Rest AssuR ed.
Broda® Chairs
Designs Benefiting Residents and Caregivers
LONG-teRM CARe se AtING, ReIMAGINed.

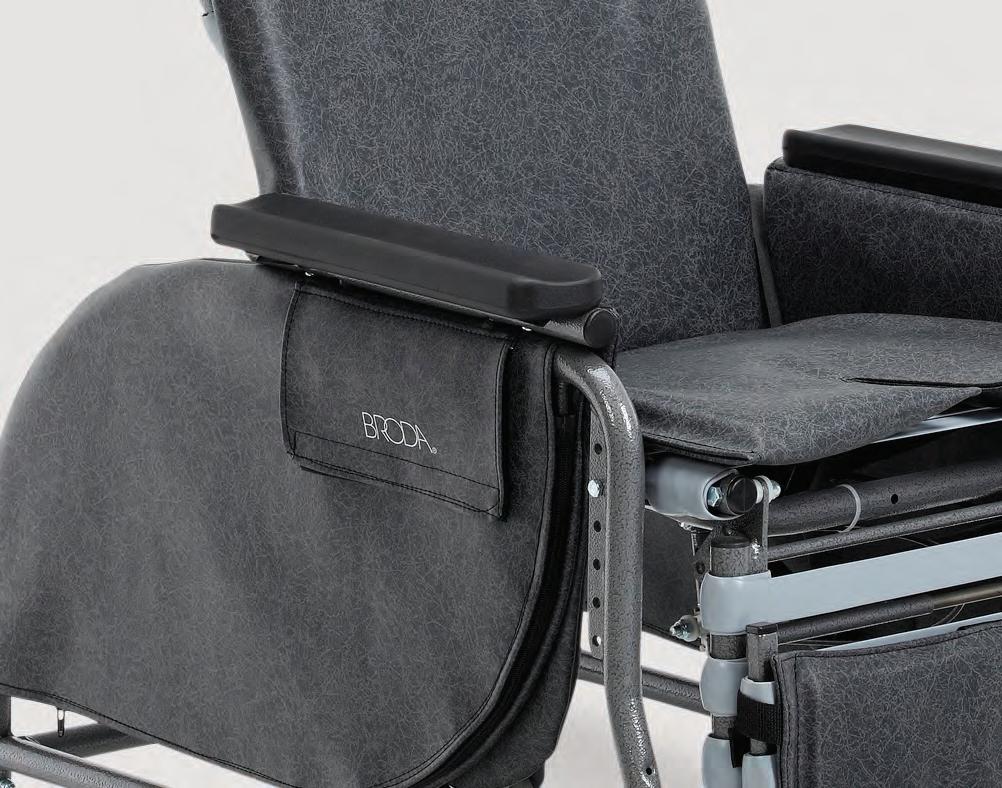

Legendary Durability, and a Design that Elevates Care
The patented Comfort Tension Seating® system features straps that are easy to clean and can be replaced without taking the chair out of service for more than a few minutes. Pressure is redistributed as each strap conforms to the resident’s body, and air easily circulates around the straps to help reduce heat and moisture buildup. The tilt-in-space design creates a cradling effect that minimizes slumping and sliding, and keeps residents in the chair without restraints.
Standard Padding Includes:
Neckrest Pad
Seat and Back Pads with Terry Cloth or Vinyl Covers
Shoulder Bolsters
Upper and Lower Side Pads
Calf and Sole Pads
Available accessories for the Elite Recliner include: slide-on ABS tray, 18” (45.7 cm) or 20” (50.8 cm); seat belt in charcoal, burgundy or meteor color; mountable I.V. pole; mountable oxygen holder for large and small tanks; factory installed padding packages in charcoal, burgundy or meteor color with long wing covers, thigh belt, fixed footrest, long foot-box.

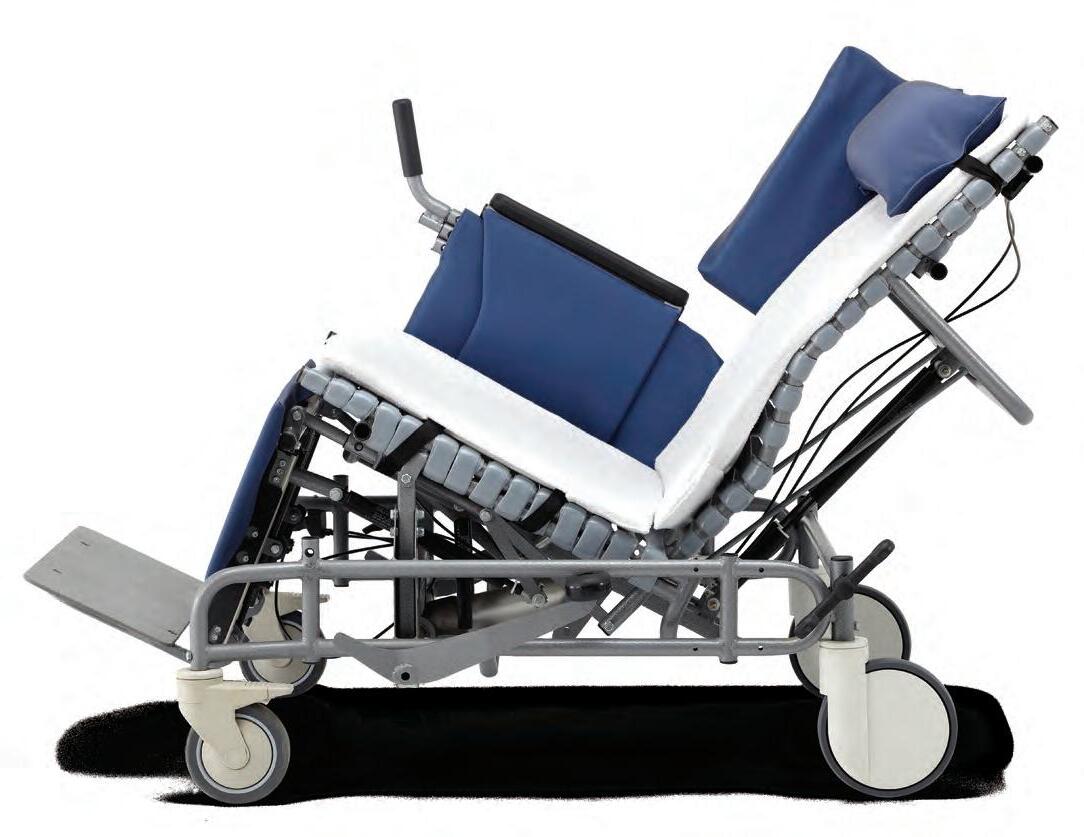

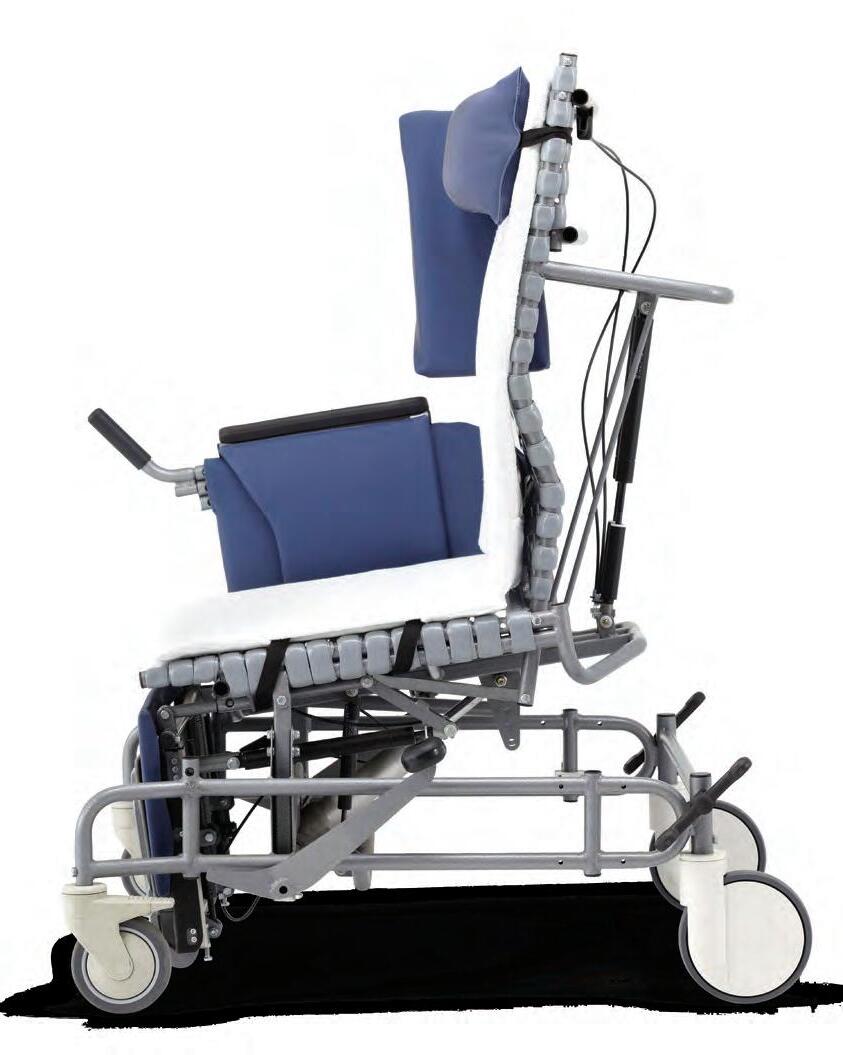

Elite Tilt Recliner
Enables patients to lie flat.
Resident Care
» S ocialization and quality of life
A forward line of vision, even when the chair is tilted
» S elf-injury protection
Full padding and optional additional padding
» Helps manage risks associated with pressure
Pressure redistribution, and heat and moisture management
Caregiver Ease of Use
» E asy side transfers and incontinence product changes Can be adjusted to lie flat
» Reliability
Durable 16-gauge tubular steel frame for agitation and involuntary movement
» No restraints
Infinitely adjustable tilt-in-space for minimal slumping or sliding, and superb comfort
Available colors:
Specifications
Infinitely Adjustable Back Recline: 90° Range
Infinitely Adjustable Seat Tilt: 40° Range
Available Upholstery Materials: Vinyl, Full Vinyl, Terry Cloth
Optional Mag Wheels: 20” (50.8 cm) Wheel Package for Arm Propulsion
Weight Capacity: 350-lb. (158.8 kg)
Burgundy Charcoal Meteor
Padding
Available accessories for the Pedal Rocker include: slide-on ABS tray, 18” (45.7 cm) or 20” (50.8 cm); seat belt in charcoal, burgundy or meteor color; mountable I.V. pole; mountable oxygen holder for large and small tanks; legrests, swing-away or elevating.

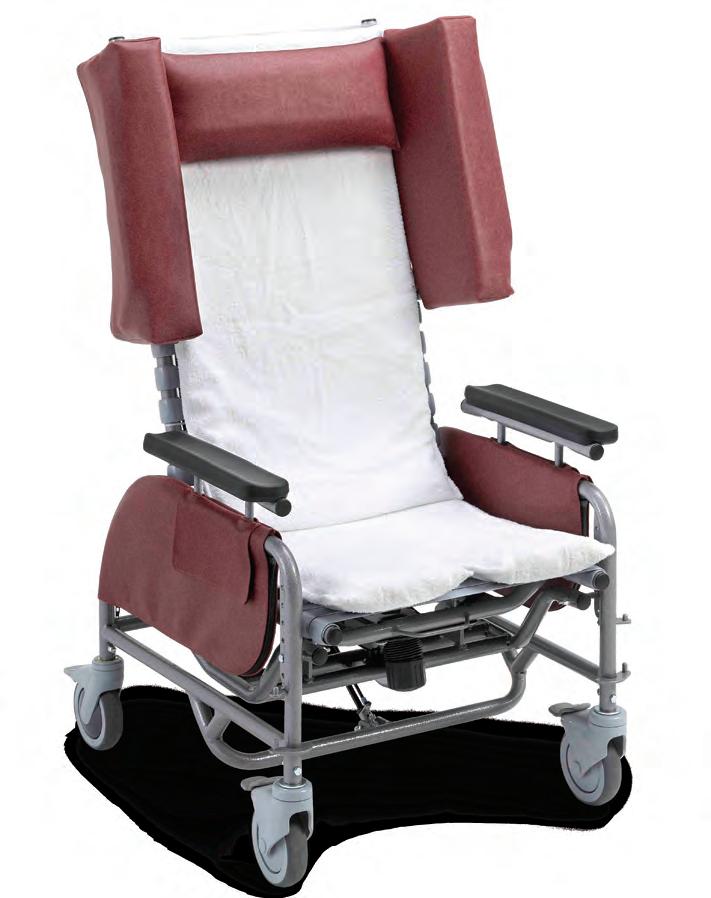

Pedal Rocker
Soothes
residents with gentle rocking.
Resident Care
» S elf-mobility
Enables mild exercise and independence
» G ood posture
Maximum comfort and easy breathing/eating
» Helps manage risks associated with pressure
Pressure redistribution, and heat and moisture management
Caregiver Ease of Use
» No restraints
Infinitely adjustable tilt-in-space for minimal slumping or sliding, and superb comfort
Available colors:
Specifications
Infinitely Adjustable Seat Tilt: Up to 33 Degrees, When Combined with Rocking Function
Available Upholstery Materials: Vinyl, Full Vinyl, Terry Cloth
Optional Mag Wheels: 20” (50.8 cm) Wheel Package for Arm Propulsion
Weight Capacity: 250-lb. (158.8 kg)
Burgundy Charcoal
Standard
Includes: Neckrest Pad Lower Side Pads

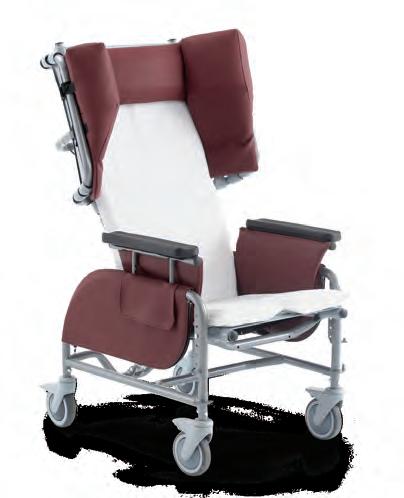

Pedal Chair
Pivot seat tilt enables feet to reach the floor and move the chair.
Standard Padding Includes: Neckrest Pad
Lower Side Pads
Resident Care
» S elf-mobility
Enables mild exercise and independence
» G ood posture
Maximum comfort and easy breathing/eating
» Support for two of the pillars of pressure ulcer prevention Pressure redistribution, and heat and moisture management
Caregiver Ease of Use
» No restraints
Infinitely adjustable tilt-in-space for minimal slumping or sliding, and superb comfort
Available colors:
Specifications
Available Seat Widths: 18” (45.7 cm), 20” (50.8 cm)
Available Upholstery Materials: Vinyl, Full Vinyl, Terry Cloth
Optional Mag Wheels: 20” (50.8 cm) Wheel Package for Arm Propulsion
Weight Capacity: 350-lb. (158.8 kg)
Available accessories for the Pedal Chair include legrests, swing-away or elevating.

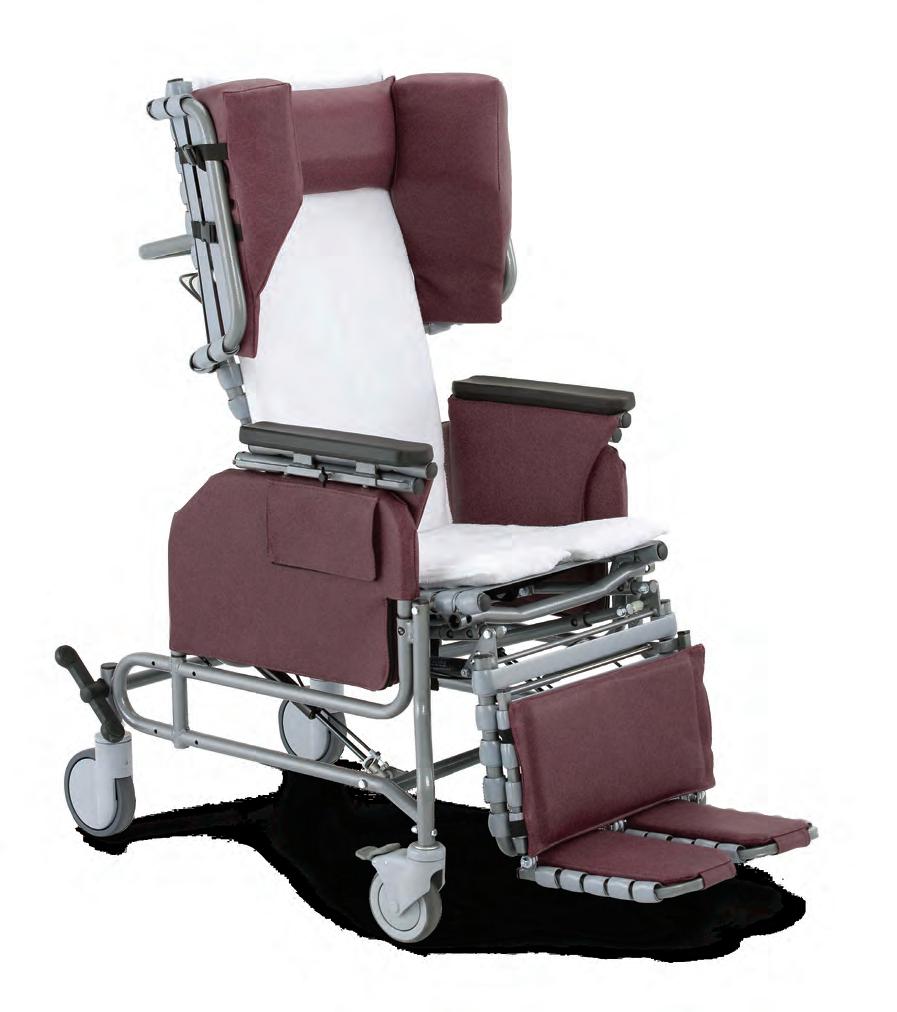

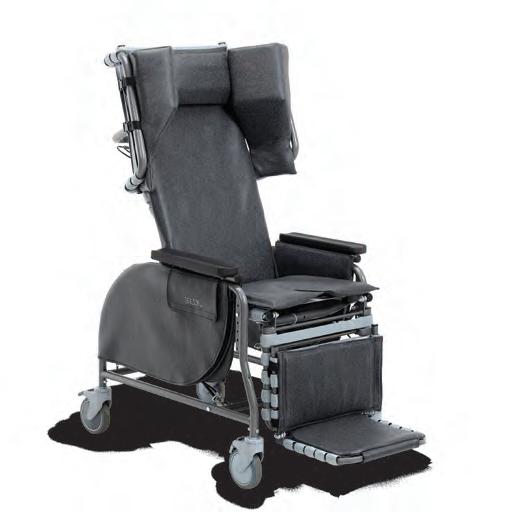

Midline Full Recliner
Enables patients to lie flat.
Standard Padding Includes: Neckrest Pad
Seat and Back Pads with Terry Cloth or Vinyl Covers Shoulder Bolsters
Upper and Lower Side Pads Calf and Sole Pads
Specifications
Adjustable Seat Height: 17”-22” (43-55 cm)
Resident Care
» S ocialization and quality of life
A forward line of vision, even when the chair is tilted
» G ood posture
Maximum comfort and easy breathing/eating
» Helps manage risks associated with pressure
Pressure redistribution, and heat and moisture management
Caregiver Ease of Use
» No restraints
Infinitely adjustable tilt-in-space for minimal slumping or sliding, and superb comfort
Available colors:
Available Seat Widths: 18” (45.7 cm), 20” (50.8 cm)
Infinitely Adjustable Back Recline: 90° Range
Infinitely Adjustable Seat Tilt: 38° Range
Available Upholstery Materials: Vinyl, Full Vinyl, Terry Cloth
Optional Mag Wheels: 20” (50.8 cm) Wheel Package for Arm Propulsion
Weight Capacity: 350-lb. (158.8 kg)
Available accessories for the Medline Full Recliner include: slide-on ABS tray, 18” (45.7 cm) or 20” (50.8 cm); seat belt in charcoal or burgundy color; mountable I.V. pole; mountable oxygen holder for large and small tanks; factory installed padding packages in charcoal or burgundy color with long wing covers, thigh belt, fixed footrest, long foot-box.
Burgundy Charcoal
Burgundy Charcoal

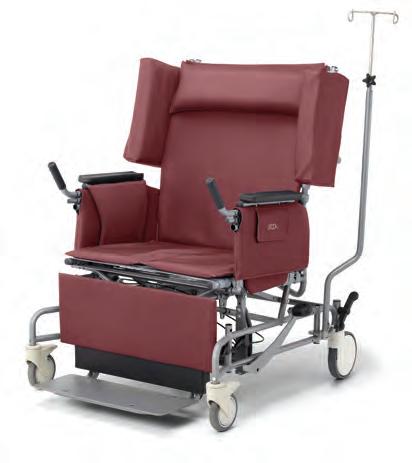

Vanguard Bariatric Tilt Recliner
Withstands rigorous bariatric healthcare use.

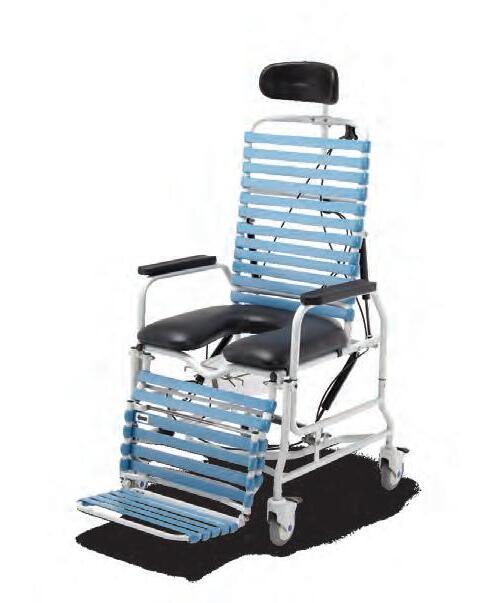

Shower Commode Chair
Can be cleaned easily, and elevating legrests provide resident comfort.
Resident Care
» E asier breathing
Semi-recline position for improved chest expansion
» Helps manage risks associated with pressure
Pressure redistribution, and heat and moisture management
Caregiver Ease of Use
» No lifting
Foot-pump activated seat tilt
» No restraints
Infinitely adjustable tilt-in-space for minimal slumping or sliding, and superb comfort
Available colors:
Standard Padding Includes: Neckrest Pad
Seat and Back Pads with Terry Cloth or Vinyl Covers Shoulder Bolsters
Upper and Lower Side Pads Calf and Sole Pads
with optional IV pole (sold separately)
Resident Care
» E xceptional comfort
Both tilt and recline positioning and a soft commode seat
» E asy entry and egress
Swing-away, removable armrests
» Helps manage risks associated with pressure
Pressure redistribution, and heat and moisture management
Caregiver Ease of Use
» No restraints
Infinitely adjustable tilt-in-space for minimal slumping or sliding, and superb comfort
Specifications
Available Seat Widths: 26” (66 cm), 28” (71.1 cm), 30” (76.2 cm)
Infinitely Adjustable Back Recline: 45° Range
Infinitely Adjustable Seat Tilt: 30° Range
Anterior Tilt (Foot Pump Operated): 10° Range
Available Upholstery Materials: V inyl, Full Vinyl, Terry Cloth
Optional Mag Wheels: 20” (50.8 cm) Wheel Package for Arm Propulsion
Weight Capacity: 600-lb. (272.2 kg)
Specifications
Available Seat Widths: 18” (45.7 cm), 22” (55.9 cm)
Infinitely Adjustable Back Recline: 67° Range
Posterior Seat Tilt: 12° Range
Anterior Tilt: 10° Range
Available Upholstery Materials: V inyl, Full Vinyl, Terry Cloth
Optional Mag Wheels: 20” (50.8 cm) Wheel Package for Arm Propulsion
Weight Capacity: 400-lb. (182 kg)
Burgundy Charcoal
Shown
Ordering Information
Elite Tilt Recliner (page
4)
Pedal Rocker (page
5)
Pedal Chair (page 6)
BRD48PB18V Pedal Chair 18” (45.7 cm) Burgundy Vinyl
Midline Full Recliner (page 6)
Item
BRDMIDC18V Midline Full Recliner 18” (45.7 cm) Charcoal Vinyl
BRDMIDB18V Midline Full Recliner 18” (45.7 cm) Burgundy Vinyl
Vanguard Bariatric Tilt Recliner (page 7)
BRDVANC26V Vanguard Bariatric Tilt Recliner 26” (66 cm) Charcoal Vinyl
BRDVANB26V Vanguard Bariatric Tilt Recliner 26” (66 cm) Burgundy Vinyl
Shower Chair Commode (page 7)
BRDCS385GR18 Shower Chair Commode 18” (45.7 cm) Gray N/A
BRDCS385GN18 Shower Chair Commode 18” (45.7 cm) Green N/A
BRDCS385BL18 Shower Chair Commode 18” (45.7 cm) Blue N/A
