Heat exchanger panel with timer
The HEP025RT isolation heat exchanger panel with timer from HeatLink is a prefabricated piping and control solution for radiant floor heating systems. Designed for use with a variety of heat sources, the unit is suitable for garages and basements up to 1,400 sq. ft. The panel includes a heat exchanger for isolation, primary and secondary pumps, isolation ball valves, pressure relief valve, expansion tank connection, simple piping to manifold, and plug-and-play wiring. A timer is included so that water is circulated every 24 hours.
www. heatlink.com
Side-stream filters
The MagnaClean CMX range of 316L stainless steel side-stream filters from Adey remove magnetic and non-magnetic debris from small to large closed-loop commercial and industrial hydronic systems. Each model provides adaptive filtration capabilities through a combination of powerful magnets, filter cartridges, and needlefelt bag filters, acting as a chemical feed/dosing pot.
www.
adey.com
Rack system
The TTS Synergy Series line by FRG offers high-performance tankless rack systems in a range of configurations, with one point of connection for water, power, gas, venting, and a condensate drain. Its compact footprint and pre-manifold system simplify installation. This rack system can expand to 24 units with maximum inputs of 4.8M BTU/ hr, delivering more than 5,616 gallons of hot water per hour. www. noritz.com

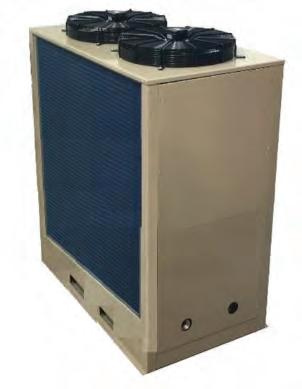

Hot water heat pump
The Hatch air source heat pump from Transom is designed to supply water temperatures as high as 140°F with the HWV model (from -20°F ambient) and 180°F with the HWR model (from 10 ° F ambient), for both commercial DHW and space heating applications. Single unit capacity ranges from 135 to 720 MBH. Modular configuration, with a maximum of 12 units, offers up to 8,600 MBH, and COP up to 4.3. Available configurations and options are suited to new and existing buildings, including cooling and true drop-in boiler replacement.
www.
transomcorporation.com
Condensing boiler
The VX Series of high-efficiency condensing boilers (110, 150, 199 MBH) from IBC feature the V-10 Control interface to program the boiler and allow for remote monitoring and diagnostics, 95 per cent AFUE, a turndown ratio of 6.5:1, and a fully automated ASME, 439 grade SS firetube heat exchanger. Other features include built-in four zone pump or valve control, a patented moisture management system, and CSA/UL approved low water cut-off and manual reset high limit.
www. ibcboiler.ca
