Premiere Pharmacy Refrigerators Catalogue
1
Peace of mind
Protect your medication, customers and pharmacy from inadequate medication storage
Using a pharmacy grade refrigerator ensures that your medication is properly stored. SAFETY & PROTECTION
ABT-HC-UCFS-0204G-MCKCA
ABT-HC-UCFS-0504G-MCKCA
Some medications and vaccines may become less effective, or even destroyed, when exposed to temperatures outside the recommended range.
PRECISE & COMPLIANT Our products respect all technical requirements of the Public Health Agency of Canada. · Microprocessor temperature controller ensures narrow tolerances with internal temperatures · Fan-forced air circulation ensures that the temperature distribution is even · A set-point temperature range is kept with audible and visual high and low temperature alarms

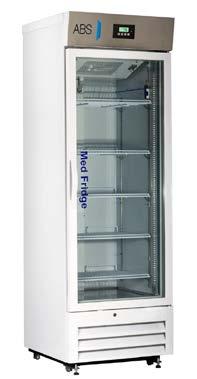

PH-ABT-VS-16G-MCKCA 6 shelves
· The temperature recovery system provides a controlled temperature pull-down and recovery after a door opening
RETURN ON INVESTMENT
TO PLACE AN ORDER OR FOR MORE INFORMATION Contact McKesson Canada Automation at 1.888.606.6337 extension 4 or automation.sales@mckesson.ca
Although pharmacy grade refrigerators require a higher upfront investment than a non-pharmacy grade unit, the expenses related to lost product due to a failure can be significant. The higher quality pharmacy grade refrigerator will ensure a long-term investment in the safety and proper storage of medication. 2
Why invest in a Pharmacy Grade Refrigerator?
Pharmacy Grade Refrigerator
Understanding the differences

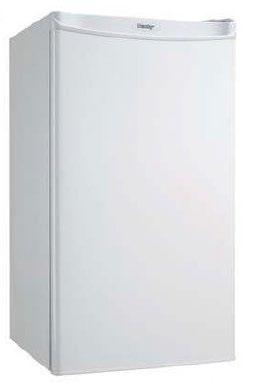

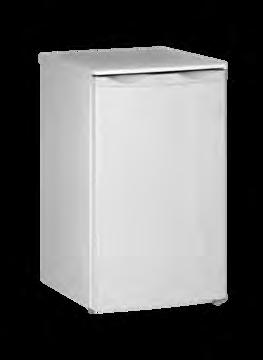

Dorm Grade Refrigerator
Digital Microprocessor Temperature Controller Maintains precise settings of temperature cycles to meet today’s standards
Forced Air Circulation Provides required temperature uniformity and recovery after door openings
Port Hole Access port for auxiliary monitoring systems probes
Safety
Temperature Alarms Equipped with audible and visual high and low temperature alarms
Accuracy
Compliance
Remote Alarm Contacts Provides contacts for alternative central alarm systems and phone dialers
Protection
Cost Savings On Purchase
Digital Temperature Display Displays interior temperature in F or C
Protects your medication, customers and pharmacy from inadequate medication storage
3

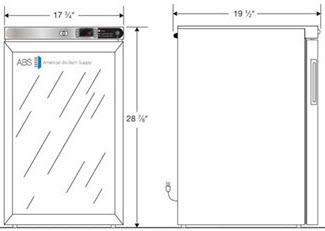

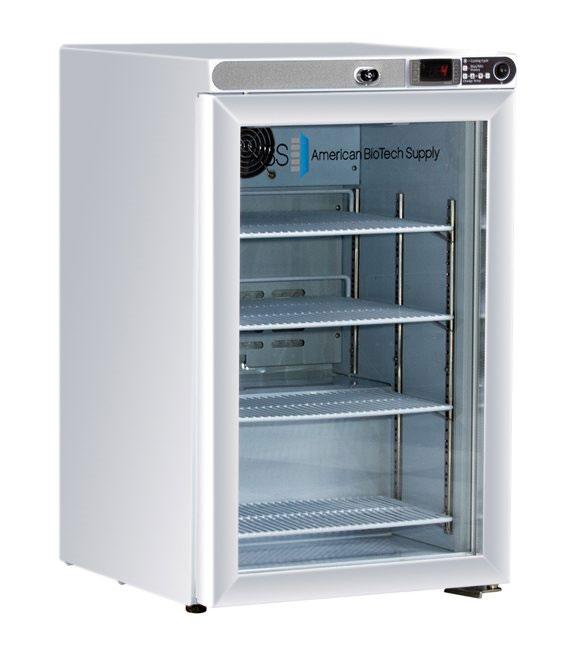

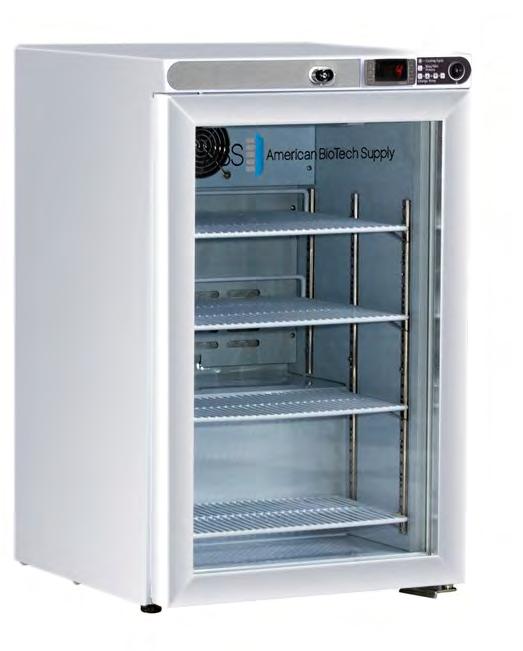

The ideal choice for pharmacies with under counter and counter top applications with adequate space for ventilation ABT-HC-UCFS-0204G -MCKCA
Refrigerator (2.5 cu.ft.)
Undercounter Freestanding
17 ¾"
19 ½"
PREMIER
4"
4"
4"
28 ⅞" 34 ½"
16" ⅛
FRONT VIEW
Cu.Ft.
2.5
Door
Cycle
Glass
D”
17 3/4*
19 1/2*
Weight H”
Product
Shipping
28 7/8*
68 lbs
97 lbs
AMPS
BTUs/hr
1/8
.90
310
Temperature
TOP VIEW
Exterior Dimensions W”
HP
Features
Warranty
Defrost
SIDE VIEW
Shelves Handle Door Legs Light Probe Access Port Exterior Interior Cabinet Insulation HFC-Free Controller Display Alarm Package Temperature Parts and Labour
115VAC/60Hz/1PH NEMA-5-15R
4 adjustable (2 full, 2 half) Recessed Keyed door lock & magnetic gasket for positive seal Glass swing door, right hinged, not reversible Leveling LED light 3/8” diameter Powder coated paint Powder coated paint High density urethane foam Refrigerant (R600a), foam insulation and packaging Microprocessor Digital to 0.1 increments. Probe in glycol sample. Audible and visual. Wired for remote alarm. 5°C (average cycle temperature) For a period of 5 years following the delivery of your unit, McKesson will replace a defective fridge with a new unit of equal or superior volume and other physical characteristics. McKesson will initiate the shipping process within 24 hours of confirmation by one of our technicians that the fridge requires repair that cannot be performed immediately by said technician.
* Exterior dimensions do not include 4” clearance required for proper free-standing installation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
4

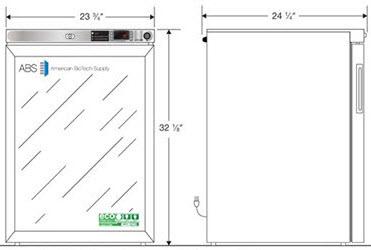

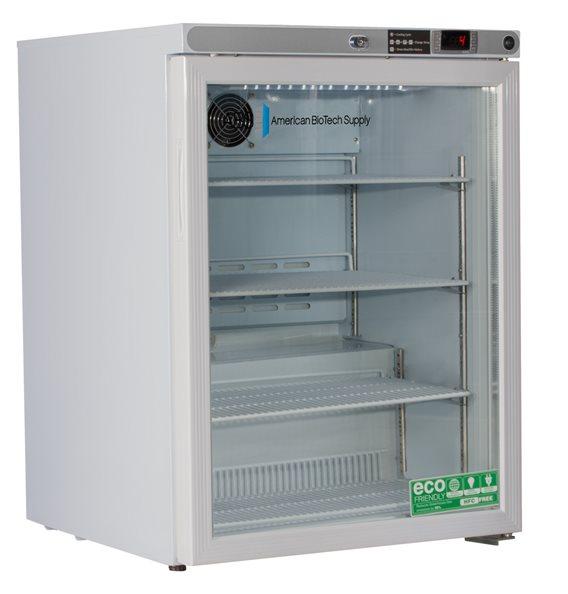

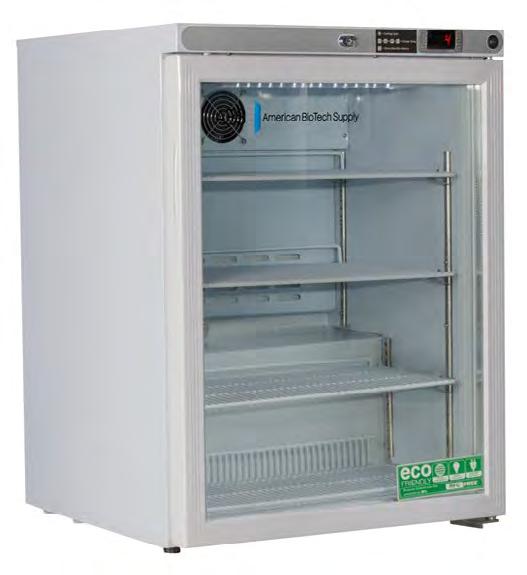

The ideal choice for pharmacies with under counter and counter top applications with adequate space for ventilation ABT-HC-UCFS-0504G -MCKCA
Refrigerator (5.2 cu.ft.)
Undercounter Freestanding
23 ¾"
PREMIER
24 ¼"
4"
4"
4"
32 ⅛"
45 ¾"
22"
FRONT VIEW
Cu.Ft.
5.2
Door
Cycle
Glass
D”
23 3/4*
24 1/4*
Weight H”
Product
Shipping
32 1/8*
93 lbs
129 lbs
AMPS
BTUs/hr
1/6
1.3
310
Temperature
TOP VIEW
Exterior Dimensions W”
HP
Features
Warranty
Defrost
SIDE VIEW
Shelves Handle Door Legs Light Probe Access Port Exterior Interior Cabinet Insulation HFC-Free Controller Display Alarm Package Temperature Parts and Labour
115VAC/60Hz/1PH NEMA-5-15R
3 adjustable ( 2 full, 1 half) Recessed Keyed door lock & magnetic gasket for positive seal Glass swing door, right hinged, not reversible Leveling LED light 3/8” diameter Powder coated paint Powder coated paint High density urethane foam Refrigerant (R600a), foam insulation and packaging Microprocessor Digital to 0.1 increments. Probe in glycol sample. Audible and visual. Wired for remote alarm. 5°C (average cycle temperature) For a period of 5 years following the delivery of your unit, McKesson will replace a defective fridge with a new unit of equal or superior volume and other physical characteristics. McKesson will initiate the shipping process within 24 hours of confirmation by one of our technicians that the fridge requires repair that cannot be performed immediately by said technician.
* Exterior dimensions do not include 4” clearance required for proper free-standing installation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
5

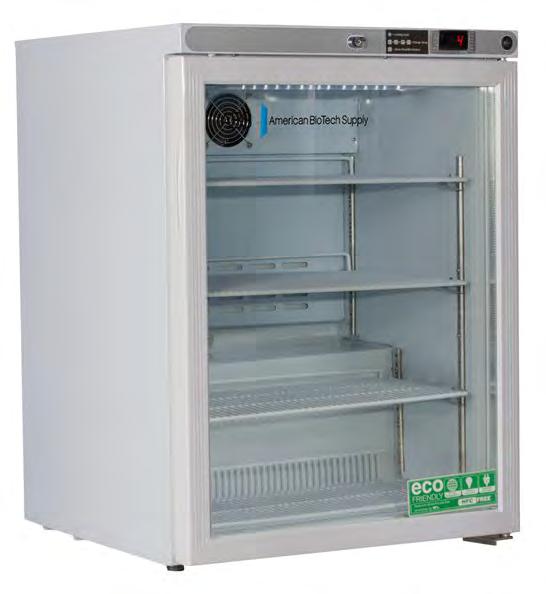

The ideal choice for medium volume pharmacies looking for flexibility and affordability ART-HC-UCFS-0504G -MCKCA
Freestanding
Total capacity of 10.4 cu.ft.
Economically Priced
Model ABT-HC-UCFS-0504G can be stackable with a stacking kit
Flexible placement
Exterior Dimensions
Defrost
Door
10.4
Cycle
Glass
HP
1/6
Features
Temperature Warranty
Weight
W”
D”
H”
Product
Shipping
23 3/4* Each Unit
24 1/4* Each Unit
32 1/8* Each Unit
Per unit
93 lbs
129 lbs
AMPS
1.3
Per unit
back-up plan
Double the number of shelves
Can be easily tucked away or stacked
Cu.Ft.
Total
Same capacity Added security as a larger unit You always have a
Per unit Shelves Handle Door Legs Light Probe Access Port Exterior Interior Cabinet Insulation HFC-Free Controller Display Alarm Package Temperature Parts and Labour
Per unit
BTUs/hr
310
Per unit
115VAC/60Hz/1PH NEMA-5-15R
Each unit has 3 adjustable shelves ( 2 full, 1 half) Recessed Keyed door lock & magnetic gasket for positive seal Glass swing door, right hinged, not reversible Leveling LED light 3/8” diameter Powder coated paint Powder coated paint High density urethane foam Refrigerant (R600a), foam insulation and packaging Microprocessor Digital to 0.1 increments. Probe in glycol sample. Audible and visual. Wired for remote alarm. 5°C (average cycle temperature) For a period of 5 years following the delivery of your unit, McKesson will replace a defective fridge with a new unit of equal or superior volume and other physical characteristics. McKesson will initiate the shipping process within 24 hours of confirmation by one of our technicians that the fridge requires repair that cannot be performed immediately by said technician.
* Exterior dimensions do not include 4” clearance required for proper free-standing installation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
6

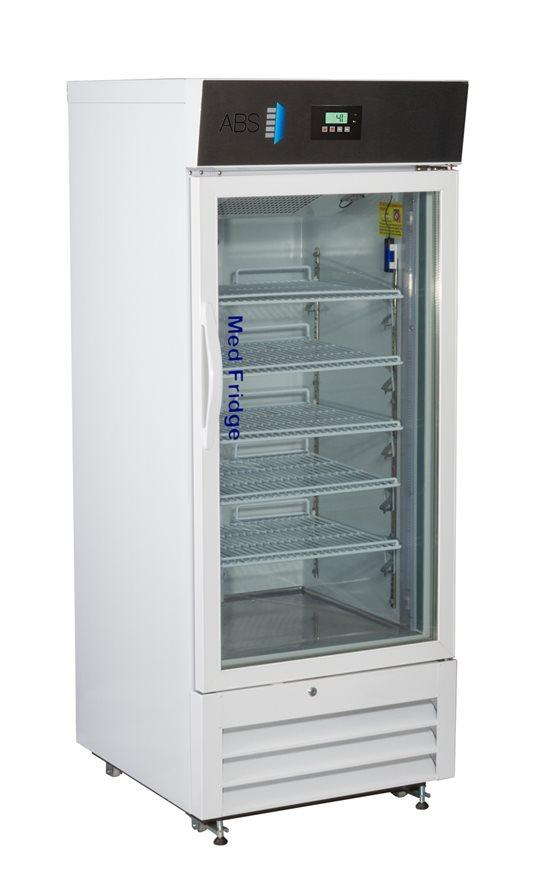

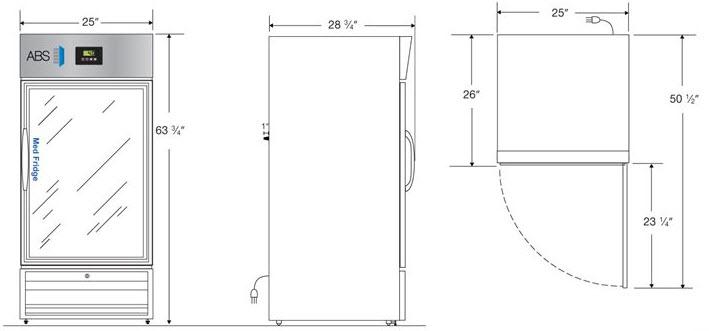

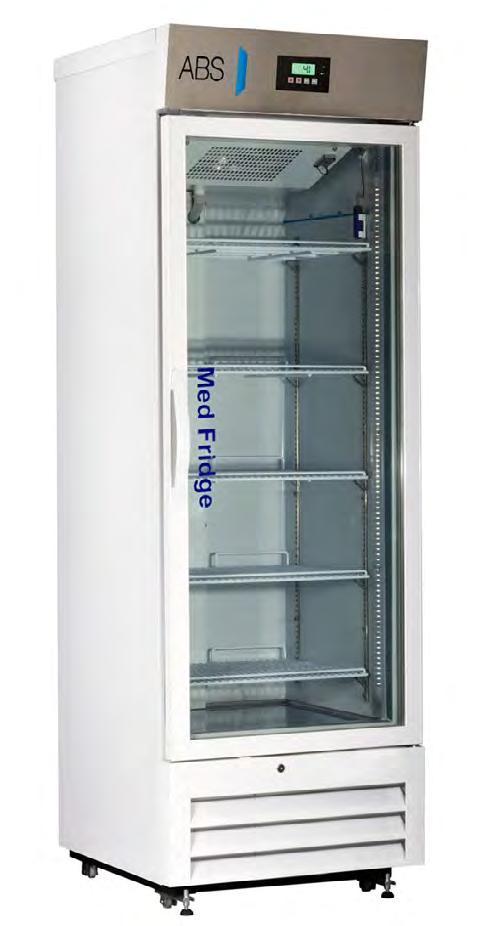

An ideal choice for high volume pharmacies PH-ABT-VS-16G-MCKCA
Refrigerator (16 cu.ft.)
Freestanding
PREMIER
6 shelves
FRONT VIEW
SIDE VIEW
TOP VIEW
Cu.Ft.
Defrost
Door
16
Cycle
Glass
Features
Temperature
Warranty
Exterior Dimensions D”
H”
Product
Shipping
25*
28.875*
79*
243 lbs
290 lbs
AMPS
BTUs/hr
2
<250 Shelves Handle Door
Legs Light Probe Access Port Exterior Cabinet Insulation CFC-Free Controller Display Alarm Package Temperature Parts and Labour
Weight
W”
110-120V AC NEMA 5-15R 15A Breaker Required
6 adjustable ( adjustable in 1/2” increments) External vertical Keyed door lock & magnetic gasket for positive seal Self-Closing (Energy efficient) Glass swing door, right hinged, not reversible Swivel casters with locking front casters LED, safety shielded and switch controlled 3/4" probe access port on rear wall White powder coated steel EPA compliant high-density urethane foam EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant) Microprocessor Digital to 0.1 increments. Product simulator bottle with glass bead media Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm 2°C to 8°C calibrated using a NIST traceable device, certificate included For a period of 5 years following the delivery of your unit, McKesson will replace a defective fridge with a new unit of equal or superior volume and other physical characteristics. McKesson will initiate the shipping process within 24 hours of confirmation by one of our technicians that the fridge requires repair that cannot be performed immediately by said technician.
* Exterior dimensions do not include 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment). Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
7
Through our wide array of innovative pharmacy automation solutions and technologies, McKesson Canada Automation is helping improve patient care and safety.
McKesson Canada is made up of many businesses all serving the health care industry. Our solutions enable health care service providers to get closer to the millions of patients they serve every single day, while contributing to the quality and safety of care in Canada.
McKesson Canada Automation 1.888.606.6337 extension 4 automation.sales@mckesson.ca mckesson.ca/automation
