"SYLVAC" BESTSELLERS 2023-2024

BESTSELLERS 2023-2024 Validity : 01.04.23-31.03.24

5 NOW WITH BLUETOOTH® 5 TECHNOLOGY INCREASED AUTONOMY, AMPLIFIED RANGE, IMPROVED STABILITY AND MORE...

BESTSELLERS 23/24

OUR SMART INSTRUMENTS NOW FEATURE BT5 TECHNOLOGY AVAILABLE AT NO EXTRA COST! To determine which instruments are equipped with Bluetooth® 4.0 or Bluetooth® 5 technology, simply check for the small identification sticker on both the packaging and the product itself.

Bluetooth® 4.0

Bluetooth® 5 Instruments featuring Bluetooth® 4.0 cannot be retrofited or exchanged for instruments with Bluetooth® 5 technology.

BLUETOOTH® CONNECTIVITY

1...n*

1...n*

SIMPLE N°1

N°2

DONGLE BT 4.0 (CURRENT)

PAIRED

Compatible with instruments BT 5.0 Up to 8 instruments connected No « Long range » mode

1

981-7100

HID

*

N°3

DONGLE BT 5.0 (NEW) 1...n

2

Instruments can be connected to multiple devices, but only one connection can be active at a time, with connections being established on a "first come, first served" basis.

Several instruments connected and locked (paired) to a specific device, enabling the setup of numerous control stations in a limited area.

An instrument can be connected only to one specific device, but device can accept multiple inputs (keyboards, bar code reader, etc.)

« Long range » mode Up to 8 instruments connected for the time being* Also compatible with BT 4.0 instruments (BT 5 functions unavailable)

981-7101

* more instruments connected in development.

BESTSELLERS 23/24

NEW FEATURES OF BLUETOOTH® 5 INSTRUMENTS CHECK OUT THE CATALOGUE

BENEFITS of Bluetooth® 5 Long range mode activated with Sylcom software* Improved stability against perturbations Enhanced battery life

BATTERY LIFE VS PROFILES AND CONNECTION MODES

Battery life vs Profiles and connection modes Bluetooth battery life ECO mode up to +30% BT4

TO IMPROVE BLUETOOTH RANGE

BT5 LR

BT5

BT5 ECO

150

145%

1

Place the dongle at a height of 1.5-2 meters.

125

125% 100

3

2

Do not plug the dongle directl into the PC tower

3

Use a USB 2.0 extension/hub*

50

4

Space the dongles at least 20cm apart

25

5

Ensure that there are no metal walls obstructing the signal between the dongle and the instruments

* only with BT 5 instruments

100% 75

0 %

89%

Profil "3" Push (SW OFF)

Profile 3: 8/24, 5/7 connected, otherwise standby SIS (Disconnected, master side switched OFF)

BESTSELLERS 23/24

WHEN SIZE MATTERS !

DIGITAL MINI INDICATORS Ø45MM CHECK OUT THE CATALOGUE

MINI INDICATORS

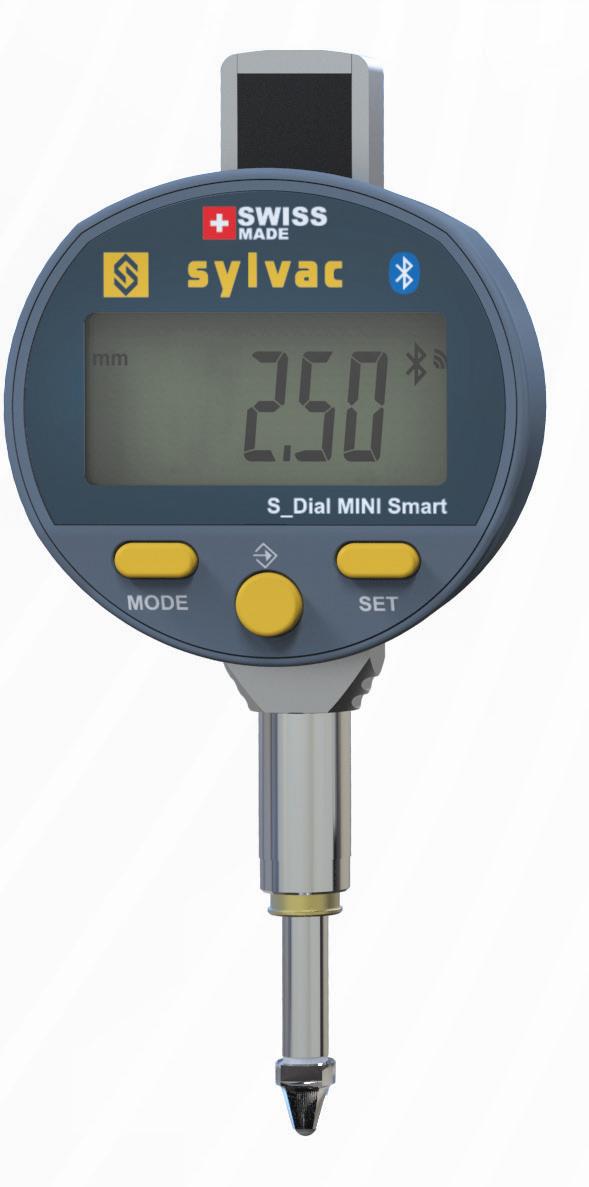

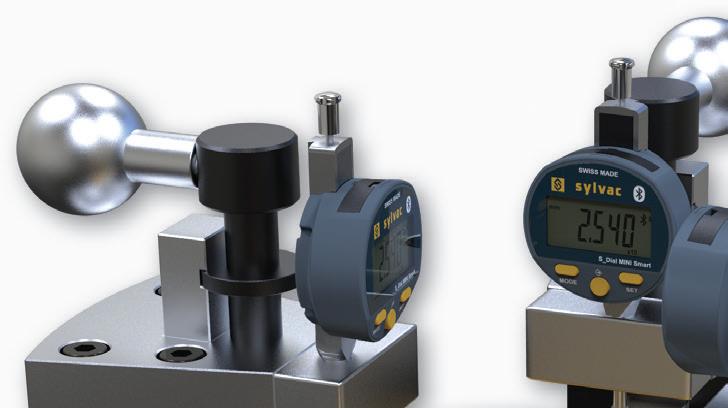

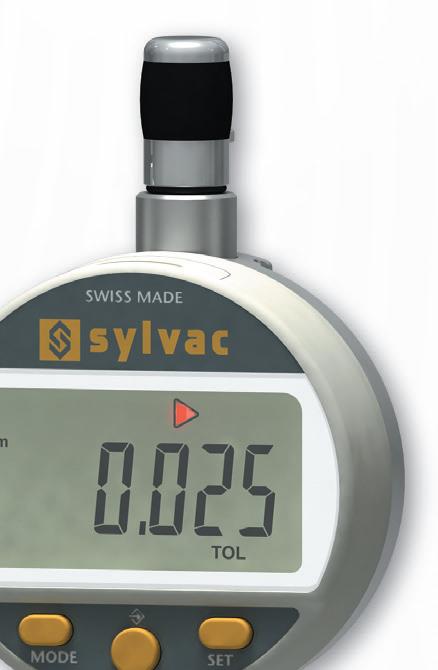

S_Dial MINI

805-6121

Standard execution

The smallest digital indicators on the market Available in 3 different executions Connectable via Bluetooth® and Power Cable Connectivity Easy-to-change battery

NEW BATTERY COVER WITHOUT SCREW

Standard execution without lifting cap

805-6123

FOLLOW THE TUTORIAL TO EASILY REPLACE THE BATTERY

Number

Model

Range (mm)

Resolution (mm)

Lifting cap

Analogic scale

Output

Execution

Protection

Price List (THB)

Promotion (THB)

805-4121

Basic

12.5

0.01



---

Power*

Standard

IP54

15,700

11,990

805-4125

Basic

12.5

0.01

---

---

Power*

Protected

IP67

16,900

13,490

805-4521

Basic

12.5

0.001



---

Power*

Standard

IP54

20,500

15,500

805-4525

Basic

12.5

0.001

---

---

Power*

Protected

IP67

21,700

16,700

805-6121

Smart

12.5

0.01





Standard

IP67

21,100

16,290

805-6123

Smart

12.5

0.01

---



Standard

IP67

21,700

16,700

805-6125

Smart

12.5

0.01

---



Protected

IP67

22,900

17,490

805-6523

Smart

12.5

0.001

---



Standard

IP67

26,500

20,790

805-6521

Smart

12.5

0.001





Standard

IP67

27,100

20,300

805-6525

Smart

12.5

0.001

---



Protected

IP67

28,300

21,590

* Power cable to USB or RS32 connections

4

ISO 13102

Protected execution

805-6125

BESTSELLERS 23/24

COMPACT LEVER INDICATOR WITH BLUETOOTH® TECHNOLOGY Ø45MM DIAMETER, A WORLD-FIRST INNOVATION CHECK OUT THE CATALOGUE

LEVER INDICATORS

S_Dial TEST Smart

Digital display with analog scale Rotating display over 270° Bluetooth® and Power cable connectivity 805-4323 805-4321

MAX

MIN

5

Compatible with insert length 12.5 and 36.5mm, thread M1.4

Number

Range (mm)

Contact point (mm)

Resolution (mm)

Force (N)

CP interchangeable

Price List (THB)

Promotion (THB)

805-4321

0.8

12.5

0.001

0.15

---

24,100

18,490

805-4322

2.0

36.5

0.001

0.06

---

30,100

20,690

805-4323

0.8 / 2.0

12.5 / 36.5

0.001

0.15 / 0.06



32,800

22,990

DIN 2270

Power cable : Output cable Power to USB or RS232 (926-6821/905-4516)

BESTSELLERS 23/24

MARKET-LEADING RANGE: WIDEST SELECTION AVAILABLE AND TRUSTED WORLDWIDE CHECK OUT THE CATALOGUE

S_Dial WORK Advanced

INDICATORS

270° Rotating Display Up to 150mm Range 0.001mm Resolution on all below references Bluetooth®, Proximity, and Power Cable Connectivity

Indication of tolerance status OK

Number

Range (mm)

Max. error (µm)

Output

Price List (THB)

Promotion (THB)

805-5301

12.5

3

Cable

26,500

18,490

805-6301

12.5

3

33,500

22,990

805-5501

25

4

28,500

22,590

805-6501

25

4

36,000

24,690

37,200

29,490

59,500

37,490

61,900

46,990

74,300

53,490

83,000

62,490

805-5621

50

5

805-6621

50

5

805-5661

100

6

805-6661

100

6

805-5681

150

10

** Available in Bluetooth® version on request.

6

ISO 13102

Cable Cable Cable Cable**

3 possibilities to get connected : 10.005

12.003

10.005 12.003 9.223

9.223

BESTSELLERS 23/24

INDICATORS SPECIAL EXECUTIONS CHECK OUT THE CATALOGUE

INDICATORS

S_Dial WORK

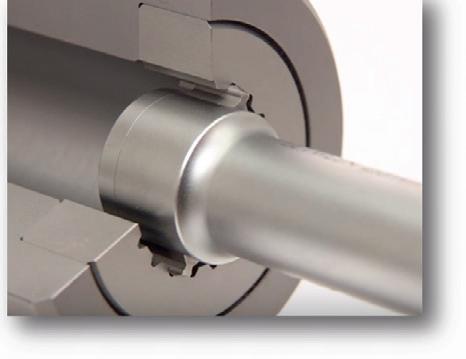

CBG Special execution allowing to memorizes internal diameter with cylinder bore gauge High 0.001mm resolution Digital display with analog scale Sylvac Anywhere & Sylcom Nano & Nano Smart One of the most accurate digital indicators on the market Resolution up to 0.0001mm Increased accuracy Bluetooth®, Proximity, and Power Cable Connectivity

7

805-6317

Number

Model

Range (mm)

Resolution (mm)

Max. error (µm)

805-6317

CBG

12.5

0.001

2

805-5306

Nano

12.5

0.0001

1.2

805-6306

Nano Smart

12.5

0.0001

1.2

805-5506

Nano

25

0.0001

1.6

805-6506

Nano Smart

25

0.0001

1.6

ISO 13102

0.1

Output & Cable Cable & Cable Cable & Cable

Price List (THB)

Promotion (THB)

33,700

23,990

37,100

26,990

43,300

31,990

41,000

28,990

45,900

34,990

805-6306

BESTSELLERS 23/24

OPEN CONNECTOR INSTRUMENTS FOR AUTOMATION DIRECT CONNECTION TO PLC CHECK OUT THE CATALOGUE

PROBE

INDICATORS

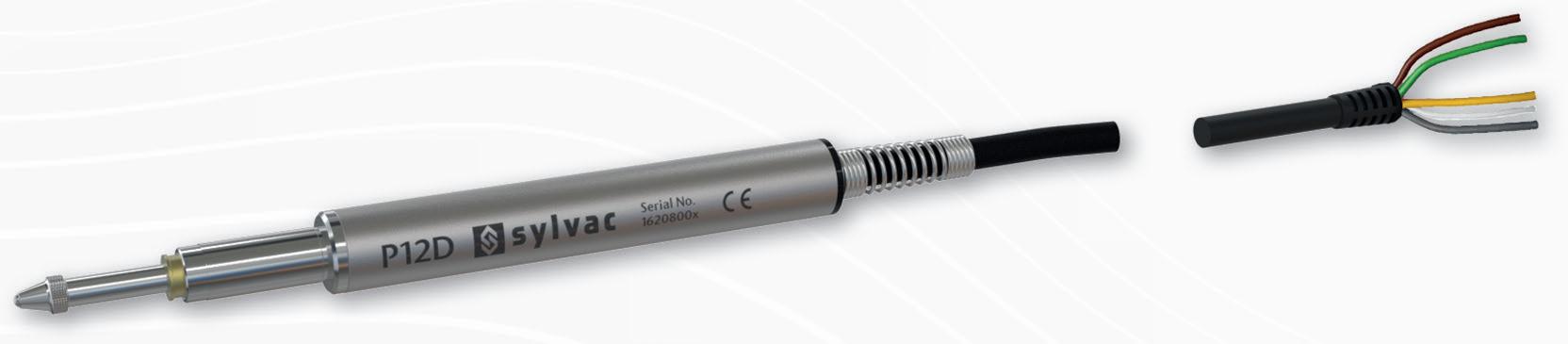

P12D OPEN

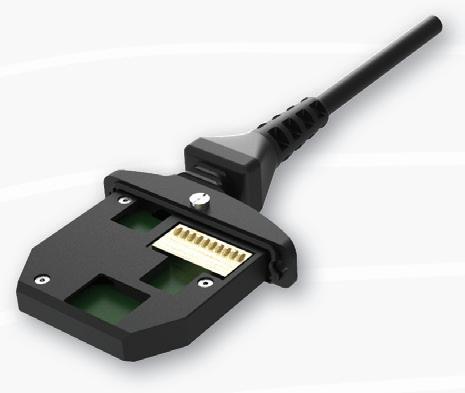

3 meter cable length and "open connector" type with 10 colored wires based on DIN 47100 for communication with PLCs Compatible with RS485 communication protocol Supports ASCII, MODBUS, and ORBIT communication protocols

2 meter cable length with "open connector" type featuring 4 colored wires based on DIN 47100 for communication with PLCs Direct digital output signal without the need for a converter Compatible with ASCII and ORBIT communication protocols

8

S_Dial WORK PLC

Number

Model

Range (mm)

Resolution (µm)

Max. error (µm)

Protection

Price List (THB)

Promotion (THB)

805-7201

Indicator

12.5

10

10

IP54

26,700

18,990

805-7301

Indicator

12.5

1

4

IP67

34,200

23,990

805-7401

Indicator

25

10

10

IP54

30,900

21,990

805-7501

Indicator

25

1

5

IP67

36,600

25,990

801-0412

Probe

12.7

0.1

1.8

IP54

33,900

23,990

ISO 13102 DIN 47100

BESTSELLERS 23/24

MORE PRECISE THAN PROBES RANGE UP TO 100 MM CHECK OUT THE CATALOGUE

INDICATORS

S_Dial PRO Smart

Equipped with a special measuring system that is corrected point by point for top accuracy across the entire measuring range Resolution up to 0.0001 mm (0.1μm) Repeatability 0.2μm Available in 8 or 25mm mounting diameters for rigidity Bluetooth®, Proximity, and Power Cable Connectivity

0.1

Indication of tolerance status OK

Number

Range (mm)

Force (N)

Max. error (µm)

Mounting

Price List (THB)

Promotion (THB)

805-8501

25

0.75-1

1.0

Ø8

69,600

51,490

805-8502

25

0.3*

1.0

Ø8

69,600

51,490

805-8601

50

0.85-1.2

1.2

Ø8

86,000

64,490

805-8701

50

0.4*

1.2

Ø8

86,000

64,490

805-8602

50

0.85-1.2

1.2

Ø25

86,900

64,490

805-8702

50

0.4*

1.2

Ø25

86,900

64,490

805-8661

100

0.9-1.3

1.8

Ø8

103,400

76,490

* version without spring

9

805-8701

ISO 13102

805-8602

BESTSELLERS 23/24

CALIPERS FOR WIRED DATA COLLECTION CHECK OUT THE CATALOGUE

CALIPERS

S_Cal EVO Proximity

Digital calipers with XL display Connectable via Proximity cable Also available in micron resolution

810-1702

810-9702

910-2207

10

Number

Model

Range (mm)

Depth rod (mm)

Resolution (mm)

Price List (THB)

Promotion (THB)

810-1702

Proximity

150

4x1.4

0.01

9,400

6,490

810-1707

Proximity

150

Ø1.5

0.01

9,400

6,490

810-1722

Proximity

200

4x1.4

0.01

14,200

9,990

810-1732

Proximity

300

-

0.01

17,400

12,590

810-9702

Proximity Micron

150

4x1.4

0.001

16,200

12,590

810-9707

Proximity Micron

150

Ø1.5

0.001

16,200

12,590

810-2205

Thumb wheel for Proximity EVO calipers

1,100

990

910-2207

Set of anvils for all EVO calipers

6,800

4,390

ISO 13385-1

Optional thumb wheel

810-2205

BESTSELLERS 23/24

CALIPERS WITH INTEGRATED BLUETOOTH® TECHNOLOGY CHECK OUT THE VIDEO !

CALIPERS

S_Cal EVO Smart

Digital calipers with XL display Connectable via Bluetooth® technology Also available in micron resolution

810-1506

810-9506 HID profile : Data transmission to any software, no dongle required !

Number

Range (mm)

Depth rod (mm)

Resolution (mm)

Price List (THB)

Promotion (THB)

810-1506

Smart

150

4x1.4

0.01

13,500

9,300

810-1516

Smart

150

Ø1.5

0.01

13,500

9,300

810-1526

Smart

200

4x1.4

0.01

19,500

13,690

810-1536

Smart

300

-

0.01

23,500

16,990

810-9506

Smart Micron

150

4x1.4

0.001

18,600

14,790

810-9516

Smart Micron

150

Ø1.5

0.001

18,600

14,790

1,100

990

810-2203 11

Model

Thumb wheel for Smart EVO calipers

ISO 13385-1

Sylvac Anywhere Connect all your Sylvac instruments to the App

BESTSELLERS 23/24

CALIPERS SPECIAL JAWS & BLUETOOTH® TECHNOLOGY CHECK OUT THE CATALOGUE

CALIPERS

S_Cal EVO Special Jaws

Digital calipers with XL display Connectable via Bluetooth® technology Special jaws

810-1510

BRAZED CARBIDE PADS

810-1546

810-1601

810-1602

810-1600

Number

Model

Range (mm)

Depth rod (mm)

Resolution (mm)

Price List (THB)

Promotion (THB)

810-1510

Carbide Smart

150

4x1.4

0.01

18,600

13,690

810-1546

Form E Smart

150

-

0.01

32,300

23,490

810-1556

Form B Smart

300

-

0.01

34,800

24,690

810-1558

Form B Smart

500

-

0.01

44,500

32,290

810-1600

IG Smart

150

4x1.4

0.01

38,500

27,990

810-1601

PJ Smart

150

4x1.4

0.01

40,900

29,790

810-1602

EG Smart

150

4x1.4

0.01

38,500

27,990

810-1603

DM Smart

150

4x1.4

0.01

38,500

27,990

1,100

990

810-2203 12

810-1556

Thumb wheel for Smart EVO calipers

ISO 13385-1

810-1603

Internal groove measurement with S_Cal EVO IG

1

BESTSELLERS 23/24

LARGE CALIPERS WITH INTEGRATED BLUETOOTH® TECHNOLOGY CHECK OUT THE CATALOGUE

ULTRALIGHT CALIPERS

UL4 Smart

Professional ultralight digital calipers Integrated Bluetooth® technology Measuring range up to 3000mm

Jaws version A

Jaws version C Number

Model

Range (mm)

Max. error (µm)

Resolution (mm)

Weight (kg)

Price List (THB)

Promotion (THB)

811-1404

UL4 Smart

400

30

0.01

1.5

74,300

49,500

811-1406

UL4 Smart

600

40

0.01

1.6

83,200

55,500

811-1410

UL4 Smart

1000

50

0.01

1.9

99,100

68,500

811-1415

UL4 Smart

1500

90

0.01

2.3

141,200

98,900

811-1420

UL4 Smart

2000

120

0.01

2.6

198,000

131,500

811-1425

UL4 Smart

2500

150

0.01

2.9

247,500

168,500

3000

200

0.01

3.3

811-1430

UL4 Smart

274,800

185,900

811-2316-99

Jaws A

Jaws length to specify with order, max. 300mm

29,900

21,500

811-2317-99

Jaws A

Jaws length to specify with order, max. 400mm

37,200

26,500

Jaws C

Jaws length to specify with order, max. 300mm

39,700

27,500

811-2319-99 13

ISO 13385-1

811-1404

Standard jaws Titanium coated

BESTSELLERS 23/24

QUICK MICROMETERS, CYLINDRICAL ANVILS THE FASTEST MICROMETER ON THE MARKET CHECK OUT THE CATALOGUE

S_Mike PRO

MICROMETERS

Quick 10mm linear movement per rotation Spindle Ø6.5mm Extended measuring range Adjustable force (5/10N) for models 0-30mm Proximity and Bluetooth® versions available 803-0300

10 mm 360°

Number

Output

Range (mm)

Anvil type (mm)

803-0300

Proximity

0-30

Ø6.5

21,100

13,590

0-30

Ø6.5

27,600

18,590

30-66

Ø6.5

31,100

19,690

30-66

Ø6.5

37,200

24,490

Proximity

66-102

Ø6.5

39,700

25,790

66-102

Ø6.5

44,700

29,500

903-1360

Proximity*

100-136

Ø6.5

89,300

56,390

903-1600

Proximity*

125-161

Ø6.5

96,700

61,290

803-0306 903-0600

Proximity

903-0606 903-1000 903-1006

Price List (THB)

Promotion (THB)

* available in Bluetooth® Technology version on request

14

DIN 863

1

BESTSELLERS 23/24

QUICK MICROMETERS WITH SPECIAL ANVILS A FAST MICROMETER FOR EVERY APPLICATION CHECK OUT THE CATALOGUE

S_Mike PRO

MICROMETERS

1

Cylindrical Ø2x5 mm

2

Number

Output

803-0301

1

Knife 0.75x6.5 mm

Proximity

803-0307

Cone 30°

5

Knife 0.5x7.5 mm Cone

Promotion (THB)

Range (mm)

Anvil type (mm)

Price List (THB)

0-25

Ø2

43,200

20,490

0-25

Ø2

37,200

24,790

Proximity*

25-60

Ø2

43,300

28,390

903-1001

Proximity*

60-95

Ø2

50,900

32,890

803-0302

Proximity

0-25

0.75x6.5

43,500

27,290

0-25

0.75x6.5

49,600

32,290

903-0602

Proximity*

25-60

0.75x6.5

55,700

35,890

903-1002

Proximity*

60-95

0.75x6.5

62,600

40,390

903-1602

Proximity*

120-155

0.75x6.5

108,200

61,790

803-0303

Proximity

0-30

Ø25

45,800

28,390

0-30

Ø25

52,400

31,190

903-0613

**

30-66

Ø25

61,900

41,990

903-1013

**

66-102

Ø25

69,700

46,790

4

803-0310

**

0-25

Cone 30°

48,400

32,490

5

803-0309

**

0-25

0.5x7.5 - cone

47,100

30,990

3

803-0313

6

803-0304

Proximity*

0-30

Ø7 - flat

37,100

24,490

7

803-0305

Proximity*

0-30

2x Ø7

41,000

25,990

* available in Bluetooth® Technology version on request ** available in Proximity version on request

15

4

903-0601

803-0308

2

Disks Ø25 mm

3

DIN 863

6

Ball Ø7 mm- flat

7

Ball Ø7 mm spherical r3.5 mm

803-0307

803-0308

BESTSELLERS 23/24

ROTATING SPINDLE MICROMETER WITH INTEGRATED BLUETOOTH® TECHNOLOGY CHECK OUT THE CATALOGUE

S_Mike EVO Smart

MICROMETERS

No-return effect rotating spindle Improved accuracy : 2µm max. error Spindle Ø6.5mm 10N force Cylindrical anvils

803-6025

1 mm

803-6050

360°

803-6100 803-6075

FRICTION THIMBLE RECOMMANDED FOR FIXED PART Number

16

Output

IMPROVED REPEATABILITY

Range (mm)

Anvil type (mm)

Price List (THB)

Promotion (THB)

803-6025

0-25

Ø6.5

24,500

15,990

803-6050

25-50

Ø6.5

26,500

18,990

803-6075

50-75

Ø6.5

34,900

24,990

803-6100

75-100

Ø6.5

37,900

26,990

DIN 863

1

BESTSELLERS 23/24

TIME TO UPDATE YOUR MICROSCOPES WITH BLUETOOTH® MICROMETER HEADS CHECK OUT THE CATALOGUE

MICROMETER HEADS

CALIBRATION RECORD

S_Screw Smart

DATE

Ø45mm dial with 270° rotation for X or Y axis use Fixing by Ø12h6 Non-rotating spindle Ø6.5mm with hard metal tip Steering wheel Ø50mm

20 / 04 / 22

CALIBRATED BY Dick Wolf NEXT DUE

19 / 04 / 23

826-2601 Thanks to our software Sylcom, you can manage the calibration of your Sylvac IIOT instruments : • •

17

Number

Model

Range (mm)

Price List (THB)

Promotion (THB)

852-2601

S_Screw 25

0-25

37,500

29,500

852-2611

S_Screw 50

0-50

50,500

40,500

When the calibration date approaches display can blink.

When the calibration due date is exceeded, the instrument can be blocked with CAL displayed.

BESTSELLERS 23/24

DIGITAL INTERNAL BORE GAUGES MEASURE ANY INTERNAL FEATURES CHECK OUT THE VIDEO !

BORE GAUGES

Xtreme Smart

Professional bore gauges Connectable via Bluetooth® technology Versions available with ratchet (XTD) or pistol grip (XTH)

Special heads for grooves, threads, splines, etc. available on request.

XTH XTD

18

CHECK OUT THE CATALOGUE SPECIAL HEADS

Number XT3D

Number XT3H

Range (mm)

Price List XT3D

Price List XT3H

Promotion XT3D

Promotion XT3H

Number XT3D

Number XT3H

Range (mm)

Price List XT3D

Price List XT3H

Promotion XT3D

Promotion XT3H

950-6011

954-6011

6-8

67,000

78,000

42,490

49,490

950-6017

954-6017

25-35

92,900

98,300

57,790

62,490

950-6012

954-6012

8-10

67,000

78,000

42,490

49,490

950-6018

954-6018

35-50

96,000

101,100

59,990

63,490

954-6019

50-65

105,900

103,400

65,490

67,490

950-6013

954-6013

10-12.5

68,500

80,800

42,490

50,490

950-6019

950-6014

954-6014

12.5-16

68,800

81,100

44,490

51,490

950-6020

954-6020

65-80

105,900

103,400

65,490

67,490

950-6015

954-6015

16-20

68,800

86,700

44,490

53,490

950-6021

954-6021

80-100

111,500

109,600

69,790

70,490

950-6016

954-6016

20-25

81,500

91,000

51,490

56,490

950-6022

954-6022

100-125

115,500

115,500

72,990

70,990

DIN 863-4

1

BESTSELLERS 23/24

INTERNAL BORE GAUGES SETS XTD INCLUDING UNIT, HEAD AND SETTING RING CHECK OUT THE VIDEO !

Xtreme Smart Sets SXTDU

BORE GAUGES

Bore gauge sets with display unit for each head Integrated Bluetooth® technology Economical and efficient

Sets consisting of complete instruments

19

Number

Model

Range (mm)

Number of digital units

Heads

Number of rings

Protection

Price List (THB)

Promotion (THB)

951-7103

SXTD3U-BT

6-10

2

6-8 & 8-10mm

1

IP67

102,500

65,490

951-7104

SXTD4U-BT

10-20

3

10-12.5, 12.5-16 & 16-20mm

2

IP67

156,500

95,990

951-7105

SXTD5U-BT

20-50

3

20-25, 25-35 & 35-50mm

2

IP67

204,500

133,000

951-7106

SXTD6U-BT

50-100

3

50-65, 65-80 & 80-100mm

2

IP67

228,500

145,000

DIN 863-4

BESTSELLERS 23/24

SMALL PARTS TO MEASURE BIG CHALLENGE !

CHECK OUT THE VIDEO !

PS15

BENCH TABLES

Available in horizontal and vertical versions Compatible with both digital indicators and Sylvac measuring probes Measuring range of 10mm Adjustable measuring force 0.3-1.0 N 908-2172 908-2170

Knife shapped anvils and special anvils available on request

808-1216* 808-1215*

Number

Version

Anvil fixation (mm)

Standard anvils (mm)

Price List (THB)

Promotion (THB)

808-1215

Horizontal

Ø1.5 & Cary

Ø1.5

112,600

85,490

808-1216

Vertical

M2.5 & Cary

Ø5

127,500

87,490

808-1218

Vertical

Ø1.5 & Cary

Ø1.5

126,500

86,990

908-2170

Supporting table XYZ for horizontal bench table

23,500

17,490

908-2172

Rotating table with 25 holes for vertical bench table

45,900

31,490

* digital indicator, probe and/or table not included

20

2

BESTSELLERS 23/24

ONE MEASURING BENCH FOR EACH APPLICATION CHECK OUT THE VIDEO !

BENCH TABLES

PS16 V2

0.1

808-1233 LV - internal version

Robust cast iron construction Large display resolution 0.0001 mm (0.1 μm) Tolerance status indication by colour LEDs Adjustable measuring force 0.1-0.6 N Features 2 ergonomic, position-adjustable levers Connects via Bluetooth® and proximity cable.

Knife shapped anvils and special anvils available on request

808-1231 External dimensions version 808-1337 3-Point internal version

Number

Version

Range (mm)

Standard anvils (mm)

Price List (THB)

Promotion (THB)

808-1231

External dimensions

0-25

Ø1.5

179,700

129,990

808-1232

External dimensions

0-50

Ø1.5

208,100

147,490

808-1233

LV-internal

Ø12-62

Thickness 0.4

262,300

184,490

808-1234

LV-internal

Ø18-68

Thickness 0.4

240,200

169,490

808-1335

3-Point Internal

Ø0.8-1.3

Ø1.5

268,600

185,490

808-1336

3-Point Internal

Ø1.3-2.5

Ø1.5

268,600

185,490

808-1337

3-Point Internal

Ø2.5-4.0

Ø1.5

268,600

185,490

808-1338

3-Point Internal

Ø4.0-8.0

Ø1.5

268,600

185,490

808-1339

3-Point Internal

Ø8.0-12.5

Ø1.5

268,600

185,490

Supporting table XYZ for 908-1231 & 908-1238

23,500

17,390

908-2170 21

BESTSELLERS 23/24

NEW VERSION BETTER THAN EVER !

WITH INTEGRATED BLUETOOTH® TECHNOLOGY CHECK OUT THE VIDEO !

HEIGHT GAUGES

Hi_Cal Smart

Completely redesigned motorized measuring height gauges Dynamic control of the probe movement speed New, larger and more ergonomic display Multiple functions: inside and outside diameter, centre-to-centre, MIN/MAX/Delta, etc.

New: Delivered with Ruby ball probe Ø 3mm and depth measurement probe

New display

Motorised

1

Compact size and light weight 830-0156

22

830-0306

830-0456

Number

Model

Range (mm)

Repeatability (µm)

Max. error (µm)

Price List (THB)

Promotion (THB)

830-0156

Hi_Cal 150

155

2

2.5+L/175

216,500

142,000

830-0306

Hi_Cal 300

320

2

2.5+L/175

240,500

181,000

830-0456

Hi_Cal 450

470

2

2.5+L/175

276,500

203,000

ISO 10360-2

Large choice of accessories available for all models

2

BESTSELLERS 23/24

FOR SIMPLE OR HIGHER MEASUREMENTS ONE INSTRUMENT FOR EVERY APPLICATION CHECK OUT THE CATALOGUE

HEIGHT GAUGES

Hi_Gage One Smart & Z5

Hi_Gage One Smart First tracing and measuring height gauge with integrated Bluetooth® technology Fast displacement New blocking system of the carriage Delivered with tracing probe

Z5 Trimos technology Manual or motor-driven displacement (switchable) «Black Mask» display with user-friendly functions Electronically adjustable measuring force Air cushion Multiple functions: inside and outside diameter, centre-to-centre, MIN/MAX/Delta, etc.

Delivered with Ruby ball probe Ø 4mm Optional Bluetooth® accessory compatible with Sylcom

10

981-7200 Bluetooth® module

840-0406

840-0606

Number

Model

Range (mm)

Repeatability (µm)

Max. error (µm)

Price List (THB)

Promotion (THB)

840-0406

Hi_Gage 400

400

10

40

60,500

49,900

840-0606

Hi_Gage 600

600

10

50

68,500

55,900

936-0700

Z5

711

2

2.5+L/300

336,500

246,900

22,900

16,490

981-7200 23

1

®

Bluetooth module for Z5

ISO 10360-2

830-0700

BESTSELLERS 23/24

MULTI-FUNCTIONAL UNIT UP TO 99 INSTRUMENTS CONNECTED CHECK OUT

PLC

THE CATALOGUE

NO WINDOWS CE = NO VIRUS D400S DISPLAY UNIT D400S

CUSTOM FILE

D400S

M-BUS

MB-IO

M-BUS

M-BUS MB-NET

USB RS232

M-BUS NETWORK MODULE

D400S CONFIG

SERVER

M-BUS

7" multifunctional unit with touchscreen interface Connect instruments, probes, air gages, sensors, etc.

Display up to 32 characteristics per screen Many functions and features Live monitoring and statistical analysis

M-BUS

M-BUS INPUTS/OUTPUTS

M-BUS

DISPLAY UNIT

M-BUS

COMPUTER

MB-AG

FOOTSWITCH USB STICK BARCODE READER

MB-8i

MB-4P

MB-TP

MB-1D

MB-4C

M-BUS MULTIPLEXERS MAX. 99 INPUTS TEMPERATURE SENSOR HANDTOOLS PROBES

804-2210

M-BUS Mounting kit

24

DIGITAL INDICATORS

AIR GAGE

New firmware with advanced functions, sequence mode with : Customizable traceability fields GO/NG judgement Values entered manually for instruments not connected

Number

Description

Price List (THB)

Promotion (THB)

804-2400

Display unit D400S (see M-Bus modules for connecting instruments)

207,100

148,500

804-2210

M-BUS mounting kit on back side of D400S unit

15,400

11,000

804-2202

Bracket for pannel mounting

904-4103

Table switch trigger

11,500

7,900

904-4101

Foot pedal trigger

12,500

8,900

904-4103

Table switch trigger

2

BESTSELLERS 23/24

CONNECTING MODULES FOR PLC AND DIPLAY UNITS CHECK OUT THE CATALOGUE

MODULES

M-Bus & accessories

Interfacing and connectig modules allowing to connect Sylvac probes, air gauges and various other instruments from different brands (including Mitutoyo) to our display units, to PC and PLC.

25

Number

Model

Description

Price List (THB)

Promotion (THB)

804-2160

M-Bus RS

Master module for connection to PC and PLC

41,500

29,500

804-2130

M-Bus I/O

8 Opto-coupled Input/Output for automation

29,900

22,900

804-2107

M-Bus 4i

4 inputs for inductive probes (Sylvac + Tesa compatible)

40,900

30,500

804-2108

M-Bus 8i

8 inputs for inductive probes (Sylvac + Tesa compatible)

52,700

39,500

804-2190

M-Bus AG

1 input for air gauge (any supplier)

41,500

30,500

804-2105

M-Bus 4P

4 inputs for Sylvac Digital probes P12D

18,900

15,500

804-2114

MB-4D

4 inputs for Digimatic (Mitutoyo) instruments

37,500

31,500

804-2111

MB-1D

1 input for Digimatic (Mitutoyo) instrument

18,500

14,500

804-2170

MB-TP

1 input for a thermocouple or PT100 temperature sensor/probe

25,900

18,900

804-2132

MB-NET

Module with Ethernet connector to transfer data to a server

30,500

21,900

804-2133

MB-RO

1 relay input for cable M12

16,700

11,900

804-2211

Cable

8,500

5,900

6,500

4,590

6,500

4,590

804-2205

Cable

M12 cable for module MB-RO M8 cable to connect M-BUS to D70A and D70i units

925-5609

Cable

To connect M-BUS modules to D400S unit

804-2130 : M-Bus I/O automation.

for

804-2133 : M-Bus RO, relay module for pneumatic probes lifting and air saving systems.

804-2132 : M-Bus NET to transfer data to a server.

BESTSELLERS 23/24

DISPLAY UNITS FOR MEASURING PROBES FOR WORKSHOP AND CONTROL ROOM CHECK OUT THE CATALOGUE

DIGITAL DISPLAY

DIGITAL DISPLAY

D62S Advanced

D70I

Display unit 4.3’’ for Sylvac inductive probes Simple or double display with bargraph, needle or no-tolerances Direct measurement or Min, Max, Average, Max-Min USB and RS232 connection

Display unit for Sylvac P12D probes (M8) Simple or double display with bargraph, needle, and indication of tolerance status Direct measurement or Min, Max, Average, Max-Min Built-in battery with 8 hours of autonomy Bluetooth®, USB and RS232 connection

Ideal for mobile control stations

26

Number

Model

Inputs/instruments

Protection (front face)

Price List (THB)

Promotion (THB)

804-1063

D62S Advanced

2x P12D (M8) probes

IP65

99,500

61,790

804-2071

D70I

2x P2/P5i probes

IP65

81,600

65,490

2

BESTSELLERS 23/24

AIR MEASUREMENT IS SO SIMPLE AND EFFICIENT ALTERNATIVE TO AIR COLUMNS CHECK OUT THE CATALOGUE

DIGITAL DISPLAY

D70A

SAVE UP TO 50% ON YOUR ENERGY BILL!

Ultimate D70A display unit for air gages User-friendly touch-screen interface Configurable & batch/part management Air pressure and temperature alarms

Introducing a new energy-saving system enabling automatic air supply cut-off when D70A and D400S units are not in use. A menu integrated into the unit allows for fine-tuning of the ECO mode by configuring the time delay and wake-up threshold. The implementation of this approach necessitates the use of the MB-RO module, M12 cable, and an air preparation kit featuring an air-cut valve.

CONTINUOUS AIR BLOW AIR ON

AIR OFF

MEASURE

MEASURE

MEASURE

MEASURE

MEASURE

INTERMITTENT AIR BLOW SAVING ON REDUCED AIR AIR ON

804-2203 804-2075 Number

Model

804-2074

MEASURE

Inputs

Price List

Promotion

D70A - 1

1 input for air gauge (any supplier)

94,000

64,490

D70A - 2

2 inputs for air gauge (any supplier)

124,000

84,490

MVT-2203

Air preparation kit

43,250

15,490

804-2212

Air preparation kit with air-cut energy saving system

-

On Request

804-2075

27

AIR OFF

MEASURE

MEASURE

MEASURE

MEASURE

804-2212

BESTSELLERS 23/24

MEASURING PROBES NO COMPROMISE ON ACCURACY CHECK OUT THE CATALOGUE

DIGITAL PROBES

804-2213 : Requires D400S unit + MB-RO module + M12 cable

S_Probes

P12D Patented dual inductive and capacitive system Absolute system with integrated correction, no more pairing needed Resolution up to 0.01 μm Repeatability up to 0.08 μm Available in different versions : M8 or USB connector Compatible with PC (USB), D62S and D400S units (M8) through M-Bus multiplexer Long life precision bearing guidance up to 100 million cycles Number

Model

Push type

Range (mm)

Force (N)

Accuracy % / Max. error (µm)

Resolution (µm)

Repeatability (µm)

Price List (THB)

Promotion (THB)

900-1101

P2i

Spring

+2

0.7

0.15

<0.1

0.15

22,500

15,490

900-1102

P2iP

Pneumatic

+2

0.7 - 2.6

0.15

<0.1

0.15

27,900

18,490

900-1111

P5i

Spring

+5

0.7

0.15

<0.1

0.15

28,600

19,490

900-1112

P5iP

Pneumatic

+5

0.7 - 2.6

0.15

<0.1

0.15

29,000

20,490

801-1012

P12D USB

Spring

12.7

0.2 - 0.3

0.6

0.01

0.08

66,500

43,490

801-1018

P12D USB

Spring

12.7

0.06

0.6

0.01

0.08

68,500

44,490

801-0012

P12D WORK USB

Spring

12.7

0.4 - 0.8

1.8

0.1

0.2

38,500

29,990

801-1212

P12D M8

Spring

12.7

0.2 - 0.3

0.6

0.01

0.08

64,000

43,490

801-1218

P12D M8

Spring

12.7

0.06

0.6

0.01

0.08

66,400

43,490

P12D WORK M8

Spring

12.7

0.4 - 0.8

1.8

0.1

0.2

34,900

27,490

801-0212

28

P2i/P5i Half bridge (HBT) analogue gauging probes Specilly designed to be used with jigs/fixtures Long-life precision bearing guidance (tested up to 13 million cycles) Excellent repeatability Available in 2 versions: spring push and pneumatic push Compatible with D70i and D300SV2/D400S units through M-Bus multiplexer

DIN 32876

2

BESTSELLERS 23/24

GAPS AND ANGLES MEASUREMENT WHEN THERE IS NO ROOM FOR ERROR CHECK OUT THE CATALOGUE

DIGITAL

DIGITAL

Feeler Gage Smart

First-ever digital feeler gage Display shows the combined thickness of all blades pulled out Available with mm and inch blades Data transfer by Bluetooth®

Protractor Smart

Measuring range : 1x 360°, 2x 180°, 4x 90° Angular value display in : Degrees, resolution 0.01° / Degrees/ minute, resolution 0°01' / Radian, resolution .0001 Data transfer by Bluetooth® or cable Indication of tolerance status OK

Eliminates the risk of misreading Eliminates the risk of miscalculation

29

Number

Type

Blades

Price List

Promotion

Number

Display

Price List

Promotion

921-0100

mm

20 (0.05-1) mm

36,000

24,500

820-1706

1x360°, 2x180°, 4x90°

73,500

54,500

921-0110

mm

19 (0.04-1) mm

34,900

23,500

921-0114

inch

14 (.0020-.0031) in

36,000

24,500

BESTSELLERS 23/24

SYLCOM : DATA ACQUISITION MADE EASY

Fast and error free acquisition

3030

Live and remote monitoring

Historical data

Easy export

3

4

BESTSELLERS 23/24

SYLCOM DATA PROCESSING SOFTWARE CHECK OUT THE CATALOGUE

SOFTWARE

Sylcom

Sylcom LITE : 1 instrument / free version Sylcom STANDARD : 16 instruments / Standard functions / M-BUS compatible Sylcom PRO : 128 instruments (40 BT max.) / Control plans, monitoring & SPC Sylcom EXPERT : 500 instruments (on the fly mode) / OPC-UA / Machine Tool corrector Accessories :

926-6721

926-6821

981-7101

926-7022

Number Dongle/Digital license

Model

Price list (THB)

Promotion (THB)

981-7132 / 981-7129

Sylcom STANDARD

31,500

21,990

981-7240 / 981-7245

Sylcom PRO

72,500

57,990

981-7250 / 981-7255

Sylcom EXPERT

103,500

76,990

926-6721

Proximity-USB cable

7,200

4,990

926-6821

Power-USB cable

11,900

7,990

6,300

3,990

981-7100

31

981-7100

®

Dongle Bluetooth 4.0 ®

981-7101

Dongle Bluetooth 5

6,900

4,990

926-7022

®

16,500

10,990

Bluetooth footpedal

Discover the new Sylcom Expert features : MTC : center your production.

On the Fly : collect data of 100 instruments in just 6 seconds.

BESTSELLERS 23/24

3D REPLICAS AVOID DESTRUCTIVE TESTING AND SPEED UP QUALITY CONTROL PROCESS CHECK OUT THE CATALOGUE

REPLICAS

Plastiform® products

As an excellent complement to our Sylvac optical machines, Plastiform® bi-component products allow to obtain in a few minutes very precise impressions (replicas) of all the details of the surface to which they have been applied.

Depending on the type of Plastiform® product used, a complete or partial impression will be obtained with a soft, semi-flexible, rigid or semi-rigid consistency that can be measured optically on VISIO and SCAN machines.

These products make it possible to avoid having to cut and therefore destroy sometimes expensive parts in order to be able to control them, or having to dismantle and move more important.

32

Number

Description

Price List (THB)

Promotion (THB)

926-6066

Starting case with Plastiform products, Twin blades cutter and accessories

50,500

35,900

3

BESTSELLERS 23/24

OPTICAL MACHINES TOP-QUALITY MANUAL VIDEO MEASURING SYSTEM CHECK OUT THE CATALOGUE

OPTICAL MACHINES

VISIO V3

High quality ergonomic 2.5D optical (video) measuring system with manual movement of the stage Extremely robust and durable construction with granite base and column Full HD camera with wide field of view for increased accuracy Lighting with ring light adjustable in segments, coaxial light and diascopic light Manual or motorised zoom depending on the version, magnification 24x-144x (12x-288x with additional lenses) Delivered complete with a computer with touch screen and the very easy to use Reflex-Vista software offering a wide range of functionalities.

FOR THOSE LOOKING FOR A HIGH QUALITY AND DURABLE MACHINE MANUFACTURED IN SWITZERLAND

33

Number

Model

Stage movement (mm)

Zoom

Price List

902-2210

Visio 200

200x100x150

Manual 4x

On request

902-2211

Visio 200

200x100x150

Motorized 6x

On request

902-2310

Visio 300

300x200x150

Motorized 6x

On request

2

BESTSELLERS 23/24

OPTICAL MACHINES ULTRA-FAST MEASUREMENT OF CYLINDRICAL PARTS CHECK OUT THE CATALOGUE

OPTICAL MACHINES

SCAN

Vertical optical measuring machines for very fast static and dynamic measurement of various features on cylindrical workpieces. The parts can be mounted in between centers or held in place thanks to various accessories. One machine replaces several measuring equipment such as traditional handtools, roundness tester, countracer, projector, etc.

Micron accuracy Range up to Ø145mm Length up to 1280mm Weight up to 100kg.

In one click and in a few seconds you get all the results:

Pinion shafts

Bone screws

Camshafts

35 features in 12 seconds

29 features in 3 seconds

62 features in 21 seconds

2 12 sec 34

312 secsec

21312 sec secsec

213sec

21 sec

3

BESTSELLERS 23/24

OPTICAL MACHINES ULTRA-FAST MEASUREMENT OF CYLINDRICAL PARTS CHECK OUT THE CATALOGUE

OPTICAL MACHINES

SCAN

Range made up of 8 machines with or without tilt system. The SCAN machines equipped with our unique optical tilting system can measure a multitude of complex features on threads. Our SCAN are intended for use in the workshop, close to the CNC machine and can be equipped with a robot for the automatic handling of the parts to be measured.

Delivered with PC and easy to use REFLEX SCAN+ software

35

Number

Model

Range (mm)

Tilting system

Price List

902-4020

SCAN S25

Ø26 x 200

No

On request

902-4025

SCAN S25T

Ø26 x 200

Yes

On request

902-4060

SCAN F60

Ø64 x 300

No

On request

902-4065

SCAN F60T

Ø64 x 300

Yes

On request

902-4062

SCAN F60L

Ø64 x 500

No

On request

902-4067

SCAN F60LT

Ø64 x 500

Yes

On request

902-4145

SCAN S145

Ø145 x 600

No

On request

902-4147

SCAN S145L

Ø145 x 1280

No

On request

BESTSELLERS 23/24

VISUALIZE, STORE AND EXPORT DATA COMPATIBLE WITH ALL SYLVAC INSTRUMENTS FREE APP

Sylvac Anywhere

Connect all your Sylvac instruments to the App

ANYTIME. ANYWHERE.

SYLVAC CATALOGUE

Android Max Value Technology Co.,Ltd.

Sylvac SA Avenue des Sciences 19 1400 Yverdon-les-Bains 36Switzerland

+41 21 637 67 57 info@sylvac.ch www.sylvac.ch

261 Soi On-nuch 17 (yak 16), Sukhumvit 77 Rd, Suanluang, Suanluang, Bangkok 10250 Thailand

Apple

Validity : 01.04.23-31.03.24 +66(0) 2717 7199 sales@maxvalue.co.th www.maxvalue.co.th

www.mvtautomation.com

SYL-BS-23-EN
