KUBI 2024 Range Guide - online edition

Quality, detail, functionality.

KUBI Dry Gloves & Expedition Equipment were designed and developed by Peter Kubicka, a highly respected, knowledgeable & experienced cave diver, instructor and founder of KUBI.

Peter has always focused on quality, detail & functionality as well as the usefulness of all products he develops.

KUBI products are high quality, made for the Technical Diving market and are extremely popular with divers & drysuit manufacturers around the world.

This range guide is intended to assist your understanding of our products, along with their use & application.

Index

Page 4 Standard Dry Glove System.

Page 6 Red Deluxe Dry Glove System

Page 8 Fitted Dry Glove System.

Page 9 Glove Side Only Sets.

Page 10 Replacement O-Ring Sets.

Page 12 Accessories.

Page 13 Replacement Latex Outer Gloves.

Page 16 Thermal Inner Gloves.

Page 18-21 KUBI Expedition Products.

l Cylinder Transport Bags.

l Drybag Backpacks.

l DPV Rucksacks.

l ATP-Additional Thermal Protection.

Page 22 Dry Glove Sizing Information.

Page 23 KUBI T-Shirts.

KUBI Standard System

The Standard System is designed to fit directly to your existing drysuit latex or silicone cuff seals, via an o-ring system.

This means you can fix our dry glove system to your drysuit yourself and it can be used on any drysuit that has latex or silicone cuff seals, (or even zip seals).

The Standard System is available in four system sizes (70, 80, 90 & 100mm) with five outer glove sizes (S,M,L,XL & XXL) and are supplied as a complete set. Not suitable for connecting on to neoprene cuff seals.

“The Standard System is designed to fit directly to your existing drysuit latex or silicone cuff seals, via an o-ring system”

KUBI Standard System

Full Sets (Cuff & Glove Sides)

The KUBI Standard range is designed to be fitted to the existing latex or silicone cuff seals of a drysuit yourself.

The complete KUBI Standard system includes:

l The KUBI ALU cuff and glove ring system.

l Pre-fitted standard 1.6mm latex outer gloves.

l A pair of standard thermal inner gloves.

l KUBI branded carry bag.

The KUBI Standard range is available in four sizes: 70, 80, 90 and 100mm and a choice of latex outer glove sizes as shown below.

“Will KUBI Drygloves work with my Drysuit?”

If your drysuit has latex or silicone cuff seals, then you can simply fit yourself the KUBI Standard System.

Price (inc. VAT) £192.00 Price Excluding VAT £160.00

If you require a permanently installed system KUBI Fitted System) discuss the alterations with your drysuit manufacturer.

If your drysuit currently has a permanently installed system already, this would have to be removed before using KUBI.

If you are purchasing a new drysuit, consider discussing the (KUBI Fitted System).

CODE

DESCRIPTION

KUBI-70-S 70mm Rings & Small Gloves (6.5)

KUBI-70-M 70mm Rings & Medium Gloves (7.5)

KUBI-80-M 80mm Rings & Medium Gloves (7.5)

KUBI-80-L 80mm Rings & Large Gloves (8.5)

KUBI-80-XL 80mm Rings & X-Large Gloves (9.5)

KUBI-80-XXL 80mm Rings & XX Large Gloves (10.5)

KUBI-90-L 90mm Rings & Large Gloves (8.5)

KUBI-90-XL 90mm Rings & X-Large Gloves (9.5)

KUBI-90-XXL 90mm Rings & XX Large Gloves (10.5)

KUBI-100-L 100mm Rings & Large Gloves (8.5)

KUBI-100-XL 100mm Rings & X-Large Gloves (9.5)

KUBI-100-XXL 100mm Rings & XX Large Gloves (10.5)

Side Sets

RED Deluxe Glove Side Only Set (KUBI-RED-GS) Available in 80, 90,100mm Sets Only. For use with KUBI Fitted Cuff Side.

Each Deluxe Set Includes:

l KUBI Alu Rings.

l Glove Side Only Set - Glove Side alu rings.

l Special Edition RED & White Reflex Labels on glove side alu rings.

Latex Outer Gloves.

l RED Textured Heavyweight Latex Gloves.

l KUBI Icelandic Wool Thermal Gloves.

l Red KUBI Carry Bag.

l FREE

Each Deluxe Set Includes:

l KUBI Alu Rings.

l Standard Set - Cuff & Glove Side alu rings.

l Special Edition RED & White Reflex Labels on the cuff side alu rings.

Latex Outer Gloves.

l RED Textured Heavyweight Latex Gloves.

l KUBI Icelandic Wool Thermal Gloves.

l Red KUBI Carry Bag.

l FREE KUBI Alu-R T-Shirt.*

*PLEASE NOTE that if t-shirt colour/size combination is not available we will choose an alternate for you.

KUBI Fitted System Cuff Side Only Sets

The KUBI Fitted System is designed specifically for Drysuit Manufacturers. These would then be glued/fitted in to a drysuit, during manufacture or alteration. We strongly recommend this is done by your drysuit manufacturer or their nominated agent.

This system allows for an aesthetically pleasing system which enables the use of replaceable cuff seals (sold seperately).

This system is sold in 2 separate parts, as manufacturers require the ability to purchase each of these to support their specific inventory requirements:

l KUBI Fitted Cuff Side Only (example product code: KUBI-FIT90)

l KUBI Glove Side Only Set (example product code: KUBI-GL90XL)

The Fitted System is available in four system sizes (70, 80, 90 & 100mm).

Sizes 70-90mm

Retail Price (inc. VAT)

£149.00

Price Excluding VAT £124.17

KUBI-FIT-70

KUBI-FIT-80

KUBI-FIT-90

KUBI-FIT-100

DESCRIPTION

70mm Fitted System-Cuff Side Only

80mm Fitted System-Cuff Side Only

90mm Fitted System-Cuff Side Only

100mm Fitted System-Cuff Side Only

Sizes 100mm

Retail Price (inc. VAT) £155.00

Price Excluding VAT £129.17

The Glove Side only set is supplied with the KUBI aluminium rings pre-fitted with a pair of standard 1.6mm latex outer gloves, a pair of standard thermal inner gloves and a KUBI branded bag.

A Glove Side half set is required to accompany the Fitted Range cuff side set to create a full fitted system.

“How can I check what size my KUBI System is?”

KUBI Dry Glove Systems are sized using the smallest aluminium ring, which your hand will fit through.

This is the alu ring on the GLOVE side. Measure the inside diameter of the GLOVE side alu ring and it will be either 70, 80, 90 or 100mm internal diameter.

This is the size of your KUBI Dry Glove System.

Retail Price (inc. VAT) £110.00 Price Excluding VAT £91.67

CODE

DESCRIPTION

KUBI-GL70S Glove Side Only Set – 70mm Rings & Small Glove (6.5)

KUBI-GL70M Glove Side Only Set – 70mm Rings & Medium Glove (7.5)

KUBI-GL80M Glove Side Only Set – 80mm Rings & Medium Glove (7.5)

KUBI-GL80L Glove Side Only Set – 80mm Rings & Large Glove (8.5)

KUBI-GL80XL Glove Side Only Set – 80mm Rings & X-Large Glove (9.5)

KUBI-GL80XXL Glove Side Only Set – 80mm Rings & XX-Large Glove (10.5)

KUBI-GL90L Glove Side Only Set – 90mm Rings & Large Glove (8.5)

KUBI-GL90XL Glove Side Only Set – 90mm Rings & X-Large Glove (9.5)

KUBI-GL90XXL Glove Side Only Set – 90mm Rings & XX-Large Glove (10.5)

KUBI-GL100L Glove Side Only Set – 100mm Rings & Large Glove (8.5)

KUBI-GL100XL Glove Side Only Set – 100mm Rings & X-Large Glove (9.5)

KUBI-GL100XXL Glove Side Only Set – 100mm Rings & XX-Large Glove (10.5)

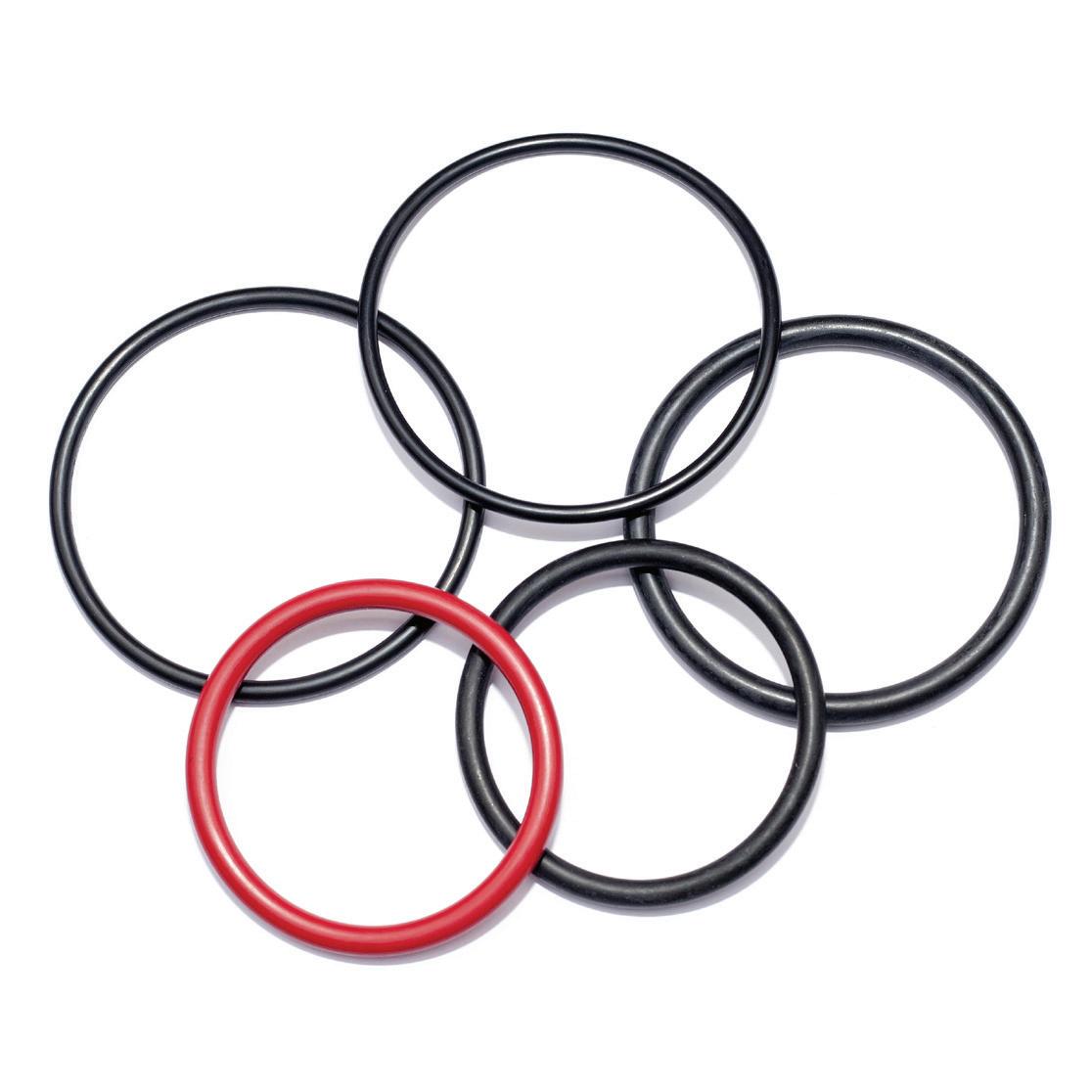

KUBI Replacement O-Ring Sets

“Do

KUBI Drygloves require maintenence?”

KUBI Dry Glove systems do need regular checks like all diving equipment.

l Check all Alu rings are clear of dirt & debris.

l Check your O-rings are in suitable condition & replace them as required.

l Lubricate sealing O-rings lightly, to ensure ease of use as required.

l Replace KUBI Reflex labels if yours become damaged.

l Remember Black O-rings are holding parts in place and the Red O-rings are the seals.

Standard System Full Set (Cuff & Glove Side)

Replacement O-Ring Sets

CODE DESCRIPTION

KUBI-OSET70 KUBI Spare O-Rings Set - 70mm Standard System

KUBI-OSET80 KUBI Spare O-Rings Set - 80mm Standard System

KUBI-OSET90 KUBI Spare O-Rings Set - 90mm Standard System

KUBI-OSET100 KUBI Spare O-Rings Set - 100mm Standard System

Fitted Cuff Side Only Replacement O-Ring Sets

CODE DESCRIPTION

KUBI-FCOR-70 KUBI Spare O-Rings Set - 70mm Fitted Cuff Side

KUBI-FCOR-80 KUBI Spare O-Rings Set - 80mm Fitted Cuff Side

KUBI-FCOR-90 KUBI Spare O-Rings Set - 90mm Fitted Cuff Side

KUBI-FCOR-100 KUBI Spare O-Rings Set - 100mm Fitted Cuff Side

Glove Side Only

Replacement O-Ring Sets

CODE DESCRIPTION

KUBI-GSET-70 KUBI Spare O-Rings Set - 70mm Glove Side

KUBI-GSET-80 KUBI Spare O-Rings Set - 80mm Glove Side

KUBI-GSET-90 KUBI Spare O-Rings Set - 90mm Glove Side

KUBI-GSET-100 KUBI Spare O-Rings Set - 100mm Glove Side

“Do KUBI

Sealing

O-Rings need any lubrication?”

We provide info with all KUBI dry gloves and O-ring sets, advising that we recommend the careful lubrication of the sealing O-rings.

Especially when new O-rings are dry and not compressed, so this is when lubrication is specifically required to prevent them feeling tight.

Please check the inside of the Alu-ring (cuff side) to remove all dirt and debris before use.

We recommend the use of the Nark-OX oil we can provide, as this requires very little and will not affect the O-rings in anyway.

We do not recommend the use of silicon based lubricants, as this can be absorbed by O-rings, causing issues.

CODE KUBI-BAG

DESCRIPTION

KUBI carry bag

CODE KUBI-CARD2

DESCRIPTION

Stainless Steel card to assist with O-ring removal

CODE CSEAL-S-S

DESCRIPTION

Silicone Cuff Seals (pair)-Small

CODE CSEAL-S-L

DESCRIPTION

Silicone Cuff Seals (pair)-Large

CODE CSEAL-L-S

DESCRIPTION

Latex Cuff Seals (pair)-Small

CODE CSEAL-L-L

DESCRIPTION

Latex Cuff Seals (pair)-Large

KUBI Replacement Latex Outer Gloves

We stock a range of different latex outer gloves for replacement purposes as well as alternatives to suit different customer requirements, these include:

Standard 1.6mm Black Latex Gloves

These are the standard glove used with the KUBI dry glove systems and is black natural rubber unsupported glove with 100% cotton flock lining. (Length: 32cm). Gloves are supplied in pairs.

CODE DESCRIPTION

GL-BRL1.6-S Black Rubber Latex Gloves -1.6mm Small (6.5)

GL-BRL1.6-M Black Rubber Latex Gloves -1.6mm Medium (7.5)

GL-BRL1.6-L Black Rubber Latex Gloves -1.6mm Large (8.5)

GL-BRL1.6-XL Black Rubber Latex Gloves -1.6mm X-Large (9.5)

GL-BRL1.6-XXL Black Rubber Latex Gloves -1.6mm XX-Large (10.5)

KUBI Replacement Latex Outer Gloves

Orange Standard 1.5mm Latex Gloves

An alternative to our Standard Black Latex Gloves, but in Orange. These are of a similar thickness and have a cotton flock liner, and are slightly more generous in sizing.

These may require triming down after installation, as they are slightly longer than the standard black latex gloves.

GL-ORL-S

Orange Rubber Latex Gloves with cotton flock lining Small (7.5)

GL-ORL-M

Orange Rubber Latex Gloves with cotton flock lining Medium (8)

GL-ORL-L

Orange Rubber Latex Gloves with cotton flock lining Large (9)

GL-ORL-XL

Orange Rubber Latex Gloves with cotton flock lining X Large (10)

GL-ORL-XXL

Orange Rubber Latex Gloves with cotton flock lining XX Large (11)

Red Textured Heavyweight Latex Gloves

These are popular 100% latex heavyweight gloves with a textured coating, in generous sizes. (Length: 32cm - can be trimmed to suit after fitting).

CODE DESCRIPTION

GL-RTEX-S Red Textured Latex Gloves -Small (7.5)

GL-RTEX-M Red Textured Latex Gloves-Medium (8.5)

GL-RTEX-L Red Textured Latex Gloves-Large (9.5)

GL-RTEX-XL Red Textured Latex Gloves-X-Large (10.5)

GL-RTEX-XXL Red Textured Latex Gloves-XX-Large (11.5)

Black Textured Heavyweight Latex Gloves

These are popular 100% latex heavyweight gloves with a textured coating, in generous sizes. (Length: 32cm - can be trimmed to suit after fitting).

CODE DESCRIPTION

GL-TEX-S Black Textured Latex Gloves -Small (7.5)

GL-TEX-M Black Textured Latex Gloves-Medium (8.5)

GL-TEX-L Black Textured Latex Gloves-Large (9.5)

GL-TEX-XL Black Textured Latex Gloves-X-Large (10.5)

GL-TEX-XXL Black Textured Latex Gloves-XX-Large (11.5)

KUBI Thermal Inner Gloves

We carry a range of different thermal inner gloves, in stock, for replacement purposes as well as offering alternatives to suit different customer requirements, these include:

Standard Thermal Inner Gloves

These are the gloves included within the KUBI complete systems and are a standard industrial knitted thermal glove.

CODE DESCRIPTION

GL-INS Standard Unisize Thermal Inner Gloves

Excluding VAT £6.67

Sub Zero Factor 2 Thermal Inner Glove

These are thermal gloves that we believe are perfect for anyone wanting a mid-weight warm glove. The excellent stretch properties of the Factor 2 material provides a comfortable and snug fit for most hand sizes. The highly brushed fleece inner face of the fabric will keep your hands lovely & warm.

CODE DESCRIPTION

GL-SUBZ-F2-S Sub Zero Factor 2 Thermal Inner Gloves – Small

GL-SUBZ-F2-M Sub Zero Factor 2 Thermal Inner Gloves – Medium

GL-SUBZ-F2-L Sub Zero Factor 2 Thermal Inner Gloves – Large

GL-SUBZ-F2-XL Sub Zero Factor 2 Thermal Inner Gloves –Extra Large

KUBI Icelandic Wool Gloves

Our Icelandic Wool Gloves offer exceptional warmth in the coldest conditions and are used by many technical divers around the world including ice divers. Made from 100% Icelandic Wool.

GL-KIW-S

GL-KIW-L

GL-KIW-XL

Icelandic Wool Thermal Inner Gloves - Small

Icelandic Wool Thermal Inner Gloves - Large

Icelandic Wool Thermal Inner Gloves - Extra Large

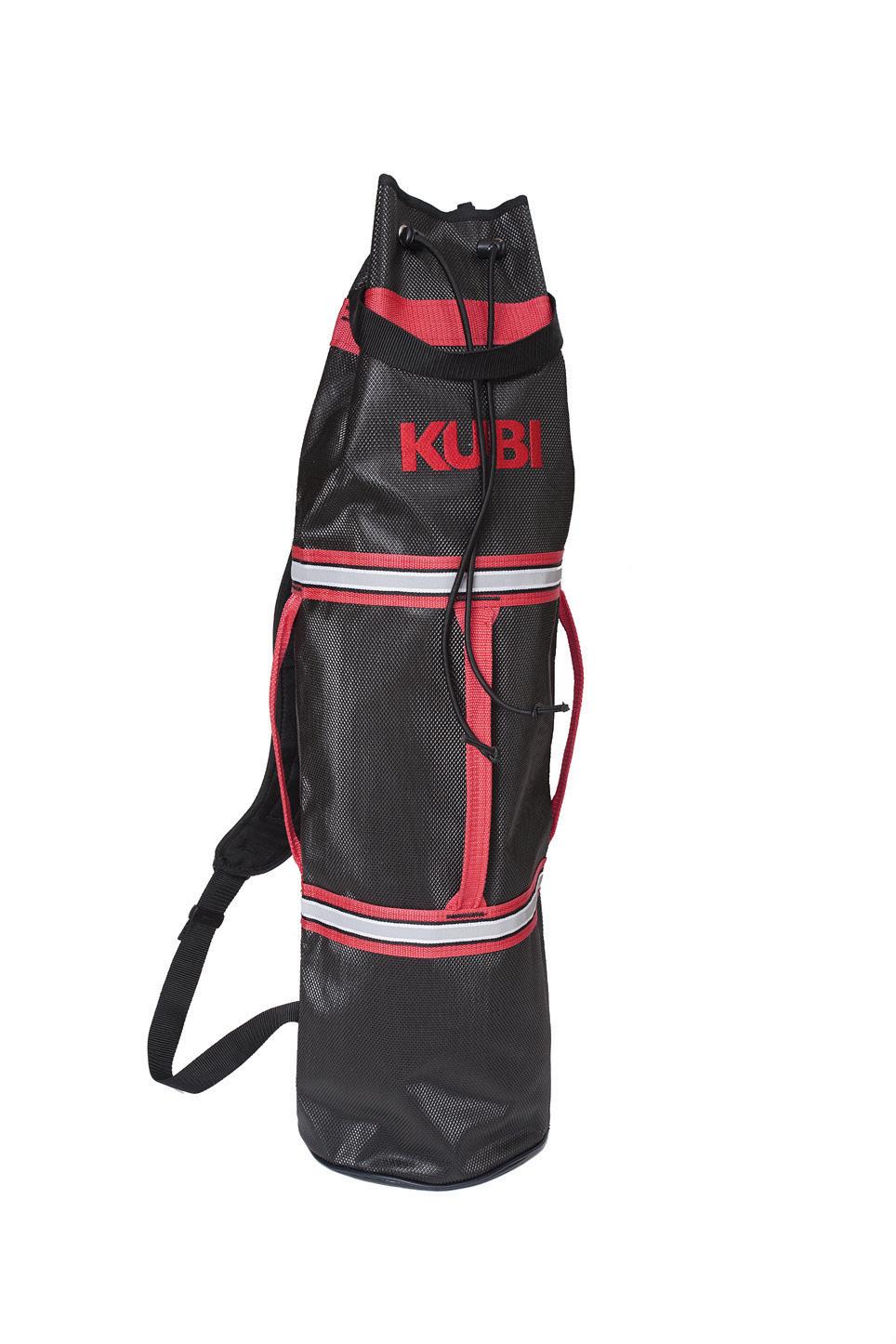

KUBI Expedition Products S80 Cylinder Transport Bags

Designed for Expedition & Cave Diving, these bags are designed to carry S80 (11litre) cylinders. The bag is equipped with strong shoulder straps for easy carrying to the dive site, along with a series of strong carry handles to assist in taking the cylinder through caves etc, to the dive location.

Available in two sizes: Single & Twin.

CODE KUBI-S80

DESCRIPTION

KUBI 80L

Single Cylinder Transport Bag

Dimension: 80x22x22cm

KUBI Dry Bag Backpacks

Developed from research & requests for where you wish to transport equipment, typically a drysuit & under-layers.

KUBI Dry bags are very light of optimal volume & size for storage when you have packed all your bags.

The bags do not have any drainage holes in case the contents are wet you can keep your car a little dry as well.

This bag is not intended for transporting over tough terrain or long distances & only has a strap for carrying on your back during walking.

Available in two sizes: Small & Large.

CODE KUBI-DRY-L

DESCRIPTION KUBI Dry Bag Large

Dimension: 88x38x35cm

Weight: 1.300 kg

CODE KUBI-DRY-S

DESCRIPTION KUBI Dry Bag Small Dimension:73x29x28cm

Weight: 0.5 kg

KUBI DPV Rucksack

Designed for Expedition and Cave Diving, this rucksack is exceptionally useful and of practical design, which allows easy carrying & storage of your DPV.

It has been designed by technical divers to make the carrying and transporting of the DPV to various dives sites as well as into

KUBI ATP-Additional Thermal Protection

Specifically designed for the technical and cave diver. The ATP is designed to add Additional Thermal Protection to your core body. Wear under your drysuit, but on top of your thermal layers, this innovatively designed product offers increased thermal protection to your front, gusset as well as your back/kidney area.

Simple and lightweight, this is another innovative technical diving product designed by Peter Kubicka.

Sizing Information

Selecting the correct KUBI System Size for you.

KUBI Dry Gloves System Size* - Important information please read:

The KUBI Dry Glove Systems are available in four KUBI system sizes. It is important to understand the system size to ensure you have the correct product and/or accessories. The KUBI system size is the internal diameter of the smallest aluminium ring your hand will pass through (with your thumb tucked in, as shown). This is the alu ring on the glove side of the KUBI System (& not the cuff side). This will have a internal diameter of 70, 80, 90 or 100mm & is defined as the KUBI system size.

What Size latex Glove do you need?

Place your left hand on the chart as shown below to measure what size glove you are: This shows your hand size for a tight fit glove.

For a DRYSUIT application, you need to be at least one size/1cm bigger, as you will be wearing a thermal inner glove, to account for the space as well as the important air layer, which will be balanced from your drysuit.

We have a downloadable sizing chart on our website https://www.kubistore.com/acatalog/Useful-information.html

KUBI dealers have a size chart available for you to check this, ask them for details.

Our dealers also have available (in store) a sizing chart to assist you with this.

Phosphorecent T-Shirts

Our latest design is printed with phosphorecent ink for a literal glow in the dark design.

Colour: Black.

KUBI ALu-R T-Shirts

Available in five sizes:

Small - 38” chest

Medium - 40” chest

Large - 43” chest

Extra Large - 45” chest

Extra Extra Large - 48” chest

Available in 6 Colours: Black, Charcoal, Grey, Navy, Burgundy, Olive.
