With 30 years of experience in professional beverage refrigeration, Serrco is a familiar name in the hospitality industry. Not only in the Netherlands, but also abroad.
Serrco is constantly developing new products, in which close cooperation with customers is paramount. Reliability and sustainability play an important role here.
In production, the emphasis is on quality, efficiency and cost control. This way, we are able to offer a high-quality product at a competitive price. We strive for maximum customer satisfaction in all aspects, whether it is price, delivery time, delivery to the location or service. Our flexibility and commitment are of great importance here.
With the development and production of specific products, Serrco has grown into a full-fledged partner for the international beverage industry.
Through this catalogue, we try to provide the best possible representation of our standard range. Do not hesitate to contact us for more information.
Professional beverage cooling for the hospitality industry
24
Combi Line
Bottle Cooling
Keg (storage) Cooling
Bottle/Keg Cooling
Keg Cooling (panels)
Combi Line Bottle Cooling SCL
Combi-Line is rightfully the new standard when it comes to professional bottle cooling. Based on a few standard cooling units, an unprecedented number of options are available.
Unprecedented choice
Plug-ready or for remote application
Environmentally friendly and low energy consumption
You can choose between standard 1, 2, 3 or 4 doors (length 77 cm, 124 cm, 172 cm or 220 cm, respectively), plug-ready or split (for remote condensing group). Instead of standard doors, glass doors, bottle rack with drawer and various drawer combinations can also be fitted. The cabinet will be delivered in the composition of your choice. The machine is completely removable so that quick servicing in the field is possible.
PRODUCT FEATURES
■ Forced air cooling
■ Better cooling capacity with 46% lower energy consumption

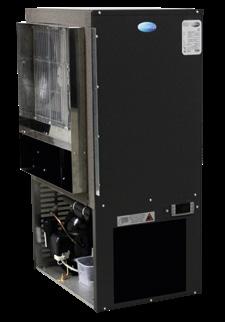

■ Easy servicing due to removable machine unit
■ Natural refrigerant R290
■ Plug-ready (MU) or for split setup (VS)
■ LED lighting (also for drawers)
■ LED Colour + standard for glass doors (adjustable colour and gradient)
Includes solenoid valve, expansion valve and electronic thermostat
SCL-2VS 69666
Bottle cooler 1 solid door, split
Storage capacity: 180 x 20 cl 138 x 30 cl
Dimensions W x D x H: 77 x 55 x 82/86 cm

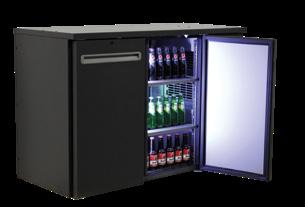

SCL-2GVS 69658 1 glass door
SCL-22VS 69668
Bottle cooler 2 solid doors, split
Storage capacity: 396 x 20 cl 306 x 30 cl
Dimensions W x D x H: 124 x 55 x 82/86 cm
SCL-22GVS 69660 2 glass doors
SCL-222VS 69670
Bottle cooler 3 solid doors, split
Storage capacity: 576 x 20 cl 444 x 30 cl
Dimensions W x D x H: 172 x 55 x 82/86 cm
SCL-222GVS 69662 3 glass doors
SCL-2222VS 69672
Bottle cooler 4 solid doors, split
Storage capacity: 792 x 20 cl 612 x 30 cl
Dimensions W x D x H: 220 x 55 x 82/86 cm
SCL-2222GVS 69664 4 glass doors

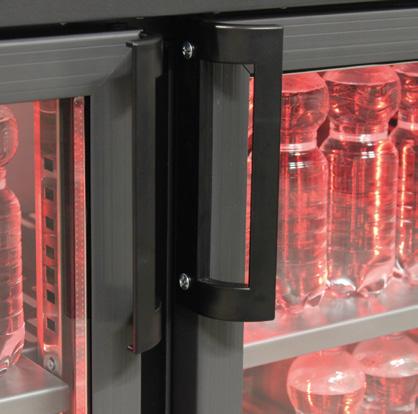

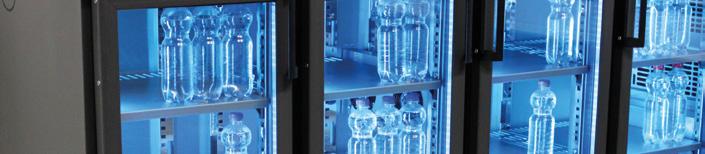

Glass doors standard with Colour LED (colour and graduation adjustable by remote control)
SCL options
SCL-1 69134 Bottle rack + drawer (instead of door), surcharge
SCL-2R 69457 Solid door R (instead of door), surcharge
SCL-2L 69456 Solid door L (instead of door), surcharge
SCL-2RG 69401 Glass door R (instead of door), surcharge
SCL-2LG 69402 Glass door L (instead of door), surcharge
SCL-3 69359 2 x drawer 50-50 (instead of door), surcharge
SCL-5 69360 2 x drawer 45-55 (instead of door), surcharge
SCL-6 69361 3 x drawer 30-30-30 (instead of door), surcharge
68994 Lock for door, drawer, surcharge per door/drawer
(with Colour LED)

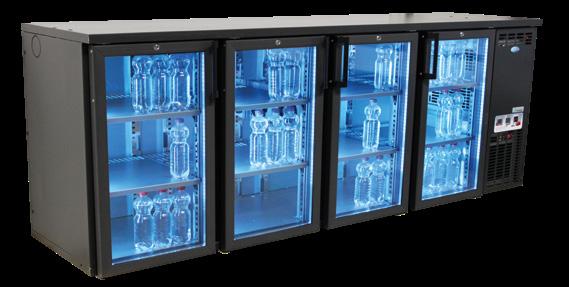

SCL-2222GMU
SCL neutral (non refrigerated) modules
Separate neutral (non refrigerated) modules have become available now for SCL Bottle Cooling. These can be placed at the left side of the cabinet enabling the completion of every bar section in a professional and efficient way. Width of these modules is 48 cm (D 55cm, H 82/86cm).

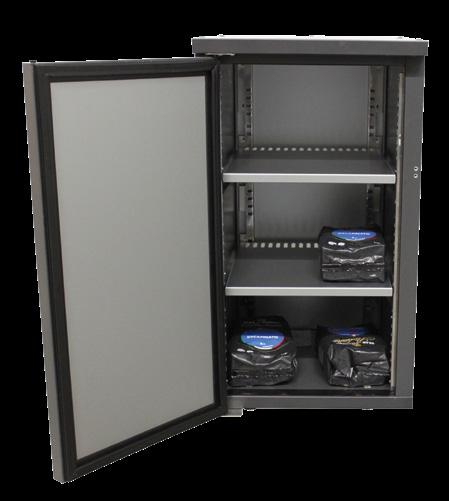

Storage module (non refrigerated) With coffee drawer and 1 door (1 shelf)
Storage module (non refrigerated) Cassette for coffee waste
Module (non refrigerated) With garbage drawer
SCL sample compositions
2 shelves per door
DESCRIPTION
Bottle cooler
Bottle rack/drawer
Bottle cooler
2 drawers (50-50)
Bottle cooler
3 drawers (30-30-30)
Bottle cooler
Bottle rack/drawer, door
Bottle cooler
2 drawers (50-50), door
Bottle cooler
2 drawers (45-55), door
Bottle cooler
3 drawers (30-30-30), door
DESCRIPTION
Bottle cooler
Door, Bottle rack/drawer, door
Bottle cooler
2 drawers (50-50), 2 x door
Bottle cooler
2 x 2 drawers (50-50), door
Bottle cooler
2 drawers (45-55), 2 x door
Bottle cooler
2 x 2 drawers (45-55), door
Bottle cooler
3 drawers (30-30-30), 2 x door
Bottle cooler
2 x 3 drawers (30-30-30), door
SCL-22GMU (with Colour LED)

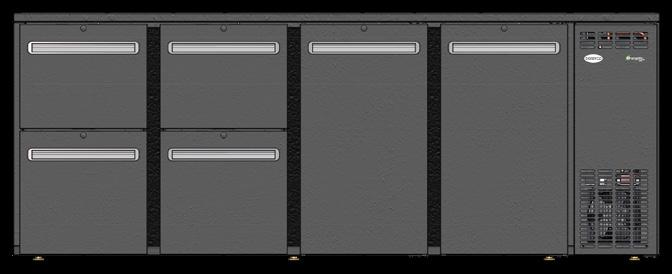

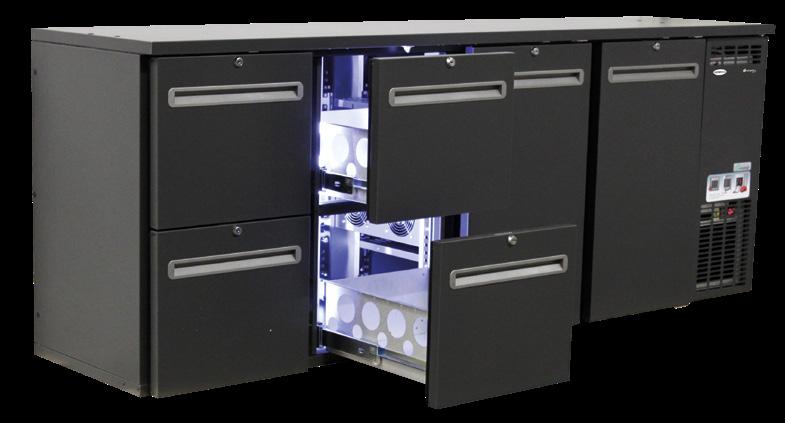

SCL-212MU

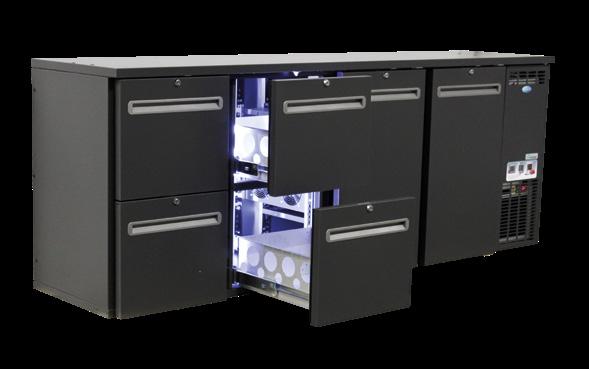

SCL-662MU
SCL sample compositions
DESCRIPTION
Bottle cooler
Door, bottle rack/drawer, 2 x door
Bottle cooler
Door, 2 x bottle rack/drawer, door
Bottle cooler
2 drawers (50-50), bottle rack/drawer, 2 x door
Bottle cooler
2 x 2 drawers (50-50), 2 x door
Bottle cooler
3 x 2 drawers (50-50), door
Bottle cooler
2 drawers (45-55), 3 x door
Bottle cooler
2 x 2 drawers (45-55), 2 x door
Bottle cooler
2 x 3 drawers (30-30-30), 2 x door
Bottle cooler
3 x 3 drawers (30-30-30), door

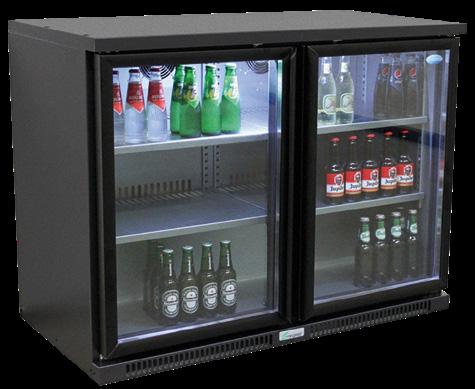

Bottle/Keg cooling SGD
SGD bottle/keg coolers are designed to fit into any hospitality interior. Depending on the situation, bottles and/or kegs are cooled within easy reach. SGD bottle/keg coolers are available as 1, 2 or 3 door models.
1, 2 or 3 door coolers for bottles and/or kegs
Environmentally friendly and low energy consumption
With solid doors or glass doors
PRODUCT FEATURES
■ Forced air cooling
■ Better cooling capacity with 35% lower energy consumption
■ Natural refrigerant R290
■ Maintenance-friendly condenser
This product has been developed with focus on a low energy consumption. The maintenance-friendly condenser requires less maintenance.
Environmentally friendly and low energy consumption

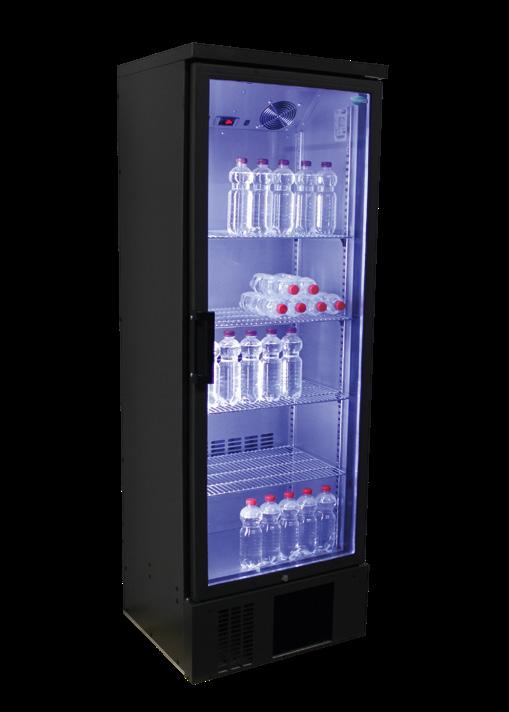

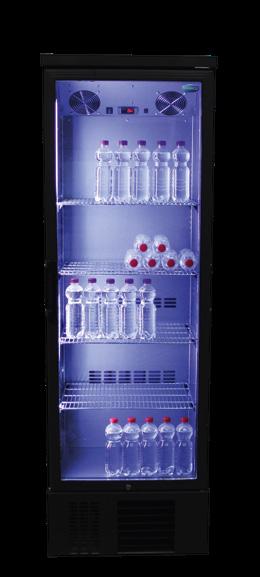

Thanks to their robust appearance, SGD upright bottle coolers are an eye-catcher in any hospitality establishment. The machine group is located below the display compartment, for efficient ventilation and protection of delicate components. The bright LED lighting ensures optimal product presentation (a solid door version is also available).

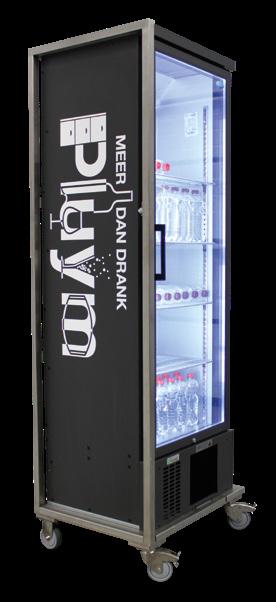

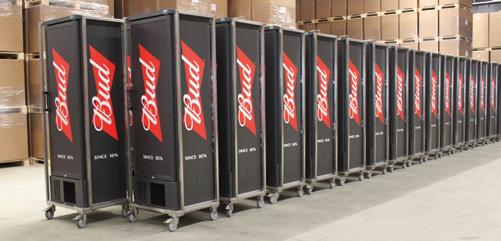

For events, SGD upright bottle coolers are available with a stainless steel mobile frame. These frames are equipped with stainless steel wheels and can take a beating, providing optimal protection for the cooling system.
SGD bottle coolers can also be provided with lettering (branding) on the walls and/or glass door. Please feel free to ask about the possibilities.
PRODUCT FEATURES
■ Forced air cooling
■ Better cooling capacity with 35% lower energy consumption
■ Also available with machine on left (does not apply to SFK-2E)
■ Available with evaporator unit (for split setup)
■ Option: mobile stainless steel frame for events
■ Option: lock on door
Machine left

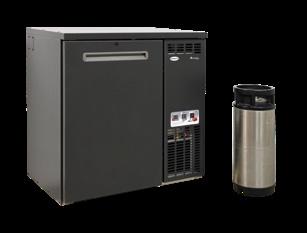

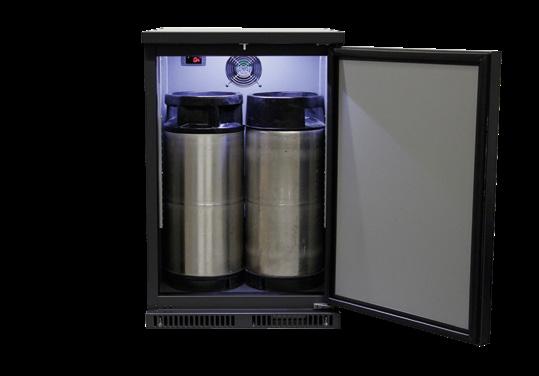

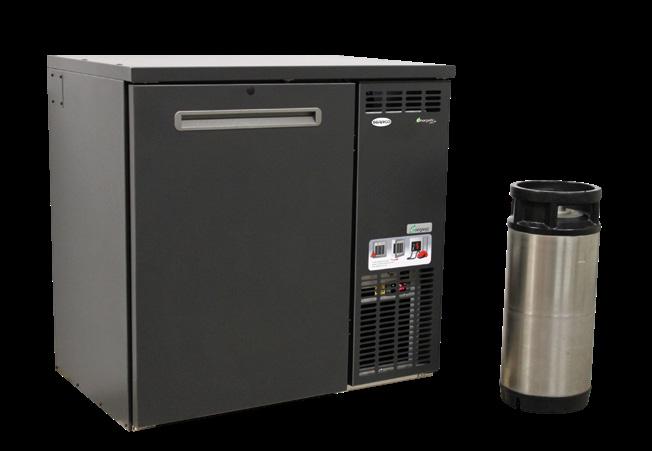

SFK-2E+ 69276
Keg cooler 1 small door
Storage capacity: 2 x 20L
Dimensions W x D x H: 62 x 58 x 84/86 cm

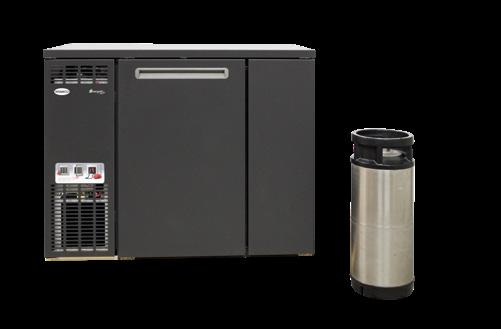

SFK-4E+ 69278
Keg cooler 1 door
Storage capacity: 4 x 20L or 1 x 50L
Dimensions W x D x H: 88 x 58 x 84/86 cm
SFK-4EL+ 69073 Machine left
SFK-6E+ 69074
Keg cooler 1 door + 1 small door
Storage capacity: 6x20L or 2x20L+1x50L
Dimensions W x D x H: 111 x58 x 84/86 cm
SFK-6EL+ 69075 Machine left
SFK-8E+ 69280
Keg cooler 2 doors
Storage capacity: 8 x 20L or 4 x 20L+1 x 50L or 2x50L
Dimensions W x D x H: 135 x 58 x 84/86 cm
SFK-8EL+ 69282 Machine left
Number of kegs
Cooling capacity*
Power consumption
Refrigerant
Temperature setting
Dimensions W x D x H (cm)
* TE = -5°C, TC = 45°C, ambient 25°C
SFK options

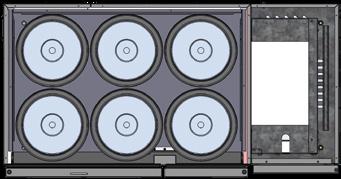

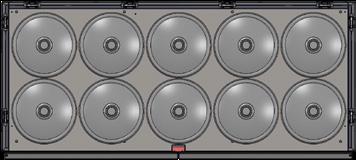

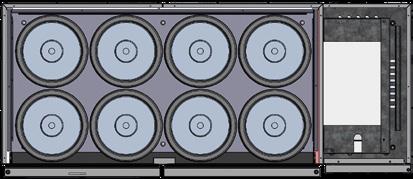

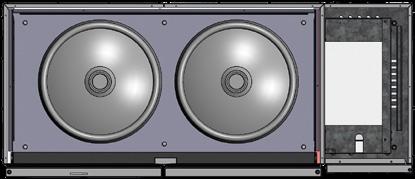

SFK Keg capacity
SFK-2E
SFK-4E
SFK-6E
SFK-8E

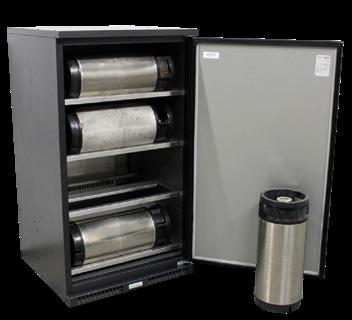

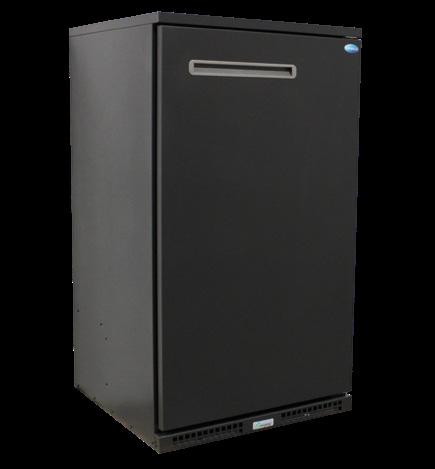

Keg (storage) cooling KSC
The KSC-720E keg (storage) cooler is often combined with the installation of SFK keg coolers to always have pre-cooled kegs available.
This product contains extra sturdy shelves to store 7 x 20L kegs and can be placed anywhere near the dispense point.
Specially developed for storing 7 x 20L kegs
Environmentally friendly and low energy consumption
Easy to maintain
Just like SFK keg coolers, this product has been developed with focus on keeping the energy consumption to a minimum. The machine is completely removable so that quick service in the field is possible.

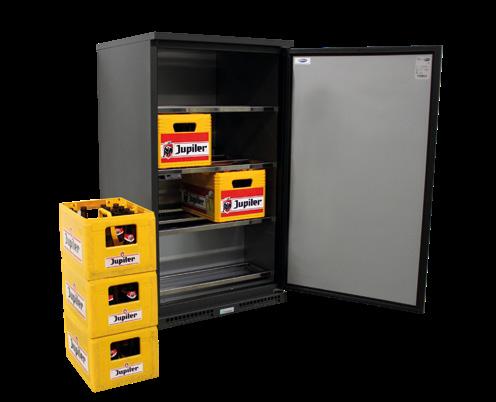

The KSC-720E has also proven to be the ideal cooler for (beer) crates.

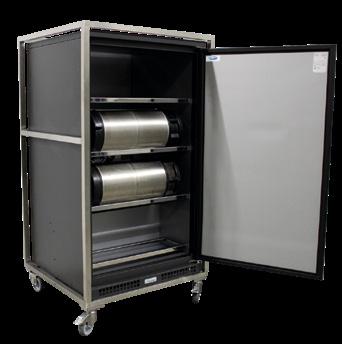

A mobile stainless steel frame is available for events. This frame is equipped with stainless steel wheels and can take a beating, providing optimal protection for the cooling system.
PRODUCT FEATURES
■ Forced air cooling
■ Better cooling capacity with 35% lower energy consumption
OPTION: 69130 Mobile stainless steel frame for KSC-720E
Number of kegs / crates
Cooling capacity*
Power consumption
Refrigerant
Temperature setting
Dimensions W x D x H (cm)
* TE = -5°C, TC = 45°C, ambient 25°C
KSC-720E
630 W
W
+2°C / +10°C
x 75 x 135
Also suitable for the storage of up to 7 crates
Panel structure

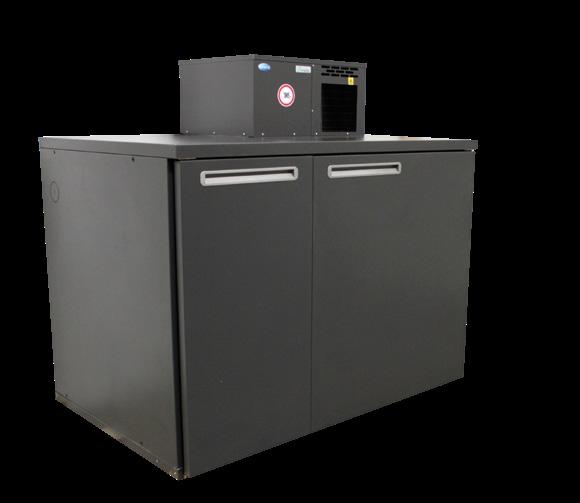

Keg cooling (panels)

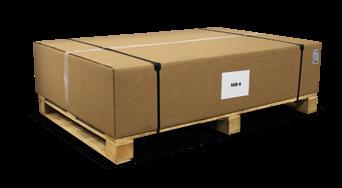

Because the SKB keg cabinets are made up of panels, they can easily be placed in small spaces, such as cellars. The cooler comes as a panel structure with a separate, plug-ready machine unit. The bottom is reinforced and the large doors provide easy access.
Suitable for all keg types
Available with plug-ready machine unit
PRODUCT FEATURES
■ Forced air cooling
■ Better cooling capacity with 35% lower energy consumption
■ Natural refrigerant R290
■ Electronic thermostat with automatic defrosting
■ Reinforced base plate
SKB keg cooling is therefore specially developed for the storage of 20L, 30L and 50L kegs or crates.
Keg cooler, storage capacity: 8 x 20L or 2 x 50L or 4 x 30L
Dimensions W x D x H: 106 x 72 x 106 cm
SKB-4 69069
Keg cooler, storage capacity: 12 x 20L or 3 x 50L or 6 x 30L
Dimensions W x D x H: 147 x 72 x 106 cm
SKB-4.1 69274
Keg cooler, storage capacity: 12 x 20L or 4 x 50L or 8 x 30L
Dimensions W x D x H: 106 x 98 x 106 cm
SKB-6 69070
Keg cooler, storage capacity: 16 x 20L or 4 x 50L or 8 x 30L
Dimensions W x D x H: 187 x 72 x 106 cm
SKB-8 69071
Keg cooler, storage capacity: 18 x 20L or 6 x 50L or 12 x 30L
Dimensions W x D x H: 147 x 98 x 106 cm
SKB-10 69072
Keg cooler, storage capacity: 24 x 20L or 8 x 50L or 16 x 30L
Dimensions W x D x H: 187 x 98 x 106 cm
Keg cooler, storage capacity: 30 x 20L or 10 x 50L or 20 x 30L
Dimensions W x D x H: 220 x 98 x 106 cm
SKB-MU 69127
Machine unit plug-ready for SKB
Cooling capacity: 630 W
Dimensions W x D x H: 62 x 53 x 36 cm
SKB-MU50R 69128
Machine unit plug-ready for SKB
Montage aan rechterzijde
Cooling capacity: 919 W
Dimensions W x D x H: 35 x 50 x 85 cm
Storage
Cooling capacity*
Power
Refrigerant
*) TE = -5°C, TC = 45°C, ambient 25°C
SKB-MU SKB-MU 50 R
630 W 919 W
W 550 W R290 R290
/ +10°C +2°C / +10°C
X 53 X 36 35 X 50 X 85

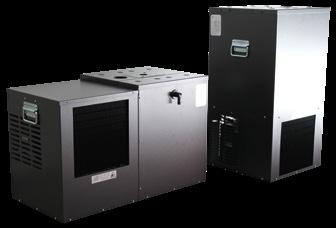

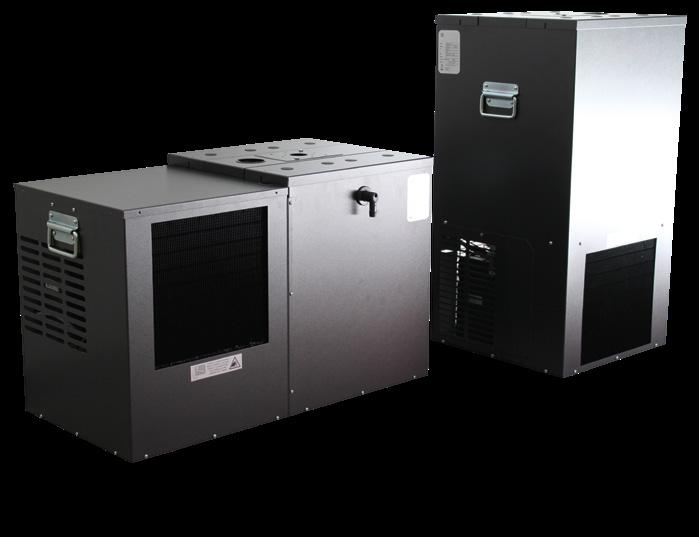

Beer coolers SBC
Powerful water bath cooling for keg beer
Serrco has been supplying beer coolers to the international beverage industry for years.
Proven technology, first-class components and production know-how ensure cold draught beer at any location.
Proven technology with first-class components
Plug-ready
PRODUCT FEATURES
■ Skinplate housing
■ Electronic thermostat
■ Coated steel condenser with fan motor
All beer coolers are supplied as standard with R290 as refrigerant, which also contributes to a better environment.
In addition to the standard range, an extensive range of customer-specific coolers is produced. Feel free to ask about the possibilities without obligation.
■ Standard handles
■ Water overflow
■ Polyethylene water bath with 20 mm polyurethane insulation
■ 3 removable top lids
■ Beer coils and (agitator) pump separately available
Tap capacity L/hour**
Cooling capacity***
Icebank capacity KG
Water bath capacity L
Power consumption
Refrigerant
Temperature setting
Dimensions W x D x H (cm)*
ARTICLE ITEM NO.
SBC25/40 68928
Beer cooler vertical, 1/4 hp, water bath 40L
Tap capacity per hour: 75L**
Dimensions W x D x H: 40 x 40 x 59 cm*
SBC50/54 68926
Beer cooler vertical, 1/2 hp, water bath 54L
Tap capacity per hour: 150L**
Dimensions W x D x H: 40 x 40 x 75 cm*
SBC50/54H 68927
Beer cooler horizontal, 1/2 hp, water bath 54L
Tap capacity per hour: 150L**
Dimensions W x D x H: 74 x 40 x 50 cm*
SBC50/87H 68929
Beer cooler horizontal, 1/2 hp, water bath 87L
Tap capacity per hour: 180L**
Dimensions W x D x H: 88 x 50 x 48 cm*
SBC75/87H 68930
Beer cooler horizontal, 3/4 hp, water bath 87L
Tap capacity per hour: 210L**
Dimensions W x D x H: 97 x 50 x 48 cm*
SBC75/137H 68931
Beer cooler horizontal, 3/4 hp, water bath 137L
Tap capacity per hour: 260L**
Dimensions W x D x H: 122 x 56 x 50 cm*
* excluding agitator (pump) and beer coils ** with a 10°C difference between keg and dispense temperature, the icebank capacity is consumed in 3 hours
TE = -2°C, TC = 45°C, ambient 25°C
SBC options
69103 Beer coil double (2 x 15M), 8,5/9,5 mm, 5/8 connection
69102
69105
Agitator motor small M4S (SBC25/40, SBC50/54, SBC 50/87)
Agitator motor large M2S (SBC75/87H, SBC75/137H)
69104
Agitator pump Saber ST/R 6M head
69101 Agitator pump Saber ST/B 12M head

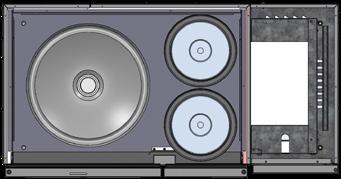

The ideal event cooler: SBC63/52
Serrco beer coolers are used in a fixed setup or at events. The ideal event cooler is type SBC63/52.
This cooler comes standard with a stainless steel housing, mechanical thermostat, agitator motor (in protective cover), service hatch/ fill opening, 2 beer coils (2 x 20M, 6/7mm) and a ½” drain valve at the bottom. The combination of robust technology and optimum cooling capacity has made this the most widely used cooler at events.
ARTICLE ITEM NO.
SBC63/52 69537
Tap capacity L/hour**
Cooling capacity***
Icebank capacity KG
Water bath capacity L
Power consumption
Refrigerant
Temperature setting
Dimensions W x D x H (cm)*
DESCRIPTION
Event beer cooler, 5/8 hp, water bath 52L
Including agitator motor, drain valve and double beer coil (2 x 20M. 7/8 mm)
Tap capacity per hour: 160L**
Dimensions W x D x H: 65 x 45 x 55 cm*
SBC63/52
160 1640 W 20 52 810 W R290
-2°C/ +12°C 65 x 45 x 55
* Excluding agitator (pump) and beer coils
** With a 10°C difference between keg and dispense temperature, the icebank capacity is consumed in 3 hours
*** TE = -2°C, TC = 45°C, ambient 25°C
CUSTOMER-SPECIFIC PRODUCTS
■ 1 hp event cooler
■ Glycol cooler for tank beer
■ Booster/ glycol cooler
■ ¾ hp vertical beer cooler
Spare parts
Parts for all our products are available from stock, whether it is thermostats, fan motors or door deals.
For spare parts please consult our web shop www.serrco.nl.
Serrco BV
Elementweg 7 4706 NN Roosendaal Netherlands
T: +31(0)76 541 85 30
E: info@serrco.nl serrco.nl
TEFCOLD FR
3, 5 rue Saint George 75009 Paris France
T: +33 4 76 65 00 92
E: info@tefcold.fr tefcold.fr
EUREKA Kühltechnik GmbH
Nickelweg 5 48282 Emsdetten Germany
T: +49 (0)2572-9554-0
E: info@eureka-emsdetten.de tefcold.de
TEFCOLD A/S
Industrivej 25 8800 Viborg Denmark
T: +45 8660 1933
E: sales@tefcold.com tefcold.com
TEFCOLD Iberia Fluvià, 65 08019- Barcelona Spain
T: +34 935 245 074
E: comercial@tefcold.es tefcold.es
TEFCOLD SK s.r.o.
Vlčie hrdlo 50 821 07 Bratislava Slovakia
T: +421 911 770 462
E: elektro@tefcold.com tefcold.sk
TEFCOLD BE Lichtenberglaan 1023 3800 Sint-Truiden Belgium
T: +32 (0) 11 / 782 698
E: receptie@tefcold.be tefcold.be
TEFCOLD UK Ltd West Meadow Rise Castle Donington Derby | DE74 2HL | UK
T: +44 (0) 1332 850090
E: sales@tefcold.co.uk tefcold.co.uk
TEFCOLD CZ s.r.o.
Logistics area P3 Ostrava Central, hall L1, Vítkovice 3046, 703 00 Ostrava Czech Republic
