Cold Rooms
COLD ROOMS
COLD ROOMS (COOLING) – COLD ROOMS (FREEZING)
Cold rooms perfect as plug - in with quick and easy assemble The cooling units comes completely pre- mounted in a panel and does not require extra expert knowledge. There is no need for cutting or drilling when assembling
and freezer rooms are are
The cold rooms can be used in restaurants, delis, cafes etc. They are a great way to create optimal and efficient cooling space at a very affordable price. Cold rooms a perfect and easily accessable way to store foods, dairy products, and beverages
The interchangeable modular panels even allow varies positioning of both the panel with the cooling unit and the panel with the door
The many differen t cold room sizes give a good fit in most conditions Cold rooms are available as both cool er and freez er models Sh elves are optional
General info about our cold rooms
• Temperature range from 0 to +8 °C
Plug-in – meaning it is ready to use after assembly
• Interlocking system makes it easy to assemble the cold room (tools are packed with the products)
• 80 mm panel insulation
• Low energy consumption compared to size (ranging from 17,93 to 25,92 kWh/24h)
• Eco-friendly refrigerant R290
• No special installation requirements, as refrigerant charge is below 150 g
• Anti-slip floor in SS304 stainless steel
• Max load on floor is 1500 kg/m2
• All stocked products are ready in our web shop. For “to-order products”, please contact your regular sales team
General info about our freezer rooms
• Temperature range from -20 to 0 °C
Plug-in – meaning it is ready to use after assembly
• Interlocking system makes it easy to assemble the freezer room
• (tools are packed with the products) 120 mm panel insulation
• Low energy consumption compared to size (ranging from 22,49 to 31,78 kWh/24h)
• Eco-friendly refrigerant R290
• No special installation requirements, as refrigerant charge is below 150 g
• Anti-slip floor in SS304 stainless steel
• Max load on floor is 2000 kg/m2
All stocked products are ready in our web shop. For “to-order products”, please contact your regular sales team
Real life installation
A very satisfied TEFCOLD costumer in Hellevad, Denmark got these two rooms. A cold room CRPF2130 (item 44183) and a freezer room CRNF2130 (item 44239) with corresponding shelf rack system kit (item 45721) and ramp (accessory item 44317).
Easy assembly and (almost) endless possibilities
Our cold rooms and freezer rooms are easy to assemble. They are built from panels with an interlocking system. This means that you can create various constellations, where you e.g. move the door or the panel with the cooling unit.
You only need to make sure that you switch the door or the cooling unit with a panel with the same dimensions and shape. The illustrations in this catalogue are therefore only one example of how each room could look like.
We have many cold rooms and freezer rooms to choose from. If you would like to customize your own cooling solution, you can also buy panel kits and cooling units individually.
No matter which solution you choose, the cooling unit always comes as a separate piece to optimize transport. To install it, simply exchange it with the corresponding top panel as seen on the illustration.
VIDEO GUIDE
Cold Rooms - available sizes
Our cold rooms are available in numerous sizes – some in stock (marked with an * ) others as "to-order products". Lead time on to-order products are 8-10 weeks.
Cold Room Complete Shelf Rack System Kit Item no. 44162 44163 44164 44165 44166 44167 44168 44169 44170 44171 44172 44173 44174 44394 44175 44176 44177 44178 44179 44180 44181 44182 44183 44184 44185 44186 44187 44188 44189 Model CRPF1212 CRPF1215 CRPF1218 CRPF1221 CRPF1224 CRPF1227 CRPF1230 CRPF1515 CRPF1518 CRPF1521 CRPF1524 CRPF1527 CRPF1530 CRPF1815 CRPF1818 CRPF1821 CRPF1824 CRPF1827 CRPF1830 CRPF2121 CRPF2124 CRPF2127 CRPF2130 CRPF2424 CRPF2427 CRPF2430 CRPF2727 CRPF2730 CRPF3030 1040x1040x2040 1040x1340x2040 1040x1640x2040 1040x1940x2040 1040x2240x2040 1040x2540x2040 1040x2840x2040 1340x1340x2040 1340x1640x2040 1340x1940x2040 1340x2240x2040 1340x2540x2040 1340x2840x2040 1640x1340x2040 1640x1640x2040 1640x1940x2040 1640x2240x2040 1640x2540x2040 1640x2840x2040 1940x1940x2040 1940x2240x2040 1940x2540x2040 1940x2840x2040 2240x2240x2040 2240x2540x2040 2240x2840x2040 2540x2540x2040 2540x2840x2040 2840x2840x2040 Internal dimensions WxDxH (mm) Internal volume (m3) 2,20 2,84 3,48 4,10 4,75 5,39 6,03 3,66 4,48 5,30 6,12 6,94 7,76 4,48 5,49 6,49 7,49 8,50 12,34 7,68 8,87 10,05 11,24 10,24 11,60 12,98 13,16 14,72 16,45 External dimensions WxDxH / wall thickness (mm) 1200x1200x2200 / 80 1200x1500x2200 / 80 1200x1800x2200 / 80 1200x2100x22000 / 80 1200x2400x2200 / 80 1200x2700x2200 / 80 1200x3000x2200 / 80 1500x1500x2200 / 80 1500x1800x2200 / 80 1500x2100x2200 / 80 1500x2400x2200 / 80 1500x2700x2200 / 80 1500x3000x2200/ 80 1800x1500x2200 / 80 1800x1800x2200/ 80 1800x2100x2200 / 80 1800x2400x2200 / 80 1800x2700x2200 / 80 1800x3000x2200 / 80 2100x2100x2200 / 80 2100x2400x2200 / 80 2100x2700x2200 / 80 2100x3000x2200 / 80 2400x2400x2200 / 80 2400x2700x2200 / 80 2400x3000x2200 / 80 2700x2700x2200 / 80 2700x3000x2200 / 80 3000x3000x2200 / 80 Item no. 46196 46196 46197 46198 46199 46200 46201 45707 45865 45709 45866 46202 46203 45713 45867 46204 46206 46212 46213 45716 46214 45720 45724 45869 46215 45512 45726 46216 46217 * * * * * *
H100536 120 120 H100536 120 150 H100536 E85936 120 180 H100536 E106436 120 210 H100536 E1369436 120 240 H100536 E85936 E85936 120 270 H100536 E85936 E106436 120 300 H130536 150 150 H130536 E85936 150 180 H130536 E106436 150 210 H130536 E1369436 150 240 H130536 E85936 E85936 150 270 H130536 E85936 E106436 150 300 H120536 E116436 180 150 E85936 H14136 H1 10536 180 180 E85936 E65936 H120536 H14136 180 210 E85936 H15136 H15136 E65936 240 180 E65936 H15136 E96436 E85936 H130536 180 270 E85936 E65936 H15136 H15136 E126436 180 300 E65936 H120536 H14136 E116436 210 210 E116436 H15136 H15136 E65936 210 240 E116436 E65936 H15136 E96436 H130536 210 270 E116436 E65936 H15136 H15136 E126436 210 300 H15136 H15136 E1469436 E65936 240 240 E1469436 E65936 H15136 E96436 H130536 240 270 E1469436 E65936 H15136 H15136 E126436 240 300 E65936 H15136 E96436 E85936 E85936 H130536 270 270 E85936 E85936 E65936 H15136 H15136 E126436 270 300 E65936 H15136 H15136 E96436 E106436 E126436 300 300 120 150 180 210 240 270 300
150 120
300 270 240 210 180
Freezer Rooms - available sizes
Our freezer rooms are available in numerous sizes – some in stock (marked with an * ) others as "to-order products". Lead time on to-order products are 8-10 weeks.
Freezer Room Complete Shelf Rack System Kit Item no. 44218 44219 44220 44221 44222 44223 44224 44225 44226 44227 44228 44229 44230 44396 44231 44232 44233 44234 44235 44236 44237 44238 44239 44240 44241 44242 44243 44244 44245 Model CRNF1212 CRNF1215 CRNF1218 CRNF1221 CRNF1224 CRNF1227 CRNF1230 CRNF1515 CRNF1518 CRNF1521 CRNF1524 CRNF1527 CRNF1530 CRNF1815 CRNF1818 CRNF1821 CRNF1824 CRNF1827 CRNF1830 CRNF2121 CRNF2124 CRNF2127 CRNF2130 CRNF2424 CRNF2427 CRNF2430 CRNF2727 CRNF2730 CRNF3030 960x960x1960 960x1260x1960 960x1560x1960 960x1860x1960 960x2160x1960 960x2460x1960 960x2760x1960 1260x1260x1960 1260x1560x1960 1260x1860x1960 1260x2160x1960 1260x2460x1960 1260x2760x1960 1560x1260x1960 1560x1560x1960 1560x1860x1960 1560x2160x1960 1560x2460x1960 1560x2760x1960 1860x1860x1960 1860x2160x1960 1860x2460x1960 1860x2760x1960 2160x2160x1960 2160x2460x1960 2160x2760x1960 2460x2460x1960 2460x2760x1960 2760x2760x1960 Internal dimensions WxDxH (mm) Internal volume (m3) 1,81 2,37 2,94 3,50 4,06 4,63 5,19 3,11 3,85 4,59 5,33 6,08 6,82 3,85 4,77 5,69 6,60 7,52 8,44 6,78 7,87 8,97 10,06 9,14 10,41 11,68 11,86 13,31 14,93 External dimensions WxDxH / wall thickness (mm) 1200x1200x2200 / 120 1200x1500x2200 / 120 1200x1800x2200 / 120 1200x2100x2200 / 120 1200x2400x2200 / 120 1200x2700x2200 / 120 1200x3000x2200 / 120 1500x1500x2200 / 120 1500x1800x2200 / 120 1500x2100x2200 / 120 1500x2400x2200 / 120 1500x2700x2200 / 120 1500x3000x2200 / 120 1800x1500x2200 / 120 1800x1800x2200 / 120 1800x2100x2200 / 120 1800x2400x2200 / 120 1800x2700x2200 / 120 1800x3000x2200 / 120 2100x2100x2200/ 120 2100x2400x2200 / 120 2100x2700x2200 / 120 2100x3000x2200 / 120 2400x2400x2200 / 120 2400x2700x2200 / 120 2400x3000x2200 / 120 2700x2700x2200 / 120 2700x3000x2200 / 120 3000x3000x2200 / 120 Item no. 46218 46218 46219 46220 46221 46222 46223 45708 45511 45710 45522 46224 46225 45712 45523 46226 46227 46228 46229 45715 46230 45719 45721 45864 46231 45722 45723 46232 46233 *
H9036 120 120 H9036 120 150 H9036 E85936 120 180 H9036 E1 16436 120 210 H9036 E1469436 120 240 H9036 E85936 E85936 120 270 H9036 E96436 E106436 120 300 H120536 150 150 H120536 E85936 150 180 H120536 E1 16436 150 210 H120536 E1469436 150 240 H120536 E85936 E85936 150 270 H120536 E96436 E106436 150 300 H15136 E85936 180 150 H15136 E1 16436 E85936 180 180 H15136 E1 16436 E1369436 180 210 H15136 E1469436 E85936 E85936 180 240 H15136 E85936 E85936 E96436 E106436 180 270 H14136 E1369436 E1469436 210 210 E1469436 H1 10536 E75936 E85936 E85936 210 240 E1469436 H1 10536 E96436 E96436 E96436 210 270 E1469436 E106436 H130536 E1 16436 E106436 210 300 E1469436 E85936 E85936 H120536 E85936 240 240 E85936 H120536 E85936 E85936 E96436 E106436 240 270 H120536 E85936 E96436 E106436 E1 16436 E1 16436 300 240 E85936 H120536 E85936 E96436 E106436 E116436 270 270 H120536 E96436 E106436 E116436 E1 16436 E1 16436 270 300 E96436 E106436 E116436 E1 16436 E1 16436 H15136 300 300 120 150 180 210 240 270 300 300 270 240 210 180 150 120 H15136 E96436 E106436 E1 16436 E1 16436 180 300

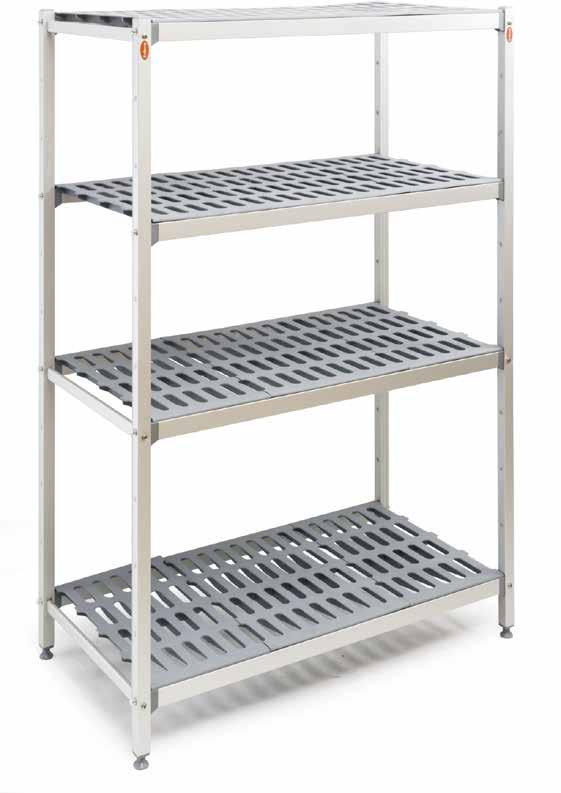

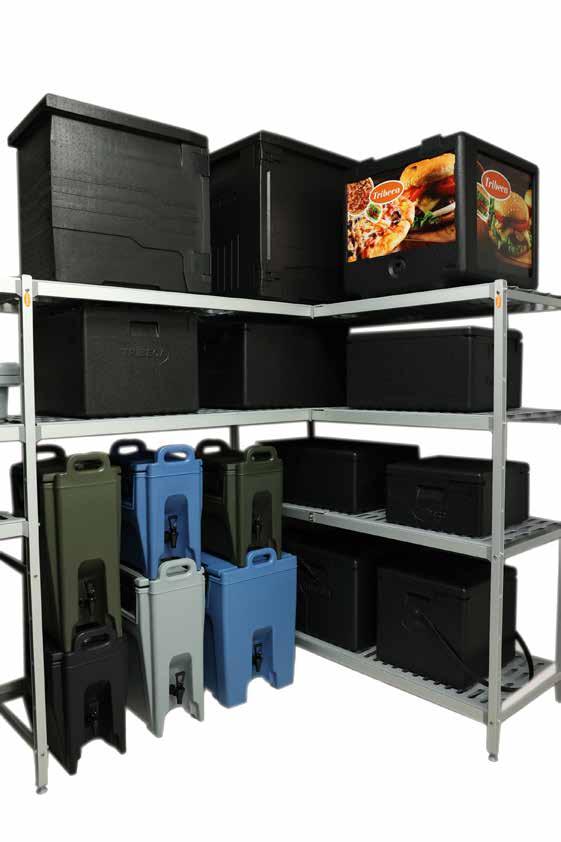

Shelf rack modules available as accessories
• The item numbers on this page represents individual shelf racks. If you would like a complete shelf rack kit, see page 7 for cold room overview and page 9 for freezer room overview.
• Famous system patented uprights / horizontal shelf rails
Allowing “L”, “U”, “T” and “+” layouts
• Easy and quickly assembly
• Highest hygienic standards, dishwasher safe (-30 C / +90 C)
• 90kg/level and 450kg between 2 uprights
Additional accessories
Alarm kit for freezer rooms
Strip curtain for frezer rooms
Ramp for freezer rooms (120 mm)
Ramp for cold rooms (80 mm)
47840
47841
Wheels for shelf rack modules – with brake
Wheels for shelf rack modules – no brake
Item no. 46194 46193 46717 45503 45504 45505 45506 46195 45711 45718 45521 45507 46704 45509 Type H-module H-module H-module H-module H-module H-module E-module E-module E-module E-module E-module E-module E-module E-module Size WxDxH in cm 900x360x1680 1005x360x1680 1105x360x1680 1205x360x1680 1410x360x1680 1510x360x1680 659x360x1680 759x360x1680 859x360x1680 964x360x1680 1064x3601680 1164x360x1680 1264x360x1680 1469x360x1680 Item no. 13680 44316 45344 44317 Type
Optional wheels
PASSION FOR COOLING
Who are we
TEFCOLD is a family-owned company with headquarters in Viborg, Denmark. Cooling is our passion and we have more than 35 years of experience distributing commercial cooling equipment. Today we are one of the market leaders within the plug-in refrigeration industry. With the help of professional distributors and business partners, we export to customers in more than 100 countries worldwide. Our goal is to help customers keep temperatures down and sales up.
The TEFCOLD GROUP in numbers
• 150+ employees in 8 countries
• 50.000 m2 warehouse spread across Denmark, the United Kingdom, Belgium, France, and the Czech Republic
• 70.000+ units in stock
• 5000+ customers in 100 countries
• 170.000 units sold yearly
WHY BUY FROM US
Always a solution in stock for you
As you can see in this catalogue, we offer a wide range of coolers and freezers, and we always have more than 70.000 units in stock.
Global delivery
To ensure fast delivery, we have offices and warehousing throughout Europe. No minimum order quantity, mix your order as preferred and enjoy super-fast delivery times. Delivery direct from one of our factories is also an option.
Save money – use our warehouse
You are welcome to arrange deliveries directly from one of our European warehouses to your customers. This way you can invest in the products you need now instead of filling up your own warehouse.
Standard or customized products
With us you always have the choice between standard or customized products. We develop new and innovative products based on market needs or customer request, and we have our own in-house branding facilities.
High-quality products
All of our existing and new products undergo strict quality control in our state-of-the-art testing facilities to ensure quality, reliability, efficiency, and to comply with regulations.
Eco-friendly
Our new products are developed with focus on keeping the energy consumption to a minimum, and we only use eco-friendly refrigerants.
Easy to do business with
It is our mission to work hard every day to provide our customers an excellent service and make their life easy. If you have any questions, our dedicated team will be glad to answer them.
COMMERCIAL COOLING WHEN IT SUITS YOU
Making life easier for our customers is important to us and we therefore focus a lot of energy on developing useful IT tools that can help with this. On this page you can see an overview of some of the solutions we have come up with – which you get access to with a web login.
Benefits of being a TEFCOLD customer with a web shop login:
● Buy 24/7 at your convenience, in your local language
● Always with your agreed prices and potential warranty agreements
● Possibility to buy on credit
● See your transport costs immediately – based on calculated loading meters
● Real time stock info
● Date of arrival if a product is sold out
● Customer center with status on orders and invoices as well as tracking codes
● Access to additional documents like product drawings, electrical diagrams, energy labels etc.
● MediaBank with all product images ready for download
● Live XML feed so you can integrate our products to your web shop
● PDF offer function - use our web shop to make offers for your customers
● Comparison function - compare different products to make an informed decision
● Create favorite lists for e.g. different product groups, projects, customers
