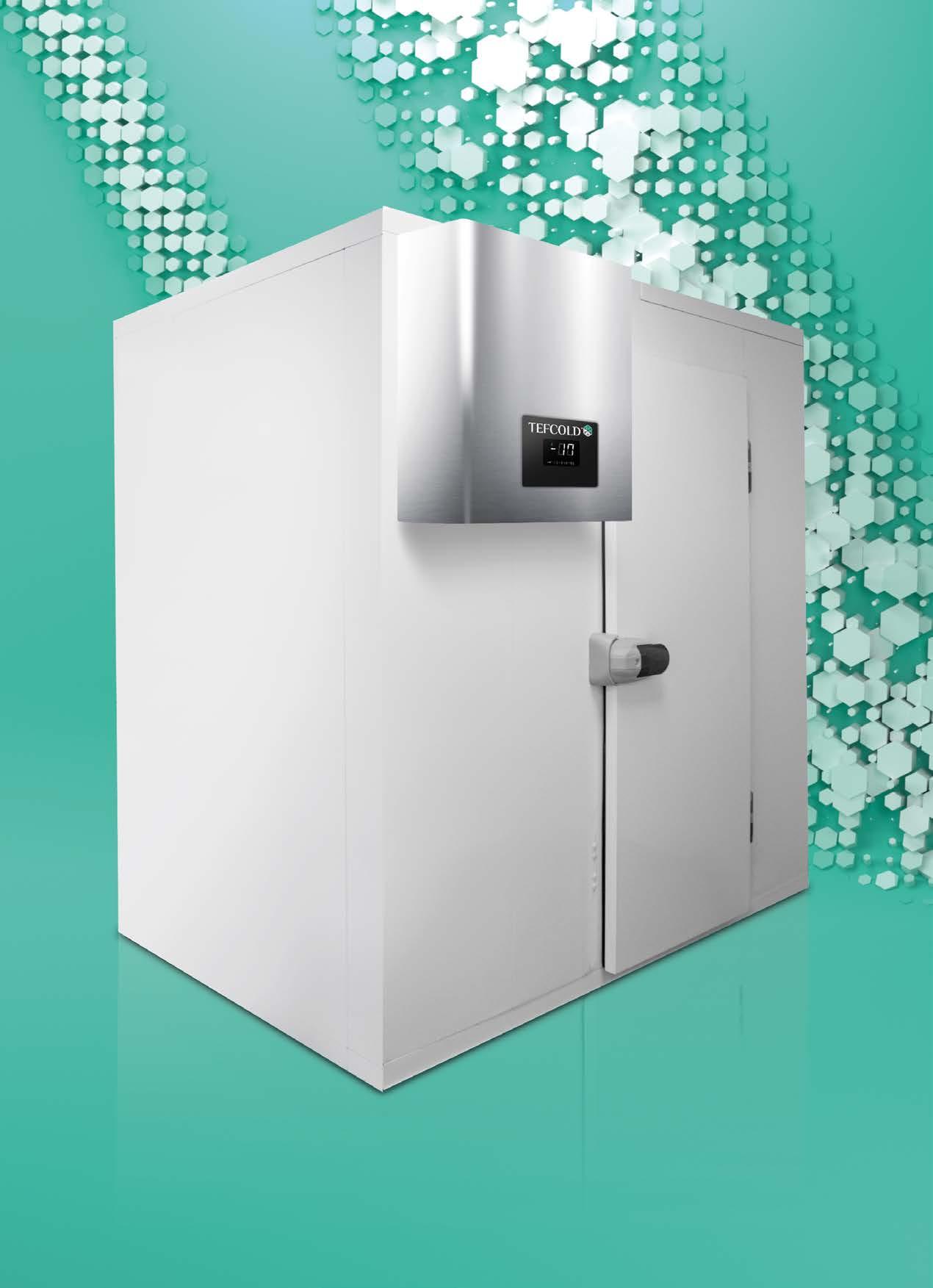

COLD ROOMS

COLD ROOMS (COOLING) – COLD ROOMS (FREEZING)

Cold rooms perfect as plug - in with solution quick and easy assemble The cooling units come completely pre- mounted in a panel and does not require extra expert knowledge. There is no need for cutting or drilling when assembling and freezer rooms are are

The cold rooms can be used in restaurants, delis, cafes etc. They are a great way to create optimal and efficient cooling space at a very affordable price. Cold rooms a perfect and easily accessable way to store foods, dairy products, and beverages

The interchangeable modular panels even allow varies positioning of both the panel with the cooling unit and the panel with the door

The many differen t cold room sizes give a good fit in most conditions Cold rooms are available as both (cooling unit) and panels are delivered separately, and it is therefore also possible to buy them individually. Sh elves cool er and freez er models The monoblock are optional

General info about our cold rooms

• Temperature range from 0 to +8 °C

Plug-in – meaning it is ready to use after assembly

• Interlocking system makes it easy to assemble the cold room (tools are packed with the products)

• 80 mm panel insulation

• Low energy consumption compared to size (ranging from 17,93 to 25,92 kWh/24h)

• Eco-friendly refrigerant R290

• No special installation requirements, as refrigerant charge is below 150 g

• Anti-slip floor in SS304 stainless steel

• Max load on floor is 1500 kg/m2

• All stocked products are ready in our web shop. For “to-order products”, please contact your regular sales team

General info about our freezer rooms

• Temperature range from -20 to 0 °C

Plug-in – meaning it is ready to use after assembly

• Interlocking system makes it easy to assemble the freezer room

• (tools are packed with the products) 120 mm panel insulation

• Low energy consumption compared to size (ranging from 22,49 to 31,78 kWh/24h)

• Eco-friendly refrigerant R290

• No special installation requirements, as refrigerant charge is below 150 g

• Anti-slip floor in SS304 stainless steel

• Max load on floor is 2000 kg/m2

All stocked products are ready in our web shop. For “to-order products”, please contact your regular sales team

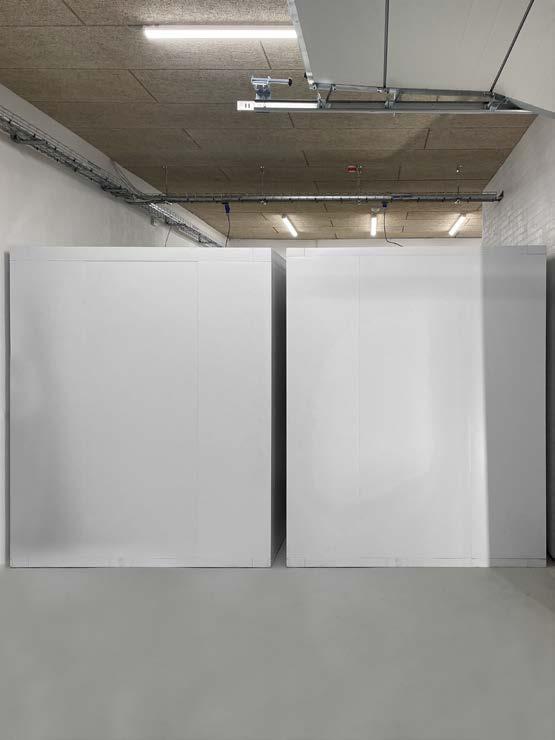

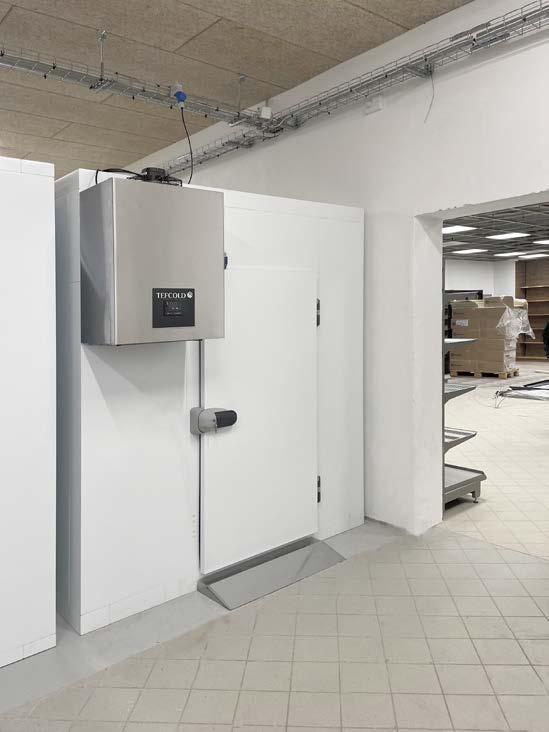

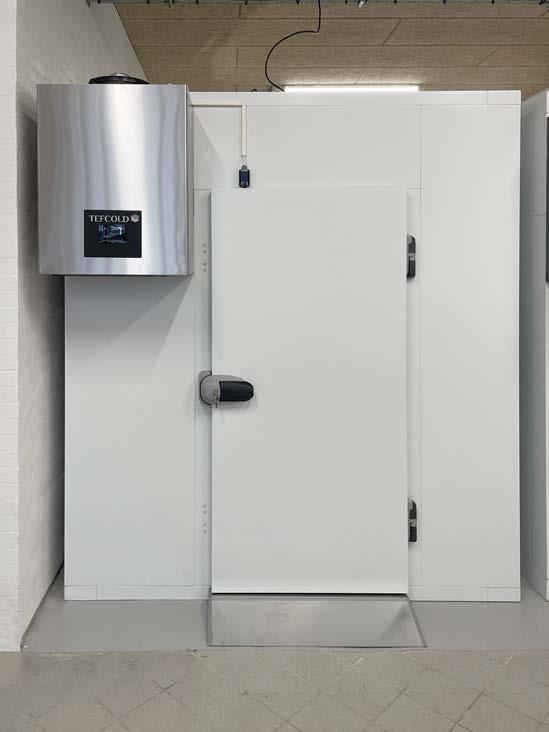

Real life installation

A very satisfied TEFCOLD costumer in Hellevad, Denmark got these two rooms. A cold room CRPF2130 (item 44183) and a freezer room CRNF2130 (item 44239) with corresponding shelf rack system kit (item 45721) and ramp (accessory item 44317).

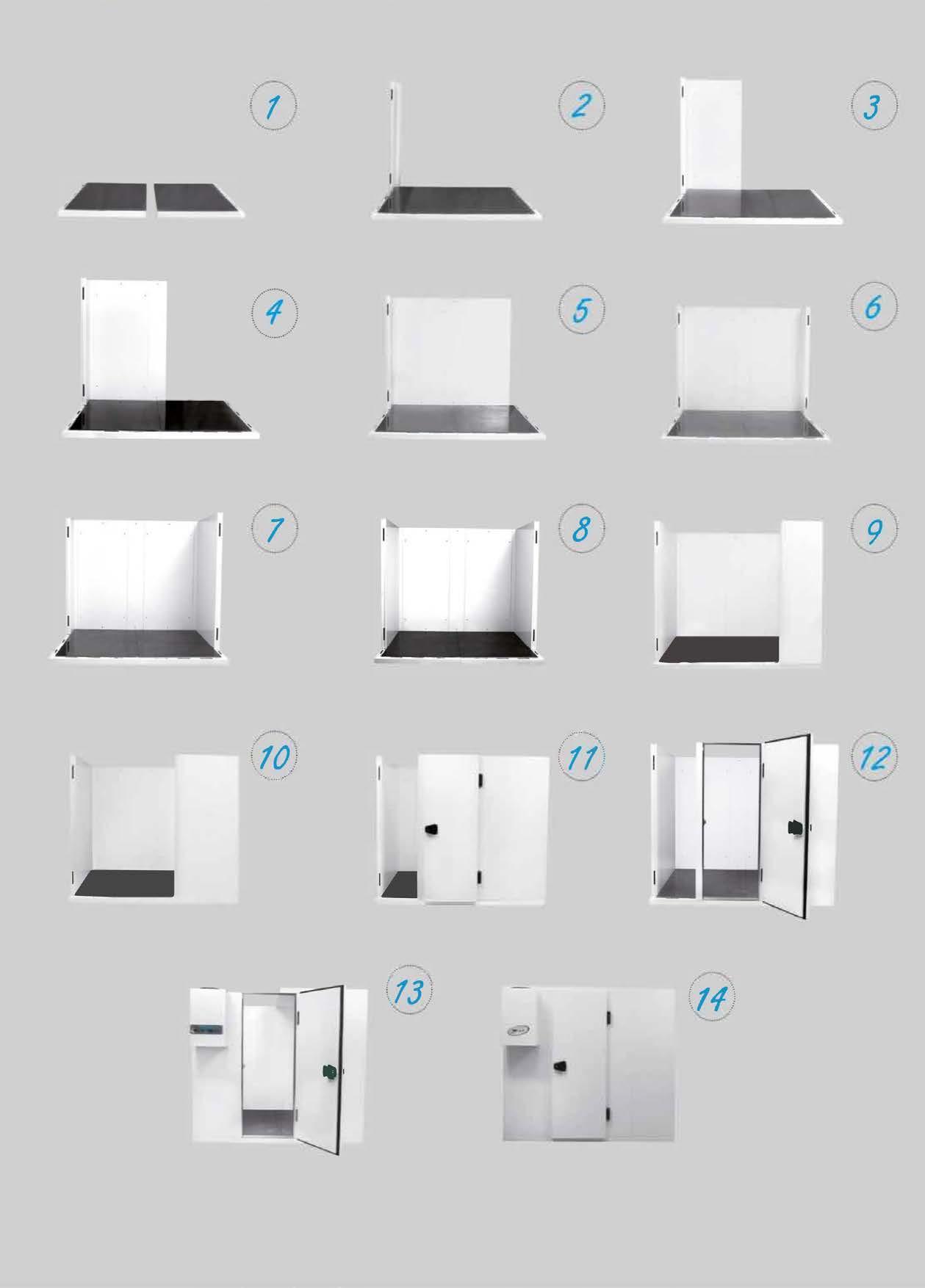

Easy assembly and (almost) endless possibilities

Our cold rooms and freezer rooms are easy to assemble. They are built from panels with an interlocking system. This means that you can create various constellations, where you e.g. move the door or the panel with the cooling unit.

You only need to make sure that you switch the door or the cooling unit with a panel with the same dimensions and shape. The illustrations in this catalogue are therefore only one example of how each room could look like.

We have many cold rooms and freezer rooms to choose from. If you would like to customize your own cooling solution, you can also buy panel kits and cooling units individually.

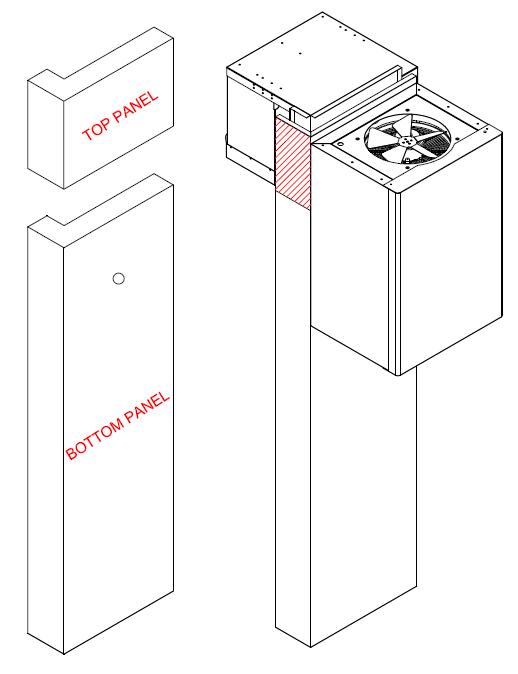

No matter which solution you choose, the cooling unit always comes as a separate piece to optimize transport. To install it, simply exchange it with the corresponding top panel as seen on the illustration.

Cold Rooms - available sizes

Our cold rooms are available in numerous sizes – some in stock (marked with an * ) others as "to-order products". Lead time on to-order products are 8-10 weeks.

Freezer Rooms - available sizes

Our freezer rooms are available in numerous sizes – some in stock (marked with an * ) others as "to-order products". Lead time on to-order products are 8-10 weeks.

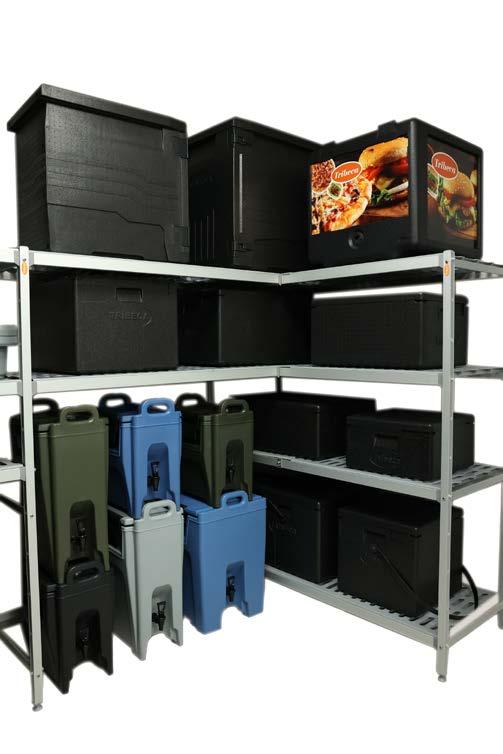

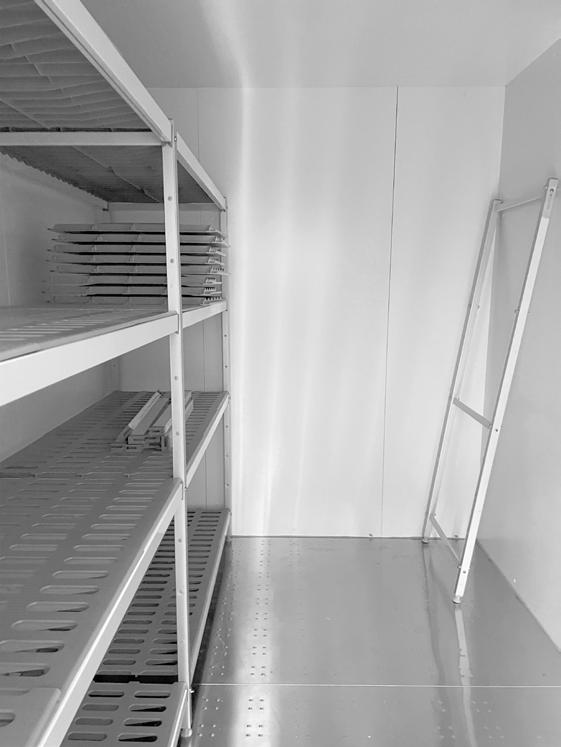

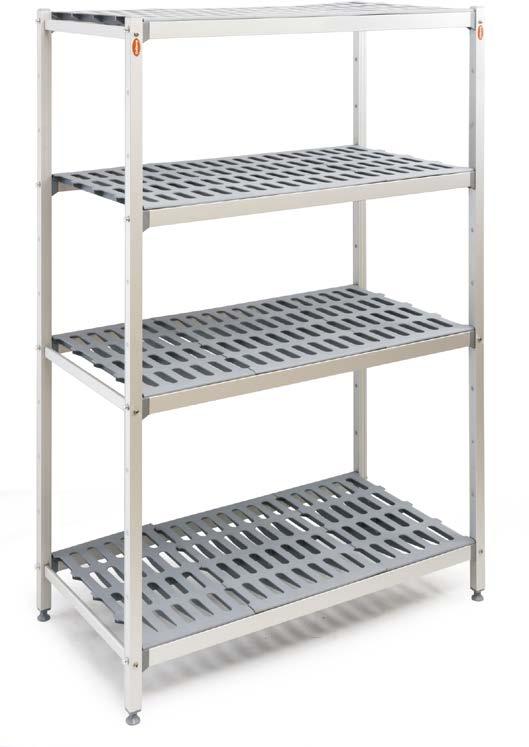

Shelf rack system kits available as accessories

• You can see the layout of each shelf rack system kit on the overview with drawings of the different rooms (page 9 for cold rooms and page 11 for freezer rooms)

• Famous system patented uprights / horizontal shelf rails

Easy and quickly assembly

• Highest hygienic standards, dishwasher safe (-30 C / +90 C)

• 90kg/level and 450kg between 2 uprights

Shelf Rack System Kit Model

A perfect fit for cold rooms

CRPF1212

CRPF1215

CRPF1218

CRPF1221

CRPF1224

CRPF1227

CRPF1230

CRPF1515

CRPF1518

CRPF1521

CRPF1524

CRPF1527

CRPF1530

CRPF1815

CRPF1818

CRPF1821

CRPF1824

CRPF1827

CRPF1830

CRPF2121

CRPF2124

CRPF2127

CRPF2130

CRPF2424

CRPF2427

CRPF2430

CRPF2727

CRPF2730

CRPF3030

Shelf Rack System Kit Model

A perfect fit for freezer rooms

CRNF1212

CRNF1215

CRNF1218

CRNF1221

CRNF1224

CRNF1227

CRNF1230

CRNF1515

Additional accessories

Alarm kit for freezer rooms

Strip curtain for frezer rooms

Ramp for freezer rooms (120 mm)

Ramp for cold rooms (80 mm)

47840

47841

Optional wheels

Wheels for shelf rack modules – with brake

Wheels for shelf rack modules – no brake
