STYLE FOR ALL SPACES BuildPro is the building materials business division of ACL Capital (Pvt.) Ltd. ACL Capital (Pvt.) Ltd. is an affiliate company of Associated Constructors Ltd. (ACL), one of Pakistan's leading civil engineering and construction companies. BuildPro's mission is to provide residential, commercial and industrial customers with unique and customized building and flooring solutions with a commitment to quality, value, creativity and customer satisfaction.

We aim to set new standards of product and service excellence in the building material industry. To accomplish our mission we have partnered with leading international suppliers of building material systems. Our showroom showcases the broad range of products in our continuously expanding portfolio. Our local market experience, knowledge and construction expertise, combined with the global strength of our principals, provides the ideal platform to cater to your building product requirements.

01

CORPORATE PROFILE

TOSTEM BRAND

Making better homes a reality for everyone, everywhere.

As the leading Japanese brand for global housing and building materials, TOSTEM stands apart as a one that deeply understands the needs of people. TOSTEM’s comprehensive range of solutions ensures comfortable home living driven by a simple and seamless user experience. TOSTEM develops people-centric home solutions by drawing on a half-century of experience and expertise in balancing design and technology to anticipate the needs of people today and their families for generations to come.

LIXIL GROUP

Every person on the planet dreams of a better home. LIXIL makes that possible with pioneering water and housing products. Born in 2011 through the merger of five of Japan’s most successful building materials and housing companies, LIXIL draws on the Japanese heritage to create world-leading technology and high-quality products that transform homes. LIXIL make things that matter to all sorts of different people, to the many communities we are part of, and to sustainably support the world we live in.

Today, LIXIL’s approach comes to life through some of the most trusted global brands in the industry, including INAX, GROHE, American Standard, and TOSTEM. LIXIL is proud that its products touch the lives of more than a billion people every day, but still believe to have the potential to do so much more.

02

TOSTEM engages in product development, manufacturing, and marketing of a diverse range of home products, such as window sashes, entrance doors, and exterior products.

TOSTEM’s product portfolio provides complete “lifestyle solutions” that are flexible, integrated, and coordinated to consumer needs, delivering everyday satisfaction.

CORPORATE OVERVIEW AluK is a global leader in the design and engineering of aluminium window, door and curtain wall systems, and part of an international group with 1,600 employees and an annual turnover exceeding €367 million.

With more than sixty years of expertise and operations in major countries around the globe, AluK’s building systems have been specified for many of the world’s most advanced and prestigious buildings.

AluK’s long heritage of family-run businesses means that they believe in a local approach, bringing AluK closer to the clients through expert service and support which is tailored for each market.

Through accredited testing facilities and in-house research and development, AluK ensures that their products offer high performance solutions and exceed many industry standards.

AluK’s all systems are meticulously tested to comply with European standard for a range of performance criteria: water, wind and air tightness, durability, thermal and acoustic insulation.

TOSTEM + AluK CURTAIN WALL DOORS & WINDOWS SYSTEM The company’s Aluminium Curtain Wall Door and Window Systems are inherently strong, lightweight and sustainable, providing contemporary aesthetic profiles along with exceptional performance.

Secure and robust, these systems have been designed to meet and exceed requirements, while a complete range of accessories, design options and configurations offers unrivalled flexibility in terms of aesthetics and functionality.

From the panoramic views created by the large sliding doors to light-filled spaces that the large glazing solutions can achieve, the company’s Aluminium Curtain Wall Door and Window Systems can turn your dream home into a stunning reality. And with plentiful options of styles, configurations, colours and finishes, your design vision can be fully realized.

03

CURTAIN WALLING SYSTEM

SL50

The SL50 system, with mullions and transoms with a width of 50 mm is designed to create vertical, inclined and polygonal curtain walls and winter-gardens. The series includes a full range of profiles to suit any type of static requirement, wind load, and is a traditional system comprising mullion, transom, pressure plate and cover cap with different designs. The system allows insertion of projecting windows both with structural glazing and with mechanical retention of the glass infill, and additional opening elements from the AluK range.

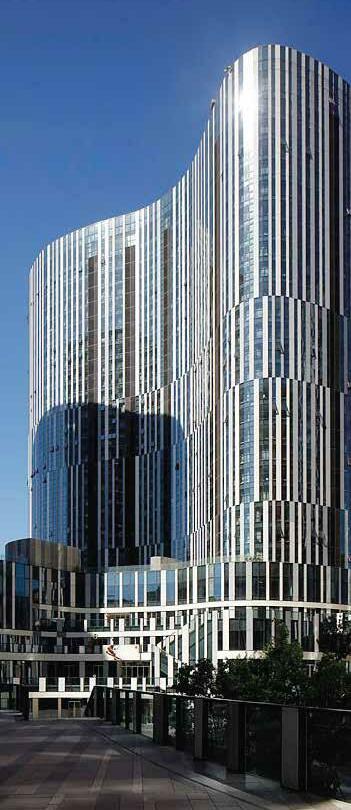

Emaar Reef Tower - Project Completed by BuildPro

Design features Self-bearing structure composed of 50 mm wide aluminium mullions and transoms.

50

Designed for vertical and inclined curtain wall, and polygonal constructions.

Can be faceted, curved or angled. Glass thickness can vary from 6 to 40 mm.

System also available in High Insulation (HI) and Fire Proof (FP).

SPECIFICATIONS

PERFORMANCES

Mullion Depth

55mm - 330mm

U-Value

1.7 W/m²K*

Transom Depth

35mm - 210mm

Acoustic Performance

Rw = 46 dB

Glazing Thickness

6mm - 40mm

Wind Resistance

2000 Pa

Max Weight

690kg

Application type Ideal for high-rise commercial/residential and industrial sector application incl. offices, hospitals and schools.

04

Mullion Range

Multiple options for static requirements Jx From 39 a 5800 cm4

Jx From 10 a 834 cm4

Jx From 80 a 609 cm4

18

05

CURTAIN WALLING SYSTEM

SG50

The SG50 Curtain Walling System is a structually-glazed solution designed to offer high performance. Our aluminium curtain walls enable specifiers to create impressive facades that not only enhance the aesthetics of a building but also provide the functionality and performance required to meet and exceed current standards.

Design features Uses same grid of mullions and transoms as the SL50 Curtain walls with structurally bonded opening elements with ""structural"" (all-glass) aesthetics.

Can be used in a full structurally glazed solution or combined with an expressed outer cover in either vertical or horizontal planes.

21 mm visible gap between panels Glass installation is achieved by a stainless steel toggle which is fixed on the structure and guarantees mechanical retains

Options Peripherical and finishing profiles Available in six different surface finishes.

Technical Data Size Limits Max glass thickness : 35 mm Maximum sash load : 690 kg Features Frame options : 50 Multi-point locking : Yes

PERFORMANCES U-Value

1.7 W/m²K*

Acoustic Performance

Rw = 44 dB

Wind Resistance

1700 Pa

Application type Ideal for high-rise commercial/residential and industrial sector application incl. offices, hospitals and schools.

06

SG50 Different solution with visible sealant

Typical Section

Corner Section

Glass connection to SG50 Facade

Glass connection to SG50 Facade

07

WINDOWS AND DOORS

45DS

The 45DS is a 45 mm, non-insulated door system that offers optimized design, yet affordable solution for all construction types requiring good weather performances.

Its simple appearance and clean lines suit the modern environment design requirements. Its wide choice of applications and technical solutions makes it ideal for all types of residential and commercial establishments. The 45 DS casement is the ideal system for exterior joinery in tropical and hot climates.

08

WINDOWS AND DOORS

63TT

The 63TT is a 63 mm, flush thermal-break door system with heavy duty hinges and available both inward and outward opening. It guaratees optimal quality and sturdiness.

This system adopts thermal break bars and strong aluminum profiles to ensure optimal environmental protection. Its hardware is durable and simple to operate.

09

SLIDING DOORS

SC45

The SC45 is a non-insulated sliding system for large dimensions windows. It benefits from the most innovative aesthetics and technical concepts making it a unique solution in its segment: slim outside strong inside. It is high on aesthetics, smart in design and excellent on all performance parameters of a sliding window.

10

SLIDING DOORS

SC95

The SC95 is a 95 mm, non-thermally broken sliding system for windows and doors, also is a superior, high-performance sliding solution with aesthetics and design appeal. Interlock standard 85 mm, slimer option interlock 55mm & 38mm also available.

PAGE 7

11

SLIDING DOORS

SC140

The SC140 is a 140 mm non-thermally broken sliding system for windows and doors, also suitable for the realization of lift and slide solutions.

The series is designed for the construction of high-quality frames.

The lift and slide mechanism, designed to facilitate the movement of heavy frames up to 400 kg, makes this system very practical and functional.

12

PAGE 8

Emaar Reef Tower - Project Completed by BuildPro
