E D I T I O N 1.1
Community Care Product Catalogue
CA R I N G F U RT H E R A L P H A L I F E CA R E .C O M . AU
About us Our Community Care team are dedicated to meeting the needs of people with care requirements living in the community or in their own homes. Every day, our experienced product specialists work closely with healthcare professionals, carers and families so that each individuals unique needs are discussed and assessed so we can deliver the best care solution. As an approved provider for NDIS, I-Care, DVA and Enable/ NSW Health, insurance providers and many other funding bodies including private sales, Alpha Lifecare is committed to doing everything we can to help our clients. Our extensive and innovative product range includes care beds, pressure management and pain relief products, lifting and manual handling solutions, bathroom safety, mobility products, seating, mobility products and more. Our Community Care team are here to help you. Whether it’s for you, your client, a family member or friend, we’re here to ensure they can live as independently as possible with dignity, respect and care. Caring further.
Contents Bathroom & Hygiene Equipment
04
Shower Stools
05
Bathboards
28
Shower Chairs
07

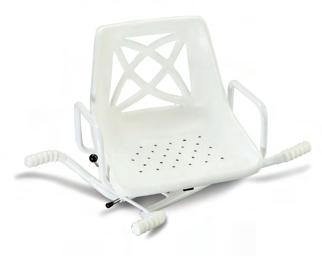

Bath Seats
29
Mobile Shower Commodes
10
Shower Seats
30
Mobile Shower Commode Options
17
Urinals & Bed Pans
31
Overtoilet Aids
18
Commode Bowls
32
Raised Toilet Seats
21
Clamp on Bath Rails
33
Toilet Surrounds
22
Toilet Rails
33

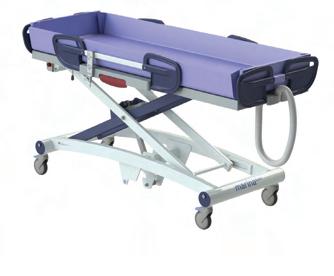

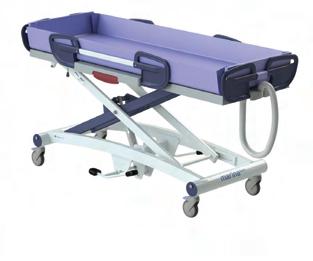

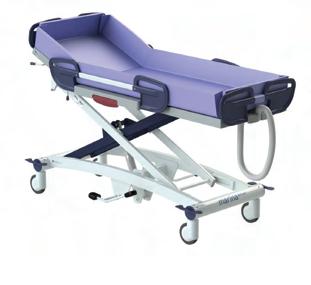

Shower Trolley
24
Bathroom Accessories
34
Bath Transfer Benches
26
Beds & Bedroom Equipment
38

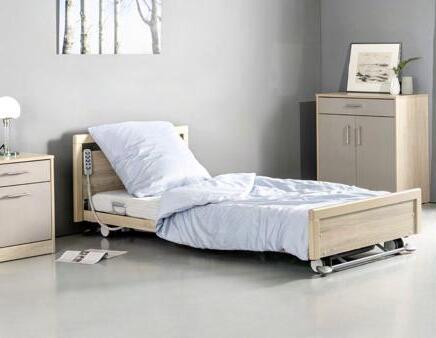

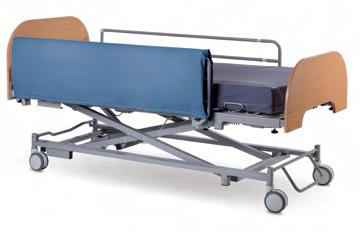

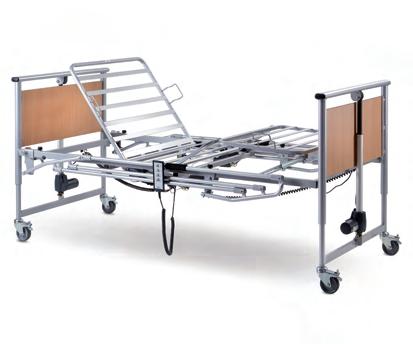

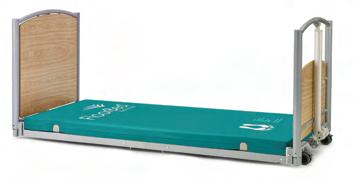

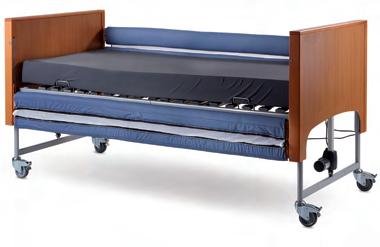

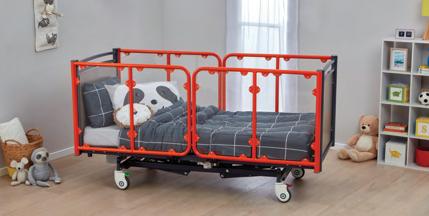

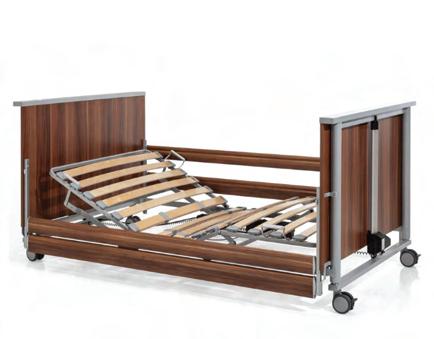

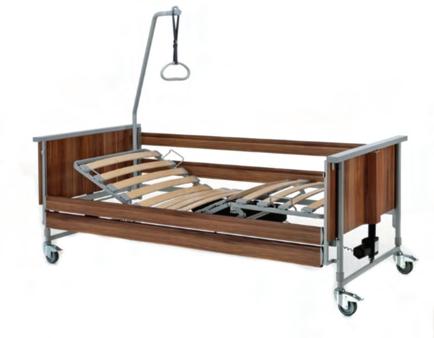

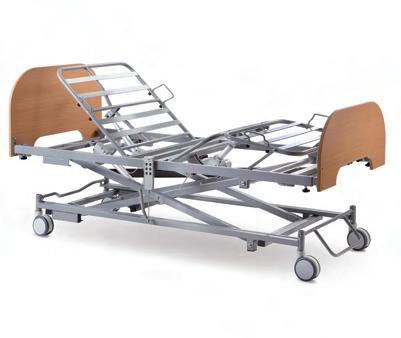

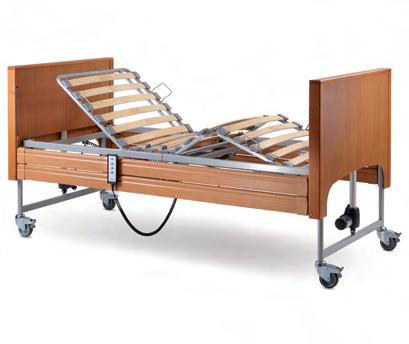

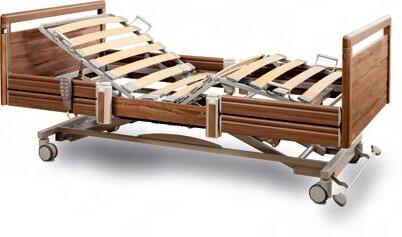

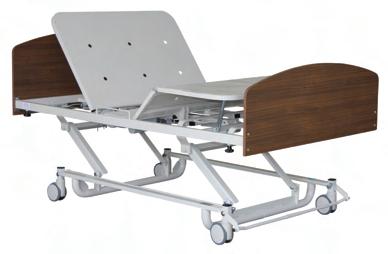

Adjustable Beds
39

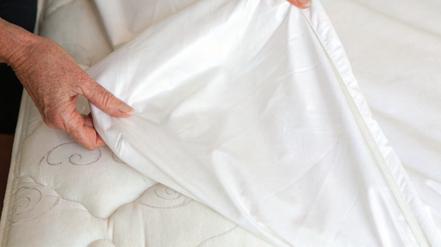

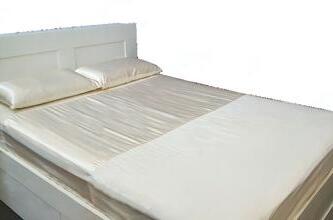

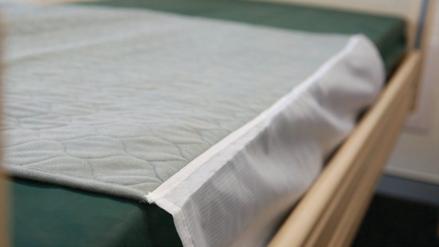

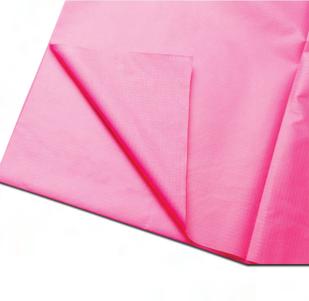

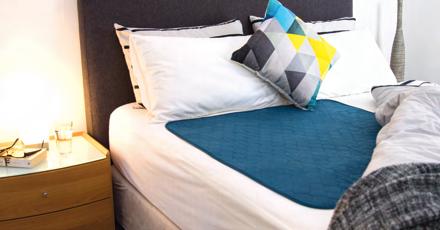

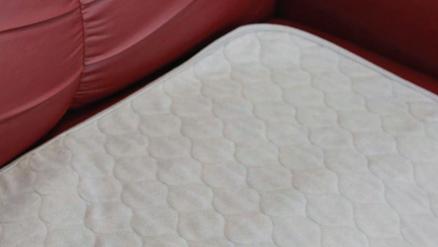

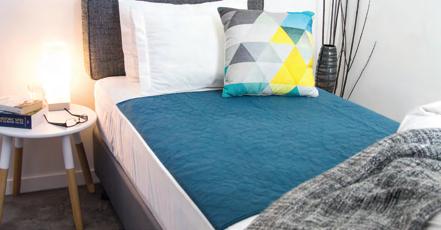

Incontinence Sheets & Protectors
54
Bedroom Patient Safety
48
Bedroom Accessories
56

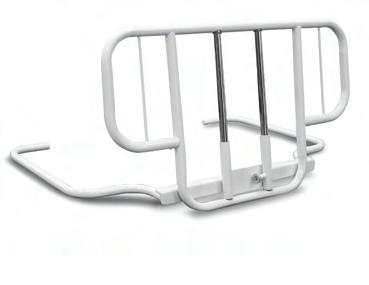

Bed Rails & Supports
50
Overbed / Overchair Tables
58
Blanket Supports
54
Bedside Commodes
61
Linen
63

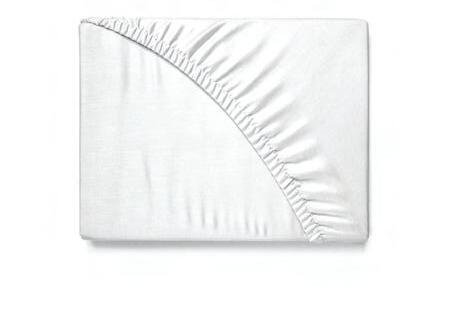

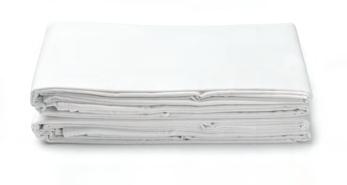

Sheet & Pillowcases
64
Blankets
66
Mattress Topper
66

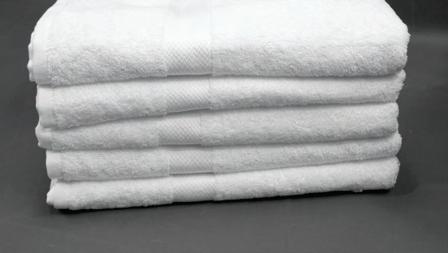

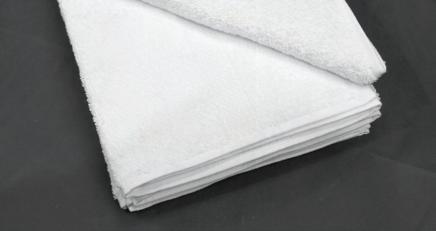

Towels & Washers
67
Mattresses & Pressure Care
68

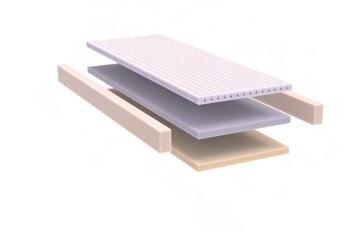

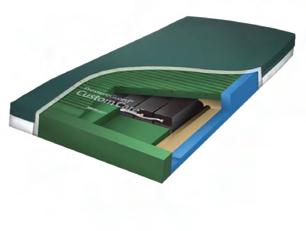

Non Powered Pressure Relieving Support Surfaces
69
Back & Neck Care
86

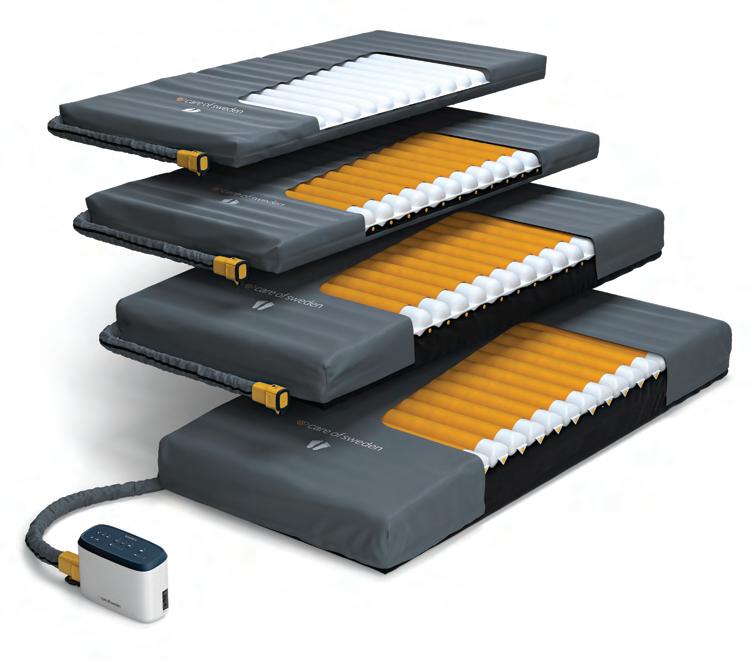

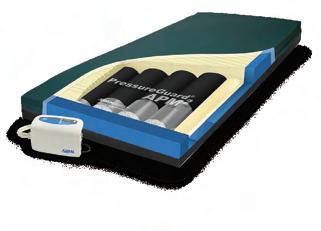

Powered Pressure Relieving Support Surfaces
74
Heel & Elbow Care
87
Non Powered Overlays
78
Ancillary Pressure Care
88

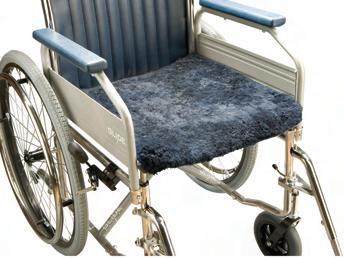

Cushions
79
Accessories
90
Commode Cushions
86
Chairs & Seating
91

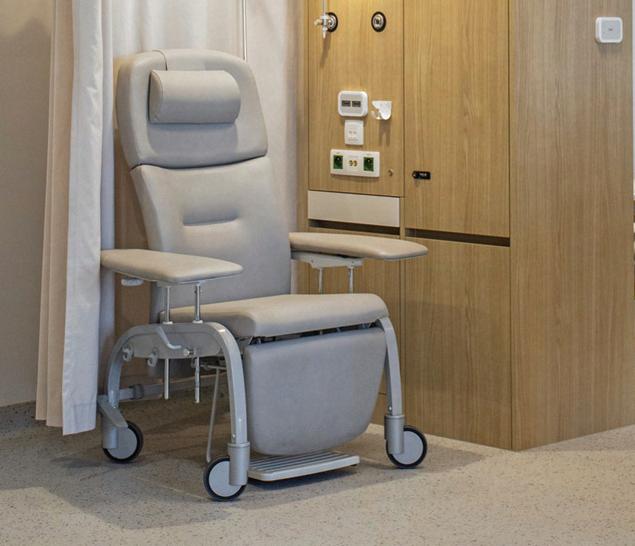

Mauro Ergo-Line Relax Chair
93

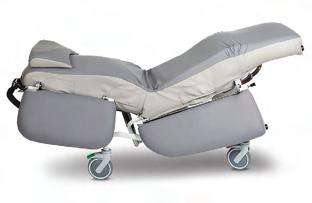

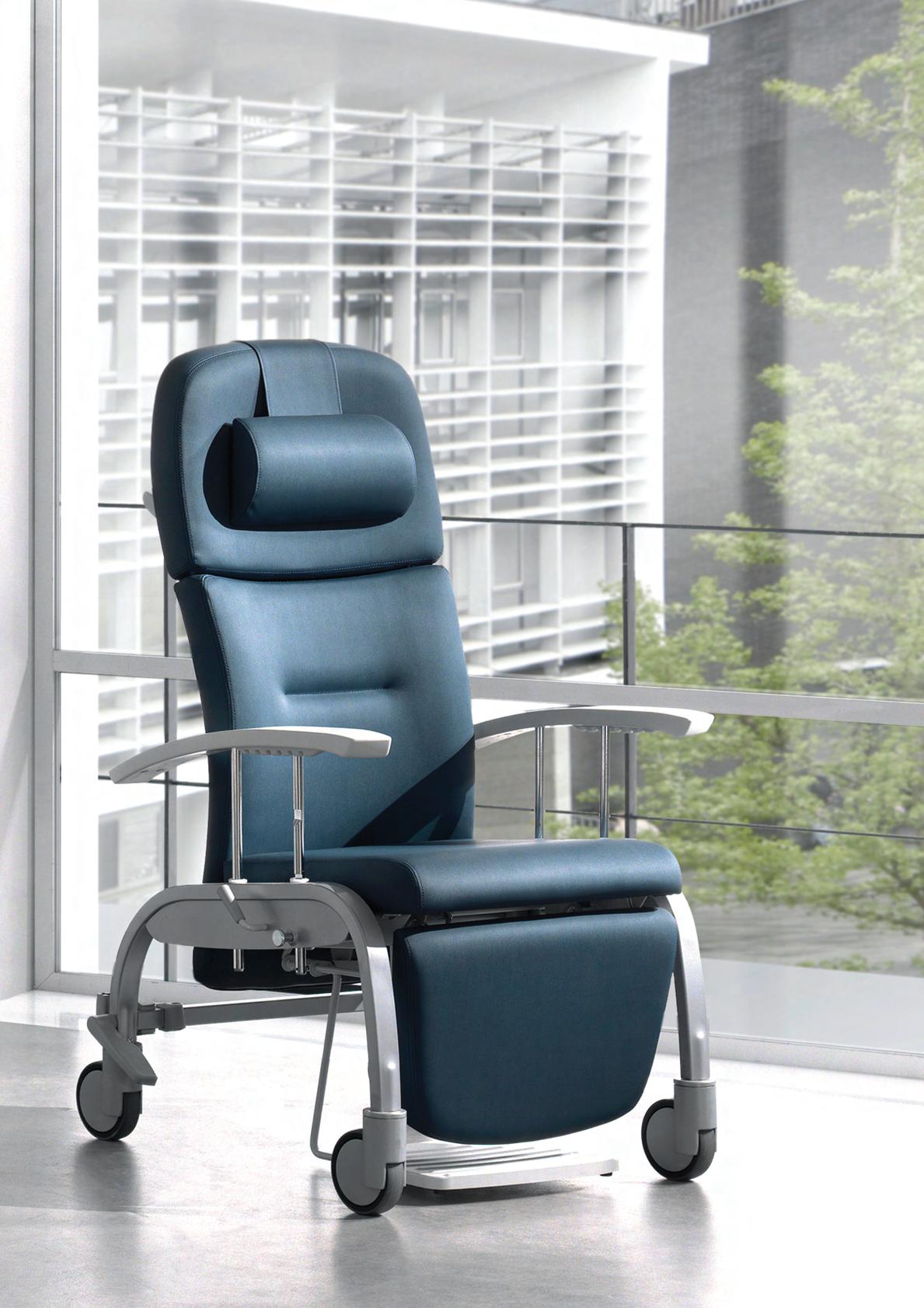

Recliner Chairs
107
Patient Chairs
94

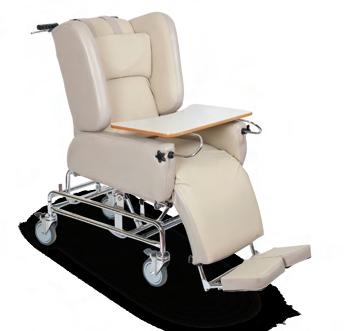

Care Chairs
108
Mobile Chairs
95
Chair Accessories
110
High Back Chairs
96
Perching Stools
111
Low Back Chairs
99
Legrests & Footrests
112
Powerlift Armchairs
100

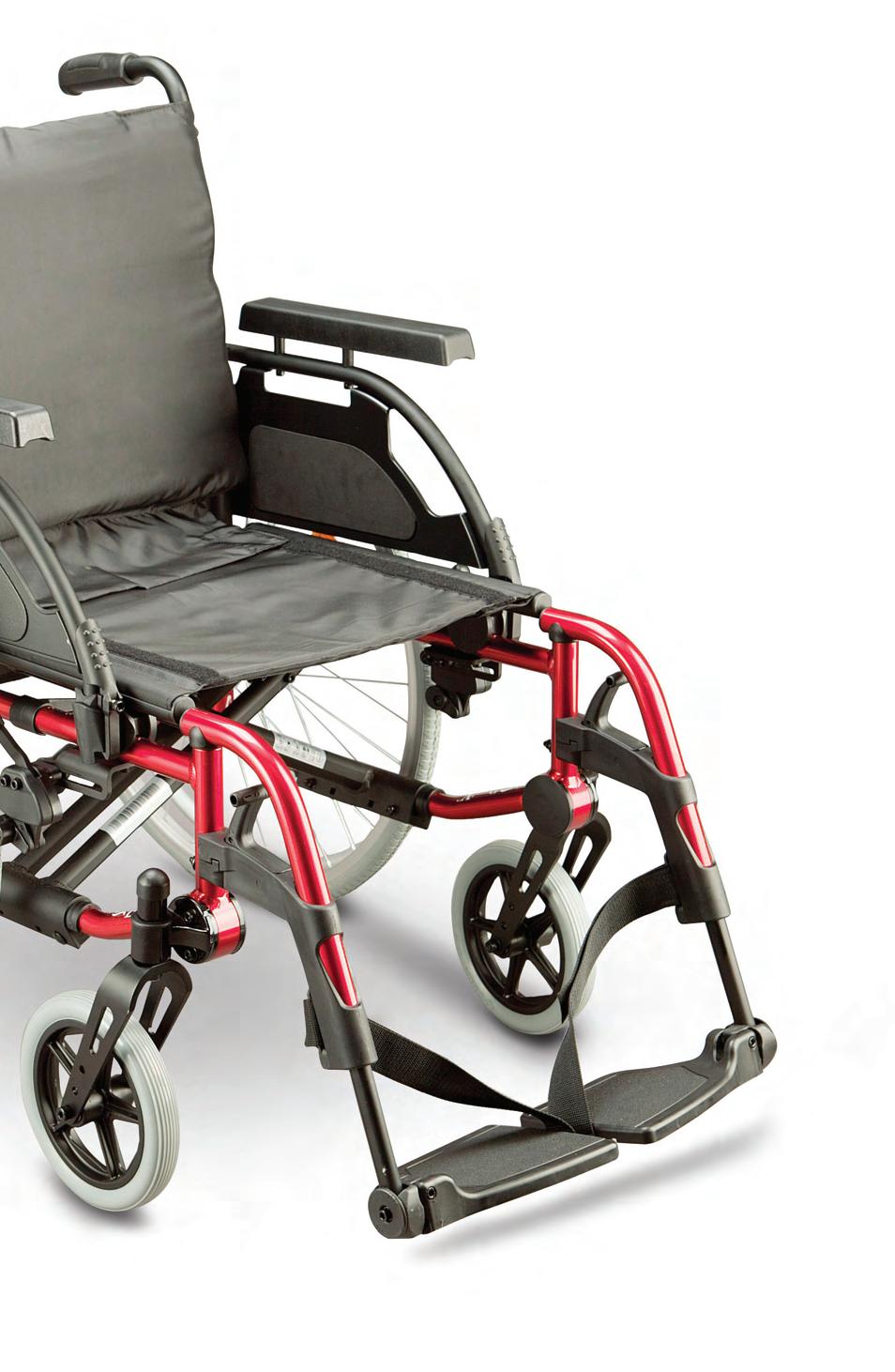

Wheelchairs
113
Self Propelling Wheelchairs
114

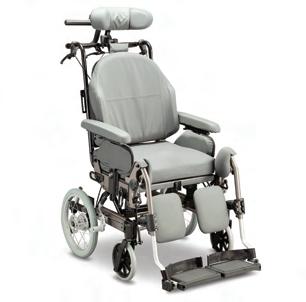

Tilt & Recline Wheelchairs
120
Transit Wheelchairs
114
Amputee Wheelchairs
121
Lightweight Wheelchairs
116
Hemiplegic Wheelchairs
122
Patient Transport Wheelchairs
117

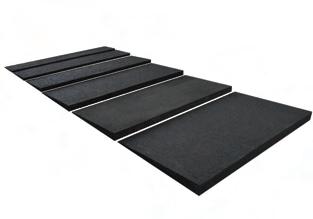

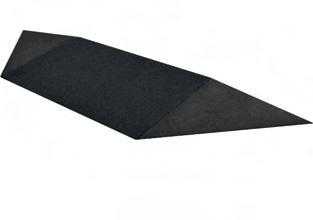

Wheelchair Ramps
123
Bariatric Wheelchairs
118
Wheelchair Parts & Accessories
126
Mobility
130

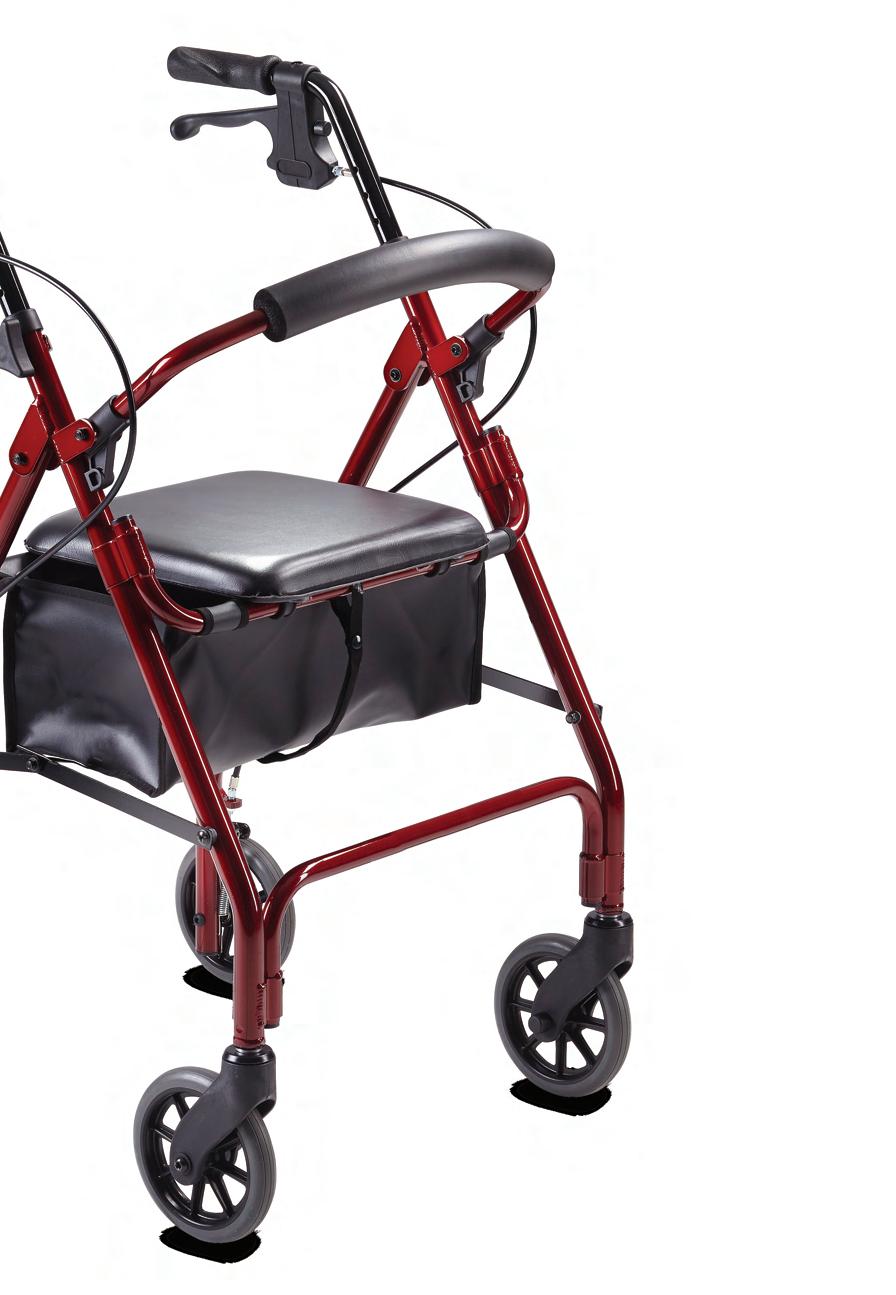

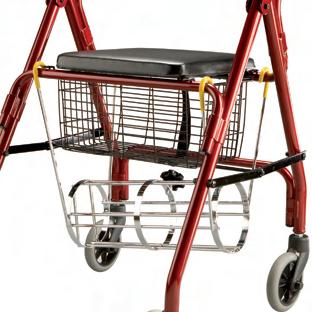

Walkers & Seat Walkers
131
Quad Sticks
145
Seat Walker Accessories
136
Underarm Crutches
147
Walking Frames
137

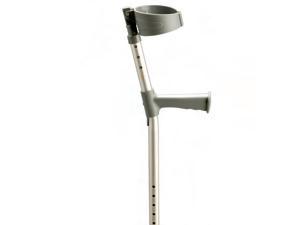

Elbow Crutches
148
Walking Frames Accessories
139
Crutch Parts & Accessories
149
Forearm Walkers
140
Recreation
150

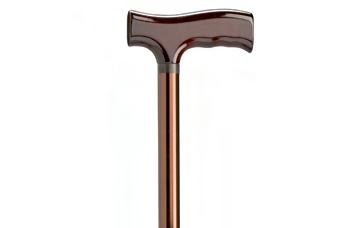

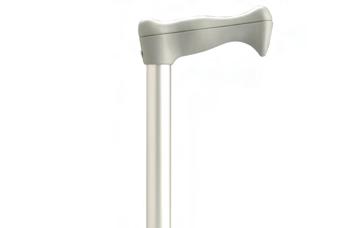

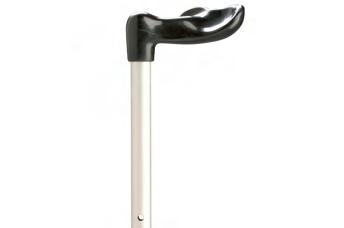

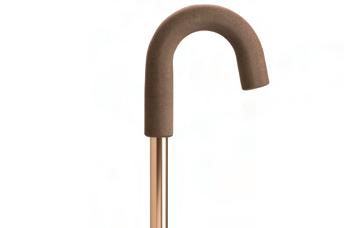

Walking Sticks
143
Exercise Theraphy
151

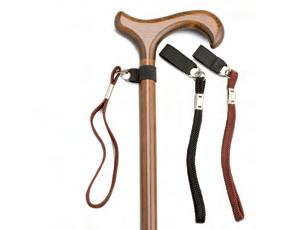

Walking Stick Accessories
145
Safe Patient Handling
152

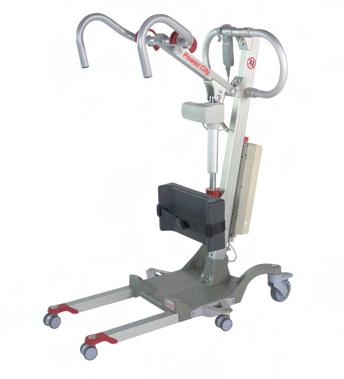

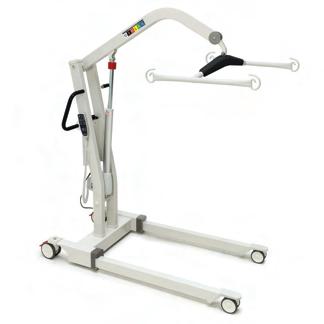

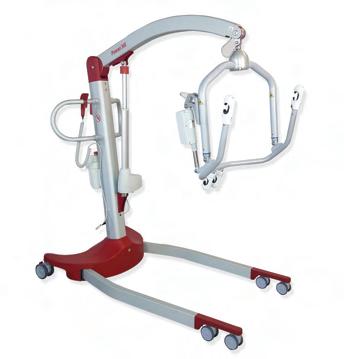

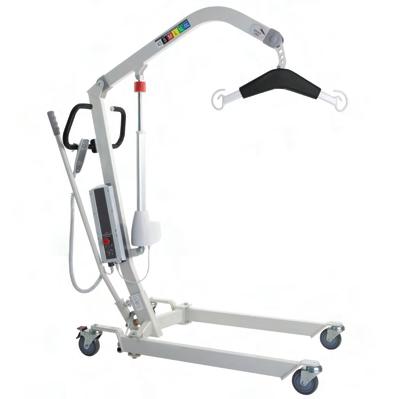

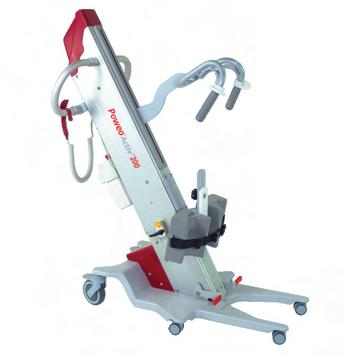

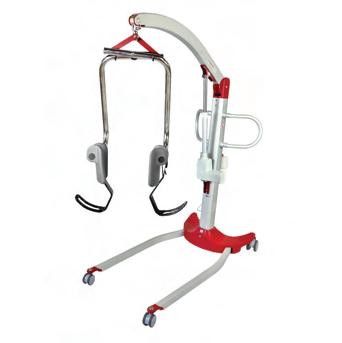

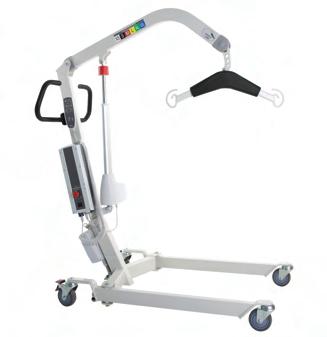

Mobile Hoists
153

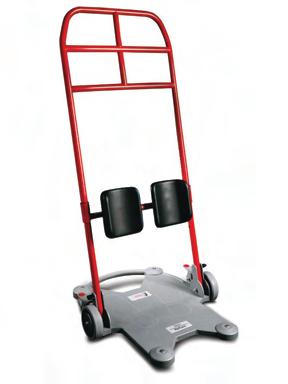

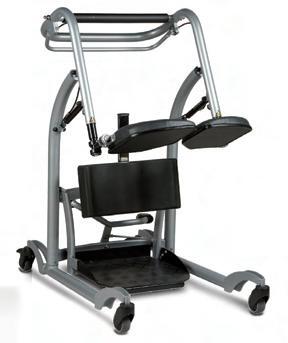

Manual Transfer
169

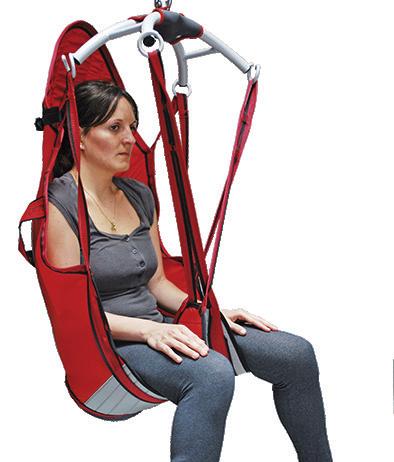

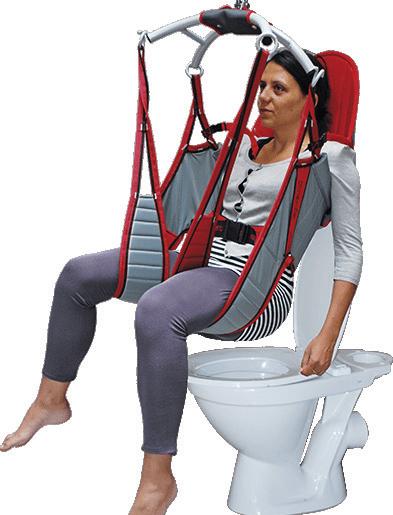

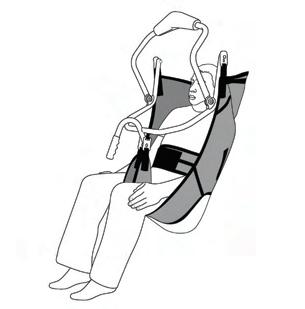

Patient Lifting Slings
162
Positioning Aids
174
Floor to Seat Lifting
168
Daily Living Aids
179
Bedroom
180
Dining
190
Bathing & Toileting
182
Easy Reachers
192

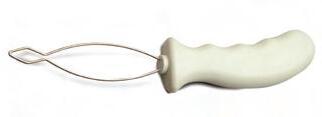

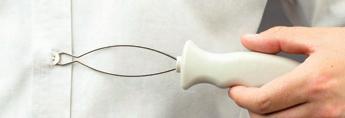

Dressing
183

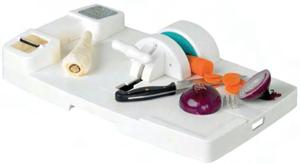

Food Preparation
193

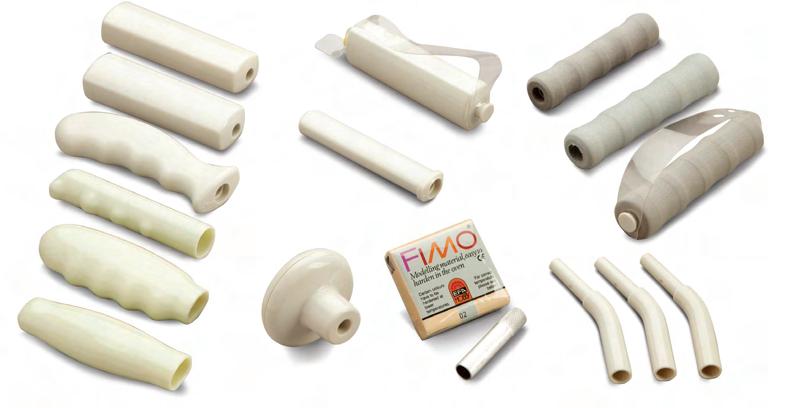

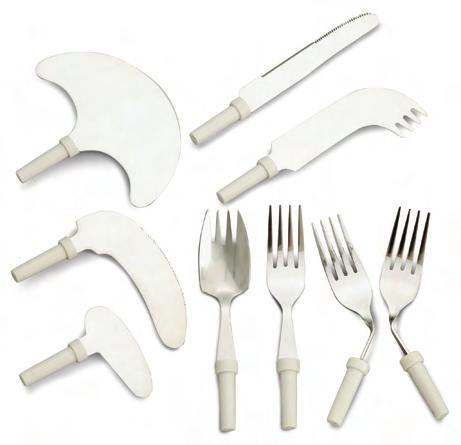

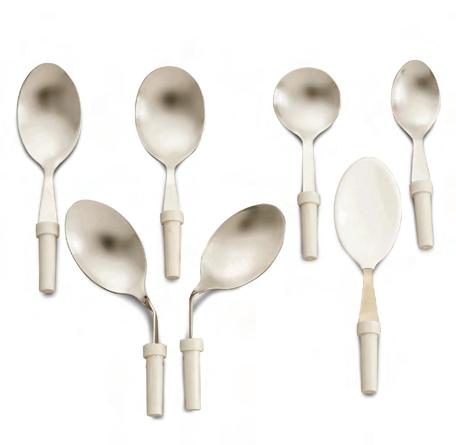

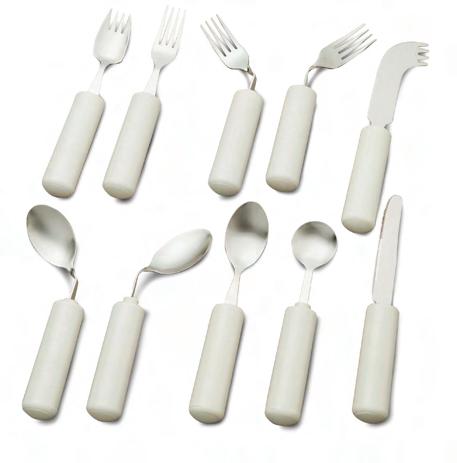

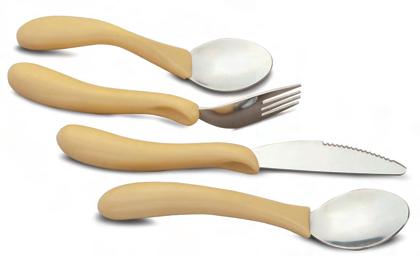

Cutlery
186
Household
196
Bathroom & Hygiene Equipment Shower Stools
05
Shower Chairs
07
Mobile Shower Commodes
10
Mobile Shower Commode Options
17
Overtoilet Aids
18
Raised Toilet Seats
21
Toilet Surrounds
22
Shower Trolley
24
Bath Transfer Benches
26
Bathboards
28
Bath Seats
29
Shower Seats
30
Urinals & Bed Pans
31
Commode Bowls
32
Clamp on Bath Rails
33
Toilet Rails
33
Bathroom Accessories
34
B AT H RO O M & H YG I E N E E Q UI P M E N T
Shower Stools AG0420 - Shower Stool - No Arms • • • • • •
Height adjustable Side handles to assist transfers Durable plastic moulded seat Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
380mm
510 - 660mm
550mm
380mm
125kg
AG0450 - Shower Stool • • • • • •
Height adjustable Integrated arms assist transfers Durable plastic moulded seat Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
510 - 660mm
550mm
380mm
125kg
AG0400 - Shower Stool - Aluminium • • • • • •
Height adjustable Integrated arms assist transfers Durable plastic moulded seat Non-slip rubber tips Powder coated aluminium frame is lightweight and rust proof Tested and conforms to Australian Standards AS/NZS 3973: 2009 Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
510 - 660mm
550mm
380mm
175kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
5
BAT H RO O M & H YG I E N E E Q UI P M E N T
Shower Stools AG0470 - Shower Stool - Padded • • • • • •
Height adjustable Padded seat for added comfort Integrated arms assist transfers Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Also Available AG0410 Shower Stool Aluminium Padded – Lightweight, rust proof Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
520 - 670mm
550mm
380mm
125kg
AG0440 - Shower Stool - Padded with Backrest • • • • • •
Height adjustable Padded seat and back for added comfort Integrated arms assist transfers Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
520 - 670mm
550mm
380mm
125kg
Shower Stool - Extra Wide • • • • • •
6
CA R I N G F U RT H E R
Wider seat widths and reinforced frame to suit the bariatric client Padded seat for added comfort Non-slip rubber feet Integrated arms assist transfers Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Code
Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
AG0310
500mm
520 - 670mm
620mm
610mm
150kg
AG0320
550mm
590mm
680mm
610mm
200kg
AG0330
600mm
590mm
730mm
610mm
250kg
AG0340
650mm
590mm
780mm
610mm
250kg
B AT H RO O M & H YG I E N E E Q UI P M E N T
Shower Chairs AG0240 - Shower Chair - No Arms • • • • • •
Height adjustable Unrestricted side access to assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Seat Width
Seat Height
Base Width
Base Depth
Max User Weight
410mm
400 - 550mm
560mm
560mm
125kg
AG0070 - Shower Chair • • • • • •
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
410 - 560mm
560mm
560mm
125kg
AG0200 - Shower Chair - Aluminium • • • • • •
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Powder coated aluminium frame is lightweight and rust proof Tested and conforms to Australian Standards AS/NZS 3973: 2009 Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
410 - 560mm
560mm
560mm
200kg
AG0270 - Shower Chair - Stainless Steel • • • • •
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Durable stainless steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
450mm
410 - 560mm
560mm
560mm
125kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
7
BAT H RO O M & H YG I E N E E Q UI P M E N T
Shower Chairs AA0250 Smik Aluminium Shower Chair with Arms • • • • • •
Aluminium rust resistant frame Removable backrest Adjustable height Seat with drain holes Padded armrests Supplied with retail packaging
Seat Width
Seat Depth
Seat Height Low Position
Seat Height High Position
Backrest Height
Max User Weight
460mm
330mm
400mm
500mm
320mm
114kg
AG0220 - Shower Chair - Folding • • • • • •
Height adjustable Folds neatly for transportation or where space is limited Cutaway plastic seat to assist in personal cleaning Contoured seat and curved back for added support Non-slip rubber tips Powder coated aluminium prevents rusting Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
430mm
460 - 525mm
550mm
470mm
120kg
AG0280 - Shower Chair - Swivel • • • • • • •
Height adjustable Swivel motion assists easy transfers from standing to showering position Seat locks in both transfer and showering positions Integrated arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Powder coated steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
480mm
480 - 560mm
560mm
540mm
160kg
Shower Chair - Wide • • •
8
CA R I N G F U RT H E R
Height adjustable • Ergonomic angled arms assist transfers• Drainage slots drain water away from seating area •
Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated frame
Code
Frame
Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
AG0080
Steel
500mm
420 - 570mm
600mm
560mm
135kg
AG0190
Aluminium
500mm
420 - 570mm
600mm
560mm
200kg
B AT H RO O M & H YG I E N E E Q UI P M E N T
Shower Chairs Shower Chair - Extra Wide • • •
Height adjustable Reinforced frame to suit bariatric client Padded seat and curved backrest
• • •
Code
Non-slip rubber feet Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Seat Width
Seat Height
Base Width
Base Depth
Max User Weight
AG0110
550mm
470 - 640mm
650mm
520mm
300kg
AG0120
600mm
470 - 640mm
700mm
520mm
300kg
AG0130
650mm
470 - 640mm
750mm
520mm
300kg
Trix Shower Chair Extra Wide • •
Clear rear open space enabling positioning over the toilet Easy access for hygiene with open armrest
• •
Integral pan carrier glides Removable backrest
Code
AJ0390
AJ0400
AJ0410
Arm Rest Height
210mm
210mm
210mm
Back Rest Height
430mm
430mm
430mm
Overall Height
920 - 1100mm
920 - 1100mm
920 - 1100mm
Overall Width
780mm
880mm
1080mm
Seat Depth – 5 settings at 25mm increments
470 - 570mm
470 - 570mm
495 - 595mm
Seat Height – 7 settings at 25mm increments
410 - 560mm
410 - 560mm
410 - 560mm
Seat Width
610mm
710mm
910mm
Width Between Arms
660mm
760mm
960mm
Max User Weight
400Kg
400Kg
400Kg
Overall Depth
650 - 750mm
650 - 750mm
710 - 810mm
Wall to Rear of Aperture
240 - 340mm
240 - 340mm
240 - 340mm
Toilet Bowl Clearance: Max Width x Height To Underside of Pan Carrier
540mm (w) x 500mm (h)
640mm (w) x 500mm (h)
840mm (w) x 500mm (h)
540mm (w) x 480mm (h)
640mm (w) x 480mm (h)
840mm (w) x 480mm (h)
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
9
BAT H RO O M & H YG I E N E E Q UI P M E N T
Mobile Shower Commodes AE0310 - Economy • • • •
Assists transportation of the patient for showering and toileting Plastic toilet seat Plastic removable pan with lid Plastic moulded arm pads
• • •
Soft fabric backrest Mounted on 4 x 100mm locking castors, 2 of which are locking Anodised aluminium frame
Width Between Arms
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
460mm
530mm
205mm
330mm
570mm
100kg
AE1610 - BathMobile - Folding • • • • • • •
The chair is made with advanced plastic injection technology The seat opening can be rotated 180O Seat locks into 3 different height positions Long armrests that assist in seating and rising Adjustable footrest and detachable bedpan rails All metal parts are made of stainless steel (including bearings) 2 Year warranty
Also Available AE1640 BathMobile Self Propelled
Accessories Available AZ0303 Square Removable Pan with Holders AZ0304 Round Removable Pan with Holders AZ0305 Rubber Closed Seat (O.M) AZ0306 PU Closed Seat (PU) AZ0307 Open Pillow 16mm (PU) AZ0308 Open Pillow 50mm (PU) AZ0309 Small Hole Open Pillow (PU) AZ0311 Back Rest Pillow AZ0312 Hand Rest Pillow Left and Right AZ0313 Carrying Case for Bath Mobile
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
450mm
450mm
520/540/560mm
715/735/755mm
1000/1020/1040mm
560mm
130kg
AE0970 - Juvo Hybrid • • • • •
Assists transportation of patient for showering and toileting Can be positioned over the toilet for toileting Supplied with open front polyurethane commode seat Swingback arms for side transfers Armrests can be set at two different heights
• • • • •
PVC slatted backrest Sliding footrest is weight bearing and can be foot operated Mounted on 4 x 125mm locking castors Durable stainless steel frame Tested and conforms to Australian Standards AS/NZS 3973: 2009
Also Available AZ1480 Pan Carrier to suit, Stainless Steel. A range of commode seats are available.
10
CA R I N G F U RT H E R
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
460mm
430mm
595mm
200/240mm
340mm
540mm
150kg
B AT H RO O M & H YG I E N E E Q UI P M E N T

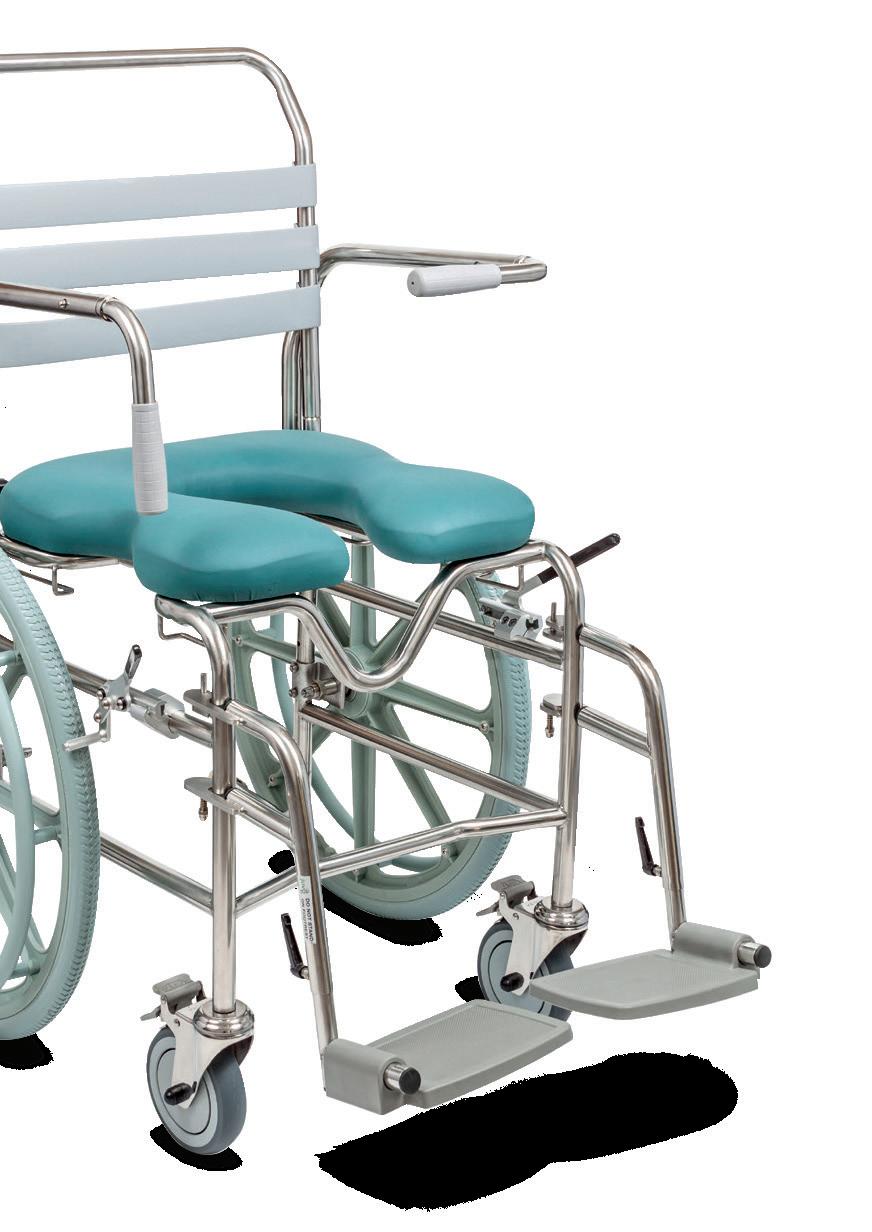

Mobile Shower Commodes Care Quip - Sliding Footplate • • •
•
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Swingback arms assist side transfers and can be positioned at two different heights Adjustable safety arms for additional security
•
• • • • • •
Sliding footrest is weight-bearing for added safety when standing or to assist during transfers PVC slatted backrest Pan carrier features a location lug to prevent movement Open front polyurethane seat PVC slatted backrest 4 x 125mm Tente locking castors Durable stainless steel frame
Code
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Height
Max User Weight
AE2060
460mm
430mm
580mm
240/280mm
330mm
550mm
200kg
AE1660
550mm
540mm
580mm
240/280mm
330mm
550mm
200kg
AE1760 - Lopital Tango • • • •
Foldable upholstered armrests Upholstered seat with toilet opening and inlay 4 x braking castors Rail for toilet bucket or bedpan
• • • •
Can be moved over the toilet Bedpan/bowl carrier Foldable and swing-out detachable footrests Made in The Netherlands
Seat Width
Seat Depth
Seat Height
Overall Depth
Overall Width
Product Weight
Maximum Load
470mm
440mm
550mm
840mm
660mm
19kg
180kg

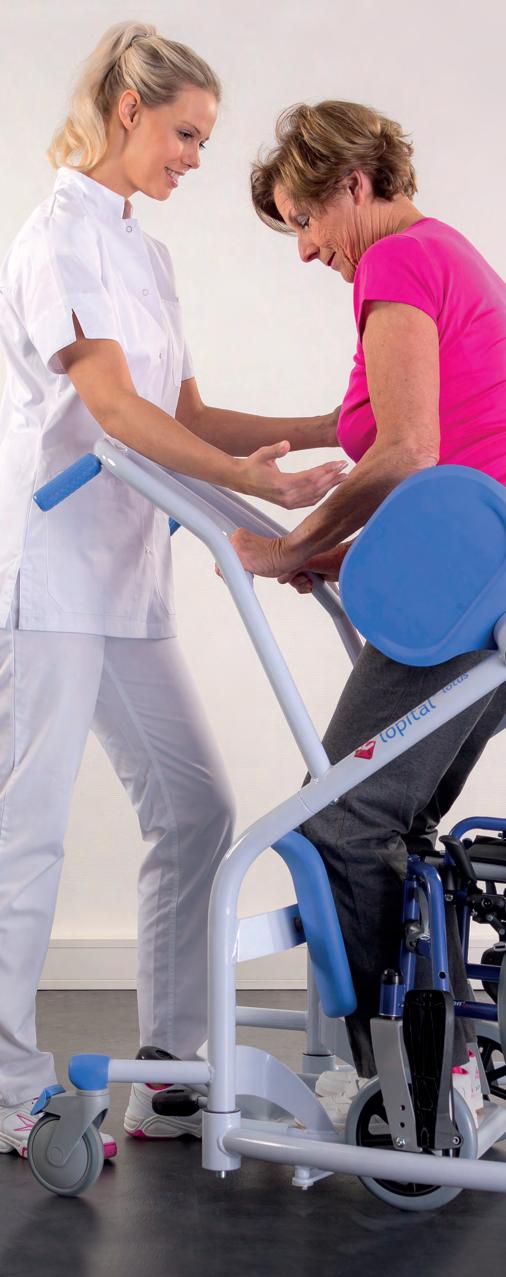

AE1780 - Lopital Mylo • • • • • • • •
Foldable upholstered armrests Foldable and removable seat for optimum hygiene Rail for toilet bucket or bedpan Ergonomically formed seat and backrest Can be wheeled over the toilet Foldable and swing-out footrests 4 plastic castors, fitted with brakes Made in The Netherlands
Seat Width
Seat Depth
Seat Height
Overall Width
Overall Length
Product Weight
Maximum Load
470mm
440mm
550mm
660mm
840mm
19kg
150kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
11
BAT H RO O M & H YG I E N E E Q UI P M E N T
Mobile Shower Commodes Juvo Folding Self Propelled • Adjustable height footrest to accommodate client leg length • Stainless steel 125mm total locking castors for effortless manoeuvring • Minimal overall dimensions to frame to assist with manoeuvrability • Adjustable seat height for improved client positioning • Fully adjustable seat tilt to assist with client positioning •
Easy removable seat, using Juvo Registered Design “Klipps” System Swing-away independent armrests to assist in side transfer and patient access
•
• • •
•
•
Two position height adjustable armrests Locking safety arms provide user security and safety Flexible impervious non-woven back straps conforming to client shape for support and comfort. Antibacterial and non-suction designed straps to avoid skin tear when client is wet Juvo registered design “TearSafe” Swing-away footrests. No plates or sharps remain when swung away prevents injury to users legs Adjustable height footrests to accommodate client leg length
Code
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2320
410mm
435mm
595mm
200/240mm
340mm
610mm
200kg
AE2330
460mm
435mm
595mm
200/240mm
340mm
660mm
200kg
AE2340
510mm
435mm
595mm
200/240mm
340mm
710mm
300kg
AE1800 - Lopital Cleo • • • • • • • •
2 independently folding armrests Non absorbent polyurethane foam seat Rail for bedpan and / or toilet bucket Fold-away footrests, removable, height adjustable Easy removable snap lock seat Rear-2 plastic 24 inch wheels with pneumatic tyres Front-2 non-braking stainless steel castors Made in The Netherlands Seat Width
Seat Depth
Seat Height
Maximum Load
460mm
450mm
540mm
135kg
Juvo Tilt in Space • • • • •
12
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Swingback arms with padded armpads for side transfers Adjustable safety arms for additional security Armrests can be positioned at two different heights
• •
•
•
Removable PVC slatted backrest Adjustable height swingaway legrests feature a unique unobtrusive mechanism design to prevent skin tears Mounted on 2 x 125mm stainless steel castors and 2 x 22 inch rear wheels Durable stainless steel frame
Code
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2360
Standard
460mm
430mm
510-660mm
200/240mm
800mm
560mm
200kg
AE2370
Wide
510mm
430mm
510-660mm
200/240mm
900mm
610mm
300kg
CA R I N G F U RT H E R
B AT H RO O M & H YG I E N E E Q UI P M E N T
Mobile Shower Commodes AE1740 Lopital Nemo • • • • •
Optimal comfort for both caregivers and clients Contoured headrest with adjustable height & depth Gas assisted seat tilt Foldback armrests 4 braking castors
• • • • •
Removable and height adjustable footrests Calf strap Moulded polyurethane construction Exceptional design to meet stringent infection control regulations Made in The Netherlands
Seat Width
Seat Depth
Seat Height
Overall Depth
Overall Width
Product Weight
Maximum Load
470mm
440mm
550mm
730mm
660mm
24kg
150kg
AE1710 - Lopital Flexo Hydraulic • • • •
Simple adjustable hydraulic height control Contoured seat with toilet opening cover Foldable armrests with front lock to allow side transfers Ergonomically shaped seat & backrest
• • • •
•
Foldable footrests with calf strap The chair will reach a maximum incline of 15° in the highest position Bedpan/ bowl carrier Lockable plastic swivel castors, stainless steel wheel housings to provide Made in The Netherlands
Seat Width
Seat Depth
Seat Height
Overall Width
Overall Length
Product Weight
Maximum Load
470mm
440mm
5001050mm
730mm
1040mm
38kg
150kg
AE1730 - Lopital Elexo • • • • • • •
Simple electric high / low adjustment 4 x braking castors Hand control with battery indicator With sleep mode setting after 60 minutes Upholstered seat with toilet opening Inlay for the toilet opening Foldable upholstered armrests with front lock for sideways transfer
• • • • • • •
Ergonomically shaped seat and backrest Fold-out footrests with calf strap Pan carrier and commode pan Extremely stable due to the fitting of 2 lifting motors Simple to recharge, with charger included Contemporary style and design Made in The Netherlands
Seat Width
Seat Depth
Seat Height
Overall Width
Overall Length
Product Weight
Maximum Load
470mm
440mm
5001000mm
700mm
1040mm
47kg
180kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
13
BAT H RO O M & H YG I E N E E Q UI P M E N T
Mobile Shower Commodes Lopital Reflex •
Electrically operated height-adjustable settings (variable) Electrically operated tilt mechanism Easy-to-use touch controls on backrest Height-adjustable headrest Ergonomically designed backrest & seat Height-adjustable legrest and calf protection Foldable swivel armrests with front locking
• • • • • •
• • • • • • • •
Suitable for use in the shower & toilet Can be moved into position over toilet Slide for stainless steel commode pan Four plastic castors with brakes Easy to recharge with battery charger provided Centre mount footrest Optional hand control available Made in The Netherlands
Options Available AE1690 Center Mount Footrest AE1700 Swing Away Legrest Seat Width
Seat Depth
Seat Height
Overall Width
Overall Length
Product Weight
Maximum Load
470mm
440mm
5001000mm
700mm
1060mm
53kg
135kg
Juvo Sliding Footplate • • • •
•
14
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Wider seat widths and reinforced frame to suit the bariatric client Swingback arms with padded armpads assist side transfers and can be positioned at two different heights Adjustable safety arms for additional security
• • • • • • •
Sliding footrest is textured and weight-bearing for added safety Footrest slides back under frame to assist patient transfers PVC slatted backrest Mounted on 4 x 125mm stainless steel locking castors Durable stainless steel frame Tested and conforms to Australian Standards AS/NZS 3973: 2009 Standard or Wide
Code
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2090
Standard
460mm
430mm
595mm
200/240mm
340mm
540mm
200kg
AE2100
Wide
510mm
430mm
595mm
200/240mm
340mm
590mm
300kg
AE2110
Wide
560mm
430mm
595mm
200/240mm
340mm
640mm
300kg
AE2120
Wide
610mm
430mm
595mm
200/240mm
340mm
690mm
300kg
AE2130
Wide
660mm
430mm
595mm
200/240mm
340mm
740mm
300kg
AE2140
Wide
710mm
435mm
595mm
200/240mm
340mm
790mm
400kg
AE2390
Wide
660mm
435mm
595mm
240mm
340mm
740mm
400kg
CA R I N G F U RT H E R
B AT H RO O M & H YG I E N E E Q UI P M E N T
Mobile Shower Commodes Juvo Swingaway Legrests • • • • •
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Swingback arms with padded armpads for side transfers Armrests can be adjusted to two different heights Adjustable safety arms for additional security
• •
• • •
PVC slatted backrest Adjustable height swingaway legrests feature a unique unobtrusive mechanism design to prevent skin tears Mounted on 4 x 125mm locking stainless steel castors Durable stainless steel frame Tested and conforms to Australian Standards AS/NZS 3973: 2009
Code
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2160
Standard
460mm
430mm
565mm
200/240mm
340mm
540mm
200kg
AE2170
Wide
510mm
430mm
565mm
200/240mm
340mm
590mm
300kg
AE2180
Wide
560mm
430mm
565mm
200/240mm
340mm
640mm
300kg
AE2190
Wide
610mm
430mm
565mm
200/240mm
340mm
690mm
300kg
AE2200
Wide
650mm
430mm
565mm
200/240mm
340mm
740mm
300kg
Juvo Self Propelled • • • • •
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Swingback arms with padded armpads for side transfers Adjustable safety arms for additional security Armrests can be positioned at two different heights
• •
•
• •
Removable PVC slatted backrest Adjustable height swingaway legrests or slide out weight-bearing footrest Mounted on 2 x 125mm stainless steel castors and 2 x 22 inch rear wheels Durable stainless steel frame Folding models also available
Code
Footrest Type
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2270
Swingaway
Standard
460mm
430mm
595mm
200/240mm
340mm
660mm
200kg
AE2280
Swingaway
Wide
510mm
430mm
595mm
200/240mm
340mm
710mm
300kg
AE2290
Swingaway
Wide
560mm
430mm
595mm
200/240mm
340mm
760mm
300kg
AE2300
Swingaway
Wide
610mm
430mm
595mm
200/240mm
340mm
810mm
300kg
AE2310
Swingaway
Wide
660mm
430mm
595mm
200/240mm
340mm
860mm
300kg
AE2210
Sliding
Standard
460mm
430mm
595mm
200/240mm
340mm
660mm
200kg
AE2220
Sliding
Wide
510mm
430mm
595mm
200/240mm
340mm
710mm
300kg
AE2230
Sliding
Wide
560mm
430mm
595mm
200/240mm
340mm
760mm
300kg
AE2240
Sliding
Wide
610mm
430mm
595mm
200/240mm
340mm
810mm
300kg
AE2250
Sliding
Wide
660mm
430mm
595mm
200/240mm
340mm
860mm
300kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
15
BAT H RO O M & H YG I E N E E Q UI P M E N T
Mobile Shower Commodes AE1770 - Lopital Tango XXL • • •
Folding extended armrests 3 x standard braking castors, 1 x directional Toilet seat with hygiene opening
• • •
Pan carrier and commode pan Foldaway detachable footrests Made in The Netherlands
Seat Width
Seat Depth
Seat Height
Overall Depth
Overall Width
Product Weight
Maximum Load
700mm
540mm
510mm
970mm
830mm
31kg
360kg
AE1720 - Lopital Elexo XXL • • • • • •
16
CA R I N G F U RT H E R
Simple electric high / low adjustment Tilt adjustment to a maximum of 17 degrees 3 x braking castors, 1 x directional castor Extremely stable due to the fitting of 2 lifting motors Bedpan/ bowl carrier Sleep mode setting after 60 minutes
• • • • • • •
Simple to recharge with charger included Folding armrests Two piece seat Ergonomic calf support Swivelling and detachable footrests Seat height adjustable 50-105cm Made in The Netherlands
Seat Width
Seat Depth
Seat Height
Overall Width
Overall Length
Product Weight
Maximum Load
700mm
540mm
5001050mm
890mm
1190mm
71kg
220kg
B AT H RO O M & H YG I E N E E Q UI P M E N T
Mobile Shower Commode Options Juvo Shower Commode Seat Wider seats are available. Contact Care Quip for more information.
430mm
215mm
112.5mm
112.5mm
260mm
80mm
90mm 440mm
Models Available AZ2470 Polyurethane - Closed AZ2490 Polyurethane - Open AZ0068 Juvo Shower Commode Polyurethane: 510mm Wide O/F Seat AZ4200 Juvo Shower Commode Polyurethane: 560mm Wide O/F Seat AZ4210 Juvo Shower Commode Polyurethane: 610mm Wide O/F Seat AZ4090 Juvo Shower Commode Polyurethane: 660mm Wide O/F Seat AZ4240 Juvo Shower Commode Polyurethane: 710mm Wide O/F Seat AZ2800 Clip And Screw for Juvo Commode Set of 4 required per commode
430mm
215mm
112.5mm
112.5mm
260mm
80mm
90mm
440mm
Pan/Bowl Carrier • • • •
Retains commode pan for toileting Slides under commode seat through existing runners Durable stainless steel To suit Juvo Shower Commodes
Models Available AZ1480 Pan/Bowl Carrier - To suit standard and wide commodes AZ1479 Pan/Bowl Carrier - To suit tilting commodes
CF0020 - Bed Pan • • • •
Frontal opening Autoclavable for sanitising Moulded plastic Fits into mobile commode pan carrier
Width
Length
Height
295mm
360mm
115mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
17
BAT H RO O M & H YG I E N E E Q UI P M E N T
Mobile Shower Commode Options CF0550 - Wash Bowl • • • •
Autoclavable for sanitising Moulded plastic Heavy duty for prolonged and repeated use Separator lugs for perfect auto clave sanitisation
Top Diameter
Base Diameter
Height
305mm
220mm
90mm
AZ0050 - Commode Bowl with Lid • • •
Autoclavable for sanitising Moulded plastic Includes lid and handle
Width
Length
Height
290mm
215mm
130mm
Overtoilet Aids AE1890 Smik Ability Overtoilet Aid • • •
18
CA R I N G F U RT H E R
Can be used as a bedside commode or overtoilet aid Removable toilet seat, lid, commode bowl and back support Adjustable seat height
• • •
Plastic moulded armpads for additional support Non-slip rubber tips Powder coated steel frame
Width Between Arms
Seat Height
Arm Height
Base Width
Base Depth
Max User Weight
470mm
410-510mm
170mm
590mm
560mm
125kg
B AT H RO O M & H YG I E N E E Q UI P M E N T
Overtoilet Aids AJ0050 - Overtoilet Aid • •
• •
Provides a raised seat and support arms to assist toilet transfers Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Height adjustable
• • •
Removable toilet seat and splashguard Non-slip rubber tips Powder coated steel
Also Available AZ1400 Lid, Clip-on
Width Between Arms
Seat Height
Arm Height
Base Width
Base Depth
Max User Weight
440mm
470 - 620mm
240mm
550mm
610mm
125kg
AJ0020 - Overtoilet Aid - Aluminium • • • • •
Provides a raised seat and support arms to assist toilet transfers Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Height adjustable Removable toilet seat and splashguard
• • •
Non-slip rubber tips Powder coated aluminium frame is lightweight and rust proof Tested and conforms to Australian Standards AS/NZS 3973: 2009
Also Available
AZ1400 Lid, Clip-on
Width Between Arms
Seat Height
Arm Height
Base Width
Base Depth
Max User Weight
445mm
470 - 620mm
230mm
550mm
610mm
150kg
AJ0090 - Overtoilet Aid - Stainless Steel • • • • • • •
Provides a raised seat and support arms to assist toilet transfers Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Height adjustable Removable toilet seat and splashguard Non-slip rubber tips Durable stainless steel frame
Also Available AZ1400 Lid, Clip-on Width Between Arms
Seat Height
Arm Height
Base Width
Base Depth
Max User Weight
440mm
470 - 620mm
240mm
550mm
610mm
125kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
19
BAT H RO O M & H YG I E N E E Q UI P M E N T
Overtoilet Aids Overtoilet Aid - Extra Wide • • • • • • •
Provides a raised seat to assist in toileting and transfers Wider seat widths and reinforced frame to suit the bariatric client Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Supplied with lift-back toilet seat and removable splashguard Non-slip rubber tips Powder coated steel
Also Available AZ1400 Lid, Clip-on
Code
Width Between Arms
Seat Height
Armrest Height
Base Width
Base Depth
Max User Weight
AJ0110
500mm
475 - 625mm
230mm
620mm
610mm
150kg
AJ0180
550mm
550mm
230mm
680mm
610mm
200kg
AJ0190
600mm
550mm
230mm
730mm
610mm
250kg
AJ0200
650mm
550mm
230mm
780mm
610mm
250kg
AJ0010 - Bedside Commode - 2 in 1 • • • • • • •
Can be used as a Bedside Commode or Overtoilet Aid Removable toilet seat, lid, commode bowl and back support Adjustable seat height Plastic moulded armpads for additional support Non-slip rubber tips Powder coated steel frame Width Between Arms
Seat Height
Arm Height
Base Width
Base Depth
Max User Weight
470mm
410 - 510mm
170mm
590mm
560mm
125kg
AJ0060 - Overtoilet Aid - Folding • • • • •
20
CA R I N G F U RT H E R
Provides a raised seat and support arms to assist toilet transfers Ideal for people with hip or knee injuries or those who require greater seat height Height adjustable folding frame Non-slip rubber tips Powder coated aluminium
Width Between Arms
Seat Height
Arm Height
Base Width
Base Depth
Max User Weight
430mm
473 - 625mm
210mm
540mm
500mm
90kg
B AT H RO O M & H YG I E N E E Q UI P M E N T
Raised Toilet Seats Serenity Raised Toilet Seat • • • • • • •
Increases toilet seat height Ideal for people with hip or knee injuries or those who find it difficult sitting down or getting up from the toilet Easily installed and removed using front location lip and two rear adjustable brackets Smooth edges, concealed fittings and high gloss finish make it easier to clean Front cut-out for easier personal cleaning Moulded plastic is stain and odour resistant Supplied with retail packaging
Accessories Available AZ3300 P-Guard – Flexible splash guard attaches to front of seat Code
Height
Type
Max User Weight
AF0280
50mm
Standard
190kg
AF0320
50mm
With Lid
190kg
AF0290
100mm
Standard
190kg
AF0330
100mm
With Lid
190kg
AF0300
150mm
Standard
190kg
AF0340
150mm
With Lid
190kg
Prima Raised Toilet Seat • • • • • •
Increases toilet seat height Ideal for people with hip or knee injuries or those who require greater seat height Easily positioned and removed using front location lip and two rear adjustable clamps Front cutout for easier personal cleaning Moulded plastic is stain and odour resistant Made in England
Accessories Available AZ3300 P-Guard - Flexible splash guard attaches to front of seat Code
Height
Type
Max User Weight
AF0110
50mm
Standard
190kg
AF0050
50mm
With Lid
190kg
AF0100
100mm
Standard
190kg
AF0040
100mm
With Lid
190kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
21
BAT H RO O M & H YG I E N E E Q UI P M E N T
Raised Toilet Seats Savannah Raised Toilet Seat • • • • • • •
Increases toilet seat height Ideal for people with hip or knee injuries or those who require greater seat height Easily positioned and removed using location lip and adjustable clamps Front and rear cutouts for personal cleaning Contoured seat for greater comfort Moulded plastic is stain and odour resistant Made in England
Accessories Available AZ3300 P-Guard - Flexible splash guard attaches to front of seat Code
Height
Type
Max User Weight
AF0220
50mm
Standard
190kg
AF0180
50mm
With Lid
190kg
AF0200
100mm
Standard
190kg
AF0160
100mm
With Lid
190kg
AF0210
150mm
Standard
190kg
AF0170
150mm
With Lid
190kg
Toilet Surrounds AJ0310 - Toilet Surround • • • •
Frame to assist toilet transfers Height adjustable Non-slip rubber tips Powder coated steel Height
Width Between Arms
Base Width
Base Depth
Max User Weight
625 - 775mm
455mm
540mm
490mm
125kg
AJ0350 - Toilet Surround - Wide • • • •
22
CA R I N G F U RT H E R
Heavy duty fixed height frame to assist toilet transfers Fitted with rear cross bar for additional strength and stability Non-slip rubber tips Powder coated steel Height
Width Between Arms
Base Width
Base Depth
Max User Weight
685mm
620mm
670mm
520mm
130kg
B AT H RO O M & H YG I E N E E Q UI P M E N T
Toilet Surrounds AJ0270 - Toilet Safety Arms • • • • • •
Frame to assist toilet transfers Arm height and width between arms is adjustable Easily attaches to toilet using existing toilet seat fixings Plastic moulded armpads for additional support Non-slip rubber tips Lightweight aluminium Arm Height
Width Between Arms
Frame Width
Max User Weight
310mm
450 - 550mm
550 - 650mm
110kg
AJ0280 - Darts Toilet Aid • • • • •
Support arms to assist toilet transfers Arms can be lifted back separately for transfers Easily attaches to toilet using existing toilet seat fixings Durable stainless steel Compatible with most toilets Arm Height
Width Between Arms
Frame Width
Max User Weight
360mm
510mm
580mm
200kg
AJ0290 - Throne Toilet Aid - 3 in 1 • • • • •
Support arms to assist toilet transfers Arms can be set in standard position, splayed position or folded down Splayed position provides a greater width between arms Fold down arms to assist side transfers Easily attaches to toilet using existing toilet seat fixings
•
• •
Clamps provide additional stability on the toilet pan, and lock arms into desired position Powder coated steel Compatible with most toilets
Width Between Arms
Back Plate
Arm Height (std)
Max User Weight
510/640mm
370mm
270mm
130kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
23
BAT H RO O M & H YG I E N E E Q UI P M E N T

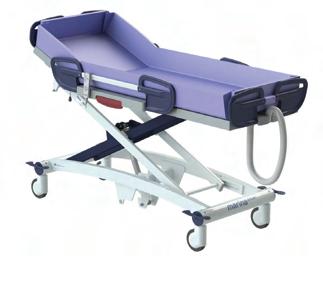

Shower Trolley AH0350 - Lopital - Marina Basic Hydraulic Shower Trolley • • • •
• •
Light aluminium construction for easy maneuvering Large stable wheelbase Large 150mm diameter wheels Hydraulically operated ergonomic and dependable pump for height adjustment Inclination adjustment for better water drainage Simple and safe control of side rails, adjustable to three positions: closed, wide and open
• •
• • • •
Corrosion resistance due to powder coated aluminium frame Comfortable mattress, antibacterial, flame retardant and free of harmful plasticizers Antibacterial coating on frame Streamlined finish for optimal cleaning and infection control Upright, high/low adjustment Easy to move under objects
Internal Width
Internal Length
Overall Width
Overall Length
High/Low Adjustment
Product Weight
Maximum Load Capacity
700 - 800mm
1700/1900/2100mm
810mm
1860/2060/2260mm
450 - 950mm
76kg
227kg
AH0360 - Lopital Marina Deluxe Hydraulic Shower Trolley • • • •
• •
• • •
24
Aid in the ergonomically responsible care and washing of clients Comfort is optimal for both client and carer Light aluminium construction for easy manoeuvring Large mobile base frame and a support base adjustable in height with a soft mattress Trolley is equipped with reverse Trendelenburg position Can be used multifunctionally and combines with the use of other aids such as hoists, sliding mats, wheelchairs, shower chairs and beds Large 150mm diameter wheels Semi-central brake system Hydraulically operated ergonomic and dependable pump for height adjustment
• • •
• •
• • • •
Variably adjustable back support up to 25° Inclination adjustment for better water drainage Simple and safe control of side rails, adjustable to three positions: closed, wide and open Corrosion resistance due to powder coated aluminium frame Comfortable mattress, antibacterial, flame retardant and free of harmful plasticizers Antibacterial coating on frame Streamlined finish for optimal cleaning and infection control Upright, high/low adjustment Easy to move under objects
Internal Width
Internal Length
Overall Width
Overall Length
High/Low Adjustment
Product Weight
Maximum Load Capacity
700 - 800mm
1700/1900/2100mm
810mm
1860/2060/2260mm
450 - 950mm
80kg
227kg
CA R I N G F U RT H E R
B AT H RO O M & H YG I E N E E Q UI P M E N T
Shower Trolley AH0370 - Lopital Marina Basic Electric Shower Trolley • • • •
• •
Light aluminium construction for easy manoeuvring Large stable wheelbase Large 150mm diameter wheels Electrically operated emergency descent switch, emergency stop, user friendly wall charger and replaceable battery Inclination adjustment for better water drainage Simple and safe control of side rails, adjustable to three positions: closed, wide and open
• •
• • • •
Corrosion resistance due to powder coated aluminium frame Comfortable mattress, antibacterial, flame retardant and free of harmful plasticizers Antibacterial coating on frame Streamlined finish for optimal cleaning and infection control Upright, high/low adjustment Easy to move under objects
Overall Width
Internal Length
Internal Width
Overall Length
High/Low Adjustment
Product Weight
Maximum Load Capacity
810mm
1700/1900/2100mm
700 - 800mm
1860/2060/2260mm
450 - 950mm
76kg
227kg
AH0380 - Lopital Marina Deluxe Electric Shower Trolley • • • •
• •
• • •
Aid in the ergonomically responsible care and washing of clients Comfort is optimal for both client and carer Light aluminium construction for easy manoeuvring Large mobile base frame and a support base adjustable in height with a soft mattress Trolley is equipped with an antiTrendelenburg position Can be used multifunctionally and combines with the use of other aids such as hoists, sliding mats, wheelchairs, shower chairs and beds Large 150mm diameter wheels Semi-central brake system Electrically operated emergency descent switch, emergency stop, user friendly wall charger and replaceable battery
• • •
• •
• • • •
Variably adjustable back support up to 25° Inclination adjustment for better water drainage Simple and safe control of side rails, adjustable to three positions: closed, wide and open Corrosion resistance due to powder coated aluminium frame Comfortable mattress, antibacterial, flame retardant and free of harmful plasticizers Antibacterial coating on frame Streamlined finish for optimal cleaning and infection control Upright, high/low adjustment Easy to move under objects
Overall Width
Internal Length
Internal Width
Overall Length
High/Low Adjustment
Product Weight
Maximum Load Capacity
810mm
1700/1900/2100mm
700 - 800mm
1860/2060/2260mm
450 - 950mm
80kg
227kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
25
BAT H RO O M & H YG I E N E E Q UI P M E N T
Bath Transfer Benches AA0190 - Bath Transfer Bench • • • • •
Provides easy and safe access and a stable seating area for bathing and showering Adjustable height aluminium frame Curved backrest provides added support Plastic moulded textured top features holes to drain water away from the seating area Integrated soap dish and grab rail (specify left or right side)
Accessories Available AZ2770 Extension Legs (adds 90mm height) pair AZ0680 Standard Legs with Suction Cups, pair AZ0670 Extension Legs with Suction Cups, pair Seat Width
Seat Depth
Seat Height
Max User Weight
800mm
370mm
450 - 565mm
130kg
AA0170 - Bath Transfer Bench - Padded • • • • • •
Provides easy and safe access and a stable seating area for bathing and showering Adjustable height aluminium frame Padded for user comfort Three piece padded seat allows water to drain away from seating area Curved backrest provides added support Integrated grab rail (specify left or right side)
Accessories Available AZ2770 Extension Legs (adds 90mm height) pair AZ0680 Standard Legs with Suction Cups, pair AZ0670 Extension Legs with Suction Cups, pair Seat Width
Seat Depth
Seat Height
Max User Weight
590mm
400mm
455 - 565mm
130kg
AA0200 - Bath Transfer Bench - Sliding • • • • • • • •
26
CA R I N G F U RT H E R
Provides easy and safe access and a stable seating area for bathing and showering Adjustable height aluminium frame Plastic moulded textured top features holes to drain water away from the seating area Sliding function allows seat to easily transfer to a bathing position Anti-slide locking device on both ends of bench Velcro lap belt provides increased security Curved backrest provides added support Integrated grab rail (specify left or right side) Seat Width
Seat Depth
Seat Height
Max User Weight
480mm
330mm
495 - 590mm
125kg
B AT H RO O M & H YG I E N E E Q UI P M E N T
Bath Transfer Benches AA0150 - Bath Transfer Bench - Heavy Duty • • • • • •
Provides easy and safe access and a stable seating area for bathing and showering Reinforced frame to suit the heavier client Adjustable height aluminium frame Curved backrest provides added support Plastic moulded textured top features holes to drain water away from the seating area Integrated soap dish and grab rail (specify left or right side) Seat Width
Seat Depth
Seat Height
Max User Weight
780mm
430mm
460 - 560mm
170kg
AA0240 - Bariatric Transfer Bench • • • • • • • • • • • •
Provides a comfortable showering and bathing rest Safe transfer platform for bath & shower access Fits all standard bath and shower recesses Rust proof stainless steel frame Moulded plastic, textured seat with drainage holes Adjustable seat height and seat angle Backrest provides increased safety & support Quick fit reversible backrest Side arm assists in lateral transfer & positioning Height adjustable legs Splayed legs for added stability Anti-slip rubber feet and suction cups Seat Width
Seat Depth
Seat Height
Max User Weight
780mm
410mm
470 - 570mm
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
27
BAT H RO O M & H YG I E N E E Q UI P M E N T
Bathboards AA0100 - Plastic Bathboard • • • • •
Wide contoured seating area Adjustable, removable grab rail Integrated hand shower holder and soap dish Holes drain water away from seating area Adjustable feet to fit most baths Width
Depth
Max User Weight
780mm
370mm
100kg
AA0110 - Plastic Bathboard • • • •
Wider contour at one end to assist transfers Soap dish and removable grab rail Integrated slots drain water away from seating area Adjustable feet to fit most baths Width
Depth
Max User Weight
680mm
350mm
150kg
AA0090 - Kingfisher Bathboard • • • • •
Integrated soap dish and removable grab rail Slotted channels drain water away from seating area Large adjustable feet swivel 360° and suit most baths Suction cup feet lock easily into position for a secure fit Made in the UK Width
Depth
Max User Weight
690mm
330mm
200kg
AA0080 - Cosby Bathboard • • • • •
28
CA R I N G F U RT H E R
Contoured channelled surface drains water away from seating area Reinforced with exterior grade plywood Adjustable feet to suit most baths Moulded plastic construction Made in the UK Width
Depth
Max User Weight
710mm
290mm
180kg
B AT H RO O M & H YG I E N E E Q UI P M E N T
Bath Seats AA0210 - Care Quip Swivel Bath Seat • • • • • • •
Assists showering over the bath Enables easy transfers from standing to bathing position Adjustable width to suit most baths Seat locks in both transfer and bathing positions Holes in plastic seat drain water away from seating area Non-slip rubber feet to hold the frame firmly in position on bath Powder coated aluminium Width Between Arms
Seat Width
Max User Weight
540mm
450mm
125kg
AA0070 - Swivel Bath Seat - Swan • • • • • • • •
Enables easy transfers from standing to bathing position Adjustable width to suit most baths Seat locks in both transfer and bathing positions Front seat cut-out assists personal cleaning Holes in plastic seat drain water away from seating area Adjustable left/right control lever positions Non-slip rubber feet to hold the frame firmly in position Durable powder coated aluminium
Accessories Available AZ1230 50mm Swan Seat Height Extension AZ1220 100mm Swan Seat Height Extension Width Between Arms
Seat Width
Max User Weight
430mm
410mm
100kg
AA0040 - Swivel Bath Seat - Myco • • • • •
Enables easy transfers from standing to bathing position Seat locks in both transfer and bathing positions Holes in plastic seat drain water away from seating area Non-slip rubber feet to hold the frame firmly in position on bath Powder coated steel
Also Available AA0050 Myco Swivel Bath Seat Stainless Steel (Max User Weight 125kg) Accessories Available AZ1210 90mm Seat Height Extension AZ1200 140mm Seat Height Extension Width Between Arms
Seat Width
Max User Weight
480mm
410mm
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
29
BAT H RO O M & H YG I E N E E Q UI P M E N T
Shower Seats AG0030 - Drop Down Shower Seat • • • • • • •
Ideal where showering space is limited Folds up against wall when not in use Slats drain water away from seating area Aluminium seat slats Durable stainless steel frame Made in Australia Must be installed by a qualified trades person Seat Width
Seat Depth
350mm
320mm
AG0020 - Drop Down Shower Seat • • • • • • •
Ideal where showering space is limited To suit the wider user Folds up against wall when not in use Durable perspex seating area Stainless steel frame Made in Australia Must be installed by a qualified trades person Seat Width
Seat Depth
600mm
320mm
AG0040 - Drop Down Shower Seat - Large • • • • • • • • • •
30
CA R I N G F U RT H E R
Ideal where showering space is limited To suit the wider user Folds up against wall when not in use Fold away support legs provide added strength Slats drain water away from seating area Aluminium seat slats Durable stainless steel frame Made in Australia Complies to Australian standards AS 1428.1-2009 Must be installed by a qualified trades person Seat Width
Seat Depth
Seat Height
960mm
390mm
470mm
B AT H RO O M & H YG I E N E E Q UI P M E N T
Urinals & Bed Pans CF0080 - Female Urinal • • • • • •
Autoclavable for sanitising Integrated handle 1 litre capacity 100ml graduation markings Moulded plastic Weight 205g
CF0090 - Female Urinal Cygnet • • • • •
CF0130 - Male Urinal with Screw on Lid • • • • • • •
CF0140 - Male Urinal ‘Spil-Pruf’
Integrated handle 1 litre capacity 100ml graduation markings Moulded plastic Weight 105g
• • • • • • • • •
CF0110 - Male Urinal
Autoclavable for sanitising Integrated handle Screw on lid prevents spillage 1 litre capacity 100ml graduation markings Moulded plastic Weight 180g
Autoclavable for sanitising Integrated handle Patented non-spill spout prevents spillage in any position Spout unscrews easily for disposal and cleaning 1 litre capacity 500ml non-spill capacity 100ml graduation markings Moulded plastic Weight 240g
CF0060 - Female Adaptor for ‘Spil-Pruf’ Urinal • • • • • •
Autoclavable for sanitising Integrated handle 1 litre capacity 100ml graduation markings Moulded plastic Weight 115g
• • • •
Converts male Spil-Pruf urinal for female use Slides into Spil-Pruf urinal spout Moulded plastic Weight 60g
Also Available CF0120 Male Urinal Green
CF0100 - Male Urinal with Lid • • • • • • •
CF0070 - Urinal Bottle Holder
Integrated handle Clip-on lid prevents spillage Lid stays attached to urinal while in use 1 litre capacity 100ml graduation markings Moulded plastic Weight 165g
• • • • • •
1 30 0 930 930
Epoxy coated wire frame Easily attaches to bed frame, rail etc. Holds urinal in an upright position to prevent spillage Compatible with most urinals Weight 345g Urinal not included
A L P H A L I F E CA R E .C O M . AU
31
BAT H RO O M & H YG I E N E E Q UI P M E N T
Urinals & Bed Pans Slipper Bed Pan • • • • •
Wedge shape assists in positioning pan for use Integrated handle Front panel prevents spillage when moving or transporting pan Autoclavable for sanitising Moulded plastic
Code
Size
Width
CF0040
Regular
240mm
320mm
85mm
CF0030
Large
300mm
430mm
90mm
CF0020 - Bed Pan • • • • •
Frontal opening Wide seating area Autoclavable for sanitising Moulded plastic Fits into mobile commode pan carrier
Width
Length
Height
295mm
360mm
115mm
Commode Bowls CF0550 - Wash Bowl • •
Autoclavable for sanitising Moulded plastic
Top Diameter
Base Diameter
Height
305mm
220mm
90mm
AZ0050 - Commode Bowl with Lid • • •
32
CA R I N G F U RT H E R
Autoclavable for sanitising Moulded plastic Includes lid and handle
Width
Length
Height
290mm
215mm
130mm
Length
Height
B AT H RO O M & H YG I E N E E Q UI P M E N T
Clamp on Bath Rails AC0040 - Clamp on Rail • • • • • • •
Provides assistance for transferring in and out of the bath Dual height grip position Rubber lined screw-on clamp Easy to install Suits most baths Powder coated steel Only suitable for downward pressure Height
Width
370mm
150mm
Toilet Rails AC0100 - Drop Down Rail • • • • • • •
Provides additional support for bathroom transfers Mounts onto wall and swings back when not in use Ideal where space is limited Spring loaded lock-up mechanism holds rail in upright position Easily folded down for use Powder coated steel All rails must be installed by a qualified trades person Overall Length
Base Plate Width
Base Plate Length
Tube Diameter
760mm
127mm
300mm
25mm
AC0120 - Drop Down Rail - Stainless Steel • • • • • • • •
Provides additional support for bathroom transfers Mounts onto wall and swings back when not in use Ideal where space is limited Rail automatically locks into upright position when vertical Easily dropped down via simple lift action to release lock Quality marine grade stainless steel Made in Australia All rails must be installed by a qualified trades person Overall Length
Base Plate Width
Base Plate Length
Tube Diameter
840mm
48mm
200mm
32mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
33
BAT H RO O M & H YG I E N E E Q UI P M E N T
Toilet Rails AZ3050 - Toilet Roll Holder • • •
Easily attaches to 32mm diameter drop down and fixed rails by heavy duty adhesive tape Conveniently positions toilet tissue in a more accessible location Quality chrome holder swivels in a plastic moulding
Bathroom Accessories AB0030 Hand Shower • • • • •
Fixes to existing shower outlet Supplied complete with wall bracket Lightweight plastic handpiece Convenient on/off switch Length 2m
AB0050 - Hand Shower - Single Tap Clamp-on • • • • •
Fixes to existing tap spout Lightweight plastic hand piece Supplied with two rubber reducing collars to suit most tap spouts Easily fitted and removed Length 2m
AB0040 Hand Shower - Dual Tap Clamp-on • • • • •
34
CA R I N G F U RT H E R
Fixes to existing tap spouts Lightweight plastic handpiece Supplied with two rubber reducing collars to suit most tap spouts Easily fitted and removed Length 2m
B AT H RO O M & H YG I E N E E Q UI P M E N T
Bathroom Accessories AB0070 Hand Shower & Holder • • • • • • • •
Clamps onto existing grab rail to provide a holder for the shower head Fixes to existing shower outlet Shower holder swivels 360° Lightweight plastic handpiece Convenient on/off switch Chrome plated brass construction To suit 32mm diameter rails Length 2m
• • • • • •
Assists showering or bathing Absorbent sponge Plastic handle for easy grip Long flexible wire stem can be angled Eliminates the need for bending and makes reaching easier Length 630mm
• • • • • •
Assists washing or powdering Double thickness sheepskin pad Plastic handle for easy grip Long flexible wire stem can be angled Eliminates the need for bending and makes reaching easier Length 630mm
• • • • • • •
For washing/drying between the toes Plastic handle for easy grip Long flexible wire stem can be angled Eliminates the need for bending and makes reaching easier Removable towelling pad Spare pad included Length 690mm
CA0010 - Bathing Sponge
CA0050 - Lambswool Pad
CA0080 - Toe Washer
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
35
BAT H RO O M & H YG I E N E E Q UI P M E N T

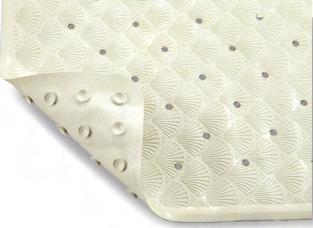

Bathroom Accessories AB0010 - Bath Mat • • • •
Provides a non-slip area within the bath Moulded suction cups on underside for added grip Beige colour Made from quality rubber compound Width
Length
400mm
700mm
AB0100 - Shower Mat • • • •
Provides a non-slip area within the shower Moulded suction cups on underside for added grip Beige colour Made from quality rubber compound Width
Length
540mm
540mm

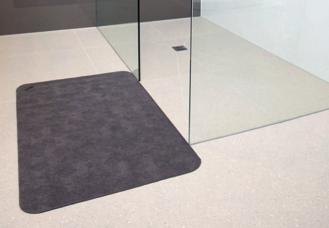

CF0300 - Conni Non Slip Floor Mat • • • •
Designed to sit firm and flat on the floor to help prevent trips and slips in areas where liquid might be spilt The non-splash surface absorbs fluid making it perfect in wet areas such as bathrooms and kitchens Works well in protecting carpets from stains and odours It can be used next to the bed or chair for leaks that may occur and is excellent under commodes and IV stands Width
Length
600mm
900mm
CA0020 - Bottom Wiper • • •
36
CA R I N G F U RT H E R
Can be used from the front or rear Moulded plastic head with recessed serrations to grip the toilet paper Paper is easily removed after use Length
Weight
325mm
70g
B AT H RO O M & H YG I E N E E Q UI P M E N T
Bathroom Accessories CA0040 - Bottom Wiper - Folding • • • •
Can be used from the front or rear Moulded plastic head with recessed serrations to grip the toilet paper Paper is easily removed after use Folds into three for easy storage Length
Folded Length
Weight
265mm
120mm
70g
CA0030 - Bottom Wiper - Buckingham • • • • •
Can be used from the front or rear Moulded silicon end with recessed pocket to grip the toilet paper Tissue is ejected after use, by push button at the other end of the handle Contoured handle for comfortable and secure grip Conveniently packaged in a zippered pouch with handle Length
Weight
380mm
120g
AZ3300 - P-Guard • • • • • •
Prevents embarrassing and unhygienic accidents that can happen when gentlemen sit down to use the toilet Soft plastic cup deflects urine into the toilet Cup slides easily on and off the bracket, making it easy to clean Flexible links allow the cup to be positioned for individual needs Can be used with a standard toilet, raised toilet seat or some commodes Width
Length
Depth
125mm
175mm
50mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
37
Beds & Bedroom Equipment Adjustable Beds
39
Bedroom Patient Safety
48
Bed Rails & Supports
50
Blanket Supports
54
Incontinence Sheets & Protectors
54
Bedroom Accessories
56
Overbed / Overchair Tables
58
Bedside Commodes
61
B E D S & B E D RO O M E Q UI P M E N T

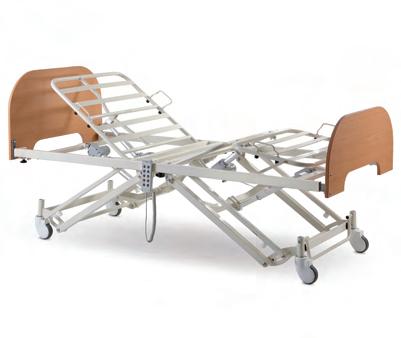

Adjustable Beds BD0910 - Eurocare Prosaic Electric Bed • • • • • • • • • •
Electric adjustable bed ideal for the homecare environment Electric high/low functions, including backrest and knee-bend Electric Trendelenburg and reverse Trendelenburg positions Pull-apart function for easy transport and installation Supplied with white head and footboard panels Drop down side rails Self help pole with adjustable support handle Hand control is simple and easy to use and functions can be locked for patient safety 4 x 100mm locking castors Grey powder coated steel frame
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD0910
Single
940mm
2160mm
1980 x 870mm
400 - 800mm
175kg
Viscount Bed • • • • • • • • • •
Adjustable bed with attractive finish is ideal for the homecare environment Electric high/low functions, including backrest and knee-bend Electric Trendelenburg and reverse Trendelenburg positions Pull-apart function for easy transport and installation Supplied with European Beech woodgrain headboard and footboard panels Full length drop down timber side rails Self help pole with adjustable support handle Hand control is simple and easy to use and functions can be locked for patient safety 4 x 100mm locking castors Grey powder coated steel frame
Accessories Available BA0780 200mm Clip-on Base Extension (BA0750 Extended Side Rails required with this option) Code
Size
Type
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD0020 BD1450
Single
Standard
1025mm
2140mm
880 x 1980mm
400 - 800mm
175kg
Single
Ultra Low
1025mm
2140mm
880 x 1980mm
230 - 630mm
175kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
39
B E D S & B E D RO O M E Q UI P M E N T

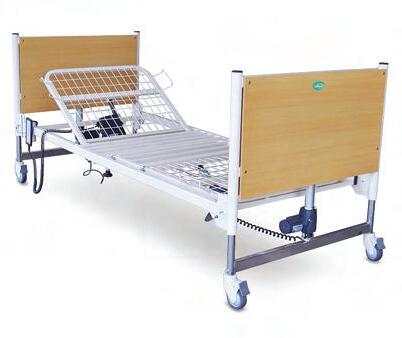

Adjustable Beds P5500 Bed • • • • • • • •
Electric adjustable bed ideal for the homecare environment Electric high/low functions, including backrest and knee-bend Electric Trendelenburg and reverse Trendelenburg positions Pull-apart function for easy transport and installation Supplied with European Beech head and footboard panels Hand control is simple and easy to use 4 x 100mm locking castors Beige powder coated steel frame
Accessories Available BA0400 Horizontal Side Rails (set) BA1000 Self Help Pole BA0200 200mm Clip-on Base Extension BA0580 Clamp on Rail
Code
Size
Type
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD0310
Single
P5500
930mm
2190mm
900 x 2000mm
295-740mm
200kg
BD0330
King Single
P5500W
1070mm
2190mm
1050 x 2000mm
295-740mm
200kg
BD1040 - Jacaranda Bed • • • • • • • • • •
Adjustable bed is ideal for the homecare environment Electric high/low functions, including backrest, knee-bend and vertical lift Additional low-low feature reduces the risk of falls Electric Trendelenburg and reverse Trendelenburg positions Pull-apart function for easy transport and installation Supplied with beech woodgrain head and footboard panels Hand control is simple and easy to use 4 x 125mm central locking castors Battery back-up Beige or grey powder coated steel frame
Accessories Available BA1140 Horizontal Side Rails (set) BA1130 Self Help Pole BA0570 Clamp on Rail
40
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD1040
Single
900mm
2080mm
1980 x 870mm
200-765mm
180kg
CA R I N G F U RT H E R
B E D S & B E D RO O M E Q UI P M E N T
Adjustable Beds Wattle Bed • • • • • • • • •
Adjustable bed is ideal for the homecare environments Electric high/low functions, including backrest, knee-bend & vertical lift In-built 200mm length extension for taller patients One-piece frame for stability and durability Supplied with beech woodgrain head and footboard panels Hand control is simple and easy to use 4 x 125mm central locking castors Battery back-up Grey powder coated steel frame
Accessories Available BA1145 Horizontal Side Rails (set) BA1135 Self Help Pole BA0570 Clamp on Rail
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD0530
Single
900mm
2080mm
880 x 1980mm
310-755mm
180kg
BD0550
King Single
1070mm
2080mm
1050 x 1980mm
310-755mm
180kg

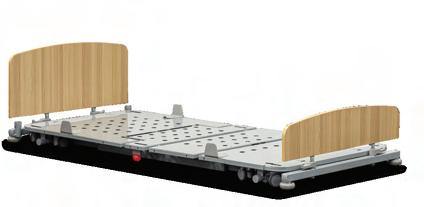

BD1170 - Accora Bed • • • • • • • • •
Electric adjustable floor bed ideal for the homecare environment Electric high/low functions, including backrest and knee-bend Ultra-low floor height of 71mm reduces the risk of injury from falls Electric Trendelenburg and reverse Trendelenburg positions Pull-apart function for easy transport and installation Supplied with beech woodgrain head and footboard panels Hand control is simple and easy to use 4 x 75mm locking castors Grey powder coated steel frame
Accessories Available BA1400 Side Rails – Integrated and fully enclosed padded side rails offer full length support and lock securely in position. Side rails do not impede on transfers as they sit below mattress when lowered.
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD1170
Single
925mm
2255mm
900 x 2000mm
71 - 650mm
185kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
41
B E D S & B E D RO O M E Q UI P M E N T
Adjustable Beds Eurocare Floorline Bed • • • • • • • • • • •
Electric high/low function Electric knee-bend and auto regression backrest Electric Trendelenburg & reverse Trendelenburg function Expandable mattress section - Single to King Single Ultra-low floor height of 100mm reduces the risk of injury from falls Hand control is simple and easy to use 8 x 75mm locking castors Supplied with removable and locking beech woodgrain head & foot boards Grey powder coated steel frame Optional timber side panels for aesthetic appeal Also available in Lindberg Oak, Idyllic or Havana timber boards & side panels
Accessories Available BZ0302 Horizontal Side Rails to suit Single Bed BZ0331 Side Wood Panels BZ0325 Self Help Pole BZ0407 Nurse Control
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD5230
Single
970mm
2180mm
2000 x 2000/2200mm
110 - 740mm
180kg
BD5240
King Single
1070mm
2180mm
1070 x 2000/2200mm
110 - 740mm
180kg
Endless Floor Bed • • • • • • • • •
Electric adjustable floor bed with low bed ends, ideal for the homecare environment Unique bed design without towers suits high, low and bariatric care clients Electric high/low functions, including backrest and knee-bend Ultra-low floor height of 100mm reduces the risk of injury from falls Electric Trendelenburg and reverse Trendelenburg positions Supplied with beech woodgrain head and footboard panels Hand control is simple and easy to use 8 x 75mm locking castors Grey powder coated steel frame
Also Available Bariatric option with safe working load of 300kg Accessories Available BZ0013 Horizontal Side Rails to suit Single Bed (set) – Side rails do not impede on transfers as they sit below mattress when lowered BZ0014 Horizontal Side Rails to suit King Single Bed (set) – Side rails do not impede on transfers as they sit below mattress when lowered BA1000 Self Help Pole
42
Code
Size
Castor Locking Type
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD1350
Single
Individual
905mm
2080mm
890 x 2000mm
100-725mm
200kg
BD1360
King Single
Individual
1090mm
2080mm
1070 x 2000mm
100-725mm
200kg
CA R I N G F U RT H E R
B E D S & B E D RO O M E Q UI P M E N T

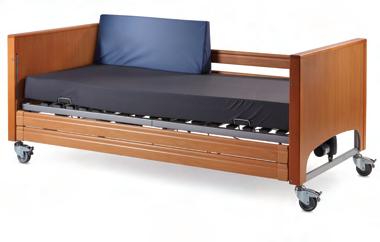

Adjustable Beds BD3050 - Domiflex Deluxe Bed • • • • •
Integrated full length timber side rails Transport and storage system Inside full covered end panels, Havana timber colour Aluminium slatted mattress base Lifting pole and triangle grip
Lying Surface Dimensions
External Dimensions
Height Adjustment
Lifter Clearance
Side Rail Height
Safe Working Load
900 x 2000mm
1030 x 2210mm
400 - 810mm
230mm
370mm
170kg

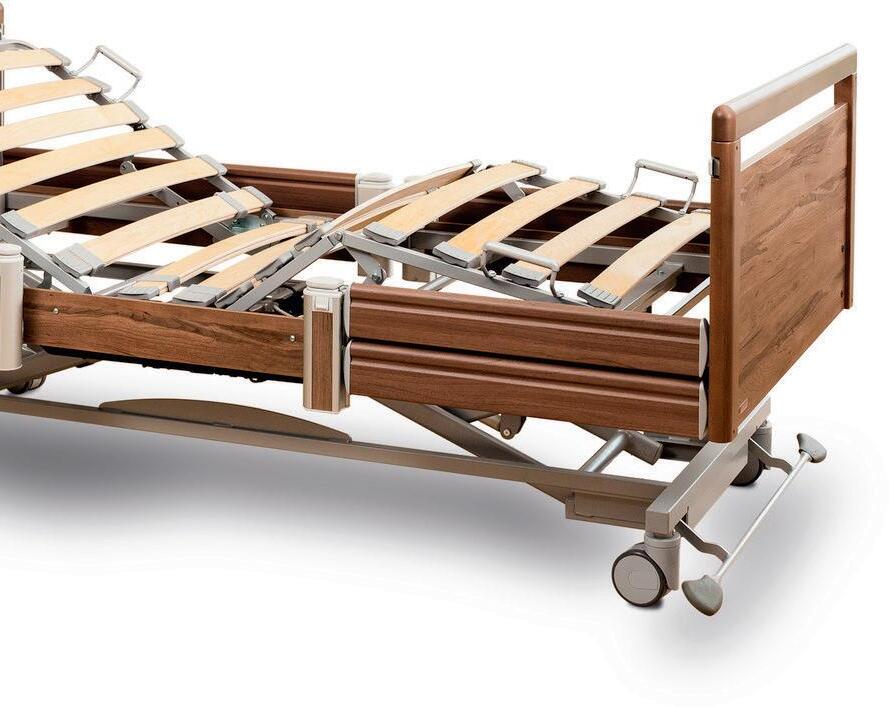

Bock Practico 25|80 • • • • • • • • • • • • • • •
Code
Size
Electric Hi-Low (250-800mm) Safe lying at the lowest height of just 250mm Various comfort sitting and lying positions Electric backrest & knee bend Comfort sitting position Timber slatted mattress platform 100mm central braking castors with directional lock for easy manoeuvring and locking Direct lift action Hand control with locking function Extra low position Battery back up Trendelenburg/reverse Trendelenburg Range of bedhead and foot panels available Variety of colour options Made in Germany
Lying Surface Dimensions
Overall Dimensions
Height Adjustment
Max User Weight
Safe Working Load
BD3450
Single
900 x 2000mm
1050 x 2000mm
250-800mm
185kg
220kg
BD3700
King Single
1050 x 2000mm
1200 x 2100mm
250-800mm
185kg
220kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
43
B E D S & B E D RO O M E Q UI P M E N T
Adjustable Beds Bock Practico 15|80 •
• •
• • • •
• • • • •
• •
Code
The Bock Floorline 15|80 reduces the height of low beds for institutional care by 40% from 250mm to 150mm and thus consistently pursues the approach of reducing measures that deprive patients of their freedom This means reduction in the severity of consequences from falls With a working height of 800mm, the everyday care operations at the bed are simplified and nursing staff can work in a back-friendly environment Programmed exit stop at 375mm for a particularly safe and comfortable exit of the bed Additional safety stop at 250mm to prevent crushing The proven Bock double scissor lift system ensures optimum stability at every height Optimal manoeuvrability due to three large double castors per side (2 × 100 and 1 × 75 mm) with castor locking and directional giving device on both sides allow smooth straight running and safe locking The floorline 15|80 can be moved at any height The 4-section lying surface offers comfortable and ergonomically optimised lying comfort Ergonomic backrest with a length of 860mm and mattress compensation A variety of sitting and lying positions as well as the different lying surface systems offer more individual lying comfort Integrated, tool-free bed and side rail extension, allow caregivers to quickly adjust the bed length to different resident profiles and care situations Trendelenburg and reverse Trendelenburg Hand control with locking function
Size
Overall Width
Overall Length
BD4750
Single
1030mm
2190mm
BD4780
King Single
1180mm
2190mm
Sleeping Surface
Height Range
Safe Working Load
900 x 2000mm
150 - 800mm
220kg
1050 x 2000mm
150 - 800mm
220kg
Bock Practico Bed Accessories

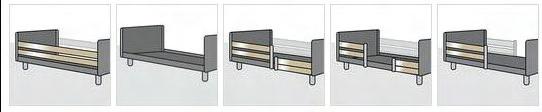

Continuous Side Rails • Our continuous side rails with safety interlock can be lifted or lowered very easily - so that restriction is kept to a minimum. Long-divided side rails • Due to the long-divided side rails, it is possible to use side rails only at the head part. This offers optimal security by legal guidelines and is at the same time only minimally restrictive. Short-divided side rails • The short-divided side rails offer security from falling out of the bed, but are less restrictive towards the patient´s freedom of movement. Head-section side rails • The telescopic head-section side rails provide the protection required by law without unnecessarily limiting patients’ freedom. 44
CA R I N G F U RT H E R
B E D S & B E D RO O M E Q UI P M E N T
Adjustable Beds Bariatric Bed • • • • • • • •
Adjustable heavy duty electric bed is ideal for the homecare environment Durable reinforced frame to suit the bariatric client Electric high/low functions, including backrest and knee-bend Supplied with woodgrain head and footboard panels Hand control is simple and easy to use 4 x 125mm locking castors Beige powder coated steel frame Made in Australia
Accessories Available BA0400 Horizontal Side Rails (set) BA0390 Self Help Pole BA0580 Clamp on Rail
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD0870
King Single
1090mm
2040mm
1070 x 2000mm
270-760mm
300kg
BD0750
Extra Wide
1220mm
2040mm
1200 x 2000mm
270-760mm
300kg
BD0150
Double
1390mm
2040mm
1370 x 2000mm
270-760mm
300kg
BD0180
Queen
1520mm
2040mm
1500 x 2000mm
270-760mm
300kg
BD4740 - Adiflex Bariatric Bed • • • • • • • •
Electric Hi/Low (230-830mm) 4 section lying surface for various comfort sitting and lying positions Integrated full length timber side rails Transport and storage system Hand control with locking function Inside full covered end panels, Havana timber colour Aluminium slatted mattress base Lifting pole and triangle grip
Lying Surface Dimensions
External Dimensions
Height Adjustment
Lifter Clearance
Side Rail Height
Max User Weight
Safe Working Load
1200 x 2200mm
1330 x 2170-2370mm
230 - 830mm
150mm
370mm
220kg
255kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
45
B E D S & B E D RO O M E Q UI P M E N T
Adjustable Beds IC111 i-Care Homecare Bed • • • • • • • • •
Code
Size
Overall Width
Overall Length
Hand Piece – Backlit for night time use Easy press buttons Wired stretch cord Hook attachment for hanging to side of bed Strong metal mesh under mattress allowing increased airflow Wheels – large lockable heavy duty swivel castors on each corner Head Lift angle 62º Knee break angle 42º Headboard not included
Sleeping Surface
Height
Safe Working Load
BD1740
Long Single
960mm
2150mm
900 x 2030mm
370mm
200kg
BD1750
King Single
1120mm
2150mm
1070 x 2030mm
370mm
200kg
BD1760
Split Double
1400mm
2150mm
2 x 750 x 2030mm
370mm
200kg
BD1770
Split Queen
1580mm
2150mm
2 x 900 x 2030mm
370mm
200kg
IC333 i-Care Homecare Bed • • • • • • • •
Hand Piece – Backlit for night time use Easy press buttons Wired stretch cord Hook attachment for hanging to side of bed Strong metal mesh under mattress allowing increased airflow 8 x heavy duty swivel castors with one lockable castor on each corner Head lift angle 62º Knee break angle 42º
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD1780
Long Single
960mm
2150mm
900 x 2030mm
220-660mm
200kg
BD1790
King Single
1120mm
2150mm
1070 x 2030mm
220-660mm
200kg
BD1800
Double
1400mm
2150mm
1350 x 2030mm
220-660mm
300kg
BD1810
Queen
1580mm
2150mm
1580 x 2030mm
220-660mm
300kg
IC555 i-Care Homecare Bed • • • • • • • • •
46
Hand Piece – Backlit for night time use Easy press buttons Wired stretch cord Hook attachment for hanging to side of bed Strong metal mesh under mattress allowing increased airflow 8 x heavy duty swivel castors with one lockable castor on each corner Head lift angle 62º Knee break angle 42º Headboard not included
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD1820
King Single
1070mm
2030mm
2030 x 1070mm
220-260mm
350kg
CA R I N G F U RT H E R
B E D S & B E D RO O M E Q UI P M E N T
Adjustable Beds i-Care Companion Bed The Companion Bed is completely stationary, with no moving parts and allows a partner or parent to sleep along side a companion. It is a non-mechanical upholstered slat base, which sits beside an adjustable homecare bed. • • • • • • •
Easy to move companion base No gap between the mattresses side by side configuration Safe working load 100kg Suitable for use with the IC222 and IC333 5 Year warranty Headboard not included
Code
Size
Overall Width
Overall Length
Sleeping Surface
Safe Working Load
BD1550
Long Single
960mm
2150mm
900 x 2030mm
100kg
BD1860
King SIngle
1120mm
2150mm
1070 x 2030mm
100kg
i-Care Bed Accessories
BA1920 - Bed Stick
BA1940 - Over Bed Pole
BA4450 - U-Assist Side Rail
BA1900 - High Side Rail
BA1910 - Low Side Rail
BA1930 - Full Length Side Rail
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
47
B E D S & B E D RO O M E Q UI P M E N T
Adjustable Beds - Children BD2030 Nino Series Bed The Nino Series allows children to perceive the world around them while at the same time providing protection and security. The transparent Perspex merges with the room allowing occupants to have an unrestricted view of their immediate surroundings yet still protects against falls and injuries. • • • • • •
Electric Hi Low Electric Backrest Electric Kneebreak Standard Head & Foot Boards 750mm Perspex Sides (Gates one Side) 125mm Braking & Directional Castors
Accessories Available Central Locking Castors (OPTIONAL) Underbed Lighting | Backlit Handset Green and Yellow Powdercoat Underbed Clearance 160mm Angles Back - 70 degrees Knee 44 degrees Available in different powdercoat colours, or with higher door elements or doors on both sides
Size
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
Single
1014mm
2200mm
870 x 2000mm
390-830mm
200kg
Bedroom Patient Safety BA1030 - Bed Rail Protectors - Standard • • • • • • • •
48
CA R I N G F U RT H E R
Protects patients from skin injury and prevents limbs from protruding through bed rails Made from soft medical grade foam 2-way stretch cover is vapour permeable and easy to clean Includes Velcro closure for secure attachment Protector needs to be removed when lowering bed rails Supplied as a set of 2 Length 1370mm Width 330mm
B E D S & B E D RO O M E Q UI P M E N T
Bedroom Patient Safety BA1310 - Two Bar Bumpers • • • • • • • • •
Protects patients from skin injury and prevents limbs from protruding through bed rails Made from soft medical grade foam Mesh insert for visibility 2-way stretch polyurethane vinyl cover is vapour permeable and easy to clean Includes zippered closure for secure attachment Designed to suit beds with full length dual timber side rails Supplied as a set of 2 Length 1980mm Width 330mm
BA1020 - Side Rail Wedges • • • • •
Protects patients from skin injury and prevents limbs from protruding through bed rails Profile allows for a secure fit between mattress and side rails for greater patient protection Made from soft medical grade foam 2-way stretch cover is vapour permeable and easy to clean Supplied as a set of 4 Length
Width
Height from Mattress
890mm
100mm
400mm
Ultra Safe Cocoon • • • • • •
Fully encloses and protects patients from skin injury and prevents limbs from protruding through bed rails Zippered cocoon sides allow carer access when side rails are lowered Secures to side rails by Velcro attachment Made from soft medical grade foam 2-way stretch polyurethane vinyl cover is vapour permeable and easy to clean To suit single adjustable beds Code
Size
Length
Width
Height from Mattress
BA0710
Single
BA0720
Wide
1980mm
890mm
400mm
1980mm
1050mm
400mm
BA0810 - Full Length Padded Side Rail Protectors • • • •
Waterproof pressure care vinyl upholstery Removable design Velcro fastening Full length
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
49
B E D S & B E D RO O M E Q UI P M E N T
Bedroom Patient Safety BC0160 - Crash Mat •
•
•
Lightweight mat can be placed on either side of the adjustable or standard bed to help prevent or reduce injuries for patients who roll or fall out of bed Ideal for aged care and homecare environments, and especially useful where facility protocols prohibit the use of side rails Foam is firm enough to walk on but soft enough to reduce impact from falls
•
•
•
Length
Width
Height
1750mm
600mm
50mm
Waterproof vinyl cover features a slip resistant underside and is seam-sealed for infection control Reflective strip on mat perimeter to reduce trip hazard and for night time visibility Hinged nylon for easy folding and storage
Bed Rails & Supports BA0640 - Curera Support Wedges •
• • • • •
50
CA R I N G F U RT H E R
High resilience foam support wedges are used to position a patient effectively in semi-side lying positions to reduce pressure on their sacrum Can assist carer and patient with position changes and as kick protection against side rails Recommended user settings are clearly illustrated and identified on the covers Polyurethane vinyl cover is vapour permeable and easy to clean Cover is machine washable up to 95° and can be tumble dried Supplied individually
Length
Width
Height
700mm
250mm
150mm
B E D S & B E D RO O M E Q UI P M E N T
Bed Rails & Supports BA0010 - Adjustable Backrest • • • •
ulti-angled pillow support M Provides assistance and support in bed Wide aluminium frame fitted with strong breathable nylon back Angle can be adjusted via a simple ratchet mechanism Back Height
Frame Width
Frame Depth
495mm
700mm
490mm
BC0680 - Bed Wedge • • • • •
Angled foam cushion provides comfort and support to the upper body Ideal for those who suffer from respiratory and reflux problems Removable quilted cotton cover Wedge can be turned to provide two different recline angles (15° or 75°) Foam insert can be removed to alter the angle by approx 5°
Width
Length
Height
680mm
710mm
240 or 600mm
CD0020 - Bed Sitta • • • •
Armchair-shaped support for sitting upright in bed Armrests provide postural and lateral support White quilted zippered cover Made from sculptured open cell foam
Width (Inner)
Width (Outer)
Height
420mm
630mm
520mm
BA0160 - Rope Ladder Bed Hoist • • • • • • •
A solution for clients who have physical difficulties sitting up in or getting out of bed Step by step they gradually pull themselves up from a lying to a sitting position The action involved also strengthens the stomach and arm muscles of the user Can also be used to assist in transfers from wheelchairs to beds Plastic ladder rungs give a firm and safe grip Cord ends tie around the bed legs Suitable for single or double beds
Rung Width
Rung Diameter
Cord Length
195mm
25mm
3m (to first rung)
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
51
B E D S & B E D RO O M E Q UI P M E N T
Bed Rails & Supports BB0040 - Bed Rail Removable • • • • •
Provides a support rail on the side of the bed Ideal for patients requiring assistance while turning, repositioning or during transfers Easily installed and removed Slides between mattress and bed base Powder coated steel
Height
Width
Reach
600mm
500mm
590mm
BB0010 - Bed Rail Dropside • • • • • • •
Provides a support rail on the side of the bed Ideal for patients requiring assistance while turning, repositioning or during transfers Easily installed and removed Slides between mattress and bed base Side rail drops to provide greater access for bed transfers Rail easily drops down below mattress height by simple release mechanism Powder coated steel
Height
Width
Reach
400mm
810mm
600mm
BB0060 - Bed Stick Cobra • • • • • •
52
CA R I N G F U RT H E R
Provides a support pole for the side of the bed Ideal for patients requiring assistance while turning, repositioning or during transfers Slides between mattress and bed base Can be used on either or both sides of the bed Easily installed and removed Powder coated steel
Height
Reach
510mm
350mm
B E D S & B E D RO O M E Q UI P M E N T
Bed Rails & Supports BB0080 - Hook Type Bed Rail • • • • • •
Provides a support rail for the side of the bed Ideal for patients requiring assistance while turning, repositioning or during transfers Handle can be removed and located in two positions – facing the bed or parallel to the bed Slides between mattress and bed base Easily installed and removed Powder coated steel
Height
Reach
520mm
520mm
BB0050 - Smart Rail • • • • • • •
Swingout support rail for the bed Ideal for patients requiring assistance while turning, repositioning or during transfers Rail simply lifts to unlock and pivots outward to provide well placed support when standing and transferring Reduces the need for carer assistance during transfers Rail is height adjustable in the locked position Slides between mattress and bed base Powder coated steel
Height
Width
Reach
210 - 660mm
410mm
540mm
Overbed Frames • • • •
Freestanding frame assists the patient in sitting and repositioning while in bed Handle is attached to chain or strap and is height adjustable Disassembles for storage and transportation Powder coated steel
Models Available BB0120 Overbed Frame – Chain and Triangle BB0110 Overbed Frame – Strap and Triangle
Base Width
Base Length
Frame Height
Chain/Handle Height
830mm
915mm
1800mm
1055 - 1485mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
53
B E D S & B E D RO O M E Q UI P M E N T
Blanket Supports BB0090 - Blanket Support • • • • •
Creates clearance between bed linen and the mattress Ideal for keeping bed linen off sensitive areas of the patient Slides between mattress and bed base Easily installed and removed Powder coated steel Height
Width
Reach
495mm
330mm
475mm
BB0100 - Blanket Support Adjustable • • • • • •
Creates clearance between bed linen and the mattress Ideal for keeping bed linen off sensitive areas of the patient Height adjustable frame is ideal for thicker mattresses or where greater clearance is required Slides between mattress and bed base Easily installed and removed Lightweight aluminium
Height
Width
Reach
510 - 665mm
480mm
500mm
Incontinence Sheets & Protectors Plastic Fitted Sheet • • • •
Prevents fluid damage to bed mattress Manufactured from waterproof hospital grade PVC plastic Fits securely with elasticised sides Stain and odour resistant
Code
54
CA R I N G F U RT H E R
Size
BA0110
Single
BA0090
Double
BA0100
Queen
B E D S & B E D RO O M E Q UI P M E N T
Incontinence Sheets & Protectors Conni Reusable Bed Pads • • • • • • • •
Waterproof and breathable Soft stay-dry top layer Slim absorbent core holds up to 2500ml over 8 hours Works with all bed sizes Fabric is comfortable and quiet; ensuring a restful night’s sleep Extremely lightweight Eliminates complete bedding changes Quick and easy to launder
Width (Not incl. Tuck-ins)
Length
Absorption Capacity
870mm
720mm
3L
Micro-Plush Fitted Sheet •
•
•
Micro-Plush waterproof mattress protectors are ideal for protecting your mattress from all fluids. The waterproof fitted sheets keep your bed hygienic and stain free increasing the life of your mattress. Elasticised for a secure fit and with a 40cm depth wall to fit pillowtop mattresses, these comfy absorbent sheets are waterproof right down the sides for complete mattress protection. Can be used with or without an additional sheet. Soft and luxurious, breathable and quiet, you are ensured a comfortable sleep. Sizes to fit from Single to King sized mattresses
Code
Size
Width
Length
Depth
CF0310
Single
920mm
1880mm
400mm
CF0340
Double
1370mm
1880mm
400mm
CF0320
Queen
1530mm
2030mm
400mm
CF0330
King
1070mm
2030mm
400mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
55
B E D S & B E D RO O M E Q UI P M E N T
Incontinence Sheets & Protectors EZ6010 - Smik Absorbent Chair Pad • • • •
Chair pad has waterproof, breathable polyurethane laminate backing and bound edges Numerous applications Can be machine washed and tumble dried countless times Size 480 x 480mm
BA4960 - Smik Absorbent Bed Pad • • • • • • • • •
Prevents fluid damage to existing bed and mattress Ideal in situations where comfort and hygiene is a priority Soft brushed polyester fabric is quilted for comfort Fabric is chemically treated to allow moisture to be absorbed into the fabric without fluids coming into contact with the patient’s skin Provides specific protection to the mattress where the patient lies Generous polyester sides for secure tuck-ins Recommended to be used in conjunction with a plastic fitted sheet To suit single bed Size 1000 x 1000mm, plus tuck-ins
Bedroom Accessories Care Quip Raisers • • • •
Quality plastic raiser used to increase the height of a bed or chair Ideal for persons who have difficulty standing up from a bed or chair Can stack for greater heights Shown with optional non-slip rubber insert (not included)
Options Available
BZ0200 Rubber non-slip insert to suit (as pictured)
Code
56
CA R I N G F U RT H E R
Type
Height
Recess Diameter
BC0100
Single
40mm
65mm
BC0110
Set of 4
40mm
65mm
B E D S & B E D RO O M E Q UI P M E N T
Bedroom Accessories Elephant Feet • • • • • • •
Quality plastic raiser used to increase the height of a bed or chair Ideal for persons who have difficulty standing up from a bed or chair Dished recess for added stability Supplied with non-slip rubber insert Available as single or set of 4 Recess diameter 90mm Maximum load 380kg (per set)
Code
Size
Type
BC0080
90mm
Set of 4
BC0050
90mm
Single
BC0070
140mm
Set of 4
BC0060
140mm
Single
BC0030 - Blox Chair Raisers • • • •
English hardwood raisers used to increase the height of a bed or chair Ideal for persons who have difficulty standing up from a bed or chair Three different recess widths to accommodate various leg profiles Supplied as a set of 4 Height
Recess Diameter
Load
75mm
30/50/75mm
380kg (per set)
BC0020 - Blox Bed Raisers • • •
English hardwood raisers used to increase the height of a bed Ideal for persons who have difficulty in bed transfers Supplied as a set of 4 Height
Recess Diameter
Load
140mm
75mm
380kg (per set)
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
57
B E D S & B E D RO O M E Q UI P M E N T
Overbed / Overchair Tables EE0030 - Handi Table • • • • •
Lightweight mobile table Suitable to use over the bed or chair Ideal to use while eating and for other household activities Adjustable height and angle Woodgrain laminate table finish
Table Width
Table Depth
Table Height
540mm
400mm
520 - 820mm
• • • •
Raised lip edge helps prevent items from slipping off table Fitted with four swivel castors, two of which are locking Disassembles for storage and transportation Powder coated steel frame
EE0120 - Overchair Table • • • • •
Lightweight mobile table Suitable to use over the bed or chair Ideal to use while eating and for other household activities Adjustable height and angle Woodgrain laminate table finish
Table Width
Table Depth
Table Height
600mm
415mm
665 - 1000mm
• • •
Raised lip edge helps prevent items from slipping off table T shaped base is fitted with three swivel castors Powder coated steel frame
EE0060 - Overbed Table Spring Loaded • • • •
•
58
CA R I N G F U RT H E R
Lightweight mobile table with adjustable height Suitable to use over the bed or chair Ideal to use while eating and for other household activities Spring loaded mechanism is quick and easy to operate, making it ideal for multiple clients, and multiple activity use Soft raised lip edge helps prevent items from slipping off table top
• •
• • •
Wide base for greater stability U shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors, two of which are locking Disassembles for storage & transportation Powder coated steel frame
Table Width
Table Depth
Table Height
Base Width (Inner)
810mm
450mm
720 - 1080mm
725mm
B E D S & B E D RO O M E Q UI P M E N T
Overbed / Overchair Tables EE0080 - Overbed Table • • • • •
Lightweight mobile table with adjustable height and angle Suitable to use over the bed or chair Ideal to use while eating and for other household activities Soft raised lip edge helps prevent items from slipping off table top Disassembles for storage & transportation
•
• • •
U shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors, two of which are locking Wide base for greater stability Powder coated steel frame
Table Width
Table Depth
Table Height
Base Width (Inner)
810mm
450mm
685 - 1000mm
735mm
EE0100 - Overchair Table Large • • • • • •
Large mobile table with adjustable height and angle Suitable to use over a large chair Ideal to use while eating and for other household activities Woodgrain laminate table finish Raised lip edge helps prevent items from slipping off table top Four post frame to support heavier items
•
• • •
U-shape base enables the table to be positioned closer to the chair and the user Wide base for greater stability Fitted with four swivel castors Powder coated steel frame
Table Width
Table Depth
Table Height
Base Width (Inner)
1000mm
600mm
600 - 900mm
825mm
EE0180 - Overchair Table • • • • •
Lightweight mobile table with adjustable height Suitable to use over the bed or chair Ideal to use while eating and for other household activities Table top can be positioned with one hand at any height within the range Gas assisted mechanism is quick and easy to operate, making it ideal for multiple clients, and multiple activity use
• • • •
• •
Seamless one-piece moulded ABS plastic top is easy to clean Soft raised lip edge helps prevent items from slipping off table top Wide base for greater stability U shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors Modern aluminium column and elliptical base frame
Table Width
Table Depth
Table Height
Inner Base Width
900mm
430mm
725 - 1050mm
750mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
59
B E D S & B E D RO O M E Q UI P M E N T
Overbed / Overchair Tables Litavo Overbed Table • • • •
• • • • •
Lightweight mobile table with adjustable height and angle Suitable to use over the bed or chair Ideal to use while eating and for other household activities Quality spring loaded mechanism is quick and easy to operate, making it ideal for multiple clients, and multiple activity use Modern European design 2-piece woodgrain laminate table finish Raised lip edge helps prevent items from slipping off table top Wide base for greater stability U shape base enables the table to be positioned closer to the chair and the user
• • • •
Fitted with four swivel castors Epoxy coated aluminium frame Left and right version available Made in Europe
Colours Available EE0410 Havana EE0420 Venetian Walnut EE0430 Sienna Walnut EE0440 Puce Dark Oak EE0450 Warm Grey EE0200 Wenge
Table Width
Table Depth
Table Height
Inner Base Width
890mm
450mm
690 - 990mm
680mm
Spring Loaded Overbed Table • • • •
Spring assisted height adjustment Non-tilting top U shaped base allows close positioning to bed or chair 4 x dual wheel castors
Code
60
CA R I N G F U RT H E R
Base Colour
Table Top Colour
Table Width
Table Depth
Table Height
EE0640
Beige
Select Beech
750mm
400mm
730-960mm
EE0550
Beige
Wiluna White
750mm
400mm
730-960mm
B E D S & B E D RO O M E Q UI P M E N T
Bedside Commodes BE0190 - Bedside Commode • • • • •
Removable padded seat, padded backrest, toilet seat and commode bowl Adjustable seat height Angled armrests to assist transfers Non-slip rubber tips Powder coated steel frame
Width between Arms
Seat Height
Arm Height
Max User Weight
440mm
470 - 620mm
240mm
125kg
AJ0010 - Bedside Commode 2-in-1 • • • • • •
Can be used as a Bedside Commode or Overtoilet Aid Removable toilet seat, lid, commode bowl and back support Adjustable seat height Plastic moulded armpads for additional support Non-slip rubber tips Powder coated steel frame
Width between Arms
Seat Height
Arm Height
Max User Weight
470mm
410 - 510mm
170mm
125kg
BE0210 - Bedside Commode Folding • • • • •
Toilet seat, lid and removable commode bowl Adjustable seat height Folding frame Non-slip rubber tips Lightweight aluminium frame
Width between Arms
Seat Height
Arm Height
Max User Weight
440mm
480 - 630mm
140mm
90kg
Deluxe Bedside Commode • • • • •
Padded seat, padded armrests, toilet seat and removable commode bowl Adjustable seat height Padded seat cover slides back easily for access to commode Three sided vanity skirt conceals commode bowl Powder coated steel frame
Code
Colour
Width between Arms
Seat Height
Arm Height
Max User Weight
BE0070
Champagne Vinyl
440mm
475 - 525mm
300mm
120kg
BE0080
Slate Vinyl
440mm
475 - 525mm
300mm
120kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
61
B E D S & B E D RO O M E Q UI P M E N T
Bedside Commodes Deluxe Bedside Commode Wide • • • • • • •
Wider seat widths and reinforced frame to suit the bariatric client Padded seat, padded armrests, lift-back toilet seat and removable commode bowl Adjustable seat height Padded seat cover slides back easily for access to commode Three sided vanity skirt conceals commode bowl Powder coated steel frame Champagne vinyl upholstery
Code
Width Between Arms
Seat Height
Armrest Height
Max User Weight
BE0030
500mm
390 - 540mm
300mm
150kg
BE0040
550mm
390 - 540mm
300mm
150kg
BE0050
600mm
390 - 540mm
300mm
150kg
BE0060
650mm
390 - 540mm
300mm
150kg
BE0010 - Bedside Commode - Basketweave • • • • •
62
CA R I N G F U RT H E R
Removable padded seat and concealed commode bowl One piece moulded plastic commode base for hygiene purposes Commode bowl features a unique locking lid to assist transportation Nylon woven upholstery and timber frame Made in the UK
Width between Arms
Seat Height
Arm Height
Max User Weight
430mm
440mm
250mm
150kg
Linen Sheets & Pillowcases
64
Mattress Topper
66
Blankets
66
Towels & Washers
67
LINEN
Sheets & Pillowcases BC0640 - Pillow Case • • • •
MB0200 - Wipeclean Pillow
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton Quantity: 120
•
Width
Length
Height
480mm
730mm
180mm
• • •
AB0250 I-Care Visco Classic Pillow • • •
• • •
Traditional shape is ideal for back sleepers Breathable under fabric to increase airflow Pressure and heat sensitive core Width
Length
Depth
450mm
700mm
330mm
Ergonomic shape to support neck & shoulders Breathable under fabric to increase airflow Pressure and heat sensitive core Suitable for side and front sleepers
MB0200 - Wipeclean Pillow • • • • • • • •
64
CA R I N G F U RT H E R
Heavy duty, durable PVC material Waterproof and easily cleaned Comfortable to rest on Polyfill Fire retardant Bacteria resistant Eliminates the needs for a separate pillow cover Phthlate free Width
Length
450mm
700mm
Width
Length
Depth
450mm
700mm
330mm
AB0280 I-Care Visco Contoured Pillow
AB0260 I-Care Visco Curve Pillow •
• • •
Waterproof and easily cleaned by wiping over with a detergent or diluted disinfectant Fire retardant Bacteria resistant Eliminate the need for a separate pillow cover Phthalate free Polyfill Carton Quantity: 10
•
• •
High side for back and side sleepers and low side for front sleepers Cooling gel insert Pressure and heat sensitive core
AB0240 I-Care Visco Cloud Pillow • • •
Pressure reliving visco insert Cotton cover ticking Anti allergy cover and fill
LINEN
Sheets & Pillowcases BC0540 - Flat Sheet - Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton Quantity: 20 Width
Length
1800mm
2750mm
BC0550 - Flat Sheet - King Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton Quantity: 15 Width
Length
2000mm
2750mm
BC0560 - Fitted Sheet - Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton Quantity: 15 Width
Length
Depth
910mm
1880mm
330mm
BC0570 - Fitted Sheet - King Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton Quantity: 30 Width
Length
Depth
1070mm
2040mm
330mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
65
LINEN
Mattress Topper I-Care Mattress Topper • • • • •
The range of Icare Pressure care overlays are designed to provide added pressure relief and comfort on an existing mattress. These overlays are heat and pressure sensitive causing them to soften around pressure points and inflamed areas 5cm Ovelay thickness Visco elastic memory foam Suitable for any type of mattress Code
Size
Width
Length
Height
BA1730
Single
900mm
1900mm
50mm
BA1740
Long Single
900mm
2030mm
50mm
BA1750
King Single
1070mm
2030mm
50mm
BA1760
Double
1350mm
1900mm
50mm
BA1770
Queen
1520mm
2030mm
50mm
Blankets BC0590 - Blanket - Single • • • •
GSM: 300 Style: 100% cotton, leno weave Colour: White Carton Quantity: 12 Width
Length
1800mm
2400mm
BC0600 Blanket - King Single • • • •
66
CA R I N G F U RT H E R
GSM: 300 Style: 100% cotton, leno weave Colour: White Carton Quantity: 12 Width
Length
2000mm
2400mm
LINEN
Towels & Washers BC0580 - Face Washer • • • •
GSM: 450 Loop Style: 16s/1 loop Colour: White Carton Quantity: 324 Width
Length
330mm
330mm
BC0610 - Hand Towel • • • •
GSM: 450 Loop Style: 16s/1 loop Colour: White Carton Quantity: 140 Width
Length
400mm
640mm
BC0620 - Bath Towel • • • •
GSM: 450 Loop Style: 16s/1 loop Colour: White Carton Quantity: 40 Width
Length
700mm
1400mm
BC0630 - Bath Mat • • • •
GSM: 750 Loop Style: 2/10s double loop with frame border design Colour: White Carton Quantity: 60 Width
Length
500mm
600mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
67
Mattresses & Pressure Care Non Powered Pressure Relief Support Surfaces
69
Powered Pressure Relief Support Surfaces
74
Non Powered Overlays
78
Cushions
79
Commode Cushions
86
Back & Neck Care
86
Heel & Elbow Care
87
Ancillary Pressure Care
88
Accessories
90
Pressure Care Risk Guide
This is a guide only and individual needs should be considered
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces I-Care Firm Mattress • • •
Firm, yet supportive mattress The IC15 offers support and comfort. Firm feel makes it easier for turning Pair with an Icare bed or suitable on any base platform Code
Type
Width
Length
Height
Max User Weight
MA1170
Long Single
900mm
2030mm
150mm
200kg
MA1180
King Single
1070mm
2030mm
150mm
200kg 200kg
MA1190
Long Double
1350mm
2030mm
150mm
MA1200
Queen
1520mm
2030mm
150mm
200kg
MA1210
Split Queen
760mm
2030mm
150mm
200kg
I-Care Medium Mattress • • • • •
Most popular, medium feel Middle of the range, the IC20 proves to be popular for most The medium feel provides a soft feel but excellent support This mattress is heat and pressure sensitive which means that as it gets warmer it becomes softer So when there is a pressure point developing which usually gets hot and enflamed, this area of the mattress will become softer which allows the blood to flow freely again Code
Type
Width
Length
Height
Max User Weight
MA1220
Single
900mm
1900mm
200mm
200kg
MA1230
Long Single
900mm
2030mm
200mm
200kg
MA1240
King Single
1070mm
2030mm
200mm
200kg
MA1250
Double
1350mm
1900mm
200mm
200kg
MA1260
Long Double
1350mm
2030mm
200mm
200kg
MA1270
Queen
1520mm
2030mm
200mm
200kg
MA1280
Split Queen
760mm
2030mm
200mm
200kg
I-Care Soft Mattress • • • •
Soft, plush, luxury mattress For clients who like a soft mattress, or who spend a long time in bed The feel of the IC25 Mattress is best suited to aged or petite patients The soft mattresses have almost no partner disturbance or roll together Code
Type
Width
Length
Height
Max User Weight
MA1290
Single
900mm
1900mm
225mm
200kg
MA1300
Long Single
900mm
2030mm
225mm
200kg
MA1310
King Single
1070mm
2030mm
225mm
200kg
MA1320
Double
1350mm
1900mm
225mm
200kg
MA1330
Long Double
1350mm
2030mm
225mm
200kg
MA1340
Queen
1520mm
2030mm
225mm
200kg
MA1350
Split Queen
760mm
2030mm
225mm
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
69
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces Vulcan - Three Layer Mattress • • •
Shear reducing “MEMAIR” modulated top layer Firm perimeter side walls to assist with patient transfer “Purify” antimicrobial foam treatment Code
Type
• • •
Width
Fire retardant foam and cover 3 sided zip with waterfall covered flap Warranty: 2 years on cover, 7 years on foam Length
Height
Max User Weight
MF1870
Single
860mm
2000mm
150mm
180kg
MF1890
King Single
1050mm
2000mm
150mm
180kg
Nebula • • • • •
3 Layer Foam Pressure Relieving Support Surface Shear Reducing Modulated Top Layer Firm Perimeter Side Walls to Assist with Patient Transfer “Purify” Antimicrobial Foam Treatment Fire Retardant Foam and Cover Code
Type
• •
• •
BS6807 & BS7175 - Crib 5 - PASS Carrflex Extreme Omni-directional Stretch Top Cover with Heavy Duty PVC Base Cover 3 sided Waterfall Covered Zip Warranty: 3 years on cover, 7 years on foam
Width
Length
Height
Max User Weight
MF1700
Single
860mm
2020mm
150mm
207kg
MF3000
King Single
1050mm
1980mm
150mm
207kg
Nova • • • • • •
3 Layer Foam Pressure Relieving Support Surface Shear Reducing Modulated Top Layer Firm Perimeter Side Walls to Assist with Patient Transfer “Purify” Antimicrobial Foam Treatment Fire Retardant Foam and Cover BS6807 & BS7175 - Crib 5 - PASS
•
• • •
Carrflex Extreme Omni-directional Stretch Top Cover with Heavy Duty PVC Base Cover 3 sided Waterfall Covered Zip Fully Welded Seams Warranty: 3 years on cover, 7 years on foam
Code
Type
Width
Length
Height
Max User Weight
MF1660
Single
860mm
2020mm
150mm
207kg
MF1680
King Single
1050mm
1980mm
150mm
207kg
MF1790 - Allay 2 Layer Paediatric Mattress • •
70
CA R I N G F U RT H E R
2 layer foam pressure relieving support surface Firm perimeter side walls to assist with patient transfer
• • •
“Purify” antimicrobial foam treatment Fire retardant foam and cover BS 6807 & BS7175 - Crib 5 - PASS
Type
Width
Length
Height
Max User Weight
Long Single
890mm
2030mm
150mm
60kg
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces Geo-Mattress® Max •
•
•
Suitable for use when treating a patient with multiple stage 1-2 and single stage 3 pressure injuries Luxurious, visco-elastic high resiliency “memory” foam in foot section enhances the pressure reducing properties of the heel slope feature Firm perimeter bolsters help to provide safe transfers, more stable edge-ofbed sitting, and reduced risk of gaps at siderails
Code
Type
•
•
•
• •
Width
Extra-soft, high performance top provides maximum immersion and a premium feel against user’s skin Fluid-repellent, flame-resistant top fabric with anti-microbial and antifungal properties Exclusive hidden zipper cover design with flapless construction creates no collection points for contaminants Made in USA 7 Year Warranty on foam and cover Length
Height
Max User Weight
MF1970
Single
880mm
1980mm
150mm
180kg
ME1480
King Single
1050mm
1980mm
150mm
181.4kg
Geo-Mattress® Plus •
•
•
Dual layer, progressive resistance design perfectly blends clinical effectiveness with patient comfort. Soft, high performance top provides maximum immersion and a premium feel against user’s skin while bottom layer adds stability Outstanding pressure redistribution across the surface ensures low average of peak pressure at vulnerable sacrum and heels Heel slope protection redistributes load onto more pressure tolerant lower legs whilst providing complete foot care Code
Type
•
•
• •
•
Width
Unique Geo-Matt design creates anti-shearing surface with 800 individually responsive cells in three zones. Ring-Of-Air channels help eliminate heat and moisture build up Fluid proof, wipe clean cover with an ultra low moisture vapour transmission rate. Bacteriostatically treated top, durable tri-laminate bottom. Hidden zipper design for easier, more thorough cleaning and superior infection control 6 years warranty Length
Height
Max User Weight
MF2130
Single
890mm
1980mm
150mm
180kg
MF2140
King Single
1050mm
1980mm
150mm
180kg
Geo-Mattress® Pro •
• •
Pressure redistribution foam mattress aiding in the prevention of skin breakdown Single layer, zoned construction Clinically proven Geo-Matt antishearing top surface. 800 individually responsive cells in distinct head, torso and foot zones enhance therapeutic support and comfort
•
• •
•
Exclusive heel slope provides subtle taper that redistributes load to pressure tolerant lower legs Fluid proof, wipe down cover Hidden zipper design for easier, more thorough cleaning and superior infection control 5 year warranty
Code
Type
Width
Length
Height
Max User Weight
MF2200
Single
890mm
2030mm
150mm
136kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
71
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces Optimal 5zon • • • • • • • • • •
Static mattress aids in the prevention of pressure injuries Adaptive cube profile cut for pressure redistribution Profiled surface contours to body shape and reduces shear forces Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant Can be used for pain management Unique zone and module system giving effective pressure equalisation Internal shear reduction system Patented DuoCore sit-function to provide support when seated Fire evacuation covers available Code
Type
Width
Length
Height
Max User Weight
MF0780
Single
850mm
2000mm
140mm
180kg
MF0790
King Single
1050mm
2000mm
140mm
180kg
Optimal 5zon Plus • • • • •
Static mattress aids in the prevention of pressure injuries Adaptive cube profile cut for pressure redistribution Profiled surface contours to body shape and reduces shear forces Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant
• •
• • • •
Can be used for pain management Unique zone and module system giving effective pressure equalisation Internal shear reduction system Patented DuoCore sit-function to provide support when seated Suitable for bariatric clients Fire evacuation covers available
Code
Type
Width
Length
Height
Max User Weight
MF0750
Single
850mm
2000mm
150mm
300kg
MF0760
King Single
1050mm
2000mm
150mm
300kg
Geo-Mattress® UltraMax™ •
• •
•
72
CA R I N G F U RT H E R
Suitable for use when treating a patient with multiple stage 1-2 and single stage 3 pressure injuries Can assist in prevention and early intervention of pressure injuries Geo-Matt® surface geometry helps to minimise shearing with more than 800 individually-articulating cells and provides reactive pressure redistribution Integrated dual Heel Slope® offloads vulnerable heel and transfers pressure onto pressure-tolerant lower legs
•
•
•
• •
Multi-tiered, progressive resistance core manufactured with premium, high-density foam Exclusive hidden zipper cover design with flapless construction creates no collection points for contaminants Firm perimeter bolsters help to provide safe transfers, more stable edge-of-bed sitting, and reduced risk of gaps at siderails Made in USA 7 Year Warranty on foam and cover
Code
Type
Width
Length
Height
Max User Weight
MF1990
Single
880mm
1980mm
150mm
227kg
MF2010
King Single
1050mm
1980mm
150mm
227kg
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces MA3190 - Span America PressureGuard Span Care Convertible • • • • •
• • • • •
Self-adjusting, convertible air therapy system Maximum performance, with or without power Non powered mode for pressure injury prevention in at risk patients, early intervention of existing pressure injuries The self adjusting system of synchronised air cylinders and pressure relief valves provide the correct level of immersion and envelopment for any user With the addition of the simple, digital control unit when powered treatment modalities are necessary, additional features include alternating pressure mode, powered flotation mode, adjustable comfort settings, audible low pressure alarm, timed auto-firm mode Safety edge bolster design helps reduce risk of falls and entrapment Geo-Matt segmented top surface helps eliminate shear, heat/moisture build up Heel Slope redistributes pressure to load tolerant calves Shear transfer zones cover design help reduce effects of micro shear, macro sear, and rotational (pivot induced) shear Cover is made of LifeSpan bleach-resistant four way stretch fabric. This is fluid resistant, anti microbial, flame resistant and wipe clean Type
Width
Length
Height
Max User Weight
Single
890mm
1980mm
180mm
227kg
Span America PressureGuard Custom Care Mattress • •
•
• • • •
• • • • •
Non-powered reactive pressure redistribution surface Recommended for use in prevention and treatment of stage I and II pressure ulcers, and treatment of uncomplicated Stage III and IV ulcers with multiple turning surfaces Custom Care’s unique Metered Immersion design reacts to changes in surface loading through a series of interconnected longitudinal support chambers. As the user moves or repositions on the surface, the chambers below react - deflecting, transferring air, and venting according to the weight and positioning. The result is a blend of pressure management, shear reduction, comfort and ease of operation Bi-directional stretch cover helps to ‘glide’ the user to original position after gatching Anti-microbial, fluid impervious cover that is easy to clean Flame resistant, tear resistant Geo-Matt surface geometry is multi zoned and designed to minimise shearing. More than 800 individually articulating cells help to dissipate heat and moisture through “Ring-of-Air” channels Ultra high performance foam adds comfort and durability in the seat section. Provides superior resiliency in high fatigue gatch/transfer area Safety edge bolster design provides a two piece stable, supportive perimeter to help minimise the risk of falls and bed entrapment Dual heel protection through the gentle “Heel Slope” that transfers pressure away from the vulnerable heels to the more tolerant lower leg All components are latex free 5 year warranty Code
Type
Width
Length
Height
Max User Weight
MF1450
Single
880mm
1980mm
180mm
227kg
MF1440
King Single
1070mm
1980mm
180mm
227kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
73
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces CuroCell Area Zone • • •
•
Pressure redistribution mattress Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant Dose not impead CRP Code
Type
• • • •
Can be used for pain therapy Fully automatic and flexible system with integrated heel function Multifunctional inner cover to reduce shear forces Fire evacuation covers available
Width
Length
Height
Max User Weight
MA0090
Single
850mm
2000mm
180mm
230kg
MA0120
King Single
1050mm
2000mm
180mm
230kg
Powered Pressure Relieving Support Surfaces Smik Alternating Pressure Mattress & Pump System • • • • • • •
Multi stretch vapour permeable cover 17 quick release interchangeable cells with low air loss and pillow function CPR immediate deflation facility Quilted full zip cover Transport valve Waterlow score 18-20 Weight range 35-150kg Code
Type
• • • • • •
Manual pressure control with low pressure warning Static patient care function TGA class one device 2 year warranty on pump unit 1 year warranty on mattress unit Supplied with retail packaging
Width
Length
Height
Max User Weight
MA2850
Single
850mm
1950mm
130mm
150kg
MA2880
King Single
1070mm
1950mm
130mm
150kg
CuroCell A4 CX10 •
•
•
Provides simplicity together with user comfort while effectively aiding in the prevention and treatment of pressure related issues up to and including category 4. Designed for simplicity and provdies features for excellent user comfort, reduction of shear forces and improvement of the microclimate. Includes an intelligent pump with a user friendly interface. Code
74
CA R I N G F U RT H E R
Type
•
•
It is fully automatic without the need for manual settings. The system identifies the user and automatically manages all settings to optimise the pressure according to the user’s needs. Mattress is supplied with four way stretch hygienic cover which meets standards for hygiene, quality and safety.
Width
Length
Height
Max User Weight
MA2540
Single
850mm
2000mm
100mm
200kg
MA2560
King Single
1050mm
2000mm
100mm
200kg
M AT T R ES S ES & P R ES SUR E CA R E
Powered Pressure Relieving Support Surfaces CuroCell A4 CX16 • • • • • • •
• • • •
Alternating replacement system 1 in 3 Alternating cycle Pressure redistribution mattress Pump is user friendly Pump is very quite and has minimum vibration Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant CRP facility with transport option Visual low pressure indicator Can be used for pain therapy Fully automated pump individually adapts to the user to optimise pressure Code
Type
• •
• • • • • •
Fully automatic and flexible system with integrated heel function Three program modes: Pulsation, Alternating and Constant Low Pressure Low voltage power cord - reduces electrocution risk Pump is fully sealed - will not deflate during power outages Multifunctional inner cover to reduce shear forces Static head end cells Sound and light alarm for low pressure or failure Fire evacuation covers available
Width
Length
Height
Max User Weight
MA2150
Single
850mm
2000mm
160mm
200kg
MA2210
King Single
1050mm
2000mm
160mm
200kg
CuroCell A4 CX15 • • • • • • • •
Individually replaceable cells with safety mattress in air Static head cells Heel function Multifunctional inner cover Unique CPR function with transport function Smart cable management Unique design for easy handling & usage Well protected zipper Code
Type
• • •
• • •
Width
Fully automated pump that adapts individually Audible and visual notifications Three program modes: Pulsating, Alternating and CLP (constant low pressure) Caring mode (max firm) Silent running and vibration free Air flow control, constant temperature, increased user comfort, energy reduction Length
Height
Max User Weight
MA2540
Single
850mm
2000mm
150mm
200kg
MA2560
King Single
1050mm
2000mm
150mm
200kg
CuroCell A4 CX20 • • • • • • • • •
Alternating replacement system 1 in 3 Alternating cycle Pressure redistribution mattress Pump is user friendly Pump is very quite and has minimum vibration Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant & fire retardant CRP facility with transport option Visual low pressure indicator Code
Type
• •
• • • • •
Can be used for pain therapy Fully automated pump individually adapts to the user to optimise pressure Fully automatic and flexible system with integrated heel function Multifunctional inner cover to reduce shear forces Static head end cells Sound and light alarm for low pressure or failure Fire evacuation covers available
Width
Length
Height
Max User Weight
MA1930
Single
850mm
2000mm
200mm
250kg
MA1990
King Single
1050mm
2000mm
200mm
250kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
75
M AT T R ES S ES & P R ES SUR E CA R E
Powered Pressure Relieving Support Surfaces CuroCell Uno • • • • • • •
• • •
Alternating replacement system 1 in 3 Alternating cycle Pressure redistribution mattress Pump is user friendly Pump is very quite and has minimum vibration Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant CRP facility with transport option Visual low pressure indicator Can be used for pain therapy
•
• • • •
• • •
Fully automated pump individually adapts to the user to optimise pressure Fully automatic and flexible system with integrated heel function Multifunctional inner cover to reduce shear forces Static head end cells Silent pump has a user friendly interface and large screen panel with built-in instruction manual Sound and light alarm for low pressure or failure Battery back-up Fire evacuation covers available
Code
Type
Width
Length
Height
Weight Range
MA1120
Single
850mm
2000mm
200mm
250kg
MA1140
King Single
1050mm
2000mm
200mm
250kg
Span America PressureGuard® APM2 • • • • • • • •
Suitable for use when treating a patient with stage 1–4 pressure injuries Alternating therapy and lateral rotation functions Unique longitudinal air chambers Integrated heel slope Quiet control unit Bi-directional stretch cover with Shear Transfer Zones® Maintains pressure for 7-days without power Also available in 2030mm length
Geo-Matt™ Foam Topper: • 5cm deep topper reduces shear to underlying tissues • More than 800 individually-articulating cells • Redistributes pressure, reduces heat and skin moisture build up • Heel Slope™ designed to further reduce heel pressure
76
CA R I N G F U RT H E R
Safety Edge™ Design: • Patented inner bolster ’cradling effect’ for user safety • Unmatched edge-of-bed stability helps ensure safer transfers • Minimises risk of falls and entrapment Shear Transfer Zone™ design helps: • Prevent heels, sacrum, and scapula from “digging into” surface • “Glide” user back to original position following HOB elevation • Protect against damaging effects of micro shear, macro shear, and rotational (pivot-induced) shear • Provide patient stability by transferring shear to more sheartolerant anchor points
Code
Type
Width
Length
Height
Max User Weight
MA3090
Single
880mm
1980mm
177mm
160kg
MA3120
King Single
1060mm
1980mm
177mm
160kg
M AT T R ES S ES & P R ES SUR E CA R E
Powered Pressure Relieving Support Surfaces CuroCell Cirrus • • • • • • • •
Alternating replacement system 1 in 2 Alternating cycle Pressure redistribution mattress Pump is user friendly Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant & fire retardant CRP facility with transport option Visual low pressure indicator Code
Type
• •
• • • •
Width
Can be used for pain therapy Fully automated pump individually adapts to the user to optimise pressure Integrated Heel Zone function Multifunctional inner cover to reduce shear forces Sound and light alarm for low pressure or failure Fire evacuation covers available Length
Height
Max User Weight
MA0150
Single
850mm
2000mm
210mm
230kg
MA0170
King Single
1050mm
2000mm
210mm
230kg
OptiCell 4 NX • • • • • • • • •
Auto-firm mode with automatic reset 4 Different Comfort Modes Transport Mode to Maintain Air Pressure for 12 Hours Integrated CPR Deflation Facility Alarm function warns of low pressure Seat function increases pressure when sitting Key lock reduces unwanted changes Extra long power cable Low Air Loss Technology
• • • • • • • •
Integrated Waterproof Cable Holder Fluid Protection Flap & Waterproof Zip Anti Slip Base Equipped with SweCells to eliminate pressure on heels Hygienic cover Fluid protection flap and waterproof zip Four handles for easy moving Made in Sweden
Code
Type
Width
Length
Height
Max User Weight
MA2540
Single
850mm
2000mm
100mm
200kg
MA2560
King Single
1050mm
2000mm
100mm
200kg
MA3440 - OptiCell 4 Pro • • • • • • • • •
Full replacement system 6 different comfort modes Transport mode to maintain air pressure for 12 hours Integrated CPR deflation function Low air loss technology Integrated waterproof cable holder Fluid protection flap & waterproof zip Anti slip base Advanced pump with automatic weight setting sensors
• • • • •
•
Interchangeable SweCells offering increased support Complies with SS876 00 01, EN5971/2 stringent fire safety standards 2 year warranty Silent pump Suitable for very high risk patients susceptible to pressure ulcers up to category 4 Made in Sweden
Type
Width
Length
Height
Max User Weight
Single
850mm
2000mm
160mm
250kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
77
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Overlays SAF Overlay - Pink/Grey • • • • • • •
Gel permeated shock absorbent foam Open cell convoluted profile provides increased air circulation Low density pink foam is laminated to a higher density grey foam Pink memory foam moulds to body shape to provide comfort and uniform pressure relief while grey foam provides a stable support Ideal for the heavier patient Anti-bacterial and machine washable up to 95°C Made in Italy
Also Available Fluid Resistant Cover - wrap over style. Refer table for relevant codes and size
Code
Size
Width
Length
Height
Max User Weight
Cover Code
ME0150
Single
900mm
2000mm
40mm
130kg
MZ0910
ME0130
Double
1390mm
2000mm
40mm
130kg
MZ0870
ME0140
Queen
1530mm
2000mm
40mm
130kg
MZ0890
ROHO Mattress System • • • • • • • • •
High quality air mattress overlay system Bed size is divided into four sections (ROHO or Foam) to suit individual user requirements Mattress sections are easily fastened together by press studs Cells are interconnected and their unique shape promote blood circulation to facilitate pressure prevention, healing and relief Air pressure is adjustable and can be customised to suit the user Durable neoprene construction is soft to suit skin sensitivity, and is easily cleaned Flexible cells adapt to patient contours and reduce shear forces while transferring or repositioning Foam section, with it’s waterproof cover, can be utilised where risk of pressure is not as critical ROHO mattress sections are supplied with pump
Code
Section
Width
Length (per section)
Height
Max User Weight
ME0110
ROHO
860mm
510mm
90mm
Unlimited
ME0100
Foam
860mm
510mm
90mm
Unlimited
ME0380 - Medical Sheepskin • • • • • • • •
78
CA R I N G F U RT H E R
Genuine Australian lambswool overlay Provides additional comfort to existing mattress or chair Soft pile allows air circulation to keep skin dry Natural fibre reduces the risk of skin irritation Machine washable Dimensions are calculated on an average Width 640mm Length 960mm
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Overlays Convoluted Foam Overlay • • •
Soft open cell foam Provides additional comfort to existing mattress Convoluted profile provides increased air circulation Code
Size
Width
Length
Height
Max User Weight
ME0090
Single
875mm
1850mm
75mm
100kg
ME0070
Double
1330mm
1850mm
75mm
100kg
ME0080
Queen
1485mm
1995mm
75mm
100kg
ME0280 Silicone Fibre Overlay • • • • • •
Silicone coated fibre filled overlay Cylindrical hollow core fibres for superior comfort and low level pressure relief Soft breathable cotton top side Water resistant polyurethane underside Elasticised corner straps hold overlay in position on mattress Machine washable
Also Available MZ0920 Fluid Resistant Removable Cover - heat sealed with plastic press studs Width
Length
Height
Max User Weight
900mm
1900mm
100mm
100kg
Cushions MC9990 - Smik Convoluted Foam Ring Cushion • • • •
Soft open cell foam cushion Convoluted surface for increased air circulation Ideal for the short term user requiring comfort and support Supplied with cotton overslip Outside Diameter
Inside Diameter
Height
Max User Weight
430mm
150mm
100mm
100kg
MC9630 - Smik Foam Ring Cushion • • • •
Soft open cell foam cushion Smooth curved surface Ideal for the short term user requiring comfort and support Supplied with cotton overslip Outside Diameter
Inside Diameter
Height
Max User Weight
450mm
130mm
70mm
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
79
M AT T R ES S ES & P R ES SUR E CA R E
Cushions MC1990 - Posture Wedge • • • • •
Soft open cell foam cushion Designed to maintain a normal lumbar curve while sitting Promotes correct posture Anterioly tilts pelvis to assist in straightening back Heavy duty zippered cotton cover Outside Diameter
Inside Diameter
Height
Max User Weight
410mm
390mm
30 - 77mm
100kg
MC0270 - All Purpose Cushion • • •
Soft open cell foam Convoluted surface for increased air circulation Corduroy fabric cover is zippered and removable for cleaning
Also Available MC0260 All Purpose Cushion with Fluid Resistant Cover Width
Depth
Height
Max User Weight
460mm
460mm
60mm
100kg
MC3480 - Silicone Fibre Seat Pad • • • • •
Silicone coated fibre filled cushion Manufactured from cylindrical hollow core fibres for greater comfort and shear reduction Breathable cotton top side Fluid resistant PVC underside Machine washable Width
Depth
Height
Max User Weight
450mm
450mm
75mm
100kg
Gel-T Cushion • •
80
CA R I N G F U RT H E R
Segmented gel-filled bladder cradled between two soft foam layers Provides excellent pressure redistribution and pain relief for those at moderate risk of pressure ulcers
•
• •
Wipe-clean cover keeps out moisture and helps reduce shear and friction Cover also features non-skid bottom Perfect for use in home or facility
Code
Dimensions
Height
Max User Weight
MC5130
400x400mm
63.5mm
113kg
MC5140
460x400mm
63.5mm
113kg
MC5150
460x460mm
63.5mm
113kg
MC5160
510x460mm
63.5mm
227kg
MC9410
560x460mm
63.5mm
227kg
MC9420
610x460mm
63.5mm
227kg
M AT T R ES S ES & P R ES SUR E CA R E
Cushions ROHO Mosaic Cushion • •
Polyvinyl interconnected air cells Provides a comfortable and functional sitting environment
• • •
Air pressure is adjustable and can be customised Breathable zippered lycra cover with a non slip base Supplied with a pump
Also Available Continence Cover to suit Code
Dimensions
Height
Cover
Max User Weight
MC1840
16 x 16” (41 x 41cm)
70mm
Standard
157kg
MC1850
18 x 16” (46 x 41cm)
70mm
Standard
157kg
MC1860
18 x 18” (46 x 46cm)
70mm
Standard
157kg
MC7160
16 x 16” (41 x 41cm)
70mm
Incontinence
157kg
MC1880
18 x 16” (46 x 41cm)
70mm
Incontinence
157kg
MC1890
18 x 18” (46 x 46cm)
70mm
Incontinence
157kg
Jay Basic Cushion • •
Durable moulded foam cushion Mildly contoured seating area provides comfort and stability, and increases postural positioning for the user Ideal for those with mild postural needs who are at low risk of skin breakdown
•
•
•
Bevelled base to fit between seat rails while providing a level support surface Quality foam with a moisture resistant cover
Code
Dimensions
Height
Max User Weight
MC5020
16 x 16” (41 x 41cm)
50mm
110kg
MC0870
18 x 16” (46 x 41cm)
50mm
110kg
MC0880
18 x 18” (46 x 46cm)
50mm
110kg
MC0890
20 x 18” (50 x 46cm)
50mm
110kg
Other sizes available
SAF Pink Cushion • •
•
Open cell convoluted foam allows increased air circulation Low density pink foam moulds to body shape providing optimum comfort and uniform pressure relief Bacteria free and machine washable (up to 95° C) Code
Dimensions
• • •
Cushion is also available with fluid resistant cover Gel permeated shock absorbent foam Made in Italy
Type
Height
Max User Weight
MC3170
16 x 16" (41 x 41cm)
No Cover
60mm
80kg
MC3210
16 x 16" (41 x 41cm)
With Fluid Resistant Cover
60mm
80kg
MC3180
18 x 16" (45 x 41cm)
No Cover
60mm
80kg
MC3220
18 x 16" (45 x 41cm)
With Fluid Resistant Cover
60mm
80kg
MC3190
18 x 18" (45 x 45cm)
No Cover
60mm
80kg
MC3230
18 x 18" (45 x 45cm)
With Fluid Resistant Cover
60mm
80kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
81
M AT T R ES S ES & P R ES SUR E CA R E
Cushions SAF Pink/Grey Cushion • • • • • • •
Gel permeated shock absorbent foam Open cell convoluted foam allows increased air circulation Lower density pink foam is laminated to a higher density grey foam Pink foam moulds to body shape to provide comfort and uniform pressure relief while grey foam provides stable support and positioning Bacteria free and machine washable (up to 95° C) Cushion is also available with fluid resistant cover Made in Italy Code
Dimensions
Type
Height
Max User Weight
MC3250
16 x 16" (41 x 41cm)
No Cover
60mm
110kg
MC3300
16 x 16" (41 x 41cm)
With Fluid Resistant Cover
60mm
110kg
MC3260
18 x 16" (45 x 41cm)
No Cover
60mm
110kg
MC3310
18 x 16" (45 x 41cm)
With Fluid Resistant Cover
60mm
110kg
MC3270
18 x 18" (45 x 45cm)
No Cover
60mm
110kg
MC3320
18 x 18" (45 x 45cm)
With Fluid Resistant Cover
60mm
110kg
MC3280
20 x 20" (50 x 50cm)
No Cover
60mm
110kg
MC3350
20 x 20" (50 x 50cm)
With Fluid Resistant Cover
60mm
110kg
ACTION® Pilot Cushion • • • • • • • •
Offers a low profile cushion, pressure care and shear reduction for medium risk users Quality AKTON® polymer Helps promote even pressure distribution AKTON® polymer, unlike fluid gel, does not displace from areas requiring pressure relief Isolates and protects areas where shear forces and pressure points are prevalent AKTON® polymer provides significant shock, vibration and impact absorption Pad does not promote bacterial growth, making it ideal for multi-client use Pad is sealed by a waterproof film within a breathable cover and non slip base
Code
Dimensions
Height
Max User Weight
MC1910
16 x 16” (41 x 41cm)
25mm
Unlimited
MC1930
18 x 16” (46 x 41cm)
25mm
Unlimited
MC1940
18 x 18” (46 x 46cm)
25mm
Unlimited
MC1960
20 x 16” (50 x 41cm)
25mm
Unlimited
MC1970
20 x 18” (50 x 46cm)
25mm
Unlimited
MC1980
20 x 20” (50 x 50cm)
25mm
Unlimited
Other sizes available
82
CA R I N G F U RT H E R
M AT T R ES S ES & P R ES SUR E CA R E
Cushions Equagel Cushion - General • • •
No pump or valve EquaGel is 12-15 degrees cooler compared to other cushions EquaGel has a vapour permeable, water proof surface where perspiration evaporates reducing moisture against the skin
•
• •
All cushions have very effective immersion so patient sits in the cushion, not ON the cushion whilst providing excellent resistance to bottoming and stability. Height 51mm Max User weight 220kg
Code
Dimensions
Code
Dimensions
MC7610
16 x 16” (40 x 40cm)
MC7630
20 x 16” (50 x 41cm)
MC9100
16 x 18” (40 x 46cm)
MC9180
20 x 18” (50 x 46cm)
MC9120
16 x 20” (41 x 50cm)
MC9200
20 x 20” (50 x 50cm)
MC9140
18 x 16” (46 x 41cm)
MC9220
22 x 16” (56 x 40cm)
MC4880
18 x 18” (46 x 46cm)
MC9240
22 x 18” (56 x 46cm)
MC9160
18 x 20” (46 x 50cm)
MC9260
22 x 20 (56 x 50cm)
Protector Gel Cushion • Height 63mm • Max user weight 350kg
Code
Dimensions
Code
Dimensions
MC9280
16 x 16” (40 x 40cm)
MC9320
20 x 16” (50 x 41cm)
MC8460
16 x 18” (40 x 46cm)
MC9340
20 x 18” (50 x 46cm)
MC4910
18 x 16” (46 x 41cm)
MC9360
22 x 16” (56 x 40cm)
MC9300
18 x 18” (46 x 46cm)
MC8580
22 x 18” (56 x 46cm)
Jay 2 Cushion • • • • • •
Contoured foam cushion with Jay Flow fluid pad Designed for the client with moderate to high postural and pressure care needs Firm, anatomically correct contoured foam base creates a foundation for postural stability Provides excellent lateral and forward/rear stability Fluid Tripad in rear seat well maintains even pressure distribution and keeps fluid under areas at high risk of skin breakdown Supplied with breathable ballistic stretch cover Code
Dimensions
Height
Max User Weight
MC0680
16 x 16” (41 x 41cm)
75mm
113kg
MC0710
18 x 16” (46 x 41cm)
75mm
113kg
MC0720
18 x 18” (46 x 46cm)
75mm
113kg
MC0740
20 x 16” (50 x 41cm)
75mm
113kg
MC0750
20 x 18” (50 x 46cm)
75mm
113kg
MC0760
20 x 20” (50 x 50cm)
75mm
113kg
Other sizes available
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
83
M AT T R ES S ES & P R ES SUR E CA R E
Cushions Jay 2 Deep Contour Cushion • • • • • •
Contoured foam cushion with Jay Flow fluid pad Designed for the client with high postural and pressure care needs Firm, anatomically correct deep contoured foam base creates a foundation for postural stability Provides excellent lateral and forward/rear stability Fluid Tripad in rear seat well, in combination with a softer foam overlay, evenly distributes pressure under areas at high risk of skin breakdown Supplied with breathable ballistic stretch cover Code
Dimensions
Height
Max User Weight
MC0550
16 x 16” (41 x 41cm)
100mm
113kg
MC0570
18 x 16” (46 x 41cm)
100mm
113kg
MC0580
18 x 18” (46 x 46cm)
100mm
113kg
MC0590
20 x 16” (50 x 41cm)
100mm
113kg
MC0600
20 x 18” (50 x 46cm)
100mm
113kg
Other sizes available
ROHO Contour Select Cushion • • • • • • • •
Cells are interconnected and their unique shape promote blood circulation to facilitate pressure prevention, healing and relief Flexible cells adapt to patient contours and reduce shear forces while transferring or repositioning As the body is immersed in the cushion, greater contact area is achieved for the dispersion of pressure, hence the pressure on any one area is minimised Contoured design, made up of high and low profile cells, positions the pelvis back in the wheelchair and centres the user comfortably in the middle of the cushion Enhances midline channelling of the femurs, providing greater lateral stability After air pressure is adjusted, ISOFLO valve prevents air flow between quadrants, assisting the positioning and postural stability of the client Durable neoprene construction is soft to suit skin sensitivity, and is easily cleaned Breathable zippered lycra cover with a non-slip base, supplied with pump
Code
Cell Size
Dimensions
CA R I N G F U RT H E R
Max User Weight
MC8220
8x8
15 x 15” (38 x 38cm)
60/100mm
Unlimited
MC8230
8x9
15 x 17” (38 x 43cm)
60/100mm
Unlimited
MC8240
9x8
17 x 15” (43 x 38cm)
60/100mm
Unlimited
MC2340
9x9
17 x 17” (43 x 43cm)
60/100mm
Unlimited
MC8250
9 x 10
17 x 19” (43 x 47cm)
60/100mm
Unlimited
MC7640
10 x 9
19 x 17” (47 x 43cm)
60/100mm
Unlimited
MC2350
10 x 10
19 x 19” (47 x 47cm)
60/100mm
Unlimited
MC8260
11 x 10
20 x 19” (52 x 47cm)
60/100mm
Unlimited
MC8270
20 x 11
20 x 20” (52 x 52cm)
60/100mm
Unlimited
Other sizes available
84
Height
M AT T R ES S ES & P R ES SUR E CA R E
Cushions ROHO Cushion • • • • • • • • •
Cells are interconnected and their unique shape promote blood circulation to facilitate pressure prevention, healing and relief Flexible cells adapt to patient contours and reduce shear forces while transferring or repositioning As the body is immersed in the cushion, greater contact area is achieved for the dispersion of pressure, hence the pressure on any one area is minimised Low profile cells maximise stability and make transfers easier for the active client High profile cells allow greater depth immersion, providing a higher level of pressure care Air pressure is adjustable and can be customised Durable neoprene construction is soft to suit skin sensitivity, and is easily cleaned Breathable zippered lycra cover with a non-slip base Supplied with pump Single Valve
Quadtro Select
Cell Size
Dimensions
Profile
Height
Max User Weight
MC2770
MC3070
8x8
15 x 15” (38 x 38cm)
Low
60mm
Unlimited
MC2830
MC3080
8x9
15 x 17” (38 x 43cm)
Low
60mm
Unlimited
MC2780
MC3090
9x8
17 x 15” (43 x 38cm)
Low
60mm
Unlimited
MC2790
MC3100
9x9
17 x 17” (43 x 43cm)
Low
60mm
Unlimited
MC2840
MC3110
9 x 10
17 x 19” (43 x 47cm)
Low
60mm
Unlimited
MC2800
MC3120
10 x 9
19 x 17” (47 x 43cm)
Low
60mm
Unlimited
MC2810
MC3130
10 x 10
19 x 19” (47 x 47cm)
Low
60mm
Unlimited
MC2820
MC3140
11 x 10
20 x 19” (52 x 47cm)
Low
60mm
Unlimited
MC2760
MC3150
20 x 11
20 x 20” (52 x 52cm)
Low
60mm
Unlimited
MC2440
MC2940
8x8
15 x 15” (38 x 38cm)
High
100mm
Unlimited
MC2450
MC2950
8x9
15 x 17” (38 x 43cm)
High
100mm
Unlimited
MC2460
MC2960
9x8
17 x 15” (43 x 38cm)
High
100mm
Unlimited
Other sizes available
MC2470
MC2970
9x9
17 x 17” (43 x 43cm)
High
100mm
Unlimited
MC2480
MC2980
9 x 10
17 x 19” (43 x 47cm)
High
100mm
Unlimited
MC2490
MC3010
10 x 9
19 x 17” (47 x 43cm)
High
100mm
Unlimited
MC2500
MC2990
10 x 10
19 x 19” (47 x 47cm)
High
100mm
Unlimited
MC2510
MC3030
11 x 10
20 x 19” (52 x 47cm)
High
100mm
Unlimited
MC2520
MC3040
20 x 11
20 x 20” (52 x 52cm)
High
100mm
Unlimited
Other sizes available
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
85
M AT T R ES S ES & P R ES SUR E CA R E
Commode Cushions MC0080 - Silicone Fibre Commode Ring Cushion • • • •
Silicone coated fibre filled cushion Manufactured from cylindrical hollow core fibres for greater comfort and shear reduction Fluid resistant PVC Adjustable velcro securing straps Width
Depth
Height
Max User Weight
410mm
410mm
75mm
100kg
Back & Neck Care Swedish Back Support • • • • • • 1
Steel framed back support Provides comfort and support for the back and spine while sitting Maintains correct posture by supporting sideways movement Ideal for persons who sit for long periods Open mesh allows for increased air circulation Adjustable nylon buckled strap secures back support to chair or backrest No
Code
Type
Height
Width
1
MB0080
Standard
425mm
390mm
2
MB0090
Heavy Duty
425mm
390mm
2
Apollo Back Support 2
1
• • • • •
Medium density foam back support cushion Provides comfort and support for the back and spine while sitting Maintains correct posture by supporting sideways movement Ideal for persons who sit for long periods Removable zippered cotton cover No
86
CA R I N G F U RT H E R
Code
Type
Width
Height
1
MB0010
Apollo
360mm
320mm
2
MB0020
Apollo Plus
360mm
330mm
M AT T R ES S ES & P R ES SUR E CA R E
Back & Neck Care Obus Forme Back Support • •
• •
Rigid framed orthopaedic back support Contoured support relieves back pain by realigning the spine and supporting correct posture Covered in soft comfortable foam Supplied with removable adjustable lumbar pad
Code
•
•
Supplied with an elasticised strap to secure back support to chair or backrest High back model (MB0050) provides extended neck and head support for those who spend long hours driving or where vehicle back and headrest support is limited
Size
Width
Height
MB0070
Low Back
450mm
530mm
MB0050
High Back
450mm
770mm
MB0060
Wide Back
500mm
560mm
Heel & Elbow Care MD0040 - Elbow Protector - Silicone Fibre • •
• •
Padded elbow cushion Provides comfort and assists in the prevention of pressure build-up in the elbow area Manufactured from millions of silicone coated cylindrical hollow cored fibres Silicone coating acts as a lubricant to eliminate friction and reduce shear forces
• •
• • • •
Adjustable velcro securing straps Internal seams are carefully positioned to avoid creating pressure points Breathable cotton cover Machine washable One size fits all Supplied as each
MD0030- Elbow Protector - Sheepskin •
• •
Provides comfort and assists in the prevention of pressure build-up in the elbow area Genuine medical sheepskin Soft pile allows air circulation to keep skin dry
• • • • •
Natural fibres reduces the risk of skin irritation Adjustable velcro securing straps Machine washable One size fits all Supplied as a pair
MD0120 - Heel Protector - Silicone Fibre • •
• •
Padded heel cushion Provides comfort and assists in the prevention of pressure build-up in the heel area Manufactured from millions of silicone coated cylindrical hollow cored fibres Silicone coating acts as a lubricant to eliminate friction and reduce shear forces
• •
• • • •
Adjustable velcro securing straps Internal seams are carefully positioned to avoid creating pressure points Breathable cotton cover Machine washable One size fits all Supplied as each
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
87
M AT T R ES S ES & P R ES SUR E CA R E
Heel & Elbow Care MD0110 - Heel Protector - Sheepskin •
• •
Provides comfort and assists in the prevention of pressure build-up in the heel area Genuine medical sheepskin Soft pile allows air circulation to keep skin dry
• • • • •
Natural fibres reduces the risk of skin irritation Adjustable velcro securing straps Machine washable One size fits all Supplied as a pair
Ancillary Pressure Care MD0100 - SAF Heel Protector •
• • •
•
Provides comfort and assists in the prevention of pressure build-up in the heel area Gel permeated shock absorbent foam Open cell convoluted profile provides increased air circulation Top soft layer of yellow foam is laminated with medium density grey foam Yellow foam moulds to body shape to provide optimum comfort while grey foam provides uniform pressure distribution and support
•
Assists in the prevention and healing of pressure ulcers at the heel and ankle Delivers positioning and alignment of the lower limb Ideal for post-operative clients, for those who suffer from diabetes or persons who are at risk of developing foot drop An inbuilt bevelled foam wedge provides support for the calf, and ensures that the heel is suspended to reduce pressure Secured in place with soft adjustable Velcro straps Ventilation holes allow added air circulation
•
•
• • • •
Secured in place with soft adjustable Velcro straps Low friction surface allows the heel protector to slide easily over the mattress surface Anti-bacterial and machine washable Made in Italy One size fits all Supplied as each
Heelift Suspension Boot • • • 1
•
• •
2 No
88
CA R I N G F U RT H E R
Code
Interior Foam Surface
1
MD0150
Smooth
2
MD0140
Convoluted
•
• • • •
• •
Stiffened base maintains the boot’s structure and supports the forefoot Low friction surface allows the boot to slide easily over the mattress surface, improving client mobility Supplied with an extra foam pad to provide added elevation Optional convoluted foam surface for sensitive skin Foam can be cut to suit individual requirements Latex-free medical grade foam is autoclavable, machine washable and dryer safe One size fits all Supplied as each
M AT T R ES S ES & P R ES SUR E CA R E
Ancillary Pressure Care MD0070 - ACTION® Heel Protector • • • •
•
Assists in the prevention and healing of pressure ulcers at the heel and ankle Quality AKTON® polymer Helps promote even pressure distribution AKTON® polymer, unlike fluid gel, does not displace from areas requiring pressure relief Isolates and protects areas where shear forces and pressure points are prevalent
•
Award winning inflatable foot cushion and exercise aid Relieves swollen legs and feet when travelling or sitting for long periods Ideal for those suffering from fluid and circulatory problems Pedal/treadle action exercises promote circulation and oxygen to the legs and feet
•
Provides comfort, warmth and assists in pressure care of the feet Genuine medical sheepskin Natural fibres reduces the risk of skin irritation Soft pile allows air circulation to keep dry Toe area is closed to increase comfort and support
• •
• • • •
Pad does not promote bacterial growth, making it ideal for multiclient use Pad is sealed by a waterproof film Secured in place with a soft adjustable velcro strap One size fits all Supplied as each
MD0240 - Push Cush • • • •
•
• •
Works important muscles and keeps joints mobile Widely used to prevent DVT (Deep Vein Thrombosis) for those travelling in confined positions Width 400mm Depth 330mm
Sheepskin Slippers Closed Toe • • • • •
Code
Size
• • •
Adjustable velcro straps Soft sole allows slipper to be worn in bed Machine washable Supplied as pair Men are recommended to use the next size up when ordering
Foot Size
MD0330
Small
6
MD0320
Medium
8
MD0310
Large
10
MD0300
Extra Large
12
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
89
M AT T R ES S ES & P R ES SUR E CA R E
Accessories Foam Surround • • • • • •
Wide range of foam surrounds available, customised to suit mattress overlays and replacement systems Converts a single mattress to suit larger than single beds High specification foam provide additional width and/or length to pressure relieving air support surfaces and adapts to almost any bed base or configuration Enhances the lateral stability of the support surface and provide additional patient and caregiver assistance for positioning and transfers Customised to suit mattress CPR outlets, valves, inlets etc. 4-way stretch cover is vapour permeable and fluid resistant
LC0460 Komfi-Tilt Turner • • • • • •
90
CA R I N G F U RT H E R
A Continuous Lateral Rotation Therapy (CLRT) system which gently tilts the user Left, Neutral and Right to relieve any pressure points developing Inflates to 20-25 degrees to provide offload of pressure points and redistribution of body weight loadings Automated 10 minute tilt cycle time Whisper quiet pump for no user disturbance Compatible with foam and alternating aircell mattresses Max user weight 200kg
Chairs & Seating Mauro Ergo-Line Relax Chair
93
Patient Chairs
94
Mobile Chairs
95
High Back Chairs
96
Low Back Chairs
99
Powerlift Armchairs
100
Recliner Chairs
107
Care Chairs
108
Chair Accessories
110
Perching Stools
111
Legrests & Footrests
112
C H A I RS & S E AT I N G
Mauro Ergo-line Relax Chair Alpha Lifecare introduces the new Mauro Ergo-line Relax reclining chair. Featuring a comfortable and supportive recline mechanism that tilts into a zero gravity position, this chair has been specifically designed for the care sector.
01. Contoured Backrest The seat shell has been designed following the shape of the human spine (S-shape). It offers an exceptional support at the level of the lower back and the shoulders. An additional neck support cushion is possible, but certainly not required.
06
02. Relax Mechanism
01
05
Less pressure points on the body and a good blood circulation thanks to the Ergo-line relax mechanism that inclines the backrest, seat and legrest simultaneously into a “Zero Gravity” position (*).
03. Central Brake
04
The chair is extremely manoeuvrable and mobile, thanks to the large castors. The 2 castors at the back legs have central brakes and a directional lock.
02
04. Adjustable Armrests 03
The lowerable armrests can be adjusted in 4 different positions. In their lowest position, the armrests are on the same level as the seat which facilitates patient transfers.
05. Modularity The relax chair can be composed the way you want it. Various accessories make the chair more complete, such as a removable headrest and a dinner tray.
(*) Zero gravity position: this seat/lying position is based on NASA data. A neutral body position converts all muscle power into a biomedical balance. (Source:“From outer space to you”, Omni, March 1994)
06. Colours
Specifications
ED7800 Graphite Grey ED7810 Brick Red ED7820 Midnight Blue
Length x Depth x Height:
720 x 780-1550 x 1250mm
Seat Height From Footrest:
460mm
Seat Depth:
510mm
Seat Width:
535mm
Height Armrests:
735-530mm
Safe Working Load:
150kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
93
C H A I RS & S E AT I N G
Patient Chairs Fero Chairs
The Fero and Mauro range of chairs has been especially designed for those in need of additional comfort. From the Mauro Relax Chair to the Fero High Low option, these chairs allow the patient to feel exceptionally well-supported in the various seating positions. With every change in position, the small of the back remains fully supported thanks to this ingenious “zero - gravity” mechanism which provides optimum support to the body and assists in minimising pressure related injuries.
Code
Model
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Width
Overall Height
Width Between Arms
Max User Weight
ED3280
Rest chair with fixed height legs and arms
535mm
510mm
455mm
695mm
640mm
680mm
1150mm
535mm
150kg
ED3450
Tilt Rest chair with adjustable height arms
535mm
510mm
455mm
695mm
455640mm
705mm
1150mm
535mm
150kg
ED3250
Relax chair with adjustable height arms and fixed legs
535mm
510mm
455mm
695mm
455640mm
705mm
1150mm
535mm
150kg
ED8010
Mauro Relax chair with adjustable arms and mobile base
535mm
510mm
510mm
740mm
510740mm
720mm
1250mm
535mm
150kg
ED8010
ED3250
ED3450
ED3280
Mauro Relax Chair with adjustable arms and mobile base
Relax chair without castors with lowerable armrests
Tilt rest chair without
Rest Chair with fixed
castors with lowerable
height legs and arms
armrests
Alpha Lifecare offers a wide selection of colour options. Please contact us to discuss your individual requirements.
94
CA R I N G F U RT H E R
C H A I RS & S E AT I N G
Mobile Chairs ED3210 - Bariatric Fero The Fero Bariatric chair is a very comfortable chair that has been especially developed for bariatric patients. The electric tilting backrest and high-quality upholstery guarantees optimal when the patient is seated for a long period of time. The lowerable armrests allow for a more straightforward patient transfer. Integral design castors are equipped with a central brake mechanism, which enables staff to move the patient with ease. Options Available ED3520 Footrest
Length
Depth
Height
Seat Height
Seat Depth
Seat Width
Armrest Height
Max User Weight
1000mm
855mm
1250mm
470mm
470mm
790mm
650mm
300kg
ED4230 - Fero E Move Chair Fero E-Move is equipped with is electrically adjustable legrest and backrest, easy to operate with an intuitive handset. Two actuators ensure that the backrest, seat and legrest tilt into a zero gravity position. The backrest and seat are individually adjustable. • • • •
Four design twin castors 4 x 100mm locking dual castors with separate brakes The backrest and legrest are individually adjustable The chair can be adjusted by means of a handset, which can be attached to either side of the chair Large range of colours available
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Width
Overall Height
Width Between Arms
Max User Weight
535mm
510mm
510mm
800mm
650mm
680mm
1200mm
535mm
135kg
ED4100 - Avento Manual High Low Relax Chair The Fero High Low Relax chair is a chair is equipped with a high/low system and a relax mechanism that inclines the backrest, seat and legrest simultaneously into a zero gravity position. • • • •
•
Height adjustment hydraulic pump easy to operate by means of a pedal at both sides of the chair Relax mechanism: Less pressure points on the body and improved blood circulation thanks to the patented mechanism “Zero Gravity” Central brake on 4 castors: The chair is extremely manoeuvrable and mobile, thanks to the large castors and the central brake system Stand-up help: The stand-up help is activated by means of a lever situated on both sides of the chair. By bringing the lever forward, the seat is lifted and the patient can get out of the chair with some extra help Range of colours available
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Height
Width Between Arms
Max User Weight
530mm
500mm
530-830mm
800mm
530-830mm
730mm
525mm
150kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
95
C H A I RS & S E AT I N G
Mobile Chairs ED4390 - Avento Electric High Low Relax Chair •
• • • • • • •
• • • •
The Avento high/low relax chair is a blessing for the patient, equipped with height adjustment and a relax mechanism that inclines the backrest, seat and legrest simultaneously Height adjustable between 530 and 830mm due to a hydraulic pump which is easy to operate via a pedal on both sides of the chair Zero Gravity mechanism allows less pressure points on the body and good blood circulation The chair is extremely manoeuvrable and mobile due to the central brake system on 4 castors Firmly welded metal construction, standard with 2 cases for IV rods and supports for the removable headrest Removable seat upholstered in fire retardant foam and finished with imitation leather Rounded seat front helps to stimulate blood circulation Armrests can be adjusted to 4 positions, and can be locked in the downwards position with a spring lever. In their lowest position, the armrests are at the same level as the seat Backrest and legrest are individually adjustable The angle between the seat and the backrest ranges form 97° (seating position) to 120° (zero gravity position) When the relax mechanism is activated, the seat inclines to a 24° angle When the chair is places in the seat position, the legrest is turned inwards so that the patient is able to stand without hindrance
Seat Width
Seat Depth
Seat Height
Overall Width
Overall Length
Overall Height
Max User Weight
535mm
500mm
530-830mm
710mm
810-1570mm
1250-1550mm
150kg
High Back Chairs Macquarie Chair • • • • • • •
igh back orthopaedic chair H Adjustable height and seat depth Contoured buttoned backrest provides added lumbar and neck support Adjustable neck pillow Concealed back frame for hygiene and infection control purposes Powder coated steel frame Available in a range of fabrics and vinyls
Colours Available ED0140 Champagne Vinyl ED0170 Slate Vinyl ED0150 Fawn Fabric ED0160 Fern Fabric
96
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
500mm
420 - 500mm
420 - 600mm
220mm
740mm
670mm
125kg
CA R I N G F U RT H E R
C H A I RS & S E AT I N G
High Back Chairs Sapphire Highback Chair • • • • • • • •
Adjustable height to assist with patient transfers Moulded backrest shell for enhanced support Multi layered seat foam for pressure prevention Two mobility tilt wheels on rear Rear Push handle Polyurethane moulded arm pads Lifetime frame warranty Complies with Australian standards: ASNZ 4688.1.2018
Available Options EZ4030 Adjustable Seat Depth EZ4060 Pressure Care Upholstery with Welded Seams Code
Seat Width
Seat Depth*
Max User Weight
ED6840
500mm
490mm
200kg
ED6850
580mm
490mm
200kg
ED6860
690mm
490mm
300kg
ED6870
850mm
490mm
400kg
*Optional adjustable seat depth available
ED3850 - X2 Deluxe Pressure Care Chair The X2 chair has been specially developed for hospital use, with a stronger frame and higher weight capacity, low resilient foam and 2-way stretch upholstery on seating surfaces. • • • • •
High backrest incorporating lumbar and lateral support and padded armrests Comfortable upholstered seat and back Adjustable seat height and depth Powdercoated steel frame with reinforcement Standard with tilt and move wheels for ease of maneuverability
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Width
Overall Depth
Overall Height
Max User Weight
500mm
450-530mm
450-600mm
790mm
230mm
700mm
730-800mm
1200-1350mm
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
97
C H A I RS & S E AT I N G
High Back Chairs Euro Chair • • • • • •
High back orthopaedic chair Wider seat widths and reinforced frames to suit the bariatric client Adjustable height and seat depth Contoured backrest and powder coated steel frame Available in a range of vinyls Tilting castors
Code
Vinyl Colour
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
ED0050
Champagne
500mm
490-550mm
430-580mm
250mm
740mm
700mm
125kg
ED0060
Slate
500mm
490-550mm
430-580mm
250mm
740mm
750mm
175kg
ED0270
Champagne
550mm
490-550mm
430-580mm
250mm
740mm
800mm
195kg
ED0280
Slate
550mm
490-550mm
430-580mm
250mm
740mm
850mm
210kg
ED0620
Champagne
600mm
490-550mm
430-580mm
250mm
740mm
850mm
210kg
ED0300
Slate
600mm
490-550mm
430-580mm
250mm
740mm
850mm
210kg
ED0310
Champagne
650mm
490-550mm
430-580mm
250mm
740mm
850mm
210kg
ED2110
Slate
650mm
490-550mm
430-580mm
250mm
740mm
850mm
210kg
ED3880 - X2 Deluxe Pressure Care Chair Bariatric Specifically developed for the bariatric patient in a hospital setting, this chair has a strong frame, large weight capacity, vinyl upholstery and tilt and move wheels. • • • • • •
98
Adjustable height High Contoured backrest incorporating lumbar support Contoured seat Padded drop down, removable arms for side transfer Adjustable seat depth Standard with tilt and move wheels for ease of manoeuvrability
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Width
Overall Height
Width Between Arms
Max User Weight
780mm
600mm
460-540mm
675mm
170mm
900mm
1000-1805mm
790mm
425kg
CA R I N G F U RT H E R
C H A I RS & S E AT I N G
Low Back Chairs Hunter Chair • • •
Low back orthopaedic chair Ideal for dining or household activities Adjustable seat height
• •
Curved padded backrest Available in a range of vinyls
Colours Available ED0400 Champagne Vinyl ED0390 Slate Vinyl
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
460mm
460mm
485 - 640mm
230mm
455mm
610mm
125kg
Hunter Chair Wide • • • • • •
Low back orthopaedic chair Wider seat width and reinforced frame to suit the bariatric client Ideal for dining or household activities Adjustable seat height Curved padded backrest Available in Champagne vinyl upholstery (as shown)
Code
Seat Width
Seat Depth
Seat Height
Armrest Height
Back Height
Overall Width
Max User Weight
ED0470
500mm
450mm
470-610mm
230mm
455mm
650mm
135kg
ED0480
550mm
450mm
470-610mm
230mm
455mm
700mm
175kg
ED0490
600mm
450mm
470-610mm
230mm
455mm
750mm
195kg
ED0500
650mm
450mm
470-610mm
230mm
455mm
800mm
210kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
99
C H A I RS & S E AT I N G
Powerlift Armchairs Monarch Chair • • • • • • • •
Seamed backrest provides additional lumbar support Padded legrest is synchronised with the backrest Full chaise pad provides additional legrest support and comfort Supplied with magazine pocket Hand held controller is simple to use Rise or recline motion stops at any point when button is released Available in a range of fabrics and vinyls. Also available in dual motor, providing independent control of backrest and legrest, or petite model for the smaller user
Code
Size
Type
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
ED1730
Standard
Single Motor
510mm
510mm
500mm
190mm
680mm
820mm
130kg
ED1930
Petite
Single Motor
460mm
460mm
460mm
140mm
620mm
780mm
130kg
ED1800
Standard
Dual Motor
510mm
510mm
500mm
190mm
680mm
820mm
130kg
ED1650 - Manor Chair • • • • • • • •
Waterfall style backrest provides superior comfort Padding on each backrest layer can be adjusted Padded legrest is synchronised with the backrest Full chaise pad provides additional legrest support and comfort Supplied with magazine pocket Hand held controller is simple to use Rise or recline motion stops at any point when button is released Available in a range of fabrics and vinyls. Contact Care Quip for more information.
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
550mm
520mm
500mm
190mm
680mm
820mm
130kg
ED0980 - Petite Chair • • • • • • • •
Compact size to suit the petite user Seamed backrest provides increased lumbar support Padded legrest is synchronised with the backrest Full chaise pad provides additional legrest support and comfort Supplied with head cover, arm covers and magazine pocket Hand held controller is simple to use. Rise or recline motion stops at any point when button is released Made in USA Available in a range of fabrics and vinyls. Contact Care Quip for more information.
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
485mm
470mm
460mm
165mm
570mm
775mm
135kg
100
CA R I N G F U RT H E R
C H A I RS & S E AT I N G
Powerlift Armchairs ED1300 Comforter Chair - Wide • • • • • • •
Wider seat width and reinforced frame to suit the bariatric client Full chaise pad provides additional legrest support and comfort Padded legrest is synchronised with the backrest Supplied with head cover, arm covers and magazine pocket Twin motors work simultaneously to provide increased lift capacity Made in USA Available in a range of fabrics and vinyls. Contact Care Quip for more information.
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
700mm
545mm
495mm
180mm
685mm
980mm
225kg
ED1370 Comforter Chair - Extra Wide • • • • • • • • •
Extra wide seat width and reinforced frame to suit the bariatric client Adjustable neck pillow provides comfort and support to the head and neck area Supplied with head cover, arm covers and magazine pocket Dual motor provides independent control of backrest and legrest Hand held controller is simple to use Rise or recline motion stops at any point when button is released Triple motor construction for increased lifting capacity Made in USA Available in a range of fabrics and vinyls. Contact Care Quip for more information.
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
840mm
560mm
535mm
180mm
735mm
1145mm
315kg
Empire Chair • • • • • •
Seamed backrest provides additional lumbar support Padded legrest is synchronised with backrest Full chaise pad provides additional legrest support and comfort Supplied with magazine pocket Hand held controller is simple to use Rise or recline motion stops at any point when button is released
Code
Colour
Upholstery
Seat Width
Seat Height
Overall Height
Overall Width
Max User Weight
ED4810
Hazelnut
Fabric
640mm
650mm
1060mm
750mm
200kg
ED4820
Coffee
Vinyl
640mm
650mm
1060mm
750mm
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 01
C H A I RS & S E AT I N G
Powerlift Armchairs ED4050 - Ena Configura Chair • • • • • • • • •
Suitable for a wide variety of users changing needs. Customisable in minutes. Vertical rise ‘n recline chair Dual Motor Extendable legrest Adaptable seat cushion. Reduced shear backrest Suitable for transfer aides Available in bariatric option
Code
Size
Seat Width
Seat Depth
Seat Height
Overall Width
Max User Weight
ED4060
Small
457mm
457-508mm
406mm
711mm
130kg
ED4070
Medium
508mm
457-508mm
457mm
762mm
160kg
ED4080
Large
508mm
457-508mm
457mm
812mm
160kg
Configura Bariatric Chair • • • • •
1 02
The Configura Bariatric chair offers unprecedented adjustability, flexibility and peace of mind Dual motor operation allows independent adjustment of the legrest elevation and backrest recline Supportive armrests for easy transfers Breathable, wipe-able fabric on seat base and backrest Multi adjustable pillow backrest - height and filling can be customised to the user offering mild to moderate pressure support
Code
Seat Width
Seat Height
Overall Width
Armrest Height
Max User Weight
ED4280
609mm
406mm
1050mm
200mm
254kg
ED4290
609mm
457mm
1050mm
200mm
254kg
CA R I N G F U RT H E R
C H A I RS & S E AT I N G
Powerlift Armchairs Luxor Electric Recliner Chair • • • • • • • • • • • • •
Power lift and recline armchair Multi layer foam cushions developed specifically by health professionals to offer optimum support and comfort for those requiring special pressure care Waterfall style backrest provides superior comfort Padding on each backrest layer can be adjusted Padded legrest is synchronised with the backrest Full chaise pad provides additional Legrest support and comfort Medium pressure care relief Upholstered with fabric that has the benefit of being anti bacterial, waterproof, breathable and anti microbial Supplied with magazine pocket Hand held controller is simple to use Rise or recline motion stops at any point when button is released Wall saver mechanism requires minimal clearance behind the chair when reclined
Single Motor Code
Size
Colour
Seat Width
Seat Depth
Seat Height
Back Height
Overall Width
Overall Height
Max User Weight
ED7150
Petite
Blue
440mm
450mm
470mm
570mm
780mm
570mm
120kg
ED7140
Petite
Beige
440mm
450mm
470mm
570mm
780mm
570mm
120kg
ED7130
Petite
Pressure Care
440mm
450mm
470mm
570mm
780mm
570mm
120kg
ED7090
Mini
Blue
480mm
490mm
470mm
600mm
780mm
1020mm
120kg
ED7080
Mini
Beige
480mm
490mm
470mm
600mm
780mm
1020mm
120kg
ED7070
Mini
Pressure Care
480mm
490mm
470mm
600mm
780mm
1020mm
120kg
ED7060
Medium
Blue
480mm
500mm
500mm
640mm
780mm
1070mm
120kg
ED7050
Medium
Beige
480mm
500mm
500mm
640mm
780mm
1070mm
120kg
ED7040
Medium
Pressure Care
480mm
500mm
500mm
640mm
780mm
1070mm
120kg
ED7120
Maxi
Blue
530mm
520mm
530mm
680mm
830mm
1170mm
120kg
ED7110
Maxi
Beige
530mm
520mm
530mm
680mm
830mm
1170mm
120kg
ED7100
Maxi
Pressure Care
530mm
520mm
530mm
680mm
830mm
1170mm
120kg
ED7220
Tall
Blue
540mm
530mm
540mm
740mm
830mm
1230mm
120kg
ED7210
Tall
Beige
540mm
530mm
540mm
740mm
830mm
1230mm
120kg
ED7200
Tall
Pressure Care
540mm
530mm
540mm
740mm
830mm
1230mm
120kg
Max User Weight
Dual Motor Code
Size
Colour
Seat Width
Seat Depth
Seat Height
Back Height
Overall Width
Overall Height
ED7350
Petite
Pressure Care
440mm
450mm
470mm
570mm
780mm
990mm
120kg
ED7370
Petite
Blue
440mm
450mm
470mm
570mm
780mm
990mm
120kg
ED7290
Mini
Pressure Care
480mm
490mm
470mm
600mm
780mm
1020mm
120kg
ED7310
Mini
Blue
480mm
490mm
470mm
600mm
780mm
1020mm
120kg
ED7300
Mini
Beige
480mm
490mm
470mm
600mm
780mm
1020mm
120kg
ED7260
Medium
Pressure Care
480mm
500mm
500mm
640mm
780mm
1070mm
120kg
ED7280
Medium
Blue
480mm
500mm
500mm
640mm
780mm
1070mm
120kg
ED7270
Medium
Beige
480mm
500mm
500mm
640mm
780mm
1070mm
120kg
ED7320
Maxi
Pressure Care
530mm
520mm
530mm
680mm
830mm
1170mm
120kg
ED7340
Maxi
Blue
530mm
520mm
530mm
680mm
830mm
1170mm
120kg
ED7330
Maxi
Beige
530mm
520mm
530mm
680mm
830mm
1170mm
120kg
ED7430
Tall
Pressure Care
540mm
530mm
540mm
740mm
830mm
1230mm
120kg
ED7450
Tall
Blue
540mm
530mm
540mm
740mm
830mm
1230mm
120kg
ED7440
Tall
Beige
540mm
530mm
540mm
740mm
830mm
1230mm
120kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 03
C H A I RS & S E AT I N G
Powerlift Armchairs Aircomfort Chair • • • • • • • • • • • •
Total surface air pressure system Patented airbag system provides optimum comfort and pressure relief in backrest, seat and legrest Overfilled back provides increased lumbar support Polished timber arm knuckles assist transfers Supplied with magazine pocket Hand held controller is easy to use Available in a range of fabrics and vinyls Recline or rise motion stops at any point when button is released Wall saver mechanism requires minimal clearance behind the chair when reclined Made in Australia Available in a range of fabrics and vinyls Also available in dual motor, where backrest and footrest can be controlled independently
Single Motor Code
Size
Upholstery
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
ED1430
Small
Mocha Fabric
500mm
440mm
480mm
190mm
680mm
750mm
140kg
ED1460
Small
Grey Vinyl
500mm
440mm
480mm
190mm
680mm
750mm
140kg
ED1440
Medium
Mocha Fabric
500mm
510mm
520mm
190mm
740mm
750mm
140kg
ED1470
Medium
Grey Vinyl
500mm
510mm
520mm
190mm
740mm
750mm
140kg
ED1450
Large
Mocha Fabric
600mm
510mm
520mm
190mm
800mm
820mm
140kg
ED1480
Large
Grey Vinyl
600mm
510mm
520mm
190mm
800mm
820mm
140kg
Dual Motor Code
Size
Upholstery
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
ED1510
Small
Mocha Fabric
500mm
440mm
480mm
190mm
680mm
750mm
140kg
ED1540
Small
Grey Vinyl
500mm
440mm
480mm
190mm
680mm
750mm
140kg
ED1520
Medium
Mocha Fabric
500mm
510mm
520mm
190mm
740mm
750mm
140kg
ED1550
Medium
Grey Vinyl
500mm
510mm
520mm
190mm
740mm
750mm
140kg
ED1530
Large
Mocha Fabric
600mm
510mm
520mm
190mm
800mm
820mm
140kg
ED1560
Large
Grey Vinyl
600mm
510mm
520mm
190mm
800mm
820mm
140kg
1 04
CA R I N G F U RT H E R
C H A I RS & S E AT I N G
Powerlift Armchairs Imperial Power Lift Recline Chair • • • • • • •
Power lift and recline armchair Adjustable waterfall style backrest Padded legrest Fully padded seat and legrest chaise Battery back up Magazine pocket Dual motor for independent backrest and legrest movement
Single Motor Code
Upholstery
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Overall Height
Overall Width
Max User Weight
ED6020
Mocha Fabric
Single
520mm
520mm
500mm
120mm
1030mm
780mm
130kg
ED6030
Blue Fabric
Single
520mm
520mm
500mm
120mm
1030mm
780mm
130kg
ED6040
Black Vinyl
Single
520mm
520mm
500mm
120mm
1030mm
780mm
130kg
ED6050
Coffee Vinyl
Single
520mm
520mm
500mm
120mm
1030mm
780mm
130kg
Code
Upholstery
Seat Width
Seat Depth
Seat Height
Arm Height
Overall Height
Overall Width
Max User Weight
Dual Motor Back Height
ED5980
Mocha Fabric
Dual
520mm
520mm
500mm
120mm
1030mm
780mm
160kg
ED5990
Blue Fabric
Dual
520mm
520mm
500mm
120mm
1030mm
780mm
160kg
ED6000
Black Vinyl
Dual
520mm
520mm
500mm
120mm
1030mm
780mm
160kg
ED6010
Coffee Vinyl
Dual
520mm
520mm
500mm
120mm
1030mm
780mm
160kg
ED1590 - Derwent Chair • • • • • • • •
Waterfall style backrest provides superior comfort Padding on each backrest layer can be adjusted Padded legrest is synchronised with the backrest Full chaise pad provides additional legrest support and comfort Supplied with magazine pocket and hand held controller is simple to use Rise or recline motion stops at any point when button is released Wall saver mechanism requires minimal clearance behind the chair when reclined Available in a range of fabrics and vinyls. Contact Care Quip for more information.
Size
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
Petite
440mm
450mm
470mm
170mm
570mm
780mm
155kg
Mini
480mm
490mm
470mm
170mm
600mm
780mm
155kg
Medium
480mm
500mm
500mm
170mm
640mm
780mm
155kg
Maxi
530mm
520mm
530mm
170mm
680mm
830mm
155kg
Tall
540mm
530mm
540mm
170mm
740mm
830mm
155kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 05
C H A I RS & S E AT I N G
Powerlift Armchairs ED4780 - X8 Powerlift Pressure Care Chair • •
•
• • • • • • • •
Ideal for clients who are confined to a chair for long periods Pressure relieving memory foam, soft contoured multi-layered foam and fibre backrest with lumbar support and ergonomic padded armrests ensure maximum comfort and postural support Integrated air cell in seat provides premium pressure relief and can be easily inflated and adjusted with integrated hand pump which is concealed within the chair when not in use Resilient European four-way stretch vinyl is fluid resistant, fire retardant and vapour permeable with antibacterial and non-allergenic properties Soft-stretch vinyl is used on inner contact surfaces, while hard-wearing vinyls are used on the outside of the chair Removable seat and back covers for infection control management Padded legrest for additional comfort and heel support Large side pockets for convenient storage Quiet and smooth lift system with infinite rise and recline positions for ultimate comfort and assists the user in sitting and standing transfers Dual motor provides independent control of backrest and legrest Small mobility castors to assist manoeuvring the chair when not in use
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
500mm
500mm
480mm
200mm
630mm
720mm
130kg
ED4790 - X9 Mobile Power Lift Pressure Care Chair • •
• • • • • • • • •
Ideal for clients who are confined to a chair for long periods Pressure relieving memory foam, soft contoured multi-layered foam and fibre backrest with lumbar support and ergonomic padded armrests ensure maximum comfort and postural support Resilient European four-way stretch vinyl is fluid resistant, fire retardant and vapour permeable with antibacterial and non-allergenic properties Soft-stretch vinyl is used on inner contact surfaces, while hard-wearing vinyls are used on the outside of the chair Removable seat and back covers for infection control management Padded legrest for additional comfort and heel support Large side pockets for convenient storage Quiet and smooth lift system with infinite rise and recline positions for ultimate comfort and assists the user in sitting and standing transfers Dual motor provides independent control of backrest and legrest Push handle with hand grips, and castors for safe and easy manoeuvrability 4 x 100mm locking castors, 2 of which are locking
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
500mm
500mm
500mm
190mm
680mm
720mm
130kg
106
CA R I N G F U RT H E R
C H A I RS & S E AT I N G
Recliner Chairs ED6790 - Belate Electric Recliner - Single Motor • • • •
•
•
Aesthetically pleasing design Rounded edges to avoid damage & injury Contoured backrest with ergonomic support and side wings Chair is designed to invite relaxation, rest and assists patients maintain an upright position Seat and backrest sections have 80mm elastic suspension straps allowing optimal weight distribution and exceptional durability Layered foams for pressure injury prevention
•
• • • • •
•
Features continuous seat section when armchair is reclined for additional comfort. 4 x 100mm Braking castors for ease of mobility or Timber Legs available Optional rear push handle Electrically adjustable backrest and footrest Range of upholstery options available The composition and treatment of the fabrics allows easy cleaning and improving the infection control Double stitched sealed seams
Seat Width
Seat Depth
Overall Length
Overall Width
Total Height
Max User Weight
510mm
500mm
780mm
690mm
1050mm
150kg
ED6680 - Belate Electric Recliner - Dual Motor • • • •
•
•
Aesthetically pleasing design Rounded edges to avoid damage & injury Contoured backrest with ergonomic support and side wings Chair is designed to invite relaxation, rest and assists patients maintain an upright position Seat and backrest sections have 80mm elastic suspension straps allowing optimal weight distribution and exceptional durability Layered foams for pressure injury prevention
•
• • • • •
•
Features continuous seat section when armchair is reclined for additional comfort. 4 x 100mm Braking castors for ease of mobility or Timber Legs available Optional rear push handle Electrically adjustable backrest, footrest and sit to stand function Range of upholstery options available The composition and treatment of the fabrics allows easy cleaning and improving the infection control Double stitched sealed seams
Seat Width
Seat Depth
Overall Length
Overall Width
Total Height
Max User Weight
510mm
500mm
780mm
690mm
1050mm
150kg
ED6780 - Belate Relax Manual Recliner •
•
•
•
The structure of the chair is made of heavy duty pine wood and the boards in laminate Seat section with N.E.A. elastic suspension and backrest with straps of 80 mm allowing an optimal weight distribution and an unlimited durability Articulated back and footrests with continuous seat section when armchair is reclined for user comfort Backrest with plywood support of ergonomic design, with wings, incorporated
•
• • • • •
The wing invites relaxation, rest and helps patients with problems for keeping an upright position Rounded edges to avoid damages or injuries Max patient weight 150 kg Easy cleaning and improved infection control High quality foams in densities of 30 and 25 kg/m3 for seat and backrest Wooden legs available in different colours
Width
Height
Depth
Extended Length
Max User Weight
690mm
820mm
1030mm
1700mm
135kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 07
C H A I RS & S E AT I N G
Care Chairs ED1960 Shoalhaven Chair/Bed • •
• • • • • • • • •
I deal for dependant clients who are confined to a chair for long periods Pressure-sensitive foam, contoured backrest with lumbar and lateral support, angled armrests and adjustable/removable wings and neck support ensure maximum comfort and postural support Integrated air cell in seat for premium pressure relief Tilt in space recline action and high leg rest elevation for reduced fluid retention Designed for use with standing machines and transfer hoists Large push handle and simple recline mechanism makes movement and operation safe and easy for the carer Resilient water proof stretch fabric with antibacterial and non-allergenic properties Soft-stretch vinyl is used on inner contact surfaces, while hard-wearing vinyls are used on the outside of the chair Armrest bumpers provide additional protection to the armrests and upholstery 4 x 100mm swivel locking castors (one directional) for easier mobility Made in Australia
Options Available EZ0011 Tray - Removable, slide in Seat Width
Seat Depth
Arm Height
Back Height
Overall Width
Max User Weight
520mm
500mm
220mm
750mm
780mm
130kg
BD1720 X6 Deluxe Chair/Bed • •
• • • • • • • • •
1 08
CA R I N G F U RT H E R
Ideal for dependant clients who are confined to a chair for long periods Pressure relieving memory foam, contoured backrest with lumbar and lateral support, angled armrests and adjustable wings and neck pillow ensure maximum comfort and postural support Integrated air cell in seat for premium pressure relief Tilt in space recline action and high leg rest elevation for reduced fluid retention Designed for use with standing machines and transfer hoists Large push handle and simple recline mechanism makes movement and operation safe and easy for the carer Resilient European four-way stretch vinyl is fluid resistant, fire retardant and vapour permeable with antibacterial and non-allergenic properties Soft-stretch vinyl is used on inner contact surfaces, while hard-wearing vinyls are used on the outside of the chair Removable seat and back covers for infection control management Supplied with slide-in removable meal tray and removable padded footrests for additional comfort and heel support 4 x swivel locking castors (one directional) for easier mobility Seat Width
Seat Depth
Arm Height
Back Height
Overall Width
Max User Weight
500mm
550mm
180mm
650mm
750mm
180kg
C H A I RS & S E AT I N G
Care Chairs ED1950 Daily Chair Bed • • • • • • • • •
Memory Foam seating for added patient comfort Gas operated seat tilt, back recline and adjustable leg rest for improved patient positioning Adjustable arms and wings for improved patient access Removable/adjustable headrest cushion Multi-stretch PU seating upholstery Tough and durable steel framework for easy maintenance Locking and directional castors for easy manoeuvrability Maximum static user weight capacity - 180kg Suits patients from 162cm (5’4”) to 188cm (6’2”) Seat Width
Arm Height
Back Height
Overall Width
Max User Weight
510mm
170mm
710mm
690mm
180kg
BD1340 V2 Deluxe Chair/Bed • • • • • • • • • • • •
Mobile reclining patient chair Ideal for dependant patients who are confined to a chair for long periods Unique total surface air pressure system (in backrest, seat and legrest) provides proven pressure relief Adjustable seat, backrest and legrest angles provide multiple seating and sleeping positions Adjustable and drop-down wings and armrests for easy side patient transfers Detachable and adjustable headrest pad for additional comfort Push handle and simple recline mechanism makes movement and operation safe and easy for the carer Soft-stretch vinyl is used on inner contact surfaces, while hard-wearing vinyls are used on the outside of the chair Easy to clean and maintain New transport tie down points 4 x 150mm swivel locking castors (one directional) for easier mobility Made in Australia
Options Available EZ1050 – Removable Footrest EZ1040 – Meal Tray, Large Seat Width
Seat Depth
Arm Height
Back Height
Overall Width
Max User Weight
470mm
550mm
170mm
710mm
680mm
180kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 09
C H A I RS & S E AT I N G
Chair Accessories Conni Chair Pad • • • • • • • • •
Lightweight and easy to use, machine washable and tumble dryer safe; Conni chair pads can be reused countless times A cost-effective and environmentally sustainable alternative to disposable pads Waterproof and breathable Soft stay-dry top layer Slim absorbent core holds up to 800mls of fluid Fabric is comfortable and quiet Extremely lightweight Absorbs fluid to protect furniture, wheelchairs, and cars Quick and easy to launder Code
Size
Width
Length
CF0290
Small
480mm
480mm
CF0280
Large
510mm
610mm
NZ2310 Universal Tray • • • •
110
CA R I N G F U RT H E R
Lightweight plastic moulded utility tray Raised lip edge helps prevent items falling off tray Moulded cup holder recess Fits to chair armrests securely by adjustable velcro straps Width
Inside Length
Outside Length
Weight
600mm
335mm
560mm
1.5kg
C H A I RS & S E AT I N G
Perching Stools ED0760 Perching Stool • • • •
Ideal for use in the kitchen, or any activity where a perched seating position is of assistance Height adjustable Padded seat and backrest Vinyl upholstery
Seat Width
Seat Depth
Seat Height
Back Height
Overall Width
Max User Weight
380mm
310mm
550 - 700mm
390mm
540mm
100kg
ED0770 Perching Stool With Arms • • • • •
Ideal for use in the kitchen, or any activity where a perched seating position is of assistance Height adjustable Padded seat and backrest Integrated arm supports assist transfers Vinyl upholstery
Seat Width
Seat Depth
Seat Height
Back Height
Overall Width
Max User Weight
380mm
310mm
550 - 700mm
140mm
540mm
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
111
C H A I RS & S E AT I N G
Legrests & Footrests EC0100 Legrest • • • •
Provides comfort and support for the legs and feet Ideal for patients with fluid or circulatory problems Adjustable in height and angle Available in a range of fabrics and vinyls Code
Upholstery
Width
Length
Height Range
EC0110
Champagne Vinyl
400mm
500mm
425 - 575mm
EC0140
Slate Vinyl
400mm
500mm
425 - 575mm
EC0120
Fawn Fabric
400mm
500mm
425 - 575mm
EC0130
Fern Fabric
400mm
500mm
425 - 575mm
EC0240
Coffee Vinyl
400mm
500mm
425 - 575mm
Footrest Padded • • • • • •
Provides support for the feet Assists in the correction of hip angle Padded for additional comfort Pad width 410mm Pad length 240mm Specify height and vinyl colour Code
Upholstery
Height 125mm
EC0050
Champagne Vinyl
EC0060
Slate Vinyl
125mm
EC0070
Champagne Vinyl
200mm
EC0080
Slate Vinyl
200mm
EB0320 Step Stool • • • • •
Durable single step platform Manufactured from steel Bright chrome Cross support for greater stability Ribbed rubber top provides extra grip and prevents slipping
Options Available: EB0310 Hammer tone powdercoat
1 12
CA R I N G F U RT H E R
Width
Length
Height
Step Area
440mm
350mm
230mm
360 x 285mm
Wheelchairs Self Propelling Wheelchairs
114
Transit Wheelchairs
114
Lightweight Wheelchairs
116
Patient Transport Wheelchairs
117
Bariatric Wheelchairs
118
Tilt & Recline Wheelchairs
120
Amputee Wheelchairs
121
Hemiplegic Wheelchairs
122
Wheelchair Ramps
123
Wheelchair Parts & Accessories
126
W H E E LC H A I RS
Self Propelling Wheelchairs Triton Wheelchair • • • • • •
Swingaway removable legrests and removable armrests Breathable padded nylon upholstery Rear backrest storage pocket Heel loops Solid tyres Folding steel frame
Colours Available NC0280 Burgundy NC0290 Titanium
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
490mm
430mm
245mm
900mm
650mm
19.1kg
15kg
120kg
Glide 1 Wheelchair • • • • • • •
Ideal for hospital and institutional use Swingaway removable legrests and removable armrests Durable vinyl upholstery Removable calf strap Quality stainless steel folding frame for long term use Tested and conforms to Australian Standards AS/NZS 3695:2009
Models Available NC1200 400mm Seat Width, Polished Stainless Steel NC1210 430mm Seat Width, Polished Stainless Steel NC0120 460mm Seat Width, Island Blue NC0130 460mm Seat Width, Merlot
Made in Australia
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
400/430/460mm
400mm
510mm
400mm
215mm
885mm
610/640/670mm
15.5kg
12.8kg
100kg
Transit Wheelchairs NC1660 - Vito Plus • • • • •
Swingaway removable legrests and fixed armrests Desk armrests allow wheelchair to be pushed close to table Adjustable nylon buckle seat belt for additional patient safety Breathable nylon upholstery Rear backrest storage pocket
• •
• •
Folding backrest and frame for easy storage and transportation Lever brake and attendant hand brakes provide more control for the carer Heel loops and Solid tyres Lightweight aluminium frame
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
480mm
440mm
210mm
910mm
630mm
11.6kg
10.3kg
100kg
114
CA R I N G F U RT H E R
W H E E LC H A I RS
Transit Wheelchairs Triton Transit Wheelchair •
• •
Swingaway removable legrests and removable armrests Breathable padded nylon upholstery Rear backrest upholstery storage pocket Heel loops Solid tyres
•
Folding steel frame
• •
Colours Available NC1030 Titanium NC1040 Burgundy
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
500mm
420mm
240mm
910mm
620mm
15.8kg
11.7kg
100kg
Glide 1 Transit Wheelchair • • • • • • •
Ideal for hospital and institutional use Swingaway removable legrests and removable armrests Durable vinyl upholstery Removable calf strap Quality stainless steel folding frame for long term use Tested and conforms to Australian Standards AS/NZS 3695:2009 Made in Australia
Models Available NC1450 400mm Seat Width, Polished Stainless Steel NC1470 430mm Seat Width, Polished Stainless Steel NC1000 460mm Seat Width, Island Blue NC1010 460mm Seat Width, Merlot
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
400/430/460mm
400mm
510mm
400mm
215mm
900mm
570/600/630mm
13.7kg
10.9kg
100kg
Breezy Basix Transit Wheelchair • •
• • •
Swingaway removable legrests and swingback removable armrests Push handles, seat depth, seat height and footplate angle are adjustable to suit individual client requirements Breathable padded nylon upholstery Tension adjustable backrest Seat to back connecting flap
• • • • •
Heel straps and tie down points Anti tip bars and rollers help prevent tipping Quick release rear wheels for easy storage and transportation Lightweight aluminium folding frame Solid tyres
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC1630
380mm
410-460mm
430-500mm
410-460mm
230mm
910mm
590mm
15.0kg
13.6kg
125kg
NC0520
430mm
410-460mm
430-500mm
410-460mm
230mm
910mm
640mm
15.0kg
13.6kg
125kg
NC0530
480mm
410-460mm
430-500mm
410-460mm
230mm
910mm
690mm
15.0kg
13.6kg
125kg
NC0540
520mm
410-460mm
430-500mm
410-460mm
230mm
910mm
730mm
15.0kg
13.6kg
125kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
115
W H E E LC H A I RS
Lightweight Wheelchairs NC1060 Neos Wheelchair • • • •
Swingaway removable legrests and fixed armrests Desk armrests allow wheelchair to be pushed close to desk or table Adjustable nylon buckle seat belt for additional patient safety Breathable nylon upholstery
• •
• • •
Rear backrest storage pocket Quick release rear wheels and folddown backrest for easy storage and transportation Heel loops Solid tyres Lightweight black aluminium frame
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
480mm
440mm
210mm
920mm
690mm
13.0kg
7.9kg
100kg
Concorde Wheelchair • • • • • • • •
•
Swingway removable legrests and swingback arms Breathable padded upholstery overlay Folding backrest and adjustable seat height Rear backrest storage pocket Padded removable calf support Double cross-over for added durability Anti tip bars and rollers help prevent tipping Lightweight aluminium folding frame and quick release rear wheels for easy storage and transportation Solid tyres
Colours Available NC0710 Burgundy NC0720 Green
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
420mm
530mm
400mm
220mm
895mm
670mm
15.7kg
10.1kg
130kg
Breezy Basix Wheelchair • •
• • •
Code
Seat Width
Seat Depth
Swingaway removable legrests and swingback removable armrests Push handles, seat depth, seat height and footplate angle are adjustable to suit individual client requirements Breathable padded nylon upholstery Tension adjustable backrest Seat to back connecting flap
Back Height
Arm Height
Push Handle Height
Overall Width
• • • • • •
Heel straps Tie down points Anti tip bars and rollers help prevent tipping Quick release rear wheels for easy storage and transportation Lightweight aluminium folding frame Red powder coat paint finish
Gross Weight
Net Weight
Max User Weight
NC0500
380mm
400-460mm
410-430mm
230mm
910mm
570mm
15.6kg
8.3kg
125kg
NC0470
430mm
400-460mm
410-430mm
230mm
910mm
620mm
15.6kg
8.3kg
125kg
NC0480
480mm
400-460mm
410-430mm
230mm
910mm
670mm
15.6kg
8.3kg
125kg
NC0490
520mm
400-460mm
410-430mm
230mm
910mm
710mm
15.6kg
8.3kg
125kg
116
CA R I N G F U RT H E R
W H E E LC H A I RS
Patient Transport Wheelchairs NB0450 Glide Ward Wheelchair - Basic • • • • • • •
Durable stainless steel non-folding frame Ideal for hospital ward or institutional use Swingback non-removable armrests and legrests prevent loss of parts Black vinyl upholstery Rear backrest pocket for document storage Plastic spoked wheels with maintenance-free solid tyres Made in Australia
Other Sizes Available Contact Care Quip for more information.
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
510mm
430mm
265mm
980mm
640mm
16.7kg
120kg
100kg
NB0470 Glide Ward Wheelchair • • • • • • • • •
Durable stainless steel non-folding frame Ideal for hospital ward or institutional use Swingback non-removable armrests and legrests prevent loss of parts Stainless steel carrier to suit Type C oxygen cylinders Adjustable height stainless steel IV pole Black vinyl upholstery Rear backrest pocket for document storage Plastic spoked wheels with maintenance-free solid tyres Made in Australia
Other Sizes Available Contact Care Quip for more information.
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
510mm
430mm
265mm
980mm
640mm
18.7kg
120kg
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
117
W H E E LC H A I RS
Bariatric Wheelchairs Care Quip Heavy Duty Wheelchair • • • • • •
Strengthened frame for the heavier client Swingaway removable legrests and removable armrests Vinyl upholstery Upholstery tensioner prevents backrest sag (on models greater than 500mm seat width) Solid tyres with reinforced front castors Durable steel folding frame
Code
Seat Width
Seat Depth
Seat Height
Back Height
Armrest Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0440
500mm
500mm
500mm
450mm
250mm
950mm
700mm
27kg
24kg
155kg
NC0330
550mm
500mm
500mm
450mm
250mm
950mm
750mm
34kg
31kg
225kg
NC0340
600mm
500mm
500mm
450mm
250mm
950mm
800mm
35kg
32kg
255kg
NC0360
700mm
500mm
500mm
450mm
250mm
950mm
900mm
37kg
34kg
270kg
NC0380
800mm
500mm
500mm
450mm
250mm
950mm
1000mm
42kg
39kg
315kg
Rubix Wheelchair • • • • • • • • • • • •
Reinforced frame to suit the bariatric client Swingaway removable legrests and swingback removable armrests Push handles, seat depth, seat height and footplate angle are adjustable to suit individual client requirements Breathable padded nylon upholstery and tension adjustable backrest Seat to back connecting flap Swingaway stabiliser bar prevents backrest sag Heel straps and tie down points Anti tip bar and rollers help prevent tipping Solid tyres with quick release rear wheels for easy storage and transportation Lightweight aluminium folding frame with silver powder coat paint finish Drum brake option also available Made in Germany
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0010
520mm
410-480mm
420-510mm
410-460mm
230mm
910mm
720mm
18.4kg
12.5kg
170kg
NC0020
560mm
410-480mm
420-510mm
410-460mm
230mm
910mm
760mm
18.4kg
12.5kg
170kg
NC0030
600mm
410-480mm
420-510mm
410-460mm
230mm
910mm
800mm
18.4kg
12.5kg
170kg
1 18
CA R I N G F U RT H E R
W H E E LC H A I RS
Bariatric Wheelchairs Glide 3 Wheelchair • • • • • • •
Strengthened frame for the heavier client Swingaway removable legrests, calf strap and removable armrests and aluminium wheels Aluminium snap-lock cross brace reduces seat sag Durable vinyl upholstery Upholstery tightner (490 and 520mm seat widths only) prevents backrest sag Quality stainless steel folding frame for long term use Made in Australia
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0160
400mm
400mm
500mm
430mm
215mm
920mm
610mm
16.1kg
13.4kg
100kg
NC0170
430mm
400mm
500mm
430mm
215mm
920mm
640mm
16.1kg
13.4kg
100kg
NC0180
460mm
400mm
500mm
430mm
215mm
920mm
670mm
16.1kg
13.4kg
100kg
NC0190
490mm
400mm
500mm
430mm
215mm
920mm
700mm
16.1kg
13.4kg
100kg
NC0200
520mm
400mm
500mm
430mm
215mm
920mm
730mm
16.1kg
13.4kg
100kg
Glide 3 Heavy Duty Wheelchair • • • • • • •
Strengthened frame for the heavier client Swingaway removable legrests, calf strap and removable armrests and aluminium wheels Aluminium snap-lock cross brace reduces seat sag Durable vinyl upholstery Upholstery tightner (490 and 520mm seat widths only) prevents backrest sag Quality stainless steel folding frame for long term use Made in Australia
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0420
490mm
400mm
500mm
430mm
215mm
920mm
700mm
17.4kg
9.8kg
180kg
NC0400
520mm
400mm
500mm
430mm
215mm
920mm
730mm
17.4kg
9.8kg
180kg
NC0430
550mm
430mm
500mm
430mm
215mm
920mm
760mm
17.4kg
9.8kg
180kg
NC0210
600mm
430mm
500mm
430mm
215mm
920mm
810mm
17.4kg
9.8kg
180kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
119
W H E E LC H A I RS
Tilt & Recline Wheelchairs Breezy Relax Wheelchair - Transit • • • • • • • • • • •
Code
Gas assisted, tilt-in-space and recline functions provide optimum postural positioning Removable adjustable height arms feature padded side panels and adjustable armpad length Removable swingaway elevating legrests and calf pads Height adjustable padded contoured backrest Depth adjustable padded seat with inbuilt pommel Removable padded headrest with adjustable side supports Tilt angle -2° to 20° Recline angle 0° to 40° Drum brakes allows attendant to control brakes from the push handles 16” rear wheels with solid tyres Alloy construction with water resistant upholstery
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NB0190
410mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
640mm
38kg
22kg
140kg
NB0230
460mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
690mm
38kg
22kg
140kg
NB0290
510mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
740mm
38kg
22kg
140kg
Breezy Relax Wheelchair - Self Propelled • • • • • • • • • • •
Seat Width
Code
Seat Depth
Seat Height
Gas assisted, tilt-in-space and recline functions provide optimum postural positioning Removable adjustable height arm feature padded side panels and adjustable armpad length Removable swingaway elevating legrests and calf pads Height adjustable padded contoured backrest Depth adjustable padded seat with inbuilt pommel Removable padded headrest with adjustable side supports Tilt angle -2° to 20° Recline angle 0° to 40° Drum brake option allows attendant to control brakes from the push handles Alloy construction with water resistant upholstery 24” rear wheels with solid tyres
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
Standard Brakes NB0200
410mm
410 - 500mm
NB0240
460mm
480 - 500mm
NB0300
510mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
640mm
38kg
22kg
140kg
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
690mm
38kg
22kg
140kg
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
740mm
38kg
22kg
140kg
Drum Brakes NB0220
410mm
410 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
640mm
38kg
22kg
140kg
NB0260
460mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
690mm
38kg
22kg
140kg
NB0310
510mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
740mm
38kg
22kg
140kg
120
CA R I N G F U RT H E R
W H E E LC H A I RS
Amputee Wheelchairs Glide Amputee Wheelchair • • • • • •
Swingaway removable legrests, calf strap and removable armrests Ideal for hospital and institutional use Rear amputee axle setting Durable vinyl upholstery Quality stainless steel folding frame for long term use Made in Australia
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC1320
400mm
400mm
510mm
400mm
215mm
910mm
610mm
16.0kg
13.2kg
100kg
NC1100
430mm
400mm
510mm
400mm
215mm
910mm
640mm
16.0kg
13.2kg
100kg
NC1110
460mm
400mm
510mm
400mm
215mm
910mm
670mm
16.0kg
13.2kg
100kg
Breezy Basix Wheelchair • •
• • •
Code
Seat Width
Seat Depth
Swingaway removable legrests and swingback removable armrests Push handles, seat depth, seat height and footplate angle are adjustable to suit individual client requirements Breathable padded nylon upholstery Tension adjustable backrest Seat to back connecting flap
Back Height
Arm Height
Push Handle Height
Overall Width
• • • • • •
Heel straps Tie down points Anti tip bars and rollers help prevent tipping Quick release rear wheels for easy storage and transportation Lightweight aluminium folding frame Red powder coat paint finish
Gross Weight
Net Weight
Max User Weight
NC0500
380mm
400-460mm
410-430mm
230mm
910mm
570mm
15.6kg
8.3kg
125kg
NC0470
430mm
400-460mm
410-430mm
230mm
910mm
620mm
15.6kg
8.3kg
125kg
NC0480
480mm
400-460mm
410-430mm
230mm
910mm
670mm
15.6kg
8.3kg
125kg
NC0490
520mm
400-460mm
410-430mm
230mm
910mm
710mm
15.6kg
8.3kg
125kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 21
W H E E LC H A I RS
Hemiplegic Glide One Arm Drive Wheelchair • • • • •
Swingaway removable legrests, calf strap and removable armrests Dual pushrims (on left or right side) allow one armed propulsion of the wheelchair Durable vinyl upholstery Quality stainless steel folding frame for long term use Made in Australia
Models Available NB0070 40cm seat width, left side drive NB0080 40cm seat width, right side drive NB0090 43cm seat width, left side drive NB0650 43cm seat width, right side drive NB0110 46cm seat width, left side drive NB0160 46cm seat width, right side drive
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NB0070
400mm
400mm
510mm
400mm
215mm
885mm
620mm
17.6kg
14.8kg
100kg
NB0080
400mm
400mm
510mm
400mm
215mm
885mm
620mm
17.6kg
14.8kg
100kg
NB0090
430mm
400mm
510mm
400mm
215mm
885mm
650mm
17.6kg
14.8kg
100kg
NB0650
430mm
400mm
510mm
400mm
215mm
885mm
650mm
17.6kg
14.8kg
100kg
NB0110
460mm
400mm
510mm
400mm
215mm
885mm
680mm
17.6kg
14.8kg
100kg
NB0160
460mm
400mm
510mm
400mm
215mm
885mm
680mm
17.6kg
14.8kg
100kg
Action 3 Lever Drive Wheelchair • • • • • • • •
Swingaway removable legrests and swingback adjustable height desk arms Lever drive mechanism is used to propel wheelchair with a push-forward, pullback motion by one hand Gear lever allows forward or reverse propulsion Drive mechanism is available on the left or right side and is easily steered by turning drive lever Drive lever causes braking mechanism to function by pulling back against the rear wheel Fitted with car buckle seat belt, tie down points and tension adjustable backrest Durable vinyl upholstery Quality black powder coated steel folding frame
Models Available NB0640 410mm Seat Width, Left Side Drive NB0140 410mm Seat Width, Right Side Drive NB0150 460mm Seat Width, Left Side Drive NB0500 460mm Seat Width, Right Side Drive NB0170 500mm Seat Width, Left Side Drive NB0510 500mm Seat Width, Right Side Drive
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NB0640
410mm
410mm
490mm
460mm
190 - 295mm
930mm
630mm
20kg
18kg
125kg
NB0140
410mm
410mm
490mm
460mm
190 - 295mm
930mm
630mm
20kg
18kg
125kg
NB0150
460mm
410mm
490mm
460mm
190 - 295mm
930mm
680mm
20kg
18kg
125kg
NB0500
460mm
410mm
490mm
460mm
190 - 295mm
930mm
680mm
20kg
18kg
125kg
NB0170
500mm
410mm
490mm
460mm
190 - 295mm
930mm
720mm
20kg
18kg
125kg
NB0510
500mm
410mm
490mm
460mm
190 - 295mm
930mm
720mm
20kg
18kg
125kg
122
CA R I N G F U RT H E R
W H E E LC H A I RS
Wheelchair Ramps ND0180 Roll-up Ramp • • •
Rolls up into a small compact unit Side clamps firmly lock ramp rails into position Aluminium construction Inner Width
Outer Width
Length
Weight
Max User Weight
760mm
765mm
935mm
6.9kg
300kg
ND0190 Telescopic Ramps • • • • • •
Extends and shortens in length to suit the required height Non-slip tread provides greater traction Underside of ramp end is also covered with a non-slip tread Safely catch locks inner and outer ramps together when not in use Heavy duty aluminium construction Supplied as a pair Length (Max)
Length (Min)
Width (Max)
Width (Min)
Weight (Each)
Max User Weight
1530mm
930mm
190mm
150mm
3.2kg
250kg
Bi-fold Ramps • • • •
Ideal for wheelchairs requiring the assistance of an attendant Folds for storage and transportation Carry handle to assist transportation Aluminium construction Code
Length
Inner Width
Outer Width
Folded Width
Weight
Max User Weight
ND0170
2100mm
720mm
730mm
380mm
16.7kg
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 23
W H E E LC H A I RS
Wheelchair Ramps Decpac Ramps • • • • • • • • • •
1 24
CA R I N G F U RT H E R
Lightweight yet durable portable ramps suitable for a wide range of use Extensive range of sizes and types Manufactured with a unique combination of fibreglass and carbon fibre material Multi-panelled, hinge system folds with a concertina action, allowing ramp to be folded to a single compact unit for easy storage and transportation Non-slip grip surface and pads at top and base for added protection Personal ramp is ideal for small areas and obstacles and includes a carry bag Multipurpose ramps are longer, wider and ideal for commercial and travel situations. Includes a carry bag. Senior ramps are available in a wide range of lengths to suit many different obstacles Edge Barrier ramps have the added security of edge barriers for access to buildings, vehicles, buses, trains etc or where a permanent ramp is impractical All ramps are tested and conform to Australian Standards Code
Type
Length
Width
Max Height
Ramp Weight
Max User Weight
ND0080
Personal
700mm
750mm
180mm
4.7kg
300kg
ND0070
Multipurpose
870mm
840mm
220mm
5.6kg
300kg
ND0200
Multipurpose
1000mm
840mm
250mm
6.0kg
300kg
ND0150
Senior
900mm
750mm
230mm
4.8kg
300kg
ND0100
Senior
1200mm
750mm
300mm
8.3kg
300kg
ND0110
Senior
1350mm
750mm
340mm
8.5kg
300kg
ND0260
Senior
1500mm
750mm
380mm
9.6kg
300kg
ND0120
Senior
1650mm
750mm
410mm
10.8kg
300kg
ND0270
Senior
1850mm
750mm
460mm
11.2kg
300kg
ND0130
Senior
2000mm
750mm
500mm
11.7kg
300kg
ND0210
Senior
2500mm
750mm
630mm
14.8kg
300kg
ND0140
Senior
3000mm
750mm
750mm
22.1kg
300kg
ND0220
Senior
3500mm
750mm
880mm
24.7kg
300kg
ND0020
Edge Barrier
900mm
820mm
230mm
6.0kg
300kg
ND0030
Edge Barrier
1200mm
820mm
300mm
9.7kg
300kg
ND0280
Edge Barrier
1350mm
820mm
340mm
11.1kg
300kg
ND0040
Edge Barrier
1500mm
82mm
380mm
11.8kg
300kg
ND0230
Edge Barrier
1650mm
820mm
410mm
13.0kg
300kg
ND0060
Edge Barrier
2000mm
820mm
500mm
13.7kg
300kg
ND0050
Edge Barrier
2500mm
820mm
630mm
23.0kg
300kg
ND0240
Edge Barrier
3000mm
820mm
750mm
27.3kg
300kg
ND0250
Edge Barrier
3500mm
820mm
880mm
31.5kg
300kg
W H E E LC H A I RS
Wheelchair Ramps Enviro Rubber Threshold Ramps Enviro Rubber’s wheelchair ramps and wedges are a safe and convenient solution for people who rely on wheelchairs, motorised scooters or walking frames for mobility. Manufactured from 100 per cent recycled tyres, the ramps and wedges are compliant with Australian Standards: 1428. 1-2009, which sets the standard for access and mobility design for new building work. The wheelchair ramps are developed for ease of access through elevated or sunken doorways, entrances and into shower recesses. They have superior stability and are slip‑resistant, reducing the risk of trips and falls. Benefits • Suitable for all locations, the tough, long-lasting rubber creates a smooth transition for wheelchairs, motorised scooters and walking frames. • The ramps can be installed in a range of buildings. • Long lasting, as the product is constructed from 100% recycled rubber tyres that will last for decades and won’t breakdown due to heavy use. • Stable construction material will not slip or curl, reducing the risk of trips and falls. • UV resistant and can be used in wet or dry, hot and cold weather conditions. • Tough and long lasting, they don’t erode in adverse conditions. • Easily installed as a permanent or as temporary fixture. • Easy to move and store. • Available in a variety of sizes.
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 25
W H E E LC H A I RS
Wheelchair Parts & Accessories Glide Stump Support • • • •
Glide Elevating Legrest Attaches via existing leg mounts Adjustable pad height Available in a variety of lengths Specify left or right side
NZ5940 Glide Headrest Deluxe • •
• • • • • • •
NZ2360 Glide Oxygen Bottle Carrier
Provides additional support and comfort to the occupant Sold including an adjustable height mount
• • • • •
• •
Support pole for intravenous use Adjustable height Slides onto existing wheelchair tilt bar Clamp holds pole securely to wheelchair frame Chromed steel
Breezy Basix Stump Support • •
NZ0260 Left NZ0290 Right
600mm
126
CA R I N G F U RT H E R
Length 335mm
• • • •
• •
Provides additional support and comfort to the user NZ0230 - 16” NZ0240 - 18” NZ0250 - 20” NZ9370 - 22”
NZ2290 Left NZ2300 Right
NZ2370 Wheelchair Tray
Plastic moulded Raised lip Moulded cup holder recess Fits securely by adjustable velcro straps
Width
•
Breezy Basix Elevated Legs
NZ2310 Universal Tray with Velcro • • • •
Suitable for type C oxygen cylinders Slides onto existing wheelchair tilt bar Clamp holds carrier securely to wheelchair frame Easily removed Chromed steel
Breezy Basix Headrests
NZ0390 Glide IV Pole • • •
Ideal where leg elevation is required Adjustable angle and length Swing away and removable Includes calf support Supplied individually NZ0800 Right NZ0790 Left
Outside Length
Weight
560mm
1.5kg
• • • •
Plastic moulded Raised lip edge Tray brackets easily fit between armrest frame and armpad Locking handwheels hold tray securely in place
Width
Length
Outside Length
Weight
580mm
320mm
375mm
2.2kg
W H E E LC H A I RS
Wheelchair Parts & Accessories NZ2440 Care Quip Oxygen Bottle Carrier • • • • •
NZ2390 Care Quip IV Pole
Suitable for type C oxygen cylinders Slides onto existing wheelchair tilt bar Clamp holds carrier securely to wheelchair frame Easily removed Chromed steel
•
• •
Support pole for intravenous use Adjustable height Slides onto existing wheelchair tilt bar Clamp holds pole securely to wheelchair frame Chromed steel
NZ2480 Rear Carry Bag
NZ2340 Armrest Trough Swivel •
• • •
•
Ideal for upper limb weakness or paralysis Swivel bracket allows trough to be rotated close to the body
•
• •
Nylon storage bag for larger personal items Fixes around backrest upholstery and secured by velcro Zippered compartment Easily removed
Solid Polyurethane Tyre
Wheelchair Lap Belt •
• •
• •
Fastens to wheelchair frame to assist in the positioning and safety of the user Adjustable length Not to be used as a patient restraint
•
Maintenance free tyre option Fine air cells provide a pneumatic style ride Ribbed tread pattern for a greater grip
Models Available NZ0489 24 x 1 3/8” NZ2540 22 x 1 3/8” NZ2530 20 x 1 3/8”
Models Available NZ2520 Velcro HZ0100 Nylon Buckle NZ2490 Car Buckle
Sheepskin Accessories • • • • •
Genuine Australian lambswool Provides increased comfort and pressure relief Natural fibres reduce the risk of skin irritation Soft pile allows air circulation to keep skin dry Machine washable Code
Type
Description
NZ0430_NEW
Seat / Backrest Cover
Slides over push handles for a secure fit.
NZ0140_NEW
Seat Cover
NZ2620_NEW
Backrest Cover
NZ2900
Armrest Covers (pair)
To suit full length armrests.
NZ2400
Armrest Covers (pair)
To suit desk length armrests.
Specify wheelchair seat width. Slides over push handles for a secure fit.
NZ2760
Arm Trough Cover
NZ2730
Footplate Covers (pair)
Specify plastic or metal footplates.
NZ2910 – 230mm NZ2920 – 300mm NZ2930 – 400mm
Stump Support Cover
Specify Stump Pad length.
NZ2970
Calf Pad Cover
To suit elevating legrests.
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 27
W H E E LC H A I RS
Wheelchair Parts & Accessories NZ7630 Wheelchair Gloves • • • • • •
Half finger gloves provide hand protection while propelling a wheelchair Polymer gel in palm region absorbs shock and maximises comfort Non slip textured underside Breathable lycra provides increased air circulation Adjustable velcro straps Supplied as a pair Code
Size
Wrist Circmference
NZ7670
Extra Small
130-140mm
NZ7700
Small
150-160mm
NZ7690
Medium
170-180mm
NZ7680
Large
190-200mm
NZ7660
Extra Large
210-220mm
NZ7650
Extra Extra Large
230-240mm
Parts & Accessories Table Wheelchair Name
Triton
Glide 1
Vito Plus
Triton Transit
Glide 1 Transit
Breezy Basix Transit
Neos
Wheelchair Type
Standard Wheelchair
Standard Wheelchair
Transit Wheelchair
Transit Wheelchair
Transit Wheelchair
Transit Wheelchair
Lightweight Wheelchair
Armrest Trough
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Armrest Trough Swivel
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Velcro Lap Belt
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Nylon Buckle Seat Belt
Yes
Yes
Standard
Yes
Yes
Yes
Standard
Car Buckle Lap Belt
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Wheelchair Tray
–
Yes
–
–
Yes
–
–
Universal Tray
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Rear Carry Bag
–
Yes
Yes
Yes
Yes
Yes
Yes
Stump Support
Yes
Yes
–
Yes
Yes
Yes
–
Elevating Legrest
Yes
Yes
–
Yes
Yes
Yes
–
Oxygen Bottle Carrier
Yes
Yes
–
Yes
Yes
–
–
1 28
IV Pole
Yes
Yes
–
Yes
Yes
–
–
Head Rest
–
–
–
–
–
Yes
–
Solid Tyres
Standard
Yes
Standard
Standard
Yes
Standard
Standard
CA R I N G F U RT H E R
W H E E LC H A I RS
Parts & Accessories Table Wheelchair Name
Concorde
Breezy Basix
Breezy Relax
Glide Amputee
Breezy Basix Amputee
Care Quip Heavy Duty
Rubix
Wheelchair Type
Lightweight Wheelchair
Lightweight Wheelchair
Tilt Recline Wheelchair
Amputee Wheelchair
Amputee Wheelchair
Heavy Duty Wheelchair
Heavy Duty Wheelchair
Armrest Trough
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Armrest Trough Swivel
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Velcro Lap Belt
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Nylon Buckle Seat Belt
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Car Buckle Lap Belt
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Wheelchair Tray
–
–
Yes
Yes
–
–
–
Universal Tray
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Rear Carry Bag
Yes
Yes
–
Yes
Yes
Yes
Yes
Stump Support
–
Yes
–
Yes
Yes
Yes
Yes
Elevating Legrest
–
Yes
Standard
Yes
Yes
Yes
Yes
Oxygen Bottle Carrier
–
–
–
Yes
–
–
–
IV Pole
–
–
–
Yes
–
–
–
Head Rest
–
Yes
Standard
–
Yes
–
Yes
Solid Tyres
Standard
Standard
Yes
Yes
Yes
Standard
Standard
Wheelchair Name
Glide 3
Glide 3 Heavy Duty
Glide Ward Basic
Glide Ward
Glide One Arm Drive
Action 3 Lever Drive
Wheelchair Type
Heavy Duty Wheelchair
Heavy Duty Wheelchair
Ward Wheelchair
Ward Wheelchair
Hemiplegic Wheelchair
Hemiplegic Wheelchair
Armrest Trough
Yes
Yes
Yes
Yes
Yes
Yes
Armrest Trough Swivel
Yes
Yes
Yes
Yes
Yes
Yes
Velcro Lap Belt
Yes
Yes
Yes
Yes
Yes
Yes
Nylon Buckle Seat Belt
Yes
Yes
Yes
Yes
Yes
Yes
Car Buckle Lap Belt
Yes
Yes
Yes
Yes
Yes
Standard
Wheelchair Tray
Yes
Yes
Yes
Yes
Yes
–
Universal Tray
Yes
Yes
Yes
Yes
Yes
Yes
Rear Carry Bag
Yes
Yes
Yes
Yes
Yes
Yes
Stump Support
Yes
Yes
Yes
Yes
Yes
Yes
Elevating Legrest
Yes
Yes
Yes
Yes
Yes
Yes
Oxygen Bottle Carrier
Yes
Yes
Yes
Standard
Yes
–
IV Pole
Yes
Yes
Yes
Standard
Yes
–
Head Rest
–
–
–
–
–
–
Solid Tyres
Yes
Yes
Standard
Standard
Yes
Yes
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 29
Mobility Walkers & Seat Walkers
131
Seat Walker Accessories
136
Walking Frames
137
Walking Frames Accessories
139
Forearm Walkers
140
Walking Sticks
143
Walking Stick Accessories
145
Quad Sticks
145
Underarm Crutches
147
Elbow Crutches
148
Crutch Parts & Accessories
149
Recreation
150
Exercise Theraphy
151
MOBILITY
Walkers & Seat Walkers HF0550 - Mobile Tray Walker • • • •
Ideal for indoor use Two removable trays to assist transporting smaller household items Height adjustable Four swivel castors provide greater manoeuvrability
Accessories Available HZ0220 Walker Skis - fitted at rear (pair) Frame Height
Frame Width
Frame Depth
Max User Weight
800 - 950mm
490mm
540mm
125kg
Tri Wheel Walker • • • •
Folds for easy storage and transportation Height adjustable handles Handbrakes can be locked for greater stability Large solid 200mm castors for greater manoeuvrability outdoors
Accessories Available HZ0040 Basket to suit HZ0030 Bag to suit Colours Available HF0490 Blue HF0500 Burgundy Handle Height
Frame Width
Frame Depth
Max User Weight
800 - 920mm
650mm
580mm
100kg
HF0020 - Knee Walker • • • • • • • •
A mobility device for foot or ankle injuries for patients who cannot weight bear on the affected area A great short term alternative to crutches which can have adverse effects such as under arm pain from extended use Patient flexes knee, and padded platform pad supports the shin of the unusable limb The opposite foot makes contact with the floor, providing propulsion Folding frame for storage and transportation Height adjustable moulded handles Handbrakes can be locked for added stability Large 8” castors for greater manoeuvrability and mobility outdoors
Knee Pad Width
Knee Pad Length
Knee Pad Height
Overall Width
Overall Length
Handle Height
Weight
Max User Weight
190mm
380mm
420 - 510mm
450mm
820mm
770 - 920mm
12.4kg
150kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
131
MOBILITY
Walkers & Seat Walkers Cruiser Walker • • • • • •
Frame and backrest fold compact for storage and transportation Height adjustable handles Push down brake system Curved padded backrest for additional comfort and support Supplied with removable backrest, vinyl bag and padded seat Walker can be folded with vinyl bag still attached
Colours Available HF0110 Burgundy HF0120 Laser Blue HF0130 Laser Green Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
310mm
310mm
540mm
620mm
800 - 910mm
6kg
130kg
Territory Walker • • • • • •
Frame and backrest fold compact for storage and transportation Height adjustable handles Soft-lock handbrakes Curved padded backrest for additional comfort and support Supplied with vinyl bag and padded seat Walker can be folded with vinyl bag still attached
Colours Available HF0600 Burgundy HF0590 Blue
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
350mm
300mm
525mm
610mm
780 - 930mm
5.9kg
130kg
Explorer Walker • • • • • •
Frame and backrest fold compact for storage and transportation Height adjustable handles Handbrakes can be locked for added stability Curved padded backrest for additional comfort and support Supplied with removable backrest, vinyl bag and padded seat Walker can be folded with vinyl bag still attached
Colours Available HF0160 Burgundy HF0170 Laser Blue HF0180 Laser Green
1 32
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
310mm
310mm
560mm
610mm
820 - 930mm
6.4kg
130kg
CA R I N G F U RT H E R
MOBILITY
Walkers & Seat Walkers Triumph Walker • • • • • • •
Compact folding design for storage and transportation Height adjustable frame and handles Removable backrest Padded seat Lock on brake feature Vinyl storage bag Supplied in retail packaging
Colours Available HF0730 Burgundy HF0740 Blue HF0750 Silver Seat Width
Seat Depth
Seat Height
Overall Width
Push Handle Height
Weight
Max User Weight
350mm
310mm
520 - 560mm
560mm
740 - 850mm
120kg
130kg
HF0780 Supremacy Walker • • • • • • • • •
Champagne coloured powder coated steel frame Frame and backrest fold compact for storage and transportation Height adjustable handles Handbrakes can be locked for added stability Curved padded backrest for additional comfort and support Supplied with removable backrest Padded seat and material bag Sturdy 203mm castors Supplied in retail packaging
Seat Width
Seat Depth
Seat Height
Width Between Arms
Overall Width
Push Handle Height
Max User Weight
300mm
300mm
520mm
465mm
590mm
680 - 970mm
120kg
Scout Walker • • • • • • •
Frame and backrest fold compact for storage and transportation Height adjustable handles Handbrakes can be locked for added stability Supplied with removable backrest, vinyl bag and padded seat Walker can be folded with vinyl bag still attached Large 8” castors for greater manoeuvrability and mobility outdoors Curved padded backrest for additional comfort and support
Colours Available HF0300 Burgundy HF0310 Laser Blue HF0320 Laser Green Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
350mm
330mm
560mm
630mm
800 - 915mm
7.5kg
130kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
133
MOBILITY
Walkers & Seat Walkers Trekker Walker • • • • • •
Height adjustable handles Handbrakes can be locked for added stability Supplied with removable backrest, vinyl bag and padded seat Walker can be folded with vinyl bag still attached Large 8” castors for greater manoeuvrability outdoors Curved padded backrest for additional comfort and support
Colours Available HF0410 Burgundy HF0420 Champagne
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
350mm
320mm
550mm
610mm
790 - 890mm
7.6kg
130kg
Rover Walker • • • • • • •
Frame and backrest fold compact for storage and transportation Height adjustable handles Narrow frame and low seat height ideal for the smaller client, or where space is limited Handbrakes can be locked for added stability Supplied with removable backrest, vinyl bag and padded seat Walker can be folded with vinyl bag still attached Curved padded backrest for additional comfort and support
Colours Available HF0260 Burgundy HF0270 Blue HF0280 Green Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
310mm
310mm
470mm
560mm
730 - 840mm
6.2kg
130kg
HF0370 - Trekker Duo Walker • • • • • • •
Dual purpose seat walker Footrest can be folded down so an attendant can push a client for small distances Back support is interchangeable to use as a transit chair or a walker Height adjustable handles and handbrakes can be locked for added stability Supplied with removable backrest, vinyl bag and padded seat, walker can be folded with vinyl bag still attached Large 8” castors for greater manoeuvrability outdoors Burgundy frame
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
350mm
330mm
550mm
610mm
785 - 900mm
8.7kg
130kg
1 34
CA R I N G F U RT H E R
MOBILITY
Walkers & Seat Walkers HF0330 - Shopper Walker • • • • • •
Folds for easy storage and transportation Height adjustable handles Handbrakes can be locked for greater stability Supplied with removable basket and tray Wide solid 8” castors for greater manoeuvrability outdoors Burgundy frame
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
390mm
210mm
600mm
600mm
805 - 980mm
11.7kg
130kg
Caravan Walker • • • • •
Wider seat width and reinforced aluminium frame to suit the bariatric user Folds for easy storage and transportation Height adjustable handles Handbrakes can be locked for added stability Supplied with removable backrest, basket and padded seat
Colours Available HF0070 Burgundy HF0080 Teal
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
430mm
320mm
580mm
630mm
875 - 990mm
10.1kg
150kg
Trekker Walker Heavy Duty • • • • • • • • •
Wider seat width and reinforced frame to suit the bariatric user Frame and backrest fold compact for storage and transportation Height adjustable handles Handbrakes can be locked for added stability Supplied with removable backrest, vinyl bag and padded seat Walker can be folded with vinyl bag still attached Large 8” castors for greater manoeuvrability and mobility outdoors Curved padded backrest for additional comfort and support Burgundy frame
Code
Type
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
HF0380
Aluminium
470mm
340mm
540mm
730mm
770 - 880mm
7.9kg
170kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
135
MOBILITY
Walkers & Seat Walkers Galaxy Walker • • • • •
Extra wide seat width and reinforced aluminium frame to suit the bariatric user Folds for easy storage and transportation Height adjustable handles Handbrakes can be locked for added stability Supplied with removable backrest, basket and padded seat
Colours Available HF0210 Burgundy HF0200 Blue
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Weight
Max User Weight
510mm
350mm
540mm
710mm
770 - 920mm
11.1kg
200kg
Seat Walker Accessories Oxygen Bottle Carrier • • • •
Chromed steel holder supports oxygen cylinder Attaches under seat frame by four plastic coated hooks Removes easily for storage and transportation Suits type C oxygen cylinders
Models Available HZ0170 Regular Type: to suit Cruiser, Territory, Voyager, Explorer, Adventurer, Scout, Trekker (standard), Rover, Trekker Duo Walkers HZ0180 Large Type: to suit Caravan, Trekker (Heavy Duty), Galaxy Walkers
136
CA R I N G F U RT H E R
MOBILITY
Walking Frames Coopers Walking Frame - Non Folding • • • • •
Height adjustable Contoured plastic handgrips Available with or without fixed front wheels Lightweight aluminium Tip size 25mm
Accessories Available
HZ0270 Fixed Wheels
HZ0220 Walker Skis
Code
Size
Type
Handle Height
Max Base Size
Net Weight
Max User Weight
HG0110
Youth
Standard
670 - 745mm
575 x 510mm
1.8kg
160kg
HG0090
Adult
Standard
770 - 845mm
670 x 565mm
2.0kg
160kg
HG0100
Tall
Standard
865 - 945mm
630 x 570mm
2.0kg
160kg
HG0350
Youth
With Wheels
690 - 765mm
575 x 540mm
2.1kg
160kg
HG0330
Adult
With Wheels
785 - 860mm
670 x 610mm
2.3kg
160kg
HG0340
Tall
With Wheels
880 - 955mm
630 x 610mm
2.3kg
160kg
Coopers Walking Frame - Folding • • • • • •
Height adjustable Folds for easy storage and transportation Contoured plastic handgrips Available with or without fixed front wheels Lightweight aluminium Tip size 25mm
Accessories Available
HZ0270 Fixed Wheels
HZ0220 Walker Skis
Code
Size
Type
Handle Height
Max Base Size
Net Weight
Max User Weight
HG0150
Youth
Standard
735 - 810mm
650 x 595mm
2.1kg
125kg
HG0130
Adult
Standard
790 - 870mm
640 x 580mm
2.1kg
125kg
HG0140
Tall
Standard
840 - 910mm
640 x 565mm
2.1kg
125kg
HG0190
Youth
With Wheels
750 - 825mm
650 x 625mm
2.4kg
125kg
HG0170
Adult
With Wheels
810 - 885mm
640 x 610mm
2.4kg
125kg
HG0180
Tall
With Wheels
860 - 935mm
640 x 595mm
2.4kg
125kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 37
MOBILITY
Walking Frames HG0040 - Walking Frame - Folding • • • • • • • •
Height adjustable Folds flat for easy storage and transportation Foam handles Available with fixed or swivel front wheels Lightweight aluminium Available in silver or bronze finish Tip size 28mm Max user weight 100kg
HZ0410 Fixed Wheels
HZ0530 Swivel Wheels
HZ0210 Walker Skies
Accessories Available HZ0410 Fixed wheels - fitted at front (pair) HZ0530 Swivel wheels - fitted at front (pair) HZ0210 Walker skies - fitted at rear (pair)
With Wheels
Folded
Code
Size
Type
Handle Height
Base Size
Weight
HG0070
Youth
Standard
700-805mm
630 x 500mm
2.5kg
HG0060
Adult
Standard
785-940mm
640 x 480mm
2.6kg
HG0270
Youth
Fixed Wheels
715-820mm
680 x 540mm
2.9kg
HG0260
Adult
Fixed Wheels
795-930mm
685 x 530mm
3.0kg
HG0310
Youth
Swivel Wheels
800-820mm
640 x 540mm
3.2kg
HG0300
Adult
Swivel Wheels
910-940mm
650 x 520mm
3.3kg
Walking Frame - Folding with Wheels • • • • • • • • •
138
CA R I N G F U RT H E R
Height adjustable Folds flat for easy storage and transportation Front swivel wheels for added manoeuvrability Rear push down brake system Foam handles Lightweight aluminium Available in silver or bronze finish Tip size 28mm Max user weight 100kg Code
Size
Colour
Handle Height
Base Size
Weight
HG0230
Youth
Silver
825-925mm
650 x 620mm
3.5kg
HG0220
Adult
Bronze
900-1000mm
690 x 590mm
3.6kg
HG0210
Adult
Silver
900-1000mm
690 x 590mm
3.6kg
MOBILITY
Walking Frames HG0030 - Walking Frame - Heavy Duty • • • • • • •
Wide frame to suit the bariatric user Height adjustable Folds flat for easy storage and transportation Front fixed wheels for added manoeuvrability Push down brake system Moulded plastic handles for additional support Durable chromed steel construction Handle Height
Base Width
Base Depth
Unit Weight
Max User Weight
855-1010mm
875mm
515mm
7.8kg
200kg
Walking Frame Accessories HZ0130 - Netbag • • •
Knotted nylon bag Clips to most walking frames Weight 40g
• • • • •
Waterproof nylon bag Attaches to most walking frames by velcro tabs Four pockets at front Rear zippered pocket Weight 370g
• • • •
Lightweight plastic tray Raised edge and non-slip mat prevent items slipping off tray Integrated cup holder To suit 840 series walking frames
HZ0110 - Carry Apron
HZ0260 - Walking Frame Tray
Width
Length
Weight
390mm
285mm
940g
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 39
MOBILITY
Forearm Walkers Forearm Walker - Ezywalker • • • • • •
Ideal for those with limited hand and wrist strength Ideal for indoor use Folds for easy storage and transportation Adjustable forearm gutter height and hand grip Swivel castors for added manoeuvrability Powder coated black steel frame Code
Castors
Frame Width
Frame Depth
Gutter Height
Max User Weight
HC0030
Two
560mm
620mm
870 - 1140mm
80kg
HC0040
Four
590mm
660mm
870 - 1140mm
80kg
Ezywalker • • • • • • •
Ideal for indoor use Height adjustable Folds for easy storage and transportation Contoured plastic handgrips Swivel castors for added manoeuvrability Powder coated black steel frame Tip size 22mm
Accessories Available HZ0220 Walker Skies – fitted at rear (pair)
Castors
Handle Height
HG0020
Two
790 - 980mm
560mm
HG0370
Four
790 - 980mm
590mm
Code
Frame Width
Frame Depth
Weight
Max User Weight
620mm
4.7kg
80kg
660mm
5.2kg
80kg
HC0170 Forearm Plus Walker • • • • • • • •
Designed to support the user in an upright position enhancing patient balance and gait stability Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists One-piece urethane arm pads are removable and easy to clean Rubber hand grips are textured for additional grip Sturdy frame folds almost flat for easy storage and transportation Supplied with four swivel castors
Also Available HC0180 Forearm Plus Walker with Rear Glides Accessories Available HZ0050 Sheepskin Gutter Covers (pair)
140
CA R I N G F U RT H E R
Frame Width
Frame Depth
Gutter Height
Max User Weight
640mm
820mm
960 - 1200mm
100kg
MOBILITY
Forearm Walkers HC0070 Walking Tutor - Rear Glides • • • • •
Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Folds almost flat for easy storage and transportation Supplied with front swivel castors and rear plastic glides
Also Available HZ0220 Walker Skis - fitted at rear (pair) HZ0050 Sheepskin Gutter Covers (pair) Frame Width
Frame Depth
Gutter Height
Max User Weight
630mm
830mm
860-1210mm
100kg
HC0080 Walking Tutor - Padded Rest • • • • • •
Ideal for those with limited hand and wrist strength Padded rest allows the user to support upper body weight at the top of the frame to assist walking Adjustable padded rest height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Folds almost flat for easy storage and transportation Supplied with four swivel castors
Also Available HC0160 Walking Tutor - Padded Rest & Rear Glides Frame Width
Frame Depth
Padded Rest Height
Padded Rest Width
Padded Rest Depth
Max User Weight
630mm
830mm
960 - 1400mm
600mm
400mm
100kg
HC0100 Walking Tutor - 4 Castors • • • • •
Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Folds almost flat for easy storage and transportation Supplied with four swivel castors
Also Available HZ0050 Sheepskin Gutter Covers (pair) Frame Width
Frame Depth
Gutter Height
Max User Weight
630mm
830mm
860-1210mm
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
141
MOBILITY
Forearm Walkers HC0110 - Walking Tutor - Heavy Duty • • • • •
Fixed reinforced frame to suit the bariatric user Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Supplied with four swivel castors
Accessories Available HZ0050 Sheepskin Gutter Covers (pair)
Castors
Frame Width
Frame Depth
Gutter Height
Max User Weight
4
650mm
830mm
900 - 1270mm
175kg
HC0090 - Walking Tutor - Heavy Duty Padded Rest • • • • • •
Fixed reinforced frame to suit the bariatric user Ideal for those with limited hand and wrist strength Padded rest allows the user to support upper body weight at the top of the frame to assist walking Adjustable padded rest height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Supplied with four swivel castors
Castors
Frame Width
Frame Depth
Padded Rest Height
Padded Rest Width
Padded Rest Depth
Max User Weight
4
650mm
830mm
980 - 1420mm
600mm
400mm
175kg
Forearm Walker - Heavy Duty • • • • •
142
CA R I N G F U RT H E R
Fixed reinforced frame to suit the bariatric user Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Supplied with four swivel castors Made in Australia Code
Castors
Skies
Frame Width
Frame Depth
Gutter Height
Max User Weight
HC0050
2
2
710mm
830mm
950 - 1230mm
170kg
HC0060
4
0
710mm
830mm
950 - 1230mm
170kg
MOBILITY
Walking Sticks Walking Stick - Crook Handle • • • •
Lightweight aluminium Adjustable height Foam covered handle Tip size 19mm Code
Colour
Height
Max User Weight
HH0070
Black
760 - 990mm
100kg
HH0080
Bronze
760 - 990mm
100kg
HH0090
Silver
760 - 990mm
100kg
Height
Max User Weight
Walking Stick - Coopers • • • •
Lightweight aluminium Adjustable height Plastic handle Tip size 22mm Code
Size
HH0050
Medium
695 - 950mm
125kg
HH0040
Long
840 - 1095mm
125kg
Walking Stick - Swan Neck • • • • •
Lightweight aluminium Adjustable height Foam handgrip Wrist strap for added security Tip size 19mm Code
Colour
Height
Max User Weight
HH0260
Black
760 - 990mm
100kg
HH0270
Bronze
760 - 990mm
100kg
HH0280
Silver
760 - 990mm
100kg
Height
Max User Weight
Walking Stick - Timber Handle • • • •
Lightweight aluminium Adjustable height Polished timber handle Tip size 19mm Code
Colour
HH0300
Black
770 - 1000mm
100kg
HH0310
Bronze
770 - 1000mm
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
143
MOBILITY
Walking Sticks Walking Stick - Folding • • • • •
Lightweight aluminium Folds for easy storage and transportation Adjustable height Polished timber handle Tip size 19mm Code
Colour
Size
Height
Max User Weight
HH0140
Black
Medium
810 - 910mm
100kg
HH0150
Bronze
Long
860 - 960mm
100kg
Walking Stick - Patterned Stem • • • • •
Lightweight aluminium Adjustable height Polished timber handle Wrist strap for added security Tip size 19mm Code
Type
Style
Height
Max User Weight
HH0550 HH0520
Non Folding
Floral Blue
770 - 1000mm
100kg
Non Folding
Pink Hibiscus
720 - 940mm
110kg
HH0620
Non Folding
Lilac Blossom
720 - 940mm
110kg
HH0510
Non Folding
Green Patterned
720 - 940mm
110kg
HH0570
Folding
Pink Floral
720 - 940mm
110kg
HH0610
Folding
Blue Floral
720 - 940mm
110kg
HH0580
Folding
Purple Floral
720 - 940mm
110kg
HH0560
Folding
Green Patterened
720 - 940mm
110kg
Walking Stick - Fisher Moulded Handle • • • •
144
CA R I N G F U RT H E R
Lightweight aluminium Adjustable height Unique contoured plastic handle evenly distributes pressure across the palm of hand Tip size 19mm Code
Type
Height
Max User Weight
HH0110
Left
815 - 1070mm
125kg
HH0120
Right
815 - 1070mm
125kg
MOBILITY
Walking Stick Accessories HZ3060 - Frog Walking Stick Holder • • • •
Spring loaded plastic holder clamps onto walking stick Enables the walking stick to be held upright on table edge Foam pad assists surface grip Easily fitted to and removed from most walking sticks
• • •
Nylon woven wrist strap attaches to neck of walking stick Prevents the stick from being accidentally dropped Allows the user to freely utilise both hands while keeping the stick close and accessible Elastic loop fits most walking sticks
Walking Stick Wrist Strap
•
Code
Walking Stick Thickness
Colour
HZ0360
16 - 19mm
Brown
HZ0370
22 - 25mm
Black
Quad Sticks Quad Stick - Low Base • • • • • •
Adjustable height Foam handgrip Handle and stem rotate for left or right hand use Low profile offset base Lightweight aluminium stem and steel base Tip size 13mm Code
Colour
Height
Base Width
Base Length
Max User Weight
HE0040
Bronze
715 - 940mm
150mm
200mm
100kg
HE0050
Silver
715 - 940mm
150mm
200mm
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
145
MOBILITY
Quad Sticks HE0060 - Quad Stick - Offset Base - Large • • • • • •
Adjustable height Reflector on handle Wrist strap for added security Handle and stem rotate for left or right hand use Low profile offset base Lightweight aluminium stem and steel base Height
Base Width
Base Depth
Tip Size
Max User Weight
795 - 1020mm
230mm
390mm
16mm
75kg
HE0010 Quad Stick • • •
Adjustable height Reflector on handle Lightweight aluminium stem and steel base Height
Base Width
Base Depth
Tip Size
Max User Weight
720 - 995mm
170mm
205mm
16mm
75kg
HE0070 - Quad Stick - Offset Base - Small • • • • •
146
CA R I N G F U RT H E R
Adjustable height Reflector on handle Handle and stem rotate for left or right hand use Low profile offset base Lightweight aluminium stem and steel base Height
Base Width
Base Depth
Tip Size
Max User Weight
720 - 995mm
165mm
295mm
16mm
75kg
MOBILITY
Underarm Crutches Underarm Crutches • • • •
Padded top, padded handgrip and rubber tip Adjustable handle and leg height Lightweight aluminium construction Tip size 22mm Code
Size
Crutch Height
Max User Weight
Approx. Patient Height
HA0210
Small
945 - 1150mm
130kg
1370 - 1570mm
HA0200
Medium
1135 - 1340mm
130kg
1570 - 1780mm
HA0190
Large
1345 - 1550mm
130kg
1780 - 1980mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
147
MOBILITY
Elbow Crutches HA0010 Elbow Crutches - ‘Cumfy’ Handle • • • •
Adjustable cuff and leg height Unique contoured plastic handle evenly distributes pressure across the palm of the hand Lightweight aluminium
Handgrip Height
Cuff to Handgrip Height
Tip Size
Max User Weight
760-985mm
240-315mm
22mm
100kg
Coopers - Elbow Crutches - Double Adjustable • • • •
Adjustable cuff and leg height Moulded plastic handgrip Lightweight aluminium Tip size 22mm
Code
Size
Handgrip Height
Cuff to Handgrip Height
Max User Weight
HA0120
Medium
HA0110
Large
555 - 810mm
180 - 255mm
180kg
685 - 935mm
200 - 275mm
180kg
HA0100
Extra Large
840 - 1095mm
200 - 275mm
180kg
HA0040 - Coopers Elbow Crutches - ‘Cumfy’ Handle • • •
Adjustable cuff and leg height Unique contoured plastic handle evenly distributes pressure across the palm of the hand Lightweight aluminium Handgrip Height
Cuff to Handgrip Height
Tip Size
Max User Weight
655 - 900mm
215 - 290mm
22mm
125kg
HA0150 Elbow Crutches - Coopers Single Adjustable Adjustable leg height Moulded plastic handgrip Lightweight aluminium Tip size 22mm Accessories Available HZ0070 Sheepskin Hand Grips (pair)
148
CA R I N G F U RT H E R
Code
Size
Handgrip Height
Cuff to Handgrip Height
Max User Weight
HA0160
Adult
685-940mm
220mm
180kg
HA0170
Extra Long
830-1085mm
220mm
180kg
MOBILITY
Crutch Parts & Accessories HZ0090 - Sheepskin Tops • • • • • •
HZ0070 Sheepskin Hand Grips
Genuine Australian lambswool Provides additional comfort Natural fibre reduces the risk of skin irritation Machine washable Supplied as pair To suit underarm crutches
HZ0080 Sheepskin Hand Grips • • • • • •
• • • • • •
Code
Genuine Australian lambswool Provides additional comfort Natural fibre reduces the risk of skin irritation Machine washable Supplied as pair To suit underarm crutches
Quad Stick Tip
Genuine Australian lambswool Provides additional comfort Natural fibre reduces the risk of skin irritation Machine washable Supplied as pair To suit elbow crutches
Type
Size
Colour
HZ1860
Stick Tip
16mm
Black
HZ1890
Stick Tip
19mm
Grey
HZ1900
Crutch Tip
22mm
Grey
HZ1910
Crutch Tip
25mm
Grey
Sherpa Tip • •
Patterned base for additional grip Supplied individually
• •
Code
Size
Colour
HZ2060
13mm
Black
HZ2080
13mm
Grey
Crutch Tip Heavy Duty • • •
Deep profile base for heavy use Patterned base for additional grip Supplied individually Code
Size
Colour
HZ1920
22mm
Black
HZ1930
22mm
Grey
HZ1940
22mm
Tan
1 30 0 930 930
Tapered base angle flexes to suit walking surface Supplied individually Code
Type
Size
Colour
HZ2290
Stick Tip
16mm
Grey
HZ2320
Stick Tip
19mm
Grey
HZ2220
Stick Tip
16mm
Black
HZ2230
Stick Tip
19mm
Black
HZ1960
Crutch Tip
22mm
Grey
HZ1980
Crutch Tip
25mm
Grey
HZ1990
Crutch Tip
28mm
Grey
A L P H A L I F E CA R E .C O M . AU
149
MOBILITY
Crutch Parts & Accessories Stick & Crutch Tips • •
HZ1840 - Padded Hand Grips •
Patterned base for additional grip Supplied individually
• •
HZ1870 - Crutch Tip Jumbo • • • • •
Moulded rubber crutch handle grips Supplied as pair To suit timber and aluminium underarm crutches
HZ1850 - Padded Tops
Flexible patterned base for additional grip Deep profile base for heavy use Supplied individually Tip size 22mm Grey Colour
• • •
Moulded rubber underarm crutch tops Supplied as pair To suit timber and aluminium underarm crutches
Recreation HH0020 Walking Stick Seat • • • • • • •
Walking stick with an integrated seat Folds flat Plastic covered handles Four legs with rubber tips provide greater stability Durable canvas upholstery Lightweight aluminium frame Made in the UK
Seat Height
Seat Size
Handle Height (Folded)
Tip Size
Unit Weight
Max User Weight
490mm
410 x 125mm
870mm
19mm
1.4kg
80kg
Bowlers Ferrules • • • •
150
CA R I N G F U RT H E R
For walking stick or crutch use on bowling greens Prevents damage to bowling green surface Increases stick or crutch tip surface area and stability Wide flexible 125mm base contours to surface area
Code
Size
Type
HZ0990
16mm
Stick Type
HZ1000
19mm
Stick Type
HZ1010
22mm
Crutch Type
HZ1020
25mm
Crutch Type
MOBILITY
Exercise Therapy HB0040 - Pedal Exerciser • • •
Assists greater muscle tone through increased leg movement Tension adjustable Foot straps prevent feet slipping off pedals Base Width
Base Depth
Height
Max Pedal Height
400mm
550mm
275mm
320mm
HB0030 - Pedal Exerciser - Digital • • • • •
Assists greater muscle tone through increased leg movement Digitally calculates speed, distance and exercise time Tension adjustable Foot straps prevent feet slipping off pedals Powered by 2 x AA batteries (supplied) Base Width
Base Depth
Height
Max Pedal Height
340mm
400mm
450mm
400mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 51
Safe Patient Handling Mobile Hoists
153
Patient Lifting Slings
162
Floor to Seat Lifting
168
Manual Transfer Aids
169
Positioning Aids
174
SA F E PAT I E N T H A N D L I N G
Mobile Hoists Sonata Electric Mobile Patient Lifting Hoist • • • • • •
Innovative and ergonomic compact mobile patient lifting hoist Designed primarily for domestic use or as a lightweight institutional hoist Provides superior patient space through the use of Space Link® technology The unique feature of Space Link® allows a patient to be rotated through 360° at full lift height, making the carer’s job easier and safer Offers more patient space than most other larger size lifters Tested and complies to Australian Standards AS ISO 10535-2002 Models available with Manual Legspread LA0070 No Attachments LA0230 With Standard Spreader Bar LA0240 With Pivot Frame LA1800 Standard Spreader Bar and Integrated Weigh Scale
LA1810 Pivot Frame and Integrated Weigh Scale LA1820 Power Pivot LA1830 Power Pivot with Integrated Weight Scale
Models Available with Electric Legspread LA0140 No Attachments LA0250 With Standard Spreader Bar LA0260 With Pivot Frame LA3040 Standard Spreader Bar and Integrated Weigh Scale
LA3050 Pivot Frame and Integrated Weigh Scale LA3060 Power Pivot LA3070 Power Pivot with Integrated Weight Scale
Parameters
Dimensions
Base Length:
1005mm
External Base Width Closed:
605mm
External Base Width Open:
1070mm
Internal Base Width Closed:
510mm
Internal Base Width Open:
975mm
Under Bed Clearance:
130mm
Minimum Height Yoke:
420mm
Maximum Height Yoke:
1735mm
Average Lift Range
870mm
Under Base Height
55mm
Maximum Hoist Reach:
875mm
Minimum Hoist Reach:
555mm
Hoist Reach at Maximum Height:
555mm
Lifter Weight:
41kg
Minimum Storage Height:
1260mm
Safe Working Load:
150kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
153
SA F E PAT I E N T H A N D L I N G
Mobile Hoists Alto Electric Mobile Patient Lifting Hoist • • •
Compact medium sized heavy duty mobile patient lifting hoist Innovative and ergonomic Designed primarily for institutional use or home care situations where a high capacity lift is required Electric base width adjustment Provides superior patient space through the use of Space Link® technology The unique feature of Space Link® allows a patient to be rotated through 360° at full lift height, making the carer’s job easier and safer Offers more patient space than most other larger size lifters Tested and complies to Australian Standards AS ISO 10535-2002
• • • • •
Models Available LA0150 No Attachments LA0270 With Standard Spreader Bar LA0280 With Pivot Frame LA1760 Standard Spreader Bar and Integrated Weigh Scale
LA1770 Pivot Frame and Integrated Weigh Scale LA1780 Power Pivot LA1790 Power Pivot with Integrated Weight Scale
Parameters
Dimensions
Base Length:
1150mm
External Base Width Closed
700mm
External Base Width Open
1130mm
Internal Base Width Closed
600mm
Internal Base Width Open
1030mm
Under Bed Clearance
130mm
Minimum Height Yoke
300mm
Maximum Height Yoke
1920mm
Under Base Height
55mm
Maximum Hoist Reach
1060mm
Minimum Hoist Reach:
610mm
Hoist Reach at Maximum Height
515mm
Lifter Weight
46kg
Minimum Storage Height
1350mm
Safe Working Load
200kg
LA1000 Weigh Scale Attachment • • •
1 54
CA R I N G F U RT H E R
Universal weighing module with tare function and kg/lb conversion Safe working load up to 300kg Suitable for Sonata and Alto Lifting Hoist
SA F E PAT I E N T H A N D L I N G
Mobile Hoists Forte Electric Mobile Patient Lifting Hoist (Bariatric) •
•
•
With a safe working load of 320kg this extremely heavy duty mobile patient lifting hoist provides full bariatric capability whilst remaining a compact and ergonomic design. Manoeuvrability and good under bed clearance are key design features. FORTE 320 provides superior patient lift space through the combination of the recessed actuator and the use of Space Link™ technology. The aesthetic design of the concealed electric leg mechanism provides infection control advantages. FORTE 320 is the lifter of choice for institutional use where a high capacity bariatric lifter is required.
Models Available LA1180 4 Point Yoke LA1660 4 Point Yoke and Integrated Weigh Scale Parameters
Dimensions
Base Length:
1433mm
External Base Width Closed:
715mm
External Base Width Open:
1205mm
Internal Base Width Closed:
590mm
Internal Base Width Open:
1080mm
Under Bed Clearance:
126mm
Minimum Yoke Height:
260mm
Maximum Yoke Height:
1955mm
Under Base Height:
31mm
Lifter Weight:
63.5kg
Minimum Storage Height:
1460mm
Safe Working Load:
320kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
155
SA F E PAT I E N T H A N D L I N G
Mobile Hoists LA0050 Salsa Standing Transfer Hoist - Electric Leg Spread • • • • •
156
CA R I N G F U RT H E R
Designed to secure patient transfers from a seated to standing position Enables quicker, easier, and safer patient lifting and transfers Multiple grip positions, adjustable knee pad, electric leg spread, removable footplate and ergonomic features designed with the patient and carer in mind Highly manoeuvrable, ideal for institutional or home environments Tested and complies to Australian Standards AS ISO 10535 – 2002
Parameters
Dimensions
Base Length:
1010mm
External Base Width Closed:
665mm
External Base Width Open:
1030mm
Internal Base Width Closed:
565mm
Internal Base Width Open:
930mm
Under Bed Clearance:
130mm
Minimum Height Lift Arm:
880mm
Maximum Height Lift Arm:
1685mm
Under Base Height:
55mm
Lifter Weight:
51kg
Minimum Storage Height:
1190mm
Safe Working Load:
200kg
SA F E PAT I E N T H A N D L I N G
Mobile Hoists LA2070 - Poweo Activ’ 200 Quick Transfer • • • • • • • • • • • • • •
The Poweo Activ’ is an innovative transfer and sit to stand hoist Unique vertical lifting path of the handlebar provides an elliptical and ergonomic movement This movement ensures a gradual rotation of the handlebar during operation imitating the natural pattern of the body in movement Compact, comfortable and easy to use Outstanding stability and easy to maneuver due to the cast aluminium base Knee support equipped with adjustable padded cushions which provide excellent support and aid in the perfect positioning of the legs Non-slip retractable footrests Double remote control 50mm front wheels, 125mm rear locking wheels Emergency stop button Emergency lowering electrical system Overload sensor disables the system if the maximum load is reached Transfer handlebar has unique cord locking system Low battery and preventive maintenance indicator light
Parameters
Dimensions
Overall Dimensions
1120 x 590 x 1330mm
Leg Height
75mm
Length of the Arm
910 - 1570mm
Hoisting Range
850mm
Battery Capacity
40 cycles
Unit Weight
45kg
Max Lifting Weight
200kg
Warranty
4 years
Country of Origin
France
Construction Materials
Steel & Aluminium
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 57
SA F E PAT I E N T H A N D L I N G
Mobile Hoists LA2080 - Poweo City • • • • • • • • • • • •
158
CA R I N G F U RT H E R
The Poweo City is a compact, light and stable stand to sit patient lifter Specially designed for home and healthcare facilities, it is easy to transport as it can easily be disassembled into two parts Lightweight aluminium with injected reinforced plastic base Compact and ideal for small spaces Exceptional stability and maneuverability Adjustable knee cushions 50mm front wheel, 100mm rear locking wheels Emergency stop button Mechanical system for emergency lowering Visual overload indicator Transfer handlebars with unique cord locking system for slings Low battery indicator
Parameters
Dimensions
Overall Dimensions
1450 x 570 x 870mm
Feet Height
80mm
Lifting Height
1120 to 11450mm
Lifting Stroke
700mm
Battery Capacity
30 cycles
Ground Clearance
40mm
Device Weight
25kg
Lifting Capacity
150kg
Warranty
4 years
Country of Origin
France
Construction Materials
Aluminium & Grivory
SA F E PAT I E N T H A N D L I N G
Mobile Hoists LA2050 - Poweo 300 • • • •
• • • • • • • •
The Poweo 300 with its outstanding stability and lifting capacity is specifically designed for bariatric care Allows the transfer of overweight, corpulent of highly dependent people Electric tilting suspension Patented Safe Locking System (SLS) innovative locking system allows the automatic locking of sling loops thanks to the weight of the patient which also prevents unlocking during transfers Aluminium cast structure Electric and manual emergency lowering System deactivation if the lifting capacity is exceeded Low battery and preventative maintenance indicator light Fixed control panel and intuitive remote control with holding hook Electric opening of the base for ease of positioning around wheelchairs, comfort chair or toilet 75mm front wheels, 100mm locking rear wheels Compatible with Scalis scale option
Parameters
Dimensions
Closed Base Width
800mm
Open Base Width
1390mm
Length in Use
1500mm
Folded Height
1460mm
Maximum Height
2110mm
Height Clearance under Suspension
1280mm
Height of the Feet
110mm
Ground Clearance
40mm
Battery Capacity
40 cycles
Unit Weight
69kg
Warranty
4 years
Country of Origin
France
Construction Materials
Steel & Aluminium
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 59
SA F E PAT I E N T H A N D L I N G
Mobile Hoists Poweo 200 • •
• • • • • • • •
The Poweo 200 electric suspension allows the patient to be positioned during the transfer Patented Safe Locking System (SLS) innovative locking system allows the automatic locking of sling loops thanks to the weight of the patient which also prevents unlocking during transfers Lightweight aluminium structure Electric opening of the base 75mm front wheels, 100mm locking rear wheels High capacity removable battery Emergency stop button Electrical and mechanical emergency lowering system System deactivation if the lifting capacity is exceeded Low battery and preventative maintenance indicator light
Models Available LA2020 Poweo 200 with Electric Tilting Suspension LA2030 Poweo 200 without Suspension LA2040 Poweo 200 with Electric Tilting Suspension and Scalis Weight System
1 60
CA R I N G F U RT H E R
Parameters
Dimensions
Closed Base Width
680mm
Open Base Width
1180mm
Length in Use
1290mm
Minimum Height
1450mm
Maximum Height
2140mm
Height Clearance Under Suspension
1380mm
Height of Feet
110mm
Ground Clearance
50mm
Unit Weight
64kg
Lifting Capacity
200kg
Battery Capacity
90 cycles
Warranty
4 years
Country of Origin
France
Construction Materials
Steel & Aluminium
SA F E PAT I E N T H A N D L I N G
Mobile Hoists LA2060 - Poweo 180 Quick Up • • • • • • • • • • • •
The Poweo 180 Quick Up is an innovative and multi-functional lifter that allows a quick and easy transfer The Quick Up suspension simplifies transfers to the bathroom, bathtub, toilet, wheelchair and comfort chairs without the need for a sling The patient can be comfortably seated and transferred in seconds Ergonomic and comfortable transfer Removable high capacity battery Electric opening of the base Lightweight aluminium structure Emergency stop button Electrical and mechanical emergency lowering system System deactivation if the lifting capacity is exceeded Low battery and preventative maintenance indicator light 75mm front wheels, 100mm rear locking wheels
Parameters
Dimensions
Closed Base Width
800mm
Open Base Width
1390mm
Length in Use
1560mm
Minimum Height
1460mm
Maximum Height
2150mm
Height Clearance Under Suspension
1390mm
Height of Feet
110mm
Ground Clearance
40mm
Battery Capacity
90 cycles
Unit Weight
60kg
Lifting Capacity
180kg
Country of Origin
France
Warranty
4 years
Construction Materials
Steel & Aluminium
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 61
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings Scaleo Polyester Fabric Sling, No Head Support • • • •
Designed for multi-functional transfers, providing easy installation and better comfort Made from resistant and highly absorbent breathable polyester material which allows perspiration to be easily released Slings have the versatility of being adjusted to allow transfers in sitting, partially reclined or lying positions Breathable sling without headrest Size
Code
Small
LD3600
Medium
LD3610
Large
LD3620
X Large
LD3630
Scaleo Quick Transfer Cocoon with Abdominal Support • • • • •
The Cocoon sling features a new polyurethane coated polyester interior lining This coating eliminates the gliding effect, provides more flexibility and is soft to the touch The abdominal belt limits slipping and provides reassurance to the user For use with 2 point handlebar Compatible for use with Poweo Activ’ Size
Code
Small
LD3640
Medium
LD3650
Large
LD3660
X Large
LD3670
Scaleo Quick Transfer Cocoon with Abdominal Support • • •
•
1 62
CA R I N G F U RT H E R
Designed for multi-functional transfers, providing easy installation and better comfort with a 4 point suspension Slings have the versatility of being adjusted to allow transfers in sitting, partially reclined or lying positions Scaleo slings have an anatomic cut out respecting the natural curve of the back. This exclusive design ensures an ideal and comfortable position, like a hammock and avoids the sliding effect Comfort sling with headrest Size
Code
X Small
LD3680
Small
LD3690
Medium
LD3700
Large
LD3710
X Large
LD3720
XX Large
LD3780
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings Scaleo Toilet Sling With Head Support • • • • • • •
The Scaleo toilet sling ensures optimal comfort thanks to its adjustable abdominal belt and non slip coating The shape facilitates the process of undressing Its high position enables easy installation and removal of the hoist suspension To undress the patient, the leg supports are positioned without being crossed, enabling better access to the toilet seat Crossed positioning allows for optimal support during transfer when dressing is not necessary The removable headrest is essential for patients requiring head support and also for patients in a wheelchair with spinal plaster The head support can be fixed to the sling during transfer, but needs to be released once the transfer is complete Size
Code
X Small
LD3730
Small
LD3740
Medium
LD3750
Large
LD3760
X Large
LD3770
XX Large
LD3790
Scaleo Comfort Sling With Abdominal Belt • • • • • •
The design of this quick transfer sling ensures perfect back support Abdominal belt limits the sliding effect and reassures the transferred person and helps restore the natural movement of the body Generous padding of the sub-axillary parts of the sling provide maximum comfort and avoids shearing The polyurethane design provides good elasticity and its impermeability limits the risk of infection Use in conjunction with Poweo Activ’ For use with 2 point handlebar Size
Code
Small
LD3800
Medium
LD3810
Large
LD3820
X Large
LD3830
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 63
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings General Purpose Slings • • • • • •
Simple and safe to use for both home and institutional patient lifting Polyester fabric or mesh (suitable for bathing) with internal padding in pressure areas Webbing loops allows for patient to have a lay back posture General Sling provides easy fitting and good support for patients with some upper body control. Recommended for general lifting General Sling with Head Support is easily fitted to a patient in bed or a chair, providing excellent upper body and head support 300kg User weight limit General Purpose Sling without Head Support
General Purpose Sling with Head Support
Size
Fabric
Mesh
Fabric
Mesh
X Small
LD0970
LD1020
LD0840
LD0840
Small
LD0170
LD0220
LD01160
LD0830
Medium
LD0180
LD0230
LD0130
LD0710
Large
LD0190
LD0240
LD0140
LD0880
X Large
LD0200
LD0250
LD0150
LD0920
XX Large
LD0210
LD1150
LD1180
LD1190
Standard Yoke Care Slings • • •
Excellent for transfers onto a toilet as it provides an open area from the middle of the back to the middle of the thigh Recommended for general toilet transfers 300kg User weight limit Care Sling without Head Support Size
Fabric
X Small
CA R I N G F U RT H E R
Fabric
Mesh
LD0960
LD1110
Small
LD0550
LD0030
LD0070
Medium
LD0510
LD0040
LD0080
Large
LD0520
LD0050
LD0090
X Large
LD1260
LD0060
LD0100
LD1280
LD1200
XX Large
1 64
General Purpose Sling with Head Support
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings Standard Yoke Junior Sling • • •
Provides easy fitting and good support for children or small adults Removable bracing and gusseted base section provide maximum support 200kg User weight limit Size
Mesh
X Small
LD0270
Small
LD0280
Medium
LD0290
Standard Yoke Amputee Sling • • •
Sling incorporates a head support and commode aperture Recommended for lifting patients with high level amputations 200kg User weight limit Size
Fabric
Mesh
Medium
LA1190
LA1200
Large
LA1050
LA1210
X Large
LA1040
LA1220
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 65
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings Pivot Slings Pivot Slings are required for use with Pivot Frame attachments. The slings are manufactured from polyester fabric or mesh (suitable for bathing). These slings allow the patient to be lifted in either a sitting or lying position, ideal for lifting on and off a bed or the floor. The unique pivot with anti-lock at the end of the boom allows the whole frame to be rocked back and forward to assist correct positioning of the patient. The frame spreads the sling attachment points to ensure the patients hips are not excessively flexed, avoiding the discomfort obese patients sometimes experience with standard slings. Warning: Pivot Slings must not be used on any attachments other than the Pivot Frame.
Pivot Sling • • • •
Comfortable, supportive sling with easily defined attachment points Recommended for general lifting especially for the larger patient Angle adjustment via Pivot Frame 200kg User weight limit Keyhole Buckle
E Clip Buckle
Size
Fabric
Mesh
Fabric
Mesh
X Small
LD1290
LD1300
LA1340
LA1400
Small
LD0400
LD1210
LA1350
LA1410
Medium
LD0410
LD0440
LA1360
LA1420
Large
LD0420
LD0910
LA1370
LA1430
X Large
LD0430
LD1220
LA1380
LA1440
XX Large
LD1240
LD1230
LA1390
LA1450
Pivot Care Sling • • •
Sling provide easy removal of clothing for toilet transfers Recommended for general toilet transfers for the less secure patient 200kg User weight limit Keyhole Buckle
1 66
CA R I N G F U RT H E R
E Clip Buckle
Size
Fabric
Mesh
Fabric
Mesh
X Small
LD1070
LD1080
LA1460
LA1520
Small
LD0310
LD0350
LA1470
LA1530
Medium
LD0320
LD0360
LA1480
LA1540
Large
LD0330
LD0370
LA1490
LA1550
X Large
LD0340
LD0380
LA1500
LA1560
XX Large
LD1310
LD1320
LA1510
LA1570
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings Standing Transfer Sling The Standing Transfer sling is designed to support a weight bearing yet less than able person from waist level to mid shoulder whilst allowing free movement of the arms. The patient’s hands can reach naturally to grip the lift arms as the patient rises. The Standing Transfer sling will provide adequate support for the patient who requires only minimal assistance for standing. A Torso Belt provides added security and prevents the sling from riding up the patient’s back when maximum support is required. The sling has the option of both Key-Hole fastening or Loop type attachments. This adds to the versatility of the sling in any environment.
Standing Transfer Sling • • • • • • • •
Size
Loop Velcro
Small
LA1710
Medium
LA0300
Large X Large
Designed to support a weight bearing yet less able person from waist level to mid shoulder whilst allowing free movement of the arms Patient’s hands can reach naturally to grip the lift arms as the patient rises Provides adequate support for the patient who requires only minimal assistance for standing. Torso Belt provides added security and prevents the sling from riding up the patient’s back when maximum support is required Option of both Key-Hole fastening or Loop type attachments, adding versatility in any environment Sling provides easy removal of clothing for toilet transfers Recommended on standing hoists for weight bearing patients only 200kg User weight limit
Keyhole Buckle
Keyhole Velcro
E-Clip Buckle
E-Clip Velcro
LA1720
LA1680
LA1690
LA0040
LA0360
LA1580
LA1610
LA0290
LA0030
LA0370
LA1590
LA1620
LA0110
LA0220
LA0380
LA1600
LA1630
Super Soft Standing Sling • • • •
A softer padded variety of Standing Sling with easy to fit Velcro fastening Neoprene Torso Belt Recommended on Standing Hoists for weight bearing patients only Available with Key-Hole and Loop type attachments 200kg User weight limit Size
Keyhole Buckle
E-Clip Buckle
Loop Velcro
Medium
LA1160
LA1210
LA1260
Large
LA1230
LA1250
LA1270
X Large
LA1750
LA1730
LA1740
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 67
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings Deluxe Leg Sling • • •
Provides maximum support to hips and thighs Recommended for patients with compromised hip joints and amputees (subject to assessment) 200kg User weight limit Size
Fabric
Mesh
Small
LD2810
LD2860
Medium
LD2820
LD2870
Large
LD2830
LD2880
Floor to Seat Lifting ED7780 - Raizer ll Lifting Chair • • • • • • •
1 68
CA R I N G F U RT H E R
Mobile chair for transfer from floor to a sitting or standing position Minimal physical effort for the assistant Both the fallen person and the assistant can feel comfortable and safe in the process Easy to transport in 2 light bags Assembly prior to operation: max 3 minutes Cleaning friendly CE-marking Lifting Capacity
150kg
Lifting Time
20-30 Secs
Number of Lifts with Full Charge
80 at average load
Max Charge Time
6 Hours
Net Weight
13kg
SA F E PAT I E N T H A N D L I N G
Manual Transfer LB1150 - Lotus Stand Up Aid • •
• • • • •
Supports and activates the client in sit-to-stand procedures, and transfers the client in a seated or standing position Developed for clients with impaired balance and reduced leg strength, but the client must have some strength in the arms and be able to weight bear to actively participate in the transfer Ideal for both long-term and for occasional needs, such as in postoperative care when the balance is temporarily impaired Stimulates a natural pattern of movement Rotating seat parts, lower leg/knee supports and chassis are all adjustable for a safe and stable transfer Compact and convenient Durable powder coated steel frame
Overall Base Length
Overall Width (Narrow Base)
Overall Width (Base Spread)
Height
Net Weight
Max User Weight
980mm
680mm
950mm
1130mm
35kg
200kg
Romedic ReTurn Belt • • • • • •
Used for sit-to-stand transfers and gait training procedures Supports the hips and under the buttocks making it ideal when greater stability is needed An excellent complement to the Romedic ReTurn Platform Internal surface prevents slipping against clothes Belt is secured by an adjustable nylon buckle Strong, stable, grip-friendly handles for the carer to hold Code
Size
Waist Measurement
No. of Handles
LB0390
Small
850 - 1050mm
4
LB0380
Medium
1050 - 1250mm
4
LB0370
Large
1200 - 1450mm
4
Other sizes available
Timber Transfer Board • • • • •
Assists patient transfers between a secure surface and wheelchair, car, chair, bed Avoids strain for the patient and carer Laminated plywood board is polished and chamfered to slide under patient Hand holes (on model LB0550) provide greater manoeuvrability for the user Not to be used as a lifting device Code
Size
Length
Width
Weight
Max User Weight
LB0540
Standard
600mm
210mm
1.1kg
130kg
LB0550
Long
750mm
210mm
1.5kg
130kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 69
SA F E PAT I E N T H A N D L I N G
Manual Transfer LB0480 - Curved Transfer Board • • • • •
Assists patient transfers between a secure surface and wheelchair, car, chair, bed Avoids strain for the patient and carer Arc shape allows for the natural sweeping pattern of an assisted transfer, and enables a variety of positioning options Slip resistant pads increase stability during transfer Solid reinforced plastic resists chipping, shattering and splintering Length
Width
Weight
Max User Weight
700mm
300mm (Tapers to 260mm)
2kg
150kg
The Slider • • • •
Assists patient transfers between wheelchair and car, chair, bed Strong perspex construction Rear wheel cut-out, covered with a flexible plastic guard, minimises skin damage while transferring over the arch of the wheel Not to be used as a lifting device Code
Size
Length
Width
Weight
Max User Weight
LB0500
Small
540mm
350mm
1.2kg
120kg
LB0530
Medium
640mm
300mm
1.2kg
90kg
LB0520
Large
640mm
350mm
1.5kg
120kg
LB0750
Straight
610mm
230mm
1.0kg
80kg
Patslide • • • • • •
170
CA R I N G F U RT H E R
Facilitates safe and easy patient transfers from bed to trolley Reduces the risk of back injury for the carer Handholes provide maximum grip for the carer Slip resistant pads increase stability during transfers Radiolucent material construction is lightweight, highly impact tolerant and static insulative Not to be used as a lifting device Code
Size
Length
Width
Weight
LB0310
All Purpose
1525mm
635mm
4.5kg
LB0320
Theatre
1525mm
560mm
4.0kg
SA F E PAT I E N T H A N D L I N G
Manual Transfer Walking Belt • • • • •
Assists the carer in patient mobility and transfers Reduces the risk of strain or back injury for the carer and user Double sided velcro fastener increases security and support Four large padded vertical handles assist the carer in supporting the client while walking Machine washable Code
Size
Colour
Chest/Waist Circumference
LB0680
Small
Red
690 - 930mm
LB0710
Medium
Yellow
850 - 1100mm
LB0700
Large
Green
900 - 1170mm
LB0670
Extra Large
Blue
1080 - 1330mm
LB0640 Padded Walking Belt • • • • • • •
Assists the carer in patient mobility and transfers Reduces the risk of strain or back injury for the carer Belt is firmly secured by an adjustable nylon buckle Slip resistant material to prevent belt from sliding up clients clothing Four large padded vertical handles assist the carer in supporting the client while walking Machine washable One universal size to suit chest or waist circumference 600-1250mm
Easy Belt / Flexibelt • •
• • • • • •
Provides client support for sit-to-stand transfers or for assisted standing and walking Inside surface of the EasyBelt is polyurethane coated nylon which can be used in environments where moisture and dampness are present, or where there are special hygiene requirements Inside surface of the FlexiBelt is a soft polyester velvet for client comfort Both inside surfaces prevent slipping against clothes Multiple handles, both vertically and horizontally, are ergonomically designed to provide the best possible grip Belt is firmly secured by an adjustable nylon buckle Outer surface material is made of durable nylon for maximum product life Seams are reinforced in exposed areas Code
Type
Inside Surface
Size
Waist Measurement
No. of Handles
LB0040
EasyBelt
Nylon
XSmall
450 - 700mm
5
LB0070
EasyBelt
Nylon
Small
600 - 1000mm
7
LB0060
EasyBelt
Nylon
Medium
700 - 1200mm
9
LB0050
EasyBelt
Nylon
Large
1000 - 1600mm
11
LB0200
FlexiBelt
Velvet
Small
600 - 1000mm
7
LB0030
FlexiBelt
Velvet
Medium
700 - 1200mm
9
LB0180
FlexiBelt
Velvet
Large
1000 - 1600mm
11
LB0170
FlexiBelt
Velvet
XLarge
1150 - 1750mm
13
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 71
SA F E PAT I E N T H A N D L I N G
Manual Transfer LB0010 Auto Slide • • • •
Reduces the risk of strain or back injury for the carer and client Assists car transfers, allowing the client to turn and move sideways with ease Reduces the effort of readjusting the client’s sitting position during the journey Cushion is firmly attached to the back of the car seat to prevent the client from sliding forward Length
Width
480mm
480mm
• • • •
Very simple to fit and use Soft padded polyester surface provides additional comfort The unique sliding material reduces friction under buttocks Durable side handles if carer assistance is required
LB0340 - Patient Swivel Seat • • • •
Comfortable padded rotating seat Reduces the risk of strain or back injury for the carer and user Assists the user in transfers from a seated position Ideal for transfers in a variety of situations such as car, wheelchair and household areas
• • • • •
Swivels 360° Lightweight and portable Smooth and safe turning action Covered in soft fabric upholstery Nonslip underside
Seat Diameter
Height
Weight
Max User Weight
390mm
50mm
0.9kg
100kg
LB1970- Handy Soft Turn Pad • • • •
Comfortable low profile padded rotating seat Reduces the risk of strain or back injury for the carer and user Assists the user in transfers from a seated position Ideal for transfers in a variety of situations such as car, wheelchair and household areas
• • • •
Diameter
Height
Weight
Max User Weight
450mm
40mm
0.35kg
125kg
•
Swivels 360° Lightweight and portable Cotton upholstered seating surface Nylon swivel mechanism provides smooth and safe turning action Nonslip underside
LB0470 - Patient Turntable • •
1 72
CA R I N G F U RT H E R
A swivel platform to assist in standing rotational transfers Ideal for transfers in a variety of situations such as car, wheelchair & household areas
• • • •
Swivels 360° Smooth and safe turning action Non slip ribbed rubber finish Non slip underside
Diameter
Height
Weight
Max User Weight
390mm
18mm
0.90kg
125kg
SA F E PAT I E N T H A N D L I N G
Manual Transfer Easy Glide Transfer Board - 3 Fold •
•
•
Assists sitting transfers from wheelchairs to beds, toilets, car seats and many other seating positions Ideal for levelling out height differences or for bridging short distances The flexible three-part sliding board is easy to place in front of the wheels of a wheelchair to protect clothing and skin against soiling and irritation
• •
• •
The smooth top surface facilitates easy and comfortable transfers Non slip underside tape prevents the board from sliding during transfers, for additional safety and security Lightweight for easy transportation The long version is ideal for transfers from wheelchair to car
Code
Size
Length
Width
LB0120
Standard
600mm
330mm
LB0130
Long
750mm
330mm
LB0110 Easy Glide Transfer Board - Oval •
• •
Assists in lying transfers: moving higher up in bed, turning in bed or transferring from one bed to another Ideal for use when the client cannot be turned to the side Easy Glide should have a firm underlying surface on both sides when transferring, with a maximum gap (to be bridged) of 5cm
•
Assists lying transfers between bed and x-ray or operating tables, shower trolleys, stretchers etc Also used for turning clients in bed Top removable protective layer is made of polyester and padded with microfibers to reduce static electricity Unique low friction inner surface reduces friction so that, with a very simple hand grip and minimum strength, the carer can transfer clients on practically any surface
•
Provides a safe and supportive handhold for transfers in and out of the car Fits securely to cars via the U-shaped striker plate on vehicle door frame
•
• • •
Thin profile facilitates easily application Strong polyethylene construction is hygienic and easy to clean Length 850mm Width 390mm
LB0140 Easy Slide •
• •
•
• •
Without unnecessary lifting, it provides a gentle, safe and comfortable transfer for the client and carer Length 1900mm Width 600mm
LB0020 Car Transfer Bar •
•
• •
Contoured handle provides secure grip Convenient size and weight In-built seat belt cutter and glass breaker for use in an emergency
Handle Length
Handle Width
Weight
210mm
40mm
320g
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 73
SA F E PAT I E N T H A N D L I N G
Positioning Aids LB0400 Romedic ReTurn • • • • • •
• • • • • • • •
A multi-functional, pivoting and transportation platform that eliminates heavy lifting procedures Provides a secure and active transfer method when the client has to stand up and be moved to a bed, wheelchair or toilet Can also be used to test and exercise weight bearing capability, and assist in helping clients sit further back into a chair Ideal tool in a rehab unit, hospital ward or home because the client can manage transfers etc with the help of just one carer Makes it possible for the carer to place the wheelchair at a comfortable distance from the bed to provide more space to work safely Place the platform close to the sitting client and place the client’s feet on the base plate. The client can then get close to the vertically-spaced gripping bars and rise to a standing position using natural movements. The platform can then be steered towards desired location using the carer as a counterbalance Romedic Return Belt is an excellent complement to the Return when additional support and stability is needed The spacing of the gripping bars provides multiple grip and hand placement options for the client in sit-to-stand scenarios Lower leg supports are height and width adjustable to suit the individual needs of each client Base plate has an in-step of only 40mm so the client does not have to lift their feet very high to stand on to the platform Outlined foot prints and a clear symbol on the base plate make the positioning of the feet self-evident both to the carer and client Rolls and steers easily even with a heavy user Sturdy brake locking system for additional stability and security Disassembles into two parts for easy transportation
Accessories Available Romedic Return Belt Frame Height
Frame Width
Base Length
Max User Weight
1150mm
570mm
690mm
150kg
LB0350 Quick Move • • • •
• • • • • •
1 74
CA R I N G F U RT H E R
Supports and activates the client in sit-to-stand procedures, and transfers the client in a seated or standing position Developed for clients with impaired balance and reduced leg strength, but the client must have some strength in the arms and be able to weight bear to actively participate in the transfer Ideal for both long-term and for occasional needs, for example in post-operative care when the balance is temporarily impaired The client places their feet on the anti-slip footplate, gets support form the lower leg support and chooses a comfortable horizontal or vertical grip. When the client has risen using their own strength, the carer or client folds down the cushions behind the buttocks, to provide a stable support. The client then has the option to remain standing or to be seated during the transfer When the client is rising again, the carer can, with a push on the handle, angle the cushions to assist achieving a standing position Stimulates a natural pattern of movement Angle-adjustable buttock cushions, lower leg/knee support and leg width are all adjustable for a safe and stable transfer Compact and convenient Durable powder coated steel frame Mounted on 4 x 75mm castors, 2 of which are locking Width
Length
Height
Base Width
Max User Weight
610mm
980mm
1120mm
510 - 900mm
150kg
SA F E PAT I E N T H A N D L I N G
Positioning Aids WendyLett Draw Sheets The multi-functional WendyLett draw sheets have been developed to facilitate moving higher up in bed, turning and other small transfers in bed. Consisting of three different sheets, they contribute to a simpler everyday life for the carer and client. The unique, simple concept lies in the weave and weft of the fabric’s structure. With this unique material and the right combinations of sheets with different functions, it becomes possible to perform very easy transfers. Even large and heavy clients can be positioned in bed with considerably less effort for carers. The draw sheet system is suitable for both passive and partially-active clients who experience difficulties in turning themselves in bed. Machine washable up to 90° they fulfil strict hygiene requirements making them ideal for home and nursing care as well as in hospitals and other acute environments.
WendyLett Base Sheet • • •
WendyLett base sheet is a satin sliding sheet that is intended for clients who have difficulties turning in bed A smooth, silky central part of the sheet enables the client to turn with minimal effort Anti-slip material on the sides of the sheet help prevent the client sliding off the side, or sliding down the bed Code
Width
Length
Sliding Surface
LC0430
1000mm
2000mm
600mm
LC0160
2000mm
2000mm
700mm
LC0130
1400mm
2000mm
600mm
LC0170
900mm
2000mm
700mm
WendyLett 2 Way Sheet • • •
•
The WendyLett 2 Way is a draw sheet to be combined with a WendyLett base sheet The combination of these two sheets make it easy for the staff to turn the client sideways in the direction of the stripes To use: Fold the edge of the draw sheet and fill your hand with fabric, creating a good, strong ergonomic grip. Working methodically, use straight arms and lean or step backwards to create a sliding transfer sideways. Material also helps prevent client from sliding down the bed Code
Width
Length
LC0060
1000mm
2000mm
LC0140
1400mm
2000mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 75
SA F E PAT I E N T H A N D L I N G
Positioning Aids WendyLett 4 Way Sheet •
The WendyLett 4 Way is a sliding draw sheet to be placed on top of a WendyLett base sheet The combination of these two draw sheets allows for multidirectional moves in bed Carers can see and understand the sheet’s function by the distinct checked pattern, providing confidence in their work and saving time Procedures such as turning in bed, moving higher up/lower in bed or readjusting a user while lying becomes simple to achieve with this combination, even with the heavier or passive user The transfer is performed without risk of friction and shearing damage of the skin of the user thus further preventing pressure-related sores WendyLett is made of a fine material which can be placed on top of a pressurerelieving mattress without compromising the pressure-relieving properties of the mattress The drawsheet is easily tucked into place under the mattress when no movement is required
• • •
• •
•
Code
Width
Length
LC0150
1400mm
2000mm
LC0180
2000mm
2000mm
Slide Sheet • • •
Nylon material to assist sliding and transferring patients Reduces the risk of strain or back injury to carer Slide sheet is folded over and placed under the patient, and top sheet is slid over the lower sheet Machine washable
•
Code
Size
Width
Length
LC0080 LC0070
Regular
1000mm
1500mm
Large
2000mm
1500mm
Wonder Sheet • • • • • • • • •
Reduces the risk of skin breakdown causing pressure ulcers Enhances independence while reducing the risk of injuries Reduced risk of back (and other MSK) injuries to carers Enhances a comfortable sleep The elastic all the way around the sheet gives it a snug fit so it won’t move Fits a mattress that has walls up to 40cm high Can be used with a pressure mattress Machine washable on a normal cycle The top and bottom panels are a 50/50 blend poly/cotton sheeting with satin material on the remainder of the top sheet surface Code
176
CA R I N G F U RT H E R
Size
Dimensions
BC0250
Single
910 x 1930mm
BC0230
Long Single
910 x 2030mm
BC0220
King Single
1070 x 2030mm
BC0210
Double
1350 x 1930mm
BC0240
Queen
1520 x 2030mm
SA F E PAT I E N T H A N D L I N G
Positioning Aids LC0040 One Way Slide • •
• •
Improves sitting positions in chairs or wheelchairs Sliding mat effectively prevents forward movement yet slides backwards, making it easy for the carer to help the user move into a more comfortable position in the chair A soft, padded polyester surface facilitates sitting comfort Straps for secure attachment to wheelchairs Six integrated and durable draw straps mean that carers need not physically pull users The ultra low friction polyethylene sliding material under the buttocks makes it easy to pull the user backwards without much force Length 450mm Width 1300mm
• • • • • •
Provides an ideal grip for moving higher up in bed Used as support under the feet Surface is easy to clean with a soap or alcohol solution Flexible cellular plastic construction Width 450mm Length 380mm
•
Ideal for the many challenges associated with lifting patients onto ambulance stretchers, or for awkward locations such as stairs, toilets, narrow spaces etc Can be used for both sitting and horizontal transfers Ideal for transfers to and from an ambulance stretcher Flexible board adapts to the shapes of ambulance stretchers so they can remain under patients for the entire journey Easy to slide underneath the patient Light padding and neck support ensures maximum comfort for the patient Waterproof and washable plastic surface is very durable and easy to clean, fulfilling all stringent medical hygiene requirements Durable handles assist secure gripping and safe lifting of heavy clients
• • • •
LC0010 Anti Slip Mat
LB0280 Mini Stretcher
• • • • • • •
Width
Length
Max User Weight
430mm
1350mm
150kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
177
SA F E PAT I E N T H A N D L I N G
Positioning Aids Flexi Move Long • • • • • • • •
178
CA R I N G F U RT H E R
Flexible plastic transfer board is designed for moving a client higher up in bed, and to assist turning and sideways transfers Suitable for lifts from the floor as it supports a major part of the body and is easy to place under the client Ideal for narrow spaces and when there is no access to a mechanical lift Can be used for both horizontal and sitting transfers Reverse underside is smooth, facilitating transfers and sliding easily in the bed Light padding ensures the transfer board is comfortable and gentle to lie on Strong, smooth and comfortable handles Nylon cover is easy to clean Code
Width
Length
No. of Handles
LB0160 LB0250
Max User Weight
530mm
1120mm
4
150kg
530mm
1520mm
6
150kg
Daily Living Aids Bedroom
180
Bathing & Toileting
182
Dressing
183
Cutlery
186
Dining
190
Easy Reachers
192
Food Preparation
193
Household
196
DA I LY L I VI N G
Bedroom BA0010 - Adjustable Backrest • • • •
ulti-angled pillow support M Provides assistance and support in bed Wide aluminium frame fitted with strong breathable nylon back Angle can be adjusted via a simple ratchet mechanism Back Height
Frame Width
Frame Depth
495mm
700mm
490mm
BC0680 - Bed Wedge • • • • •
Angled foam cushion provides comfort and support to the upper body Ideal for those who suffer from respiratory and reflux problems Removable quilted cotton cover Wedge can be turned to provide two different recline angles (15° or 75°) Foam insert can be removed to alter the angle by approx 5°
Width
Length
Height
680mm
710mm
240 or 600mm
CD0020 - Bed Sitta • • • •
Armchair-shaped support for sitting upright in bed Armrests provide postural and lateral support White quilted zippered cover Made from sculptured open cell foam
Width (Inner)
Width (Outer)
Height
420mm
630mm
520mm
Care Quip Raisers • • • • •
Plastic raiser used to increase the height of a bed or chair Ideal for persons who have difficulty standing up from a bed or chair Can stack for greater heights Maximum load 250kg (per set) Shown with optional non-slip rubber insert (not included)
Options Available
BZ0200 Rubber non-slip insert to suit (as pictured)
180
CA R I N G F U RT H E R
Code
Type
Height
Recess Diameter
BC0100
Single
40mm
65mm
BC0110
Set of 4
40mm
65mm
DA I LY L I V I N G
Bedroom Elephant Feet • • • • •
Plastic raiser used to increase the height of a bed or chair Ideal for persons who have difficulty standing up from a bed or chair Dished recess for added stability Supplied with non-slip foam insert Maximum load 380kg (per set)
Code
Size
Type
BC0080
90mm
Set of 4
BC0050
90mm
Single
BC0070
140mm
Set of 4
BC0060
140mm
Single
BC0030 - Blox Chair Raisers • • • •
English hardwood raisers used to increase the height of a bed or chair Ideal for persons who have difficulty standing up from a bed or chair Three different recess widths to accommodate various leg profiles Supplied as a set of 4 Height
Recess Diameter
Load
75mm
30/50/75mm
380kg (per set)
BC0020 - Blox Bed Raisers • • •
English hardwood raisers used to increase the height of a bed Ideal for persons who have difficulty in bed transfers Supplied as a set of 4 Height
Recess Diameter
Load
140mm
75mm
380kg (per set)
BA0160 - Rope Ladder Bed Hoist • • • • • • •
A solution for clients who have physical difficulties sitting up in or getting out of bed Step by step they gradually pull themselves up from a lying to a sitting position The action involved also strengthens the stomach and arm muscles of the user Can also be used to assist in transfers from wheelchairs to beds Plastic ladder rungs give a firm and safe grip Cord ends tie around the bed legs Suitable for single or double beds
Rung Width
Rung Diameter
Cord Length
195mm
25mm
3m (to first rung)
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
181
DA I LY L I VI N G
Bathing & Toileting CA0010 - Bathing Sponge • • • • • •
CA0060 - Nail/Denture Brush
Assists showering or bathing Absorbent sponge Plastic handle for easy grip Long flexible wire stem can be angled Eliminates the need for bending and makes reaching easier Length 630mm
CA0050 - Lambswool Pad • • • • • •
• • • • • •
Assists washing or powdering Double thickness sheepskin pad Plastic handle for easy grip Long flexible wire stem can be angled Eliminates the need for bending and makes reaching easier Length 630mm
• •
182
CA R I N G F U RT H E R
• • • •
Enables hair to be washed when patient is lying in bed Contoured for user comfort Waste water drains from integrated spout Moulded plastic Base Length
Base Width
Height
740mm
385mm
80mm
CA0020 - Bottom Wiper For washing/drying between the toes Plastic handle for easy grip Long flexible wire stem can be angled Eliminates the need for bending and makes reaching easier Removable towelling pad Spare pad included Length 690mm
• •
•
Can be used from the front or rear Moulded plastic head with recessed serrations to grip the toilet paper Paper is easily removed after use Length
Weight
325mm
70g
CA0030 - Buckingham Easy Wipe
CA0040 - Bottom Wiper Folding • •
•
Assists nail or denture cleaning Ideal for one-handed use Strong nylon bristles Fitted with two suction cups which can be mounted to a smooth surface Length 100mm
CD0030 - Hair Washing Tray for Bed
CA0080 - Toe Washer •
• • • •
Can be used from the front or rear Moulded plastic head with recessed serrations to grip the toilet paper Paper is easily removed after use Folds into three for easy storage
• •
•
•
Length
Folded Length
Weight
265mm
120mm
70g
•
Can be used from the front or rear Moulded silicon end with recessed pocket to grip the toilet paper Tissue is ejected after use, by push button at the other end of the handle Contoured handle for comfortable and secure grip Conveniently packaged in a zippered pouch with handle Length
Weight
380mm
120g
DA I LY L I V I N G
Dressing CC0470 - Smik Stocking Aid • • • • •
A lightweight flexible plastic gutter to assist in pulling on socks or stockings Designed for those who have difficulty in bending or reaching Side notches hold the socks or stockings securely Sock is placed over gutter then pulled into position over the foot. Strap ends then pull the sock into place up the leg Supplied with retail packaging Gutter Length
Weight
240mm
45g
CC0300 - Tights Aid • • • •
A lightweight flexible plastic double gutter to assist in pulling on pantihose or tights Designed for those who have difficulty in bending or reaching Side notches hold the pantihose or tights securely Tights are placed over gutter then pulled into position over the feet. Strap ends then pull the tights into place up the legs Gutter Length
Weight
210mm
90g
CC0290 - Terry Towling Stocking Aid • • • • • • • •
A flexible fabric gutter to assist in pulling on socks or stockings Designed for those who have difficulty in bending or reaching Large loop handles for those with weak grip Slits in the plastic core allow it to bend around the heel The inside is lined with nylon to reduce friction Terry cloth fabric holds hosiery secure Sock is placed over gutter then pulled into position over the foot. Strap ends then pull the sock into place up the leg Machine washable Gutter Length
Weight
230mm
95g
CC0260 - Soxon Stocking Aid • • • • • •
A flexible fabric gutter to assist in pulling on socks or stockings Designed for those who have difficulty in bending or reaching Large loop handles for those with weak grip Fabric holds hosiery secure Sock is placed over gutter then pulled into position over the foot. Strap ends then pull the sock into place onto the leg Machine washable Gutter Length
Weight
315mm
115g
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
183
DA I LY L I VI N G
Dressing CC0040 - Compression Stocking Aid • • • •
A unique plastic gutter to assist in pulling on compression stockings Designed for those who have difficulty in bending or reaching Side grooves hold the stockings securely Compression stockings are placed over gutter then pulled into position over the feet. Cord then pulls the stockings into place onto the leg Gutter Length
Gutter Width
Weight
270mm
150mm
210g
CC0110 - Easy-On Stocking Aid Frame • • • • •
Lightweight wire gutter frame to assist in pulling on socks or stockings Designed for those who have difficulty in bending or reaching Sock or stocking is placed inside the frame and stretched over the top of the rim Continue sliding the hosiery over the frame until it’s heel is at the top of the frame Place the frame on the floor and slide toes into the opening, then gently push forward until the hosiery is as far up the leg as needed. The hosiery will fit onto your foot Frame Height
Frame Width
Weight
210mm
180mm
355g
CC0480 - Smik Plastic Shoe Horn • • • •
A long handled shoe horn to assist in putting on shoes Designed for those who have difficulty in bending or reaching Features a hanging loop attached to the handle Supplied with retail packaging Length
Weight
400mm
45g
CC0020 - Chromed Shoe Horn with Spring • • • • •
184
CA R I N G F U RT H E R
A long handled shoe horn to assist in putting on shoes Designed for those who have difficulty in bending or reaching Spring mounted horn bends for greater flexibility Features a hanging loop attached to the handle Vinyl handle for easy grip Length
Weight
590mm
150g
DA I LY L I V I N G
Dressing CC0090 - Dressing Stick • •
Assists in the process of dressing and removing garments Features an angled wire hook and rubber tip at opposite ends of the timber stick Length
Weight
520mm
105g
CC0120 - Kings Button Hook • • •
Assists one-handed dressing Stainless steel wire passes through button hole, gripping the button. It is pulled through with a slight twisting motion. Contoured handle Length
Weight
230mm
70g
CC0450 - Smik Leg Lifter • • • •
Enables the user to move an immobile leg when transferring or dressing Upper loop fits around the hand and wrist, and lower stiffened loop slides over the foot or shoe Webbing strap with stiffened stem provides control in lifting the leg Supplied with retail packaging Length
Weight
1050mm
87g
CC0150 Long Handled Style Comb • • • • •
Wide toothed style comb Designed for those who have difficulty in raising their arm or reaching behind their head to comb their hair Extension handle is easily fitted to provide extra length Hinged piece allows comb angle to be adjusted Comb folds into handle and extension piece is removable to condense size when not in use
Length
Extended Length
Folded Length
Weight
325mm
460mm
235mm
110g
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
185
DA I LY L I VI N G
Dressing CC0430 - Smik Medi Butler Stocking Aid • • •
For compression stockings and pantyhose Long handles Supplied with retail packaging
Cutlery CB0060 Nelson Knife • •
• •
186
CA R I N G F U RT H E R
CB0070 Rocker Knife Stainless steel utensil for one handed eating Knife can be used with a rocker action involving little movement of the wrist Pronged end can be used as a fork Dishwasher safe
•
• •
•
Ideal for people with upper extremity weakness or limited wrist movement Requires minimal effort to use Wide stainless steel blade is only sharpened over a portion of the blade for increased safety Dishwasher safe
Length
Weight
Length
Weight
210mm
45g
185mm
70g
DA I LY L I V I N G
Cutlery Kings Cutlery Attachments
7
1
8
9
10
2
5
6 11
3
12
4
No
Code
Type
Length
Weight
1
CB0410
Knife
114mm
15g
2
CB0450
Large Rocker Knife
70mm
45g
3
CB0490
Splayed
95mm
20g
4
CB0380
Fork
104mm
20g
5
CB0290
Angled Fork Right
95mm
15g
6
CB0280
Angled Fork Left
95mm
15g
7
CB0520
Standard Spoon
105mm
30g
8
CB0470
Sipping Spoon
95mm
30g
9
CB0400
Junior Spoon
90mm
25g
10
CB0530
Teaspoon
84mm
20g
11
CB0330
Angled Spoon Right
100mm
30g
12
CB0320
Angled Spoon Left
100mm
30g
•
• •
Comprehensive and modular cutlery range to suit the individual needs of the client Integrated utensils are hygienic, non corroding and dishwasher safe Each utensil is mounted with a plastic spigot that is pushed to fit tightly into the chosen handle
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 87
DA I LY L I VI N G
Cutlery Kings Cutlery Handles 1
6 7
2
8
3
9
4
10
11
12
5
• • •
Comprehensive and modular cutlery range to suit the individual needs of the client Integrated utensils are hygienic, non corroding and dishwasher safe Each utensil is mounted with a plastic spigot that is pushed to fit tightly into the chosen handle No
Code
Handle/Sleeve Type
Details
Length
Weight
1
CB0340
Standard Built-Up Handle
A simple and versatile handle
110mm
30g
2
CB0390
Heavyweight Handle
Similar to CB0340 but has the hollow core filled with a non-toxic metal bar to create heavier handle for those with a tremor or unsteady hands
110mm
145g
3
CB0350
Contoured Handle
Contoured for a comfortable grip
120mm
65g
4
CB0510
Standard Slim Handle
Has an oval cross section. Also used for the core of the vari-grip sleeves (see items 11, 12 and 13)
105mm
20g
5
CB0270
Mushroom Handle
Round knob style handle is easy to grip for those with weak or painful joints
45mm
45g
6
CB0480
Slim Lightweight Handle
Made from sculptured closed cell foam for those unable to use standard weight handles
110mm
15g
7
CB0500
Lightweight Handle
Similar to CB0480 but wider in diameter
120mm
15g
CB0420
Lightweight Double Ended Handle with Strap
Similar to CB0900 but the handle is made of sculptured closed cell foam
115mm
15g
110mm
20g
Handles
8
Varigrip Sleeves 9
CB0560
Small Grip
Contoured PVC sleeve. Fits onto slim handle (Item 5)
10
CB0540
Large Grip
Contoured PVC sleeve. Fits onto slim handle (Item 5)
110mm
45g
11
CB0550
Oval Grip
Contoured PVC sleeve. Fits onto slim handle (Item 5)
105mm
20g
Angle Adaptor
Adds extra length and a 30° angle to any utensil. Supplied as a pack of 3.
65mm
10g
Angle Adaptor 12
188
CB0260
CA R I N G F U RT H E R
DA I LY L I V I N G
Cutlery Queens Cutlery 3
1
•
4
• • •
2
Wide range of stainless steel utensils moulded into built up plastic handles to help those with weak or restricted grip Handle is cylindrical to assist with gripping Cutlery is hygienically sealed, easy to clean and dishwasher safe Handle diameter 30mm
5
6
7
8
9
10
No
Code
Description
Length
Weight
1
CB0710
Splayed
200mm
55g
2
CB0680
Fork
205mm
45g
3
CB0630
Angled Fork Right
180mm
50g
4
CB0620
Angled Fork Left
180mm
50g
5
CB0700
Nelson Knife
210mm
55g
6
CB0670
Angled Spoon Right
190mm
55g
7
CB0660
Angled Spoon Left
190mm
55g
8
CB0720
Spoon
205mm
60g
9
CB0730
Junior Spoon
190mm
50g
10
CB0690
Knife
215mm
45g
11
CB0640
Angled Knife
150mm
45g
Caring Cutlery • 1
• 2
• • •
3
•
Range of stainless steel utensils moulded into contoured plastic handles Ideal for those with a weak grip and restricted wrist or finger movement Knife and fork have a shaped indent on the top for the index finger, to help with directional control Knife has a serrated blade to assist with cutting Right handed spoon is available with an angled handle to minimise wrist movement Cutlery is hygienically sealed, easy to clean and dishwasher safe
4
No
Code
Description
Length
Weight
1
CB0190
Angled Spoon Right
175mm
60g
2
CB0200
Fork
185mm
55g
3
CB0240
Knife
215mm
60g
4
CB0250
Spoon
185mm
65g
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
189
DA I LY L I VI N G
Dining Manoy Plate • •
•
Oval melamine plate Designed for one handed use or for those who have difficulty picking up food with utensils Sloping base and one high sided end helps user to scoop up food without spilling it over the side Code
Size
• •
Length
Dishwasher safe Not suitable for microwave use
Width
Weight
CB0820
Small
220mm
160mm
145g
CB0810
Large
280mm
200mm
285g
CB0860 Plate Surround • •
•
Fits onto dinner plate to assist with one handed eating Three clips attach the surround to plate rim and create a high inward sloping face to help with food collection Flexible nylon construction
• •
Suits a variety of plate sizes ranging from 200mm to 280mm diameter Weight 30g
• •
Mug only is dishwasher safe Microwave safe
• •
Dishwasher safe Not suitable for microwave use
•
Two large contoured and angled handles enables the mug to be held in the correct position for drinking Wide stable base Microwave safe
CB0040 Clear Polycarbonate Mug • • •
Clear plastic mug Large handle assists gripping Supplied with two lids; one to prevent spills and one with a drinking spout Capacity
Weight
300ml
110g
CB0790 Manoy Beaker •
Melamine beaker has a cutaway base to allow the hand to get a firm and balanced grip Capacity
Weight
200ml
170g
CB0030 Clear Caring Mug • • •
190
CA R I N G F U RT H E R
Clear plastic mug Useful for those with tremor or who cannot sit upright Removable lid with spout Capacity
Weight
250ml
190g
• •
DA I LY L I V I N G
Dining CB0880 Two Handled Mug • • • • • •
Durable plastic mug Two handles enable the mug to be easily held in the correct position for drinking Supplied with two lids; one for anti-spill and one with a drinking spout Mug only is dishwasher safe Not suitable for microwave use Supplied as a pack of 2 Capacity
Weight
200ml
55g
Feeding Cup • • • •
Clear plastic beaker designed for easy gripping Has a vented lid with a drinking spout Available with 4mm or 8mm spout hole Supplied as a pack of 2 Code
Capacity
Spout Size
Weight
CB0760
200ml
4mm
30g
CB0770
200ml
8mm
30g
CB0740 Dysphagia Cup • • • • • •
Helps people who have trouble swallowing Drinking while tucking the chin toward the chest gives normal swallowing mechanisms time to work Design of the cup helps prevent liquids from escaping at the lips and directs the liquid to the centre of the mouth Provides sufficient nose clearance to empty the cup without tilting the head back Extended handle assists gripping Dishwasher safe Capacity
Weight
200ml
240g
CB0780 Insulated Mug • • • • • • •
Plastic mug Double wall for insulation Keeps contents hot but protects the hand or table top Large handle assists gripping Supplied with a lid with drinking spout Not suitable for microwave use Not suitable for dishwasher use Capacity
Weight
300ml
160g
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
191
DA I LY L I VI N G
Dining CB0850 Pat Saunders Straw • • • • • •
Plastic reusable straws One-way valve reduces air intake Keeps straw filled with fluid even after removing the straw from the users lips Clip keeps straw against side of glass or cup Supplied as a pack of 2 Length 185/260mm
•
Assists in reaching and retrieving a wide variety of household items Ideal for those who have difficulty bending or reaching Ergonomic full trigger handle requires minimal finger extension Ideal for those with weak grip Twin gripping jaws are rubber lined for an excellent controlled grip
Easy Reachers Smik Swivel Head Reacher
• • • •
Code
Length
CD0780
1000mm
250g
CD0760
600mm
250kg
CD0770
750mm
250kg
•
• •
•
Features magnet on head for the retrieval of pins and other small metal objects Swivel head allows objects to be picked up from a variety of angles Supplied with a plastic clip to attach the reacher to walking frame or stick Supplied with retail packaging
Weight
Helping Hand Featherweight • • • •
192
CA R I N G F U RT H E R
Assists in reaching and retrieving a wide variety of household items Ideal for those who have difficulty bending or reaching Moulded plastic handle with pull type trigger action Minimal hand movement activates the reacher making it suitable for those with limited hand function
• •
•
Single moving jaw Features magnet on head for the retrieval of pins and other small metal objects Supplied with plastic clip to attach the reacher to walking frame or stick
Code
Type
Length
Weight
CD0330
Standard
660mm
195g
CD0340
Long
810mm
220g
DA I LY L I V I N G
Easy Reachers Helping Hand Arthrigrip • • •
Assists in reaching and retrieving a wide variety of household items Ideal for those who have difficulty bending or reaching Ergonomic full trigger handle requires minimal finger extension
• • •
Ideal for those with weak grip Twin gripping jaws are rubber lined for an excellent controlled grip Jaws can be set at two different angle positions
Code
Type
Length
Weight
CD0310
Standard
660mm
230g
CD0320
Long
810mm
260g
Pick-up Reacher Swivel Head • 1
• • • •
Assists in reaching and retrieving a wide variety of household items Ideal for those who have difficulty bending or reaching Ergonomic full trigger handle requires minimal finger extension Ideal for those with weak grip Twin gripping jaws are rubber lined for an excellent controlled grip No
2
3
4
Code
• •
•
Type
Length
Swivel head allows objects to be picked up from a variety of angles Features magnet on head for the retrieval of pins and other small metal objects Supplied with plastic clip to attach the reacher to walking frame or stick
Weight
1
CD0390
Short
350mm
155g
2
CD0400
Standard
610mm
190g
3
CD0380
Long
760mm
205g
4
CD0370
Extra Long
900mm
220g
Food Preparation CE0040 Cordless Kettle Tipper •
•
•
Designed to assist in pouring boiling water from a jug kettle with virtually no effort or risk of spilling boiling water Pivots on a raised wire frame by gentle pressure on the handle to assist in pouring water into teapot, mug or cup Kettle sits on platform and is secured by a velcro strap
•
• •
Base Width
Base Depth
Platform Height
240mm
255mm
85mm
Frame has a cut out which allows cup to be positioned close to the kettle sprout, and a back-stop to prevent spillage if kettle is accidentally released during pouring Non-slip feet for added safety Kettle/cup not included
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 93
DA I LY L I VI N G
Food Preparation CE0060 - Electric Can Opener Kenwood • • • • •
•
Assist the user in one handed opening of tins Simply plugs into power point Simple one-touch automatic operation Rest the can on the drive wheel while the lever is in the open position Close the lever down and the selfstarting blade will pierce the can and commence cutting Once the lid is open the motor will automatically stop and the lever can be lifted to remove the can
•
• • •
• •
Width
Length
Weight
240mm
135mm
1.1kg
A magnet attaches to lid for safe disposal (excluding alumminium cans) Handle and blade unit are removable for washing Integral knife sharpener and bottle opener Cord storage compartment for added safety and for a clean work area Suitable for small to large cans with a maximum tin weight of 1.2kg Non slip rubber base pads
CE0240 - Smik-Care Kitchen Workstation •
• •
•
•
Multi-function food preparation unit is designed to provide assistance with many day-to-day kitchen tasks Mounted on a tough durable chopping board A removable grater and slicer (with a protective cover) that collects the food with a minimum of mess and waste A raised L-shaped corner measuring 130 x 95mm which can be used to hold bread and toast in place when food is being spread Removable stainless steel spikes that can be used to hold fruit or vegetables in place whilst being chopped or peeled
•
• • •
A removable clamp that can open up to 110mm wide and hold any object such as food, tins or bowls in place. The clamp has a reversible edge which can be either flat or contoured. The workstation has four non-slip suction pads that firmly anchor it in place, even in wet conditions The workstation is dishwasher safe and all parts are removable and replaceable Supplied with retail packaging 1 year warranty Board size 500 x 300mm
Lightweight closed handle with blades set at an angle that minimises wrist movement The handle, which has finger contours for better grip, has been designed to counterbalance the weight of the utensil
• •
Stainless steel blade Dishwasher safe
•
•
Reflex Cutlery Range •
• 1
2 3
4
No
Code
Type
Blade
Blade/Prong Length
Weight
1
CE0140
Reflex Preparation Knife
Scalloped edge useful for cutting and preparing food
120mm
90g
2
CE0150
Reflex Slicing Knife
Long narrow blade ideal for slicing bread
230mm
105g
3
CE0120
Reflex Carving Knife
Scalloped edge which will stay permanently sharp
198mm
110g
4
CE0130
Reflex Chefs Knife
Smooth sharp edge which is useful for cutting food
205mm
120g
1 94
CA R I N G F U RT H E R
DA I LY L I V I N G
Food Preparation CE0070 Food Preparation System • •
•
Durable injection moulded plastic board for cutting and preparing food Ideal for those who have difficulty in gripping, or only have the use of one hand Clamp fixes items such as tins, bowls or food items Width
Depth
Weight
315mm
295mm
1.31kg
• •
Stainless steel spikes hold vegetables while cutting or peeling Four non-slip rubber feet and suction pads provided for secure use
CE0190 Spread Board • •
Assists one handed spreading of bread etc. Durable one-piece injection moulded plastic Width
Depth
Weight
255mm
180mm
185g
• •
L shaped lip in one corner holds bread slice etc. in place Four non-slip rubber feet provided for secure use
CE0230 Bread Board • •
Assists one handed cutting of bread, vegetables etc. Durable harwood timber and board is fitted with six stainless steel spikes to grip bread of vegetables Width
Depth
Weight
355mm
195mm
935g
• •
L shaped lip in one corner holds bread slice etc. in place Four non-slip rubber feet provided for secure use
CE0210 Twister Jar Opener • • •
Assists opening of jars and bottles Cone shaped rubber moulding with fluted finger grips Ribbing on the inside provides grip for opening jar lids
• •
Suitable for lids 250 to 800mm diameter Weight 80g
CE0220 Undo-it Jar and Bottle Opener • • •
Assists opening of jars and bottles Powder coated metal with non-slip lining Screws underneath a shelf or cupboard Length
Weight
130mm
140g
• •
Jar is slid up the V until the lid wedges, then twisted to remove lid Suitable for tops 250 to 750mm diameter
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 95
DA I LY L I VI N G
Food Preparation CE0180 Spillnot Jar & Bottle Opener • •
Assists one handed opening of jars and bottles Features three sunken cones of different sizes, lined with non-slip material
Width
Depth
Weight
240mm
150mm
425g
•
• •
When a jar or bottle is pressed in the appropriate cone, it is gripped, leaving both hands free to twist the top Fitted with four non-slip feet Suitable for jars 45mm to 100mm diameter
Household Dycem • •
•
A unique non-slip material that can be used in many applications Solves many of the stabilisation and gripping problems encountered by those with limited dexterity, restricted mobility and reduced wrist or upper limb strength Dycem products, which grip on both sides, are not sticky but grip to any surface without the use of an adhesive
•
• •
Product range consists of mats and material on a reel that can easily be cut to size Anchor Mats are moulded, while Reels are thinner for more flexibility All Dycem products are latex free and washable in warm soapy water
Code
Size
Colour
Code
Size
Colour
CD0090
190mm
Blue
CD0140
350 x 250mm
Red Blue
CD0100
190mm
Red
CD0160
200 x 2000mm
CD0110
250 x 180mm
Blue
CD0170
200 x 2000mm
Red
CD0180
200 x 9000mm
Blue
CD0120
250 x 180mm
Red
CD0130
350 x 250mm
Blue
Plastazote Tubing • • •
Closed cell foam tubing Easy to cut to required lengths Available in various sizes to provide a built up handle for easy gripping
• • •
Ideal for pens, pencils, cutlery, tools etc Non-absorbent, non-sticky, washable and dishwasher safe Supplied in 1 metre lengths
4
3 2
196
CA R I N G F U RT H E R
1
No
Code
Length
Inside Diameter
Outside Diameter
Weight
1
CD0540
1m
6mm
19mm
10g
2
CD0520
1m
6mm
31mm
30g
3
CD0550
1m
9mm
31mm
30g
4
CD0530
1m
12mm
31mm
25g
DA I LY L I V I N G
Household CD0490 Pen and Pencil Holder • • •
Assists in the grip and control of writing Ideal for those with weak grip Soft flexible PVC
• •
Plastic sheet magnifies large areas of print Lightweight and flexible
• • •
Supplied as a pack of three Internal Diameter 7mm Weight (each) 6g
CD0590 Sheet Magnifier
Length
Width
Weight
260mm
180mm
25g
Easy Grip Scissors • • • • •
Ideal for arthritics or those with limited wrist movement or weak grip Stainless steel blades are set into plastic handles which are joined in a loop Loop style handles spring open again after cutting for easier grip and use Supplied with a safe storage holder Specify type
No
Code
Type
Overall Length
Blade Length
Blade Type
Weight
1
CD0240
Easigrip Scissors
200mm
32mm
Rounded
30g
2
CD0220
Easigrip Scissors
200mm
35mm
Pointed
30g
3
CD0230
Easigrip Scissors
230mm
55mm
Pointed
40g
CD0210 Easygrip Chiropodist Scissors • • • •
Steel surgical scissors Strong serrated blades are angles upwards Lengthened shank avoids unnecessary bending for the user Elongated handles with finger holes to assist cutting through toe nails Overall Length
Blade Length
Blade Type
Weight
205mm
30mm
Pointed
50g
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 97
DA I LY L I VI N G
Household CD0060 Double Key Turner • • •
Built-up plastic handle provides better grip and leverage for turning keys Keys are held by a screw fitted through the hole in the key Keys can be folded down into handle when not in use Length
Weight
125mm
55g
CD0070 Long Handled Dust Pan & Brush • • • •
198
CA R I N G F U RT H E R
Plastic dustpan and soft bristled brush Long plastic stem and handle avoids unnecessary bending while sweeping Brush handle conveniently clips onto pan stem for easy storage Features a flat base and shaped lip for efficient dust collection Length
Weight
790mm
440g
Service Care Alpha Lifecare’s Service team provides prompt servicing of healthcare equipment and medical devices used in aged care and medical facilities, hospitals and in the general community. Servicing can be completed by our experienced technicians at our fully equipped workshops or on-site, depending on the scope of work. Alpha Lifecare keep an extensive range of spare parts in stock and have access to other non-standard parts through hundreds of supply partners within a short lead time, to minimise clinical downtime.
We offer efficient preventative maintenance and asset management programs for your medical and healthcare equipment asset’s total life-cycle management, ensuring compliance on all relevant legislation and Australian Standards and to assist in increasing regulatory compliance levels. We’re here to help more people more often. Care is in the DNA of everything we do, and it guides every member of our team across Australia. We all share the same goal of improving care efficiency, reducing workloads and safer work environments for caregivers and patients, through consistent, quality service and strong long-term relationships.
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
199
Hire Care Alpha Lifecare understands that care environments can often change, and that your product requirements to optimise patient care will change as well. Equipment hire is a great option for our customers. Our Hire Care team have an extensive range of equipment and options available to suit both short- and long-term requirements, and to suit operational and regulatory demands on aged care and hospital facilities. All equipment is maintained to a high standard of quality and condition for reliability and performance. Our experienced and trained maintenance team provide rigorous testing, cleaning and sanitisation to all equipment, exceeding relevant industry, government and ISO 9001 standards. Our service also offers timely and efficient delivery, installation, set-up of the equipment and training in your home or facility.
With more than 40 years’ experience, an innovative mindset and an extensive range of products, we have the inhouse capabilities and knowledge to support you at every step. We want to take care further by helping you find the best solutions for you and your clients – so that we make a real difference in how Australians live today and in the future.
2 00
CARING FURTHER
This catalogue is to be used as a guide only and due care has been taken to ensure all information in this product catalogue is correct at time of publication, however variations may occur. Some of the products shown may be equipped with optional extras at extra charge. Alpha Lifecare Pty Ltd will not be liable in any way as a result of any reliance, by any person, on anything contained in this product catalogue. Due to the printing process, colours shown in this product catalogue are indicative only and may vary from actual product. Alpha Lifecare Pty Ltd reserves the right to change or modify the design, technical specifications, features or appearance of any product without prior notice. The sale of all products and services are subject to our ‘Terms and Conditions’ which are available upon request or visit www.alphalifecare.com.au Alpha Lifecare Pty Ltd ©2022. No part of this publication may be copied, reproduced, scanned or stored in any electronic database, whether in whole or in part, in any form or by any means without the written approval of Alpha Lifecare Pty Ltd.
Caring Further 1300 930 930 community@alphalifecare.com.au alphalifecare.com.au GPO Box 3390 Sydney NSW 2001 Australia
Visit our showrooms 5 Millennium Court Silverwater NSW 2128
15 Craftsman Cl, Beresfield NSW 2322
© Copyright Alpha Lifecare Pty Ltd 2022, all rights reserved.
