2024 P RO DU CT CATA LO G UE
Aged Care Product Catalogue
CA R I N G F U RT H E R A L P H A L I F E CA R E .C O M . AU
About us Helping restore respect and dignity. We believe in transforming people’s lives for the better. We’re dedicated to providing the very best in product and equipment solutions and have spent years building a passionate team of specialists who understand the unique needs of the Aged Care sector. By working together with your facility, we can meet the needs of your residents, ensuring the dignity, respect and care they are entitled to. Our trained product specialists provide equipment solutions that ensure work environments are safe, productive and compliant. Alpha Lifecare focuses on many aspects of aged care including residential, respite, dementia specific care and palliative care. Our unique methodology and continued investment in aged care products plus the fact we empower our staff to provide solutions ensures we contribute positively to the care and support of Australia’s ageing population. Our extensive and innovative product range of global and national brands includes aged care beds, pressure management and pain relief products, lifting and manual handling solutions, bathroom safety, mobility products, healthcare furniture and seating, facility service equipment, mobility products and more.
BAT H RO O M
Contents Beds & Bedroom Accessories
06
Adjustable Beds
08
Bedside Commodes
23
Bed Accessories
16
Urinals
24
Blanket Support
16
Bed Pans
26
Overbed/Overchair Tables
17
Commode Bowls
26
Bedroom Furniture
20
Wash Bowls
27
Bedding & Linen
28

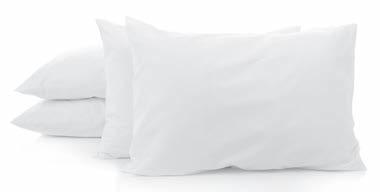

Pillows
29
Blankets
30

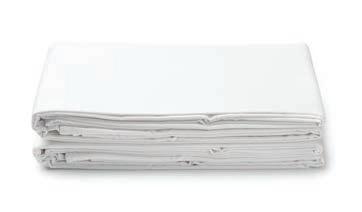

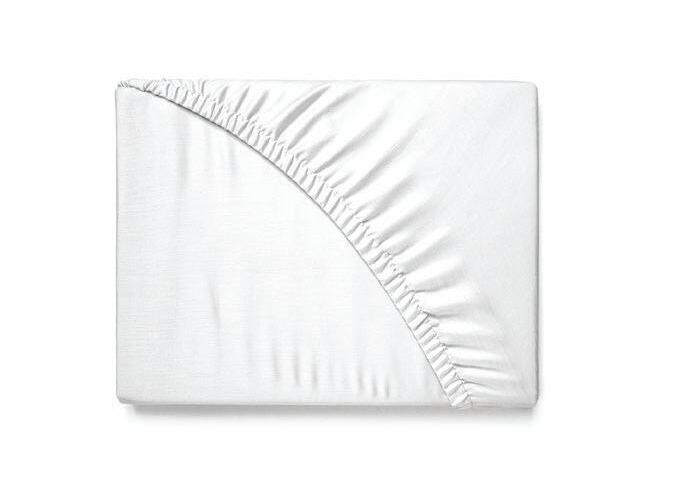

Linen
29

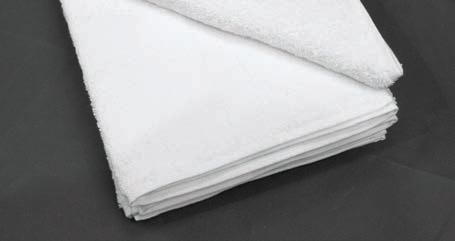

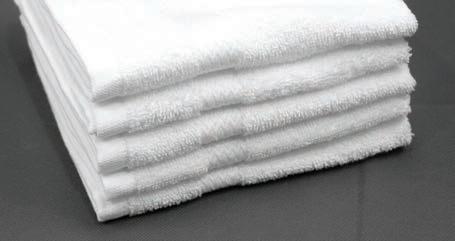

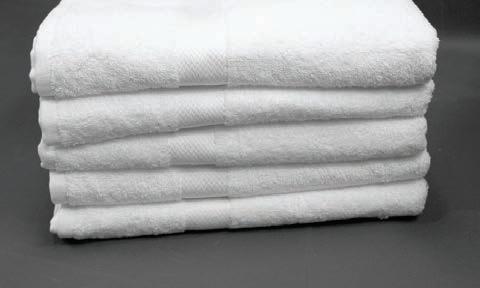

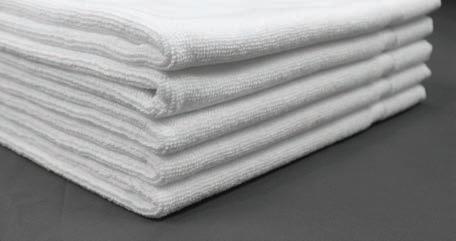

Bath Towels
31
Mattresses & Cushions
32
Ancillary Pressure Care
33
Bed Overlays
39
Limb/Fall Protection
35
Non Powered Pressure Relieving Support Surfaces
41

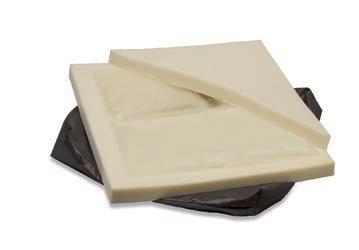

Cushions
36

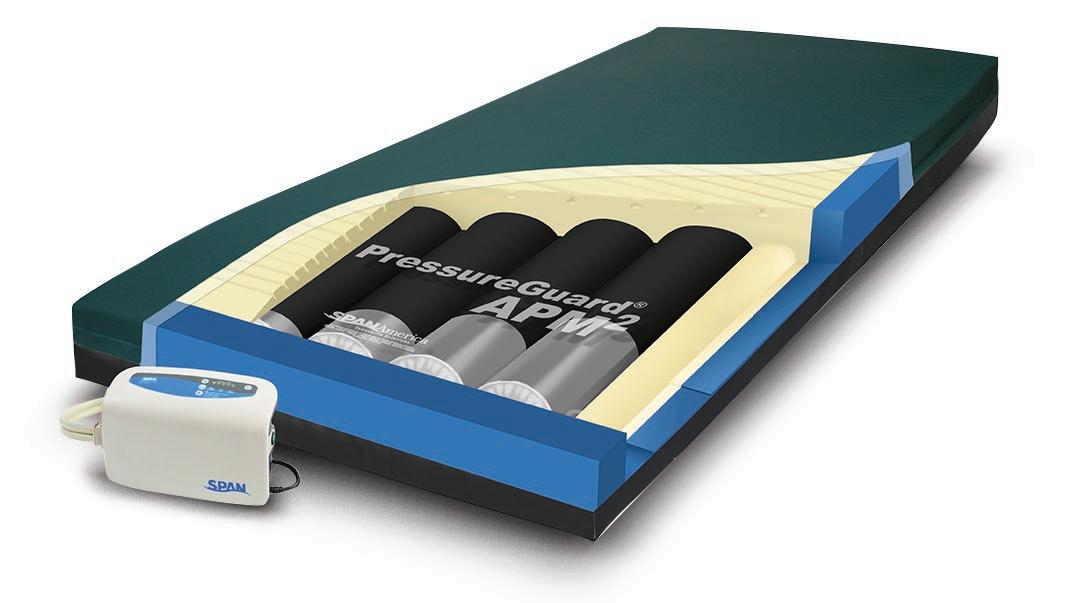

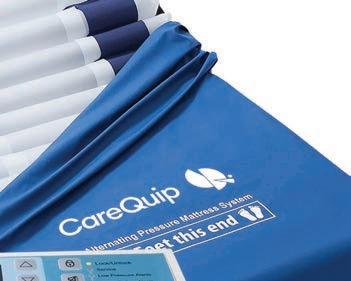

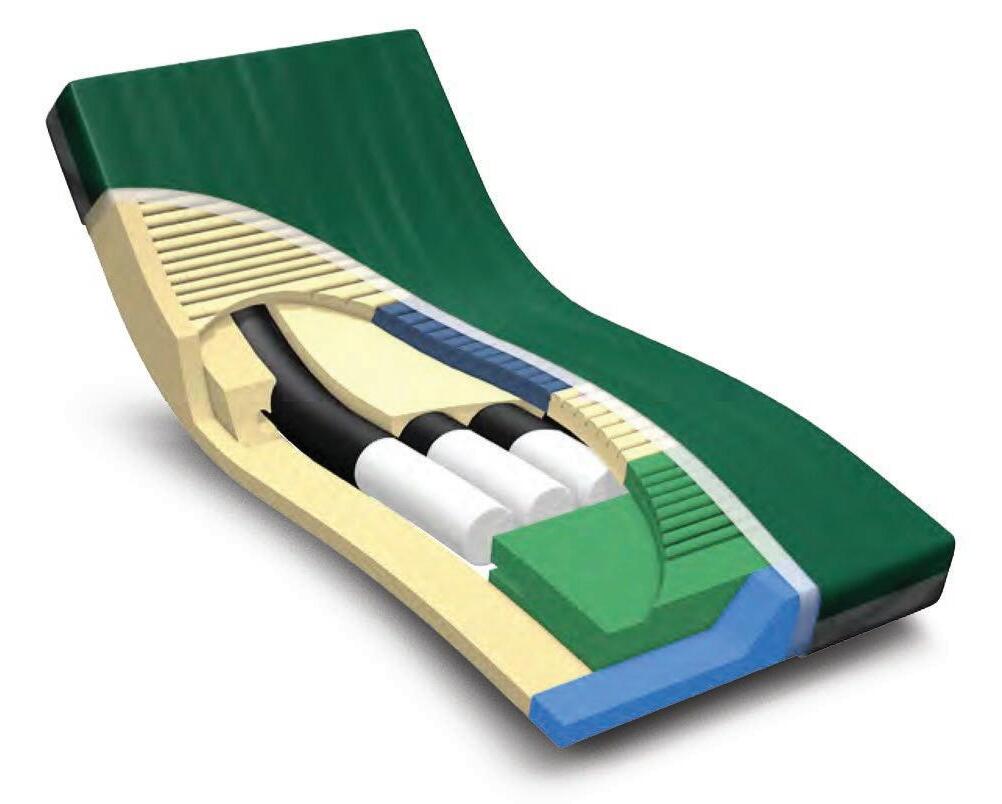

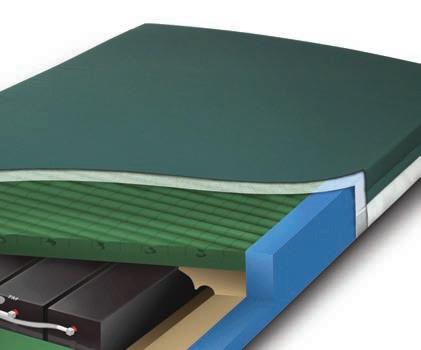

Powered Pressure Relieving Support Surfaces
48
Seating
54
Advento Hi Lo Chair
55
X6 Deluxe Chair Bed
64
Domus Classic Flex
56

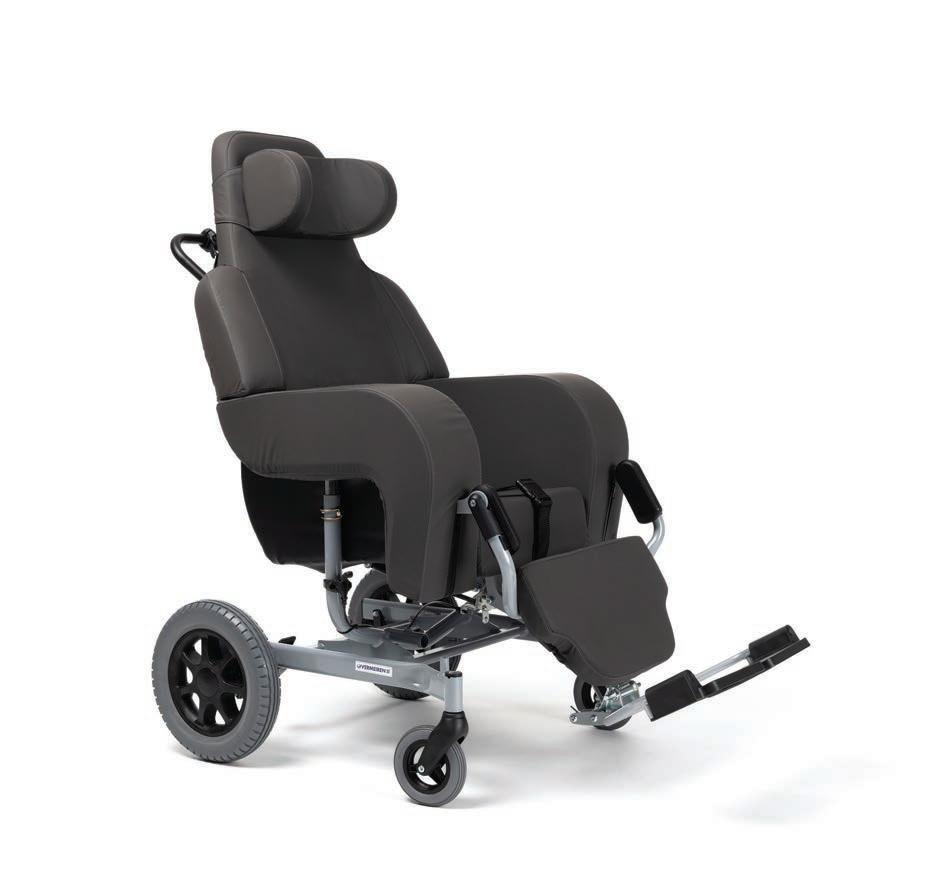

Coraille Care Chair
65
Fero Mauro Chairs
57
Chair Beds
66

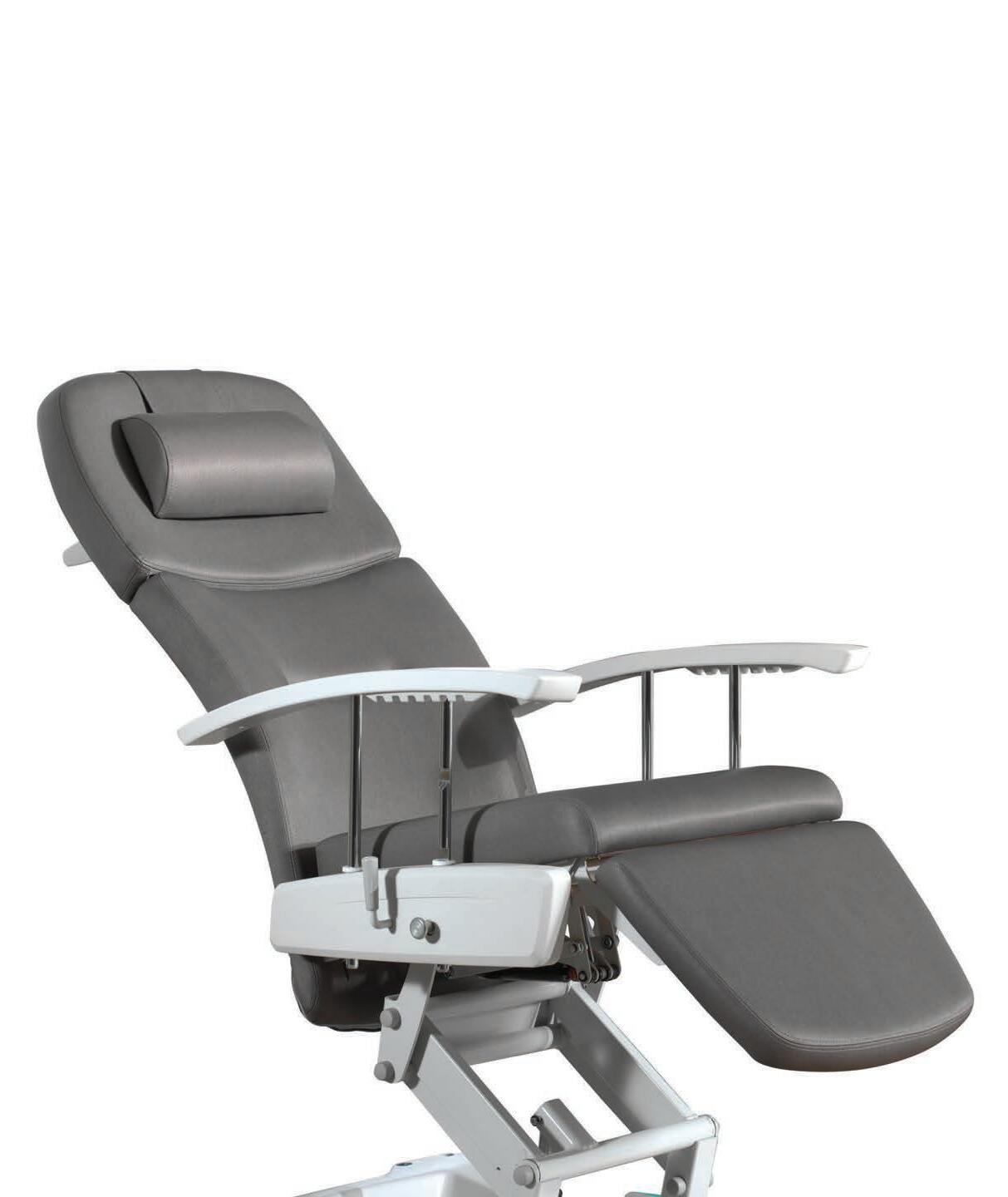

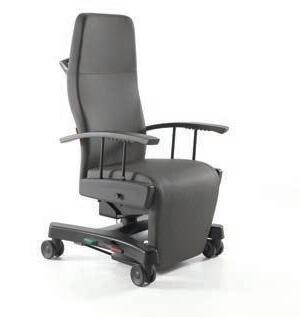

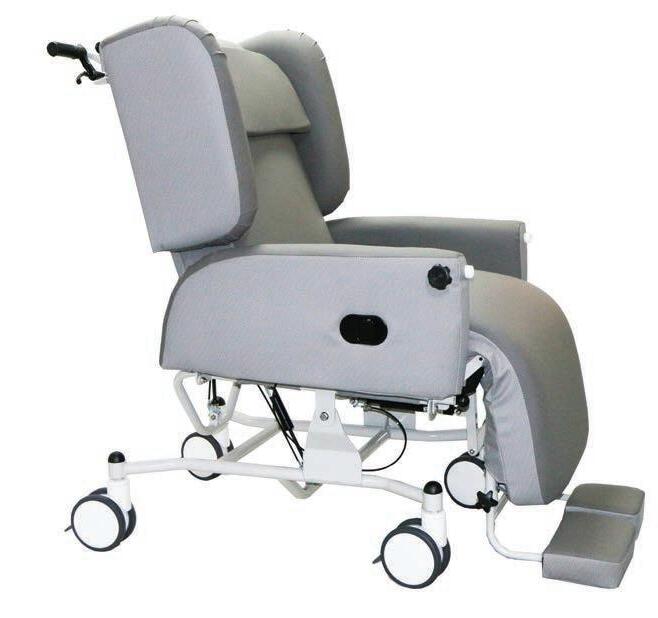

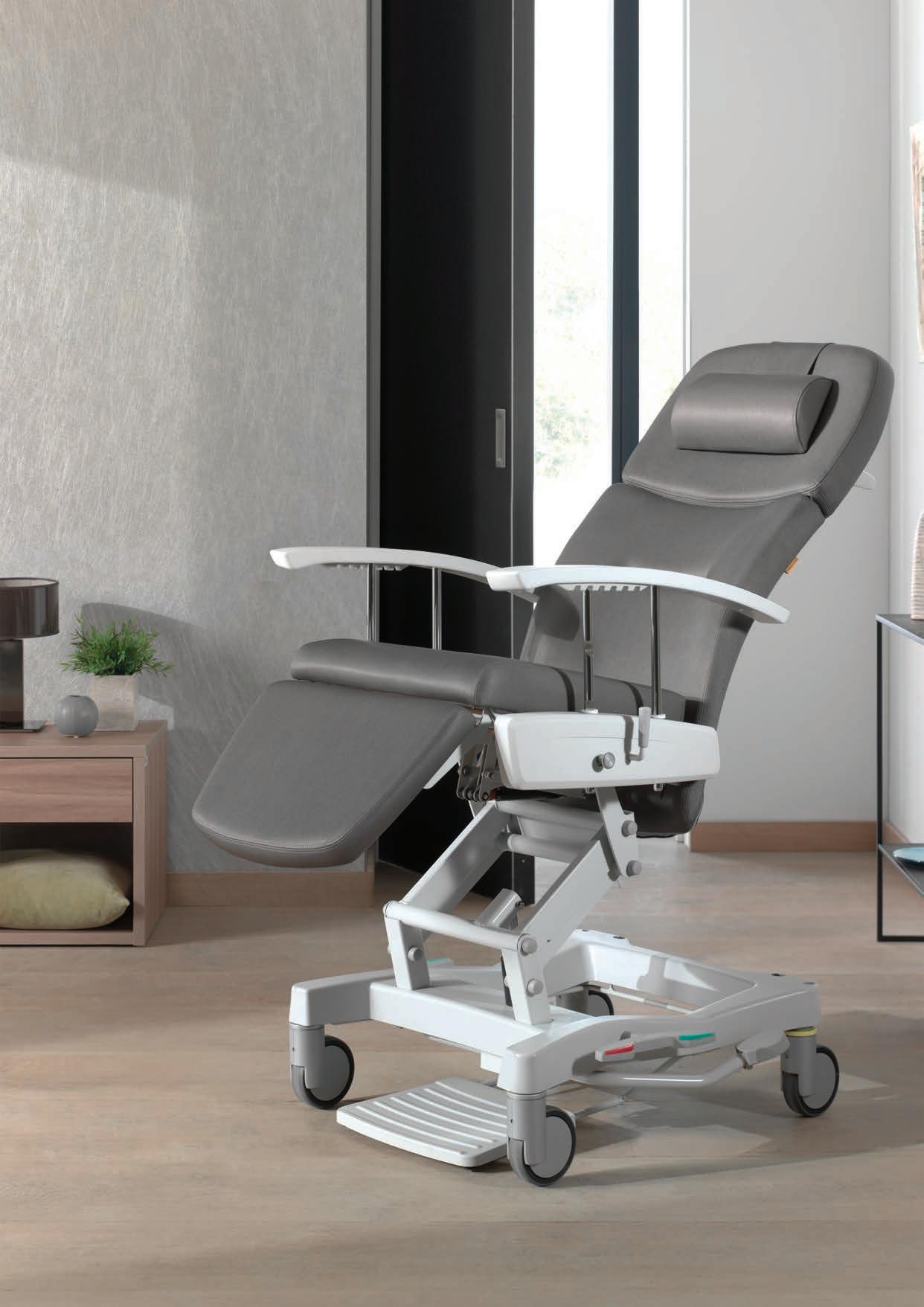

Patient Chairs
58

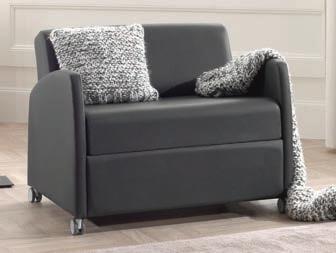

Sofa Beds
68

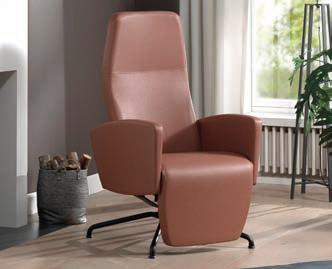

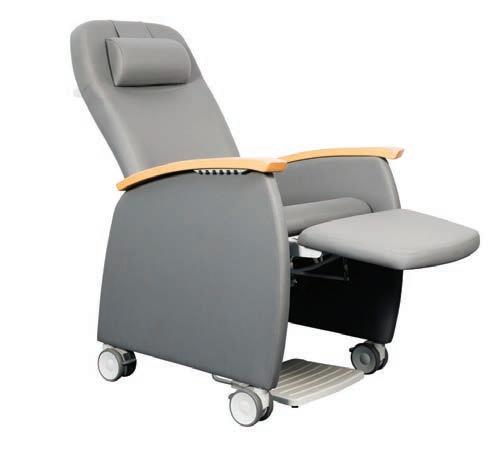

Powerlift & Recline Armchairs
62
Legrests & Footrests
69
Bathroom
4
70
Shower Stools
71
Mobile Shower Commodes Options
81
Shower Chairs
72
Overtoilet Aid
82

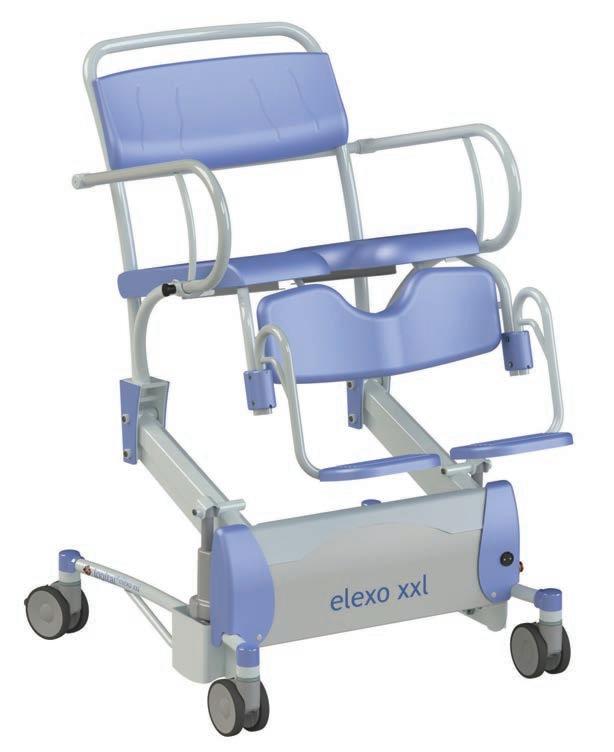

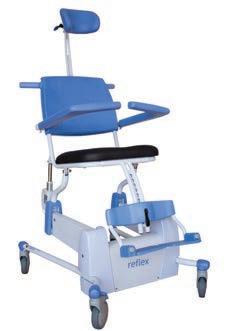

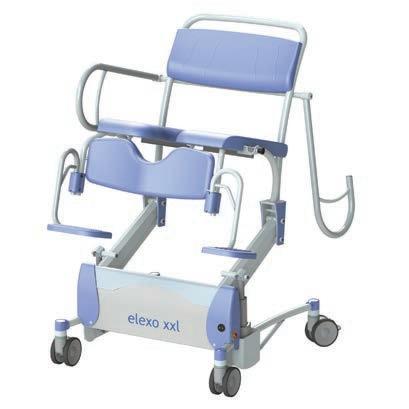

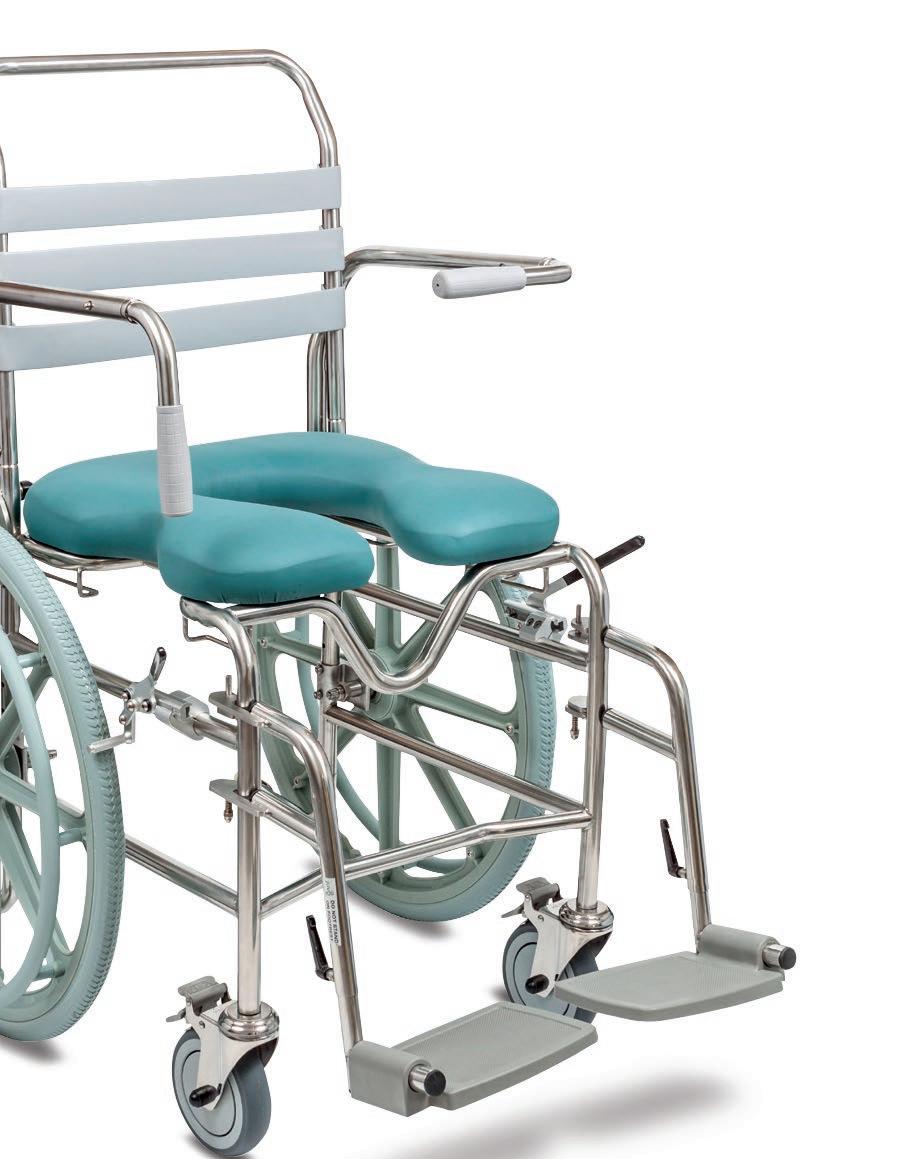

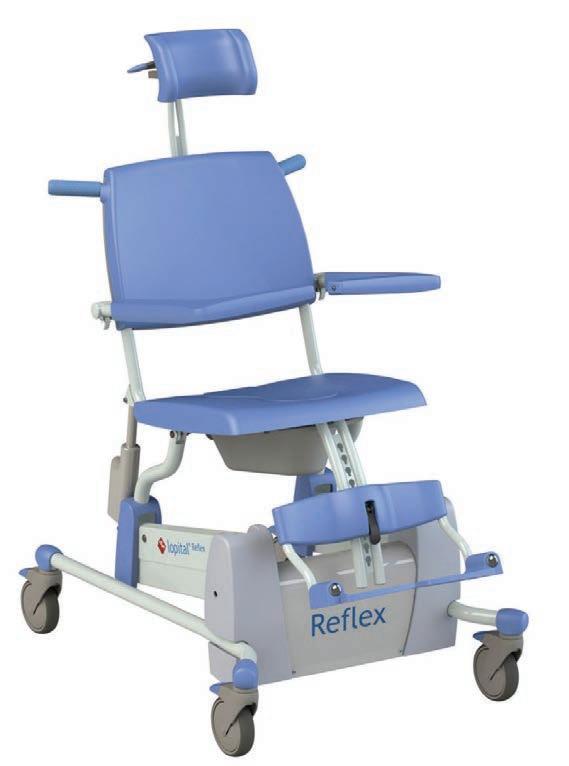

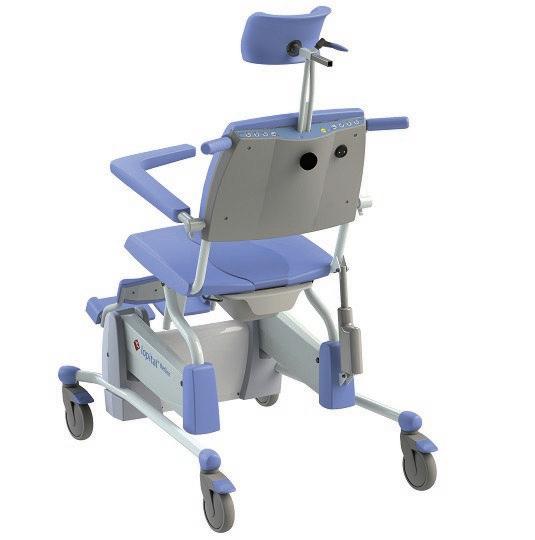

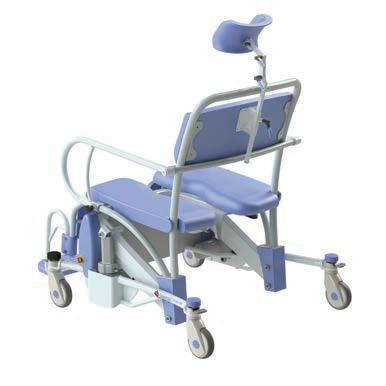

Mobile Shower Commodes
74

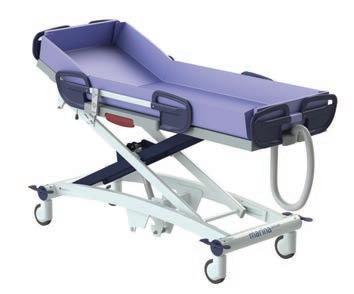

Shower / Bath Trolleys
84
AG E D CA R E CATA LO G UE
B AT H RO O M
Facility Service Equipment
86

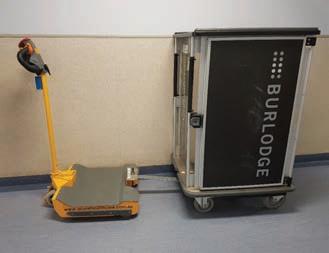

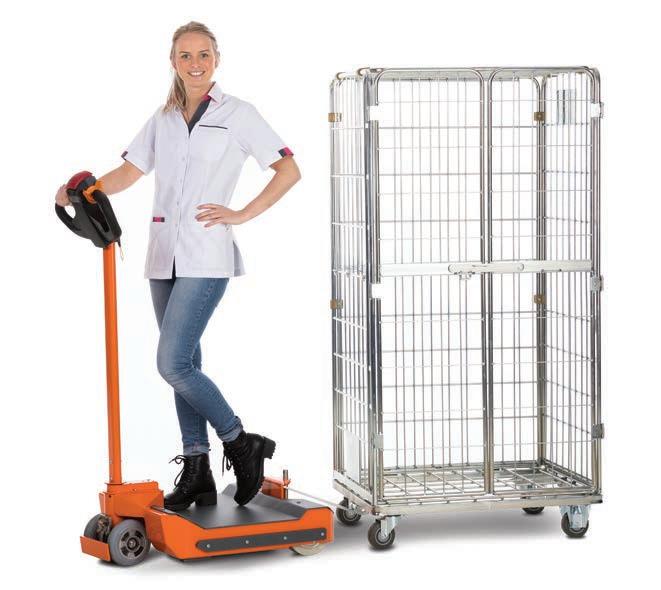

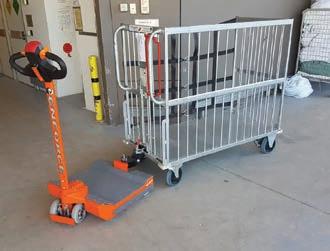

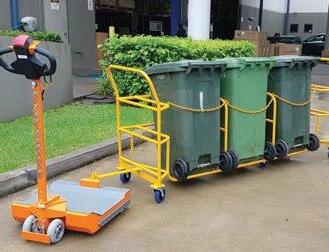

Tugs
87
Service Carts & Trolleys
94
Linen Trolleys & Equipment
89

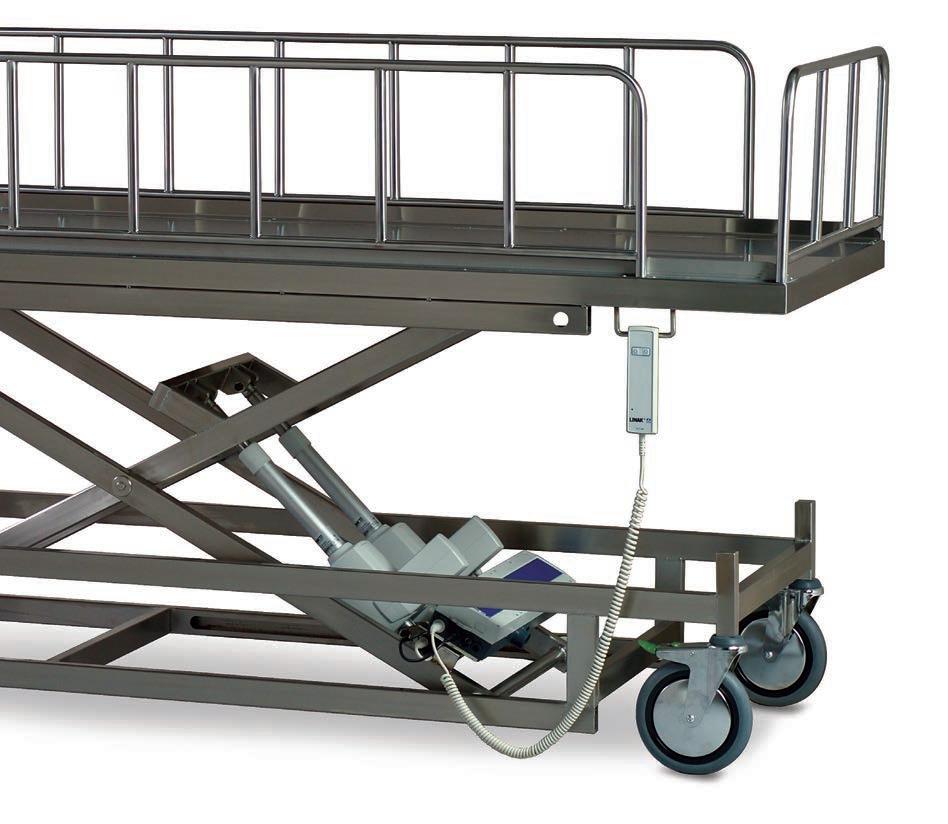

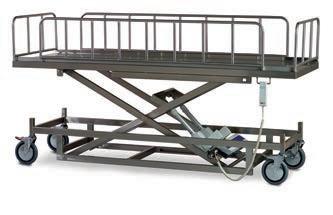

Mortuary Trolley
97
Medical Carts & Trolleys
98

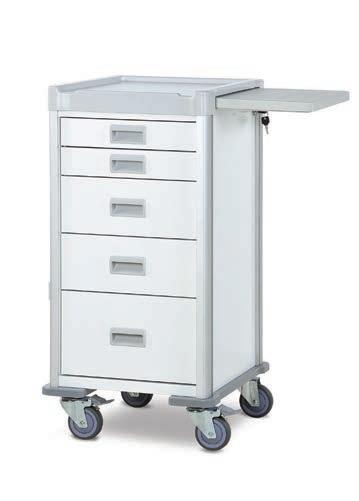

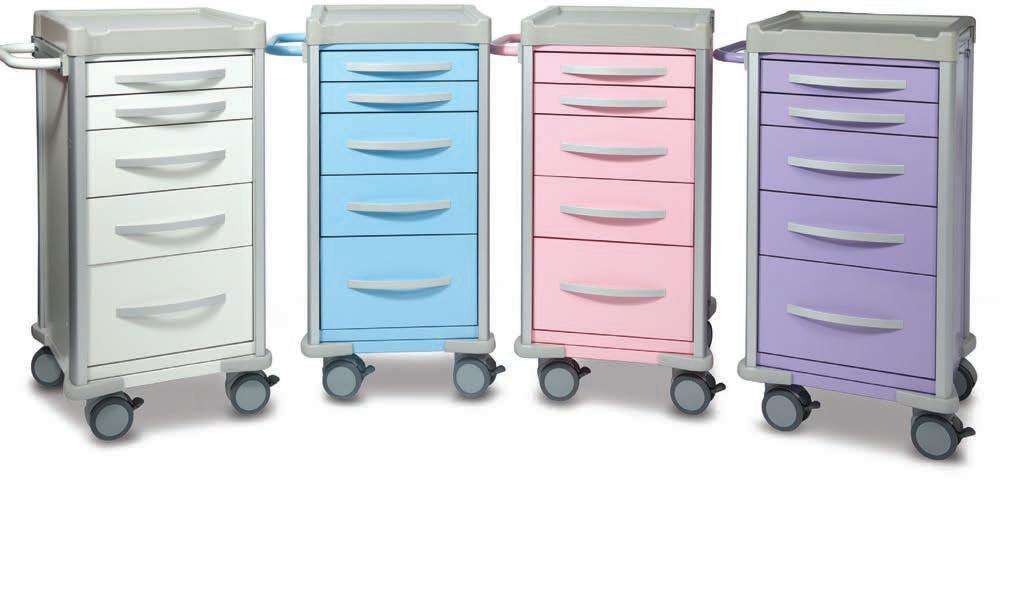

Medical Carts
99
Dressing Trolleys
106
Medical Cart Accessories
101
IV Poles
108
IT Equipment Carts
103
IV Pole Accessories
109
IT Equipment Carts Accessories
104
Oxygen Trolleys
109
Medical Trolleys
105

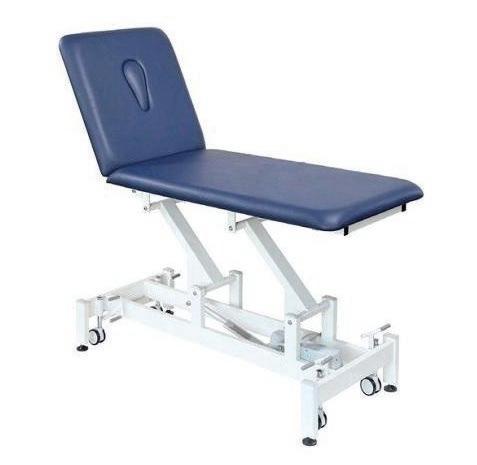

Treatment Tables
110
Instrument Trolleys
106
Monitoring & Diagnostics
111
Healthweight Chair Scale
112

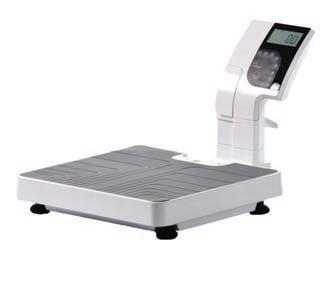

Weigh Scales
113
Fall Prevention
Patient Handling
116
118
Transfer Aids
119

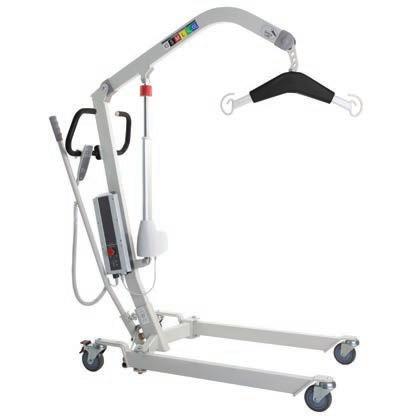

Mobile Hoists
121
Positioning Aids
119

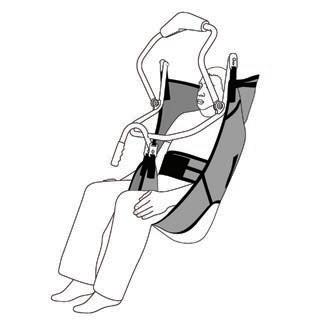

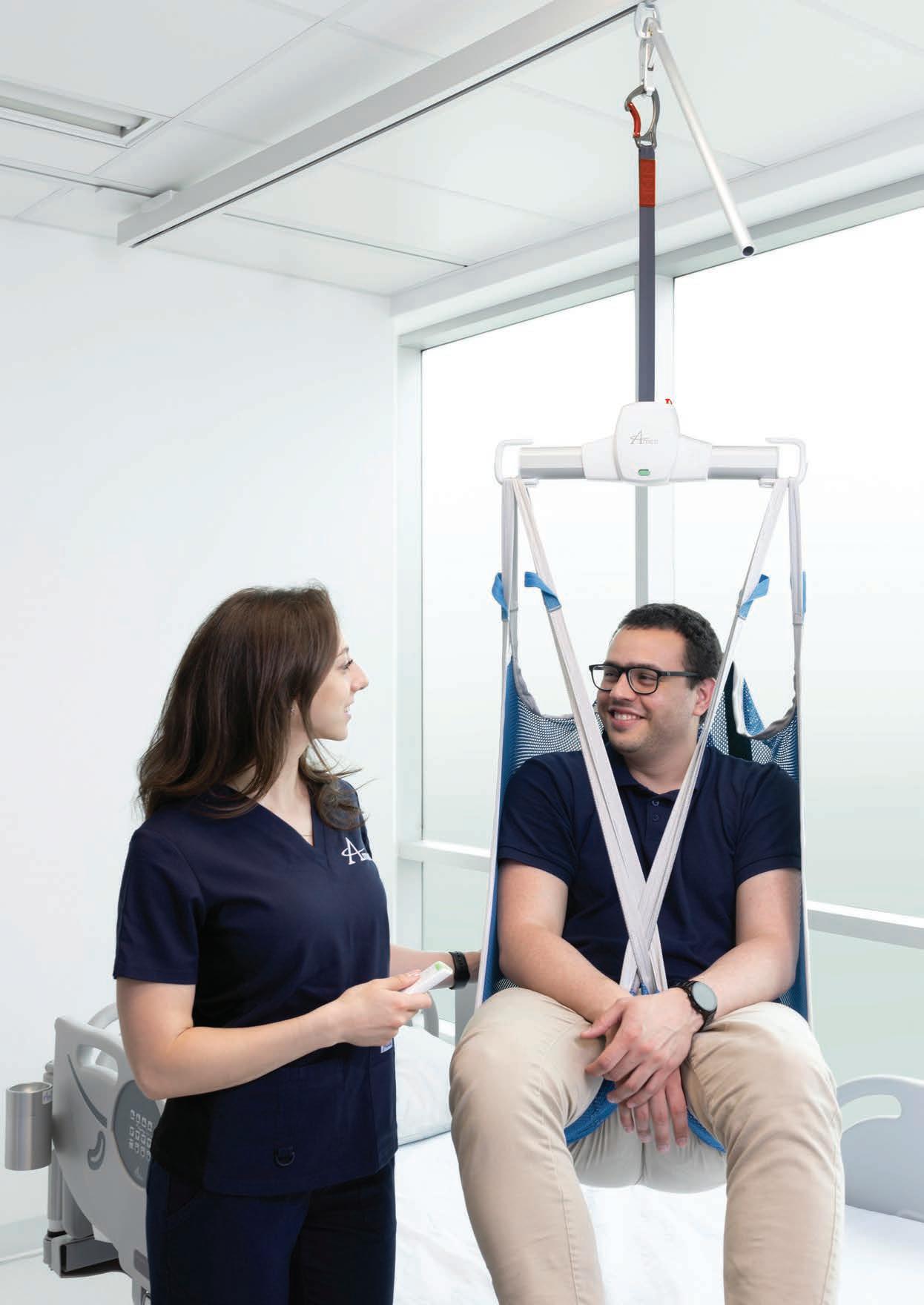

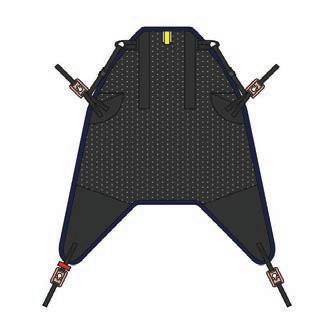

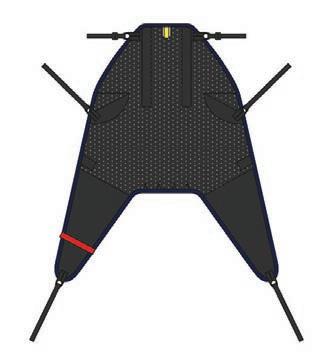

Patient Lifting Slings
125
Support
120
Transfer Aids
131
Walking Belts
120

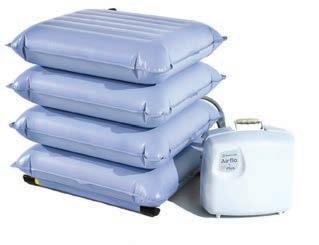

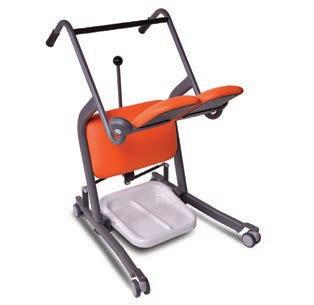

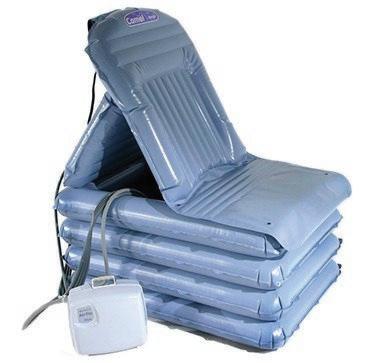

Floor to Seat Lifiting Aids
132
Wheelchairs & Mobility
134
Standard
135

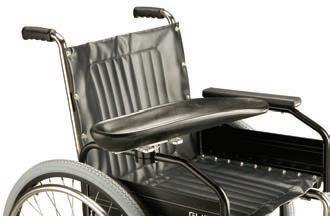

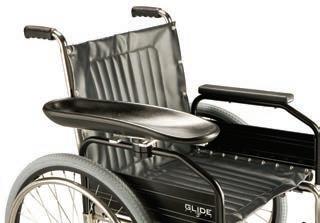

Options & Accessories
138
Transit
135
Walking Frames
140
Heavy Duty
136
Forearm Walkers
141
Light Weight
136

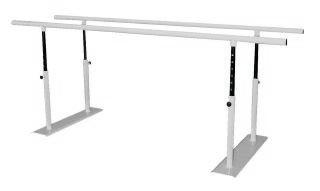

Exercise Therapy
143
Tilt Recline
137
Seat Walkers
144
Hemiplegic
138

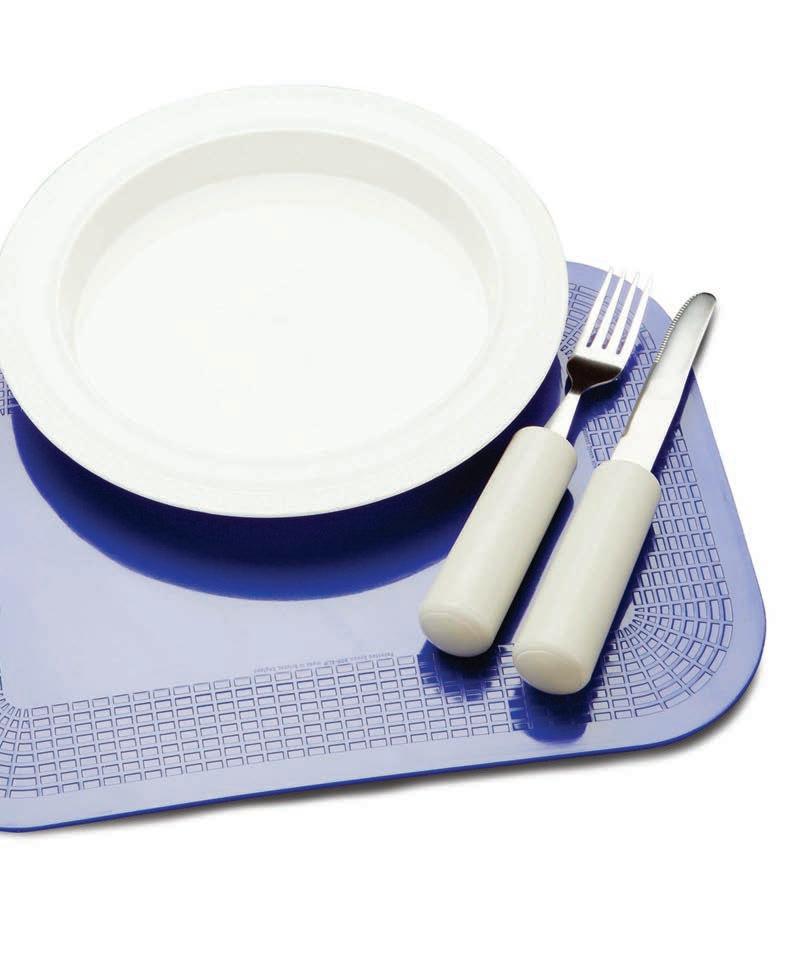

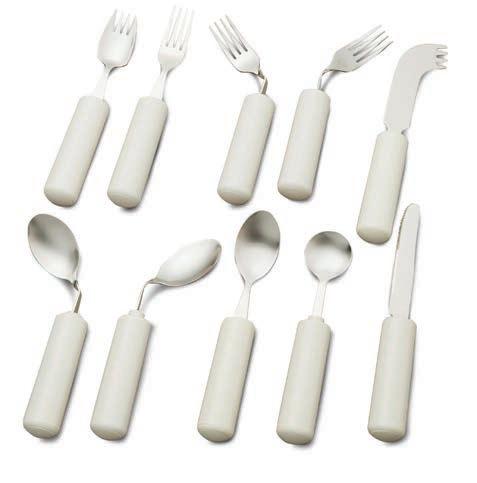

Kitchen & Dining Cutlery
146 147
Dining
147
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
5
Beds & Bedroom Accessories Adjustable Beds
08
Bed Accessories
16
Blanket Support
16
Overbed/Overchair Tables
17
Bedroom Furniture
20
Bedside Commodes
23
Urinals
24
Bed Pans
26
Commode Bowls
26
Wash Bowls
27
B E D S & B E D RO O M AC C ES S O R I ES

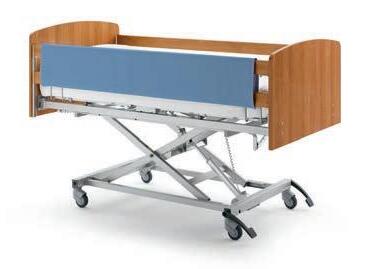

Adjustable Beds Eurocare Floorline Bed The Eurocare Floorline Bed is a sophisticated, stylish and intelligent bed, that takes every feature to a new level. This floorline bed has expandable length and width. Functionality doubles as a floorline bed to reduce the risk of falls, and with the change of a hand control is the standard aged care bed with increased capacity.
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height Range
Safe Working Load
BD5230
Single
936mm
2180mm
870 × 2000mm
110 - 740mm
250kg
BD5240
King Single
1086mm
2180mm
1070 × 2000mm
110 - 740mm
250kg
870 - 1050mm
• • • • • • • • • •
Expandable Mattress Section 870 - 1050mm Single to King Single
AutoRegression helps to reduce sacral pressure, shear forces and abdominal compression during bed profiling.
Electric high/low function Electric knee-bend and auto regression backrest Electric Trendelenburg & Reverse Trendelenburg function Ultra-low floor height of 110mm reduces the risk of injury from falls Hand control is simple and easy to use Central locking castors Supplied with removable Lindberg Oak woodgrain head & foot boards Grey powder coated steel frame Optional timber side panels for aesthetic appeal Custom head and footboard available
Accessories Available BZ0302 Horizontal Side Rails BA5680 Quarter Rails BZ0331 Side Wood Panels BZ0325 Self Help Pole BZ0337 Nurse Control Panel BZ0345 Wall Protection Bumper Single Size BZ0466 King Single Wall Bumper BZ0326 King Single Expansion Kit Fitted Options BZ0336 Underbed Lighting Allows discreet visibility and safety at night BZ0335 Battery Back Up Safe guard in the event of a power outage Warranty Frame 10 Years Electronics 5 Years
8
AG E D CA R E CATA LO G UE
B E D S & B E D RO O M AC C ES S O R I ES

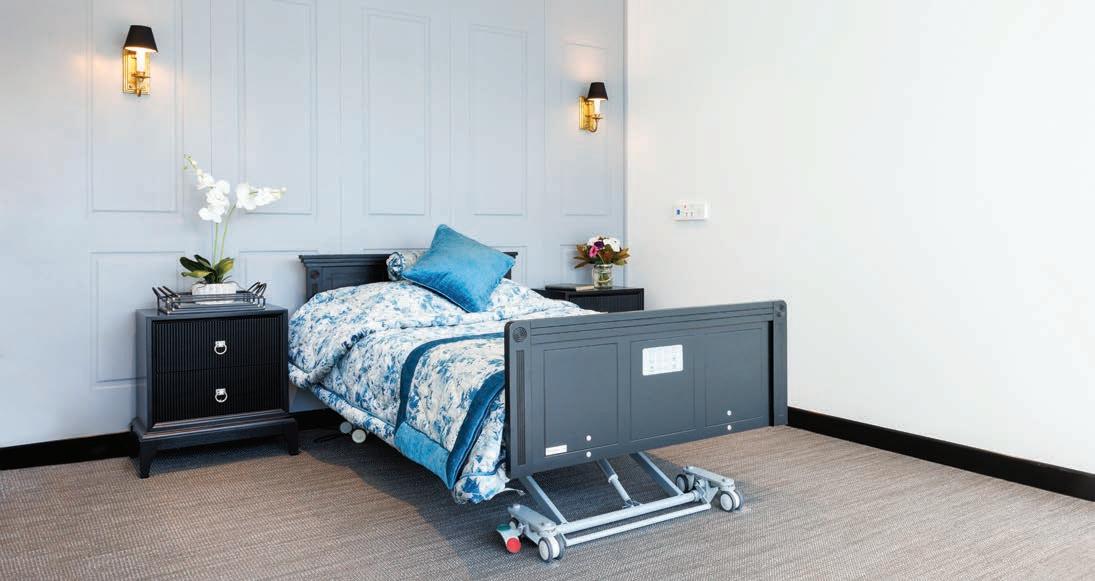

Adjustable Beds Eurocare Floorline Bed
Uniquely designed electric adjustable fl oor bed without towers to suit high and low care clients. Ideal for homecare and aged care environments. International clinical studies have shown the benefi ts of sleeping low and eliminating side rails improves resident safety, welfare and comfort, in particular by lowering fall rates and injury.
Under Bed Clearance While the Eurocare floorline bed achieves a low height of 110mm, full clearance under the bed is still maintained, minimising the risk of foot or cord impingement.
Hand Control Simply by replacing a hand controller this versatile bed can be changed from an aged care bed with 250mm minimum height to a floorbed with 110mm height, ensuring facilities are using the correct bed for their clients needs.
Low Height With it’s impressive low height of 110mm, injury to the resident can be significantly reduced or avoided in the event of a fall from bed, therefore reducing the need for side-rails.
Extendable Patient Surface Integrated bed extension to 100mm or 200mm including foot end mattress retainer.
200mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
9
B E D S & B E D RO O M AC C ES S O R I ES

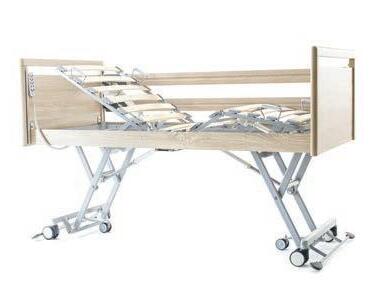

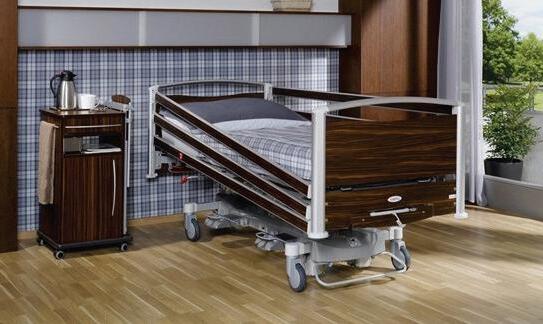

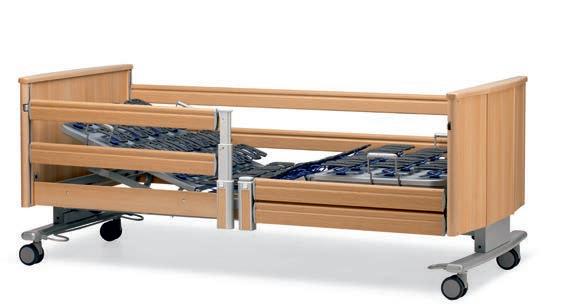

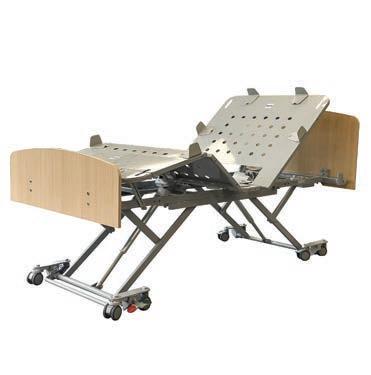

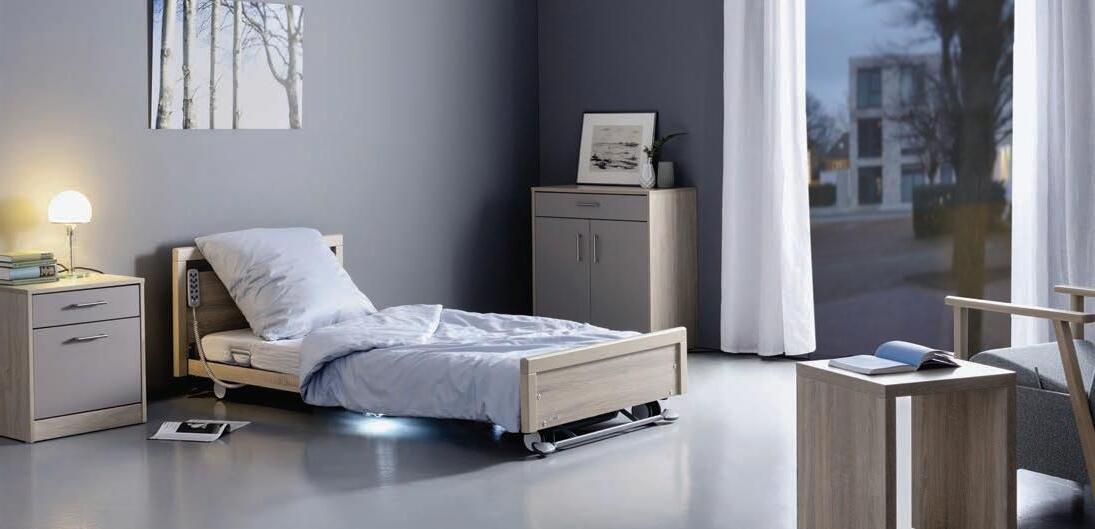

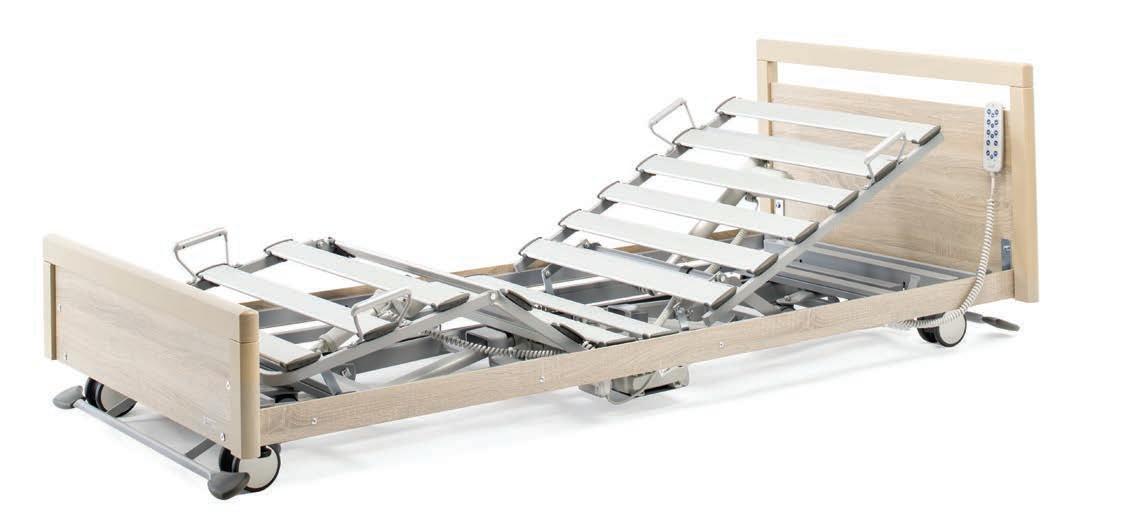

Adjustable Beds Bock Floorline 15/80 The Bock Floorline 15/80 reduces the height of low beds for institutional care by 40% from 25cm to 15cm and thus consistently pursues the approach of reducing measures that deprive patients of their freedom (customary in the industry is a standard height of 25cm or even 40cm). With the integrated, tool-free bed and side rail extension, caregivers can quickly adjust the bed length to different resident profiles and care situations.
Integrated, tool-free bed extension to 2100 or 2200mm
Castors on both sides with directional giving device
10
AG E D CA R E CATA LO G UE
Optionally with various side rails
Extremely stable back rest, ergonomic length 860 mm and mattress compensation
4-section lying surface, here with removable and washable aluminium slats
150mm for safe sleeping position close to the floor helps minimise injury from falls
Well-arranged and clear hand control with locking function
B E D S & B E D RO O M AC C ES S O R I ES
Adjustable Beds Bock Floorline 15/80
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height Range
Safe Working Load
BD5300
Single
1050mm
2100mm
900 × 2000mm
150 - 800mm
220kg
BD5310
King Single
1100mm
2100mm
1050 × 2000mm
150 - 800mm
220kg
Measures that deprive residents of their freedom are no longer necessary. Residents experience more self-determination and significant psychological relief. At the same time, mobility is supported. Falls and serious consequences of falls are significantly mitigated by the lower fall height. Caregivers can take immediate preventive action for residents at risk of falling. Reducing the consequences of falls ties up fewer resources and significantly simplifies both everyday care and interaction at the care bed. Care home operators can document in their documentation system, effectively a prophylaxis for minimising severe consequences of falls and present it if required (MDK/home supervision). •
Accessories Available BZ13640
Illuminated Hand Control
BZ11130
LED Bed Lamp Model E
BZ13630
Underbed Lighting
BZ1600
Side Rail 840mm length - Sonoma Oak
BZ16630
SR2 Side Rail
BZ16640
SR3 Full Length Side Rail - Sonoma Oak
BZ16650
SR3 Long Split Side Rail - Sonoma Oak
BZ16660
SR3 Head End Side Rail only - Sonoma Oak
• • • •
• •
The 4-section lying surface offers an ergonomic backrest with a length of 86cm and a mattress compensation, both ensure a comfortable and physiologically sensible sitting position and reduce pressure peaks. A variety of sitting and lying positions as well as the different lying surface systems offer more individual lying comfort. Integrated, tool-free bed and side rail extensions for easy and quick adjustment to the resident’s body size. Extremely stable head bar, also suitable for intensive use. Various adjustment possibilities such as Trendelenburg, AntiTrendelenburg and comfort sitting position can be selected with one button. 150mm Lowest position for an ideal prophylaxis of fall consequences Range of head and footboard designed colour options available
Warranty Frame 10 Years Electronics 5 Years 1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
11
B E D S & B E D RO O M AC C ES S O R I ES

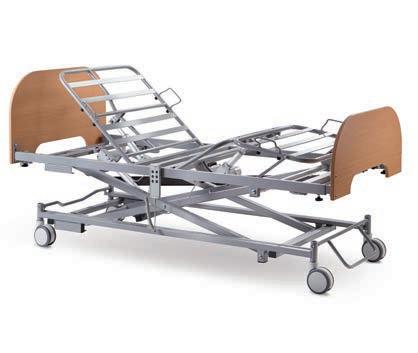

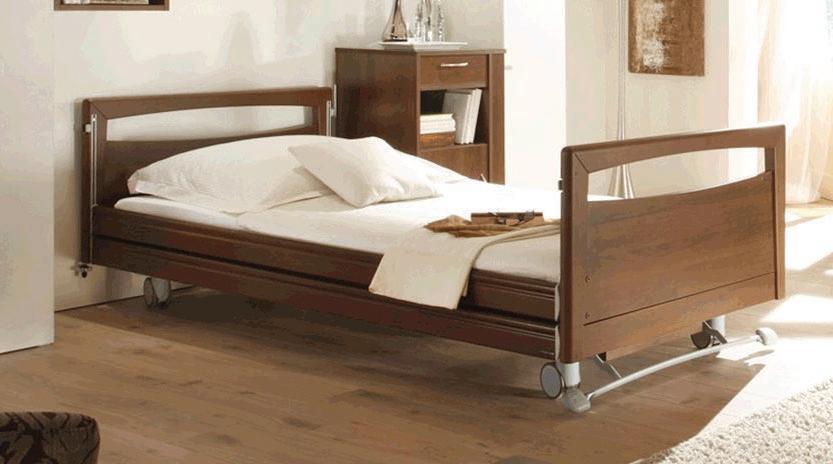

Adjustable Beds BD3910 - Bock Practico 25/80
• • • • • •
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height
Safe Working Load
BD3450
Single
1050mm
2100mm
900 × 2000mm
250-800mm
220kg
BD3700
King Single
1100mm
2200mm
1050 × 2000mm
250-800mm
220kg
Height adjustment from 25-80cm Added stability at every bed height Central braking with directional locking device Lifter space: 15cm Trendelenburg / Reverse Trendelenburg Comfort-sitting position
• • • • •
Accessories Available BZ4590 Continuous Side Rail System for Practico 25/80 BZ10460
SRX Spit Side Rail System for Practico 25/80
BZ10590
Lifting Pole for Practico 25/80
BZ10830
Single Bed Extension
BZ10840
King Single Bed Extension
BZ4590
12
BZ10460
AG E D CA R E CATA LO G UE
BZ10590
Handset with locking function Different comfort lying surfaces Underbed Light - Optional Made in Germany Range of head and foot board design and colour options available
Warranty Frame 10 Years Electronics 5 Years
B E D S & B E D RO O M AC C ES S O R I ES
Adjustable Beds Wattle Bed • • • • • • • • •
Adjustable bed is ideal for the homecare and aged care environments Electric high/low functions, including backrest, knee-bend and vertical lift In-built 200mm extension for taller patients One-piece frame for stability and durability Supplied with beech woodgrain head and footboard panels 4 × 125mm central locking castors Battery back-up Grey powder coated steel frame Custom head and foot boards available
Accessories Available BA1145 Horizontal Side Rails BA1135 Self Help Pole BA0570 Clamp on Rail
Warranty Frame 10 Years Electronics 5 Years
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height Range
Safe Working Load
BD0530
Single
900mm
2080mm
800 × 1980mm
310-755mm
180kg
BD0550
King Single
1070mm
2080mm
1050 × 1980mm
310-755mm
180kg
Latera Thema - Turning Bed Latera Thema Palliative Care Turning, Repositioning, Reclining Patient Support System. The Latera Thema was designed after extensive research showed the need for a system with lateral tilting and reclining that could still be cost-effective. This model offers a host of functions and has a non-institutional appearance. • • • • • • • •
• • • •
Fully functional seating and reclining positions Painful friction forces during positioning reduced Significantly reduces stress to care staff when performing clothing changes, wound dressing etc.. A handset for patient (does not have turning function) and an additional handset for care staff Double retracting sleeping surface reduces friction and shearing forces Vertical raise therefore no holes in walls, not scissor action Underbed clearance for mobile patient lifters at any position 2000mm sleeping surface equipped with integrated 200mm bed extension (just requires extensions in-fill and foam bolster to close gap) Easy access foot pedals (optional) Hand control has nurse lockout for dementia residents Robust hand control with 2 button operation reducing risk of accidental adjustment This bed is available in a variety of wood-stain decor colours
Warranty 2 Years
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height Range
Safe Working Load
BD1260
Single
1025mm
2190mm
860 × 2000mm
430-810mm
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
13
B E D S & B E D RO O M AC C ES S O R I ES

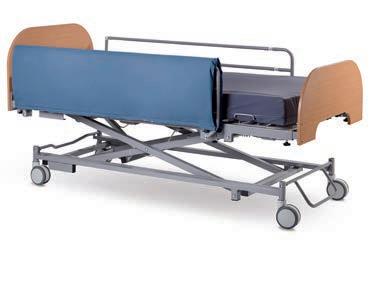

Bed Accessories BA1030 - Bed Rail Protectors - Standard • • • • • •
Protects patients from skin injury and prevents limbs from protruding through bed rails Made from soft medical grade foam 2-way stretch cover is vapour permeable and easy to clean Includes Velcro closure for secure attachment Protector needs to be removed when lowering bed rails Supplied as a set of 2 Length
Width
1370mm
330mm
BA0790 - Bed Rail Protectors - Full Length • • • • • •
Protects patients from skin injury and prevents limbs from protruding through bed rails Made from soft medical grade foam Side section padding for continuous two part side guards for bed length 2000mm Bed rails can be lowered with protectors in place 2-way stretch cover is vapour permeable and easy to clean Supplied as a set of 2 Length
Width
1800mm
380mm
BA1200 - Bed Rail Protectors - Half Length • • • • • •
14
AG E D CA R E CATA LO G UE
Protects patients from skin injury and prevents limbs from protruding through bed rails Made from soft medical grade foam Side section padding to suit divided rail with snap fasteners Protector needs to be removed when lowering bed rails Grey vinyl Supplied as invidiual protectors Length
Width
980mm
380mm
B E D S & B E D RO O M AC C ES S O R I ES

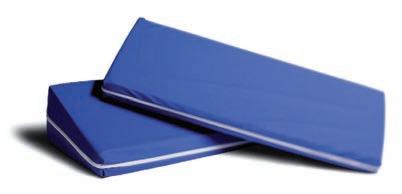

Bed Accessories BA0640 - Curera Support Wedges •
• • • • •
High resilience foam support wedges are used to position a patient effectively in semi-side lying positions to reduce pressure on the sacrum Can assist carer and patient with position changes and as kick protection against side rails Recommended user settings are clearly illustrated and identified on the covers Polyurethane vinyl cover is vapour permeable and easy to clean Cover is machine washable up to 95° and can be tumble dried Supplied as each Length
Width
Height
700mm
250mm
150mm

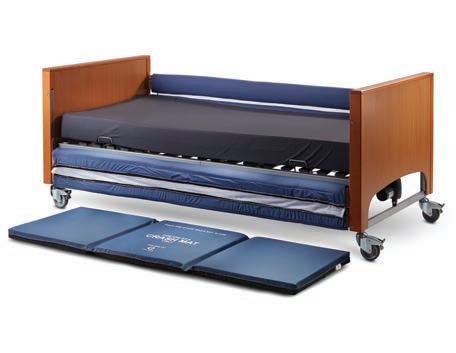

BC0160 - Crash Mat •
• • • • •
Lightweight mat can be placed on either side of the adjustable or standard bed to help prevent or reduce injuries for patients who roll or fall out of bed Ideal for aged care and homecare environments, and especially useful where facility protocols prohibit the use of side rails Foam is firm enough to walk on but soft enough to reduce impact from falls Waterproof vinyl cover features a slip resistant underside and is seam-sealed for infection control Reflective strip on mat perimeter to reduce trip hazard and for night time visibility Hinged nylon for easy folding and storage Length
Width
Height
1750mm
600mm
50mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
15
B E D S & B E D RO O M AC C ES S O R I ES
Bed Accessories Foam Bolster • •
2 way stretch waterproof cover To suit length extensions Code
Size
Length
Width
Height
MF0540
Single
870mm
200mm
150mm
MF0680
King Single
1050mm
200mm
150mm
Underlay Foam Mattress • • •
Standard foam underlay PVC vinyl cover For use under alternating air mattress Code
Type
Width
Length
Height
MF0550
Standard Single
870mm
1980mm
50mm
MF1230
KIng Single
1050mm
1980mm
50mm
Blanket Support BB0090 - Blanket Support • • • • •
16
AG E D CA R E CATA LO G UE
Creates clearance between bed linen and the mattress Ideal for keeping bed linen off sensitive areas of the patient Slides between mattress and bed base Easily installed and removed Powder coated steel Height
Width
Reach
495mm
330mm
475mm
B E D S & B E D RO O M AC C ES S O R I ES
Blanket Support BB0100 - Blanket Support Adjustable • • •
Creates clearance between bed linen and the mattress Ideal for keeping bed linen off sensitive areas of the patient Height adjustable frame is ideal for thicker mattresses or where greater clearance is required Slides between mattress and bed base Easily installed and removed Lightweight aluminium
• • •
Height
Width
Reach
510 - 665mm
480mm
500mm
Overbed / Overchair Tables EE0180 - Viva Overbed Table • • • • • • • • • • •
Lightweight mobile table with adjustable height Suitable to use over the bed or chair Ideal to use while eating and for other household activities Table top can be positioned with one hand at any height within the range Gas assisted mechanism is quick and easy to operate, making it ideal for multiple clients, and multiple activity use Seamless one-piece moulded ABS plastic top is easy to clean Soft raised lip edge helps prevent items from slipping off table top Wide base for greater stability U shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors Modern aluminium column and elliptical base frame
Warranty 1 Year Table Width
Table Depth
Table Height
Inner Base Width
900mm
430mm
725 - 1050mm
750mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
17
B E D S & B E D RO O M AC C ES S O R I ES
Overbed / Overchair Table Litavo Overbed Table • • • • • • • • • • • •
Lightweight mobile table with adjustable height and angle Suitable to use over the bed or chair Ideal to use while eating and for other household activities Quality spring loaded mechanism is quick and easy to operate, making it ideal for multiple clients, and multiple activity use Modern European design 2-piece woodgrain laminate table finish Raised lip edge helps prevent items from slipping off table top Wide base for greater stability U shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors Epoxy coated aluminium frame Made in Europe
Warranty 1 Year Table Tops Available
One-piece tabletop symmetrical
Two-piece tabletop left version
Two-piece tabletop right version
Two-piece tabletop symmetrical
Table Width
Table Depth
Table Height
Inner Base Width
890mm
450mm
690 - 990mm
680mm
Colours Available EE0410 Havana EE0420 Venetian Walnut EE0430 Sienna Walnut EE0440 Puce Dark Oak EE0450 Warm Grey EE0200 Wenge
18
AG E D CA R E CATA LO G UE
B E D S & B E D RO O M AC C ES S O R I ES
Overbed / Overchair Tables EE0060 - Overbed Table Spring Loaded • • • • • • • • • •
Lightweight mobile table with adjustable height Suitable to use over the bed or chair Ideal to use while eating and for other household activities Spring loaded mechanism is quick and easy to operate, making it ideal for multiple clients, and multiple activity use Soft raised lip edge helps prevent items from slipping off table top Wide base for greater stability U shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors, two of which are locking Disassembles for storage & transportation Powder coated steel frame Table Width
Table Depth
Table Height
Inner Base Width
810mm
450mm
720 - 1080mm
725mm

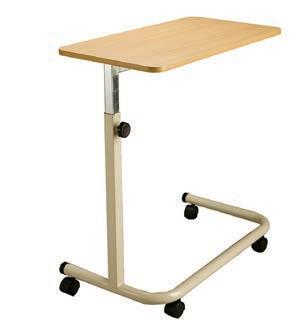

EE0080 - Overbed Table • •
Lightweight mobile table Suitable to use over the bed or chair Adjustable height and angle Soft raised lip edge prevents items from slipping off table top Wide base for greater stability
• • •
•
• •
U-shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors, two of which are locking Powder coated steel frame
Table Width
Table Depth
Table Height
Inner Base Width
810mm
450mm
685 - 1000mm
735mm
EE1090 - Spring-loaded Overbed Table - Round Top • • • • •
Spring assisted height adjustment 50mm dual wheel castors Non tilting top The OBT Top Colours and frames Options Laminate colour options for Furniture
Warranty 1 Year
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
19
B E D S & B E D RO O M AC C ES S O R I ES
Overbed / Overchair Tables Spring-Loaded Overbed Table •
• • •
Spring-assisted height adjustment or gas-assisted variation Non-tilting top Top size - 750 × 400mm 50mm twin wheel castors
•
Available with beige or grey base frame colour Available with Wiluna White or Select Beech woodgrain laminate top, or can be purchased as frame only
•
Code
Type
EE0640
Select Beech - Spring-Assisted Top
EE0550
Wiluna White - Spring-Assisted Top
Bedroom Furniture EB1070 - Hunter Bedside Cabinet • • • • • •
Mobile Bedside Cabinet Single Top Drawer (Lockable) Single Middle Drawer Double Bottom Drawer Radius Corners Concealment Skirt Around Castors
• • •
4 × Swivel Castors Colour Choice from Formica Commercial Laminate Range All Laminate Ranges Available (May Incur Additional Cost)
Width
Depth
Height
450mm
500mm
780mm

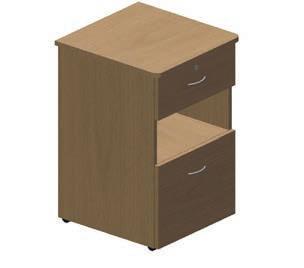

EB1060 - Macquarie Bedside Cabinet • • • • • •
20
AG E D CA R E CATA LO G UE
Mobile Bedside Cabinet Single Top Drawer (Lockable) Middle Shelf Double Bottom Drawer Radius Corners Concealment Skirt Around Castors
• • •
4 × Swivel Castors Colour Choice from Formica Commercial Laminate Range All Laminate Ranges Available (May Incur Additional Cost)
Width
Depth
Height
450mm
500mm
780mm
B E D S & B E D RO O M AC C ES S O R I ES
Bedroom Furniture EB1080 - Hawkesbury Bedside Cabinet • • • • • •
Mobile Bedside Cabinet Single Top Drawer (Lockable) Single Middle Drawer Double Bottom Drawer Radius Corners Concealment Skirt Around Castors
• • • •
4 × Swivel Castors Vase Hutch Colour Choice from Formica Commercial Laminate Range All Laminate Ranges Available (May Incur Additional Cost)
Width
Depth
Height
450mm
500mm
1000mm
EB1090 - Manning Bedside Cabinet • • • • • •
Mobile Bedside Cabinet Single Split Top Drawer (1 × Lockable) Single Middle Drawer Double Bottom Drawer Radius Corners Concealment Skirt Around Castors
• • •
4 × Swivel Castors Colour Choice from Formica Commercial Laminate Range All Laminate Ranges Available (May Incur Additional Cost)
Width
Depth
Height
450mm
500mm
780mm
EB1100 - Sydney Bedside Cabinet • • • • • •
Mobile Bedside Cabinet Single Top Drawer (Lockable) Single 2nd Drawer Single 3rd Drawer Double Bottom Drawer Radius Corners
• • • •
Concealment Skirt Around Castors 4 × Swivel Castors Colour Choice from Formica Commercial Laminate Range All Laminate Ranges Available (May Incur Additional Cost)
Width
Depth
Height
450mm
500mm
930mm
Custom Options Available Alpha Lifecare also custom manufactures bedside cabinets, please contact us to discuss your individual requirements agedcare@alphalifecare.com.au
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
21
B E D S & B E D RO O M AC C ES S O R I ES
Bedroom Furniture EB0020 - Grande Single Wardrobe • • • • •
1 door style Internal hat shelf & hanging rail Plinth base Standard bow handles Available in a range of laminate colours Width
Depth
Height
500mm
500mm
1800mm
EB1030 - Grande Double Wardrobe • • • • • •
22
AG E D CA R E CATA LO G UE
2 door style Internal hat shelf & hanging rail Plinth base Standard bow handles Available in a range of laminate colours Solid melamine back
B E D S & B E D RO O M AC C ES S O R I ES
Bedside Commodes Deluxe Bedside Commode • • • • •
Padded seat, padded armrests, toilet seat and removable commode bowl Adjustable seat height Padded seat cover slides back easily for access to commode Three sided vanity skirt conceals commode bowl Powder coated steel frame
Code
Upholstery
Width Between Arms
Seat Height
Arm Height
Max User Weight
BE0070
Champagne Vinyl
440mm
475-525mm
300mm
120kg
BE0080
Slate Vinyl
440mm
475-525mm
300mm
120kg
Deluxe Bedside Commode Wide • • • • •
Padded seat, padded backrest, toilet seat & commode bowl Adjustable seat height Padded seat cover slides back for access to commode Three sided vanity skirt conceals bowl Powder coated steel frame
Code
Width Between Arms
Seat Height
Arm Height
Max User Weight
BE0030
500mm
390-540mm
300mm
150kg
BE0040
550mm
390-540mm
300mm
150kg
BE0050
600mm
390-540mm
300mm
150kg
BE0060
650mm
390-540mm
300mm
150kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
23
B E D S & B E D RO O M AC C ES S O R I ES
Urinals CF0110 - Male Urinal • • • • • •
Autoclavable for sanitising Integrated handle 1 litre capacity 100ml graduation markings Moulded plastic Weight 115g
Also Available CF0120 Male Urinal Green
CF0100 - Male Urinal with Lid • • • • • • •
Integrated handle Clip-on lid prevents spillage Lid stays attached to urinal while in use 1 litre capacity 100ml graduation markings Moulded plastic Weight 165g
• • • • • • •
Autoclavable for sanitising Integrated handle Screw on lid prevents spillage 1 litre capacity 100ml graduation markings Moulded plastic Weight 180g
• • • • • • • • •
Autoclavable for sanitising Integrated handle Patented non-spill spout prevents spillage in any position Spout unscrews easily for disposal and cleaning 1 litre capacity 500ml non-spill capacity 100ml graduation markings Moulded plastic Weight 240g
CF0130 - Male Urinal with Screw on Lid
CF0140 - Male Urinal ‘Spil-Pruf’
24
AG E D CA R E CATA LO G UE
B E D S & B E D RO O M AC C ES S O R I ES
Urinals CF0060 - Female Adaptor for ‘Spil-Pruf’ Urinal • • • •
Converts male Spil-Pruf urinal for female use Slides into Spil-Pruf urinal spout Moulded plastic Weight 60g
• • • • • •
Autoclavable for sanitising Integrated handle 1 litre capacity 100ml graduation markings Moulded plastic Weight 205g
• • • • •
Integrated handle 1 litre capacity 100ml graduation markings Moulded plastic Weight 105g
• • • • • •
Epoxy coated wire frame Easily attaches to bed frame, rail etc. Holds urinal in an upright position to prevent spillage Compatible with most urinals Weight 345g Urinal not included
CF0080 - Female Urinal
CF0090 - Female Urinal Cygnet
CF0070 - Urinal Bottle Holder
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
25
B E D S & B E D RO O M AC C ES S O R I ES
Bed Pans Slipper Bed Pan • • • • •
Wedge shape assists in positioning pan for use Integrated handle Front panel prevents spillage when moving or transporting pan Autoclavable for sanitising Moulded plastic Code
SIze
Width
Length
Height
CF0040
Regular
240mm
320mm
85mm
CF0030
Large
300mm
430mm
90mm
CF0020 - Bed Pan • • • •
Frontal opening Wide seating area Autoclavable for sanitising Moulded plastic Width
Length
Height
295mm
360mm
115mm

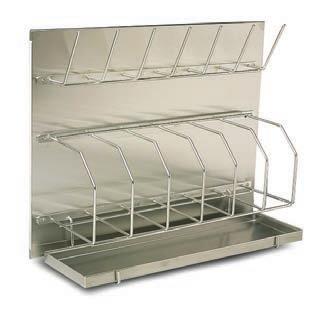

GF0360 - Pan Bottle Rack • • • • •
Capacity 6 Pans and 7 Bottles Removable drip tray for cleaning Full back plate Fixings not included 304 Grade stainless steel construction – Satin finish Width
Depth
Height
800mm
300mm
650mm
Commode Bowls CF0550 - Commode Bowl Economy Green • •
26
AG E D CA R E CATA LO G UE
Autoclavable for sanitising Moulded plastic Top Diameter
Base Diameter
Height
305mm
220mm
90mm
B E D S & B E D RO O M AC C ES S O R I ES
Commode Bowls AZ0050 - Commode Bowl Beige • • •
Autoclavable for sanitising Moulded plastic Includes lid and handle Width
Length
Height
290mm
215mm
130mm
Wash Bowls Heavy duty, reusable medical wash bowls have been a staple for many hospitals and healthcare providers for over 30 years. They are suitable for surgical and general ward use. Designed and made in Australia from high durability synthetic materials, all bowls have separator lugs for perfect autoclave sterilisation.
Deep Splash Bowl
Splash Bowl
Deep Lotion Bowl
Lotion Bowl
CA0390
CA0380
CA0370
CA0360
345mm
305mm
240mm
205mm
Lotion Bowl
Lotion Bowl
Lotion Bowl
Lotion Bowl
CA0350
CA0340
CF0490
CA0320
185mm
140mm
110mm
100mm
Gallipot
Wash Bowl
CF0510
CF0520
80mm
80mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
27
Bedding & Linen Pillows
29
Linen
29
Blankets
30
Bath Towels
31
BEDDING & LINEN

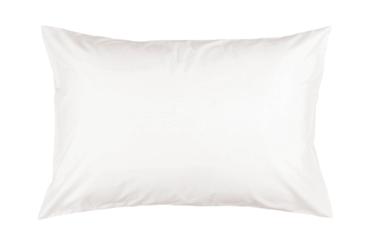

Pillows BC0640 - Pillow Case • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton quantity 12 Width
Length
Height
480mm
730mm
180mm
MB0200 - Wipeclean Pillow • • • • • • •
Waterproof and easily cleaned by wiping over with a detergent or diluted disinfectant Fire retardant Bacteria resistant Eliminate the need for a separate pillow cover Phthlate free Polyfill Carton quantity 10 Width
Length
Depth
450mm
700mm
330mm
Linen BC0540 - Flat Sheet - Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton quantity 5 Width
Length
1800mm
2750mm
BC0550 - Flat Sheet - King Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton quantity 5 Width
Length
2000mm
2750mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
29
BEDDING & LINEN
Linen BC0560 - Fitted Sheet - Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton quantity 5 Width
Length
Depth
910mm
1880mm
330mm
BC0570 - Fitted Sheet - King Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton quantity 5 Width
Length
Depth
1070mm
2040mm
330mm
Blankets BC0590 - Blanket - Single • • • •
GSM: 300 Style: 100% cotton, leno weave Colour: White Carton quantity 12 Width
Length
1800mm
2400mm
BC0600 - Blanket - King Single • • • •
30
AG E D CA R E CATA LO G UE
GSM: 300 Style: 100% cotton, leno weave Colour: White Carton quantity 12 Width
Length
2000mm
2400mm
BEDDING & LINEN
Bath Towels BC0580 - Face Washer • • • •
GSM: 450 Loop Style: 16s/1 loop Colour: White Carton quantity 12 Width
Length
330mm
330mm
BC0610 - Hand Towel • • • •
GSM: 450 Loop Style: 16s/1 loop Colour: White Carton quantity 10 Width
Length
400mm
640mm
BC0620 - Bath Towel • • • •
GSM: 450 Loop Style: 16s/1 loop Colour: White Carton quantity 5 Width
Length
700mm
1400mm
BC0630 - Bath Mat • • • •
GSM: 750 Loop Style: 2/10s double loop with frame border design Colour: White Carton quantity 10 Width
Length
500mm
600mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
31
Mattresses & Cushions Ancillary Pressure Care
33
Limb/Fall Protection
35
Cushions
36
Bed Overlays
39

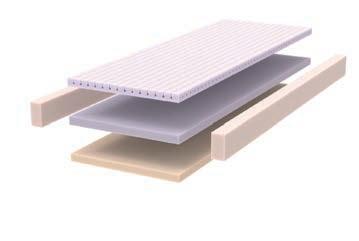

Non-Powered Pressure Relieving Support Surfaces
41

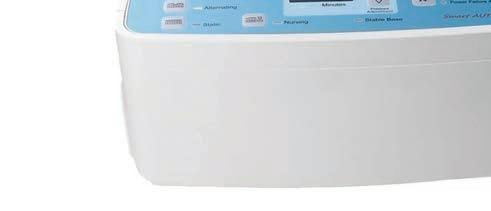

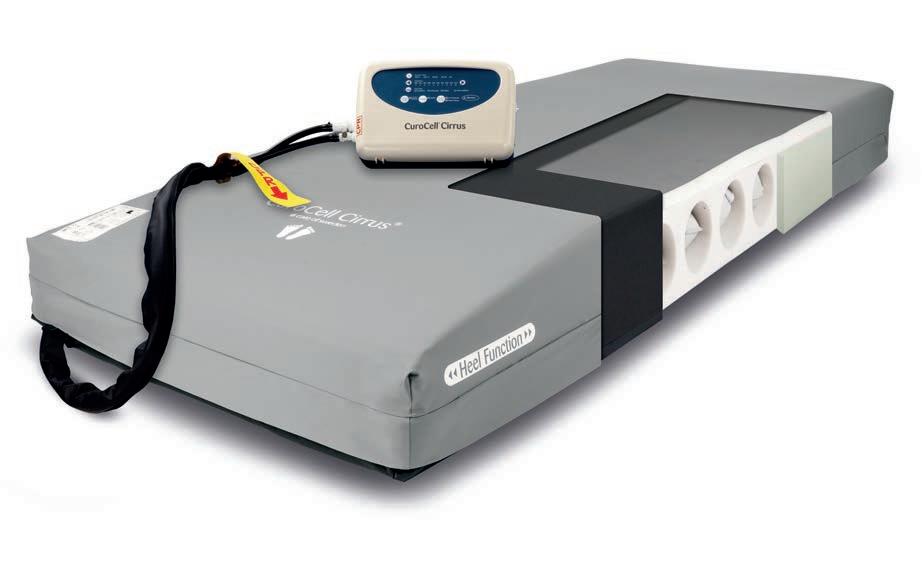

Powered Pressure Relieving Support Surfaces
48
Pressure Care Risk Guide
This is a guide only and individual needs should be considered
M AT T R ES S ES & P R ES SU R E CA R E
Ancillary Pressure Care MD0120 - Heel Protector - Silicone Fibre • • • • • • • • • •
Padded heel cushion Provides comfort and assists in the prevention of pressure build-up in the heel area Manufactured from millions of silicone coated cylindrical hollow cored fibres Silicone coating acts as a lubricant to eliminate friction and reduce shear forces Adjustable velcro securing straps Internal seams are carefully positioned to avoid creating pressure points Breathable cotton cover Machine washable One size fits all Supplied as each
MD0110 - Heel Protector - Sheepskin • • • • • • • •
Provides comfort and assists in the prevention of pressure build-up in the heel area Genuine medical sheepskin Soft pile allows air circulation to keep skin dry Natural fibres reduces the risk of skin irritation Adjustable velcro securing straps Machine washable One size fits all Supplied as a pair
Heelift Suspension Boot - Smooth Foam • • • • 1
• • • •
2
• • • • • •
Assists in the prevention and healing of pressure ulcers at the heel and ankle Delivers positioning and alignment of the lower limb Ideal for post-operative clients, for those who suffer from diabetes or persons who are at risk of developing foot drop An inbuilt bevelled foam wedge provides support for the calf, and ensures that the heel is suspended to reduce pressure Secured in place with soft adjustable Velcro straps Ventilation holes allow added air circulation Stiffened base maintains the boot’s structure and supports the forefoot Low friction surface allows the boot to slide easily over the mattress surface, improving client mobility Supplied with an extra foam pad to provide added elevation Optional convoluted foam surface for sensitive skin Foam can be cut to suit individual requirements Latex-free medical grade foam is autoclavable, machine washable and dryer safe One size fits all Supplied as each No
Code
Interior Foam Surface
1
MD0150
Smooth
2
MD0140
Convoluted
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
33
M AT T R ES S ES & P R ES SUR E CA R E
Ancillary Pressure Care Sheepskin Slippers Open Toe • • • • • • • •
Provides comfort, warmth and assists in pressure care of the feet Genuine medical sheepskin Natural fibres reduces the risk of skin irritation Soft pile and open toe area allows air circulation to keep skin dry Adjustable velcro straps Soft sole allows slipper to be worn in bed Machine washable Supplied as a pair Code
Size
Foot Size
MD0470
Small
6
MD0460
Medium
8
MD0450
Large
10
MD0430
Extra Large
12
Men are recommended to use the next size up when ordering
Sheepskin Slippers Closed Toe • • • • • • • • •
Provides comfort, warmth and assists in pressure care of the feet Genuine medical sheepskin Natural fibres reduces the risk of skin irritation Soft pile allows air circulation to keep dry Toe area is closed to increase comfort and support Adjustable velcro straps Soft sole allows slipper to be worn in bed Machine washable Supplied as pair Code
Size
Foot Size
MD0330
Small
6
MD0320
Medium
8
MD0310
Large
10
MD0300
Extra Large
12
Men are recommended to use the next size up when ordering
34
AG E D CA R E CATA LO G UE
M AT T R ES S ES & P R ES SU R E CA R E
Limb/Fall Protection Protect-A-Limb • • • •
Protect limbs from skin tears and damage Can provide additional comfort easy application Available in three sizes Small
Medium
Large
CF0660
CF0670
CF0680

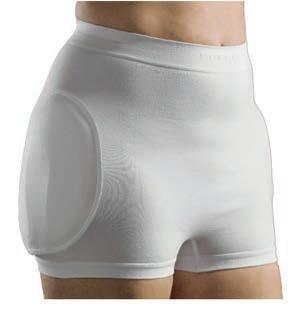

SafeHip AirX Hip Protector The SAFEHIP hip protectors are based on impact energy dispersion and impact energy absorption. In the event of a fall on the hip, the SAFEHIP hip protector disperses the energy of the impact away from the greater trochanter (hip bone). This means that the energy from the fall is absorbed by the soft tissue and the muscles around the femoral neck, thereby reducing the risk of a hip fracture. • • • • • • •
Unisex design for people requiring intensive nursing care For hospitals, nursing homes or at home Can be used with sanitary pads for light incontinence Can be worn over user’s underwear Discreet and comfortable to wear Washable at up to 95°C, can be tumble dried at high temperatures Sewn in shields for optimal protection Extra Small
Small
Medium
Large
Extra Large
CF0480
CF0400
CF0390
CF0380
CF0410
SafeHip AirX Open Hip Protector The SAFEHIP hip protectors are based on impact energy dispersion and impact energy absorption. In the event of a fall on the hip, the SAFEHIP hip protector disperses the energy of the impact away from the greater trochanter (hip bone). This means that the energy from the fall is absorbed by the soft tissue and the muscles around the femoral neck, thereby reducing the risk of a hip fracture. • • • • • • • • •
For use in hospitals, nursing homes or at home Ideal for heavy to double incontinence Designed to be worn underneath an adult diaper Ideal for patients suffering from dementia, dizziness or reduced physical strength Facilitates change of diapers Excellent for nighttime use Sewn-in shields for optimal protection Washable at up to 95°C, can be tumble-dried at high temperatures In the event of a fall on the hip, the SAFEHIP hip protector disperses the energy of the impact away from the greater trochanter (hip bone). This means that the energy from the fall is absorbed by the soft tissue and the muscles around the femoral neck, thereby reducing the risk of a hip fracture. Extra Small
Small
Medium
Large
Extra Large
CF0370
CF0360
CF0350
CF0470
CF0650
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
35
M AT T R ES S ES & P R ES SUR E CA R E
Cushions MC0270 - All Purpose Cushion • • •
Soft open cell foam Convoluted surface for increased air circulation Corduroy fabric cover is zippered and removable for cleaning
Also Available MC0260 All Purpose Cushion with Fluid Resistant Cover Width
Depth
Height
Max User Weight
460mm
460mm
60mm
100kg
Gel-T Cushion • • • • • • •
Sectional Flo Gel Wipe clean cover Provides medium level pressure care Pressure care foams Maximises immersion Made in USA 18 months warranty Code
Width
Depth
Height
Max User Weight
MC5130
400mm
400mm
63.5mm
113kg
MC5140
460mm
400mm
63.5mm
113kg
MC5150
460mm
460mm
63.5mm
113kg
MC5160
500mm
460mm
63.5mm
227kg
MC9410
560mm
460mm
63.5mm
227kg
MC9420
610mm
460mm
63.5mm
227kg
ROHO Mosaic Cushion • • • • • •
Polyvinyl interconnected air cells Provides a comfortable and functional sitting environment Air pressure is adjustable and can be customised Breathable zippered lycra cover with a non slip base Supplied with a pump 1 year warranty
Also Available Continence Cover to suit
36
AG E D CA R E CATA LO G UE
Code
Dimensions
Height
Cover
Max User Weight
MC1840
16 × 16” (41 × 41cm)
70mm
Standard
157kg
MC1850
18 × 16” (46 × 41cm)
70mm
Standard
157kg
MC1860
18 × 18” (46 × 46cm)
70mm
Standard
157kg
MC7160
16 × 16” (41 × 41cm)
70mm
Incontinence
157kg
MC1880
18 × 16” (46 × 41cm)
70mm
Incontinence
157kg
MC1890
18 × 18” (46 × 46cm)
70mm
Incontinence
157kg
M AT T R ES S ES & P R ES SU R E CA R E
Cushions SAF Pink/Grey Cushion • • • • • • •
Gel permeated shock absorbent foam Open cell convoluted foam allows increased air circulation Lower density pink foam is laminated to a higher density grey foam Pink foam moulds to body shape to provide comfort and uniform pressure relief while grey foam provides stable support and positioning Bacteria free and machine washable (up to 95° C) Cushion is also available with fluid resistant cover Made in Italy Code
Dimensions
Type
Height
Max User Weight
MC3250
16 × 16" (41 × 41cm)
No Cover
60mm
110kg
MC3300
16 × 16" (41 × 41cm)
With Fluid Resistant Cover
60mm
110kg
MC3260
18 × 16" (45 × 41cm)
No Cover
60mm
110kg
MC3310
18 × 16" (45 × 41cm)
With Fluid Resistant Cover
60mm
110kg
MC3270
18 × 18" (45 × 45cm)
No Cover
60mm
110kg
MC3320
18 × 18" (45 × 45cm)
With Fluid Resistant Cover
60mm
110kg
MC3280
20 × 20" (50 × 50cm)
No Cover
60mm
110kg
MC3350
20 × 20" (50 × 50cm)
With Fluid Resistant Cover
60mm
110kg
Equagel Cushion - General • • •
No pump or valve EquaGel is 12-15 degrees cooler compared to other cushions EquaGel has a vapour permeable, water proof surface where perspiration evaporates reducing moisture against the skin
•
• •
All cushions have very effective immersion so patient sits in the cushion, not ON the cushion whilst providing excellent resistance to bottoming and stability. Height 51mm Max User weight 220kg
Code
Dimensions
Code
Dimensions
MC7610
16 × 16” (40 × 40cm)
MC7630
20 × 16” (50 × 41cm)
MC9100
16 × 18” (40 × 46cm)
MC9180
20 × 18” (50 × 46cm)
MC9120
16 × 20” (41 × 50cm)
MC9200
20 × 20” (50 × 50cm)
MC9140
18 × 16” (46 × 41cm)
MC9220
22 × 16” (56 × 40cm)
MC4880
18 × 18” (46 × 46cm)
MC9240
22 × 18” (56 × 46cm)
MC9160
18 × 20” (46 × 50cm)
MC9260
22 × 20 (56 × 50cm)
Protector Gel Cushion • Height 63mm • Max user weight 350kg Code
Dimensions
Code
Dimensions
MC9280
16 × 16” (40 × 40cm)
MC9320
20 × 16” (50 × 41cm)
MC8460
16 × 18” (40 × 46cm)
MC9340
20 × 18” (50 × 46cm)
MC4910
18 × 16” (46 × 41cm)
MC9360
22 × 16” (56 × 40cm)
MC9300
18 × 18” (46 × 46cm)
MC8580
22 × 18” (56 × 46cm)
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
37
M AT T R ES S ES & P R ES SUR E CA R E
Cushions ROHO Cushion • • • • • • • • •
Cells are interconnected and their unique shape promote blood circulation to facilitate pressure prevention, healing and relief Flexible cells adapt to patient contours and reduce shear forces while transferring or repositioning As the body is immersed in the cushion, greater contact area is achieved for the dispersion of pressure, hence the pressure on any one area is minimised Low profile cells maximise stability and make transfers easier for the active client High profile cells allow greater depth immersion, providing a higher level of pressure care Air pressure is adjustable and can be customised Durable neoprene construction is soft to suit skin sensitivity, and is easily cleaned Breathable zippered lycra cover with a non-slip base Supplied with pump
Single Valve
Quadtro Select
Cell Size
Dimensions
Profile
Height
Max User Weight
MC2770
MC3070
8×8
15 × 15” (38 × 38cm)
Low
60mm
Unlimited
MC2830
MC3080
8×9
15 × 17” (38 × 43cm)
Low
60mm
Unlimited
MC2780
MC3090
9×8
17 × 15” (43 × 38cm)
Low
60mm
Unlimited
MC2790
MC3100
9×9
17 × 17” (43 × 43cm)
Low
60mm
Unlimited
MC2840
MC3110
9 × 10
17 × 19” (43 × 47cm)
Low
60mm
Unlimited
MC2800
MC3120
10 × 9
19 × 17” (47 × 43cm)
Low
60mm
Unlimited
MC2810
MC3130
10 × 10
19 × 19” (47 × 47cm)
Low
60mm
Unlimited
MC2820
MC3140
11 × 10
20 × 19” (52 × 47cm)
Low
60mm
Unlimited
MC2760
MC3150
20 × 11
20 × 20” (52 × 52cm)
Low
60mm
Unlimited
Other sizes available MC2440
MC2940
8×8
15 × 15” (38 × 38cm)
High
100mm
Unlimited
MC2450
MC2950
8×9
15 × 17” (38 × 43cm)
High
100mm
Unlimited
MC2460
MC2960
9×8
17 × 15” (43 × 38cm)
High
100mm
Unlimited
MC2470
MC2970
9×9
17 × 17” (43 × 43cm)
High
100mm
Unlimited
MC2480
MC2980
9 × 10
17 × 19” (43 × 47cm)
High
100mm
Unlimited
MC2490
MC3010
10 × 9
19 × 17” (47 × 43cm)
High
100mm
Unlimited
MC2500
MC2990
10 × 10
19 × 19” (47 × 47cm)
High
100mm
Unlimited
MC2510
MC3030
11 × 10
20 × 19” (52 × 47cm)
High
100mm
Unlimited
MC2520
MC3040
20 × 11
20 × 20” (52 × 52cm)
High
100mm
Unlimited
Other sizes available
38
AG E D CA R E CATA LO G UE
M AT T R ES S ES & P R ES SU R E CA R E
Cushions ROHO Enhancer Cushion • • • • • • • • •
Cells are interconnected and their unique shape promote blood circulation to facilitate pressure prevention, healing and relief Flexible cells adapt to patient contours and reduce shear forces while transferring or repositioning As the body is immersed in the cushion, greater contact area is achieved for the dispersion of pressure, hence the pressure on any one area is minimised Contoured design, made up of high and low profile cells, positions the pelvis back in the wheelchair and centres the user comfortably in the middle of the cushion Enhances midline channelling of the femurs, providing greater lateral stability High and low profile cells are independently adjusted via separate valves Durable neoprene construction is soft to suit skin sensitivity, and is easily cleaned Breathable zippered lycra cover with a non-slip base, supplied with pump 2 years warranty
Code
Cell Size
Dimensions
Height
Max User Weight
MC2380
8×8
15 × 15” (38 × 38cm)
60/100mm
Unlimited
MC8170
8×9
15 × 17” (38 × 43cm)
60/100mm
Unlimited
MC8180
9×8
17 × 15” (43 × 38cm)
60/100mm
Unlimited
MC8190
9×9
17 × 17” (43 × 43cm)
60/100mm
Unlimited
MC2390
9 × 10
17 × 19” (43 × 47cm)
60/100mm
Unlimited
MC8200
10 × 9
19 × 17” (47 × 43cm)
60/100mm
Unlimited
MC5120
10 × 10
19 × 19” (47 × 47cm)
60/100mm
Unlimited
MC2400
11 × 10
20 × 19” (52 × 47cm)
60/100mm
Unlimited
MC8210
20 × 11
20 × 20” (52 × 52cm)
60/100mm
Unlimited
Bed Overlays ME0280 - Silicone Fibre Overlay • • • • • •
Silicone coated fibre filled overlay Cylindrical hollow core fibres for superior comfort and low level pressure relief Soft breathable cotton top side Water resistant polyurethane underside Elasticised corner straps hold overlay in position on mattress Machine washable
Also Available MZ0920 Fluid Resistant Removable Cover - heat sealed with plastic press studs Width
Length
Height
Max User Weight
900mm
1900mm
100mm
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
39
M AT T R ES S ES & P R ES SUR E CA R E
Bed Overlays SAF Overlay - Pink/Grey • • • • • • •
Gel permeated shock absorbent foam Open cell convoluted profile provides increased air circulation Low density pink foam is laminated to a higher density grey foam Pink memory foam moulds to body shape to provide comfort and uniform pressure relief while grey foam provides a stable support Ideal for the heavier patient Anti-bacterial and machine washable up to 95°C Made in Italy

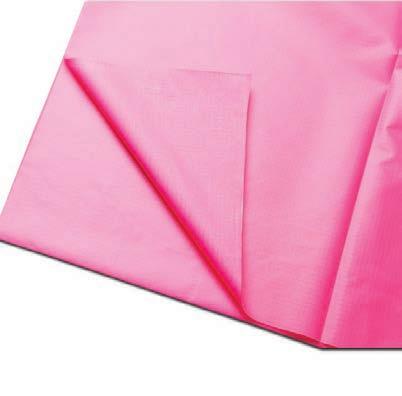

Also Available Fluid Resistant Cover - wrap over style. Refer table for relevant codes and size
Code
Size
Width
Length
Height
Max User Weight
Cover Code
ME0150
Single
900mm
2000mm
40mm
130kg
MZ9010
ME0130
Double
1390mm
2000mm
40mm
130kg
MZ0870

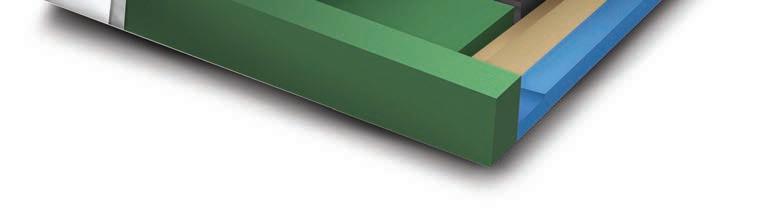

Non Powered Pressure Relieving Support Surfaces Vulcan - Three Layer Mattress • • • • •
Shear reducing “MEMAIR” modulated top layer Firm perimeter side walls to assist with patient transfer “Purify” antimicrobial foam treatment Fire retardant foam and cover 3 sided zip with waterfall covered flap
Warranty Cover 2 Years Foam 7 Years
40
AG E D CA R E CATA LO G UE
Code
Type
Width
Length
Height
Max User Weight
MF1870
Single
890mm
2000mm
150mm
200kg
MF1890
King Single
1050mm
2000mm
150mm
200kg
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces Nebula • • • • • • • •
3 Layer foam pressure relieving support surface Shear reducing modulated top layer Firm perimeter side walls to assist with patient transfer “Purify” Antimicrobial foam treatment Fire retardant foam and cover BS6807 & BS7175 - Crib 5 - PASS Carrflex extreme omni-directional stretch top cover with heavy duty PVC base 3 Sided waterfall covered zip
Warranty Cover 3 Years Foam 7 Years Code
Type
Width
Length
Height
Max User Weight
MF1700
Single
860mm
2020mm
150mm
207kg
MF3000
King Single
1050mm
1980mm
150mm
207kg
Nova • • • • • • • • •
3 Layer foam pressure relieving support surface Shear reducing modulated top layer Firm perimeter side walls to assist with patient transfer “Purify” Antimicrobial foam treatment Fire retardant foam and cover BS6807 & BS7175 - Crib 5 - PASS Carrflex extreme omni-directional stretch top cover with heavy duty PVC base 3 sided Waterfall Covered Zip Fully Welded Seams
Warranty Cover 3 Years Foam 7 Years Code
Type
Width
Length
Height
Max User Weight
MF1660
Single
860mm
2020mm
150mm
207kg
MF1680
King Single
1050mm
1980mm
150mm
207kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
41
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces Atlas • • • • • • • • •
4 Layer foam bariatric pressurerelieving support surface Shear reducing modulated top layer Firm perimeter side walls to assist with patient transfer “Purify” Antimicrobial foam treatment Fire retardant foam and cover BS6807 & BS7175 - Crib 5 - PASS Carrflex extreme omni-directional stretch top cover with heavy duty PVC base 3 Sided waterfall covered zip Fully welded seams
Warranty Cover 3 Years Foam 7 Years Code
Type
Width
Length
Height
Max User Weight
MF1600
Mattress
860mm
2030mm
200mm
350kg
Bolster
150mm
2030mm
2000mm
King Single
1050mm
2030mm
200mm
MF1620
416kg
Span America Geo-Mattress® Max • • • ANTI SHEAR
• • HEEL SLOPE
• •
Suitable for use when treating a patient with multiple stage 1-2 and single stage 3 pressure injuries Luxurious, visco-elastic high resiliency “memory” foam in foot section enhances the pressure reducing properties of the heel slope feature Firm perimeter bolsters help to provide safe transfers, more stable edge-of-bed sitting, and reduced risk of gaps at siderails Extra-soft, high performance top provides maximum immersion and a premium feel against user’s skin Fluid-repellent, flame-resistant top fabric with anti-microbial and anti-fungal properties Exclusive hidden zipper cover design with flapless construction creates no collection points for contaminants Made in USA
Warranty Cover 7 Years Foam 7 Years
42
AG E D CA R E CATA LO G UE
Code
Type
Width
Length
Height
Max User Weight
MF1990
Single
880mm
1980mm
150mm
180kg
MF2010
King Single
1050mm
1980mm
150mm
180kg
M AT T R ES S ES & P R ES SU R E CA R E
Non Powered Pressure Relieving Support Surfaces Span America Geo-Mattress Plus •
• • ANTI SHEAR
• HEEL SLOPE
• • • •
Dual layer, progressive resistance design perfectly blends clinical effectiveness with patient comfort. Soft, high performance top provides maximum immersion and a premium feel against user’s skin while bottom layer adds stability Outstanding pressure redistribution across the surface ensures low average of peak pressure at vulnerable sacrum and heels Heel slope protection. Combines proprietary and luxurious viscoelastic memory foam to deliver unsurpassed offloading of vulnerable heels. Subtle taper redistributes load onto more pressure tolerant lower legs whilst providing complete foot care Unique Geo-Matt design creates anti-shearing surface with 800 individually responsive cells in three zones. Ring-Of-Air channels help eliminate heat and moisture build up Fluid proof, wipe clean cover with an ultra low moisture vapour transmission rate. Bacteriostatically treated top, durable tri-laminate bottom. Hidden zipper design for easier, more thorough cleaning and superior infection control 6 years warranty
Code
Type
Width
Length
Height
Max User Weight
MF2130
Single
890mm
1980mm
150mm
180kg
MF2140
King Single
1050mm
1980mm
150mm
180kg
Span America Geo-Mattress® UltraMax™ • • • • ANTI SHEAR
• •
HEEL SLOPE
• •
Suitable for use when treating a patient with multiple stage 1-2 and single stage 3 pressure injuries Can assist in prevention and early intervention of pressure injuries Geo-Matt® surface geometry helps to minimise shearing with more than 800 individually-articulating cells and provides reactive pressure redistribution Integrated dual Heel Slope® offloads vulnerable heel and transfers pressure onto pressure-tolerant lower legs Multi-tiered, progressive resistance core manufactured with premium, highdensity foam Exclusive hidden zipper cover design with flapless construction creates no collection points for contaminants Firm perimeter bolsters help to provide safe transfers, more stable edge-of-bed sitting, and reduced risk of gaps at siderails Made in USA
Warranty Cover 7 Years Foam 7 Years Code
Type
Width
Length
Height
Max User Weight
MF2270
Single
880mm
1980mm
150mm
227kg
MF2280
King Single
1050mm
1980mm
150mm
227kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
43
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces Optimal 5zon • • • • • • • • • •
ANTI SHEAR
HEEL SLOPE
Static mattress aids in the prevention of pressure injuries Adaptive cube profile cut for pressure redistribution Profiled surface contours to body shape and reduces shear forces Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant Can be used for pain management Unique zone and module system giving effective pressure equalisation Internal shear reduction system Patented DuoCore sit-function to provide support when seated Fire evacuation covers available
Warranty Cover 3 Years Foam 3 Years Code
Type
Width
Length
Height
Max User Weight
MF0780
Single
850mm
2000mm
140mm
180kg
MF0790
King Single
1050mm
2000mm
140mm
180kg
Optimal 5zon Plus
ANTI SHEAR
HEEL SLOPE
44
AG E D CA R E CATA LO G UE
• • • • • • • • • • •
Static mattress aids in the prevention of pressure injuries Adaptive cube profile cut for pressure redistribution Profiled surface contours to body shape and reduces shear forces Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant Can be used for pain management Unique zone and module system giving effective pressure equalisation Internal shear reduction system Patented DuoCore sit-function to provide support when seated Suitable for Bariatric clients Fire evacuation covers available
Warranty Cover 3 Years Foam 3 Years Code
Type
Width
Length
Height
Max User Weight
MF0750
Single
850mm
2000mm
150mm
300kg
MF0760
King Single
1050mm
2000mm
150mm
300kg
M AT T R ES S ES & P R ES SUR E CA R E

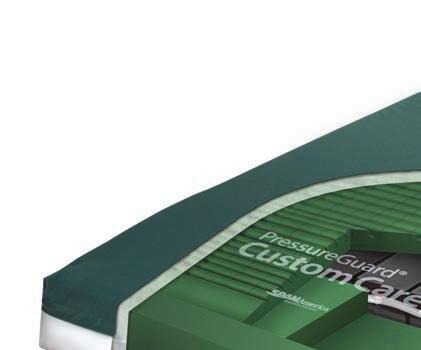

Non Powered Pressure Relieving Support Surfaces Span America PressureGuard® Custom Care®
ANTI SHEAR
HEEL SLOPE
Features • Suitable for use when treating a patient with multiple stage 1-2 and single stage 3 pressure injuries • Bi-directional stretch cover with Shear Transfer Zones • Maintenance-free support chambers require no adjustment or refilling • Made in USA Warranty Cover 5 Years Foam 5 Years
Geo-Matt™ Foam Topper: • 5cm deep topper reduces shear to underlying tissues • More than 800 individually-articulating cells • Redistributes pressure, reduces heat and skin moisture buildup • Heel Slope™ designed to further reduce heel pressure Safety Edge™ Design: • Patented inner bolster ’cradling effect’ for user safety • Unmatched edge-of-bed stability helps ensure safer transfers minimises risk of falls and entrapment Shear Transfer Zone™ design helps: • Prevent heels, sacrum, and scapula from “digging into” surface • “Glide” user back to original position following HOB elevation • Protect against damaging effects of micro shear, macro shear, and rotational (pivot-induced) shear • Provide patient stability by transferring shear to more • shear-tolerant anchor points
Code
Type
Width
Length
Height
Max User Weight
MA3690
Single
880mm
1980mm
177mm
227kg
MA3680
King Single
1050mm
1980mm
177mm
227kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
45
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces Span America PressureGuard® Convertible®
ANTI SHEAR
HEEL SLOPE
AUTOSETUP
Features • Suitable for use when treating a patient with stage 1–4 pressure injuries • Minimise falls risk by reducing patient transfers • Can be used as a static mattress (without pump) • Alternating air therapy (with pump) • Unique longitudinal air chambers • Integrated heel slope • Quiet control unit • Bi-directional stretch cover with Shear Transfer Zones® • Also available in 2030mm length • Made in USA Warranty Cover 5 Years Foam 5 Years
Safety Edge™ Design: • Patented inner bolster ’cradling effect’ for user safety • Unmatched edge-of-bed stability helps ensure safer • transfers minimises risk of falls and entrapment Shear Transfer Zone™ design helps: • Prevent heels, sacrum, and scapula from “digging into” surface • “Glide” user back to original position following HOB elevation • Protect against damaging effects of micro shear, macro shear, • and rotational (pivot-induced) shear • Provide patient stability by transferring shear to more sheartolerant anchor points
Code
Type
Width
Length
Height
Max User Weight
MA3370
Single
880mm
1980mm
150mm
227kg
MA3380
King Single
1050mm
1980mm
150mm
227kg
Optional Accessory MA3050 Span Pump Unit
46
Geo-Matt™ Foam Topper: • 5cm deep topper reduces shear to underlying tissues • More than 800 individually-articulating cells • Redistributes pressure, reduces heat and skin moisture buildup • Heel Slope™ designed to further reduce heel pressure
AG E D CA R E CATA LO G UE
M AT T R ES S ES & P R ES SUR E CA R E
Non Powered Pressure Relieving Support Surfaces CuroCell AreaZone
ANTI SHEAR
HEEL SLOPE
CuroCell® AREA Zone is used as an aid in the prevention and treatment of pressure ulcers up to category 3(1). It is a mattress system that combines air with foam for effective pressure redistribution and great comfort. The mattress is self-adjusting and non-powered. It is a flexible mattress replacement system that can be used in all kinds of healthcare settings, easy to use and handle.
Features • Reduces shearing forces • Zone system in the top mattress • Easy to handle and maintain • Flexible and self-adjusting • Handles for easy transportation • Hygienic cover with welded seams • High quality inner cover • Integrated heel function • Non-powered mattress replacement system • Reinforced sides for improved lateral stability • Helps to reduce trip hazards as there are no power leads
Anti-Shear Designed to significantly reduce shear and friction which often leads to tissue damage. The base foam remains in position on the bed frame, whilst the top moves with the user. Heel Protection Heel slope redistributes pressure away from the high risk heel area.
PRS Pressure Relief System Interconnected air chambers and pressure release valves move pressure away from body.
Warranty 5 Years
Code
Type
Width
Length
Height
Max User Weight
MA0090
Single
850mm
2000mm
180mm
230kg
MA0120
King Single
1050mm
2000mm
180mm
230kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
47
M AT T R ES S ES & P R ES SUR E CA R E
Powered Pressure Relieving Support Surfaces Care Quip Alternating Pressure Mattress & Pump System • • • • • • • • •
Multi stretch vapour permeable cover 21 quick release interchangeable cells with low air loss and pillow function Quilted full zip cover Transport valve Waterlow score 18-20 Weight range 35-150kg Manual pressure control with low pressure warning Static patient care function 150kg maximum user weight
Warranty Pump Unit 2 Years Mattress 3 Years Code
Type
Width
Length
Height
Max User Weight
MA2850
Single
850mm
1950mm
130mm
150kg
MA2880
King Single
1070mm
1950mm
130mm
150kg
Mattress Replacement - Alternating Pressure Mattress & Pump System • • • • • • •
Omni-stretch carrflex extreme cover 20 quick release interchangeable cells with low air loss and pillow function Static patient care function TGA class one device Firm peremiter, increase stability & minimise entrapment Mattress made in Australia Pump made in Taiwan
Warranty Pump Unit 2 Years Mattress 1 Year
48
AG E D CA R E CATA LO G UE
Code
Type
Width
Length
Height
Max User Weight
MA2860
Single
900mm
2000mm
175mm
150kg
MA3300
King Single
1050mm
2000mm
175mm
150kg
M AT T R ES S ES & P R ES SU R E CA R E
Powered Pressure Relieving Support Surfaces CuroCell A4 CX10
ANTI SHEAR
HEEL SLOPE
AUTOSETUP
• • • • • • • • • • • • • • • • •
Alternating overlay system 1 in 3 Alternating cycle Pressure redistribution mattress Pump is user friendly very quite with minimum vibration Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant CPR facility with transport option Visual low pressure indicator Can be used for pain therapy Fully automated pump individually adapts to the user to optimise pressure Three program modes: Pulsation, Alternating and Constant Low Pressure Low voltage power cord - reduces electrocution risk Pump is fully sealed - Will not deflate during power outages Multifunctional inner cover to reduce shear forces Static head end cells Sound and light alarm for low pressure or failure Fire evacuation covers available
Warranty Pump Unit 2 Years Mattress 2 Years Code
Type
Width
Length
Height
Max User Weight
MA2270
Single
850mm
2000mm
100mm
200kg
MA2330
King Single
1050mm
2000mm
100mm
200kg
CuroCell A4 CX16
ANTI SHEAR
HEEL SLOPE
AUTOSETUP
• • • • • • • • • • • • • • • • • •
Alternating replacement system 1 in 3 Alternating cycle Pressure redistribution mattress Pump is user friendly very quite with minimum vibration Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant CPR facility with transport option Visual low pressure indicator Can be used for pain therapy Fully automated pump individually adapts to the user to optimise pressure Fully automatic and flexible system with integrated heel function Three program modes: Pulsation, Alternating and Constant Low Pressure Low voltage power cord - reduces electrocution risk Pump is fully sealed - Will not deflate during power outages Multifunctional inner cover to reduce shear forces Static head end cells Sound and light alarm for low pressure or failure Fire evacuation covers available
Warranty Pump Unit 2 Years Mattress 2 Years Code
Type
Width
Length
Height
Max User Weight
MA2150
Single
850mm
2000mm
160mm
200kg
MA2210
King Single
1050mm
2000mm
160mm
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
49
M AT T R ES S ES & P R ES SUR E CA R E
Powered Pressure Relieving Support Surfaces CuroCell A4 CX15
ANTI SHEAR
HEEL SLOPE
• • • • • • • • • • • • • •
Individually replaceable cells with safety mattress in air Static head cells Heel function Multifunctional inner cover Unique CPR function with transport function Smart cable management Unique design for easy handling & usage Well protected zipper Fully automated pump that adapts individually Audible and visual notifications Three program modes: Pulsating, Alternating and CLP (constant low pressure) Caring mode (max firm) Silent running and vibration free Air flow control, constant temperature, increased user comfort, energy reduction
AUTOSETUP
Warranty Pump Unit 2 Years Mattress 2 Years Code
Type
Width
Length
Height
Max User Weight
MA2540
Single
850mm
2000mm
150mm
200kg
MA2560
King Single
1050mm
2000mm
150mm
200kg
CuroCell A4 CX20
ANTI SHEAR
HEEL SLOPE
AUTOSETUP
50
AG E D CA R E CATA LO G UE
• • • • • • • • • • • • • • •
Alternating replacement system 1 in 3 Alternating cycle Pressure redistribution mattress Pump is user friendly Pump is very quite and has minimum vibration Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant & fire retardant Visual low pressure indicator Can be used for pain therapy Fully automated pump individually adapts to the user to optimise pressure Fully automatic and flexible system with integrated heel function Multifunctional inner cover to reduce shear forces Static head end cells Sound and light alarm for low pressure or failure Fire evacuation covers available
Warranty Pump Unit 2 Years Mattress 2 Years Code
Type
Width
Length
Height
Max User Weight
MA1930
Single
850mm
2000mm
200mm
250kg
MA1990
King Single
1050mm
2000mm
200mm
250kg
M AT T R ES S ES & P R ES SUR E CA R E
Powered Pressure Relieving Support Surfaces Span America PressureGuard® APM2
ANTI SHEAR
HEEL SLOPE
AUTOSETUP
Features • Suitable for use when treating a patient with stage 1–4 pressure injuries • Alternating therapy and lateral rotation functions • Unique longitudinal air chambers • Integrated heel slope • Quiet control unit • Bi-directional stretch cover with Shear Transfer Zones® • Maintains pressure for 7-days without power • Also available in 2030mm length • Complete with pump
Geo-Matt™ Foam Topper: • 5cm deep topper reduces shear to underlying tissues • More than 800 individually-articulating cells • Redistributes pressure, reduces heat and skin moisture buildup • Heel Slope™ designed to further reduce heel pressure Safety Edge™ Design: • Patented inner bolster ’cradling effect’ for user safety • Unmatched edge-of-bed stability helps ensure safer transfers • Minimises risk of falls and entrapment Shear Transfer Zone™ design helps: • Prevent heels, sacrum, and scapula from “digging into” surface • “Glide” user back to original position following HOB elevation • Protect against damaging effects of micro shear, macro shear, and rotational (pivot-induced) shear • Provide patient stability by transferring shear to more sheartolerant anchor points
Warranty 1.5 Years
Code
Type
Width
Length
Height
Max User Weight
MA3670
Single
880mm
1980mm
177mm
160kg
MA3660
King Single
1060mm
1980mm
177mm
160kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
51
M AT T R ES S ES & P R ES SUR E CA R E
Powered Pressure Relieving Support Surfaces CuroCell Cirrus
ANTI SHEAR
HEEL SLOPE
AUTOSETUP
Features • Alternating replacement system • 1 in 2 Alternating cycle • Pressure redistribution mattress • Pump is user friendly • Two-way stretch PU cover • Cover is vapour permeable, machine washable, fluid resistant and fire retardant • Visual low pressure indicator • Can be used for pain therapy • Fully automated pump individually adapts to the user to optimise pressure • Integrated Heel Zone function • Multifunctional inner cover to reduce shear forces • Sound and light alarm for low pressure or failure • Fire evacuation covers available Warranty Pump Unit 2 Years Mattress 2 Years
52
Code
Type
Width
Length
Height
Max User Weight
MA0150
Single
850mm
2000mm
210mm
230kg
MA0170
King Single
1050mm
2000mm
210mm
230kg
AG E D CA R E CATA LO G UE
M AT T R ES S ES & P R ES SU R E CA R E
Powered Pressure Relieving Support Surfaces Care-Quip Alternating Pressure Mattress & Pump System
Features • Automic weight recognition • Alternating replacement system • 1 in 2 Alternating cycle • Pump is user friendly very quite with minimum vibration • Two-way stretch PU cover • Cover is vapour permeable, machine washable, fluid resistant and fire retardant • CPR facility with transport option • Visual low pressure indicator • Fully automated pump individually adapts to the user to optimise pressure • Sound and light alarm for low pressure or failure
Code
Type
Width
Length
Height
MA3870
Single
900mm
2000mm
250mm
MA3880
King Single
1000mm
2000mm
250mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
53
Seating Avento Hi Lo Chair
55
Domus Classic Flex
56
Fero Mauro Chairs
57
Patient Chairs
58
Powerlift & Recline Armchairs
62
X6 Deluxe Chair Bed
64
Coraille Care Chair
65
Chair Beds
66
Sofa Beds
68
Legrests & Footrests
69
S E AT I N G
Avento Hi Lo Chair The Avento High Low Chair is designed with a goal of optimal comfort and benefit for the patient. The chair is equipped with a high/low system and a relax mechanism that inclines the backrest, seat and legrest simultaneously into a “zero gravity” position. This chair offers exceptional ergonomic support to the user.
Features •
•
• •
•
Height range of 53cm to 83cm, which is easily adjusted with a hydraulic pump pedal located at both sides of the chair The ‘’Zero Gravity’’ patented mechanism allows good blood circulation and reduces pressure Four large central locking castors allow manoeuverability and ease of use The mechanisms are completely hidden by a design cover cap in synthetic material. The rounded corners make cleaning of this chair simple. Various accessories are available, including a removable headrest, dinner tray, IV pole and more.
Colours Available ED4710 Graphite Grey ED4700 Expresso ED4720 Brick Red ED4730 Midnight Blue
Code
Type
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Height
Width Between Arms
Max User Weight
ED4100
Manual
530mm
500mm
530-830mm
800mm
530-830mm
730mm
525mm
150kg
ED4390
Electric
530mm
500mm
530-830mm
800mm
1530-830mm 30 0 930 930 730mm A L P H A L I F 525mm E CA R E .C O M . AU 150kg 5 5
S E AT I N G
Domus Classic Flex The central idea behind the Domus relax chair is to offer optimal seating comfort in peace and quiet. The Classic mechanism can be easily adjusted by pushing yourself off. Lever manipulations belong to the past. Support • • • • • • • •
The rounded sides consist of 2 OSB boards of 18 mm, and are firmly connected with a metal structure The sides are upholstered with fire-retardant foam The upholstery is finished with imitation leather and decorative stitching Comfortable rounded armrests of ± 5 cm All edges and corners have been rounded No visible fastening elements Design castors 65 mm with brake Optionally possible on solid beech legs, with aid castors at the back
Seat • • • • •
Removable seat in melaminated MDF, thickness: 12 mm The rounded seat in front stimulates a fluent blood circulation Comfortable seat height of 45 cm Upholstered with fire-retardant foam. Two different density zones guarantee optimal seating comfort The upholstery is finished with imitation leather and decorative stitching
Back Rest • • • •
The backrest consists of an ergononomic pre-shaped plywood shell, thickness 12 mm Upholstered with fire-retardant foam. This foam has 3 different density zones to guarantee optimal seating comfort The upholstery is finished with imitation leather and decorative stitching Equipped with an adjustable and removable head/neck cushion
Leg Rest •
Upholstered with fire-retardant foam and finished with imitation leather
Adjustable Positions
Colours Available
• •
ED5000 Stormy Blue ED4990 Graphite Grey
• • • • •
2 positions: seating position and relax position The relax mechanism first raises the legs, after which it is possible to further incline the entire chair Easy to adjust by pushing yourself off Adjustable without lever manipulation Optimal seating comfort in each position, thanks to the constant angle between the backrest and seat during the inclination Optimal leg support, thanks to the telescopic legrest In the seating position, the legrest is turned inward to make it easier to get up
Overall Length
Overall Depth
Overall Height
Seat Height
Seat Depth
Seat Width
Armrest Height
Max User Weight
620mm
730mm
1150mm
450mm
510mm
520mm
630mm
150kg
56
AG E D CA R E CATA LO G UE
S E AT I N G
Fero Mauro Chairs The Mauro chair range offers stylish mobile sitting options with lowerable armrests and castors. They are equipped with a relax mechanism that tilts the backrest, seat, and legrest into a zero-gravity position inspired by NASA. The new transport chair has larger castors allowing better mobility.
Height
Width
Depth
*Depth Fully Reclined
Seat Height
Seat Width
Seat Depth
Max User Weight
1250mm
720mm
780mm
1550mm
510mm
535mm
510mm
150kg
Duo Line Recliner ED8830 Midnight Blue
Mauro Range
Ergoline Recliner ED7800 Graphite Grey ED7810 Brick Red ED7820 Midnight Blue ED7840 Stormy Blue
Synchronised movement of backrest and legrest
✓
✕
✕
Backrest and legrest are operated independently of each other
✕
✓
✕
Electric operation with battery back up
✕
✕
✓
300mm front castors with shock absorbing tyre
✕
✕
✕
Ergonomic design offering exceptional supprot for the lower back and the shoulders
✓
✓
✓
Antimicrobial vinyl which protects against germs, abrasion and staining
✓
✓
✓
Efficient relax movement reducing pressure points on the body, providing good blood circulation
✓
✓
✓
Central rear castors
✓
✓
✓
Integrated weight bearing foot plate
✓
✓
✓
Lowerable and adjustable arms to facilitate patient transfer
✓
✓
✓
1 30 0 930 930
E-Move Electric Recliner ED8840 Graphite Grey ED8850 Brick Red ED8860 Stormy Blue ED8870 Midnight Blue
A L P H A L I F E CA R E .C O M . AU
57
S E AT I N G
Patient Chairs Mauro Transport Chair The Mauro Transport Chair has lowerable armrests and large easy to move castors • • • • • • •
300mm Front castors with shock absorbing tyre Antimicrobial vinyl which protects against germs, abrasion and staining Ergonomic design offering exceptional support for the lower back and the shoulders Central locking rear castors Integrated weight bearing foot plate Lowerable and Adjustable arms to facilitate patient transfer SWL: 150kg (200 kg capacity models available)
Code
Colour
Height
Width
Depth
Seat Height
Seat Width
Seat Depth
Max User Weight
Olive Green
ED8940
1280mm
740mm
780mm
510mm
535mm
510mm
150kg
Charcoal
ED8930
1280mm
740mm
780mm
510mm
535mm
510mm
150kg
ED3210 - Bariatric Fero The Fero Bariatric chair is a very comfortable chair that has been especially developed for bariatric patients. The electric tilting backrest and high-quality upholstery guarantees optimal when the patient is seated for a long period of time. The lowerable armrests allow for a more straightforward patient transfer. Integral design castors are equipped with a central brake mechanism, which enables staff to move the patient with ease. Options Available ED3520 Footrest
Length
Depth
Height
Seat Height
Seat Depth
Seat Width
Armrest Height
Max User Weight
1000mm
855mm
1250mm
470mm
470mm
790mm
650mm
300kg
Zenso E-Lift Recliner • • • • • •
• •
The lift function on the ZenSo E-lift chair supports the user optimally while both taking a seat, reclining and assistance to get out of the chair Adjustable height armrests to allow for side transfers The leg rest is lengthened by 70 mm when inclined providing additional support when in the recline position Electric operation, battery back up with magnetic power charging connection to prevent cord damage When initiating the E-lift system, the automatic brake activation mechanism Safe Brake is activated as well, which automatically activates the brakes The centrally braked castors can be activated smoothly in one single movement by means of an ergonomic brake pedal that is accessible on both the front and back of the chair The seat and leg rest can easily be removed completely for cleaning Directional castors on the front and the integrated push handle on the rear of the chair enable easy manoeuvrability
Colour Available ED8950 Brick Red
58
AG E D CA R E CATA LO G UE
S E AT I N G
Patient Chairs Zenso Ergo Line •
• • •
• •
The Zenso Ergo-line relax simultaneously inclines the back and leg support and is easy to operate by means of an ergonomic lever, which can be locked in infinite positions of recline The leg rest is lengthened by 70 mm when inclined providing additional support when in the recline position The seat and leg rest can easily be removed completely for cleaning This chair can be optionally equipped with a raising & sitting assist that can be easily activated by means of an additional lever. The supporting seat movement makes both getting up and sitting easier Optional electric operation with battery back up Large range of bases, including mobile base options available
Colour Available ED9420 Silverguard Mandarin
Sapphire Highback Chair • • • • • • • •
Adjustable height to assist with patient transfers Moulded backrest shell for enhanced support Multi layered seat foam for pressure prevention Two mobility tilt wheels on rear Rear Push handle Polyurethane moulded arm pads Lifetime frame warranty Complies with Australian standards: ASNZ 4688.1.2018
Code
Seat Width
Seat Depth*
Max User Weight
ED6840
500mm
490mm
200kg
ED6850
580mm
490mm
200kg
ED6860
690mm
490mm
300kg
ED6870
850mm
490mm
400kg
*Optional adjustable seat depth available
Available Options EZ4030 Adjustable Seat Depth EZ4060 Pressure Care Upholstery with Welded Seams

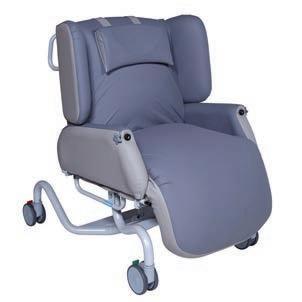

ED3850 - X2 Deluxe Pressure Care Chair The X2 chair has been specially developed for hospital use, with a stronger frame, higher weight capacity, low resilient foam and a 2-way stretch upholstery on seating surfaces. • • • • •
High backrest incorporating lumbar and lateral support and padded armrests Comfortable upholstered seat and back Adjustable seat height and depth Powdercoated steel frame with reinforcement Standard with tilt and move wheels for ease of maneuverability
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Width
Overall Depth
Overall Height
Max User Weight
500mm
450-530mm
450-600mm
790mm
230mm
700mm
730-800mm
1200-1350mm
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
59
S E AT I N G
Patient Chairs Euro Chair • • • • •
High back orthopaedic chair Wider seat widths and reinforced frames to suit the bariatric client Adjustable height and seat depth Contoured backrest and powder coated steel frame Available in a range of vinyls
Code
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
ED0040
490mm
490-550mm
430-580mm
250mm
740mm
700mm
125kg
ED0260
540mm
490-550mm
430-580mm
250mm
740mm
750mm
175kg
ED0620
590mm
490-550mm
430-580mm
250mm
740mm
800mm
195kg
ED0310
640mm
490-550mm
430-580mm
250mm
740mm
850mm
210kg
ED3880 - X2 Deluxe Pressure Care Chair Bariatric Specifically developed for the bariatric patient in a hospital setting, this chair has a strong frame, large weight capacity, vinyl upholstery and tilt and move wheels. • • • • • •
Adjustable height High contoured backrest incorporating lumbar support Contoured seat Padded drop down, removable arms for side transfer Adjustable seat depth Standard with tilt and move wheels for ease of manoeuvrability
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Width
Overall Height
Width Between Arms
Max User Weight
780mm
600mm
460-540mm
675mm
170mm
900mm
1000-1805mm
790mm
425kg
Hunter Chair • • • • •
Low back orthopaedic chair Ideal for dining or household activities Adjustable seat height Curved padded backrest Available in a range of vinyls
Colours Available ED0400 Champagne Vinyl ED0390 Slate Vinyl
60
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
460mm
460mm
485 - 640mm
230mm
455mm
610mm
125kg
AG E D CA R E CATA LO G UE
S E AT I N G
Patient Chairs Hunter Chair Wide • • • • • •
Low back orthopaedic chair Wider seat width and reinforced frame to suit the bariatric client Ideal for dining or household activities Adjustable seat height Curved padded backrest Available in Champagne vinyl upholstery (as shown)
Code
Seat Width
Seat Depth
Seat Height
Armrest Height
Back Height
Overall Width
Max User Weight
ED0470
500mm
450mm
470-610mm
230mm
455mm
650mm
135kg
ED0480
550mm
450mm
470-610mm
230mm
455mm
700mm
175kg
ED0490
600mm
450mm
470-610mm
230mm
455mm
750mm
195kg
ED0500
650mm
450mm
470-610mm
230mm
455mm
800mm
210kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
61
S E AT I N G
Powerlift & Recline Armchairs Imperial Power Lift & Recline Armchair • • • • • •
Power lift & recline armchair Adjustable waterfall style backrest Padded legrest Fully padded seat to legrest chaise Battery back up Magazine pocket
Warranty 1 Year Code
Type
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
ED3260
Single Motor
520mm
520mm
650mm
120mm
1030mm
780mm
160kg
ED3230
Dual Motor
520mm
520mm
650mm
120mm
1030mm
780mm
160kg
Derwent Chair • • • • • • • •
Waterfall style backrest provides superior comfort Padding on each backrest layer can be adjusted Padded legrest is synchronised with the backrest Full chaise pad provides additional legrest support and comfort Supplied with magazine pocket and hand held controller is simple to use Rise or recline motion stops at any point when button is releasedt Wall saver mechanism requires minimal clearance behind the chair when reclined Available in a range of fabrics and vinyls
Warranty 1 Year
62
Codes
Size
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
ED8490
Petite
440mm
450mm
470mm
170mm
570mm
780mm
150kg
ED8500
Mini
480mm
490mm
470mm
170mm
600mm
780mm
150kg
ED8510
Medium
480mm
500mm
500mm
170mm
640mm
780mm
150kg
ED8520
Maxi
530mm
520mm
530mm
170mm
680mm
830mm
150kg
ED8530
Tall
540mm
530mm
540mm
170mm
740mm
830mm
150kg
AG E D CA R E CATA LO G UE
S E AT I N G
Powerlift & Recline Armchairs ED6620 - Derwent Recovery Recliner Chair • • • • • • •
High back reclining armchair Spring loaded side trigger releases legrest, and allows chair to be reclined by pushing on the armrest and against the backrest Wall saver recline mechanism allows chair to recline with less back clearance area Waterfall style backrest provides superior comfort, lumbar and neck support Padding on each backrest layer can be adjusted Padded legrest is synchronised with the backrest Available in a range of fabrics and vinyls. Please enquire
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
480mm
500mm
500mm
170mm
630mm
780mm
120kg
ED4790 - X9 Mobile Power Lift Pressure Care Chair, Dual Motor • •
• • • • • • • •
Ideal for clients who are confined to a chair for long periods Pressure relieving memory foam, soft contoured multi-layered foam and fibre backrest with lumbar support and ergonomic padded armrests ensure maximum comfort and postural support Resilient European four-way stretch vinyl is fluid resistant, fire retardant and vapour permeable with antibacterial and non-allergenic properties Soft-stretch vinyl is used on inner contact surfaces, while hard-wearing vinyls are used on the outside of the chair Removable seat and back covers for infection control management Padded legrest for additional comfort and heel support Large side pockets for convenient storage Quiet and smooth lift system with infinite rise and recline positions for ultimate comfort and assists the user in sitting and standing transfers Dual motor provides independent control of backrest and legrest 4 × 100mm locking castors, 2 of which are locking
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
500mm
500mm
500mm
190mm
680mm
720mm
130kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
63
S E AT I N G
X6 Deluxe Chair Bed - BD7150 (Comes without footrest and tray)
The X6 Deluxe Chair Bed has been designed for the treatment and prevention of pressure problems related to long-term seating. Using a contoured dual layer air cushion overlaid with pressure relieving high density foam, the X6 Chair Bed evenly distributes the occupant’s weight, ensuring that there are no main pressure points that can restrict circulation.
Features • •
• • • •
•
•
• •
•
Ideal for dependant clients who are confined to a chair for long periods Pressure relieving memory foam, contoured backrest with lumbar and lateral support, angled armrests and adjustable wings and neck pillow ensure maximum comfort and postural support Integrated air cell in seat for premium pressure relief Tilt in space recline action and high leg rest elevation for reduced fluid retention Designed for use with standing machines and transfer hoists Large push handle and simple recline mechanism makes movement and operation safe and easy for the carer Resilient European four-way stretch vinyl is fluid resistant, fire retardant and vapour permeable with antibacterial and non-allergenic properties Soft-stretch vinyl is used on inner contact surfaces, while hard-wearing vinyls are used on the outside of the chair Removable seat and back covers for infection control management Supplied with slide-in removable meal tray and removable padded footrests for additional comfort and heel support 4 × swivel locking castors (one directional) for easier mobility
Accessories Available BZ0423 - Footrest BZ0143 - Tray Warranty 1 Year
64
Seat Width
Seat Depth
Arm Height
Back Height
Overall Width
Max User Weight
500mm
550mm
180mm
650mm
750mm
180kg
AG E D CA R E CATA LO G UE
S E AT I N G
Coraille Care Chair - ED8480 Backrest is 3cm higher to give better support
Padded and
to tall users.
removable headrest
Calf support is shaped to give more space to the legs
Drum brake accesible by foot
Seat inclination from 0° to 40°
Removable Covers for ease of cleaning. Dartex fabric in praline colour.
Optional Footrest in one piece mounted on a spring in order to stay upright during a transfer.
Optional A light, wooden table is available. Convenient as it is removable and collapsible to the side and can be adjusted in depth. Easy to remove or reinstall without extra tools. Even when the seat is tilted, the table always remains horizontal.
Description
Specifications
The Coraille is standard equipped with a 80mm thick
Total width
720mm
Seat inclination
0°/40°
seating pillow. The height of the back and armrests are
Seat width
485mm
Seat depth
440/460/480mm
dependable on the thickness of the seating pillow (60-80-
Armrest height
235/255/275mm
Total length
1090-1640mm
100mm). The steel structure with a diametre of 32mm and
Seat height
465/490/515mm
Weight
36kg
Total height
1345mm
Users weight
120kg
Back height
792/812/832mm
Deviations in sizes and weight are possible (1.5cm & 1.5kg)
epoxy coating result in a very robust resistance against chemical and mechanical forces. The two rear wheels are equipped with a drum brake easy accessible by foot.
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
65
S E AT I N G
Chair Beds BD1340 - V2 Deluxe Chair / Bed • • • • • • • • • • • •
Mobile reclining patient chair Ideal for dependant patients who are confined to a chair for long periods Unique total surface air pressure system (in backrest, seat and legrest) provides proven pressure relief Adjustable seat, backrest and legrest angles provide multiple seating and sleeping positions Adjustable and drop-down wings and armrests for easy side patient transfers Detachable and adjustable headrest pad for additional comfort Push handle and simple recline mechanism makes movement and operation safe and easy for the carer Soft-stretch vinyl is used on inner contact surfaces, while hard-wearing vinyls are used on the outside of the chair Easy to clean and maintain New transport tie down points 4 × 150mm swivel locking castors (one directional) for easier mobility Made in Australia
Warranty 1 Year
Options Available EZ1050 – Removable Footrest EZ1040 – Meal Tray, Large Seat Width
Seat Depth
Arm Height
Back Height
Overall Width
Max User Weight
470mm
550mm
170mm
710mm
680mm
180kg
ED5180 - Maxi Deluxe Chair • • • • • • • • •
66
Dropdown arms & wings Detachable adjustable headrest Carrflex pressure care upholstery Power assisted backrest, seat & legrest tilt 200mm locking castors (3 × standard,1 directional) 10 year frame warranty Sectional air system in backrest seat & footrest Australian made Rear tray storage bracket
Overall Length
Overall Width
Overall Depth
Overall Height
Seat Width
Seat Depth
Floor to Seat Height
Net Weight
Max User Weight
1360mm
950mm
950mm
1385mm
720mm
550mm
640mm
100kg
300kg
AG E D CA R E CATA LO G UE
S E AT I N G
Chair Beds ED8230 - Bariatric Deluxe Chair/Bed The Bariatric Deluxe Chair/Bed makes side transfers simple with completely removable armrests. Packed full of features and functions, this care chair is ready to be customised to suit your caring needs. The design in flexible, allowing choice from four backrests, five armrests and two leg-rest options. • • • • • • • • •
Electric 3 Function – backrest, seat tilt, & legrest (includes Emergency battery back-up) Auto lay-flat function, auto chair function MulticushTM pressure management gel seating & air cushion backrest system. 2 position swing-away head-wings – Rio style 2 position fold-down and removable armrests – With NO Meal Tray Provision Deluxe electric leg-rest including fold-away footplate Standard push handle 150mm castors 350kg SWL Seat Width
Seat Depth
Seat Height
Overall Width
Overall Height
SWL
720mm
600mm
550mm
920mm
1320mm
350kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
67
S E AT I N G
Sofa Beds Domus Sofa Bed The new space saving Domus Sofa Bed is the ideal patient/visitor chair that turns into visitor bedding for the night with just 3 easy steps. With a range of durable imitation leather or vinyl available, the chairs will suit any décor. •
•
•
Fixed backrest cushion, you only need to remove the seat cushion when unfolding the bed mechanism Mattress platform equipped with rounded wooden slats to reinforce the seating surface Folding and unfolding the bed is quick and easy in 3 movements
Warranty 1 Year Code
Width
Depth
Height
Seat Height
Seat Depth
Arm Height
Length Height
ED3680
900mm
790mm
800mm
450mm
500mm
650mm
2340mm
ED8210 - Buddy Sofa Chair • • • • •
Designed for relaxation & family sleepovers in patient rooms Stylish contemporary design Easy operation Multi-position backrest Storage area with protective cover for pillows etc
• • •
•
Space saving Fully open head area In-line locking castors - easy push button operation, swivel rear castor for manoeuvrability Available in a combination of Panaz Zest Ash and Panaz Zest Dove vinyl
Seat Width
Seat Height
Seat Depth
Width
Depth
Height
Sleeping Length
640mm
460mm
540mm
870mm
870mm
1170mm
2000mm
ED8240 - Moby Sofa Bed • • • •
68
AG E D CA R E CATA LO G UE
Stylish contemporary design Easy operation Extends up to 2m bed Storage box under extended side for pillows and blankets, with protective cover Seat Width
Seat Height
Seat Depth
Width
Depth
Height
1600-2350mm
470mm
650mm
1300-2000mm
800mm
760mm
S E AT I N G
Legrests & Footrests EB0320 - Step Stool • • • • •
Durable single step platform Manufactured from steel Bright chrome Cross support for greater stability Ribbed rubber top provides extra grip and prevents slipping Width
Length
Height
Step Area
440mm
350mm
230mm
360 × 285mm
Legrest • • • •
Provides comfort and support for the legs and feet Ideal for patients with fluid or circulatory problems Adjustable in height and angle Available in a range of fabrics and vinyls Code
Colur
Height Range
Width
Length
EC0110
Champagne Vinyl
425 - 575mm
400mm
500mm
EC0140
Slate Vinyl
425 - 575mm
400mm
500mm
EC0120
Fawn Fabric
425 - 575mm
400mm
500mm
EC0130
Fern Fabric
425 - 575mm
400mm
500mm
Footrest Padded • • • • •
Provides support for the feet Assists in the correction of hip angle Padded for additional comfort Pad width 410mm Pad length 240mm Code
Upholstery
Height
EC0050
Champagne Vinyl
125mm
EC0060
Slate Vinyl
125mm
EC0070
Champagne Vinyl
200mm
EC0080
Slate Vinyl
200mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
69
Bathroom Shower Stools
71
Shower Chairs
72
Mobile Shower Commodes
74
Mobile Shower Commode Accessories
81
Overtoilet Aids
82
Shower / Bath Trolleys
84
B AT H RO O M
Shower Stools AG0450 - Shower Stool • • • • • •
Height adjustable Integrated arms assist transfers Durable plastic moulded seat Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Width Between arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
510 - 660mm
550mm
380mm
125kg
AG0400 - Shower Stool - Aluminium • • • • • •
Height adjustable Integrated arms assist transfers Durable plastic moulded seat Non-slip rubber tips Powder coated aluminium frame is lightweight and rust proof Tested and conforms to Australian Standards AS/NZS 3973: 2009 Width Between arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
510 - 660mm
550mm
380mm
175kg
AG0470 - Shower Stool - Padded • • • • • •
Height adjustable Padded seat for added comfort Integrated arms assist transfers Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Also Available AG0410 Shower Stool Aluminium Padded – Lightweight, rust proof Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
520 - 670mm
550mm
380mm
125kg
AG0440 - Shower Stool - Padded with Backrest • • • • • •
Height adjustable Padded seat and back for added comfort Integrated arms assist transfers Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
520 - 670mm
550mm
380mm
125kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
71
BAT H RO O M
Shower Stools Shower Stool - Extra Wide • • • • • •
Wider seat widths and reinforced frame to suit the bariatric client Padded seat for added comfort Non-slip rubber feet Integrated arms assist transfers Electrophoretic surface treatment to prevent rusting Powder coated steel frame Code
Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
AG0310
500mm
520 - 670mm
620mm
610mm
150kg
AG0320
550mm
590mm
680mm
610mm
200kg
AG0330
600mm
590mm
730mm
610mm
250kg
AG0340
650mm
590mm
780mm
610mm
250kg
Shower Chairs AG0070 - Shower Chair • • • • • •
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
410 - 560mm
560mm
560mm
125kg
AG0200 - Shower Chair - Aluminium • • • • • •
72
AG E D CA R E CATA LO G UE
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Powder coated aluminium frame is lightweight and rust proof Tested and conforms to Australian Standards AS/NZS 3973: 2009 Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
410 - 560mm
560mm
560mm
200kg
B AT H RO O M
Shower Chairs AG0270 - Shower Chair - Stainless Steel • • • • •
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Durable stainless steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
450mm
410 - 560mm
560mm
560mm
125kg
Shower Chair - Wide • • • • • •
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Code
Type
Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
AG0080
Steel
500mm
420 - 570mm
600mm
560mm
135kg
AG0190
Aluminium
500mm
420 - 570mm
600mm
560mm
135kg
Shower Chair - Extra Wide • • • • • •
Height adjustable Wider seat widths and reinforced frame to suit the bariatric client Padded seat and curved backrest provide comfort and postural support Non-slip rubber feet Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Code
Seat Width
Seat Height
Base Width
Base Depth
Max User Weight
AG0110
550mm
470 - 640mm
650mm
520mm
300kg
AG0120
600mm
470 - 640mm
700mm
520mm
300kg
AG0130
650mm
470 - 640mm
750mm
520mm
300kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
73
BAT H RO O M
Shower Chairs Trix Shower Chair • • • •
Assists patient with showering and toileting Clear rear open space enabling positioning over the toilet Easy access for hygiene with open armrest Integral pan carrier glides
• •
Removable backrest Seat Depth has 5 settings at 25mm increments Seat Height has 7 settings at 25mm increments
•
Code
AJ0390
AJ0400
AJ0410
Arm Rest Height
210mm
210mm
210mm
Back Rest Height
430mm
430mm
430mm
Overall Height
920 - 1100mm
920 - 1100mm
920 - 1100mm
Overall Width
780mm
880mm
1080mm
Seat Depth – 5 settings at 25mm increments
470 - 570mm
470 - 570mm
495 - 595mm
Seat Height – 7 settings at 25mm increments
410 - 560mm
410 - 560mm
410 - 560mm
Seat Width
610mm
710mm
910mm
Width Between Arms
660mm
760mm
960mm
Max User Weight
400Kg
400Kg
400Kg
Overall Depth
650 - 750mm
650 - 750mm
710 - 810mm
Wall to Rear of Aperture
240 - 340mm
240 - 340mm
240 - 340mm
540mm (w) × 500mm (h)
540mm (w) × 500mm (h)
840mm (w) × 500mm (h)
360mm (w) × 460mm (h)
360mm (w) × 460mm (h)
360mm (w) × 460mm (h)
Toilet Bowl Clearance: Max Width x Height To Underside of Pan Carrier
Mobile Shower Commodes AE1610 - BathMobile Shower Commode - Folding • • •
The Chair is made with advanced plastic injection technology The Seat opening can be rotated 180O Seat locks into 3 different height positions
• • •
Long armrests that assist in seating and rising Adjustable footrest and detachable bedpan rails All metal parts are made of stainless steel (including bearings)
Warranty Frame 2 Years Accessories Available AZ0303 Square Removable Pan with Holders AZ0304 Round Removable Pan with Holders AZ0305 Rubber closed Seat (O.M) AZ0306 PU Closed Seat (PU) AZ0307 Open Seat 16mm (PU)
74
AZ0308 Open Seat 50mm (PU) AZ0309 Small Hole Open Pillow (PU) AZ0311 Back rest Pillow AZ0312 Armrests, Padded Clip-on (Pair) AZ0313 Carrying Case for Bath Mobile
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
450mm
450mm
520/540/560mm
715/735/755mm
1000/1020/1040mm
560mm
130kg
AG E D CA R E CATA LO G UE
B AT H RO O M
Mobile Shower Commodes AE0970 - Mobile Shower Commode - Hybrid • • • • • • • • • • •
Assists transportation of patient for showering and toileting Can be positioned over the toilet for toileting Supplied with open front polyurethane commode seat Swingback arms for side transfers Armrests can be set at two different heights PVC slatted backrest Sliding footrest is weight bearing and can be foot operated Mounted on 4 × 125mm locking castors Durable stainless steel frame Hand made seat closed and open etc Tested and conforms to Australian Standards AS/NZS 3973: 2009
Warranty Frame 7 Years Also Available AZ1480 Pan Carrier to suit, Stainless Steel. A range of commode seats are available. Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
460mm
430mm
595mm
200/240mm
340mm
540mm
150kg
Care Quip - Sliding Footplate • • • • • • • • • • •
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Swingback arms assist side transfers and can be positioned at two different heights Adjustable safety arms for additional security Sliding footrest is weight-bearing for added safety when standing or to assist during transfers PVC slatted backrest Pan carrier features a location lug to prevent movement Open front polyurethane seat PVC slatted backrest 4 × 125mm Tente locking castors Durable stainless steel frame
Warranty Frame 1 Year Also Available A range of commode seats are available. Code
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Height
Max User Weight
AE2060
460mm
430mm
580mm
240/280mm
330mm
550mm
200kg
AE1660
540mm
430mm
580mm
240/280mm
330mm
550mm
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
75
BAT H RO O M
Mobile Shower Commodes Mobile Shower Commode - Sliding Footplate • • • • • • • • • • • • •
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Wider seat widths and reinforced frame to suit the bariatric client Swingback arms with padded armpads assist side transfers and can be positioned at two different heights Adjustable safety arms for additional security Sliding footrest is textured and weight-bearing for added safety Footrest slides back under frame to assist patient transfers PVC slatted backrest Mounted on 4 × 125mm stainless steel locking castors Durable stainless steel frame Tested and conforms to Australian Standards AS/NZS 3973: 2009 Standard or Wide Includes open front seat
Warranty Frame 7 Years Code
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2090
Standard
460mm
430mm
595mm
200/240mm
340mm
540mm
200kg
AE2100
Wide
510mm
430mm
595mm
200/240mm
340mm
590mm
300kg
AE2110
Wide
560mm
430mm
595mm
200/240mm
340mm
640mm
300kg
AE2120
Wide
610mm
430mm
595mm
200/240mm
340mm
690mm
300kg
AE2130
Wide
660mm
430mm
595mm
200/240mm
340mm
740mm
300kg
Mobile Shower Commode - Swingaway Legrests • • • • • • • • • • • • •
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Padded commode seat (available as open or closed front) Swingback arms with padded armpads for side transfers Armrests can be adjusted to two different heights Adjustable safety arms for additional security PVC slatted backrest Adjustable height swingaway legrests feature a unique unobtrusive mechanism design to prevent skin tears Mounted on 4 × 125mm locking stainless steel castors Durable stainless steel frame Tested and conforms to Australian Standards AS/NZS 3973: 2009 Standard or Wide Includes open front seat
Warranty Frame 7 Years Code
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2160
Standard
460mm
430mm
565mm
200/240mm
340mm
540mm
200kg
AE2170
Wide
510mm
430mm
565mm
200/240mm
340mm
590mm
300kg
AE2180
Wide
560mm
430mm
565mm
200/240mm
340mm
640mm
300kg
AE2190
Wide
610mm
430mm
565mm
200/240mm
340mm
690mm
300kg
AE2200
Wide
650mm
430mm
565mm
200/240mm
340mm
740mm
300kg
76
AG E D CA R E CATA LO G UE
B AT H RO O M
Mobile Shower Commodes Mobile Shower Commode - Tilt in Space • • • • • • • • •
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Swingback arms with padded armpads for side transfers Adjustable safety arms for additional security Armrests can be positioned at two different heights Removable PVC slatted backrest Adjustable height swingaway legrests feature a unique unobtrusive mechanism design to prevent skin tears Mounted on 2 × 125mm stainless steel castors and 2 × 22 inch rear wheels Durable stainless steel frame
Warranty Frame 7 Years
Code
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2360
Standard
460mm
430mm
510-660mm
200/240mm
800mm
560mm
200kg
AE2370
Wide
510mm
430mm
510-660mm
200/240mm
900mm
610mm
300kg
AE1940 - Aquatec Ocean • • • • • • • •
Assists transportation of the patient for showering and toileting Soft contoured ergonomic seat is height adjustable, removable and easy to clean Integrated pan holder and commode bowl supplied as standard Adjustable height swingback arms for side transfers Machine washable backrest Height adjustable swing away legrests Foldaway texture footplates Space saving push bar
Warranty 1 Year
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
480mm
480mm
475-600mm
210-250mm
450mm
565mm
150kg
AE1870 - Aquatec Ocean - VIP Tilting • • • • • • • •
Assists transportation of the patient for showering and toileting Soft ergonomic seat is height adjustable, removable and easy to clean Integrated pan holder and commode bowl supplied as standard Adjustable height swingback arms for side transfers Tension adjustable backrest Adjustable height swing away legrests 4 × 125mm front and rear castors Durable powder coated steel frame
Warranty 1 Year
Seat Width
Seat Depth
Seat Height
Overall Width
Overall Depth
Max User Weight
480mm
480mm
475-600mm
565mm
1000mm
150kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
77
BAT H RO O M
Mobile Shower Commodes AE1740 - Nemo Gas-Assisted Tilt-in-Space Shower Commode • • • • • • • • • • •
Optimal comfort for both caregivers and clients Contoured headrest with adjustable height & depth Gas assisted seat tilt Foldback armrests 4 × braking castors Removable and height adjustable footrests Calf strap Moulded polyurethane construction Exceptional design to meet stringent infection control regulations Contemporary style and design Made in Netherlands
Warranty 2 Years Outside Depth
Outside Width
Inside Seat Depth
Seat Height
Max User Weight
Product Weight
Max Tilt
730mm
660mm
440mm
540mm
150kg
24.5kg
30O
AE1710 - Flexo Shower Commode • • • • • • • • • •
Simple adjustable hydraulic height control Seat height adjustable 500-1050mm Contoured seat with toilet opening cover Foldable armrests with front lock to allow side transfers Ergonomically shaped seat & backrest Foldable footrests with calf strap The chair will reach a maximum incline of 15° in the highest position Bedpan/ bowl carrier Lockable plastic swivel castors, stainless steel wheel housings to provide greater stability Made in Netherlands
Warranty 2 Years Seat Width
Seat Depth
Seat Height
Overall Width
Overall Length
Product Weight
Max User Weight
470mm
440mm
500-1050mm
730mm
1040mm
39kg
150kg
AE1770 - Lopital Tango XXL Shower Commode • • • • • •
Flip back armrests 4 × braking castors Toilet seat with hygiene opening Pan carrier and commode pan Foldable swing away footrests Made in Netherlands
Warranty 2 Years
78
Seat Width
Seat Depth
Seat Height
Overall Width
Overall Depth
Product Weight
Max User Weight
700mm
540mm
510mm
830mm
970mm
19kg
360kg
AG E D CA R E CATA LO G UE
BAT H RO O M
Mobile Shower Commodes Lopital Reflex Shower Commode
• • • • • • • • • • • • • •
Electrically operated height adjustment Electrically operated tilt mechanism Easy-to-use touch controls on backrest Height-adjustable headrest Ergonomically designed backrest and seat Height-adjustable legrest and calf support Foldback armrests with locking mechanism Suitable for use in the shower and toilet Slide for commode pan 4 × braking castors Easy to recharge with battery charger provided Optional hand control available at an additional cost Contemporary style and design Made in Netherlands
Warranty 2 Years
Code
Footrest Type
Seat Width
Outside Width
Inside Seat Depth
Seat Height
Max User Weight
Product Weight
Max Tilt
AE1690
Center Mounted
470mm
700mm
440mm
500-1000mm
135kg
53kg
30O
AE1700
Swing Away
470mm
700mm
440mm
500-1000mm
135kg
53kg
30O
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
79
BAT H RO O M
Mobile Shower Commodes AE1720 - Lopital Elexo XXL Bariatric Shower Commode
• • • • • • • • • • • • •
Simple electric high / low adjustment electric Electric operation with battery indicator 4 × castors (3 × locking, 1 × directional locking) Dual motors for increased lift capacity Pan carrier and commode pan Sleep mode setting after 60 minutes Battery charger included Folding and extended armrests Open front seat Ergonomic calf support Swivelling and detachable footrests Contemporary style and design Made in Netherlands
Warranty 2 Years
80
Seat Width
Seat Depth
Seat Height
Overall Length
Overall Wdith
Product Weight
Max User Weight
700mm
540mm
500-1050mm
1190mm
890mm
71kg
220kg
AG E D CA R E CATA LO G UE
BAT H RO O M
Mobile Shower Commode Options AZ4820 - Shower Commode Accessory - Bedpan with Cover • • •
Plastic bedpan compatible with the Reflex and Nemo shower commodes Made in Netherlands
AZ6650 - Charger for Lopital Reflex • •
Replacement charger for the Reflex shower commode Made in Netherlands
• • • •
Retains commode pan for toileting Slides under commode seat through existing runners Durable stainless steel To suit Juvo Shower Commodes
Pan/Bowl Carrier
Models Available AZ1480 Pan/Bowl Carrier - To suit standard and wide commodes AZ1479 Pan/Bowl Carrier - To suit tilting commodes
AZ5020 - Lopital Shower Commode Accessory - Platilon Pressure Relieving Seat • • •
Water resistant Pressure relieving add on Made in the Netherlands
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
81
BAT H RO O M
Overtoilet Aid AJ0050 - Overtoilet Aid • • • • • • •
Provides a raised seat and support arms to assist toilet transfers Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Height adjustable Removable toilet seat and splashguard Non-slip rubber tips Powder coated steel
Also Available AZ1400 Lid, Clip-on With Lid
Seat Height
Width Between Arms
Arm Height
Base Width
Base Depth
Max User Weight
470 - 620mm
440mm
240mm
550mm
610mm
125kg
AJ0020 - Overtoilet Aid - Aluminium • • • • • • • •
Provides a raised seat and support arms to assist toilet transfers Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Height adjustable Removable toilet seat and splashguard Non-slip rubber tips Powder coated aluminium frame is lightweight and rust proof Tested and conforms to Australian Standards AS/NZS 3973 :2009
Also Available AZ1400 Lid, Clip-on
Seat Height
Width Between Arms
Arm Height
Base Width
Base Depth
Max User Weight
470 - 620mm
445mm
230mm
550mm
610mm
150kg
With Lid
AJ0090 - Overtoilet Aid - Stainless Steel • • • • • • •
Provides a raised seat and support arms to assist toilet transfers Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Height adjustable Removable toilet seat and splashguard Non-slip rubber tips Durable stainless steel frame
Also Available AZ1400 Lid, Clip-on
With Lid
Seat Height
Width Between Arms
Arm Height
Base Width
Base Depth
Max User Weight
470 - 620mm
440mm
240mm
550mm
610mm
125kg
82
AG E D CA R E CATA LO G UE
BAT H RO O M
Overtoilet Aid Overtoilet Aid - Extra Wide • • • • • • •
Provides a raised seat to assist in toileting and transfers Wider seat widths and reinforced frame to suit the bariatric client Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Supplied with lift-back toilet seat and removable splashguard Non-slip rubber tips Powder coated steel
Also Available AZ1400 Lid, Clip-on With Lid
Code
Width Between Arms
Seat Height
Armrest Height
Base Width
Base Depth
Max User Weight
AJ0110
500mm
475 - 625mm
230mm
620mm
610mm
150kg
AJ0180
550mm
550mm
230mm
680mm
610mm
200kg
AJ0190
600mm
550mm
230mm
730mm
610mm
250kg
AJ0200
650mm
550mm
230mm
780mm
610mm
250kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
83
BAT H RO O M
Shower / Bath Trolleys Marina Hydraulic Shower Trolley Lopital Marina Hydraulic Shower Trolley is a light weight shower trolley made of aluminium which makes it easy to maneuver making transfers easier. The Marina Hydraulic Shower Trolley is height adjustable, ensuring caregiver convenience and resident/client comfort. • • • • • • • •
AH0350 Basic
•
Wide stable wheelbase Extremely light frame made of aluminium Large diameter wheels (Ø 12.5 cm) Height-adjustable, hydraulically operated Ergonomic pump action for height adjustment Simple and safe control of side rails with locking mechanism Includes mattress, pillow and outlet hose Corrosion resistant through coated aluminium, stainless steel, plastic and galvanised parts Streamlined finish for optimal cleaning
Warranty 2 Years
AH0360 Deluxe
84
AG E D CA R E CATA LO G UE
High / Low Drive:
Hydraulic push-only
Diameter of Wheels:
125cm
Side Rails:
Turnable, requires both hands when opening
External Dimensions:
2090 x 820 x 620/1160mm (l x w x h)
Top Surface Net Area:
Approx. 1900 x 650mm
Mattress Edge Height
Approx. 200mm
Minimum Lying Surface Height:
Approx. 450mm
Maximum Lying Surface Height:
Approx. 990mm
Water Discharge Hose:
Internal Ø 40mm
Wheel Base:
1400mm
Wheel Gauge:
630mm
Clearance Space:
180mm
Weight:
68kg
Max User Weight:
180kg
B AT H RO O M
Shower / Bath Trolleys Marina Electric Shower Trolley Lopital Marina Electric Shower Trolley is a light weight shower trolley made of aluminium which makes it easy to maneuver making transfers easier. The Marina Electric Shower Trolley is height adjustable, ensuring caregiver convenience and resident/client comfort. • • • • • • • •
AH0370 Basic
•
Wide stable wheelbase Extremely light frame made of aluminium Large diameter wheels (Ø 12.5 cm) Height-adjustable, electrically operated Fitted with an emergency descent switch, emergency brake and user-friendly charger Simple and safe control of side rails with locking mechanism Includes mattress, pillows and outlet hose Corrosion resistant through coated aluminium, stainless steel, plastic and galvanised parts Streamlined finish for optimal cleaning
Warranty 2 Years
AH0380 Deluxe
High / Low Drive:
Electric, push-only
Manual Control:
2-key handset with suspension-hook, IP66
Control Box:
24VDC, max. 250 W, IP65
Emergency Brake:
Push button with rotation lock
Battery:
2 x 12V, 7Ah
Battery Charger:
220V 50/60Hz 500mA
Emergency Descent Switch:
Stick shift, directly from the control box
Complete Electrical System:
IP65
Diameter of Wheels:
125mm
Side Rails:
Turnable, requires both hands when opening
External Dimensions:
2090 x 820 x 620/1160mm (l x w x h)
Top Surface Net Area:
Approx. 1900 x 650mm
Mattress Edge Height:
Approx. 200mm
Minimum Lying Surface Height:
Approx. 450mm
Maximum Lying Surface Height:
Approx. 990mm
Water Discharge Hose:
Internal Ø 40mm
Wheel Base:
1400mm
Wheel Gauge:
630mm
Clearance Space:
180mm
Weight:
68kg
Max User Weight:
180kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
85
Facility Service Equipment Tugs
87
Linen Trolleys & Equipment
89
Service Trolleys
94
Mortuary Trolleys
97
FAC I L I T Y S E RV I C E E Q UI P M E N T
Tugs Enforce Towing Tug
The Enforce, a compact ride-on tug is effective in confined spaces. With a very low centre of gravity, the risk of tipping is greatly reduced. It has two front-steer wheels which creates exceptional stability across many rough surfaces. The Enforce Tug has a number of coupling options. The standard high towing hook can be used either on a downward or upward motion. A range of customised coupling attachments are also available to suit our trolleys or equipment. The Enforce Tug has a unique high quality hand control system that has a removable key to protect against unauthorised use. It has a horn, an emergency stop button and a variable speed control in forward and backward motions. • • • • • • •
With a very low centre of gravity, the risk of tipping is greatly reduced. It has two front-steer wheels which creates exceptional stability across many rough surfaces. The Enforce Tug has a number of coupling options. The standard high towing hook can be used either on a downward or upward motion. A range of customised coupling attachments are also available to suit our trolleys or equipment. The Enforce Tug has a unique high quality hand control system that has a removable key to protect against unauthorised use. It has a horn, an emergency stop button and a variable speed control in forward and backward motions.
Accessories Available
DZ0110
DZ0030
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
87
FAC I L I T Y S E RVI C E E Q UI P M E N T
Tugs Enforce Towing Tug
Code:
DC0020
Tug Length:
790mm
Tug Width:
660mm
Wheel Base:
620mm
Platform Height:
170mm
Overall Height:
1340mm
Ground Clearance:
39mm
Motor Voltage:
24 Volts
Pull Capacity:
1000kg
Push Capacity:
1000kg
Battery Range:
30-60km
Warranty:
1 year
The Enforce ride-on compact electric tug is the ultimate manual handling solution designed for goods transport in hospitals and aged care and facility environments.
88
Linen
Waste Management
Oxygen Tanks
Food
Hospital Stores
Warehouse
AG E D CA R E CATA LO G UE
FAC I L I T Y S E RV I C E E Q UI P M E N T
Linen Trolleys & Equipment DA0370 - Classic Single Linen Skip - No Lid • • •
For soiled linen 75mm swivel castors; 2 of which are locking Stainless steel frame Width
Length
Height
380mm
540mm
850mm
DA0350 - Classic Double Linen Skip - No Lids • • •
For soiled linen 75mm swivel castors; 2 of which are locking Stainless steel frame Width
Length
Height
780mm
540mm
850mm
DA0390 - Classic Triple Linen Skip - No Lids • • •
For soiled linen 75mm swivel castors; 2 of which are locking Stainless steel frame Width
Length
Height
1170mm
540mm
850mm
DA0380 - Classic Single Linen Skip - with Lid • • • •
For soiled linen Foot operated plastic lid 75mm swivel castors; 2 of which are locking Stainless steel frame
Warranty 1 Year Width
Length
Height
380mm
540mm
850mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
89
FAC I L I T Y S E RVI C E E Q UI P M E N T
Linen Trolleys & Equipment DA0360 - Classic Double Linen Skip - with Lids • • • •
For soiled linen Foot operated plastic lids 75mm swivel castors; 2 of which are locking Stainless steel frame
Warranty 1 Year Width
Length
Height
780mm
540mm
850mm
DA0400 - Classic Triple Linen Skip - with Lids • • • •
For soiled linen Foot operated plastic lids 75mm swivel castors; 2 of which are locking Stainless steel frame
Warranty 1 Year Width
Length
Height
1170mm
540mm
850mm
DA01080 - Linen Skip - Double With Bin • • •
Stainless steel construction 4 × 125mm castors Side mounted bin
• •
Ideal for colour coding soiled linen Durable cotton material
Soiled Linen Bags
90
AG E D CA R E CATA LO G UE
Code
Colour
DA1190
White
DA0470
Red
DA0460
Blue
DA0730
Yellow
DA0720
Green
FAC I L I T Y S E RV I C E E Q UI P M E N T
Linen Trolleys & Equipment DD0050 - Waste Bag Holder - Pedal Operated Lid • • • • •
Stainless steel body with powder coated lid Designed for use with wide plastic bags Solid platform to support waste bags Incorporated clip holds bag securely 50mm castors
Warranty 1 Year Width
Depth
Overall Height
400mm
500mm
930mm
DA0550 - Linen Folding Table • • •
PVC plastic work top Powder coated steel frame 100mm swivel castors (shown with optional locking castors) Width
Length
Height
700mm
1200mm
980mm
DA0420 - Viva Clean Linen Trolley • • • • •
For clean linen Powder coated steel 2 × Push handles Shelf dimensions 1000mm width x 500mm length 4 × 150mm swivel castors; 2 of which are locking
Options Available DA0410 Front PVC Hygiene Cover to suit Width
Length
Height
550mm
1000mm
1430mm
DA0560 - Garment Rack • • •
Fully welded stainless steel construction 125mm castors (Locking also available) Rubber bumpers Base Width
Length
Height
600mm
1600mm
1600mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
91
FAC I L I T Y S E RVI C E E Q UI P M E N T
Linen Trolleys & Equipment DA0020 - Mesh Clean Linen Trolley • • • • • •
Integrated push handle Powder coated steel finish 125mm castors (4 swivel on small, 2 × swivel and 2 × fixed on large) 2 × Shelves Also available in custom sizes Also available with corner bumpers Width
Depth
Height
1200mm
500mm
1400mm
Linen Storage Tray Trolley • • • • •
Multi tray capacity Integrated push handle Powder coated steel finish 125mm Castors (4 Swivel on Small, 2 × Swivel and 2 × fixed on Large) Corner buffers Code
Tray Model
Width
Length
Height
Garment Rack
DA0670
15
500
1180mm
1220mm
No
DA0180
18
500
1180mm
1420mm
No
DA0930
21
500
1180mm
1500mm
No
DA1210
24
700
1450mm
1420mm
Yes
DA0940
28
700
1450mm
1500mm
Yes
DA0950
30
700
1525mm
1250mm
No
Moist Linen Trolley • • •
92
AG E D CA R E CATA LO G UE
Durable rotomoulded plastic tub Galvanised sheet metal base frame 125mm rubber swivel castors (2 × Fixed and 2 × Swivel on DA0260 model) Code
Capacity
Width
Length
Height
DA0240
340 Litres
710mm
1000mm
780mm
DA0250
450 Litres
730mm
1280mm
840mm
DA0810
650 Litres
930mm
1530mm
840mm
FAC I L I T Y S E RV I C E E Q UI P M E N T
Linen Trolleys & Equipment Spring Base for Linen Trolley - Coil Type • • •
Strong scissor action lift Galvanised sheet metal frame 50/70/100 kg capacity coil spring Code
Model
Width
Length
Height
DA0340
PVC Top
760mm
430mm
600mm
DZ0540
Galvanised Top
760mm
430mm
600mm
DA0270 - Spring Base for Linen Trolley - Rising Spring Type • • • •
Folded sheet metal top 4 or 6 stainless steel springs Vinyl spring covers Suits 340 and 450 litre tubs only Width
Length
Height
600mm
1200mm
30mm
Wet & Dry Linen Trolley • • • • •
Mesh sided basket Spring loaded base Corner buffers and push handle Powder coated steel finish 125mm swivel castors Code
Model
Width
Length
Height
DA0700
Small
600mm
900mm
1020mm
DA0710
Large
650mm
1200mm
1050mm
Service Cart - 2 Shelves • • •
2 × Polypropylene shelves and handles 4 × Aluminium frames 4 × 100mm swivel castors; 2 of which are locking
Also Available Service Cart with side panels on 3 sides (not shown)
Code
Side Panels
Tray Size
Overall Width
Depth
Overall Height
DB0110
No
720 × 450mm
900mm
490mm
1025mm
DB0120
Yes
720 × 450mm
900mm
490mm
1025mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
93
FAC I L I T Y S E RVI C E E Q UI P M E N T
Service Carts & Trolleys Service Cart - 2 Shelves and 2 Drawers • • • •
2 × Polypropylene shelves and handles 4 × Aluminium frames 4 × 100mm swivel castors; 2 of which are locking 2 × Drawers 285mm width x 390mm length
Also Available Service Cart with side panels on 3 sides (not shown)
Code
Side Panels
Tray Size
Overall Width
Depth
Overall Height
DB0090
No
720 × 450mm
900mm
490mm
1025mm
DB0100
Yes
720 × 450mm
900mm
490mm
1025mm
Service Cart - 3 Shelves • • • •
3 × Polypropylene shelves 2 × Polypropylene handles 4 × Aluminium frames 4 × 100mm swivel castors; 2 of which are locking
Also Available Service Cart with side panels on 3 sides (as shown)
Code
Side Panels
Tray Size
Overall Width
Depth
Overall Height
DB0150
No
720 × 450mm
900mm
490mm
1040mm
DB0130
Yes
720 × 450mm
900mm
490mm
1040mm
Service Cart - 3 Shelves & 2 Drawers • • • • •
3 × Polypropylene shelves 2 × Polypropylene handles 4 × Aluminium frames 4 × 100mm swivel castors; 2 of which are locking 2 × Drawers 285mm width x 390mm length
Also Available Service Cart with side panels on 3 sides (not shown)
94
Code
Side Panels
Tray Size
Overall Width
Depth
Overall Height
DB0160
No
720 × 450mm
900mm
490mm
1040mm
DB0140
Yes
720 × 450mm
900mm
490mm
1040mm
AG E D CA R E CATA LO G UE
FAC I L I T Y S E RV I C E E Q UI P M E N T
Service Carts & Trolleys DB0200 - Utlity Cart - 2 Shelves • • •
2 × Polypropylene shelves and handles 4 × Aluminium frames 4 × 100mm swivel castors; 2 of which are locking Tray Size
Overall Width
Depth
Overall Height
620 × 450mm
790mm
480mm
1040mm
DB0190 - Utility Cart Narrow - 3 Shelves • • • •
3 × Polypropylene shelves 2 × Polypropylene handles 4 × Aluminium frames 4 × 75mm swivel castors; 2 of which are locking Tray Size
Overall Width
Depth
Overall Height
485 × 365mm
655mm
370mm
966mm
DB0210 - Utility Cart Medium - 3 Shelves • • • •
3 × Polypropylene shelves 2 × Polypropylene handles 4 × Aluminium frames 4 × 100mm swivel castors; 2 of which are locking Tray Size
Overall Width
Depth
Overall Height
620 × 450mm
790mm
480mm
1090mm
Utility Cart Wide - 3 Shelves • • • •
3 × Polypropylene shelves 2 × Polypropylene handles 4 × Aluminium frames 4 × 100mm swivel castors; 2 of which are locking
Also Available DB0180 Utility Cart Wide with side panels on 3 sides (as shown) Code
Side Panels
Tray Size
Overall Width
Depth
Overall Height
DB0170
No
915 × 520mm
1100mm
520mm
1040mm
DB0180
Yes
915 × 520mm
1120mm
520mm
1040mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
95
FAC I L I T Y S E RVI C E E Q UI P M E N T
Service Carts & Trolleys DB0360 - Clax Cart with Basket • •
• •
The X-Cart is a collapsible trolley that has a range of applications and is ideal for use in aged care environments. It can be completely collapsed by the push of a button on the handle. The wheels are able to be removed by the push of a button and stored underneath for compact transport and storage. The top platform can be folded back to allow larger items to be transported. The basket has foolscap/file suspension capability great for transporting documents. A robust foot pedal brake allows the X-Cart to be locked in position whilst loading or unloading. The injection moulded plastic and aluminium design means that whilst the X-Cart is lightweight it is still very robust and has a great carrying capacity. Width
Length
Height
600mm
1000mm
1070mm
DB0030 - Classic Multi Purpose Trolley • • • • •
Stainless steel construction 2 × shelves Easy clean edges 4 × 125mm castors Rubber corner bumpers Length
Depth
Overall Height*
900mm
490mm
900mm
*Overall height includes castors
DB0020 - Classic Multi Purpose Trolley • • • • •
Stainless steel construction 3 × shelves Easy clean edges 4 × 125mm castors Rubber corner bumpers Length
Depth
Overall Height*
900mm
490mm
900mm
*Overall height includes castors
96
AG E D CA R E CATA LO G UE
FAC I L I T Y S E RV I C E E Q UI P M E N T
Mortuary Trolley KE0240 - Mortuary Trolley • • • •
Stainless steel construction Hi Low function electrically operated with battery back up Removable side and end rails 4 × 200mm Castors; 2 × locking and 1 × steer Width
Length
Height
650mm
2200mm
450mm-1450mm
KE0770 - Mortuary Transport Trolley • •
Welded stainless steel construction Push handle at one end 12.5cm diameter chrome plated, ball bearing castors, two castors are fitted with steering locks and two with brakes Width
Length
Height
630mm
1970mm
960mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
97
Medical Carts & Trolleys Medical Carts
99
Dressing Trolleys
106
Medical Carts Accessories
101
IV Poles
108
IT Equipment Carts
103
IV Pole Accessories
109
IT Equipment Carts Accessories
104
Oxygen Trolley
109
Medical Trolleys
105
Treatment Tables
110
Instrument Trolleys
106
M E D I CA L E Q U I P M E N T & CA RTS
Medical Carts GC1340 - Viva Medication Cart The Viva Medication Cart is designed to make the supply of medicines fast and efficient. Convenient size and practical in the dispensing and transportation of medication make this an ideal option for transporting and storing medications. • ABS top and push handles • Aluminium side frames • Central key lock control • 2 × 76mm drawers • 1 × 155mm drawer • 1 × 234mm drawer • 4 × 100mm swivel castors; two locking, one directional • Drawer dividers available Warranty 1 Year Width
Depth
Height*
690mm
520mm
1010mm
*Overall height includes castors
Viva Medication Cart The Viva Medication Cart is designed to make the supply of medicines fast and efficient. Convenient size and practical in the dispensing and transportation of medication make this an ideal option for transporting and storing medications. • ABS top with slide out work surface • Central key lock control • Push handle • 3 × 155mm drawers • 1 × 234mm drawer • 4 × 125mm Twin swivel castors; two locking, one directional • Soft close drawers • Dividers in each drawer Warranty 1 Year Also Available GC1350 as above, with aluminium drawers Colours Available GC1390 Blue GC1410
White
GC1400
Purple
Width
Depth
Height*
690mm
520mm
1010mm
*Overall height includes castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
99
M E D I CA L E Q UI P M E N T & CA RTS
Medical Carts GC0690 - Viva Pre-Pack Medication Cart - Aluminium The Pre-Pack Aluminium Cart is lightweight for easy maneuverability and has drawers designed to accommodate individual dosage medication blister packs. • ABS top with slide out work surface • Central key lock control • Push handle • 4 × 125mm twin swivel castors; two locking, one directional • Soft close drawers • Drawer dividers available Warranty 1 Year
Code
Width
Depth
Height*
155mm Drawer
260mm Drawer
GC0690
690mm
520mm
1010mm
1
2
GC0700
690mm
520mm
1085mm
0
3
*Overall height includes castors
Viva Narrow Cart The Viva Narrow Cart is designed with smaller overall dimensions than the regular procedure cart. This is ideal for areas with limited space. It provides convenient storage and easy manoeuvrability. • ABS top with slide out work surface • ABS Protection bumpers • Central key lock control • Push handle • 4 × 100mm Castors; two locking • Dividers available • Soft close drawers Warranty 1 Year Heights Available
GC1500 900mm
GC1490 1056mm
Code
Width (Incl. Bumpers)
Depth
Height*
76mm Drawer
155mm Drawer
234mm Drawer
Total Drawers
GC1500
520mm
542mm
900mm
1
2
1
4
GC1480
520mm
542mm
977mm
2
2
1
5
GC1490
520mm
542mm
1056mm
3
2
1
6
*Overall height includes castors
100
GC1480 977mm
AG E D CA R E CATA LO G UE
M E D I CA L E Q U I P M E N T & CA RTS
Medical Cart Accessories GZ1600 - Adjustable IV Pole • • •
Fits to rear of cart 2 Hooks Easy height adjustment
GZ1690 - Sharps Container Set • • • •
GZ0120 - Sharps Bin Bracket for Large Bin • •
GZ0130 - Sharps Bin Bracket for Small Bin
Side accessory includes side rail Width 110mm Height 215mm Depth 113mm
GZ0530 - Sharps Bin Bracket
• •
• • •
• • •
Fits to side of Cart Height adjustable Suitable for Cutan®
GZ1580 - Hand Sanitiser Holder • • • •
BD Small • Side accessory includes side rail • Height adjustable
GZ1830 - Drop Down Side Shelf
Side accessory includes side rail Height adjustable
GZ1581 - Hand Sanitiser Holder
Daniels® with fixing plate • Side accessory includes side rail • Height adjustable
GZ2740 - Sharps Bin Bracket
Side accessory includes side rail Height adjustable
Fits to left side of Cart Height adjustable Suitable for Avaguard® GZ1579 Right hand side
GZ1440 - Drawer Divider - 76mm • • •
Width 350mm Depth 345mm Height 161mm
1 30 0 930 930
3 Short dividers 3 Long dividers 2 Locating strips
A L P H A L I F E CA R E .C O M . AU
1 01
M E D I CA L E Q UI P M E N T & CA RTS
Medical Cart Accessories GZ1810 - Waste Bin • • • • • •
GZ1500 - Drawer Divider - 155mm No lid Width 365mm Depth 255mm Height 460mm 19L Capacity White bracket for side rails: GZ2630
GZ1820 - Waste Container Set & Lid • • • •
Side accessory, includes side rail Width 255mm Depth 170mm Height 315mm
GZ1650 - Multi-storage Basket • • • •
Side accessory, includes side rail Width 330mm Depth 130mm Height 180mm
GZ1550 - Single Glove Holder • • • • •
Side accessory, includes side rail Width 270mm Depth 110mm Height 135mm Gloves not included
GZ1700 - Monitor Holder Set - Short Arm • • • • •
1 02
Rotates 270° Pivots 180° Weight capacity 8kg Monitor not included Support holder not included
AG E D CA R E CATA LO G UE
• • •
2 Short dividers 2 Long dividers 2 Locating strips
GZ1530 - Garbage Bin • • • •
Side accessory, includes side rail Width 255mm Depth 170mm Height 315mm
JB0100 - Cantilever Monitor Arm • • • •
Width 413mm Depth 113mm Height 370mm Requires support holder: GZ2425
GZ1400 - Adjustable Drawer Divider 76mm – Narrow • For the mini, narrow and double cart range • 3 Short dividers • 6 Adjustable dividers • 6 T-clips for securing dividers • 2 Locating strips
GZ1430 - Adjustable Drawer Divider 155mm – Narrow • For the mini, narrow and double cart range • 3 Short dividers • 4 Adjustable dividers • 4 T-clips for securing dividers • 2 Locating strips
M E D I CA L E Q U I P M E N T & CA RTS
Medical Cart Accessories GZ1610 - Monitor Holder - Long Arm • • • • •
Multi adjustable arm Maximum length 250mm Weight capacity 10kg Monitor not included Support holder not included
GZ1360 - Computer Drawer • • •
Support Holder for Monitor Models Available • GZ2420 Left Side Style • GZ2430 Right Side Style • GZ2425 Cantilever Style
GZ2770 - Notebook Holder
76mm Drawer Computer not included Specify colour and size
• • • • • • •
Mounts to right side of cart Steel construction with powder coat finish Rotates 270° Pivots 180° Fixings to retain computer Weight capacity 8kg Computer not included
IT Equipment Carts i-Move Cart The i-Move is an affordable, gas assisted height adjustable rounds trolley. When it comes to moving laptops, tablets or simply pens and paper along with other clinical items, traditionally metal dressing trolleys have been used. The i-Move is light and easy to move, unobtrusive in tight spaces and you can comfortably sit or stand at it. Included is a convenient storage shelf and our ability to customise the top size and shape to totally suit your requirements. Features • Compact, easy to clean top - 550mm wide x 560mm deep • Rebated to prevent items from sliding off • Convenient 110mm storage shelf with lip • Height adjustable from 810mm to 1110mm • Laptop security lock system available • Tablet mounting available • Option of a rear cable storage compartment • Customisable design Options • Kensington computer lock • Storage compartment • Tablet mount • Custom top size • Power cord securing bracket Models Available • GC2190 - With Shelf • GC2195 - Without Shelf
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 03
M E D I CA L E Q UI P M E N T & CA RTS
IT Equipment Carts GC1120 - IT Equipment Cart • • • • • • • • •
4 × 100mm swivel castors; two locking Aluminium mount profile Powder coated metal drawer/shelf Adjustable shelves ABS shelves and base cover Auto return drawer glides Cart weight 32kg Drawer load limit 10kg Shelf load limit 20kg Specifications
Width
Depth
Height*
Cart dimensions
500mm
610mm
1350mm
Drawer dimensions
380mm
300mm
85mm
Shelf dimensions
455mm
360mm
30mm
*Overall height includes castors
IT Equipment Cart Accessories GZ1990 - Basket
GZ2090 - Monitor Holder Set - Short Arm • • •
Mounts to aluminum central post Steel construction with PVC finish 200 × 200 × 150mm
GZ2100 - Notebook Holder • • • • • •
1 04
Mounts to aluminum central post Aluminium construction Rotation 270° Pivot 180° Adjustable fixings to retain computer Weight capacity 8kg
AG E D CA R E CATA LO G UE
• • • • • •
Mounts to aluminum central post Aluminum construction with grey painted finish Multi adjustable arm Maximum length 250mm Weight capacity 10kg Monitor not included
GZ2080 - Monitor Holder Set - Long Arm • • • • • •
Mounts to aluminum central post Aluminum construction with grey painted finish Multi adjustable arm Maximum length 250mm Weight capacity 10kg Monitor not included
M E D I CA L E Q U I P M E N T & CA RTS
Medical Trolleys Viva Instrument Trolley - Standard • • •
2 shelves, no rails Full under bracing support for shelves providing maximum stability & strength Double safety folds to all shelf edges
• •
4 × 100mm castors (2 locking) 304 Grade stainless steel construction, satin finish
Warranty 1 Year Code
Width
Depth
Height*
GD0870
490mm
490mm
900mm
GD0880
600mm
490mm
900mm
GD1040
750mm
490mm
900mm
GD0890
900mm
490mm
900mm
*Overall height includes castors
Viva Instrument Trolley - Large • • •
2 shelves, no rails Full under bracing support for shelves providing maximum stability & strength Double safety folds to all shelf edges
• •
125mm ball bearing fork castors with grey rubber wheels 304 grade stainless steel construction, satin finish
Warranty 1 Year Code
Width
Depth
Height*
GD0920
1000mm
490mm
900mm
GD0940
1200mm
490mm
900mm
GD0930
1000mm
600mm
900mm
GD1050
1200mm
600mm
900mm
*Overall height includes castors
Viva Instrument Trolley with Rails - Standard • • •
2 shelves, with rails Full under bracing support for shelves providing maximum stability & strength Double safety folds to all shelf edges
• •
4 × 100mm castors (2 locking) 304 grade stainless steel construction, satin finish
Warranty 1 Year Code
Width
Depth
Height*
GD0900
490mm
490mm
970mm
GD1060
600mm
490mm
970mm
GD0910
750mm
490mm
970mm
GD1070
900mm
490mm
970mm
*Overall height includes castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 05
M E D I CA L E Q UI P M E N T & CA RTS
Instrument Trolleys Viva Instrument Trolley with Rails - Large • • • • •
2 shelves, with rails Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges 125mm ball bearing fork castors with grey rubber wheels (2 locking) 304 grade stainless steel construction, satin finish
Warranty 1 Year Code
Width
Depth
Height*
GD1080
1000mm
490mm
970mm
GD0860
1200mm
490mm
970mm
GD1090
1000mm
600mm
970mm
GD1100
1200mm
600mm
970mm
*Overall height includes castors
Dressing Trolleys Viva Dressing Trolley - 1 Drawer • • • • • •
1 × 125mm drawer with full extension runners Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges Work surface and lower shelf with 3 rails 4 × 100mm castors (2 locking) 304 grade stainless steel construction, satin finish
Warranty 1 Year Code
Width
Depth
Height*
GD0840
490mm
490mm
970mm
GD0950
600mm
490mm
970mm
GD0850
750mm
490mm
970mm
GD0960
900mm
490mm
970mm
*Overall height includes castors
106
AG E D CA R E CATA LO G UE
M E D I CA L E Q U I P M E N T & CA RTS
Dressing Trolleys Viva Dressing Trolley - 2 Drawer • • • • • •
2 × 125mm drawers with full extension runners Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges Work surface and lower shelf with 3 rails 4 × 100mm castors (2 locking) 304 grade stainless steel construction, satin finish
Warranty 1 Year Code
Width
Depth
Height*
GD0970
490mm
490mm
970mm
GD0370
600mm
490mm
970mm
GD0790
750mm
490mm
970mm
GD0980
900mm
490mm
970mm
*Overall height includes castors
Viva Dressing Trolley - 3 Drawer • • • • • •
3 × 125mm drawers with full extension runners Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges Work surface and lower shelf with 3 rails 4 × 100mm castors (2 locking) 304 grade stainless steel construction, satin finish
Warranty 1 Year Code
Width
Depth
Height*
GD0990
490mm
490mm
970mm
GD1000
600mm
490mm
970mm
GD1010
750mm
490mm
970mm
GD0800
900mm
490mm
970mm
*Overall height includes castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 07
M E D I CA L E Q UI P M E N T & CA RTS
Dressing Trolleys Viva Dressing Trolley - 4 Drawer • • • • • •
4 × 125mm drawers with full extension runners Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges Work surface and lower shelf with 3 rails 125mm ball bearing fork castors with grey rubber wheels (2 locking) 304 grade stainless steel construction, satin finish
Warranty 1 Year Code
Width
Depth
Height*
GD0810
490mm
490mm
970mm
GD0820
600mm
490mm
970mm
GD0830
750mm
490mm
970mm
GD1030
900mm
490mm
970mm
*Overall height includes castors
IV Poles GB0010 - IV Stand Mobile - Economy • • • • •
2 Hook design Adjustable height 1240-2130mm 560mm nylon base Chromed steel pole 50mm castors
GB0142 - IV Stand Mobile - Alloy Base - 2 Hook • • • • •
1 08
2 Hook design Adjustable height 1420-2200mm Durable 600mm alloy base Stainless steel pole 50mm castors
AG E D CA R E CATA LO G UE
GB0141 - IV Stand Mobile - Nylon Base - 2 Hook • • • • •
2 Hook design Adjustable height 1420-2200mm 600mm nylon base Stainless steel pole 50mm castors
M E D I CA L E Q U I P M E N T & CA RTS
IV Pole Accessories GZ0650 - Push Handle • • • • •
GZ0630 - Multi Storage Basket
Adjustable height clamp Powdercoated metal – White Width 310mm Depth 295mm Tube 28mm
• • • •
GZ0620 - Single Glove Dispenser • • • •
Adjustable height clamp Width 330mm Depth 150mm Height 90mm
GZ0660 - Sharps Container Set
Adjustable height clamp Width 270mm Depth 110mm Height 135mm
• • • •
Adjustable height clamp Width 25mm Depth 150mm Height 230mm
Oxygen Trolleys Oxygen Bottle Trolley • • • •
Robust design and construction Soft touch handle 150mm heavy duty castors Bed hook available for transport Code
Finish
Cylinder Size
Handle Height
GE0030
Powder Coated
C size
1000mm
GE0040
Stainless Steel
C size
1000mm
Oxygen Bottle Trolley D Size • • • •
Robust design and construction Securing chain to attach cylinder 150mm heavy duty castors Stainless steel Code
Finish
Cylinder Size
Handle Height
GE0110
Powder Coated
D size
1000mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 09
M E D I CA L E Q UI P M E N T & CA RTS
Treatment Tables KD1410 - Viva 2 Section Treatment Table • • • • • • • • • • • • • •
Navy blue medical vinyl upholstery Padding thickness of 60mm Electric high/low operation Supplied in 2 sections Head section with face hole and plug Manually adjustable head section from 0° to 75° Dual gas strut backrest adjustment to ensure maximum longevity and smooth operation Backrest movement handle on the back of the backrest Adjustable feet for uneven surfaces Designed to meet the strict RACGP accreditation guidelines High performance T-motion actuator with foot operating pedal 5 year structural frame warranty 3 year actuator and moving parts warranty TGA approved
Warranty 1 Year Length
Width
Height Range
Max User Weight
2000mm
700mm
470-900mm
230kg
KD1420 - Viva 3 Section Treatment Table • • • • • • • •
3 section adjustment for greater flexibility Electronically mains powered motor for hi-lo function Precision glide gas struts allow for easy adjustment of the head and footrest Mobility castors allow treatment table to be moved effortlessly Rigid design with minimal working parts for maximum stability for all examination or surgical work Antimicrobial medical grade vinyl and foam for longevity and minimal infection risk Face cut out with insert plug (optional) Other colour options available
Warranty 1 Year
11 0
AG E D CA R E CATA LO G UE
Head Section Length:
685mm
Head Section Width:
650mm
Mid Section Length:
565mm
Mid Section Width:
650mm
Lower Section Length:
680mm
Lower Section Width:
650mm
Height Range:
430mm-910mm
Max User Weight:
250kg
Monitoring & Diagnostics Healthweight Chair Scale
112
Weigh Scales
113
Fall Prevention
116
M O N I TO R I N G & D I AG N O ST I C S
Healthweight Chair Scale The new Healthweigh Chair Scales offers an ergonomic patient-oriented design, combined with reliability, precision and comfort. These chair scales feature many different weigh functions and movement compensation technology. Compact package design ensures cost efficient shipping.
Features • • • • • • • • • • • • • •
Chair is ergonomically contoured to the shape of the patient Folding armrests and footrest can be raised independently Movement compensation technology BMI (Body Mass Index) function Tare/Zero/Hold/kg/lb functions 5 Digit LCD screen /Positive FSTN 0.1kg graduations Automatic reweigh Updatable firmware Swivel castors Rear locking castors Automatic power-off and low battery indicator Optional Bluetooth and printer connectivity Rechargeable battery
Warranty 2 Years
112
Code
Seat Width
Seat Depth
Overall Width
Overall Depth
Overall Height
Net Weight
Max User Weight
JE0660
430mm
420mm
630mm
850mm
965mm
18kg
300kg
AG E D CA R E CATA LO G UE
M O N I TO R I N G & D I AG N O ST I C S
Weigh Scales JE0580 - Healthweigh Physician Scale - Eye Level with Height Measure • • • • • •
Movement compensation technology BMI function Zero/Hold/Print/kg/lb 5 digit ¾” LCD/Positive FSTN Automatic re-weigh Updatable firmware
• • • • •
Ports: RS232 and USB Optional: Bluetooth Rechargeable option NOT available Power: 230v or 6 × 1.5V AA batteries Platform 375 × 375 × 78mm
Warranty 2 Years
Width
Depth
Height
Height Range
Max User Weight
Net Weight
567mm
375mm
1331m
700-2040mm
250kg
12kg
JE0610 - Healthweigh Physician Scale - Waist Level • • • • •
Movement compensation technology BMI function Zero/Hold/Print/kg/lb 5 digit ¾” LCD/Positive FSTN Automatic Reweigh
• • • • •
Accuracy - 0.1kg Updatable firmware Ports: RS232 and USB Power: 230v or 6 × 1.5V AA batteries Platform 37 × 375 × 78mm
Warranty 2 Years
Width
Depth
Height
Max User Weight
597mm
375mm
1231mm
250kg
JE0590 - Healthweigh Physician Scale - Floor Level • • • • • •
Movement compensation technology BMI function Zero/Hold/Print/kg/lb 5 digit ¾” LCD/Positive FSTN Automatic re-weigh Updatable firmware
• • • • • •
Ports: RS232 and USB Accuracy - 0.1kg Optional: Bluetooth 0.1kg Graduation Platform Size 375 × 375 × 78mm Power: 230v or 6 × 1.5V AA batteries
Warranty 2 Years
Width
Depth
Height
Max User Weight
Net Weight
597mm
375mm
323mm
250kg
6.5kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
113
M O N I TO R I N G & D I AG N O ST I C S
Weigh Scales JE0600 - Healthweigh Multifunction Handrail Scale • • • • • •
Movement compensation technology BMI function Zero/Hold/Print/kg/lb 5 digit ¾” LCD/positive FSTN Automatic reweigh Updatable firmware and optional Bluetooth
• • • • • • •
Acurracy - 0.1kg Ports: RS232 and USB 230v/120v input Auto power off 6 × 1.5AA batteries Low battery indicator Platform size 500 × 640 × 70
Warranty 2 Years
Width
Depth
Height
Graduation
Max User Weight
Net Weight
650mm
640mm
1130mm
0.1kg
360kg
22kg
JE0620 - Healthweigh Multifunction Handrail Scale with Seat • • • • •
Movement compensation technology BMI function Tare/zero/hold/print/kg/lb 5 digit 3/4” LCD/positive FSTN Automatic re-weigh
• • • •
Accuracy - 0.1kg Updatable firmware Ports: RS232 and USB Platform size 510 × 640 × 70mm
Warranty 2 Years
Width
Depth
Height
Graduation
Max User Weight
Net Weight
640mm
640mm
1200mm
0.1kg
360kg
28kg
JE0680 - Healthweigh Wheelchair Scale with One Ramp • • • • • •
Movement compensation technology BMI function Tare/Zero/Hold/Print/kg/lb Scroll Down/Up 5 digit ¾” LCD/Positive FSTN Automatic re-weigh
• • • • •
Accuracy - 0.1kg Updatable firmware Ports: RS232 and USB Optional: Bluetooth Platform size 800 × 780 × 70mm
Warranty 2 Years
114
AG E D CA R E CATA LO G UE
Width
Depth
Graduation
Max User Weight
Net Weight
1000mm
940mm
0.1kg
360kg
33kg
M O N I TO R I N G & D I AG N O ST I C S
Weigh Scales JE0690 - Healthweigh Wheelchair Scale with Two Ramps • • • • • • • • • • •
Movement compensation technology BMI function Tare/Zero/Hold/Print/kg/lb Scroll Down/Up 5 digit ¾” LCD/Positive FSTN Automatic re-weigh Updatable firmware Ports: RS232 and USB Optional: Bluetooth Supplied Rechargeable with Adaptor Platform size 800 × 780 × 70mm
Warranty 2 Years Width
Depth
Graduation
Max User Weight
Net Weight
1250mm
940mm
0.1kg
360kg
33kg
JE0640 - Multifunction Wheelchair Scale with Two Ramps and Seat • • • • • • • • • • • • • •
Movement compensation technology BMI function Tare/Zero/Hold/Print/kg/lb Scroll Down/Up 5 digit ¾” LCD/Positive FSTN Automatic re-weigh Updatable firmware Ports: RS232 and USB Optional: Bluetooth 360kg Capacity Product Size 1250 × 740 × 1250mm Platform Size 800 × 780 × 70mm Net Weight 43.2kg Max User Weight 360kg
Warranty 2 Years
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
115
M O N I TO R I N G & D I AG N O ST I C S
Fall Prevention JD4340 - Universal Chair Pad • • • • • •
Simple operation and maintenance When fitted with a Universal transmitter, pads & mats work with cura1 Cordless receivers eg 2700, 2544, 2549, 3500, 3501 & 3508 When USB to RJ10 Breakaway Cable is used, pads & mats work with any Premium monitor or receiver eg. 2701, 2544, 2503 Easy to clean non-allergenic soft PVC Recommended weight range for reliable operation: 30 - 200kg. Dimensions: 38 x 25 cm
JD4330 - Universal Single Fold Bed Pad • • • • • • • • •
Foldable (single fold) When fitted with a Universal Transmitter, Pads & Mats work with cura1 Cordless Receivers eg 2700, 2544, 2549, 3500, 3501 & 3508 When USB to RJ10 Breakaway Cable is used, Pads & Mats work with any Premium Monitor or receiver eg. 2701, 2544, 2503 Made from durable & improved PVC Easy to clean & non-allergenic Designed to reduce the risk of moisture ingress Full width pressure pad means reliable operation with practically no false alarms Recommended weight range for reliable operation: 30 - 200kg. Dimensions: 76 x 25 cm
JD4500 - Universal Single Fold Floor Mat • • • • • • •
Trigger alarm when pressure is applied Foldable design for easy storage & transportation Low profile edges reduces tripping hazard & allows easy wheelchair access Composed of durable, heavy duty, latex free vinyl with non-slip texture Available in beige colour to help some Alzheimer patients who have trouble with dark mats being perceived as a “dark hole in the floor” Recommended weight range for reliable operation: 30 - 200kg. Dimensions: 90 x 60 cm
JD4350 - Universal Cordless Pad/Mat Transmitter • Simple operation & maintenance • Status / in-use LED indicaton • Auto alarm reset when back in bed or via Console • Range: 50* m • Frequency: 433 MHz *Dependent on environmental conditions
11 6
AG E D CA R E CATA LO G UE
M O N I TO R I N G & D I AG N O ST I C S
Fall Prevention JD4170 - Ibeam • • • • • • • • • • •
Narrow detection zone means a more precise target can be set. There are less false alarms in busy areas compared to conventional detectors Can be installed adjacent to a bed, in front of a chair or across a doorway, stairs, oven, heater or any potentially hazardous area Mounting bracket, screws and double-sided tape included On / Off switch to conserve battery life when not in use Low battery indicator Works with other cura1 cordless receivers or as a stand-alone alarm Detection range: up to 8 m Wireless range: 30-50 m* Battery life: 6 months with normal usage Dimensions: 78 x 81.5 x 38.5 mm (includes bracket) Weight: 100 g (not incl. batteries)
JD4550 - Ezystand •
• •
The EzyStand / iBeam combination allows a caregiver to quickly deploy targeted motion detection alarms in a variety of positions such as next to a bed, in front of a chair, near a door or stairs. PVC base, chrome plated stand Height: Adjustable from 650 - 885 mm
JD4160 - Six Channel Cordless Falls Monitor •
• • •
Monitor up to 7 devices simultaneously - a single Premium pad / mat and up to 6 Cordless devices. Alarm memory and auto re-arm Amber LED visual alarm indicator Caregiver secure reset option Battery operated or optional external plug pack Up to 6 months battery life (nominal) Can be connected to a nurse call system “Pause” feature allows a caregiver to attend to the patient without setting the alarm off Fault supervision for pressure pads (low battery, device lost) Alerts for lost nurse call connection, lost AC power supply & low battery Dimensions 120 x 77 x 40 mm
• • • • • • • •
Large easy-to-read 7-digit LCD screen displays device type and ID Monitor up to 9 cordless devices Up to 5 simultaneous alarms can be stored in the pager’s “Call Review” memory Vibration and tone selection for hard of hearing Out of range check Wireless reset capability Direct signalling from wireless devices for use in home care environments Easily cleanable buttons for a hygienic setting
• • • • • • •
JD4740 - Active LCD Pager
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
117
Patient Handling Transfer Aids
119
Positioning Aids
119
Support
120
Walking Belts
120
Mobile Hoists
121
Patient LIfting Slings
125
Transfer Aids
131
Floor to Seat Lifting Aids
132
PAT I E N T H A N D L I N G
Transfer Aids Patslide • • • • • •
Facilitates safe and easy patient transfers from bed to trolley etc Reduces the risk of back injury for the carer Handholes provide maximum grip for the carer Slip resistant pads increase stability during transfers Radio-lucent material construction is lightweight, highly impact tollerant and static insulative Not to be used as a lifting device Code
Size
Length
Width
Weight
LB0310
All Purpose
1525mm
635mm
4.5kg
LB0320
Theatre
1525mm
560mm
4.0kg
Positioning Aids Slide Sheet • • •
Silicone coated both sides Slips consistently in all directions - no right way up Made of soft polyester taffeta Code
Colour
Size
Width
Length
Max User Weight
LB1930
Red
Regular
1000mm
1500mm
360kg
LB0890
Red
Large
2000mm
1500mm
360kg
Slide Sheet • • •
Nylon material to assist sliding and transferring patients Reduces the risk of strain or back injury to carer Machine washable Code
Size
Width
Length
LC0080
Regular
1000mm
1500mm
LC0070
Large
2000mm
1500mm
Heat Sealed Slide Sheet • • •
Nylon material to assist sliding and transferring patients Reduces the risk of strain or back injury to carer Machine washable Code
Width
Length
LB0870
1000mm
1500mm
LB0880
2000mm
1500mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
119
PAT I E N T H A N D L I N G
Support HB0430 - Parallel Bars • • • • •
Ideal for post-operative exercises and where leg movement is limited Adjustable height to suit individual user requirements Dismantles for storage and transportation Powder coated mild steel frame with chrome plated uprights 50mm diameter tube Length
Width
Height
Max User Weight
2500mm
650mm
540-1065mm
130kg
Walking Belts Walking Belt • • • • •
Assists the carer in patient mobility and transfers Reduces the risk of strain or back injury for the carer and user Double sided velcro fastener increases security and support Four large padded vertical handles assist the carer in supporting the client while walking Machine washable Code
Type
Colour
Chest/Waist Circumference
LB0680
Small
Red
690 - 930mm
LB0710
Medium
Yellow
850 - 1100mm
LB0700
Large
Green
900 - 1170mm
LB0670
Extra Large
Blue
1080 - 1330mm
LB0640 - Padded Walking Belt • • • • • • •
12 0
AG E D CA R E CATA LO G UE
Assists the carer in patient mobility and transfers Reduces the risk of strain or back injury for the carer Belt is firmly secured by an adjustable nylon buckle Slip resistant material to prevent belt from sliding up clients clothing Four large padded vertical handles assist the carer in supporting the client while walking Machine washable One universal size to suit chest or waist circumference 600-1250mm
PAT I E N T H A N D L I N G
Mobile Hoists Sonata Electric Mobile Patient Lifting Hoist • • • • • •
Innovative and ergonomic compact mobile patient lifting hoist Designed primarily for domestic use or as a lightweight institutional hoist Provides superior patient space through the use of Space Link® technology The unique feature of Space Link® allows a patient to be rotated through 360° at full lift height, making the carer’s job easier and safer Offers more patient space than most other larger size lifters Tested and complies to Australian Standards AS ISO 10535-2002
Warranty Frame Electronics
2 Years 2 Years
Models Available • LA0070 No Attachments • LA0230 With Standard Spreader Bar • LA0240 With Pivot Frame • LA1800 Standard Spreader Bar and Integrated Weigh Scale Models Available with Electric Legspread • LA0140 No Attachments • LA0250 With Standard Spreader Bar • LA0260 With Pivot Frame • LA3040 Standard Spreader Bar and Integrated Weigh Scale
Parameters
Dimensions
Base Length:
1005mm
External Base Width Closed:
605mm
External Base Width Open:
1070mm
Internal Base Width Closed:
510mm
Internal Base Width Open:
975mm
Under Bed Clearance:
130mm
Minimum Height Yoke:
420mm
Maximum Height Yoke:
1735mm
Average Lift Range
870mm
Under Base Height
55mm
Maximum Hoist Reach:
875mm
Minimum Hoist Reach:
555mm
Hoist Reach at Maximum Height:
555mm
Lifter Weight:
41kg
Minimum Storage Height:
1260mm
Safe Working Load:
150kg
1 30 0 930 930
• • •
• • •
LA1810 Pivot Frame and Integrated Weigh Scale LA1820 Power Pivot LA1830 Power Pivot with Integrated Weight Scale
LA3050 Pivot Frame and Integrated Weigh Scale LA3060 Power Pivot LA3070 Power Pivot with Integrated Weight Scale
A L P H A L I F E CA R E .C O M . AU
1 21
PAT I E N T H A N D L I N G
Mobile Hoists Alto Electric Mobile Patient Lifting Hoist • • •
Compact medium sized heavy duty mobile patient lifting hoist Innovative and ergonomic Designed primarily for institutional use or home care situations where a high capacity lift is required Electric base width adjustment Provides superior patient space through the use of Space Link® technology The unique feature of Space Link® allows a patient to be rotated through 360° at full lift height, making the carer’s job easier and safer Offers more patient space than most other larger size lifters Tested and complies to Australian Standards AS ISO 10535-2002
• • • • •
Warranty Frame Electronics
2 Years 2 Years
Models Available • LA0150 No Attachments • LA0270 With Standard Spreader Bar • LA0280 With Pivot Frame • LA1760 Standard Spreader Bar and Integrated Weigh Scale
Parameters
Dimensions
Base Length:
1150mm
External Base Width Closed
700mm
External Base Width Open
1130mm
Internal Base Width Closed
600mm
Internal Base Width Open
1030mm
Under Bed Clearance
130mm
Minimum Height Yoke
300mm
Maximum Height Yoke
1920mm
Under Base Height
55mm
Maximum Hoist Reach
1060mm
Minimum Hoist Reach:
610mm
Hoist Reach at Maximum Height
515mm
Lifter Weight
46kg
Minimum Storage Height
1350mm
Safe Working Load
200kg
• • •
LA1770 Pivot Frame and Integrated Weigh Scale LA1780 Power Pivot LA1790 Power Pivot with Integrated Weight Scale
LA1000 Weigh Scale Attachment • • •
Universal weighing module with tare function and kg/lb conversion Safe working load up to 300kg Suitable for C2 and C4 Lifiting Hoist
Warranty 1 Year 12 2
AG E D CA R E CATA LO G UE
PAT I E N T H A N D L I N G
Mobile Hoists Forte Electric Mobile Patient Lifting Hoist (Bariatric) •
•
•
With a safe working load of 320kg this extremely heavy duty mobile patient lifting hoist provides full bariatric capability whilst remaining a compact and ergonomic design. Manoeuvrability and good under bed clearance are key design features. FORTE 320 provides superior patient lift space through the combination of the recessed actuator and the use of Space Link™ technology. The aesthetic design of the concealed electric leg mechanism provides infection control advantages. FORTE 320 is the lifter of choice for institutional use where a high capacity bariatric lifter is required.
Warranty Frame Electronics
2 Years 2 Years
Models Available • LA1180 4 Point Yoke • LA1660 4 Point Yoke and Integrated Weigh Scale • LA1980 Power Pivot with Integrated Weigh Scale
Parameters
Dimensions
Base Length:
1433mm
External Base Width Closed:
715mm
External Base Width Open:
1205mm
Internal Base Width Closed:
590mm
Internal Base Width Open:
1080mm
Under Bed Clearance:
126mm
Minimum Yoke Height:
260mm
Maximum Yoke Height:
1955mm
Under Base Height:
31mm
Lifter Weight:
63.5kg
Minimum Storage Height:
1460mm
Safe Working Load:
320kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 23
PAT I E N T H A N D L I N G
Mobile Hoists LA0050 - Salsa Standing Transfer Hoist - Electric Leg Spread • • • • •
Designed to secure patient transfers from a seated to standing position Enables quicker, easier, and safer patient lifting and transfers Multiple grip positions, adjustable knee pad, electric leg spread, removable footplate and ergonomic features designed with the patient and carer in mind Highly manoeuvrable, ideal for institutional or home environments Tested and complies to Australian Standards AS ISO 10535 – 2002
Warranty Frame Electronics
1 24
AG E D CA R E CATA LO G UE
2 Years 2 Years
Parameters
Dimensions
Base Length:
1010mm
External Base Width Closed:
665mm
External Base Width Open:
1030mm
Internal Base Width Closed:
565mm
Internal Base Width Open:
930mm
Under Bed Clearance:
130mm
Minimum Height Lift Arm:
880mm
Maximum Height Lift Arm:
1685mm
Under Base Height:
55mm
Lifter Weight:
51kg
Minimum Storage Height:
1190mm
Safe Working Load:
200kg
PAT I E N T H A N D L I N G
Patient Lifting Slings General Purpose Slings • • • • • •
Simple and safe to use for both home and institutional patient lifting Polyester fabric or mesh (suitable for bathing) with internal padding in pressure areas Webbing loops allows for patient to have a lay back posture General Sling provides easy fitting and good support for patients with some upper body control. Recommended for general lifting General Sling with Head Support is easily fitted to a patient in bed or a chair, providing excellent upper body and head support 300kg User weight limit
Warranty 1 Year General Purpose Sling without Head Support
General Purpose Sling with Head Support
Size
Fabric
Mesh
Fabric
Mesh
Extra Small
LD0970
LD1020
LD1160
LD0840
Small
LD0170
LD0220
LD0120
LD0830
Medium
LD0180
LD0230
LD0130
LD0710
Large
LD0190
LD0240
LD0140
LD0880
X Large
LD0200
LD0250
LD0150
LD0920
XX Large
LD0210
LD1150
LD1180
LD1190
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 25
PAT I E N T H A N D L I N G
Patient Lifting Slings Standard Yoke Care Slings • • •
Excellent for transfers onto a toilet as it provides an open area from the middle of the back to the middle of the thigh Recommended for general toilet transfers 300kg User weight limit
Warranty 1 Year
Care Sling without Head Support
General Purpose Sling with Head Support
Fabric
Fabric
Mesh
-
LD0960
LD1110
Small
LD0500
LD0030
LD0070
Medium
LD0510
LD0040
LD0080
Large
LD0520
LD0050
LD0090
X Large
LD1260
LD0060
LD0100
XX Large
LA1270
LD1280
LD1200
Size Extra Small
Standard Yoke Junior Sling • • •
Provides easy fitting and good support for children or small adults Removable bracing and gusseted base section provide maximum support 200kg User weight limit
Warranty 1 Year Size
Mesh
X Small
LD0270
Small
LD0280
Medium
LD0290
Standard Yoke Amputee Sling • • •
Sling incorporates a head support and commode aperture Recommended for lifting patients with high level amputations 200kg User weight limit
Warranty 1 Year
12 6
AG E D CA R E CATA LO G UE
Size
Fabric
Mesh
Medium
LA1190
LA1200
Large
LA1050
LA1210
X Large
LA1040
LA1220
PAT I E N T H A N D L I N G
Patient Lifting Slings Pivot Slings Pivot Slings are required for use with Pivot Frame attachments. The slings are manufactured from polyester fabric or mesh (suitable for bathing). These slings allow the patient to be lifted in either a sitting or lying position, ideal for lifting on and off a bed or the floor. The unique pivot with anti-lock at the end of the boom allows the whole frame to be rocked back and forward to assist correct positioning of the patient. The frame spreads the sling attachment points to ensure the patients hips are not excessively flexed, avoiding the discomfort obese patients sometimes experience with standard slings. Warning. Pivot Slings must not be used on any attachments other than the Pivot Frame.
Pivot Sling • • • •
Comfortable, supportive sling with easily defined attachment points Recommended for general lifting especially for the larger patient Angle adjustment via Pivot Frame 200kg User weight limit
Warranty 1 Year Keyhole Buckle
E Clip Buckle
Size
Fabric
Mesh
Fabric
Mesh
X Small
LD1290
LD1300
LA1340
LA1400
Small
LD0400
LD1210
LA1350
LA1410
Medium
LD0410
LD0440
LA1360
LA1420
Large
LD0420
LD0910
LA1370
LA1430
X Large
LD0430
LD1220
LA1380
LA1440
XX Large
LD1240
LD1230
LA1390
LA1450
Pivot Care Sling • • •
Sling provide easy removal of clothing for toilet transfers Recommended for general toilet transfers for the less secure patient 200kg User weight limit
Warranty 1 Year Keyhole Buckle
E Clip Buckle
Size
Fabric
Mesh
Fabric
Mesh
X Small
LD1070
LD1080
LA1460
LA1520
Small
LD0310
LD0350
LA1470
LA1530
Medium
LD0320
LD0360
LA1480
LA1540
Large
LD0330
LD0370
LA1490
LA1550
X Large
LD0340
LD0380
LA1500
LA1560
XX Large
LD1310
LD1320
LA1510
LA1570
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 27
PAT I E N T H A N D L I N G
Patient Lifting Slings Standing Transfer Sling The Standing Transfer sling is designed to support a weight bearing yet less than able person from waist level to mid shoulder whilst allowing free movement of the arms. The patient’s hands can reach naturally to grip the lift arms as the patient rises. The Standing Transfer sling will provide adequate support for the patient who requires only minimal assistance for standing. A Torso Belt provides added security and prevents the sling from riding up the patient’s back when maximum support is required. The sling has the option of both Key-Hole fastening or Loop type attachments. This adds to the versatility of the sling in any environment.
Standing Transfer Sling • • • • • • • •
Designed to support a weight bearing yet less able person from waist level to mid shoulder whilst allowing free movement of the arms Patient’s hands can reach naturally to grip the lift arms as the patient rises Provides adequate support for the patient who requires only minimal assistance for standing. Torso Belt provides added security and prevents the sling from riding up the patient’s back when maximum support is required Option of both Key-Hole fastening or Loop type attachments, adding versatility in any environment Sling provides easy removal of clothing for toilet transfers Recommended on standing hoists for weight bearing patients only 200kg user weight limit
Warranty 1 Year Size
Loop Velcro
Keyhole Buckle
Keyhole Velcro
E-Clip Buckle
E-Clip Velcro
Small
LA1710
LD3900
LA1720
LA1680
LA1690
Medium
LA0300
LA0040
LA0360
LA1580
LA1610
Large
LA0290
LA0030
LA0370
LA1590
LA1620
X Large
LA0110
LA0220
LA0380
LA1600
LA1630
XX Large
LA2120
LD3910
LA2130
LD3890
-
Super Soft Standing Sling • • • •
A softer padded variety of Standing Sling with easy to fit Velcro fastening Neoprene Torso Belt Recommended on Standing Hoists for weight bearing patients only Available with Key-Hole and Loop type attachments 200kg user weight limit
Warranty 1 Year Size
1 28
AG E D CA R E CATA LO G UE
Keyhole Buckle
E-Clip Buckle
Loop Velcro
Medium
LA1160
-
LA1260
Large
LA1230
LA1250
LA1270
X Large
LA1750
LA1730
LA1740
PAT I E N T H A N D L I N G
Patient Lifting Slings Deluxe Leg Sling • • •
Provides maximum support to hips and thighs Recommended for patients with compromised hip joints and amputees (subject to assessment) 200kg user weight limit
Warranty 1 Year Size
Fabric
Mesh
Small
LD2810
LD2860
Medium
LD2820
LD2870
Large
LD2830
LD2880
X Large
LD3930
-
Walking Sling • • •
This sling helps support and assist when walking in the rehabilitation environment Used with Ceiling Track Hoists and compatible Standing Hoists 200kg user weight limit
Warranty 1 Year Size
Fabric
Small
LD1770
Medium
LD1760
Large
LD1750
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 29
PAT I E N T H A N D L I N G
Patient Lifting Slings Parasilk Straight Leg Style In Situ Sling The Parasilk Straight Leg Style In Situ Sling is a full body patient transfer sling with a divided leg, featuring head support and removable support bones. It is designed to protectively cocoon and support users during transfers and provides additional protection against shearing and pressure injuries due to its low friction fabric design. The sling is easy to use with detachable tapes and loops. • • • • • • •
Head Support Polyester Material – Glides and Slides Smoothly, Quick Drying Loop Attachment Large Size Suitable for Full Body Support and General Transferring Compatible with loop fixing spreader bar 160kg Max User Weight
Warranty 1 Year Size
Straight Leg
Deluxe Leg
X Small
LD1470
LD1690
Small
LD1450
LD1670
Medium
LD1440
LD1660
Large
LD1430
LD1650
X Large
LD1460
LD1680
Parasilk High Easy Style In Situ Sling The Parasilk High Easy Style In Situ Sling is a patient transfer sling featuring universal D-anserclip®, head support, and removable support bones. It is designed to protectively cocoon and support users during transfers and provides additional protection against shearing and pressure injuries due to its low friction fabric design. The Parasilk High Easy Style In Situ Sling’s Universal D-anserclip® fixing enables the sling to be used with a variety of hoists and is suitable for use on stud/clip fixing spreader bars. The Universal D-anserclip’s® simple click on and click off action empower carers to safely and securely lift users during transfers. • • • • • • •
Head Support Polyester Material – Glides and Slides Smoothly, Quick Drying Variety of Attachments Options Variety of Sizes Suitable for Full Body Support and General Transferring 200kg Max User Weight Additional waist or chest support can be ordered if required
Warranty 1 Year Parasilk
130
AG E D CA R E CATA LO G UE
Size
Clips
E Clips
X Small
-
LD3120
Small
LD1510
LD3130
Medium
LD1490
LD3140
Large
LD1480
LD3150
X Large
LD1520
LD3160
XX Large
LD3220
LD3170
PAT I E N T H A N D L I N G
Transfer Aids LB0840 - Flexi Mover • •
The Flexi Mover is an excellent substitute for a wheelchair with its rotating padded seats and a knee support, which allow comfortable sitting. The Flexi Mover allows fast, stable and safe transport of a patient to the bed, chair or the toilet and back. The rear castors can be fixed by means of a brake and is useful for transportation of patients, who have difficulties walking or standing.
Warranty 1 Year Width
Length
Height
Net Weight
Max User Weight
585mm
970mm
1040mm
19.6kg
150kg
LB1150 - Lotus Stand Up Aid • •
• • • • • • •
Supports and activates the client in sit-to-stand procedures, and transfers the client in a seated or semi-standing position Developed for clients with impaired balance and reduced leg strength, but the client must have some strength in the arms and be able to weight bear to actively participate in the transfer Ideal for both long-term and for occasional needs, such as in postoperative care when the balance is temporarily impaired Stimulates a natural pattern of movement Rotating seat parts, lower leg/knee supports and chassis are all adjustable for a safe and stable transfer Compact and convenient Durable powder coated steel frame Contemporary style and design Made in Netherlands
Warranty 2 Years Width
Length
Height
Net Weight
Max User Weight
680mm
980mm
1130mm
35kg
200kg
LB0910 - Smart Stand Patient Transfer Aid • • • • • •
Foot operated leg spread Swing away seat Waterproof padded seat pads Rear braking castors Optional pelvic belt Durable powder coated frame
Warranty 1 Year Max User Weight 182kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
131
PAT I E N T H A N D L I N G
Floor to Seat Lifting Aids ED7780 - Raiser II Lifting Chair • • • • • • •
Mobile chair for transfer from floor to a sitting or standing position Minimal physical effort for the assistant Both the fallen person and the assistant can feel comfortable and safe in the process Easy to transport in 2 light bags Assembly prior to operation: max 3 minutes Cleaning-friendly CE-marking
Warranty 1 Year Lifting Capacity
150kg
Lifting Time
20-30 Secs
Number of Lifts with Full Charge
40 Max
Max Charge Time
6 Hours
Net Weight
13kg
LB1140 - Mangar Elk Emergency Lifting Cushion The Elk is a lifting cushion designed to lift a person from the floor with the help of only one person. It is compact and lightweight, weighing only 3.6 kgs (8 lbs) and will lift up to 450kg (70 stone). Its unique design and portability means it can be used inside or outside and is particularly effective in small confined spaces such as the bedroom or bathroom where alternative lifting devices may not be suitable. The Elk is commonly used in a range of settings, such as the emergency services, care homes, hospitals, and in the community, reducing the risk of injury and associated costs. If someone falls over they can shuffle on to the cushion, or be rolled on from the recovery position and assisted to sit upright. The ELK can then be inflated at the touch of a button with someone supporting the individual from behind to bring them to a raise seated position ready to stand. Once the lift is complete, the ELK can be deflated, folded up and stored away tidily. • • • • • • •
Designed to be used with the help of a carer the ELK emergency lifting cushion can be used in the tightest of spaces. Lifts up to (450kg) Portable – weighs just 3.6kg and folds up for easy carrying Applicable for any age Simple to use Minimises moving and handling risk – protects carers’ backs Suitable for indoor and outdoor use
Warranty 1 Year 132
AG E D CA R E CATA LO G UE
PAT I E N T H A N D L I N G
Floor to Seat Lifting Aids LD1340 - Mangar Camel Emergency Lifting Cushion The Camel is an emergency lifting cushion designed to lift a person from the floor with the help of one person. With an inbuilt backrest, the Camel offers a fully supportive lift for a person up to 320kg (50 stone) with minimal moving and manual handling requirements. Battery powered and weighing only 6.5kgs (14 lbs), the Camel can be used inside or outside in situations where many alternative lifting devices may not be suitable. The Camel is commonly used in a range of settings, such as the emergency services, care homes, hospitals, as bariatric lifting equipment and in the community, reducing the risk of injury and associated costs. The Camel is used by ambulance services in Queensland, Tasmania, South Australia and Western Australia. • • • • • • • • • •
The Camel is particularly suitable for very large or bariatric people (lifts up to 320kg) Lightweight Simple to use Appropriate for any age Portable Packs away into a compact and discreet bag For use indoors or out Minimises moving & handling risks Battery operated Mains Power also available upon request
Warranty 1 Year
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
133
Wheelchairs & Mobility Standard
135
Transit
135
Heavy Duty
136
Light Weight
136
Tilt Recline
137
Hemiplegic
138
Options & Accessories
138
Walking Frames
140
Forearm Walkers
141
Exercise Therapy
143
Seat Walkers
144
W H E E LC H A I RS & M O B I L I T Y
Standard Triton Wheelchair • • • • • •
Swingaway removable legrests and removable armrests Breathable padded nylon upholstery Rear backrest storage pocket Heel loops Solid tyres Folding steel frame
Warranty 1 Year Colours Available NC0280 Burgundy NC0290 Titanium Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
490mm
430mm
245mm
900mm
650mm
19.1kg
15kg
120kg
Transit NC1660 - Vito Plus Transit Wheelchair • • • • • • • • • • •
Swingaway removable legrests and fixed armrests Desk armrests allow wheelchair to be pushed close to table Adjustable nylon buckle seat belt for additional patient safety Breathable nylon upholstery Rear backrest storage pocket Folding backrest and frame for easy storage and transportation Lever brake and attendant hand brakes provide more control for the carer Heel loops Solid tyres Lightweight aluminium frame Silver paint finish
Warranty 1 Year Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
480mm
440mm
210mm
910mm
630mm
11.6kg
10.3kg
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
135
W H E E LC H A I RS & M O B I L I T Y
Heavy Duty Care Quip Heavy Duty Wheelchair • • • • • •
Strengthened frame for the heavier client Swingaway removable legrests and removable armrests Vinyl upholstery Upholstery tensioner prevents backrest sag (on models greater than 500mm seat width) Solid tyres with reinforced front castors Durable steel folding frame
Warranty 2 Years
Code
Seat Width
Seat Depth
Seat Height
Back Height
Armrest Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0440
500mm
500mm
500mm
450mm
250mm
950mm
700mm
27kg
24kg
155kg
NC0330
550mm
500mm
500mm
450mm
250mm
950mm
750mm
34kg
31kg
225kg
NC0340
600mm
500mm
500mm
450mm
250mm
950mm
800mm
35kg
32kg
225kg
NC0360
700mm
500mm
500mm
450mm
250mm
950mm
900mm
37kg
34kg
270kg
NC0380
800mm
500mm
500mm
450mm
250mm
950mm
1000mm
42kg
39kg
315kg
Light Weight Breezy Basix Wheelchair • Swingaway removable legrests and swingback removable armrests • Push handles, seat depth, seat height and footplate angle are adjustable to suit individual client requirements • Breathable padded nylon upholstery • Tension adjustable backrest • Seat to back connecting flap • Heel straps • Tie down points • Anti tip bars and rollers help prevent tipping • Quick release rear wheels for easy storage and transportation • Lightweight aluminium folding frame • Red powder coat paint finish Warranty 1 Year
Code
Seat Width
Seat Depth
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0500
380mm
400-460mm
410-430mm
230mm
910mm
570mm
15.6kgs
8.3kgs
125kgs
NC0470
430mm
400-460mm
410-430mm
230mm
910mm
620mm
15.6kgs
8.3kgs
125kgs
NC0480
480mm
400-460mm
410-430mm
230mm
910mm
670mm
15.6kgs
8.3kgs
125kgs
NC0490
520mm
400-460mm
410-430mm
230mm
910mm
710mm
15.6kgs
8.3kgs
125kgs
136
AG E D CA R E CATA LO G UE
W H E E LC H A I RS & M O B I L I T Y
Tilt Recline Breezy Relax Wheelchair - Transit • • • • • • • • • • •
Gas assisted, tilt-in-space and recline functions provide optimum postural positioning Removable adjustable height arms feature padded side panels and adjustable armpad length Removable swingaway elevating legrests and calf pads Height adjustable padded contoured backrest Depth adjustable padded seat with inbuilt pommel Removable padded headrest with adjustable side supports Tilt angle -2° to 20° Recline angle 0° to 40° Drum brakes allows attendant to control brakes from the push handles 16” rear wheels with solid tyres Alloy construction with water resistant upholstery
Warranty 1 Year
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NB0190
410mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
640mm
38kg
22kg
140kg
NB0230
460mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
690mm
38kg
22kg
140kg
NB0290
510mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
740mm
38kg
22kg
140kg
Breezy Relax Wheelchair - Self Propelled • • • • • • • • • • •
Gas assisted, tilt-in-space and recline functions provide optimum postural positioning Removable adjustable height arm feature padded side panels and adjustable armpad length Removable swingaway elevating legrests and calf pads Height adjustable padded contoured backrest Depth adjustable padded seat with inbuilt pommel Removable padded headrest with adjustable side supports Tilt angle -2° to 20° Recline angle 0° to 40° Drum brake option allows attendant to control brakes from the push handles Alloy construction with water resistant upholstery 24” rear wheels with solid tyres
Warranty 1 Year
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
Standard Brakes NB0200
410mm
410 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
640mm
38kg
22kg
140kg
NB0240
460mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
690mm
38kg
22kg
140kg
NB0300
510mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
740mm
38kg
22kg
140kg
Drum Brakes NB0220
410mm
410 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
640mm
38kg
22kg
140kg
NB0260
460mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
690mm
38kg
22kg
140kg
NB0310
510mm
480 - 500mm
410 - 520mm
500 - 650mm
180 - 290mm
980 - 1160mm
740mm
38kg
22kg
140kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
137
W H E E LC H A I RS & M O B I L I T Y
Hemiplegic Action 3 Lever Drive Wheelchair • • • • • • • •
Swingaway removable legrests and swingback adjustable height desk arms Lever drive mechanism is used to propel wheelchair with a push-forward, pullback motion by one hand Gear lever allows forward or reverse propulsion Drive mechanism is available on the left or right side and is easily steered by turning drive lever Drive lever causes braking mechanism to function by pulling back against the rear wheel Fitted with car buckle seat belt, tie down points and tension adjustable backrest Durable vinyl upholstery Quality black powder coated steel folding frame
Warranty 1 Year
Code
Drive Side
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NB0640
Left
410mm
410mm
490mm
460mm
190 - 295mm
930mm
630mm
20kg
18kg
125kg
NB0140
Right
410mm
410mm
490mm
460mm
190 - 295mm
930mm
630mm
20kg
18kg
125kg
NB0150
Left
460mm
410mm
490mm
460mm
190 - 295mm
930mm
680mm
20kg
18kg
125kg
NB0500
Right
460mm
410mm
490mm
460mm
190 - 295mm
930mm
680mm
20kg
18kg
125kg
NB0170
Left
500mm
410mm
490mm
460mm
190 - 295mm
930mm
720mm
20kg
18kg
125kg
NB0510
Right
500mm
410mm
490mm
460mm
190 - 295mm
930mm
720mm
20kg
18kg
125kg
Options & Accessories AZ0036 - Armrest Trough • •
Ideal for upper limb weakness or paralysis Arm trough is attached in a fixed position
NZ2340 - Armrest Trough Swivel • •
138
AG E D CA R E CATA LO G UE
Ideal for upper limb weakness or paralysis Swivel bracket allows trough to be rotated close to the body
W H E E LC H A I RS & M O B I L I T Y
Options & Accessories NZ5940 - Glide Headrest Deluxe • •
Provides additional support and comfort to the occupant Sold including an adjustable height mount
Wheelchair Lap Belt • • •
Fastens to wheelchair frame to assist in the positioning and safety of the user Adjustable length Not to be used as a patient restraint
Models Available NZ2520 Velcro NZ0100 Nylon Buckle NZ2490 Car Buckle
NZ2370 - Wheelchair Tray • • • •
Plastic moulded Raised lip edge Tray brackets easily fit between armrest frame and armpad Locking handwheels hold tray securely in place Width
Length
Outside Length
Weight
580mm
320mm
375mm
2.2kg
NZ2310 - Universal Tray • • • •
Plastic moulded Raised lip Moulded cup holder recess Fits securely by adjustable velcro straps Width
Length
Outside Length
Weight
600mm
335mm
560mm
1.5kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 39
W H E E LC H A I RS & M O B I L I T Y
Walking Frames Coopers Walking Frame - Non Folding • • •
Height adjustable Contoured plastic handgrips Available with or without fixed front wheels
• •
Lightweight aluminium Tip size 25mm
Warranty 1 Year Accessories Available
HZ0270 Fixed Wheels
HZ0220 Walker Skis
Code
Size
Type
Handle Height
Max Base Size
Net Weight
Max User Weight
HG0110
Youth
Standard
670 - 745mm
575 × 510mm
1.8kg
160kg
HG0090
Adult
Standard
770 - 845mm
670 × 565mm
2.0kg
160kg
HG0100
Tall
Standard
865 - 945mm
630 × 570mm
2.0kg
160kg
HG0350
Youth
With Wheels
690 - 765mm
575 × 540mm
2.1kg
160kg
HG0330
Adult
With Wheels
785 - 860mm
670 × 610mm
2.3kg
160kg
HG0340
Tall
With Wheels
880 - 955mm
630 × 610mm
2.3kg
160kg
Coopers Walking Frame - Folding • •
•
Height adjustable Folds for easy storage and transportation Contoured plastic handgrips
•
• •
Available with or without fixed front wheels Lightweight aluminium Tip size 25mm
Warranty 1 Year Accessories Available
HZ0270 Fixed Wheels
140
HZ0220 Walker Skis
Code
Size
Type
Handle Height
Max Base Size
Net Weight
Max User Weight
HG0150
Youth
Standard
735 - 810mm
650 × 595mm
2.1kg
125kg
HG0130
Adult
Standard
790 - 870mm
640 × 580mm
2.1kg
125kg
HG0140
Tall
Standard
840 - 910mm
640 × 565mm
2.1kg
125kg
HG0190
Youth
With Wheels
750 - 825mm
650 × 625mm
2.4kg
125kg
HG0170
Adult
With Wheels
810 - 885mm
640 × 610mm
2.4kg
125kg
HG0180
Tall
With Wheels
860 - 935mm
640 × 595mm
2.4kg
125kg
AG E D CA R E CATA LO G UE
W H E E LC H A I RS & M O B I L I T Y
Forearm Walkers HC0170 - Forearm Plus Walker • • • •
Supports the user in an upright position enhancing balance and gait stability Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Adjustable hand grip to individual forearm length and to reduce strain on wrists
Warranty 1 Year
• • • •
One-piece urethane arm pads are removeable and easy to clean Rubber hand grips are textured for additional grip Sturdy frame folds almost flat for easy storage and transportation Supplied with four swivel castors
Also Available HC0180 Forearm Plus Walker with Rear Glides
Accessories Available HZ0050 Sheepskin Gutter Covers (pair)
Castors
Frame Width
Frame Depth
Gutter Height
Max User Weight
Four
640mm
820mm
960 - 1200mm
100kg
HC0080 - Walking Tutor - Padded Rest • •
•
Ideal for those with limited hand and wrist strength Padded rest allows the user to support upper body weight at the top of the frame to assist walking Adjustable padded rest height
Warranty 1 Year
•
• •
Adjustable hand grip to individual forearm length and to reduce strain on wrists Folds almost flat for easy storage and transportation Supplied with four swivel castors
Also Available HC0160 Walking Tutor - Padded Rest & Rear Glides
Castors
Frame Width
Frame Depth
Padded Rest Height
Padded Rest Width
Padded Rest Depth
Max User Weight
Four
630mm
830mm
960 - 1400mm
600mm
400mm
100kg
HC0110 - Walking Tutor - Heavy Duty • • •
Fixed reinforced frame to suit the bariatric user Ideal for those with limited hand and wrist strength Adjustable forearm gutter height
Warranty 1 Year
•
•
Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Supplied with four swivel castors
Accessories Available HZ0050 Sheepskin Gutter Covers (pair)
Castors
Frame Width
Frame Depth
Gutter Height
Max User Weight
Four
650mm
830mm
900 - 1270mm
175kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
141
W H E E LC H A I RS & M O B I L I T Y
Forearm Walkers HC0090 - Walking Tutor - Heavy Duty Padded Rest • • • • • •
Fixed reinforced frame to suit the bariatric user Ideal for those with limited hand and wrist strength Padded rest allows the user to support upper body weight at the top of the frame to assist walking Adjustable padded rest height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Supplied with four swivel castors
Warranty 1 Year
Castors
Frame Width
Frame Depth
Padded Rest Height
Padded Rest Width
Padded Rest Depth
Max User Weight
Four
650mm
830mm
980 - 1420mm
600mm
400mm
175kg
HC0060 - Forearm Walker - Heavy Duty 4 Castors • • • • •
Fixed reinforced frame to suit the bariatric user Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Supplied with four swivel castors Made in Australia
Warranty 1 Year Also Available HC0050 Forearm Walker - Front Swivel Castors, Rear Glides
Castors
Frame Width
Frame Depth
Gutter Height
Max User Weight
Four
710mm
830mm
950 - 1230mm
170kg
HC0100 - Walking Tutor - 4 Castors • • • • •
Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Folds almost flat for easy storage and transportation Supplied with four swivel castors
Warranty 1 Year Also Available HZ0050 Sheepskin Gutter Covers (pair)
142
AG E D CA R E CATA LO G UE
Castors
Frame Width
Frame Depth
Gutter Height
Max User Weight
Four
630mm
830mm
860-1210mm
100kg
W H E E LC H A I RS & M O B I L I T Y
Forearm Walkers HC0070 - Walking Tutor - Rear Glides • • • • •
Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Folds almost flat for easy storage and transportation Supplied with front swivel castors and rear plastic glides
Warranty 1 Year Also Available HZ0220 Walker Skis - fitted at rear (pair) HZ0050 Sheepskin Gutter Covers (pair)
Castors
Frame Width
Frame Depth
Gutter Height
Max User Weight
Four
630mm
830mm
860-1210mm
100kg
Exercise Therapy EB0190 - Training Stairs • • • • • • •
Two stairs up and 3 stairs down Non slip flooring Stair height 130/200mm Stair Width 750mm Handrail height 900mm Handrail diameter 50mm Max User Weight 200kg
• • •
Assists greater muscle tone through increased leg movement Tension adjustable Foot straps prevent feet slipping off pedals
HB0040 - Pedal Exerciser
Warranty 1 Year Base Width
Base Depth
Height
Max Pedal Height
400mm
550mm
275mm
320mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
143
W H E E LC H A I RS & M O B I L I T Y
Exercise Therapy HB0030 - Pedal Exerciser - Digital • • • • •
Assists greater muscle tone through increased leg movement Digitally calculates speed, distance and exercise time Tension adjustable Foot straps prevent feet slipping off pedals Powered by 2 × AA batteries (supplied)
Warranty 1 Year Base Width
Base Depth
Height
Max Pedal Height
340mm
400mm
450mm
400mm
Seat Walkers Territory Walker • • • • • •
Frame and backrest fold compact for storage and transportation Height adjustable handles Soft-lock handbrakes Curved padded backrest for additional comfort and support Supplied with vinyl bag and padded seat Walker can be folded with vinyl bag still attached
Warranty 1 Year
Colours Available HF0600 Burgundy HF0590 Blue Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Net Weight
Max User Weight
350mm
300mm
525mm
610mm
780 - 930mm
5.9kg
130kg
144
AG E D CA R E CATA LO G UE
W H E E LC H A I RS & M O B I L I T Y
Seat Walkers Explorer Walker • • • • • •
Frame and backrest fold compact for storage and transportation Height adjustable handles Handbrakes can be locked for added stability Curved padded backrest for additional comfort and support Supplied with removable backrest, vinyl bag and padded seat Walker can be folded with vinyl bag still attached
Warranty 1 Year
Colours Available HF0160 Burgundy HF0170 Laser Blue HF0180 Laser Green Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Net Weight
Max User Weight
310mm
310mm
560mm
610mm
820 - 930mm
6.4kg
130kg
Scout Walker • • • • • • •
Frame and backrest fold compact for storage and transportation Height adjustable handles Handbrakes can be locked for added stability Supplied with removable backrest, vinyl bag and padded seat Walker can be folded with vinyl bag still attached Large 8 castors for greater manoeuvrability and mobility outdoors Curved padded backrest for additional comfort and support
Colours Available HF0300 Burgundy HF0310 Laser Blue HF0320 Laser Green Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Net Weight
Max User Weight
350mm
330mm
560mm
630mm
800 - 915mm
7.5kg
130kg
Galaxy Walker • • • • •
Extra wide seat width and reinforced aluminium frame to suit the bariatric user Folds for easy storage and transportation Height adjustable handles Handbrakes can be locked for added stability Supplied with removable backrest, basket and padded seat
Colours Available HF0210 Burgundy HF0200 Blue
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Net Weight
Max User Weight
510mm
350mm
540mm
710mm
770 - 920mm
11.1kg
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
145
Kitchen & Dining Cutlery
147
Dining
147
K I TC H E N & D I N I N G
Cutlery Queens Cutlery 3
1
•
4
• • •
2
Wide range of stainless steel utensils moulded into built up plastic handles to help those with weak or restricted grip Handle is cylindrical to assist with gripping Cutlery is hygienically sealed, easy to clean and dishwasher safe Handle diameter 30mm
5
6
7
8
9
10
No
Code
Description
Length
Weight
1
CB0710
Splayed
200mm
55g
2
CB0680
Fork
205mm
45g
3
CB0630
Angled Fork Right
180mm
50g
4
CB0620
Angled Fork Left
180mm
50g
5
CB0700
Nelson Knife
210mm
55g
6
CB0670
Angled Spoon Right
190mm
55g
7
CB0660
Angled Spoon Left
190mm
55g
8
CB0720
Spoon
205mm
60g
9
CB0730
Junior Spoon
190mm
50g
10
CB0690
Knife
215mm
45g
Dining Manoy Plate • • • • •
Oval melamine plate Designed for one handed use or for those who have difficulty picking up food with utensils Sloping base and one high sided end helps user to scoop up food without spilling it over the side Dishwasher safe Not suitable for microwave use Code
Size
Length
Width
Weight
CB0820
Small
220mm
160mm
145g
CB0810
Large
280mm
200mm
285g
CB0880 Two Handled Mug • • • • • • •
Durable plastic mug Two handles enable the mug to be easily held in the correct position for drinking Supplied with two lids; one for anti-spill and one with a drinking spout Mug only is dishwasher safe Not suitable for microwave use Capacity: 200ml Weight: 55g
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
147
This catalogue is to be used as a guide only and due care has been taken to ensure all information in this product catalogue is correct at time of publication, however variations may occur. Some of the products shown may be equipped with optional extras at extra charge. Alpha Lifecare Pty Ltd will not be liable in any way as a result of any reliance, by any person, on anything contained in this product catalogue. Due to the printing process, colors shown in this product catalogue are indicative only and may vary from actual product. Alpha Lifecare Pty Ltd reserves the right to change or modify the design, technical specifications, features or appearance of any product without prior notice. The sale of all products and services are subject to our ‘Terms and Conditions’ which are available upon request or visit www.alphalifecare.com.au Alpha Lifecare Pty Ltd ©2024. No part of this publication may be copied, reproduced, scanned or stored in any electronic database, whether in whole or in part, in any form or by any means without the written approval of Alpha Lifecare Pty Ltd.
Caring Further 1300 930 930 agedcare@alphalifecare.com.au alphalifecare.com.au
Sydney NSW
Newcastle NSW
Brisbane QLD
Head Office
15 Craftsman Cl, Beresfield NSW 2322
38 Industry Place Wynnum QLD 4178
2 Holbeche Road Arndell Park NSW 2148 3-5 Millennium Court Silverwater NSW 2128
Melbourne VIC 3 Carmen Street Truganina VIC 3029
© Copyright Alpha Lifecare Pty Ltd 2024, all rights reserved.
COL038SEP23
