AC U T E CA R E P RO D U CT CATA LO G UE E D I T I O N 1.4
Contents Hospital Beds & Cots
06
Healthcare Furniture & Chairs
56
ook snow
07

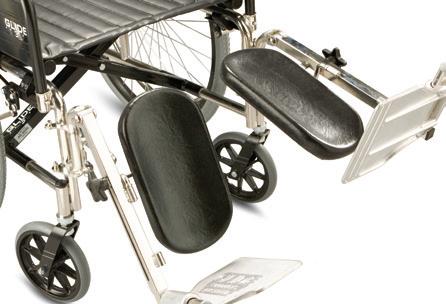

Legrests & Footrests
71
Low Height Ward Beds
08

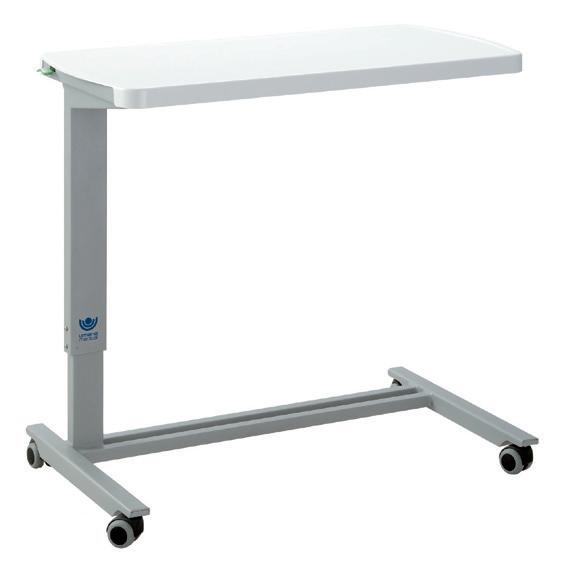

Overbed & Chair Tables
72
Bariatric Beds
10

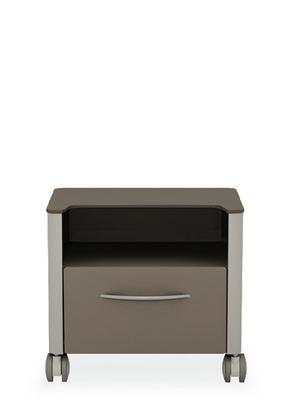

Bedside Cabinets
74
Mental Health Beds
13

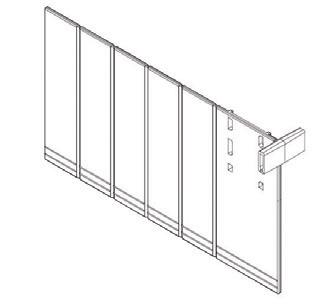

Privacy Screens
77
Hospital Bed Options
16
Wardrobes
77
Hospital Bed Accessories
19
Floorline Beds
20

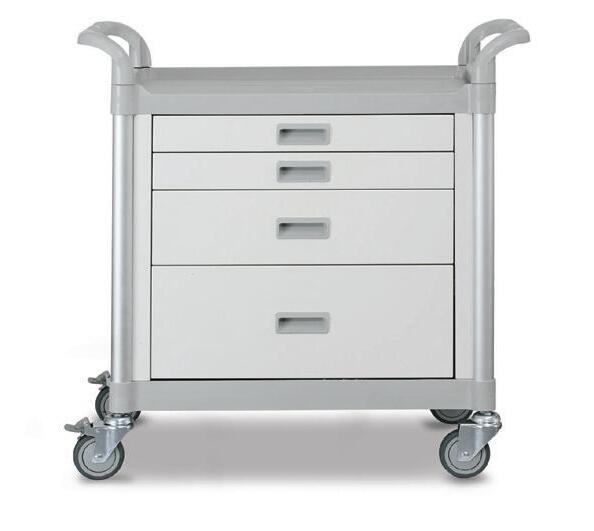

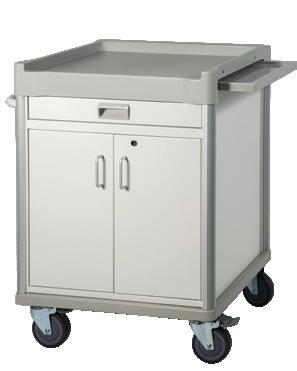

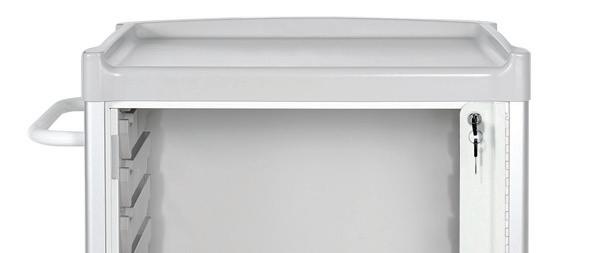

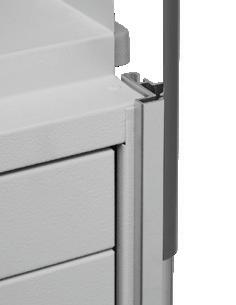

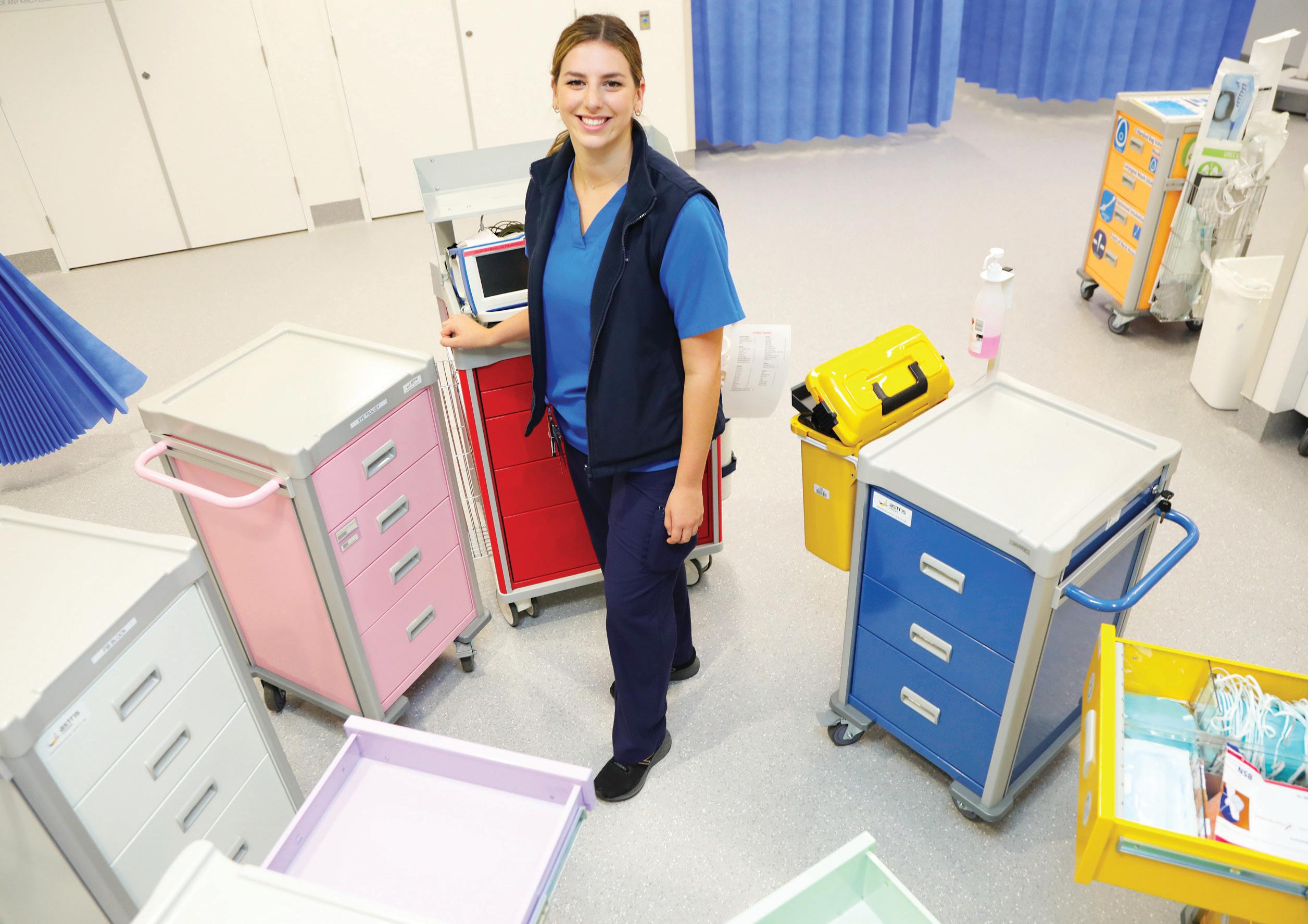

Medical Carts & Trolleys
78
Bedroom Patient Safety
21
Medical Cart Guide
79

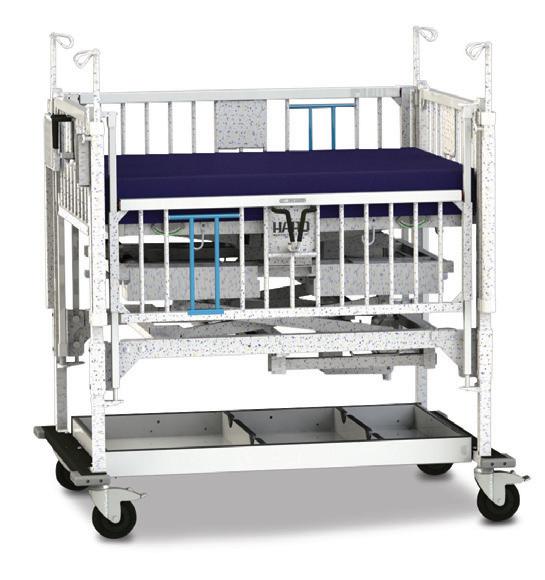

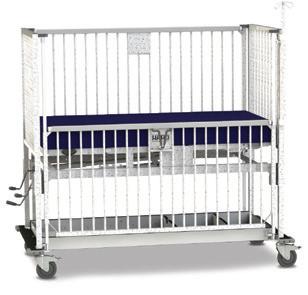

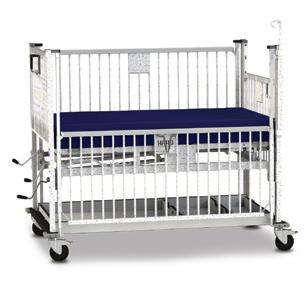

Bassinets & Cots
22
Anaesthetic Carts
81

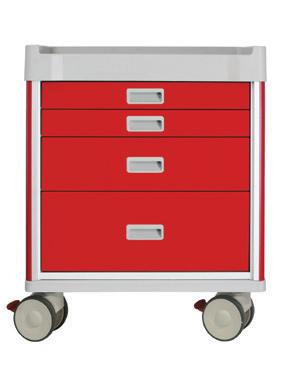

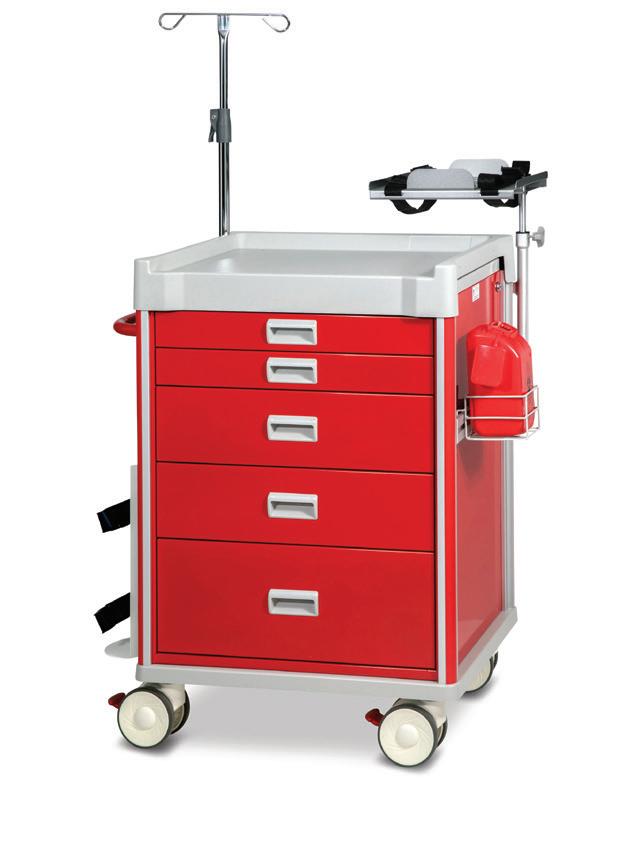

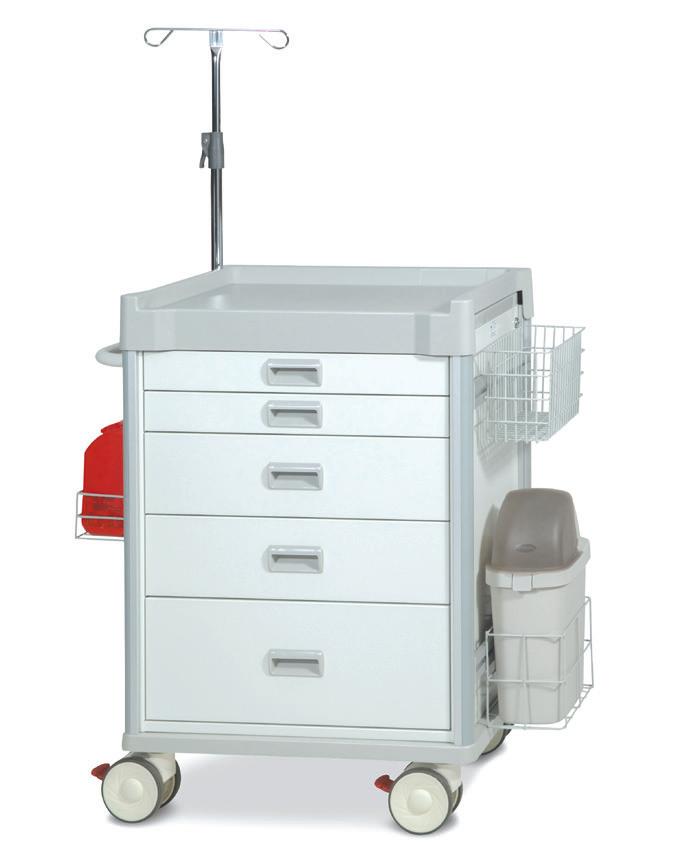

Emergency Carts
84
Stretchers & Treatment Chairs
26
Procedure Carts
88

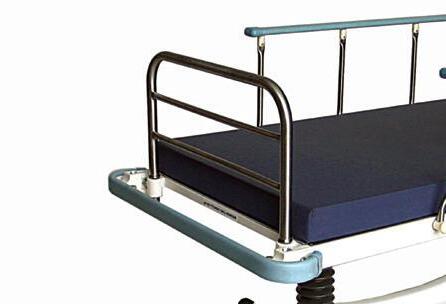

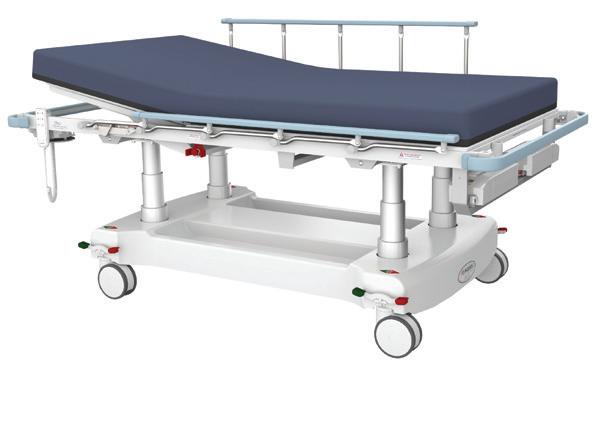

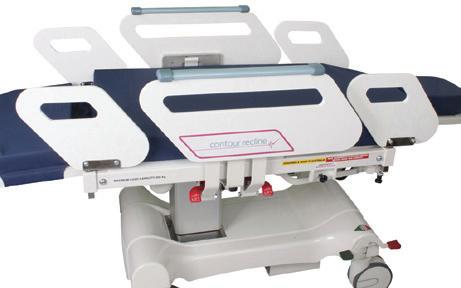

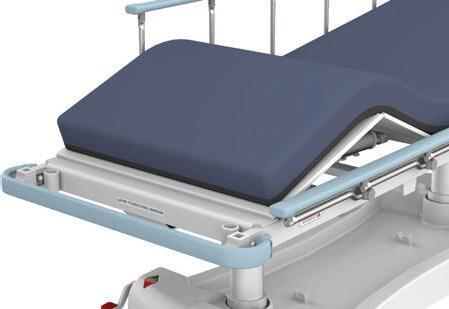

Stretchers
27

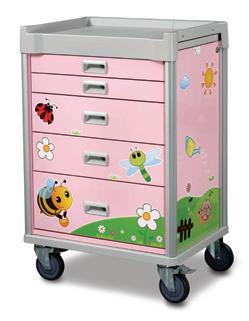

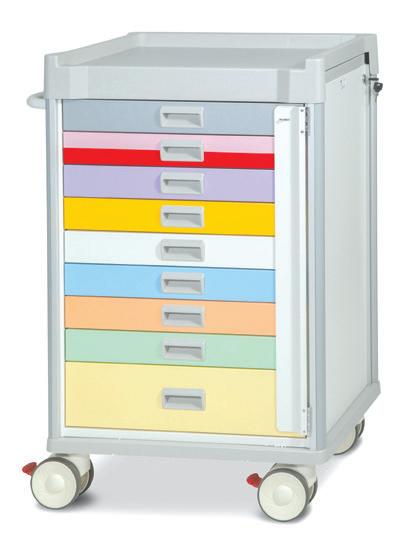

Paediatric Carts
94
Stretcher Upgrade Options
30
Isolation Carts
95

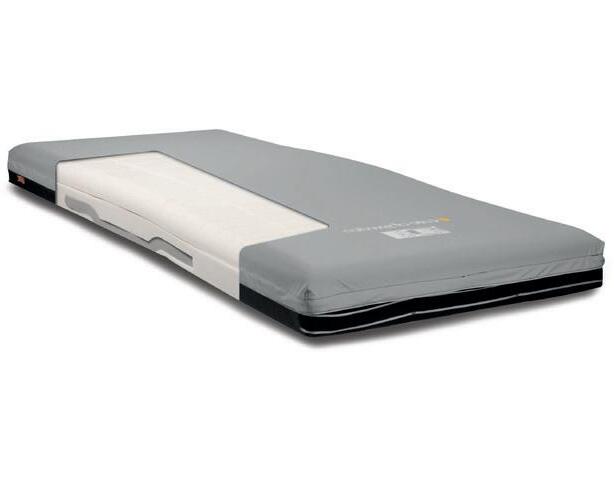

Stretcher Mattress Options
31

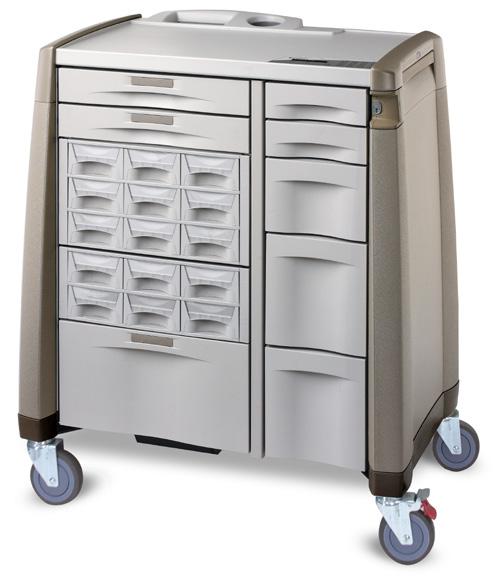

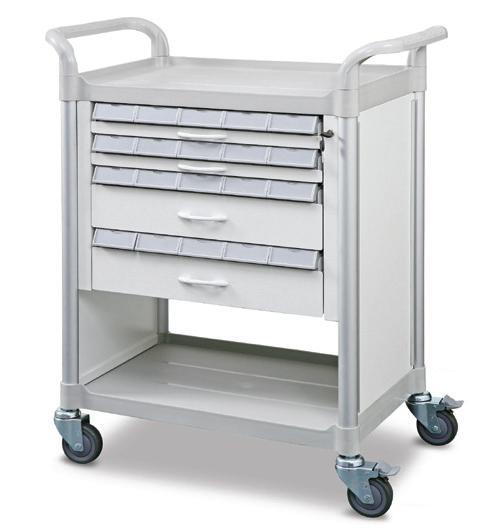

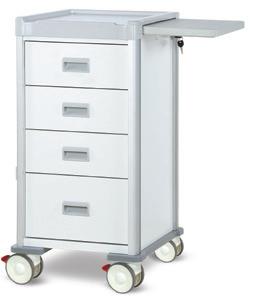

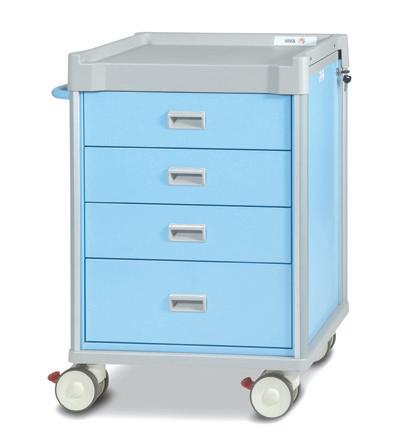

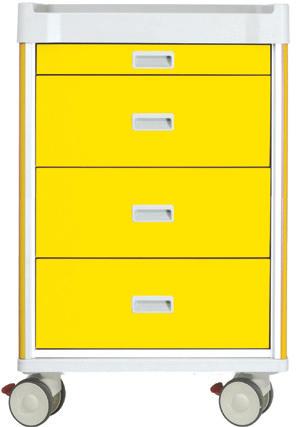

Medication Carts
97

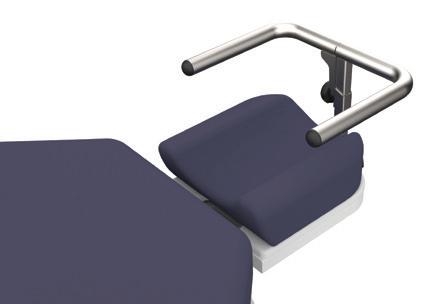

Stretcher Accessories
32

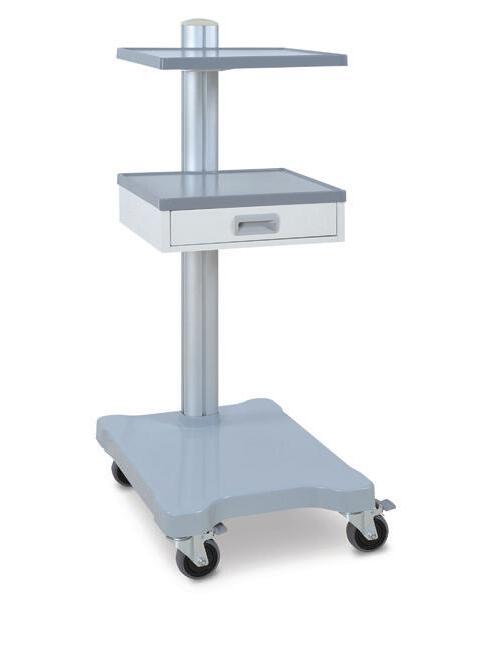

I.T Equipment Carts
101
Examination Couches
34

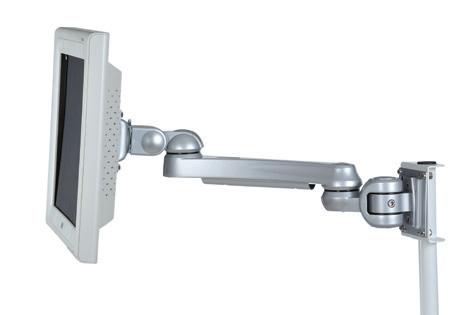

I.T Equipment Cart Options
104
Treatment Chairs
36

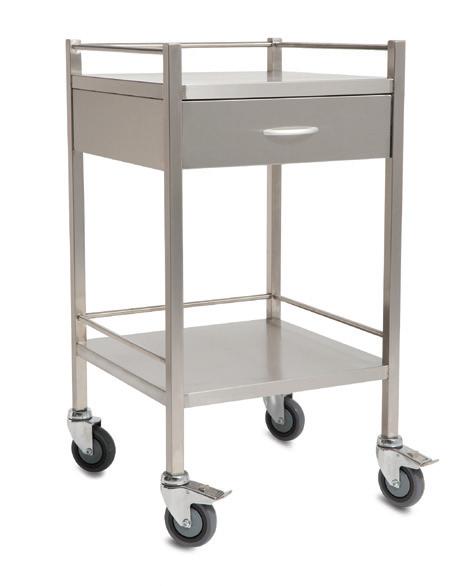

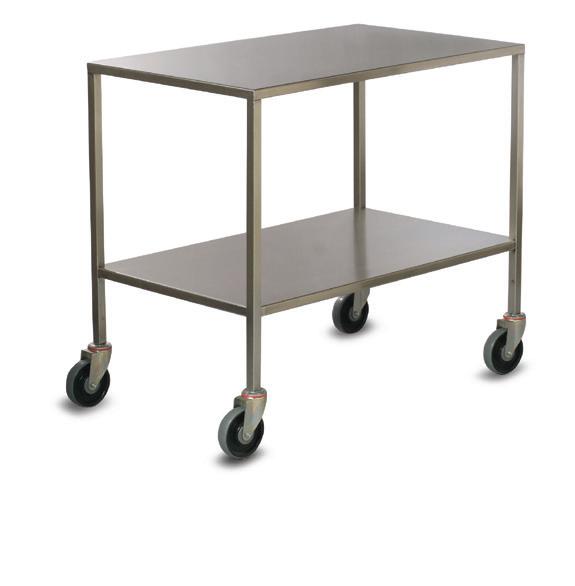

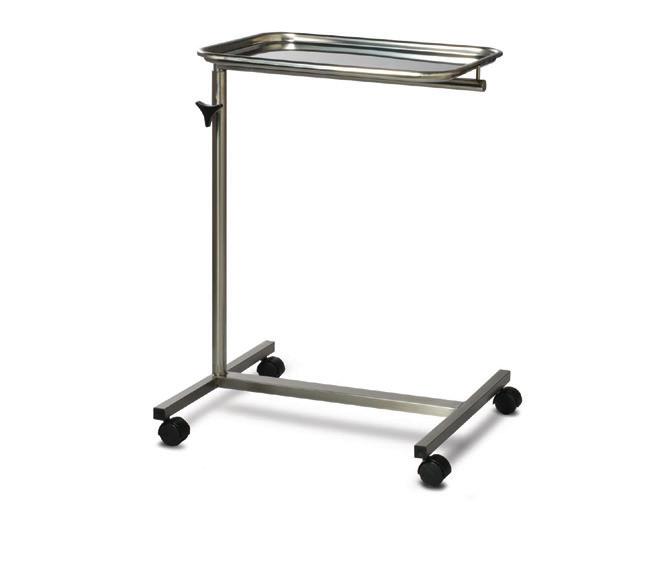

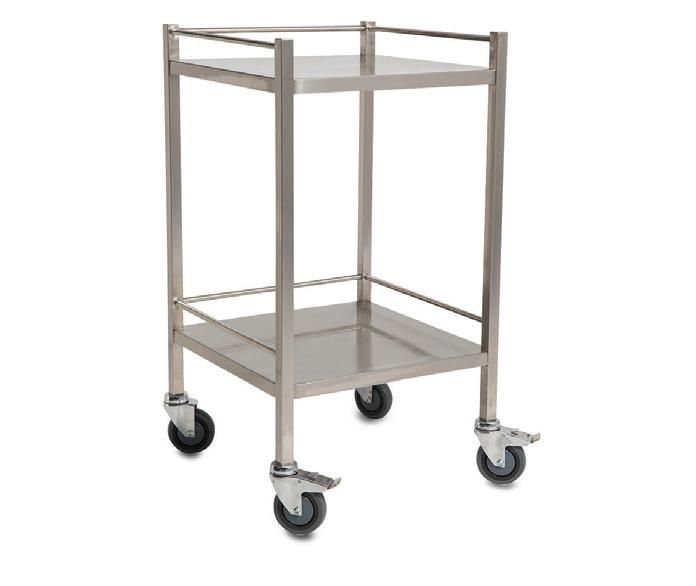

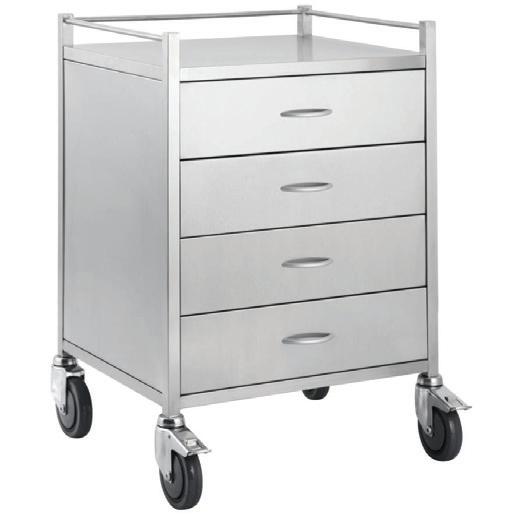

Instrument & Dressing Trolleys
105

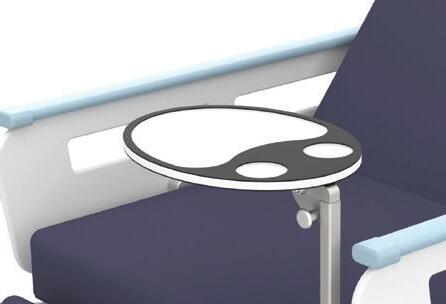

Treatment Chair Accessories
38
Linen Trolleys & Equipment
108

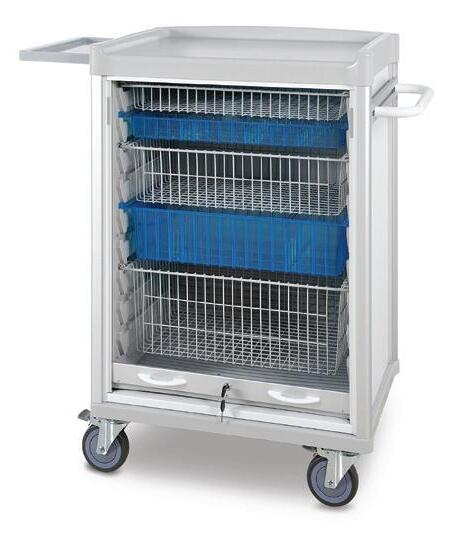

Clean Linen Trolleys
110

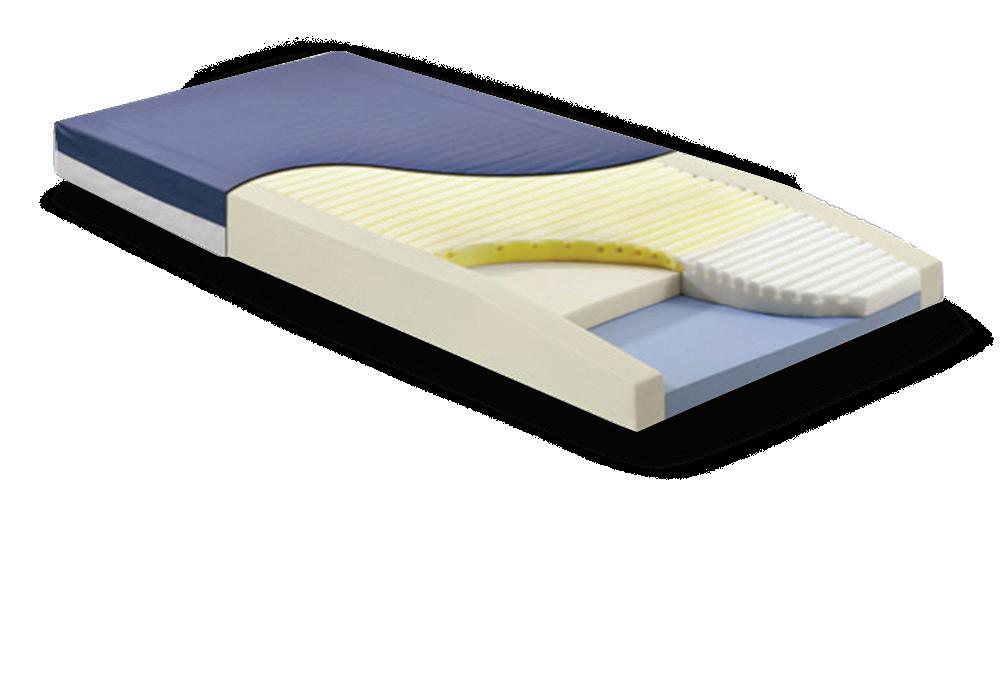

Mattresses & Cushions
39

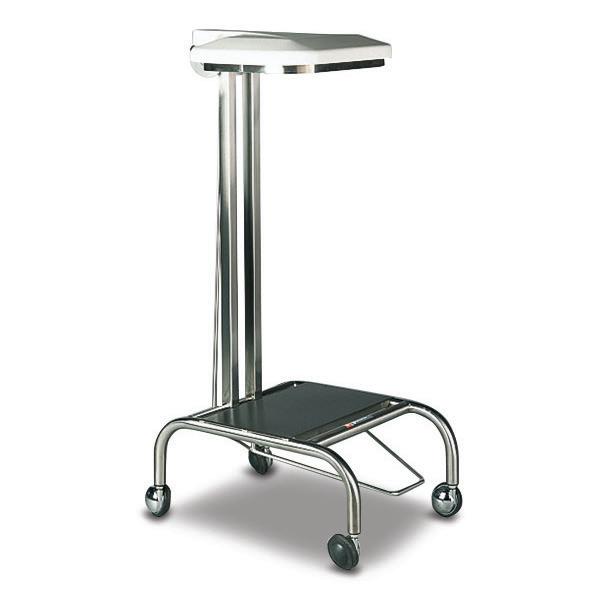

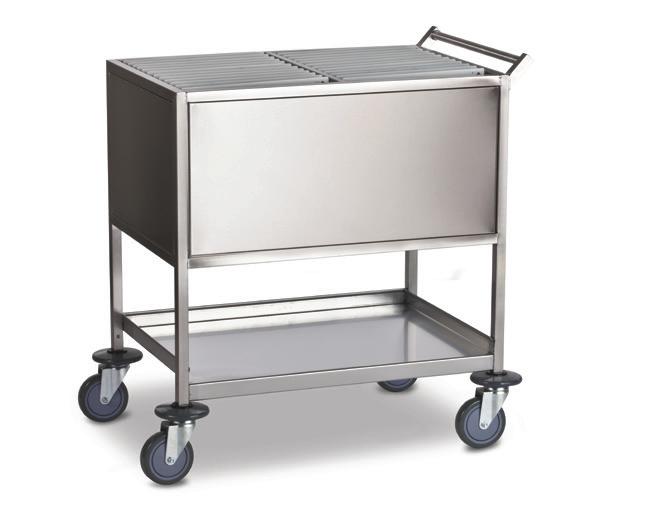

Soiled Linen Trolleys
111
Non Powered Pressure Redistribution Support Surfaces
40

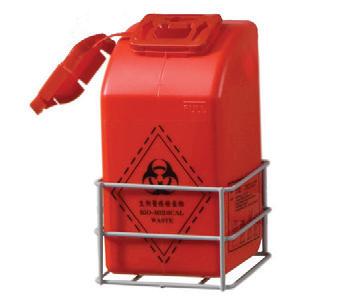

Waste Equipment
112

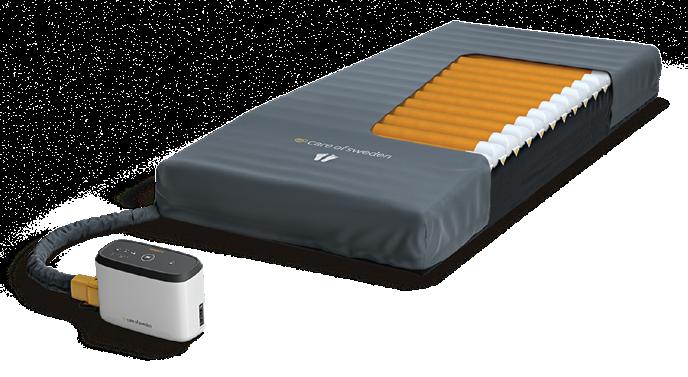

Powered Pressure Redistribution Support Surfaces
44

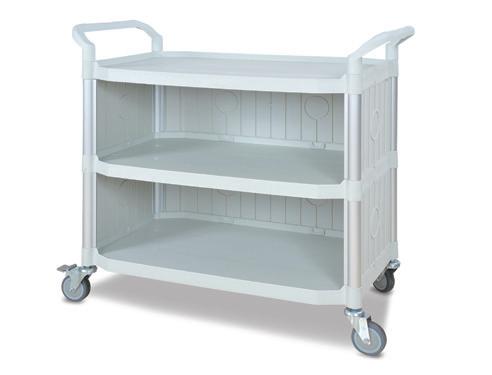

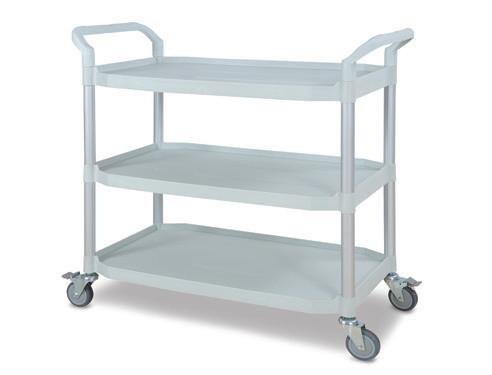

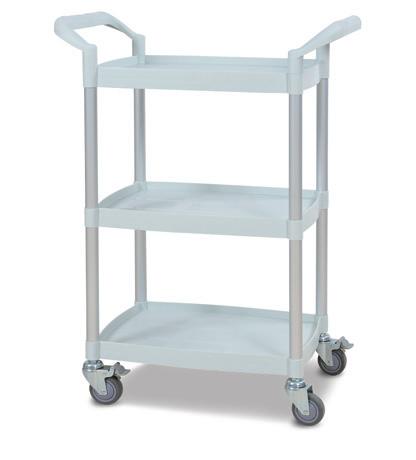

Service Trolleys
112

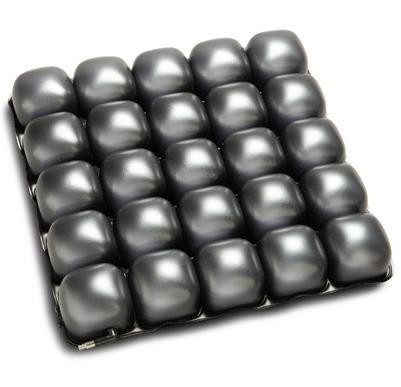

Cushions
50
File Carts
116
Chart Trolleys
117
Bedding & Linen
52

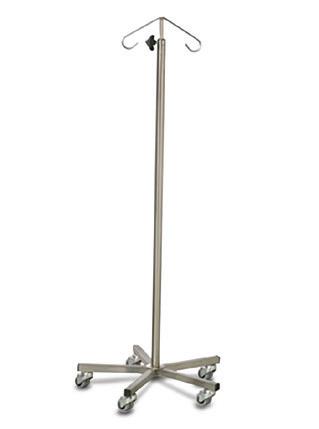

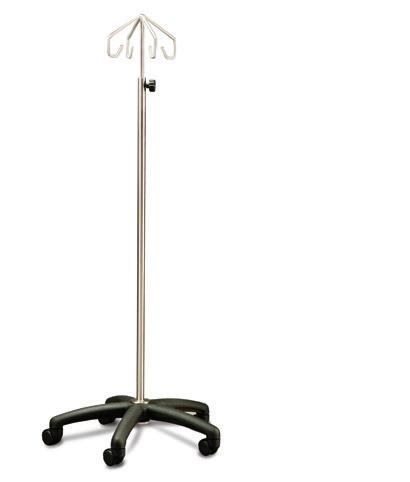

IV Poles
118

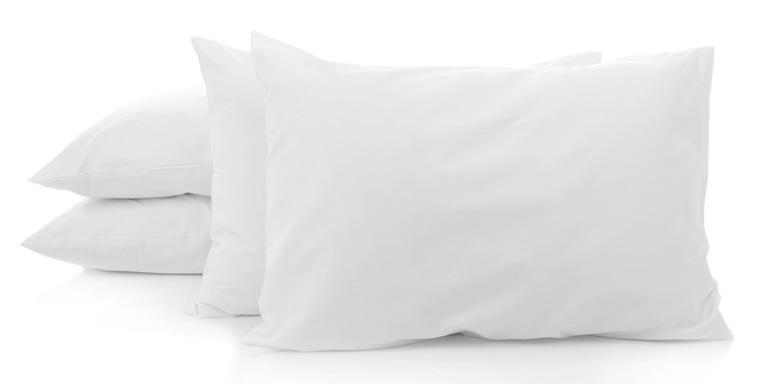

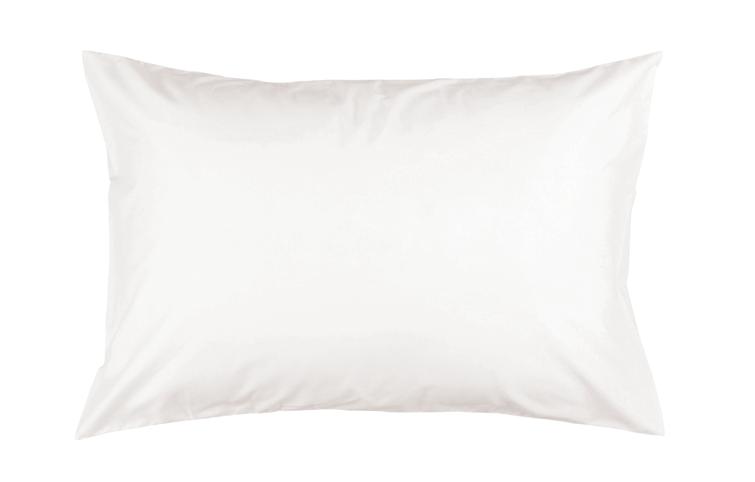

Sheets & Pillowcases
53

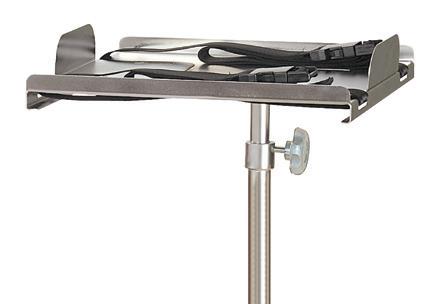

IV Poles Accessories
119
Blankets
54
Theatre Trolleys & Equipment
120
Towels & Washers
55
Oxygen Trolleys
122

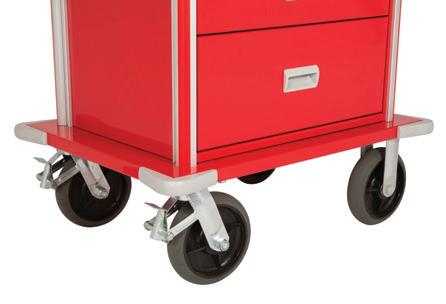

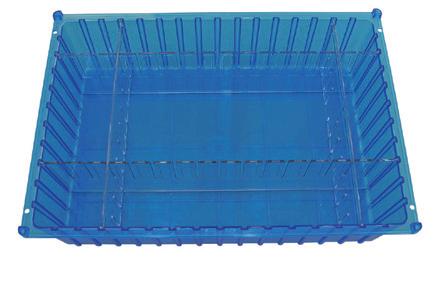

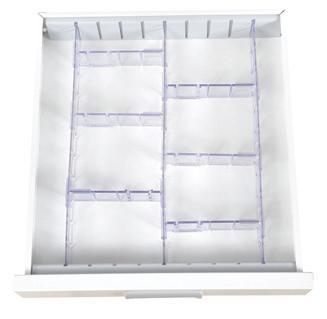

Medical Cart Accessories
123
Healthcare Furniture & Chairs
56

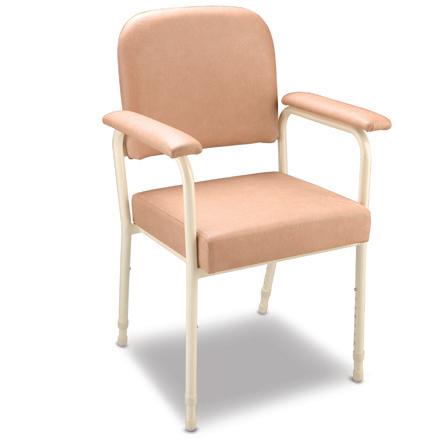

Patient Chairs
57

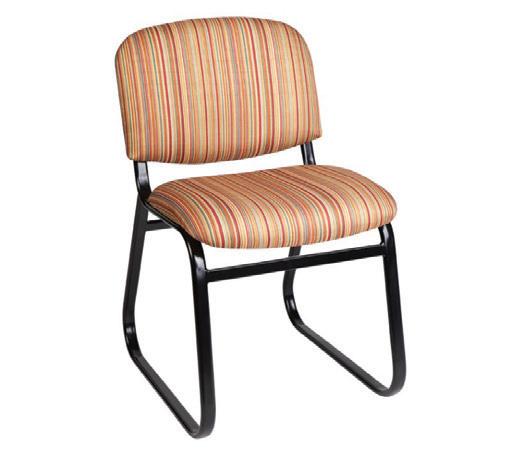

Visitor Chairs
64
Recliner Chairs
67

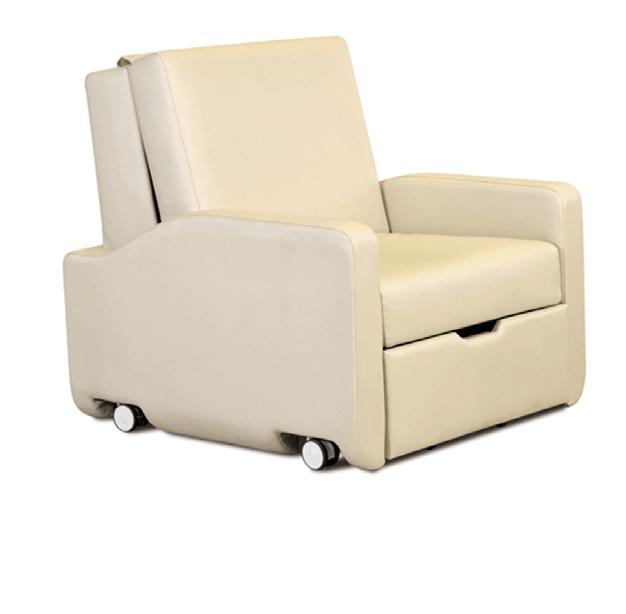

Sofa Beds
69
Medical Scales
129
Mobility
162

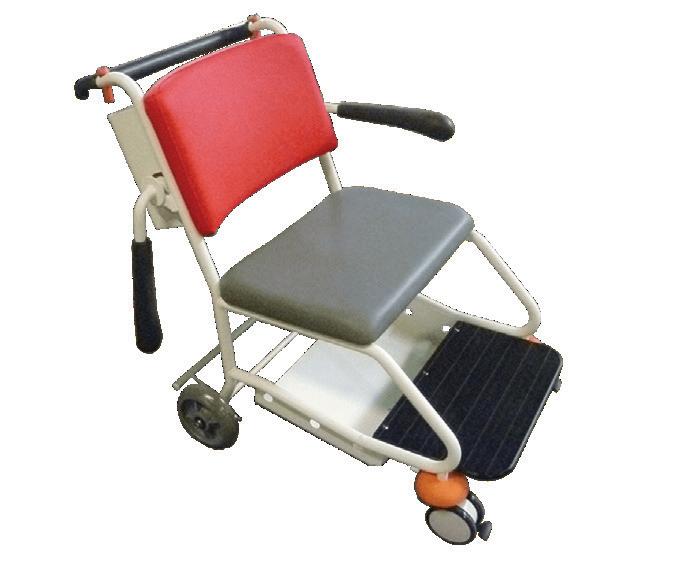

Chair Scales
130

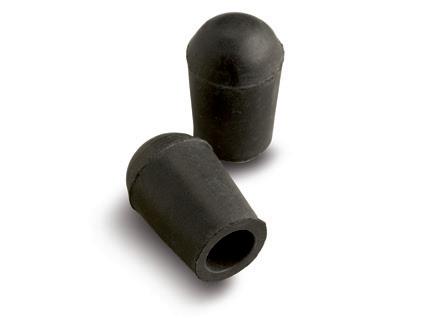

Stick & Crutch Tips
178

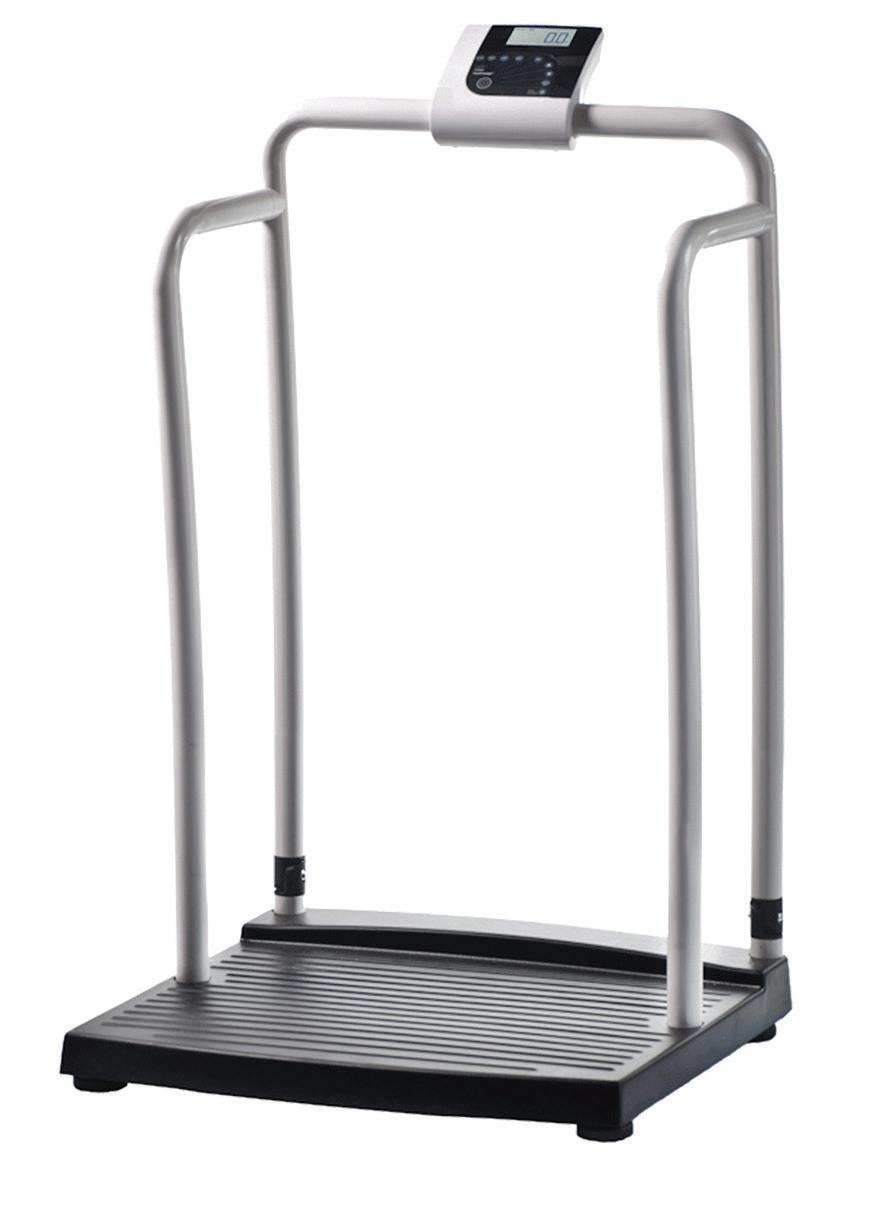

Platform Scales
130
Wheelchair Scales
133
Bathroom & Hygiene Equipment
179
Neonatal Scales
134

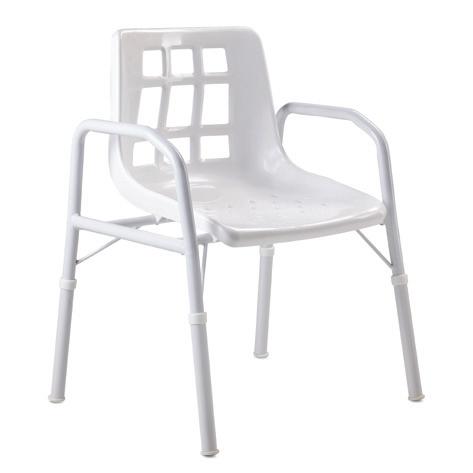

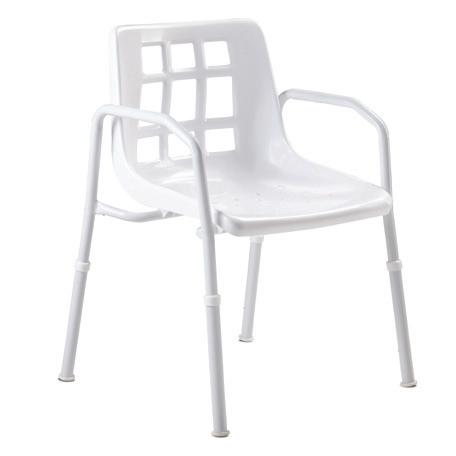

Shower Chairs & Stools
181

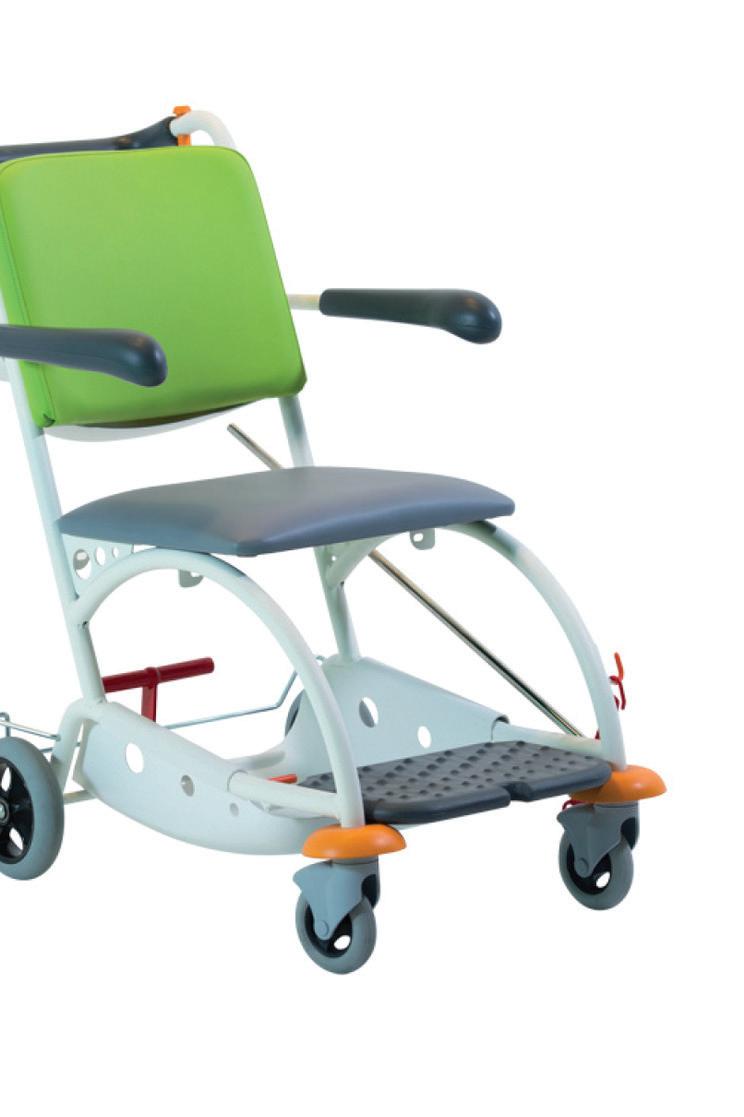

Mobile Shower Commodes
185
Safe Patient Handling
135
Mobile Shower Commode Accessories
189
Patient Ceiling Hoist Systems
136
Toilet Surrounds
191

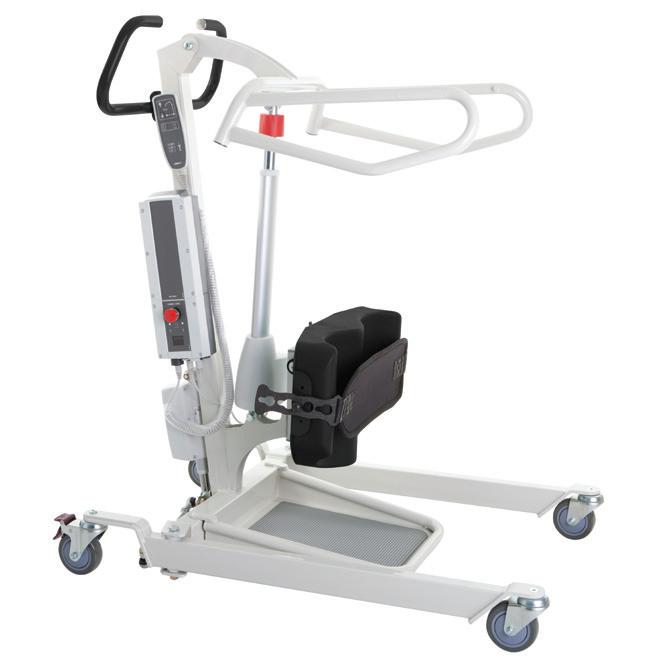

Mobile Hoists
137

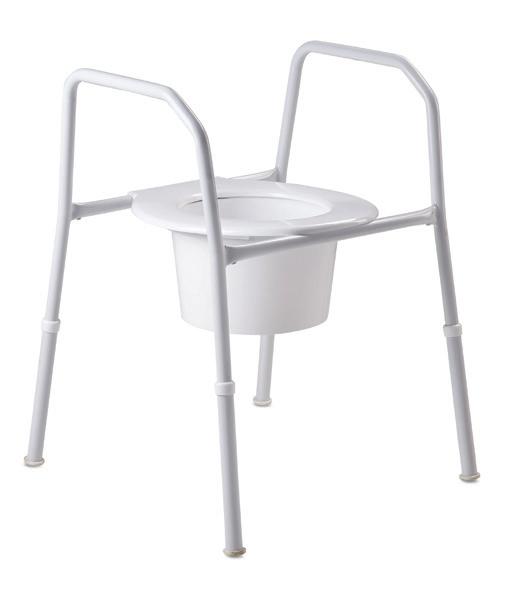

Overtoilet Aids
191

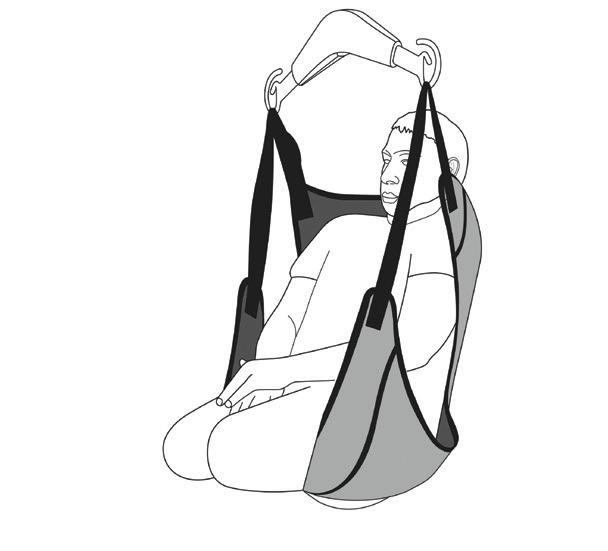

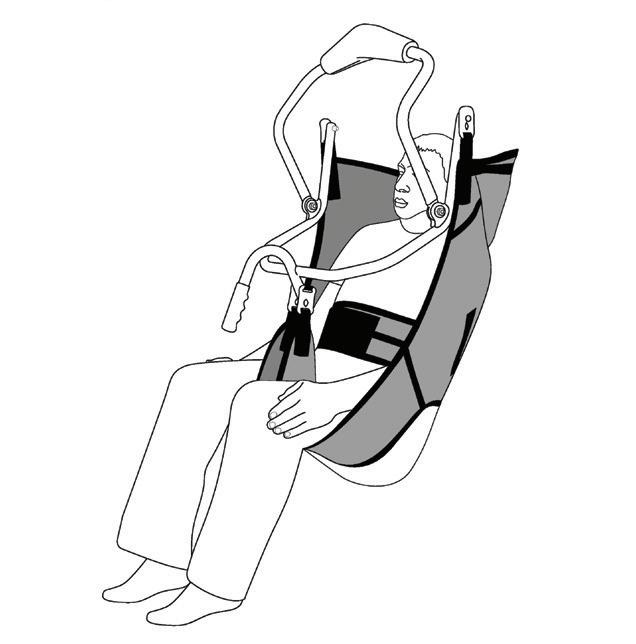

Patient Lifting Slings
140
Bedside Commodes
193

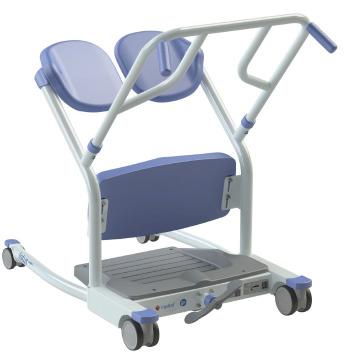

Manual Transfer Aids
144

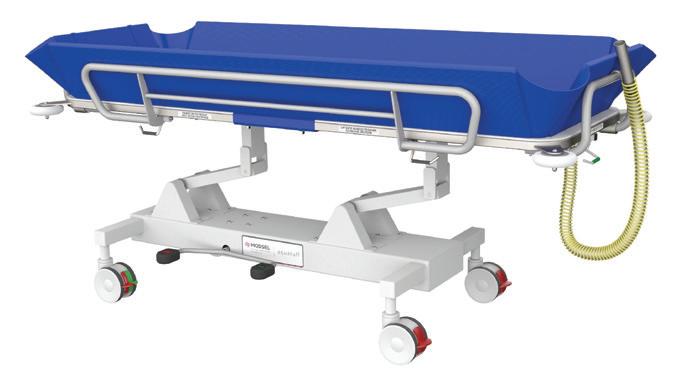

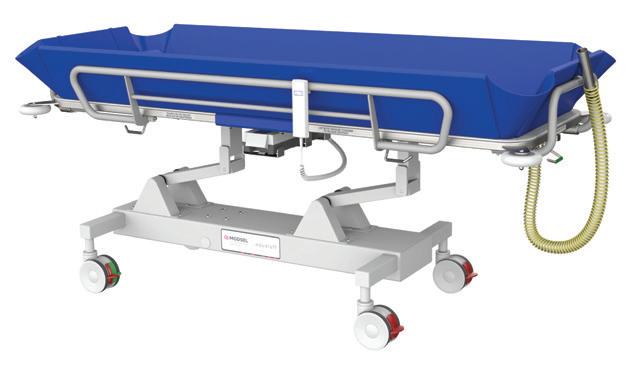

Shower / Bath Trolleys
194
Positioning Aids
147
Shower / Bath Trolley Options
197

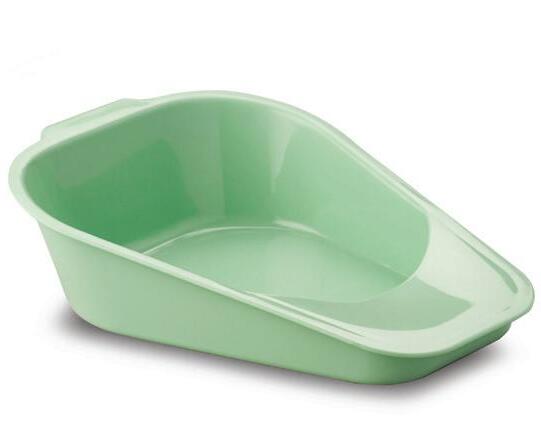

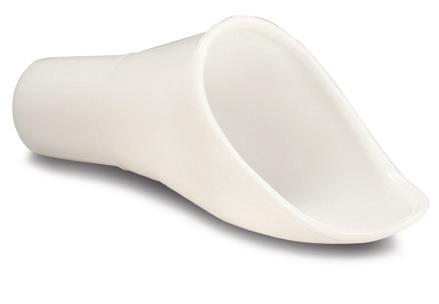

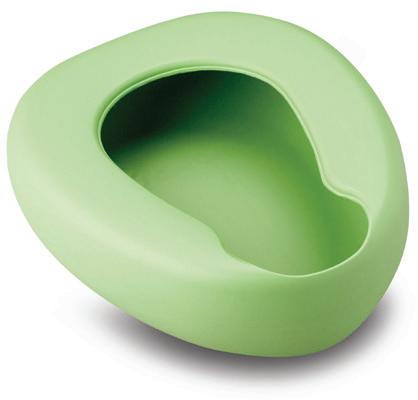

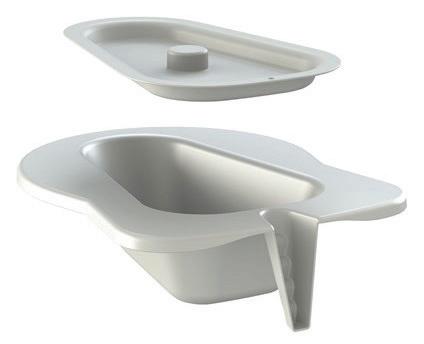

Urinals & Bedpans
198
Commode Bowls
199

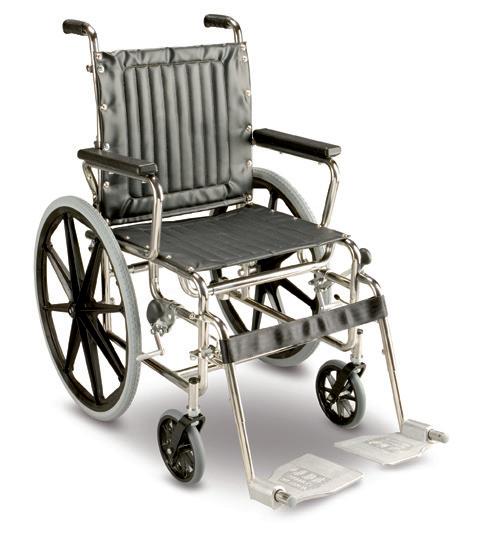

Wheelchairs
148

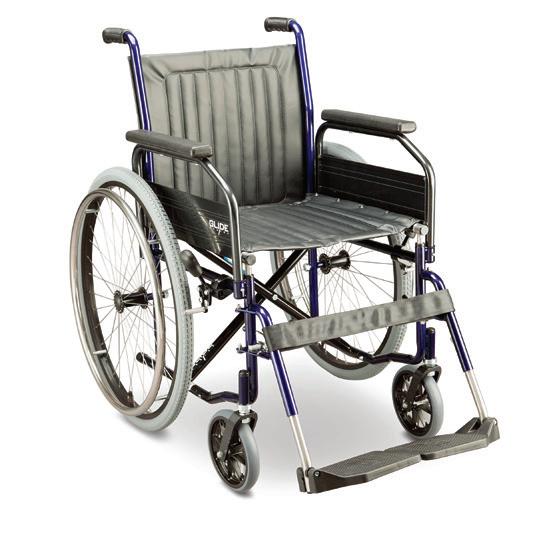

Self Propelling Wheelchairs
149
Transit Wheelchairs
150
Monitoring & Examination Equipment
200
Patient Transport Wheelchairs
152

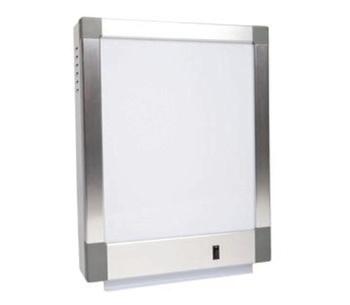

X-Ray Viewers
201
Bariatric Wheelchairs
155

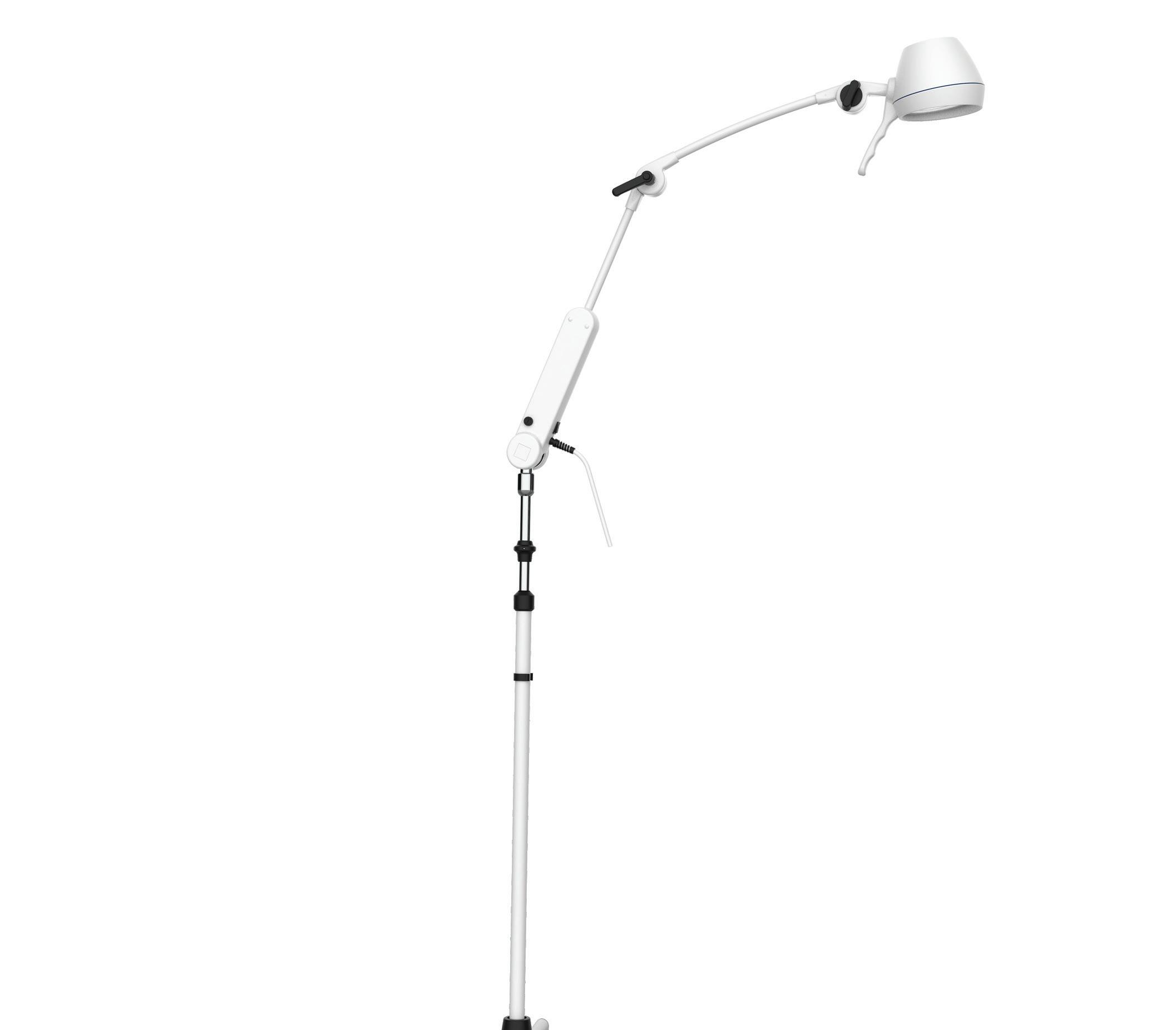

Medical Lighting
201

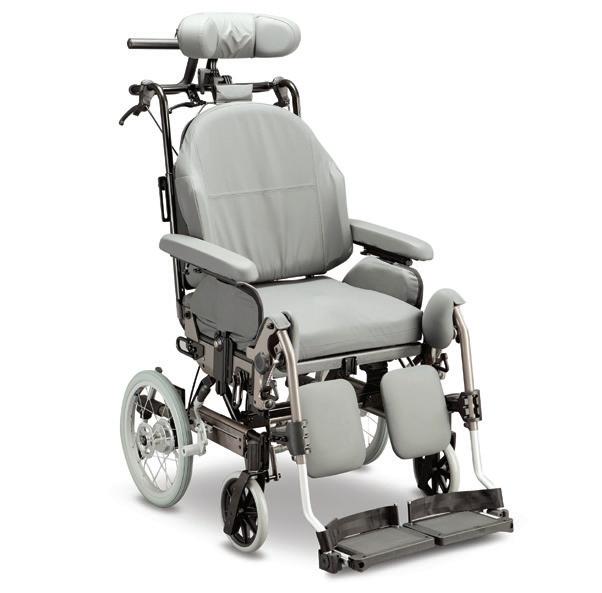

Tilt & Recline Wheelchairs
157
Treatment Stools
202
Amputee Wheelchairs
158
Flow Chart Tables
204
Hemiplegic Wheelchairs
159
Chart Holders
204

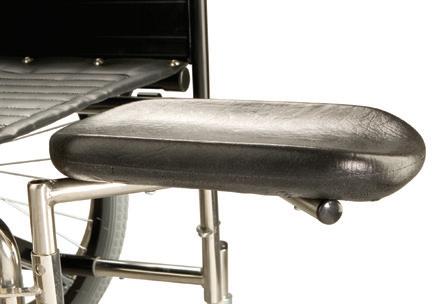

Parts & Accessories
160 Mortuary
205

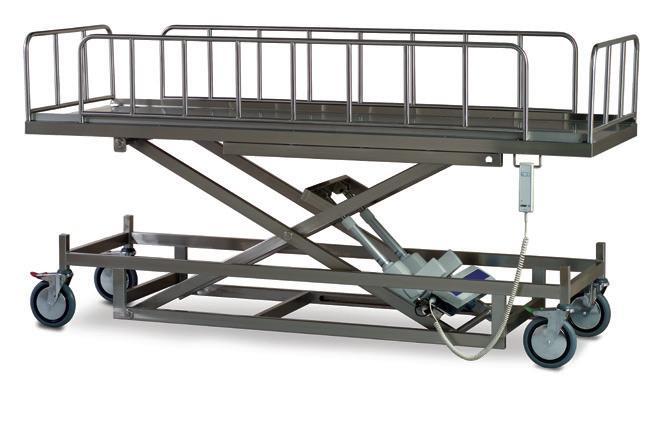

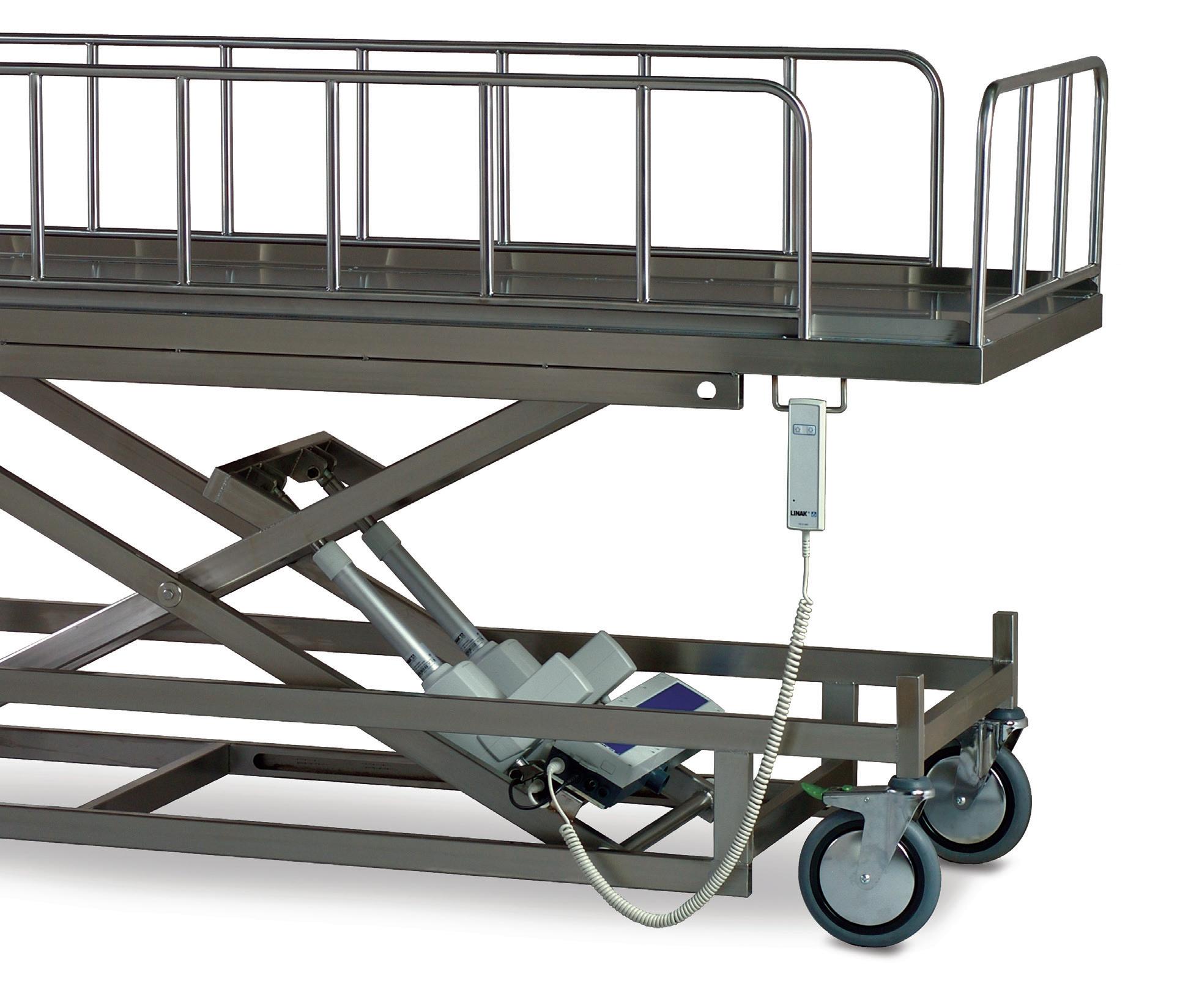

Mortuary Trolleys
206
Mobility
162
Walkers & Rollators
163

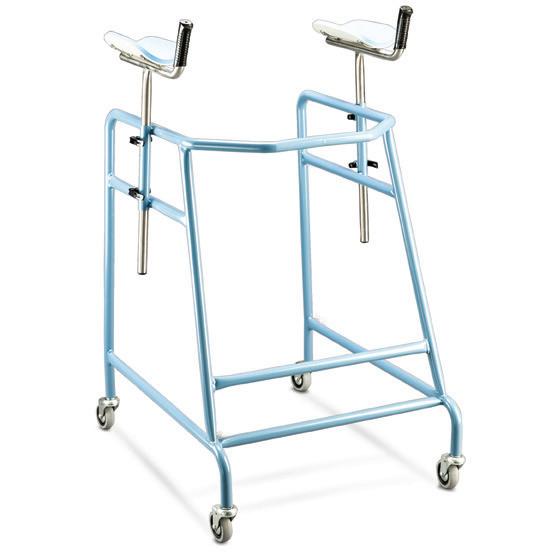

Walking Frames
164
Tugs & Bed Movers
208
Walking Frames Accessories
167

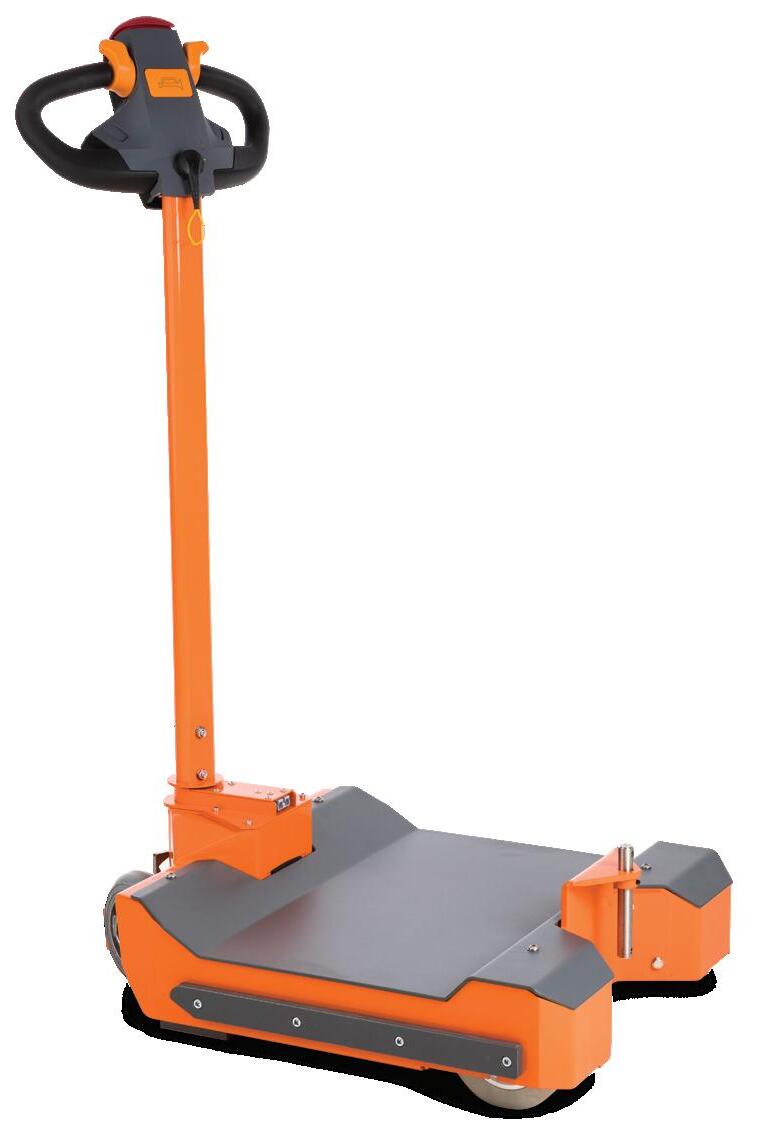

Tugs
210
Forearm Walkers
167
Bed Movers
211
Exercise Therapy
170

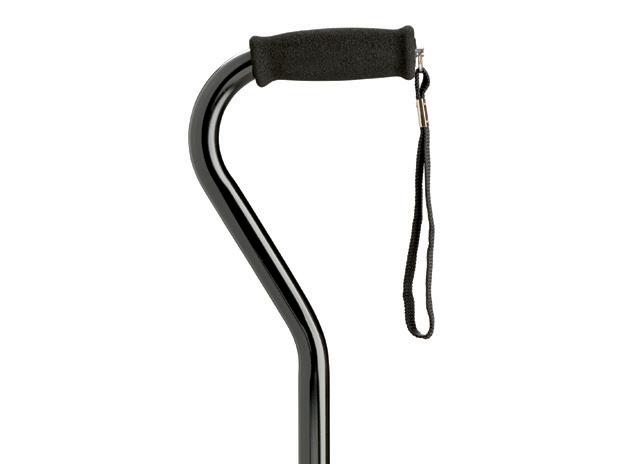

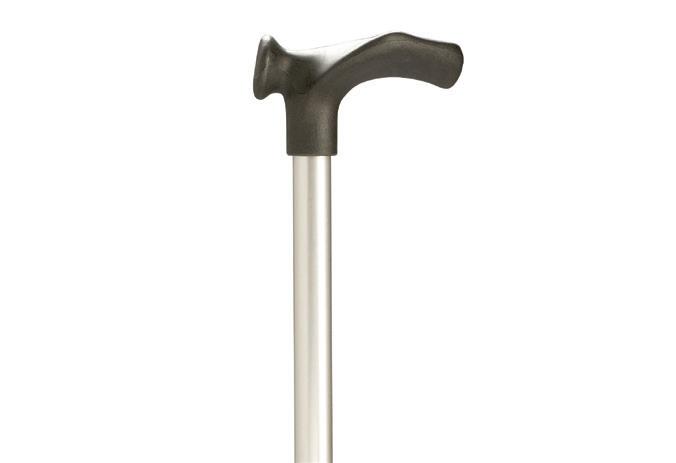

Adjustable Walking Sticks
171
Caring Further in Hospitals
212

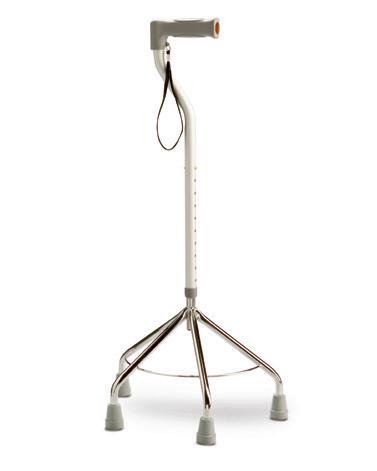

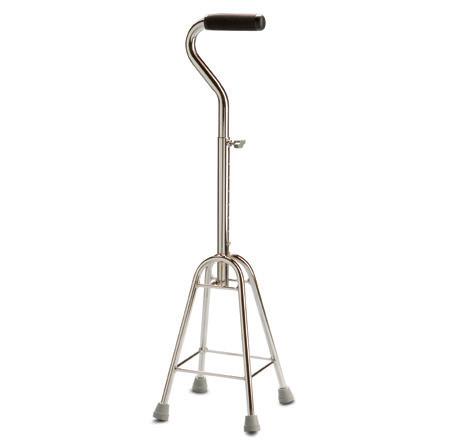

Quad Sticks
173
Service Care for Hospitals
213
Underarm Crutches
174
Hire Care for Hospitals
214

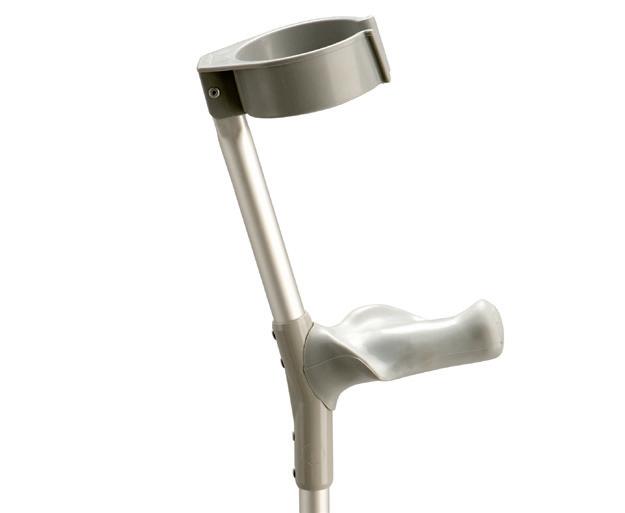

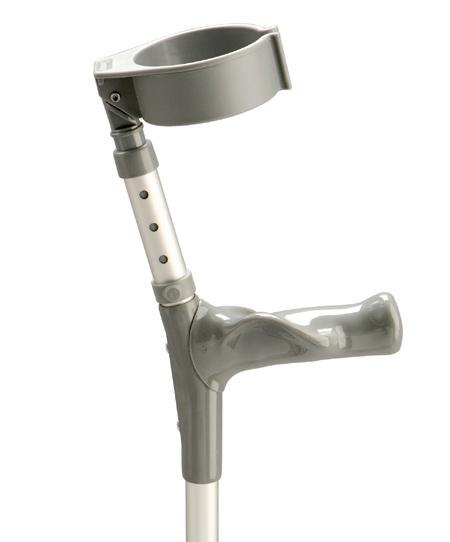

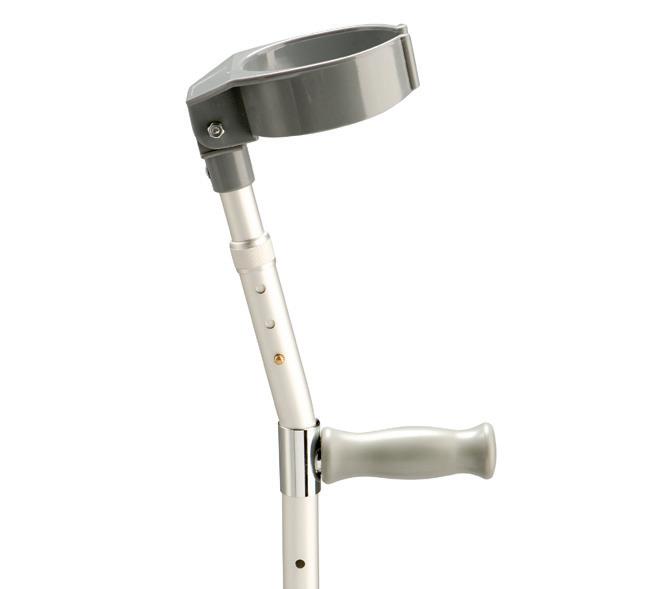

Elbow Crutches
175
What we offer to you
215
Gutter Crutches
177
Commitment to excellence, quality and compliance
216
Hospital Beds & Cots
06
ook snow
07

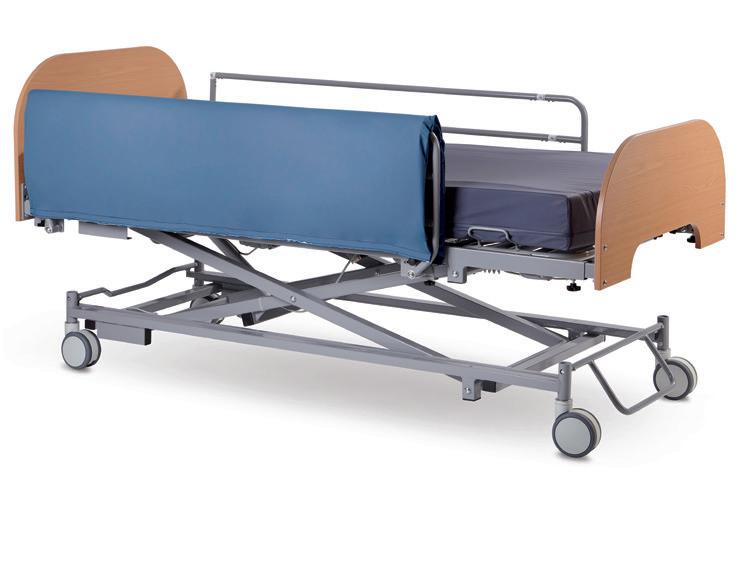

Low Height Ward Beds
08
Bariatric Beds
10
Mental Health Beds
13
Hospital Bed Options
16
Hospital Bed Accessories
19
Floorline Beds
20
Bedroom Patient Safety
21

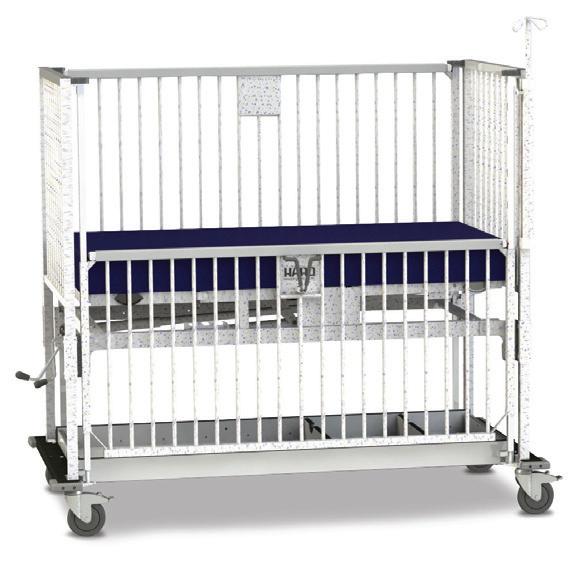

Bassinets & Cots
22

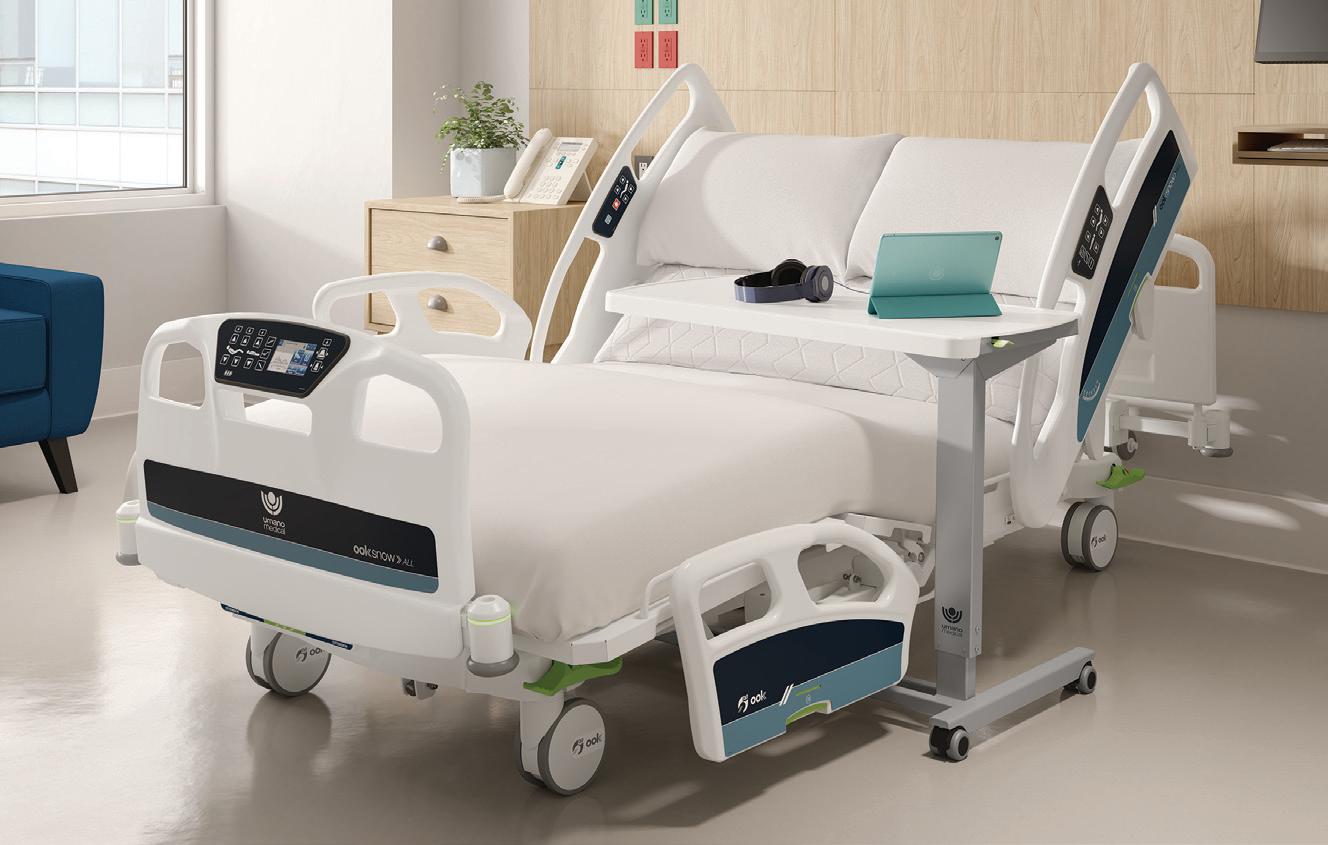

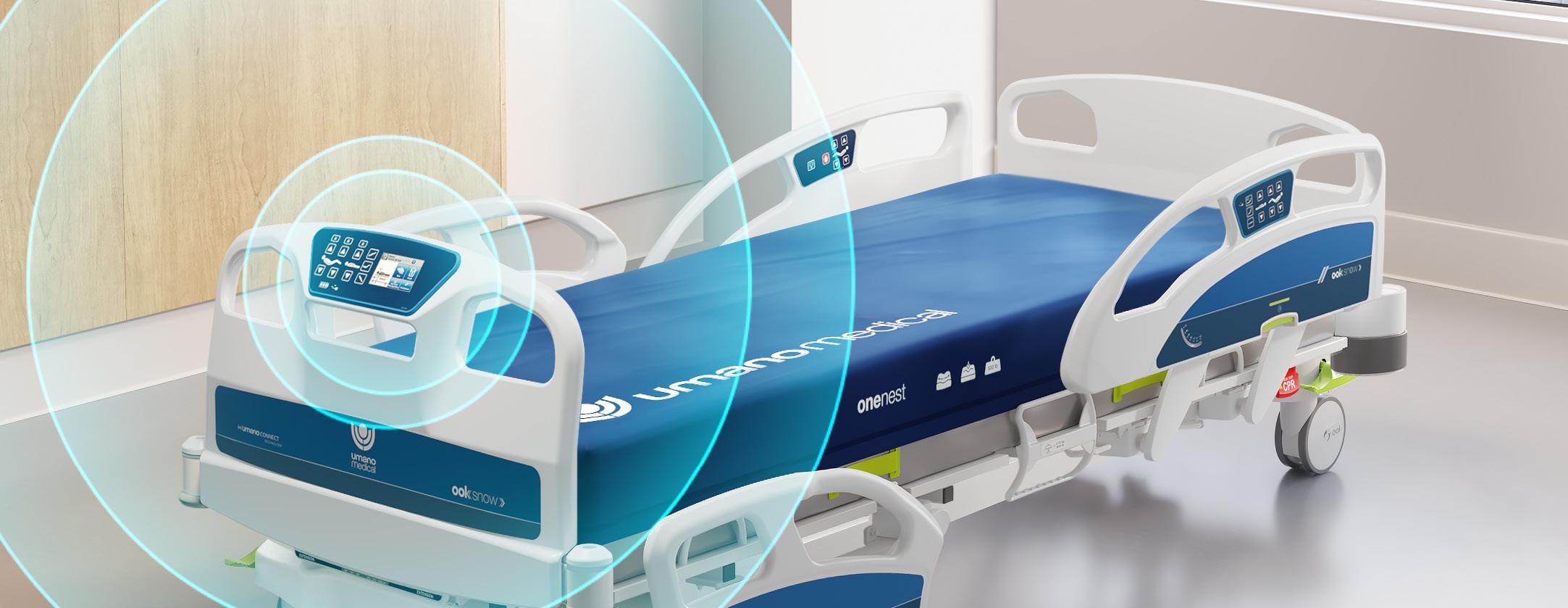

High performance beds tailored for all your needs and environments.
Partnering with Umano Medical we offer a complete array of high performance and low height medical beds, which can adapt to all care environments. Discover a low height hospital bed that is smart, intuitive, and powerful. With its 360O approach to falls prevention and infection control, the ook snow is a powerful, low height bed that meets your needs. All beds in the ook snow line share the same intuitive design making standardisation throughout multiple care environments now possible.
One Platform.
ook snow
Multiple Environments.
ook snow SC
Countless Benefits.
ook snow ALL
ook snow MH
H O S P I TA L B E D S & C OTS

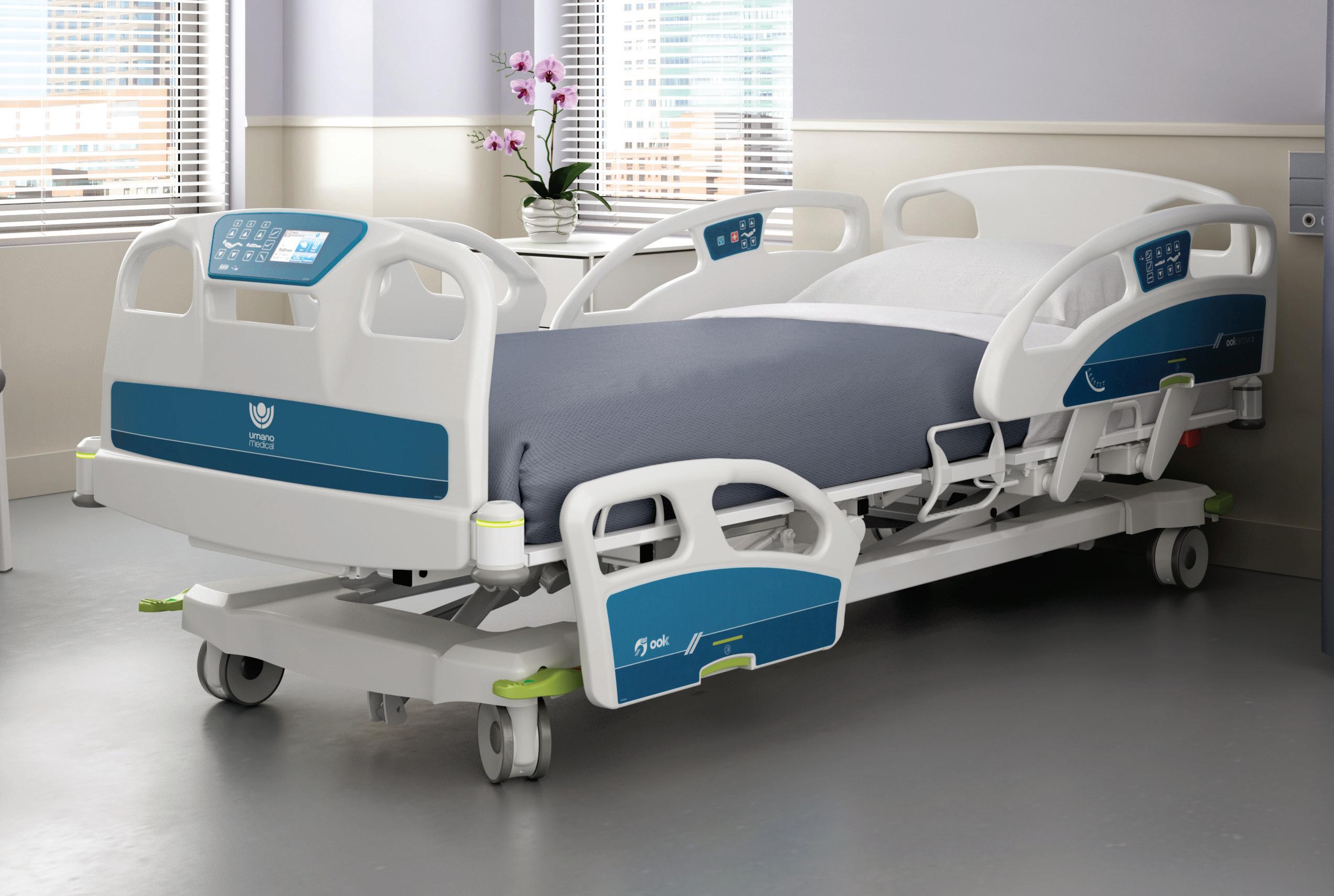

Low Height Ward Beds ook snow Bed Platform Low Height Exceptional low height reduces the risk of harm from falls and facilitates patient mobility.
Kg | Lb
Highly Efficient Scale The integrated scale provides accurate weight in any bed or patient position.
Safe Working Load 272kg
Easy to Clean Open architecture, seamless smooth surfaces to facilitate cleaning procedures.
Max Patient Weight 207kg

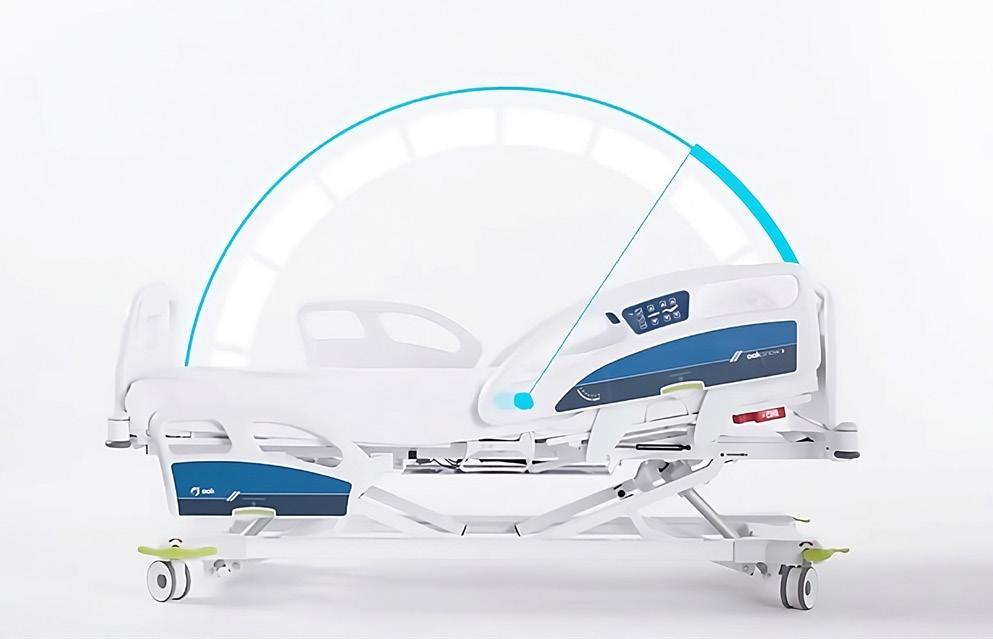

Boostless™ Backrest System Backrest moves backward to reduce shearing and patient repositioning needs.
Underbed Clearance Full 12.5cm underbed clearance from head to foot end.
Fall Risk Management Fall prevention protocols are strengthened with the combination of low height, bed exit technology, and ergonomic siderail design.
Seamless smooth surfaces maximising infection control
Power outlet on bed platform
Open architecture to simplify cleaning & mattress installation
Under bed clearance for lift & overbed table compatibility
Technical Specification Safe Working Load
272kg
Max Patient Weight
207kg
Castor diameter
12.5cm or 15cm
With Pilot Drive
15cm
Compliant with standard
IEC 60601-2-52
Mattress surface dimension
203cm Length x 89cm Width
Extended length max
228cm
Overall width – siderails down
100cm
Overall width – siderails up
105cm
Height with 12.5cm dual castors
Low 25cm High 76cm
Height with 15cm dual castors
Low 30.5cm High 81cm
TM
8
AC U T E CA R E
Download full specifications
H O S P I TA L B E D S & C OTS
Low Height Ward Beds ook snow Bed Platform ook snow Low Height BD4610
ook snow SC Low Height & Scale BD4630
ook snow and Pilot DriveTM Manoeuvrability BD4630
Low bed with ergonomic design and intuitive interface.
Designed with fall prevention in mind, this bed offers low height, a high-precision integrated scale and bed exit.
Designed to increase manoeuvrability without comprimising low height and underbed clearance.
Low height 25cm (12.5cm Castor) 30cm (15cm Castor)
✓
✓
✓
Central braking system
✓
✓
✓
BoostlessTM backrest system
✓
✓
✓
Backrest angle indicator
✓
✓
✓

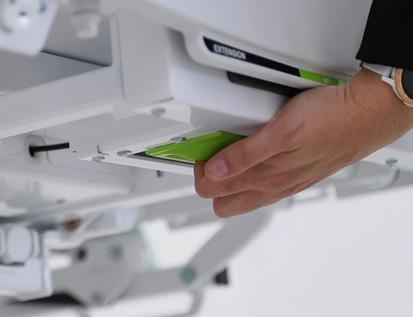

3 position integrated bed extender
✓
✓
✓
One hand slow release siderail
✓
✓
✓
Integrated patient & nurse siderail controls
✓
✓
✓
Integrated footend controls
✓
✓
✓
One touch buttons chair/trendelenburg/reverse trendelenburg/bed flat
✓
✓
✓
Option
Option
Option
✓
✓
✓
Smart screen on footboard
-
✓
✓
Integrated weigh scale
-
✓
✓
Integrated bed exit detection system
-
✓
✓

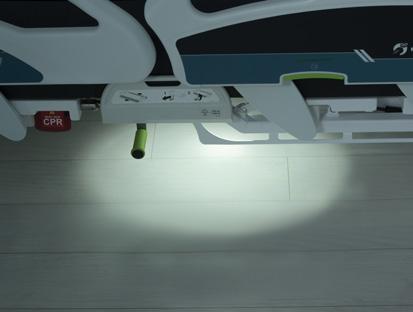

Bed exit side view nightlights
-
✓
✓
Smart NightlightsTM
-
✓
✓
Bed status monitoring
-
-
✓
In-bed time
-
✓
✓
Turn reminder
-
✓
✓
History logs (event logs)
-
✓
✓
Wifi upgrade
-
Option
Option

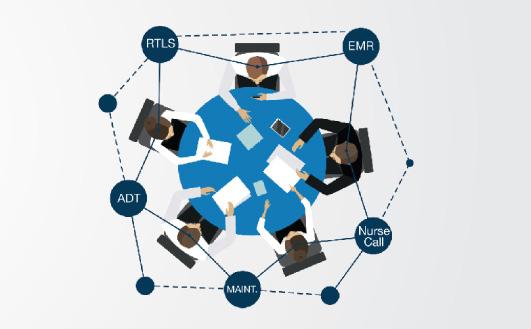

Umano ConnectTM technology
-
Option
Option
Option
Option
-
-
-
✓
ook snow Features
Aux outlet at footend + side USB port Patient control lockout Patient Monitoring

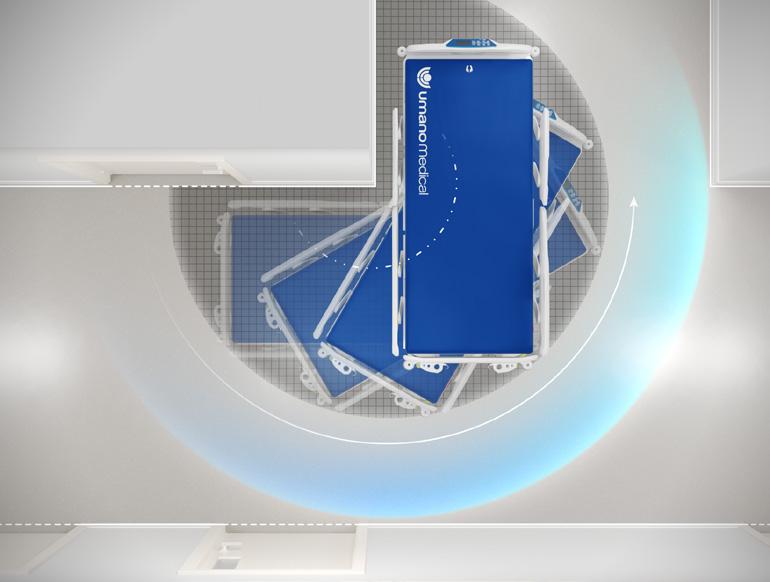

Manoeuvrability 5th Wheel Pilot DriveTM Powered drive system
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
9
H O S P I TA L B E D S & C OTS

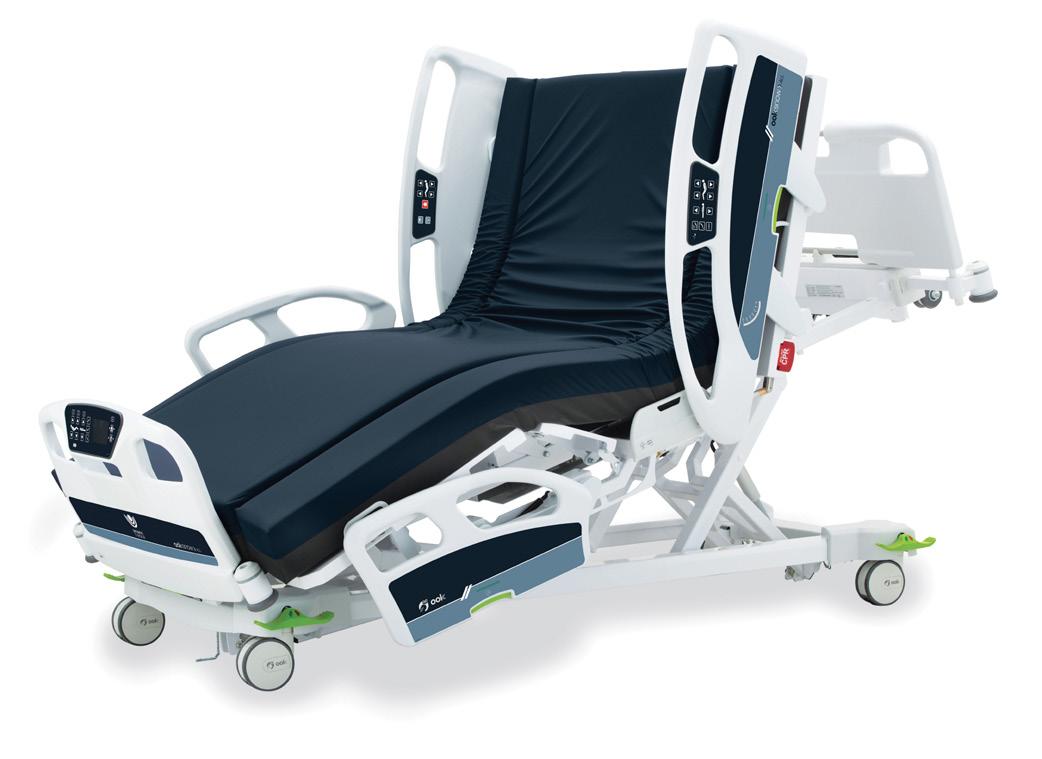

Bariatric Beds ook snow ALL
Palliative Care “The Cuddle Bed” See how this ALL-in-one bed offers a unique and versatile solution for med-surg, bariatric and palliative care settings. With one step width expansion, increased weight capacity, low height and certified for use by two people, the ook snow ALL offers a game changing standardisation possibility. Through innovative design and exceptional versatility this ALL-in-one bed will fulfill the needs of all your patients, staff and care facility.
Features Low Height Exceptional low height reduces the risk of harm from falls and facilitates patient mobility.
Highly Efficient Scale The integrated scale provides accurate weight in any bed or patient position.
Safe Working Load 481kg weight capacity makes the bed versatile for any patient size.
Easy to Clean Open architecture, seamless smooth surfaces, and liftable deck covers facilitate cleaning procedures.
Maximum Patient Weight 416kg
Boostless™ Backrest System Backrest moves backward to reduce shearing and patient repositioning needs.

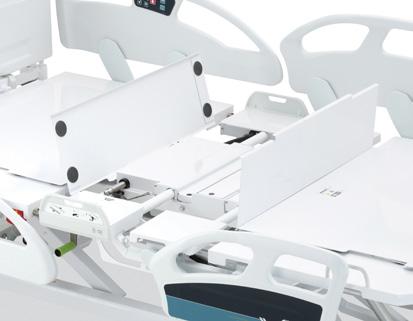

Infinite™ Width Adjustment Patient deck can be expanded to accommodate support surfaces from 89cm to 122cm.
Fall Risk Management Fall prevention protocols are strengthened with the combination of low height, bed exit technology, and ergonomic siderail design.
Safe Gap Monitoring Software-integrated system monitors bed width to ensure safe gaps are maintained.
10
Kg | Lb
AC U T E CA R E
H O S P I TA L B E D S & C OTS
Bariatric Beds ook snow ALL
InfiniteTM width adjustment
Adjustable width headboard with 60mm gap
Smart NightlightsTM

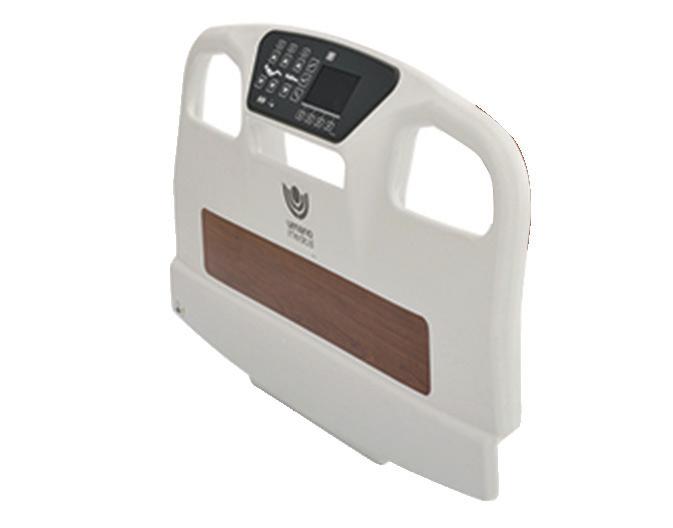

Nurse control on footboard
Liftable deck covers
Power outlets with USB ports
Bed exit side view lights
3 Position integrated bed extender
Technical Specification Safe working load
481kg
Max patient weight
416kg
Length Overall length
229cm
Extended length
Adds 10cm
with Pilot Drive
Adds 2.5cm
TM
Overall width Siderails down - Standard
101cm
Siderails up - Standard
105cm
Siderails down - Fully expanded
131cm
Siderails up - Fully expanded
134cm
Height range (to deck top) Low (with 12.7 cm dual casters)
28cm
High (with 12.7 cm dual casters)
76cm
Low (with 15.2 cm dual casters)
32cm
High (with 15.2 cm dual casters)
81cm
Mattress surface dimensions Download full specifications
Width
89cm to 119cm
Length
203cm to 213cm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
11
H O S P I TA L B E D S & C OTS
Bariatric Beds ook snow ALL
ook snow ALL BD4570
ook snow ALL + Pilot Drive BD4830
30cm (12.5cm castors) Low height
✓
-
32cm (15cm castors) Low height
Option
✓
✓
✓
Smart screen, nurse controls, patient control lockout
✓
✓
Integrated weigh scale
✓
✓
Boostless
backrest system
✓
✓
Integrated bed exit detection 3 levels of sensitivity Bed exit side view lights
✓
✓
One hand slow siderail release
✓
✓
Smart NightlightsTM
✓
✓
Liftable flat deck covers
✓
✓
Nurse and patient controls integrated into siderails
✓
✓
Backrest angle indicator
✓
✓
Integrated bed extender (up to 10cm)
✓
✓
Certification for 2 person use
✓
✓
30O head of bed
✓
✓
Chair position
✓
✓
Flat bed
✓
✓
Vascular foot
✓
✓
Trendelenburg / Reverse trendelenburg
✓
✓
Aux outlet on footend
✓
✓
Footend backup control
Option
Option
Bed status monitoring
Option
Option
Brake status alarm
Option
Option
Wifi
Option
Option
Umano connect technology
Option
Option
-
✓
ook snow ALL Features
Infinite
TM
width adjustment
TM
One Touch Button
Patient Monitoring Features
Manoeuvrability Pilot DriveTM
12
AC U T E CA R E
H O S P I TA L B E D S & C OTS
Mental Health Beds ook snow MH
Designed around strong ligature resistance management strategy, the ook snow MH offers a wide range of features that will help you meet safety and clinical requirements. Discover the features that will support your risk mitigation plan. With the ook snow MH you will feel confident that you are providing a safe environment for your high-acuity patients while maintaining strong clinical capabilities.
Standard Features Standard 29cm Low Height Reduces the risk of falls and voluntary injuries
Filled Boards are Permanently Attached Supports a reduced ligature environment and prevents patients from causing harm.
Safe Working Load 272kg
Cable and Wires Concealed to minise the risk of using them as a ligature.
Maximum Patient Weight 207kg
Available with No Siderails Increases security and avoid improper use in more challenging environments.
Tamper-Resistant Fasteners Secured bed parts and components.
Support Surface Open architecture to accomodate a complete line of surfaces.
Battery Powered Patient Positioning Bed remains functional even when placed in rooms not equipped with no power outlets.
Optional Heavy Duty Resistant Loops Can be added in 8 strategic locations for challenging situations.
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
13
H O S P I TA L B E D S & C OTS
Mental Health Beds ook snow MH
Safe-lock breaking system option
Nurse control on footboard
Rigidized power cord
Key lockout option
Technical Specification Safe Working Load
272kg
Height Range (to deck top)
Max Patient Weight
207kg
Low
25cm
Mattress Surface Dimensions
203cm Length x 89cm Width
High
76cm
Overall Width Siderails down
100cm
Siderails up
103cm
Download full specifications
14
AC U T E CA R E
H O S P I TA L B E D S & C OTS
Mental Health Beds ook snow MH
ook snow MH BD4590
ook snow MH Plus BD4600
BoostlessTM backrest system
✓
✓
Tamper resistant design
✓
✓
Safeflex patient surface
✓
✓
Permanently attached boards*
✓
✓
Filled head and footboards
✓
✓
Filled siderails
-
✓
Option
Option
Heavy duty metal castor cover
✓
✓
Concealed cables
✓
✓
Battery powered patient positioning
✓
✓
Short power cord
Option
Option
Quick disconnect power cord
Option
Option
3 Section rigidized power cord
✓
✓
Covered restraint points
✓
✓
Heavy duty restraint loops
Option
Option
No siderails
✓
-
Floor mount
Option
Option
Motion key lock
Option
Option
✓
✓
Option
Option
✓
✓
Option
✓
Smart screen
Option
Option
Motion control master lockout/Password protection
Option
Option
Bed exit with 3 levels of sensitivity
Option
Option
Minimum height management
Option
Option
Bed status monitoring
Option
Option
Alarms and reminders
Option
Option
History and logs
Option
Option
Integrated weigh scale
Option
Option
ook snow MH Features
Safe-lock braking system
TM
Master lock out function Tamper resistant hardware tools Built-in nurse controls on footend One touch button - chair/bed flat/30 head of bed O
Patient Monitoring Features
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
15
H O S P I TA L B E D S & C OTS
Hospital Bed Options ook snow with 5th Wheel
Watch the demo video
Developed for optimised bed mobility and usability
• • •
A central pivot improves maneuverability Maintains an unmatched low height of the bed and underbed clearance Navigate tight spaces and corners with less effort
• •
Glide in a straight line with ease One-step activation for maximum efficiency
Reduces the turn radius by 33% to navigate tight spaces and corners
16
Turn radius of the bed
Turn radius of the bed
without 5th wheel
with 5th wheel
AC U T E CA R E
H O S P I TA L B E D S & C OTS

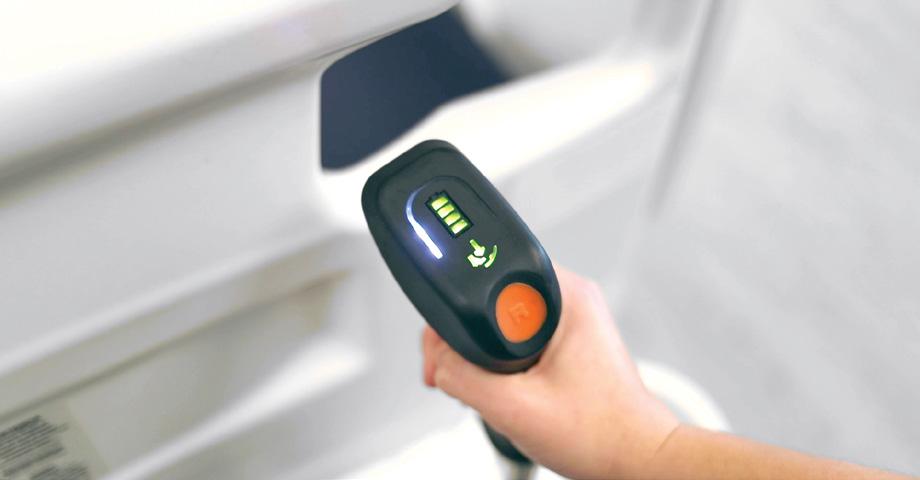

Hospital Bed Options ook snow with Pilot DriveTM
Transporting patients in a hospital bed has never been more accessible
Watch the demo video
Discover how the Pilot Drive™ brings your ook snow SC and ook snow ALL hospital beds to the next level. Transporting patients within a hospital can be a challenge for caregivers, this powered drive system offers an unmatched combination of low height, underbed clearance and manoeuvrability.
Reimagined with falls prevention, ease of use and infection control in mind, staff will gain additional mobility without compromise.
Offering variable speed capabilities and battery autonomy, the Pilot Drive™ allow staff to cover long distances. The ergonomic design, intuitive visual prompts and powerful driving force reduces the strain on the caregiver, providing ease of use and enhances efficiency.
Technical Specification Beds lowest height:
30.5cm ook snow SC 32cm ook snow ALL
Variable travel speed: 5th Wheel: Available on models:
0 to 5km/h Automatically retracts when power drive is engaged, disengages when brake is applied. ook snow SC and ook snow ALL
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
17
H O S P I TA L B E D S & C OTS
Hospital Bed Options Umano ConnectTM
Watch the demo video
Discover the technology that takes your bed to the next level. Take the first step to a simpler and connected future.
From the patient room to the nurses station and the maintenance department, all your teams come together with Umano ConnectTM dashboard. With Umano ConnectTM, bed status data and event logs that were previously only available at the bedside can now be accessed remotely, in near-real time, by staff members.
This proactive monitoring enables your facility to make fact based assessments and track fall prevention efforts from the workstation.
18
Future ready bed with
View bed data remotely with
Integrated bed data with
Umano Connect Technology
Umano Connect Dashboard
3 rd Party System
AC U T E CA R E
H O S P I TA L B E D S & C OTS
Hospital Bed Accessories
Patient Trapeze Arm & Triangle BA4350 - ook snow SC
Patient Trapeze Arm & Triangle BA4200 -ook snow ALL
Bed Extender Cushion MF2840
Seizure Pads BA5460
Transport Shelf BA2880 - ook snow SC BA2890 - ook snow ALL
IV Pole BA4270
2 Function Pendant Control BA4310
5 Function Pendant Control BA3230
Roller Type Wall Protection Bumpers BA4870

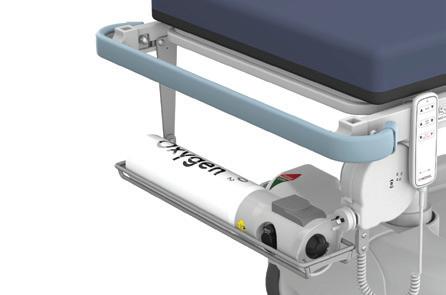

Oxygen Bottle Holder BA4290
Removable Pump Holder BA7090
Connectivity with Nurse Call System BA4880
Colour Options
Hard Rock Maple
Amber Maple
Tuscany Walnut
Natural Cherry
Bourbon Cherry
Cherry
Hazelnut
Classic Chocolate
Anthracite Grey
Snow
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
19
H O S P I TA L B E D S & C OTS
Floorline Beds Eurocare Floorline Bed
The Eurocare Floorline Bed is a sophisticated, stylish and intelligent that takes patient care to a new level.
Code
Size
Overall Width
Overall Length
Sleeping Surface
Height Range
Safe Working Load
BD5230
Single
936mm
2180mm
870 x 2000mm
110 - 740mm
250kg
BD5240
King Single
1086mm
2180mm
1070 x 2000mm
110 - 740mm
250kg
870 - 1050mm
• • • • • • • • • •
BZ0326 Expandable Mattress Section 870 - 1050mm Single to King Single
AutoRegression helps to reduce sacral pressure, shear forces and abdominal compression during bed profiling.
Electric high/low function Electric knee-bend and auto regression backrest Electric Trendelenburg & Reverse Trendelenburg function Ultra-low floor height of 110mm reduces the risk of injury from falls Hand control is simple and easy to use Central locking castors Supplied with removable Lindberg Oak woodgrain head & foot boards Grey powder coated steel frame Optional timber side panels for aesthetic appeal Custom head and footboard available
Accessories Available BZ0302 Horizontal Side Rails BA5680 Quarter Rails BZ0331 Side Wood Panels BZ0325 Self Help Pole BZ0337 Nurse Control Panel BZ0345 Wall Protection Bumper Single Size BZ0466 King Single Wall Bumper BZ0326 King Single Expansion Kit Fitted Options BZ0336 Underbed Lighting Allows discreet visibility and safety at night BZ0335 Battery Back Up Safe guard in the event of a power outage Warranty Frame 10 Years Electronics 5 Years
20
AC U T E CA R E
H O S P I TA L B E D S & C OTS
Bedroom Patient Safety BA1030 - Bed Rail Protectors - Standard • • • • • •
Protects patients from skin injury and prevents limbs from protruding through bed rails Made from soft medical grade foam 2-way stretch cover is vapour permeable and easy to clean Includes Velcro closure for secure attachment Protector needs to be removed when lowering bed rails Supplied as a set of 2 Length
Width
1370mm
330mm
Foam Bolster • •
2 way stretch waterproof cover To suit length extensions Code
Size
Length
Width
Height
MF0540
Single
870mm
200mm
150mm
MF0680
King Single
1050mm
200mm
150mm
BC0160 - Crash Mat •
• • • • •
Lightweight mat can be placed on either side of an adjustable or standard bed to help prevent or reduce injuries for patients who are at risk of rolling or falling out of bed Ideal for aged care and homecare environments, and especially useful where facility protocols prohibit the use of side rails Foam is firm enough to walk on but soft enough to reduce impact from falls Waterproof vinyl cover features a slip resistant underside and is seam-sealed for infection control Reflective strip on mat perimeter to reduce trip hazard and for night time visibility Hinged nylon for easy folding and storage Length
Width
Height
1750mm
600mm
50mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
21
H O S P I TA L B E D S & C OTS
Bassinets & Cots KB1370 - First Dream Basket • • • • • • • • •
Head elevation to 10 degrees for newborn comfort Standard size clear acrylic plastic basket 2 large storage drawers on quiet glides are accessible from either side of the bassinet Pull out shelf provides a convenient writing surface Heavy duty castors for quiet, fluid movement - 1 steer, 2 brake & 1 swivel Sturdy handle allows for new mothers to have optimum control of movement Quality steel construction Made in the USA
Colours Available Confetti Light Pink Yellow Signal Green Purple French Blue AM Medium Blue
Width
Length
Height
457mm
762mm
762mm
Bassinet • • • •
50mm thick mattress 2 white removable storage trays 4 x 100mm castors Mattress Base Height: 825mm
Code
Type
Frame
Width
Length
Height
KB0070
Single
Stainless Steel
420mm
800mm
1065mm
KB0050
Twin
Stainless Steel
640mm
800mm
1065mm
KB0040
Twin
Powdercoated
640mm
800mm
1065mm
KB1300 - Overbed Bassinet Trolley • • • •
22
AC U T E CA R E
Overbed bassinet trolley with 4 x 75mm swivel castors each fitted with brake Moulded cradle bassinet in transparent PMMA with mattress aeration holes Bassinet can be tilted within the trolley frame to the head up and head down positions (+10°/-10°) Padded mattress that is easy to wash and disinfect and is made of Class 1M fire retardant materials Width
Length
Height
Max User Weight
770mm
480mm
890mm
10kg
H O S P I TA L B E D S & C OTS
Bassinets & Cots KB0010 - Hi-Lo Baby Bath • • • •
Powdercoated steel frame Electric height adjustment from 670-870mm Clear acrylic tub with drain outlet and plug 100mm Castors, 2 locking
Width
Length
Height
420mm
800mm
1065mm
KB0200 - Neonatal Critical Care Cot • • • • • • • • • • • • • • • • •
Electric Head & Knee Elevation Electric Trendelenberg Feature Head and Foot Elevation Indicators (4) Electric Hi-Lo System CPR Release Foot End Staff Control and WeighSafe Scale 80mm Pressure Reduction Mattress Pan Mattress Surface Drop Head End and Foot End Rails Portland Access E-Z Lift Sides and IV Poles (4) Shelf with Oxygen Tank Holders 130mm Heavy Duty Castors (1 Steer, 2 Brake, 1 Swivel) Bracket for Portable Monitor Bumper System and Teething Rails Confetti Epoxy Finish and AntiMicrobial Coating Factory Assembly
Overall Without Bumpers
760 x 1120mm
Overall With Bumpers
860 x 1240mm
Mattress Size
710 x 1070mm
Overall Height
1900mm
Floor to Top of Platform Highest Point
985mm
Lowest Point
840mm
Height of Sides
300mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
23
H O S P I TA L B E D S & C OTS
Bassinets & Cots Neonatal Cots • • • • • • •
Manual Head Elevation Head Elevation Indicators (2) 80mm Pressure Reduction Mattress Pan Mattress Surface Drop Head End Rail E-Z Lift Sides IV Pole
• • • • • •
Shelf with Oxygen Tank Holders 130mm Heavy Duty Castors (1 Steer, 2 Brake, 1 Swivel) Bumper System Teething Rails Confetti Epoxy Finish Anti-Microbial Coating
Size 1
Size 2
Standard
KB0140
KB0170
Manual
KB0150
KB0180
Electric
KB0160
KB0190
Overall Without Bumpers
610 x 910mm
760 x 1120mm
Overall With Bumpers
740 x 1040mm
860 x 1240mm
Mattress Size
560 x 860mm
710 x 1070mm
Overall Height
1900mm
1190mm
Height of sides
300mm
300mm
Doernbecher Critical Care Cots • • • • • • • • • • •
Electric Head & Knee Elevation Electric Trendelenberg Feature Head and Foot Elevation Indicators (4) Electric Hi-Lo System CPR Release Foot End Staff Control WeighSafe Scale 130mm Pressure Reduction Mattress Pan Mattress Surface Drop Head End and Foot End Rails E-Z Lift Sides
• • • • • • • • • •
Portland Access- 2 per side rail Clear Vinyl Safety Panels- All 4 Sides IV Poles (4) Shelf with Oxygen Tank Holders 130mm Heavy Duty Castors (1 Steer, 2 Brake, 1 Swivel) Bumper System Teething Rails Confetti Epoxy Finish Anti-Microbial Coating Factory Assembly
Size 1
Size 2
Doernbecher I
KB0210
KB0220
Doernbecher II
KB0900
KB0910
Overall Without Bumpers
760 x 1520mm
910 x 1520mm
Overall With Bumpers
860 x 1650mm
1010 x 1650mm
Mattress Size
710 x 1470mm
860 x 1470mm
Overall Height
1500mm
1500mm
Highest Point
1120mm
1120mm
Lowest Point
810mm
810mm
Height of Sides
660mm
660mm
Floor to Top of Platform
24
AC U T E CA R E
H O S P I TA L B E D S & C OTS
Bassinets & Cots Standard Crib • • • • • •
130mm PR Mattress (CA Code TB603) IV Pump Bracket Shelf with Oxygen Tank Holders Head Elevation Indicator E-Z Lift Sides Bumper System
• • • • •
130mm Heavy Duty Castors (1 Steer, 2 Brake, 1 Swivel) Teething Rails Confetti Epoxy Finish Anti-Microbial Coating Steel Construction
Size 1
Size 2
Size 3
Size 4
Size 5
Standard
KB0870
KB0920
KB0680
KB0710
KB0740
Manual
KB0930
KB0940
KB0690
KB0720
KB0750
Electric
KB0950
KB0960
KB0700
KB0730
KB0760
Overall Without Bumpers
760 x 1120mm
760 x 1370mm
760 x 1520mm
910 x 1520mm
910 x 1830mm
Overall With Bumpers
860 x 1250mm
860 x 1500mm
860 x 1650mm
1010 x 1650mm
1010 x 1960mm
Mattress Size
710 x 1070mm
710 x 1320mm
710 x 1470mm
860 x 1470mm
860 x 1780mm
Overall Height
1500mm
1500mm
1500mm
1500mm
1500mm
Floor to Top of Platform
740mm
740mm
740mm
740mm
740mm
Height of Sides
660mm
660mm
660mm
660mm
660mm
Safe Working Load
68kg
68kg
68kg
68kg
68kg
MoveSafe Stretcher • • • • • • •
Manual Head & Knee Elevation Head & Knee Elevation Indicators (4) 130mm Pressure Reduction Mattress Pan Mattress Surface Drop Head & Foot End Rails E-Z Lift Sides IV Pole
• • • • • • •
Shelf with Oxygen Tank Holders 130mm Heavy Duty Castors(1 Steer, 2 Brake, 1 Swivel) Bumper System Teething Rails Confetti Epoxy Finish Anti-Microbial Coating Factory Assembly
Size 1
Size 2
Size 3
Size 4
Size 5
Standard
KB0970
KB0980
KB0590
KB0620
KB0650
Manual
KB0990
KB1000
KB0600
KB0630
KB0660
Electric
KB1010
KB1020
KB0610
KB0640
KB0670
Overall Without Bumpers
760 x 1120mm
760 x 1370mm
760 x 1520mm
910 x 1520mm
910 x 1830mm
Overall With Bumpers
860 x 1250mm
860 x 1500mm
860 x 1650mm
1010 x 1650mm
1010 x 1960mm
Mattress Size
710 x 1070mm
710 x 1320mm
710 x 1470mm
860 x 1470mm
860 x 1780mm
Overall Height
1500mm
1500mm
1500mm
1500mm
1500mm
Floor to Top of Platform
740mm
740mm
740mm
740mm
740mm
Height of Sides
660mm
660mm
660mm
660mm
660mm
Safe Working Load
68kg
68kg
68kg
68kg
68kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
25
Stretchers & Treatment Chairs Stretchers
27
Stretcher Upgrade Options
30
Stretcher Mattress Options
31
Stretcher Accessories
32

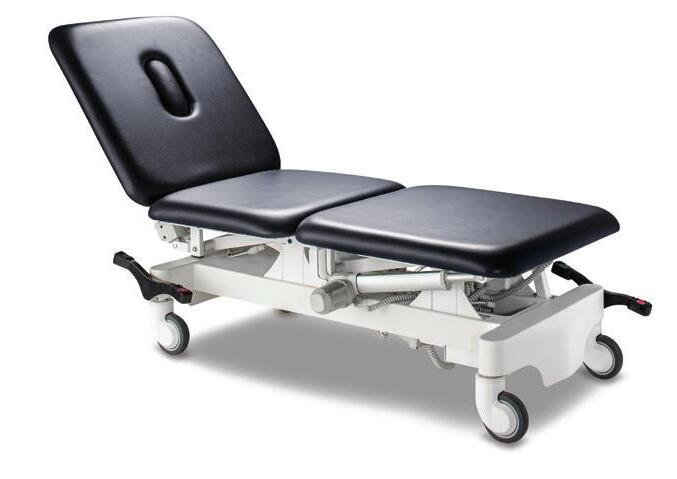

Examination Couches
34

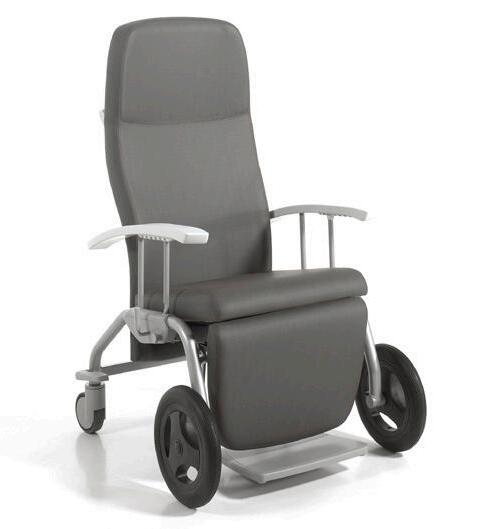

Treatment Chairs
36
Treatment Chair Accessories
38
26
ST R E TC H E RS & T R E AT M E N T C H A I RS

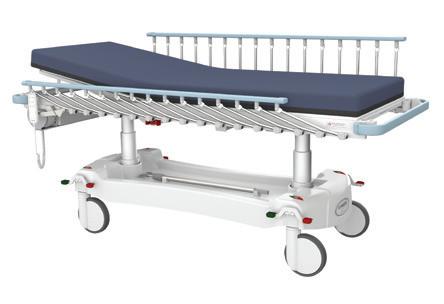

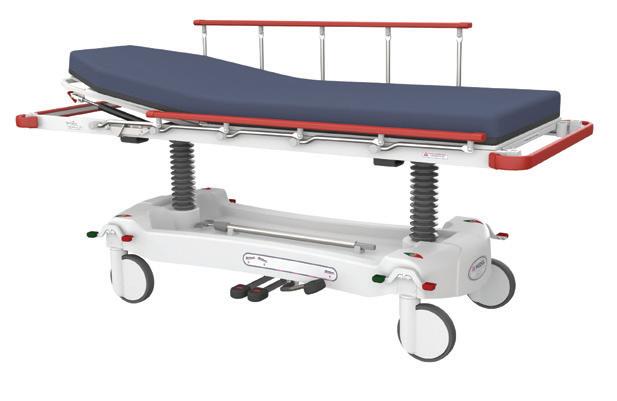

Stretchers KE0730 - Contour Portare • • • • • • • • • •
Economical transfer trolley E-Point steering system Emergency CPR backrest release 15° head and foot down Trendelenburg Fully electric operation 150mm twin wheel castors Also available in 965mm wide top option Dropside handrail PVC upgrade option Choice of 7 dropside armrest/end rail colours for easy identification Made in Australia
Length:
2135mm
Width:
815mm
Electric Height Range:
400 - 830mm
Mattress Size:
1900 x 680mm
Max User Weight:
300kg
Contour Classic • • • • •
Fully customisable stretcher • E-Point steering system • Emergency CPR backrest release 15° head and foot down Trendelenburg • Full electric or hydraulic versions available •
200mm Castors with Ezi-Track retractable 5th Wheel Steering Also available in 705mm narrow and 965mm wide top options Choice of 7 dropside armrest/end rail colours for easy identification Made in Australia
Code
Type
Length
Width
Height Range
Mattress Size
Max User Weight
KE0900
Hydraulic - Low
2135mm
815mm
530 - 760mm
1900 x 680mm
300kg
KE0910
Hydraulic - Med
2135mm
815mm
565 - 830mm
1900 x 680mm
300kg
KE0920
Hydraulic - High
2135mm
815mm
630 – 960mm
1900 x 680mm
300kg
KE0100
Electric - Low
2135mm
815mm
440 - 810mm
1900 x 680mm
300kg
KE0930
Electric - High
2135mm
815mm
540 - 910mm
1900 x 680mm
300kg
Contour Deluxe • • • • •
Full length gas assisted siderails Siderails are fully welded stainless steel Emergency CPR backrest release Full electric or hydraulic versions available 200mm Castors with Ezi-Track retractable 5th Wheel Steering
• • • •
965mm wide top option X-ray sub-top option Choice of 7 end rail colours for easy identification Made in Australia
Code
Type
Length
Width
Height Range
Mattress Size
Max User Weight
KE1010
Hydraulic
2135mm
815mm
630 - 960mm
1900 x 680mm
300kg
KE1020
Electric
2135mm
815mm
570 - 940mm
1900 x 680mm
300kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
27
ST R E TC H E RS & T R E AT M E N T C H A I RS
Stretchers KE0950 - Contour Endo-X • • • • • •
Increased column spacing with left or right hand chassis C-shaped base for maximum camera clearance Emergency CPR backrest release 15° head and foot down Trendelenburg Split dropside option with mid-position catch 200mm large bearing castors
• • • •
2135 x 815mm overall size 705mm narrow and 965mm wide top options Choice of 7 dropside armrest/end rail colours for easy identification Made in Australia
Electric Type
Length
Width
Height Range
Mattress Size
Max User Weight
High
2135mm
815mm
570 - 940mm
1900 x 680mm
300kg
Contour Endosurge •
• • • • •
An endoscopy imaging stretcher with a sliding top for quick and easy patient positioning Sliding top and cut-away base cover 400mm slide; 140mm to head and 260mm to foot from centre Split dropside option with mid-position catch Emergency CPR backrest release 15° head and foot down Trendelenburg
• • • • •
Full electric and hydraulic versions available 200mm Castors with Ezi-Track retractable 5th Wheel Steering 705 narrow and 965mm wide top options Choice of 7 dropside armrest/end rail colours for easy identification Made in Australia
Code
Type
Length
Width
Height Range
Mattress Size
Max User Weight
KE0960
Hydraulic Low
2135mm
815mm
530 - 760mm
1900 x 680mm
300kg
KE0970
Hydraulic Med
2135mm
815mm
565 - 830mm
1900 x 680mm
300kg
KE0980
Hydraulic High
2135mm
815mm
630 - 960mm
1900 x 680mm
300kg
KE0990
Electric Med
2135mm
815mm
570 - 940mm
1900 x 680mm
300kg
Contour Multi-X • • • • • •
28
AC U T E CA R E
Fully customisable x-ray trolley A variety of dropside options Emergency CPR backrest release 15° head and foot down Trendelenburg Full electric and hydraulic versions available 200mm castors and Retractable EziTrak 5th wheel steering
• • •
705mm narrow and 965mm wide top options Choice of 7 dropside armrest/end rail colours for easy identification Made in Australia
Code
Type
Length
Width
Height Range
Mattress Size
Max User Weight
KE1030
Hydraulic - Low
2135mm
815mm
630 - 860mm
1900 x 680mm
300kg
KE1040
Hydraulic - Med
2135mm
815mm
665 - 930mm
1900 x 680mm
300kg
KE1050
Electric - Low
2135mm
815mm
545 - 915mm
1900 x 680mm
300kg
KE1060
Electric - High
2135mm
815mm
625 - 995mm
1900 x 680mm
300kg
ST R E TC H E RS & T R E AT M E N T C H A I RS
Stretchers KE0780 - Contour Portare - X-Ray •
• • • • • •
An ultra-low electric trauma stretcher with totally unobstructed x-ray clearance Economical trauma stretcher E-Point steering system Emergency CPR backrest release 15° head and foot down Trendelenburg Unique InfineX x-ray system option 150mm twin wheel castors
• • • • •
965mm wide top option Dropside handrail PVC upgrade option Choice of 7 dropside armrest/end rail colours for easy identification Also available in wider version Made in Australia
Length
Width
Height Range
Mattress Size
Max User Weight
2135mm
815mm
430 - 880mm
1900 x 680mm
300kg
Contour Vertex •
• • • • •
Electric procedure stretcher with accurate head positioning and comfortable access Infinitely adjustable, slimline headrest 300kg safe working load Emergency CPR backrest release 15° head and foot down Trendelenburg 200mm castors and Retractable EziTrak 5th wheel steering
• • • •
705mm narrow and 965mm wide top options Standard scalloped or flat headrest cushion option Choice of 7 dropside armrest/end rail colours for easy identification Made in Australia
Code
Type
Length
Width
Height Range
Mattress Size
Max User Weight
KE1070
Electric - Low
2210mm
815mm
505 - 875mm
1900 x 680mm
300kg
KE1080
Electric - High
2135mm
815mm
560 - 930mm
1900 x 680mm
300kg
KE0810 - Contour Barituff •
• • •
A 500kg SWL extra-wide electric stretcher designed for Bariatric patients. Emergency CPR backrest release 15° head and foot down Trendelenburg 110mm and 150mm thick bariatric mattress options
• • •
150mm twin wheel castors Full body x-ray top, weigh scale and powered drive options available Choice of 7 dropside armrest/end rail colours
Length
Width
Height Range
Mattress Size
Max User Weight
2135mm
1100mm
470 - 850mm
1900 x 980mm
500kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
29
ST R E TC H E RS & T R E AT M E N T C H A I RS
Stretchers KE0800 - Contour Barituff – X Ray •
• • •
A 500kg SWL extra-wide electric trauma stretcher designed for Bariatric patients. Emergency CPR backrest release 15° head and foot down Trendelenburg 110mm and 150mm thick bariatric mattress
Options Available • 150mm twin wheel castors • Full body x-ray top, weigh scale and powered drive options available • Choice of 7 dropside armrest/end rail colours
Length
Width
Height Range
Mattress Size
Max User Weight
2135mm
1100mm
600 – 980mm
1900 x 980mm
500kg
Stretcher Upgrade Options Contour Orbit Drive Take all the human effort out of pushing and jostling stretchers with an intuitive and intelligent drive system designed for easy and safe use by any operator. Natural movement controls the speed and direction of the stretcher with the ability to stop very quickly by pulling back. Help prevent the most common carer strain injuries by taking the back twist out of moving a stretcher forwards, backwards and sideways. Importantly, we haven’t overlooked safety features such as emergency stop and system lock out, which are standard. The electric system runs by a powerful removable and rechargeable battery lasting days of normal use and charged via a retractable cable, which saves time and prevents accidental damage in emergencies. Compatible with:
30
AC U T E CA R E
Contour Classic
Contour Deluxe
Contour Multi-X
Contour Endosurge
Contour Vertex
Contour Barituff
Contour Barituff X Ray
ST R E TC H E RS & T R E AT M E N T C H A I RS
Stretchers Mattress Options Stretcher Mattress
• • • •
• • • • •
Pressure care design
Welded cover
Sealed zip
Care label
Protran
Non-slip base
Thicknesses that aid egress and imaging Protran mattress - single foam layer Premia mattress - 3 effective foam layers Premia Barituff mattress - 4 support layers (110mm thick 60 - 350kg, 150mm thick 45 - 400kg therapeutic support loads) Welded ‘double coated’ stretch cover Non-slip base design Permanent care label New technology fluid proof zip (excludes 75mm mattress) MADE IN AUSTRALIA Type
Length
Width
Standard
1900mm
680mm
Narrow
1900mm
570mm
Wide
1900mm
830mm
Barituff
1900mm
980mm
Lateral Right Side Average Pressure: 24.47 mmHg Peak Pressure: 39.88 mmHg Area (cm2): 1087.45cm2 Compression (%): 42.61%
Lateral Left Side Average Pressure: 24.44mmHg Peak Pressure: 40.65 mmHg Area (cm2): 1143cm2 Compression (%): 41.44%
Supine Average Pressure: 21.7 mmHg Peak Pressure: 38.37 mmHg Area (cm2): 1190.63cm2 Compression (%): 38.28%
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
31
ST R E TC H E RS & T R E AT M E N T C H A I RS
Stretcher Accessories KZ2760 - Tri-Control • •
KZ2930 - Drop Down Push Handles Allows for foot or head end control Decals allow fast identification of pedal function
KZ2877 - Electric Drive Compatibility • •
•
• •
Assists easier slide transfer Suitable for unimpeded horizontal X-ray
KZ2920 - Knee Break • • •
32
AC U T E CA R E
• •
Padded To suit Ophthalmic headrest
KZ2970 - Flush Fold Dropside • •
Assists slide transfer of mattress Minimises gap for patient side transfers
KZ3130 - Document Holder
Allows greater access, whilst still providing patient support Locks at 45 degrees
KZ2970 - Flush Fold Dropside
Heavy duty stainless steel Non slip moulded rubber push handles Fold down when not in use 150mm Height 250mm between handgrips
KZ0082 - Shoulder Support
400mm Long Stainless steel Attaches to underside of Contour top
KZ2900 - Mid Position Catch •
• • •
For electric drive units Custom made to suit most electric drive units

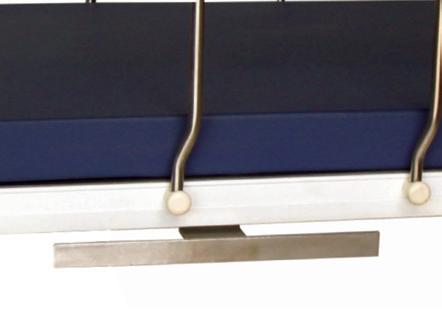

KZ0086 - Surgi Rail Short • • •
• •
• • • • •
Height: 25mm Width: 380mm Depth: 40mm Hangs from trolley end rail Can be fitted to drop down foot board or folding monitor board
• • •
Can be mounted at both ends Stainless steel Folding option available (KZ1360)
KZ0132 - IV Pole
KZ3080 - Foot End Rail Used for patient comfort or long stay Foot end handle operation Max Height: 150mm
• • • •
175mm High 600mm Wide Mounts from foot end sockets Stainless steel
ST R E TC H E RS & T R E AT M E N T C H A I RS
Stretcher Accessories KZ0137 - Foot Rail
KZ3210 - Folding Monitor Board • • • • •
235mm High 600mm Wide Mounts from foot end sockets Cross tube Stainless steel
KZ0111 - Foot Rail Board • • • • •
• •
• • • •
Mounts on head or end rail Max bottle size 120mm diameter Max bottle length 320mm Stainless steel
KZ2700 - Multi Riser Dropsidess • • • •
6 Riser option 7 Riser option 16 Riser option Can have reverse folding
KZ1480 - Vertical Oxygen Holder Rail Mount • • • •
Mounts on end of bumper Max bottle size 120mm diameter Max bottle length 320mm Stainless steel
KZ2600 - Paper Roll Holder
Suits 155mm diameter and 500mm long bottles Hangs from head end Allows front loading of bottle Stainless steel
KZ0073 - Padded Bumpers • • •
• • • •
Mounts on corner IV socket Max bottle size 120mm diameter Max bottle length 320mm Stainless steel
KZ2940 - Horizontal Oxy Holder
2 x Tie straps for fastening monitors and equipment Folds over when not in use Can be used to push the trolley Stainless steel frame
KZ1480 - Vertical Oxy Holder (Rail Mount)
Folds down to increase mattress length Padded for patient comfort Integrated push handles
KZ2320 - Vertical Oxygen Holder Corner Mount • • • •
• • •
345mm High 600mm Wide Mounts from foot end sockets 2x additional cross tubes Stainless steel
KZ1170 - Dropdown Foot Board •
•
• •
Lift out paper roll axle internal width of 550mm Ideal for high patient turnover
Colour Options (Rails & End Bumpers)
25mm Thick High density foam Fits both classic and deluxe style dropside rails
• • • • • • • 1 30 0 930 930
KZ0054 Forest Green KZ9000 Midnight Blue KZ0058 Sunny Orange KZ0056 Fuchsia KZ0055 Flame Red KZ0053 Deep Violet KZ0057 Pastel Blue
A L P H A L I F E CA R E .C O M . AU
33
ST R E TC H E RS & T R E AT M E N T C H A I RS
Examination Couches KD1500 - Stability 2 Section Treatment Table • • • •
•
• •
Electronically mains powered motor for hi-lo function Precision glide gas struts allow for easy adjustment of the head section Mobility castors allow treatment table to be moved effortlessly Rigid design with minimal working parts for maximum stability for all examination or surgical work Antimicrobial medical grade vinyl and foam for longevity and minimal infection risk Face cut out with insert plug (optional) Also available in Navy/White (KD1120)
Head Section Length:
675mm
Head Section Width:
650mm
Lower Section Length:
1300mm
Lower Section Width:
650mm
Height Range:
430mm-970mm
Max User Weight:
255kg
Head Section Length:
675mm
Head Section Width:
650mm
Mid Section Length:
545mm
Mid Section Width:
650mm
Lower Section Length:
676mm
Lower Section Width:
650mm
Height Range:
430mm-970mm
Max User Weight:
255kg
Head Section Length:
675mm
Head Section Width:
700mm
Mid Section Length:
545mm
Mid Section Width:
700mm
Lower Section Length:
676mm
Lower Section Width:
700mm
Overall Length:
1955mm
Height Range:
451mm-980mm
Max User Weight:
300kg
KD1130 - Stability 3 Section Treatment Table • • • • •
•
• • •
3 section adjustment for greater flexibility Electronically mains powered motor for hi-lo function Precision glide gas struts allow for easy adjustment of the head and footrest Mobility castors allow treatment table to be moved effortlessly Rigid design with minimal working parts for maximum stability for all examination or surgical work Antimicrobial medical grade vinyl and foam for longevity and minimal infection risk Face cut out with insert plug (optional) Other colour options available Also available in Navy/White (KD1150)
KD1140 - Gladiator Surgical Table • • •
•
• • •
34
AC U T E CA R E
Electronically mains powered motor for hi-lo function 200mm central locking castors allow treatment table to be moved effortlessly Rigid design with minimal working parts for maximum stability for all examination or surgical work Antimicrobial medical grade vinyl and foam for longevity and minimal infection risk Full electric actuation on head and foot section for effortless adjustment Face cut out with insert plug (optional) Other colours available
ST R E TC H E RS & T R E AT M E N T C H A I RS
Examination Couches KD1410 - Viva 2 Section Treatment Table • • •
• •
Navy blue medical vinyl upholstery Supplied in 2 section Double gas strut backrest adjustment to ensure maximum longevity and smooth operation Backrest movement handle on back of backrest Designed to meet the Strict RACGP accreditation guidelines
• •
•
High performance T-motion actuator with foot operating pedal 5 Year structural frame warranty with a 3 year actuator and moving parts warranty TGA Approved
Overall Length
Overall Width
Height Range
Max User Weight
2000mm
700mm
470-900mm
250kg
KD1420 - Viva 3 Section Treatment Table • • •
•
Navy blue medical vinyl upholstery Treatment table supplied in 3 section (equal) style Double gas strut backrest and legrest adjustment to ensure maximum longevity and smooth operation Backrest movement handle on back of backrest, and the legrest handles are on both sides of legrest
• • •
•
Designed to meet the strict RACGP accreditation guidelines High performance T-motion actuator with foot operating pedal 5 Year structural frame warranty with a 3 year actuator and moving parts warranty TGA Approved
Overall Length
Overall Width
Height Range
Max User Weight
2000mm
700mm
470–900mm
250kg
KD1240 - Contour Exami • • • • • •
2135 x 815mm overall dimensions Exceptional Height Range: 400 to 830mm SWL: 300kg 125mm twin wheel castors, 4 brakes and 1 steer 100mm Protran mattress Electric backrest that raises to 85O
• • •
Standard main power electric operation Made in Australia Optional Upgrades Available: Folding dropsides, base cover, battery back-up with cable retractor, larger castors and 7 endrail colour options
Overall Length
Overall Width
Height Range
Max User Weight
2135mm
815mm
400-830mm
300kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
35
ST R E TC H E RS & T R E AT M E N T C H A I RS
Treatment Chairs ED2010 - Blood Collection Chair • • • • •
Sloping arms positioned for optimum angle for sample collection Powder coated steel frame Fully upholstered vinyl Choice of colours available Step fitted with non slip rubber surface
Seat Height:
630mm
Seat Width:
450mm
Seat Length:
460mm
Overall Length:
740mm
Overall Width:
840mm
Step Height:
180mm
Low Height:
460mm
High Height:
840mm
Mattress Width:
650mm
Overall Width:
780mm
Overall Length (sitting position):
1150mm
Overall Length (lying position):
1750mm
Backrest Raise Angle:
90 Deg
Head Down Trendelenburg:
14 Deg
Weight Capacity :
300kg
Castor Size:
150mm
KE0580 - Contour Recline •
• • • • • • • • •
36
AC U T E CA R E
Multi-purpose treatment and transfer chair for ED, Day Surgery, Clinics and Aged Care 650mm seat with 100mm wider option available 100mm thick premium, removable mattress User friendly, long life battery operation Glide-away dropsides with no protrusions Steer/brake pedals on both sides Sockets on all four corners for many accessories Twin wheel 150mm castors with double steer Choice of 7 dropside armrest colours Made in Australia
ST R E TC H E RS & T R E AT M E N T C H A I RS
Treatment Chairs KE0590 - Contour Recline Vertex •
• • • • • • • • • •
Treatment chair with an infinitely adjustable headrest for Eye, ENT, Plastics and Dental Ultra-thin headrest design for best surgeon clearance Choice of the flat or scalloped head cushion 100mm thick premium, removable mattress User-friendly, long-life battery operation Glide-away dropsides Steer/brake pedals on both sides Sockets on all four corners for many accessories Twin wheel 150mm castors Choice of 7 dropside armrest colours Made in Australia
Low Height:
460mm
High Height:
840mm
Mattress Width:
650mm
Overall Width:
780mm
Overall Length (sitting position):
1150mm
Overall Length (lying position):
1760mm
Backrest Raise Angle:
90 Deg
Head Down Trendelenburg:
14 Deg
Weight Capacity :
300kg
Castor Size:
150mm
Low Height:
530mm
High Height:
890mm
Mattress Width:
750mm
Overall Width:
850mm
Overall Length (sitting position):
1200mm
Overall Length (lying position):
1850mm
KE1130 - Contour Recline Endo • • • • • • • • • •
A treatment, transfer and recovery chair for day procedure Access the patient without losing critical side support 100mm thick premium, removable mattress User friendly, long life battery operation Glide-away dropsides with no protrusions Steer/brake pedals on both sides Sockets on all four corners for many accessories Twin wheel 150mm castors with double steer Choice of 7 dropside armrest colours Made in Australia
Backrest Raise Angle:
90Deg
Head Down Trendelenburg:
14 Deg
Weight Capacity :
300kg
Castor Size:
150mm
Low Height:
480mm
High Height:
880mm
Mattress Width:
850mm
Overall Width:
980mm
Overall Length (sitting position):
1270mm
Overall Length (lying position):
1750mm
Backrest Raise Angle:
90 Deg
Head Down Trendelenburg:
14 Deg
Weight Capacity :
500kg
Castor Size:
150mm
KE0870 - Contour Recline Barituff • • • • • • • • • • •
Multi-purpose Bariatric treatment and transfer chair for ED, and Day Surgery Heavy duty 100mm vinyl mattress cushion User-friendly, long-life battery operation Fully electric operation with 500kg weight capacity Glide-away dropsides with no protrusions Steer/brake pedals on both sides Sockets on all four corners for many accessories Twin wheel 150mm castors with double steer Choice of 7 dropside armrest colours Foot control option available Made in Australia
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
37
ST R E TC H E RS & T R E AT M E N T C H A I RS
Treatment Chair Accessories KZ0077 - Arm Board • • •
KZ3430 - Drop Down Foot Board Lightweight armboard clips onto the dropside rail Padded for patient comfort 400mm long x 200mm wide
KZ0132 - IV Pole
• •
19mm square non-rotational pole Fits all four corners of the chair and is height adjustable Can be stored under the top in an optional holder 19mm diameter round pole option
KZ3450 - Padded Arms •
•
•
High density foam pads covered in welded pressure relieving material Clips onto the standard dropside to provide a comfortable arm surface Supplied as a pair
KZ3460 - Side Board Extensions • • •
Drop in extension for extra patient support Fits all four corners of the chair Supplied as a pair
KZ3480 - Wrist Support •
AC U T E CA R E
Removable and foldable foot rest Covered in heavy duty vinyl Fits to the standard leg support
•
Solid tray constructed from medical grade plastic Moulded cup positions Fits into all four corners of the chair Swivels away for ease of access
KZ3440 - Meal Tray • •
38
• • •
25mm diameter wrist support
• • •
KZ0082 - Shoulder Support • •
Lightweight, removable frame with cushions Fills in corners as a shoulder and pillow support
KZ3580 - Vertical Oxy • • • •
Stainless steel oxy holder Holds C size bottles Mounts to all four chair corners Also available in horizontal mount
Mattresses & Cushions Non-Powered Pressure Relieving Support Surfaces
40
Powered Pressure Relieving Support Surfaces
44
Cushions
50
39
M AT T R ES S ES & C U S H I O N S
Non Powered Pressure Redistribution Support Surfaces Vulcan - Three Layer Mattress • • • • • •
Shear reducing “MEMAIR” modulated top layer Firm perimeter side walls to assist with patient transfer “Purify” antimicrobial foam treatment Fire retardant foam and cover 3 sided zip with waterfall covered flap Warranty: 2 years on cover, 7 years on foam Code
Type
Width
Length
Height
Max User Weight
MF1870
Single
860mm
2000mm
150mm
180kg
MF1890
King Single
1050mm
2000mm
150mm
180kg
Nebula • • • • • • • • • •
3 Layer Foam Pressure Relieving Support Surface Shear Reducing Modulated Top Layer Firm Perimeter Side Walls to Assist with Patient Transfer “Purify” Antimicrobial Foam Treatment Fire Retardant Foam and Cover BS6807 & BS7175 - Crib 5 - PASS Carrflex Extreme Omni-directional Stretch Top Cover with Heavy Duty PVC Base Cover 3 sided Waterfall Covered Zip Fully Welded Seams Warranty: 3 years on cover, 7 years on foam Code
Type
Width
Length
Height
Max User Weight
MF1700
Single
860mm
2020mm
150mm
207kg
MF3000
King Single
1050mm
1980mm
150mm
207kg
Nova • • • • • • • • • •
40
AC U T E CA R E
3 Layer Foam Pressure Relieving Support Surface Shear Reducing Modulated Top Layer Firm Perimeter Side Walls to Assist with Patient Transfer “Purify” Antimicrobial Foam Treatment Fire Retardant Foam and Cover BS6807 & BS7175 - Crib 5 - PASS Carrflex Extreme Omni-directional Stretch Top Cover with Heavy Duty PVC Base Cover 3 sided Waterfall Covered Zip Fully Welded Seams Warranty: 3 years on cover, 7 years on foam Code
Type
Width
Length
Height
Max User Weight
MF1660
Single
860mm
2020mm
150mm
207kg
MF1680
King Single
1050mm
1980mm
150mm
207kg
M AT T R ES S ES & CU S H I O N S
Non Powered Pressure Redistribution Support Surfaces Atlas • • • • • •
4 Layer Foam Bariatric Pressure Relieving Support Surface Shear Reducing Modulated Top Layer Firm Perimeter Side Walls to Assist with Patient Transfer “Purify” Antimicrobial Foam Treatment Fire Retardant Foam and Cover BS6807 & BS7175 - Crib 5 - PASS
•
• • •
Carrflex Extreme Omni-directional Stretch Top Cover with Heavy Duty PVC Base Cover 3 sided Waterfall Covered Zip Fully Welded Seams Warranty: 3 years on cover, 7 years on foam
Code
Type
Width
Length
Height
Max User Weight
MF1600
Mattress
860mm
2030mm
200mm
416kg
Bolster
150mm
2030mm
2000mm
Allay • • • • •
2 layer foam pressure relieving support surface Firm perimeter side walls to assist with patient transfer “Purify” antimicrobial foam treatment Fire retardant foam and cover 50mm 38/40 visco-elastic high density top layer
• • • • • •
100mm 35/100 high density base layer 1.6 support factor Heel slope included 2 way stretch top cover with PVC base cover 3 sided invisible fluid proof zip Fully welded seams
Code
Type
Width
Length
Height
Max User Weight
MF1790
Long Single
890mm
2030mm
150mm
60kg
Geo-Mattress® Max •
•
•
Suitable for use when treating a patient with multiple stage 1-2 and single stage 3 pressure injuries Luxurious, visco-elastic high resiliency “memory” foam in foot section enhances the pressure reducing properties of the heel slope feature Firm perimeter bolsters help to provide safe transfers, more stable edge-ofbed sitting, and reduced risk of gaps at siderails
•
•
•
• •
Extra-soft, high performance top provides maximum immersion and a premium feel against user’s skin Fluid-repellent, flame-resistant top fabric with anti-microbial and antifungal properties Exclusive hidden zipper cover design with flapless construction creates no collection points for contaminants Made in USA Warranty: 7 years on foam and cover
Code
Type
Width
Length
Height
Max User Weight
MF1970
Single
880mm
1980mm
150mm
180kg
MF1480
King Single
1050mm
1980mm
150mm
181.4kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
41
M AT T R ES S ES & C U S H I O N S
Non Powered Pressure Redistribution Support Surfaces Geo-Mattress® UltraMax™ •
• •
•
Suitable for use when treating a patient with multiple stage 1-2 and single stage 3 pressure injuries Can assist in prevention and early intervention of pressure injuries Geo-Matt® surface geometry helps to minimise shearing with more than 800 individually-articulating cells and provides reactive pressure redistribution Integrated dual Heel Slope® offloads vulnerable heel and transfers pressure onto pressure-tolerant lower legs
•
•
•
• •
Multi-tiered, progressive resistance core manufactured with premium, high-density foam Exclusive hidden zipper cover design with flapless construction creates no collection points for contaminants Firm perimeter bolsters help to provide safe transfers, more stable edge-of-bed sitting, and reduced risk of gaps at siderails Made in USA Warranty: 7 years on foam and cover
Code
Type
Width
Length
Height
Max User Weight
MF1990
Single
880mm
1980mm
150mm
227kg
MF2010
King Single
1050mm
1980mm
150mm
227kg
PressureGuard® Custom Care® Features • Suitable for use when treating a patient with multiple stage 1-2 and single stage 3 pressure injuries • Bi-directional stretch cover with Shear Transfer Zones • Maintenance-free support chambers require no adjustment or refilling • Made in USA • Warranty: 5 Years on foam and cover
Geo-Matt™ Foam Topper: • 5cm deep topper reduces shear to underlying tissues • More than 800 individuallyarticulating cells • Redistributes pressure, reduces heat and skin moisture • buildup • Heel Slope™ designed to further reduce heel pressure Safety Edge™ Design: • Patented inner bolster ’cradling effect’ for user safety • Unmatched edge-of-bed stability helps ensure safer transfers minimises risk of falls and entrapment Shear Transfer Zone™ design helps: • Prevent heels, sacrum, and scapula from “digging into” surface • “Glide” user back to original position following HOB elevation • Protect against damaging effects of micro shear, macro shear, and rotational (pivot-induced) shear • Provide patient stability by transferring shear to more shear tolerant anchor points
42
AC U T E CA R E
Code
Type
Width
Length
Height
Max User Weight
MF1450
Single
880mm
1980mm
177mm
227kg
MF1470
King Single
1050mm
1980mm
177mm
227kg
M AT T R ES S ES & CU S H I O N S
Non Powered Pressure Redistribution Support Surfaces CuroCell Optimal 5zon • • • •
Adaptive cube profile cut for pressure redistribution Profiled surface contours to body shape and reduces shear forces Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant
• •
• • •
Can be used for pain management Unique zone and module system giving effective pressure equalisation Internal shear reduction system Patented DuoCore sit-function to provide support when seated Fire evacuation covers available
Code
Type
Width
Length
Height
Max User Weight
MF0780
Single
850mm
2000mm
140mm
180kg
MF0790
King Single
1050mm
2000mm
140mm
180kg
MF0900
Single Plus
1000mm
2000mm
140mm
180kg
CuroCell Optimal 5zon Plus • • • •
•
Adaptive cube profile cut for pressure redistribution Profiled surface contours to body shape and reduces shear forces Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant Can be used for pain management
•
• • • •
Unique zone and module system giving effective pressure equalisation Internal shear reduction system Patented DuoCore sit-function to provide support when seated Suitable for Bariatric clients Fire evacuation covers available
Code
Type
Width
Length
Height
Max User Weight
MF0750
Single
850mm
2000mm
150mm
300kg
MF0760
King Single
1050mm
2000mm
150mm
300kg
MA0880
Single Plus
1000mm
2000mm
150mm
300kg
CuroCell Area Zone • • • • • • •
Reduces shearing forces Zone system in the top mattress Easy to handle and maintain Flexible and self-adjusting Handles for easy transportation Hygienic cover with welded seams High quality inner cover
• • • •
Integrated heel function Reinforced sides for improved lateral stability Helps to reduce trip hazards as there are no power leads Removes the risk of electric shock as this is a non-powered mattress
Code
Type
Width
Length
Height
Max User Weight
MA0090
Single
850mm
2000mm
150mm
230kg
MA0120
King Single
1050mm
2000mm
150mm
230kg
MA0100
Single Plus
1000mm
2000mm
150mm
230kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
43
M AT T R ES S ES & C U S H I O N S
Powered Pressure Redistribution Support Surfaces Span-Care® Convertible
Features: • Suitable for use when treating a patient with stage 1–4 pressure injuries • Minimise falls risk by reducing patient transfers • Can be used with or without a pump • Can be used as a static mattress (without pump) • Alternating air therapy (with pump) • Unique longitudinal air chambers • Integrated heel slope • Quiet control unit • Bi-directional stretch cover with shear transfer zones • Also available in 2030mm length
Safety Edge™ Design: • Patented inner bolster cradling effect for user safety • Unmatched edge of bed stability helps ensure safer transfers minimises risk of falls and entrapment
Geo-Matt™ Foam Topper: • 5cm deep topper reduces shear to underlying tissues • More than 800 individually articulating cells • Redistributes pressure, reduces heat and skin moisture buildup • Heel Slope™ designed to further reduce heel pressure
Optional Accessories:
44
Shear Transfer Zone™ Design: • Prevents heels, sacrum, and scapula from digging into surface • Glides user back to original position following HOB elevation • Protects against damaging effects of micro shear, macro shear, and rotational (pivot-induced) shear • Provides patient stability by transferring shear to more shear tolerant anchor points
MA3050 Span Care Pump
Max User Weight
Max User Weight
with Pump
Without Pump
175mm
272kg
180kg
1980mm
175mm
317kg
272kg
1980mm
175mm
317kg
272kg
Code
Type
Width
Length
Height
MA3190
Single
890mm
1980mm
MA3210
Narrow King Single
990mm
MA3220
King Single
1060mm
AC U T E CA R E
M AT T R ES S ES & CU S H I O N S
Powered Pressure Redistribution Support Surfaces CuroCell A4 CX10 • • • • • •
• • •
Alternating overlay system 1 in 3 Alternating cycle Pressure redistribution mattress Pump is user friendly, very quiet with minimum vibration Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant CPR facility with transport option Visual low pressure indicator Fully automated pump individually adapts to the user to optimise pressure
• • • • • • • •
Three program modes: Pulsation, Alternating and Constant Low Pressure Low voltage power cord - reduces electrocution risk Pump is fully sealed - Will not deflate during power outages Multifunctional inner cover to reduce shear forces Static head end cells Sound and light alarm for low pressure or failure Fire evacuation covers available Can be used for pain therapy
Code
Type
Width
Length
Height
Max User Weight
MA2270
Single
850mm
2000mm
100mm
200kg
MA2330
King Single
1050mm
2000mm
100mm
200kg
MA2310
Single Plus
1000mm
2000mm
100mm
200kg
CuroCell A4 CX15 • • • • • • • • • •
Individually replaceable cells with safety mattress in air Static head cells Heel function Multifunctional inner cover Unique CPR function with transport function Smart cable management Unique design for easy handling and usage Well protected zipper Fully automated pump that adapts individually User friendly interface
• •
• • • • • •
•
Audible and visual notifications Three program modes: Pulsating, Alternating and CLP (constant low pressure) Caring mode (max firm) Pack&Go function Silent running and vibration free Low voltage (12V power supply) Soft friction hangers with extra soft tip Air flow control, constant temperature, increased user comfort, energy reduction 2 Year warranty
Code
Type
Width
Length
Height
Max User Weight
MA2540
Single
850mm
2000mm
150mm
200kg
MA2560
King Single
1050mm
2000mm
150mm
200kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
45
M AT T R ES S ES & C U S H I O N S
Powered Pressure Redistribution Support Surfaces CuroCell IQ A4 CX15 • • • • • • • • • •
Automatic control untit which adapts individual to the user User friendly interface Audible and visual notifications Pulsating mode Caring mode (max-firm) Pack&Go® function Silent running and vibration free Low voltage (12V power supply) Soft friction hangers with soft tip Heel function
• • • • • • • •
Air flow control; Constant temperature, good user comfort, energy reduction Individually replaceable cells with safety mattress in air Multifunctional inner cover CPR-function with transport function Smart cable management Easyhandling and usage Well protected zipper 2 Year warranty
Code
Type
Width
Length
Height
Max User Weight
MA2480
Single
850mm
2000mm
150mm
200kg
MA2500
King Single
1050mm
2000mm
150mm
200kg
CuroCell A4 CX16 • • • • • •
• • • •
46
AC U T E CA R E
Alternating replacement system 1 in 3 Alternating cycle Pressure redistribution mattress Pump is user friendly, very quiet with minimum vibration Two-way stretch PU cover Cover is vapour permeable, machine washable, fluid resistant and fire retardant CPR facility with transport option Visual low pressure indicator Can be used for pain therapy Fully automated pump individually adapts to the user to optimise pressure
• •
• • • • • •
Fully automatic and flexible system with integrated heel function Three program modes: Pulsation, Alternating and Constant Low Pressure Low voltage power cord - reduces electrocution risk Pump is fully sealed - Will not deflate during power outages Multifunctional inner cover to reduce shear forces Static head end cells Sound and light alarm for low pressure or failure Fire evacuation covers available
Code
Type
Width
Length
Height
Max User Weight
MA2150
Single
850mm
2000mm
160mm
200kg
MA2210
King Single
1050mm
2000mm
160mm
200kg
MA2190
Single Plus
1000mm
2000mm
160mm
200kg
M AT T R ES S ES & CU S H I O N S
Powered Pressure Redistribution Support Surfaces CuroCell A4 CX20 • • • • • • • • •
Individually replaceable cells with safety mattress Static head cells Heel function Multifunctional inner cover Unique CPR function with transport function Smart cable management Unique design for easy handling and usage Well protected zipper Fully automated pump that adapts individually
• • •
• • • • • •
•
User friendly interface Audible and visual notifications Three program modes: Pulsating, Alternating and CLP (constant low pressure) Caring mode (max firm) Pack&Go function Silent running and vibration free Low voltage (12v) Soft friction hangers with extra soft tip Air flow control, constant temperature, increased user comfort, energy reduction 2 Year warranty
Code
Type
Width
Length
Height
Max User Weight
MA1930
Single
850mm
2000mm
200mm
250kg
MA1990
King Single
1050mm
2000mm
200mm
250kg
CuroCell IQ A4 CX20 • • • • • • • • •
Automatic control unit which adapts individual to the user User friendly interface Audible and visual notifications Pulsating mode Caring mode (max-firm) Pack&Go® function Silent running and vibration free Low voltage (12V power supply) Air flow control; Constant temperature, good user comfort, energy reduction
• • • • • • • • • •
Soft friction hangers with soft tip Individually replaceable cells with safety mattress Static head cells Heel function Multifunctional inner cover CPR-function with transport function Smart cable management Easy handling and usage Well protected zipper 2 Year warranty
Code
Type
Width
Length
Height
Max User Weight
MA2750
Single
850mm
2000mm
200mm
250kg
MA2780
King Single
1050mm
2000mm
200mm
250kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
47
M AT T R ES S ES & C U S H I O N S
Powered Pressure Redistribution Support Surfaces Span America PressureGuard® APM2
Features • Suitable for use when treating a patient with stage 1–4 pressure injuries • Alternating therapy and lateral rotation functions • Unique longitudinal air chambers • Integrated heel slope • Quiet control unit • Bi-directional stretch cover with Shear Transfer Zones® • Maintains pressure for 7-days without power • Also available in 2030mm length
Geo-Matt™ Foam Topper: • 5cm deep topper reduces shear to underlying tissues • More than 800 individually-articulating cells • Redistributes pressure, reduces heat and skin moisture build up • Heel Slope™ designed to further reduce heel pressure Safety Edge™ Design: • Patented inner bolster ’cradling effect’ for user safety • Unmatched edge-of-bed stability helps ensure safer transfers • Minimises risk of falls and entrapment Shear Transfer Zone™ design helps: • Prevent heels, sacrum, and scapula from “digging into” surface • “Glide” user back to original position following HOB elevation • Protect against damaging effects of micro shear, macro shear, and rotational (pivot-induced) shear • Provide patient stability by transferring shear to more sheartolerant anchor points
48
Code
Type
Width
Length
Height
Max User Weight
MA3090
Single
880mm
1980mm
177mm
160kg
MA3120
King Single
1060mm
1980mm
177mm
160kg
AC U T E CA R E
M AT T R ES S ES & CU S H I O N S
Powered Pressure Redistribution Support Surfaces CuroCell Cirrus A4 Features • Alternating replacement system • 1 in 2 Alternating cycle • Pressure redistribution mattress • Pump is user friendly • Two-way stretch PU cover • Cover is vapour permeable, machine washable, fluid resistant and fire retardant • CPR facility with transport option • Visual low pressure indicator •
• • • • • •
Can be used for pain therapy Fully automated pump individually adapts to the user to optimise pressure Integrated Heel Zone function Multifunctional inner cover to reduce shear forces Sound and light alarm for low pressure or failure Fire evacuation covers available
Code
Type
Width
Length
Height
Max User Weight
MA0150
Single
850mm
2000mm
210mm
230kg
MA0170
King Single
1050mm
2000mm
210mm
230kg
MA1110
Single Plus
1000mm
2000mm
210mm
230kg
CuroCell IQ Cirrus A4 • • • • • • • •
Soft foam surface Smart cable management Easy handling and cleaning Heel slope, for pressure redistribution of heels Hygienic cover with welded seams Soft, elastic, vapour permeable(5) hygienic cover CPR-function with transport function Automatic control untit which adapts individual to the user
• • • • • • • • •
User friendly interface Audible and visual notifications Pulsating mode Caring mode (max-firm) Pack&Go® function Silent running and vibration free Low voltage (12V power supply) Soft friction hangers with soft tip Air flow control; Constant temperature, good user comfort, energy reduction
Code
Type
Width
Length
Height
Max User Weight
MA2510
Single
850mm
2000mm
210mm
230kg
MA2530
King Single
1050mm
2000mm
210mm
230kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
49
M AT T R ES S ES & C U S H I O N S
Cushions Gel-T Cushion • • • • • •
Sectional Flo Gel Wipe clean cover Provides medium level pressure care Pressure care foams Maximises immersion Made in USA
Code
Width
Depth
MC5130
400mm
400mm
MC5140
460mm
400mm
MC5150
460mm
460mm
MC5160
500mm
460mm
MC9430
560mm
460mm
MC9420
610mm
460mm
ROHO Mosaic Cushion • • •
Polyvinyl interconnected air cells Provides a comfortable and functional sitting environment Air pressure is adjustable and can be customised
• •
Breathable zippered lycra cover with a non slip base Supplied with a pump
Also Available Continence Cover to suit
Code
Dimensions
Height
Cover
Max User Weight
MC1840
16 x 16” (41 x 41cm)
70mm
Standard
157kg
MC1850
18 x 16” (46 x 41cm)
70mm
Standard
157kg
MC1860
18 x 18” (46 x 46cm)
70mm
Standard
157kg
MC7160
16 x 16” (41 x 41cm)
70mm
Incontinence
157kg
MC1880
18 x 16” (46 x 41cm)
70mm
Incontinence
157kg
MC1890
18 x 18” (46 x 46cm)
70mm
Incontinence
157kg
Equagel Cushion - General • • •
50
AC U T E CA R E
No pump or valve EquaGel is 12-15 degrees cooler compared to other cushions EquaGel has a vapour permeable, water proof surface where perspiration evaporates reducing moisture against the skin
•
• •
All cushions have very effective immersion so patient sits in the cushion, not ON the cushion whilst providing excellent resistance to bottoming and stability. Height: 51mm Max User weight: 220kg
Code
Dimensions
Code
Dimensions
MC7610
16 x 16” (40 x 40cm)
MC7630
20 x 16” (50 x 41cm)
MC9100
16 x 18” (40 x 46cm)
MC9180
20 x 18” (50 x 46cm)
MC9120
16 x 20” (41 x 50cm)
MC9200
20 x 20” (50 x 50cm)
MC9140
18 x 16” (46 x 41cm)
MC9220
22 x 16” (56 x 40cm)
MC4880
18 x 18” (46 x 46cm)
MC9240
22 x 18” (56 x 46cm)
MC9160
18 x 20” (46 x 50cm)
MC9260
22 x 20 (56 x 50cm)
M AT T R ES S ES & CU S H I O N S
Cushions ROHO Cushion • • • • • • • • •
Cells are interconnected and their unique shape promote blood circulation to facilitate pressure prevention, healing and relief Flexible cells adapt to patient contours and reduce shear forces while transferring or repositioning As the body is immersed in the cushion, greater contact area is achieved for the dispersion of pressure, hence the pressure on any one area is minimised Low profile cells maximise stability and make transfers easier for the active client High profile cells allow greater depth immersion, providing a higher level of pressure care Air pressure is adjustable and can be customised Durable neoprene construction is soft to suit skin sensitivity, and is easily cleaned Breathable zippered lycra cover with a non-slip base Supplied with pump
Single Valve
Quadtro Select
Cell Size
Dimensions
Profile
Height
Max User Weight
MC2770
MC3070
8x8
15 x 15” (38 x 38cm)
Low
60mm
Unlimited
MC2830
MC3080
8x9
15 x 17” (38 x 43cm)
Low
60mm
Unlimited
MC2780
MC3090
9x8
17 x 15” (43 x 38cm)
Low
60mm
Unlimited
MC2790
MC3100
9x9
17 x 17” (43 x 43cm)
Low
60mm
Unlimited
MC2840
MC3110
9 x 10
17 x 19” (43 x 47cm)
Low
60mm
Unlimited
MC2800
MC3120
10 x 9
19 x 17” (47 x 43cm)
Low
60mm
Unlimited
MC2810
MC3130
10 x 10
19 x 19” (47 x 47cm)
Low
60mm
Unlimited
MC2820
MC3140
11 x 10
20 x 19” (52 x 47cm)
Low
60mm
Unlimited
MC2760
MC3150
20 x 11
20 x 20” (52 x 52cm)
Low
60mm
Unlimited
Other sizes available MC2440
MC2940
8x8
15 x 15” (38 x 38cm)
High
100mm
Unlimited
MC2450
MC2950
8x9
15 x 17” (38 x 43cm)
High
100mm
Unlimited
MC2460
MC2960
9x8
17 x 15” (43 x 38cm)
High
100mm
Unlimited
MC2470
MC2970
9x9
17 x 17” (43 x 43cm)
High
100mm
Unlimited
MC2480
MC2980
9 x 10
17 x 19” (43 x 47cm)
High
100mm
Unlimited
MC2490
MC3010
10 x 9
19 x 17” (47 x 43cm)
High
100mm
Unlimited
MC2500
MC2990
10 x 10
19 x 19” (47 x 47cm)
High
100mm
Unlimited
MC2510
MC3030
11 x 10
20 x 19” (52 x 47cm)
High
100mm
Unlimited
MC2520
MC3040
20 x 11
20 x 20” (52 x 52cm)
High
100mm
Unlimited
Other sizes available
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
51
Bedding & Linen Sheets & Pillowcases
53
Blankets
54
Towels & Washers
55
52
LINEN
Sheets & Pillowcases BC0640 - Pillow Case • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton Quantity: 120 Width
Length
Height
480mm
730mm
180mm
MB0200 - Wipeclean Pillow • • • • • • •
Waterproof and easily cleaned by wiping over with a detergent or diluted disinfectant Fire retardant Bacteria resistant Eliminate the need for a separate pillow cover Phthalate free Polyfill Carton Quantity: 10 Width
Length
Depth
450mm
700mm
330mm
BC0540 - Flat Sheet - Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton Quantity: 20 Width
Length
1800mm
2750mm
BC0550 - Flat Sheet - King Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton Quantity: 15 Width
Length
2000mm
2750mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
53
LINEN
Sheets & Pillowcases BC0560 - Fitted Sheet - Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton Quantity: 15 Width
Length
Depth
910mm
1880mm
330mm
BC0570 - Fitted Sheet - King Single • • • •
Thread Count: 225 Fabric: 72% Cotton / 28% Poly Blend Colour: White Carton Quantity: 30 Width
Length
Depth
1070mm
2040mm
330mm
Blankets BC0590 - Blanket - Single • • • •
GSM: 300 Style: 100% cotton, leno weave Colour: White Carton Quantity: 12 Width
Length
1800mm
2400mm
BC0600 Blanket - King Single • • • •
54
AC U T E CA R E
GSM: 300 Style: 100% cotton, leno weave Colour: White Carton Quantity: 12 Width
Length
2000mm
2400mm
LINEN
Towels & Washers BC0580 - Face Washer • • • •
GSM: 450 Loop Style: 16s/1 loop Colour: White Carton Quantity: 324 Width
Length
330mm
330mm
BC0610 - Hand Towel • • • •
GSM: 450 Loop Style: 16s/1 loop Colour: White Carton Quantity: 140 Width
Length
400mm
640mm
BC0620 - Bath Towel • • • •
GSM: 450 Loop Style: 16s/1 loop Colour: White Carton Quantity: 40 Width
Length
700mm
1400mm
BC0630 - Bath Mat • • • •
GSM: 750 Loop Style: 2/10s double loop with frame border design Colour: White Carton Quantity: 60 Width
Length
500mm
600mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
55
Healthcare Furniture & Chairs
56
Patient Chairs
57
Visitor Chairs
64
Recliner Chairs
67
Sofa Beds
69
Legrests & Footrests
71
Overbed & Chair Tables
72
Bedside Cabinets
74
Privacy Screens
77
Wardrobes
77
H E A LT H CA R E F U R N I T U R E & C H A I RS
Patient Chairs Fero Mauro Chairs The Mauro chair range offers stylish mobile sitting options with lowerable armrests and castors. They are equipped with a relax mechanism that tilts the backrest, seat, and legrest into a zero-gravity position inspired by NASA. The new transport chair has larger castors allowing better mobility. Colours Available Graphite Grey Brick Red Midnight Blue Stormy Blue
Height
Width
Depth
*Depth Fully Reclined
Seat Height
Seat Width
Seat Depth
Max User Weight
1250mm
720mm
780mm
1550mm
510mm
535mm
510mm
150kg
Mauro Range
Ergoline Recliner
Duo Line Recliner
E-Move Electric Recliner
Synchronised movement of backrest and legrest
✓
✕
✕
Backrest and legrest are operated independently of each other
✕
✓
✕
Electric operation with battery back up
✕
✕
✓
300mm front castors with shock absorbing tyre
✕
✕
✕
Ergonomic design offering exceptional supprot for the lower back and the shoulders
✓
✓
✓
Antimicrobial vinyl which protects against germs, abrasion and staining
✓
✓
✓
Efficient relax movement reducing pressure points on the body, providing good blood circulation
✓
✓
✓
Central rear castors
✓
✓
✓
Integrated weight bearing foot plate
✓
✓
✓
Lowerable and adjustable arms to facilitate patient transfer
✓
✓
✓
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
57
H E A LT H CA R E F U R N I T UR E & C H A I RS
Patient Chairs Mauro Transport Chair The Mauro Transport Chair has lowerable armrests and large easy to move castors • • • • • • •
300mm Front castors with shock absorbing tyre Antimicrobial vinyl which protects against germs, abrasion and staining Ergonomic design offering exceptional support for the lower back and the shoulders Central locking rear castors Integrated weight bearing foot plate Lowerable and Adjustable arms to facilitate patient transfer SWL: 150kg (200 kg capacity models available)
Colours Available Graphite Grey Brick Red Midnight Blue Stormy Blue
58
Height
Width
Depth
Seat Height
Seat Width
Seat Depth
Max User Weight
1280mm
740mm
780mm
510mm
535mm
510mm
150kg
AC U T E CA R E
H E A LT H CA R E F U R N I T U R E & C H A I RS
Domus Classic Flex The Domus Relax chair is designed to offer optimal seating comfort and can be easily adjusted and reclined for rest periods. The Domus is a compact design with a mobile base and is well suited to a ward environment. Support • • • • • • • •
The rounded sides consist of 2 OSB boards of 18 mm, and are firmly connected with a metal structure The sides are upholstered with fire-retardant foam The upholstery is finished with imitation leather and decorative stitching Comfortable rounded armrests of ± 5 cm All edges and corners have been rounded No visible fastening elements Design castors 65 mm with brake Solid Beech Legs are available, with castors at the back
Seat • • • • •
Removable seat in melaminated MDF, thickness: 12 mm The rounded seat in front stimulates a fluent blood circulation Comfortable seat height of 45 cm Upholstered with fire-retardant foam. Two different density zones guarantee optimal seating comfort The upholstery is finished with imitation leather and decorative stitching
Back Rest • • • •
The backrest consists of an ergononomic pre-shaped plywood shell, thickness 12 mm Upholstered with fire-retardant foam. This foam has 3 different density zones to guarantee optimal seating comfort The upholstery is finished with imitation leather and decorative stitching Equipped with an adjustable and removable head/neck cushion
Leg Rest •
Upholstered with fire-retardant foam and finished with imitation leather
Adjustable Positions
Colours Available
• •
ED5000 Stormy Blue ED4990 Graphite Grey
• • • • •
2 positions: seating position and relax position The relax mechanism first raises the legs, after which it is possible to further incline the entire chair Easy to adjust by pushing yourself off Adjustable without lever manipulation Optimal seating comfort in each position, thanks to the constant angle between the backrest and seat during the inclination Optimal leg support, thanks to the telescopic legrest In the seating position, the legrest is turned inward to make it easier to get up
Overall Length
Overall Depth
Overall Height
Seat Height
Seat Depth
Seat Width
Armrest Height
Max User Weight
620mm
730mm
1150mm
450mm
510mm
520mm
630mm
150kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
59
H E A LT H CA R E F U R N I T UR E & C H A I RS
Avento Hi Lo Chair
Fero Chair Accessories The Avento High Low Chair is designed with a goal of optimal comfort and benefit for the patient. The chair is equipped with a high/low system and a relax mechanism that inclines the backrest, seat and legrest simultaneously into a “zero gravity” position. This chair offers exceptional ergonomic support to the user.
Features •
•
• •
•
Height range of 53cm to 83cm, which is easily adjusted with a hydraulic pump pedal this whole page with located at both sides of the Replace chair Electric High-Low The ‘’Zero Gravity’’ patentedED4390 mechanism allows good blood circulation and reduces Avento Chair - Steve to propressure vide information. Four large central locking castors allow manoeuverability and ease of use The mechanisms are completely hidden by a design cover cap in synthetic material. The rounded corners make cleaning of this chair simple. Various accessories are available, including a removable headrest, dinner tray, IV pole and more.
Colours Available ED4710 Graphite Grey ED4700 Expresso ED4720 Brick Red ED4730 Midnight Blue
Code
Type
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Height
Width Between Arms
Max User Weight
ED4100
Manual
530mm
500mm
530-830mm
800mm
530-830mm
730mm
525mm
150kg
60 ED4390 AC U T E CA RE Electric
530mm
500mm
530-830mm
800mm
530-830mm
730mm
525mm
150kg
H E A LT H CA R E F U R N I T U R E & C H A I RS
Patient Chairs ED3210 - Bariatric Fero The Fero Bariatric chair is a very comfortable chair that has been especially developed for bariatric patients. The electric tilting backrest and high-quality upholstery guarantees optimal when the patient is seated for a long period of time. The lowerable armrests allow for a more straightforward patient transfer. Integral design castors are equipped with a central brake mechanism, which enables staff to move the patient with ease. Options Available ED3520 Footrest
Length
Depth
Height
Seat Height
Seat Depth
Seat Width
Armrest Height
Max User Weight
1000mm
855mm
1250mm
470mm
470mm
790mm
650mm
300kg
Zenso E-Lift Recliner • • • • • •
• •
The lift function on the ZenSo E-lift chair supports the user optimally while both taking a seat, reclining and assistance to get out of the chair Adjustable height armrests to allow for side transfers The leg rest is lengthened by 70 mm when inclined providing additional support when in the recline position Electric operation, battery back up with magnetic power charging connection to prevent cord damage When initiating the E-lift system, the automatic brake activation mechanism Safe Brake is activated as well, which automatically activates the brakes The centrally braked castors can be activated smoothly in one single movement by means of an ergonomic brake pedal that is accessible on both the front and back of the chair The seat and leg rest can easily be removed completely for cleaning Directional castors on the front and the integrated push handle on the rear of the chair enable easy manoeuvrability
Zenso Ergo Line •
• • •
• •
The Zenso Ergo-line relax simultaneously inclines the back and leg support and is easy to operate by means of an ergonomic lever, which can be locked in infinite positions of recline The leg rest is lengthened by 70 mm when inclined providing additional support when in the recline position The seat and leg rest can easily be removed completely for cleaning This chair can be optionally equipped with a raising & sitting assist that can be easily activated by means of an additional lever. The supporting seat movement makes both getting up and sitting easier Optional electric operation with battery back up Large range of bases, including mobile base options available
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
61
H E A LT H CA R E F U R N I T UR E & C H A I RS
Patient Chairs Sapphire Highback Chair • • • • • • • •
Adjustable height to assist with patient transfers Moulded backrest shell for enhanced support Multi layered seat foam for pressure prevention Two mobility tilt wheels on rear Rear Push handle Polyurethane moulded arm pads Lifetime frame warranty Complies with Australian standards: ASNZ 4688.1.2018
Code
Seat Width
Seat Depth*
Max User Weight
ED6840
500mm
490mm
200kg
ED6850
580mm
490mm
200kg
ED6860
690mm
490mm
300kg
ED6870
850mm
490mm
400kg
*Optional adjustable seat depth available
Available Options EZ4030 Adjustable Seat Depth EZ4060 Pressure Care Upholstery with Welded Seams
ED3850 - X2 Deluxe Pressure Care Chair The X2 chair has been specially developed for hospital use, with a stronger frame, higher weight capacity, low resilient foam and a 2-way stretch upholstery on seating surfaces. • • • • •
High backrest incorporating lumbar and lateral support and padded armrests Comfortable upholstered seat and back Adjustable seat height and depth Powdercoated steel frame with reinforcement Standard with tilt and move wheels for ease of maneuverability
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Width
Overall Depth
Overall Height
Max User Weight
500mm
450-530mm
450-600mm
790mm
230mm
700mm
730-800mm
1200-1350mm
200kg
Euro Chair • • • • •
62
AC U T E CA R E
High back orthopaedic chair Wider seat widths and reinforced frames to suit the bariatric client Adjustable height and seat depth Contoured backrest and powder coated steel frame Available in a range of vinyls
Code
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
ED0040
490mm
490-550mm
430-580mm
250mm
740mm
700mm
125kg
ED0260
540mm
490-550mm
430-580mm
250mm
740mm
750mm
175kg
ED0620
590mm
490-550mm
430-580mm
250mm
740mm
800mm
195kg
ED0310
640mm
490-550mm
430-580mm
250mm
740mm
850mm
210kg
H E A LT H CA R E F U R N I T U R E & C H A I RS
Patient Chairs ED3880 - X2 Deluxe Pressure Care Chair Bariatric Specifically developed for the bariatric patient in a hospital setting, this chair has a strong frame, large weight capacity, vinyl upholstery and tilt and move wheels. • • • • • •
Adjustable height High contoured backrest incorporating lumbar support Contoured seat Padded drop down, removable arms for side transfer Adjustable seat depth Standard with tilt and move wheels for ease of manoeuvrability
Seat Width
Seat Depth
Seat Height
Backrest Height
Arm Height
Overall Width
Overall Height
Width Between Arms
Max User Weight
780mm
600mm
460-540mm
675mm
170mm
900mm
1000-1805mm
790mm
425kg
Hunter Chair • • • • •
Low back orthopaedic chair Ideal for dining or household activities Adjustable seat height Curved padded backrest Available in a range of vinyls
Colours Available ED0400 Champagne Vinyl ED0390 Slate Vinyl
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
460mm
460mm
485 - 640mm
230mm
455mm
610mm
125kg
Hunter Chair Wide • • • • • •
Low back orthopaedic chair Wider seat width and reinforced frame to suit the bariatric client Ideal for dining or household activities Adjustable seat height Curved padded backrest Available in Champagne vinyl upholstery (as shown)
Code
Seat Width
Seat Depth
Seat Height
Armrest Height
Back Height
Overall Width
Max User Weight
ED0470
500mm
450mm
470-610mm
230mm
455mm
650mm
135kg
ED0480
550mm
450mm
470-610mm
230mm
455mm
700mm
175kg
ED0490
600mm
450mm
470-610mm
230mm
455mm
750mm
195kg
ED0500
650mm
450mm
470-610mm
230mm
455mm
800mm
210kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
63
H E A LT H CA R E F U R N I T UR E & C H A I RS
Patient Chairs ED3400 - Ellia Bariatric Chair • • • • • • •
Firmly welded steel construction The legs consist of a square steel profile (40 x 25 mm), welded to the seat frame All corners are rounded No visible fastening elements The front legs are equipped with synthetic glides Integrated castors at the back legs make it easier to move the chair A limited number of chairs can be stacked Width
Depth
Height
Max User Weight
780mm
620mm
920mm
350kg
Visitor Chairs Sara Visitor Chair • • •
Steel fully welded frame with upholstered seat and back With sloped armrests and optional arm pads for added comfort and support Australian made
Code
Seat Width
Width
Depth
Height
Max User Weight
EA0650
490mm
560mm
640mm
800mm
300kg
EA0660
600mm
560mm
640mm
800mm
350kg
EA0670
720mm
560mm
640mm
800mm
350kg
Ziggy Visitor Chair • • •
64
AC U T E CA R E
Steel fully welded frame with upholstered seat and back Armrests and optional arm pads for added comfort and support Australian made
Code
Armrest
Width
Depth
Height
Max User Weight
EA0710
Yes
565mm
585mm
800mm
130kg
EA0720
No
565mm
585mm
800mm
130kg
H E A LT H CA R E F U R N I T U R E & C H A I RS
Visitor Chairs EA0740 - Joshua Visitor Chair • •
4 Leg fully welded steel frame, upholstered seat & back Convert to a lecture chair with tablet arm
Options Available Armrests Links to join chairs as required Chrome Frame Width
Depth
Height
Max User Weight
560mm
580mm
780mm
110kg
Joshua Sled Chair • • • •
Sled steel fully welded frame, upholstered seat & back Optional Chrome Frame Australian Made version with no base bar Chinese imported version with base bar
Code
Armrest
Width
Depth
Height
Max User Weight
EA0160
Yes
480mm
590mm
830mm
110kg
EA0170
No
480mm
590mm
830mm
110kg
Lazer Side Chair • • • • • • •
Durable Lazer frame with arms for added support Fully welded 22.2mm Dia RHS steel frame with upholstered Seat & Back Powdercoated & Chrome frames available Available with a sled style base Easily stackable in Four Leg frame ONLY 100% Australian Made Stunning array of upholstery options
Code
Armrest
Width
Depth
Height
Max User Weight
EA0190
No
590mm
550mm
825mm
120kg
EA0200
Drop Arms
590mm
550mm
825mm
120kg
EA0210
Straight Arms
590mm
550mm
825mm
120kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
65
H E A LT H CA R E F U R N I T UR E & C H A I RS
Visitor Chairs Dyno Beam Seating •
Steel frame with upholstered seat and back
Options Available Armrests between each seat or end arms only Coffee table inserted in place of a seat
Code
No of Seats
Seat Width No Arms
Seat Width All Arms
Seat Height
Seat Depth
EA0700
2
1180mm
1293mm
820mm
640mm
EA0330
3
1766mm
1878mm
820mm
640mm
EA0340
4
2348mm
2460mm
820mm
825mm
EA0350
5
2933mm
3045mm
820mm
825mm
Joshua Beam Seating •
Steel fully welded frame with upholstered seat and back
Options Available Armrests between each seat or end arms only Coffee table inserted in place of a seat
66
AC U T E CA R E
Code
No of Seats
Seat Width No Arms
Seat Width All Arms
Seat Height
Seat Depth
EA0250
2
1035mm
1293mm
835mm
640mm
EA0260
3
1580mm
1878mm
835mm
640mm
EA0270
4
2125mm
2460mm
835mm
825mm
EA0280
5
2680mm
3045mm
835mm
825mm
H E A LT H CA R E F U R N I T U R E & C H A I RS
Recliner Chairs ED1590 - Derwent Chair • • • •
Waterfall style backrest provides superior comfort Padding on each backrest layer can be adjusted Padded legrest is synchronised with the backrest Full chaise pad provides additional legrest support and comfort
•
• •
•
Supplied with magazine pocket and handheld controller which is simple to use Rise or recline motion stops at any point when button is released Wall saver mechanism requires minimal clearance behind the chair when reclined Available in a range of fabrics and vinyls
Size
Seat Width
Seat Depth
Seat Height
Back Height
Overall Width
Overall Height
Max User Weight
Petite
440mm
450mm
470mm
570mm
780mm
990mm
155kg
Mini
480mm
490mm
470mm
600mm
780mm
1020mm
155kg
Medium
480mm
500mm
500mm
640mm
780mm
1070mm
155kg
Maxi
530mm
520mm
530mm
680mm
830mm
1170mm
155kg
Tall
540mm
530mm
540mm
740mm
830mm
1230mm
155kg
ED6620 - Derwent Recovery Recliner Chair • •
•
•
High back reclining armchair Spring loaded side trigger releases legrest, and allows chair to be reclined by pushing on the armrest and against the backrest Wall saver recline mechanism allows chair to recline with less back clearance area Waterfall style backrest provides superior comfort, lumbar and neck support
• • •
Padding on each backrest layer can be adjusted Padded legrest is synchronised with the backrest Available in a range of fabrics and vinyls. Please enquire
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
480mm
500mm
500mm
170mm
630mm
780mm
120kg
ED4790 - X9 Mobile Power Lift Pressure Care Chair, Dual Motor • •
•
•
Ideal for clients who are confined to a chair for long periods Pressure relieving memory foam, soft contoured multi-layered foam and fibre backrest with lumbar support and ergonomic padded armrests ensure maximum comfort and postural support Resilient European four-way stretch vinyl is fluid resistant, fire retardant and vapour permeable with antibacterial and non-allergenic properties Soft-stretch vinyl is used on inner contact surfaces, while hard-wearing vinyls are used on the outside of the chair
• • • •
• •
Removable seat and back covers for infection control management Padded legrest for additional comfort and heel support Large side pockets for convenient storage Quiet and smooth lift system with infinite rise and recline positions for ultimate comfort and assists the user in sitting and standing transfers Dual motor provides independent control of backrest and legrest 4 x 100mm locking castors, 2 of which are locking
Seat Width
Seat Depth
Seat Height
Arm Height
Back Height
Overall Width
Max User Weight
500mm
500mm
500mm
190mm
680mm
720mm
130kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
67
H E A LT H CA R E F U R N I T UR E & C H A I RS
Recliner Chairs ED6720 - Belate Med Manual Recliner - with Castors • • • •
•
•
Aesthetically pleasing design Rounded edges to avoid damage & injury Contoured backrest with ergonomic support and side wings Chair is designed to invite relaxation, rest and assists patients maintain an upright position Seat and backrest sections have 80mm elastic suspension straps allowing optimal weight distribution and exceptional durability Layered foams for pressure injury prevention
•
• • • • •
•
Features continuous seat section when armchair is reclined for additional comfort. 4 x 100mm Braking castors for ease of mobility or Timber Legs available Optional rear push handle Manually adjustable backrest and footrest Range of upholstery options available The composition and treatment of the fabrics allows easy cleaning and improving the infection control Double stitched sealed seams
Seat Width
Seat Depth
Overall Length
Overall Width
Total Height
Max User Weight
510mm
500mm
780mm
690mm
1050mm
150kg
ED6790 - Belate Electric Recliner - Single Motor • • • •
•
•
Aesthetically pleasing design Rounded edges to avoid damage & injury Contoured backrest with ergonomic support and side wings Chair is designed to invite relaxation, rest and assists patients maintain an upright position Seat and backrest sections have 80mm elastic suspension straps allowing optimal weight distribution and exceptional durability Layered foams for pressure injury prevention
•
• • • • •
•
Features continuous seat section when armchair is reclined for additional comfort. 4 x 100mm Braking castors for ease of mobility or Timber Legs available Optional rear push handle Electrically adjustable backrest and footrest Range of upholstery options available The composition and treatment of the fabrics allows easy cleaning and improving the infection control Double stitched sealed seams
Seat Width
Seat Depth
Overall Length
Overall Width
Total Height
Max User Weight
510mm
500mm
780mm
690mm
1050mm
150kg
ED6680 - Belate Electric Recliner - Dual Motor • • • •
•
•
68
AC U T E CA R E
Aesthetically pleasing design Rounded edges to avoid damage & injury Contoured backrest with ergonomic support and side wings Chair is designed to invite relaxation, rest and assists patients maintain an upright position Seat and backrest sections have 80mm elastic suspension straps allowing optimal weight distribution and exceptional durability Layered foams for pressure injury prevention
•
• • • • •
•
Features continuous seat section when armchair is reclined for additional comfort. 4 x 100mm Braking castors for ease of mobility or Timber Legs available Optional rear push handle Electrically adjustable backrest, footrest and sit to stand function Range of upholstery options available The composition and treatment of the fabrics allows easy cleaning and improving the infection control Double stitched sealed seams
Seat Width
Seat Depth
Overall Length
Overall Width
Total Height
Max User Weight
510mm
500mm
780mm
690mm
1050mm
150kg
H E A LT H CA R E F U R N I T U R E & C H A I RS
Recliner Chairs BD1750 - X6 Deluxe Chair Bed • •
• •
• •
Ideal for dependant clients who are confined to a chair for long periods Pressure relieving memory foam, contoured backrest with lumbar and lateral support, angled armrests and adjustable wings and neck pillow ensure maximum comfort and postural support Integrated air cell in seat for premium pressure relief Tilt in space recline action and high leg rest elevation for reduced fluid retention Designed for use with standing machines and transfer hoists Large push handle and simple recline mechanism makes movement and operation safe and easy for the carer
•
•
• •
Resilient European four-way stretch vinyl is fluid resistant, fire retardant and vapour permeable with antibacterial and non-allergenic properties Soft-stretch vinyl is used on inner contact surfaces, while hardwearing vinyls are used on the outside of the chair Removable seat and back covers for infection control management 4 x swivel locking castors (one directional) for easier mobility
Also Available BZ0143 Tray BZ0423 Foot rest
Seat Width
Seat Depth
Arm Height
Back Height
Overall Width
Max User Weight
500mm
550mm
180mm
650mm
750mm
180kg
Sofa Beds Domus Sofa Bed The new space saving Domus Sofa Bed is the ideal patient/visitor chair that turns into visitor bedding for the night with just 3 easy steps. With a range of durable imitation leather or vinyl available, the chairs will suit any décor. •
•
•
Fixed backrest cushion, you only need to remove the seat cushion when unfolding the bed mechanism Mattress platform equipped with rounded wooden slats to reinforce the seating surface Folding and unfolding the bed is quick and easy in 3 movements
Code
Width
Depth
Height
Seat Height
Seat Depth
Arm Height
Length Height
ED3680
900mm
790mm
800mm
450mm
500mm
650mm
2340mm
ED3690
1000mm
790mm
800mm
450mm
500mm
650mm
2340mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
69
H E A LT H CA R E F U R N I T UR E & C H A I RS
Sofa Beds ED8210 - Buddy Sofa Chair • • • • •
Designed for relaxation & family sleepovers in patient rooms Stylish contemporary design Easy operation Multi-position backrest Storage area with protective cover for pillows etc
• • •
•
Space saving Fully open head area In-line locking castors - easy push button operation, swivel rear castor for manoeuvrability Available in a combination of Panaz Zest Ash and Panaz Zest Dove vinyl
Seat Width
Seat Height
Seat Depth
Width
Depth
Height
Sleeping Length
640mm
460mm
540mm
870mm
870mm
1170mm
2000mm
ED8240 - Moby Sofa Bed • • • •
70
AC U T E CA R E
Stylish contemporary design Easy operation Extends up to 2m bed Storage box under extended side for pillows and blankets, with protective cover Seat Width
Seat Height
Seat Depth
Width
Depth
Height
1600-2350mm
470mm
650mm
1300-2000mm
800mm
760mm
H E A LT H CA R E F U R N I T U R E & C H A I RS
Legrests & Footrests EB0320 - Step Stool • • • • •
Durable single step platform Manufactured from steel Bright chrome Cross support for greater stability Ribbed rubber top provides extra grip and prevents slipping Width
Length
Height
Step Area
440mm
350mm
230mm
360 x 285mm
EC0100 - Legrest • • • •
Provides comfort and support for the legs and feet Ideal for patients with fluid or circulatory problems Adjustable in height and angle Available in a range of fabrics and vinyls
Available Colours EC0110 Champagne EC0120 Slate Max Height
Width
Length
425 - 575mm
400mm
500mm
Footrest Padded • • • • •
Provides support for the feet Assists in the correction of hip angle Padded for additional comfort Pad width 410mm Pad length 240mm Code
Upholstery
Height
EC0050
Champagne Vinyl
125mm
EC0060
Slate Vinyl
125mm
EC0070
Champagne Vinyl
200mm
EC0080
Slate Vinyl
200mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
71
H E A LT H CA R E F U R N I T UR E & C H A I RS
Overbed & Chair Tables EE0330 - Litavo Overbed Table • • • • •
Lightweight mobile table with adjustable height and angle Fixed top or Split top option that allows top to be tilted for reading Slimline solid laminate top Suitable to use over the bed or chair Quality spring loaded mechanism is quick and easy to operate
•
• •
• •
Optional raised lip edge helps prevent items from slipping off table top Wide base for greater stability U-shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors, two locking Epoxy coated aluminium frame
Code
Type
Colour
Width
Depth
Height
Inner Base Width
EE0370
One Piece Top
White
890mm
450mm
690 - 990mm
680mm
EE0380
Two Piece Top
White
890mm
450mm
690 - 990mm
680mm
EE0200
One Piece Top
Dark Wood Grain
890mm
450mm
690 - 990mm
680mm
EE0390
Two Piece Top
Dark Wood Grain
890mm
450mm
690 - 990mm
680mm
EE0180 - Viva Overbed Table • • • • •
Lightweight mobile table with adjustable height Suitable to use over the bed or chair Ideal to use while eating and for other household activities Table top can be positioned with one hand at any height Gas assisted mechanism is quick and easy to operate, making it ideal for multiple clients, and multiple activity use
• •
• •
• •
Seamless one-piece moulded ABS plastic top is easy to clean Soft raised lip edge helps prevent items from slipping off table top Wide base for greater stability U-shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors Modern aluminium column and elliptical base frame
Table Width
Table Depth
Table Height
Inner Base Width
900mm
430mm
725 - 1050mm
750mm
EE0060 - Overbed Table Spring Loaded • • • •
•
72
AC U T E CA R E
Lightweight mobile table Suitable to use over the bed or chair Adjustable height Spring loaded mechanism is quick and easy to operate, making it ideal for multiple clients, and multiple activity use Soft raised lip edge prevents items from slipping off table top
• •
• •
Wide base for greater stability U shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors, two of which are locking Powder coated steel frame
Table Width
Table Depth
Table Height
Inner Base Width
810mm
450mm
720 - 1080mm
725mm
H E A LT H CA R E F U R N I T U R E & C H A I RS
Overbed & Chair Tables EE0080 - Overbed Table • • • • •
Lightweight mobile table Suitable to use over the bed or chair Adjustable height and angle Soft raised lip edge prevents items from slipping off table top Wide base for greater stability
•
• •
U-shape base enables the table to be positioned closer to the chair and the user Fitted with four swivel castors, two of which are locking Powder coated steel frame
Table Width
Table Depth
Table Height
Inner Base Width
810mm
450mm
685 - 1000mm
735mm
Spring-Loaded Overbed Table •
• • •
Spring-assisted height adjustment or gas-assisted variation Non-tilting top Top size - 750 x 400mm 50mm twin wheel castors
• •
Available with beige or grey base frame colour Available with Wiluna White or Select Beech woodgrain laminate top, or can be purchased as frame only
Code
Type
EE0640
Select Beech - Spring-Assisted Top
EE0550
Wiluna White - Spring-Assisted Top
EE0850 - FTG Overbed Table •
• •
•
The sturdy design of this furniture makes it a reliable and great quality product Will meet the highest expectations for infection control Its resistant acrylic top has a smooth surface and is easy to clean, allowing your staff to save time A low profile base for easy access under the bed
•
• • • • •
Extendable acrylic top for increased reach and greater surface (optional) Fast and easy adjustment 5cm Twin Castors Load Capacity: 45kg Self-locking Hi-lo system Epoxy polyester powder coating
Top
Height
Top Size
Top Extension
Base
Net Weight
Max User Weight
Acrylic
650-1031mm
445x890mm
N/A
787x730
13.6kg
45kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
73
H E A LT H CA R E F U R N I T UR E & C H A I RS
Bedside Cabinets EE0470 - Ilana Bedside Cabinet Features • The sides are made of 8mm solid laminate panels that are assembled between 4 aluminium corner profiles • Solid laminate doors • Equipped with high-quality self-closing hinges, opening up to 175° • Metal handle • An open compartment is accessible from all sides • The drawer can be opened on both sides. It is made of steel plate and has 2 solid laminated fronts • The drawer glides on 2 synthetic rails • The drawer is equipped with a removable synthetic drawer tray • Aluminium and steel parts are protected by an epoxy-coating or an anodisation layer • Tabletop with rounded solid laminate corners • 4 x 65mm design castors
One Sided
Two Sided
With Refrigerator
Extra Low
EB1270 - Advance Hospital Bedside Cabinet The Advance is a very elegant, affordable and durable bedside table. You can choose between a double-sided or one-sided version. It can be equipped with an optional refrigerator and/or dinner tray. Features • 2 side panels, a bottom, a middle panel and a tabletop • The back is made of steel plate • The side panels are covered with 2 MDF posts with an aluminium look and a light grey melaminated chipboard of 19 mm thick • Solid laminate door • Equipped with high-quality self-closing hinges, opening up to 175° • The door hinges can be installed on the right or left side • Metal handle • An open compartment is accessible from on the front side • The drawer is made of steel plate and has a solid laminate front • The drawer glides on 2 synthetic rails with an end stop • The drawer is equipped with a removable synthetic drawer tray • The metal parts are protected by a light grey epoxy coating • The tabletop has rounded solid laminate corners • 4 x 65mm design castors
74
AC U T E CA R E
H E A LT H CA R E F U R N I T U R E & C H A I RS
Bedside Cabinets EB0230 - Viva Low Height Bedside Cabinet • •
ABS Top Manufactured from powder coated steel Slide out work surface Single drawer with key lock Single cupboard with internal adjustable shelf
• • •
• • •
Retractable stainless steel towel holders on both sides 4 x 50mm swivel castors, 2 x locking Also available in cream
Seat Width
Seat Depth
Seat Height
460mm
510mm
760mm
*Height is overall including castors
EB0250 - Viva Bedside Cabinet - High • •
ABS Top Manufactured from powder coated steel Slide out work surface Single drawer with key lock Single cupboard with internal adjustable shelf
• • •
• • • •
Retractable stainless steel towel holders on both sides Shoe shelf 4 x 50mm swivel castors, 2 x locking Also available in white (EB0260)
Width
Depth
Height
460mm
510mm
920mm
*Height is overall including castors
EB1070 - Hunter Bedside Cabinet • • • • • •
Mobile Bedside Cabinet Single Top Drawer (Lockable) Single Middle Drawer Double Bottom Drawer Radius Corners Concealment Skirt Around Castors
• • •
4 x Swivel Castors Colour Choice from Formica Commercial Laminate Range All Laminate Ranges Available (May Incur Additional Cost)
Width
Depth
Height
450mm
500mm
780mm
EB1060 - Macquarie Bedside Cabinet • • • • • •
Mobile Bedside Cabinet Single Top Drawer (Lockable) Middle Shelf Double Bottom Drawer Radius Corners Concealment Skirt Around Castors
• • •
4 x Swivel Castors Colour Choice from Formica Commercial Laminate Range All Laminate Ranges Available (May Incur Additional Cost)
Width
Depth
Height
450mm
500mm
780mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
75
H E A LT H CA R E F U R N I T UR E & C H A I RS
Bedside Cabinets EB1080 - Hawkesbury Bedside Cabinet • • • • • •
Mobile Bedside Cabinet Single Top Drawer (Lockable) Single Middle Drawer Double Bottom Drawer Radius Corners Concealment Skirt Around Castors
• • • •
4 x Swivel Castors Vase Hutch Colour Choice from Formica Commercial Laminate Range All Laminate Ranges Available (May Incur Additional Cost)
Width
Depth
Height
450mm
500mm
1000mm
EB1090 - Manning Bedside Cabinet • • • • • •
Mobile Bedside Cabinet Single Split Top Drawer (1 x Lockable) Single Middle Drawer Double Bottom Drawer Radius Corners Concealment Skirt Around Castors
• • •
4 x Swivel Castors Colour Choice from Formica Commercial Laminate Range All Laminate Ranges Available (May Incur Additional Cost)
Width
Depth
Height
450mm
500mm
780mm
EB1100 - Sydney Bedside Cabinet • • • • • •
Mobile Bedside Cabinet Single Top Drawer (Lockable) Single 2nd Drawer Single 3rd Drawer Double Bottom Drawer Radius Corners
• • • •
Concealment Skirt Around Castors 4 x Swivel Castors Colour Choice from Formica Commercial Laminate Range All Laminate Ranges Available (May Incur Additional Cost)
Width
Depth
Height
450mm
500mm
930mm
Custom Options Available Alpha Lifecare also custom manufactures bedside cabinets, please contact us to discuss your individual requirements acutecare@alphalifecare.com.au
76
AC U T E CA R E
H E A LT H CA R E F U R N I T U R E & C H A I RS
Privacy Screens Folding Screens The mobile folding screen provides protection and convenience. This can be closed to move around easily with a stable base. • • •
Screen aluminium poles are easy to operate and clean Screen materials: PS + HPL (high pressure laminates) Screen colour options: White/ grey/blue
Mobile Screen
Wall Mounted Screen
Code
Type
Panels
Length
Height
EB0660
Mobile
4
1200mm
1650mm
EB0670
Mobile
6
1800mm
1650mm
EB0680
Mobile
8
2400mm
1650mm
EB0690
Mobile
10
3000mm
1650mm
EB0700
Mobile
4
1200mm
1850mm
EB0710
Mobile
6
1800mm
1850mm
EB0720
Mobile
8
2400mm
1850mm
EB0730
Mobile
10
3000mm
1850mm
EB0770
Wall Mounted
4
1200mm
1650mm
EB0780
Wall Mounted
6
1800mm
1650mm
EB0790
Wall Mounted
8
2400mm
1650mm
EB0800
Wall Mounted
4
1200mm
1850mm
EB0810
Wall Mounted
6
1800mm
1850mm
EB0820
Wall Mounted
8
2400mm
1850mm
*Height is overall including castors
Wardrobes EB0020 - Grande Single Wardrobe • • • • •
EB1030 - Grande Double Wardrobe
1 door style Internal hat shelf & hanging rail Plinth base Standard bow handles Available in a range of laminate colours
• • • • • •
Width
Depth
Height
500mm
500mm
1800mm
1 30 0 930 930
2 door style Internal hat shelf & hanging rail Plinth base Standard bow handles Available in a range of laminate colours Solid melamine back
A L P H A L I F E CA R E .C O M . AU
77
Medical Carts & Trolleys Medical Cart Guide
79
Clean Linen Trolleys
110
Anaesthetic Carts
81
Soiled Linen Trolleys
111
Emergency Carts
84
Waste Equipment
112
Procedure Carts
88
Service Trolleys
112
Paediatric Carts
94
File Carts
116
Isolation Carts
95
Cart Trolleys
117
Medication Carts
97
IV Poles
118
IT Equipment Carts
101
IV Pole Accessories
119
IT Equipment Cart Options
104
Theatre Trolleys & Equipment
120
Instrument & Dressing Trolleys
105
Oxygen Trolleys
122
Linen Trolleys & Equipment
108
Medical Cart Accessories
123
78
M E D I CA L CA RTS & T RO L L E YS
Width Options Alpha Lifecare has a vast range of medical carts. Please use our guide to assist you in selecting the carts best suited to you and your teams.
Standard
Narrow 510mm
Wide (Only available in 34 inches) 900mm
690mm
Height Options
24 Inches (610mm)
37 Inches
27 Inches (686mm)
1085mm
34 Inches
1010mm
21 Inches (533mm)
31 Inches
930mm
850mm
28 Inches
30 Inches (762mm)
Drawer Options A Drawer - Internal Drawer Dimensions
3 Inches
Width
Depth
Height
Narrow
375mm
395mm
57mm
Standard
565mm
395mm
57mm
Wide
832mm
395mm
57mm
Width
Depth
Height
Narrow
375mm
395mm
136mm
Standard
565mm
395mm
136mm
Wide
832mm
395mm
136mm
Width
Depth
Height
Narrow
375mm
395mm
215mm
Standard
565mm
395mm
215mm
Wide
832mm
395mm
215mm
B Drawer - Internal Drawer Dimensions
6 Inches
C Drawer - Internal Drawer Dimensions
9 Inches
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
79
M E D I CA L CA RTS & T RO L L E YS
Colour Options Red
Yellow
Dark Blue
White
Blush Pink
Bright Orange
Cream
Fresh Green
Lavender
Light Blue
80
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Anaesthetic Carts Viva Anaesthetic Cart The Viva Anaesthetic Cart is designed with a combination of functions and technology specific to the needs of the anaesthesia department. This series offers a wide choice of accessories to personalise carts for every possible situation. Features • Top narcotics drawer with lockable lid • ABS top with slide-out work surface • Dividers in two drawers • Central key lock control • Push handle • Multi-functional top accessories • 4 x 125mm twin swivel castors; two locking, one directional • Soft close drawers GZ2640 - Optional Anaesthetic Accessories Package • Accessory bridge supports • Adjustable IV Pole • Sharps container set • Tilt bin organiser – 12 small compartments • Tilt bin organiser – 5 large compartments • Glove dispenser • Waste container with lid • Cart is also available without the above accessory package
GC0780
GC2040
GC2030
GC2020
Code
76mm Drawer
155mm Drawer
234mm Drawer
Total Drawers
Width
Depth
Height*
GC0780
2
1
1
4
690mm
520mm
850mm
GC2040
3
1
1
5
690mm
520mm
930mm
GC2030
2
2
1
5
690mm
520mm
1010mm
GC2020
3
2
1
6
690mm
520mm
1085mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
81
M E D I CA L CA RTS & T RO L L E YS
Anaesthetic Carts Avalo Emergency Cart Designed to meet the unique needs of your anaesthesia department, bringing together function and technology in perfect harmony. Choose from (3) lock systems, including options for secondary proximity access for added security. Flexible divider systems and removable drawer trays allow for smart organisation of medications and all anaesthesia-related supplies. Features • Precision-welded steel frame with durable, high-impact panels • Lightweight design and profile simplify movement and steering • Smooth panels, work surface and seamless drawers promote simple cleaning for infection prevention • Delivered fully assembled, no tools required • 10-year limited warranty – structure • 2-year limited warranty - key locking mechanism, castors, draw runner system. GZ4550 - Optional Accesory Package • Writing Surface • Waste with Lid • 3” Drawer Dividers (Set of 3) • Storage Tower • Tilt 4 Bin Unit • Tilt 5 Bin Unit
Compact
Standard
Code
Type
3” Drawer
6” Drawer
10” Drawer
Total Drawers
Width
Depth
Height*
GC4000
Compact
3
1
1
5
790mm
610mm
910mm
GC4100
Intermediate
2
2
1
5
790mm
610mm
1000mm
GC4200
Standard
3
2
1
6
790mm
610mm
1100mm
*Height is overall including castors
82
Intermediate
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Anaesthetic Carts GD0230 - Anaesthetic Trolley - 4 Drawers • • • •
3 x Drawers 125mm Deep 1 x Drawer 250mm Deep 125mm Ball bearing fork castors with grey rubber wheels (2 x Locking) 304 Grade stainless steel construction - Satin finish Width
Depth
Height*
600mm
490mm
970mm
*Height is overall including castors
GD0210 - Anaesthetic Trolley - 4 Drawers • • • •
2 x Drawers 125mm Deep 2 x Drawers 250mm Deep 4 x 125mm Heavy duty castors (2 x Locking) 304 Grade stainless steel construction - Satin finish Width
Depth
Height*
600mm
490mm
1070mm
*Height is overall including castors
GD0250 - Anaesthetic Trolley – 6 Drawers • • • • • •
1st Drawer 75mm, 2nd & 3rd Drawers 150mm 4th Drawer 75mm, 5th & 6th Drawers 100mm 2 x Shelves with rails 4 x 125mm Heavy duty castors (2 x Locking) 304 Grade stainless steel construction - Satin finish Other sizes, specifications and accessories available Width
Depth
Height*
900mm
490mm
970mm
*Height is overall including castors
GC0500 - IV Set up Trolley • • • •
6 x Half drawers 125mm deep 1 x Drawer 250mm deep 4 x 125mm Heavy duty castors (2 x Locking) 304 Grade stainless steel frame and work surface - Satin finish Width
Depth
Height*
600mm
490mm
970mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
83
M E D I CA L CA RTS & T RO L L E YS
Anaesthetic Carts GC0510 - IV Set up Cart Trolley • • • • •
5 x Drawers 125mm 2 x Half drawers 250mm deep Lift up shelf with Stainless Steel surface 125mm Ball bearing fork castors with grey rubber wheels (2 x locking) 304 Grade stainless steel frame and work surface with powder coated door fronts and panels Width
Depth
Height*
900mm
490mm
970mm
*Height is overall including castors
Emergency Carts Viva Paediatric Emergency Cart • • • • • • •
ABS top with slide-out work surface Drawer dividers available Central key lock control in addition to tab locks Push handle 4 x 125mm twin swivel castors; two locking, one directional Individual break-away lock or full locking bar Drawers: 8 x 76mm and 1 x 155mm Code
Lock Type
Width
Depth
Height*
GC1600
Individual Break-Away
690mm
520mm
1085mm
GC1610
Full Locking Bar
690mm
520mm
1085mm
*Height is overall including castors
84
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Emergency Carts Viva Emergency Cart The Viva Emergency Cart is designed with input from emergency room professionals to deliver the ultimate in convenience and safety. These carts define a new standard of organisation and function, offering stable, smooth mobility and enhanced convenience. Features • ABS top with slide - out work surface • Dividers in two drawers • Central key lock control • Push handle • Break-away lock options available see page 117 • 4 x 125mm twin swivel castors; two locking, one directional • Soft close drawers GZ2650 - Optional Emergency Package • Adjustable IV Pole • Defibrillator Shelf • - Rotates 360° • - Locks tight during transportation • CPR Cardiac board (mounted on rear of cart) • Easy clean polymer • Sharps container set • Oxygen tank holder with tank securing straps • Cart is also available without the above accessory package
GC0890
GC0900
GC2050
GC2210
GC0930
Code
76mm Drawer
155mm Drawer
234mm Drawer
Total Drawers
Width
Depth
Height*
GC0890
2
1
1
4
690mm
520mm
850mm
GC0900
3
1
1
5
690mm
520mm
930mm
GC2050
2
2
1
5
690mm
520mm
1010mm
GC2210
0
3
1
4
690mm
520mm
1010mm
GC0930
3
2
1
6
690mm
520mm
1085mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
85
M E D I CA L CA RTS & T RO L L E YS
Emergency Carts Viva Narrow Emergency Cart The Viva Narrow Emergency Cart is designed with smaller overall dimensions than the regular Emergency cart. This is ideal for areas with limited space. It provides convenient storage and easy manoeuvrability. • • • • •
ABS top with slide out work surface ABS Protection bumpers Central key lock control 4 x 100mm Castors; two locking, one directional Soft close drawers
GZ2650 – Optional Emergency accessory package (as pictured) • Adjustable IV Pole • Defibrillator Shelf • CPR Cardiac board (mounted on rear of cart) • Sharps container set • Oxygen tank holder
Code
76mm Drawer
155mm Drawer
234mm Drawer
Total Drawers
Width
Depth
Height*
GC2620
0
3
1
4
510mm
542mm
977mm
GC2110
2
2
1
5
510mm
542mm
977mm
GC2500
3
2
1
6
510mm
542mm
1056mm
*Height is overall including castors
GC0970 - Viva Aluminium Emergency Cart The Aluminium Emergency Cart has many of the same features as the traditional Viva Emergency Cart, yet with sleek lines, contemporary handles and a lightweight body for a greater ease of use. Features • ABS top with slide out work surface • Central key lock control • Push handle • 4 x 125mm twin swivel castors; two locking, one directional • Soft close drawers • Optional emergency accessory package can be added Width
Depth
Height*
690mm
520mm
1010mm
*Height is overall including castors
86
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Emergency Carts Avalo Emergency Cart Designed for reliable performance and improved workflow in emergency departments, the Avalo® Emergency Cart boasts a unique breakaway lock for optimal security and easy access. With stable manoeuvrability and accessories, it enhances user efficiency and supports code team performance. Features • Precision-welded steel frame with durable, high-impact panels • Lightweight design and profile simplify movement and steering • Smooth panels, work surface and seamless drawers promote simple cleaning for infection prevention • Delivered fully assembled, no tools required • 10-year limited warranty – structure • 2-year limited warranty - key locking mechanism, castors, draw runner system. GZ4540 - Optional Accesory Package • Tamper Evident Seals (100) • Oxygen Tank Holder • Difibrillator Shelf • IV Pole • Cardiac Board • 3” Drawer Dividers (Set of 2)
Compact
Intermediate
Standard
Code
Type
3” Drawer
6” Drawer
10” Drawer
Total Drawers
Width
Depth
Height*
GC3500
Compact
3
1
1
5
790mm
610mm
910mm
GC3600
Intermediate
2
2
1
5
790mm
610mm
1000mm
GC3700
Standard
3
2
1
6
790mm
610mm
1100mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
87
M E D I CA L CA RTS & T RO L L E YS
Procedure Carts Viva Procedure Cart The Viva Procedure Cart is a complete solution package suited for a wide range of functions in the healthcare environment. Some applications of the Viva Procedure Carts include: • • • • • • • •
Medical/Surgical Wards Cast Rooms Dressing Equipment Storage IV Therapy Critical Care Oncology Treatment Trauma Laboratory
Features • ABS top with slide-out work surface • Dividers in two drawers • Central key lock control • Push handle • 4 x 125mm twin swivel castors; two locking, one directional • Soft close drawers GZ2690 - Optional Procedure Accessory Package • Adjustable IV Pole • Waste container set & lid • Multi-storage basket • Sharps container set
GC1650
GC1660
GC1670
Code
76mm Drawer
155mm Drawer
234mm Drawer
Total Drawers
Width
Depth
Height*
GC1650
2
1
1
4
690mm
520mm
850mm
GC1680
1
2
1
4
690mm
520mm
930mm
GC1660
2
2
1
5
690mm
520mm
1010mm
GC1670
1
3
1
5
690mm
520mm
1085mm
*Height is overall including castors
88
GC1680
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Procedure Carts Avalo Procedure Cart Designed with ample storage capacity this cart is adaptable to various healthcare applications including trauma, airway, dressing, cast, or a general supply cart. Security is prioritised with three (3) proven lock systems, including an advanced keyless entry with auto-relock feature. Features • Precision-welded steel frame with durable, high-impact panels • Lightweight design and profile simplify movement and steering • Smooth panels, work surface and seamless drawers promote simple cleaning for infection prevention • Delivered fully assembled, no tools required • 10-year limited warranty – structure • 2-year limited warranty - key locking mechanism, castors, draw runner system. GZ4560 - Optional Accesory Package • AM Handle Left Light Créme • A&E Mount • Waste Bin Lid • 3” Drawer Divider (1) • Writing Surface
Compact
Intermediate
Code
Type
Lock
3” Drawer
6” Drawer
10” Drawer
Total Drawers
Width
Depth
Height*
GC4600
Compact
Key Lock
1
2
1
5
790mm
610mm
910mm
GC4700
Compact
Keyless
1
2
1
5
790mm
610mm
910mm
GC4400
Intermediate
Key Lock
2
2
1
5
790mm
610mm
1000mm
GC4500
Intermediate
Keyless
2
2
1
5
790mm
610mm
1000mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
89
M E D I CA L CA RTS & T RO L L E YS
Procedure Carts GC1740 - Viva Aluminium Procedure Cart The Aluminium Procedure Cart has many of the same features as the traditional Viva Procedure Cart, yet with sleek lines, contemporary handles and a lightweight body for a greater ease of use. Features • ABS top with slide out work surface • Central key lock control • Push handle • 4 x 125mm twin swivel castors; two locking, one directional • Soft close drawers • Optional procedure accessory package can be added Width
Depth
Height*
690mm
520mm
1010mm
*Height is overall including castors
Viva Economy Procedure Cart 4 Drawer • 3 x 155mm Drawers • 1 x 234mm Drawer • 4 x 125mm Steel Castors, 2 Locking • Push Handle
5 Drawer • 2 x 76mm Drawers • 2 x 155mm Drawers • 1 x 234mm Drawer • 4 x 125mm Steel Castors, 2 Locking • Push Handle
Code
Drawers
Width
Depth
Height*
GC0850
4
690mm
542mm
970mm
GC0860
5
690mm
542mm
970mm
*Height is overall including castors
GC0540 - Viva Series Procedure Cart • • • • •
4 x 150mm Drawers 2 x 200mm Drawers Double safety folds to all shelf edges 125mm Ball bearing fork castors with grey rubber wheels (2 locking) 304 Grade stainless steel construction - Satin finish Width
Depth
Height*
900mm
490mm
970mm
*Height is overall including castors
90
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Procedure Carts Viva Wide Procedure Cart • • • • • • • • •
ABS top with slide - out work surface Central key lock control Push Handle 2 x 76mm Drawers 2 x 155mm Drawers 1 x 234mm Drawer 4 x 125mm twin swivel castors; two locking, one directional Soft close drawers
Code
76mm Drawers
155mm Drawers
234mm Drawers
Total Drawers
Width
Depth
Height*
GC2490
2
2
1
5
932mm
524mm
1010mm
GC2690
0
3
1
4
932mm
524mm
1010mm
*Height is overall including castors
GC0810 - Viva Double Medical Cart The Double Viva Medication Cart provides large space for storage and organizes medicines easily and clearly. The key lock design secures all drawers, it also offers stable, smooth mobility and enhanced convenience with changeable accessories to meet your needs. Features • ABS Top • Central key lock control • Push handle • 4 x 125mm twin swivel castors; two locking, one directional • Drawer dividers available Width
Depth
Height*
1125mm
545mm
1010mm
*Height is overall including castors
GC0815 - Viva ICU Cart The Viva ICU Cart provides large space for storage and organises medicines and equipment easily and clearly. With a mix of open shelves for easy access and lockable drawers, it offers convenience for your needs. Features • ABS top with slide out work surface • Central key lock control drawers • Adjustable open shelves • Push handle • 4 x 125mm twin swivel castors; two locking, one directional Width
Depth
Height*
1125mm
545mm
1010mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
91
M E D I CA L CA RTS & T RO L L E YS
Procedure Carts Viva Mini Cart The Viva Mini Cart is designed with smaller overall dimensions than the regular procedure cart. This is ideal for areas with limited space and those seeking a cost effective option. Features • ABS top • ABS Protection bumpers • Central key lock control
• •
GC1440
4 x 100mm Castors; two locking Dividers available
GC1450
GC1460
Code
76mm Drawer
155mm Drawer
234mm Drawer
Total Drawers
Width*
Depth*
Height**
GC1440
3
1
1
5
520mm
540mm
867mm
GC1450
2
2
1
5
520mm
540mm
946mm
GC1460
3
2
1
6
520mm
540mm
1025mm
*Including bumper
**Height is overall including castors
Viva Narrow Cart The Viva Narrow Cart is designed with smaller overall dimensions than the regular procedure cart. This is ideal for areas with limited space. It provides convenient storage and easy manoeuvrability. Features • ABS top with slide out work surface • ABS Protection bumpers • Central key lock control • Push handle
GC1500
4 x 100mm Castors; two locking Dividers available Soft close drawers
GC1480
GC1490
Code
76mm Drawer
155mm Drawer
234mm Drawer
Total Drawers
Width*
Depth*
Height**
GC1500
1
2
1
4
520mm
542mm
900mm
GC1480
2
2
1
5
520mm
542mm
977mm
GC1490
3
2
1
6
520mm
542mm
1056mm
*Including bumper
92
• • •
**Height is overall including castors
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Procedure Carts Viva Aluminium Narrow Cart The Aluminium Narrow Cart has many of the same features as the traditional Viva Narrow cart, yet with sleek lines, contemporary handles and a lightweight body for a greater ease of use. Features • ABS top with slide out work surface • Central key lock control • Push handle • 4 x 100mm twin swivel castors; two locking • Soft close drawers
Code
76mm Drawer
155mm Drawer
234mm Drawer
Total Drawers
Width*
Depth*
Height**
GC1560
White
2
2
1
510mm
542mm
977mm
GC1540
Light Blue
2
2
1
510mm
542mm
977mm
GC1550
Pink
2
2
1
510mm
542mm
977mm
GC1530
Lavender
2
2
1
510mm
542mm
977mm
*Including bumper
**Height is overall including castors
Viva Storage Cart • • • • • •
ABS top with Slide out work surface Central key lock for drawers Separate Key lock for Cupboard Push Handle Adjustable shelf in cupboard space 4x 125mm twin swivel castors; two locking, one directional
GC1860
GC1880
GC1890
Code
76mm Drawer
Cupboard
Width
Depth
Height*
GC1860
1
1
690mm
520mm
930mm
GC1880
2
1
690mm
520mm
1010mm
GC1890
3
1
690mm
520mm
1085mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
93
M E D I CA L CA RTS & T RO L L E YS
Procedure Carts GC2750 - Viva Narrow Storage Cart • • • • • •
ABS top with Slide out work surface Central key lock for drawers Separate Key lock for cupboard Push Handle Adjustable shelf in cupboard space 4 x 100 mm twin swivel castors; two locking, one directional
Paediatric Carts GC3600 - Avalo Paediatric Crash Cart Designed for use with the proven clinical methodology for treating life-threatening emergencies in paediatric patients. With colour-coded drawers, doctors and clinicians can swiftly identify critical supplies when every second matters. Contents are secured with a breakaway locking, providing immediate access in urgent situations with a simple swift motion. • • • • • •
Precision-welded steel frame with durable, high-impact panels Lightweight design and profile simplify movement and steering Smooth panels, work surface and seamless drawers promote simple cleaning for infection prevention Delivered fully assembled, no tools required 10-year limited warranty – structure 2-year limited warranty - key locking mechanism, castors, draw runner system.
GZ4540 - Optional Accessory Package • Tamper Evident Seals (100) • Oxygen Tank Holder • Cardiac Board • Difibrillator Shelf • IV Pole • 3” Drawer Dividers (Set of 2)
94
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Isolation Carts Viva Isolation Cart The bright yellow colour of the Viva Isolation Cart is synonymous with the high risk infection control areas in the facility. Safe and dust free storage of clean gowns, caps, gloves etc provide peace of mind for staff and visitors. Features • ABS top with slide-out work surface • Divider in two drawers • Central key lock control • Push handle • 4 x 125mm Twin swivel castors; two locking, one directional • Soft close drawers GZ2680 - Optional Isolation Accessory Package • Waste container set & lid • Multi-storage basket • Glove dispenser • Cart is also available without the above accessory package
GC1030
GC1040
GC1050
GC1060
Code
76mm Drawer
155mm Drawer
234mm Drawer
Total Drawers
Width
Depth
Height*
GC1030
1
0
2
3
690mm
520mm
850mm
GC1040
0
1
2
3
690mm
520mm
930mm
GC1050
0
0
3
3
690mm
520mm
1010mm
GC1060
1
0
3
4
690mm
520mm
1085mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
95
M E D I CA L CA RTS & T RO L L E YS
Isolation Carts Avalo Isolation Cart Designed with storage space a priority, this cart allows you to keep all your isolation supplies neatly organised and easily accessible with drawers that open fully so you can reach contents in the rear effortlessly. Smooth panels, work surface and seamless drawers promote simple cleaning for infection prevention. Drawers stay securely closed during motion. Features • Precision-welded steel frame with durable, high-impact panels • Lightweight design and profile simplify movement and steering • Smooth panels, work surface and seamless drawers promote simple cleaning for infection prevention • Delivered fully assembled, no tools required • 10-year limited warranty – structure • 2-year limited warranty - key locking mechanism, castors, draw runner system. GZ4560 - Optional Accesory Package • Waste Bin with Lid • 3” Drawer Divider (1) • Writing Surface
Code
3” Drawer
6” Drawer
10” Drawer
Total Drawers
Width
Depth
Height*
GC4300
0
0
3
3
790mm
610mm
910mm
*Height is overall including castors
Isomed Mobile PPE Station • • • •
Acrylic PPE system offers five individual spaces for dispensing gloves (3 packs), masks and gowns Height adjustable and features an IV pole, with a selection of base choices, each with 5 castors Mobile stainless steel model (GB0310) features a stackable base which is ideal if storage space is at a premium Mobile acrylic system is mounted to pole with clamps. This can be removed and converted to wall mounted system or as a single IV pole with ease
Models Available GB0290 Wall Mounted, No IV Pole, No Base GB0320 Chrome Steel IV Pole, Nylon Base GB0300 Stainless IV Pole, Alloy Base GB0310 Stainless IV Pole, Stainless Steel Base, Stackable
96
AC U T E CA R E
Length
900mm
Width
280mm
Depth
110mm
Glove Dispenser Width
140mm
Mask Dispenser Width
195mm
Gown Dispenser Width
245mm
Overall Height of IV Pole
1540mm
M E D I CA L CA RTS & T RO L L E YS
Isolation Carts GB0570 Provita Hygiene Centre • • • • •
Enables professional compliance with strict hygiene requirements Flexible convenient use Stainless steel and aluminium construction 80mm castors, 2 locking Made in Germany Length
1500mm
Base Diameter
630mm
Small Stainless Steel Utensils Basket
300 x 200 x100mm
Stainless Steel Storage Basket
450 x 450 x 150mm
Drip Bowl
2 Litres
Glove Dispenser
2 Boxes
Disinfectant Dispenser
500ml bottles
Medication Carts GC5100 - Avalo ACM The perfect solution for hospital environments, combining cutting-edge design with ample capacity and easy manoeuvrability. Customise your medication control with a choice of cassette size, ensuring highly secure and organised medication management. Despite its compact design, these carts offer generous storage and remain lightweight, making it easy for healthcare personnel to handle. • • • • •
Keyless locking system 2 x 3” drawer 1 x 10” drawer 1 x 5.5”’ two tier cassette package 1 x 5’’ three tier cassette package
• • • •
2 x 3” utility drawer 1 x 6” utility drawer 2 x 10” utility drawer Light Créme colour
GC5000 - Avalo ACS9 The perfect solution for hospital environments, combining cutting-edge design with ample capacity and easy manoeuvrability. Customise your medication control with a choice of cassette size, ensuring highly secure and organised medication management. Despite its compact design, these carts offer generous storage and remain lightweight, making it easy for healthcare personnel to handle. • • • •
Keyless locking system 2 x 3” main drawer 1 x 10” main drawer 2 x 8” ac two tier cassette package
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
97
M E D I CA L CA RTS & T RO L L E YS
Medication Carts GC1990 - Viva Medication Cart - Double Sided 4 Drawer The Viva 4 Drawer Double Sided Medication Cart is designed to make the supply of medication simple and efficient. Sturdy, interchangeable drawers and dividers provide a variety of compartments which can easily accommodate medication packs of various sizes. Features • Drawer access on both sides • ABS top & push handles • Aluminium side frames • Central key lock control • Storage shelf • 4 x 100mm swivel castors; two locking, one directional
ABS Bin 76mm W112 x D215 x H76mm
ABS Bin 155mm W112 x D215 x H155mm
Drawers
76mm Bins
155mm Bins
Width
Depth
Height*
Height (inc. push handle)
4
20
20
900mm
490mm
950mm
1090mm
*Height is overall including castors
Viva Medication Cart - Double Sided 8 and 10 Drawer The Viva 8 & 10 Drawer Double Sided Medication Carts are designed making the supply of medication fast and efficient. Strong changeable drawers and dividers provide a variety of large and small spaces which can easily accommodate supplies of all sizes. Features • Drawer access on both sides (bin drawers only) • ABS top & push handles • Aluminium side frames • Central key lock control • 4 x 100mm swivel castors; two locking, one directional
ABS Bin 76mm W112 x D215 x H76mm
ABS Bin 155mm W112 x D215 x H155mm
Code
Drawers
76mm Bins
155mm Bins
234mm Drawer
Width
Depth
Height*
Height (inc. push handle)
GC2000
8
20
10
1
760mm
490mm
950mm
1090mm
GC2010
10
40
10
1
760mm
490mm
950mm
1090mm
*Height is overall including castors
98
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Medication Carts GC0650 - Viva 30 Dosage Medication Cart The Viva 30 Dosage Medication Cart is double sided making the supply of medicines fast and efficient. Features • ABS top with slide - out work surface • 30 x 155mm ABS Bins with acrylic divider • 1 x 234mm Drawer
Top View
• • •
Width
Depth
Height*
690mm
540mm
1100mm
Central key lock control Push Handle 4 x 125mm swivel castors: two locking, one directional
*Height is overall including castors
GC1420 - Viva Medication Cart The Viva Medication Cart is designed to make the supply of medicines fast and efficient. The convenient drawer sizes make this a very ideal and practical option for the dispensing, storage and transportation of medication. Features • ABS top & push handles • Aluminium side frames • Central key lock control • 2 x 76mm Drawers • 1 x 155mm Drawer
• • •
Storage shelf 4 x 100mm swivel castors; two locking, one directional Drawer dividers available
Width
Depth
Height* (inc. Push Handle)
Work Surface Height
900mm
490mm
930mm
800mm
*Height is overall including castors
GC1340 - Viva Medication Cart The Viva Medication Cart is designed to make the supply of medicines fast and efficient. The convenient drawer sizes make this a very ideal and practical option for the dispensing, storage and transportation of medication. Features • ABS top & push handles • Aluminium side frames • Central key lock control • 2 x 76mm Drawers • 1 x 155mm Drawer
• • •
1 x 234mm Drawer 4 x 100mm swivel castors; two locking, one directional Drawer dividers available
Width
Depth
Height*
690mm
520mm
1010mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
99
M E D I CA L CA RTS & T RO L L E YS
Medication Carts Viva Medication Cart - Blue/White/Lavender • • • • •
ABS top with slide out work surface Central key lock control Push handle 3 x 155mm Drawers 1 x 234mm Drawer
• • • •
4 x 125mm Twin swivel castors; two locking, one directional Soft close drawers Dividers in each drawer Also available with aluminium drawers Code: GC1350 (Blue)
Code
Colour
Width
Depth
Height*
GC1390
Blue
690mm
520mm
1010mm
GC1410
White
690mm
520mm
1010mm
GC1400
Lavender
690mm
520mm
1010mm
*Height is overall including castors
Viva Stock Cart - Single • • • •
Tray access both sides of cart ABS Trays 600mm x 400mm Dividers available Accommodates removable ABS trays and/or wire baskets (Total combination to equal internal height)
• •
Trays, baskets and dividers purchased separately 4 x 100mm swivel castors; two locking, one directional
Code
Push Handle
Width
Depth
Height*
71mm Trays
150mm Trays
Internal Height
GC1830
N/A
660mm
410mm
825mm
2
2
457mm
GC1840
Included
660mm
410mm
1070mm
2
3
610mm
GC1850
N/A
660mm
410mm
1455mm
2
6
1076mm
*Height is overall including castors
Viva Stock Cart - Double • • • •
Tray access both sides of cart • ABS Trays 600mm x 400mm • Dividers available Accommodates removable ABS trays and/or wire baskets (Total combination to equal internal height) Code
Push Handle
Width
Depth
Height*
71mm Trays
150mm Trays
Internal Height
GC1810
N/A
895mm
610mm
665mm
4
4
457mm
GC1790
Included
895mm
610mm
915mm
4
6
610mm
GC1800
N/A
895mm
610mm
1300mm
4
12
1076mm
*Height is overall including castors
100
AC U T E CA R E
Trays, baskets and dividers purchased separately 4 x 100mm swivel castors; two locking, one directional
M E D I CA L CA RTS & T RO L L E YS
Medication Carts Transportation Cart • • • • •
Locking Bar
Available with locking bar or shutter • option • Ideal for storage and transport of medications and supplies Easy close lightweight ABS shutter to • protect contents during transportation Central key lock • ABS top with slide out work surface
Push handle Accommodates removable ABS trays and/or wire baskets (Total combination to equal internal height) Trays, baskets and dividers not included 4 x 125mm swivel castors; two locking, one directional
Code
Type
Width
Depth
Height*
Internal Height
GC1950
Shutter
716mm
520mm
945mm
533mm
GC1960
Shutter
716mm
520mm
1025mm
610mm
GC1970
Shutter
716mm
520mm
1105mm
686mm
GC1910
Locking Bar
716mm
520mm
945mm
533mm
GC1920
Locking Bar
716mm
520mm
1025mm
610mm
GC1930
Locking Bar
716mm
520mm
1105mm
686mm
*Height is overall including castors
I.T Equipment Carts i-Move The i-Move is an affordable, gas assisted height adjustable rounds trolley. When it comes to moving laptops, tablets or simply pens and paper along with other clinical items, traditionally metal dressing trolleys have been used. The i-Move is light and easy to move, unobtrusive in tight spaces and you can comfortably sit or stand at it. Included is a convenient storage shelf and our ability to customise the top size and shape to totally suit your requirements. Features • Electric high/low functions • Compact, easy to clean top • Size: 550mm wide x 560mm deep • Rebated to prevent items from sliding off • Convenient 110mm storage shelf with lip • Gas height adjustable from 810mm to 1110mm • Fully customisable top • 75mm diameter twin wheel castors
Options Available • Kensington computer lock • Storage compartment • Tablet mount • Custom top size • Power cord securing bracket Models Available GC2190 - With Shelf GC2195 - Without Shelf
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 01
M E D I CA L CA RTS & T RO L L E YS
I.T Equipment Carts GC1140 - IT Equipment Cart • • • • • •
4 x 100mm Swivel castors; two locking Aluminium mount profile Powder coated metal drawer/shelf ABS shelves and base cover Auto return drawer glides Cart weight 48kg
• • •
Drawer load limit 10kg Shelf load limit 20kg Computer not included
Options Available Adjustable Height Monitor Stand - Foot Operated. (GC1150)
Specifications
Width
Depth
Height*
Cart dimensions*
500mm
610mm
1350mm
Drawer dimensions 1+2
350mm
270mm
85mm
Drawer dimensions 3+4
350mm
275mm
170mm
Shelf dimensions
455mm
360mm
30mm
*Height is overall including castors
GC0225 - Viva Hybrid Narrow Cart The Viva Hybrid range of specialised carts assisting the secure and safe medication management of patients in the hospital, medical and other clinical environments. Features • ABS top with slide out work surface • Aluminium Construction • Central Key Lock control • Top keyboard drawer • 1 x 76mm Drawer • 2 x 155mm Drawers
• • • •
1 x 234mm Drawer 4 x 125mm Twin swivel castors; two locking, one directional Soft close drawers Shown with monitor (not included) viva cart accessory options suit this cart
Width
Depth
Height*
520mm
542mm
977mm
*Height is overall including castors
GC1130 - IT Equipment Cart • • • • •
4 x 100mm Swivel castors; two locking Aluminium mount Powder coated metal shelves Powder coated steel push handle ABS shelves and base cover Specifications
Width
Depth
Height*
Load Limit
Cart dimensions*
500mm
610mm
1350mm
20kg
Shelf dimensions
455mm
360mm
30mm
20kg
*Height is overall including castors
1 02
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
I.T Equipment Carts GC1120 - IT Equipment Cart • • • • • • •
4 x 100mm Swivel castors; two locking Aluminium mount Powder coated metal drawer/shelf Adjustable shelves ABS shelves and base cover Auto return drawer glides Drawer load limit 10kg Specifications
Width
Depth
Height*
Load Limit
Cart dimensions*
500mm
610mm
1350mm
20kg
Drawer dimensions
380mm
300mm
85mm
20kg
Shelf dimensions
455mm
360mm
30mm
20kg
*Height is overall including castors
GC1110 - IT Equipment Cart • • • • • •
4 x 100mm Swivel castors; two locking Aluminium mount Powder coated metal drawer/shelf ABS shelves and base cover Auto return drawer glides Drawer load limit 10kg Specifications
Width
Depth
Height*
Load Limit
Cart dimensions*
500mm
610mm
1350mm
20kg
Drawer dimensions
380mm
300mm
85mm
20kg
Shelf dimensions
455mm
360mm
30mm
20kg
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 03
M E D I CA L CA RTS & T RO L L E YS
I.T Equipment Cart Options GZ1970 - Probe Holder • • •
GZ1950 - Bottle Holder Mounts to cabinet side Steel construction with powder coat finish Holds probes up to: Width 43 x Length 260 x Height 90mm
GZ1990 - Basket
• • •
Mounts to cabinet side Steel construction with powder coat finish Holds bottle diameter up to: Width 54 x Length 54 x Height 89mm
GZ2100 - Notebook holder • • •
Mounts to aluminium central post Steel construction with PVC finish 200 x 200 x 150mm
• • • • • •
Mounts to aluminium central post Aluminium construction Rotation 270° Pivot 180° Adjustable fixings to retain computer Weight capacity 8kg
GZ2090 - Monitor holder set - Short arm
GZ2080 - Monitor holder set - Long arm
• •
• •
• • • •
Mounts to aluminium central post Aluminium construction with grey painted finish Multi adjustable arm Maximum Length: 250mm Weight capacity: 10kg Monitor not included
GZ2070 - Keyboard and Mouse holder • • • • •
1 04
AC U T E CA R E
Mounts to aluminium central post Aluminium construction Angle adjustable Fits most keyboards Keyboard and mouse not included
• • • •
Mounts to aluminium central post Aluminium construction with grey painted finish Multi adjustable arm Maximum Length: 250mm Weight capacity 10kg Monitor not included
GZ1980 - Push Handle • • • •
Mounts to aluminium central post Steel construction with Powder coat finish Handle width 435mm Handle diameter 25mm
M E D I CA L CA RTS & T RO L L E YS
Instrument & Dressing Trolleys Viva Instrument Trolley • • • • •
2 shelves, no rails Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges 4 x 100mm castors (2 locking) 304 grade stainless steel construction - satin finish Code
Width
Depth
Height*
GD0870
490mm
490mm
900mm
GD0880
600mm
490mm
900mm
GD1040
750mm
490mm
900mm
GD0890
900mm
490mm
900mm
*Height is overall including castors
Viva Instrument Trolley - Large • • • • •
2 Shelves, no rails Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges 125mm ball bearing fork castors with grey rubber wheels 304 grade stainless steel construction - Satin finish Code
Width
Depth
Height*
GD0920
1000mm
490mm
900mm
GD0940
1200mm
490mm
900mm
GD0930
1000mm
600mm
900mm
GD1050
1200mm
600mm
900mm
*Height is overall including castors
Viva Instrument Trolley with Rails • • • • •
2 Shelves, with rails Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges 4 x 100mm Castors (2 locking) 304 Grade stainless steel construction - Satin finish Code
Width
Depth
Height*
GD0900
490mm
490mm
970mm
GD1060
600mm
490mm
970mm
GD0910
750mm
490mm
970mm
GD1070
900mm
490mm
970mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 05
M E D I CA L CA RTS & T RO L L E YS
Instrument & Dressing Trolleys Viva Instrument Trolley - With Rails - Large • • • • •
2 Shelves, with rails Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges 125mm Ball bearing fork castors with grey rubber wheels (2 locking) 304 Grade stainless steel construction - Satin finish Code
Width
Depth
Height*
GD1080
1000mm
490mm
970mm
GD0860
1200mm
490mm
970mm
GD1090
1000mm
600mm
970mm
GD1100
1200mm
600mm
970mm
*Height is overall including castors
Viva Dressing Trolley – 1 Drawer • • • • • •
1 x 125mm Drawer with full extension runners Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges Work surface with 3 rails, Lower shelf with 3 rails 4 x 100mm Castors (2 locking) 304 Grade stainless steel construction - Satin finish Code
Width
Depth
Height*
GD0840
490mm
490mm
970mm
GD0950
600mm
490mm
970mm
GD0850
750mm
490mm
970mm
GD0960
900mm
490mm
970mm
*Height is overall including castors
Viva Dressing Trolley - 2 Drawer • • • • • •
2 x 125mm Drawers with full extension runners Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges Work surface with 3 rails, Lower shelf with 3 rails 4 x 100mm Castors (2 locking) 304 Grade stainless steel construction - Satin finish Code
Width
Depth
Height*
GD0970
490mm
490mm
970mm
GD0370
600mm
490mm
970mm
GD0790
750mm
490mm
970mm
GD0980
900mm
490mm
970mm
*Height is overall including castors
106
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Instrument & Dressing Trolleys Viva Series Dressing Trolley - 3 Drawer • • • • • •
3 x 125mm Drawers with full extension runners Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges Work surface with 3 rails, Lower shelf with 3 rails 4 x 100mm Castors (2 locking) 304 Grade stainless steel construction - Satin finish Code
Width
Depth
Height*
GD0990
490mm
490mm
970mm
GD1000
600mm
490mm
970mm
GD1010
750mm
490mm
970mm
GD0800
900mm
490mm
970mm
*Height is overall including castors
Viva Series Dressing Trolley - 4 Drawer • • • • • •
4 x 125mm Drawers with full extension runners Full under bracing support for all shelves providing maximum stability & strength Double safety folds to all shelf edges Work surface with 3 rails 125mm Ball bearing fork castors with grey rubber wheels (2 locking) 304 Grade stainless steel construction - Satin finish Code
Width
Depth
Height*
GD0810
490mm
490mm
970mm
GD0820
600mm
490mm
970mm
GD0830
750mm
490mm
970mm
GD1030
900mm
490mm
970mm
*Height is overall including castors
GC0420 - Resuscitation Trolley • • • • •
2 x 125mm Half width drawers Work Surface with 3 Rails 1 x Shelf with 3 Rails, 4 x 125mm Castors (2 Locking) Full under bracing support for all shelves providing maximum stability & strength 304 Grade stainless steel construction - Satin finish Width
Depth
Height*
800mm
490mm
970mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 07
M E D I CA L CA RTS & T RO L L E YS
Instrument & Dressing Trolleys GC0560 - Resuscitation Trolley • •
1 x Shelf with 3 Rails , 4 x 125mm Half width drawers Full under bracing support for all shelves providing maximum stability & strength
• • •
Double safety folds to all shelf edges 4 x 125mm Castors (2 Locking) 304 Grade stainless steel construction - Satin finish
Width
Depth
Height*
800mm
490mm
970mm
*Height is overall including castors
GC0580 - Resuscitation Trolley • • •
1 x Shelf with 3 Rails , 4 x 125mm Half width drawers 1 x Full width drawer – 125mm Full under bracing support for all shelves providing maximum stability & strength
• • •
Double safety folds to all shelf edges 4 x 125mm Heavy duty castors (2 Locking) 304 Grade stainless steel construction - Satin finish
Width
Depth
Height*
800mm
490mm
970mm
*Height is overall including castors
GC0620 - Resuscitation Trolley • • •
6 x 125mm half width drawers 1 x 250mm full width drawers Double safety folds to all shelf edge
• •
4 x 125mm Heavy duty castors (2 Locking) 304 Grade stainless steel construction - Satin finish
Width
Depth
Height*
800mm
490mm
970mm
*Height is overall including castors
Linen Trolleys & Equipment Classic Single Linen Skip • •
1 08
AC U T E CA R E
For soiled linen 75mm forked castors (2 Locking) Code
Lid
Width
Depth
Height
DA0370
No
900mm
490mm
900mm
DA0380
Yes
900mm
490mm
900mm
M E D I CA L CA RTS & T RO L L E YS
Linen Trolleys & Equipment Classic Double Linen Skip • •
For soiled linen 75mm forked castors (2 Locking) Code
Lid
Width
Depth
Height
DA0350
No
780mm
540mm
850mm
DA0360
Yes
780mm
540mm
850mm
Classic Triple Linen Skip • •
For soiled linen 75mm forked castors (2 Locking) Code
Lid
Width
Depth
Height
DA0390
No
1170mm
540mm
850mm
DA0400
Yes
1170mm
540mm
850mm
DA0970 - Single Half Linen Skip - No Lid • • •
For Soiled Linen 75mm forked castors (2 Locking) Elevated bag support Width
Depth
Height
380mm
540mm
850mm
DA1010 - Double Half Linen Skip - No Lid
• • •
For soiled linen 775mm forked castors (2 Locking) Elevated bag support Width
Depth
Height
1170mm
540mm
850mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 09
M E D I CA L CA RTS & T RO L L E YS
Linen Trolleys & Equipment DA01080 - Linen Skip - Double With Bin • • •
Stainless steel construction 4 x 125mm castors Side mounted bin
• •
Ideal for colour coding soiled linen Durable cotton material
Soiled Linen Bags Code
Colour
DA1040
White
DA1030
Red
DA0460
Blue
DZ0590
Yellow
DZ0600
Green
Clean Linen Trolleys DA0830 - Mesh Clean Linen Trolley • • • •
Stainless steel construction 3 shelves Mesh sides & back 125mm locking castors
Width
Depth
Height
1200mm
500mm
1400mm
DA0420 - Viva Clean Linen Trolley • • • • •
For clean linen Powder coated steel 2 x push handles Shelf dimensions 1000mm width x 500mm length 4 x 150mm swivel castors; 2 of which are locking
Options Available DA0410 front PVC hygiene cover to suit
110
AC U T E CA R E
Width
Length
Height
550mm
1000mm
1430mm
M E D I CA L CA RTS & T RO L L E YS
Soiled Linen Trolleys Moist Linen Trolley • • •
Durable rotomoulded plastic tub Galvanised sheet metal base frame 125mm rubber swivel castors (2 x Fixed and 2 x Swivel on DA0260 model) Code
Capacity
Width
Length
Height
DA0240
340 Litres
710mm
1000mm
780mm
DA0250
450 Litres
730mm
1280mm
840mm
DA0260
650 Litres
930mm
1530mm
840mm
Wet & Dry Linen Trolley • • • • •
Mesh sided basket Spring loaded base Corner buffers and push handle Powder coated steel finish 125mm swivel castors Code
Model
Width
Length
Height
DA0440
Small
600mm
900mm
1020mm
DA0430
Large
650mm
1200mm
1050mm
DA0270 - Spring Base for Linen Trolley - Rising Spring Type • • • •
Folded sheet metal top 4 or 6 stainless steel springs Vinyl spring covers Suits 340 and 450 litre tubs only Width
Length
Height
600mm
1200mm
30mm
Spring Base for Linen Trolley - Coil Type • • •
Strong scissor action lift Galvanised sheet metal frame 50/70/100 kg capacity coil spring Code
Model
Width
Length
Height
DA0340
PVC Top
760mm
430mm
600mm
DA0330
Galvanised Top
760mm
430mm
600mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
111
M E D I CA L CA RTS & T RO L L E YS
Waste Equipment Waste Bag Holder • • • • • •
Stainless steel body with powder coated lid Designed for use with wide plastic bags Solid platform to support waste bags Bag holder 350 x 235mm Incorporated clip holds bag securely 50mm castors Code
Pedal Operated Lid
Width
Depth
Height
DD0050
Yes
410mm
280mm
810mm
DD0040
No Lid
410mm
280mm
810mm
Service Trolleys Service Cart - 2 Shelf • •
2 x Polypropylene shelves and handles, 4 x Aluminium frames 4 x 100mm Castors, 2 locking
Also Available DB0120 Includes side panels on 3 sides (not shown)
Code
Side Panels
Tray Size
Width
*Overall Width
Depth
**Overall Height
DB0110
No
720 x 450mm
760mm
900mm
490mm
1025mm
DB0120
Yes
720 x 450mm
760mm
900mm
490mm
1025mm
*Overall width includes handles **Height is overall including castors
Service Cart - 2 Shelf & 2 Drawers • • •
2 x Polypropylene shelves and handles, 4 x Aluminium frames 4 x 100mm Castors, 2 locking 2 x Drawers W285 wide x L390mm
Also Available DB0100 Includes side panels on 3 sides (not shown)
Code
Side Panels
Tray Size
Width
*Overall Width
Depth
**Overall Height
DB0090
No
720 x 450mm
760mm
900mm
490mm
1025mm
DB0100
Yes
720 x 450mm
760mm
900mm
490mm
1025mm
*Overall width includes handles **Height is overall including castors
1 12
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Service Trolleys Service Cart - 3 Shelf • • •
3 x Polypropylene shelves, 2 x Polypropylene handles 4 x Aluminium frames 4 x 100mm Castors, 2 locking
Also Available DB0130 Includes side panels on 3 sides (see inset image)
Code
Side Panels
Tray Size
Width
*Overall Width
Depth
**Overall Height
DB0150
No
720 x 450mm
760mm
900mm
490mm
1040mm
DB0130
Yes
720 x 450mm
760mm
900mm
490mm
1040mm
*Overall width includes handles **Height is overall including castors
Service Cart - 3 Shelves & 2 Drawers • • • •
3 x Polypropylene shelves , 2 x Polypropylene handles 4 x Aluminium frames 4 x 100mm Castors, 2 locking 2 x Drawers W285 wide x L 390mm
Also Available DB0140 Includes side panels on 3 sides (not shown)
Code
Side Panels
Tray Size
Width
*Overall Width
Depth
**Overall Height
DB0160
No
720 x 450mm
760mm
900mm
490mm
1040mm
DB0140
Yes
720 x 450mm
760mm
900mm
490mm
1040mm
*Overall width includes handles **Height is overall including castors
DB0200 - Utility Cart - 2 Shelves • • •
2 x Polypropylene shelves and handles 4 x Aluminium frames 4 x 100mm Castors, 2 locking Tray Size
Width
Depth
*Overall Height
620 x 450mm
790mm
480mm
1040mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
113
M E D I CA L CA RTS & T RO L L E YS
Service Trolleys DB0190 - Utility Cart Narrow - 3 Shelves • • •
3 x Polypropylene shelves , 2 x Polypropylene handles 4 x Aluminium frames 4 x 75mm Castors, 2 locking Tray Size
Width
Depth
*Overall Height
485 x 365mm
655mm
370mm
966mm
*Height is overall including castors
DB0190 - Utility Cart Narrow - 3 Shelves • • •
3 x Polypropylene shelves, 2 x Polypropylene handles 4 x Aluminium frames 4 x 100mm Castors, 2 locking Tray Size
Width
Depth
*Overall Height
620 x 450mm
790mm
480mm
1090mm
*Height is overall including castors
Utility Cart Wide- 3 Shelves • • • •
3 x Polypropylene shelves 2 x Polypropylene handles 4 x Aluminium frames 4 x 100mm Castors, 2 locking
Also Available DB0180 Includes side panels on 3 sides (see inset image)
Code
Side Panels
Tray Size
Width
*Overall Width
Depth
**Overall Height
DB0170
No
915 x 520mm
1100mm
520mm
1110mm
1040mm
DB0180
Yes
915 x 520mm
1100mm
520mm
1120mm
1040mm
*Overall width includes handles
*Height is overall including castors
DB0030 - Classic Multi Purpose Trolley • • • • •
Stainless steel construction 2 x Shelves Easy to clean edges 4 x 125mm castors Rubber corner bumpers Width
Depth
*Overall Height
900mm
490mm
900mm
*Height is overall including castors
114
AC U T E CA R E
M E D I CA L CA RTS & T RO L L E YS
Service Trolleys DB0020 - Classic Multi Purpose Trolley • • • • •
Stainless steel construction 3 x Shelves Easy to clean edges 4 x 125mm castors Rubber corner bumpers Width
Depth
*Overall Height
900mm
490mm
900mm
*Height is overall including castors
GZ1810 - Waste Bin • • •
Heavy duty polypropylene material Easy to remove for cleaning 19 Litre capacity Width
Depth
Height
255mm
365mm
460mm
DB0360 - X Cart with Basket The X Cart can be completely collapsed by the push of a button on the handle. The wheels are able to be removed by the push of a button and stored underneath for compact transport and storage. The top platform can be folded back to allow larger items to be transported. The basket has foolscap/file suspension capability great for transporting documents. Also Available DZ0004 Extra Basket
Cart Dimensions Overall Length Assembled Overall Width Assembled Overall Height Assembled
Basket Dimensions
Specifications
1000mm
Overall Length
560mm
600mm
Overall Width
400mm
1070mm
Overall Height
260mm
Total Trolley Weight Total Basket Weight Total Trolley Capacity Top Shelf Capacity Bottom Shelf Capacity
1 30 0 930 930
10kg
1.8kg
90kg
40kg
50kg
A L P H A L I F E CA R E .C O M . AU
115
M E D I CA L CA RTS & T RO L L E YS
File Carts GC2450 - Viva Narrow File Cart The Viva Narrow File Cart is designed with smaller overall dimensions than the regular file cart. This is ideal for areas with limited space. It provides convenient storage and easy manoeuvrability. Features • ABS top with slide-out work surface • ABS Protection bumpers • Central key lock control • 4 x 100mm Twin Wheel Castors; two locking • 1 x 76mm Drawer • 2 x File Drawers
Width
Depth
Height*
520mm
540mm
927mm
*Height is overall including castors
GC0300 - Open Top File Cart The Viva top open file cart is ideal for metal hanging files. Lockable top file receptacle with a 76mm drawer and bottom file drawer make this a large capacity file cart. Features • Locking top slider doors • Central Key lock control • Push Handle • 1 x 76mm Drawer • 1 x File Drawer • 4 x 125mm Castors; two locking, one directional
Width
Depth
Height*
520mm
540mm
927mm
*Height is overall including castors
GC1000 - Viva File Cart • • • • • • •
ABS top with slide out work surface Central key lock control Push handle 2 x 310mm Drawers 4 x 125mm Twin swivel castors; two locking, one directional Supplied with suspension file hanging rails Folders not included
Width
Depth
Height*
690mm
520mm
930mm
*Height is overall including castors
GC0990 - Viva File Cart • • • • • • • •
116
AC U T E CA R E
ABS top with slide out work surface Central key lock control Push handle 400mm Lift up door with handle 310mm Drawer 4 x 125mm Twin swivel castors; two locking, one directional Supplied with suspension file hanging rails Folders not included
Width
Depth
Height*
690mm
520mm
1010mm
*Height is overall including castors
M E D I CA L CA RTS & T RO L L E YS
File Carts GC1010 - File Cart • • • • • •
For Binder/Folder use ABS top with slide out work surface Separate key lock control on each door Push handle 2 x 400mm Lift up door with handle 4 x 125mm Twin swivel castors; two locking, one directional Width
Depth
Height*
690mm
520mm
1085mm
*Height is overall including castors
Chart Trolleys GD0170 - Chart Trolley Small • • • • • •
Stainless steel construction Capacity: 10-12 Charts (not included) Push handle to one end Lower storage shelf Corner buffers 4 x 125mm castors Width
Depth
Height*
420mm
500mm
900mm
*Height is overall including castors
GC0440 - Chart Trolley Large • • • • • •
Stainless steel construction Capacity: 22-24 Charts (not included) Push handle to one end Lower storage shelf Corner buffers 4 x 125mm castors Width
Depth
Height*
805mm
530mm
900mm
*Height is overall including castors
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
117
M E D I CA L CA RTS & T RO L L E YS
I.V Poles GB0141 - IV Stand Mobile with Nylon Base • • • • •
2 Hook design Adjustable height 1420-2200mm 600mm nylon base Stainless steel pole 50mm castors
GB0142 - IV Stand Mobile with Alloy Base • • • • •
2 Hook design Adjustable height 1420-2200mm Durable 600mm alloy base Stainless steel pole 50mm castors
GB0144 - IV Stand Mobile with Nylon Base • • • • •
4 Hook design Adjustable height 1420mm 2000mm Durable 600mm nylon base Non-removable stainless steel pole 50mm castors
GB0143 - IV Stand Mobile with Alloy Base • • • • •
4 Hook design Adjustable height 1420mm 2000mm Durable 600mm alloy base Non-removable stainless steel pole 50mm castors
GB0200 - Stainless Steel IV Pole Weighted Base • • • • •
GB0440 - IV Pole with 5 Star Base • • • • • •
AC U T E CA R E
Single handed height adjustment 50mm mono castors, 2 lockable 520mm diameter weighted base Stainless steel construction 2kg load per hook Height Adjustment - 1480 2110mm
GB0220 - Stainless Steel IV Pole - Stackable • • • •
2 Hook design Height: 1500mm - 2400mm Base Diameter: 530mm Ideal for wards and operating theatres
GB0500 - IV Pole with 5 Star Base - Stackable • • • • • • •
1 18
2 Hook design 304 Grade stainless steel Weighted base Stand height: 1600mm - 2100mm Base diameter: 560mm
Stainless steel construction Telescoping one hand operation 4 hook and IV holder 80mm castors, 2 with brake Colour coordinated Bases link together to save storage space Height Adjustment - 1360 2220mm
M E D I CA L CA RTS & T RO L L E YS
IV Poles Accessories GZ0650 - Push Handle • • • • •
GZ0640 - Oxygen Cylinder holder Adjustable height clamp Powdercoated metal – White Width: 310mm Depth: 295mm Tube: 28mm
GZ0620 - Glove dispenser • • • • •
• •
Adjustable height clamp with two restraining straps Suits C size
GZ0610 - Bottle Holder
Powder coated finish Adjustable height clamp Width: 270mm Depth: 110mm Height: 135mm
• • • • • •
1 30 0 930 930
Mesh basket divided to hold 3 bottles Powder coated finish Adjustable height clamp Width: 320mm Depth: 130mm Height: 80mm
A L P H A L I F E CA R E .C O M . AU
119
M E D I CA L CA RTS & T RO L L E YS
Theatre Trolleys & Equipment GF0320 - Nest of 3 Tables • • • •
Set of 3 Stack to occupy minimal space 75mm Castors 304 Grade Stainless steel construction – Satin finish Size
Width
Depth
Height
Small
840mm
490mm
840mm
Medium
940mm
510mm
880mm
Large
1000mm
600mm
900mm
GF0240 - Kick Bucket and Stand • • • •
Bucket Capacity 11.4 litre 300mm Diameter 4 x 50mm Castors 304 Grade Stainless steel construction – Satin finish
Options Available • GF0230 Separate bucket • GF0300 Lid for kick bucket
GF0220 - Bowl Stand • • • •
Suits 300mm diameter stainless steel bowl Height 910mm 4 x 50mm Twin castors 304 Grade stainless steel construction – Satin finish
Also Available • GF0230 Double bowl stand also available
GF0290 - General Purpose Equipment Trolley • • • • •
120
AC U T E CA R E
Work surface with 3 Rails 4 Swing out baskets 2 Fixed baskets 4 x 100mm Twin castors with 2 locking Powder coated frame Type
Width
Length
Height
Overall size
560mm
610mm
950mm
Swing Baskets
250mm
250mm
125mm
Fixed Baskets
100mm
500mm
100mm
M E D I CA L CA RTS & T RO L L E YS
Theatre Trolleys & Equipment GF0200 - Arm Table • • •
Adjustable height 2 x 75mm Twin castors 304 Grade stainless steel construction – Satin finish
Also Available • GF0190 Non-adjustable model Code
Width
Length
Height
GF0190
750mm
490mm
845 - 1100mm
GF0200
750mm
490mm
900mm
GF0310 - Lithotomy Table • • • •
Lip to 3 sides of work surface Adjustable height 4 x 75mm Twin castors 304 Grade stainless steel construction – Satin finish Width
Length
Height
750mm
490mm
730 - 950mm
GF0250 - Mayo Table • • • • •
Removable tray 3 Leg base Adjustable height 3 x 75mm Castors 304 Grade stainless steel construction – Satin finish Width
Length
Height
560mm
410mm
820 - 1120mm
GF0260 - Mayo Table • • • • •
Removable tray 4 Leg base Adjustable height 4 x 50mm Twin castors 304 Grade stainless steel construction – Satin finish Width
Length
Height
560mm
410mm
820 - 1120mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 21
M E D I CA L CA RTS & T RO L L E YS
Oxygen Trolleys Oxygen Bottle Trolley C & G Size • • • •
Robust design and construction Soft touch handle 150mm Heavy duty castors Bed hook available for transport Code
Finish
Cylinder Size
Handle Height
GE0030
Powder Coated
C size
1000mm
GE0040
Stainless Steel
C size
1000mm
GE0050
Powder Coated
G size
1000mm
GE0060
Stainless Steel
G size
1000mm
Oxygen Bottle Trolley D Size • • •
Robust design and construction Securing chain to attach cylinder 150mm Heavy duty castors Code
Finish
Cylinder Size
Handle Height
GE0150
Powder Coated
D size
1000mm
GE0160
Stainless Steel
D size
1000mm
Multi Stack Gas Cylinder Trolley • • •
122
AC U T E CA R E
Robust design and construction Ideal for storage and transportation of cylinders 150mm Heavy duty castors Code
Finish
Cylinder Size
Capacity
Handle Height
GE0090
Powder Coated
C size
9 Cylinders
1000mm
GE0100
Stainless Steel
C size
9 Cylinders
1000mm
GE0070
Powder Coated
C size
12 Cylinders
1000mm
GE0080
Stainless Steel
C size
12 Cylinders
1000mm
M E D I CA L CA RTS & T RO L L E YS
Medical Cart Accessories GZ1600 - Adjustable IV Pole • • •
Fits to rear of cart 2 Hooks Easy height adjustment
GZ1780 - Small Tilt Bin Organizer • • • • • •
• • • •
• • • •
• • • •
• • • •
Top accessory Requires accessory mount posts for mounting 5 bins Width: 603mm Depth: 106mm Height: 153mm
GZ1310 - Accessory Mount Posts • •
Used for mounting accessories(pr) Rear rail code: GZ2470
GZ1581 - Hand Sanitiser Holder • • • •
Fits to left side of Cart Height adjustable Suitable for Cutan Right side code GZ1582
GZ1610 - Monitor Holder Long Arm
Fits to left side of Cart Height adjustable Suitable for Avaguard Right side code GZ1579
GZ1700 - Monitor Holder Set – Short Arm • • • • •
• •
Requires an accessory bridge for mounting Set of five Width: 190mm Depth: 105mm Height: 75mm
GZ1580 - Hand Sanitiser Holder
Rotates 360° Locks tight Fits to rear of cart Width: 335mm Length: 335-415mm
GZ1770 - Large Tilt Bin Organizer
Top accessory Requires accessory mount posts for mounting 4 Bins Width: 603mm Depth: 123mm Height: 153mm
GZ1320 - Bulk Storage Bins •
• • • • •
Top accessory Requires accessory mount posts for mounting 12 Bins Width: 603mm Depth: 123mm Height: 153mm
GZ1760 - Extra Large Tilt Bin Organizer • •
GZ1370 - Defibrillator Shelf
• • • • •
Multi adjustable arm Maximum length 250mm Weight capacity 10kg Monitor not included Support holder not included
JB0100 - Cantilever Monitor Arm
Rotation 270° Pivot 180° Weight capacity 8kg Monitor not included Support holder not included
• • • •
1 30 0 930 930
Width: 413mm Depth: 113mm Height: 370mm Requires support holder GZ2425
A L P H A L I F E CA R E .C O M . AU
1 23
M E D I CA L CA RTS & T RO L L E YS
Medical Cart Accessories GZ2770 - Notebook Holder • • • • • •
Mounts to right side of cart Steel construction with powder coat finish Rotation 270° and Pivot 180° Fixings to retain computer Weight capacity 8kg Computer not included
GZ1360 - Computer Drawer • • •
76mm Drawer Computer not included Specify colour and size
GZ0120 - Sharps Bin Bracket BD for Large Bin • •
Side accessory includes side rail Height adjustable
GZ0530 - Sharps Bin Bracket Daniels with fixing plate • •
Side accessory includes side rail Height adjustable
GZ1550 - Single Glove Holder • • • • •
Side accessory, includes side rail Width: 270mm Depth: 110mm Height: 135mm Gloves not included
GZ1330 - Catheter Holder • • • •
1 24
AC U T E CA R E
Side accessory, includes side rail Width: 100mm Height: 480mm Depth: 100mm
Support Holder for Monitor • • • •
Mounts to accessory channel Left hand code GZ2420 Right hand code GZ2430 Cantilever monitor arm code - GZ2425
GZ1690 - Sharps Container Set • • • •
Side accessory includes side rail Width: 110mm Height: 215mm Depth: 113mm
GZ0130 - Sharps Bin Bracket BD for Small Bin • •
Side accessory includes side rail Height adjustable
GZ2740 - Sharps Bin Bracket BD Small • •
Side accessory includes side rail Height adjustable
GZ1800 - Triple Glove Holder • • • • •
Side accessory, includes side rail Width: 295mm Depth: 110mm Height: 360mm Gloves not included
DE0340 - Catheter Holder – Long • • • •
Side accessory, includes side rail Width: 130mm Depth: 150mm Height: 600mm
M E D I CA L CA RTS & T RO L L E YS
Medical Cart Accessories GZ1650 - Multi-storage Basket • • • •
GZ1380 - Document Holder
Side accessory, includes side rail Width: 330mm Depth: 130mm Height: 180mm
GZ1520 - File Holder
• • • • •
Side accessory, includes side rail Width: 255mm Depth: 160mm Height: 330mm Files not included
GZ1300 - Bottle Holder • • • •
Side accessory, includes side rail Width: 571mm Depth: 397mm Height: 150mm
GZ1900 - Side Drawer Set • • • • •
• • • •
ABS Plastic Width 450mm Depth 120mm Height 665mm To be used with 1010mm and 1085mm height carts
The oxygen tank is fixed securely on the side with adjustable ties. Side accessory, includes side rail Width: 145mm Depth: 125mm Height: 405mm
Width: Depth: Height:
Width: Depth: Height:
1220mm 400mm 155mm
• • • •
Side accessory, includes side rail Width: 255mm Depth: 170mm Height: 315mm
• • • • • •
No lid Width: 365mm Depth: 255mm Height: 460mm 19L Capacity GZ2630 - White bracket for side rails
GZ1810 - Waste Bin
Side accessory, includes side rail Width: 255mm Depth: 170mm Height: 315mm
GZ1830 - Drop Down Side Shelf • • •
• • •
GZ1530 - Garbage Bin
GZ1820 - Waste Container Set & Lid • • • •
Side accessory, includes side rail Width: 355mm Depth: 95mm Height: 80mm
GZ2450 - Scope Cabinet
GZ1660 - Oxygen Tank Holder •
• • • •
GZ1750 - Suction Pump Holder 350mm 345mm 161mm
• • • •
1 30 0 930 930
Side accessory, includes side rail Width: 213mm Depth: 395mm Height: 113mm
A L P H A L I F E CA R E .C O M . AU
1 25
M E D I CA L CA RTS & T RO L L E YS
Medical Cart Accessories GZ1620 - Magnetic label holder • • • • • •
Clear plastic front to protect label Length: 80mm Width: 50mm Thickness: 5mm Six pieces per pack Not suitable for aluminium drawers
GZ2590 - Tamper Proof Pull Tie Drawer • • •
With serial number 50 pieces per pack Colour Pink
Full Length Breakaway Lock • • •
Full cart length Drug and equipment security To be used with tamper proof seals
GZ1500 - Drawer Divider – 155mm • • •
2 Short dividers 2 Long dividers 2 Locating strips
GZ1470 - Adjustable Drawer Divider - 155mm • • • •
3 Short dividers 4 Adjustable dividers 4 T clips for securing dividers 2 Locating strips
GZ1430 - Adjustable Drawer Divider 155mm – Narrow • • • • • 126
AC U T E CA R E
For the mini, narrow and double cart range 3 Short dividers 4 Adjustable dividers 4 T Clips for securing dividers 2 Locating strips
GZ2580 - Tamper Proof Drawer Seals – Red • •
With serial number 50 pieces per pack
Single Breakaway Lock • • •
1st drawer locking only Drug and equipment security To be used with tamper proof seals
GZ1440 - Drawer Divider – 76mm • • •
3 Short dividers 3 Long dividers 2 Locating strips
GZ1510 - Adjustable Drawer Divider - 76mm • • • •
3 Short dividers 6 Adjustable dividers 6 T clips for securing dividers 2 Locating strips
GZ1400 - Adjustable Drawer Divider 76mm – Narrow • • • • •
For the mini, narrow and double cart range 3 Short dividers 6 Adjustable dividers 6 T Clips for securing dividers 2 Locating strips
GZ1260 - Adjustable Divider - 76mm • • •
Width: 51mm Length: 237mm To suit 76mm drawer
M E D I CA L CA RTS & T RO L L E YS
Medical Cart Accessories GZ1180 - Adjustable Divider - 155mm • • •
Width: 130mm Length: 237mm To suit 155mm drawer
GZ1240 - Drawer Divider - 155mm short • • •
• • • •
Width: Length: Height:
Width: Length: Height:
Width: 51mm Length: 542mm To suit 76mm drawer
GZ0860 - T clips in AS material • •
Clips onto dividers, ABS tray and wire basket 20 pieces per pack Width: 40mm Depth: 18mm Height: 60mm
• • •
10 pieces per pack Retains adjustable dividers
Width: Length: Height:
600mm 400mm 70mm
GZ1280 - Wire Basket for Stock / Transport Carts
600mm 400mm 148mm
GZ1740 - ABS Trays for Stock / Transport Carts - Small • • •
• • •
GZ1220 - Wire Basket for Stock / Transport Carts
GZ1250 - Wire Basket for Stock / Transport Carts • • •
Width: 51mm Length: 368mm To suit 76mm drawer
GZ1200 - Drawer Divider - 76mm long
Width: 130mm Length: 542mm To suit 155mm drawer
GZ1350 - Label Holder – Clip on •
• • •
Width: 130mm Length: 368mm To suit 155mm drawer
GZ1230 - Drawer Divider - 155mm long • • •
GZ1210 - Drawer Divider - 76mm short
• • •
Width: Length: Height:
600mm 400mm 226mm
GZ1730 - ABS Trays for Stock Transport Carts - Large
600mm 400mm 71mm
• • •
1 30 0 930 930
Width: Length: Height:
600mm 400mm 150mm
A L P H A L I F E CA R E .C O M . AU
1 27
M E D I CA L CA RTS & T RO L L E YS
Medical Cart Accessories GZ1460 - Tray Divider for ABS Trays - Small
GZ1450 - Tray Divider for ABS Trays - Large
• •
• •
3 Short 3 Long
GZ1490 - Adjustable Tray Divider for ABS Trays - Small • • •
• • •
Width: Depth: Height:
794mm 30mm 588mm
Can be applied to any Viva Cart at time of order
Blue Signline Option
AC U T E CA R E
Width: Depth: Height:
454mm 203mm 352mm
•
Can be applied to any Viva Cart at time of order
•
Coloured signline to identify cart functions or location
Red Signline Option
Yellow Signline Option •
Coloured signline to identify cart functions or location
•
Coloured signline to identify cart functions or location
Grey Signline Option
1 28
• • •
GZ1540 - Garden Scene Sticker Set
GZ1680 - Sea Scene Sticker Set •
GZ2440 - Outdoor Push Handle
3 Short 6 Adjustable 6 T clips for secure dividers
GZ0230 - All Terrain Base
2 Short 2 Long
•
Coloured signline to identify cart functions or location
Medical Scales Chair Scales
130
Platform Scales
130
Wheelchair Scales
133
Neonatal Scales
134
129
M E D I CA L S CA L ES
Chair Scales JE0660 - Chair Scale The Healthweigh® Chair Scale with its patented ergonomic design is known for its reliability and uncompromising precision. All of a patient’s care needs, including safety, comfort, caregiver’s ease-of-use and maintenance, are met. Features • Movement compensation technology • BMI function • Automatic reweigh • Graduation 0.1kg
Flip Up Armrests
• • • •
LCD Display Screen
Rechargeable battery Low battery indicator Auto power off function Supplied with battery charger and adaptor
Flip Up Footrest
Locking Castors
Product Size
Seat Size
Net Weight
Graduation
Max User Weight
630 x 850 x 965mm
430 x 420 x 80mm
18kg
0.1kg
300kg
Platform Scales JE0580 - Eye Level Physician Scale The Eye Level Healthweigh® Physician Scale features a lightweight, slender and multifunctional design with patented technology. User BMI is calculated automatically after entering the patient’s height into the device and their weight is digitally displayed on the scale’s large LCD screen.
Features • Movement compensation technology • BMI function • Zero/Hold/Print/kg/lb settings • 5 digit ¾” LCD/Positive FSTN • Automatic re-weigh
Aluminium Cast Coat
130
• • • •
Updatable firmware Height measure range 700mm2040mm RS232 and USB ports Bluetooth optional
Wide Platform with Silicon Mat
Product Size
Platform Size
Net Weight
Graduation
Max User Weight
567 x 375 x 1331mm
375 x 375 x 78mm
12kg
0.1kg
250kg
AC U T E CA R E
M E D I CA L S CA L ES
Platform Scales JE0610 - Waist Level Physician Scale The Waist Level Healthweigh® Physician Scale features a lightweight, slender and multifunctional design with patented technology. User BMI is calculated automatically after entering the patient’s height into the device and their weight is digitally displayed on the scale’s large LCD screen. The Waist Level Healthweigh® features a large platform and silicone mat for additional patient comfort and safety. Features • Movement compensation technology • BMI function • Tare/Zero/Hold/Print/kg/lb settings • 5 digit ¾” LCD/Positive FSTN
Aluminium Cast Coat
• • • •
Automatic re-weigh Updatable firmware RS232 and USB ports Bluetooth optional
Wide Platform with Silicon Mat
Product Size
Platform Size
Net Weight
Graduation
Max User Weight
597 x 375 x 1231mm
375 x 375 x 78mm
10.6kg
0.1kg
250kg
JE0590 - Floor Level Physician Scale Features • Movement compensation technology • 250kg capacity • BMI function • Zero/Hold/Print/kg/lb • 5 digit ¾ LCD/Positive FSTN • Automatic Reweigh • Updatable firmware
• • • • • • •
Optional Bluetooth Ports - RS232 and USB 230v/120v input Auto power off 6 X 1.5AA batteries Low battery indicator 2 years warranty
Product Size
Platform Size
Net Weight
Graduation
Max User Weight
567 x 375 x 323mm
375 x 375 x 78mm
6.5kg
0.1kg
250kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
131
M E D I CA L S CA L ES
Platform Scales JE0600 - Multifunction Handrail Scale The Healthweigh® Multifunction Handrail Scale features a robust, multifunctional design which is suitable for bariatric patients. It’s unique construction also features ergonomic handrails which provide additional safety and support to unsteady patients. The Healthweigh® Multifunction Handrail Scale also includes Movement Compensation Technology, which eliminates involuntary movement. Assembly is effortless, with the scales patented hinge joint which enables the scale to be assembled within seconds. Features • Movement compensation technology • BMI function • Tare/Zero/Hold/Print/kg/lb settings • Scroll down/up
Two Heavyduty Wheels
Pop Up Patented Hinge Joint
• • • • •
5 digit ¾” LCD/Positive FSTN Automatic re-weigh Updatable firmware RS232 and USB ports Bluetooth optional
Folded, Preassembled
Product Size
Platform Size
Net Weight
Graduation
Max User Weight
650 x 640 x 1130mm
500 x 640 x 70mm
22kg
0.1kg
360kg
JE0620 - Multifunction Handrail Scale with Seat The Healthweigh® Multifunction Handrail Scale is ideal for bariatric patients up to 300kg. The scale features a stable, integrated seat which enables patient to remain safe and comfortable during the weighing process. The seat can be easily lifted, thereby enabling the patient to be weighed while standing as well, supported by the scale’s ergonomic handrail. Features • Movement compensation technology • BMI function • Tare/Zero/Hold/Print/kg/lb settings • 5 digit ¾” LCD/Positive FSTN
Folded, Preassembled
1 32
Robust Handrail
• • • •
Automatic re-weigh Updatable firmware RS232 and USB ports Bluetooth optional
LCD Display Screen
Product Size
Platform Size
Net Weight
Graduation
Max User Weight
640 x 640 x 1200mm
510 x 640 x 70mm
28kg
0.1kg
360kg
AC U T E CA R E
M E D I CA L S CA L ES
Wheelchair Scales JE0680 - Wheelchair Scale with One Ramp The Healthweigh® Wheelchair Scale allows practices to measure patients confined to a wheelchair in a safe and comfortable manner. Patients can be placed onto the scale via the scale’s wide accessibility ramp. Movement Compensation Technology eliminates involuntary movement during the weighing process to ensure accurate results. Features • Movement compensation technology • BMI function • Tare/Zero/Hold/Print/kg/lb settings • Scroll down/up
Folding Design with Two Heavy-Duty Wheels
• • • • •
Automatic re-weigh Updatable firmware RS232 and USB ports Bluetooth optional 5 digit ¾” LCD/Positive FSTN
Wide Side Ramp
Product Size
Platform Size
Net Weight
Graduation
Max User Weight
750 x 780 x 1150mm
800 x 780 x 70mm
22kg
0.1kg
360kg
JE0690 - Wheelchair Scale with Two Ramps The Healthweigh® Wheelchair Scale allows practices to measure patients confined to a wheelchair in a safe and comfortable manner. Patients can be placed onto the scale via the scale’s two wide accessibility ramps. The Healthweigh® Wheelchair Scale also includes Movement Compensation Technology, which eliminates involuntary movement during the weighing process to ensure accurate results. The scale also features a manual/automatic tare option, which allows the weight of wheelchair to be reduced in calculations. Features • Movement compensation technology • BMI function • Tare/Zero/Hold/Print/kg/lb settings • Scroll down/up
Folding Design with Two Heavy-Duty Wheels
• • • • •
5 digit ¾” LCD/Positive FSTN Automatic re-weigh Updatable firmware RS232 and USB ports Bluetooth optional
Wide Side Ramps
Product Size
Platform Size
Net Weight
Graduation
Max User Weight
1000 x 940 x 70mm
1250 x 940 x 1150mm
28kg
0.1kg
360kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
133
M E D I CA L S CA L ES
Wheelchair Scales JE0640 - Wheelchair Scale with Ramps and Seat The multifunctional Healthweigh® Wheelchair Scale meets the needs of a variety of patients. Featuring a stable, integrated seat, the scale enables patients to remain safe and comfortable during the weighing process. Alternatively, for patients who can weight bear or are confined to a wheelchair, the seat can be easily lifted, thereby enabling the patient to be weighed while standing or rolled onto the scale’s platform via the scale’s two wide accessibility ramps. Movement Compensation Technology eliminates involuntary movement during the weighing process to ensure accurate results. Features • Movement compensation technology • BMI function • Tare/Zero/Hold/Print/kg/lb settings • Scroll down/up
Folded, Preassembled
Wide Side Ramps
• • • • •
5 digit ¾” LCD/Positive FSTN Automatic re-weigh Updatable firmware RS232 and USB ports Bluetooth optional
Wide Side Ramps
Product Size
Platform Size
Net Weight
Graduation
Max User Weight
1250 x 740 x 1250mm
800 x 780 x 70mm
43kg
0.1kg
360kg
Neonatal Scales JE0670 - Neonatal Weigh Scale The Healthweigh® Baby and Neonatal Scales are ergonomically designed for the newborn and growing baby. The scales feature advanced technology for precision weighing which is important for keeping track of the baby’s growth. This same technology is integrated into warmers and incubators to sustain premature babies. Additional features are available upon request. Features • Movement compensation technology • Updatable firmware • RS232 and USB ports • Tare/Pre-set Tare settings • Zero/Hold/kg/lb settings
LCD Display Screen
1 34
Product Size
Net Weight
Graduation
Max User Weight
600 x 430 x 145mm
9.2kg
0.005kg
0-20kg
AC U T E CA R E
Safe Patient Handling Patient Ceiling Hoist System
136
Mobile Hoists
137
Patient Lifting Slings
140
Manual Transfer Aids
144
Positioning Aids
147
135
SA F E PAT I E N T H A N D L I N G
Patient Ceiling Hoist System LA0550 - GoLift Patient Ceiling Hoist Features • Emergency Stop • Emergency Lowering Device • Upper Limit Detection • Lower Limit Detection • Slack Tape Sensor • Free Fall Brake (Over Speed Governor) • Low Battery and Dead Battery Alarms • Soft Start and Stop • Overload Protection • Emergency Manual Lowering
The world’s smallest patient lift weighing only 10 lbs, the Amico GoLift is an ideal ceiling lift system designed for routine transfers of patients up to 318kg. A GoLift system lifting up to 181kg is also available. For larger patients, you may combine two compact GoLift700 systems to obtain a lifting capacity of 454 kg. The GoLift is designed to be aesthetically pleasing and is the most compact ceiling lift in its class. In an effort to address infection control requirements, we incorporated smooth edges and rounded corners on our ceiling lift, carry bar, and hand control.
LA0570 - GoLift Portable Patient Ceiling Hoist Designed for clinicians to easily transfer a patient lift from room to room. The Amico GoLift Portable450 system is the smallest and lightest portable patient lift on the market today, weighing only 6lbs. This makes the transition of the lift from room to room easy and possible. The GoLift Portable450 can lift up to 450lbs, catering to a wide variety of patient clientele. The seamless design comprises of capacitive touch, and magnetic attachments, allowing for easy cleaning and infection prevention.
Features • Weighs 6lbs, lifts 450lbs! • Wired capacitive touch, IPX4 • Controls on lift motor • Magnetic hand control • Emergency stop and lowering • Manual lowering • IP23 lift rating • Reacher bar • Long lasting NiMH battery
Gotrack System & Support Structure We offer three different track profiles, as well as modular and custom configurations that come in: • • • •
Straight Track or Curved Systems Full Room Coverage (X/Y or H Systems) Optional Infection Control Track Optional Recessed, Flush Mount Track Systems
All GoTrack Systems feature: • • • •
Low Weight and High Capacity Fast and Flexible Installation Hidden End Stops for Safety Anywhere/Continuous Charge
Type
Length
Width
Height
Product Weight
Regular
2440mm
67mm
60mm
3.77kg
Regular
3050mm
67mm
60mm
3.77kg
Regular
6100mm
67mm
60mm
3.77kg
Double
3050mm
67mm
90mm
4.72kg
Double
3800mm
67mm
90mm
4.72kg
Double
6100mm
67mm
90mm
4.72kg
Triple
3050mm
67mm
146mm
5.65kg
Triple
6100mm
67mm
146mm
5.65kg
Custom lengths in any track type available upon request
136
AC U T E CA R E
SA F E PAT I E N T H A N D L I N G
Mobile Hoists Sonata Electric Mobile Patient Lifting Hoist • • • • • •
Innovative and ergonomic compact mobile patient lifting hoist Designed primarily for domestic use or as a lightweight institutional hoist Provides superior patient space through the use of Space Link® technology The unique feature of Space Link® allows a patient to be rotated through 360° at full lift height, making the carer’s job easier and safer Offers more patient space than most other larger size lifters Tested and complies to Australian Standards AS ISO 10535-2002 Models available with Manual Legspread LA0070 No Attachments LA0230 With Standard Spreader Bar LA0240 With Pivot Frame
Models Available with Electric Legspread LA0140 No Attachments LA0250 With Standard Spreader Bar LA0260 With Pivot Frame
Parameters
Dimensions
Base Length:
1005mm
External Base Width Closed:
605mm
External Base Width Open:
1070mm
Internal Base Width Closed:
510mm
Internal Base Width Open:
975mm
Under Bed Clearance:
130mm
Minimum Height Yoke:
420mm
Maximum Height Yoke:
1735mm
Average Lift Range
870mm
Under Base Height
55mm
Maximum Hoist Reach:
875mm
Minimum Hoist Reach:
555mm
Hoist Reach at Maximum Height:
555mm
Lifter Weight:
41kg
Minimum Storage Height:
1260mm
Safe Working Load:
150kg
1 30 0 930 930
LA1800 Standard Spreader Bar and Integrated Weigh Scale LA1830 Power Pivot with Integrated Weight Scale
LA3040 Standard Spreader Bar and Integrated Weigh Scale LA3050 Pivot Frame and Integrated Weigh Scale
A L P H A L I F E CA R E .C O M . AU
1 37
SA F E PAT I E N T H A N D L I N G
Mobile Hoists Alto Electric Mobile Patient Lifting Hoist • • •
Compact medium sized heavy duty mobile patient lifting hoist Innovative and ergonomic Designed primarily for institutional use or home care situations where a high capacity lift is required Electric base width adjustment Provides superior patient space through the use of Space Link® technology The unique feature of Space Link® allows a patient to be rotated through 360° at full lift height, making the carer’s job easier and safer Offers more patient space than most other larger size lifters Tested and complies to Australian Standards AS ISO 10535-2002
• • • • • • • • • •
Models Available LA0150 No Attachments LA0270 With Standard Spreader Bar LA0280 With Pivot Frame LA1760 Standard Spreader Bar and Integrated Weigh Scale
Parameters
Dimensions
Base Length:
1150mm
External Base Width Closed
700mm
External Base Width Open
1130mm
Internal Base Width Closed
600mm
Internal Base Width Open
1030mm
Under Bed Clearance
130mm
Minimum Height Yoke
300mm
Maximum Height Yoke
1920mm
Under Base Height
55mm
Maximum Hoist Reach
1060mm
Minimum Hoist Reach:
610mm
Hoist Reach at Maximum Height
515mm
Lifter Weight
46kg
Minimum Storage Height
1350mm
Safe Working Load
200kg
• • •
LA1770 Pivot Frame and Integrated Weigh Scale LA1780 Power Pivot LA1790 Power Pivot with Integrated Weight Scale
LA1000 Weigh Scale Attachment • • •
138
AC U T E CA R E
Universal weighing module with tare function and kg/lb conversion Safe working load up to 300kg Suitable for Sonata and Alto Lifting Hoist
SA F E PAT I E N T H A N D L I N G
Mobile Hoists Forte Electric Mobile Patient Lifting Hoist (Bariatric) •
•
•
• • •
With a safe working load of 320kg this extremely heavy duty mobile patient lifting hoist provides full bariatric capability whilst remaining a compact and ergonomic design. Manoeuvrability and good under bed clearance are key design features. FORTE 320 provides superior patient lift space through the combination of the recessed actuator and the use of Space Link™ technology. The aesthetic design of the concealed electric leg mechanism provides infection control advantages. FORTE 320 is the lifter of choice for institutional use where a high capacity bariatric lifter is required. Models Available LA1180 4 Point Yoke LA1660 4 Point Yoke and Integrated Weigh Scale
Parameters
Dimensions
Base Length:
1433mm
External Base Width Closed:
715mm
External Base Width Open:
1205mm
Internal Base Width Closed:
590mm
Internal Base Width Open:
1080mm
Under Bed Clearance:
126mm
Minimum Yoke Height:
260mm
Maximum Yoke Height:
1955mm
Under Base Height:
31mm
Lifter Weight:
63.5kg
Minimum Storage Height:
1460mm
Safe Working Load:
320kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 39
SA F E PAT I E N T H A N D L I N G
Mobile Hoists LA0050 Salsa Standing Transfer Hoist - Electric Leg Spread • • • • •
Designed to secure patient transfers from a seated to standing position Enables quicker, easier, and safer patient lifting and transfers Multiple grip positions, adjustable knee pad, electric leg spread, removable footplate and ergonomic features designed with the patient and carer in mind Highly manoeuvrable, ideal for institutional or home environments Tested and complies to Australian Standards AS ISO 10535 – 2002
Parameters
Dimensions
Base Length:
1010mm
External Base Width Closed:
665mm
External Base Width Open:
1030mm
Internal Base Width Closed:
565mm
Internal Base Width Open:
930mm
Under Bed Clearance:
130mm
Minimum Height Lift Arm:
880mm
Maximum Height Lift Arm:
1685mm
Under Base Height:
55mm
Lifter Weight:
51kg
Minimum Storage Height:
1190mm
Safe Working Load:
200kg
Patient Lifting Slings General Purpose Slings • • • • • •
140
AC U T E CA R E
Simple and safe to use for both home and institutional patient lifting Polyester fabric or mesh (suitable for bathing) with internal padding in pressure areas Webbing loops allows for patient to have a lay back posture General Sling provides easy fitting and good support for patients with some upper body control. Recommended for general lifting General Sling with Head Support is easily fitted to a patient in bed or a chair, providing excellent upper body and head support 300kg User weight limit General Purpose Sling without Head Support
General Purpose Sling with Head Support
Size
Fabric
Mesh
Fabric
Mesh
Extra Small
LD0970
LD1020
LD1160
LD0840
Small
LD0170
LD0220
LD0120
LD0830
Medium
LD0180
LD0230
LD0130
LD0710
Large
LD0190
LD0240
LD0140
LD0880
X Large
LD0200
LD0250
LD0150
LD0920
XX Large
LD0210
LD1150
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings Standard Yoke Care Slings • • •
Excellent for transfers onto a toilet as it provides an open area from the middle of the back to the middle of the thigh Recommended for general toilet transfers 300kg User weight limit Care Sling without Head Support
General Purpose Sling with Head Support
Fabric
Size Extra Small
Fabric
Mesh
LD0960
LD1110
Small
LD0500
LD0030
LD0070
Medium
LD0510
LD0040
LD0080
Large
LD0520
LD0050
LD0090
X Large
LD1260
LD0060
LD0100
LD1280
LD1200
XX Large
Standard Yoke Junior Sling • • •
Provides easy fitting and good support for children or small adults Removable bracing and gusseted base section provide maximum support 200kg User weight limit Size
Mesh
X Small
LD0270
Small
LD0280
Medium
LD0290
Standard Yoke Amputee Sling • • •
Sling incorporates a head support and commode aperture Recommended for lifting patients with high level amputations 200kg User weight limit Size
Fabric
Mesh
Medium
LA1190
LA1200
Large
LA1050
LA1210
X Large
LA1040
LA1220
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
141
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings Pivot Slings Pivot Slings are required for use with Pivot Frame attachments. The slings are manufactured from polyester fabric or mesh (suitable for bathing). These slings allow the patient to be lifted in either a sitting or lying position, ideal for lifting on and off a bed or the floor. The unique pivot with anti-lock at the end of the boom allows the whole frame to be rocked back and forward to assist correct positioning of the patient. The frame spreads the sling attachment points to ensure the patients hips are not excessively flexed, avoiding the discomfort obese patients sometimes experience with standard slings. Warning: Pivot Slings must not be used on any attachments other than the Pivot Frame.
Pivot Sling • • • •
Comfortable, supportive sling with easily defined attachment points Recommended for general lifting especially for the larger patient Angle adjustment via Pivot Frame 200kg User weight limit Keyhole Buckle
E Clip Buckle
Size
Fabric
Mesh
Fabric
Mesh
X Small
LD1290
LD1300
LA1340
LA1400
Small
LD0400
LD1210
LA1350
LA1410
Medium
LD0410
LD0440
LA1360
LA1420
Large
LD0420
LD0910
LA1370
LA1430
X Large
LD0430
LD1220
LA1380
LA1440
XX Large
LD1240
LD1230
LA1390
LA1450
Pivot Care Sling • • •
Sling provide easy removal of clothing for toilet transfers Recommended for general toilet transfers for the less secure patient 200kg User weight limit Keyhole Buckle
142
AC U T E CA R E
E Clip Buckle
Size
Fabric
Mesh
Fabric
Mesh
X Small
LD1070
LD1080
LA1460
LA1520
Small
LD0310
LD0350
LA1470
LA1530
Medium
LD0320
LD0360
LA1480
LA1540
Large
LD0330
LD0370
LA1490
LA1550
X Large
LD0340
LD0380
LA1500
LA1560
XX Large
LD1310
LD1320
LA1510
LA1570
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings Standing Transfer Sling The Standing Transfer sling is designed to support a weight bearing yet less than able person from waist level to mid shoulder whilst allowing free movement of the arms. The patient’s hands can reach naturally to grip the lift arms as the patient rises. The Standing Transfer sling will provide adequate support for the patient who requires only minimal assistance for standing. A Torso Belt provides added security and prevents the sling from riding up the patient’s back when maximum support is required. The sling has the option of both Key-Hole fastening or Loop type attachments. This adds to the versatility of the sling in any environment.
Standing Transfer Sling • • • • • • • •
Designed to support a weight bearing yet less able person from waist level to mid shoulder whilst allowing free movement of the arms Patient’s hands can reach naturally to grip the lift arms as the patient rises Provides adequate support for the patient who requires only minimal assistance for standing. Torso Belt provides added security and prevents the sling from riding up the patient’s back when maximum support is required Option of both Key-Hole fastening or Loop type attachments, adding versatility in any environment Sling provides easy removal of clothing for toilet transfers Recommended on standing hoists for weight bearing patients only 200kg User weight limit
Size
Loop Buckle
Loop Velcro
Keyhole Buckle
Keyhole Velcro
E-Clip Buckle
E-Clip Velcro
Medium
LA0170
LA0300
LA0040
LA0360
LA1580
LA1610
Large
LA0180
LA0290
LA0030
LA0370
LA1590
LA1620
X Large
LA0190
LA0190
LA0220
LA0380
LA1600
LA1630
Care Quip Super Soft Standing Sling • • • •
A softer padded variety of Standing Sling with easy to fit Velcro fastening Neoprene Torso Belt Recommended on Standing Hoists for weight bearing patients only Available with Key-Hole and Loop type attachments 200kg User weight limit Size
Keyhole Buckle
E-Clip Buckle
Loop Velcro
Medium
LA1160
LA1210
LA1260
Large
LA1230
LA1250
LA1270
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
143
SA F E PAT I E N T H A N D L I N G
Patient Lifting Slings Deluxe Leg Sling • • •
Provides maximum support to hips and thighs Recommended for patients with compromised hip joints and amputees (subject to assessment) 200kg User weight limit Size
Fabric
Mesh
Small
LD2810
LD2860
Medium
LD2820
LD2870
Large
LD2830
LD2880
Manual Transfer Aids Patslide • • • • • •
144
AC U T E CA R E
Facilitates safe and easy patient transfers from bed to trolley etc Reduces the risk of back injury for the carer Handholes provide maximum grip for the carer Slip resistant pads increase stability during transfers Radiolucent material construction is lightweight, highly impact tolerant and static insulative Not to be used as a lifting device Code
Size
Length
Width
Weight
LB0310
All Purpose
1525mm
635mm
4.5kg
LB0320
Theatre
1525mm
560mm
4.0kg
SA F E PAT I E N T H A N D L I N G
Manual Transfer Aids ED4000 - Raizer • • • • • • •
Mobile chair for transfer from floor to a sitting or standing position Minimal physical effort for the assistant Both the fallen person and the assistant can feel comfortable and safe in the process Easy to transport in 2 light bags Assembly prior to operation: max 3 minutes Cleaning friendly CE-marking Lifting Capacity
150kg
Lifting Time
20-30 Secs
Number of Lifts with Full Charge
40 Max
Max Charge Time
6 Hours
Net Weight
13kg
ED4530 - Mangar Elk Emergency Lifting Cushion The Elk is a lifting cushion designed to lift a person from the floor with the help of only one person. It is compact and lightweight, weighing only 3.6 kgs (8 lbs) and will lift up to 450kg (70 stone). Its unique design and portability means it can be used inside or outside and is particularly effective in small confined spaces such as the bedroom or bathroom where alternative lifting devices may not be suitable. The Elk is commonly used in a range of settings, such as the emergency services, care homes, hospitals, and in the community, reducing the risk of injury and associated costs. If someone falls over they can shuffle on to the cushion, or be rolled on from the recovery position and assisted to sit upright. The ELK can then be inflated at the touch of a button with someone supporting the individual from behind to bring them to a raise seated position ready to stand. Once the lift is complete, the ELK can be deflated, folded up and stored away tidily. • • • • • • •
Designed to be used with the help of a carer, the ELK emergency lifting cushion can be used in the tightest of spaces. Lifts up to 450kg Portable – weighs just 3.6kg and folds up for easy carrying Applicable for any age Simple to use Minimises moving and handling risk – protects carers’ backs Suitable for indoor and outdoor use
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
145
SA F E PAT I E N T H A N D L I N G
Manual Transfer Aids ED4540 - Mangar Camel Emergency Lifting Cushion The Camel is an emergency lifting cushion designed to lift a person from the floor with the help of one person. With an inbuilt backrest, the Camel offers a fully supportive lift for a person up to 320kg (50 stone) with minimal moving and manual handling requirements. Battery powered and weighing only 6.5kgs (14 lbs), the Camel can be used inside or outside in situations where many alternative lifting devices may not be suitable. The Camel is commonly used in a range of settings, such as the emergency services, care homes, hospitals, as bariatric lifting equipment and in the community, reducing the risk of injury and associated costs. The Camel is used by ambulance services in Queensland, Tasmania, South Australia and Western Australia. • • • • • • • • • •
The Camel is particularly suitable for very large or bariatric people (lifts up to 320kg) Lightweight Simple to use Appropriate for any age Portable Packs away into a compact and discreet bag For use indoors or out Minimises moving & handling risks Battery operated Mains Power also available upon request
LB1150 - Lotus Stand Up Aid • •
• • • • •
Supports and activates the client in sit-to-stand procedures, and transfers the client in a seated or standing position Developed for clients with impaired balance and reduced leg strength, but the client must have some strength in the arms and be able to weight bear to actively participate in the transfer Ideal for both long-term and for occasional needs, such as in postoperative care when the balance is temporarily impaired Stimulates a natural pattern of movement Rotating seat parts, lower leg/knee supports and chassis are all adjustable for a safe and stable transfer Compact and convenient Durable powder coated steel frame
Overall Base Length
Overall Width (Narrow Base)
Overall Width (Base Spread)
Height
Net Weight
Max User Weight
980mm
680mm
950mm
1130mm
35kg
200kg
146
AC U T E CA R E
SA F E PAT I E N T H A N D L I N G
Positioning Aids Slide Sheet • •
Nylon material to assist sliding and transferring patients Reduces the risk of strain or back injury to carer
•
Slide sheet is folded over and placed under the patient, and top sheet is slid over the lower sheet Machine washable
•
Code
Size
Width
Length
LC0080
Regular
1000mm
1500mm
LC0070
Large
2000mm
1500mm
Heat Sealed Slide Sheet • • •
Nylon material to assist sliding and transferring patients Reduces the risk of strain or back injury to carer Machine washable
Code
Base Width
Base Length
LB1930
1000mm
2000mm
LB0880
1500mm
1500mm
HB0430 - Parallel Bars • •
Ideal for post-operative exercises and where leg movement is limited Adjustable height to suit individual user requirements
• •
Easy storage and transportation Powder coated mild steel frame with chrome plated uprights 50mm diameter tube
•
Length
Width
Height
Max User Weight
3000mm
400mm
540-1065mm
130kg
Walking Belt • •
Assists the carer in patient mobility and transfers Reduces the risk of strain or back injury for the carer and user
• •
•
Double sided velcro fastener increases security and support Four large padded vertical handles assist the carer in supporting the client while walking Machine washable
Code
Type
Colour
Chest/Waist Circumference
LB0680
Small
Red
690 - 930mm
LB0710
Medium
Yellow
850 - 1100mm
LB0700
Large
Green
900 - 1170mm
LB0670
Extra Large
Blue
1080 - 1330mm
LB0640 - Padded Walking Belt • • • •
Assists the carer in patient mobility and transfers Reduces the risk of strain or back injury for the carer Belt is firmly secured by an adjustable nylon buckle Slip resistant material to prevent belt from sliding up clients clothing
• •
• •
Circumference 600-1250mm Four large padded vertical handles assist the carer in supporting the client while walking Machine washable One universal size to suit chest or waist
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
147
Wheelchairs
148
Self Propelling Wheelchairs
149
Transit Wheelchairs
150
Patient Transport Wheelchairs
152
Bariatric Wheelchairs
155
Tilt & Recline Wheelchairs
157
Amputee Wheelchairs
158
Hemiplegic Wheelchairs
159
Parts & Accessories
160
W H E E LC H A I RS
Self-Propelling Wheelchairs Triton Wheelchair • • • • • •
Colours Available NC0280 Burgundy NC0290 Titanium
Swingaway removable legrests and removable armrests Breathable padded nylon upholstery Rear backrest storage pocket Heel loops Solid tyres Folding steel frame
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
490mm
430mm
245mm
900mm
650mm
19.1kg
15kg
120kg
Glide 1 Wheelchair • • • • • • •
Ideal for hospital and institutional use Swingaway removable legrests and removable armrests Durable vinyl upholstery Removable calf strap Quality stainless steel folding frame for long term use Tested and conforms to Australian Standards AS/NZS 3695:2009
Models Available NC1200 400mm Seat Width, Polished Stainless Steel NC1210 430mm Seat Width, Polished Stainless Steel NC0120 460mm Seat Width, Island Blue NC0130 460mm Seat Width, Merlot
Made in Australia
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
400/430/460mm
400mm
510mm
400mm
215mm
885mm
610/640/670mm
15.5kg
12.8kg
100kg
Glide 3 Wheelchair • •
•
Strengthened frame for the heavier client Swingaway removable legrests, calf strap and removable armrests and aluminium wheels Aluminium snap-lock cross brace reduces seat sag
• •
• •
Durable vinyl upholstery Upholstery tightner (490 and 520mm seat widths only) prevents backrest sag Quality stainless steel folding frame for long term use Made in Australia
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0160
400mm
400mm
500mm
430mm
215mm
920mm
610mm
16.1kg
13.4kg
100kg
NC0170
430mm
400mm
500mm
430mm
215mm
920mm
640mm
16.1kg
13.4kg
100kg
NC0180
460mm
400mm
500mm
430mm
215mm
920mm
670mm
16.1kg
13.4kg
100kg
NC0190
490mm
400mm
500mm
430mm
215mm
920mm
700mm
16.1kg
13.4kg
100kg
NC0200
520mm
400mm
500mm
430mm
215mm
920mm
730mm
16.1kg
13.4kg
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
149
W H E E LC H A I RS
Self-Propelling Wheelchairs Breezy Basix Wheelchair • •
• •
Swingaway removable legrests and swingback removable armrests Push handles, seat depth, seat height and footplate angle are adjustable to suit individual client requirements Breathable padded nylon upholstery Tension adjustable backrest
• • • • •
Seat to back connecting flap Heel straps and tie down points Anti tip bars and rollers help prevent tipping Quick release rear wheels for easy storage and transportation Lightweight aluminium folding frame
Code
Seat Width
Seat Depth
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0500
380mm
400-460mm
410-430mm
230mm
910mm
570mm
15.6kg
8.3kg
125kg
NC0470
430mm
400-460mm
410-430mm
230mm
910mm
620mm
15.6kg
8.3kg
125kg
NC0480
480mm
400-460mm
410-430mm
230mm
910mm
670mm
15.6kg
8.3kg
125kg
NC0490
520mm
400-460mm
410-430mm
230mm
910mm
710mm
15.6kg
8.3kg
125kg
Transit Wheelchairs Breezy Basix Transit Wheelchair • •
• • •
Swingaway removable legrests and swingback removable armrests Push handles, seat depth, seat height and footplate angle are adjustable to suit individual client requirements Breathable padded nylon upholstery Tension adjustable backrest Seat to back connecting flap
• • • • •
Heel straps and tie down points Anti tip bars and rollers help prevent tipping Quick release rear wheels for easy storage and transportation Lightweight aluminium folding frame Solid tyres
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC1730
380mm
410-460mm
430-500mm
410-460mm
230mm
910mm
590mm
15.0kgs
13.6kgs
125kgs
NC0520
430mm
410-460mm
430-500mm
410-460mm
230mm
910mm
640mm
15.0kgs
13.6kgs
125kgs
NC0530
480mm
410-460mm
430-500mm
410-460mm
230mm
910mm
690mm
15.0kgs
13.6kgs
125kgs
NC0540
520mm
410-460mm
430-500mm
410-460mm
230mm
910mm
730mm
15.0kgs
13.6kgs
125kgs
150
AC U T E CA R E
W H E E LC H A I RS
Transit Wheelchairs NC1050 - Vito Plus • • • • •
Swingaway removable legrests and fixed armrests Desk armrests allow wheelchair to be pushed close to table Adjustable nylon buckle seat belt for additional patient safety Breathable nylon upholstery Rear backrest storage pocket
• •
• • •
Folding backrest and frame for easy storage and transportation Lever brake and attendant hand brakes provide more control for the carer Heel loops and Solid tyres Lightweight aluminium frame Silver paint finish
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
480mm
440mm
210mm
910mm
630mm
11.6kgs
10.3kgs
100kgs
NC0980 - Glide Transit Wheelchair • • • •
Ideal for hospital and institutional use Swingaway removable legrests and removable armrests Quality stainless steel folding frame for long term use Blue, burgundy and polished steel finish
• •
Tested and conforms to Australian Standards AS/NZS 3695:2009 Made in Australia
Models Available NC1450 40cm Seat Width NC1470 43cm Seat Width NC1500 46cm Seat Width
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
40/43/46cm
400mm
510mm
400mm
215mm
900mm
57/60/63cm
13.7kg
10.9kg
100kg
Triton Transit Wheelchair • • • •
Swingaway removable legrests and removable armrests Breathable padded nylon upholstery Rear backrest upholstery storage pocket Heel loops
• •
Solid tyres Folding steel frame
Colours Available NC1030 Titanium NC1040 Burgundy
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
460mm
400mm
500mm
420mm
240mm
910mm
620mm
15.8kgs
11.7kgs
100kgs
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 51
W H E E LC H A I RS
Patient Transport Wheelchairs ED6430 - Manchester 3 Mobile Transport Chair • • • • • • •
Lightweight & robust transfer chair Fixed 200mm rubber banded rear castors 125mm front swivel castors Easy accessible rear brake system Single foldable footrest Foldable armrests Seat and backrest in 50mm high density foam
• • • •
Flame retardant vinyl cover complying to M1 and M2 standards 2 location holes for IV poles Underseat storage tray Document holder mounted on rear of chair
•
2 year warranty
Seat Width
Seat Height
Overall Width
Overall Length
Max User Weight
490mm
550mm
640mm
1100mm
200kg
ED6440 - Manchester Speed-E Mobile Transport Chair • •
•
Lightweight & robust transfer chair Fixed 200mm rubber banded rear castors 125mm front swivel castors Easy accessible rear brake system E-Motion electric drive unit with rechargeable battery system Single foldable footrest
•
Foldable armrests
• • •
• • • • •
Document holder behind backrest Seat and backrest in 50mm high density foam Flame retardant vinyl cover complying to M1 and M2 standards IV pole and oxygen bottle holder included 2 year warranty
Seat Width
Seat Height
Overall Width
Overall Length
Max User Weight
490mm
550mm
640mm
1100mm
200kg
EZ3990 - Manchester Inn Mobile Transport Chair - Stackable •
• • • • •
Group occupation reduced by 50% (starting from 5 chairs) Retractable Polyurethane footrest 2 completely retractable armrests, offering the possibility to sit sideways Fixed extra large seat 2 IV stand fixations Integrated luggage rack underneath the seat Standard urine bag holder Omni directional wheels Emergency handbrake Soft saddlery Ergonomic armrests
•
2 year warranty
• • • • •
1 52
AC U T E CA R E
Options Available • • • • • • • • • • •
IV pole Coin deposit slot Key-slot coin deposit Wall fixed coin deposit Document holder for rear of chair Orthopaedic leg rest with support Sole orthopaedic leg rest support Retractable oxygen bottle holder Anti-theft roll bar and IV support Anti-theft roll bar hooks Non standard coating
Seat Width
Seat Height
Overall Width
Overall Length
Max User Weight
480mm
550mm
650mm
1050mm
200kg
W H E E LC H A I RS
Patient Transport Wheelchairs ED6370 - Manchester Bariatric Mobile Transport Chair • • • • • • • • • • • •
Lightweight and robust transfer chair Fixed 200mm rubber banded rear castors 125mm front swivel castors Easy accessible rear brake system Single foldable footrest Under seat oxygen bottle holder Document holder behind backrest Seat and backrest in 50mm high density foam Flame retardant vinyl cover complying to M1 and M2 standards IV pole - 2 location holes for IV poles Foldable armrests Seat and backrest in 50mm high density foam
•
2 year warranty
Seat Width
Seat Height
Overall Width
Overall Length
Max User Weight
650mm
550mm
800mm
1100mm
330kg
ED7880 - Manchester Bariatric Speed-E Mobile Transport Chair The chair can be used 24 hours a day. Indeed, even if the battery is empty, the electrically assisted wheel does not touch the ground and thus makes it possible to move the chair all the same. • • • • •
Ergonomic design Equipped with soft upholstery Reinforced structure to accommodate a static load of 500kg High stability for safety Front wheels also brakes
•
The electric assistance considerably reduces the pushing force of the nursing staff
Seat Width
Seat Height
Overall Width
Overall Length
Max User Weight
650mm
550mm
800mm
1100mm
330kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
153
W H E E LC H A I RS
Patient Transport Wheelchairs Glide Ward Wheelchair • • • • • • • • •
Durable stainless steel non-folding frame Ideal for hospital ward or institutional use Swingback non-removable armrests and legrests prevent loss of parts Black vinyl upholstery Rear backrest pocket for document storage Plastic spoked wheels with maintenance-free solid tyres Coloured upholstery available Optional screen printing available Made in Australia
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Net Weight
Max User Weight
NB0600
430mm
400mm
510mm
430mm
265mm
980mm
610mm
16.7kg
150kg
NB0450
460mm
400mm
510mm
430mm
265mm
980mm
640mm
16.7kg
150kg
NB0610
490mm
400mm
510mm
430mm
265mm
980mm
670mm
16.7kg
150kg
NB0620
520mm
400mm
510mm
430mm
265mm
980mm
700mm
16.7kg
150kg
Glide Ward Wheelchair with IV Pole & Oxygen Cylinder Holder • • • • • • • • • • •
Durable stainless steel non-folding frame Ideal for hospital ward or institutional use Swingback non-removable armrests and legrests prevent loss of parts Stainless steel carrier to suit Type C oxygen cylinders Black vinyl upholstery Adjustable height stainless steel IV pole Rear backrest pocket for document storage Plastic spoked wheels with maintenance-free solid tyres Coloured upholstery available Optional screen printing available Made in Australia
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Net Weight
Max User Weight
NB0660
430mm
400mm
510mm
430mm
265mm
980mm
610mm
18.7kg
150kg
NB0470
460mm
400mm
510mm
430mm
265mm
980mm
640mm
18.7kg
150kg
NB0670
490mm
400mm
510mm
430mm
265mm
980mm
670mm
18.7kg
150kg
NB0480
520mm
400mm
510mm
430mm
265mm
980mm
700mm
18.7kg
150kg
1 54
AC U T E CA R E
W H E E LC H A I RS
Bariatric Wheelchairs Care Quip Heavy Duty Wheelchair • • • • • •
Strengthened frame for the heavier client Swingaway removable legrests and removable armrests Vinyl upholstery Upholstery tensioner prevents backrest sag (on models greater than 500mm seat width) Solid tyres with reinforced front castors Durable steel folding frame
Code
Seat Width
Seat Depth
Seat Height
Back Height
Armrest Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0440
500mm
500mm
500mm
450mm
250mm
950mm
700mm
27kg
24kg
155kg
NC0330
550mm
500mm
500mm
450mm
250mm
950mm
750mm
34kg
31kg
225kg
NC0340
600mm
500mm
500mm
450mm
250mm
950mm
800mm
35kg
32kg
225kg
NC0360
700mm
500mm
500mm
450mm
250mm
950mm
900mm
37kg
34kg
270kg
NC0380
800mm
500mm
500mm
450mm
250mm
950mm
1000mm
42kg
39kg
315kg
Glide 3 Heavy Duty Wheelchair • • • • • • •
Strengthened frame for the heavier client Swingaway removable legrests, calf strap and removable armrests and aluminium wheels Aluminium snap-lock cross brace reduces seat sag Durable vinyl upholstery Upholstery tightner (490 and 520mm seat widths only) prevents backrest sag Quality stainless steel folding frame for long term use Made in Australia
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0420
490mm
400mm
500mm
430mm
215mm
920mm
700mm
17.4kg
9.8kg
180kg
NC0400
520mm
400mm
500mm
430mm
215mm
920mm
730mm
17.4kg
9.8kg
180kg
NC0430
550mm
430mm
500mm
430mm
215mm
920mm
760mm
17.4kg
9.8kg
180kg
NC0210
600mm
430mm
500mm
430mm
215mm
920mm
810mm
17.4kg
9.8kg
180kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
155
W H E E LC H A I RS
Bariatric Wheelchairs Rubix Wheelchair • • • • • • • • • • • •
Reinforced frame to suit the bariatric client Swingaway removable legrests and swingback removable armrests Push handles, seat depth, seat height and footplate angle are adjustable to suit individual client requirements Breathable padded nylon upholstery and tension adjustable backrest Seat to back connecting flap Swingaway stabiliser bar prevents backrest sag Heel straps and tie down points Anti tip bar and rollers help prevent tipping Solid tyres with quick release rear wheels for easy storage and transportation Lightweight aluminium folding frame with silver powder coat paint finish Made in Germany Drum brake option also available
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0010
520mm
410-480mm
420-510mm
410-460mm
230mm
910mm
720mm
18.4kg
12.5kg
170kg
NC0020
560mm
410-480mm
420-510mm
410-460mm
230mm
910mm
760mm
18.4kg
12.5kg
170kg
NC0030
600mm
410-480mm
420-510mm
410-460mm
230mm
910mm
800mm
18.4kg
12.5kg
170kg
156
AC U T E CA R E
W H E E LC H A I RS
Tilt & Recline Wheelchairs Care Quip Relax Wheelchair - Self Propelled • • • • • • • • • • •
Gas assisted, tilt-in-space and recline functions provide optimum postural positioning Removable adjustable height arm feature padded side panels and adjustable armpad length Removable swingaway elevating legrests and calf pads Height adjustable padded contoured backrest Depth adjustable padded seat with inbuilt pommel Removable padded headrest with adjustable side supports Tilt angle -2° to 20° Recline angle 0° to 40° Drum brake option allows attendant to control brakes from the push handles Alloy construction with water resistant upholstery 24” rear wheels with solid tyres
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NB0240
460mm
480 500mm
410 520mm
500 650mm
180 290mm
980 1160mm
690mm
38kg
22kg
140kg
NB0300
510mm
480 500mm
410 520mm
500 650mm
180 290mm
980 1160mm
740mm
38kg
22kg
140kg
Care Quip Relax Wheelchair - Transit • • • • • • • • • • •
Gas assisted, tilt-in-space and recline functions provide optimum postural positioning Removable adjustable height arms feature padded side panels and adjustable armpad length Removable swingaway elevating legrests and calf pads Height adjustable padded contoured backrest Depth adjustable padded seat with inbuilt pommel Removable padded headrest with adjustable side supports Tilt angle -2° to 20° Recline angle 0° to 40° Drum brakes allows attendant to control brakes from the push handles 16” rear wheels with solid tyres Alloy construction with water resistant upholstery
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NB0190
410mm
480 - 500mm
410 - 520mm
500 650mm
180 290mm
980 1160mm
640mm
38kg
22kg
140kg
NB0230
460mm
480 - 500mm
410 - 520mm
500 650mm
180 290mm
980 1160mm
690mm
38kg
22kg
140kg
NB0290
510mm
480 - 500mm
410 - 520mm
500 650mm
180 290mm
980 1160mm
740mm
38kg
22kg
140kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 57
W H E E LC H A I RS
Amputee Wheelchairs Glide Amputee Wheelchair • • • • • •
Swingaway removable legrests, calf strap and removable armrests Ideal for hospital and institutional use Rear amputee axle setting Durable vinyl upholstery Quality stainless steel folding frame for long term use Made in Australia
Code
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC1320
400mm
400mm
510mm
400mm
215mm
910mm
610mm
16.0kg
13.2kg
100kg
NC1100
430mm
400mm
510mm
400mm
215mm
910mm
640mm
16.0kg
13.2kg
100kg
NC1110
460mm
400mm
510mm
400mm
215mm
910mm
670mm
16.0kg
13.2kg
100kg
Breezy Basix Wheelchair • •
• •
Swingaway removable legrests and swingback removable armrests Push handles, seat depth, seat height and footplate angle are adjustable to suit individual client requirements Breathable padded nylon upholstery Tension adjustable backrest
• • • • •
Seat to back connecting flap Heel straps and tie down points Anti tip bars and rollers help prevent tipping Quick release rear wheels for easy storage and transportation Lightweight aluminium folding frame
Code
Seat Width
Seat Depth
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NC0500
380mm
400-460mm
410-430mm
230mm
910mm
570mm
15.6kg
8.3kg
125kg
NC0470
430mm
400-460mm
410-430mm
230mm
910mm
620mm
15.6kg
8.3kg
125kg
NC0480
480mm
400-460mm
410-430mm
230mm
910mm
670mm
15.6kg
8.3kg
125kg
NC0490
520mm
400-460mm
410-430mm
230mm
910mm
710mm
15.6kg
8.3kg
125kg
158
AC U T E CA R E
W H E E LC H A I RS
Hemiplegic Wheelchairs NB0060 Glide One Arm Drive Wheelchair • • • • •
Swingaway removable legrests, calf strap and removable armrests Dual pushrims (on left or right side) allow one armed propulsion of the wheelchair Durable vinyl upholstery Quality stainless steel folding frame for long term use Made in Australia
Code
Drive Side
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NB0070
Left
400mm
400mm
510mm
400mm
215mm
885mm
620mm
17.6kg
14.8kg
100kg
NB0080
Right
400mm
400mm
510mm
400mm
215mm
885mm
620mm
17.6kg
14.8kg
100kg
NB0090
Left
430mm
400mm
510mm
400mm
215mm
885mm
650mm
17.6kg
14.8kg
100kg
NB0650
Right
430mm
400mm
510mm
400mm
215mm
885mm
650mm
17.6kg
14.8kg
100kg
NB0110
Left
460mm
400mm
510mm
400mm
215mm
885mm
680mm
17.6kg
14.8kg
100kg
NB0160
Right
460mm
400mm
510mm
400mm
215mm
885mm
680mm
17.6kg
14.8kg
100kg
Action 3 Lever Drive Wheelchair • • • • • • • •
Swingaway removable legrests and swingback adjustable height desk arms Lever drive mechanism is used to propel wheelchair with a push-forward, pullback motion by one hand Gear lever allows forward or reverse propulsion Drive mechanism is available on the left or right side and is easily steered by turning drive lever Drive lever causes braking mechanism to function by pulling back against the rear wheel Fitted with car buckle seat belt, tie down points and tension adjustable backrest Durable vinyl upholstery Quality black powder coated steel folding frame
Code
Drive Side
Seat Width
Seat Depth
Seat Height
Back Height
Arm Height
Push Handle Height
Overall Width
Gross Weight
Net Weight
Max User Weight
NB0640
Left
410mm
410mm
490mm
460mm
190 - 295mm
930mm
630mm
20kg
18kg
125kg
NB0140
Right
410mm
410mm
490mm
460mm
190 - 295mm
930mm
630mm
20kg
18kg
125kg
NB0150
Left
460mm
410mm
490mm
460mm
190 - 295mm
930mm
680mm
20kg
18kg
125kg
NB0500
Right
460mm
410mm
490mm
460mm
190 - 295mm
930mm
680mm
20kg
18kg
125kg
NB0170
Left
500mm
410mm
490mm
460mm
190 - 295mm
930mm
720mm
20kg
18kg
125kg
NB0510
Right
500mm
410mm
490mm
460mm
190 - 295mm
930mm
720mm
20kg
18kg
125kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 59
W H E E LC H A I RS
Parts & Accessories Glide Stump Support • •
Glide Elevating Legrest NZ12310 Right NZ12300 Left
• •
NZ5940 Glide Headrest Deluxe • •
NZ2360 Glide Oxygen Bottle Carrier
Provides additional support and comfort to the occupant Sold including an adjustable height mount
• • • • •
NZ0390 Glide IV Pole • • • • •
Support pole for intravenous use Adjustable height Slides onto existing wheelchair tilt bar Clamp holds pole securely to wheelchair frame Chromed steel
• •
NZ0260 Left NZ0290 Right
600mm
1 60
AC U T E CA R E
Length 335mm
NZ0230 - 16” NZ0240 - 18” NZ0250 - 20” NZ9370 - 22”
NZ2290 Left NZ2300 Right
NZ2370 Wheelchair Tray
Plastic moulded Raised lip Moulded cup holder recess Fits securely by adjustable velcro straps
Width
• • • •
Breezy Basix Elevated Legs
NZ2310 Universal Tray with Velcro • • • •
Suitable for type C oxygen cylinders Slides onto existing wheelchair tilt bar Clamp holds carrier securely to wheelchair frame Easily removed Chromed steel
Breezy Basix Headrests
Breezy Basix Stump Support • •
NZ0800 Right NZ0790 Left
Outside Length
Weight
560mm
1.5kg
• • • •
Plastic moulded Raised lip edge Tray brackets easily fit between armrest frame and armpad Locking handwheels hold tray securely in place
Width
Length
Outside Length
Weight
580mm
320mm
375mm
2.2kg
W H E E LC H A I RS
Parts & Accessories NZ2440 Care Quip Oxygen Bottle Carrier • • • • •
Suitable for type C oxygen cylinders Slides onto existing wheelchair tilt bar Clamp holds carrier securely to wheelchair frame Easily removed Chromed steel
NZ2340 Armrest Trough Swivel • •
NZ2390 Care Quip IV Pole • • • • •
Support pole for intravenous use Adjustable height Slides onto existing wheelchair tilt bar Clamp holds pole securely to wheelchair frame Chromed steel
NZ2480 Rear Carry Bag •
Ideal for upper limb weakness or paralysis Swivel bracket allows trough to be rotated close to the body
• • •
Nylon storage bag for larger personal items Fixes around backrest upholstery and secured by velcro Zippered compartment Easily removed
Wheelchair Lap Belt •
• •
Fastens to wheelchair frame to assist in the positioning and safety of the user Adjustable length Not to be used as a patient restraint
Models Available NZ2520 Velcro NZ0100 Nylon Buckle NZ2490 Car Buckle
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 61
Mobility
162
Walkers & Rollators
163
Walking Frames
164
Walking Frame Accessories
167
Forearm Walkers
167
Exercise Therapy
170
Adjustable Walking Sticks
171
Quad Sticks
173
Underarm Crutches
174
Elbow Crutches
175
Gutter Crutches
177
Stick & Crutch Tips
178
MOBILITY
Walkers & Rollators Territory Walker • • • • • •
Frame and backrest fold compact for storage and transportation Height adjustable handles Soft-lock handbrakes Curved padded backrest for additional comfort and support Supplied with vinyl bag and padded seat Walker can be folded with vinyl bag still attached
Code
Colour
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Net Weight
Max User Weight
HF0600
Burgundy
350mm
300mm
525mm
610mm
780 930mm
5.9kg
130kg
HF0590
Blue
350mm
300mm
525mm
610mm
780 930mm
5.9kg
130kg
Explorer Walker • • • • •
Frame and backrest fold compact for storage and transportation Height adjustable handles Handbrakes can be locked for added stability Curved padded backrest for additional comfort and support Supplied with removable backrest, vinyl bag and padded seat
•
Walker can be folded with vinyl bag still attached Code
Colour
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Net Weight
Max User Weight
HF0160
Burgundy
310mm
310mm
560mm
610mm
820 930mm
6.4kg
130kg
HF0170
Laser Blue
310mm
310mm
560mm
610mm
820 930mm
6.4kg
130kg
HF0180
Laser Green
310mm
310mm
560mm
610mm
820 930mm
6.4kg
130kg
Caravan Walker • • • • •
Wider seat width and reinforced aluminium frame to suit the bariatric user Folds for easy storage and transportation Height adjustable handles Handbrakes can be locked for added stability Supplied with removable backrest, basket and padded seat
Code
Colour
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Net Weight
Max User Weight
HF0070
Burgundy
430mm
320mm
580mm
630mm
875 990mm
10.1kg
150kg
HF0080
Teal
430mm
320mm
580mm
630mm
875 990mm
10.1kg
150kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 63
MOBILITY
Walkers & Rollators Galaxy Walker • • • • •
Extra wide seat width and reinforced aluminium frame to suit the bariatric user Folds for easy storage and transportation Height adjustable handles Handbrakes can be locked for added stability Supplied with removable backrest, basket and padded seat
Code
Colour
Seat Width
Seat Depth
Seat Height
Overall Width
Handle Height
Net Weight
Max User Weight
HF0210
Burgundy
510mm
350mm
540mm
710mm
770 920mm
11.1kg
220kg
HF0200
Blue
510mm
350mm
540mm
710mm
770 920mm
11.1kg
220kg
Walking Frames Coopers Walking Frame - Non Folding • • • • •
Height adjustable Contoured plastic handgrips Available with or without fixed front wheels Lightweight aluminium Tip size 25mm
Accessories Available
HZ0270 Fixed Wheels
1 64
HZ0220 Walker Skis
Code
Size
Type
Handle Height
Max Base Size
Net Weight
Max User Weight
HG0110
Youth
Standard
670 - 745mm
575 x 510mm
1.8kg
160kg
HG0090
Adult
Standard
770 - 845mm
670 x 565mm
2.0kg
160kg
HG0100
Tall
Standard
865 - 945mm
630 x 570mm
2.0kg
160kg
HG0350
Youth
With Wheels
690 - 765mm
575 x 540mm
2.1kg
160kg
HG0330
Adult
With Wheels
785 - 860mm
670 x 610mm
2.3kg
160kg
HG0340
Tall
With Wheels
880 - 955mm
630 x 610mm
2.3kg
160kg
AC U T E CA R E
MOBILITY
Walking Frames Coopers Walking Frame - Folding • • • • • •
Height adjustable Folds for easy storage and transportation Contoured plastic handgrips Available with or without fixed front wheels Lightweight aluminium Tip size 25mm
Accessories Available
HZ0270 Fixed Wheels
HZ0220 Walker Skis
Code
Size
Type
Handle Height
Max Base Size
Net Weight
Max User Weight
HG0150
Youth
Standard
735 - 810mm
650 x 595mm
2.1kg
125kg
HG0130
Adult
Standard
790 - 870mm
640 x 580mm
2.1kg
125kg
HG0140
Tall
Standard
840 - 910mm
640 x 565mm
2.1kg
125kg
HG0190
Youth
With Wheels
750 - 825mm
650 x 625mm
2.4kg
125kg
HG0170
Adult
With Wheels
810 - 885mm
640 x 610mm
2.4kg
125kg
HG0180
Tall
With Wheels
860 - 935mm
640 x 595mm
2.4kg
125kg
Walking Frame - Folding with Wheels • • • • • • • • •
Height adjustable Folds flat for easy storage and transportation Front swivel wheels for added manoeuvrability Rear push down brake system Foam handles Lightweight aluminium Available in silver or bronze finish Tip size 28mm Max user weight 100kg Code
Handle Height
Base Size
Weight
HG0230
825-925mm
650 x 620mm
3.5kg
HG0210
900-1000mm
690 x 590mm
3.6kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 65
MOBILITY
Walking Frames HG0040 - Walking Frame - Folding • • • • • • • •
Height adjustable Folds flat for easy storage and transportation Foam handles Available with fixed or swivel front wheels Lightweight aluminium Available in silver or bronze finish Tip size 28mm Max user weight 100kg
HZ0410 Fixed Wheels
HZ053 Swivel Wheels
HZ0210 Walker Skies
Accessories Available HZ0410 Fixed wheels - fitted at front (pair) HZ0530 Swivel wheels - fitted at front (pair) HZ0210 Walker Skies - fitted at rear (pair)
With Wheels
Folded
Code
Size
Type
Handle Height
Base Size
Weight
HG0070
Youth
Standard
700-805mm
630 x 500mm
2.5kg
HG0060
Adult
Standard
785-940mm
640 x 480mm
2.6kg
HG0270
Youth
Fixed Wheels
715-820mm
680 x 540mm
2.9kg
HG0260
Adult
Fixed Wheels
795-930mm
685 x 530mm
3.0kg
HG0310
Youth
Swivel Wheels
800-820mm
640 x 540mm
3.2kg
HG0300
Adult
Swivel Wheels
910-940mm
650 x 520mm
3.3kg
HG0030 - Walking Frame - Heavy Duty • • • • • • •
1 66
AC U T E CA R E
Wide frame to suit the bariatric user Height adjustable Folds flat for easy storage and transportation Front fixed wheels for added manoeuvrability Push down brake system Moulded plastic handles for additional support Durable chromed steel construction Handle Height
Base Width
Base Depth
Unit Weight
Max User Weight
855-1010mm
875mm
515mm
7.8kg
200kg
MOBILITY
Walking Frame Accessories HZ0130 - Netbag • • •
Knotted nylon bag Clips to most walking frames Weight 40g
• • • • •
Waterproof nylon bag Attaches to most walking frames by velcro tabs Four pockets at front Rear zippered pocket Weight 370g
• • • •
Lightweight plastic tray Raised edge and non-slip mat prevent items slipping off tray Integrated cup holder To suit 840 series walking frames
HZ0110 - Carry Apron
HZ0260 - Walking Frame Tray
Width
Length
Weight
390mm
285mm
940g
Forearm Walkers HC0170 - Forearm Plus Walker • • • • • • • •
Supports the user in an upright position enhancing balance and gait stability Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Adjustable hand grip to individual forearm length and to reduce strain on wrists One-piece urethane arm pads are removable and easy to clean Rubber hand grips are textured for additional grip Sturdy frame folds almost flat for easy storage and transportation Supplied with four swivel castors
Also Available HC0180 Forearm Plus Walker with Rear Glides Accessories Available HZ0050 Sheepskin Gutter Covers (pair) Castors
Frame Width
Frame Depth
Gutter Height
Max User Weight
Four
640mm
820mm
960 - 1200mm
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 67
MOBILITY
Forearm Walkers Walking Tutor • • • • •
Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Folds almost flat for easy storage and transportation Supplied with four swivel castors
Also Available HZ0220 Walker Skis - fitted at rear (pair) HZ0050 Sheepskin Gutter Covers (pair)
Code
Castors
Frame Width
Frame Depth
Gutter Height
Max User Weight
HC0100
4
630mm
830mm
860-1210mm
100kg
HC0070
4
630mm
830mm
860-1210mm
100kg
HC0080 - Walking Tutor - Padded Rest • • • • • •
Ideal for those with limited hand and wrist strength Padded rest allows the user to support upper body weight at the top of the frame to assist walking Adjustable padded rest height Adjustable hand grip to individual forearm length and to reduce strain on wrists Folds almost flat for easy storage and transportation Supplied with four swivel castors
Also Available HC0160 Walking Tutor - Padded Rest & Rear Glides
Castors
Frame Width
Frame Depth
Padded Rest Height
Padded Rest Width
Padded Rest Depth
Max User Weight
4
630mm
830mm
960 - 1400mm
600mm
400mm
100kg
HC0110 - Walking Tutor - Heavy Duty • • • • •
Fixed reinforced frame to suit the bariatric user Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Supplied with four swivel castors
Accessories Available HZ0050 Sheepskin Gutter Covers (pair)
1 68
AC U T E CA R E
Castors
Frame Width
Frame Depth
Gutter Height
Max User Weight
4
650mm
830mm
900 - 1270mm
175kg
MOBILITY
Forearm Walkers HC0090 - Walking Tutor - Heavy Duty Padded Rest • • • • • •
Fixed reinforced frame to suit the bariatric user Ideal for those with limited hand and wrist strength Padded rest allows the user to support upper body weight at the top of the frame to assist walking Adjustable padded rest height Adjustable hand grip to suit individual forearm length and to reduce strain on wrists Supplied with four swivel castors
Castors
Frame Width
Frame Depth
Padded Rest Height
Padded Rest Width
Padded Rest Depth
Max User Weight
4
650mm
830mm
980 - 1420mm
600mm
400mm
175kg
Forearm Walker - Heavy Duty • • • • •
Fixed reinforced frame to suit the bariatric user Ideal for those with limited hand and wrist strength Adjustable forearm gutter height Supplied with four swivel castors Made in Australia
Also Available HC0050 Forearm Walker - Front Swivel Castors, Rear Glides
Code
Castors
Skies
Frame Width
Frame Depth
Gutter Height
Max User Weight
HC0050
2
2
710mm
830mm
950 - 1230mm
170kg
HC0060
4
0
710mm
830mm
950 - 1230mm
170kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 69
MOBILITY
Exercise Therapy HB0040 - Pedal Exerciser • • •
Assists greater muscle tone through increased leg movement Tension adjustable Foot straps prevent feet slipping off pedals Base Width
Base Depth
Height
Max Pedal Height
400mm
550mm
275mm
320mm
HB0030 - Pedal Exerciser - Digital • • • • •
170
AC U T E CA R E
Assists greater muscle tone through increased leg movement Digitally calculates speed, distance and exercise time Tension adjustable Foot straps prevent feet slipping off pedals Powered by 2 x AA batteries (supplied) Base Width
Base Depth
Height
Max Pedal Height
340mm
400mm
450mm
400mm
MOBILITY
Adjustable Walking Sticks HH0060 - Walking Stick - Crook Handle • • • •
Lightweight aluminium Adjustable height Foam covered handle Tip size 19mm
Code
Colour
Height
Max User Weight
HH0070
Black
760-990mm
100kg
HH0080
Bronze
760-990mm
100kg
HH0030 - Walking Stick - Coopers • • • •
Lightweight aluminium Adjustable height Plastic handle Tip size 22mm
Code
Colour
Height
Max User Weight
HH0050
Medium
695-950mm
125kg
HH0040
Large
840-1095mm
125kg
HH0250 - Walking Stick - Swan Neck • • • • •
Lightweight aluminium Adjustable height Foam handgrip Wrist strap for added security Tip size 19mm
Code
Colour
Height
Max User Weight
HH0260
Black
760-990mm
100kg
HH0270
Bronze
760-990mm
100kg
HH0210 - Walking Stick - Plastic Handle • • • • • • •
Lightweight aluminium Adjustable height Moulded plastic handle Tip size 19mm Black colour Height 765 - 990mm Max user weight 100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 71
MOBILITY
Adjustable Walking Sticks HH0290 - Walking Stick - Timber Handle • • • •
Lightweight aluminium Adjustable height Polished timber handle Tip size 19mm
Code
Colour
Height
Max User Weight
HH0300
Black
770-1000mm
100kg
HH0310
Bronze
770-1000mm
100kg
HH0130 - Walking Stick - Folding • • • • •
Lightweight aluminium Folds for easy storage and transportation Adjustable height Polished timber handle Tip size 19mm
Code
Colour
Size
Height
Max User Weight
HH0140
Black
Medium
810-910mm
100kg
HH0150
Bronze
Tall
860-960mm
100kg
HH0100 - Walking Stick - Fisher Moulded Handle • • • •
Lightweight aluminium Adjustable height Unique contoured plastic handle evenly distributes pressure across the palm of hand Tip size 19mm
Code
Type
Height
Max User Weight
HH0110
Left
815-1070mm
125kg
HH0120
Right
815-1070mm
125kg
HH0220 - Walking Stick - Rehab Moulded Handle • • • •
1 72
AC U T E CA R E
Lightweight aluminium Adjustable height Unique contoured plastic handle evenly distributes pressure across the palm of hand Tip size 19mm
Code
Type
Height
Max User Weight
HH0230
Left
765-995mm
100kg
HH0240
Right
765-995mm
100kg
MOBILITY
Quad Sticks HE0020 - Quad Stick • • • • • •
Steel Adjustable height Foam covered handle Tip size 19mm Height 760-990mm Max user weight 100kg Handle Height
Base Width
Base Depth
Tip Size
Max User Weight
720-945mm
230mm
230mm
13mm
100kg
HE0030 - Quad Stick • • • • • •
Adjustable height Foam handgrip Handle and stem rotate for left or right hand use Low profile offset base Lightweight aluminium stem and steel base Tip size 13mm
Code
Colour
Height
Base Width
Base Depth
Max User Weight
HE0040
Bronze
715-940mm
150mm
200mm
100kg
HE0050
Silver
715-940mm
150mm
200mm
100kg
HE0060 - Quad Stick • • • • • •
Adjustable height Reflector on handle Wrist strap for added security Handle and stem rotate for left or right hand use High profile offset base Lightweight aluminium stem and steel base Handle Height
Base Width
Base Depth
Tip Size
Max User Weight
795-1020mm
230mm
390mm
16mm
75kg
HE0070 - Quad Stick • • • • •
Adjustable height Reflector on handle Handle and stem rotate for left or right hand use Low profile offset base Lightweight aluminium stem and steel base Handle Height
Base Width
Base Depth
Tip Size
Max User Weight
720-995mm
165mm
295mm
16mm
75kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 73
MOBILITY
Quad Sticks HE0010 - Quad Stick • • • • • •
Adjustable height Reflector on handle Wrist strap for added security Handle and stem rotate for left or right hand use High profile offset base Lightweight aluminium stem and steel base
Handle Height
Base Width
Base Depth
Tip Size
Max User Weight
720-995mm
170mm
205mm
16mm
75kg
Underarm Crutches HA0180 - Underarm Crutches • • • •
Padded top, padded handgrip and rubber tip Adjustable handle and leg height Lightweight aluminium construction Tip size 22mm
Accessories Available HZ0080 Sheepskin Hand Grips (pair) HZ0090 Sheepskin Tops (pair)
1 74
AC U T E CA R E
Code
Size
Crutch Height
Max User Weight
Approx. Patient Height
HA0210
Small
945-1150mm
130kg
137-157cm
HA0200
Medium
1135-1340mm
130kg
157-178cm
HA0190
Large
1345-1550mm
130kg
178-198cm
MOBILITY
Elbow Crutches HA0150 - Elbow Crutches - Coopers Single Adjustable • • • •
Adjustable leg height Moulded plastic handgrip Lightweight aluminium Tip size 22mm
Accessories Available HZ0070 Sheepskin Hand Grips (pair)
Code
Size
Handgrip Height
Cuff to Handgrip Height
Max User Weight
HA0160
Adult
685-940mm
220mm
180kg
HA0170
Extra Long
830-1085mm
220mm
180kg
HA0090 - Elbow Crutches - Coopers Double Adjustable • • • •
Adjustable cuff and leg height Moulded plastic handgrip Lightweight aluminium Tip size 22mm
Accessories Available 400SH Sheepskin Hand Grips (pair)
Code
Size
Handgrip Height
Cuff to Handgrip Height
Max User Weight
HA0120
Medium
555-810mm
180-255mm
180kg
HA0110
Adult
685-935mm
200-275mm
180kg
HA0100
Extra Long
840-1095mm
200-275mm
180kg
Elbow Crutches - Double Adjustable • • • •
Adjustable cuff and leg height Moulded plastic handgrip Lightweight aluminium Tip size 22mm
Accessories Available HZ0070 Sheepskin Hand Grips (pair)
Code
Size
Handgrip Height
Cuff to Handgrip Height
Max User Weight
HA0310
Small
460-685mm
240-290mm
100kg
HA0300
Medium
525-750mm
260-330mm
100kg
HA0290
Adult
635-870mm
260-330mm
100kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 75
MOBILITY
Elbow Crutches HA0040 - Elbow Crutches – Coopers ‘Cumfy’ Handle • • •
Adjustable cuff and leg height Unique contoured plastic handle evenly distributes pressure across the palm of the hand Lightweight aluminium
Handgrip Height
Cuff to Handgrip Height
Tip Size
Max User Weight
655-900mm
215-290mm
22mm
125kg
HA0010 - Elbow Crutches – ‘Cumfy’ Handle • • •
Adjustable cuff and leg height Unique contoured plastic handle evenly distributes pressure across the palm of the hand Lightweight aluminium
Handgrip Height
Cuff to Handgrip Height
Tip Size
Max User Weight
760-985mm
240-315mm
22mm
100kg
HA0130 - Elbow Crutches – Coopers Permanent User • • • •
Extra long length to be cut down to suit individual requirements Ideal for the heavier user or for those who use crutches for long periods of time Moulded plastic handgrip Double thickness reinforced aluminium tubing for added strength
Accessories Available HZ0070 Sheepskin Hand Grips (pair)
Handgrip Height
Cuff to Handgrip Height
Tip Size
Max User Weight
1010mm
245mm
25mm
190kg
HA0140 - Elbow Crutches – Coopers Permanent User ‘Cumfy’ Handle • • • •
176
AC U T E CA R E
Extra long length to be cut down to suit individual requirements Ideal for the heavier user or for those who use crutches for long periods of time Unique contoured plastic handle evenly distributes pressure across the palm of the hand Double thickness reinforced aluminium tubing for added strength
Handgrip Height
Cuff to Handgrip Height
Tip Size
Max User Weight
1005mm
230mm
25mm
190kg
MOBILITY
Gutter Crutches HC0130 - Forearm Gutter Crutch • • • • • •
Ideal for those with limited hand and wrist strength Adjustable height Forearm gutter pad and velcro strap provides maximum support Adjustable hand grip to suit individual forearm length Powdercoated steel Supplied as a pair Gutter Height
Tip Size
Max User Weight
950-1200mm
22mm
90kg
HC0140 - Forearm Gutter Crutch • • • • • •
Ideal for those with limited hand and wrist strength Adjustable height Forearm gutter pad and velcro strap provides maximum support Adjustable hand grip to suit individual forearm length Aluminium Supplied as a pair Gutter Height
Tip Size
Max User Weight
960-1220mm
25mm
125kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
177
MOBILITY
Stick & Crutch Tips HZ2360 - Type Z Stick & Crutch Tips • •
HZ2070 - Type Q Quad Stick Tip
Patterned base for additional grip Colour Grey Code
Type
Size
HZ1860
Stick Tip
16mm
HZ1890
Stick Tip
19mm
HZ1900
Crutch Tip
22mm
HZ1910
Crutch Tip
25mm
HZ2300 - Type D Stick Tip Heavy Duty • •
•
Patterned base for additional grip Supplied as each
•
178
AC U T E CA R E
Code
Size
Colour
HZ2070
9mm
Black
• •
Patterned base for additional grip Supplied as each
Code
Size
Colour
Code
Size
Colour
HZ2190
16mm
Black
HZ2060
13mm
Black
HZ2200
19mm
Black
HZ2080
13mm
Grey
HZ2210
22mm
Black
HZ2350 - Type X Crutch Tip Heavy Duty
Flexible patterned base for additional grip Deep profile base for heavy use
• • •
Deep profile base for heavy use Patterned base for additional grip Supplied as each
Size
Colour
Code
Size
Colour
22mm
Grey
HZ1920
22mm
Black
HZ1930
22mm
Grey
HZ1940
22mm
Tan
Sherpa Stick Tips •
Supplied as each
HZ2310 - Type QL Quad Stick Tip
HZ1870 - Type JS Crutch Tip Jumbo •
•
Tapered base angle flexes to suit walking surface Supplied as each Code
Type
Size
HZ2220
Stick Tip
16mm
HZ2230
Stick Tip
19mm
Bathroom & Hygiene Equipment Shower Chairs & Stools
181
Mobile Shower Commodes
185
Mobile Shower Commode Accessories
189
Toilet Surrounds
191
Overtoilet Aids
191
Bedside Commodes
193
Shower / Bath Trolleys
194
Shower / Bath Trolley Options
197
Urinals & Bedpans
198
Commode Bowls
199
179
BAT H RO O M
Shower Chairs & Stools AG0240 - Shower Chair - No Arms • • • • • •
Height adjustable Unrestricted side access to assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Seat Width
Seat Height
Base Width
Base Depth
Max User Weight
410mm
400 - 550mm
560mm
560mm
125kg
AG0070 - Shower Chair • • • • • •
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
410 - 560mm
560mm
560mm
125kg
AG0200 - Shower Chair - Aluminium • • • • • •
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Powder coated aluminium frame is lightweight and rust proof Tested and conforms to Australian Standards AS/NZS 3973: 2009 Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
410 - 560mm
560mm
560mm
200kg
AG0270 - Shower Chair - Stainless Steel • • • • •
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area Non-slip rubber tips Durable stainless steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
450mm
410 - 560mm
560mm
560mm
125kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
181
BAT H RO O M
Shower Chairs & Stools Shower Chair - Wide • • •
Height adjustable Ergonomic angled arms assist transfers Drainage slots drain water away from seating area
• • •
Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Code
Frame
Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
AG0080
Steel
500mm
420 - 570mm
600mm
560mm
135kg
AG0190
Aluminium
500mm
420 - 570mm
600mm
560mm
200kg
Shower Chair - Extra Wide • • •
Height adjustable Reinforced frame to suit bariatric client Padded seat and curved backrest
• • •
Non-slip rubber feet Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Code
Seat Width
Seat Height
Base Width
Base Depth
Max User Weight
AG0110
550mm
470 - 640mm
650mm
520mm
300kg
AG0120
600mm
470 - 640mm
700mm
520mm
300kg
AG0130
650mm
470 - 640mm
750mm
520mm
300kg
Trix Shower Chair • •
Clear rear enabling positioning over the toilet Easy access for hygiene with open armrest
AC U T E CA R E
Integral pan carrier glides Removable backrest
Code
AJ0390
AJ0400
AJ0410
Arm Rest Height
210mm
210mm
210mm
Back Rest Height
430mm
430mm
430mm
Overall Height
920 - 1100mm
920 - 1100mm
920 - 1100mm
Overall Width
780mm
880mm
1080mm
Seat Depth – 5 settings at 25mm increments
470 - 570mm
470 - 570mm
495 - 595mm
Seat Height – 7 settings at 25mm increments
410 - 560mm
410 - 560mm
410 - 560mm
Seat Width
610mm
710mm
910mm
Width Between Arms
660mm
760mm
960mm
Max User Weight
400Kg
400Kg
400Kg
Overall Depth
650 - 750mm
650 - 750mm
710 - 810mm
Wall to Rear of Aperture
240 - 340mm
240 - 340mm
240 - 340mm
540mm (w) x 500mm (h)
540mm (w) x 500mm (h)
840mm (w) x 500mm (h)
360mm (w) x 460mm (h)
360mm (w) x 460mm (h)
360mm (w) x 460mm (h)
Toilet Bowl Clearance: Max Width x Height To Underside of Pan Carrier
182
• •
BAT H RO O M
Shower Chairs & Stools AG0420 - Shower Stool - No Arms • • • • • •
Height adjustable Side handles to assist transfers Durable plastic moulded seat Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Width Between arms
Seat Height
Base Width
Base Depth
Max User Weight
380mm
510 - 660mm
550mm
380mm
125kg
AG0450 - Shower Stool • • • • • •
Height adjustable Integrated arms assist transfers Durable plastic moulded seat Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Width Between arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
510 - 660mm
550mm
380mm
125kg
AG0400 - Shower Stool - Aluminium • • • • • •
Height adjustable Integrated arms assist transfers Durable plastic moulded seat Non-slip rubber tips Powder coated aluminium frame is lightweight and rust proof Tested and conforms to Australian Standards AS/NZS 3973: 2009 Width Between arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
510 - 660mm
550mm
380mm
175kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
183
BAT H RO O M
Shower Chairs & Stools AG0470 - Shower Stool - Padded • • • • • •
Height adjustable Padded seat for added comfort Integrated arms assist transfers Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame
Also Available AG0410 Shower Stool Aluminium Padded – Lightweight, rust proof Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
520 - 670mm
550mm
380mm
125kg
AG0440 - Shower Stool - Padded with Backrest • • • • • •
Height adjustable Padded seat and back for added comfort Integrated arms assist transfers Non-slip rubber tips Electrophoretic surface treatment to prevent rusting Powder coated steel frame Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
460mm
520 - 670mm
550mm
380mm
125kg
Shower Stool - Extra Wide • • • • • •
184
AC U T E CA R E
Wider seat widths and reinforced frame to suit the bariatric client Padded seat for added comfort Non-slip rubber feet Integrated arms assist transfers Electrophoretic surface treatment to prevent rusting Powder coated steel frame Code
Width Between Arms
Seat Height
Base Width
Base Depth
Max User Weight
AG0310
500mm
520 - 670mm
620mm
610mm
150kg
AG0320
550mm
590mm
680mm
610mm
200kg
AG0330
600mm
590mm
730mm
610mm
250kg
AG0340
650mm
590mm
780mm
610mm
250kg
BAT H RO O M
Mobile Shower Commodes AE0970 - Juvo Mobile Shower Commode - Hybrid • • • • • • • • • •
Assists transportation of patient for showering and toileting Can be positioned over the toilet for toileting Supplied with open front polyurethane commode seat Swingback arms for side transfers Armrests can be set at two different heights PVC slatted backrest Sliding footrest is weight bearing and can be foot operated Mounted on 4 x 125mm locking castors Durable stainless steel frame Tested and conforms to Australian Standards AS/NZS 3973: 2009
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
460mm
430mm
595mm
200/240mm
340mm
540mm
150kg
Juvo Mobile Shower Commode - Sliding Footplate • • • • • • • • • • • •
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Wider seat widths and reinforced frame to suit the bariatric client Swingback arms with padded armpads assist side transfers and can be positioned at two different heights Adjustable safety arms for additional security Sliding footrest is textured and weight-bearing for added safety Footrest slides back under frame to assist patient transfers PVC slatted backrest Mounted on 4 x 125mm stainless steel locking castors Durable stainless steel frame Tested and conforms to Australian Standards AS/NZS 3973: 2009 Standard or Wide
Seat Sold Separately Padded commode seats (open or closed front) are additional see page 181
Code
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2090
Standard
460mm
435mm
595mm
200/240mm
340mm
540mm
200kg
AE2100
Wide
510mm
435mm
595mm
200/240mm
340mm
590mm
300kg
AE2110
Wide
560mm
435mm
595mm
200/240mm
340mm
640mm
300kg
AE2120
Wide
610mm
435mm
595mm
200/240mm
340mm
690mm
300kg
AE2130
Wide
660mm
435mm
595mm
200/240mm
340mm
740mm
300kg
AE2390
Wide
660mm
435mm
595mm
240mm(drop arm)
340mm
740mm
400kg
AE2140
Wide
710mm
435mm
595mm
200/240mm
340mm
790mm
400kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
185
BAT H RO O M
Mobile Shower Commodes Juvo Mobile Shower Commode - Swingaway Legrests • • • • • • • • • • • •
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Padded commode seat (available as open or closed front) Swingback arms with padded armpads for side transfers Armrests can be adjusted to two different heights Adjustable safety arms for additional security PVC slatted backrest Adjustable height swingaway legrests feature a unique unobtrusive mechanism design to prevent skin tears Mounted on 4 x 125mm locking stainless steel castors Durable stainless steel frame Tested and conforms to Australian Standards AS/NZS 3973: 2009 Standard or Wide
Seat Sold Separately Padded commode seats (open or closed front) are additional see page 181 Code
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2160
Standard
460mm
430mm
565mm
200/240mm
340mm
540mm
200kg
AE2170
Wide
510mm
430mm
565mm
200/240mm
340mm
590mm
300kg
AE2180
Wide
560mm
430mm
565mm
200/240mm
340mm
640mm
300kg
AE2190
Wide
610mm
430mm
565mm
200/240mm
340mm
690mm
300kg
AE2200
Wide
650mm
430mm
565mm
200/240mm
340mm
740mm
300kg
Juvo Mobile Shower Commode - Tilt in Space • • • • • • • • •
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Swingback arms with padded armpads for side transfers Adjustable safety arms for additional security Armrests can be positioned at two different heights Removable PVC slatted backrest Adjustable height swingaway legrests feature a unique unobtrusive mechanism design to prevent skin tears Mounted on 2 x 125mm stainless steel castors and 2 x 22 inch rear wheels Durable stainless steel frame
Seat Sold Separately Padded commode seats (open or closed front) are additional see page 181
Code
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2360
Standard
460mm
430mm
510-660mm
200/240mm
800mm
560mm
200kg
AE2370
Wide
510mm
430mm
510-660mm
200/240mm
900mm
610mm
300kg
186
AC U T E CA R E
BAT H RO O M
Mobile Shower Commodes Juvo Mobile Shower Commode - Self Propelled • • • • • • • • • •
Assists transportation of the patient for showering and toileting Can be positioned over the toilet for toileting Swingback arms with padded armpads for side transfers Adjustable safety arms for additional security Armrests can be positioned at two different heights Removable PVC slatted backrest Adjustable height swingaway legrests or slide out weight-bearing footrest Mounted on 2 x 125mm stainless steel castors and 2 x 22 inch rear wheels Durable stainless steel frame Folding models also available
Seat Sold Separately Padded commode seats (open or closed front) are additional see page 181 Code
Footrest Type
Type
Seat Width
Seat Depth
Seat Height
Armrest Height
Backrest Height
Overall Width
Max User Weight
AE2270
Swingaway
Standard
460mm
430mm
595mm
200/240mm
340mm
660mm
200kg
AE2280
Swingaway
Wide
510mm
430mm
595mm
200/240mm
340mm
710mm
300kg
AE2290
Swingaway
Wide
560mm
430mm
595mm
200/240mm
340mm
760mm
300kg
AE2300
Swingaway
Wide
610mm
430mm
595mm
200/240mm
340mm
810mm
300kg
AE2310
Swingaway
Wide
660mm
430mm
595mm
200/240mm
340mm
860mm
300kg
AE2210
Sliding
Standard
460mm
430mm
595mm
200/240mm
340mm
660mm
200kg
AE2220
Sliding
Wide
510mm
430mm
595mm
200/240mm
340mm
710mm
300kg
AE2230
Sliding
Wide
560mm
430mm
595mm
200/240mm
340mm
760mm
300kg
AE2240
Sliding
Wide
610mm
430mm
595mm
200/240mm
340mm
810mm
300kg
AE2250
Sliding
Wide
660mm
430mm
595mm
200/240mm
340mm
860mm
300kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 87
BAT H RO O M
Mobile Shower Commodes AE1740 - Lopital Nemo Gas-Assisted Tilt-in-Space Shower Commode • • • • • • • • • • •
Optimal comfort for both caregivers and clients Contoured headrest with adjustable height & depth Gas assisted seat tilt Foldback armrests 4x braking castors Removable and height adjustable footrests Calf strap Moulded polyurethane construction Exceptional design to meet stringent infection control regulations Contemporary style and design Made in Netherlands
Outside Depth
Outside Width
Inside Seat Depth
Seat Height
Max User Weight
Product Weight
Max Tilt
730mm
660mm
440mm
540mm
150kg
24.5kg
30O
AE1710 - Lopital Flexo Shower Commode • • • • • • • • • •
Simple adjustable hydraulic height control Seat height adjustable 50-105mm Contoured seat with toilet opening cover Foldable armrests with front lock to allow side transfers Ergonomically shaped seat & backrest Foldable footrests with calf strap The chair will reach a maximum incline of 15° in the highest position Bedpan/ bowl carrier Lockable plastic swivel castors, stainless steel wheel housings to provide greater stability Made in Netherlands
Outside Depth
Inside Seat Depth
Seat Height
Max User Weight
Product Weight
Max Tilt
700mm
440mm
500-1050mm
150kg
39kg
15O
AE1770 - Lopital Tango XXL Shower Commode • • • • • •
Flip back armrests 4 x braking castors Toilet seat with hygiene opening Pan carrier and commode pan Foldable swing away footrests Made in Netherlands
Outside Depth
Outside Width
Inside Seat Depth
Seat Height
Max User Weight
Product Weight
680mm
660mm
480mm
550mm
360kg
21kg
188
AC U T E CA R E
BAT H RO O M
Mobile Shower Commodes Lopital Reflex Shower Commode • • • • • • •
Electrically operated height adjustment Electrically operated tilt mechanism Easy-to-use touch controls on backrest Height-adjustable headrest Ergonomically designed backrest and seat Height-adjustable legrest and calf support Foldback armrests with locking mechanism
• • • • • • •
Suitable for use in the shower and toilet Slide for commode pan 4 x braking castors Easy to recharge with battery charger provided Optional hand control available at an additional cost Contemporary style and design Made in Netherlands
Code
Footrest Type
Outside Depth
Inside Seat Depth
Seat Height
Max User Weight
Product Weight
Max Tilt
AE1690
Center Mounted
700mm
440mm
500-1000mm
135kg
39kg
30O
AE1700
Swing Away
700mm
440mm
500-1000mm
135kg
39kg
30O
AE1720 - Lopital Elexo XXL Bariatric Shower Commode • • • • •
Simple electric high / low adjustment electric operation with battery indicator 4 x castors (3 x locking, 1 x directional locking) Dual Motors for increased lift capacity Pan carrier and commode pan Sleep mode setting after 60 minutes
• • • • • • •
Battery charger included Folding and extended armrests Open front seat Ergonomic calf support Swivelling and detachable footrests Contemporary style and design Made in Netherlands
Outside Depth
Outside Width
Inside Seat Depth
Seat Height
Max User Weight
Product Weight
Max Tilt
960mm
880mm
600mm
510-1100mm
220kg
75kg
20O
Mobile Shower Commode Accessories AZ4880 - Loptial Reflex Charger • •
Replacement charger for the Reflex shower commode Made in Netherlands
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 89
BAT H RO O M
Mobile Shower Commode Accessories Juvo Shower Commode Seat Wider seats are available. Contact Alpha Lifecare for more information.
430mm
215mm
112.5mm
260mm
112.5mm
80mm
90mm 440mm
Models Available AZ2470 Polyurethane - Closed AZ2490 Polyurethane - Open AZ0068 Juvo Shower Commode Polyurethane: 510mm Wide O/F Seat AZ4200 Juvo Shower Commode Polyurethane: 560mm Wide O/F Seat AZ4210 Juvo Shower Commode Polyurethane: 610mm Wide O/F Seat AZ4090 Juvo Shower Commode Polyurethane: 660mm Wide O/F Seat AZ4240 Juvo Shower Commode Polyurethane: 710mm Wide O/F Seat AZ2800 Clip And Screw for Juvo Commode Set of 4 required per commode
430mm
215mm
112.5mm
112.5mm
260mm
80mm
90mm
440mm
Pan/Bowl Carrier • • • •
Retains commode pan for toileting Slides under commode seat through existing runners Durable stainless steel To suit Juvo Shower Commodes
Models Available AZ1480 Pan/Bowl Carrier - To suit standard and wide commodes AZ1479 Pan/Bowl Carrier - To suit tilting commodes
AZ4820 - Shower Commode Accessory - Bedpan with Cover • • •
190
AC U T E CA R E
Plastic bedpan compatible with the Reflex and Nemo shower commodes Made in Netherlands
BAT H RO O M
Toilet Surrounds AJ0310 - Toilet Surround • • • •
Frame to assist toilet transfers Height adjustable Non-slip rubber tips Powder coated steel Height
Width Between Arms
Base Width
Base Depth
Max User Weight
625 - 775mm
455mm
540mm
490mm
125kg
AJ0350 - Toilet Surround - Wide • • • •
Heavy duty fixed height frame to assist toilet transfers Fitted with rear cross bar for additional strength and stability Non-slip rubber tips Powder coated steel Height
Width Between Arms
Base Width
Base Depth
Max User Weight
685mm
620mm
670mm
520mm
130kg
Overtoilet Aid AJ0050 Overtoilet Aid • • • • • • •
Provides a raised seat and support arms to assist toilet transfers Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Height adjustable Removable toilet seat and splash guard Non-slip rubber tips Powder coated steel
Also Available AZ1400 Lid, Clip-on
Seat Height
Width Between Arms
Arm Height
Base Width
Base Depth
Max User Weight
470 - 620mm
440mm
240mm
550mm
610mm
125kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 91
BAT H RO O M
Overtoilet Aid AJ0020 Overtoilet Aid - Aluminium • •
• • •
Provides a raised seat and support arms to assist toilet transfers Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Height adjustable Removable toilet seat and splash guard
• •
Non-slip rubber tips Powder coated aluminium frame is lightweight and rust proof Tested and conforms to Australian Standards AS/NZS 3973 :2009
•
Also Available AZ1400 Lid, Clip-on
Seat Height
Width Between Arms
Arm Height
Base Width
Base Depth
Max User Weight
470 - 620mm
445mm
230mm
550mm
610mm
150kg
AJ0090 - Overtoilet Aid - Stainless Steel • •
• •
Provides a raised seat and support arms to assist toilet transfers Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers Height adjustable
•
Removable toilet seat and splash guard Non-slip rubber tips Durable stainless steel frame
• •
Also Available AZ1400 Lid, Clip-on
Seat Height
Width Between Arms
Arm Height
Base Width
Base Depth
Max User Weight
470 - 620mm
440mm
240mm
550mm
610mm
125kg
Overtoilet Aid - Extra Wide • • •
•
192
Provides a raised seat to assist in toileting and transfers Wider seat widths and reinforced frame to suit the bariatric client Ideal for people with hip or knee injuries or those who require greater seat height Ergonomic angled arms assist transfers
• • •
Supplied with lift-back toilet seat and removable splash guard Non-slip rubber tips Powder coated steel
Also Available AZ1400 Lid, Clip-on
Code
Width Between Arms
Seat Height
Armrest Height
Base Width
Base Depth
Max User Weight
AJ0110
500mm
475 - 625mm
230mm
620mm
610mm
150kg
AJ0180
550mm
550mm
230mm
680mm
610mm
200kg
AJ0190
600mm
550mm
230mm
730mm
610mm
250kg
AJ0200
650mm
550mm
230mm
780mm
610mm
250kg
AC U T E CA R E
BAT H RO O M
Bedside Commode BE0190 - Bedside Commode • • • • •
Removable padded seat, padded backrest, toilet seat and commode bowl Adjustable seat height Angled armrests to assist transfers Non-slip rubber tips Powder coated steel frame Width Between Arms
Seat Height
Arm Height
Max User Weight
440mm
470-620mm
240mm
125kg
Deluxe Bedside Commode • • • • •
Padded seat, padded armrests, toilet seat and removable commode bowl Adjustable seat height Padded seat cover slides back easily for access to commode Three sided vanity skirt conceals commode bowl Powder coated steel frame
Code
Colour
Width Between Arms
Seat Height
Arm Height
Max User Weight
BE0080
Slate
440mm
475-525mm
300mm
120kg
BE0070
Champagne
440mm
475-525mm
300mm
120kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 93
BAT H RO O M
Shower / Bath Trolleys Lopital Marina Hydraulic Shower Trolley Lopital Marina Hydraulic Shower Trolley is a light weight shower trolley made of aluminium which makes it easy to manoeuver making transfers easier. The Marina Hydraulic Shower Trolley is height adjustable, ensuring caregiver convenience and resident/client comfort. • • • • • • • • AH0350 Lopital Marina Shower Trolley - Hydraulic
AH0360 Lopital Marina Deluxe Shower Trolley - Hydraulic
1 94
AC U T E CA R E
•
Wide stable wheelbase Extremely light frame made of aluminium Large diameter wheels (Ø 12.5 cm) Height-adjustable, hydraulically operated Ergonomic pump action for height adjustment Simple and safe control of side rails with locking mechanism Includes mattress, pillow and outlet hose Corrosion resistant through coated aluminium, stainless steel, plastic and galvanised parts Streamlined finish for optimal cleaning High / Low Drive:
Hydraulic push-only
Diameter of Wheels:
12.5cm
Side Rails:
Turnable, requires both hands when opening
External Dimensions:
209 x 82 x 62/116cm (l x w x h)
Top Surface Net Area:
Approx. 190 x 65cm
Mattress Edge Height
Approx. 20cm
Minimum Lying Surface Height:
Approx. 45cm
Maximum Lying Surface Height:
Approx. 99 cm
Water Discharge Hose:
Internal Ø 4cm
Wheel Base:
140cm
Wheel Gauge:
63cm
Clearance Space:
18cm
Weight:
68kg
Max User Weight:
180kg
BAT H RO O M
Shower / Bath Trolleys Lopital Marina Electric Shower Trolley Lopital Marina Electric Shower Trolley is a light weight shower trolley made of aluminium which makes it easy to manoeuver making transfers easier. The Lopital Marina Electric is a lightweight, height adjustable shower trolley which ensures caregiver convenience and patient comfort. • • • • •
AH0370 Lopital Marina Shower Trolley - Electric
AH0380 Lopital Marina Deluxe Shower Trolley - Electric
• • • •
Wide stable wheelbase Extremely light frame made of aluminium Large diameter wheels (Ø 12.5 cm) Height-adjustable, electrically operated Fitted with an emergency descent switch, emergency brake and user-friendly charger Simple and safe control of side rails with locking mechanism Includes mattress, pillows and outlet hose Corrosion resistant through coated aluminium, stainless steel, plastic and galvanised parts Streamlined finish for optimal cleaning
High / Low Drive:
Electric, push-only
Manual Control:
2-key handset with suspension-hook, IP66
Control Box:
24VDC, max. 250 W, IP65
Emergency Brake:
Push button with rotation lock
Battery:
2 x 12V, 7Ah
Battery Charger:
220V 50/60Hz 500mA
Emergency Descent Switch:
Stick shift, directly from the control box
Complete Electrical System:
IP65
Diameter of Wheels:
12.5cm
Side Rails:
Turnable, requires both hands when opening
External Dimensions:
209 x 82 x 62/116cm (l x w x h)
Top Surface Net Area:
Approx. 190 x 65cm
Mattress Edge Height:
Approx. 20cm
Minimum Lying Surface Height:
Approx. 45cm
Maximum Lying Surface Height:
Approx. 99 cm
Water Discharge Hose:
Internal Ø 4cm
Wheel Base:
140cm
Wheel Gauge:
63cm
Clearance Space:
18cm
Weight:
68kg
Max User Weight:
180kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
1 95
BAT H RO O M
Shower / Bath Trolleys AG0520 - Aquarius Shower Trolley Single column design with minimal exposed moving parts Easy action hydraulic Hi lo function accessible from either side Heavy duty poly tuff liner with drain hose and mounting hook Tilt function for quick draining Easy fold dropsides with 2 release handles for additional rigidity 4 x Anti-marking bumpers 4 x 175mm Castors (locking) Triple coated steel with stainless steel side and end rails
Specifications
Models Available AG0490 Aqua Tuff Hydraulic AZ3110 Aqua Tuff Electric
• •
Bariatric compatible with extra strengthened plates and pins Twin lifting columns for rigidity and stability Easy action hydraulic Hi lo function accessible from either side Heavy duty poly tuff liner with drain hose and mounting hook Tilt function for quick draining Easy fold dropsides with 2 release handles for additional rigidity 4 x Anti-marking bumpers 4 x 125mm Stainless steel Castors (locking) Fully Stainless steel construction Also available with electric backrest
• • • • • • • • •
Electric height adjustment with 300kg SWL 15 degree electric backrest option available Total stainless steel construction 1195 W x 1950mm Long overall size including bumpers Liner inner (min) base size - 960 W x 1720 L x 180mm Deep Adjustable end rails with 120mm extra length Standard hose length; 1100mm, custom lengths available Height Range - 680 to 900mm Quality 125mm twin wheel castors with total lock and steer
• • • • • • • •
Length:*
1950mm
Width:
790mm
Liner Base Dimensions:
1750mm x 560mm
Height Range:
680mm-880mm
Max User Weight:
180kg
*Additional 120mm extra adjustment to length
AquaTuff Shower Trolley • • • •
Hydraulic
• • • •
Length:*
1950mm
Width:
790mm
Liner Base
1750mm x 560mm
Dimensions:
620mm-900mm
Height Range:
300kg
Max User Weight:
650mm
*Additional 120mm extra adjustment to length
Electric
Aquatuff Bari Shower Trolley
196
AC U T E CA R E
BAT H RO O M
Shower / Bath Trolley Options (To suit Aquarius & Aquatuff) AZ3120 - Concealment Cover • •
AG0550 - Change Table
Replaces bath liner Light weight frame retained by washable fitted cover
• • • •
AZ3160 - Custom Drain Hose • • • •
• • • •
AZ3110 - Electric Hi/lo
Standard length is 1100mm Can be made to any length required 2000mm hose will hook on head end of trolley Cannot be used on Aqualift or Aqualife
AZ3240 - Extra Wide Top
Replaces bath liner 25mm Foam fully poly welded mattress Heavy duty vinyl Cannot be used on Aqualift or Aqualife
• • • • •
One touch function Battery is removable for charging lP65 Rating Suitable for Aquabed or AquaTuff only Aqualife comes as standard electric function
AZ3140 - Junior / AZ3130 - Midi Tops
100mm wider top Allows more room and comfort for Bariatric Clients Greater area for turning patient Cannot be used on Aqualift or Aqualife
• • • •
1 30 0 930 930
For smaller patients or where space is limited Junior Top 1600mm Midi top 1740mm Cannot be used on Aqualift or Aqualife
A L P H A L I F E CA R E .C O M . AU
1 97
BAT H RO O M
Urinal & Bed Pans CF0110 - Male Urinal
CF0060 - Female Adaptor for ‘Spil-Pruf’ Urinal • • • • • •
Autoclavable for sanitising Integrated handle 1 litre capacity 100ml graduation markings Moulded plastic Weight 115g
• • • •
Converts male Spil-Pruf urinal for female use Slides into Spil-Pruf urinal spout Moulded plastic Weight 60g
Also Available CF0120 Male Urinal Green
CF0100 - Male Urinal with Lid • • • • • • •
Integrated handle Clip-on lid prevents spillage Lid stays attached to urinal while in use 1 litre capacity 100ml graduation markings Moulded plastic Weight 165g
CF0130 - Male Urinal with Screw on Lid • • • • • • •
Autoclavable for sanitising Integrated handle Screw on lid prevents spillage 1 litre capacity 100ml graduation markings Moulded plastic Weight 180g
CF0140 - Male Urinal ‘Spil-Pruf’ • • • • • • • • •
198
AC U T E CA R E
Autoclavable for sanitising Integrated handle Patented non-spill spout prevents spillage in any position Spout unscrews easily for disposal and cleaning 1 litre capacity 500ml non-spill capacity 100ml graduation markings Moulded plastic Weight 240g
CF0080 - Female Urinal • • • • • •
Autoclavable for sanitising Integrated handle 1 litre capacity 100ml graduation markings Moulded plastic Weight 205g
CF0090 - Female Urinal Cygnet • • • • •
Integrated handle 1 litre capacity 100ml graduation markings Moulded plastic Weight 105g
CF0070 - Urinal Bottle Holder • • • • • •
Epoxy coated wire frame Easily attaches to bed frame, rail etc. Holds urinal in an upright position to prevent spillage Compatible with most urinals Weight 345g Urinal not included
BAT H RO O M
Urinal & Bed Pans Slipper Bed Pan • • • • •
Wedge shape assists in positioning pan for use Integrated handle Front panel prevents spillage when moving or transporting pan Autoclavable for sanitising Moulded plastic Code
Size
Width
Length
Height
CF0040
Regular
240mm
320mm
85mm
CF0030
Large
300mm
430mm
90mm
CF0020 - Bed Pan • • • •
Frontal opening Wide seating area Autoclavable for sanitising Moulded plastic Width
Length
Height
295mm
360mm
115mm
GF0360 - Pan Bottle Rack • • • • •
Capacity 6 Pans and 7 Bottles Removable drip tray for cleaning Full back plate Fixings not included 304 Grade stainless steel construction – Satin finish Width
Depth
Height
800mm
300mm
650mm
Commode Bowls AZ1260 - Commode Bowl Economy Green • •
AZ0050 - Commode Bowl Beige
Autoclavable for sanitising Moulded plastic Top Diameter
Base Diameter
Height
305mm
220mm
90mm
• • •
1 30 0 930 930
Autoclavable for sanitising Moulded plastic Includes lid and handle Width
Length
Height
290mm
215mm
130mm
A L P H A L I F E CA R E .C O M . AU
199
Monitoring & Examination Equipment X-Ray Viewers
201
Medical Lighting
201
Treatment Stools
202
Flow Chart Tables
204
Chart Holders
204
200
M O N I TO R I N G & E X A M I N AT I O N E Q UI P M E N T
X-Ray Viewers JD4310 - Slimline X-Ray Viewer Cabinet
JD4230 - X-Ray Viewer Cabinet - Double
• LCD Display • 100,00 hours of working time • Compact design
JD4220 - X-Ray Viewer Cabinet - Single
Width
Length
Depth
550mm
800mm
120mm
JD4240 - X-Ray Viewer Cabinet - Triple
Width
Length
Depth
Width
Length
Depth
440mm
550mm
120mm
590mm
1160mm
120mm
Medical Lighting JZ0950- Ceiling Mounted Examination Light Series 5 •
•
• •
Light intensity, non-reflective illumination of the work field to optimize procedures during treatment and to support the examining doctor Homogeneous light field through an optimized light steering - excellent illumination depth, ideal colour rendering and colour temperature All plastic parts are light resisting Central light unit and high gloss metal facetted reflector generate a high level shadowless lighting
• • •
• • • •
Light source with overheat protection High value colour rendering index and optimised colour temperature Sturdy articulated arms made from metal with high grade structured powder coating with highest yellowing resistance Multiple mixture of light High life expectancy of the light source Low maintenance effort Complete recyclability
JZ1000 - LED Ceiling Mounted Examination Lamp •
• •
Brilliant, non-reflective illumination of the treatment level helps the examining doctor during diagnosis Extended life time - maximum energy efficiency - minimal maintenance Full access to the patient thanks to a maximum floor freedom
• • • • •
High life expectancy of the light source Low maintenance effort Complete recyclability Protected interior cable management Lighthead with hardened / scratchproofed safety glass
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
201
M O N I TO R I N G & E X A M I N AT I O N E Q UI P M E N T
Medical Lighting JC0090 - Mobile LED Examination Lamp •
• • •
Brilliant, non-reflective illumination of the treatment level helps the examining doctor during diagnosis Extended life time - maximum energy efficiency - minimal maintenance High life expectancy of the light source Low maintenance effort
• • • •
Complete recyclability Protected interior cable management Lighthead with hardened / scratchproofed safety glass Enough safe distance in between both tubes once the pole reached its lowest height
Treatment Stools KD0470 - Novak-M Stool Round Base •
• • •
•
KD0480 - Novak-M Stool Star Base
Extremely comfortable stool with height adjustment ensures perfect comfort Upholstery available in more than 40 colors Chrome-plated stool base and 360° swivel Five castors coated in rubber ensure perfect stability and mobility Also possible with rubber feet instead of castors (shown with feet option) Base Diameter
Seat Diameter
Seat Height (Adjustable)
540mm
360mm
460 - 580mm
KD0700 - Novak-M Stool Round Base & Backrest •
• • •
•
202
AC U T E CA R E
Extremely comfortable stool with height adjustment ensures perfect comfort Upholstery available in more than 40 colors Chrome-plated stool base and 360° swivel Five castors coated in rubber ensure perfect stability and mobility Also possible with rubber feet instead of castors (shown with feet option) Base Diameter
Seat Diameter
Seat Height (Adjustable)
540mm
360mm
460 - 580mm
•
• • •
•
Extremely comfortable stool with height adjustment ensures perfect comfort Upholstery available in more than 40 colors Chrome-plated stool base and 360° swivel Five castors coated in rubber ensure perfect stability and mobility Also possible with rubber feet instead of castors Base Diameter
Seat Diameter
Seat Height (Adjustable)
620mm
360mm
510 - 600mm
KD0710 - Novak-M Stool Star Base & Backrest •
• • •
•
Extremely comfortable stool with height adjustment ensures perfect comfort Upholstery available in more than 40 colors Chrome-plated stool base and 360° swivel Five castors coated in rubber ensure perfect stability and mobility Also possible with rubber feet instead of castors Base Diameter
Seat Diameter
Seat Height (Adjustable)
620mm
360mm
510 - 600mm
M O N I TO R I N G & E X A M I N AT I O N E Q UI P M E N T
Treatment Stools EF0100 - Guardian Treatment Stool • • • •
KD0460 - Novak - M - Surgeon Stool
High quality gas stool features a deluxe comfortable padded seat Anti bacterial upholstery Five castors base offers greater stability and easy manoeuvrability Height adjustable for various treatment positions. Diameter
Height
350mm
450 - 630mm
EF0120 - Guardian Saddle Stool with Backrest •
• • • • •
•
• • • •
Length
Height
350mm
450mm
500 - 650mm
Base Diameter
Seat Diameter
Seat Height (Adjustable)
530mm
360mm
480 - 610mm
EF0220 - Viva Treatment Stool •
Helps reduce discomforts of sitting for long periods and improves seated posture High quality gas stool features a deluxe comfortable padded seat and back Anti-bacterial upholstery Five castors base offers greater stability and easy maneuverability Height adjustable for various treatment positions Width
Comfortable stool with foot operated pneumatic height control 360° swivel Chrome-plated stool base and foot ring Anti-static upholstery in black Five anti-static castors ensure perfect stability and mobility
•
• • •
High quality gas stool features a deluxe comfortable padded seat Five castors on base offers greater stability and easy manoeuvrability Height adjustable for various treatment positions Black vinyl upholstery Height Range 470–580mm
EF0110 - Guardian Saddle Stool • • • • •
High quality gas stool features a deluxe comfortable padded seat Shaped to encourage a better posture and circulation Anti bacterial upholstery Five castors base offers greater stability and easy manoeuvrability Height adjustable for various treatment positions Diamter
Height
350mm
450 - 630mm
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
203
M O N I TO R I N G & E X A M I N AT I O N E Q UI P M E N T
Flow Chart Tables JB0010 - Flow Chart Table • • • • • • •
JB0160 - iMove Chart Table
Height adjustable work surface 870-1370mm Stainless steel frame 760mm x 610mm Melamine timber work surface 800 wide x 610mm high Full width pen/pencil holder at bottom of board Easy to use one handed tilt mechanism Optional basket available Can be customised to individual requirements
• • • • • •
Gas assisted height adjustment Storage tray under the top 75mm diameter castors, 2 with brakes Retaining lip at bottom of board 4 x stainless steel spring clips 700mm square compact design for easy storage
Chart Holders JA0150 - Wire Chart Holder • • •
204
AC U T E CA R E
JA0120 - Wallmounted Chart Holder
For patient records and folders Manufactured from powder coated steel Hangs on up to 50mm diameter rails/bed ends Width
Height
Opening
390mm
410mm
73 x 380mm
• • •
For patient records and folders Manufactured from powder coated steel Wallmounted Width
Height
Opening
390mm
410mm
73 x 380mm
Mortuary Mortuary Trolleys
206
205
M O RT UA RY T RO L L E YS
Mortuary Trolley KE0240 - Mortuary Trolley • • • •
Stainless steel construction Hi Low function electrically operated with battery back up Removable side and end rails 4 x 200mm Castors; 2 x locking and 1 x steer Width
Length
Height
650mm
2200mm
450mm-1450mm
Mortuary Trolley, 3 Level, Electric Height Adjustable • • • • • • • •
Sturdy, torsion-free, welded steel construction Built-in electro-hydraulic module for continuous control of height adjustment. 4 x 125mm ball-bearing castors. 1 x Directional, 2 x Total locking. Tray support with 5 cylindrical transport PVC rollers (lockable). 37 mm Diameter Rollers, width 470 mm 1 stop roller at the operation side. Robust corner bumpers With removable push handle (height 900 mm)
Models Available • 200/250/300kg with Steel or Stainless Steel Construction Optional Upgrades • Mortuary Trolley Optional Upgrade – Integrated Power Drive • Mortuary Trolley Optional Upgrade – Integrated Weigh Scales Width
Length
Height
2210mm
720mm
305 - 1750mm
Mortuary Trolley, 4 Level, Electric Height Adjustable • • • • • • • •
Sturdy, torsion-free, welded steel construction Built-in electro-hydraulic module for continuous control of height adjustment. 4 x 125mm ball-bearing castors. 1 x Directional, 2 x Total locking. Tray support with 5 cylindrical transport PVC rollers (lockable). 37 mm Diameter Rollers, width 470 mm 1 stop roller at the operation side. Robust corner bumpers With removable push handle (height 900 mm)
Models Available • 200/250/300kg with Steel or Stainless Steel Construction Optional Upgrades • Mortuary Trolley Optional Upgrade – Integrated Power Drive • Mortuary Trolley Optional Upgrade – Integrated Weigh Scales
20 6
AC U T E CA R E
Width
Length
Height
2260mm
720mm
305 - 1920mm
M O RT UA RY T RO L L E YS
Mortuary Trolley Body Trays • • •
Stainless Steel Construction 800mm Width Folded design with skids
• • • • •
Aluminium 2 Carry Handles 10kg Weight Stainless Steel 4 Carry Handles
Cover for Body Tray
Width
Length
Height
Net Weight
200mm
660mm
330mm
25kg
Storage Racks • • •
Stainless Steel Construction Movable on 4 x 125mm Castors, 2 x Locking Tray support with 6 cylindrical transport PVC rollers
Models Available • 3 Level • 4 Level
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
207
Tugs & Bed Movers Tugs
210
Bed Movers
211
208
T U G S & B E D M OV E RS
Tugs Enforce Towing Tug
Features • • • • • • •
With a very low centre of gravity, the risk of tipping is greatly reduced. It has two front-steer wheels which creates exceptional stability across many rough surfaces. The Enforce Tug has a number of coupling options. The standard high towing hook can be used either on a downward or upward motion. A range of customised coupling attachments are also available to suit our trolleys or equipment. The Enforce Tug has a unique high quality hand control system that has a removable key to protect against unauthorised use. It has a horn, an emergency stop button and a variable speed control in forward and backward motions.
Accessories Available
DZ0110 Backrest
DZ0030 Tray
Tug Length
Tug Width
Wheel Base
Platform Height
Overall Height
Ground Clearance
Motor Voltage
Pull Capacity
Push Capacity
Battery Range
790mm
660mm
620mm
170mm
1340mm
39mm
24 Volts
1000kg
1000kg
30-60km
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
209
T U G S & B E D M OVE RS
Tugs Enforce Towing Tug
The Enforce ride‑on compact electric tug is the ultimate manual handling solution designed for goods transport in hospitals, aged care and other facility environments.
Linen
Waste Management
Oxygen Tanks
Food
Hospital Stores
Warehouse
21 0
AC U T E CA R E
T U G S & B E D M OV E RS
Bed Movers DC0050 - Enforce Bedmovers Medical professionals are constantly on the move, often pushing hospital beds with not only patients but also a variety of equipment. The bedmover has been designed specifically for hospitals, our clients needs in mind during every step of the way. For example, the bedmover’s operator faces the driving direction therefore allowing them to view the patient during transport. Features • Due to its compact size the bedmover can turn around its own axis and adds only a few cm in length • The battery provides a range of action of up to 30 km in between charging • Speed limit can be adjusted to the client’s needs, to a maximum of 10 km/h • The operator faces the driving direction, allowing eye contact with the patient during transport • Customised handling arms allow the bedmover to fit most hospital beds Accessories Available Vertical claw - Adjusted to the actual situation in your hospital, vertical claws can grip the undercarriage of a bed Horizontal claw - Adjusted to the actual situation in your hospital, horizontal claws can grip the undercarriage of a bed Battery charger - The batteries in the Enforce Bedmover have to be recharged on a regularly base with a battery charger
Batteries
Charger
Load Capacity
Speed
Length
Width
Height
Weight
80 Ah 24 V
8 A 24 V IP68
1000kg
Up to 10 km/h (alterable)
790mm
550mm
390 – 1120mm
160kg
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
21 1
What we offer to you Comprehensive range - of products with many exclusive arrangements Fast & efficient delivery - across Australia Trial prior to purchase - ensuring peace of mind Competitive pricing - with quality and cost efficiency at the fore Expert advice and experience - extensive industry and product knowledge Dedicated client support - so we know you and you know us Tailored service - making sure you get what you need when you need it Asset Register - and preventative maintenance service
1 30 0 930 930
A L P H A L I F E CA R E .C O M . AU
21 5
Commitment to excellence, quality and compliance Alpha Lifecare is fully committed to continuous improvement in quality, safety and protecting the environment. We will develop, maintain and improve our management systems in line with worldwide best practices.
Quality & Safety
Human Rights and Labour Practices
Alpha Lifecare is fully accredited to Quality Assurance Systems ISO 9001, ISO 45001 and ISO 14001. These systems are supported by meticulous internal and external audit programs to ensure we comply to the regulations and law of not only the Australian Government, but adhere to international standards. This commitment and compliance provides you with the highest quality service, product range, and expertise.
Respect for human rights is deeply ingrained in
Compliance
•
Non-discriminatory treatment and anti-harassment
•
Workplace health and safety
•
Minimum wages
•
No child labour
•
Voluntary employment
•
Freedom of association
•
Anti-slavery and human trafficking
We understand that there are critical standards and legislation to comply with. Applicable products are reviewed, listed and certified by the TGA (Therapeutic Goods Administration) on an annual basis. All electric components we use are of quality manufacture and have been tested and certified to all known current standards. Other areas we have addressed include CE marking and FDA listing. Environmental Care Alpha Lifecare endeavours to be a leader in promoting environmentally sustainable practices and products. We are committed to protecting the environment, preventing pollution and will always seek to comply with relevant environmental legislation and applicable standards, codes, and guidelines. We have implemented a number of policies and procedures within our business which help control our environmental activities and minimise our environmental footprint.
21 6
AC U T E CA R E
our values and is demonstrated by how we run our business, interact with stakeholders, and engage with the local, regional and global community. At Alpha Lifecare, we value diversity and equal opportunity and do not tolerate discrimination or harassment of any kind. Alpha Lifecare pays special attention to international labour standards such as:
This catalogue is to be used as a guide only and due care has been taken to ensure all information in this product catalogue is correct at time of publication, however variations may occur. Some of the products shown may be equipped with optional extras at extra charge. Alpha Lifecare Pty Ltd will not be liable in any way as a result of any reliance, by any person, on anything contained in this product catalogue. Due to the printing process, colours shown in this product catalogue are indicative only and may vary from actual product. Alpha Lifecare Pty Ltd reserves the right to change or modify the design, technical specifications, features or appearance of any product without prior notice. The sale of all products and services are subject to our ‘Terms and Conditions’ which are available upon request or visit www.alphalifecare.com.au Alpha Lifecare Pty Ltd ©2024. No part of this publication may be copied, reproduced, scanned or stored in any electronic database, whether in whole or in part, in any form or by any means without the written approval of Alpha Lifecare Pty Ltd.
Acute Care 1300 930 930 acutecare@alphalifecare.com.au alphalifecare.com.au Level 45 88 Walker St North Sydney NSW 2060
ACCAT24
© Copyright Alpha Lifecare Pty Ltd 2024, all rights reserved.
