570 SERIES 1
THE FEATURES

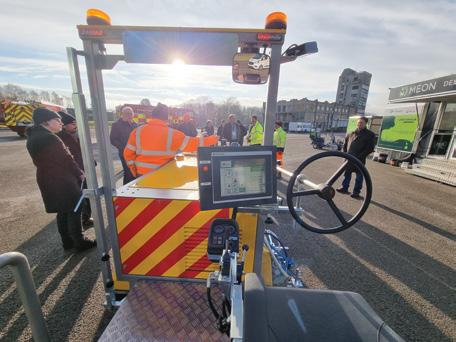

1. On-board computer with sensitive touch screen for use with gloves
2. Highway specification light system
3. 18HP Kubota Euro 6 engine

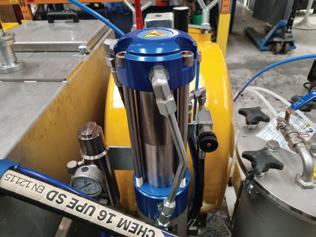

4. Graco hydraulic Airless pump
5. Pressurised glass bead tank
6. Liquid peroxide vessel

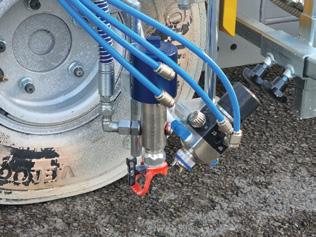

7. Electrically powered steering system
8. 5.25m turning circle

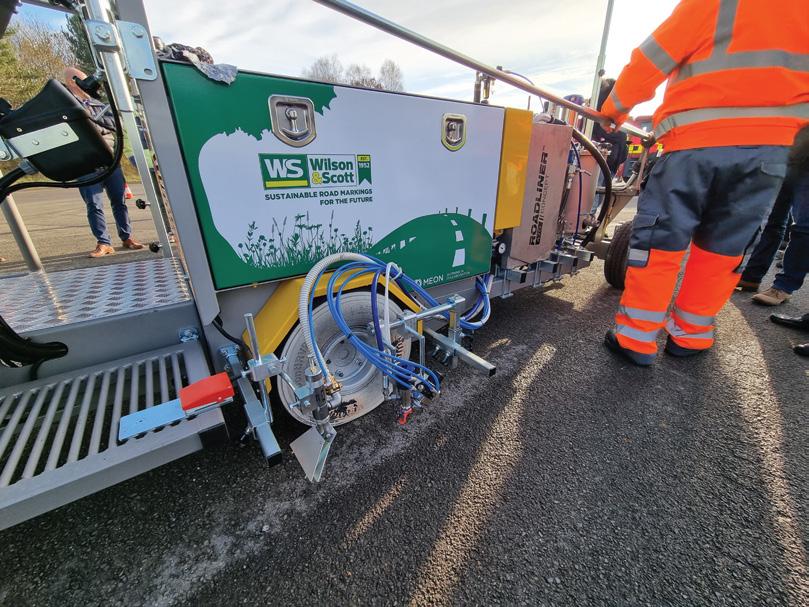

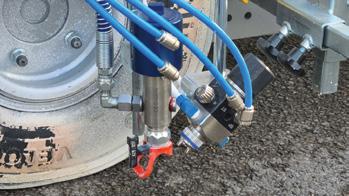

9. Low pressure liquid peroxide gun
10. Pressurised bead dispensing system
11. Foot operated spray activator
12. Operator position inline with application guns
13. Quality, fully adjustable suspension seat complete with armrests
The use of Methyl Methacrylate (MMA) cold applied paint over traditional heated thermoplastic paint is highly recommended due to it delivering huge increases in durability and safety and massive reduction in lifetime carbon emissions. Cold applied systems can be broken down into three distinct groups by application type and it is advised to take guidance from the manufacturer when specifying which product to use for each application group:

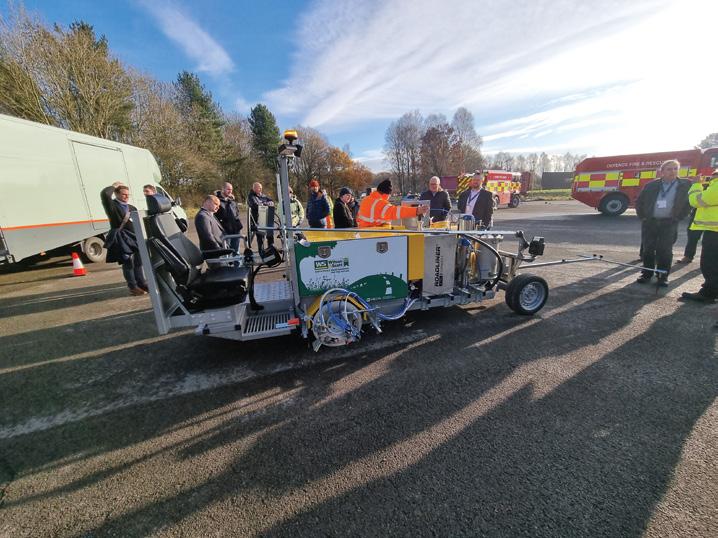

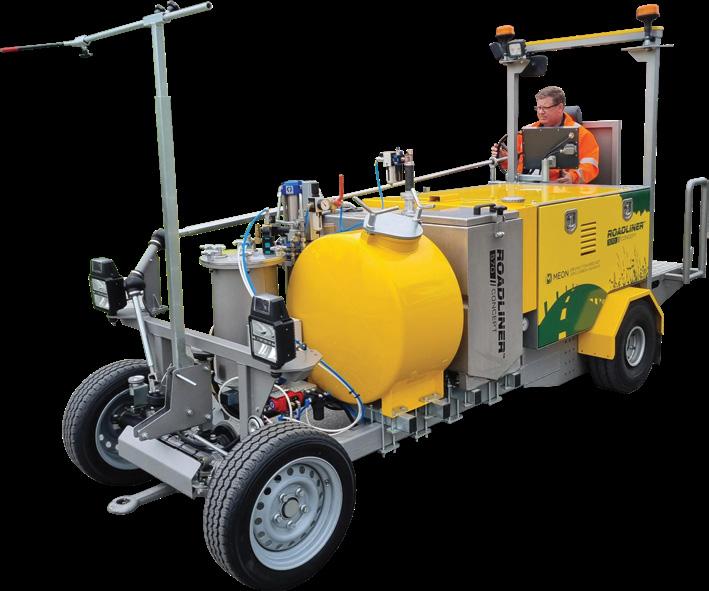

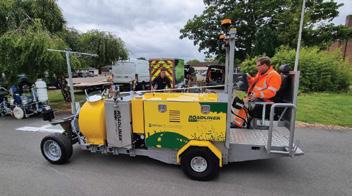

Series 1: Diesel powered road marking machine for MMA.
- Powered by 18HP Kubota diesel engine.
- Electric steering system
- External mixing technology
- Diesel tank 80 litres (Fuel consumption approx 10 litres / 8 hour shift)
- Paint tank 230 litres / 400kg MMA = approx. 5,000 linear metres of 100mm line
- Touch screen on board computer system
- All metal parts polyester powder coated.
- Metal panels finished in yellow RAL
