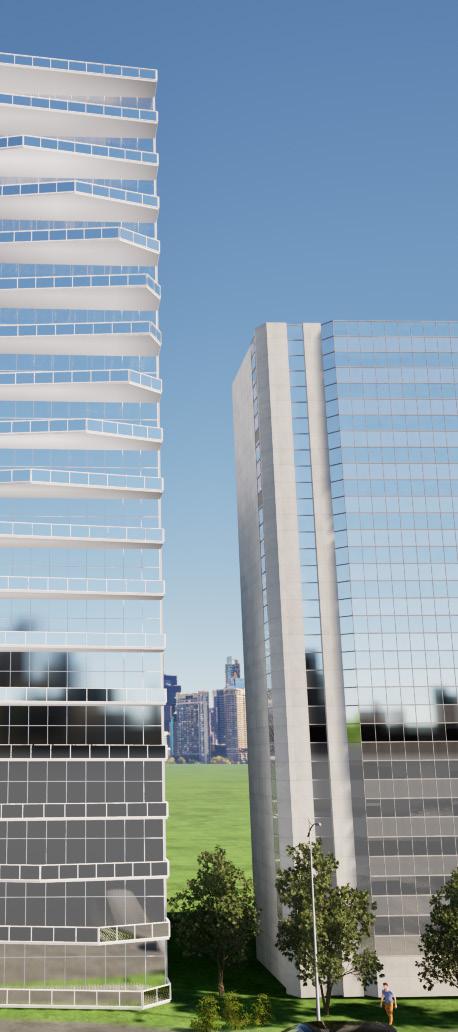

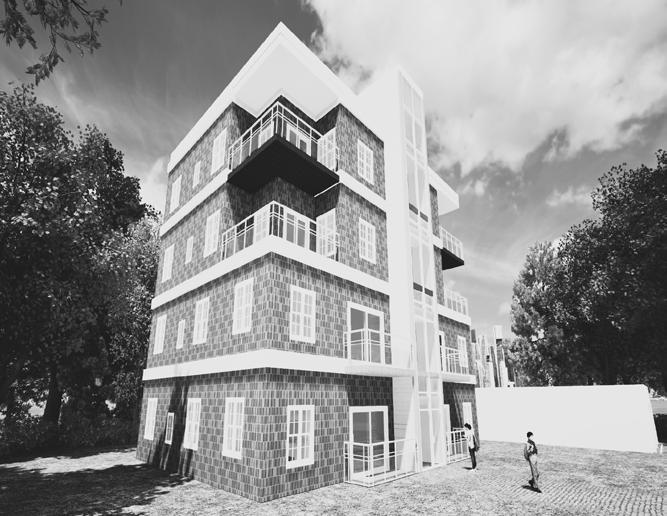

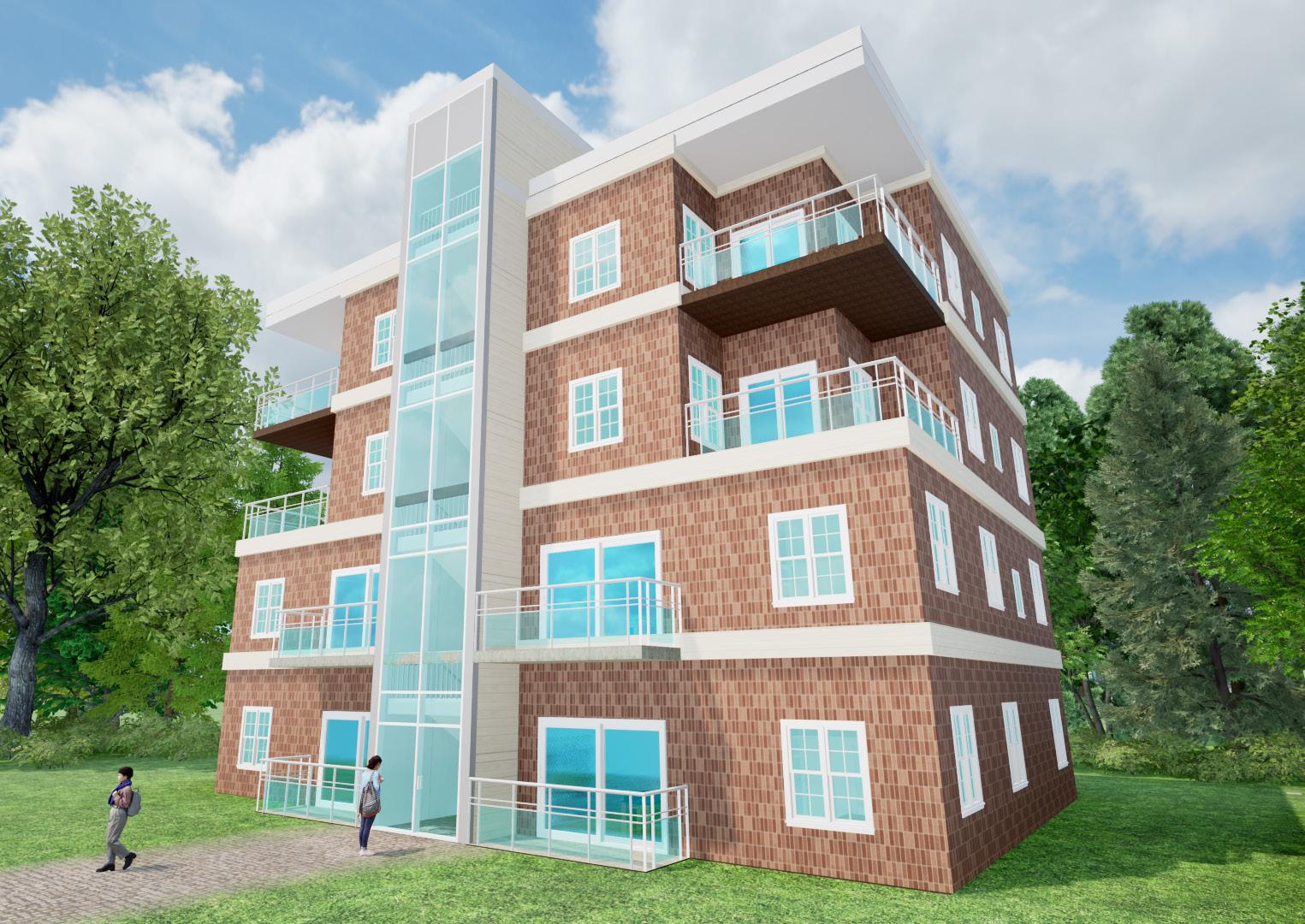

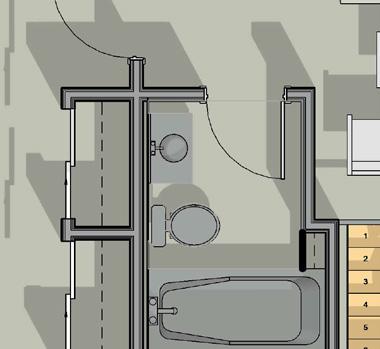

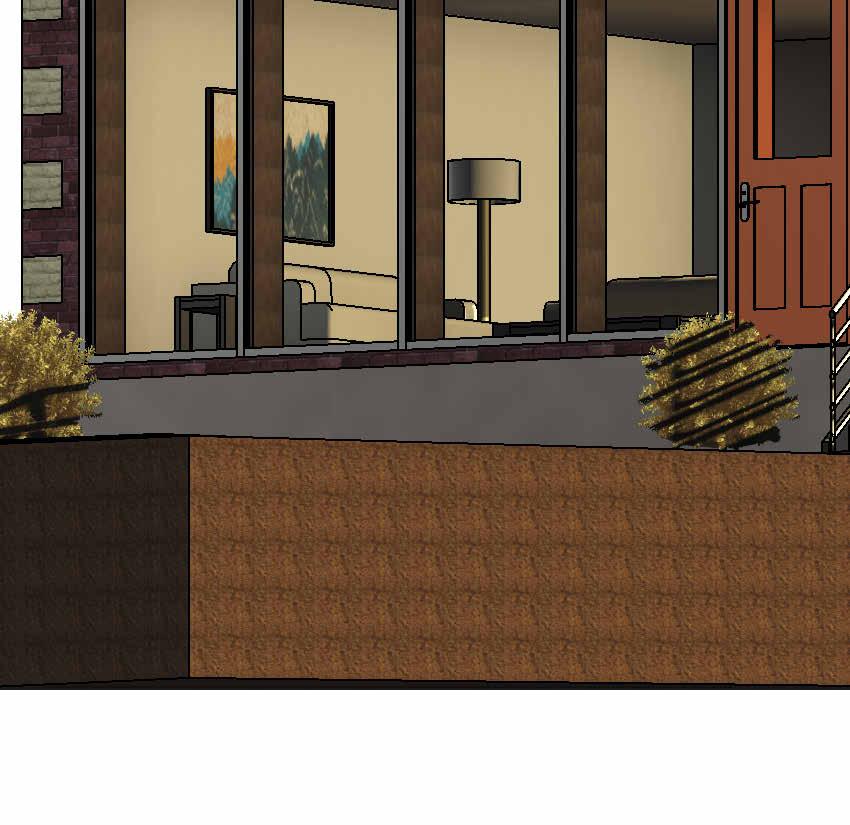

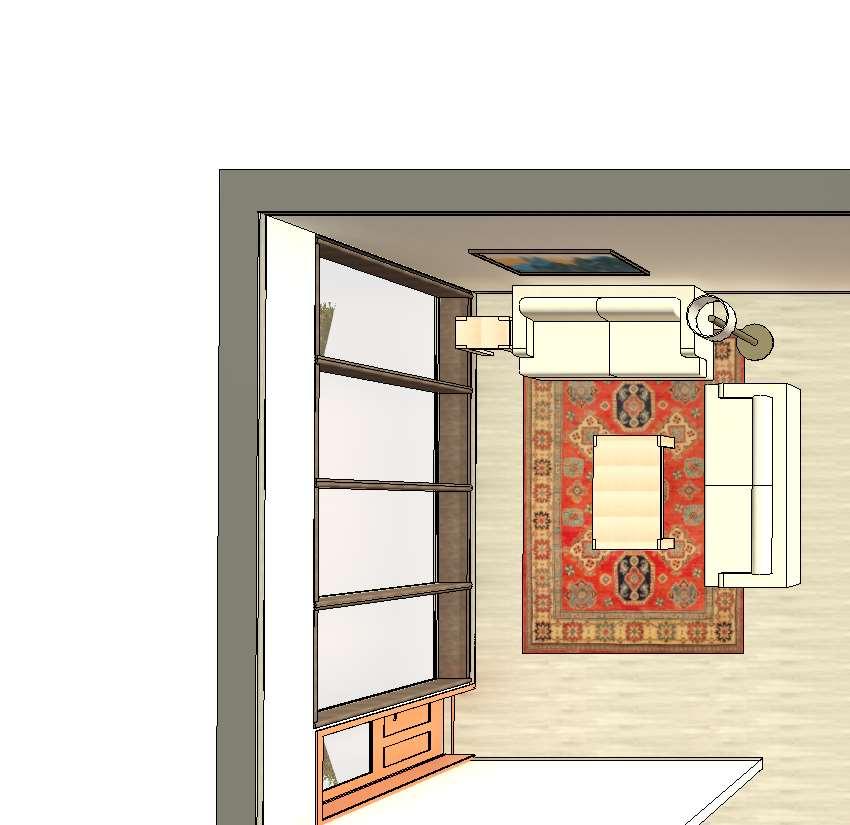

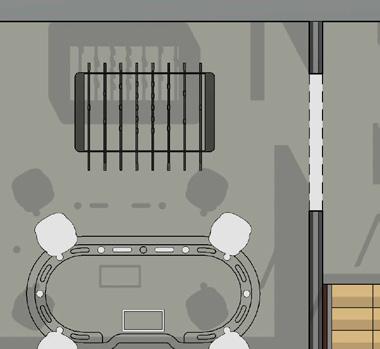

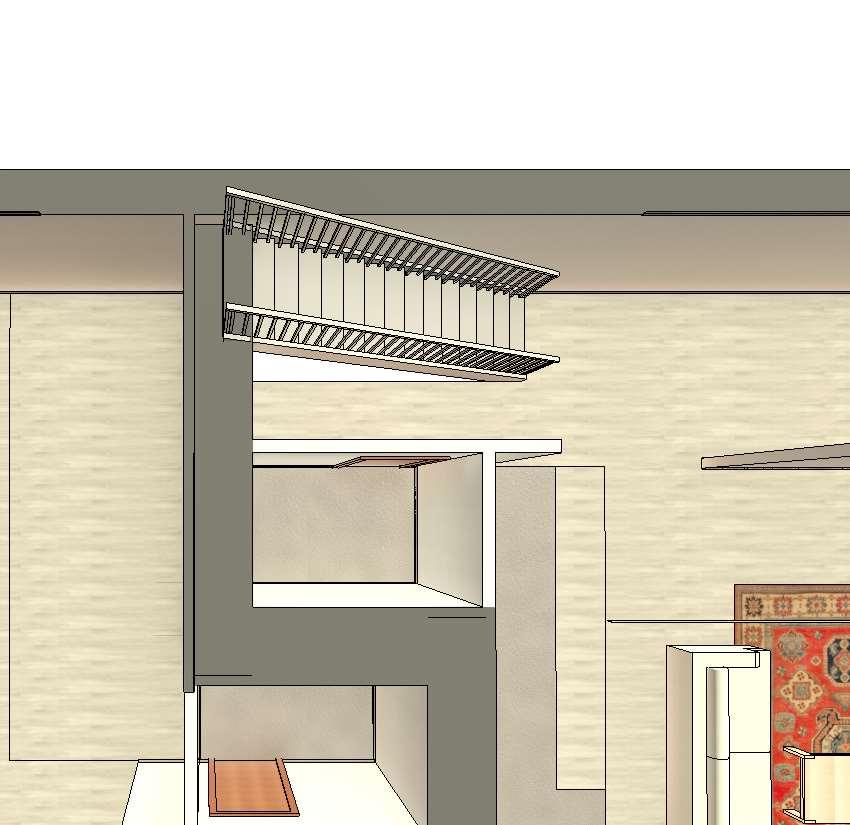

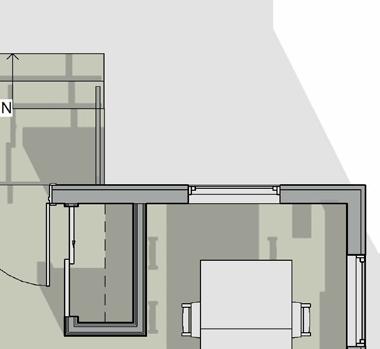

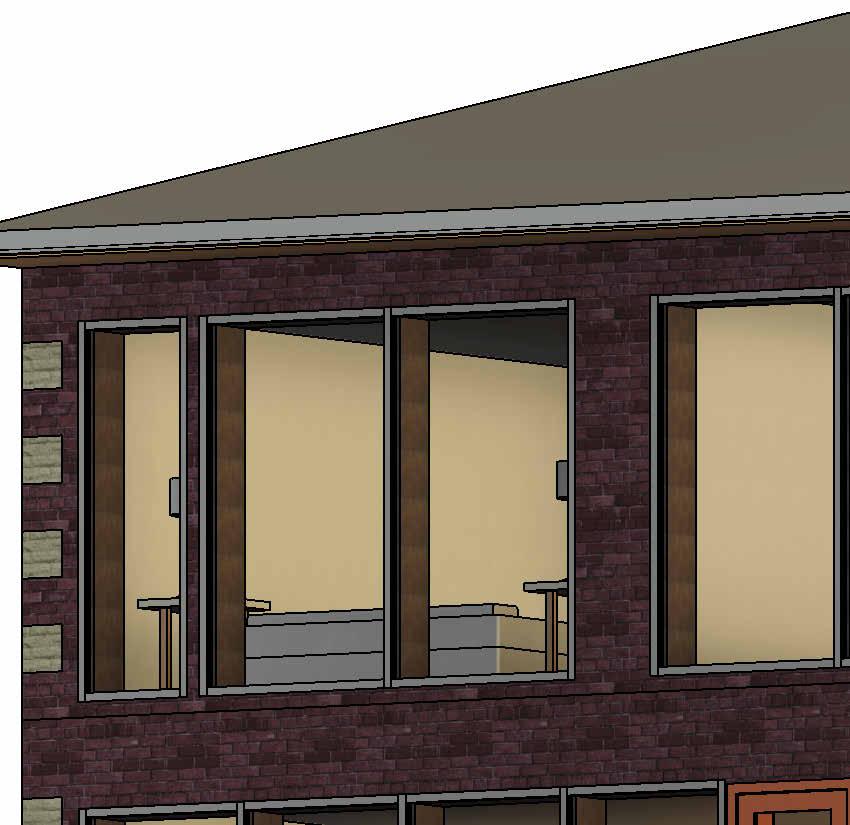

Students were tasked with designing a student residence on a proposed site at 500 Macpherson Avenue, Toronto. They conducted a site visit to gather information and prepare a site analysis report on the location’s characteristics. The project required the integration of barrier-free design, adherence to Parts 9 and 3 of the Ontario Building Code, and compliance with Toronto zoning bylaws. Additionally, this project aimed to help students become more proficient with concrete construction and CAD drawing standards.

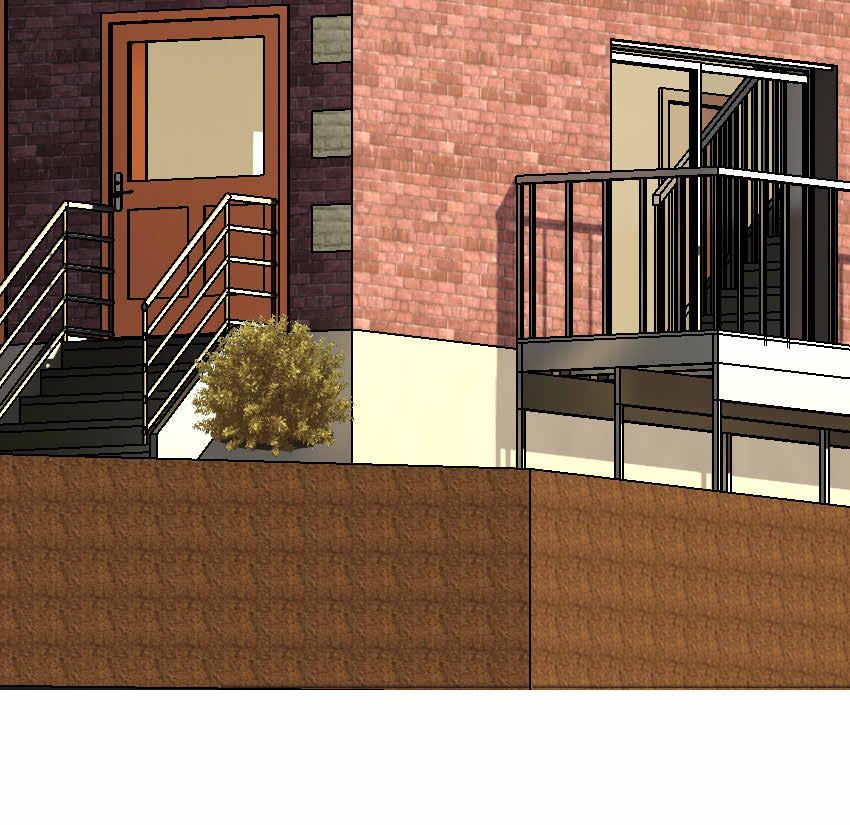

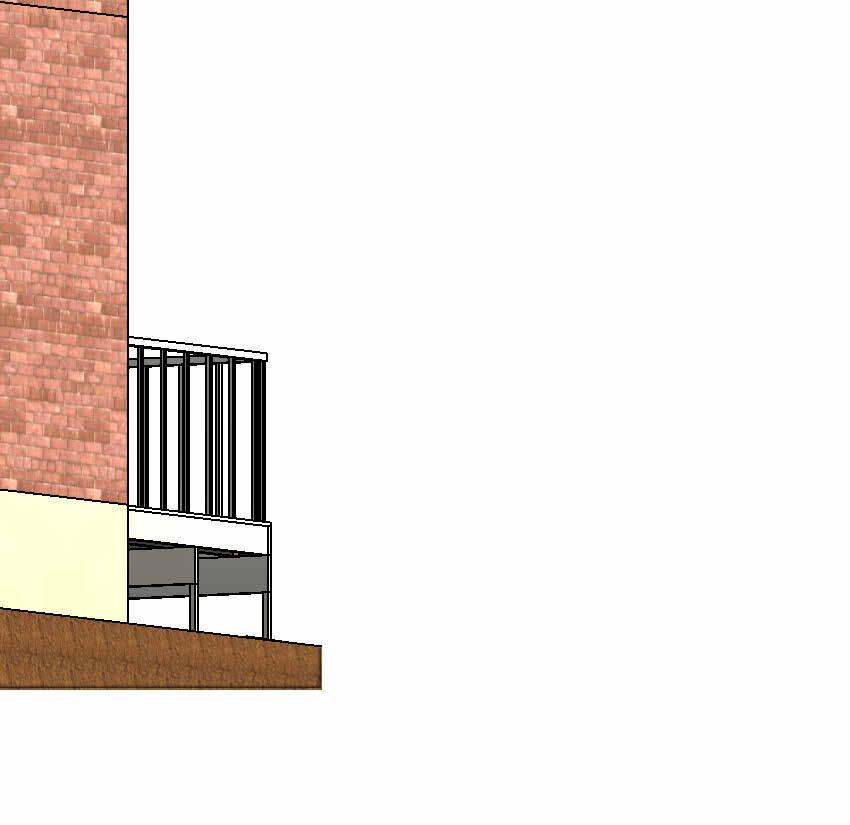

DOUBLE SIDING DOOR FOR BALCONY WITH ALUMINUM FRAME WIDTH: 2800mm HEIGHT: 2100mm 90mm POLYISO RIGID INSUL. 200mm CONCRETE BLOCK 76mm BATT INSULATION R12
METAL FINISH RAILING ON GLASS LAMINATED FIXED ON FLOOR AS PER INSTRUCTION GUARDS-OBC. 9.8.8. INTERIOR GAURDS: 1100mm MIN.
STONE FLOORING ON BALCONY WITH 2% SLOPE.
SLAB ON BALCONY: CAST-IN PLACE CONCRETE SLAB WITH 2% SLOPE. CONNECTED WITH REINFORCING BAR CAST INTO THE FLOOR SLAB.
03

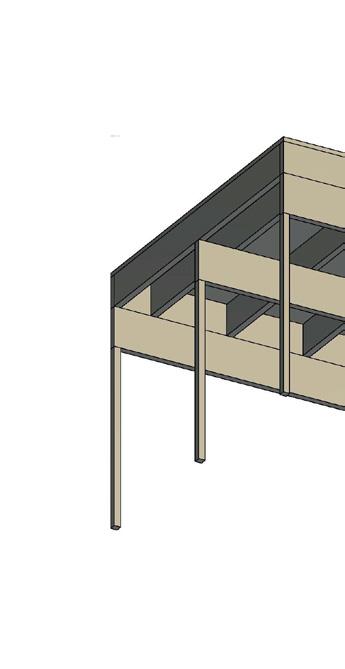

STEEL FRAME WAREHOUSE
WINTER 2024
Modeling: Revit & Twinmotion
Drafting: Revit

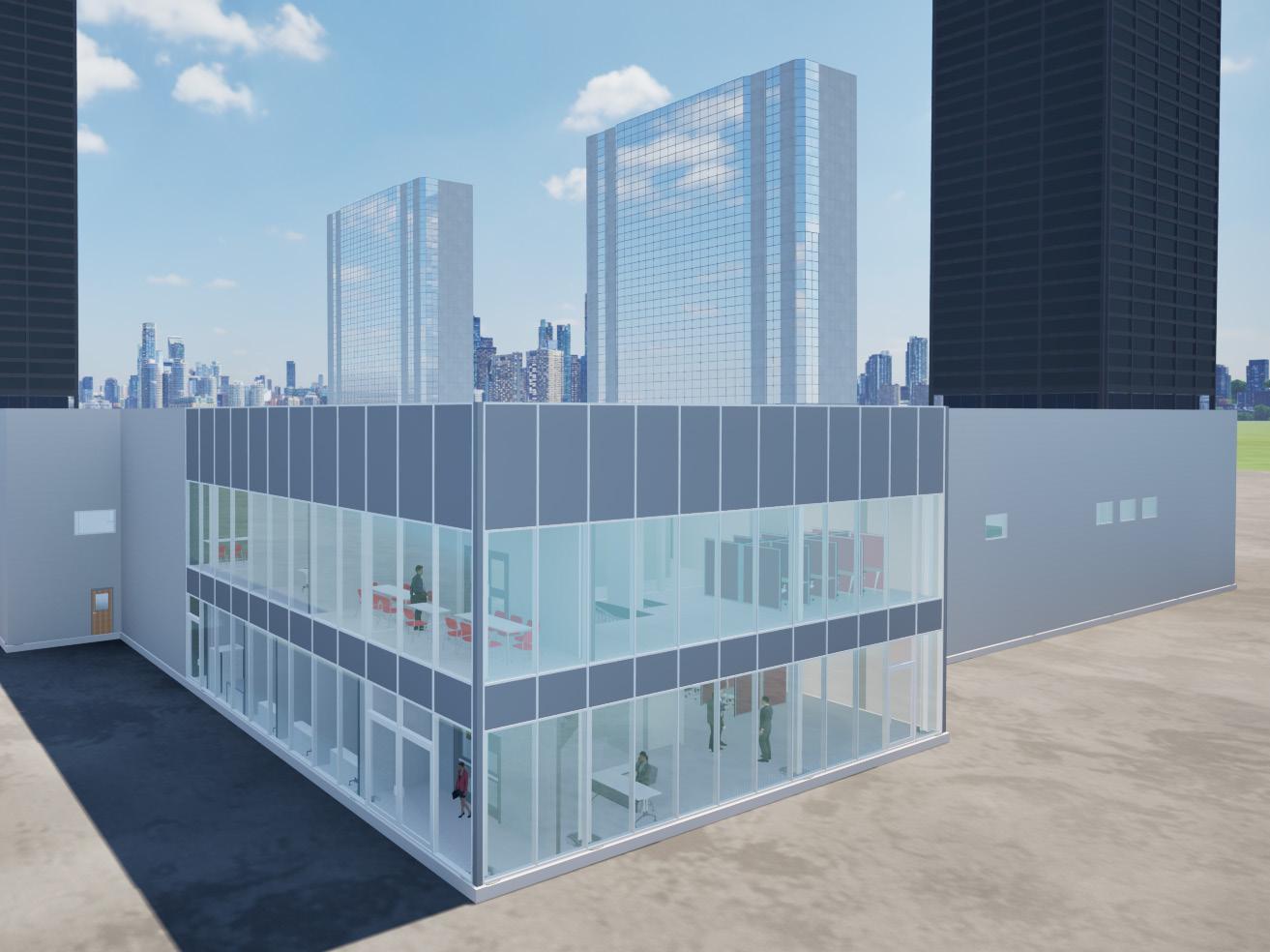

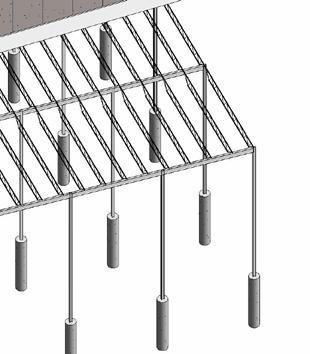

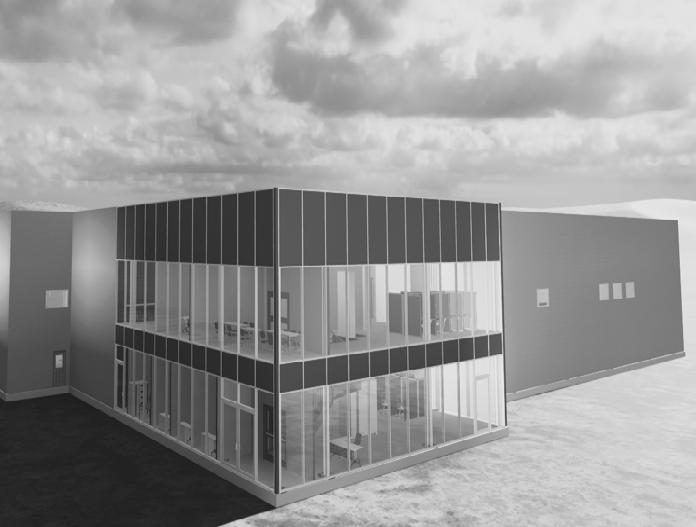

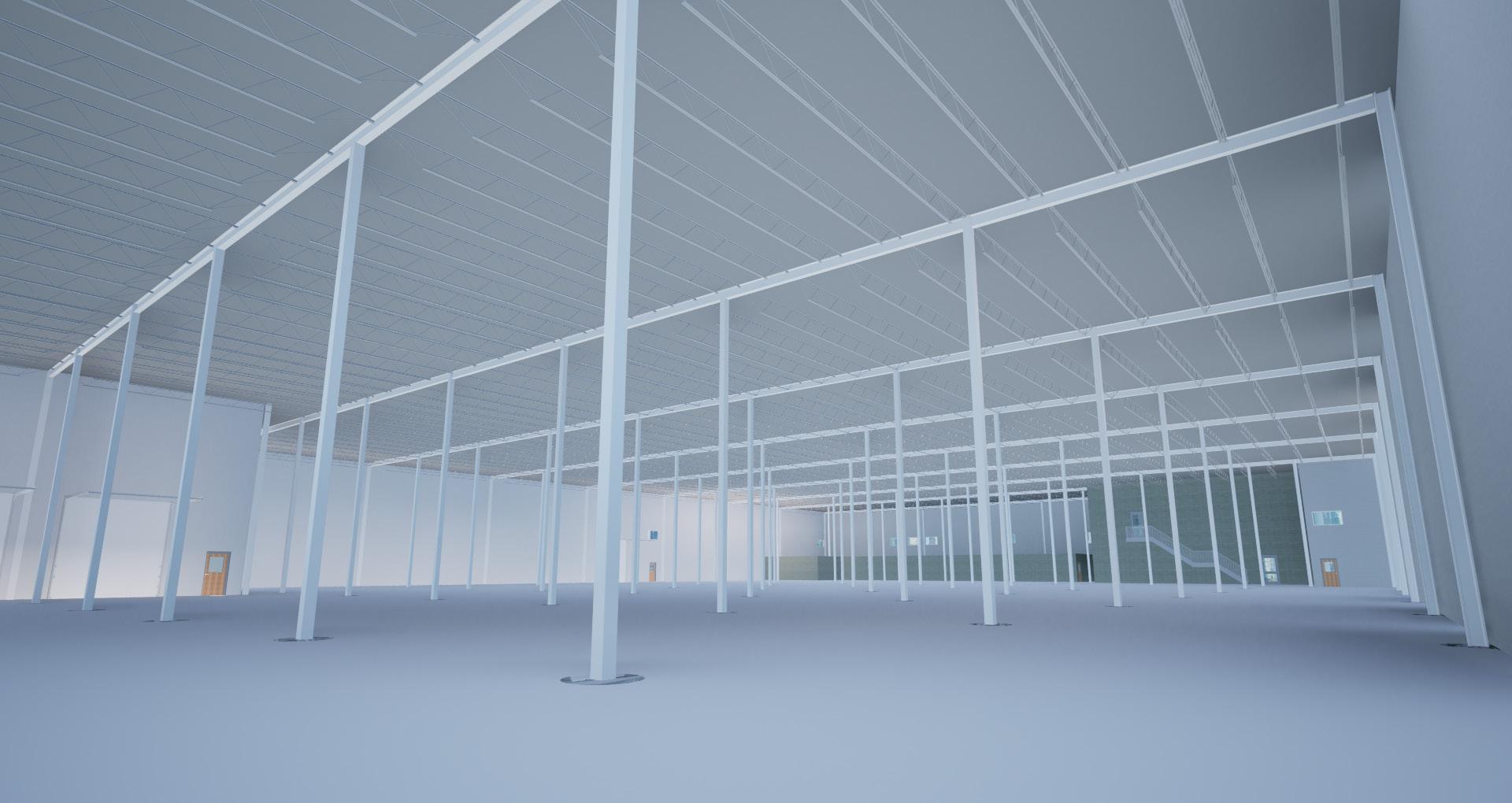

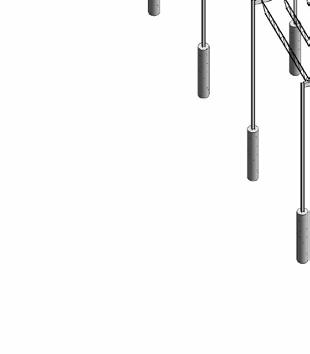

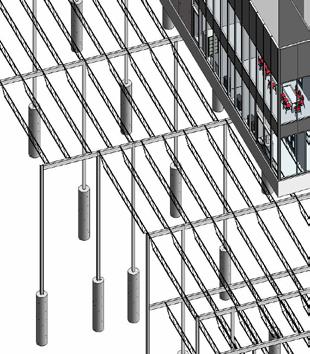

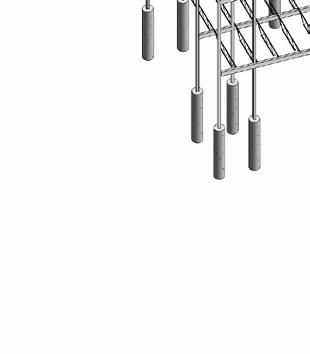

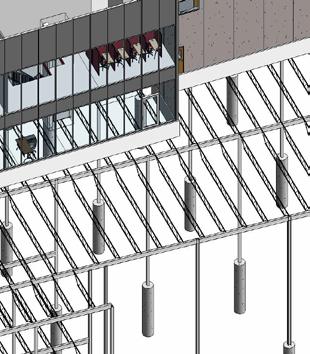

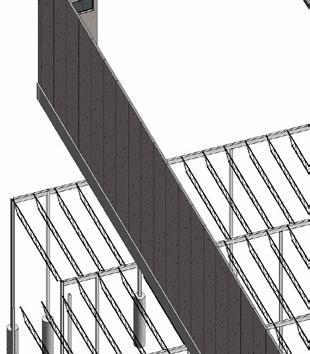

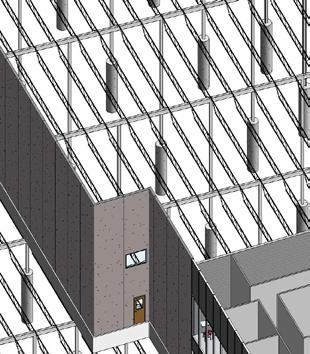

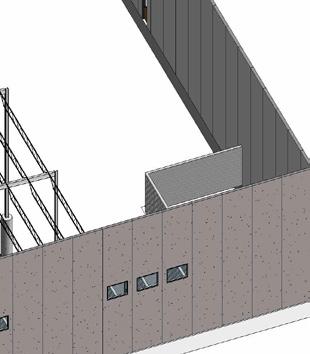

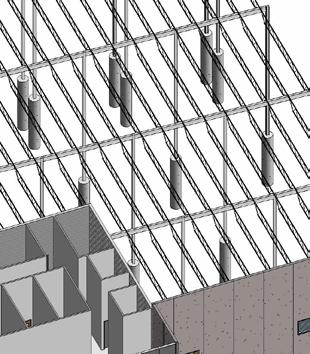

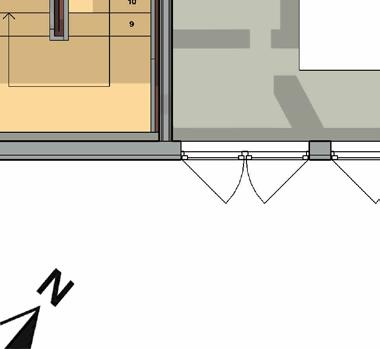

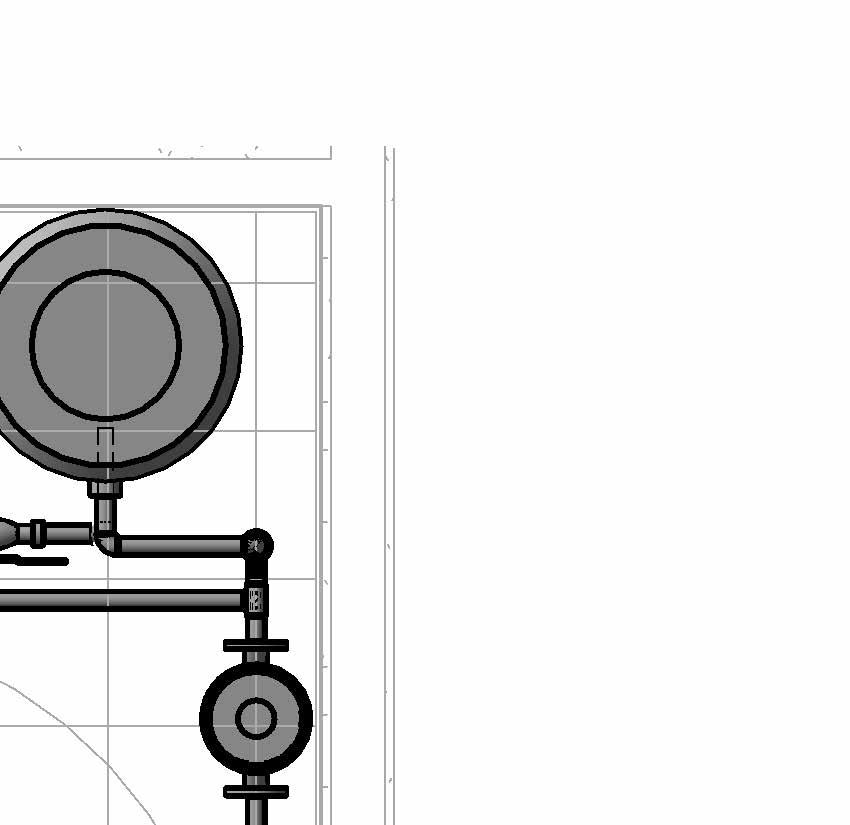

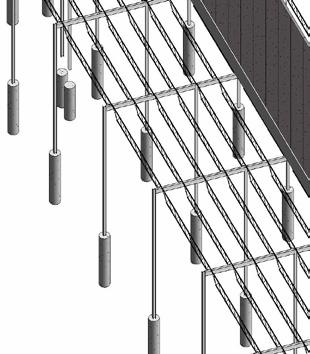

In this project, we were tasked with designing a warehouse with an office, focusing on curtain wall systems, steel framing, and compliance with Part 3 of the Ontario Building Code and Vaughan’s zoning by-laws. I worked on the design and technical drawing of the first floor and the office space, using Revit. The structure included Precast Concrete walls, Metal Stud construction, and a glass curtain wall for the office, supported by steel beams. A major focus was on making the office area barrier-free, ensuring it met accessibility standards. This project helped strengthen my Revit skills and broadened my understanding of warehouse design. We use Bim 360 for collaboration, which was incredibly helpful for our group work.
Group Member:
Rojan Doroudian Homayouni
BLOCK 'C'
SEMESTER:
SOUTH STREET
STUDENTS: MEMBER 1: ROJAN DOROUDIAN
PROFESSOR(S):
04

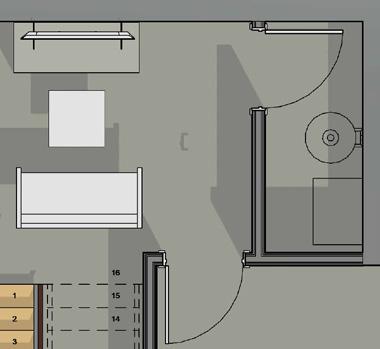

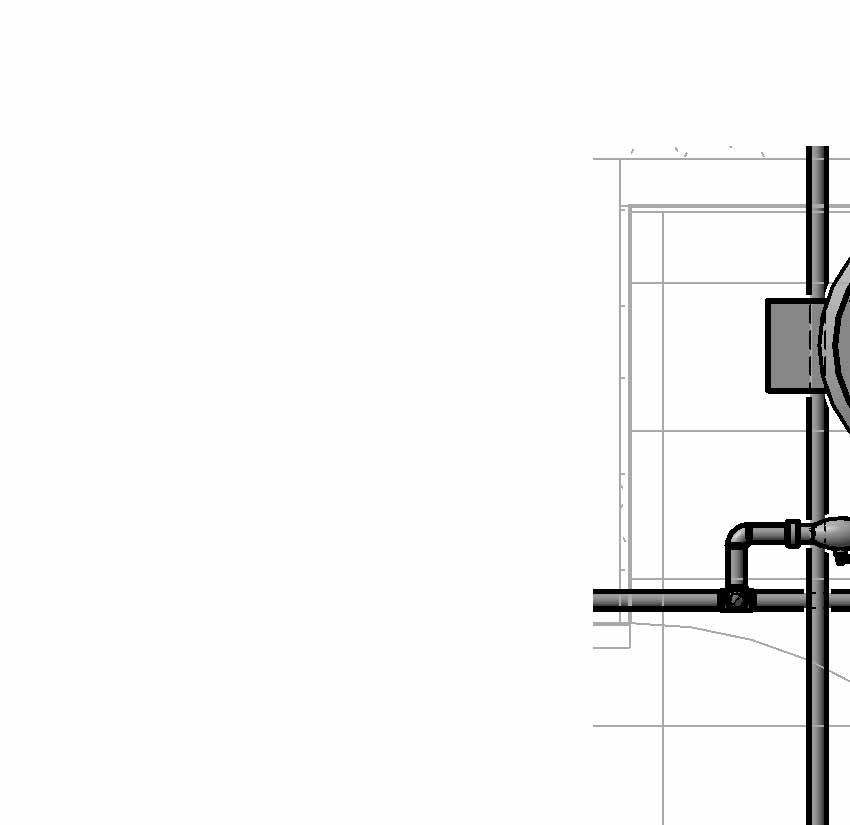

GARDEN
SUITE PROJECT
SPRING 2024
Modeling: Revit and V-Ray
Drafting: Revit

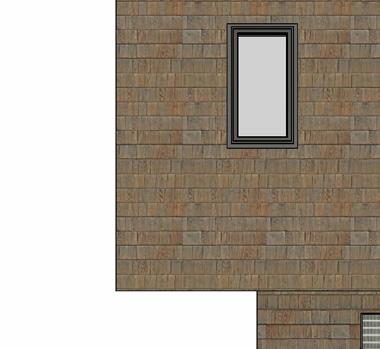

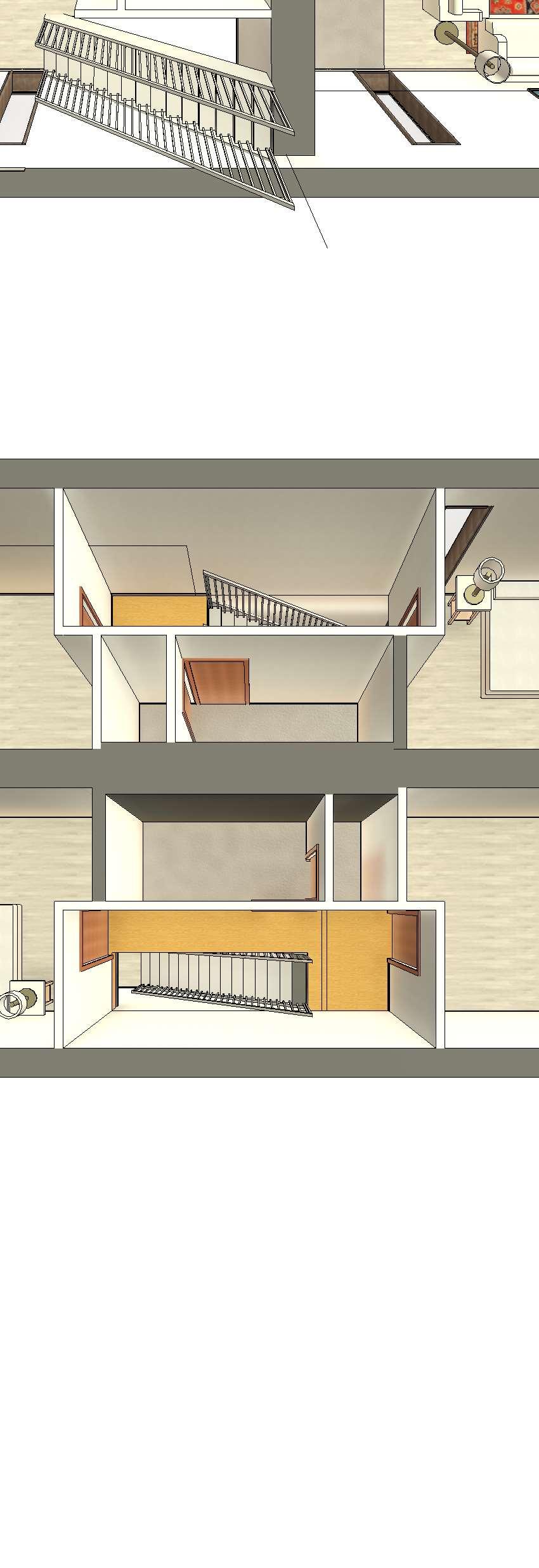

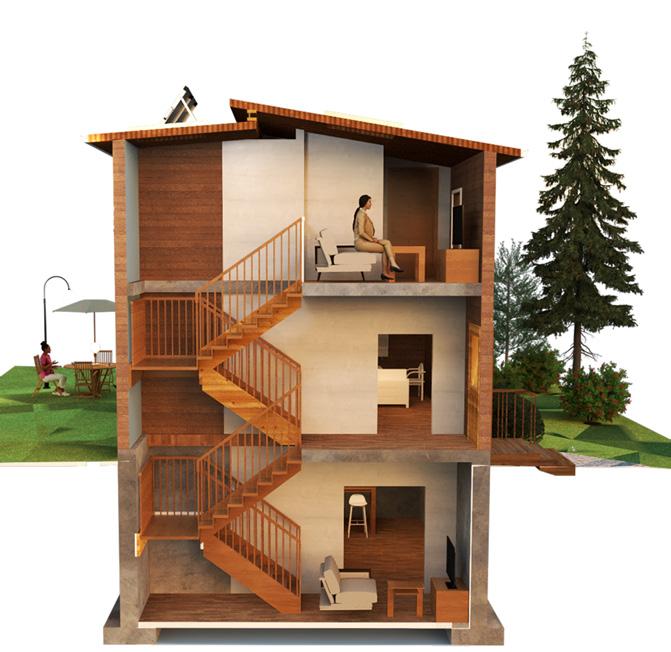

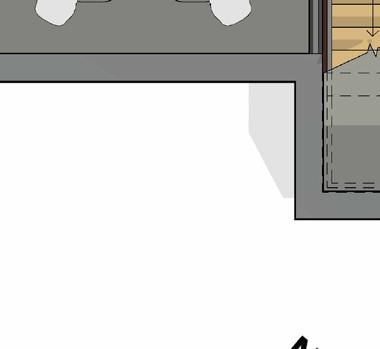

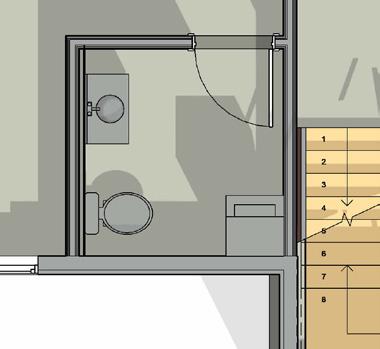

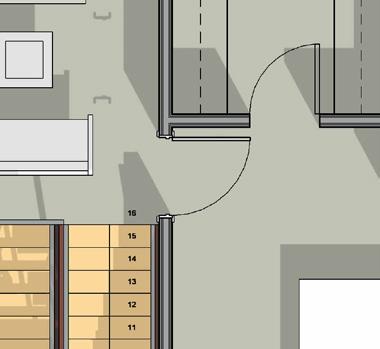

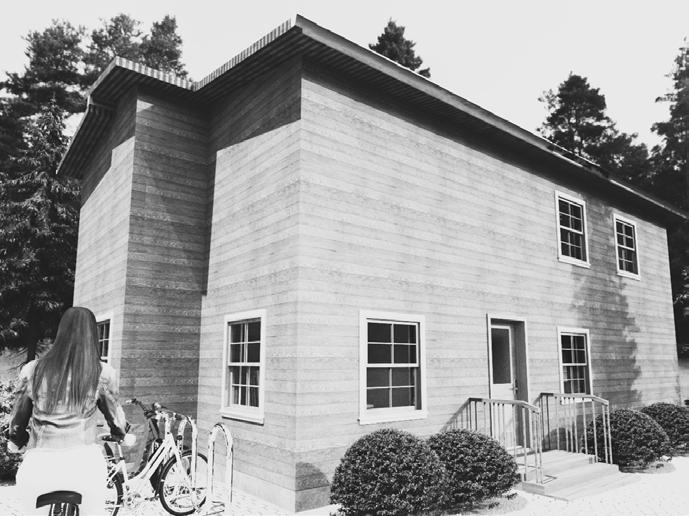

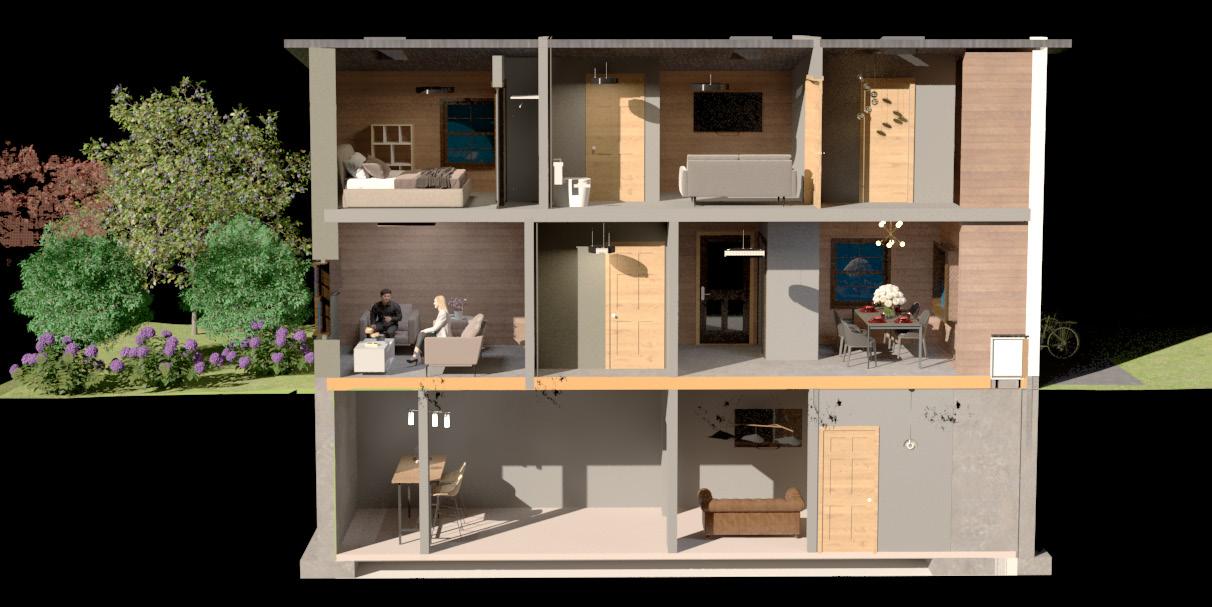

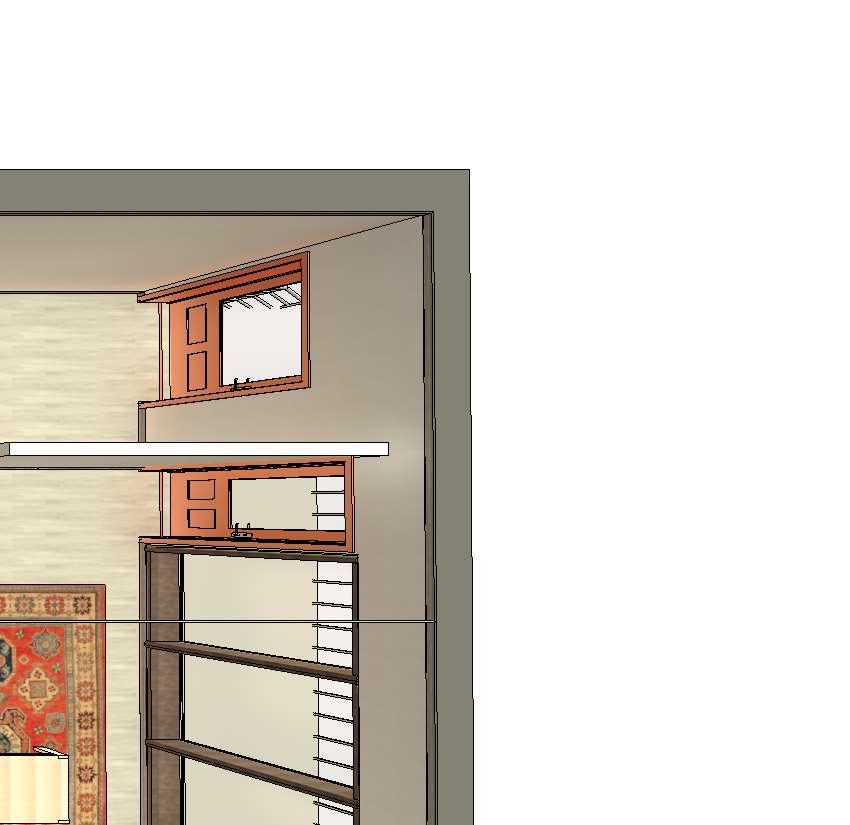

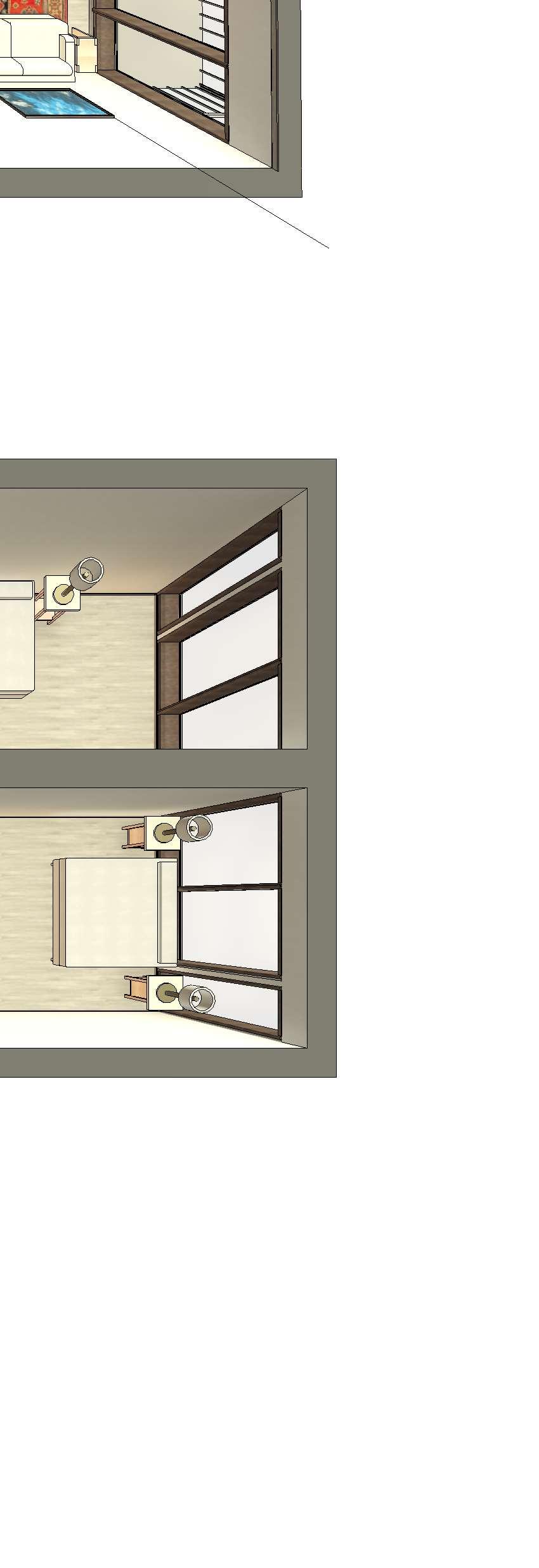

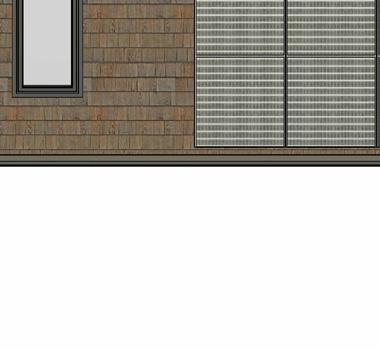

This project aims to design a Garden Suite in North York, Toronto. The suite is a 2-storey rental unit with a basement, emphasizing environmental sustainability and flexible living options, such as live/work spaces and multi-generational living. The site is surrounded by residential homes, with ongoing commercial and residential redevelopment in the vicinity. The original site featured an in-ground swimming pool, which had to be removed for this project. Though a large new house has since been built on the site, our project focused on the previous state, utilizing an older survey plan that depicted the original house layout.
In this section, I present two 2D drawings and one 3D model created during the “Sustainable Materials & Methods 4” course in semester six. Completing this assignment enhanced my ability to produce detailed architectural drawings that adhere to industry standards for the graphic illustration of architectural details.

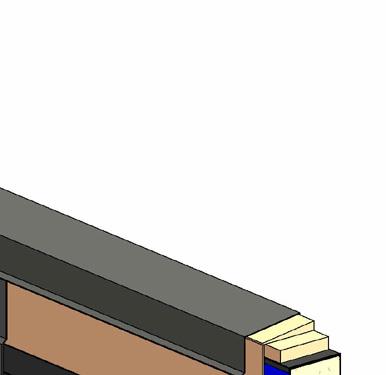

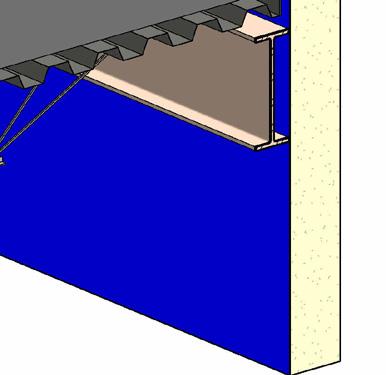

3D DETAIL DRAWING : THIS IS A TRUE 3D DRAWING OF THE 2D DETAIL DRAWING 1. MATERIAL ARE RENDERED IN COLOR AND LABELED WITH THE MATERIAL LEGEND.
Overall Feedback:
1. top track of stud is a steel stud track, not a heavy steel lintel 2. 45 degree cut on the cant strip typical 3.most bitumen roof have two layers bitumen ply 4.There should be no membrane of the semirigid wall insulation

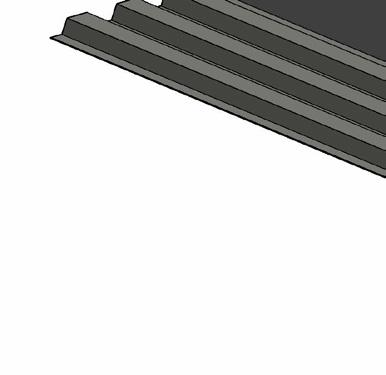

NON-COMPOSITE STEEL DECK
RIGID INSULATION

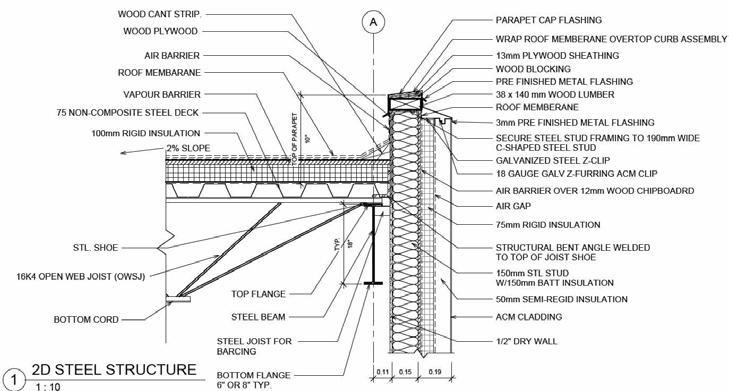

2D DETAIL DRAWING 1: WALL SECTION DETAIL, SHOWING ROOF TO WALL CONNECTION INCLUDING PARAPET. STEEL STRUCTURE AND INCOMBUSTIBLE CONSTRUCTION.
JOIST FOR BARCING
1. METAL COUNTER FLASHING
PARAPET CAP FLASHING
MARIYEH AZADDAVAR
WRAP ROOF MEMBERANE OVERTOP CURB ASSEMBLY
www.autodesk.com/revit
13mm PLYWOOD SHEATHING
STEEL STRUCTURE
WOOD BLOCKING PRE FINISHED METAL FLASHING
38 x 140 mm WOOD LUMBER
ROOF MEMBERANE

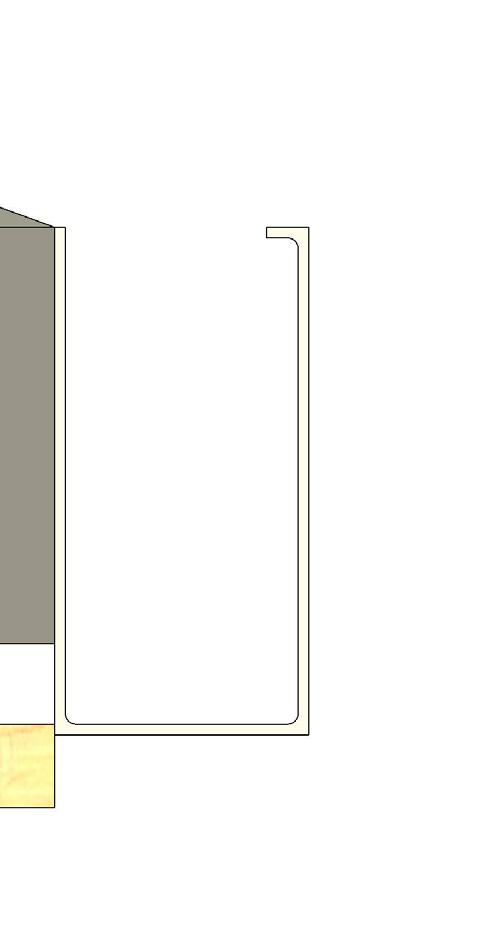

3mm PRE FINISHED METAL FLASHING SECURE STEEL STUD FRAMING TO 190mm WIDE C-SHAPED STEEL STUD
GALVANIZED STEEL Z-CLIP
18 GAUGE GALV Z-FURRING ACM CLIP AIR BARRIER OVER 12mm WOOD CHIPBOADRD AIR GAP
75mm RIGID INSULATION
STRUCTURAL BENT ANGLE WELDED TO TOP OF JOIST SHOE
150mm STL STUD W/150mm BATT INSULATION
ACM CLADDING
1/2" DRY WALL
2D
DETAIL
DRAWING 2: WALL SECTION DETAIL, SHOWING TRANSITION BETWEEN BRICK AND ACM CLADDINGS AS WELL AS CURTAIN WALL WINDOW HEAD/SILL CONDITIONS.
2. EXTEND ROOF MEMBRANE TO TOP OF PARAPET
3. ROOF MEMBRANE
4. FIBER CANT STRIP
5. PRESSURE TREATED PLYWOOD
6. CONTINUOUS VAPOUR RETARDER
7. ROOF INSULATION w.AIR/VAPOUR BARRIER SHEATHING
8. 38mm STEEL ROOF DECK
9. 152mm GLASS FIBER BATT INSULATION
10. 152mm STEEL STUDS @ 400mm O.C.
11. STRUCTURE BENT ANGLE WELDED TO TOP OF JOIST SHOE
12. 16K4 OPEN WEB JOIST
13. STEEL BEAM

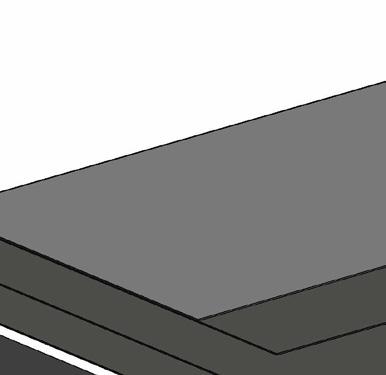

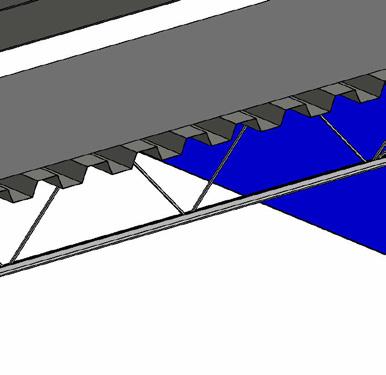

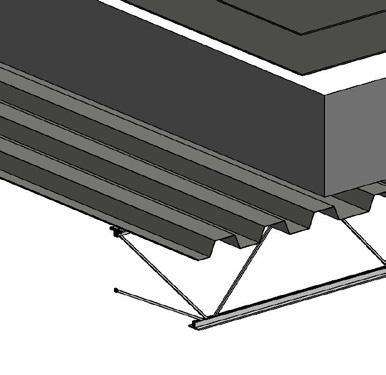

3D DETAIL DRAWING
A101
19mm FIBERGLASS SHEATHING TO STEEL Z-CLIPS
4mm ALPOLIC ALUMINUM/METAL COMPOSITE PANEL
64mm EXTERIOR SEMI-RIGID INSULATION
VAPOUR BARRIER TO OVERLAP FLASHING
ALUMINUM FLASHING TO HAVE MIN. 5% SLOPE
PORTLAND CEMENT-LIME

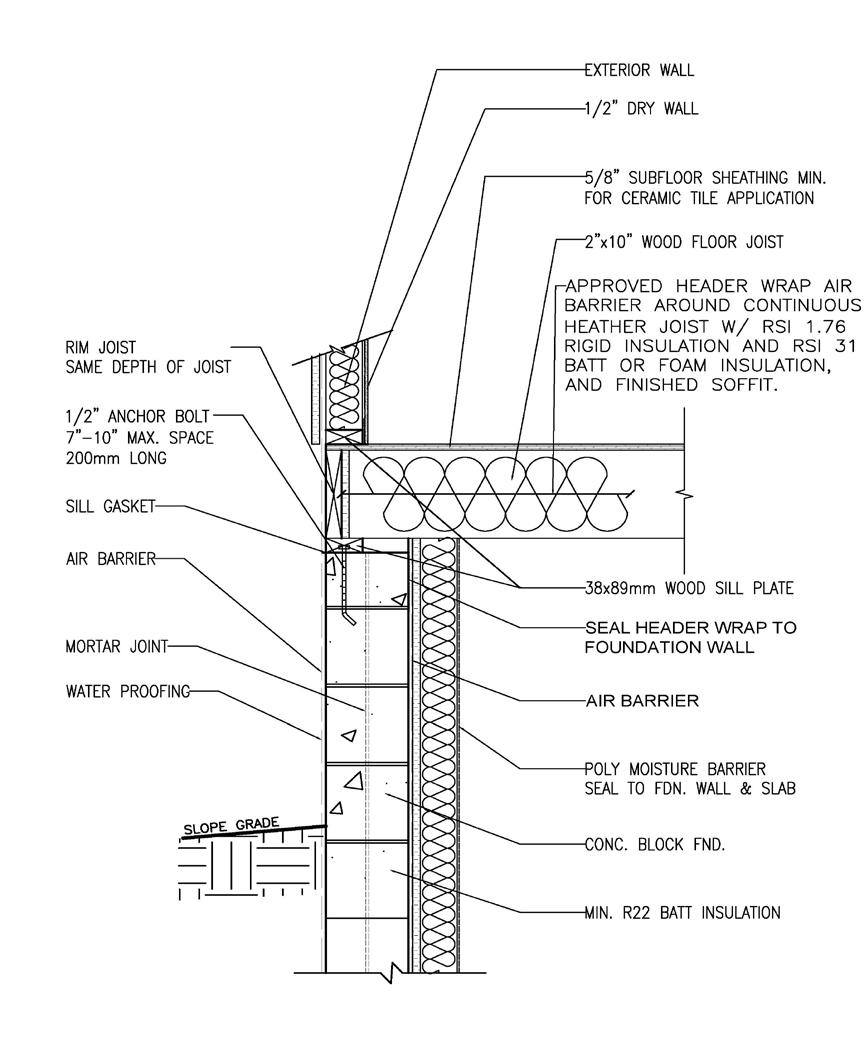

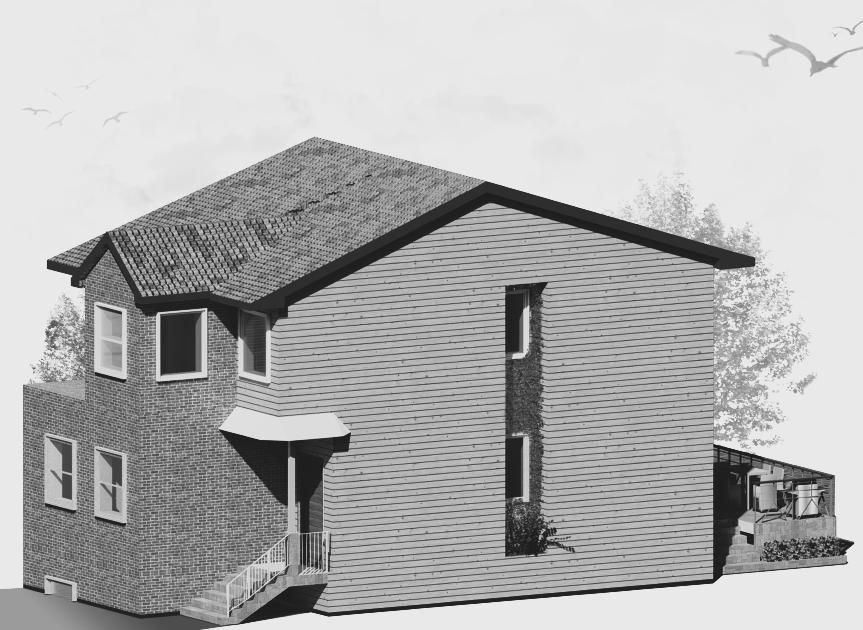

MAJESTIC HOUSE
WINTER 2023
Modeling: SketchUp & V-Ray
Drafting: AutoCAD

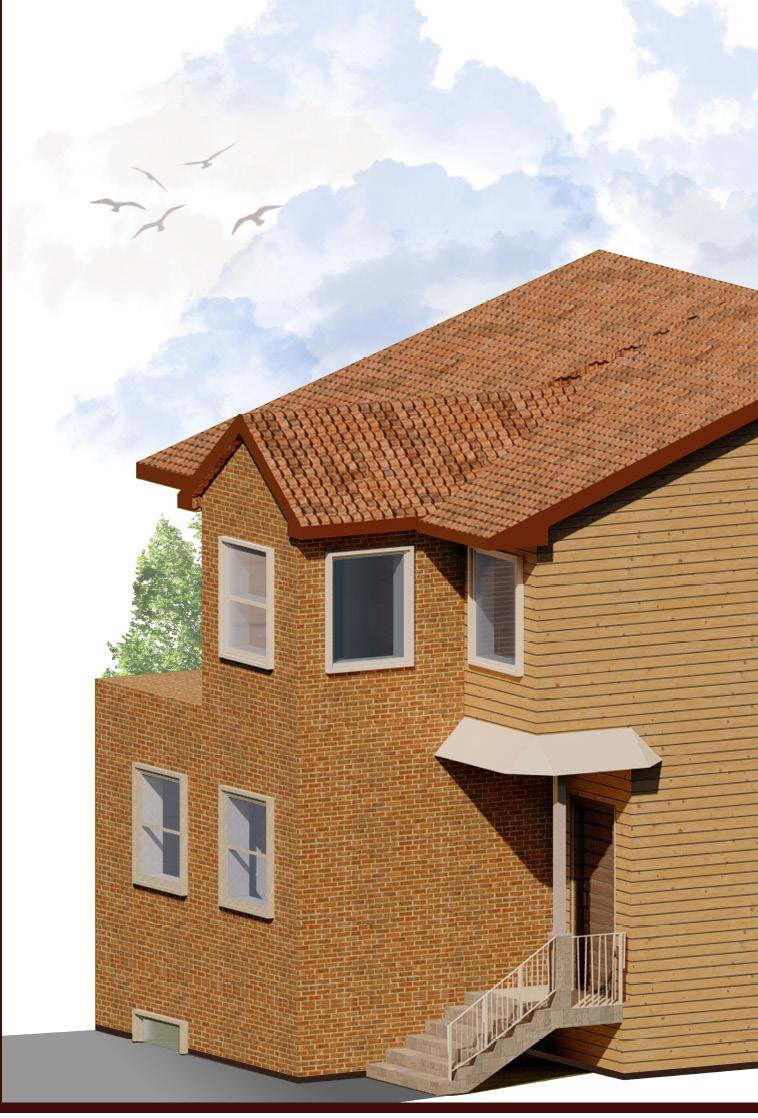

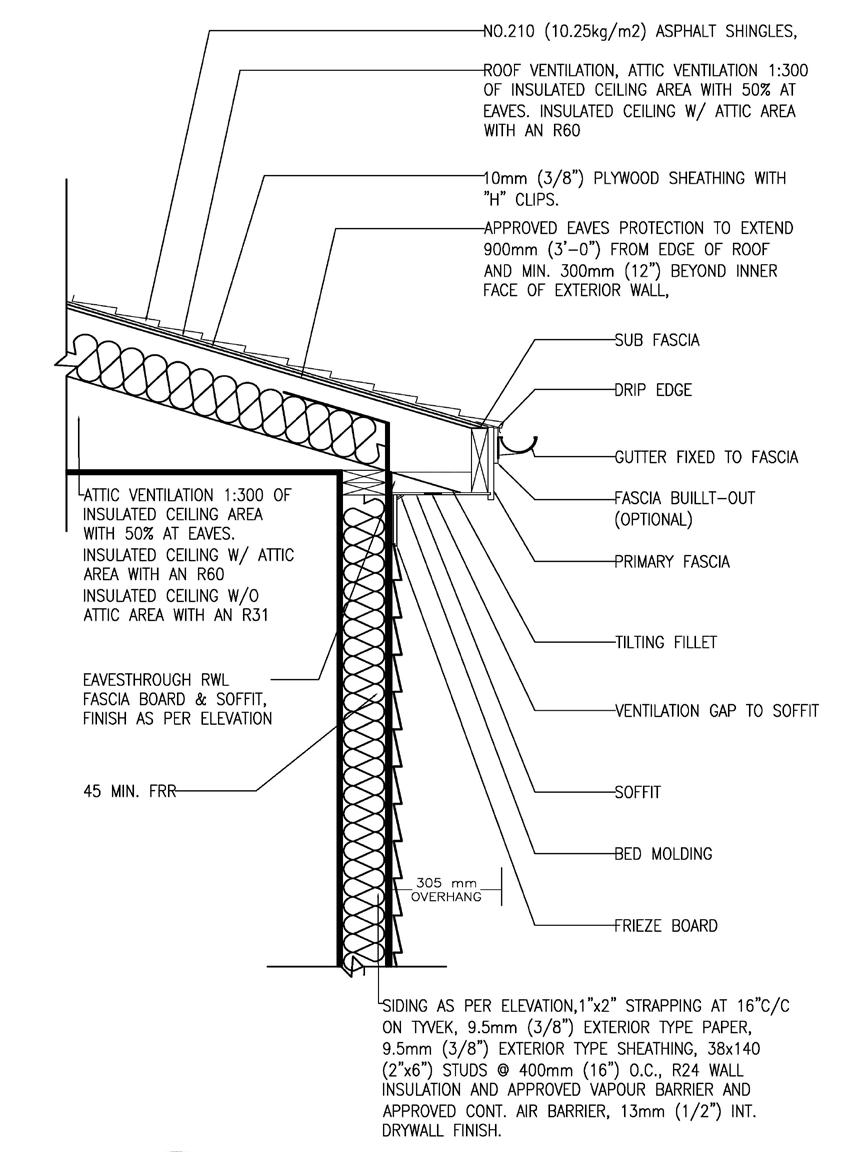

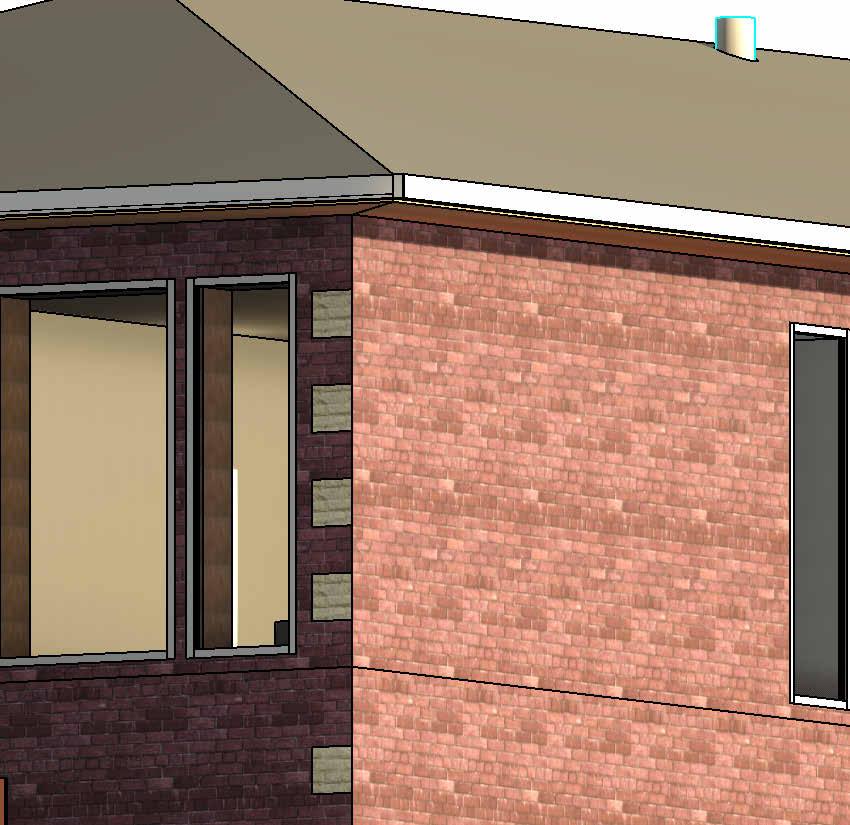

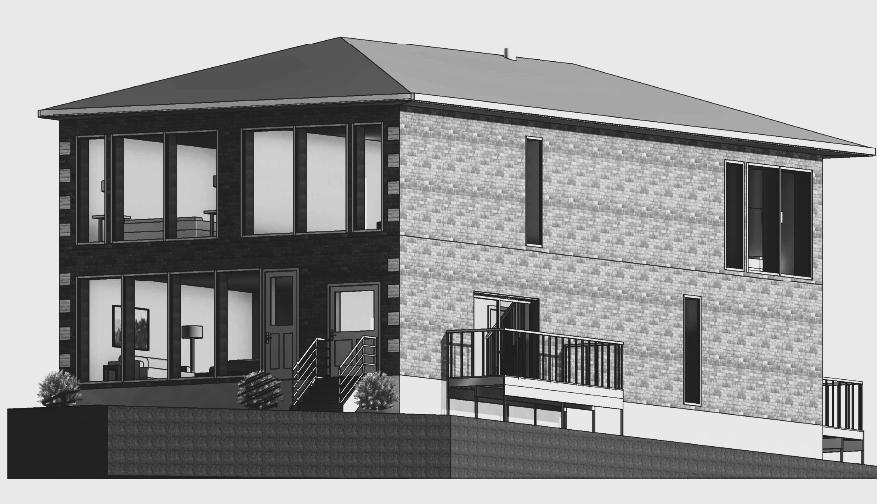

In the second semester, we worked on a project focused on wood frame houses, adhering to Part 9 of the Ontario Building Code and Toronto Zoning bylaws. In pairs, we designed a residential home that met client requirements, featuring two exterior finishes, various room specifications, and a unique combination of contrasting double-sloped roofs with a green wall. The project balanced creativity with strict compliance to building guidelines.
Group Member:
Kimia Karimi
ARCHITECTURAL TECHNOLOGY AND STUDIO II
SUBMISSION
ARCHITECTURAL TECHNOLOGY AND STUDIO II PART FIVE SUBMISSION
