Ruam Mitr Festival

Ruam Mitr means gathering various elements that are incredibly different from one another but are harmonious when they are brought together. The concept is to have a gathering space for ALL both in daily life and at the festival.

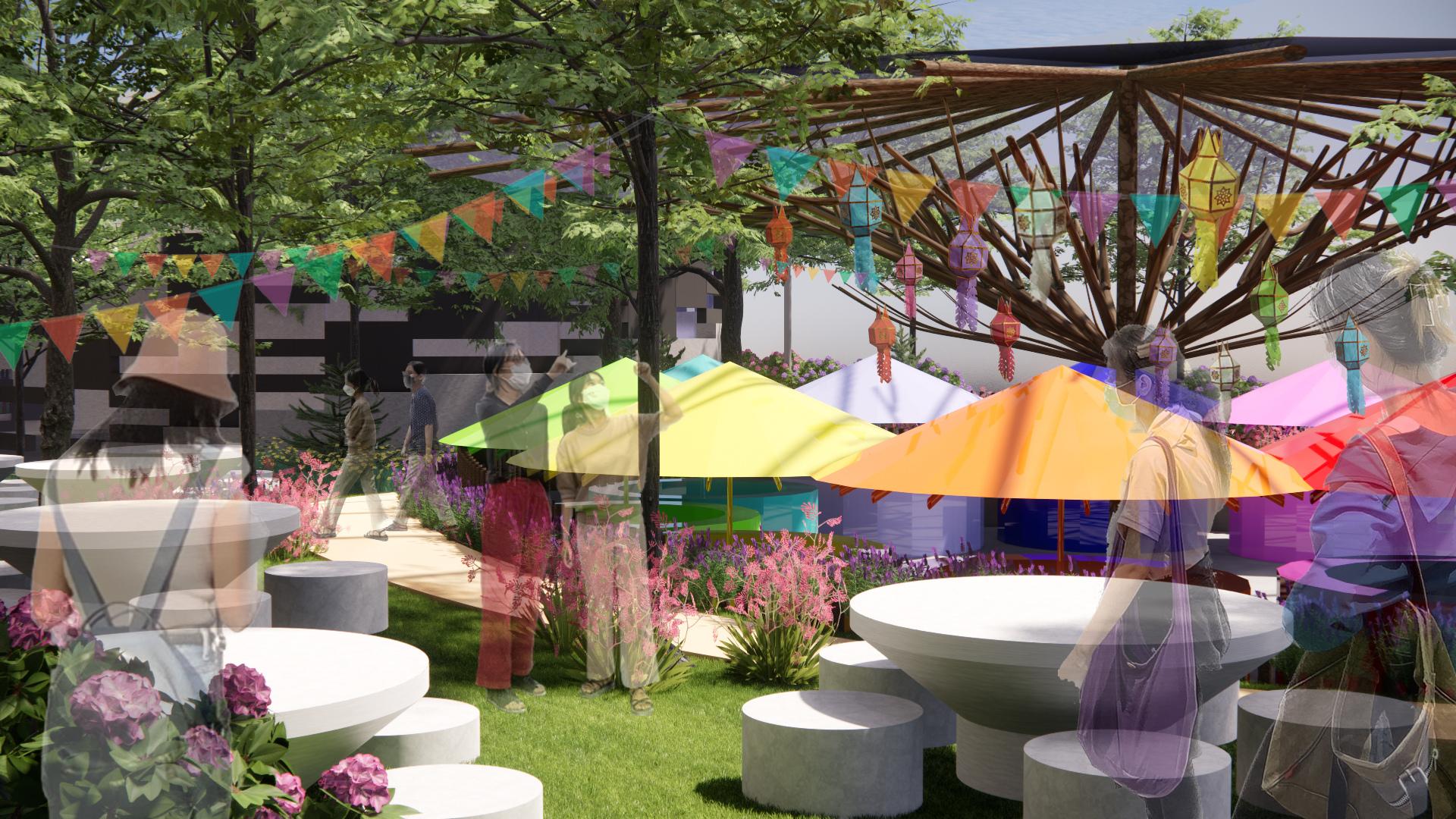

Northern Zone Perspective

Next is the perspective of the northern zone where the umbrella installations are hung with lanterns that were painted by the participants of the event.

Re-imagining Thai Social Space: RuamMitr

School of Architecture and Design

King Mongkut's University of Technology Thonburi

Student names: Phurichaya Ruangthong 63120500033

Student names: Phurichaya Ruangthong 63120500033

Maria Andrea Marqueses 63120500044

ARC 343 Architecture Design Studio IV Semester 2/2022

| Semester 2/2022

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Instructor: Elliott Voth

Athisaya Jiratawornkul 63120500060

Instructor: Elliott Voth

School

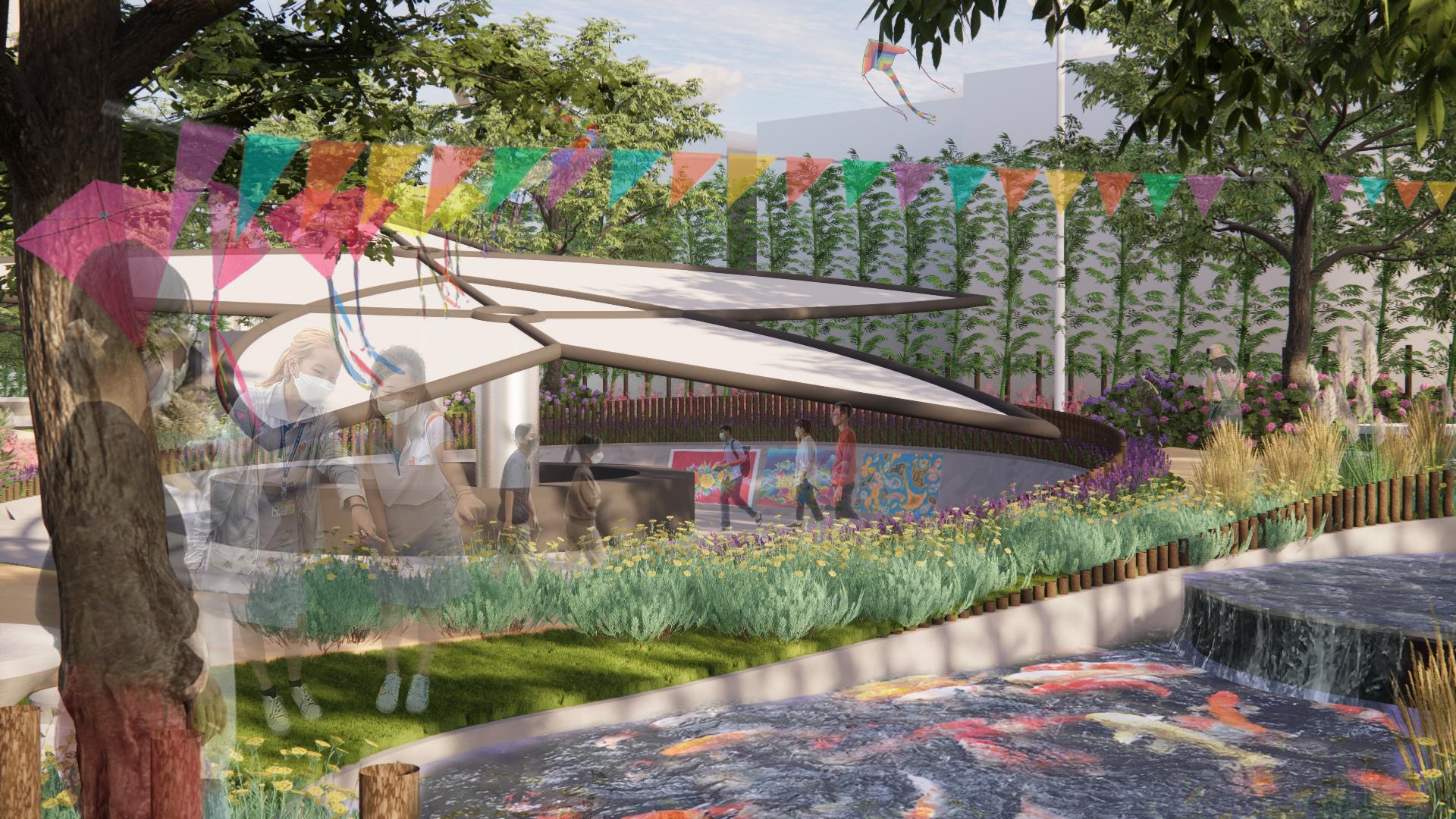

Southern Area Perspective

The next perspective shows the area of the southern zone with the kite pavilions, people can join the batik painting along with kite painting here.

Student names: Phurichaya Ruangthong 63120500033

Student names: Phurichaya Ruangthong 63120500033

Maria Andrea Marqueses 63120500044

|

Re-imagining Thai Social Space: RuamMitr ARC 343 Architecture Design Studio IV Semester 2/2022

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Athisaya Jiratawornkul 63120500060

of Architecture and Design King Mongkut's University of Technology Thonburi

Instructor: Elliott Voth

Semester 2/2022 Instructor: Elliott Voth

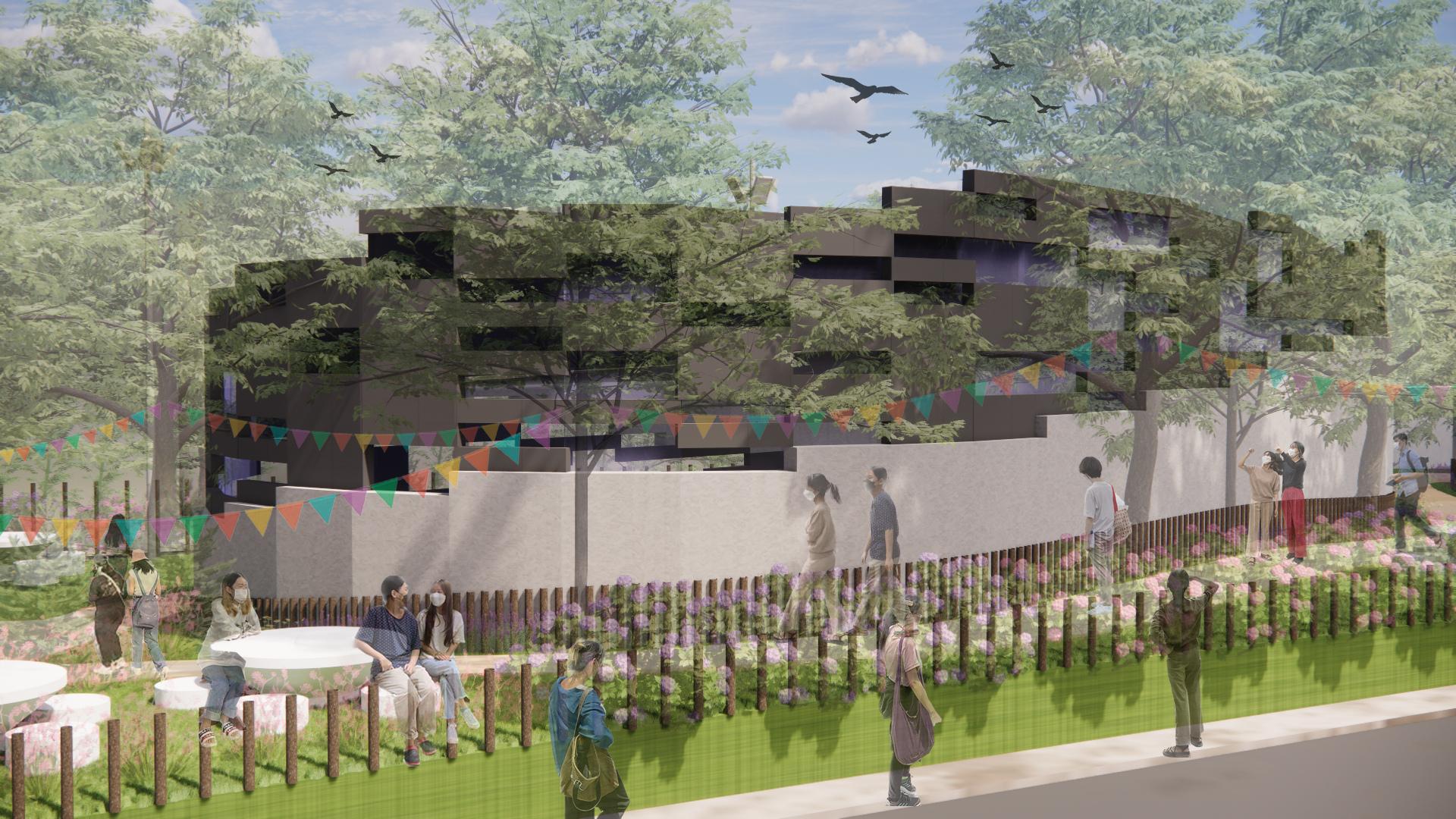

Cantral Thailand Zone Perspective

Lastly, this perspective shows the different level in elevation of the site by comparing the people walk in ground level and people in the site which is higher than ground level for 1.2m.

Re-imagining Thai Social Space: RuamMitr

School of Architecture and Design

King Mongkut's University of Technology Thonburi

Student names: Phurichaya Ruangthong 63120500033

Student names: Phurichaya Ruangthong 63120500033

Maria Andrea Marqueses 63120500044

ARC 343 Architecture Design Studio IV Semester 2/2022

| Semester 2/2022

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Instructor: Elliott Voth

Athisaya Jiratawornkul 63120500060

Instructor: Elliott Voth

CONCEPT

Day to Day Usage

The Ruam Mitr Prakanong Pocket Park is meant to be used by people of all ages, gender and ability. The division of space is created by giving the space elevations and direction.

Ruam Mitr Festival

A celebration of Thailand’s vase identity throughout the four regions North, Northeast, Central, and South. Each region might be separated, but all share the common space in harmony.

Student names: Phurichaya Ruangthong 63120500033

Student names: Phurichaya Ruangthong 63120500033

Maria Andrea Marqueses 63120500044

| Semester 2/2022

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Instructor: Elliott Voth

Re-imagining Thai Social Space: RuamMitr ARC 343 Architecture Design Studio IV Semester 2/2022

Instructor: Elliott Voth

Athisaya Jiratawornkul 63120500060

CONCEPT

How it came to be

Being Considerate to the Original Users

The space is currently used as a sport complex and this space is the only public space anyone can go to within their ten minutes walk and bik Th fore, as a public space, it must serve it's lo to be effe

Adding Sufficient Circulation for Usage

The circulation is differentiated for different uses such as walking through, running in loops, and leisure walking for people who would like to enjoy the park, time.

Badminton

Snge Route Fast and Straight

Circular Route

Jogging and Running

Leisure Route Walking and Relaxing

Voleybal /Takraw

Basketball /Futsal

CONCEPT

How it came to be

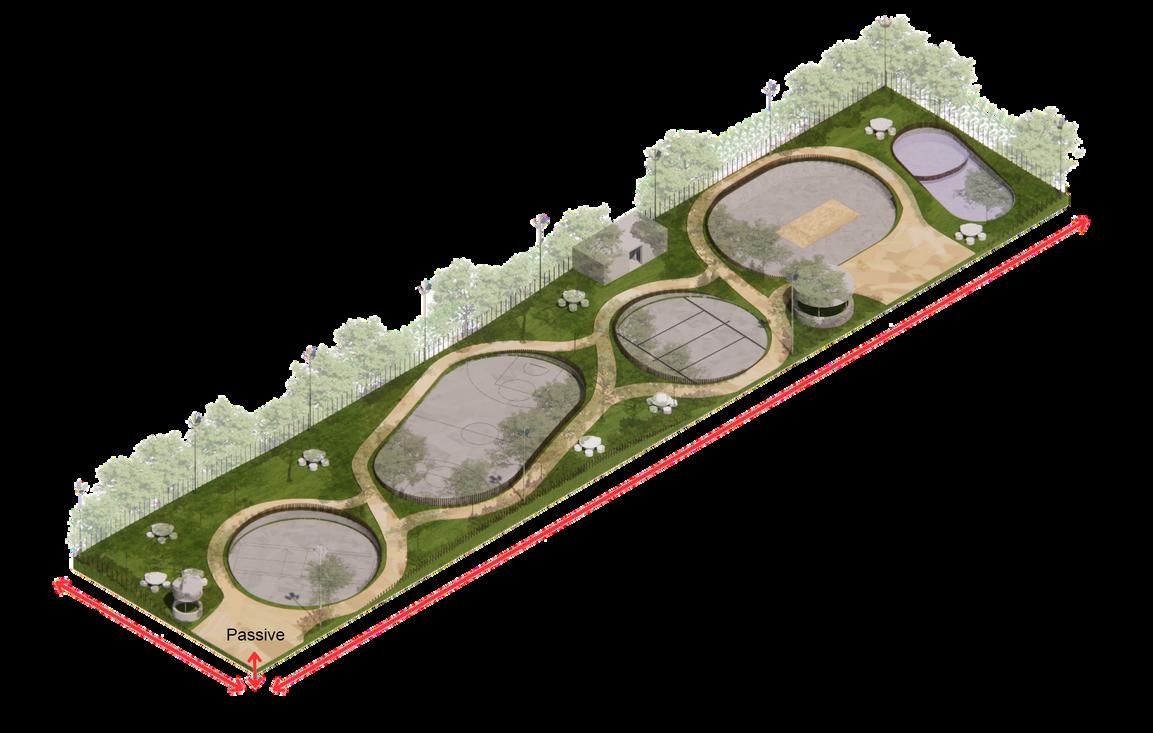

Adding Elevations to Create Spatial Difference

The landscape is designed with slopes and elevations to create a distinct space from the active spaces such as basketball and futsal to passive spaces such as yoga and seating areas that are high above ground level.

Space for More Activities to Gain More Users

With better understanding of space all users can intuitively create their own activities in the leisure space such as picnic and yoga - two activities which will diverse the users at the Ruam Mitr PPK.

SITE ANALYSIS WEATHER AND CLIMATE

In Phra Khanong, Wet season is oppressive and overcast. Dry season is muggy and partly cloudy. It is hot year round. Over the course of the year, the temperature typically varies from 72°F to 94°F.

The rainless period of the year lasts for 2.6 months, from December 4 to February 22 and The month with the fewest muggy days in Phra Khanong is December. The windiest month of the year in Phra Khanong is March. The calmer time of year lasts from September 3 to January 24. These information will help to decide the date and time the event should held.

SITE ANALYSIS SITE CONTEXT

SITE CONTEXT:

Residences

Small Offices Building

Gas Station

Large Office Building

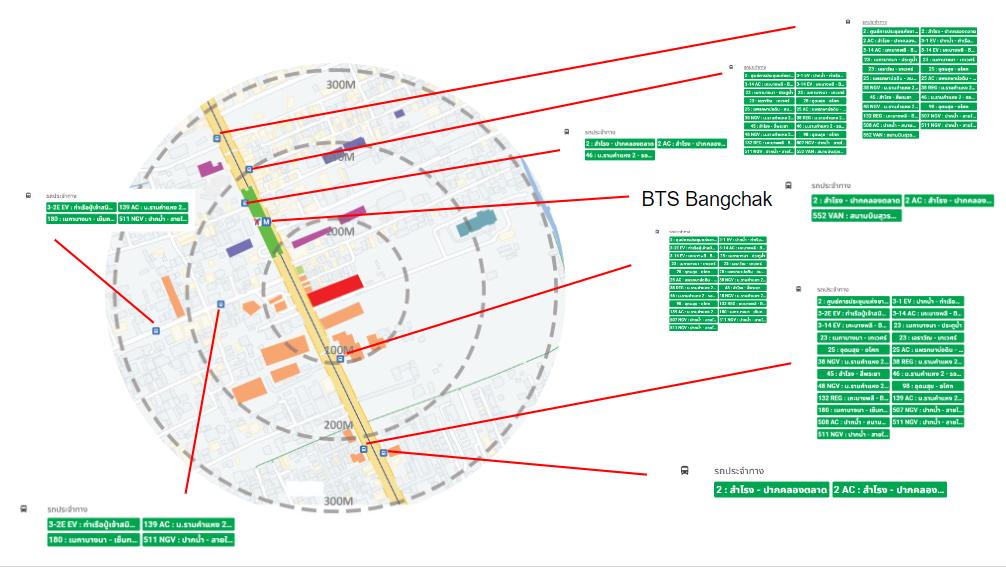

In the site context, we can see that there are many residences, small offices and there’s even a large office building next to the site. Furthermore, the site has great accessibility, it can be easily accessed by BTS Bang Chak and buses.

ACCESSIBILITY

School of Architecture and Design

King Mongkut's University of Technology Thonburi

Re-imagining Thai Social Space: RuamMitr

ARC 343 Architecture Design Studio IV

| Semester 2/2022

Student names: Phurichaya Ruangthong 63120500033

Student names: Phurichaya Ruangthong 63120500033

Maria Andrea Marqueses 63120500044

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Semester 2/2022

Instructor: Elliott Voth

Athisaya Jiratawornkul 63120500060

Instructor: Elliott Voth

USER ANALYSIS

Users Analysis

HIGH SCHOOL STUDENTS, COLLEGE STUDENTS

MALE, AGE 13 - 23

TIME: 3PM - 6PM

ACTIVITY:

OFFICE WORKERS

MALE, AGE 30 - 60

TIME: 4PM - 7PM

SPORT PLAYERS

MALE, AGE 30 - 50

TIME: 4PM - 7PM

We want to gain more users to the site because there are only male users using the space. High school students and college students, office workers, and sports players. They use this space to play futsal, basketball, and Takraw.

Re-imagining

Maria Andrea Marqueses 63120500044

2/2022 Instructor: Elliott Voth

| Semester

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Athisaya Jiratawornkul 63120500060

TARGET USERS

EXISTING USERS NEW USERS

Target Users

There are many opportunities to attract more users around the area. We want to keep the existing users and attract more users to use the space such as families, women, the elderly, and children.

EVENT ACTIVITIES

North Thailand

Featuring: Yi Peng

ActivityBooth

Lantern Makng

Painting Umbrellas

Cental Thailand

Featuring: Mini-Mahanakorn

Food Booth

Kao Soi

Num Chilli Paste & Kab - Moo Nam

Nguew with Rice Noodle

Shows Ti Glong Show

Northeast Thailand

Featuring: Phi Ta Khon

ActivityBooth

Mask Painting

Food Booth

Som Tum & Sticky R ce

Eastern Sausage

Grilled Sticky Rice

Shows Pong Lang Band

Southern Thailand

Featuring: Chula Kite

Clay Pot Making

ActivityBooth

Garland Making

Weaving Pla-Ta-Pien

Food Booth

Pad Thai

Tom Yum Kung

Mango & Sticky Rice

Thai Cotton Candy & Roti

Shows

Ramayana Puppet Show

Te De & Paint

Cloth Kite Making

Food Booth

Roti & Tea

Khue Gling

ActivityBooth Shows

Shadow Puppet Show

SCHEDULE

Thailand has incredibly hot climate through out the year, so the Ruam Mitr event will be hosted during times that Thailand has lower temperature such as the last two weekends of January and the first two weekends of February.

We would like to have the event last for at least a week because of the effort of constructing the installations are high and that not a lot of visitor will have the chance to enjoy the activities and performance.

The event is an open space with all the activities available throughout the day. The only aspects to consider scheduling are the performance that will happen on the same stage at the Central structure.

Saturday Week 1 Ti Glong Show Ramayana Puppet Show Pong Lang Band Shadow Puppet Show

Sunday Week 1 Shadow Puppet Show Ti Glong Show Ramayana Puppet Show Pong Lang Band

Saturday Week 2 Pong Lang Band Shadow Puppet Show Ti Glong Show Ramayana Puppet Show

Sunday Week 2 Ramayana Puppet Show Pong Lang Band Shadow Puppet Show Ti Glong Show

ROOF PLAN

Roof Plan

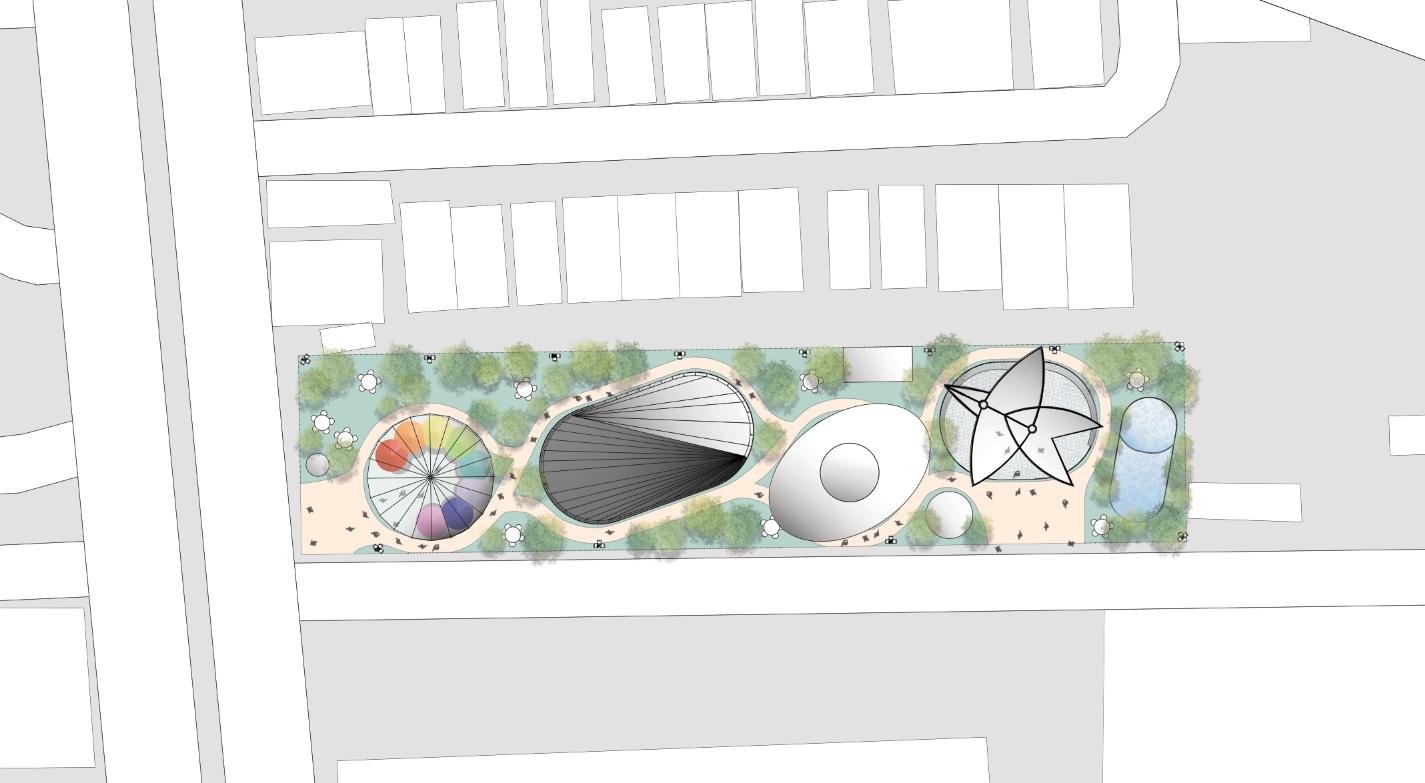

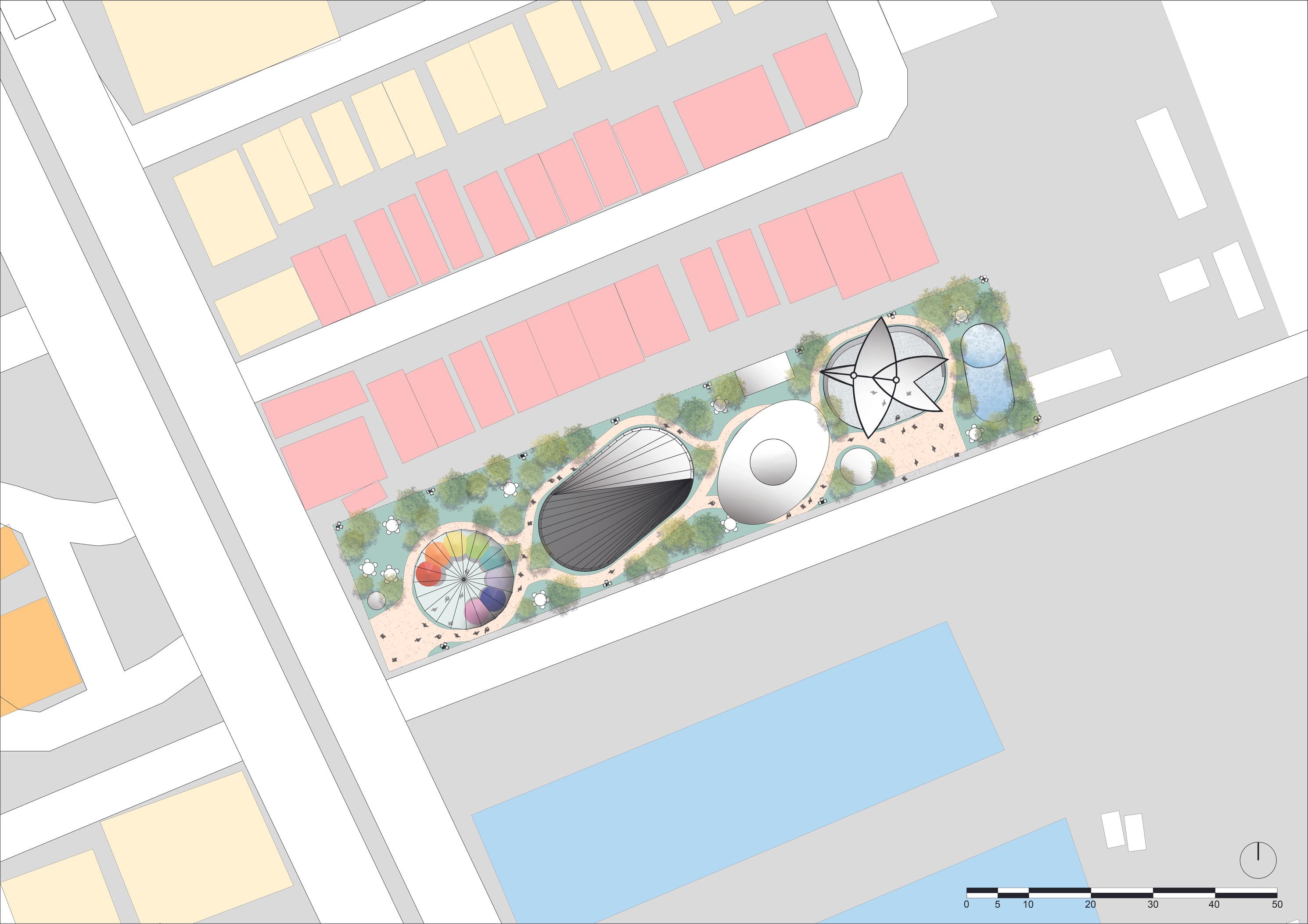

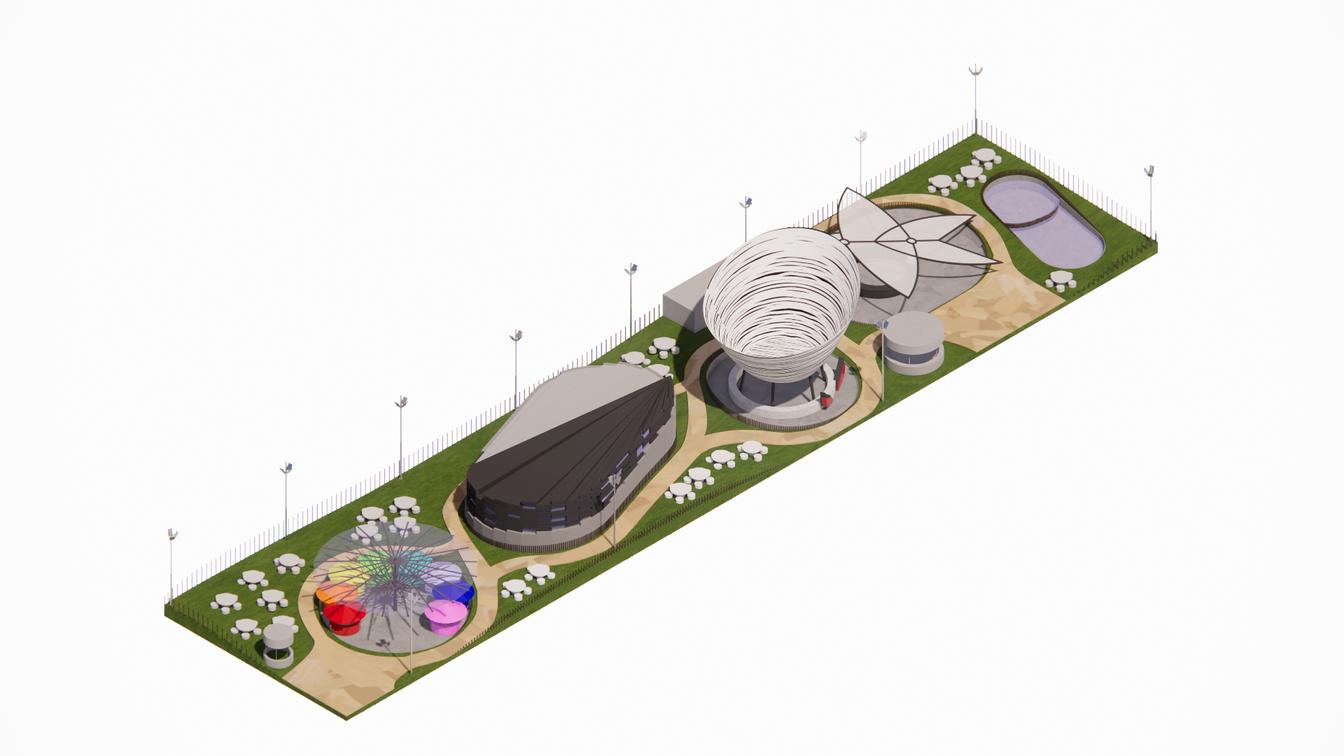

The roof plan shows the top view of the site including the pavilions and it shows how people can look from the BTS sky train to our site. The perception from the BTS to the site is one way to promote the event because the colors and massive structure will attract people and tell people that there is an event occurring.

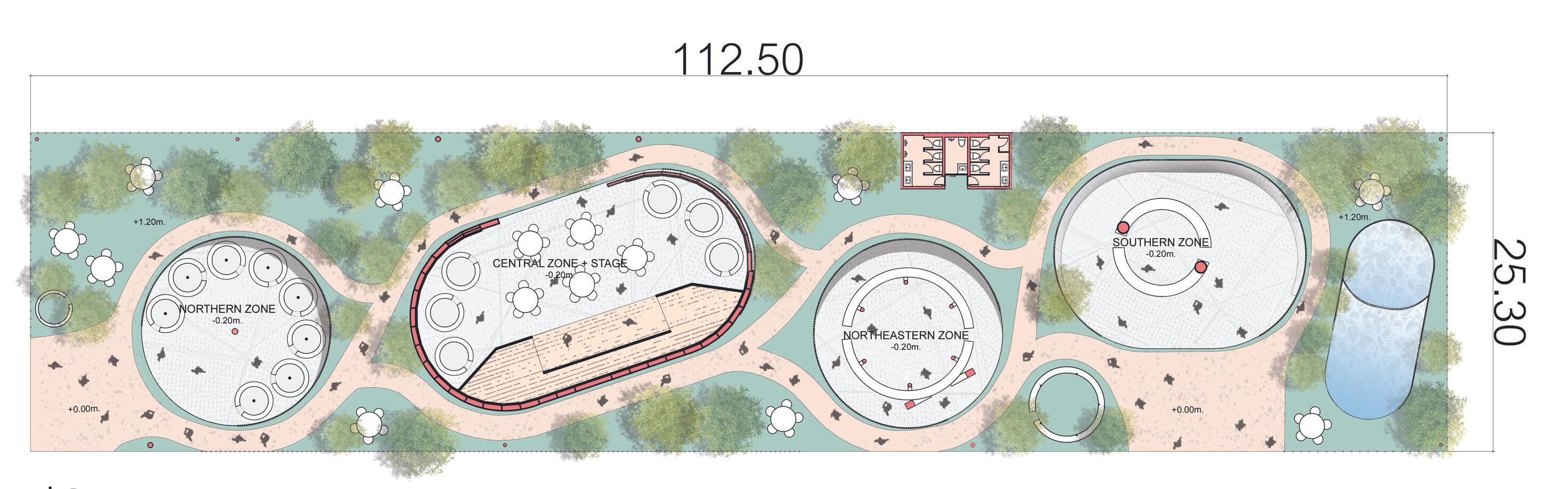

FLOOR PLAN DURING EVENT

Re-imagining Thai Social Space: RuamMitr

School of Architecture and Design

King Mongkut's University of Technology Thonburi

Student names: Phurichaya Ruangthong 63120500033

Student names: Phurichaya Ruangthong 63120500033

Maria Andrea Marqueses 63120500044

ARC 343 Architecture Design Studio IV

Semester 2/2022

Instructor: Elliott Voth

Instructor: Elliott Voth | Semester 2/2022

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Athisaya Jiratawornkul 63120500060

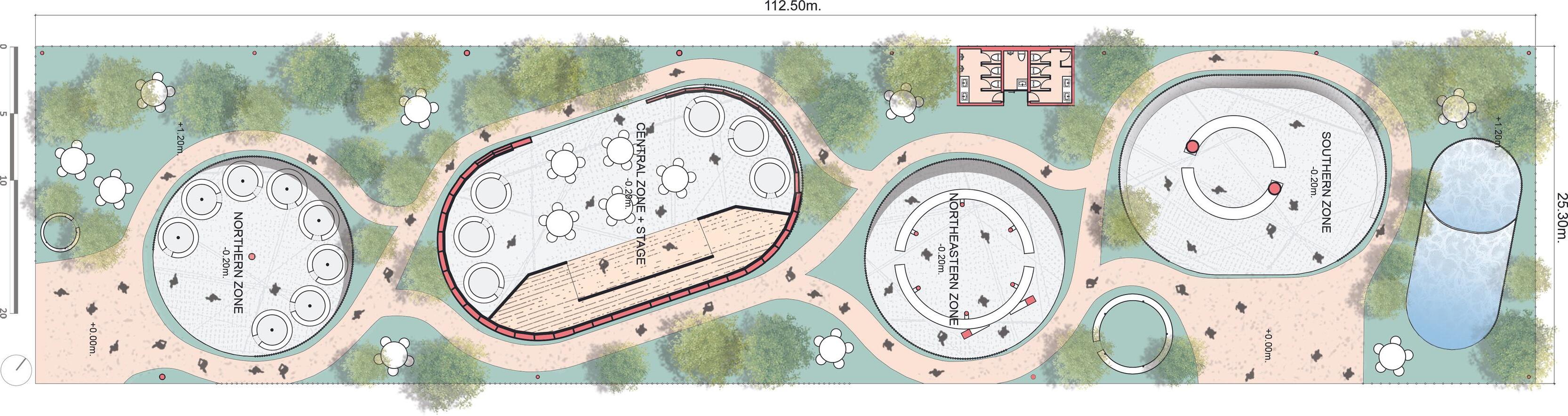

When there is a time for a festival people can enter the site from the east si Central zone where all the shows are performed, Northeastern zone, and S

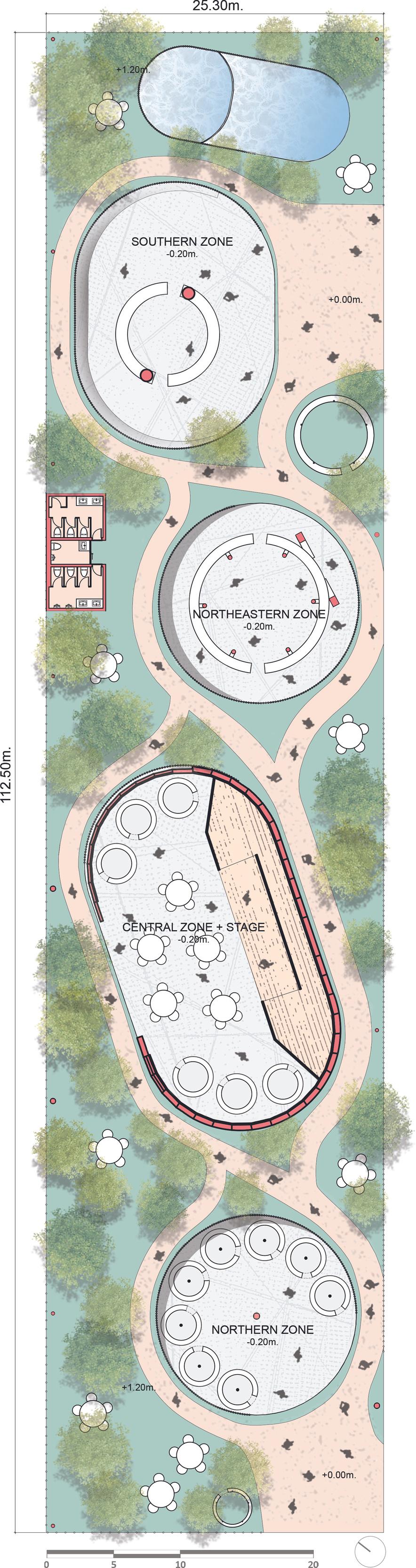

FLOOR PLAN

DAY USE

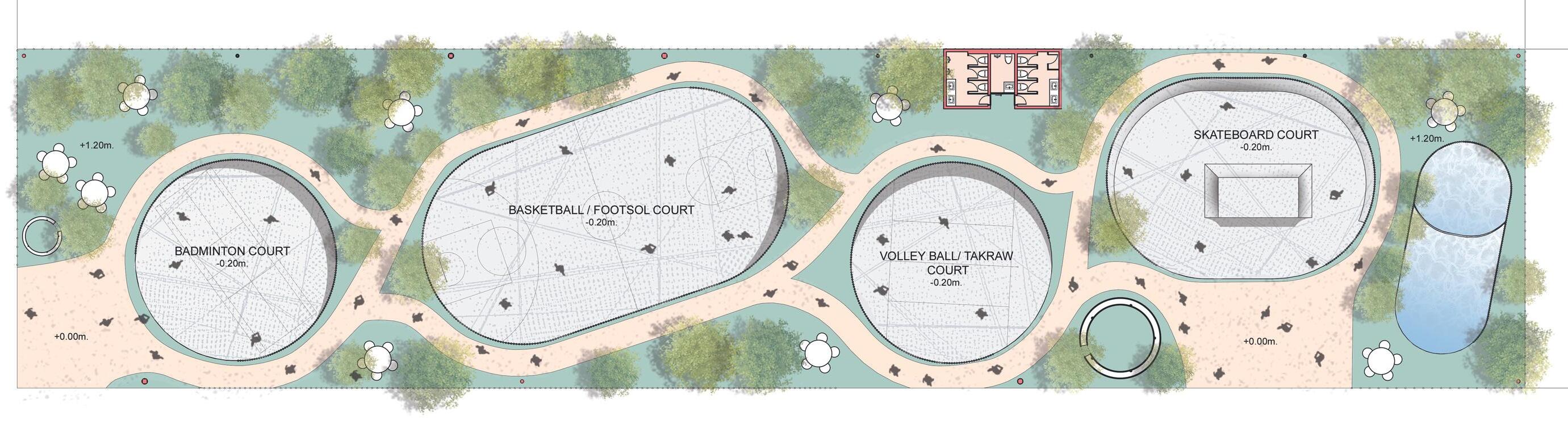

When the festival is over, the site will go back to park and sport courts such court, volleyball or Takraw court and skateboard and allow people to walk

Re-imagining Thai Social Space: RuamMitr

ARC 343 Architecture Design Studio IV

Student names: Phurichaya Ruangthong 63120500033

Student names: Phurichaya Ruangthong 63120500033

Maria Andrea Marqueses 63120500044

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Semester 2/2022

Instructor: Elliott Voth

Athisaya Jiratawornkul 63120500060

Instructor: Elliott Voth

ELEVATIONS

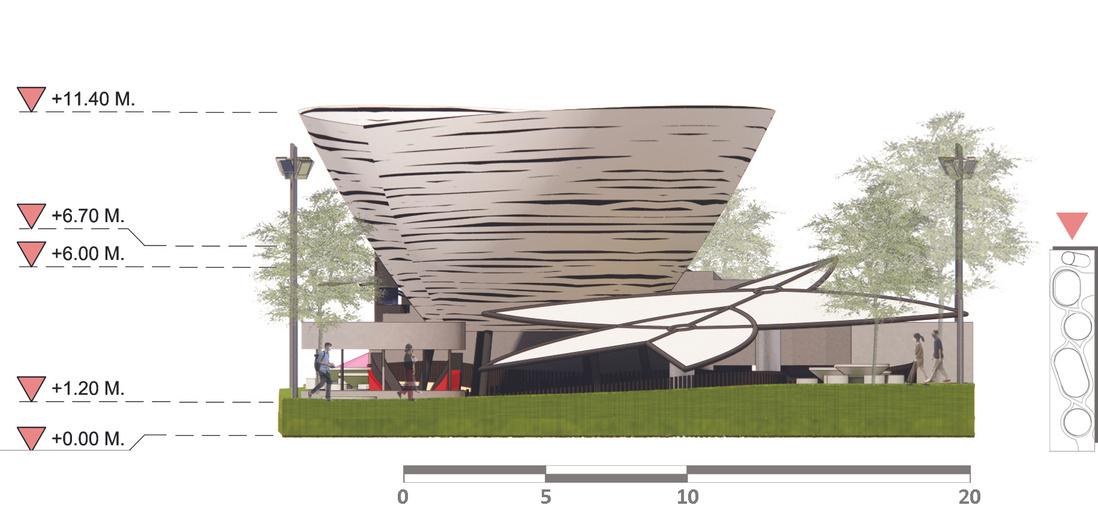

The elevations show the exterior materials of all the pavilions along with compositions found in landscape. Moreover, it also shows the overall height estimation of the structures with the human scale.

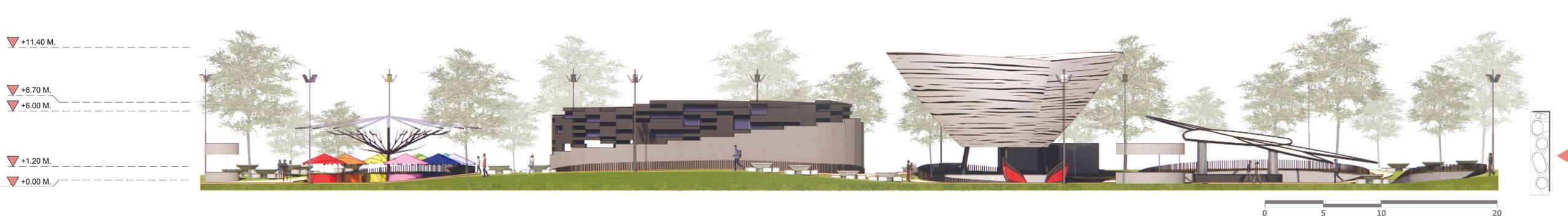

East Elevation

West Elevation

School of Architecture and Design

King Mongkut's University of Technology Thonburi

Re-imagining Thai Social Space: RuamMitr

ARC 343 Architecture Design Studio IV

| Semester 2/2022

Student names: Phurichaya Ruangthong 63120500033

Student names: Phurichaya Ruangthong 63120500033

Maria Andrea Marqueses 63120500044

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Semester 2/2022

Instructor: Elliott Voth

Athisaya Jiratawornkul 63120500060

Instructor: Elliott Voth

ELEVATIONS

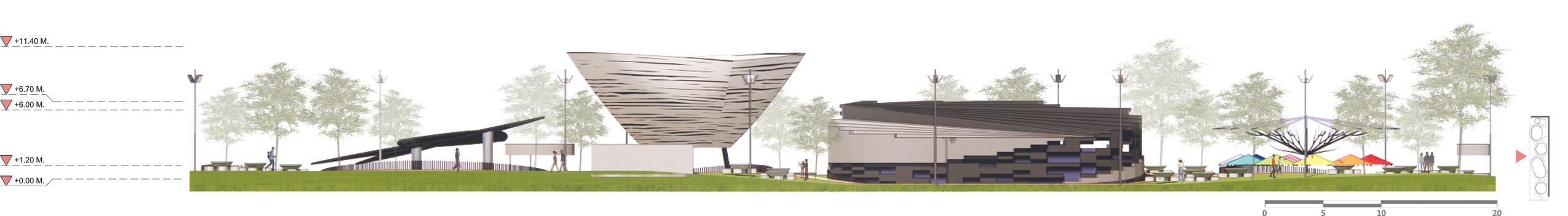

North Elevation

South Elevation

School of Architecture and Design

King Mongkut's University of Technology Thonburi

Re-imagining Thai Social Space: RuamMitr

ARC 343 Architecture Design Studio IV

| Semester 2/2022

Student names: Phurichaya Ruangthong 63120500033

Student names: Phurichaya Ruangthong 63120500033

Maria Andrea Marqueses 63120500044

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Semester 2/2022

Instructor: Elliott Voth

Athisaya Jiratawornkul 63120500060

Instructor: Elliott Voth

SECTIONS

Section A shows the cross-section of the mini Mahanakorn which reveals a seating area and a stage while section B shows the relationship of the slope that went down to lead visitors to certain spaces all across the site.

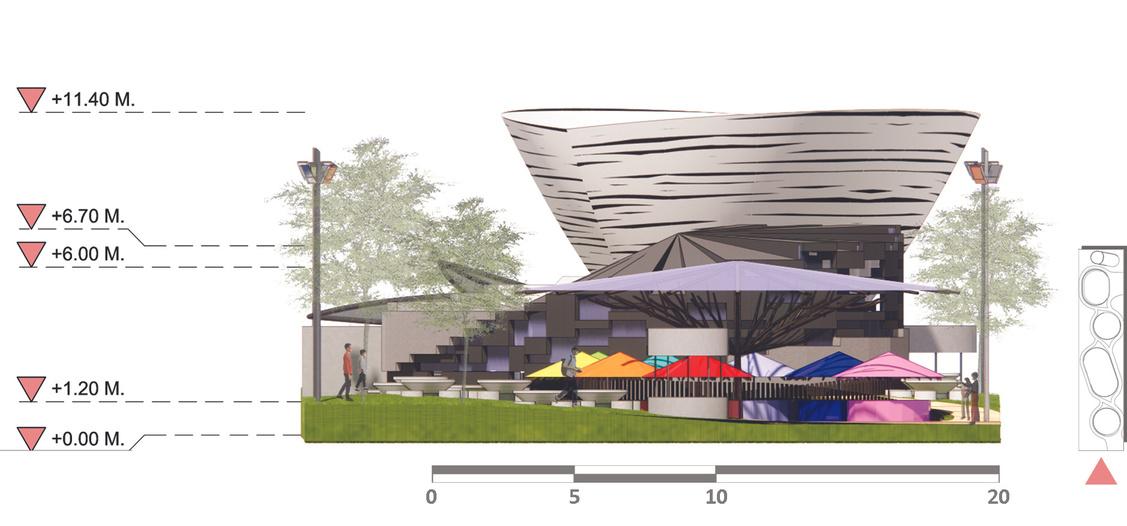

Section A

Section B

Re-imagining Thai Social Space: RuamMitr

School of Architecture and Design

King Mongkut's University of Technology Thonburi

Student names: Phurichaya Ruangthong 63120500033

Student names: Phurichaya Ruangthong 63120500033

Maria Andrea Marqueses 63120500044

ARC 343 Architecture Design Studio IV

Semester 2/2022

Instructor: Elliott Voth

Instructor: Elliott Voth | Semester 2/2022

Maria Andrea Marqueses 63120500044

Athisaya Jiratawornkul 63120500060

Athisaya Jiratawornkul 63120500060

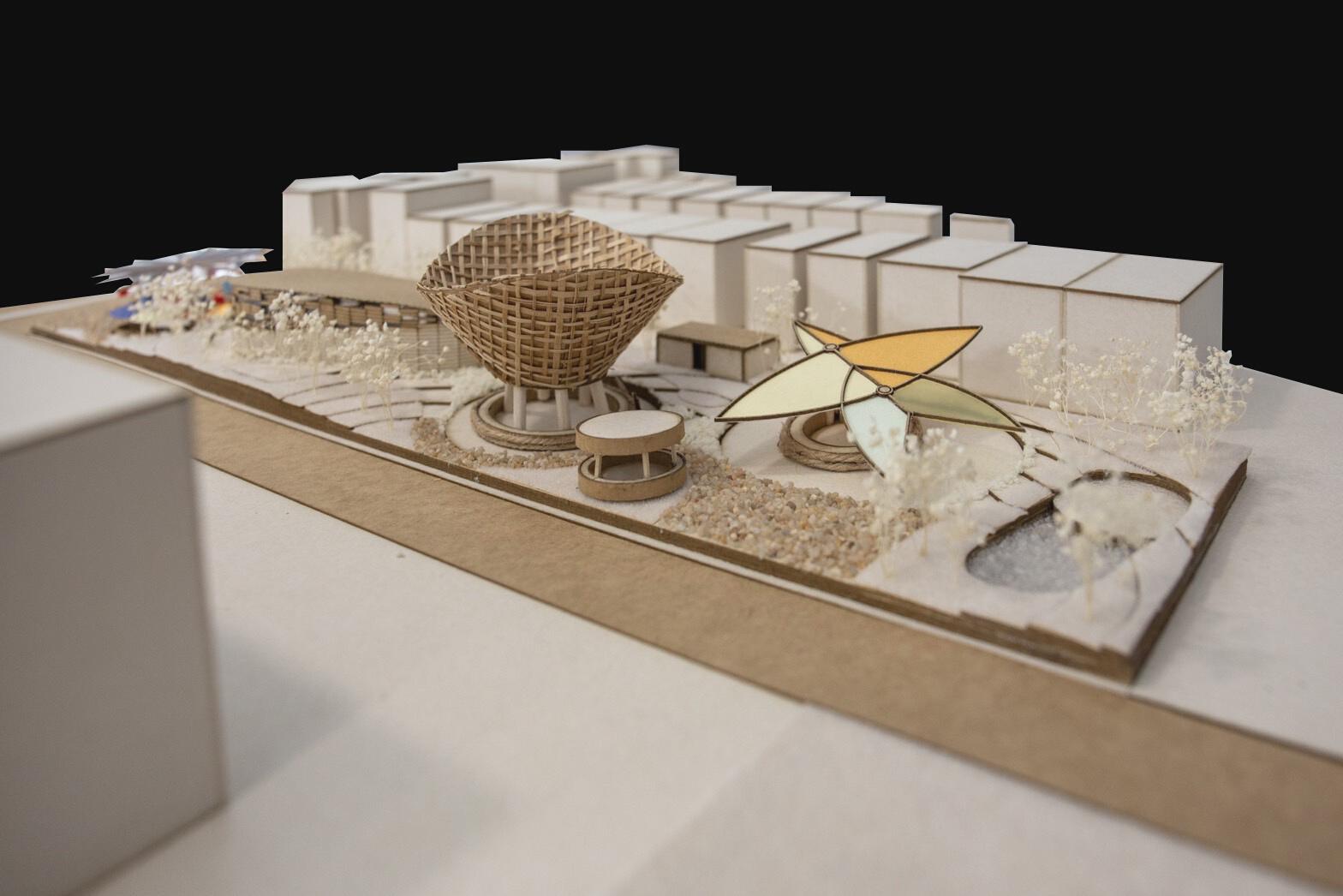

PAVILIONS STRUCTURE

North Thailand

Featuring: Yi Peng, Bo Sang Umbrella

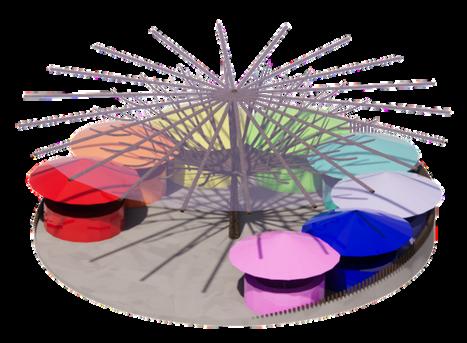

Northern Thailand pavilion which is inspired by the Thai umbrella called Rom Bo Sang made out of copper steel poles with clear circular acrylic panels on top.

Cental Thailand

Featuring: Mini-Mahanakorn

Northeast Thailand

Featuring: Phi Ta Khon

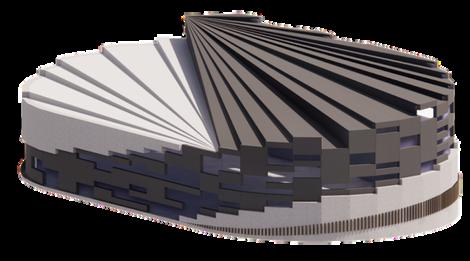

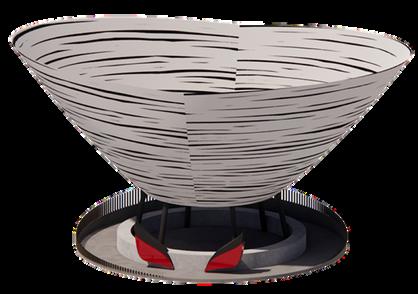

The northeastern Thailand pavilion is inspired by the Phi Ta Khon mask which is made out of bamboo woven with a steel structure.

Southern Thailand

Featuring: Chula Kite

Central Thailand pavilion, Mini-Mahanakorn, inspired by the Mahanakorn building in Bangkok will be using the units of steel structure.

The Southern Thailand pavilion is inspired by Chula Kite with the material steel kite structure with elastic fabric.

STAKEHOLDERS MAPPING

Stakeholders mapping shows who can be affected by our project design based on expertise and influence. There are internal stakeholders such as the owner, employees, shareholders, subsidiaries, construction/installation workers, private shops workers or owners. Then, there are external stakeholders which include customers, government, supplier, competitors, communities, and MQDC.
