PLANS (RETAIL & OFFICE BUILDING)

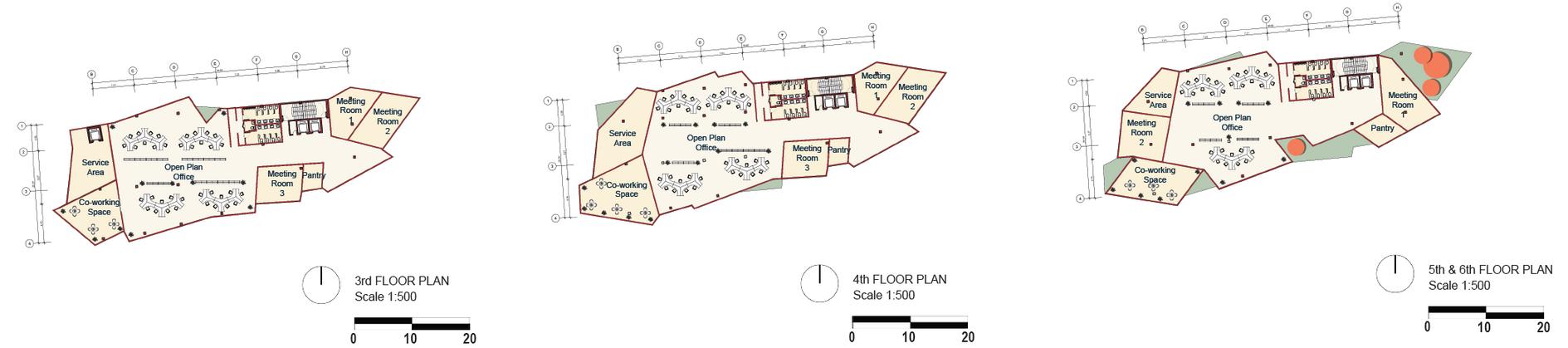

office & Retail Building (1st- 6th floor plan)

The 1st and 2nd floors of the building retail spaces have a total of 13 retail spaces with bathrooms and a service area, while the 3rd to 6th floor is where the offices are located. The office level has 3 meeting rooms, a pantry, a co-working space, a service area, and an open-plan office.

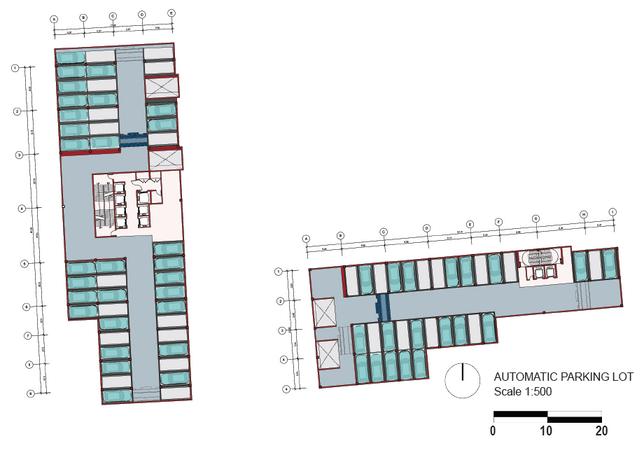

Automatic Parking System

The parking lot is an automatic parking system that takes place on the underground level with a capacity of 264 spaces for the residential building, while the office and the retail building have 60 parking spaces. The cars are led underground by the car elevators.

Residential Building (1st- 36th-floor plan)

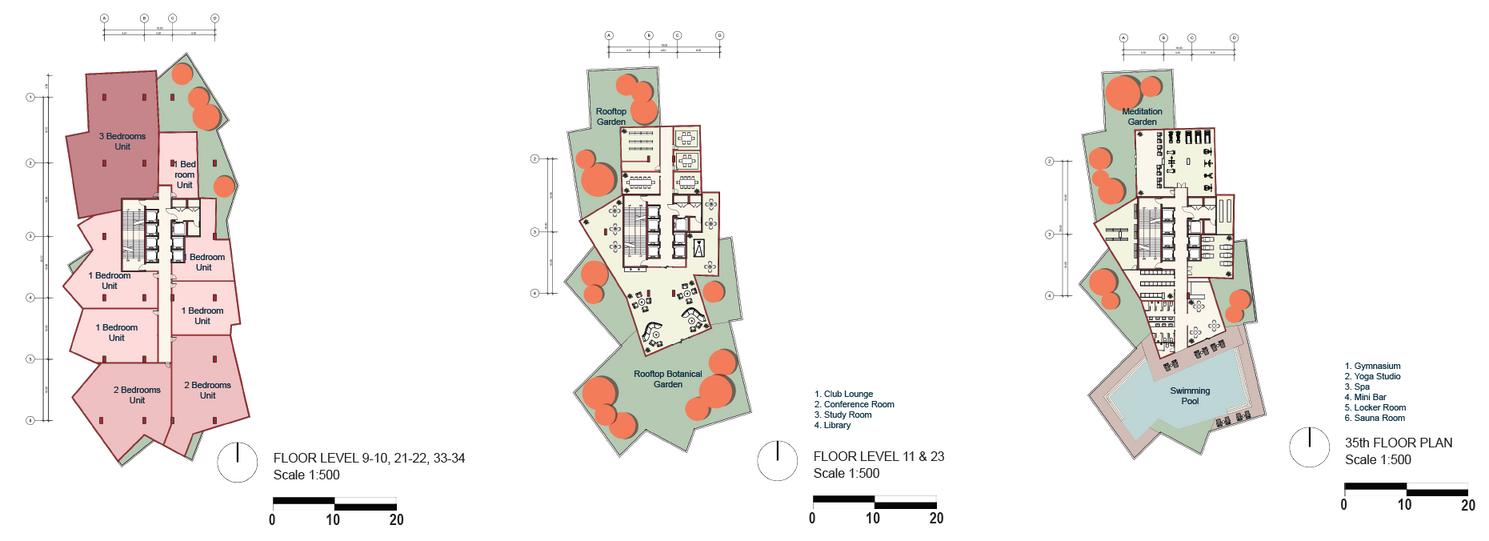

Floor levels 1-2, 13-14, and 25-26 of the building consist of a 2-bedroom unit and 5-loft units. While floor levels 3 - 10, 13 - 22, and 25 - 34 have 5 1-bedroom units, 3 2bedroom units, and a 3-bedroom unit.

Moreover, the amenity levels are in each segment of the building. Floor levels 11th and 23rd consist of a club lounge, conference rooms, study rooms, a library, and a rooftop botanical garden. While on the 35th plan, there is a gymnasium, yoga studio, Spa, mini bar by the swimming pool, locker room, sauna room, and a meditation garden.

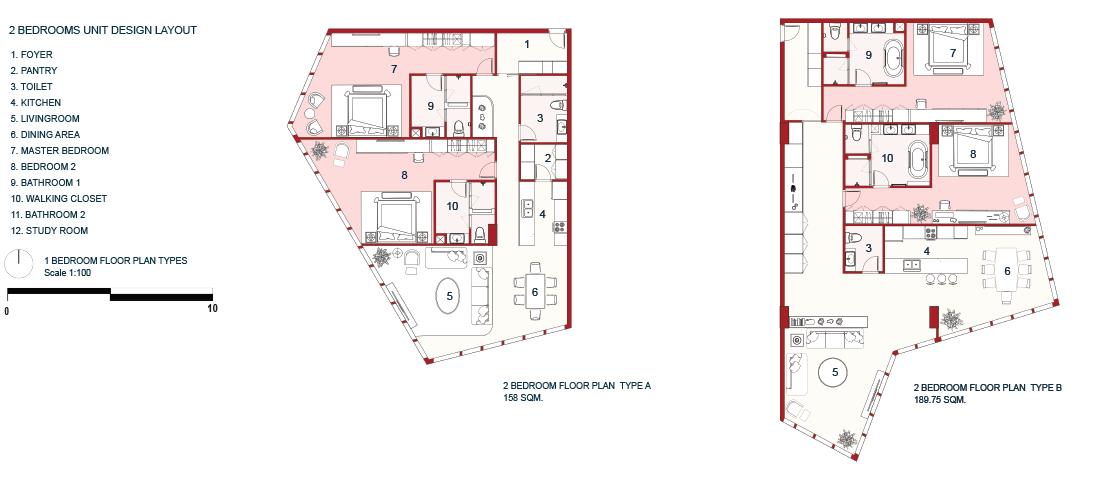

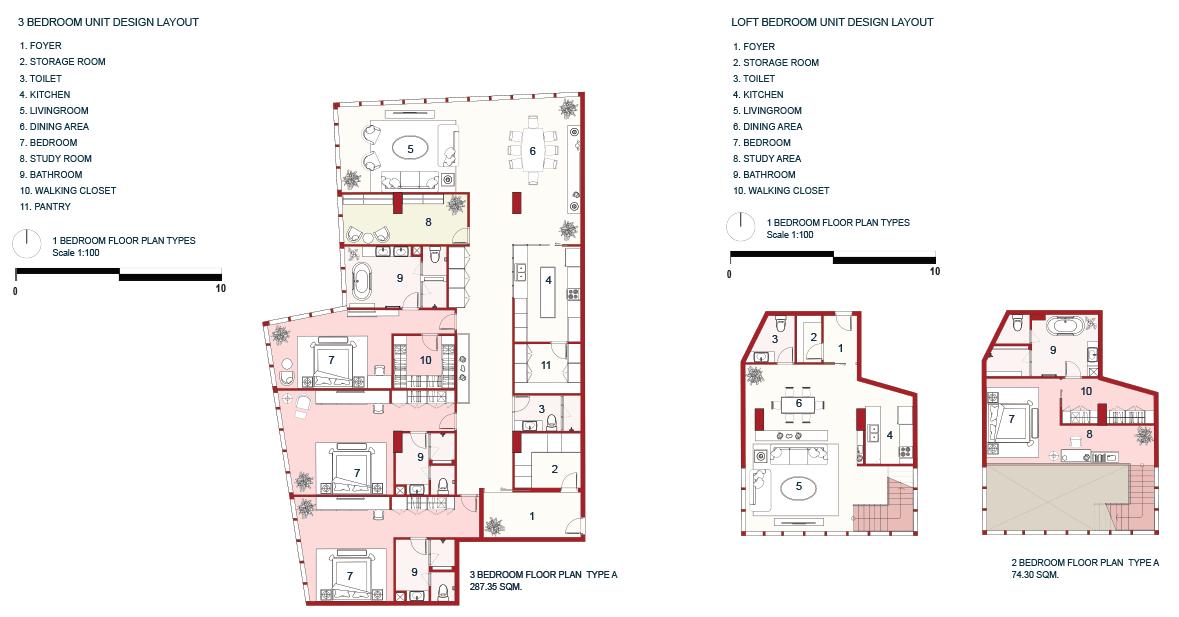

The residential building consists of 4 main unit types: Loft unit, 1 Bedroom Unit t, 2 bedroom Unit, and 3 bedroom unit. Each type of room varies in shape and size, so there are different types of furniture layout designs in each room unit of the building.

1 Bedroom Unit Design Layout

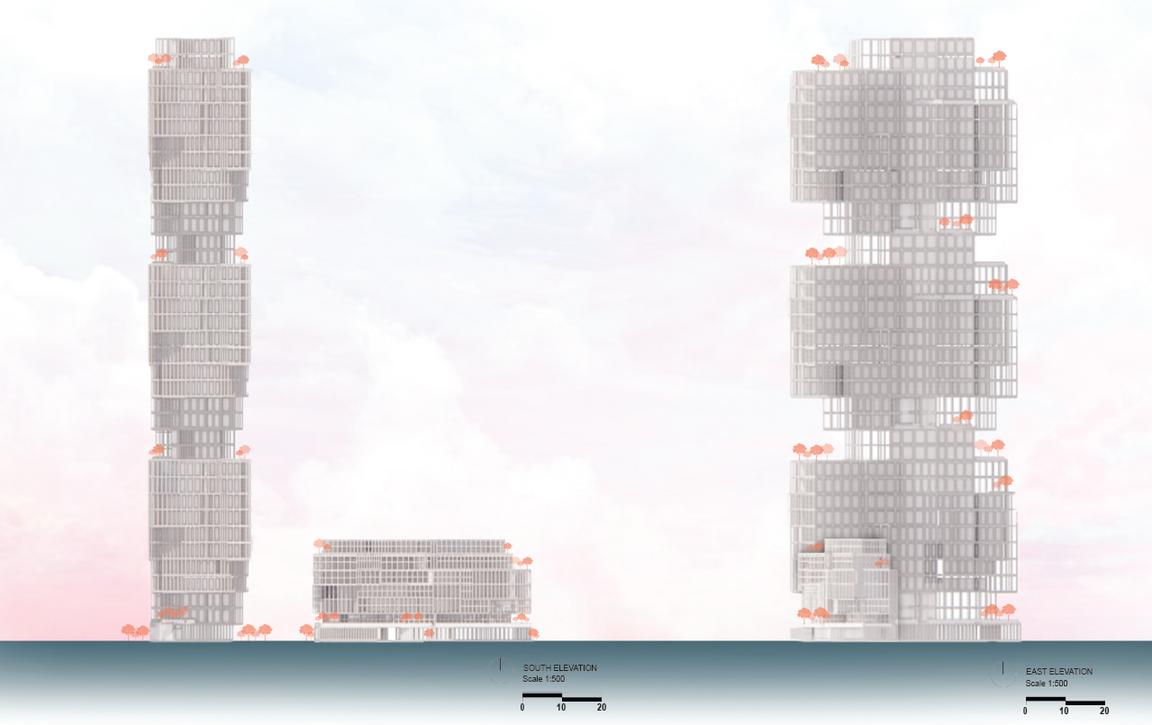

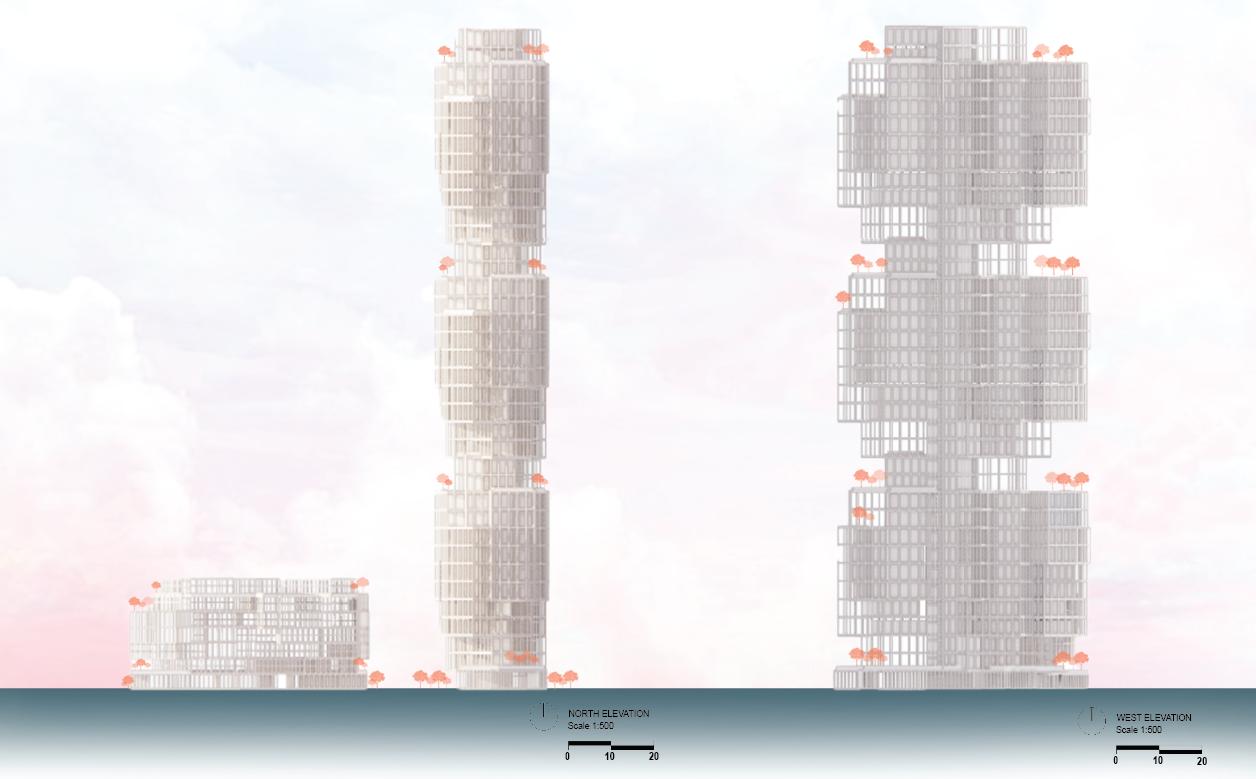

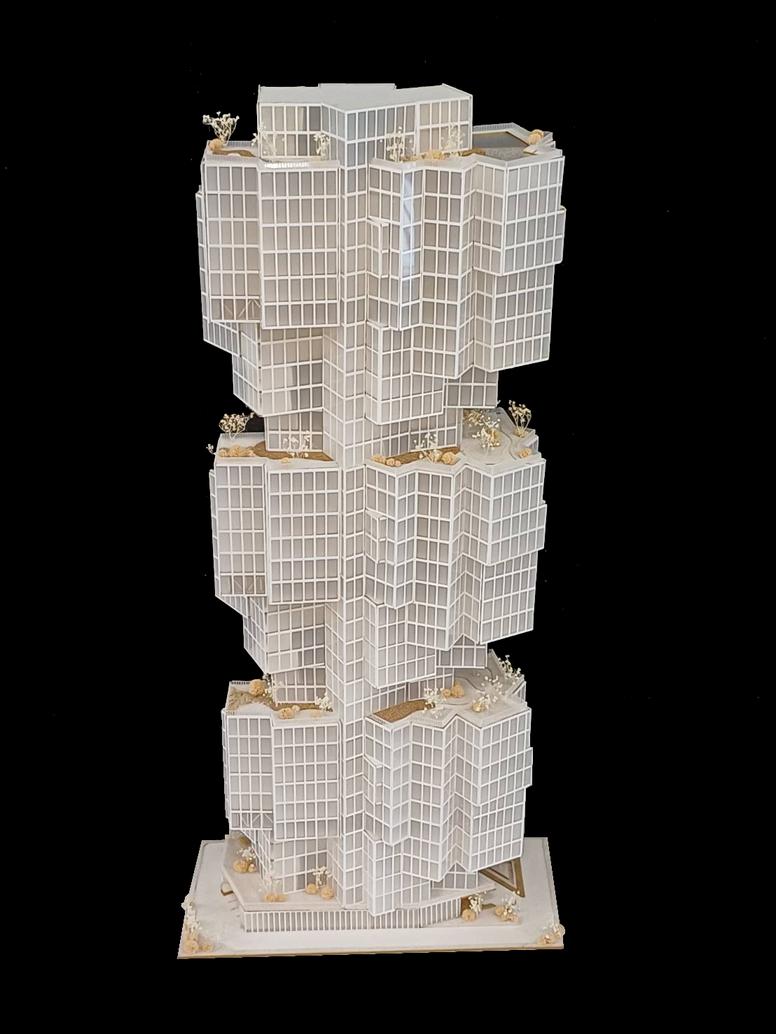

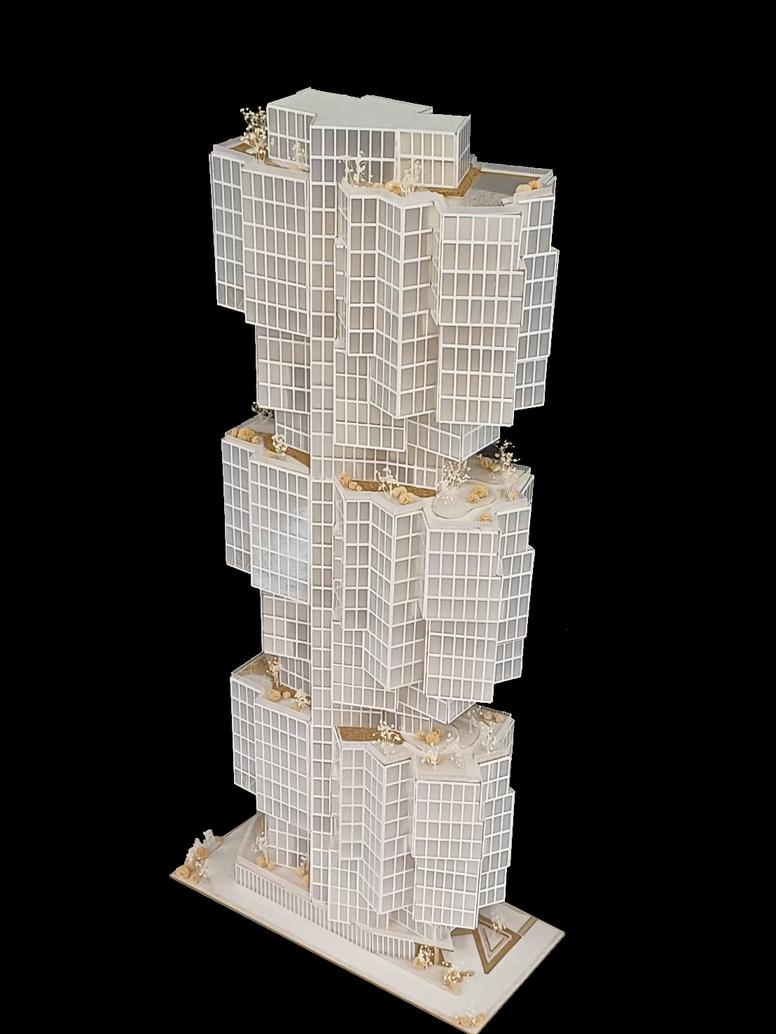

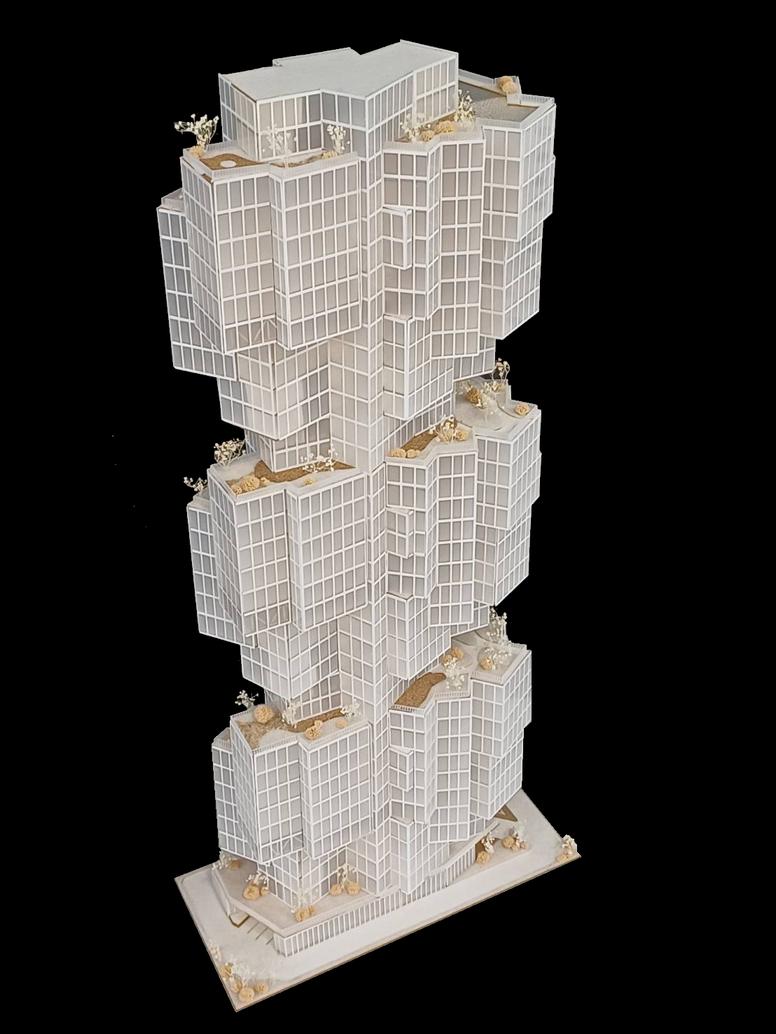

Elevations

The material of the exterior envelope of the building is a bouble-glazed low energy facade. It is designed to minimize heat transfer, improve insulation, and reduce energy consumption in buildings. Curtains can be used as an additional layer of interior window treatment. It can provide privacy and control the amount of natural light entering the interior space, and also provide thermal insulation from heat and an accoustic control that can reduce the sound transmission.

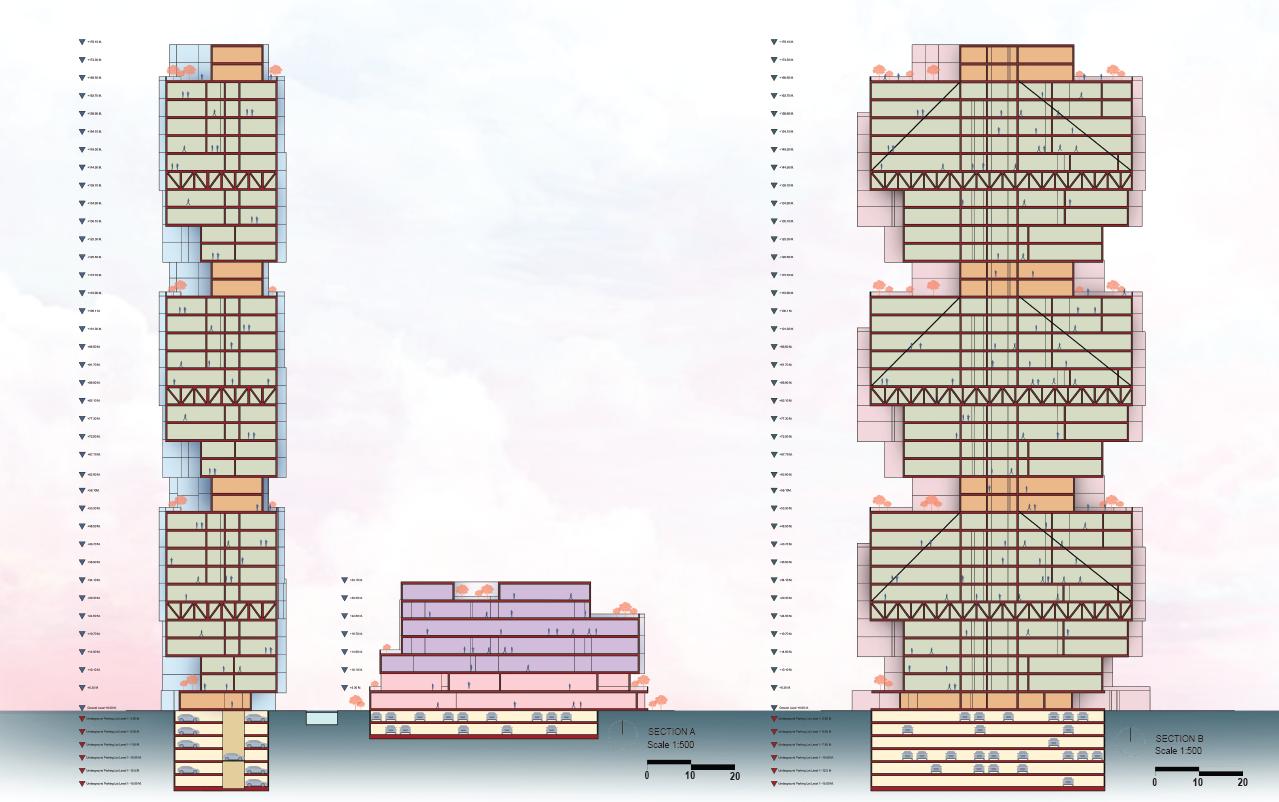

Setion A

Section A cuts from East to West. It shows the separation of the public building (office & retail) and the private building (residential). Moreover, it also shows how the interior space of the building increases in the residential portion, while it decreases in each interval which is the amenities of the building. There is also a truss system in each segment to support the structure of the building.

Section B

Section B cuts from North to South. It shows the relationship between the people in the interior space and the outdoor garden spaces of the building. Where people can socialize and spend time relaxing and enjoying the amenities provided. Moreover, it also shows the truss system in each segment of the building with the rod suspensions supporting the truss structurally. However, this structural system will be hidden in the interior walls and envelope of the building.

GLASS GLAZING

REINFORCED CONCRETE

GRASS (GREEN AREAS)

MARBLE (INTERIOR)

WHITE GLAZED BRICK

LIMESTONE PAVEMENTS

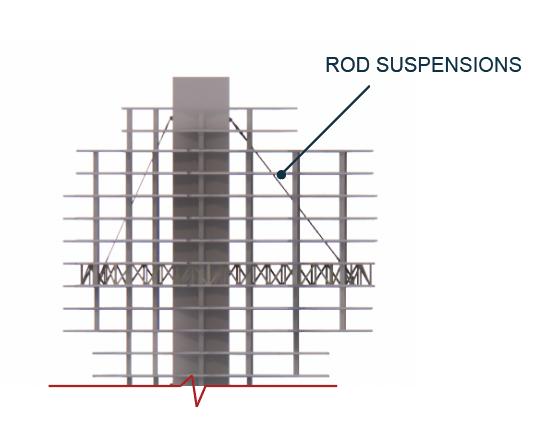

Outrigger Structural System

The outrigger structural system is the structural system used in the building. It is an internal lateral load-resisting system that is located within the interior of the building. It consists of a core structure and the outrigger as the truss. The load transfer from the floor slab to the columns and then to the outrigger truss that is connected to the core structure of the building having the central core as the primary load transfer. The rod suspensions provide essential support for the longdistance truss. It improves the overturning stiffness and strength of highrise buildings.

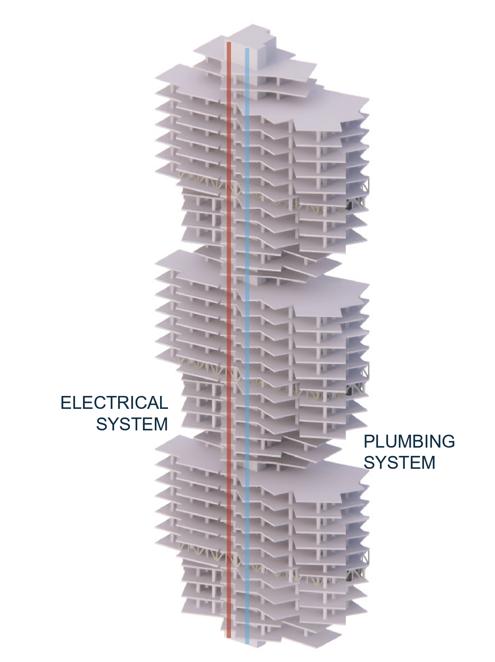

PLUMBING SYSTEM & ELECTRICAL SYSTEM CORE OF THE BUILDING

Electrical System

The electrical transformer and generator are located underground in the building which ensures an uninterrupted power supply, offering peace of mind even during unexpected outages. The electricity is distributed to the building by the service and enters the MDB room which will receive the electricity. The electricity then being distributed throughout the building.

Plumbing System

The water tank is located on the ground floor. The water from the public will be pumped to the water tank and then pump up to be distributed to the toilets and kitchens. The greywater and rainwater from rooftops will undergo treatment and filtration processes to remove any harmful substances and contaminants. This includes using filters, settling tanks, and natural processes such as soil filtration and plant uptake. Then this will be used to water the green spaces in the building

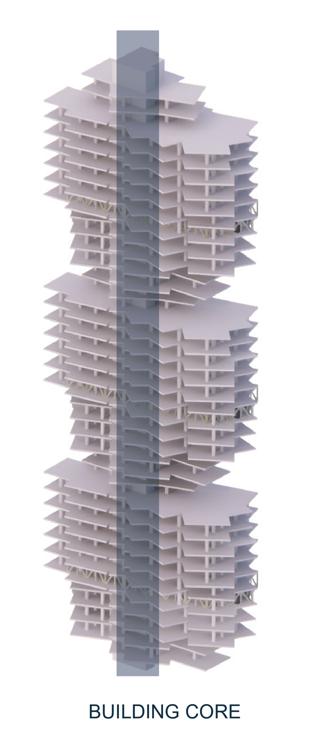

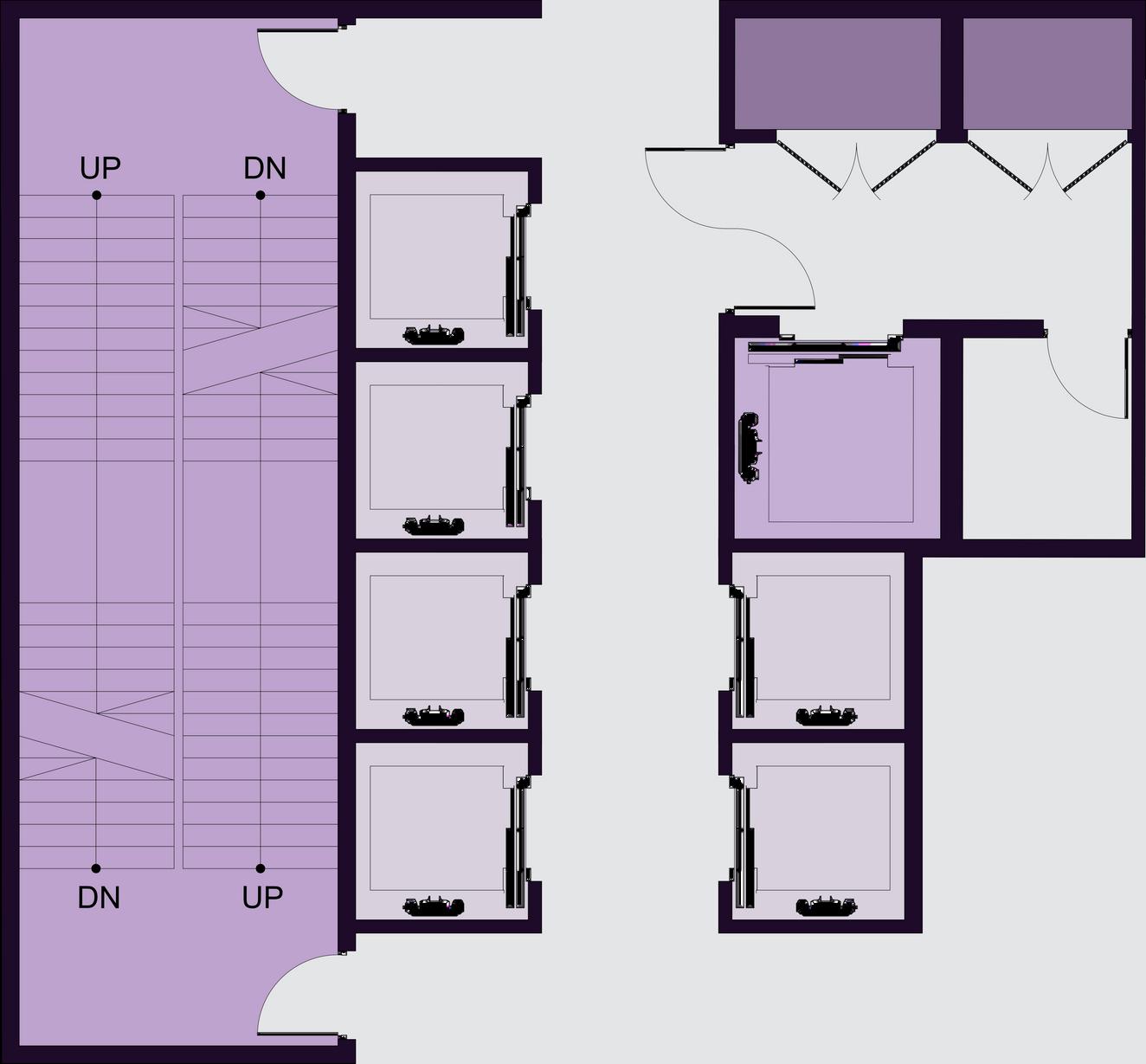

The core of the building consists of the double helix fire stairs, passenger elevators, service elevator, the plumbing and electrical system shaft, and the garbage disposal collection for segregation.
