MVI Bedroom & Wardrobe Fittings Range

Page 1


Bedroom & Wardrobe Fittings Range Components

Introducing Our Range of Accessories for Bedroom Furniture

MVI are delighted to put together a comprehensive range of bedroom pull outs and accessories with the help of our friends in Emuca. We are showcasing this catalogue as a one stop shop for all bedroom & wardrobe components. All items are easily installed, bringing both functionality and space saving to wardrobes, bedroom furniture and walkins.

Emuca’s Hack range comes in a highly aesthetic finish which compliments many wood types. Other items in the range include a pin-code built-in safe and a very neat built-in laundry basket. We also have a large selection of handles suitable for wardrobe doors, in particular our Finesse range with handles up to 800mm long, each in “on trend” finishes.

Full bedroom range and many more products, can be found on our website www.mvihazel.com

For more information please contact our sales office on +353 1864 3480 or contact your local area manager.

The MVI Hazel Team

Components for the Kitchen & Furniture Trade

Hack Built In Trouser Rack Stone Grey

• Built-in trouser rack for wardrobes and dressers

• Includes 7 trouser rods and a frame with adjustable soft close slides

• Each slide can be adjusted up to 17mm

• Load capacity: 20kg

• All required hardware included for assembly

• Finish: Stone grey

Code Description

3501010 Hack Built In Trouser Rack Stone Grey For 600mm

3501015 Hack Built In Trouser Rack Stone Grey For 800mm

3501020 Hack Built In Trouser Rack Stone Grey For 900mm

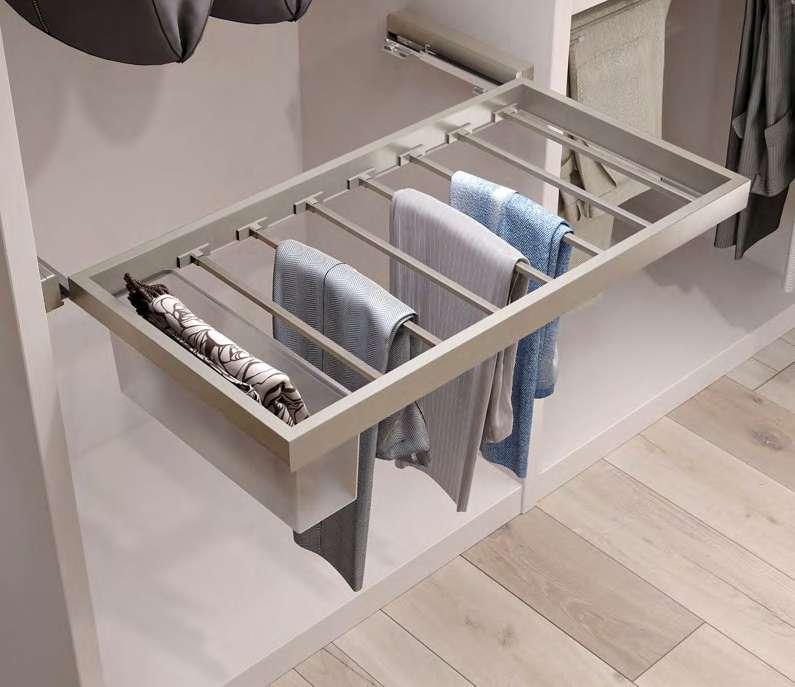

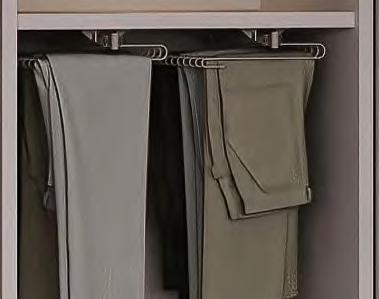

Hack Pull Out Trouser Rack Stone Grey

• Pull-out trouser rack for wardrobe and walk-in closets

• For mounting on either right or left-hand side

• Finish: Stone grey

• Minimum depth: 470mm

• Width: 340mm

• Height: 100mm

• Minimum cabinet size: 400mm

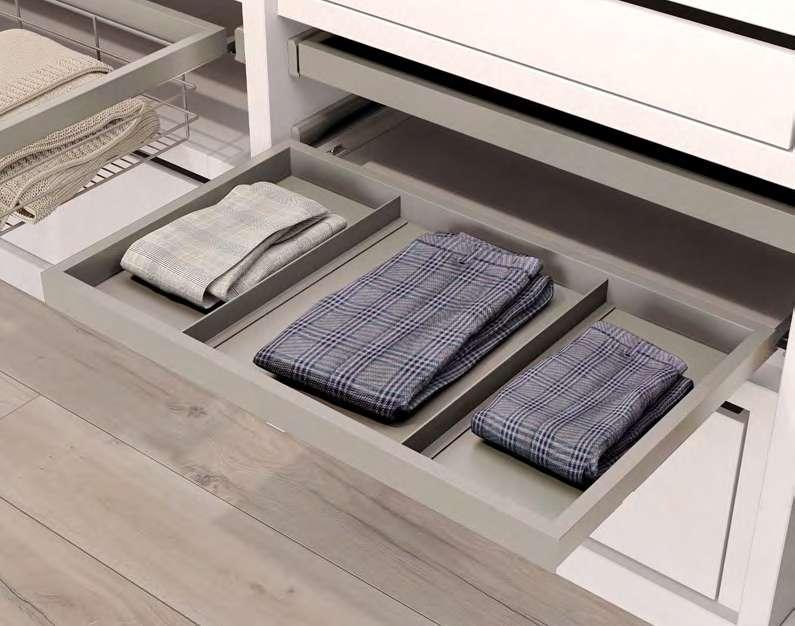

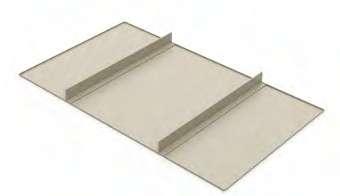

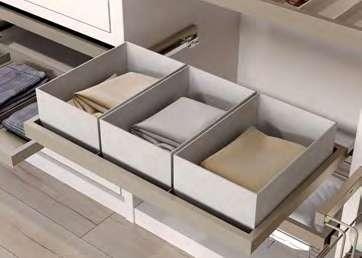

Hack Base With Divides

• Tray base for closets and dressers

• A great addition for organising clothes in a wardrobe

• Finish: Stone grey

• Material: Steel

• Available in 3 sizes: 600mm, 800mm and 900mm

• Internal lengths: 487mm, 687mm and 787mm

Code Description

3501130 Hack Base With Divides for 600mm

3501135 Hack Base With Divides for 800mm

3501140 Hack Base With Divides for 900mm

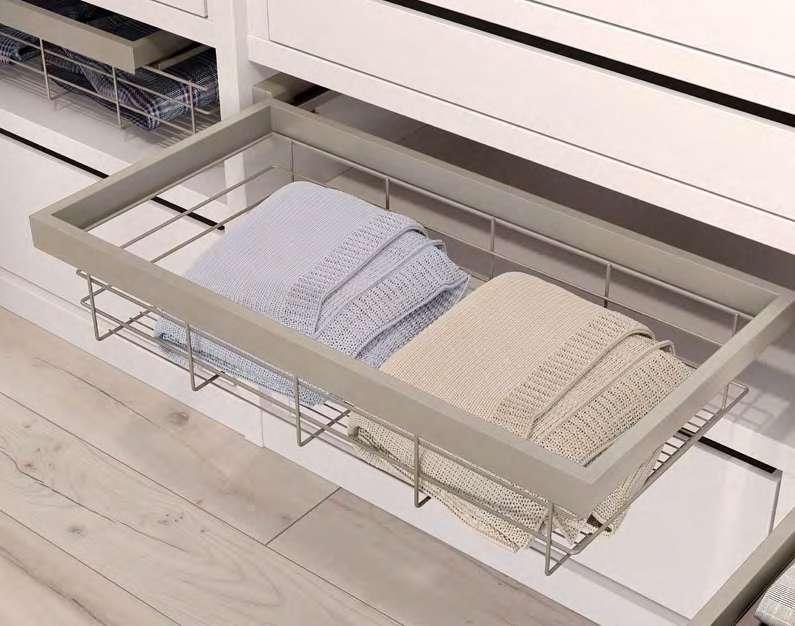

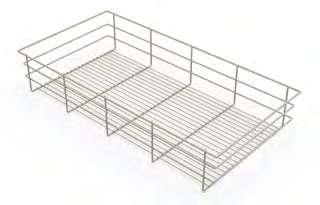

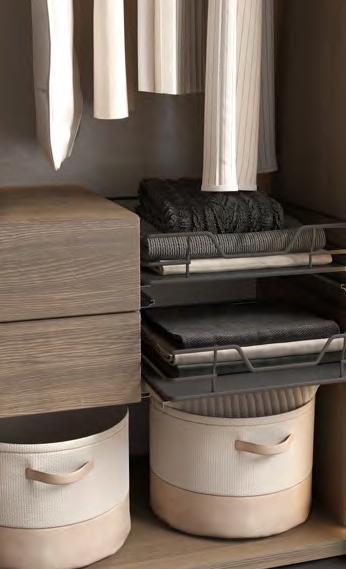

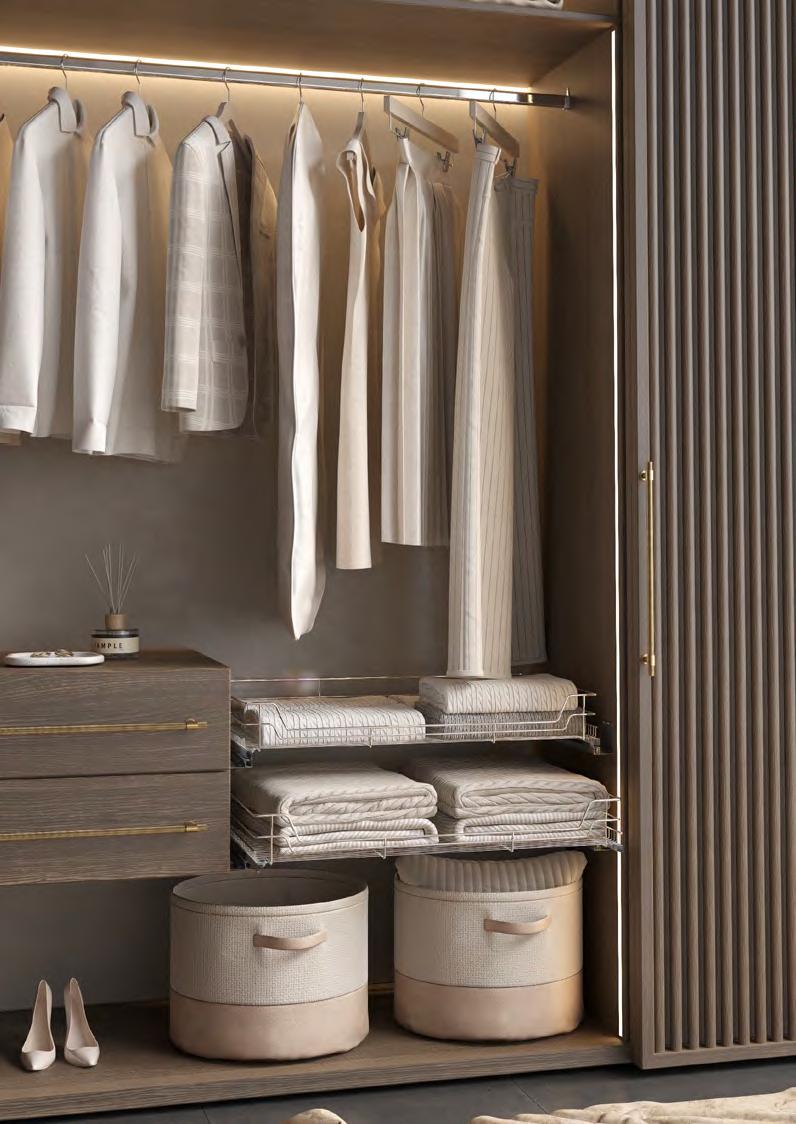

Hack Basket

Stone Grey

• Wire basket for wardrobes and dressers

• Finish: Stone grey

• Material: Steel

• Available in 3 sizes: 600mm, 800mm and 900mm

• Internal lengths: 482mm, 682mm and 782mm

Hack Frame Stone Grey

• Hack pull out frame with soft close slides for Hack wardrobe accessories

• Minimalist yet trendy design which stands out

• Suitable for cabinet widths: 600mm, 800mm and 900mm

• Material: Aluminium & plastic

• Finish: Stone grey

• Load capacity: 20kg

• Required for Hack baskets & divides

Code Description

3501090 Hack Frame Stone Grey For 600mm

3501095 Hack Frame Stone Grey For 800mm

3501100 Hack Frame Stone Grey For 900mm

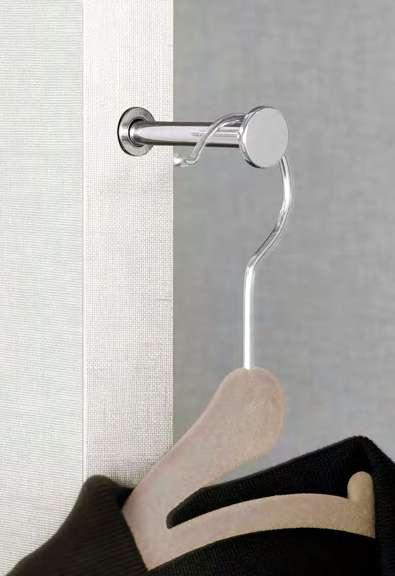

Hack Push To Open Gable Garment

Hanger

• Push to open gable garment hanger for modern wardrobes

• Easy to use

• Material: Stainless steel

• Finish: Chrome

Code Description

3501160 Hack Push To Open Gable Garment Hanger

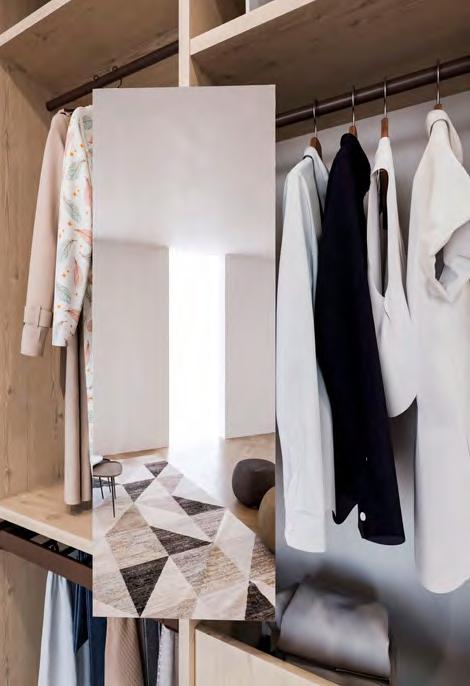

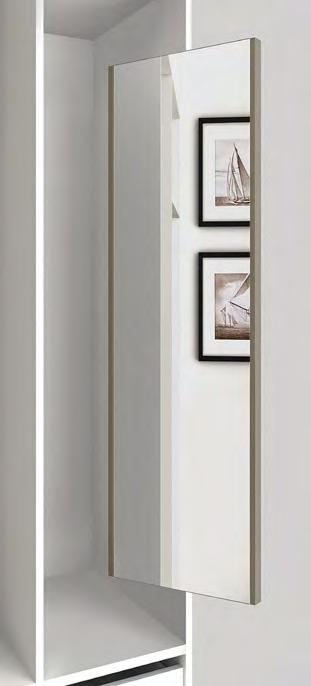

Hack Pull Out Pivot Mirror Stone Grey

• Pull-out pivot mirror for wardrobes from Hack by Emuca

• Smooth running 45mm ball bearing runners

• Can be mounted either left hand side or right hand side

• Minimum cabinet width: 380mm

• Mirror measurements: 1000 x 340mm

• Mirror can pivot upto 180º for easy movement

Code Description 3501180

Hack Pull Out Pivot Mirror Stone Grey
VIEW ONLINE

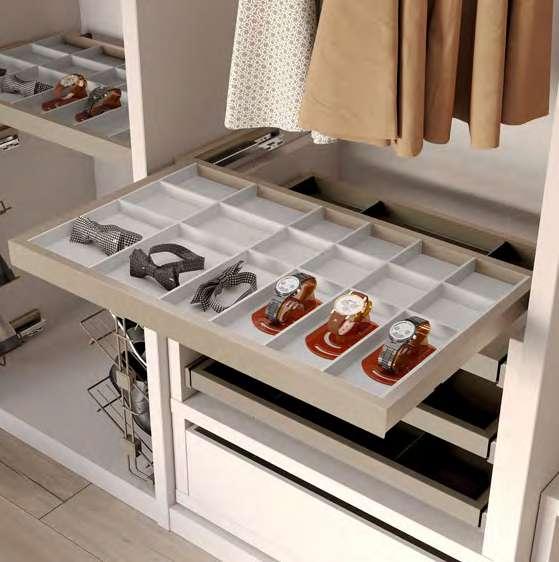

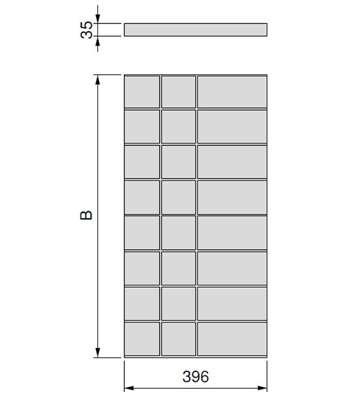

Hack Jewellery Tray

Stone Grey

• Jewellery tray for wardrobes and dressers

• Colour: Stone grey

• Material: Wood

• Available in 3 sizes: 600mm, 800mm and 900mm

• Internal lengths: 487mm, 687mm and 787mm

Code Description

3501070 Hack Jewellery Tray Stone Grey For 600mm

3501075 Hack Jewellery Tray Stone Grey For 800mm

3501080 Hack Jewellery Tray Stone Grey For 900mm

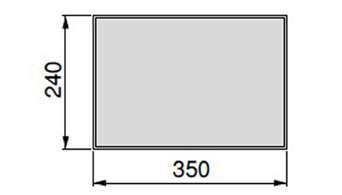

Hack Fabric Box

• Wardrobe and dressing room organizer basket

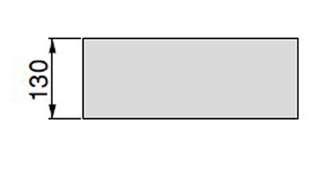

• Dimensions: 350mm x 240mm x 130mm

• Finish: Grey

Code Description

3501150 Hack Fabric Box

VIEW ONLINE

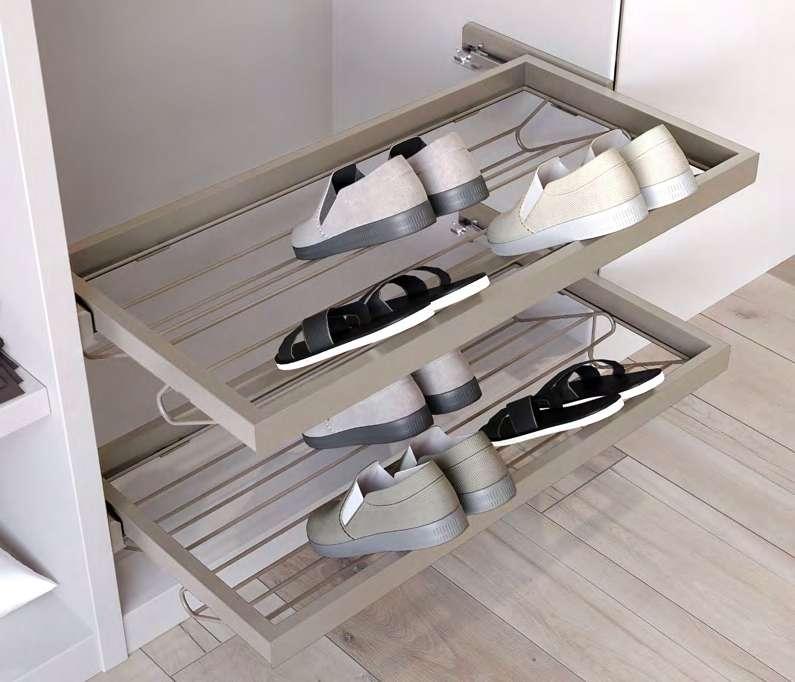

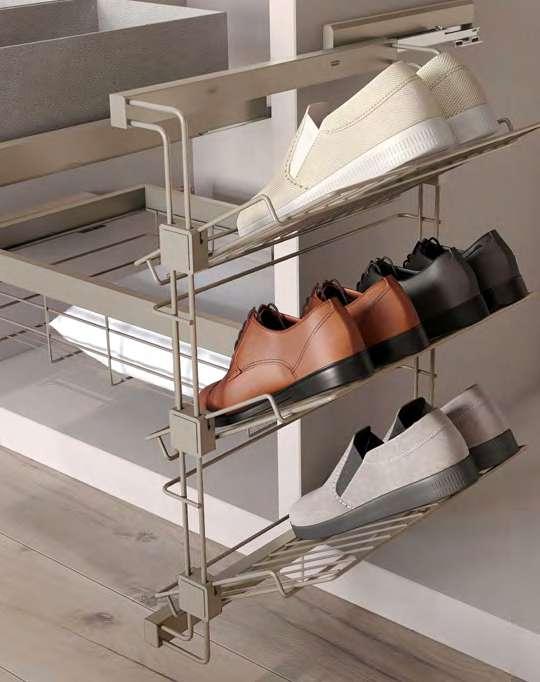

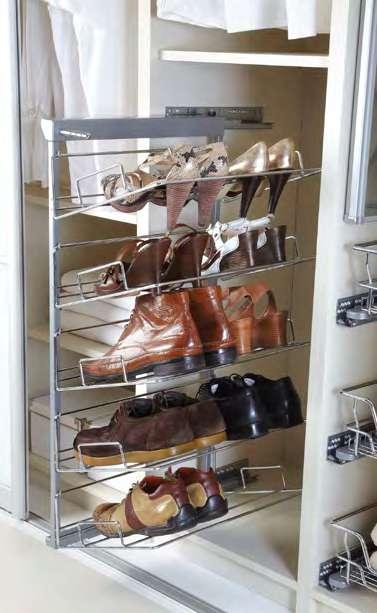

Hack Pull Out Shoe

Rack Stone Grey

• Pull-out side shoe rack for wardrobes and walk-in closets

• Can either be installed right hand side or left hand side

• Finish: Stone grey

• Material: Steel

Hack Built In Shoe

Rack Stone Grey

• Shoe drawer for wardrobes and dressers

• Finish: Stone grey

• Material: Steel

• Dimensions:

- Width: 391mm

- Height: 106mm

Code Description 3501050

VIEW ONLINE

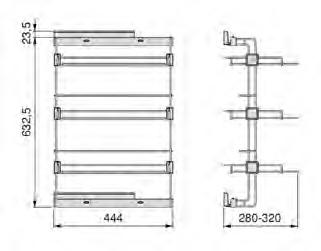

Five Tier Shoe Rack With Soft Close

• A five tier shoe rack with soft close function

• Fitted with undermount slides for smooth running

• Very easy to fit

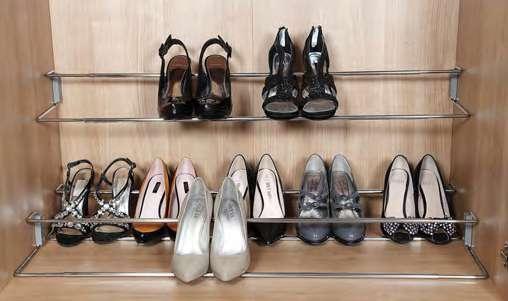

Telescopic Shoe Rack

• Adjustable shoe rack on telescopic rails

• Available in three size ranges

• To fit wardrobes from 420 - 960mm in width Code

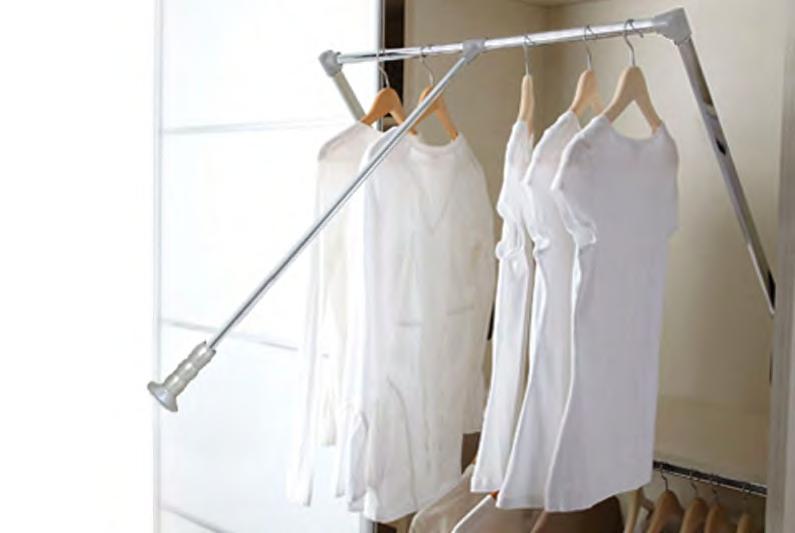

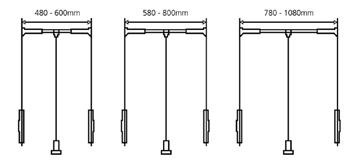

Reclining Clothes Lift

• Pull down adjustable wardrobe rail

• Creates extra storage space in high wardrobes

• Allows easy access to high hanging clothes

• With soft close return

• Load capacity: 12kg

• Reclining clothes lift is available in 3 different adjustable sizes:

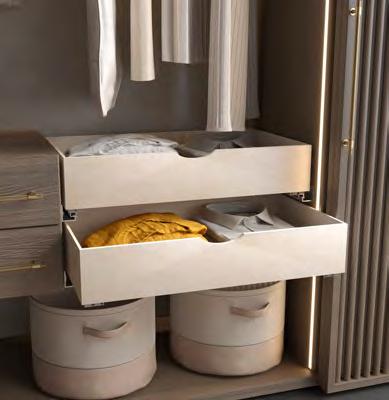

Complete Internal Wooden Drawer

• Decorative complete wooden drawer for internal storage

• For kitchen and bedroom cabinets

• Popular for traditional larder and pantry units

• 4 sides and base included

• Front panel has stylish curved handle

• Built-in dowel fixings for super easy hand installation

• Sizes: 400-1000mm

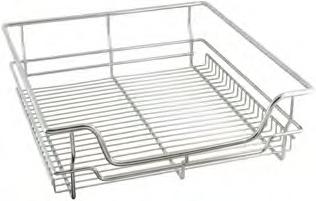

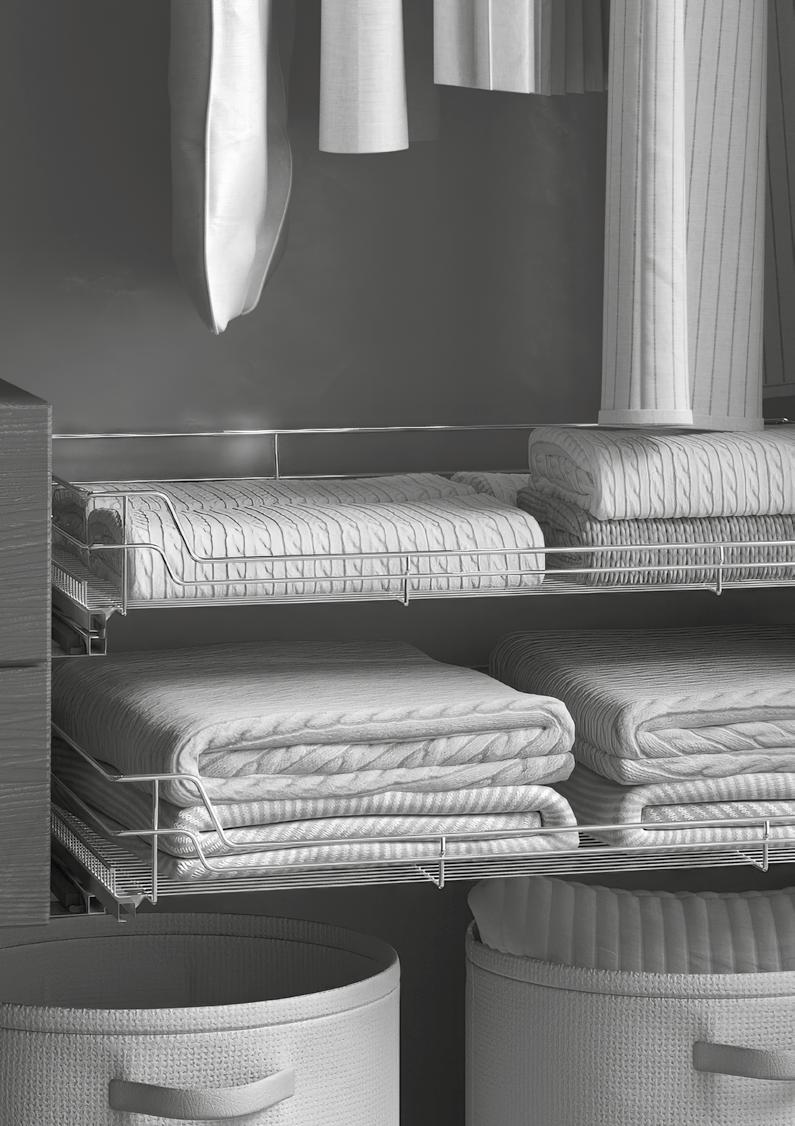

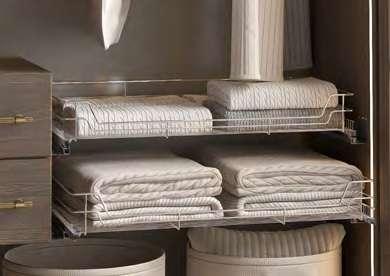

High Line Chrome Pull Out Wire Basket

• An individual pull out basket on telescopic slides

• 450mm deep and suitable for a variety of size units

• Can be fitted in a tall unit as a handy alternative to a larder

• Are also suitable for built-in wardrobes

• Easy to fit

• Sizes: 400-1000mm

VIEW ONLINE
VIEW ONLINE

Soft Close Solid Base Basket

• Undermounted basket storage with solid bases

• Soft closing effect

• Finish: Steel with anthracite base

• To fit units with an 18mm thick gable

• Minimum depth: 500mm

• Overall height: 128mm

• Sizes: 400-600mm

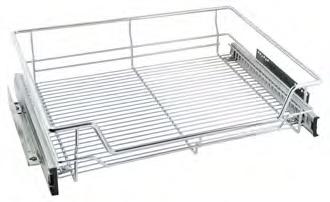

Soft Close Pull Out Wire Basket

• An individual pull out basket on soft closing slides

• 450mm deep and suitable for a variety of size units

• Can be fitted in a tall unit as a handy alternative to a larder

• Are also suitable for build in wardrobes

• Easy to fit

• Sizes: 400-1000mm

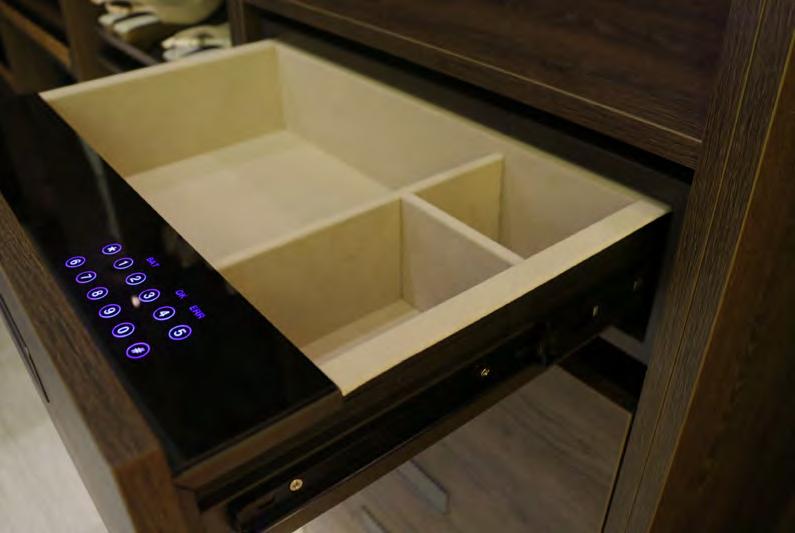

Hack Built In Pin Code Drawer Safe 600mm Cabinet

• Built-in drawer safe for wardrobes

• Keep your valuables secure and accessible with this built-in drawer safe featuring a convenient pin code entry

• Suitable for a 600mm cabinet space

• Put a drawer front on the safe and include it as part of a walk in or built in wardrobe

• The safe also comes with a spare key in case you forget the password

Emuca Bifold Door Kit

With 2.35m Rails

• A bi-fold door kit system for installing in large wardrobes with soft-closing function

• Suitable for confined spaces where there is not enough space to assemble wardrobes with hinged doors

• Load capacity: 50kgs (25kg per sheet)

• All fixings required included for assembly (except wooden boards/sheets)

• Easy to fit and can also be retro fitted

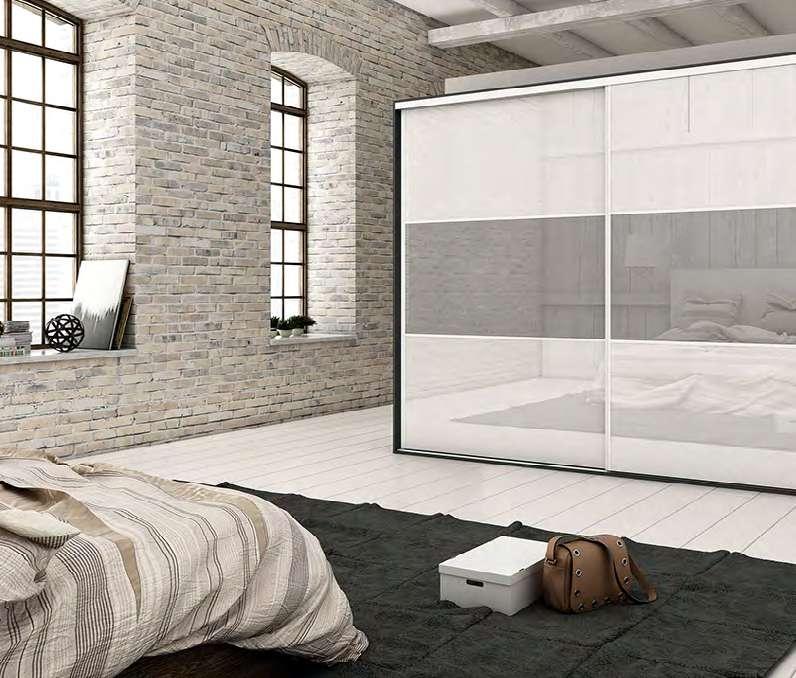

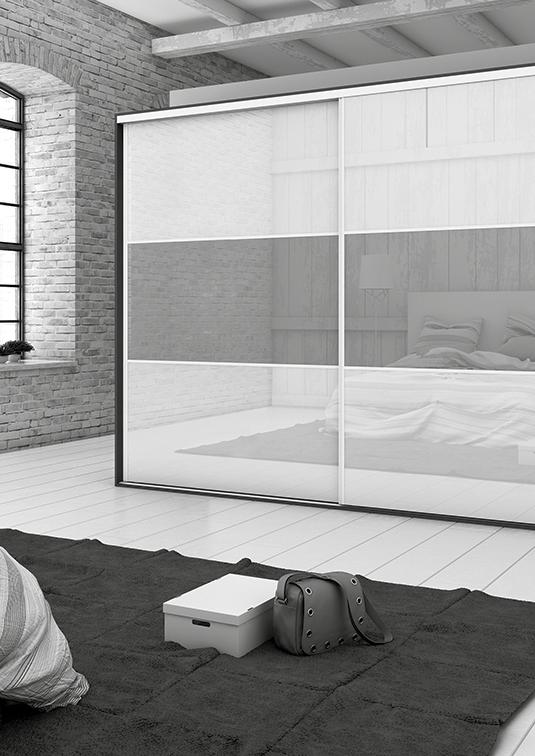

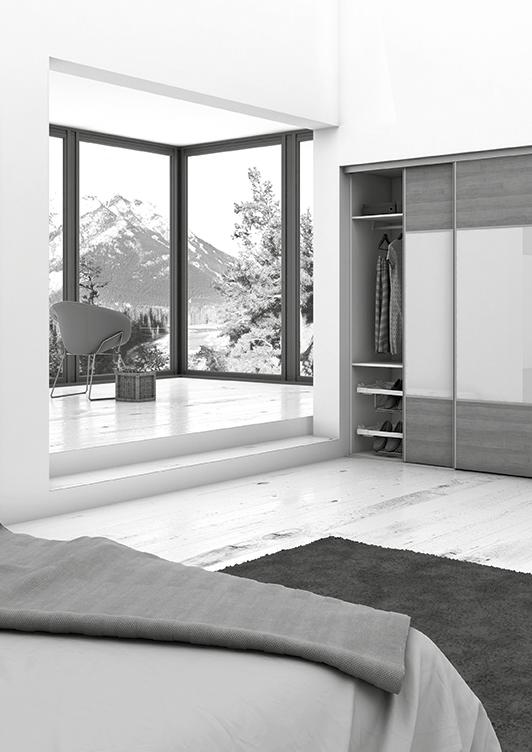

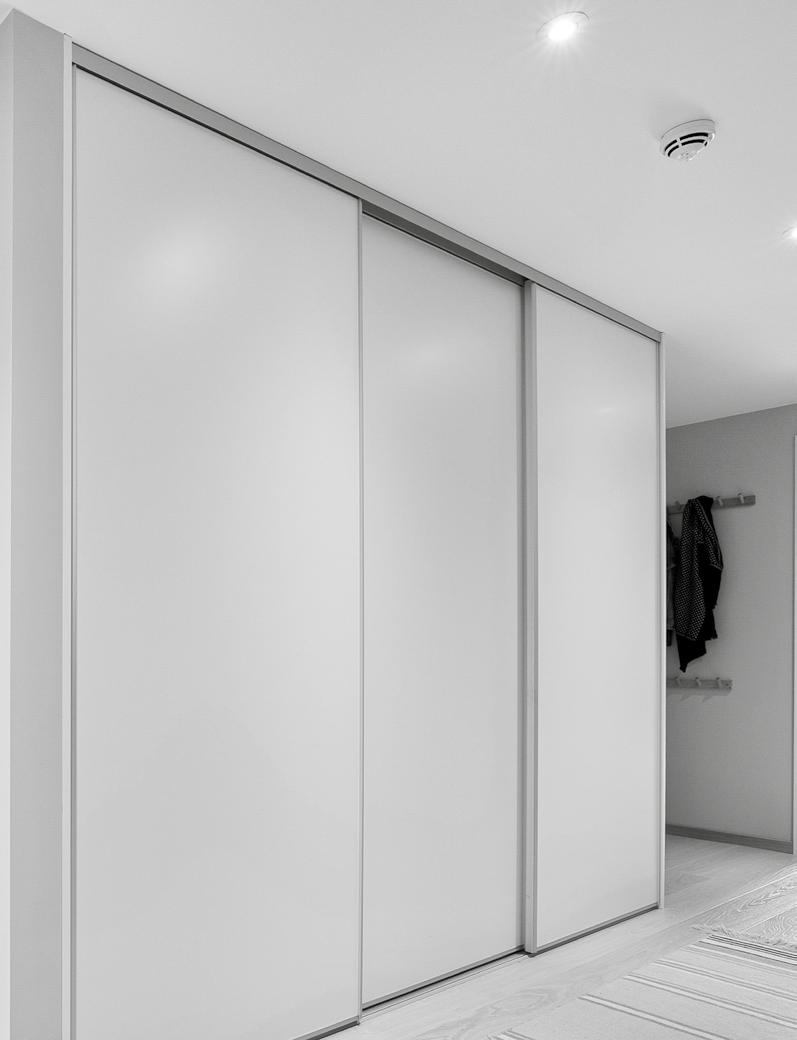

Placard Sliding Wardrobe Track Systems

• Placard complete and comprehensive range of sliding track systems from Emuca

• To provide sliding door solutions for all types of sliding wardrobes

• For both wooden and glass panelling

• Compatible for wooden and glass pannelling being combined

• For 18mm board

• Highly durable yet stylish track lengths

• Standard length sizes can be easily cut down

• Lengths are all packaged in kit format

• For sliding doors up to 50kg

• Finish: Matt anodized

• Easy to install

• Full documentation available for all standard installations

• All necessary components to be used in tandem with each track system, are listed on the respective website product page

• For length sizes and finishes not listed, please contact your local sales rep

VIEW INSTALLATION

Code Description

2504000 Placard Sliding Wardrobe Track Kit 3m Set

2504050 Placard Glass Door Kit 3m

2504010 Placard Sliding Wardrobe Door Kit (Per Door)

2504020 Placard Soft Close Mechanisim Set (2 pcs)

2504030 Placard H Profile Cross Bar 2.35m

2504035 Placard U Profile Top / Bottom 2.35m

2504040 Placard Glazing Strip For Glass 1m

2504025 Wheel Kit For Placard Wardrobe Door

Components for the Kitchen & Furniture Trade

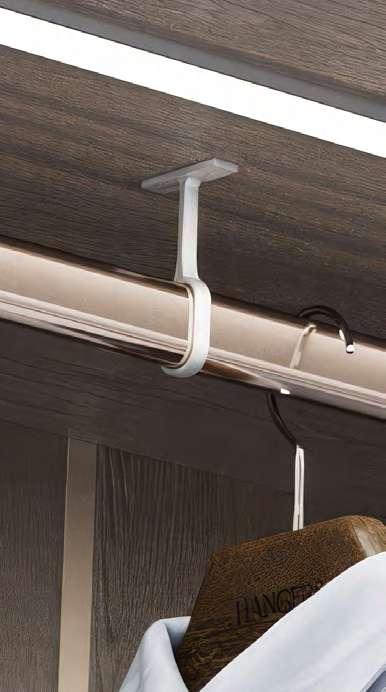

Oval Rail Centre Support

• Used where an extra long span is encountered

• Material: Zinc diecast

• Dimensions: 75mm x 15mm

• Finish: Chrome plated

Code Description

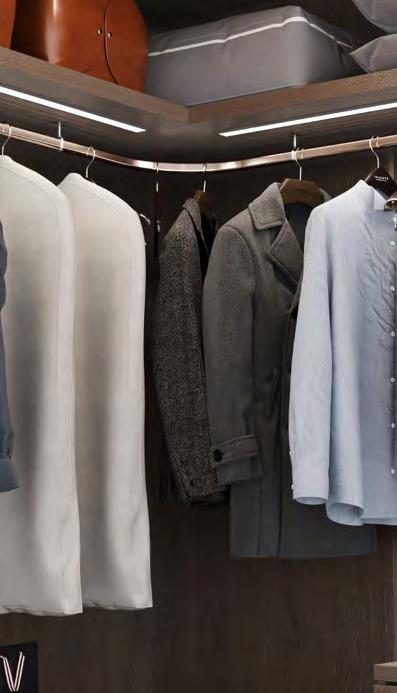

Curved Robe Rail

• For running rail at a 90 degree angle

• Material: 0 7mm steel

• Dimensions: 825mm x 825mm

• Finish: Chrome plated

Code Description

4801250 Oval Rail Centre Support
4801500 Curved Robe Rail
VIEW ONLINE

Oval Rail End Support With

Dowels

• With dowels for quick installation

• Top and bottom dowel 32mm apart

• Dimensions: 50mm x 20mm x 15mm

• Finish: Chrome plated

• Sold as a single item

Code Description

4801058

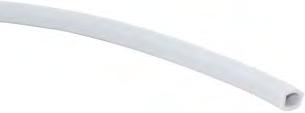

Oval Robe Rail

• Wardrobe robe rail in 2 and 3 meter lengths

• Material: 0 7mm steel thick

• Universal dimensions: 30mm x 15mm

• Finish: Chrome plated

• Also available in sizes cut to standard wardrobe units

Code Description

4820005 Oval Robe Rail 2m Lengths

4820006 Oval Robe Rail 3m Lengths

Oval Rail End Support With 5mm Dowel

Modern

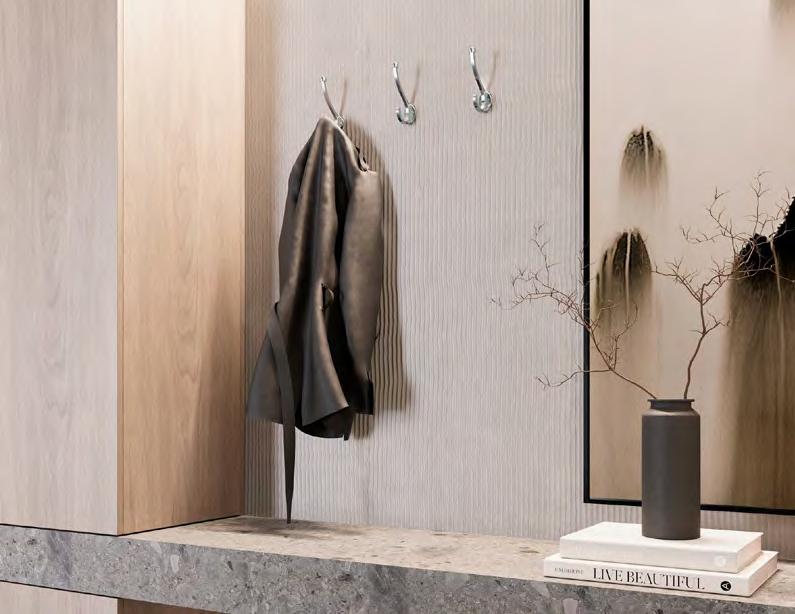

Style Hat & Coat Hook

• Decorative modern style collection of hat & coat hooks

• For screw on fixing to wood, plasterboard etc

• Finishes: brushed, chrome, satin brass, antique brass & black

• Each pack comes with two screws of matching finish

• Total height: 138mm

• Extension: 60mm

Code Description
4002000 Modern Style Hat & Coat Hook Brushed
4002005 Modern Style Hat & Coat Hook Chrome
4002010 Modern Style Hat & Coat Hook Satin Brass
4002015 Modern Style Hat & Coat Hook Antique Brass
4002020 Modern Style Hat & Coat Hook Black
Brushed Chrome Black
Antique Brass Satin Brass

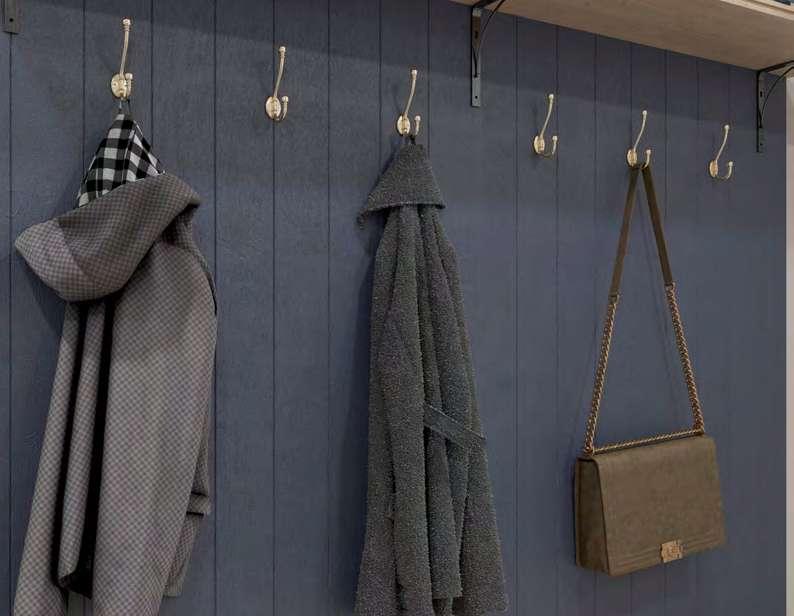

Venetian Signature Hat & Coat Hooks

• Decorative and ornate collection of hat & coat hooks

• For screw on fixing to wood, plasterboard etc

• Decorative corbel designed rings

• Finishes: polished brass, antique brass, polished chrome, satin nickel & black nickel

• Each pack comes with two wood screws of matching finish

• Total height: 133mm

• Extension: 60mm VIEW ONLINE

Code Description

4001200

4001205

4001210

4001215

4001220

Venetian Signature Hat & Coat

Hook Polish Brass

Venetian Signature Hat & Coat

Hook Antique Brass

Venetian Signature Hat & Coat

Hook Chrome

Venetian Signature Hat & Coat

Hook Satin Nickel

Venetian Signature Hat & Coat

Hook Black

Polished Brass
Antique Brass

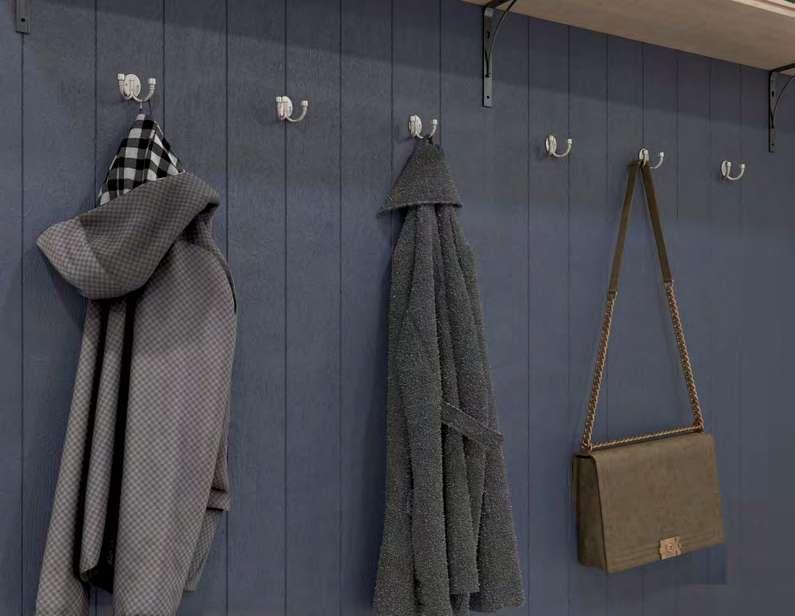

Venetian Signature Double Hooks

• Ornate collection of double coat hooks

• For screw on fixing to wood, plasterboard etc

• Finishes: antique brass, satin nickel, polished brass & polished chrome

• Each pack comes with two wood screws of matching finish

• Base height: 48mm

• Hook height: 42mm

• Gap between hooks: 40mm

• Extension: 47mm

Code Description

4001265

4001270

Venetian Signature Double Hook

Antique Black

Venetian Signature Double Hook

Antique Brass

4001275 Venetian Signature Double Hook

4001280

4001285

Satin Nickel

Venetian Signature Double Hook

Polish Brass

Venetian Signature Double Hook

Polish Chrome

Polished Brass
Antique Brass
Chrome Satin Nickel Black
VIEW ONLINE

VIEW ONLINE

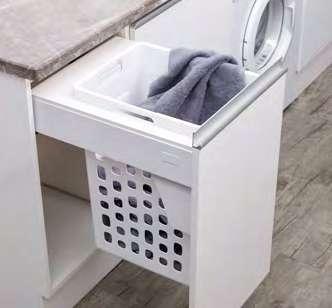

Pull Out Laundry Drawer For 450mm Unit

• Consists of a single basket

• To fit 450mm unit

• Soft close runners included

• Finish: White

• Capacity: 48L

Code Description

2802650 Pull Out Laundry Drawer For 450mm Unit - 1 Basket

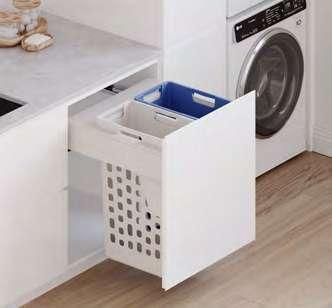

Pull Out Laundry Drawer For 600mm Unit

• Consists of 2 baskets

• To fit 600mm unit

• Soft close runners included

• Finish: White & Blue

• Capacity: 70L (35L x 2 baskets)

Code Description

2802660 Pull Out Laundry Drawer For 600mm Unit - 2 Baskets

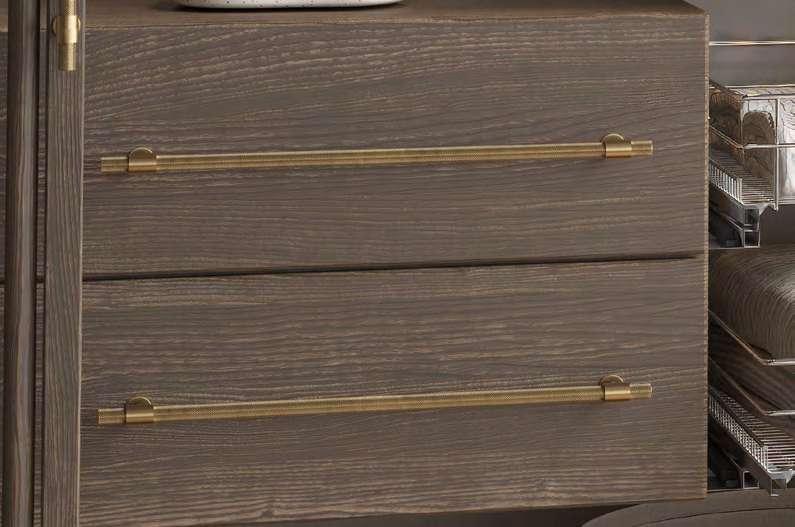

System Knurled Bar Handle

• Modern knurled textured bar handle and knob connecting to door/drawer

• Finish: Brushed nickel, bronze, gold & black

• Hole centres: 320mm

• Extension: 35mm

Code Description

0905338 System Knurled Bar Handle Brushed Nickel 320mm

0905342 System Knurled Bar Handle Bronze 320mm

0905348 System Knurled Bar Handle Gold 320mm

0905352 System Knurled Bar Handle Black 320mm

VIEW ONLINE
Brushed Nickel
Bronze Gold Black

Finesse Rear

Fixing Handle

• Durable rear fixing handles for bedroom drawers and wardrobes

• Screws to back of door with lip facing in front

• Hole centres: 96mm, 192mm and 800mm

• Overall length: 121mm, 221mm and 820mm

• Extension: 40mm

• Front lip height: 9mm

• Rear fixing base height: 19mm

Code Description

0705010 Finesse Brushed Rear Fixing Handle 192mm

0705020 Finesse Brushed Rear Fixing Handle 800mm

0705040 Finesse Satin Brass Rear Fixing Handle 192mm

0705050 Finesse Satin Brass Rear Fixing Handle 800mm

0705070 Finesse Black Rear Fixing Handle 192mm

0705080 Finesse Black Rear Fixing Handle 800mm

Brushed
Satin Brass
Black

Nice Handle

• Slimline bar handles

• Sleek design

• Finish: Brushed nickel, chrome, rose gold copper, satin brass & black

• Extension: 27mm

• Thickness: 9mm

Camden D Handle

• Material: Metal

• Finish: Brushed nickel, matt black, satin brass & antique copper

• Hole centres: 320mm

• Overall length: 328mm

• Extension: 24mm

• Popular handle for wardrobes

0400310

Antique Copper
Satin Brass
Matt Black
Brushed Nickel
VIEW ONLINE

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
