Secondary packaging

Index 01 | CARTONERS Horizontal cartoner | V CENTOSEI C........................................................................... 7 Horizontal cartoner | V106N....................................................................................... 8 Horizontal cartoner | V2000....................................................................................... 9 Horizontal perfume sample forming machine | FCP.............................................. 10 Horizontal perfume sample forming machine | FCP120........................................ 11 Top load cartoner | VERTIPACK................................................................................ 12 02 | OVER-WRAPPERS Stretch & shrink wrapper | V40................................................................................ 15 Over-wrapper | ECONOWRAP................................................................................... 16 Over-wrapper | V122 SERIES................................................................................... 17 03 | END OF LINE Case packer | V140P.................................................................................................. 19 Case packer | V150N................................................................................................. 20 Palletizer | MINIVSTRATUS....................................................................................... 21

3

V2 Engineering, now part of Marchesini Group Beauty, produces a wide range of machines from cartoners to overwrapping machines and case packers, for both standard and highly customised solutions.

4

V2 engineering was founded in the early ‘90s

by Carlo Veronesi who gained the extensive experience to set up his own company after having worked, for a long period of time, with a leading manufacturer of automated machinery, in Bologna.

Veronesi’s production initially focused on cartoning machines then it evolved to satisfy new market demands. Today V2 engineering produces a range of machines which are constantly developed and updated. It goes from overwrapping machines to case packers, for both standard and highly customised solutions for the cosmetic industry.

The level of care put into the search of innovation is the same used for every step of the process: from the initial design phase to production, until the testing and inspection of the machines.

V2 engineering sets great store by after-sales support, paying the maximum attention to the customers’ needs and requests. Throughout the whole process, customers are constantly updated and made active part of it.

In 2019, V2 engineering became part of the Marchesini Group, adding value to its already wide range of machinery and contributing to its expansion into the cosmetic sector.

5

Cartoners 6

CARTONERS

Horizontal cartoner V CENTOSEI C Featured Model V CENTOSEI C

Automatic intermittent motion horizontal cartoning machine.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolongs machine life.

• Easy and fast change over from operator side.

• Touch screen control panel for machine management.

• Highly reliable positive carton opening ensures erection of square and/or hard carton with low grammage.

• Multiple product feed options (bottles, tubes, lipsticks, mascara, lipgloss, trousses, sachets&stickpacks) as well as different components (leaflets, booklets, etc).

• Wide selection of coding and print systems available (embossing, inkjet, and laser).

• Flexibility for customisation.

• Compact-sized machine, with small footprint.

OUTPUT Up to 80 cartons/min PRODUCT RANGE Width (A): 30 mm - 140 mm Height (B): 15 mm - 80 mm Length (H): 90 mm - 200 mm

7

CARTONERS

Horizontal cartoner V106N Featured Model V106N

Automatic intermittent motion horizontal cartoning machine.

• Ergonomic construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolongs machine life.

• Easy and fast change over.

• Touch screen control panel for machine management.

• Highly reliable positive carton opening ensures erection of square and/or hard carton with low grammage.

OUTPUT Up to 70 cartons/min PRODUCT RANGE Width (A): 30 mm - 140 mm Height (B): 15 mm - 80 mm Length (H): 90 mm - 200 mm

8

• Multiple product feed options (bottles, tubes, lipsticks, mascara, lipgloss, trousses, sachets&stickpacks) as well as different components (leaflets, booklets, etc).

• Wide selection of coding and print systems available (embossing, inkjet, and laser).

• Flexibility for customisation.

• Compact-sized machine, with small footprint.

CARTONERS

Horizontal cartoner V2000 Featured Model V2000

Automatic intermittent motion horizontal cartoning machine.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolongs machine life.

• Easy and fast changeover from operator side.

• Touch screen control panel for machine management.

• Highly reliable positive carton opening ensures erection of square and/or hard cartons and with low grammage.

• Cartons transport with rubber toothed belts without friction thereby avoiding scratching or marking carton surface.

• Multiple product feed options (bottles, tubes, lipsticks, mascara, lip-gloss, trousses, sachets & stick packs) as well as different components (leaflets, booklets, etc).

• Wide selection of coding and print systems available (embossing, inkjet, and laser).

• Flexibility for customisation.

• Compact-sized machine, with small footprint.

OUTPUT Up to 120 cartons/min PRODUCT RANGE Width (A): 25 mm - 110 mm Height (B): 15 mm - 60 mm Length (H): 55 mm - 200 mm

9

CARTONERS

Horizontal perfume sample forming machine FCP Featured Model FCP

Automatic intermittent motion horizontal cartoning machine for flat card samples.

• Specifically designed to pack small cosmetic and fragrance products such as vials and plastic tubes into flat sample card for promotional activities.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolongs machine life.

• Easy and fast changeover from operator side.

OUTPUT Up to 80 cartons/min PRODUCT RANGE Width (A): 58 mm - 90 mm Height (B): 12 mm - 15 mm Length (H): 80 mm - 100 mm

10

• Touch screen control panel for machine management.

• Highly reliable carton pick-up system from magazine.

• Cartons transport with rubber toothed belts without friction thereby avoiding scratching or marking carton surface.

• Wide selection of coding and print systems available (inkjet and laser).

• Flexibility for customisation.

• Compact-sized machine, with small footprint.

CARTONERS

Horizontal perfume sample forming machine FCP 120 Featured Model FCP120

Automatic intermittent motion horizontal cartoning machine for flat card samples.

• Specifically designed to pack small cosmetic and fragrance products such as vials into flat sample card for promotional activities.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolong machine life.

• Easy and fast changeover from operator side.

• Touch screen control panel for machine management.

• Highly reliable carton pick-up system from magazine.

• Cartons formation using a revolver system that preserves the surface of the cartons.

• Wide selection of coding and print systems available (ink-jet and laser).

• Flessibility for customization.

• Compact-sized machine, with small footprint.

OUTPUT Up to 120 cartons/min PRODUCT RANGE Width (A): 55 mm - 75 mm Height (B): 12 mm - 15 mm Length (H): 85 mm - 110 mm

11

CARTONERS

Top load cartoner VERTIPACK Featured Model VERTIPACK

Automatic intermittent motion vertical cartoning machine.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolongs machine life.

• Easy and fast changeover from operator side.

• Touch screen control panel for machine management.

• Highly reliable positive carton opening ensures erection of square and/or hard carton with low grammage.

12

• Cartons do not come into contact with fixed parts thereby avoiding scratching or marking carton surface.

• Multiple product feed options (bottles & jars in plastic and glass) as well as different components (carton in liners, leaflets, booklets, etc).

• Flexibility for customisation.

• Compact-sized machine.

STANDARD VERSION

HIGH SPEED

OUTPUT Up to 60 cartons/min

OUTPUT Up to 80 cartons/min

PRODUCT RANGE Width (A): 22 mm - 110 mm Height (B): 20 mm - 100 mm Length (H): 45 mm - 200 mm

PRODUCT RANGE Width (A): 22 mm - 85 mm Height (B): 20 mm - 85 mm Length (H): 45 mm - 200 mm

13

Over-wrappers 14

OVER-WRAPPERS

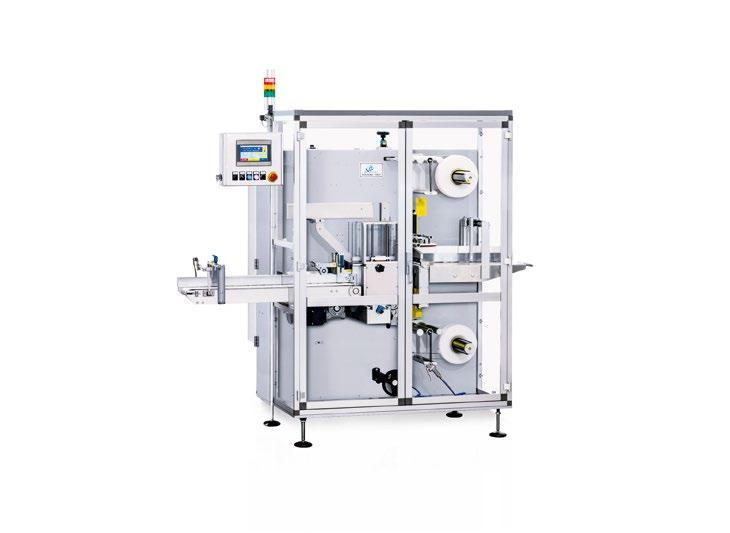

Stretch & shrink wrapper V40 Featured Model V40

Automatic intermittent motion stretch banding & shrink-wrapping machine.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolongs machine life.

• Easy and fast changeover from operator side.

• Touch screen control panel for machine management.

• High quality sealing in terms of stretching resistance, as well as surface result.

• Bypass belt for products that must not be wrapped.

• Wide size range.

• Flexibility for customisation.

• Compact-sized machine, with small footprint.

OUTPUT Up to 40 bundles/min PRODUCT RANGE Width (A): 60 mm - 300 mm Height (B): 30 mm - 200 mm Length (H): 60 mm - 250 mm

15

OVER-WRAPPERS

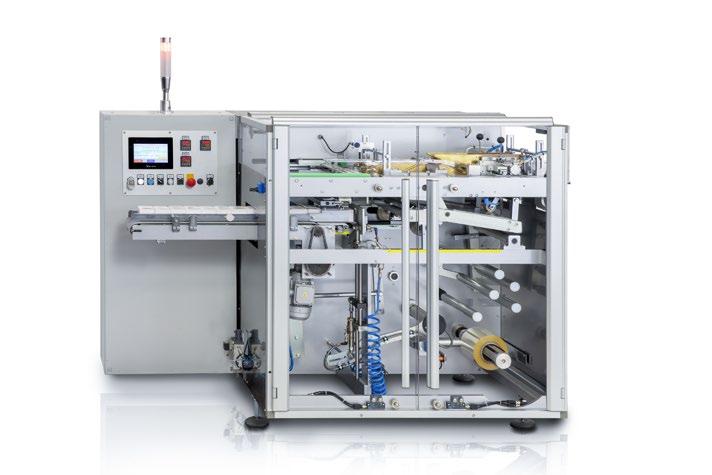

Over-wrapper ECONOWRAP Featured Model ECONOWRAP

Automatic machine for overwrapping cartons and regular-shaped single or bundled products.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolongs machine life.

• Easy and fast changeover from operator side.

• Touch screen control panel for machine management.

• High quality wrapping.

OUTPUT Up to 40 cartons/min PRODUCT RANGE Width (A): 40 mm - 120 mm Height (B): 25 mm - 70 mm Length (H): 50 mm - 200 mm

16

• Printed film centering device available • Tear tape unit for easy opening available.

• Possibility to over-wrap single cartons or bundles in different configuration: stacks or on-edge grouping.

• Possibility to over-wrap naked soaps.

• Flexibility for customisation.

• Compact-sized machine, with small footprint.

OVER-WRAPPERS

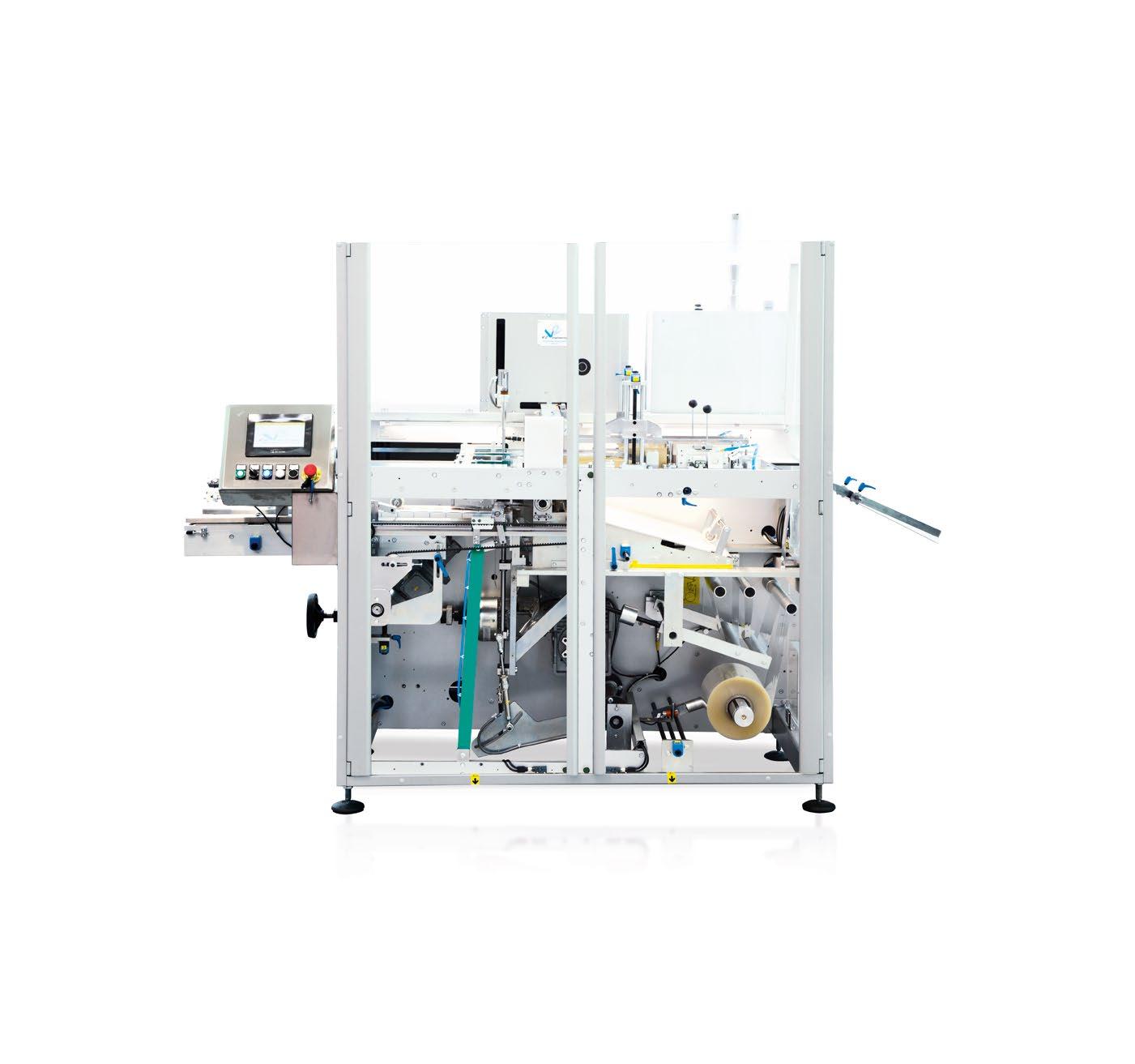

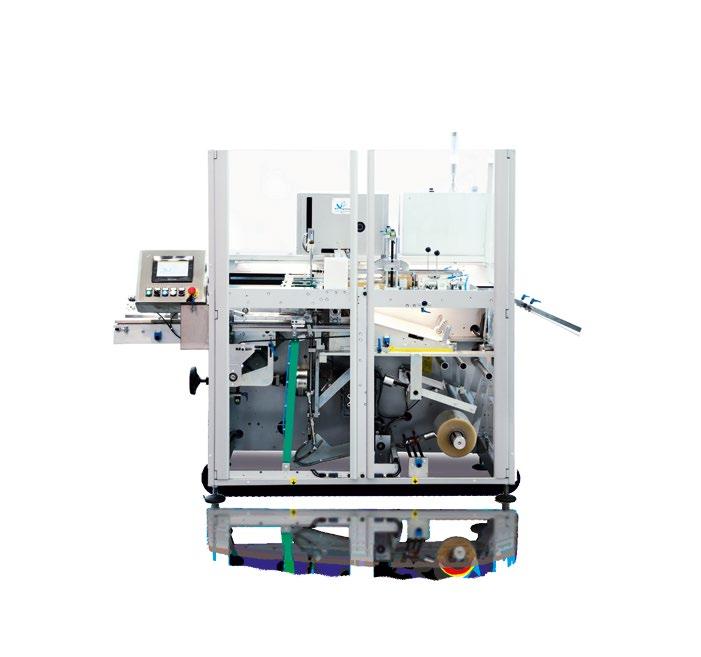

Over-wrapper V122 SERIES Featured Model V122LS

Automatic machine for overwrapping cartons and regular-shaped single products or bundled products.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolongs machine life.

• Easy and fast changeover from operator side.

• Touch screen control panel for machine management.

• High quality wrapping.

• Printed film centering device.

• Film trimming unit.

• Tear tape unit for easy opening.

• Possibility to over-wrap naked soaps, single cartons or bundles in different configuration: stacks or on-edge grouping (feature available in V122-V122MP).

• Lateral sealing customisation dedicated for high quality products (feature available only in V122LS).

• Flexibility for customization.

• Compact-sized machine, with small footprint.

STANDARD VERSION

LS VERSION

OUTPUT Up to 60 cartons/min

OUTPUT Up to 50 cartons/min

PRODUCT RANGE Width (A): 50 mm - 210 mm Height (B): 25 mm - 100 mm Length (H): 80 mm - 300 mm

PRODUCT RANGE Width (A): 40 mm - 120 mm Height (B): 30 mm - 80 mm Length (H): 60 mm - 220 mm

17

End of line 18

END OF LINE

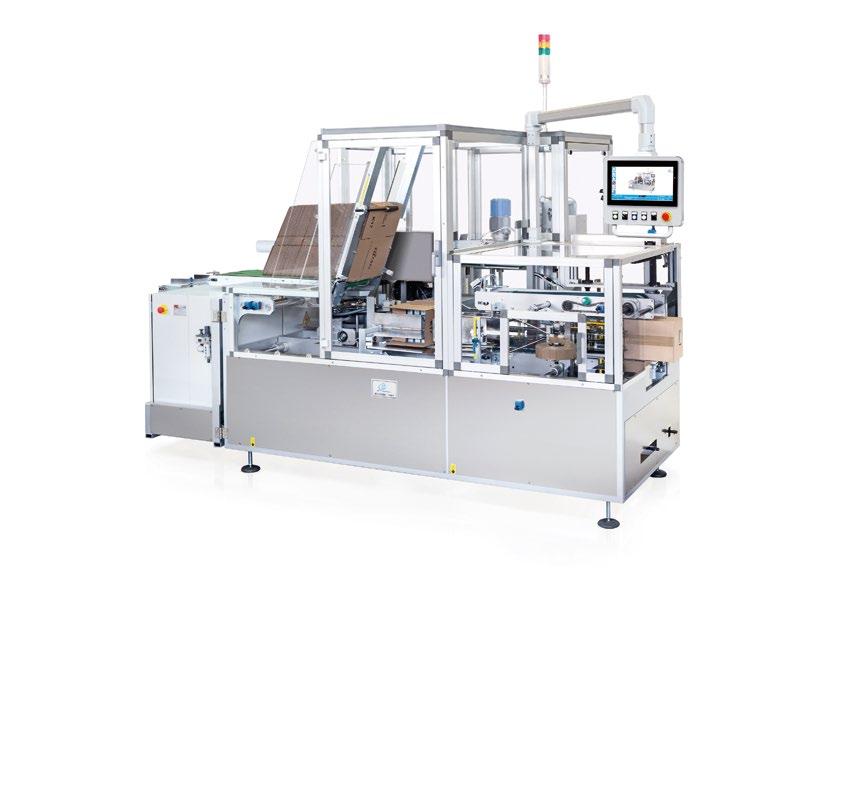

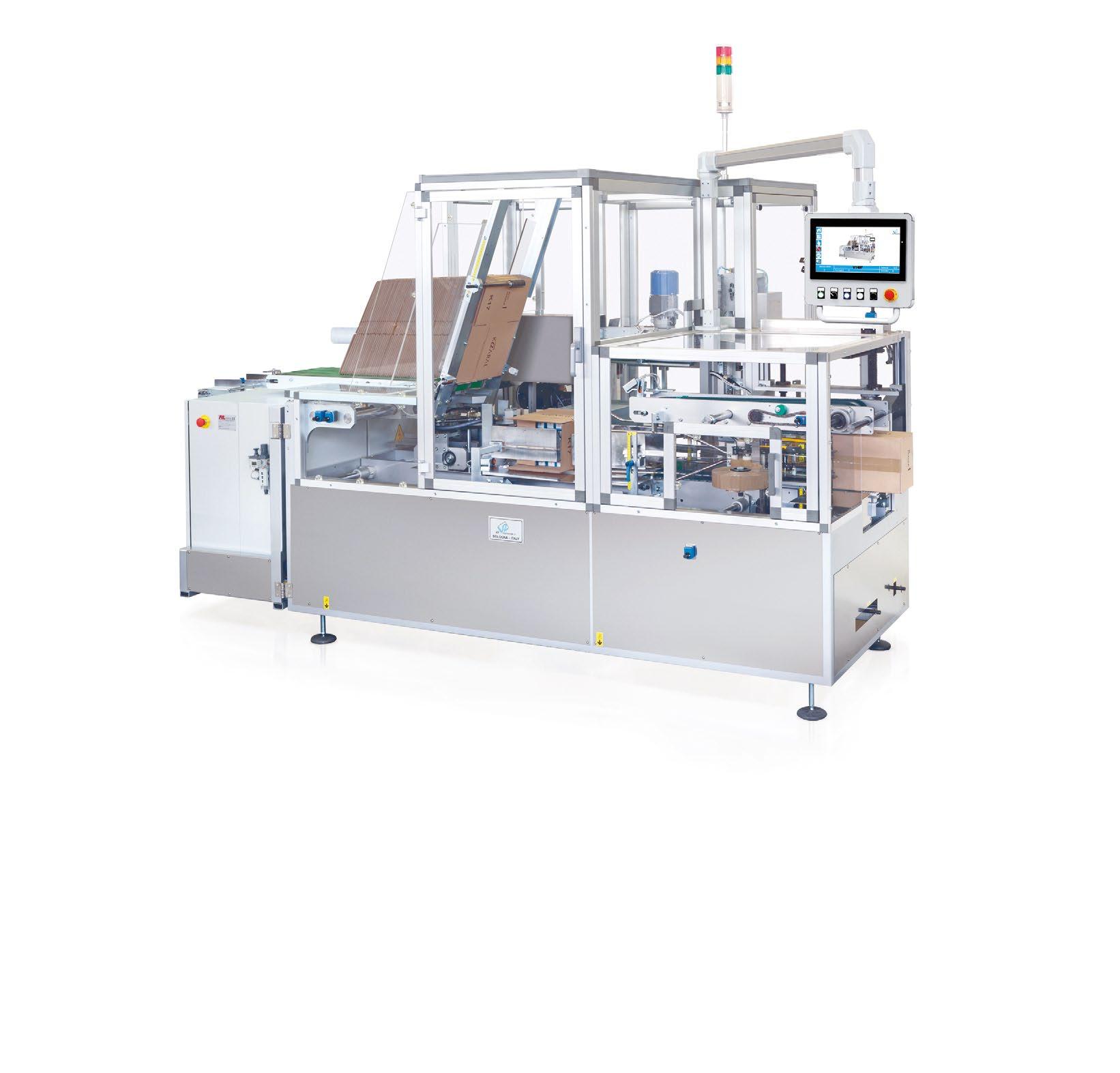

Case packer V140P Featured Model V140P

Automatic horizontal case packing machine.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolongs machine life.

• Easy and fast changeover from operator side.

• Touch screen control panel for machine management.

• Highly reliable positive case opening ensures erection of square and/or hard cases.

• Reliable bundle grouping system for flat or on-edge cartons achieved with servomotors.

• Case sealing with tape or hot melt.

• Flexibility for customisation.

• Compact-sized machine, with small footprint.

OUTPUT Up to 12 cases/min PRODUCT RANGE Width (A): 180 mm - 500 mm Height (B): 100 mm - 350 mm Length (H): 130 mm - 350 mm

19

END OF LINE

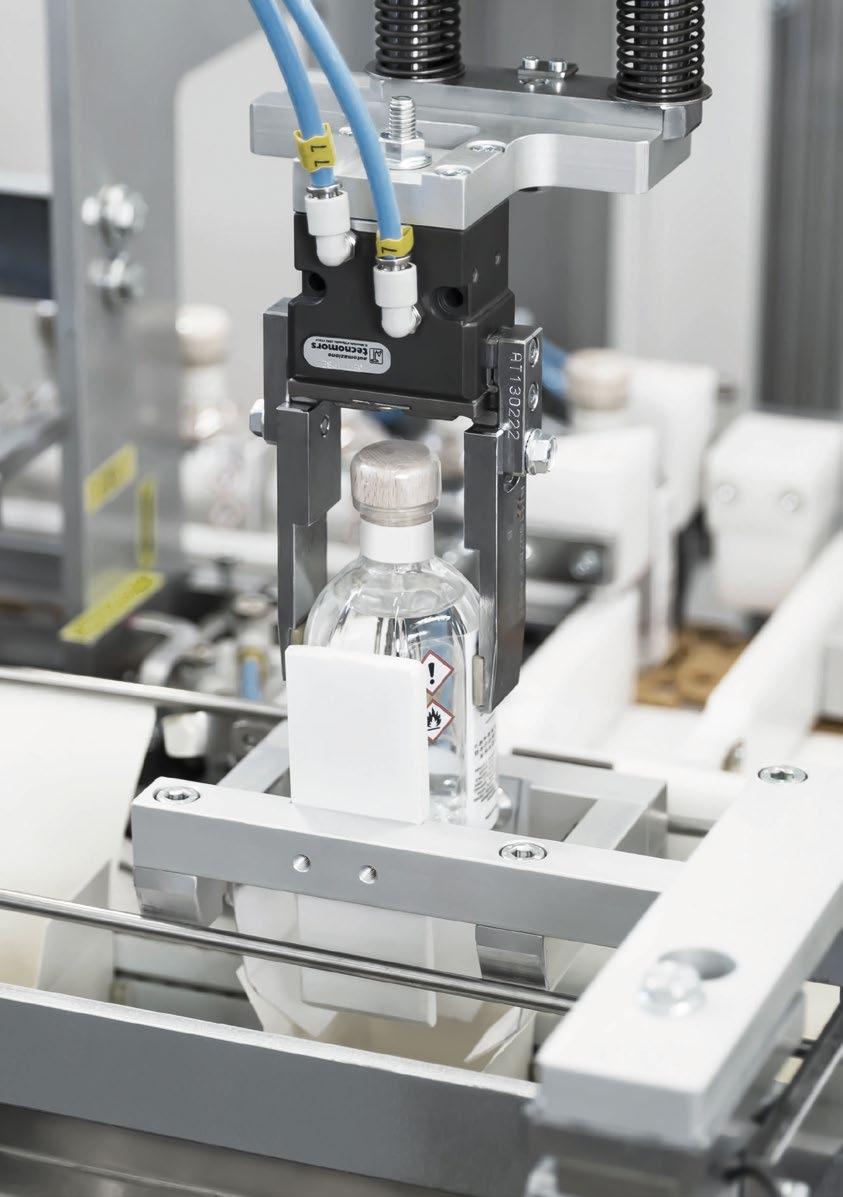

Case packer V150N Featured Model V150N

Automatic top load case packing machine.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction reduces maintenance and prolongs machine life.

• Easy and fast changeover from operator side.

• Touch screen control panel for machine management.

• Highly reliable positive case opening ensures erection of square and/or hard cases.

20

• Particularly indicated for products which must be kept in upright vertical position during packaging process such as bottles, jars, bundles, etc.

• Case sealing with tape or hot melt.

• Possibility to equip the case packer with a single or double bay robotic palletizer (Cartopallet version).

• Flexibility for customisation.

• Compact-sized machine.

CASE PACKER VERSION

CARTOPALLET VERSION

OUTPUT Up to 10 cases/min

OUTPUT Up to 10 cases/min

PRODUCT RANGE Width (A): 200 mm - 400 mm Height (B): 120 mm - 300 mm Length (H): 150 mm - 300 mm

PALLET Europallet: 800 x 1200 mm 1000 x 1200 mm Height: up to 1800 mm

PRODUCT RANGE Width (A): 200 mm - 400 mm Height (B): 120 mm - 300 mm Length (H): 150 mm - 300 mm

END OF LINE

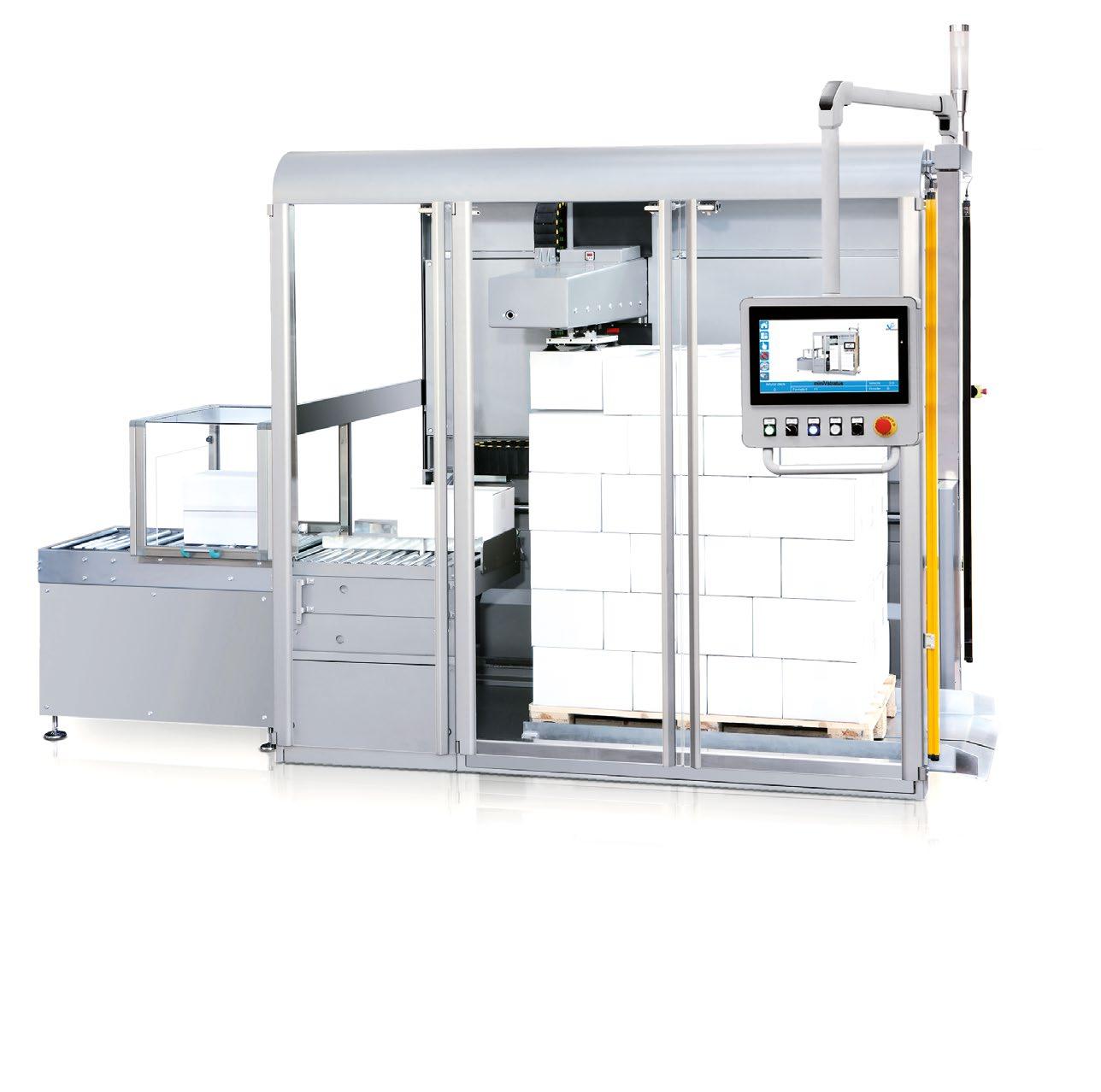

Palletizer MINIVSTRATUS Featured Model MINIVSTRATUS

Automatic palletising machine.

• Balcony construction for easy access, product visibility, maintenance and cleaning.

• Reliable and robust mechanical construction to reduce maintenance and prolongs machine life.

• Compact-sized machine, with small footprint.

OUTPUT Up to 8 cases/min

• Touch screen control panel for machine management, with format size parameter set-up.

• Easy and fast changeover.

• A wide range of personalization options available.

• Each pick up operation is checked during every cycle to guarantee correct case composition.

PALLET Europallet: 800 x 1200 mm - 1000 x 1200 mm Height: up to 1650 mm PRODUCT RANGE Width (A): 140 - 520 mm Height (B): 120 - 350 mm Length (H): 120 - 350 mm

21

22

CARTONERS, OVER-WRAPPERS, CASE PACKERS AND MORE… V2 engineering is a leader in the field of secondary packaging, with a presence in the most important markets around the world.

Our machines are available for both low and high-end productions.

The technical specifications given in this catalogue are subject to change without prior notice or liability.

Size range may vary in accordance with the different applications.

V2 engineering constantly updates its products to meet market needs.

23
