nnovate. Connect. Thrive. Join us in crafting a visionary community of 3D-printed homes using ICON technology for Initiative 99. Designed with a ocus on sociability, our single-family homes prioritize connections among esidents. Our homes strike a balance between comfort, budget constraints, and visual connectivity. Through three distinct schemes, we integrate ample windows, creating semi-public spaces, with porches strategically placed o encourage community interactions. Optimizing 3D printing efficiency, we arrange houses for future landscaping, fostering in-between spaces.

Our commitment to sustainable, affordable housing drives us to redefine homes as essentials, providing comfort and aesthetics within constraints.

Experience a neighborhood where residents genuinely connect, engage, and find comfort.

Active Public Spaces

2

// UNIVERSITY OF OREGON 2023

Dense 3D Printed Community

UNITYSCAPE : MICRO RESIDENCES //

3

1 // BIOS

4

// UNIVERSITY OF OREGON 2023

Wilka Mendiola

Nana Kwadwo Baidoo

Hi, I’m Wilka. I’m from San Mateo, California but I moved to Eugene, Oregon to pursue my passion for architecture. I am currently in my third year of the Bachelor of Architecture program at the University of Oregon. My love for architecture was kindled by an early appreciation for creativity, expressed through drawings and paintings. My father’s IT company, catering to architecture firms, provided me with a unique introduction to the world of architecture at a young age. Spending time at architecture firms gave me a firsthand look at the dynamic and innovative field. This furthered my desire to become an architect. Some of my architectural interests are affordable housing, sustainability, and residential design. I find residential architecture appealing, as it connects closely with people’s lives, shaping the spaces where they create memories and find comfort. I’m committed to leveraging my skills and knowledge to hopefully create more sustainable and affordable housing solutions in the future. As I continue my academic journey, I am eager to bring my creative spirit and dedication to the field.

Hello, I’m Nana Kwadwo Baidoo. I’m a Ghanian-American, full time undergradutate architecture student at the University of Oregon. I am currently in my third year at the university and my interests in architecture lie within sustainable and affordable residental architecture. I am actively taking strides to understand the problems surrounding architecture for low and single income households, in hopes of becoming knowledgable enough to change the disapointing architecture that currently dominates this landscape.

UNITYSCAPE : MICRO RESIDENCES //

5

1 // SECTION

A

A

A

B

B

A

B

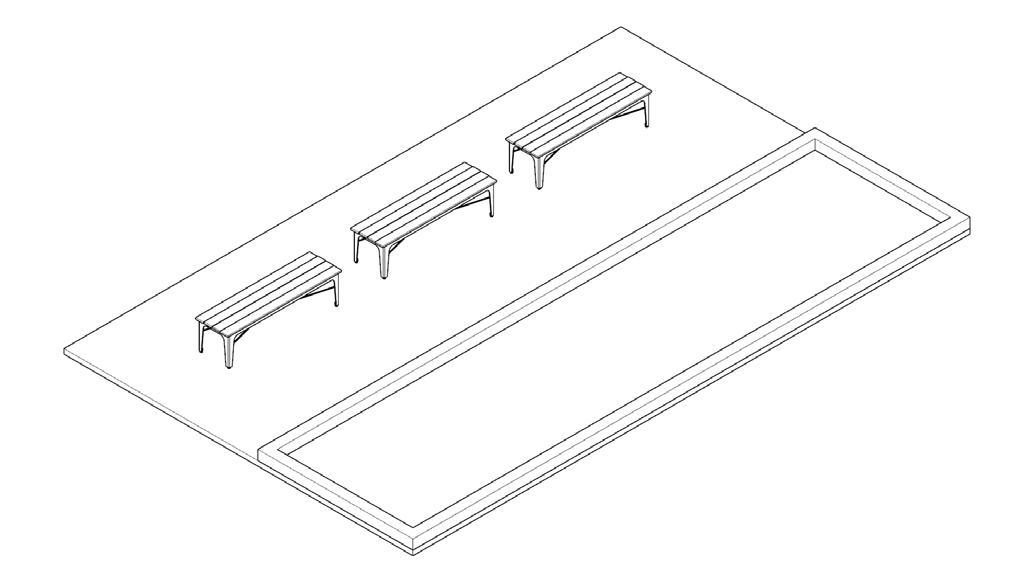

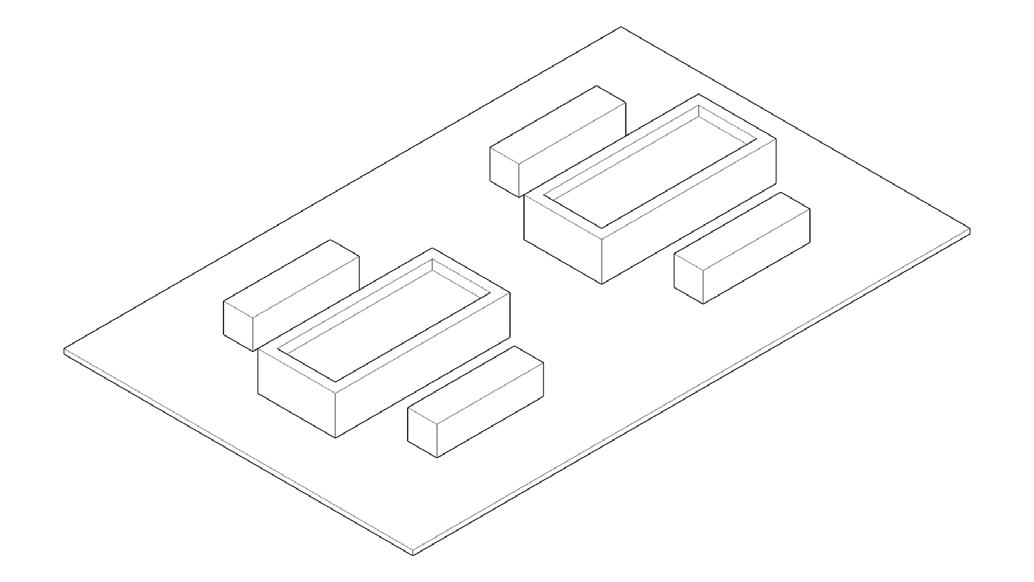

A. HAMMOCKS

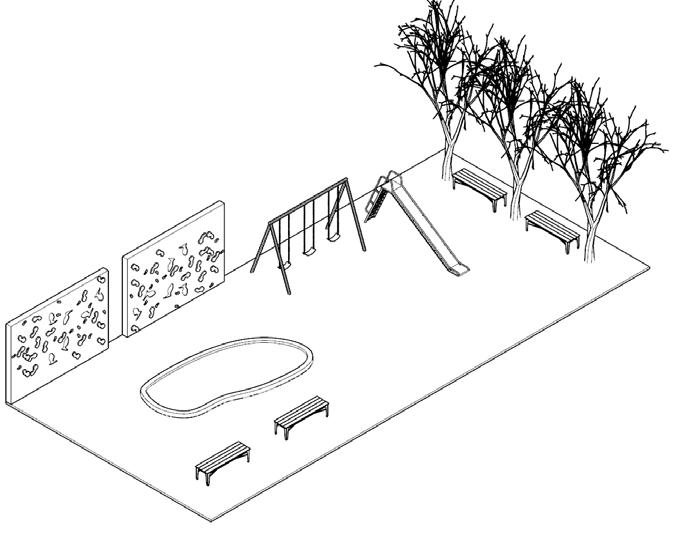

A. PLAYGROUND B. AMPHITHEATER

B. BOCCE

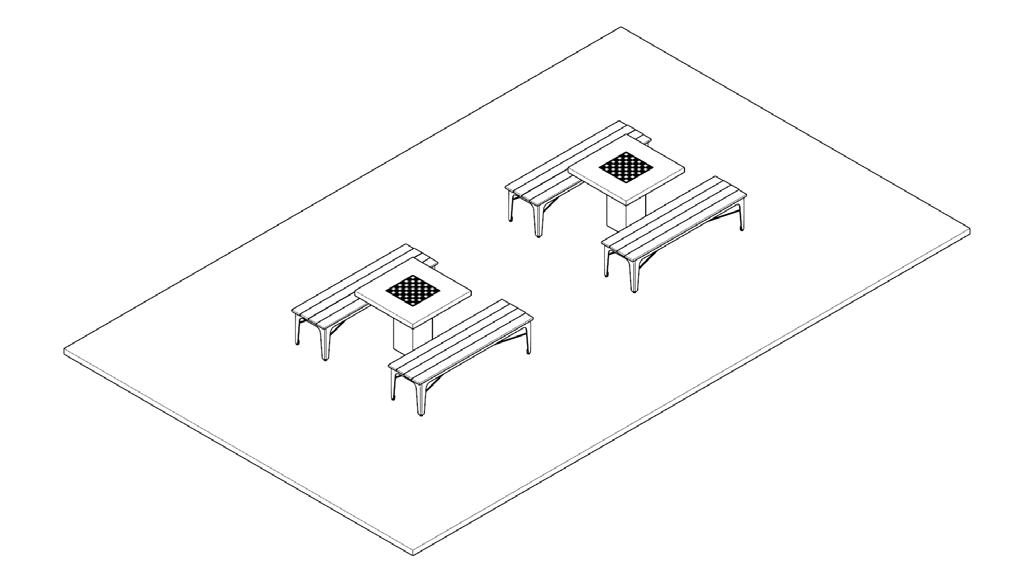

B. CHESS TABLES

A-GATHERING SPACE

6

A. BASKETBALL COURT

// UNIVERSITY OF OREGON 2023

UNITYSCAPE : MICRO RESIDENCES // B. SEATING MOUND

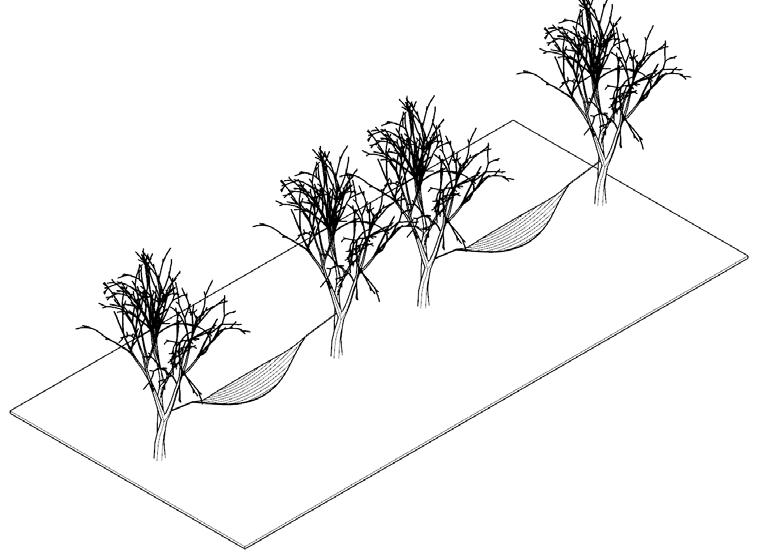

B. PLANTERS

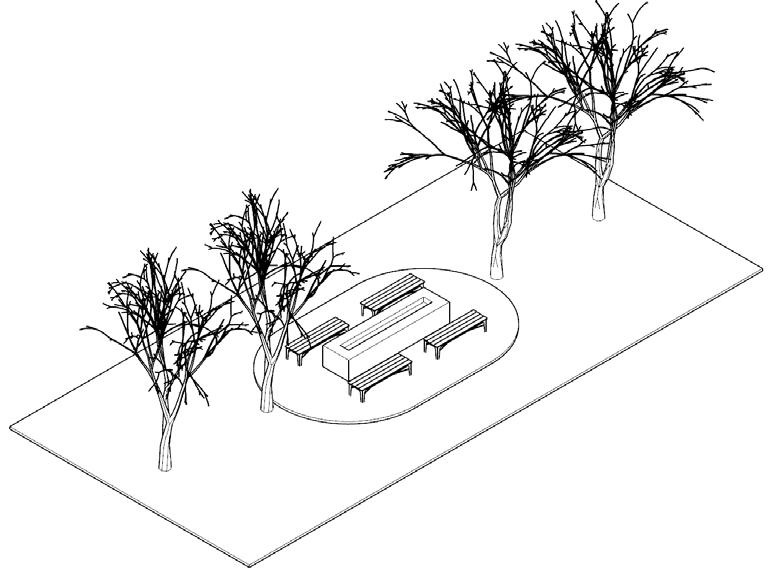

B. FIRE PITS

7

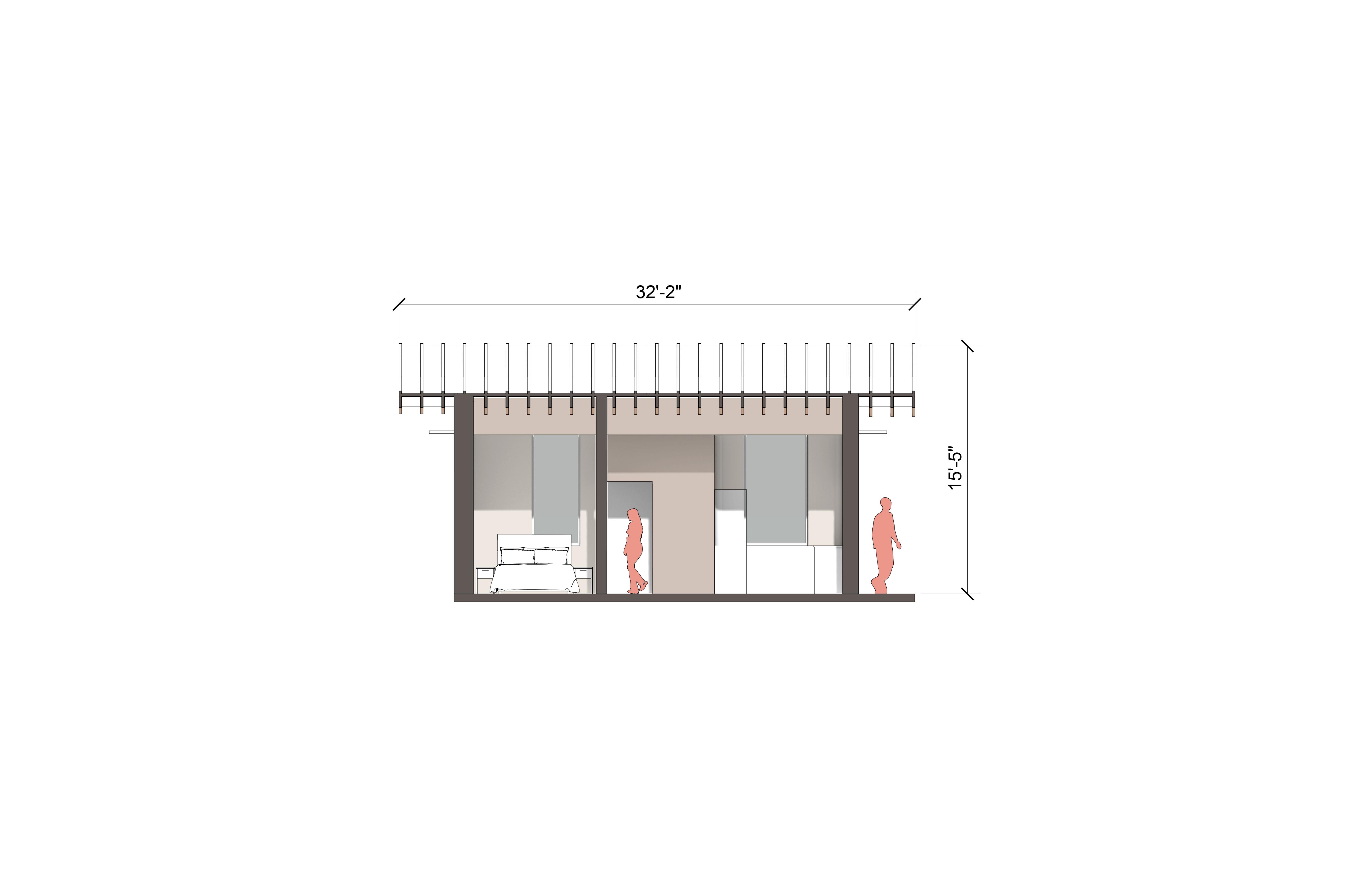

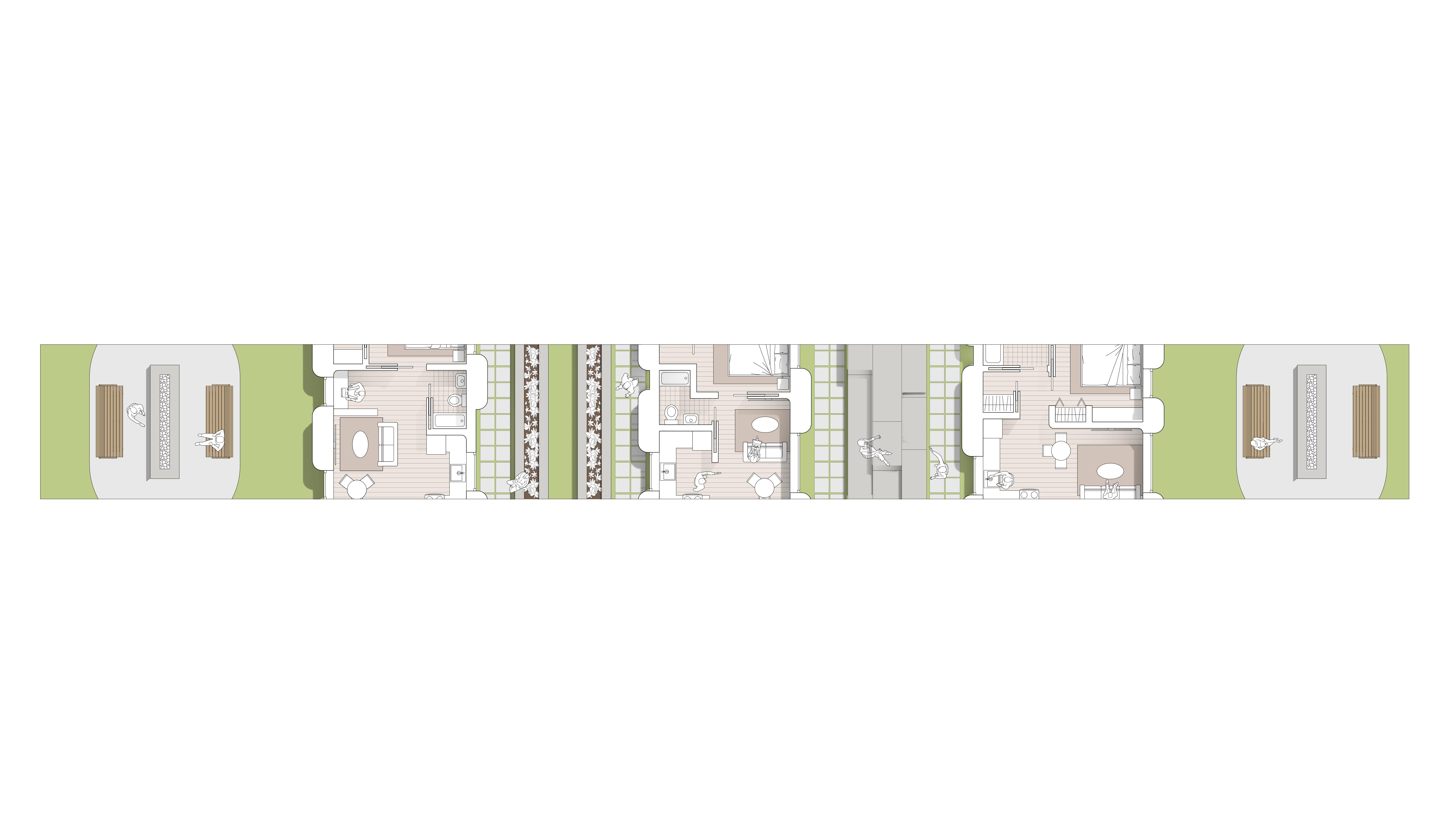

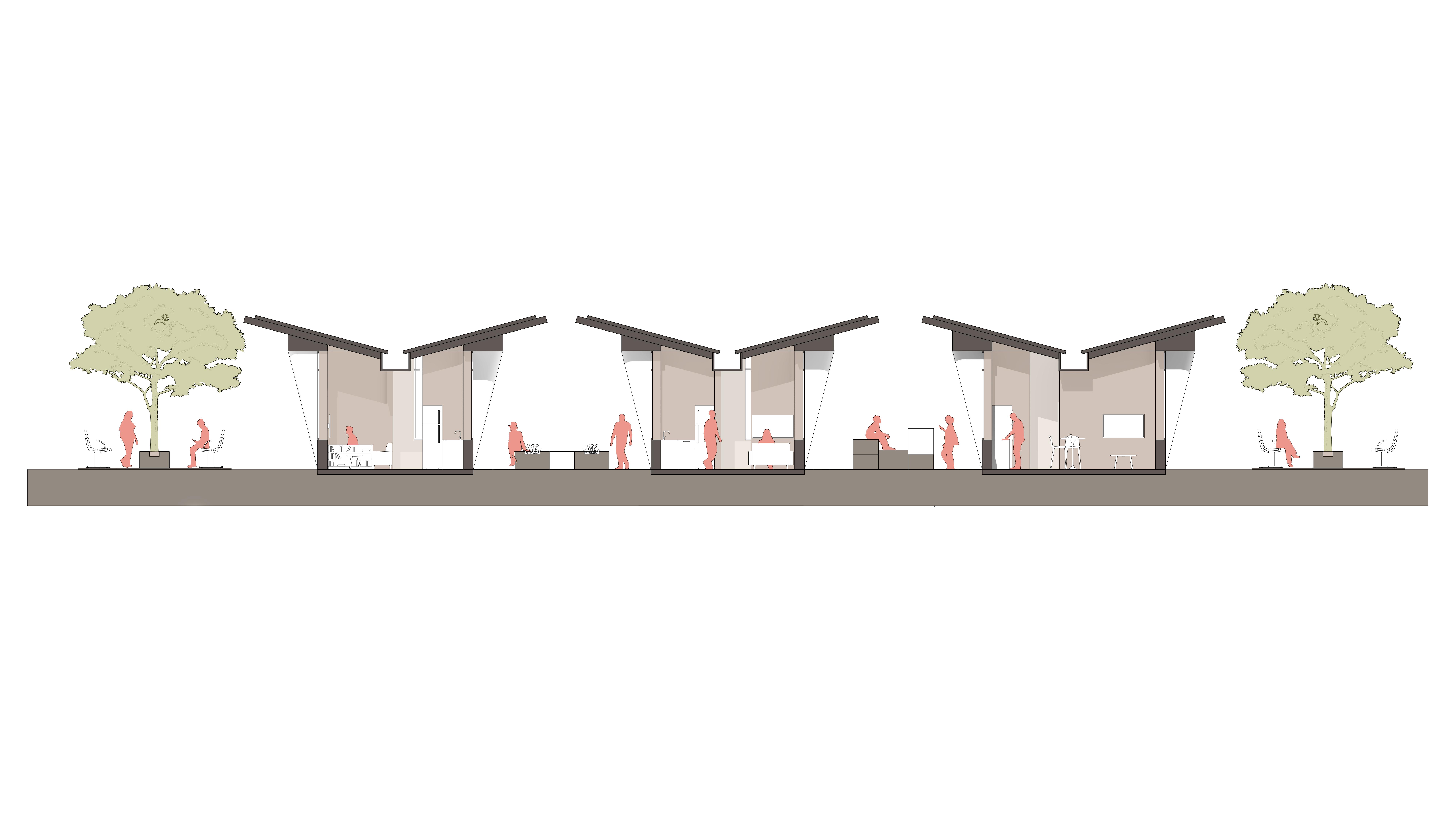

1 // LONGITUDINAL SECTION

Isolation in Private Spaces

Porch Facing Public Realm

BEDROOM

STORAGE

KITCHEN Total SF : 379

8

// UNIVERSITY OF OREGON 2023

UNITYSCAPE : MICRO RESIDENCES //

9

4

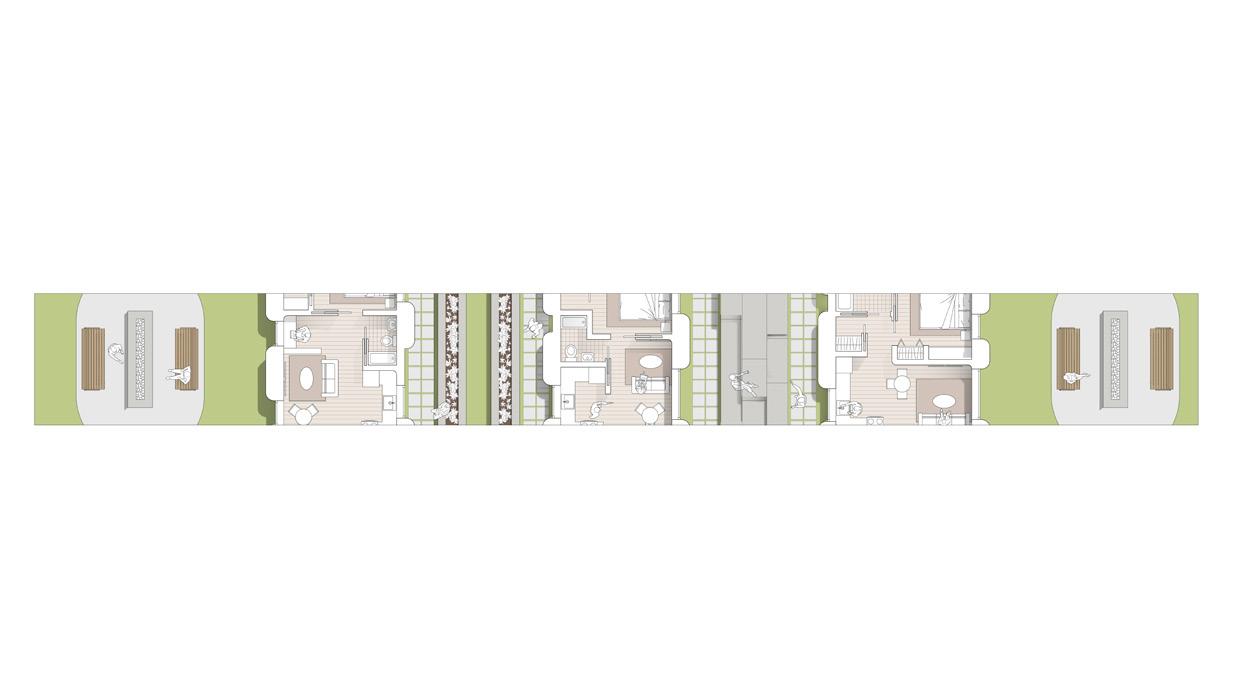

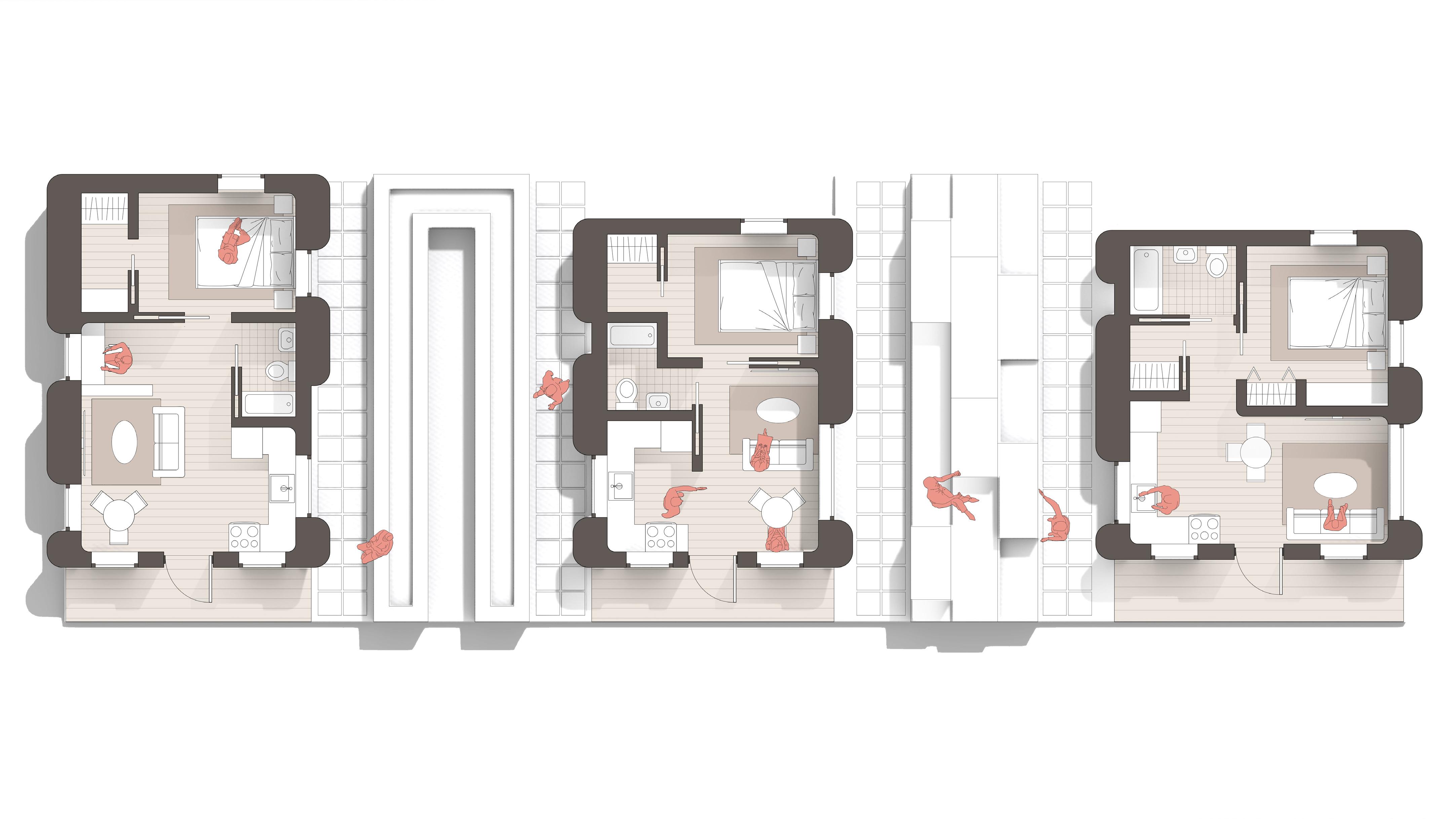

1 // PLANS 7

4

4 5

7

6

7

5 5 1

1

25'-2"

25'-11"

28'-9"

1. Living Room 2. Kitchen 3. Dining Area 4. Bedroom 5. Bathroom 6. Office 7. Storage

2

2

2

3

1 3

Living Room from Kitchen

10

// UNIVERSITY OF OREGON 2023

3

15'-9"

Kitchen from Living Room

15'-8"

Bedroom from Hallway

18'-7"

UNITYSCAPE : MICRO RESIDENCES //

11

1 // PRINTABILITY Standing Seam Metal Roof

Wood Rafters

Wood Paneled Wall

Gypsum Ceiling

Windows Cost Estimate 1

Concrete Slab

$1,417.29

2

Wood Imitation Decorative Finish

$3,760.00

3

Concrete Tile Finish

$84.00

4

12" Exterior Wall

$14,325.00

5

8" Interior Wall

$814.82

6

Cedar Shiplap Wood Paneling

$2,544.00

7

2 in. x 8 in . x 16 ft. Southern Pine

$714.00

8

Gypsum Board Ceiling

$3,633.00

9

Standing Seam Metal Roof

$15,924.00

10

Interior Paint

$8,148.00

11

Entry Door

$1,000.00

12

Interior Pocket Doors

$1,500.00

13

3 in. x 9 in. Picture Window

$500.00

14

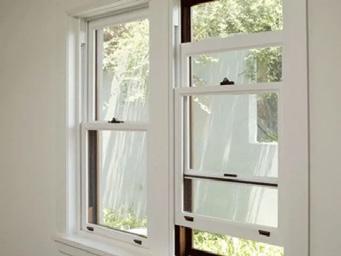

3 in. x 9 in. Double Hung Window

$1,400.00

15

4 in. x 8 in. Double Hung Window

$350.00

16

2 in. x 4 in. Clerestory Window

$150.00

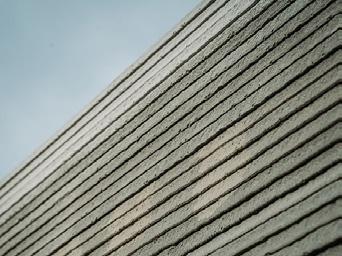

3D Printed Walls

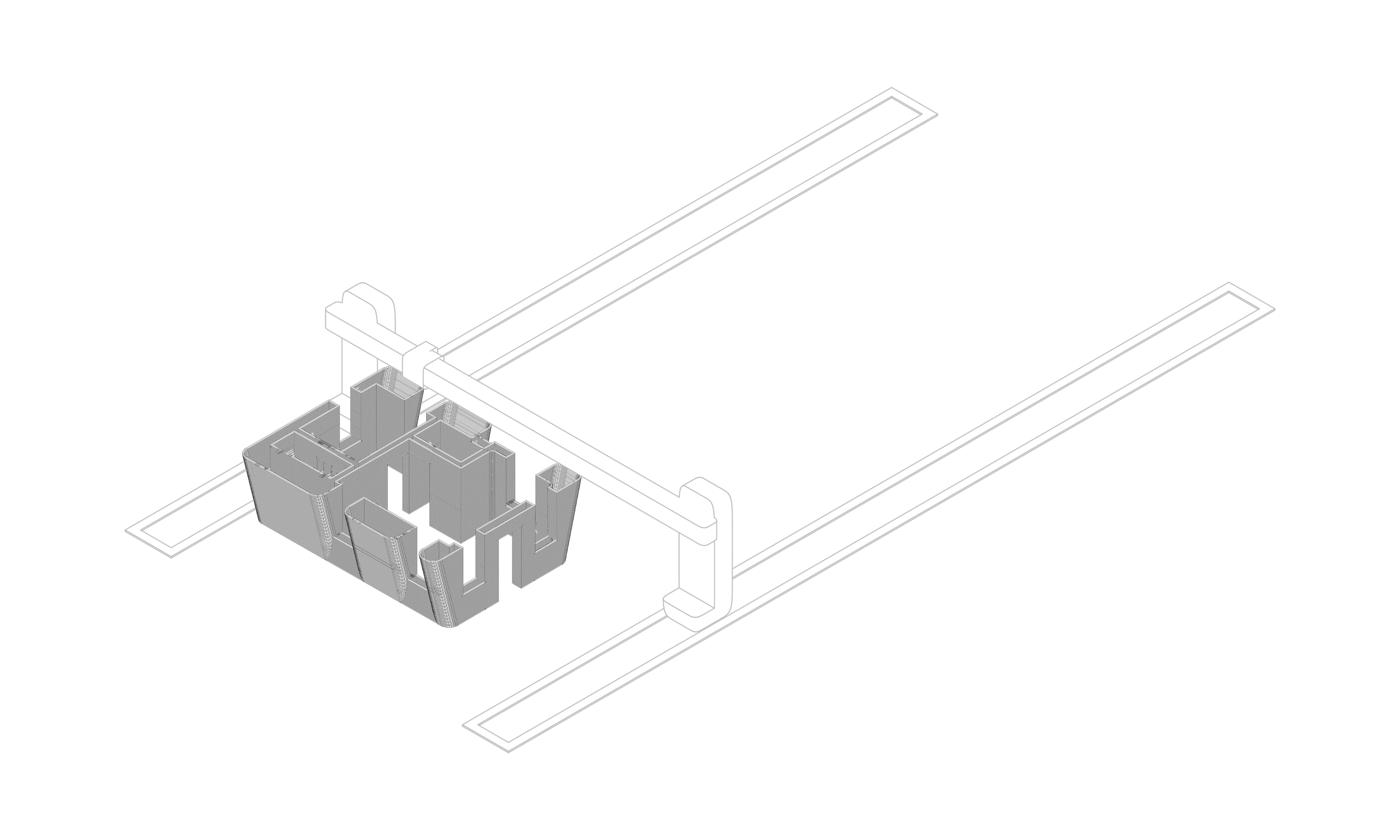

ICON 3D Printing Technology

Total Cost Per Unit: $64247.11 Total Square Footage: 397

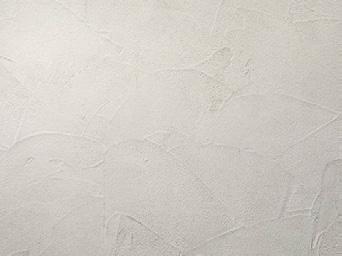

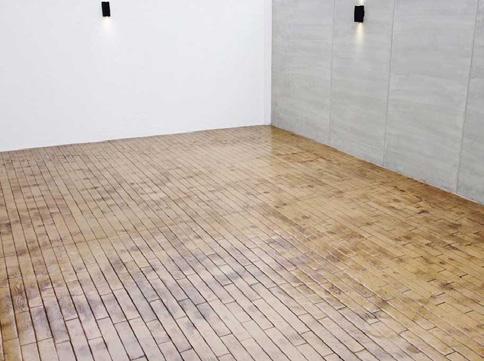

Concrete Slab with Wood Finish Lavacrete

12

// UNIVERSITY OF OREGON 2023

UNITYSCAPE : MICRO RESIDENCES //

13

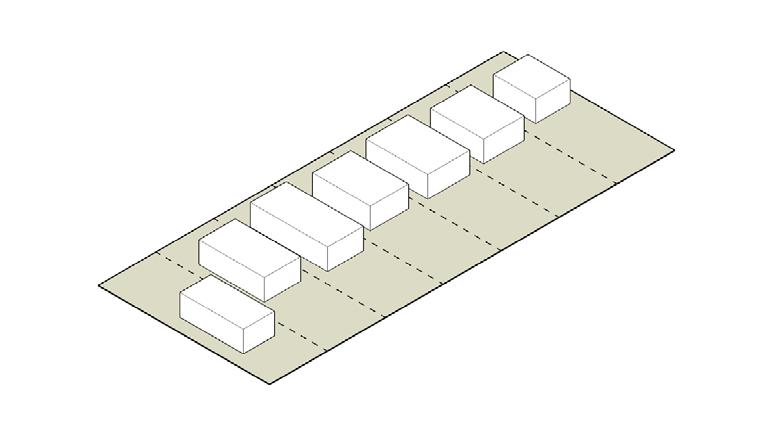

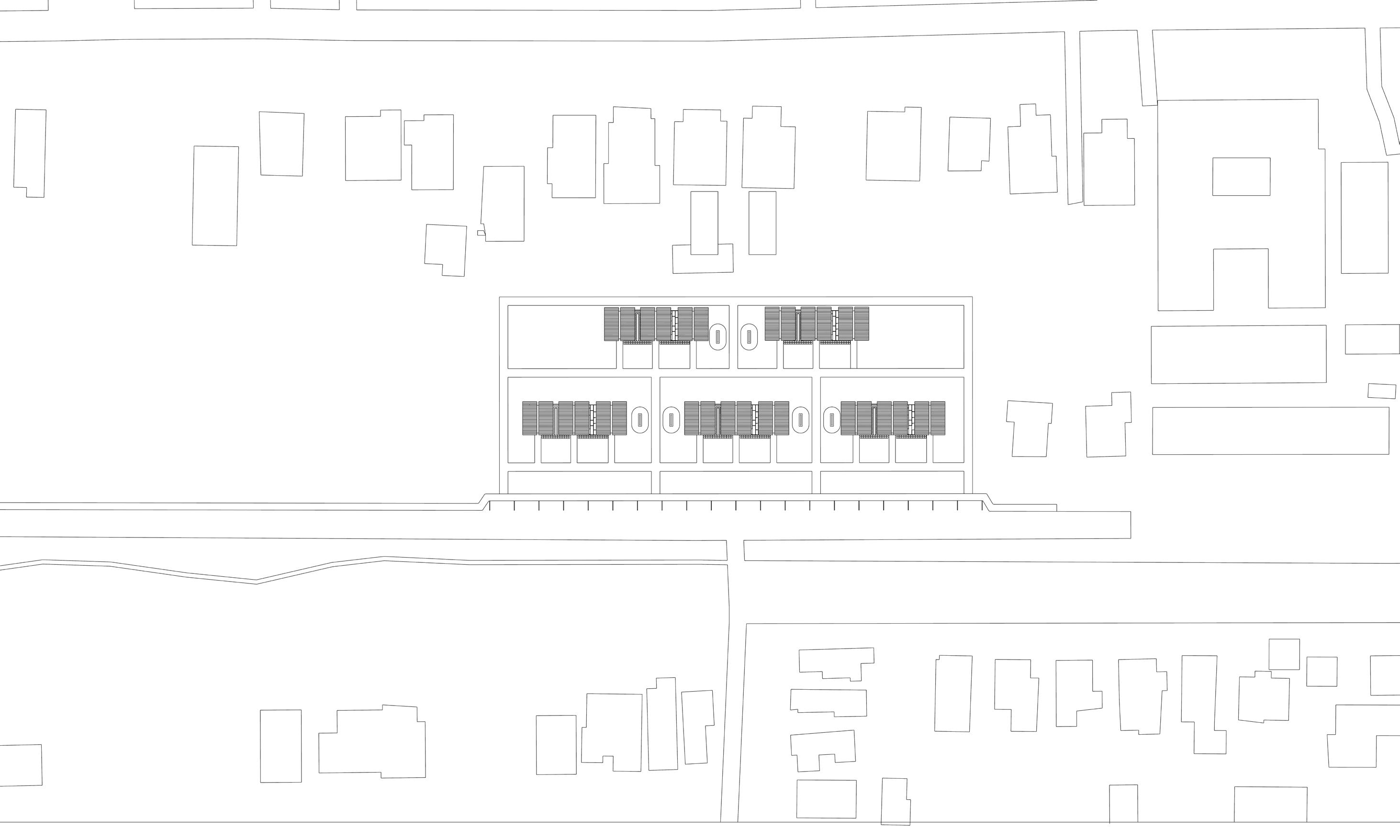

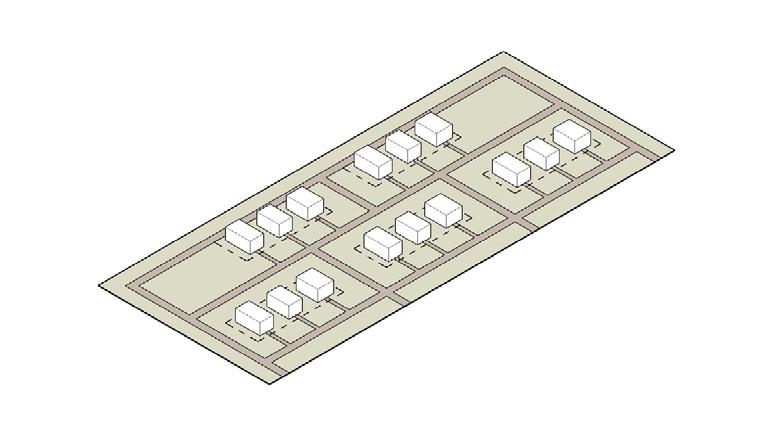

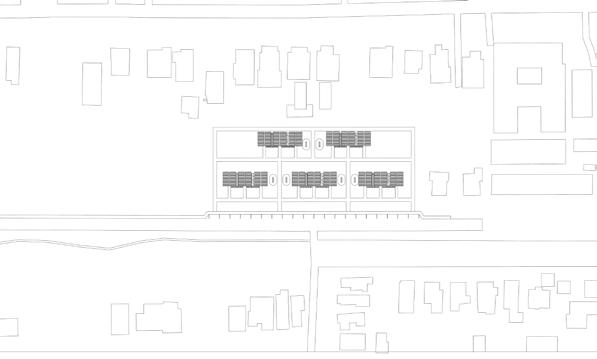

1 // SITE DEVELOPMENT

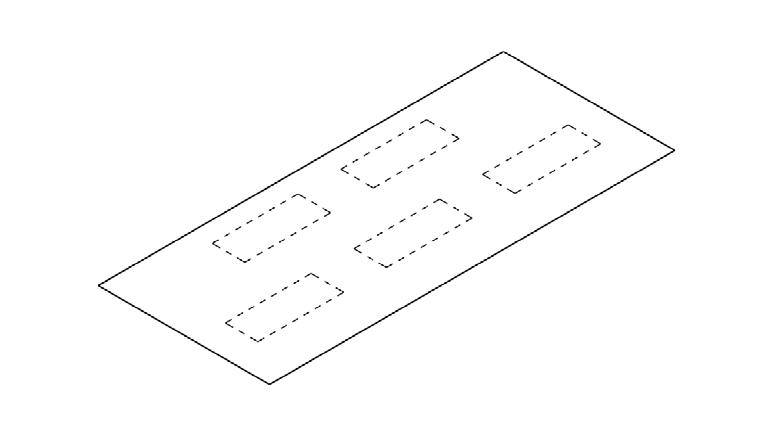

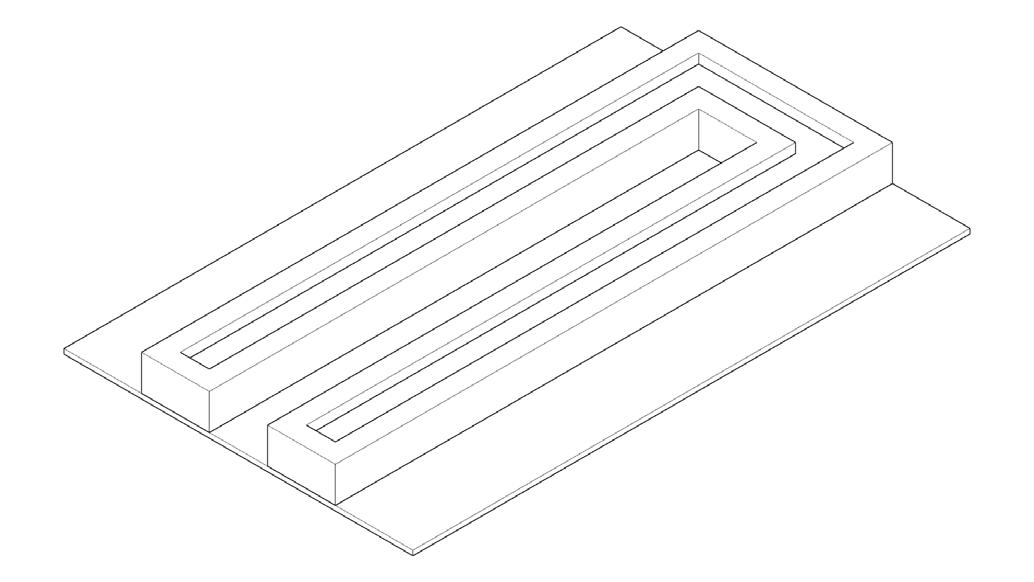

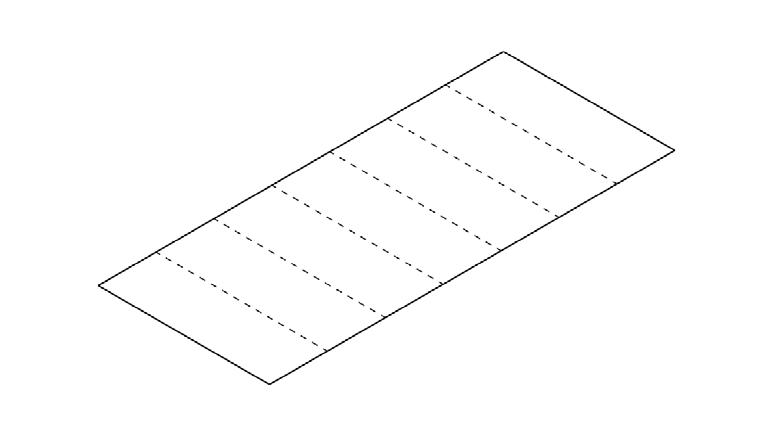

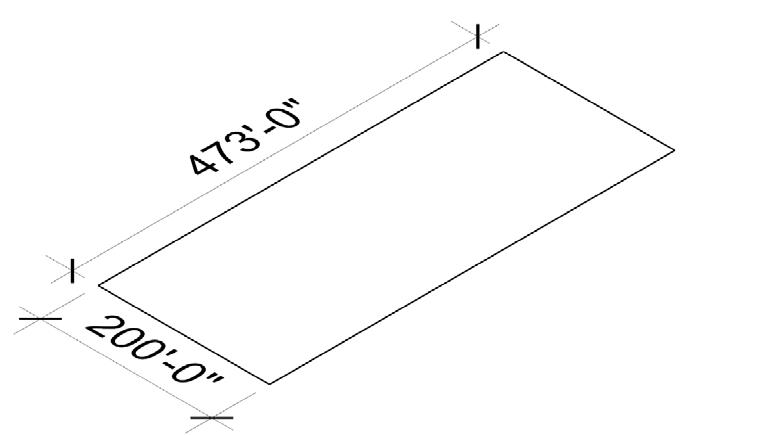

Print Bed

Plot

1

Linear Site

2

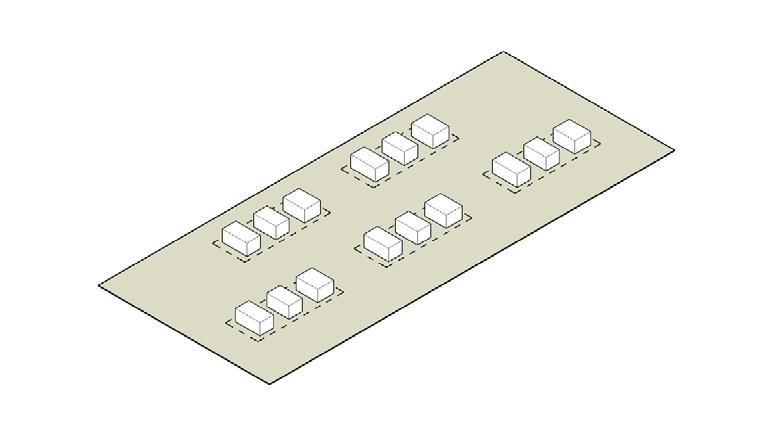

7 Plots

3 5 Print Beds Pedestrian Network

3 15 Units

4

7 Units 1 Unit: 3,025 SF

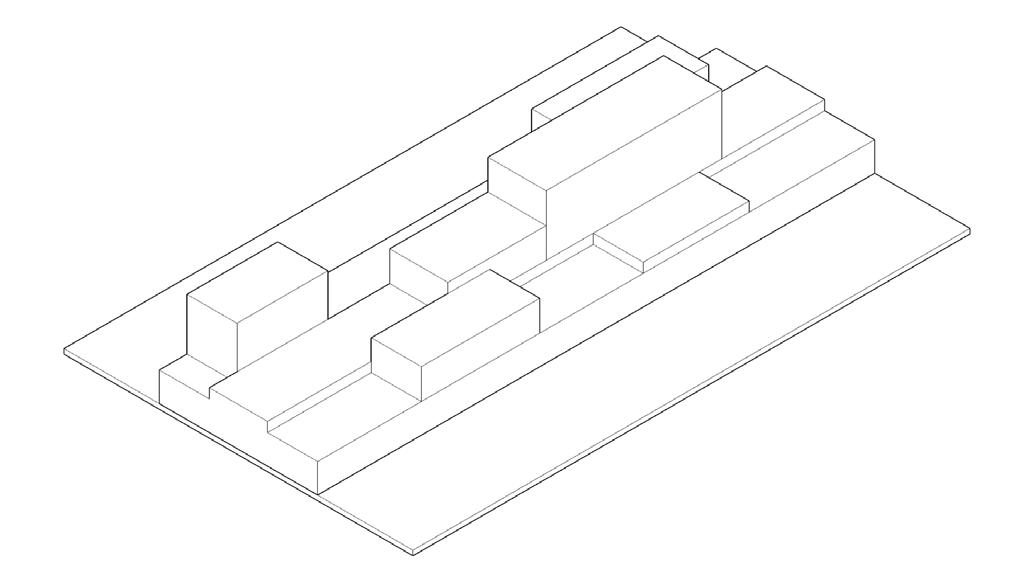

5 High Density: 5,685 SF +

8

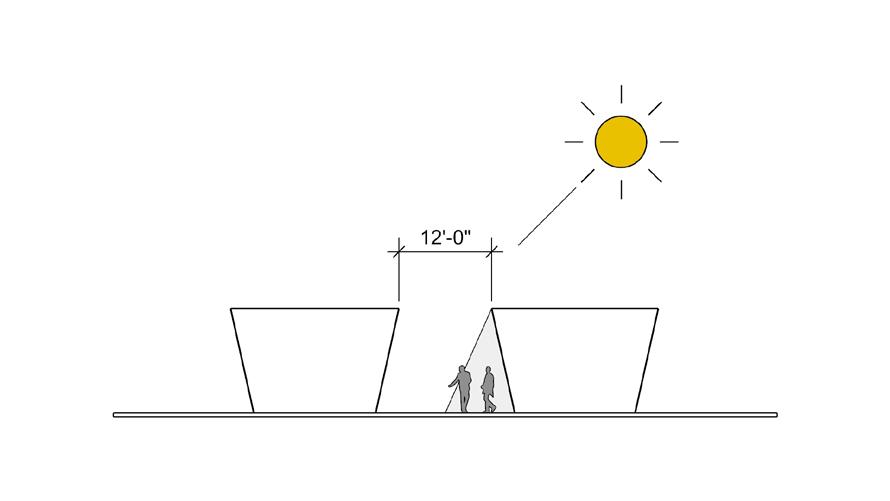

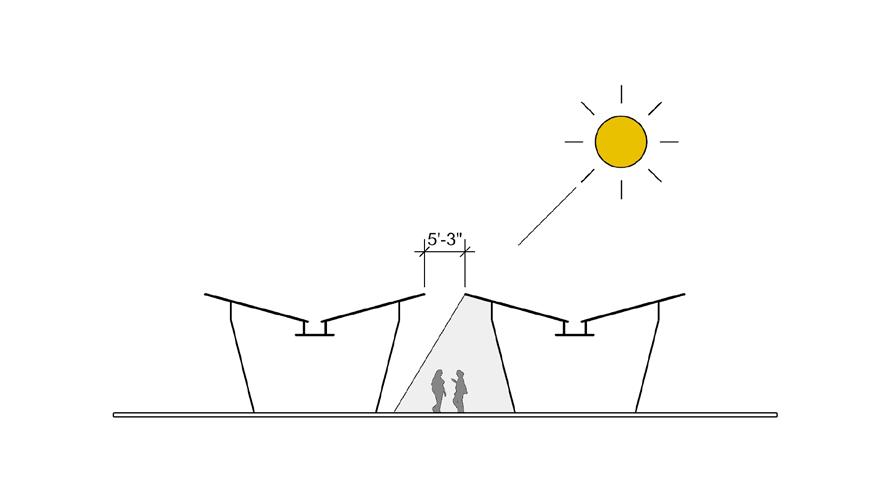

40% Shading

9 90% Shading

3 Units: 1,137 SF

7

14

// UNIVERSITY OF OREGON 2023

10% Shading

Green Space: 94,600 SF

UNITYSCAPE : MICRO RESIDENCES //

15

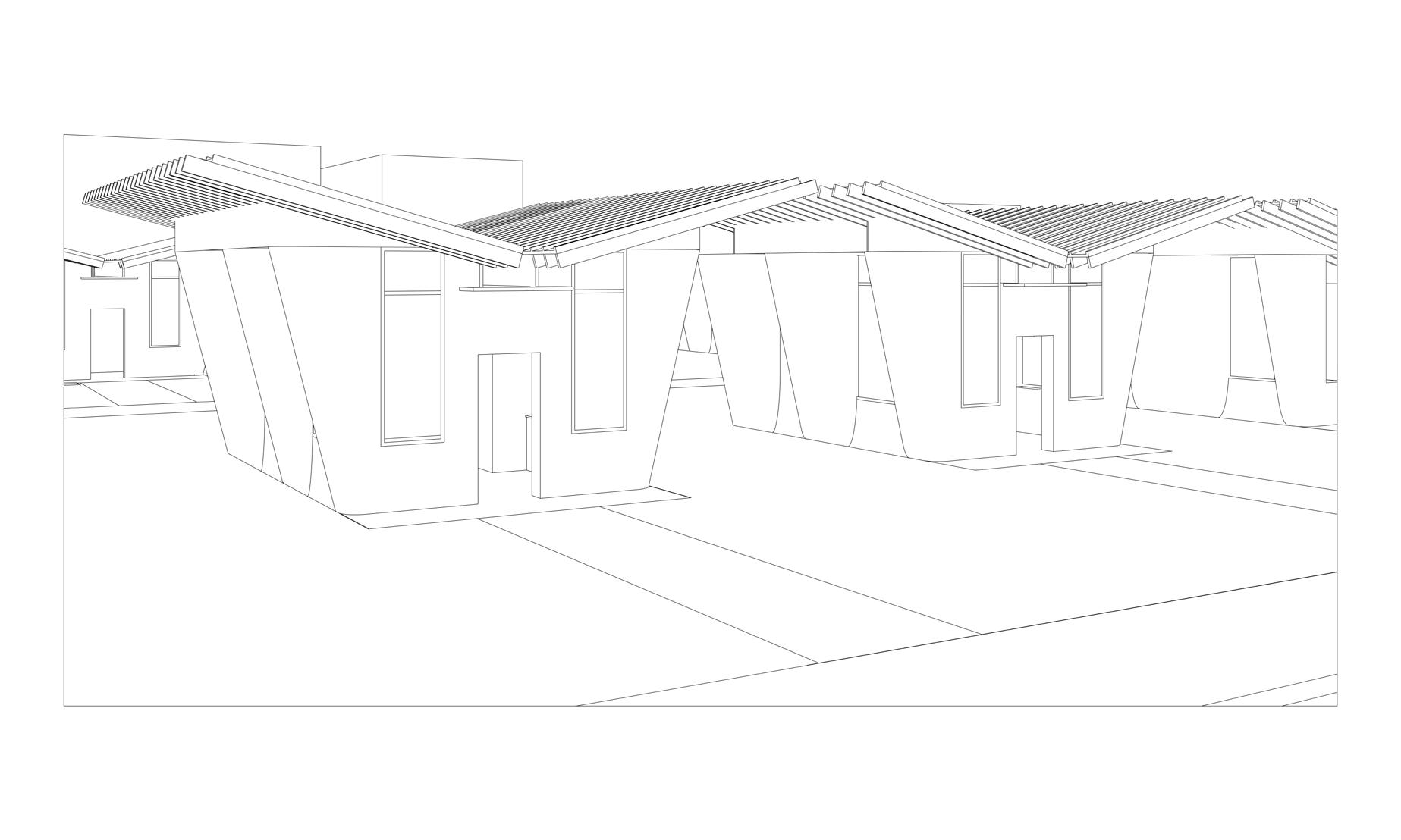

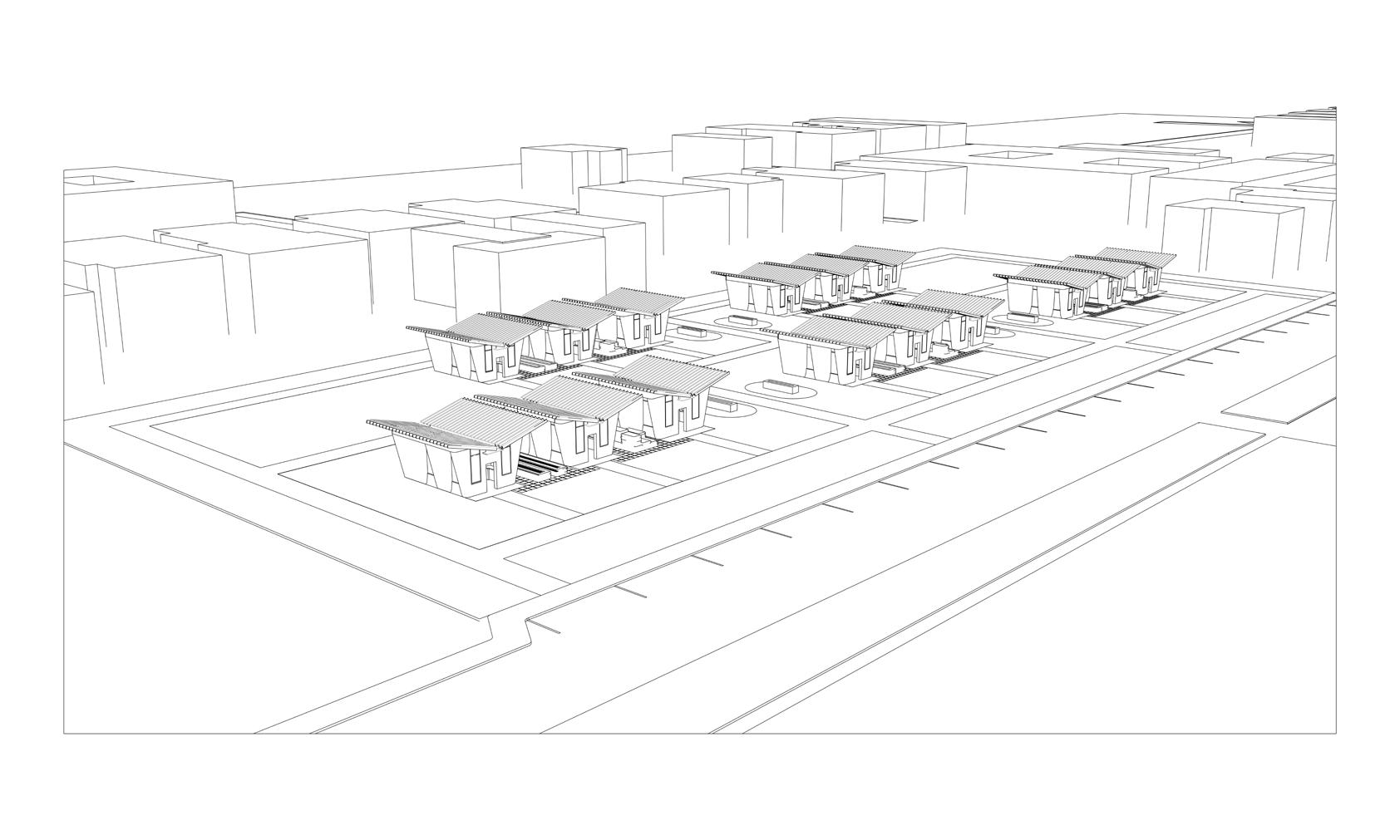

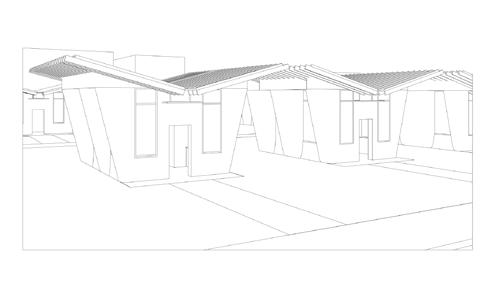

1 // EXTERIOR RENDERS
