Kingspan MICROHOME ARCH 484 | Mary Polites | Fall 2024 ALEXA GEHLHAAR PRESLEY REHLING-MANULLANG MAYSEN RUNNING

LAGOM

| 003

ARCH 484

| 4

| not too much, not too little

| MARY POLITES | Fall 2024

| 5

| KINGSPAN MICROHOME COMPETITION

GLOBAL PROBLEM | housing need + food insecurity + climate crisis

[law-gom] swedish; adverb, adjective | “not too much, not too little”

Exploring the innovations of 3D print building technology as means of addressing a global housing crisis, Lagom embraces micro-living as a way of life. The Swedish principles of [law-gom] reject the ideals of consumerism by pursuing sustainable alternatives and balanced living. These principles extend from the home into the community through collaborative productive landscapes, minimalist design, and the thoughtful integration of the private and public realm. In addressing a housing crisis, Lagom seeks to recognize other compounding global crises such as food insecurity and climate change, considering the opportunity for micro-living to confront these intersecting issues and re-imagine a better future.

GLOBAL SOLUTION | 3D print technology + productive landscapes + sustainable systems

LAGOM

| 003

Crown Shyness The phenomenon of “crown shyness” found in forest canopies was used to imagine how each micro unit comes together to form a cohesive, yet separate, whole.

ARCH 484

| 6

| not too much, not too little

| MARY POLITES | Fall 2024

| 7

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

Crown Shyness The phenomenon of “crown shyness” found in forest canopies was used to imagine how each micro unit comes together to form a cohesive, yet separate, whole.

ARCH 484

| 8

The Trunk | Walls

| not too much, not too little

| MARY POLITES | Fall 2024

| 9

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

Crown Shyness The phenomenon of “crown shyness” found in forest canopies was used to imagine how each micro unit comes together to form a cohesive, yet separate, whole.

ARCH 484

| 10

The Trunk | Walls

| not too much, not too little

The Canopy | Roof

| MARY POLITES | Fall 2024

| 11

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

Crown Shyness The phenomenon of “crown shyness” found in forest canopies was used to imagine how each micro unit comes together to form a cohesive, yet separate, whole.

ARCH 484

| 12

The Trunk | Walls

| not too much, not too little

The Canopy | Roof

| MARY POLITES | Fall 2024

The Forest | Site

| 13

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

Crown Shyness The phenomenon of “crown shyness” found in forest canopies was used to imagine how each micro unit comes together to form a cohesive, yet separate, whole.

ARCH 484

| 14

The Trunk | Walls

| not too much, not too little

The Canopy | Roof

| MARY POLITES | Fall 2024

The Forest | Site

| 15

| KINGSPAN MICROHOME COMPETITION

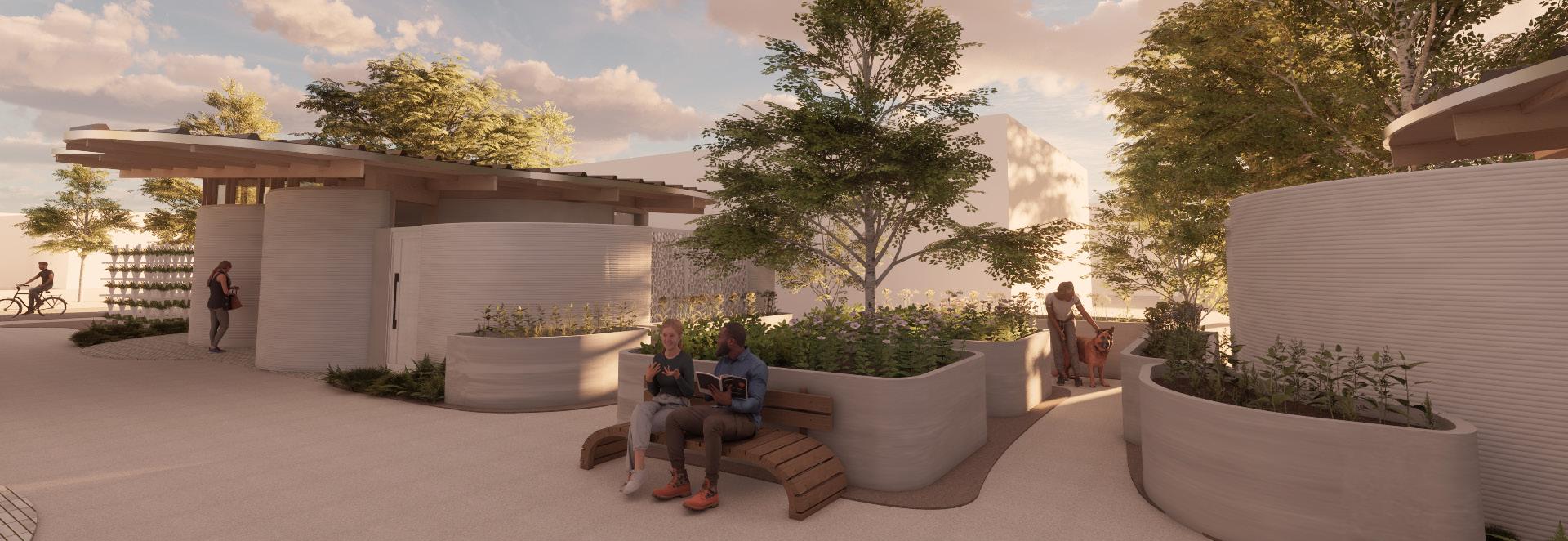

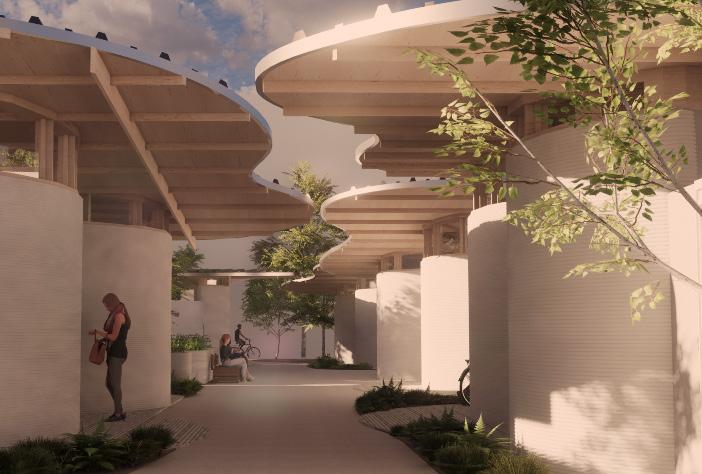

The Ecosystem | Community

LAGOM

| 003

| 16

ARCH 484

| not too much, not too little

| MARY POLITES | Fall 2024

E 13th Alley

E 14th Ave

Property Line

Hilyard Street

SITE PLAN | Scale 1/16”

| 17

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

ARCH 484

public living

| 18

| not too much, not too little

semi-public living

| MARY POLITES | Fall 2024

semi-private living

| 19

private living

“garage”

Kitchen | Dining Back Patio Foyer Work | Living

Front Patio

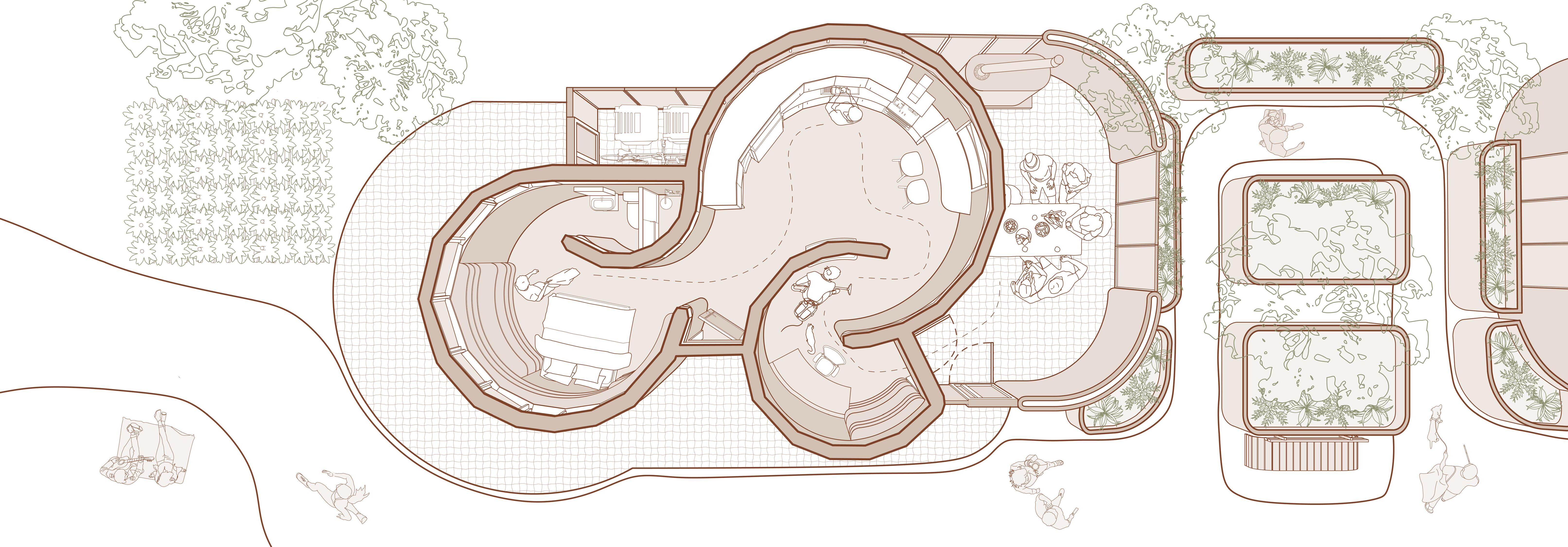

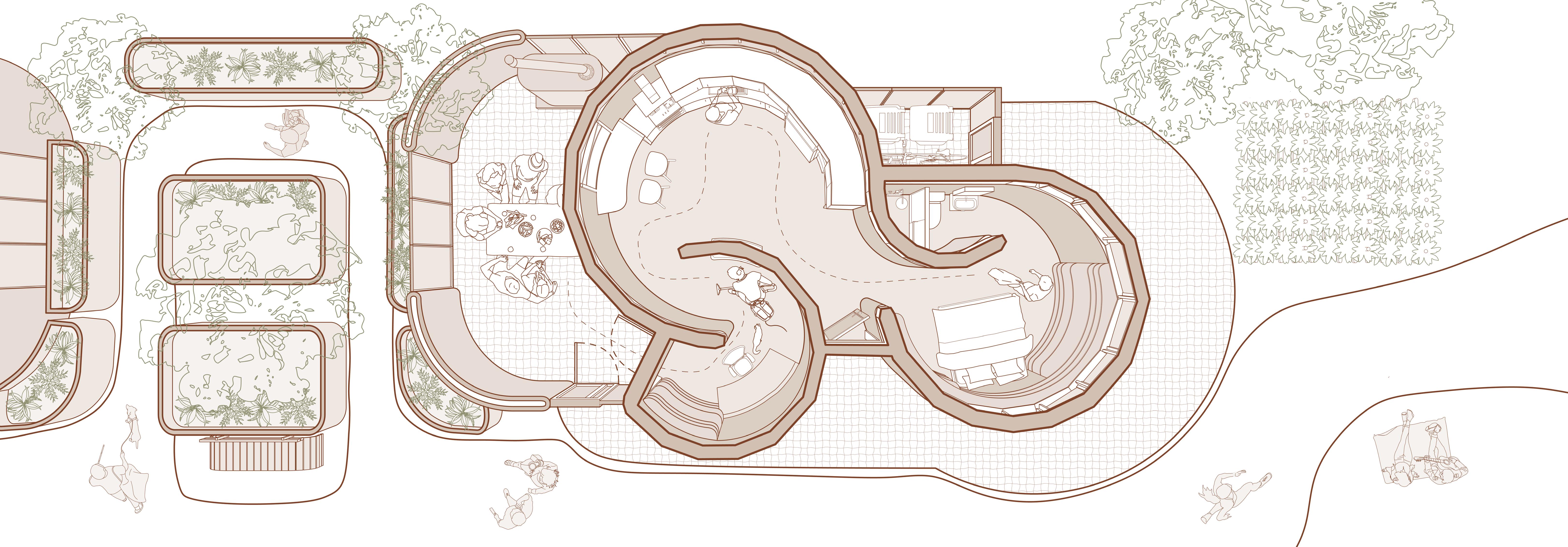

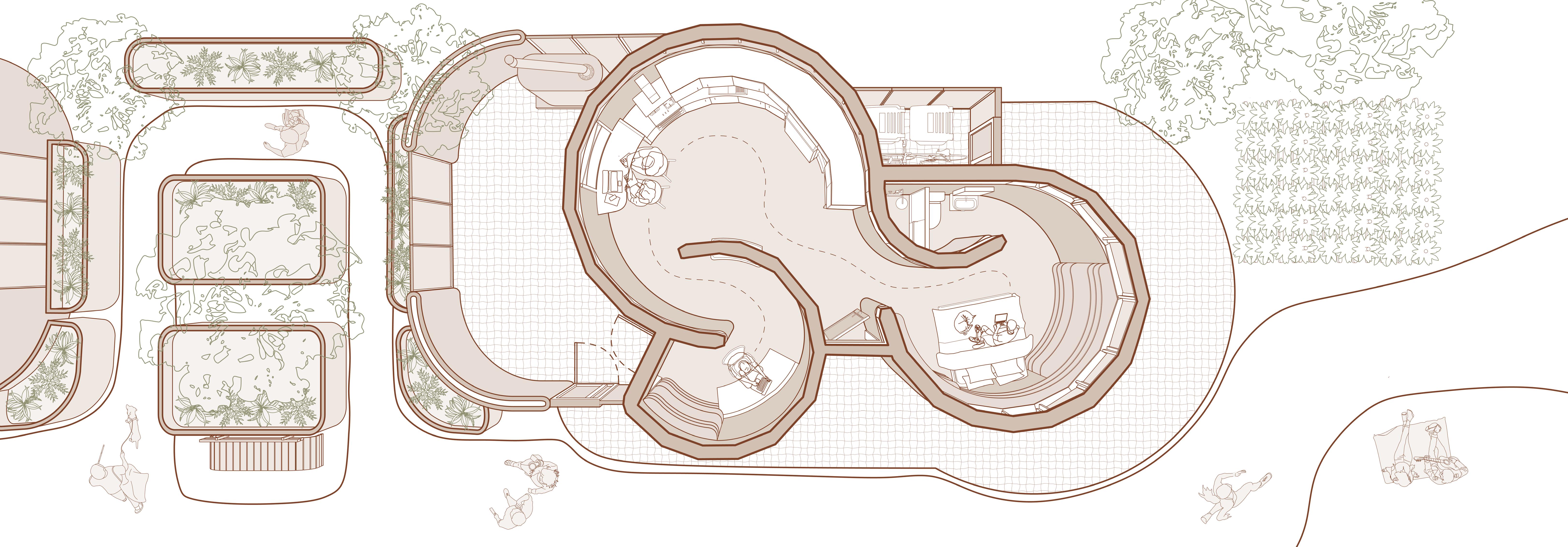

PLAN | Scale 1/4”

Bed | Bath

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

ARCH 484

| 20

| not too much, not too little

| MARY POLITES | Fall 2024

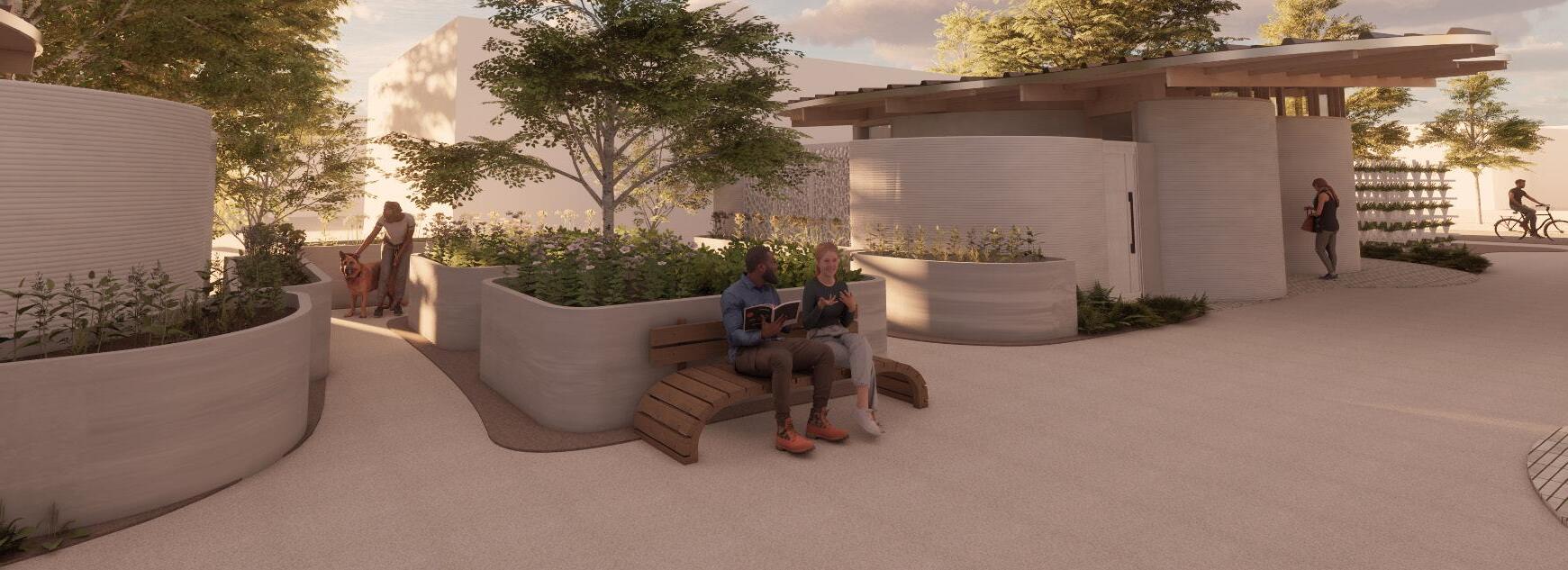

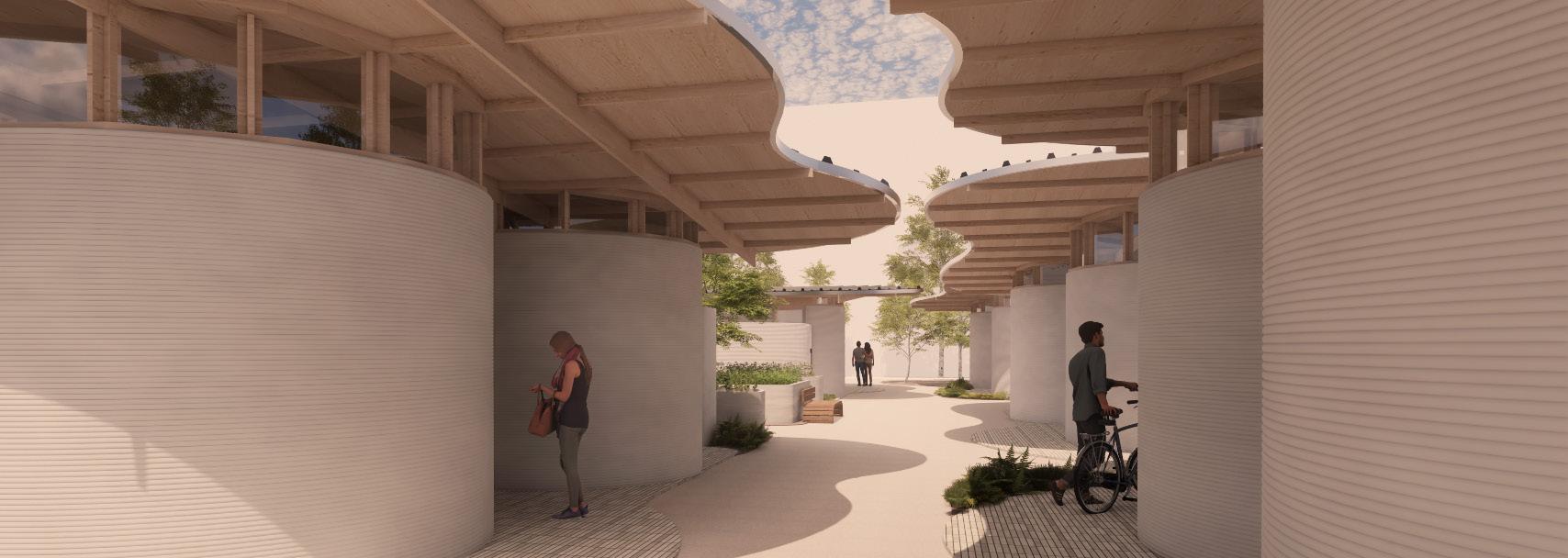

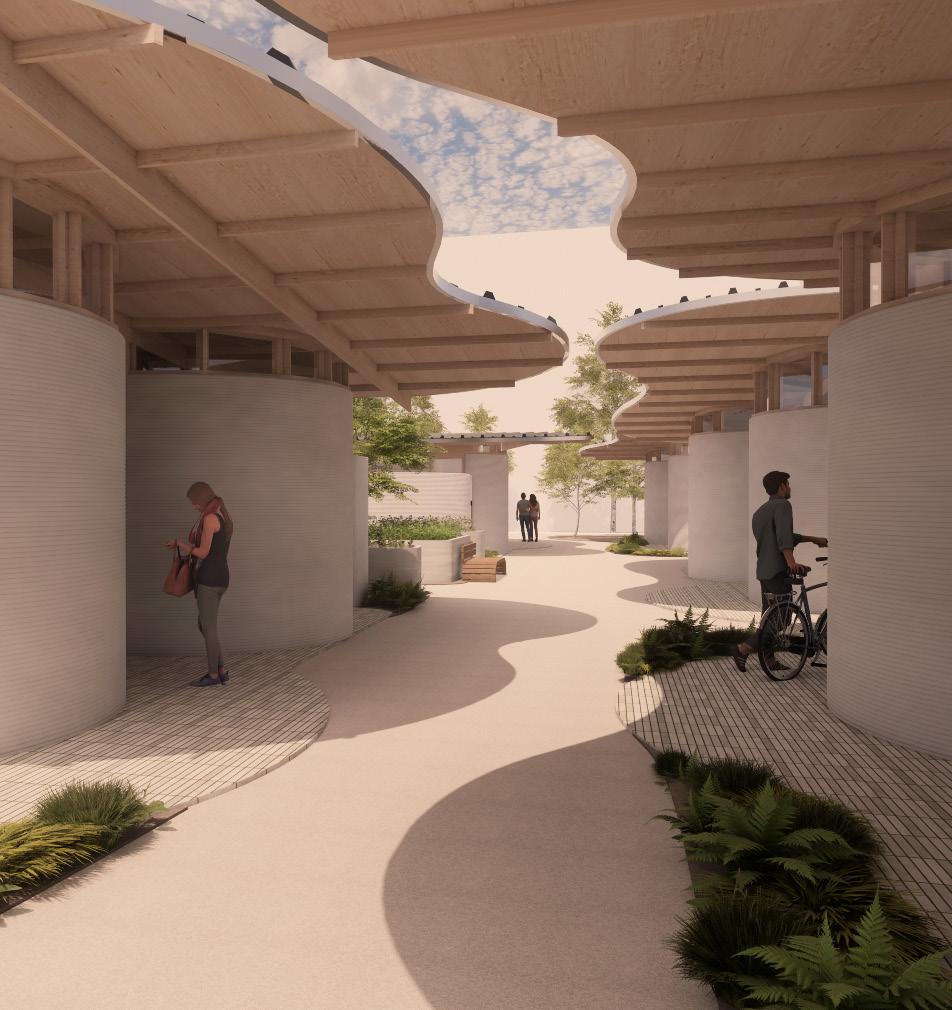

the outdoor “living room”

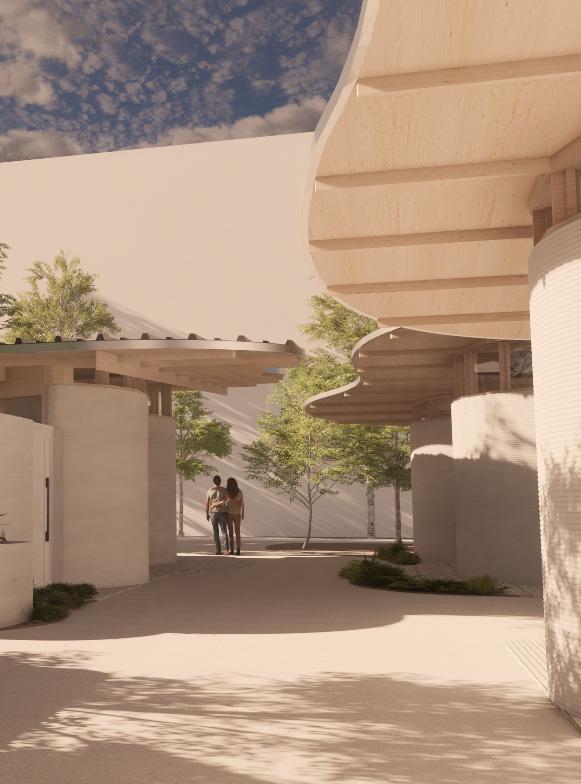

LIVE | indoor - outdoor living

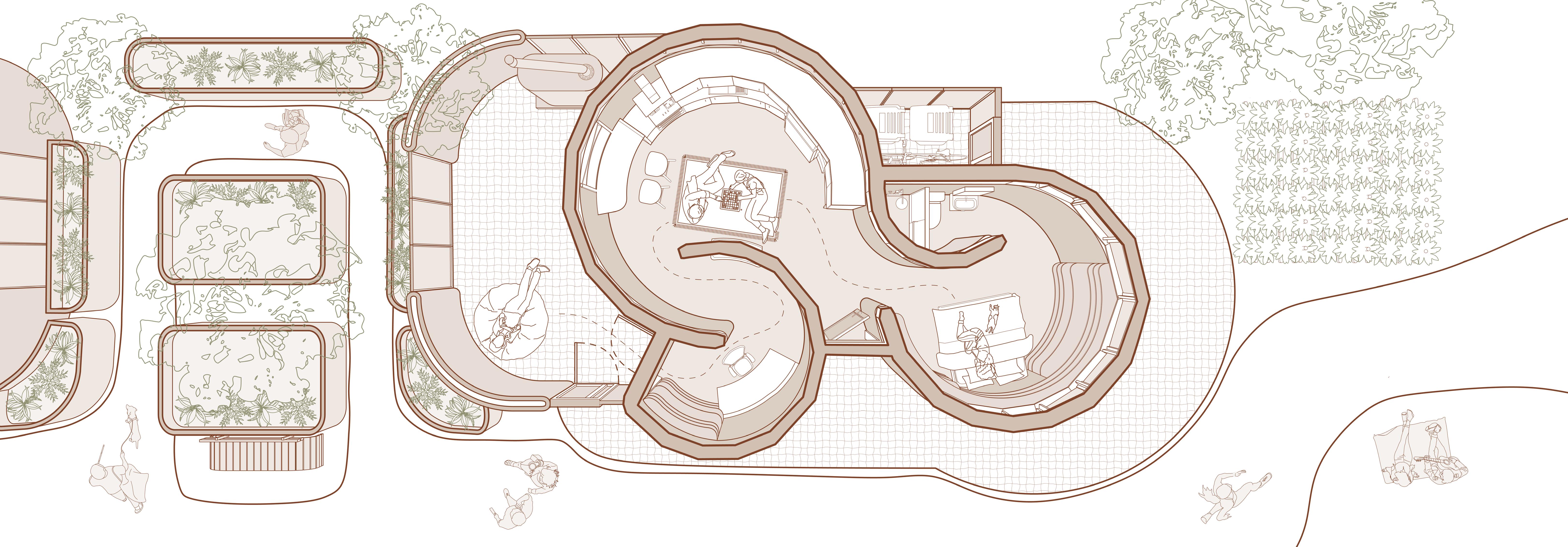

PLAN | Scale 1/4”

| 21

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

ARCH 484

| 22

| not too much, not too little

| MARY POLITES | Fall 2024

collaboration & connection together or apart WORK | casual or formal

PLAN | Scale 1/4”

| 23

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

ARCH 484

| 24

| not too much, not too little

| MARY POLITES | Fall 2024

REST | flexibility of space

PLAN | Scale 1/4”

| 25

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

ARCH 484

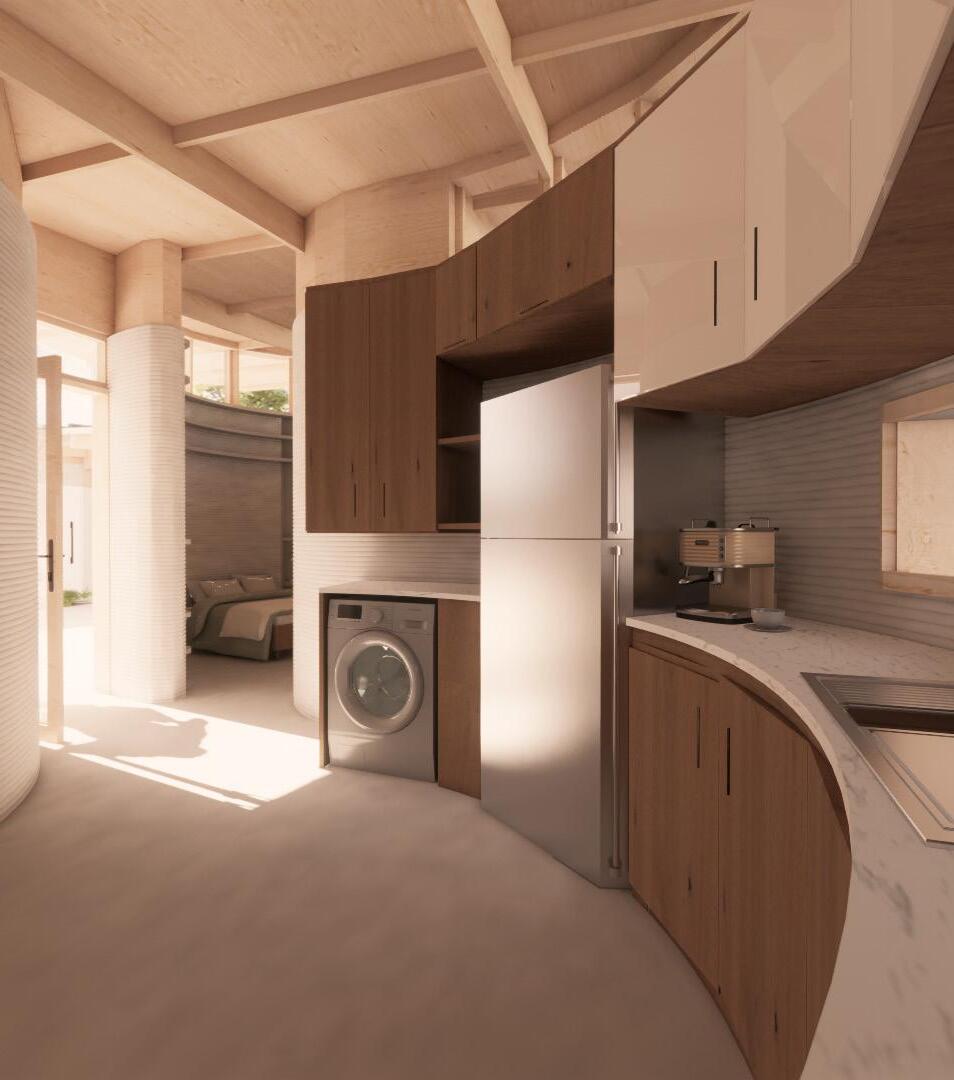

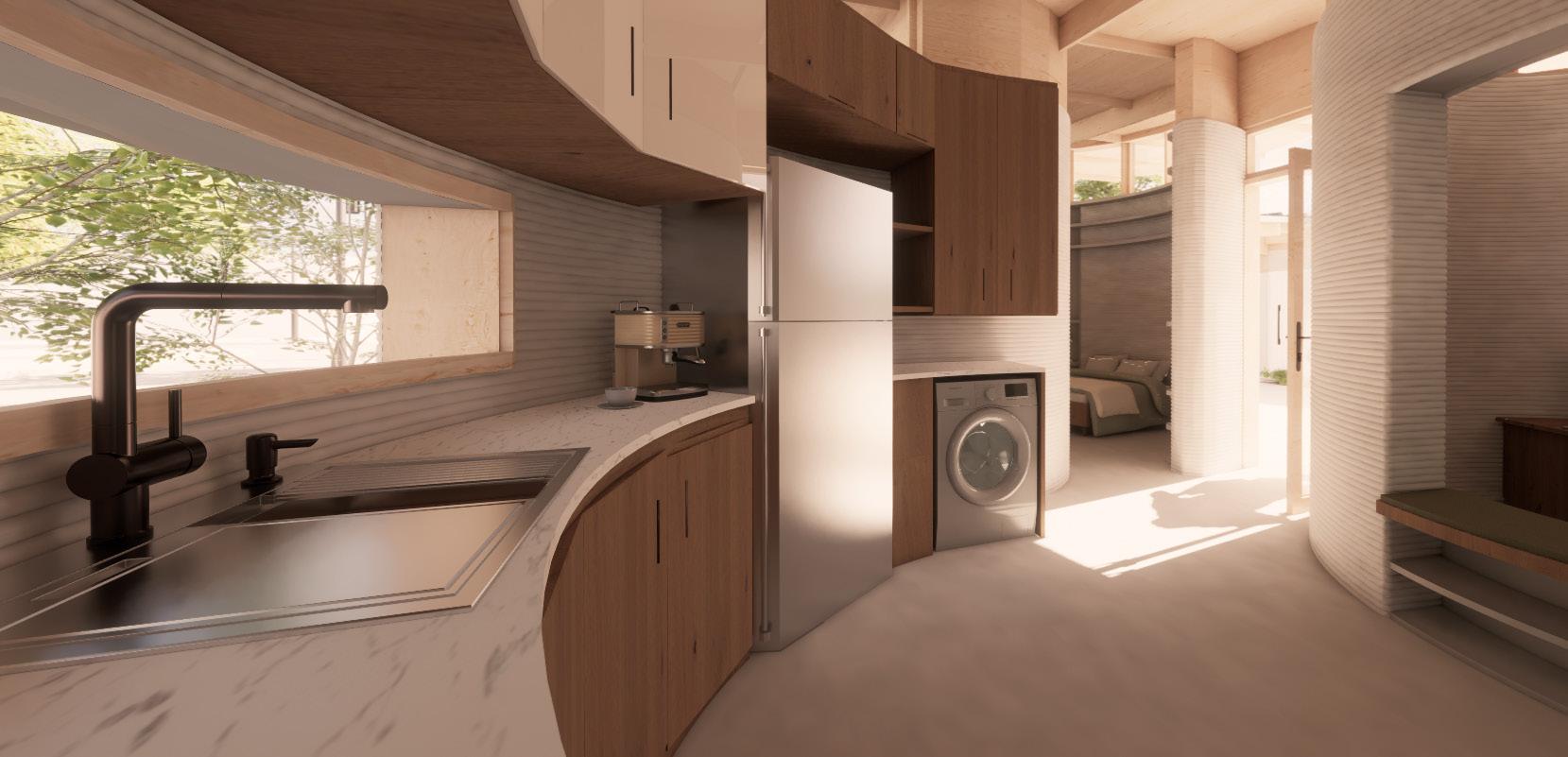

KITCHEN | thickening of walls

| 26

| not too much, not too little

| MARY POLITES | Fall 2024

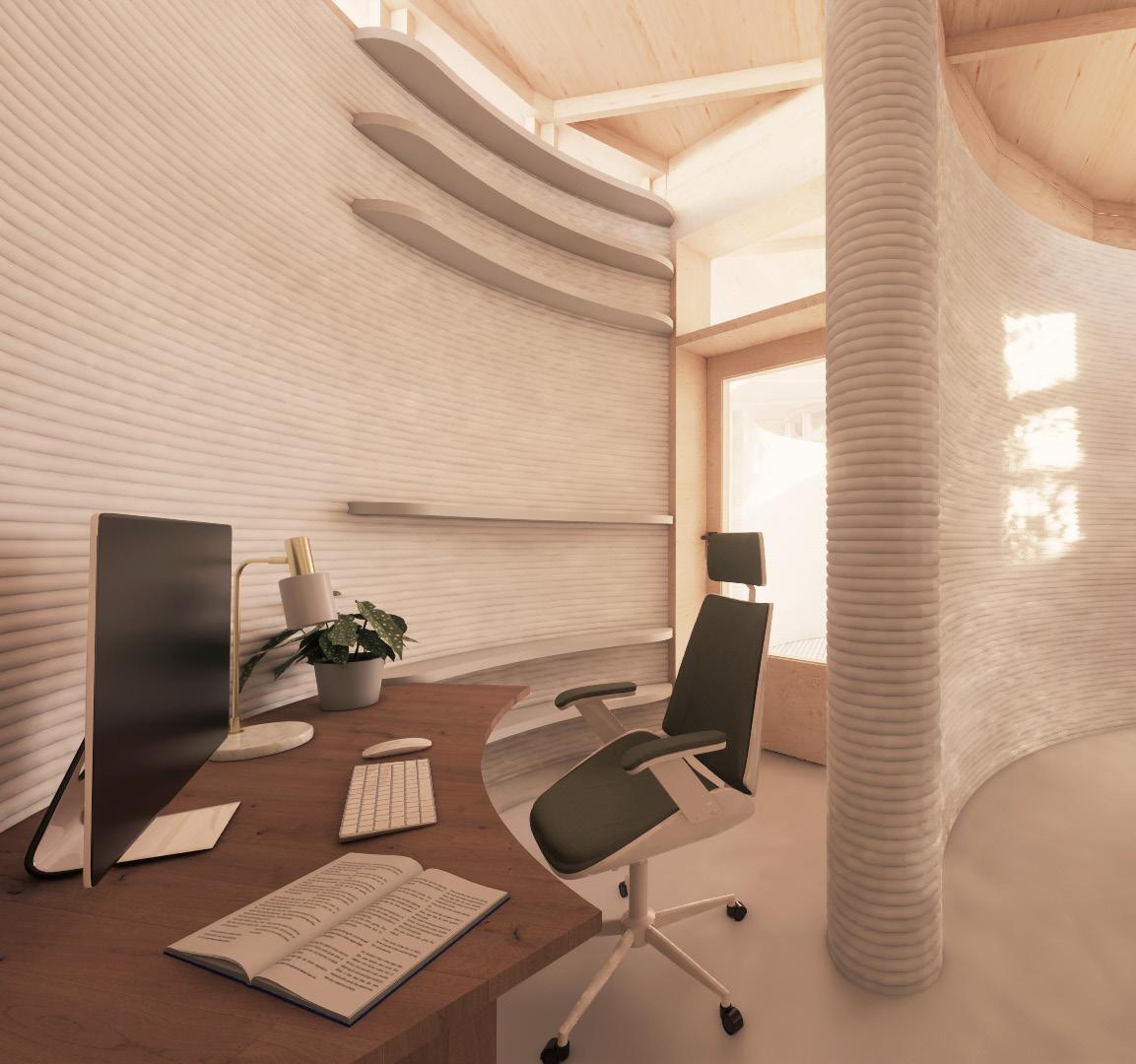

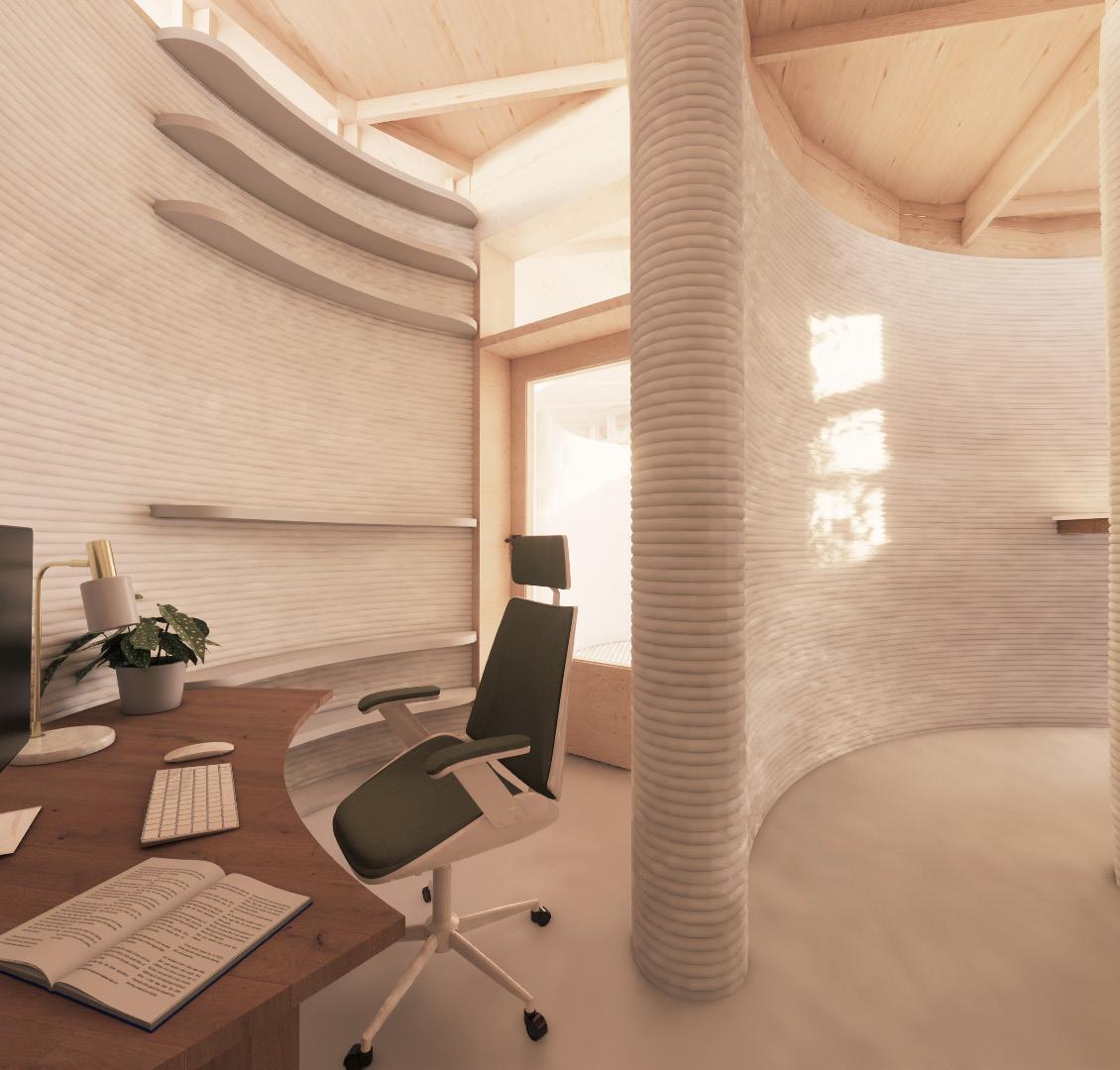

OFFICE | separation of program

| 27

| KINGSPAN MICROHOME COMPETITION

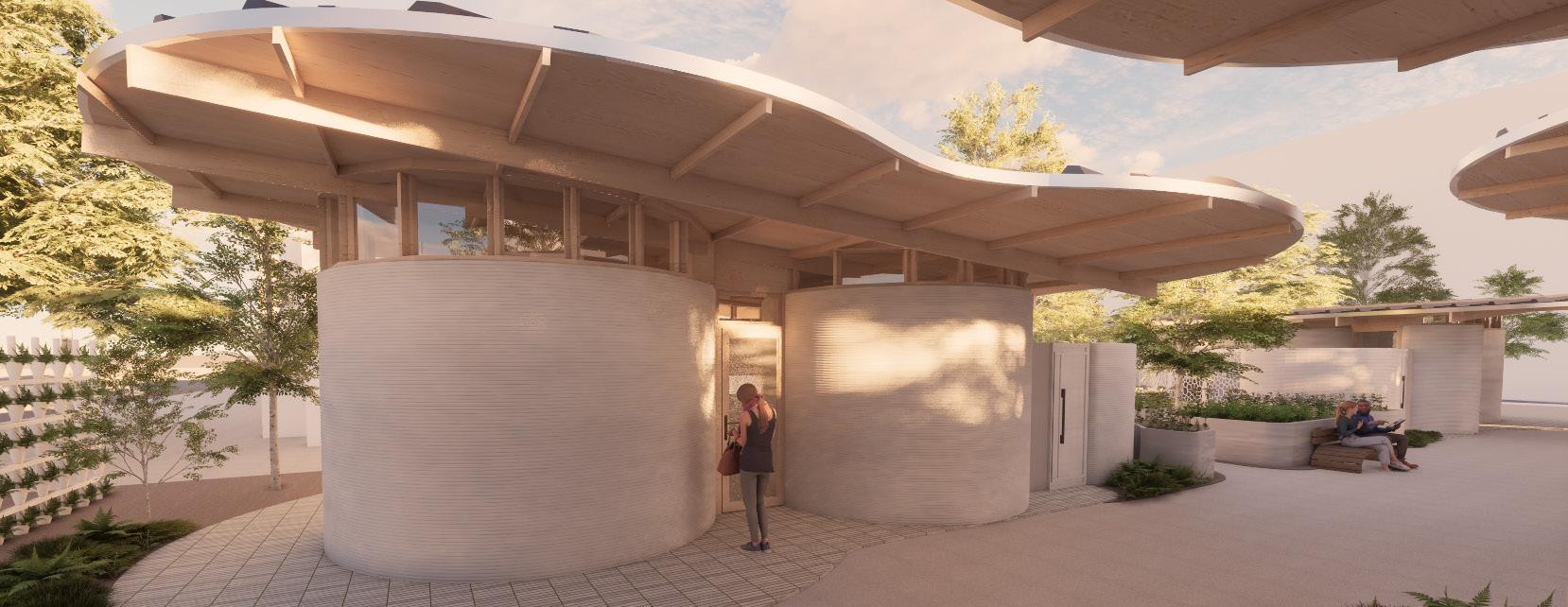

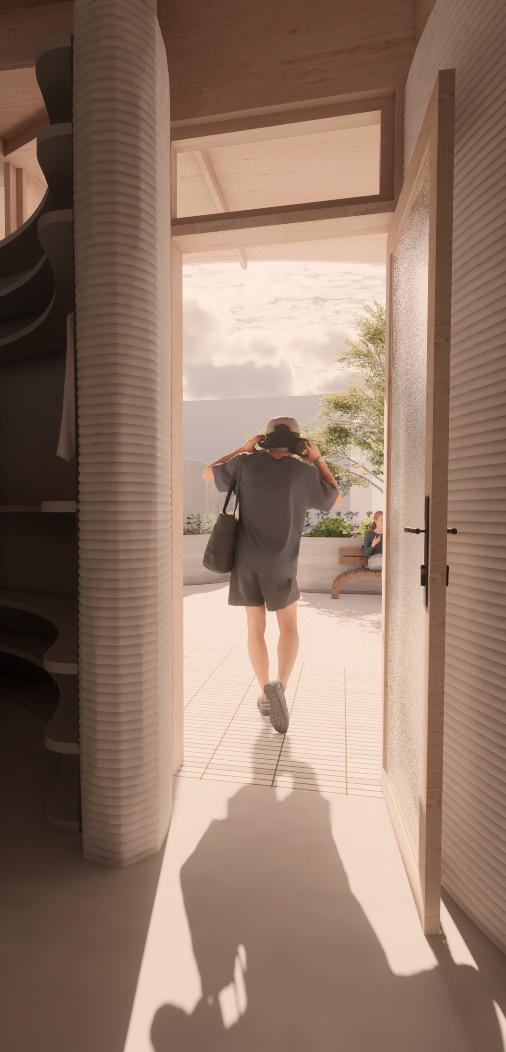

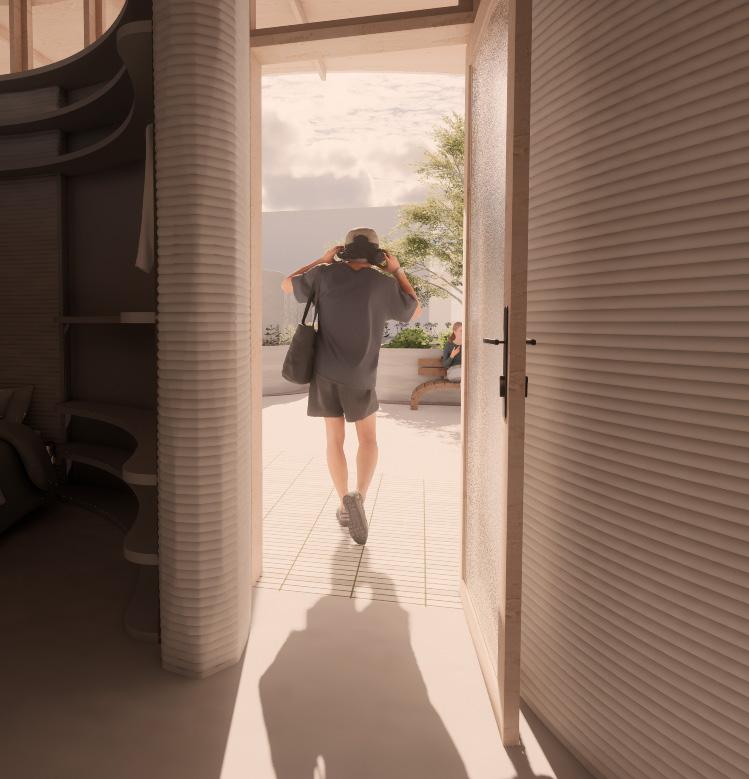

ENTRY | continuity of form

LAGOM

| 003

ARCH 484

| 28

| not too much, not too little

| MARY POLITES | Fall 2024

| 29

| KINGSPAN MICROHOME COMPETITION

Kingspan QuadCore KS1000 RW Insulated Roof Panel (Roof R Value = 38.0) Kingspan SolaTube 160 Tubular Skylight 10” Diameter Plywood / Flashing / 2”x 6” Air Cavity / WRB / Wood Siding

Roof System

Non-Structural Exposed Heavy Rafters, 2 x 4 at 4’ o.c.

Exposed Heavy Timber Rafters, 2 x 10 at 6’ o.c.

Support Arm Highline Type Gutter

2-3” 3D Printed Lavacrete Wall Open Cell Spray Foam Insulation (Wall R-Value = 31.0)

Wall System

Kingspan SlimLine Tank 2” Concrete Slab Compacted Pea Gravel 6” Slab-On-Grade Concrete Foundation SECTION | Scale 1/4”

Rigid Polyiso Insulation (R-Value = 30.0)

Floor System

LAGOM

| 003

ARCH 484

| 30

| not too much, not too little

| MARY POLITES | Fall 2024

| 31

| KINGSPAN MICROHOME COMPETITION

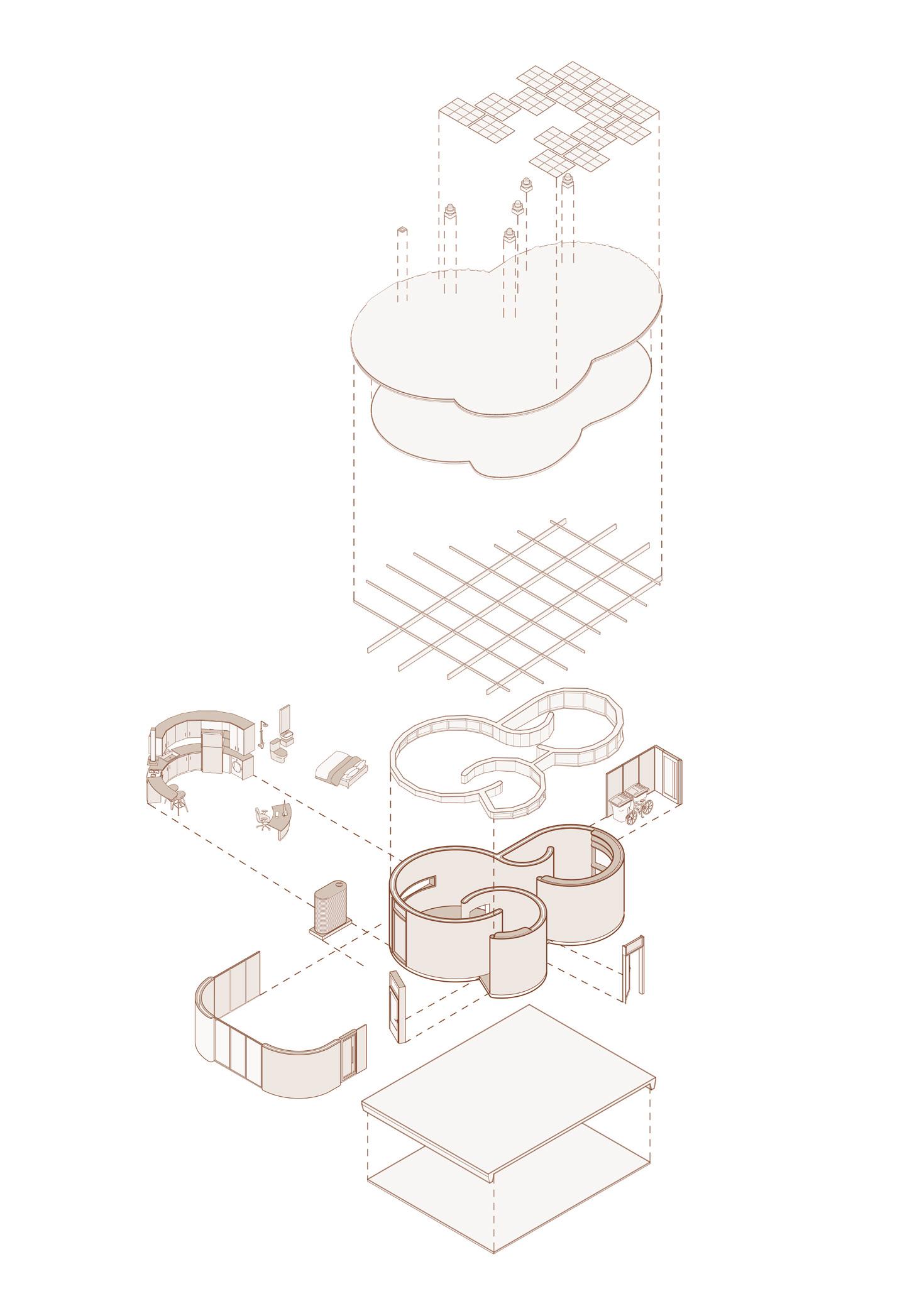

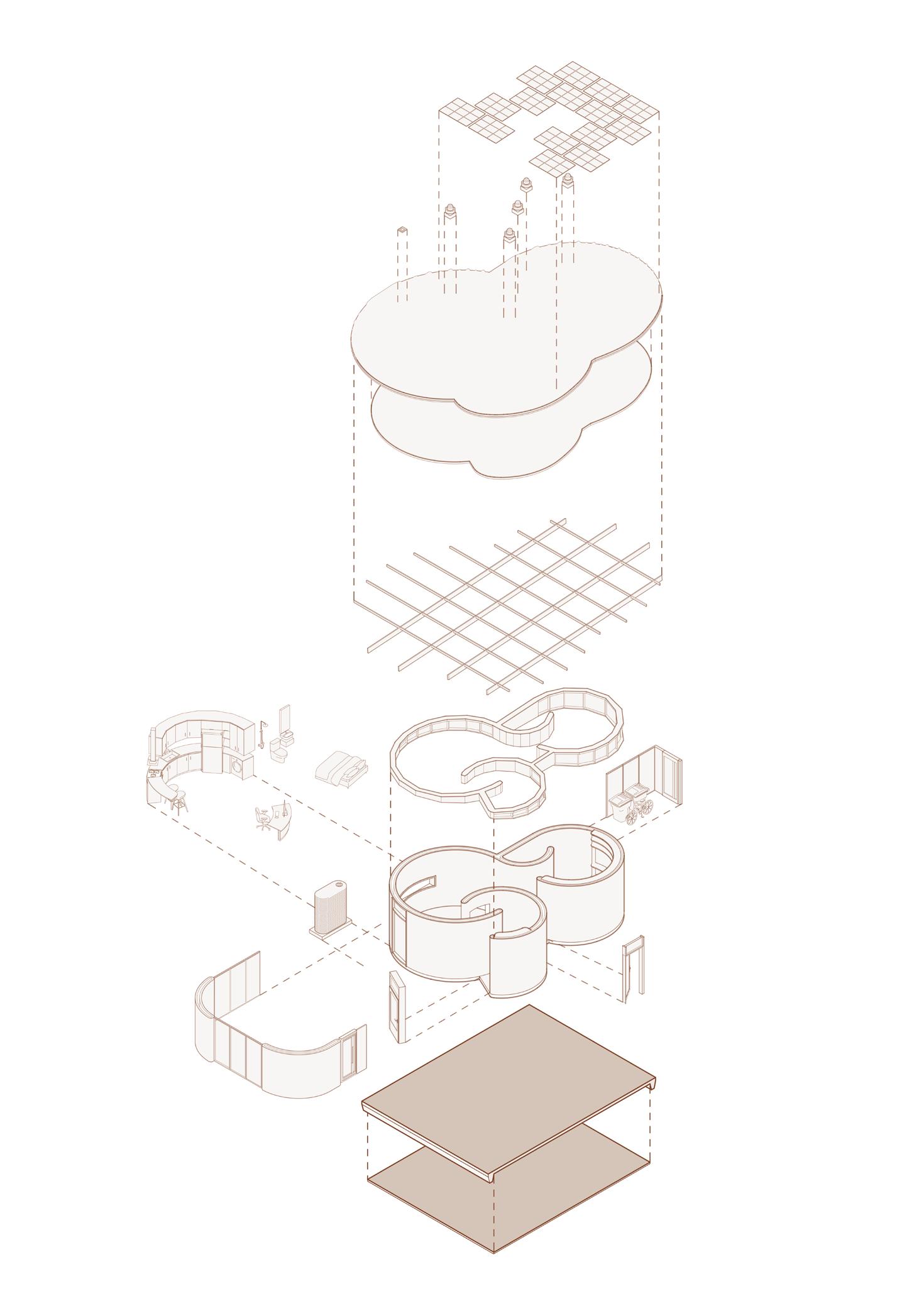

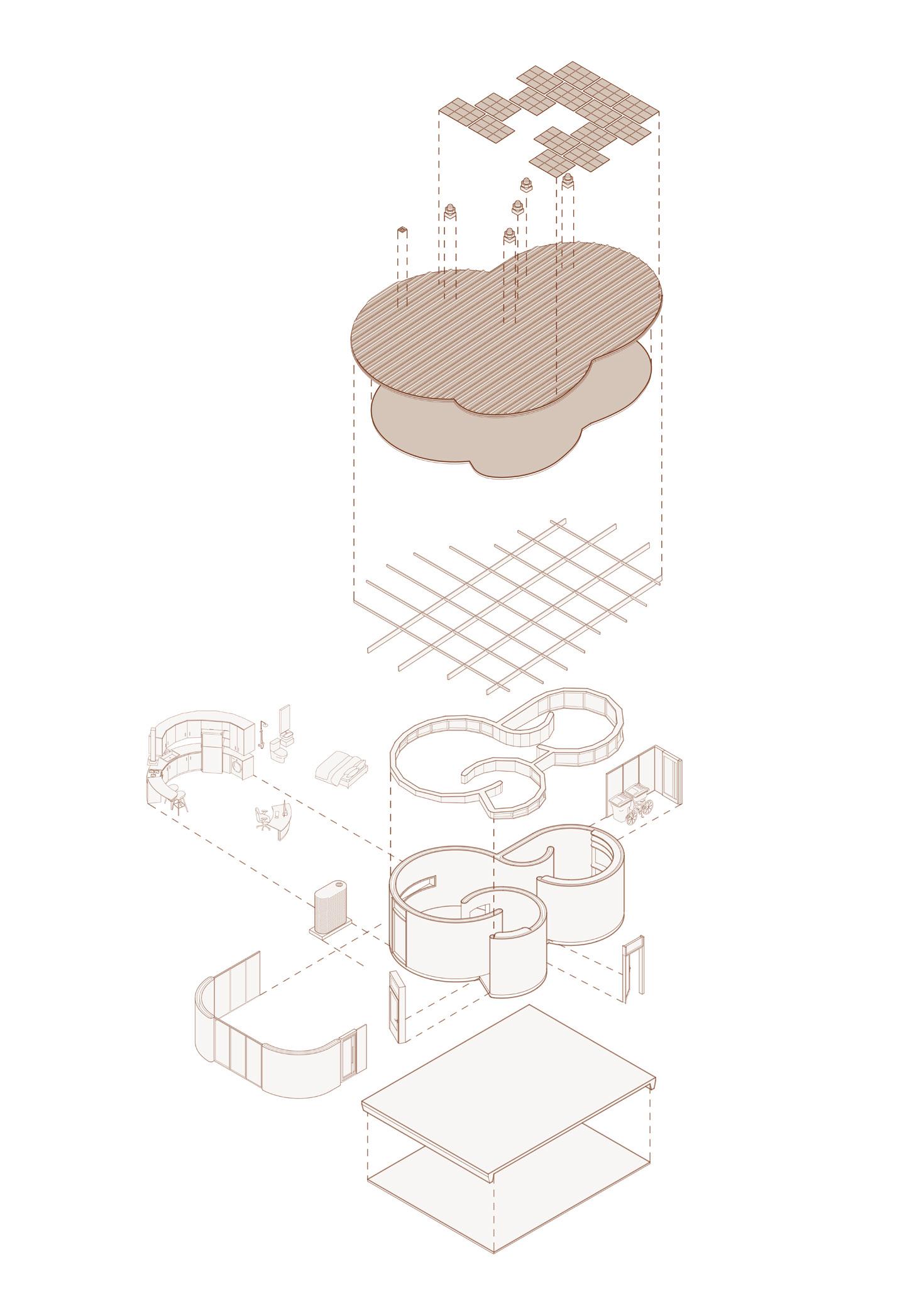

EXPLODED AXON | Foundation

6” Concrete Printing Base

4” Rigid Insulation

LAGOM

| 003

ARCH 484

| 32

| not too much, not too little

| MARY POLITES | Fall 2024

| 33

| KINGSPAN MICROHOME COMPETITION

EXPLODED AXON | Walls and Interior Furniture, Appliances, and Decoration

2-3” 3D Printed Lavacrete Wall Kingspan SlimLine Water Tank The 1,517 liter tank locally stores rainwater at each residential unit. Stored in a food grade polymer enclosure, this rainwater tank is connected to an integrated garden pump system where the water is used for on-site vertical and horizontal hydroponic farming.

The water can also be used locally at each unit for toilet flushing and, when appropriately filtered, for washing, bathing, and drinking.

Exterior Decking Privacy Screen

LAGOM

| 003

ARCH 484

| 34

| not too much, not too little

| MARY POLITES | Fall 2024

| 35

| KINGSPAN MICROHOME COMPETITION

EXPLODED AXON | Roof Framing

Non-structural Exposed Heavy Timber Rafters, 2 x 4 at 4’ o.c.

Exposed Heavy Timber Rafters, 2 x 8 at 6’ o.c.

Light Wood Framed Faceted Clerestory Windows

LAGOM

| 003

ARCH 484

| 36

| not too much, not too little

EXPLODED AXON | Roof

| MARY POLITES | Fall 2024

| 37

| KINGSPAN MICROHOME COMPETITION

583 sq. ft. of Solar Photovoltaic Panels Kingspan Solatube Tubular Daylighting

Kitchen Range Roof Ventilation

Kingspan Solatubes offer integrated natural daylight in the foyer, kitchen, bedroom, bathroom, and workspace. Unlike traditional skylights, these compact light tubes eliminate glare and reduce solar heat gain while still evenly diffusing 99.7% spectral reflectivity light into the space. To increase energy efficiency, internally integrated UV Solar panels collect energy during the day to illuminate LED lights after sundown.

Kingspan QuadCore KS1000RW Roof Panel | R-value 8 The rib seamed metal protected steel insulation roof panels offer air, water, sound and thermal protection all in one. The weathering coat ensures long-lasting finish that is resistant to chipping or rusting over time.

0.5” Plywood Sheathing Panel

LAGOM

| 003

ARCH 484

Underground Rainwater Storage Tank

Horizontal Hyrdoponic Farming

cultivating

SYSTEMS DIAGRAM

| 38

| not too much, not too little

Kingspan SlimLine Water Tank

Compact Electric Composting Water Heater Toilet

Kingspan Solatube

cooking

Solar Photo voltaic Panels (583 sq.ft.)

Electric MiniSplit Heating/ Cooling Unit

Solar Powered Water Pump

Vertical Hydroponic Farming

harvesting

1,000 Gallon Septic Tank

Agrivoltaic Panels

LAGOM

| 003

ARCH 484

| 40

| not too much, not too little

| MARY POLITES | Fall 2024

| 41

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

ARCH 484

| 42

| not too much, not too little

Creating a Global Ecosystem

3D PRINT MICROHOMES | addressing a global housing crisis 1.6 billion people globally lack adequete housing.

By 2030 this number will be 3 billion.

Unless... 96,000 houses are built per day.

3D printed homes are built 20 times faster than traditional construction micro-living offers unique afforable solutions for a wide variety of populations in need

OUR SITE | Lagom 5 homes, 270 sq-ft each, 10 residents imagine this multiplied... creating micro-ecosystems across cities and around the globe

| MARY POLITES | Fall 2024

| 43

| KINGSPAN MICROHOME COMPETITION

LAGOM

| 003

ARCH 484

| 44

| not too much, not too little

| MARY POLITES | Fall 2024

| 45

| KINGSPAN MICROHOME COMPETITION

Creating a Global Ecosystem

3D PRINT MICROHOMES | addressing a global housing crisis 1.6 billion people globally lack adequete housing.

By 2030 this number will be 3 billion.

Unless... 96,000 houses are built per day.

PRODUCTIVE LANDSCAPES | addressing a global food crisis

3D printed homes are built 20 times faster than traditional construction

2.8 billion people, 35% of the global population cannot afford a healthy diet.

micro-living offers unique afforable solutions for a wide variety of populations in need

23.5 million Americans live in food deserts.

OUR SITE | Lagom 5 homes, 270 sq-ft each, 10 residents imagine this multiplied... creating micro-ecosystems across cities and around the globe

urban farming increases senses of community cohesion and belonging lowers risk of cardiovascular disease, type 2 diabetes, obesity, and cancer

OUR SITE | Lagom total hydroponic farming area: 2,000 sq-ft total annual crop production: 20,000 - 50,000 lbs total annual consumption: 25,000 lbs total production surplus: 25,000 lbs

LAGOM

| 003

ARCH 484

| 46

| not too much, not too little

| MARY POLITES | Fall 2024

| 47

| KINGSPAN MICROHOME COMPETITION

Lagom not too much

[law-gom] | Swedish ; adverb, adjective

not too little

The Trunk | walls

The Canopy | roof

The Forest | site

The Ecosystem | community

Exploring the innovations of 3D print building technology as means of addressing a global housing crisis, Lagom embraces micro-living as a way of life. The Swedish principles of [law-gom] reject the ideals of consumerism by pursuing sustainable alternatives and balanced living. These principles extend from the home into the community through collaborative productive landscapes, minimalist design, and the thoughtful integration of the private and public realm. In addressing a housing crisis Lagom seeks to recognize other compounding global crises such as food insecurity and climate change, considering the opportunity for micro-living to confront these intersecting issues and re-imagine a better future.

Crown Shyness The phenomenon of “crown shyness” found in forest canopies was used to imagine how each micro unit comes together to form a cohesive, yet separate, whole.

Site Plan | Scale 1/32”

Plan | Scale 1/4”

go outside

socialize

grow

work | live

Roof System 1

Kingspan QuadCore KS1000 RW Insulated Roof Panel (Roof R Value = 38.0)

1

2

3

4

6

5

2

Kingspan SolaTube 160 Tubular Skylight 10” Diameter

3

Plywood / Flashing / 2”x 6” Air Cavity / WRB / Wood Siding

4

Non-Structural Exposed Heavy Rafters, 2 x 4 at 4’ o.c.

5

Exposed Heavy Timber Rafters, 2 x 10 at 6’ o.c.

6

Support Arm Highline Type Gutter

Wall System

7 8

7

2-3” 3D Printed Lavacrete Wall

8

Open Cell Spray Foam Insulation (Wall R Value = 31.0)

9

9

Floor System 10

2” Concrete Slab

11

Compacted Pea Gravel

12

6” Slab-On-Grade Concrete Foundation

13

Rigid Polyiso Insulation

Section | Scale 1/4” 13 12

11

10

Kingspan SlimLine Tank

(Floor R Value = 30.0)

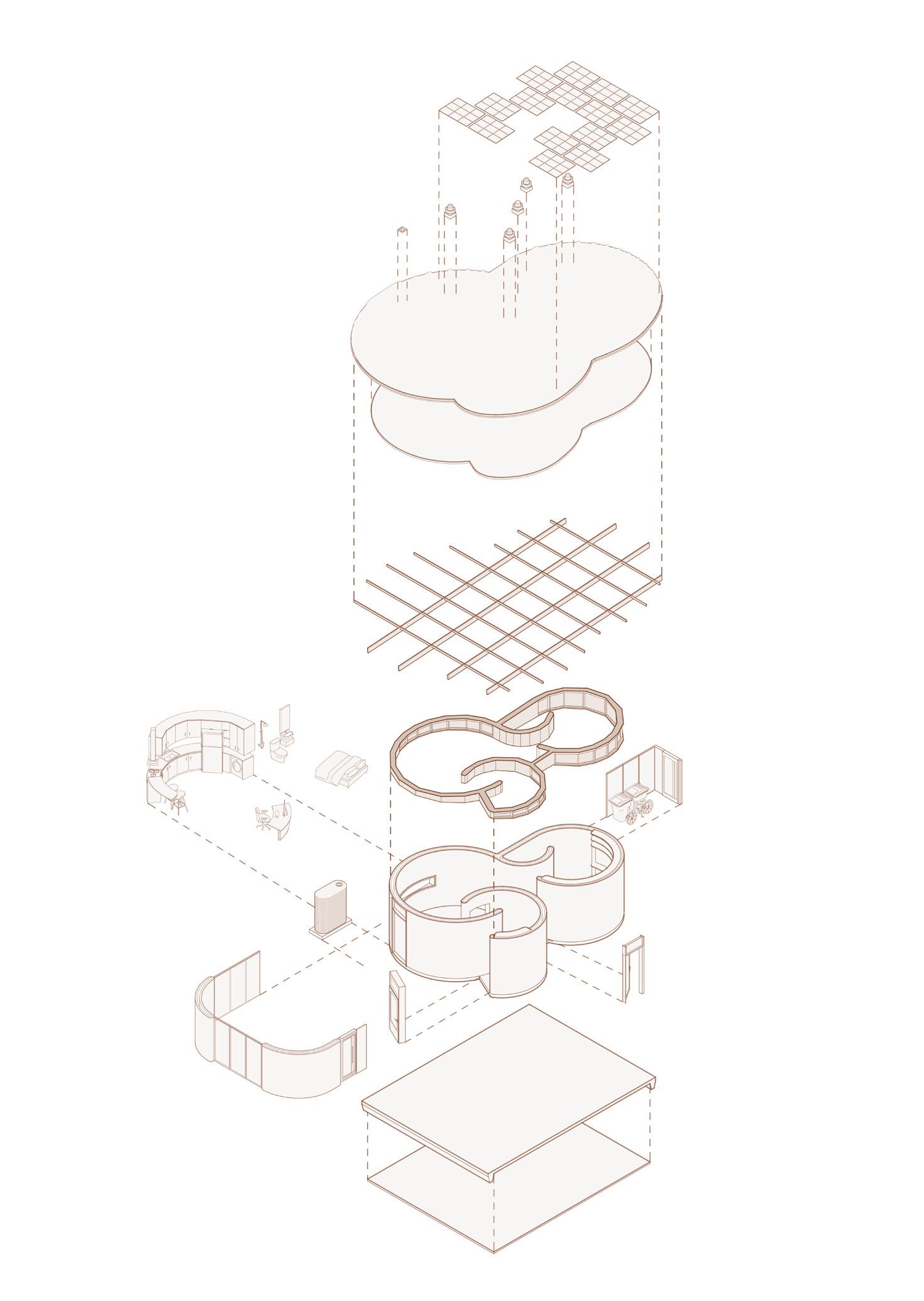

Exploded Axon 583 sq. ft. of Solar Photo-voltaic Panels

Kingspan Solatube Daylighting System

Roof System

Kitchen Range Roof Ventilation

Kingspan Solatube Tubular Daylighting Kingspan Solatubes offer integrated natural daylight in the foyer, kitchen, bedroom, bathroom, and workspace. The compact light tubes eliminate glare and reduce solar heat gain while diffusing 99.7% spectral reflectivity light into the space. Integrated UV Solar panels collect energy during the day to illuminate LED lights at night.

Kingspan QuadCore KS1000RW Roof Panel, R-value 8

0.5” Plywood Sheathing Panel

Non-structural Exposed Heavy Timber Rafters, 2 x 4 at 4’ o.c.

Exposed Heavy Timber Rafters, 2 x 8 at 6’ o.c.

Kingspan SlimLine Water Tank The 1,517 liter tank stores rainwater at each residential unit in a food grade polymer enclosure. Each tank is connected to an integrated garden pump system where the water is used for onsite vertical and horizontal hydroponic farming. The water can also be used at each unit for toilet flushing and, when appropriately filtered, for washing, bathing, and drinking.

Furniture, Appliances, and Decoration

2-3” 3D Printed Lavacrete Wall 1,517 Liter Kingspan SlimLine Water Tank with Integrated Garden Pump System

Floor System

Exterior Decking Privacy Screen 6” Concrete Printing Base

4” Rigid Insulation

Kingspan QuadCore KS1000RW Roof Panel The rib seamed, metal protected, steel insulated, roof panels offer air, water, sound, and thermal protection all in one. The weathering coat ensures long-lasting finish that is resistant to chipping or rusting over time.

Composting Toilet

Kingspan SlimLine Water Tank

Underground Rainwater Storage Tank

Kingspan Solatube

Horizontal Hydroponic Farming

cultivating

Compact Electric Water Heater

Electric Mini-Split Heating/Cooling Unit

cooking

1. GLOBAL PROBLEM productive landscapes | addressing a global food crisis

2.8 billion people, 35% percent of the global population cannot afford a healthy diet 23.5 million Americans live in food deserts 1 in 5 Eugene, OR residents are food insecure

Solar photo-voltaic Panels (583 sq-ft.)

Solar Powered Water Pump

Vertical Hydroponic Farming

Agrivoltaic Panels

1,000 Gallon Septic Tank

harvesting

2. LOCAL STRATEGIES

3. RESULTS

2,000 sq-ft of Hydroponic Farming

total crops annually: 20,000 - 50,000 lbs total consumption annually: 25,000 lbs total production surplus: 25,000 lbs

leafy greens: 40,000 - 50,000 lbs herbs: 8,000 - 12,000 lbs fruit bearing crops: 20,000 - 30,000 lbs

~ 20,000 - 50,000 lbs of crops annually

average consumption: 1,700 - 2,500 lbs of crops/year 2 people per unit + 5 units on site = 10 consumers/year 10 residents x 2,500 lbs = 25,000 lbs of crops consumed/year

Systems Diagram | NTS
