Echo Haven

ECHO HAVEN MICROHOME STUDIO FALL 2024 Tusu Mahmud & Lexi Moidel

MICROHOME STUDIO | FALL 2024

| ECHO HAVEN

INTRODUCTION The US military has a long history of neglecting the needs of veterans who have served in combat or remote outposts. Many of these veterans leave service with mental health issues that are often overlooked by the government. At Echo Village, veterans who are too young to retire but too old for active duty have a place to recover and reflect on their experiences.

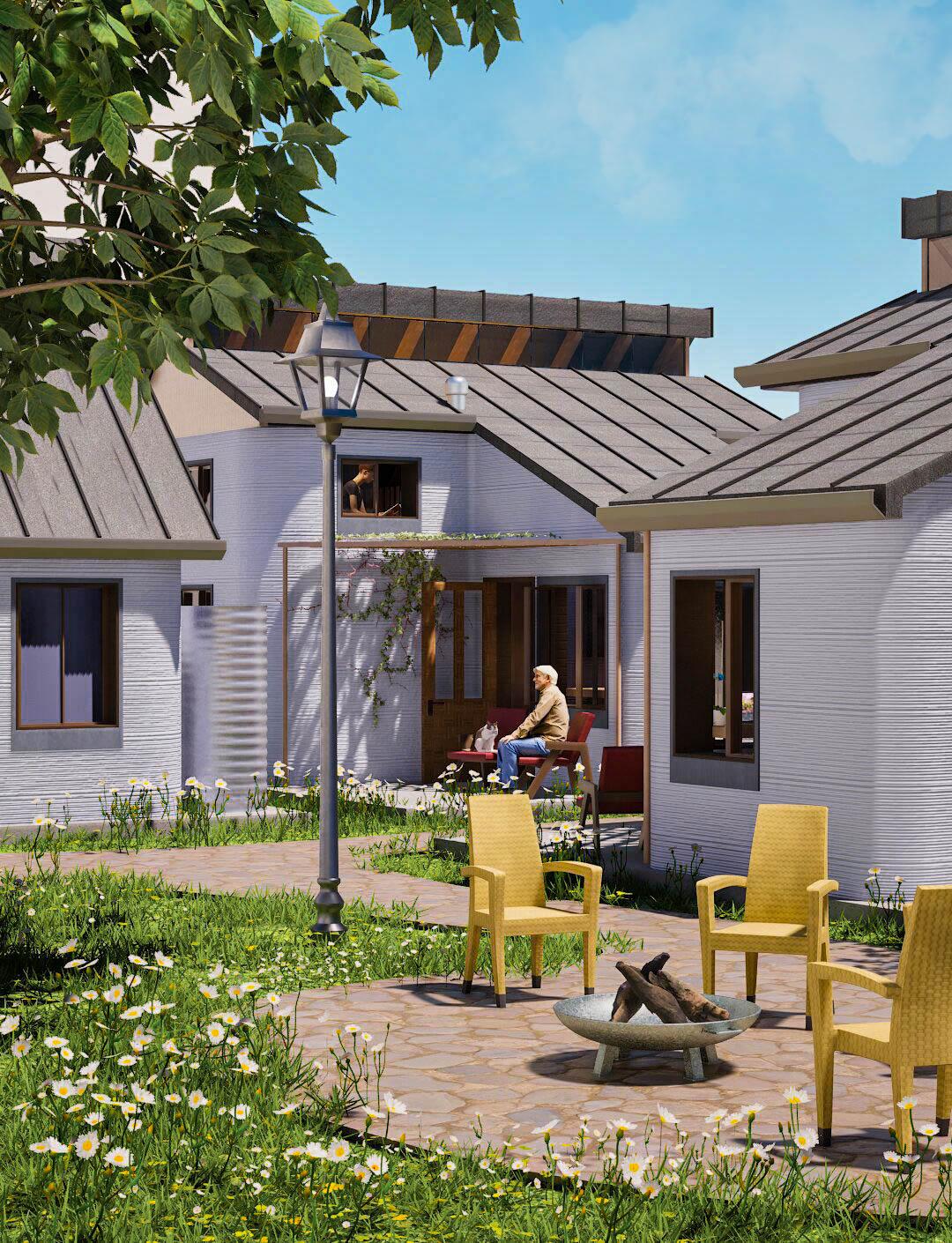

Located in Eugene, Oregon, the property features six micro-housing units connected by a shared greenspace. This close-knit community prioritizes mental healthcare through a balance of shared community spaces and private retreats.

STANFORD SMITH

The construction of the micro-housing units utilizes 3D-printed lavacrete for the structure, topped with Kingspan’s Quadcore LEC Insulated roof panels and 160 Tubular Solatube skylights. Each unit also incorporates Kingspan’s Rainwater Harvesting Slimline Tank, enabling rainwater collection to help offset water costs.

These micro-housing units are designed with sustainable systems to ensure they are both energy-efficient and cost-effective, addressing the financial challenges many veterans face while providing the support they need.

CHLOE AN-SMITH

| ECHO HAVEN

DIAGRAMS

MICROHOME STUDIO | FALL 2024

| ECHO HAVEN

DIAGRAMS

MICROHOME STUDIO | FALL 2024

| ECHO HAVEN

DIAGRAMS

MICROHOME STUDIO | FALL 2024

| ECHO HAVEN

DIAGRAMS

MICROHOME STUDIO | FALL 2024

| ECHO HAVEN

DIAGRAMS

MICROHOME STUDIO | FALL 2024

| ECHO HAVEN

DIAGRAMS

MICROHOME STUDIO | FALL 2024

| ECHO HAVEN

MICROHOME STUDIO | FALL 2024

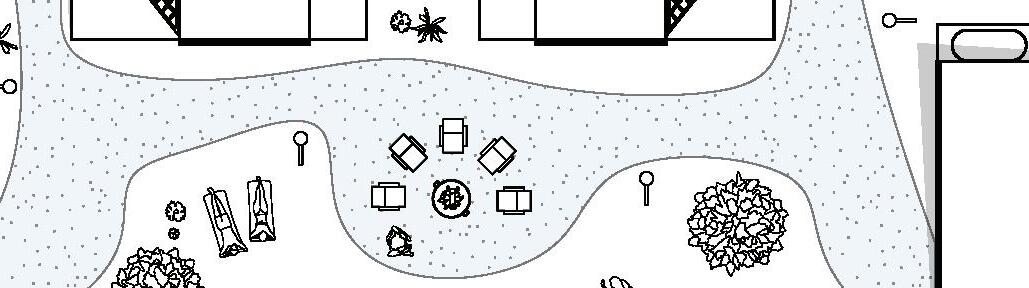

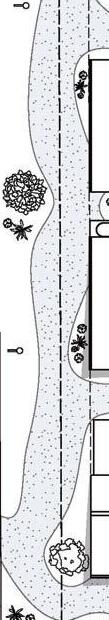

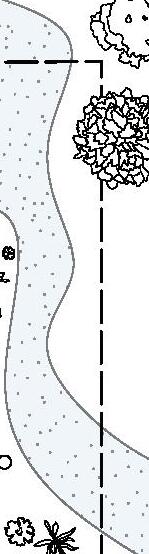

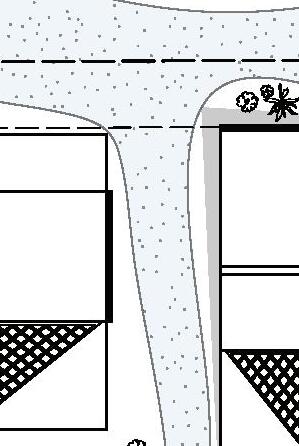

SITE PLAN 651 E 14th Ave

Site Boundary Setback Line

East 13th Alley

East 14th Avenue

West University Park

Hilyard Street

Parking Garage

| ECHO HAVEN

MICROHOME STUDIO | FALL 2024

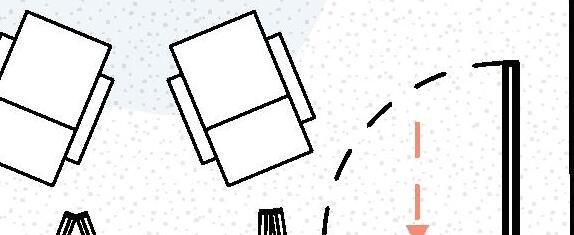

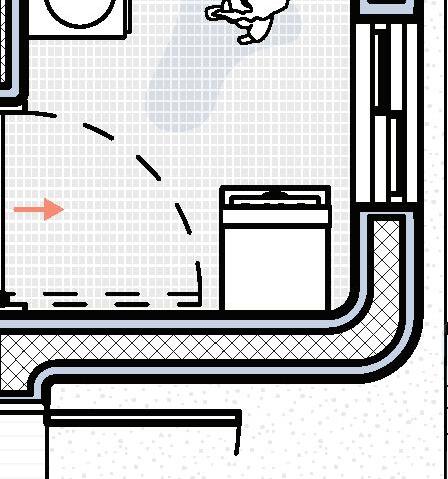

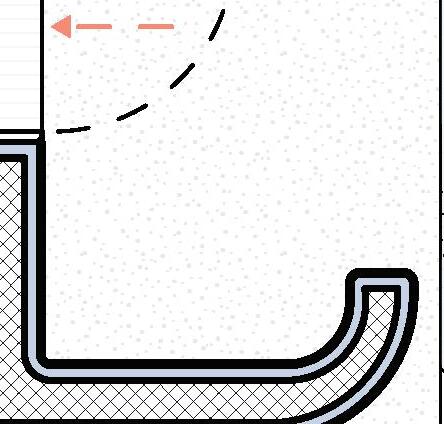

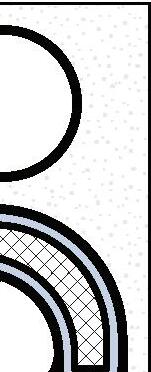

SITE PLAN

Living Space

Open to Below

Kitchen

Loft

Bathroom

Primary Bedroom

GROUND FLOOR

LOFT

| ECHO HAVEN

MICROHOME STUDIO | FALL 2024

BUILT-IN STORAGE

LIVING ROOM

KITCHEN Douglas Fir Wood

”

5/8

Douglas Fir Wood

Chrome Handles

Chrome Handles

Open to Below

3’-3”

7’-0”

9’0

7’8-1/4”

”

5/8

9’0

LOFT/BEDROOM

Cotton Upholstry Cushions

Marble

Douglas Fir Wood

L fftt Loft

7’8-1/4”

”

Douglas Fir Wood

8”

4’-

Douglas Fir Wood

3’-3”

2’-6”

7’5-1/8”

4’

1/2

9’0

8”

4’-

-7”

Chrome Handles

LOFT

| ECHO HAVEN

MICROHOME STUDIO | FALL 2024

SUSTAINABILITY DIAGRAM 1 2

1 KINGSPAN’S 160 Tubular Solatube Acts as a skylight Allows for sunlight to go to rooms with interior ceiling Channeled through wall into primary bedroom

2 72-Cell Solar Panels 3.25 ft x 6.42 ft Angle changes depending on sun height 1,971 kWh/year energy production 19.7% of total energy consumption

3 KINGSPAN’S

3

Quadcore LEC Insulated Roof Panels Total thickness 133.35 mm (5.25 in) 0.17 W/M2k U-Value 11.55 kg/m^2 Wight

4 KINGSPAN’S Rainwater Harvesting Slimline Tank 1276.44 sqft roof area Rainwater collected through gutter Yearly rainfall between 40” and 50” Holds 528.34 gallons (2000 litres) Can collect ~6,000 gallons annually

4

5 Power Kit Console 6 Radiant Flooring Allows for more evenly distributed heating Only on ground floor

7 Water Filtration System 5

8 Septic Tank

6

7

8 1 KINGSPAN’S 160 Tubular Solatube Acts as a skylight Allows for sunlight to go to rooms with interior ceiling Channeled through wall into primary bedroom

| ECHO HAVEN

MICROHOME STUDIO | FALL 2024

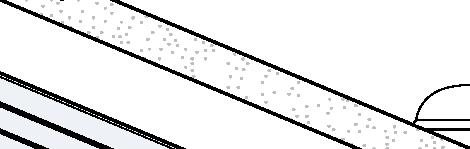

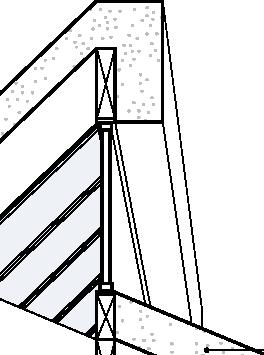

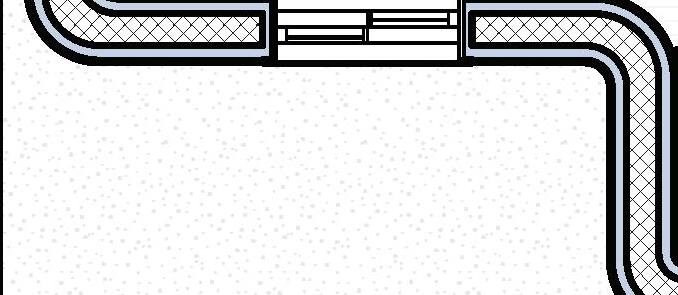

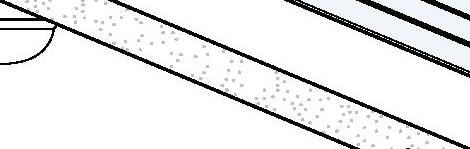

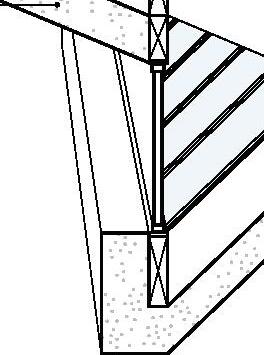

SECTION PERSPECTIVE

Exterior Walls

R32 Celloluse 8”

Foundation

R15

Wood Flooring

Insulated Panels 6”

R8.33

Celloluse 8”

R4

Exterior Walls

R32 Celloluse 8”

R4

Foundation

R15

R38

Concrete Slab 6”

R1

Extruded Polystyrene 2”

R5

Concrete Slab 6”

R1

Extruded Polystyrene 2”

R5

KINGSPAN’S Quadcore LEC Insulated Roof Panels

Electrical Heating

Roof

R4

Celloluse Insulation

KINGSPAN’S 160 Tubular Solatube

KINGSPAN’S Acoustic Ceiling Panel

ICON’S Lavacrete Layers

Timber Rafters

Celloluse Insulation

Top Plate

Gutter

Bathroom B Bathroo hro roo o

Kitc itc chen e

Primary ary Bedroom Bedroo Bed B o

Patio Concrete Slab Gravel & Dirt Wood Flooring Electrical Heating

Concrete Slab

Vapor Sealant

Rigid Insulation

Rigid Insulation

Earth

| ECHO HAVEN

MICROHOME STUDIO | FALL 2024

EXPLODED AXONOMETRIC

Glazed Skylight Strip

Each microhome is topped with local Douglas Fir rafters that holds up the Kingspan roof including an opening that spans the full roof.

KINGSPAN’S 160 Tubular Solatube

This feature allows sunlight bathe the top of the room in different times of the day, creating unique ambience inside the home.

KINGSPAN’S Quadcore LEC Insulated Roof Panels

Douglas Fir Rafters 2x8

Loft Floor Wooden Built-in Closet, Shelf & Ladder

ICON’S Lavacrete Structure

KINGSPAN’S Rainwater Harvesting Slimline Tank

Wooden Pergola

The homes also include a small patio covered with an angled, sharp wooden pergola that contrasts the smooth curves of the lavacrete walls. This aspect was included with the intentions of encouraging community engagement as well as

an opportunity for the residents to show their personalities through their patios.

For instance, many veterans get into gardening after their service so they can do that in their cozy patio.

| ECHO HAVEN

INTERIOR PERSPECTIVES

MICROHOME STUDIO | FALL 2024

| ECHO HAVEN

INTERIOR PERSPECTIVES

MICROHOME STUDIO | FALL 2024

| ECHO HAVEN

MICROHOME STUDIO | FALL 2024

SITE MODEL

SCALE: 1/8” = 1’-0”

| ECHO HAVEN

MICROHOME STUDIO | FALL 2024

MODEL

SCALE: 1/2” = 1’-0”

| ECHO HAVEN

MODEL

MARY POLITES | MICROHOME STUDIO | FALL 2024

Echo Haven Pro v i d es p ea c e f ro m a l l t he nois e

The micro-housing community in Eugene, Oregon reflects a commitment to helping the long-overlooked struggles of middle-aged US military veterans, specifically those who have been in combat or stationed at an outpost.

These people suffer from depression (20%), PTSD (2-17%), anxiety (7.9%), and qualify as low income (1.6 million veterans as of 2019).

To assist with this reality, the property features six micro-housing units interconnected by a shared greenspace which fosters a balance between community connection and personal privacy to support mental health recovery.

The units are sustainably built with 3D-printed lavacrete walls, with Kingspan Quadcore LEC Insulated roof panels and 160 Tubular Solatubes above. Additionally, rainwater is collected using Kingspan’s Rainwater Harvesting Slimline Tank.

These additions allow reduced water, energy, heating, and cooling costs for all residents.

Parking Garage

Basic Shape

Wall Height Variation

Roof Form

Groupings

Orientation Variation

Details

The Dough Co

East 13th Alley

Open to Below

Loft

Site Boundary Setback Line

Hilyard Street

Loft Space

651 E 14th Ave

Living Space

Hilyard House Apartments Kitchen

Bathroom

Primary Bedroom

East 14th Avenue

West University Park

Kitchen N

Scale: 1’-0” = 1/24”

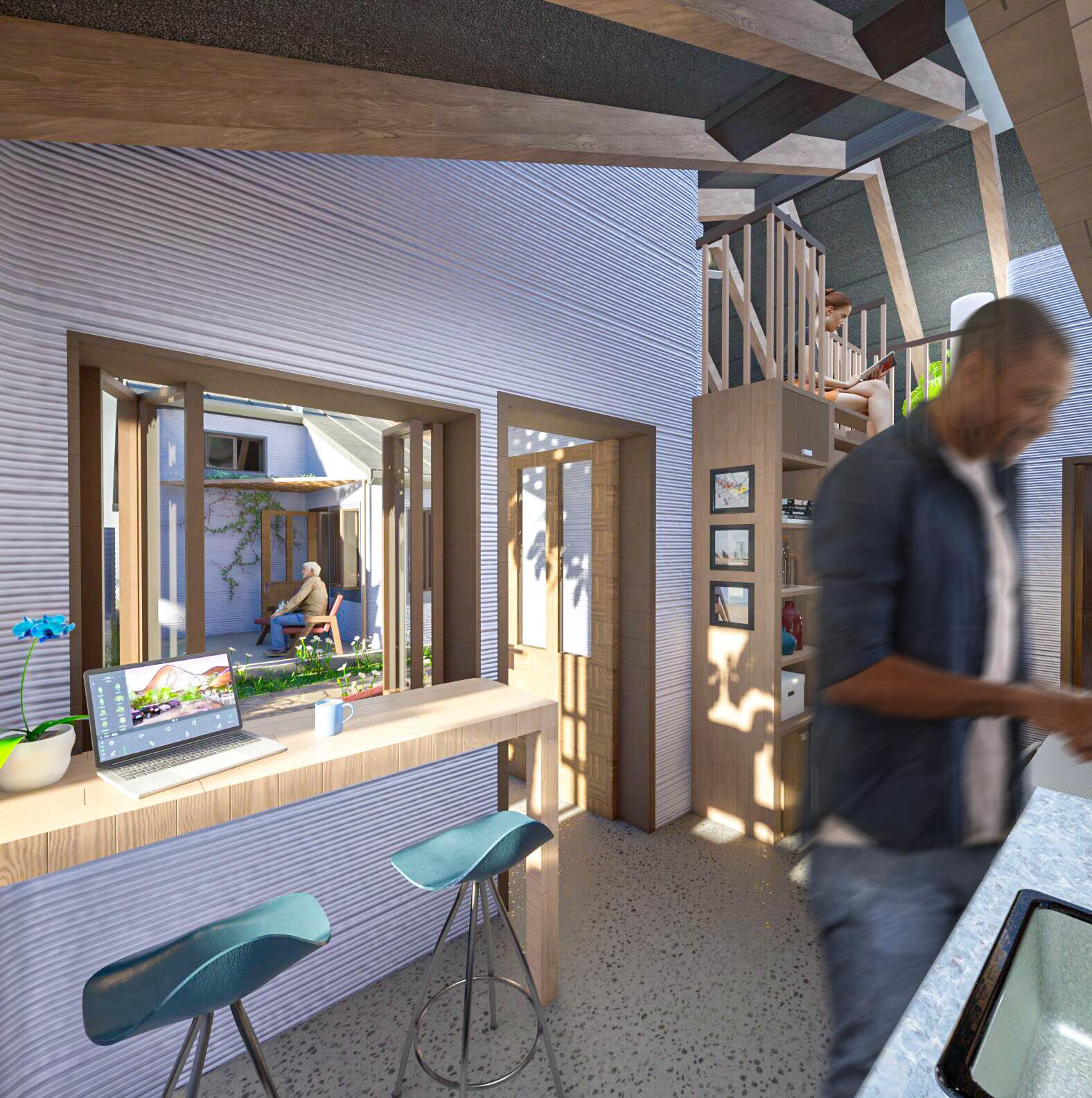

Activating indoor/outdoor environment in the kitchen for some afternoon cooking.

Ground Floor

N

Scale: 1’-0” = 1/5”

Exploded Axonometric

Sustainability Diagram

Furniture Details 205 sq ft of total storage space

Glazed Skylight Strip

8”

Douglas Fir Wood

-5/

9’0

Chrome Handles

7’-0”

7”

Douglas Fir Wood

2”

-1/

9’0 Cotton Upholstry Cushions

7’8-1/4”

KINGSPAN’S Quadcore LEC Insulated Roof Panels

Douglas Fir Wood

Marble

Chrome Handles

Douglas Fir Wood

Section Detail

3

Roof Exterior Walls

Douglas Fir Rafters 2x8

Foundation

Wood Flooring

Celloluse Insulation

R8.33

Celloluse 8”

R4

R32 Celloluse 8”

R4

R15

Concrete Slab 6”

R1

Extruded Polystyrene 2”

R5

KINGSPAN’S 160 Tubular Solatube

Loft Floor KINGSPAN’S Acoustic Ceiling Panel

Wooden Built-in Closet, Shelf & Ladder

Insulated Panels 6”

R38

KINGSPAN’S Quadcore LEC Insulated Roof Panels

Electrical Heating

4

8”

4’-

4’-

3’-3”

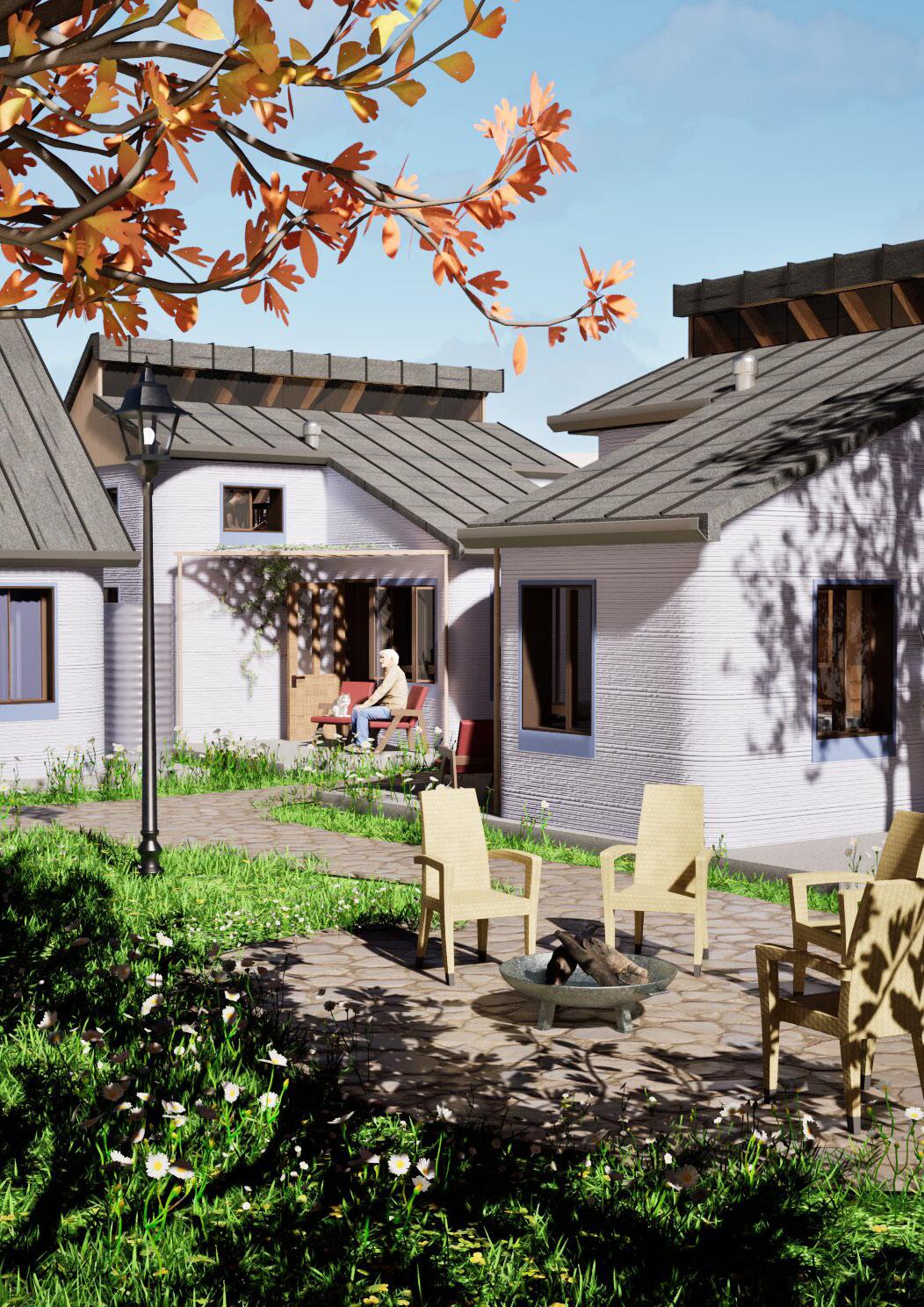

Each micro-housing unit has a primary bedroom and a loft space that can either be used as a second bedroom, like in Stanford and Chloe’s set up, or storage. Each unit also includes a full kitchen, a living space, a bathroom, and a patio with a covering pergola. The community itself is anchored by a central fire pit where gatherings can take place.

8”

4’-

7’5-1/8”

KINGSPAN’S 160 Tubular Solatube

7’8-1/4”

9’0

1 2

Chloe An-Smith

Chrome Handles

Douglas Fir Wood

8” -5/

3’-3”

As a whole, the community is not just designed for veterans, but also the family and caregivers that look after them. Our residents Stanford and Chloe, a father-daughter duo that lives together, would be an example. Stanford is a 55 year-old military veteran who needs help with his mental health. Chloe is a semi-permanent resident in her mid-20s who looks after her father while she’s off from her job as a flight attendant.

2’-6”

Stanford Smith

ICON’S Lavacrete Layers

Timber Rafters

Celloluse Insulation

Top Plate

Gutter

ICON’S Lavacrete Structure

5

Bathroom B Bathroo hro roo o

Kitc itc chen e

Primary ary B Bedroo Bedroom Bed o

7

6

8

KINGSPAN’S Rainwater Harvesting Slimline Tank

1 KINGSPAN’S 160 Tubular Solatube Acts as a skylight Allows for sunlight to go to rooms with interior ceiling Channeled through wall into primary bedroom

Concrete Foundation Patio Concrete Slab

4 KINGSPAN’S 2 72-Cell Solar Panels 3.25 ft x 6.42 ft Angle changes depending on sun height 1,971 kWh/year energy production 19.7% of total energy consumption

Gravel & Dirt

Rainwater Harvesting Slimline Tank

Wood Flooring

1276.44 sqft roof area Rainwater collected through gutter Yearly rainfall between 40” and 50” Holds 528.34 gallons (2000 litres) Can collect ~6,000 gallons annually

Wooden Pergola

3 KINGSPAN’S Quadcore LEC

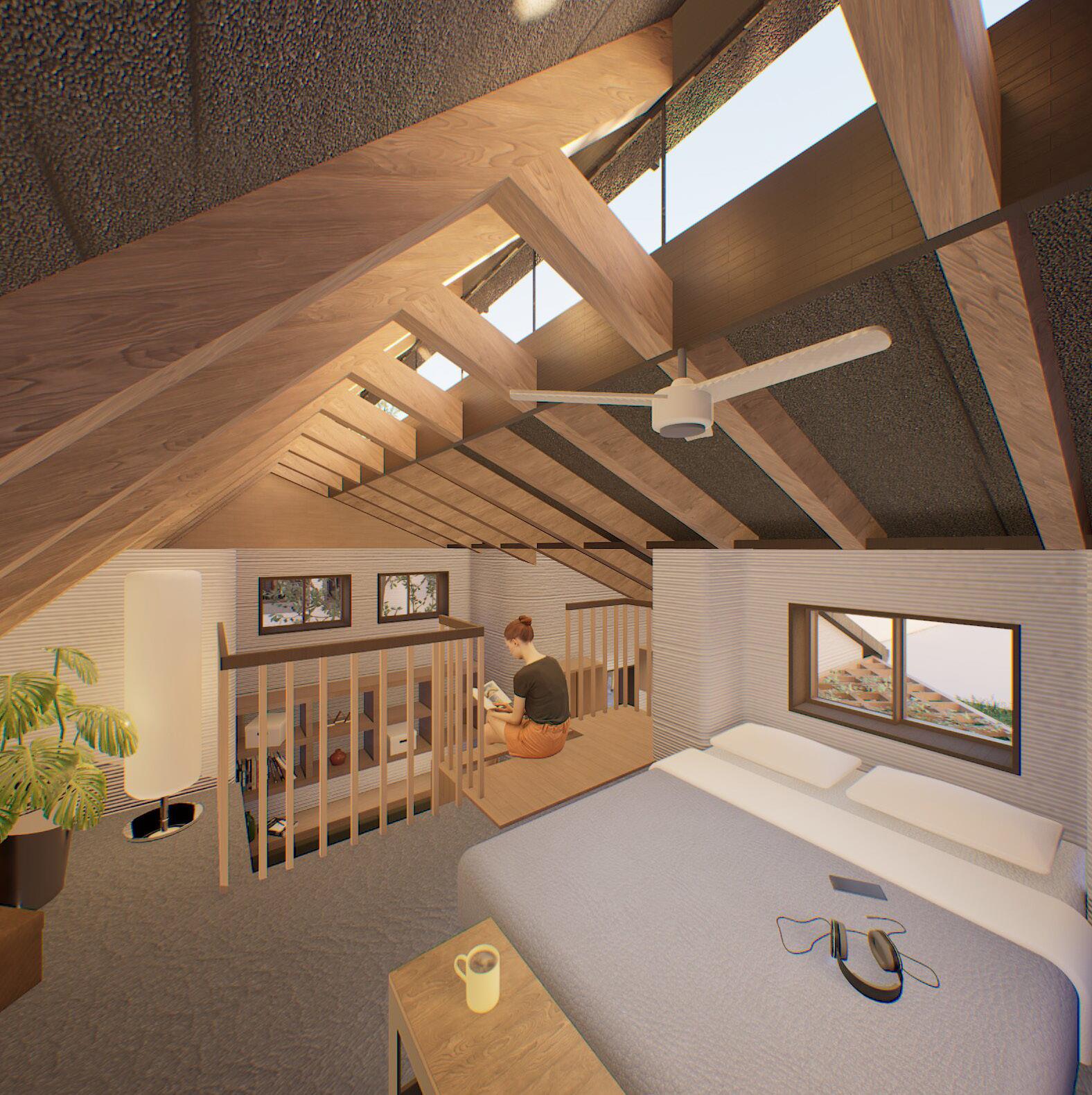

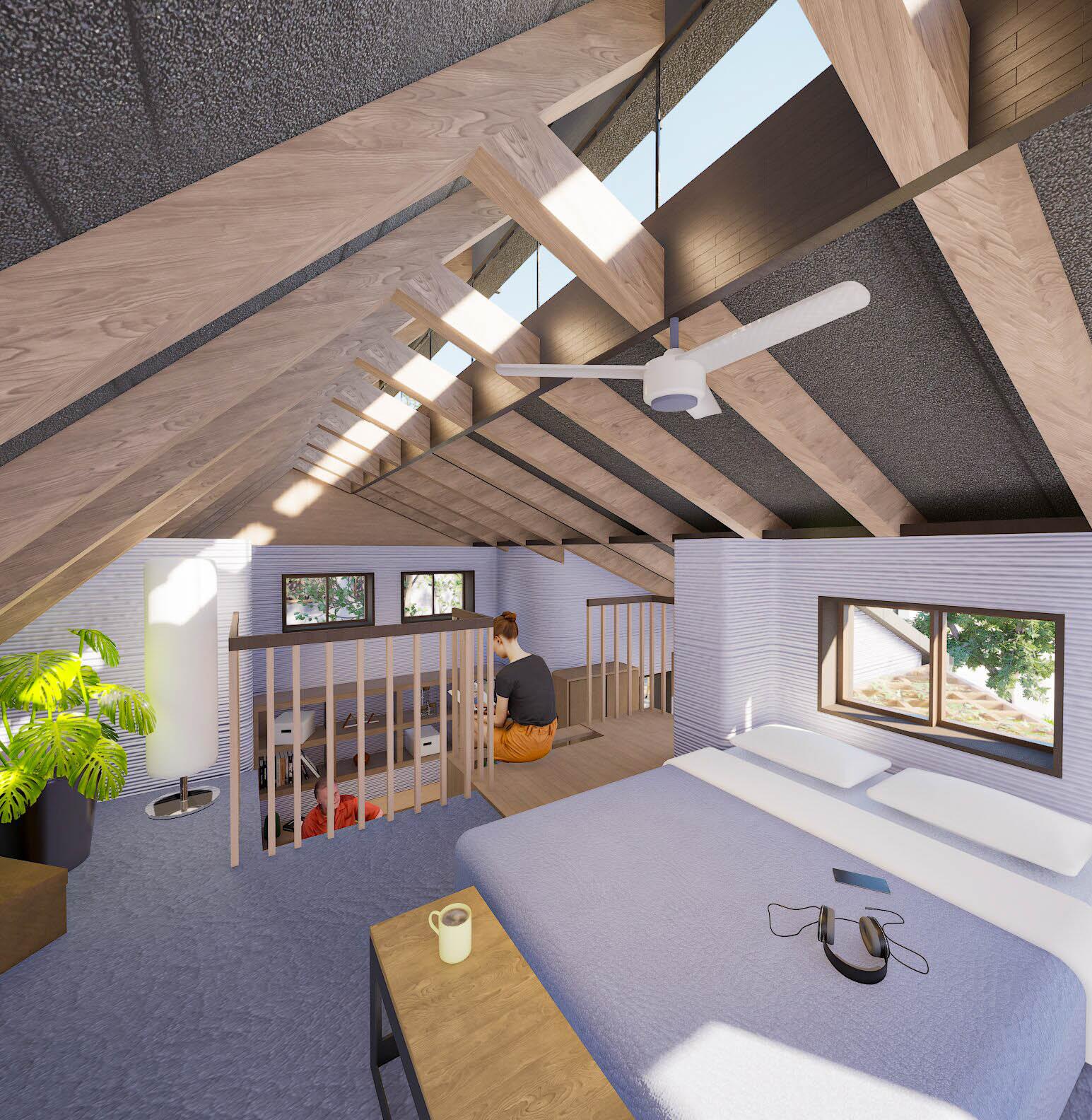

Morning sun beaming onto the loft through the skylight strip.

Loft

Insulated Roof Panels Total thickness 133.35 mm (5.25 in) 0.17 W/M2k U-Value 11.55 kg/m^2 Wight

5 Power Kit Console

7 Water Filtration System

6 Radiant Flooring

8 Septic Tank

Allows for more evenly distributed heating Only on ground floor

Electrical Heating

Concrete Slab

Vapor Sealant

Rigid Insulation

Rigid Insulation

Earth

Echo Haven P rovid e s p e a ce f rom all the noi se

The micro-housing community in Eugene, Oregon reflects a commitment to helping the long-overlooked struggles of middle-aged US military veterans, specifically those who have been in combat or stationed at an outpost.

These people suffer from depression (20%), PTSD (2-17%), anxiety (7.9%), and qualify as low income (1.6 million veterans as of 2019).

To assist with this reality, the property features six micro-housing units interconnected by a shared greenspace which fosters a balance between community connection and personal privacy to support mental health recovery.

The units are sustainably built with 3D-printed lavacrete walls, with Kingspan Quadcore LEC Insulated roof panels and 160 Tubular Solatubes above. Additionally, rainwater is collected using Kingspan’s Rainwater Harvesting Slimline Tank.

These additions allow reduced water, energy, heating, and cooling costs for all residents.

Parking Garage

The Dough Co

East 13th Alley

Site Boundary

Hilyard Street

Setback Line

651 E 14th Ave

Hilyard House Apartments

East 14th Avenue West University Park

Scale: 1’-0” = 1/24”

N

Basic Shape

Wall Height Variation

Roof Form

Groupings

Orientation Variation

Details

Open to Below

Loft

Loft Space

Living Space

Kitchen

Bathroom

Primary Bedroom

Kitchen

Activating indoor/outdoor environment in the kitchen for some afternoon cooking.

Ground Floor

Scale: 1’-0” = 1/5”

N

Stanford Smith

Chloe An-Smith

As a whole, the community is not just designed for veterans, but also the family and caregivers that look after them. Our residents Stanford and Chloe, a father-daughter duo that lives together, would be an example. Stanford is a 55 year-old military veteran who needs help with his mental health. Chloe is a semi-permanent resident in her mid-20s who looks after her father while she’s off from her job as a flight attendant.

Sustainability Diagram

1 2

Each micro-housing unit has a primary bedroom and a loft space that can either be used as a second bedroom, like in Stanford and Chloe’s set up, or storage. Each unit also includes a full kitchen, a living space, a bathroom, and a patio with a covering pergola. The community itself is anchored by a central fire pit where gatherings can take place.

3

4

5 7

6

8 1 KINGSPAN’S

160 Tubular Solatube

Acts as a skylight Allows for sunlight to go to rooms with interior ceiling Channeled through wall into primary bedroom

2 72-Cell Solar Panels

3.25 ft x 6.42 ft Angle changes depending on sun height 1,971 kWh/year energy production 19.7% of total energy consumption

3 KINGSPAN’S

Quadcore LEC

Morning sun beaming onto the loft through the skylight strip.

Loft

Insulated Roof Panels Total thickness 133.35 mm (5.25 in) 0.17 W/M2k U-Value 11.55 kg/m^2 Wight

4 KINGSPAN’S

Rainwater Harvesting Slimline Tank 1276.44 sqft roof area Rainwater collected through gutter Yearly rainfall between 40” and 50” Holds 528.34 gallons (2000 litres) Can collect ~6,000 gallons annually

5 Power Kit Console

7 Water Filtration System

6 Radiant Flooring

8 Septic Tank

Allows for more evenly distributed heating Only on ground floor

Furniture Details Glazed Skylight Strip

205 sq ft of total storage space

Chrome Handles

Douglas Fir Wood

8”

5/ ’0-

8”

9

Douglas Fir Wood

5/ ’0-

9

Chrome Handles

7’-0”

8”

3’-3” Cotton Upholstry Cushions

7”

7’8-1/4”

7’5-1/8”

Douglas Fir Wood

”

Douglas Fir Wood

Marble

Chrome Handles

Douglas Fir Wood

Section Detail

Insulated Panels 6”

R8.33

Celloluse 8”

R4

Exterior Walls

R32 Celloluse 8”

R4

Foundation

R15

Roof

Douglas Fir Rafters 2x8

Wood Flooring

Celloluse Insulation

Concrete Slab 6”

R1

Extruded Polystyrene 2”

R5

KINGSPAN’S 160 Tubular Solatube

KINGSPAN’S Acoustic Ceiling Panel

Wooden Built-in Closet, Shelf & Ladder

R38

KINGSPAN’S Quadcore LEC Insulated Roof Panels

Electrical Heating

Loft Floor

4’-

4’-

1/2

9’0

8”

4’-

3’-3”

KINGSPAN’S Quadcore LEC Insulated Roof Panels

2’-6”

KINGSPAN’S 160 Tubular Solatube

7’8-1/4”

Exploded Axonometric

ICON’S Lavacrete Layers

Timber Rafters

Celloluse Insulation

Top Plate Gutter

ICON’S Lavacrete Structure Bathroom B Bathroo hro roo o

Kitc itc chen e

Primary ary Bed Bedroom B Bedroo o

KINGSPAN’S Rainwater Harvesting Slimline Tank

Concrete Foundation

Patio Concrete Slab Gravel & Dirt Wood Flooring

Wooden Pergola

Electrical Heating

Concrete Slab

Vapor Sealant

Rigid Insulation

Rigid Insulation

Earth
