Slope Design of a family home in the hills

location typology size m²

Heidaskogen, Norway residential 870

Photo shop.

Archi CAD. Lumi on.

Illus trator.

More Info?

Design Concept Diagram (2)

10 / Solo Project / 2nd Semester / Prof. Frank Hausmann (Design Basics II)

Feb 2018

Jun 2022* 1

Goals of the Course: „Architecture puts its program in a clarified relationship to the local context.“ The task is to design a holiday house (four residents) with the usual basic functions, which stages the daily routines

while offering an exceptional architectural experience.

Next to functional aspects, the focus is primarily on how the house profiles itself due to its construction, spatial qualities, orientations and its appearance with the peculiarity

of its outstanding location, the hillside, which identity it develops from this as a building and what makes clear that the building belongs into this remote location and nowhere else.

House

Slope House / 11

2

3 2a

4

1

5

3

4

6

1a 7

8

ground floor

10 9

15 17

3

16 11

12

13

6

8

14

basement

4

12 / Solo Project

8 bathroom h3 9 living 10 bathroom h1 11 terrace 12 bedroom 13 wardrobe 14 children 15 utility 16 storage 17 tech

1 entrance h1 1a entrance h3 2 kitchen 2a dining 3 gallery 4 airspace 5 bathroom h2 6 exterior developement 7 guest

0

5

10

N

h1 h3

0

5

10

h2

site

N

h3

h2

h1

elevation south

h1

h2

h3

elevation north

h1

h3 h1

h2

elevation east

elevation west

section h1

section h2

noitc

0

5

Slope House / 13

interior & framework

transparent envelope

exploded isometry

14 / Solo Project

7a

Design Concept: The focus was to implement the exceptional location into daily actions by creating visual references (2) and gently pushing its users to experience nature‘s forces. Another factor was the hillside which the house deals with. In place of leveling the site, the slope becomes part of it. Instead of creating artificial walls, the roof is settled right on the hill — hedonistic sustainability.

7b

5

Instead of squeezing everything under one roof, it is divided and equalized. The four roofs form a unity nestling into the slope (3). Each house fulfills a curated purpose. This segmentation brings a variety of benefits to its inhabitants.

The most significant is the expansion of the inside through the terraces in between the houses (7b).

7c

The opaque sliding doors are the lower stories’ only barriers (6,7c). When moved to the side, there’s no distinction between inside and outside.

The little spaces interconnect with the outside space they surround.

What looks like a tiny house on paper becomes almost doubled in reality. It generates fascinating visual references (6) and a clear separation between private (5) and shared (4) spaces.

6

Slope House / 15

Archi CAD.

axonometry

"Build differently in the future" - Klara Geywitz, federal minister for housing & construction, Germany

Photo shop.

Illus trator.

Goals of the Course: The desperate need for sustainable social housing sets the virtual foundation stone for this project.

The task is to design a modular social housing complex for the city of Dusseldorf. Its primary building material is supposed to be serial produced mass timber.

D5.

Timber

16 / 4th Semester / Prof. Jörg Wollenweber (Building Construction IV)

yard Apr 2019

Nov 2022*

Social Housing in urban areas

Dusseldorf, Germany location residential / public typology 5900 size m²

1

Timberyard / 17

Design Concept: Located in Dusseldorf's neighbourhood of Wersten, the 5900 m² complex with its marketplace and public walkway is reminiscent of the typical courtyard typology.

Timberyard offers 36 affordable homes, a combined public rooftop and walkway, and a meeting point with its public courtyard marketplace.

The perimeter block is lifted towards the access street leading to Dusseldorf centre, bringing daylight into the lowered courtyard and forming a welcoming gesture for everyone passing by.

Inviting neighbours and visitors to take the spiralling walkway/ bicycle lane to meet up and shop for locally grown vegetables in the heart of the buildings, followed by a walk on the circular rooftop garden, which can be entered via one of the five cores.

The dismantlable hybrid construction fusing the worlds of concrete and timber architecture receives wide-open floorplans that lead to different apartment typologies.

Timberyards' modular construction system contributes to fast on-site construction time, meaning a higher cost efficiency resulting in affordable rents.

The facade is a modular system out of curved panels and triple glazing. Towards the courtyard, these elements cantilever at three different distances, extending the living area, creating terraces, constructive sun protection and facade greenery.

6

5

8 3

2

4

7

1

9

ground floor

11

13

10

12

second floor

14

Want to know more?

1 2 3 4 5 6 7 8

18

entrance entr. spiral courtyard apartment t1 apartment t2 apartment t3 apartment t4 apartment t5

9 tech 10 staircase 11 bathroom 12 apartment t6 13 apartment t7 14 rooftop garden 15 walkway 16 viewpoint

16 15

top floor

0

5

10

20

N

isometry

Timberyard / 19

section / scale 1:20

1

2

3

4

Roof construction: Retention roof: intensive greenery intensive substrat 150 - 350 mm sub-substrate 55 mm suction and capillary fleece water retention box 85 mm with capillary bridges protection and storage fleece 2x bituminous sheeting hard foam boards 180 mm vapour barrier seperating layer, Composite ceiling slab: max. 100 mm reinforced concrete supported by laminated timber beam 100/260/8560 mm

1

Facade-roof terrace construction: curved steel-facade 2 mm, Substructure: 2 aluminium angles; 1x 100 mm; 1x 260mm, CLT L-70/3s; 20/30/20 mm; protected by waterproof PVC membrane, steel-facade 2 mm Facade construction: curved steelfacade 2 mm airspace 120 mm, Substructure: 2 thermally seperated aluminium angles 1x 100 mm; 1x 230mm, between them minimum 180 mm mineral wool thermal insulation CLT L-100/3s; 40/20/40 mm vapour barrier 18 mm waterproof plywood panel 15 mm clayplaster white finish 240/240/3500 mm laminated timber support pillar fire-retardantimpregnated Interior wall construction: Pre-wall installation: tiles 75/75/8 mm 2x cement board waterproof 12,5 mm C-stand profile 150/60 mm; CLT L-70/3s; 20/30/20 mm clay board 18 mm white clay plaster 3 mm

5

Slab construction: floor covering 10 mm hollow floor plate 38 mm raised floor elevation 150 mm; between footfall sound insulation Composite ceiling slab: max. 100 mm reinforced concrete supported by laminated timber beam 100/260/8560 mm at 1300 mm centres

6

Basement ceiling construction: tongue and groove pine boards 20 mm floating screed 60 mm mineral wool 120 mm, floor heating reinforced concrete slab 250 mm

20

2

4

3

5

6

7

8

Cantilever ceiling construction: Retention roof: flow control system; pavement stones 50 mm bedding stone chipping 0-5 mm; 50 m base gravel layer 0-40 mm; 105 mm suction and capillary fleece water retention box 85 mm with capillary bridges protection and storage fleece 2x bituminous sheeting hard foam boards 180 mm vapour barrier seperating layer, CLT L-130/5s; 30/20/30/20/30 mm Suspension system: airspace / installation level 155 mm 40/40 + 40/10 mm counter battens, between them 45 mm mineral wool acoustic insulation acoustic fleece 40/40 mm fire-retardant-impregnated pine battens at 80 mm centres

7

Window: laminated glass 3x6 mm + cavity 2x18 mm, fixed top and bottom to CLT

8

Timberyard / 21

2

3

4

22

section

0

10

20

40

Timberyard / 23

LOCAL+ movement to Bring movement our cities

location: typology: size m²:

Wuppertal, Germany residential, masterplan 156, 737.000

2

3 1

choose one urban situation

handle both challenges

design challenge

choose representative unit

design and energy concept for the whole building

building challenge

design and build the unit

demonstration unit solar campus

contest in ten disciplines

Competition Mode (2) ©SDE 21/22

24 / Team Project / Master Thesis / realisation & research competition

Oct 2019

Jul 2022

1

©Aryan Mirfendereski

Team LOCAL+'s concept: In response to today's challenges, such as climate change, scarcity of resources, urbanisation, and a growing and ageing population, LOCAL+ aims to promote a flexible, sustainable and socially responsible housing solution that keeps pace with the constant changes in everyday life.

For this purpose, the team has chosen a building gap (2) in the Mirke Quarter (Wuppertal, GER) as the setting. Here, in addition to social differences, age variatons, in particular, play a key role. To promote social inter­ action, the team has developed a living concept for (temporarily) single people like newcomers, students or pensioners who want to

be part of a community.

To support social interaction, the building design is based on keeping individual space to a minimum and thereby offering larger communal areas.

A high degree of flexibility allows an innovative living concept that adapts to the individual needs of a diverse group of residents.

LOCAL+ / SDE 21-22 / 25

design challenge (dc) In addition to social interaction, LOCAL+ aims to create a building that innovatively and intelligently adopts new approaches to energy and sustainability. A clever combination of different means of generating, storing and using energy enables two-thirds of the building's energy needs to be covered.

homeoffice

Furthermore, the circularity of the building is increased by an efficient and sufficient choice of materials and detachable construction. In this way, the goal of reducing the carbon footprint and planning and building to conserve resources is achieved.

party

The building was designed to transfer the concept to other urban situations, thus serving as a prototype for closing gaps and vacancies or new buildings.

Areas of responsibility: Concepts, research, architectural designs, teams BIM Manager, knowledge sharing, production of graphic and written documents in english, relations with partners and sponsors, construction of a 110 m² habitable prototype, public tours, presentations, interviews.

DC concept: While the basement, the ground floor, and the attached garden offer communal areas for the entire house. The four upper floors each form a shared apartment for three roommates.

On about 60m2, they share a bathroom, a pantry-kitchen and a flexible communal area that is constantly changed by the Cubes.

Projects website?

26 / Team Project

freetime

sleeping

isometry / design challenge

3a

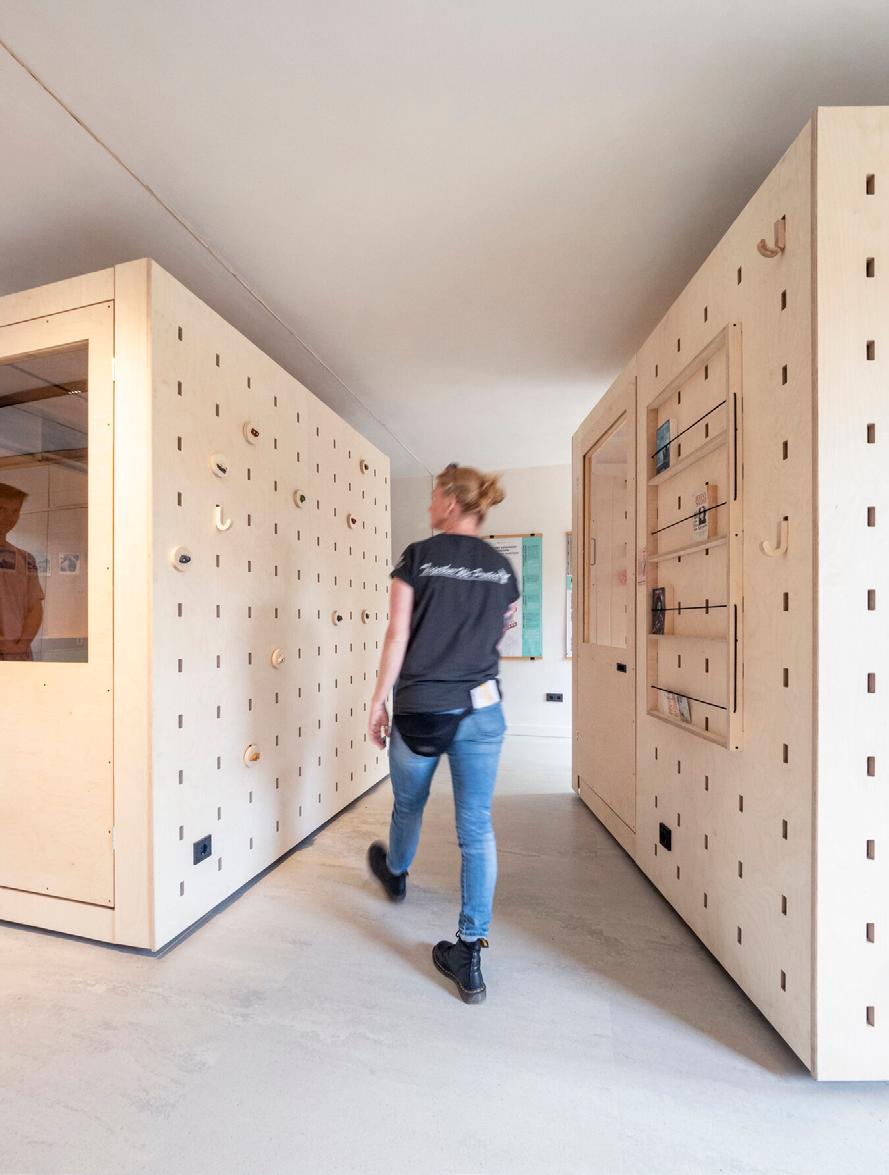

Cube Concept: The Cube was invented to show a contrary traditional rooms. The room units are a central design aspect and architectural innovation since they are fully movable!

They create spatial diversity by permitting adaptable zoning of rooms (3) but mainly serve as personal retreats and workspaces.

isometry / cube couch

3b

isometry / cubes sitting niche

Their minimised size puts interaction, communication and communal living in the spotlight and reduces the living space used per person.

The cubes are movable rooms with floors, ceilings, and walls that can be moved around the room by hand using rollers. On the one hand, they function as a space-creating element, and on the other hand, they can be moved to create various spatial boundaries and thus meet the temporary needs of a daily routine.

3c 2 5

1

4 3

floor plan / scale 1:33

With the help of furniture attachable to the cube outside, varying situations in everyday life can be represented. The season and the daily position of the sun will consciously influence the movement of the cubes because the residents will get more quality out of the given spaces through the cubes.

1 2 3

couch / bed shelf pegboard inside

4 5

pivot door pegboard outside

LOCAL+ / SDE 21-22 / 27

house demonstration unit (hdu)

2 9

4

5

1 8

6 7

design translation (4)

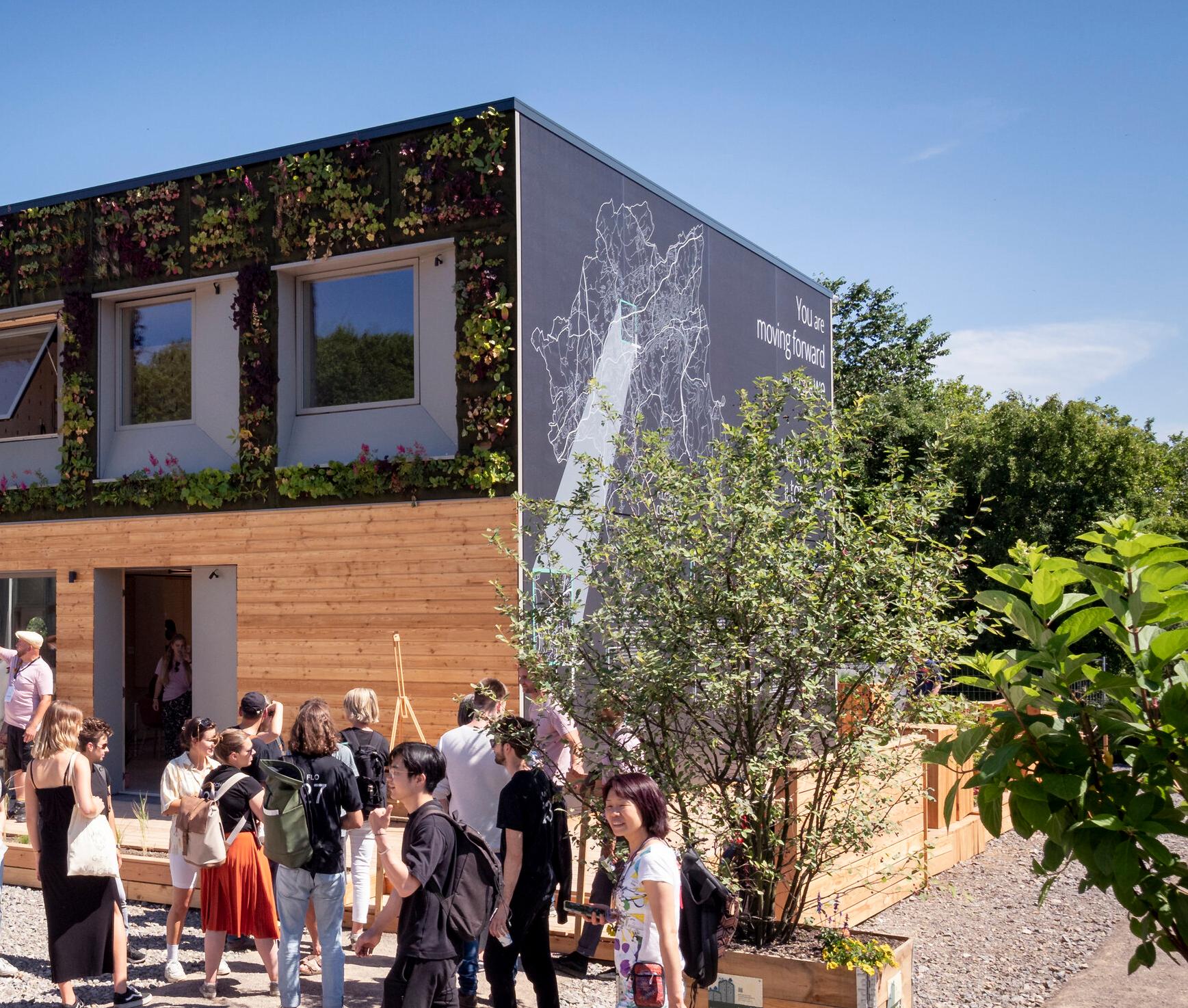

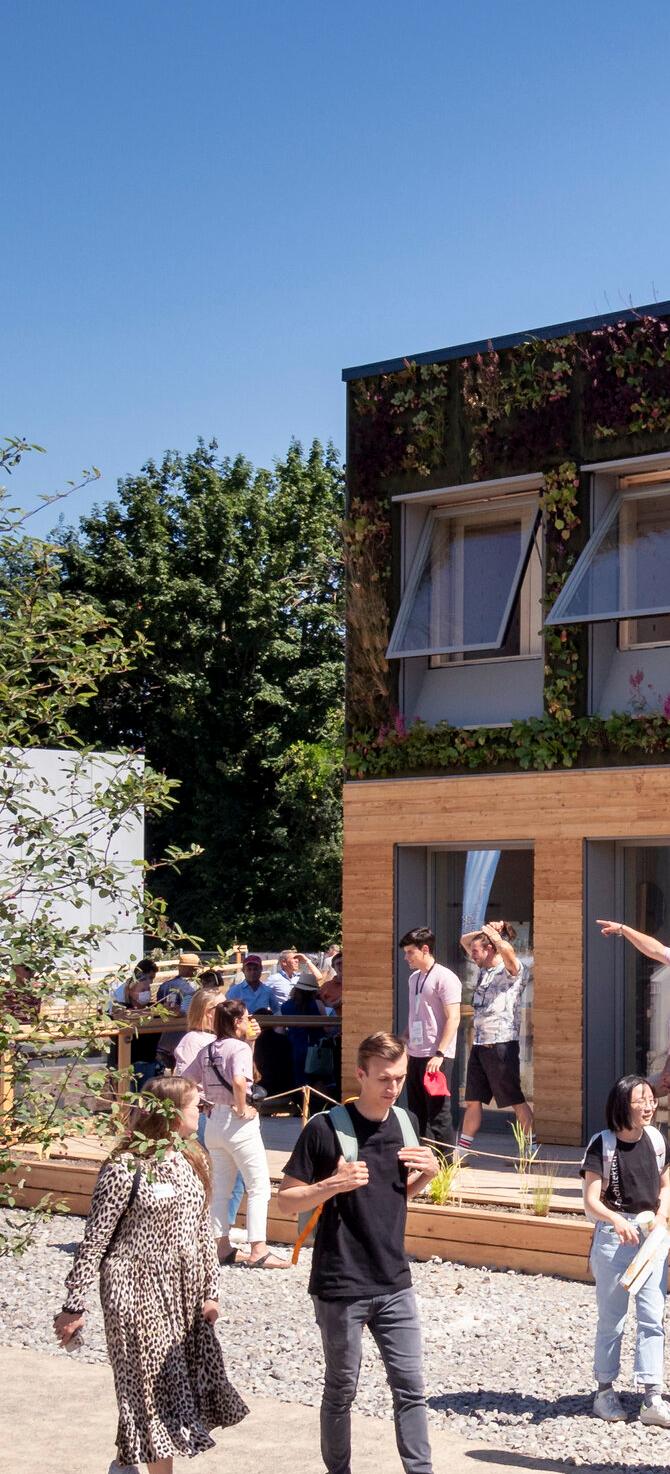

HDU concept: The house demonstration unit is the translation of the design challenge into an exhibition architecture. While the lower floor combines the communal living room and the kit­ chen, the upper floor represents one of the four shared apartments of the DC. The demonstrator (hdu), which consists of ten solid timber modules, was built with mostly detachable, reusable and ecofriendly materials and construction methods. The facade picks up on the photovoltaic panels, the wood cladding as well as the plant elements of the design challenge.

In addition, the two outer walls with an air-clea­ ning textile reflect the neighbouring walls of the building gap. Finally, the energy concept with the PVT panels, the heat pump, the ice storage and the heating/cooling ceiling were also adapted.

3

ground floor

5

12

28 / Team Project

13

11

upper floor

1 2 3

Virtual tour?

10

6

4 5 6

ramp main entrance urban gardening community area staircase elevator

7 tech 1 8 tech 2 9 tech 3 10 tech 4 11 bathroom 12 shared space 13 cube

0

5

N

isometry

IFC Model viewer

LOCAL+ / SDE 21-22 / 29

section / scale 1:20

1

2

3

Roof construction: greenroof system 50 mm waterproofing glassfoam slope insulation 240 mm vapour barrier board stacked wood ceiling 200 mm ceiling heating system 28 mm clay plaster 3 mm Green-facade construction: living wall outdoor system 60 mm Substructure: agraffe, horizontal mounting rail, vertical aluminium mounting rail Tshape 50/100 mm, thermally seperated aluminium angle 280/85 mm; in between ventilation 92 mm vapour barrier wood fibre insulation 240 mm CLT L-120/3s; 40/40/40 mm clay plaster 25 mm

1

2

Slab construction: natural rubber flooring 4,5 mm free floating subfloor system 15 mm CLT L-120/3s; 40/40/40 mm ventilation 100 mm grain filling as ballast 100 mm OSB board 30 mm clay modules with integrated ceiling heating and cooling system 35 mm clay plaster 15 mm

4

Slab construction: natural rubber flooring 4,5 mm subfloor system 15 mm clay ballast plates 30 mm CLT L-120/3s; 40/40/40 mm high efficiency insulation boards 130 mm; 2x 50 mm 1x 30 mm underlay membrane

5

Cube wall construction pegboard; multiplex 18 mm timber agraffe system 27 mm textile membrane timber wall frame 60 mm; in between sound insulation textile membrane pegboard; multiplex 18 mm

6

Cube slab construction: natural rubber flooring 4,5 mm sound insulation 7 mm OSB board 30 mm timber floor frame 100 mm; in between insultation 60 mm heavy-duty casters 50 mm

7

Window: glass 48 mm; 3x4 mm + cavity 2x18 mm

8

Terrace floor construction: timber plank 145/28 mm timber beam 80/140 mm squared timber coupling with ating half coupling 48 mm O-double bar foot spindle; start piece concrete plate 30/300/300 mm

30 / Team Project

rot-

7

3

8

4

5

©Aryan Mirfendereski

2

©Aryan Mirfendereski

3

6

LOCAL+ / SDE 21-22 / 31
