RANA RESIDENCE

Location: Bangalore

Type: Architecture

Collaborator: Gaurav Roy

Choudhury

Status: Ongoing

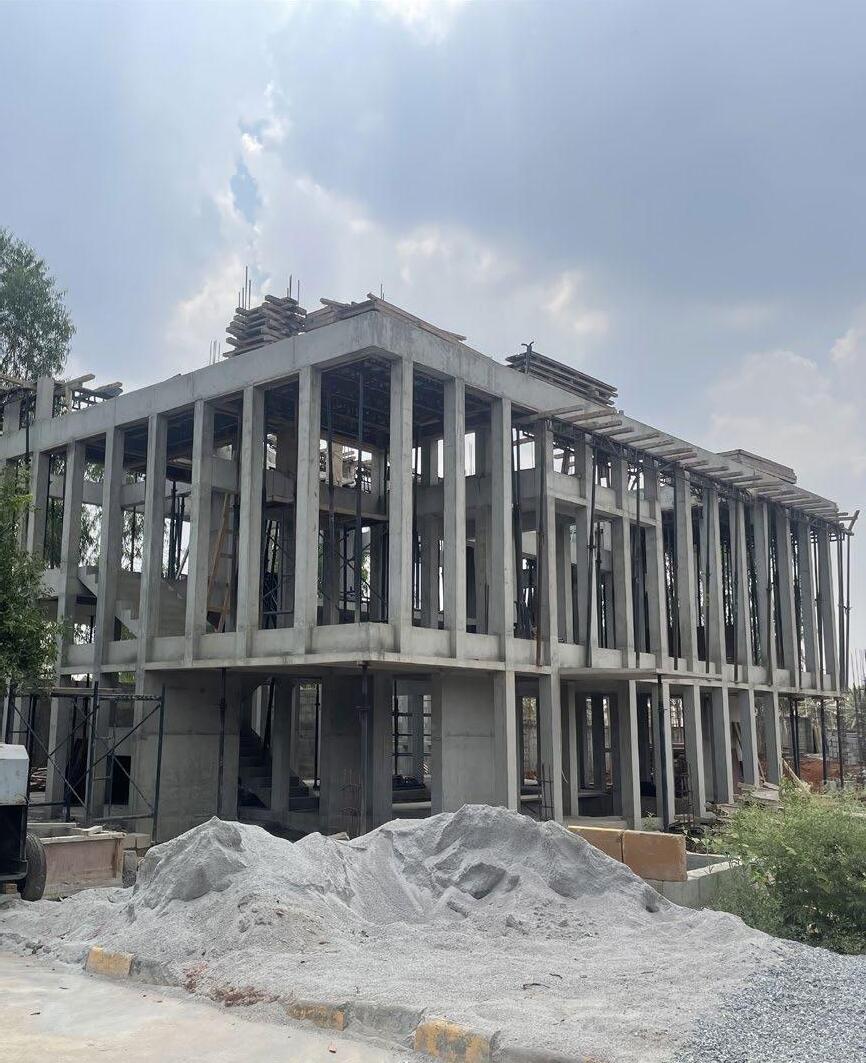

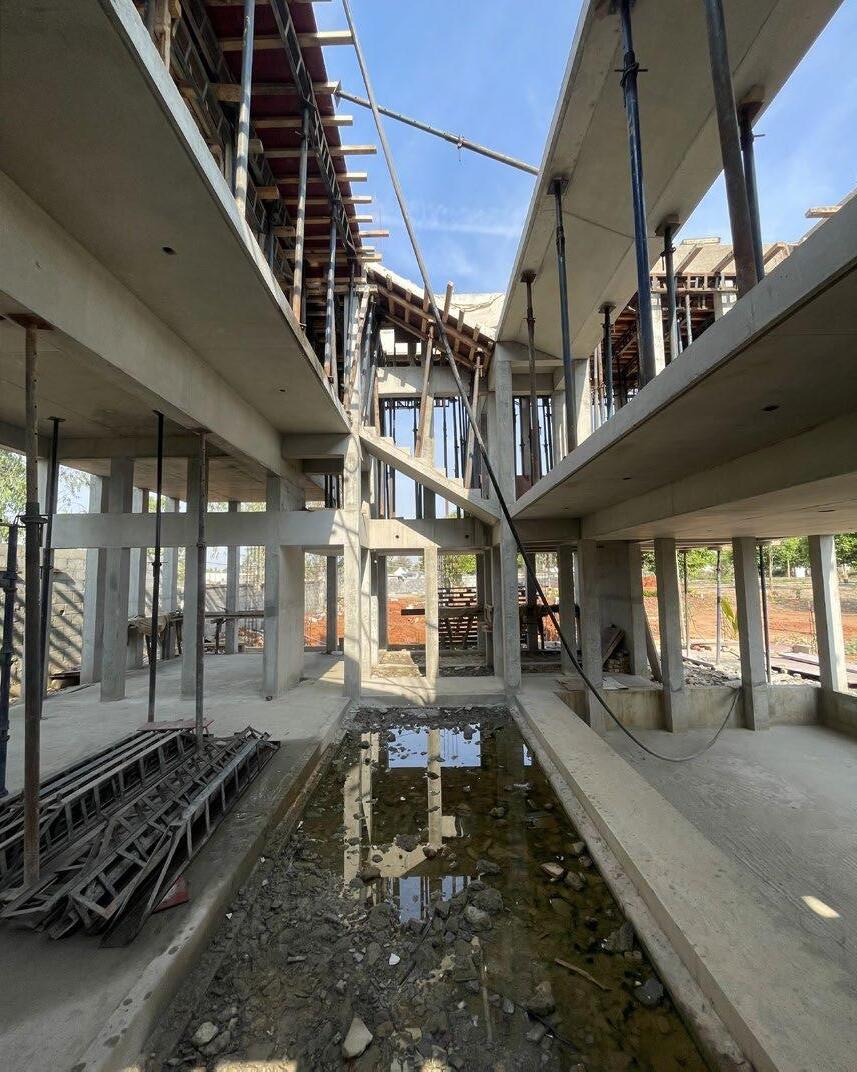

Designed with the idea of expanding horizontally and vertically, Rana Residence is a split-level bungalow for a joint family in Bangalore. To have privacy yet awareness of others in the house, the slab is jiggered into two halves at different levels. This allows for a central courtyard and multiple terrace gardens that let nature in and blur the boundaries between inside and outside.

Work Handled:

- Coordination with clients for design and site updates

- Revising architectural plans, sections and elevations as per changes in design

- Preparation and revision of architectural and structural 3D for the client, structural engineer and civil contractor

- Preparation of electrical drawings with bill of quantities for electrical tender

- Coordination with electrical contractors for the tendering process

- Preparation of GFC electrical drawings, masonry drawings and details for brick wall panels

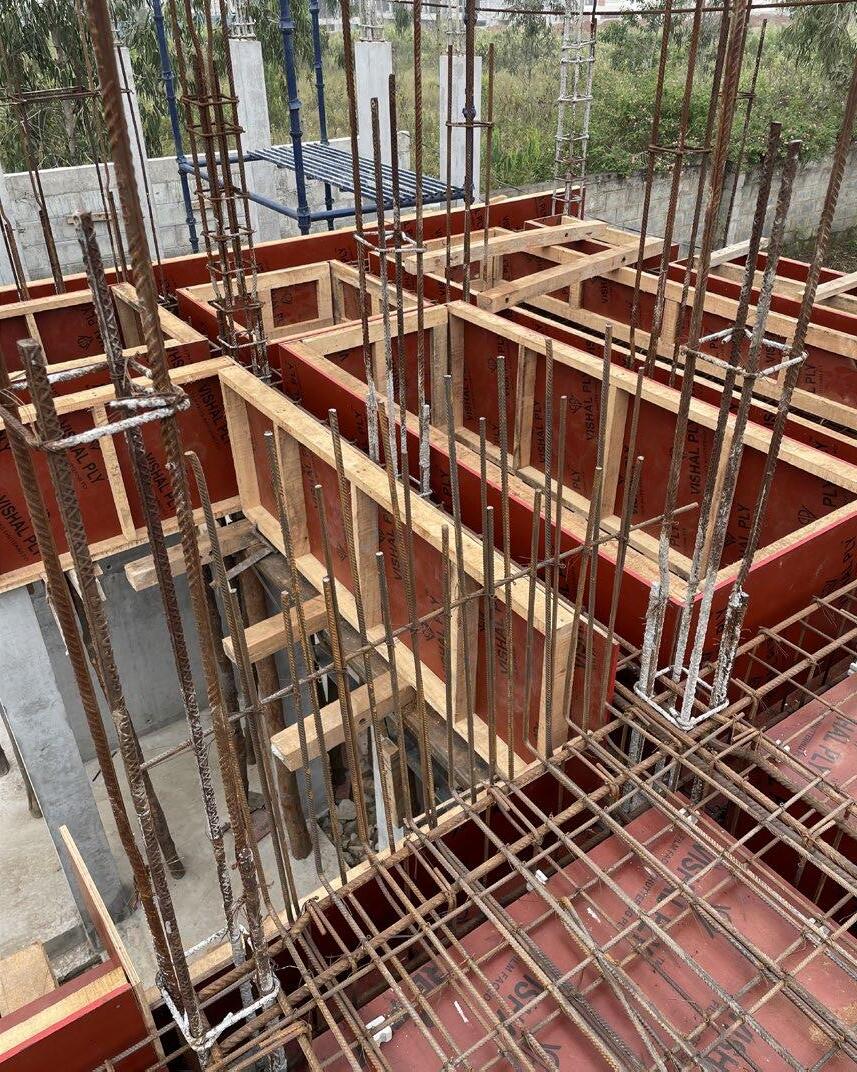

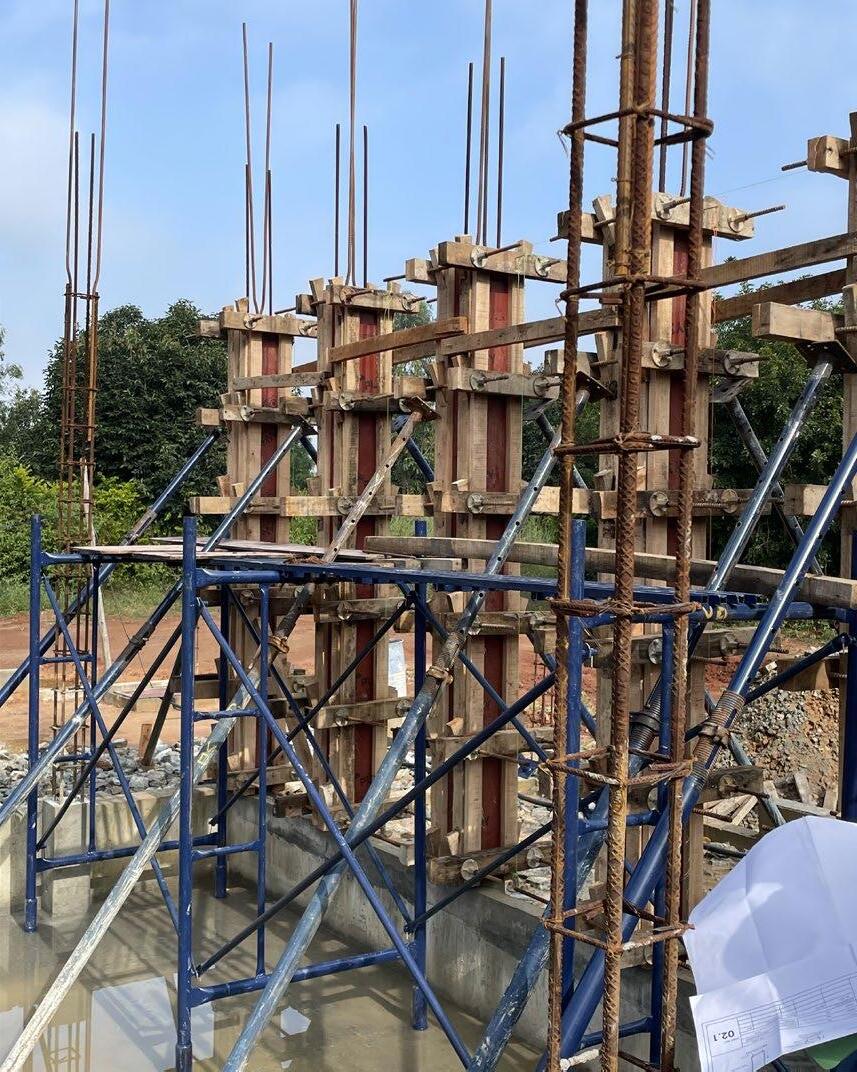

- Site visits for checking of column starters, PCC, shuttering and reinforcements of different slab levels and electrical conduits

- Coordination with client and civil contractor for bill checks

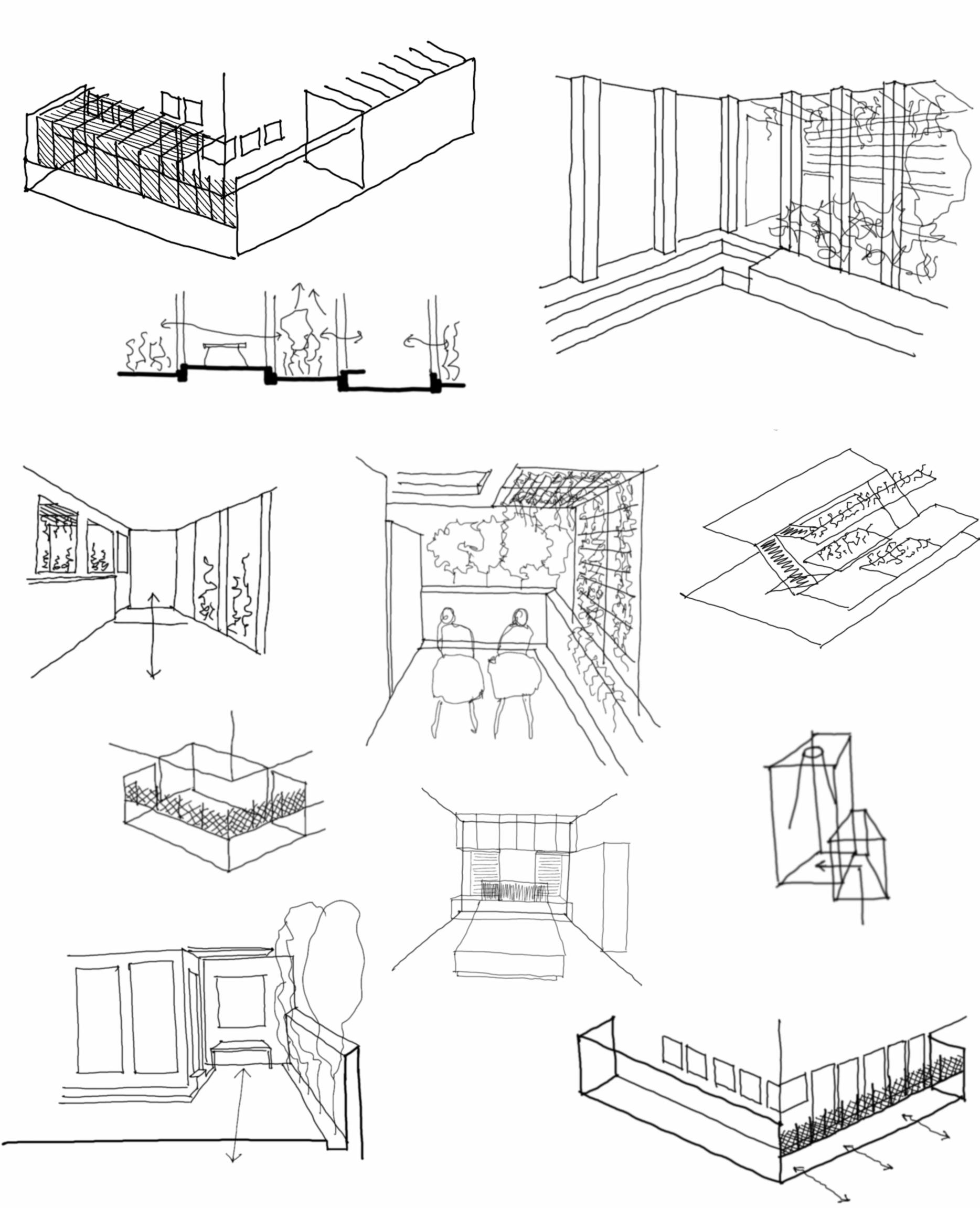

Conceptual Design Sketches

Architectural, Electrical and Masonry Plans for Ground and Second Floor
