Keating - Hard Finishes, Tile Layouts, & Plumbing

Grape Creek Road Hard Finishes, Tile Layouts, & Plumbing April 22nd, 2025

*Please refer to Design Specification Worksheet & Tile Layout Drawing Packet for additional specs and information. *Revision 1 All details to be reviewed and confirmed by team.

Mann Design | April 2025

Limestone - Zahara Beige Loft Finish, Sawn Edges (Wet Space Only)

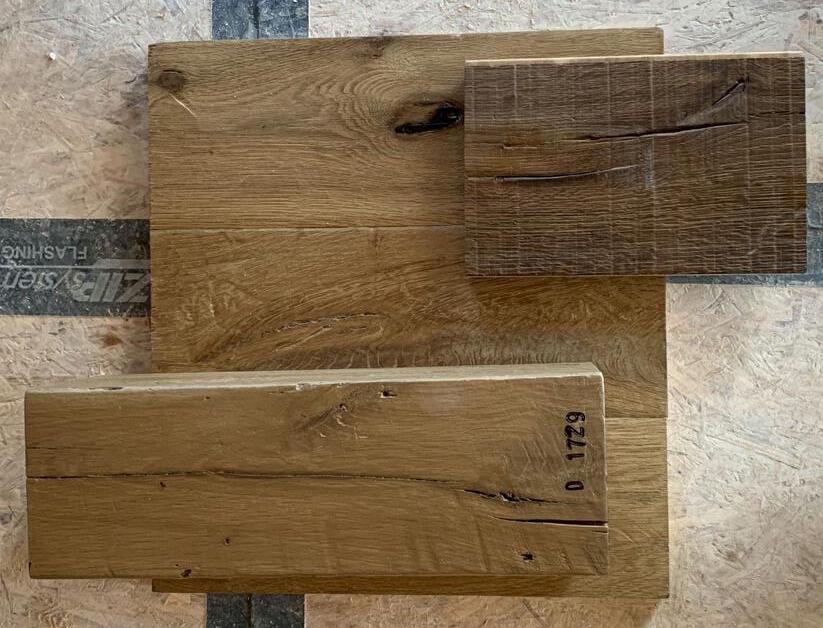

Hardwood Flooring Campagne, Old Brown Varying Wide Widths, Random Lengths

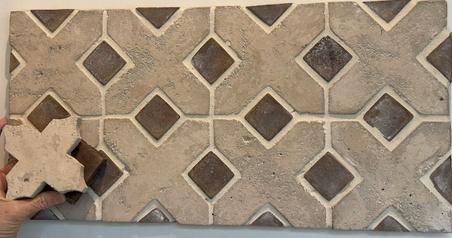

Artillo, Arabesque 2D Cross Picket and 2"x2" Color: Yazmin Blend Hacienda with Tuscan Mustard

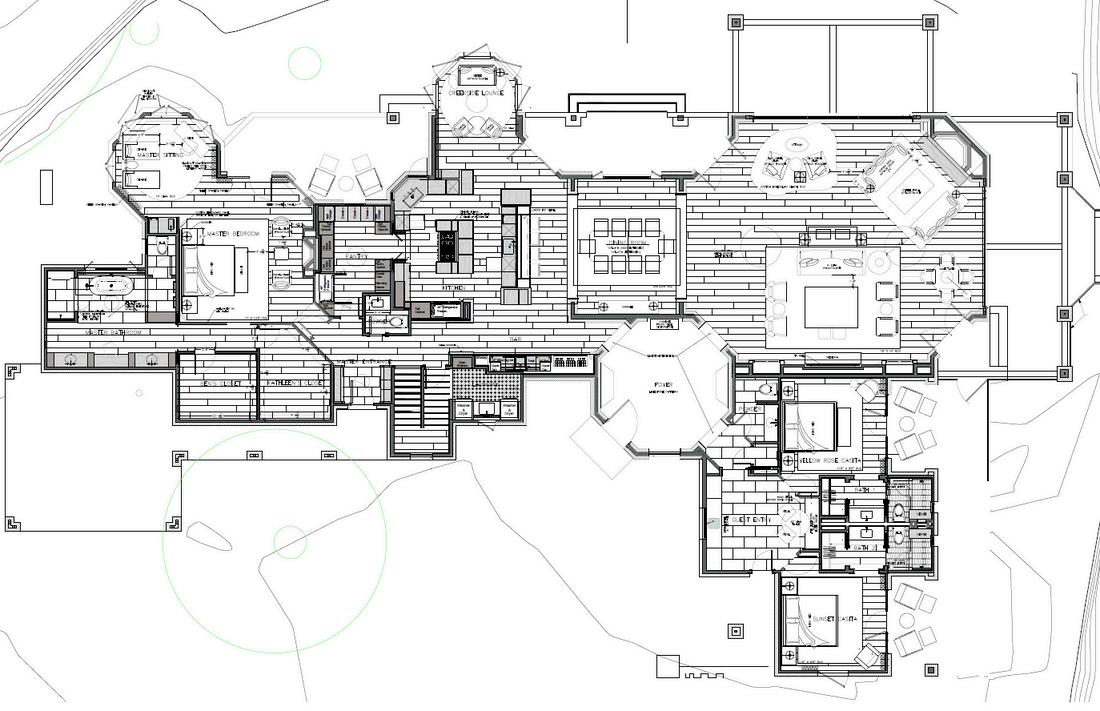

First Floor

Hardwood Flooring Campagne, Old Brown Varying Wide Widths, Random Lengths

Limestone - Zahara Beige Limestone, Zahra Loft Finish, Sawn Edges Beige Picket Foyer Installed in Cut Pattern (Wet Space Only) See Foyer Details Hardwood Flooring Campagne, Old Brown Varying Wide Widths, Random Lengths

2

Hardwood Flooring Campagne, Old Brown Fixed Width 8.5"W, Random Lengths

Limestone Zahra Beige, 2"x8" Herringbone

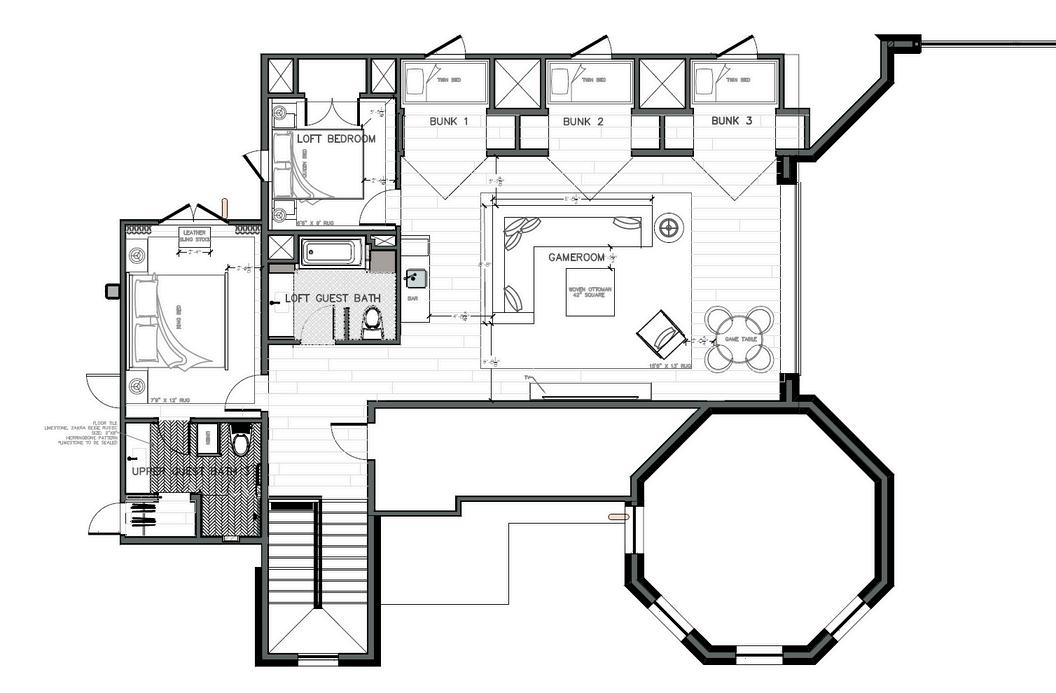

Second Floor

Artillo,Arabesque Creme Friache Blend 5" Square Star & 6" Cross

3

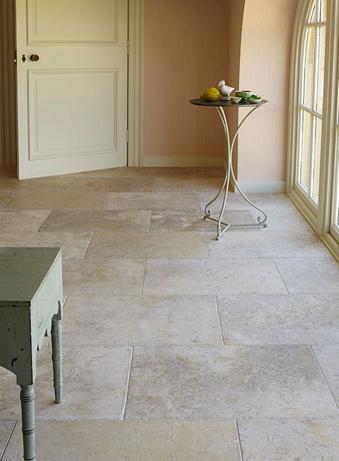

Limestone Flooring Zahara Beige Loft Finish, Sawn Edges

Limestone Floor Pattern Design per Renegage

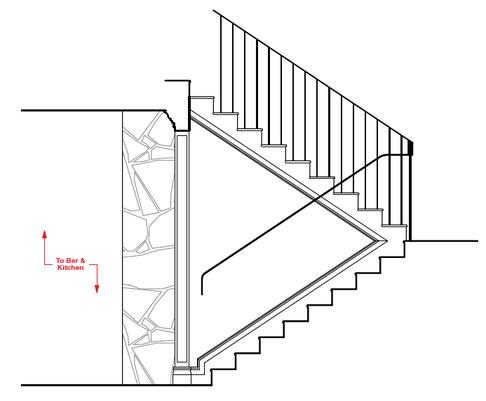

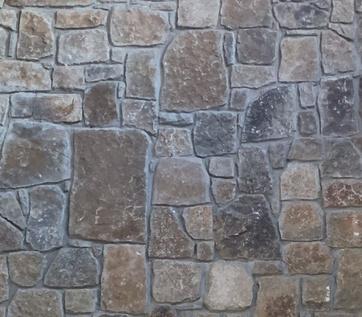

Stone Wall to match exterior

Bronze Metal Cased Opening Details

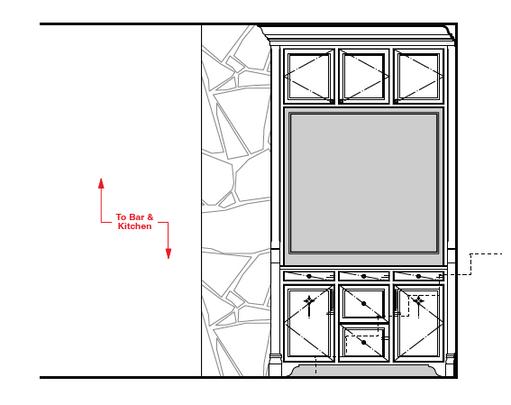

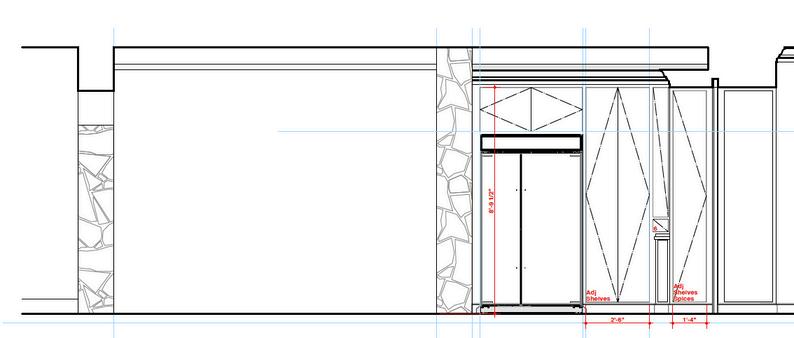

Foyer - 100

4

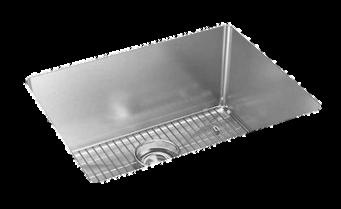

Newport Brass Taft Pull Down Faucet Crosstown Stainless Sink 31.5"x18.5"x9"

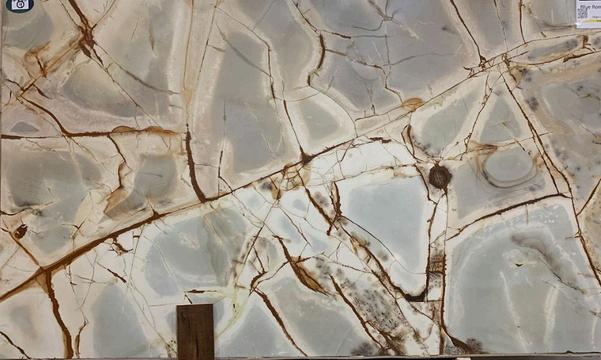

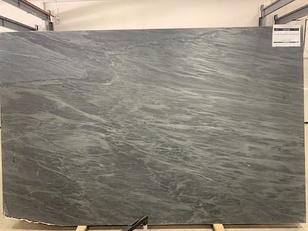

All Countertop & Backsplash Honed Blue Roma Countertop

Newport Brass Bar Taft Pull Down Faucet Crosstown Stainless Sink 23.5"x18.25"x10"

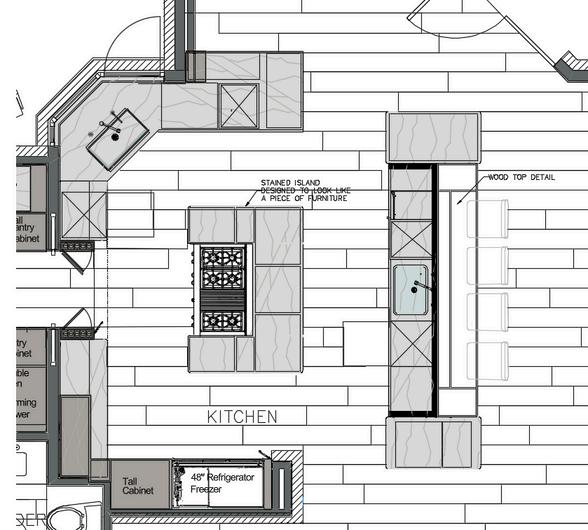

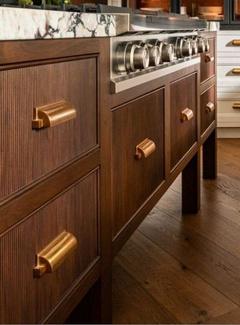

Cooking Island - Stained Wood Built with feet to look like a piece of furniture

Kitchen - 102

All Countertop & Backsplash Honed Blue Roma Countertop

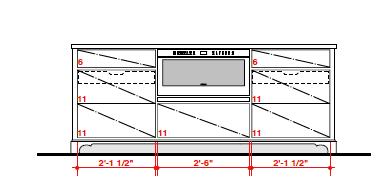

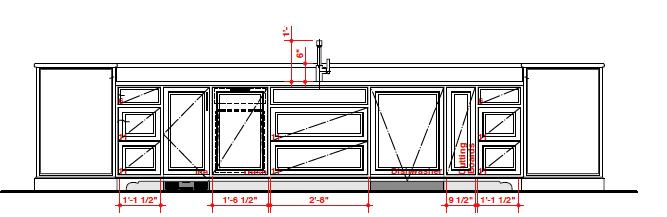

Wood Top Detail (See Drawings) At Counter Stool Bar

Hardwood Flooring Farmhouse Stone Campagne, Old Brown Lengths Vary

5

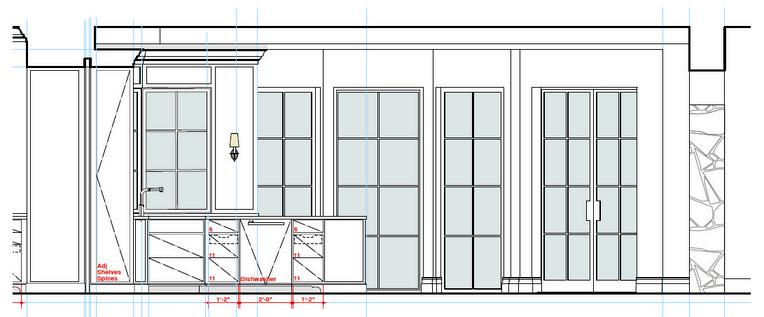

Kitchen - West

Kitchen - West

Kitchen - East

Kitchen - 102

6

Kitchen - North

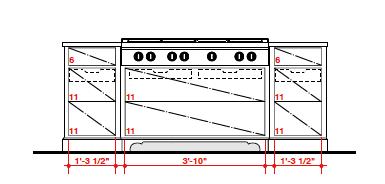

Cooking Island - STAINED

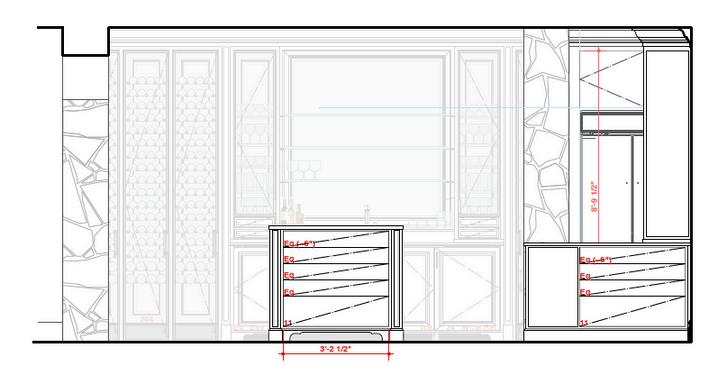

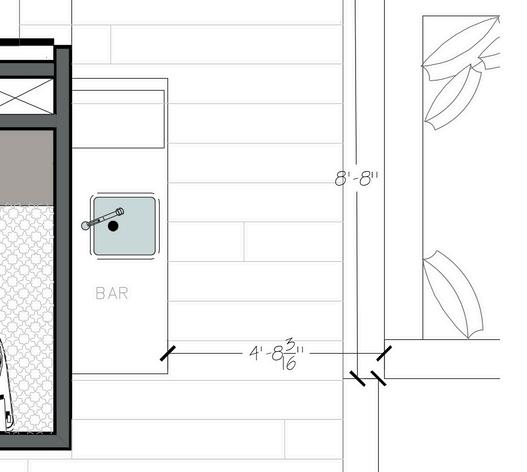

Bar Island

Bar Island - With Wood Top Detail

Kitchen - 102

7

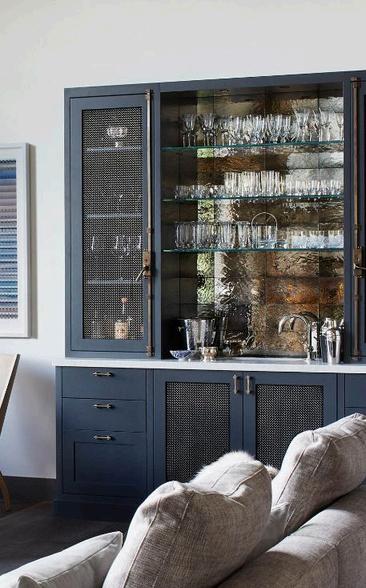

Antique Mirror Backsplash Vendor: To Be Confirmed Would like the antique look to match closely to sample shown.

Installation: TBD

Samuel Heath Single Lever Lavatory Mixer Faucet Urban Brass Elkay, Quartz Luxe Single Bowl Sink Charcoal, 15.75"x15.75"

Countertop Honed Soapstone

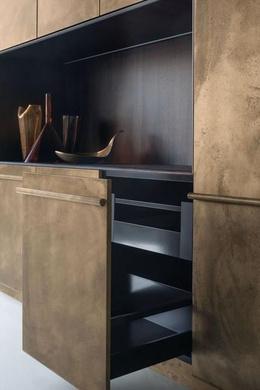

Brass Metal Cabinet Front Mirror Installation Reference

By Renaissance Photo (See Renegade Drawings) Installed: Horizontal Straight Stack (Similar to example photo shown) *Exact antique mirror size to be confirmed.

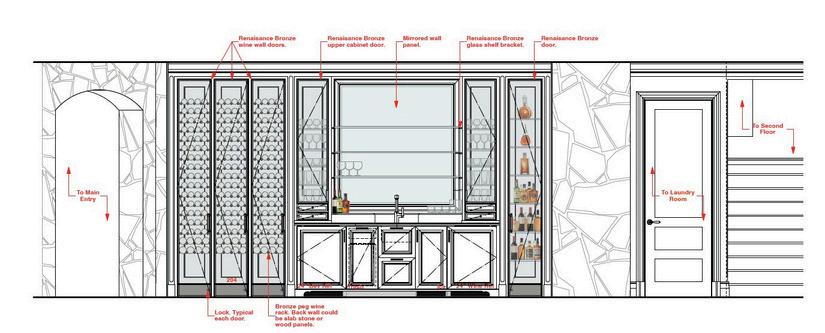

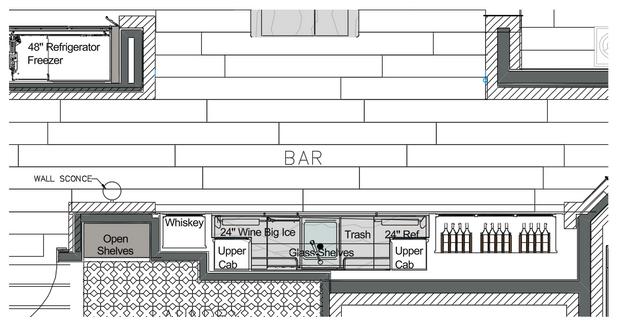

Bar - 101

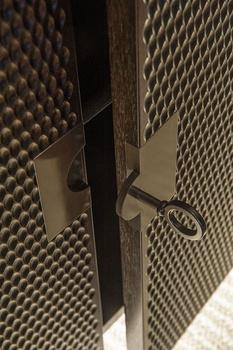

Metal Inserts & Details

By Renaissance (See Renegade Drawings)

Hardwood Flooring Farmhouse Stone Campagne, Old Brown Lengths Vary

8

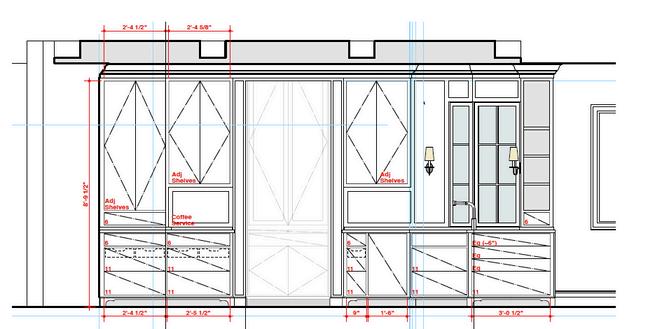

Countertop Remnant Options Neolith Porcelain New York, New York, Finish: Silk Honed Soapstone Honed Blue Roma Quartzite Selection to be finalized based on remnant availability

Hardwood Flooring Farmhouse Stone Campagne, Old Brown Lengths Vary

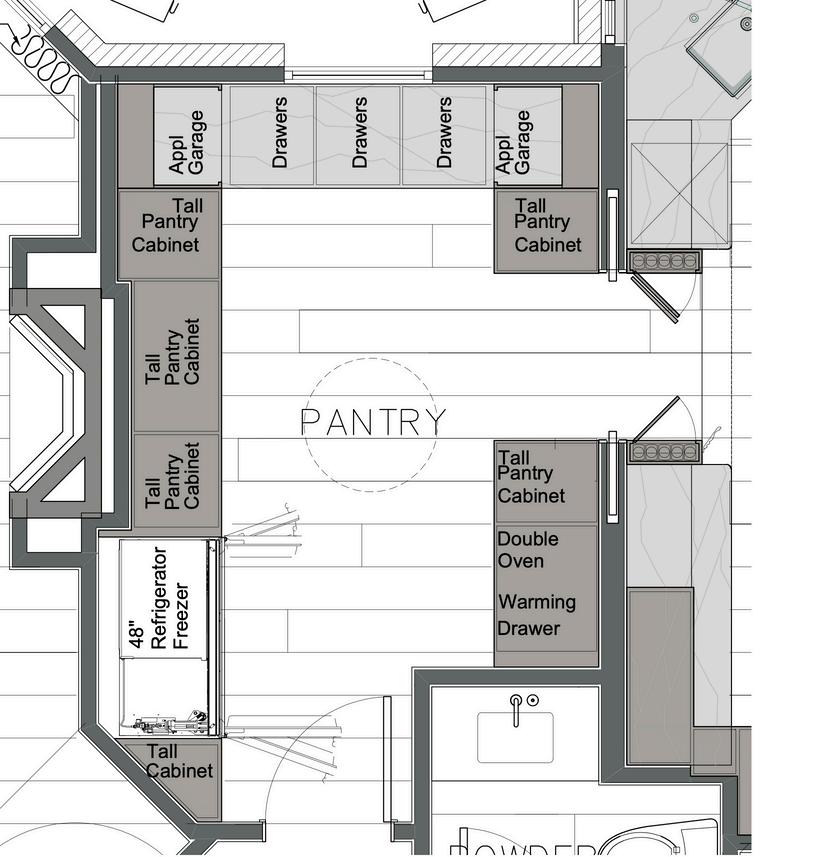

Pantry - 103

9

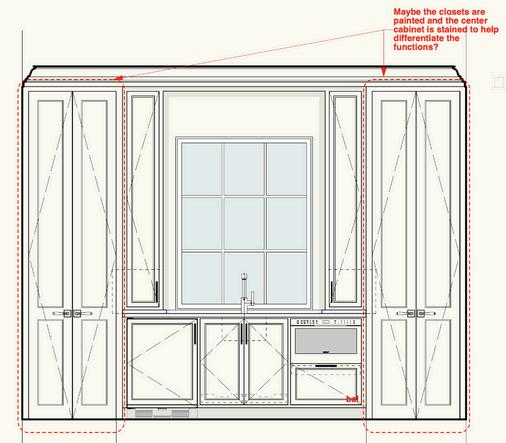

Newport Brass Adams Pull Down Faucet Elkay Crosstown Stainless Sink 23.5"x18.25"x10"

Countertop Neolith Porcelain Slab New York, New York Finish: Silk

Flooring Farmhouse Stone Artillo, Arabesque 2D 6" Cross Picket and Artillo 2"x2" Color: Yazmin Blend, Hacienda with Tuscan Mustard Installed: Match, Per Designer Drawings

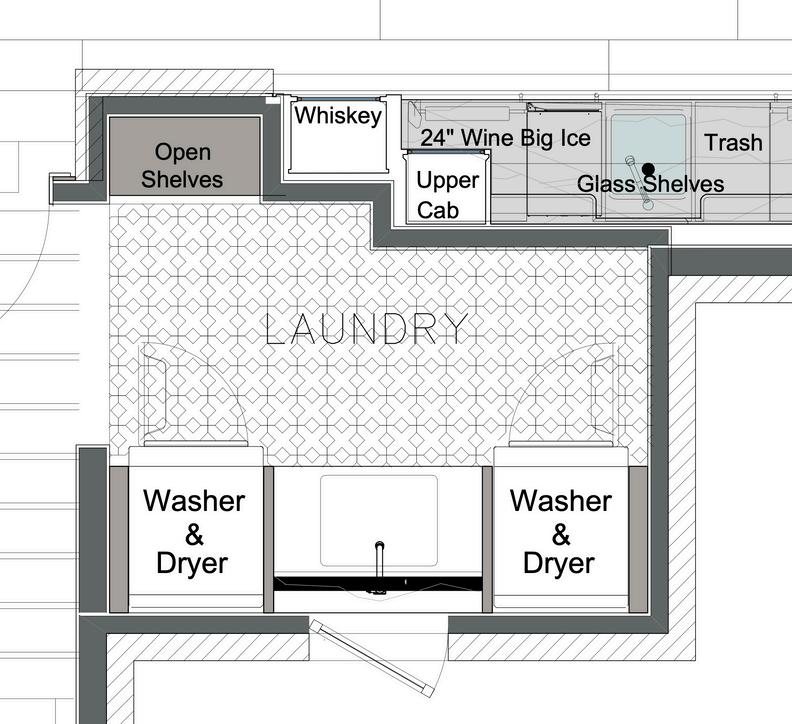

Laundry - 118

10

Limestone Flooring Zahara Beige Loft Finish, Sawn Edges

Countertop Neolith Porcelain Slab New York, New York Finish: Silk

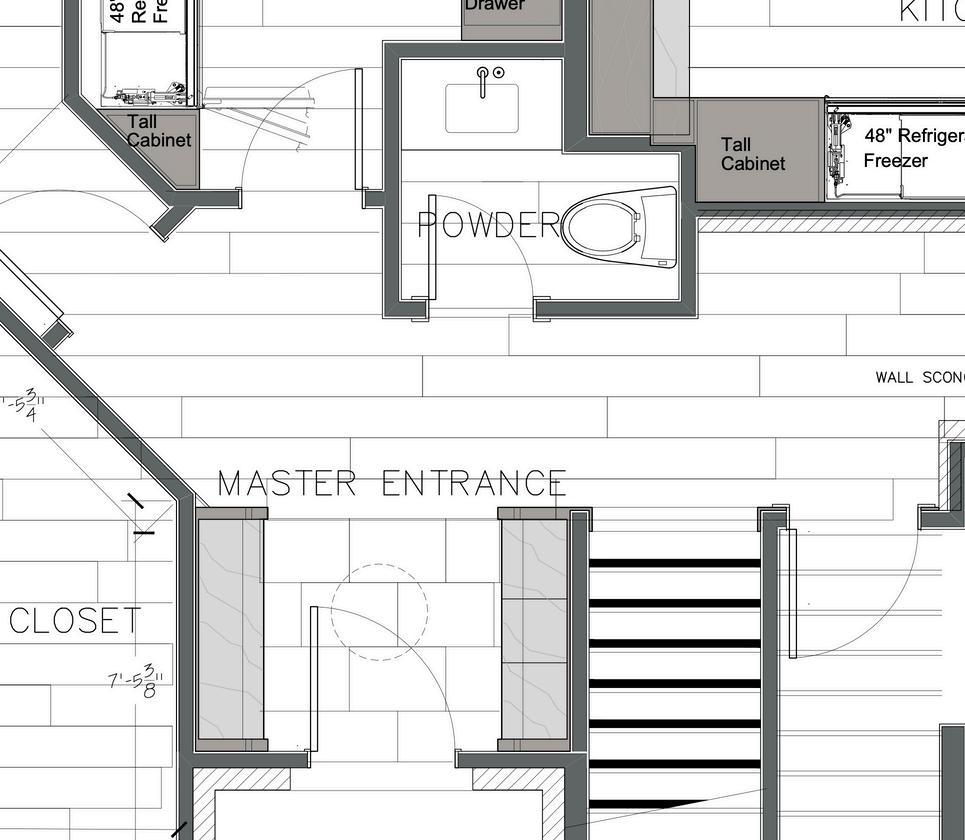

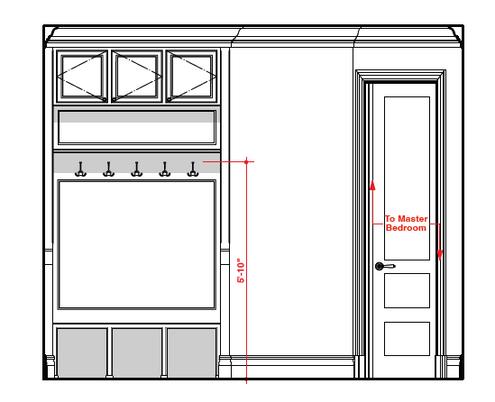

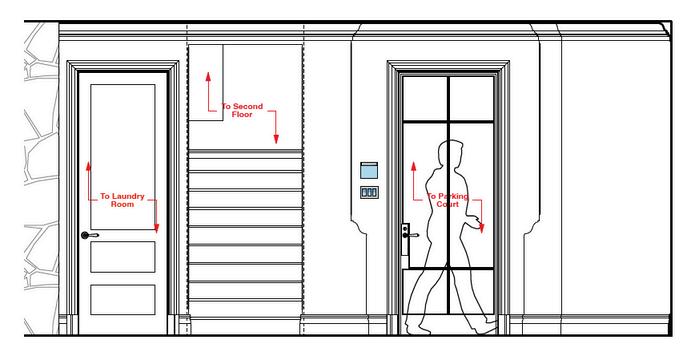

Master Entry - 120

11

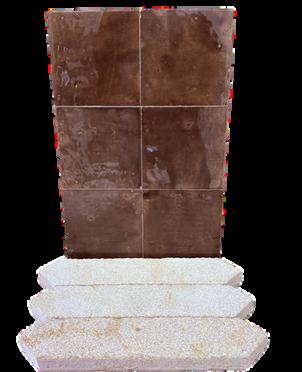

Stair Treds Hardwood Flooring, Farmhouse Stone Campagne, Old Brown *Confirm nosing detail with Farmhouse Stone

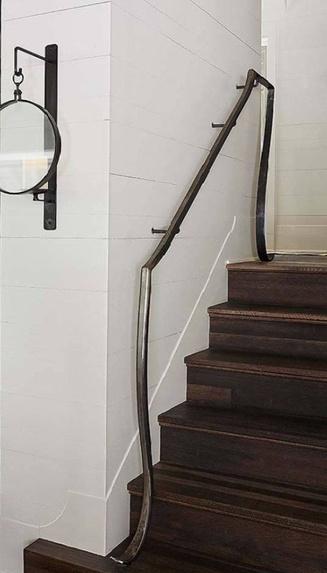

Metal Hand Rail Detail

Master Entry - 120

12

Stair Treds Hardwood Flooring, Farmhouse Stone Campagne, Old Brown *Confirm nosing detail with Farmhouse Stone

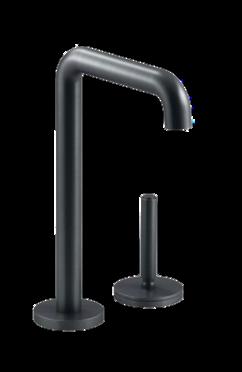

Kallista One Bar Faucet Gun Metal

Countertop and Integrated Sink Saint Laurent Quartzite - Honed

Master Powder - 121

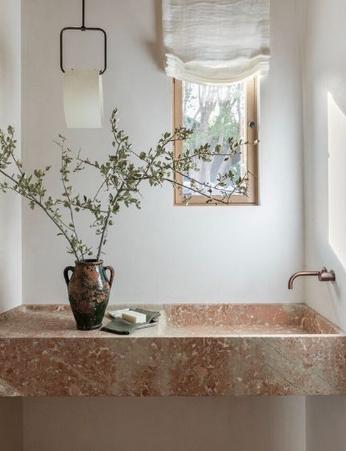

Integrated Floating Sink/Vanity Top With edge detail across front (similar to photo) Concealed Storage In Wall underneath (pushed back)

13

Newport Brass East Linear Prep/Pull Down Bar Faucet Oil Rubbed Bronze Nantucket Single Bowl Granite Bar Sink Black 15"x18"

Countertop Remnant Options Honed Saint Laurent Quartzite Selection to be finalized based on remnant availability

Need to confirm if we have enough remnant of suggested slab for MD to confirm backsplash selection.

Hardwood Flooring Farmhouse Stone Campagne, Old Brown Lengths Vary

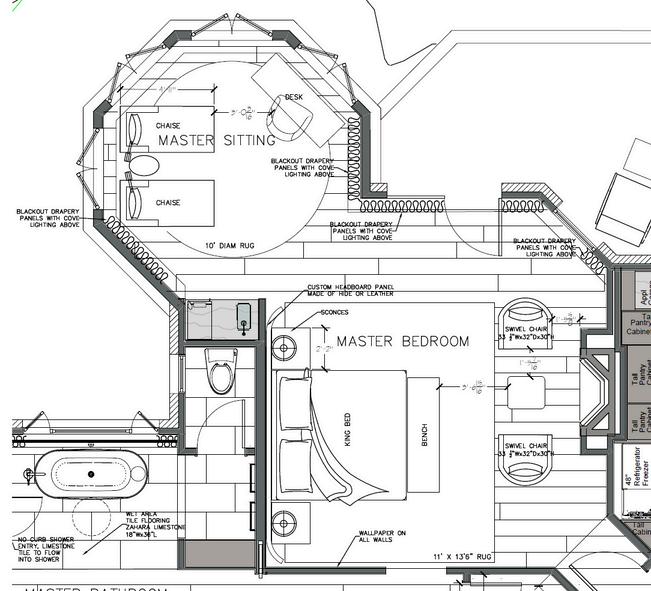

Master Bedroom Sitting - 123

14

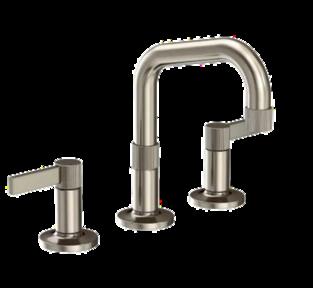

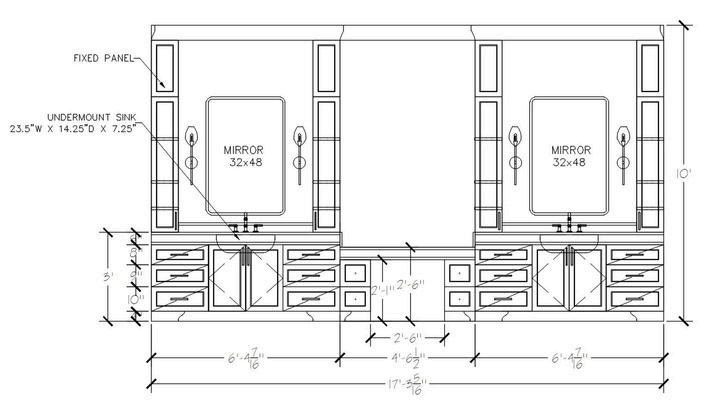

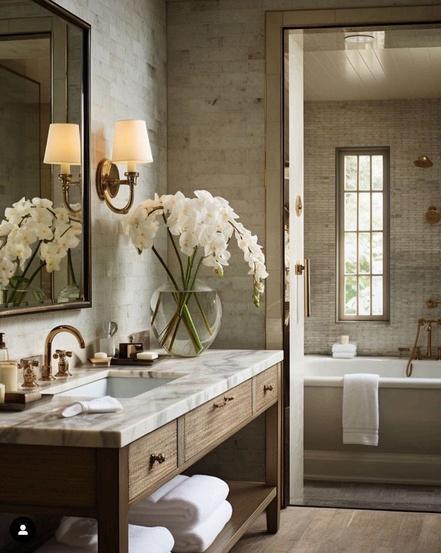

Newport Brass Pardees Widespread Antique Nickel

Undermount Sink, White 23.5" x 14.5"

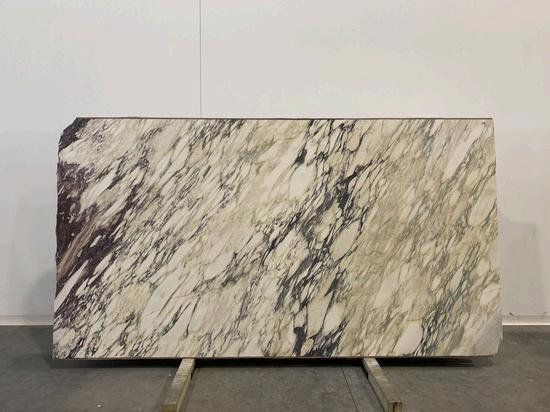

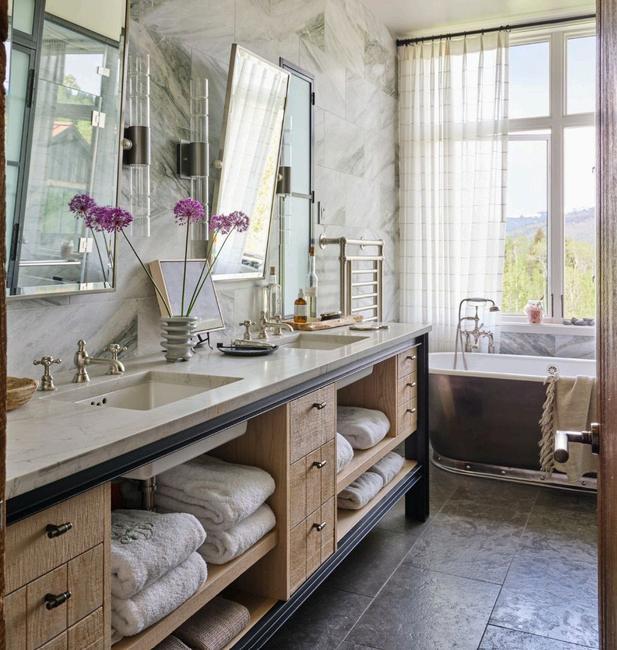

Countertop & Shower Slab Walls Marble

Countertop Edge Detail

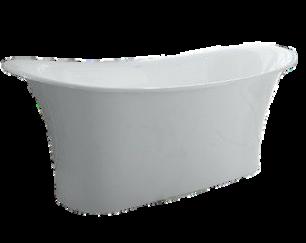

Newport Brass, Tub Spout, Finish: Antique Nickel Victoria & Albert Freestanding Tub Color: White, Center Drain, 71"x32"

Limestone Flooring in Wet Spaces & Shower Floor Zahara Beige Loft Finish, Sawn Edges 18"x36"

Hardwood Flooring at Vanity Farmhouse Stone Campagne, Old Brown Lengths Vary

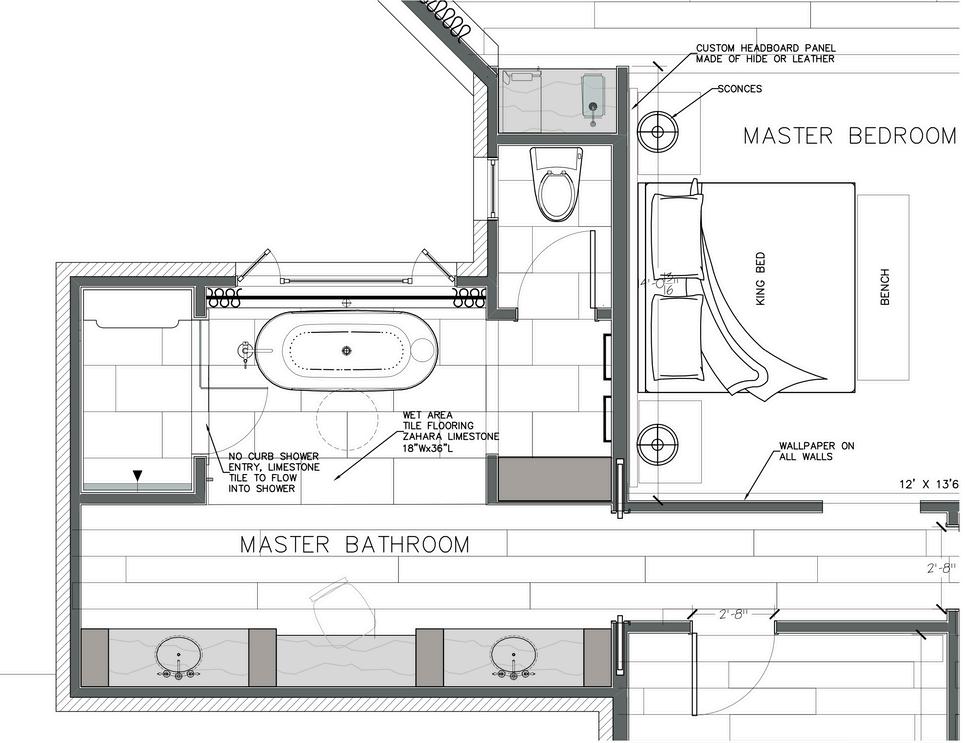

Master Bathroom - 124, 125, 126, 127

15

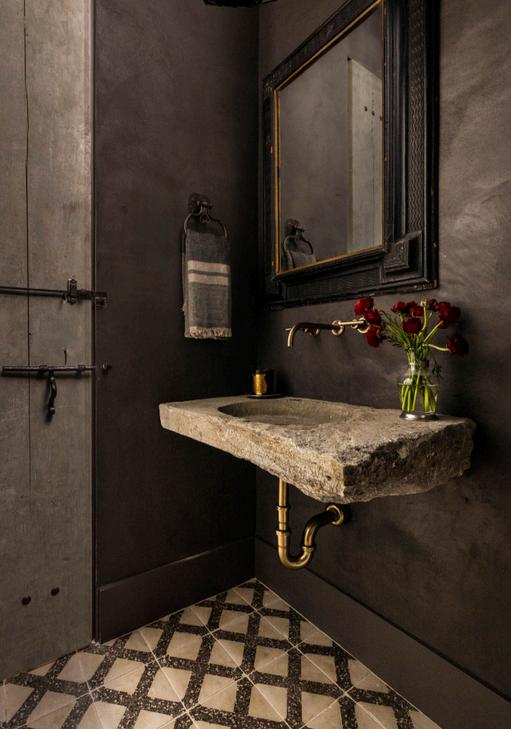

Samuel Heath 2 Hole Wall Mounted Lavatory Mixer without Plate City Bronze

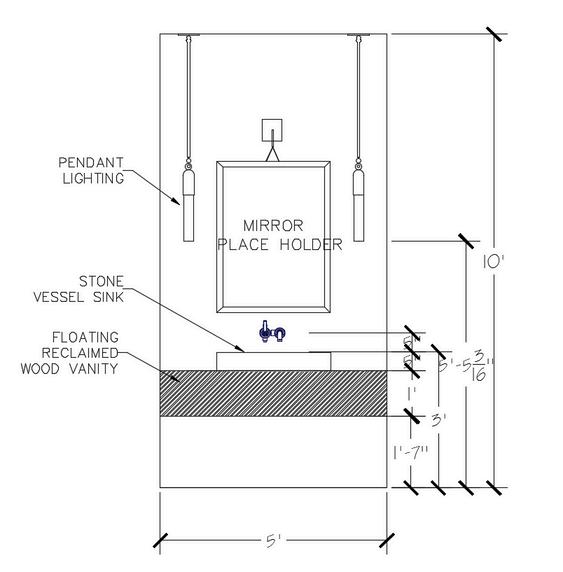

Floating stone countertop and sink Farmhouse Stone to rest on wood counter top

Limestone Flooring in Wet Spaces & Shower Floor Zahara Beige Loft Finish, Sawn Edges 18"x36"

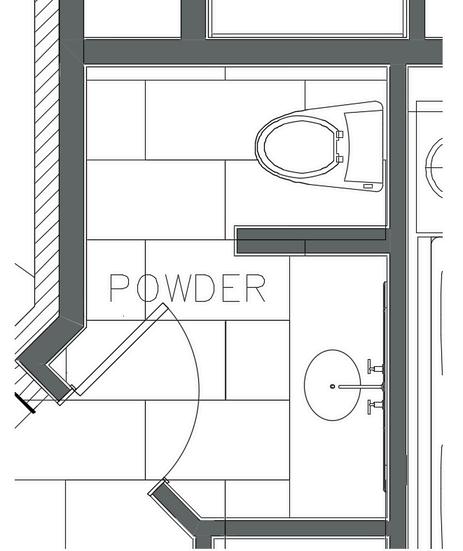

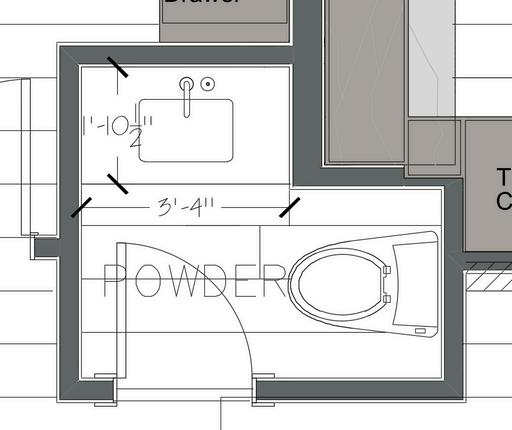

Main Powder - 107

16

East Linear Bar Faucet Blanco Quartus Bar Sink Stainless Steel Sink

Countertop Rio Alicante Marable Premium Honed

Limestone Flooring in Wet Spaces & Shower Floor Zahara Beige Loft Finish, Sawn Edges 18"x36" Cabinetry Design to be finalized with team & drawn by Renegade.

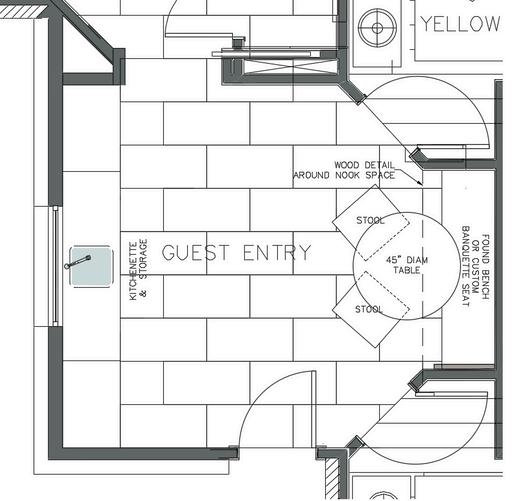

Guest Entry - 120

17

Hardwood Flooring at Vanity Farmhouse Stone Campagne, Old Brown Lengths Vary

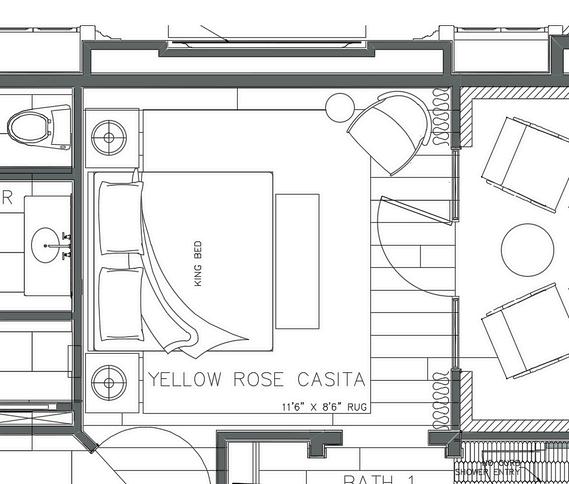

Casita 1 - 110

18

Hardwood Flooring at Vanity Farmhouse Stone Campagne, Old Brown Lengths Vary

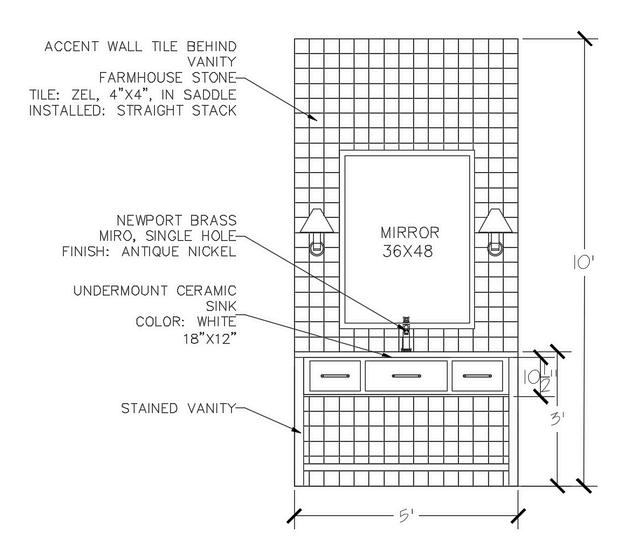

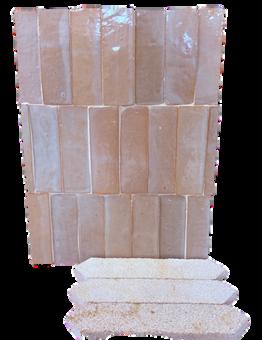

Accent Wall Tile & Shower Wall Tile Series: Zel Bejmat, Size: 4"x4" Color: Saddle Installed: Straight Stacked

Newport Brass, Miro Single Spout Finish: Antique Nickel

Undermount Sink Finish: White, 20.5"x14.25"

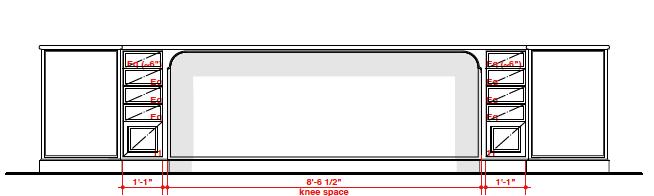

Designer Vanity Specifications & Design to be reviewed with & drawn by Renegade.

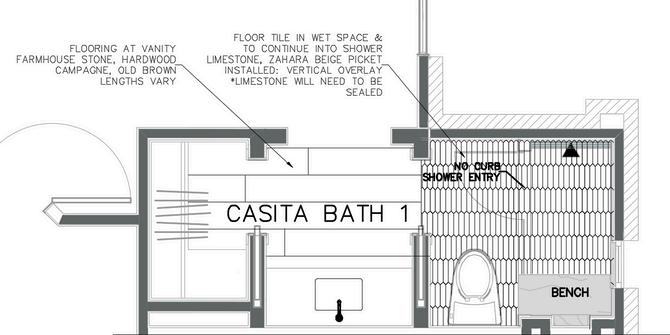

Casita 1 Bath - 111, 112, 113

Countertop Taj Mahal Quartzite 19

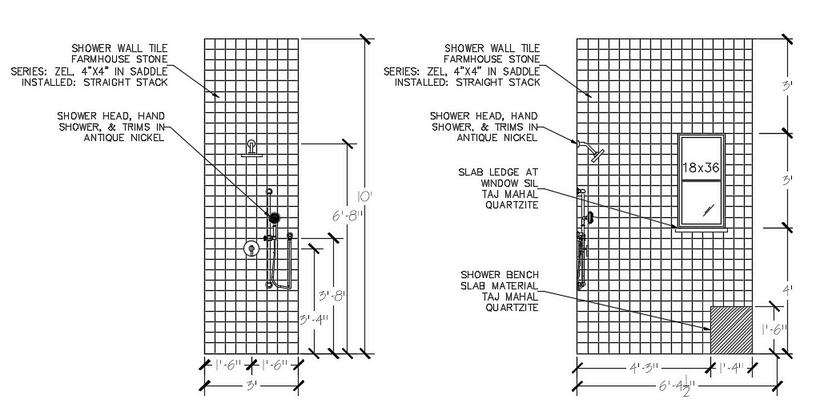

Accent Wall Tile & Shower Wall Tile Series: Zel Bejmat, Size: 4"x4" Color: Saddle Installed: Straight Stacked Flooring in Wet Space & Shower Floor Limestone, Zahara Beige Picket

Newport Brass Showerhead with 8” Arm Antique Nickel

Wall tile & slab detail at Niche Linear Drain Satin Stainless Steel Length Adjustable on Site

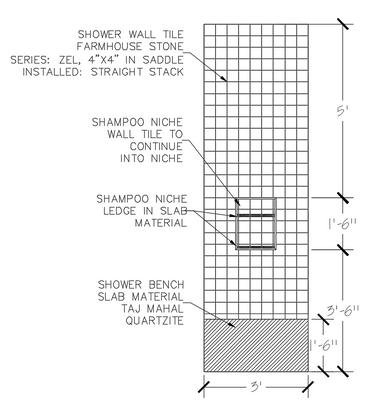

Casita 1 Shower - 112

Niche Design in Development MD to review niche design with Renegade

Shower bench material Taj Mahal Quartzite

20

Hardwood Flooring at Vanity Farmhouse Stone Campagne, Old Brown Lengths Vary

Casita 2 - 114

21

Hardwood Flooring at Vanity Farmhouse Stone Campagne, Old Brown Lengths Vary

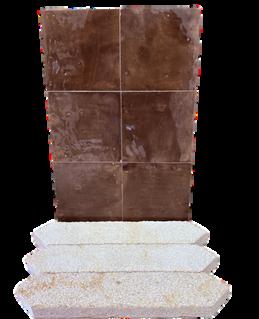

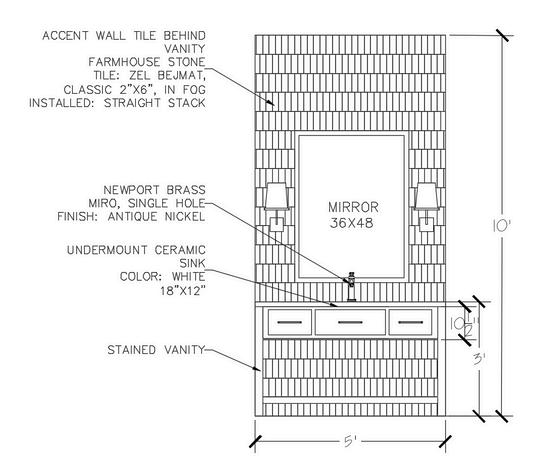

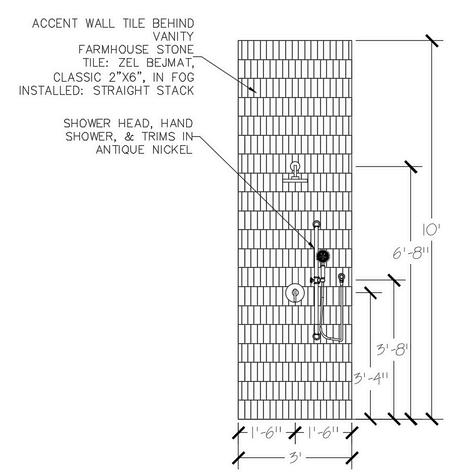

Accent Wall Tile Series: Zel Bejmat Classic 2"x6" Color: Fog Installed: Vertical Overlay

Newport Brass, Miro Single Spout Finish: Antique Nickel

Undermount Sink Finish: White, 20.5"x14.25"

Designer Vanity Specifications & Design to be reviewed with & drawn by Renegade.

Casita 2 Bath - 115, 116, 117

Countertop Taj Mahal Quartzite

22

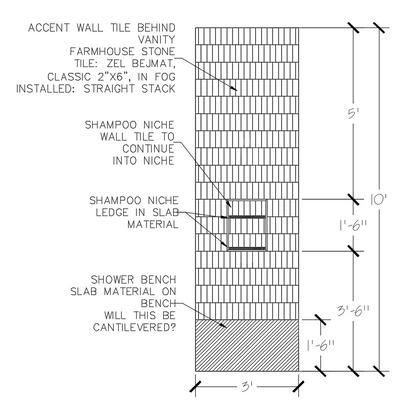

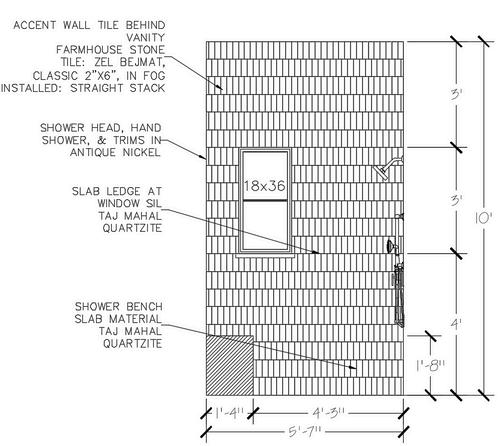

Shower Wall Tile Series: Zel Bejmat, Size: 2"x6" Color: Saddle Installed: Straight Stacked Flooring in Wet Space & Shower Floor Limestone, Zahara Beige Picket

Newport Brass Showerhead with 8” Arm Antique Nickel

Wall tile & slab detail at Niche Linear Drain Satin Stainless Steel Length Adjustable on Site

Casita 2 Shower - 116

Niche Design in Development MD to review niche design with Renegade

Shower bench material Taj Mahal Quartzite

23

Hardwood Flooring at Vanity Farmhouse Stone Campagne, Old Brown Lengths Vary

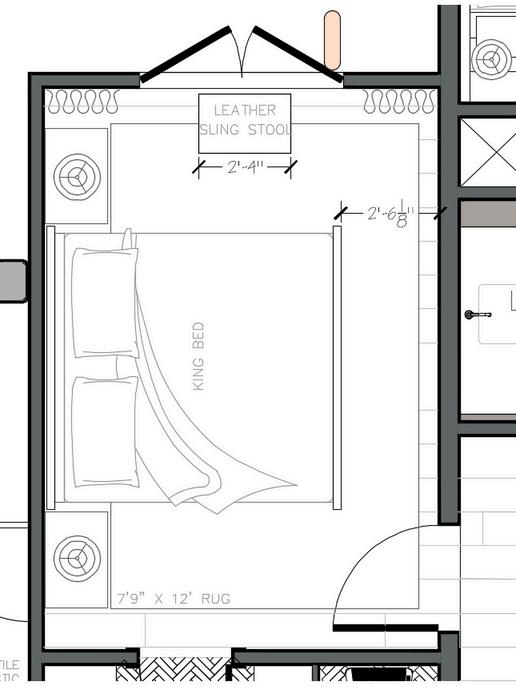

Upper Guest Bedroom - 209

24

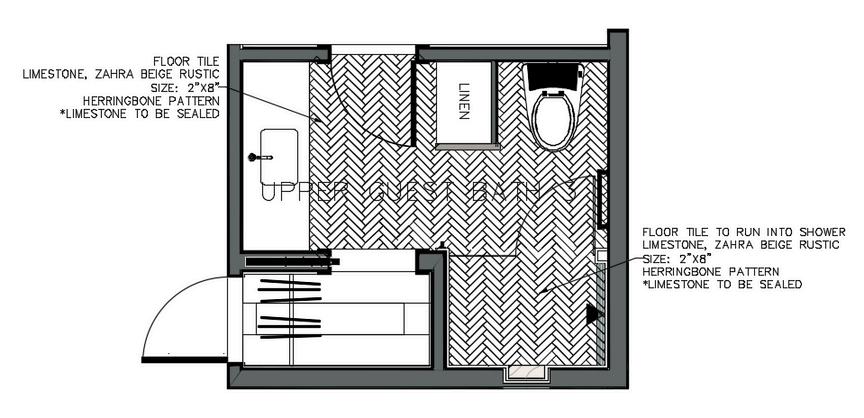

Flooring Limestone, Zahra Beige Rustic Size: 2"x8" Installed: Herringbone Pattern

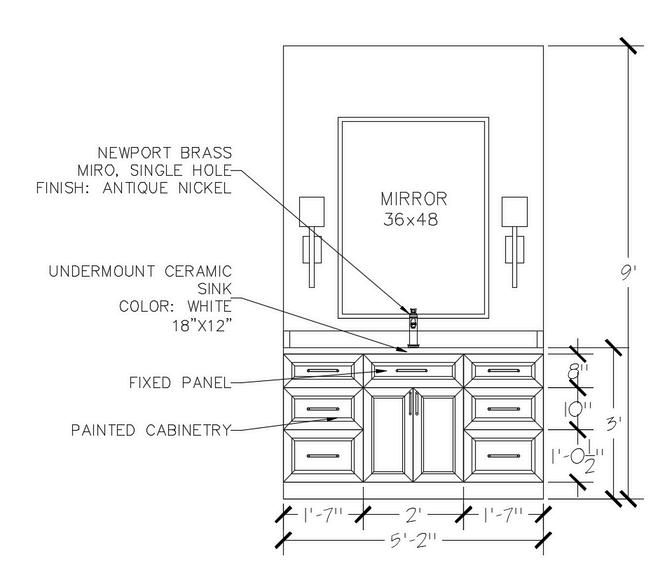

Newport Brass, Miro Single Spout Finish: Antique Nickel

Undermount Sink Finish: White, 20.5"x14.25"

Countertop Taj Mahal Quartzite

Designer Vanity Specifications & Design to be reviewed with & drawn by Renegade.

Upper Guest Bath - 211

25

Shower Flooring Limestone, Zahra Beige Rustic Size: 2"x8" Installed: Herringbone Pattern Pattern to continue from main bath

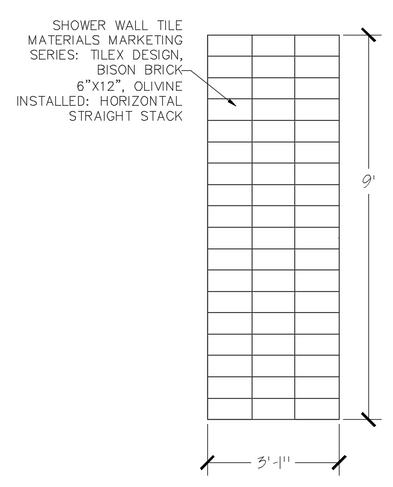

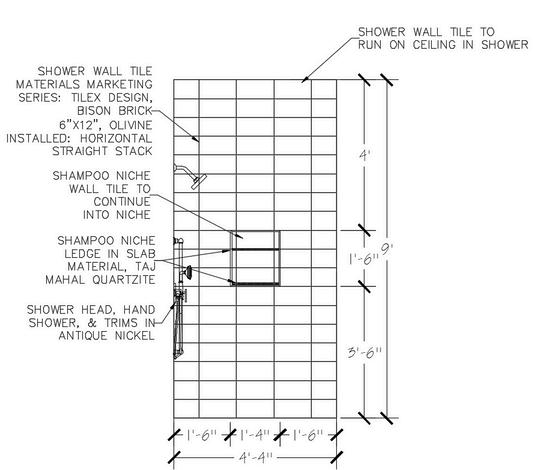

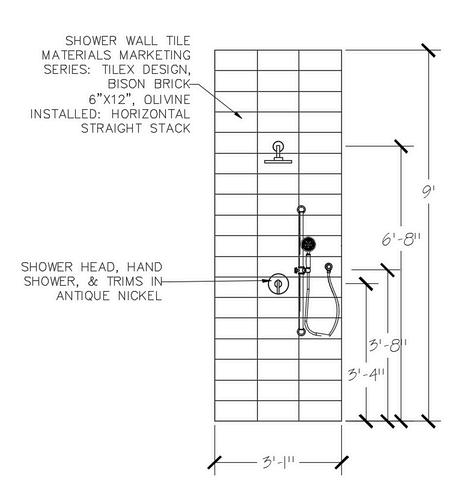

Shower Wall Tile Tilex Design, Bison Brick 6"x12", Olivine Installed: Horizontal Straight Stack

Newport Brass Showerhead with 8” Arm Antique Nickel Wall tile & slab detail at Niche

Linear Drain Satin Stainless Steel Length Adjustable on Site

Guest Bath Shower - 211

Niche Design in Development MD to review niche design with Renegade

Shower bench material Taj Mahal Quartzite 26

Hardwood Flooring at Vanity Farmhouse Stone Campagne, Old Brown Lengths Vary

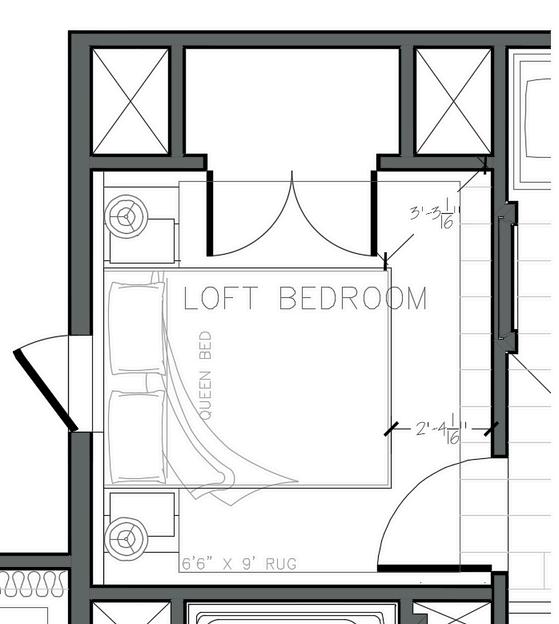

Loft Guest Bedroom - 208

27

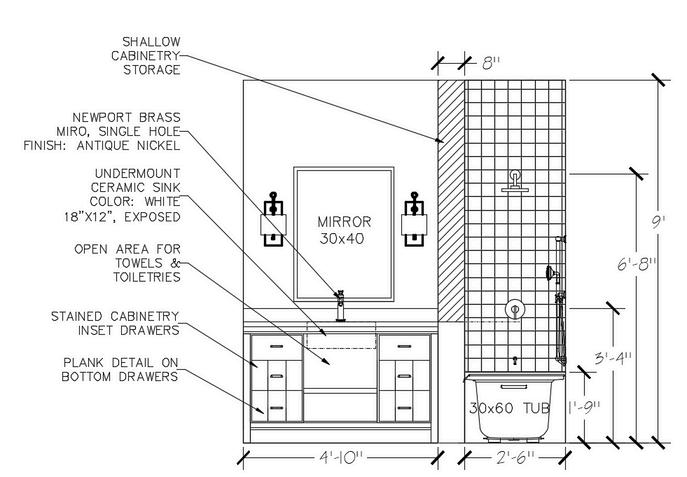

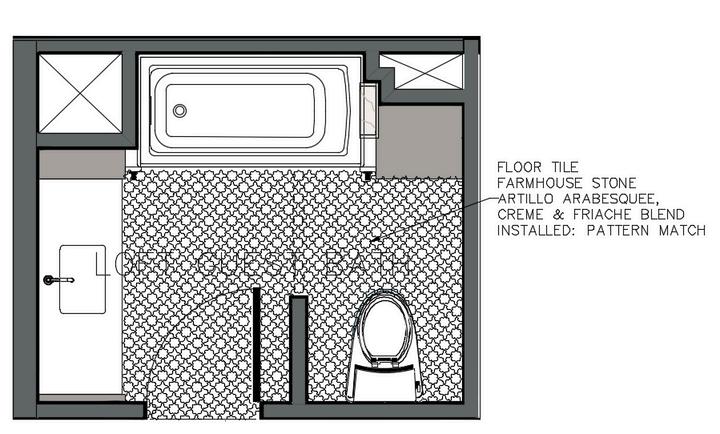

Flooring Artillo Arabesque, Creme & Friache Blend Installed: Pattern Match

Newport Brass, Miro Single Spout Finish: Antique Nickel

Undermount Sink Finish: White, 20.5"x14.25" *Sink is exposed at bottom

Designer Vanity Specifications & Design to be reviewed with & drawn by Renegade.

Exposed Wood Vanity - Stained

Loft Guest Bath - 210

Countertop Rojo Alicante Premium Honed

28

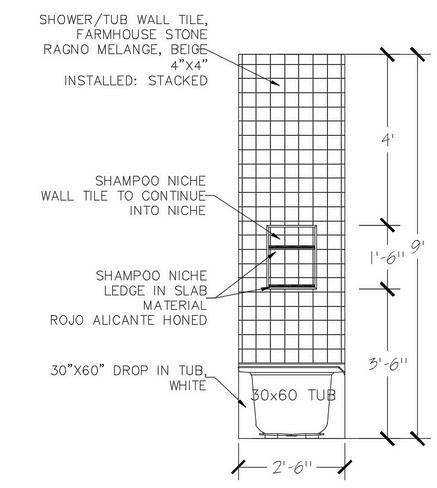

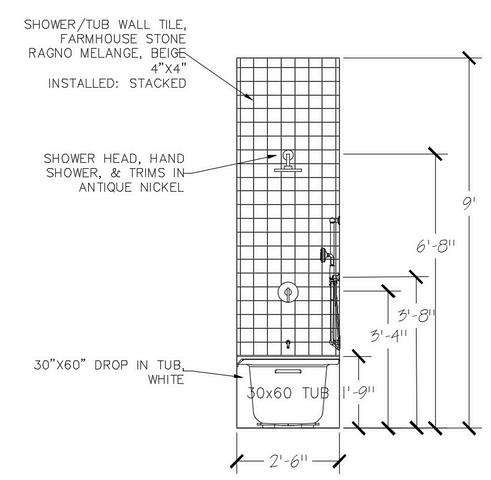

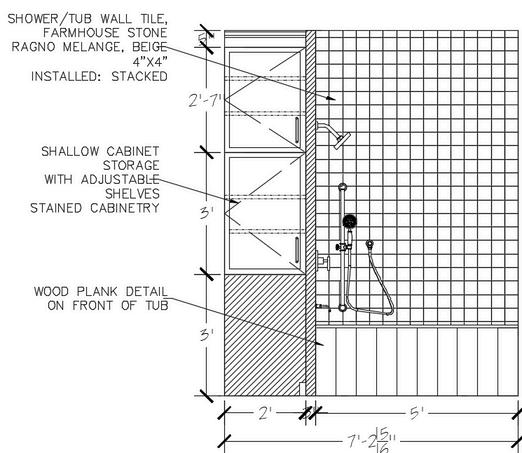

Shower Wall Tile Ragno Melange, Beige 4"x4" Installed: Straight Stack

Miro Shower/Tub Control & Faucet Antique Nickel

Wall tile & slab detail at Niche

Loft Tub/Shower - 210

Kohler 30x60 Tub White Archer Flange Bath

Wood Detail at Front of Drop In Tub Niche Design in Development MD to review niche design with Renegade

29

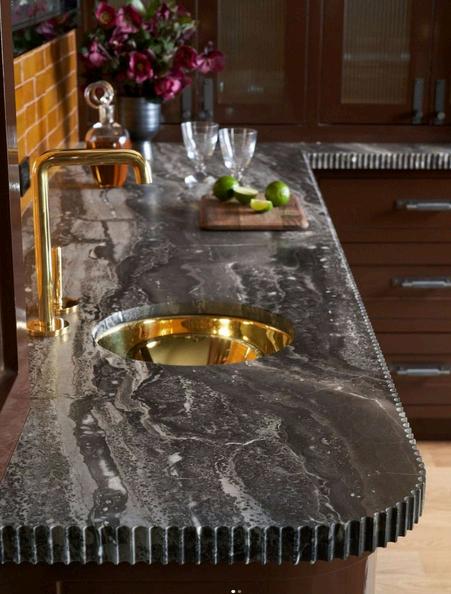

Brizo Litze Bar Faucet with Knurled Handle Brilliance Luxe Gold Elkay, Quartz Luxe Single Bowl Sink Charcoal, 15.75"x15.75"

Countertop Rojo Alicante Marble Premium Honed

Hardwood Flooring at Vanity Farmhouse Stone Campagne, Old Brown Lengths Vary

Need to confirm if we have enough remnant of suggested slab for MD to confirm backsplash selection.

Gameroom Bar - 201

30
