This dissertation investigates the re-industrialisation of our townships by using urban agriculture as a design driver. With global issues such as food pricing and population growth, these issues have had an impact on food as a resource. The proposal provides a food hub in Mamelodi. The architectural exploration of the design aims to create a space which can act as a catalyst for economic growth in the Mamelodi West. The plan seeks to create a food production space which connects existing networks found in Mamelodi. The systems are informal markets and spaza shops located in the area. The design proposal will revitalise the township economy to alleviate the food insecurity issue and unemployment found in the area.
DIJO aims to create a closed-loop cycle of food production, food processing and food consumption. Also, to create an architecture that can empower the people of Mamelodi by having facilities needed to be competitive and creating a thriving economy. The project aims to develop an integrated approach with regards to ‘’agri-food system’’, food production, informal networks and distribution within a framework of socio-economic ecosystem integrity.

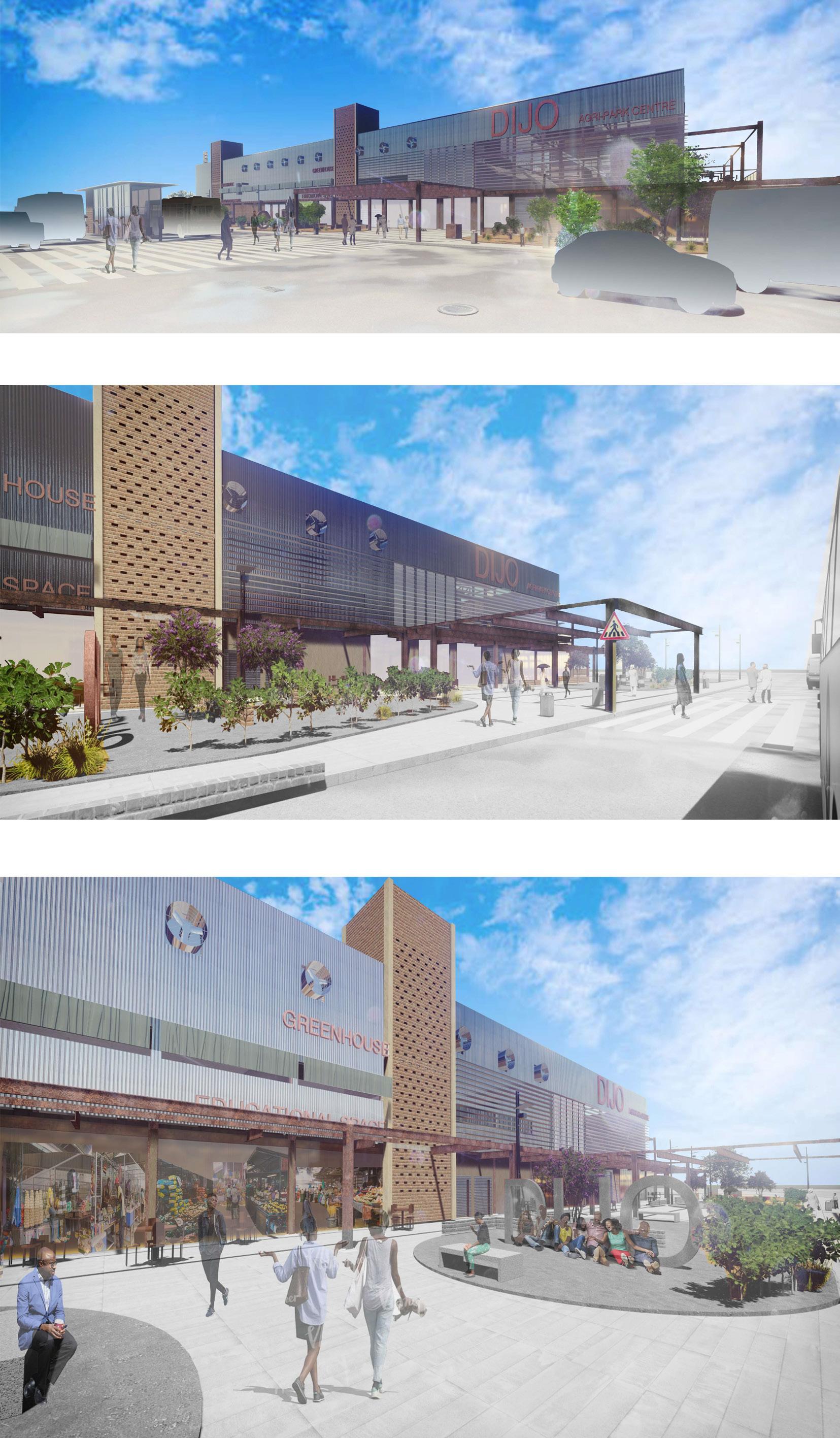

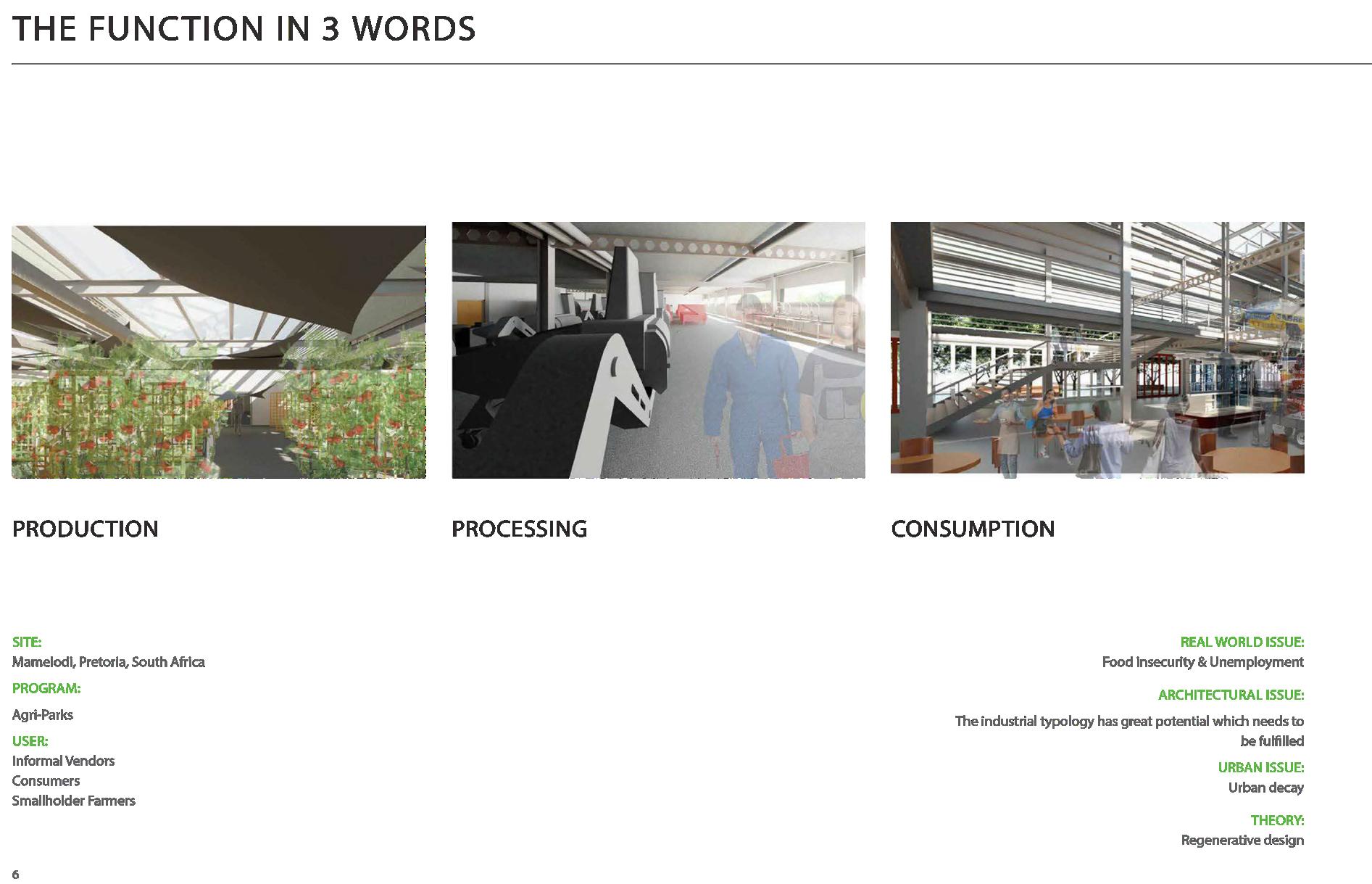

THE FUNCTION IN 3 WORDS

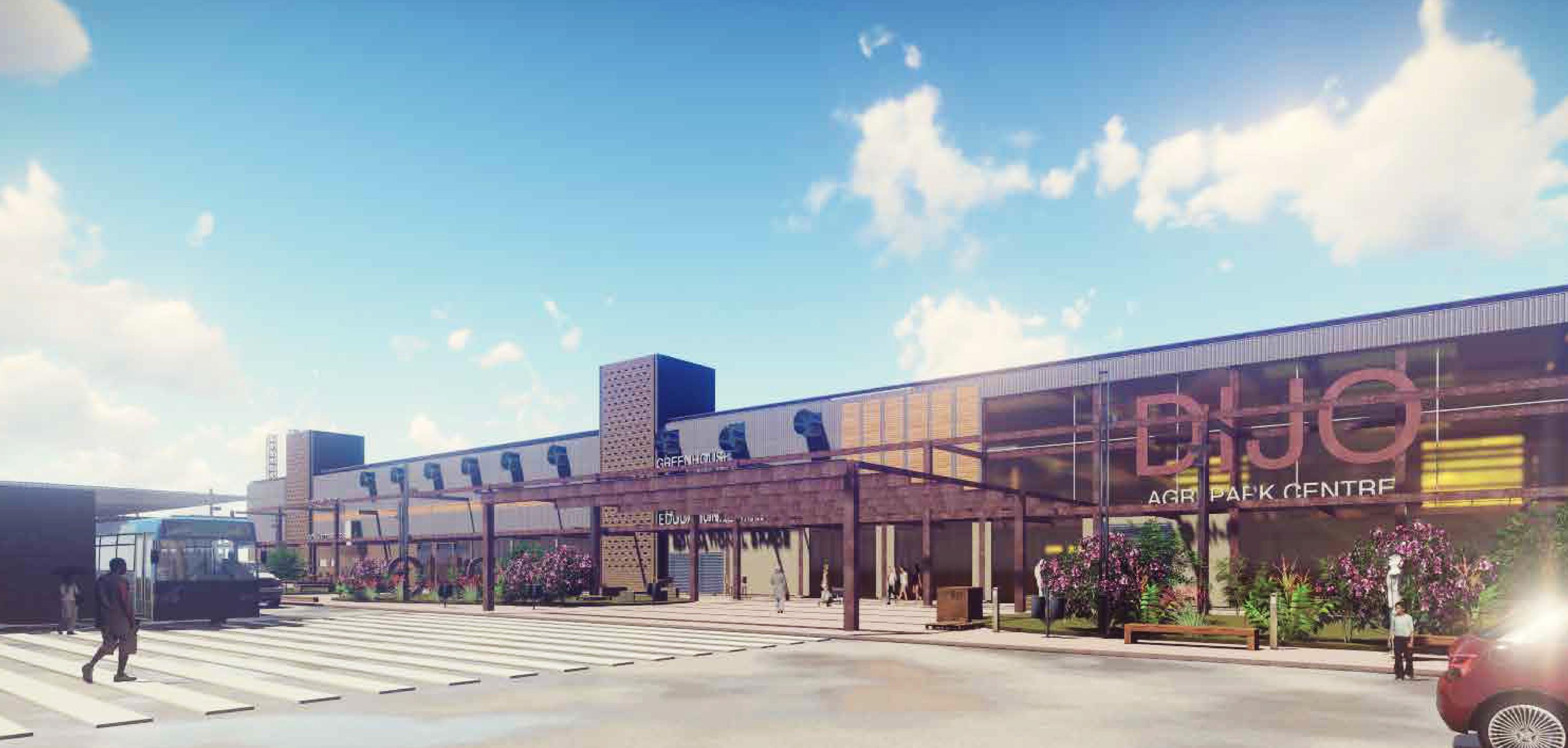

DIJO DESIGN
PRODUCTION PROCESSING CONSUMPTION
MANGALISO MTETWA | MASTER OF ARCHITECTURE PORTFOLIO | 2020 3
‘‘A SYSTEM, WITHIN A SYSTEM’’

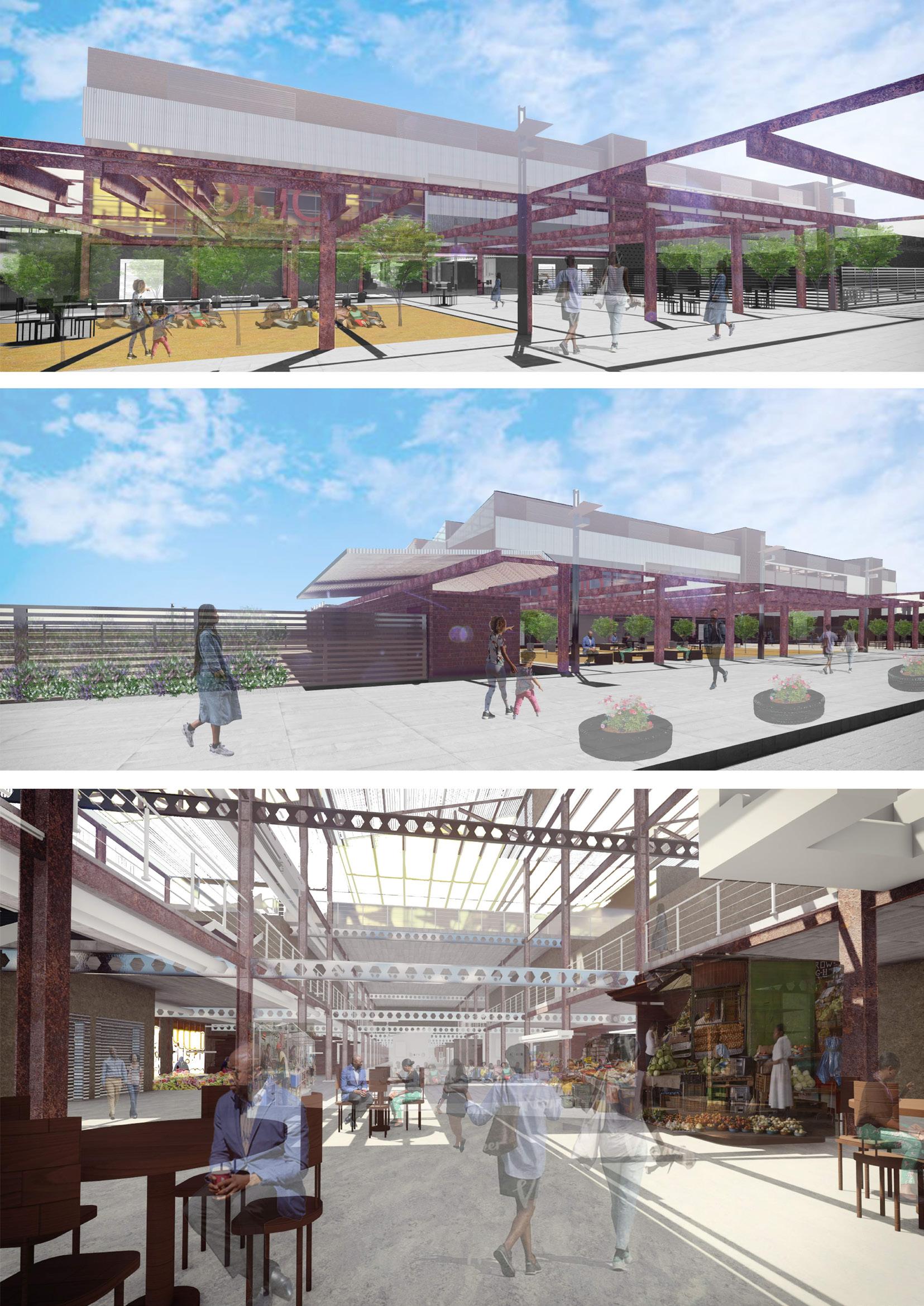

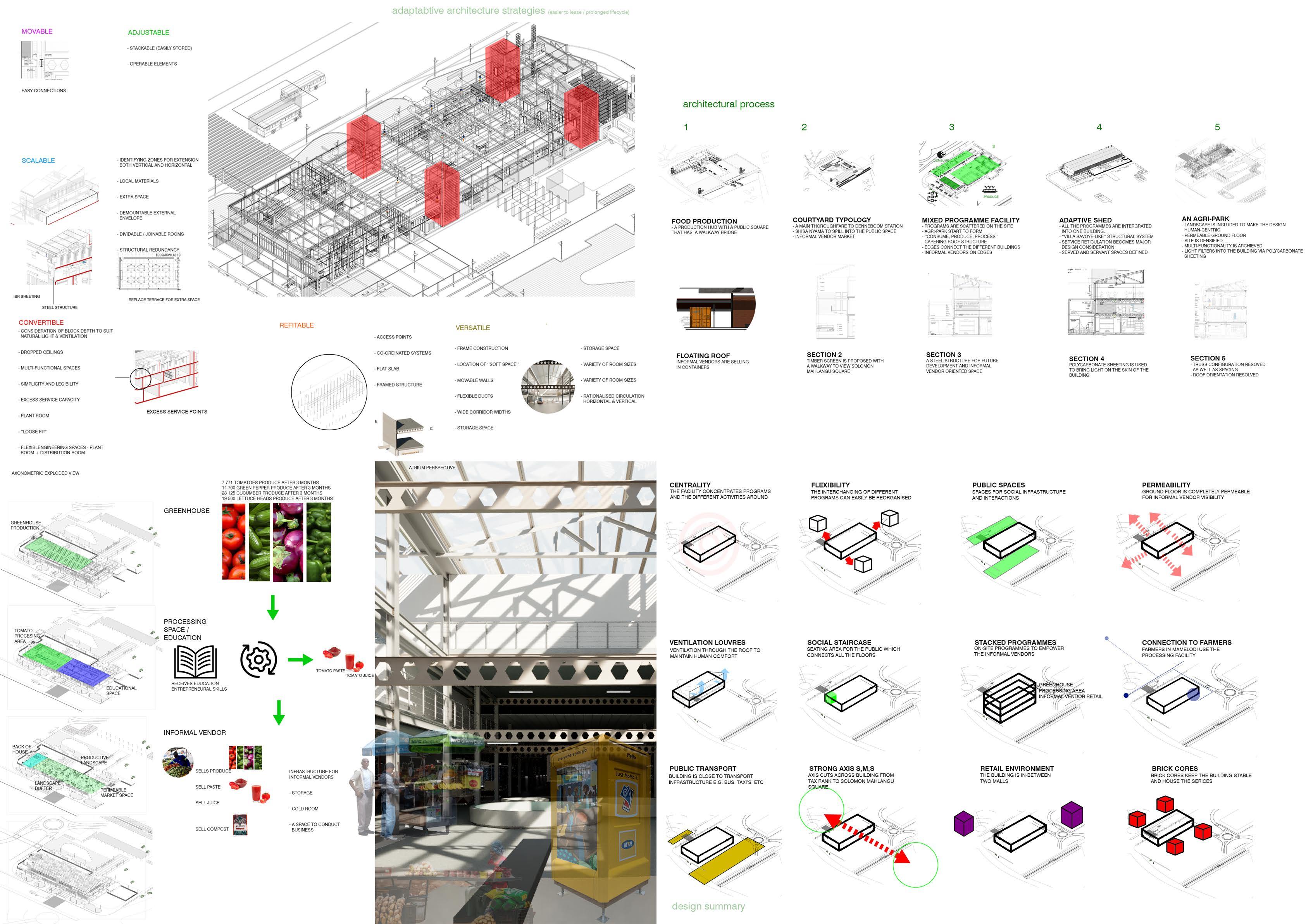

DESIGN SUMMARY
CENTRALITY
FLEXIBILITY
PUBLIC SPACES PERMEABILITY
THE FACILITY CONCENRATES PROGRAMS THE INTERCHANGING OF DIFFERENT SPACES FOR SOCIAL INFRASTRUCTURE GROUND FLOOR IS COMPLETELY PERMEABLE AND THE DIFFERENT ACTIVITIES AROUND PROGRAMS CAN EASILY BE REORGANISED AND INTERACTIONS FOR INFORMAL VENDOR VISIBILITY
VENTILATION LOUVRES SOCIAL STAIRCASE STACKED PROGRAMMES CONNECTION TO FARMERS
VENTILATION THROUGH THE ROOF TO SEATING AREA FOR THE PUBLIC WHICH ON SITE PROGRAMMES TO FARMERS IN MAMELODI USE THE MAINTAIN HUMAN COMFORT CONNECTS ALL THE FLOORS THE INFORMAL VENDORS PROCESSING FACILITY
PUBLIC TRANSPORT STRONG AXIS S.M.S. RETAIL ENVIRONMENT
BRICK CORES
BUILDING IS CLOSE TO TRANSPORT AXIS CUTS ACROSS BUILDING FROM THE BUILDING IS IN- BETWEEN BRICK CORES KEEP THE BUILDING STABLE INFRASTRUCTURE E.G. BUS, TAXI, ETC TAXI RANK TO SOLOMON MAHLANGU TWO MALLS AND HOUSE THE SERVICES SQUARE
4
SITE:
Mamelodi, Pretoria, South Africa
PROGRAM:
Agri-Parks
USER:
Informal Vendors
Consumers
Smallholder Farmers
CONCEPT
Adaptive Architecture
Thresholds:
REAL WORLD ISSUE: Food insecurity & Unemployment
ARCHITECTURAL ISSUE:
The industrial typology has great potential which needs to be fulfilled
URBAN ISSUE: Urban decay
THEORY: Regenerative design
CURRENT URBAN TYPOLOGY:
– Abandoned open spaces
– Abandoned industrial buildings
– Unemployment
– Mono-functional land use
PROPOSED URBAN TYPOLOGY:
– Learning about agriculture
– Employment opportunities
– Self-sustaining economic node
– Alleviating food insecurity
From the BRT to the buiding, up until the taxi wash bay
MANGALISO MTETWA | MASTER OF ARCHITECTURE PORTFOLIO | 2020 5

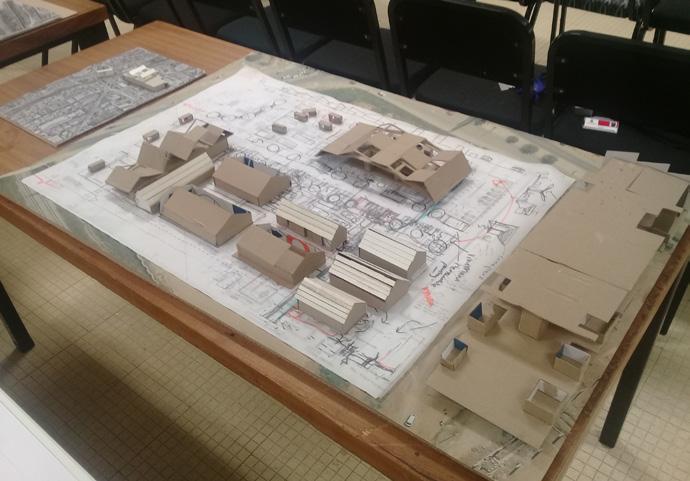

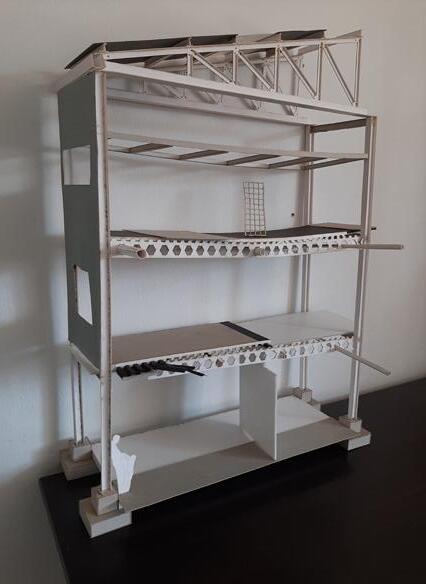

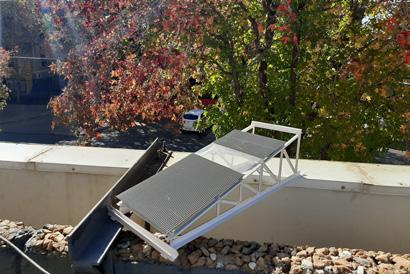

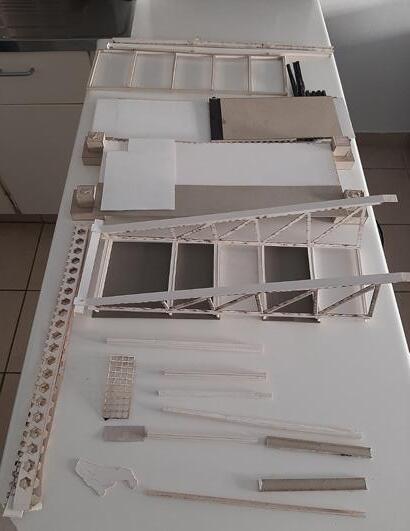

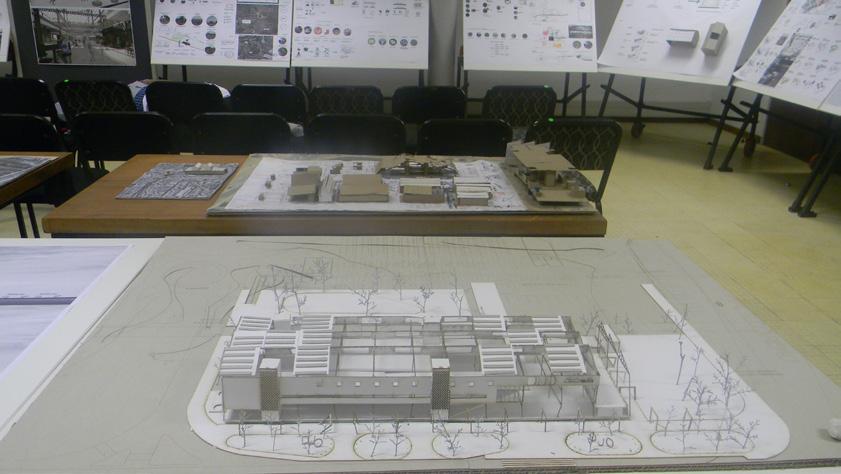

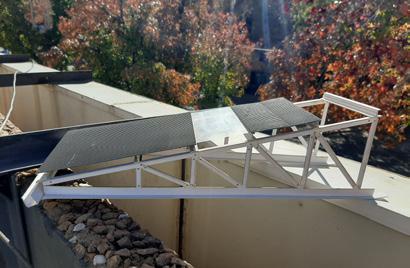

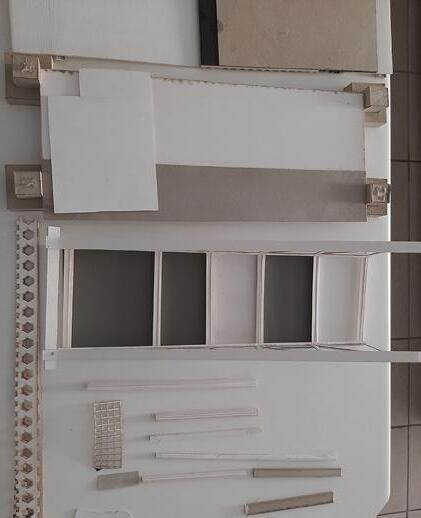

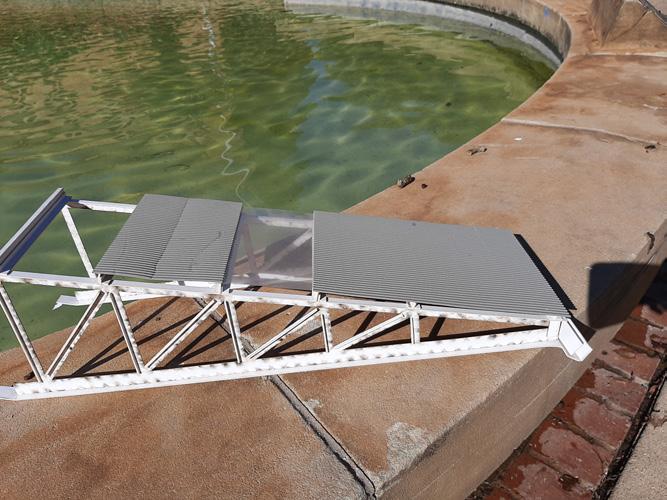

MODELS
6
TRADE INFORMAL VENDORS PACKAGING STORAGE
MANGALISO MTETWA | MASTER OF ARCHITECTURE PORTFOLIO | 2020

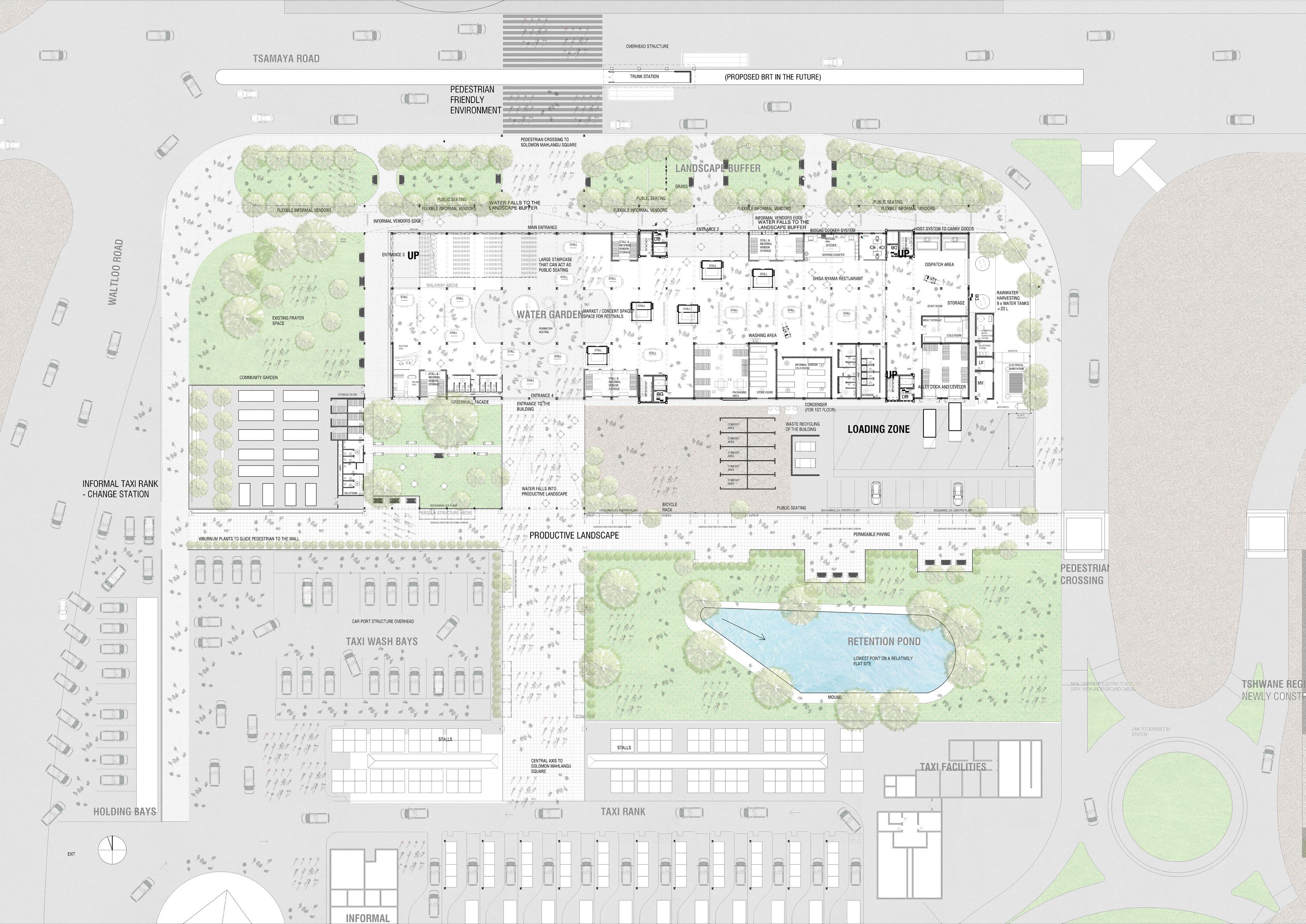

8 SOLOMON MAHLANGU SQUARE TSHWANE REGIONAL MALL DENNEBOOM STATION PROPOSED TAXI RANK TSAMAYA ROAD (PROPOSED BRT ROUTE) DENLYN SHOPPING MALL WALTLOO ROAD ADIENT AUTOMOTIVE FORD MOTOR COMPANY AUTOMOTIVE INCUBATION CENTRE FMCSA MAMELODI COMMUNITY HEALTH CENTRE DEPARTMENT OF LABOUR HLANGU'S COFFEE SHOP SHOPS TRANSPORTATION HUB LEDWABA STREET MINI MUNITORIA TSHWANE HOSTEL MAMELODI MAMELODI HERITAGE FORUM SASOL MAMELODI TSHWANE METROPOLITAN POLICE DEPARTMENT TB SCRAP OPEN FIELD N N METALS PTY GALVADIP LEITA STEEL (PTY) LEVEL CONSTRUCTION (PTY) LTD OPEN FIELD RAILWAY OPEN FIELD OPEN FIELD STORMVOELROAD SCALE: 1 : 1000 Site Plan
TECHNOLOGICAL INTENTIONS
CONTEXTUAL RESPONSE
- THE NEEDS OF THE COMMUNITY
- LINKING SOLOMON MAHLANGU AND THE PROPOSED TAXi RANK
- THE NEEDS OF THE INFORMAL VENDORS
- PEDESTRIAN ORIENTATED DEVELOPMENT
- MATERIALITY OF SURROUNDING BUILDINGS
- EXISTING EDGES AND FUNCTIONS
FUNCTIONAL ORGANISATION
FORMAL IDEAS
TECHNOLOGICAL INTENSIONS
STACKING THE RESPECTIVE FUNCTION STEWARD BRANDS IDEAS OF ADAPTABILITY A PERMANENT STEEL STRUCTURE THAT ALLOWS FOR ADAPTABILITY ESPECIALLY USE
DIJO TECHNICAL

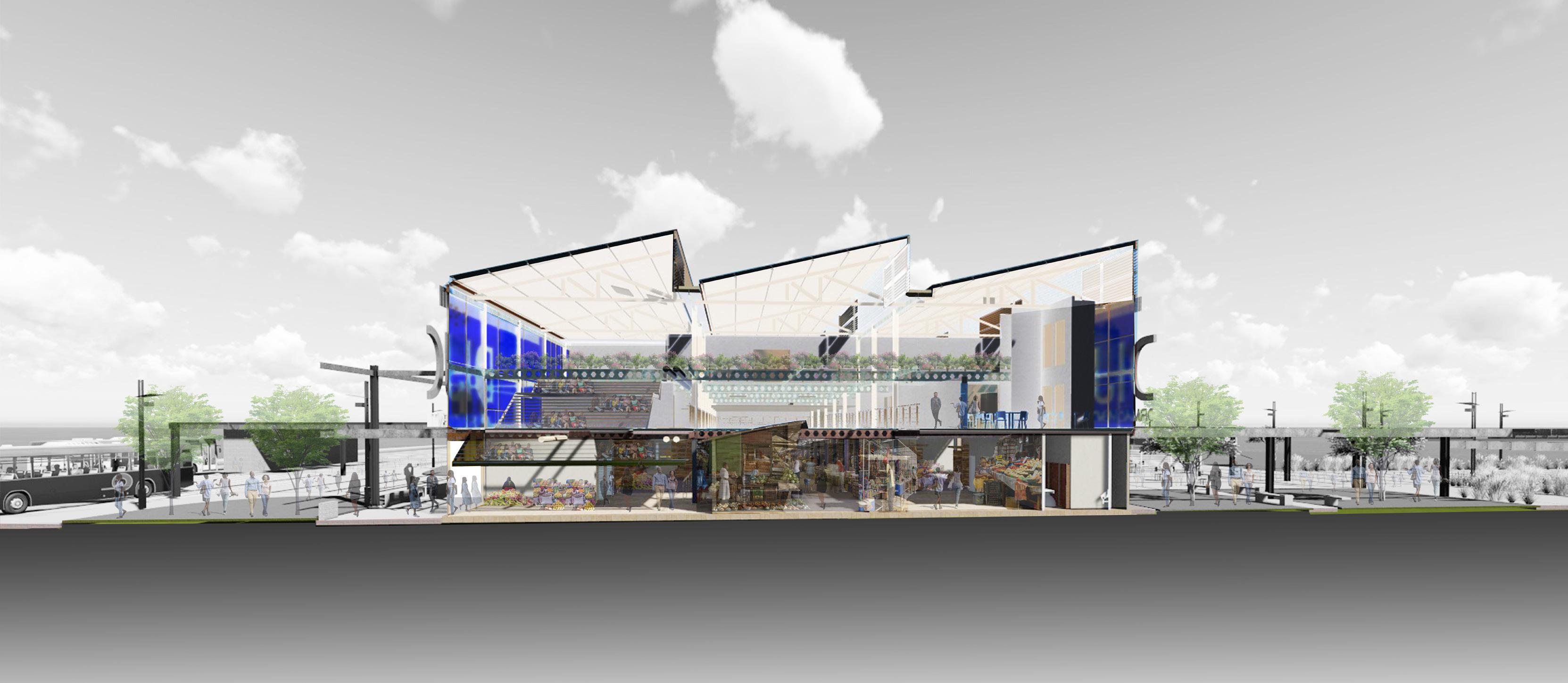

BASEMENT FLOORBRICK CORE HEIGHT 16000 TRIPLE ATRIUM SPACE INFORMAL VENDOR MARKET SPACE EDUCATION AND CLASS ROOMS CENTER FOR THE INFORMAL ENDORS BRICK AND CONCRETE CORE BRICK AND CONCRETE CORE TOMATO PRODUCTION GREEN PEPPER PRODUCTION CUCUMBER PRODUCTION LETTUCE PRODUCTION FERTILIZER STORAGE STAIRCASE SERVICE CORE HOIST SYSTEM HOIST SYSTEM WET AREA SELECTION AND GRADING AUTOCLAVE DOUBLE BOTTOM KETTLES JUICE EXTRATION WALKWAY PUBLIC STAIRCASE WATER GARDEN SPACE STALL STALL STALL STALL SHISA NYAMA RESTUARANT OFFICE ENTRANCE MAIN ENTRANCE ENTRANCE TERRACE SPACE PUBLIC WALKWAY WATER STORAGE PUBLIC WALKWAY POLYCARBONATE SHEETING FOR DAYLIGHTING LOUVRES FOR VENTILATION FOUNDATION LEVEL -1000 GREENHOUSE PROCESSING LEVEL INFORMAL MARKET FLOOR ROOF LEVEL 450 GALVANISED STEEL GUTTER PURLIN BOLTED CLEAT WITH M16 BOLTS 00 GROUND FLOOR 225 THICK UNFINISHED CONCRETE SLAB DIAMETER STEEL WEATHERED STEP ROOF LEVEL 12000 125 STEEL ANGLE CLEAT FASTENED KLIP SECOND FLOOR 8000 STEEL I-BEAM 254 ANGLE CLEAT WELDED 146 STEEL H-COLUMN ANGLE CLEAT AND 150 65 FOAM BOARD ALUMINIUM BRACKET 100 2 SECTION (ATRIUM) 10 1 SECTION 2 -DETAIL SECTION AT BOX GUTTER 1 10 4 SECTION -DETAIL SECTION AT GROUND 10 5 SECTION 2 -DETAIL SECTION AT ROOF I-BEAM 10 SECTION -DETAIL SECTION AT SECOND FLOOR SLAB
MANGALISO MTETWA | MASTER OF ARCHITECTURE PORTFOLIO | 2020 9
FIRST FLOOR 4000 SECOND FLOOR 8000 ROOF LEVEL 12000 CASTELLATED BEAM WELDED TO A BASE PLATE WHICH IS BOLTED TO A HCOLUMN 5M SPACING BOLTED TO AN H-COLUMN BY M16 BOLTS D404 6 D404 305 x 305 x 97 STEEL H-PROFILE COLUMN 254 x 146 x 31 STEEL I-BEAM PROFILE POWERFLOATE COMPOSITE FLOOR 200 THICK ROBERTSONS Q-FLOOR QC SLAB PLACED ON METAL DECKING SUPPORTED BY CANTILEVER BEAM INFORMAL VENDOR STALL AND STORAGE TOMATO PROCESSING FLOOR GREENHOUSE FLOOR ROOF KLIP LOK 700 700 MM x 233 MM x 41 MM, SHALE GREY COLOUR FINISH. FASTENED WITH THE KL70 CLIP ON C-SECTIONS & TRANSLUCENT POLYCARBONATE SHEETING (FOR LIGHT) 305 MM 635 MM X 4 MM 2 UNEQUAL ANGLE BACK TO BACK BOLTs 75 x 50 5 WELDED TO HORIZONTAL I-BEAM 225 CONCRETE SLAB UNFINISHED FLOOR LEVEL M16 BOLTS DRILLED INTO A BASE PLATE 0.25 POLYOLEFIN DAMP PROOF MEMBRANE 150 x 65 20 2.0 STEEL LIPPED CHANNEL GIRT 125 x 75 8 STEEL ANGLE CLEAT WELDED TO RAFTER BOX GUTTER 500 DEEP, MILD STEEL INFORMAL VENDOR FLOOR PEDESTRIAN WALKWAY / INFORMAL VENDOR INTERFACE TILT UP DOOR FOR THE INFORMAL VENDOR STORE 1:20 SCREED FALL TO PIPE FLASHING WITH A DRIP EDGE C STUD SECTION 102 mm 25 mm SPACED IN 1200 mm SPACINGS CIRCULAR HOLLOW SECTIONS 19.1 IN DIAMETER TUBES FOR THE FLEXIBLE VENDORS DRIP IRRIGATION HYDROPONIC SYSTEM TO BE USED FOR PLANT AREA YELLOW ELECTRICAL WATER PIPES LOOSE FIT, STRUCTURE CAPABLE OF LATER ADAPTION FOR DIFFERENT USES: GOOD ROOM SIZES, FLOOR TO CEILING HEIGHTS AND LOADING CAPACITY SHADE NETTING IN THE GREENHOUSE FOR TEMPERATURE AND TO PROTECT THE PLANTS MILD STEEL SECTIONS 50 50 SQUARE BAR 2500 cc INTERVALS TO CARRY THE SHEETING AND KEEP PLANTS UPRIGHT HOIST SYSTEM TOMATO PLANTS WINDOW FLEX DUCT RECTANGULAR 125 75 8 STEEL ANGLE CLEAT WELDED TO RAFTER SIGNAGE FOR INFORMAL VENDORS SQUARE TRELLIS 2000 X 800 STEEL LOUVRE SYSTEM 400 MM THICK C L C L C C 1200 1605 1200 1200 1200 1447 3343 464192 3730 1070 D404 CONCRETE FOOTING FLOOR DRAIN 110 PVC PIPE TO FALL EXTRACTOR FAN PHOTOVOLTAIC PANELS 1956 992 X 40 MM 330 W MENTIS GRID 10000 1:20 FALL SCREED TO FALL TO FLOOR DRAIN 1:20 FALL SCREED TO FALL TO FLOOR DRAIN SKIN KLIP LOK 700, 700 MM 233 MM 41 MM SHALE GREY COLOUR FINISH, FASTENED WITH THE KL70 CLIP & TRANSLUCENT POLYCARBONATE SHEETING (FOR LIGH) 305 MM x 635 MM x MM NAILED ON C-SECTIONS MILD STEEL 1100 MM HANDRAIL SCALE: 1 : 20 SECTION 2 -TECHNICAL SECTION RETRACTABLE SHADE NETTING SIGNAGE BY SPECIALIST 10

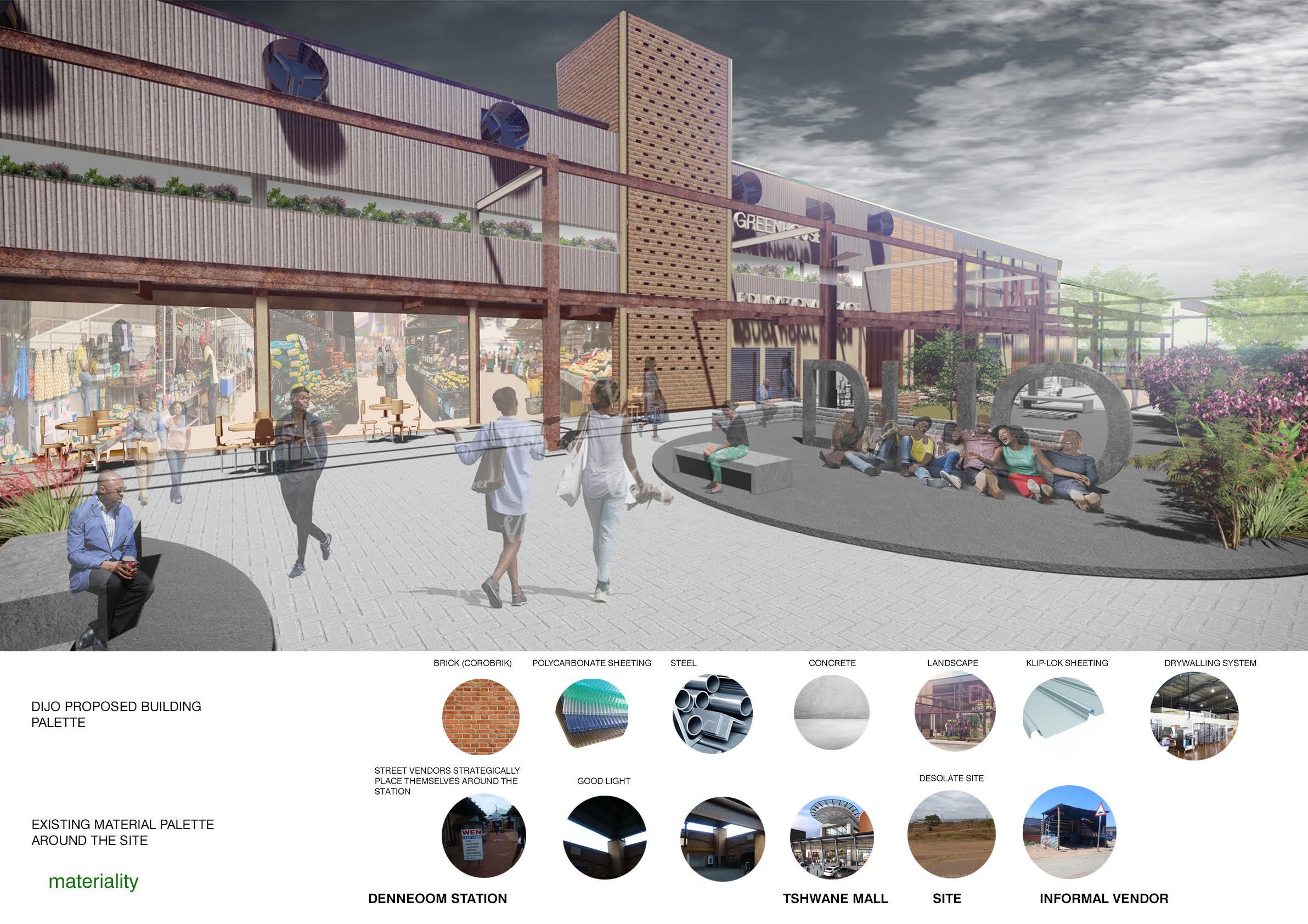

DIJO PROPOSED BUILDING PALETTE
EXISTING MATERIAL PALETTE AROUND THE SITE
DENNEBOOM STATION TSHWANE MALL SITE INFORMAL VENDOR
MANGALISO MTETWA | MASTER OF ARCHITECTURE PORTFOLIO | 2020 11
BRICK (COROBRIK) POLYCARBONATE STEEL CONCRETE LANDSCAPE KLIP-LOK SHEETING DRYWALLING SYSTEM
