water management solutions
Creating Safe and Sustainable Play Spaces
WHAT YOU DO WITH THE WATER is an essential part of any successful aquatic play project.
By carefully planning and implementing Waterplay’s robust water treatment systems, components, and management strategies, your splash pad project can provide a safe, enjoyable, and sustainable water play experience for users while minimizing environmental impact and resource usage. With different options for every project, Waterplay can help you find the best solution for your space!
WATER Management SYSTEMS
Creating sustainable play spaces.
There are two different water management systems available for your splash pad: recirculation and flow-through. Which one is best for your project will depend on many factors such as the size of the play area, surrounding landscape, demographics, local regulations, and the overall design.
At Waterplay, we have made it our objective to understand the evolving needs of the industry and to offer new, state-of-the-art technologies to help you build an environmentally sensitive space.
RECIRCULATION
Waterplay’s recirculation treatment system is designed to collect, filter, treat, disinfect, and return the water to the spray park, creating a safe and sustainable circulation method.
• Reduces water consumption by recycling and treating the same water repeatedly.
• Minimizes operating costs.
• Provides filtration and disinfection.
• Conserves local water resources and minimizes environmental impact.
• Can save millions of gallons annually.
On-Demand Activation
As the water falls to the concrete play surface, the drain filters large debris and sends the water through the diverter and strainer system. 1 4 3 6 2 5
Waterplayers interact with the activator which triggers the controller to start the flow of water.
Controller & Manifold
The smartPLAY™ Controller & manifold work together to send the water to the play space based on programmed sequences.
Drain
Diverter & Strainer
The diverter & strainer captures debris and also redirects rainwater to reduce overall chemical consumption from the water treatment system.
Holding Tank
The underground holding tank stores water that has been collected from the drains and pumps it to the water treatment system.
Water Treatment System
The water treatment system is responsible for maintaining water quality through filtration and advanced disinfection techniques. After treatment, the water is reintroduced to the splash pad where it sprays back onto the concrete surface, runs down the drain, and back into the underground holding tank.
recirculation systems
Powerful protection, made simple. We’ve changed the future of water care.
There’s a reason we’ve designed our recirculation systems to exceed industry standards—to give you the best water management system possible. All you have to do is select the right size.
Water Treatment System 150
Up to 150 GPM | Single loop
For small to medium splash pads.
Water Treatment System 300
For medium to large splash pads. Up to 300 GPM | Single loop
Single loop: 1 pump and 100% filtration.
Water Treatment System 450 Up to 450 GPM | Double loop
Best for large splash pads.
A single pump circulates water through the system ensuring 100% of the water being used is treated.
Double loop: 2 pumps (separate filtration and feature loops).
The filter pump circulates water through treatment process while the feature pump sends water to the splash pad features. Need the capacity of a double loop system but want 100% filtration?
Don’t worry, we’ve got you covered – check out our cartridge filters as an optional add-on.
Included features:
• Small footprint. Skid mounted system.
• smartPLAY™ controller featuring smartACCESS™ .
• Includes fail safe protection.
• Sand filtration shipped loose for flexibility.
• Automated multi-port valve backwash for simplified operation.
• Primary automated disinfection liquid chemical monitoring and dosing with alarm protection.
• Smart Programming for reduced power consumption.
• Flow switch safety interlock ensures system protection.
• Four different chemical controller options to choose from for ease of operation and monitoring.
See specification sheet for full product data.
Optional add-ons:
+ Chemical storage tanks.
+ Controller output expansion for more than 28 valves.
+ Wind and rain sensors with controller integration.
+ Cartridge filters for the WTS450 for 100% filtration.
Optional Cartridge Filters
Clear Comfort or UV Disinfection add-ons:
Enhance your water purification by adding secondary disinfection to your water treatment system. Protect your peace of mind with these options:
+ Clear Comfort
+ Ultra Violet Hydroxyl-based advanced oxidation (AOP)
UV Low pressure
• Effective against cryptosporidium & giardia.
• Destroys 99.9% of microorganisms.
• Effective against viruses.
• Easily retrofittable with little to no additional space required.
• Reduction in chloramines. (Clear Comfort only)
• Low maintenance.
• Reduces chemical usage = less odor and irritation.
FLOW THROUGH How it works...
A flow through system is efficient both financially and economically for aquatic play spaces using small volumes of water. Water from a potable source is pumped directly onto the splash pad and is allowed to drain into a local sanitary or storm drain system and handled according to municipal water management strategies.
• Low maintenance.
• No chemicals or filtration required.
• Quick startup and shutdown.
• Lower maintenance costs.
3 1
On-Demand
Activation
Waterplayers interact with the activator which triggers the controller to start the flow of water!
2
Controller & Manifold
The smartPLAY™ controller & manifold work together to route the water to the play features.
Water Flows
Potable municipal water is pumped directly to the splash pad’s play features through a network of pipes.
5
4
Drain
The drain leads the water away from the play space and filters large debris.
Back to Municipal Wastewater System
Water is re-introduced back into the municipal infrastructure via sanitary or storm drain systems.
WATER Management components
Take control.
While all splash pad designs are unique, they all use similar water management elements. Our advanced components and systems work together to create a seamless environment that delivers safety, efficiency and sustainability for every footprint.
CAMPING AVENTURE ABENAKI | Quebec, CAN
To
start the flow of water...
activators
Start the water.
Turn on the fun!
Optimize water use and maximize play value with Waterplay’s on-demand activators. A perfect solution for reducing water consumption while creating a dynamic play experience. Touch, turn, spin, or tap to start the flow of water.
the playPHASE™
Foot Activator
A simple solution for small parks! ECO ACTIVATOR
The Eco Activator is an integrated controller, manifold and activator all-in-one. The perfect tool for designing small parks in a sprawling urban metropolis or situations where smaller splashes are just enough!
• Below-grade controller and manifold activates play features on demand.
• Supports up to 75 GPM (284 LPM)
• 6 outlets, each with a check valve.
• Requires only one water supply line.
• Flush-to-grade installation.
• Anti-slip coating.
• Hard-wired.
*Compatible with Power Post, Sprout and Foot Activator (Activator Sold Seperatly)
Basic Controller
For minimal splash pad requirements
• Simple controls.
• Value engineered for essential play space needs.
• Nema 4X weatherproof enclosure.
• Effective feature management.
• Control up to 12 standard valves.
Intelligent water controls. CONTROLLERS
Conserve water.
The brains behind the operation and an essential component, the controller operates hand-in-hand with the activator and manifold to automate the supply of water to the spray features. Waterplay’s controllers can be wall mounted, or installed in a below grade vault or above-grade kiosk making them installation-friendly!
smartPLAY™ Controllers
Remote access in the palm of your hand
• Easy-to-use colour touch screen.
• Nema 4X weatherproof enclosure.
• Operators can connect remotely by computer or mobile device with smartACCESS™.
• Conserve water with feature sequencing & flow management.
• 24 hour programming clock, timer and park calendar.
• Synchronize water and light features to create spectacular displays.
• Controls up to 12 valves and 5 activator inputs. Need more than 12 valves?
Add more as needed with an output expansion. (Up to 44)
Connect anywhere, anytime!
Waterplay’s smartACCESS™ digital feature connects you to what’s happening at your play space anywhere, anytime. Control multiple play spaces through your computer or mobile device from one screen and save important data for analyzing and reporting.
• Available for PC and Mac, tablet, and smartphones.
• Simple user interface.
• Sequence and manage water consumption remotely.
• Reduces on-site maintenance calls and operation costs.
• Technical support provided.
SEQUENCING
Feature sequencing & flow management. Sustainable solutions matter.
At Waterplay we are committed to designing play spaces that optimize water through the use of sequenced play zones. Through the use of your Waterplay controller, we can help you determine which features should be active and for how long. By bundling your spray features into timed sequences instead of running everything at once, you can save a significant amount of water!
Starting the flow of water to 1st play zone, then the 2nd, 3rd and finally the 4th, this programmed play sequence promotes movement, saves water and enhances play value!
1st 2nd 3rd 4th
Wall mounted manifolds. DISTRIBUTION
The workhorse behind the scenes!
Transfer the water from the main water supply out to your aquatic play features with Waterplay’s high efficient, wall mounted manifolds. Depending on the project size and flow rate requirements, Waterplay has a solution to best suit your goals.
• Ideal for installing inside an existing utility building.
• Available in 6, 10, 12, 15 or 18 valve configurations.
• Easy access to valves for simple maintenance.
• Adapts to any project size.
• Pre-assembled with mounting brackets for easy installation.
• Slow-closing solenoid valves prevent water hammer.
• Stainless steel header and schedule 80 PVC piping.
Control centrEs
Equipment vaults and kiosks.
No
utility building? No problem!
A complete solution for medium to large sized spray parks.
Below Grade Vault
An underground superpower.
The vault is an underground, selfenclosed system with a durable, tamper resistant hatch that accesses the manifold and controller.
Above Grade Kiosk
A powerful green unit.
The kiosk is an above ground, safe and lockable self enclosed system designed to go next to the play area.
HydroVault
Secure. Durable, Ready to Go.
A fully assembled aluminum enclosure designed to protect and house the Waterplay Water Treatment System.
• Aluminum construction & environmentally friendly.
• Pre-assembled with a 6, 10 or 18 valve manifold.
• Fits into any space and is flush-to-grade.
• Integrates with Waterplay’s smartPLAY™ Controller*
*Sold separately
• Aluminum construction.
• Pre-assembled with a 6, 10 or 18 valve manifold.
• Fits into any space.
• Integrates with Waterplay’s smartPLAY™ Controller*.
*Sold separately
• Aluminum construction.
• Lockable* 3-point latches with stainless-steel handles.
• Double doors for easy access to the controller.
• Ships fully-assembled with WTS150* or WTS450*.
• Dimensions: 8ft W x 12ft L x 8ft H.
*Sold separately
EQUIPMENT
Drains, tanks, hatches and more.
A few more considerations for your design.
Drains
Waterplay’s high capacity drain options ensure that water is quickly drained away from the play space and provides safety for all Waterplayers. Choose from our two options for the style and functionality you need.
• Safe design protects small fingers and toes.
• Optional strainers available for added debris filtering. An essential product for all splash pads.
Stainless Steel Drain Square Drain
• Up to 200 GPM capacity.
• Built in strainer basket.
• Textured powder coated.
• Accommodates 3”/4” or 6” outlet.
Holding Tanks
A best friend for your recirculation system.
Installed underground, the holding tank’s main purpose is to store the water that has been collected from the spray park drains. It plays an important function as a reservoir for the water treatment system and is an essential component for any sustainable splash pad project.
*Compatible with the H-20 Traffic and Pedestrian rated access hatches. (sold separately)
Rated H-20 Traffic Rated
Access Hatches

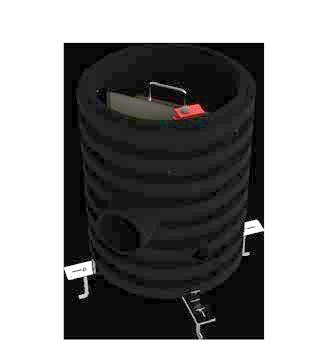

Diverter and Strainer System
A close friend for your holding tank.
The diverter strainer system (DSS) is designed to strain and divert water to the holding tank when the splash park is in service and to divert waste water away outside of daily operational hours.
Easy access to the underworld!
Waterplay’s hatches are tamper resistant with locking provisions and are sized perfectly for quick, simple, and safe entry to your essential underground water management equipment.
