PREFACE
HELLO!
THIS IS MAHMOUD NAGY ELSAYED ...
I would like to begin by introducing myself.
I am an Environmental architect, sustainable and computational designer by education and an explorer by nature!, I am passionate, determined, and ambitious individual.
Architecture, in its broad spectrum, has always implored me to seek new avenues, concepts and stories. As Architecture taught me to dream and being visionary, Engineering regulated my scope with limitations of logic and reason, which -I believe- both are needed to access new horizons on the ground.
As a child, I spent my formative years on the Asian continent. I then returned to Africa having undergone a series of significant experiences which have been cardinal in my personal and vocational developments. Furthermore, as I followed my higher education in Europe, I got to live other impactful years.
My diverse inter-continental upbringing and exposure to various cultures have refined my personality and prompted for more comprehension, and had been complementary to the parameters that shape who I am and essential to new perspectives, I seek to capitalize one as well-driven architect in his pursuit for continuous inspiration!
Here is this portfolio recipe:
Artistic | Architecture
Aspect for my soul, Environmental | Sustainability
For my duty and Technological | Computational For my passion!
Simply put, I am keen to use the technology means to serve a coherent architecture that achieves societal well-being.
Have a look and Hope to like it ...
2021 Milan - Abu Dhabi | 3-IM/ SixConstruct | Junior Architect / Consultant.
2018 - 2019 Cairo | A Plus Architects | Architectural Engineer.
EDUCATION
M.Sc. Architecture For Sustainability
Politecnico di Torino (Honors Thesis)
Italy - Turin | 2019- 2022
| Intensive Code Camp ( M.Sc. Thesis) | AEC Informatics - ITI | Egypt- Smart village | 2022
Summer program | Urban - Water Integration
Delft University of Technology - TU Delft Netherlands - Delft | 2019
B.Sc. - Architectural Engineering and Urban Planning
Faculty of Engineering, Menoufia University Egypt- Menoufia 2012 (Engineering) 2013-2017 (Architecture)
National secondary Education Certificate Grade 97% ( 2012 )
TRAINING
2022 | PARTICIPANT
Belgium - Brussels (Online) | KU Leuven
Structural Integrity: A Computational Design Investigation
2019 | PARTICIPANT
Egypt - Elgouna | TU Berlin
Scholarship in 2nd URBAN Lab Camp
2016 | INTERN
Riyadh Saudi Kingidom | Ram Co., Proger s.p.a. Summer Site training ( FIT OUT ) at OLAYA towers
MY PACKAGE
DESIGN
• RHINO / GRASSHOPPER
• SKETCHUP
• AUTOCAD
BIM
• REVIT
• DYNAMO
• NAVISWORKS
ILLUSTRATION
• Microsoft suite
• Adobe PS - AI - ID
• LUMION
PHOTOGRAMMETRY
• Metashape
• PointCab
ENVIRONMENTAL
• DesignBuilder
• OpenFoam
SKILLS
Physical Models
Arch. Photography
Freehand drawing
Arduino - C# .NET
SOCIAL MEDIA
https://www.linkedin.com/in/nagyarch/
NOTE
If you are interested in any project please contact me and I will gladly provide you with the full versions! More detailed version on my ISSUU profile: https://issuu.com/mahmoudsyd/docs/portfolio_a3_202209_hd !
In respect of your time and portability, This document introduces some TITLE projects! ( Initial milestones about each project and a hint about what I can introduce )
- Denmark
PROFESSIONAL PROJECTS
2024 Denmark- Hybrid | AUC s CORTEX - Climate Tech |Online

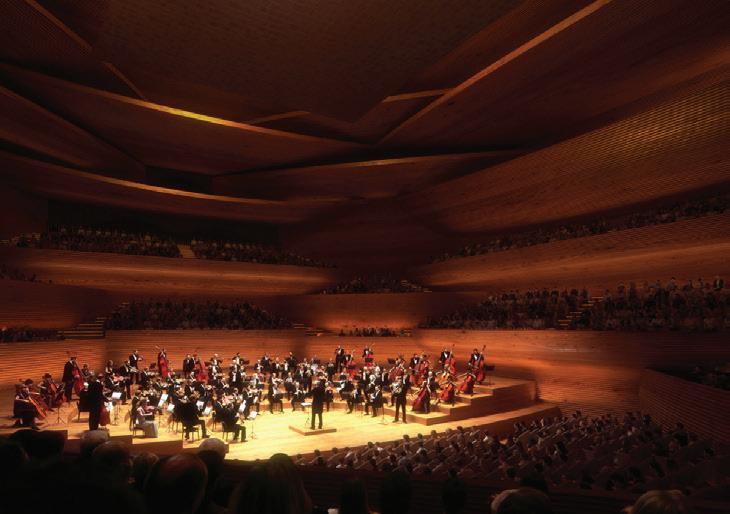

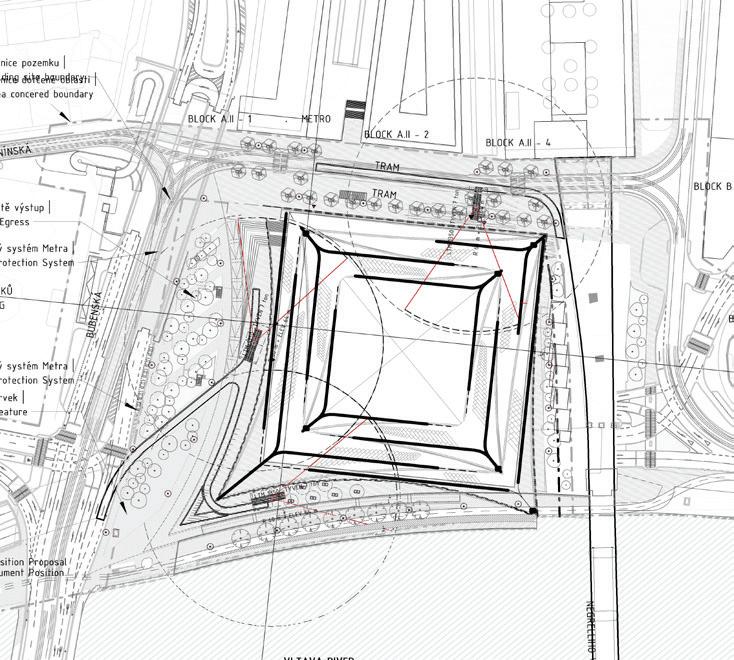

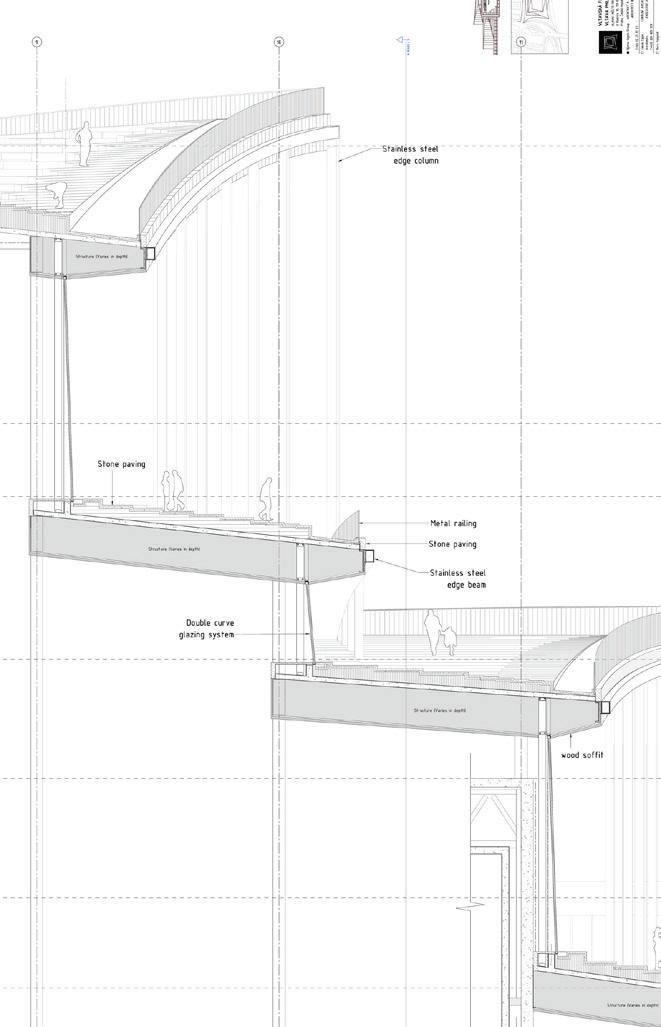

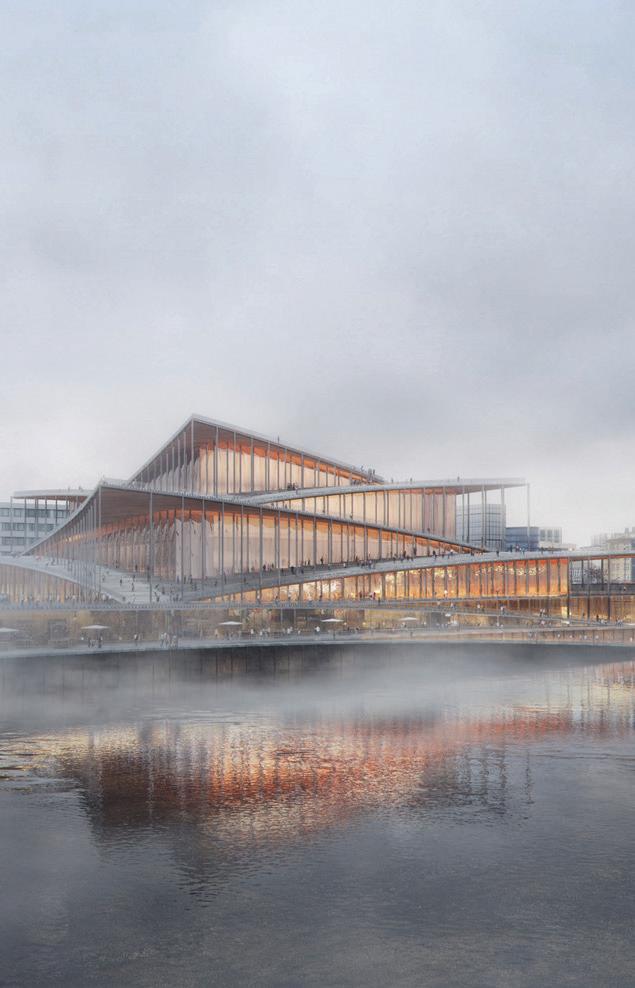

2023 Denmark- Copenhagen | BIG VALTAVA - Philharmonic | Prague, Czech

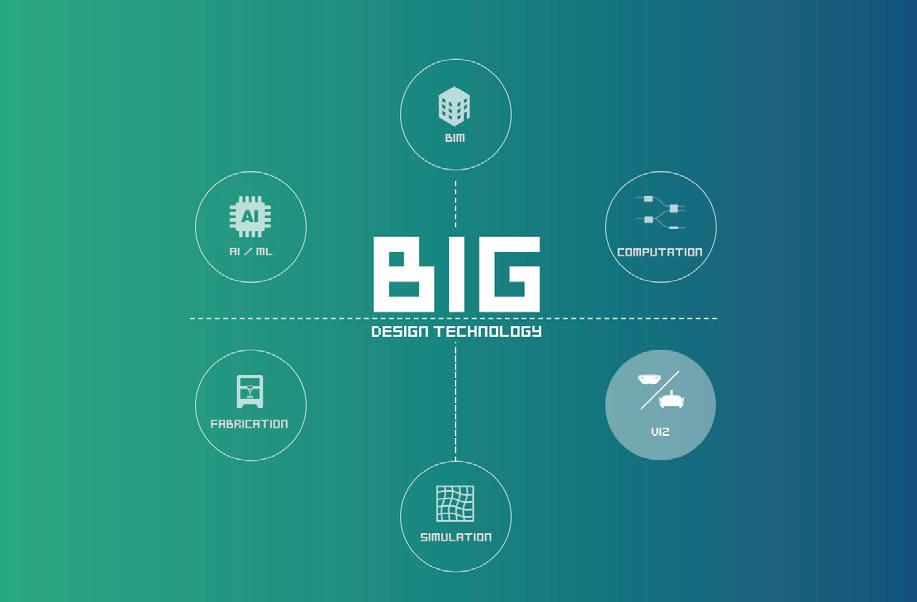

2023 Denmark- Copenhagen | BIG NOTION - Design Technology | BIG's R&D

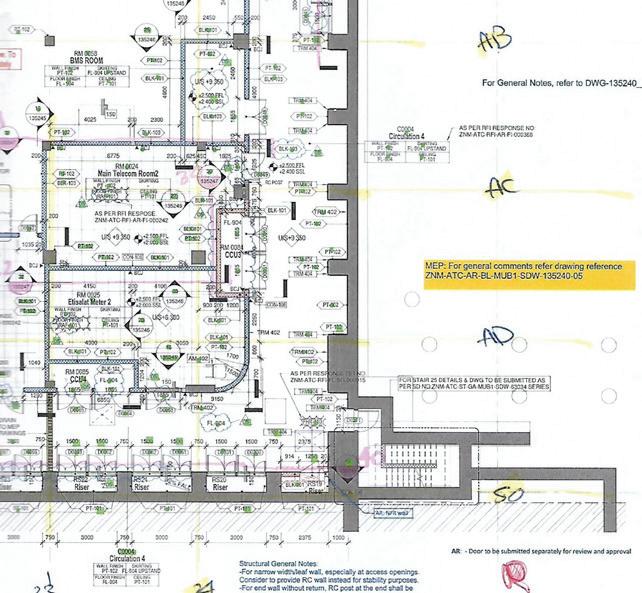

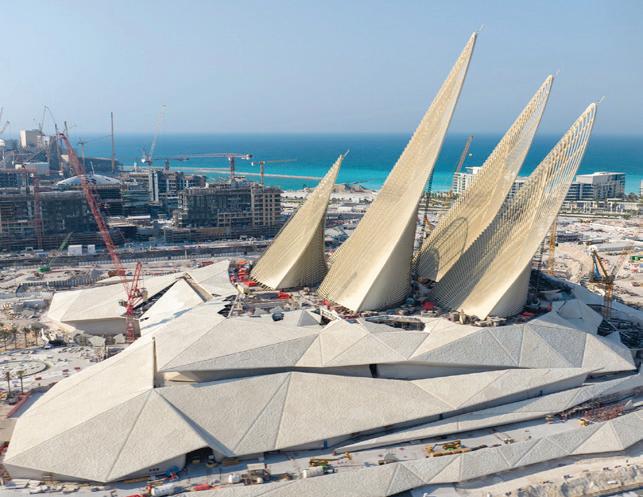

2021 Italy - Milan | 3IM Consulting ZNM - Zayed Museum | Abu Dhabi, UAE

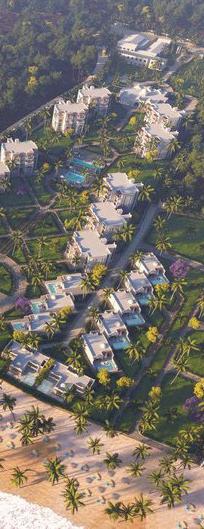

2022 Italy - Turin | SERAPIONI PROGETTI Bwejuu Resort | Tanzaniz, Zanzibar
2018 Egypt - Cairo | ECG - UTW 10 SAUDI NORTHERN MUSEUM | Arar, KSA.
2018 Egypt - Cairo | A++ - MSKN Professor building | Khartom,Sudan.

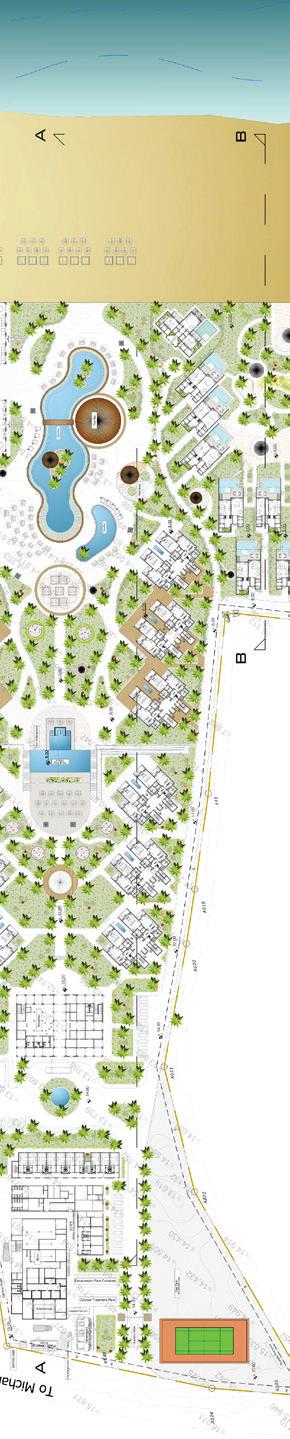

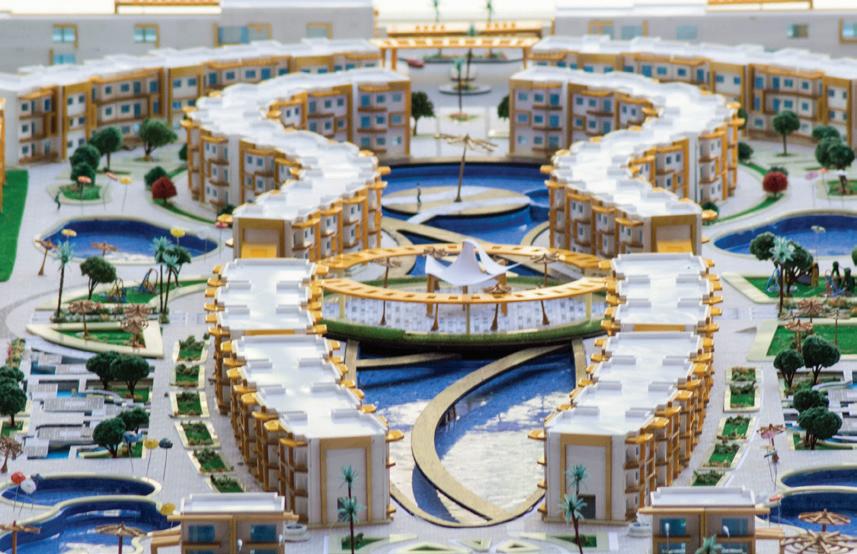

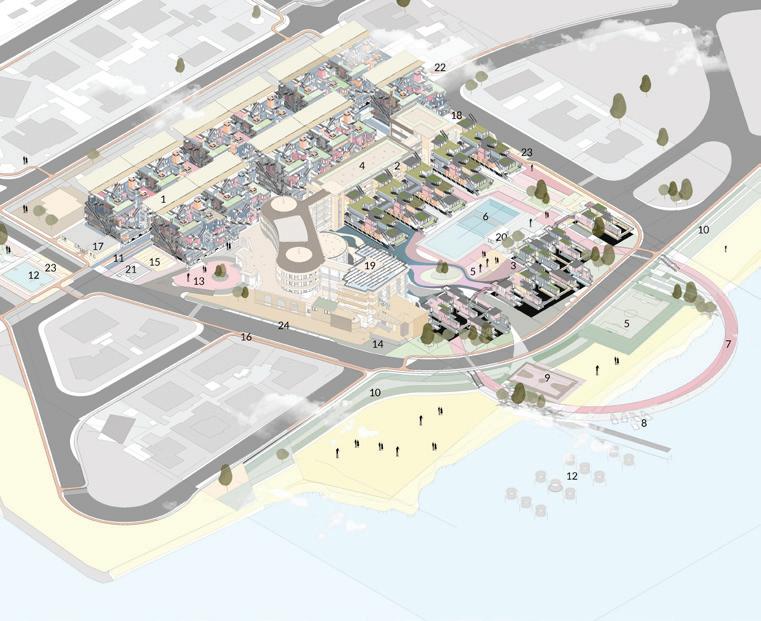

2019 Egypt - Cairo | A++ - MSKN La bella la Goon Resort| Matrouh, Egypt
2016 Riyadh - KSA | RAM Con., PROGER S.p.A. Olaya tower, HRDF | Riyadh, KSA.
FREELANCE SAMPLES BETWEEN 2017 - 2019
ACADEMIC
2022 Italy - Milan | Politecnico di Torino TRIO - Adabtle skyscraper in CityLife Milan
2022 Virtual | Information Technology Institute Hello AEC world! Automating the process.
2020 Italy - Mondovì | Politecnico di Torino GALLIANO BARRACK RESTORATION
2020 Italy - Biella | Politecnico di Torino Biella 2050, Algorithmic climate urbanism

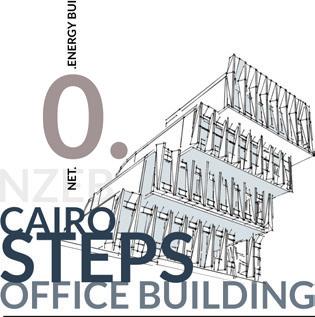

2021 Egypt - New Cairo | ValueTech Competition Cairo Steps - NET ZERO ENERGY BUILDING

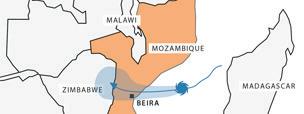

2021 Beira - Mozambique | Politecnico di Torino Contain-us - Recourse grand hotel
2016 Egypt - Menoufia | Menoufia University IMPULSE - A land mark of a logistic area.
2020 Italy - Torino | Politecnico di Torino INTO - INTERACTION IN TORINO
2017 Egypt - Rosetta | Heritage for all Initiative UAHSI- Urban Heritage and Social interaction
2015 Egypt - Cairo | MENOUFIA UNIVERSITY Apple byte - Parametric shaded apple store
2017 Egypt - Alexandria | MENOUFIA UNIVERSITY INFINITY - Archeology Research center
2017 Chile - Santiago | MENOUFIA UNIVERSITY GALLERIA - Patricia Ready
2017 Egypt - Zagazig | MENOUFIA UNIVERSITY MUBARAK Institute of Oncology
HONORS, CERITIFICATES
2022 Italy - Milan | Buildner ( Bee Breeders ) Shortlisted | Annual international architecture competition SKYHIVE Challenge.
2022 Egypt - Cairo | Cairo Design Award (2022 edition ) Honorable Mention | CDA 22" Architecture and Landscape category
2021 Egypt - Cairo | Design Marathon for sustainability compliance - ValueTech Silver award - Cairo Steps - NetZero Building
2021 Qatar - Doha | ISCOCARP congress Speaker at ISOCARP Congress -case study smart city paper
2019 Italy - Bolzano | RESTORE Training School in Bolzano - E-Cost Presenter with The school outcome at UN mid-term Conference for 2030 SDGS
2018 USA- Seattle | U.S green building Council , INT. LIVING FUTURE INSTITUTE LEED ® Green Associate™ ID 11186898 | 11 CEUs LIVING BUILDING CHALLENGE
2018 MultiNational- Online | AutoDesk Accredited as Autodesk Student Ambassador - REVIT Certified Professional
2017 Egypt- Cairo | House of Egyptian ArchitectureGolden cubes encouraging Award – Short film category
2016 Egypt- Cairo | ECG Engineering consultant Group (UTW). Best Team award - Architecture Track
Different facade typologies combined with the software offer a revolutionary approach to adaptive buildings, optimizing energy efficiency and indoor comfort.
HIGHLIGHTS : STATUS :
SCHOOL : SITE : TYPE : DATE :
# Climate_Tech, PropTech
#Environmental_performance
# Automation Development
#Business Development
Professional AUC - American University Cairo University of Duisburg-Essen
REFERENCES:
2024 - 2025
TEAM : ROLE :
AWARD : SOFTWARES :
Ayman Ismail, AUC
Stefan Schneegass, UDE
Mahmoud Nagy Elsayed, AUC
Marwan Soltan, UDE
Environmental and technical development
AUC Demoday_Cliamate tech_2025
# Software Architecture
#Spring Boot, Java
#Open_Studio
# #Grasshopper
Envelope's Brain

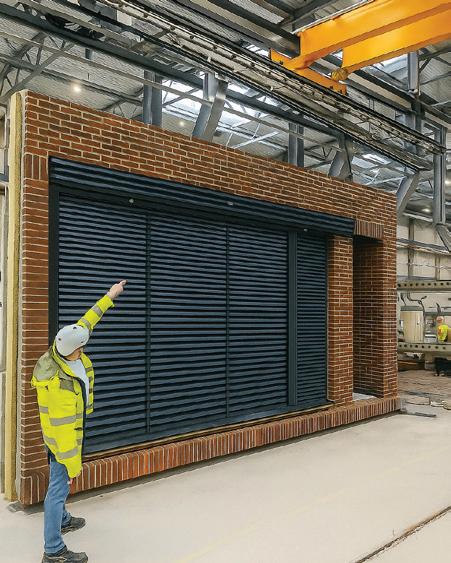

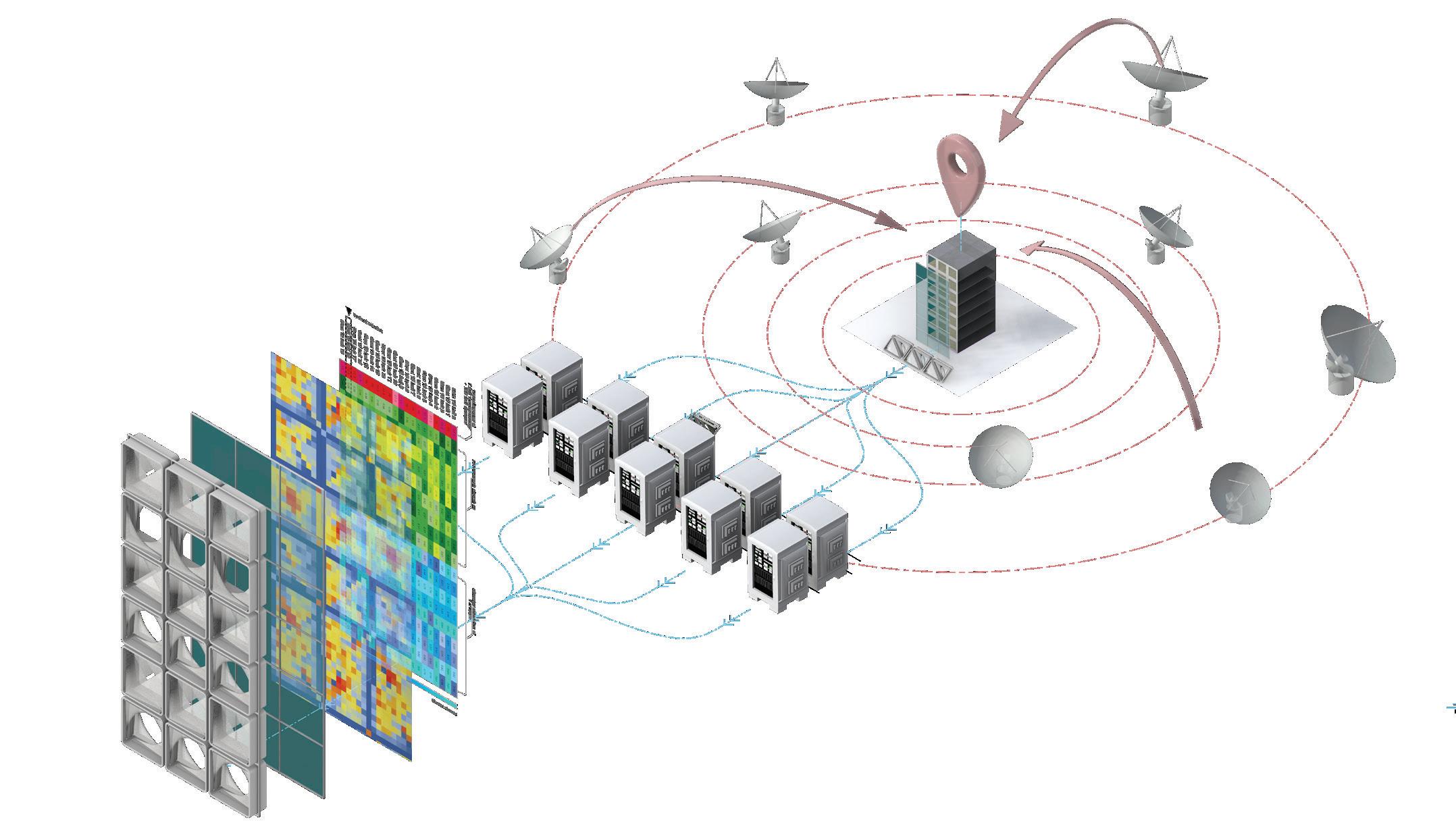

The facade physical units (shading devices) combined with the software offer a revolutionary approach to adaptive buildings, optimizing energy efficiency and indoor comfort through AI-agent. The autonomous façade control system - like
Envelope brain
"MODEL CAN AUTONOMOUSLY CONTROL A BUILDING'S ENVELOPE"
Weather stations
Data centers
Autonomous AI façade control system that intelligently adapts in real time to environmental conditions, optimizing energy use. it turns passive exteriors into smart, self-regulating skins. AUTOMATION WORKFLOW
GREEN BUILDING SCOPE
WELL BEING SUSTAINABILITY
ENVELOPE SCOPE
FULL ENVELOPE AUTOMATION (BD+C) AND CONTROL (O+M)

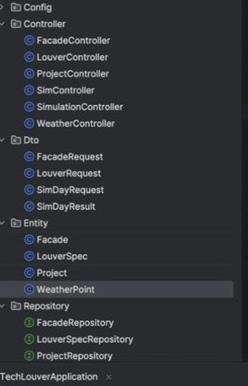

Technical Architecture
Backend – Spring Boot (Java)
Responsibilities:
- EPW Weather Data Integration
- Reads hourly DNI (Direct Normal Irradiance) and GHI (Global Horizontal Irradiance) from an EPW file for the project’s location and date.
-Maps data into time buckets aligned with the project’s time zone.
-Automatic Louver Scheduling (AutoControlService)
-Uses solar position (altitude) and irradiance data to determine optimal louver tilt for each time step.
Rules:
-Night (sun altitude ≤ 0°) → set tilt to minimum (open).
-Strong sunlight → tilt towards maximum (closed).
-Weak sunlight → partial tilt between min and max.
Includes:
Hysteresis to prevent small, rapid movements.
Rate limiting to simulate realistic motor speed.
Fallback Mode
If no EPW data is available for a time, a synthetic sunlight curve is generated so louvers still move smoothly.
REST API Endpoints
/api/sim/auto – Returns a list of tilt angles over time (AnglePoint list) for a given project, louver spec, date, and time step.
Designed for frontend to fetch and play scheduled tilt changes.

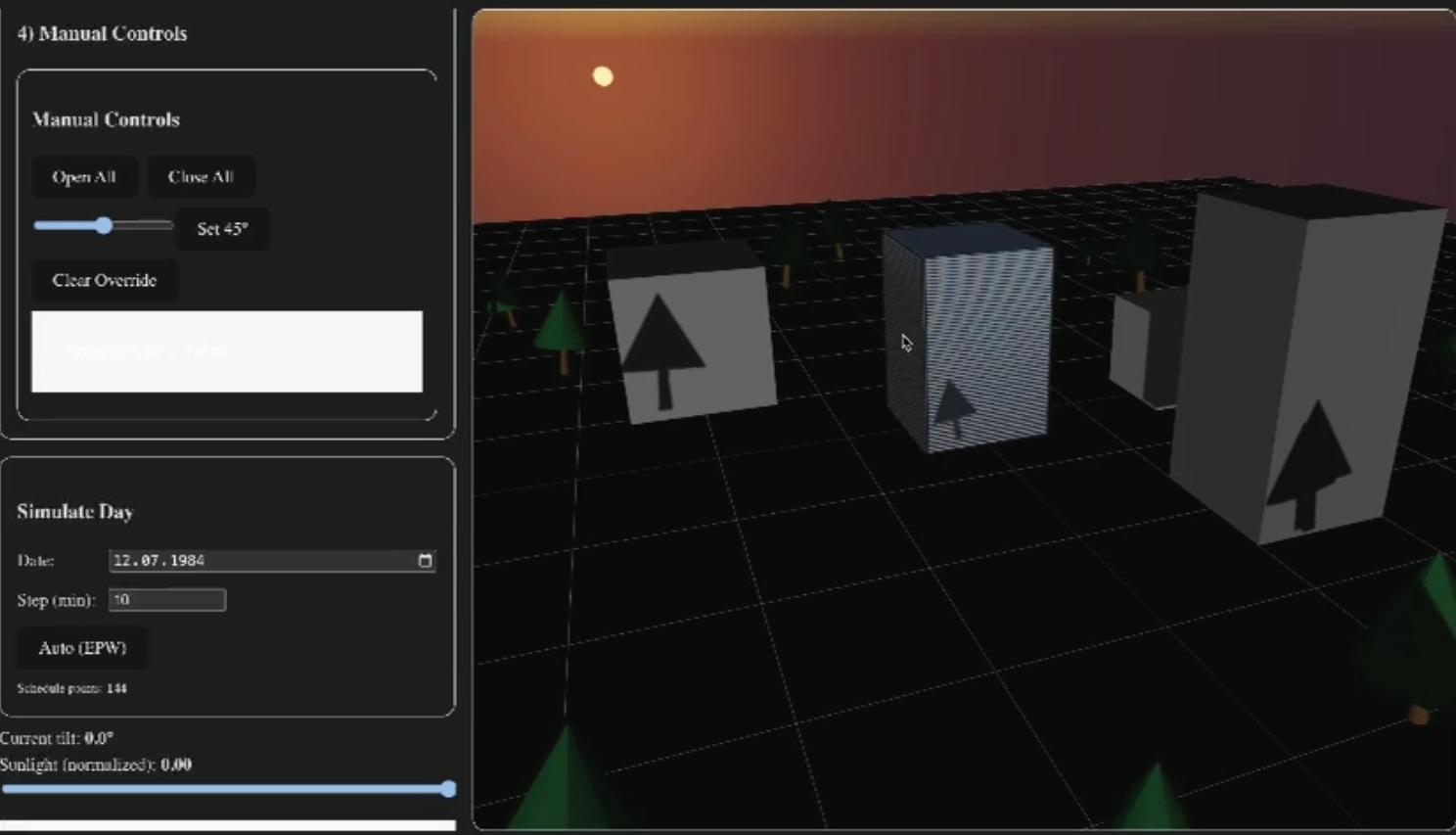

Frontend (React + TypeScript + Three.js)
Responsibilities:

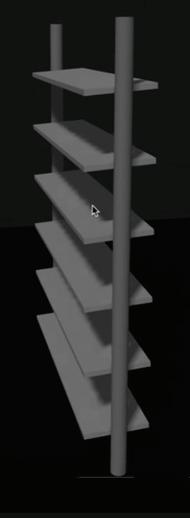

-3D Louver Visualization (LouverView component)
-Created with react-three-fiber and three.js.
-Simulates multiple horizontal slats rotating individually based on tiltDeg from backend.
-Smooth animation using damped rotation for realistic movement.
-Dynamic lighting that changes subtly with simulated sunlight intensity.
-Playback System (App.tsx)
-Fetches tilt schedule from backend via Axios.
-Stores it in schedule[] and uses idx to step through frames.
-Passes current tilt to LouverView to update 3D model in real-time.
-Data Flow Debugging.
Added console logging to trace:
-Schedule size and first few tilt points when loaded.
-Current index, tilt, and timestamp during playback.
-Tilt changes in LouverView to confirm animation updates.
-EPW-driven Motion
-The louvers currently move automatically based on weather data, following backend-calculated schedule.

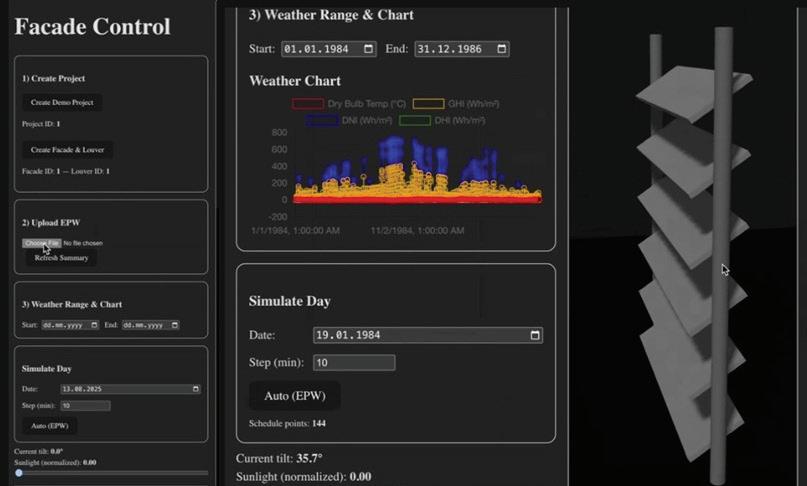

CORTEX V0.1 FRONT END (UP), BACK END (DOWN)
Between chaos and order you find TRIO ( the Triad ) is a hybrid of several triads, The formation followed the Rössler rule and relied in the envelope on a pattern of improvement that changes over time.
HIGHLIGHTS : STATUS : SCHOOL : SITE : TYPE : DATE : REFERENCES: TEAM : ROLE : AWARD : SOFTWARES :
TRIO

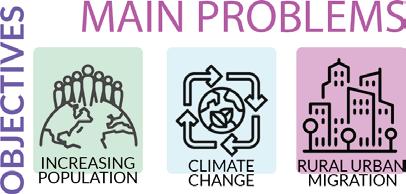

According to the UN estimations, by 2022 the world population hit 8 billion. These legions of new generation basically attracted to the cities and city centers and main metropolitans seeking for development and better opportunities causing the rural urban migration.
Otherwise, rapid urban development beside many other factors causes climate change which adding a new challenge for the proposed solution.
TRIO Followed by the three previous mentioned superposition challenges. commercial, residential, administrative, farming …. etc.) activities or whatever a human activity it is which we need to respond and occupy; vertical solutions in heart of urban zones will represent a dominant solution in the coming era.

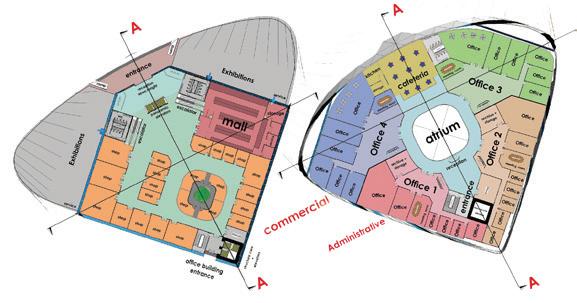

ADAPTIVE TRIO is a typical commercialoffice tower to represent a realistic solution that tries to integrate creative ideas with the determinants of reality, as it follows the municipality rules and adapts to its surrounding towers.
Surrounding factors remain in dynamic change, Climate Change and its consequences may be chaotic or systematic, or perhaps chaos contains a system, as in the case of the Rössler equations!, TRIO based on a morphological concept beside an environmental solution, mainly as follows:

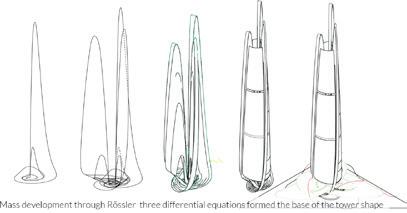

Rössler three equations
Milan, as a large metropolitan city, attracted a large population, particularly in the city center, where a complex of Citylife is located, including a hub of skyscrapers, in the northern-west remaining part we have shaped (Adaptive TRIO).
These differential equations formed the base of the tower shape. Rossler attractor is a system of three nonlinear ordinary differential equations originally studied by Otto Ressler in the 1970s which define a continuous – time dynamical system associated with the fractal properties of the attractor, it is a respond for a chaotic-systematic dynamic change whichand its graphic representation was the base of the concept to define the tower form and its main structural frames, the inspiration leads to the form which continues to influence the environmental solution in order to have a direct response to this dynamic change, both based on ternary aspects.

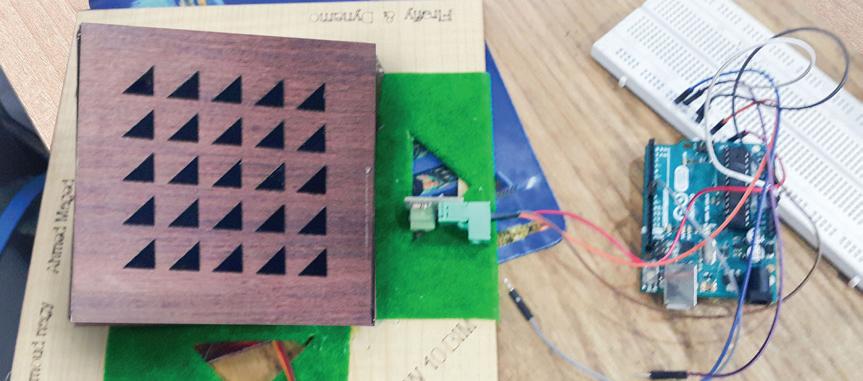

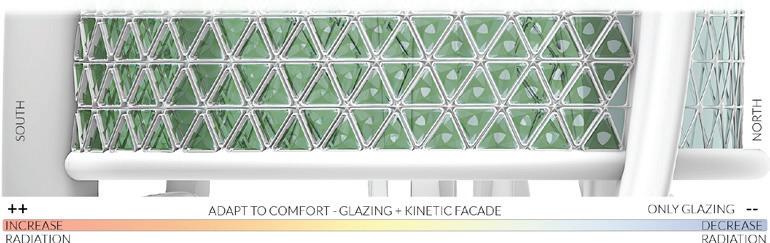

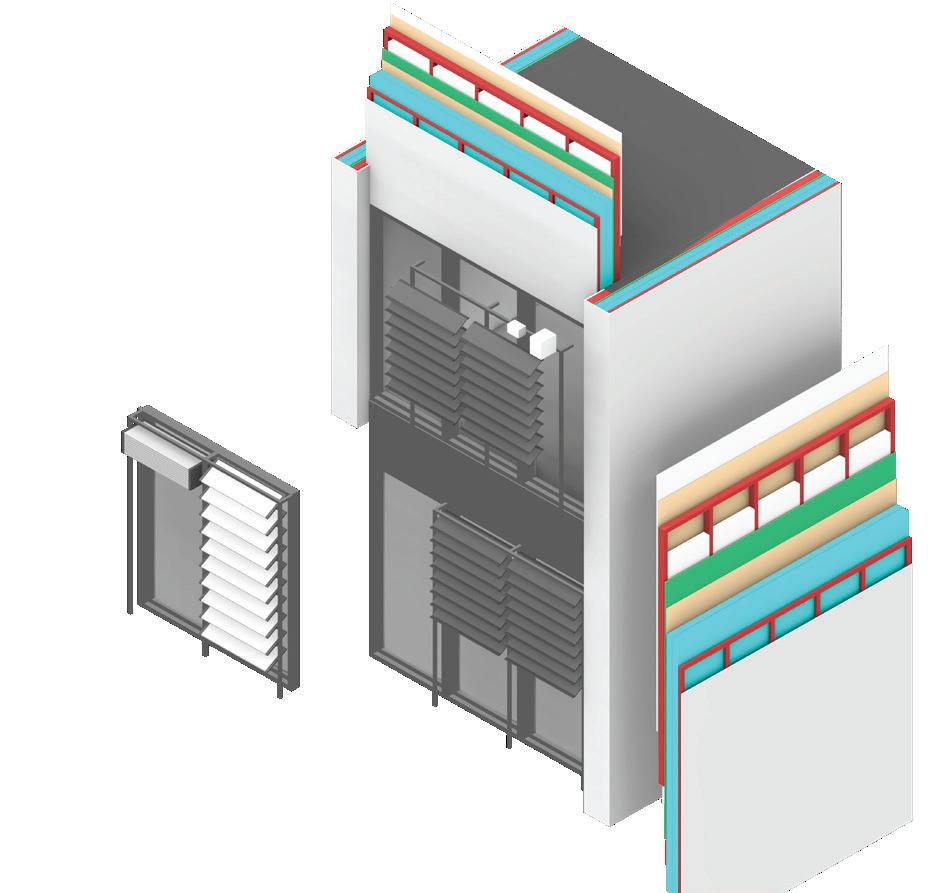

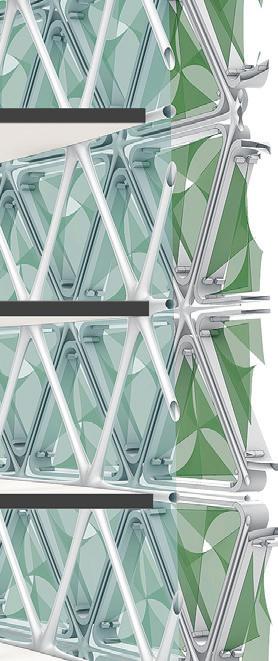

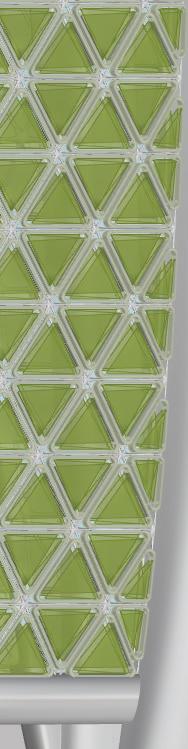

The adaptive envelope unit with built-in sensors adapting to context factors (Sun radiation, wind context shading ...etc) is shown in all of its corresponding shapes in a plan views, down there is two perspective views for the unit in its maximum and minimum opening values.
Fig.7: Southern facade with its adaptive panels chime with Generali tower
Fig.8: Birds Eye view shows TRIO tower included in CityLife Milano context
Abstract
In remarkable way, Computational Design (CD) methods have enabled archi-tects to enhance their design. Thereafter, one of the main aspects to manage is the In-door Environment Quality (IEQ).
This research introduces a holistic approach for an optimized computational method to achieve an adaptable envelope with its context -in every eventuality-, able to manage different morphological inputs and different climate zones as well, pursuing the com-fort key factors to shift from (adjust to respond) to (adapt to comfort) concept.
The workflow aims to establish a methodology for integrating multidisciplinary criteria to control factors such as design geometry characteristics and the material parameters that affect the performance of the envelope to produce a holistic customized envelope design pipeline for different users.
The methodology followed consists of three main steps, first to create and improve an adjustable unit with different polygonal options gives different geometry possibilities. Secondly adjust the computational script to adapt the preferred unit for different morphological inputs out of the user. Finally, introduce solutions that are tailored to the selected scenario and optimized for its context using an evolutionary Multi-Objective Optimization engine.
The optimized solutions give the envelope the potentiality to be adapted in both fixed and kinetic solutions by manipulating the integrated façade screen at its different spots to have a significant impact on building performance, either by making it more efficient or by expanding its controlling boundaries.A case study was conducted in the climate zone of northern Italy, where the optimization method was used and interpreted in the context of Milan city. by fixing the thermal transadmittance factors (H’T) in the dedicated face and applying an adiabatic in the other parts, then optimizing to adapt the Equivalent solar area (Asol,est) and Daylight factor (DF) with their internal parameters to achieve the targeted comfort values.

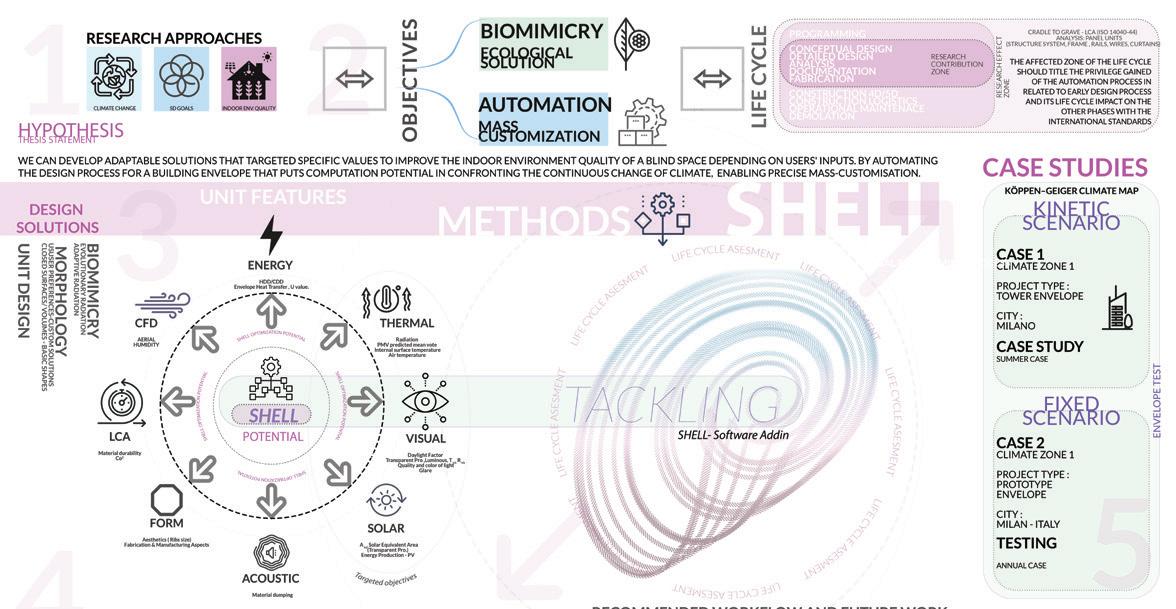

Fig.9: (Left) )Main MSc. thesis structure to create a new software called (SHELL), that can adapt users' (Architects using the software) preferences to get different solutions. The workflow (Fit all - workflow) for the customized envelope solutions, The development of the optimized design pipeline depends on addressing the areas of performance data-driven with its criteria definitions to guide the design optimization in a loop controlled by certain algorithms. the Automation part has been developed for the two steps of the (Software Application) and the remaining three parts will be developed in the future to have a full interoperability with other software

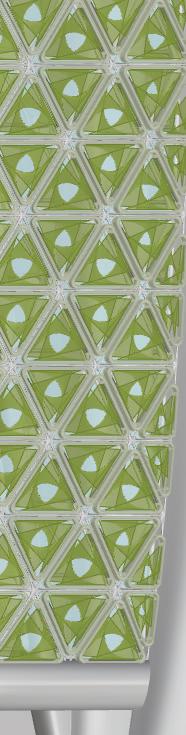

Fig.10: The Trinary unit arrangement over an envelope ( fully closed case (UP), and a fully open (Down)). Radiation levels indicated on facade with units' respond (10:00 am 02:00 pm )(Right).

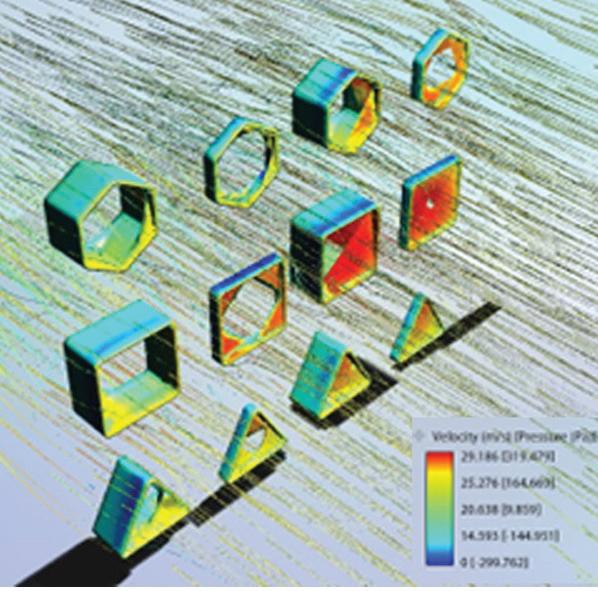

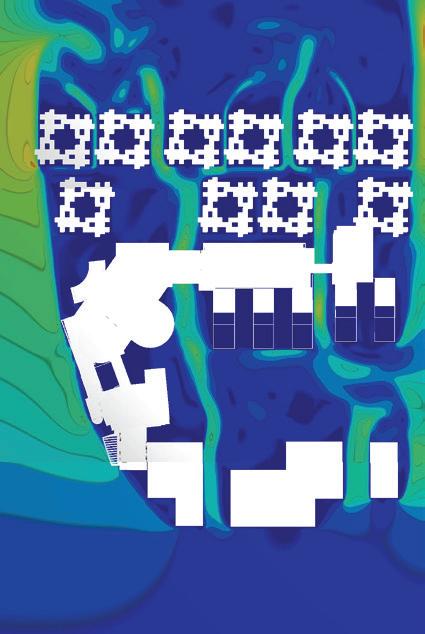

Fig.11: Quaternary, Hexa-units’ structure and the aerodynamics simulation

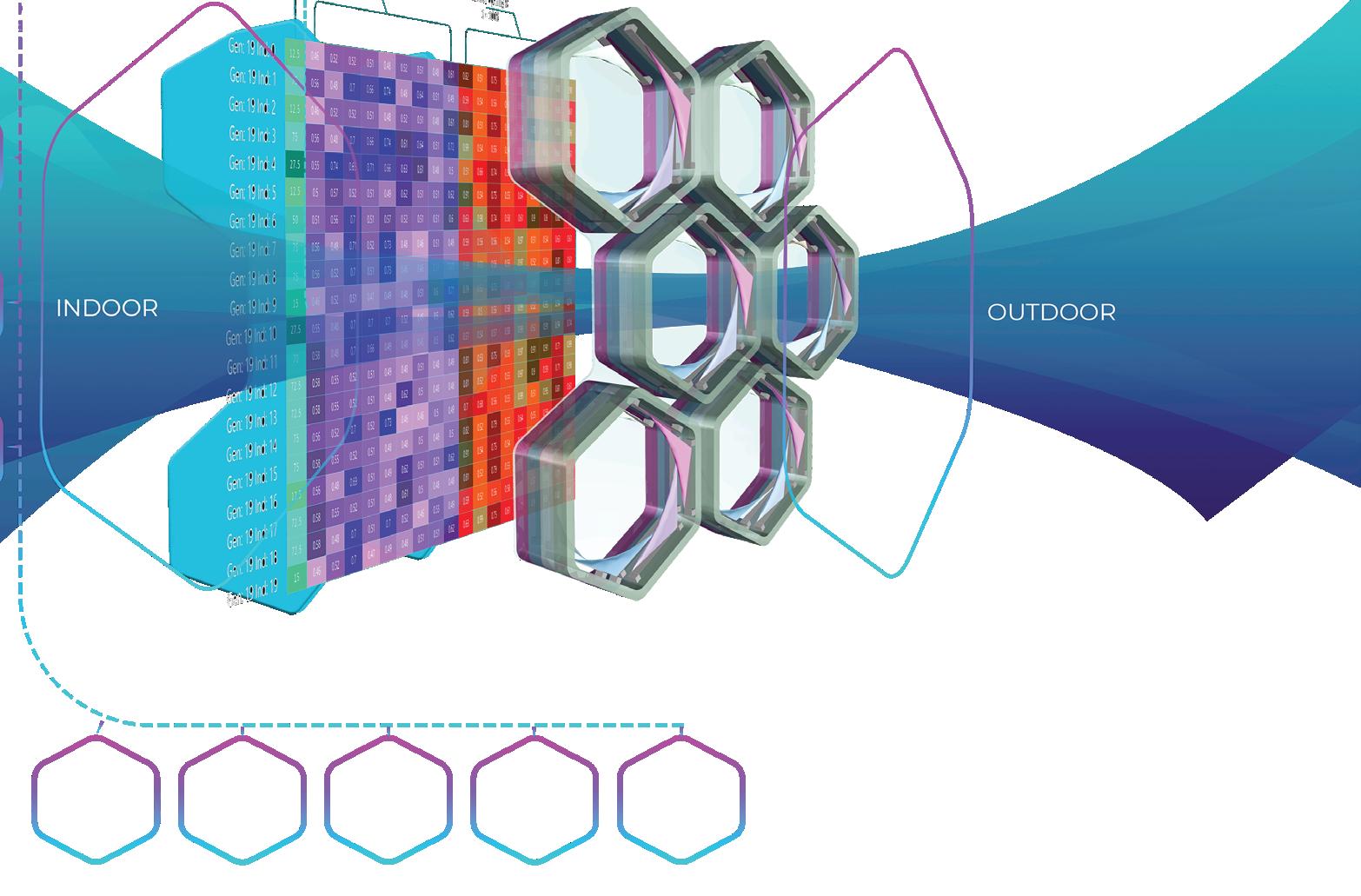

The research introduces a mediator as a controlled envelope between the indoor environment and the momentary outdoor changes that put computing in the face of the instantaneous changes from the external environment of the targeted building to maintain an indoor quality and comfort levels style according to numerical rates.

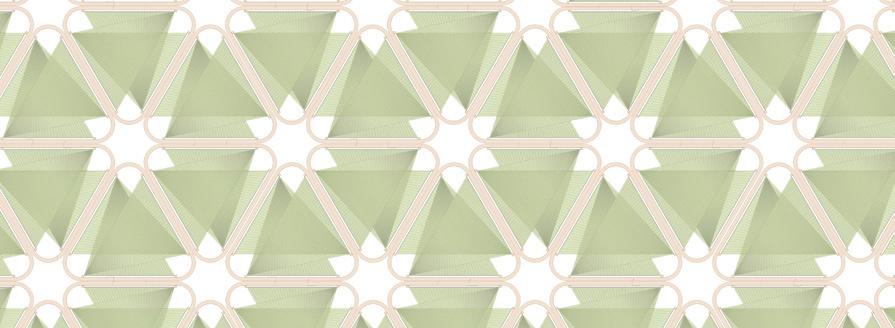

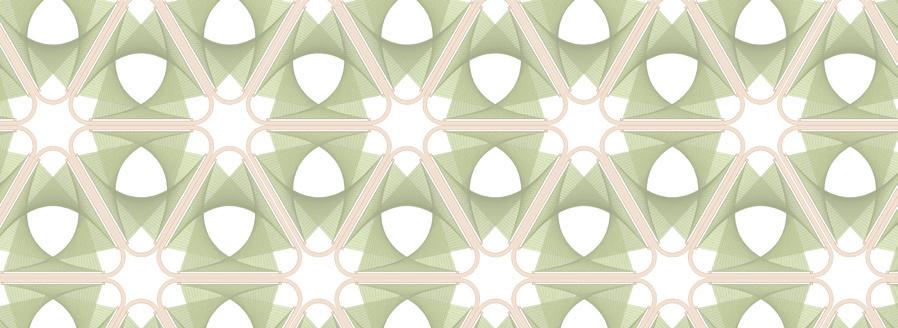

The envelope units could come in three geometrical typologies with different algorithmic definitions and had the potential of various features and a set of objectives to target. The research conducted a prototype simulation run for nine different scenarios, in Milan city, three of them for annual cumulative fixed solutions and six for Kinetic instantaneous or daily solutions in summer and winter to represent the units’ abilities to introduce the objectives, other objectives could be added to the evolutionary optimization such as acoustic, aerial, and material means while it needs a high computing capability. The Prototype simulation aimed to better understand the revolutionary runs and to make more informed decisions in all the different typologies. A case study of a Skyscraper in Milan CityLife district was conducted as a dense context site to test the optimal result for the prototype simulation results.
Fig.12: The
Compromised

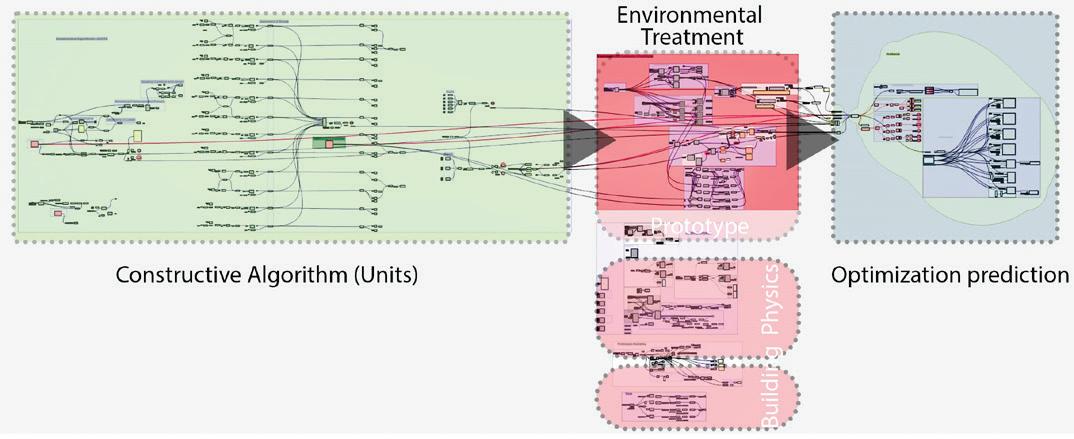

Fig.14: Research Algorithmic definition (Grasshopper). (UP) And Decoding the genome and the phenotypes of the generation 19 cluster.

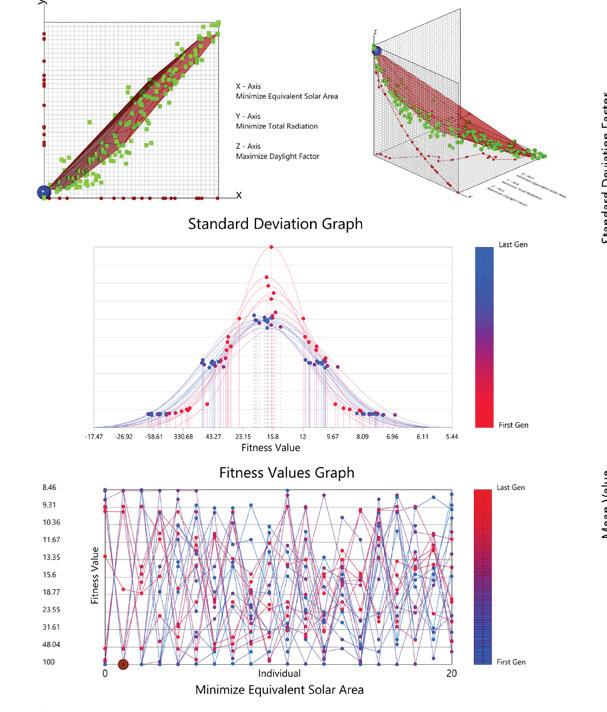

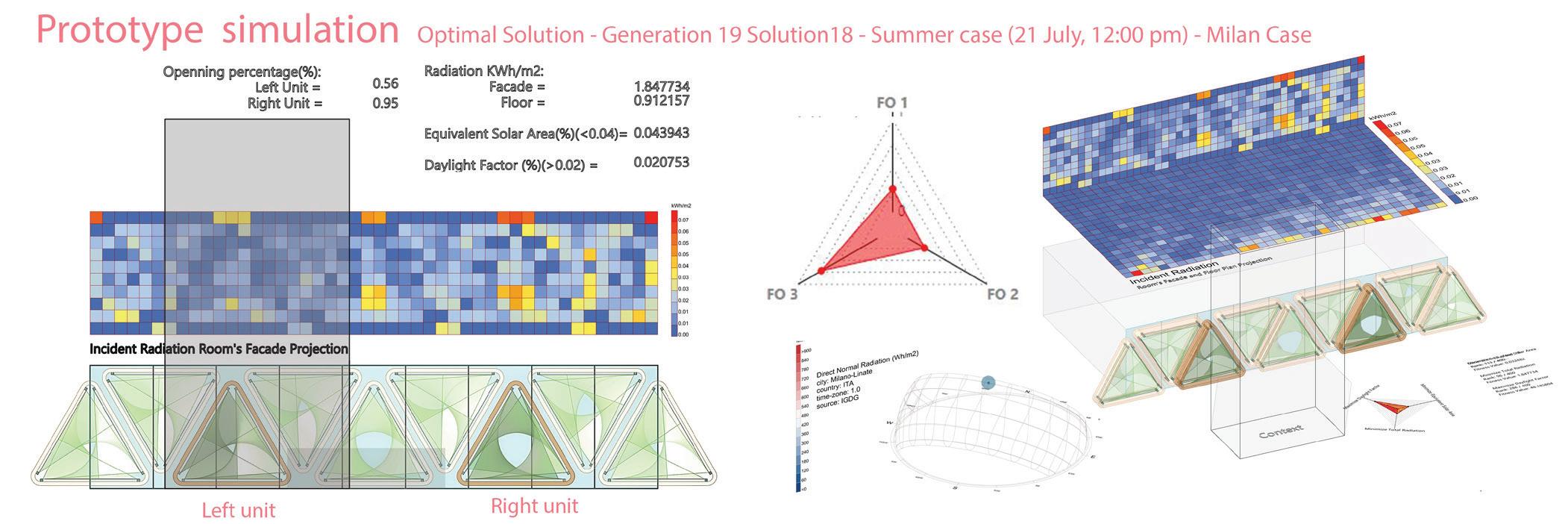

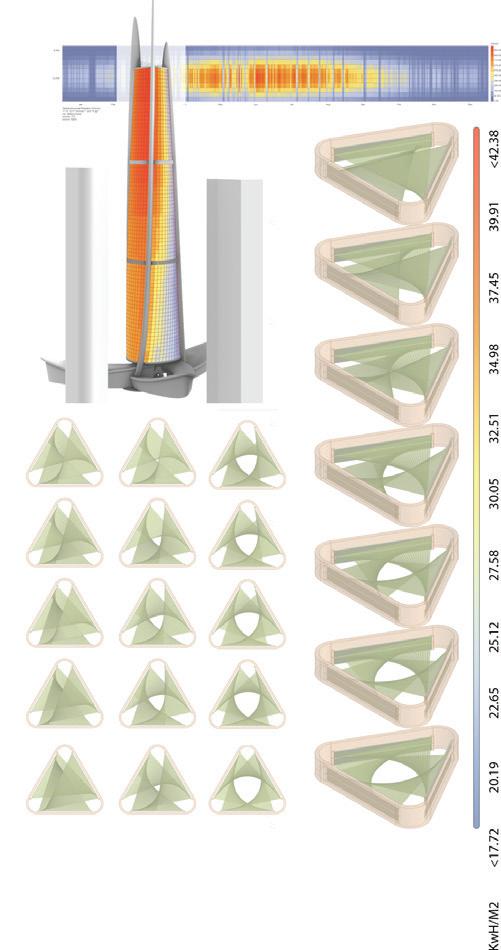

Fig.15: The results of the evolutionary algorithms across two key metrics and the Pareto front.

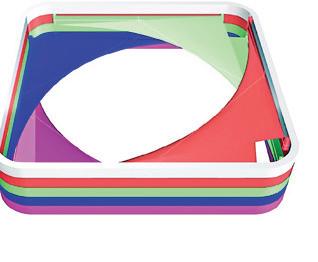

Constructive Algorithm (Units)

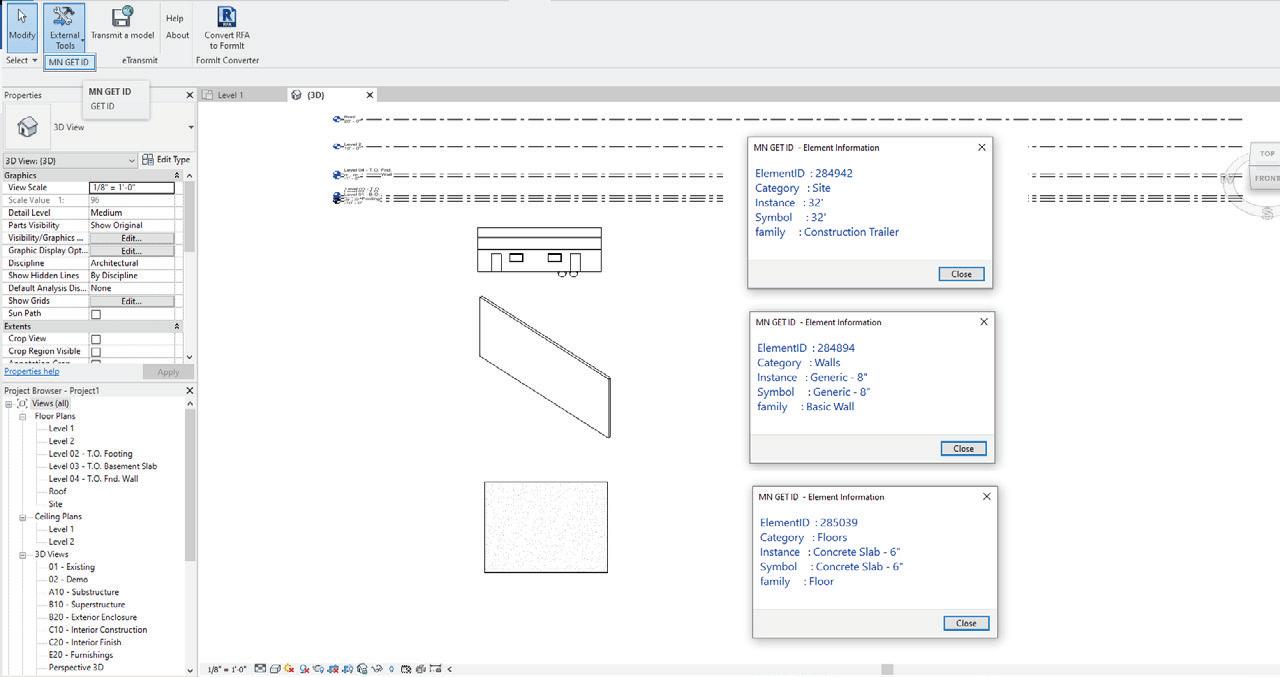

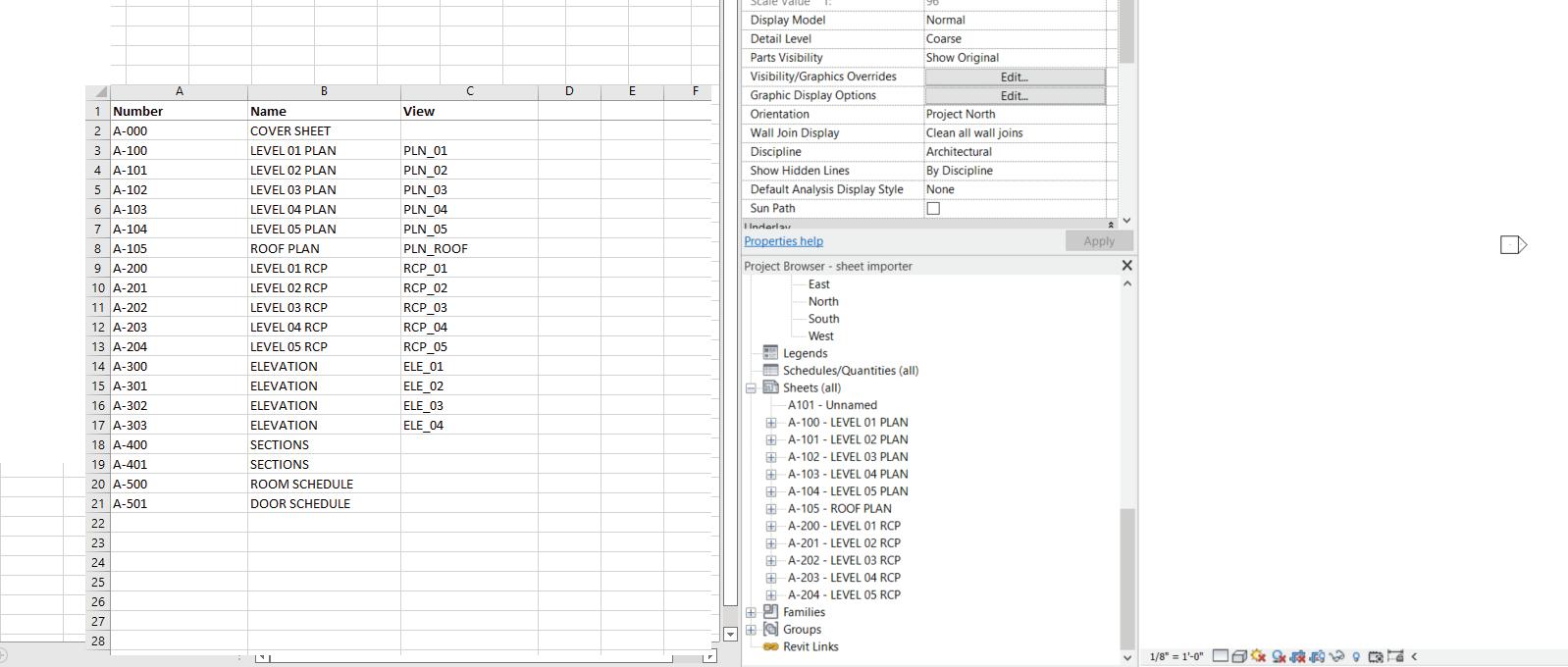

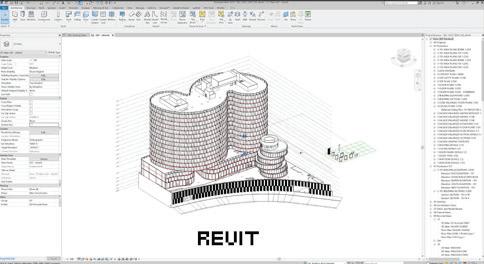

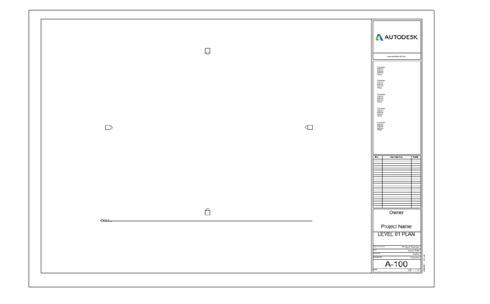

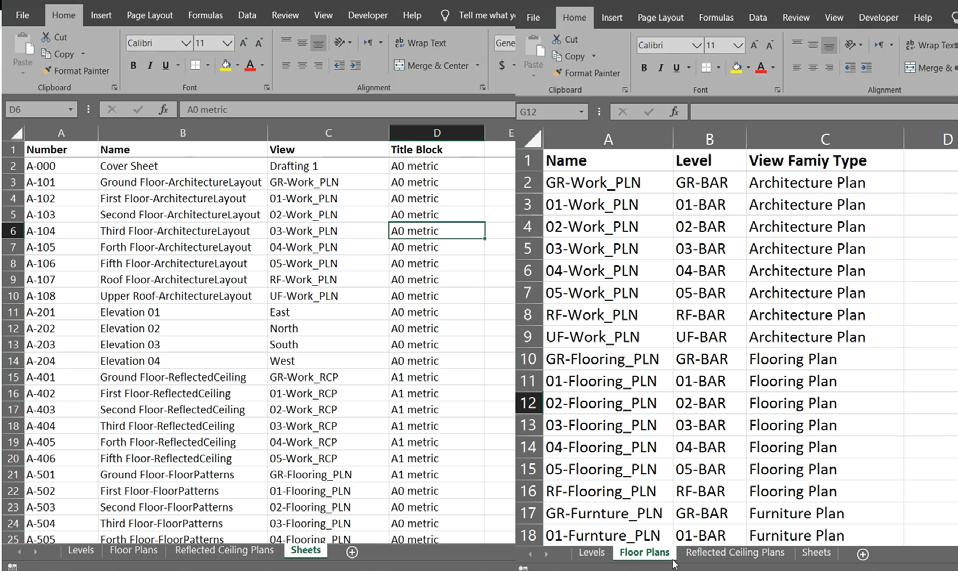

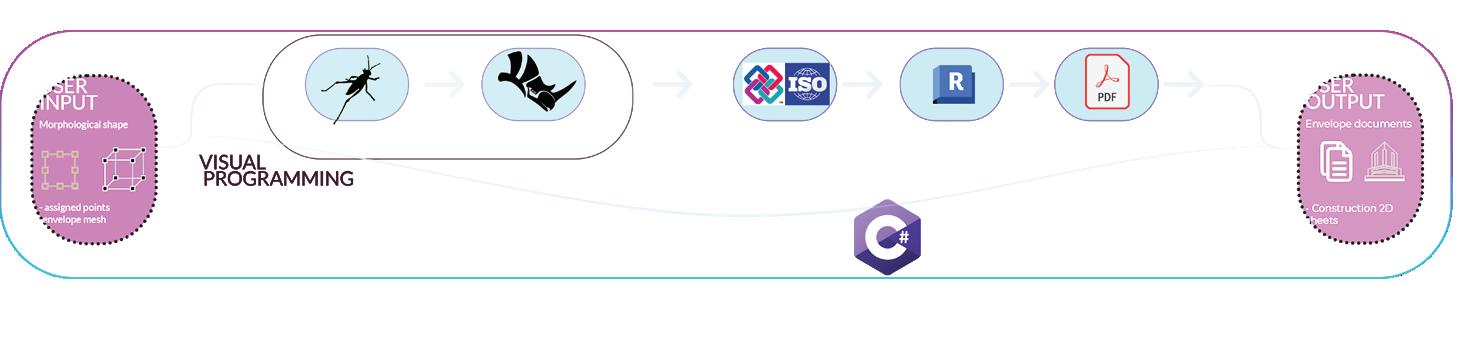

hello AEC world, is a practical project for specific functions using C # Programming language and Revit Api to automate some Functions ass internal addins to save time.

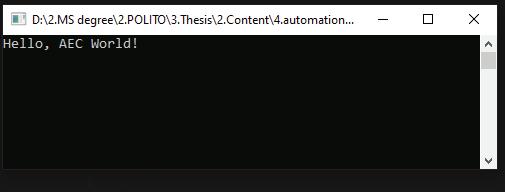

: AWARD : SOFTWARES : using System; struct program { static void Main() { Console.WriteLine(“Hello, AEC World!”); Console.ReadLine(); } }
:
:
HELLO AEC WORLD !

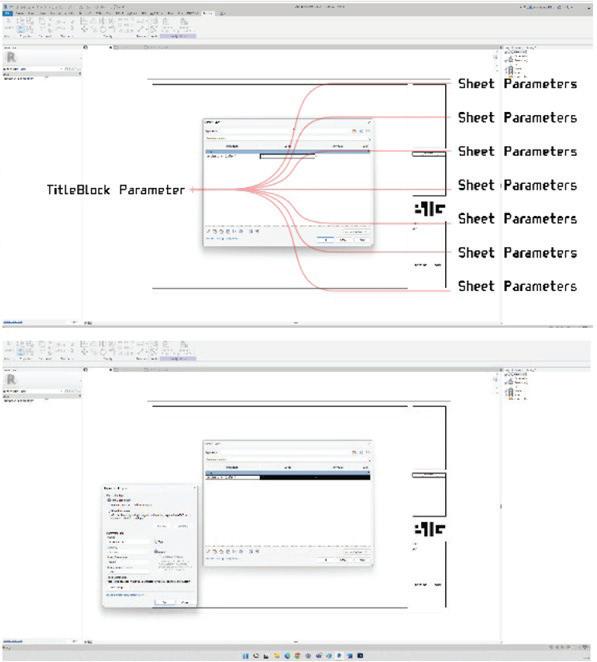

Design development stage has alot of tasks that such a time-demanding and exhausting process consuming energy for a repeated work, these samples gives a hint about how can effectively use different programs APIs to automate some tasks as example the upper photos indicated a File Creator add-in in REVIT by connecting an outsource Excel file contain different sheets to create Levels, Floor plan, Reflected ceiling plans and sheets depending on the filing data on the Excel cells depending on user needs ALL BY ONE KING ! The lower sample indicates a simple (External tool ) in Revit get a window showing the user a useful info about the selected element ( Element ID, Category, Instance, Symbol and Family , same the right text shows a sample code using Revit API Dll file, C sharp language and .NET Visual studio softwares.
using System; using System.Collections.Generic; using System.Linq; using System.Text; using System.Threading.Tasks; using Autodesk.Revit.UI; using Autodesk.Revit.DB; using Autodesk.Revit.Attributes; using Autodesk.Revit.UI.Selection;
namespace lab3 { [TransactionAttribute(TransactionMode.Manual)] class lab3 : IExternalCommand { public Result Execute(ExternalCommandData commandData, ref string message, ElementSet elements) { UIDocument uidoc = commandData.Application.ActiveUIDocument; Document doc = uidoc.Document;
ViewFamilyType viewFamilyType = new FilteredElementCollector(doc).OfClass(typeof(ViewFamilyType)). WhereElementIsElementType(). Cast<ViewFamilyType>().FirstOrDefault(e => e.ViewFamily == ViewFamily. FloorPlan);
ElementId levelId = new FilteredElementCollector(doc).OfCategory(BuiltInCategory.OST_Levels). WhereElementIsNotElementType(). FirstOrDefault(e => e.Name == “Level 1”).Id; ViewPlan viewPlan = null; using (Transaction t = new Transaction(doc, “create view plan”)) { t.Start(); viewPlan = ViewPlan.Create(doc, viewFamilyType.Id, levelId); viewPlan.Name = “My ViewPlan”; t.Commit(); } } }
Fig.17: The

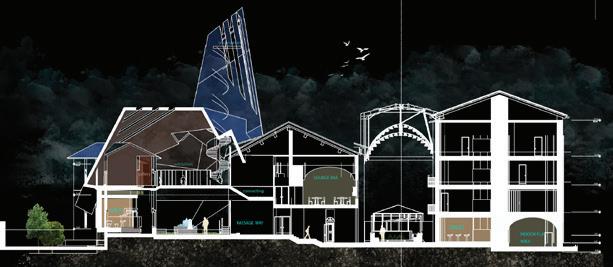

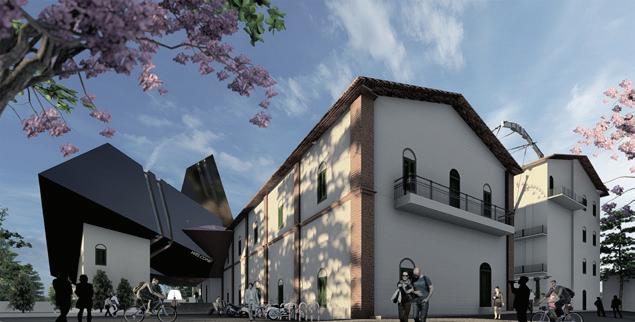

By creating a lighting path connecting its history, the Galliano barrack came back to life again by conserving its original shape but working around it in the Atelier “Compatibility and sustainability of architectural restoration” which introduced interdisciplinary topics between conservation and surveying.
HIGHLIGHTS : STATUS : SCHOOL : SITE : TYPE : DATE :
#Heritage BIM
# Rehabilitation

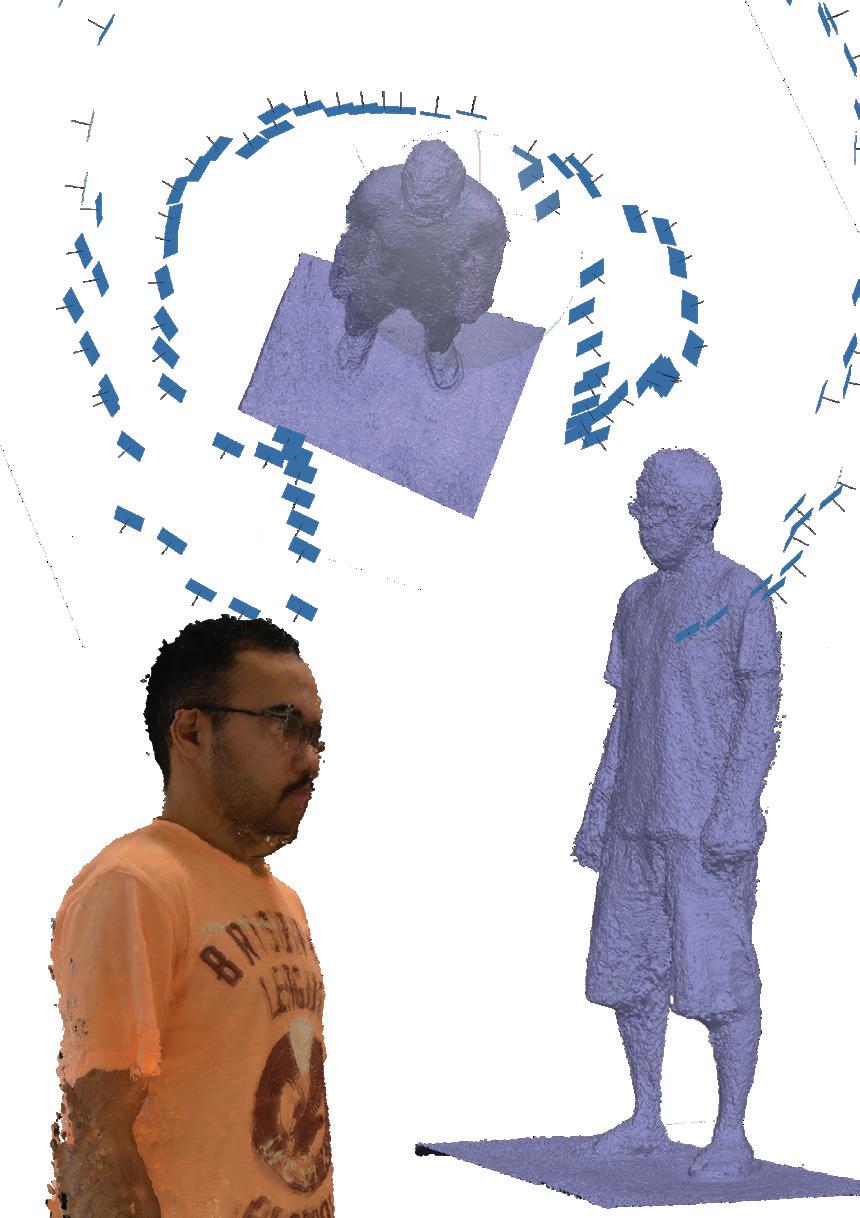

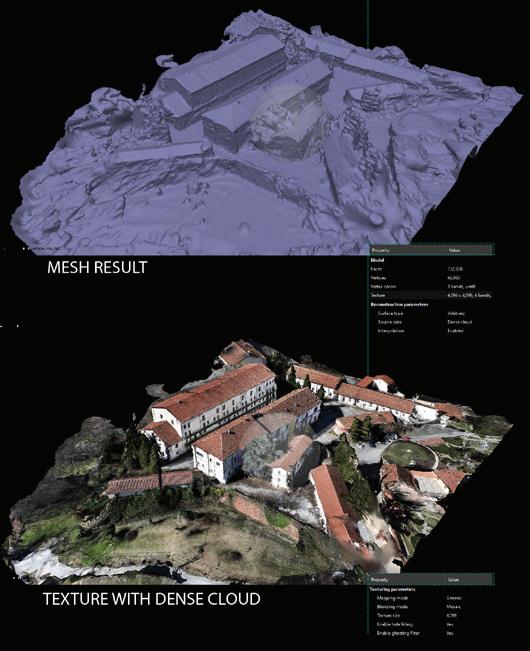

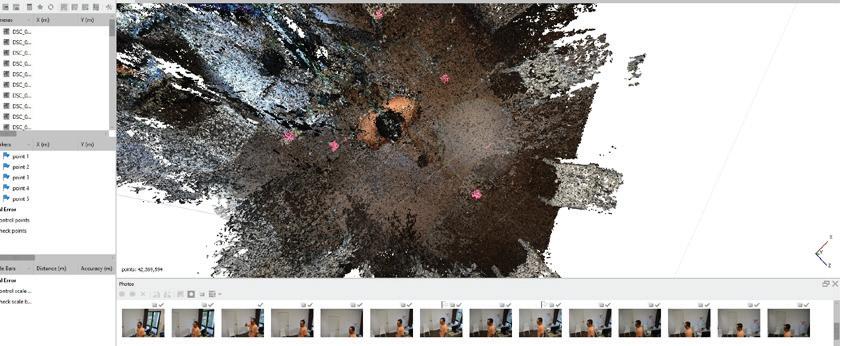

#Photogrammetry
REFERENCES: TEAM : ROLE : AWARD : SOFTWARES :
Research, photogramenty and design creation
N/A--
# Rhinoceros
# Revit - Sketchup
# Pointcab - Agisoft Metashape
# microsoft visual studio
GALLIANO
BRING THE LIGHT BACK
Academic Politecnico di Torino Mondovi, Italy Restoration
June 2020
Prof. Cesare Tocci
Prof: Filiberto Chiabrando Prof: Paolo Piumatti
Mahmoud Nagy Elsayed, Aswanuddin Syed, Mobina Motiei, Nehal Mehdi Khan

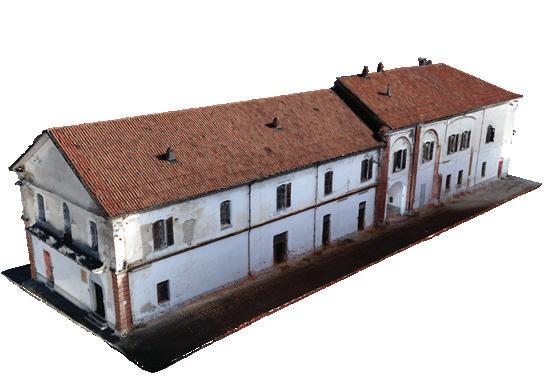

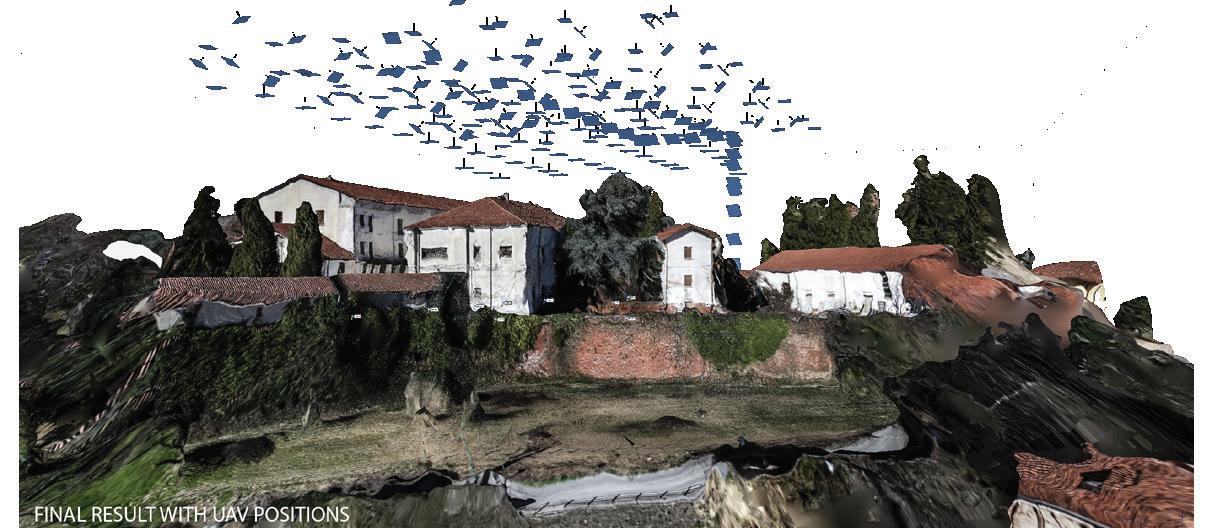

Galliano Barrack is located in Mondovi on a hill founded in 1198 by survivors of the destroyed village of Berdolo, we need to follow all the building history and all the modifications over the last 800 years in a detailed chronological timeline detecting the elements, connections and masonry analysis than the current decay situation by following the NORMAL 1/88 of the material science for architectural conservation. For the outer part we had used UAVs for the aerial photogrammetry and DSLR for the terrestrial images, Also the interior parts we have used Point cloud technique ( pointCab) as a set of data points had used and producted by 3D scanners, Finally, we have introduced a new design project respect the historical elements to rehabilitate the building again, one of the design features to create the old church nave by lighting fixtures to introduce the building history to the new users!
TOWARDS A RESILIENT CITY ADAPTING TO CLIMATE CHANGE WE HAVE TACKLED THE SOCIETY STRATEGIC PLAN FOR BIELLA CITY 2050 AS A CLIMATE URBANISM CASE IN NORTHERN ITALY THROUGH AN ALGORITHMIC PLANNING APPROACH EMPASISING THE SOCIAL MEANINGS
REFERENCES: TEAM :
#CLIMATE URBANISM
#ALGORITNMIC PLANNING
#SOCIOLOGY

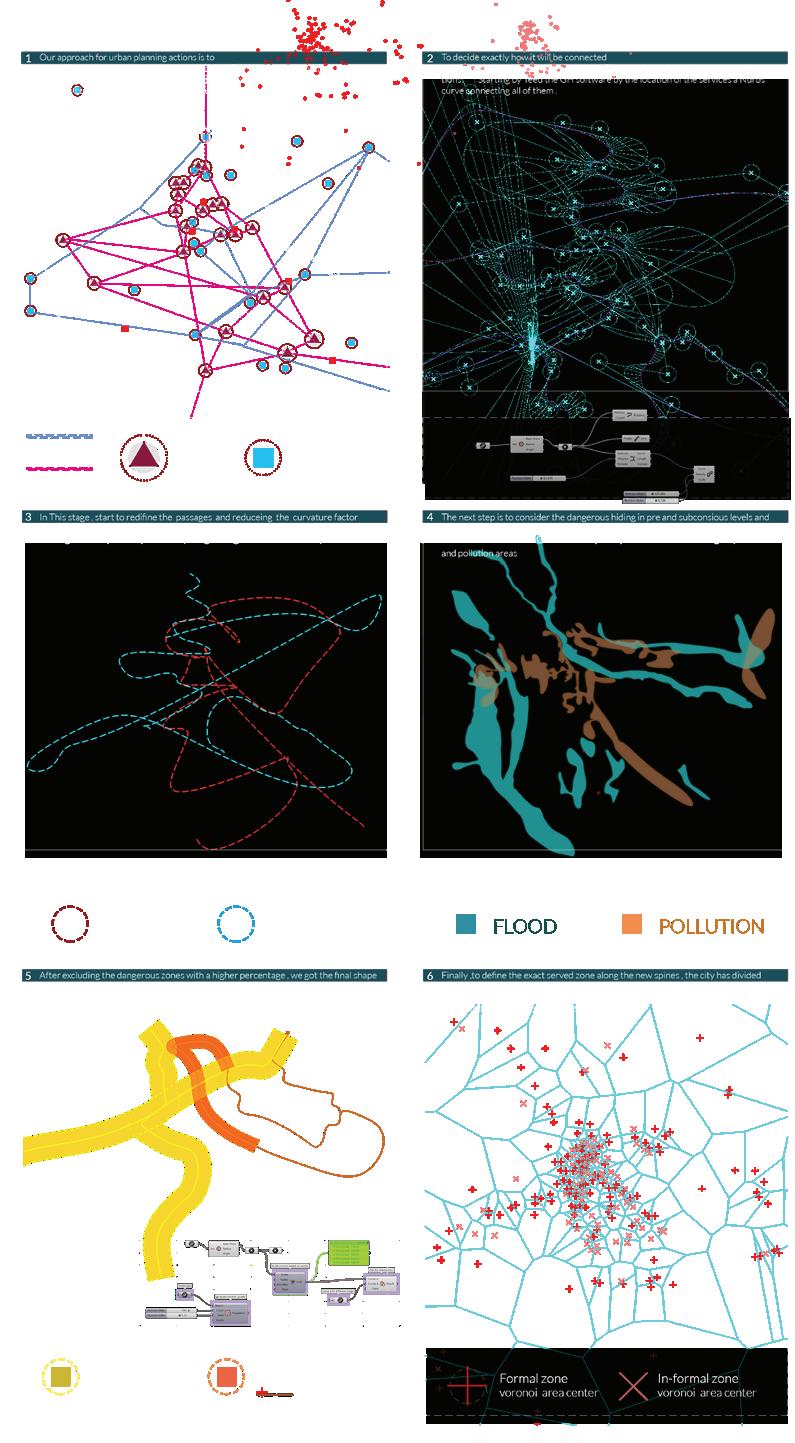

#ALGORITHMIC_PLANNING
:

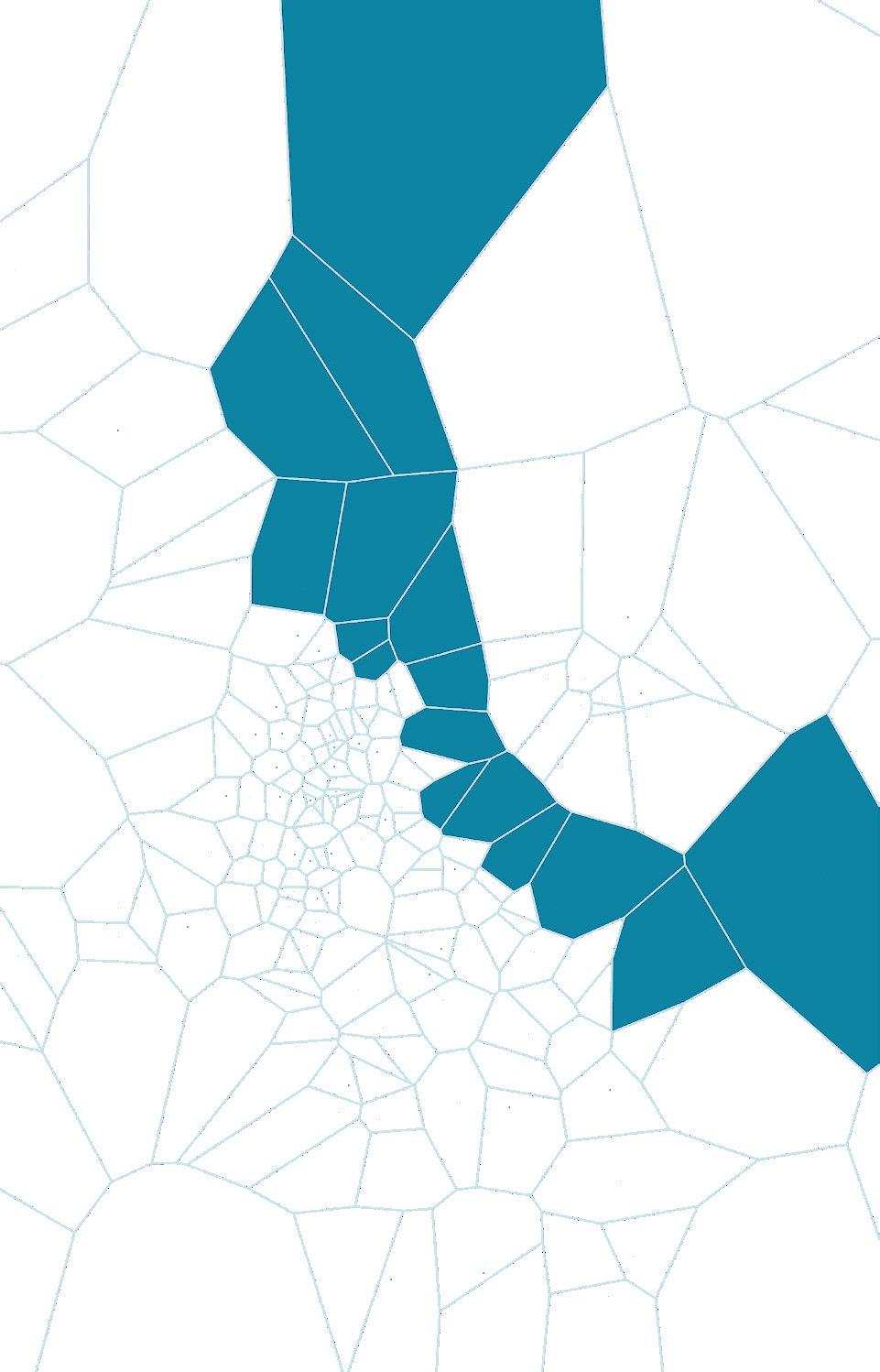

Algorithmic planning, collages
Speaker - Case study Paper ISOCARP 57th congress
# Grasshopper # Sketch up #Photoshop # Interviews
BIELLA CLIMATE URBANISM
Academic
Politecnico di Torino Biella, Italy Urban planning
June 2020
Prof. Daniela Ciaffi
Prof. Michele Cerruti But
Mahmoud Nagy Elsayed
Mobina Motiei
ABSTRACT

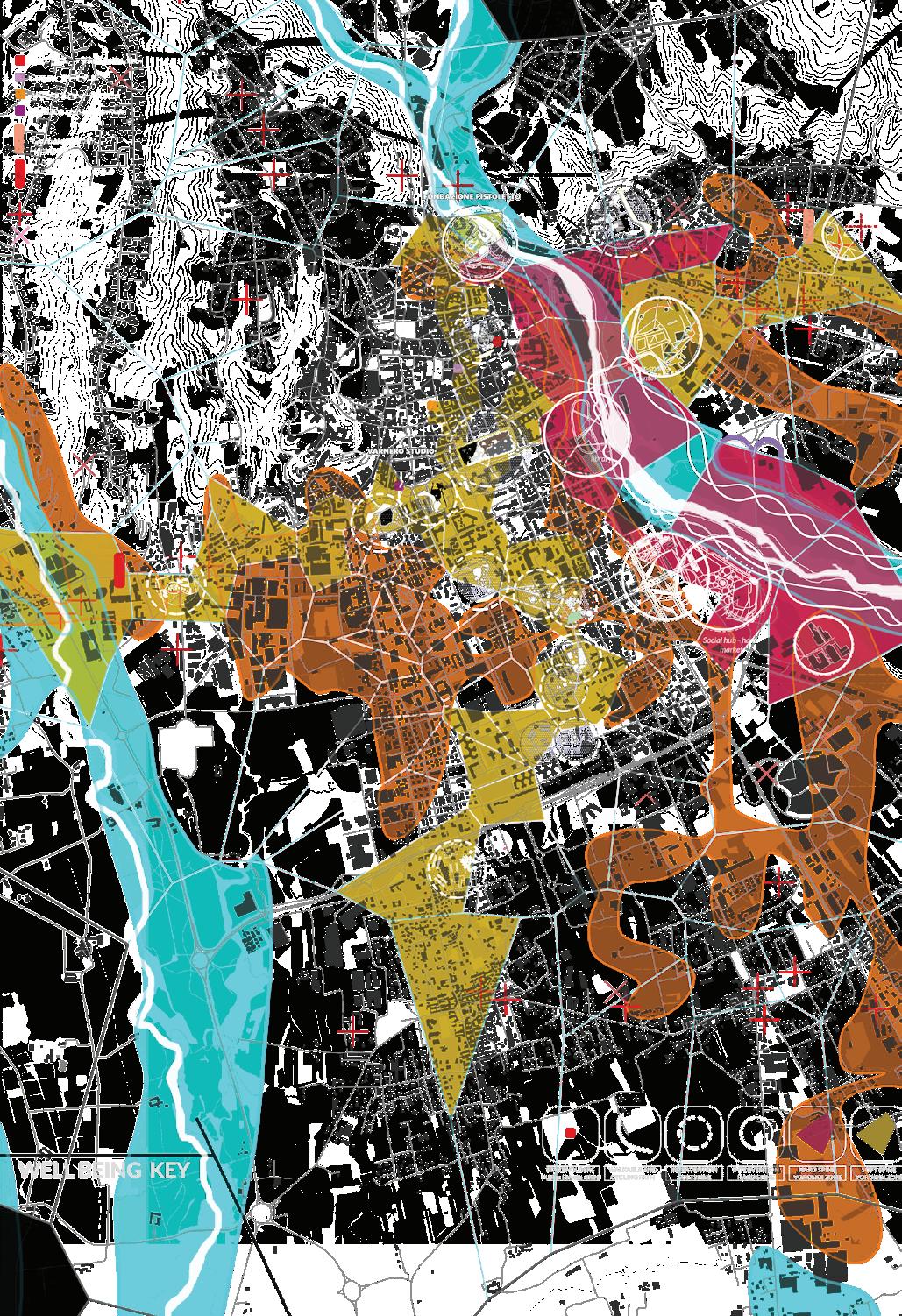

Biella is a name of a city and a capital of the province of the same name, it forms a complex territory which has been considered as the cradle of the industrial revolution in Italy, inherited urban and social values which promoted the city now to defined as a creative city mainly with the luxury wool fabrics in northern Italy, Piedmont region. Climate change CC creates new societal challenges which affect the transformation of the society fabric ending with environmental displacement, because of, the whole sociocultural-economic world has already affected the way that our cities perform not just the environment, we have to go forward from sustainable urbanism to climate urbanism to achieve real livable places and resistant societies. This shift is characterized by new policies, programs aimed to, considering climate alterations as a present condition instead of a future hazard and seeking to the actual implications on the case study of Biella’s Society, with the influence of built environment, Natural environment, Economy, and mobility, started by mapping the climate change potential effects through this approaches then tackling it through a systemic approach developing comprehensive spatial and infrastructure response with the aim of evolving new models of living together, finally to promoting the horizontal metropolis as a proper site of climate action instead of running local policies based on centers – peripheries narratives!
PROCESS SITUATIONISM
How and where should we intervene? Soft and Hard spine details

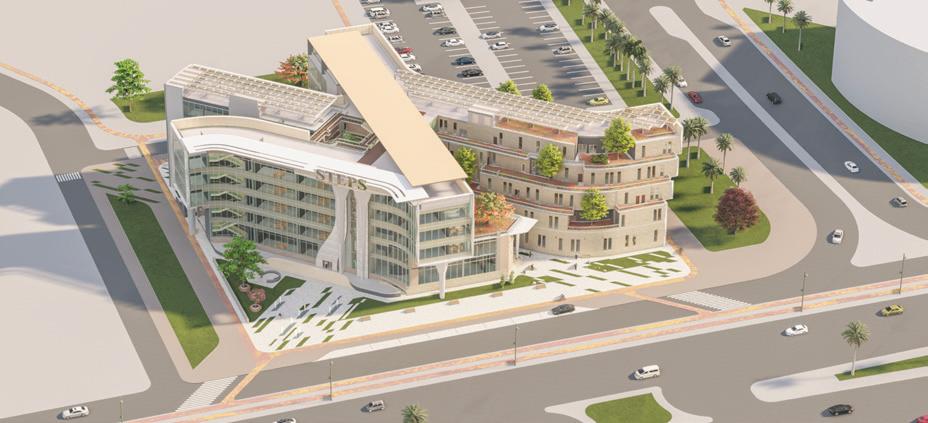

“Cairo Steps” is a sustainable model and ambitious methodology commensurate with the local nature and context applied in a five-story typical administrative building, located in the east of the Cairo Metropolitan Area adapted for climate mitigation to achieve a measured Net-Zero building
HIGHLIGHTS : STATUS : Firm : SITE : TYPE : DATE :
#NZEB Net zero energy building
#ECMs Energy Conservation Measures, #MEP Integration
#DAYLIGHT ANALYSIS
Competition ValueTech
Egypt, New-Cairo.
Office Building
June 2021
REFERENCES:
TEAM : ROLE : AWARD : SOFTWARES :
Mahmoud Nagy Elsayed, Mohamed Hanafy, Shady Khaled, Sherif Fouad

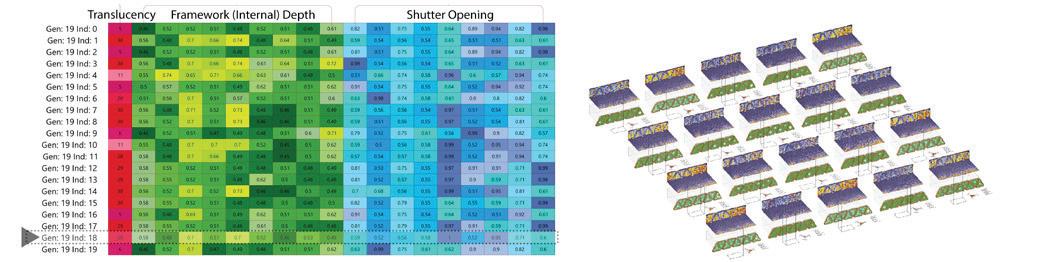

Design development, Daylighting calculations, Facade optimization
SILVER AWARD Design Marathon for sustainability Compliance.
# Design Builder # Revit # AutoCad # LUMION-PS
CAIRO STEPS
NET ZERO ENERGY BUILDING
Prof. Khaled Tarabieh, Eng. Karim Farah, Eng. Ahmed Abdelghany

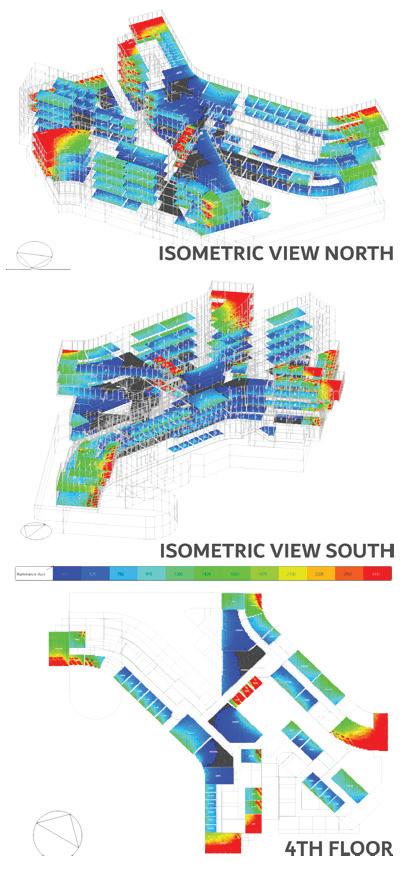

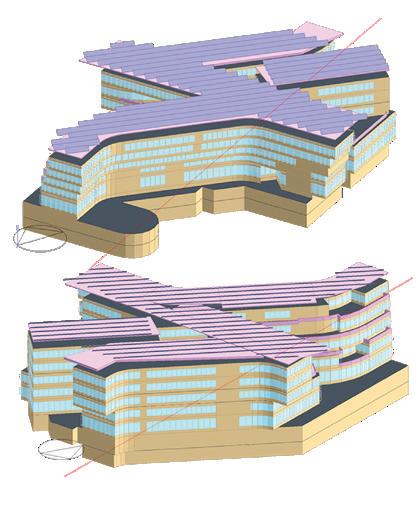

Enerrgy Modeling and Lighting Analysis
Using DesignBuilder V.07 Software
Population growth is one of Egypt’s major challenges, over 100 million settle in 7 percent of the available landmass till the Nile delta and its basin reached its maximum capacity! In response the country is establishing 14 new cities, which subsequently drove a boom in the AEC industry. Contrary to the historical base and away from the “Green area”, the urbanization of these new cities including the new administrative capital with its vast area and the Mediterranean coast city of El Alamein are located away in the depths of the desert!

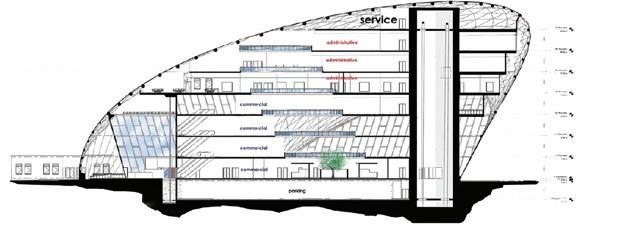

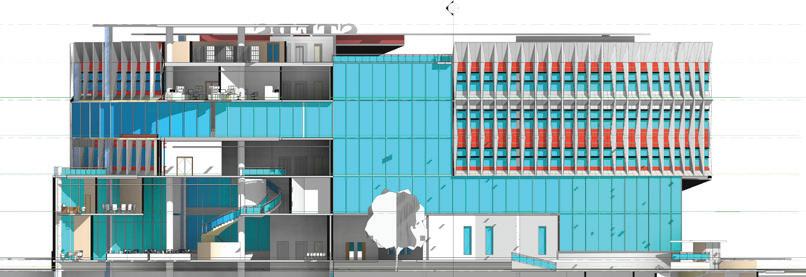

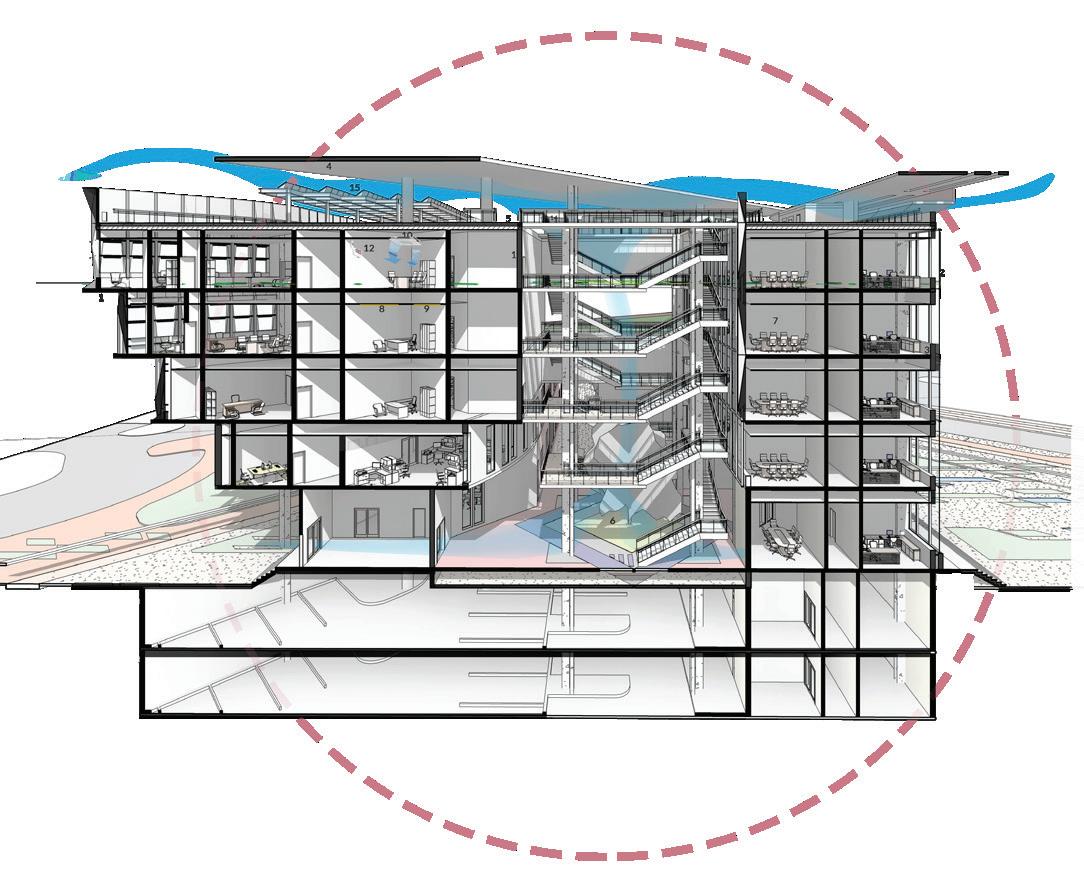

Geographic, climatic nature of these extensions besides the consequences of climate change introduce new challenges into the design process. Commonly, the predominant local Longitudian lSection representing the Internal facade aand courtyard

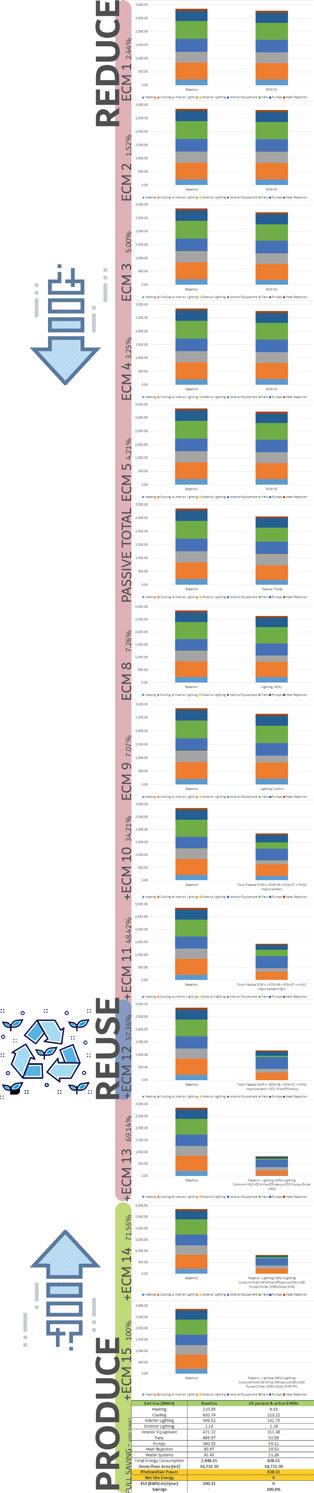

ENERGY CONSERVATION MEASURES (REDUCE | REUSE | PRODUCE )
1. Building Envelope (Wall, Roof) [ECM-01]
2. Building Envelope (Glazing) 3 [ECM-02]
3. Airtightness [ECM-03]
4. Shading [ECM-04]
5. Green Roof, Cool Roof & Walls [ECM-05]
6. Building orientation [ECM-06]
7. Occupancy (Negative Impact) [ECM-07]
8. Electric Lighting system [ECM-08]
9. Lighting Control [ECM-09]
10.HVAC System selection [ECM-10]
11.Demand controlled ventilation (DCV) [ECM-11]
12.AHU Fan Efficiency and static pressure [ECM-12]
13. Chiller (VSD), Chilled water pump (VSD) & Energy -Efficient Appliances (Energy Labels). [ECM-13]
14. Solar water heating [ECM-14]
15. Photovoltaic Panels [ECM-15]

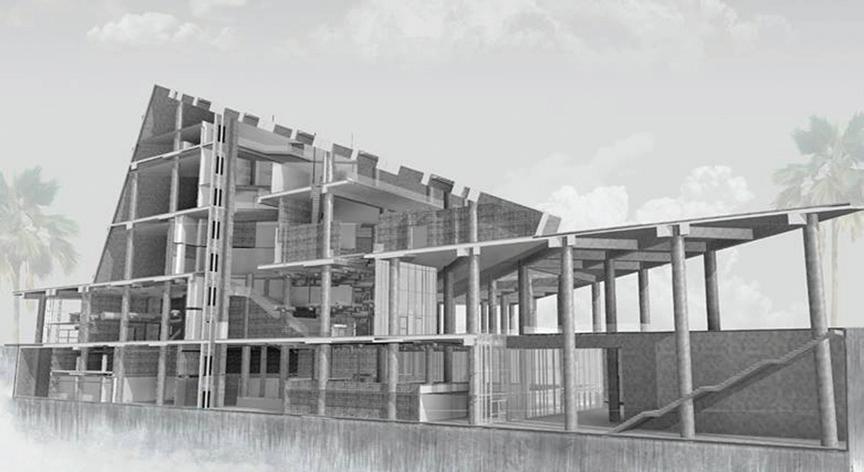

CONTAIN-US is a cyclone-responsive architecture that investigates the concepts of design with scarcity in order to provide adequate housing for more than 4000 homeless people using (container) Architecture.
HIGHLIGHTS :
#Scarcity, #Anti-Cyclone Arch. #manual and computational UTCI analysis

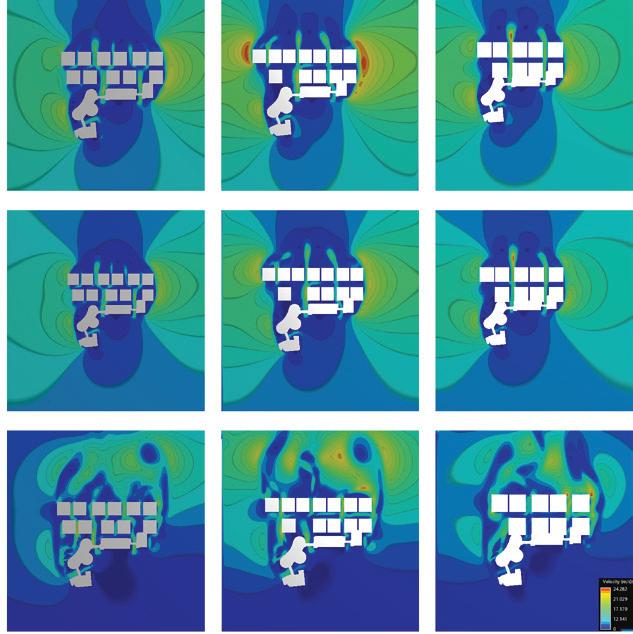

# Computational Fluid Dynamics (CFD) Simulation
STATUS : SCHOOL : SITE : TYPE : DATE : REFERENCES:
Academic Politecnico di Torino Mozambique, Beira Anti-Cyclone Architecture
January 2021 Prof. Matteo Robiglio, Prof. Francesca de Filippi, Prof.Marco Simonetti.
TEAM : ROLE : AWARD : SOFTWARES :
Mahmoud Nagy Elsayed, Merve Tatli, Sena Sagiroglu.
Research, Design development, CFD simulations
Participant TAMAYOUZ INTERNATIONAL EXCELLENCE AWARD
# Revit
# GrassHopper
# Sketchup
#FlowDesign
# Adobe PS-IL
CONTAIN-US Recourse Grand-Hotel

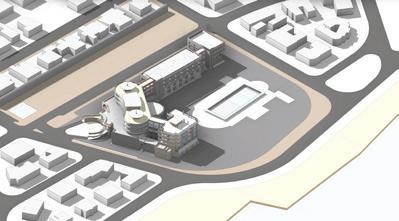

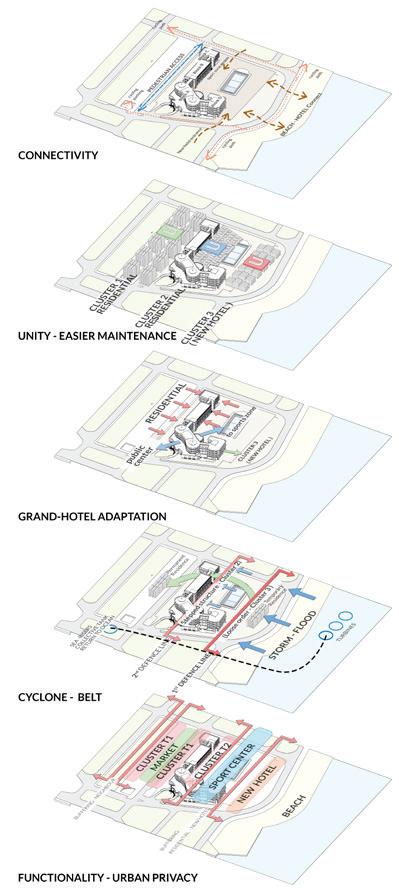

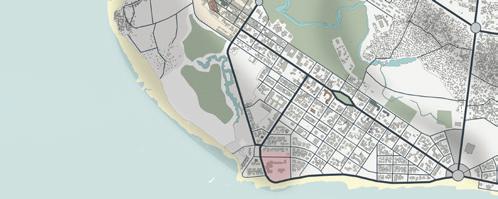

Back to Beira to Belt the Cyclone (Recourse Grand-Hotel)

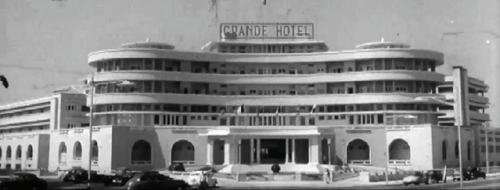

GRAND HOTEL

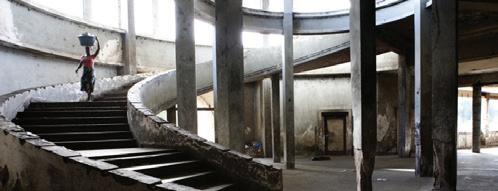

Grand-Hotel Beira was a luxury hotel in Beira, Mozambique. It was opened in 1954 and operated until 1974, when it was closed After decades, currently home to over 3500 squatters and displaced people because of the cyclone.
MAIN CLIENTS (Right of Housing)
Intense
IMPULSE introduces a futuristic form for an expressive urban landmark of the new logistic area for electrical industries and electronics in the authentic agricultural Governor-ate, south of the Nile delta.
HIGHLIGHTS :
#Futuristic, #Abstraction, #Gravity, #Environmental
#Augmented Reality
#Laser_Cutting
STATUS :
SCHOOL : SITE :
TYPE :
DATE :
Academic
Menoufia University
Faculty of Engineering
Industrial city (Menoufia), Egypt Design Studio
February 2016
REFERENCES:
Prof. Safaa M. Isaa
Dr. Mohamed shebl
TEAM : ROLE :
Mahmoud Nagy Elsayed
Individual project
AWARD : SOFTWARES :
N/A
# Revit, Dynamo
# Sketch up - Vray
# Ecotect
# 123D make
# Lumion
# Premiere Pro (video)

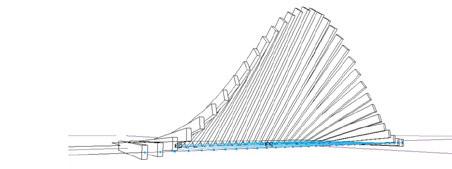

IMPULSE
LANDMARK FOR A LOGISTIC AREA

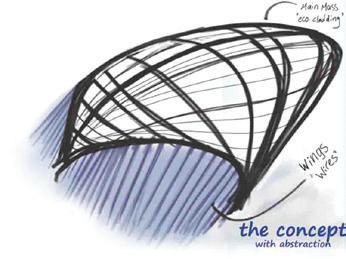

IMPULSE defies gravity as the region defies its past; the agriculture governorate has a new industriallogistic city and is investigating hightech industries such as electronics. Between regional planning and urban architecture design, IMPULSE, the 28,000 m2 landmark aim to create a dynamic place express the development occurs and serves the strategic plan of Menoufia governorate, with its location in the main-road between Cairo and Alexandria.
Managing a variety of components such as administrative and commercial zones, public spaces next to workshops and local galleries, and warehouses related to the industrial city. Circulation was very important to achieve pedestrianvehicle separation and to manage all aspects of the project through creative environmental strategies and expressive structure solutions in such a comprehensive layout program and the diverse urban context.

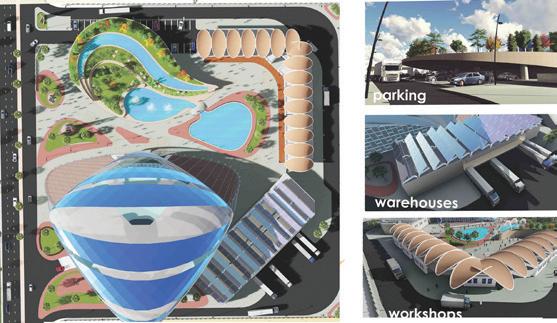

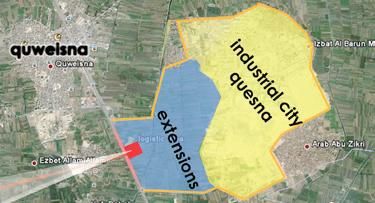

Fig.1: Site plan | Ground and First floor plan | Elevated Park | warehouses and workshop and galleries for local products.
Fig.2: Main perspective
Fig.3: North Facade | Wind captures | Elevated park | Surface parking

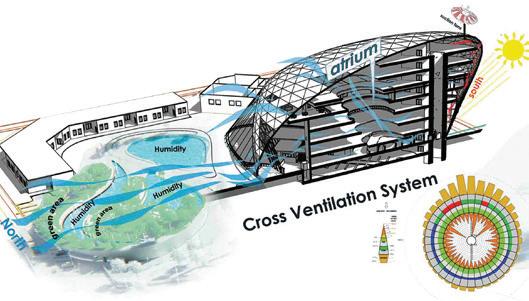

Fig.4: Environmental Solution | Cross ventilation.

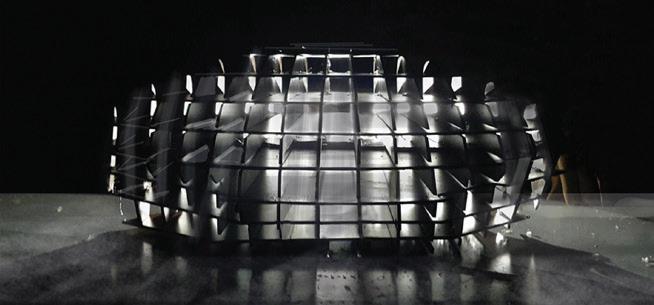

Fig.7: Physical model | Conceptual mass | Slicing technique.

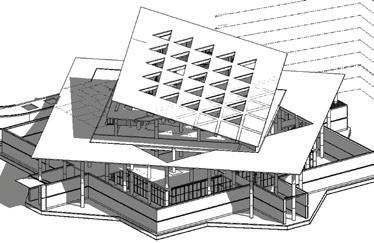

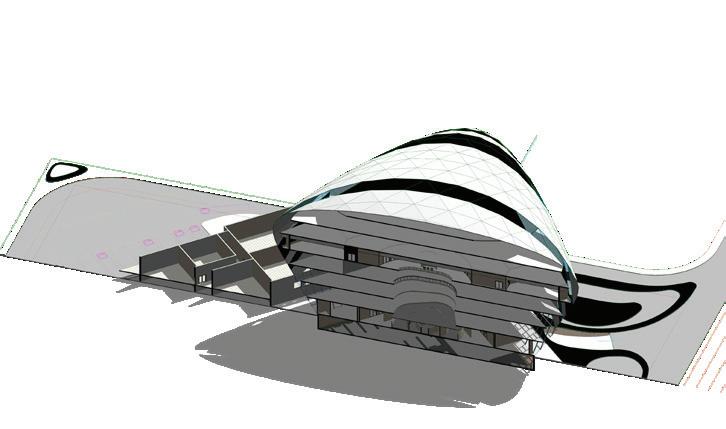

Fig.6: Virtual model | Detailed mass | AR media Plugin
using System; struct program { static void Main() { Console.WriteLine(“Hello, AEC World!”); Console.ReadLine(); } }
DESIGN
TECHNOLOGY (DT) is an internal R&D unit at BIG global studios,
BIG's Design Technology
Design Technology team is involved in the Design Development, application, implementation, and management of computer-based technologies to communicate the building design intent and constructability.
DT can be applied to the problems encountered in the construction, operation, and maintenance of a product or building.

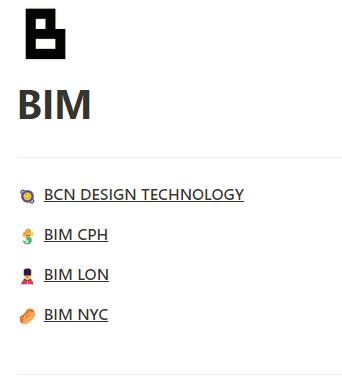

I have contributed to updating and enhancing the in-house libraries and office BIM standards through BIG NOTIONs which is an offline domain to assist the Architects, Designers, and constructing architects in BIG's different studios.
in these libraries, and with different programs' APIs, we automate some tasks , identify and develop automation scripts for different projects in SD and DD stages, which assist in alot of tasks that is a time-demanding, exhausting and consuming energy for its repeated work.
INPUT
OUTPUT

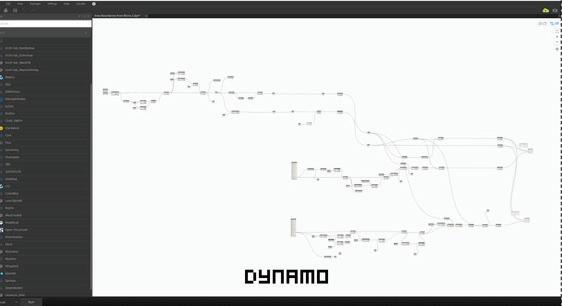

DYNAMO

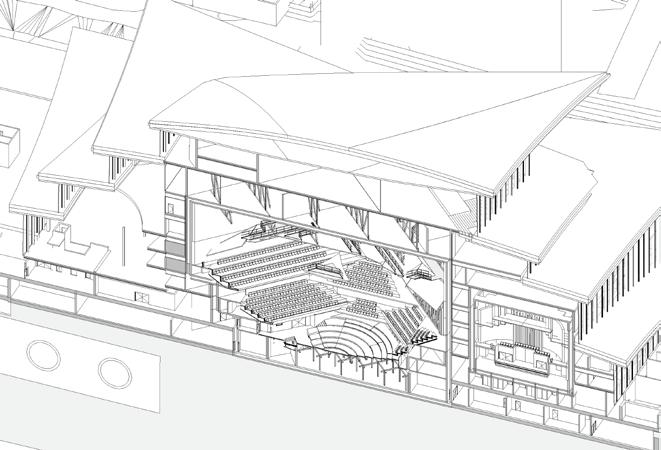

Philharmonic is composed as a meandering journey from riverbank to rooftop. Public flows and belvedere plazas unite the city life of Prague to music within. Its halls are formed for sight, fine-tuned for sound, and orchestrated for functionality and connectivity. From this rhythmic structure, a symphony of colonnades and balconies extend as platforms for public life.
HIGHLIGHTS : STATUS : FIRM : POSITION :
#Design Development
#Shop drawing
#Coordination
Professional Bjarke Ingels Group: BIG
ARCHITECT
SITE : TYPE : DATE :
REFERENCES:
ENGAGED : ROLE : SOFTWARES :

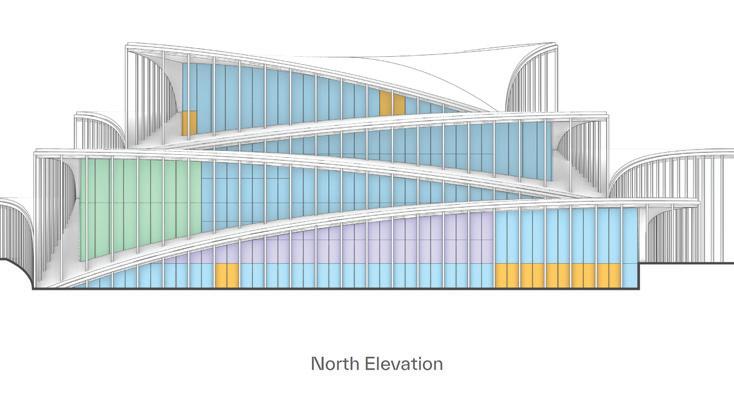

VLTAVA
PHILHARMONIC PRAGUE
Prague, Czech Republic Opera house, 50,000 m2
2023
Luca Nicoletti, PM
Buro Happold - Front Design Development, Envelope team. Facade Coordination (BIM team) #Revit
#Rhino #Adobe

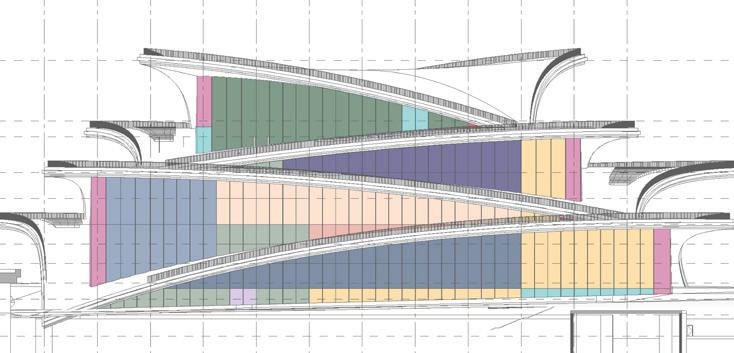

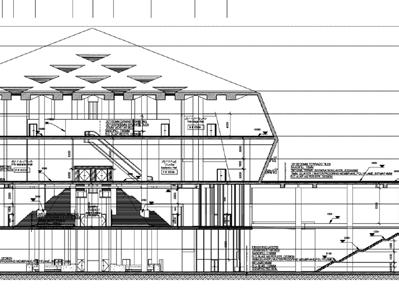

Automating the envelope sheets production. apart from is to control a vignette/keyplan from the sheet parameters, instead of the Title Block parameters, as you are then able to control it from a schedule, instead of clicking on each and every Title block.
#Shop drawing , Coordination
Professional
3IM Six Construct Milan- Italy- Abudhabi
Junior BIM consultant, ( MSc. Internship)
Abu Dhabi, United Arab Emirates
Museum 44,000 m2
SEP - DEC 2021
BESIX, FOSTER + Partners
using Dynamo scripting to help in the shopdrawings as example, creating sections from Alignment lines to submit the required packages for the basements and drums zones LOD 350.
# Revit # Dynamo
Northern Border Museum was established to preserve and document the effects and heritage of the northern border region of Saudi Arabia. 6D BIM part was educational part in the UTW BIM program and it refers to the part of Sustainability.
6D BIM, an acronym for 6D Building Information
Modeling and a term widely used in the Construction industry, refers to the intelligent linking of individual 3D CAD components or assemblies with all aspects of project life-cycle management information.
Base model and testing the experiment of Daylighting control through Firefly-Arduino package
HIGHLIGHTS : STATUS
FIRM
POSITION: SITE : TYPE : DATE :
ENGAGED : ROLE
SOFTWARES :
#Dynamo Firfly , #6D
Professional - UTW10
Engineering Consultant Group.
Cairo | Egypt
Intern - UTW 10 progran
Arar, Saudi Arabia Museum, 30000 m2
2018
TeaServ
Scripting development, Coordination.
# Revit #Dynamo #Firefly #Arduino
Fig.1: Produced work sample
I participated as a member of the peer review committee for the UIA WORLD CONGRESS OF ARCHITECTS back to 2022 when copenhagen announced as capital of Architecture. Copenhagen, 2023
FOUNDER
I established a student initiative called SCALE, and with an effective team, we were able to support architecture Undergraduates with events and workshops. We had formed a social network between Egyptian Architecture schools with unprecedented level of engagement over the country.
Around Architecture
ORGANIZER
(BIM EGYPT DAY) The largest industry gathering, Late 2017, joined the organization team of the Autodesk conference.
- Assisted in contacting international speakers and organizing the conference hall sets January 17, 2018 at Intercontinental City Stars Cairo. by educational academy I had recognized with Autodesk student Ambassador badge.
Organizer, Autodesk academy, BIM Egypt day |Cairo,2018
Winner of CAIRO DESIGN AWARD 2022 Edition, Honorable Mention | Cairo, 2022
Participant at UAHSI Workshop, Heritage For All Initiative, Golden Cube Encouraging award | Rosetta,2017
SCALE at Egyptian Engineering Day |Smart village, Cairo 2017
Speaker, ISOCARP International Society and Regional Planners | Doha,2021
Honors Thesis (SHELL), Politecnico di Torino | Torino, 2022
Winner, Design Marathon Award
| Cairo,2021
Best Team award, NEXT magazine, UTW 7 , Cairo 2015
Welcome day | Menoufia, 2016
UIA Congress
UN - MID TERM Conference - Bolzano regenerative school, Bolzano 2019
Our final presentation during the United Nations mid term conference in Italy 2019. we were representing the output of Bolzano restore school, The 100+ researchers and professionals from 30+ different countries gathered at NOI Tech-park for the event. the Training School was about regenerative construction process and workshop addressing Sustainable Development goals through the lens of RESTORE
Interdisciplinary camp on urban development, urban economy,
and climate
TU Delft Summer School
The summer school is a collaborative exercise involving many hands to foster a global dialogue of equals in which challenges stemming from climate change and growing inequality are tackled holistically, collectively, and in an integrative manner.
The 6th edition of the summer school: planning and design with water, organized by faculty of Architecture and the Built environment at TU DELFT and the ministry of Infrastructure.
Delft, 2019
Accelerator program Supported by DainshArab Partnership Programe and Dansk ERHVERV. Cairo, 2024
Moderator - ASCAAD
We have been apart of the 11th ASCAAD conference (Arab Society for Computing in Architecture, Art and Design)!
We moderate a workshop about AI application in architecture engineering at University of Petra/ Jordan.
Amman, 2023
Participant - CAAD
I had participate in the AI & machine learning co-creation session which was part of of CAAD Futures conference.
Delft, 2023
URBAN LAB CAMP II - TU Berlin , Campus Elgouna
heritage conservation,
change that takes place in El Gouna and Elquseir, TU Berlin ,2019
School of Business -AUC
Rössler attractor
“ What is important is to keep learning, to enjoy challenge, and to tolerate ambiguity” , In the end we hope to be guided to the Straight path.
Horner
Radcliffe Harvard President
SUSTAINABILITY
Matina
