The Temporary Permanent Shelter

The Emergency Housing Prototype

Archistorming & TECHNO | June 2019

THE BRIEF: Redesign the current emergency housing model made by TECHNO.

THE HOPE: By re-purposing the existing materials and techniques, we achieved a more durable and adaptable architectural solution that ultimately helps give form and permanence to the lives of those inhabiting it.

THE STEPS: Move to a spacious square-based arrangement - while retaining the limits of the current cladding modules and woodframe construction. In order to optimize the use of space and resources, an over-lapping of different uses is implemented: the living and sleeping combined with the use of an additional kitchen or bathroom module. Lastly a permanent division of daytime living and night-time sleeping spaces is organized vertically through the addition of a mezzanine level used exclusively for rest and/or storage.

Designed with Vuk Krcmar-Grkavac

My part: All drawings and renders shown

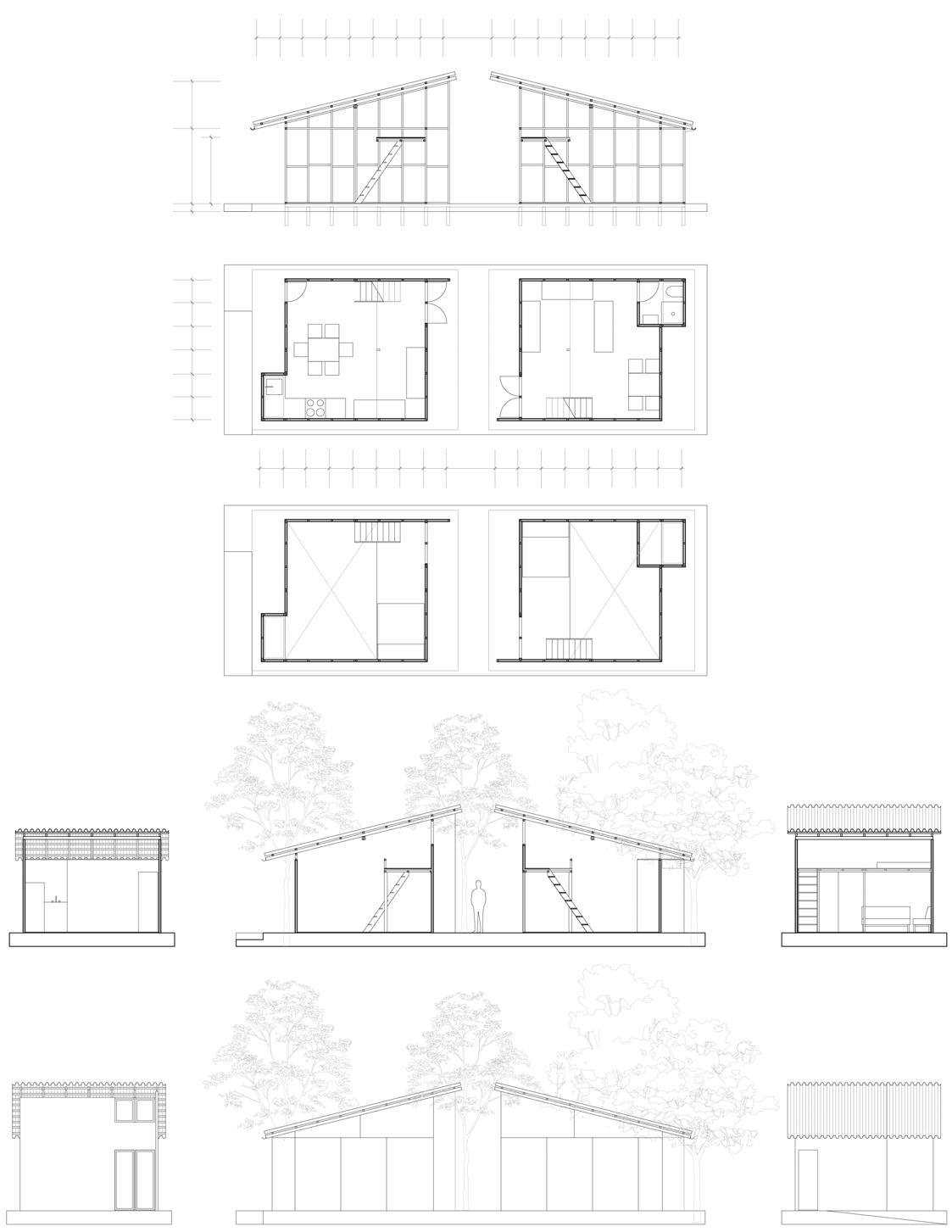

Cladding Module (1.525m x 2.44m) With Plan and Future Addition

Combined Program Moduels

Program Uses With Modular Addition

Mezzanine Level For Separation of Day and Night Uses

Fibre Cememnt

Roofing Panels

2” x 2” Joists

2” x 4” Transversal Beams

1” Wood Plans

2” x 2” Joists and Beams

2” x 4” Column

Wood-Frame Panels

Water-collecting Tanks

1/2” Wood Chip Board Interior Finish - Painted White

Insulation

Fibre Cement Exterior Cladding Painted White, Blue, Yellow, Orange or Purple

1” Wood Planks Floor Surface 2” x 4” Wood Frame Floor Base 36” Concrete or Brick Seismic Plinth
