Giro d’Italia

Angelo Carosi is the lead director on Giro d’Italia. EMG is utilising its plethora of broadcast technologies and the reach of its expertise across Europe to create an innovative production for RCS’s first Giro d’Italia as host broadcaster

Combining European forces to bring Giro d’Italia to life

BY HEATHER MCLEAN

FIRST PUBLISHED 19 MAY 2022

Giro d’Italia 2022 is being televised by EMG for host broadcaster and event organiser RCS. This marks the first year that RCS has run the production after taking the role back from Italian public broadcaster Rai, which had produced the event for the past 20 years.

As of 2022 EMG is utilising its plethora of broadcast technologies — externally and internally developed — and the reach of its expertise across Europe to create an innovative production that misses nothing, and still hits the budget. It plans to further develop its production with more innovations over the course of the three years of its agreement with RCS.

Fabio Guadagnini, EMG Italy chief commercial officer and project leader for Giro d’Italia, tells SVG Europe from his OB van in Italy: “This year [RCS] decided to leave the former relationship it had with the national broadcaster doing the production [Rai]. They were leaning on Rai for everything that was connected with the TV production. This year, they decided to centralise it and being chosen as their partner was very important for EMG.”

EMG has bought together its Italian, French and Belgian divisions to work together on this project for the first time, combining skills, expertise and technologies to come up with a strong and unique solution for RCS and the Giro.

Guadagnini comments: “The thing that as a group has a very huge meaning is that, with this project, we are working with three different countries — Belgium, France and Italy — as a group and a partner for the first time, with the three of us working together on a single project. It’s another small revolution that we have started from this year.

“Our intention when starting with the three-year deal [with RCS] was to be connected with RCS for a longer period, and [we are] starting to improve the innovations [used in the broadcast]. As a group [we know that] this is just the starting point of the path, [working together as a group on] innovations, and bringing new stories in; this is something we would like to do.”

Adds Guadagnini: “The grand production is essentially something that the Italian entity is leading, because we know the territory — the specific complexity in having a lot of mountain stages — and we have people here. Aerials is something that we are leading in worldwide, thanks to the technology brought by EMG Belgium and EMG France, and also [specialist] knowledge of cycling comes from those countries, where cycling is like what football is in Italy. Putting all of this together as a group was the only way to provide to our partner with a top-class production.”

Chris Demeulemeester, EMG Belgium head of

international projects and sales, and project leader for Giro d’Italia, says: “It’s actually even larger [than EMG France, Italy and Belgium]. The uplinks, co-ordination and the quality control are done in Holland, with satellite trucks we’re going to bring in next year from Holland. This year the OB trucks, the classic business, is coming from Italy. The helicopter co-ordination is coming from Belgium. The aircraft and the tracking is from the French [division]. It’s probably one of the biggest projects we [have done] as one solid, glued EMG. Guadagnini is leading for the group and we add in all our specialties and engineers, while he co-ordinates everything, and we execute for Guadagnini’s clients. Done deal.”

Continues Demeulemeester “With the content team and the technology team, we have fewer people in the team, we are closer to each other, and I think that’s one of the biggest advantages that our clients can see. The storytelling, the engineering, the commercial aspects of this project, the co-ordination by Guadagnini and his team, is in one smooth, lean and mean package that we can bring to the table. In the past with previous clients, they have looked at us as the technical guys; now we are bringing engineering, content and storytelling, knowhow and new technologies for the future, because there are plenty of other tools that we will bring [to Giro d’Italia] with Guadagnini and his team.”

Lean and mean

RCS, the biggest race organiser in Italy for a number of sports, has one major Italian client for Giro d’Italia, Rai, and one major external client, Warner Bros. Discovery. On what is being produced, Guadagnini says: “We produce about six hours of live production per day; at least six hours, sometimes more than that because we have to shoot the preparation of the race. We have also the ceremonies, the awards, after the race, so it’s a very extended, long production.”

Demeulemeester notes that EMG is using its experience on similar races such as the Tour de France to make the coverage work smoothly: “We are lean and mean, we are fast, efficient, and we do this with fewer people — we are doing this production with 75 crew in total — but what do we do differently? We cover flag to flag with a very, very powerful intermediate set up. That’s one of our specialties that we learned during the Tour de France, going into the Alps or the high mountains; it’s totally different than doing a race somewhere in the flat areas of Italy.”

EMG is using five motorbikes, two helicopters, two airplanes, plus five additional motorbikes for Rai and Discovery on this production.

Demeulemeester comments on how EMG has managed the production: “I started together with Guadagnini on this project and we basically do it in two blocks. The first block

Expeeience the Next.

www.qvest.com

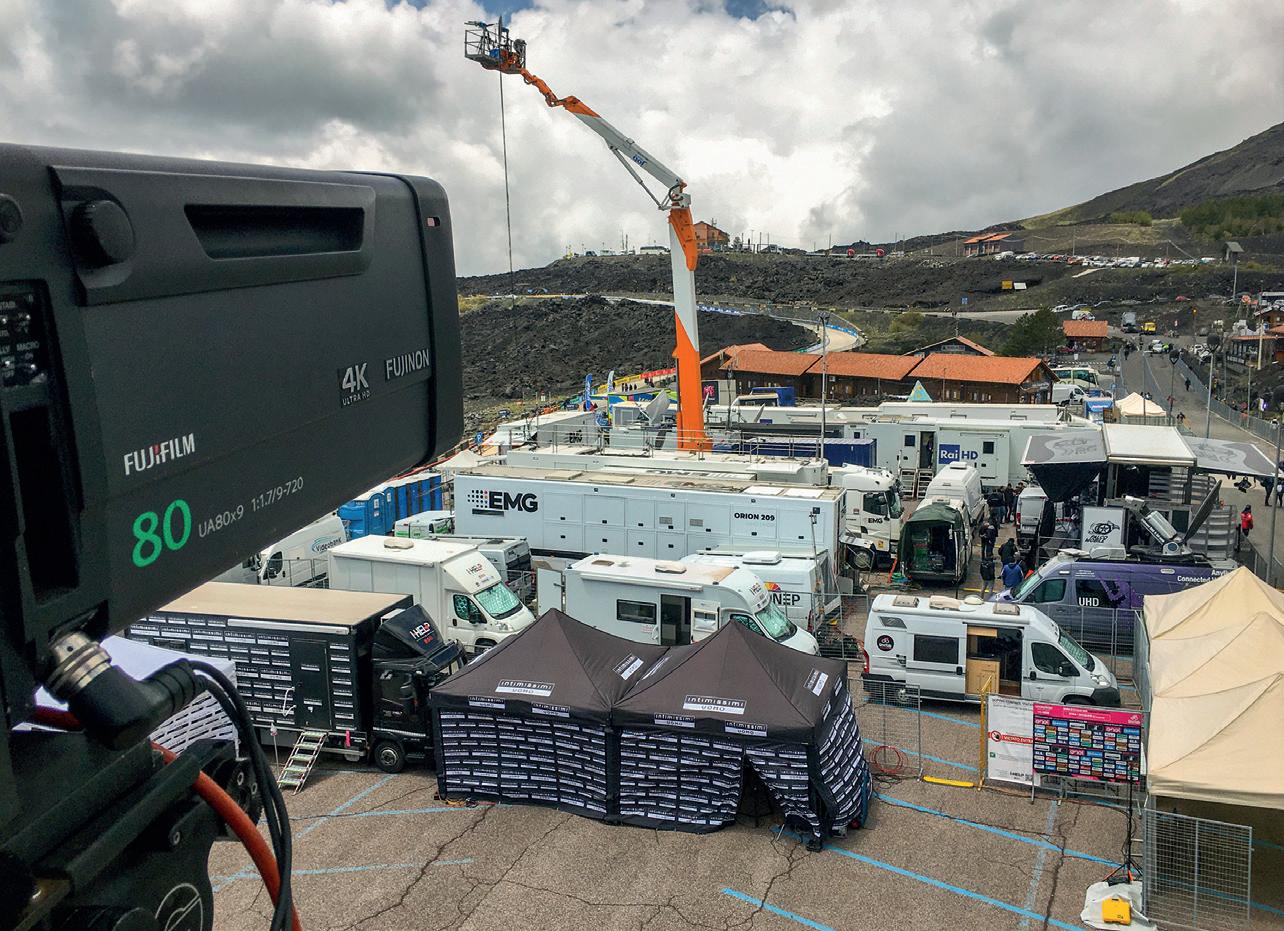

EMG has bought together its Italian, French and Belgian divisions to work together on this project for the first time. Shown here, the Mount Etna TV compound

“The thing that as a group has a very huge meaning is that, with this project, we are working with three different countries – Belgium, France and Italy – as a group and a partner for the first time”

FABIO GUADAGNINI, EMG ITALY is very basic; it is classic OB coverage. The second block which is probably the most complicated, is everything that is long range.”

He continues: “Why is this year a bit more complicated for the Giro d’Italia? The Giro is covered from flag to flag; that means from the start of the race to the end it’s live covered on Eurosport, on Rai, on all the broadcasters. With a flat race it’s not really an issue because the tools we are using are powerful enough, but the moment we go into a mountain situation, you need relay systems. You need to work in different blocks with different tools, with different teams handing over the signal, literally over the mountain; we are pushing the content over the mountain. That is one of the biggest challenges. If we are not able to detect the aircraft while blocked because of high mountain tops, we use an additional team and set up a ‘bounce’ via satellite and several carriers back to the finish.”

Demeulemeester continues: “Our second challenge is that everybody’s always focusing on a live feed covered by three or four motorbikes and a helicopter because that’s what everybody sees on the air. But besides that our team is delivering unilateral services for all these other broadcasters. So we are not driving around with four classic TV motorbikes, but we have 10 motorbikes up and running on the track. That creates massive bandwidth issues and we need massive different lines that we are pushing from point A to point Z.

“Plus a third element, which is very challenging every day, is that Guadagnini and his team are at a different location. The trucks are arriving in the evening around midnight. Next day at 10 o’clock they are ready to go live. So, every day, a whole circus is being built, moved, installed, tested, set up and ready to go live. There is no moment to make mistakes or errors and that creates a bit of pressure on people.”

Tech talk

EMG is using huge truck capability to cover this event. While the Giro started this year in Budapest, Hungary, for the first three live stages, in less than 24 hours the entire production set up of trucks, RF motorbikes, crew, helicopters and relay aircraft needed to be available at the Mount Etna, Sicily, stage to continue the race. Says Demeulemeester“Of course trucks can never be on time, so we used double set ups and double teams.”

EMG has an in-house-developed RF platform called Livetools, created especially for the complex and highvolume transmission of the Giro. Livetools, which has been designed as a centralised low-latency wireless solution, is focused on time-based interleaving modulation and automatic ASI switching.

EMG uses interchangeable RF modules for 1310-2000, 1990-2700 and 3400-3800MHz; changeable bandwidths that gives the crew spectrum flexibility all over the European Union and the rest of the world.

Demeulemeester goes on: “What is actually very special in what we do, [which we also do] on the Tour de France, is our antenna tracking system, which is military-based. We are [focused on high] performance in high altitude mountains. Underneath our aircraft and every motorcycle, every source is tracked individually, so if the motorbike drives to the left and the pilot needs to fly to the right by coincidence because of wind and altitude, the antennas will [still] always look to each other. If the pilot banks to the left, the antenna will always follow the exact location [of the helicopter].

“[That gives us] a whole mix of data that we mix in the aircraft and recompile the ASIF stream and we recreate a new signal out of it. We always pick the best feed from the best motorbike in the best carrier. We push it to the aircraft, we track it back to the compound and there we select [which is the most] stable signal, what is good, what is not good, but very fast of course, and we create a new video stream.”

Continues Demeulemeester “Time-based interleaving modulation with automatic package switching and our high gain antennas in-house; that is really key and core from us. No one in the world has that type of modulation technology because we designed it ourselves. We have our in-house live tools and coding tools, so Rai or BBC or any other broadcaster who would do similar projects, they would always use off-the-shelf equipment from manufacturing. We don’t think that equipment is good enough for what we do, so we designed our own encoding.

“The high gain antenna tracking concept is probably the strongest tool in this long-range RF solution. All individual sources — helicopters and motorbikes — are tracked individually from a B200 King Air platform flying at 22,000-27,000ft. These individual controllable antennas (TX/RX) create the RF backbone of the entire system.”

Audio communication for the camera crew is an important part of the EMG set up, says Demeulemeester “Because we do [these type of productions] 180 days a year, we want to create comfort for Guadagnini’s team. The intercom is not classic UHF VHF; we created an entire digital link back to the motorbikers. So the motorbikers sitting there on the bike for more than six, seven hours a day, they have a digital intercom line that creates comfort,

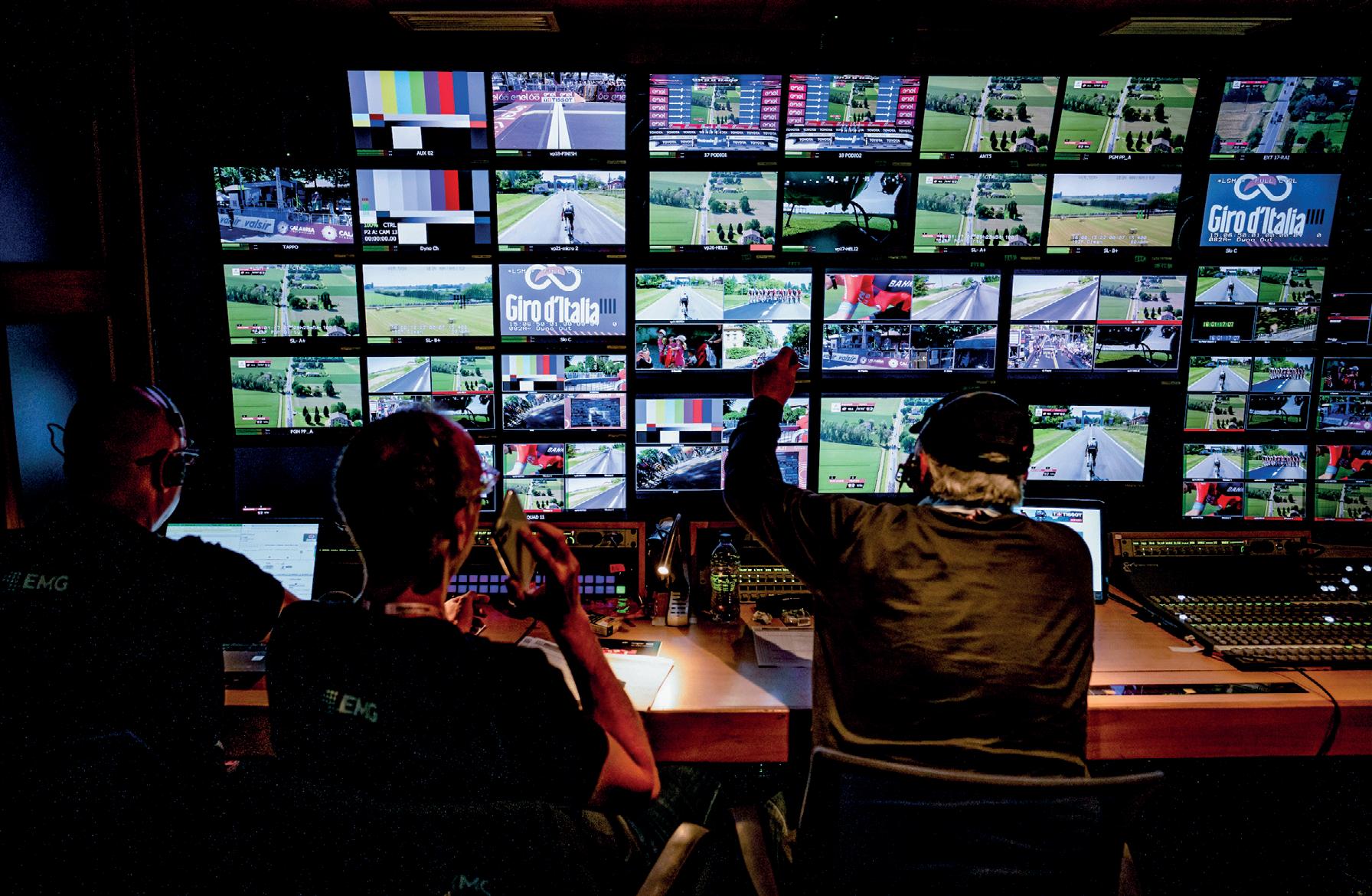

EMG crew hard at work in the OB for this year’s Giro d’Italia

that creates more attention for the camera operator to the director, and so the director doesn’t need to yell. Everybody’s very relaxed and Guadagnini’s team can work very professionally in a small and cool environment. It’s like the camera operators are connected with cables. It’s exactly the same functionality.”

Storytelling creativity

Angelo Carosi is the lead director on Giro d’Italia, with deputy directors Franco Scotton and Antonello Grippo. Guadagnini says the storytelling aspects of an event such as this are focused on showcasing the race, the competition, the country, and all the many other stories going on, both on and off the track. EMG is using two helicopters to enhance this storytelling. One is focused on the race and the other films the landscape, gathering footage of the scenery in relation to the peloton to provide directors with the opportunity to give viewers visual context of where the race is geographically, while also showcasing the splendour of the Italian countryside. In addition, the camera operator onboard the second helicopter captures 360 images in the locale of the race.

Notes Guadagnini: “The complexity of a race like Giro d’Italia is that we have more stories crossing over and very close to each other, so every day we ask ourselves to tell the story of the territory, the country and the sports performance, all mixed together.”

He continues: “We have a daily meeting [from which we create] parallel rundowns. The first one is for the ground production, so the roads and the cameras positioned at the start and at the arrival, together with the story we can tell, thanks to our helicopters. These helicopters have their own rundown, to tell how the landscape follows this story, these people, competing in this race. These parallel stories are the main approach that Angelo, Franco and Antonello are calling the cameras from every day in our races.” Demeulemeester comments on the parallel rundown approach: “If you compare it with previous periods, the helicopter pilots were just, let’s say, bus drivers carrying a camera operator. Now we engage the pilots and the Cineflex operator in those places of interest so they become part of the storytelling. This means that everybody in the chain becomes important. In the past the pilot got their briefing the same day of the production. Our pilots have a briefing two months [before the race].” One of the reasons RCS chose to work with EMG is its ability to offer rights holders personalised feeds. Says Demeulemeester “ Discovery asked us to have a special TV bike equipped with remote minicams in order to cover Sir Bradley Wiggins during his live interviews.

“One of the key storytelling lines for Discovery is Bradley, so for Discovery we created a dedicated Bradley Wiggins feed; Bradley is on a motorbike and we installed mini cameras that we can switch, so if he’s doing reports and live interviews in the race, on the right side of a rider or on the left side of a rider, we use mini cameras that can pan and tilt, they can zoom in and out; we control that camera. We feed that signal on one of the embedders up to the satellite, up to the truck. We unplug that signal and send it separately to Paris, where we get a return line, because [Bradley] needs to know what’s going on in Paris, of course, and so on. There is a massive in and out of data and lines and feeds.”Crosshead Snack time

The company is also enhancing the world feed with ‘snackable videos’ and fan perspective shots. Demeulemeester explains: “If we are doing a certain climb where a famous rider is very well-known, like Marco Pantani who is a God in Italy, very early in the morning we would send one of our ENG EFP media content managers. They will film with a wide sensor camera, some arty [shots] and quotes for content; for instance, extreme close ups of paintings of Marco Pantani on the asphalt, where you can see the emotion of the Italians that will pass by. We will [turn that into] a clip and during the live, [as the riders] head up to that climb, we launch that clip so the viewers at home would already recognise, ‘oh, that’s the climb coming up’.

Concludes Carosi: “We are lucky because our territory is very, very interesting and we discover each place; I’m Italian but it’s very important for me to discover new places, new adventures, in this country. This is a circus we build every day for one month; the effort is very hard, but [despite] the challenges, [this] is important for us and we are sure of the success of the team.”
