2025 PRODUCT HANDBOOK
AMX has been leading innovation in automation and video distribution for 40 years. AMX takes the complexity out of managing technology by providing reliable, consistent and scalable systems comprising control and automation, switching and signal distribution.
AMX leads the way with the most innovative and comprehensive networked AV portfolio with SVSI solutions, the most secure, pixel-perfect video distribution with Enova matrix switchers, and defined the automation market with the NetLinx control platform. Secure. Robust. Mission-critical. This is why iconic institutions like the United Nations, NATO, and the US White House rely on AMX to be productive and effective.
M ARKETS SER VED
SINGLE OUTPUT DEVICES
1
SWITCHER: VPX Series
VPX-1401:
4x1 4K60 Switcher
Inputs: VGA, HDMI
Outputs: HDMI, DXLink
Audio Out: Yes
VPX-1701:
7x1 4K60 Switcher
Inputs: VGA, HDMI
Outputs: HDMI, DXLink
Audio Out: Yes
2
3
TRANSMITTER-RECEIVER KIT: CT Series
CTP-1301:
4x1 4K30 TxRx Kit
Inputs: VGA, HDMI
Output (Rx): HDMI
Audio Out: Yes
CTC-1402:
Multi-inputs with USB & USB-C TxRx Kit
Inputs (Tx and Rx): VGA, HDMI, DP, USB, USB-C
Outputs (Rx): HDMI, USB
Audio Out: Yes
ALL-IN-ONE TRANSMITTER-RECEIVER KIT: JETPACK Kit
JPK-1300:
Includes Wall-plate Transmitter, all-in-one receiver box, 6-buttons keypad with volume knob (2 versions: UA & EK)
3x1 Switching, Transport, and Control Solution
Inputs: USB-C, USB, HDMI (2), Line/Mic, Output: HDMI, Audio Out, Amp Out, USB Button Keypad included: Yes (No programming required)
2
H.264 ENCODERS & DECODERS:
N3300 SERIES – 4K60
4K Encoders:

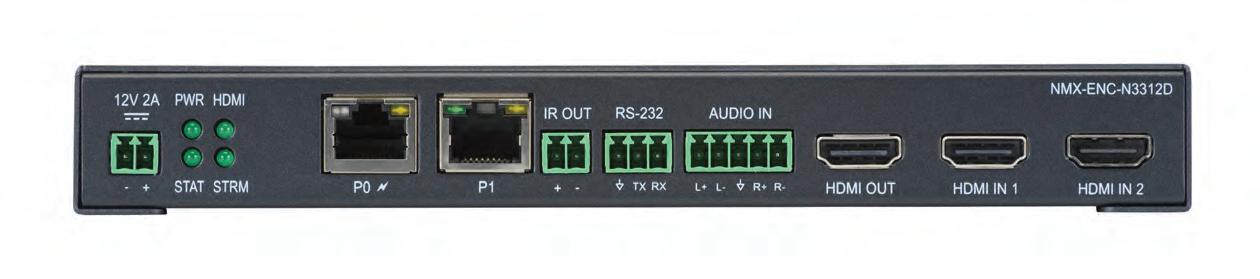

N3312D Encoder – Box type N3312D-C
Encoder – Card type
Input: 2x HDMI, 1x Audio
Local Monitor: 1 x HDMI
Primary Stream : 4K60 H.26x or Dante AV-H
Secondary Stream: H.26x
USB 3.0 Recording to External Drive (Up to 2TB)
4K Decoder:

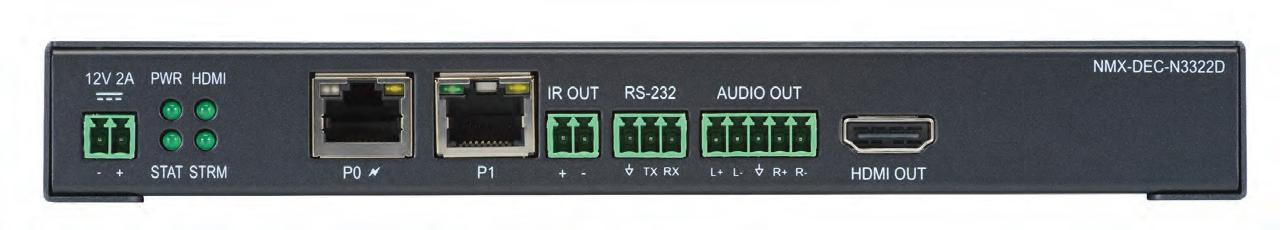

N3322D Decoder – Box type Output: 1x HDMI , 1x Audio

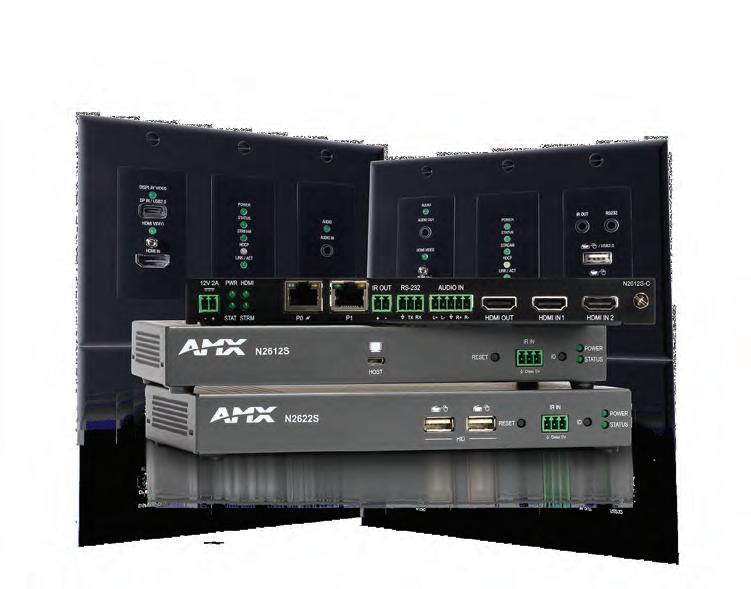

1G ENCODERS & DECODERS:
N2600 SERIES – 4K60
4K60 Encoders:

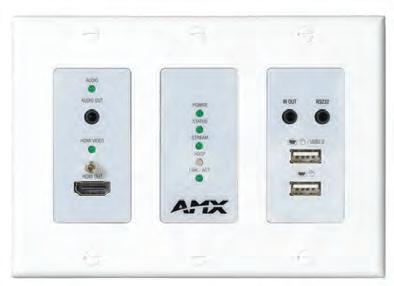

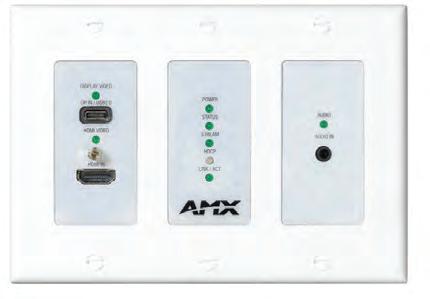

N2615D-WP Encoder – Wallplate Input: 1x HDMI, 1x USB-C, audio in, Dante AV-A enabled

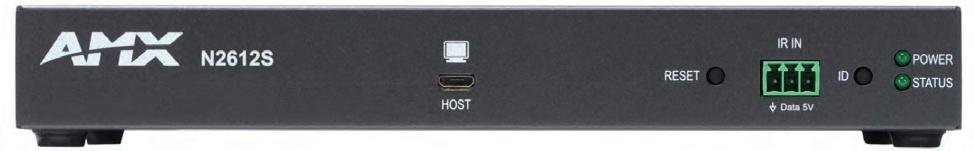

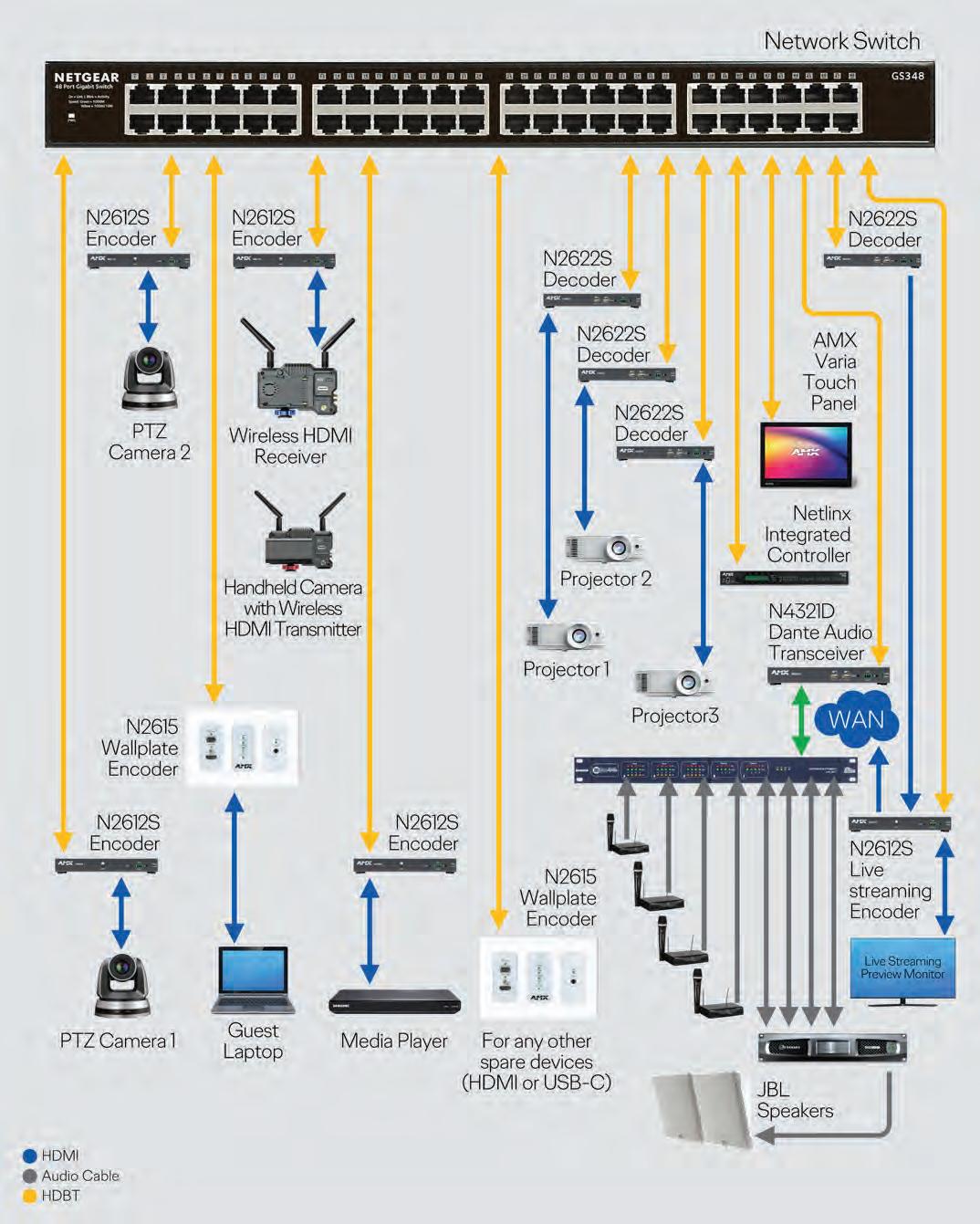

N2612S Encoder – box type N2612S-C Encoder – Card type Input: 2x HDMI, 1x USB
Monitor out: 1x HDMI
H.264 Streaming on WAN: Yes (box version/ S models only)
4K60 Decoders:
N2625D-WP Decoder – Wallplate Output: 1x HDMI, 2x USB 2.0, audio out, Dante AV-A enabled

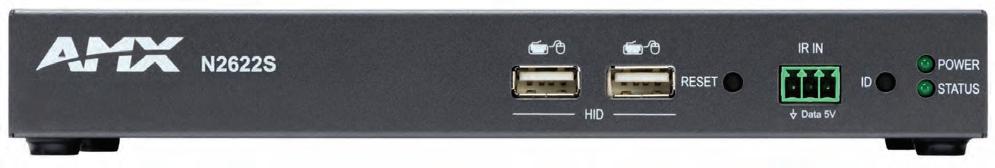

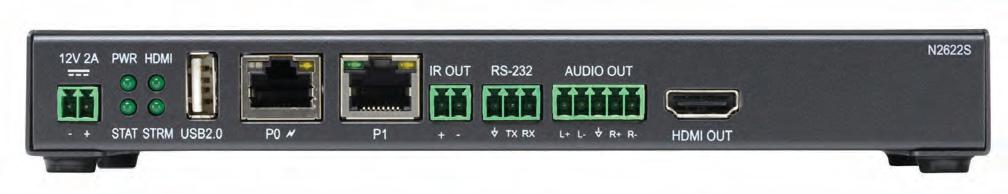

N2622S Decoder – box type Input: 1x HDMI, 1x USB 2.0
1
2
3
FIXED HDMI MATRIX SWITCHER: PRECIS -4K60
PR Series:
PR-0402 – 4in x 2out
PR-0602 – 6in x 2out
Input: HDMI
PR-0404 – 4in x 4out
PR-0808 – 8in x 8out
Output: HDMI, Audio

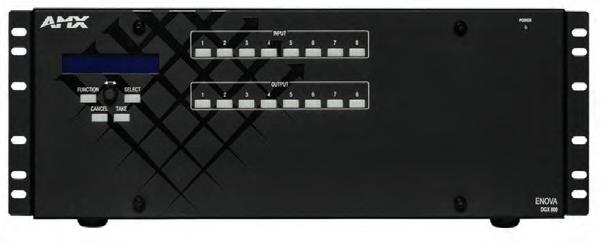

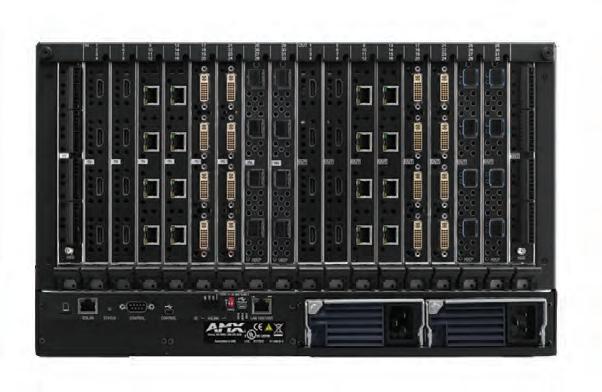

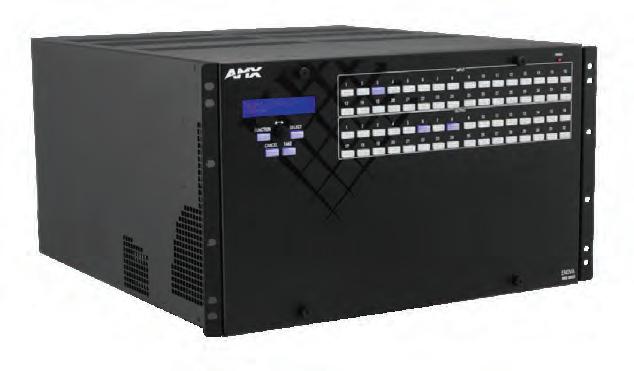

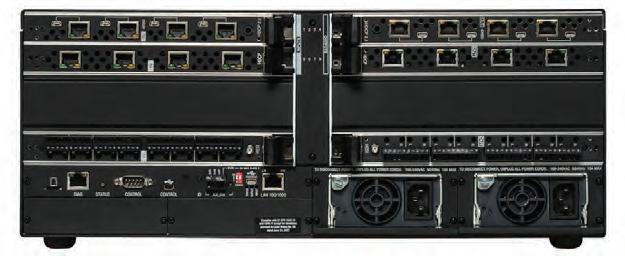

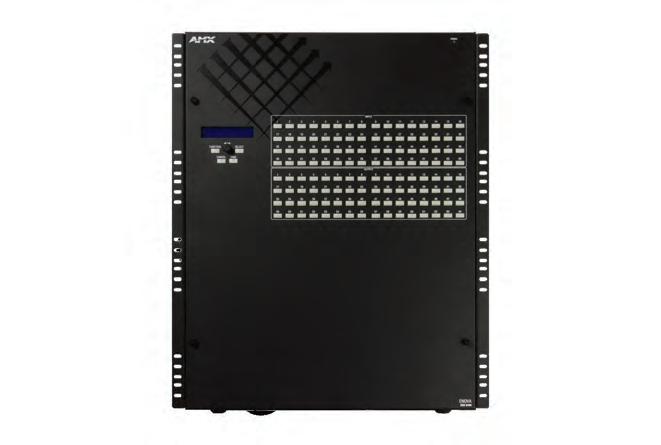

MODULAR MATRIX SWITCHER: DGX

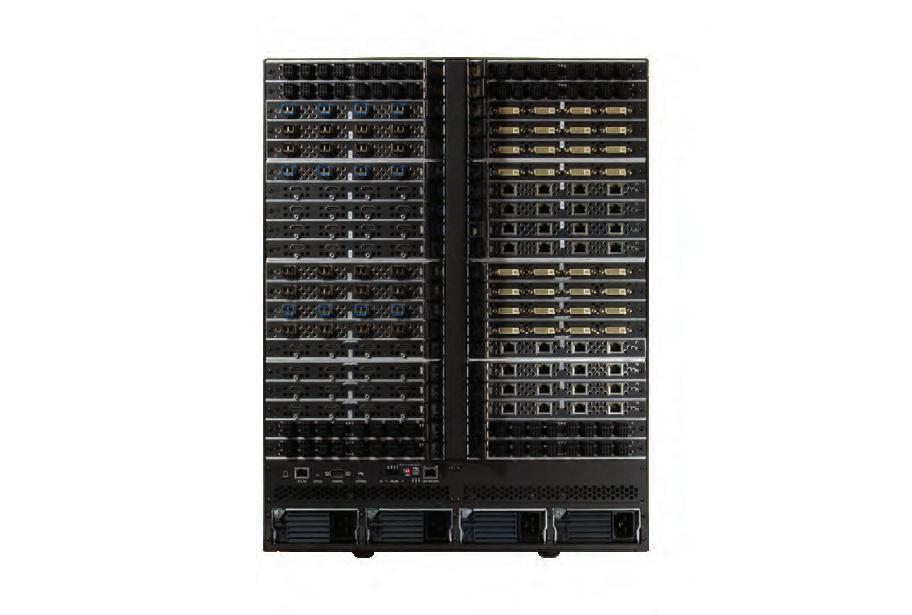

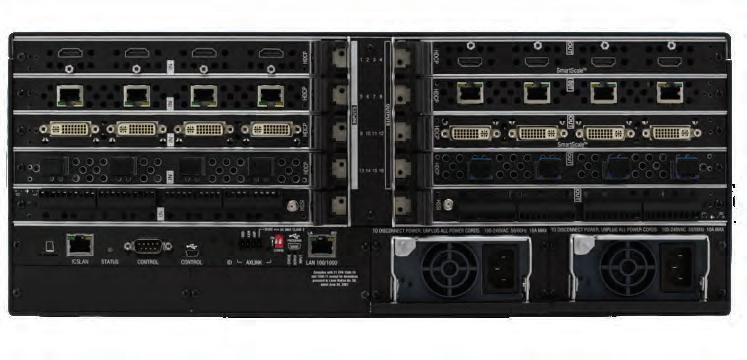

DGX Enclosure:
DGX800: 8x8 in/out

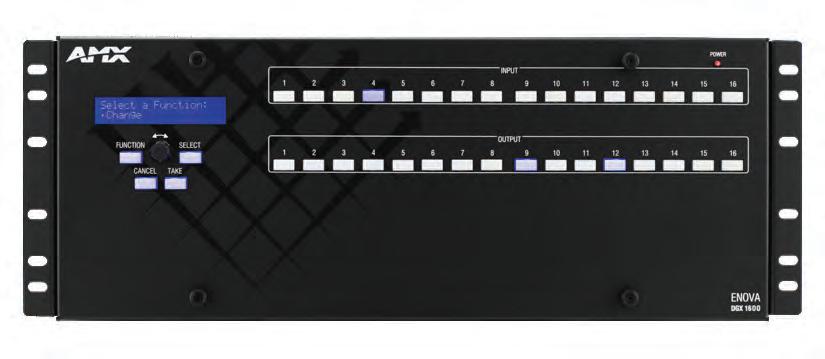

DGX1600: 16x16 in/out
DGX3200: 32x32 in/out
DGX6400: 64x64 in/out
PR01 Series:
PR01-0808 – 8 in x 8 + 4 out
Input: HDMI
Output: HDMI, HDBT, Audio

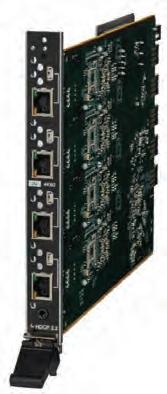

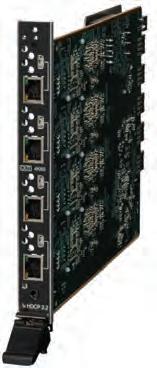

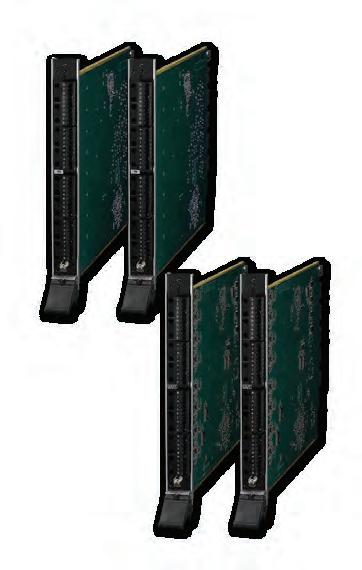

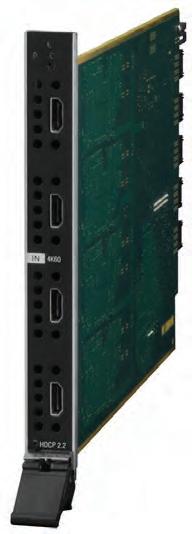

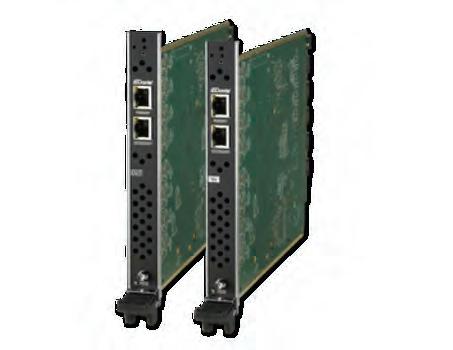

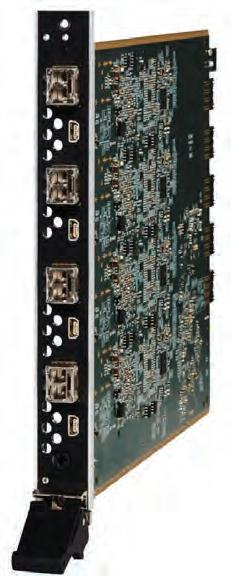

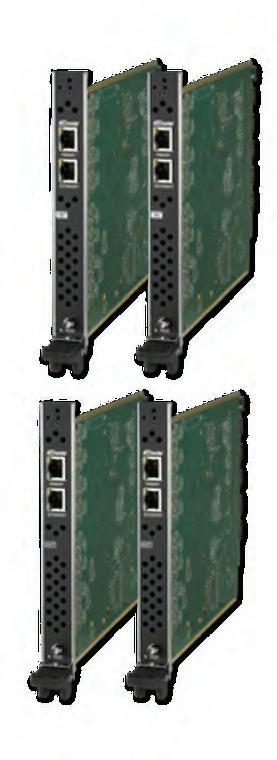

Input Boards format: 4K60 - HDMI, DXLink, Fiber

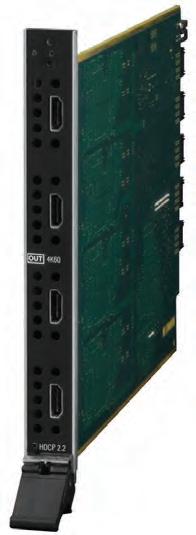

Output Boards format: 4K60 - HDMI, DXLink, Fiber
Integrated Control Processor: Yes (via LAN only)
Audio Board: Audio Switching Board, Audio Insert/ Extract Board
ALL-IN-ONE PRESENTATION SWITCHER: DVX 4K60
DVX-2265-4K: 6x2 4K60 Video Switching
Inputs: HDMI, DXLink Outputs: HDMI, DXLink
Audio: Dante in/out, Analog in/out
Amplifier output: Yes, 120W per channel
Integrated Control Processor: Yes

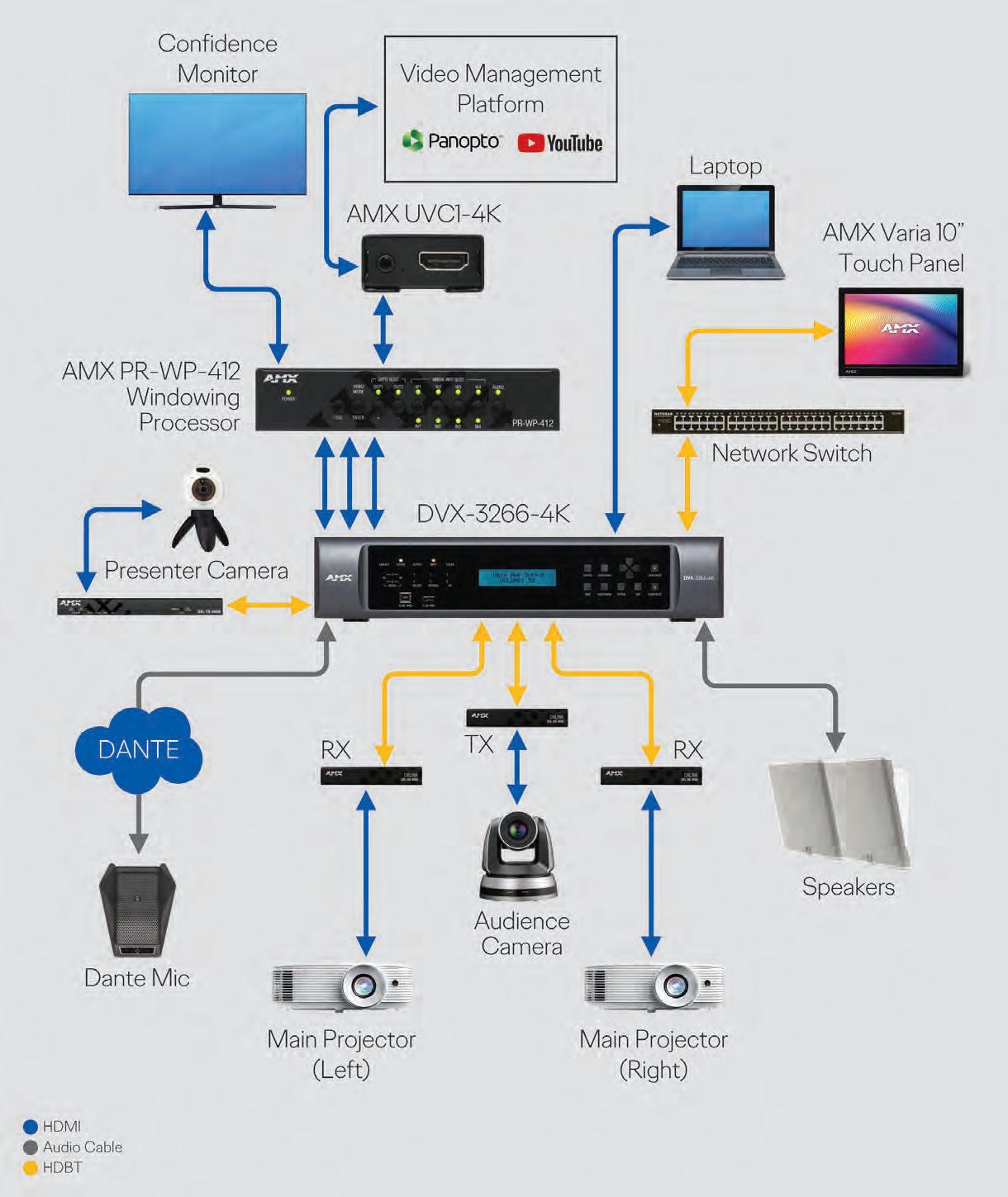

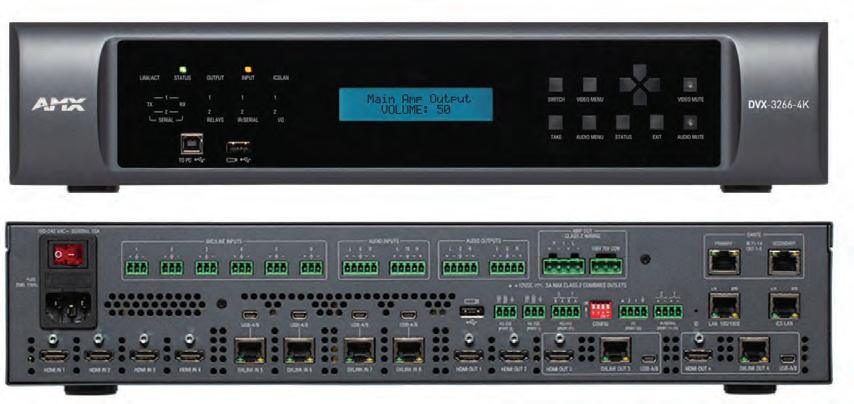

DVX-3266-4K: 8x4 4K60 Video Switching
Inputs: HDMI, DXLink Outputs: HDMI, DXLink
Audio: Dante in/out, Analog in/out
Amplifier output: Yes, 120W per channel
Integrated Control Processor: Yes
SINGLE OUTPUT DEVICES
1
HDMI WINDOWING PROCESSOR:
HDMI 4K60 WINDOWING PROCESSOR
PRECIS:

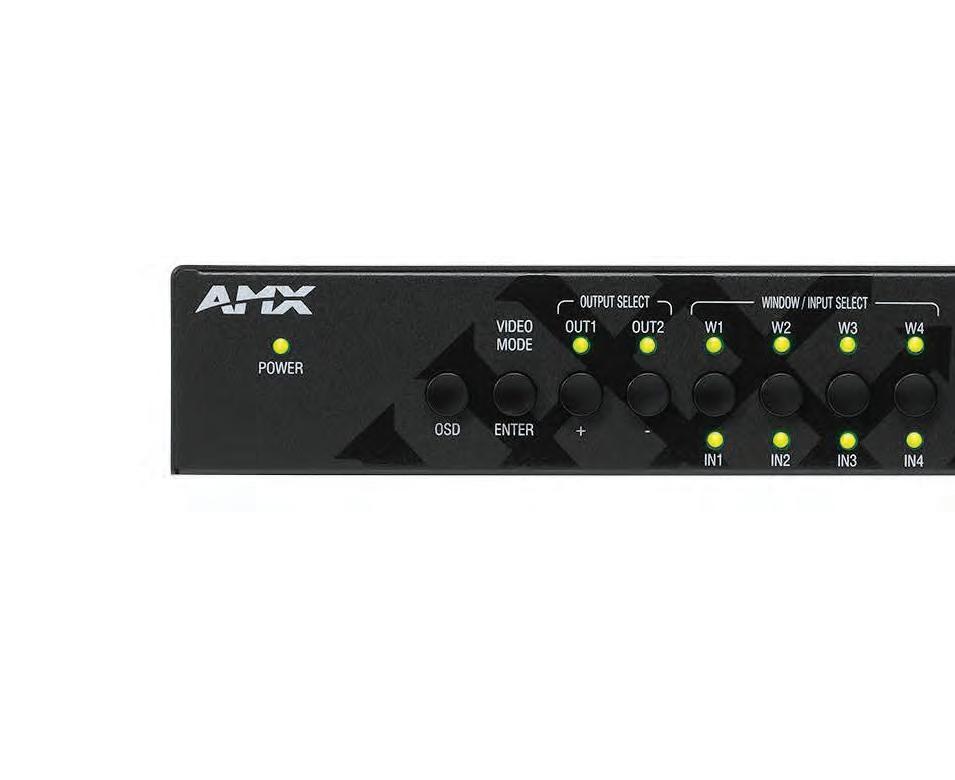

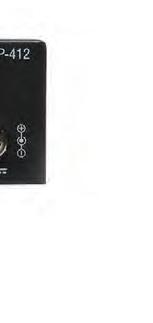

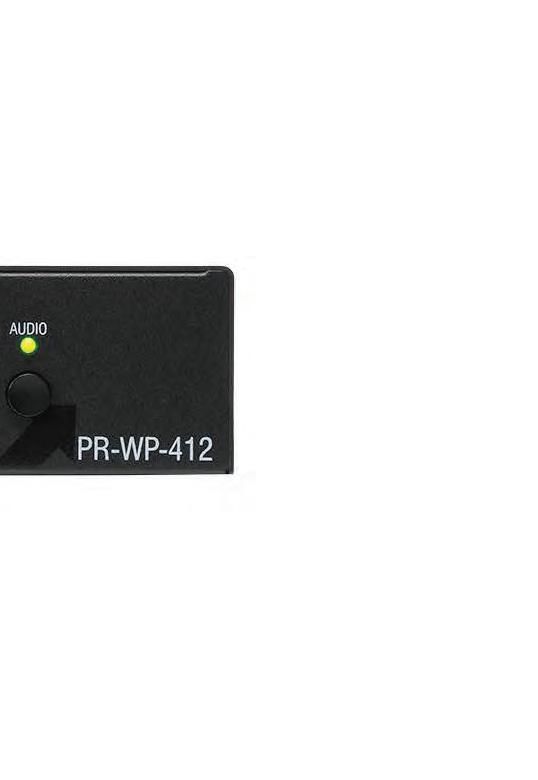

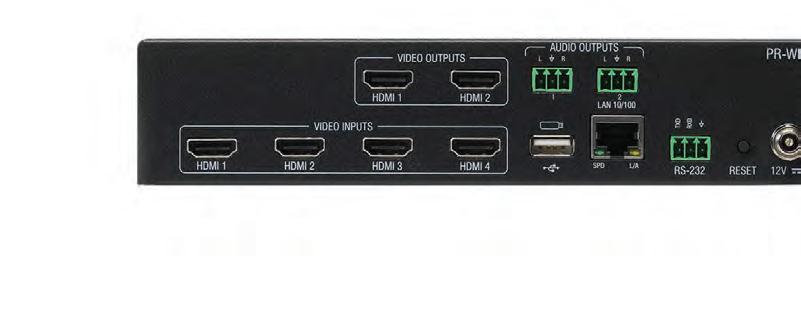

PR-WP-412– 4x1 HDMI Windowing Processor
Input: 4x HDMI
Output: 1x HDMI, 1x HDMI (mirrored), 2x Audio
2
NETWORK WINDOWING PROCESSORS: SVSI FULL HD & 4K WINDOWING PROCESSORS
N3510 Windowing Processor (FHD)For N3000 series Encoders/Decoders only
Input: Up to nine N3000 network video sources over Ethernet; Output: N3000 network video over Ethernet
Single-Output Switchers
SINGLE OUTPUT SWITCHER:

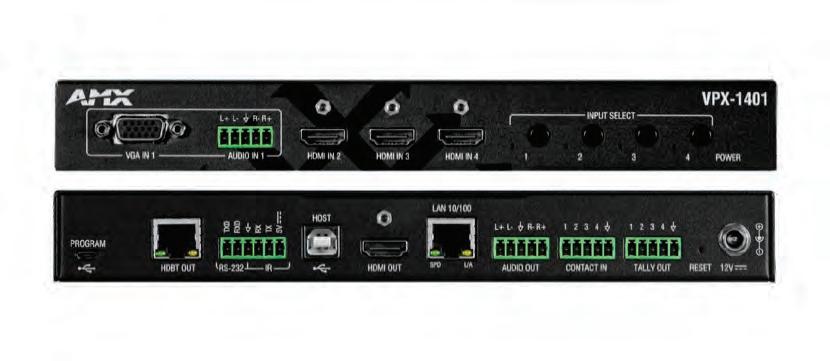

VPX-1401
4x1 4K60 Switcher
Inputs: VGA, HDMI
Outputs: HDMI, DXLink
Audio Out: Yes

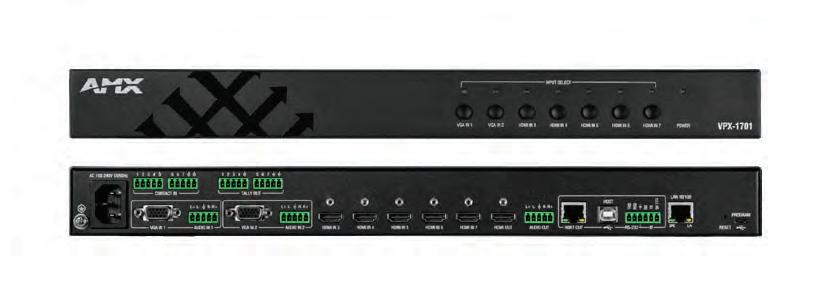

VPX-1701:
7x1 4K60 Switcher
Inputs: VGA, HDMI
Outputs: HDMI, DXLink
Audio Out: Yes
Features
• 4K60 4:4:4 perfect pixel-for-pixel experience video reproduction of 4K60 source video with full 4:4:4 color space
• HDCP 2.2 supports the latest source devices
• Mirrored HDBaseT output provides simultaneous support to the local HDMI output and to compatible receiving devices
• Automatic scaling converts signals up or down to match the display resolution
• Front Panel Control simple push-button switching
• Audio Output Extraction directly connect to powered speakers for room or pod sound reinforcement
• Web Configuration provides simple user interface for setup and configuration
• Open Control API IP controllable by any control system even directly by Zoom rooms
VPX-1401
UNIVERSITY INTERACTIVE TEACHING ROOMS
Key-points for Interactive Teaching Rooms:
Teaching spaces that allow the trainer to conduct the session with annotations capabilities from Trainer’s Self-View Monitor.
Self-View Monitor is usually placed on trainer’s station, where it is easily accessible for reference and annotation of the content he / she is presenting.
VPX-1401
UNIVERSITY INTERACTIVE TEACHING ROOMS
Connection Diagram for Interactive Teaching Rooms:
VPX-1701

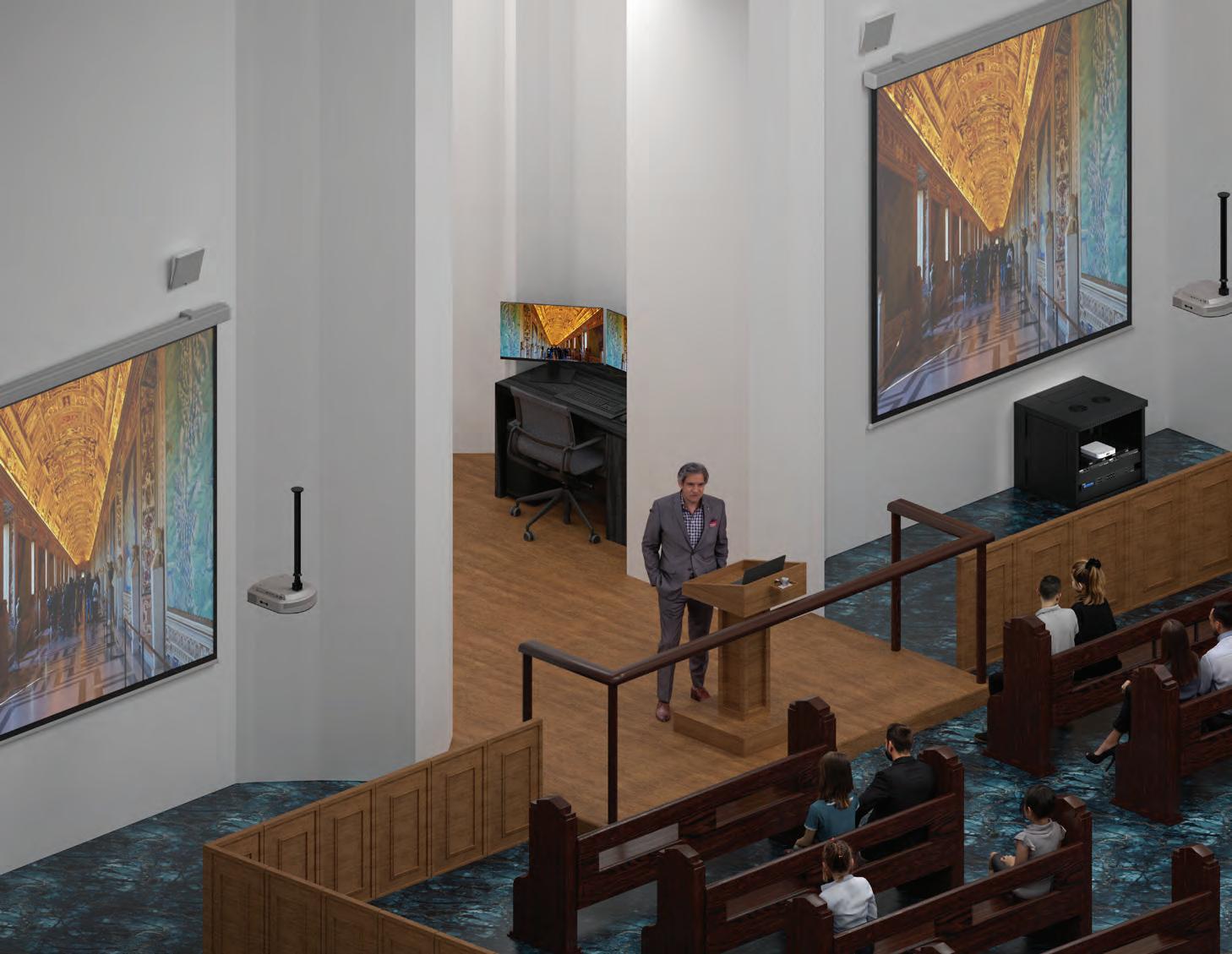

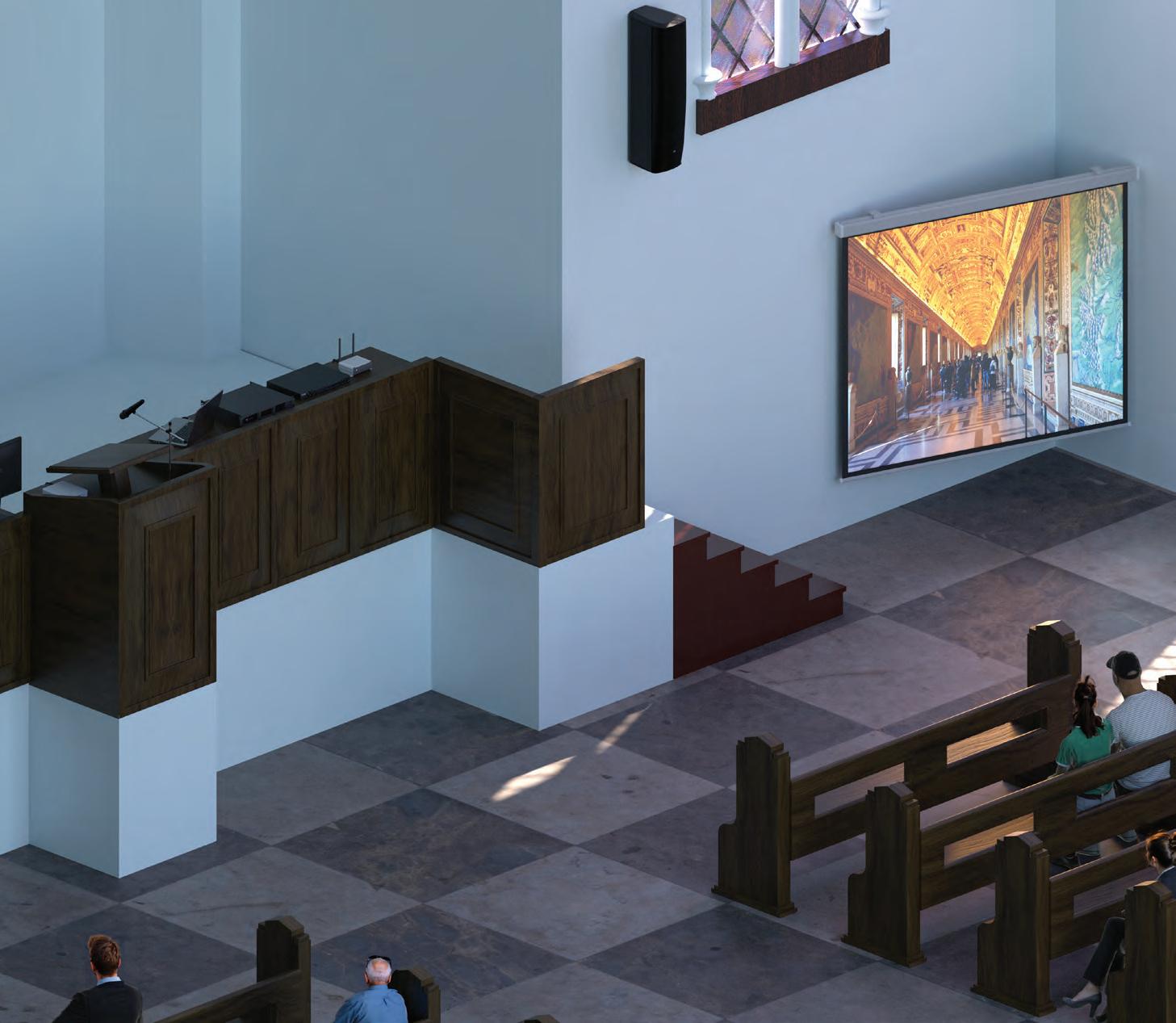

Key-points for Chapel Service:
A small to medium size setting where a group of people gather to sing, worship, and having the pastor or guest speaker preach to them.
Simplicity is key in this kind of setup, yet with multiple sources required for the different inputs such as Media Player, Chapel PC, guest laptop, wireless sharing capabilities, etc.

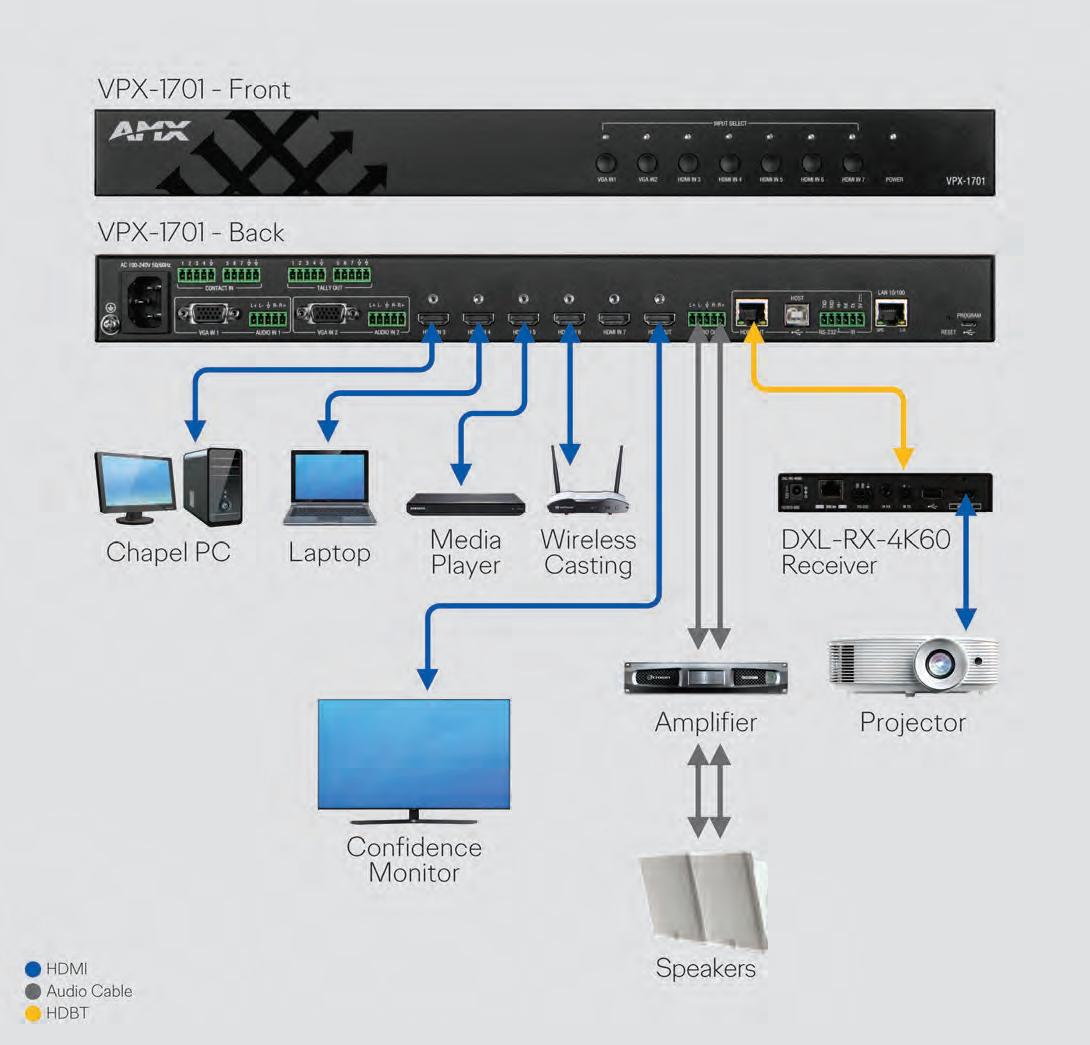

Connection Diagram for Chapel Service:

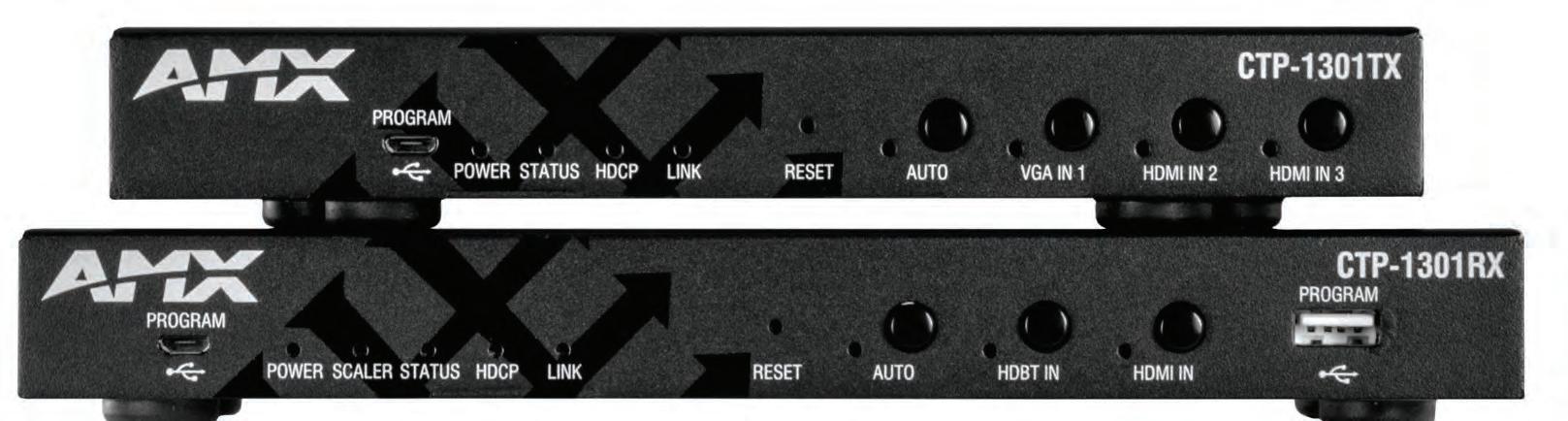

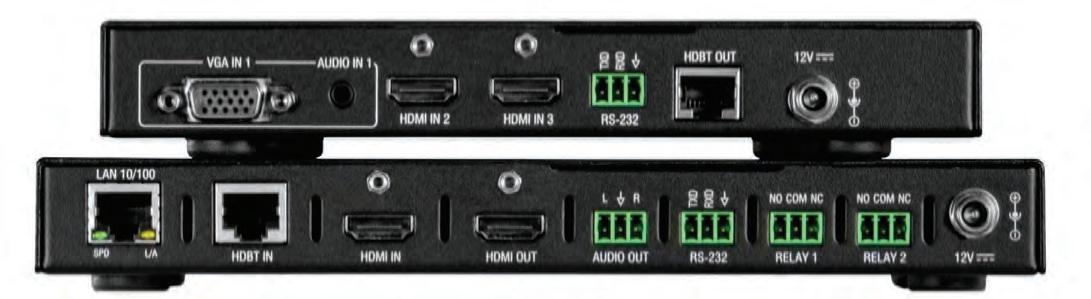

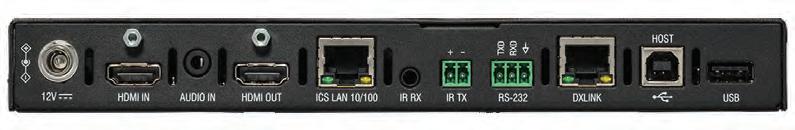

CT Series – CTP 1301
CTP-1301
4x1 4K30 TxRx Kit
Inputs: 1 x VGA, 2 x HDMI (on Transmitter), 1 x HDMI (On Receiver) Output (Rx): HDMI |Audio Out: Yes
Features
• Inputs (TX) Transmitter includes 2 HDMI and 1 VGA inputs
• Inputs and Outputs (RX) Receiver includes 1 HDMI input and 1 scaled HDMI output
• Distance Transport eliminates the need for additional cable extenders by connecting the TX and RX with a single category cable
• Control the display or projector and a screen from built-in control ports on the receiver; transmitter and receiver connect via a single category cable
• Front Panel Control simple push-button switching
• 4K30 4:4:4 support 4K source devices and displays
CT Series – CTC 1402

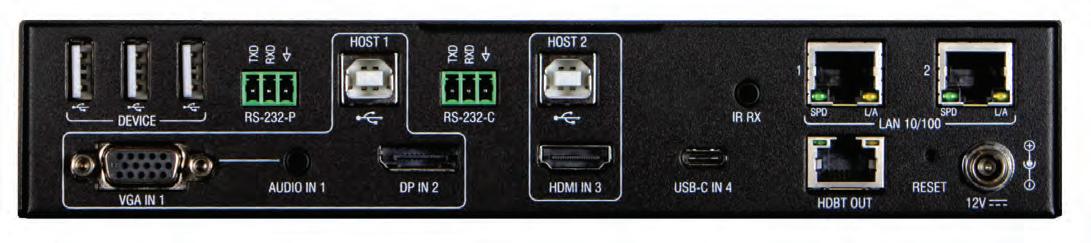

CTC-1402 | Multi-inputs with USB and USB-C TxRx Kit
Input: VGA, HDMI, DP, USB, USB-C
Output (Rx): HDMI, USB
Audio Out: Yes
Features
• HDMI, Display Port, VGA, and USB-C* Inputs (TX) different types of ports to allow for full BYOD flexibility
• HDMI Inputs (RX) Switch to a room PC or any media player located near the display
• USB Switching allows room USB devices at the table or near the display to be dynamically shared between visiting and permanent computing devices without having to disconnect / reconnect
• Control the display or projector and a screen from built-in control ports on the receiver
• Front Panel Control simple push-button switching
• 4K60 4:4:4 support Future-proof for full 4K60 devices and displays
CTC-1402
SERVICED OFFICE
Key-points for SERVICED OFFICE:
Serviced Office has recently been a common sight across different region, where users are able to rent a fully furnished office space or just a workstation for both short and long term use. Such spaces included meeting rooms as some common facilities offerings to all users.
As various virtual meeting platforms are more adopted, many serviced offices would opt to have their meeting rooms to be simple, yet fully flexible for any kind of meeting platforms (eg, Zoom, MS teams, Webex, Google Meet, etc).
The users just have to bring their own devices with any meeting platforms on their devices, connect up to the system in the room for their meeting.

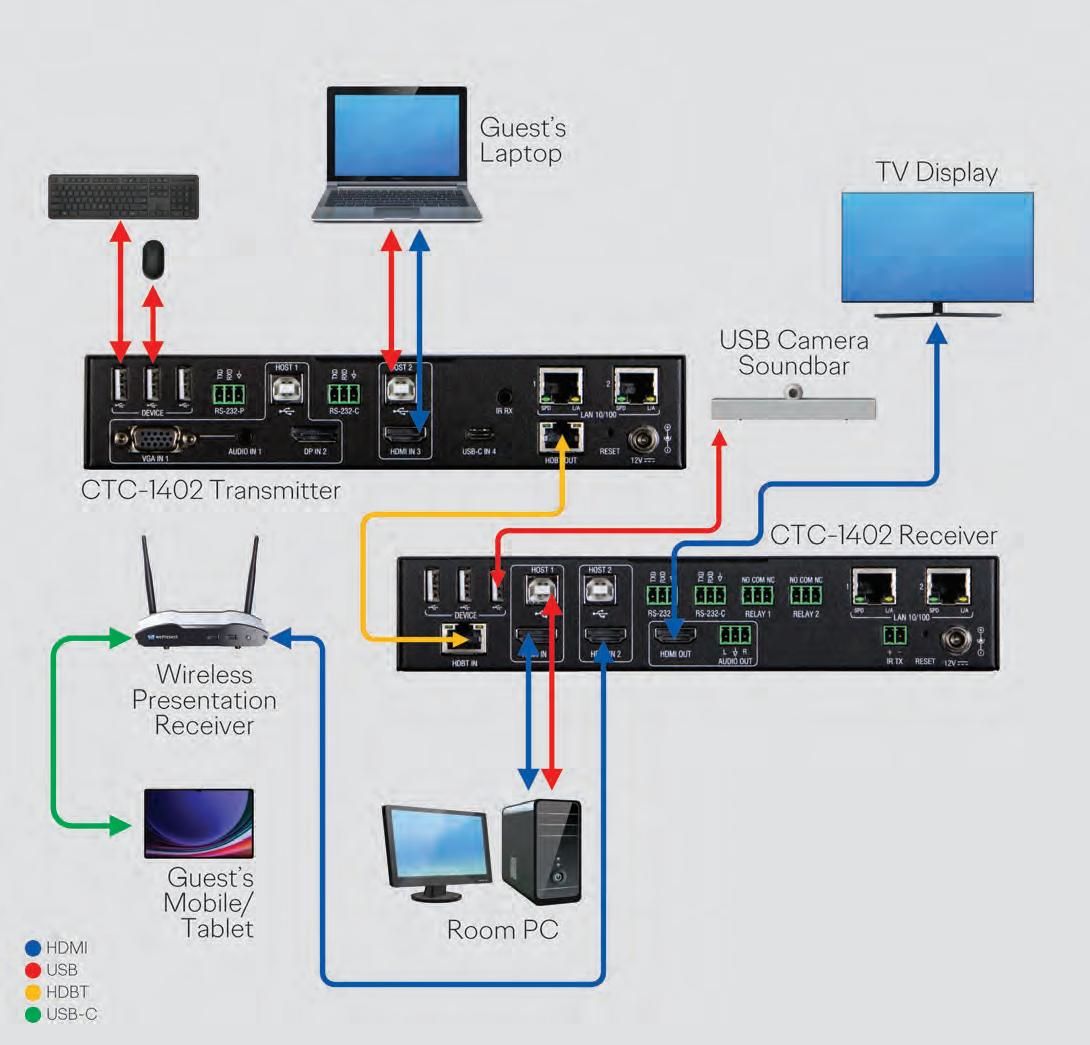

Connection Diagram for SERVICED OFFICE:

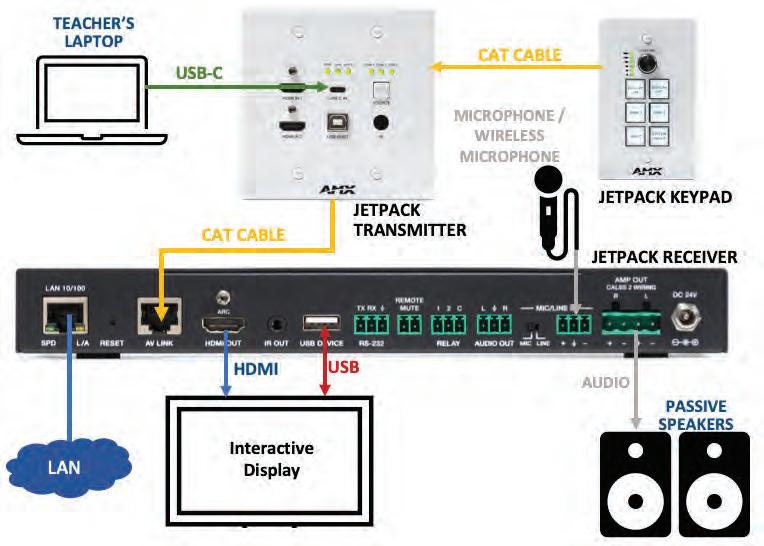

JETPACK
CLASSROOM SETTING
Key-points for CLASSROOM SETTING:
Small to mid-size classrooms are the most common setting found in any school, be it at the junior level or up till the tertiary level.
Interactive teaching is one of the common scene of classrooms teachings. As technology advances, the traditional whiteboard is very often replaced by interactive systems where information from the teacher’s devices gets projected on the screen for discussions, and annotations onto the screen gets the information across to the students more effectively.
The AMX Jetpack kit bundle provides auto-switching and audio enhancement to bring out teaching at a more effective level, without the need for users to learn how to use the system.

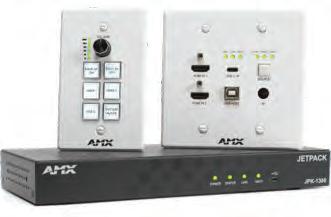

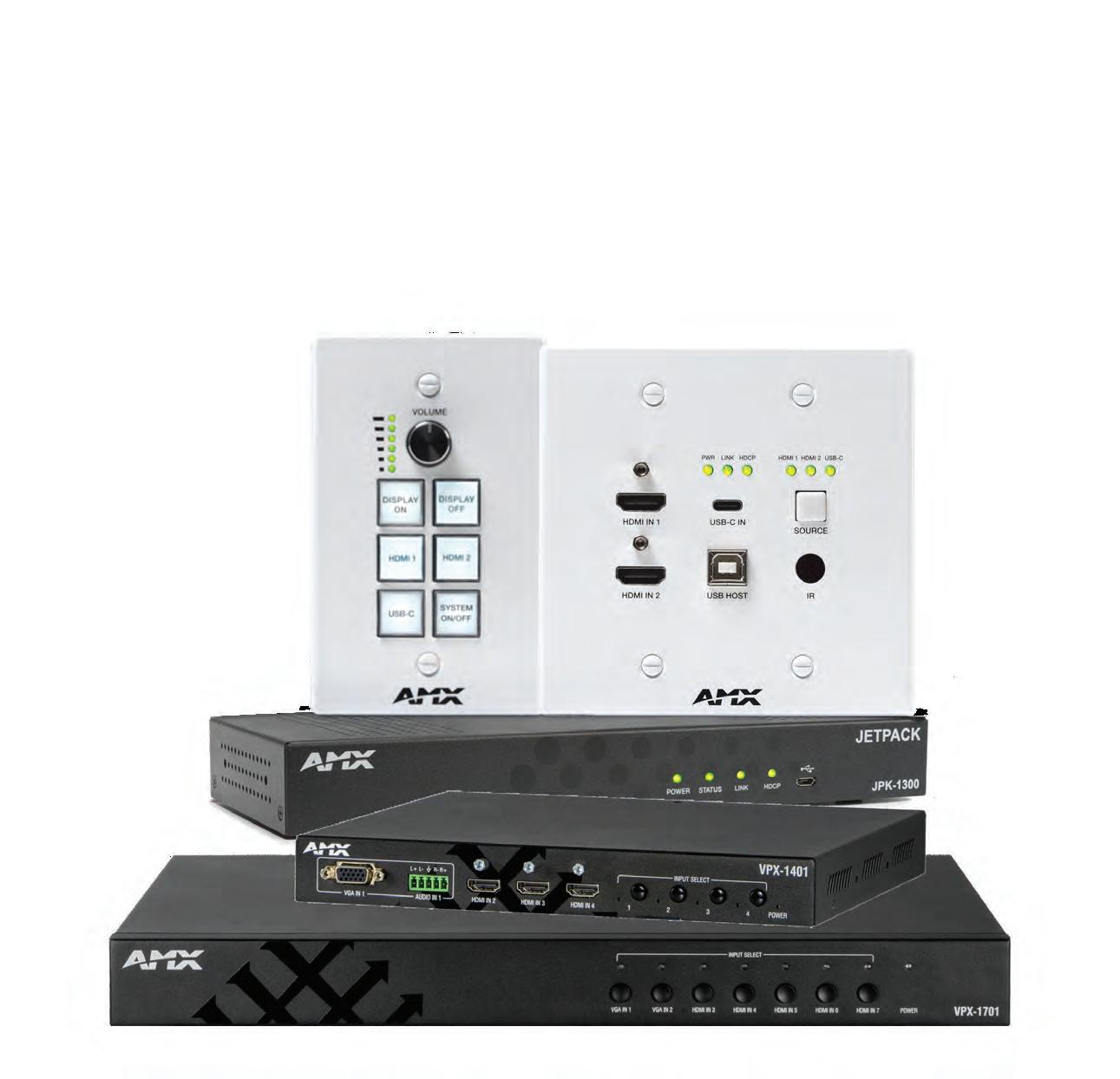

JETPACK (US & EK VERSION)
JPK-1300 | 3x1 Switching, Transport, and Control Solution (UA & EK)
Input: HDMI, USB, USB-C, mic/line in Output (Rx): HDMI, USB Audio Out: Yes
Built-in Audio Amp: 2x25W
Features
• A cost-effective solution that combines HDMI and USB-C video switching, distance transport, control, and audio amplification for voice lift– all in a convenient kit
• Keypad, Wall-Plate Transmitter and All-in-one Receiver box: Each Jetpack comes with a keypad, wall-plate transmitter, and all-in-one receiver box that is easy to deploy within a short time
• Keypad is pre-programmed and works instantly once setup is done
• USB-C & HDMI 4K support video resolution of 4K at 40m distance and 1080p signal at 70m distance on a single category cable
• USB Pass-through USB 2.0 connectivity available for devices such as USB2.0 cameras or smart board connectivity
• Built in 2x25W amplifier and microphone mixing provides additional flexibility to a cost-effective setup
FIXED MATRIX SWITCHER :
PRECIS – PR SERIES

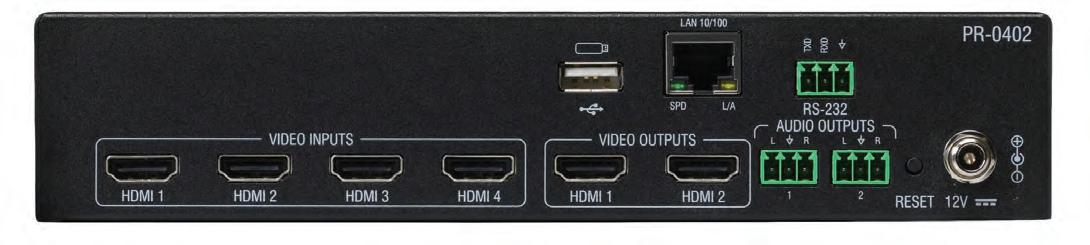

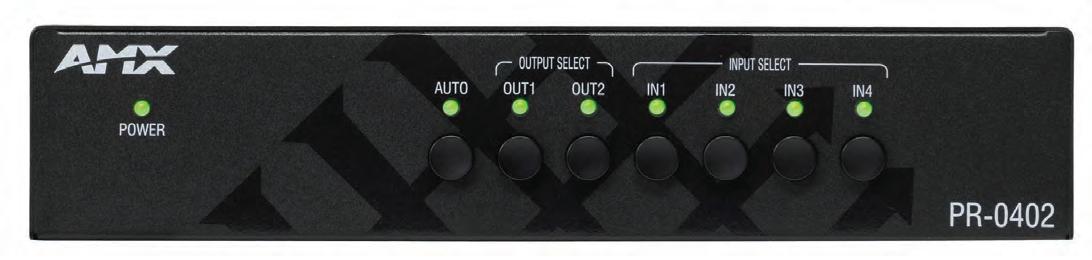

PR-0402 | 4x2 4K60 HDMI Matrix Switcher
Input: 4 x HDMI
Output: 2 x HDMI
Audio Out: 2 x analog stereo audio out 1 x Ethernet port
1 x Serial port
1 x USB program port
Features
• HDMI 2.0 4K60 4:4:4 video ideal for users that can benefit from processing the full fidelity of their displays
• High Dynamic Range (HDR) and Deep Colour support HDR10+, 36-bit per pixel Deep Color, and D Dolby® Vision
• HDCP 2.2 supports the latest video standards to realize the full capabilities of HDMI interfaces
• Open API provides integrators with easier integration using 3rd party control processors
• EDID Management ensures that every source is displayed at the optimal resolution and format
• Audio De-Embedding includes the convenience of analogue audio de-embedding from each HDMI output separately
FIXED MATRIX SWITCHER :
PRECIS – PR SERIES

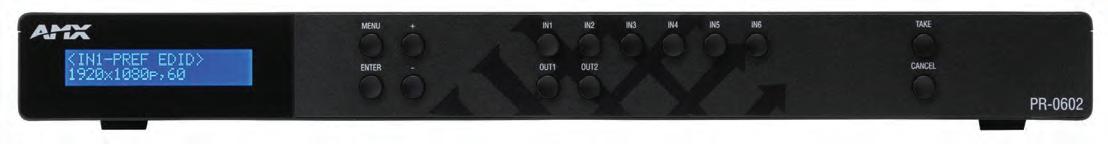

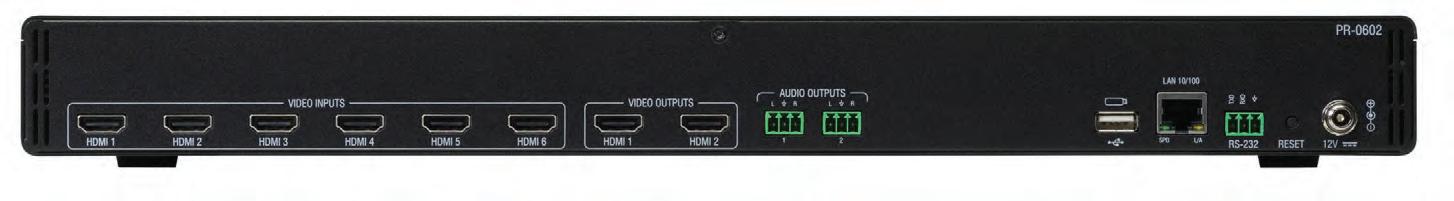

PR-0602 | 6x2 4K60 HDMI Matrix Switcher
Input: 6 x HDMI
Output: 2 x HDMI
Audio Out: 2 x analog stereo audio out 1 x Ethernet port
1 x Serial port
1 x USB program port
Features
• HDMI 2.0 4K60 4:4:4 video ideal for users that can benefit from processing the full fidelity of their displays
• High Dynamic Range (HDR) and Deep Colour support for HDR10+, 36-bit per pixel Deep Color, and D Dolby® Vision
• HDCP 2.2 supports the latest video standards to realize the full capabilities of HDMI interfaces
• Open API to provide integrators with easier integration using 3rd party control processors
• EDID Management ensures that every source is displayed at the optimal resolution and format
• Audio De-Embedding includes the convenience of analogue audio de-embedding from each HDMI output separately
FIXED MATRIX SWITCHER :
PRECIS – PR SERIES

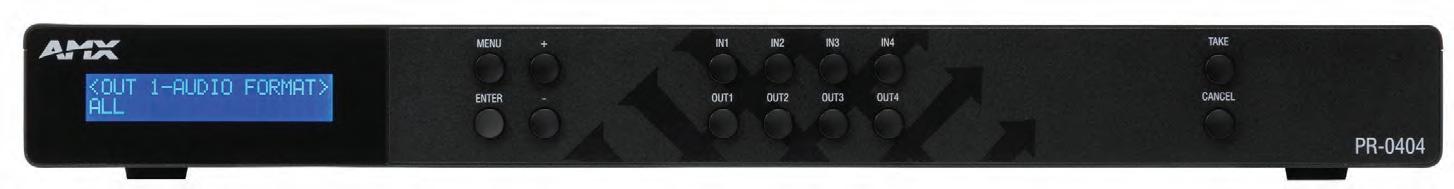

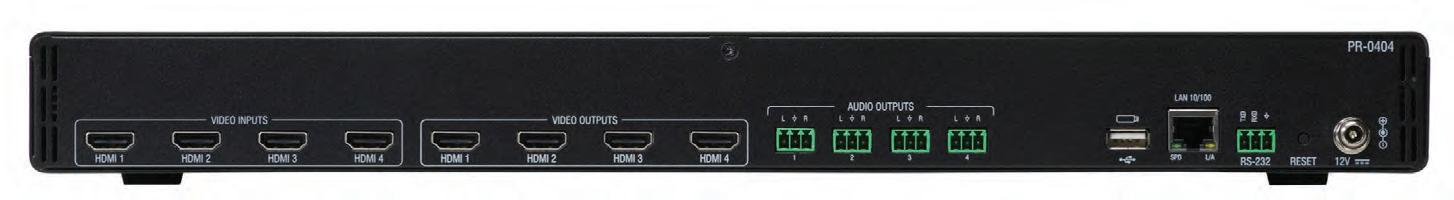

PR-0404 | 4x4 4K60 HDMI Matrix Switcher
Input: 4 x HDMI
Output: 4 x HDMI
Audio Out: 4 x analog stereo audio out 1 x Ethernet port
1 x Serial port
1 x USB program port
Features
• HDMI 2.0 4K60 4:4:4 Video Ideal for users that can benefit from processing the full fidelity of their displays
• High Dynamic Range (HDR) and Deep Colour support HDR10+, 36-bit per pixel Deep Color, and D Dolby® Vision
• HDCP 2.2 supports the latest video standards to realize the full capabilities of HDMI interfaces
• Open API provides integrators with easier integration using 3rd party control processors
• EDID Management ensures that every source is displayed at the optimal resolution and format
• Audio De-Embedding includes the convenience of analogue audio de-embedding from each HDMI output separately
PR-0404
SMALL CHURCH HYBRID SETUP
Key-points for SMALL CHURCH HYBRID :
Small churches would often have a much simpler system, fulfilling the requirements of having the basics of audio and video for church settings.
Since the outbreak of the pandemic, church services had to be moved to a virtual platform, while still keeping the on-site capabilities for a hybrid service.
The PR-0404 brings about a cost-effective solution that fulfil each of the minimum requirement and still keeping the entire system simple.
SMALL CHURCH HYBRID SETUP
Connection Diagram for SMALL CHURCH HYBRID :
FIXED MATRIX SWITCHER :
PRECIS – PR SERIES

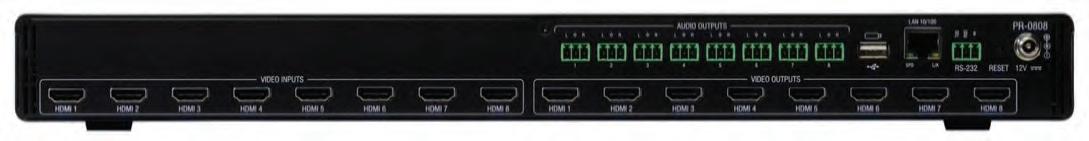

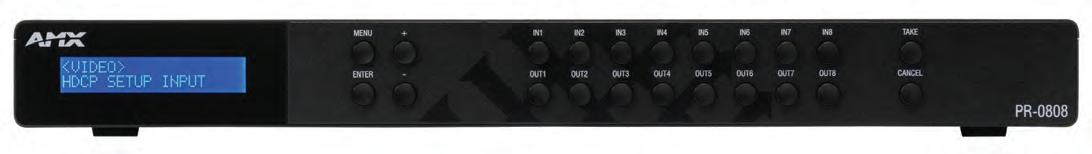

PR-0808 | 8x8 4K60 HDMI Matrix Switcher
Input: 8 x HDMI
Output: 8 x HDMI
Audio Out: 8 x analog stereo audio out 1 x Ethernet port
1 x Serial port
1 x USB program port
Features
• HDMI 2.0 4K60 4:4:4 video ideal for users that can benefit from processing the full fidelity of their displays
• High Dynamic Range (HDR) and Deep Colour support HDR10+, 36-bit per pixel Deep Color, and D Dolby® Vision
• HDCP 2.2 supports the latest video standards to realize the full capabilities of HDMI interfaces
• Open API provides integrators with easier integration using 3rd party control processors
• EDID to ensures that every source is displayed at the optimal resolution and format
• Audio De-Embedding includes the convenience of analogue audio de-embedding from each HDMI output separately
PR-0402 and PR-0808

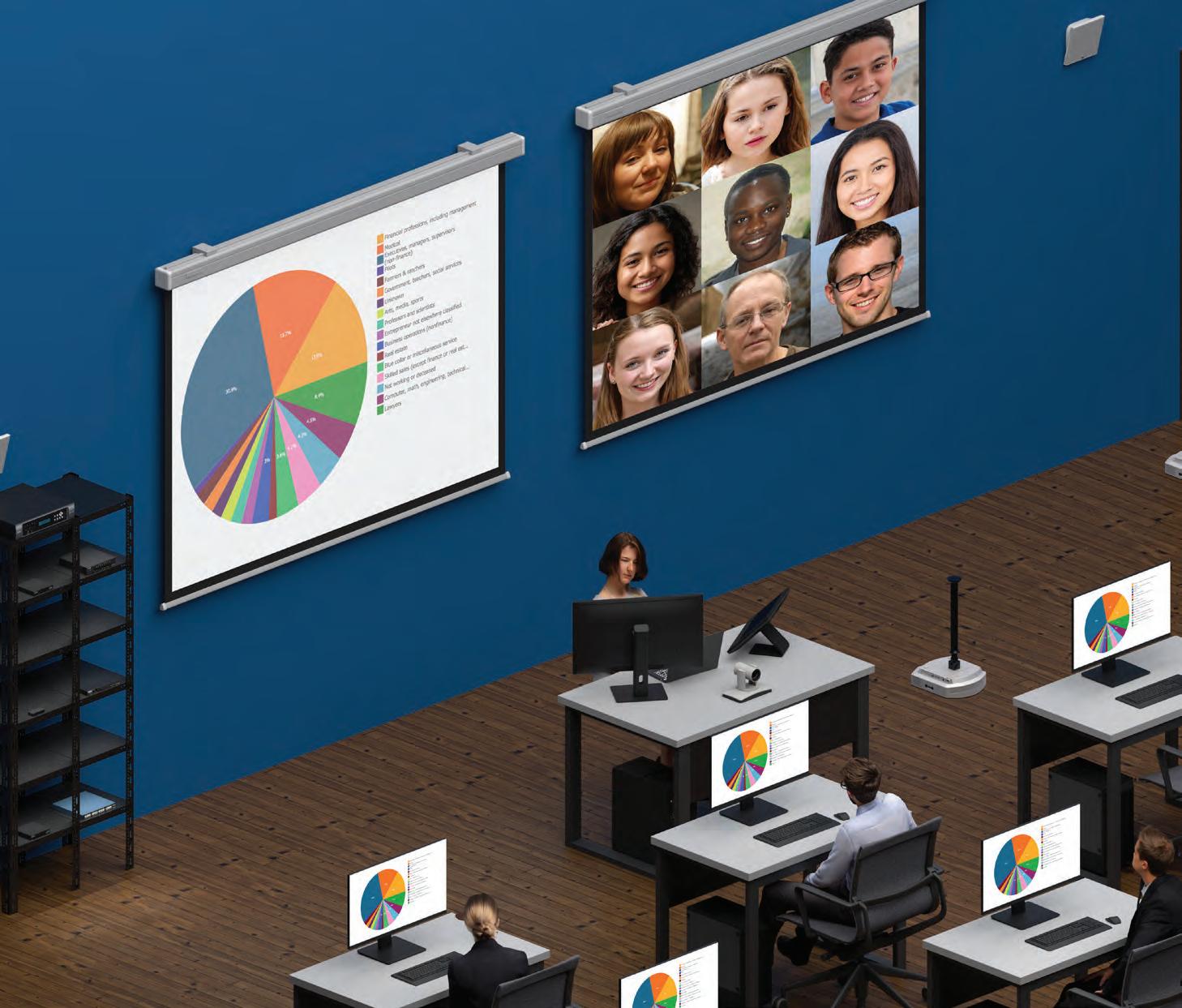

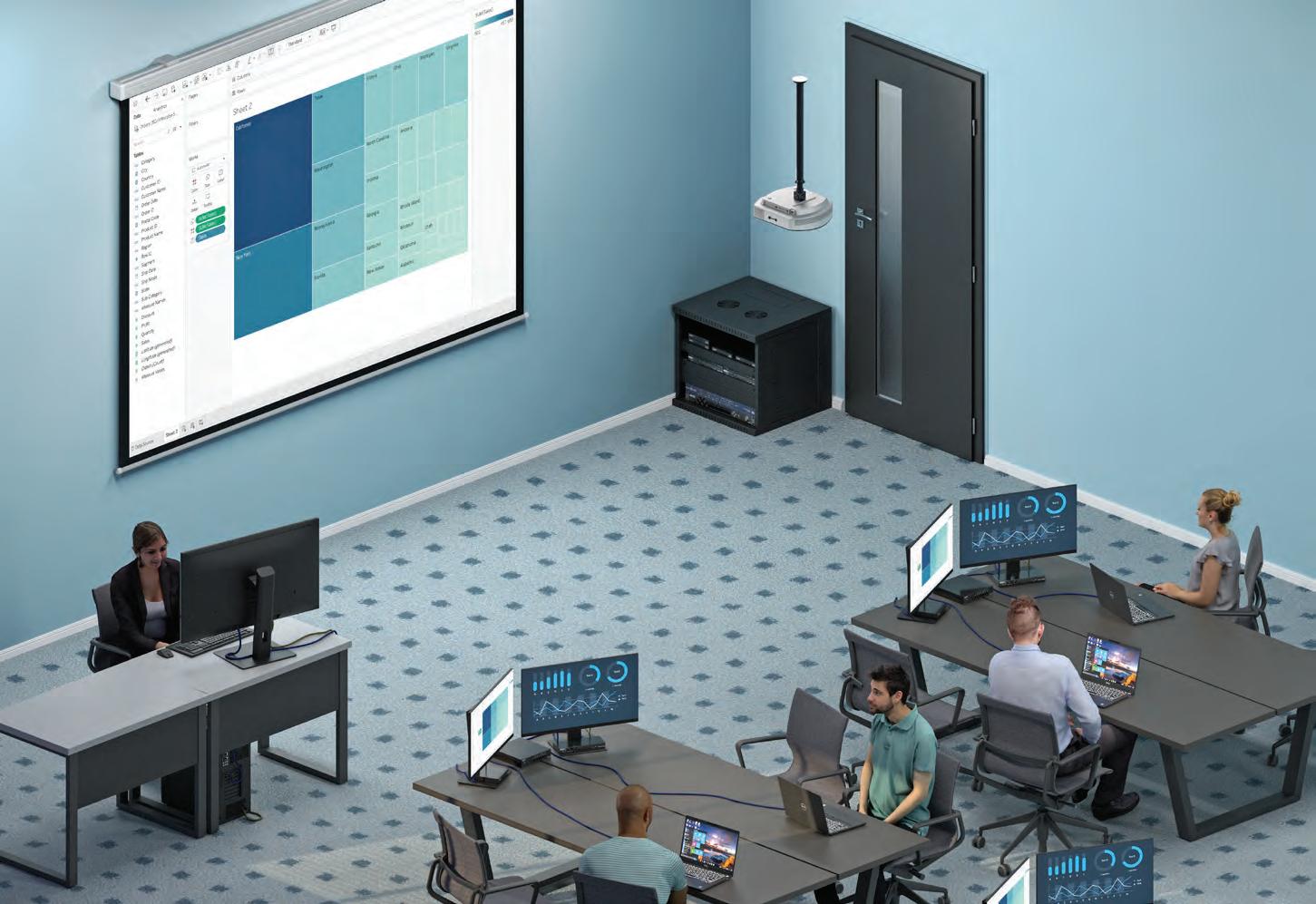

ACTIVE LEARNING SPACE
Key-points for ACTIVE LEARNING SPACE:
Active Learning Space is an environment often seen in the education setting, where the teacher engages the students through discussions and various forms of activity-based learning.
Such a concept can also be identified in certain large corporate organizations where they provide internal trainings to the various internal teams.
In active learning spaces, there are usually various workstations, with each workstation consisting of 4 to 5 participants, and a main trainer to facilitate the entire space. Each workstation typically have 2 display screens to compare the work among themselves. The trainer can also choose to project any content from a particular workstation to all the other workstations for discussion.
PR-0402 and PR-0808
ACTIVE LEARNING SPACE

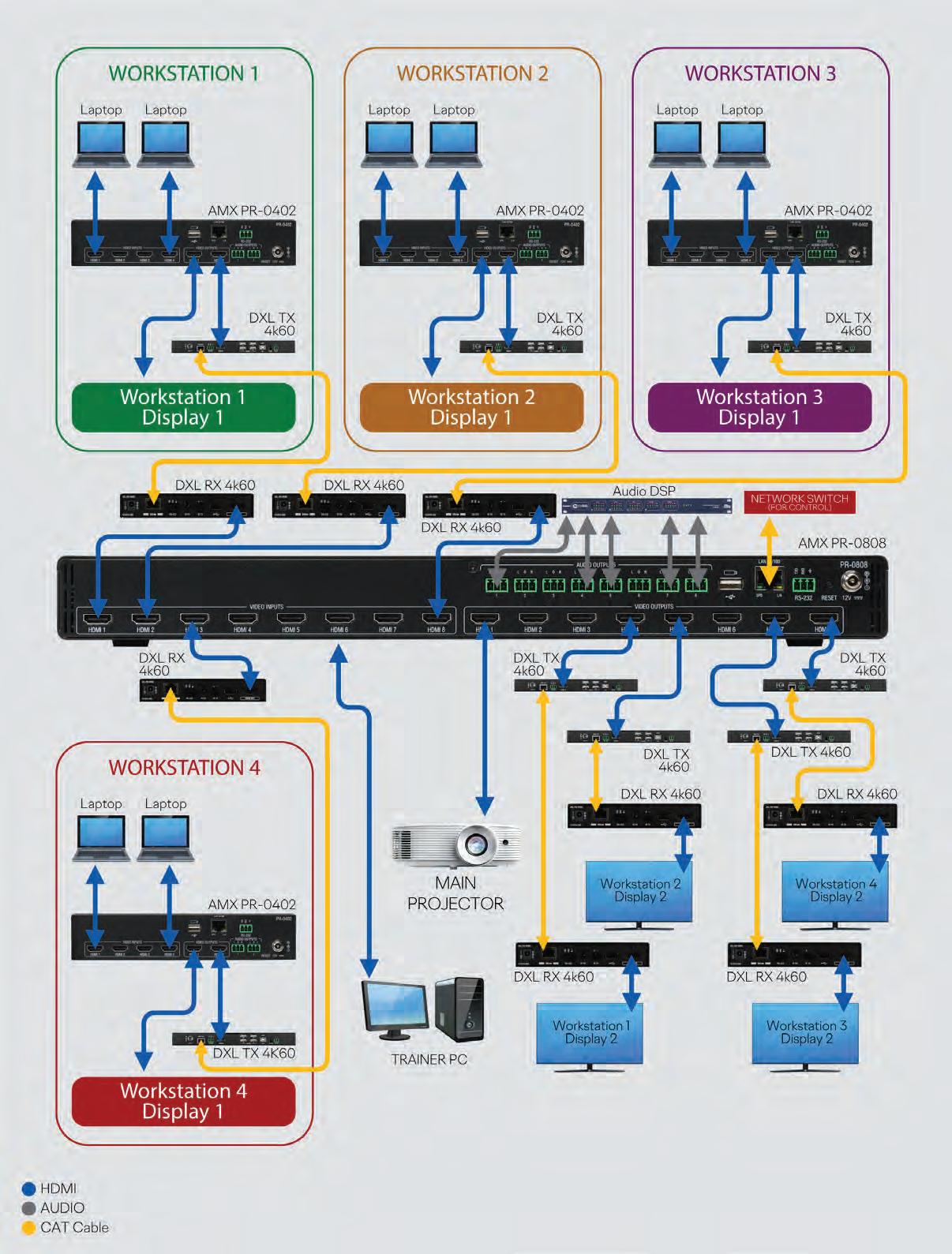

Connection Diagram for ACTIVE LEARNING SPACE:
FIXED MATRIX SWITCHER :
PRECIS – PR01 SERIES
PR01-0808 | 8x8+4 4K60 HDMI Matrix Switcher
Input: 8 x HDMI
Output: 8 x HDMI + 4 x HDBT
Audio Out: 8 x analog stereo audio out
1 x Ethernet port
1 x Serial port
1 x USB program port
Features
• 4K60 4:4:4 video experience pixel-for-pixel video reproduction of 4K60 source video with full 4:4:4 color space
• High Dynamic Range (HDR) supported
• HDMI 2.0 & HDCP 2.2 supports the latest video standards to realize the full capabilities of HDMI interfaces
• 4 mirrored HDBaseT outputs ports connect to PR01-RX receivers or directly to a display or projector that supports standard HDBaseT
• Open Control API integrates into designs with any 3rd parties control system
• 8x audio de-embedding 8 audio ports to allow flexible design of audio for use in more applications
PR01-0808
COMBINABLE TRAINING ROOMS
Key-points for COMBINABLE TRAINING ROOMS:
As more corporate offices become mindful of better space utilization, flexibility becomes key in the different types of workspaces. Operable or combinable rooms is becoming more popular among offices as such, to fully utilize the spaces.
One example is among training offices, where individual rooms can operate as a training room itself (diagram below as example)

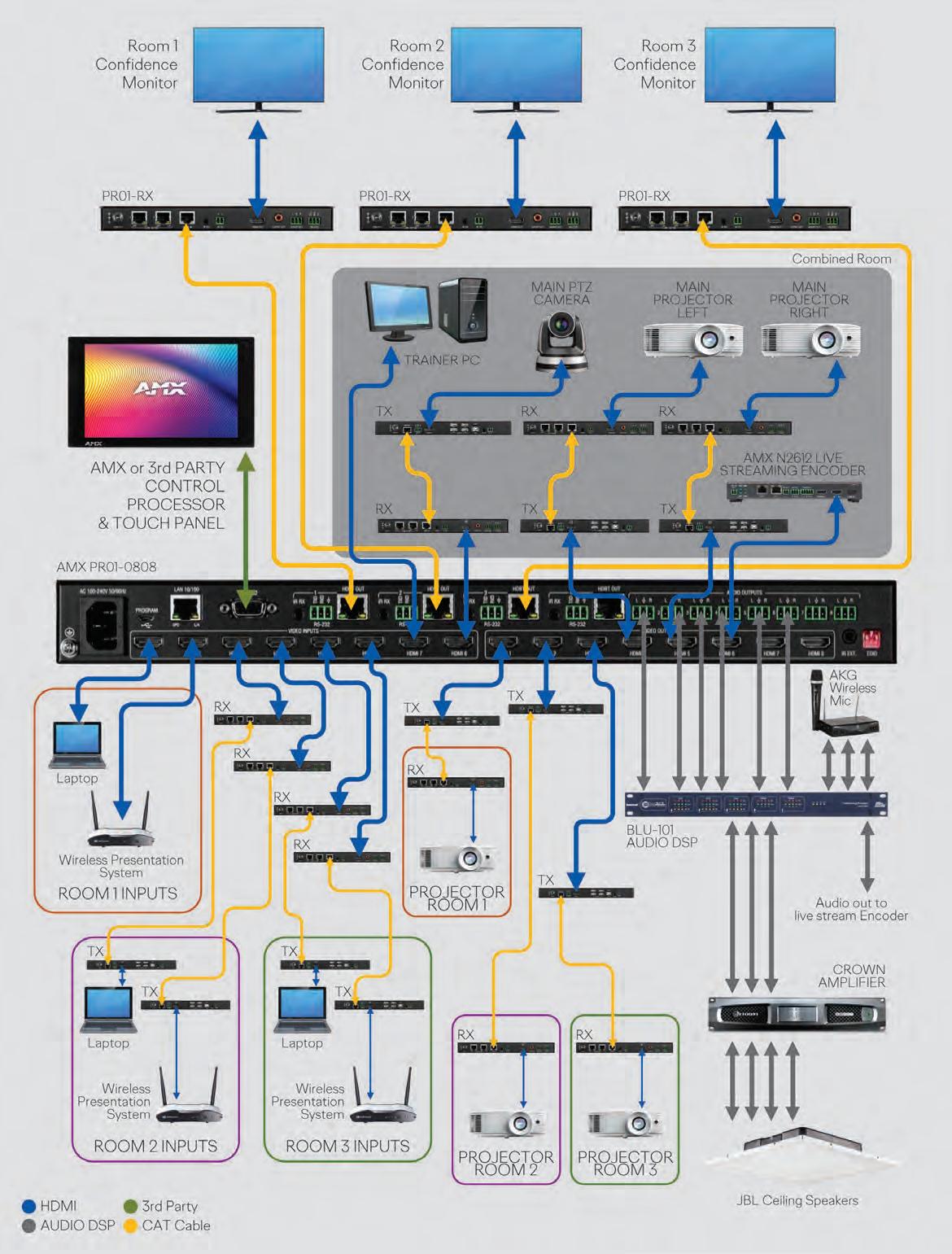

PR01-0808
COMBINABLE TRAINING ROOMS
Key-points for COMBINABLE TRAINING ROOMS:
When a particular function is called for — such as townhall or any event that requires a larger group of audience — 2 or 3 of such individual rooms can be combined to allow for the bigger space (diagram below as example). In situations like this, the audio and video elements will also require such flexibility to merge and separate as and when it’s needed.
PR01-0808
COMBINABLE TRAINING ROOMS
COMBINABLE TRAINING ROOMS:
WINDOWING PROCESSOR:
PRECIS – PR-WP412
PR-WP-412 | 4x1+1 4K60 HDMI Windowing Processor
Input: 4 x HDMI
Output: 1 x HDMI + 1 x HDMI
Audio Out: 2 x analog audio out
1 x Ethernet port
1 x Serial port
1 x USB Program port
Features
• 4K60 4:4:4 video ideal for users running critical viewing applications such as courtrooms that can benefit from processing the full fidelity of their displays
• High Dynamic Range (HDR) supported
• HDMI 2.0 & HDCP 2.2 supports the latest video standards to realize the full capabilities of HDMI interfaces
• Up to four simultaneous, freely scalable windows can be processed using the 4x1+1 multi-windowing mode
• Open Control API integrates into designs with any 3rd parties control system
• Audio Pass-Through & De-Embedding empowers independent audio source selection and routing to HDMI outputs in all modes
DGX800-ENC | 8x8 4K60 Modular Matrix Switcher
Input: 8 (4 inputs per board)
Output: 8 (4 outputs per board)
Audio Board: Yes

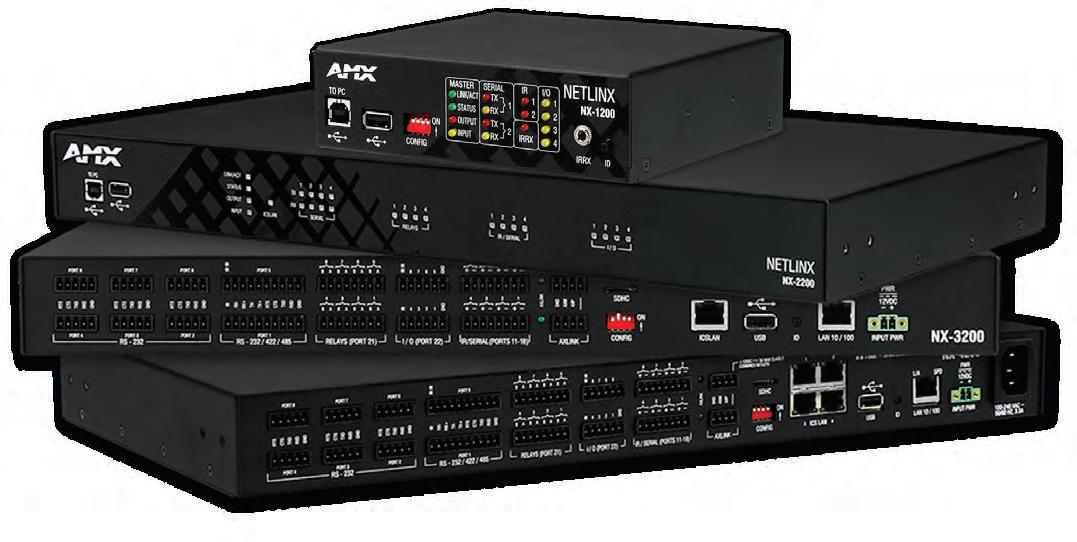

Built-in Netlinx Integrated Controller (LAN only)
Features
• 4K60 4:4:4 video support input and output boards of up to 4K60 – including fiber connections
• HDMI/HDCP Switching End-to-end distribution HDMI/HDCP without interruption or key constraints using AMX exclusive InstaGate Pro® Technology
• Built-in control processor allows any connected device to be managed or controlled via Lan through the built-in Netlinx NX Integrated Control Processor
• Fully redundant power supplies with independent power paths to ensure maximum reliability for applications that require 24/7 uptime
• SmartScale technology automatically responds to the display’s declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup
• 3D Support - pass through latest video formats including 3D and Deep Color
• Surround Sound Support - pass through high definition surround sound including Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM
DGX1600-ENC | 16x16 4K60 Modular Matrix Switcher
Input: 16 (4 inputs per board)
Output: 16 (4 outputs per board)
Audio Board: Yes
Built-in Netlinx Integrated Controller (LAN only)
Features
• 4K60 4:4:4 video support input and output boards of up to 4K60 – including fiber connections
• HDMI/HDCP Switching End-to-end distribution HDMI/HDCP without interruption or key constraints using AMX exclusive InstaGate Pro® Technology
• Built-in control processor allows any connected device to be managed or controlled via Lan through the built-in Netlinx NX Integrated Control Processor
• Fully redundant power supplies with independent power paths to ensure maximum reliability for applications that require 24/7 uptime
• SmartScale technology automatically responds to the display’s declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup
• 3D Support - pass through latest video formats including 3D and Deep Color
• Surround Sound Support - pass through high definition surround sound including Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM
DGX3200-ENC | 32x32 4K60 Modular Matrix Switcher
Input: 32 (4 inputs per board)
Output: 32 (4 outputs per board)
Audio Board: Yes
Built-in Netlinx Integrated Controller (LAN only)
Features
• 4K60 4:4:4 video support input and output boards of up to 4K60 – including fiber connections
• HDMI/HDCP Switching End-to-end distribution HDMI/HDCP without interruption or key constraints using AMX exclusive InstaGate Pro® Technology
• Built-in control processor allows any connected device to be managed or controlled via Lan through the built-in Netlinx NX Integrated Control Processor
• Fully redundant power supplies with independent power paths to ensures maximum reliability for applications that require 24/7 uptime
• SmartScale technology automatically responds to the display’s declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup
• 3D Support - pass through latest video formats including 3D and Deep Color
• Surround Sound Support - pass through high definition surround sound including Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM
DGX6400-ENC | 64x64 4K60 Modular Matrix Switcher
Input: 64 (4 inputs per board)
Output: 64 (4 outputs per board)
Audio Board: Yes
Built-in Netlinx Integrated Controller (LAN only)
Features
• 4K60 4:4:4 video support input and output boards of up to 4K60 – including fiber connections
• HDMI/HDCP Switching End-to-end distribution HDMI/HDCP without interruption or key constraints using AMX exclusive InstaGate Pro® Technology
• Built-in control processor allows any connected device to be managed or controlled via Lan through the built-in Netlinx NX Integrated Control Processor
• Fully redundant power supplies with independent power paths to ensures maximum reliability for applications that require 24/7 uptime
• SmartScale technology automatically responds to the display’s declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup
• 3D Support - pass through latest video formats including 3D and Deep Color
• Surround Sound Support - pass through high definition surround sound including Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM
ENOVA® DGX INPUT BOARDS
DGX 4K60 4:4:4 HDMI INPUT BOARD
DGX-I-HDMI-4K60 (FG1061-542)
Connectors: 4 HDMI Type A Female Ports
Compatible formats: HDMI, HDMI 2.x, HDCP, HDCP 2.2
Maximum resolution support: 3840x2160p@24/25/30/60 Hz @ 4:4:4, 4096x2160p@24/25/30/60 Hz @ 4:4:4 (when used with compatible Enova DGX 100 Series enclosures)
Audio format support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48 kHz, 5.1 channels
DGX 4K60 TWISTED PAIR INPUT BOARD
DGX-I-DXL-4K60 (FG1061-572)
Connectors: 4 RJ-45 Ports, 4 Micro-USB AB Ports
Compatible formats: HDMI Video, Audio, Ethernet, USB2.0, Power, Serial Control, & IR Control
Audio format support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
DGX 4K60 TWISTED PAIR INPUT BOARD
DGX-I-DXFP-4K60 (FG1061-624)
Connectors: 4 Duplex LC Fiber Ports, conforming to ANSI TIA/EIA 604-10 (FOCIS 10A); 4 Mini-USB AB Ports
Compatible formats: HDMI Video, Audio, Ethernet, USB(HID), USB (2.0), Serial Control, and IR Control
Maximum resolution support: 480p up to 3840x2160 @ 60Hz 4:4:4 and 4:2:2
Audio format support: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD MA, DTS-HD High Resolution, DTS, 2 CH through 8 CH L-PCM
FIXED MATRIX SWITCHER :
ENOVA® DGX OUTPUT BOARDS
DGX 4K60 4:4:4 HDMI OUTPUT BOARD
DGX-O-HDMI-4K60 (FG1061-552)
Connectors: 4 HDMI Type A Female Ports
Compatible formats: HDMI, HDMI 2.x, HDCP, HDCP 2.2
Maximum resolution support: 3840x2160p@24/25/30/60 Hz @ 4:4:4, 4096x2160p@24/25/30/60 Hz @ 4:4:4 (when used with compatible Enova DGX 100 Series enclosures)
Audio format support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48 kHz, 5.1 channels
DGX 4K60 TWISTED PAIR OUTPUT BOARD
DGX-O-DXL-4K60 (FG1061-582)
Connectors: 4 RJ-45 Ports, 4 Micro-USB AB Ports
Compatible formats: HDMI Video, Audio, Ethernet, USB2.0, Power, Serial Control, & IR Control
Audio format support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
DGX 4K60 TWISTED PAIR OUTPUT BOARD
DGX-O-DXFP-4K60 (FG1061-634)
Connectors: 4 Duplex LC Fiber Ports, conforming to ANSI TIA/EIA 604-10 (FOCIS 10A); 4 Mini-USB AB Ports
Compatible formats: HDMI Video, Audio, Ethernet, USB(HID), USB (2.0), Serial Control, and IR Control
Maximum resolution support: 480p up to 3840x2160 @ 60Hz 4:4:4 and 4:2:2
Audio format support: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD MA, DTS-HD High Resolution, DTS, 2 CH through 8 CH L-PCM
ENOVA® DGX AUDIO BOARDS
AUDIO SWITCHING BOARD KIT FOR ENOVA DGX 800/1600
DGX800-1600-ASB (FG1061-716)
Audio Inputs: 8 or 16 Embedded Digital Audio Inputs from Video Input Positions.
Audio Outputs: 8 or 16 Embedded Digital Audio to Video Outputs.
Audio Switching: 16x16 (DGX 800) or 24x24 (DGX 1600) Matrix Audio Switching. Each of the embedded or auxiliary analog audio outputs has independent volume, EQ and sync delay.
Others: Downmixing, Balance Control.
AUDIO SWITCHING BOARD KIT FOR ENOVA DGX 3200
DGX3200-ASB (FG1061-732)
Audio Inputs: 32 Embedded Digital Audio Inputs from Video Input Positions.
Audio Outputs: 32 Embedded Digital Audio to Video Outputs.
Audio Switching: 40x40 (DGX 3200) Matrix Audio Switching with each out having independent volume, EQ, and sync delay.
Others: Downmixing, Balance Control.
AUDIO SWITCHING BOARD KIT FOR ENOVA DGX64200
DGX6400-ASB (FG1061-764)
Audio Inputs: 64 Embedded Digital Audio Inputs from Video Input Positions.
Audio Outputs: 64 Embedded Digital Audio to Video Outputs.
Audio Switching: 80 x 80 Matrix Audio Switching with each output having independent volume, EQ, and sync delay
Others: Downmixing, Balance Control.
ENOVA® DGX OUTPUT BOARDS
DANTE AUDIO SWITCHING BOARD KIT FOR ENOVA DGX
800/1600/3200
DGX3200-ASB-DAN (FG1061-832)
Audio Inputs: 8, 16, or 32 Embedded Digital Audio Inputs from Video Input Positions.
Audio Outputs: 8, 16, or 32 Embedded Digital Audio to Video Outputs.
Audio Switching: 16x16 (DGX 800), 24x24 (DGX 1600) or 40x40 (DGX 3200) Matrix Audio
Switching with each out having independent volume, EQ, and sync delay
Others: Downmixing, Independent EQ, Volume and Balance Control.
DANTE AUDIO SWITCHING BOARD KIT FOR ENOVA DGX 6400
DGX6400-ASB-DAN (FG1061-864)
Audio Inputs: 64 Embedded Digital Audio Inputs from Video Input Positions.
Audio Outputs: 64 Embedded Digital Audio to Video Outputs.
Audio Switching: 16x16 (DGX 800), 24x24 (DGX 1600) or 40x40 (DGX 3200) Matrix Audio
Switching with each out having independent volume, EQ, and sync delay
Others: Downmixing, Independent EQ, Volume and Balance Control.
Key-points for HOTEL BALLROOM:
Hotel ballroom is often set for a variety of uses according to the types of function. Other than wedding banquet, other functions may include company events, meetings and conferences, or private functions.
To meet the need for the different events happening in the ballroom, such rooms are usually designed to suit the variety of different uses, and the AV system must be able to bring convenience for the various type of usage. Referring to diagram below , the ballroom is used as one whole area for larger function.
Key-points for HOTEL BALLROOM:
But the ballroom also could be split to cater for different events in the same time or even events or meetings that require for breakout session. To be able to cater for this, AV system designed in the room must be flexible enough to meet variety of different setup. Below diagram is the example when the one large ballroom need to be split to individual spaces.

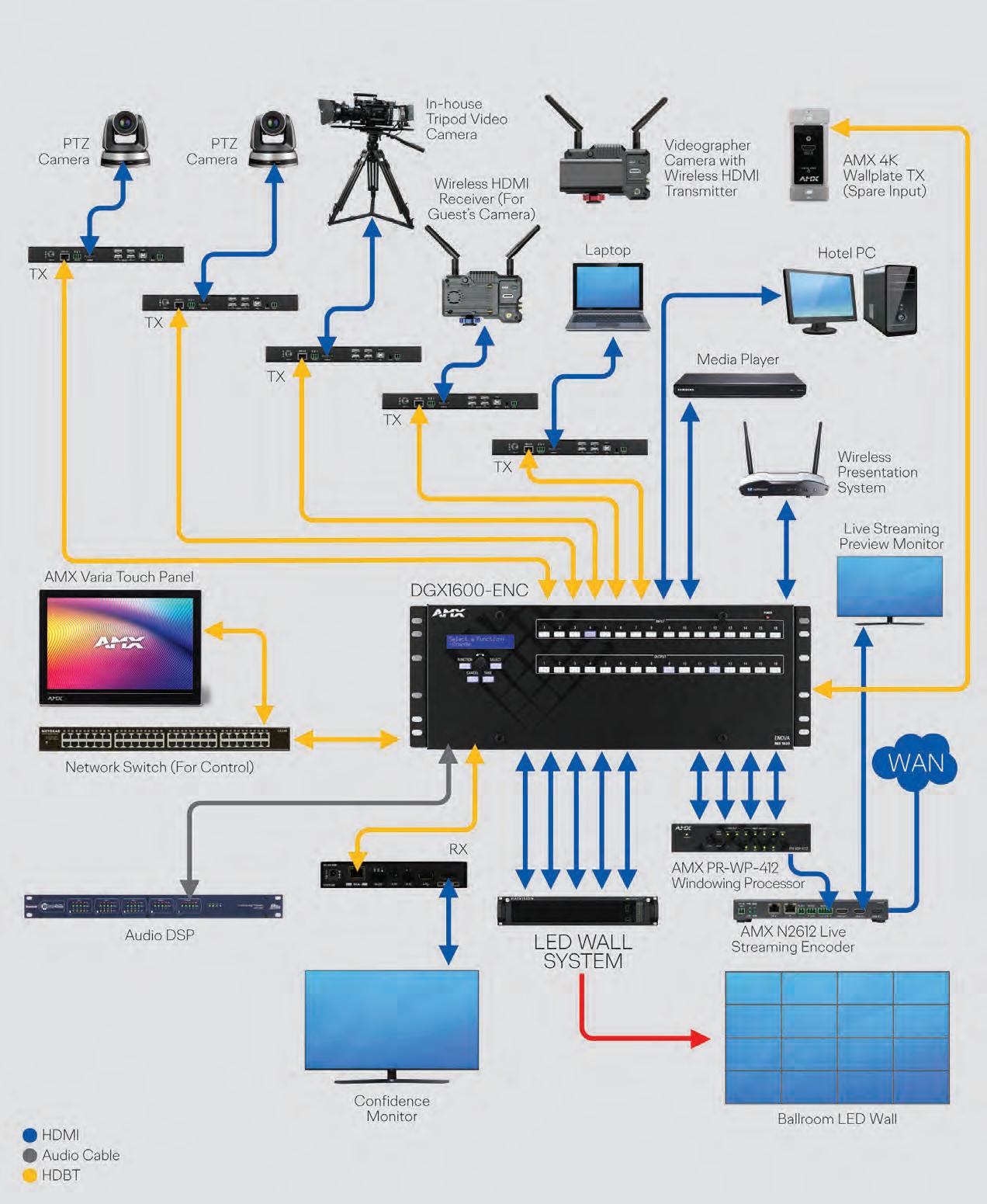

Connection Diagram for HOTEL BALLROOM:
ALL-IN-ONE PRESENTATION SWITCHER :
DVX-2265-4K
DVX-2265-4K | 6x2 4K60 All-in-One Presentation Switcher
Video Input: 4x HDMI, 2x DX-Link
Video Output: 2x HDMI + 1 DX-Link (mirrored)
Audio Input : 6x Analog Mic In, 2x Analog Stereo Audio in, 8 Channel Dante In
Audio Output: 1x Amp Output, 120W (8-Ohm and 70/100V), 2x Analog Stereo Audio Out, 8 Channel Dante Out Control: 2x Serial, 2x IR, 2x Relay, 2x I/O, 1x Ethernet, 1x ICSLan)
Features
• 4K60 4:4:4 supports HDMI 2.0 and HDCP 2.2 with scaled output to support the highest possible video quality over HDMI and category cable
• Simple configuration and HTML5 web interface with built-in status and troubleshooting features alleviates the need for proprietary configuration software and internal network allows for automatic configuration of endpoints
• All-In-One device controller, video matrix switcher, video scaler, audio signal processor, amplifier – all in a space-saving 2U chassis
• Dante Audio 8 input channels and 8 output channels of IP audio
• Crown DriveCore Amplifier 120W per channel stereo at 4/8 Ohms, 120W mono at 70/100 Volt
• BSS audio processing includes an integrated digital signal processor with advanced to allow for precision tuning to match unique source and room attributes
• dbx AFS2 includes Advance Feedback Surpression form dbx
:
DVX-3266-4K
DVX-3266-4K | 8x4 4K60 All-in-One Presentation Switcher
Video Input: 4x HDMI, 4x DX-Link
Video Output: 4x HDMI + 2 DX-Link (mirrored)
Audio Input : 6x Analog Mic In, 2x Analog Stereo Audio in, 8 Channel Dante In Audio Output: 1x Amp Output, 120W (8-Ohm and 70/100V), 2x Analog Stereo Audio Out, 8 Channel Dante Out Control: 2x Serial, 2x IR, 2x Relay, 2x I/O, 1x Ethernet, 1x ICSLan)
Features
• 4K60 4:4:4 supports HDMI 2.0 and HDCP 2.2 with scaled output to support the highest possible video quality over HDMI and category cable
• Simple configuration and HTML5 web interface with built-in status and troubleshooting features alleviates the need for proprietary configuration software and internal network allows for automatic configuration of endpoints
• All-In-One device controller, video matrix switcher, video scaler, audio signal processor, amplifier – all in a space-saving 2U chassis
• Dante Audio 8 input channels and 8 output channels of IP audio
• Crown DriveCore Amplifier 120W per channel stereo at 4/8 Ohms, 120W mono at 70/100 Volt
• BSS audio processing includes an integrated digital signal processor with advanced to allow for precision tuning to match unique source and room attributes
• dbx AFS2 includes Advance Feedback Surpression form dbx
PRODUCT ILLUSTRATION:
DVX-3266-4K
HYBRID LEARNING ENVIRONMENT
Key-points for HYBRID LEARNING ENVIRONMENT:
Hybrid learning space offers the flexibility for students to attend in-class sessions or online if need be. At the same time, this also allows the school to offer distance learning to interested candidates globally without the need for relocation.
DVX-3266-4K
HYBRID LEARNING ENVIRONMENT
Key-points for HYBRID LEARNING ENVIRONMENT:
Hybrid learning space offers the flexibility for students to attend in-class sessions or online if need be. At the same time, this also allows the school to offer distance learning to interested candidates globally without the need for relocation.
TRANSMITTERS & RECEIVERS:
DXLINK / HDBT TRANSMITTERS
DxLink 4K60 HDMI Wall plate Transmitter
Transmitter DX-TX-DWP-4K60
Available Colors: AMX-VTT0001B (DX-TX-DWP-4K60-BL - Black) , AMX-VTT0001W (DX-TX-DWP-4K60-WH - White)
Cable Type: Shielded Cat6A or Cat7 Cable Length: up to 80m for full 4K, 100m for 1080p and below
DXLink 4K60 HDMI Transmitter Module
DX-TX-4K60
Design for use with DGX-I-DXL-4K60, DVX-2265-4K, DVX-3266-4K, DX-RX-4K60
Additional features: Built-in USB 2.0 transmitter - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables
Cable Type: Shielded Cat6, Cat6A or Cat7
Cable Length: 100m supported on Shielded Cat6A and Cat7
DXLite 4K60 4:4:4 HDBaseT Transmitter
DXL-TX-4K60
Design for use with DXL-RX-4K60
Additional features: Built-in USB 2.0
Cable Type: Shielded Cat6A or Cat7
Cable Length: 80m for full 4K, and 100m for 1080p and below
TRANSMITTERS & RECEIVERS:
DXLINK / HDBT RECEIVERS

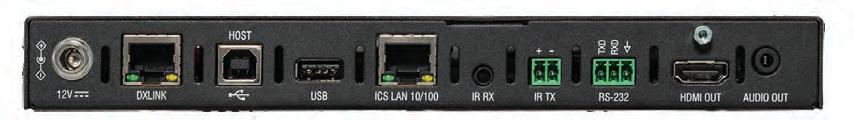

DXLink 4K60 HDMI Receiver Module
DX-RX-4K60
Design for use with DGX-O-DXL-4K60, DVX-2265-4K, DVX-3266-4K, DX-TX-4K60
Additional features: Built-in USB 2.0 transmitter - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables
Cable Type: Shielded Cat6, Cat6A or Cat7
Cable Length: 100m supported on Shielded Cat6A and Cat7

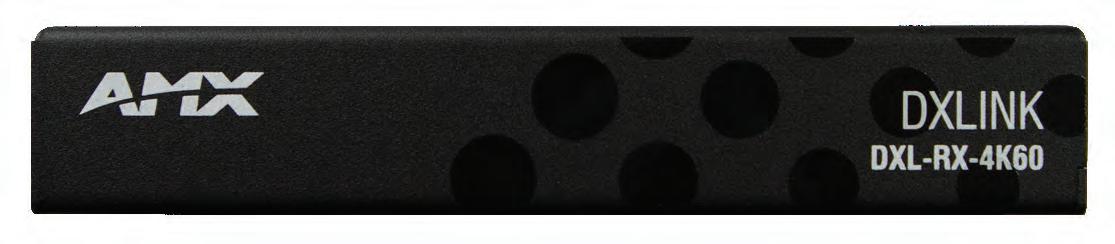

DXLite 4K60 4:4:4 HDBaseT Receiver
DXL-RX-4K60
Design for use with DXL-TX-4K60, VPX-1401, VPX-1701
Additional features: Built-in USB 2.0
Cable Type: Shielded Cat6A or Cat7
Cable Length: 80m for full 4K, and 100m for 1080p and below
TRANSMITTERS & RECEIVERS:
HDMI FIBER TRANSMITTER AND RECEIVER

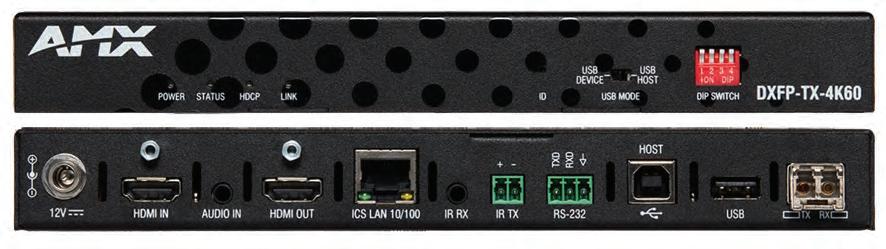

DXLink 4K60 HDMI Fiber Transmitter Module
DXFP-TX-4K60
Design for use with Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX DXLink 4K60 Fiber Input Board (DGX-IDXFP-4K60) installed, DXLink 4K60 Fiber Receivers (DXFP-RX-4K60)
Additional features: USB HID and USB 2.0 are supported point-to-point to DXLink 4K60 HDMI Fiber Receivers and DGX DXLink 4K60 Fiber Input Boards.

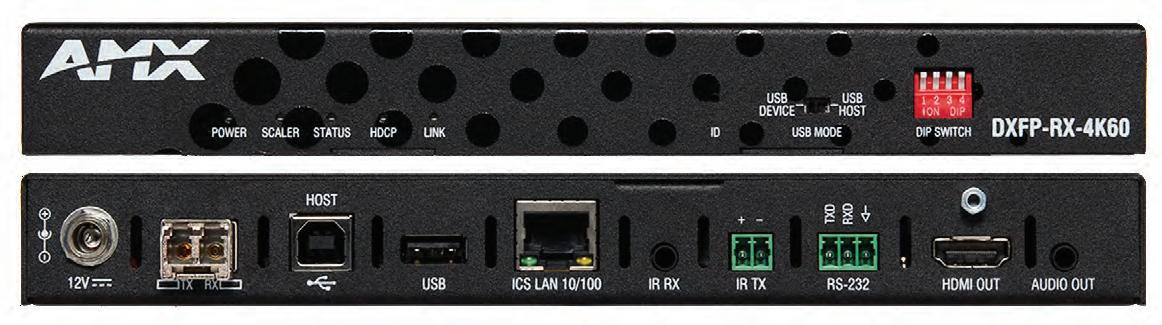

DXLink 4K60 HDMI Fiber Receiver Module
DXFP-RX-4K60
Design for use with Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX DXLink 4K60 Fiber Output Board (DGXO-DXFP-4K60) installed, DXLink 4K60 Fiber Transmitters (DXFP-TX-4K60)
Additional features: USB HID and USB 2.0 are supported point-to-point to DXLink 4K60 HDMI Fiber Transmitters and DGX DXLink 4K60 Fiber Output Boards.
H.264 ENCODERS & DECODERS :
N3300 SERIES – 4K60
N3300 Series Encoders and Decoders
4K60 H.26x/Dante AV-H & H.26x Dual-Stream Encoder and Decoders with PoE+, HDMI, USB 3.0 for Record
Features
• 4K60 H.26x / Dante AV-H primary stream & high-compatibility H.26x secondary stream
• Power Over Ethernet (PoE+) eliminates the need for power supply
• Video preview viewable from the built-in web interface or from a touch panel
• USB 3.0 video recording capability
NMX-DEC-N3322D Decoder
NMX-ENC-N3312D Encoder
Key Feature
4K60 H.26x or Dante AV-H as primary stream & high-compatibility, low-bandwidth 1080p H.26x as secondary stream
Card Module
1G BANDWIDTH ENCODERS & DECODERS :
N2600 – 4K60 WALLPLATES ENCODERS & DECODERS
NMX-DEC-N2615D Wallplate Encoder (US)
NMX-DEC-N2625D Wallplate Decoder (US)
N2600 Series Wallplate Encoders and Decoders
Motion Wavelet Compression (MWC) 4K60 4:4:4 Wallplate Encoders and Decoders
Features
• Motion Wavelet Compression: the N2600 uses MWC to achieve its high quality yet low latency encoding and decoding, making it ideal for detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications
• Video Preview available via the built-in web interface or from a touch panel
• USB 2.0: simply connect the N2600 series decoder to an end device such as USB cameras, audio, or USB 2.0 device, and connect any mobile devices, laptops or even PC to the encoders to enjoy a full BYOD solution
• Virtual Network USB Hub allows the USB signal from up to four decoders to be combined and delivered to a USB host on any encoder
• USB-C Single USB-C laptop connection that supports both video and USB 2.0
• Open Direct-Control API control via AMX Controllers or any 3rd party controllers
1G BANDWIDTH ENCODERS
& DECODERS :
N2600S – 4K60 ENCODERS & DECODERS
NMX-ENC-N2612S Encoder (Front)
NMX-ENC-N2612S Encoder (Back)
NMX-DEC-N2622S Decoder (Front)
NMX-DEC-N2622S Decoder (Back)
N2600S Series Encoders and Decoders
Motion Wavelet Compression (MWC) 4K60 4:4:4 & H.264 1080p Multi-Codec, Dual-Stream Encoder, Dante AV-A
Features
• Dual Stream and Dual Codec: the N2600S supports dual stream capabilities, via MWC/Dante AV-A and H.264 simultaneously, making it flexible for any solution that requires local content switching and live
• USB 2.0: Simply connect the N2600 series decoder to an end device such as USB cameras, audio, or USB 2.0 device, and connect any mobile devices, laptops or even PC to the encoders to enjoy a full BYOD solution
• Virtual Network USB Hub allows the USB signal from up to four decoders to be combined and delivered to a USB host on any encoder
• PoE+ powered with low-power mode for energy savings
• Open Direct-Control API control via AMX Controllers or any 3rd party controllers
N2600 / N2600S PRODUCT SPECIFICATIONS CHART
N2600 / N2600S ENCODERS
Video
Key Feature
N2600 / N2600S DECODERS
USB over IPUSB over IP via USB-C USB 2.0 over IP , USB Virtual Hub (Up to 4 devices)
MWC: 4K60 4:4:4/ Dante AV-A
H.264: 1080p 60Hz
MWC: 4K60 4:4:4 / Dante AV-A
MWC: 4K60 4:4:4/ Dante AV-A
H.264: 1080p 60Hz
MWC: 4K60 4:4:4/ Dante AV-A
Input 2 x HDMI1 x HDMI, 1x USB-CNetwork video over Ethernet via RJ45 port
Resolution
4K60 4:4:4 H.264: 1080p 60Hz 4K60 4:4:4
4K60 4:4:4 H.264: 1080p 60Hz 4K60 4:4:4
Latency <2-ms , Scaling adds one frame of latency (17ms at 60fps)
Embedded audio on HDMI or Analog Stereo (Balanced or Unbalanced)
Embedded audio on HDMI, USB-C or Analog Stereo (Unbalanced)
audio over internet
audio over internet Control
RJ 452 x RJ 45 Port1 x RJ 45 Port2 x RJ 45 Ports1x RJ 45 Port Device
DC, 2 Amps
kg
0.97 kg Size 2.66cm x 20.0cm x 12cm
2.66cm x 20.0cm x 12cm
PRODUCT ILLUSTRATION:
N2600 and N2600S
HOTEL BALLROOM
Key-points for HOTEL BALLROOM:
Hotel ballrooms is often set for a variety of uses according to the types of function. Other than wedding banquet, other functions may include company events, meetings and conferences, or private functions.
To meet the need for the different events happening in the ballroom, such rooms are usually designed to suit the variety of different uses, and the AV system must be able to bring convenience for the various type of usage.
NEXT-GEN CONTROLLERS:

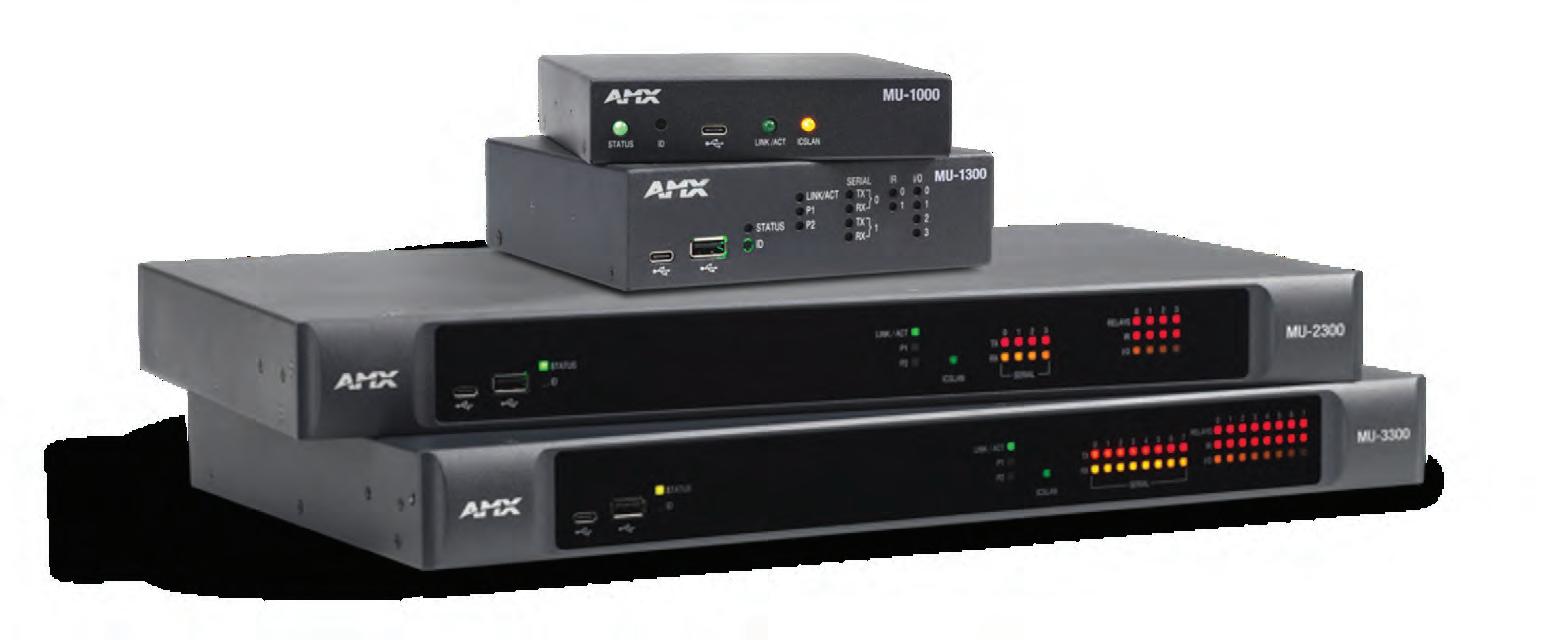

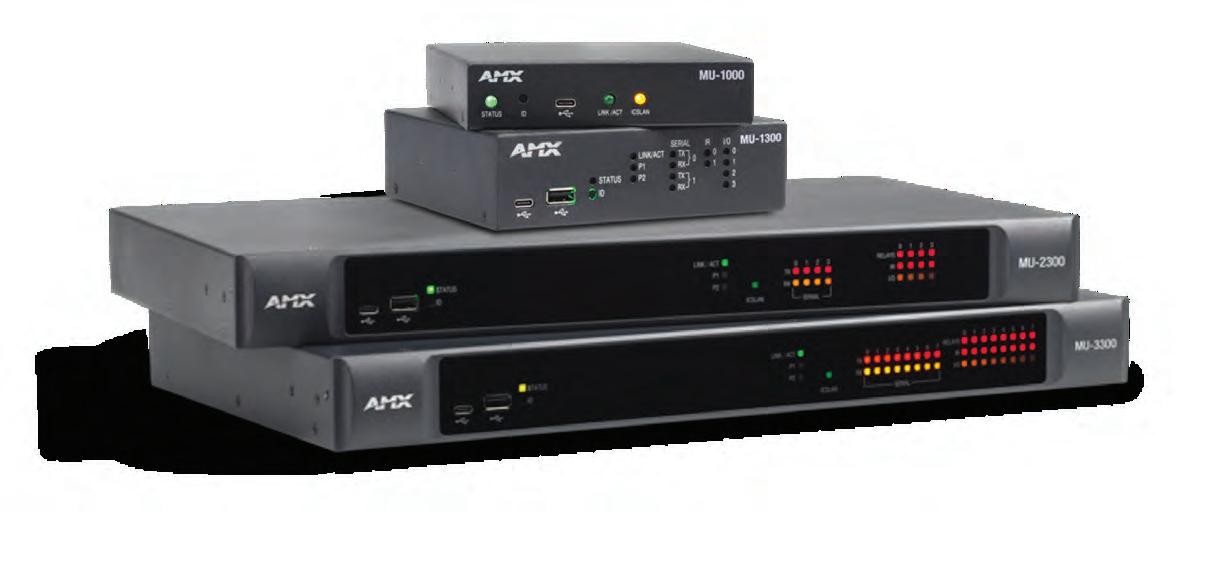

MUSE AUTOMATION CONTROLLERS
AMX MUSE Automation Controllers are powerful, secure, and reliable devices that provide a dedicated computing resource running HARMAN Professional’s AMX MUSE automation platform. Features include:
• Wide range of developers multiple scripting languages are supported including Python, JavaScript, and Groovy
• Native No-Code/Low Code Programming - AMX MUSE Automation Controllers include native support for visual flow-based development using the Node-RED development tool
• Industrial Grade Storage - onboard eMMC storage to deliver decades of high-access 24/7 mission-critical operation
• Built For The Most Secure Environment - engineered to surpass the requirements of the most secure environments and are ideal for government, financial, and other applications with ultra-secure needs.
NEXT-GEN CONTROLLERS:
MUSE AUTOMATION CONTROLLERS
Programming Node-RED, Javascript, Python, Groovy
USB-A Host Port
USB-C Program Port
2x Type-A USB host port:
• USB Mass Storage – for external logging
• FLIRC – IR Receiver for IR hand control input
1x Type-C Program Port: Connection to PC for virtual terminal for MU configuration
Supported HARMAN Protocols HControl, HiQnet, ICSP
UNIVERSAL CONTROL EXTENDER
These universal control extender boxes deliver AMX quality hardware control to any system that supports IP connectivity. An open control API makes it simple to integrate these boxes with third-party control systems or apps, and the integrated web interface enables configuration without specialized applications.

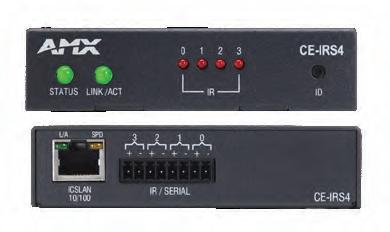

IR/S Interface, 4 IR/S Ports – CE-IRS4
1x RJ-45 ICS-LAN Ethernet Connector 1x 8-Pin 3.5mm captive-screw terminal for I/R ports

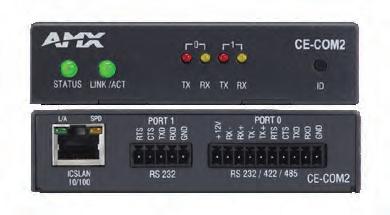

Serial Interface, 2 COM Ports – CE-COM2
1x RJ-45 ICS-LAN Ethernet Connector 1x 10-Pin 3.5mm captive-screw terminal (RS-232/422/485 port) 1x 5-Pin 3.5mm captive-screw terminal (RS-232 port)

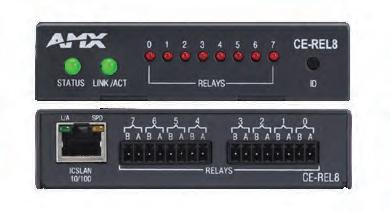

Relay Interface , 8 Channels – CE-REL8
1x RJ-45 ICS-LAN Ethernet Connector 2x 8-Pin 3.5mm captive-screw terminals

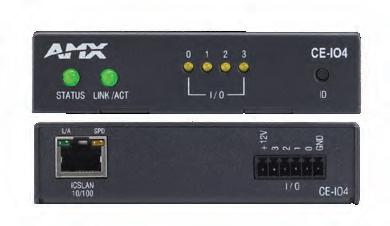

Input/Output Interface, 4 Channels- CE-IO4
1x RJ-45 ICS-LAN Ethernet Connector 1x 6-Pin 3.5mm captive-screw terminal (4 contacts + GND and +12VDC)

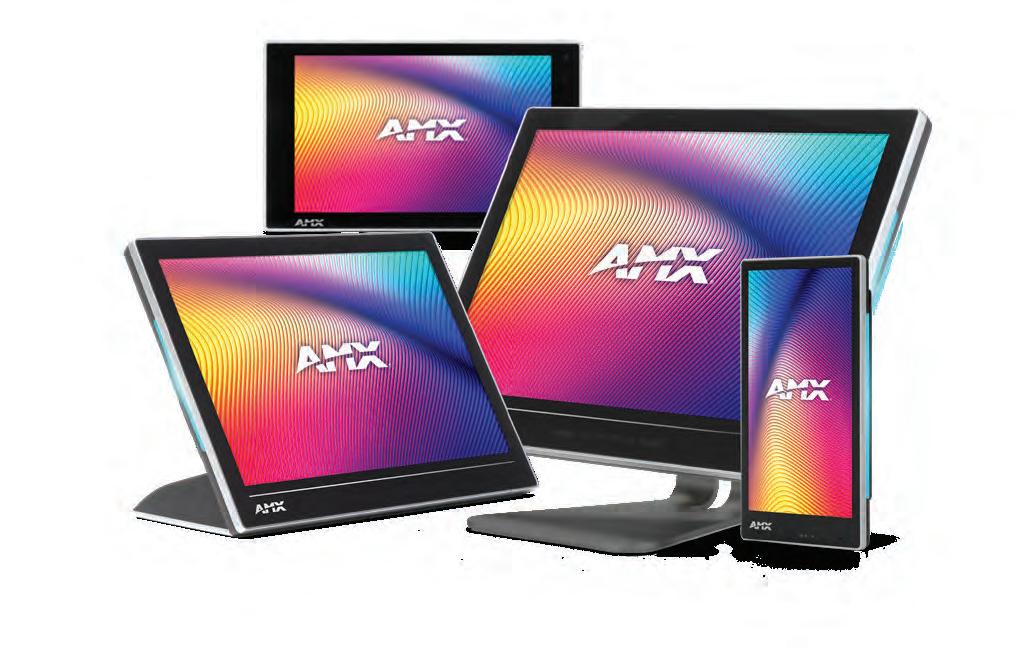

AMX TOUCH PANELS:
VARIA PANELS
AMX VARIA professional-grade touch panels are designed to adapt to the unique needs of your environment by offering a selection of pre-load apps (known as personas) that define the entire panel experience. Personas include:
Web Kiosk
Varia becomes a full-screen, frameless interface for accessing web applications such as a wayfinding app, hoteling app, or custom control app.
Zoom Rooms Controller
Converts Varia into a dedicated Zoom Rooms appliance.
Room Scheduling
Transforms Varia into a dedicated stand-alone room scheduling touch panel on any Office 365, Microsoft Exchange, or Google platform.
AMX G5 Control
All the features and capabilities of the previous AMX touch panel generation, Modero G5, are now encompassed in a single persona.

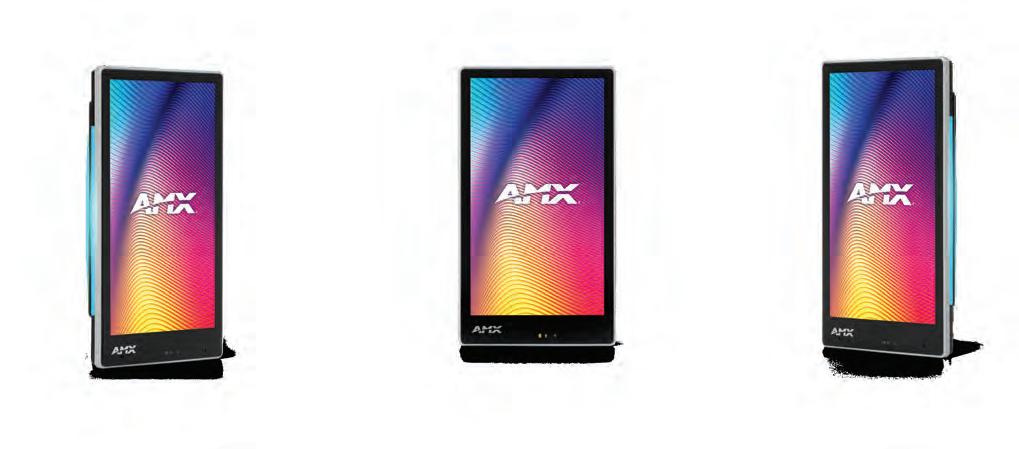

VARIA-SL50
Specifications
SKU Numbers AMX-UTP0501
Display Size 5.5” Diagonal
Resolution 720x1280
Aspect Ratio 9:16 portrait
Speakers 1 x 1W
Microphone Dual
Camera N/A
NFC N/A
Ambient Light Sensor
Yes, Supports Adaptive Brightness
Proximity Sensor Yes, Supports Wake on Approach Power
Product Weight 0.38 lb (173 g)

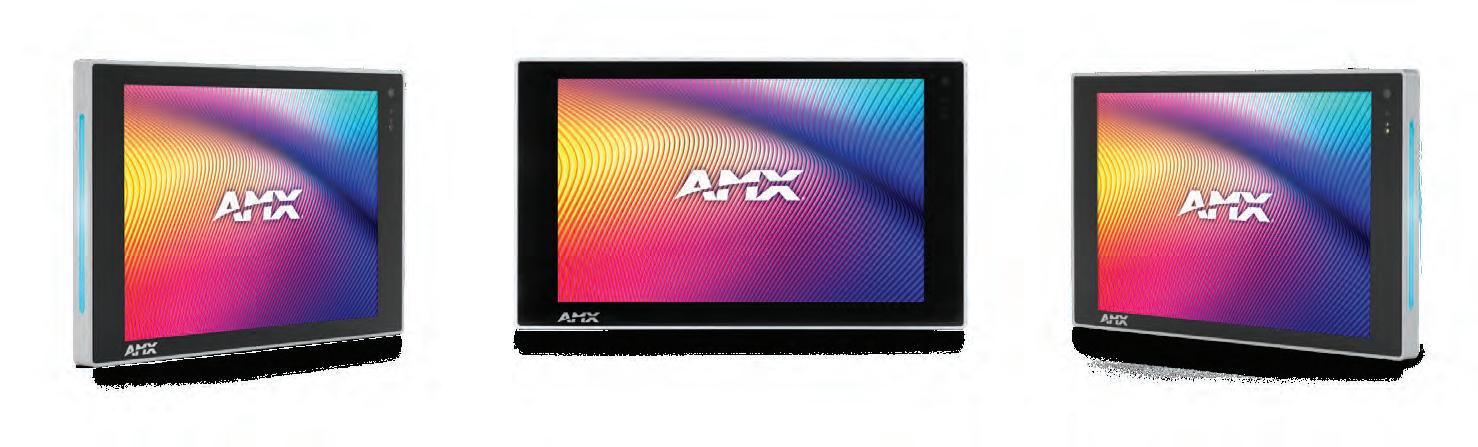

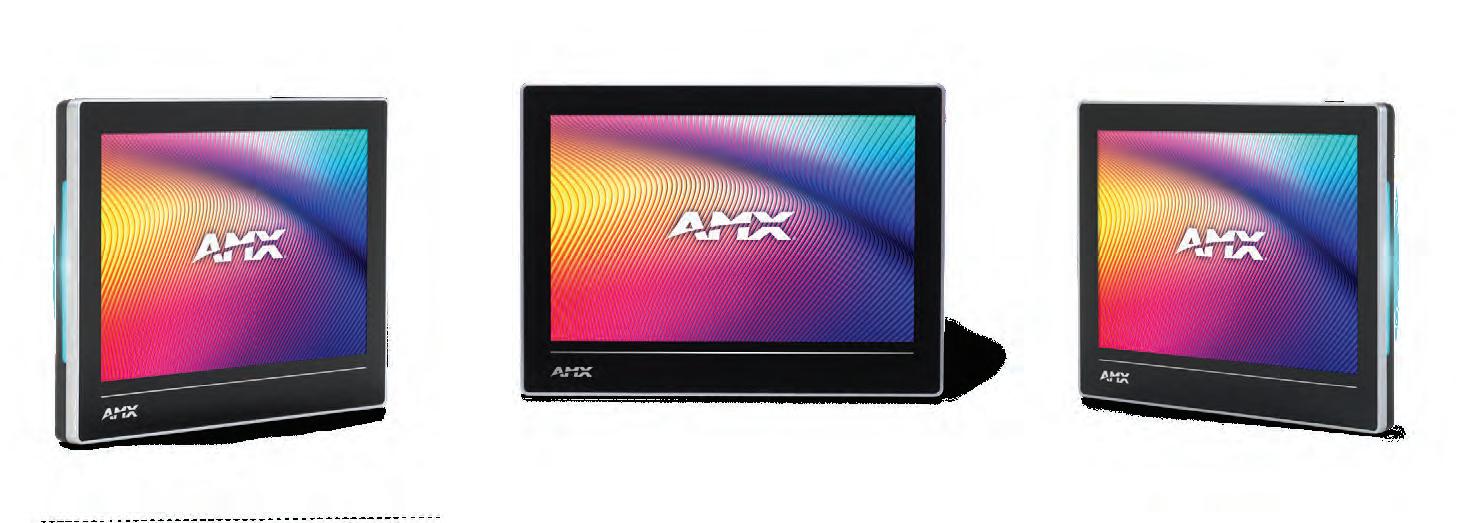

VARIA-SL80
Specifications
SKU Numbers
AMX-UTP0801
Display Size 8” Diagonal
Resolution 1280x800
Aspect Ratio 16:10 landscape
Speakers 2 x 1W
Microphone Dual
Camera
5MP front-facing, with Fixed Focusing Lens
NFC Yes, Supports Read & Write
Ambient Light Sensor Yes, Supports Adaptive Brightness
Proximity Sensor Yes, Supports Wake on Approach
Power RJ-45, POE 802.3af, 15.4W
Product Dimensions (H x W x D) 5 1⁄16” x 8 7⁄16” x 11⁄16” (127.64 mm x 213.22 mm x 26.65 mm)
Product Weight 1.06 lb (482 g)
VARIA-80
Specifications
SKU Numbers AMX-UTP0811
Display Size 8” Diagonal
Resolution 1280x800
Aspect Ratio 16:10 landscape
Speakers 2 x 2W
Microphone Dual
Camera
5MP front-facing, with Fixed Focusing Lens
NFC Yes, Supports Read & Write
Ambient Light Sensor Yes, Supports Adaptive Brightness
Proximity Sensor Yes, Supports Wake on Approach
Power RJ-45, POE 802.3af, 15.4W
Product Dimensions (H x W x D) 5 7⁄8” x 7 15⁄16” x 7⁄8” (148.9 mm x 201.2 mm x 21.7 mm)
Product Weight 1.17 lb (532 g)
Specifications
SKU Numbers AMX-UTP1011
Display Size 10.1” Diagonal
Resolution 1920x1200
Aspect Ratio 16:10 landscape
Speakers 2 x 2W
Microphone Dual
Camera
5MP front-facing, with Fixed Focusing Lens
NFC Yes, Supports Read & Write
Ambient Light Sensor Yes, Supports Adaptive Brightness
Proximity Sensor Yes, Supports Wake on Approach
Product Dimensions (H x W x D)
7⁄8” x 9 9⁄16” x 13⁄16” (173.9 mm x 242.88 mm x 20.5 mm)
Product Weight 1.25 lb (567 g)
VARIA-100N (NO-COMM)
Specifications
SKU Numbers AMX-UTP1011N
Display Size 10.1” Diagonal
Resolution 1920x1200
Aspect Ratio 16:10 landscape
Speakers 2 x 2W
Microphone None
Camera None
NFC None
Ambient Light Sensor Yes, Supports Adaptive Brightness
Proximity Sensor Yes, Supports Wake on Approach

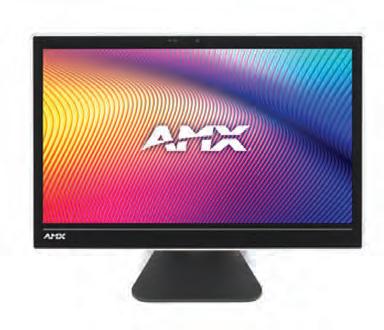

Specifications
SKU Numbers AMX-UTP1511
Display Size 15.6” Diagonal
Resolution 1920x1080
Aspect Ratio 16:9 landscape
Speakers 2 x 2W
Microphone Dual
Camera
5MP front-facing, with Fixed Focusing Lens
NFC Yes, Supports Read & Write
Ambient Light Sensor Yes, Supports Adaptive Brightness
Proximity Sensor Yes, Supports Wake on Approach
Power RJ-45, POE 802.3at, 30W
Product Dimensions (H x W x D) 9 9/16” x 14 11/16” x 1 1/32” (243.1 mm x 373.5 mm x 26.2 mm)
Product Weight 3.86 lb. (1750 g)

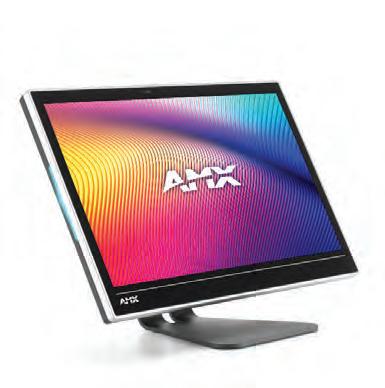

VARIA-150N (NO-COMM)
Specifications
SKU Numbers AMX-UTP1511N
Display Size 15.6” Diagonal
Resolution 1920x1080
Aspect Ratio 16:9 landscape
Speakers 2 x 2W
Microphone None
Camera None
NFC None
Ambient Light Sensor Yes, Supports Adaptive Brightness
Proximity Sensor Yes, Supports Wake on Approach
Power RJ-45, POE 802.3af, 30W
Product Dimensions (H x W x D) 9 9/16” x 14 11/16” x 1 1/32” (243.1 mm x 373.5 mm x 26.2 mm)
Product Weight 3.86 lb. (1750 g)

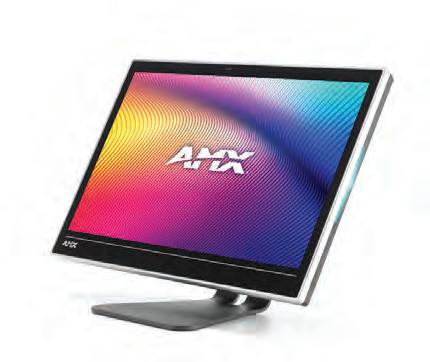

VARIA-150
Capacitive
ETHERNET KEYPADS
Metreau® 6-Button Ethernet Keypad with Navigation MET-6NE
SKU: FG5793-01-WH (White) , FG5793-01-BL (Black)
Dimensions: Keypad and Mounting Plate: 4” x 1 3/4” x 1” (10.3 cm x 4.5 cm x 2.5 cm)
Connectors: (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
Power: PoE (Power over Ethernet) via RJ-45 Ethernet Connector
Metreau® 7-Button Ethernet Keypad MET-7E
SKU: FG5793-03-WH (White) , FG5793-03-BL (Black)
Dimensions: Keypad and Mounting Plate: 4” x 1 3/4” x 1” (10.3 cm x 4.5 cm x 2.5 cm)
Connectors: (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
Power: PoE (Power over Ethernet) via RJ-45 Ethernet Connector
Metreau® 13-Button Ethernet Keypad MET-13E
SKU: FG5793-02-WH (White) , FG5793-02-BL (Black)
Dimensions: Keypad and Mounting Plate: 4” x 1 3/4” x 1” (10.3 cm x 4.5 cm x 2.5 cm)
Connectors: (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
Power: PoE (Power over Ethernet) via RJ-45 Ethernet Connector
MASSIO – KEYPADS & KEYPADS WITH CONTROLLER
Programming Netlinx Programming
Product Type6-Button keypad 8-Button Keypad with Knob 6-Button keypad with Controller 8-Button keypad with Knob and Controller
Power ConsumptionPoE (37V-57V), Voltage DC Range: 37 V-57 V per 802.3af spec via RJ-45 Ethernet Port
Available Colours Black or White
Types of Modules available

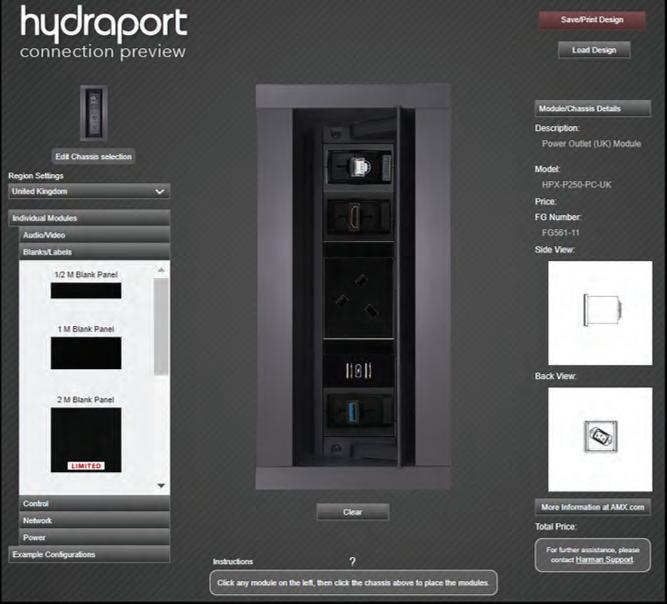

Refer to Hydraport Configurator for details https://www.amx.com/hydraportpreview
8 3/16” x 5 7/16” (208mm x 138mm)
11 5/32” x 5 7/16” (283mm x 138mm)
14 3/32” x 5 7/16” (358mm x 138mm)
Table Cutout Dimensions
7.64” x 4.84” (194mm x 123mm) 10.59” x 4.84” (269mm x 123mm) 13.54” x 4.84” (344mm x 123mm)
CABLE MANAGEMENT:
HYDRAPORT MODULES (NEW)
MODEL
Product Type
HPX-AV103-USBC-RHPX-USBC-100HPX-USBC-US65
USB-C to HDMI Module with Retractable Cable
-Retractable USB-C Cable
- 4K60 4:4:4, HDCP 2.2
Features
- High Dynamic Range (HDR) and Deep Color Support
USB-C Power Module
- USB-C Charging Port – 100W with Compatible Power Supply
- USB-A Charging Port – 30W with Compatible Power Supply
USB-C Power Module with 65W US Power Supply
- USB-C Charging Port – 65W with included US Power Supply
- USB-A Charging Port – 30W with included US Power Supply
EDID
MANAGEMENT, SCALING & CAPTURE

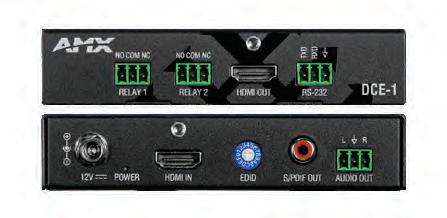

DCE-1 In-Line Controller
3-in-1 device for:
EDID emulation: for resolutions up to 4K60 4:4:4, and includes HDCP 2.2 support for the latest displays and source devices.
Audio extraction: offers audio de-embed capabilities with digital SPDIF and analog output options.
CEC Control: turn the display on and off using CEC or RS232 strings whenever a source device is connected or disconnected

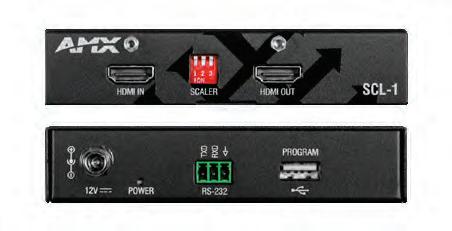

SCL-1 Video Scaler
4K60 4:4:4 and HDCP 2.2 support both 4K60 and non-4K content.
Single Input/Output - Can be used in combination with products such as presentation switchers which do not have resolution support to match displays.
Automatic Scaling Option - Can be configured to automatically scale to the optimal resolution of the display based on its EDID, or it can be set to always scale to a particular resolution

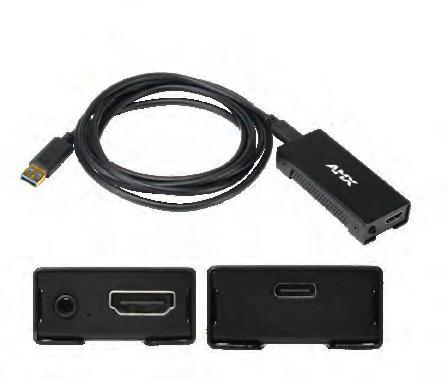

UVC1-4K
4K HDMI to USB Capture Device
The UVC1-4K captures content from HDMI video sources for seamless importation into PCs and video conferencing software such as Zoom or Teams via USB. It supports HDMI video input resolutions up to 4096×2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color and outputs resolutions up to 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010).
