OUTSTANDING PERFORMANCE UNDER PRESSURE
Powered by
Powered by
Welcome to a new era of technology.
Madimack’s range of products is designed to revolutionise the way you experience the world. With a steadfast focus on sustainability, innovation and enhanced user-features, we are proud to offer cutting-edge solutions that exceed your expectations.
At Madimack, we believe in a future where technology coexists harmoniously with the environment. That’s why sustainability is at the core of everything we do. Our products are meticulously crafted to minimise their ecological footprint.
We are thrilled you chose Madimack to partner with. Together we will shape a more sustainable future.
Alex Welsh Madimack Global CEO2 INVERFLOW ULTRA
Madimack’s enhanced inverter technology, InverMAC, is engineered to support inverter motor operation. The inclusion of product specific proprietary technology allows for precise control of motor speed and energy usage across our range. InverMAC Technology supports Madimack’s overall position of unrivalled innovation, sustainability and performance. By incorporating inverter motor technology in creative and unique ways, Madimack is leading the way in the development of energy-efficient products.
3
INVERMAC ENHANCED INVERTER TECHNOLOGY

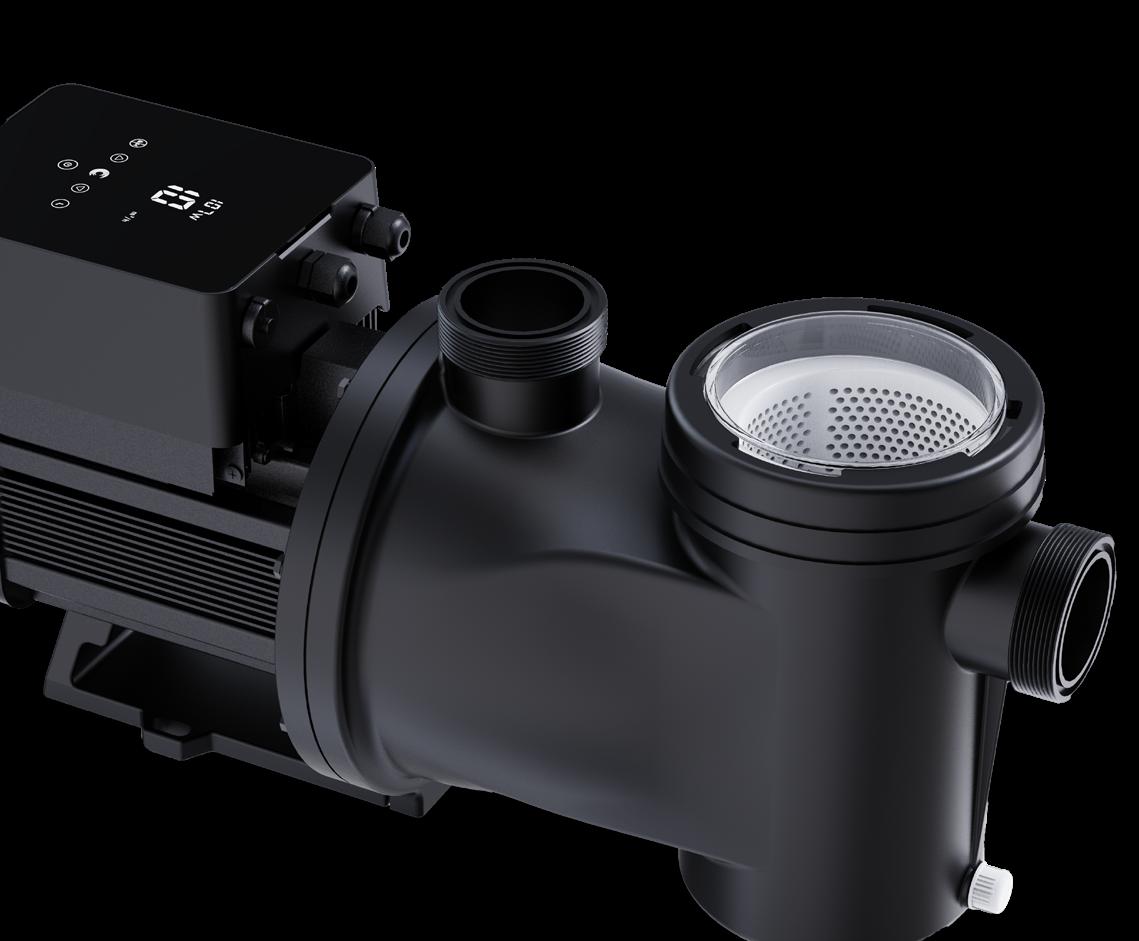

InverFLOW Ultra is powered by Madimack’s InverMAC Technology delivering outstanding performance and efficiency. 14 times more efficient than a traditional single-speed-pump, this outstanding product delivers on every level.
The operational benefits of this finely engineered pool pump is a high-flow to pressure ratio, allowing for greater installation options. This pump delivers outstanding flow even in the toughest of pool conditions.
4 INVERFLOW ULTRA

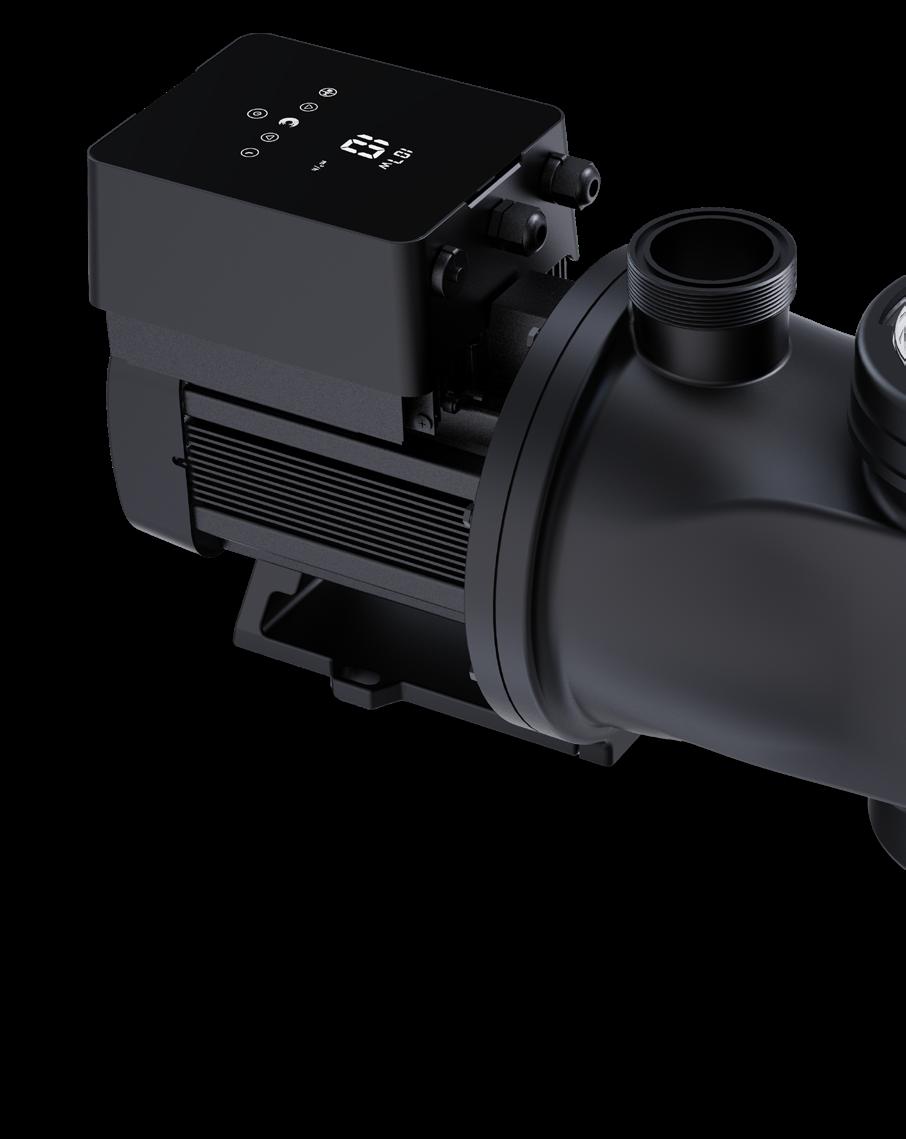

Full Inverter technology
Allows for precision control of the speed pump, with running capacity adjustments between

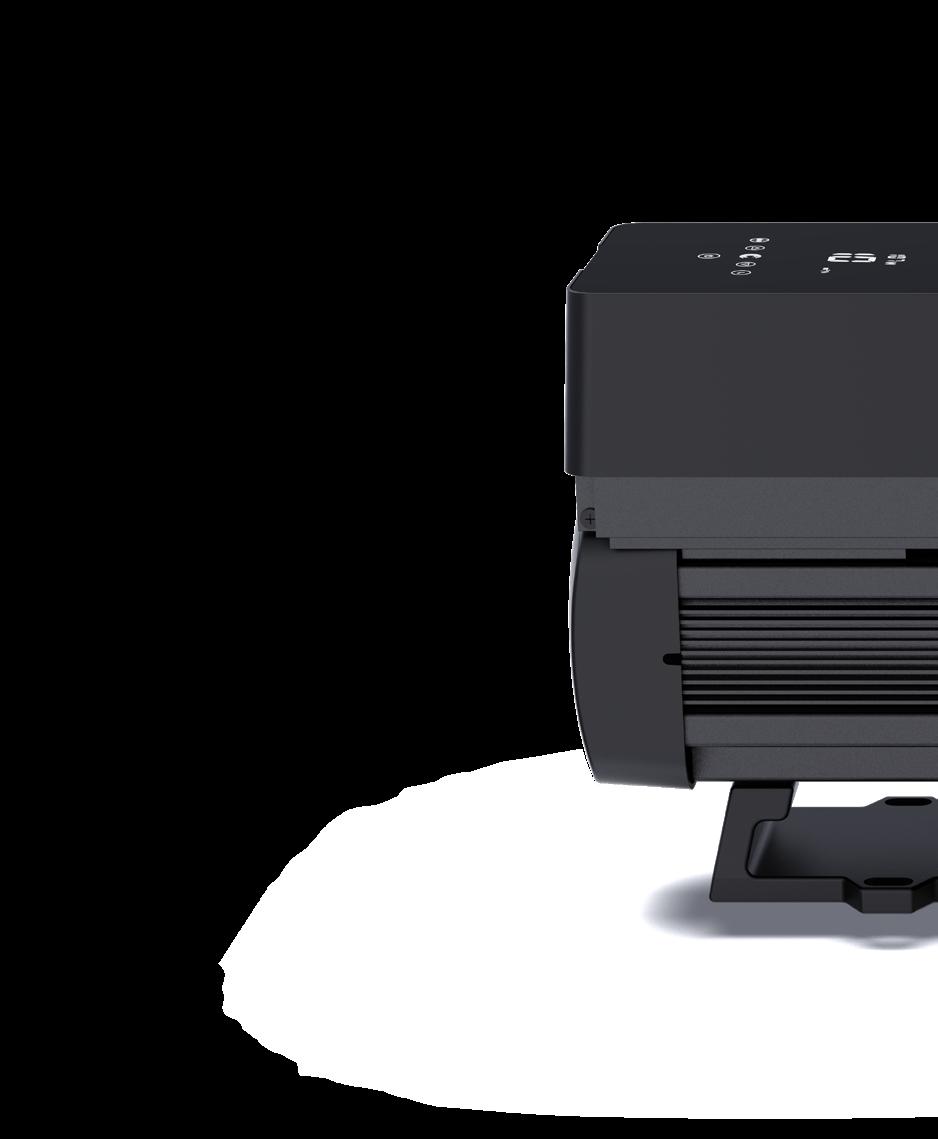

DC brushless motor
Provides significant reduction in operating noise, optimises efficiency and extends the product life-span
7
ULTRA QUIET SOLUTION FOR ULTRA TRANQUILITY
8
Whisper Quiet bedroom at night Refrigerator InverFLOW ULTRA Washing machine Single speed pump Fan Alarm clock 10 dB 20 dB 30 dB 40 dB 50 dB 60 dB 70 dB 80 dB 36 dB 9
OUTSTANDING ENERGY EFFICIENCY DELIVERING LONG-TERM BENEFITS
10
Disclaimer: Product price is indicative RRP only. Energy costs are based on a 50,000L pool running 8 hours per day with electricity pricing of 30c per kW.
11 Approximate Retail Price $1450 $238 $238 $238 $238 $238 $1688 $1926 $2164 $2402 $2640 $700 $937 $937 $937 $937 $937 $1637 -$51 $2574 $648 $3511 $1347 $4448 $2046 $5385 $2745 Energy Cost Energy Cost Energy Cost Energy Cost Energy Cost Total Cost Year 1 Total Cost Year 2 Total Cost Year 3 Total
Year
Single speed pump InverFLOW ULTRA
Cost
4 Total Cost Year 5
Money Saved

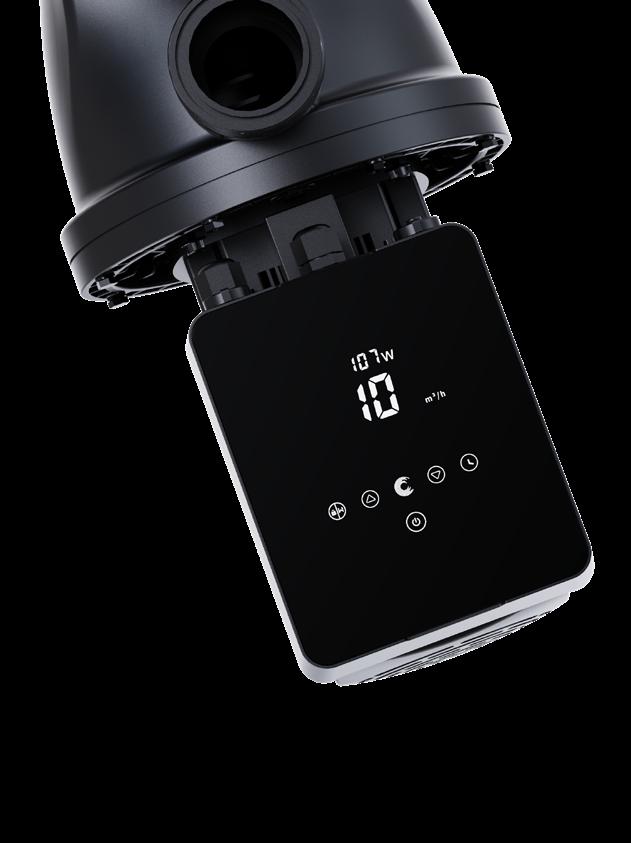

INTUITIVE TOUCH CONTROLLER
INVERFLOW ULTRA
12
Check and manage your energy and waterflow from your phone
Active energy monitor WiFi control AI/MI mode
Auto Inverter Mode: After setting the flow rate, the pump can adjust the running capacity to reach the set flow.
Manual Inverter Mode: Running capacity can be set from 30% ~ 100% manually
Advanced Features & Benefits
View real time energy saving
Minimum Energy Performance Standards
Engineered with Madimack’s InverMAC Technology, the InverFLOW Ultra delivers market leading efficiency levels
IP rating: IP55
Optimal performance in sun, rain or snow
External control optional
RS485 modbus, Digital input, Relay output
13
TECHNICAL PARAMETERS
v e rall Dimension
Advised pool volume (m³) P1 (kW/HP) Voltage (V/Hz) Qmax (L/min) Hmax (m) Circulation (Max) Flow at 8mh (L/min) Flow at 10mh (L/min) U300i 30~50 0.75/1 220~240/50/60 400 11.5 300 190 U400i 40~70 1.05/1.5 450 14 400 310 U500i 50~80 1.4/2 490 17 480 410 Model Packing Dimension (mm) Weight (kg) Gross/Net InverFLOW Ultra all models 648*270*340 19.5/16.5
Dimensions 14 252 302 302 610.11
648*270*340 Packing Dimension (mm) 11.5 19.0 25.5 18.5 24.0 29.0 8m 10m Qmax:27.0 Hmax :14.0 Q(m³/h ) 15 20 25 30 200 250 300 350 400 450 500 Q(l/min) IC25D 100% Circulation Flow (m³/h) （Max） INVERFLOW ULTRA
O
Performance Curve
30 InverFLOW Ultra 300 InverFLOW Ultra 400 100% 30% 100% 30% 0 0 0 0 10 10 15 15 20 20 25 25 30 2 2 4 4 6 6 8 8 10 10 12 12 14 14 16 16 18 18 H(m) H(m) Q(m 3/h) Q(m 3/h) Qmax: 24.3 Hmax: 11.5 Qmax: 27 Hmax: 14 5 5 InverFLOW Ultra 500 100% 30% 0 0 10 15 20 25 30 2 4 6 8 10 12 14 16 18 H(m) Q(m 3/h) Qmax: 29.5 Hmax: 17 5
15
