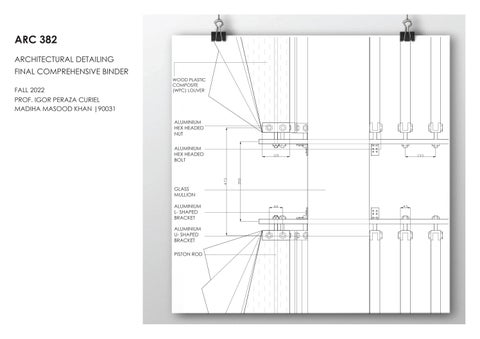

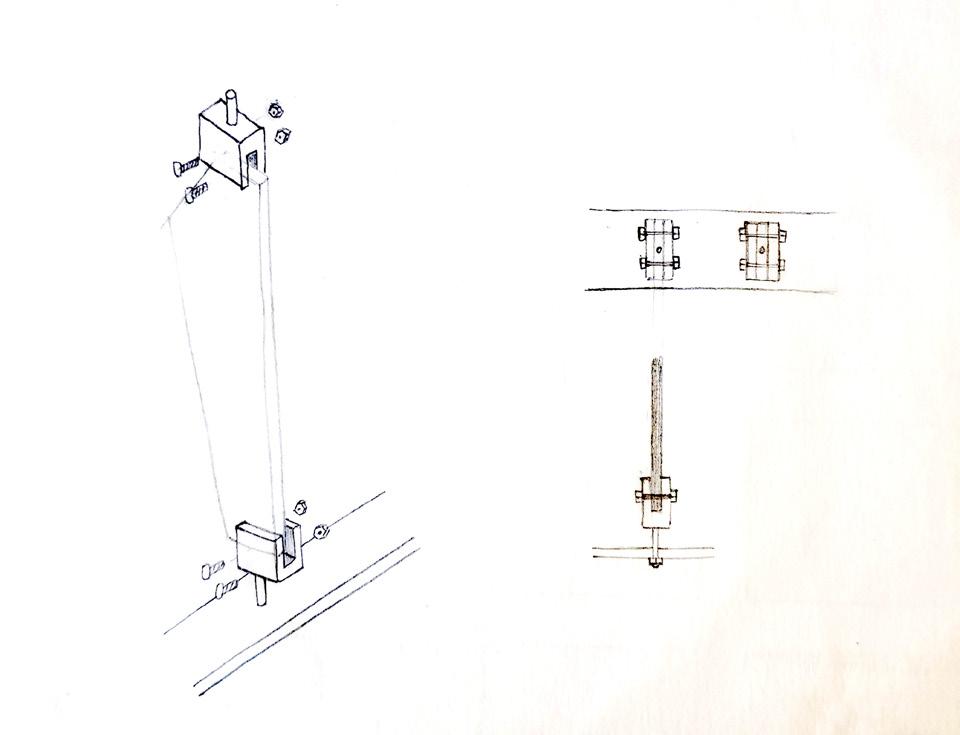

WOOD PLASTIC COMPOSITE (WPC) LOUVER
ALUMINIUM HEX HEADED BOLT GLASS MULLION
ALUMINIUM L- SHAPED BRACKET
ALUMINIUM U- SHAPED BRACKET
ALUMINIUM HEX HEADED NUT PISTON ROD
Norman Robert Foster (born 1 June 1935) is a British architect and designer. Closely associated with the development of high-tech architecture, Foster is recognized as a key figure in British modernist architecture. He is known for his sleek modern buildings made of steel and glass. His earliest works explore the idea of a technologically advanced "shed," meaning a structure surrounded by a lightweight shell or envelope.
His architectural practice Foster + Partners, first founded in 1967 as Foster Associates, is the largest in the United Kingdom, and maintains offices internationally. It was created to 'promote interdisciplinary thinking and research to help new generations of architects, designers and urbanists to anticipate the future'.
Awards won for the House of Wisdom
2021- Prix Versailles- Africa and West Asia 2021
2021- Win Awards- Civic Libraries, Museums and the Arts- Bronze

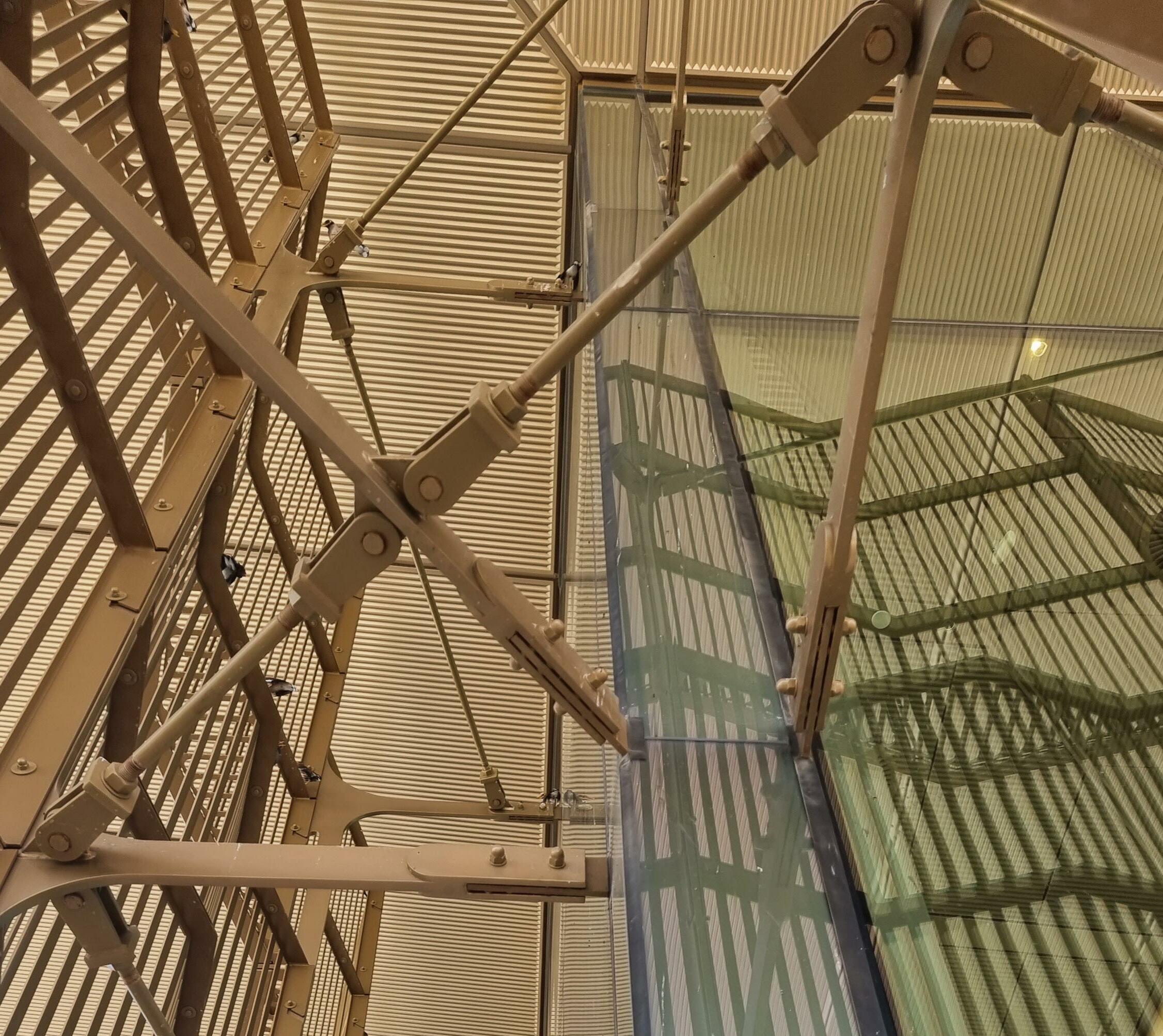

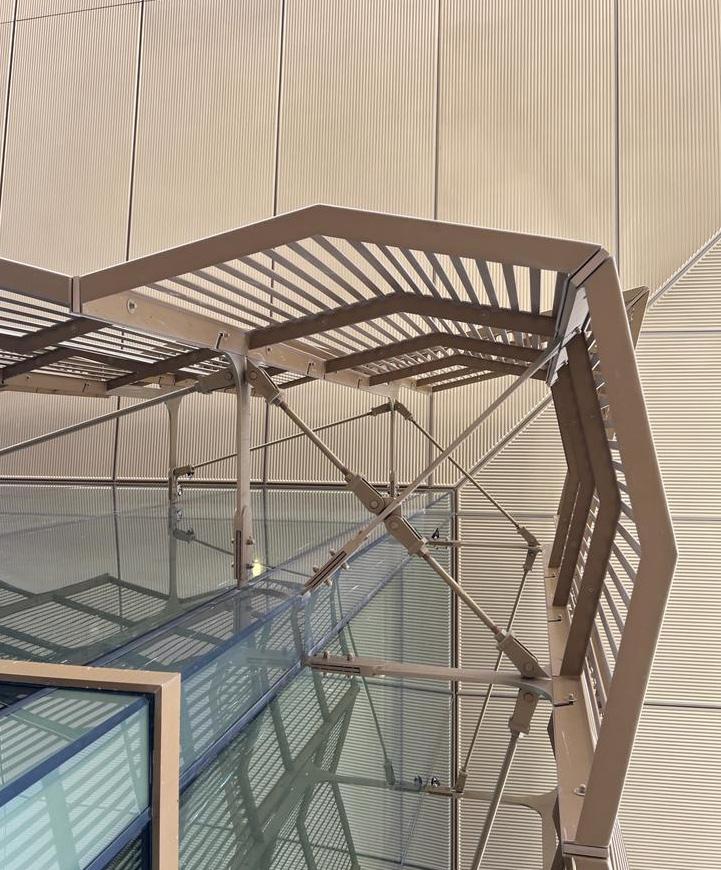

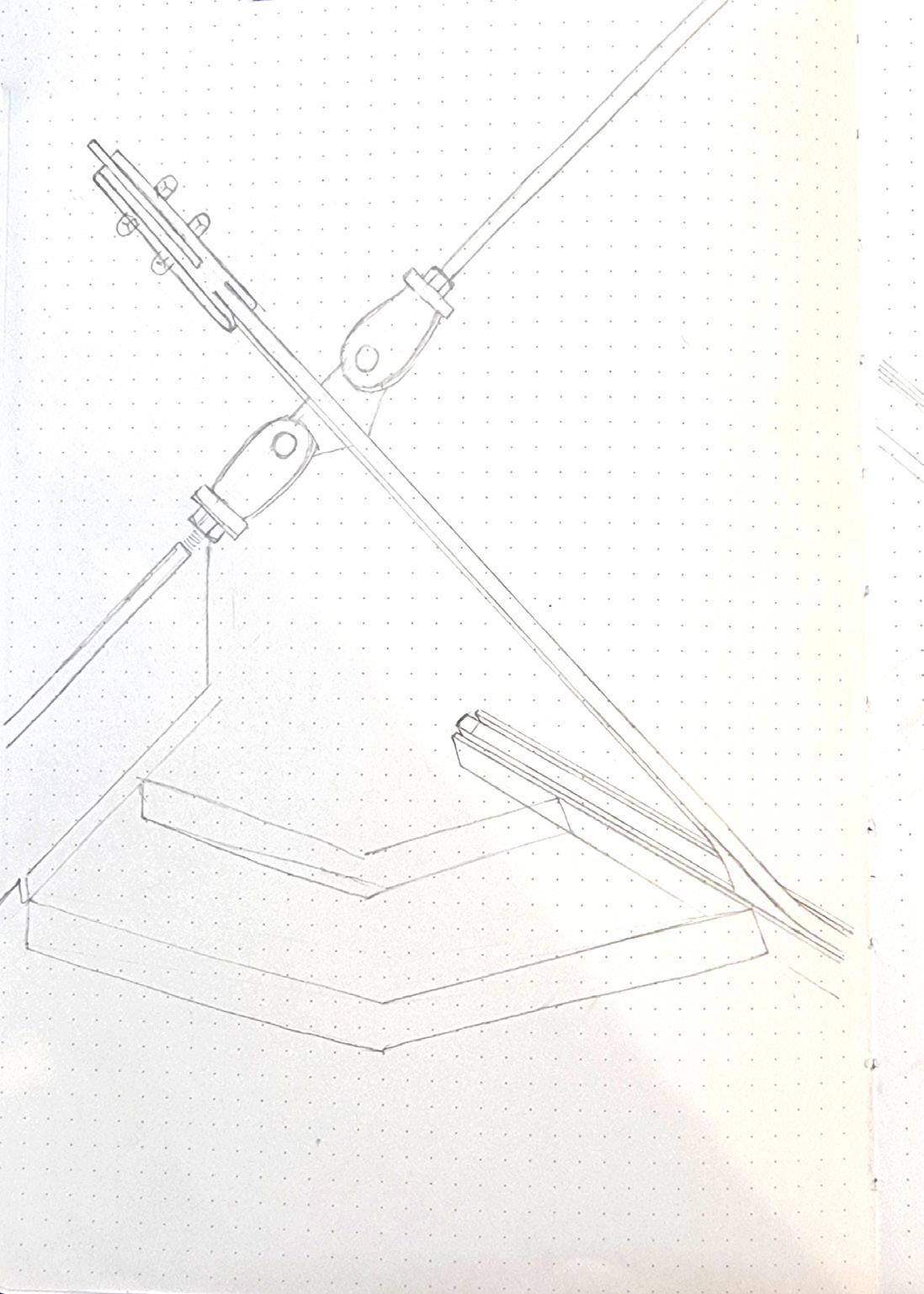

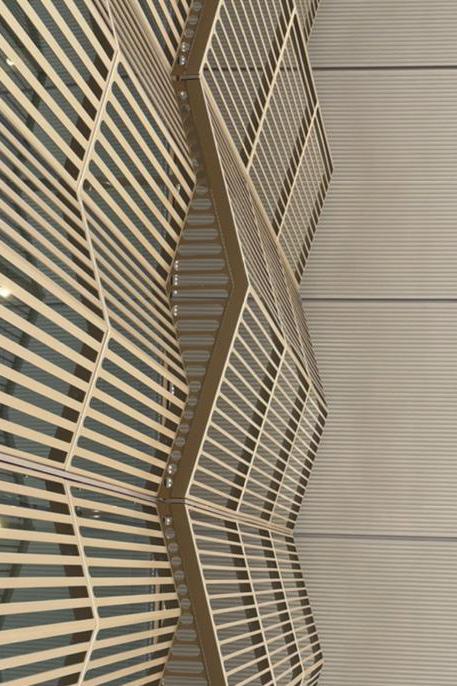

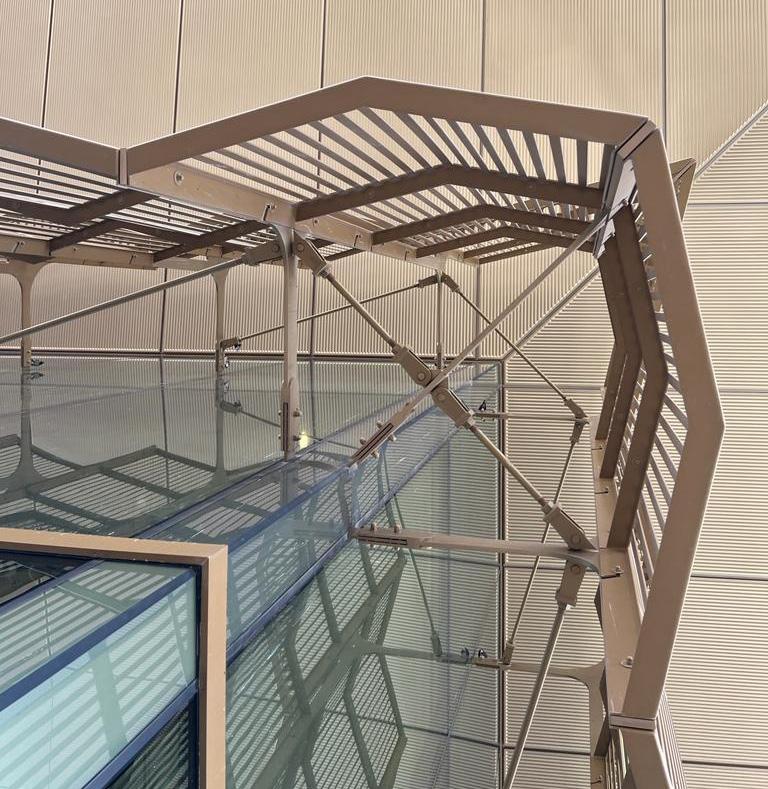

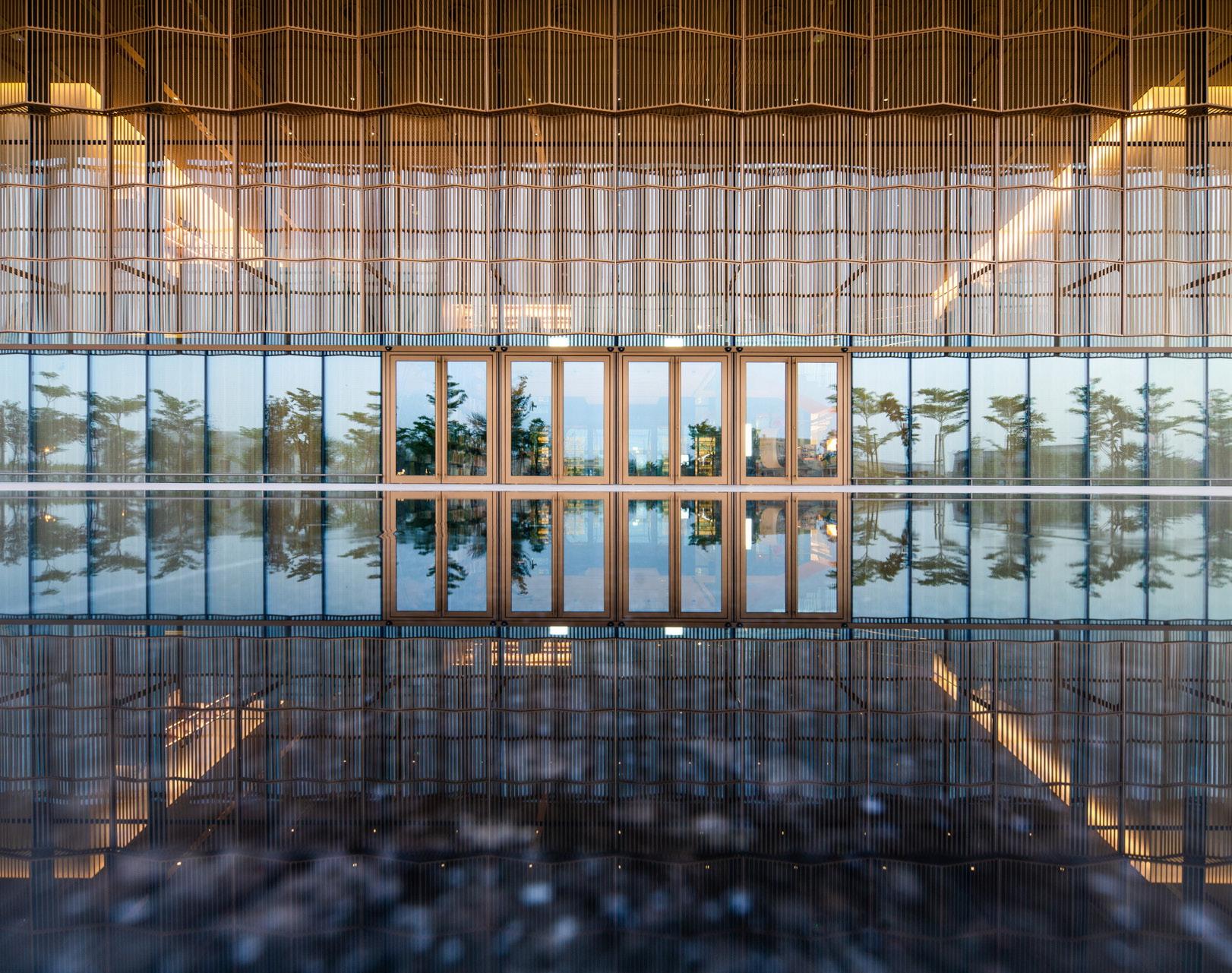

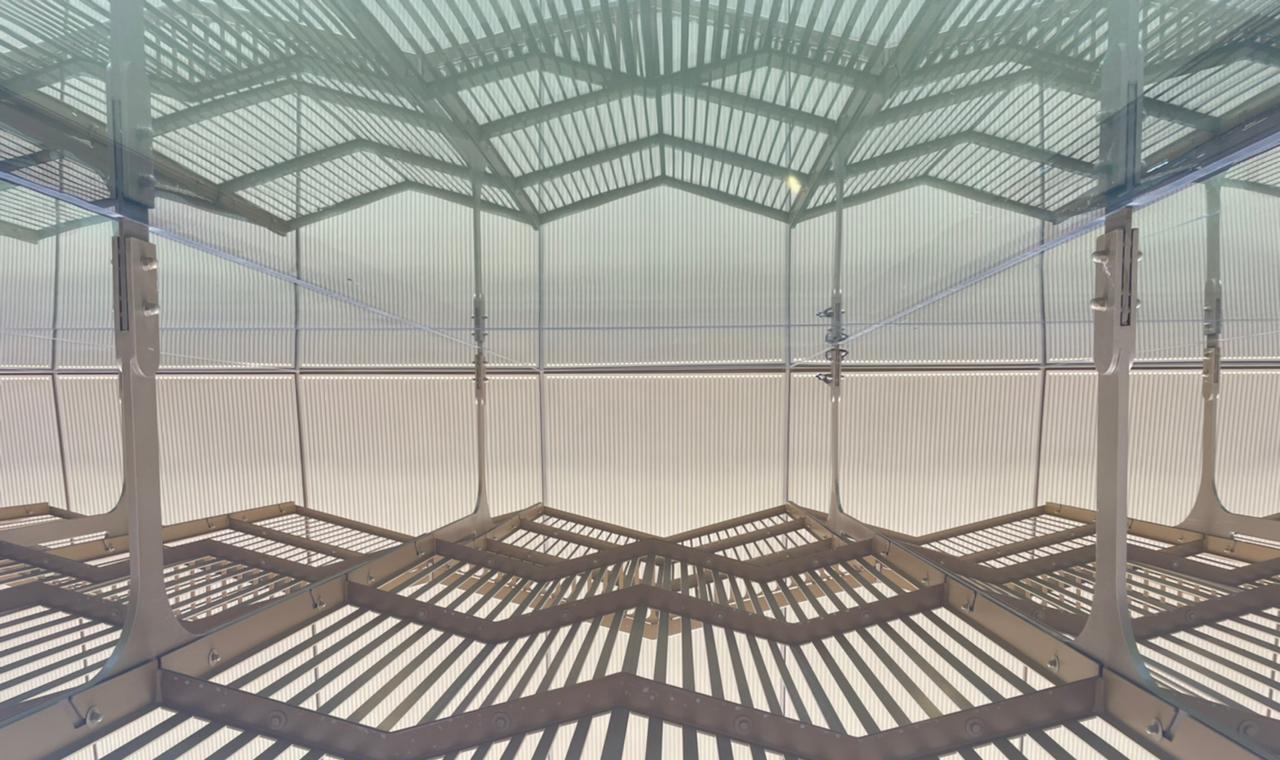

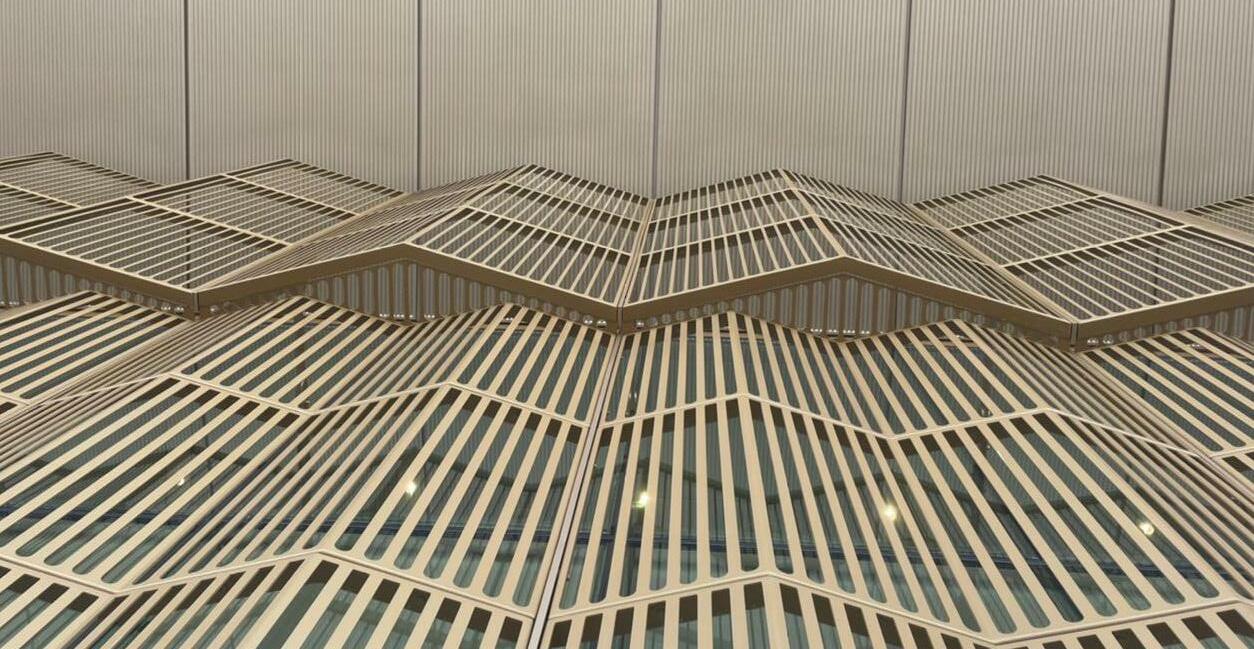

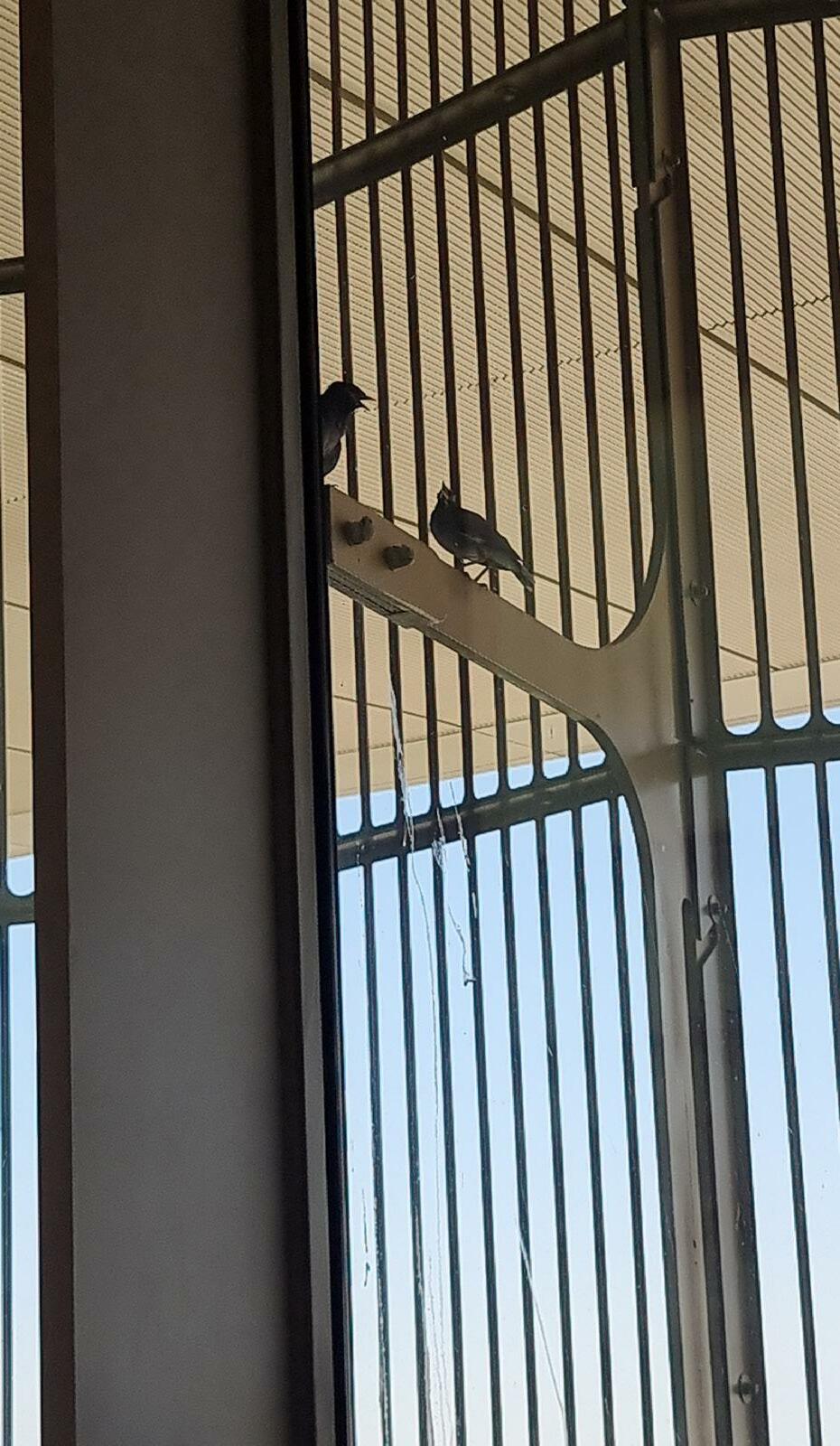

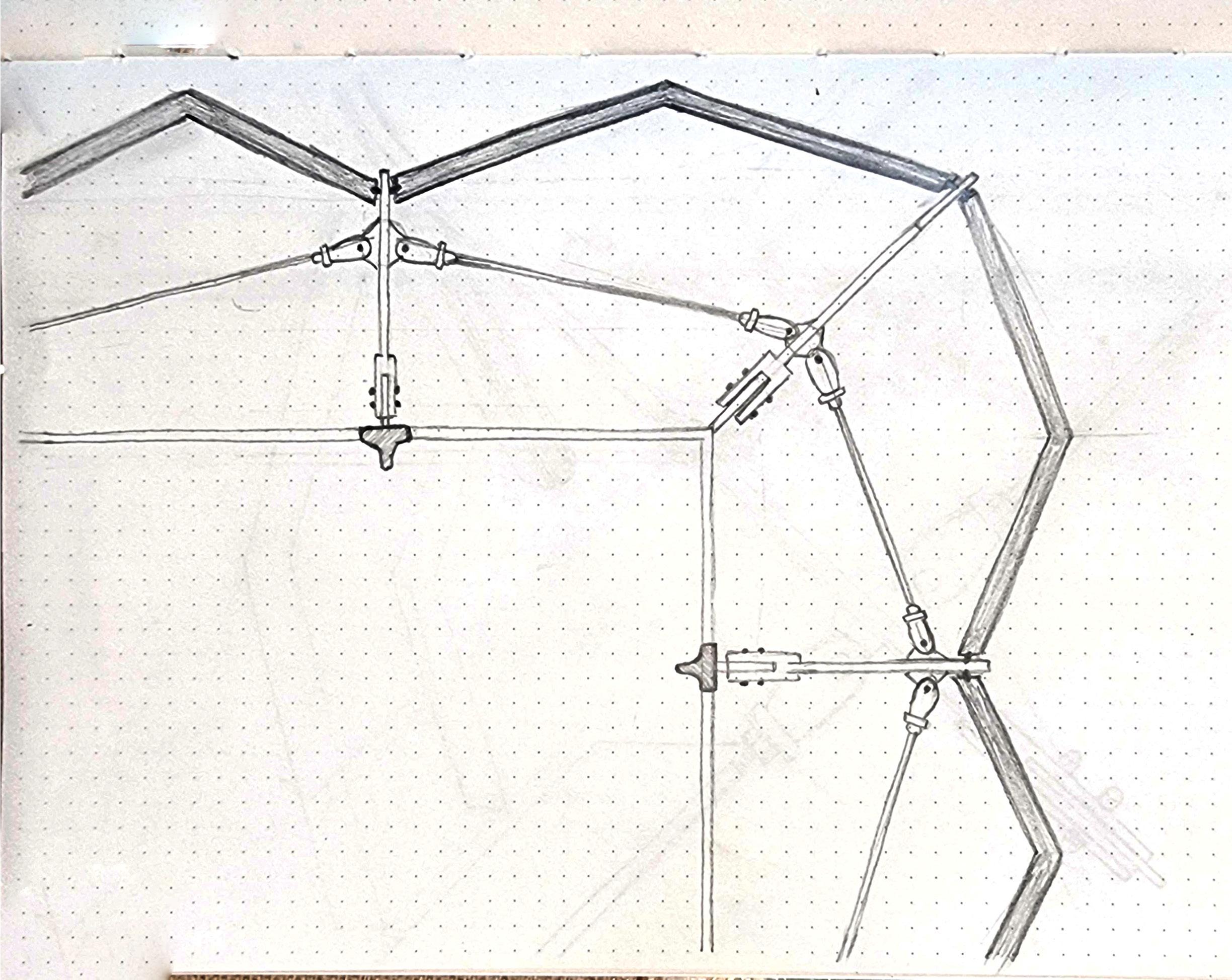

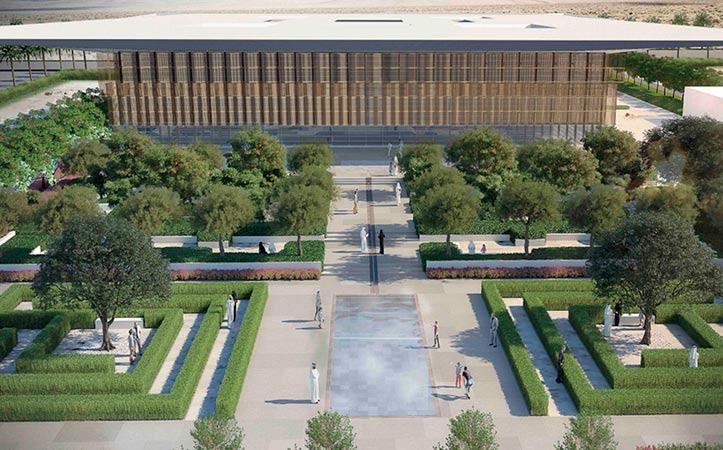

Located adjacent to the airport, ten kilometres from the city centre, the two-storey building embodies a sense of clarity and lightness, with a large floating roof cantilevering on all sides of a transparent rectilinear volume. The 15-metre-wide overhang shades the façades throughout most of the day, while fixed aluminium screens with differing densities filter the low sun in the evenings. Movable bamboo screens at low level are deployed by the building users, to provide privacy or to control glare. When not in use the bamboo screens are left open, preserving the visual connections with the landscaped gardens.
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
ID 90031 1217 3650 3650 100 100 1878 794
DATE 19/09/2022 2547 1062 1063 1063 1062 1062 1063 1062 1063
2109 2109 2109 2109 ELEVATION PLAN
CURIEL EMAIL:- icuriel@aus.edu 1217
SHEET SIZE 1216
of 1217
PROJECT HOUSE OF WISDOM DRAWING NAME FACADE ELEVATION, PLAN AND SECTION SCALE 1:120 1216
EMAIL:- g00090031@aus.edu CLIENT IGOR 2125 2125 2125 2125
DIMENSIONS MM SHEET NO. 1217 2400
SECTION
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
550 220 1150 R300 50

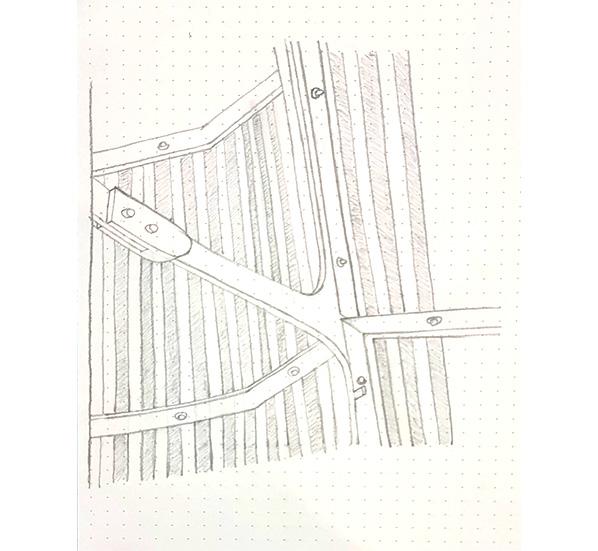

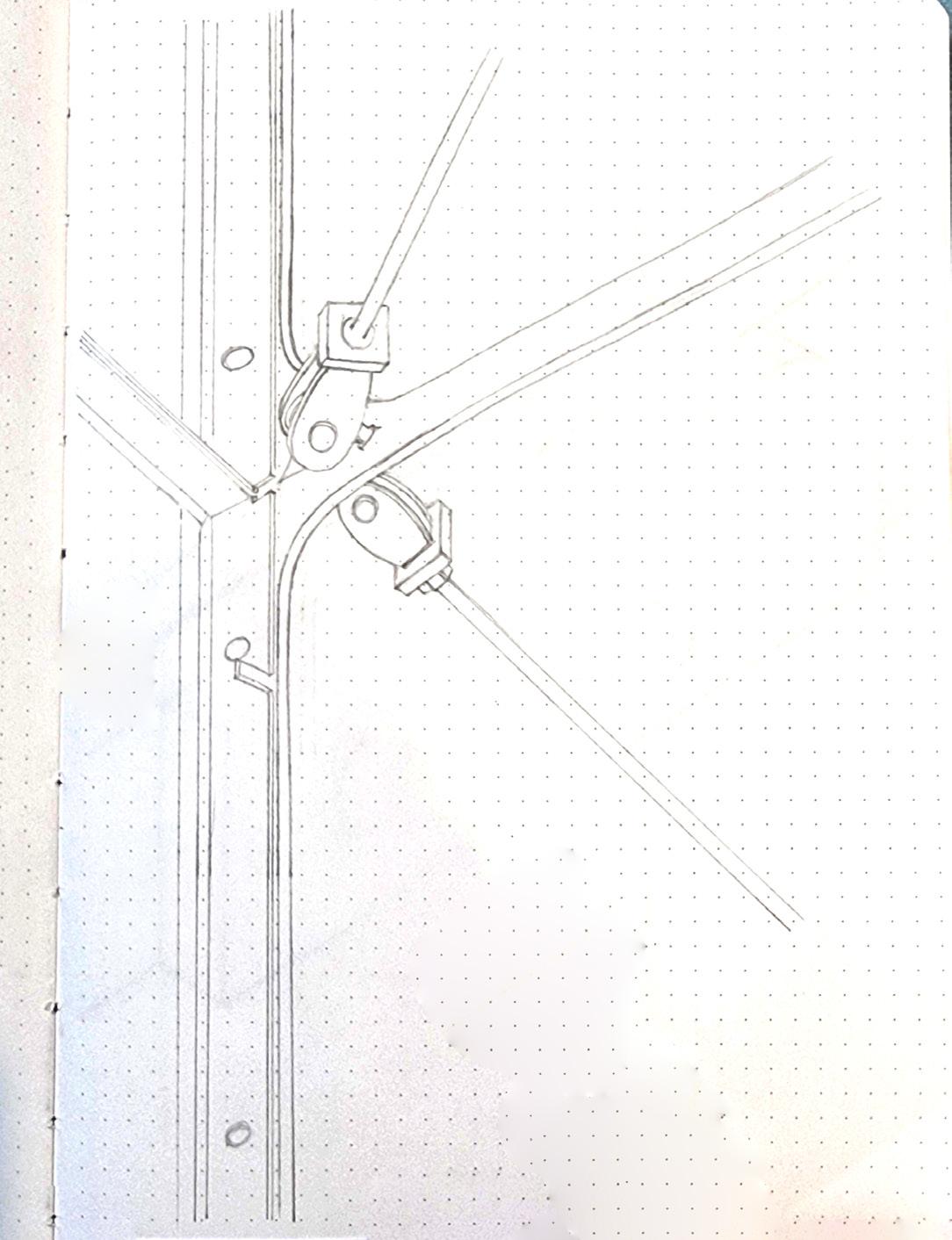

PLAN SECTION PLAN SECTION JOINT B JOINT A
DATE 19/09/2022 350 60
ID 90031 350
ARCHITECT MADIHA
80
1000 65
350 700 220 R150
EMAIL:- g00090031@aus.edu
CLIENT
DIMENSIONS MM SHEET NO. 150 180 65
SHEET SIZE 220 30
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
PROJECT HOUSE OF WISDOM
DRAWING NAME JOINT A
ID 90031
ARCHITECT
DATE 19/09/2022
EMAIL:- g00090031@aus.edu
EMAIL:- icuriel@aus.edu
SCALE 0:000
SHEET NO.
DIMENSIONS MM
SHEET SIZE
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
PROJECT HOUSE OF WISDOM
DRAWING NAME JOINT B
ID 90031
ARCHITECT
DATE 19/09/2022
EMAIL:- g00090031@aus.edu
EMAIL:- icuriel@aus.edu
DIMENSIONS MM SHEET NO.
SHEET SIZE
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
ID 90031
ARCHITECT MADIHA
EMAIL:- g00090031@aus.edu CLIENT IGOR
DIMENSIONS MM SHEET NO.
SHEET SIZE
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
1275 587 143
DATE 19/09/2022 50 50 100
ID 90031 1256
2125 130
ARCHITECT MADIHA
EMAIL:- g00090031@aus.edu
SHEET SIZE 2125 1909
DIMENSIONS MM SHEET NO. 1909
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.

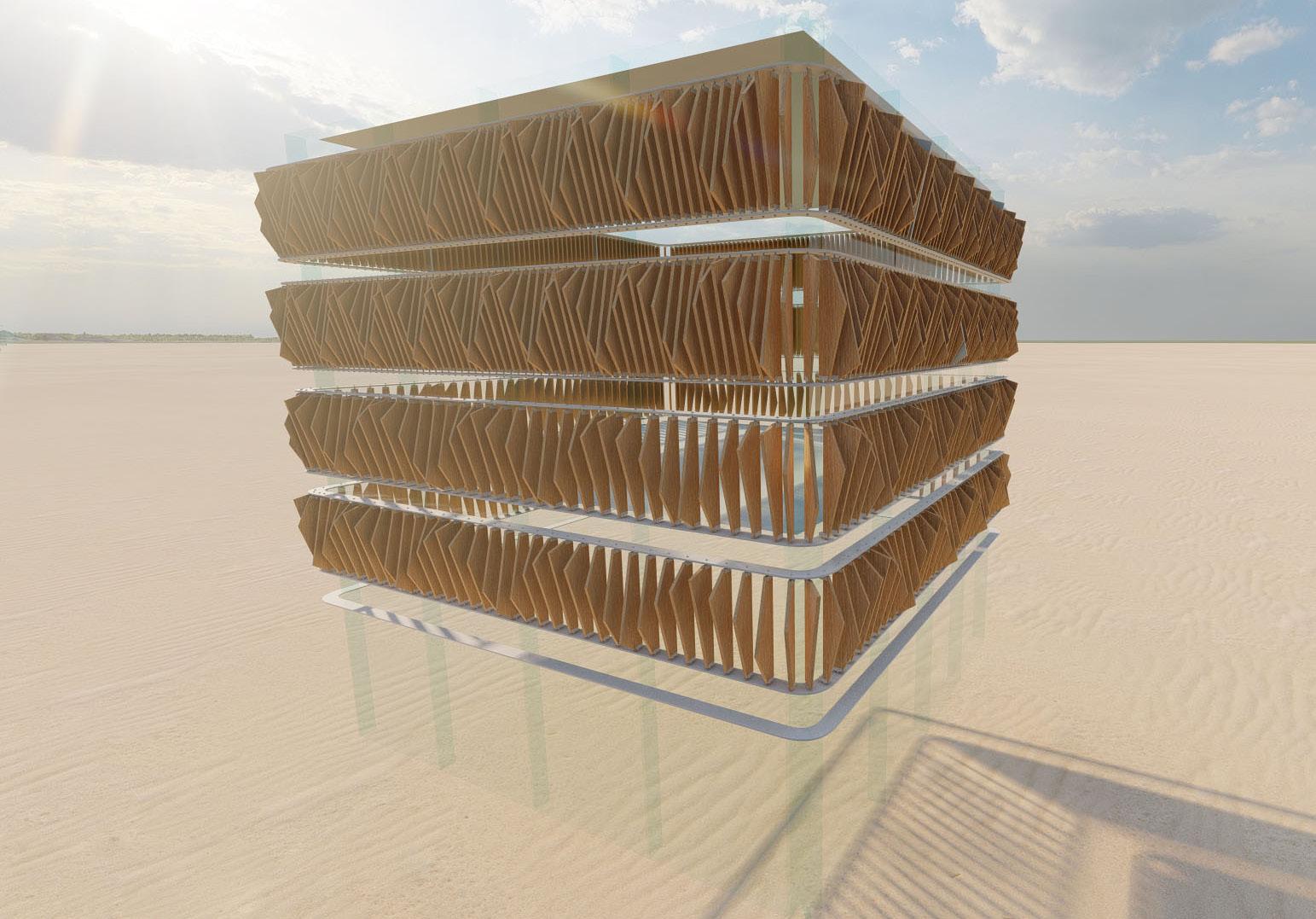

PROJECT HOUSE OF WISDOM LOUVER PROPOSAL
DRAWING NAME FACADE ELEVATION, PLAN AND SECTION
ID 90031
ARCHITECT MADIHA
EMAIL:- g00090031@aus.edu
CLIENT
DATE 26/10/2022 ELEVATION
PLAN SECTION
EMAIL:- icuriel@aus.edu
DIMENSIONS MM SHEET NO.
SHEET SIZE
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
PROJECT HOUSE OF WISDOM LOUVER PROPOSAL

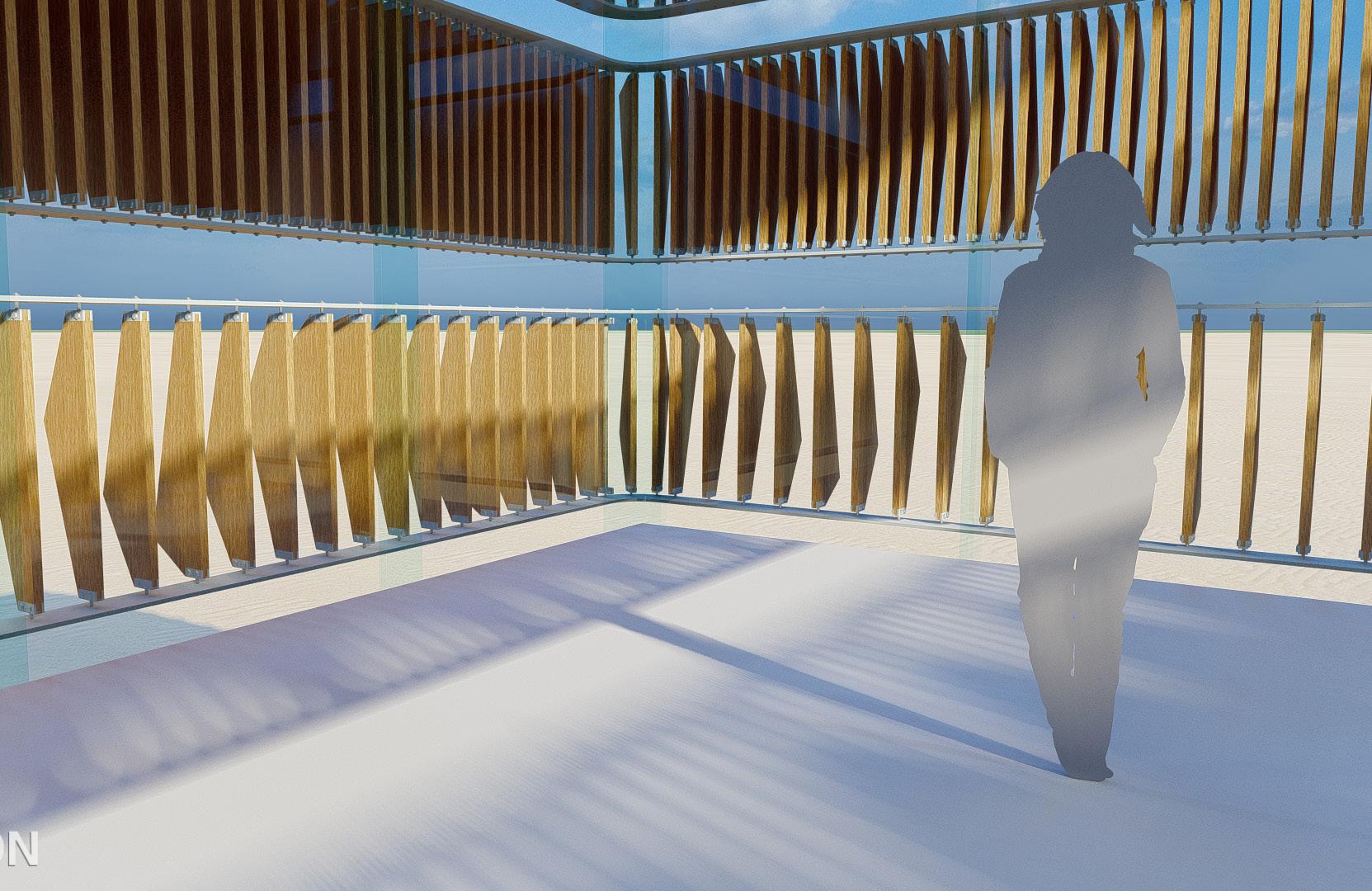

DRAWING NAME CORNER DETAIL
ID 90031
ARCHITECT
DATE 26/10/2022
EMAIL:- g00090031@aus.edu
EMAIL:- icuriel@aus.edu
SCALE 1:40
SHEET NO.
DIMENSIONS MM
SHEET SIZE
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
PROJECT HOUSE OF WISDOM LOUVER PROPOSAL

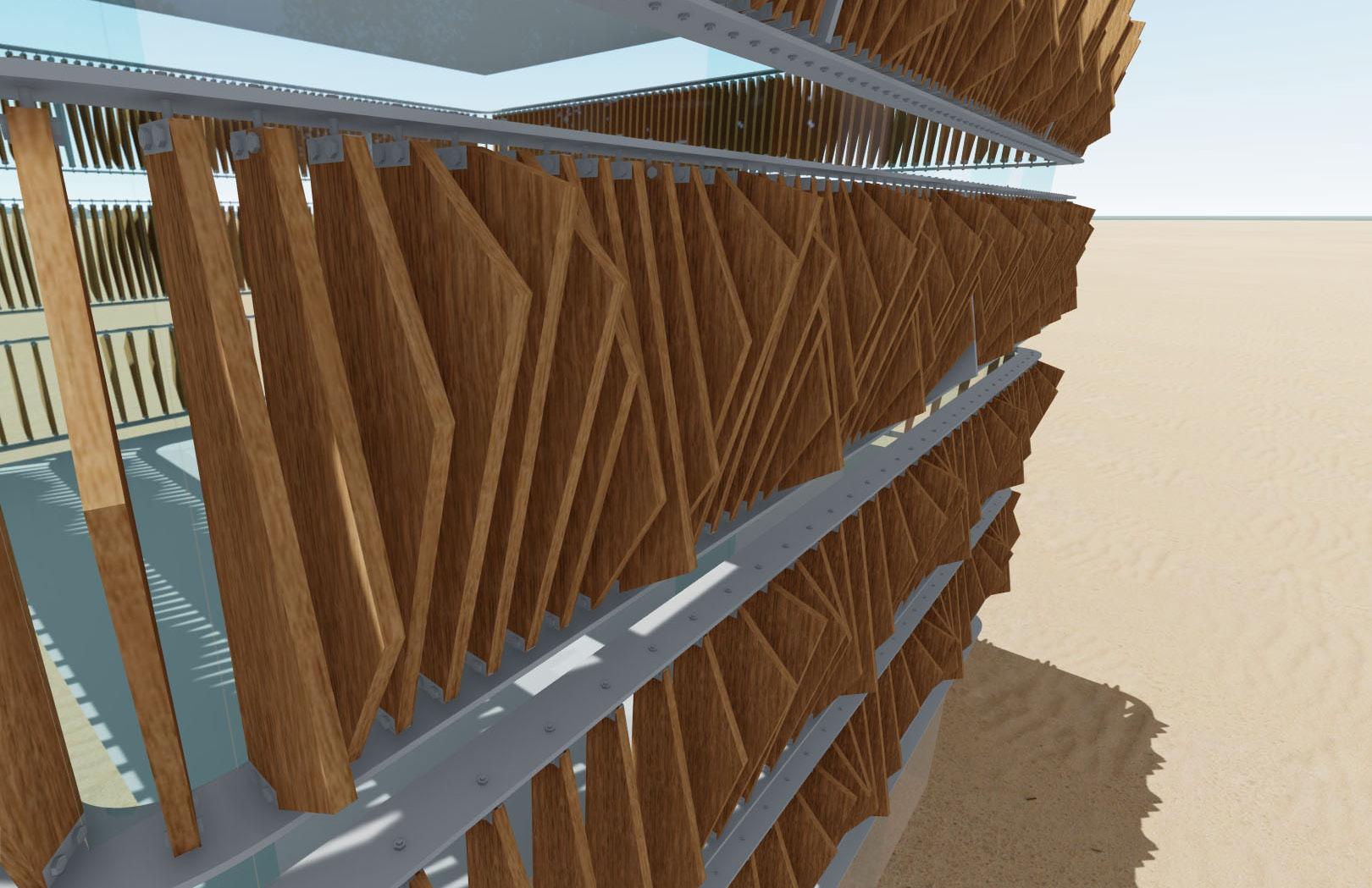

DRAWING NAME LOUVER CONNECTIONS
ID 90031
ARCHITECT
DATE 26/10/2022
EMAIL:- g00090031@aus.edu
EMAIL:- icuriel@aus.edu
SCALE 0:000
SHEET NO.
DIMENSIONS MM
SHEET SIZE
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
PROJECT HOUSE OF WISDOM LOUVER PROPOSAL

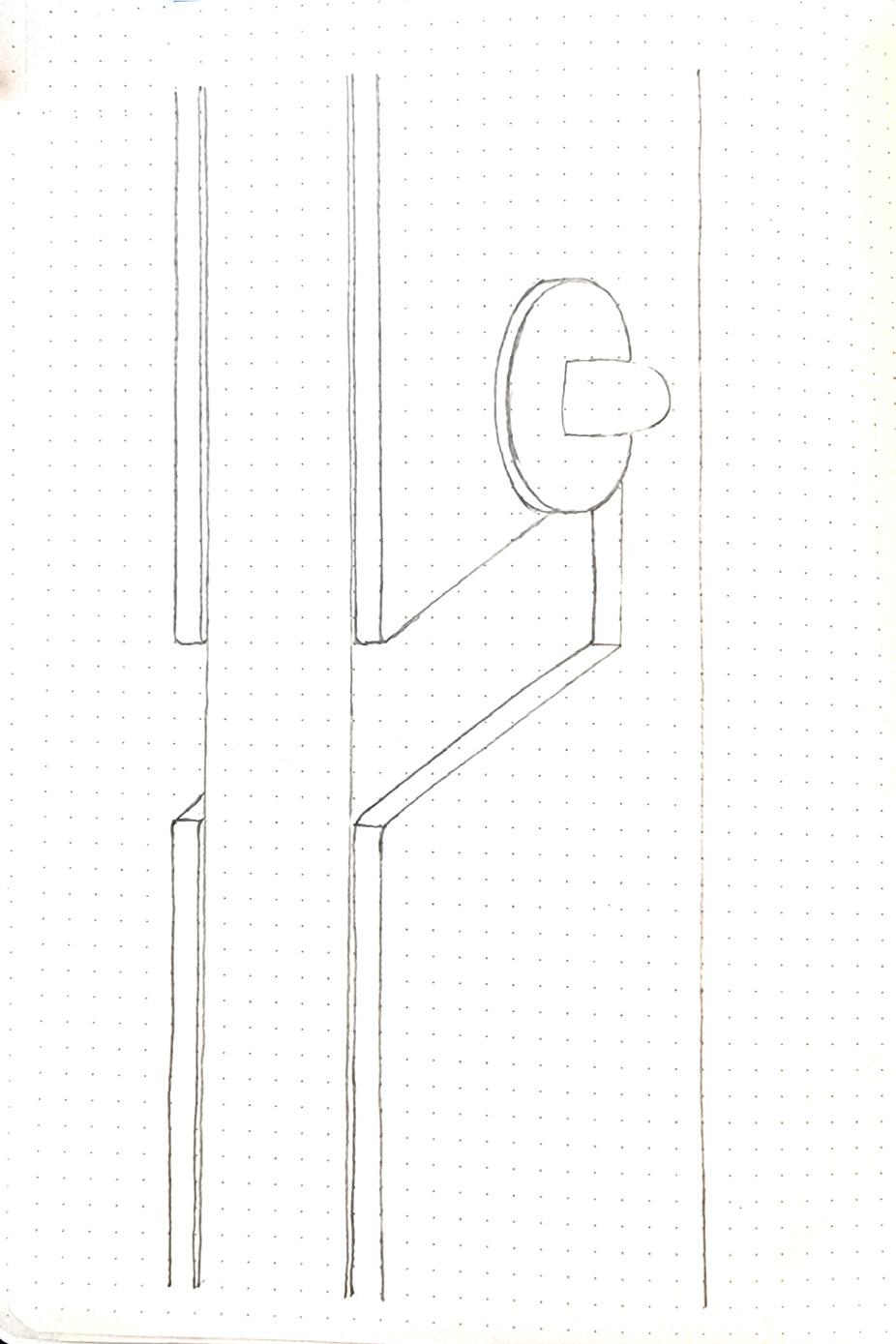

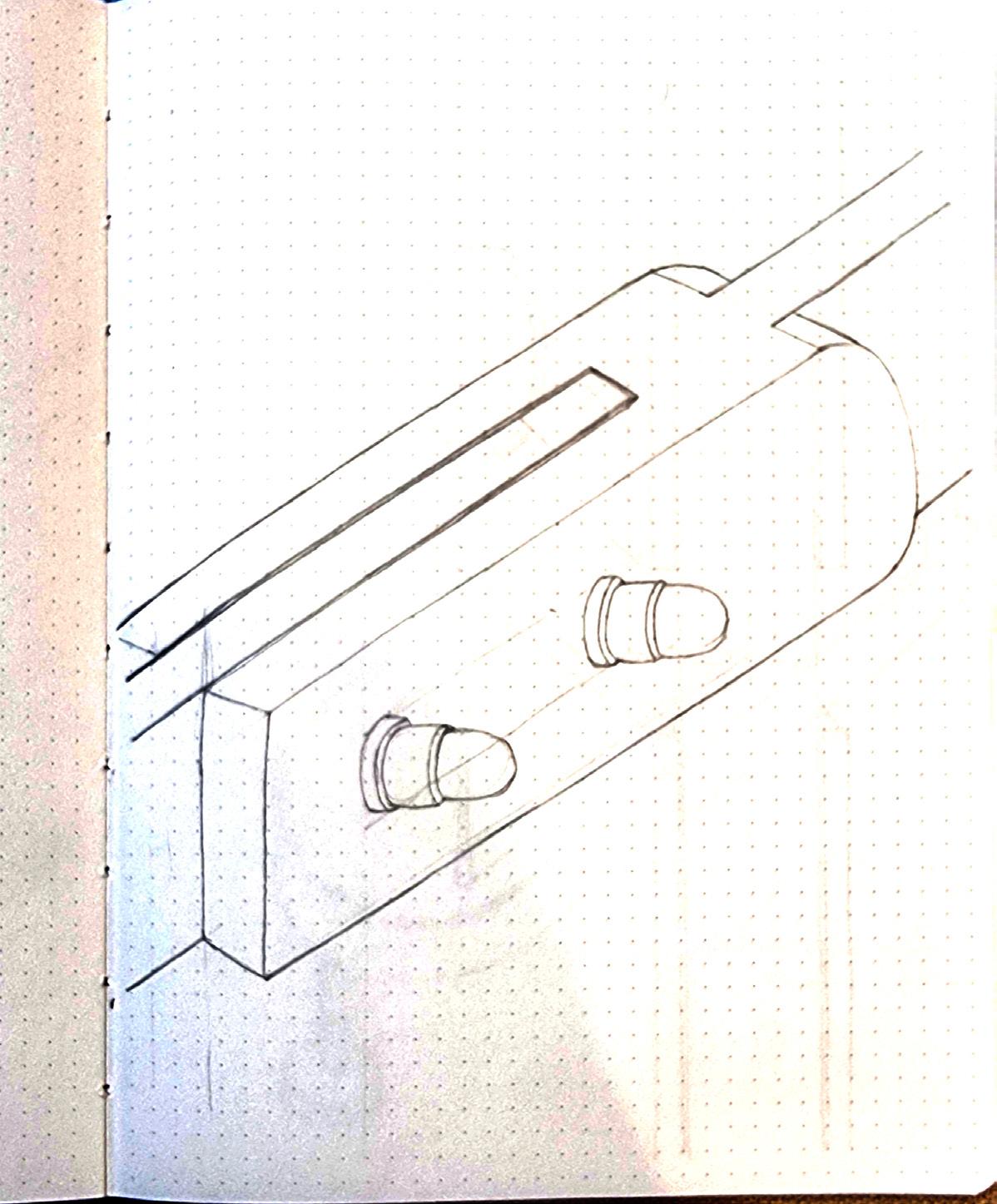

DRAWING NAME AXONOMETRIC DRAWING OF JOINT
ID 90031
ARCHITECT
DATE 26/10/2022
EMAIL:- g00090031@aus.edu
EMAIL:- icuriel@aus.edu
SCALE 1:3
SHEET NO.
of
DIMENSIONS MM
SHEET SIZE
PROJECT
DATE 26/10/2022
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER. ARCHITECT MADIHA
EMAIL:- g00090031@aus.edu CLIENT IGOR PERAZA CURIEL EMAIL:- icuriel@aus.edu
DIMENSIONS MM SHEET NO.
SHEET
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
PROJECT HOUSE OF WISDOM LOUVER PROPOSAL
DRAWING NAME LOUVER SYSTEM
ID 90031
ARCHITECT
DATE 26/10/2022
EMAIL:- g00090031@aus.edu
CLIENT
EMAIL:- icuriel@aus.edu
SCALE 1:100
SHEET NO.
DIMENSIONS MM
SHEET SIZE
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.

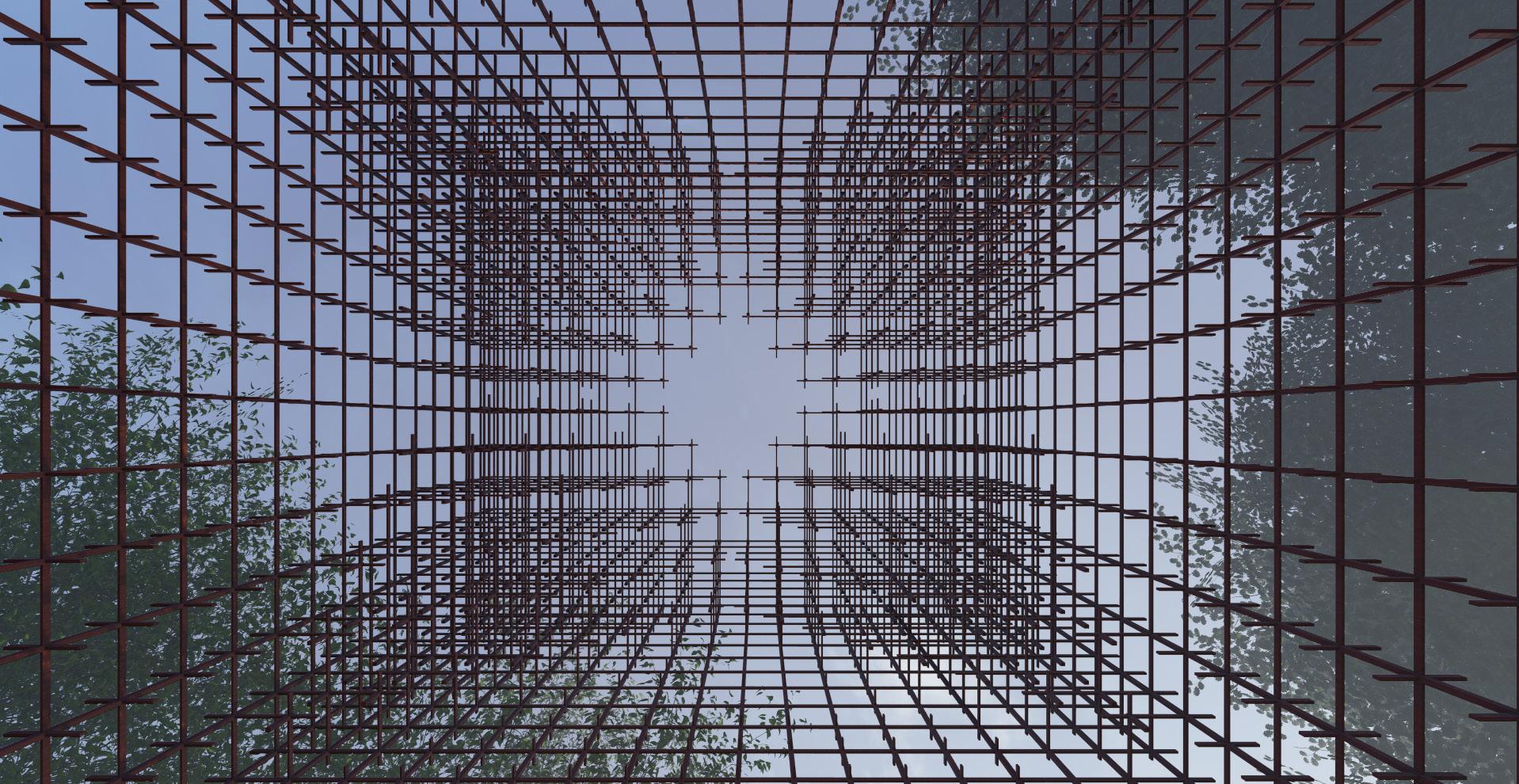

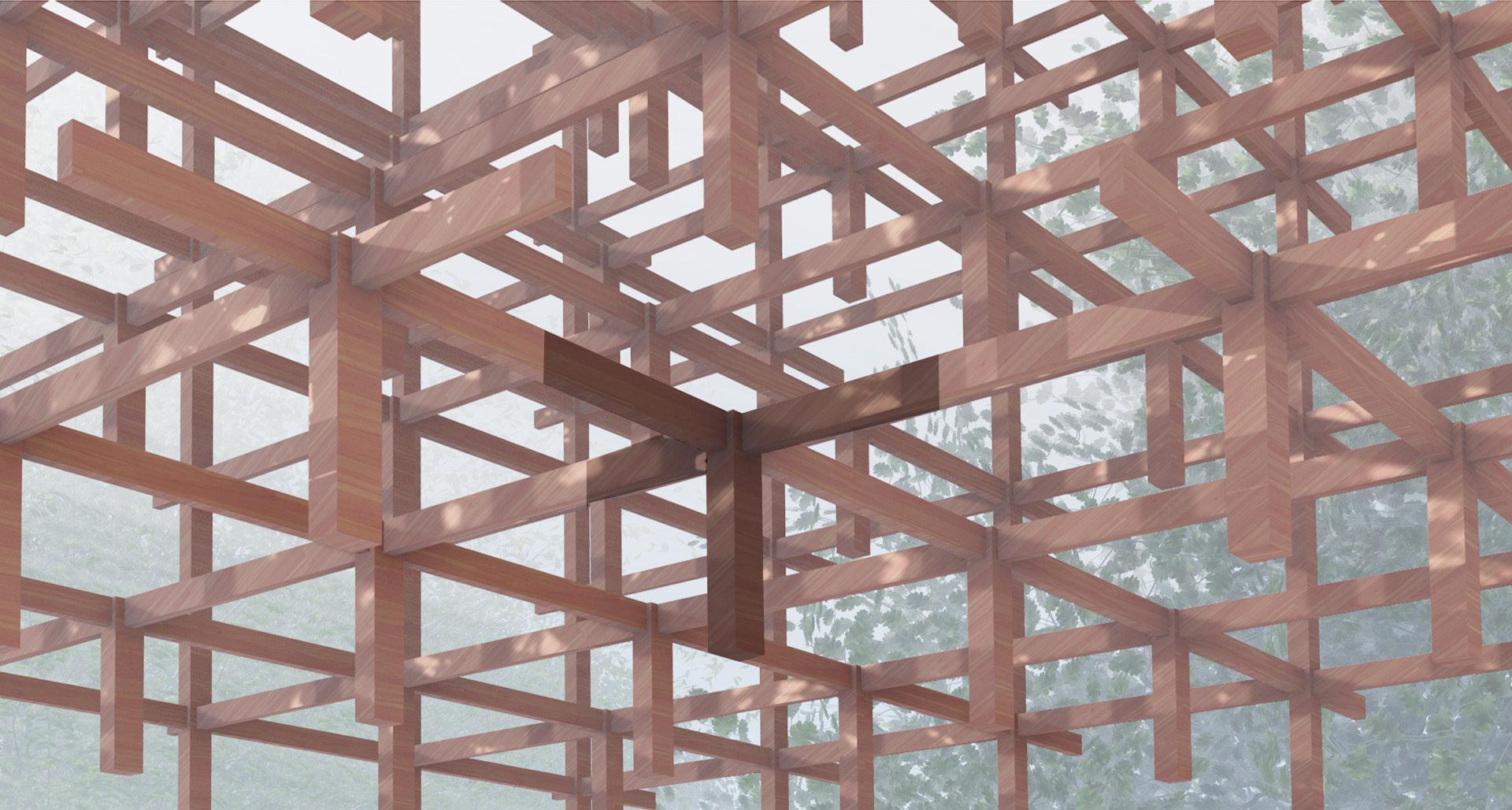

PROJECT JAPANESE JOINTS DRAWING NAME AXONOMETRIC DRAWING
ID 90031
ARCHITECT MADIHA KHAN
EMAIL:- g00090031@aus.edu
CLIENT
EMAIL:- icuriel@aus.edu
SCALE 1:11
DIMENSIONS MM
DATE 16/11/2022 STEP 1 STEP 2 STEP 3 STEP 4
80.00
65.00 ELEVATION BOTTOM
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
ARCHITECT MADIHA KHAN EMAIL:- g00090031@aus.edu
CLIENT
SHEET SIZE
ID 90031 DATE 16/11/2022 ELEVATION RIGHT ELEVATION FRONT ELEVATION LEFT ELEVATION BACK ELEVATION TOP 65.00 80.00 500.00 11.00 76.50 500.00 18.50
73.00 11.00
11.00
80.00 18.50 25.00
25.00 30.00
195.00
ID 90031 DATE 16/11/2022 ELEVATION TOP ELEVATION RIGHT ELEVATION FRONT ELEVATION BOTTOM ELEVATION LEFT ELEVATION BACK
DIMENSIONS MM SHEET NO.
PROJECT JAPANESE JOINTS DRAWING NAME ELEMENT C SCALE 1:3 A3
SHEET SIZE
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER. ARCHITECT MADIHA KHAN EMAIL:- g00090031@aus.edu CLIENT IGOR PERAZA CURIEL EMAIL:- icuriel@aus.edu 33 of 43
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.
DATE 16/11/2022 195.00 30.00 65.00 80.00 73.00 11.00 18.50 25.00 195.00 30.00 80.00 ELEVATION FRONT ELEVATION BACK ELEVATION LEFT ELEVATION RIGHT ELEVATION TOP ELEVATION BOTTOM
ARCHITECT MADIHA KHAN EMAIL:- g00090031@aus.edu
CLIENT IGOR PERAZA CURIEL
DIMENSIONS MM SHEET NO.
34 of 43 SHEET SIZE
PROJECT JAPANESE JOINTS DRAWING NAME ELEMENT D SCALE 1:3 A3
THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT THE EXPRESS PERMISSION OF THE COPYRIGHT HOLDER.

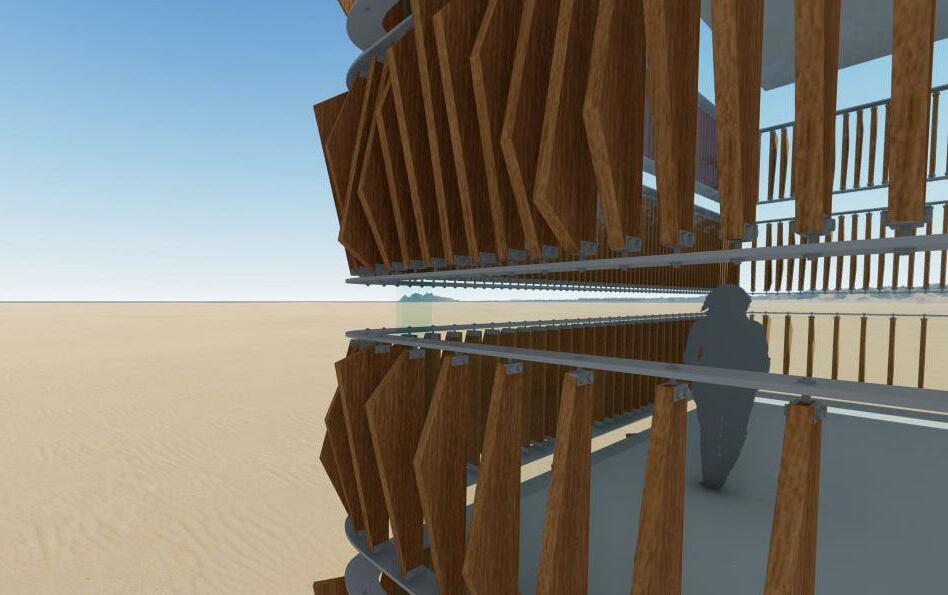

PROJECT HOUSE OF WISDOM LOUVER PROPOSAL DRAWING NAME LOUVER DETAIL
ID 90031
ARCHITECT
DATE 16/11/2022
EMAIL:- g00090031@aus.edu
CLIENT
EMAIL:- icuriel@aus.edu
SCALE 1:123
DIMENSIONS MM
SHEET SIZE
WOOD PLASTIC COMPOSITE (WPC) LOUVER
ALUMINIUM HEX HEADED BOLT GLASS MULLION
ALUMINIUM L- SHAPED BRACKET
ALUMINIUM U- SHAPED BRACKET
ALUMINIUM HEX HEADED NUT PISTON ROD
