COVERED (UNHEATED)

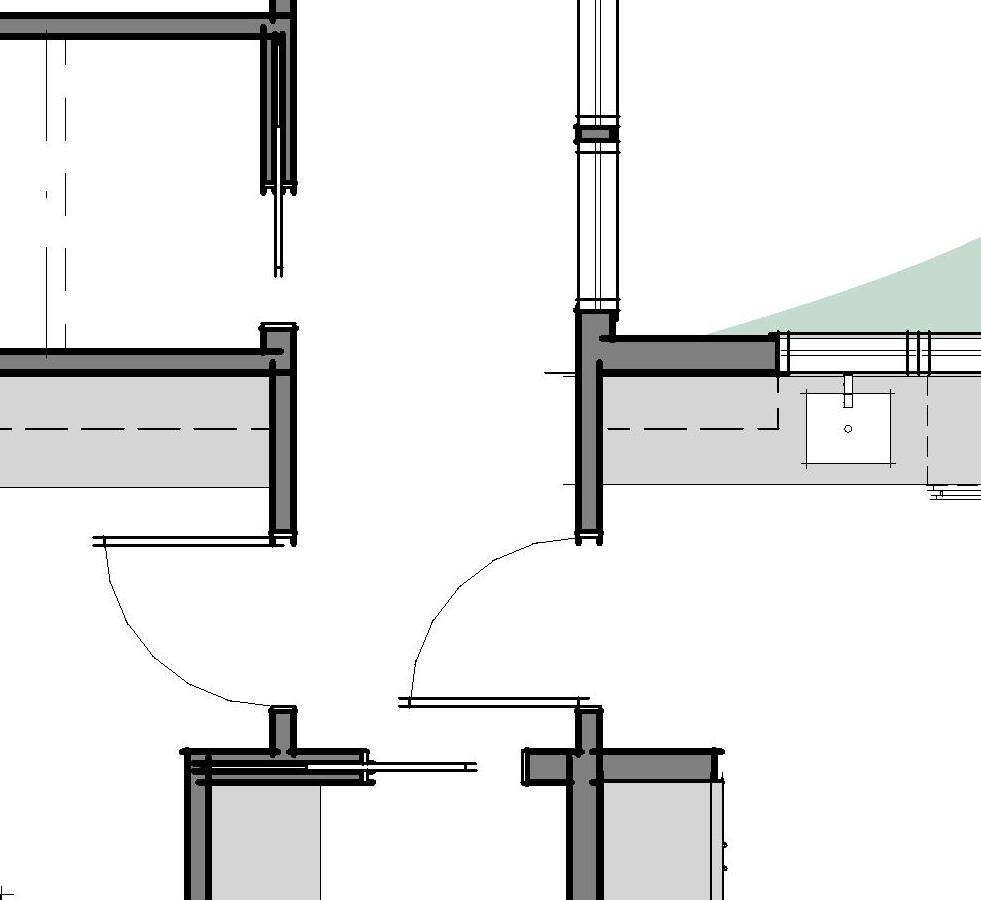

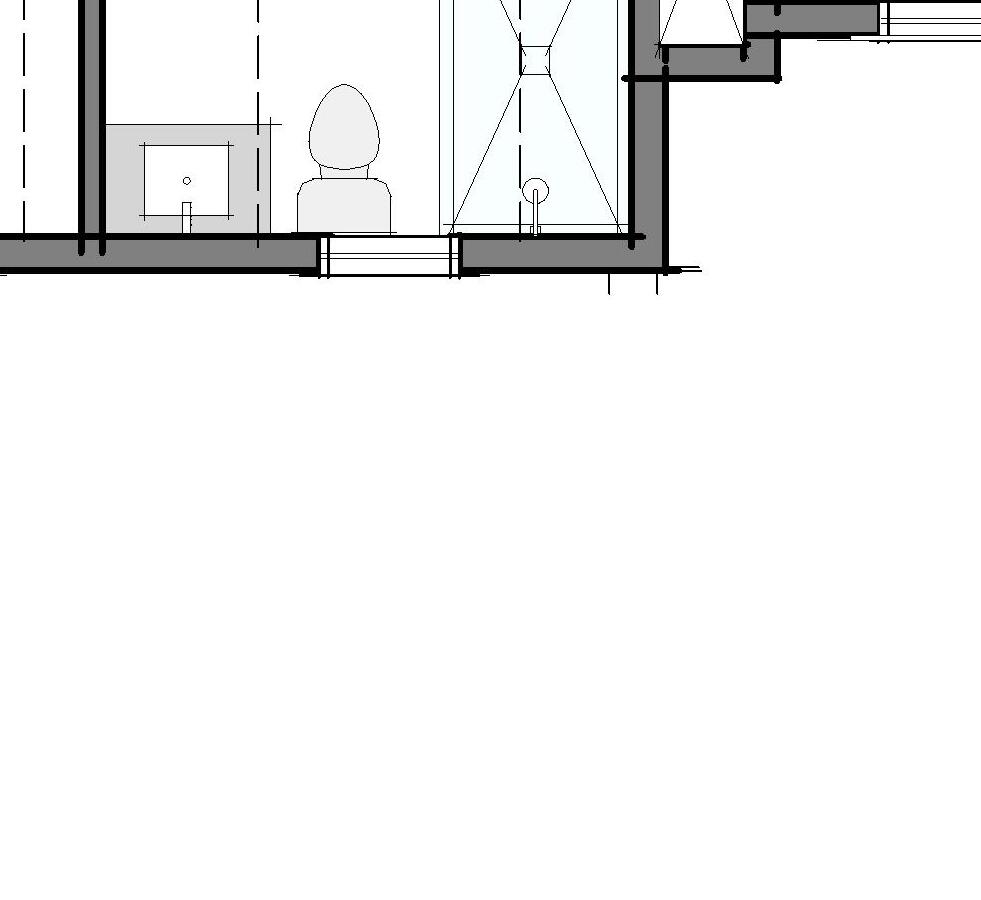

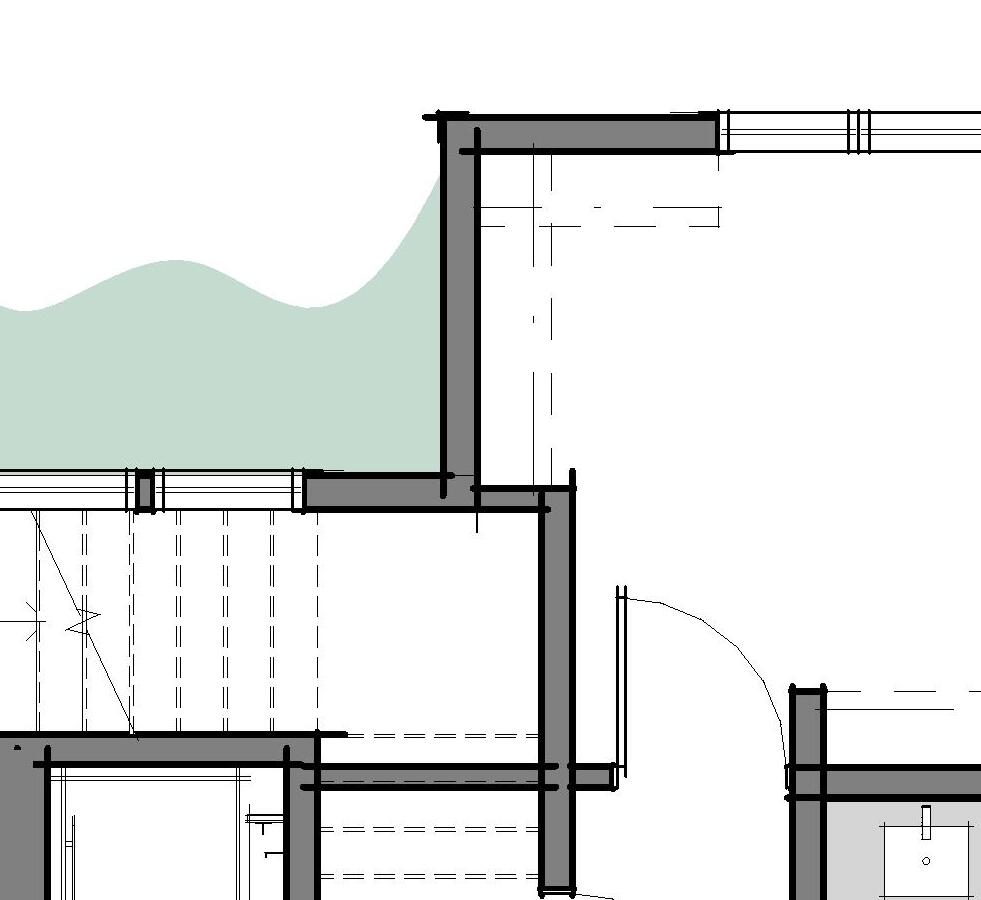

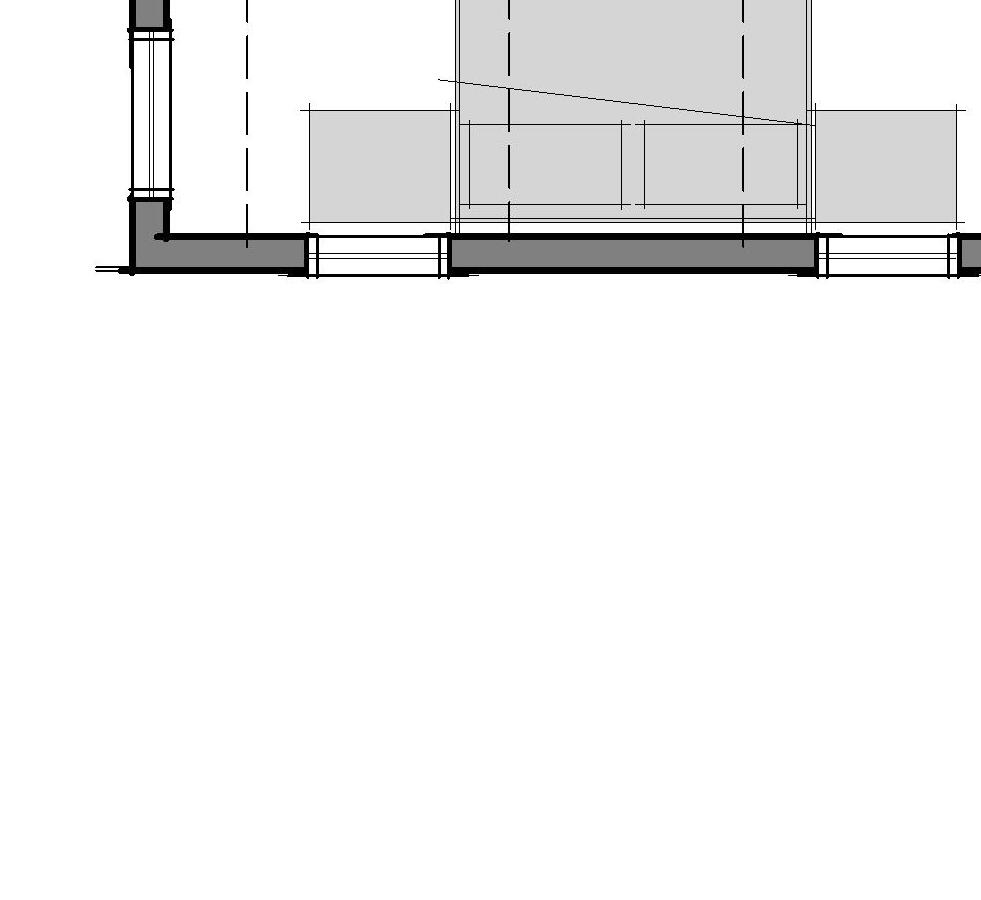

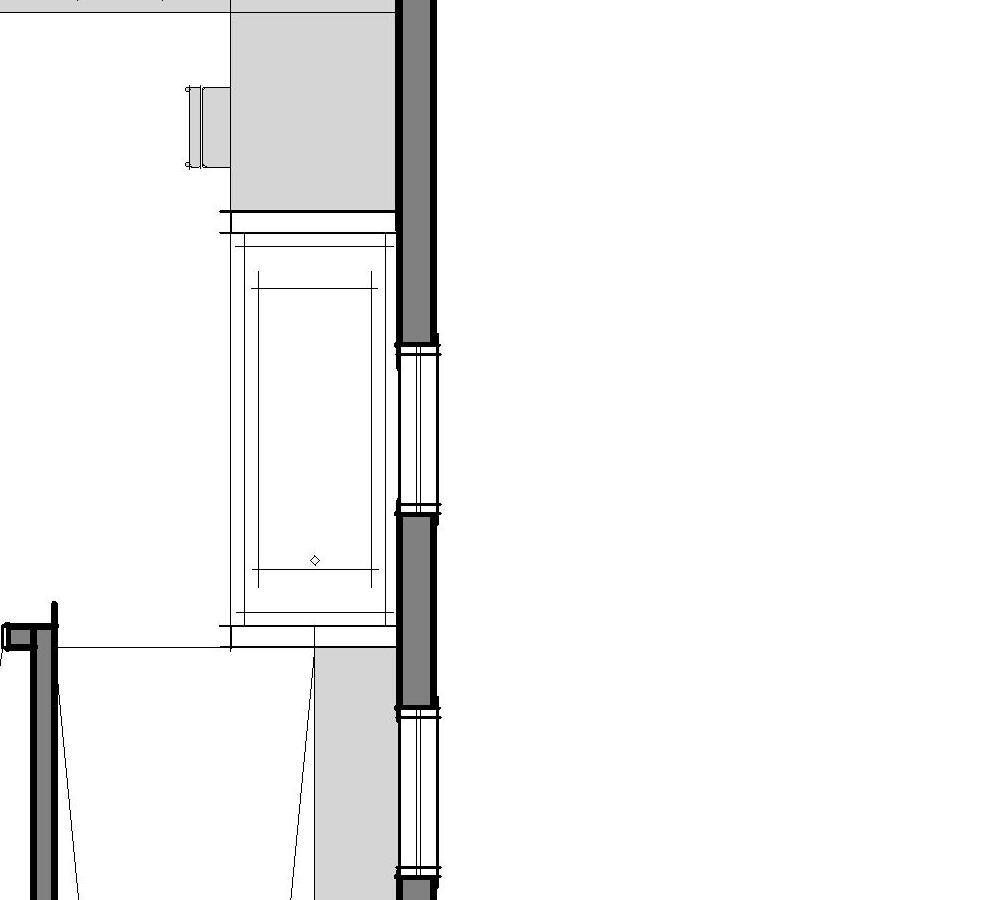

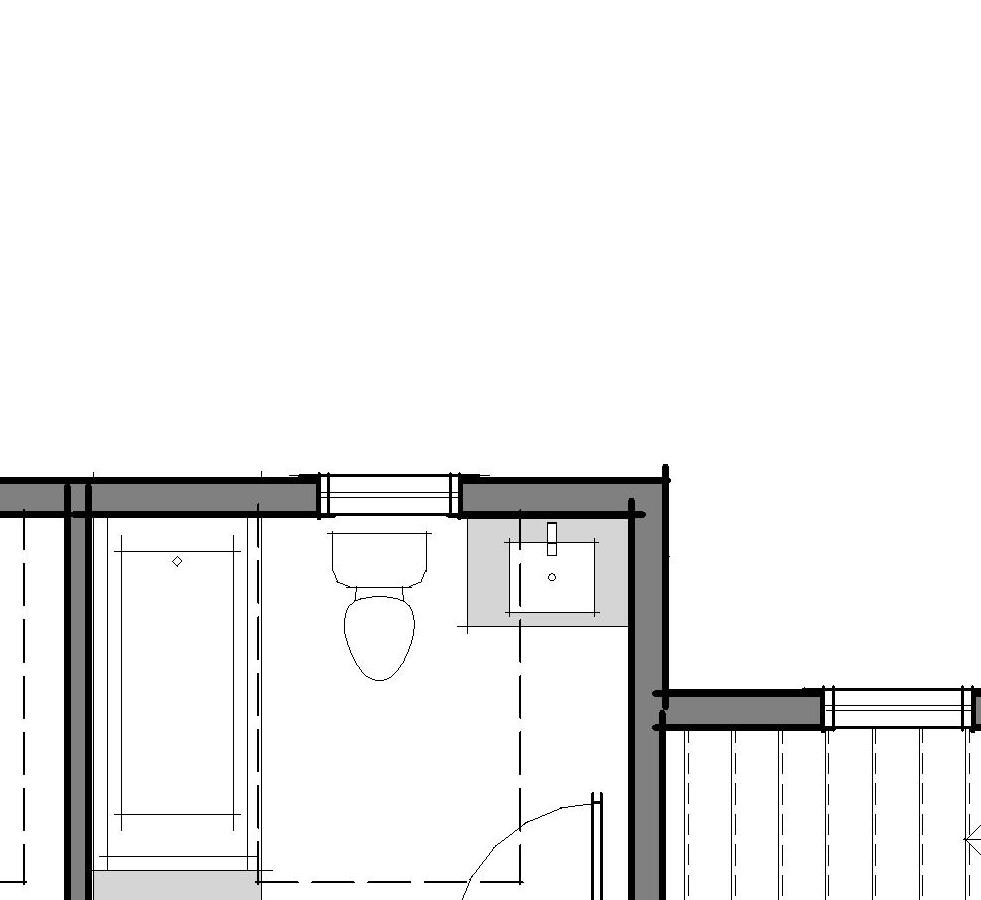

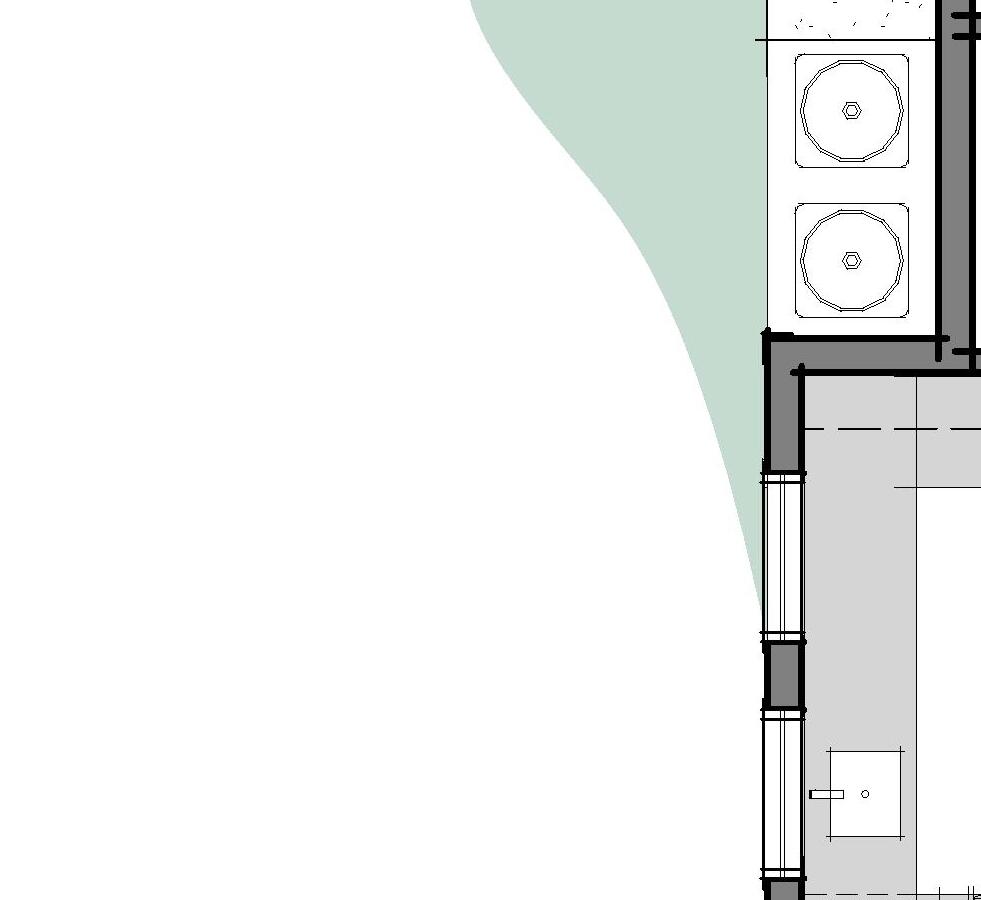

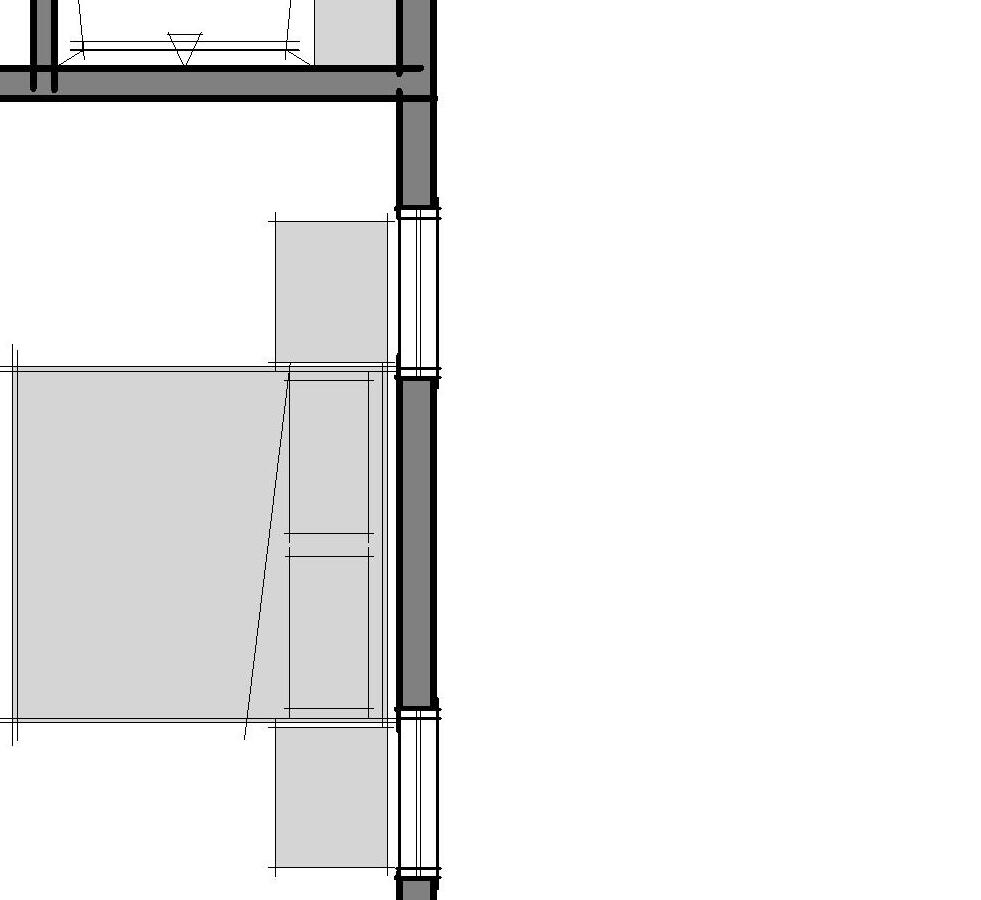

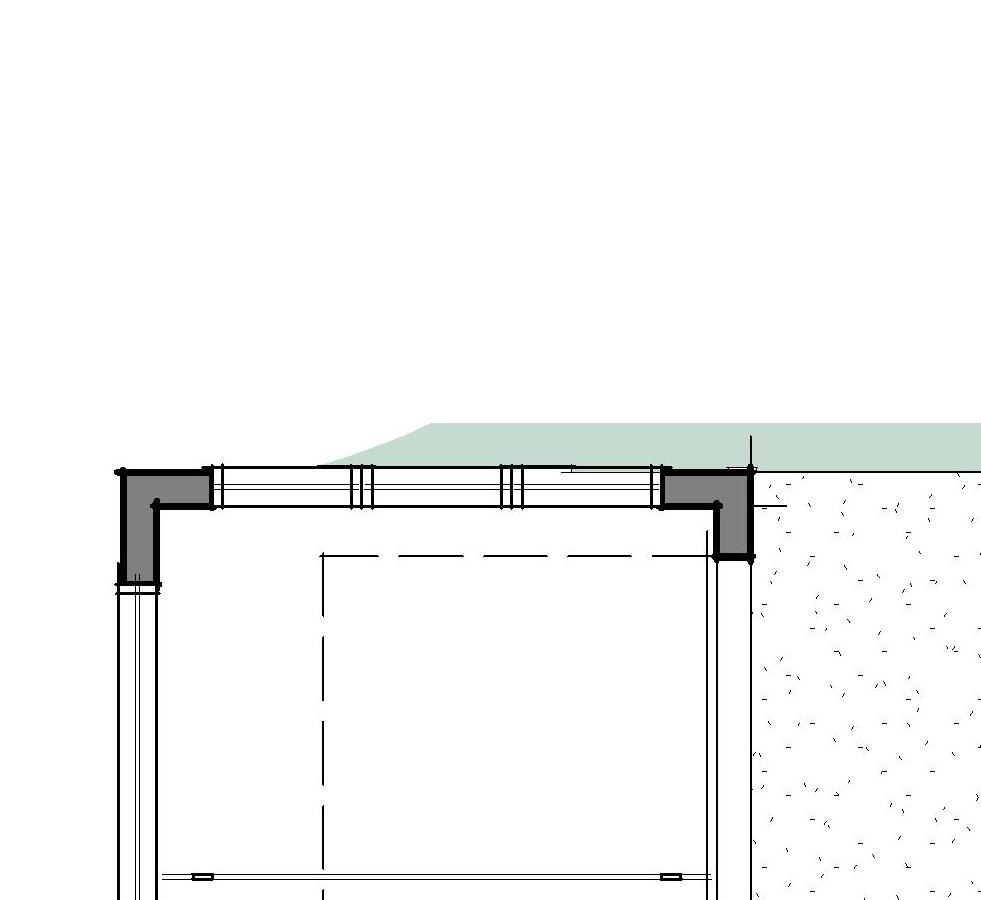

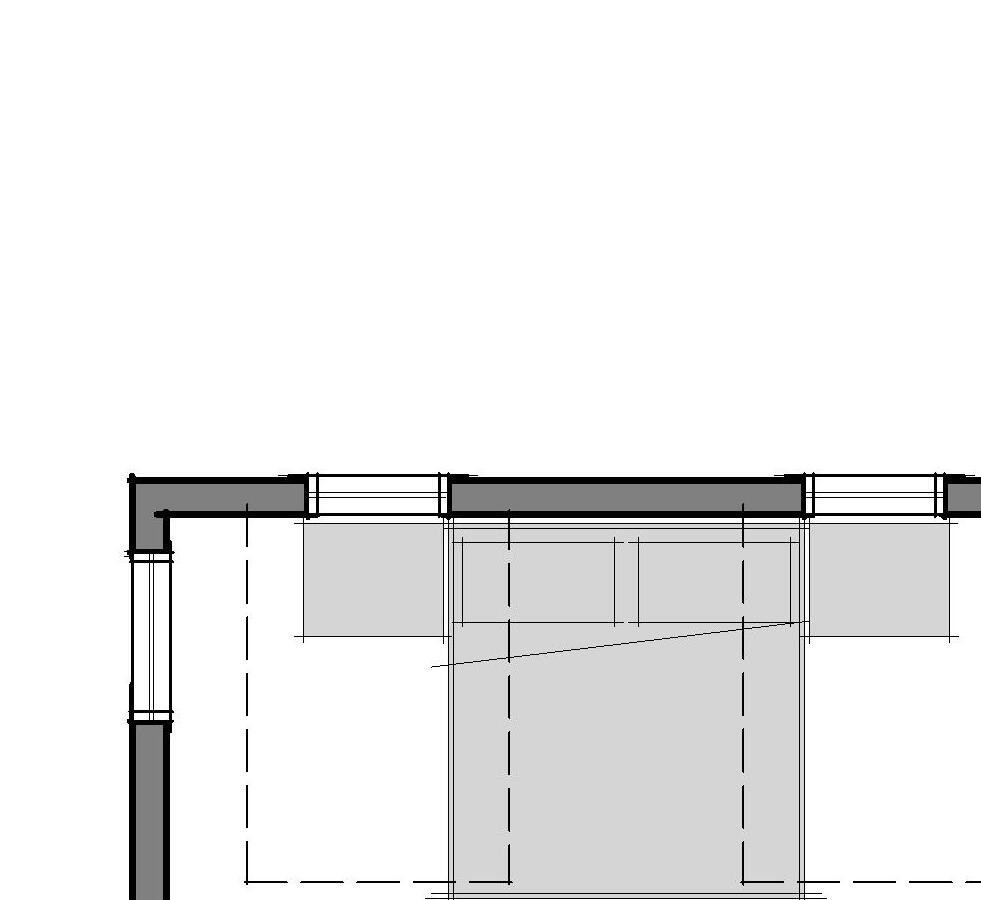

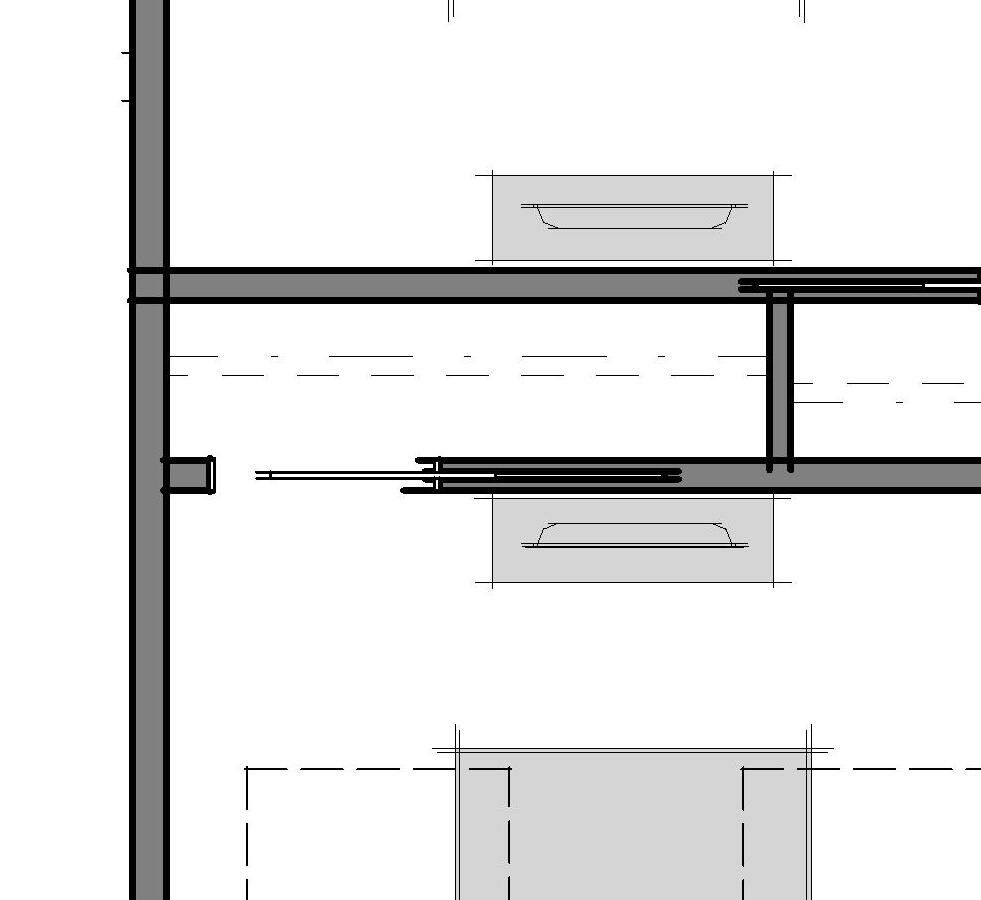

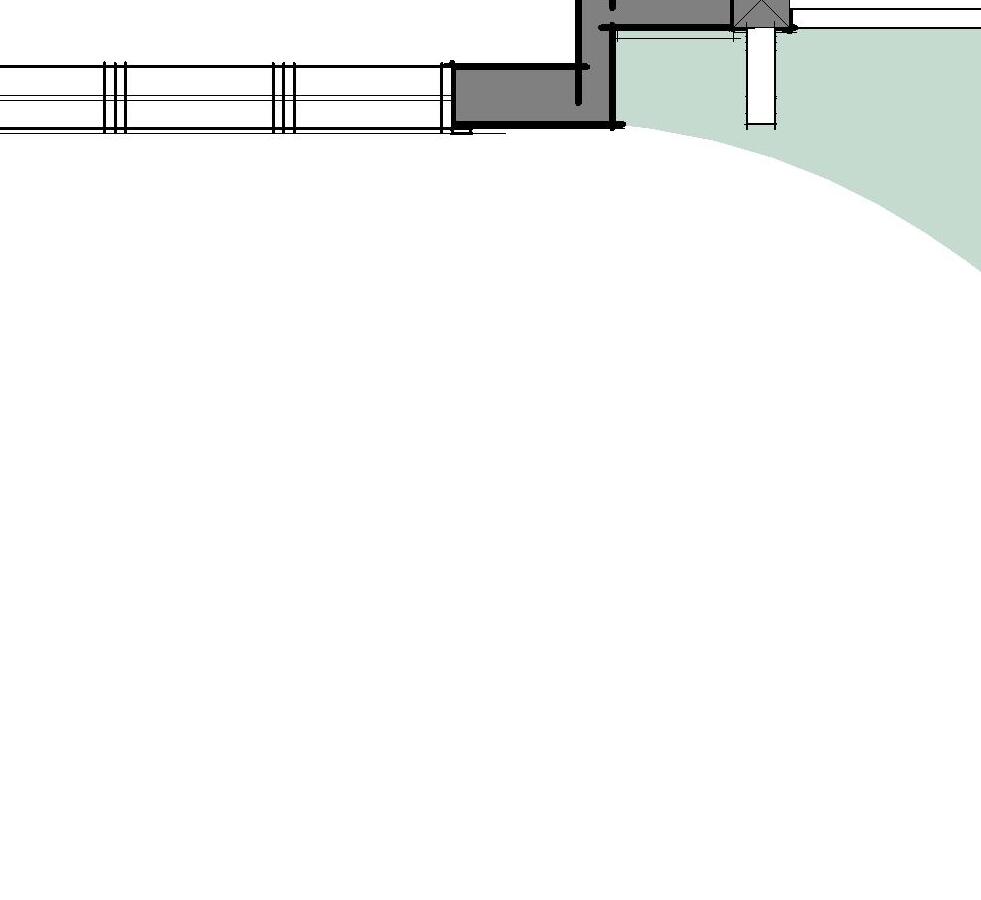

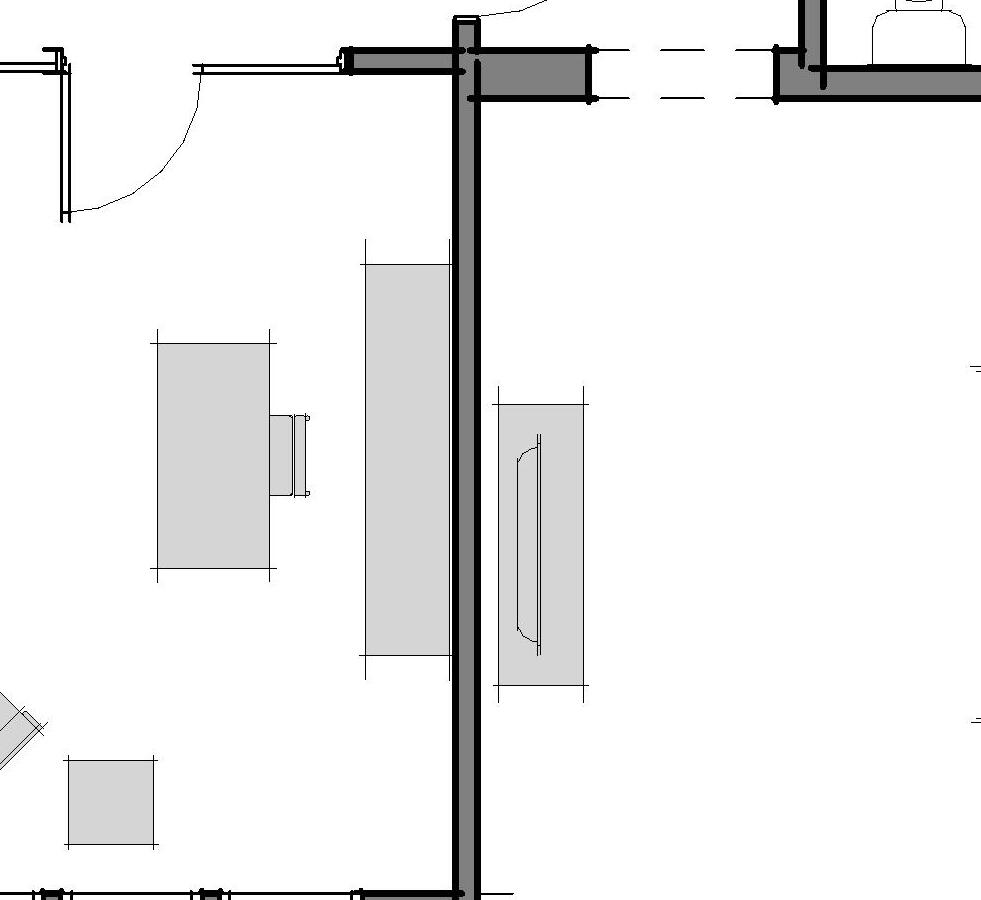

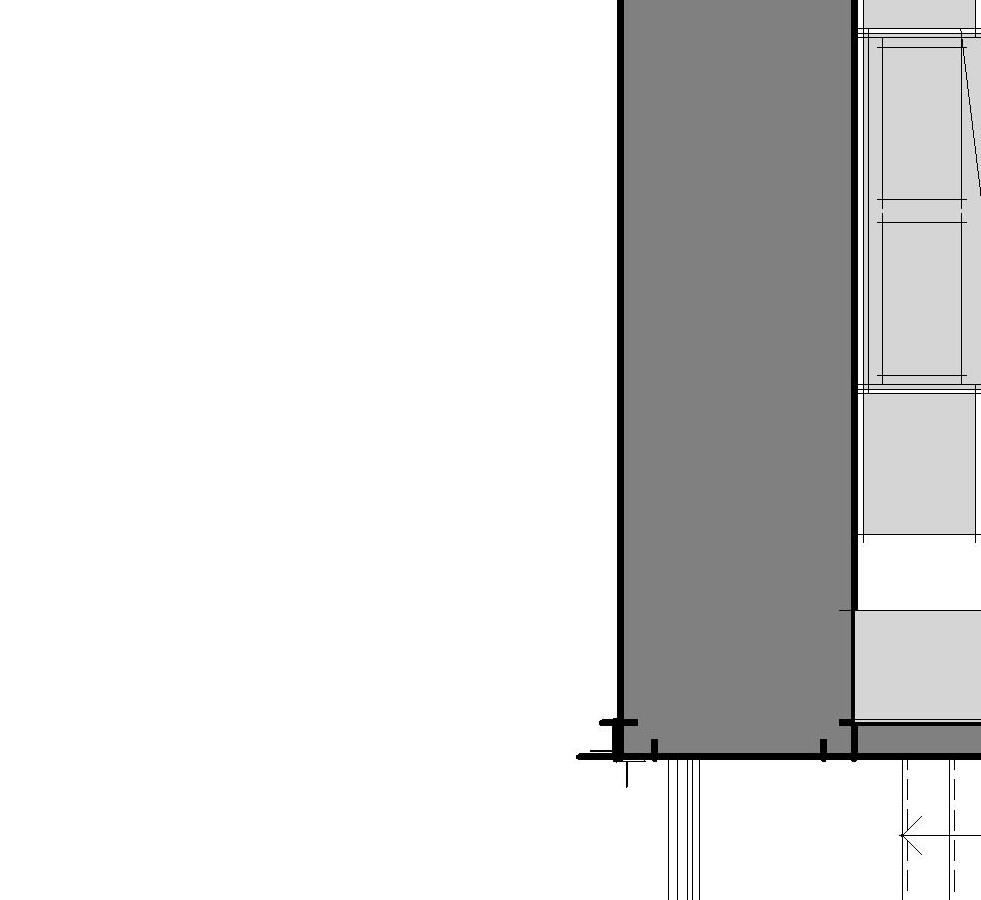

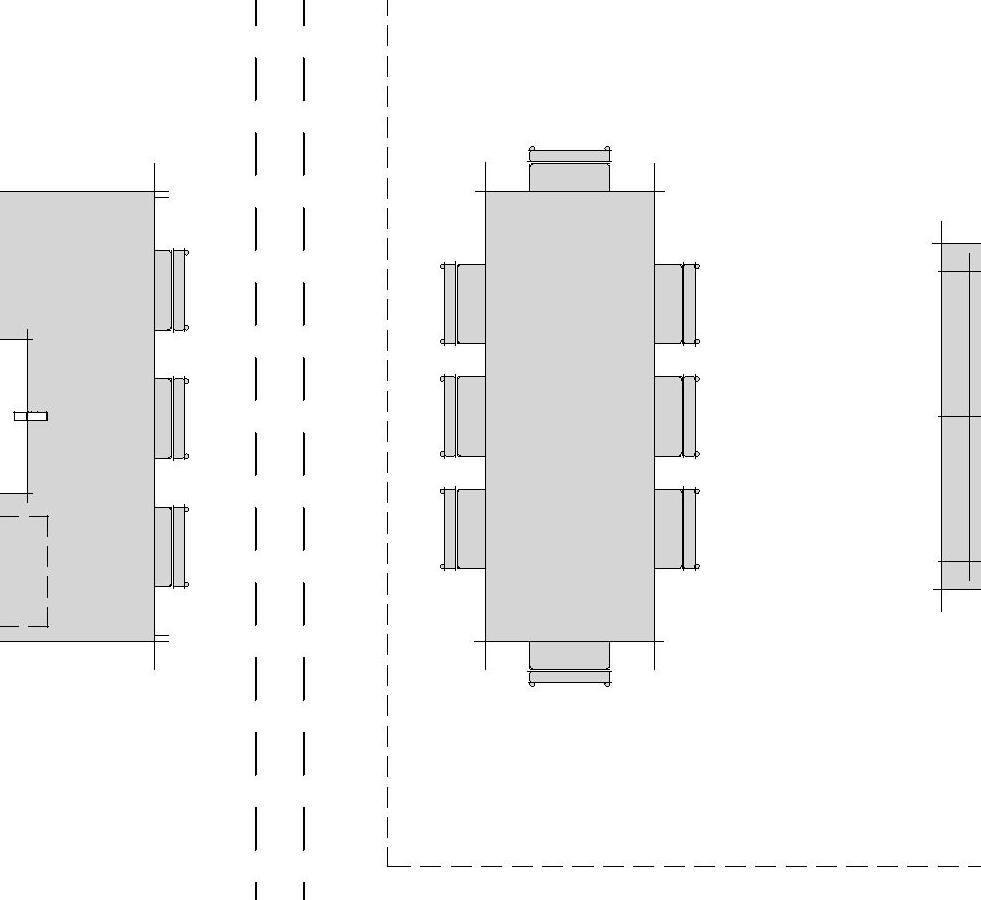

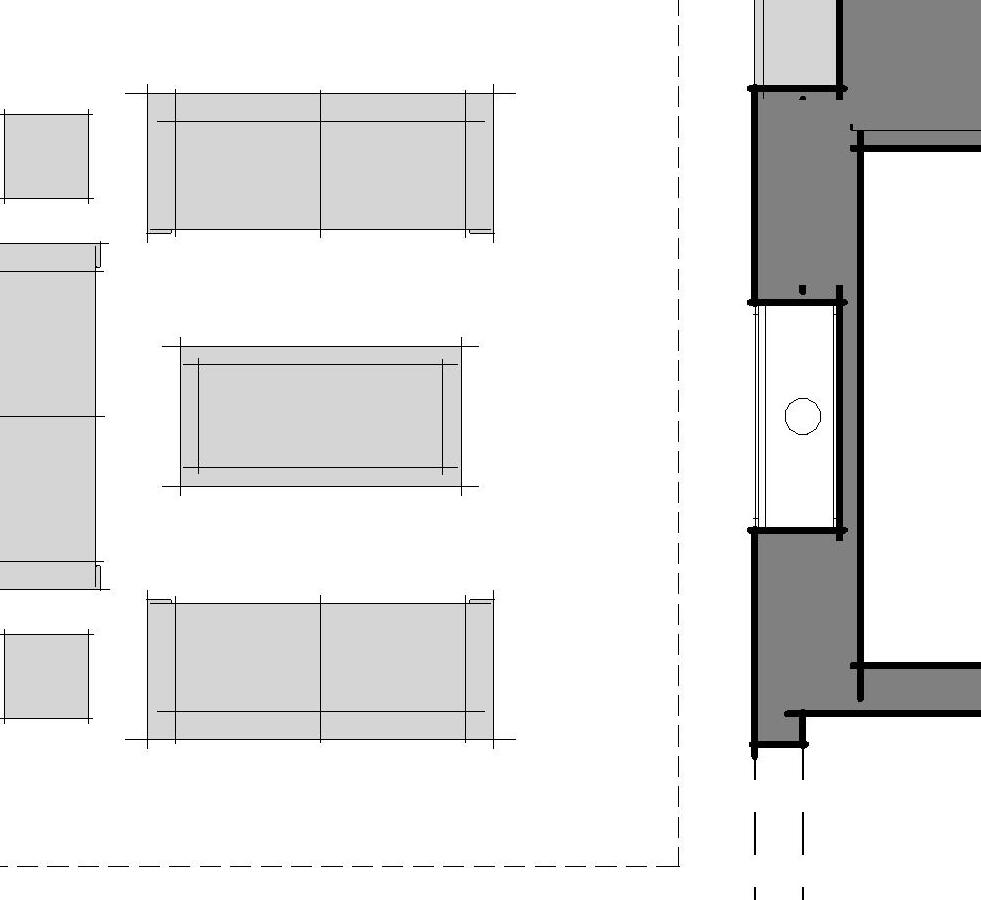

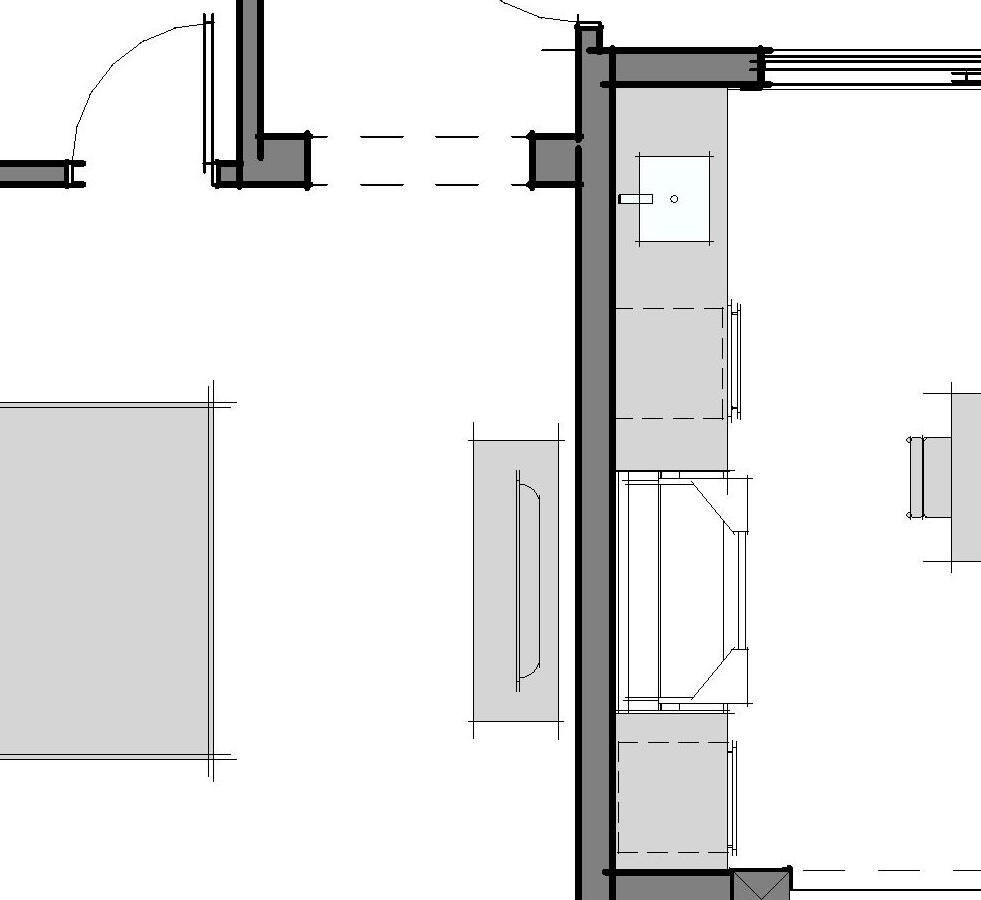

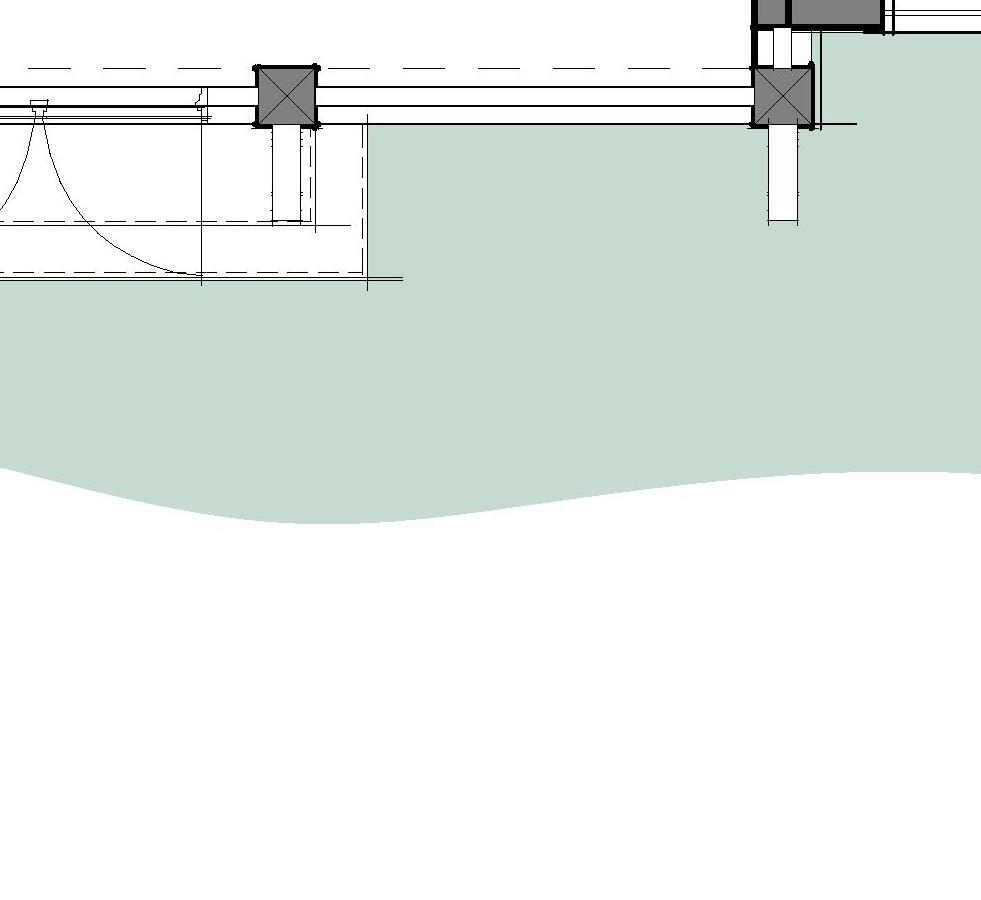

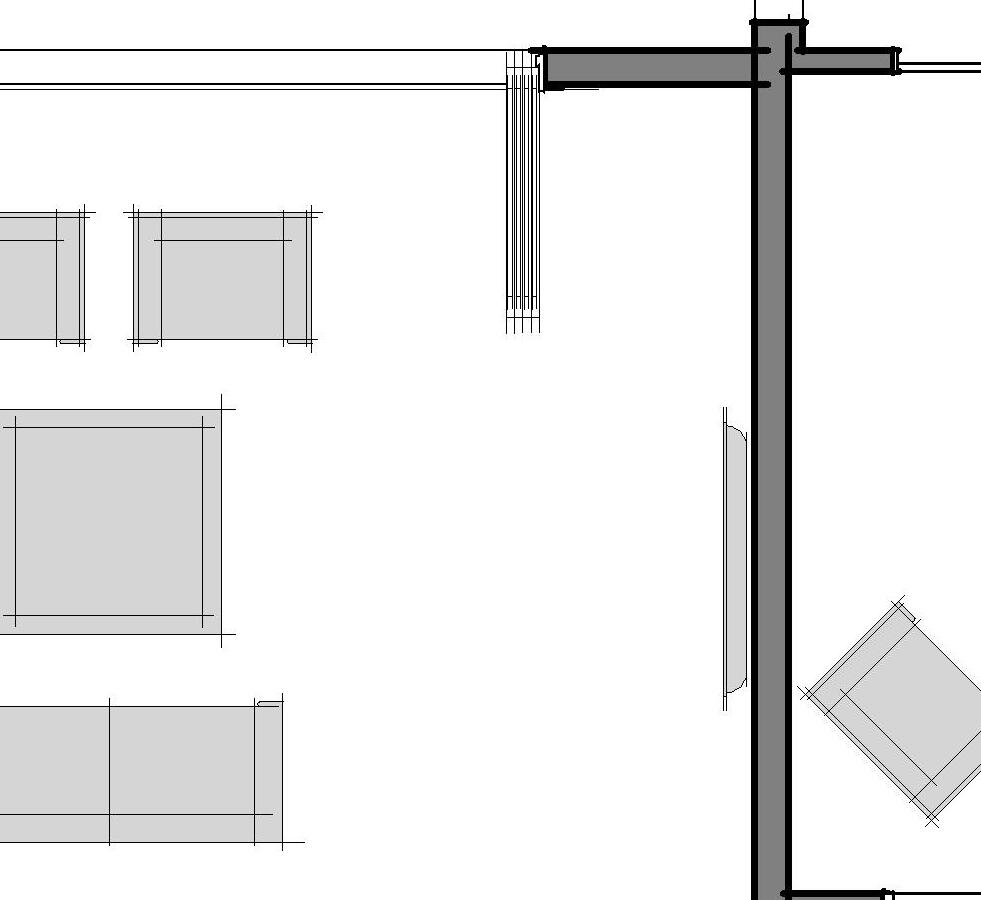

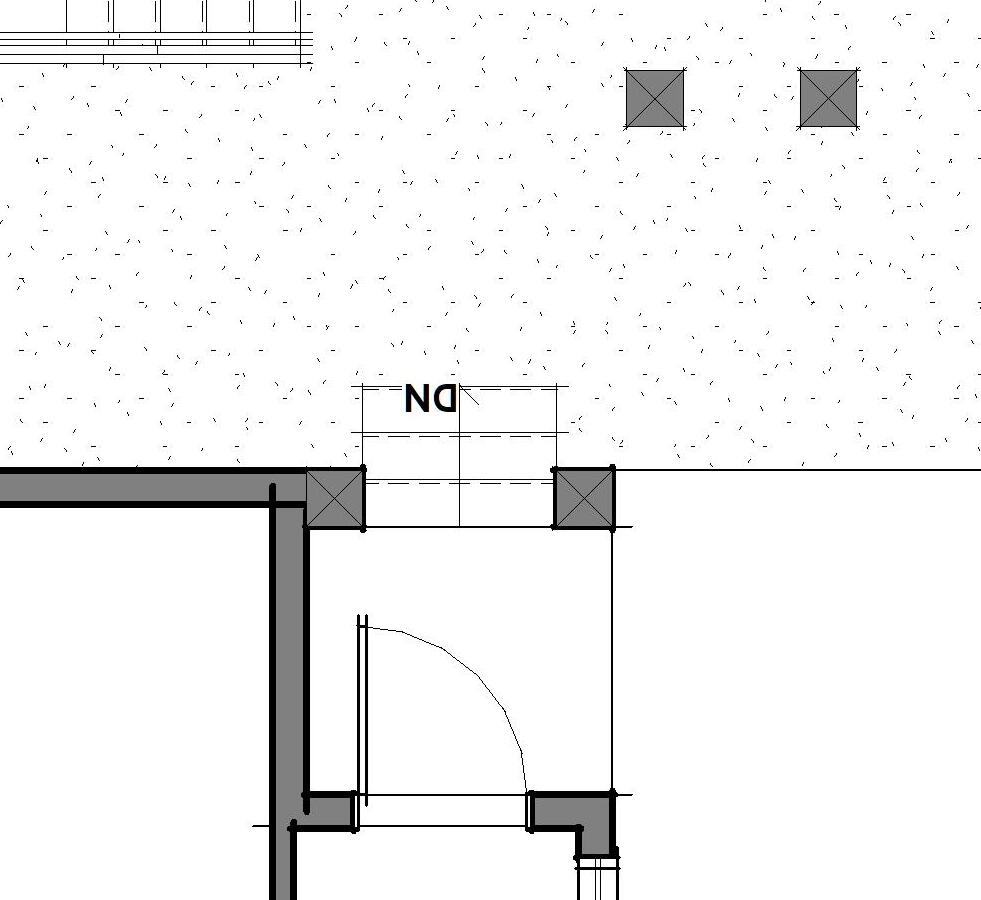

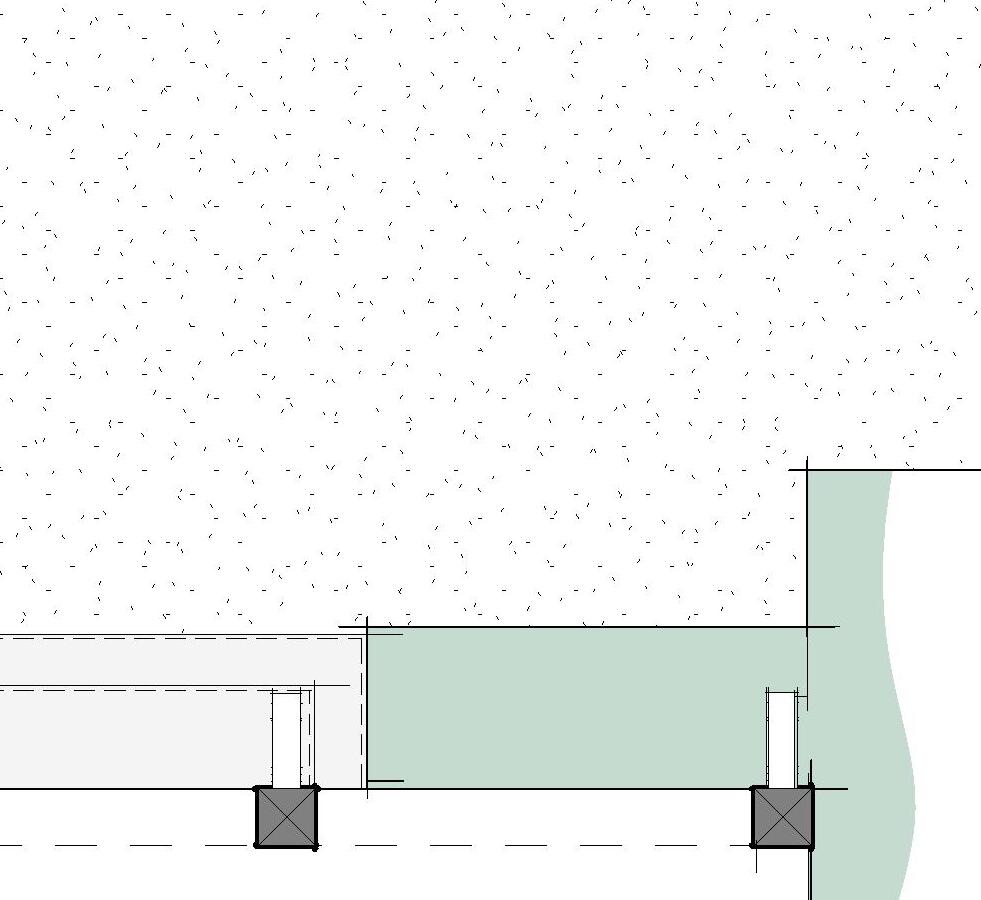

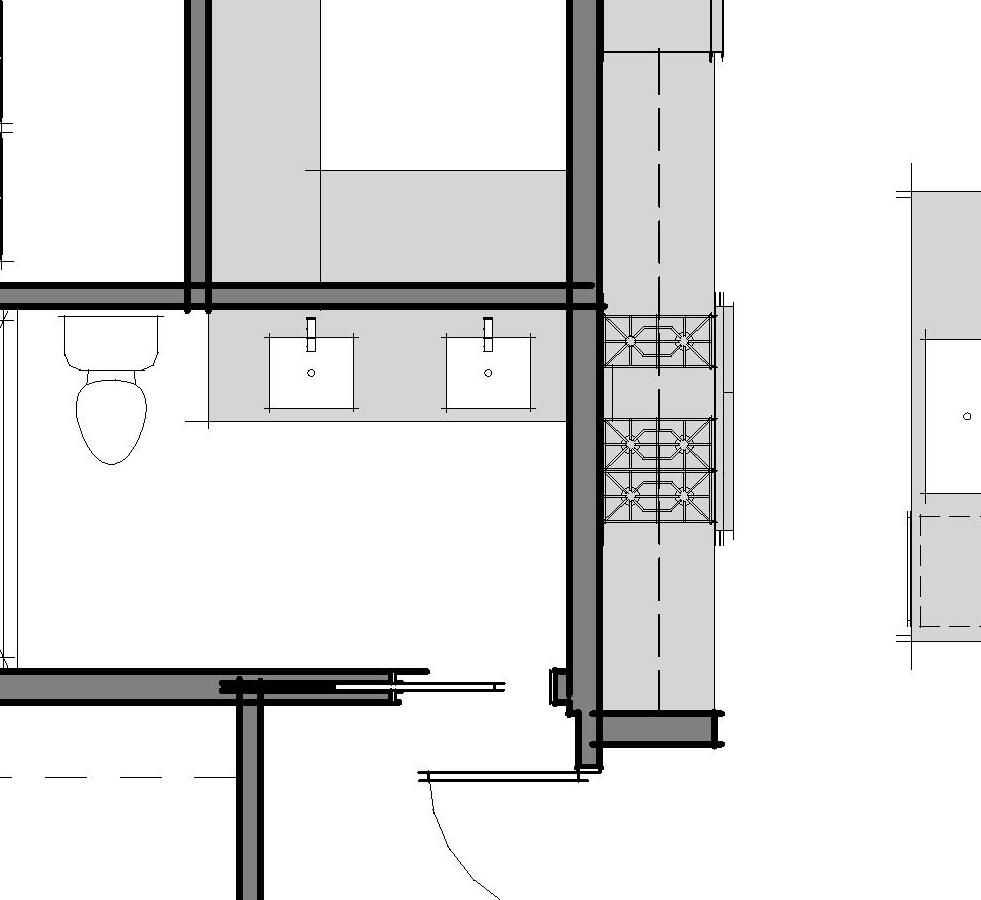

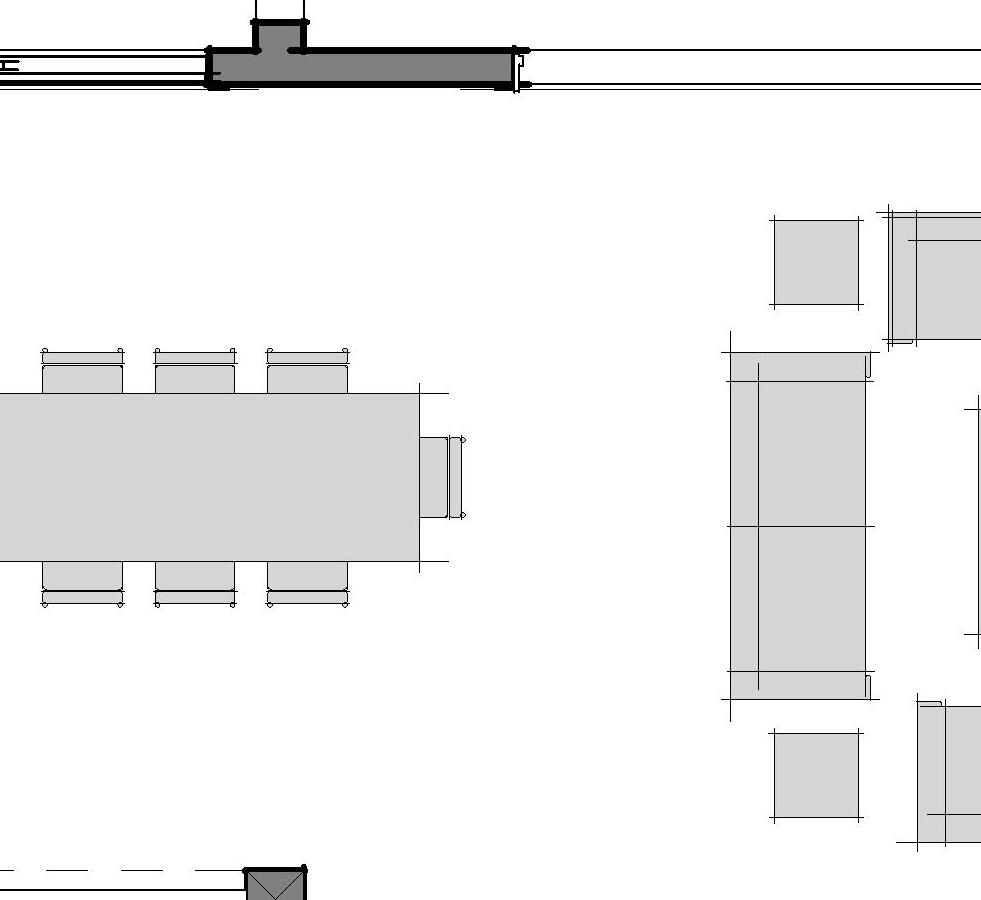

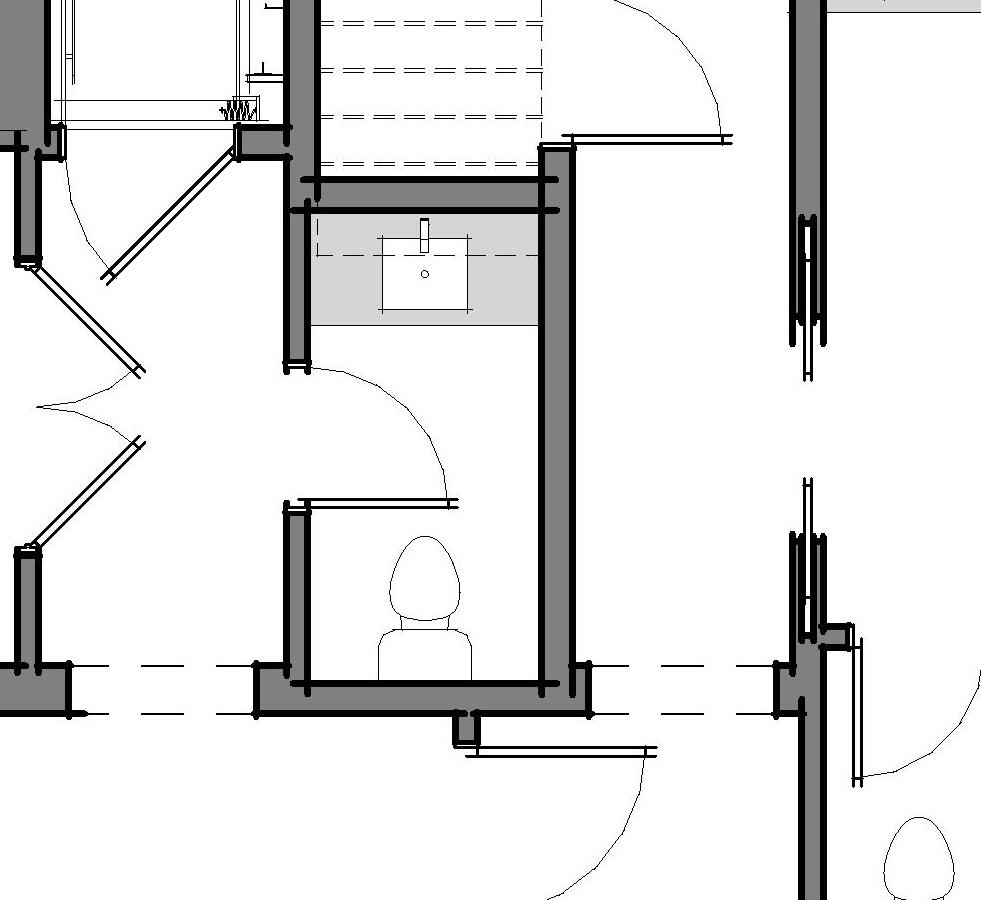

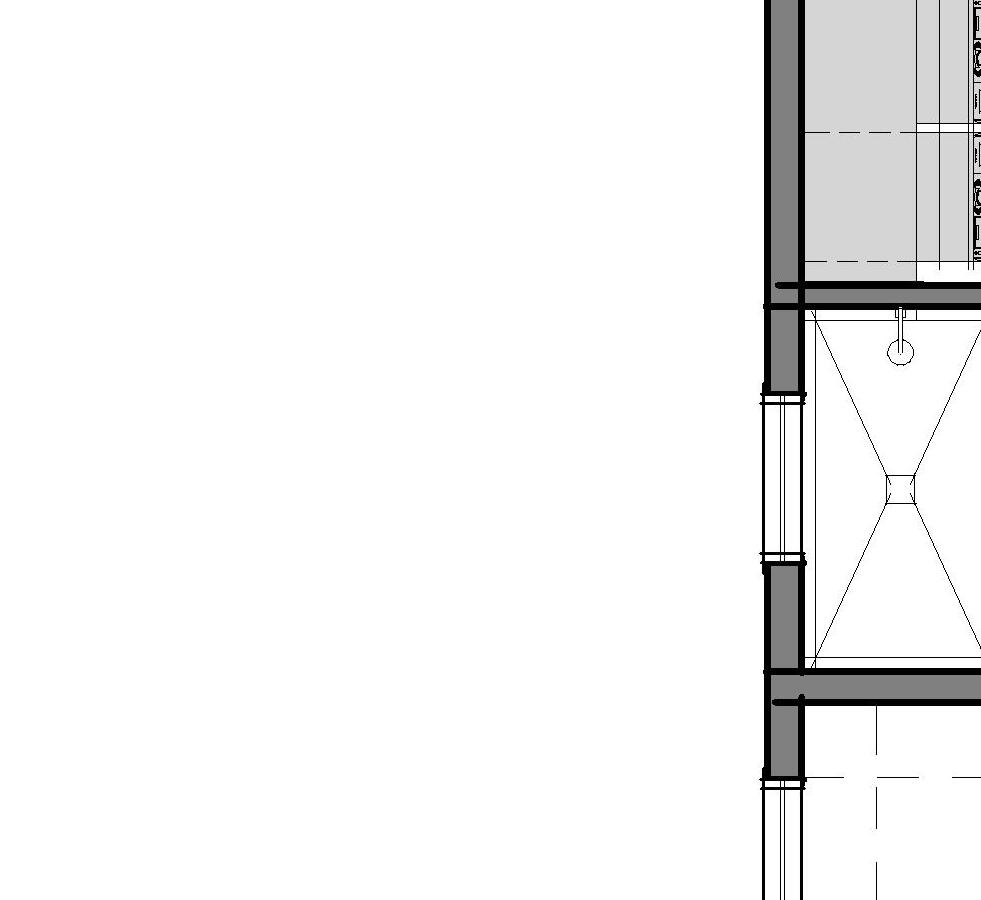

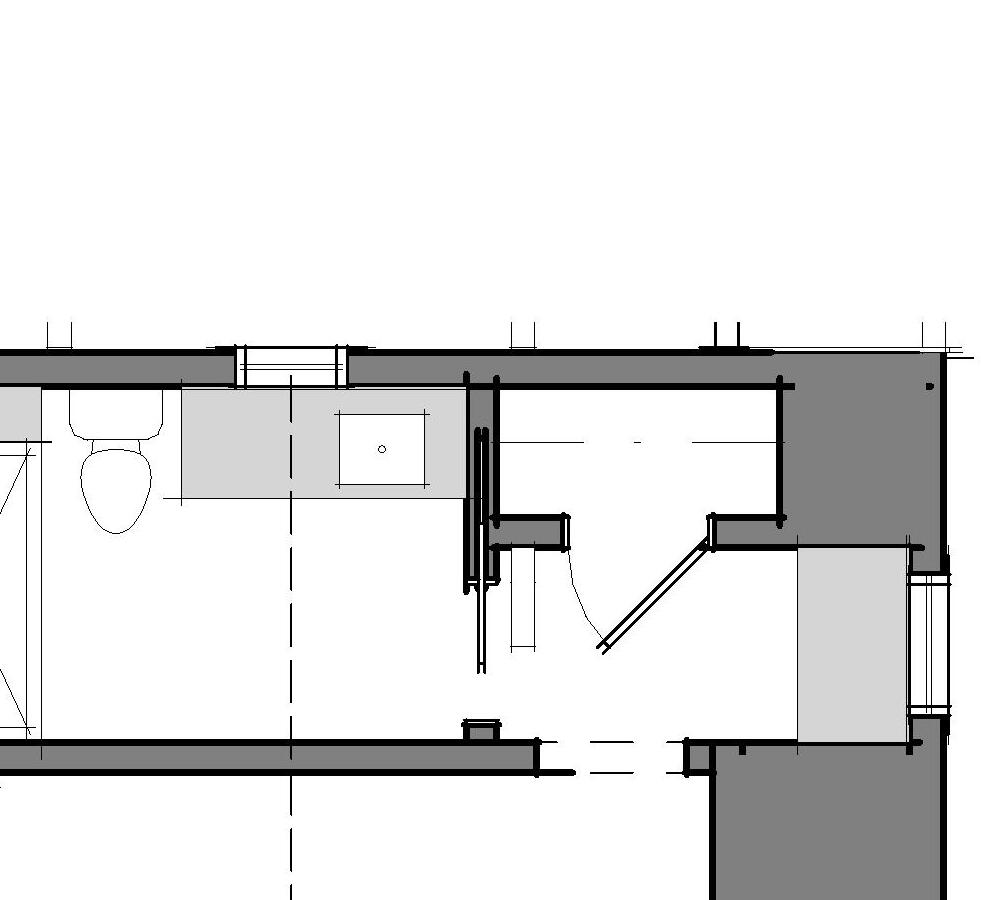

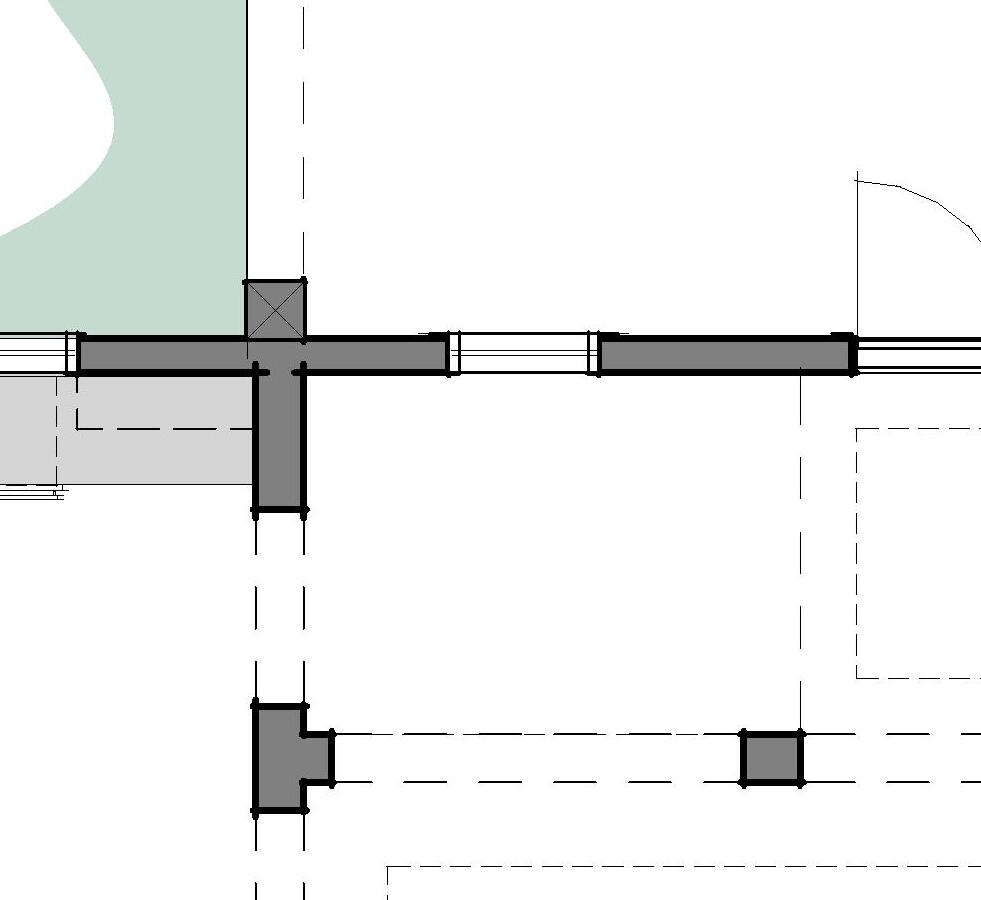

FRONT PORCH DW I/M REF. MOTOR COURT 36'-0" X 34'-2" 8'-0" X 27'-6" GRILL ALL PORCHES TO BE SCREENED, TYP. BUILTIN PAINTED BRACKET, TYP. FUTURE ELEV. OPTION U/C REF. OVEN PDR 4'-3" x 8'-5" LIVING 16'-8" x 19'-0" FOYER PANTRY 6'-5" x 7'-2" UTILITY 6'-7" x 14'-6" GUEST BATH 13'-4" 6'-6" GUEST W.I.C. 7'-6" x 6'-5" GUEST BEDROOM 13'-6" x 13'-11" OUTDOOR LIVING 20'-6" X 15'-9" OUTDOOR DINING 17'-0" x 14'-0" KITCHEN 11'-4" x 19'-0" DINING 9'-8" 19'-0" BAR 11'-4" 7'-4" CLOSET 4'-10" x 5'-7" M/E 5'-0" x 9'-0" 2-CAR GARAGE 22'-0" x 22'-0" GOLF CART GARAGE 10'-0" x 10'-0" W D LINEAR GAS FIREPLACE ART WALL BENCH VANITY MASTER BATH 9'-11" 19'-0" MASTER BEDROOM 16'-1" x 15'-6" STUDY 11'-7" x 14'-8' MASTER W.I.C. 16'-1" x 11'-0" LINEN 4'-0" x 5'-2" A.V. 2'-6" x 9'-2" FUTURE ELEV. OPTION BED #2 16'-0" x 11'-6" BED #3 15'-9" x 11'-8" BATH #2 9'-5" 7'-8" BATH #3 9'-8" X 7'-10" CLO. #3 10'-9" x 2'-10" BED #4 BATH #4 CLO. #4 14'-11" X 15'-11" 10'-6" X 6'-0" 5'-0" X 2'-4" U/C REF. MORNING BAR CLO. #2 10'-9" 2'-10" BENCH BENCH LOFT 10'-8" x 9'-4" BUILTIN GARAGE 640 SQFT

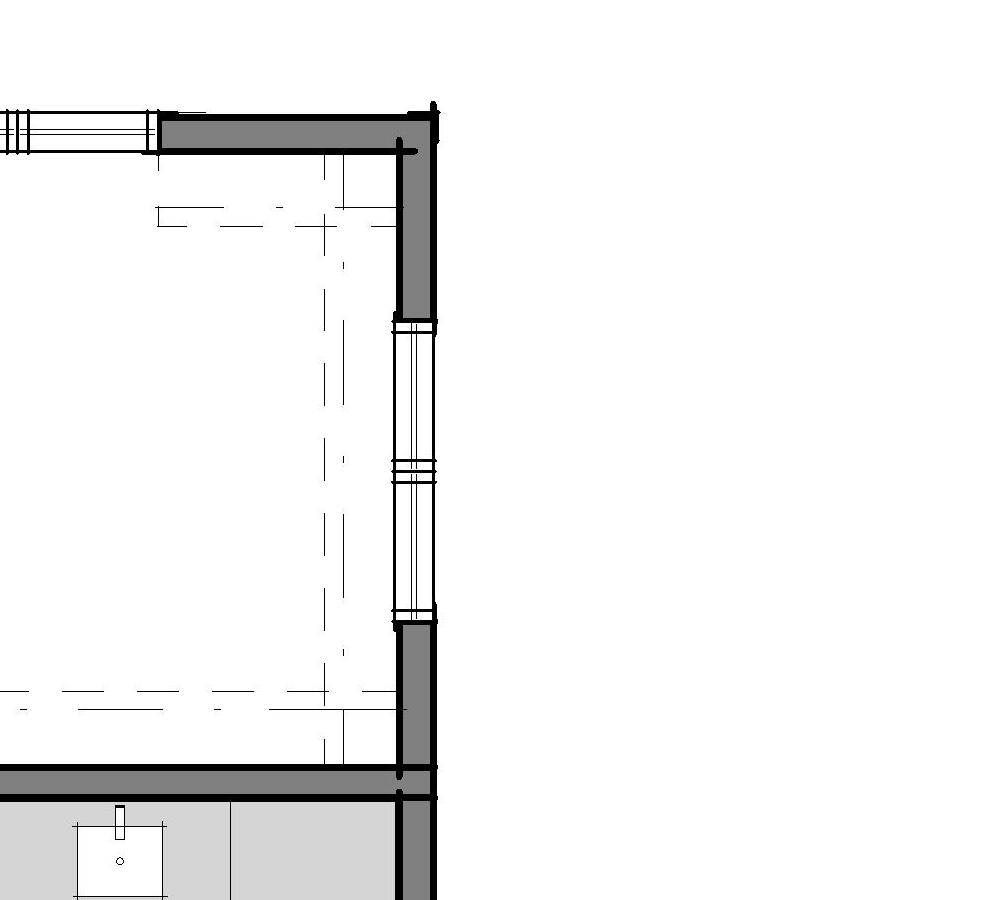

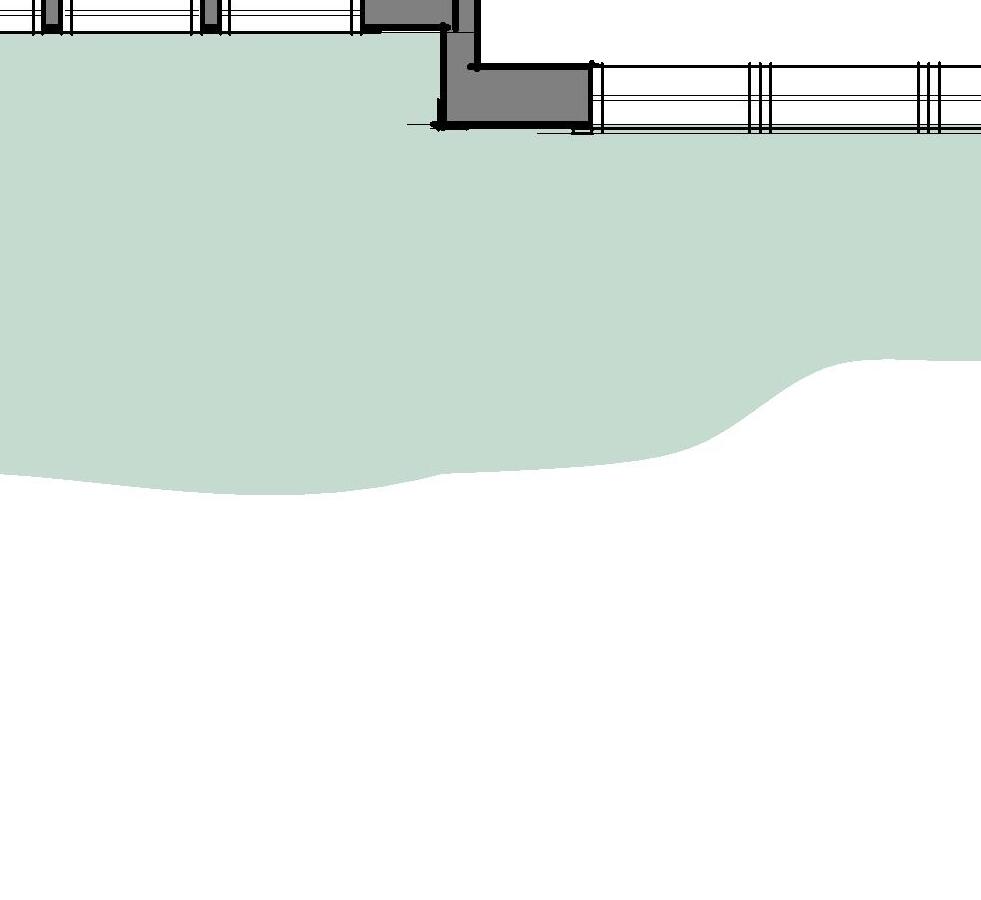

ENTRY/ PORCH 220 SQFT TOTAL UNDER ROOF 5,807 SQFT OUTDOOR LIVING 610 SQFT MAIN LEVEL 3,087 SQFT MAIN HOUSE (HEATED) UPPER LEVEL 1,397 SQFT TOTAL HEATED 4,337 SQFT TOTAL UNHEATED 1,470 SQFT MHK ARCHITECTURE COPYRIGHT © 2022 02/21/2023 COASTAL COLLECTION #1 3/16" = 1'-0" 1 MAIN LEVEL PLAN 3/16" = 1'-0" 2 UPPER LEVEL PLAN

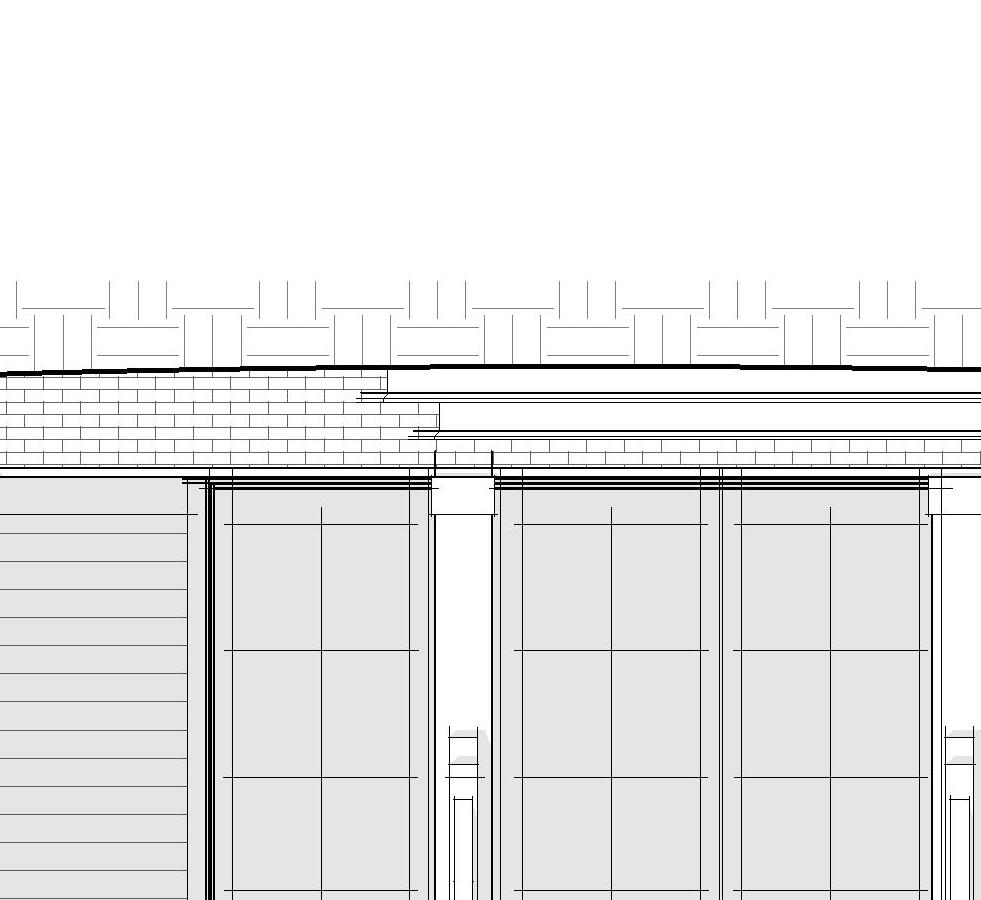

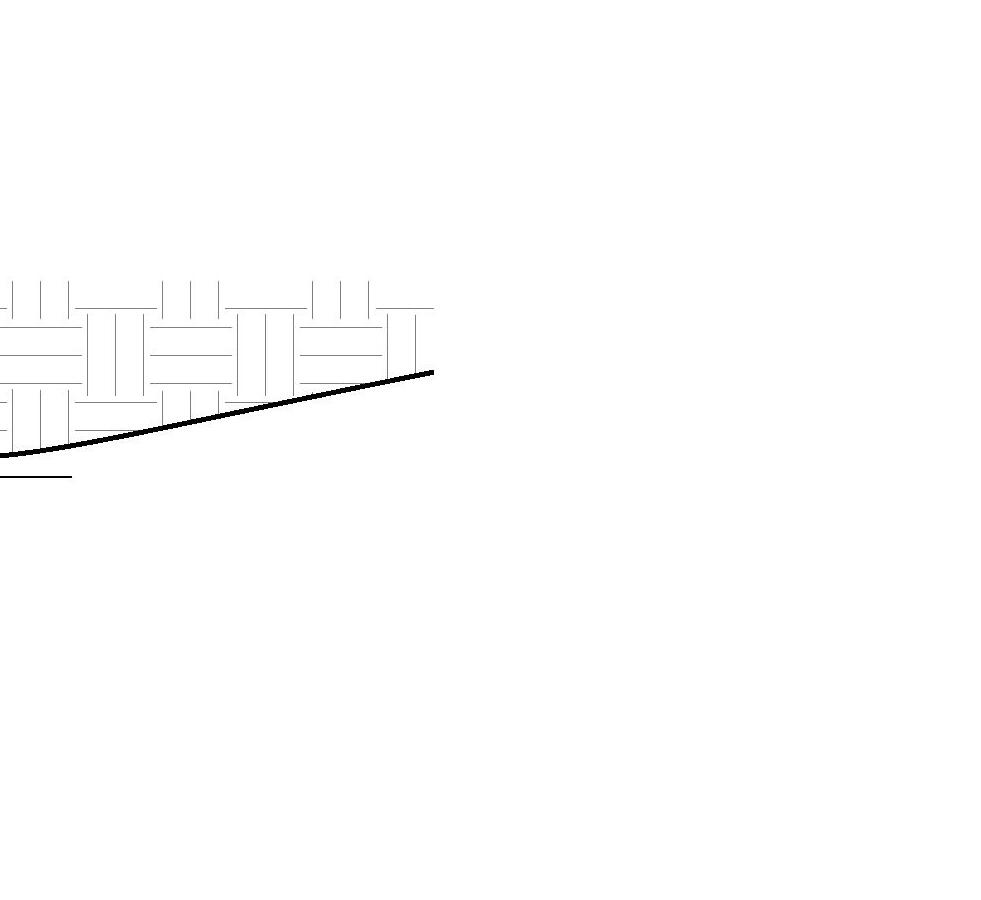

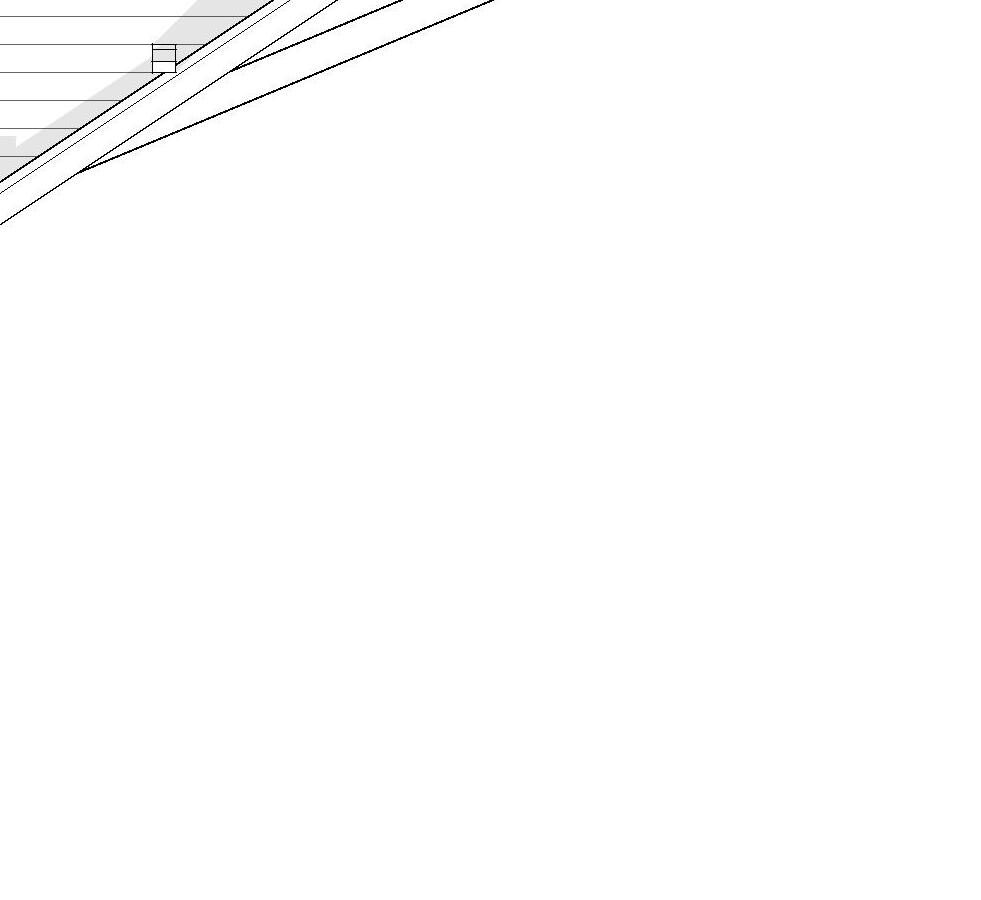

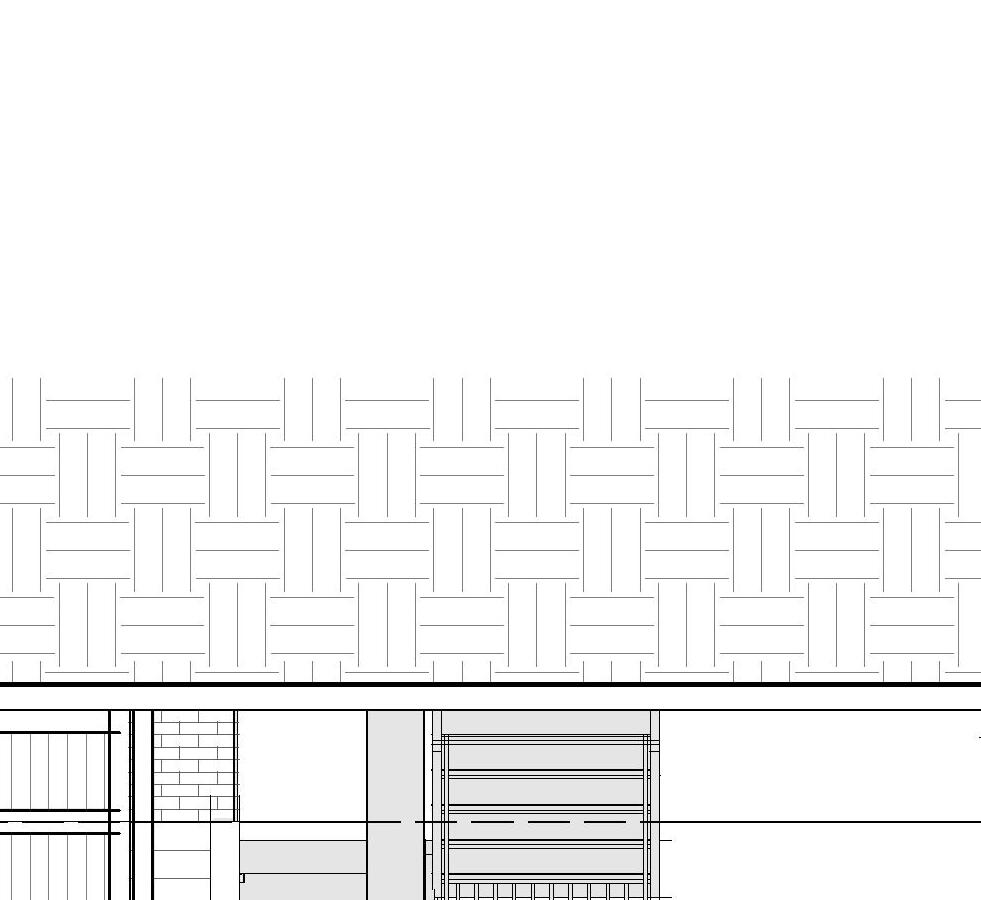

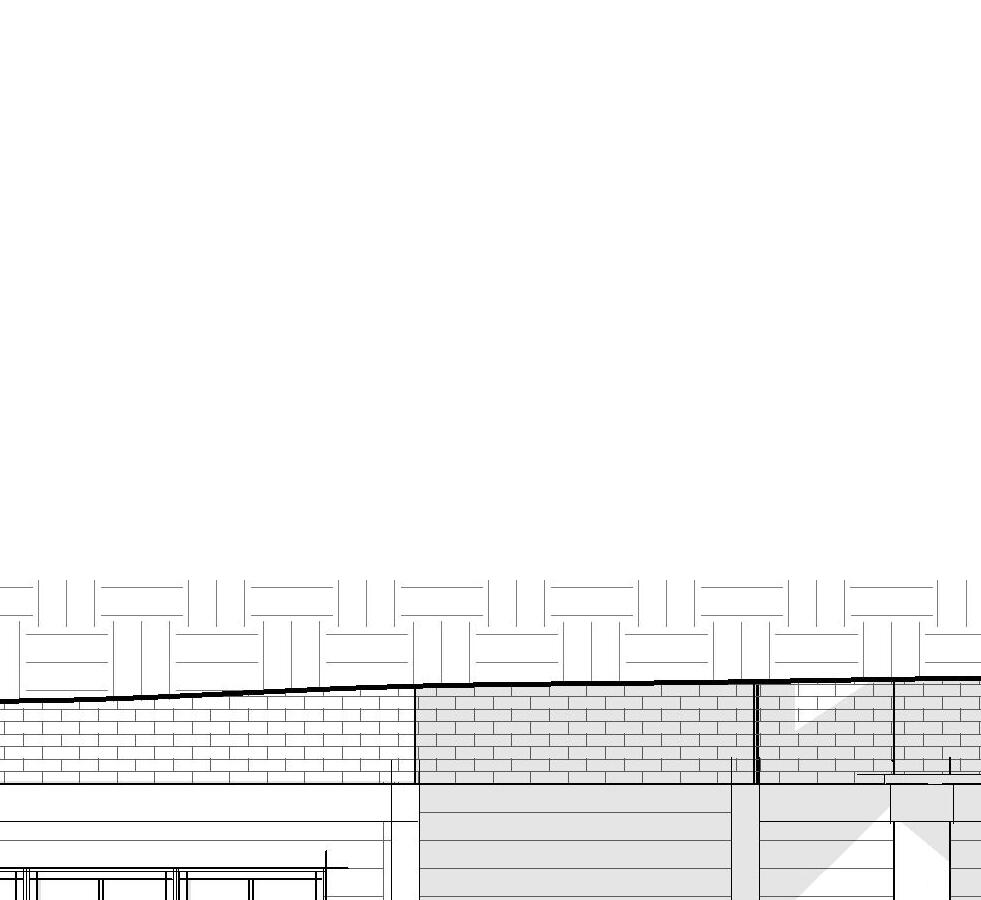

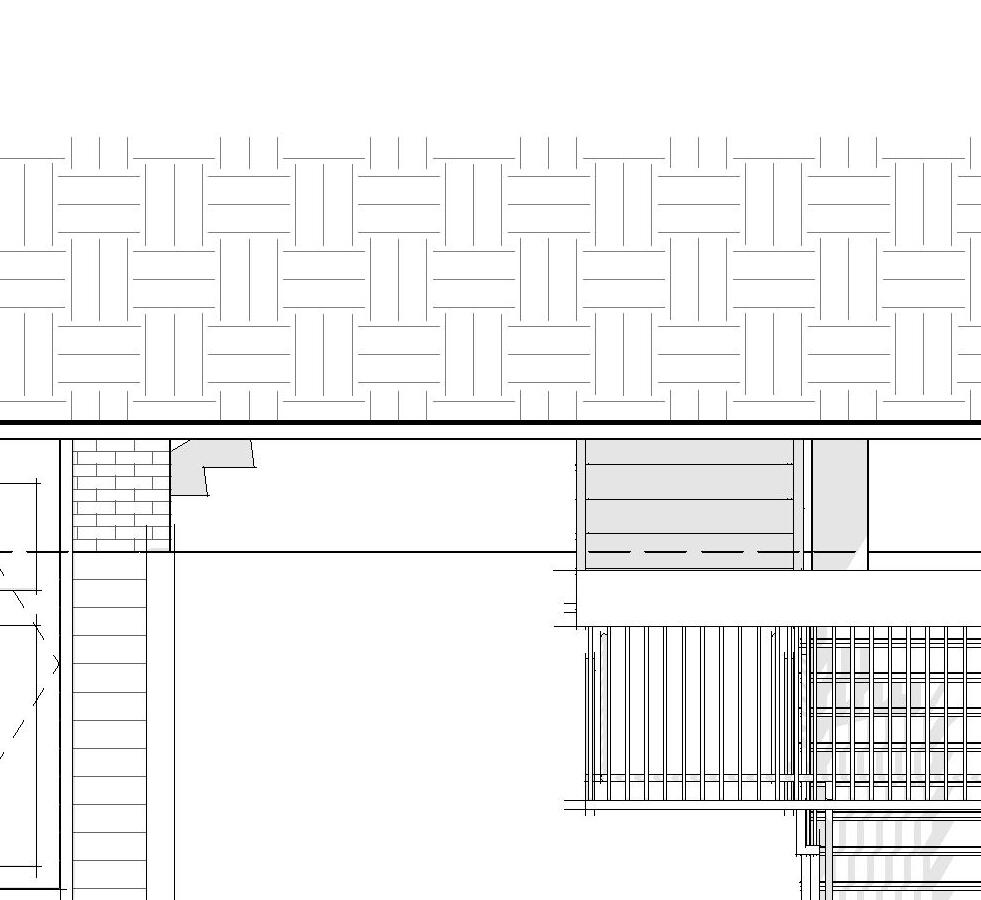

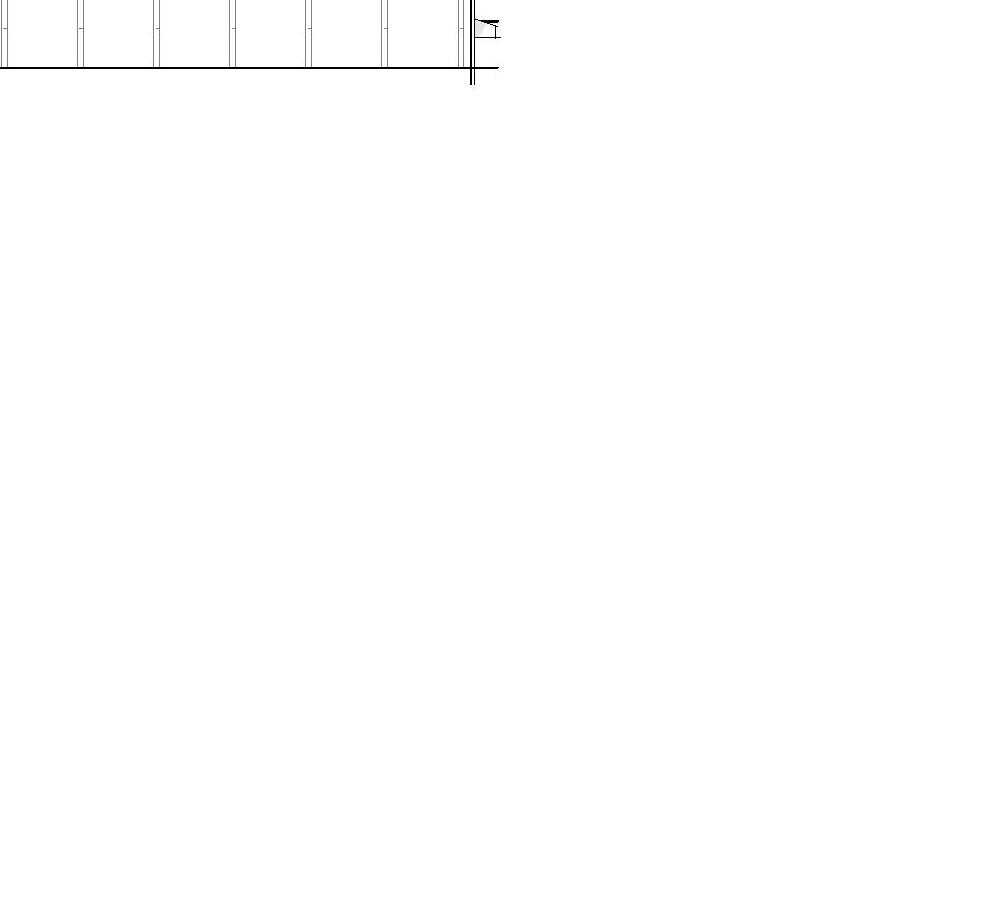

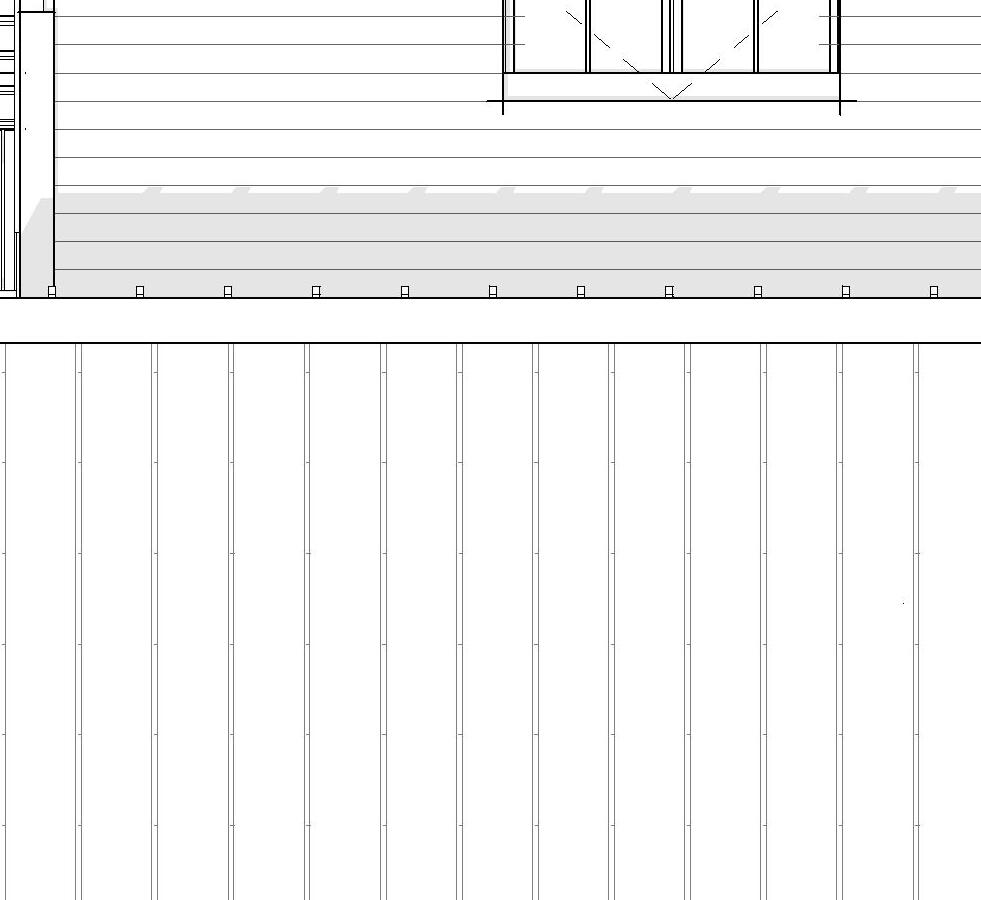

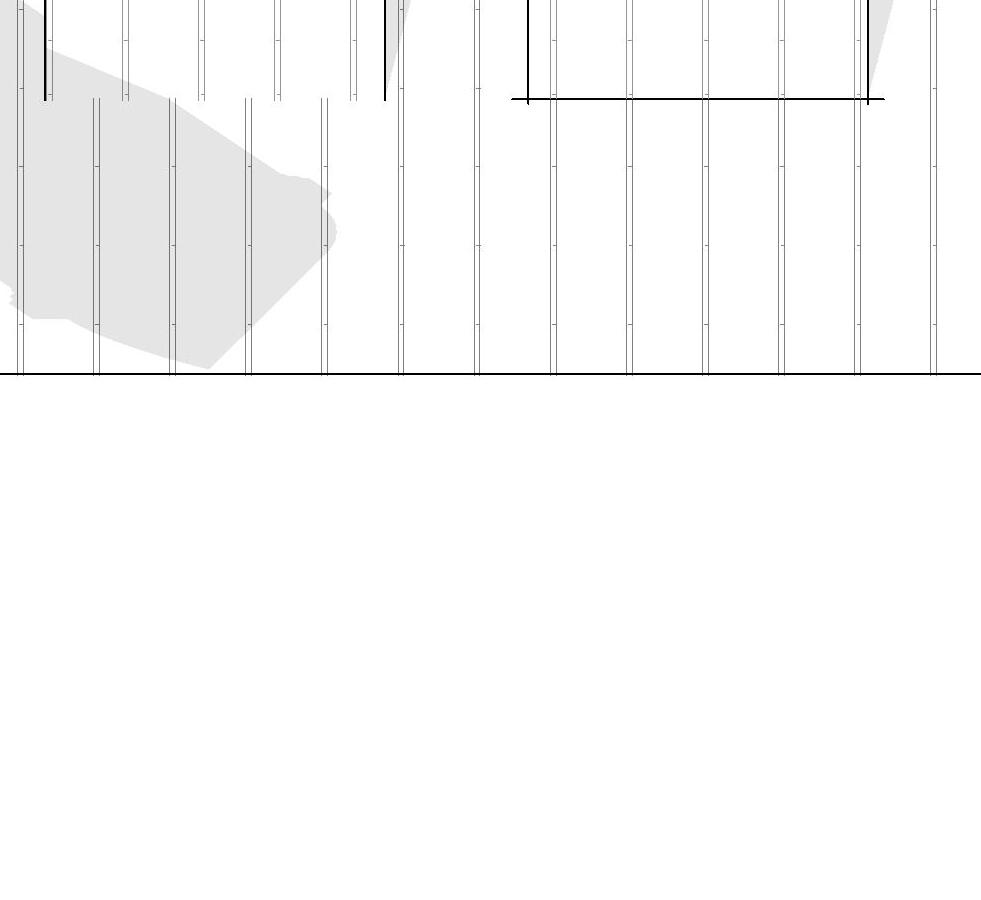

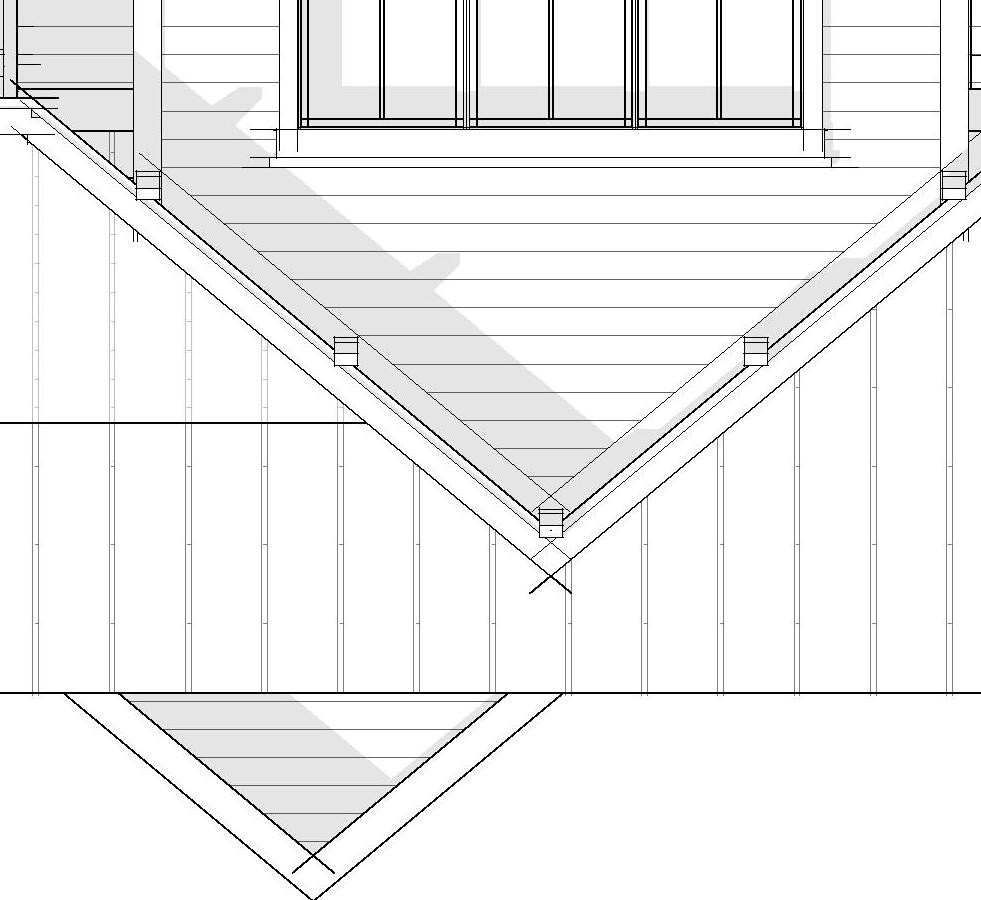

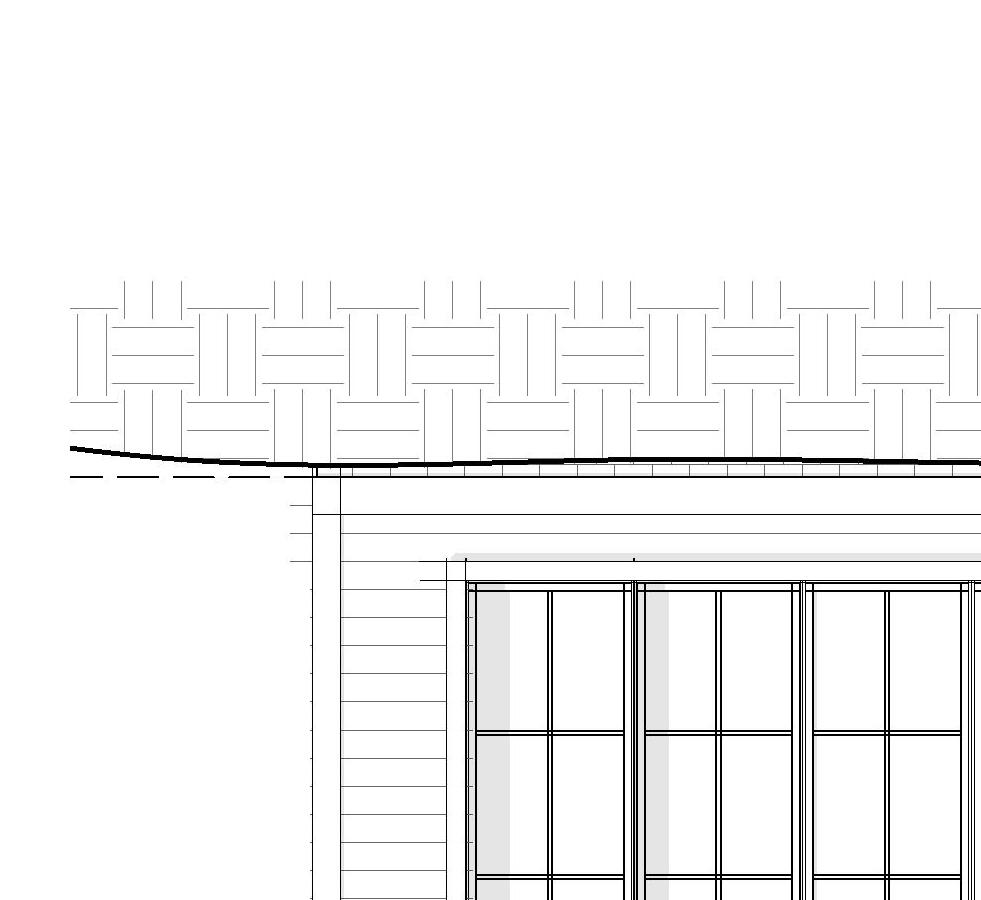

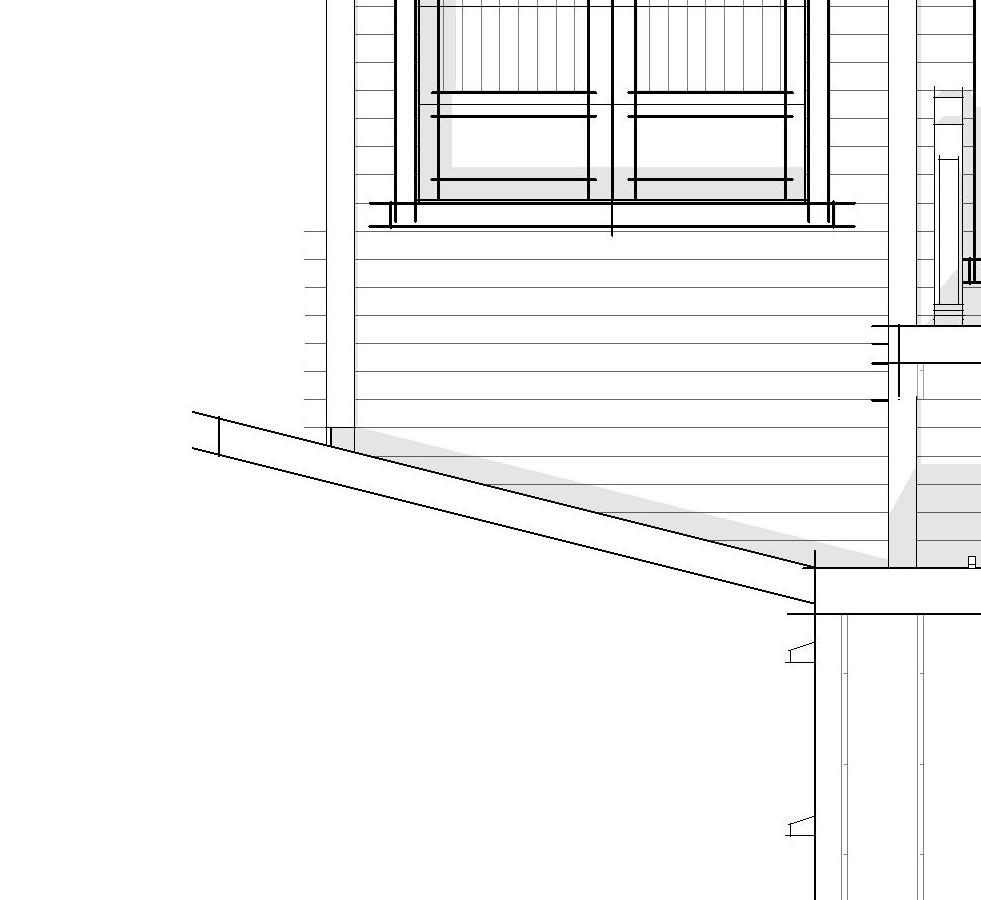

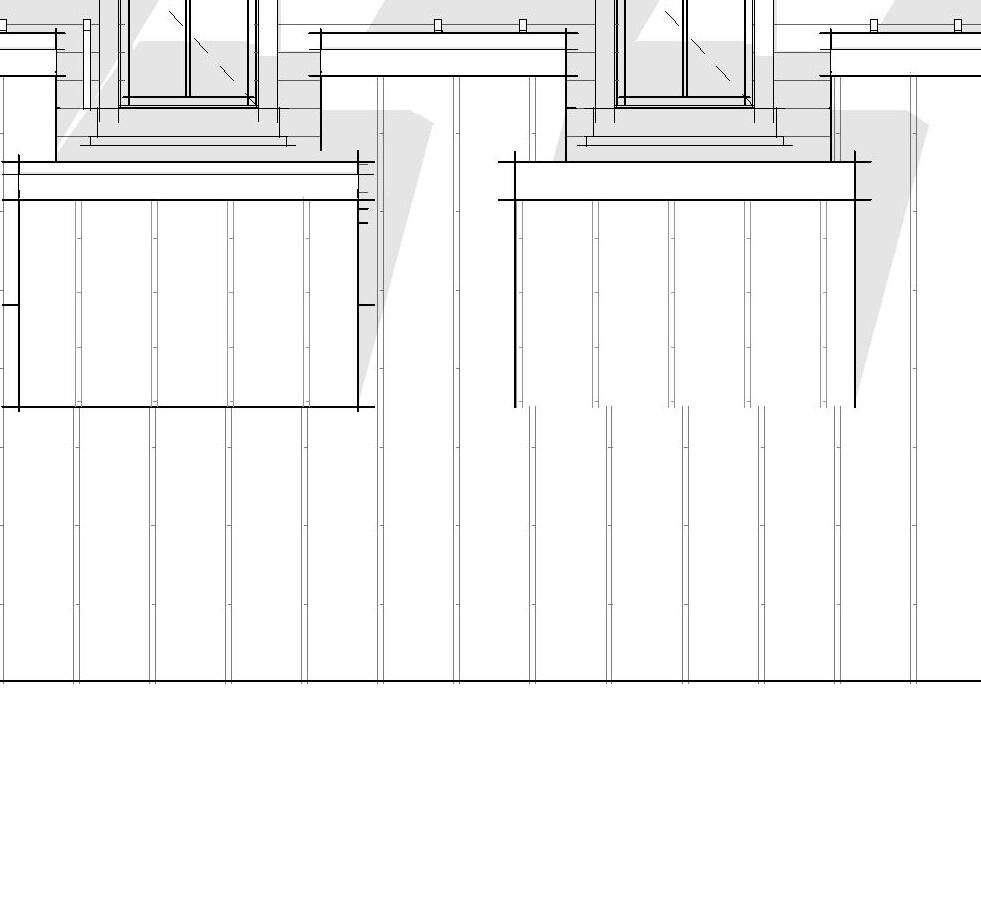

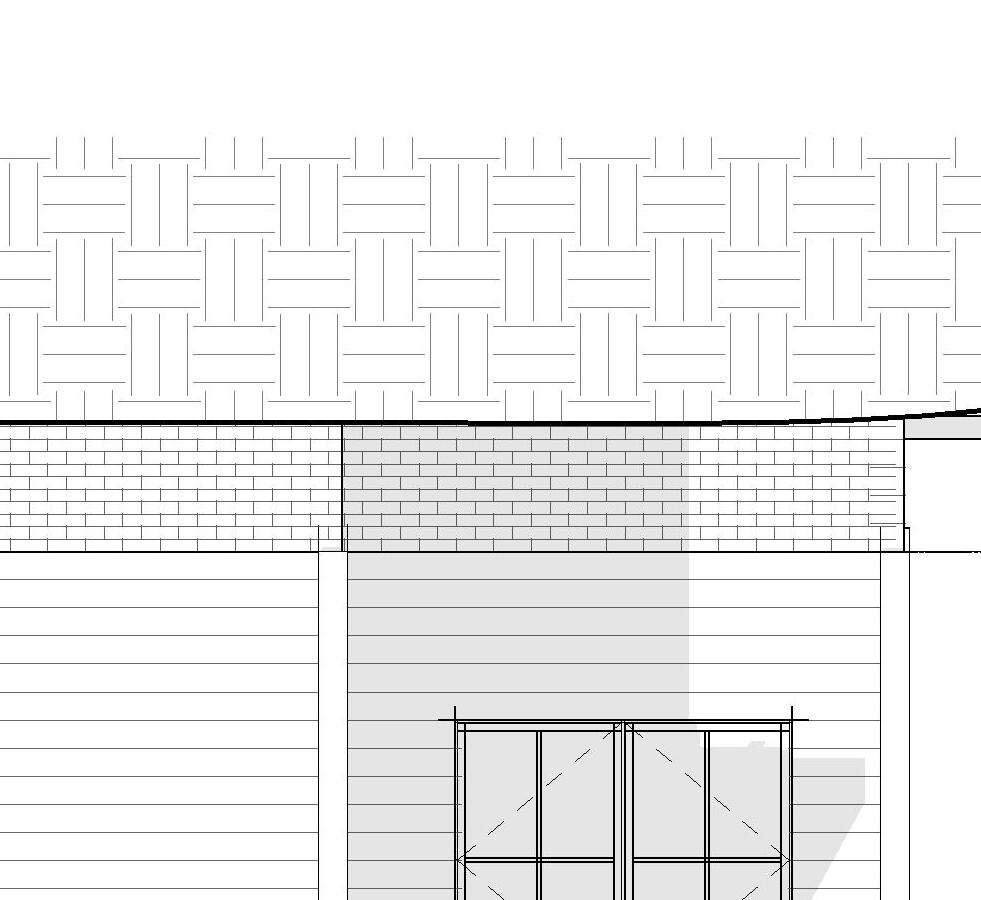

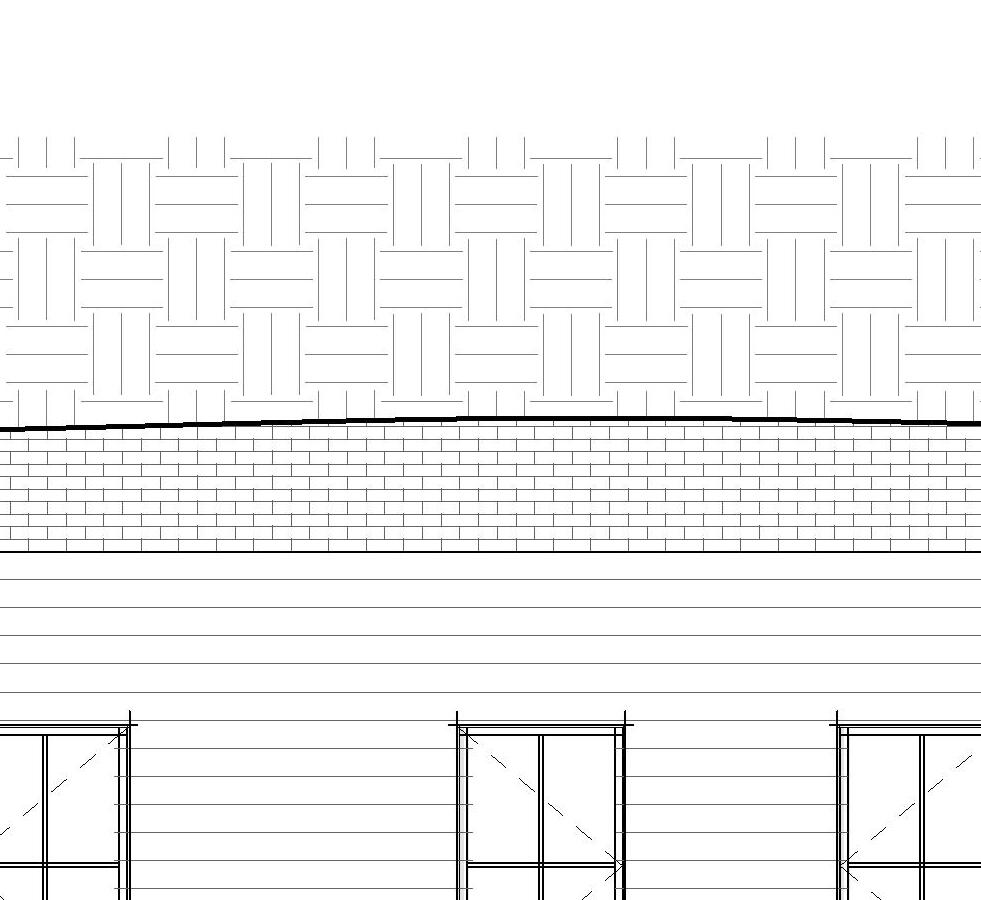

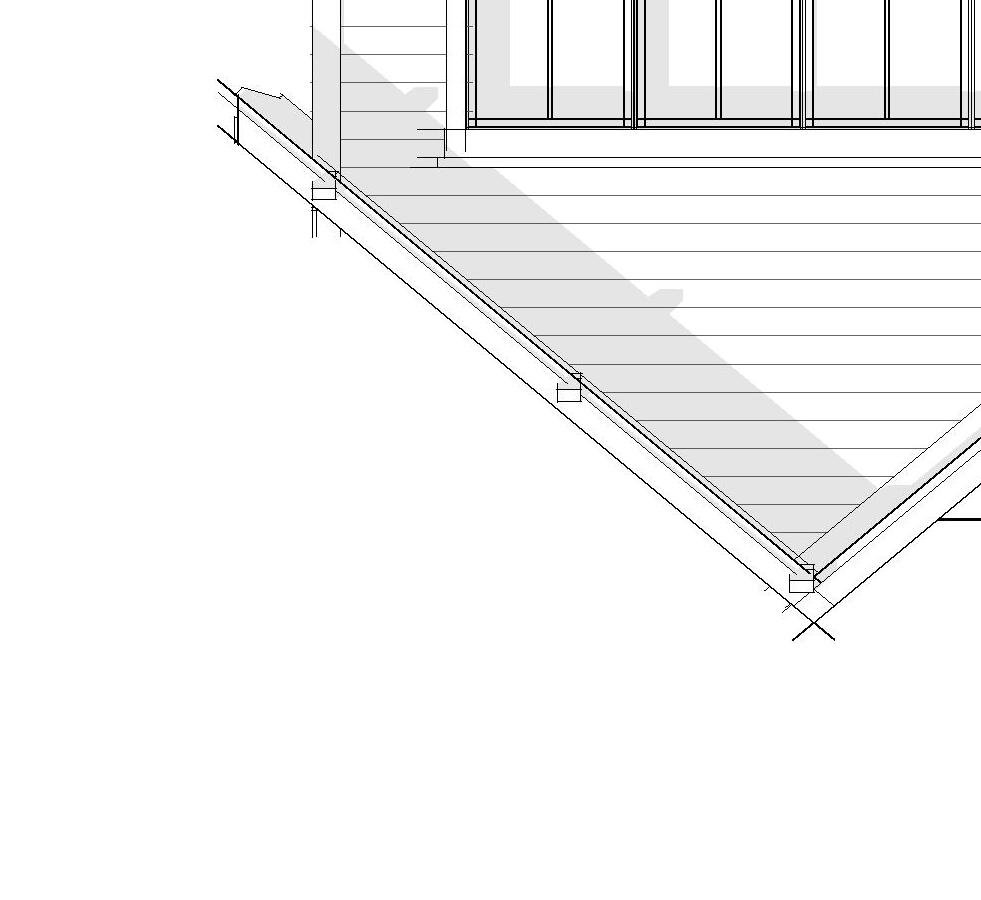

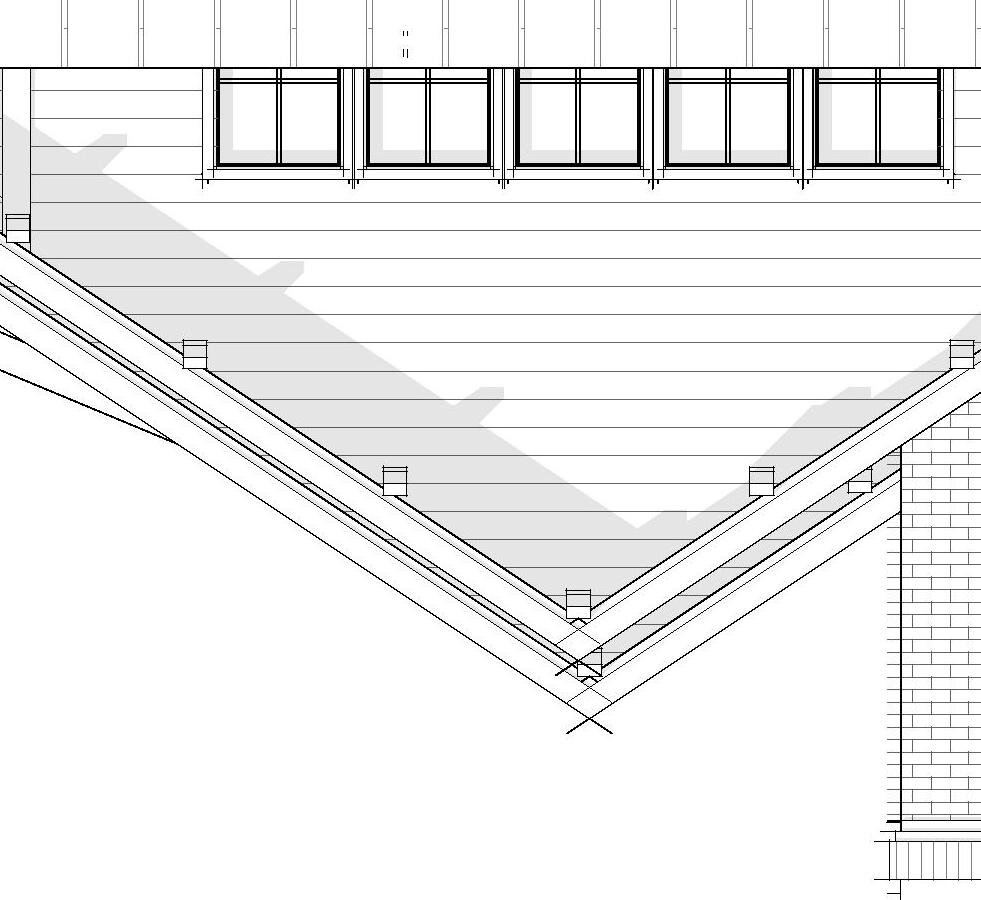

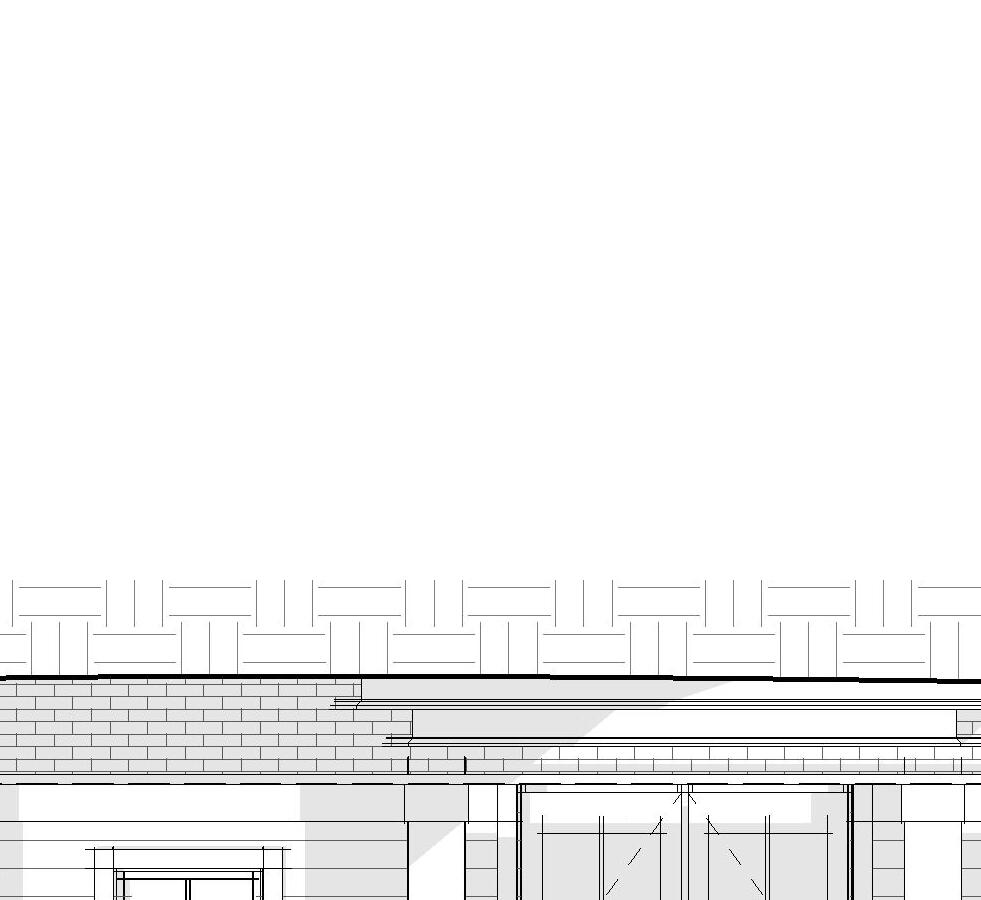

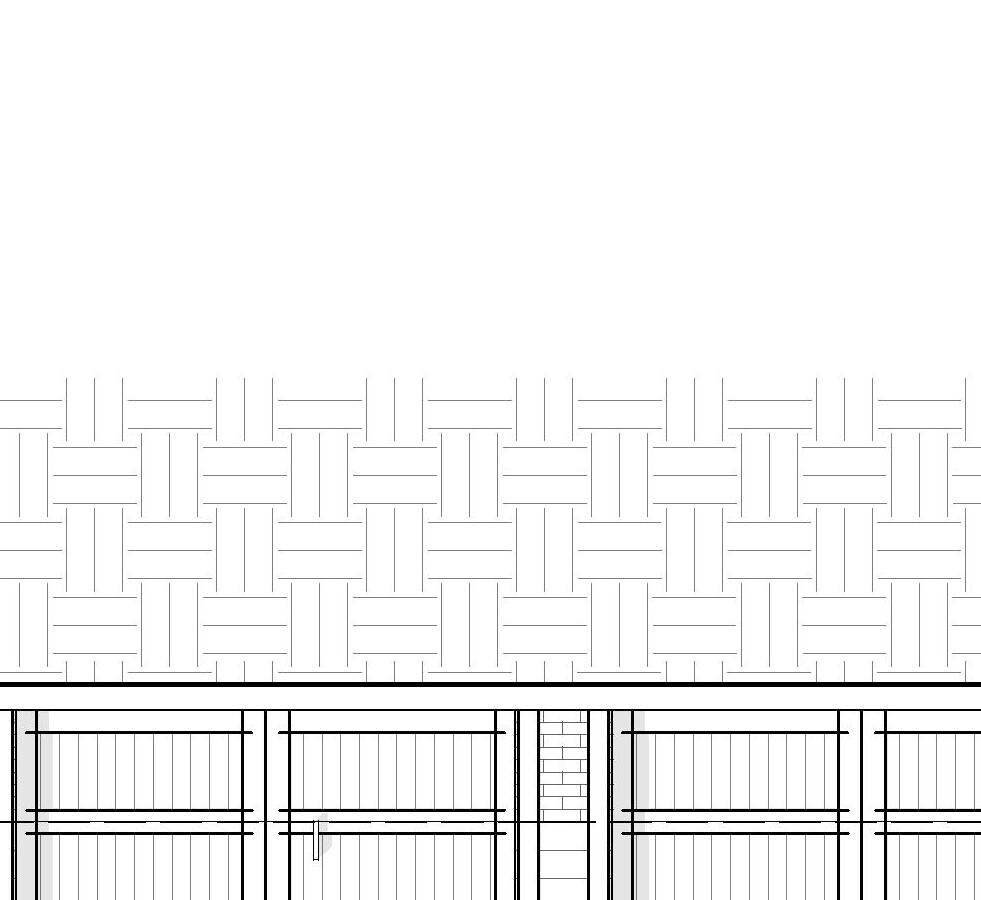

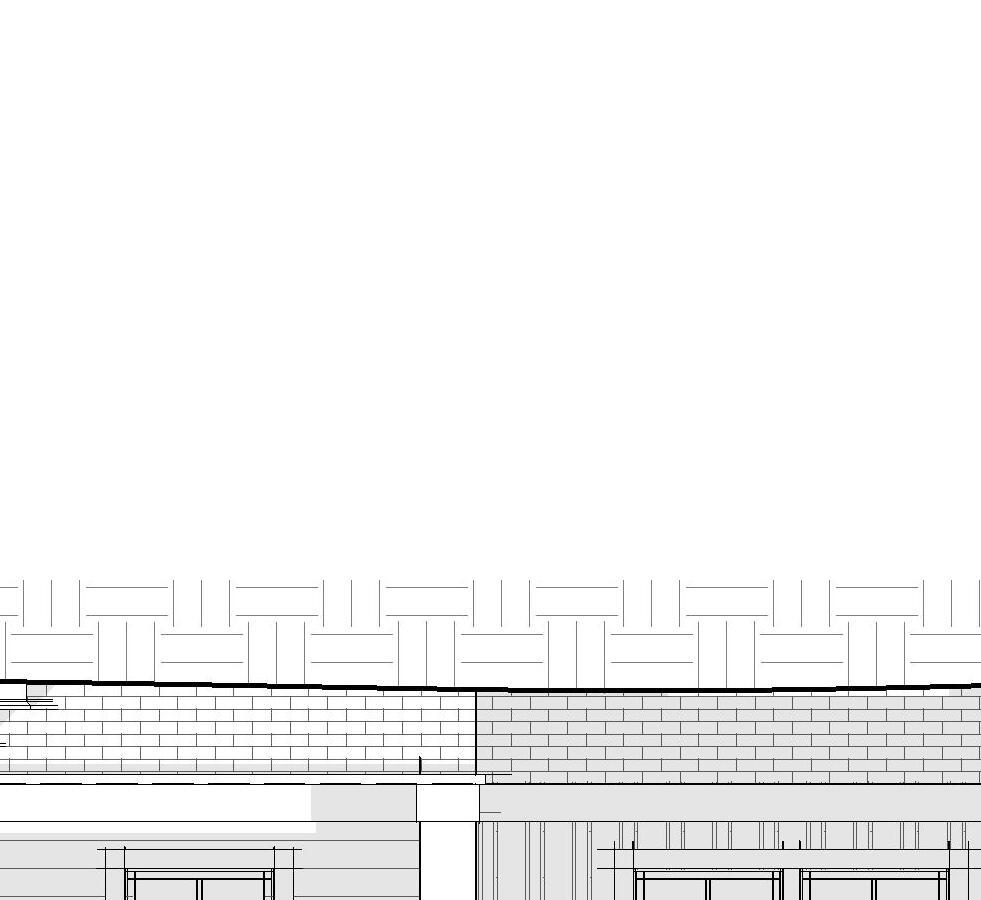

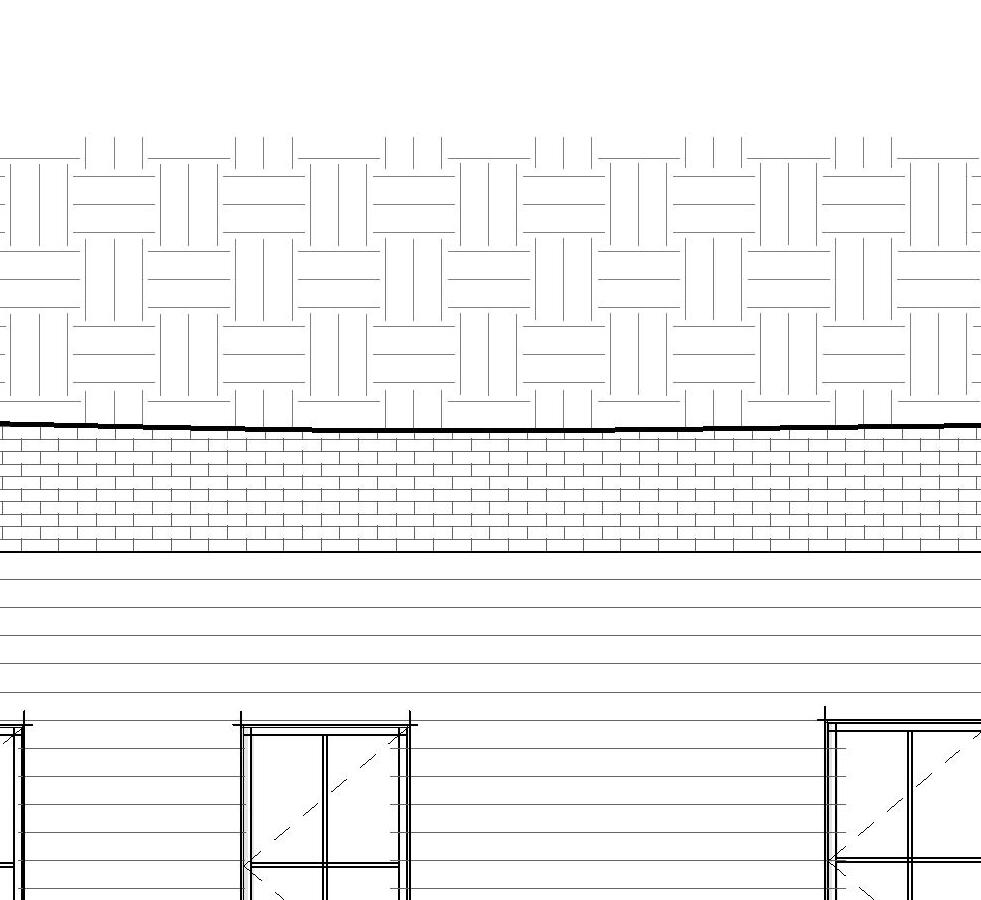

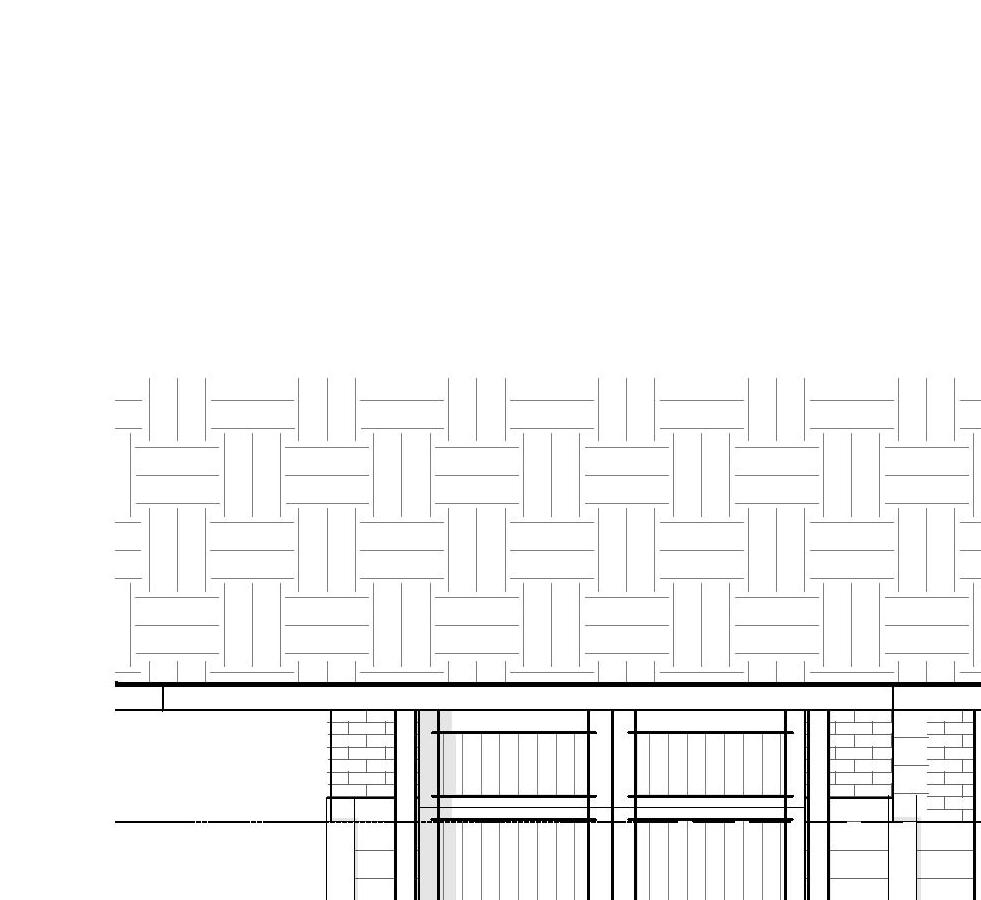

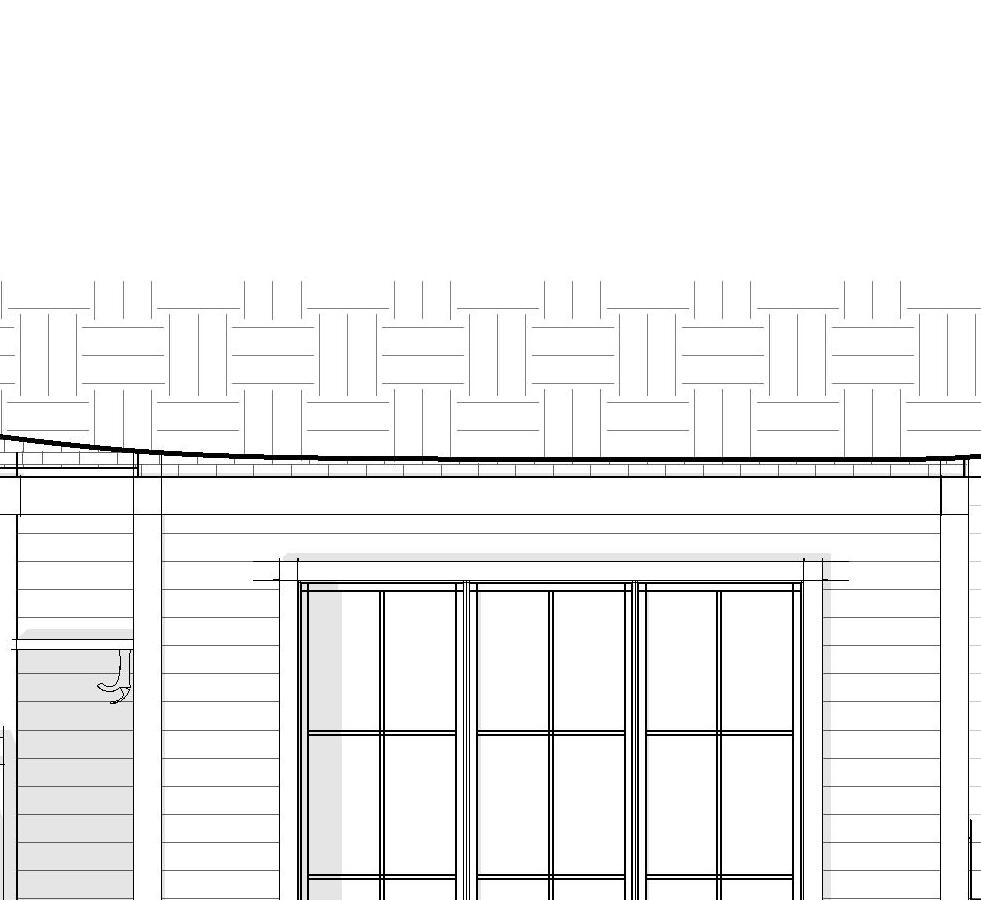

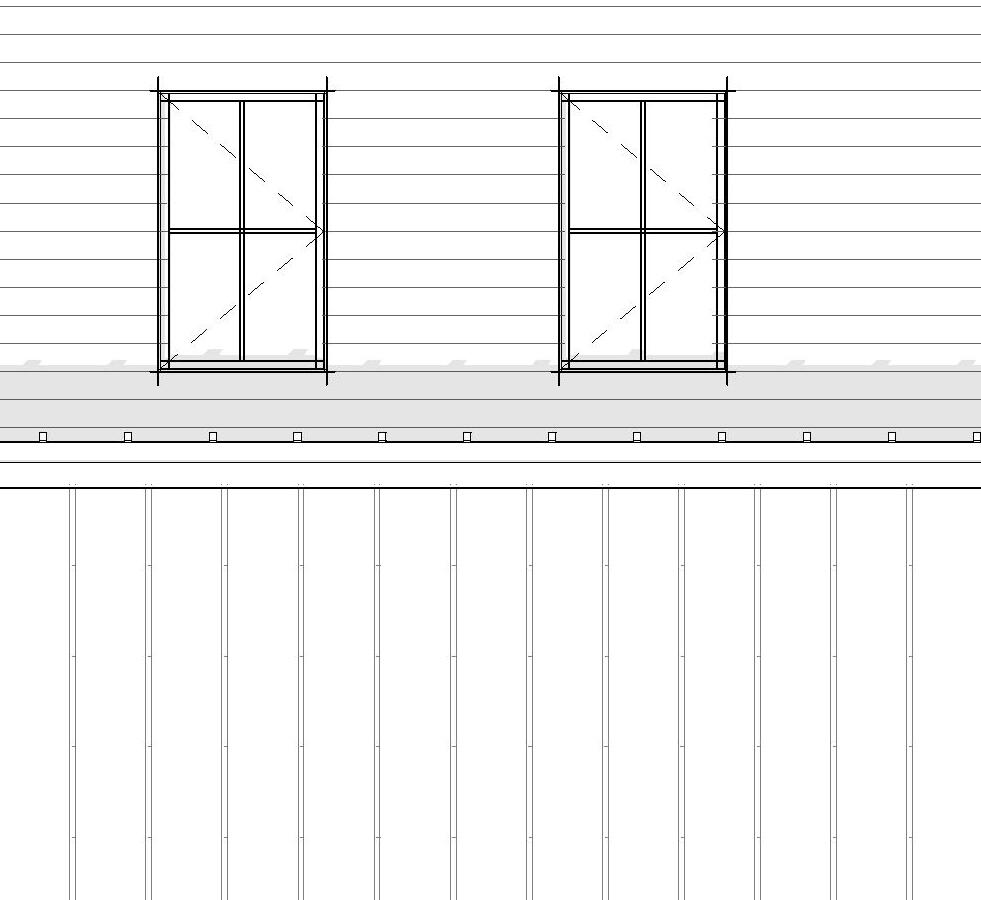

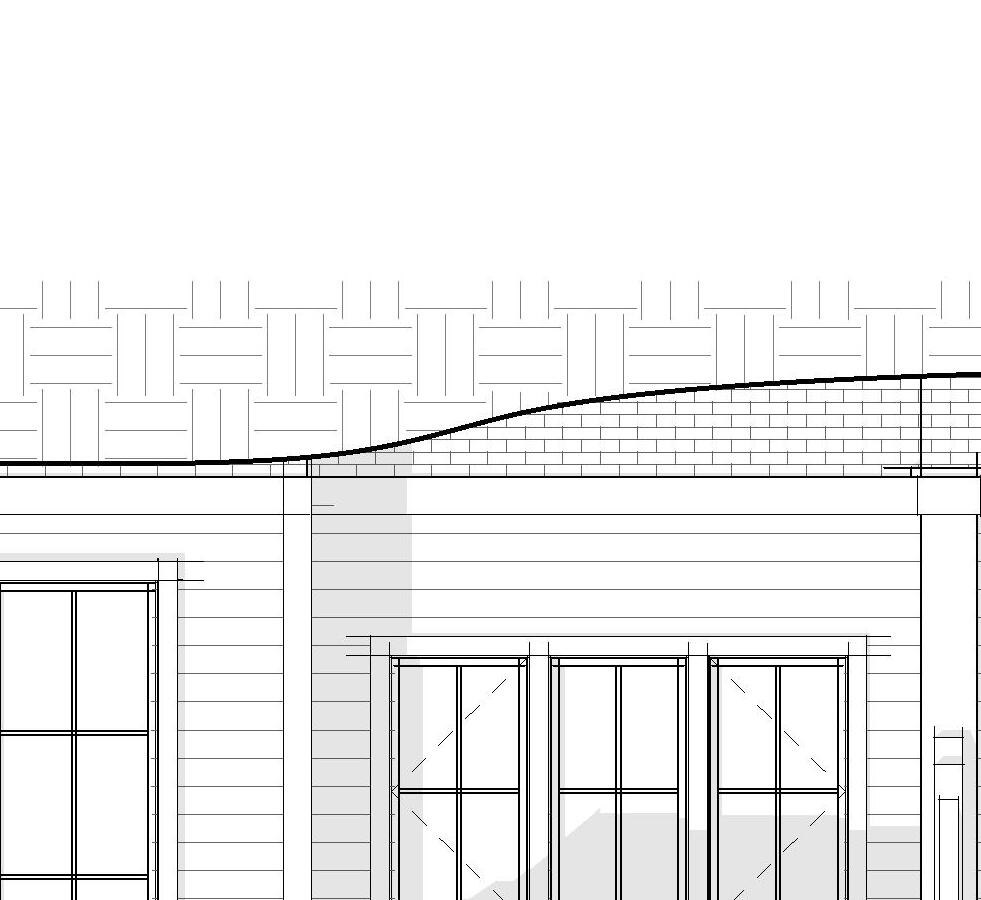

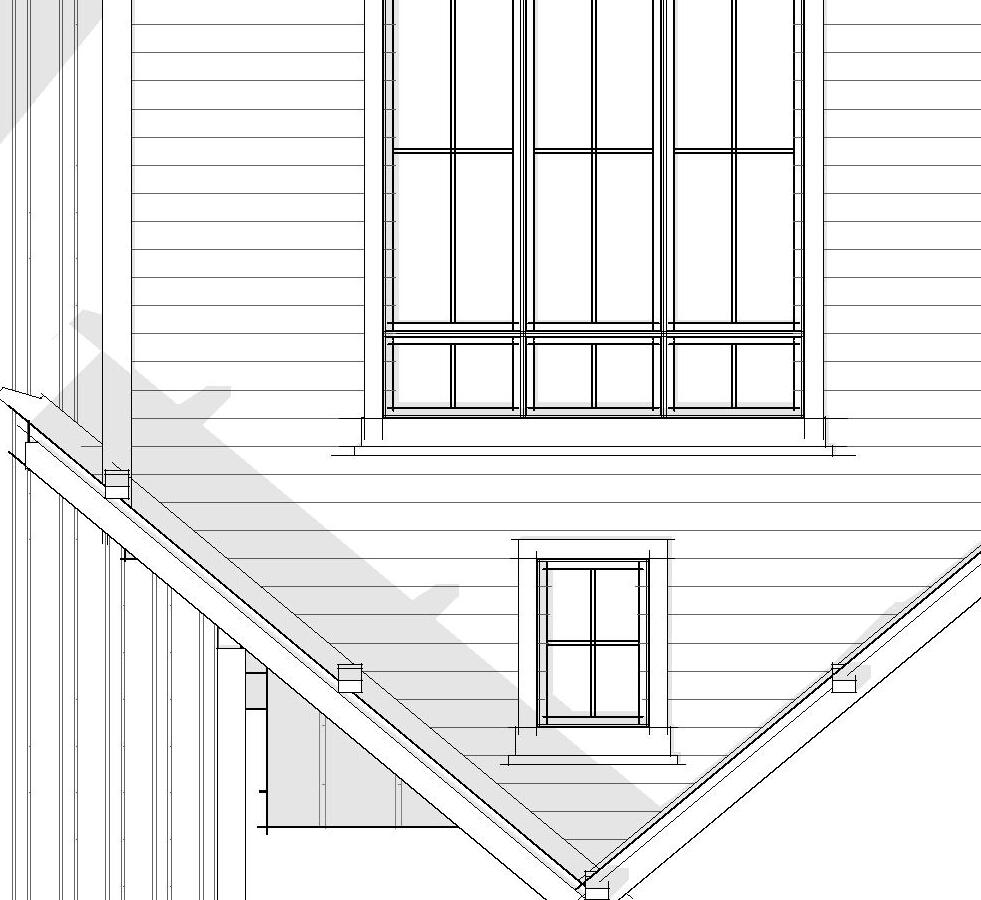

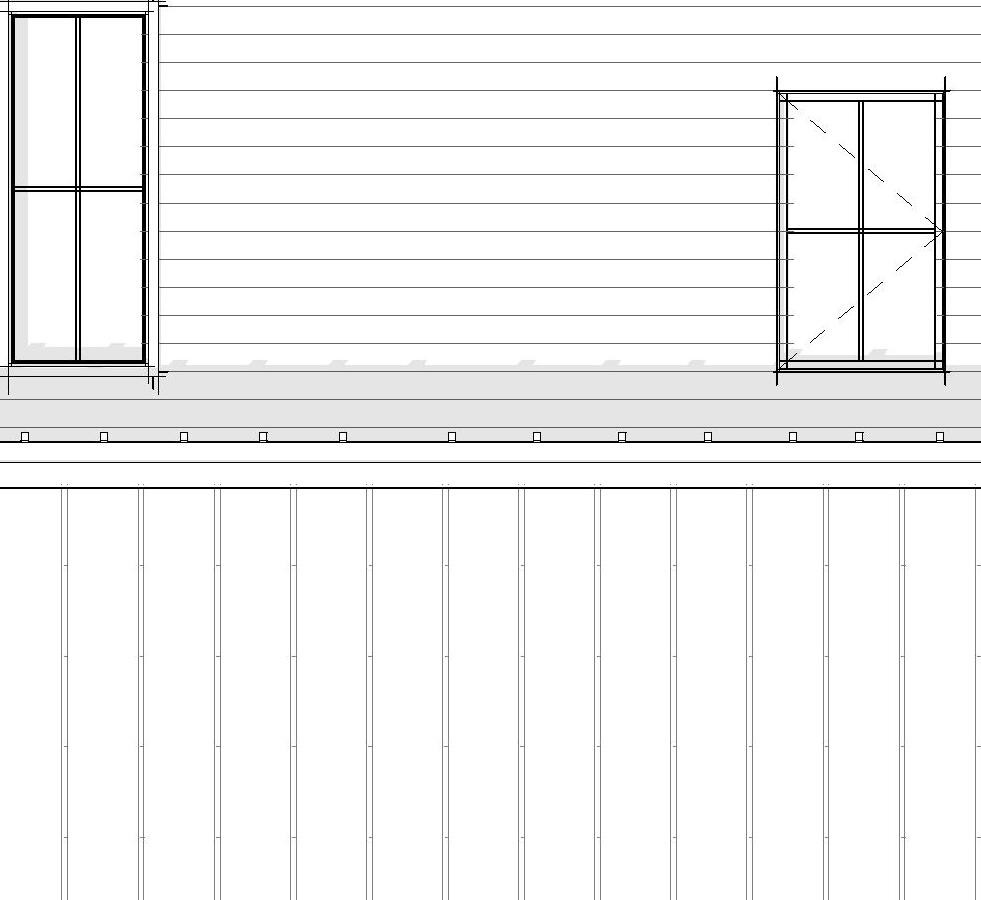

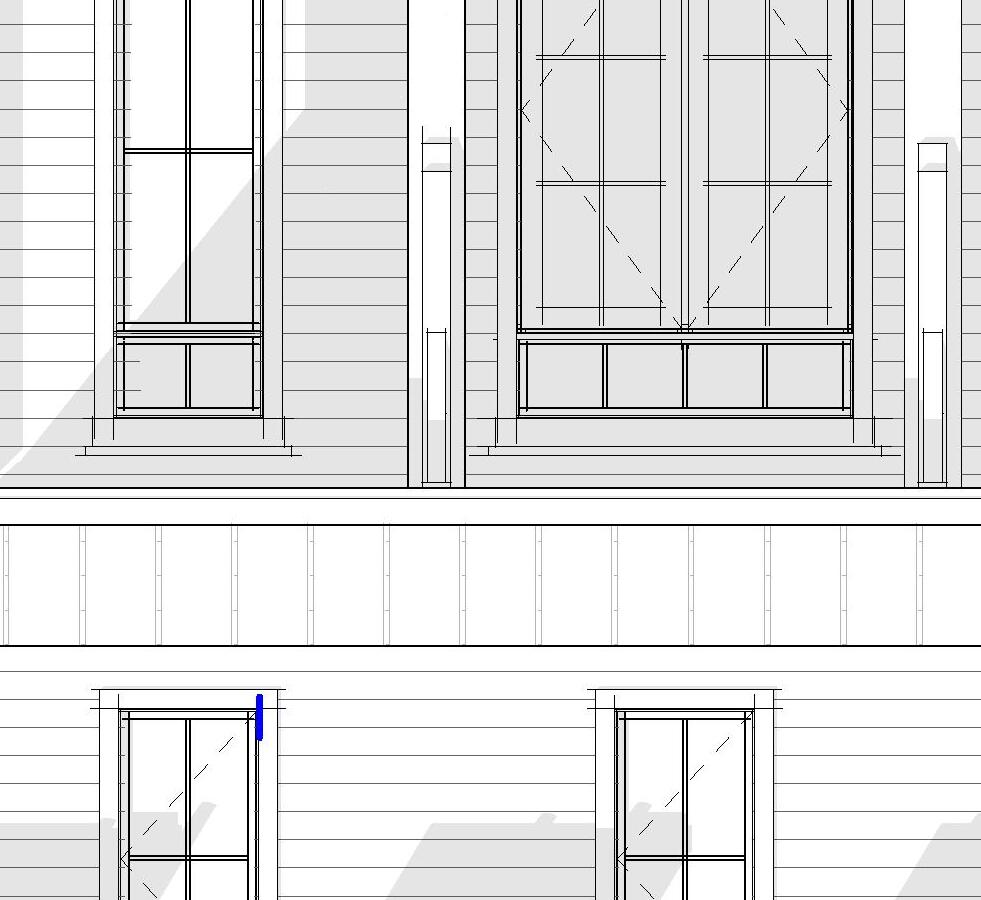

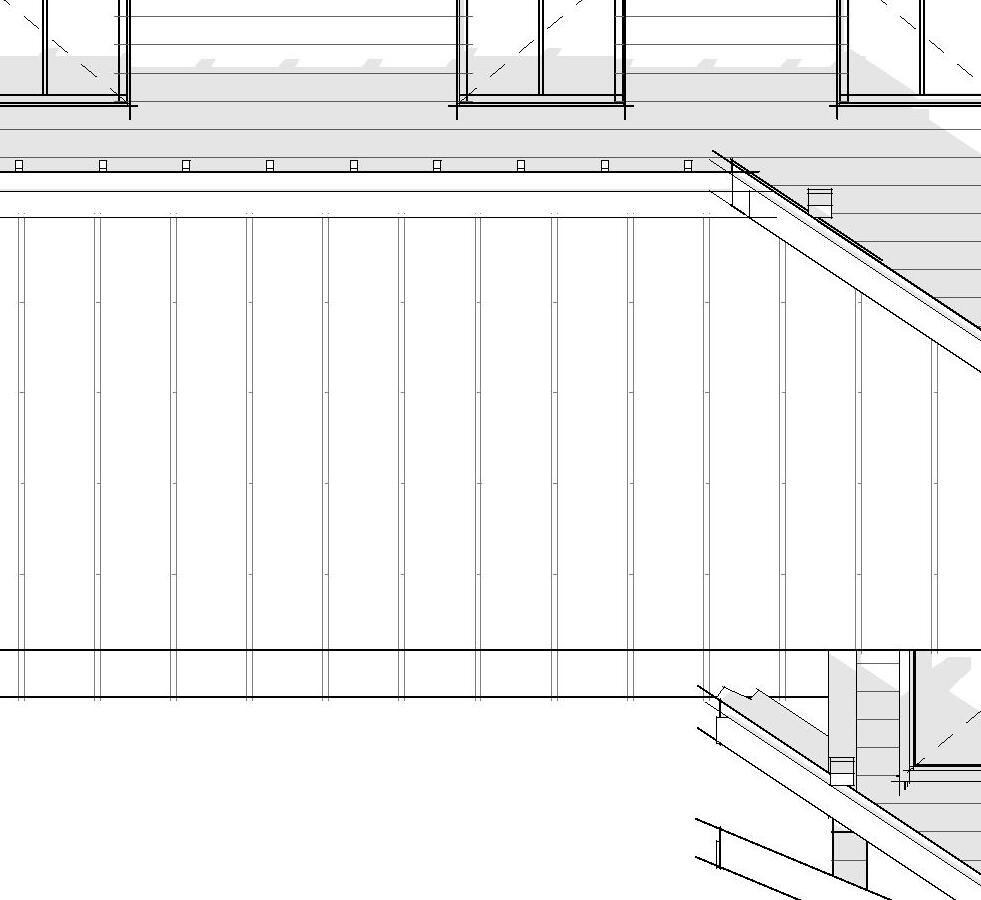

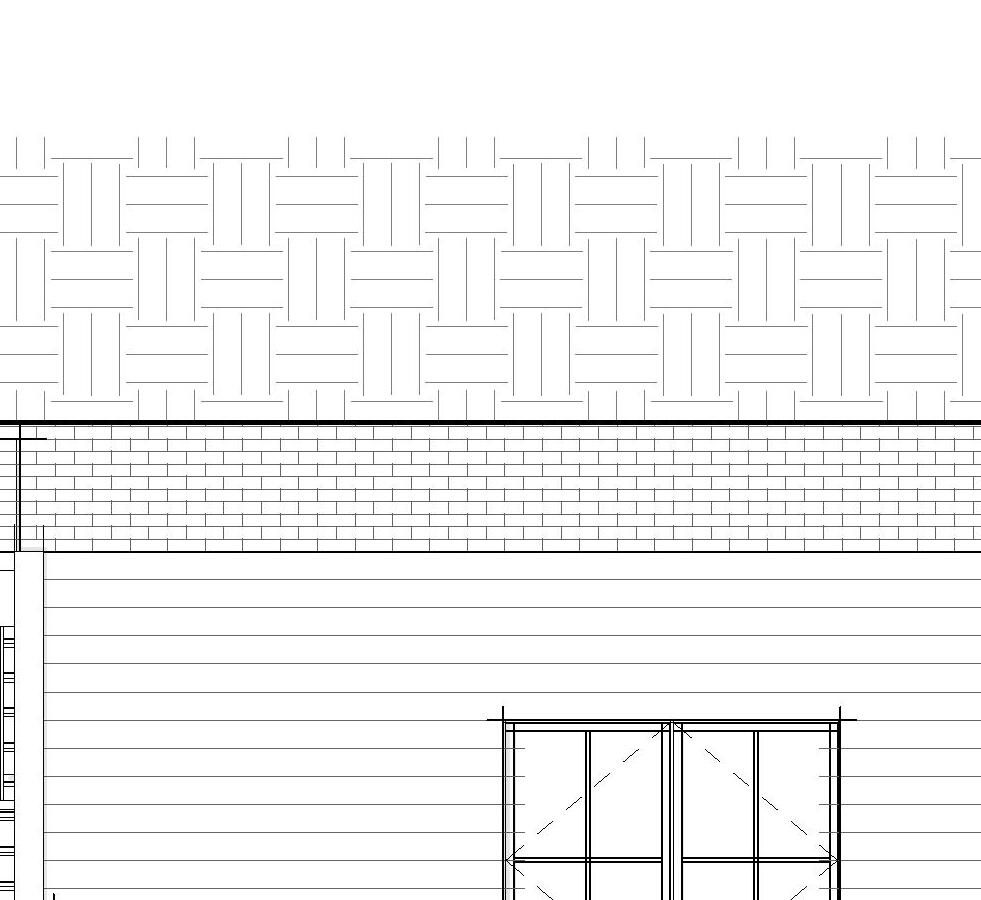

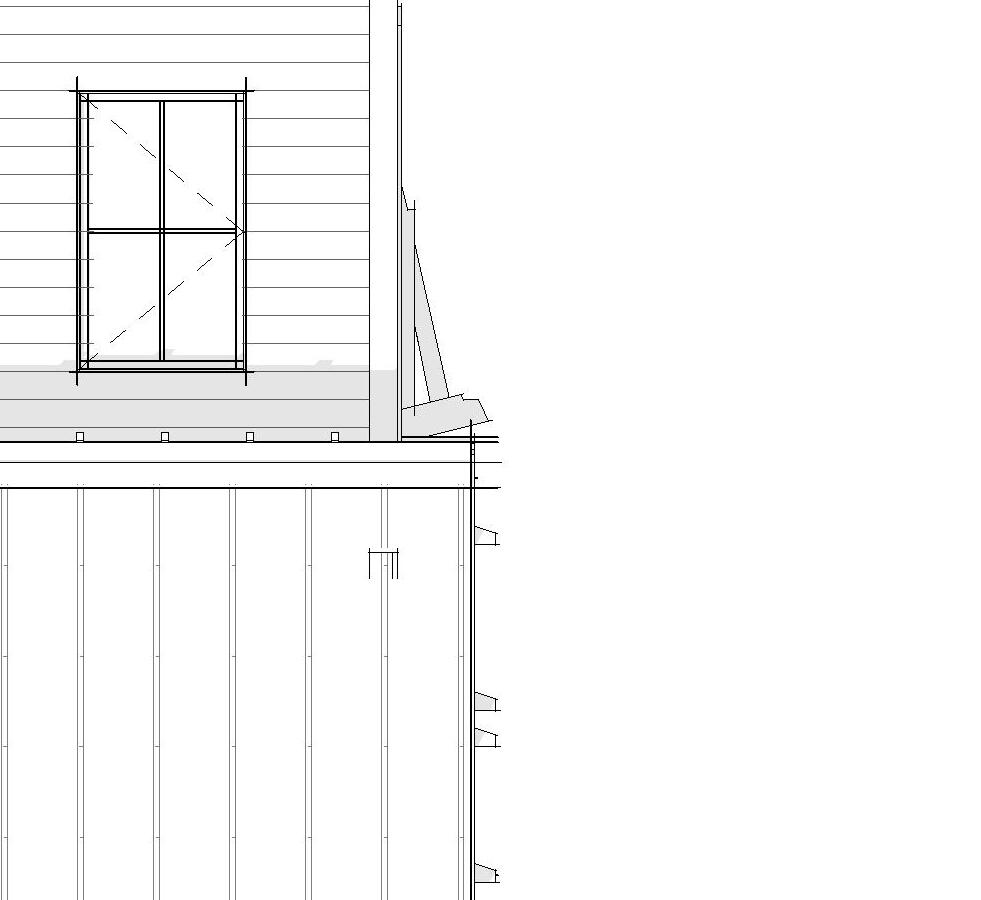

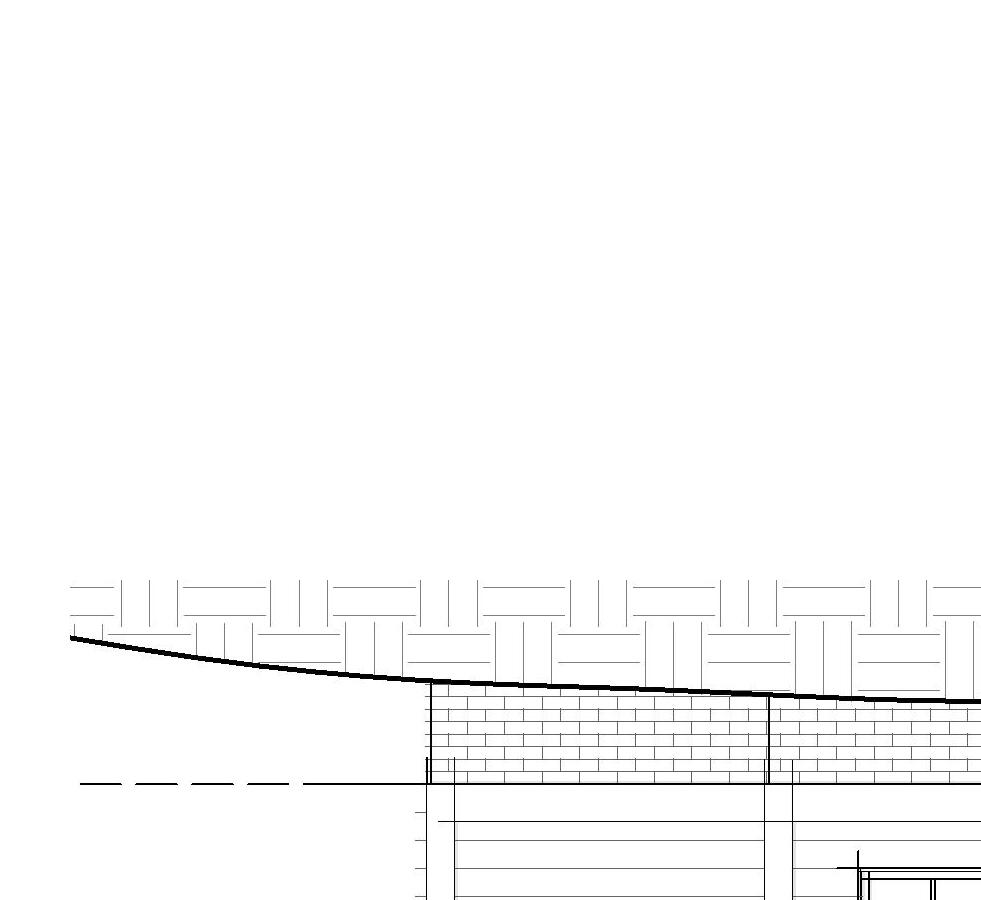

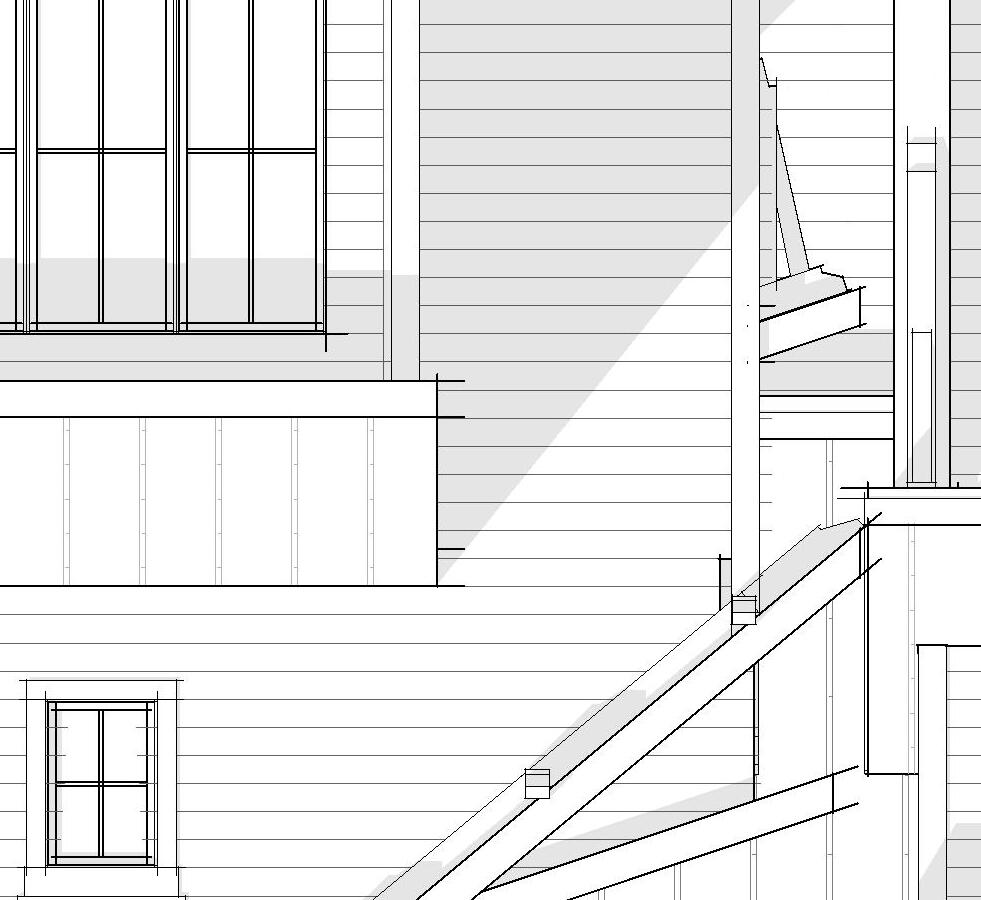

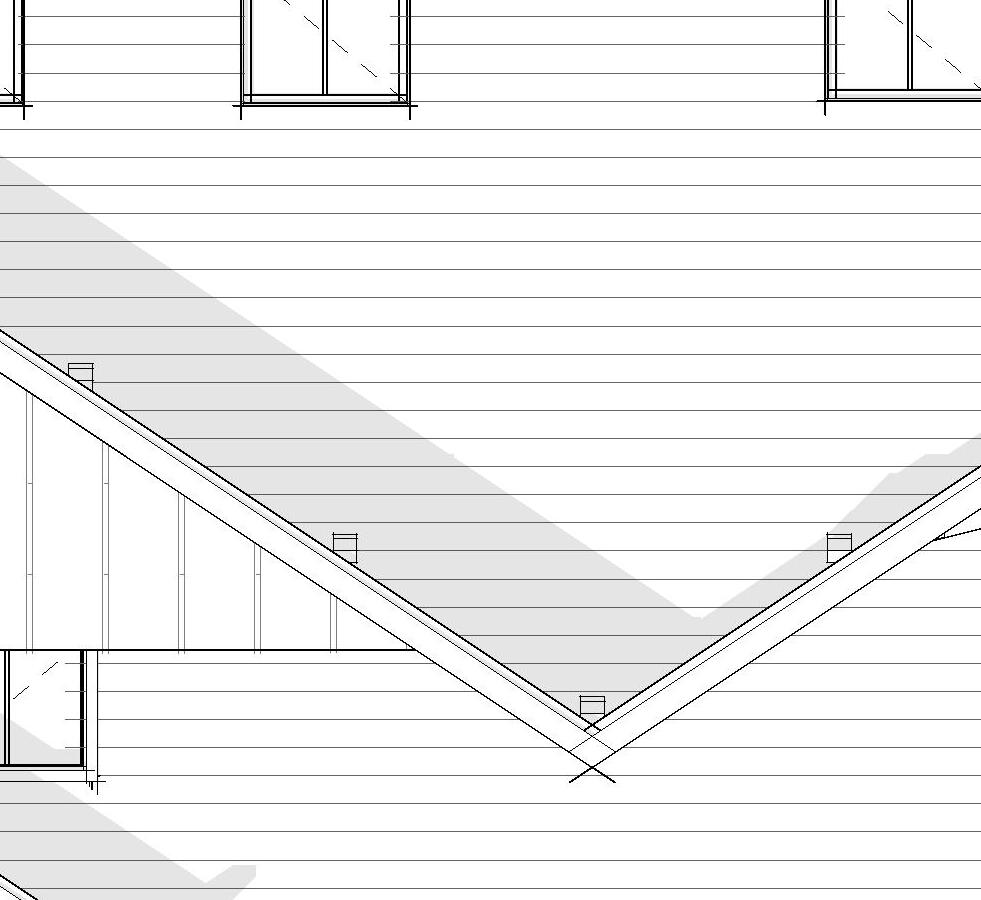

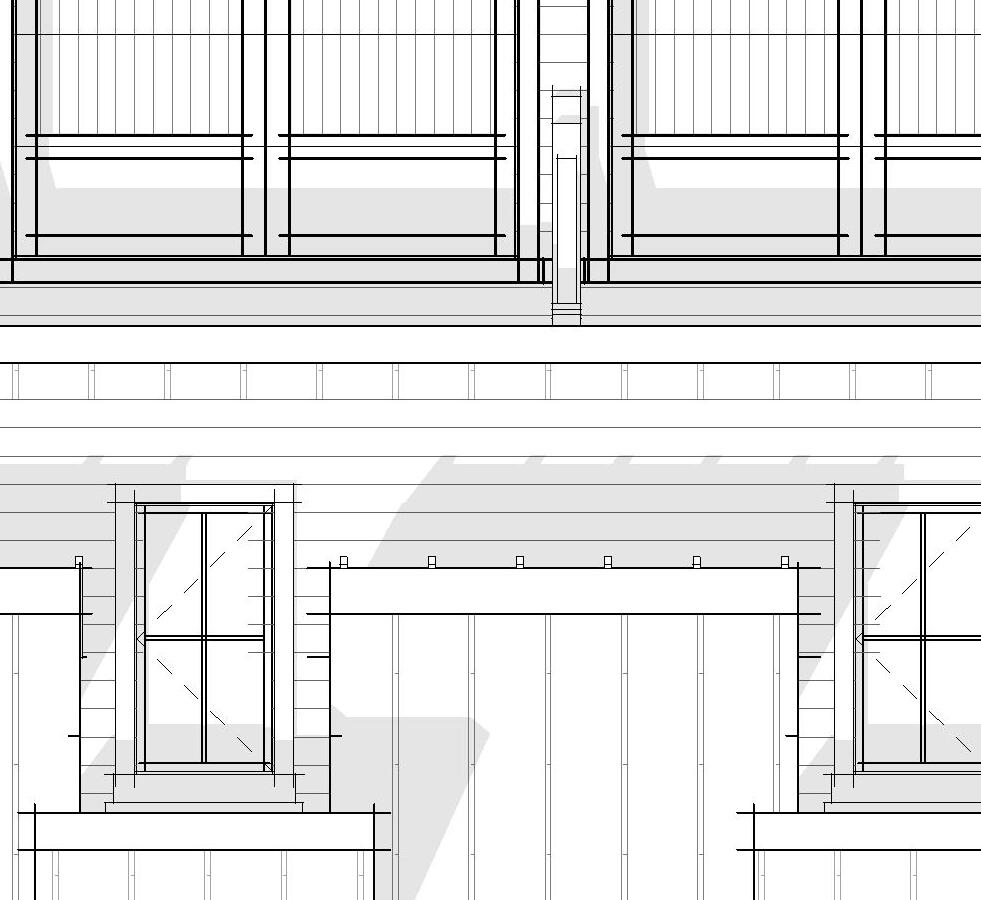

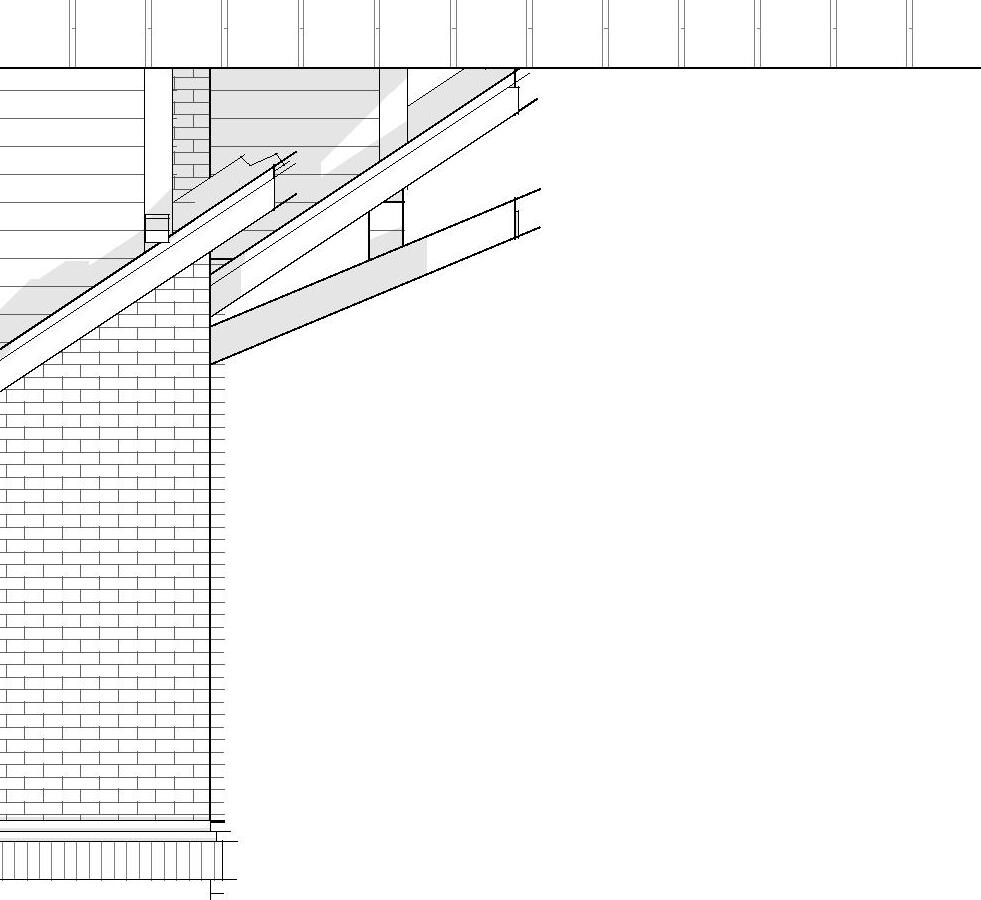

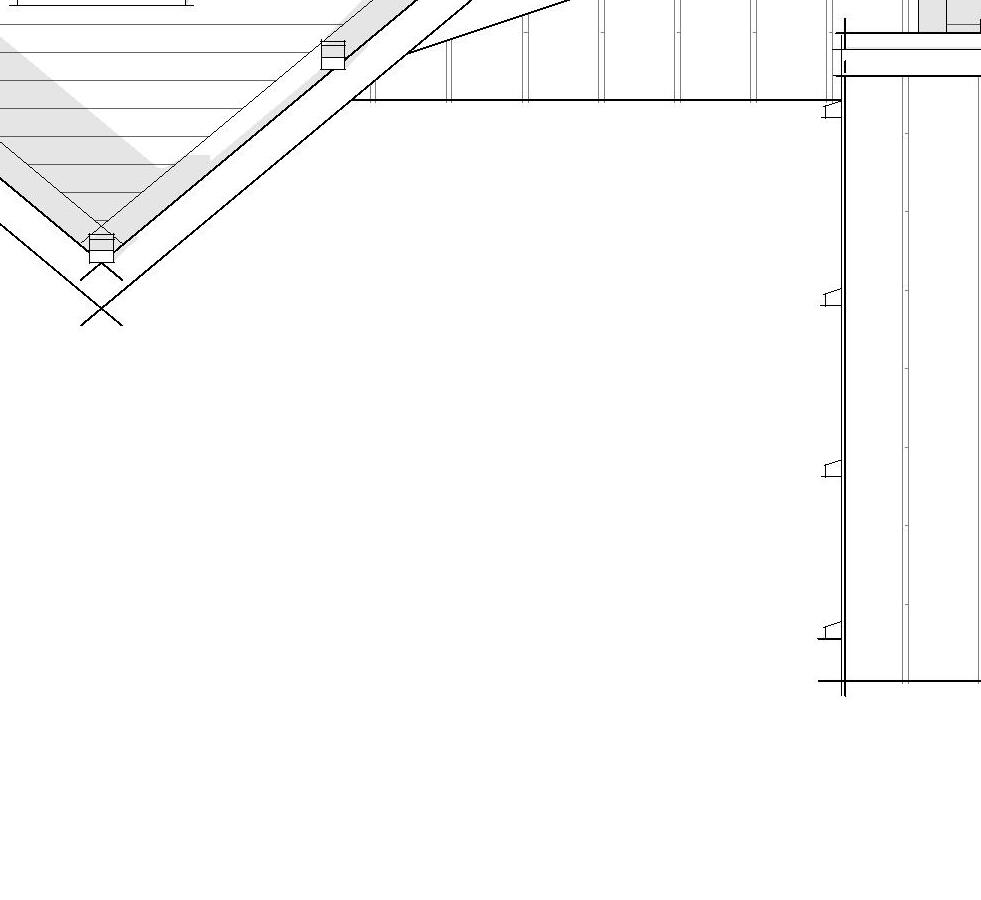

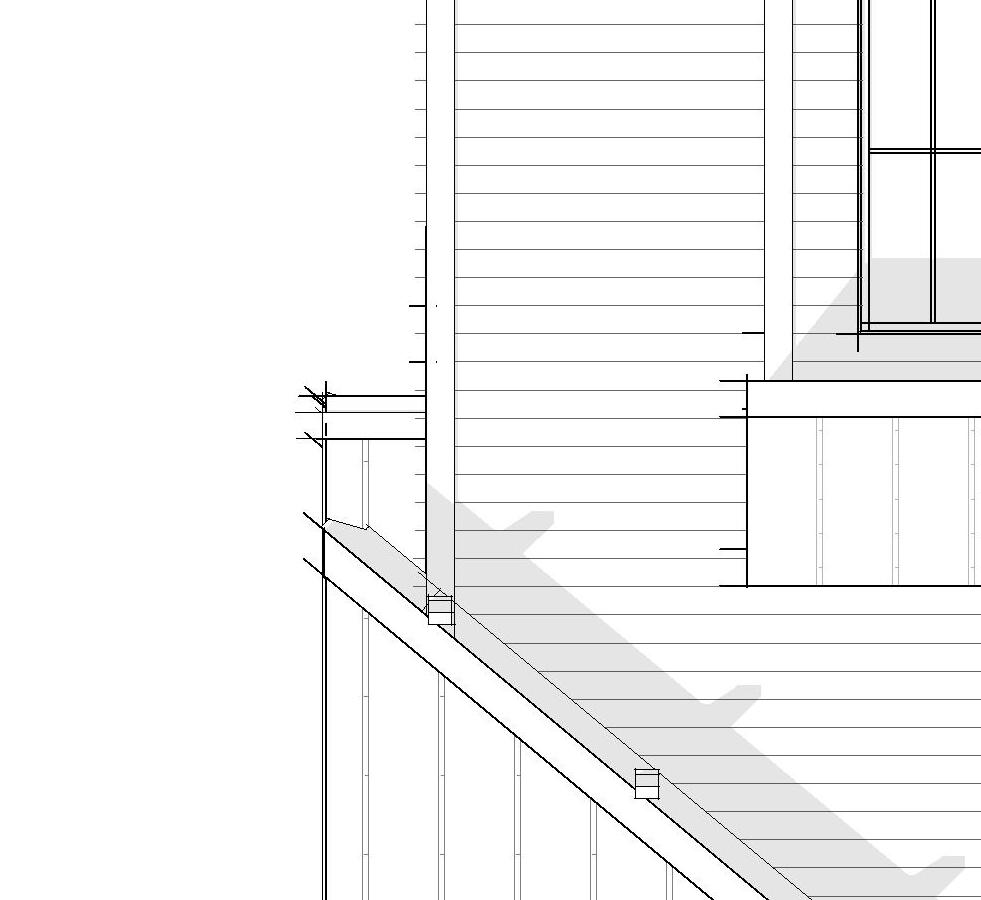

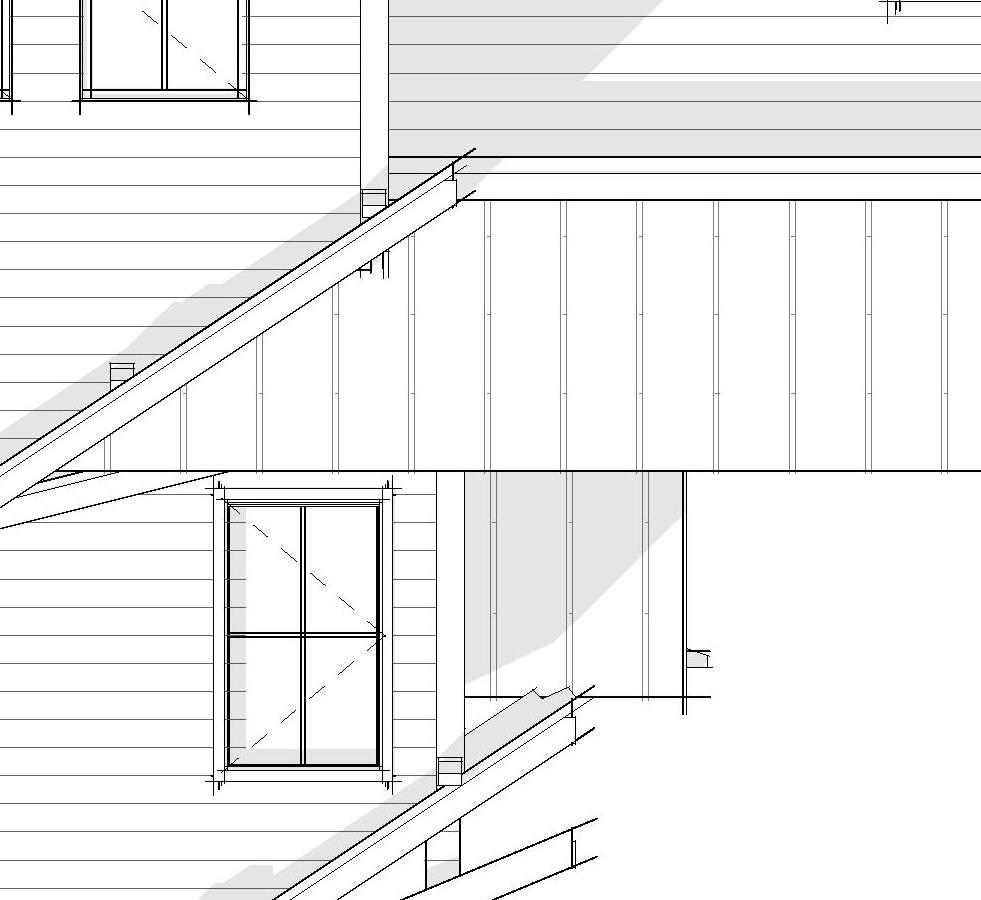

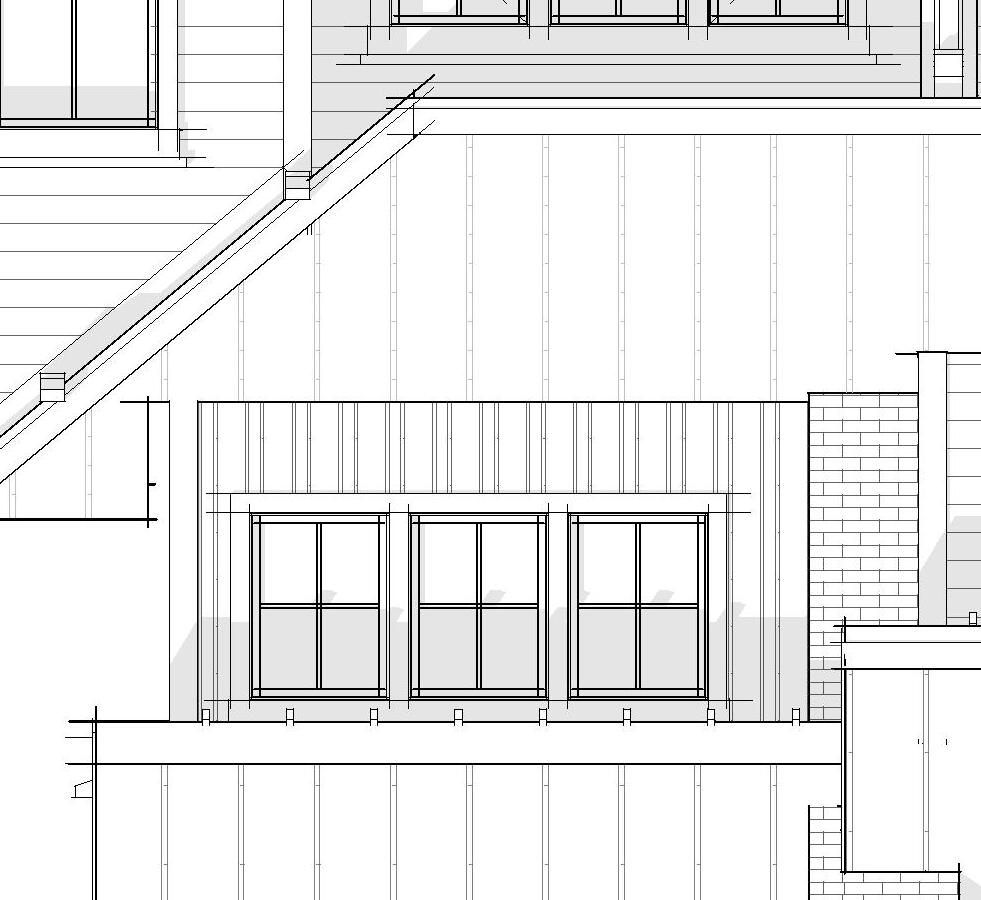

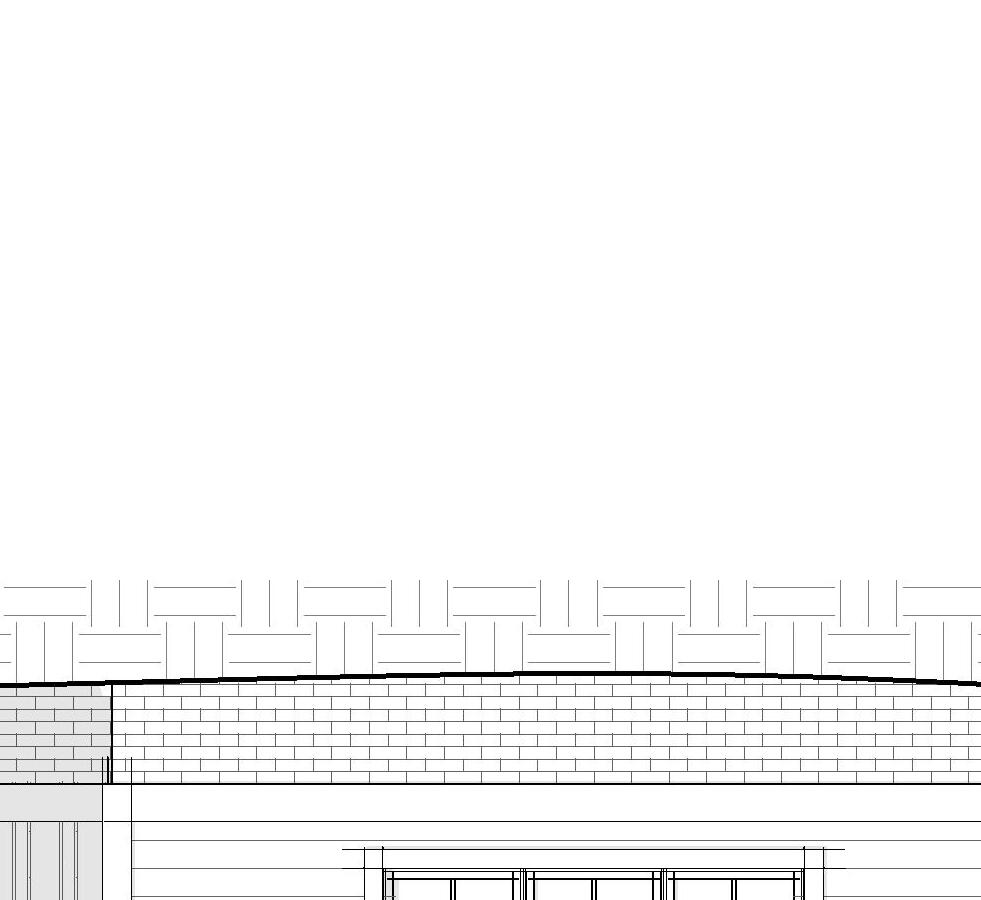

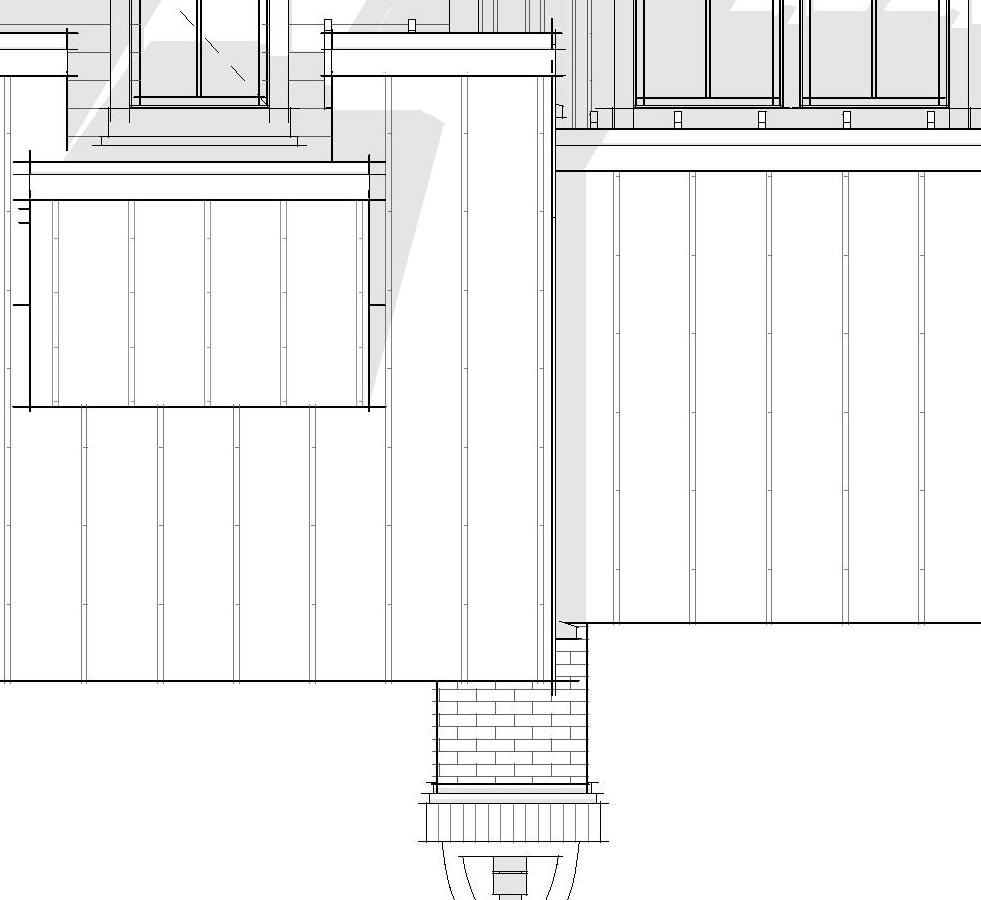

MHK ARCHITECTURE COPYRIGHT © 2022 02/21/2023 COASTAL COLLECTION #1 3/16" = 1'-0" 1 FRONT ELEVATION 3/16" = 1'-0" 2 REAR ELEVATION

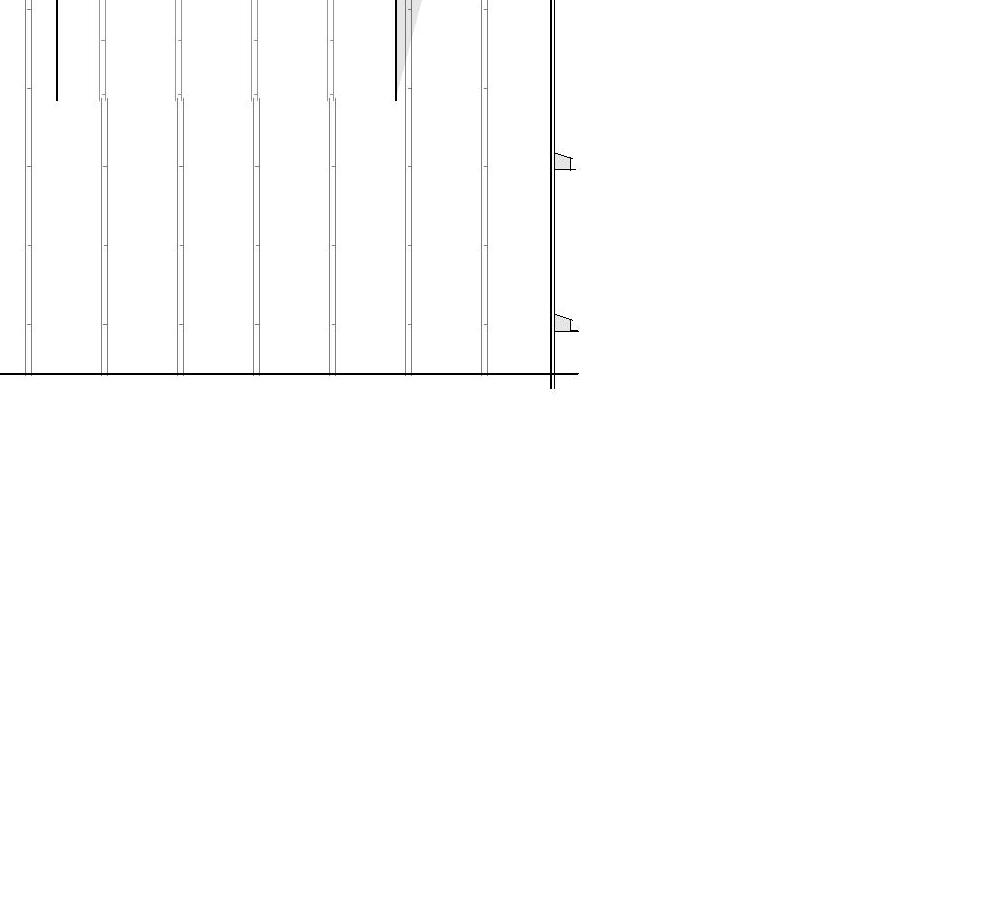

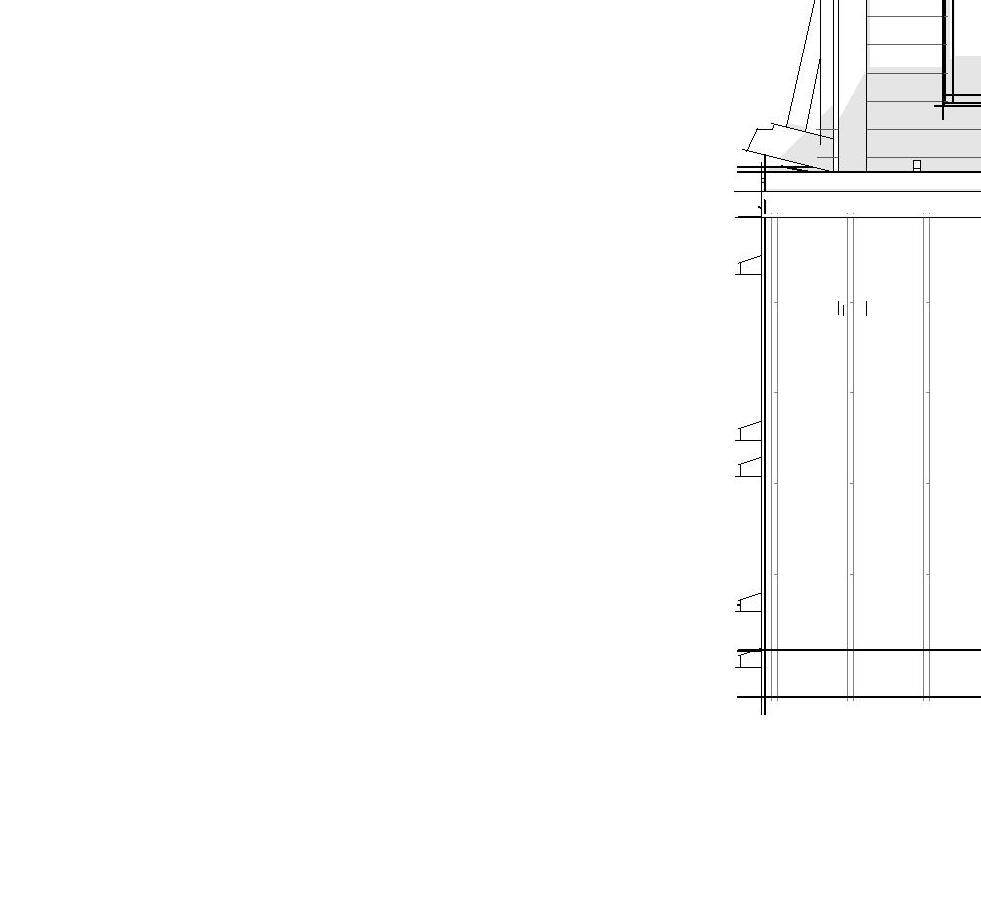

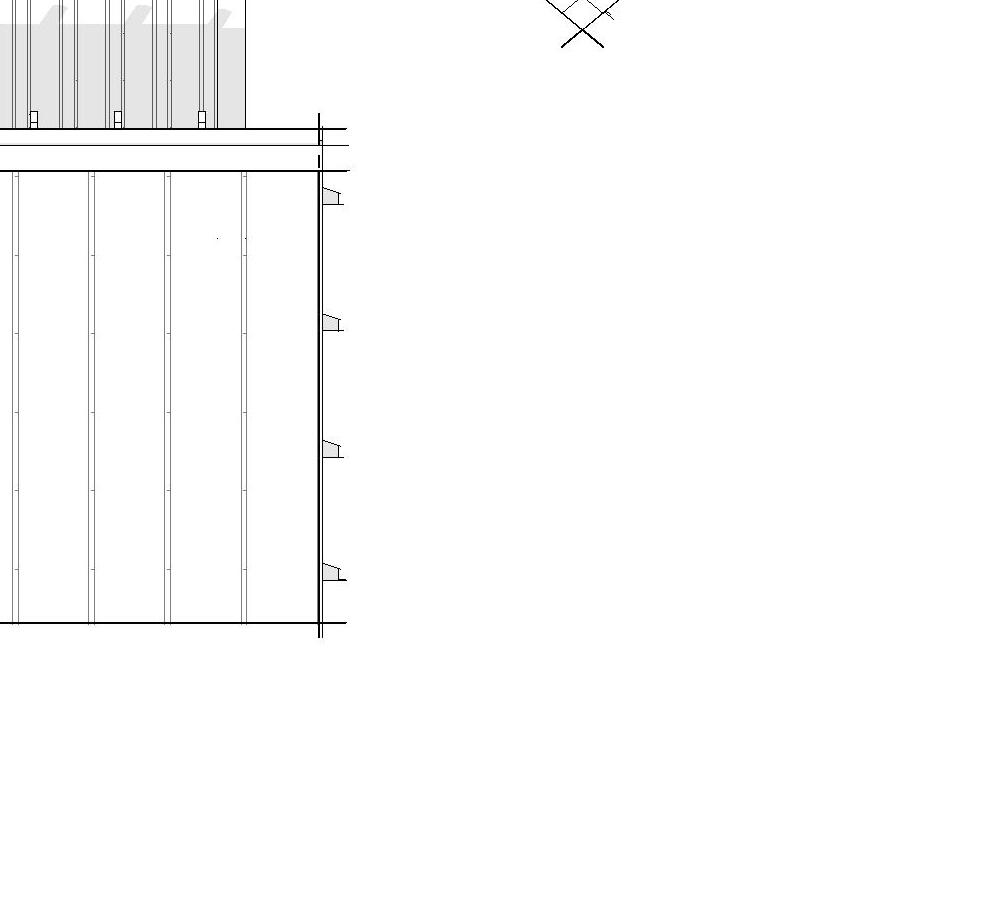

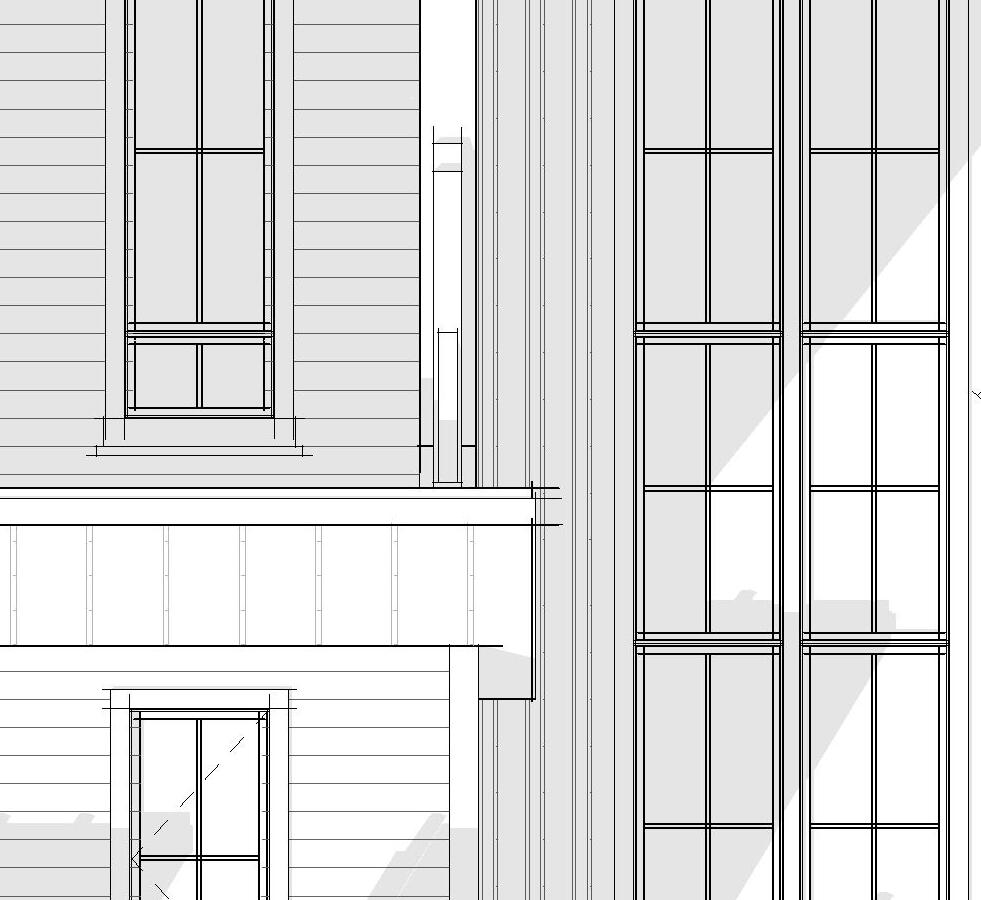

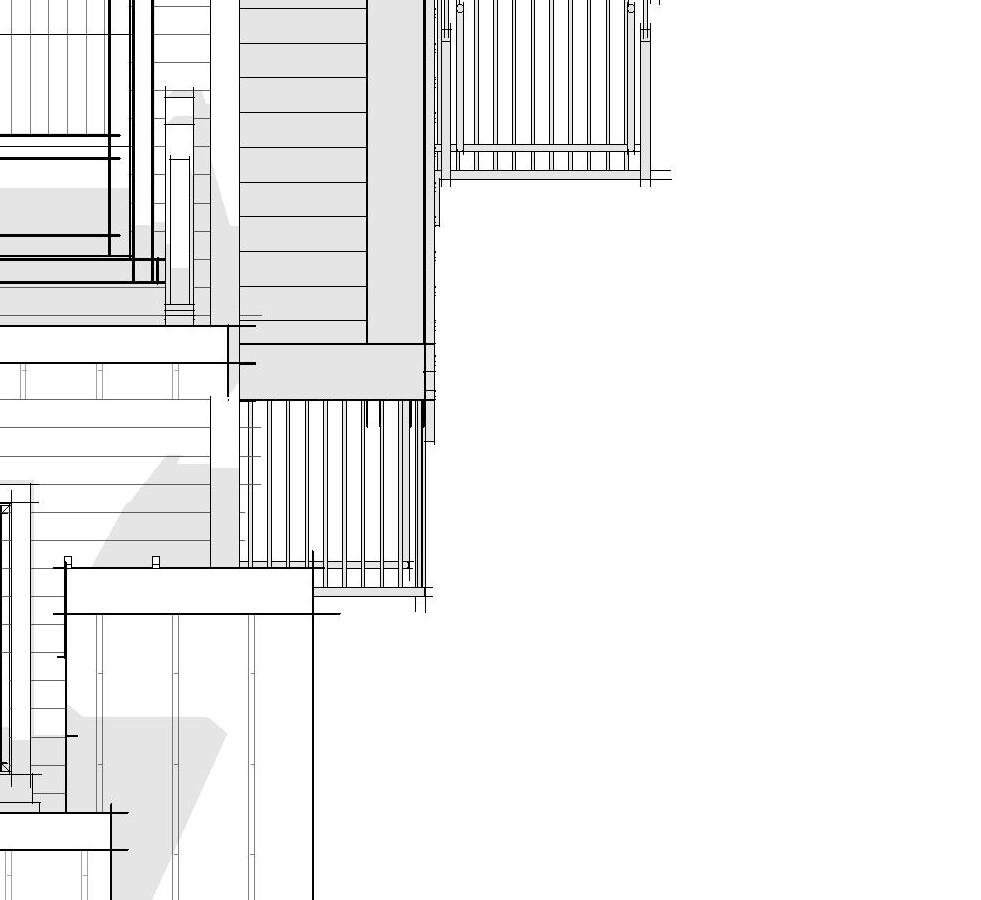

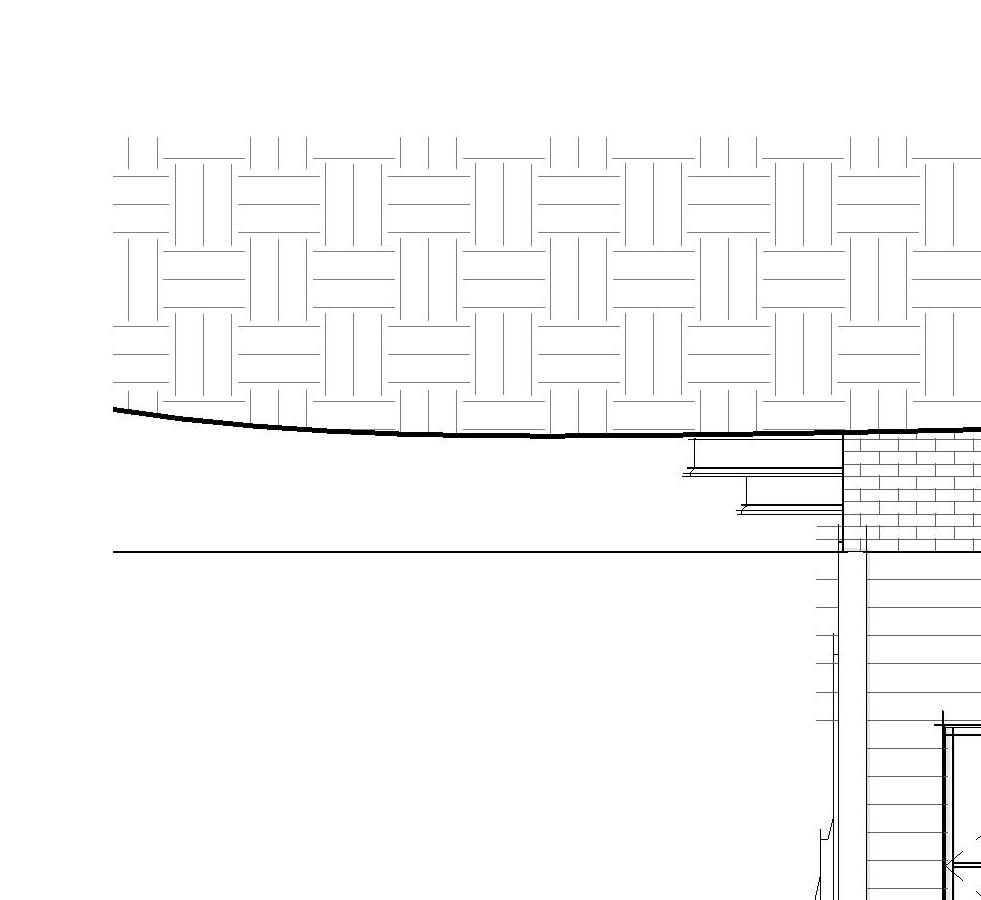

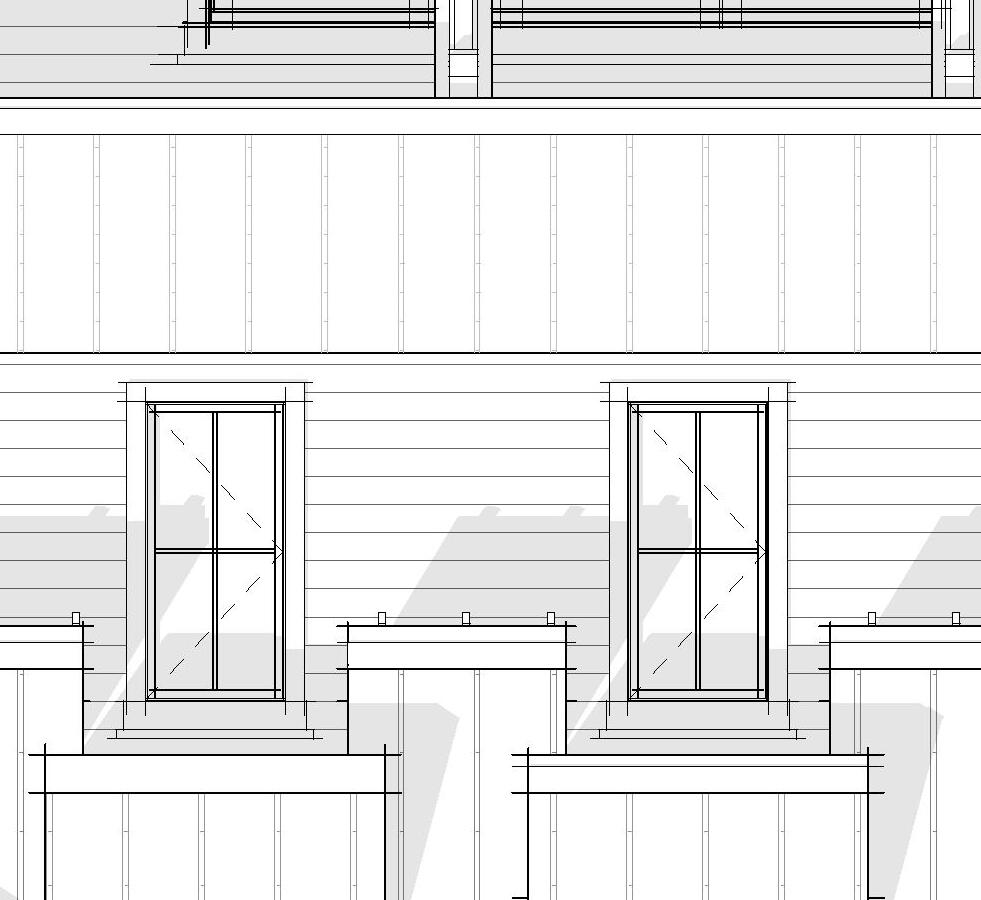

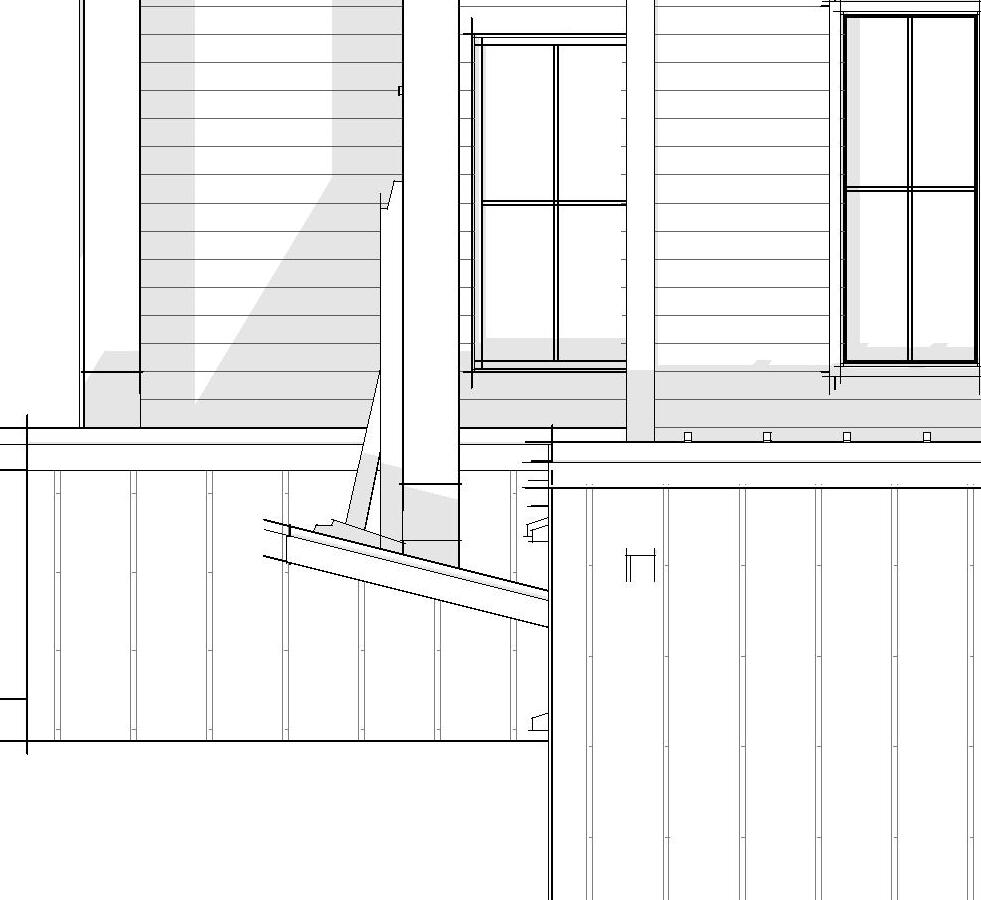

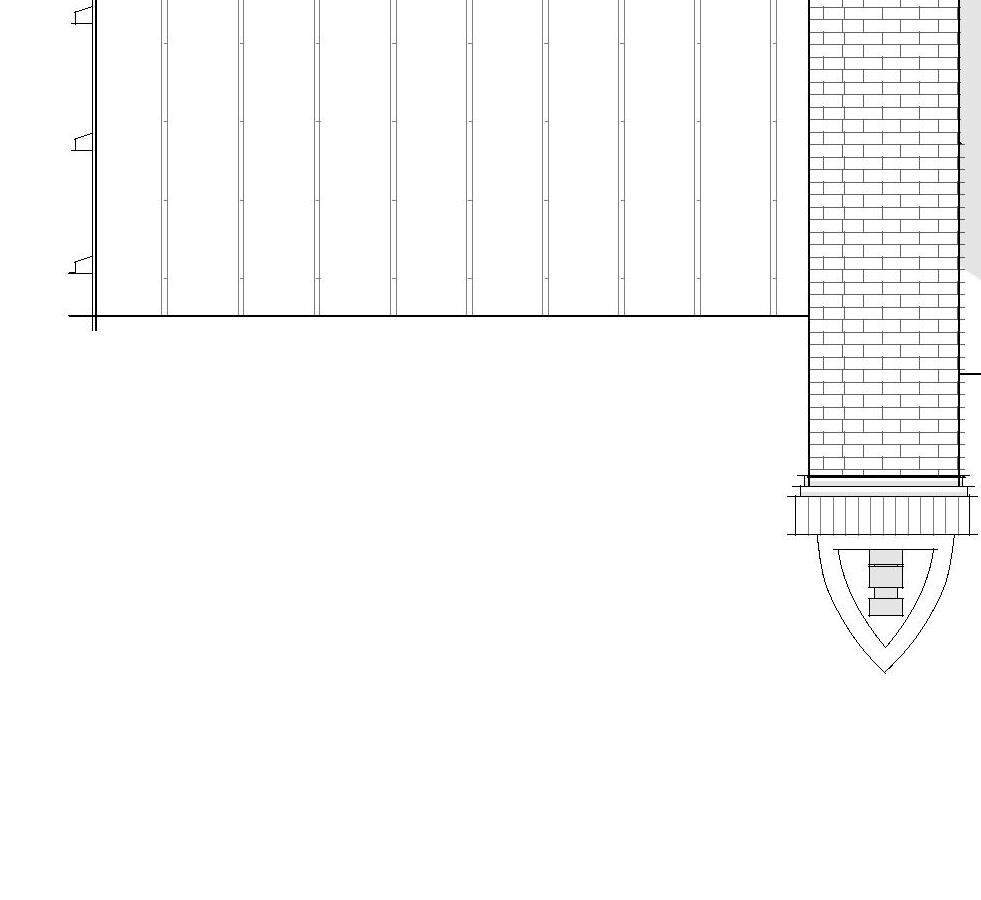

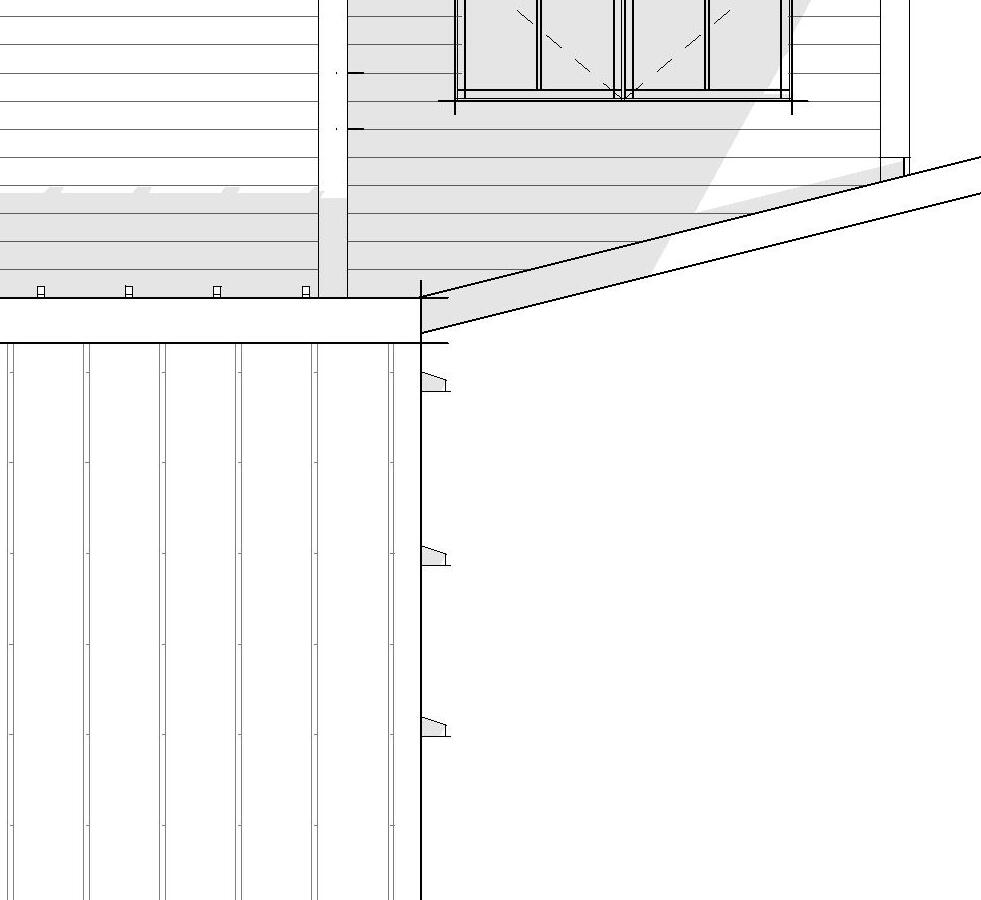

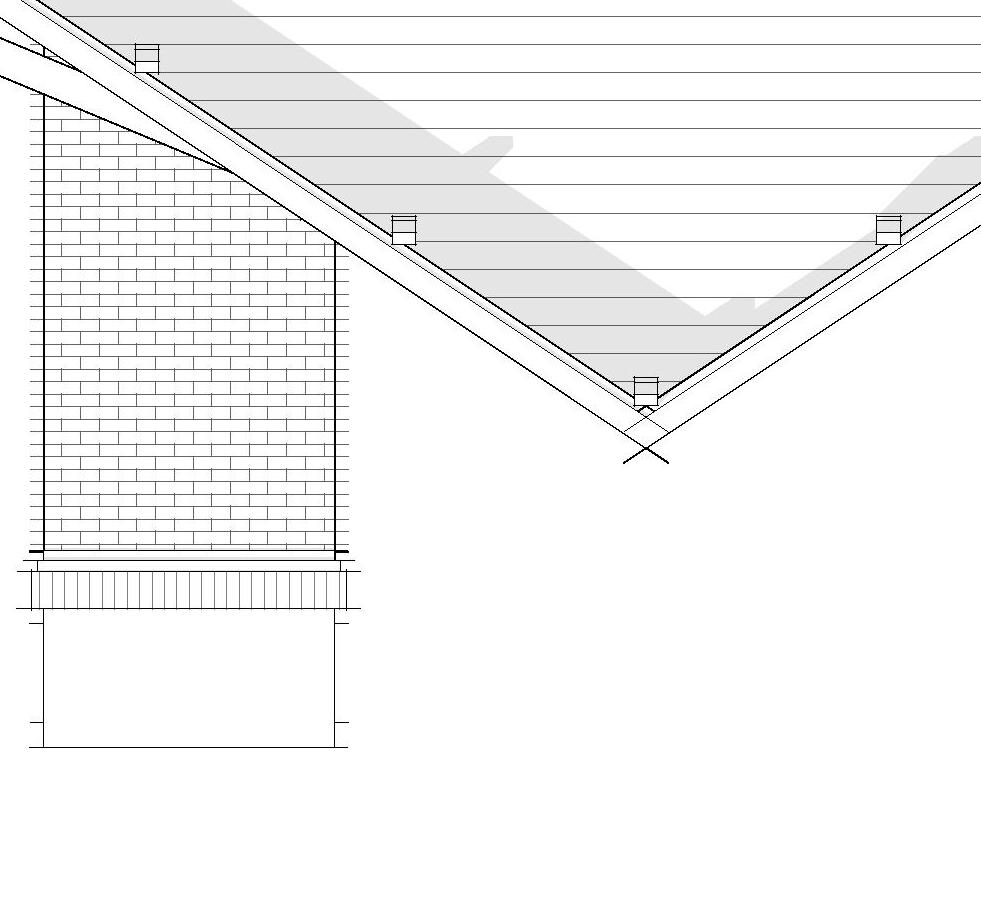

MHK ARCHITECTURE COPYRIGHT © 2022 02/21/2023 COASTAL COLLECTION #1 3/16" = 1'-0" 1 WEST ELEVATION 3/16" = 1'-0" 2 EAST ELEVATION
