With over 20 years’ experience and over 100,000 products installed worldwide, we’re recognised across the globe by leading lighting designers, architects and end clients as the pioneers in remote controlled motorised lighting.
ABOUT ABOUT ABOUT ABOUT
RCL ABOUT 4
RCL is an industry leader with an in-house R&D team at our head office in London, a satellite office in Hong Kong, and worldwide representation through our international partners. We are proud of our heritage in developing innovative patented technology, and our portfolio evolves constantly to meet the complex needs of clients whilst surpassing their expectations. Our award-winning luminaires are particularly suited to ballrooms, museums, art galleries, hospitality and retail applications, where subjects and styles can change frequently but physical access to the lighting may be restricted.
Remote Controlled Lighting (RCL) exclusively specialises in the design, manufacture and supply of remote controlled architectural luminaires.
LightingControlledRemote
ABOUT ABOUT ABOUT ABOUT luminaires now offer latest tuneable white and variable beam technology, providing users with truly adaptable lighting. RCL has used its years of experience and expertise to create RCL Control, our latest lighting control system which simplifies complex motorised lighting schemes into one easy-to-use system, capable of operating across multiple rooms and even multiple floors.
RCL ABOUT 5 RCL
National Museum of
Qatar Designer Licht Kunst Licht Architect Jean Nouvel Location 1398QatarDR7s
our
6
CUSTOM PRODUCTS AVAILABLE At RCL we find challenging projects exciting, and we will always try to provide a solution. By listening to lighting designers and architects over the years, we have been able to develop innovative solutions to overcome complex project requirements. Some of our custom projects have given rise to new products. Originally designed to fit within a high and narrow ceiling trough for a custom project specification, the DR8 became one of our most popular fixtures, offering a minute turning circle and ultimate flexibility.
We are proud of every product we design and every project we supply. The combination of our intuitive, innovative control systems and market leading technology with excellent service means that our customers turn to us time after time. Since 2001, RCL luminaires have been installed in over 1,000 luxury hotel ballrooms and countless museum, gallery and retail projects worldwide. This wealth of experience has given us an unmatched understanding of all facets of designing, manufacturing and controlling motorised architectural luminaires and a detailed knowledge of the specific requirements of the projects where they are specified.
EMBRACING INNOVATION
InnovationEmbracing RCL EMBRACING INNOVATION
FIVE YEAR WARRANTY All of our luminaires are designed in-house, and we have complete confidence in their performance. We use only the best materials and components to ensure durability and reliability, which is why we offer a five year warranty on all our luminaires as standard. Additional details are available on request.
EMBRACING INNOVATIONRCL EMBRACING INNOVATION 7 DEVELOPMENTREMOTE CONTROLRCLCURRENTREMOTE UPDATEDREMOTE AWARDIDIRECTWINNING i PAD BASED LIGHTING CONTROL SYSTEM Over 20 Years OF LIGHTING CONTROL
TECHNOLOGYRCL RCL TECHNOLOGY
DirectSelectControlComplete&
RCL RCL
2. Once the luminaire has been selected, colour temperature, beam width, dim level and beam positioning can be altered using the remote.
TECHNOLOGY
8
All of our luminaires are remotely controllable in motorised pan and tilt, dim level, and also colour temperature and beam angle if specified. There is no need for ladders, scaffolding or mechanical lifts, which can present health and safety risks and potentially damage interior features, displays and artworks.
3. When the adjustments are complete, press the laser button to deselect the luminaire.
Our products have been designed to be compatible with global control systems DALI and DMX, along with our iPad-based control system RCL Control. Simple controls mean that anyone can adjust the lighting from floor-level with ease. The set-up time saved by using our luminaires means a much more efficient and cost-effective use of the space. Our patented ‘Select & Direct’ technology gives anyone the ability to adjust our lights in three easy steps using a remote control. Select & Direct is particularly popular with display, hospitality and retail environments where layout and content can change on a weekly, sometimes daily basis, and lights need altering individually.

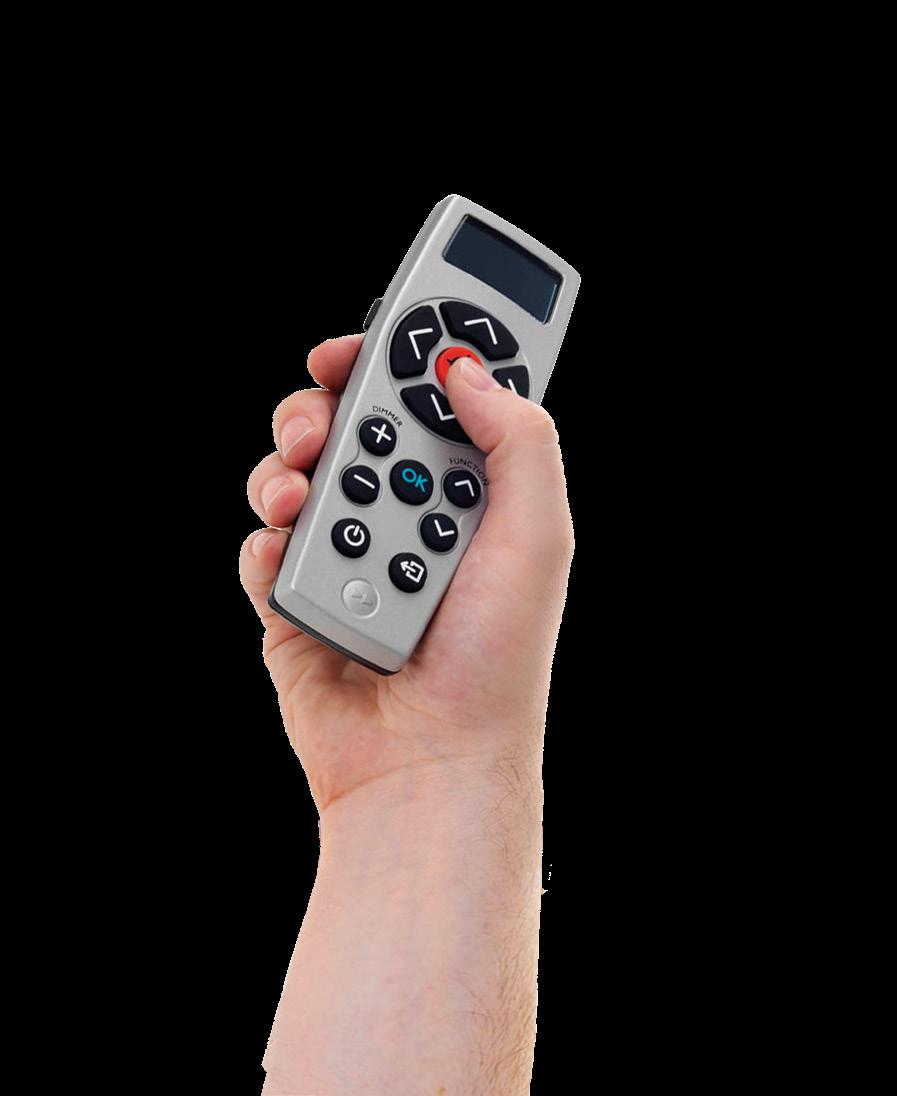

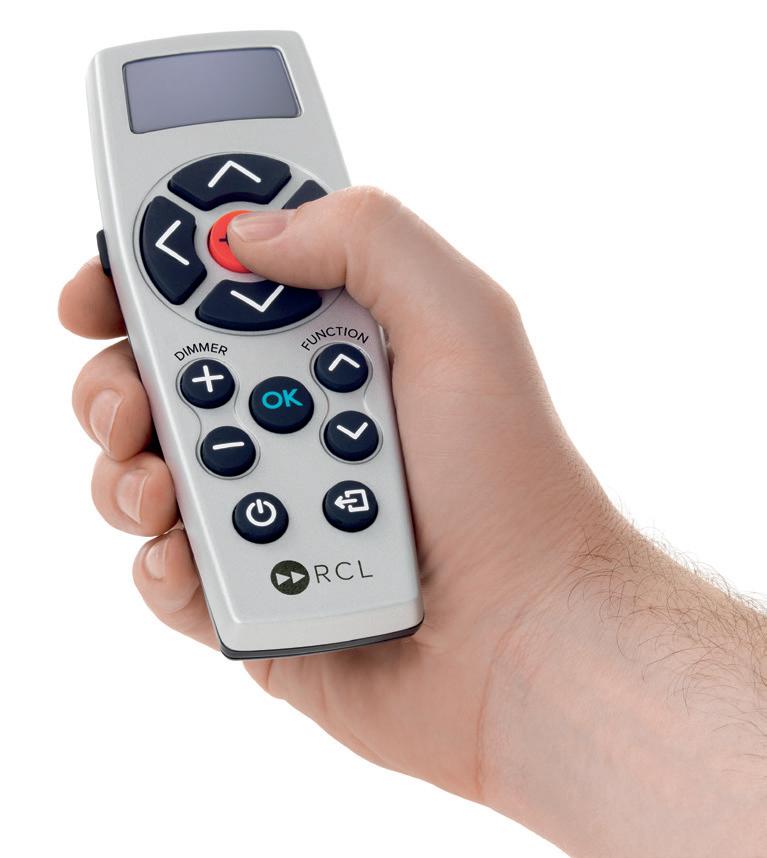

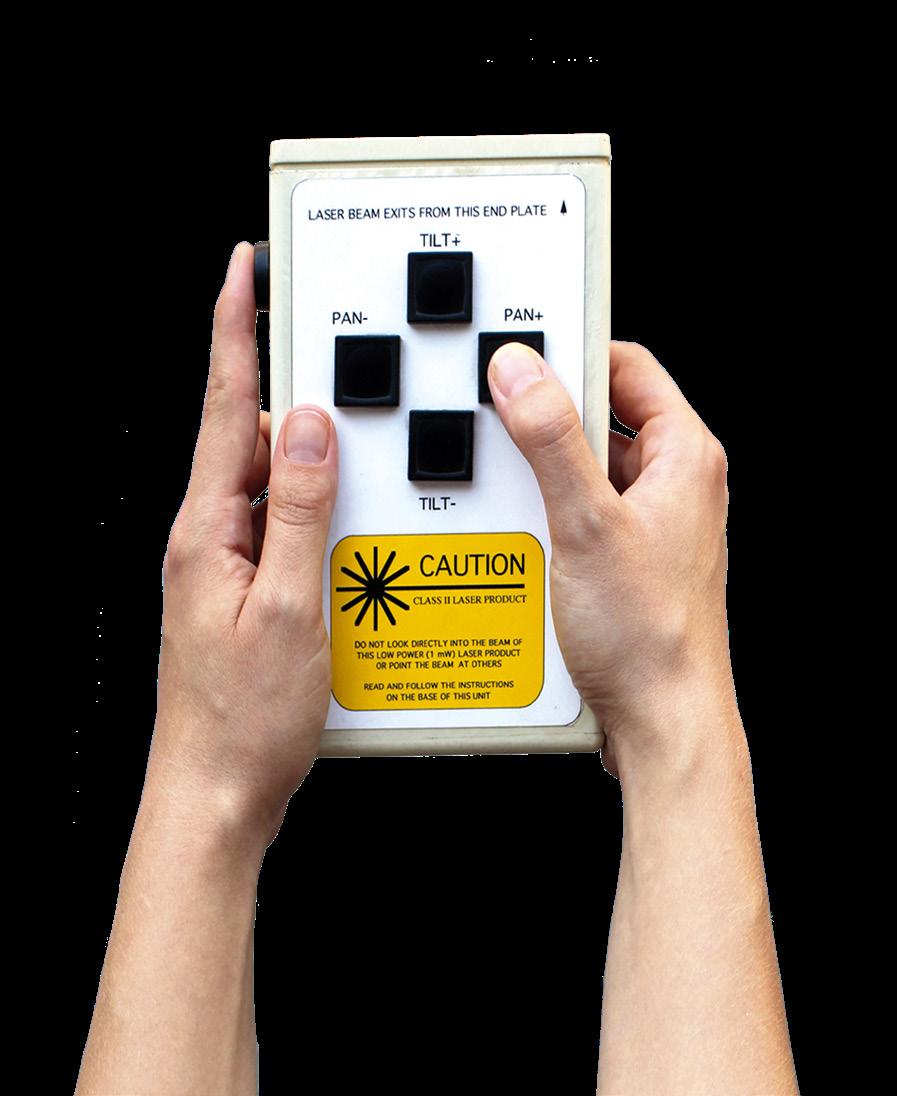

1. Select the RCL luminaire you wish to control with the RCL handheld remote’s built in laser*.
STAGE SCENE 3 MEETING ROOM
9

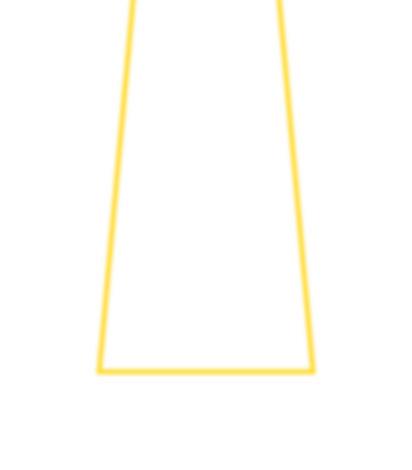

KEY: = Light beam = Luminaire = Chair = Table = Dining Table
TECHNOLOGY RCL TECHNO
Each table has been pin spotted to accentuate table top focal points, such as floral centrepieces. Three spots with wider beams have also been positioned to illuminate the top table and bring it into focus. Beam width adjustability and clever positioning avoids washing the guests’ faces with light.
Three luminaires are focused directly on centre stage whilst using different dim levels to illuminate and make the host the focal point of the stage space itself.
RCL RCL
By pre-recording a number of Scenes to suit each purpose, users can reduce set up time and maximise the profitability of the space. For example, a hotel function room could regularly be used for wedding receptions, conferences and business meetings. The lighting arrangement may be very different for each setting and could traditionally take hours to adjust using ladders or scaffold towers. Scenes convert these hours into seconds at the touch of a button.
AGE SCENE 2 CONFERENCE
TECHNOLOGY
All RCL luminaires are independently intelligent due to their inbuilt memory. Regardless of which control protocol is used, they are able to recall any pan and tilt position, colour temperature, beam width and dim level previously recorded via the remote or RCL Control app. A Scene is a group of pre-recorded position and light settings specifically designed to ensure that RCL luminaires can quickly and easily adapt to the multi-functional use of a space that they are installed in.
STAGE SCENE 1 WEDDING
Scenes
The horseshoe-shaped meeting table has been lit with a number of luminaires to provide uniform lighting for the worksurface. The light levels can be dimmed up and down as required.
Many RCL customers use Scenes to reduce setup time and to maximise the flexibility and efficiency of their space. The functionality that Scenes offers means the luminaires can adapt to their surroundings, ensuring that lighting is quickly and easily adjustable in seconds. Up to 10 Scenes can be recorded using a Select & Direct remote, or up to 1000 if using RCL Control.
Four of the remaining six luminaires are dimmed down and set to a warmer colour temperature to ensure all attention is focused on centre stage without leaving the attendees in darkness.
RCL TECHNOLOGY RCL TECHNOLOGYRCL RCL TECHNOLOGY 10 iPAD CONTROL SYSTEM
TECHNOLOGY RCL TECHNORCL RCL TECHNOLOGY 11 DIMMINGLEVELWIDTHBEAMTEMPERATURECOLOR MOTORISEDPOSITIONINGBEAM CREATE & RECALL UP TO 1000 LIGHTING SCENES INSTANTLY SET UP AN EVENT SPACE CREATE & SAVE LIGHT GROUPS CONTROL MULTIPLE LIGHTS SIMULTANEOUSLY IMPORT YOUR LIGHTPLANSOWN EFFORTLESSLY ADD, LOCATE & CONTROL LIGHTS WIRELESSLY CONTROL HUNDREDS OF RCL LUMINAIRES PERFECT FOR ANYWHERE ADJUSTABILITY & CONTROL IS REQUIRED HOSPITALITY MUSEUMS & GALLERIES RETAIL SHOWROOMS
RCL Control is highly resilient to any security threat as it does not require any internet services and uses the latest in wireless device security, along with a unique and secure authentication system. Users can easily organise and navigate complex lighting schemes thanks to the intuitive user interface. Live onscreen feedback ensures that luminaire adjustment is simple, intuitive and responsive. Perfect for large scale applications, RCL Control allows the user to create ‘Zones’, ‘Light Plans’, Groups and Scenes (pre-saved light settings) to organise hundreds of luminaires across multiple rooms and floors. This tiered set-up allows users to easily navigate complex lighting schemes and control individual or multiple luminaires at once. Controlling and manipulating light has never been so easy. Users position their luminaires directly onto Light Plans for quick and easy selection and adjustability, putting complete control into their hands. RCL Control allows users to import professional lighting schematics, or even take photos of room layouts instantly with the iPad camera, offering simple and highly versatile commissioning of lighting schemes. RCL Control offers multiple levels of control, ranging from group fixture manipulation to fine-tuning individual luminaires. Motorised pan and tilt positioning can be controlled either together through the joystick interface for rapid positioning, or individually via the precision control dials, allowing adjustments in minute increments for incredible accuracy. Along with high resolution positioning, RCL Control provides user-friendly beam manipulation of colour temperature and beam width, delivering truly customisable lighting at the user’s fingertips. RCL Control has the ability to integrate into existing DALI control systems, transmitting external commands from the master building control system, and allowing saved Scenes, inclusive of motorised positioning and full beam manipulation, to be configured for and recalled by DALI Scene panels, providing yet another level of control and flexibility.

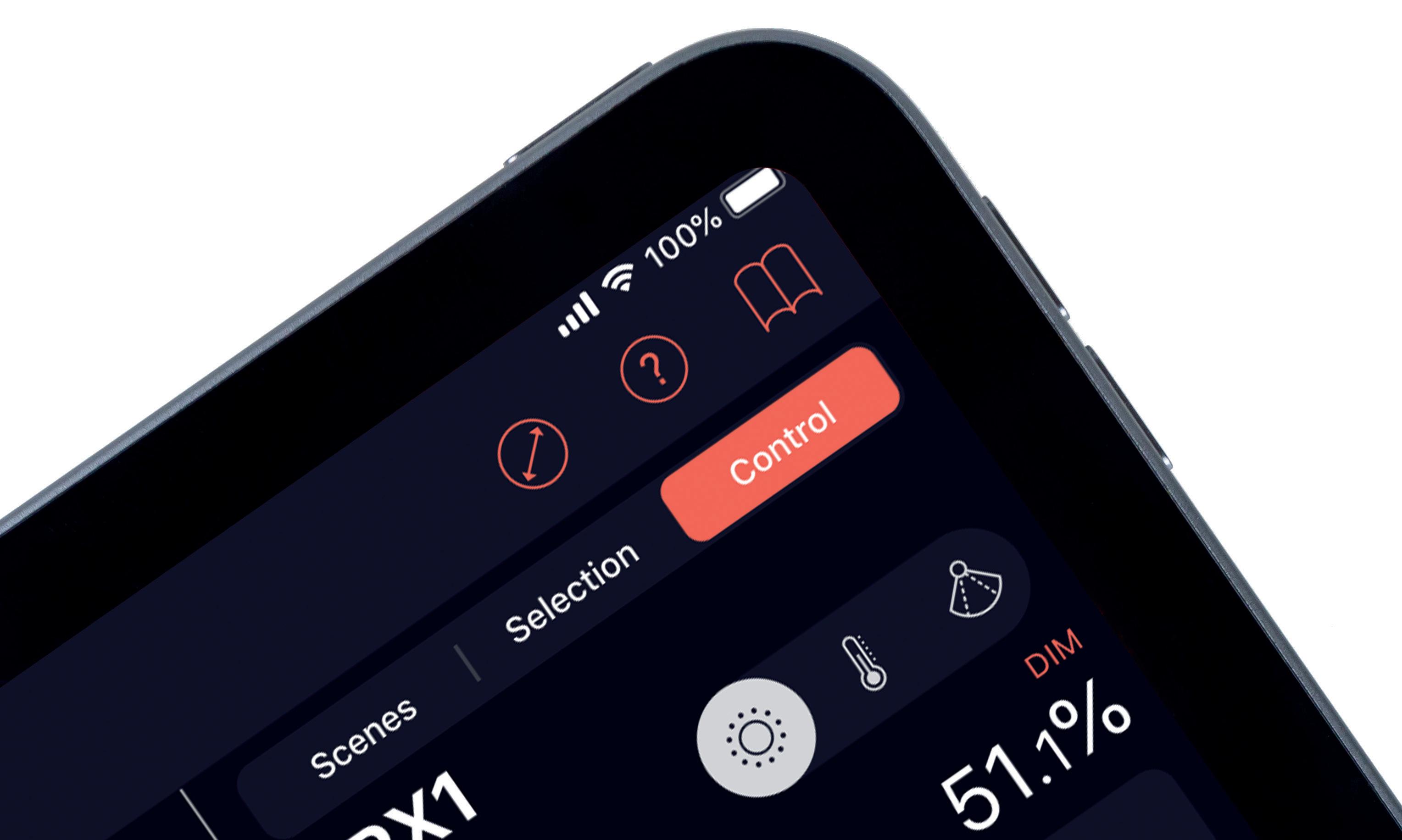

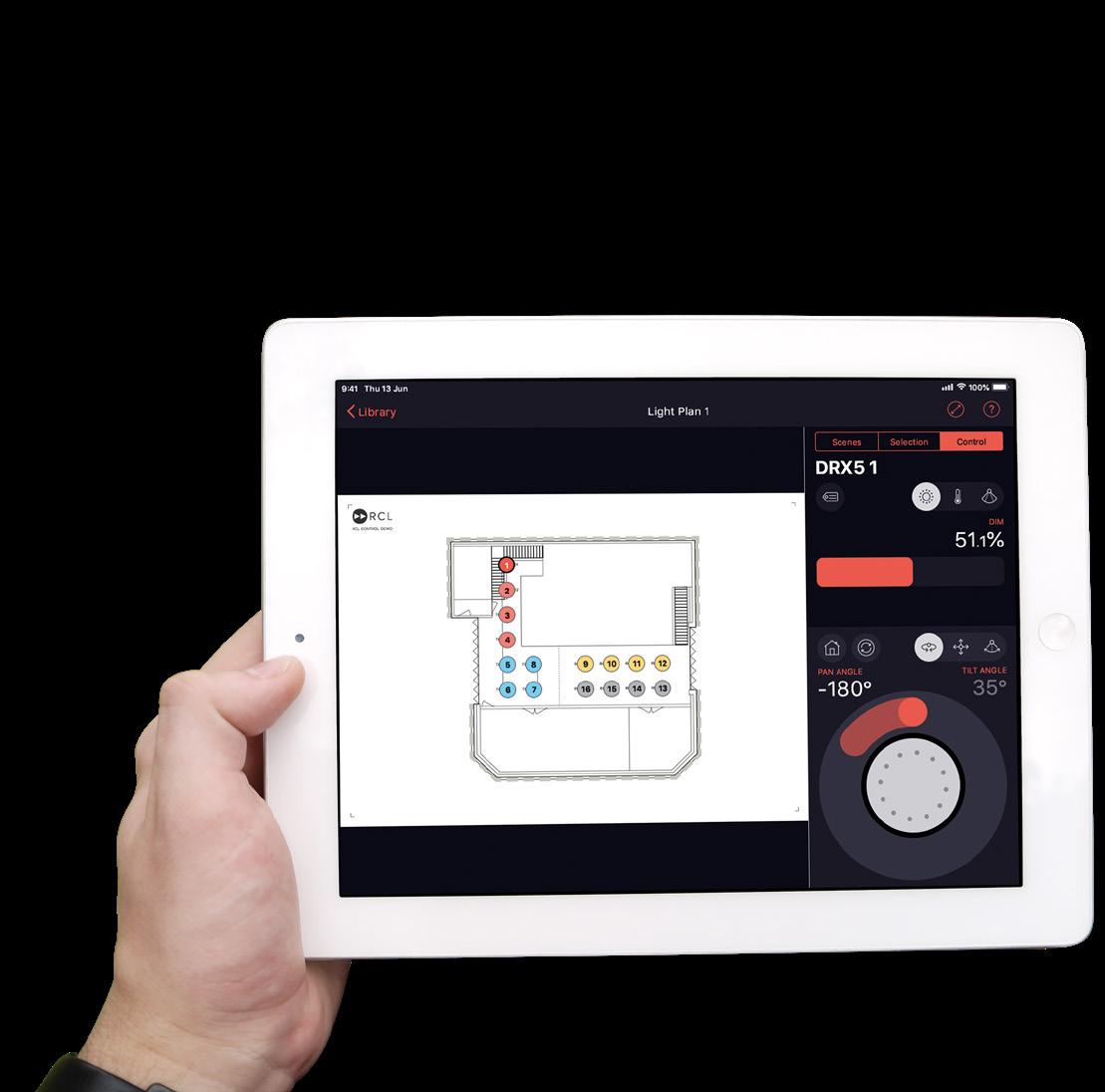

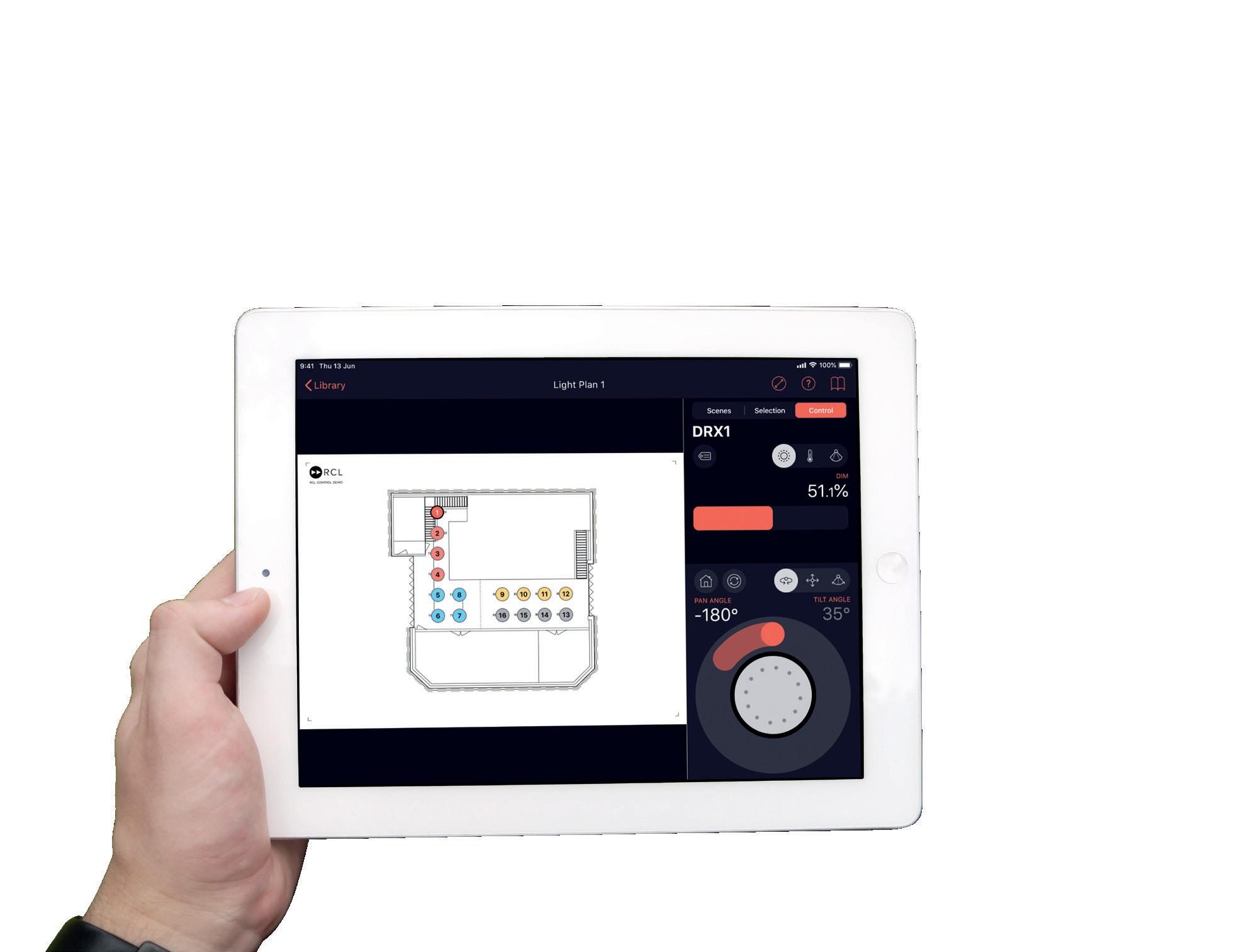

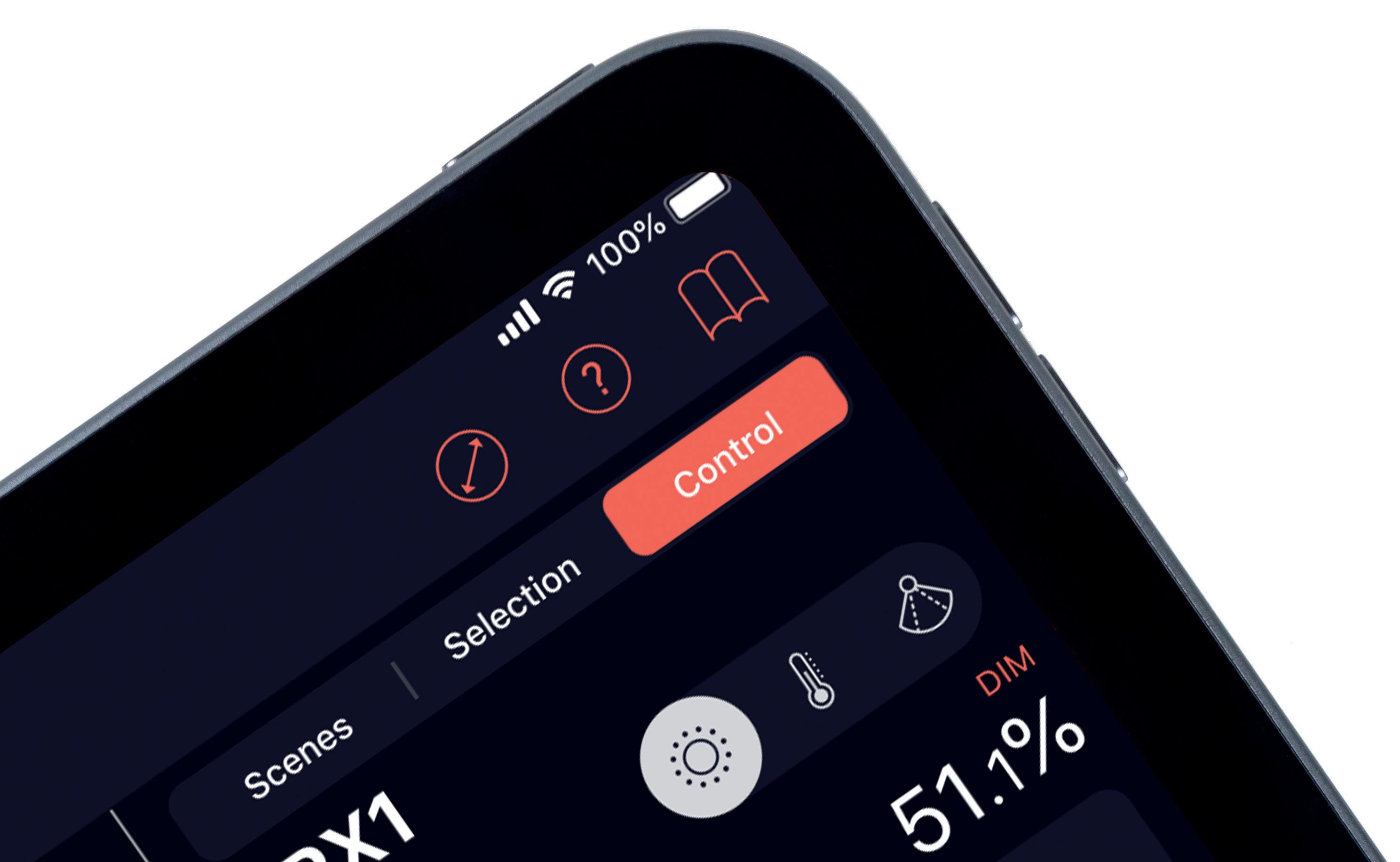

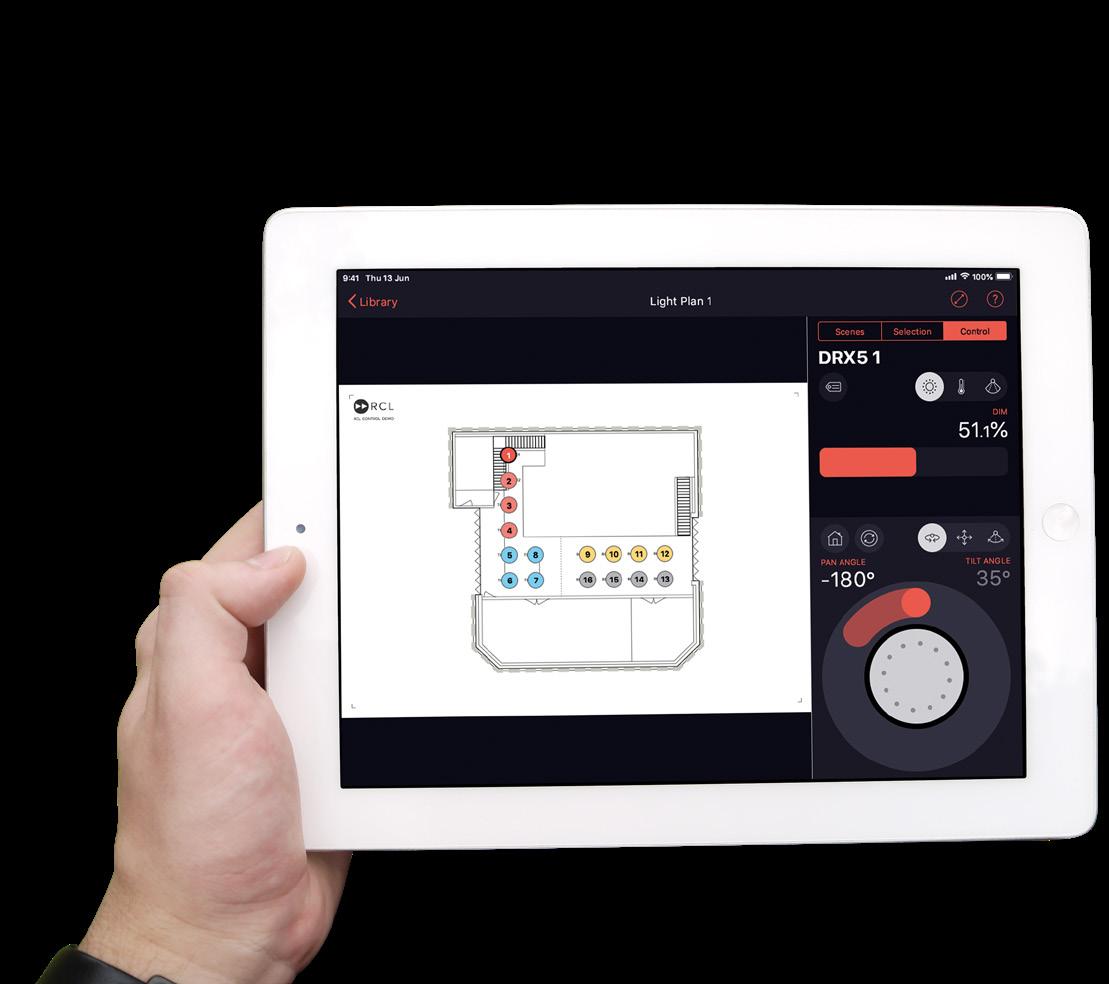

RCL RCL CONTROL iPad App
RCL has used its many years of experience and expertise to create RCL Control, our latest lighting control system which simplifies complex motorised lighting schemes into one easy-to-use system, capable of operating across multiple rooms and even multiple floors. RCL’s latest luminaires feature the ability to manipulate beam width, colour temperature and motorised positioning, giving ultimate flexibility no matter the application.
CONTROL RCL CONTROL
RCL Control has been designed to reflect the real time nature of lighting control; the system uses a dynamic reconfiguring wireless mesh network, constantly self-optimising to maintain signal reliability. The Thread mesh network provides longer-range coverage with excellent scalability, but without compromising on latency, the reaction speed between command and action, meaning there is almost no limit to the size or shape of a project.
12
RCL TECHNOLOGY RCL TERCL RCL TECHNOLOGY RCL CONTROL MEDIATOR RCL LUMINAIRES INJECTORPoEWIFI ROUTER IPAD DSL 43 LAN 12V AC 21IN ON/OFF EXTERNALCONTROLDALI ALTERNATIVECONNECTIONPOWER THREAD COMMUNICAMESHTION LANPoE TERMINAL SYSUSB TEM RESET POPOWER WER RESET ETHERNET PASSWORD RESET Please Note: The above diagram is for illustration purposes only and should not be referred to as a technical drawing. 13

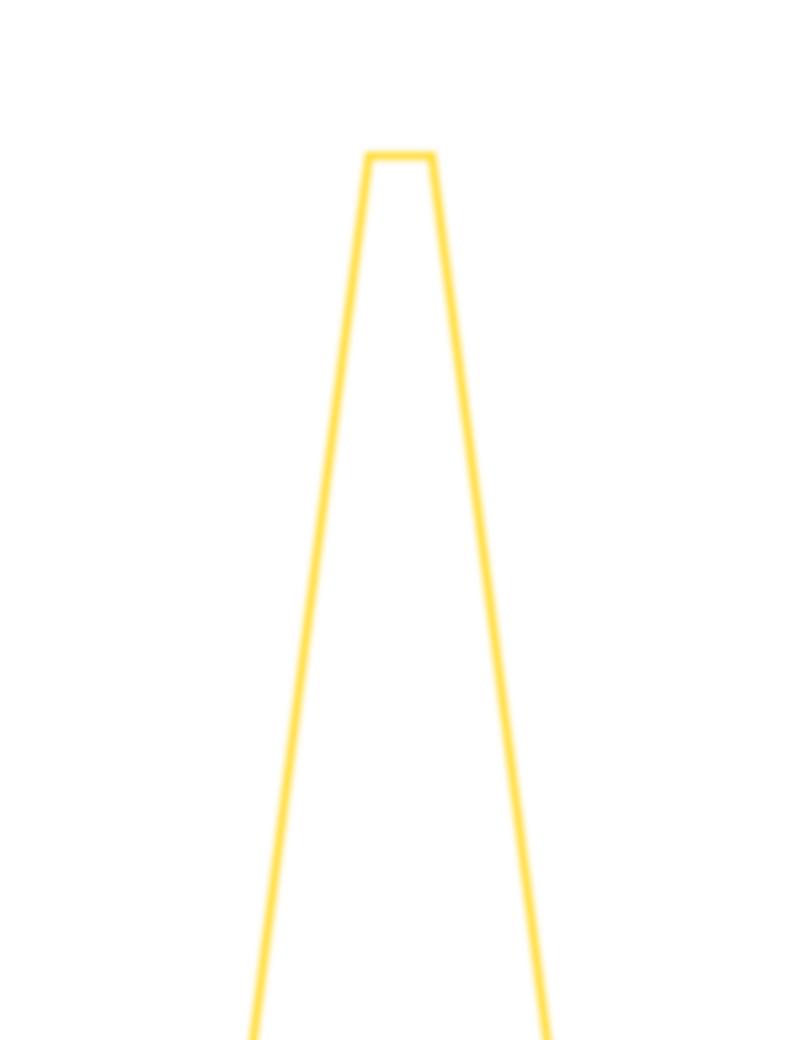

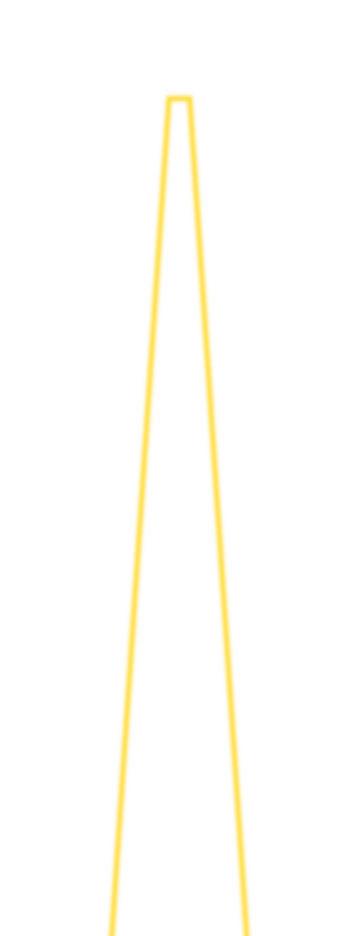

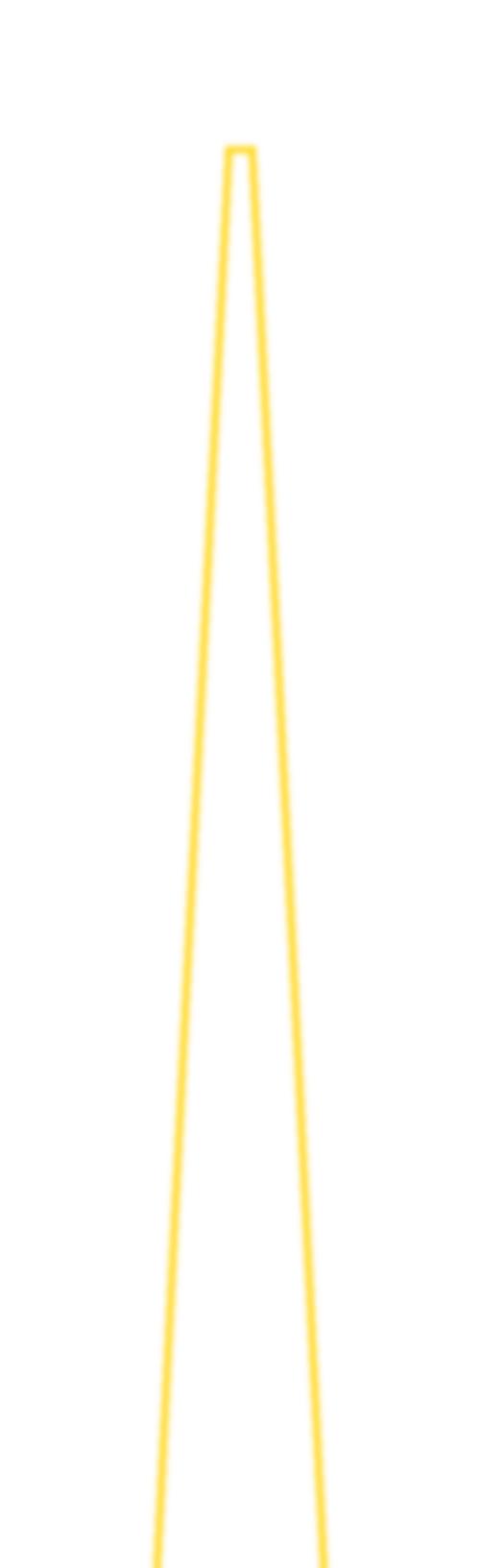

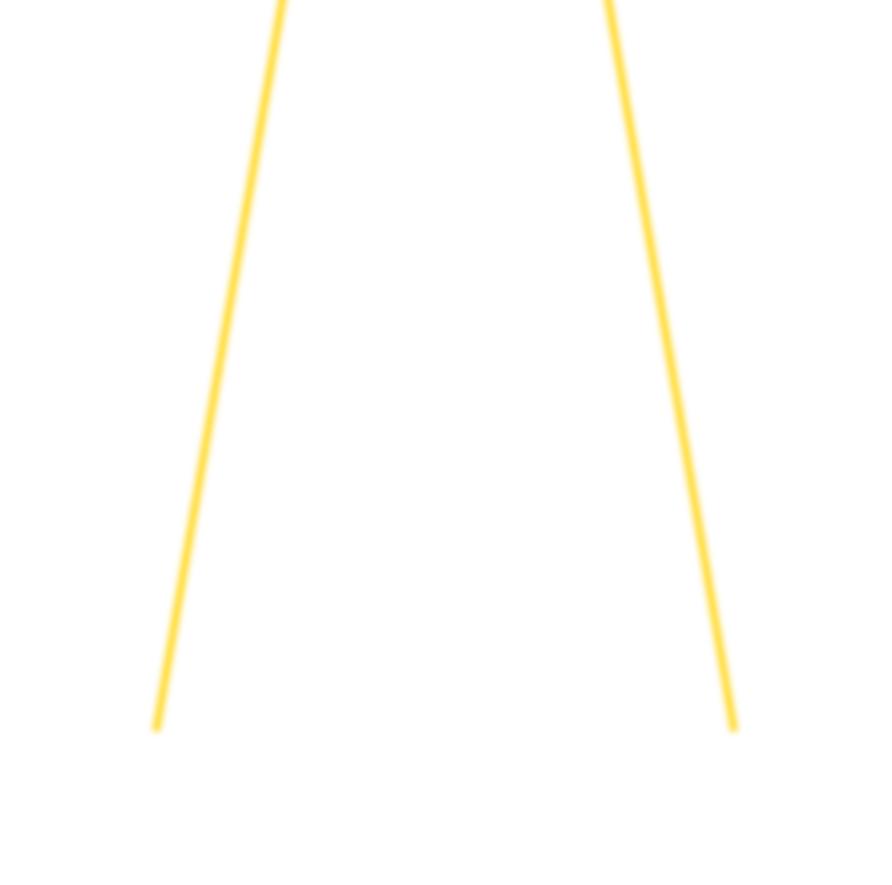

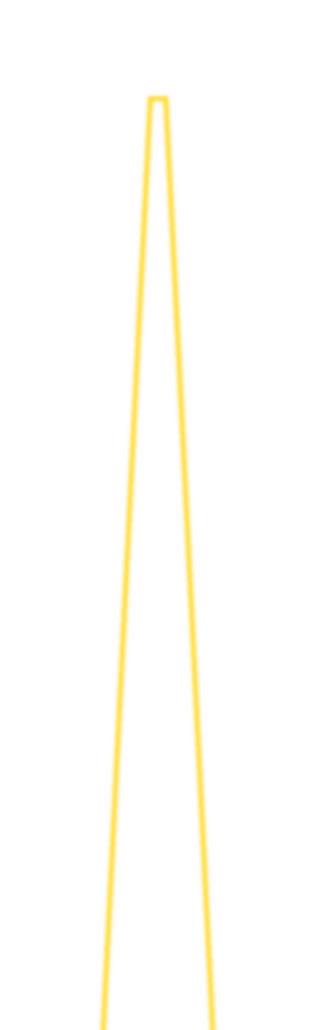

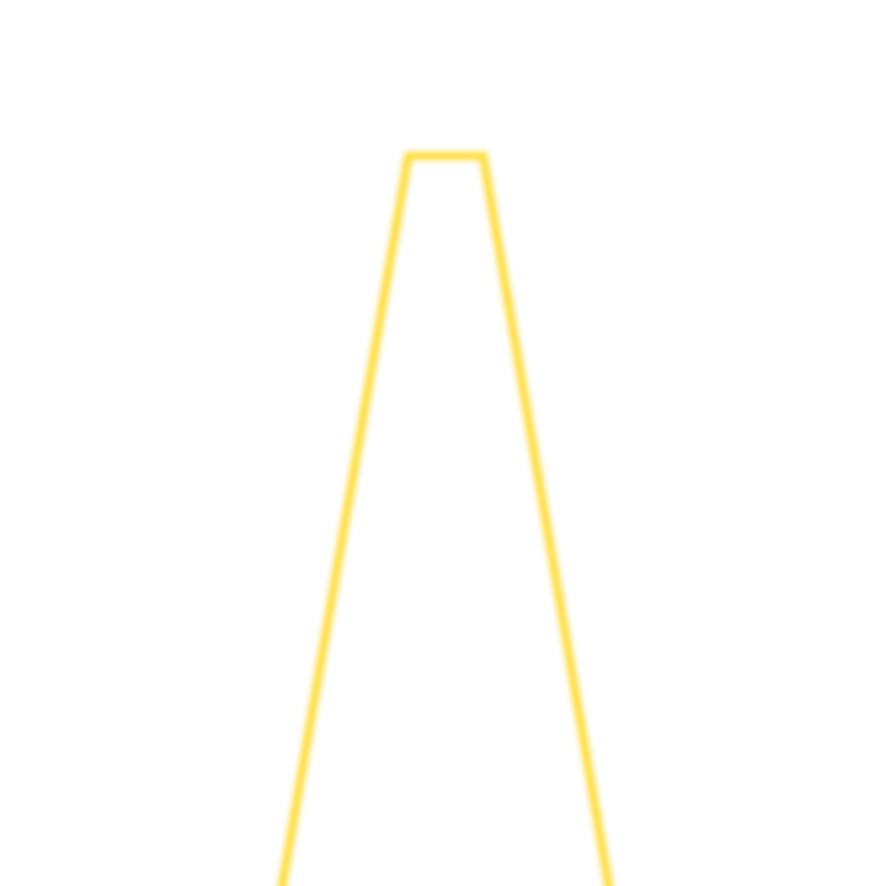

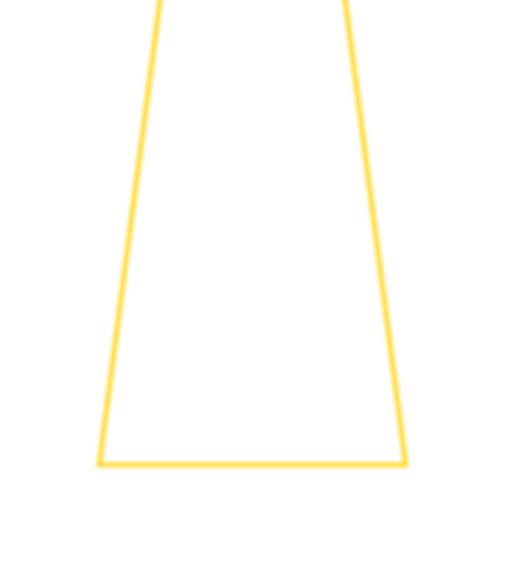

FULL TABLE ILLUMINATION 14 VARIABLE PINSPOT
FROM NARROW PINSPOT TO TECHNOLOGY
Ever-changing spaces require flexible lighting. Variable Pinspot technology is available for our DRX1 and DRX5 luminaires and is designed specifically for lighting ballroom dining tables and other event spaces where remote adjustment from ultra-narrow to medium beam widths is required whilst maintaining a consistent average lux level.
RCL INNOVATIVE TECHNOLOGY
INNOVATIVE TECHNOLOGYGY
RCL TechnologyInnovative
Architectural lighting is a fast-moving industry that combines innovative design with cutting-edge technology. With over 20 years’ experience and over 100,000 fixtures installed worldwide, RCL is the pioneer of remote controlled motorised architectural spotlights, producing luminaires that are efficient, intelligent and reliable. Our passionate product designers and engineers are constantly striving to bring cutting-edge lighting technologies to our everevolving product portfolio.*
TECHNOLOGYGY INNOVATIVE TECHNOLOGYRCL INNOVATIVE TECHNOLOGY
If our Variable Pinspot luminaires don’t have the range of beam adjustment that you require, our full DRX range is now available with LensVector® technology, ideal for use in hospitality, museum, gallery and retail applications. The beam passes through a highly efficient TIR optic into the LensVector liquid crystal beam-shaping filter, which allows full adjustment from the narrow to wide beam widths. LensVector can also be combined with our tunable white light engine for ultimate flexibility.
15 VARIABLE BEAM TECHNOLOGY
GY INNOVATIVE TECHNOLOGY
WARM - 2200K COOLER - 3800K
The specified warmth of light is critical to any project; it affects how objects are perceived within the room’s atmosphere. Our R&D team have combined our dim-to-dark technology with our new tunable white light engine so that the colour temperature and brightness level of our luminaires can be manipulated easily, giving you complete control over a lighting scheme. Using the remote control or RCL Control, colour temperature can be adjusted from warm 2200K through to cool 3800K, placing dynamic lighting directly into the user’s hands.
RCL INNOVATIVE TECHNOLOGY 16
TechnologyInnovativeRCL
TECHNOLOGY INNOVATIVE TECHNOLOGY Madame de Pompadour in the Frame, 23 May – 27 October 2019 Waddesdon: A Rothschild House & Gardens © Photo: Waddesdon Image Library, Mike Fear RCL INNOVATIVE TECHNOLOGY PROJECT: WADDESON MANOR PRODUCTS: 31 VARIABLE PINSPOT DRX1 LUMINAIRES17
CONTROL
CONTROL
RCL RCL
At RCL we understand the importance of colour consistency across the beam. Sourcing and combining only the highest quality components for our light engines and utilising our inhouse photometric testing lab, we ensure that our LEDs have excellent colour over angle and use top-of-the-range TIR optics with fantastic colour mixing properties to produce beautiful beams that are homogeneous in colour.
INTENSITY
Precise PerformanceBeam Our London-based R&D team excel in creating beautifully engineered luminaires to accurately project light from high spaces. The efficacy of our optics combined with the highest quality LED chips allow us to produce flawless beams which set us apart from our rivals.

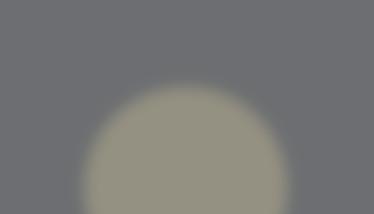

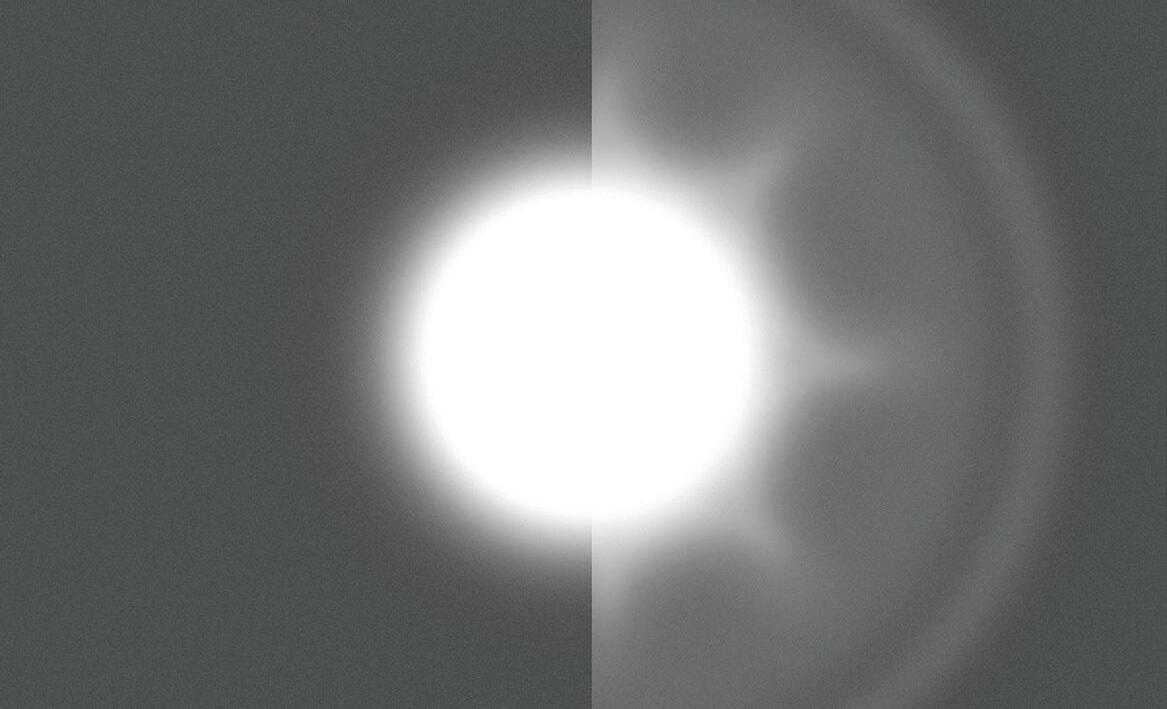

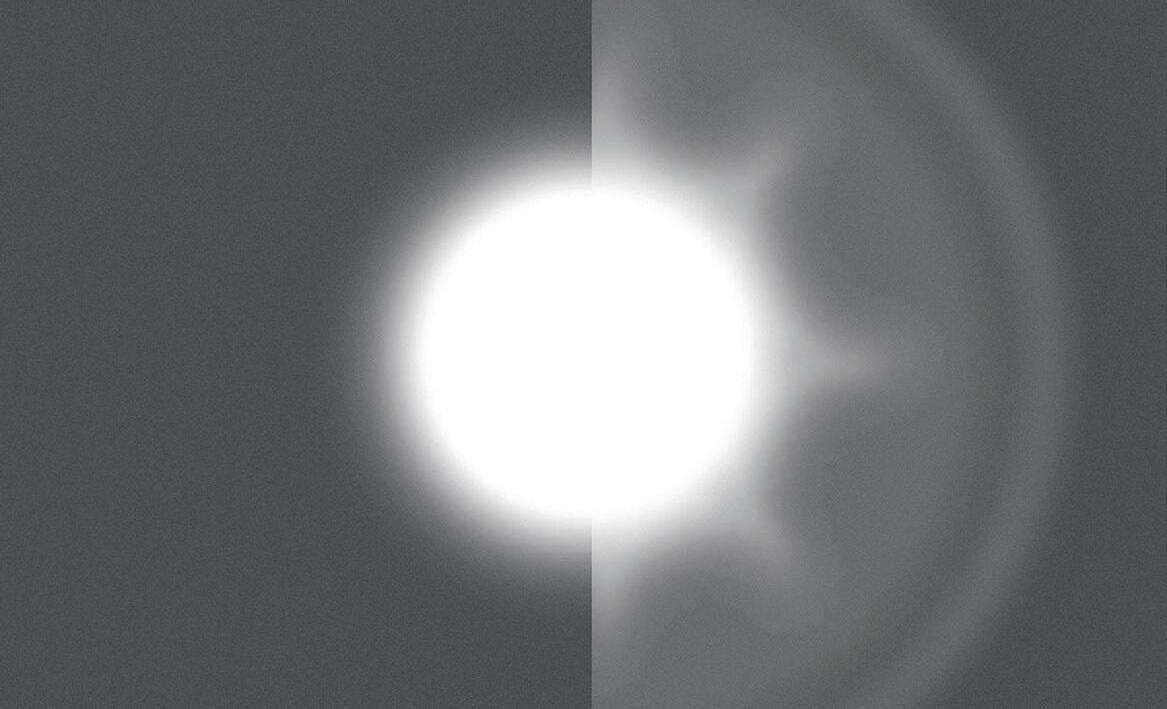

SHAPE Shape also has an important role to play with beam quality. Good beams will be perfectly circular with minimal distracting striations or halos.
We engineer the light engines of our luminaires with peak intensity at the forefront of design, producing beams with high lux on target that are bright, powerful and efficient.

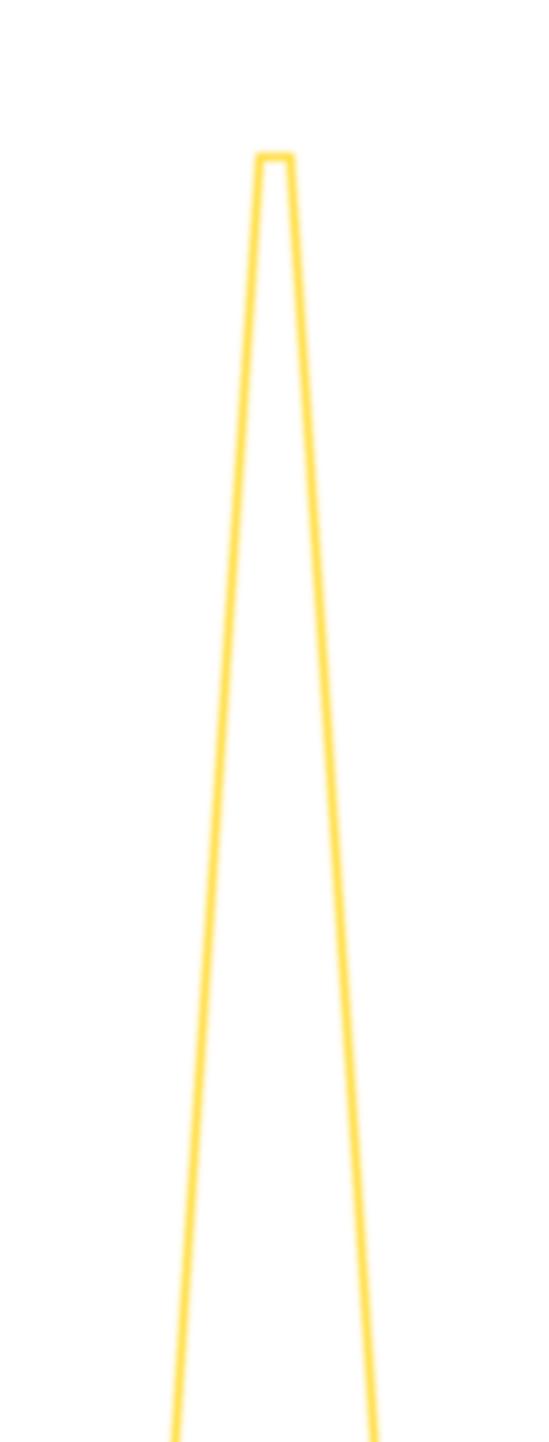

SPOTRCL SPOTORDINARY RCL BEAM PERFORMANCE 18

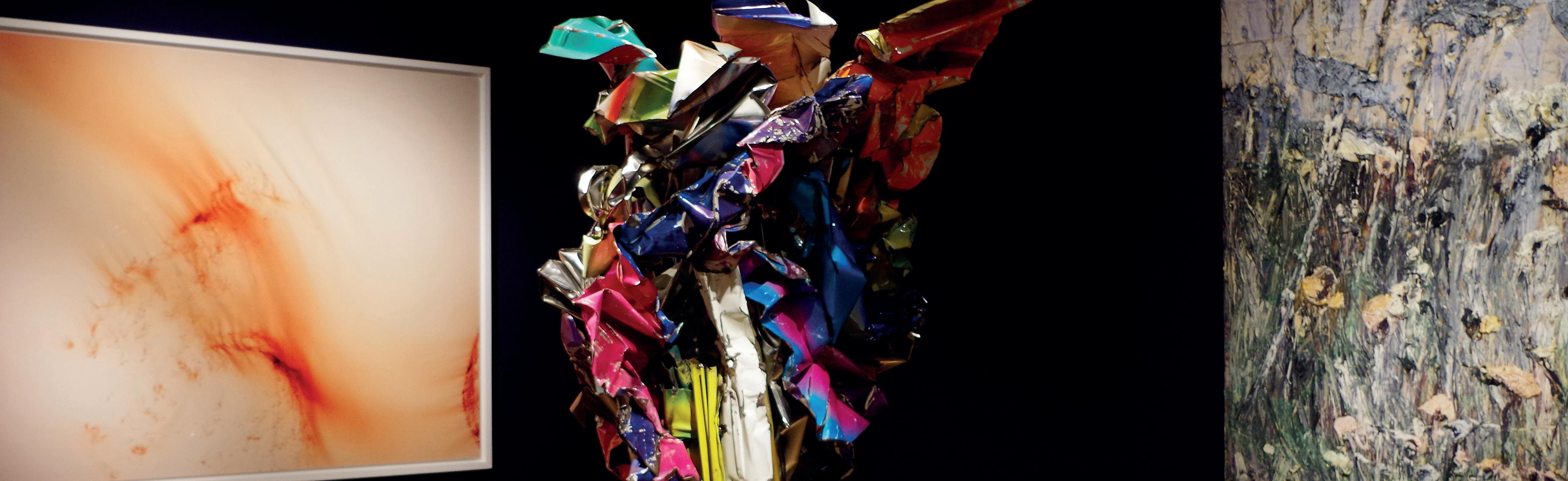

CHRISTIE’S , LONDON

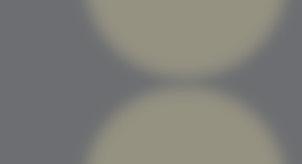

COLOUR UNIFORMITY
RCL CONTROL RCL COLOUR
We carefully select LEDs to ensure colour consistency across our entire product range. Our 2700K and 3000K options deliver a minimum of 90+ CRI. These colour temperatures are suited to colour-critical applications such as art galleries, museums and retail environments, as they accurately reflect the depth of colour in the artwork, artefact or product being lit. The paintings were chosen to illustrate low CRI due to their use of red, green, blue and yellow; these are the colours that tend to be the most difficult to render using artificial light. Notice how some of the key colours in the paintings look significantly different under a light source with low CRI. Our newest COB 4000K LED’s deliver a minimum of 90+ CRI, proven to be particularly popular with jewellers and car showrooms as they give a sharper blue tone, so that cars shine beautifully and diamonds sparkle.
& COLOUR RENDERING
CONTROL CONSISTENCY INDEX (CRI)
Art courtesy of Kelly Sweeney – Further work can be found at kellysweeney.co.uk
CRIHIGH CRILOW RCL BEAM PERFORMANCE 19
MOUNTING OPTIONS MOUNTING OptionsMounting RCL MOUNTING OPTIONS We always recommend talking to one of our Technical Sales Advisors to ensure you choose the correct luminaires and mounting options for your installation. There are many different configurations available, and suitability will vary depending on project requirements and global location. The most discreet mounting option available for a completely seamless finish. A flexible lighting scheme that can easily be configured with additional luminaires after first-fit. An elegant solution that can be installed directly into the ceiling for a clean aesthetic. U.S. Certified options are available. + Distance above and around the mounting point + Distance between each mounting point + Ceiling thickness + Track type – we use 3-circuit Eutrac as standard + Other tracks may need alternative track adaptors THINGS TO CHECK PRIOR TO INSTALLATION: THINGS TO CHECK PRIOR TO INSTALLATION: + Distance above and around the mounting point + Distance between each mounting point + Ceiling thickness THINGS TO CHECK PRIOR TO INSTALLATION: RECESSED TRACK MONOPOINT 20
Easy to Install with PopTwist
RCL’s recessed and monopoint luminaires have a unique ‘PopTwist’ system which allows installers to pop and twist the luminaire in and out of the mounting ring in just a few seconds, reducing installation time by hours, if not days, for large scale projects. To take the luminaire out of the mounting ring, simply reverse all of the steps below. No tools. No time. No fuss.
MOUNTING OPTIONS MOUNTING
Once the mounting ring is securely in place, hold the luminaire underneath it with the stud aligned to the hook on the mounting ring. Pop the luminaire into the mounting ring, and push up gently until you feel some resistance. Twist the luminaire clockwise until it stops. Pull down to lock into place.
21
RCL EASY TO INSTALL
PRODUCT PORTFOLIO PRODUCT PortfolioProduct At RCL we only use the highest quality materials and components to ensure that our products are reliable, efficient and easy to use. Our product portfolio is continuously evolving to keep up with the latest technological advances and user requirements. Our control technology is featured across our complete range of luminaires, to suit any specification. DRX1 DRX2 DR8 TRACK & MONOPOINT LUMINAIRES All of these luminaires are available in 3-Circuit/2-Circuit/1Circuit track and monopoint mounting options. RECESSED LUMINAIRES DRX5 DR7 Available in standard bezel or trimless options, our recessed luminaires are subtle and unobtrusive. *Please see page 20 of this brochure for installation methods. RCL PRODUCT PORTFOLIO 22
DRX7NEW COMING LATE 2022 + RANGE OF FIXED BEAM OPTICS FROM 6° TO 34° + MOTORISED RECESSED LUMINAIRE PRODUCT PORTFOLIO PRODRCL PRODUCT PORTFOLIO

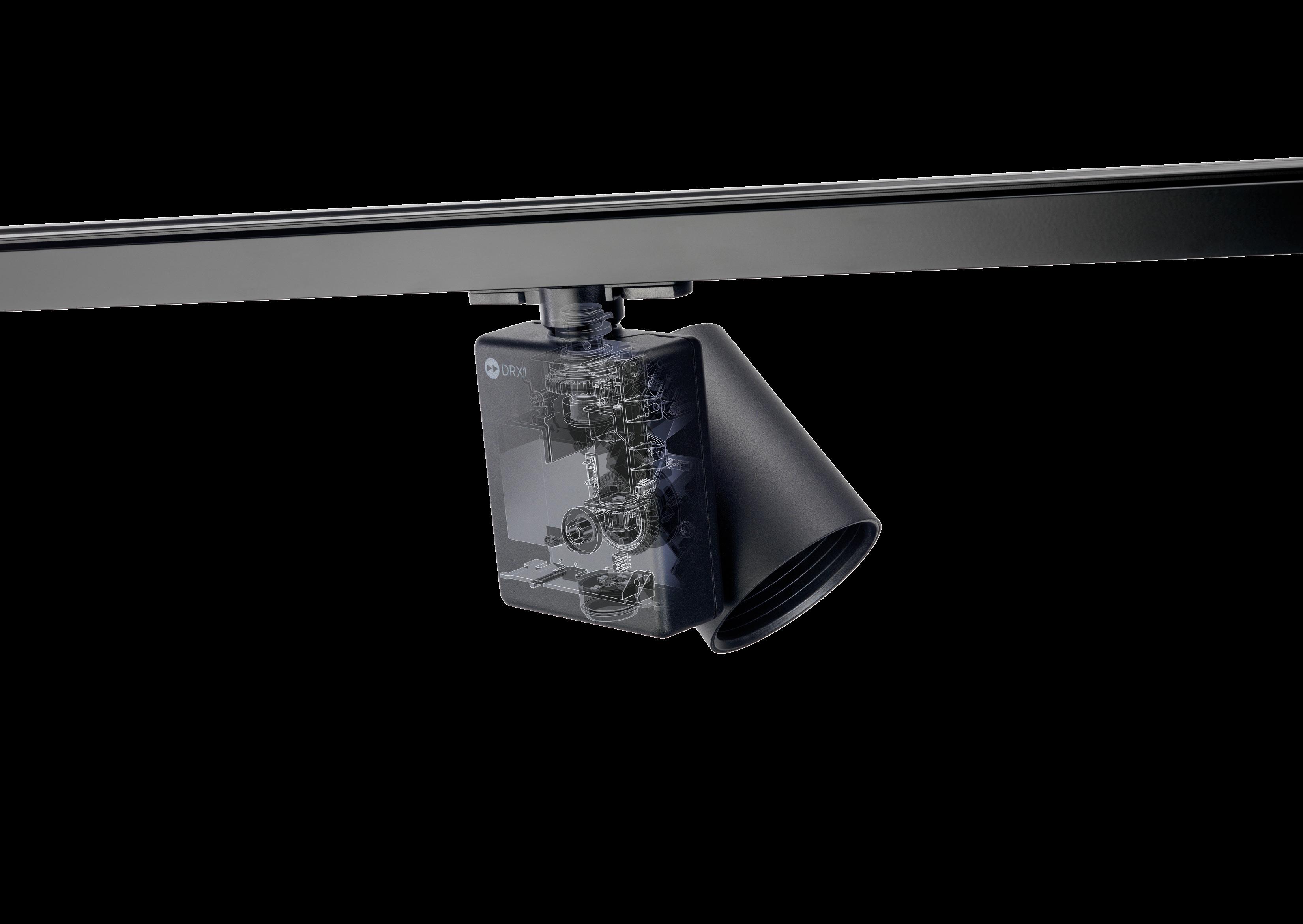

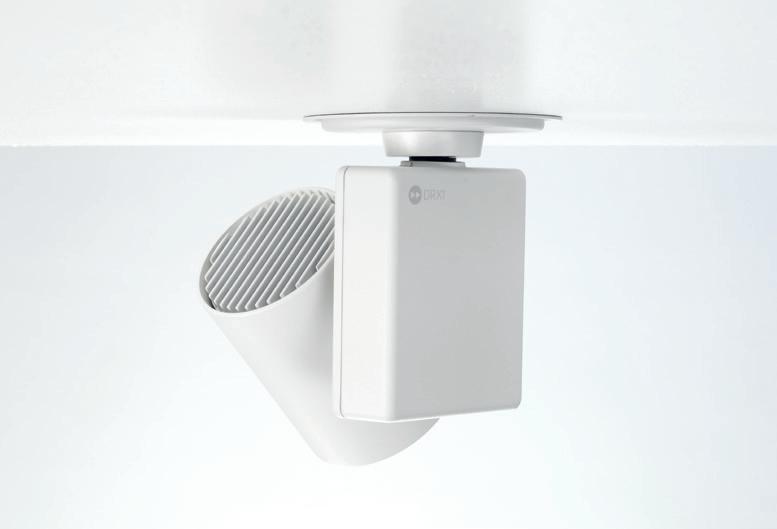

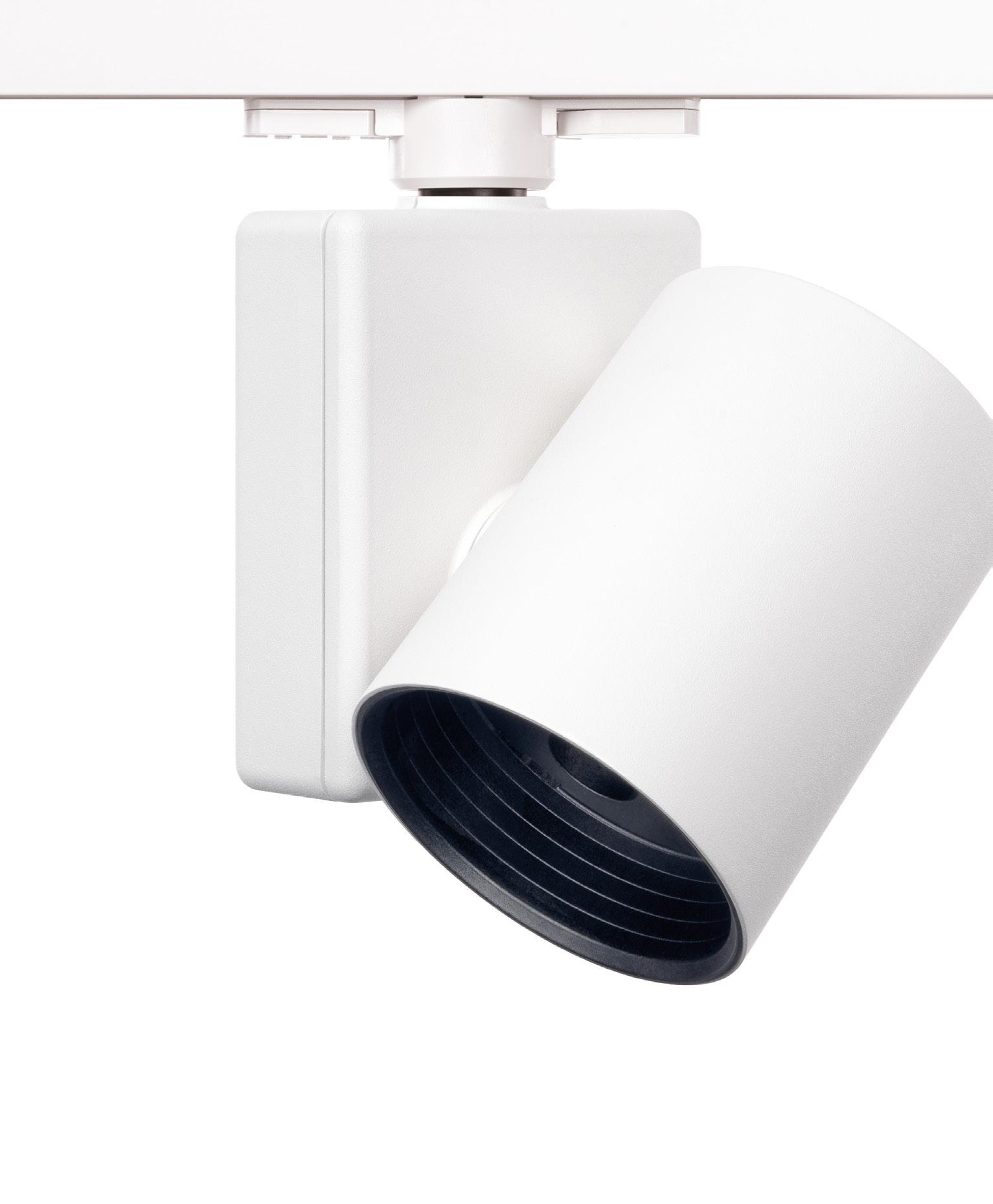

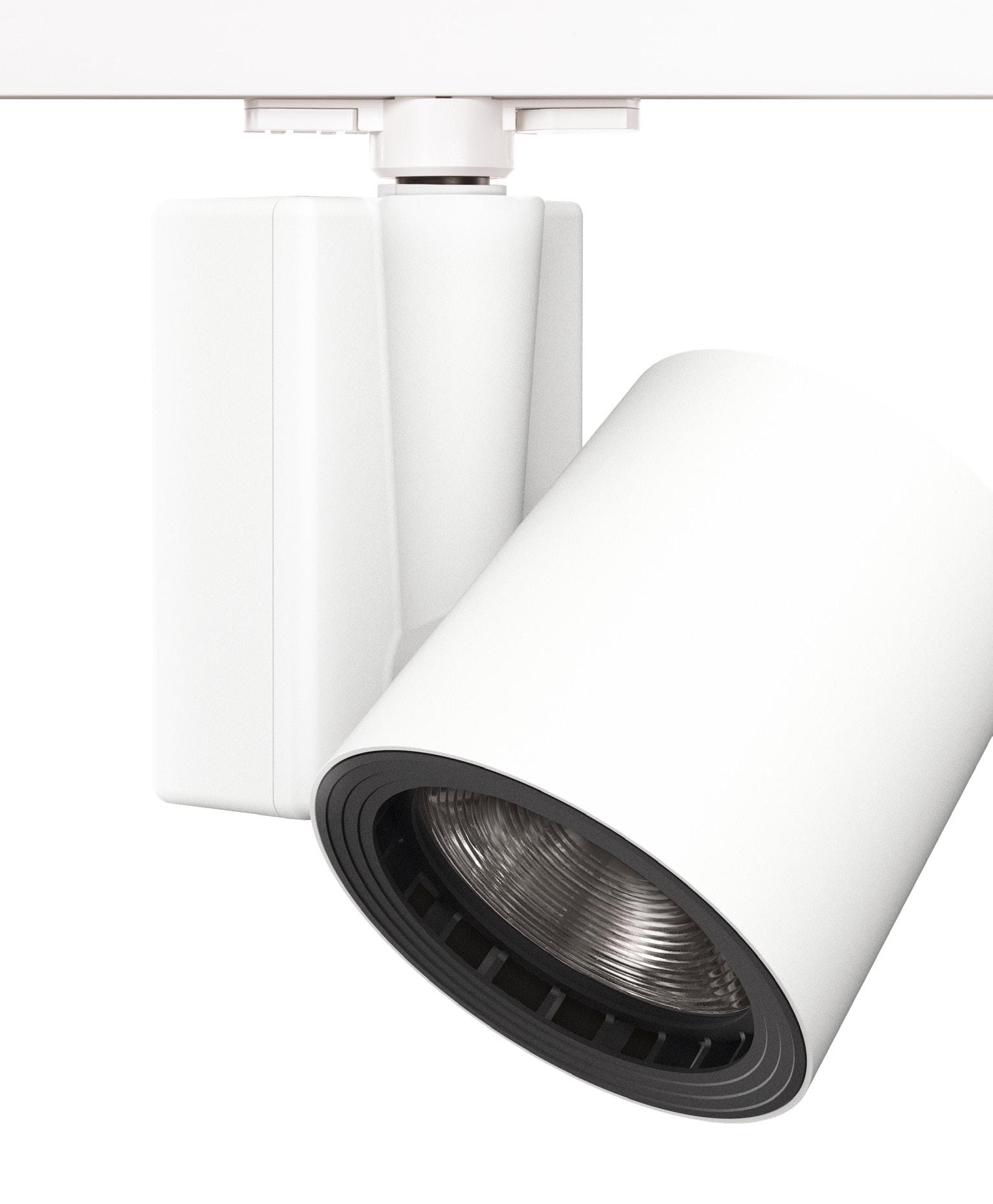

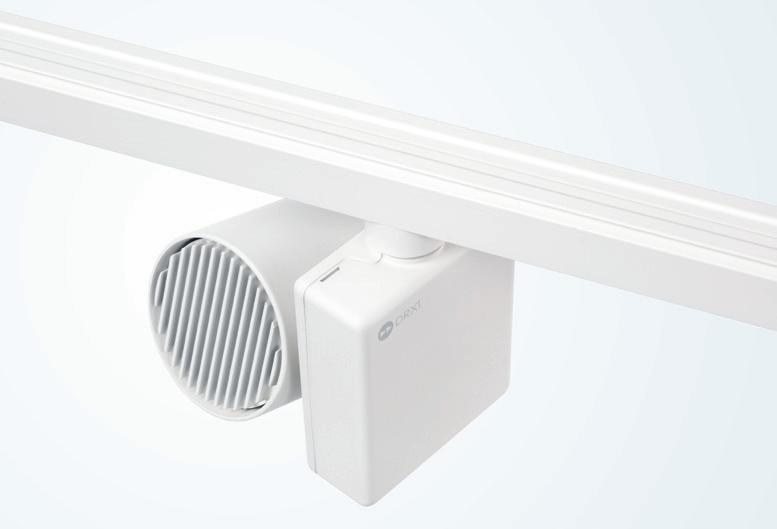

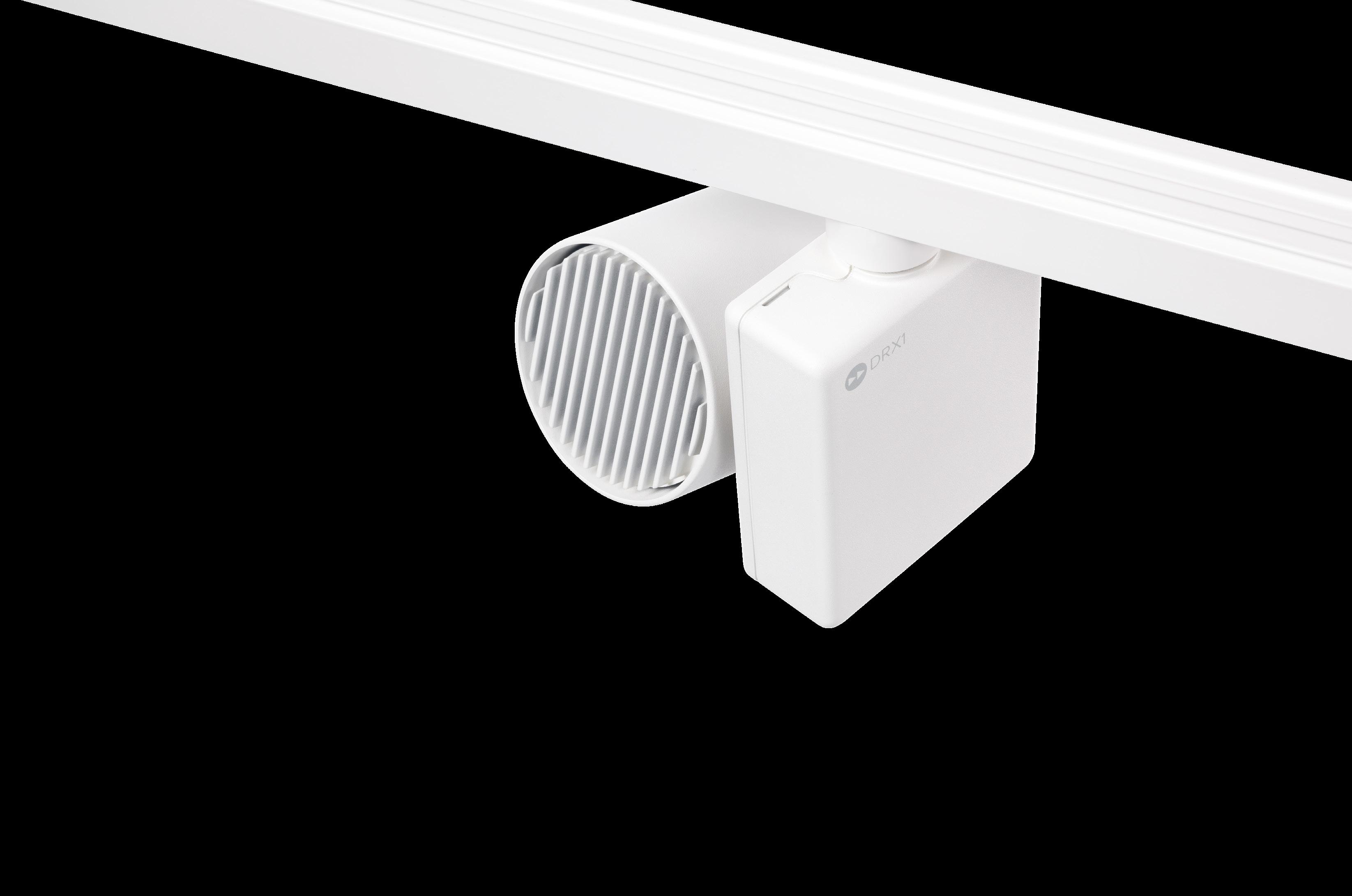

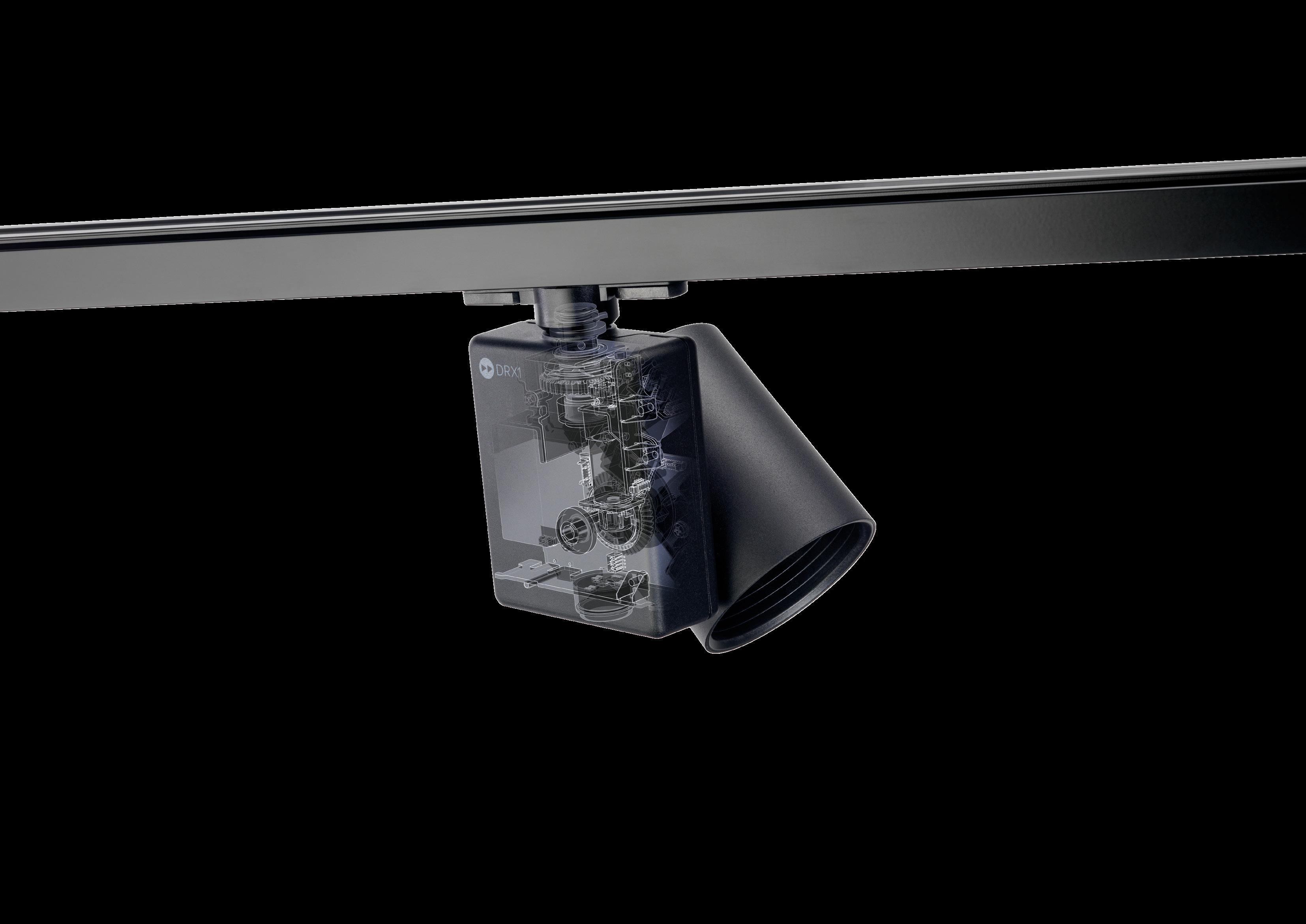

DRX1DRX1DRX1DRX1DRX1DRX1DRX1 Track & Monopoint DRX1 is a lightweight and powerful remote-controlled motorised spotlight. Its compact design and tiny footprint offer a solution for restricted spaces without compromising on output and quality. DRX1 provides a minimalist aesthetic and small luminaire body, with the 115mm long fixture head measuring just 100mm in diameter, while delivering up to 1474 lumens from a wide selection of light engine and beam control options including Variable Pinspot, LensVector and Tunable White technology. For more colour critical applications, all beam widths for DRX1 have a custom option of 98 CRI, and an 80 CRI 2200K light engine is also available. BEAM WIDTHS 4˚, 6°, 8°, 10°, 17°, 22°, 34˚, LensVector 5˚-55˚, LensVector 10˚-55˚, Variable Pinspot 8°-16° LED CONFIGURATION OPTIONS Single Source and Multi-Source PEAK INTENSITY RANGE 3739 CD - 56646 CD LUMEN PACKAGE RANGE 540lm - 1474lm 90mm161mm140mm 91mm136mm 136mm91mm 163mm 115mm TRACK COLOURMONOPOINTTEMPERATURE 2700K, 3000K, 4000K CUT OUT DIAMETER (MONOPOINT) 115mm CEILING CLEARANCE (MONOPOINT) 200mm 220º330º RCL PRODUCT PORTFOLIO 24 IPAD CONTROL SYSTEM DYNAMIC BEAM SHAPING COMPATIBLE WITH &
34 DEGREEDRX1 SINGLE SOURCE COB 6 DEGREEDRX1 SINGLE SOURCE COB4 DEGREEDRX1 8 DEGREEDRX1-HP 17 DEGREEDRX1-HP 4m3m2m1m5m 00.0.07m14m0.21m.28m0.35m 56646 lx 14161 lx 6294 lx 3540 lx 2266 lx LED4º 56646 cd 60º 30º 30º 60º BEAM DIAMETER AT 10M: 0.7M LX AT 10M: 566 LX 4m3m2m1m5m 0.00.1m.3m0.4m6m0.7m 33344 lx 8336 lx 3705 lx 2084 lx 1334 lx LED8º 30º 60º60º 30º 33344 cd BEAM DIAMETER AT 10M: 1.4M LX AT 10M: 333 LX BEAM DIAMETER AT 10M: 3M 4m3m2m1m5m 11189 lx 2797 lx 1243 lx 699 lx 448 lx LED17º 1.2m00.3m.6m0.9m1.5m 30º 60º60º 30º 11189 cd 4m3m2m1m5m 0.00.2m.3m0.5m7m0.9m 41654 lx 10414 lx 4628 lx 2603 lx 1666 lx 10º LED 41654 cd 30º 60º 30º 60º BEAM DIAMETER AT 10M: 1.8M LX AT 10M: 417 LX DRX1 SINGLE SOURCE COB 22 DEGREE BEAM DIAMETER AT 10M: 3.9M 4m3m2m1m5m 1.6m00.4m.8m1.2m1.9m 8931 lx 2233 lx 992 lx 558 lx 357 lx 22º LED 30º 60º60º 30º 8931 cd BEAM DIAMETER AT 10M: 6.1M 4m3m2m1m5m 2.4m1.2m0.6m1.8m3.1m 3739 lx 935 lx 415 lx 234 lx 150 lx 34º LED 30º 60º60º 30º 3739 cd 4m3m2m1m5m 000.10m.21m0.31m.42m0.52m 41409 lx 10352 lx 4601 lx 2588 lx 1656 lx 6º LED 41409 cd 60º 30º 30º 60º BEAM DIAMETER AT 10M: 1M LX AT 10M: 414 LX 10 DEGREEDRX1 SINGLE SOURCE COB PEAK INTENSITY: 56646 CD PEAK INTENSITY: 33344 CD PEAK INTENSITY: 11189 CD PEAK INTENSITY: 3739 CD PEAK INTENSITY: 41409 CD PEAK INTENSITY: 41654 CD PEAK INTENSITY: 8931 CD SEE PAGE 42 FOR TUNABLE WHITE & VARIABLE BEAM PHOTOMETRY OptionsBeam RCL PRODUCT PORTFOLIO 25

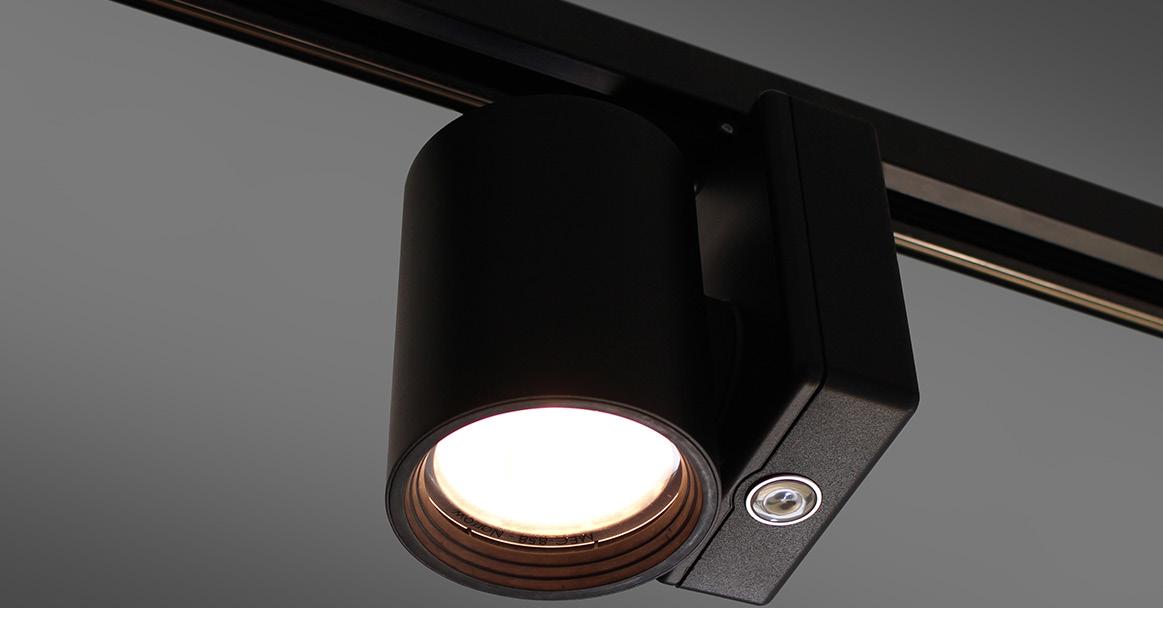

DRX2DRX2DRX2DRX2DRX2DRX2DRX2 Track & Monopoint A blend of clean, simple form and high output functionality, DRX2 is the newest addition to RCL’s product portfolio. Outputting over 3700lm, DRX2 is RCL’s most powerful luminaire to date, making it perfect for applications with very high ceilings. DRX2 uses passive cooling concealed within a minimal and unobtrusive aesthetic to maximise lumen output, delivering excellent performance while blending neatly into its surroundings. For more colour critical applications, all beam widths for DRX2 have a custom option of 98 CRI, and an 80 CRI 2200K light engine is also available. 210mm 130mm 131mm211mm 211m131mmm 90mm208mm 130mm TRACK MONOPOINT BEAM WIDTHS 7°, 10°, 17°, 28°, LensVector 10˚-55˚, LensVector 15˚-50˚ LED CONFIGURATION OPTIONS Single Source PEAK INTENSITY RANGE 10697 CD - 81116 CD LUMEN PACKAGE RANGE 1814lm - 3779lm COLOUR TEMPERATURE 2700K, 3000K, 4000K CUT OUT DIAMETER (MONOPOINT) 115mm CEILING CLEARANCE (MONOPOINT) 200mm 220º330º RCL PRODUCT PORTFOLIO 26 IPAD CONTROL SYSTEM DYNAMIC BEAM SHAPING COMPATIBLE WITH &
Options*Beam 7 DEGREEDRX2 4m3m2m1m5m 000.12m.24m0.37m.49m0.61m 73476 lx 18369 lx 8164 lx 4592 lx 2939 lx 7º LED 73476 cd 60º 30º 30º 60º BEAM DIAMETER AT 10M: 1.2M LX AT 10M: 735 LX 17 DEGREEDRX2 4m3m2m1m5m 1.20m0.0.30m60m0.90m1.49m 31316 lx 7829 lx 3480 lx 1957 lx 1253 lx 17º LED 31316 cd 60º 30º 30º 60º BEAM DIAMETER AT 10M: 3M LX AT 10M: 313 LX 28 DEGREEDRX2 28º LED 4m3m2m1m5m 1.99m1.0.50m00m1.50m2.49m 10697 lx 2674 lx 1189 lx 669 lx 428 lx 10697 cd 60º 30º 30º 60º BEAM DIAMETER AT 10M: 5M LX AT 10M: 107 LX 10 DEGREEDRX2 4m3m2m1m5m 0.00.17m.35m0.52m70m0.87m 81116 lx 20279 lx 9013 lx 5070 lx 3245 lx 10º LED 81116 cd 60º 30º 30º 60º BEAM DIAMETER AT 10M: 1.8M LX AT 10M: 811 LX *2700K/3000K PHOTOMETRY PROVIDED, PLEASE ENQUIRE FOR 4000K. PLEASE ENQUIRE FOR PHOTOMETRY PEAK INTENSITY: 73476 CD PEAK INTENSITY: 81116 CD PEAK INTENSITY: 40504 CD PEAK INTENSITY: 10697 CD PEAK INTENSITY: 35885 CD PEAK INTENSITY: 31316 CD RCL PRODUCT PORTFOLIO 27 10-55 DEGREEDRX2 LENSVECTOR 4m3m2m1m5m 2.08m1.04m3.12m 1512 lx 378 lx 168 lx 95 lx 10º / 55º LED 00.17m.35m0.52m 40504 lx 10126 lx 4500 lx 2532 lx 1620 lx0.70m0.87m 60 lx4.16m5.21m 60º 30º 30º 60º 40504 cd (Max) 15-50 DEGREEDRX2 LENSVECTOR 4m3m2m1m5m 1.87m0.93m2.80m 3385 lx 846 lx 376 lx 212 lx 135 lx 15º / 50º LED 00.26m.53m0.79m 35885 lx 8971 lx 3987 lx 2243 lx 1435 lx1.05m1.32m3.4.66m73m 60º 30º 30º 60º 35885 cd (Max)

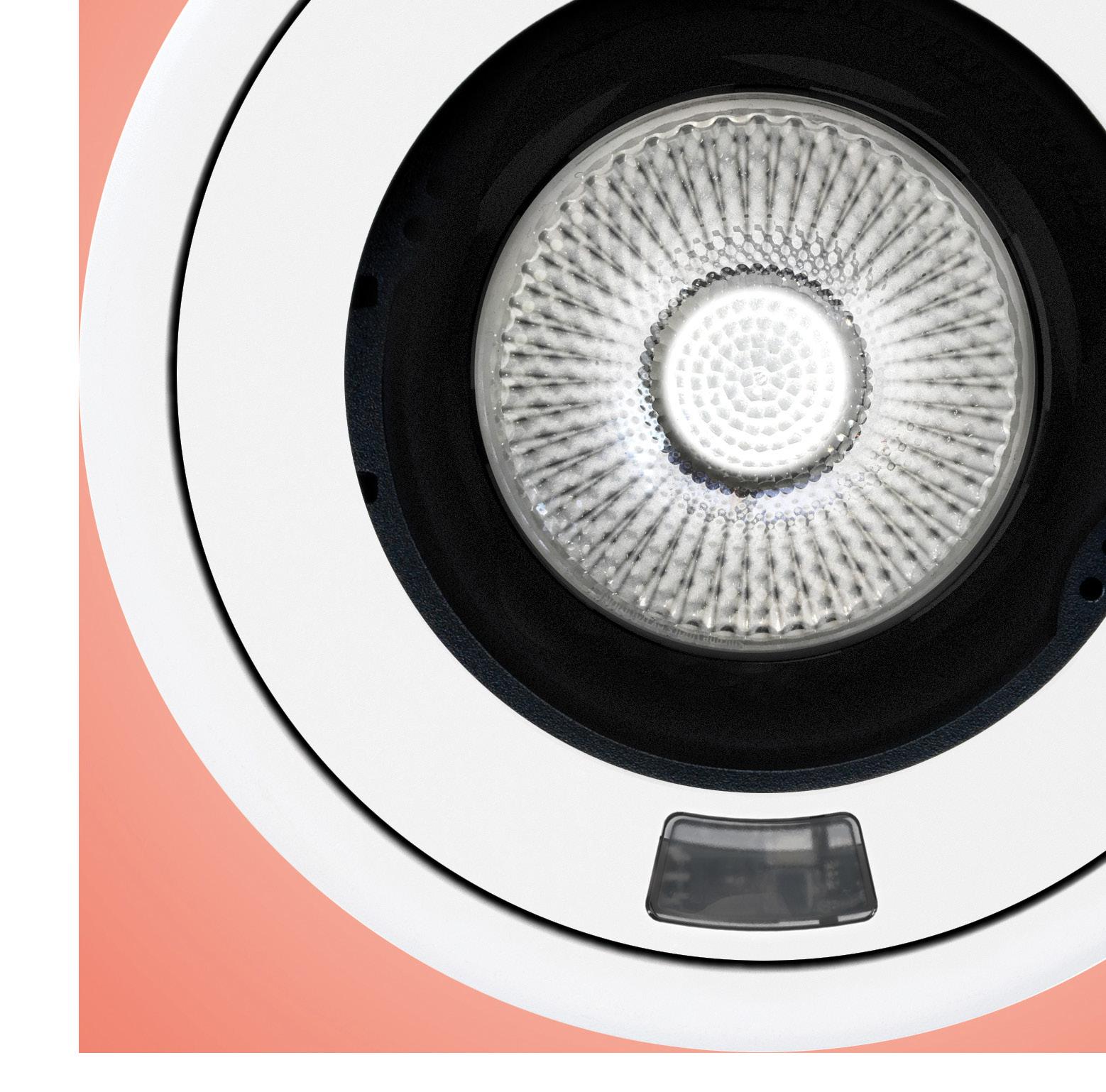

RecessedDRX5 DRX5DRX5DRX5BEAM WIDTHS 4°, 6°, 10°, 22°, 34°, Variable Pinspot: 8°-16°, LensVector 5˚-55˚, LensVector 10˚-55˚ LED CONFIGURATION OPTIONS Single Source and Multi-Source PEAK INTENSITY RANGE 3739 CD - 56646 CD LUMEN PACKAGE RANGE 540lm - 1474lm Ø162mmØ140mm 180mm DRX5 is a compact recessed luminaire that masters the art of pin spotting and accent lighting while combining excellent beam quality with all the benefits of RCL technology. Measuring just 145mm in diameter, DRX5 is RCL’s smallest recessed product and is suitable for use in low ceiling voids, making it the perfect solution for applications with tight space constraints. DRX5 offers a wide selection of light engine and beam control options including Variable Pinspot, LensVector and Tunable White technology. For more colour critical applications, all beam widths for DRX5 have a custom option of 98 CRI, and an 80 CRI 2200K light engine is also available. COLOUR TEMPERATURE 2700K, 3000K, 4000K CUT OUT DIAMETER 145mm CEILING CLEARANCE 200mm +360º35º RCL PRODUCT PORTFOLIO 28
34 DEGREEDRX5 SINGLE SOURCE COB 22 DEGREEDRX5 SINGLE SOURCE COB10 DEGREEDRX5 SINGLE SOURCE COB 6 DEGREEDRX5 SINGLE SOURCE COB4 DEGREEDRX5 BEAM DIAMETER AT 10M: 3.9M 4m3m2m1m5m 1.6m00.4m.8m1.2m1.9m 8931 lx 2233 lx 992 lx 558 lx 357 lx 22º LED 30º 60º60º 30º 8931 cd 4m3m2m1m5m 00.0.07m14m0.21m.28m0.35m 56646 lx 14161 lx 6294 lx 3540 lx 2266 lx LED4º 56646 cd 60º 30º 30º 60º BEAM DIAMETER AT 10M: 0.7M LX AT 10M: 566 LX LX AT 10M: 414 LX 4m3m2m1m5m 0.00.2m.3m0.5m7m0.9m 41654 lx 10414 lx 4628 lx 2603 lx 1666 lx 10º LED 41654 cd 30º 60º 30º 60º 4m3m2m1m5m 000.10m.21m0.31m.42m0.52m 41409 lx 10352 lx 4601 lx 2588 lx 1656 lx 6º LED 41409 cd 60º 30º 30º 60º BEAM DIAMETER AT 10M: 1M BEAM DIAMETER AT 10M: 1.8M LX AT 10M: 417 LX BEAM DIAMETER AT 10M: 6.1M 4m3m2m1m5m 2.4m1.2m0.6m1.8m3.1m 3739 lx 935 lx 415 lx 234 lx 150 lx 34º LED 30º 60º60º 30º 3739 cd SEE PAGE 43 FOR TUNABLE WHITE & VARIABLE BEAM PHOTOMETRY OptionsBeam PEAK INTENSITY: 56646 CD PEAK INTENSITY: 41654 CD PEAK INTENSITY: 3739 CD PEAK INTENSITY: 41409 CD PEAK INTENSITY: 8931 CD RCL PRODUCT PORTFOLIO 29
DRX7DRX7DRX7RCL PRODUCT PORTFOLIO CONTACT YOUR LOCAL REMOTE CONTROLLED LIGHTING OR LUMINII REPRESENTATIVE FOR MORE INFORMATION rclighting.com

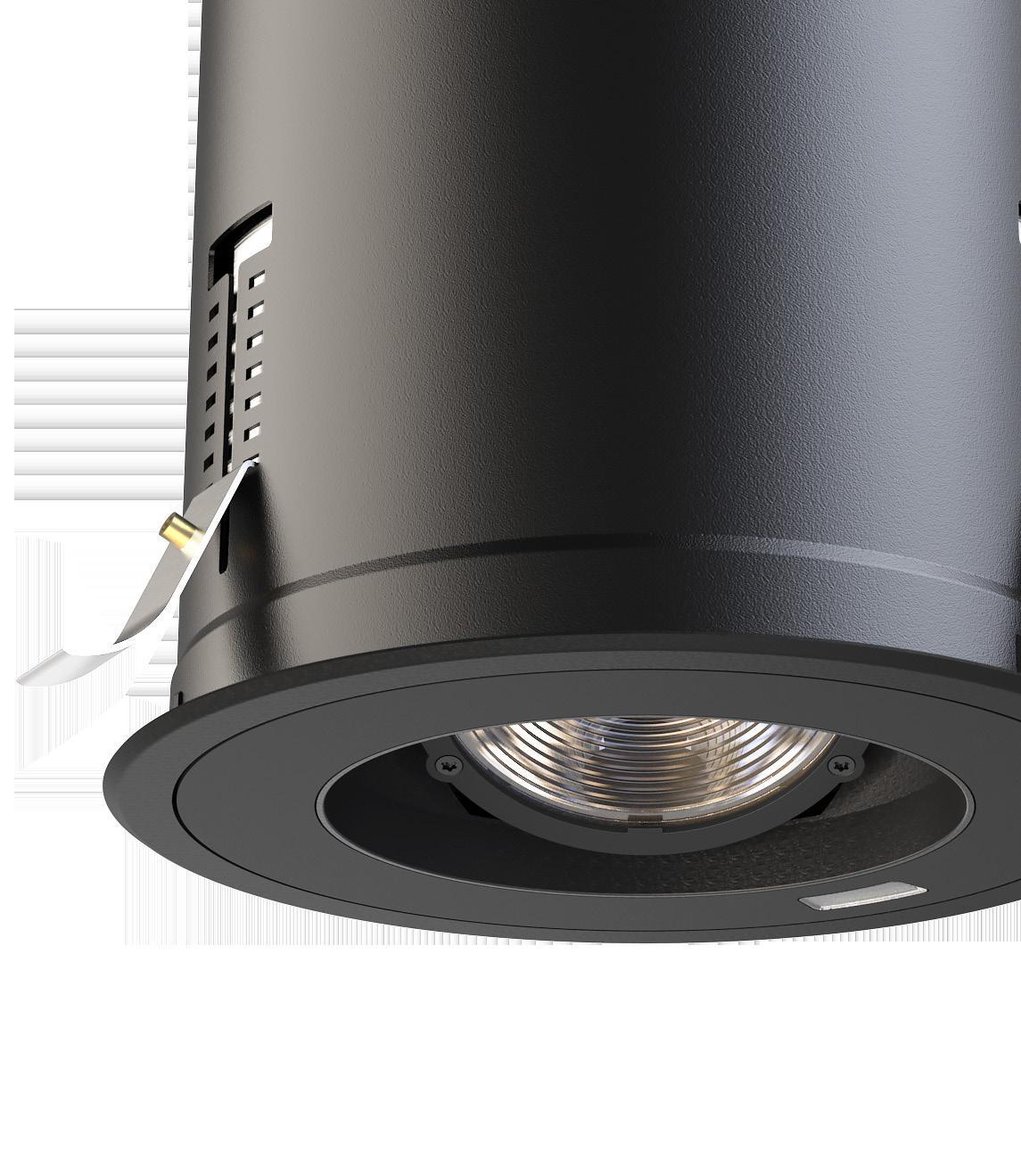

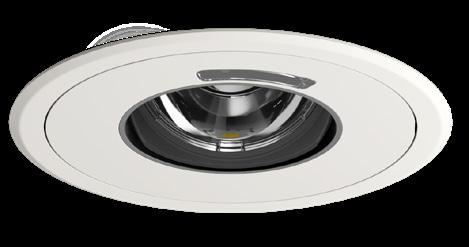

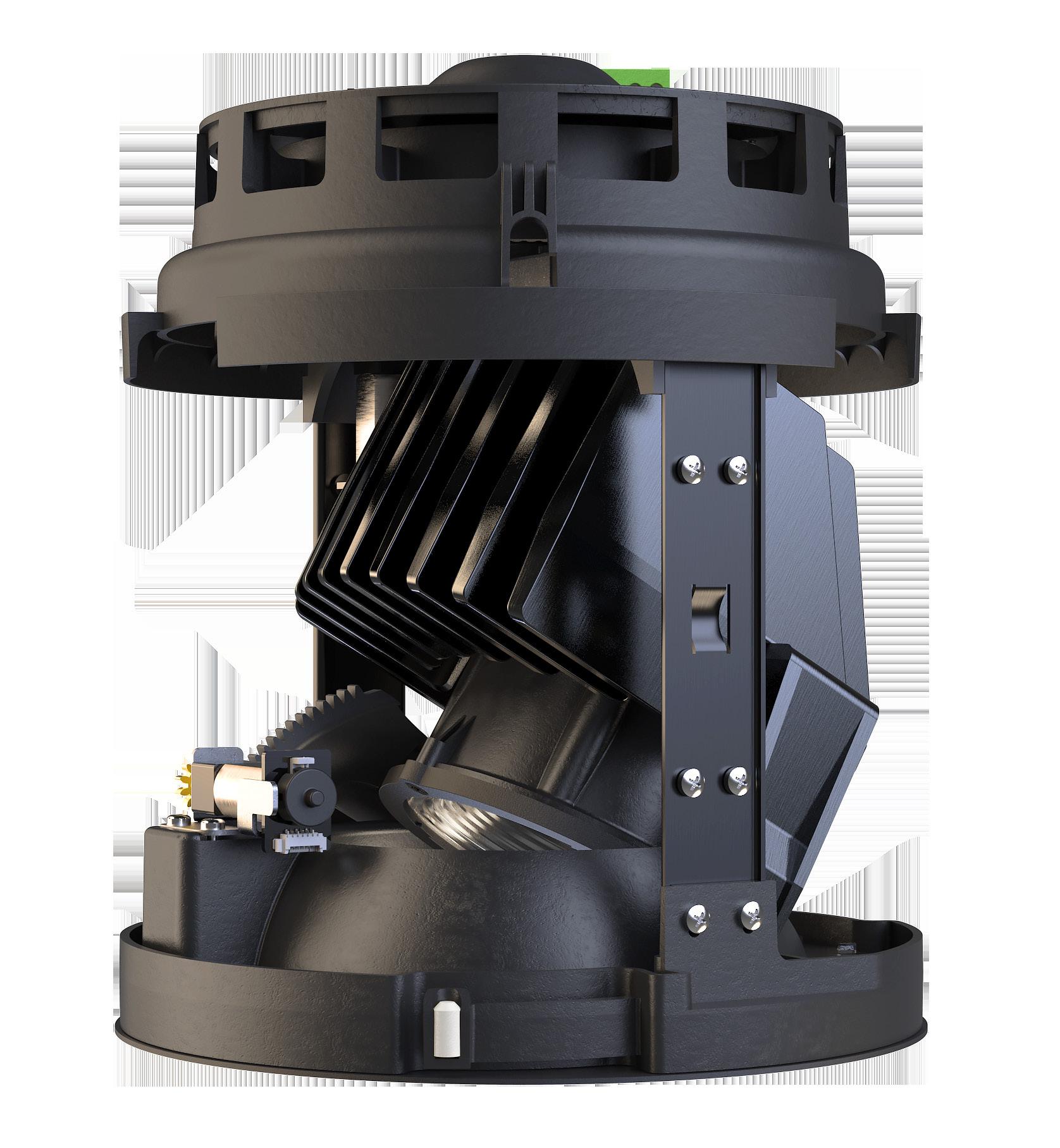

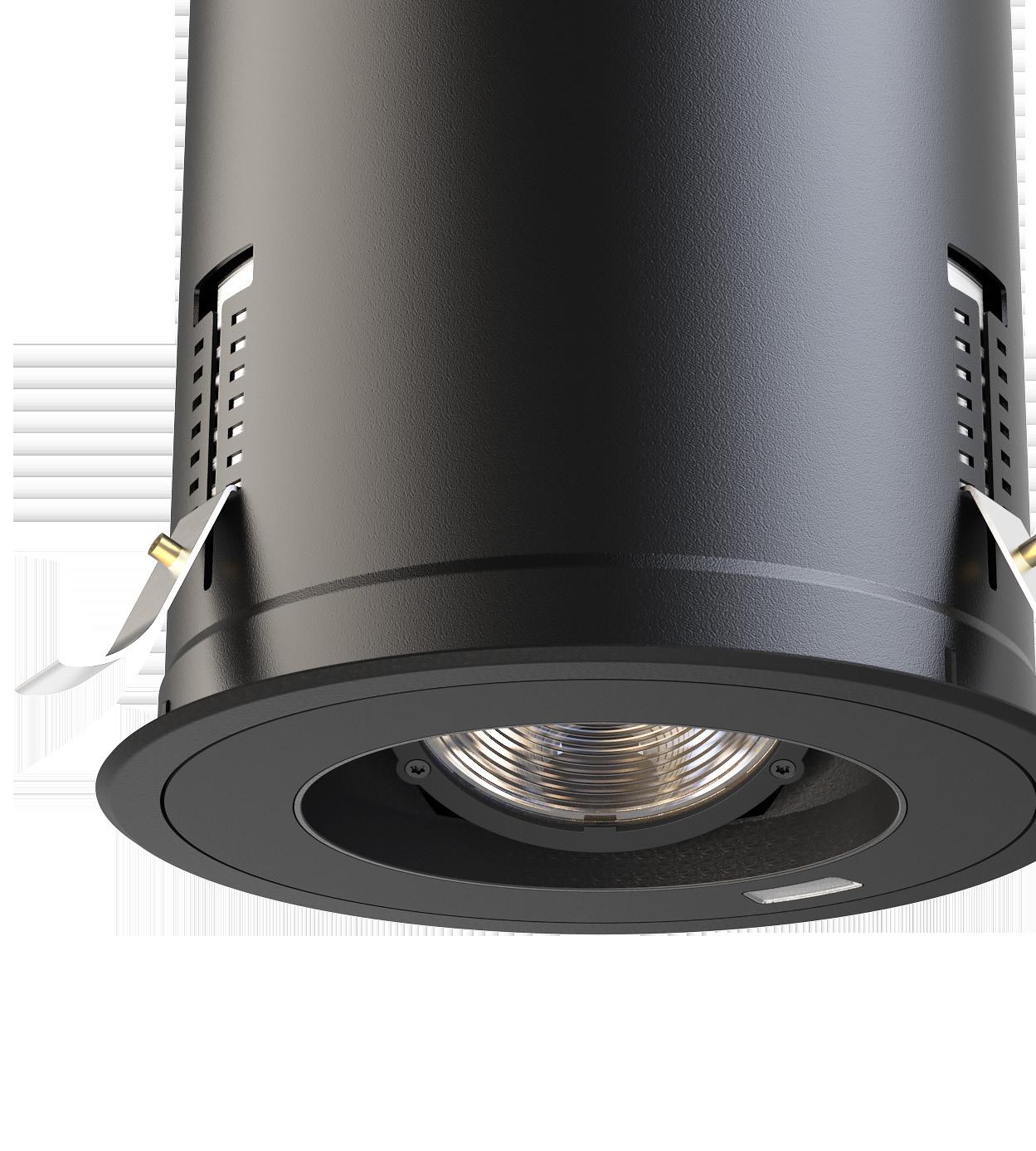

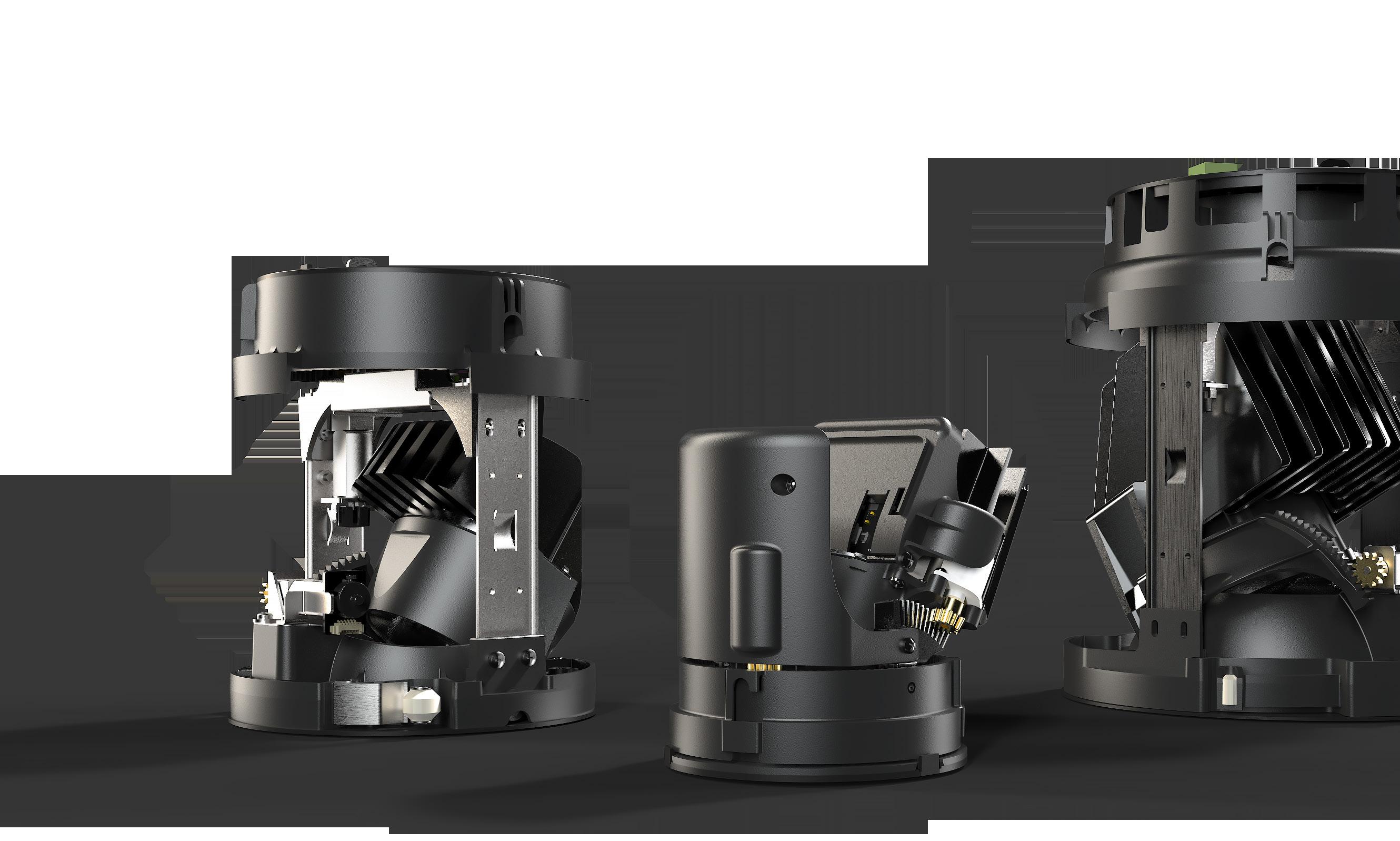

DRX7 is the latest motorised recessed luminaire from RCL. It is a reimagining of our highest selling product the DR7, with up to double the power and brought up to date with the latest in LED and wireless technology. The DRX7 utilises a version of the high power single source light engine from the DRX2 and is available with a range of fixed beam optics from 6 to 34 degrees along with LensVector beam shaping control. This 4” light engine outputs up to double that of the DRX5. As with all RCL products it is compatible with a whole host of control protocols including DMX, DALI, 0-10V along with wireless controls such as RCL Control and the RCL handheld remote. In addition to this we have integrated 3rd party wireless protocols such as Casambi and Xicato for specific projects. In developing the DRX7 we leveraged advanced thermal modelling to ensure our most powerful recessed light could handle even the most challenging of environments. This is backed up by on-board thermal feedback to give the piece of mind that our products will achieve best in class LM-80.
7.87”(200mm)Cutout
theIntroducingNewDRX7
5.12”(130mm)Aperture (230mm)9”
RCL PRODUCT PORTFOLIO 31 MOTORISED 360° PAN ROTATION SINGLE SOURCE TIR LIGHT ENGINE COMPATIBLE WITH WIRED AND WIRELESS CONTROLS UP TO DOUBLE THE POWER OF REPLACEMENTDROPDRX5INFOR DR7 AVAILABLE BEAMLENSVECTORWITHSHAPINGRANGEMOTORISED35°TILTOFOPTICSFROM6°TO34° FeaturesProduct As a successor to our highest selling product the DR7, we have developed the DRX7 to be retrofittable. It utilises the same mounting hardware as the DR7, so even if you have existing plastered in DR7s on a project these can be removed and replaced requiring no modification to the ceiling.

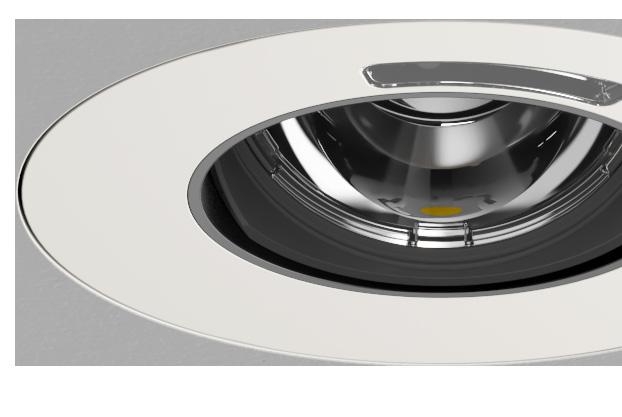

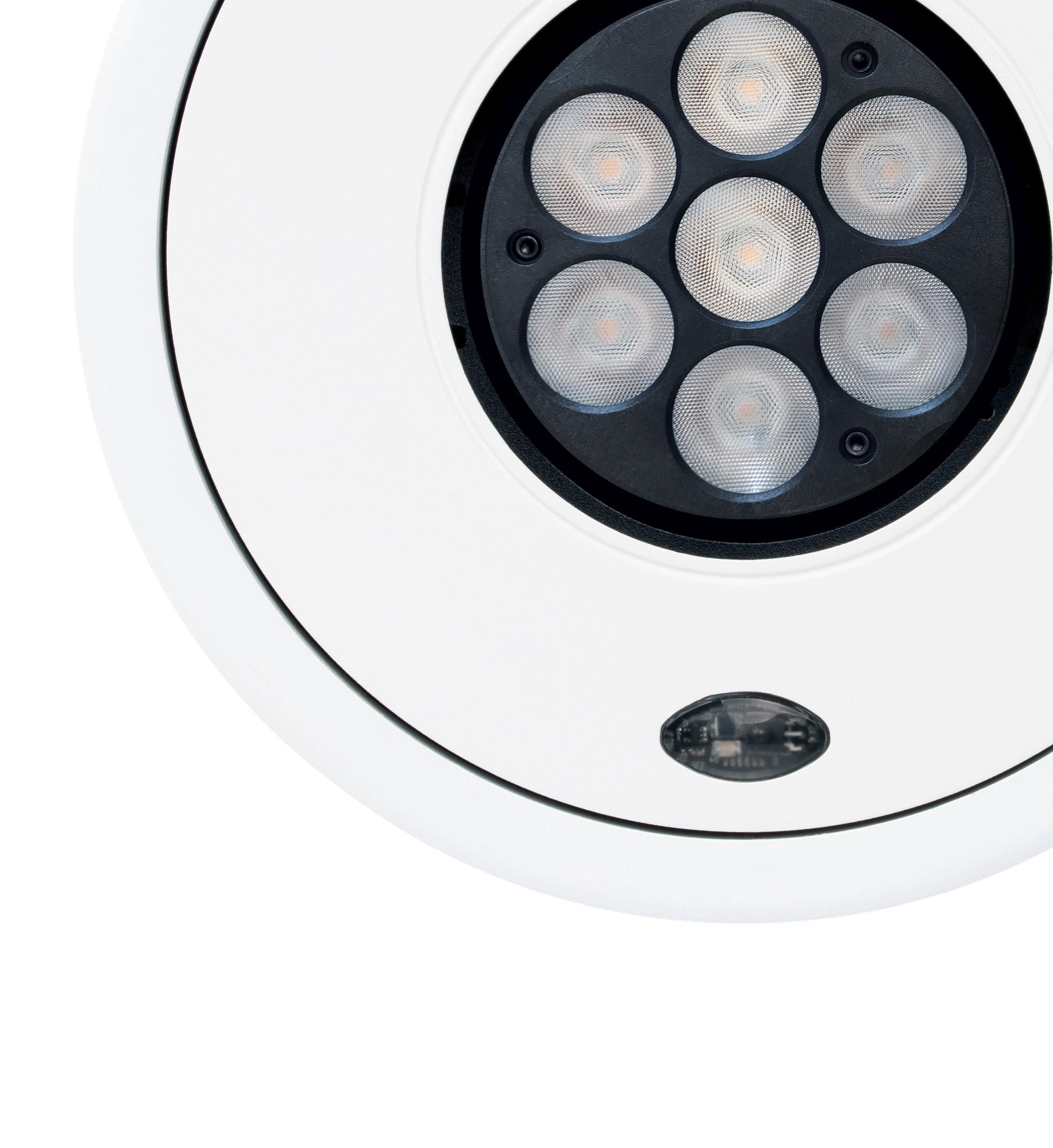

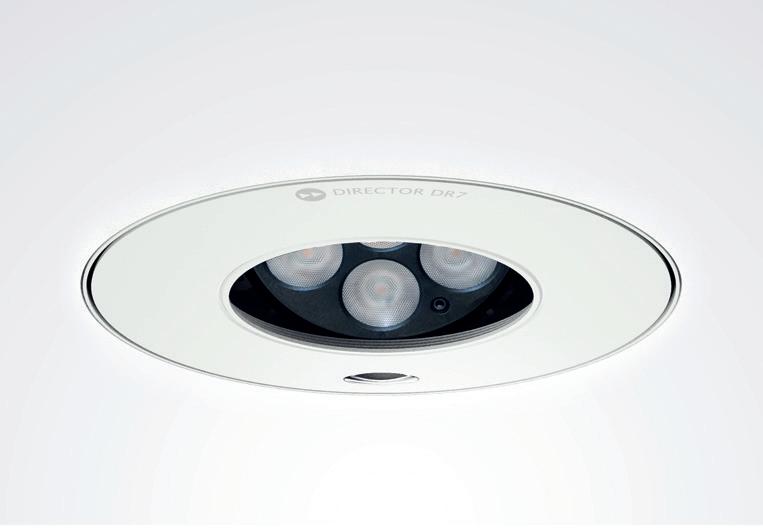

RecessedDR7 DR7DR7 DR7 is a multi-directional recessed luminaire that sits flush with the ceiling for truly clean lines and great versatility. It’s proven to be very popular with architects and lighting designers since its introduction and has been re-engineered to produce a High Power (HP) version for an even brighter and more powerful beam. Ø220mmØ194mm 210mm BEAM WIDTHS 6°, 8°, 10°, 17°, 24° COLOUR TEMPERATURE 2700K, 3000K, 4000K CUT OUT DIAMETER 195mm LED CONFIGURATION OPTIONS Multi-Source PEAK INTENSITY RANGE 6194 CD - 62615 CD LUMEN PACKAGE RANGE 1100lm - 2056lm CEILING CLEARANCE 250mm ±350º35º RCL PRODUCT PORTFOLIO 32 IPAD CONTROL SYSTEM DYNAMIC BEAM SHAPING COMPATIBLE WITH &
6 DEGREEDR7 10 DEGREEDR7 24 DEGREEDR7 8 DEGREEDR7-HP 17 DEGREEDR7-HP BEAM DIAMETER AT 10M: 1M LX AT 10M: 401 LX 4m3m2m1m5m 000.1m.2m0.3m.4m0.5m 40144 lx 10036 lx 4460 lx 2509 lx 1606 lx LED6º 40144 cd 60º60º 30º 30º BEAM DIAMETER AT 10M: 1.8M LX AT 10M: 219 LX 4m3m2m1m5m 0.00.2m.4m0.5m7m0.9m 21864 lx 5466 lx 2429 lx 1367 lx 875 lx LED10º 30º 60º60º 30º 21864 cd BEAM DIAMETER AT 10M: 6.1M 4m3m2m1m5m 1.00.4m.9m1.3m7m2.1m 6194 lx 1523 lx 688 lx 387 lx 248 lx LED24º 30º 60º60º 30º 6194 cd BEAM DIAMETER AT 10M: 1.4M LX AT 10M: 626 LX 4m3m2m1m5m 0.00.1m.3m0.4m6m0.7m 62615 lx 15654 lx 6957 lx 3913 lx 2505 lx LED8º 30º 60º60º 30º 62615 cd BEAM DIAMETER AT 10M: 3M 4m3m2m1m5m 1.2m00.3m.6m0.9m1.5m 19098 lx 4775 lx 2122 lx 1194 lx 764 lx LED17º 30º 60º60º 30º 19098 cd OptionsBeam PEAK INTENSITY: 40144 CD PEAK INTENSITY: 21864 CD PEAK INTENSITY: 6194 CD PEAK INTENSITY: 62615 CD PEAK INTENSITY: 19098 CD RCL PRODUCT PORTFOLIO 33
DR8DR8DR8DR8 Track & Monopoint Initially developed as a bespoke product for Christie’s auction house, the DR8 spotlight has been refined over the years to offer a number of variants in a compact footprint. Specifically designed to disappear into ceiling troughs, DR8 has a tight turning circle of 200mm with ±165° pan and ±90° movement through the tilt axis, allowing the user to easily navigate in narrow spaces. BEAM WIDTHS 6°, 8˚, 10°, 17°, 24° COLOUR TEMPERATURE 2700K, 3000K, 4000K LED CONFIGURATION OPTIONS Multi-Source PEAK INTENSITY RANGE 6276 CD - 62615 CD LUMEN PACKAGE RANGE 1100lm - 2090lm TRACK MONOPOINT 194mm 230mm 285mm ø133mm 223mm 56mm ø133mm 223mm 194mm 247mm CUT OUT DIAMETER (MONOPOINT) 115mm CEILING CLEARANCE (MONOPOINT) 200mm 330º180º RCL PRODUCT PORTFOLIO 34 IPAD CONTROL SYSTEM DYNAMIC BEAM SHAPING COMPATIBLE WITH &
17 DEGREEDR8-HP 8 DEGREEDR8-HP6 DEGREEDR8 10 DEGREEDR8 24 DEGREEDR8 4m3m2m1m5m 0.00.2m.4m0.5m7m0.9m 21391 lx 5348 lx 2377 lx 1337 lx 856 lx LED10º 21391 cd 30º 60º 30º 60º BEAM DIAMETER AT 10M: 1.8M LX AT 10M: 214 LX 4m3m2m1m5m 000.1m.2m0.3m.4m0.5m 39075 lx 9769 lx 4342 lx 2442 lx 1563 lx LED6º 39075 cd 60º 30º 30º 60º BEAM DIAMETER AT 10M: 1M LX AT 10M: 391 LX 4m3m2m1m5m 1.2m00.3m.6m0.9m1.5m 19098 lx 4775 lx 2122 lx 1194 lx 764 lx LED17º 30º 60º60º 30º 19098 cd BEAM DIAMETER AT 10M: 3M 4m3m2m1m5m 1.00.4m.9m1.3m7m2.1m 6276 lx 1569 lx 697 lx 392 lx 251 lx LED24º 30º 60º60º 30º 6276 cd BEAM DIAMETER AT 10M: 4.3M 4m3m2m1m5m 0.00.1m.3m0.4m6m0.7m 62615 lx 15654 lx 6957 lx 3913 lx 2505 lx LED8º 30º 60º60º 30º 62615 cd BEAM DIAMETER AT 10M: 1.4M LX AT 10M: 626 LX OptionsBeam PEAK INTENSITY: 39075 CD PEAK INTENSITY: 21391 CD PEAK INTENSITY: 6276 CD PEAK INTENSITY: 62615 CD PEAK INTENSITY: 19098 CD RCL PRODUCT PORTFOLIO 35
Variable Beam Technology
RCL offers two variable beam options for the DRX range: Variable Pinspot (VPS) and LensVector® (LV). Variable Pinspot is designed specifically for lighting ballroom dining tables and other event spaces where remote adjustment from ultra-narrow to medium beam widths is required. It is the more economical of the two and is better suited to lower ceilings and light levels. LensVector® is ideal for use in hospitality, museum, gallery and retail applications. It offers a wider beam range and higher lumen outputs than Variable Pinspot and can also be combined with our tunable white light engine for ultimate flexibility.
8-9M10M+5-7M3-4M LVDRX15-55ºLVDRX55-55º VPSDRX1LVLVLVDRX15-55ºDRX15-55ºDRX15-55º8-16ºVPSDRX58-16º LVDRX110-55ºLVDRX510-55º LVDRX110-55ºDRX2LVDRX2LV OR OR OR OR OROROR OR HEIGHTCEILING PRODUCTSSUGGESTED RECESSED TRACK & MONOPOINT LVDRX55-55º LVDRX510-55º LVLVDRX55-55ºDRX55-55º PLEASE NOTE: This diagram is intended as a guide only. RCL always recommends using professional lighting designers or seeking assistance from our technical sales managers to select the correct luminaires and beam widths. SPECIFICATION GUIDE SPECIFICATIONRCL SPECIFICATION GUIDE 36
SPECIFICATION GUIDE SPECI PLEASE NOTE: This diagram is intended as a guide only. RCL always recommends using professional lighting designers or seeking assistance from our technical sales managers to select the correct luminaires and beam widths. 8-9M10M+5-7M LVDRX15-55º LVDRX110-55º OR OR HEIGHTCEILING PRODUCTSSUGGESTED ACCENT LIGHTING RECESSED TRACK & MONOPOINT LVDRX55-55º LVDRX510-55º LVDRX55-55º DRX2LV 3-4M LVDRX15-55ºLVDRX55-55º VPSDRX18-16ºDRX5VPS LVDRX110-55ºORLVDRX510-55ºOR ORLVDRX1OR5-55º DRX2LV OR RCL SPECIFICATION GUIDE 37
Pinspotting Tables 8-9M10M+5-7M3-4M DRX1-S10º DRX27ºDRX27º DRX1-S10º DRX1-S22º DRX14º DR8-HP8º OR OR OR OR DRX14º HEIGHTCEILING PRODUCTSSUGGESTED DRX5-S10º DRX5-SDRX5-SDR76º10º22ºDRX5DR76º4º DR7-HP8ºDRX54º OROROROR PLEASE NOTE: This diagram is intended as a guide only. RCL always recommends using professional lighting designers or seeking assistance from our technical sales managers to select the correct luminaires and beam widths. PIN SPOTTING RECESSED TRACK & MONOPOINT SPECIFICATION GUIDE SPECIFICATION To assist with specification of our luminaires, we have created a simple guide to illustrate how the height of a ceiling relates to the spread of light. Each diagram showcases both recessed and track and monopoint fixtures to suit all mounting requirements. RCL SPECIFICATION GUIDE 38
SPECIFICATION GUIDE SPECI Small Areas DR76ºDRX5-S6º OR8-9M10M+5-7M DRX14º DRX1-S6º HEIGHTCEILING PRODUCTSSUGGESTEDDRX54º DR76ºDRX54º OR ø <1M DR86ºDRX14º OROR PLEASE NOTE: This diagram is intended as a guide only. RCL always recommends using professional lighting designers or seeking assistance from our technical sales managers to select the correct luminaires and beam widths. DRX27º ACCENT LIGHTING RECESSED TRACK & MONOPOINT Objects with a diameter of less than 1 metre can be illuminated using narrow beams regardless of ceiling height. If the ceiling height exceeds 8 metres, our unrivalled ultra-narrow 4º beam is the perfect choice; even with a ceiling height of 14 metres, the beam spread stays within 1 metre diameter. RCL SPECIFICATION GUIDE 39
HEIGHTCEILING 8-9M10M+5-7M3-4M DRX1-S22º PRODUCTSSUGGESTEDDR7-HPDR7-HPDRX5-SDRX5-S22º10º8º8º ø 1-2M PLEASE NOTE: This diagram is intended as a guide only. RCL always recommends using professional lighting designers or seeking assistance from our technical sales managers to select the correct luminaires and beam widths. DRX210ºDR8-HP8º OR OR DRX1-S6º DRX210ºDR8-HP8º OR OR DRX1-S10º DRX210ºDRX1-S10º OR PIN SPOTTING RECESSED TRACK & MONOPOINT Medium Areas SPECIFICATION GUIDE SPECIFICATION This diagram illustrates how useful our new High Power beams are when accent lighting from high ceilings. Our clean, consistent beams give extra depth to artwork, featuring areas or architectural detail even when used from great heights. RCL SPECIFICATION GUIDE 40
SPECIFICATION GUIDE SPECI Large Areas 8-9M10M+5-7M3-4M DRX1-S34º DRX1-S22ºDR8-HPDRX1-S22º17ºORHEIGHTCEILING PRODUCTSSUGGESTEDDRX5-SDRX534º22º DRX5-S22ºDR7-HP17º OR DRX5-S22ºDR7-HP17º OR ø 3-5M PLEASE NOTE: This diagram is intended as a guide only. RCL always recommends using professional lighting designers or seeking assistance from our technical sales managers to select the correct luminaires and beam widths. DRX218ºDR8-HP17º OR OR DRX1-S22º ACCENT LIGHTING RECESSED TRACK & MONOPOINT Accent lighting large areas isn’t as easy as it sounds, particularly if no attention is paid to the luminaire’s lux levels. The downfall with only measuring luminaires by lumen output, particularly for accent lighting, is that a considerable amount of light can be lost before it reaches the target. RCL SPECIFICATION GUIDE 41
ADDITIONAL PHOTOMETRY BeamVariableWhiteTunable& 8-16 15-54DEGREEDEGREE 14 10-55DEGREEDEGREE5-55 DEGREE PEAK INTENSITY: 33214 CDPEAK INTENSITY: 39526 CD DRX1 VARIABLE PINSPOT DRX1 LENSVECTOR & TUNABLE WHITE DRX1 TUNABLE WHITE DRX1 LENSVECTORDRX1 LENSVECTOR 4m3m2m1m5m 1.00.28m.56m0.84m12m1.41m 16720 lx 4180 lx 1858 lx 1045 lx 669 lx 8º / 16º LED 00.14m.28m0.42m 20522 lx 5131 lx 2280 lx 1283 lx 821 lx0.56m0.70m 4m3m2m1m5m 4.2.1.02m04m3.06m08m5.10m 681 lx 170 lx 76 lx 43 lx 27 lx 15º / 54º 3000K* LED 00.26m.53m0.79m 9727 lx 2432 lx 1081 lx 608 lx 389 lx1.05m1.32m 4m3m2m1m5m 0.00.25m.49m0.74m98m1.23m 15325 lx 3831 lx 1703 lx 958 lx 613 lx 14º 3000K* LED 4m3m2m1m5m 4.2.1.04m08m3.12m16m5.21m 991 lx 248 lx 110 lx 62 lx 40 lx 10º / 55º LED 00.17m.35m0.52m 33214 lx 8304 lx 3690 lx 2076 lx 1329 lx0.70m0.87m4m3m2m1m5m 4.2.1.04m08m3.12m16m5.21m 481 lx 120 lx 53 lx 30 lx 19 LEDlx0.0.09m17m0.26m 39526 lx 9882 lx 4392 lx 2470 lx 1581 lx0.35m0.44m 5º / 55º 60º 30º 30º 60º 20522 cd (Max) 60º 30º 30º 60º 9727 cd (Max) 15325 cd 60º 30º 30º 60º 60º 30º 30º 60º 33214 cd (Max) 60º 30º 30º 60º 39526 cd (Max) PEAK INTENSITY: 15325 CDPEAK INTENSITY: 20522 CD PEAK INTENSITY: 9727 CD RCL ADDITIONAL PHOTOMETRY 42
PHOTOMETRY ADDITIONAL PHOTOME 8-16 15-54DEGREEDEGREE 10-55 DEGREE5-55 DEGREE PEAK INTENSITY: 15325 CDPEAK INTENSITY: 20522 CD DRX5 VARIABLE PINSPOT DRX5 LENSVECTOR & TUNABLE WHITE DRX5 LENSVECTORDRX5 LENSVECTOR 4m3m2m1m5m 4.2.1.02m04m3.06m08m5.10m 681 lx 170 lx 76 lx 43 lx 27 lx 15º / 54º 3000K* LED 00.26m.53m0.79m 9727 lx 2432 lx 1081 lx 608 lx 389 lx1.05m1.32m 4m3m2m1m5m 1.00.28m.56m0.84m12m1.41m 16720 lx 4180 lx 1858 lx 1045 lx 669 lx 8º / 16º LED 00.14m.28m0.42m 20522 lx 5131 lx 2280 lx 1283 lx 821 lx0.56m0.70m 4m3m2m1m5m 4.2.1.04m08m3.12m16m5.21m 481 lx 120 lx 53 lx 30 lx 19 LEDlx0.0.09m17m0.26m 39526 lx 9882 lx 4392 lx 2470 lx 1581 lx0.35m0.44m 5º / 55º 4m3m2m1m5m 4.2.1.04m08m3.12m16m5.21m 991 lx 248 lx 110 lx 62 lx 40 lx 10º / 55º LED 00.17m.35m0.52m 33214 lx 8304 lx 3690 lx 2076 lx 1329 lx0.70m0.87m 60º 30º 30º 60º 9727 cd (Max) 60º 30º 30º 60º 20522 cd (Max) 14 DEGREEDRX5 TUNABLE WHITE 4m3m2m1m5m 0.00.25m.49m0.74m98m1.23m 15325 lx 3831 lx 1703 lx 958 lx 613 lx 14º 3000K* LED 15325 cd 60º 30º 30º 60º 60º 30º 30º 60º 39526 cd (Max) 60º 30º 30º 60º 33214 cd (Max) PEAK INTENSITY: 9727 CD PEAK INTENSITY: 33214 CDPEAK INTENSITY: 39526 CD RCL ADDITIONAL PHOTOMETRY 43
CASE STUDIES CASE STUDIESRCL CASE STUDIES LOCATION: HONG KONG PRODUCTS: 59 DR7s LIGHTING CONSULTANTS: LIGHT DIRECTION44
STUDIES STUDIES CASE
CASE

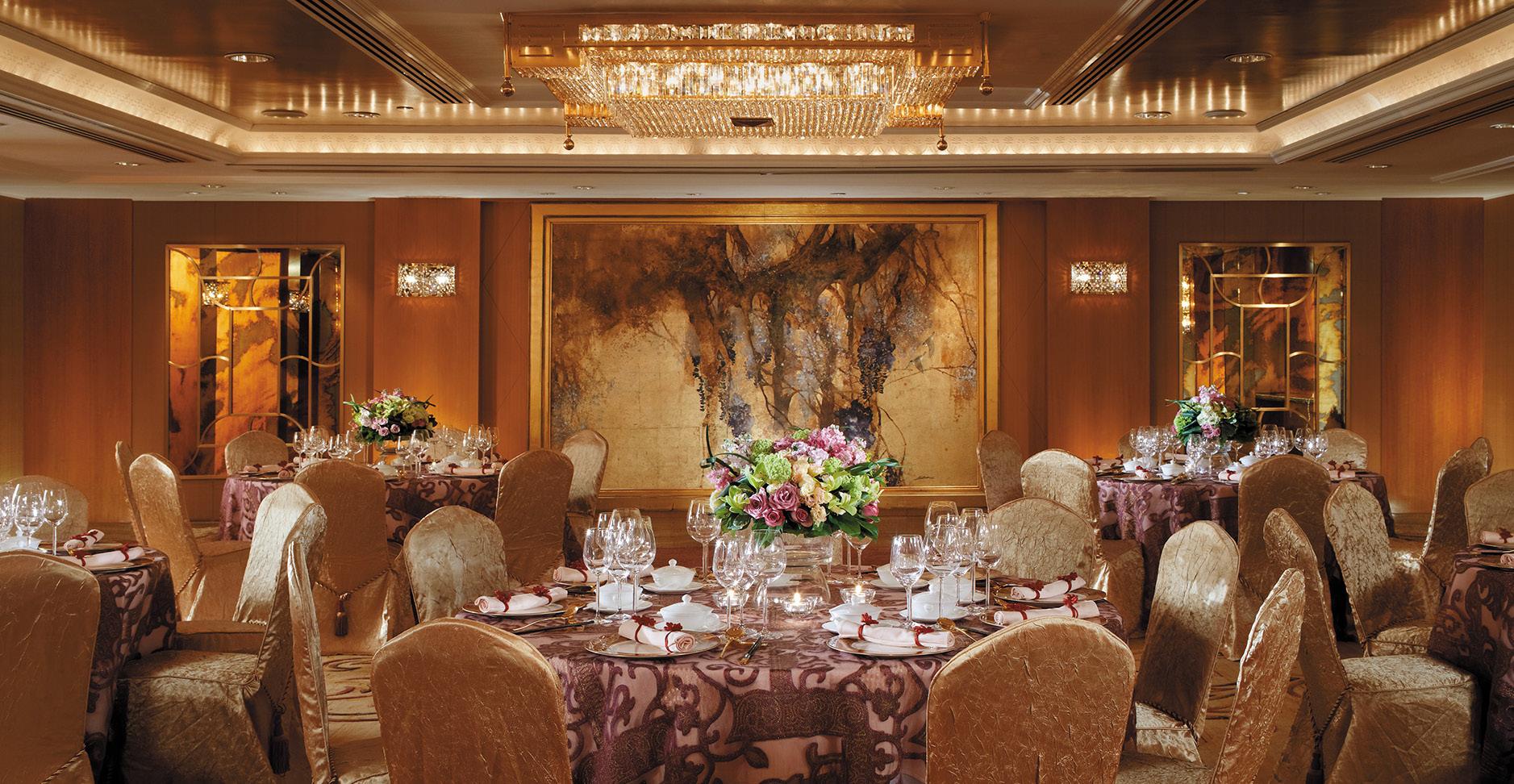

Grand Hyatt
Light Directions
A beautifully designed hotel overlooking Victoria Harbour and the Wanchai waterfront promenade, the Grand Hyatt is a first choice for travellers looking for a luxury location. specified DR7s to complement the Grand Ballroom’s elegant finish and accentuate the large crystal chandelier – the key feature in this impressive 730m2 space.
RCL CASE STUDIES 45

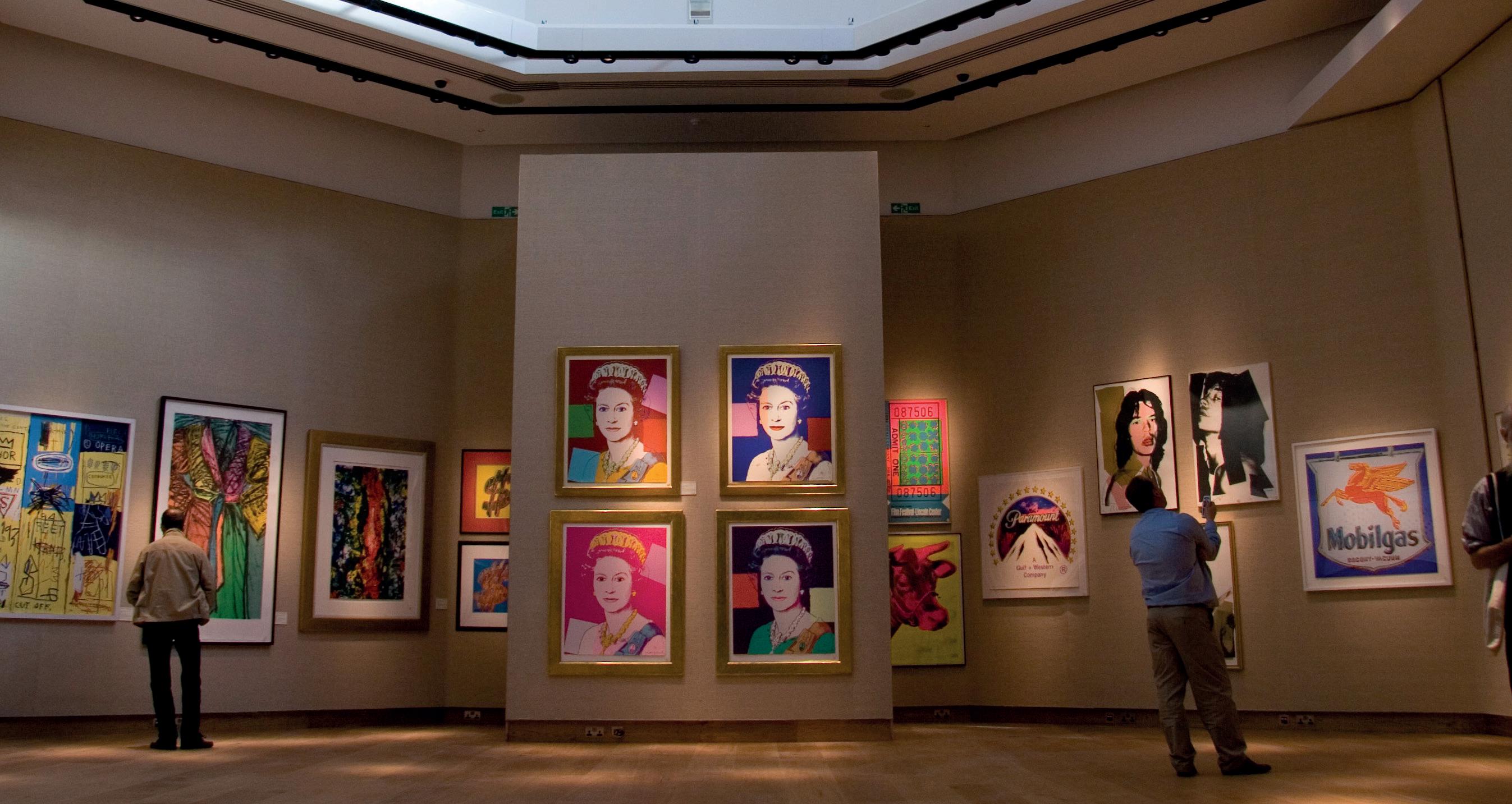

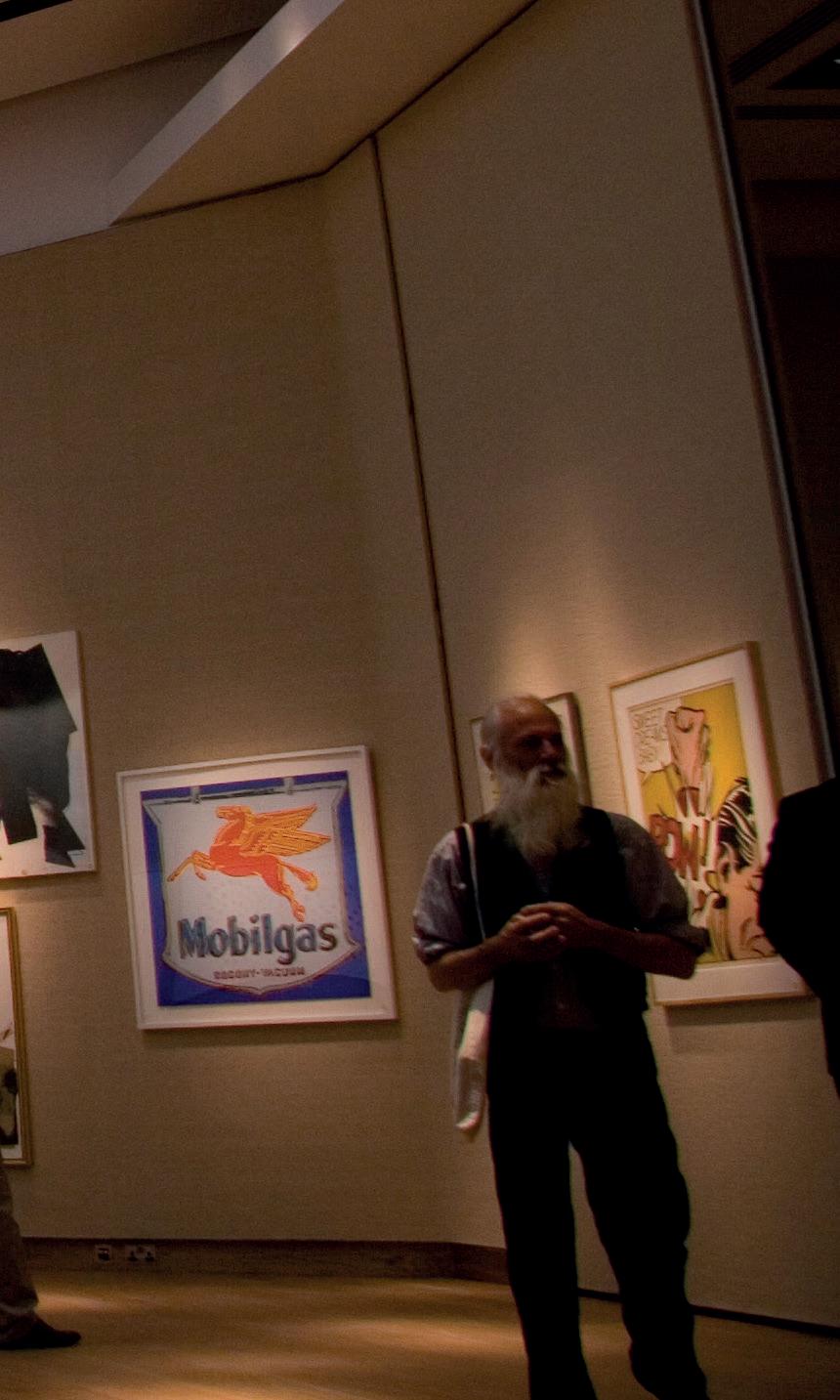

CASE STUDIES CASE STUDIESRCL CASE STUDIES LOCATION: LONDON PRODUCTS: 152 DR8s & 36 DRX1s SPECIFIER: CHRISTIE’S46
STUDIES CASE STUDIES CASESTUDIES

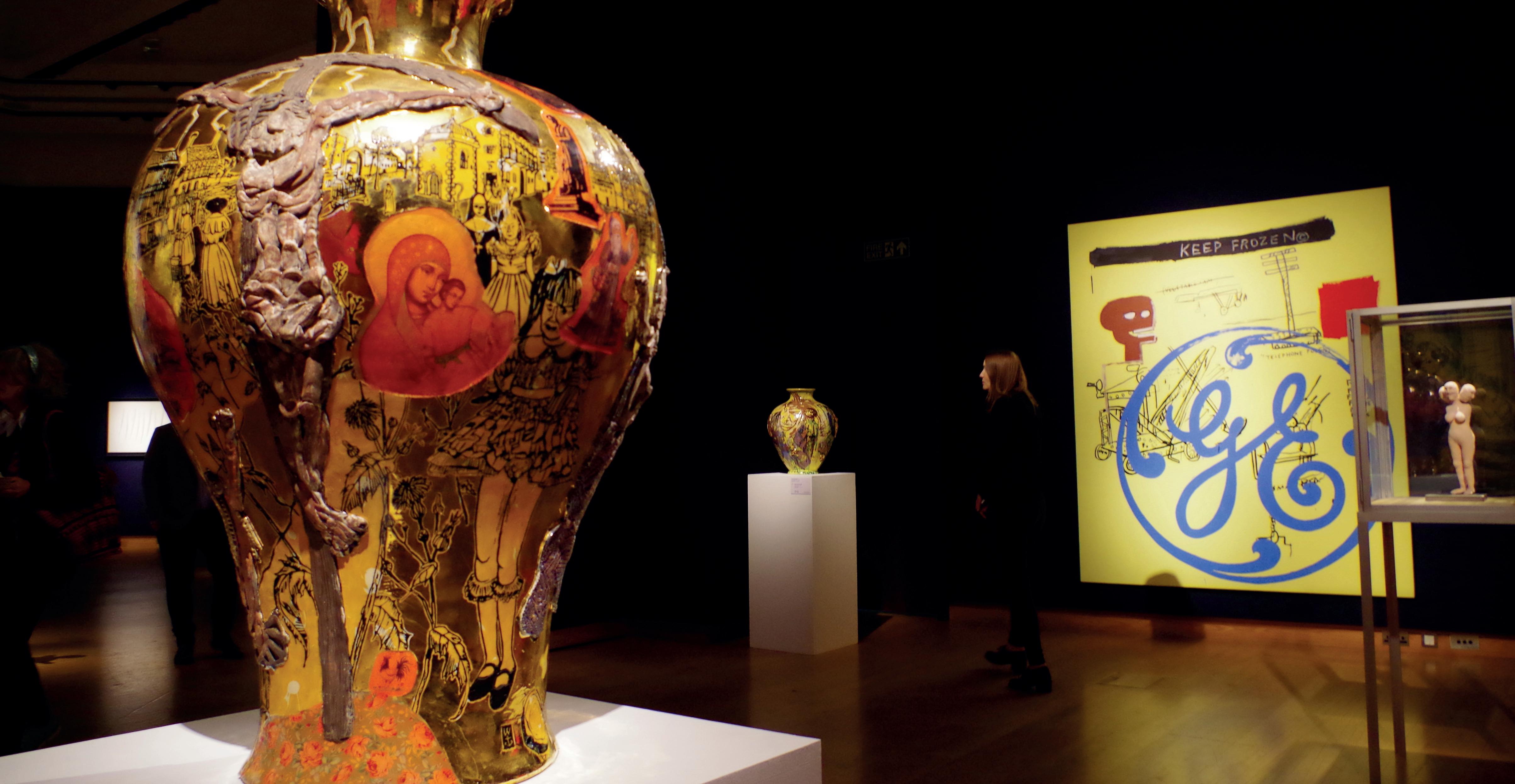

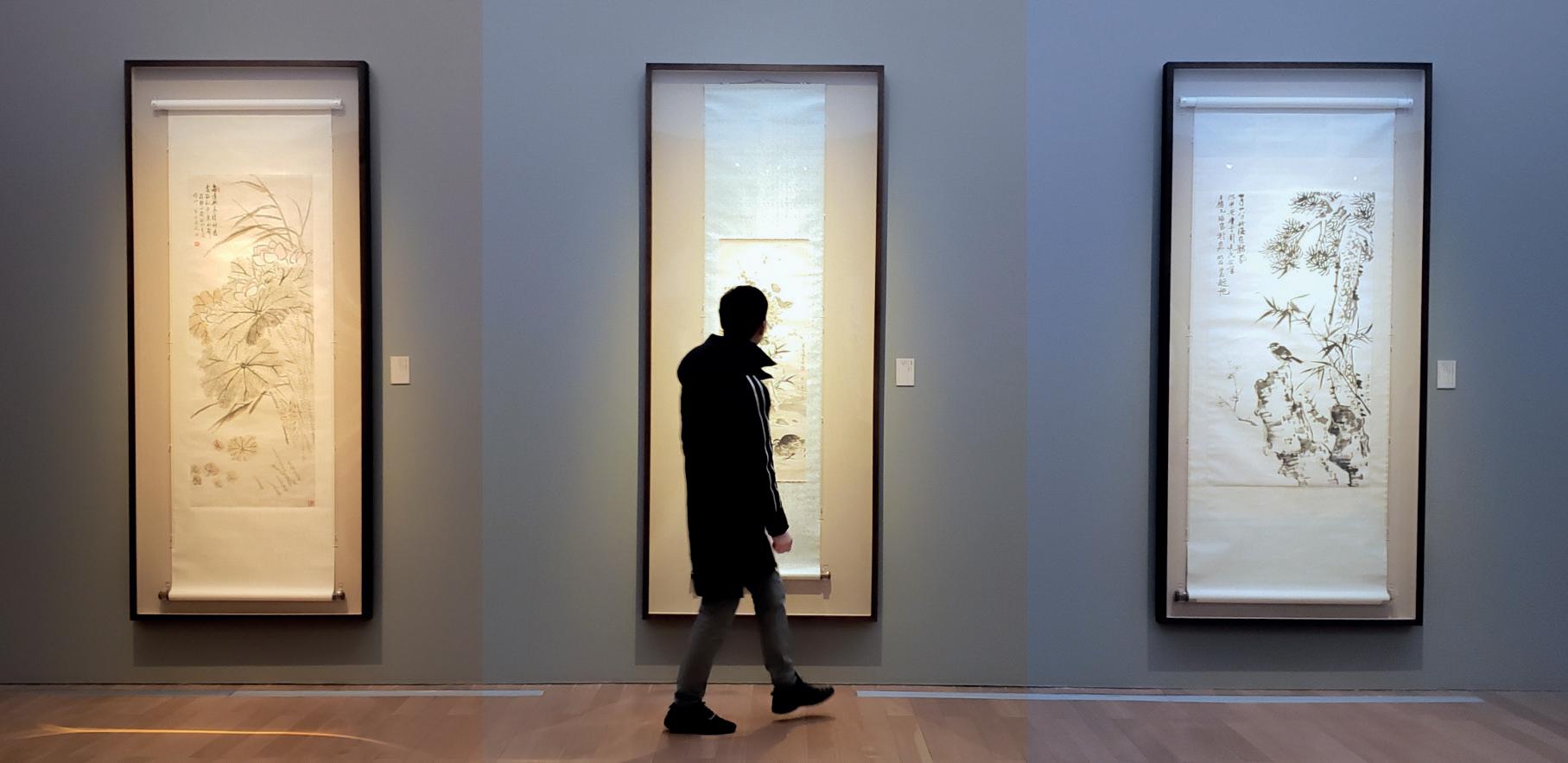

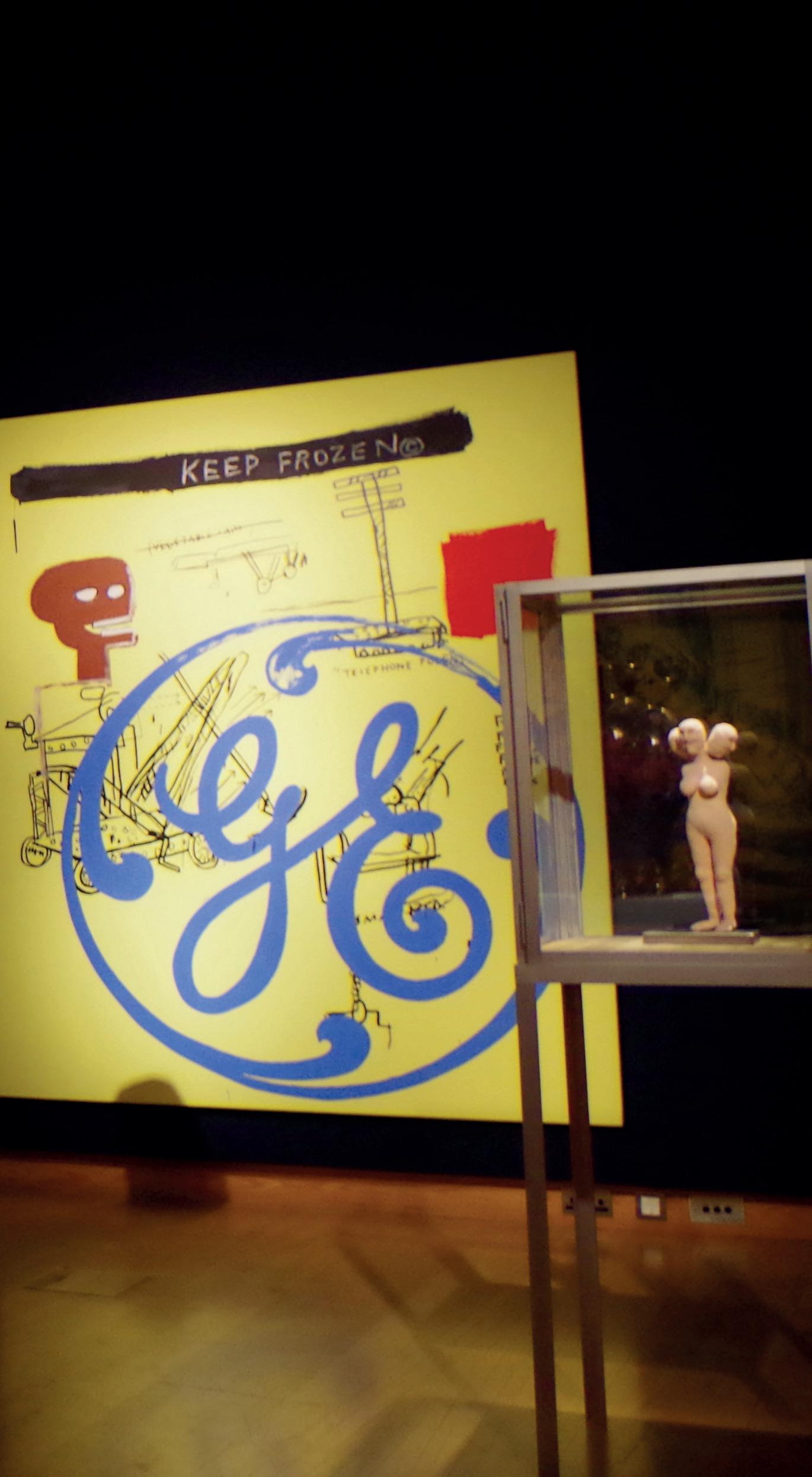

Christie’s
“We’ve had first class service and lighting from RCL for years. We trust them implicitly and always contact them for advice when embarking on new renovation projects.”
47
RCL CASE
David OperationsGregoryDirector at Christie’s In 1766, James Christie opened the London fine art auction house, and their reputation has grown ever since. In 2008 and 2017 Christie’s approached RCL to supply lighting as part of gallery renovations. Lighting is always a key part of any refurbishment for Christie’s. With constantly changing collections, a contemporary, flexible lighting system that can be easily operated is essential. With thousands, if not millions, of pounds at stake in a highly competitive market, it’s crucial that items are shown in literally their best light.
CASE STUDIES CASE STUDIESRCL CASE STUDIES LOCATION: QATAR PRODUCTS: 1398 DR7s DESIGNER: LICHT KUNST LICHT48

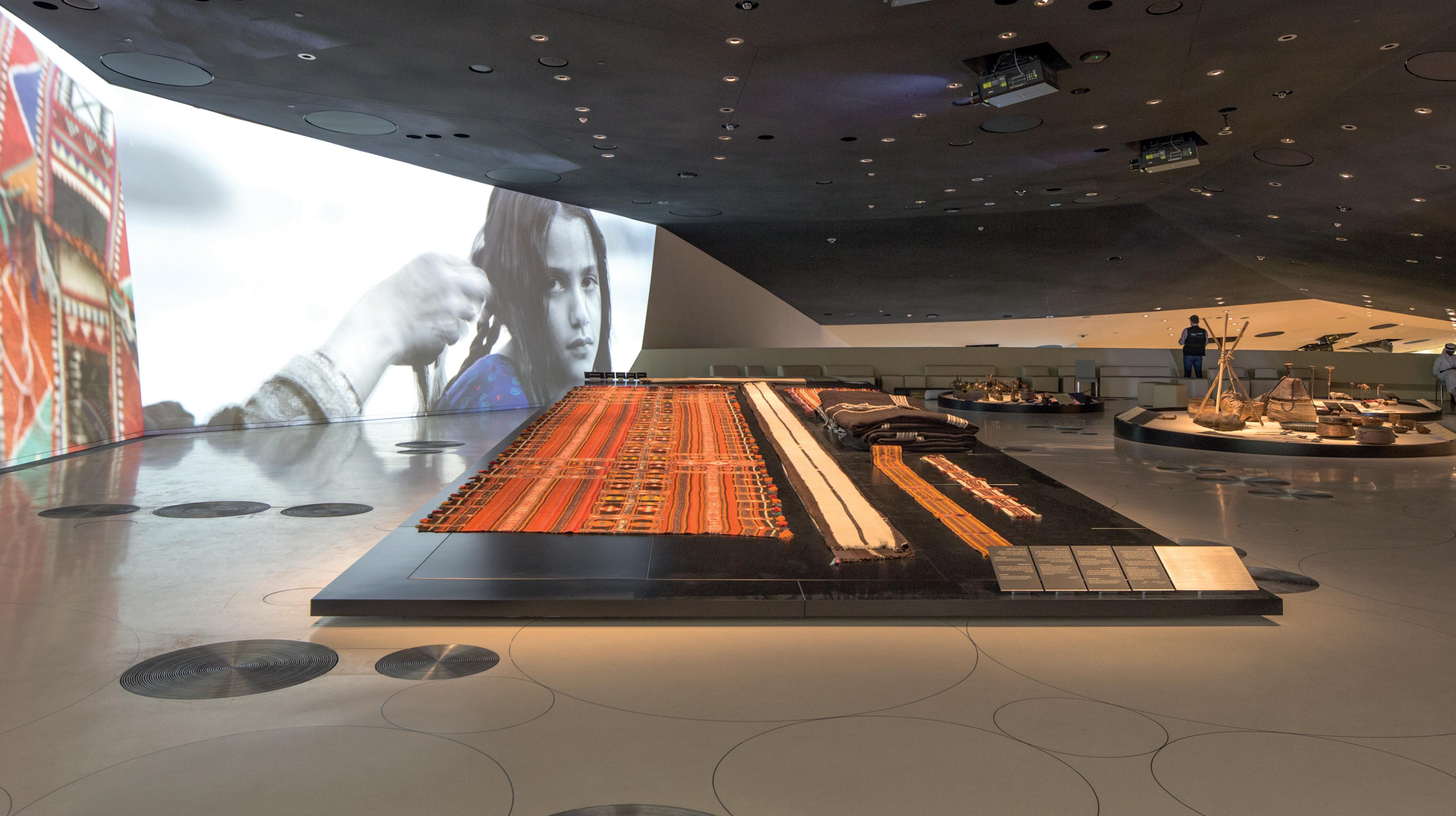

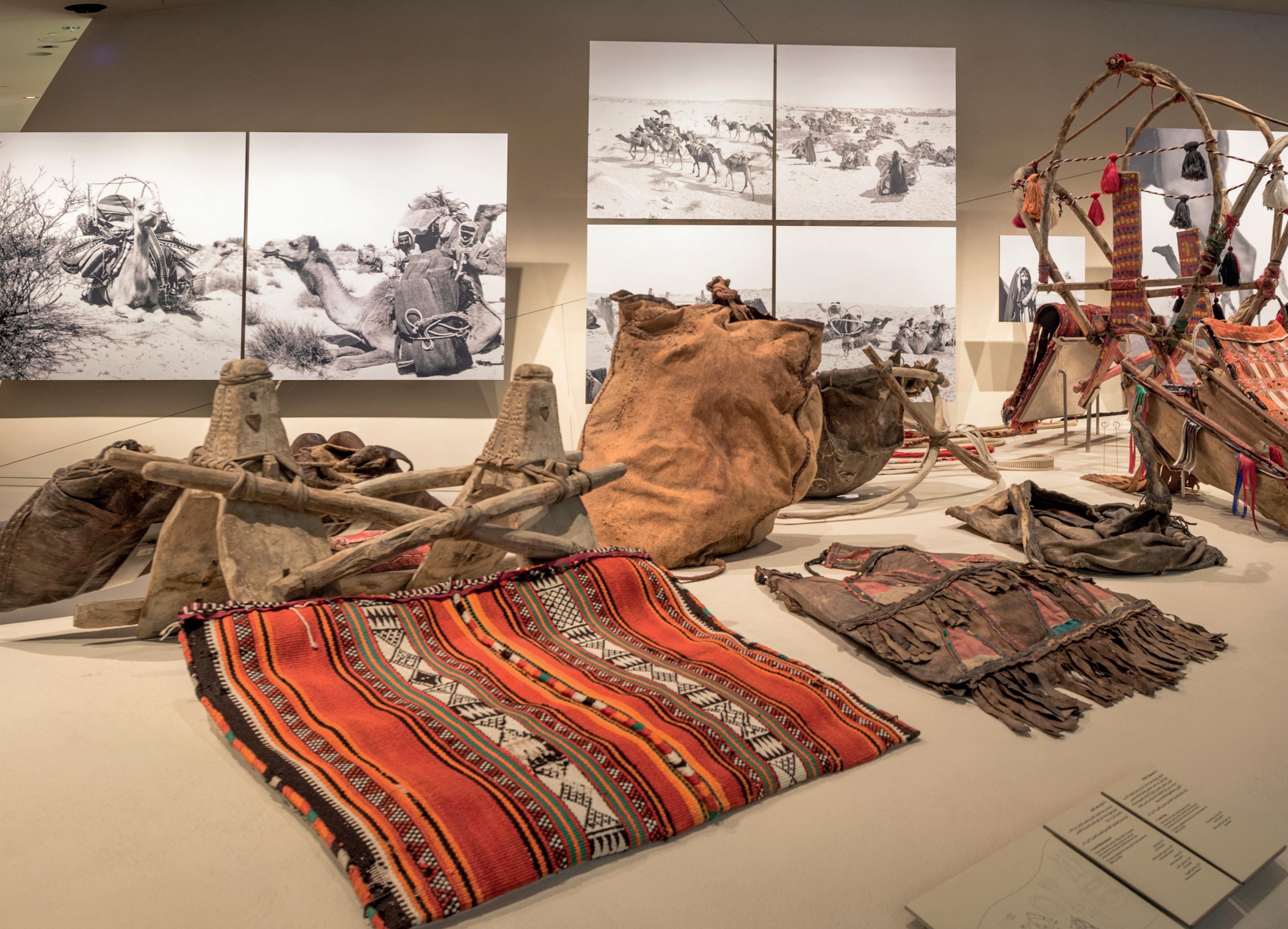

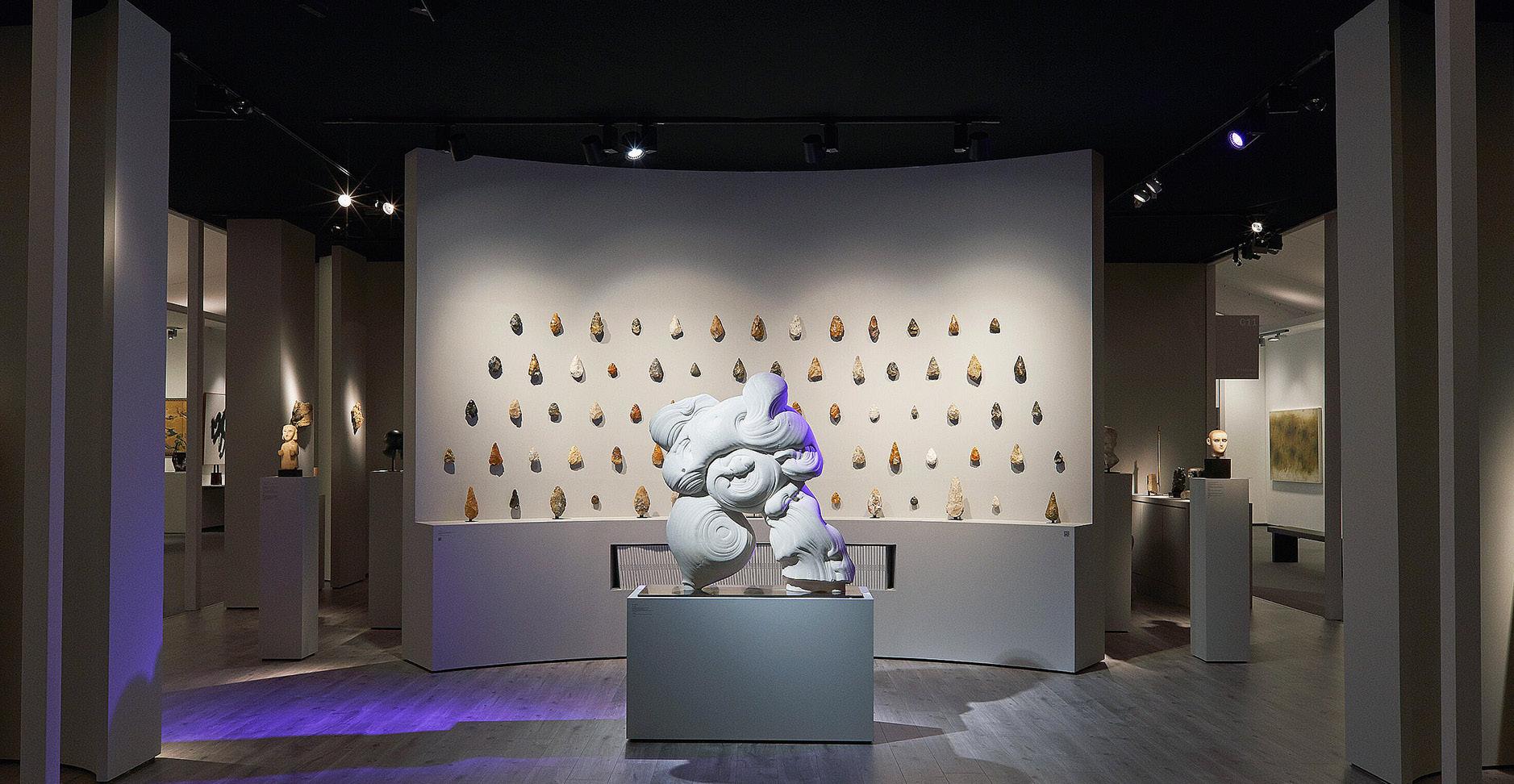

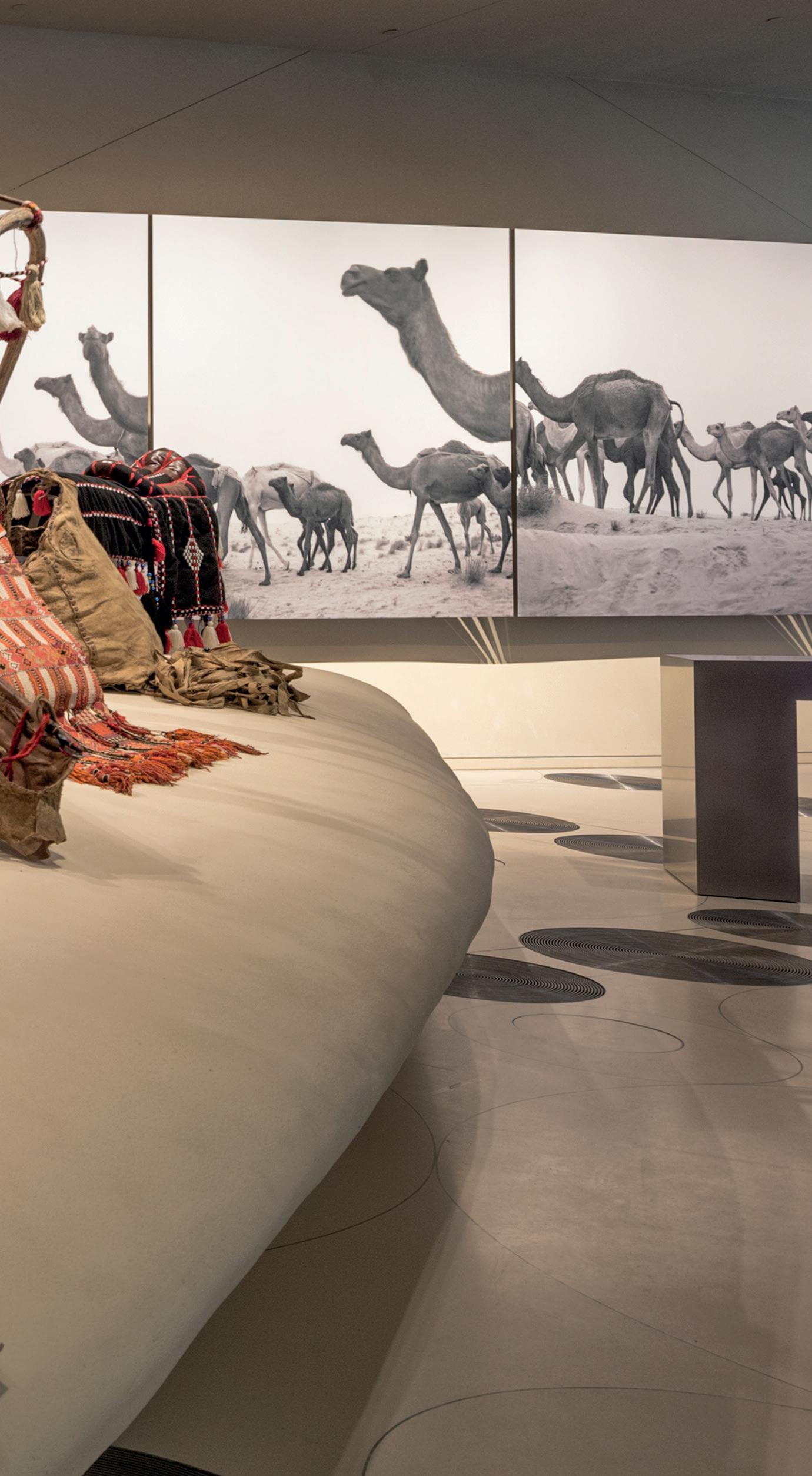

National Museum of Qatar
Each artefact on display is perfectly illuminated by DR7s using the RCL handheld remote, allowing for beam manipulation from ground level and providing ultimate flexibility in the lighting scheme. This installation provides adaptable lighting for new and temporary exhibits that is quick, simple and completely unrestricted by the building’s high ceilings and distinctive layout.
RCL CASE STUDIES 49
STUDIES CASE STUDIES CASE

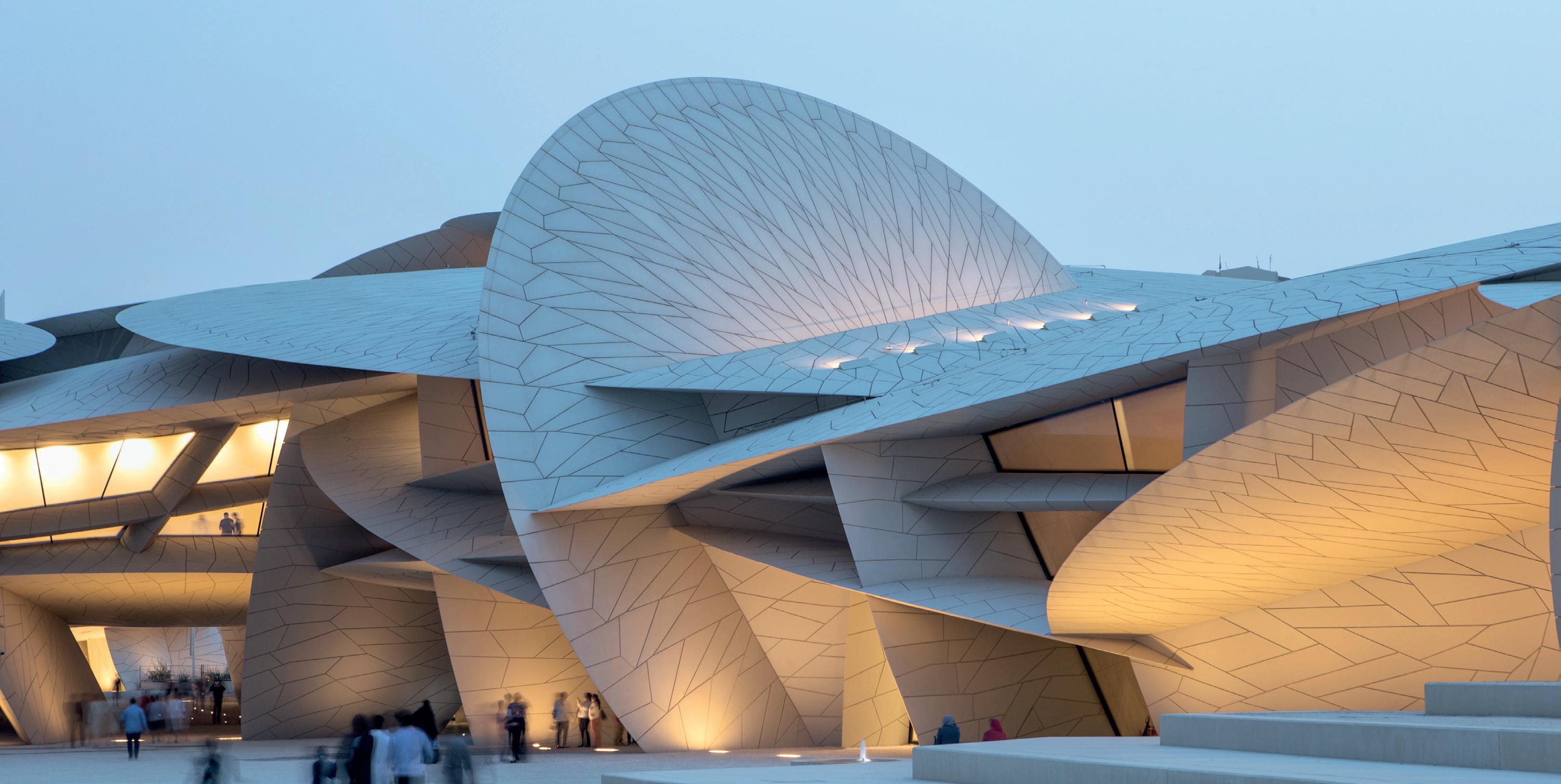

Inspired by the desert rose, the newly built National Museum of Qatar specified 1,398 of RCL’s DR7 luminaires to illuminate various exhibitions throughout the museum showcasing the unique history of Qatar.
Architect: Jean Nouvel

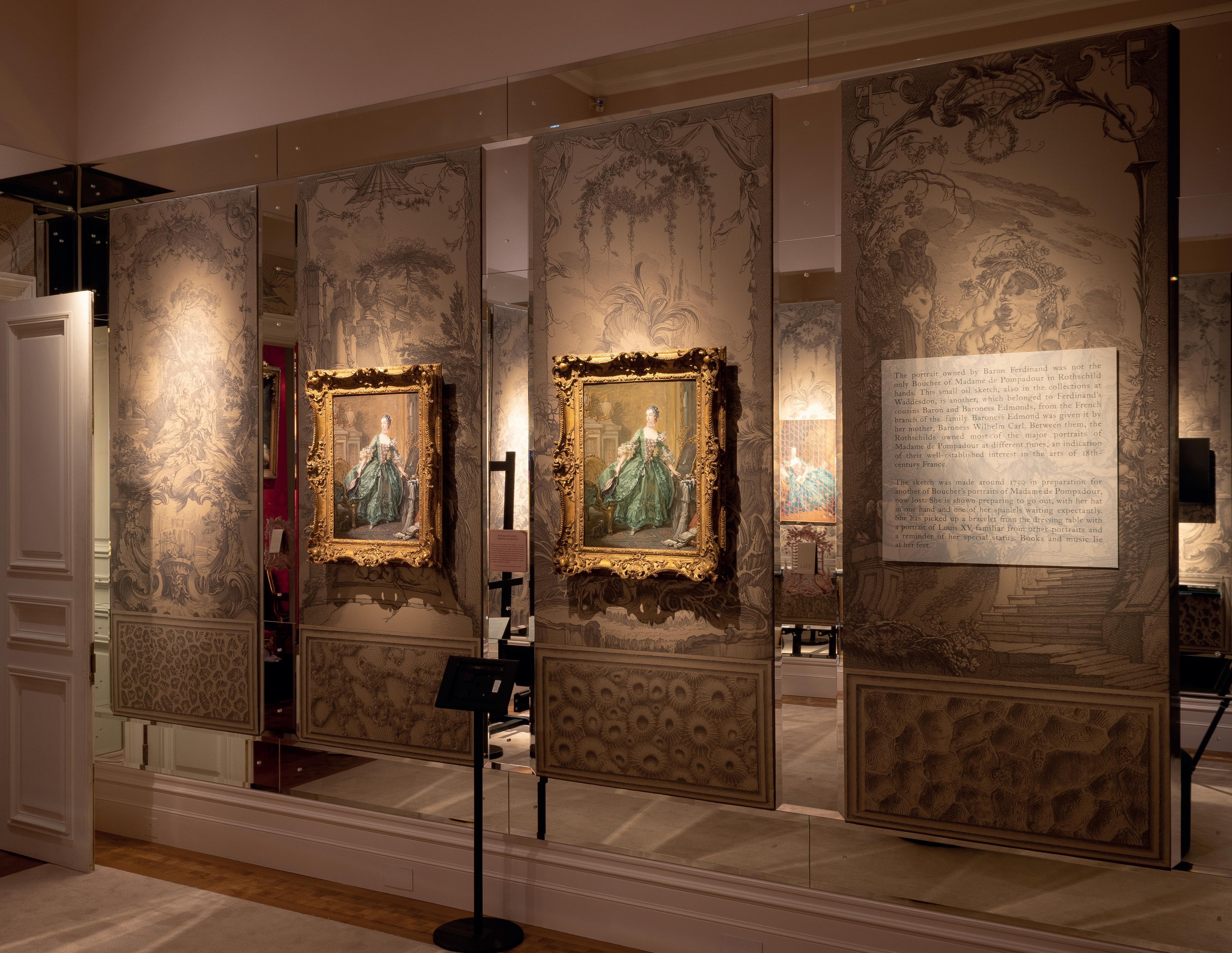

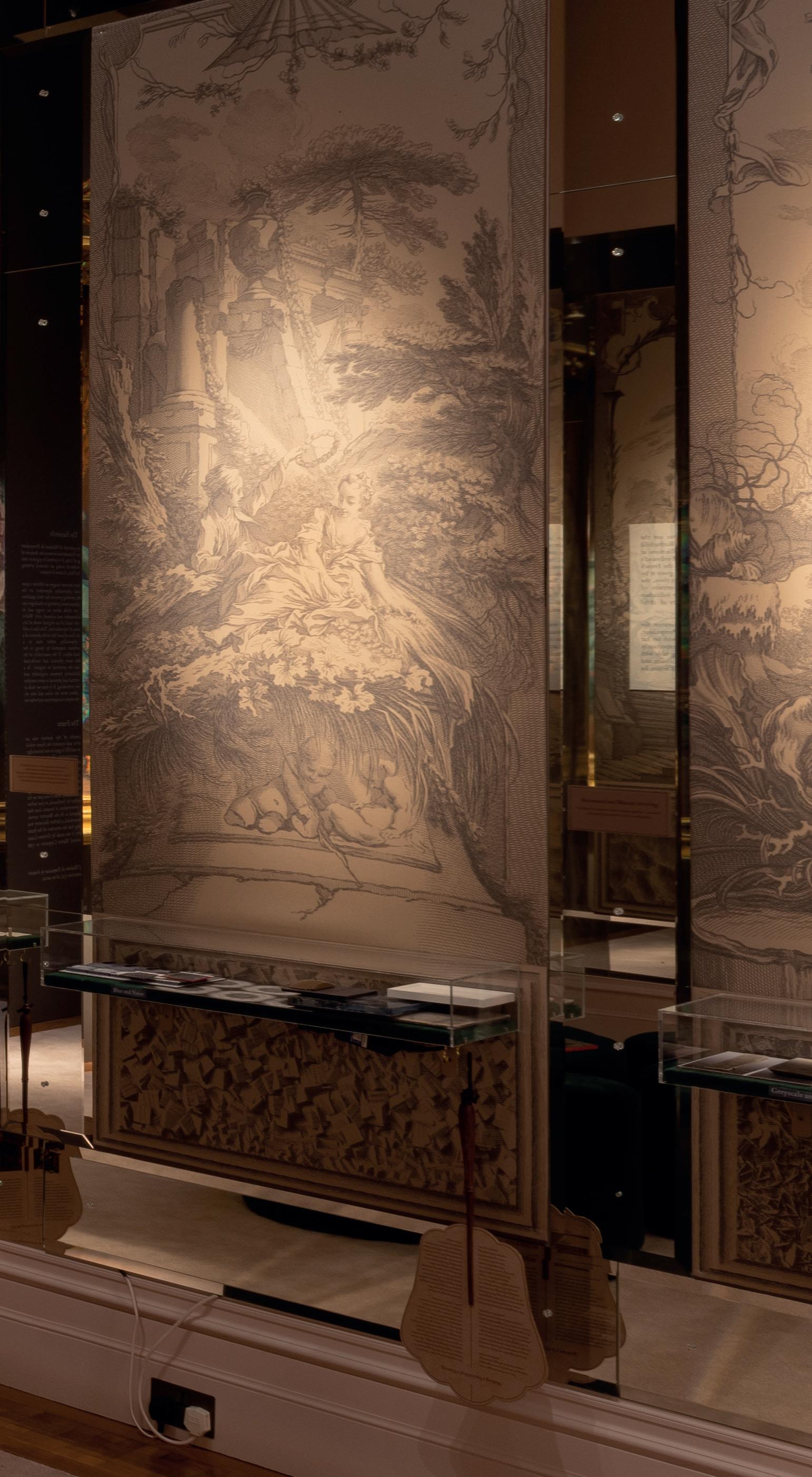

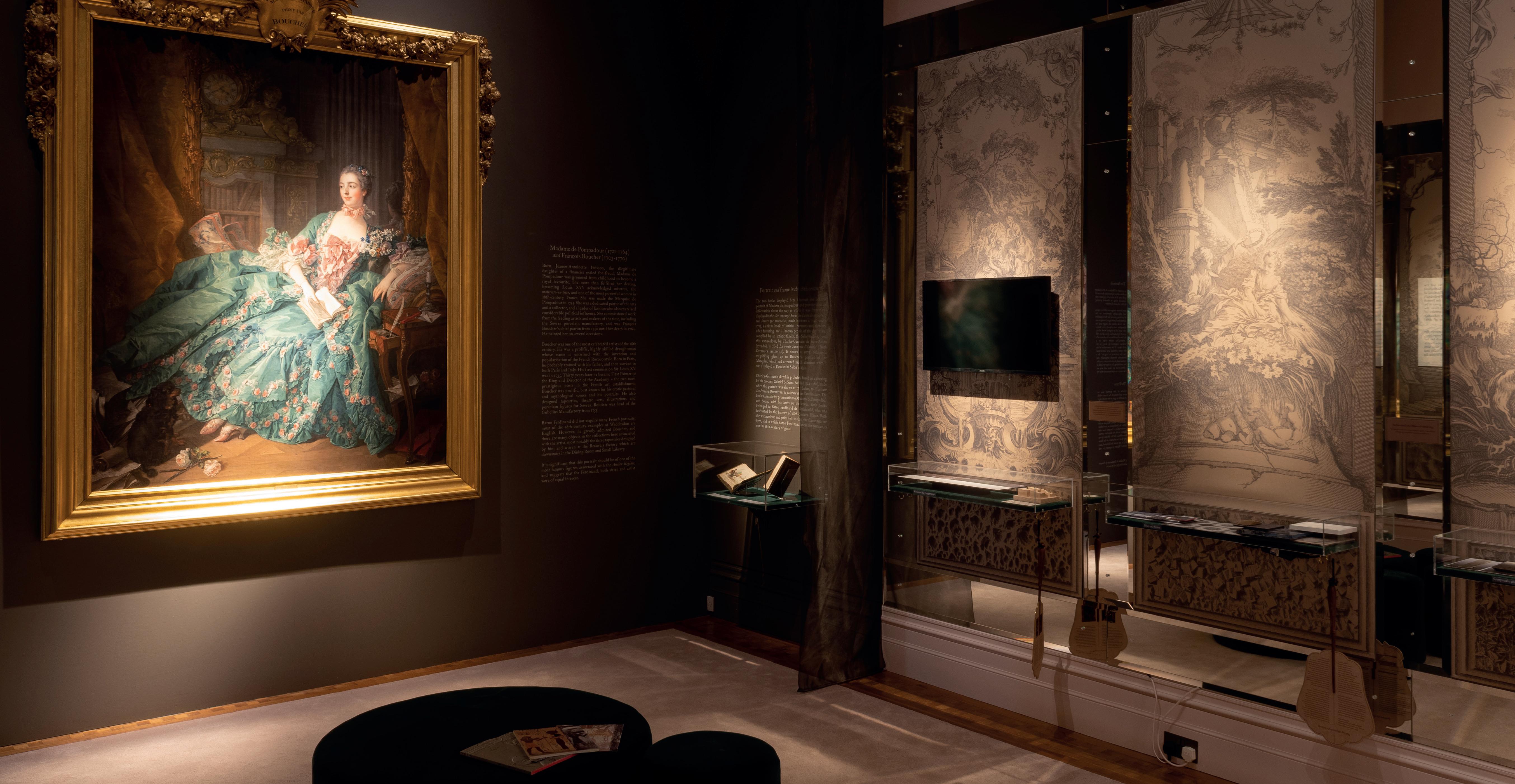

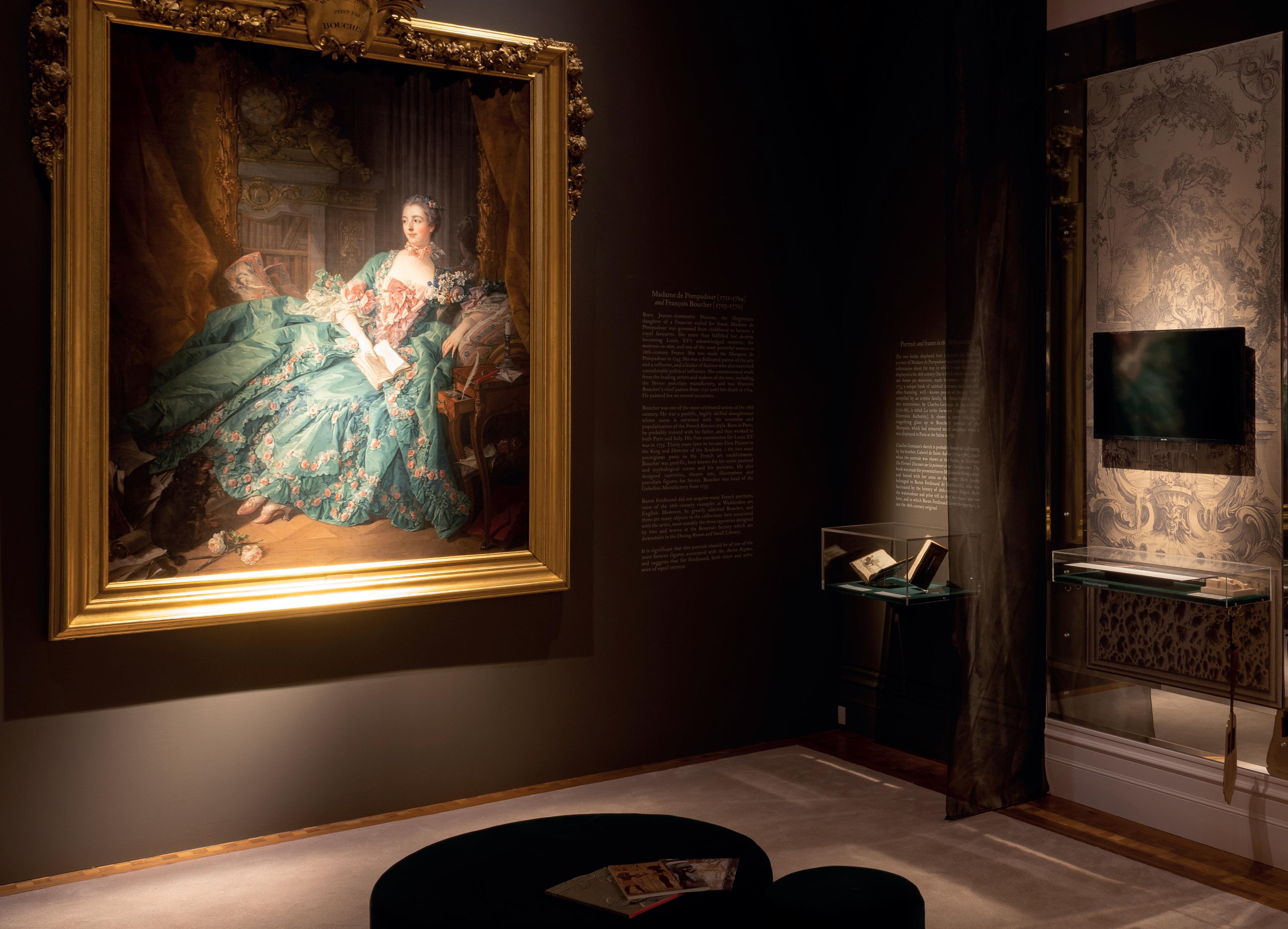

CASE STUDIES CASE STUDIES Madame de Pompadour in the Frame, 23 May – 27 October 2019 Waddesdon: A Rothschild House & Gardens © Photo: Waddesdon Image Library, Mike Fear RCL CASE STUDIES LOCATION: BUCKINGHAMSHIRE PRODUCTS: 31 VPS DRX1s SPECIFIER: WADDESDON MANOR50
CASE
ManorWaddesdon High-resolution digital scanning and advanced 3D digital reproduction have recreated François Boucher’s famous portrait of Madame de Pompadour (1756), displayed at the ‘Madame de Pompadour in the Frame’ exhibition at Waddesdon Manor.
RCL’s new DRX1 Variable Pinspot luminaires specifically tailor the lighting for each unique piece on show, adjusting the beam width to ensure they are seen in full splendor. Adjusting and focusing light is quick and effortless, providing essential flexibility for future exhibitions.
51
CASERCL CASE STUDIES
STUDIES STUDIES
CASE STUDIES CASE STUDIESRCL CASE STUDIES LOCATION: LONDON PRODUCTS: 330 DR7s ARCHITECT: G1 ARCHITECTURE52
RCL CASE STUDIES 53
The DR7, with full motorised pan and tilt control from ground level, offers this flexibility. Integrated with a customised DMX system, the DR7s were configured in a number of typical scenes which offered convenience for the venue operators. Fine-tuning is controlled with RCL’s handheld remote for events that don’t fall into the standard categories. The ±35° tilt angle enabled the venue to light suspended objects in the three-dimensional space via the 64 one-tonne rigging points. With no protruding elements, the DR7s deliver a clean ceiling line with minimal architectural intrusion.
STUDIES CASE STUDIES CASE

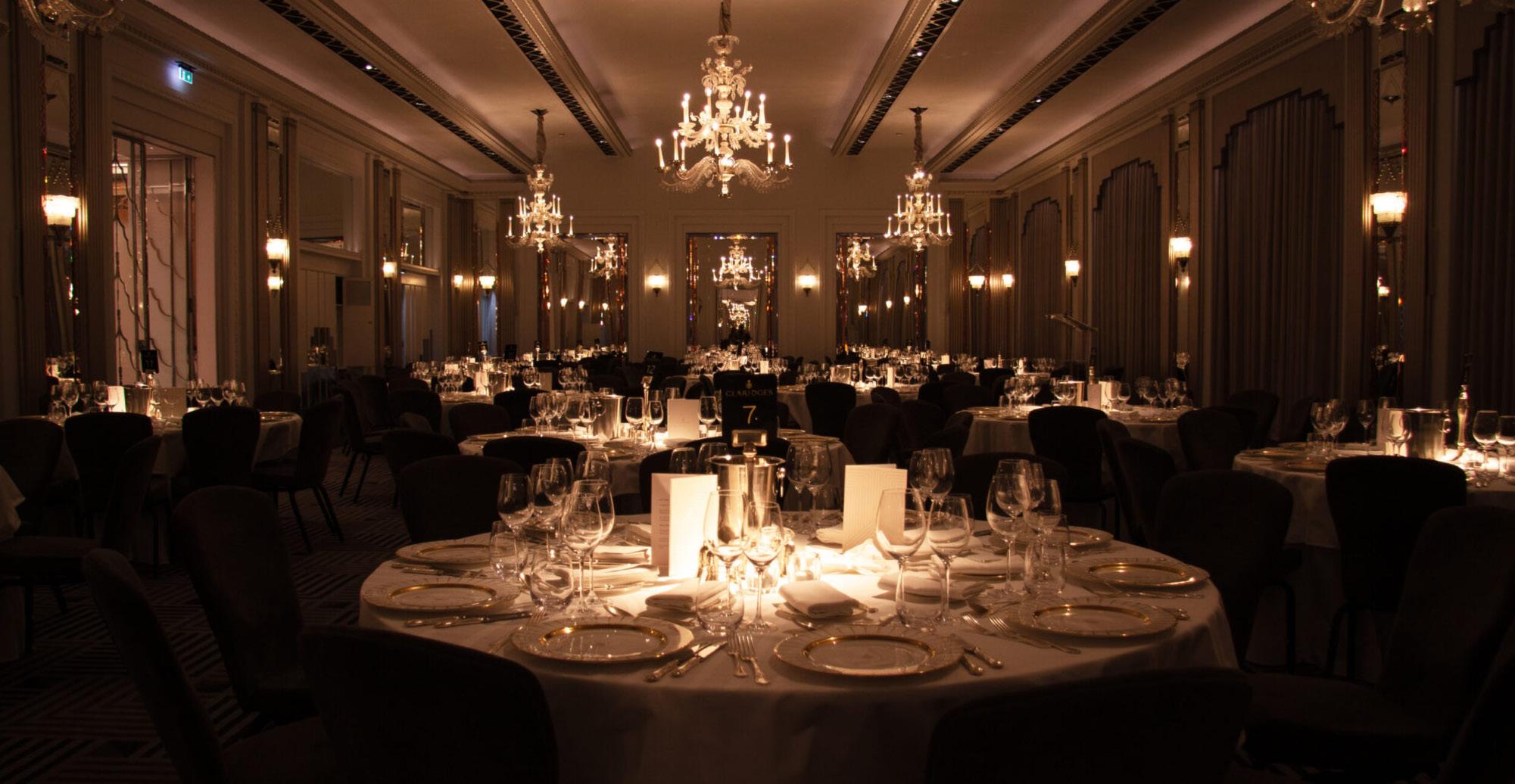

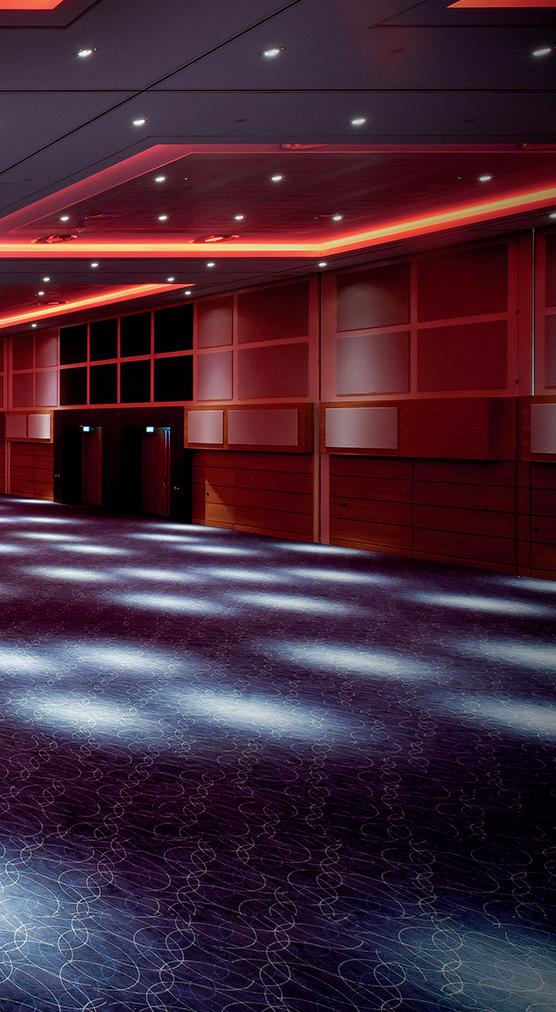

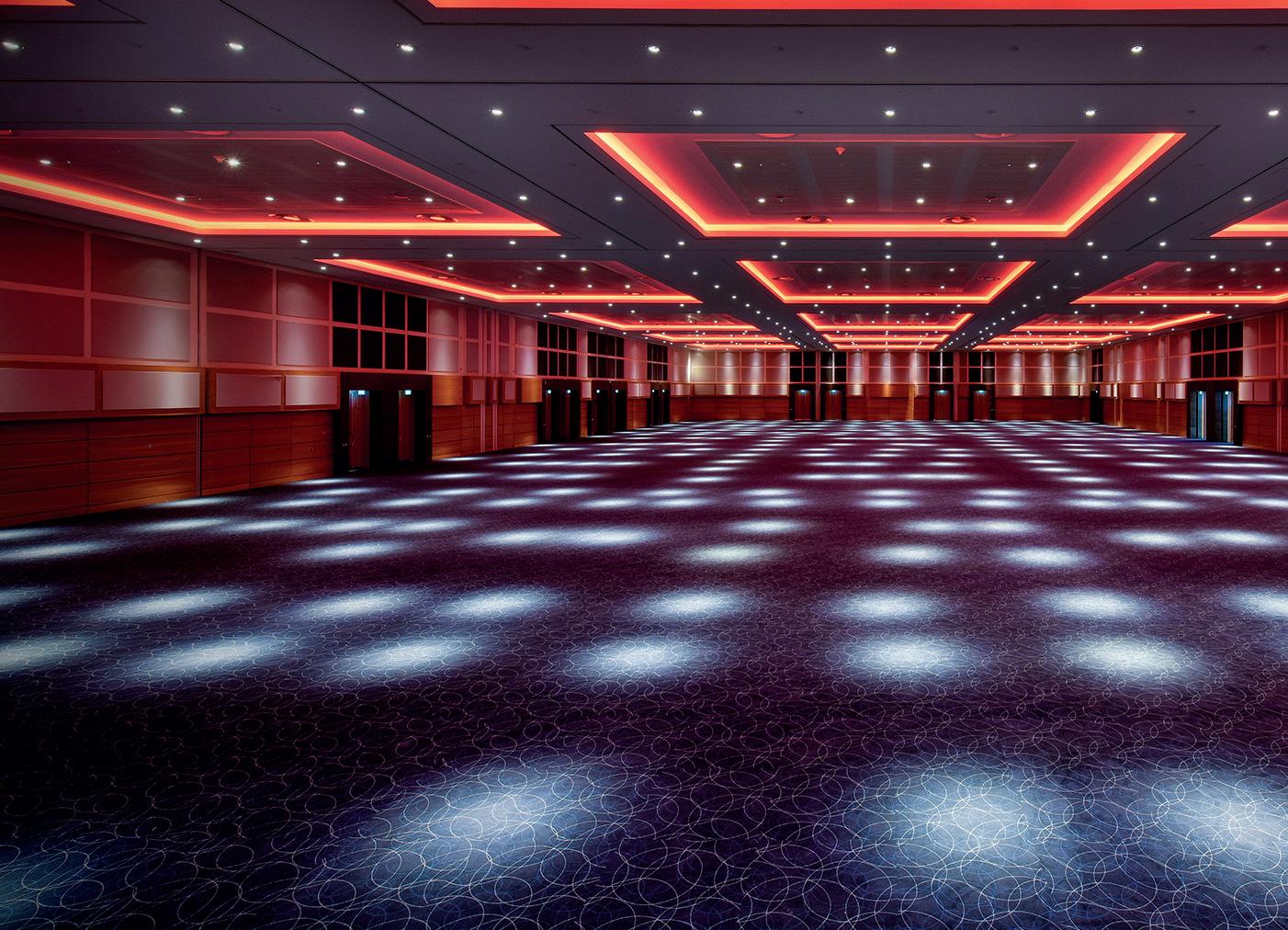

DR7 luminaires were specified for the Arora Ballroom at London’s InterContinental O2 luxury hotel. The Ballroom, which at over 3,000m² is one of the largest pillar-less ballrooms in Europe, regularly hosts a number of events for up to 3,000 people and consequently needed a truly flexible lighting system.
OInterContinental2 Room: Arora Ballroom

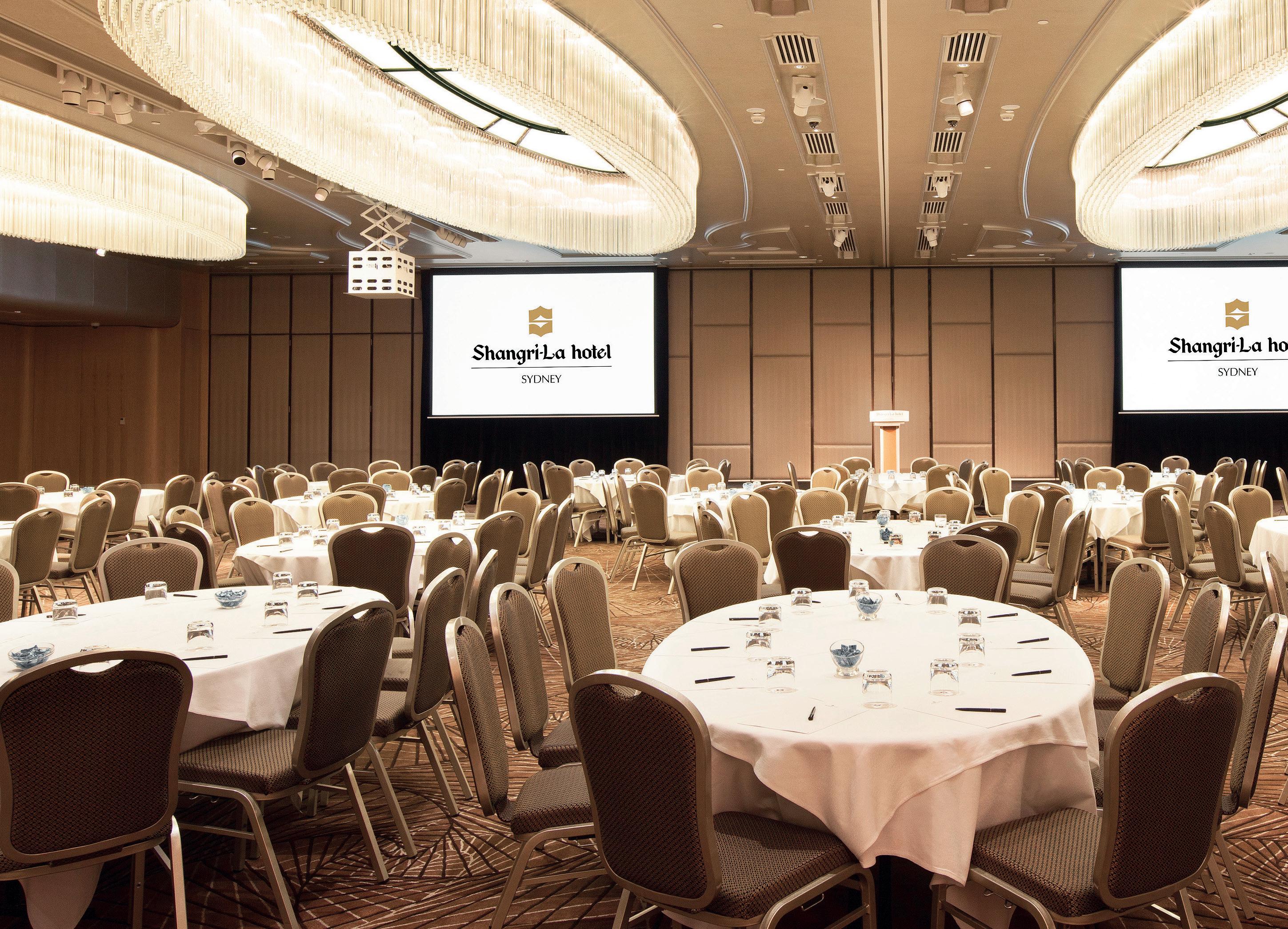

CASE STUDIES CASE STUDIESRCL CASE STUDIES LOCATION: SYDNEY PRODUCTS: 55 DR8s & 8 DR7s DESIGNER: LIGHTING PLANNERS ASSOCIATES54

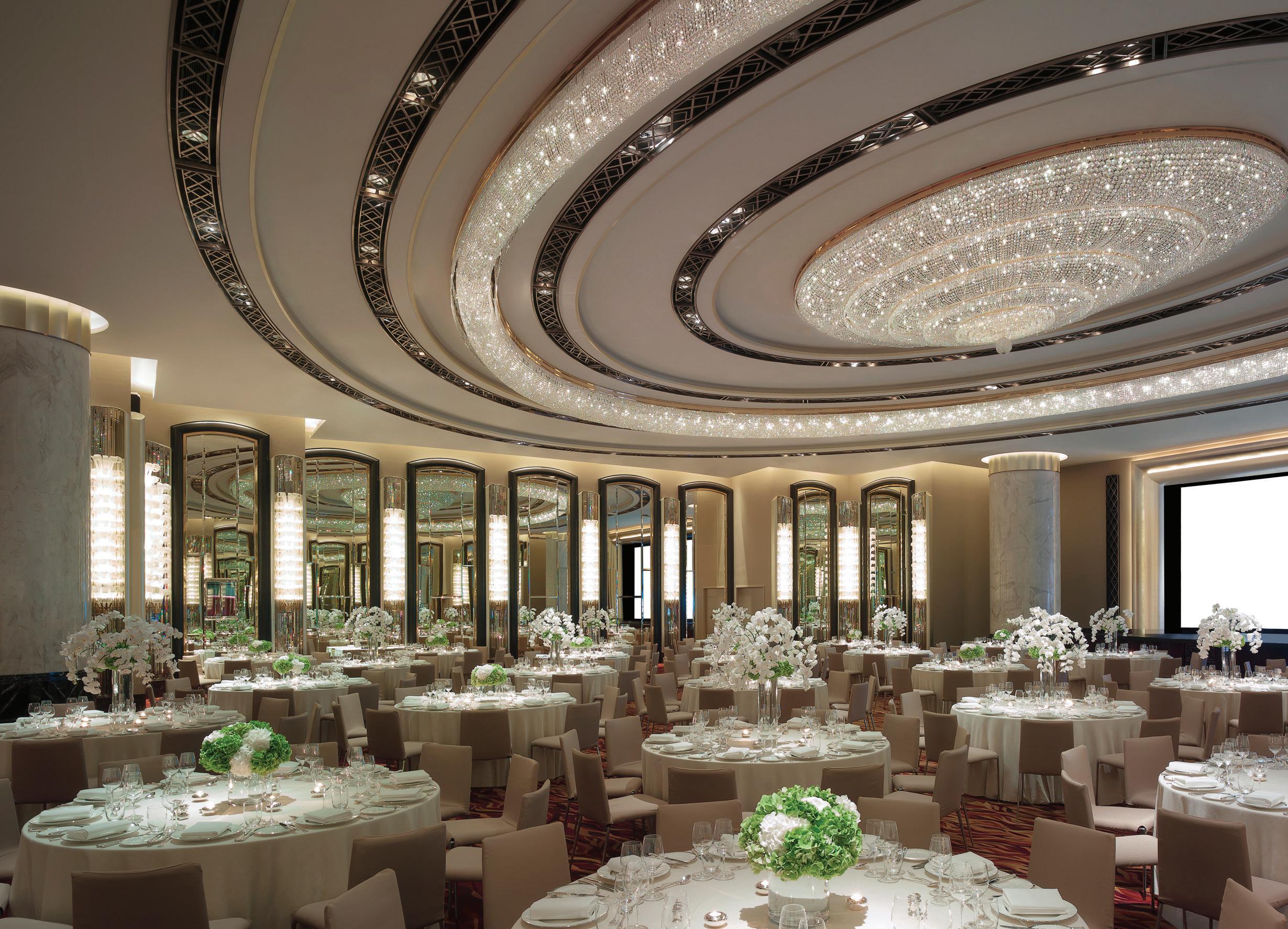

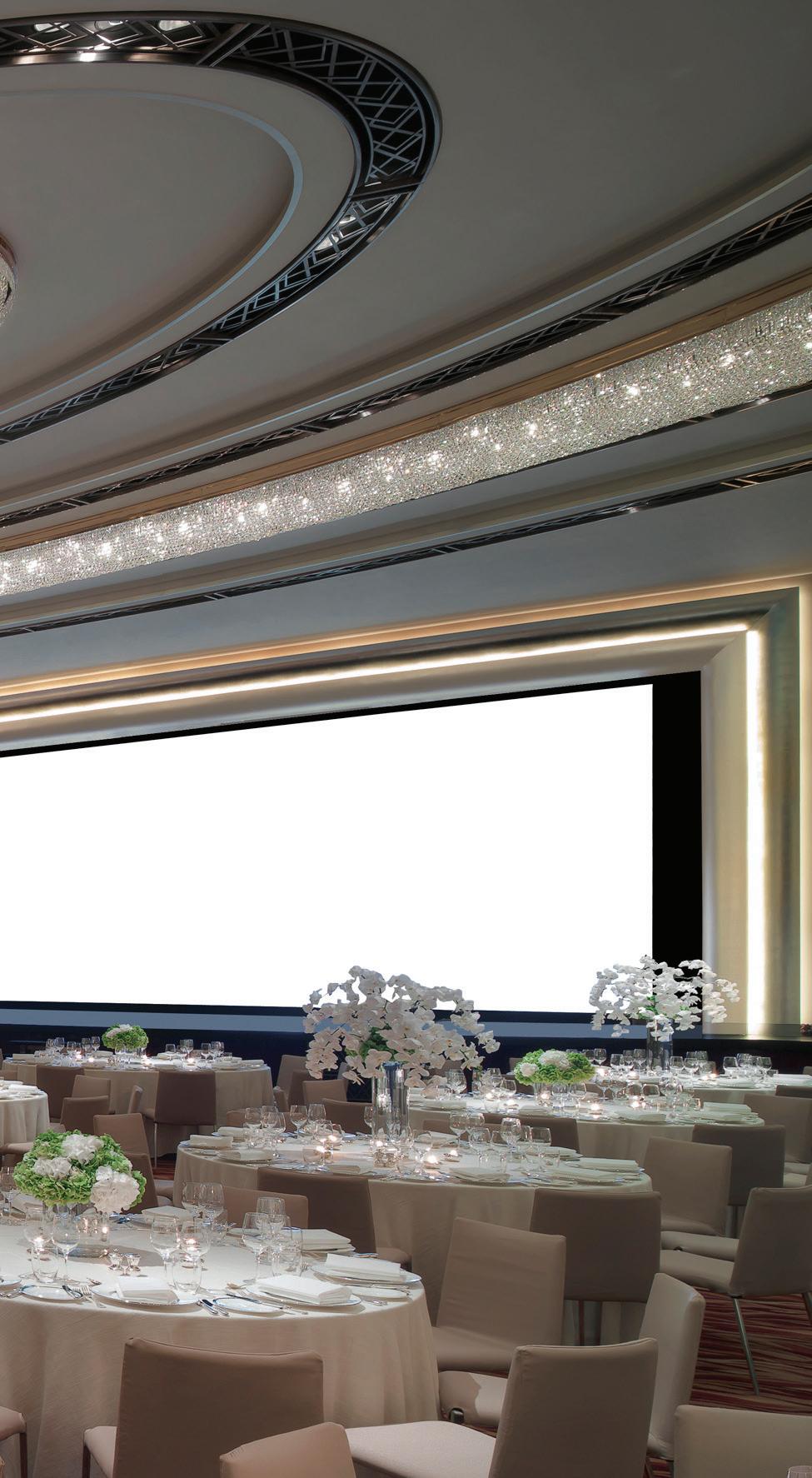

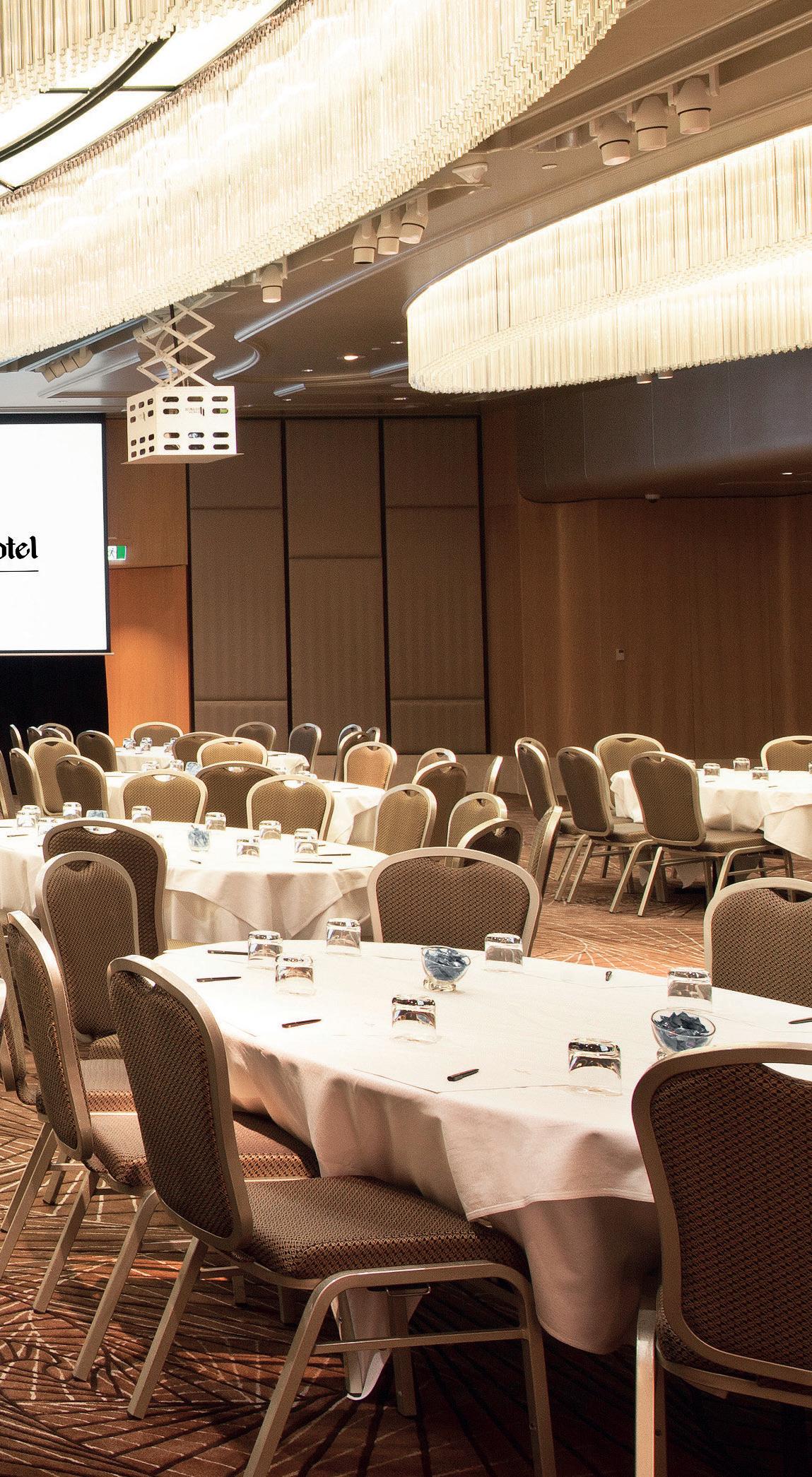

The 668m2 Grand Ballroom had extensive refurbishment with a remarkable interior and lighting scheme created by Hong Kong-based design company AB Concept and Tokyo’s Lighting Planners Associates, which is led by internationally acclaimed lighting designer Kaoru Mende.
Lighting Planners Associates Sydney Harbour is home to one of the world’s most exciting and vibrant lighting festivals as well boasting a lively culture and nightlife.
RCL CASE STUDIES 55
STUDIES CASE STUDIES CASE
“The design concept reflected an expansive feeling, as if it was an open-air venue, with a bright and comfortable lighting environment. The lighting system is adaptable to fit various situations and meets tight energy conservation guidelines in Australia.”
Shangri-La
The historic area, known as ‘The Rocks’, is a prime example of successful regeneration and boasts luxury hotels such as the Shangri-La.
CASE STUDIES CASE STUDIESLOCATION:RCL SEOUL CASE PRODUCTS:STUDIES180DR7s LIGHTING DESIGNER: TINO KWAN56
The unique functions of DR7 also served to benefit Tino Kwan’s design scheme for the Kioku restaurant, a three-story venue hosted by Japanese Chef Kazumi Sawada. As the restaurant is sky lit during the day, the artificial lighting had to be discreetly concealed and remotely dimmable. DR7 luminaires were installed into shallow troughs embedded into ceiling beams, effectively concealing the fixtures during lunch service.

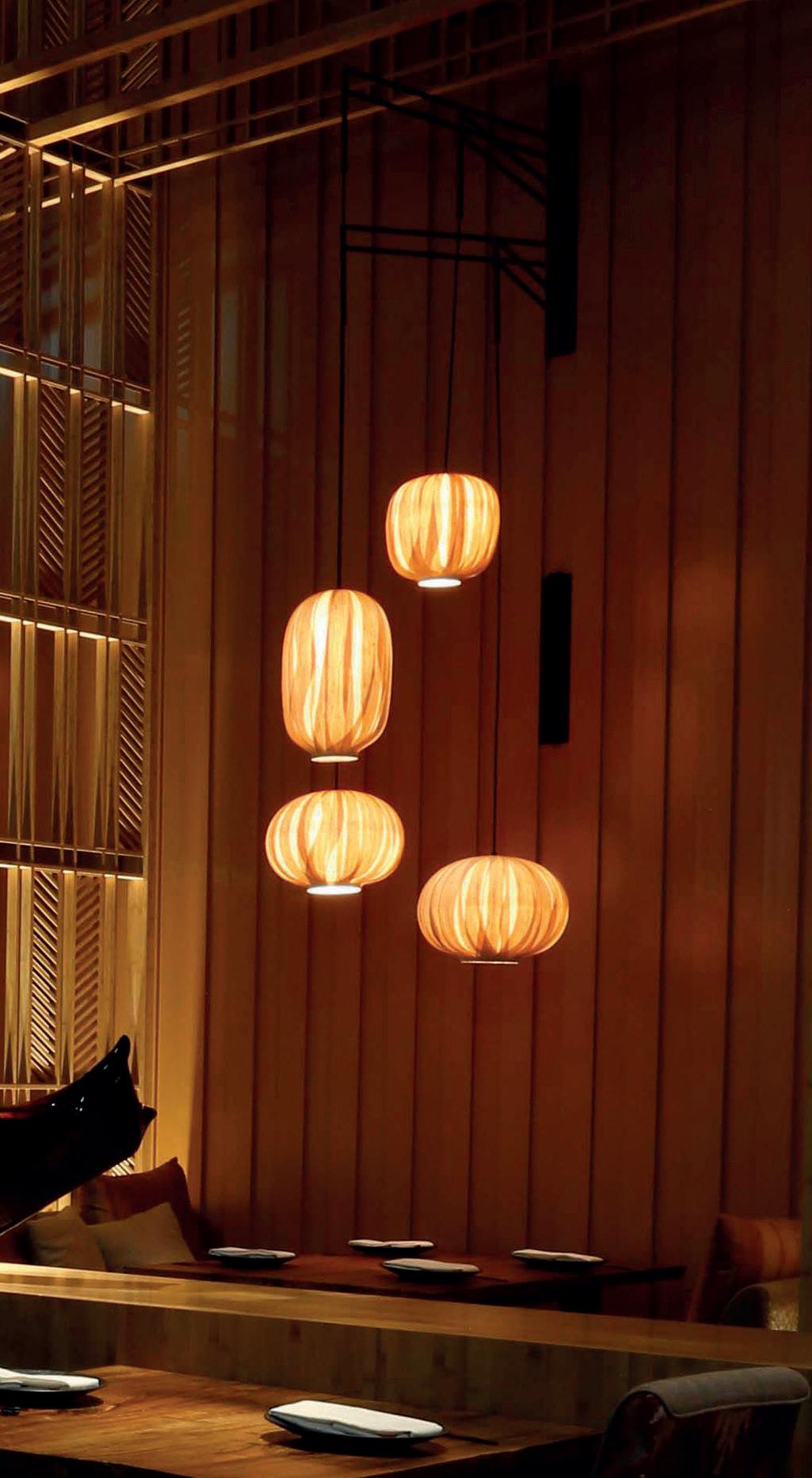

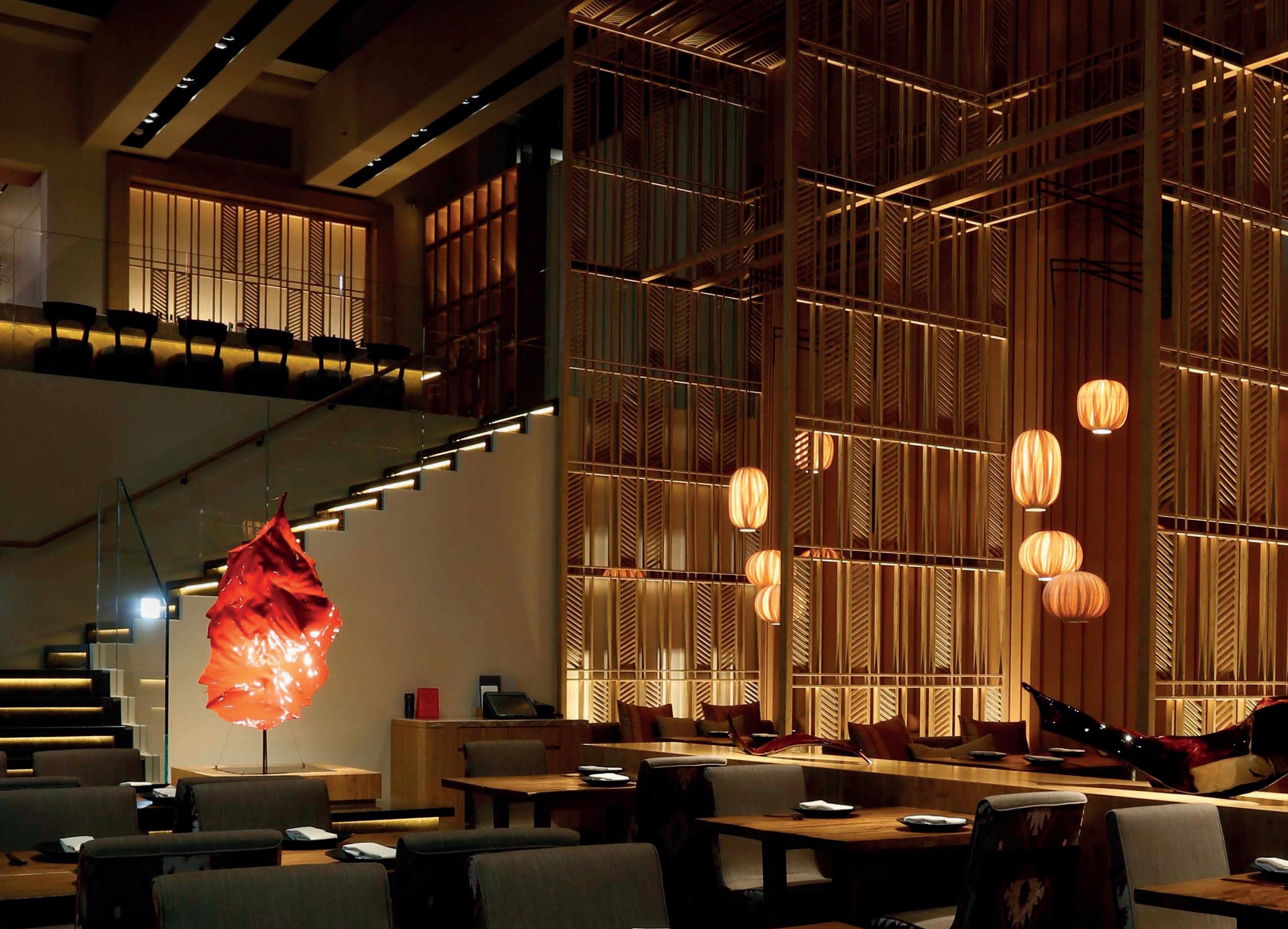

Room: Kioku Restaurant Four HotelSeasons
STUDIES CASE STUDIES CASE
RCL
Internationally acclaimed lighting designer Tino Kwan desired minimal quantities of equipment to achieve maximum lighting effect for the Grand Ballroom and Kioku restaurant. It was only fitting that our recessed DR7 luminaires were specified to provide a versatile and discreet solution. DR7s were the perfect choice for the 5.2m high Grand Ballroom, which features floorto-ceiling windows and blackout curtains, playing host to a number of events including weddings, conferences and banquets.
RCL CASE STUDIES 57
CASE STUDIES CASE STUDIESLOCATION:RCL SUSSEX CASE PRODUCTS:STUDIES38DRX5s LIGHTING DESIGNER: INGINE58
STUDIES CASE STUDIES CASESTUDIES
RCL CASE

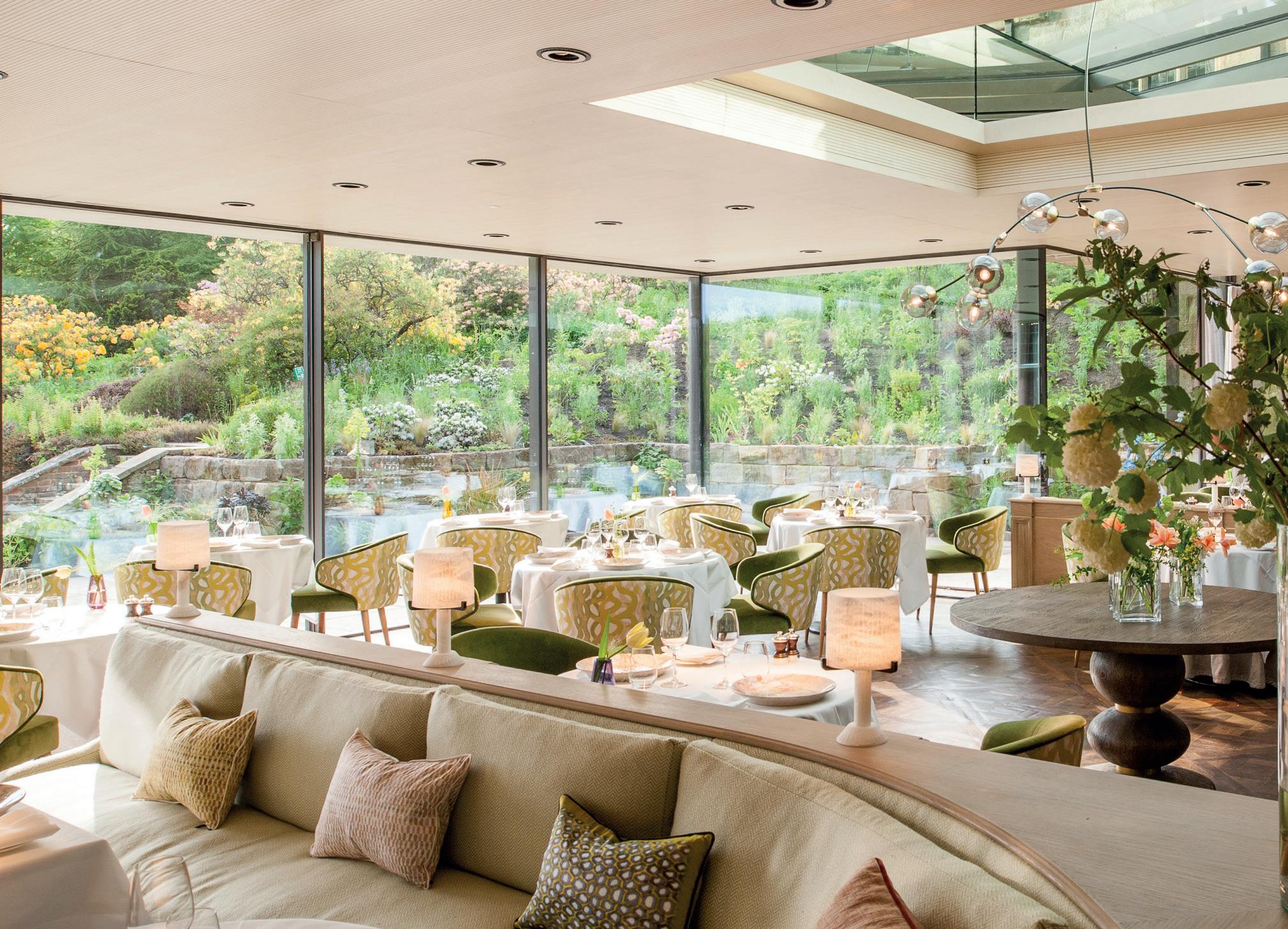

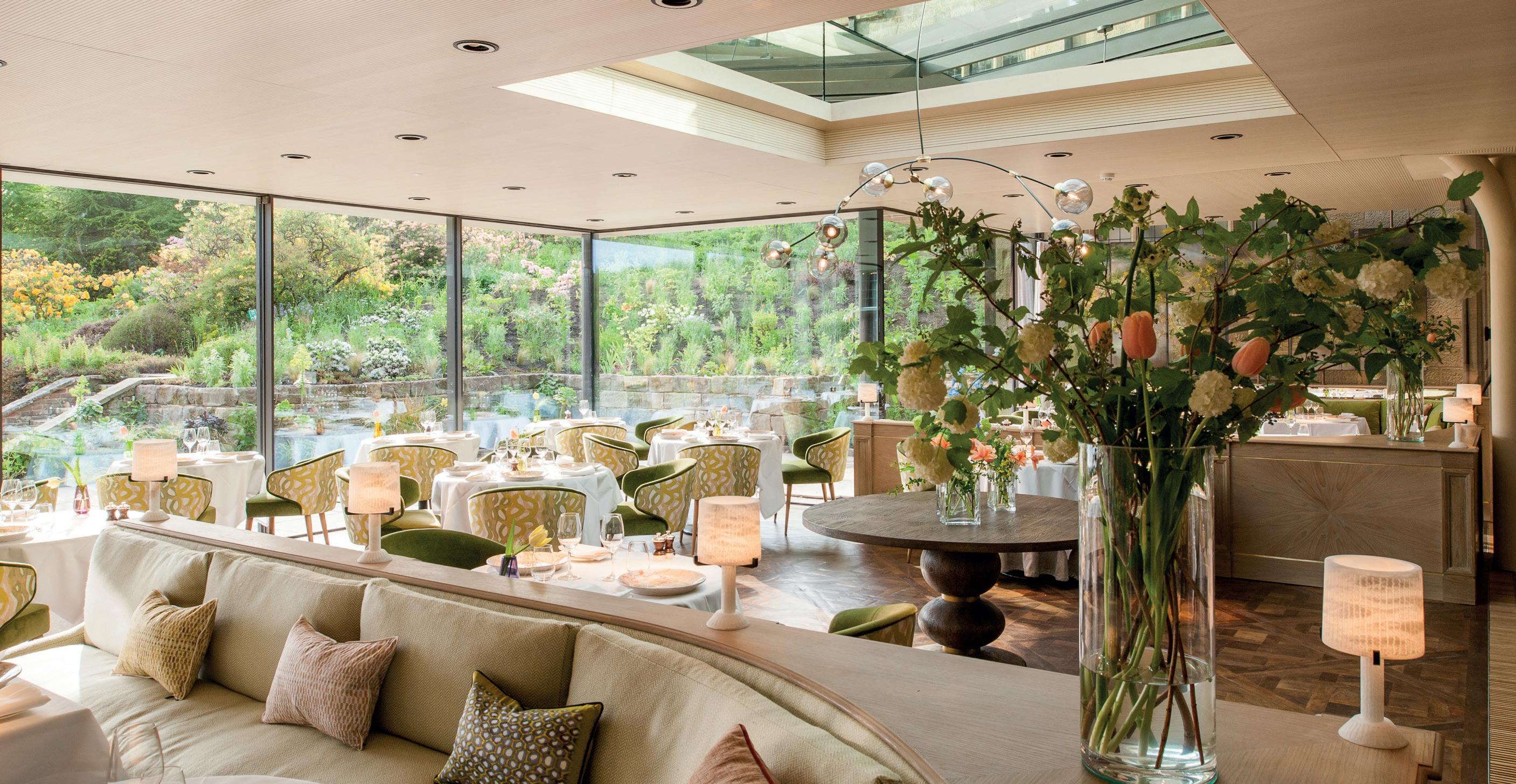

Architect: Charles Knowles Design Built in 1598, Gravetye Manor celebrated its 60th anniversary as a luxury country house hotel by opening a new restaurant, innovatively designed by Charles Knowles Design, with views out to the historic gardens created by the late, great William TheRobinson.interior layout has been designed to create personal space and intimacy, with luxurious banquette seating enclosed by oak dwarf walls. A light maple acoustic ceiling keeps noise levels to a muted but buzzy level reflecting the serenity of the surroundings. The 200-year-old reclaimed Versailles pattern oak floor perfectly befits the style of the Manor. The atmosphere is enhanced by innovative, subtle lighting specified by lighting consultants Ingine. 38 DRX5 motorised luminaires are remotely directed onto every table, providing quick and easy adjustments between servings, and giving full flexibility at the touch of a button, including weddings, conferences and banquets. The unique functions of DR7 also served to benefit Tino Kwan’s design scheme for the Kioku restaurant, a three story venue hosted by Japanese Chef Kazumi Sawada. As the restaurant is sky lit during the day, the artificial lighting had to be discreetly concealed and remotely dimmable. DR7 luminaires were installed into shallow troughs embedded into ceiling beams, effectively concealing the fixtures during lunch service.
Gravetye Manor
59
International Partners RCL works with a number of sales partners worldwide. They are dedicated lighting professionals who understand their local design community and have extensive knowledge of our products. To connect with someone in your geographic region, visit the Worldwide Partners section of https://rclighting.com/contact/. INTERNATIONAL PARTNERCL INTERNATIONAL PARTNERS 60 FOLLOW THE QR CODE BELOW TO VIEW OUR SALES PARTNERS
