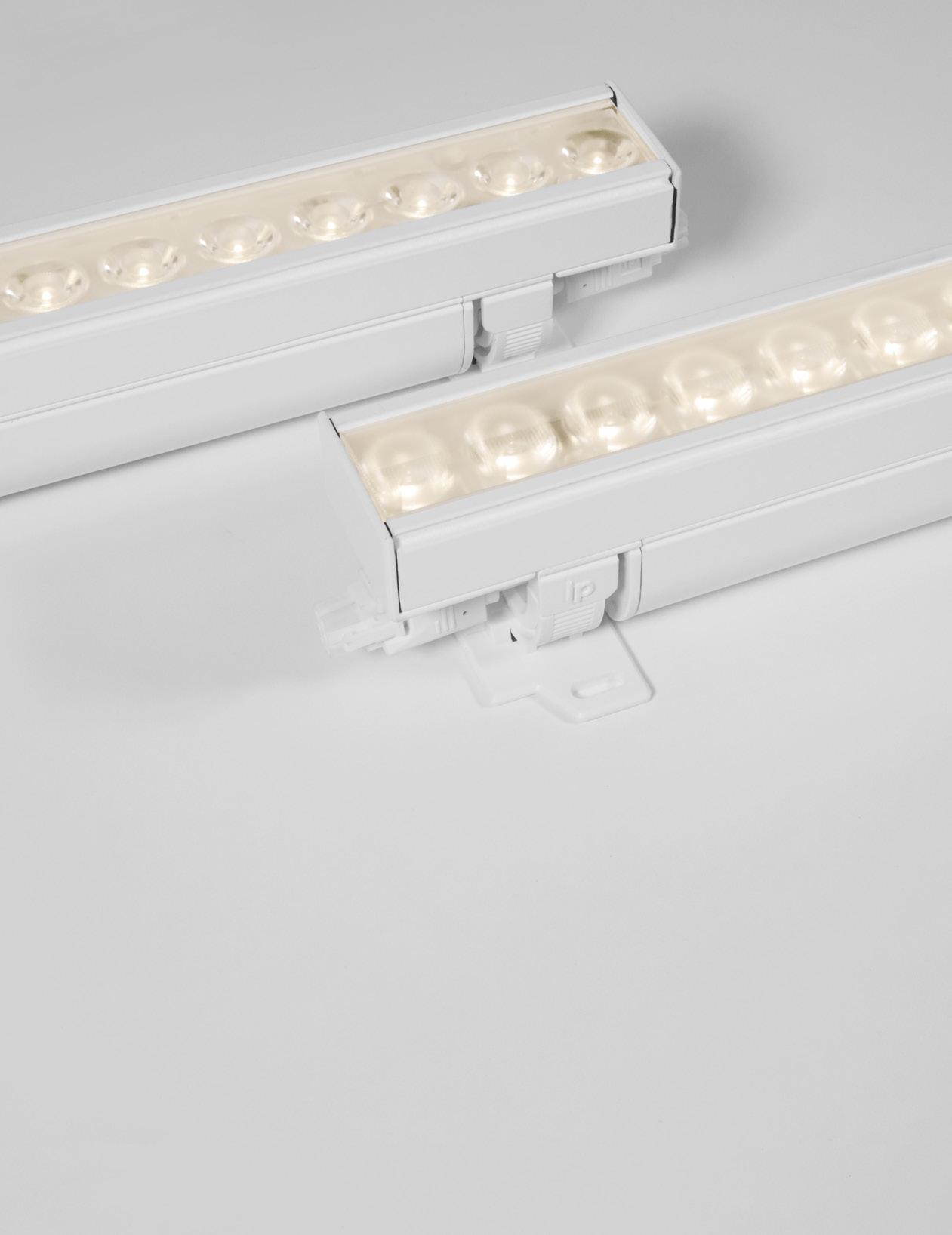

ABUNDANCE OF APPLICATIONS

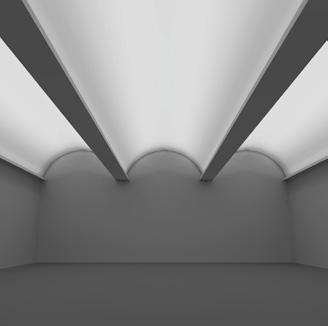

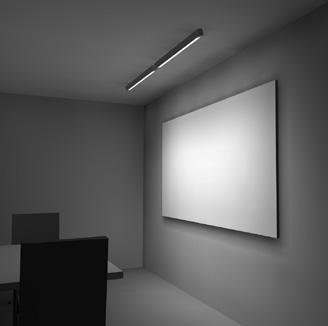

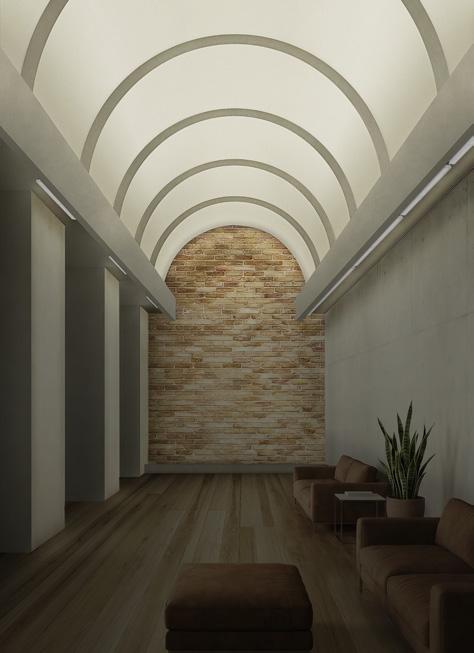

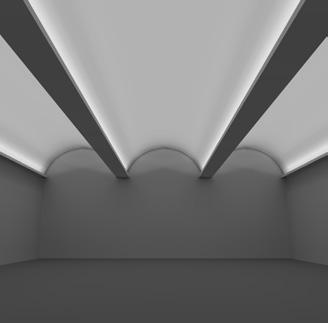

The Lumencore Linear Graze is a precision tool for designers, offering eleven optical distributions to meet any architectural challenge. Ideal for textured wall grazing, backlighting translucent surfaces, uplighting ceilings, or accenting focal points, all with flawless control and performance.

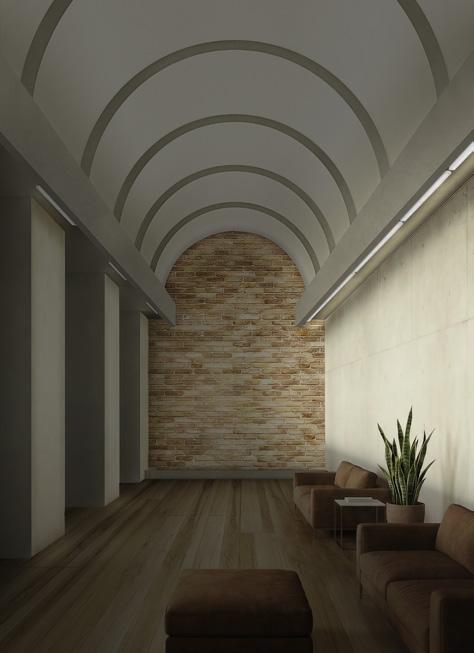

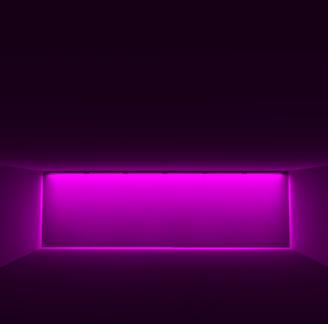

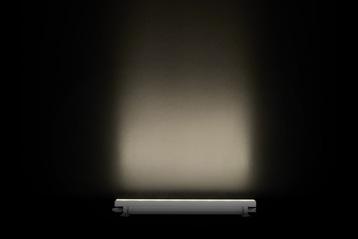

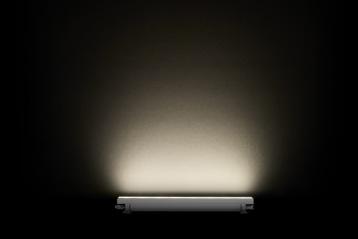

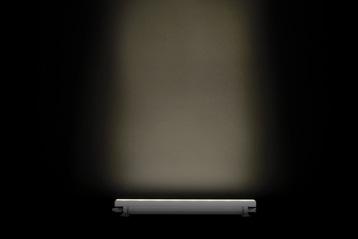

10o x 10o 10o x 30o

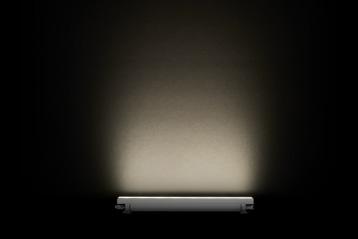

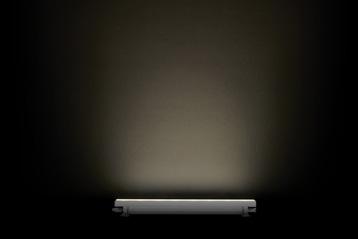

10o x 60o

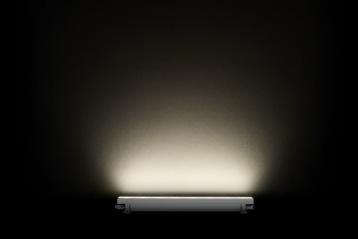

30o x 30o

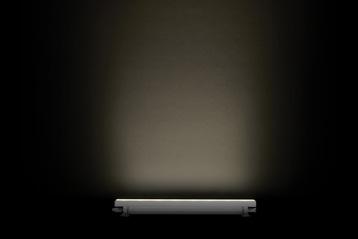

60o x 60o

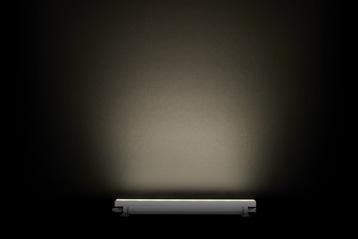

90o x 90o

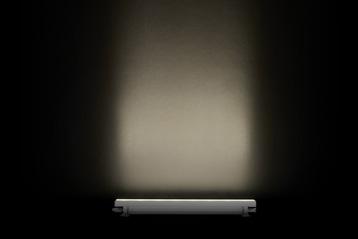

30o x 10o
60o x 10o
30o x 60o

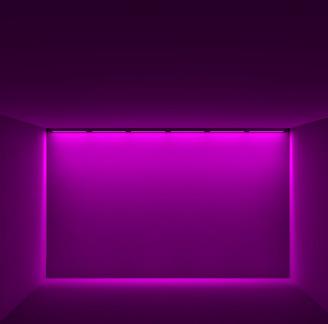

GRAZING
WALLWASHING
GRAZING

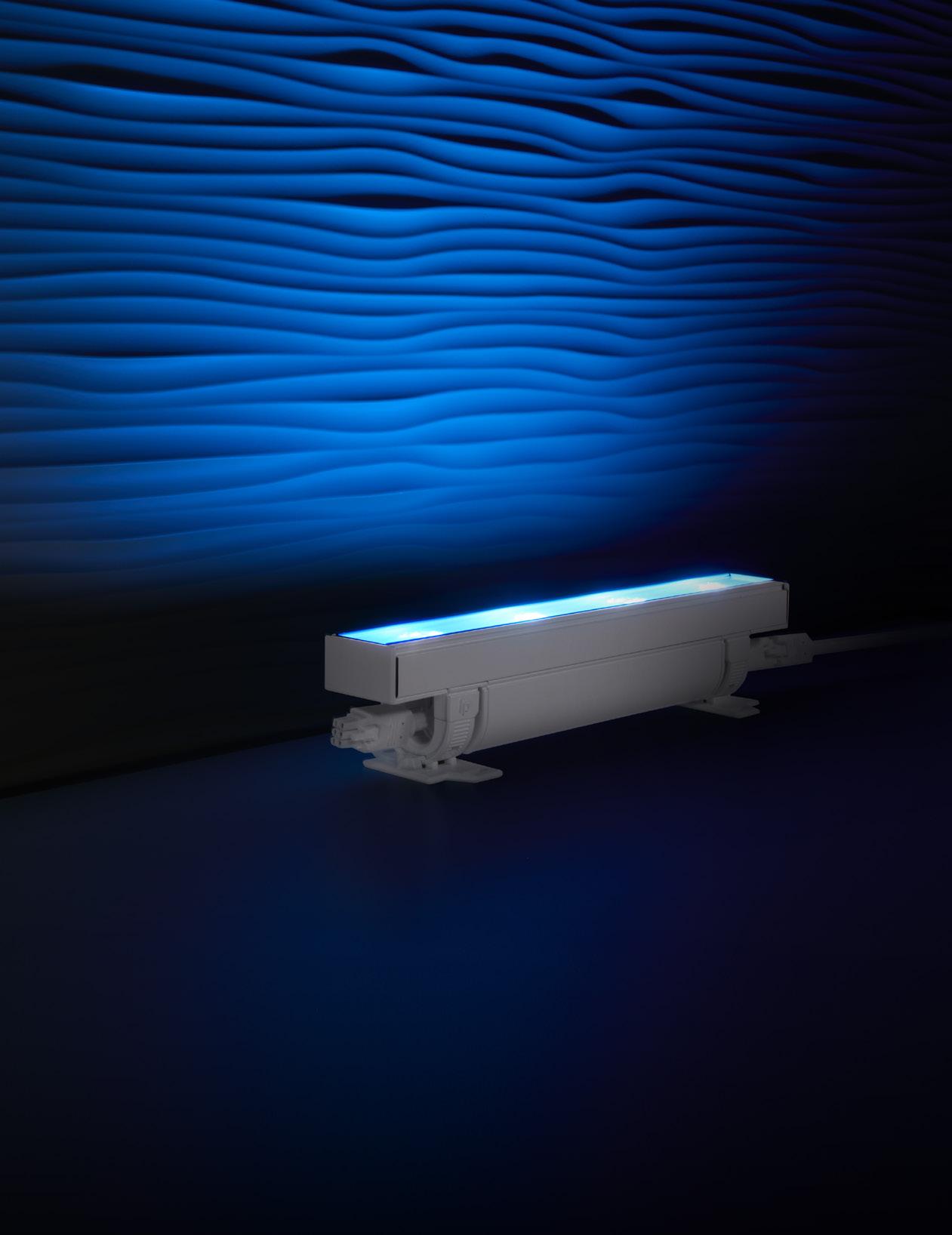

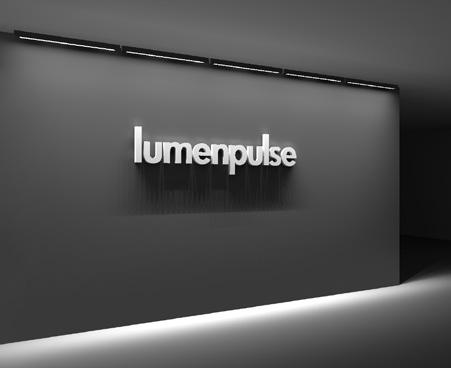

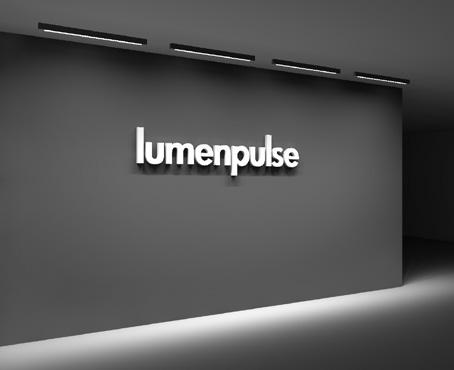

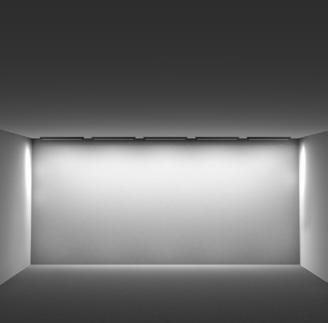

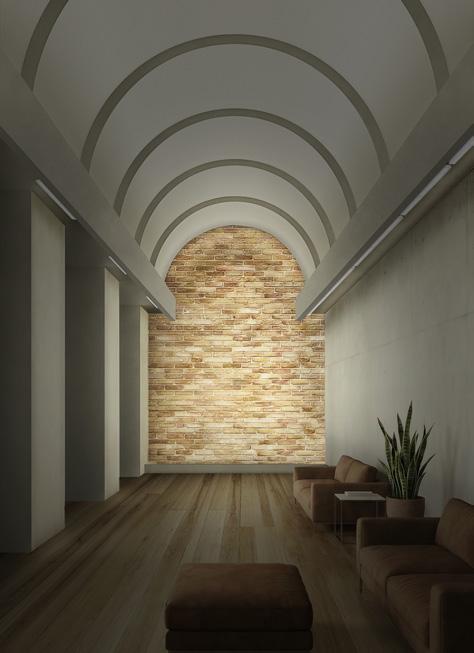

Designed to emphasize texture and depth, grazing lighting brings surfaces to life. Positioned close to the wall, the light reveals intricate details and shadows, adding drama and dimension to architectural elements.

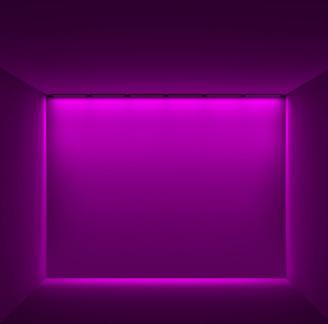

8-Foot Wall

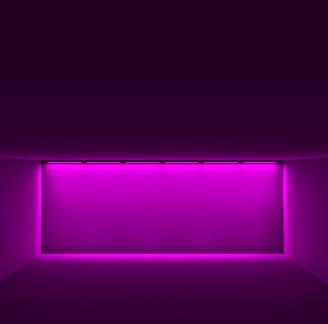

LCVA-120_277-48-4W-MRGBW30K10x60-NA-NH
Spacing: 2" / Setback: 0.33'
16-Foot Wall
LCVA-120_277-48-7W-MRGBW30K10x60-NA-NH
Spacing: 2" / Setback: 0.5'

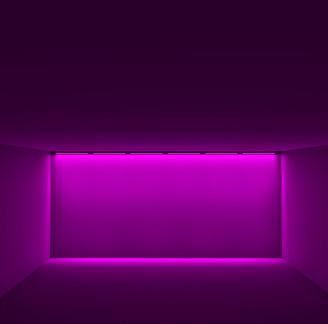

10-Foot Wall
LCVA-120_277-48-4W-MRGBW30K10x60-NA-NH
Spacing: 2" / Setback: 0.42'
20-Foot Wall
LCVA-120_277-48-10W-MRGBW30K10x30-NA-NH
Spacing: 2" / Setback: 0.67'
12-Foot Wall
LCVA-120_277-48-4W-MRGBW30K10x30-NA-NH
Spacing: 2" / Setback: 0.42'
30-Foot Wall
LCVA-120_277-48-13W-MRGBW30K10x30-NA-NH
Spacing: 2" / Setback: 1'

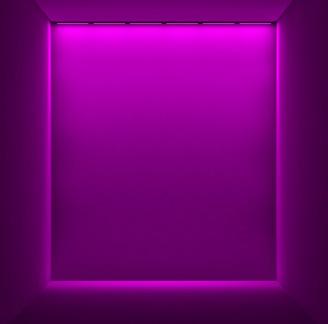

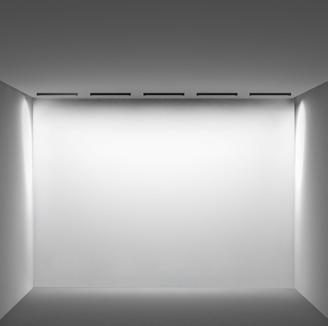

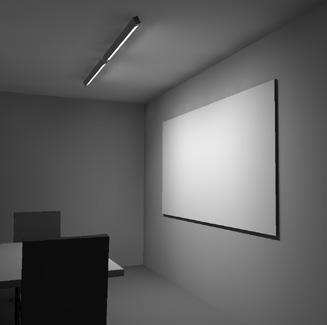

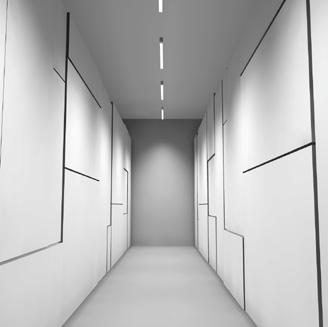

WALLWASHING

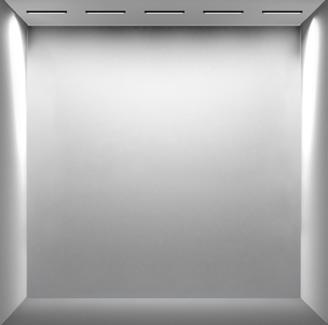

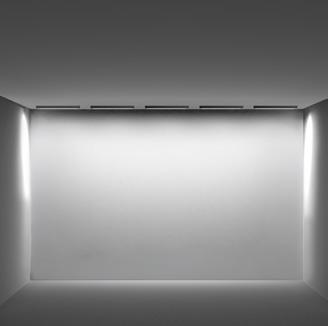

For smooth, even illumination, wallwashing lighting eliminates harsh contrast and softens surface textures. Ideal for showcasing art, finishes, or large vertical planes with balanced, uniform light.
General Guidelines: Setback: 1/8 of wall height. Spacing: 1/2 of setback.
8-Foot Wall
LCVA-120_277-48-4W-40K-90WW-NA-NH
Spacing: 0.5' / Setback: 1'
16-Foot Wall
LCVA-120_277-48-10W-40K-90WW-NA-NH
Spacing: 1' / Setback: 2'
10-Foot Wall
LCVA-120_277-48-7W-40K-90WW-NA-NH
Spacing: 0.63' / Setback: 1.25'
20-Foot Wall
LCVA-120_277-48-13W-40K-90WW-NA-NH
Spacing: 1.25' / Setback: 2.5'
12-Foot Wall
LCVA-120_277-48-10W-40K-90WW-NA-NH
Spacing: 0.75' / Setback: 1.5'
30-Foot Wall
LCVA-120_277-48-13W-40K-90WW-NA-NH
Spacing: 1.88' / Setback: 3.75'

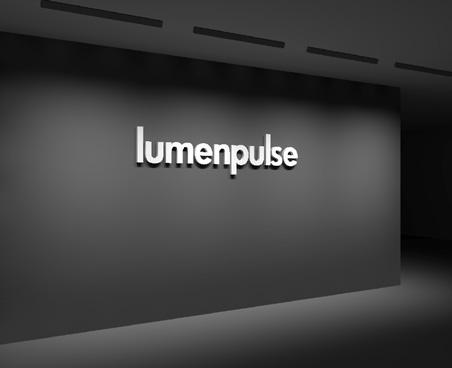

FLOODING
Flood lighting provides broad, powerful coverage that enhances spatial perception. Set farther from the wall, it delivers wide, consistent illumination.
30o x 60o
LCVA-120_277-48-7W-MRGBW30K30x60-NA-NH
Fixtures tilted forward 40° from vertical. No spacing between fixtures.
90o x 90o
LCVA-120_277-48-7W-MRGBW30K90x90-NA-NH
Fixtures tilted forward 40° from vertical. No spacing between fixtures.
30o x 60o
LCVA-120_277-48-13W-35K-9030x60-HL-NH
Spacing: 2.75'
90o x 90o
LCVA-120_277-48-13W-35K-9090x90-HL-NH
Spacing: 2.75'
30o x 60o
LCVA-120_277-48-7W-30K-9030x60-NA-NH
Spacing: 3" / Setback: 2.25'
60o x 60o
LCVA-120_277-48-7W-30K-9060x60-NA-NH
Spacing: 3" / Setback: 4.4'

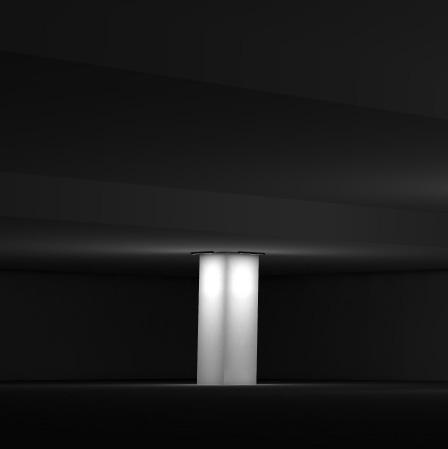

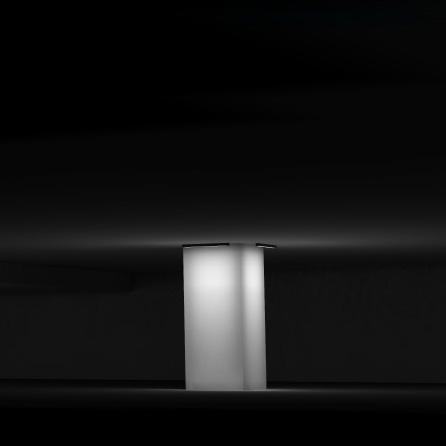

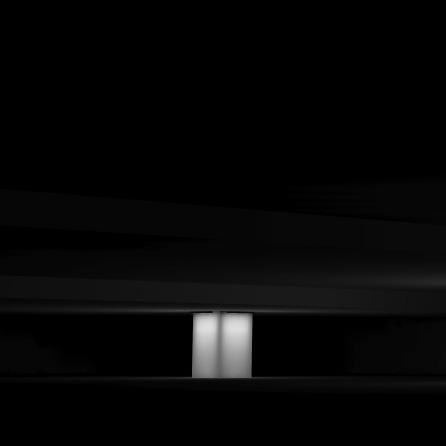

NARROW ASYMMETRIC

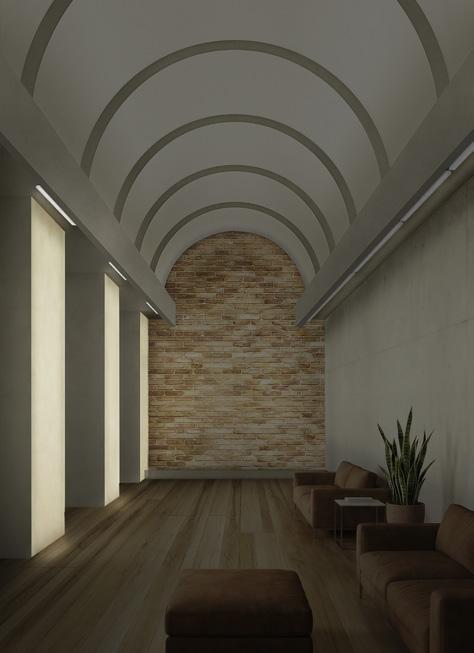

The Narrow Asymmetric Optic provides precise illumination to highlight narrow architectural elements such as columns. Its controlled distribution prevents spill and flattens textures for a clean aesthetic.
General Guidelines: Setback: 1/10 of column height. Spacing: No space between fixtures.

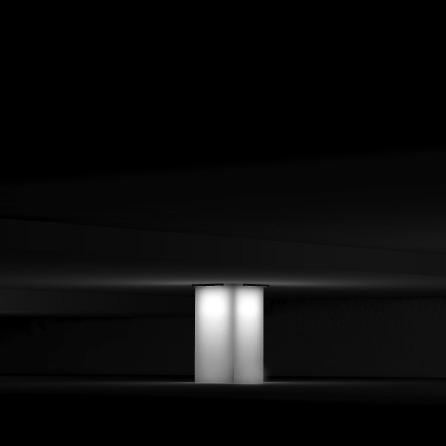

8-Foot Column
LCVA-120_277-48-4W-40K-90NAS-NA-NH
Setback: 0.8'
16-Foot Column
LCVA-120_277-48-10W-40K-90NAS-NA-NH
Setback: 1.6'

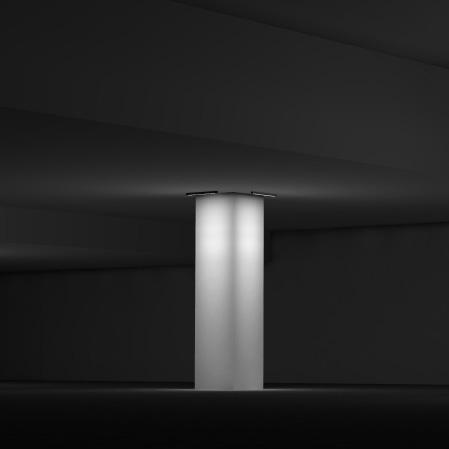

10-Foot Column
LCVA-120_277-48-7W-40K-90NAS-NA-NH
Setback: 1'
20-Foot Column
LCVA-120_277-48-10W-40K-90NAS-NA-NH
Setback: 2'
12-Foot Column
LCVA-120_277-48-7W-40K-90NAS-NA-NH
Setback: 1.2'

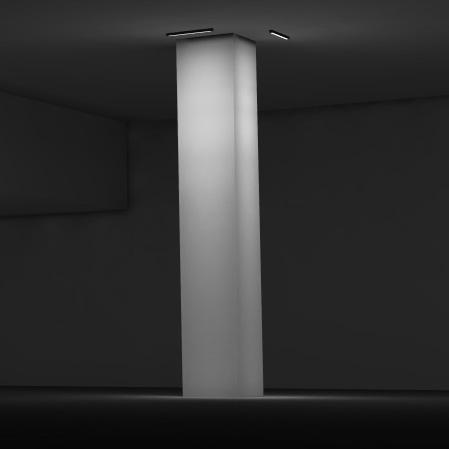

30-Foot Column
LCVA-120_277-48-13W-40K-90NAS-NA-NH Setback: 3'

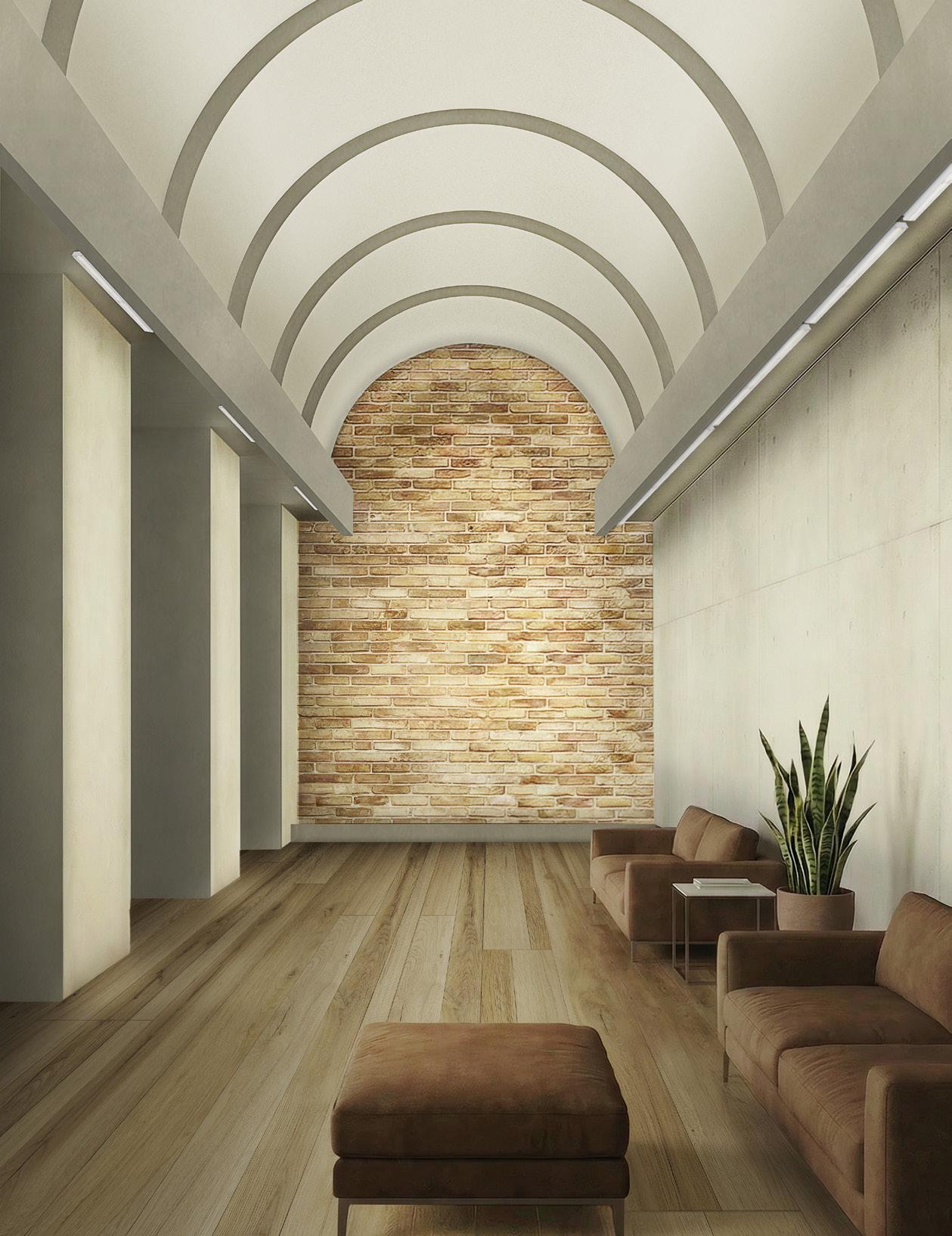

COMPARISON
Grazing
Fixtures are installed close to the wall (3–9 in) without tilt. Ideal for highlighting texture and creating contrast and adding dimension, with additional luminous intensity near the source which softens with distance.
Wallwashing
Fixtures are set slightly farther (≈1/8 of wall height) with no tilt. The asymmetric optic provides even illumination, minimizing small to medium surface textures.
Flooding
Fixtures are placed farthest from the wall (typically beyond 2 ft) and tilted toward the surface. The wide optic flattens textures and provides uniform, broad light coverage.
GRAZING
WALLWASHING
FLOODING
Fixture Type: LCVA 10ox60o
Setback: Very close to surface (3–9 in)
Spacing: Often very small
Tilt: No tilt
Lighting Goal:
• Highlights texture and contrast
• Adds dimension
Fixture Type: LCVA Wallwash Asymmetric
Setback: 1/8 of wall height
Spacing: 1/2 of setback
Tilt: No tilt
Lighting Goal:
• Even illumination
• Flattens small/medium textures
Fixture Type: LCVA 60ox60o
Setback: > 2 ft from surface
Spacing: Can be large depending on setback and distribution.
Tilt: Tilted toward surface
Lighting Goal:
• Maximizes texture flattening
• Wide beam coverage
FIELD-CHANGEABLE

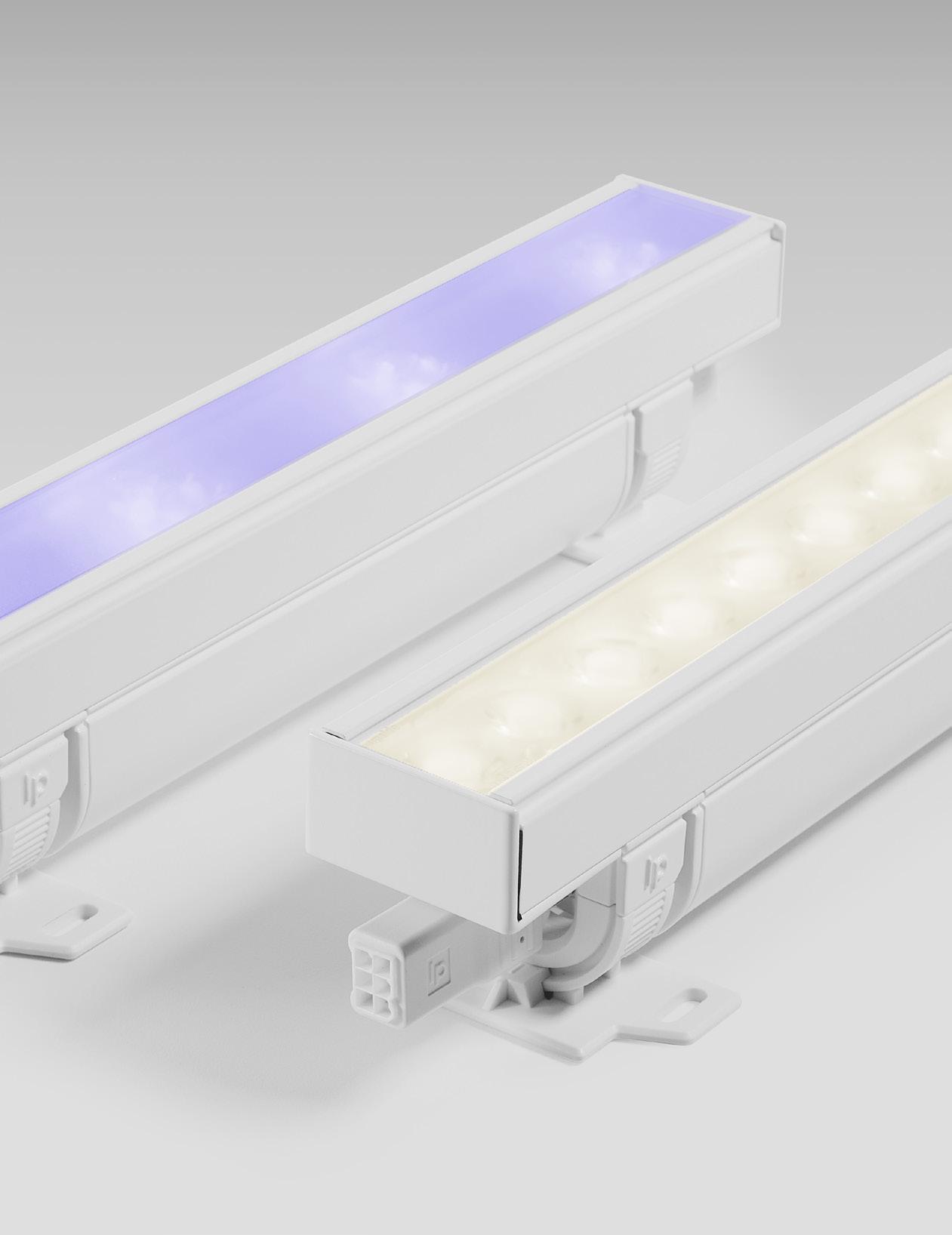

The Lumencore Linear luminaires are designed with field-changeable distributions, optical accessories, and feed side options, allowing quick and easy on-site adjustments. This builtin flexibility simplifies installation, ensuring the lighting solution can adapt seamlessly to real-world conditions and evolving project requirements.
DISTRIBUTIONS
1. Unscrew End Cap using provided screwdriver. Remove End Cap.
2. Remove and change Diffuser after peeling protective film off.
3. Replace End Cap and screws.
FEED SIDE
Asymmetric optics typically demand a pre-defined feed side, relying on installers to confirm site conditions. We’ve eliminated that step. An integrated adapter lets the fixture accept power from either direction.
The result: easier specification and adaptability to onsite conditions.
OPTICAL ACCESSORIES
Note: The Shield (Metal Sheet) is available in 1 to 4ft lengths. All other accessories are available in 1-foot sections only. *Optical accessories available for Wallwash distribution.

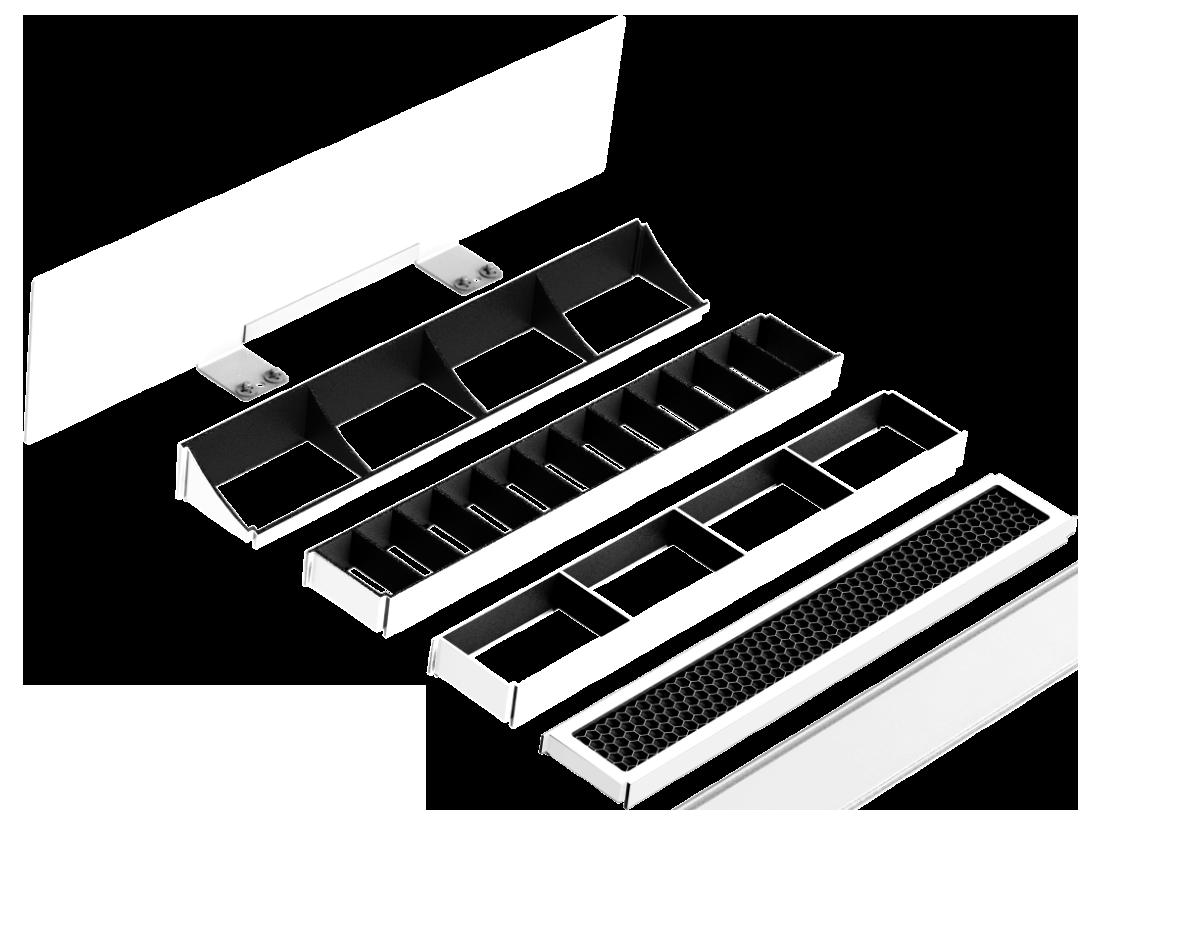

1. Shield* 2. Visor*
3. Louver 12 Cells
4. Snoot/Louver 4 Cells
5. Honeycomb Louver
