CATALOGUE 2025

C ATA L O G U E 2 0 2 5

VISION

Our vision is to become the most present and service-oriented manufacturer of technical lighting fixtures for the professional market in Europe. We acknowledge that achieving this requires deep industry insight and flexibility. Furthermore, we are the only lighting manufacturer worldwide to have implemented customer approval processes. We are committed to continuously making choices based on customer behavior and values. For us, close collaboration sometimes means parting ways with certain customers.

This is only justifiable out of respect for our vision of providing the best service on the market.

Join us and help us achieve this vision.

2

C ATA L O G U E 2 0 2 5

WE BELIEVE IN QUALITY OF LIGHT AND LIFE 3

C ATA L O G U E 2 0 2 5

A b o u t us L u me ga h as b u ilt a s t rong re p u t a t ion o v er ma ny yea rs a s a relia b le su p p lier o f l i gh t i n g sy st e m s f or c ons t r uc t ion p roj e c t s w o r ldw ide. We w o r k c lo sely w it h dev elope rs, e l e c tri c i a ns , c ont ra c t or s , a rc hit ec t s, a nd c o nsu lt ing engineers w ho p rio rit iz e qu al i ty. Te c h nic a l e x p e r t is e is a t t he co re o f ev eryt hing w e do . Ou r sp ec ia liz a t io n l i e s i n de si gn ing hig h- q ua lit y lig ht ing s yst ems t ha t c o mb ine a deep u nderst a nding o f i n st al l ati o n wor k , s us t a ina b le c ons t ru c t io n, a nd ex c ep t io na l light q u a lit y.

E ve ry pro j e c t in ou r p or t f olio is u niq u e, reflec t ing t he div erse sc o p e o f o u r w o r k pro c e sse s. L u m e g a ha s a d e d ic a t e d pro jec t ma na gement a nd dev elo p ment departme n t e qu ip p e d t o ha nd le p roj e c t s o f a ll siz es. Ou r dev elo p ment t ea m u ses i n n o vati ve ap p roa c he s t o c re a t e t a ilored designs a nd light ing so lu t io ns, ena b ling the o pti m i zat ion of old e r s ys t e m s in pro t ec t ed b u ildings. Addit io na lly, w e c o nt in u o u sl y de velop ne w p rod u c t s t o m e et ma r ket dema nds, designing fro m sc ra t c h an d de l i ve ri ng p rod uc t ion f ile s t o ou r fa c t o ry. This ensu res u niq u e p ro du c t s a nd fl e x i bi l i ty t o a d a p t f ix t ure s t o s p e c if ic needs, inc lu ding energy ef fic ienc y, light qu al i ty , l u m e n ou t p ut , c oa t ing s , a nd finish.

Q u al i t y c o n tro l is p a ra m ou nt , wit h e v e ry Lu mega fix t u re u ndergo ing rigo ro u s t es tin g an d al w a ys inc or p ora t ing hig h- q u a lit y c o mp o nent s. Befo re la u nc h, o u r p ro du c ts are te s t e d b y ind e p e nd e nt t hird-p a rt y light ing la b o ra t o ries. The resu lt ing l i gh t re po rt s g ua ra nt e e a c c ura t e t e c hnic a l sp ec ific a t io ns a nd p ro v ide relia b le data fo r c o n s t r uc t ion p roj e c t s . We d eliv er p remiu m-q u a lit y p ro du c t s a t c o mp et i tive pri c e s, m e e t ing t he ne e d s of b ot h new c o nst ru c t io n a nd reno v a t io n p ro jec t s.

L u me ga pro u d ly s howc a s e s a s e le c t io n o f o u r light ing p ro du c t s.

L e t u s h e l p y o u d e s ig n a nd re a liz e your idea s t hro u gh o u r yea rs o f ex p ert ise.

Fo u n de r & C EO

Rune Søgaard Larsen

4

20 25

5 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

Sustainability

At L u m e g a , w e a re c o m m i t t e d t o m o re t h a n d e s i g n i n g a n d p ro d u c i n g i n n o v a t i ve LED fixtures and lamps. Our dedication extends beyond business success; we strive to positively impact the environment, community, and society as a whole through our corporate social responsibility (CSR) initiatives.

We r e c o g n i z e t h a t o u r s u c c e s s a s a c o m p a n y i s c l o s e l y t i e d t o t h e w e l l - b e i n g o f t h e p l a n e t a n d s o c i e t y. O u r C S R e f f o r t s r e f l e c t o u r c o m m i t m e n t t o b u i l d i n g a sustainable future for generations to come. Through responsible practices and a focus on making a positive difference, we aim to set an example of corporate r e s p o n s i b i l i t y w i t h i n t h e L E D l i g h t i n g i n d u s t r y.

W e i n v i t e y o u t o r e a d a n d d o w n l o a d o u r m a t e r i a l s . C S R - r e p o r t.

6

7 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

Project planning

L u me ga h as e x t e ns iv e e x p e r ie nc e in p la nning a nd c a lc u la t ing light ing p ro jec t s o f a ll si ze s. O u r t e a m inc lu d e s a d v is or s a n d light ing designers w ho p ro v ide gu ida nc e, c a lc ul at i o n s, an d v is u a liz a t ions f or t a ilored so lu t io ns t o sp ec ific p ro jec t s. We u se DI ALu x o r R e l u x to c alc ula t e , v is ua liz e , a nd d o c u ment t ha t o u r so lu t io ns c o mp ly w it h t he la t est E u ro pe an a nd D a nis h lig ht ing s t a nd ards.

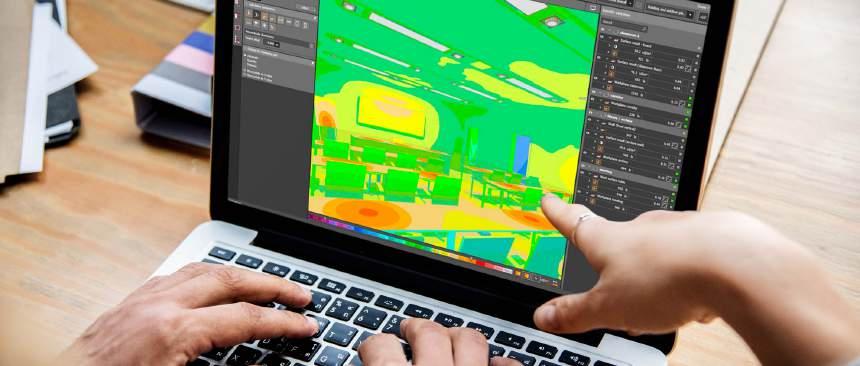

As a n a ddit io na l serv ic e, w e o f fer b o th 3 D v isu a liz a t io ns a nd light simu la t io ns fo r a ll p ro jec t s. Ou r simu la t io ns p ro v ide a n imp ressiv e v isu a l p ro du c t t ha t c a n b e u sed, fo r inst a nc e, in p ro jec t p resent a t io ns t o inv est o rs o r o t her st a keho lders. They a lso giv e a c lea r idea o f how t he light ing w ill lo o k o nc e imp lement ed .

Beyo nd t he p la nning a nd deliv ery o f a light ing syst em, Lu mega o f fers c lo se colla b o ra t io n o n t he ent ire p ro gra mming p ro c ess. This serv ic e is b a c ked b y year s o f so lid ex p erienc e in p ro gra mming c o mp lex light ing c o nt ro ls.

W it h Lu mega a s t he light ing ma nu fa c turer fo r syst ems su c h a s c irc a dia n r hyt h m light ing, yo u w ill b enefit fro m q u ic k imp lement a t io n w it h minima l, if a ny, er ror s u p o n deliv ery. This ensu res t ha t b u ildings c a n b e u t iliz ed o n t ime w it h o u t st a nding resu lt s.

8

C u st o m i ze d p rof e s s iona l lig ht ing wit h u niq u e c o lo rs a nd sha p es is t he key t o c rea t ing a di sti n c t i ve a nd inv it ing a t m os p he re . We u nderst a nd t ha t light ing is no t ju st a b o u t illum i n ati o n bu t a ls o a b out s e t t ing a m o o d, highlight ing a rc hit ec t u re, a nd a dding p erson al i ty. O u r d e d ic a t e d t e a m of lig ht in g designers a nd engineers ha s yea rs o f ex p erienc e i n c re at ing t a ilore d lig ht ing s olut io ns t ha t meet o u r c u st o mers’ sp ec ific needs a nd pre f e re n c e s . We re c og niz e t ha t e v e ry sp a c e is u niq u e a nd st riv e t o design light ing t h at re fl e c t s i t s c ha ra c t e r a nd p ur p os e .

O u r l i gh ti n g p rod uc t s of f e r a wid e ra nge o f c o lo rs a nd sha p es t ha t c a n b e c u st o miz ed t o y o u r pre f e re nc e s . Whe t he r you p refer so f t p a st els, b o ld t o nes, o r sc u lp t u ra l fo r ms, w e c an tai l or t he lig ht ing t o p e r f e c tly ma t c h yo u r v isio n. To get her w it h o u r engineerin g an d de si gn t e a m , we c a n a ls o c ont rib u t e t o c rea t ing light ing fix t u res u nlike a nyt hing c u r re n tl y av a ila b le on t he m a r ke t.

9

C ATA L O G U E 2 0 2 5

Custom projects

C ATA L O G U E 2 0 2 5

Downlights Lumega

offers

a

wide

range

of

downlights designed for both indoor and outdoor applications. Our i n d o o r m o d e l s a r e h i g h l y p o p u l a r, with some selling over 100,000 units a n n u a l l y. We a l s o p r o v i d e s p e c i a lized

downlights

for

challenging

environments, including vandal-resistant options for prisons and hospitals. The majority of our downlights are installed in office buildings and hotels, delivering reliable, high-quality illumination. With versatile designs and robust per for mance, Lumega’s downlights cater to diverse needs while maintaining exceptional

standards

for

functionality

a n d d u r a b i l i t y.

10

Pro du ct

11

I Ca tegor y C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

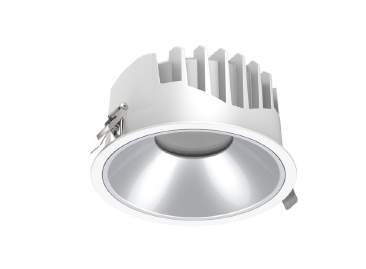

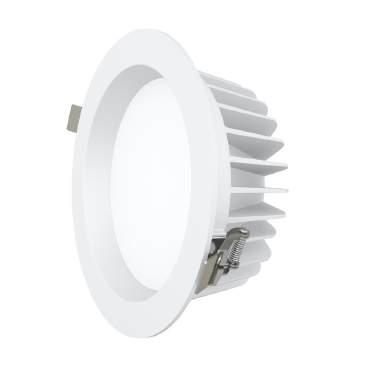

N S 1 0

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø86, 110, 140, 180, 212 mm Lumen: 1.000lm - 5.500lm - Custom possible lm/W: 100 lm/W (LEDs 185 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 10W, 18W, 30W, 35W, 40W eller 55W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

De s c r i p t i o n NS10 is a downlight that is recessed into the ceiling. The design expression suits most buildings and it is available in any RAL color to match the frame and reflector to the ceiling or walls. NS10 comes with many dif ferent light distributions and dimming options. The luminaire is particular ly suitable for lighting cor ridors, atriums, toilets, but also restaurants and shops, as the optics can be changed to nar row to minimize glare.

The price is mid-range, but the cooling system and mechanical parts of the luminaire are well above average. NS10 is available in special versions such as RGBW, RGBWWA and Tunable white.

20

12

NS10

13

01 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 1 1

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø110, Ø140, Ø162, Ø193 or Ø230 mm Lumen: 900lm - 2.900lm - Custom possible lm/W: 100 lm/W (LEDs 165 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 9W, 12W, 15W, 18W, 23W eller 29W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

De s c r i p t i o n NS11 has become one of the most widely used LED downlights in the Nordic region. It comes with a neutral expression. The luminous dif fuse sur face of polycar bonate (PC) ensures an even light level. Combined with high energy ef ficiency and wide light dis tribution, this is a versatile downlight that fits in most places. NS11 has been used in places like Nuuk Prison, which was featured in the Netflix series Wor ld toughest prisons.

Which leads us to mention that the luminaire is very hardy and comes with IK10 and the option of safety screws in the front. NS11 is available in special versions such as RGBW, RGBWWA and tunable white. In addition, luminaire rings are available in all dimensions, so it can fit almost any size hole.

54

14

NS11

15

02 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 1 3

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø110, Ø140, Ø162, Ø193 or Ø230 mm Lumen: 660lm - 2.750lm - Custom possible lm/W: 110 lm/W (LEDs 195 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 6W, 12W, 20W eller 25W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

De s c r i p t i o n NS13 is the recessed downlight used for more exclusive lighting projects. Here we are in a higher price range, but light quality and comfort come from the top shelf. The lu minaire comes with a rotatable matte reflector so that the light cone can be directed to the area to be illuminated. In addition, the LED light source is pulled all the way up into the luminaire housing, ensuring minimal glare. The NS13 is the best choice for restaurants, hotels, meeting rooms and museums. It has been used in numerous exclusive restaurants around the wor ld. The NS13 is available in special versions such as RGBW and Tunable white for changing the color temperature.

20

16

NS13

17

03 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 1 4

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø86.5 x H40 mm Lumen: 420lm - Custom possible lm/W: 60 lm/W (LEDs 100 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. dim to war m) CRI: CRI90 (Option CRI97) Watt: 7W Lifetime: 60K hours at Ta = 25°C (L90) B10 Driver: DALI-2, Triac dim, 1-10V, CLO

De s c r i p t i o n NS14 is a simple LED spotlight with only 40mm installation height and excellent light quality. It is per fect for the home and bathroom as it comes as waterproof. The NS14 can be installed directly in insulation and it is possible to loop cables. The spotlight is in the top three of the best-selling spotlights in Denmar k. W ith more than 100,000 copies sold and a per mille of 21 defects over 5 years, the NS14 has a unique stability that is rarely seen elsewhere. It therefore brings a great deal of security to residential buildings, so developers and contractors do not have to consider future operation for tenants.

44

18

NS14

19

04 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 1 5

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø85*H75 / Ø115*H110 / Ø140*H126 mm Lumen: 1.000lm - 3.000lm - Custom possible lm/W: 100 lm/W (LEDs 165 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 10W, 20W, 30W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

De s c r i p t i o n NS15 is a robust spotlight made of die-cast aluminum. It is resistant to seawater and high chlorine content. It is available in three dif ferent lumen packages and comes in a totally waterproof construction with IP65 finish. NS15 can be supplied with Honey comp filter to minimize glare to UGR 16. The spotlight must not be installed directly in insulation, but must have a safe box or air above the ceiling. Applications include over hangs, spa areas, swimming pools or entrances to of fice buildings.

65

20

NS15

21

05 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 1 6

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø85*H143 cut of f Ø80mm Lumen: 550lm - Custom possible lm/W: 85 LPW (LEDs 120 LPW ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. dim-to-war m) CRI: CRI90 (option CRI95) Watt: 6.5W Lifetime: 60K hours at Ta = 25°C (L90) B10 Driver: Triac / Phase dimmable

De s c r i p t i o n NS16 is a very af fordable LED spotlight for recessed ceilings. It of fers high light quality and reasonable energy ef ficiency. A loop box is included in the package, so it is possible to loop between luminaires. This spot is recommended for use in bathrooms, small meeting rooms along the wall or in the home. The product is not suitable for exterior installation.

44

22

NS16

23

06 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 1 7

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø85 x H53 mm Lumen: 490lm - Custom possible lm/W: 70 lm/W (LEDs 100 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. dim to war m) CRI: CRI90 (Option CRI97) Watt: 7W Lifetime: 60K hours at Ta = 25°C (L90) B10 Driver: DALI-2, Triac dim, 1-10V, CLO

De s c r i p t i o n NS17 is a fully enclosed and waterproof LED spotlight with only 53mm installation height and excellent light quality. It is per fect for the home and bathroom as it comes as waterproof. The spot is especially suitable for projects where there is less than 225cm to the ceiling as IP65 will be a requirement. The NS17 can be installed directly in insu lation and it is possible to loop cables. The spotlight is one of our bestsellers, as the economy is sought af ter. W ith more than 25,000 copies sold and a one in seven failure rate over 3 years, the NS17 has a unique stability that is rarely seen elsewhere. It therefore brings a great deal of security to residential buildings, so that developers and contractors don’t have to wor ry about future operation with tenants.

65

24

NS17

25

07 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 1 8

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø86 mm Lumen: 354lm or 552lm (pending on LED bulb) lm/W: T ypisk 69-100 lm/W Kelvin: 2700K, 3000K, 4000K (Opt. dim to war m) CRI: CRI90 (Option CRI97) Watt: 5W, 6W eller 8W Lifetime: pending on LED bulb Driver: Triac dim og DALI2-2 modul

De s c r i p t i o n NS18 is the recessed spotlight that ensures a unique expression. This is a spotlight where the luminaire frame is not visible. Installation is done by filling the frame into the ceiling, af ter which the painting wor k is done. The insert is simply clicked in af terwards.

The NS18 comes with or without a tube and is fitted with a GU10 LED bulb, which makes it possible with the Philips Hue solution. Areas of application are mainly exclusive homes, of fices, hotels and restaurants. Delivery can take place in dif ferent RAL colors as well as dif ferent brass shades.

20

26

NS18

27

08 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 1 9

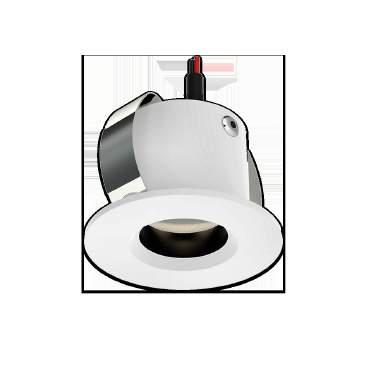

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø40*H21 cut of f Ø34mm Lumen: 241lm (133lm with honeycomp) lm/W: 105 LPW (LEDs 185 LPW ) Kelvin: 2700K, 3000K, 4000K (Opt. dim to war m) CRI: CRI90 (Option CRI97) Watt: 2.3W Lifetime: 50K hours at Ta = 25°C (L80) B10 Driver: Leading edge (Option DALI-2 or 1-10V )

De s c r i p t i o n NS19 recessed spotlight, the ultimate solution for versatile indoor and outdoor lighting.

This ultra-compact luminaire blends seamlessly into any interior and of fers excellent light quality with a high CRI of up to 95. Available in all RAL colors, the NS19 complements any design style. It has adjustable beam angles (15°, 24° or 36°) for tailored lighting and the optional honeycomb filter minimizes glare. Energy ef ficient at only 2.3W and supports dimmable options for precise light control. W ith an IP44 rating for durability and a lifetime of up to 50,000 hours, the NS19 delivers per for mance and longevity in one elegant package.

20

28

NS19

29

09 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 2 0

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø90 mm Lumen: 640 lm lm/W: 80 lm/W Kelvin: 2700K, 3000K, 4000K (Opt. dim to war m) CRI: CRI90 (Option CRI95) Watt: 8W Lifetime: 65K hours at Ta = 25°C (L80) B50 Driver: Yes leading edge (Option DALI-22 or 1-10V )

De s c r i p t i o n NS20 is an innovative downlight that is per fect for installation in ceilings with limited space. The unique feature of the NS20 is that the front can easily be swapped out with dif ferent designs using a magnet, giving great flexibility in appearance. A special ver sion with a pinhole design, where the light exits through a small hole, provides a UGR of less than 10, which means minimal glare. The NS20 delivers extremely high light quality and has a smooth dimming that wor ks with almost all dimmers on the mar ket. There is also the option to add a DALI2 driver if desired. Another advantage of the NS20 is that it can be ordered in any RAL color to per fectly match any interior design. Ideal for use in lounge areas, restaurants, homes, hotel rooms and bathrooms.

20

30

NS20

31

10 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 2 2

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø55 (H91), Ø75 (98) or Ø91 (H117) mm Lumen: 370lm - 1.500lm - Custom possible lm/W: 75 lm/W (LEDs 110 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 5W, 10W, 15W, 20W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, Triac, 1-10V, CLO

De s c r i p t i o n NS22 comes in an extremely exclusive look. The LED light source is pulled all the way up into the luminaire housing, ensuring minimal glare. The spotlight is especially suitable for hotels and restaurants where glare-free lighting with, for example, UGR10 is essential. The NS22 comes in dif ferent physical sizes and lumen packages. It is easily mounted by drilling a hole and the luminaire comes with a ter minal box for two cables.

Dimming and color changing are both options on this spot series. The NS22 is available in a Tunable white version, so color changing is an option. Further more, the NS22 can be delivered with many dif ferent optical lenses, so 5 degrees light spread and upwards is an option.

20

32

NS22

33

11 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 2 3

Te ch n i c a l

d a t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø42, 66, 82 x H72, 76 or 100mm Lumen: 315lm, 567lm or 945lm - Custom possible lm/W: 75 lm/W (LEDs 110 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI90 (option CRI95) Watt: 5W, 9W or 15W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, Triac, 1-10V, CLO

De s c r i p t i on This highly exclusive downlight is available in three sizes, featuring an adjustable tube for precise light control and a low UGR of 10, ensuring minimal glare. Per fect for res taurants, homes, and hotels, it can be customized in any RAL color or premium finishes like brass, dar k brass, copper, and 18-carat gold. Designed for connoisseurs of exceptional lighting, this downlight combines elegance with functionality, delivering unparalleled ambiance and sophistication to any space. Ideal for those seeking refined, high-quality lighting solutions.

20

34

NS23

35

12 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 2 4

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø110 (H112) mm Lumen: 490lm - 980lm - Custom possible lm/W: 49 lm/W (LEDs 165 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. T TW or RGBWWA) CRI: CRI80 (Option CRI90 / CRI99) Watt: 10W or 20W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

De s c r i p t i o n The NS24 downlight is specifically designed for environments like prisons and psychia tric departments. Built to IK10+ standards with safety screws, it ensures durability and security. This high-per for mance downlight is available with tunable white across various Kelvin ranges, RGBWWA, and uniquely programmed spectral power distributions.

These features make it ideal for supporting stabilized treatments for individuals with diverse conditions, of fering both robust functionality and advanced lighting technology tailored to sensitive environments.

44

36

NS24

37

13 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 2 6

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø95 x H105 mm Lumen: 2.000lm - 3.000lm - Custom possible lm/W: 100 lm/W (LEDs 150 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 20W, 30W Lifetime: 80K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

De s c r i p t i o n NS26 is an extremely compact LED downlight with a power ful light output. It is recessed into suspended ceilings with a minimum of 12cm above the ceiling. The latest LED technology ensures long life and low power consumption. The NS26 spotlight is especially suitable for shops, restaurants, showrooms and hotels where a compact recessed spotlight with high light output is desired. It can be dimmed with all common dimming options and can be equipped with an LED module that has the ability to change the light color. Including Kelvin change or RGBW. NS26 is included in frame agreements with well-known brands wor ldwide.

20

38

NS26

39

14 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 2 7

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Round design Size: 5 Sizes of choice Lumen: 1000, 1500, 2500, 3500, 5000lm ± 5 % lm/W: 100 lm/W (LEDs 150 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI90 (Option CRI97) Watt: 10W, 15W, 25W, 35W or 50W Lifetime: 65K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

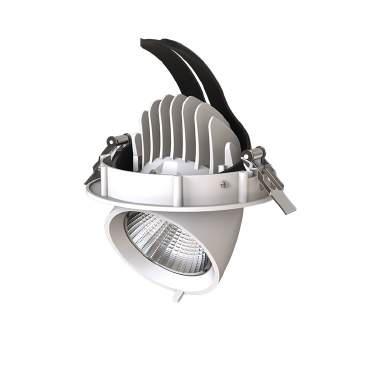

De s c r i p t i on NS27 is a 355-degree rotatable recessed LED downlight with a power ful light emission.

It is recessed in suspended ceilings with a minimum of 12cm above the ceiling. The latest LED technology ensures long life and low power consumption. The NS27 spotlight is especially suitable for shops, super mar kets, showrooms and hotels where a flexible recessed spotlight with high light output is required. It can be dimmed with all common dimming options and can be equipped with an LED module that has the option of changing the light color. Including Kelvin change or with the option of light that highli ghts meat and vegetables with a precise color composition in the spectral spectrum.

The purchase of an additional luminaire ring ensures the NS27 can be used in virtually any existing size hole in the ceiling, eliminating the need to replace the ceiling.

20

40

NS27

41

15 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 2 8

Te chn i c a l

da t a

Housing: Aluminum

C olor s

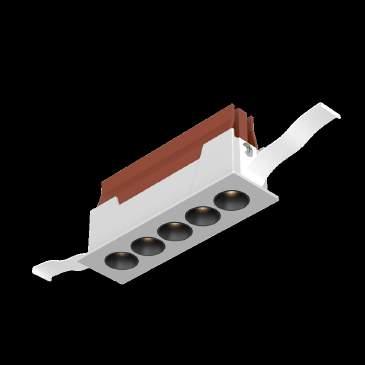

For m: S quare design Size: S ee website for sizes Lumen: 240lm - 864 lm - Custom possible lm/W: 48 lm/W (LEDs 150 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI90 (Option CRI97) Watt: 5W, 7W, 9W, 15W, 18W Lifetime: 80K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, Triac, 1-10V, CLO

De s c r i p t i o n The NS28 is a linear, highly exclusive downlight designed for top-tier lighting per for mance in a compact size. W ith an impressive low UGR, of ten below 16 and as low as 10 with nar row reflectors, it ensures minimal glare and optimal comfort. This makes it ideal for homes, hotels, restaurants, and premium of fice spaces. Available in recessed and sur face-mounted versions, the NS28 delivers high lumen output and supports DALI2, phase dimming, and smart lighting solutions. The series is of fered in all RAL colors, and reflectors are available in brass, gold, silver, and white finishes, adding a touch of elegance to any space.

20

42

NS28

43

16 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

Wall lights Lumega’s wall light portfolio includes both mir ror lights and versatile wall lights for various applications.

Our

wall

lights

are

designed

for

bathrooms, outdoor environments, and specialized projects such as psychiatric departments and hospitals. Combining functionality with durability, they meet the highest standards for diverse needs. Whether for residential or professional use, Lumega’s wall lights provide reliable and high-quality solutions t a i l o r e d t o a n y p r o j e c t.

44

Pro du ct

45

I Ca tegor y C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 3 1

Te chn i c a l

da t a

Housing: Aluminum

C olor s

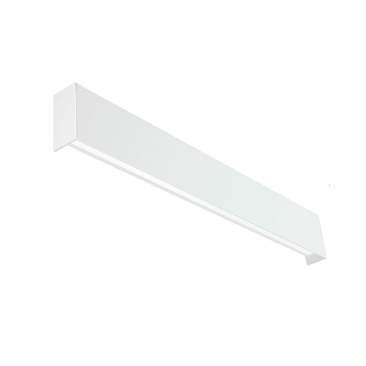

For m: Linear design Size: L450,600,900 x H86.5mm (opt. custom length) Lumen: 700lm - 2.000lm - Custom possible lm/W: 100 lm/W (LEDs 165 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 7W, 12W or 20W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

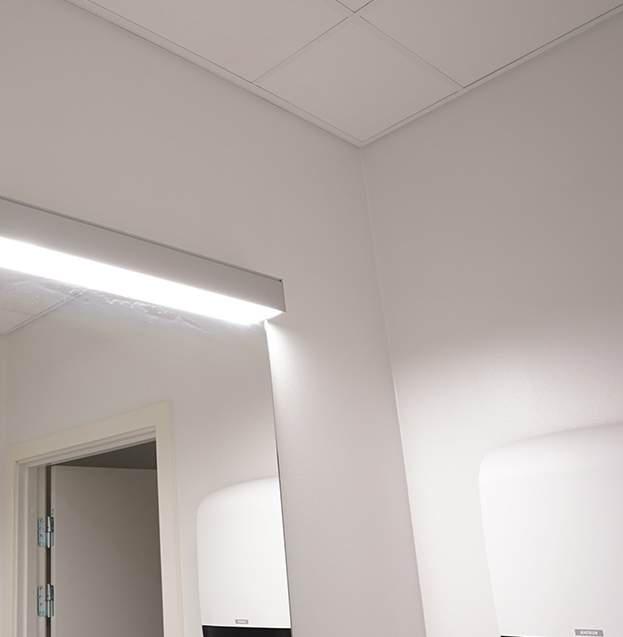

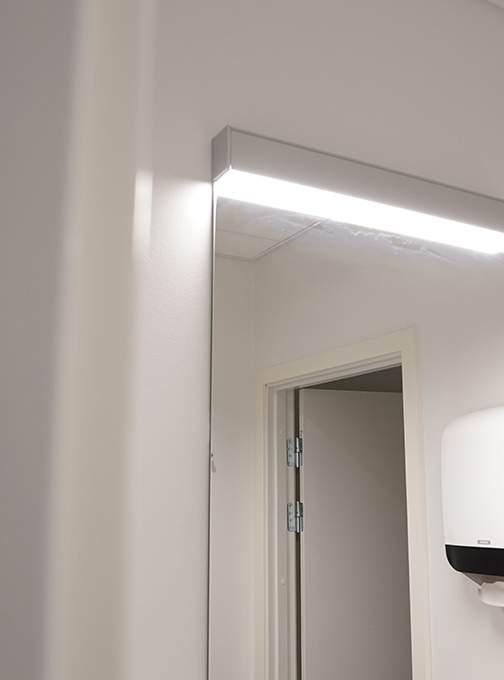

De s c r i p t i o n NS31 mir ror luminaire with a moder n look. In the design process, special attention has been paid to a slim design with a very low glare. The linear LED light source is pulled up into the lamp housing and shielded by the front. The NS31 comes in various standard lengths, but can be tailored to desired lengths to fit mir rors up to 3 meters wide. The light quality is high and installation is simple via the two cable holes from the rear. NS31 is of fered with tunable white, so the color temperature can be changed.

44

46

NS31

47

17 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 3 2

Te chn i c a l

da t a

Housing: Plastic with EU socket several types

C olor s

For m: Linear design Size: L450, 595 x H57mm x D65 mm Lumen: 1.320lm or 1.650lm lm/W: 110 lm/W (LEDs 185 lm/W ) - Custom possible Kelvin: 3000K, 4000K (Option TW with no EU socket) CRI: CRI80 (Option CRI90) Watt: 12W or 15W Lifetime: 50K hours at Ta = 25°C (L90) B10 Driver: DALI, DALI-2 DT6, 1-10V, CLO

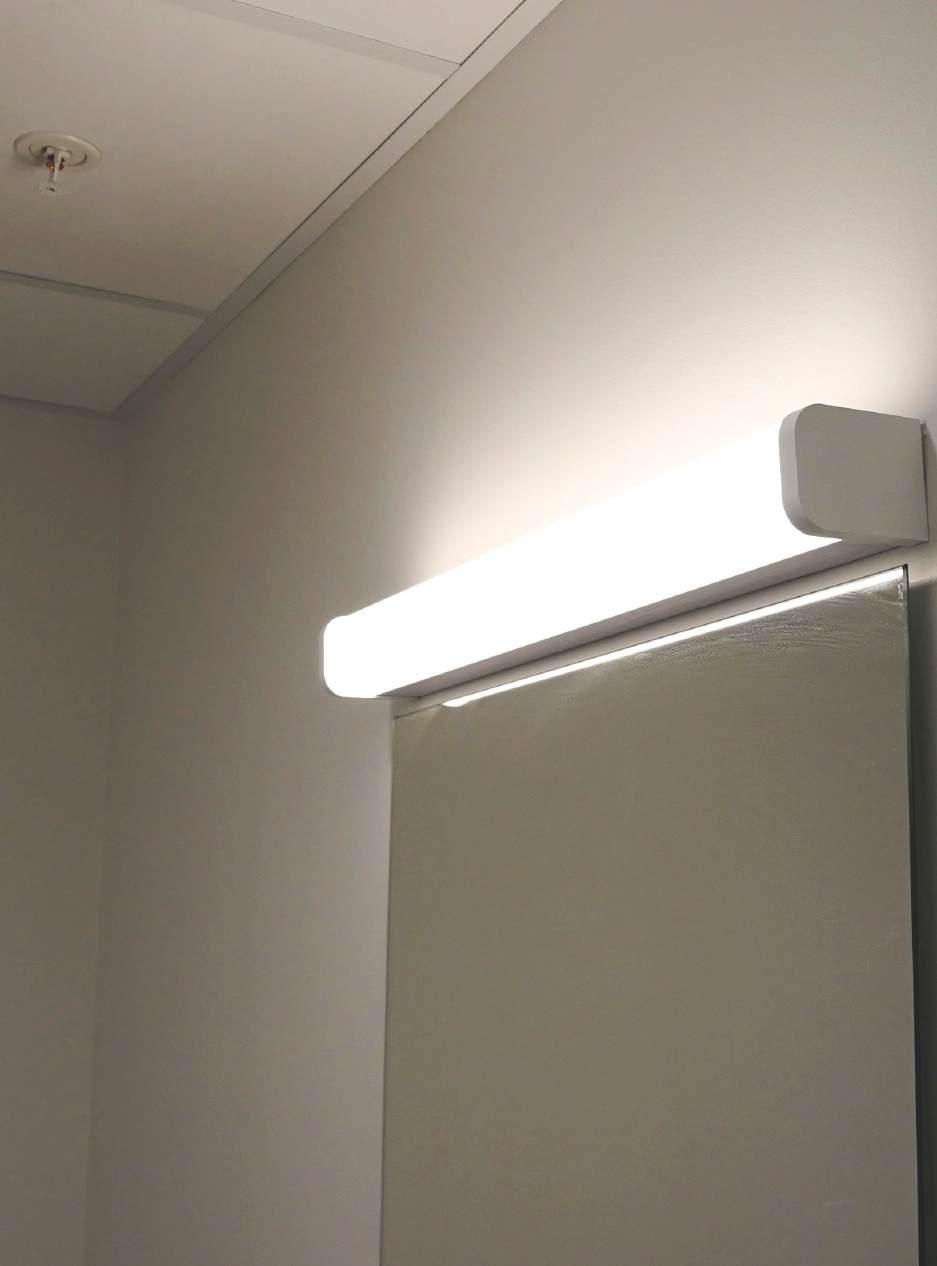

De s c r i p t i o n The NS32 is a high-per for mance plastic mir ror light, ideal for residential projects, in cluding bathroom renovations and new builds. Designed with quality components, it of fers unifor m, high-quality illumination. The NS32 can be equipped with an EU socket at one end, making it a per fect choice for renovation projects. Additionally, it is available with an integrated sensor, providing a practical solution for spaces without switches. This professional-grade product aligns with other high-quality mir ror lights, ensuring reliability and suitability for various projects.

44

48

NS32

49

18 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 3 5

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Oval design Size: W200 x H259 mm (Custom possible) Lumen: 570lm ± 5 % (Custom possible) lm/W: 95 lm/W (LEDs 165 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. T TW, RGBWWA) CRI: CRI80 (Option CRI90 / CRI97) Watt: 7W, 12W or 20W Levetid: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

De s c r i p t i o n NS35 is an innovative LED wall light, per fect as a bedside light for nursing homes, psychiatric homes, hospital projects and prison projects. It is designed without sharp edges and with safety screws for maximum safety and comfort. The entire luminaire complies with the requirements for prison cells and housing for severely mentally ill patients. NS35 of fers dif ferent technical lighting properties. These include standard war m or neutral white light, Circadian lighting and RGBWWA for therapeutic purposes.

NS35 can be equipped with DALI-2 DT6 or DT8 driver, KNX or wireless communication.

Further more, the luminaire housing can be delivered in any RAL color of your choice, ensuring easy integration into any interior design.

21

50

NS35

51

19 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 3 8

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Round design (remar k opt down or up/down) Size: S ee website for sizes Lumen: 1050lm or 2.100lm lm/W: 105 lm/W (LEDs 185 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K CRI: CRI80 (Option CRI90 / CRI97) Watt: 10W or 20W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6, 1-10V, CLO

De s c r i p t i on The NS38 is a versatile wall light designed for both indoor and outdoor use, available in sleek cylinder and square designs. Ideal for exclusive projects such as homes, residential developments, hotels, restaurants, and of fice buildings, it features a high-quality reflector for excellent light control. W ith beam angle options ranging from very nar row to wide, the NS38 ensures precise downlight illumination. Available in various RAL colors, it can also be treated in finishes like brass or corten upon request. Compatible with DALI-2 and non-dimmable configurations, this luminaire of fers flexibility for diverse project requirements.

44

52

NS38

53

20 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

Roundlights Lumega’s range of round fixtures includes sur face-mounted, pendant, and recessed options, ensuring versatile solutions for any setting. Regardless of the choice, our fixtures deliver absolutely uniform light with n o d a r k a r e a s o n t h e f r o n t g l a s s . We o f f e r s p e c i a l i z e d R G B W WA s o l u t i o n s tailored for hospital environments, enhancing functionality in various applications. While our fixtures are suitable for diverse sectors, most of our projects focus on office spaces, where our round fixtures provide superior lighting per formance and aesthetic appeal.

54

Pro du ct

55

I Ca tegor y C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

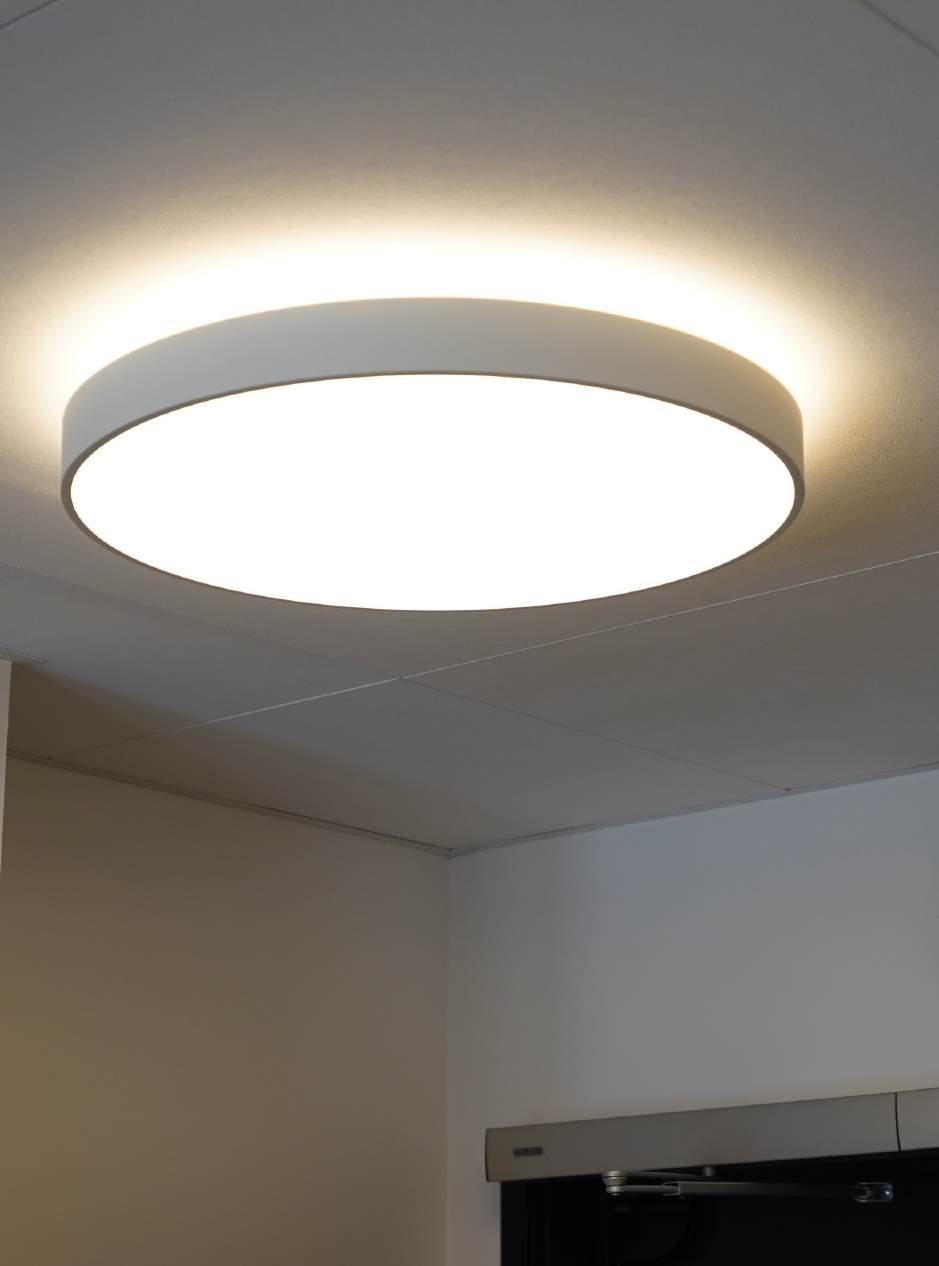

N S 4 0

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø300, 435, 585, 735, 875 or 1150mm Lumen: 1.800lm - 14.400lm - Custom possible lm/W: 120 lm/W (LEDs 175 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 15, 25, 30, 40, 50, 60, 70, 90 or 120W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, Triac, 1-10V, CLO

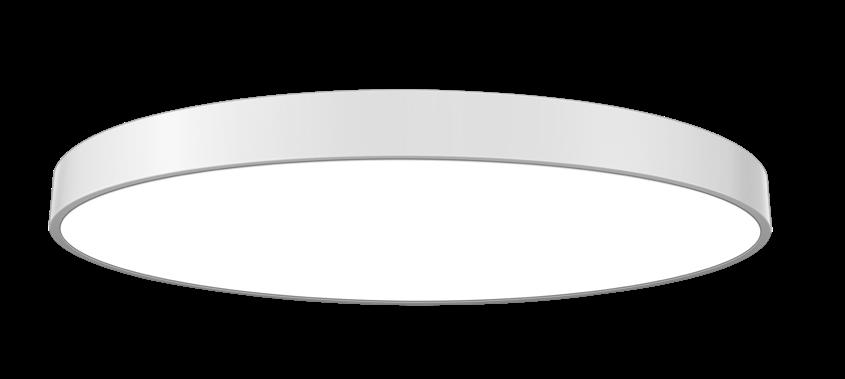

De s c r i p t i o n NS40 is an elegant circular sur face-mounted luminaire that can also be suspended in wire suspension. The luminaire is equipped with the latest LED technology and therefore meets most requirements for future new builds. The luminaire housing is designed with a stable aluminum wreath and machined for a top-class finish. The LEDs behind are distributed in such a way that, together with the front glass, they ensure an even luminous sur face without any dar k areas. The energy ef ficiency is extremely high, even with indirect lighting, which creates beautiful contrasts in any room. This luminaire comes standard with a powder-coated finish in white, black or silver, but can be ordered in any RAL color and wood look to fit per fectly into the interior design.

20

56

NS40

57

21 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 4 1

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Circle design Size: 50x58x Ø600, 1000, 1500, 2000, 3000mm Lumen: 2.940lm - 14.910lm - Custom possible lm/W: 105 lm/W (LEDs 165 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 28W, 47W, 56W, 70W, 94W, 113W, 142W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, Triac, 1-10V, CLO

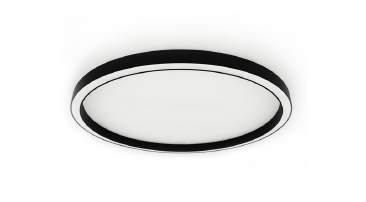

De s c r i p t i o n NS41 is an elegant and innovative circular aluminum luminaire that can be suspen ded in a wire set or mounted on a wall or ceiling. This is a lighting fixture in a class of its own. The finish and appearance will provide a unique lighting solution for of fice lounge areas, hotel lobbies, restaurants, shops and exclusive residential projects with high ceilings. W ith a combination of dif ferent sizes in the same space, diversity and an interesting lighting concept can be achieved. The NS41 is available in several standard powder-coated colors, but can be produced in a variety of RAL colors and wood looks on request. The tunable white option ensures the possibility to control the color temperature.

20

58

NS41

59

22 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 4 2

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø300, 400, 500mm Lumen: 1800lm, 2400lm, 3600lm or 4000lm lm/W: 120 lm/W (LEDs 200 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. TW and RGBWWA) CRI: CRI80 (Option CRI90) Watt: 15W, 20W, 30W or 40W (custom possible) Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, Triac, 1-10V, CLO

De s c r i p t i o n The NS42 is for recessed ceilings and comes in a circular design shape that fits in well with most projects’ interior plans. There are several options on this luminaire series. The Smart sensor system with intelligent live daylight control, motion sensor and not least the ability to bring the latest technology into the building, even if there is only mains voltage without control wires. The NS42 comes in a beautiful powder-coated finish in standard colors such as white, black and silver. It can be ordered in many other RAL colors. The luminaire comes in three physical sizes Ø320mm, Ø420mm, 520mm and 3 lumen packages as needed. Options include RGBW, RGBWWA and Tunable white.

20

60

NS42

61

23 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 4 3

Te chn i c a l

da t a

Housing: Plastic and Polycar bonate

C olor s

For m: Round design Size: Ø300mm x H72mm Lumen: 2.160lm, 3.000lm or 3.600lm lm/W: 120 lm/W (LEDs 180 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 18W, 25W or 30W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

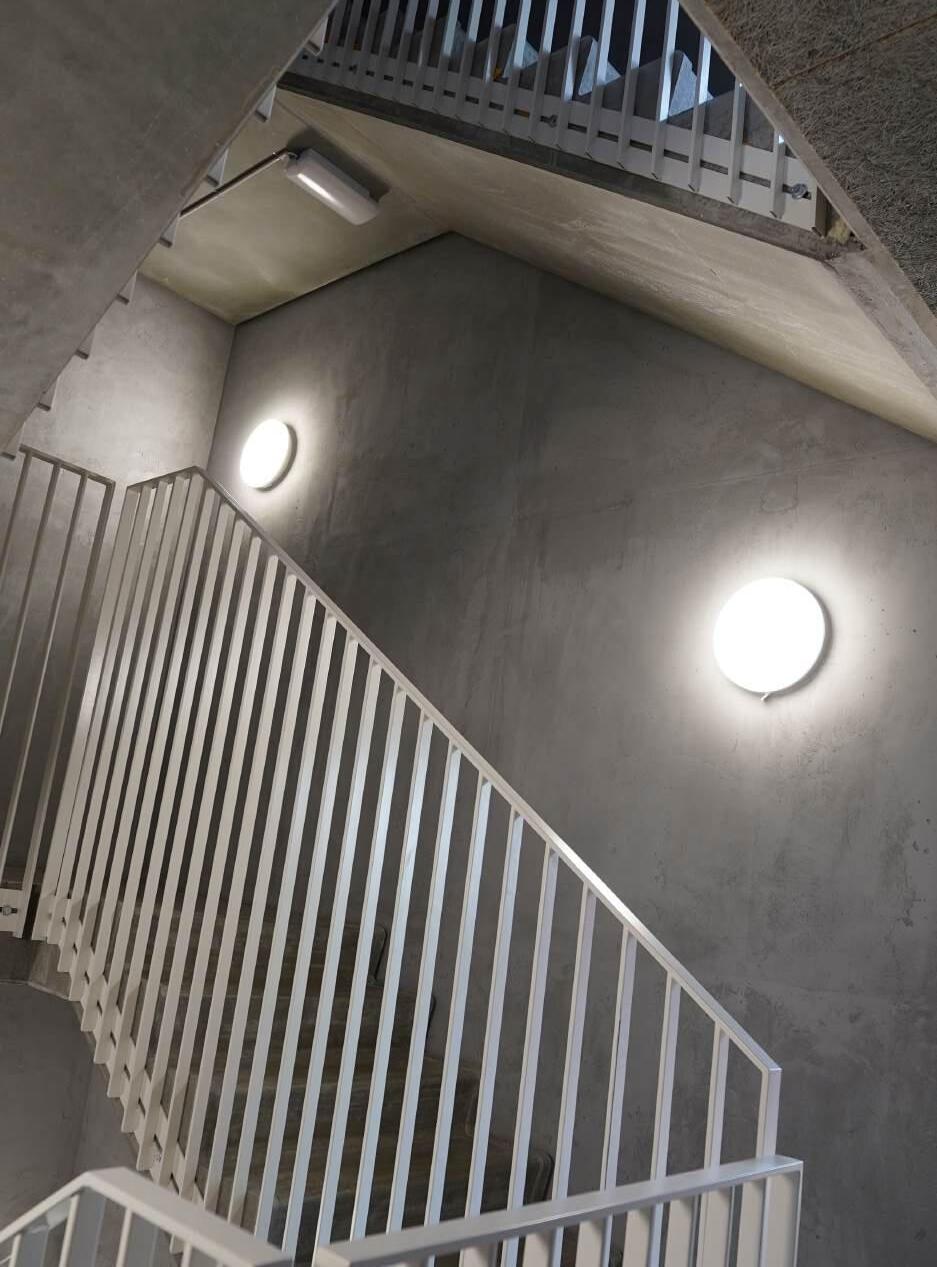

De s c r i p t i o n NS43 brings high energy ef ficiency into construction. The luminaire is equipped with the latest LED technology and a front glass that ensures even, beautiful lighting throughout the entire area. The NS43 front glass is pulled slightly down over the bottom of the luminaire housing, providing an indirect lighting experience on the ceiling or wall.

The contrasts and regularity of e.g. a stair tower are better contrasted against other ceiling luminaires that only illuminate the room. The luminaire housing is extremely impact resistant and in combination with a timeless design, it is the per fect solution for stair towers, restrooms, depots and cor ridors. NS43 is approved for common access routes and is available with many control options.

54

62

NS43

63

24 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 4 4

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø145, 220, 275, 350 x H55, 65, 85, 110 mm Lumen: 550, 1.100, 1.650, 2.200, 3.300 or 4.400lm lm/W: 110 lm/W (LEDs 180 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 5W, 10W, 15W, 20W, 30W, 40W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI V2 DT8, 1-10V, Triac Dim, CLO

De s c r i p t i o n The NS44 is very durable and comes in a solid aluminum construction. The luminaire series is available in crescent or round design. Both versions are available in square or round design language. There are many dif ferent physical sizes and lumen packages.

The front glass of the luminaire is extra reinforced, so it can be installed in areas whe re there is a risk of per manent vandalism. The front glass also ensures even, beautiful illumination throughout the entire shade. The entire series is approved for shared access routes. The NS44 comes in an attractive powder-coated finish in white, black or silver as standard. There are also options for special RAL colors and treatments such as corten.

65

64

NS44

65

25 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 4 6

Te chn i c a l

da t a

Housing: Aluminum

C olor s

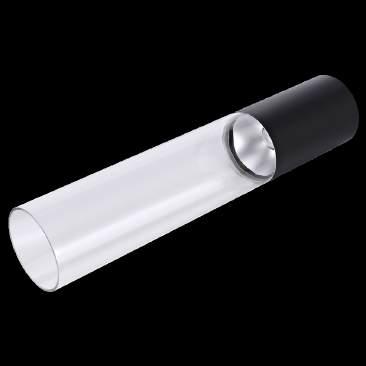

For m: Cylinder design Size: Ø180xH800 mm (Unit H300 mm) Lumen: 3800 lm lm/W: 95 lm/W (LEDs 185 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 40W (Custom possible) Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI-2 DT6 or DT8, 1-10V, Triac Dim, CLO

De s c r i p t i o n The NS46 pendant luminaire combines functionality and style for both indoor and outdoor spaces. Its advanced reflector delivers rotationally symmetrical wide-beam light with various beam angle options, ensuring optimal lighting design. Vertical illumination enhances visibility and comfort in arcades, galleries, and passageways. Choose from frosted, clear, colored, or microprismatic glass to match your aesthetic. NS46 can, however, also be supplied without glass. Easy installation is ensured with an included ceiling cup, wires, and power cord. Driver options like DALI-2, tunable white, and dimming provide flexibility, making NS46 a versatile choice for any setting.

65

66

NS46

67

26 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 4 7

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø71xH100, Ø110xH145, Ø141xH170, Ø171xH190, Ø200xH210mm Lumen: 1000, 2000, 3000, 4000, 5000lm lm/W: 100 lm/W (LEDs 175 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 10W, 20W, 30W, 40W or 50W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI V2 DT8, 1-10V, Triac Dim, CLO

De s c r i p t i o n NS47 is a sur face-mounted luminaire designed in a timeless cylindrical expression. The luminaire is equipped with the latest in high-ef ficiency LED technology. The reflector comes in matte aluminum as standard, but is available in white, black, brass and other shades on request. At the top of the reflector is an optical lens solution. The lens ensures a very low UGR value (glare). In addition, there are options for dif ferent light distributions including a unique oval light distribution. The diversity of light distributions makes the luminaire applicable in many types of projects. The driver and ter minal box are built into the top of the luminaire housing. Option for dynamic color change.

20

68

NS47

69

27 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 4 8

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: S ee sketches on website Lumen: 900lm, 2.100lm, 3.080lm, 3.850lm ± 5 % lm/W: 60 lm/W (LEDs 165 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K CRI: CRI80 (Option CRI90) Watt: 15W, 30W, 45W, 66W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2, 1-10V, Triac Dim, CLO

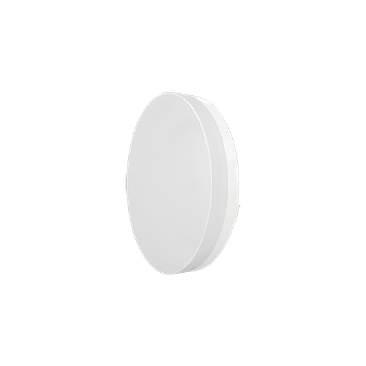

De s c r i p t i o n NS48 is a sur face mounted downlight, ideal for outdoor areas. What makes NS48 particular ly interesting is the possibility to deliver with many types of light distributions and honey comb filter that makes the UGR extremely low. NS48 is delivered with a cable in the desired length. Extremely high quality paint is used, which ensures a beautiful finish. C2 paint is available, which is suitable for areas near the sea. Further more, this luminaire is available in many RAL colors. The NS48 comes with DALI-2 driver or other smart lighting systems, ensuring flexibility and high per for mance. This is a durable and ef ficient lighting solution suitable for any outdoor or indoor installation.

65

70

NS48

71

28 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

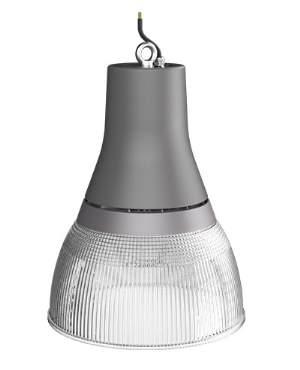

N S 4 9

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø330 x H456mm Lumen: 11.600lm lm/W: 145 lm/W (LEDs 245 lm/W ) Kelvin: 3000K, 4000K, 5000K CRI: CRI80 (option CRI90) Watt: 80W (80W-60W-40W-25W Adjustable) Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

De s c r i p t i o n NS49 is a remar kable lighting fixture that comes with a heavy-duty wire suspension.

NS49 is the luminaire that provides the most light for the money. This is especially useful in rooms with high ceilings. Its high energy ef ficiency is also an important parameter in several types of buildings where lighting costs can be high. The luminaire comes with many dif ferent lumen packages and can be manually switched between them.

The NS49 can be installed indoors and outdoors under a suspended roof. The luminaire comes with accessories to match the cur rent dimming options and integrated sensor technologies. In new buildings, the luminaire can be used with a special RAL color or Corten treatment to create an industrial look for an of fice environment.

65

72

C ATA L O G U E 2 0 2 5

NS49

29

P H O T O O N I T S W AY

73

C ATA L O G U E 2 0 2 5

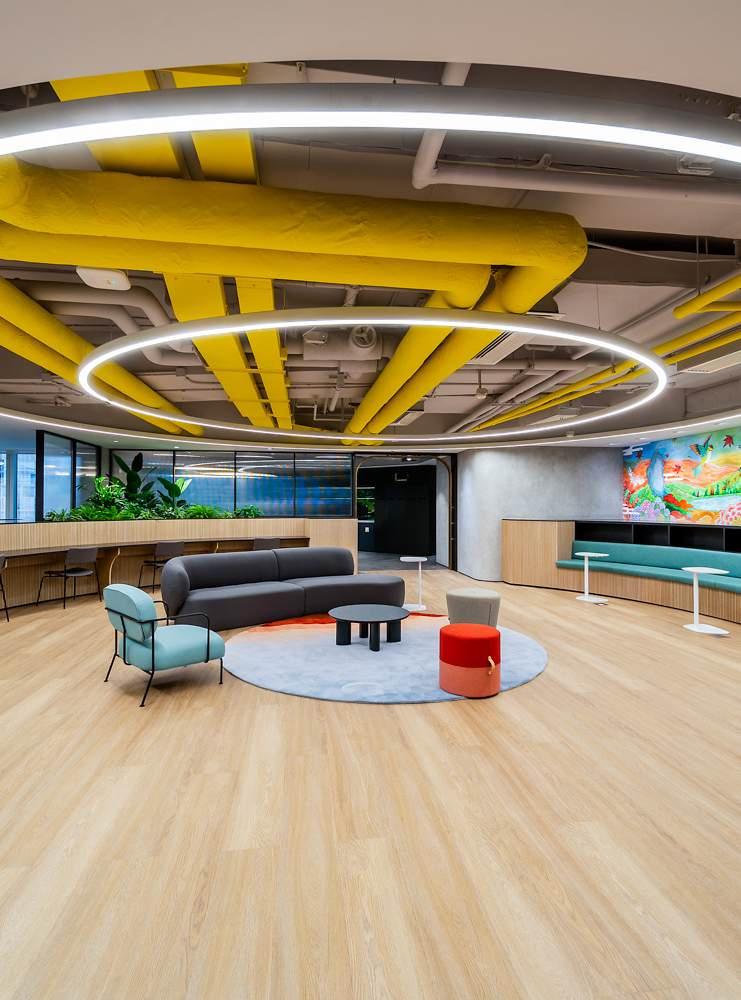

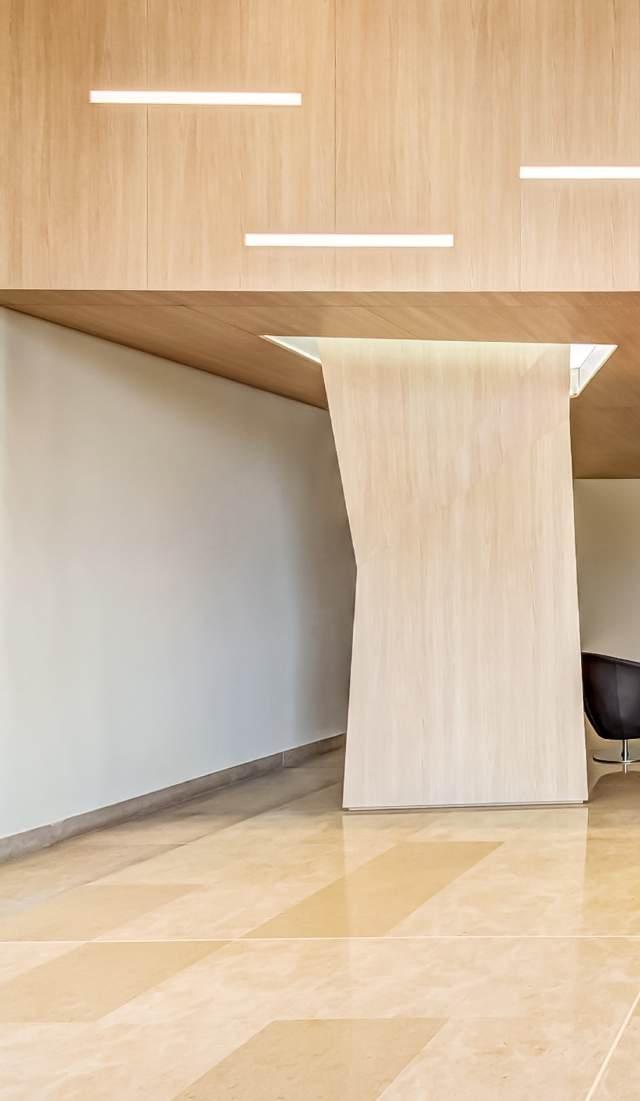

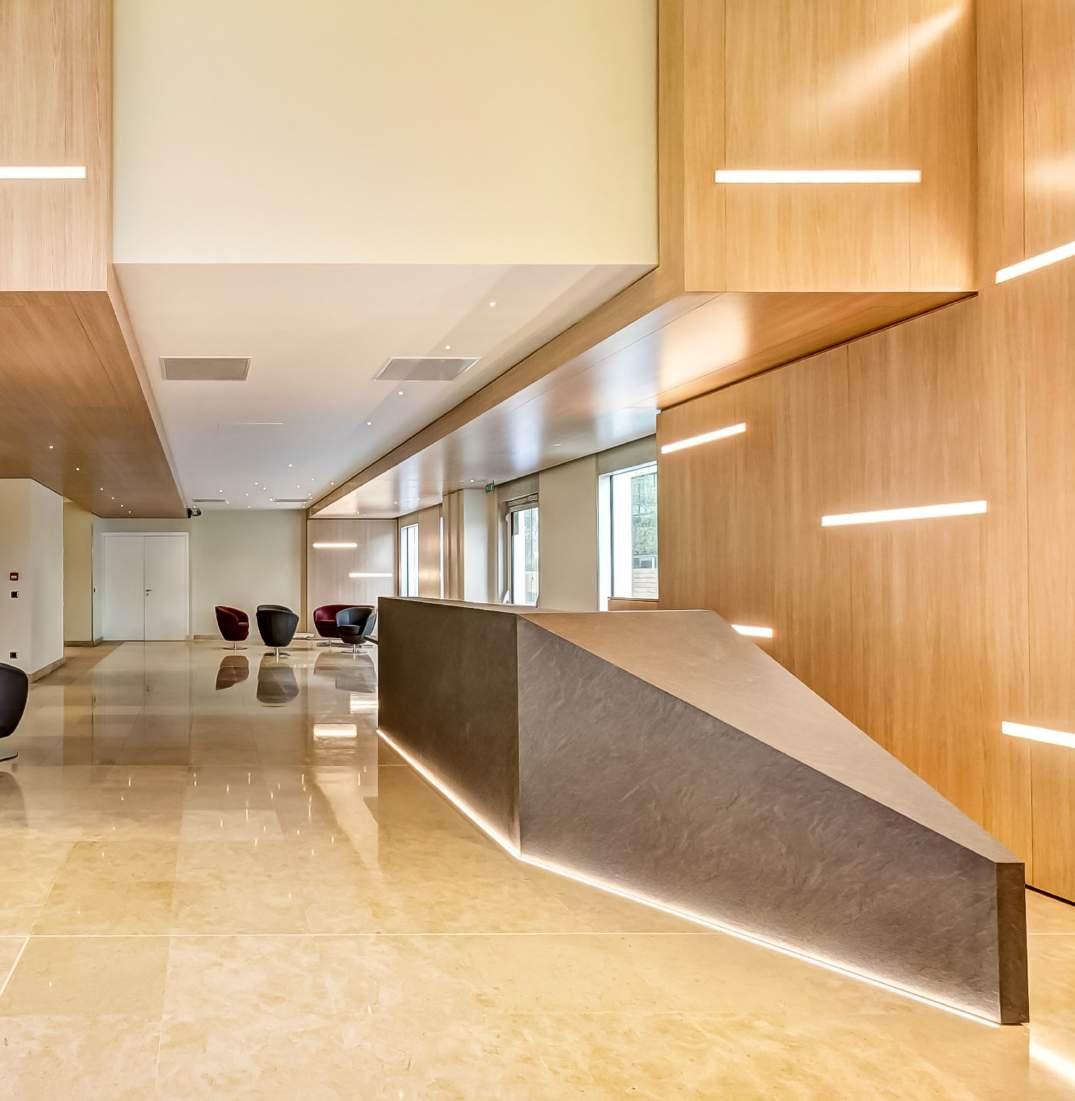

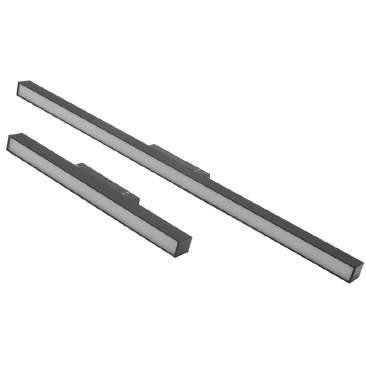

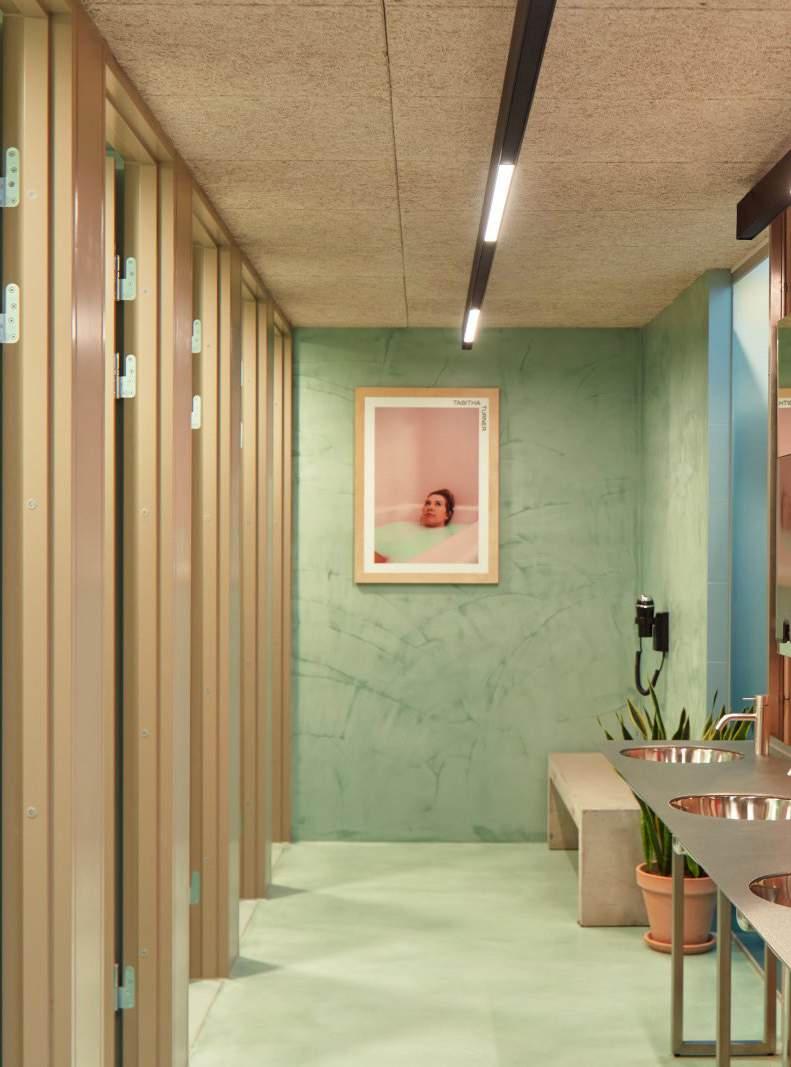

Linear lights Lumega’s

linear

lighting

solutions

are a top choice among architects and electrical engineers for office spaces and government buildings l i ke s c h o o l s a n d l a r g e f a c i l i t i e s . We offer custom lengths that outperform

competitors,

delivering

un-

matched versatility and per formance. Most fixtures come with a 3- or 4-meter pre-installed power cord, saving electricians valuable instal l a t i o n t i m e . Av a i l a b l e i n d i v e r s e d e signs, our linear lights offer tunable w h i t e , R G B W WA , a n d e x c e p t i o n a l light quality, ensuring optimal illumination tailored to any project’s specific needs.

74

Pro du ct

75

I Ca tegor y C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

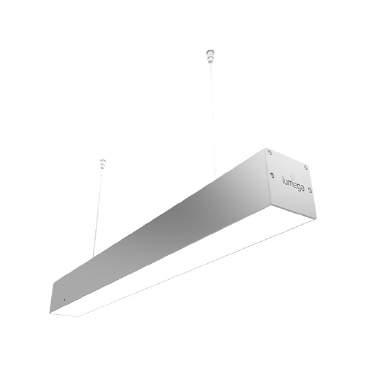

N S 5 0

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Linear design Size: H75 x W60 mm x L (custom sizes possible) Lumen: 2400, 3000, 4200, 4800, 7200 or 9600lm lm/W: 120 lm/W (LEDs 220 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 20W, 25W, 35W, 40W, 60W or 80W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

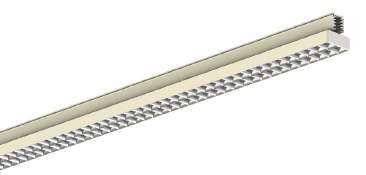

De s c r i p t i o n The NS50 is an elegant linear lighting fixture whose range includes many types of lu men packages, installation options and control options. W ith the NS50 series, a continuous line of light can be routed through the room. The series also of fers pendant mounting where they can hang over desks in the of fice or meeting room. The exciting thing about this series is also the finish. Here the profile can be chosen in raw aluminum, brass finish, various RAL colors and other finishes that could pave the way for ins tallation in harsh environments. The NS50 is easy to install and comes with a very high energy ef ficiency, ensuring the luminaire fits into even the greenest buildings. Options such as RGBW, RGBWAA and Tunable white for changing color temperature

20

76

NS50

77

30 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 5 1

Te chn i c a l

da t a

Ar matur hus: Aluminium

C olor s

For m: Linear design Size: H54 x W64 mm x L594,1181,1490,2070mm Lumen: 4.000lm, 8.000lm, 12.000lm or 16.000lm lm/W: 160 lm/W (LEDs 245 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90 / CRI97) Watt: 25W, 50W, 75W or 100W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

De s c r i p t i o n The NS51 is especially useful in schools, of fices or museums where a blackboard or painting needs to be illuminated with even light distribution. The luminaire is equipped with optical properties that ensure the light is cast onto the blackboard or art so that it appears well-lit. NS51 can be ceiling mounted, installed from the wall with a bracket and suspended in wire sets. S everal dif ferent dimming methods are available. The finish is high with a beautiful powder coating in standard white, black or silver, with the option of other RAL colors. Dimensions are fixed and cannot be customized.

20

78

NS51

79

31 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

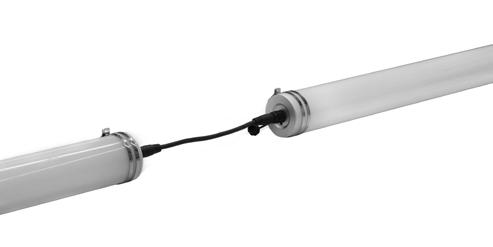

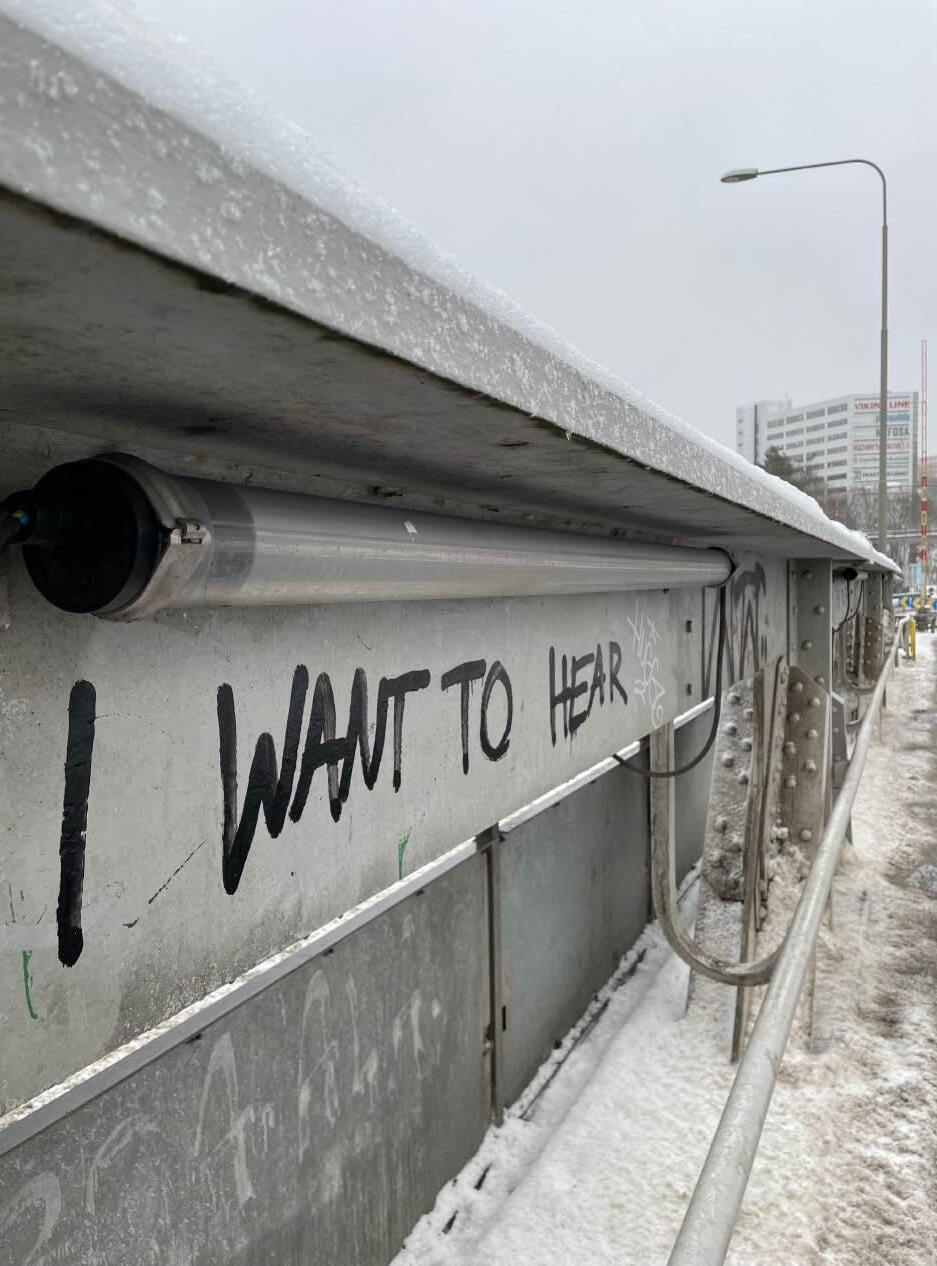

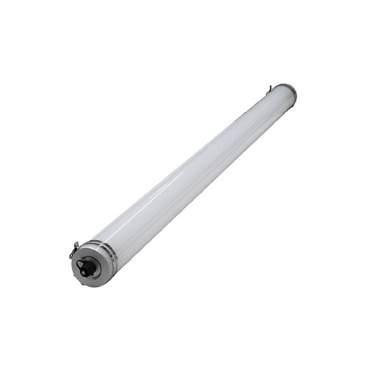

N S 5 2

Te chn i c a l

da t a

Housing: Polycar bonat

C olor s

For m: Linear design Size: S everal options (custom sizes possible) Lumen: 1650lm, 2640lm, 3300lm, 3850lm, 7700lm lm/W: 110 lm/W (LEDs 175 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt. RGB) CRI: CRI80 (Option CRI90) Watt: 15W, 24W, 30W, 35W, 40W, 60W or 70W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6, 1-10V, Triac Dim, CLO

De s c r i p t i o n NS52 comes as a tube in opal polycar bonate. The design is particular ly unique because the light from the LEDs is cast evenly around the entire tube. This results in a 300 or 360 degree light distribution, which of fers interesting possibilities for creating beautiful lighting concepts. The luminaire can be mounted with brackets on the wall and cei ling. It can also be supplied with a wire set so it can be hung as a pendant. W ith the included connectors, the NS52 is easily installed and will hang as a pendant vertically on its own in the inlet. It is not possible to install this series without using Lumega’s own cables. Therefore, the luminaire comes with a given length of cable, or cable for bran ching multiple luminaires in extension of each other.

68

80

NS52

81

32 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 5 3

Te chn i c a l

d a t a

Housing: Special A6063 alloy aluminum

C olor s

For m: Linear design Size: L599, L1199 or L1499 x (H78 and W114) mm Lumen: 1650lm, 2640lm, 3300lm, 3850lm, 7700lm lm/W: 140 lm/W (LEDs 220 lm/W ) Kelvin: 2700K, 3000K, 4000K (Opt. RGB) CRI: CRI70 (Option CRI80) Watt: 20W, 40W, 60W or 75W Lifetime: 50K hours at Ta = 35°C (L90) B10 Driver: DALI, DALI-2 DT6, 1-10V, Triac Dim, CLO

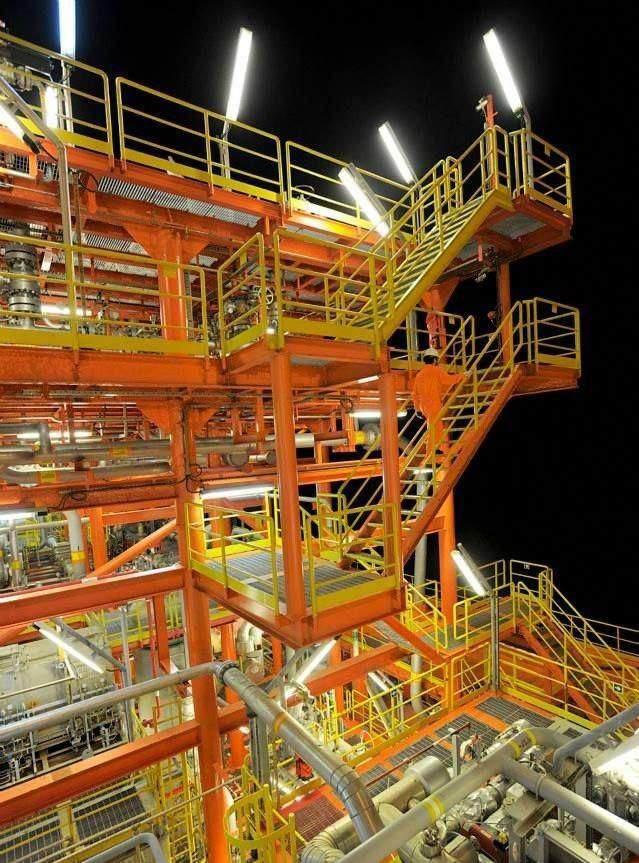

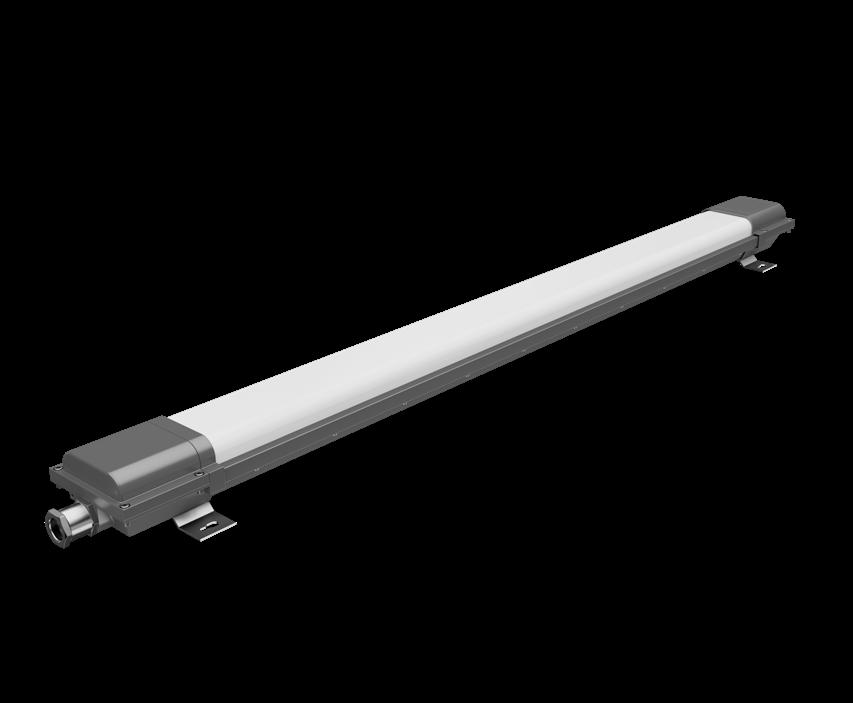

De s c r i p t i on The NS53 is a linear fixture with multiple ATEX certifications, designed for of f-shore environments, oil platfor ms, and industrial areas requiring explosion-proof lighting. Built with an extremely robust luminaire housing and components from renowned brands, it guarantees durability and reliability. The NS53 is available in yellow safety paint and traditional silver paint, both specially suited for installations near sea salt water.

Comprehensive documentation is provided, ensuring compliance and ease of use for demanding applications.

66

82

NS53

83

33 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 5 5

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Linear design Size: L600, 1200 or 1500mm x W160 x H50 mm Lumen: 3360lm, 4900lm, 7000lm, 9800lm lm/W: 140 lm/W (LEDs 220 lm/W ) - Custom possible Kelvin: 3000K, 4000K (Opt. tunable white) CRI: CRI80 (Option CRI90) Watt: 24W, 35W, 50W, 70W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, Triac Dim, CLO

De s c r i p t i on NS55 is an all-round splashproof luminaire with prismatic front glass. The streamlined neutral design expression makes the luminaire suitable for many environments. The luminaire housing is made of galvanized steel and the front glass is extra strong polycar bonate. The LED board is linear and has the highest energy ef ficiency on the market. As accessories, NS55 can be supplied with wire sets, sur face-mounted brackets for shelters and special gaskets to raise the luminaire to a higher IP class. Finish is powder coated in white. Application examples could be changing rooms, cor ridors, depots, shelters or schools.

44

84

NS55

85

34 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 5 7

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Linear design Size: W32 x H43 x L600, L1200 or L1500 mm Lumen: 2.520lm, 2.800lm, 4.200lm or 4.900lm lm/W: 140 lm/W (LEDs 220 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K CRI: CRI80 (Option CRI90) Watt: 18W, 20W, 30W or 35W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6, 1-10V, CLO

De s c r i p t i on NS57 is per haps the most elegant linear luminaire for par king garages on the mar ket.

At only 32mm wide, it has a slim, distinctive design that will ensure a futuristic experience. NS57 is equipped with the most energy-ef ficient LEDs on the mar ket, ensuring very high energy ef ficiency and thus minimal consumption. The cooling on the back has been further optimized to extend the lifespan even further than our first version. NS57 comes in 3 physical lengths and 4 lumen packages. S ensors and 1-10V dimming can be included as needed. Installation is done with a plug-in system, so it is not possible to loop in this luminaire series, instead a given length of cable is supplied with a plug. The luminaire series is produced in quantities exceeding 35,000 units with very few defects.

65

86

NS57

87

35 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

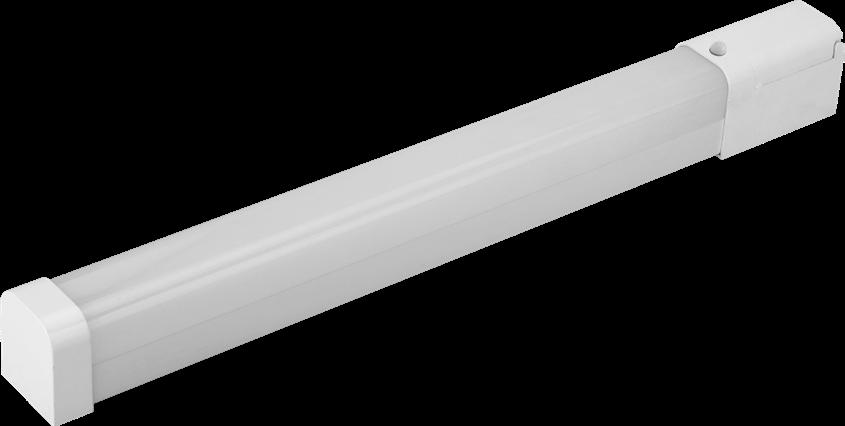

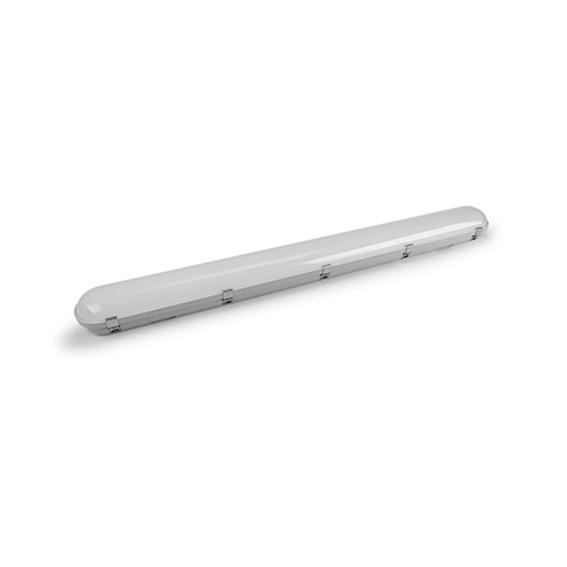

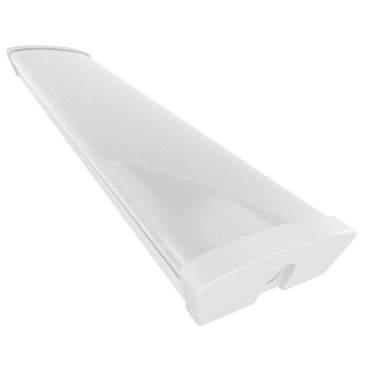

N S 5 9

Te chn i c a l

da t a

Housing: Polycar bonate

C olor s

For m: Linear design Size: W95xH80 ( W125xH88) x L600, 1200, 1500 Lumen: 2800, 4200, 5600, 8400 or 9800lm lm/W: 140 lm/W (LEDs 220 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K (Opt tunable white) CRI: CRI80 (Option CRI90) Watt: 20W, 30W, 40W, 60W or 70W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

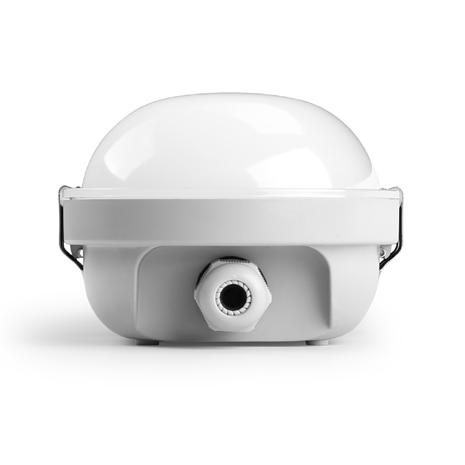

De s c r i p t i o n NS59 is the familiar basic luminaire with polycar bonate housing and opal front glass.

This luminaire series has been taken to new heights by using the latest LED and driver technology. This is a basic luminaire with maximum energy ef ficiency. Installation is easy from either end of the luminaire, with ter minal blocks ready for direct mounting.

The long service life ensures safe operation. The luminaire series is available with DALI and several dif ferent types of sensors. NS59 is used in hundreds of par king garages around the wor ld with very low failure rates.

65

88

NS59

89

36 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

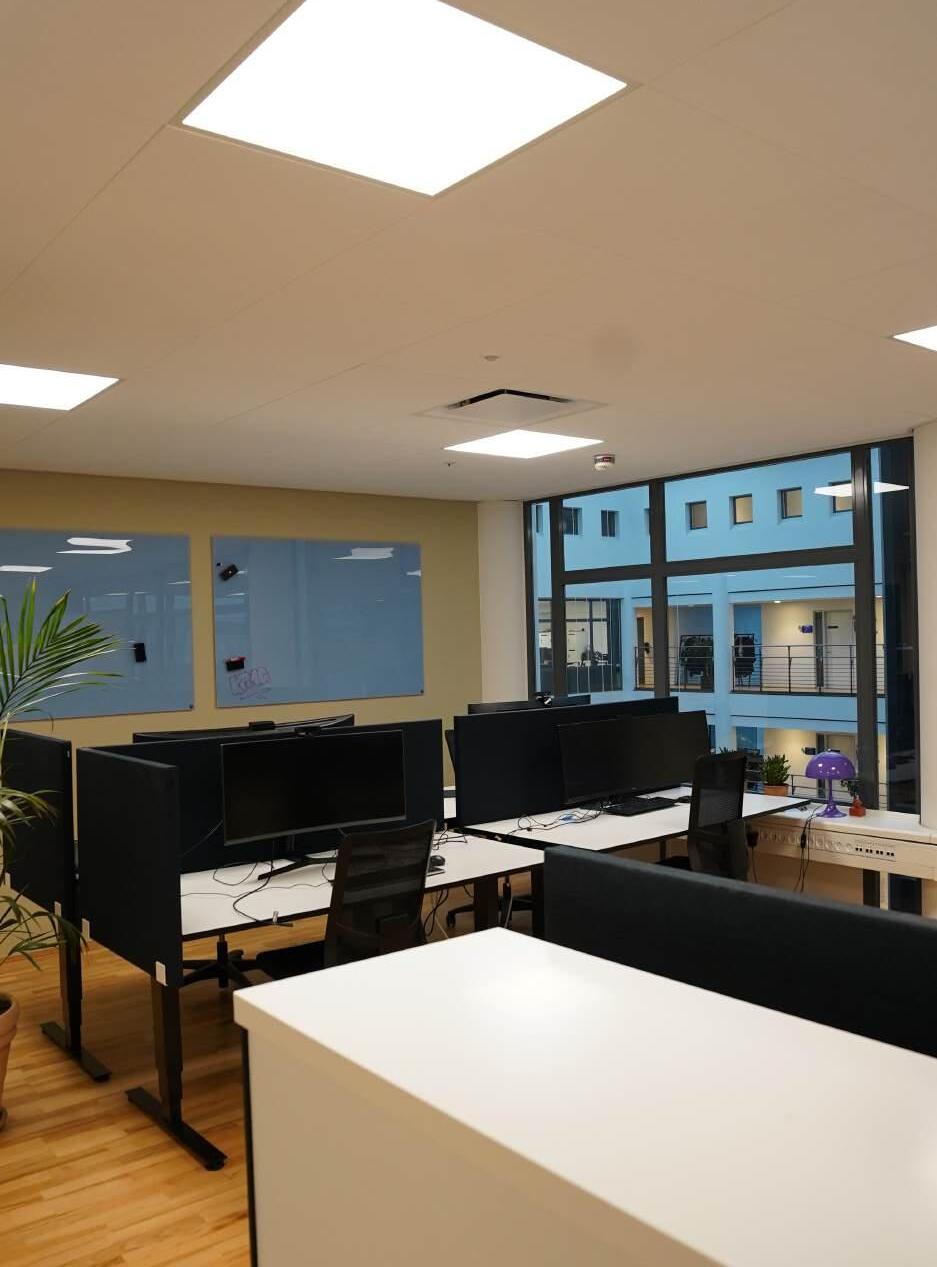

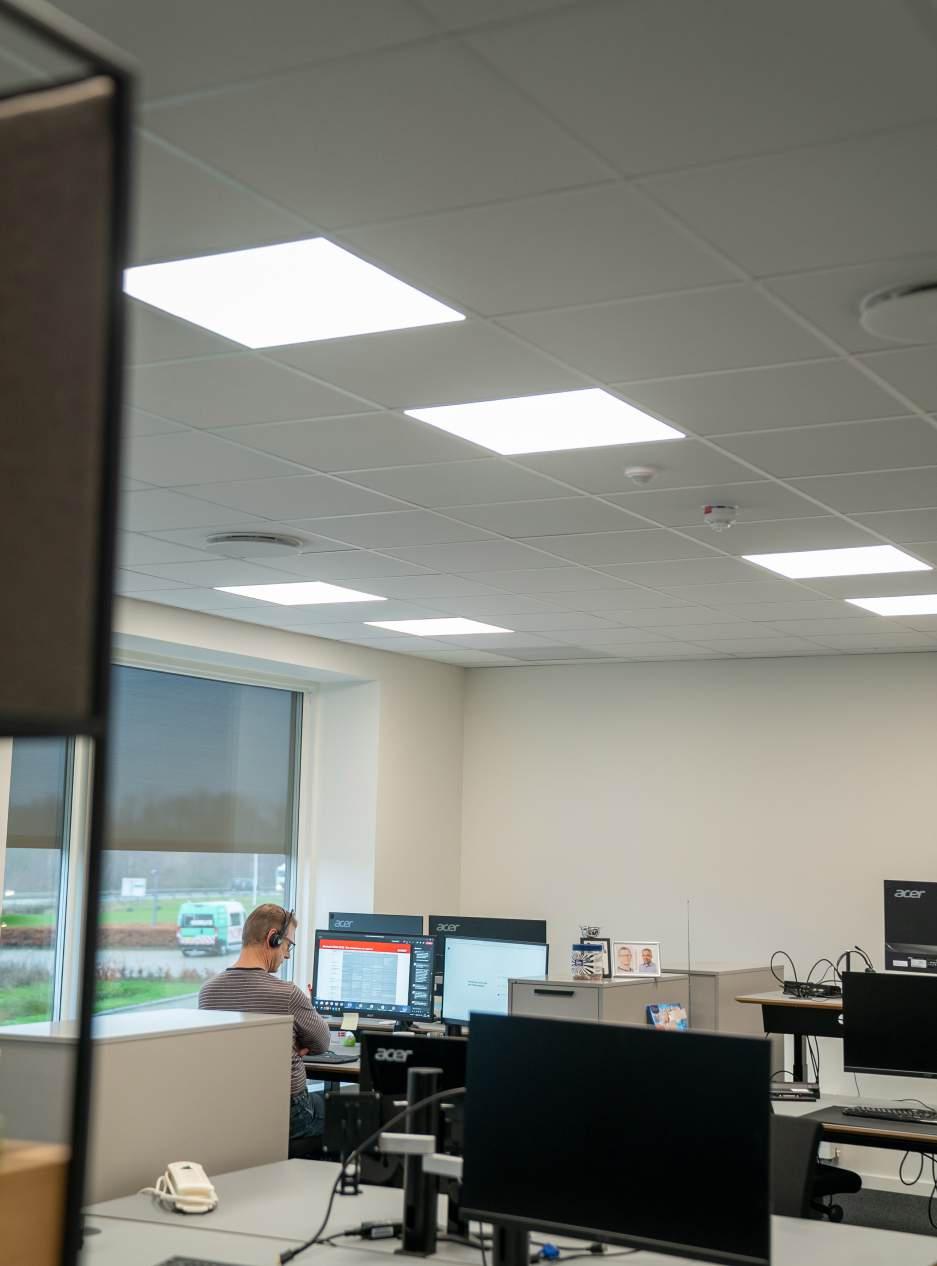

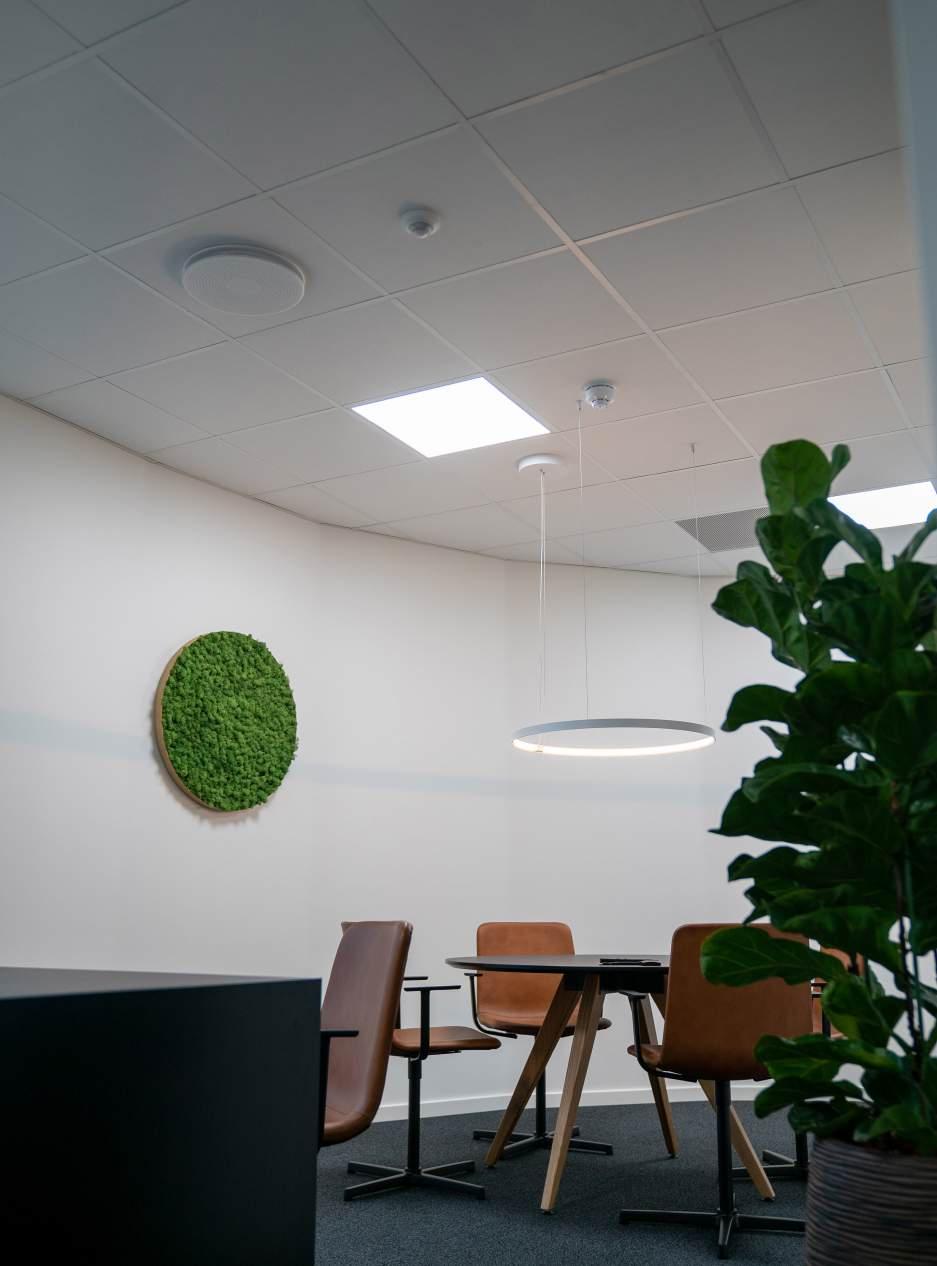

Panellights Lumega’s panel lights are designed for quality and longevity, not to c o m p e t e o n p r i c e . I n a m a r ke t f l o o ded with $15 options, we stand out by using the best LEDs and renowned drivers, ensuring exceptional p e r f o r m a n c e a n d d u r a b i l i t y. We f o cus on premium front glass and offer f e a t u r e s l i ke d a y l i g h t s e n s o r s a n d Casambi integration for advanced control. Our panel lights are built for long-term use, delivering outstanding

efficiency

and

ultra-low

energy consumption, making them a high-per formance choice for any p r o j e c t.

90

Pro du ct

91

I Ca tegor y C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

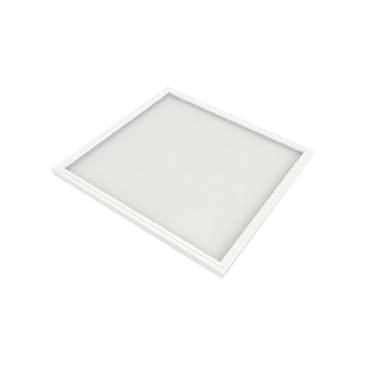

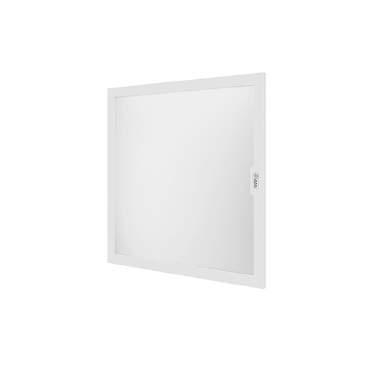

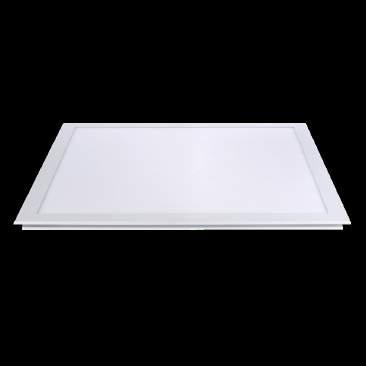

N S 6 0

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Rectangular design Size: L595 x W595 or W295 x L1195 x H10 mm Lumen: 2800lm, 4200lm or 5600lm lm/W: 140 lm/W (LEDs 220 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K (Opt TW or RGBWWA) CRI: CRI80 (Option CRI90) Watt: 20W, 30W or 40W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, Triac Dim, CLO

De s c r i p t i o n NS60 is simple in expression and can be installed in suspended ceilings with hidden or visible track systems. Other mounting options include sur face mounting, where a fra me is used for the purpose. The ar mature series comes with a wide range of options.

These include the traditional square design language, but the circular front shape is becoming more popular. Likewise, the NS60 of fers the rectangular shape. What they all have in common is extremely high energy ef ficiency. The luminaire series also comes with the option of opal and microprismatic front glass. W ith microprismatic front glass, glare is minimized and hits approximately UGR below 19. NS60 has many control system options with the latest technology RGB, RGBW, RGBWWA and Tunable white.

20

92

NS60

93

37 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 6 1

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Rectangular design Size: L595 x W595 x H10 mm (Option 599 x 599) Lumen: 2700lm, 4050lm or 5400lm lm/W: 135 lm/W (LEDs 200 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K (Opt Tunable white) CRI: CRI80 (Option CRI90) Watt: 20W, 30W or 40W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: Philips EasyAir incl Daylight and app comm. or smart lighting with Casambi, Helvar or Silvair

De s c r i p t i o n The NS61 brings the highest energy ef ficiency on the mar ket to the construction industry. W ith built-in daylight and motion sensors in each luminaire housing, the accurate detection can result in extremely high energy savings. The luminaire series runs Zigbee or Mesh and programming is simple via a professional app. The system also of fers the addition of wireless pressures. The NS61 can be powered by mains voltage alone, pa ving the way for very high energy savings in renovation projects in schools, of fices, etc. The energy saving potential can exceed 70% electricity savings, which can ensure a payback time of less than 2 years. The list of accessories for this luminaire series is long and the luminaire is available with Casambi, EasyAir, Helvar and Hytronic.

20

94

NS61

95

38 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 6 2

The best fit in the Wor ld for the following ceiling brands

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Rectangular design Size: L599 x W599 x H10 mm Lumen: 4200lm lm/W: 140 lm/W (LEDs 220 lm/W ) - Custom possible Kelvin: 3000K, 4000K (2 in 1 Kelvin Switch) Opt TW CRI: CRI90 Watt: 30W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI-2 DT6 or DT8 incl. Push Dim Option smart lighting Casambi or Helvar

De s c r i p t i o n The NS62 builds on the versatility and ef ficiency of the NS60 while of fering a groundbreaking dif ference: its frame is specifically designed to fit seamlessly into ceilings with invisible frames, such as Ecophon, Rockfon, and others. This innovation makes the NS62 the fastest-to-install luminaire on the mar ket for such ceilings, with a finish that per fectly matches existing ceiling plates. W ith the same high energy ef ficiency, opal or microprismatic front glass options (UGR below 19), and advanced control options like RGB, RGBW, RGBWWA, and Tunable White, the NS62 sets a new standard for of fice lighting at only a slightly higher price than traditional panel lights. Its precision and seamless integration make it the future of moder n of fice illumination in Europe.

40

96

NS62

97

39 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 6 3

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Rectangular design Size: L595 x W595 x H10 mm (Option 599 x 599) Lumen: 2700lm, 4050lm or 5400lm lm/W: 135 lm/W (LEDs 200 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K (Opt Tunable white) CRI: CRI80 (Option CRI90) Watt: 20W, 30W or 40W Lifetime: 65K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO

De s c r i p t i on NS63 is approved as a recessed luminaire for projects with extra hygiene requirements.

W ith a tightness class of IP65 and compliance certifications, the luminaire can be installed in everything from industrial kitchens, hospitals or other places where cleaning and hygiene requirements are high. Despite the high density, the NS63 comes with high energy ef ficiency. The luminaire is installed as a recessed luminaire in visible or invisible ceiling track systems. Option with tunable white increases staf f well-being.

65

98

NS63

99

40 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

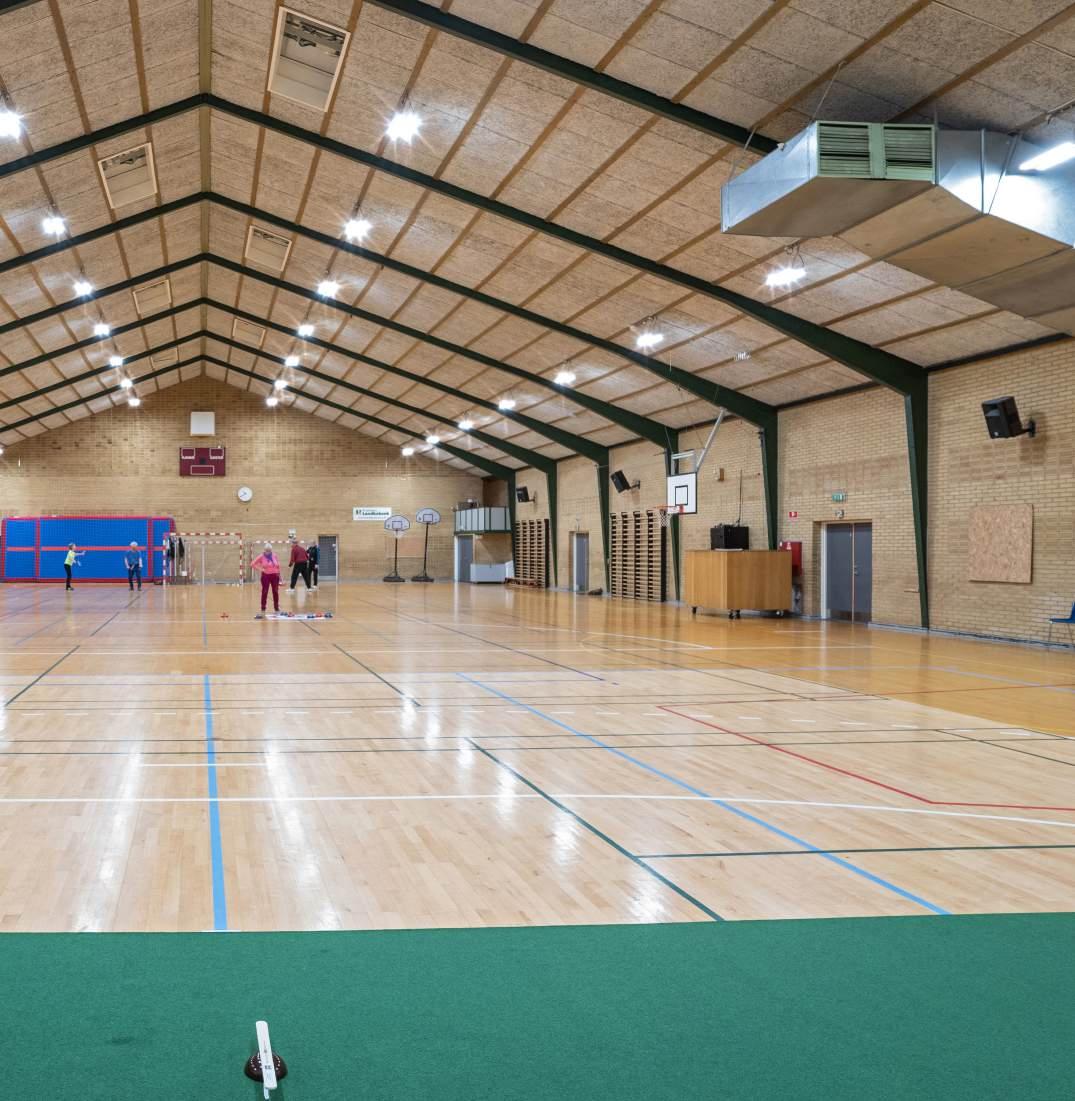

High power Lumega’s portfolio of high-power luminaires delivers exceptional performance with a focus on high lum e n o u t p u t a n d e n e r g y e f f i c i e n c y.

Our products combine outstanding energy savings with precise glare control, ensuring low UGR values even for the most demanding sports facility requirements. Designed for high-per formance Lumega’s

solutions

applications, offer

reliable,

efficient, and controlled lighting, making them ideal for complex environments where both power and precision are essential.

100

C ATA L O G U E 2 0 2 5

Pro du kt

101

I

Ka tegor i

C ATA L O G U E 2 0 2 5

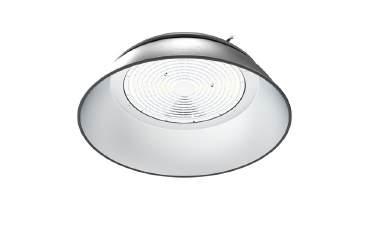

N S 6 4

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Round design Size: Ø552 / H208 mm Lumen: 12.000lm, 18.000lm, 21.000lm, 24.000lm lm/W: 120 lm/W (LEDs 220 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K (Opt Tunable white) CRI: CRI80 (Option CRI90) Watt: 100W, 150W or 200W Levetid: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO, S ensor

De s c r i p t i o n The NS64 is a groundbreaking luminaire designed for high-ceiling projects, of fering both uplight and downlight—an innovation rarely seen in high bay lighting. Develo ped alongside a renovation project in a historic industrial building, the NS64 meets all European lighting standards while delivering a striking industrial raw design. Available in all RAL colors, including a rustic finish, the NS64 combines aesthetic versatility with exceptional light quality. W ith DALI-2 and DT8 options for tunable white, it’s per fect for moder n of fice lighting installations. Please note, the NS64 is suitable for indoor use only.

20

102

NS64

103

41 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 6 5

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Linear design Size: L1094 or 577xW244.7 / 358.7xH58.6 mm Lumen: 6500lm, 13000lm, 19500lm or 26000lm lm/W: 130 lm/W (LEDs 220 lm/W ) - Custom possible Kelvin: 3000K, 4000K, 5000K (Opt Tunable white) CRI: CRI80 (Option CRI90) Watt: 50W, 100W, 150W or 200W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8, 1-10V, CLO, S ensor

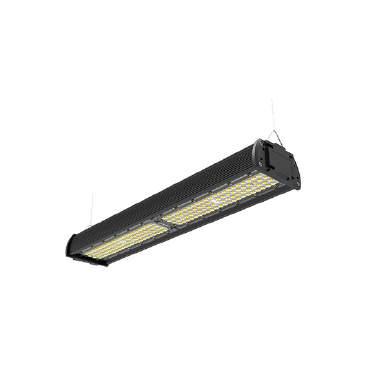

De s c r i p t i o n NS65 is a linear LED luminaire with a high lumen package. The luminaire can be both sur face mounted and suspended. W ith a PC optic and robust luminaire housing, the lu minaire can be used in harsh environments including ice rinks and padel courts. There are several dif ferent control options and this can ensure the possibility of dif ferent lux levels. S ensor solutions can be integrated into the luminaire housing for further energy savings. The front is equipped with ef ficient optical lenses that cast light down onto the floor area with minimal loss and glare. There are a number of accessories available for this luminaire series including ball grids, casambi sensors and other intelligent controls, so the luminaire can deliver exactly the right lux value.

65

104

NS65

105

42 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

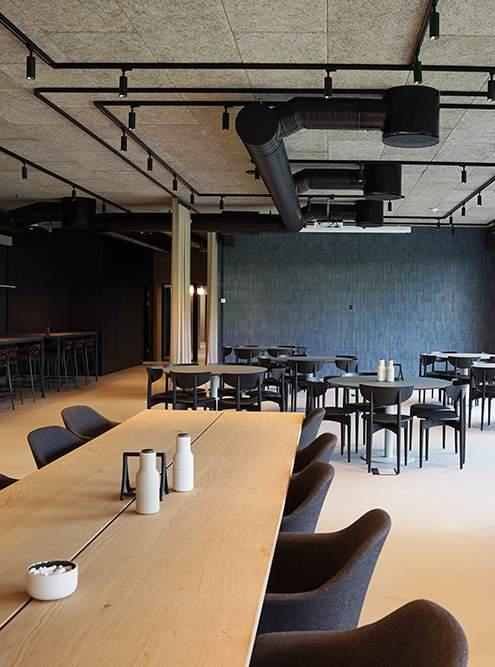

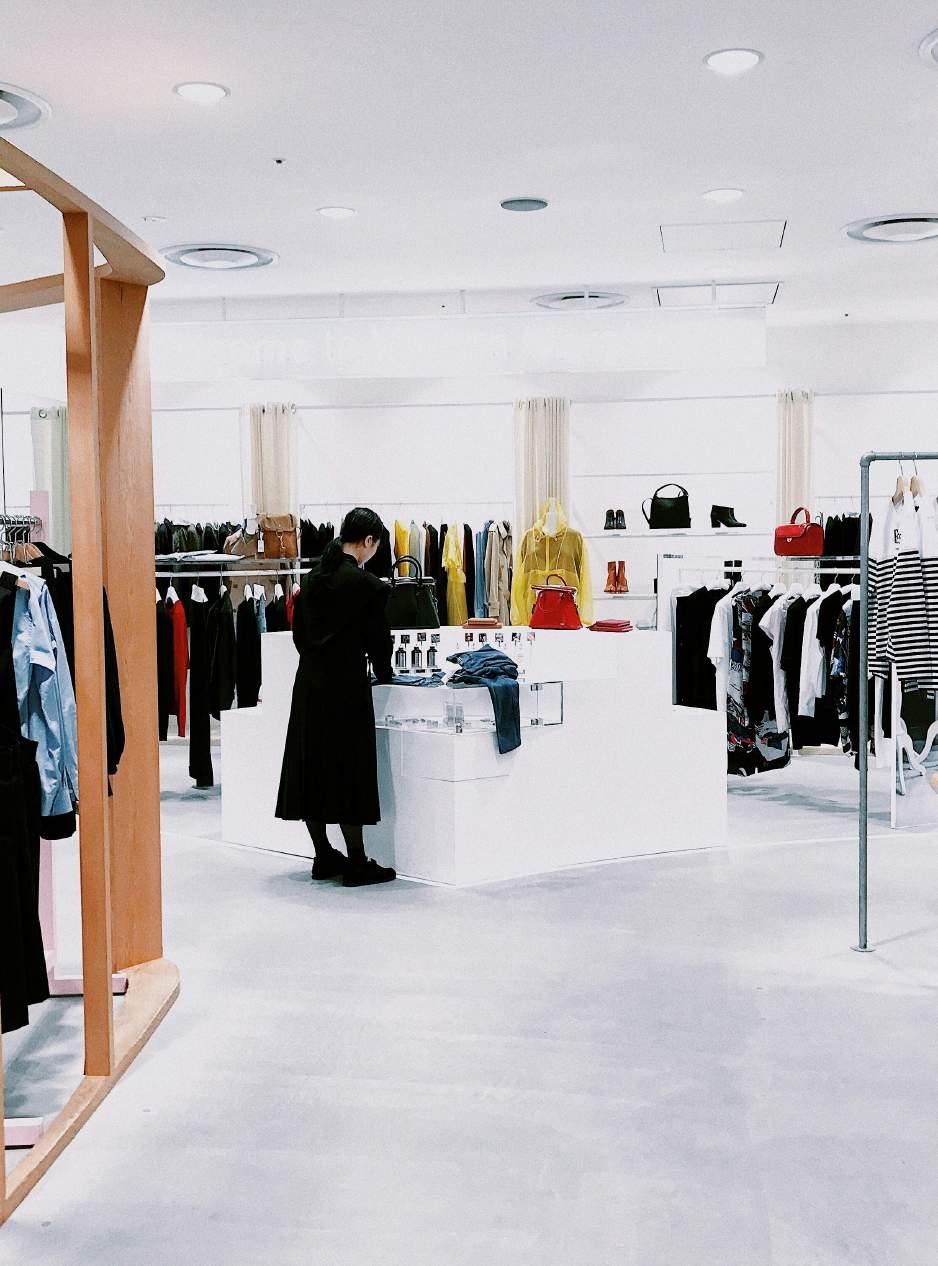

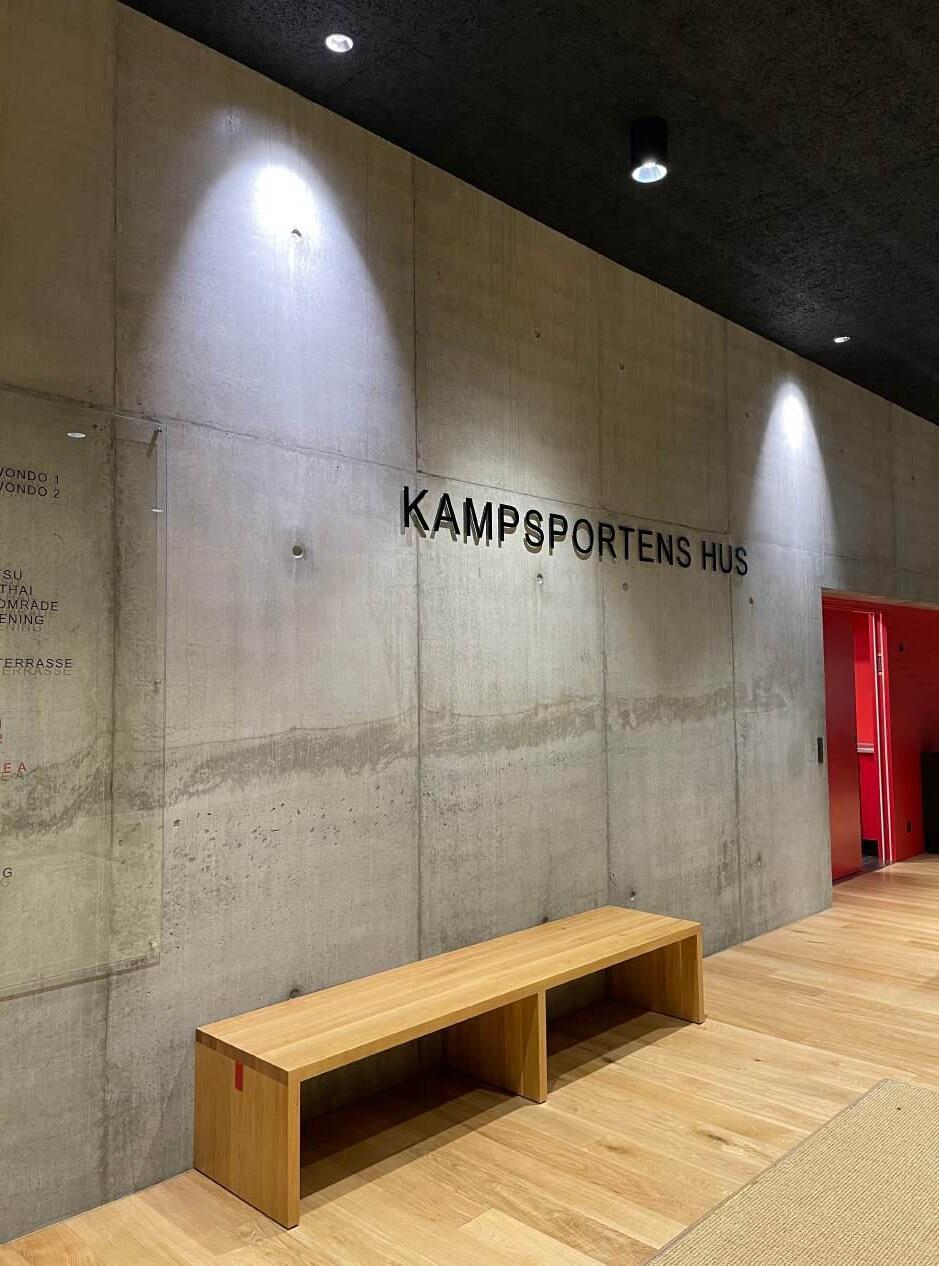

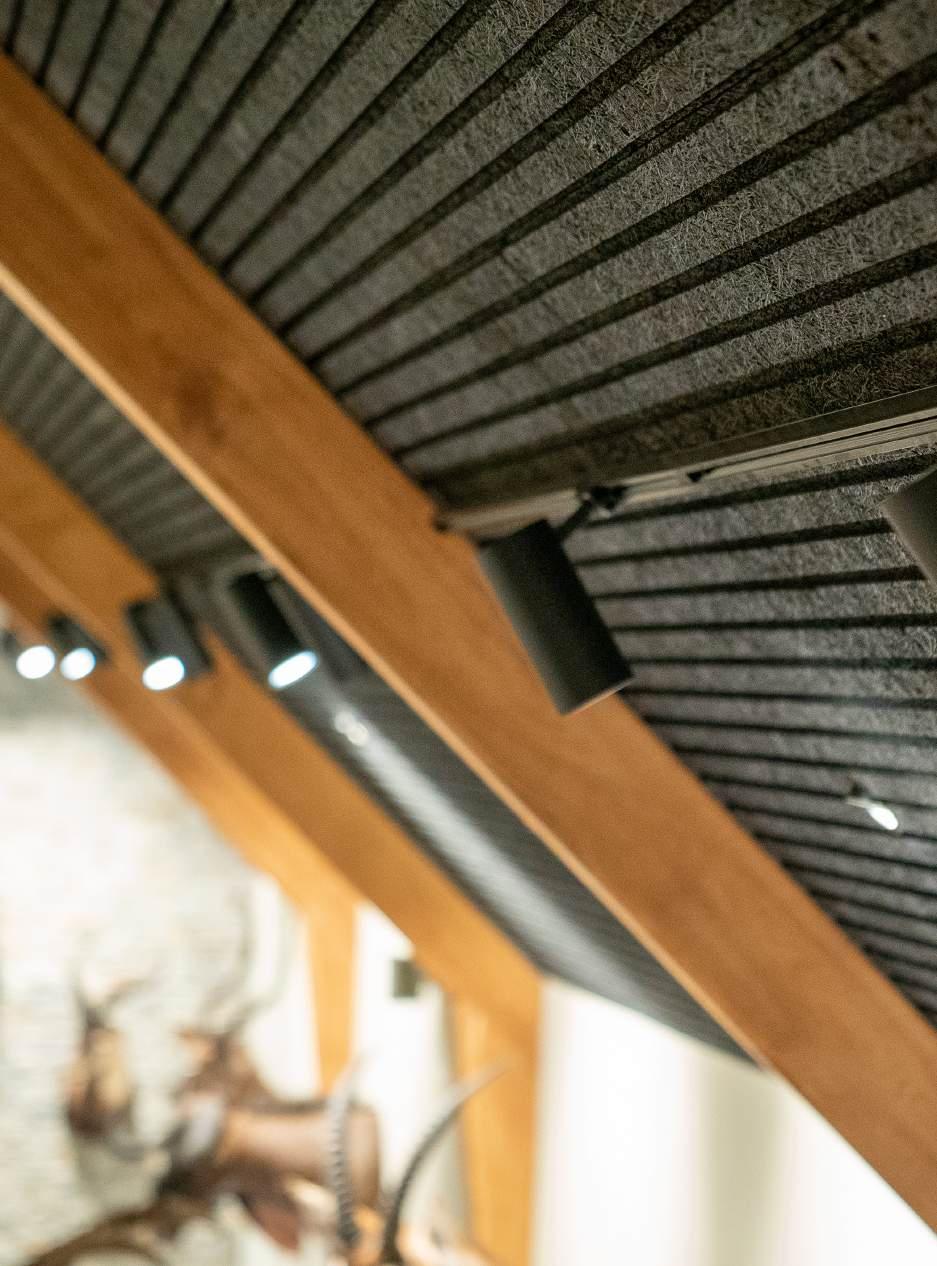

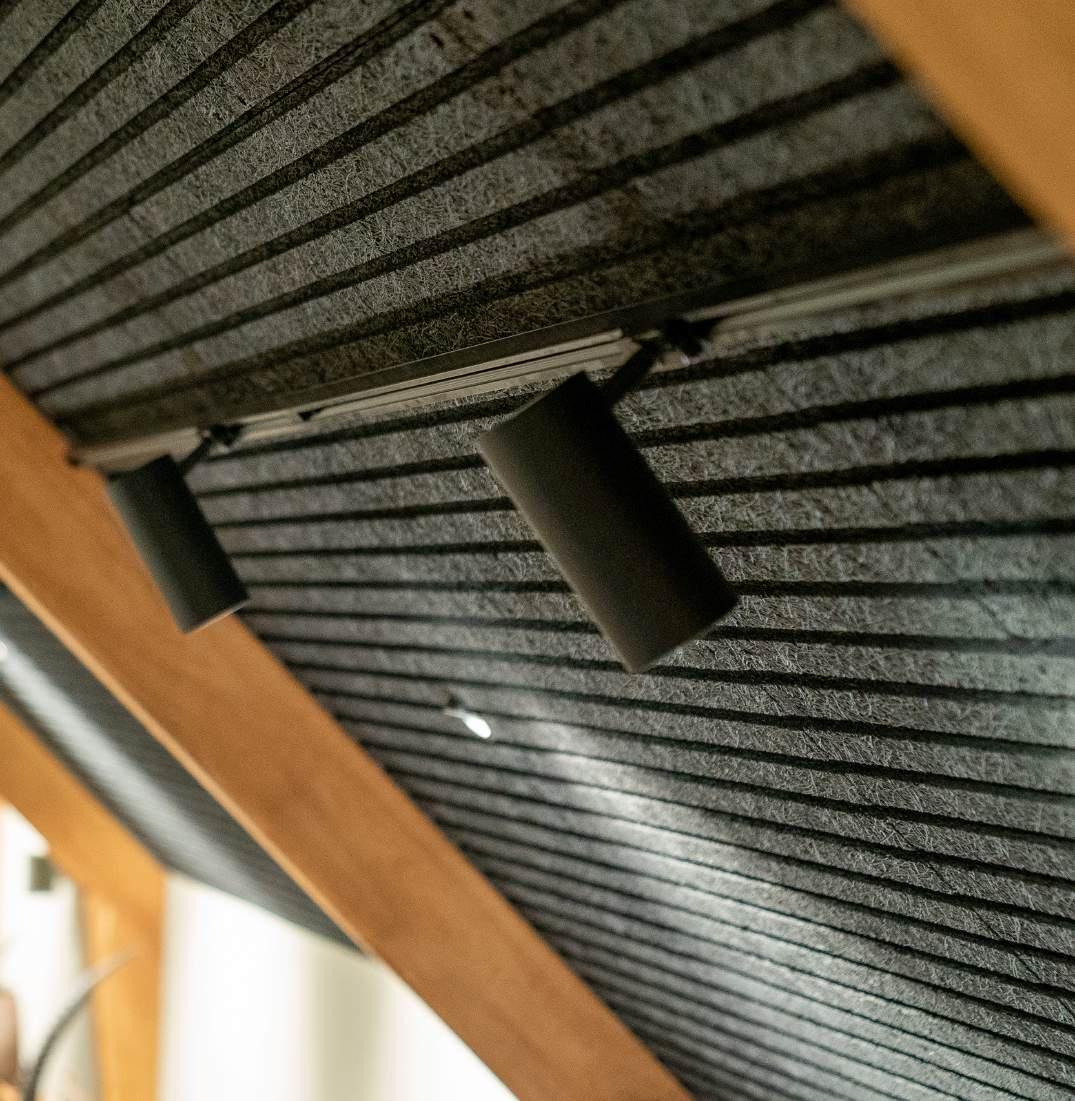

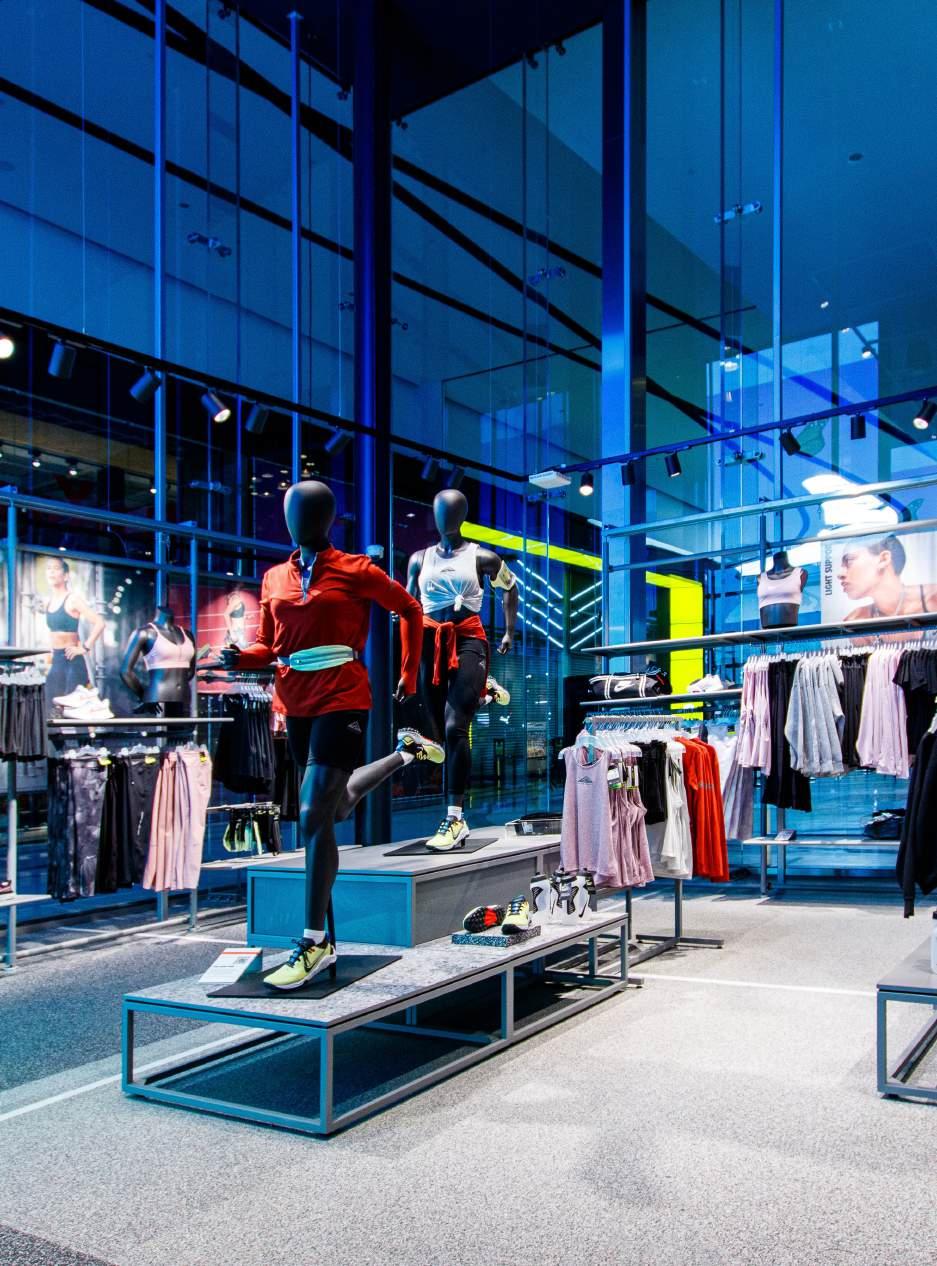

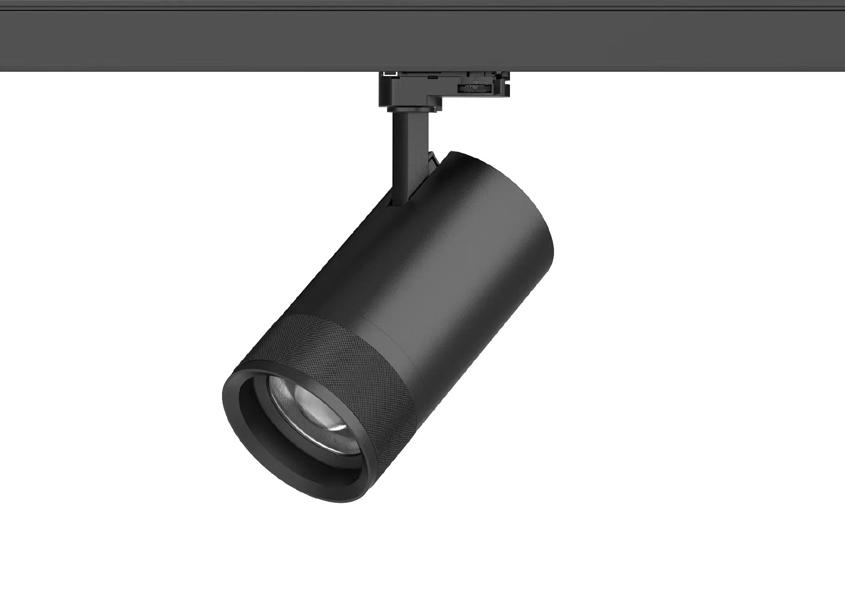

Tracklights Lumega’s track lights offer diverse designs tailored for retail, offices, restaurants, hotels, and museums.

We

provide

competitively

priced

solutions for global retail chains as well as premium track lights with a d j u s t a b l e b e a m s , R G B W W, a n d t u n a b l e w h i t e f u n c t i o n a l i t y. T h r o u g h our OEM partnership, we incorporate advanced sensors that adjust colors dynamically based on objects i n f r o n t o f t h e l i g h t. C o n n e c t e d t o an AI-driven app, this technology ensures exceptional lighting adaptability, making Lumega a leader in innovative track light solutions.

106

C ATA L O G U E 2 0 2 5

Pro du kt

107

I

Ka tegor i

C ATA L O G U E 2 0 2 5

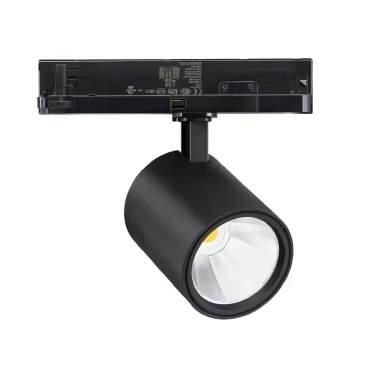

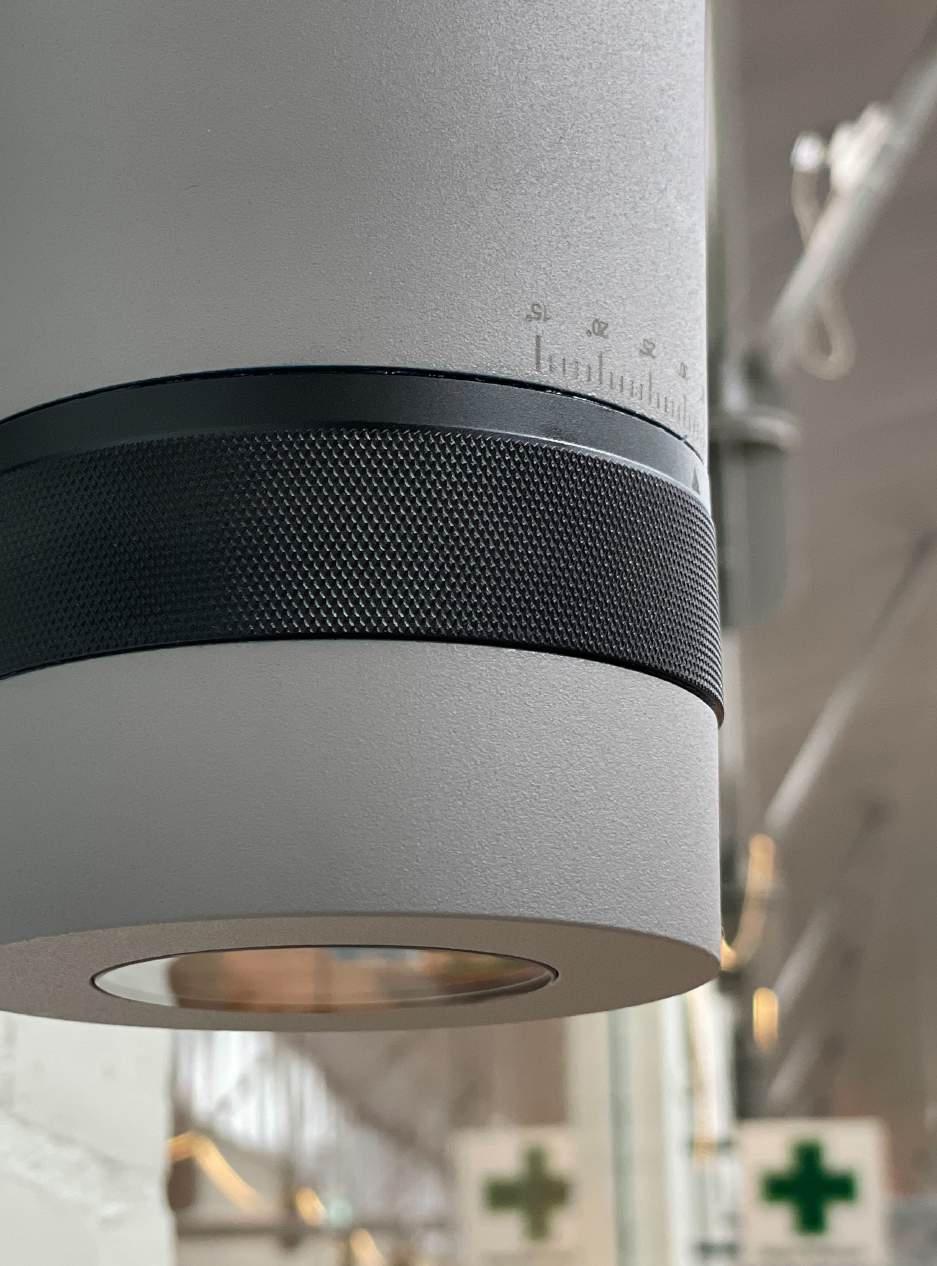

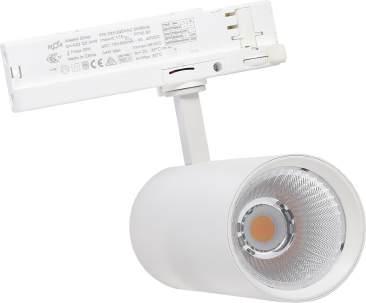

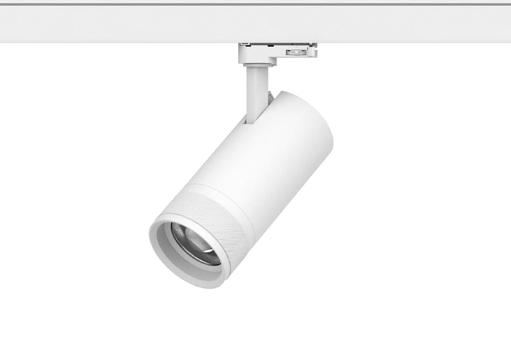

N S 7 2

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø62 or Ø90 mm x H 140mm or 108 mm Lumen: 1200lm, 1800lm, 2500lm, 3500lm lm/W: 100 lm/W (LEDs 160 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt Tunable white) CRI: CRI80 (Option CRI90) Watt: 10W, 18W, 25W or 35W Lifetime: 80K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8 Option: Smart lighting with Casambi

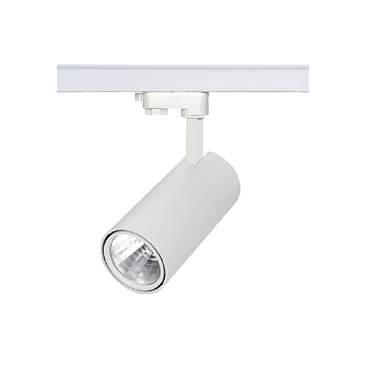

De s c r i p t i on NS72 is an all-round LED track spot that can be used in Global tracks or with a ceiling bracket, eliminating the need for a track in the ceiling. The luminaire housing is stylish and simple. The spot comes with a fantastic light quality and with the die-cast alu minum reflector, the light is directed exactly where you want it. NS72 is of ten used in of fices, meeting rooms, showrooms and shops. W ith the option of DALI, the light can be controlled individually. The luminaire housing comes standard in white or black powder coating, but is available in many other RAL colors and finishes, such as brass and copper finishes, on request.

20

108

NS72

109

43 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 7 3

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø62 or Ø90 mm x H 140mm or 108 mm Lumen: 1200lm, 1800lm, 2500lm, 3500lm lm/W: 100 lm/W (LEDs 160 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt Tunable white) CRI: CRI80 (Option CRI90) Watt: 10W, 18W, 25W or 35W Lifetime: 80K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6 or DT8 Option: Smart lighting with Casambi

De s c r i p t i o n The NS73 is a small compact track spot with one of the highest energy ef ficiency on the mar ket. It comes with a 3-phase Global adapter. The interesting thing about the spotlight is the finish options. Not only can the luminaire housing be supplied with various RAL codes in powder coating. Treatments such as brass, copper, chrome or other finishes can be of fered. The luminaire series has a built-in driver in the adapter and is available with both DALI and Casambi.

20

110

NS73

111

44 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 7 5

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: S ee website for sizes Lumen: 510lm to 1.530lm (see website for variations) lm/W: 85 lm/W (LEDs 185 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt Tunable white) CRI: CRI90 (Option CRI95) Watt: 6W to 16W (see website for variations) Lifetime: 75K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-2 DT6, Casambi

De s c r i p t i o n The NS75 series combines spotlights and linear luminaires, with or without lenses, installed seamlessly into a sleek black magnetic track powered by 48V DC. This system is featured in our most exclusive projects, from luxurious homes to restaurants, hotels, and of fices. W ith UGR values as low as 10 in some configurations, it of fers virtually glare-free lighting, making it ideal for premium settings. The system includes a wide range of options and accessories, and we provide comprehensive project planning to meet specific needs. Its elegant design and precision lighting make it a standout choice for high-end applications.

20

112

NS75

113

45 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 7 6

Te chn i c a l

da t a

Housing: Aluminum For m: Cylinder design Size: Ø62, Ø72, Ø80 or Ø90 mm x L 170, 185 or 190mm

C olor s

Lumen: 950lm, 1900lm, 2850lm, 3800lm lm/W: 95 lm/W (LEDs 160 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K CRI: CRI90 Watt: 10W, 20W, 30W or 40W Lifetime: 75K hours at Ta = 25°C (L80) B50 Driver: Non dimmable option DALI-2 DT6

De s c r i p t i o n The NS76 is an ideal track light for large-scale retail projects where cost-ef fective ness is a priority. Designed with a highly competitive price point, it is suitable for most 3-phase tracks and built for long operational life. The luminaire features a sleek and practical design, ensuring reliable per for mance and good light quality for extensive use. Available in standard white or black powder coating, the NS76 of fers a robust, af fordable solution for retail lighting without compromising durability or functionality.

20

114

NS76

115

46 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 7 7

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø62 or Ø90 mm x H 140mm or 108 mm Lumen: 1200lm, 1800lm, 2500lm, 3500lm lm/W: 100 lm/W (LEDs 160 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt Tunable white) CRI: CRI80 (Option CRI90) Watt: 10W, 18W, 25W or 35W Lifetime: 80K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI-V2 DT6

De s c r i p t i o n The NS77 is designed for optimal flexibility. The front of the luminaire can be adjusted so that the beam angle is between 15 to 60 degrees. This flexibility gives lighting designers an exciting range of lighting options. The luminaire is used in Global tracks or with a ceiling bracket, eliminating the need for a track in the ceiling. The spot comes with a great light quality and with the adjustable light distribution, the spot is suitable for galleries, museums, showrooms and shops. Control options for NS77 are DALI, W ireless as smart lighting. The luminaire housing comes in white or black powder coating as standard, but can be supplied in many other RAL colors and finishes, such as brass and copper finishes, on request.

20

116

NS77

117

47 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 7 8

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø62 or Ø90 mm x H 140mm or 108 mm Lumen: 1200lm, 1800lm, 2500lm, 3500lm lm/W: 100 lm/W (LEDs 160 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K (Opt Tunable white) CRI: CRI80 (Option CRI90) Watt: 10W, 18W, 25W or 35W Lifetime: 80K hours at Ta = 25°C (L80) B50 Driver: DALI, DALI V2 DT8

De s c r i p t i o n The NS78 comes with the latest LED technology for the highest energy ef ficiency on the mar ket. The luminaire series is extremely flexible and can be mounted directly in 3-phase Global track or other track brands on request. Dip switches are included in the luminaire housing, which paves the way for changing the lumen package in the same luminaire. This and the possibility of options on optical front, opal front glass or die-cast aluminum reflector with UGR 16 ensures flexibility in any project. NS78 can be combined with track spotlights, so the luminaire series provides general lighting where track spotlights highlight areas in the room. T ypical applications are super mar kets, shops, cor ridors and of fice buildings. Pre-wiring such as DALI is an option.

20

118

NS78

119

48 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

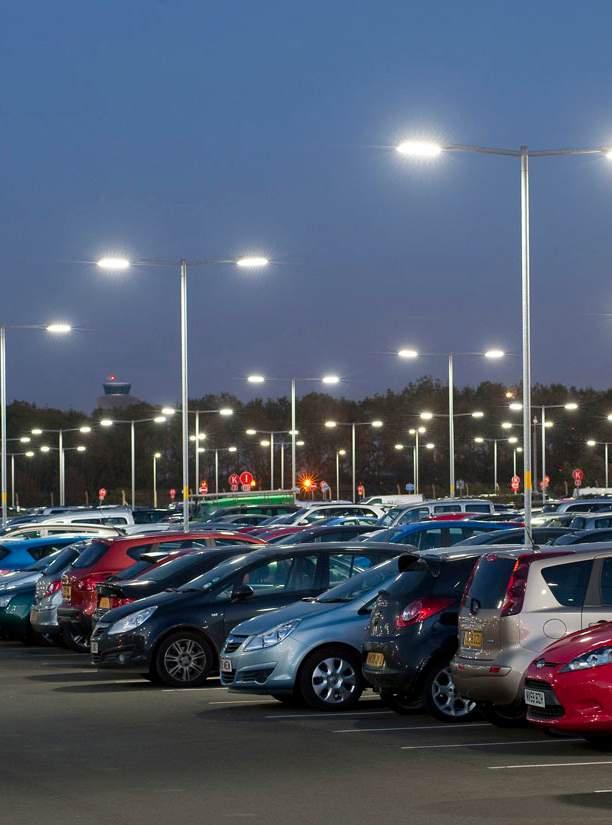

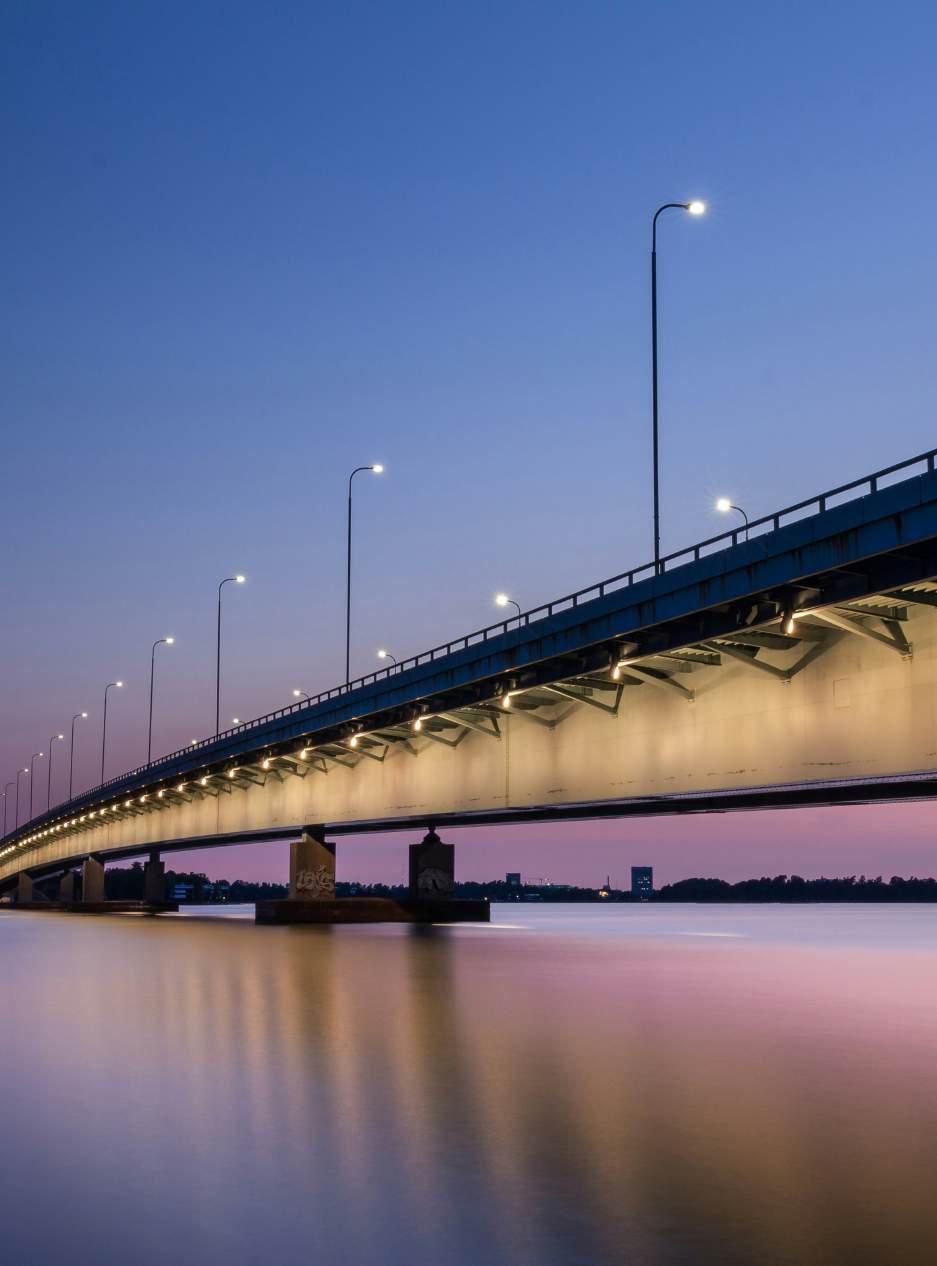

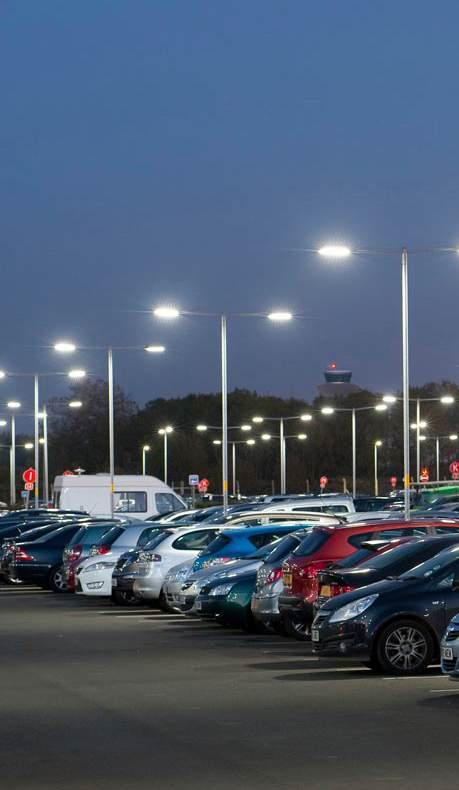

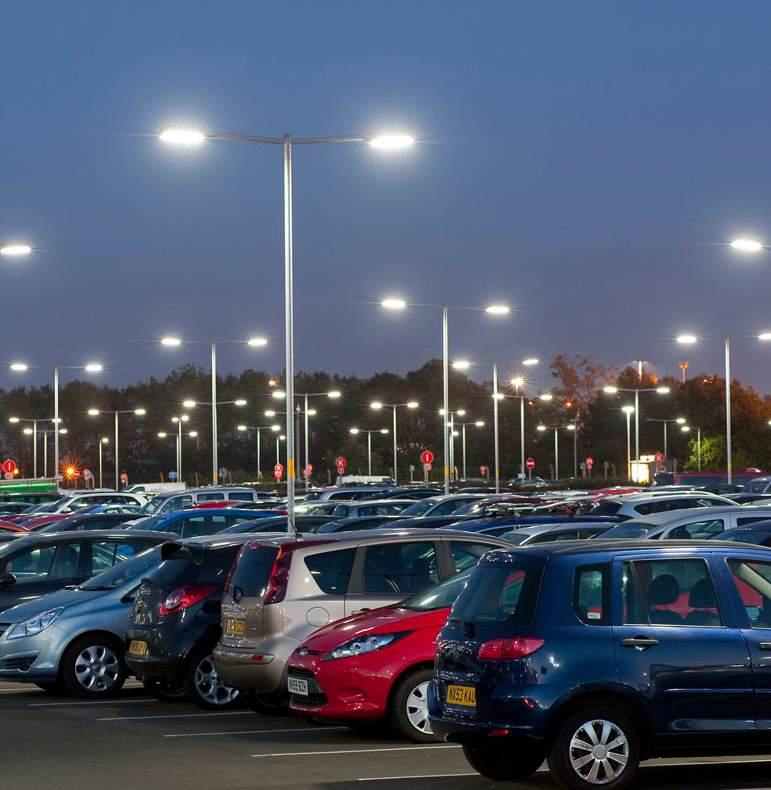

Streetlights Lumega’s street light luminaires focus on delivering high per formance while meeting all road regulations.

Our solutions are also designed for smart city applications, integrating advanced features to enhance urban lighting systems. Lumega is part of the same group as Luxega, the world’s only company offering 100% tailored LED inserts designed and manufactured using their AI model.

For more details, visit luxega.eu

120

C ATA L O G U E 2 0 2 5

Pro du ct

121

I

Ca tegor y

C ATA L O G U E 2 0 2 5

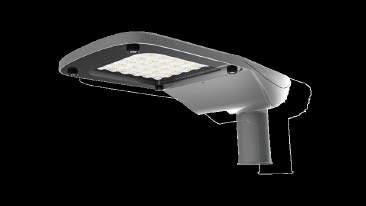

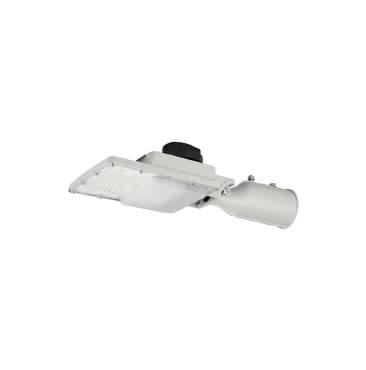

N S 8 0

Te chn i c a l

da t a

Housing: Aluminium

C olor s

For m: Rectangular design Size: L483.2xW230xH126.5mm (various sizes) Lumen: 3900, 6500, 13000, 19500, 26000lm ± 5 % lm/W: 130 lm/W (LEDs 220 lm/W ) Kelvin: 2700K, 3000K, 4000K, 5000K CRI: CRI80 (Option CRI90) Watt: 30W, 50W, 100W, 150W or 200W Lifetime: 122K hours at Ta = 25°C (L80) B50 Driver: DALI, IoT, Camera or Motion sensor

De s c r i p t i o n The NS80 is a reliable street lighting luminaire with the best components from leading manufacturers. The energy ef ficiency is very high and the optical lens solution mini mizes glare. NS80 is ideal for use in the norther n countries of Europe, as the luminaire series can meet the requirements for e.g. wet roads. The luminaire series comes in many dif ferent lumen packages and optical solutions. NS80 is typically used in par king lots associated with residential projects, smaller streets and paths, and road lighting projects. NS80 is developed in close OEM partnership and comes with a range of ac cessories including sensors, twilight relay and IoT solutions.

65

122

NS80

123

49 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 8 1

Te chn i c a l

da t a

Housing: Aluminum

C olor s

For m: Rectangular design Size: Various sizes see on our website Lumen: 4800lm, 6400lm, 12800lm, 19200lm ± 5 % lm/W: 160 lm/W (LEDs 245 lm/W ) Kelvin: 2700K, 3000K, 4000K CRI: CRI80 (Option CRI90) Watt: 30W, 40W, 80W, 120W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI-2, IoT, Camera or Motion sensor

De s c r i p t i o n The NS81 is a compact street lighting luminaire designed for low-budget projects without compromising on long-ter m quality. Ideal for par king lots, residential areas, smaller streets, and roads (excluding highways), it of fers an af fordable yet reliable solu tion. Built with components from Philips and Lumileds, it ensures exceptional stability and per for mance despite its extremely low price. The NS81 features lenses that comply with the most common European street lighting regulations and comes with options for Nightdim and sensors, making it a versatile and energy-ef ficient choice. Available through OEM agreements, it’s per fect for cost-ef fective yet durable lighting projects.

66

124

NS81

125

50 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

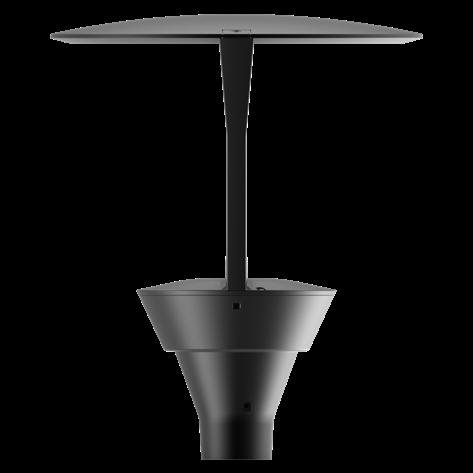

N S 8 3

Te chn i c a l

da t a

Housing: Aluminum

C olor s

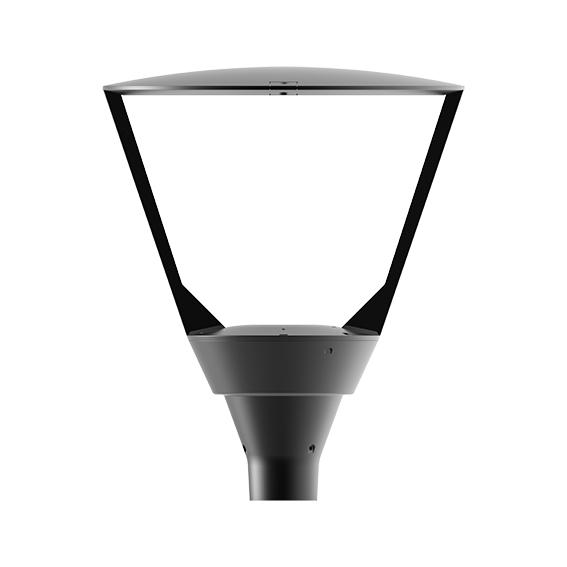

For m: Round design Size: Ø500 x H557 mm Lumen: 2.900lm or 5.800lm lm/W: 145 lm/W (LEDs 220 lm/W ) Kelvin: 2700K, 3000K, 4000K, 5000K CRI: CRI80 (Option CRI90) Watt: 20W or 40W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, IoT or Motion sensor

De s c r i p t i o n NS83 comes in an elegantly simple design language that fits into most outdoor environments. The luminaire housing has a circular top plate where LED boards are placed with optical lenses. The light is cast directly into a controlled light distribution and ensures minimal light pollution. The ballast is located at the bottom of the luminaire housing and is available with DALI and automatic nightdim, which dims the light for a period of time. Nightdim can ensure even higher energy savings in an existing lighting system and a highly energy-ef ficient lighting installation in residential areas and par king lots, where NS83 is most of ten installed. The design of the luminaire housing was created in close OEM collaboration.

65

126

NS83

127

51 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

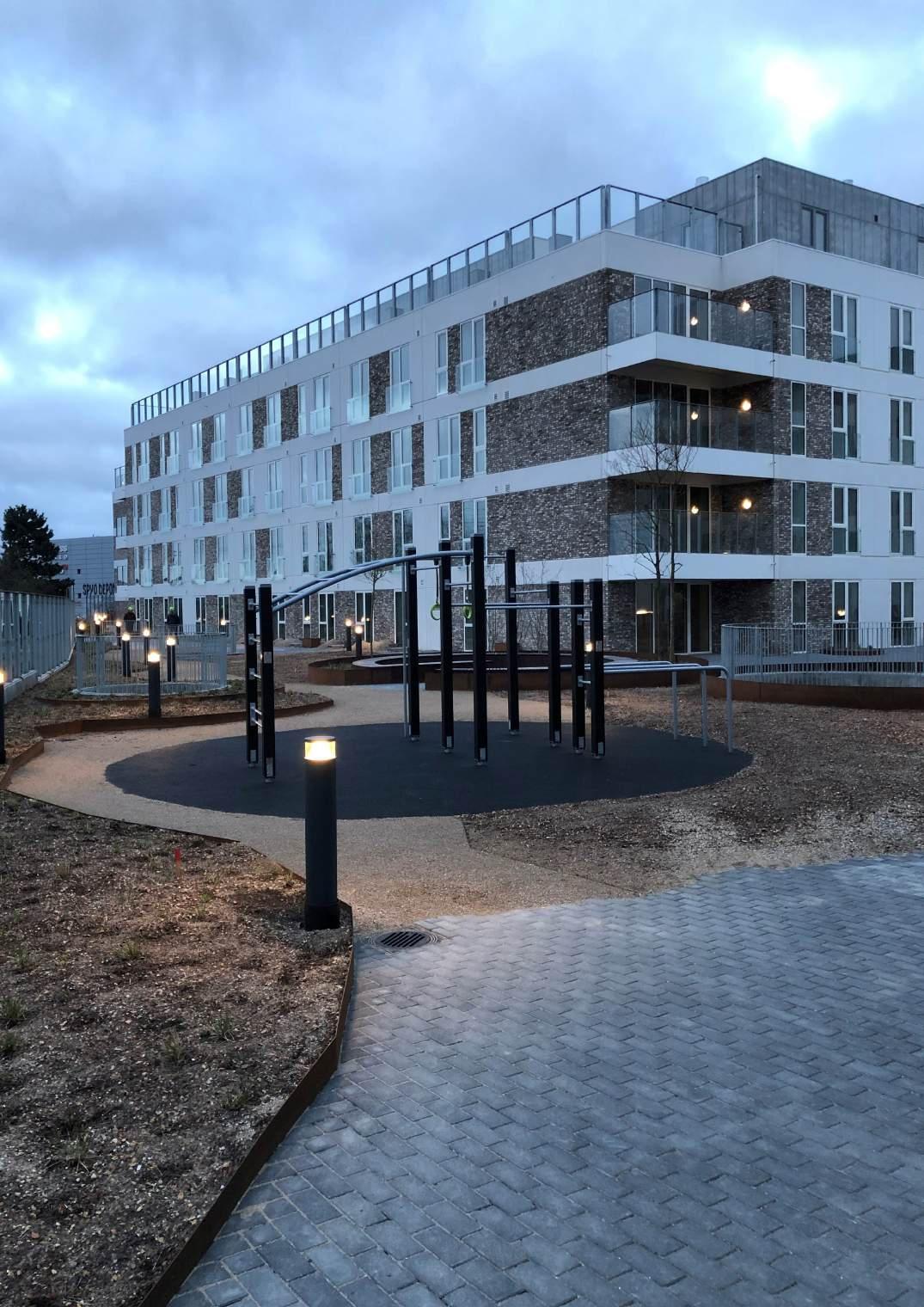

N S 8 5

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

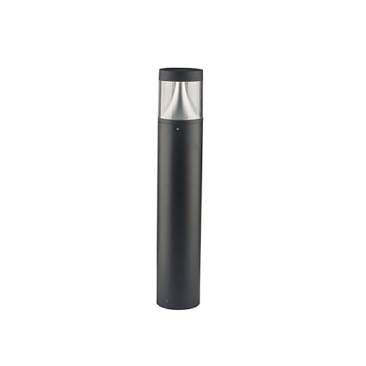

For m: Cylinder design Size: Ø150 x H800 mm (custom heights possible) Lumen: 1.060lm or 1.590lm lm/W: 106 lm/W (LEDs 160 lm/W ) Kelvin: 2700K, 3000K, 4000K, 5000K CRI: CRI80 (Option CRI90) Watt: 10W or 15W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, 0-10V or S ensor solution

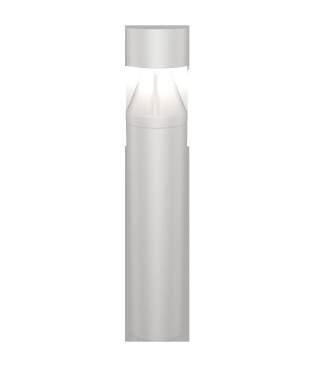

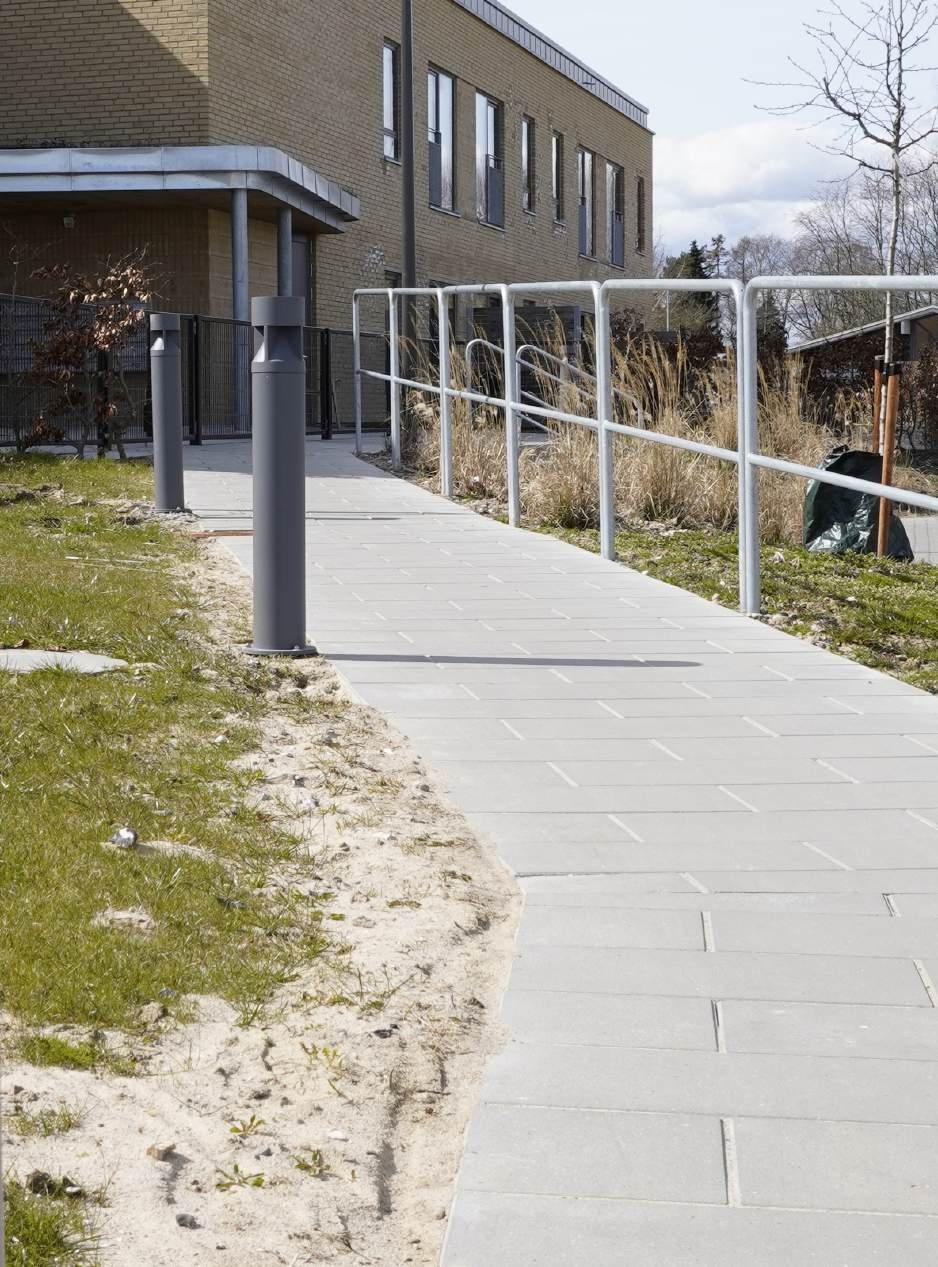

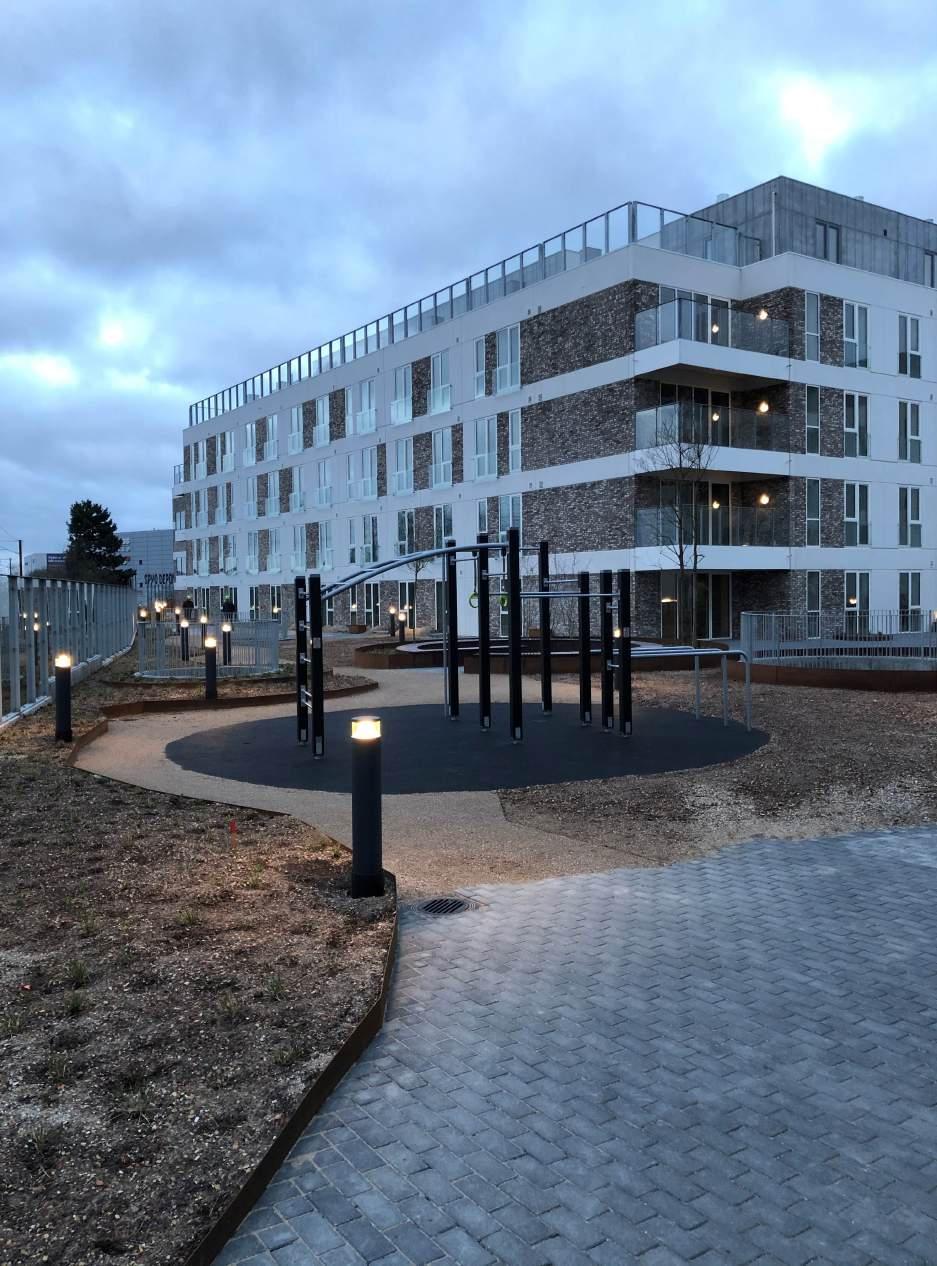

De s c r i p t i on The NS85 bollard luminaire is mainly developed for residential buildings where courtyards and smaller pathways need to be illuminated. The luminaire of fers many advan tages. The LED light source is mounted in the top of the luminaire housing and casts the light down via the built-in reflector. The Pullert luminaire comes in a minimalist ex pression that is timeless and in balance with many other outdoor fixtures. The luminaire is more robust than most bollard luminaires on the mar ket. The luminaire can be insta lled in most high-risk vandalism areas. Replacement of the LED light source is possible, so the entire luminaire does not need to be replaced in the future. The NS85 is in the mid-range from an economic perspective, but the quality is comparable to high-end bollards. The standard finish is powder coating, but special treatments such as corten and galvanized are both options.

65

128

NS85

129

52 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 8 6

Te chn i c a l

d a t a

Ar matur hus: Aluminium

C olor s

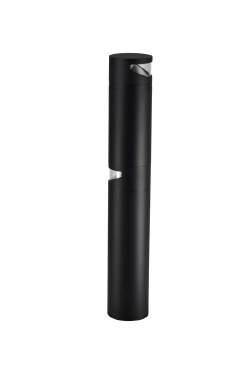

For m: Cylinder design Stør relse: Ø150 x H800 mm (custom heights possible) Lumen: 1.060lm or 1.590lm lm/W: 106 lm/W (LEDs 160 lm/W ) Kelvin: 2700K, 3000K, 4000K, 5000K CRI: CRI80 (Option CRI90) Watt: 10W or 15W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, 0-10V or S ensor solution

De s c r i p t i on The NS86 bollard luminaire is mainly developed for residential buildings where courtyards and smaller pathways need to be illuminated. The luminaire of fers many advan tages. The LED light source is mounted in the top of the luminaire housing and casts the light down via a tor nado reflector. The reflector creates a drop-like light design that fits into most projects. The NS86 comes in two dif ferent designs, with a round or flat head. Both designs have the same lighting properties, it is purely a matter of design.

The luminaire is extremely robust with IK10 vandal class. Replacement of the LED light source is possible, so the entire luminaire does not need to be replaced in the future.

The NS86 is at the low end of the price scale, but the quality is definitely not on par with the price. The standard finish is powder coating, but special treatments such as corten and galvanized are both options.

65

130

NS86

131

53 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 8 7

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø150 x H800 mm (custom heights possible) Lumen: 1.060lm or 1.590lm lm/W: 106 lm/W (LEDs 160 lm/W ) Kelvin: 2700K, 3000K, 4000K, 5000K CRI: CRI80 (Option CRI90) Watt: 10W or 15W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, 0-10V or S ensor solution

De s c r i p t i on NS87 is the ideal lighting solution for pathways in residential areas and par ks. W ith the latest LED technology and the vertical light distribution that enables over lapping of light, it is a very energy-ef ficient bollard. The optical lens helps to reduce the number of bollards needed to meet European standards, reducing installation costs. The NS87 has built-in dimming options and can be integrated with a motion sensor to automa tically adjust brightness in response to movement. It is easy to install, comes with a connection box and can be mounted on a stable sur face or with our ground anchor solutions. The NS87 is available in virtually all RAL colors and this version is of fered in many dif ferent finishes and in C2 material for port areas.

65

132

C ATA L O G U E 2 0 2 5

NS87

54

P H O T O O N I T S W AY

133

C ATA L O G U E 2 0 2 5

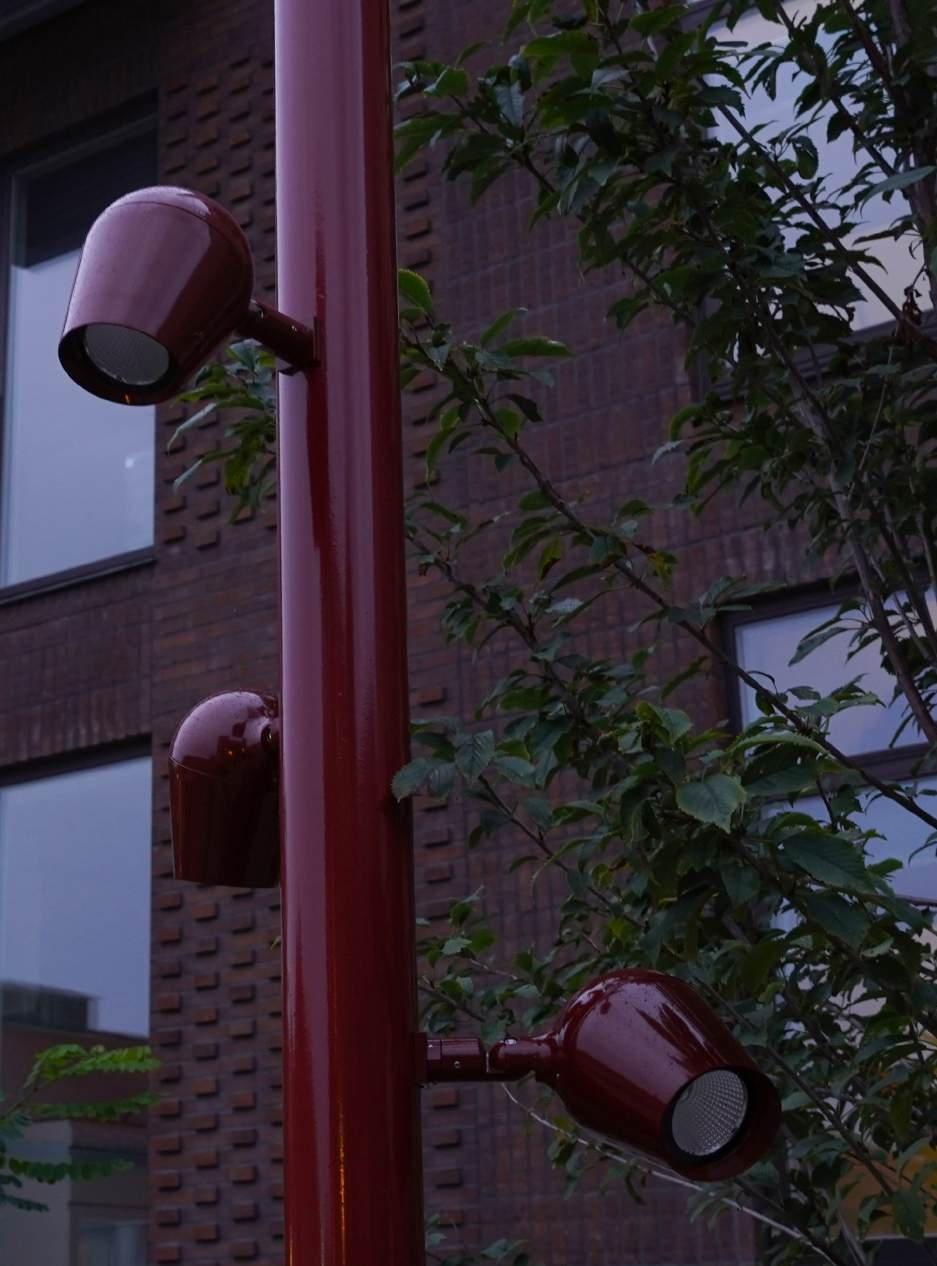

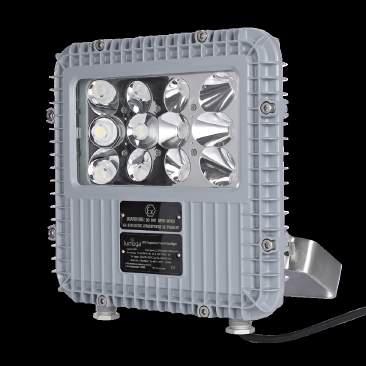

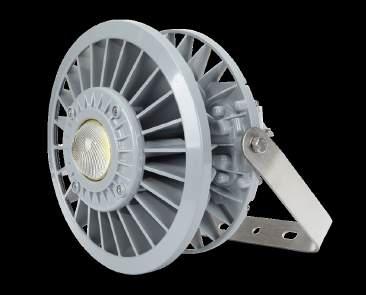

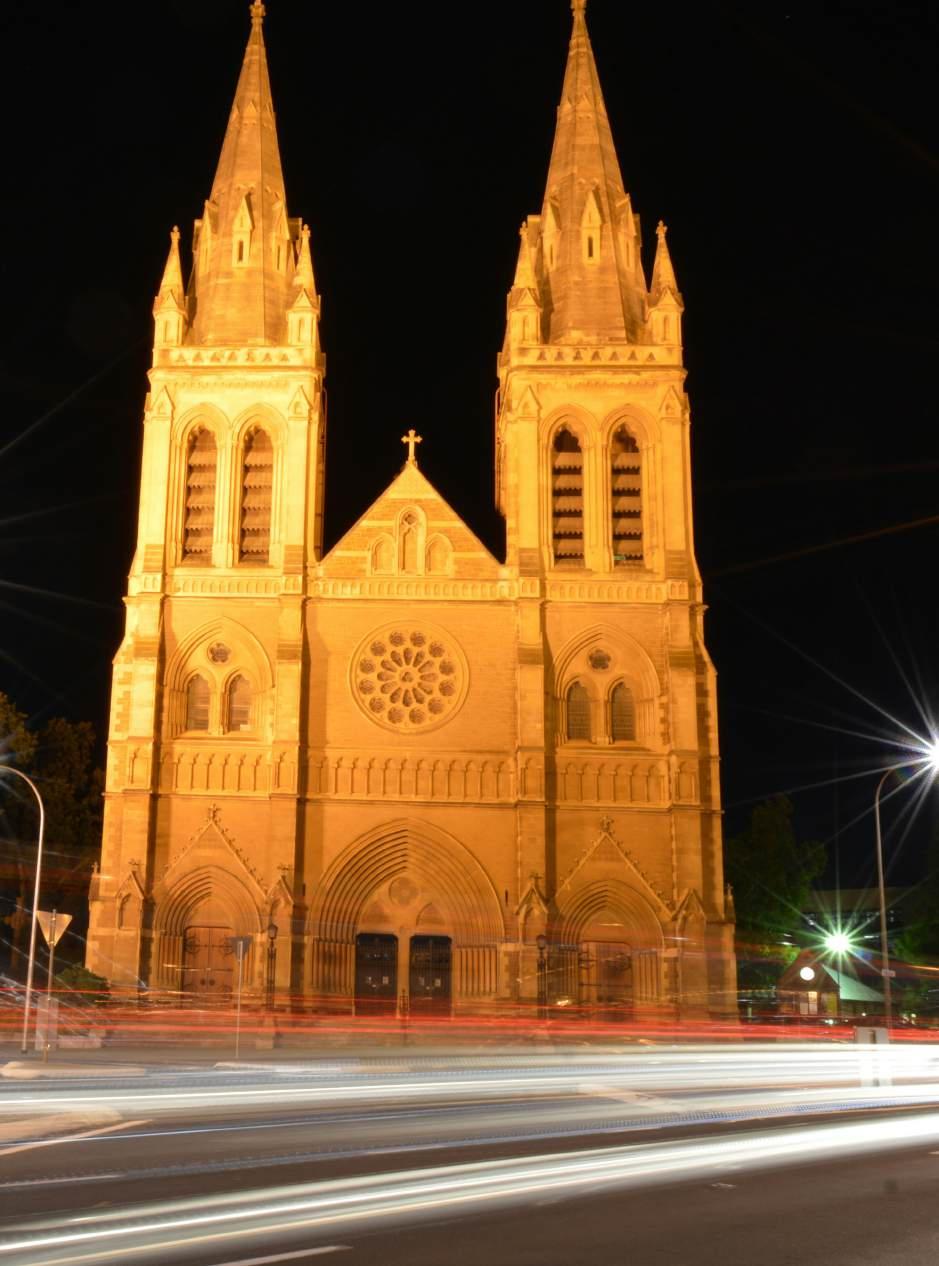

Outdoor lights Our outdoor lighting portfolio includes floodlights, stadium lighting, in-ground

lights,

mast-mounted

spotlights, and explosion-proof luminaires. Designed for durability, all products feature 316-grade screws and treatments to prevent rust, ensuring reliability in harsh environm e n t s . We u s e s p e c i a l i z e d p a i n t s , typically regulated under C2 or C3 standards, to maintain color quality even in tough conditions. Whether for large-scale sports arenas or industrial applications, our outdoor luminaires

deliver

robust

per for-

mance and exceptional longevity, meeting the demands of diverse outdoor lighting projects.

134

C ATA L O G U E 2 0 2 5

Pro du ct

135

I

Ca tegor y

C ATA L O G U E 2 0 2 5

N S 9 0

Te chn i c a l

d a t a

housing: Aluminum

C olor s

For m: S quare design Size: 389*296 / 436*345 / 492*387*56 mm Lumen: 15.000lm, 22.500lm, 30.000lm or 45.000lm lm/W: 130 lm/W (LEDs 220 lm/W ) Kelvin: 3000K, 4000K, 5000K CRI: CRI70 or CRI80 Watt: 100W, 150W, 200W or 300W Levetid: 172K hours at Ta = 25°C (L70) B50 Driver: DALI, 0-10V, S ensor options

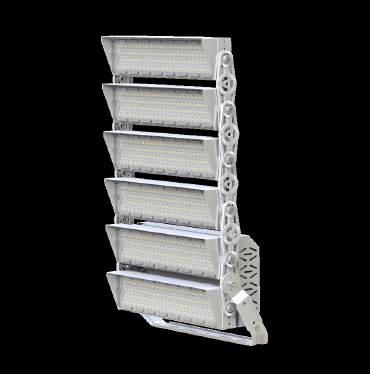

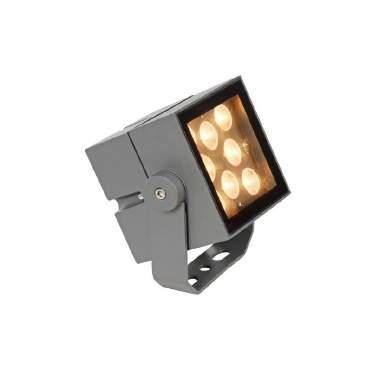

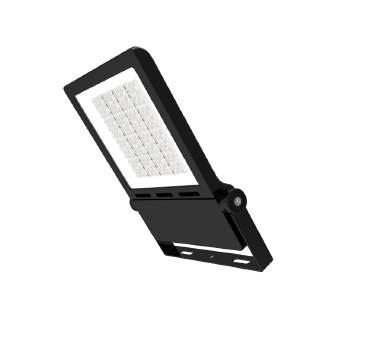

De s c r i p t i on NS90 is a power ful LED floodlight luminaire series. The luminaire housing is made of solid die-cast aluminum with polyester coating to withstand harsh environments. The luminaire series comes with the latest LED technology that ensures one of the highest energy ef ficiencies on the mar ket. W ith the ef ficient optical lenses, the light is directed exactly where it is needed. S afety is top notch on the NS90. Only the best components are used. This means it is of ten used in industry, larger panels, lighting in front of truck gates or in har bor areas with a high salt content. The NS90 also comes with an integrated supply line, which is delivered to measure.

65

136

NS90

137

55 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 9 1

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø150 x H800 mm (custom heights possible) Lumen: 1.060lm or 1.590lm lm/W: 106 lm/W (LEDs 160 lm/W ) Kelvin: 2700K, 3000K, 4000K, 5000K CRI: CRI80 (Option CRI90) Watt: 10W or 15W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI, 0-10V or S ensor solution

De s c r i p t i on NS91 is a series of high-per for mance LED floodlights designed specifically for stadium lighting and large spaces. The luminaire series comes with optical solutions that ensure minimal glare and light pollution. In addition, all luminaires in the series are equipped with the latest LED technology for the highest energy ef ficiency. NS91 delivers UEFA-approved lighting, which includes flicker-free light, moder n optical properties for the cor rect distribution of light and intelligent control options with App or wireless wall switches. Combined in dif ferent lumen packages, the most complicated areas can benefit from the NS91, which will contribute to an approved lighting installation according to the latest European standards. Add-ons such as treatment and painting for areas such as har bors and of f-shore are options for this series.

65

138

NS91

139

56 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 9 2

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: S quare design Size: H340 x W326 mm ( Thickness 88 mm) Lumen: 3.500lm, 5.600lm, 8.400lm or 11.200lm lm/W: 140 lm/W (LEDs 220 lm/W ) Kelvin: 4000K, 5000K or 6000K CRI: CRI70 or CRI80 Watt: 25W, 40W, 60W or 80W Lifetime: 50K hours at Ta = 35°C (L90) B10 Driver: Non dimmable or DALI-2

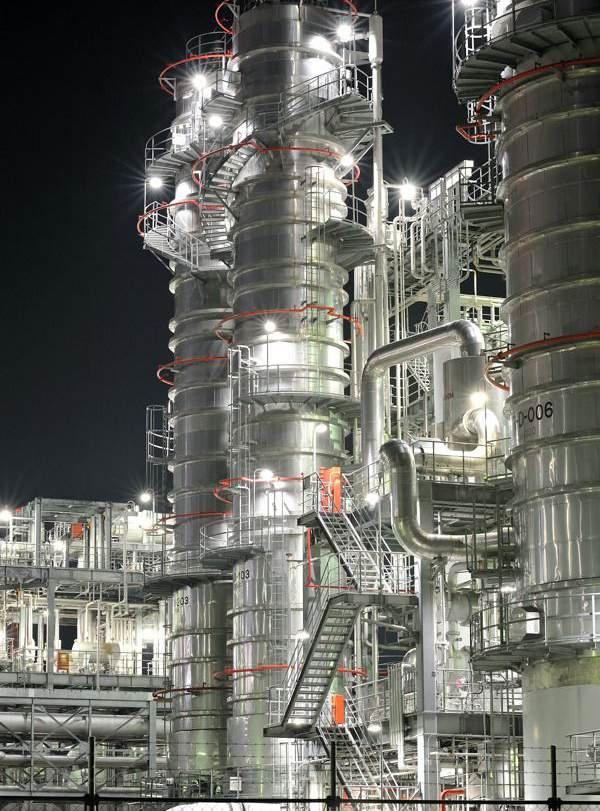

De s c r i p t i on The NS92 is a robust floodlight specifically designed for of f-shore environments, explosion-risk areas, oil platfor ms, and industrial sites. Developed in close collaboration with one of our trusted OEM partners, the NS92 meets all necessary certifications for various Ex-rated zones. Its specially designed lens ensures excellent light unifor mity, of ten re ducing the quantity of luminaires required for a project. Additionally, the NS92 boasts exceptional energy ef ficiency, making it a cost-ef fective and sustainable solution.

Supplied with a power cord for seamless installation, it of fers reliable and high-per formance lighting for the most demanding applications.

65

140

NS92

141

57 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 9 3

Te ch n i c a l

d a t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø230 or Ø300 mm x H245 or 295 mm Lumen: 5.600lm to 33.600lm lm/W: 140 lm/W (LEDs 220 lm/W ) Kelvin: 4000K, 5000K or 6000K CRI: CRI70 or CRI80 Watt: 40, 50, 60, 80, 100, 120, 150, 200 or 240W Lifetime: 50K hours at Ta = 35°C (L90) B10 Driver: Non dimmable or DALI-2

De s c r i p t i o n The NS93 is a robust lighting solution designed for rough environments with explosion risks and of f-shore applications. Engineered for continuous exposure to sea water, it is ideal for demanding of f-shore conditions. The NS93 is equipped with a wide range of Ex certifications, ensuring compliance for installation in almost any hazardous area.

It of fers versatile installation options, including wall-mounted, ceiling-mounted, and pendant configurations. Of fered through our trusted OEM partner, this durable luminaire combines reliability, versatility, and exceptional per for mance for tough environ ments.

65

142

NS93

143

58 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 9 4

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: S quare design Size: S ee website for sizes Lumen: 360lm, 810lm, 1440lm or 7920lm lm/W: 90 lm/W (LEDs 150 lm/W ) Kelvin: 2200K, 2700K, 3000K, 4000K, 5000K ( TW ) CRI: CRI80 (Option CRI90) Watt: 4W, 9W, 16W or 88W Lifetime: 100K hours at Ta = 25°C (L80) B50 Driver: DALI-2 or 0-10V

De s c r i p t i o n NS94 is a unique compact LED luminaire for facade lighting. It comes with many dif ferent optical solutions and is available in many dif ferent Kelvin values. W ith the unique 2200K( Y ), the NS94 can illuminate church facades like the old traditional yellowish lighting. The NS94 is suitable for the demanding facade lighting tasks and delivers every time. W ith a lighting design, the design can be simulated before the luminaire is used in the project.

65

144

NS94

145

59 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 9 5

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø116 mm Lumen: 810lm or 1215lm lm/W: 106 lm/W (LEDs 160 lm/W ) Kelvin: 2700K, 3000K, 4000K, 5000K CRI: CRI80 (Option CRI90) Watt: 10W or 15W Lifetime: 70K hours at Ta = 25°C (L80) B50 Driver: DALI, 0-10V or Triac/Leading edge

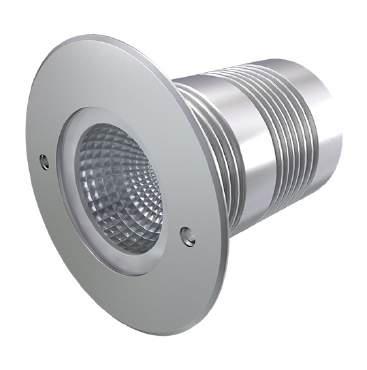

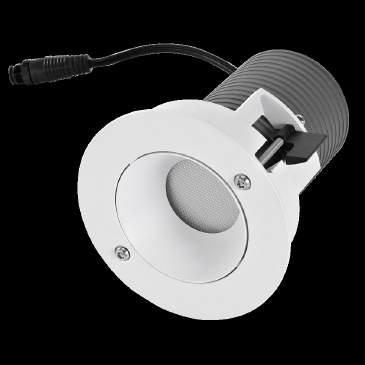

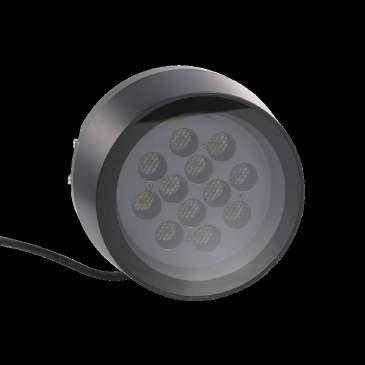

De s c r i p t i o n The NS95 is a circular recessed spotlight that can be recessed into everything from ground to solid floors. The luminaire comes with a stainless steel ring that is fitted with a reinforced tempered glass for up to 1000KG load. To keep the luminaire tight, the luminaire comes with an attached supply line in an agreed length. The luminaire is mounted directly to 12V or 24V DC voltage and the ground box is placed according to instructions. NS95 has options such as RGB, colored lighting and several shades of white.

65

146

NS95

147

60 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 9 8

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø95 x H199 / Ø95 x H199 / Ø140 x H254 mm Lumen: 900lm, 1800lm, 2700lm, 3600lm lm/W: 90 lm/W (LEDs 150 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K, 5000K (Option RGBW ) CRI: CRI80 (Option CRI90) Watt: 10W, 20W, 30W, 40W Lifetime: 80K hours at Ta = 25°C (L80) B50 Driver: Option DALI or 0-10V

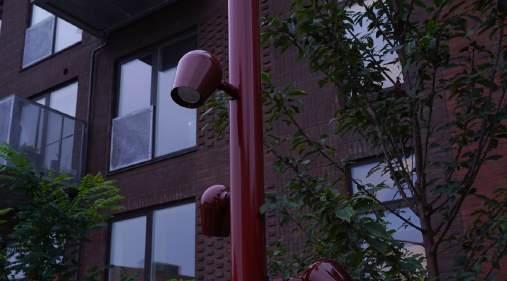

De s c r i p t i on NS98 is an energy-ef ficient LED spotlight with many mounting options. The spot is of ten seen in projects with masts, where it is mounted in a Ø30mm hole in the mast. The driver is inter nal in the luminaire housing, which comes in a heavy-duty aluminum construction. The design is kept minimalistic which ensures the luminaire fits into most exterior environments. The luminaire can be mounted as a pole mount, ground spike, wall mount or with hanger brackets. Due to the many mounting options, the range of applications for this luminaire series is wide. The luminaire has a built-in driver and connects directly to mains voltage. It comes with a fixed supply line, which is specified before ordering. There are also options such as colored RGB light or several dif ferent shades of white.

65

148

NS98

149

61 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

N S 9 9

Te chn i c a l

d a t a

Housing: Aluminum

C olor s

For m: Cylinder design Size: Ø60 x H100 / Ø80 x H125 / Ø100 x H160mm Lumen: 360lm, 600lm, 1080lm or 2700lm lm/W: 60 lm/W (LEDs 135 lm/W ) - Custom possible Kelvin: 2700K, 3000K, 4000K, 5000K CRI: CRI80 (Option CRI90) Watt: 6W, 10W, 18W, 40W Lifetime: 80K hours at Ta = 25°C (L80) B50 Driver: DALI or 0-10V

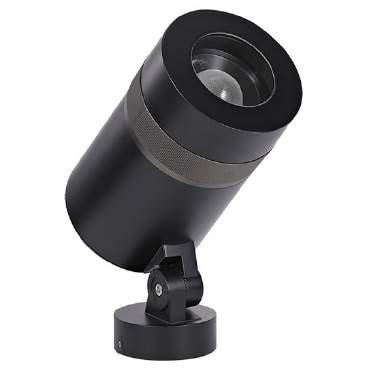

De s c r i p t i on NS99 is a high-quality spotlight that delivers new possibilities in outdoor environments.

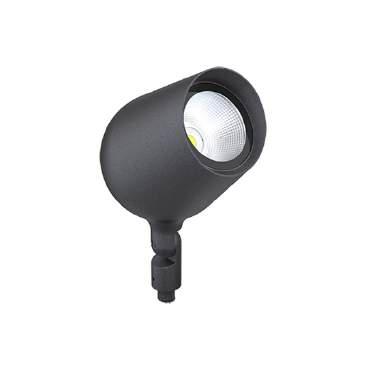

The front of the luminaire housing is equipped with an adjustable mechanical optical lens. The feature ensures on-site light regulation can take place. The precise beam angle can be changed between 15 to 60 degrees. The spotlight can be mounted with several types of brackets. For example, there are brackets for masts, ground spikes, tree clamps, sur face mounts and many more brackets. The NS99 has already been embraced by several professional lighting designers who see new opportunities in out door lighting scenes. The luminaire has a built-in driver and connects directly to mains voltage. It comes with a per manently mounted supply line, which is specified before ordering. There are also options such as colored RGB light or several dif ferent shades of white.

65

150

NS99

151

62 C ATA L O G U E 2 0 2 5

C ATA L O G U E 2 0 2 5

S i g n a t ure s

E x p l a i n e d

20

The product is CE certified and tested to meet the latest European regulations.

The product is RoHS compliant and meets regulations on substances like lead.

Waste management includes WEEE compliance and recycling of older lighting fixtures.

The product is double-insulated and typically does not require a protective conductor to the driver.

The product features the latest LED technology, ensuring long life and high energy savings.

The product is dimmable via 1-10V, DALI, DALI 2, or traditio nal phase dimming.

The product must not be installed directly in insulation due to fire risk and potential reduced lifespan.

The product’s IP rating ensures protection against exter nal 20

objects and water to a high degree.

The product can be supplied with the latest technology in circadian r hythm lighting in various configurations.

The product features smart lighting and can be controlled wirelessly via phone, tablet, or wireless wall switches.

152

w w w. l u m e g a . e u

Lu m e ga E u ro p e H Q Co pe n h ag e n Tl f . + 45 71995 8 2 5 i nfo @ l u me ga.e u fa c e bo o k . c o m / lum e g a . e u i nst agram. c o m / lu m e g a _ e u
