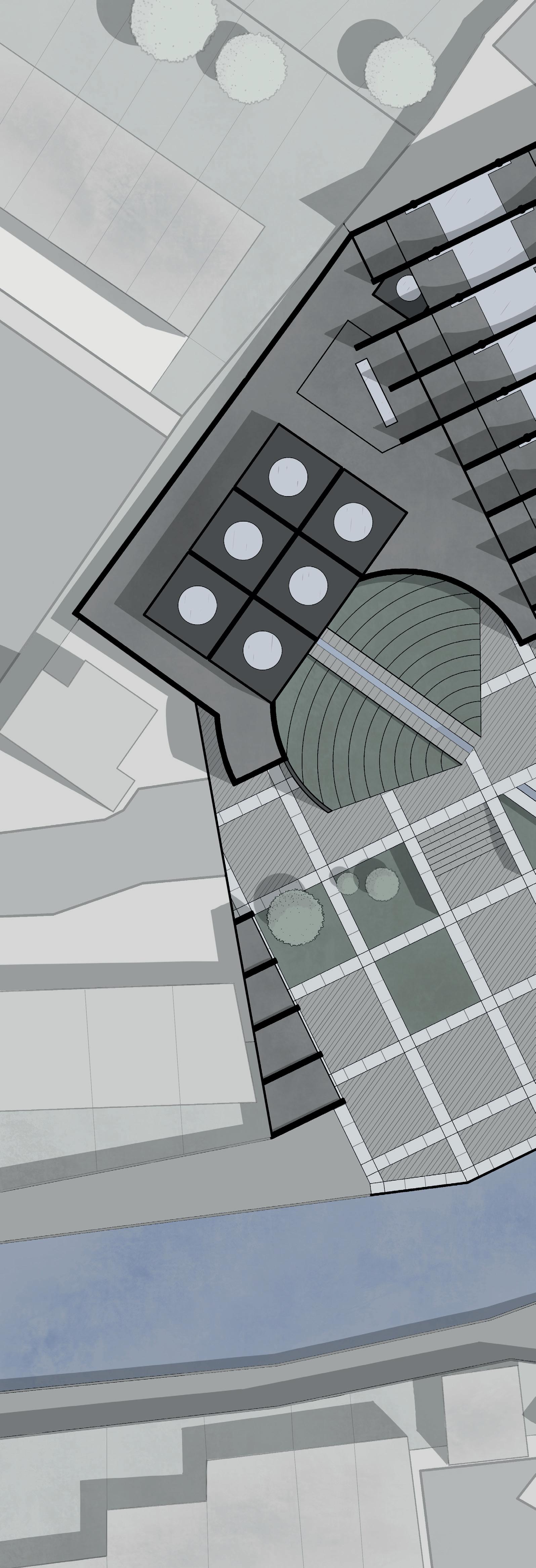

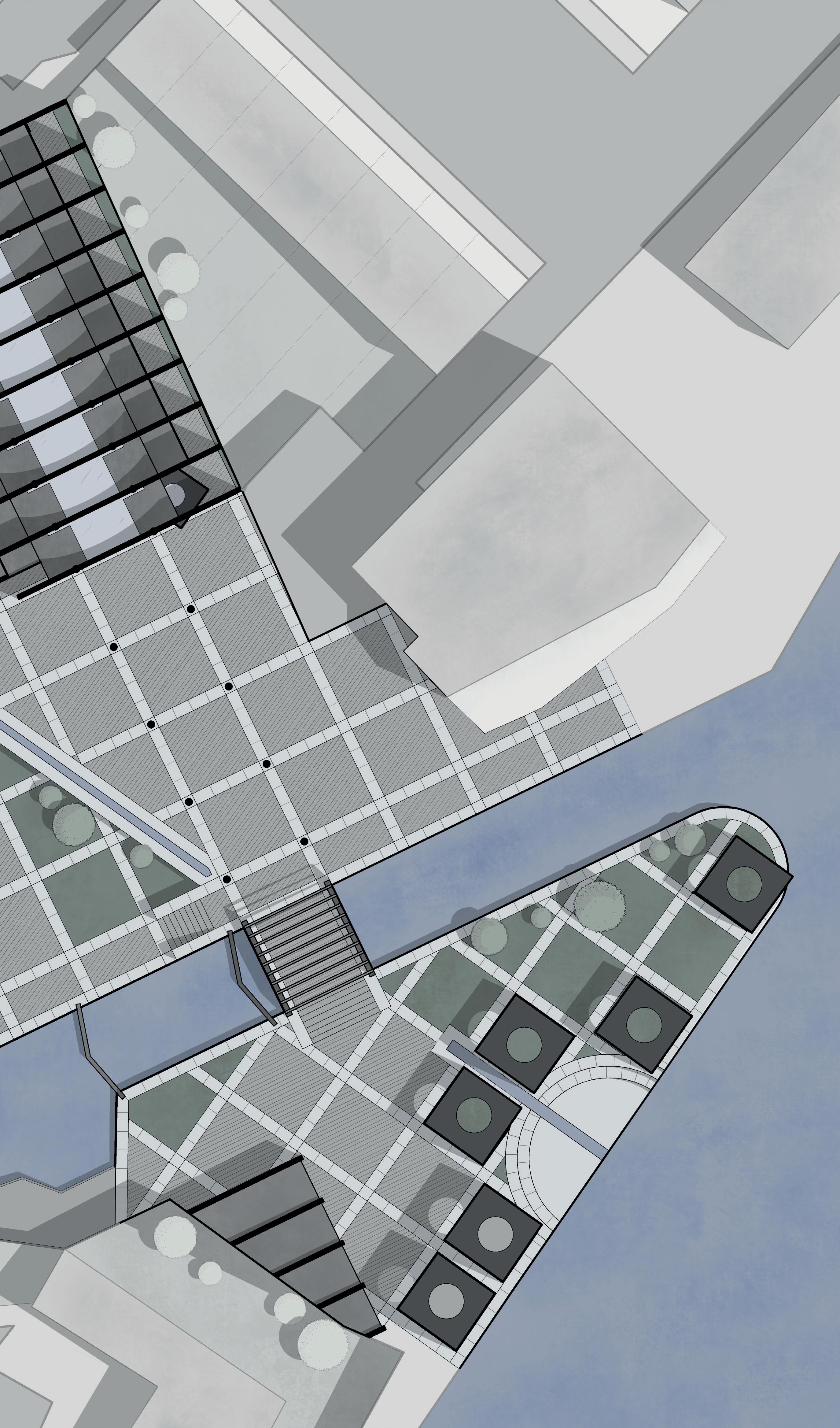

Site Plan
Description:
Overall site plan with Surrounding context
Scale: 1:300
Drawing number: 1
Ground Floor Plan
Description: General ground floor plan of the A.R.C.H building.
Scale: 1:150
Drawing number: 2

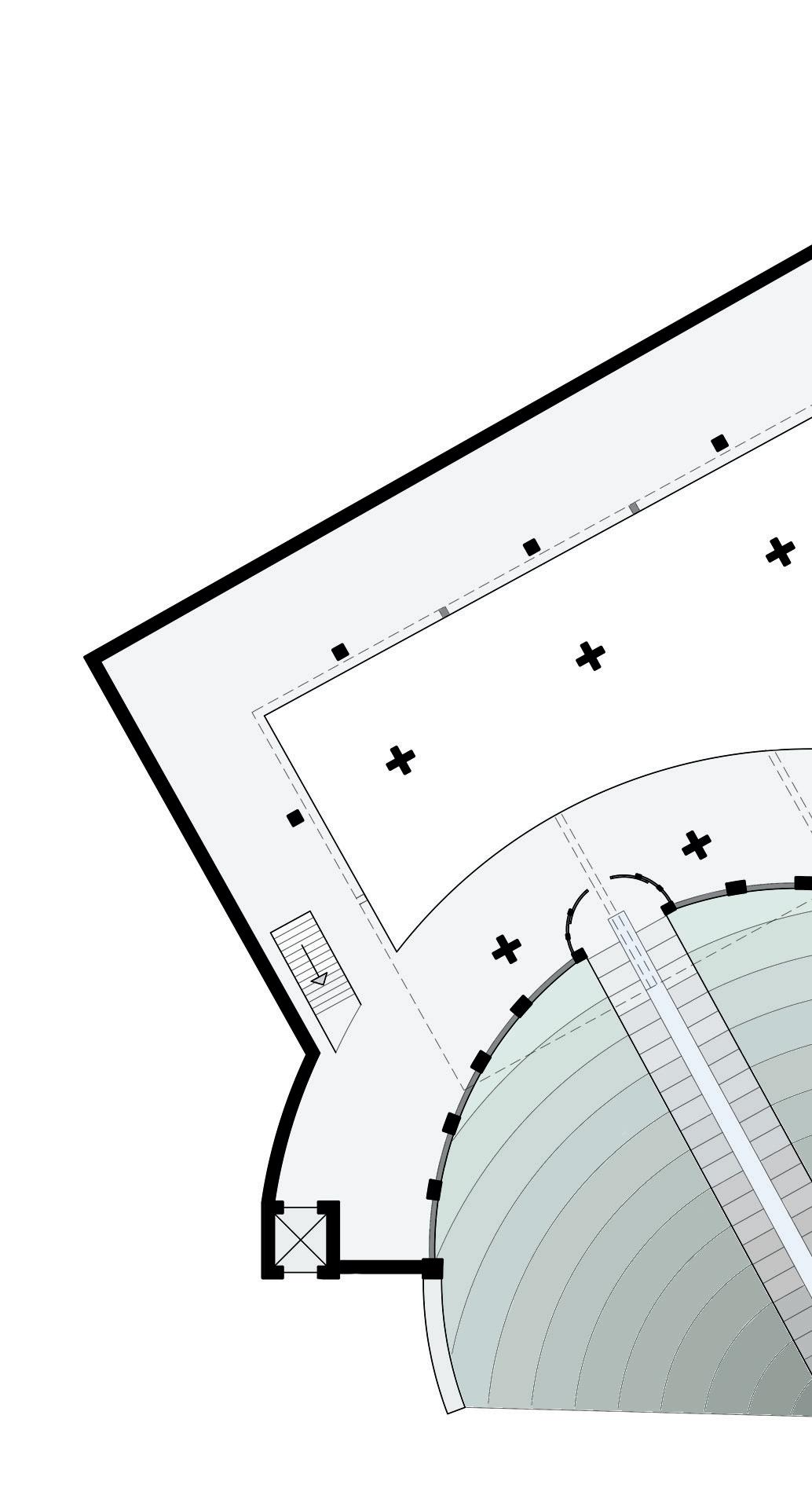

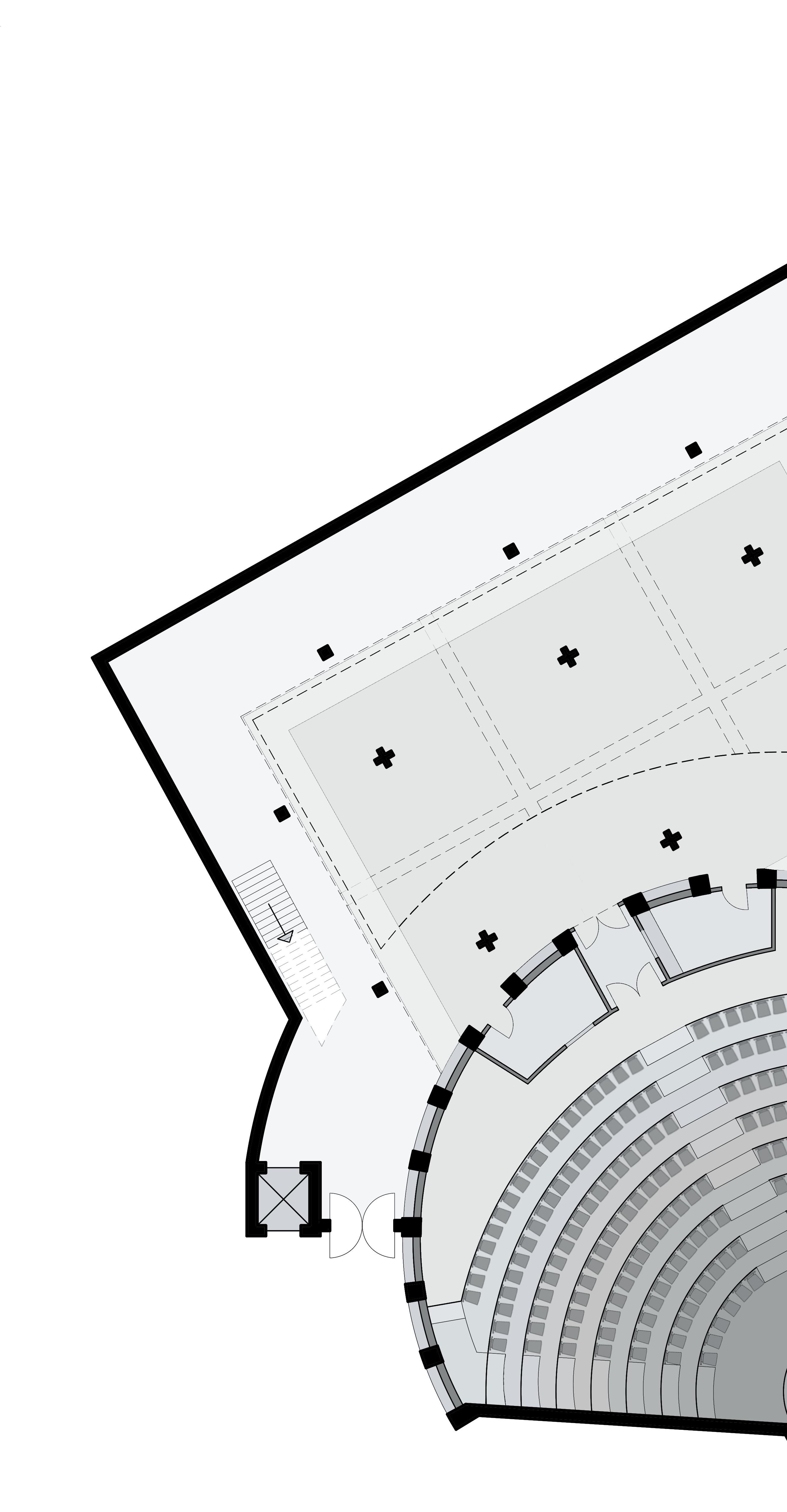

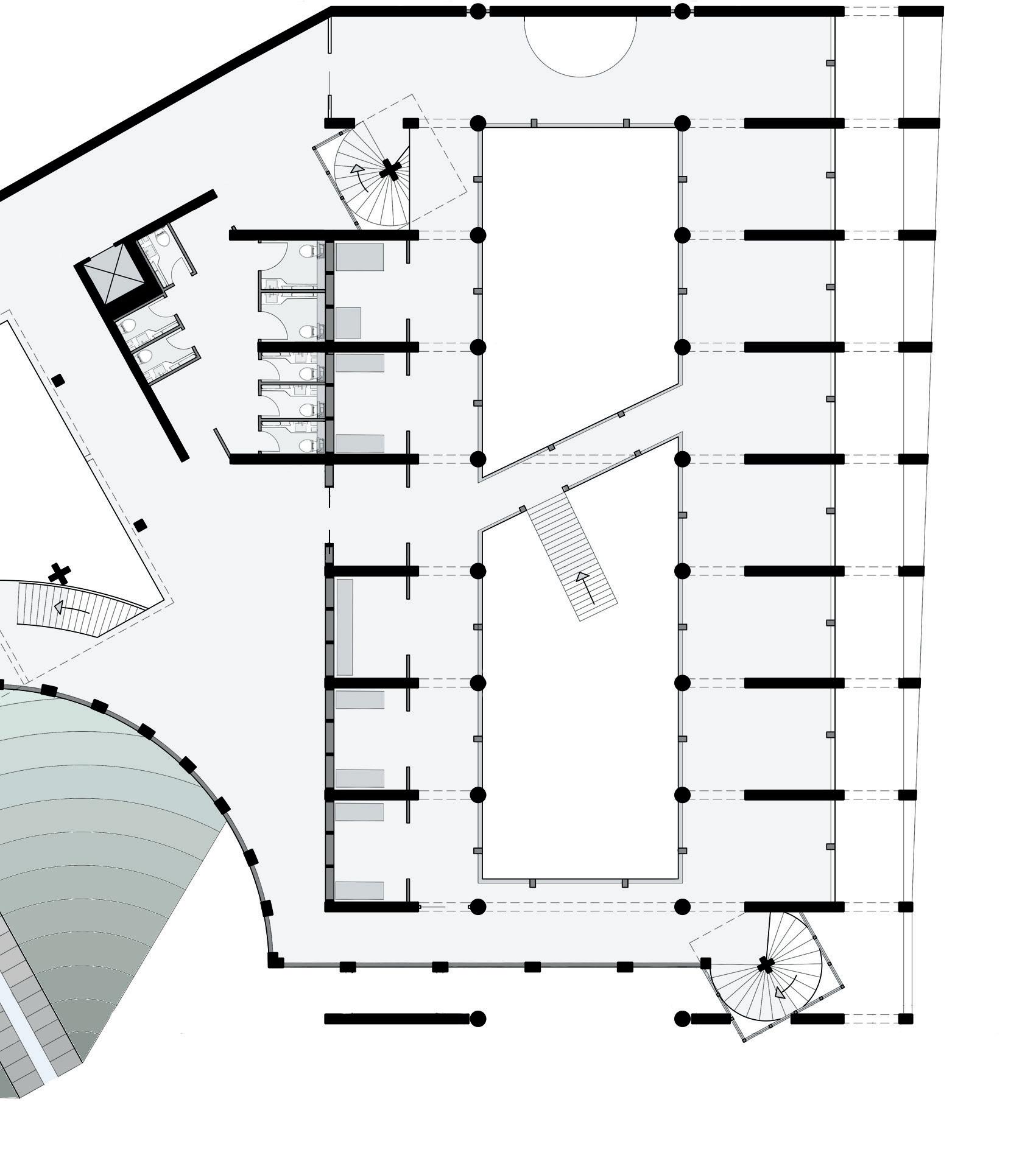

First Floor Plan
Description:
General first floor plan of The A.R.C.H building.
Scale: 1:150
Drawing number: 3

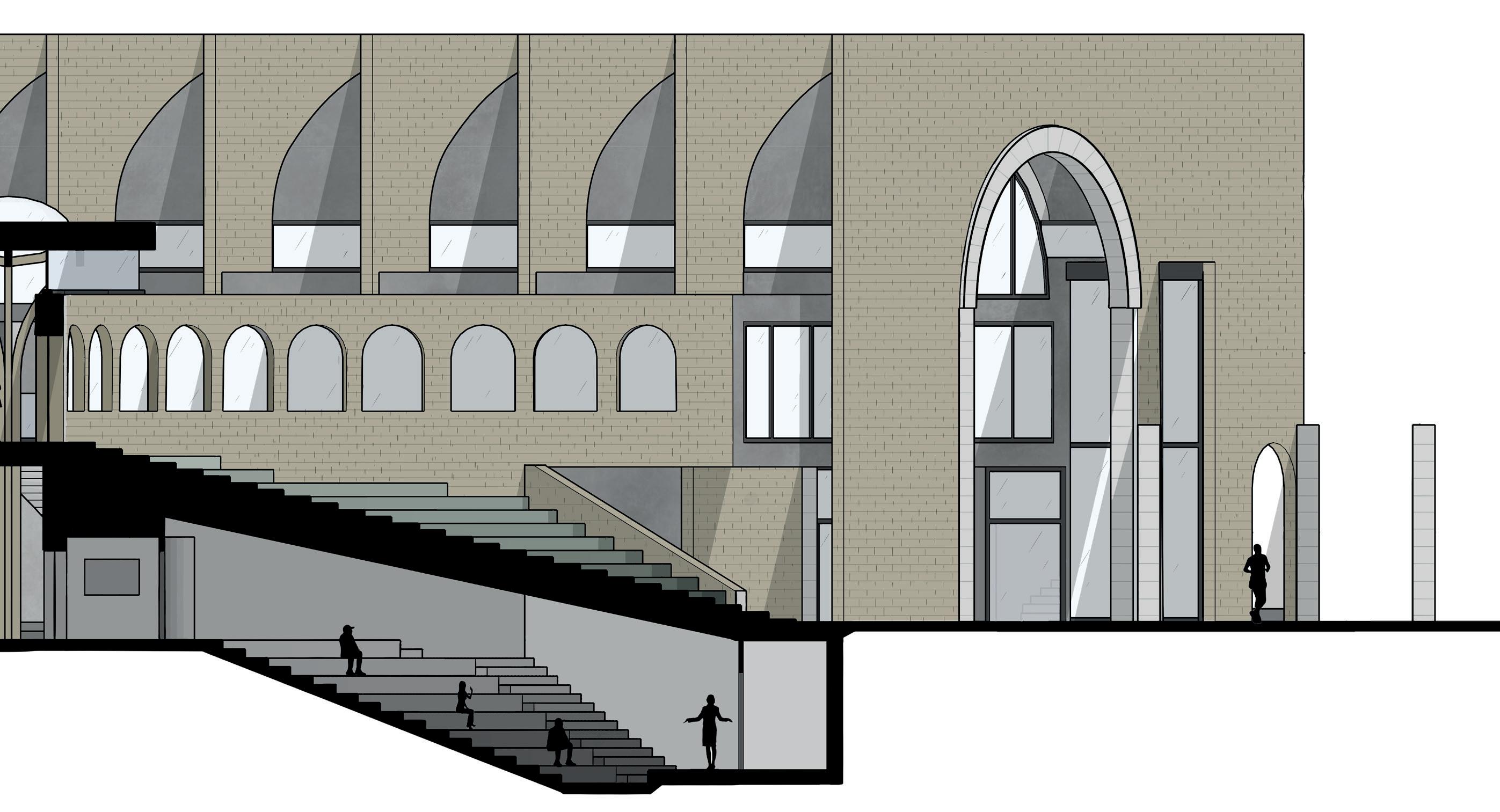

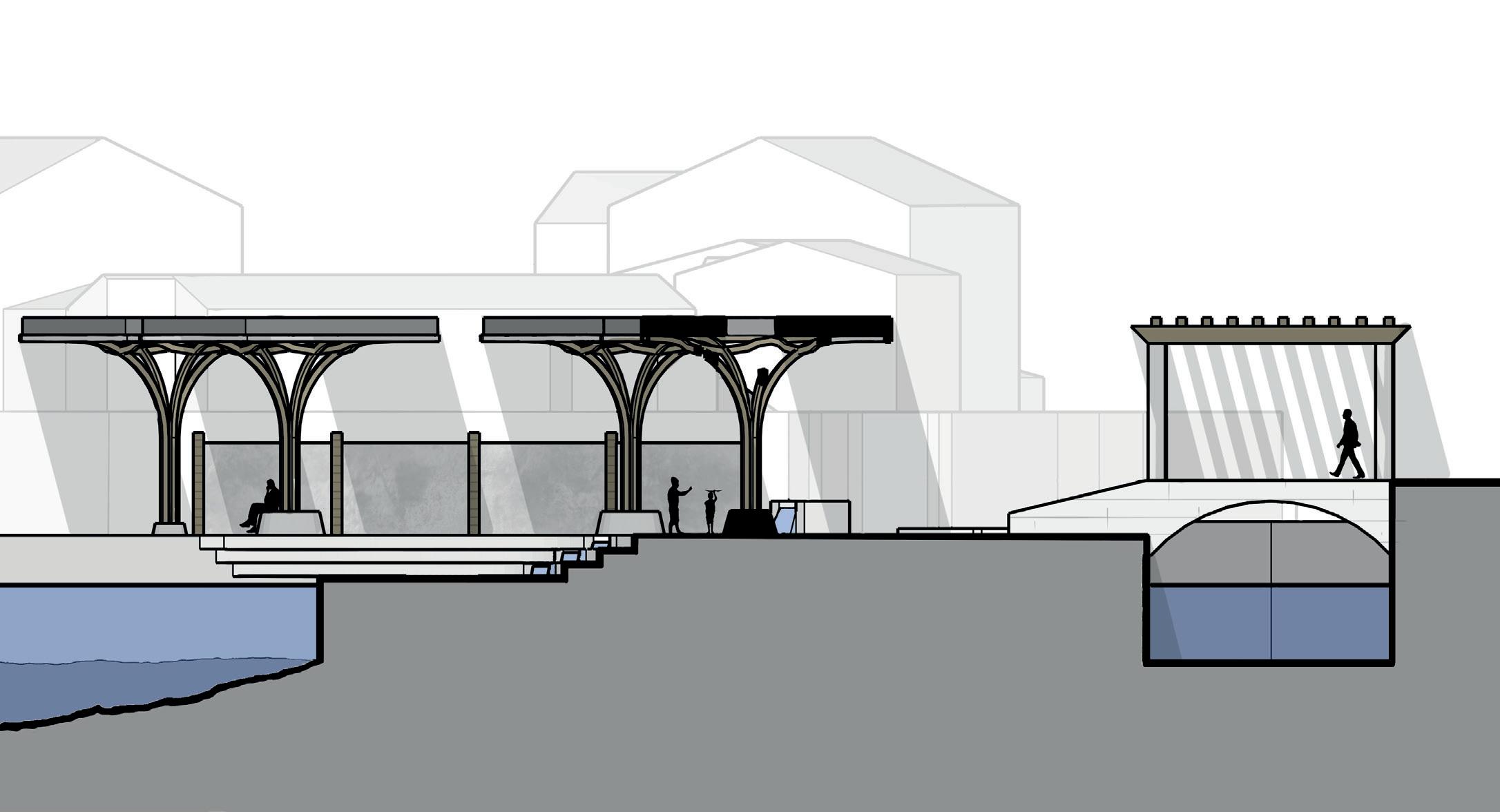

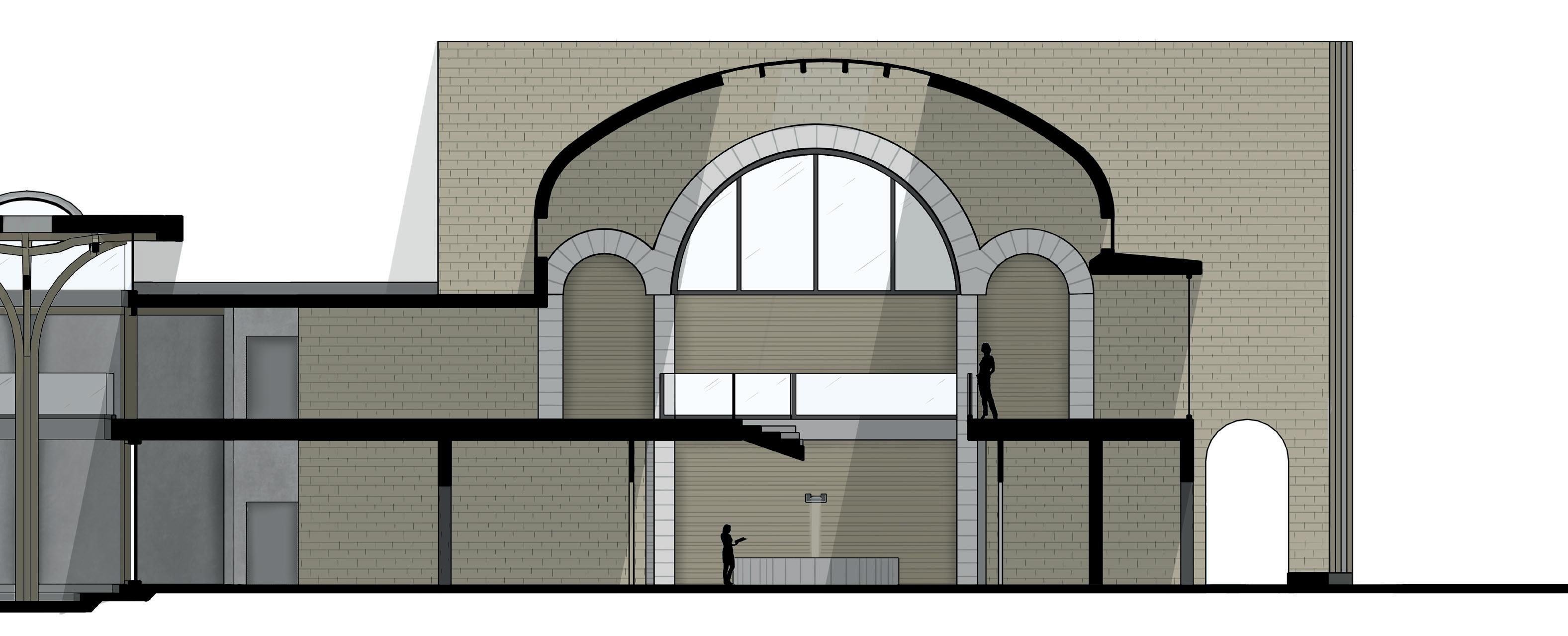

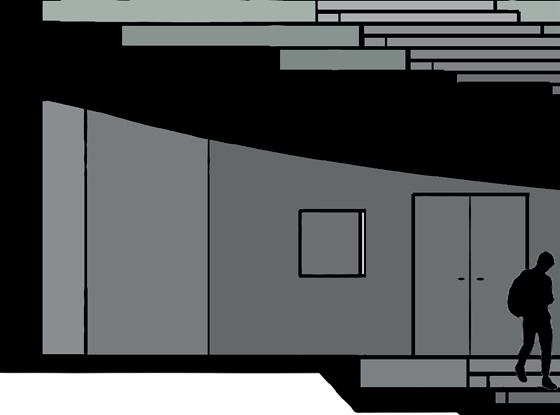

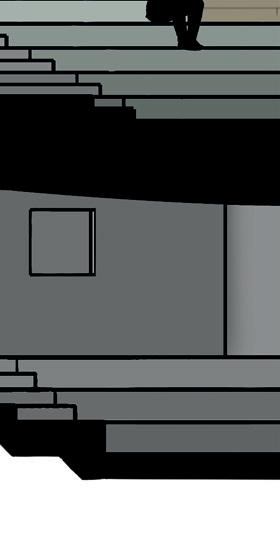

Section 1
Description:
Section through market space and multi functional lecture hall.
Scale: 1:150
Drawing number: 4

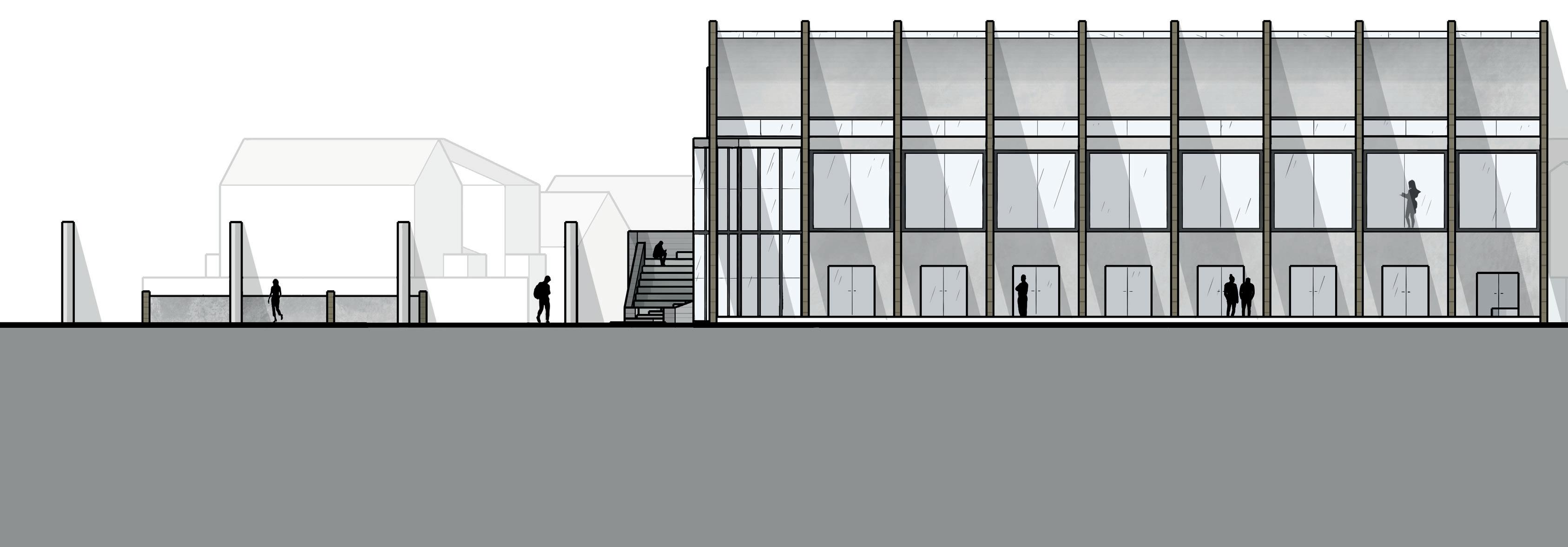

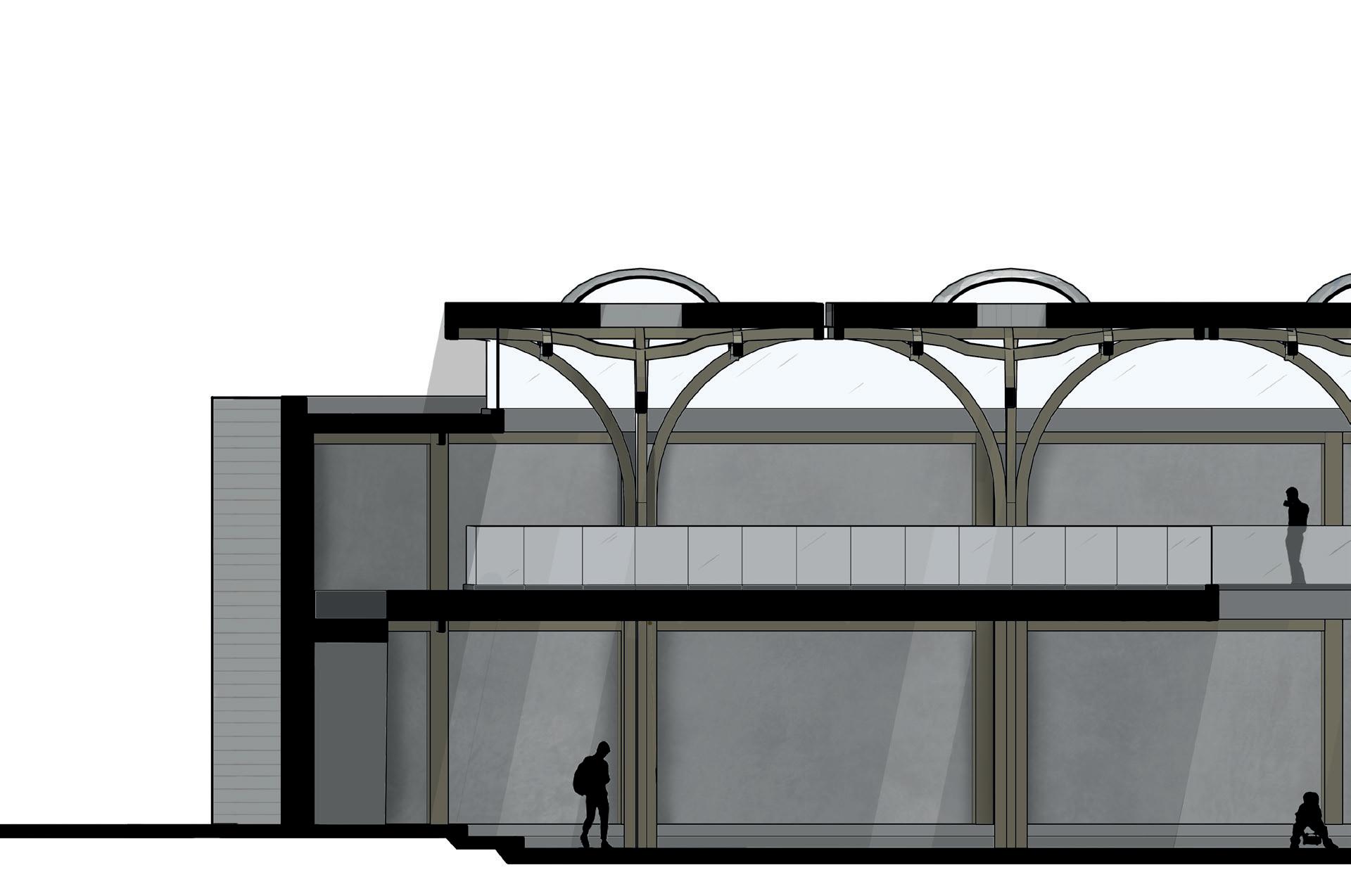

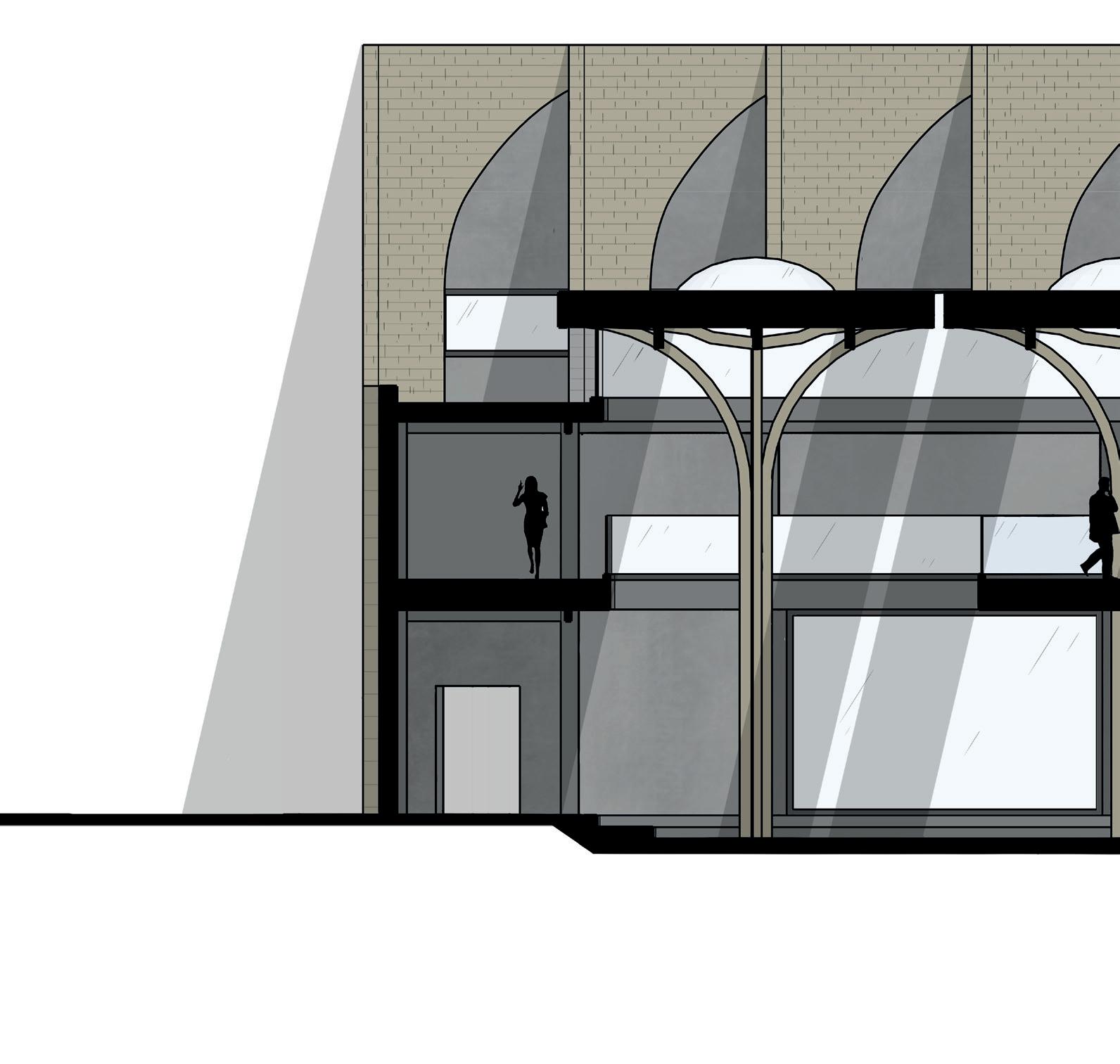

Section 2
Description:
Section through exhibition space and multi functional lecture hall.
Scale: 1:150
Drawing number: 5
Drawn By: Luke Simpson

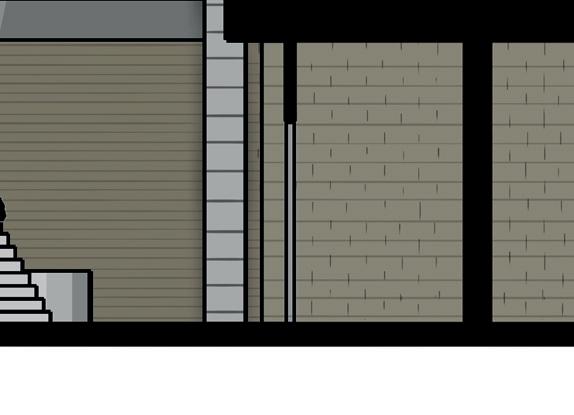

Cranked Section
Description:
Cranked section through market space and exhibition space.
Scale: 1:150
Drawing number: 6
Drawn By: Luke Simpson

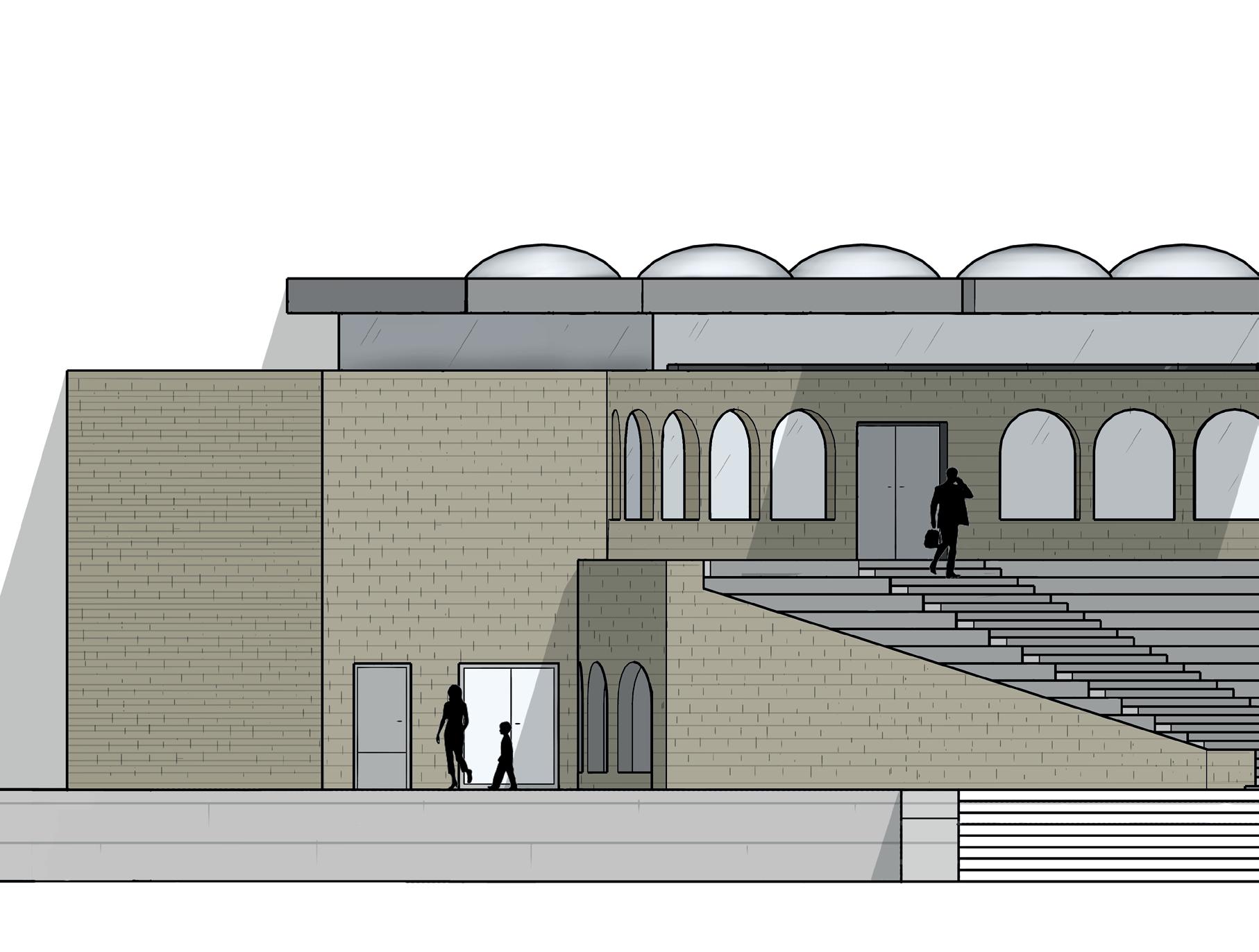

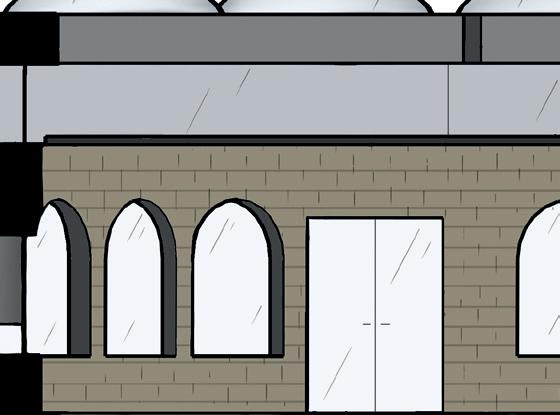

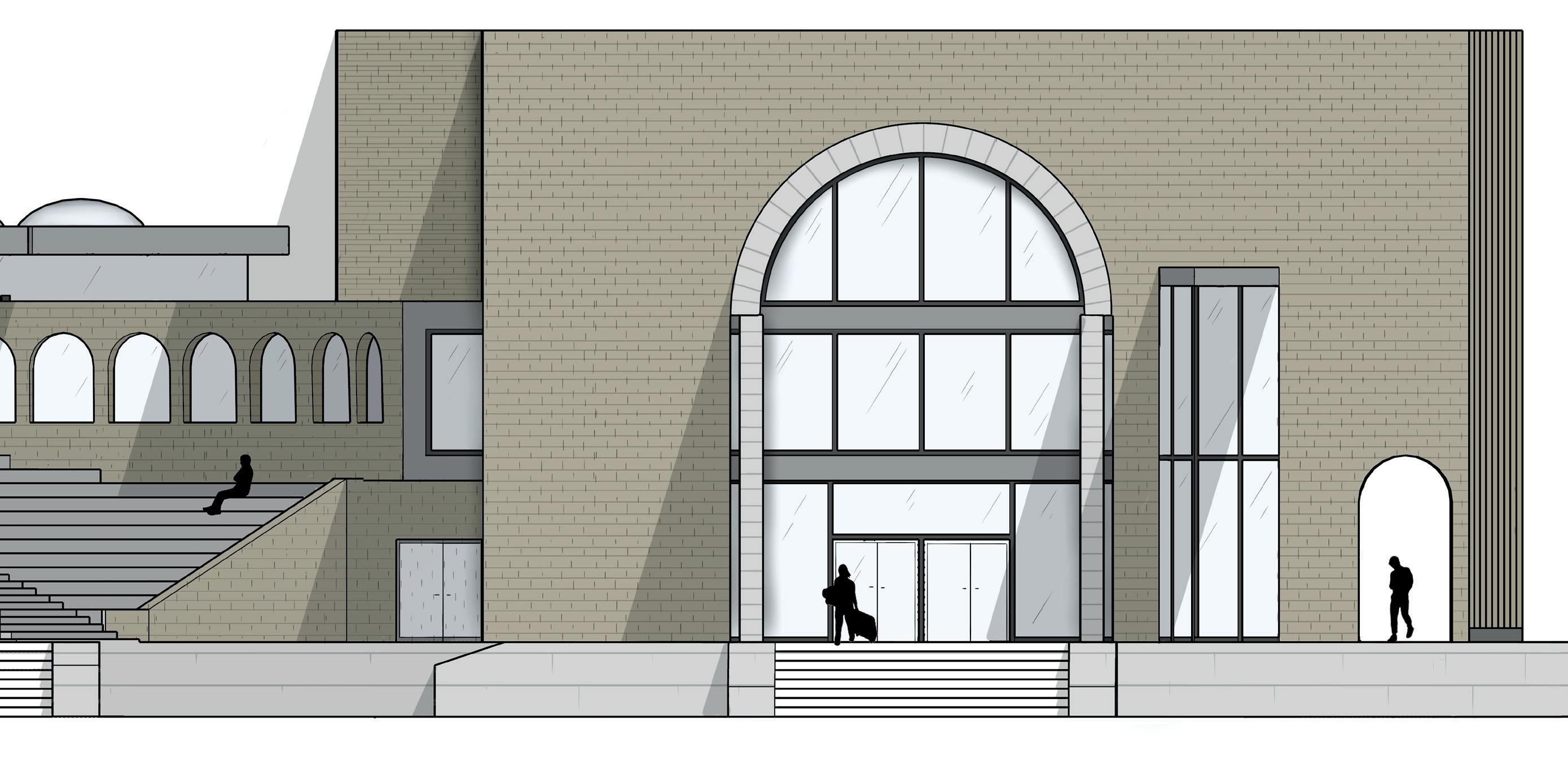

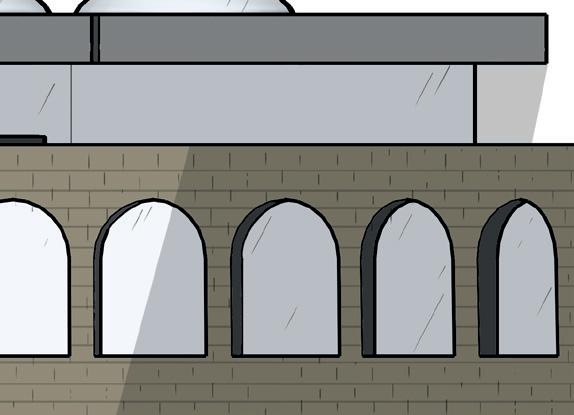

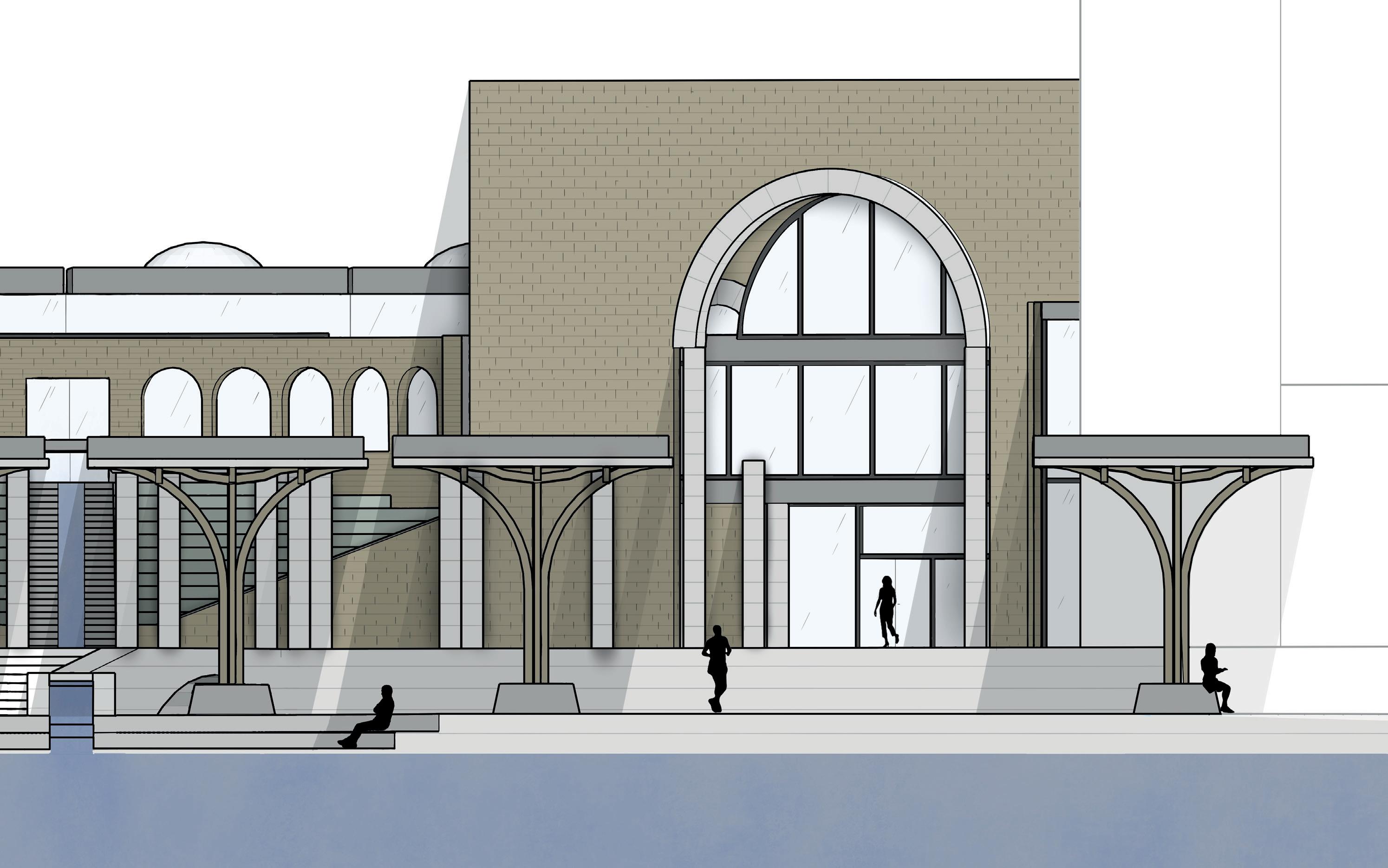

Elevation 1
Description:
Front elevation of the A.R.C.H with main entrance and green roof.
Scale: 1:150
Drawing number: 7
Drawn By: Luke Simpson

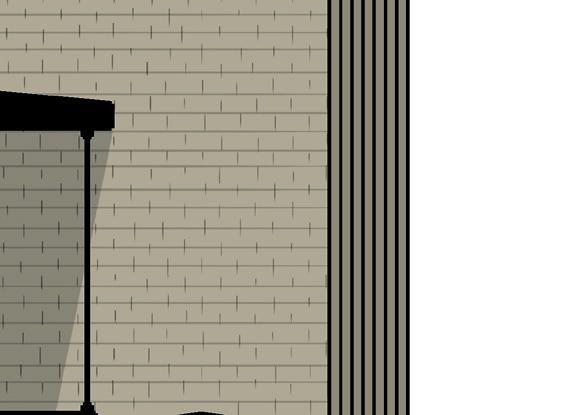

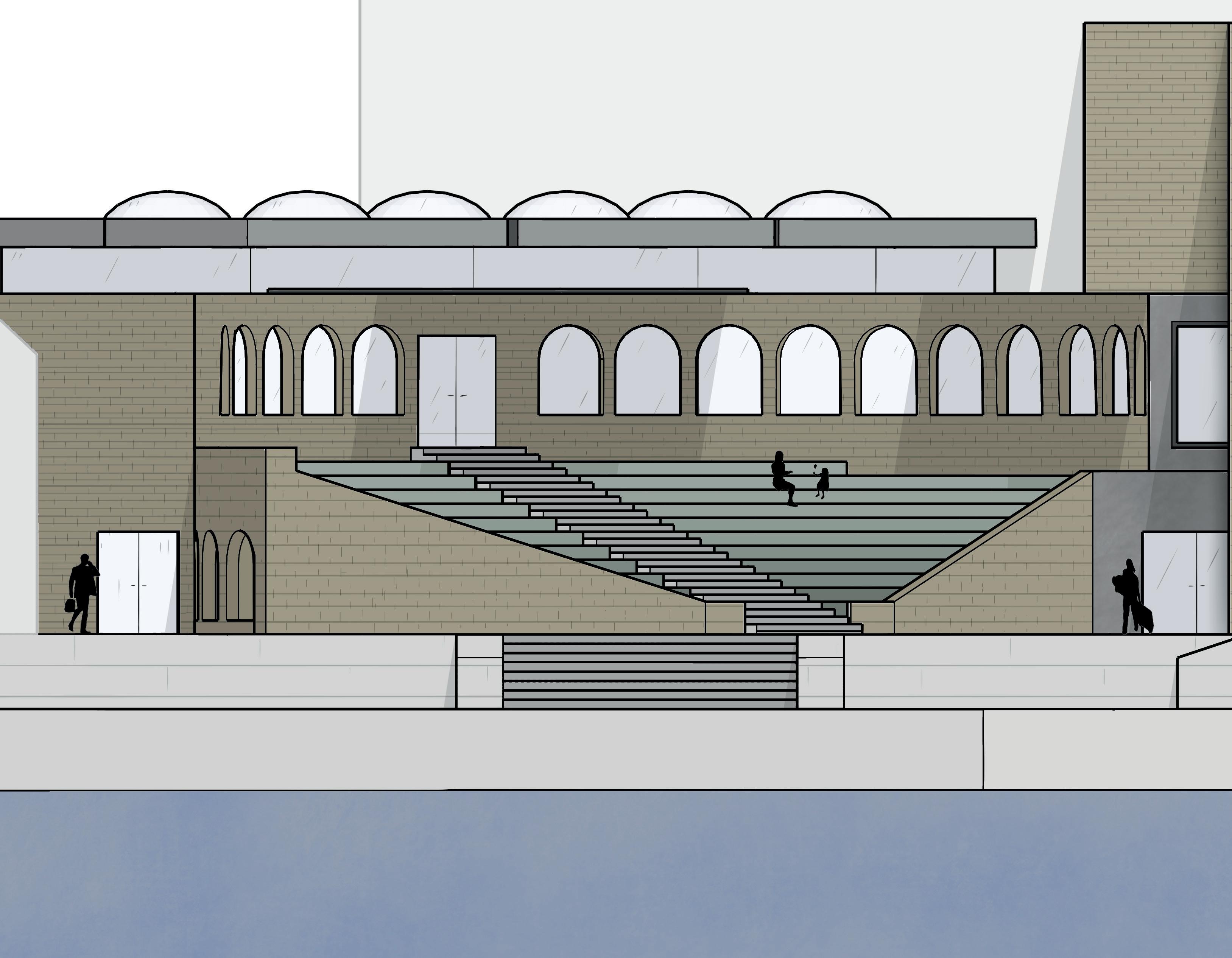

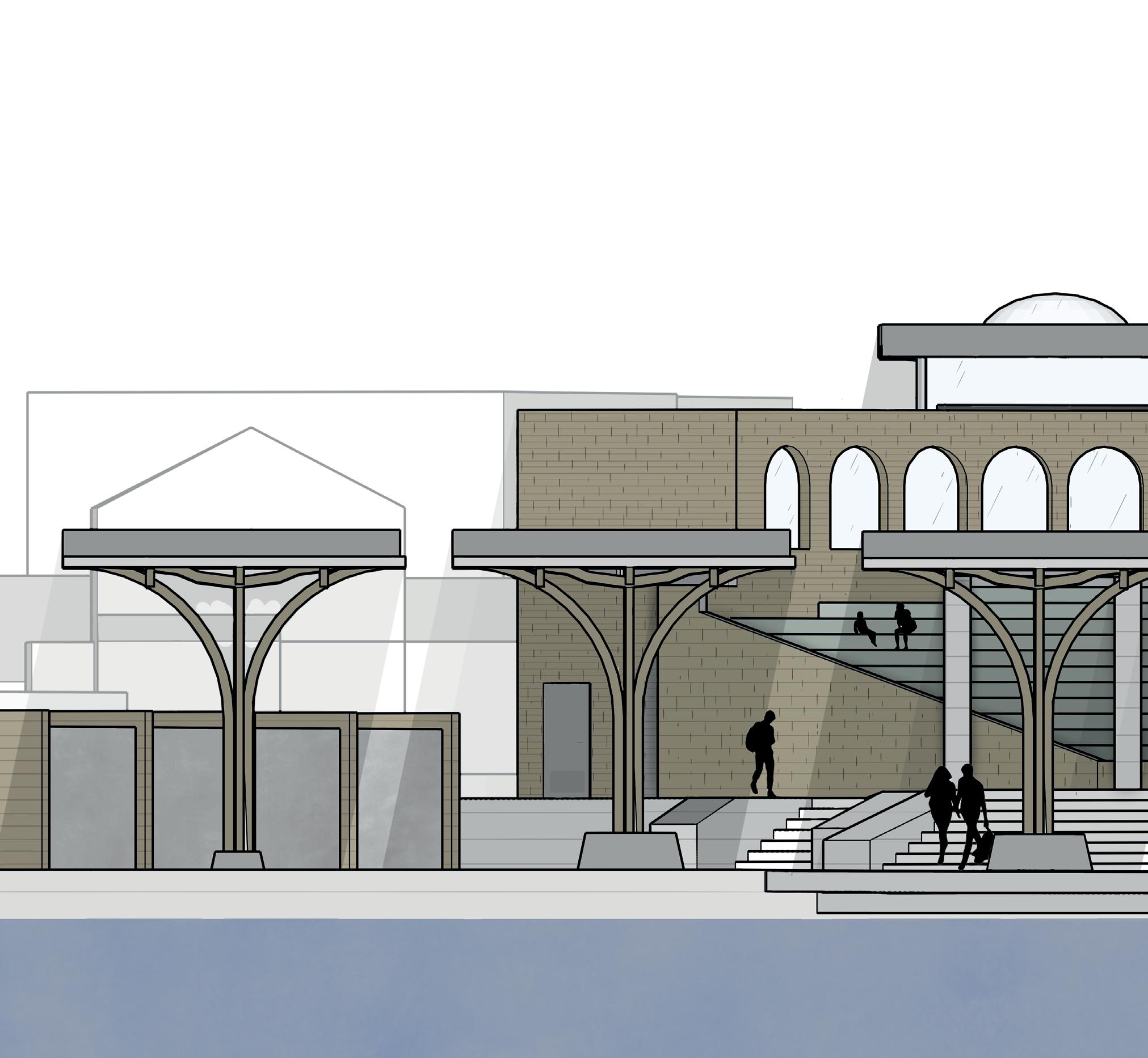

Elevation 2
Description:
Elevation from the front of the pavilion along the River Trent axis.
Scale: 1:150
Drawing number: 8
Drawn By: Luke Simpson
Elevation 3
Description:
Elevation from the front of the site along the canal axis.
Scale: 1:150
Drawing number: 9
Drawn By: Luke Simpson
Elevation 4
Description:
Side elevation through the site from the north east.
Scale: 1:200
Drawing number: 10
Visuals
Drawn By: Luke Simpson
Visual 1: Ariel view of the site along canal axis.
Visual 2: Ariel view of the site along Axis.
Visuals

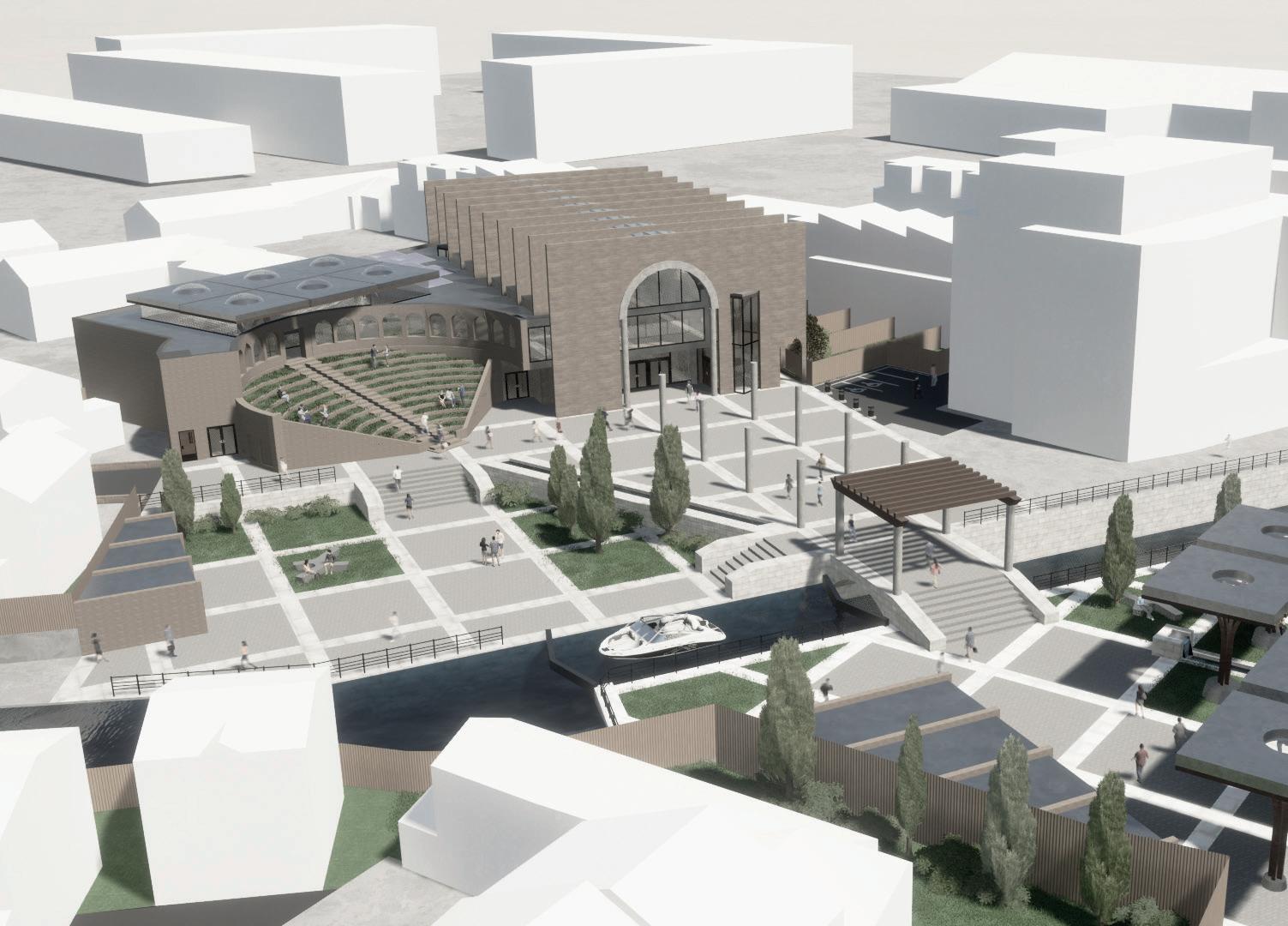

Visual 3: Ariel view of The A.R.C.H building.

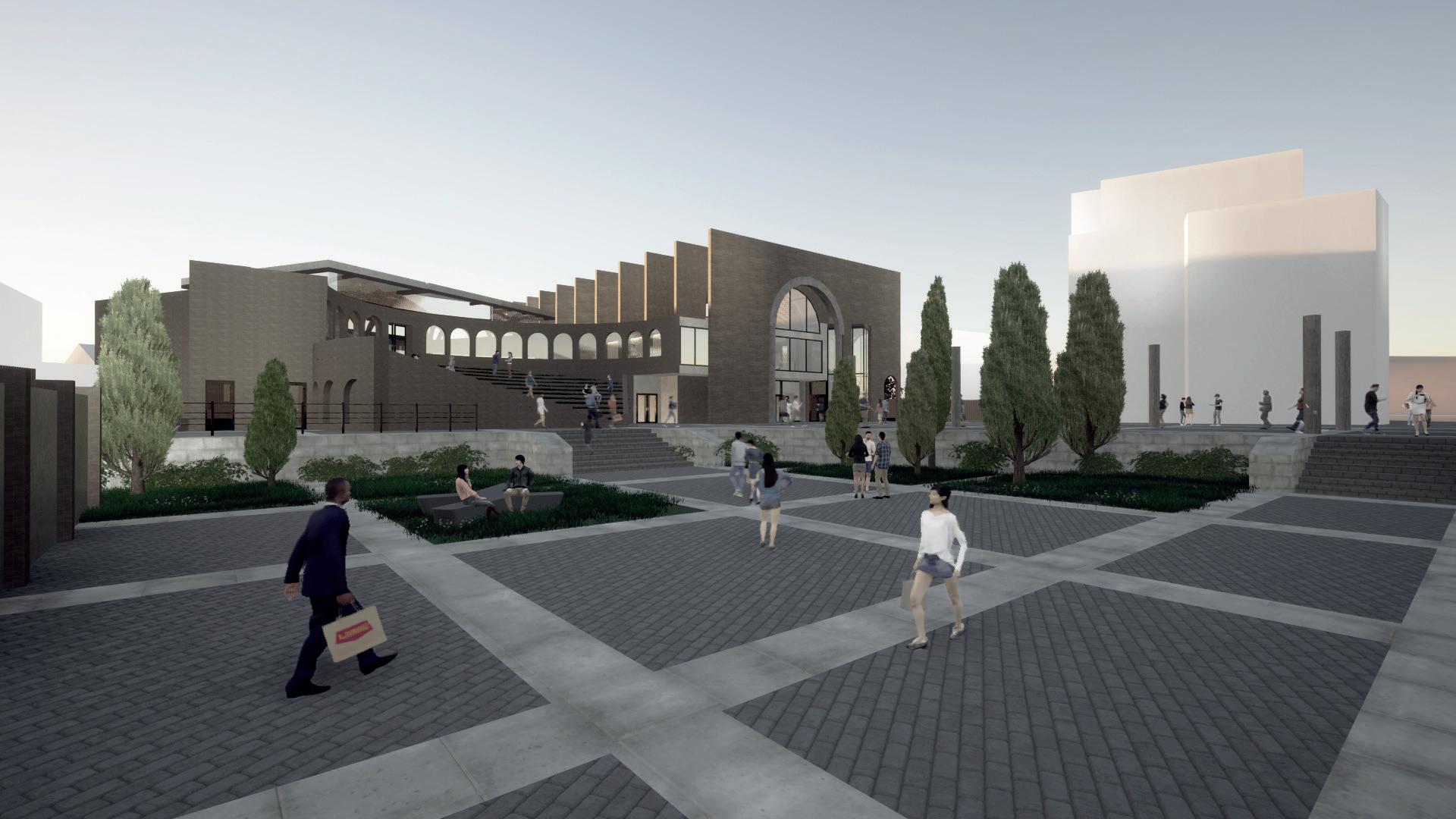

Visual 4: Evening perspective of lower public space.
Visual 5: Perspective of green roof walkway with water feature.
Visual 6: Night time view of pavilion across the river Trent.
Visual 7: Perspective of tree timber canopy and exhibition space.
