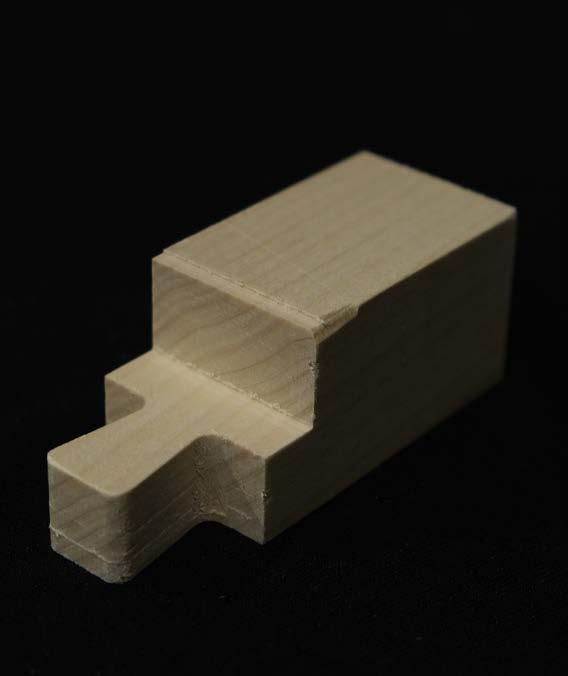

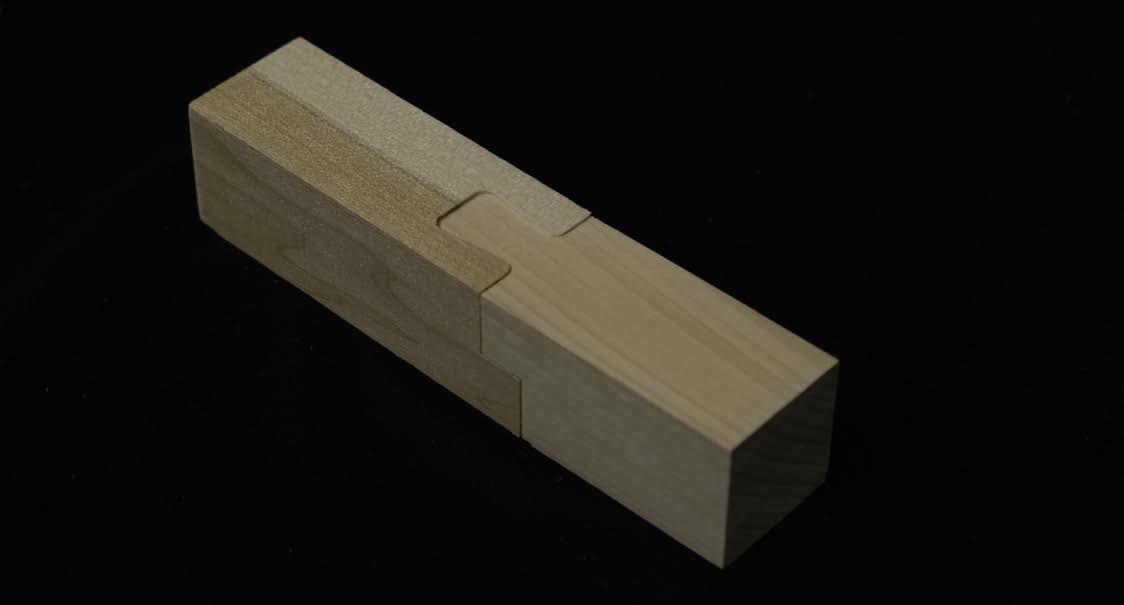

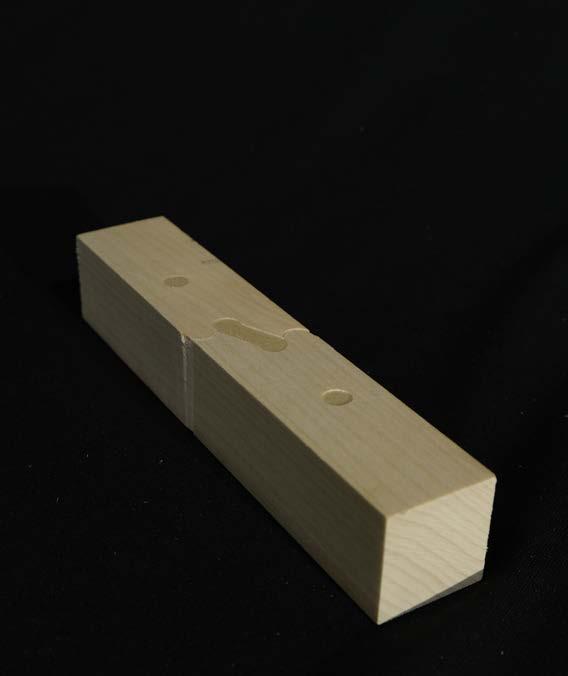

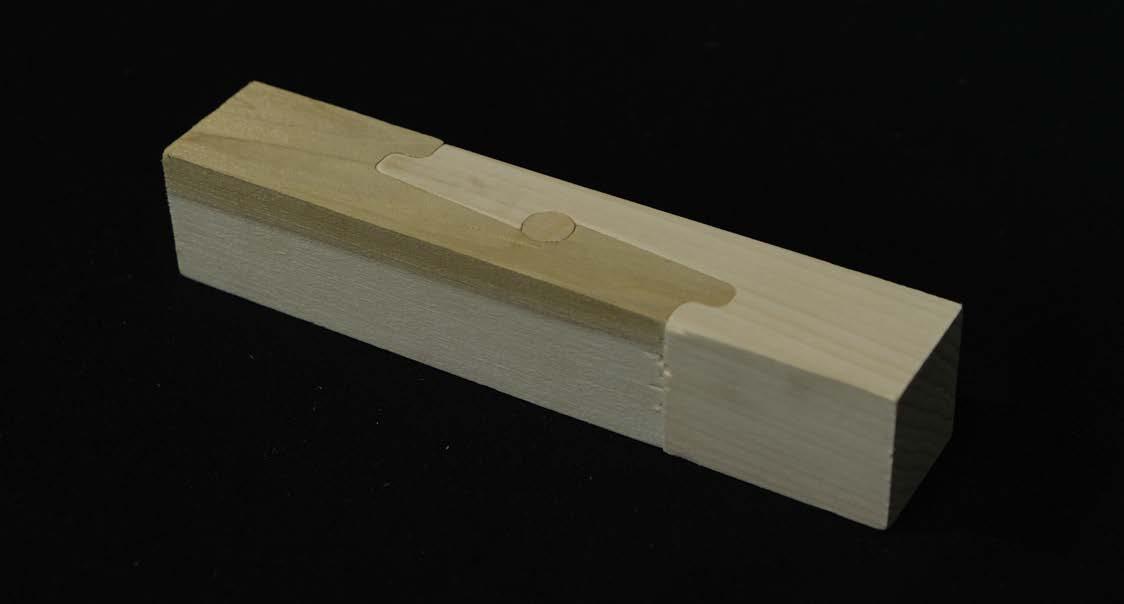

Exploration: Replication The half lapped dovetail joint is commonly used for mudsills and roof joists as an extending joint. A lap or hip is made at the midpoint of the wood member to join the male and female pieces. Isometric Scale: 1/4”=1’-0”
Bottom Scale: 1/4”=1’-0”
ari tsugi
half lapped dovetail joint
Top Scale: 1/4”=1’-0”
Exploded Isometric Scale: 1/2”=1’-0”
Transposing Marginalized Crafts Traditions and Advanced Fabrication
results + discussion
26
