3-DIMENSIONAL DESIGN

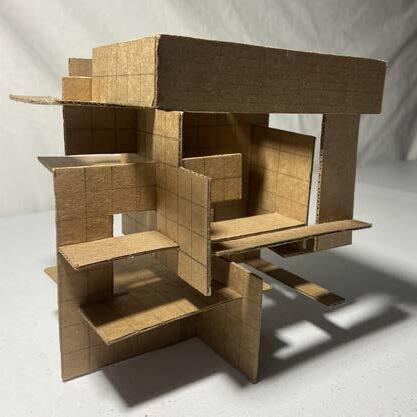

CARDBOARD CUBE MODEL,6’’X6’’

ELEVATIONS

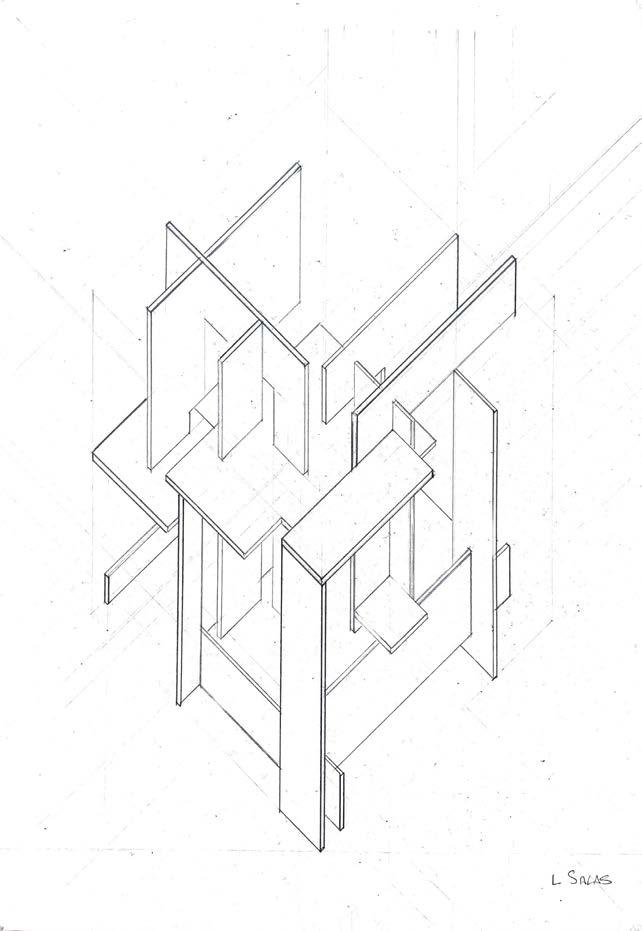

AXONOMETRIC PROJECTION

1.1 CUBE STUDY

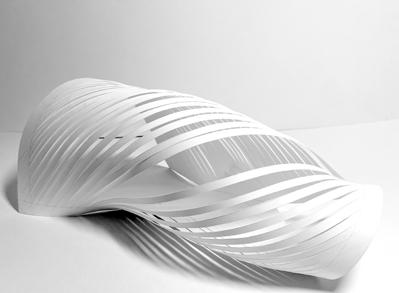

METAMORPHOSIS I

PLASTER 8’’x18’’

METAMORPHOSIS II

WELDED STEEL RODS

25.5’’x54’’

1.2 METAMORPHOSIS

SERIES

1.2 METAMORPHOSIS SERIES

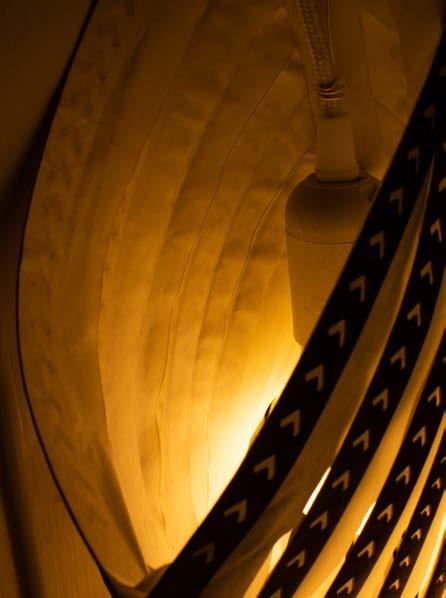

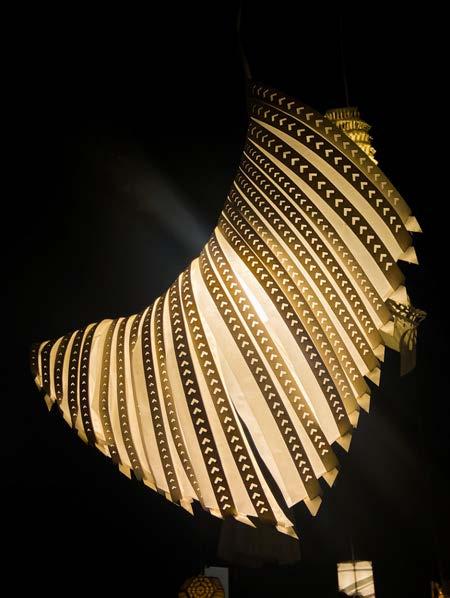

This hanging light fixture experiments with the folding and distortion of the Polypodium Glycyrrhiza fern. When illuminated, the glow from the cutouts represents the vascular current of the fern. This lamp was inspired by organic structure of the fern blades. In the initial study models, there was an emphasis on the movement of the leaves, which heavily inspired the direction of this lamp.

1.3 FOLDED FERN LAMP

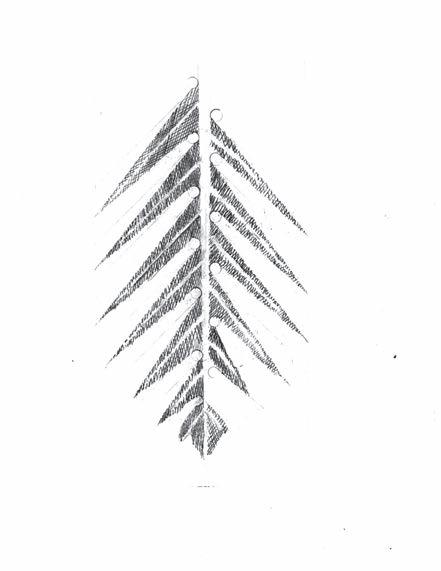

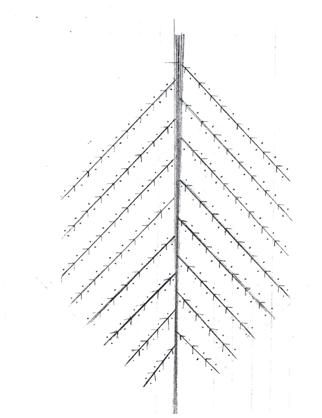

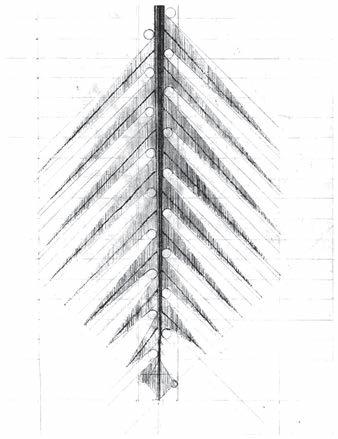

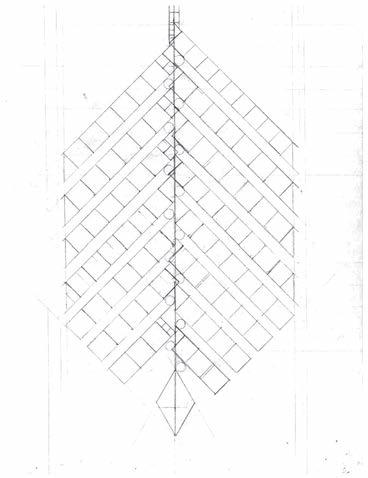

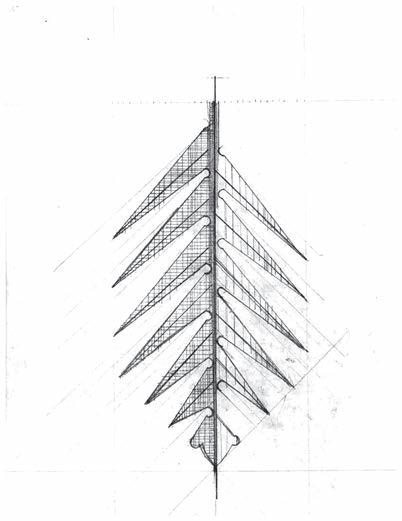

ANALYTICAL DIAGRAMS

SHADOW MODELS

1.3

FERN LAMP LUCY

FOLDED

SALAS| DRAFTED DIAGRAMS | DESG 2005 GEOMETRY FIGURE GROUND STRUCTURE COMPRESSION

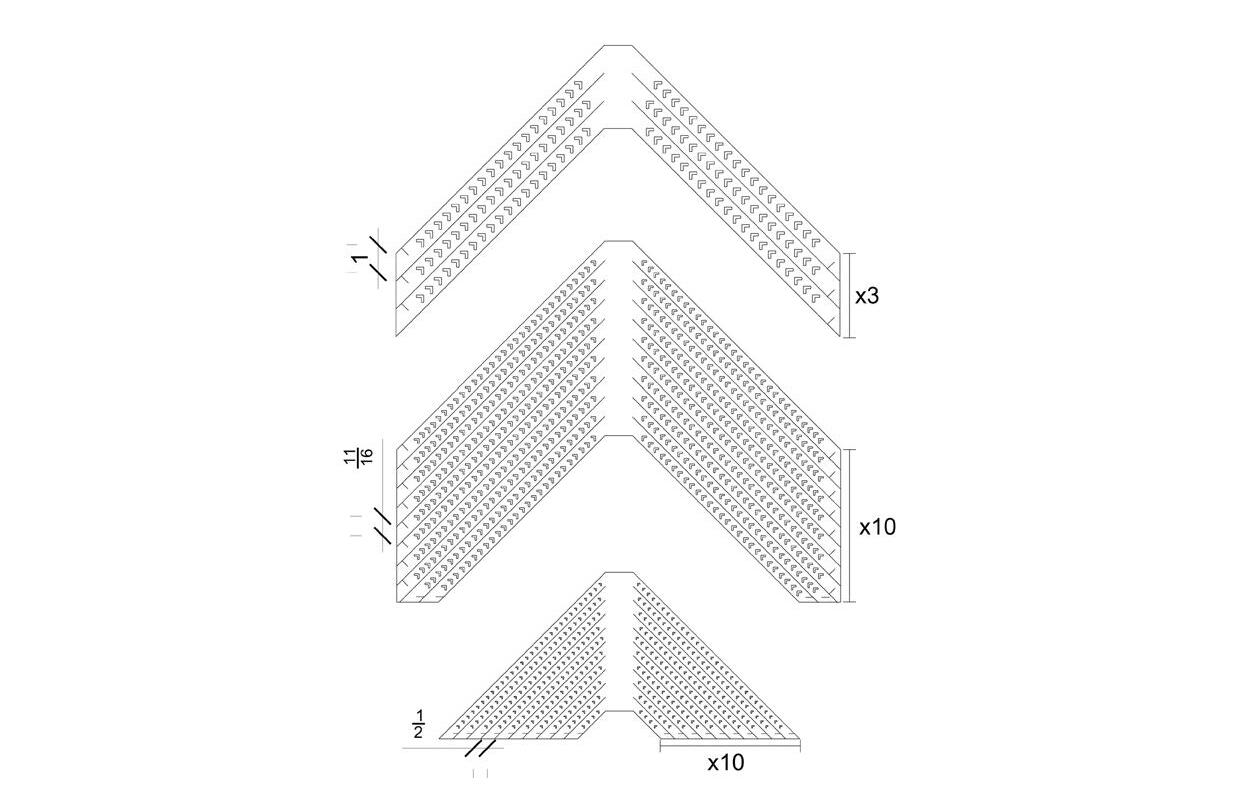

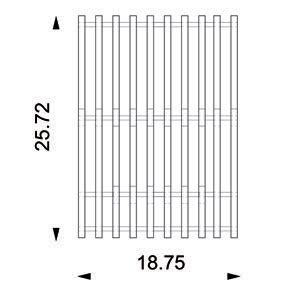

12 3 16 11 3 4 DESG-2005 PLAN 3" = 1'-0" ELEVATION 3" = 1'-0" EXPLODED AXONOMETRIC 3" = 1'-0" FERN LANTERN LUCY SALAS ASSIGNMENT 3C

VIEW 11 3 4 DESG-2005 PLAN 3" = 1'-0" FRONT ELEVATION 1.3 FOLDED FERN LAMP

ASSEMBLY MODEL

PLAN

CANDY COUTURE

SWEDISH FISH AND FABRIC

SCHOLASTIC ART AWARD

HONORABLE MENTION

1.4 CANDY COUTURE

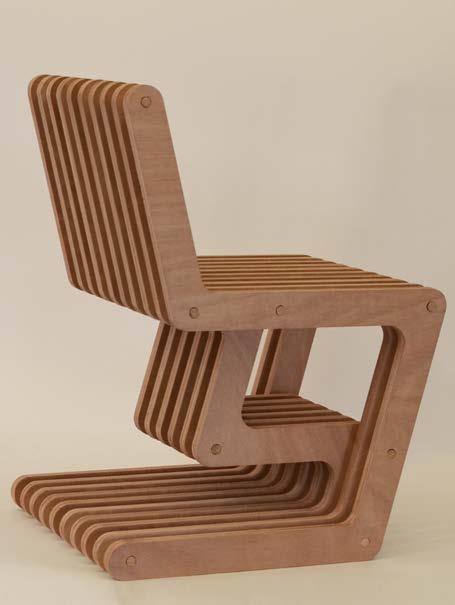

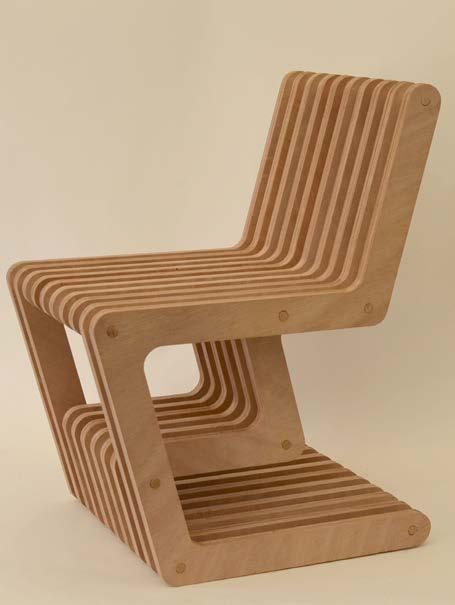

This portmanteau is the combination of a shelf and a chair. Inspired by the Cantilever Chair designed by architect Mart Stam, the goal of this portmanteau is to use the continuous planes in order add a shelf and be structurally sound enough to lack back legs. Altogether, this piece serves the three purposes as art, seating, and storage.

1.5CONTINUOUS CANTILEVER CHAIR

EXPLODED AXONOMETRIC PROJECTION

LATERAL ELEVATION

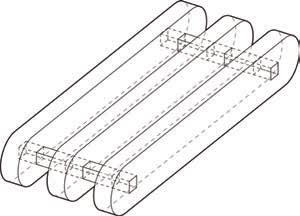

DETAIL PIECE

LONGITUDINAL ELEVATION

1.5 CONTINUOUS CANTILEVER CHAIR

HAND OF MOTHER NATURE STEEL

1.6 HAND OF MOTHER NATURE

The intersection between humanity and nature through experimentation of the form of Mother Nature. Made out of welded steel rods and is over 8 feet tall.
