Light is an essential part of life. At LUCIO we use light to sculpt the environment and architectural spaces. In that way we use light to attract and inspire people, to invite and to activate them.

ABOUT US

LUCIO, an innovative professional lighting brand, was established in the Netherlands in June 2008 by a team of three partners. These partners brought a combined 42 years of experience in various aspects of the lighting industry, including product development, product management, production, sales, and marketing. Lucio offers products with a high design value for a competitive price. Our products are energy efficient, durable and easy to recycle. Our knowledge of the use of materials, technology, heat management and processing are brought together in a timeless shape, making our products last longer.

How did LUCIO start?

We started developing a product portfolio for the High End retail market, a segment that back in 2008, was one of the most demanding segments. The product had to comply to a design that is timeless with high end requirements for beam control. Franco Clivio, an award winning product designer, designed the Lucio portfolio for the high end retail segment. Over the years Lucio expended the portfolio covering segment like Hospitality, Healthcare, Offices, Education, Industrial, Landscaping, Façade Lighting, etc.

LUCIO creates tools to design spaces with light. Our products are created using durable materials that are easy to recycle and are equipped with the latest energy efficient technology.

LUCIO is a reliable partner for any project or installation. With extensive knowledge and experience, our team can provide support for the development and design of any lighting fixtures. LUCIO strategy is defined focusing on improving the support we give every day to our partners

Lucio has a very simple idea

We manufacture well-designed products with higher quality at competitive prices

OUR LIGHTING TECHNOLOGY

Light Source

LUCIO carefully selects the best option from the biggest supplier of LEDs in the world. The critical factor in this selection is the color rendering index (CRI), which measures how truthfully that light source can show the color of an illuminated objects.

Dimming & Control

To ensure versatility in adapting to various uses, the lighting system must facilitate proper control and dimming. LUCIO provides conventional methods such as DALI and 1-10V, as well as other technologies like KNX or CASAMBI.

Light Colors

Our portfolio offers a wide range of color options, from static white light sources to vivid colors such as red, green, blue, and white. All these solutions can be configured and supplied with the necessary control equipment.

Light control

Effective use of a luminaire requires careful consideration of the illuminated area. The angle of light emission plays a crucial role. LUCIO offers a diverse range of beam angles, from narrow 15º to wide 120º.

Finishing

A product’s color finishing can enhance the aesthetics of the space. LUCIO offers standard options such as White, Black, or Silver, with the flexibility to customize upon request.

Protection grade

The lighting fixture should meet the specific demands of the space, including protection requirements. Our portfolio offers a variety of options suitable for installations in spaces with different levels of protection from IP65 to IP68.

INGROUND

pag_8

FLOODLIGHT

03 04 01 02

WALL WASHER

OUTDOOR DOWNLIGHTS

WALL MOUNTED & WALL RECESSED

pag_68

pag_46

pag_56

SURFACE MOUNTED & WINDOW LIGHTS

pag_22 pag_84

05 07 06 08

WEATHERPROOF & HIGHBAY

pag_102

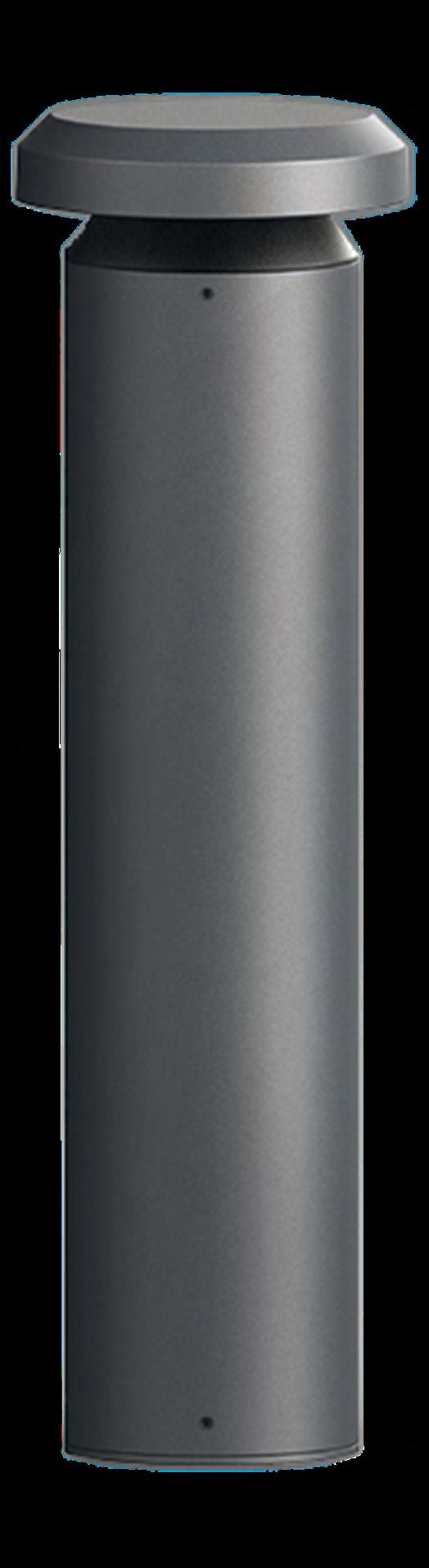

BOLLARD LIGHTS & DECORATIVE POLETOP & STREET LIGHT

pag_114

09 10

NEON FLEX

pag_128

UNDERWATER

pag_134

A_ B_ D_ F H_ I _ _

AR126 - L 107

AR126 - M 107

AR126 - S 107

AR126 - XL 107

BL42-L 121

BL42-M 121

BL42-S 121

BL80-M 117

BL80-S 117

BL81 117

DR16 63

DS13 65

FL30 - L 33

FL30 - M 33

FL30 - S 33

FL30 - XL 33

FL33 - L 39

FL33 - M 39

FL33 - S 39

FL33 - XL 39 FL71 45 FL72 45 FL73 45 FL74 45

FL8 - L 43 FL8 - M 43

FL8 - S 43

HB12-G 113

HB12-L 113

IG24 1 WAY 11

IG24 2 WAYS 11

IG24 4 WAYS 11

IG28 1 WAY 13

INGROUND

Inground Lighting can add a unique touch to any installation specially in outdoor environments. LUCIO’s selection of products offers versatile solutions always considering the possibility to adapt and customize to any special request. It’s almost possible to blend these luminaires with the environment as we offer compact fixtures and the best dimming and control options to operate the lighting system as needed. With extensive experience in outdoor installations, LUCIO’s team can help on the project and design of any setup required.

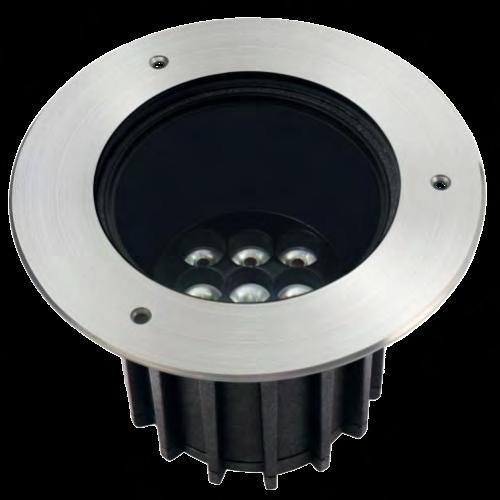

IG24

The IG24 family features inground round models with side lighting emission options. These IP67 rated models offer versatility with 1-way, 2-way, or 4-way lighting configurations. They are available in three different sizes: Ø48 with 3W, Ø80 with 7W, and Ø100 with 10W. The color temperature options include 3000K, 4000K, and 5000K, and upon request, an RGB version is also available.

photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 24V

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

ONE WAY

TWO WAYS

FOUR WAYS

28 IG

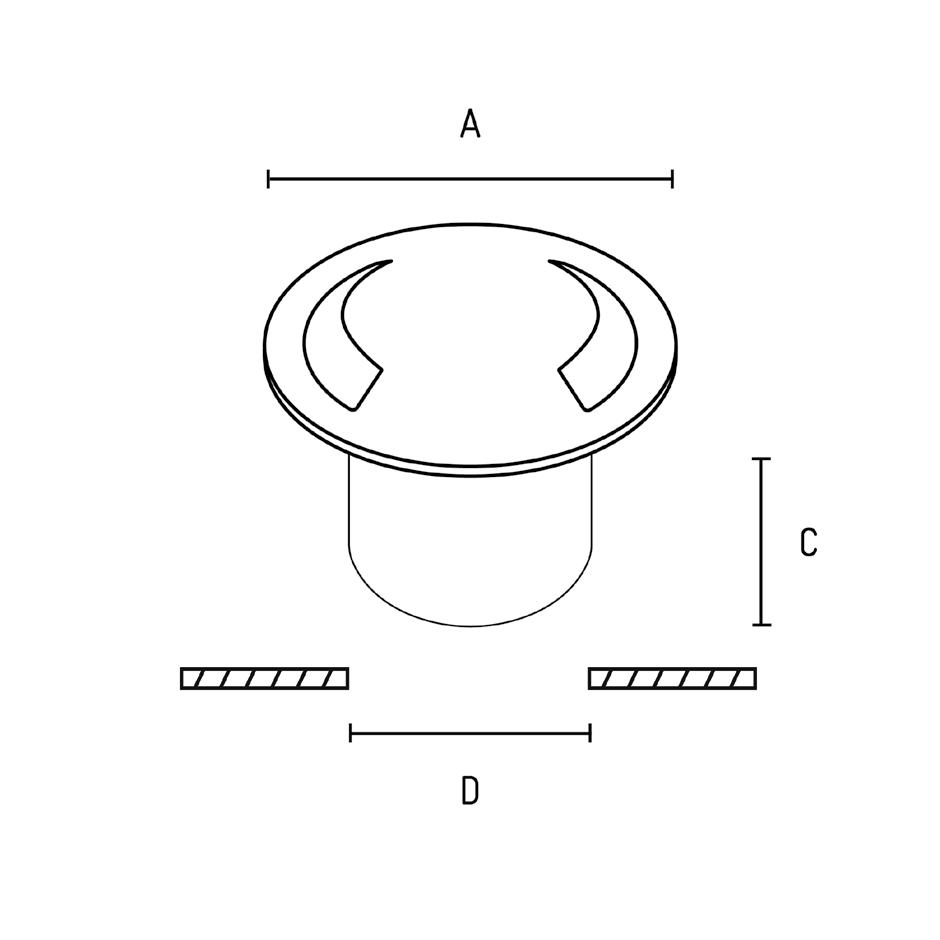

IG28

The IG28 family of inground round models can be selected with Ø55, Ø116, and Ø173 diameters. These models offer wattages of 2W, 6W, and 15W respectively, and are available in color temperatures of 3000K, 4000K, and 6000K. With an IP67 rating, these models provide 1-way, 2-way, or 4-way side lighting emission options.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

IG3

The IG34 family includes inground models available in round (IG34), square (IG35), and eyelid versions (IG341 and IG351). The round models are available in diameters of Ø38, Ø64, Ø80, and Ø100, while the square version come in sizes of 38x38mm, 64x64mm, 80x80mm, and 100x100mm. These models offer wattages of 1W, 5W, 7W, and 10W, and color temperatures of 3000K, 4000K, and 5000K. With IP67 and a beam angle selecting between 15º or 38º, it’s possible to customize these products offering tunable white or RGB solutions upon request.

IG341

IG351

IG350

IG340

Full photometric data available upon request.

Voltage

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color Upon request

THE ST. REGIS HOTEL

RIYADH, KSA

WR1

SP44 IG44

IG44

This inground family of round models can be selected as fixed or adjustable versions. The IG44 adjustable allows a manual tilt from -25º to +25º. With diameters available of Ø130, Ø160, Ø180, Ø210, and Ø250, these products range from 6W to 36W power. The color temperature selection can be made between 2700K, 3000K and 4000K or, upon request, RGB and RGBW solutions. With IP67 the IG44 family can be equipped with beam angles of 25º, 40º, or 60º.

FIXED & ADJUSTABLE INGROUND

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

Full photometric data available upon request.

FIND MORE

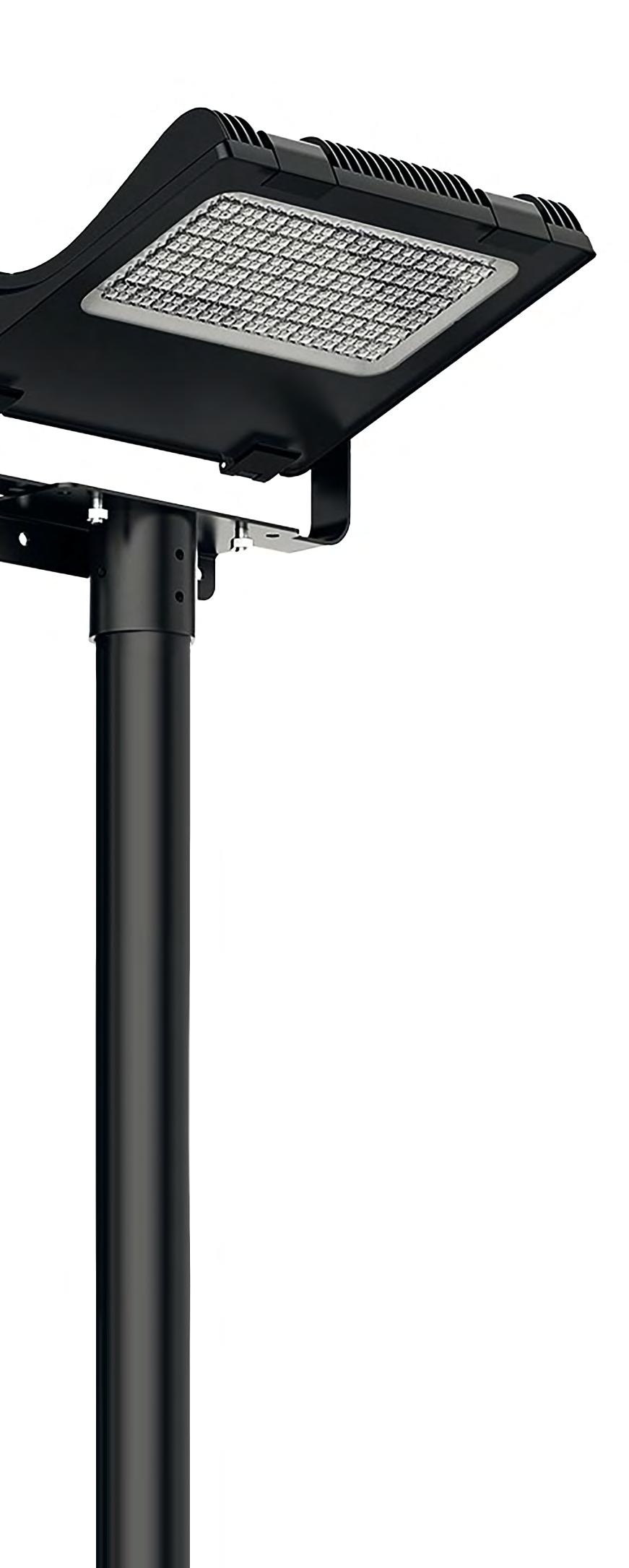

FLOODLIGHT

LUCIO presents a range of floodlights capable of delivering the best lighting solutions for any space. With versatile options available as standard or through customized solutions, LUCIO’s floodlights provide advanced solutions with high-efficiency light sources and flexible control and dimming options. Within this family, it’s possible to choose from a wide range of wattages that match the most suitable beam angle for any installation. For more creative environments, many of these products can be customized to offer RGB and RGBW solutions.

SP9

SP9

The SP9 floodlight series offers a selection of wattages ranging from 6W to 40W. With beam angles of 25º, 40º, and 60º, it’s possible to select between color temperaturesof 3000K, 4000K, or 5000K. As standard, the SP9 comes with a CRI80 and IP66 rate. Customization options are available for different wattages, control and dimming or RGB solutions.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color Upon request

SP13

Available in a range of wattages of 15W, 30W, 45W, 75W, 100W, and 240W, The SP13 floodlight family can be equipped with a of 12º, 30º, 60º, or an asymmetric option of 10x60º. These products, as standard, are available in color temperatures of 3000K, 4000K, and 5000K with other solutions available upon request: RGW or RGBW. With a CRI80 and an IP66 rating, these floodlights can also feature some lighting confort elements increasing the overall output.

SP13

SP13 FLOODLIGHT

Full photometric data available upon request.

Upon request

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

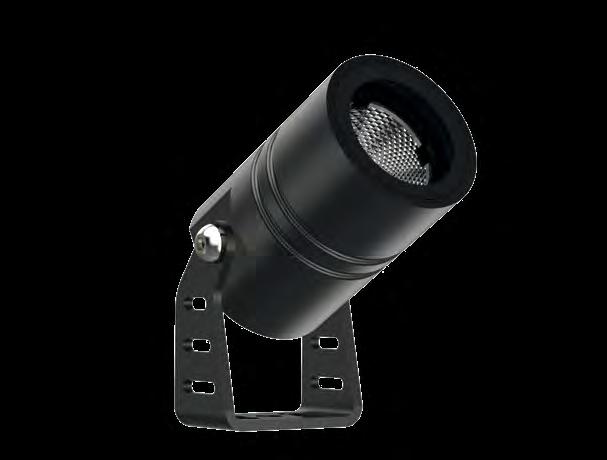

SP44

With a range of beam angles of 15º, 24º and 38º The SP44 floodlight series offers wattages of 2W, 6W, and 15W. Standard color temperatures of 3000K, 4000K, and 5000K, these models are IP66 rated with constant voltage supply of 24Vdc. Upon request it’s possible to supply these floodlights with RGB light sources or with narrow beam angles.

Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 24Vdc

Light Source COB

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

FL30

The FL30 floodlight series can also be used as an uplight. Offering a range of wattage from 22W to 120W, it’s possible to use beam angles of 12º, 30º, 60º, or an asymmetrical option of 10x60º. Available in color temperatures of 3000K, 4000K, and 5000K, with a CRI80, the FL30 family is IP66 rated. Upon request it’s possible to customize these products offering RGB and RGBW solutions besides other control and dimming solutions.

FL

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source COB

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

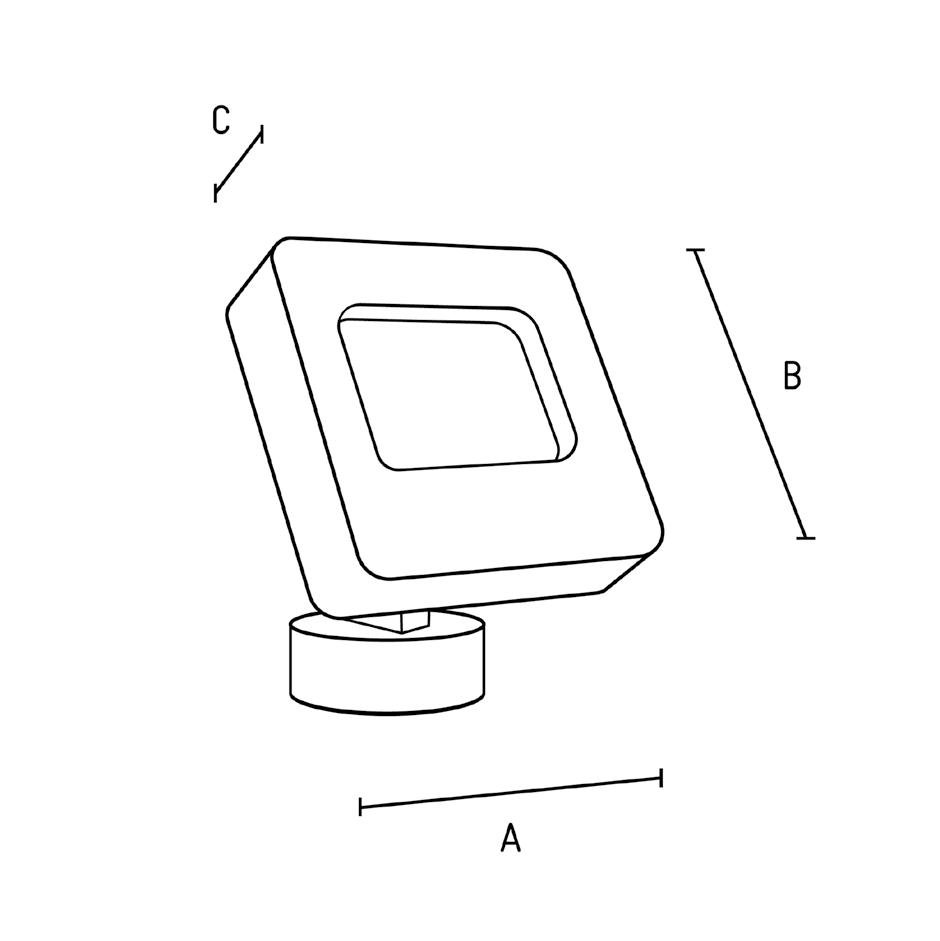

SP7

The square shaped floodlights SP7 features wattages of 24W, 48W, and 60W with a selection of beam angles of 18º, 24º, 38º, and 60º. With an adjustable arm up to 110º, these floodlights are available in color temperatures of 2700K, 3000K, and 4000K. With IP66 rate and CRI80 as standard, it’s possible to customize these models offering other power packages or RGB solutions.RGB and RGBW solutions besides other control and dimming solutions.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color Full photometric data available upon request.

JW MARRIOTT

AI KHOBAR, SAUDI ARABIA

FL33

The FL33 floodlight family consists of square-shaped fixtures with IP67 protection and wattages ranging from 6W to 60W. Available in a variety of beam angles, 5º, 15º, 30º, and 60º, and in color temperatures of 3000K, 4000K, or 5000K. Dimming controls include 1-10V and DALI for a CRI80 as standard. Upon request it’s possible to supply the FL33 products with CRI90 or RGB.

Full photometric data available upon request.

Voltage Range 100-265VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -40~+50°C

Material Aluminium Aloy

Available color

FL8

FL8

The FL8 versatile floodlight family offers a wide range of wattages from 40W to 240W. With IP66 rate and CRI80, these products can be selected with a beam angle of 18º, 24º, 50º, or an asymmetrical option of 120x60º. Available in color temperatures of 3000K, 4000K, and 5000K, other solutions can be provided upon request.

Voltage Range 100-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -30~+50°C

Material Aluminium Aloy

Available color

FL7

FL7 is a high-performance floodlight available in various wattages from 200W to 1200W. Designed for high mast installations, it offers beam angles of 10º, 30º, 60º, and 15x40º, with color temperature options of 3000K, 4000K, and 5000K. FL7 products are rated IP65 and feature CRI80, with dimming options available in DALI and 1-10V.

FL72

FL73

FL74

FL76 FL71

Full photometric data available upon request.

LED Lifespan > 111,000 Hours

Voltage Range 100-240VAC

Light Source SMD

MacAdam Step <5

Operating Temperature -20~+50°C

Material Aluminium Aloy

Available color

WALL WASHER

Our portfolio of wall washers were carefully designed to meet any project demand. From functional purpose to facade or any landscape type of installation, our products can meet the specifications as lighting effect or requirements of control. With surface or inground type of products, solutions in static white or RGB lighting are available. Considering the most common methods of controlling or for special projects, our team can help to achieve any setup required.

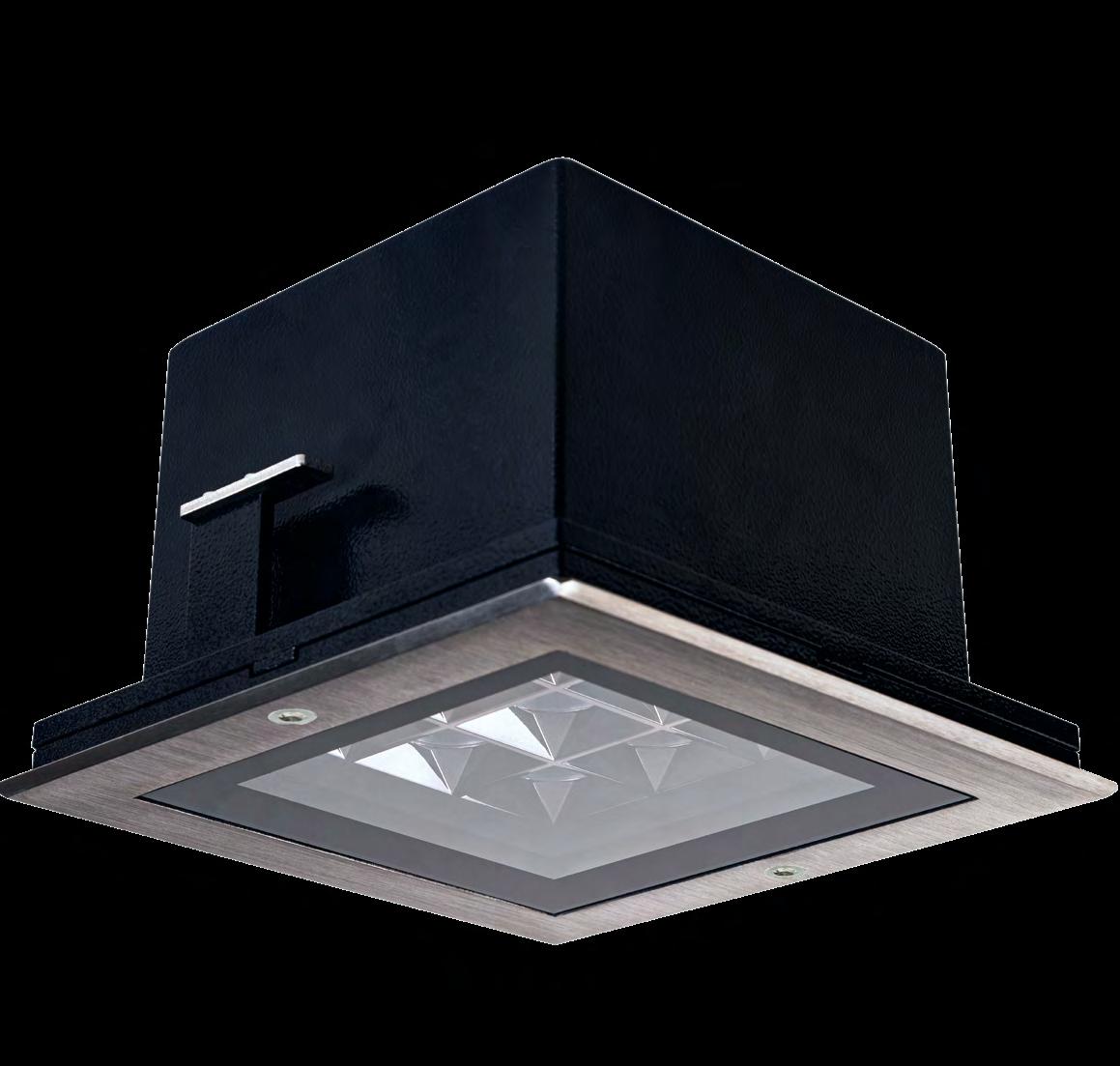

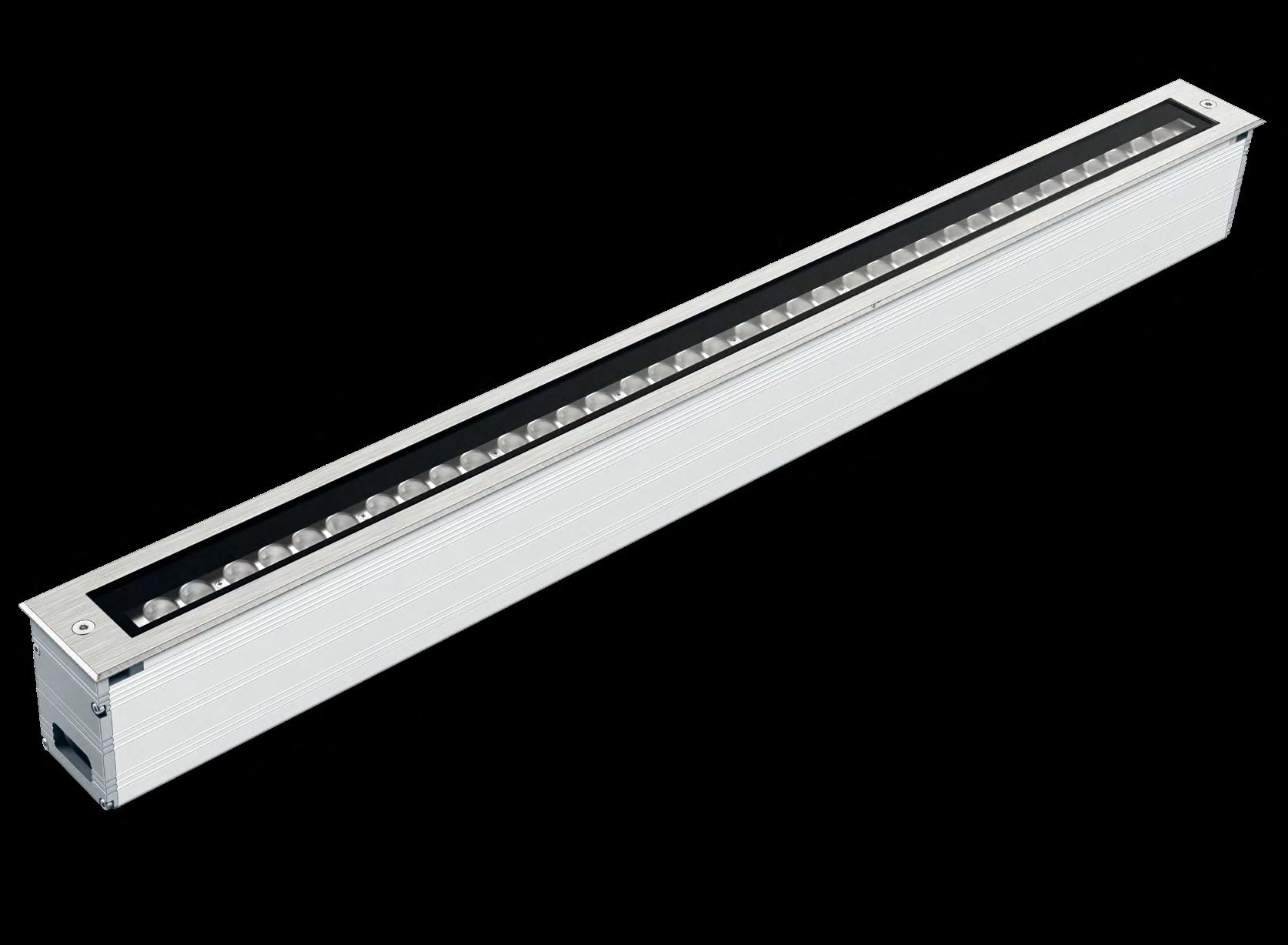

IL32

The IL32 it’s a family of wall washer lights designed for inground installation. With power outputs of 36W or 48W, a wide range of beam angles are available: 15º, 30º, 60º, 10x60º, and 20x60º. These IP66 fixtures are equipped with CRI80 as standard and offer a choice of CCTs, including 2700K, 3000K, 4000K, and 5000K. They can be controlLED via DALI and, upon request, provided with RGB or RGBW solutions.

IL32

36W 15º I 30º I 60º I 10x60º | 20x60º 2700K

Upon request

LED Lifespan > 50,000 Hours

Voltage Range 100-240VAC

Frequency 50/60 Hz

Light Source SMD

MacAdam Step <3

Operating Temperature -30~+50°C

Material Stainless Steel

Available color

48W 15º I 30º I 60º I 10x60º | 20x60º 2700K

Full photometric data available upon request.

IL41

IL41

The IL41 inground wall washer family offers a wide range of wattages and beam angles. From 7W to 42W, it’s possible to select from 8º, 20º, 45º, 60º and 10x60º beam angle. Besides 3000K, 4000K and 5000K color temperatures, an RGB solution is also available all with CRI80. These luminaires are IP67 rated and can be selected with DALI dimming control.

LED Lifespan > 50,000 Hours

Voltage Range 24Vdc

Frequency 50/60 Hz

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Stainless Steel

Available color

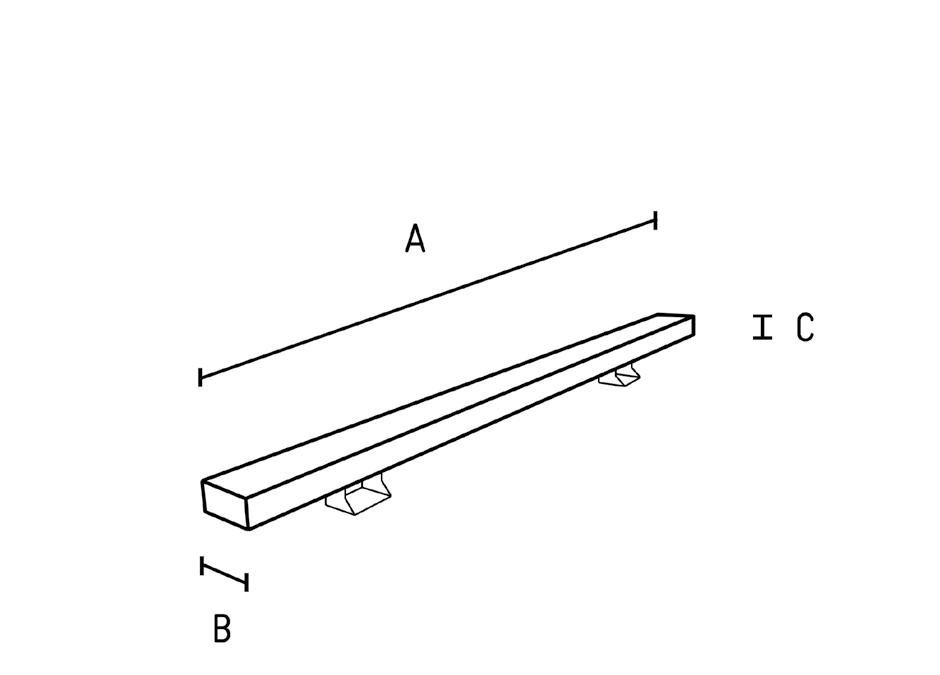

LL25

LL25

The LL25 family includes surface-mounted wall washer lights with wattages of 60W, 72W, and 80W. With symmetrical beam angles ranging from 3º to 60º and asymmetrical options of 10x30º, 10x60º, and 20x40º, it’s possible to choose between 2700K, 3000K, 4000K, and 5000K color temperatures. Featuring a CRI80 and an IP66, the LL25 products support DALI dimming control and, upon request, RGB and RGBW solutions.

LED Lifespan > 50,000 Hours

Voltage Range 100-240VAC

Frequency 50/60 Hz

Light Source SMD

MacAdam Step <3

Operating Temperature -30~+50°C

Material Aluminium

Available color

Full photometric data available upon request.

LL26

The LL26 it’s a IP67 family of flexible surface-mounted wall washers available from 0.3m to 1.2m long. These products are available in 2700K, 3000K, 4000K, and 6000K color temperatures, 15º or 30º beam angles with a range of wattages from 8W to 32W. An RGB solution is also available with 5W, 11W, 15W and 22W and

Lifespan > 50,000 Hours

Voltage Range 24Vdc

Light Source SMD

MacAdam Step <3

Operating Temperature -40~+50°C

Material Aluminium

Available color

DOWNLIGHTS

LUCIO’s range of downlights were designed to create an inviting atmosphere in any space or environment. Our portfolio offers a wide array of options, from round and square to linear shapes, offering various beam angles and color finishes. Our team’s expertise allows us to customize our standard selection or even create a new design to fit any special requirement.

S87 & S88

The S87 model features a round shape with an exterior dimension of 85mm, while the S88 model is square with an exterior dimension of 85x85mm. With IP65 protection rating, these downlights are available in 8W or 15W and with a beam angle of 15º, 24º, or 38º. The standard model has a CRI>80 but can be improved to CRI>90 for special requests.

Upon request Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 100-240VAC

Light Source COD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

S87 - IP65

S87 - IP65

S88 - IP65

S88 - IP65

SEAFACE TOWER

ABU DHABI, UAE

DR16

The DR16 IP65 family of outdoor recessed round downlights offers four beam angle options: 15º, 24º, 36º, and 50º. These downlights come in different sizes with diameters of 136mm, 186mm, 220mm, and 270mm offering a range of wattages from 11W to 44W. With a default CRI>80 it’s possible to select between color temperatures of 2700K, 3000K, 4000K, and 5000K.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source COB

MacAdam Step <3

Operating Temperature -30º~+50ºC

Material Aluminium

Available color

Full photometric data available upon request.

DS13

DS13

The DS13 is a series of square-shaped outdoor downlights, designed with various lens options for different beam angles, such as 15º, 24º, 38º, and 50º. It offers a selection of wattages ranging from 5W to 22W, along with color temperature choices of 2700K, 3000K, 4000K, and 6000K. As standard these downlights are equipped with a CRI80 light source but, upon special request, they can be upgraded to CRI90.

Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step 5

Operating Temperature -20~+50°C

Material Aluminium

Available color

S 29

S29

S29 is a range of recessed linear downlights featuring optical lenses with beam angles ranging from 15º to 50º. These luminaires come in various wattages from 11W to 24W, and color temperature options of 2700K, 3000K, 4000K, and 6000K. They have an IP65 rating for outdoor use and come with a default CRI of 80, although a CRI of 90 can be provided on special request.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Aluminium

Available color Full photometric data available upon request.

WALL MOUNTED & WALL RECESSED

LUCIO’s wall products are thoughtfully designed to meet any lighting requirements. Our product range seamlessly complements any space, offering both aesthetic appeal and comfortable lighting effects. With options for surface and recessed mounting installations, it’s possible to select from a variety of shapes and finishes in our standard offer. At the same time, LUCIO’s team is capable of providing customized solutions, selecting different light sources and dimming control setups to match any specific need.

WM54

WM54 is a family of compact tubular wall surfaced mounted lights with wattages of 2x5W, 2x10W, and 2x13.5W. With direct and indirect lighting, it’s possible to choose from beam angles of 15º, 24º, and 60º. Available in color temperatures of 2700K, 3000K, and 4000K, the standard model is CRI80 and IP65.

WALL MOUNTED

Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source COB

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

S88

WM12

The WM12 is a family of IP65 round-shaped surface-mounted products. With models available in wattages of 8W and 15W, it’s possible to select from 3000K, 4000K, and 5000K as color temperature. The WM12 family is available with CRI80 and a wide 90º beam angle.

Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

WM 97

WM97

WM97 is a squared-shape luminaire for surface-mounted installation. This family of IP65 products are available with 5W with direct and indirect light emission. The beam angle is manually adjustable using interior plates, ranging from a narrow 15º to a wide 120º. It’s possible to select from color temperatures of 3000K, 4000K, and 5000K with CRI80.

Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

WM98

WM98 is a family of wall surface-mounted lights with single or double side-emitting models. These compact, square-shaped models offer 6W or 10W in direct versions, and 2x6W or 2x10W in direct and indirect models. WM98 models provide a wide 85x75º beam angle with a standard CRI80.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color Full photometric data available upon request.

WM98DI

WR1

WR1

The WR1 is a round-shaped wall-recessed light with a 2W power output. This fixture offers a 30º beam angle and is available in color temperatures of 2700K, 3000K, and 4000K. With a CRI80 and an IP65 rating, dimming solutions can be supplied upon request.

LED Lifespan > 50,000 Hours

Voltage Range 24V DC

Light Source COB

MacAdam Step <3

Operating Temperature -20~+50°C

Material Aluminium

Available color

Full photometric data available upon request.

WR3 WR 12

WR12 & WR3

WR12 and WR3 are recessed wall fixtures available with powers of 2W and 6W respectively. With 30º beam angle and a selection of color temperatures of 2700K, 3000K and 4000K, WR12 is a square shaped fixture with 160mm x 160mm as the WR3 is linear shaped with 255mmx78mm. Featuring a CRI80 and an IP65 rating, these luminaires can be supplied with DALI dimming control upon request.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Aluminium

Available color

Full photometric data available upon request.

SURFACE MOUNTED & WINDOW LIGHTS

LUCIO’s wall products are thoughtfully designed to meet any lighting requirements. Our product range seamlessly complements any space, offering both aesthetic appeal and comfortable lighting effects. With options for surface and recessed mounting installations, it’s possible to select from a variety of shapes and finishes in our standard offer. At the same time, LUCIO’s team is capable of providing customized solutions, selecting different light sources and dimming control setups to match any specific need.

SM16

SM16 is a family of round-shaped surface mounted luminaires with power options ranging from 4W to 44W. These IP65 products offer beam angles of 15º, 24º, 36º, and 50º, and a selection of color temperatures, including 2700K, 3000K, 4000K, and 5000K. SM16 comes with CRI80 as standard and can be controlLED using the DALI protocol.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source COB

MacAdam Step <3

Operating Temperature -20~+50°C

Material Aluminum

Available color Full photometric data available upon request.

SM17

WM97 is a squared-shape luminaire for surface-mounted installation. This family of IP65 products are available with 5W with direct and indirect light emission. The beam angle is manually adjustable using interior plates, ranging from a narrow 15º to a wide 120º. It’s possible to select from color temperatures of 3000K, 4000K, and 5000K with CRI80.

Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Light Source COB

MacAdam Step <3

Operating Temperature -20~+50°C

Material Aluminum

Available color

ALOFT HOTEL

RIYADH, SAUDI ARABIA

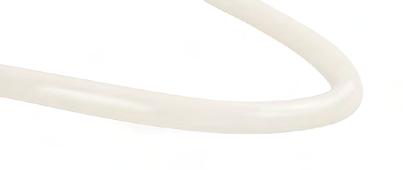

NEON FLEX

SM14

SM14 & SM15

These two families of round-shaped surface mounted fixtures are available in a standard (SM140 and SM150) and eyelid version (SM141 and SM151). SM14 is a fully open model, while the SM15 family offers a side-emitting light module. Wattages range from 12W to 30W for SM140, while the other models can be selected between 12W and 25W. With a wide 110º beam angle and a selection of color temperatures (3000K, 4000K, and 5000K), these luminaires feature CRI80, a IP65 rating and support DALI dimming control.

SM15

SM14 & SM15

SURFACE MOUNTED

SM150

SM151 SM141

LED Lifespan > 50,000 Hours

Voltage Range 200-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Aluminum

Available color

SM21

The SM21 is a square-shaped family of surface mounted luminaires. Available in wattages of 12W, 18W, and 25W, with a wide beam angle of 110º, it’s possible to select models in 3000K, 4000K, or 5000K. Featuring a CRI80 and IP65, SM21 products can be controlLED with DALI or a customized solution upon request.

Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 200-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Aluminum

Available color

WL01 & WL03

WL01 and WL03 are linear-shaped window lights available in 3W and 36W, respectively. With a beam angle of 2x120º and a CRI80, it’s possible to choose from 3000K, 4000K, or 5000K. Additionally, RGBW versions are also available. With an IP65 rating, these products can be equipped with DALI dimming control or any other specific control setup.

Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 24Vdc

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminum

Available color

WL02

Designed for window lighting, WL02 offers a specific narrow beam angle of 8x120º. These models are available with 20W and color temperature options of 3000K, 4000K, 5000K, or RGBW. With CRI80 and DALI dimming control available, this IP65 luminaire can integrate any other special control setup or requirement.

Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 24Vdc

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminum

Available color

WEATHERPROOF & HIGHBAY

Our weatherproof and highbay products were designed for durability and performance, offering a range of options from various wattages and lengths to beam angles and dimming control. Carefully selecting the right materials, LUCIO’s weatherproof products are IP-tested to ensure precise lighting where and when it is needed.

AR

AR126

The AR126 family of tubular lights were designed for both surface and suspended installations. With wattages ranging from 20W to 70W in various lengths of 0.6m, 1.2m, 1.5m, and 1.8m, these luminaires provide a wide 120º beam angle. Available in color temperatures of 3000K, 4000K, 5000K, and 6000K, with a CRI80, These IP67 models support dimming control via DALI and 1-10V, and tunable white options are available upon request.

WEATHERPROOF

Suspended version available upon request

Upon request

LED Lifespan > 50,000 Hours

Voltage Range 100-277VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Aluminum

Available color

Full photometric data available upon request.

AR126-XL

WP1

The WP1 family features weatherproof lights in various wattages and lengths, including 0.6m, 1.2m, 1.5m, and 1.8m. Suitable for both surface and suspended installations, these luminaires provide a wide 120º beam angle and are available in color temperatures of 3000K, 4000K, 5000K, and 6000K. With CRI80 and an IP65 rating, it’s possible to select DALI or 1-10V for dimming control. Higher CRI and other dimming controls or configurations are available upon request.

Suspended version available upon request

WP1

Upon request

LED Lifespan > 50,000 Hours

Voltage Range 200-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Polycarbonate

Available color

JUMEIRAH AT SAADIYAT ISLAND RESORT

DAMMAM, SAUDI ARABIA

HB

HB12

The highbay HB12 family offers both tempered glass and lens model options. These luminaires are available in wattages of 100W, 120W, 150W, and 200W, with color temperatures of 3000K, 4000K, and 5000K, all featuring CRI80. The tempered glass models provide a 110º beam angle, while the lens modelsoffer an 80º beam angle. With an IP65 rating, the HB12 supports dimming control through both DALI and 1-10V.

HB12-G

HB12-L

LED Lifespan > 50,000 Hours

Voltage Range 200-240VAC

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Aluminium

Available color

WB12-G

WB12-L

HB12-G

BOLLARD STREET LIGHT

DECORATIVE POLETOP & &

In this section, LUCIO presents a variety of exterior lighting solutions. Our range of bollards enhances the aesthetic appeal of any outdoor space while ensuring comfortable illumination. Similarly, our Decorative Poletop models are versatile, offering various options for installation and distribution of the fixtures in the space. The street light model was designed to fulfill the technical requirements of any project, with customization options available to meet specific needs.

BL80 BL81

BL80 & BL81

The BL80 and BL81 families of bollard lights are constructed from concrete and offer various finish options. The BL80, a rectangular design with straight lines, delivers 10W of power and features a 90º beam angle. It’s available in two heights: 450mm or 700mm. The BL81, with a rounded top and a 360º beam angle, provides 6W of power and stands at 322mm in height. Both these IP65-rated bollards are available in color temperatures of 2700K, 3000K, and 4000K, all with CRI80. Additionally, upon request, DALI dimming control can be supplied.

BL81

BL80

Upon request

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Frequency 50/60 Hz

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Concrete

Full photometric data available upon request.

BL80 -

BL81

BL81 BL80-M BL80-S

BL42

BL42 bollard lights are available in a range of wattages, from 6W to 40W, with beam angles of 180º or 360º. With a selection of color temperatures of 3000K, 4000K, and 5000K, a CRI80 and IP65 rating. BL42 supports DALI dimming control in all hree different heights available: 280mm, 600mm and 900mm.

B L 4 2

Voltage

Frequency 50/60 Hz

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Aluminum

Available color

BL42-L BL42-M BL42-S

PT4

The PT4 decorative poletop family presents a range of models: Single Strut, Twin Strut, Suspended, Straight Arm, Side Entry, and Post Top. All variants offer wattages from 9W to 60W, with beam angles of 150º and 150ºx65º. Available in color temperatures of 3000K, 4000K, and 5000K, and featuring a CRI80, this IP66-rated family of products can be equipped with DALI or 1-10V dimming control.

P T4

PT40

PT41

PT42

PT43

PT45

DECORATIVE POLETOP

PT44

LED Lifespan > 50,000 Hours

Voltage Range 220-240VAC

Frequency 50/60 Hz

Light Source SMD

MacAdam Step <3

Operating Temperature -30~+50°C

Material Aluminum

Available color Full photometric data available upon request.

SL1

SL1

SL1 is a range of streetlights available in wattages ranging from 30W to 240W. With standard beam angles of 150º, 100x65º, and 151x81º, it’s possible to select a color temperature of 3000K, 4000K, or 5000K. These IP65-rated luminaires are equipped with CRI80 and can be supplied with DALI dimming control or other required specifications.

Full photometric data available upon request.

LED Lifespan > 134,000 Hours

Voltage Range 100-240VAC

Frequency 50/60 Hz

Light Source SMD

MacAdam Step <3

Operating Temperature -30~+50°C

Material Die-Cast Aluminum

Available color

NEON FLEX

LUCIO’s NEON flex strips are highly flexible and versatile lighting options suitable for both interior and exterior installations. With a wide range of solutions, including different IP’s, a diverse selection of color temperatures, and different shapes, allowing limitless lighting design possibilities. Our team offers advice and customized setups to provide the most suitable dimming control for your installation.

NEON FLEX

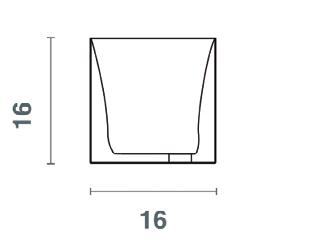

NEON flex products are available in various shapes and designs, allowing for bending in different directions. The 16x16mm profile offers solutions for horizontal, vertical, or dual bending, with a CRI80 and IP67 rating. There is also a tubular model with a Ø40mm diameter that provides a 360º light emission. The optical model offers a selection of beam angles for vertical bending applications. These solutions are available in a range of color temperatures, from cool to warm colors, as well as tunable white and RGB options.

Upon request

TOP BEND 16X16

SIDE BEND 16X16

DUAL BEND 16X16

TUNABLE WHITE

ACESSORIES

DualBend I 16x16 Vertical I 16x16 Horizontal Optical

ACC-AC-1616

ACC-AC-2211

ACC-TC-1616 -

ACC-AMC-1616

ACC-AMC-2211

ACC-FMC-1616 -

POWER SUPPLY CV 24V

PSU-24V-IP00

PSU-24V-IP67

Maximum length per power supply. For other configurations contact our team.

UNDERWATER

LUCIO’s offer for underwater lighting applications can meet all the tough requirements of such an environment. With IP tested solutions and carefully selecting the best materials, our product offer can deliver a comfort lighting effect in any space. With a range of different solutions and options, from wattages to beam angles, LUCIO team can also helps to find a customized solution for every project.

UW1

The UW1 family features round stainless steel inground products available in 1.5W and 2W, with diameters of 38mm, 55mm, and 69mm. It’s possible to select between beam ngles of 25º or 60º and from color temperatures of 2700K, 3000K, 4000K, and 5000K. With CRI80 and an IP68 rating, standard DALI dimming control is available.

UW 1

LED Lifespan > 50,000 Hours

Voltage Range 24V

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Die-cast Aluminium

Available color

UW2-8W

UW2-24W

UW2-36W

UW2-12W

UW2

UW2

UW2 offers a range of wattages from 8W to 36W and beam angles of 10º, 30º, and 60º. Featuring a stainless steel body this IP68 family of inground lights can be selected with color temperatures of 2700K, 3000K, 4000K, and 5000K. UW2 products are equipped with CRI80 LEDs and can be configured with DALI dimming control.

Voltage Range 24V

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Stainless Steel

Available color

Full photometric data available upon request.

FAIRMONT HOTEL

ABU DHABI, UAE

UW10

UW10

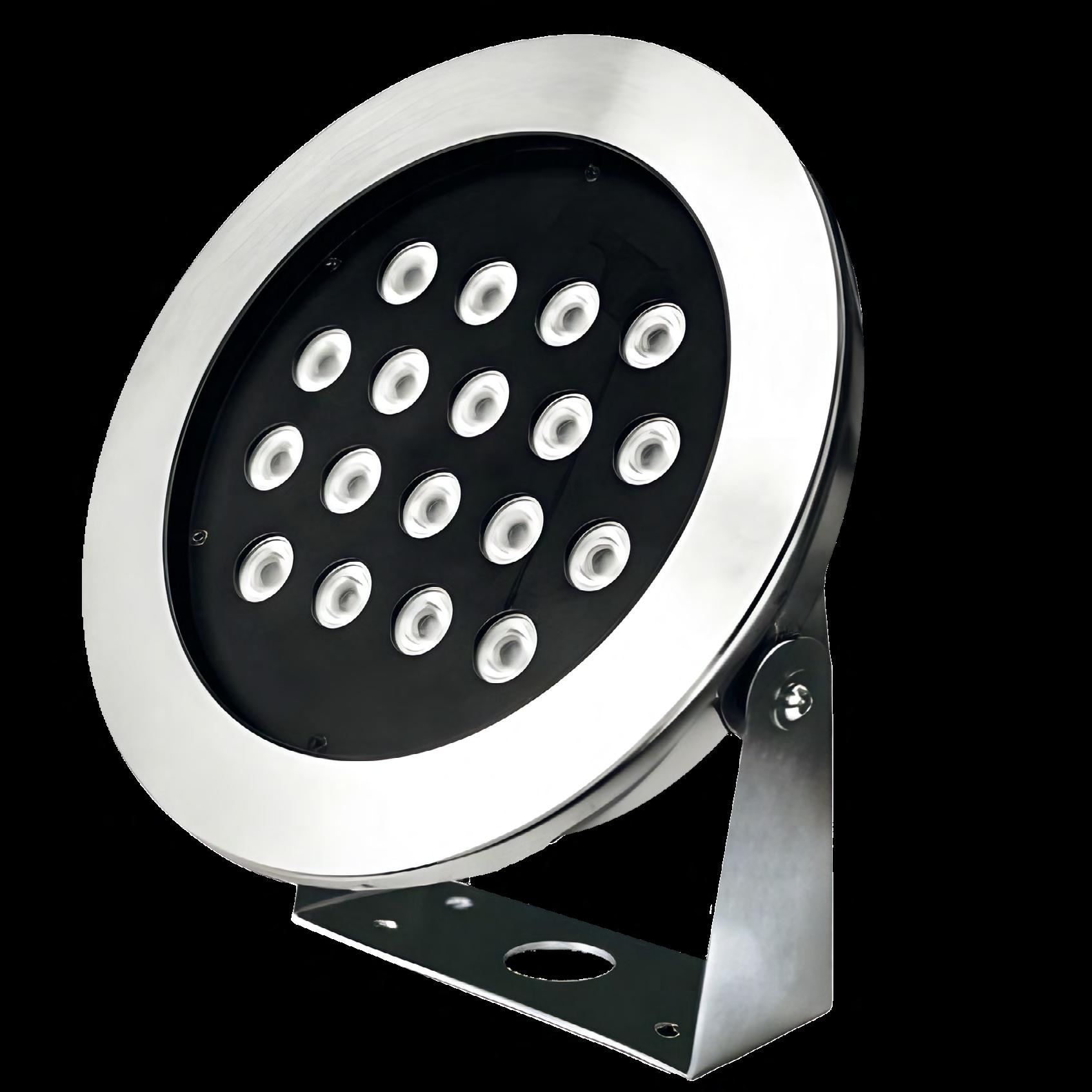

UW10 is designed for underwater fountain lighting. Featuring a stainless steel body, these products are available in 18W and 24W wattages, with beam angles of 10º, 30º, and 60º. Available in a range of color temperatures, including 2700K, 3000K, 4000K, and 5000K, and are equipped with DALI dimming control. The UW10 has a CRI80 and an IP68 rating. Upon request, RGB options can be provided.

Full photometric data available upon request.

LED Lifespan > 50,000 Hours

Voltage Range 24Vdc

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Stainless Steel

Available color Upon request

IL31 & UW20

The IL31 and UW20 families offer IP68 products designed for underwater applications. These stainless steel, linear-shaped luminaires are available in 6W and 12W wattages with beam angles of 10º, 25º, 30º, and 60º. With a selection of color temperatures, including 2700K, 3000K, 4000K, and 5000K, RGB solutions are also available upon request. The UW20 family features an articulated arm, allowing for adjustable lighting direction.

IL31

IL31

UW20

LED Lifespan > 50,000 Hours

Voltage Range 24Vdc

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Stainless Steel

Available color Upon request

Full photometric data available upon request.

UW30

UW30

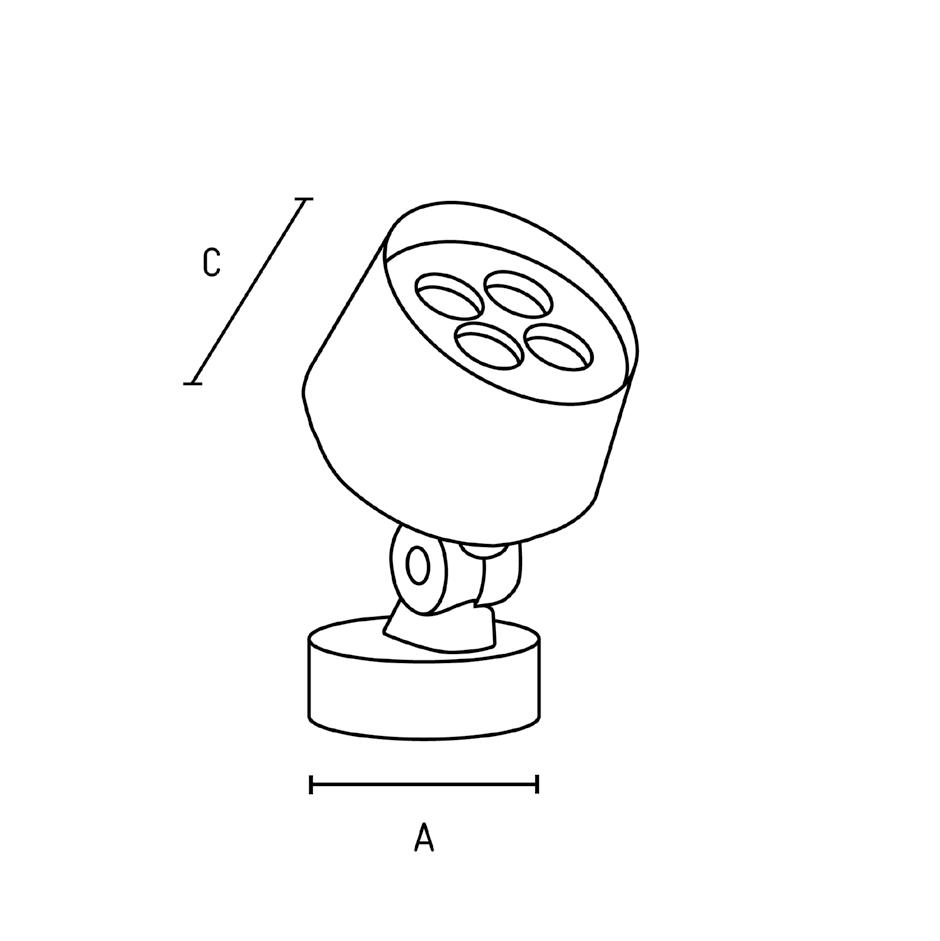

The UW30 family offers a range of round, stainless steel underwater floodlights with articulated arms. These lights are available in wattages ranging from 7W to 48W with a selection of beam angles of 15º, 30º, 45º, and 60º. With color temperatures of 2700K, 3000K, and 4000K and CRI80, these IP68 luminaires support DALI dimming control. Additionally, RGB solutions are available upon request.

Full photometric data available upon request.

Lifespan > 50,000 Hours

Voltage Range 24Vdc

Light Source SMD

MacAdam Step <3

Operating Temperature -20~+50°C

Material Stainless Steel

Available color Upon request

THINK

LIGHT
