tracis
architectural linear lighting system
tracis
Fully adaptable to any requirement and desire. From colour finishings to light effect.
tracis
light is in the details.
Every design begins with a line, a trace. Tracis is an architectural lighting system that transforms that first gesture into light. Flexible, modular and precise, it adapts seamlessly to any space—bringing clarity, continuity, and expression to architectural ideas.

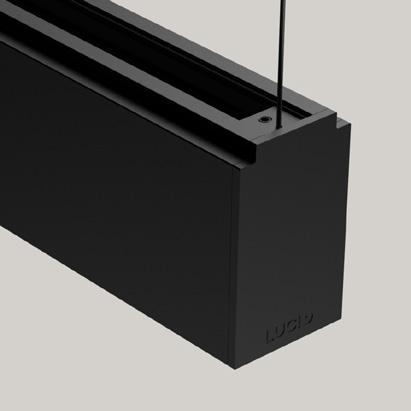

tracis profiles
Tracis profiles merge into any space, delivering sharp and precise light. They can be installed as pendant, surface-mounted, recessed or trimless, adapting to the specific requirements of each project.

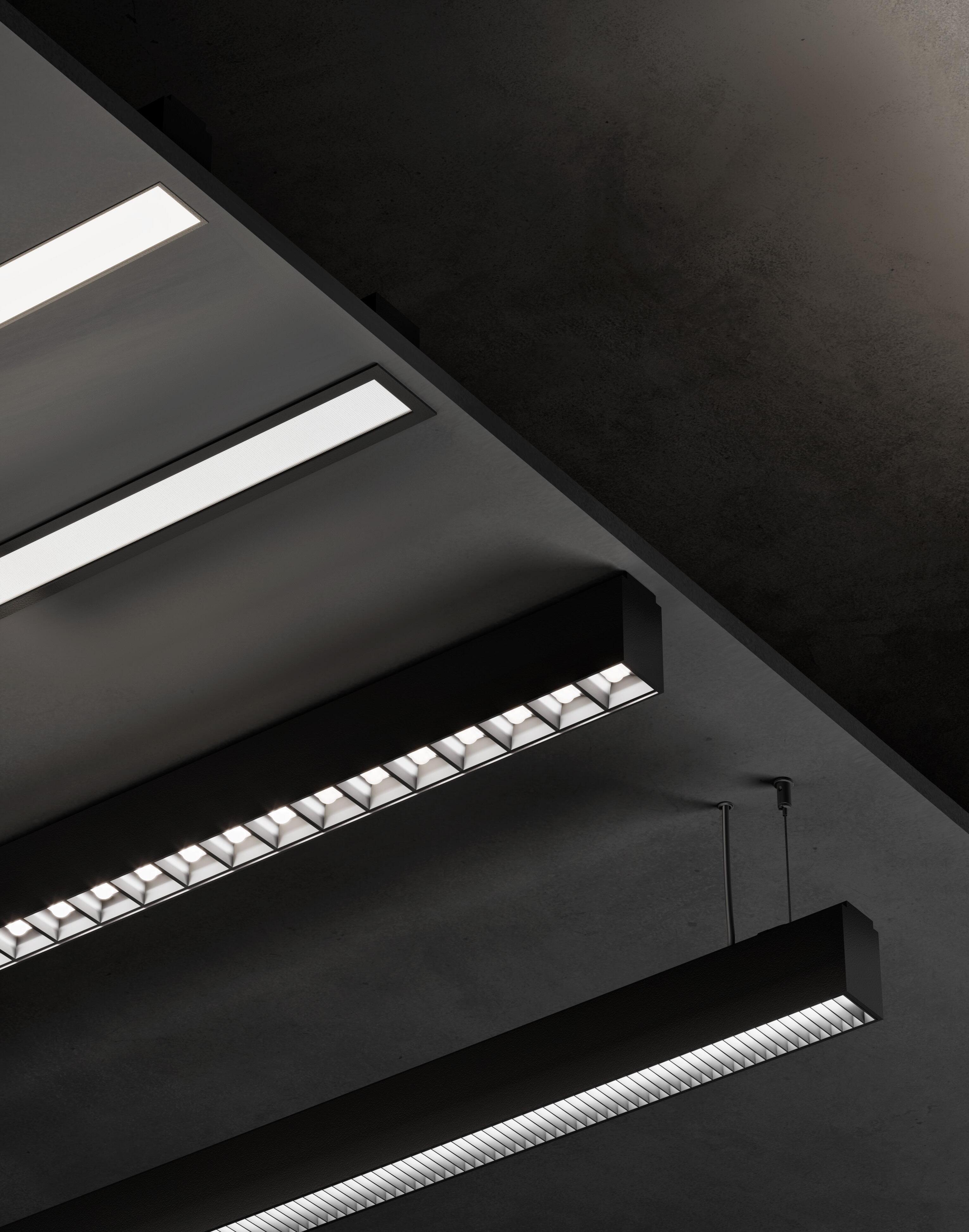

installation options
2
8
prismatic lenses
louvre
Lighting solutions that define spaces with a clean and precise design.

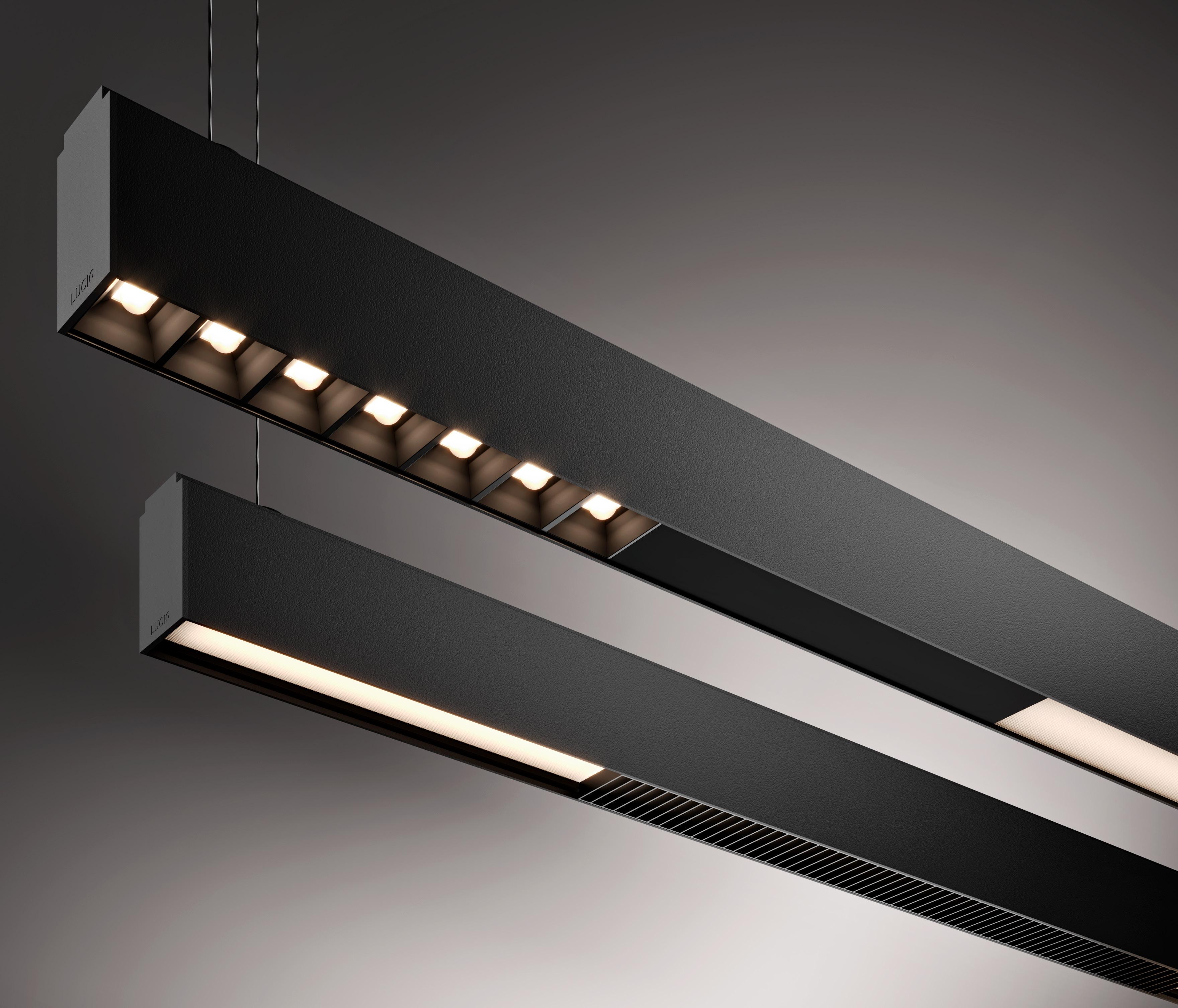

multiple optic and light options modular system allows freedom and flexibility to choose.
IP44 protection grade as standard Colour Rendering Index above 90
Built-in driver
DALI 2 dimming protocol
CASAMBI Bluetooth dimming option
Tunable white option available
Dim to warm option available

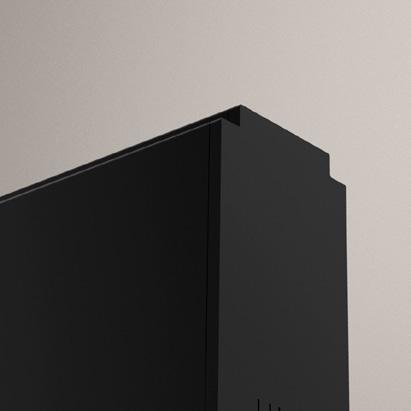

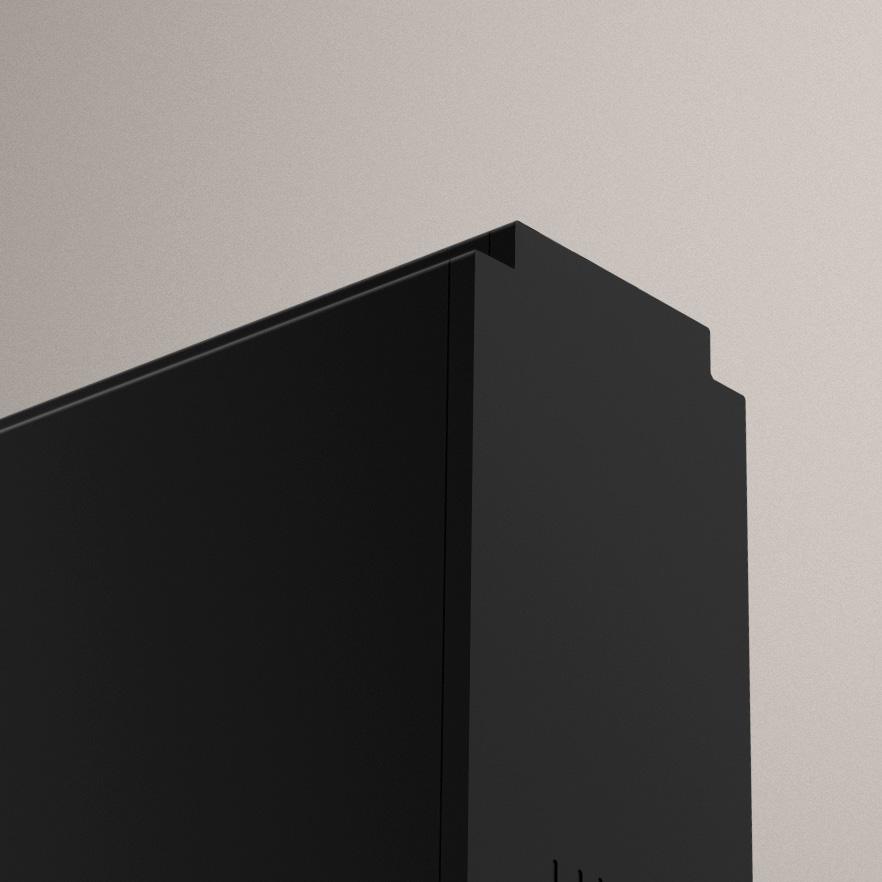

shadow line
A design choice that helps conceal ceiling defects.
Tracis integrates seamlessly into any space, becoming part of the architecture itself. The subtle shadow line not only enhances visual precision but also helps conceal ceiling imperfections, ensuring a clean appearance and a refined light experience throughout the room.

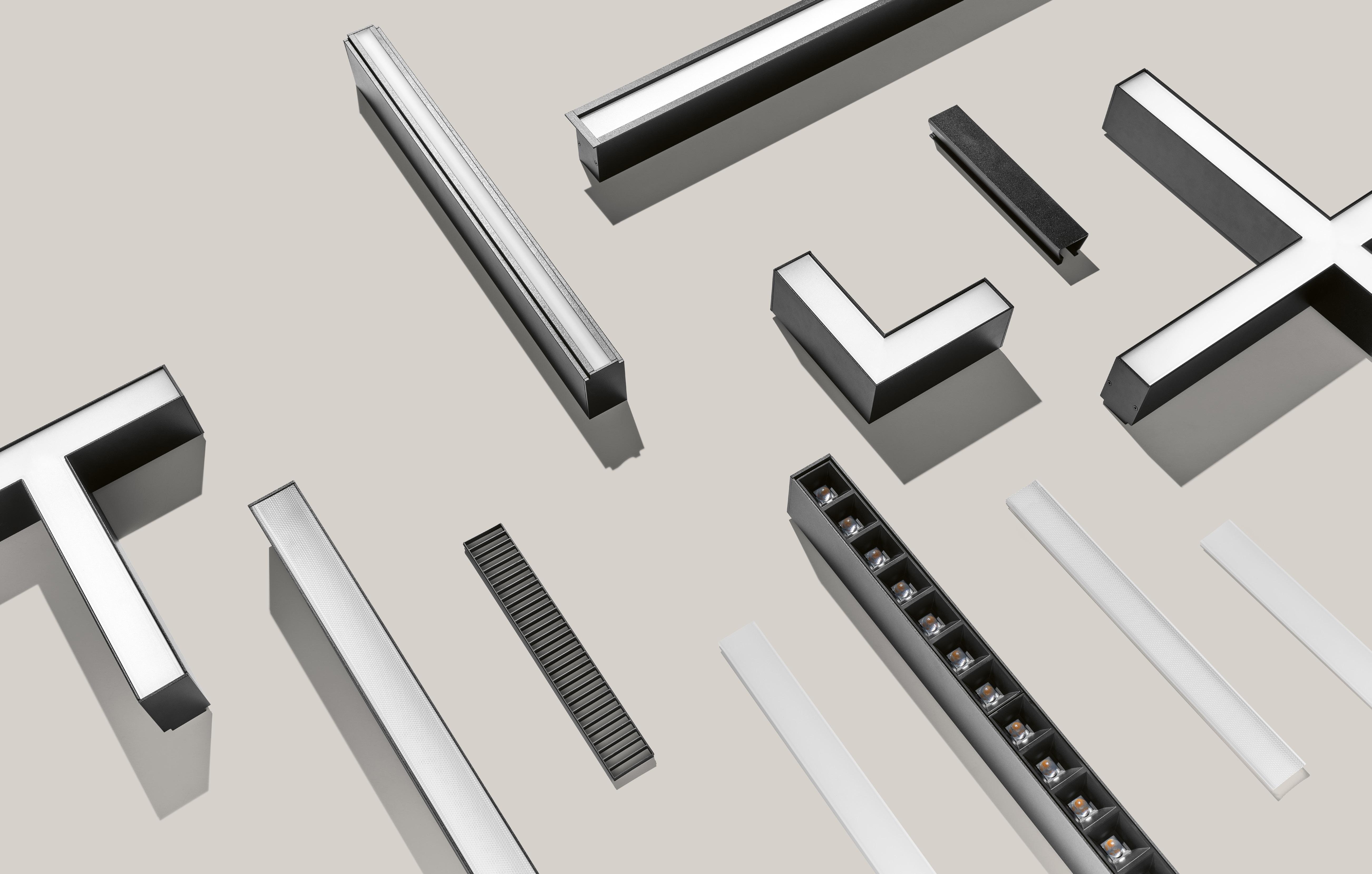

system components
A modular lighting system designed for total flexibility.

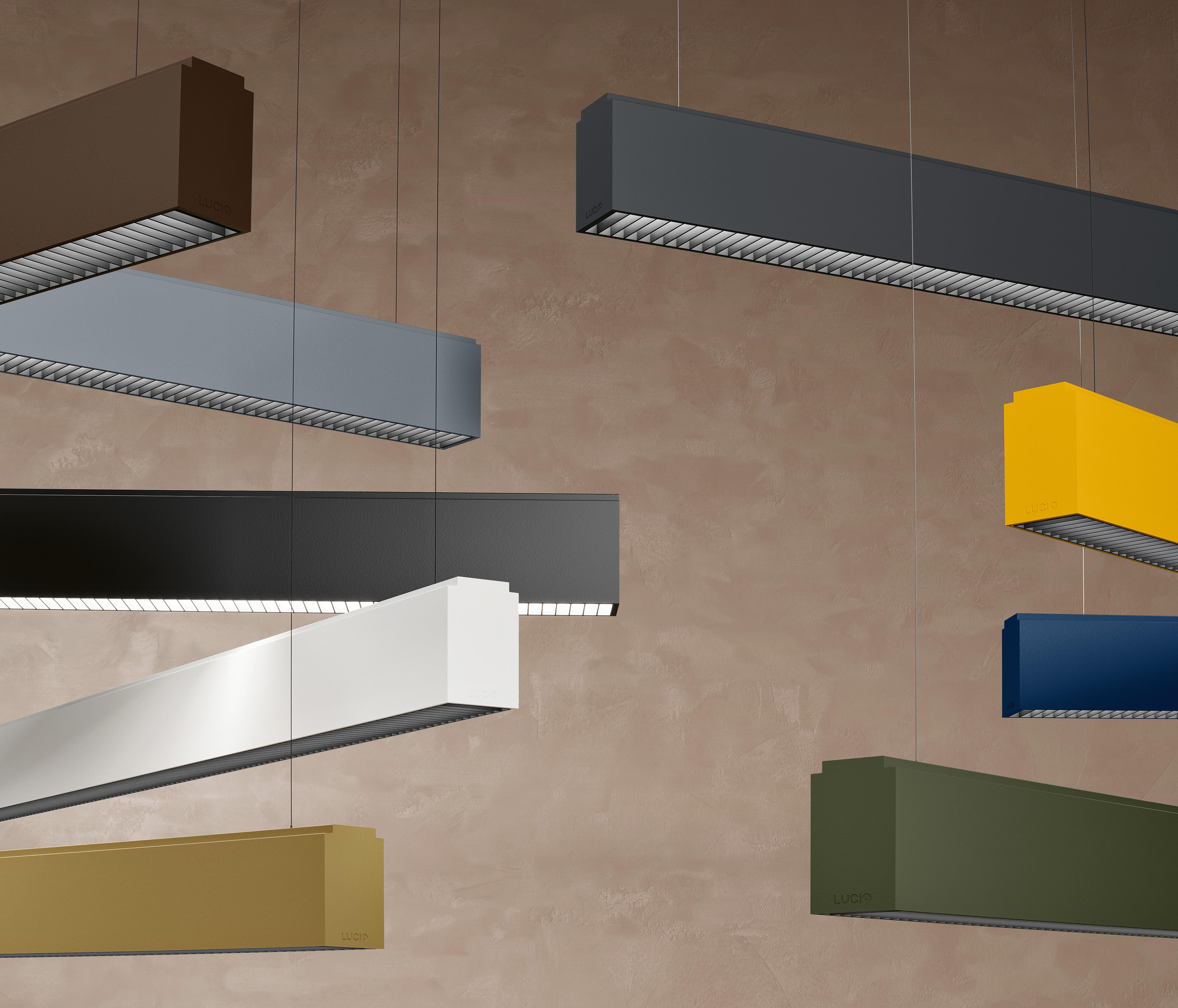

colour options
black
aged brass
white
colour options
From timeless tones to the colours of your own vision.
Our profiles are available in refined standard finishes, with custom colours upon request.
Choose from our six options — or create your own bespoke palette, tailored to your vision when customization is desired.

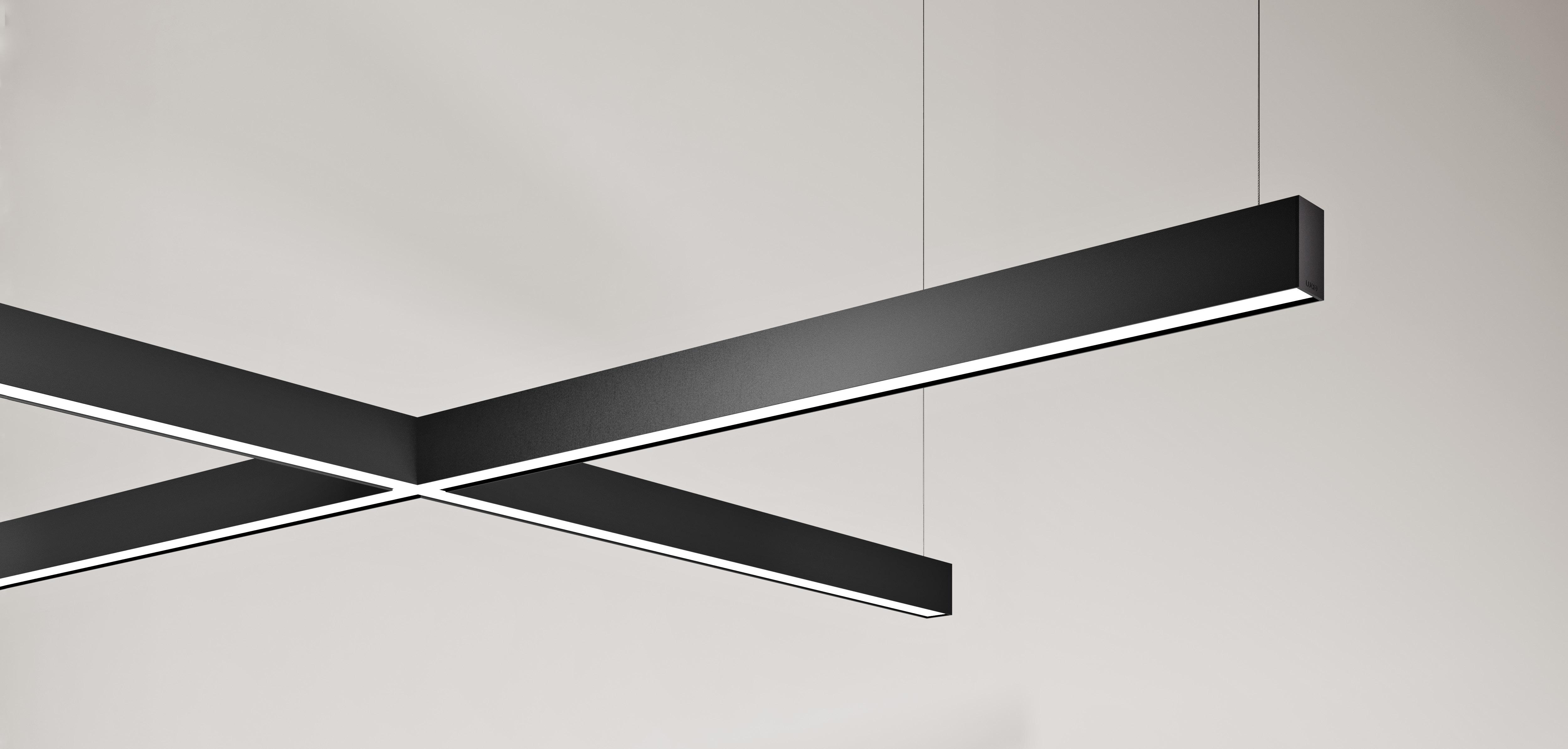

pendant
Balanced lighting that enhances depth, contrast, and atmosphere.

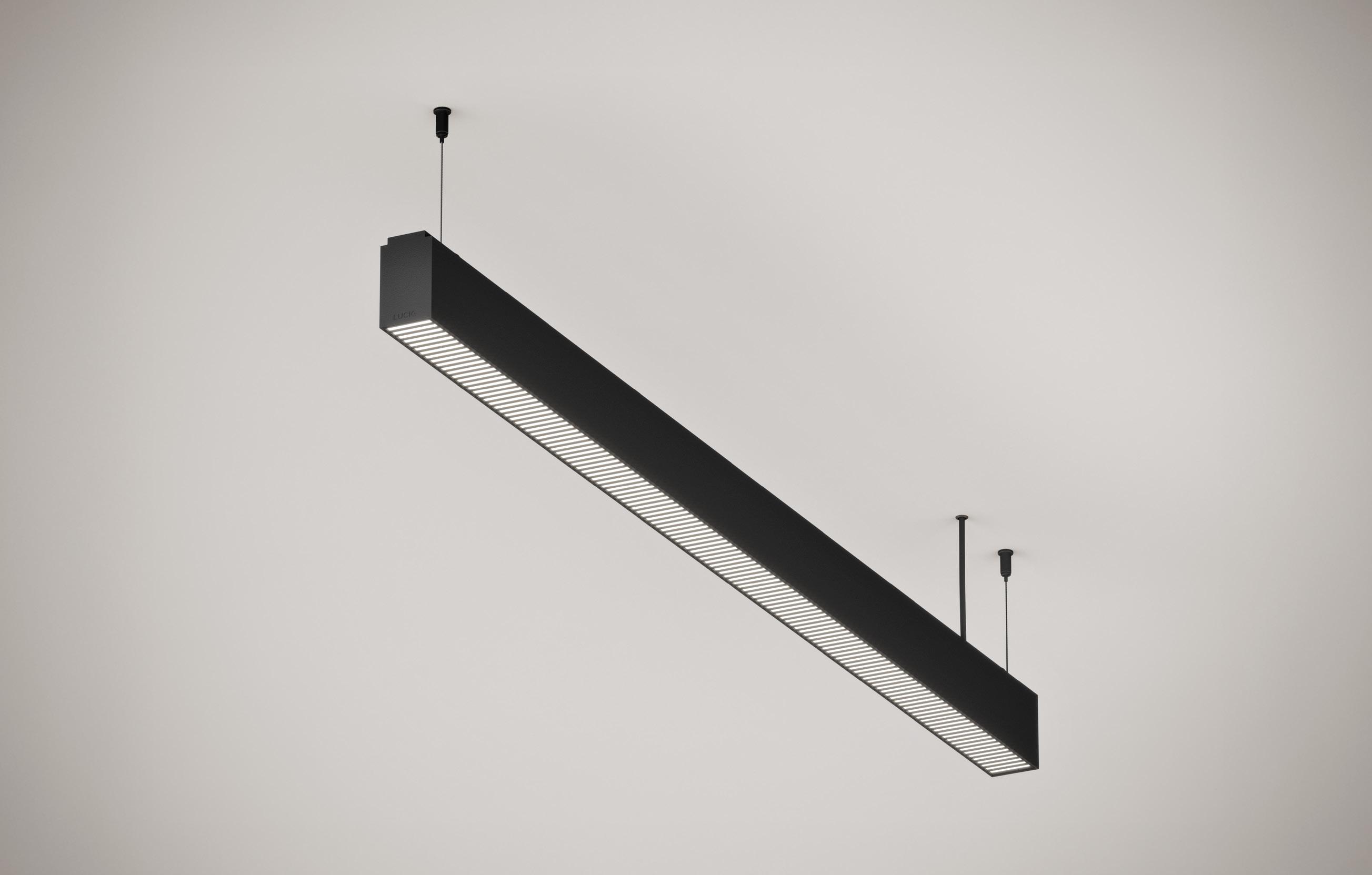

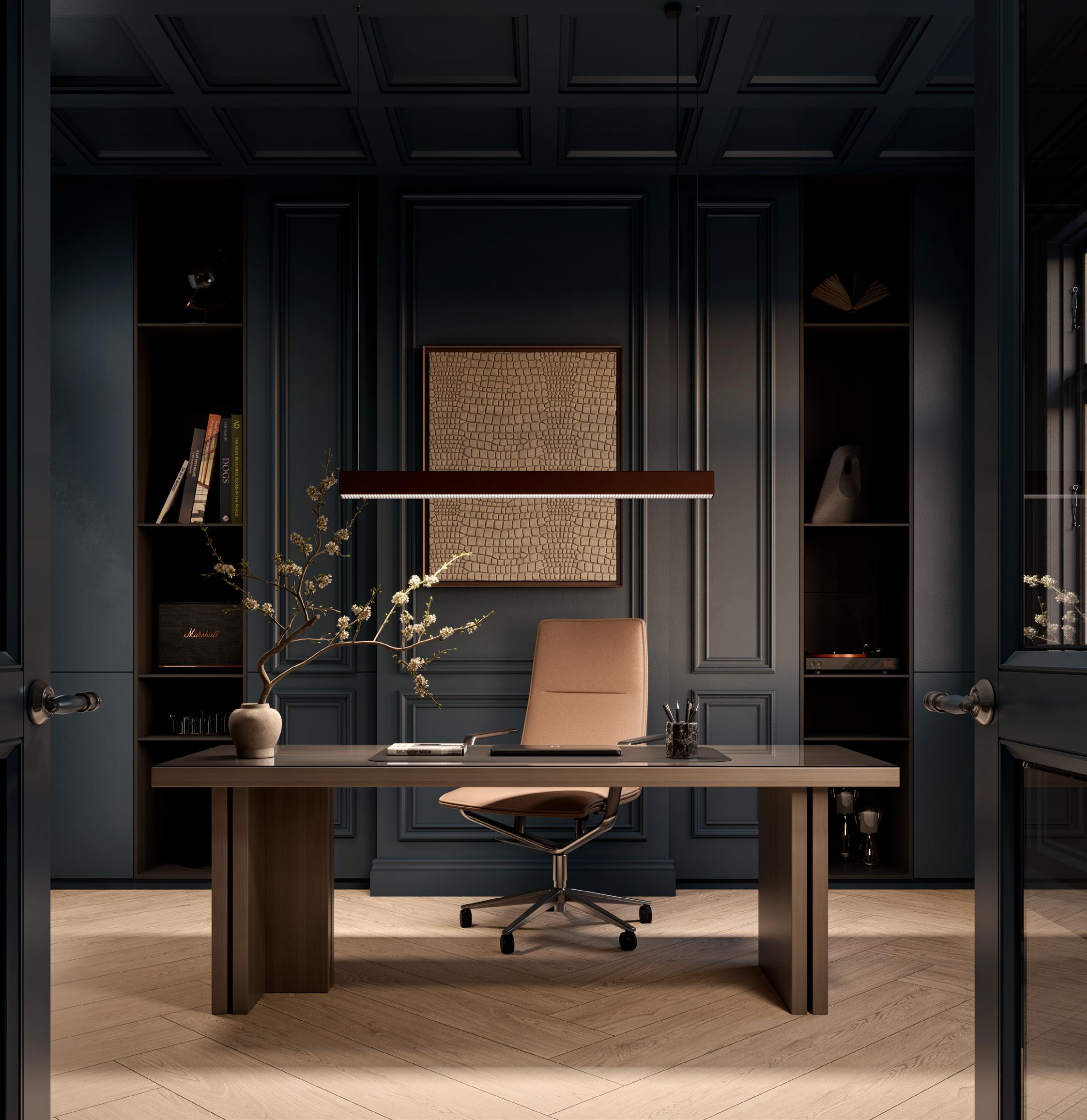

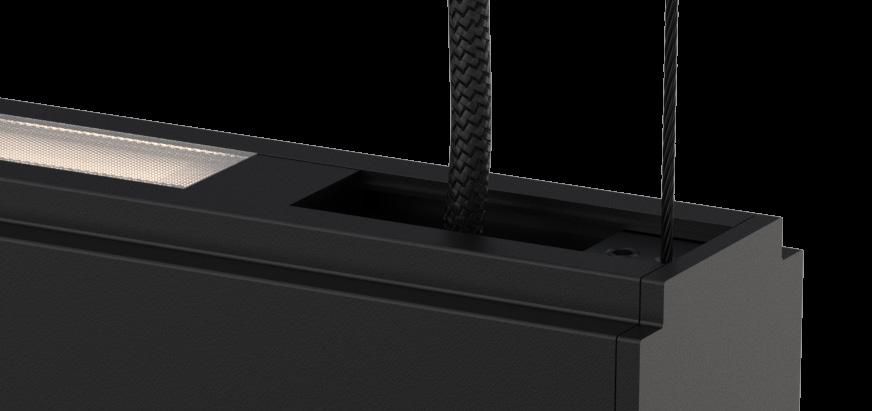

pendant installation

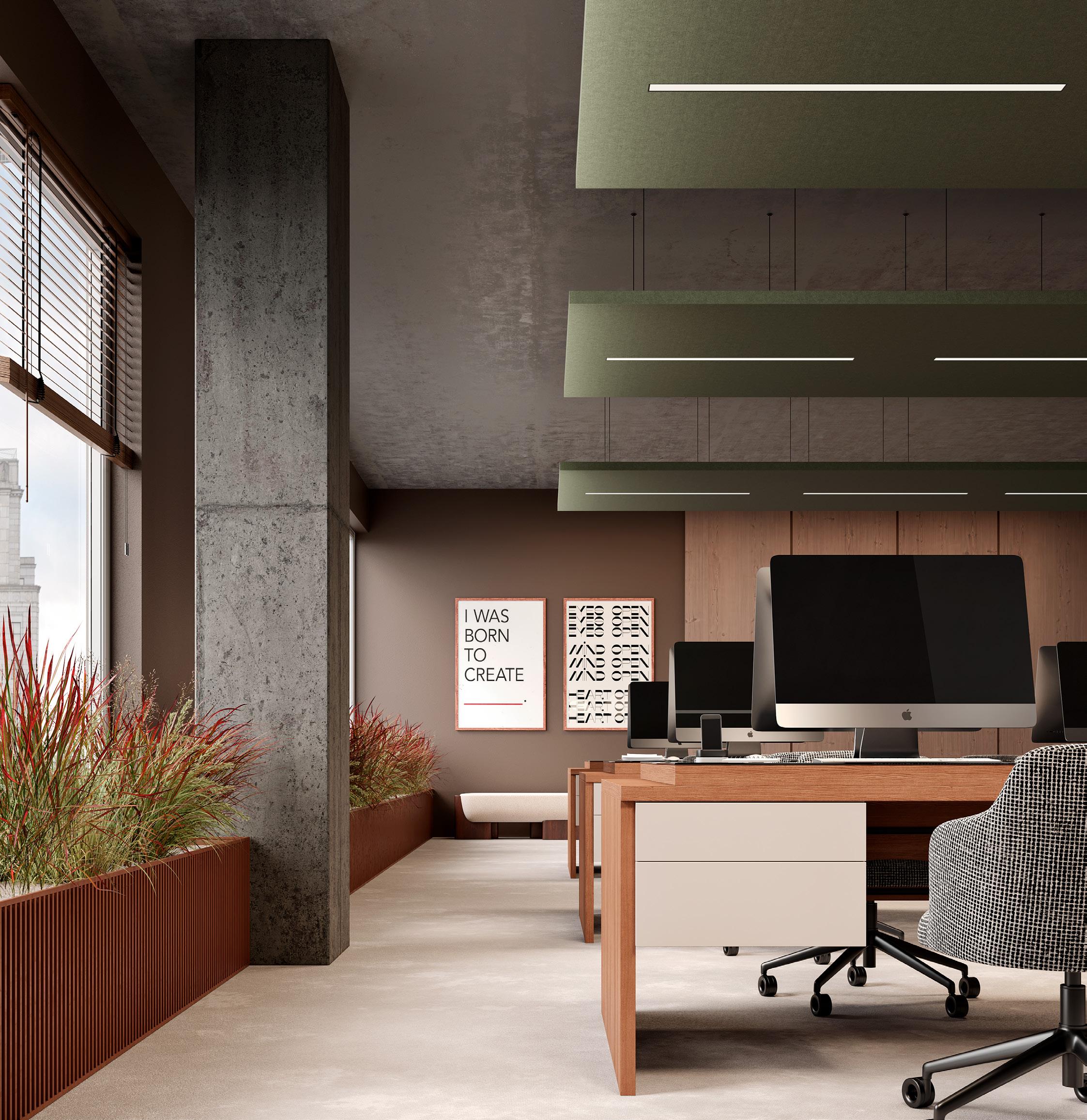

Pendant installations bring light exactly where it’s needed, making the space feel more personal and comfortable. By defining zones, highlighting key areas, or creating focal points, Tracis profiles can bring rhythm and character to the environment.
surface
Geometry becomes atmosphere, versatile lighting refined for modern interiors.

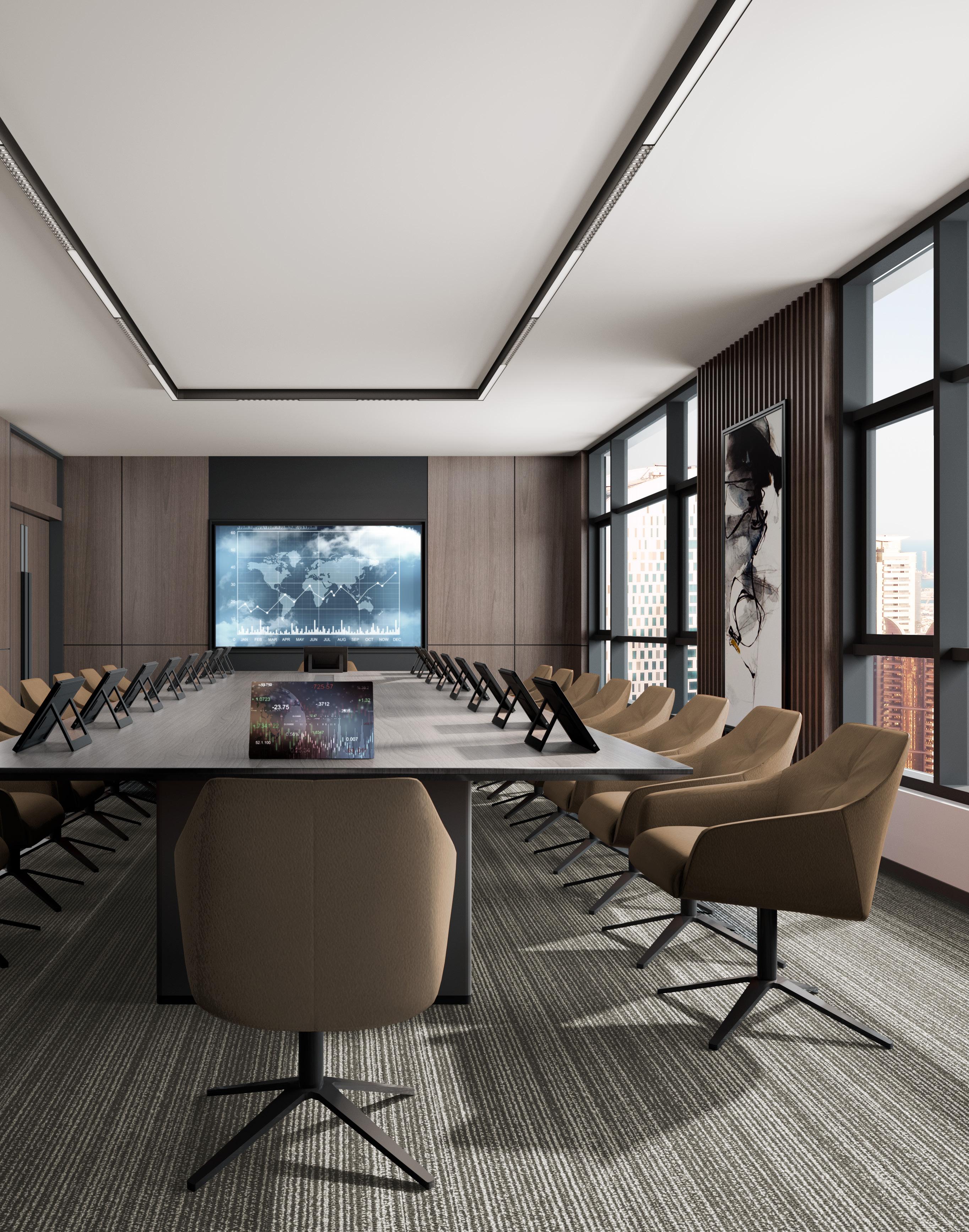

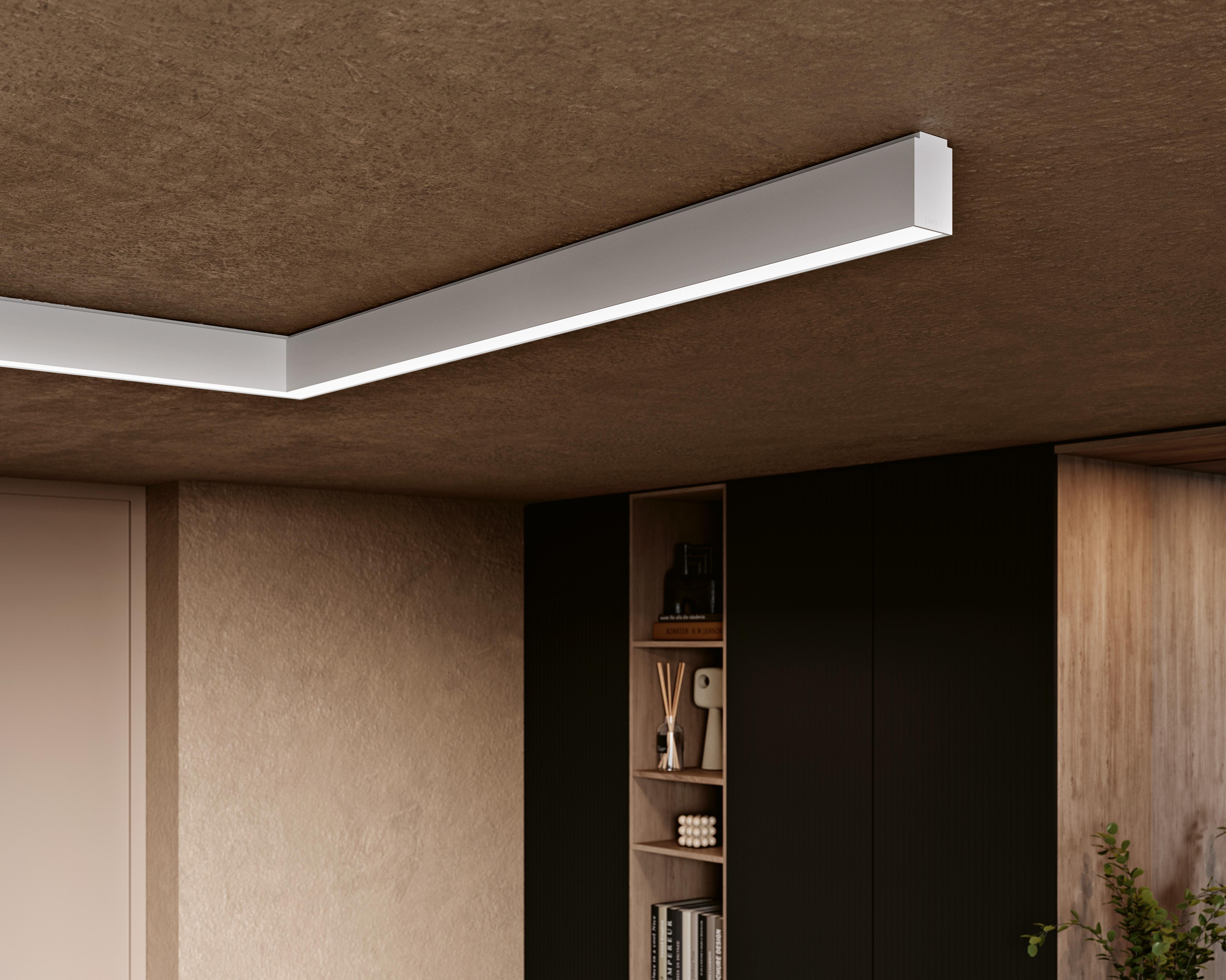

surface installation
Directly mounted to the ceiling, Tracis provides a flexible yet precise lighting solution for a wide range of spaces. The profiles are designed to simplify installation while improving the visual appearance of the ceiling.
shadow line a design choice that helps hide ceiling imperfections.
recessed
Minimalist fixtures that integrate seamlessly into any architectural environment.

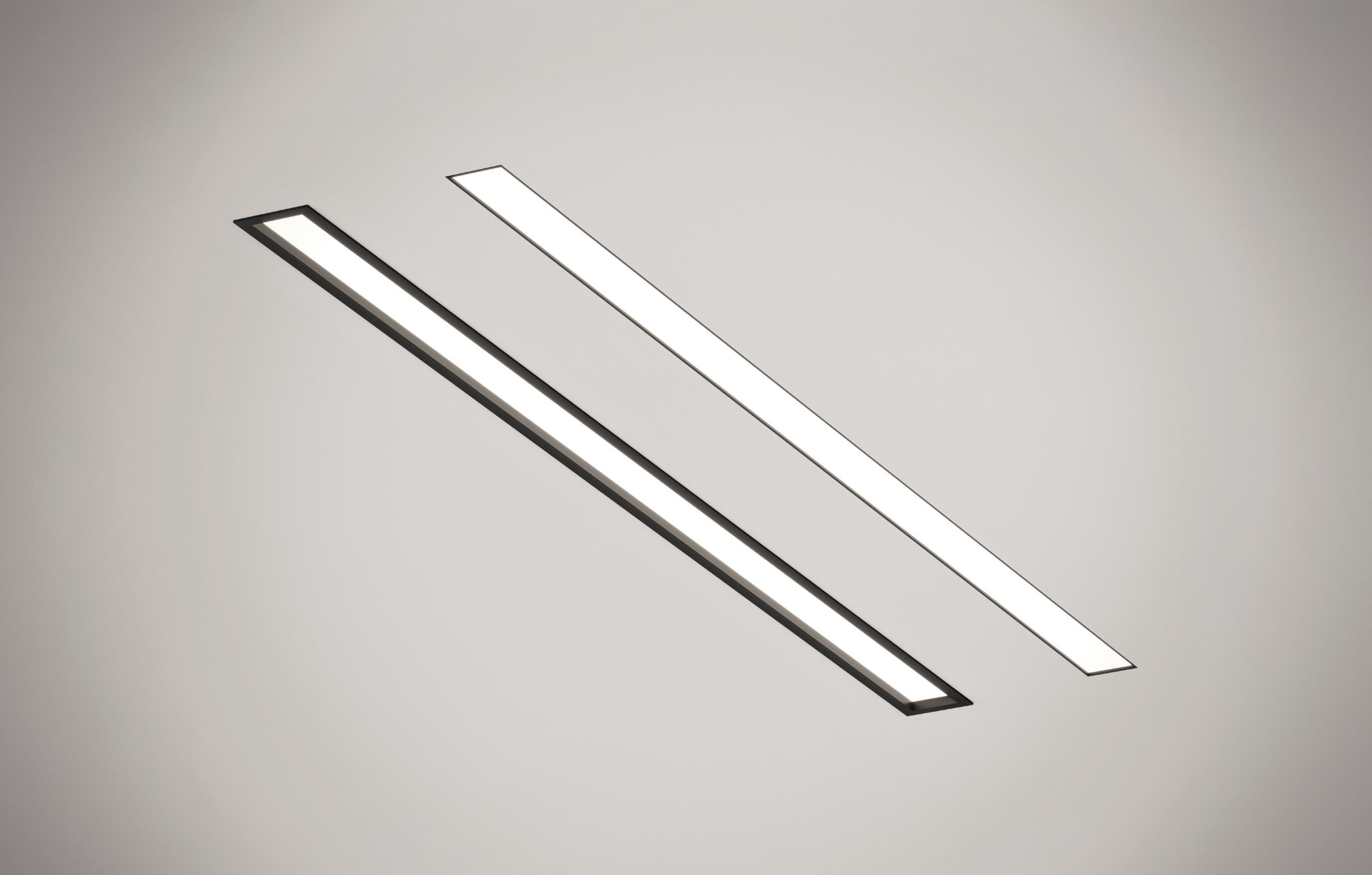

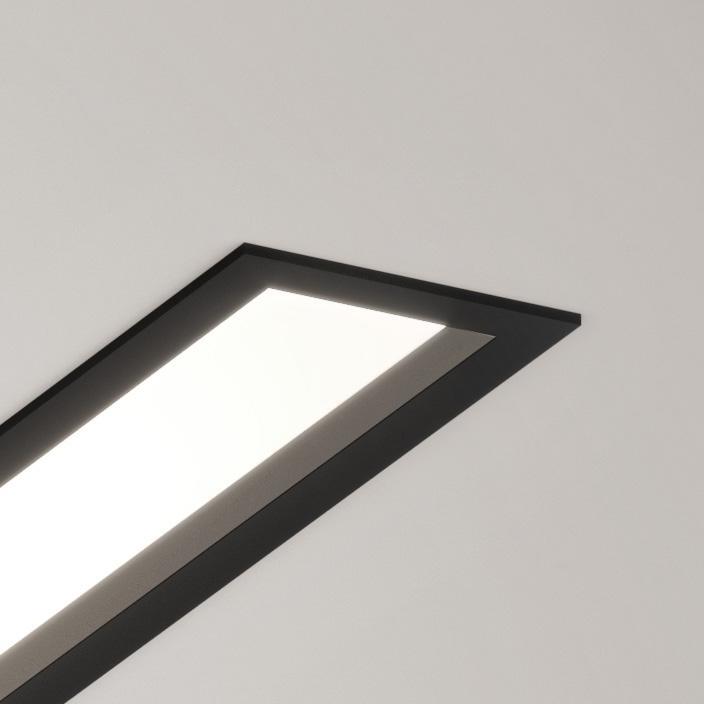

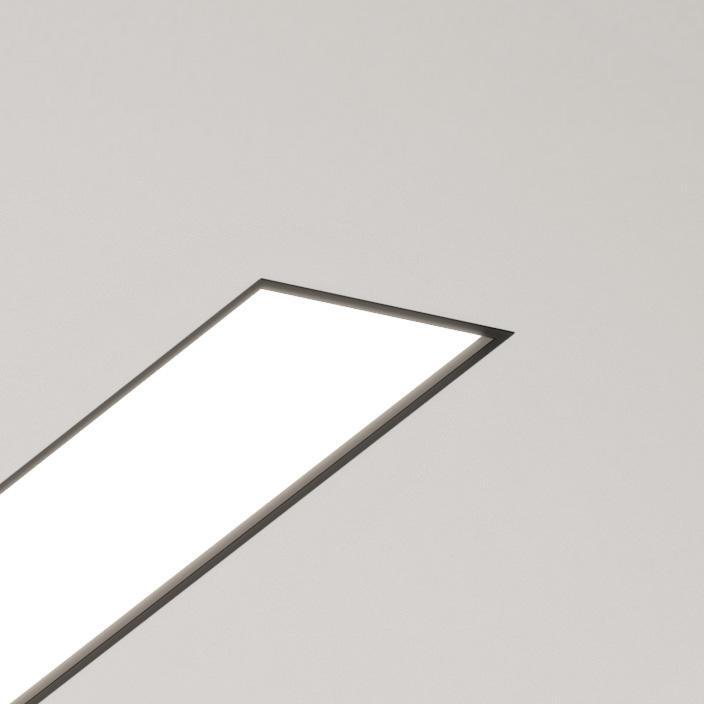

recessed / trimless installation
Recessed Tracis profiles can be seamlessly integrated into any ceiling or structure.
The modular system ensures flexibility during installation while maintaining a clean appearance.

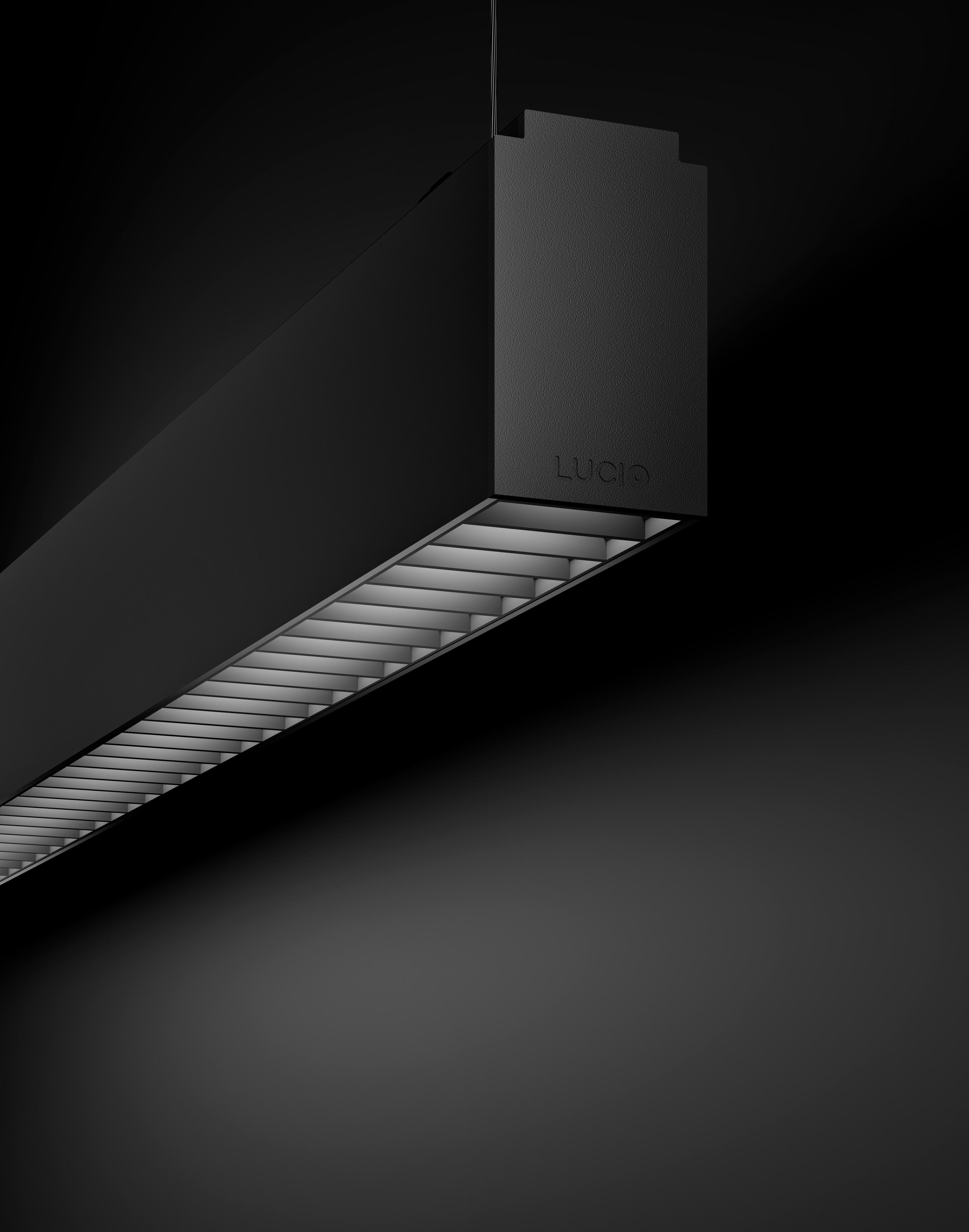

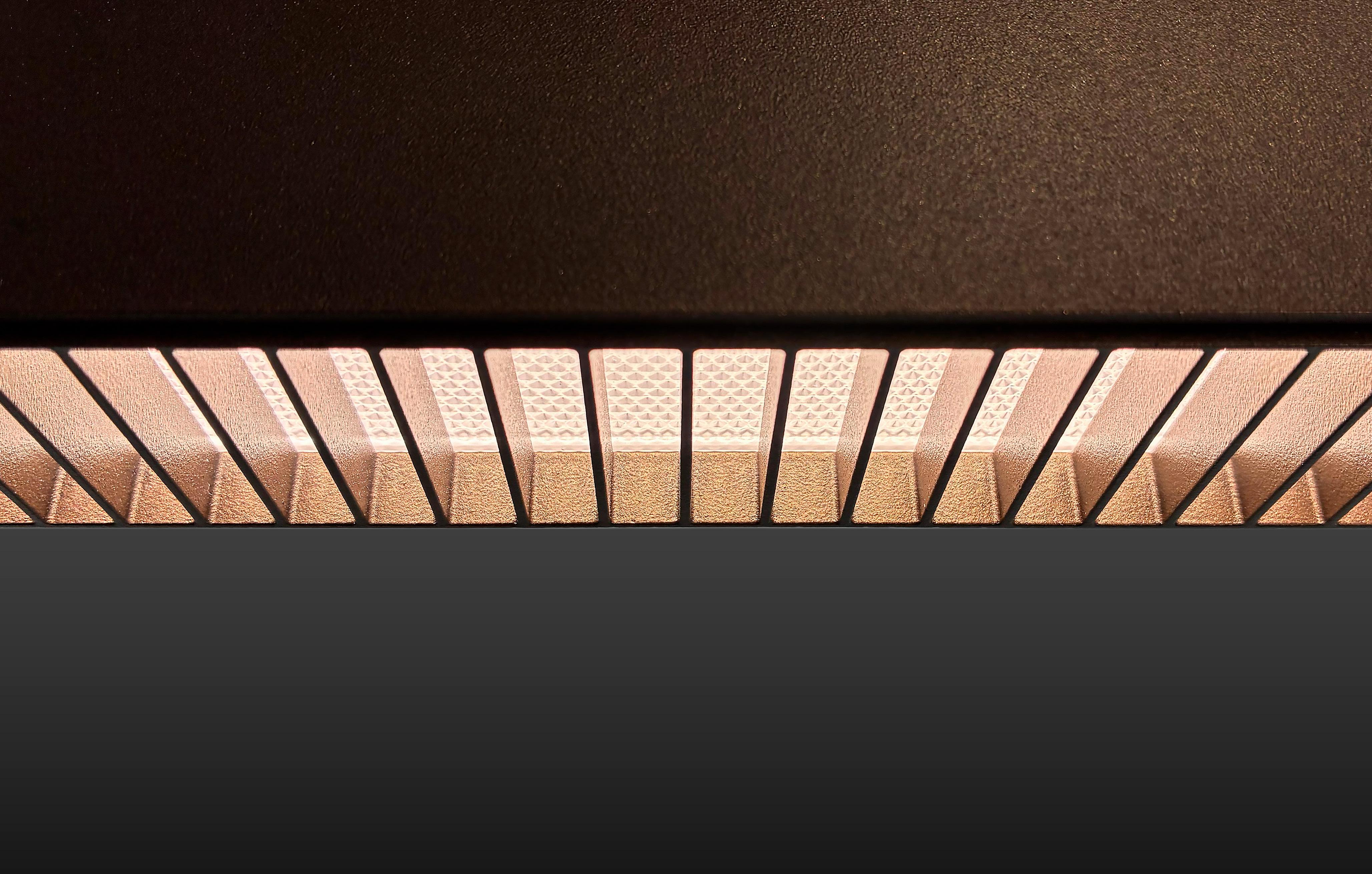

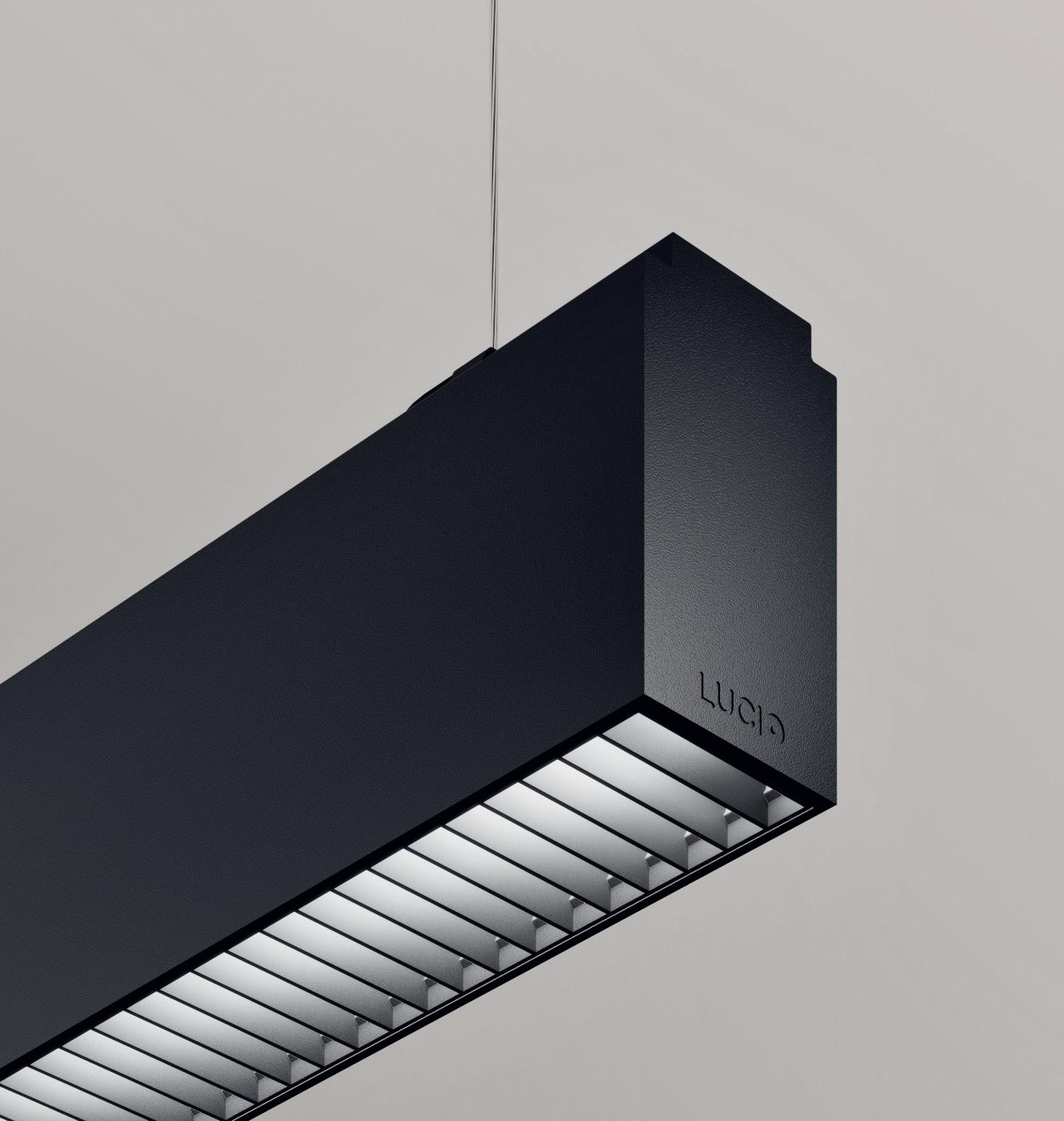

louvre
The louvre option defines the architectural character of the Tracis system. Its controlled light output and improved visual comfort make it ideal as a central lighting feature.
7285 3355
7666 3485
8052 3647 2737
2947
3828
8475 3831
3909
9199 4078

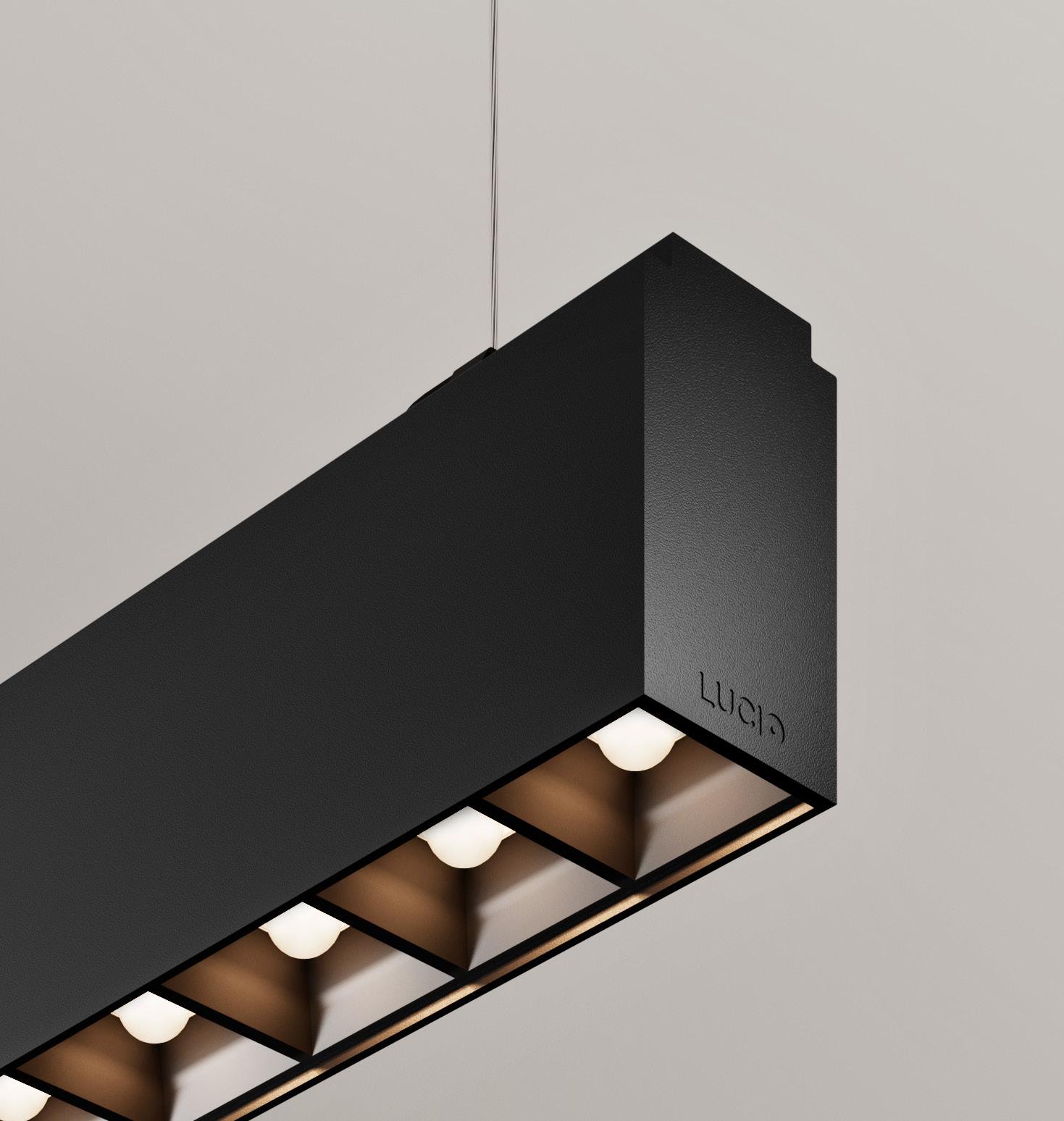

lenses
Low-glare shaded lenses provide precise, controlled light while minimizing visual discomfort. Ideal for spaces where comfort and clarity are essential, providing an even and efficient distribution.
80D
35D

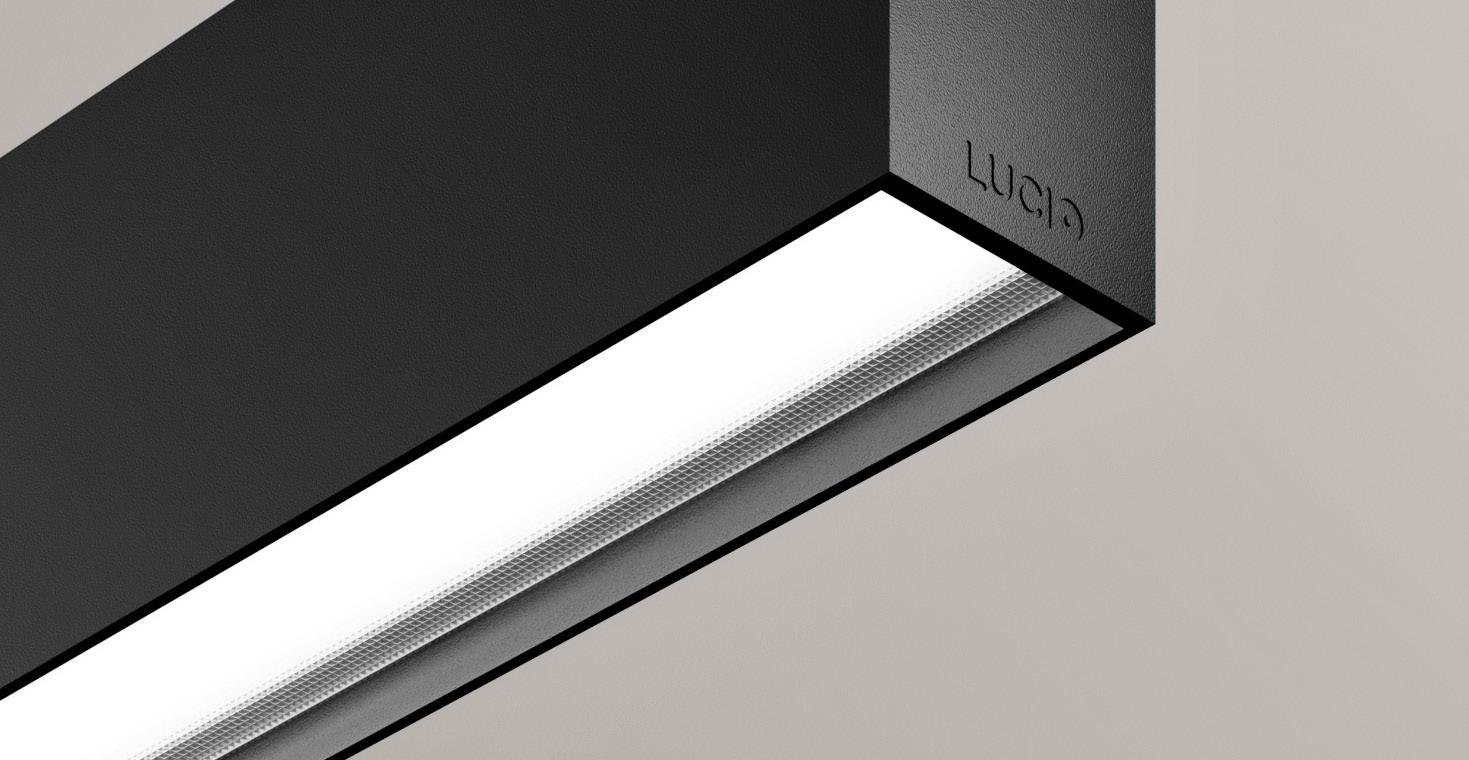

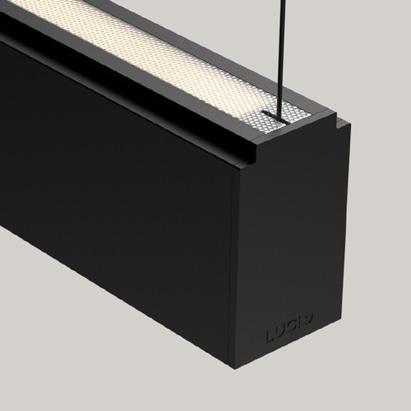

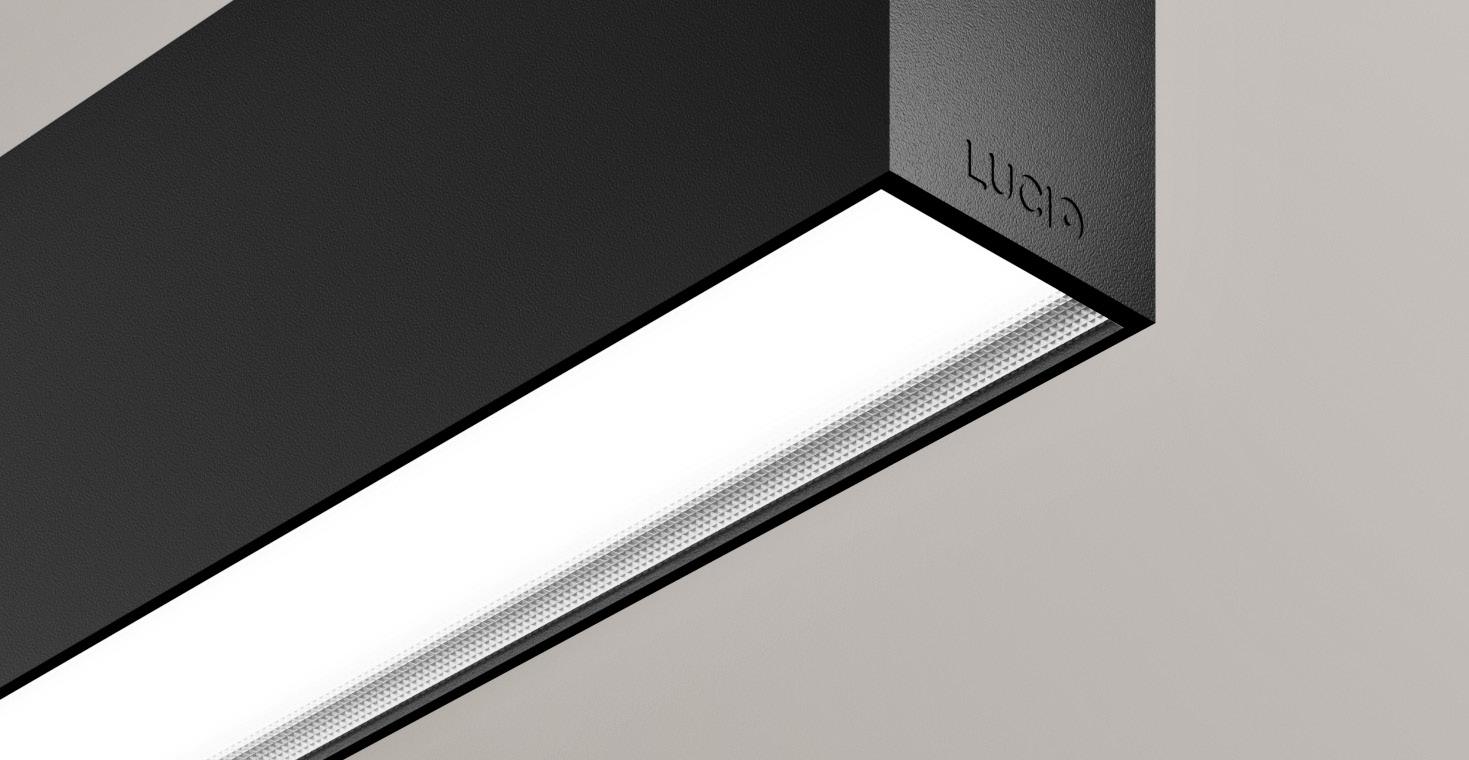

prismatic
high efficiency diffuser
This high-efficiency prismatic option delivers a powerful light output. It maximizes luminous performance while maintaining an even and clear illumination.
2 mm recessed
567 mm 581 mm 16,6 1695 1422
637 mm 651 mm 18,6 1907 1607
707 mm 721 mm 20,6 2167 1819 777 mm 791 mm 22,5 2383 2039
847 mm 861 mm 24,4 2629 2189
917 mm 931 mm 26,3 2755 2349
987 mm 1001 mm 28,3 3033 2512
1057 mm 1071 mm 30,2 3214 2729
1127 mm 1141 mm 32,2 3467 2940
1197 mm 1211 mm 34,1 3683 3149
1267 mm 1281 mm 36,0 3900 3277
1337 mm 1351 mm 36,6 4071 3381
1407 mm 1421 mm 38,5 4381 3727
4600 3873
1477 mm 1491 mm
1547 mm 1561 mm 42,3 4766 4017
1617 mm 1631 mm 44,1 5038 4264
1687 mm 1701 mm 45,9 5143 4285
1757 mm 1771 mm 47,8 5476 4529
1827 mm 1841 mm 49,6 5509 4635
1897 mm 1911 mm 51,5 5721 4751
1967 mm 1981 mm 53,3 6000 5072
2037 mm 2051 mm 58,5 6352 5425
2107 mm 2121 mm 60,5 6428 5461
2177 mm 2191 mm 62,4 6568 5620
2247 mm 2261 mm 64,3 7009 5941
2317 mm 2331 mm 66,3 7071 5991
2387 mm 2401 mm 68,3 7285 6211
2457 mm 2471 mm 70,1 7666 6492
2527 mm 2541 mm 72,0 7799 6588
2597 mm 2611 mm 72,6 8016 6747
2667 mm 2681 mm 73,2 8052 6733
2737 mm 2751 mm 75,1 8449 7243
2807 mm
8475 7173
8687 7190
9199 7798
8 mm recessed
prismatic diffuser
Prismatic models balance illumination for both functional and architectural needs. The prismatic surface directs and diffuses light evenly, reducing glare while enhancing visual comfort.
2 mm recessed
lm lm
567 mm 581 mm 16,6 1695 1368
637 mm 651 mm 18,6 1907 1478
707 mm 721 mm 20,6 2167 1683
777 mm 791 mm 22,5 2383 1831
847 mm 861 mm 24,4 2629 2056
917 mm 931 mm 26,3 2755 2233
987 mm 1001 mm 28,3 3033 2466
1057 mm 1071 mm 30,2 3214 2542
1127 mm 1141 mm 32,2 3467 2748
1197 mm 1211 mm 34,1 3683 2907
1267 mm 1281 mm 36,0 3900 3126
1337 mm 1351 mm 36,6 4071 3215
1407 mm 1421 mm 38,5 4381 3428
1477 mm 1491 mm 40,4 4600 3623
1547 mm 1561 mm 42,3 4766 3836
1617 mm 1631 mm 44,1 5038 3875
1687 mm 1701 mm 45,9 5143 4077
1757 mm 1771 mm 47,8 5476 4218
1827 mm 1841 mm 49,6 5509 4263
1897 mm 1911 mm 51,5 5721 4554
1967 mm 1981 mm 53,3 6000 4667
2037 mm 2051 mm 58,5 6352 4941
2107 mm 2121 mm 60,5 6428 4960
2177 mm 2191 mm 62,4 6568 5122
2247 mm 2261 mm 64,3 7009 5469
2317 mm 2331 mm 66,3 7071 5543
2387 mm 2401 mm 68,3 7285 5718
2457 mm 2471 mm 70,1 7666 5891
2527 mm 2541 mm 72,0 7799 6020
2597 mm 2611 mm 72,6 8016 6263
2667 mm 2681 mm 73,2 8052 6258
2737 mm 2751 mm 75,1 8449 6795
2807 mm 2821 mm 77,0 8475 6522
8687 7050
9199 7468
8 mm recessed

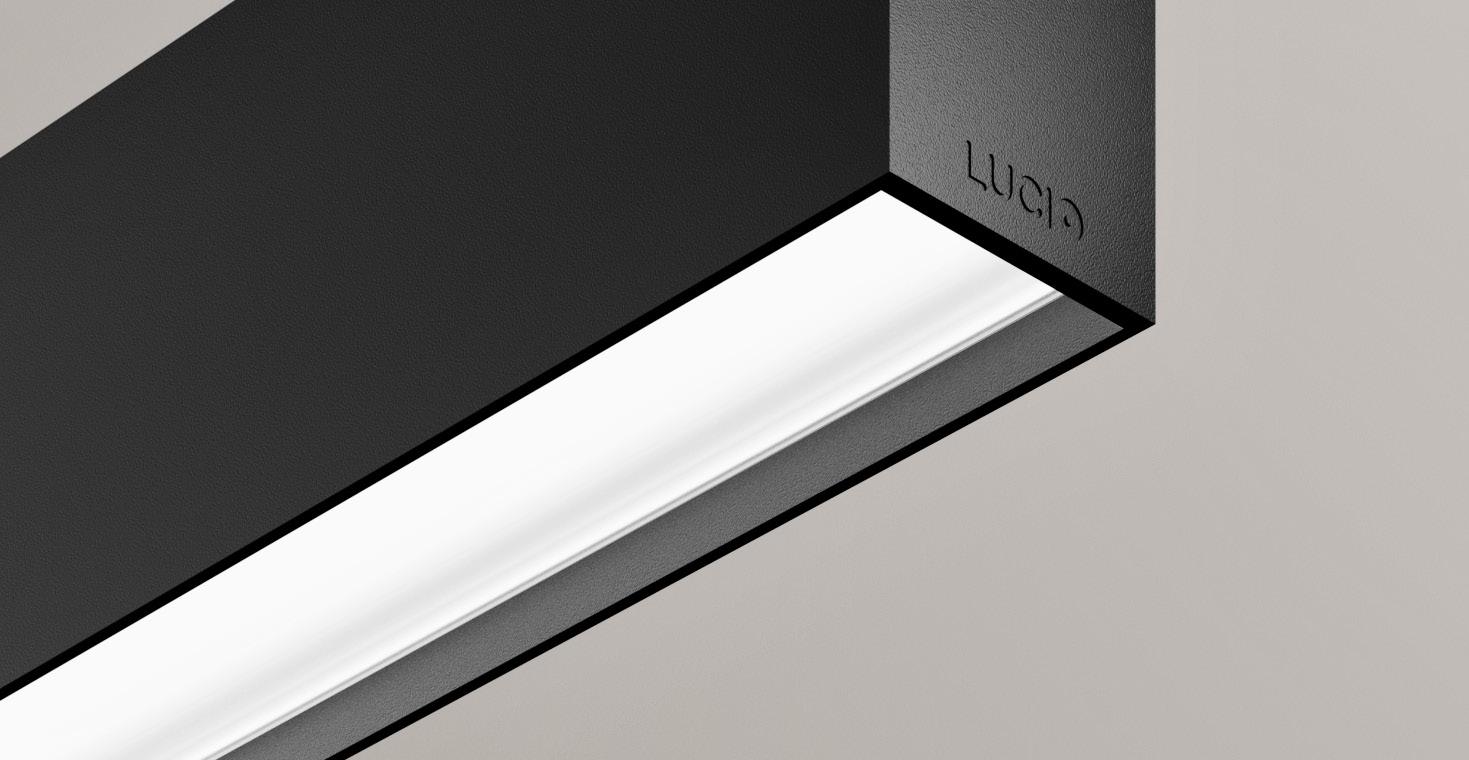

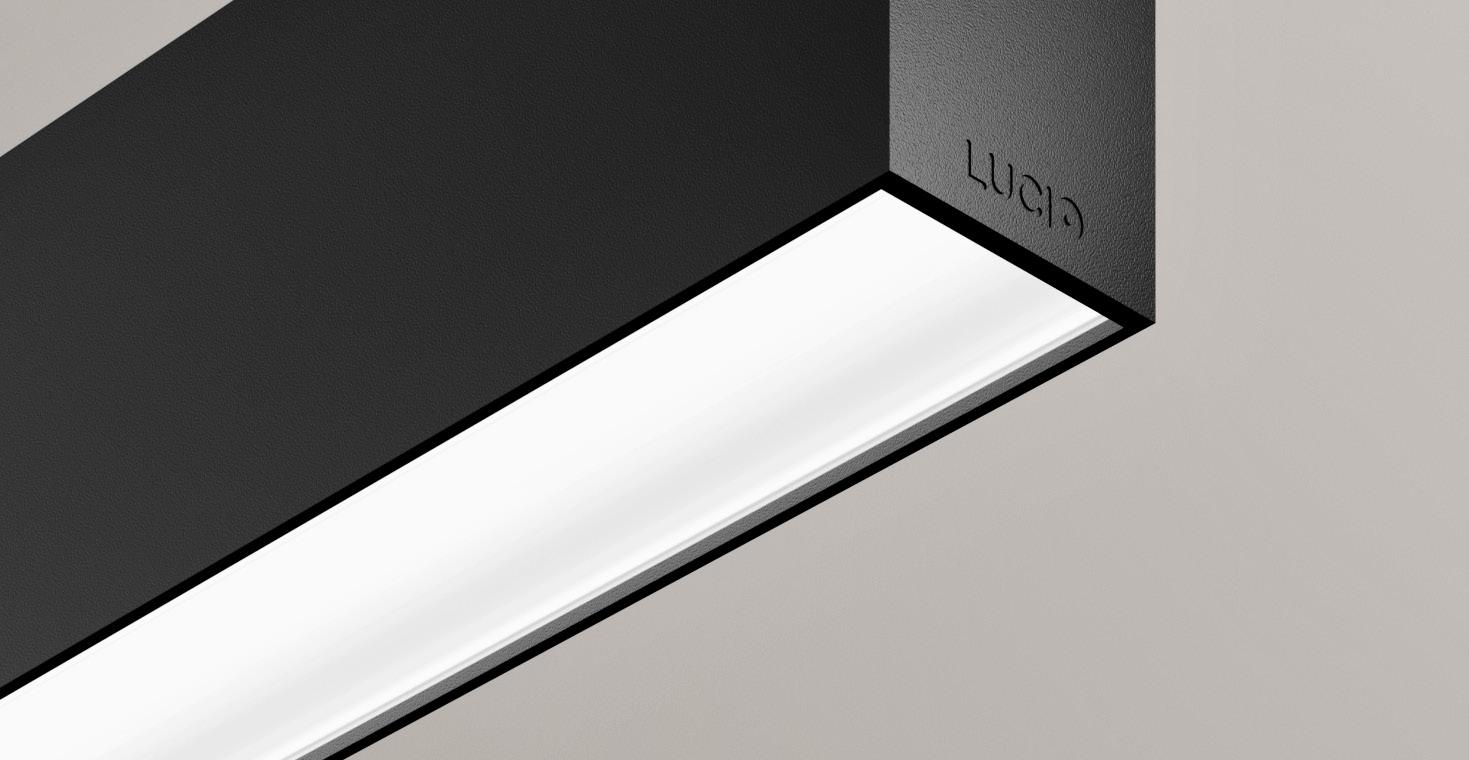

opal diffuser
The opal diffuser delivers soft, uniform light across the profile. Its smooth, minimalistic finish blends seamlessly into any space.
2 mm recessed
lm lm
567 mm 581 mm 16,6 1695 1265
637 mm 651 mm 18,6 1907 1439
707 mm 721 mm 20,6 2167 1686
777 mm 791 mm 22,5 2383 1777
847 mm 861 mm 24,4 2629 1986
917 mm 931 mm 26,3 2755 2051
987 mm 1001 mm 28,3 3033 2312
1057 mm 1071 mm 30,2 3214 2465
1127 mm 1141 mm 32,2 3467 2586
1197 mm 1211 mm 34,1 3683 2779
1267 mm 1281 mm 36,0 3900 2968
1337 mm 1351 mm 36,6 4071 3080
1407 mm 1421 mm 38,5 4381 3388
1477 mm 1491 mm 40,4 4600 3459
1547 mm 1561 mm 42,3 4766 3579
1617 mm 1631 mm 44,1 5038 3810
1687 mm 1701 mm 45,9 5143 3979
1757 mm 1771 mm 47,8 5476 4078
1827 mm 1841 mm 49,6 5509 4177
1897 mm 1911 mm 51,5 5721 4382
1967 mm 1981 mm 53,3 6000 4567
2037 mm 2051 mm 58,5 6352 4801
2107 mm 2121 mm 60,5 6428 4744
2177 mm 2191 mm 62,4 6568 4903
2247 mm 2261 mm 64,3 7009 5372
2317 mm 2331 mm 66,3 7071 5350
2387 mm 2401 mm 68,3 7285 5606
2457 mm 2471 mm 70,1 7666 5818
2527 mm 2541 mm 72,0 7799 5856
2597 mm 2611 mm 72,6 8016 6232
2667 mm 2681 mm 73,2 8052 6029
2737 mm 2751 mm 75,1 8449 6333
2807 mm 2821 mm 77,0 8475 6513
2877
2947
2961
8687 6623
80,7 9199 7064
8 mm recessed
tracis accessories
end caps installation boxes power cables installation accessories
