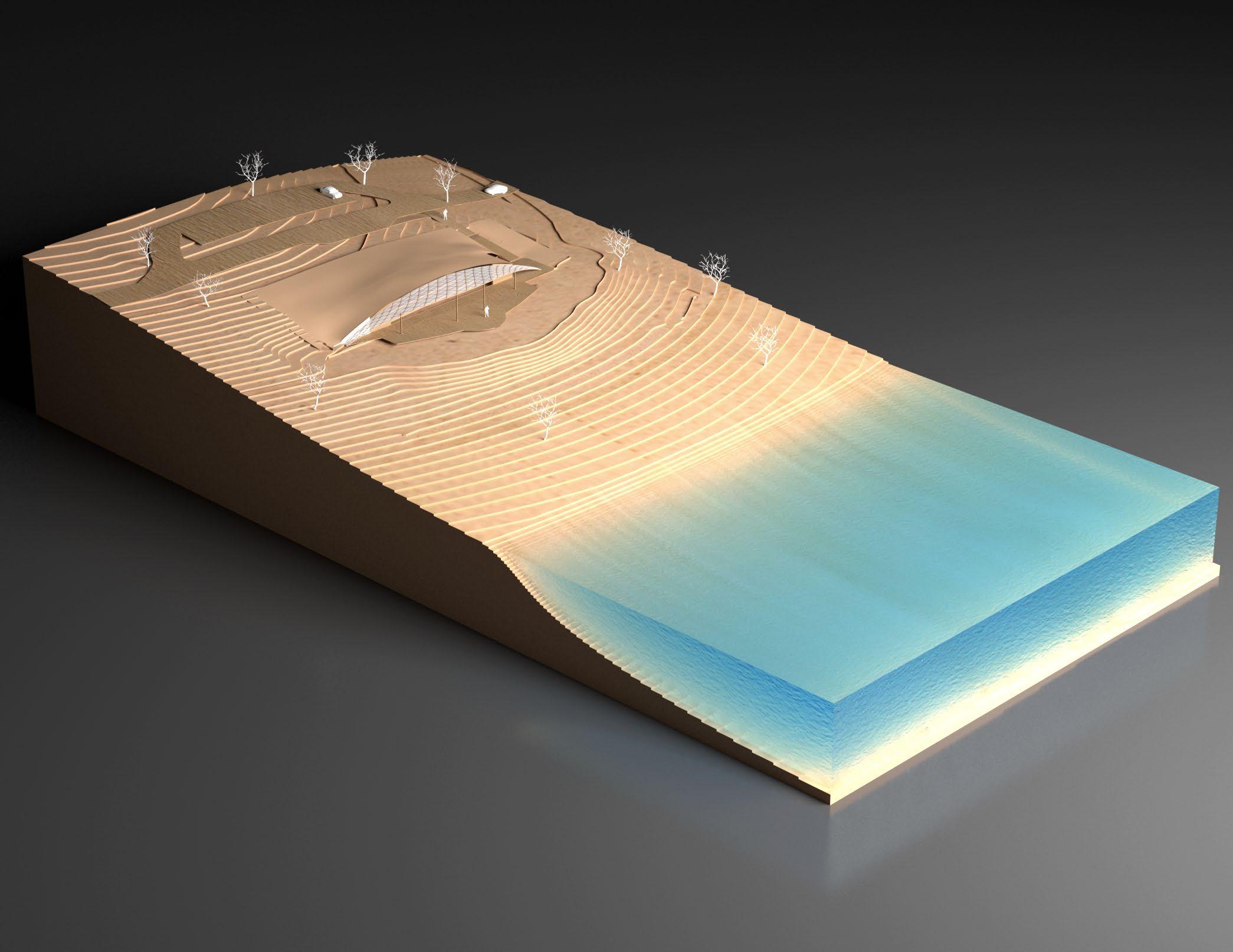

MAGISTRATE’S LAND COURT AND COMMUNITY SPACE

SUMMER 2022 INSTRUCTOR: GENEVIEVE BAUDOIN

KANSAS STATE UNIVERSITY

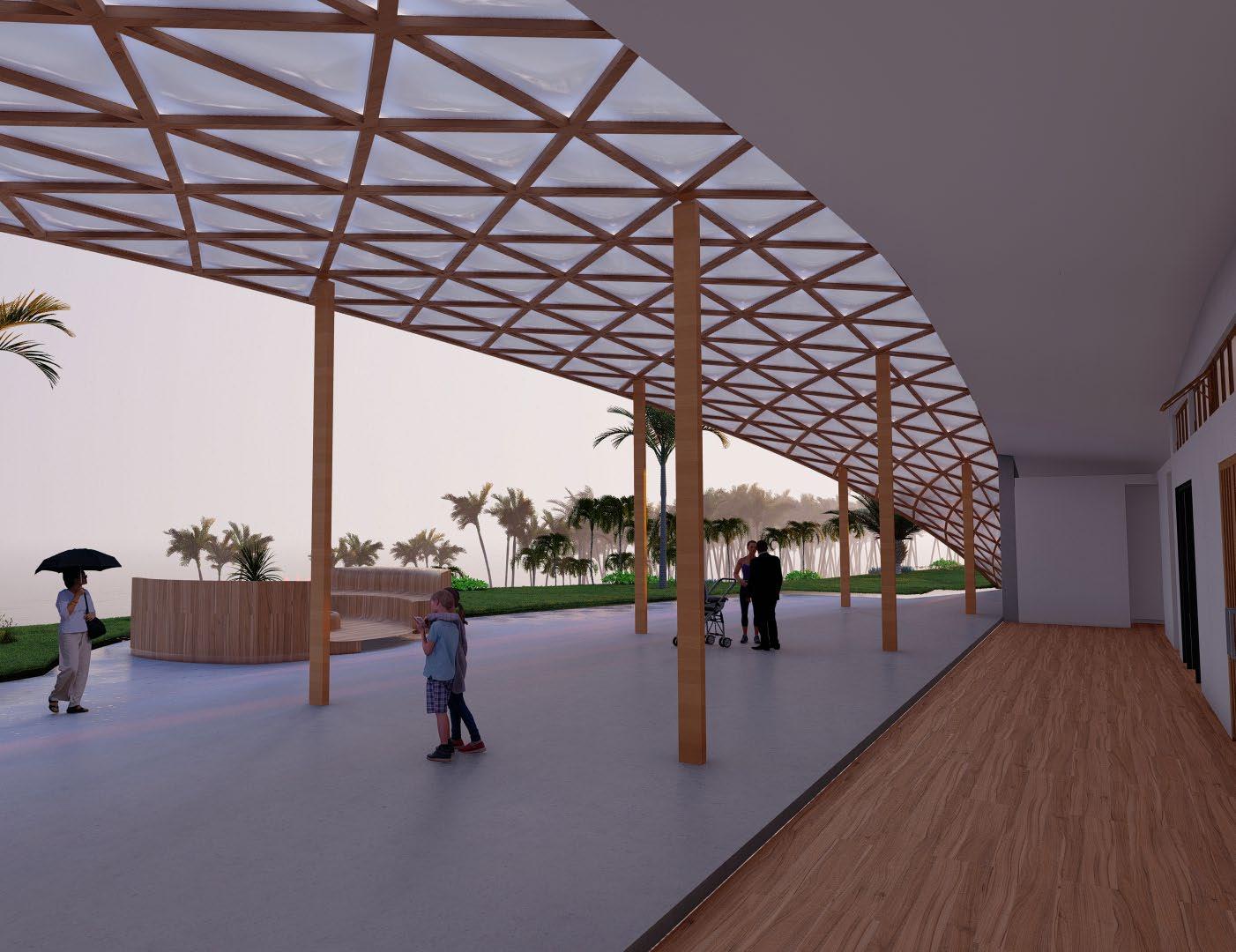

THE NEW AHUOUA’A MAGISTRATE LAND COURT TO BE FELT LIKE BEING RAISED FROM ANAHOLA (HAWAII) LANDSCAPE. AS YOU APPROACH THE SITE FROM THE ROAD, THE BUILDING APPEARS TO BE HIDDEN FROM SIGHT, INCREASING THE VIEWERS’ INTEREST. AS YOU ENTER THROUGH THE CANOPY STRUCTURE, MADE BY GLULAM LATTICE WITH DOUBLE LAY ERS OF ETFE CUSHION, YOU ARE FACED A WITH THE ONLY FAÇADE THAT REVEALS THE INTERIOR. THE INTERIOR SPACES ARE SURROUNDED BY 14-INCH RETAINING WALL THAT SUPPORTS A STRUCTURE THAT CONSISTS OF A PLYWOOD AEROFOIL STRUCTURE.

P-4

PLYWOOD AIRFOIL ROOF CON TRUCTION TRIPLE LAYERED ETFE FOIL GLUELAM SHELL CONCRETE RETAINING WALL

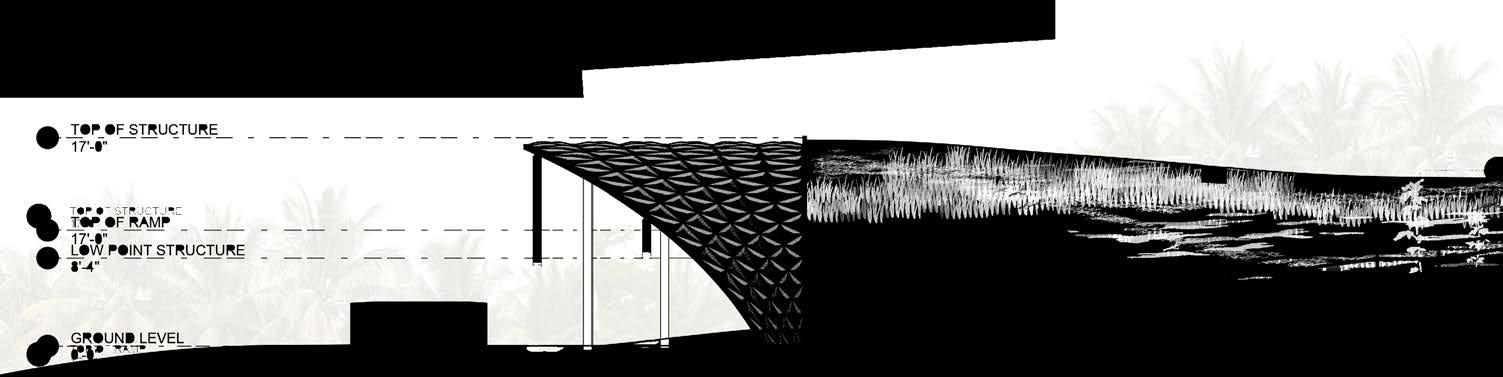

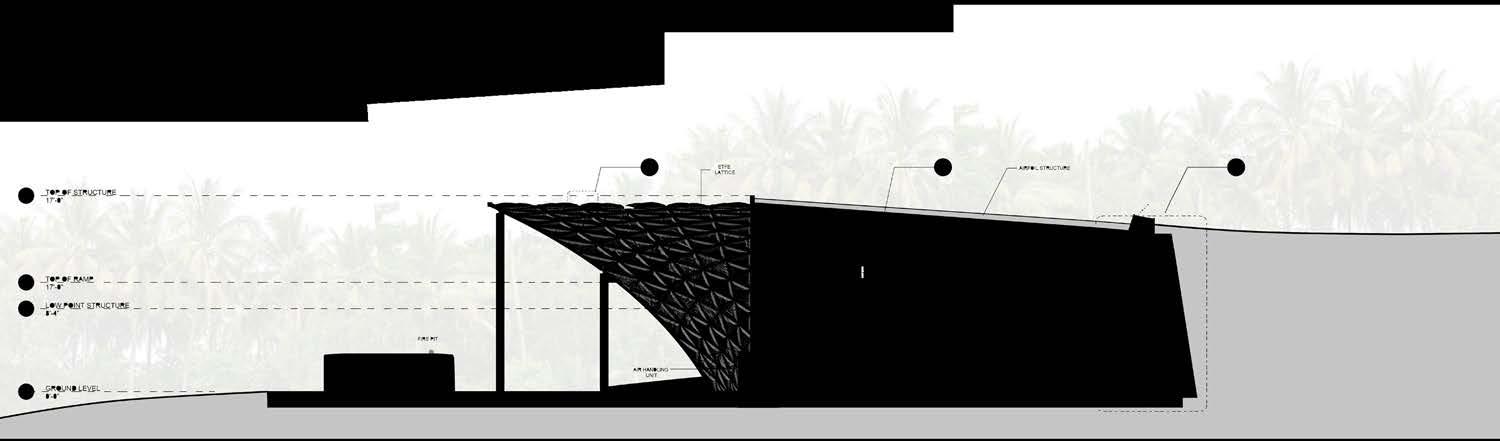

P-6 SECTION

WEST ELEVATION

A-A

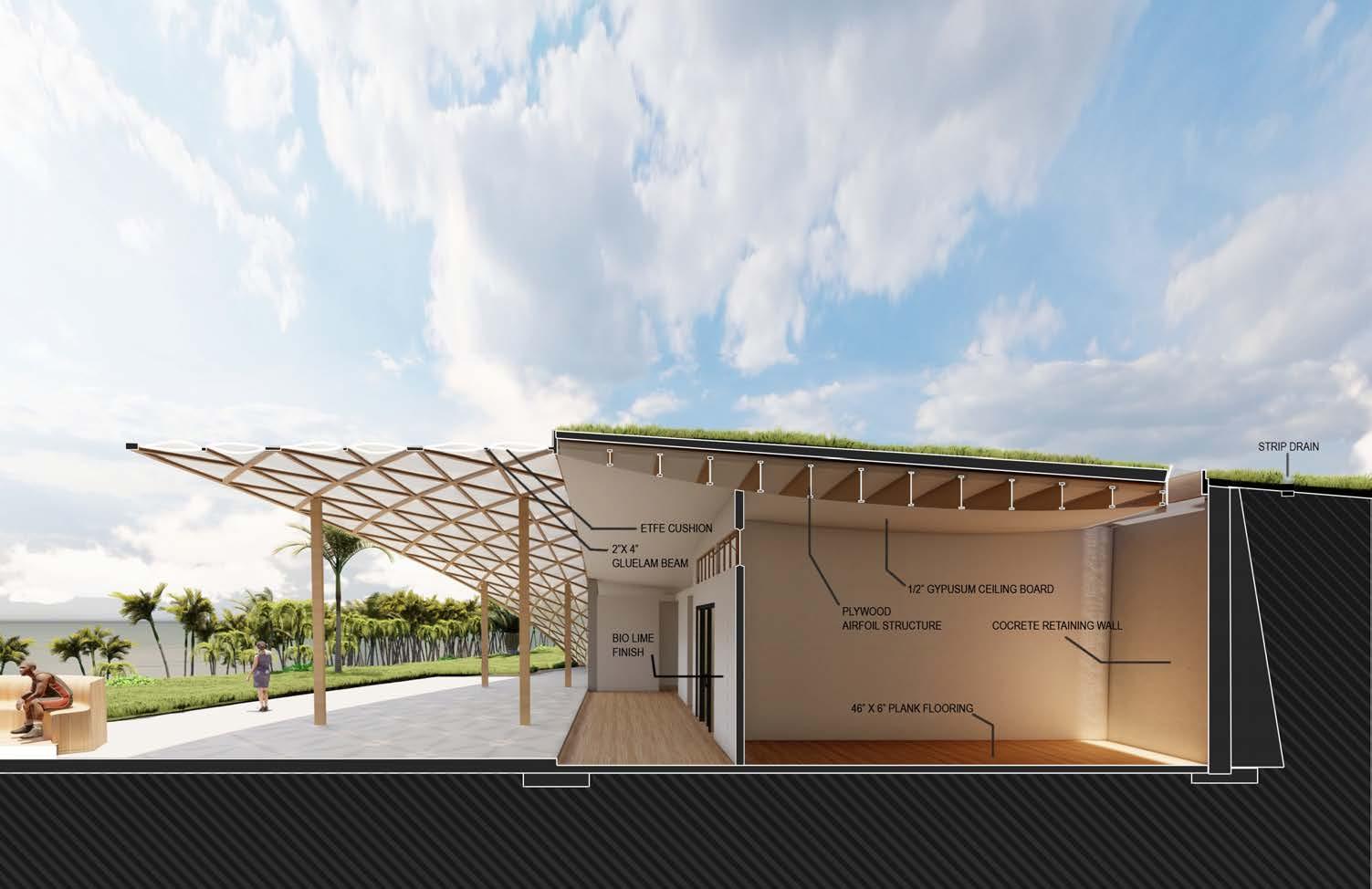

P-7 NORTH ELEVATION WATER PROOF MEMBRANE W.R GRACE BITUTHNE HORIZONTAL BAR SKYLIGHT STRIP DRAIN DRAINAGE MAT 6 mm PLASTIC 3/4" TREATED PLYWOOD 46” X 6” PLYWOOD PLANK 6" CORRUGATED DRAIN PIPE GRAVEL RIGID PLASTIC FOAM INSULATION GRAVEL 1/5" EXPANSION JOINT VAPOR RETARDER VEGETATION LAYER WATER STORAGE PANEL (50 mm) GEOTEXTILE FILTER DRAINAGE LAYER SPRAY FOAM INSULATION PLYWOOD WEB STIFNERS 1/2” GYPSUM CEILING BOARD

P-8 SECTION A-A

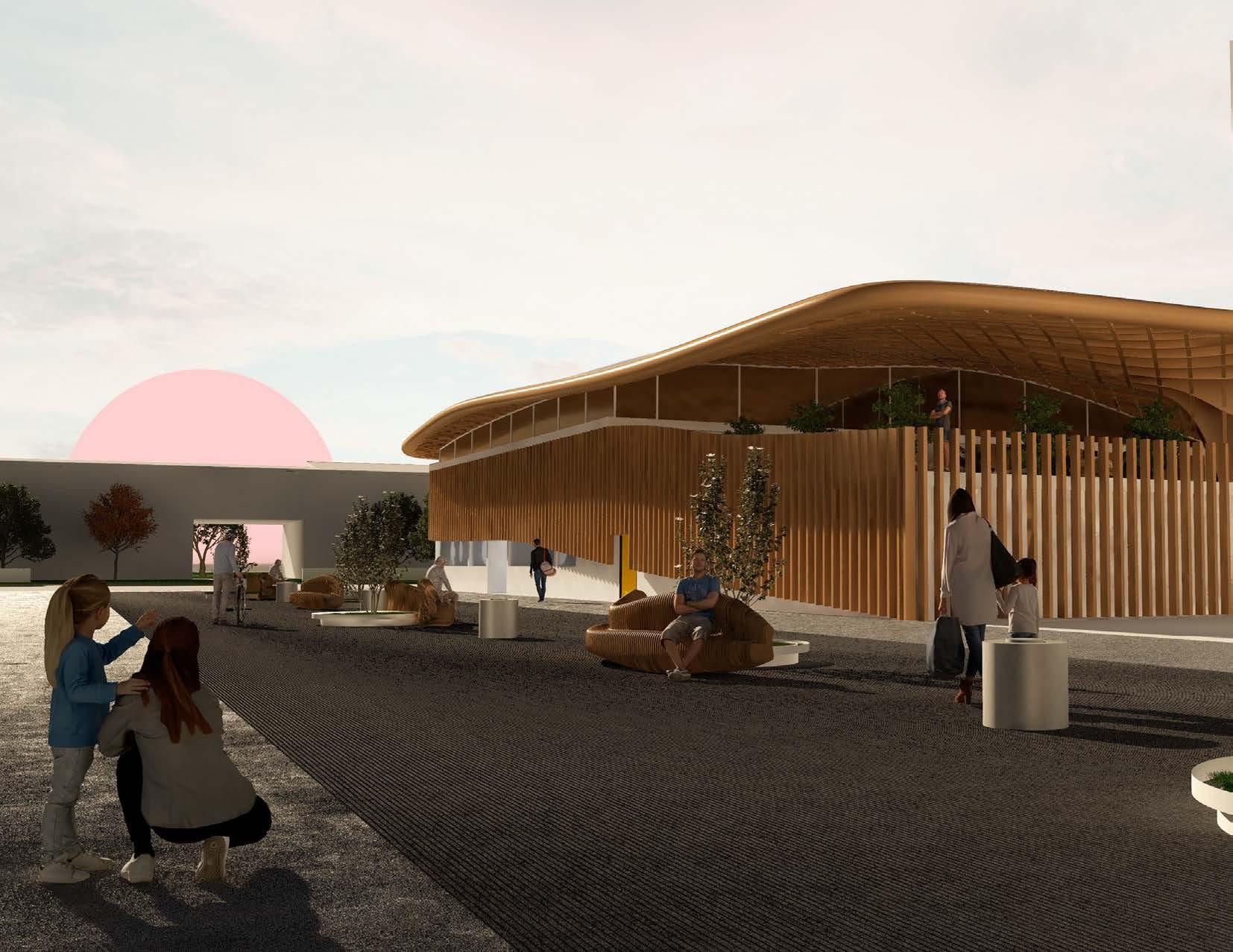

NEW FIRE STATION

FALL 2021

INSTRUCTOR: TORGEIR NORHEIM

KANSAS STATE UNIVERSITY

THE BUILDING ACTS AS A NEW FOOTPRINT BY BRINGING TO THE SITE A NEW CONCEPT OF WHAT A FIRE-STATION SHOULD BE AND REDIRECT ING WAMEGO’S AGENDA TO A MORE CARING, INSPIRING, CREATIVE AND WELCOMING FUTURE. THIS WAS ACHIEVED BY CELEBRATING THE FOUR ELEMENTS: WATER, FIRE, WIND AND EARTH BY ALLOWING THE WAFFLE ROOF STRUCTURE TO COLLECTING WATER, DEFINES GREEN SPACES AND ALLOW CROSS VENTILATION AND PASSIVE SOLAR GAIN. LIKE A TREE, THE COLUMN EMERGES FROM WAMEGO EARTH, INTERACTING WITH THE INTERIOR AND CREATES ENCLOSURE FOR FOR THE FIRE-STATION CRE ATING A GAMES OF SHADE AND SHADOW.

P-10

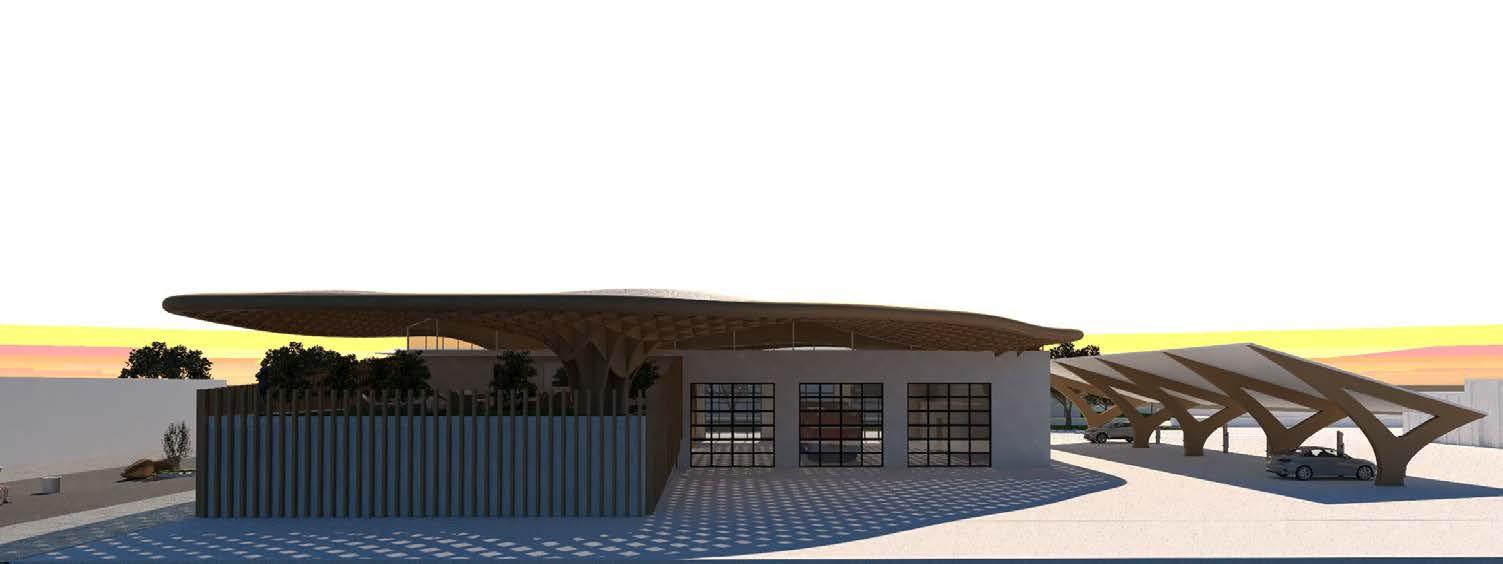

NORTH ELEVATION

P-12 SECTION A-A

FIRST FLOOR PLAN

A-A

OIL PAPER

TIMBER WAFFLE STRUCTURE

SECOND FLOOR PLAN

B-B

GLAZING/ APERTURE CONCRETE COLUMN

A-A

WOOD FINS

P-13

B-B

P-14 WEST ELEVATION SECTION

B-B

P-15

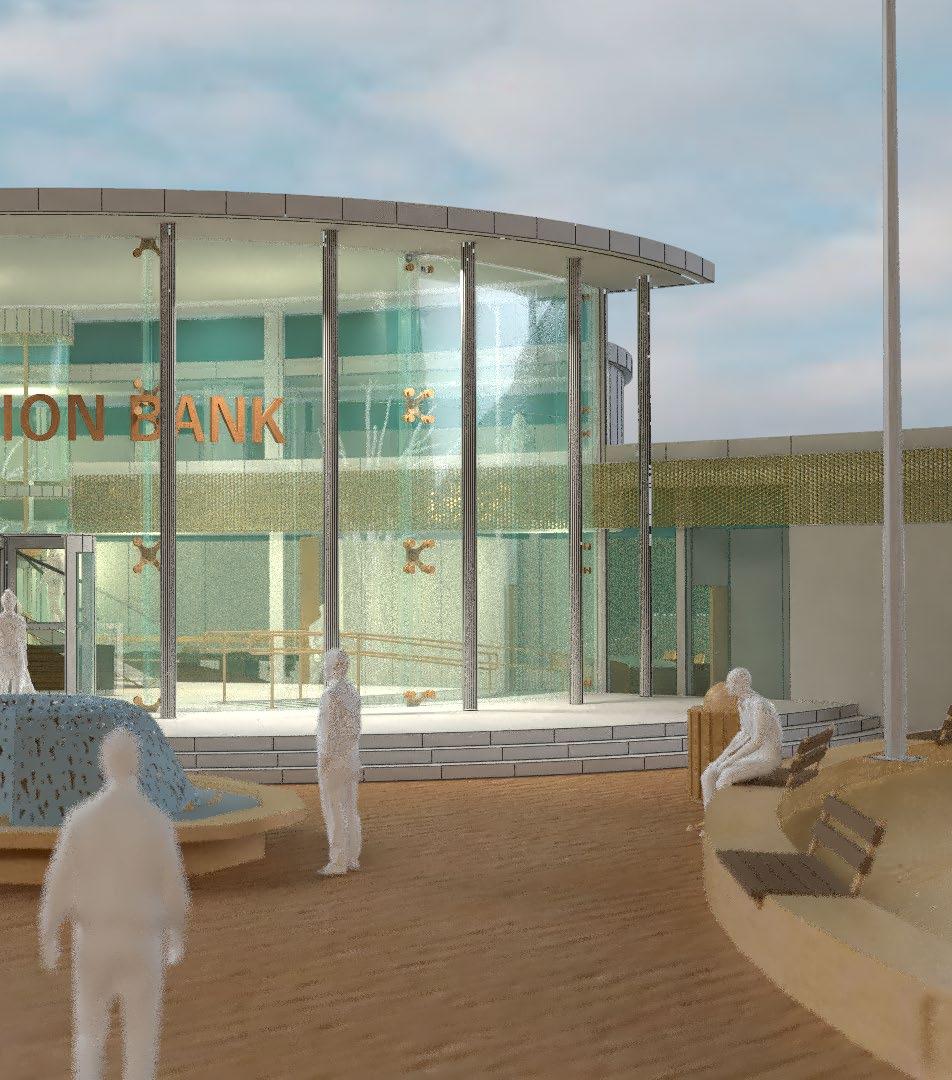

IRWIN UNION BANK

SPRING 2021

INSTRUCTOR: ADRIANA MOLINA

KANSAS STATE UNIVERSITY

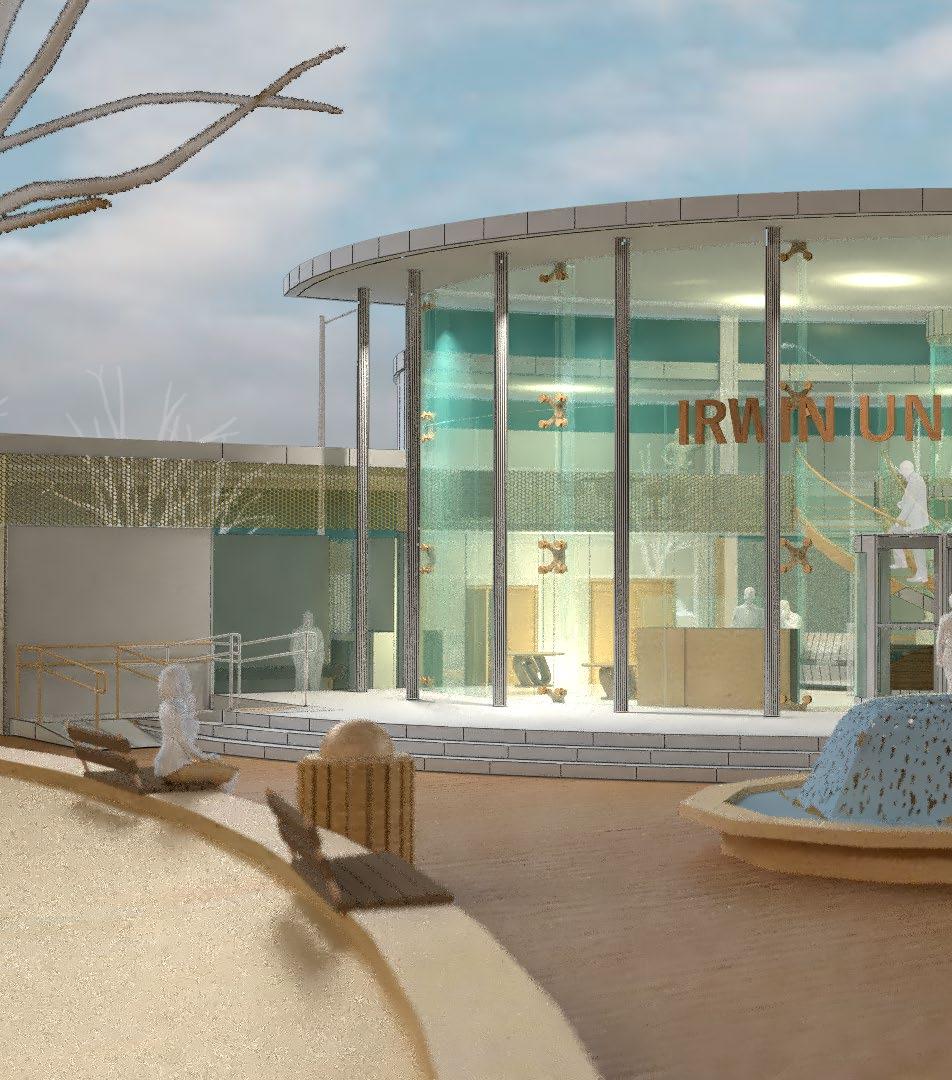

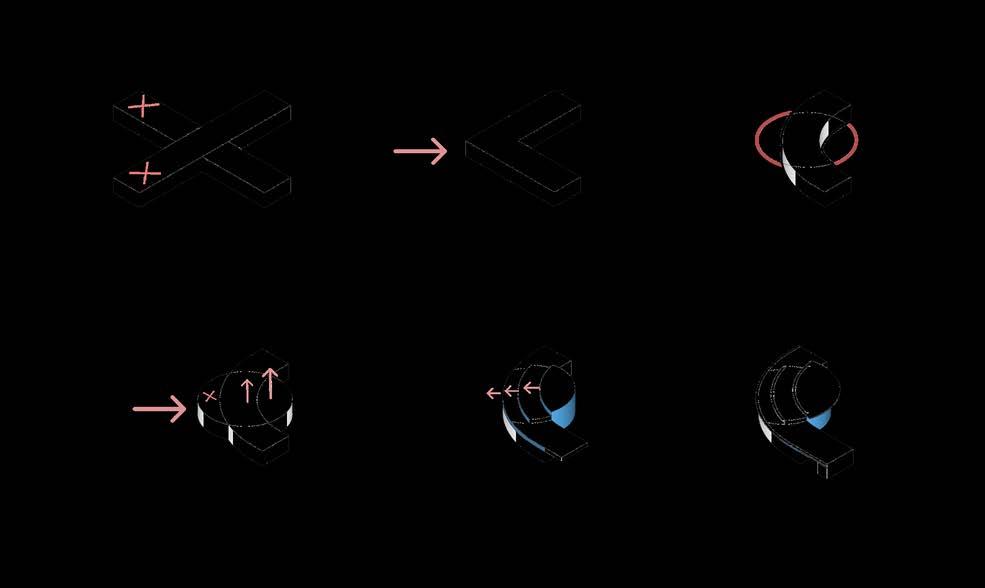

THE DESIGN CONCEPT BEGAN WITH HIGH CONSIDERATION OF THE SITE AND HIS HISTORIC POSITION IN KANSAS. TROOST AVENUE HAS HIS TORICALLY SERVED AS A DIVIDING LINE OF RACIST SEGREGATION AND DISINVESTMENT IN KANSAS CITY AND THIS IS STILL PRESENT NOWA DAYS. THE PROJECT RISES FROM THE IDEA OF BREAKING THAT SOCIAL DIVISION LINE AND PROVIDING ENGAGING MOMENTS FOR THE COMMUNITY. THE IDEOLOGY OF THE BUILDING ITSELF RELATES TO THE GEO METRIC SHAPE OF A CIRCLE WHICH IS ASSOCIATED WITH UNIFICATION AND SUSTAINABILITY. THE BANK ACTS AS ARMS, INVITING SOCIETY.

Troost Linwood

P-16

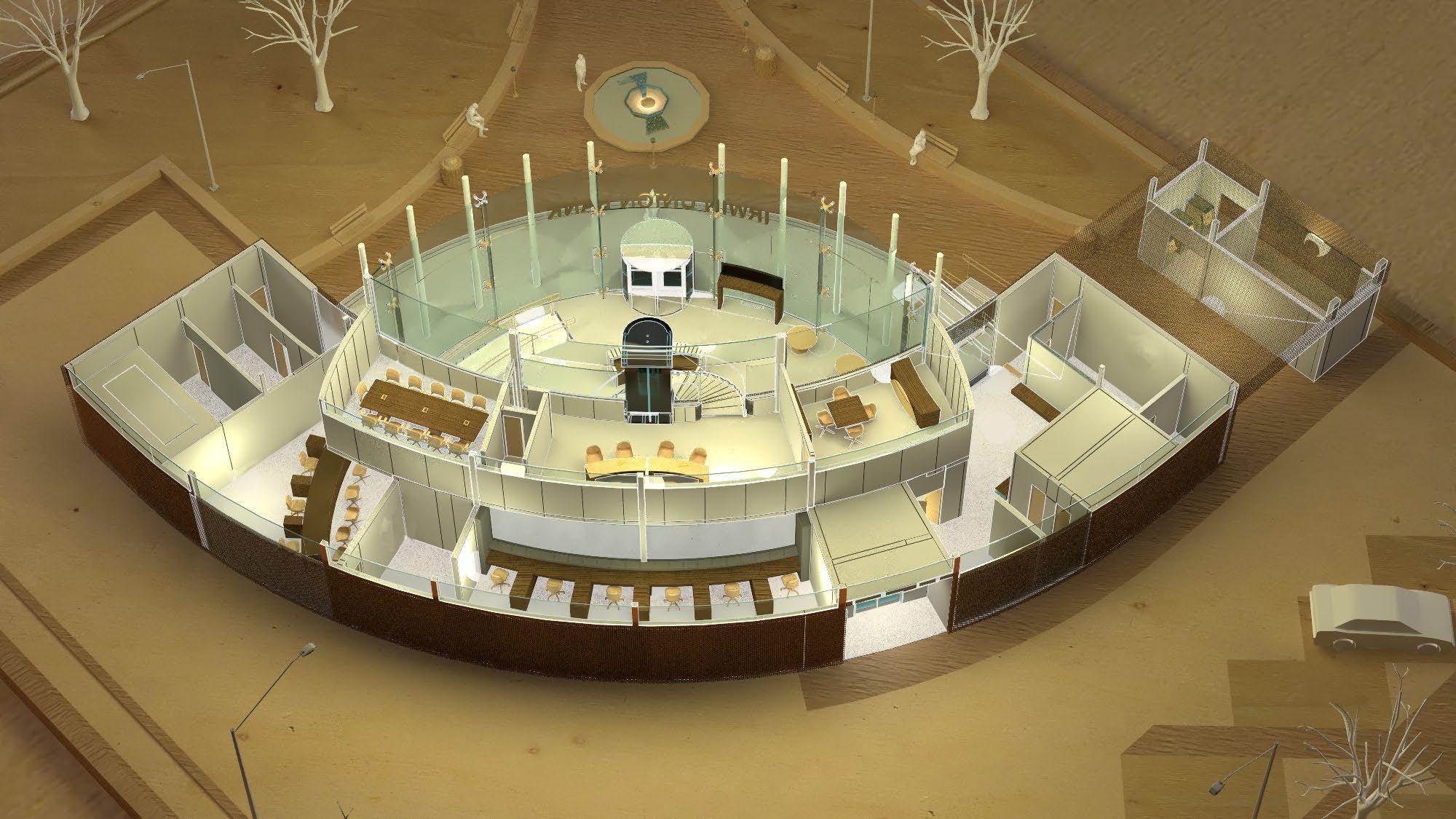

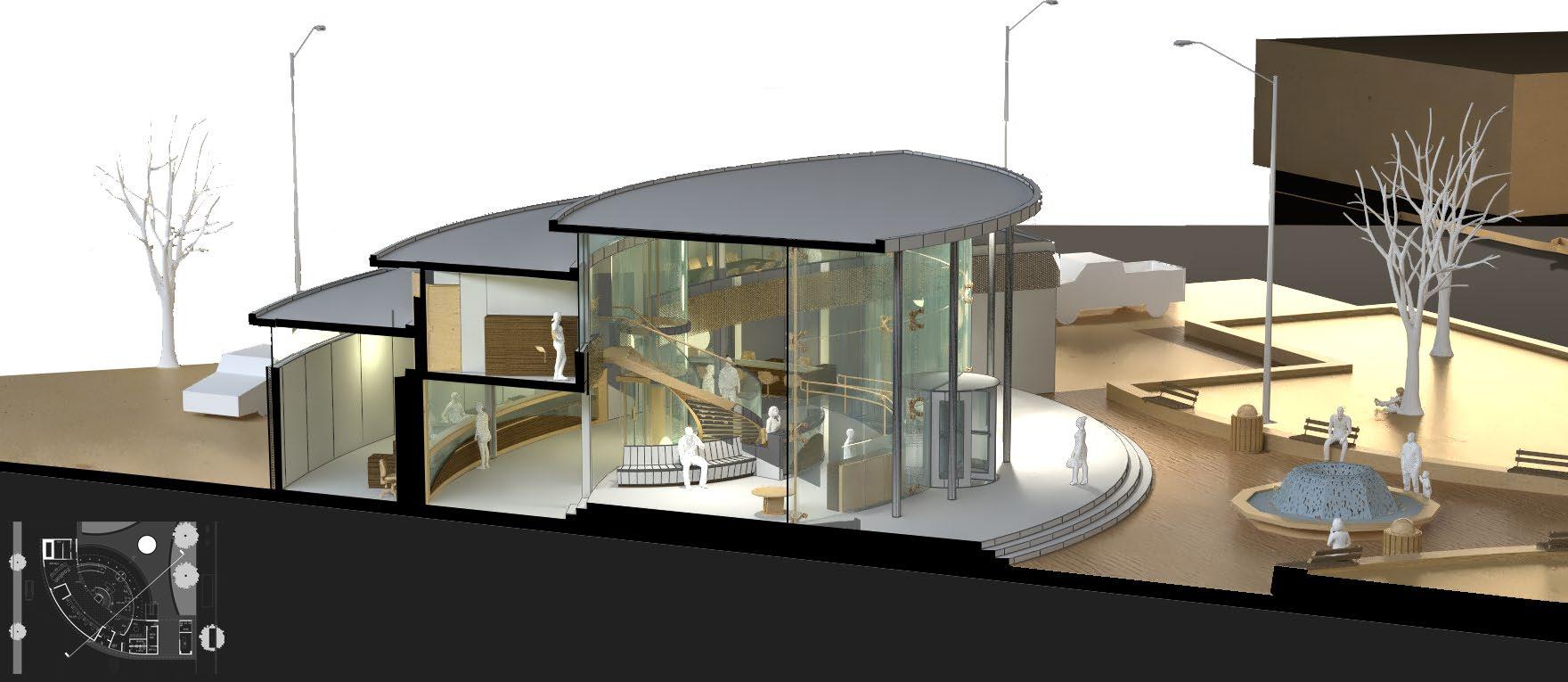

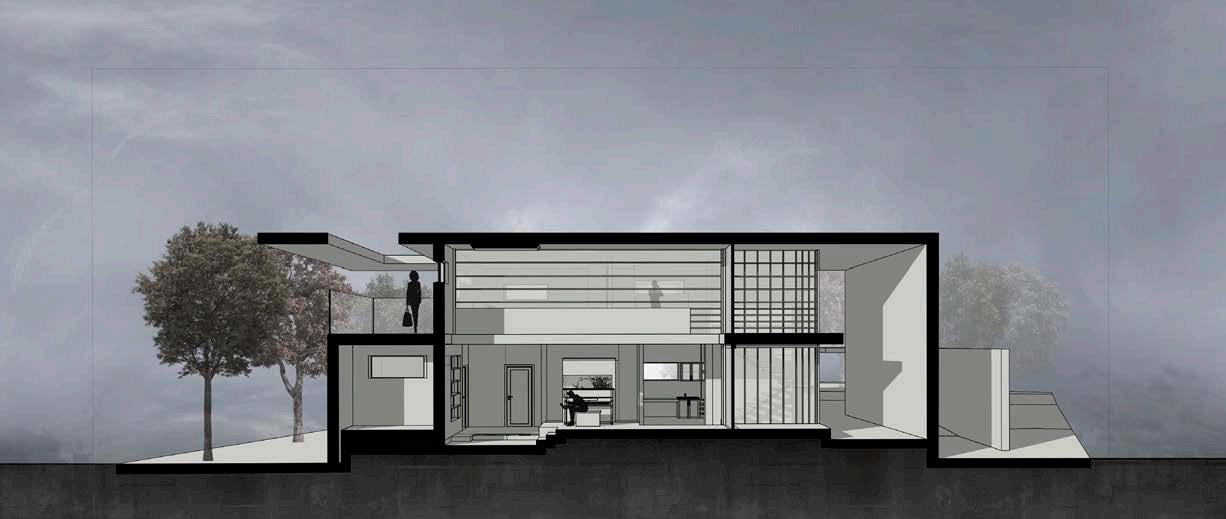

P-18 SITE PLAN SECTION A-A FIST FLOOR PLAN SECOND FLOOR PLAN LN DPT MNG OF CNF RM

P-19

P-21

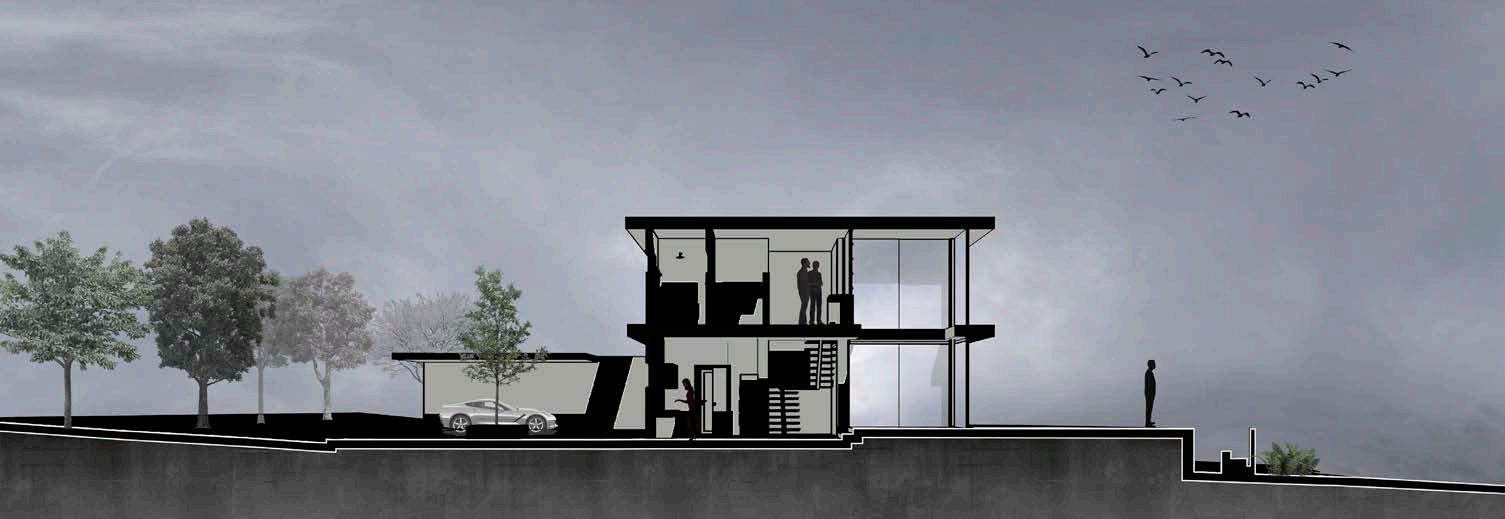

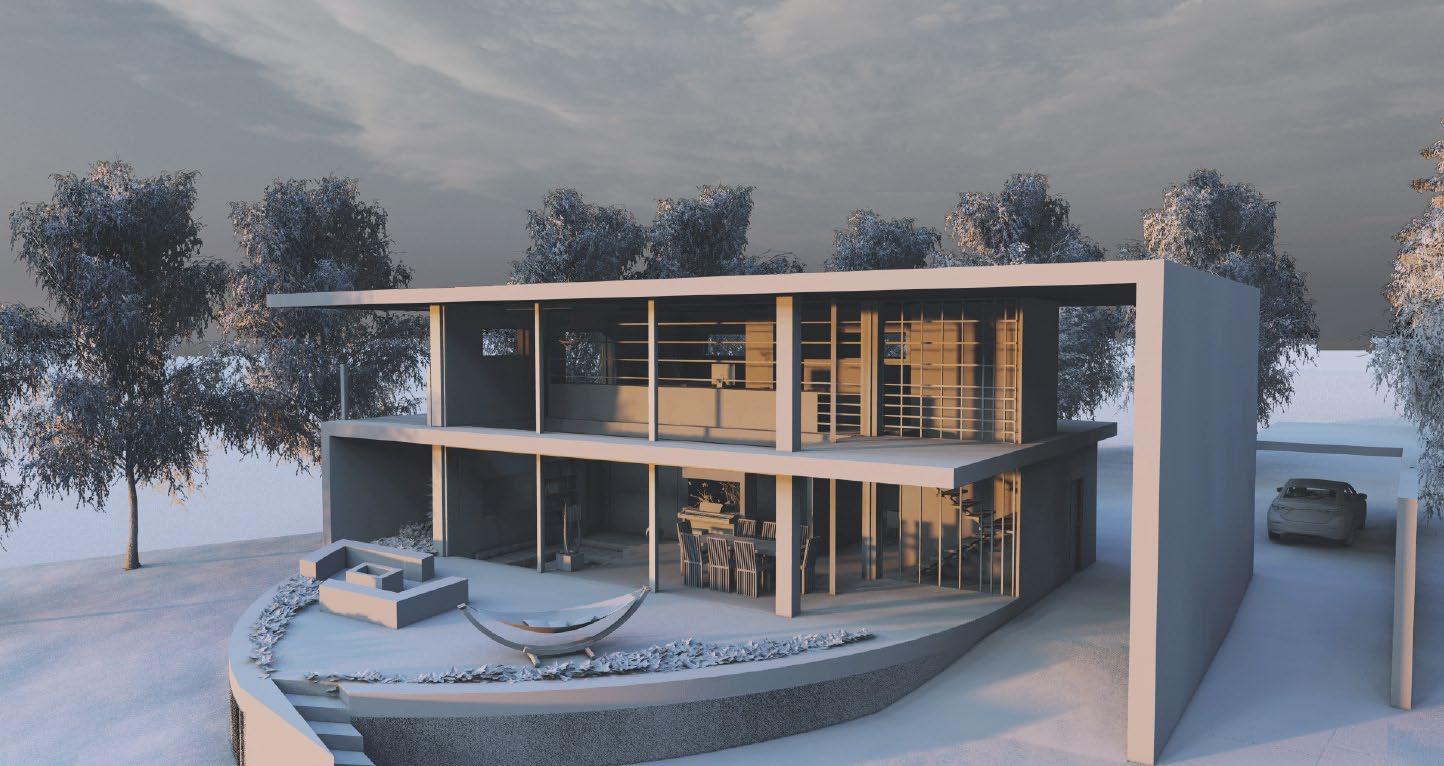

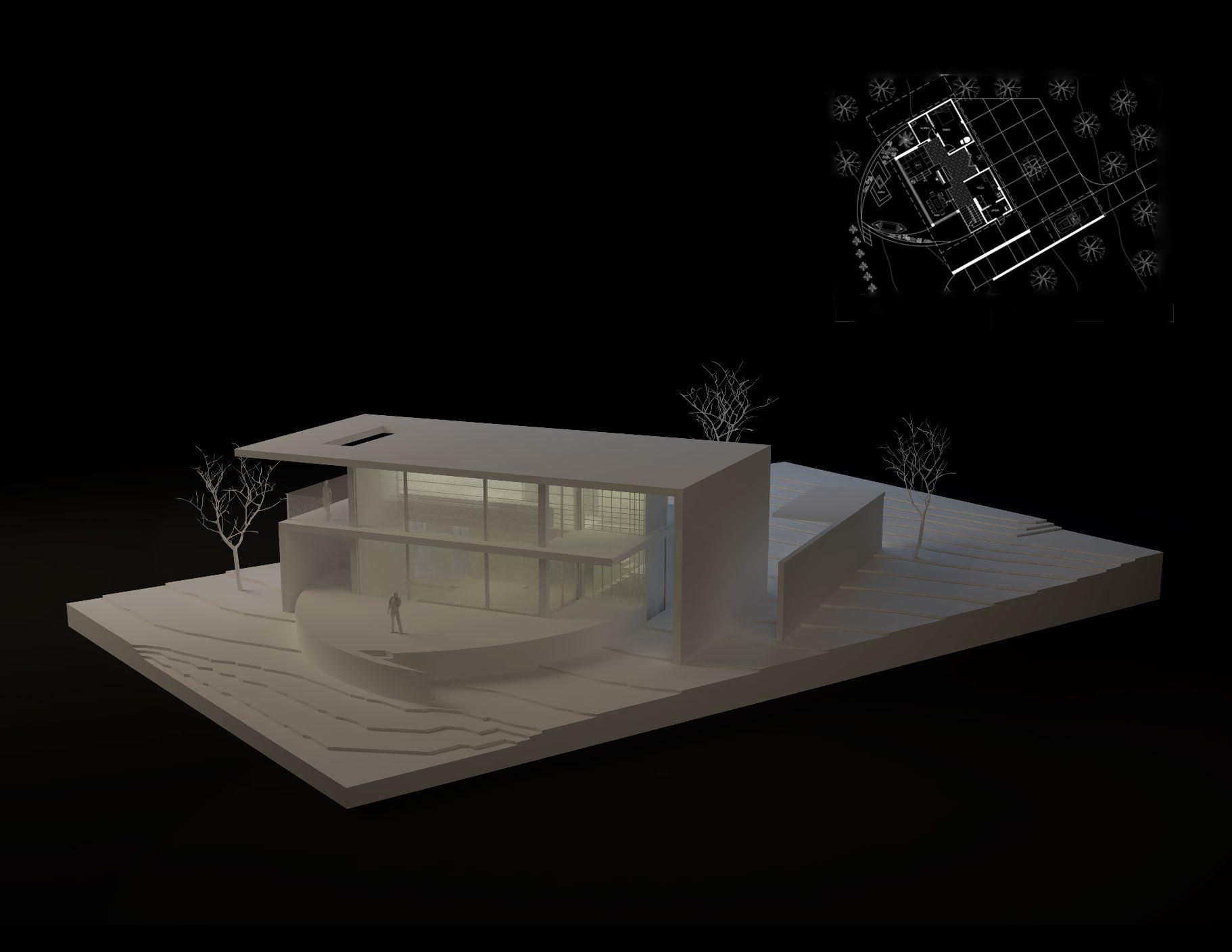

House project

SPRING 2021 kansas state university

instructor: ADRIANA MOLINA

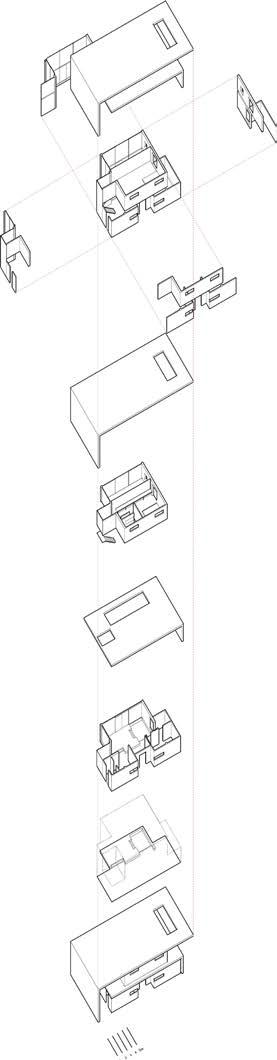

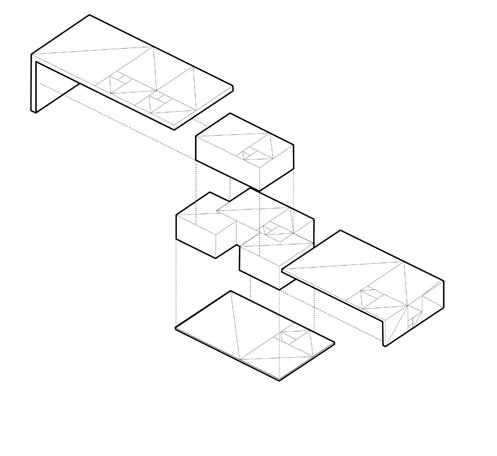

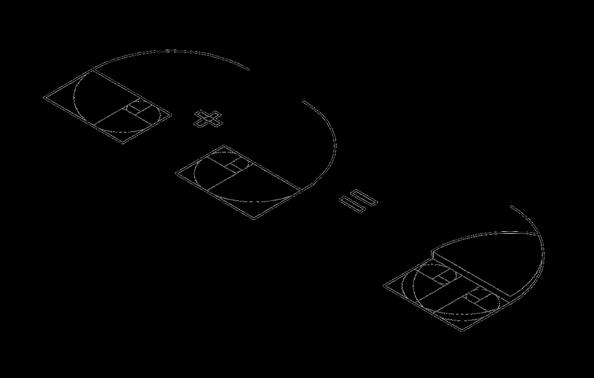

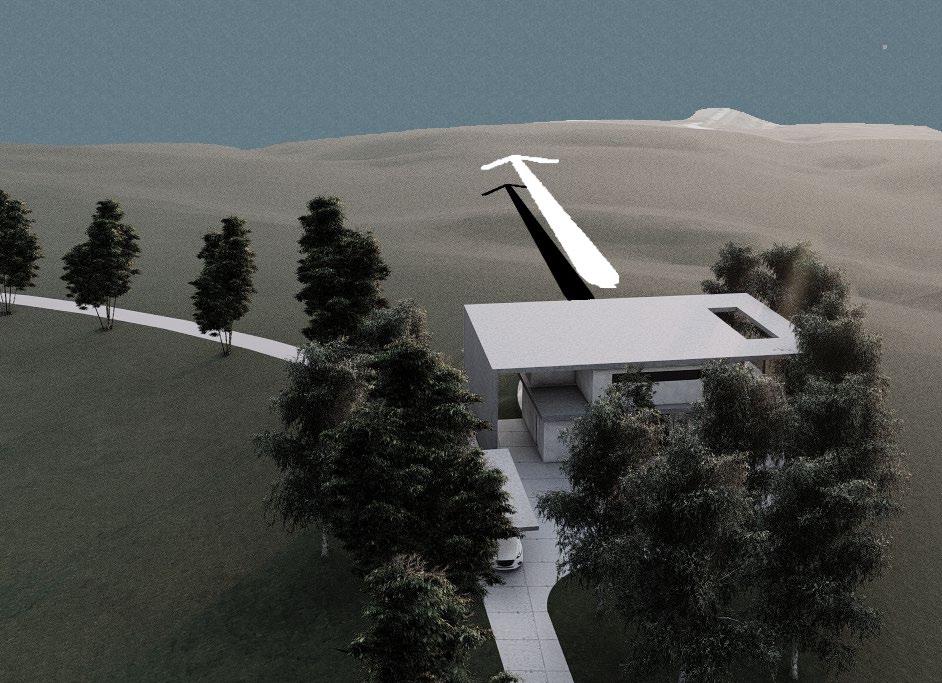

THE CLIENTS OF THE PROJECT WHERE A COUPLE,THE WIFE IS A MATH PROFESSOR AND THE HUSBAND A FISH AND WILDLIFE MANAGER AS WELL AS AN IMPROVISATIONAL MUSICIAN. THIS PROJECT STEMS FROM THE OBJECTIVE OF A HARMONIC CONNECTION BETWEEN MUSIC AND MATH THROUGHOUT THE ARCHITECTURE, IN ORDER TO ACHIEVE THIS IDEA, THE STRATEGY WAS COMPOSED OF UTILIZING COLOR, RHYTHM AND THE GOLDEN RECTANGLE. THIS MATHEMATICAL ORDER IS PRES ENT IN MUSICAL SCALE AND ARCHITECTURE AND NATURE PROPORTION. THIS NOT ONLY EXPRESSES THEIR CAREERS AND INTEREST BUT ALSO CONNECTS THEM WITH THE ENVIRONMENT.
