Lovelight Spec Brochure V9 Cloud Dancer 2026 - Digital

Window Furnishings Specification Brochure

Introducing Lovelight

At Lovelight™ our business is about three things: sourcing the latest design technology, selecting the best styling in window furnishings worldwide, and listening to the needs of our customers. For too long the Australian window furnishings market has been saturated with the same overpriced product offering.

By taking an innovative approach to every aspect of our supply chain, we have been able to redefine what is possible in window furnishings, opening up a product range that had previously only been available to a select few, and offering it to the broader Australian domestic market at very competitive prices. Our rigorous testing ensures we only stock products that are durable, easy to install and use, and are suited to the Australian environment.

3

Window Furnishing Overview

5

Roller Blinds

13

Curtains

19

Shutters

23

Roman Blinds

27

Venetian Blinds

31

Vertical Blinds

33

Pelmets

35

Installation Positions

37

User Guide

Window Furnishing Overview

Roller Blind Type

Overall Look

Best For

Blockout Roller Blinds

Clean, simple, minimal; strong light & privacy control.

Bedrooms, nurseries, media rooms, shiftworker spaces; street-facing windows; areas requiring darkness or thermal efficiency.

Light-Filtering Roller Blinds

Soft, diffused light; warm and gentle ambiance with subtle texture.

Living rooms, dining rooms, shared spaces; rooms needing daytime privacy without darkening; spaces where natural light is desired.

Screen Roller Blinds

Contemporary, sleek; maintains views while reducing glare.

Offices, kitchens, areas with strong sun exposure; spaces needing UV protection while keeping visibility.

Curtain Type

Overall Look

Best For

Blockout Curtains

Luxury and tailored; strong light control and privacy.

Bedrooms, nurseries, media rooms; shift workers; street-facing windows; thermal and acoustic improvement.

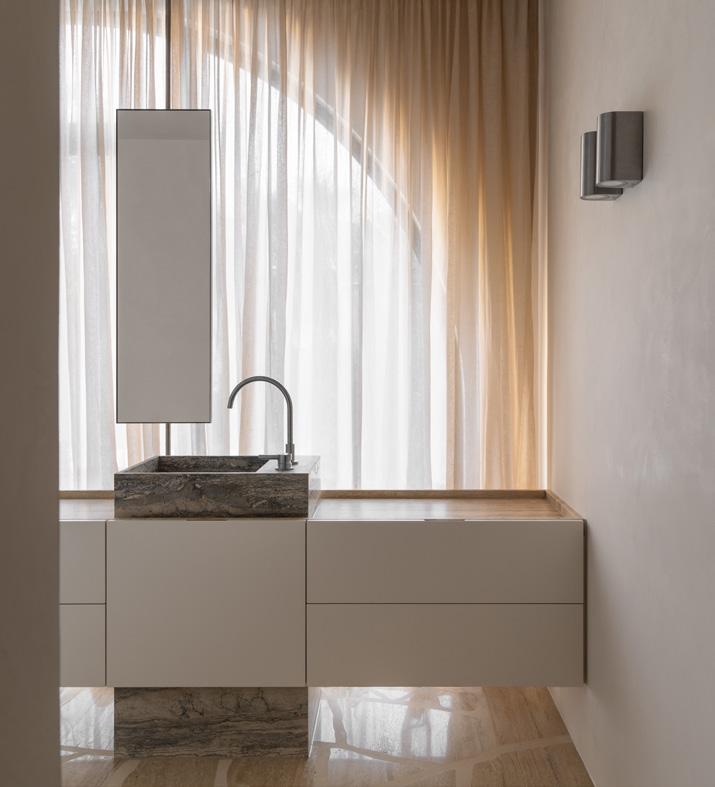

Sheer Curtains

Airy, soft, elegant; diffuses light while softening the room.

Living rooms, dining rooms, open-plan spaces; daytime privacy; layering over blinds or pairing with blockouts.

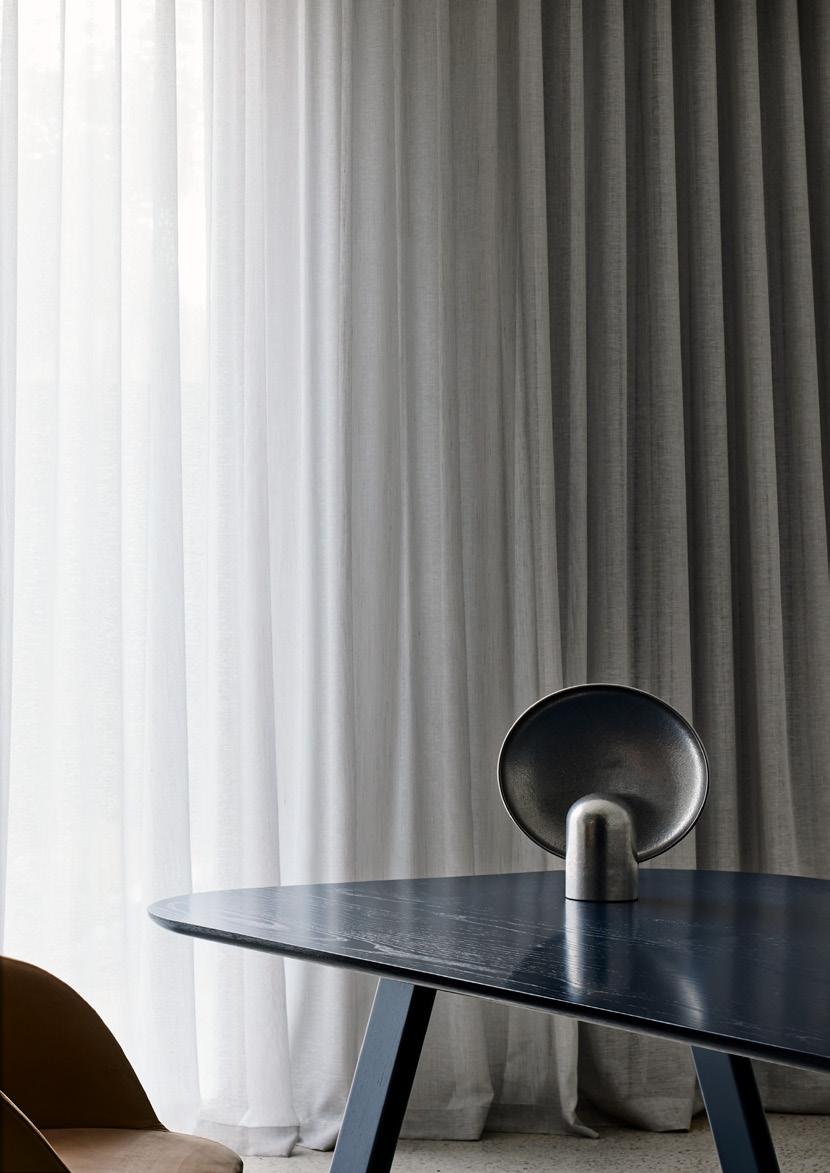

Double Curtains (Sheer + Blockout)

Versatile and premium; sheers by day, full darkness at night.

Whole-home solution where flexibility is key; master suites and living areas needing both softness and true darkness.

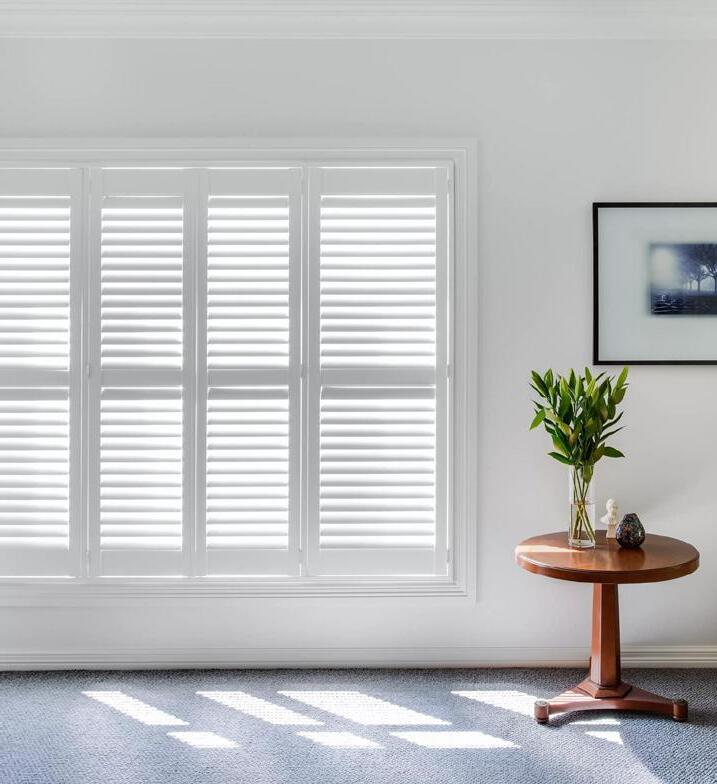

Shutter Type

Overall Look

Best For

PVC Shutters

Clean, modern, durable; smooth finish.

Bathrooms, laundries, kitchens; households needing easy maintenance.

Woodlore

Classic, refined, premium engineered timber

Living rooms, bedrooms, general home use; durable and high‑quality appearance.

Woodlore Plus Waterproof

Sleek, modern, fully waterproof and highly durable.

Bathrooms, ensuites, coastal homes, high‑moisture areas

Normandy Shutters

Warm, natural, elegant real‑wood grain; luxury aesthetic.

Feature windows, living rooms, master suites; premium timber product.

3

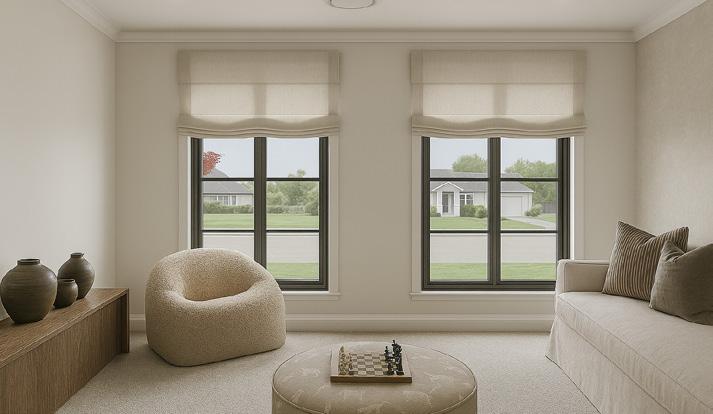

Roman Blind Type

Overall Look

Best For

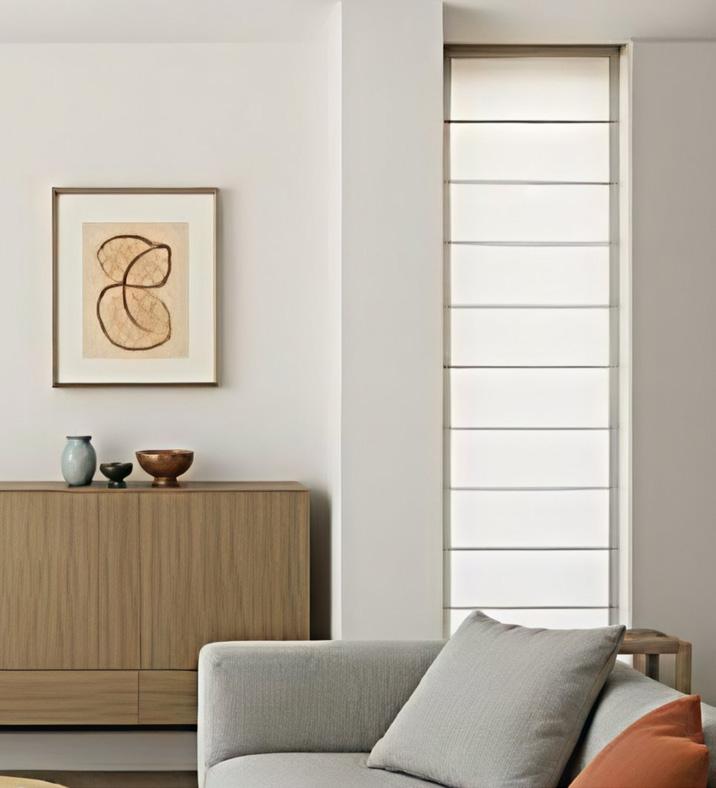

Soft Roman

Elegant, relaxed.

Bedrooms, living rooms.

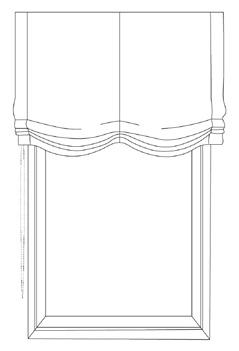

Gathered Roman

Decorative, romantic.

Feature windows, low-use areas.

Venetian Blind Type

Overall Look

Best For

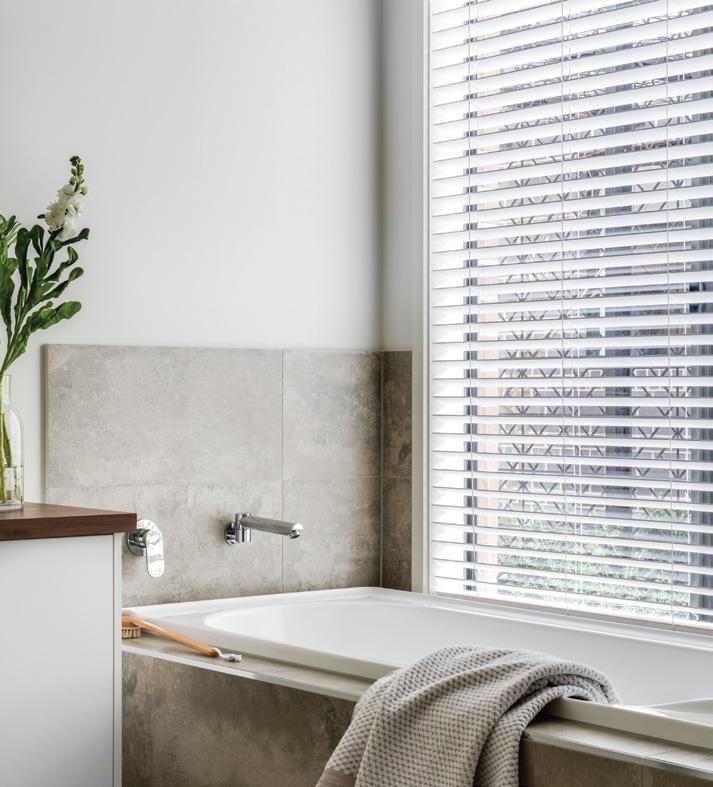

Aluminium Venetians

Sleek, modern, minimal; slim slats with a contemporary feel.

Kitchens, bathrooms, offices, high-use areas; spaces needing moisture resistance and precise light control.

Fauxwood Venetians

Warm, timber-like appearance; classic and structured.

Living rooms, bedrooms, family areas; homes wanting the look of wood with better moisture resistance and durability.

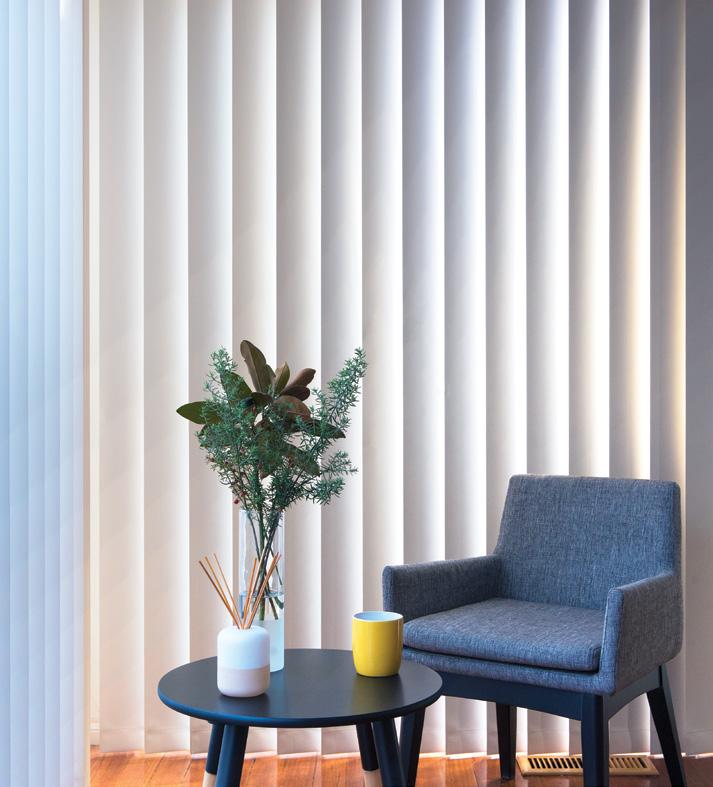

Vertical Blind Type

Overall Look

Best For

Vertical Blinds

Sleek, functional, provides strong privacy and moderate light control.

Bedrooms, media rooms, street-facing areas requiring maximum privacy and light blocking.

4

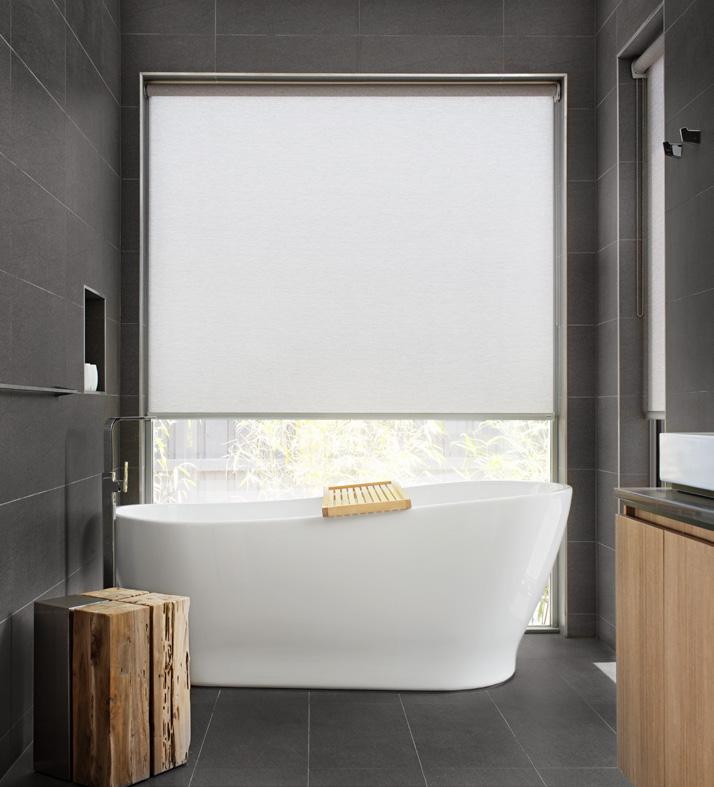

Roller Blinds Blockout, Screen or Light Filtering

5

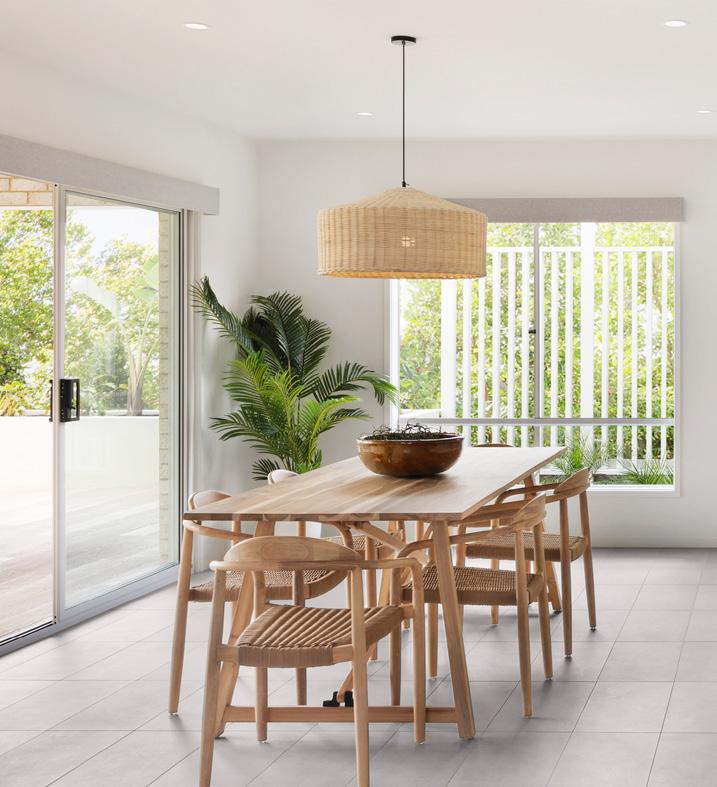

The most popular way to furnish windows and sliding doors. With modern clean lines, roller blinds offer a minimalistic look while assisting with insulation, day time privacy and keeping the home dark at night.

Why Roller Blinds?

Advantages

Considerations

Cost-Effective

Light Bleed and Light Gaps

Roller blinds are a cost-effective window treatment option, making them an economical choice for various spaces.

Depending on the fixing type and roll direction, roller blinds may have light bleed, especially with front roll configurations, leading to significant light gaps.

Space-Efficient When lifted, roller blinds take up minimal space, providing an unobstructed view and a clean, streamlined appearance.

Cost-Effective Motorization Motorizing roller blinds is more affordable compared to other window treatment options, offering convenient automation without a hefty price tag.

For linked roller blinds, there can be gaps between individual blinds, affecting privacy and light control.

Chain Maintenance Over time or with incorrect use, chains used for roller blinds may break and need to be replaced.

Weight Challenges of Linked Blinds

Easy Maintenance

The weight of linked blinds can pose challenges for smooth operation, and care must be taken to ensure proper functionality.

Roller blinds are easy to clean and maintain, requiring simple dusting or occasional spot cleaning to keep them looking fresh.

Secure Fixing Points

Versatile Installation With their small profile, roller blinds can be installed into a reveal or on the face of a window, offering flexibility in design and installation options.

Maximized Natural Light When raised, roller blinds allow maximum natural light to enter the space, creating a bright and airy atmosphere.

Light, Heat & UV Control Screen roller fabrics reduce glare, help regulate indoor temperatures by limiting solar heat gain, and provide excellent UV protection to help safeguard floors and furniture.

Proper installation with secure fixing points is crucial for the stable and reliable operation of roller blinds, as they are only attached to the face of the architrave or within the reveal.

Long Chain on High Windows For high windows, a long chain running down the wall may not be aesthetically pleasing.

Limitations around Bay & Corner Windows Roller blinds may face difficulties in achieving a seamless fit around corner or bay windows and are not ideal in this instance.

Daytime Privacy Without Losing Light Enjoy privacy during the day while still allowing natural light to filter through, keeping rooms bright, comfortable, and visually connected to the outdoors.

6

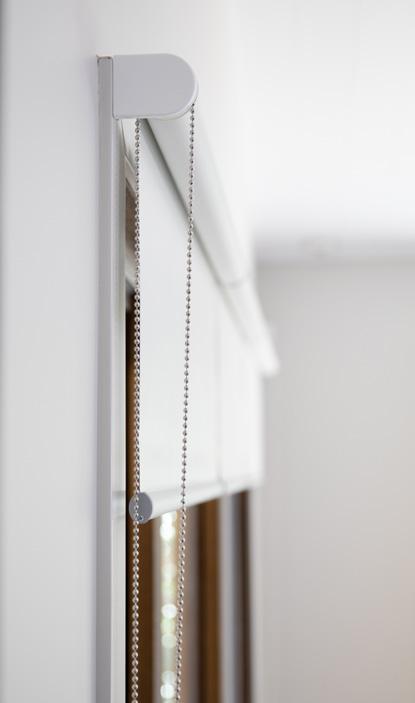

Roller Blinds Anatomy & Specifications

Chain Drive

Chain

Tube

Child Safety Device

Bracket

Bracket Cover

Base Bar

Fabric

Chains

Roller Systems

Child Safety Devices

As a standard, all roller blinds are chain operated with a metal ball chain. All chain positions will be at Lovelight’s discretion.

There are two roller systems available with different bracket sizes. Selection is dependant on the size of your window.

Base Bars

On larger blinds Lovelight will automatically increase bracket and tube sizes.

Child safety devices are required by law to be installed on all roller blind chains hanging below 1600mm from the floor. Chains above 1600mm are exempt. The chain must not form a loop exceeding 220mm in circumference.

Lovelight will install the child safety device in the most secure position.

All roller blind base bars as standard are oval shaped. They are available in anodised aluminium, black , white and in some cases fabric wrapped.

Bracket & Mechanism Colour Roller blinds with black fabric are supplied with black brackets and mechanisms.

All other blinds are supplied with white brackets and mechanisms.

7

Please note that if the bracket size changes Lovelight will match any adjacent blinds on the same window elevation in the same room.

Tube Sizes 38mm tube for blinds 300mm - 1979mm wide 38mm heavy duty tube for blinds 1980mm - 2410mm wide 45mm tube for blinds on highlight windows wider than 2410mm

Motorisation There is an upgrade option for a Wirefree battery motorised blind. No electrician is required for installation. One remote will be provided per room and one charging cable will be provided for up to 5 blinds. If more than 5 motorised roller blinds, a second charger will be provided.

Batteries last approximately 9-12 months in between charges.

Roller Blinds Specifications

Minimum/Maximum Widths

Linking Blinds Together

Corner Windows

Minimum roller blind width – 300mm

Blinds can be linked together. This is typically done when multiple blinds are required for larger window applications, allowing them to operate together as one. Please speak to your consultant for further information.

On corner windows, all blinds will automatically be front rolled to reduce the light gap as much as possible. Please be aware that the light gap will still be larger for face fit blinds. All other blinds in the room will be front rolled to match.

Please be aware that light gaps will be present at each link. We will link in certain situations as per page 10.

In instances of butt & through corner windows, the through blind will be the one facing the street. When not facing the street, the larger blind will be the through blind.

Maximum roller blind width –2410mm

Minimum/Maximum Drops Minimum roller blind drop – 300mm Maximum roller blind drop – 2700mm

Highlight Windows Roller blinds wider than 2410mm are only available on highlight windows with a maximum drop of 500mm.

Longer drops will not be warranted by Lovelight due to potential sagging of fabric and general performance issues.

500mm drop

2700mm wide highlight window

Front/Back Rolling Roller blinds can be front or back rolled, this must be specified on the quote.

A.

Front rolled blinds are a good choice to avoid the blind interfering with obstructions.

B.

Back rolled blinds are better suited to achieve maximum privacy and light blocking.

Light & Cloth Gaps All roller blinds have visible light gaps around the sides of the fabric, even when blockout fabric is used. This is because the overall width of the blind including its brackets is always wider than the fabric width.

Gap measurements are: — Side gaps up to 30mm per side — Gap between linked blinds is up to 30mm Blind Width Fabric Width

Diagram showing corner window with through blind (left) & butt blind (right).

Things to Consider — Colour variations may occur between fabric production batches. These variances are within industry tolerances.

— When windows are open, window furnishings should be in the open position to avoid stretching and distortion of the fabrics.

— As the sizes of blinds increase, there may be sagging or 'V-ing' in the fabric. This is not unexpected with larger blinds, and warranty claims will not be accepted.

Top cloth gaps Side cloth gaps

A. Front rolled blind

B. Back rolled blind Top fabric gaps Side fabric gaps Diagram showing the difference between the overall blind width (outside of bracket to outside of bracket) and the fabric width. Applicable for both single and dual roller blinds.

8

Single Roller Blinds Specifications

Single Roller Rolling Direction Industry standard rolling direction of single roller blinds is back rolled.

Blinds may need to be front rolled if there is an obstruction. This is determined at site measure at Lovelight’s discretion.

Single Roller Bracket Projection: 72mm Bracket — 72mm (face fit) — 50mm (reveal/recess fit)

72 mm 50mm Diagrams showing 72mm standard bracket in face fit and reveal fit positions.

80mm Bracket For highlight windows only — 80mm (face fit) — 67mm (reveal/recess fit)

80mm 67mm Diagram showing 80mm highlight window bracket in face fit and reveal fit positions.

9

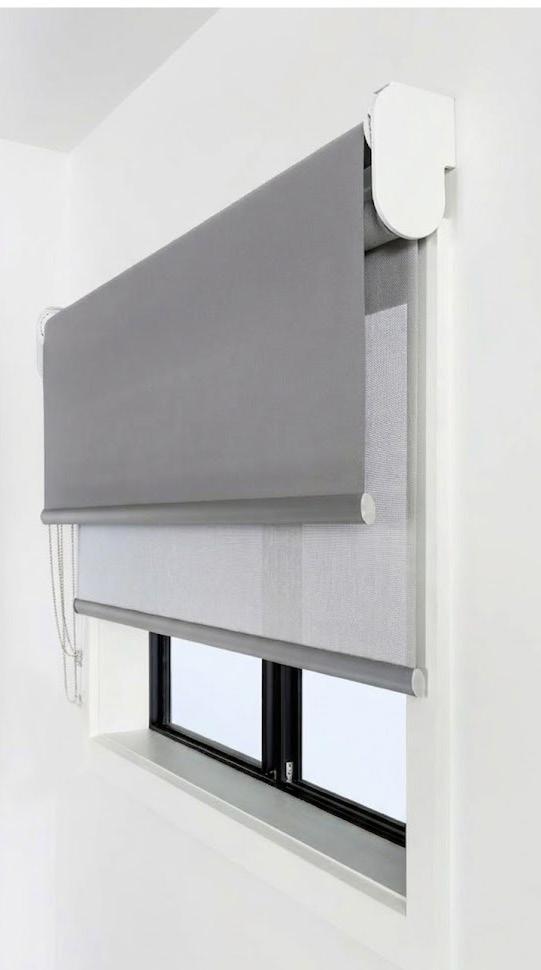

Dual Roller Blinds Specifications

Dual Roller Rolling Direction There are two blinds in a dual system: 'window' and 'room' blinds. These can be explained as: Window blind (RED in figure below): — Closest to the glass — Always back-rolled — Screen blind Room blind (BLUE in figure below): — Furthest from the glass — Always front-rolled — Blockout blind

Dual Roller Bracket Projection: 300mm –2410mm wide dual rollers 90mm

152mm

Highlight windows only 106mm

190mm Diagram showing dual roller blind bracket systems with window blind (red) and room blind (blue).

10

Window Blind Configurations Windows Wider Than 2410mm

Lovelight Standards No Mullion Roller blind will be split in the centre over the glass.

wider than 2410mm

1 Mullion Roller blind will be split into 2 blinds

Upgrade Options

2 Mullions

2 Mullions

Blinds will be 2/3 – 1/3 split to lower the cost for clients.

Two linked roller blinds & one independent roller blind Chains to both sides

3 Mullions Blinds will be split into 2 or 4 independent blinds, depending on the overall width of the window.

Highlight Windows 2700mm wide roller blinds are only recommended on highlight windows.

2700mm wide window

Blinds Chains Link required 11

3 Mullions Two linked roller blinds & two linked roller blinds Chains to both sides

Sliding Door Blind Configurations Sliding Doors Wider Than 2410mm

Lovelight Standards

Upgrade Options One independent roller blind

Two independent roller blinds

Chain to opening side

Chains to both sides

less than 2410mm

less than 2410mm

Two independent roller blinds Chains to both sides

Two linked roller blinds & one independent roller blind

2/3 – 1/3 split*

Chains to both sides

greater than 2410mm

greater than 2410mm

Two independent roller blinds Chains to both sides

Two linked roller blinds & one independent roller blind

2/3 – 1/3 split*

Chains to both sides

or Two independent roller blinds

Alternate Linkage

Chains to both sides

Three linked roller blinds

Centre opening door

Chain to opening side 2 links must be indicated on quote

Two linked roller blinds & one independent roller blind

Two linked roller blinds & two linked roller blinds

Chains to both sides

Chains to both sides

Centre opening door

Centre opening door

*Please Note: Larger blind (2/3 blind) will always be over the opening portion of the door.

Blinds Chains Link required 12

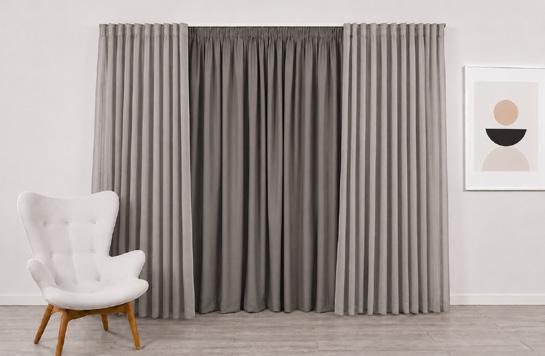

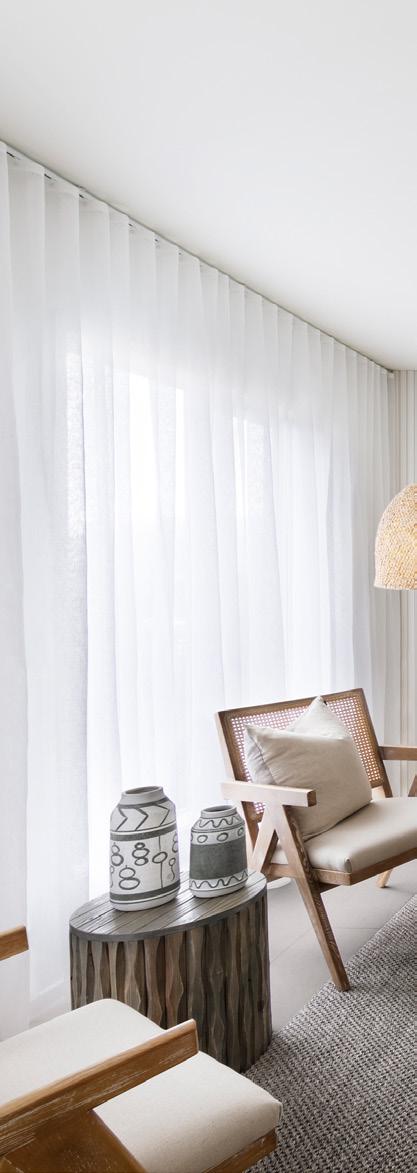

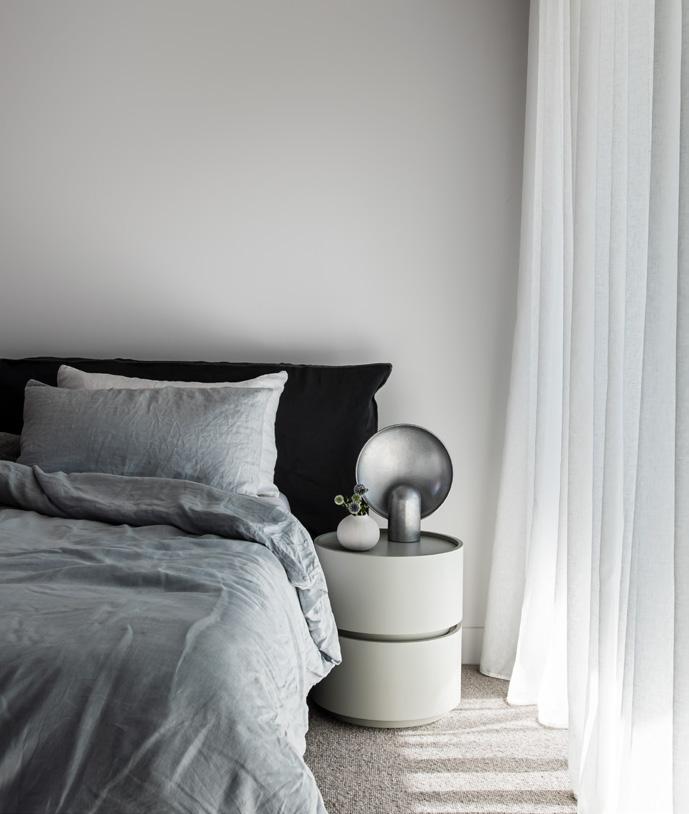

Curtains S-Fold & Pencil Pleat Headings in Blockout & Sheer Fabrics

13

Sheer curtains will offer softness and privacy whilst blockout curtains can help create a relaxing dark bedroom or real cinematic experience right in your home!

Why Curtains?

Advantages

Considerations

Soft Daylight with Added Privacy

Space

Sheer fabrics let natural light filter through while still providing a gentle level of daytime privacy.

Curtains, especially when open, can take up a significant portion of the opening, potentially obstructing the view and natural light.

Reduced UV Exposure Indoors

Curtains require wall space for installation, limiting the placement of furniture and other decor elements.

Sheers help minimise UV rays entering the room, offering added protection for furniture and flooring.

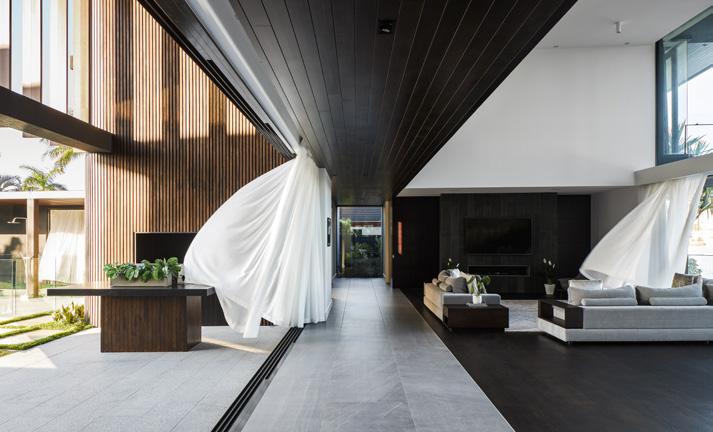

Double curtains, in particular, may billow into the room, requiring additional attention to ensure a neat appearance.

Comfortable, Low‑Glare Environment

Light Bleed

The diffused light from sheers helps reduce glare, making living areas more comfortable for reading, relaxing, or TV watching.

Curtains may allow some light to bleed through, with ceiling fit or pelmet installations providing better light control.

Layered Flexibility for Light Control

Higher Cost

Pairing sheers with a blockout layer gives you adaptable control over both privacy and brightness throughout the day.

Curtains, especially customized and high-quality ones, are more expensive than roller blinds.

Height-Enhancing Visual Impact Hanging curtains higher elongates the wall line, making rooms feel more spacious, airy, and elegant.

Complete Darkness When Needed Blockout fabrics provide full light reduction, ideal for bedrooms, media rooms, or anyone who prefers a darker environment.

Luxurious, Hotel‑Style Ambience The rich, heavy drape of blockout curtains adds a premium, opulent feel to any room.

Improved Thermal & Acoustic Insulation Blockout curtains help regulate temperature and reduce outside noise, enhancing overall comfort.

Energy-Efficient Temperature Control By helping rooms stay cooler in summer and warmer in winter, blockout curtains can support energy savings over time.

14

Curtains Anatomy & Specifications

Decorative (Round Profile) Track

Heading Options

End Caps

S-Fold

S-Fold Heading

The S-fold curtain heading style creates wide, even folds resembling an 'S' shape, offering a modern and clean aesthetic. It enhances light flow into the room and stacks compactly when opened. With no discernible back, it maintains the same appearance from both sides of the window, while holding its shape well. Projection into the room for an S-fold is 120mm.

Pencil Pleat The Pencil Pleat heading has tightly gathered folds of fabric that create pencil style pleats in the top of the curtain. This heading appeals to a more traditional style that is casual and unstructured.

Projection into the room for pencil pleat is 100mm.

Fabric Options Lead Weighted Hem

Sheer

Non-Decorative (Square Profile) Track

Sheer fabrics are great for letting in natural light while still providing privacy. They offer a soft, delicate look and are often used in combination with other curtain types to create layered window treatments.

Blockout

Pencil Pleat Heading

Blockout fabrics are commonly used in bedrooms, nurseries, and home theatres where light control is important for sleep, privacy, or viewing experiences.

Blockouts are manufactured as either — With lining (a separate blockout lining fabric is sewn into the curtain) — Self coated (Coating is applied to the back of the fabric. Please note, there will likely be visible stitch lines that may allow pin holes of light through.)

Track Options Non Decorative — Suitable for S-fold and pencil pleat — Ceiling and face fit — Squared profile with end caps Folded Hem

Decorative — Suitable for S-fold only — Face fit only — 28mm round profile with end caps

15

Curtains Specifications

Fullness

Returns

Raked or Pitched Ceilings

Pencil pleat curtains will have:

A return is the wrap around of the fabric at each end of the curtain track. Lovelight do not offer returns on curtains.

For raked or pitched ceiling the track will always be horizontal to the floor.

— 2.0 × fullness for sheer fabrics — 2.0 × fullness for blockout fabrics S-fold curtains will have: — 1.8 × fullness for sheer fabrics — 1.8 × fullness for blockout fabrics

Hems Sheer fabrics may have either a lead weighted hem or a turned hem depending on the range selected.

On blockout fabrics that are self-coated (white backing), the hem will be double turned, meaning the face colour of the fabric will be visible at the hemline when viewed from outside the home.

Minimum Width/Maximum Drop Minimum width — 300mm Maximum drop — 2700mm due to fabric restrictions.

Curtain Width Options

Curtains & Pelmets

We have the following curtain width options:

If a pelmet accompanies the curtain, the curtain will be brought down to reside within the pelmet. The curtain track will be standard width (window width + 200mm).

Standard Curtain will be manufactured to sit 100mm past each vertical architrave.

Where a blockout fabric has a separate lining, both the blockout and the lining have a single turned hem.

Wall to Wall When the curtain is installed over the full width of the wall from corner to corner.*

Lead weighted hem

Side Stack This is the space a curtain occupies on the left or right side of your window when it is open. As a rule, assume the side stack is equal to a third of the curtain width.

This will be priced as per the width of the wall, not the width of the window.

Track Installation Options

Curtain Drop All curtains will sit approximately 10mm off the floor.

Fabrics can be affected by atmospheric conditions and some movement is acceptable.

The industry standard is 3% movement up or down.

Standard

Things to Consider

150mm above the architrave.

— Colour variations may occur between fabric production batches. These variances are within industry tolerances.

Below Cornice 50mm below cornice.

A. Left stack

For existing pelmets, the mounting position will be confirmed upon check measure.

Please Note

*Please Note

Please note that the curtain stack may protrude into the window opening.

Pelmets will be installed 50mm above the architrave and are 50mm wider than the overall width of the curtain.

— When windows are open, window furnishings should be in the open position to avoid stretching and distortion of the fabrics.

B. Right stack

Operation

Ceiling Mount

All curtains are operated with a flick stick that is suitable for sheers and blockout fabrics.

Curtains can be configured to open as centre opening, 1 piece free flow, 2 piece free flow or one way draw.

Flick stick quantities will automatically match curtain configuration.

Installed onto the ceiling. Only when ceilings are square set, with no cornice.

Please Note Lovelight does not offer curved tracks.

Please Note Lovelight does not offer cord drawn curtains.

16

Double Curtains Specifications

Room Curtain

Window Curtain

Double Curtain Track Options

Things to Consider

We supply double curtains with the below options only:

— Projection of tracks is approximately 200mm into the room.

Window Curtain (closest to the glass) — Always pencil pleat — Always the blockout fabric Room Curtain (furthest from the glass) — Pencil pleat OR S-fold — Always the sheer fabric

17

— In a pencil pleat and S-fold configuration, the pencil pleat will always be the window furnishing and the S-fold will always be the room furnishing.

18

Shutters Timber, Waterproof and PVC

19

Shutters represent the ultimate in style and function by enhancing the aesthetics of a room with light control, while still offering privacy. Facade windows are the most popular application for shutters to be installed.

Why Shutters?

Advantages

Considerations

Easy Maintenance

Light Bleed Between Blades

Shutters are easy to clean, simplifying maintenance and ensuring a neat appearance.

Light bleed can occur between the blades of shutters, making them not completely blockout. However, they still provide better light control compared to some other window furnishings.

Shape Versatility Adaptable and custom-made, shutters can be crafted into various shapes, offering versatility and the ability to complement windows of different configurations.

Not Suitable for Doors Shutters are not a suitable option for doors, given their design and operational characteristics.

Simple Operation

Higher Cost

Shutters are very user-friendly, allowing for easy adjustment of light and privacy levels.

Shutters are generally more expensive compared to some other window furnishings, reflecting their high-quality materials, versatility, and customization. Shutters are custom-made to suit each window.

Dual Functionality Shutters offer dual functionality, serving as both sheer and block-out elements in one, providing flexibility in light control.

Effortless Privacy Solution Shutters provide excellent privacy control, featuring a split tilt operation that allows for independent adjustment of the upper and lower sections.

Strength and Durability Shutters are made from strong and durable materials, making them a long-lasting window treatment solution.

Fly Screens and Hardware It's essential to be conscious of existing fly screens and window hardware to ensure compatibility and a seamless installation experience.

Industry Guideline for Plantation Shutters It is usual for slight dropping or sagging to occur to the panels when operated out of their closed position. Heavier shutter panels may need to be lifted back in to their frame. This not a fault but is inherent to the product.

Insulation Shutters provide effective insulation, contributing to temperature control and energy efficiency in the home.

Bay Windows and Corners Shutters are excellent for bay windows and corners, offering a seamless and visually appealing solution for unique window configurations.

Waterproof Shutters can be ordered in waterproof materials that are suitable for use in bathrooms, providing privacy and moisture resistance.

20

Shutters Anatomy & Specifications

Top Rail

Frame

Louvres/Blades

Hinge

Midrail

Side Stile Bottom Rail

Range Selection Thermo Select PVC Thermo Select shutters are made from durable PVC that delivers excellent quality at a more economical price point. They are low maintenance, moisture resistant, and provide good insulation and are suitable for both wet and dry areas.

Woodlore Woodlore shutters are made out of engineered wood composite with a polypropylene coating for durability. It is used worldwide in the manufacture of furniture, and lends itself very well to the manufacture of shutters. Suitable for dry areas only.

Woodlore PLUS Waterproof Woodlore Plus Waterproof shutters are made from ABS, the same product used to manufacture Lego. It is waterproof and suitable for wet areas.

Normandy Normandy shutters are made from Phoenixwood, from the Phoenix Tree (Firmiana Simplex) which is classed as a hardwood, and comes from the Sterculiaceae (Cacao) family of trees. This product is suitable for dry areas only.

21

Louvres

Stile Profile

Alternatively called blades.

Lovelight have two stile profiles available:

Elliptical 89mm

Hinges All hinge colours are determined depending on the shutter colour requested.

Chamfer Angled edges providing a modern and streamlined appearance.

This is completed by Lovelight and will be matched to the closest colour to the shutter selected. With the exception of Woodlore Plus Waterproof shutters – these will always include stainless steel hinges, suitable for wet areas.

Chamfer Detail

Midrails (Divider Rails) For larger shutters, midrails assist with the integrity of the panels and prevent them from sagging. If the height of your window is greater than 1500mm, Lovelight will automatically add a midrail.

Beaded Decorative moulding for a classic look.

Beaded Detail

Shutters Specifications

Specification Summary Thermo select PVC

Woodlore

Woodlore Plus

Normandy

Material Type

Polyresin with Aluminium core

Engineered Wood Composite

ABS (Waterproof)

Phoenixwood

Maximum Panel Height

2400mm

2700mm

3000mm

3000mm

Maximum Panel Width

900mm

914mm

920mm

1095mm

Midrail Required For Panel Heights Over

1500mm

1879mm

1800mm

1981mm

Suitable For

Indoor, All areas

Dry Areas Only

Dry & Wet Areas

Dry Areas Only

Hinge Colour

Matched to Shutter Colour

Matched to Shutter Colour

Stainless Steel Only

Matched to Shutter Colour

Projection

Panel Operation

Louvre Operation

To fit shutters within a window reveal, we require 70mm internal clearance. The shutter blades will still protrude into the room when in the open position. Please take note of any window winders or obstructions that may impede the shutter.

Shutter panels installed to a window will be hinged and can be opened.

PVC shutters operate via an external tilt rod while all other shutter ranges operate via the invisible Easy Tilt gear driven system. Blades are connected by an internal link hidden in the side stiles of each shutter panel.

Flyscreens When selecting the mounting position with your sales consultant: Please consider if flyscreens will be added to the window in the future, as there may not be enough space if reveal mount is selected.

Doors and Sliding Shutters Lovelight do not install shutters to doors, either hinged or sliding. Lovelight also do not provide sliding shutter configurations.

Shutters installed to a wall cut out will be fixed in place.

Once a panel exceeds 1350mm, a shutter panel will have split operation . This is where the top section of louvres operate independently from the bottom section.

The standard split operation is 50/50.

Face Fit/Reveal Fit Shutters can be installed on the face or within the reveal.

When face fitted, shutters will automatically have an additional 140mm added to their width and drop to cover the architraves. This may affect the quantity of panels.

Image demonstrating a 50/50 split where the top half can be opened independently from the bottom.

22

Roman Blinds Blockout & Light Filtering Fabrics

23

With its desired pelmet look in an opened position, this homely window furnishing adds a beautiful, neat and decorative finish to any room. Suitable for bedrooms right through to living and dining areas. Romans are a great option to pair with screen roller blinds, for day and night time privacy.

Why Roman Blinds?

Advantages

Considerations

Coordination with Curtain Furnishings

Light Bleed and Pin Holes

Roman blinds can be coordinated with curtain fabrics, creating a cohesive look throughout a space.

Roman blinds may experience light bleed on the sides due to the head rail, which can be a consideration for those seeking a complete blockout. Due to the stitching of roman blinds, it is common that pin holes may be present.

Bay Window Compatibility Roman blinds can be effectively used in bay windows, providing an elegant and functional window furnishing solution.

Blockout Performance Roman blinds offer better block-out capabilities than roller blinds, as the fabric covers the brackets, unlike a roller blind.

Neat Aesthetics Roman blinds look neater than roller blinds as brackets are not visible, contributing to a clean and minimalist aesthetic. The head rail also acts as a pelmet for the roman blind.

Gathered Romans Gathered romans add a soft, decorative focal point for a room. They create a more elegant look than other styles of romans.

Reveal Fit Roman blinds are not suitable to be installed in the reveal due to accessibility issues with the chain, resulting in a loss of around 250mm of window space and natural light. Fabrics can also drop with atmospheric changes, meaning they will sit on the window sill if reveal fitted.

Consideration for Bay Window Installation The recommended installation will be 150mm above the architrave/window.

Gathered Romans Gathered Roman blinds are designed to look most attractive when they are raised, as this is when the natural centre scoop and soft draping are fully visible. When lowered, the fabric can appear flatter and less decorative, so they’re best suited to windows where the blind will spend a lot of time pulled up to showcase the curvature.

24

Roman Blinds Anatomy

Open/Stacked Roman Blind

Head Rail

Chain

Gathered Roman

Fabric

Gathered Fabric

Chain

Closed Roman

Light Pin Holes

Bottom Pocket

25

Roman Blinds Specifications

Minimum/Maximum Widths

Head Rail Projection

Installation Position

Minimum roman blind width – 500mm Maximum roman blind width – 3000mm

The head rail will project into the room by 42mm.

— 150mm above the top architrave

Minimum/Maximum Drops

Bottom Pocket

— 20mm past the outer edge of each side architrave

Minimum roman blind drop – 500mm

Roman blinds are fitted with a bottom bar in pocket unless gathered romans are selected.

— Up to 40mm below the bottom architrave when roman blind is closed

Panel Spacing & Line Up

On the same elevation, romans will be installed at the same height unless the height difference between the windows/sliding doors is greater than 200mm.

Maximum roman blind drop – 3000mm

Operation All roman blinds are fitted with manual, continuous metal ball chain.

All chain positions will be at Lovelight's discretion. Chain lengths will be 2/3 of the length of the roman's drop.

Light Pin Holes All roman blinds will have pin holes of light showing through the blinds wherever stitching occurs (batten pockets, side hems, and base pockets).

Panel spacing will vary according to the drop of your roman blind. These will be automatically calculated by the team at Lovelight. If you have more than one roman blind in a room with varying drops, Lovelight will automatically line up the spacing for you.

This may result in your bottom panels being different sizes to each other.

Stack Height The stack height is usually between 250 – 330mm, or the height of the first fold on your roman blind.

Roman blinds will be installed:

Child Safety Devices Child safety devices are required by law to be installed on all roman blind chains hanging below 1600mm from the floor. Chains above 1600mm are exempt. The chain must not form a loop exceeding 220mm in circumference.

Lovelight will install the child safety device in the most secure position.

26

Venetian Blinds Aluminium and Fauxwood

27

Venetian blinds are one of the world’s most popular window furnishings. Enjoy the ease of filtering light into a room while maintaining the rooms privacy. Venetian blinds are also aesthetically pleasing from the inside and outside of the home.

Why Venetian Blinds?

Aluminium Venetians Advantages

Considerations

Commercial Appeal

Limited Blockout Capabilities

Aluminium venetians have a sleek and modern appearance, making them more appropriate for office settings.

Aluminium venetians are not 100% blockout, light gaps can occur between the blades and through ladder string holes.

Compact Profile for Tight Reveals

Vulnerability to Damage

With their small profile, aluminium venetians can fit into tight reveals.

The thin nature of aluminium venetians makes them susceptible to bending and kinking, requiring gentle handling to prevent damage.

Light Control and Privacy Similar to shutters, a single aluminium venetian blind offers effective control over both light and privacy.

Versatile Use in Different Spaces

Dust Accumulation and Cleaning Needs Aluminium venetians can gather dust and require regular cleaning to maintain their appearance and functionality

Aluminium venetians might be a good fit for laundry areas where sleek and functional window furnishing is preferred.

Small Stack Size Aluminium venetians have a small stack size when raised, minimizing the visual impact on the window when open.

Fauxwood Venetians Advantages

Considerations

Versatile Appeal

Avoid Frequent Lifting

Fauxwood venetians share a modern appearance similar to aluminium, offering a stylish option for those who prefer the look of venetian blinds.

Fauxwood venetians have a more homey feel to them and are more commonly seen in residential spaces.

Due to their weight, venetians are not designed for frequent lifting and should be handled carefully. The blind should only be lifted for cleaning purposes, however the slats can be tilted and adjusted frequently.

Compact Profile for Tight Reveals With their small profile, Fauxwood venetians can fit into tight reveals, provided that window or door hardware does not obstruct the installation.

Light Control and Privacy Similar to shutters, a single Fauxwood venetian blind offers effective control over both light and privacy.

28

Aluminium Venetians Anatomy & Specifications

Head Rail

Tilt Rod

End Caps

Lift Cord

Aluminium Blades

Cord Lock & Cleat

Bottom Rail

Minimum/Maximum Widths

Head Rail Projection

Hold Down Clips

Minimum venetian blind width – 250mm Maximum venetian blind width – 2400mm

The head rail is 25mm × 25mm and is coordinated to your blade colour selection.

Lovelight will not supply or install hold down clips.

Minimum/Maximum Drops

Bottom Rail

Sliding Doors

Minimum venetian blind drop – 300mm

Made from a 22.5mm × 10mm C-channel lock seamed tubular section.

Lovelight will not install aluminium venetian blinds to sliding doors.

Maximum venetian blind drop – 2700mm

Operation All aluminium venetian blinds come with a lift cord and a tilt wand.

Blade Width Blade width – 25mm.

Blade Overlap Blade overlap – 5mm.

This is the amount that each blade covers the preceding blade.

29

Tilt Rod All tilt rods are clear plastic PVC.

Cord Colour Coordinated with blade colour.

Cord Lock & Cleat Aluminium venetian blinds come standard with a cord lock and a clear plastic cleat to wrap the cord around.

Fauxwood Venetians Anatomy & Specifications

Integrated Fascia

Head Rail

Fauxwood Blades

Lift/Tilt Cords

Bottom Rail

Minimum/Maximum Widths

Bottom Rail

Safe Product Use

Minimum venetian blind width – 300mm Maximum venetian blind width – 2400mm

The bottom rail is 48mm × 12mm and is coordinated to your blade colour selection.

Before raising blinds, please ensure that blades are in the open (horizontal) position.

Minimum/Maximum Drops

Fascia

Minimum venetian blind drop – 300mm Maximum venetian blind drop – 2600mm

Fauxwood venetians are provided with an integrated fascia that forms part of the headrail and does not need to be removed.

Operation All PVC and timber venetian blinds come with lift cords and tilt cords.

Blade Width Blade width – 50mm.

Head Rail Projection The head rail is 57mm × 54mm and is coordinated to your blade colour selection.

Cord Colour Matched to blade colour.

Cord Lock & Cleat Fauxwood venetian blinds come standard with cord lock and a clear plastic cleat to wrap the cord around.

Venetian blinds are designed to be used in the down position. Leaving them in a partly or fully raised position may cause bowing in the slats.

This bowing will not be covered by warranty.

Venetian blinds can be heavy to lift. This is standard and there are no options to assist with the weight. Ideally, this blind should be selected for a window where you most commonly will tilt the blades to control light, and only require lifting infrequently (eg. routine cleaning).

Sliding Doors Lovelight will not install venetian blinds to sliding doors.

30

Vertical Blinds Blockout Fabrics

31

Vertical blinds control privacy and light with ease. Available in a wide range of blockout colours, and suitable for windows and sliding doors.

Vertical Blinds Anatomy & Specifications

Track with End Caps

Minimum/Maximum Width Minimum vertical blind width – 600mm Maximum vertical blind width – 6000mm

Vertical Blind Blade

Minimum/Maximum Drop Minimum vertical blind drop – 600mm Maximum vertical blind drop – 3300mm

Blade Width Blade width – 127mm.

Operation Tilt control is by way of plastic beaded chain.

Stack control is by way of continuous cord.

Verticals stacking to one side will have controls on the stack side.

Track Vertical blinds that are manufactured with black fabric are supplied with black tracks.

All other vertical blinds are supplied with white tracks.

Tilt Control Chain Stack Control Cord

Fabrics Vertical blinds are manufactured in blockout fabrics only.

Bottom Weights All vertical blinds will have chain-less bottom weights.

Opening Direction Vertical blinds can be one way draw, centre opening or centre stacking. Vertical blinds installed to sliding doors will follow the same opening direction as the door.

Child Safety Devices Bottom Weight

Child safety devices are required by law to be installed on all vertical blind chains hanging below 1600mm from the floor. Chains above 1600mm are exempt. The chain must not form a loop exceeding 220mm in circumference.

Lovelight will install the child safety device in the most secure position.

32

Pelmets Upholstered Fabric

33

Pelmets are the ideal addition to insulate windows & sliding doors. Pelmets can be used decoratively, to frame your windows/sliding doors and cover furnishing fixtures such as curtain tracks and blind mechanisms.

Why Pelmets?

Advantages

Considerations

Concealing Hardware

Pelmet Projection

Pelmets serve as an excellent way to hide the hardware of blinds or curtains, creating a polished and finished look for the window furnishings.

Pelmets sit over window furnishings, depending on the quantity of window furnishings, the projection can impact the aesthetic of the room.

Enhanced Blockout Performance Pelmets contribute to better blockout performance for various window furnishings by closing the light gap at the top, preventing unwanted light from entering the room.

Coordination with Curtain Fabric Pelmets can be designed to match the fabric of curtains, creating a cohesive and harmonious appearance in the room.

Traditional Appeal Pelmets have a traditional style, making them well-suited for older houses and spaces with a more classic or vintage aesthetic.

Fabric Join Return

Pelmets Anatomy & Specifications

Minimum/Maximum Widths

Fabric Joins

Installation

Minimum pelmet width — 300mm

Depending on the width of the pelmet and the fabric you select, vertical fabric joins may be present. If vertical joins are required, we will manufacture your pelmet with two joins spaced apart, rather than one central join.

Pelmets will be installed 50mm above the architrave. Pelmets will be installed 25mm beyond the outside edges of the architraves.

Maximum pelmet width — 3900mm

Pelmet Height Pelmet height — 200mm.

Fabrics

Pelmet Projections

Soft pelmets are manufactured from our Lovelight blockout curtain fabrics.

Pelmet projections are determined by the amount of furnishings being installed to the window or sliding door:

Returns

— Without furnishing/or blind installed into recess: 75mm

All pelmets are supplied with returns as standard, when required.

If a pelmet accompanies a curtain, the curtain will be brought down to reside within the pelmet that will be installed 50mm above the architrave. The pelmet will then be 50mm wider than the overall width of the curtain.

The overall width of the curtain equals window width + 200mm (standard width).

— With 1 × furnishing installed within the pelmet: 100mm — With 2 × furnishings installed within the pelmet: 200mm 34

Standard Installation Position All Furnishings

Standard installation positions will be as per the table below, unless noted otherwise on your quote. Some builders have specific installation positions due to the type of windows they supply. As a result, your furnishings may be reveal or face fitted at Lovelight's discretion at the time of site check measure.

Please note: Window furnishings installed in the reveal of the window may restrict install and/or removal of flyscreens.

Windows

Sliding Doors

Opening/Cut outs

Single Roller Blinds

Reveal/Recess

Face Fit Only

N/A

Dual Roller Blinds

Reveal/Recess

Face Fit Only

N/A

Roman Blinds

Face fit only 150mm above architrave, 20mm past each vertical architrave, and up to 40mm below the bottom architrave

Face fit only 150mm above architrave, 20mm past each vertical architrave, and will sit 10mm above floor

N/A

Venetian Blinds

Reveal/Recess

N/A

N/A

Shutters

Reveal/Recess

N/A

Fixed in U-Channels

Curtains

Face fit only 150mm above architrave, 100mm past each vertical architrave and 10mm above floor

Face fit only 150mm above architrave, 100mm past each vertical architrave and 10mm above floor

N/A

Pelmets

Face fit only 50mm above architrave, 25mm past each vertical architrave

Face fit only 50mm above architrave, 25mm past each vertical architrave

N/A

Vertical Blinds

Face fit to architrave & reveal for windows

Face Fit Only

N/A

35

Window Furnishings will not be installed in these locations

Within shower cubicles

Kitchen low light windows

Void windows

Lovelight will not install window furnishings inside shower cubicles due to significant water & moisture damage to the fabrics and materials.

Lovelight will not install window furnishings to a low light window above a cook-top. This is due to the stove being a fire hazard.

If a window furnishing is required to a void window, the builder must supply access equipment (such as scaffolding) for the check measure and the installation of the products.

Where roller blinds are specified, please ensure that the drop of the window doesn’t exceed our maximum height restriction of 2700mm.

It is also a Lovelight recommendation that window furnishings are not installed above a sink due to the potential that water may damage the fabric of the blinds.

Entry side light windows

Onto Hinged Doors

Lovelight will not install any product to entry side light windows where the window is narrower than 300mm.

Window furnishings manufactured this small often do not function well.

Lovelight will not install window furnishings onto hinged doors due to the projections of the furnishings.

If the sidelight is over 300mm wide, it will be subject to check measure.

Most furnishings will protrude further than the door stopper and the furnishings will damage the plaster once opened.

If installed onto hinge doors it will void the warranty.

Any stair window that is unsafe to install Lovelight will only install window furnishings to windows located on a staircase where there is a flat landing directly beneath the window. Installations will not be carried out on ascending sections of staircases. Windows above stair winder treads and above ascending stairs cannot have blinds installed.

36

User Guide Cleaning & Maintenance

Care & Cleaning

Roller & Roman Blinds

Curtains & Pelmets

All window furnishings require some regular cleaning and maintenance in order to preserve their integrity. In all cases, the cleaning process should first be tested in an inconspicuous area.

Most roman and roller blinds simply require regular vacuuming (with an upholstery attachment) in order to keep them in top condition. Do not oil any part or mechanism of the blind, as the oil may get on the fabric and damage it permanently.

It is important to vacuum your curtains regularly with the appropriate attachment.

This will prevent dust from accumulating and gradually becoming embedded in the fabric.

Generally, surface dust may be removed with a gentle brush, feather duster or clean, dry cloth and wiped with a dry sponge. However, each window furnishing will have slightly different instructions.

Stain Removal To remove wet embedded stains, sponge blind clean with a damp cloth. Use a small amount of diluted washing liquid in warm water and avoid rubbing the stain. Do not immerse blinds in water. Do not use this method with timber window furnishings – use ammonium free general use spray, spraying onto a cloth first and then wipe onto surface.

Spot Cleaning Small dry marks may be rubbed off quite effectively with a gum-based eraser (available in most art supply stores). If this fails, use the method described in the paragraph above Mould Prevention Many fabrics are treated with mould repelling agents, however under certain conditions even these preventative agents can prove ineffective. High levels of humidity inside your house can lead to mould growth on any surface, including your blinds. Mould is most commonly found in areas such as bathrooms, but any room could have a humidity problem.

When the warm air inside your home comes in contact with the cold glass of your window, condensation can occur. This can trap a layer of moisture between your windows and your blinds over time, and may lead to the growth of mould.

Proper ventilation is the simplest way to reduce humidity levels. However where this is not possible, installing a de-humidifier will assist.

37

Aluminium Venetian Blinds To clean the slats of venetian blinds, we recommend the use of a clean anti-static duster or cloth. For stubborn stains we recommend you wash your blinds with a mild detergent, and thoroughly rinse with clean water. Dry thoroughly before re-hanging.

Do not use harsh abrasive or solvent based chemicals as these cause irreparable damage to your blind.

Fauxwood Venetian Blinds Cleaning venetians may be done with the soft brush of a vacuum cleaner or feather duster.

Do not use a damp or wet cloth. Do not use silicone-based products for cleaning. Dust blinds frequently to avoid dust build up.

Engineered Composite Wood & ABS We recommend regular dusting of shutters to avoid dust build up, with a soft dust brush or soft microfibre cloth.

You can use a mild detergent with a soft cloth to wipe each shutter blade clean. Do not use a kitchen cleaner e.g. Ajax or a scouring pad, as this can permanently damage the shutters.

Timber Plantation Shutters We recommend regular dusting of shutters to avoid dust build up, with a soft dust brush or soft microfibre cloth. If shutters are a natural timber, you may need to use a soft cloth and a non-wax polish.

Avoid using water or other liquid methods as this can damage the timber and could lead to warping or bowing. If there are stubborn stains, we recommend using an ammonium-free general use spray: spray onto cloth first and then wipe onto surface.

If curtains require cleaning, please follow cleaning instructions according to the care label attached to the product. Remove all hooks, and in the case of pencil or gathered headings, loosen the drawstrings (but do not remove).

Always allow for 3% shrinkage with dry cleaning. It is recommended that matching items be cleaned together. Remove all spills immediately using a clean damp cloth. Do not rub or soak the fabric but dab gently.

Wirefree Automation Surface dust may be removed with a gentle brush, feather duster or clean, dry cloth and wiped with a dry sponge. To remove any small marks, use a gum-based eraser.

User Guide Operation Instructions, Safety Instructions & Warranty Statement

Single & Dual Roller Blinds

Roman Blinds

Safety Instructions

Roller blinds are finished without side hems and have ultrasonically sealed edges. Please ensure that the blind rolls up and down straightly by raising and lowering the blind with moderate speed. Avoid letting the chain rub on the edge of the fabric as this can result in fraying of the fabric.

Roman blind operation is with a chain, as per the roller blind. Do not pull on the fabric to operate the roman, use the chain provided.

Avoid letting the chain rub on the edge of the fabric of the roman blind.

Warning:

Do not pull on the fabric to operate the blind, use the chain provided. Ensure that you never unroll the total length of fabric from the roller.

When rolling your blind up or down, the chain should be held in a vertical position. Avoid using excessive force when operating the blind, as this may cause damage to the chain mechanism and/or the fabric.

Following these steps will ensure that: — The fabric is not damaged — The amount of noise is limited when operating the blind — The blind will lift evenly

The cleat will be installed 1600mm or more above floor level. Lovelight will fit a child safety device in the most secure position.

Aluminium Venetian Blinds Before raising the blinds, always ensure that the slats are tilted fully open. When opening the window behind the blind, always raise the blind first. Pushing your hand through the slats will cause unnecessary wear and tear on your blind.

Timber Shutters Ensuring your hands are clean, you can just grab lightly any of the timber blades to open the shutter. Please ensure that there are no obstructions that may hit and damage a blade, i.e. a key lock for a window, or a window winder.

Curtains & Pelmets Keep curtain track and rod channels free of dust. Always use the flick stick to operate.

INCORRECT

CORRECT

Young children can strangle themselves in the loop of chains and cords that run through window coverings. To avoid strangulation and entanglement keep cords out of reach of young children.

10 Year Shutter Warranty Statement Lovelight warrants each window furnishing that is sold and delivered, to be free of defects in material and workmanship under normal use and conditions for a period of 12 months.

Please note that this 12 month period begins from the date of installation.

Lovelight will replace any window furnishing that proves defective within the limits of this warranty.

Warranty does not apply to any product that has been subject to misuse, negligence, accidental damage or improper maintenance.

Please Note: Each product has been manufactured with the highest quality materials, however some colour fading and shrinkage is completely normal and should be expected during the lifetime of the blind. Lovelight will not warrant a blind narrower than 300mm in width.

Figure 1 Schematic diagram showing the correct and incorrect orientation to hold your chain when rolling your blind up or down.

38

Victoria 34 Garden Street South Yarra 3141 Melbourne VIC New South Wales 38/34 – 36 Ralph Street Alexandria NSW 2015

National Phone 1300 763 171 info@lovelight.com.au Follow us Fb In Pn @lovelightblinds Version 8

Queensland Unit 10 4 Computer Rd Yatala QLD 4207

39

lovelight.com.au
