Bachelor of Architectural Studies/Masters of Architectural Studies

portfoli o

selected

works

by Lucy Pritchard

A church and community centre all under 1 roof. Situated in Karori, centering its design around papatuanuku’s sacred resource waiwater.

pg 6-15

A library designed in Shelly Bay, inviting users out of the city and into the bay. Encouraging exploration with child-like curiousity.

pg 16-21

newtown urban design.

An urban masterplan that uplifts Newtown’s already eccentric and eclectic mix of shops, homes and amenities.

pg 22-23

A home, a sancutuary and a place of respite for women between their 30s-50s. This shared whare welcomes the residents to explore their artistic hobbies.

pg 24-27

An infrastructure response to the increasing flash flooding in Forli, Italy. This design combines the solution to a climate crisis and a functional skate park.

pg 28-35

A selection of details and drawings that demonstrate proficiency in documentation skills through Revit and Archicad.

pg 36-45

watering the seed

ARCI412 Architecture Design-Victoria Willocks June 2025

This project is centred around water- this sacred taonga- wai. Large roofs span across both the community centre and the church, located at the exisitng site of Karori Baptist Church. This roof joins these two amenities and collects rain water that is distributed to the multi-generational housing units that are situation beside a communal co-working hub.

water. Collection and reuse of water for residential grey water systems and irrigation use.

Situating the community centre at street frontage is a strategic move to draw residents in.

Interactive elements within the courtyards allow occupants to grow their relationship with space & water.

process through sketching

Rough and quick sketches were my main outlet for iterating and testing designs for this project.

internal courtyard axonometric

This drawing shows an array of activities going on. From residents watering the gardens, cooking on the barbie and cycling home.

Down the Spine

Illustration 1: Looking Down the Spine.

Illustration 2: Into the Courtyard.

Illustration 3: In the Atrium

detail cross section- close up.

detail cross section.

detail cross section- close up. 1:25 0.5m

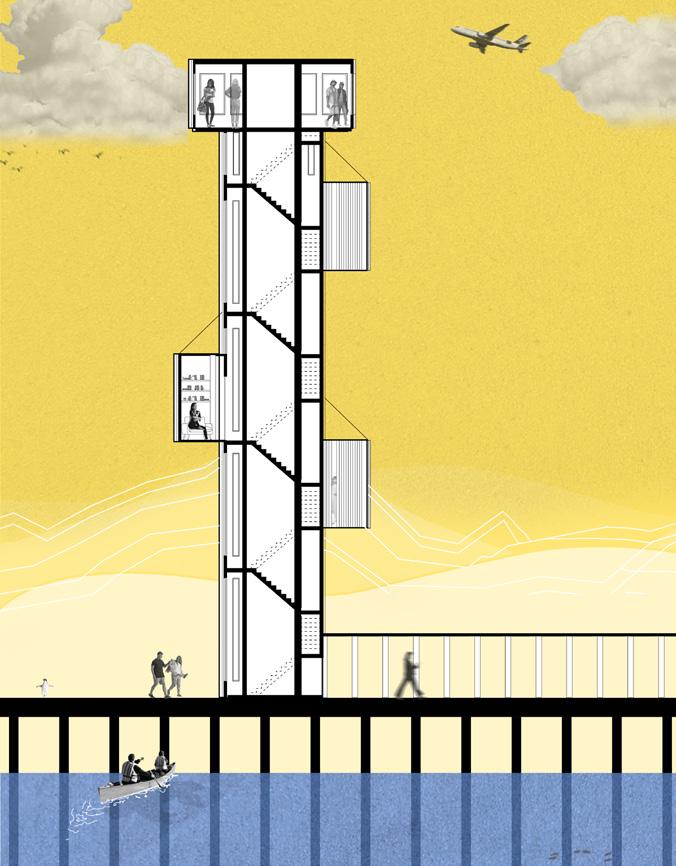

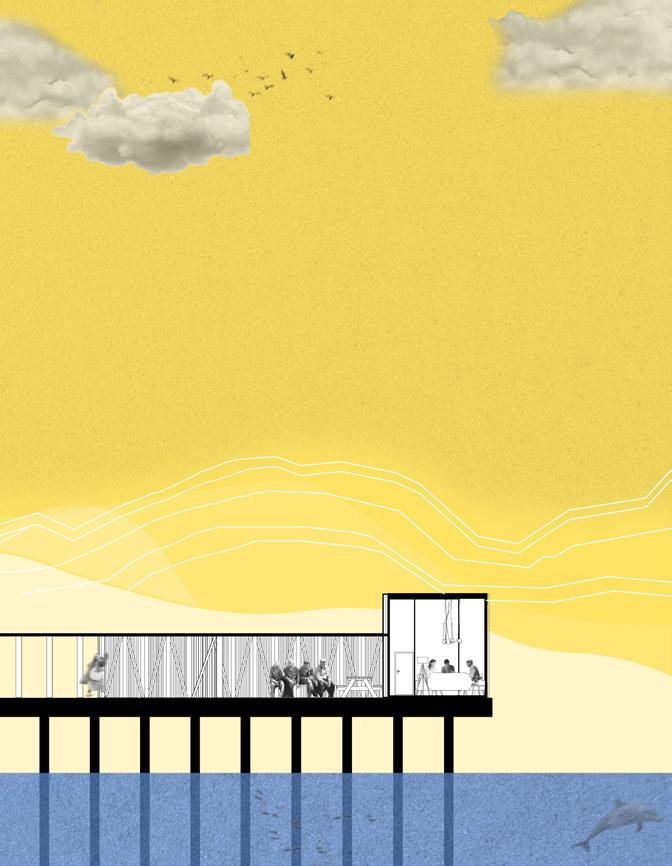

02. shelly bay librar y.

material links.

ARCI212 Architecture Design- Sam Kebbell September 2022

This design aims to draw on form, materiality and light from the surrounding site, particularly the wharf that it sits upon. The ‘lighthouse’ structure acts as a landmark and begins the users journey along the wharf to the library perched at the end.

Considering materiality and textural elements that will create intrigue & curiousity.

accessibility.

Creating alternative routes to cater for each individuals needs.

light.

Using light in an expressive and playful manner to harness the youthfulness of a library.

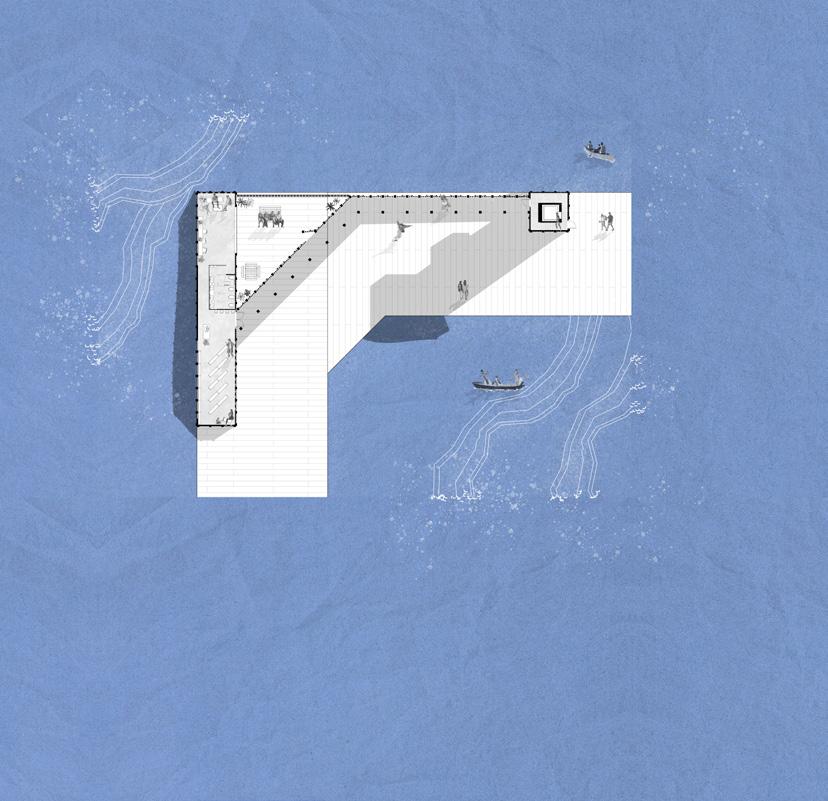

1:500 5m 10m 20m ground floor plan.

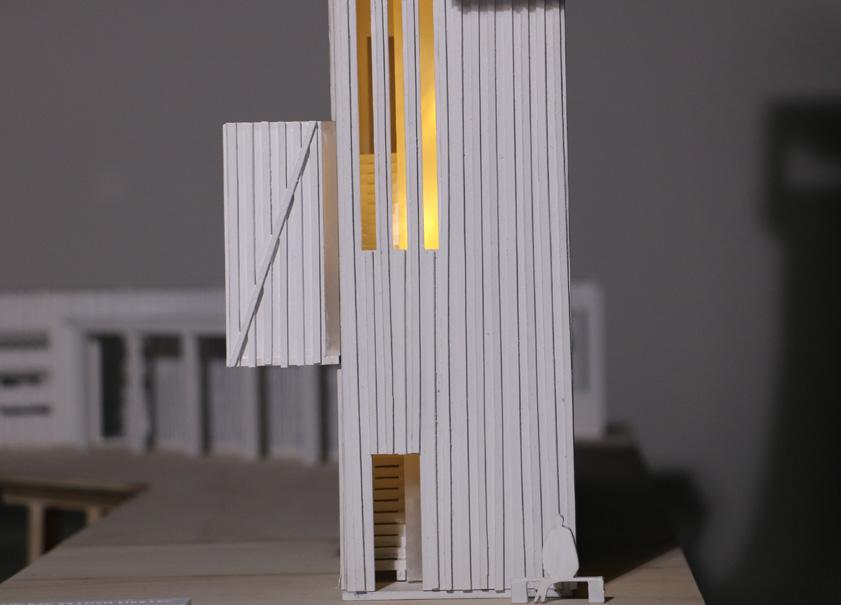

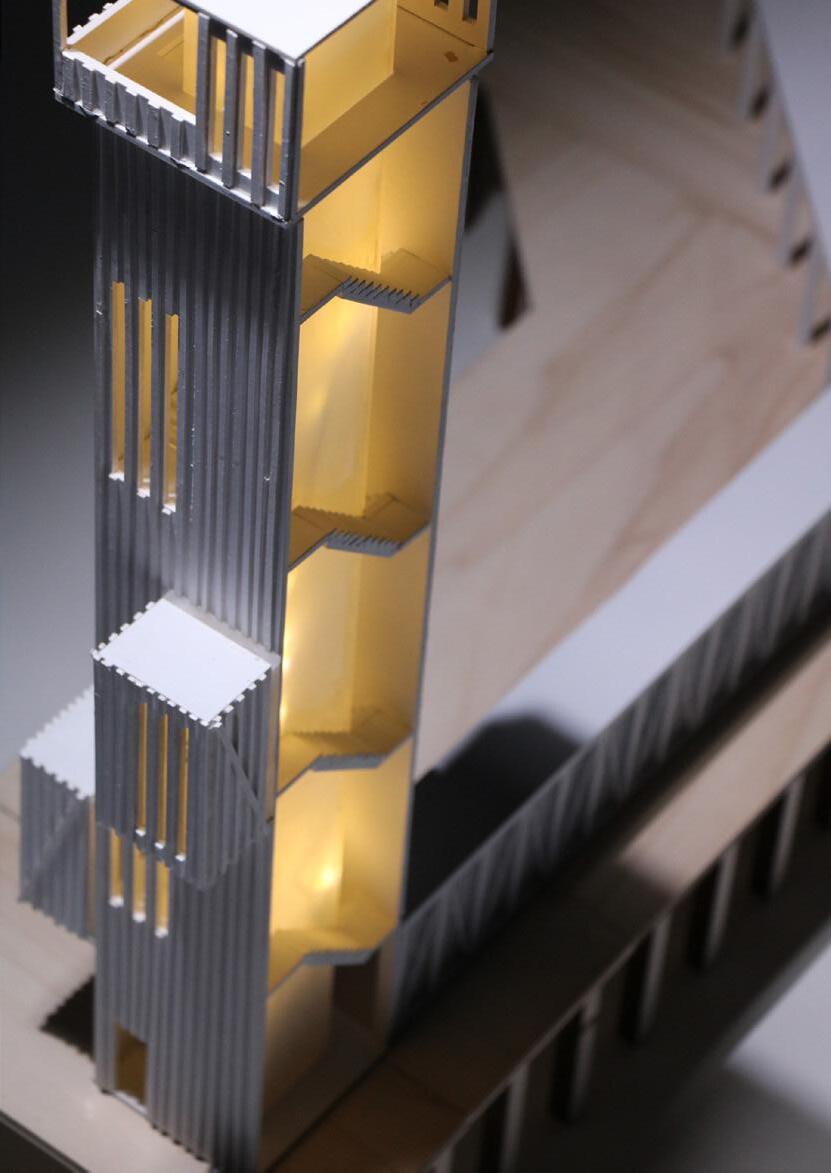

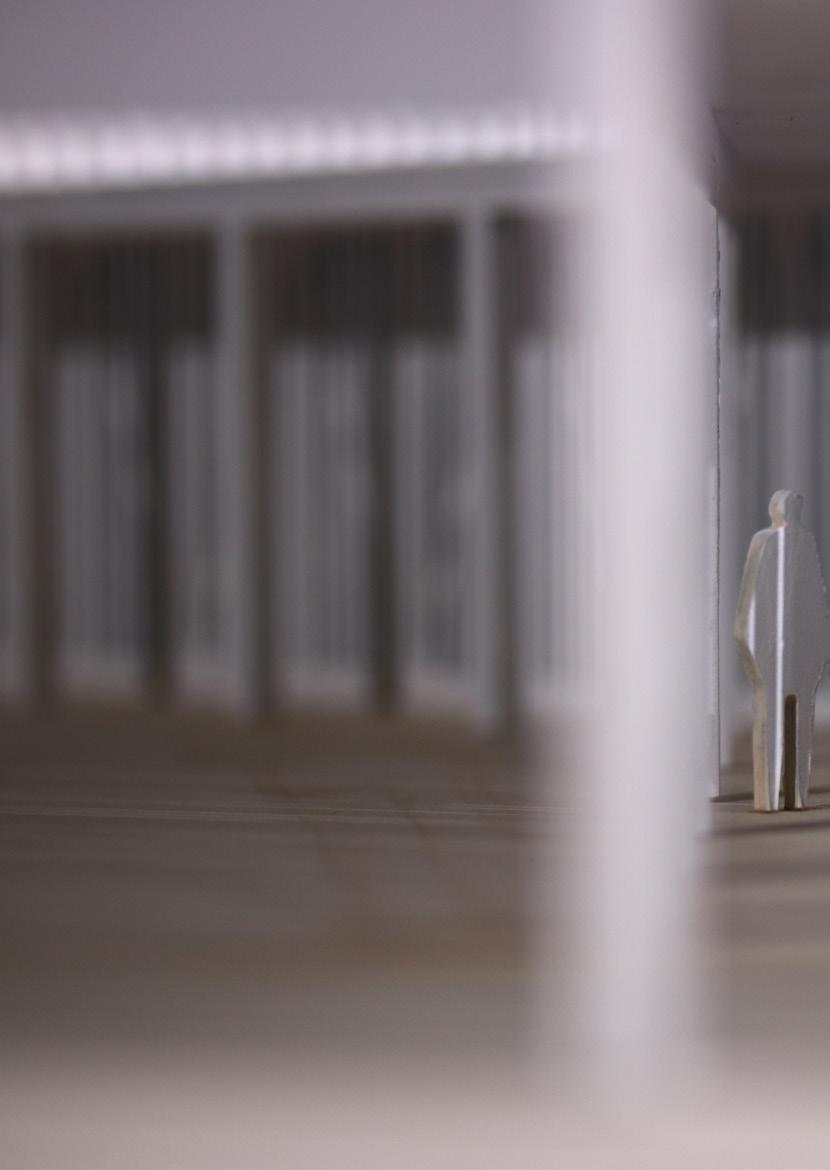

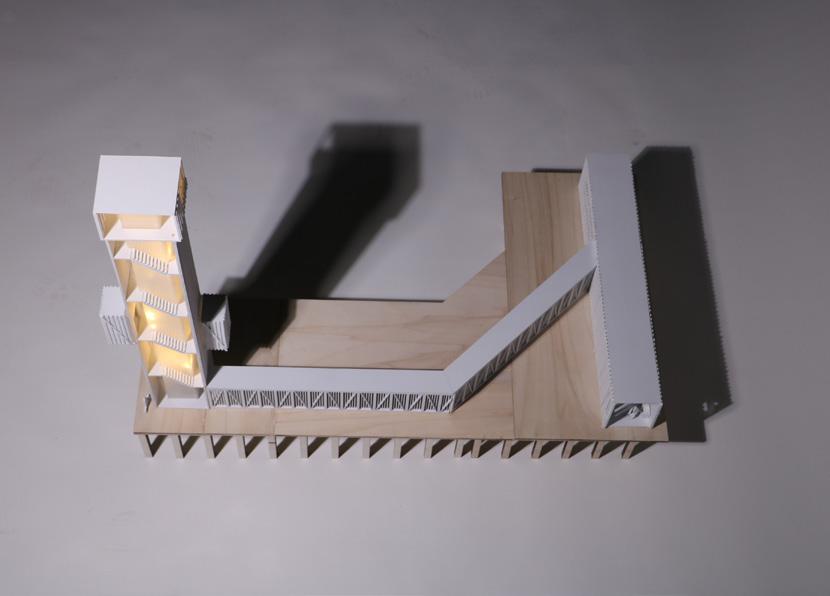

cross sectional model

Built at 1:200 using lazer cut MDF board, frosted acrlyic and birch plywood.

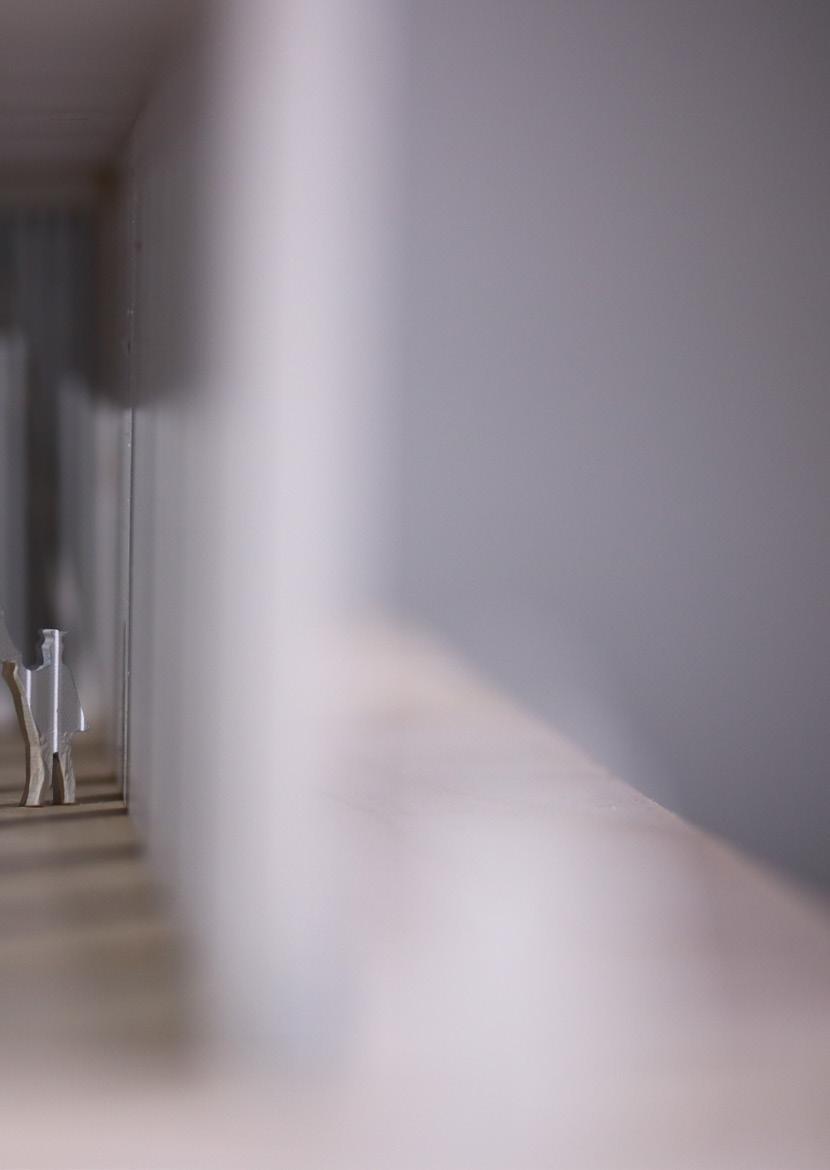

cross sectional model

Mother & daughter walking through the covered wharf walkway to the library.

03. newtown urban desig n.

SARC351 Urban Design and Planning - Crystal Olin May 2023

This project explored designing an urban materplan for a site in Newtown. A main driver in my design was to enhance the vibrancy and eccentricities of Newtown, by integrating organisations that are already established such as Vincents art workshop, kaibosh and the free store.

circulation.

Creating permeability throughout streets.

site design issues.

vibrancy.

Incorporating accessible creative outlet amenities. safety.

Exploring lighting to create warm, safe spaces.

site context.

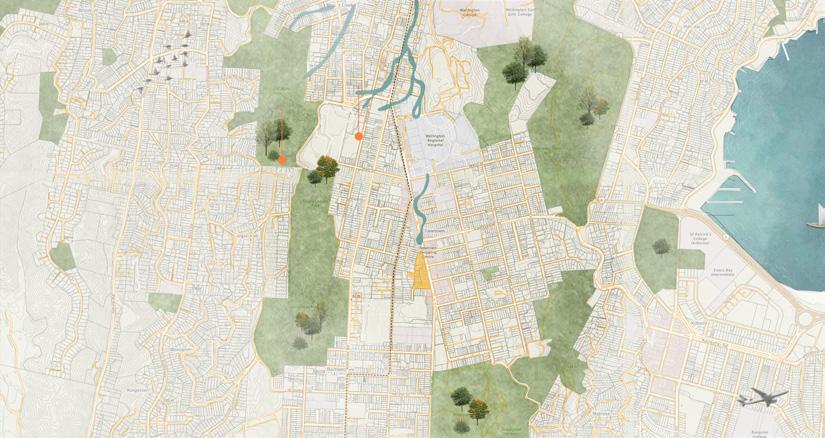

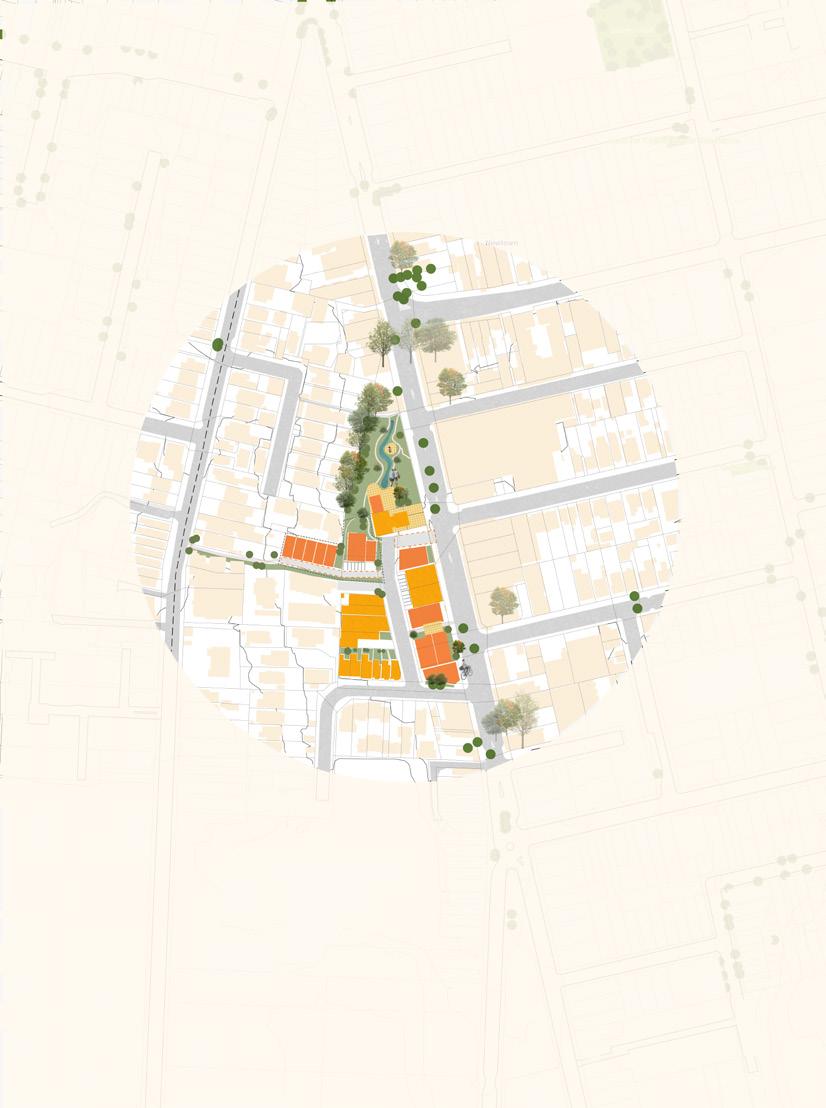

omaroro master plan

Legend

Scale 1:8,000 [People & trees not to scale]

1m Contours

Building Parcels

Existing Buildings

Existing Roads

Proposed Greenspace

Trees

Removed Buildings

Proposed Roads

Dwell Site Boundary

Existing Buildings

Proposed Buildings

Proposed Residential Buildings

Proposed Pathways Stream Paving

Car Parking

Proposed light rail route

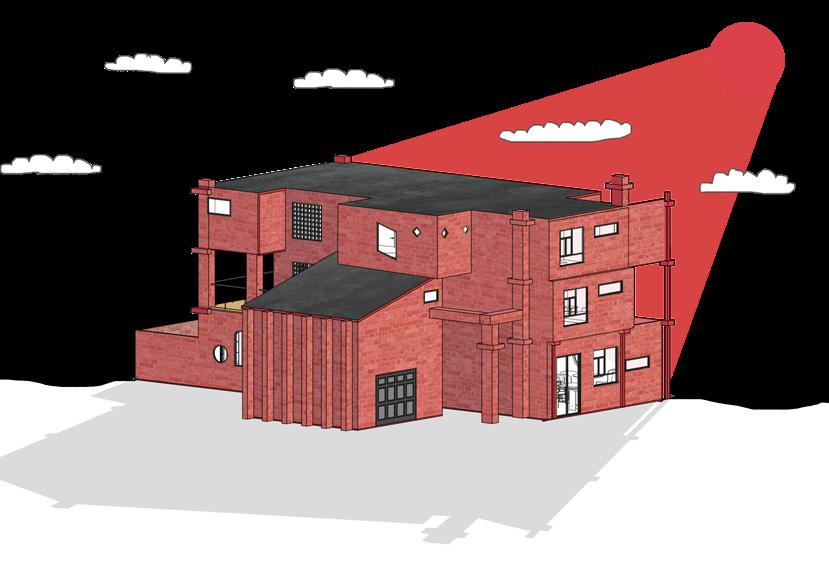

04. cuba st . co-housing.

ARCI211 Architecture Design- Jan Smitheram June 2022

This project brought me so much joy. Despite it being one of my first design projects, I felt connected to the mediums I used to design and the brief itself resonated with me. The brief was to design a co-housing solution for women in their 30s-50s. I incorporated collage into my design process, a medium that I use in my leisure as well.

safety.

Ensuring occupants feel safe and at ease in their own home.

community.

Giving communities outside of the co-house an opportunity to connect.

artistic liberties.

Encouraging artistic expression through designated spaces for these activities.

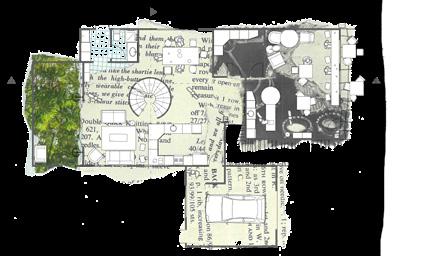

ground floor.

cuba street!

cafe/ community space

storeroom

entrances

perspective callout

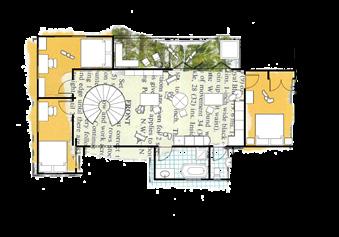

first floor.

balcony

guest bedroom

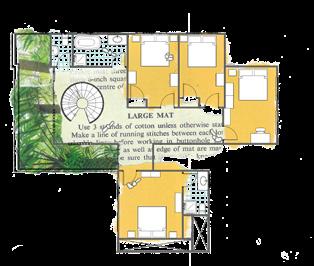

second floor.

balcony

art space

kitchenette

* ilustrative render.

A glass of wine is poured, books are read, knitting is knit, it is an evening of rest and relaxation at the Cuba st co-house.

05. water ever.

Water Ever- Francis Kere, Alberto Pottenghi, Alida von Boch-Galhau Technical University of Munich - Spring Semester 2024

This course focused on climate change’s effects on water based problems around the world. Our site is in Forli, Italy and addresses constant urban flooding events. Our architectural solution proposed a detention basin to temporarily hold water during floods, and as a recreational space during dry seasons.

model building.

This course heavily relied on model building as a form of design development.

climate response.

Our brief directly related to climate issues we are faced with today. communication.

English were many students second language, therefore we had to vary our communication approaches.

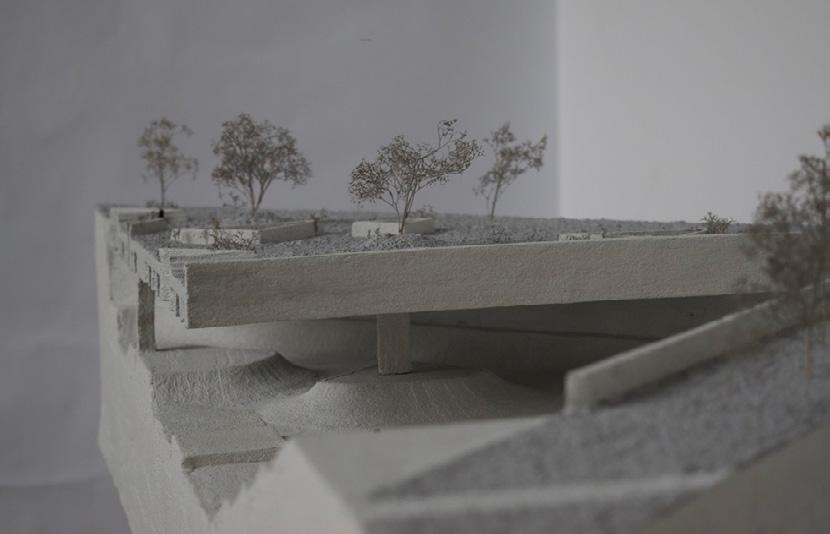

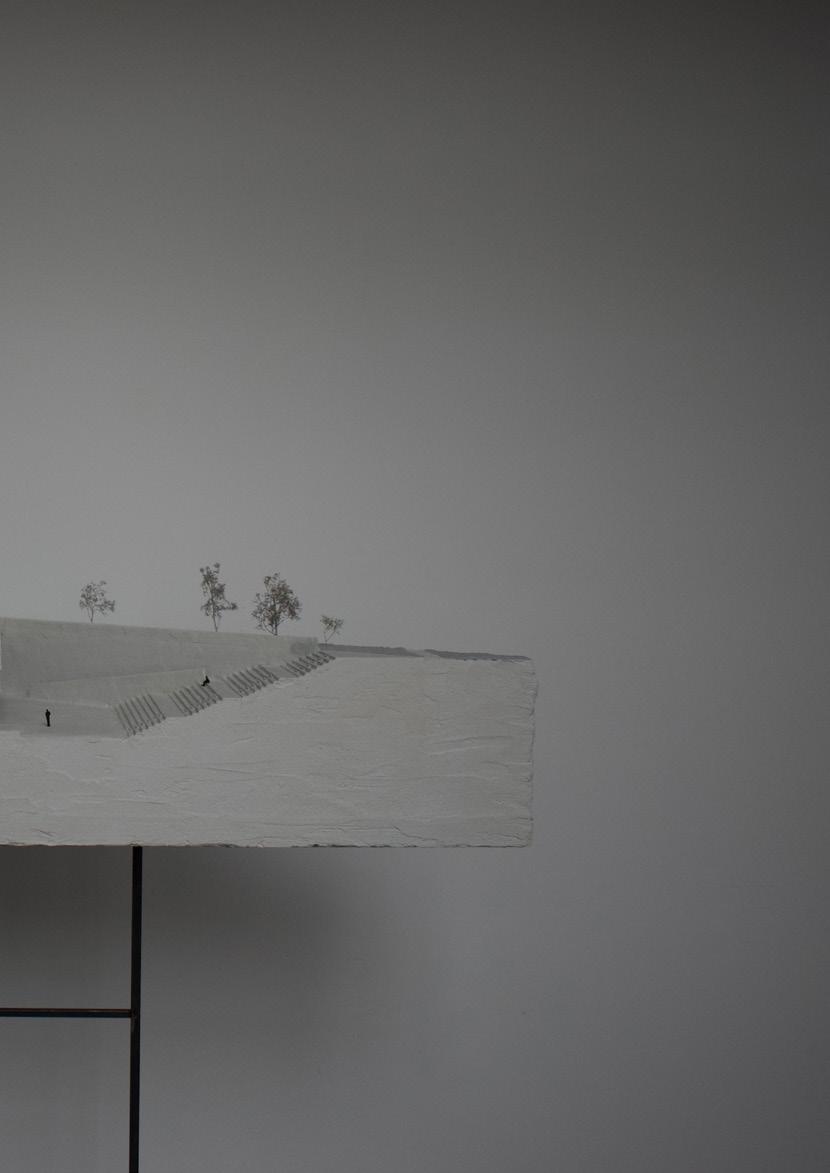

1:200 Section Model

This model’s base is created with 40mm foam and a plaster finish across the whole model. The remaining details and structure were laser cut using 2mm grey card.

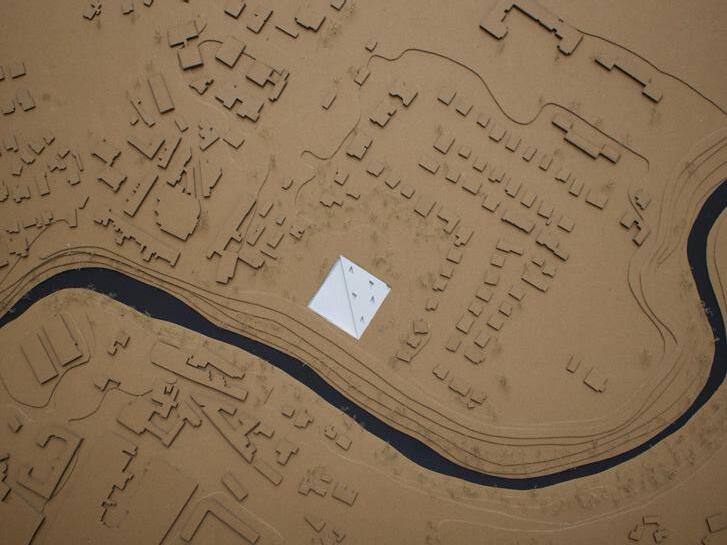

1:2000 Site Model

This model’s base is created with 1mm card building footprints were laser cut and topography contours were cut by hand.

card models.

Quick iterative cardboard models were made to test ideas without investing too much time into final models.

lazer cutting.

Learning a lazer cutting system on a software that is set to German was difficult to say the least.

plastering.

This technique allowed us to have a concrete looking finish without the process of casting.

1:1000 Site Model

Banner

Site plan

Ground Floor Plan

Exploded Axo Perspective Section

Render 1:20 Detail Model

Model

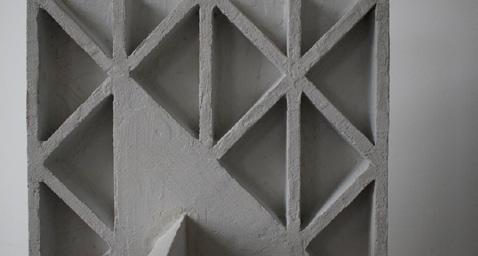

1:20 Detail Model

This model was created using 40mm foam with plaster finish.Plaster was sanded to create a smooth finish. MdDF board and wooden dowels support the model upright.

Italian & Kiwi Whanau.

I could not have done this project alone. Thank you to these wonderfully passionate & kind friends.

Lucy Pritchard on the Left Giacomo Torcoletti on the Right Rebecca Ruggerini below

illustrative render. It is a sunny day in Forli and the skaters seek out a shady space to skate. Light trickles in from above illuminating their space to practice.

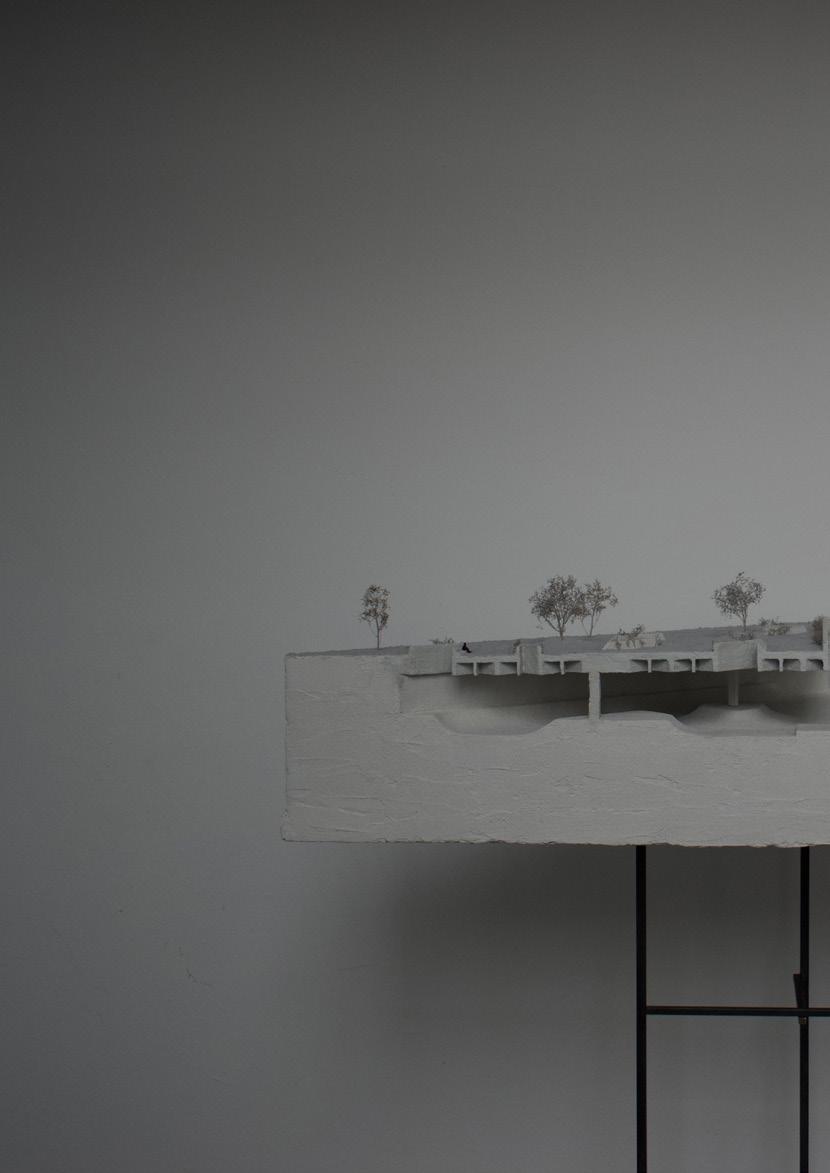

1:200 cross sectional model

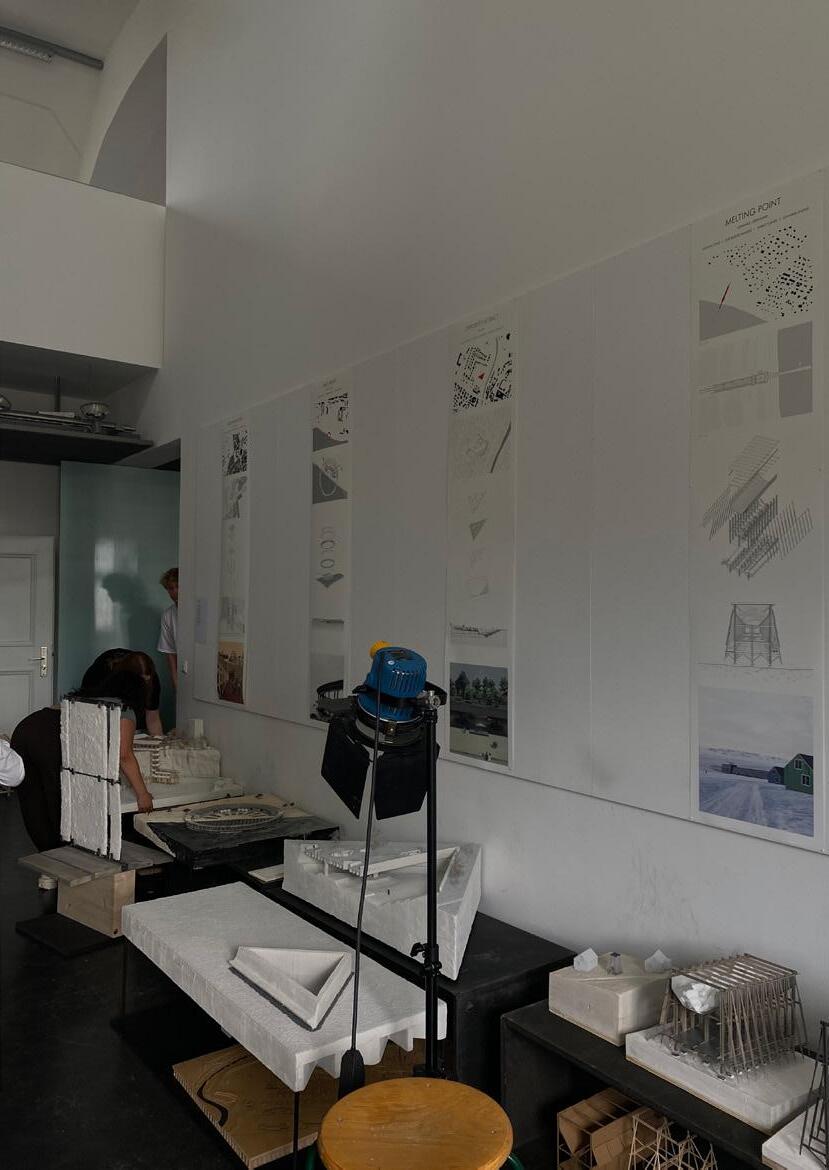

This project was exhibited in an exhibition titled “Watery Futures” in Pavillon 333, TU Munich and ZAZ Bellerive, Zurich.

06. technical skills .

SARC321 C onstruction & SARC421 Guy Marriage July 2023 & July 2024

This section focuses on showcasing my technical skills on Revit and Archicad. I am proficient in Archicad having used it at my internship and throughout my degree. I have also had experience using Revit in various construction courses.

revit. intermediate level

• 3D modelling

• CAD drawings

• Schedule creation

• 3D modelling

• CAD drawings

• Transmittal sets

• Family management archicad. advanced level

• Template organisation

• CI tools adobe CC . advanced level

• Presentation documents

• Photo editing

• Rendering

• Diagramming

SARC321 TALL Building facade render.

Arm JEB 212 (refer to manufacturers for further specifications)

10mm Toughened Glass

Baseplate JEC416

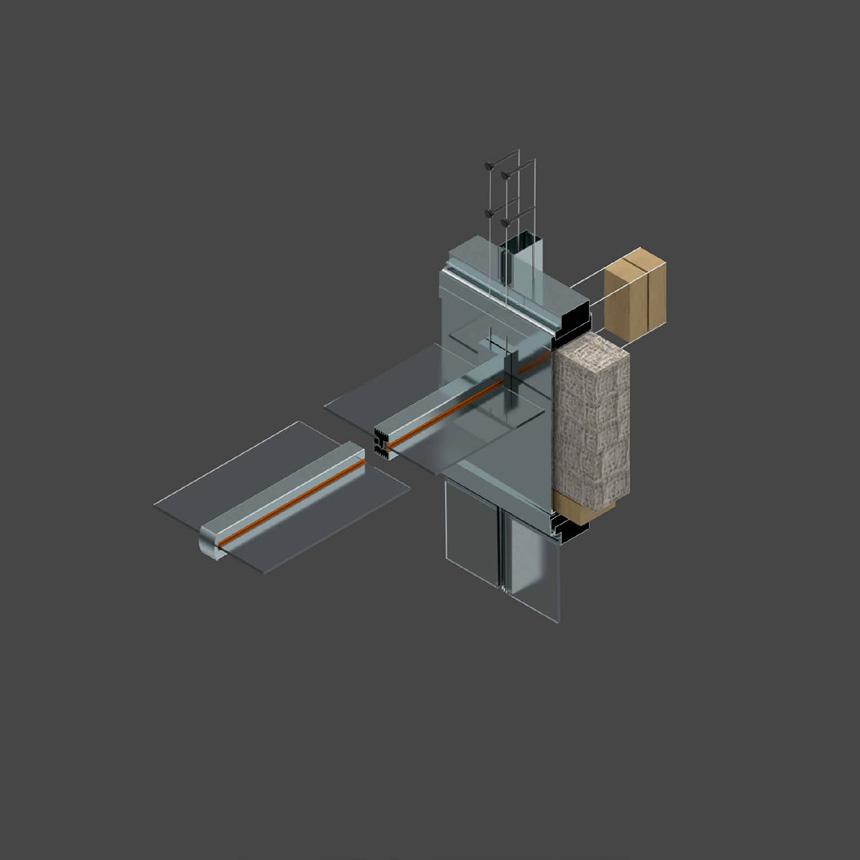

Thermosash PW1000 4 sided unitised curtain glass system, with single glazed laminated glass in clear

Thermosash PW1000 mullion in silver anodised finish (double glazed)

Thermosash PW1000 transom in silver anodised finish with backer rods & weather sealant as per manufacturers specifications

Forster Presto PFP60 fire door from Pacific Doors NZ (FRR -/60/-)

Drainage metal backfill

Base course VENTILATED CAVITY

A-501

460UB Steel Primary Beam with intumescent coating (refer to SE for further specifications)

460UB Steel Secondary Beam with intumescent coating (refer to SE for further specifications)

203 UC Steel Column (refer to SE for specifications)

Compressed mineral wool to fill ALL gaps between spandrel panel and steel deck

Thermosash PW1000 transom in silver anodised finish with backer rods & weather sealant as per manufacturers specifications

Thermosash PW1000 mullion in silver anodised finish (double glazed)

Thermosash PW1000 4 sided unitised curtain glass system, with double glazed laminated glass in clear

125mm reinforced concrete wall (refer to SE for further specification)

V60 Silicone bead (near each end)

End Cap Attach with Rhodorsil V60

Top Cap Part No JEC 20

10mm Toughened Glass

D Seal (Top)

3mm Wedge (Bottom)

Arm JEB 212

CANOPY SECTION DETAIL

SCALE 1:10 S.02

D Seal (Top)

3mm Wedge (Bottom)

Arm JEB 212

Top Cap Part No JEC 20

10mm Toughened Glass

4 x M10 C/S SS Screws per JURALCO specifications

Thermosash PW1000 mullion in silver anodised finish

Baseplate JEC416

Saxun Fixed Louvre (refer to manufacturers for further specifications)

FFL 5.000

Air cavity

Level 1 Office

PVC Tape layer

Baseplate JEC416

4 x M10 C/S SS Screws

90mm insulation

Thermosash PW1000 head transom in silver anodised finish with backer rods & weather sealant as per manufacturers specifications

Thermosash PW1000 4 sided unitised curtain glass system, with single glazed laminated glass in clear

Timber block work 50x150 supporting JEC416 Baseplate (refer to JURALCO specifications for further details)

90mm insulation

Thermosash PW1000 head transom in silver anodised finish with backer rods & weather sealant as per manufacturers specifications

Thermosash PW1000 4 sided unitised curtain glass system, with double glazed laminated glass in clear

PROJECT DESCRIPTION: SCALE: DRAWING: DATE: DRAWN BY: DRAWING NO. Project: SARC321 P2 Core Client: Commercial Address: 279 Wakefield Street, Te Aro, Wellington 6011 1 : 10 Canopy Detail

09/10/23 Lucy Pritchard

SARC421 - Archicad

These details are based off ARCH412 Design Capstone

Watering the Seed Page 6-15

A401.1 VERANDAH EAVE

A401.2 VERANDAH COLUMN TO BEAM INTERSECTION

ROOF PITCH

CORROGATED STEEL ROOF PROFILE PERMEABLE UNDERLAY, SHOWN DASHED 45 x 45 ROOF PURLINS AT 600mm CTRS 140 X 45 VERANDAH RAFTERS

TIMBER FASCIA

EAVES FLASHING

BOX GUTTER 125 WITH EXTERNAL BRACKET

PREFINISHED WAFER-TEK SCREW

12kn FIXINGS

JOISTS @ 450 CTRS

140×45 TIMBER BEARERS NAILED TOGETHER @ 180mm CTRS

TIMBER PILE H5 TREATED @ 1.5 CTRS

stoodiio_ Address: 102 Old Mill Road, Westmere Auckland

Email: pritchlucy@myvuw.ac.nz

Ph: 0800 102 102 1022

karori baptist church

Site: 161/163 Karori Road Karori Wellington, 6012

Set Date: 01/01/2026

Plot Date: 10/10/2025

Project #: A25_01

Status: Detail Design

Drawing Title : Verandah Detail Assembly

Project Name: watering the seed

Drawing #: A401

Scale #: 1:10

BUILDEX TYPE 17 SELFDRILLING SCREWS

140 X 45 RAFTERS

BIRDSMOUTH RECESS TO FIT BEAM

140 x 90 LVL VERANDA BEAM

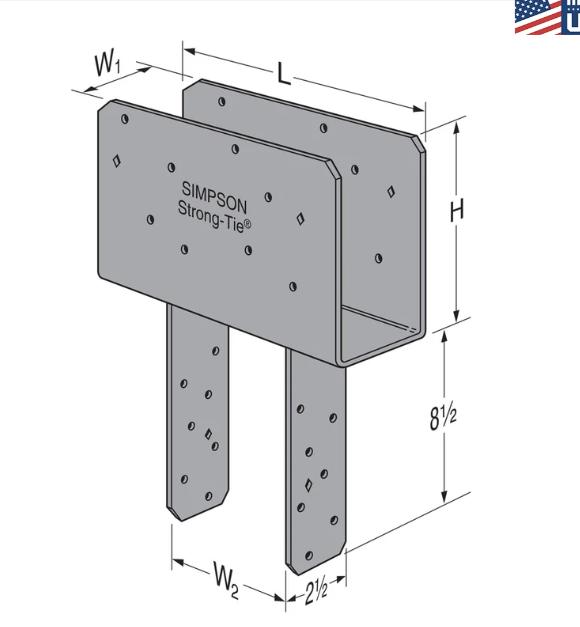

SIMPSON 7 GAUGE COLUMN CAP

STRONG-DRIVE SDS HEAVYDUTY CONNECTOR SCREWS

DIAMOND HOLES FOR TEMPORARY FASTENING

140 x 45 TIMBER POST H1.2 TREATED

R3.2 140mm TERRALANA WOOL INSULATION EXTERIOR WALL UNDERLAY

18mm VULCAN CHARRED SHIPLAP

140 x 45 TIMBER POST H1.2 TREATED

M12 BOLT WITH 50x50x3mm WASHERS

STEEL BASE COLUMN PLATE

M12 BOLT WITH 50x50x3mm WASHERS 142x27mm VULCAN ABODO DECKING THERMALLY TREATED

STAINLESS STEEL NAIL, HEAD FLUSH WITH SURFACE DAMP PROOF COURSE

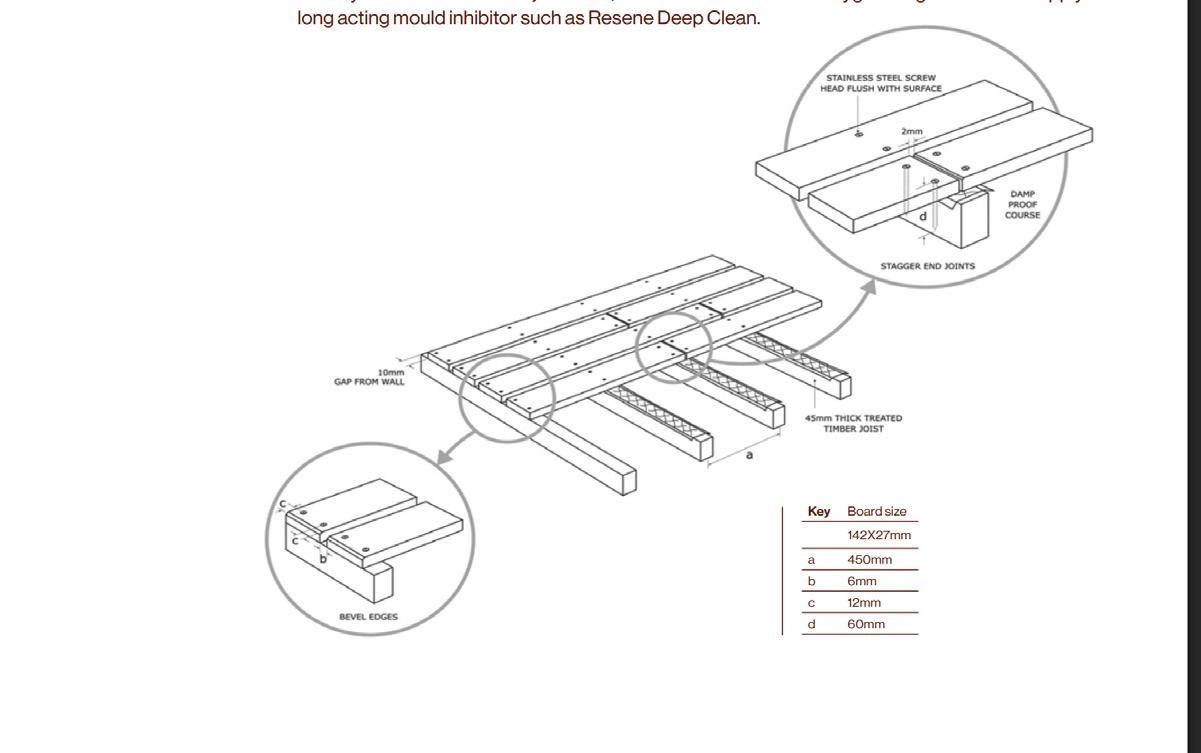

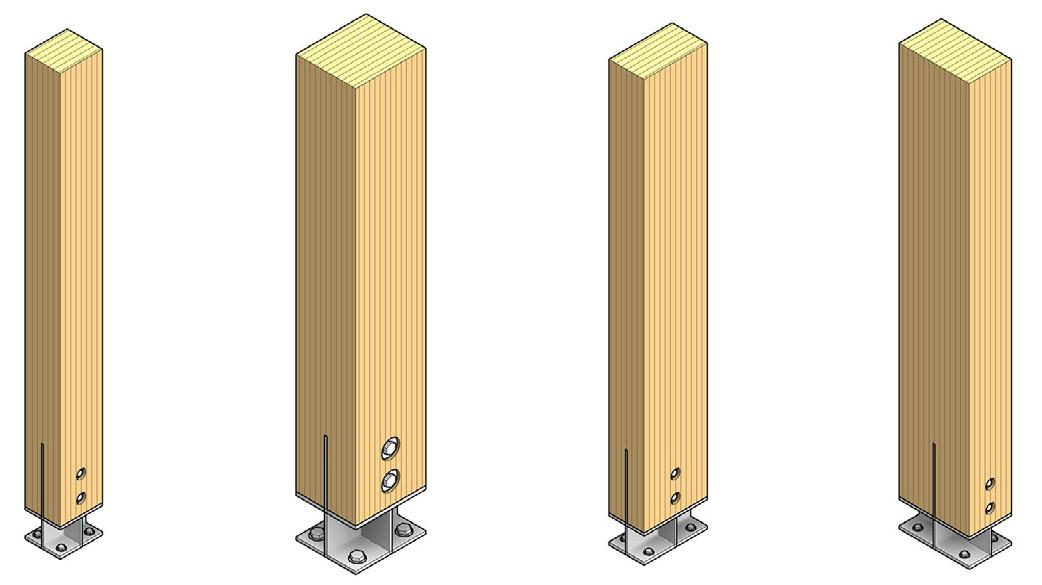

A401.4 VERANDAH COLUMN TO DECK

NZBC References :

B2/AS1

Table 1.1.1 Structural decking must have 50 year durability life span

Relevant Clauses B1 STRUCTURE

B1.2.3.6 TIMBER DECKING

B2.3.3 TIMBER TREATMENT

Timber piles have to be treated H5 under NZS 3602:2003.

All decking element to be treat H3.2 and framing elements to be treated H1.2

A401.3 VERANDAH ROOF TO WALL

SARC421 - Archicad

These details are based off ARCH412 Design Capstone

Watering the Seed Page 6-15

GSEducationalVersion

stoodiio_

Address: 102 Old Mill Road, Westmere Auckland

Email: pritchlucy@myvuw.ac.nz

Ph: 0800 102 102

R5.0 190mm TERRALANA ROOF WOOL INSULATION

12mm PLYWOOD CEILING

R3.2 140mm TERRALANA WOOL WALL INSULATION

12MM PLYWOOD LINING, FIXINGS EVERY 600mm TO FRAMING

12MM PLYWOOD INTERIOR LINING, FIXINGS EVERY 600mm TO FRAMING

140 X 70 TIMBER LINTEL

ALUMINIUM JOINERY

520 X 240 GLULAM COLUM DISTANCE

520 X 240 GLULAM COLUM IN DISTANCE

DOUBLE GLAZED APL ARCHITECTURAL SERIES AWNING WINDOW 106mm FRAME

A405.1 EAVE AND GUTTER

karori baptist church

Site: 161/163 Karori Road

Karori

Wellington, 6012

Karori Wellington, 6012

Set Date: 01/01/2026

Plot Date: 10/10/2025

Drawing Title : Eave, Window, Gutter Detail

Ph: 0800 102 102 1022 Drawing

Project #: A25_01

Status: Detail Design

Project Name: watering the seed

1:10

SOFFIT ON BATTENS

18mm VULCAN CHARRED SHIPLAP EDGEBOARD CAVITY

FLASHING

E2/AS1

8.4.2 Steel roof cladding 0.55mm BMT

G300 steel

8.4.5.1 All profiled metal long-run roofing shall have a roof underlay

ESPAN470 STEEL ROOF PROFILE

THERMACRAFT403 ROOF UNDERLAY

FLASHING

PURLINS - 190 x 70 mm, CAN SPAN 2.9m FIXING WITH 2/M16 BOLTS, SPACINGS AT 1.5m

ROOF DRAIN

200mm BOX GUTTER

STAINLESS STEEL PIPE (70mm) WELDED STAINLESS STEEL TAB TO SUPPORT CHAIN GALVANIZED DOWNPIPE CHAIN

520 X 240 GLULAM PORTAL FRAME

Relevant Clauses

B1 STRUCTURE

B1.3.3 (a, b, c, g, h,j)

B2 DURABILITY

B2.3.1 (b(i))

E2 EXTERNAL MOISTURE

E2.3.1, E2.3.2

Chain downpipes are every 12m to accomodate roofs large span. Roof area is approximately 300m^2. This water is carried through underground pipes and stored in water tanks for grey water re use in the residential units at the rear of the site.

Nga mihi nui ,

Tha nk you for taking this time to consider this portfolio.

Best wishes, Lucy Pritchard
