LINDSEY MODER ARCHITECTURE PORTFOLIO

“Architecture is not created, it is discovered – the hand will find solutions before the mind can even comprehend them.”

—Glenn Murcutt

SELECTED WORKS View 6 Hudson New York City, NY

Exchange 12 SCAD Savannah, GA

Horizons 16 Pleated Crystal River, FL

Beacon 20 Free Philadelphia, PA

Refuge 28 Roost Apalachicola, FL

Plex 34 Lumina St. Kilda, Melbourne, Australia

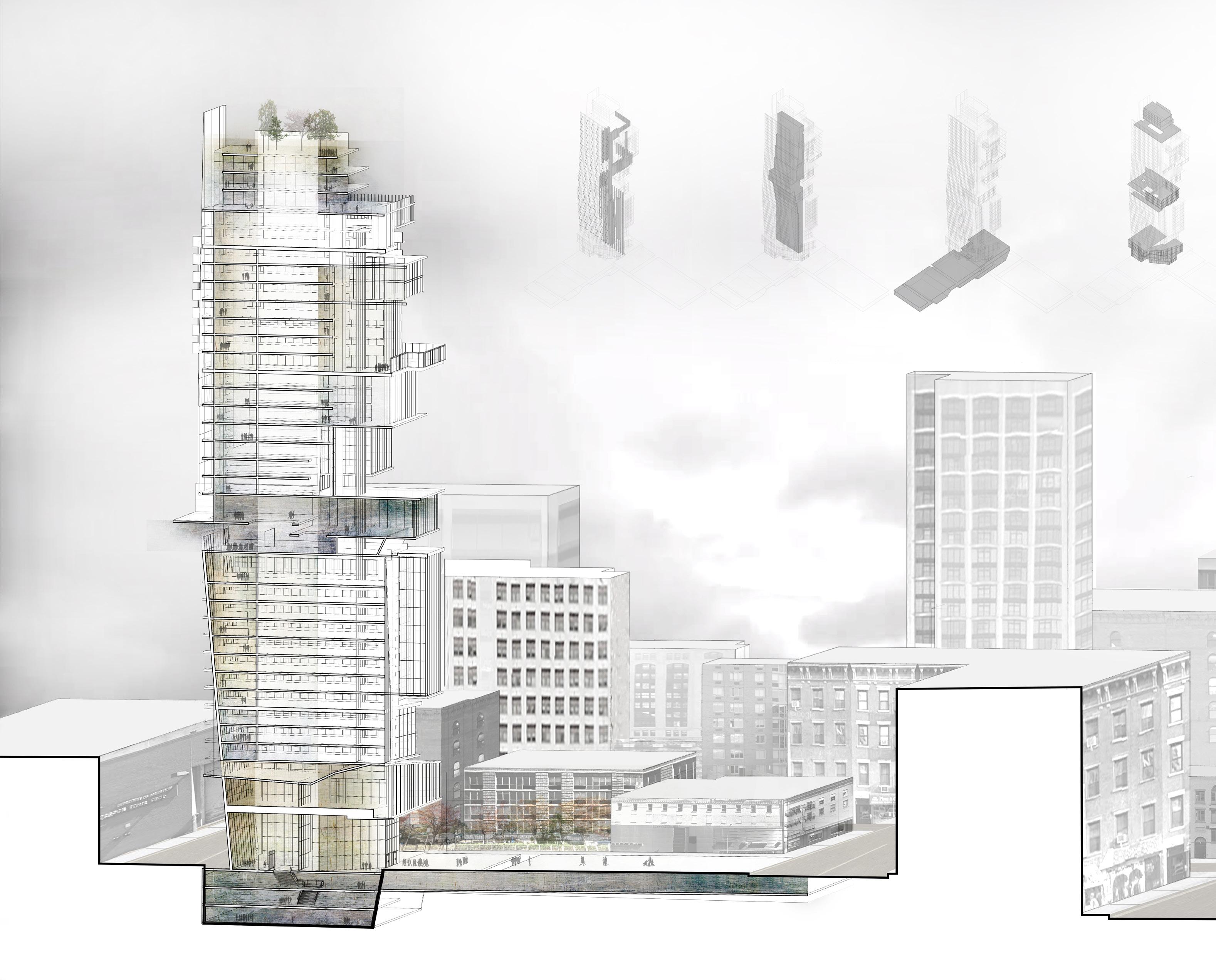

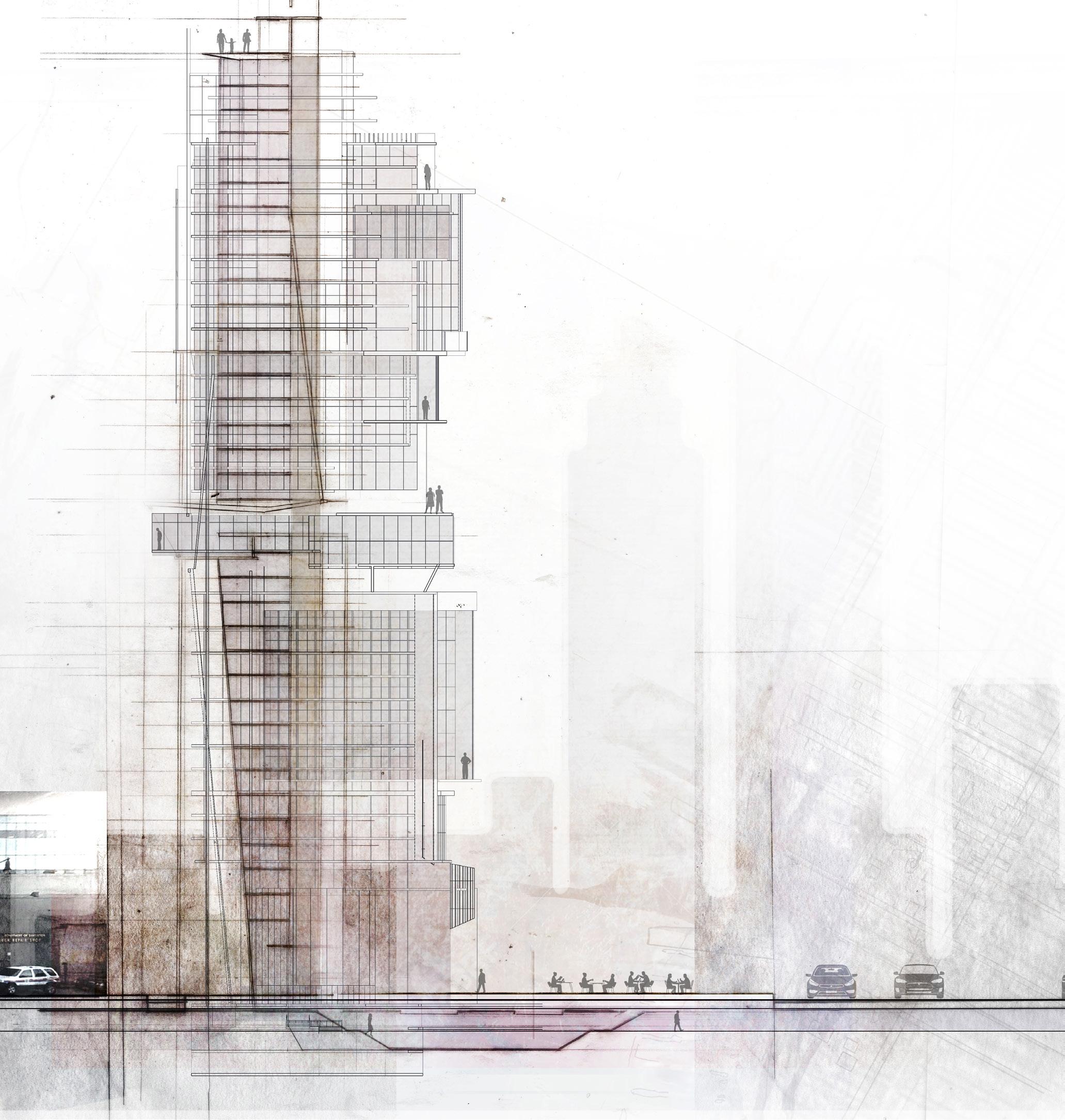

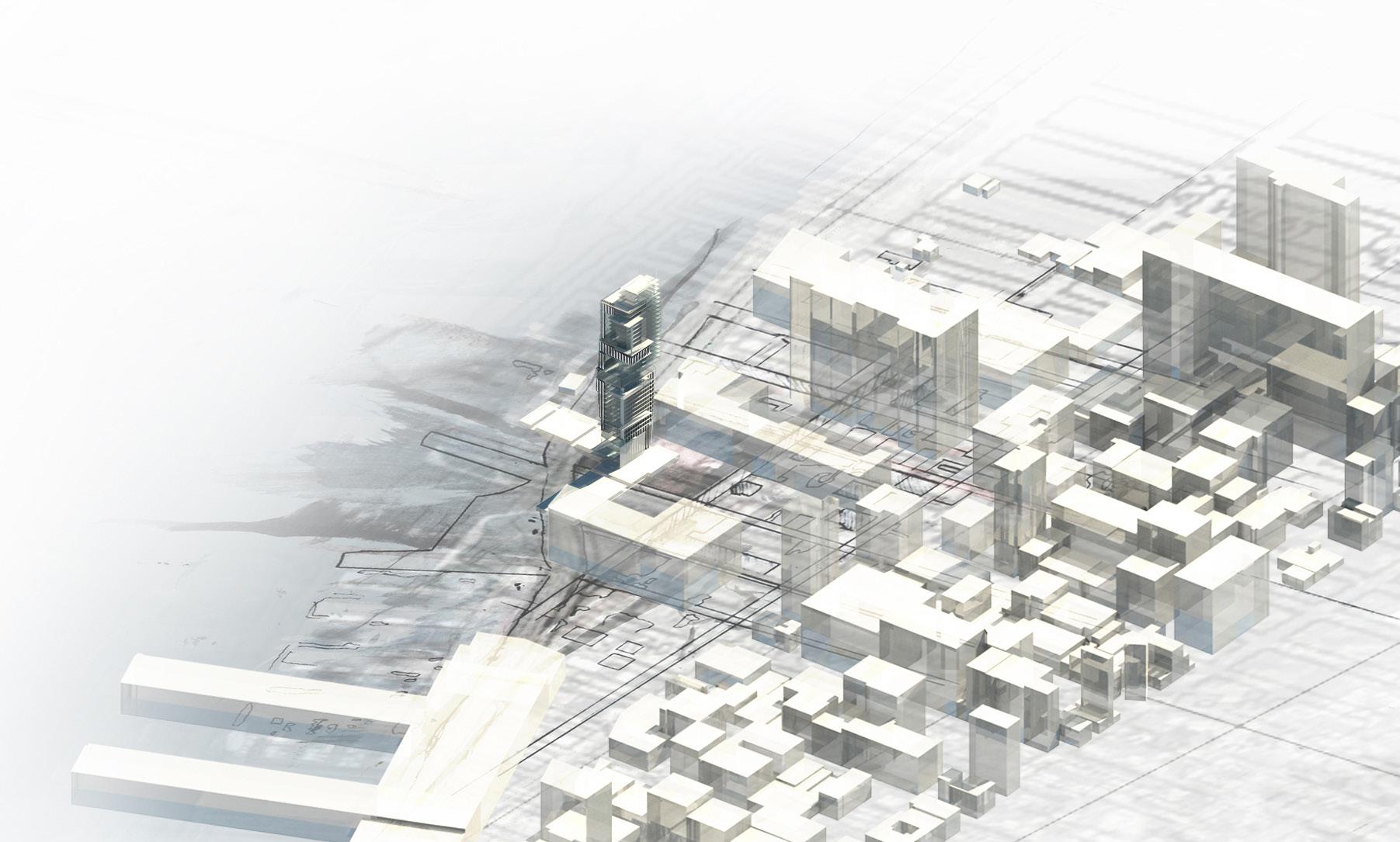

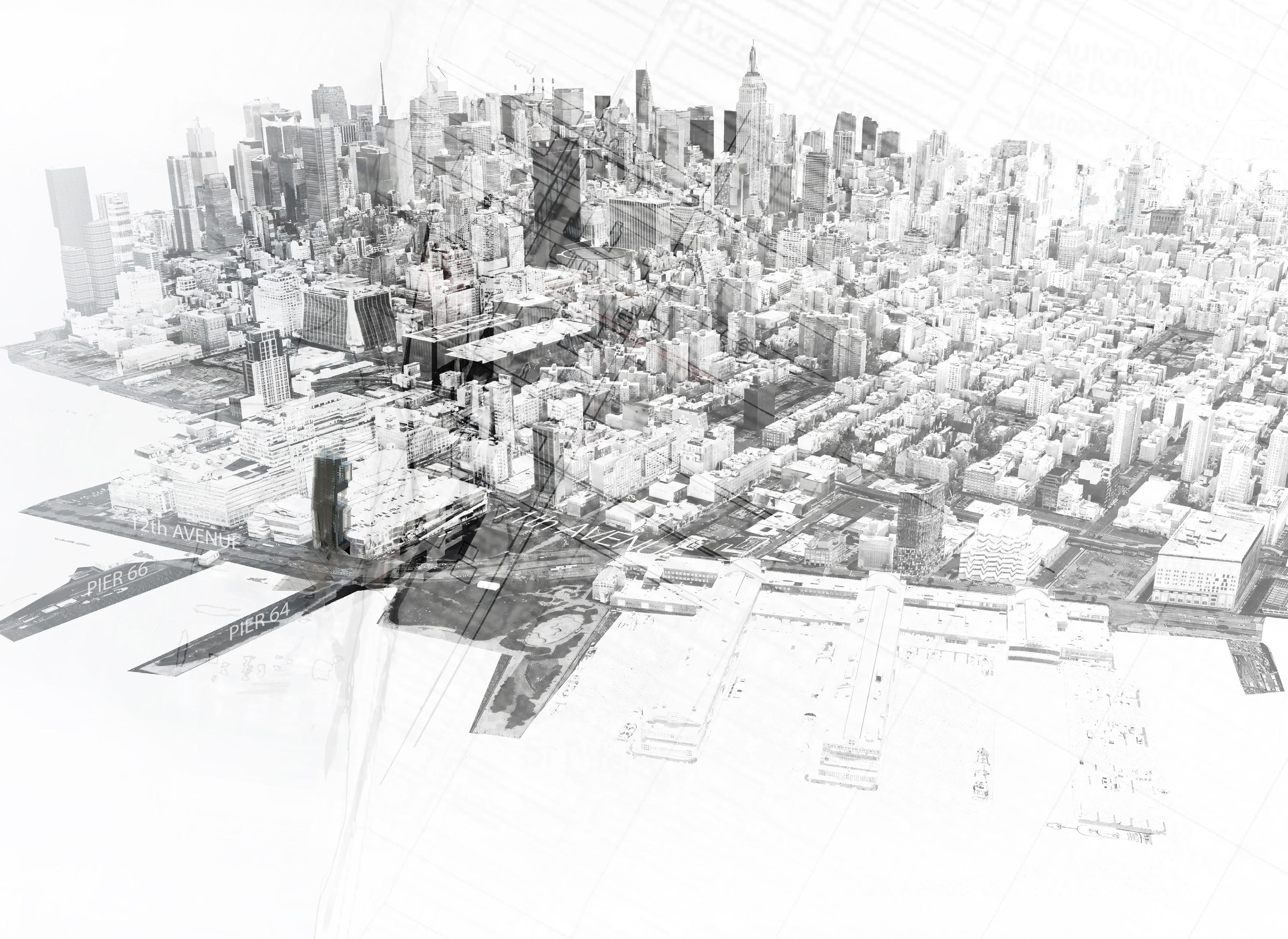

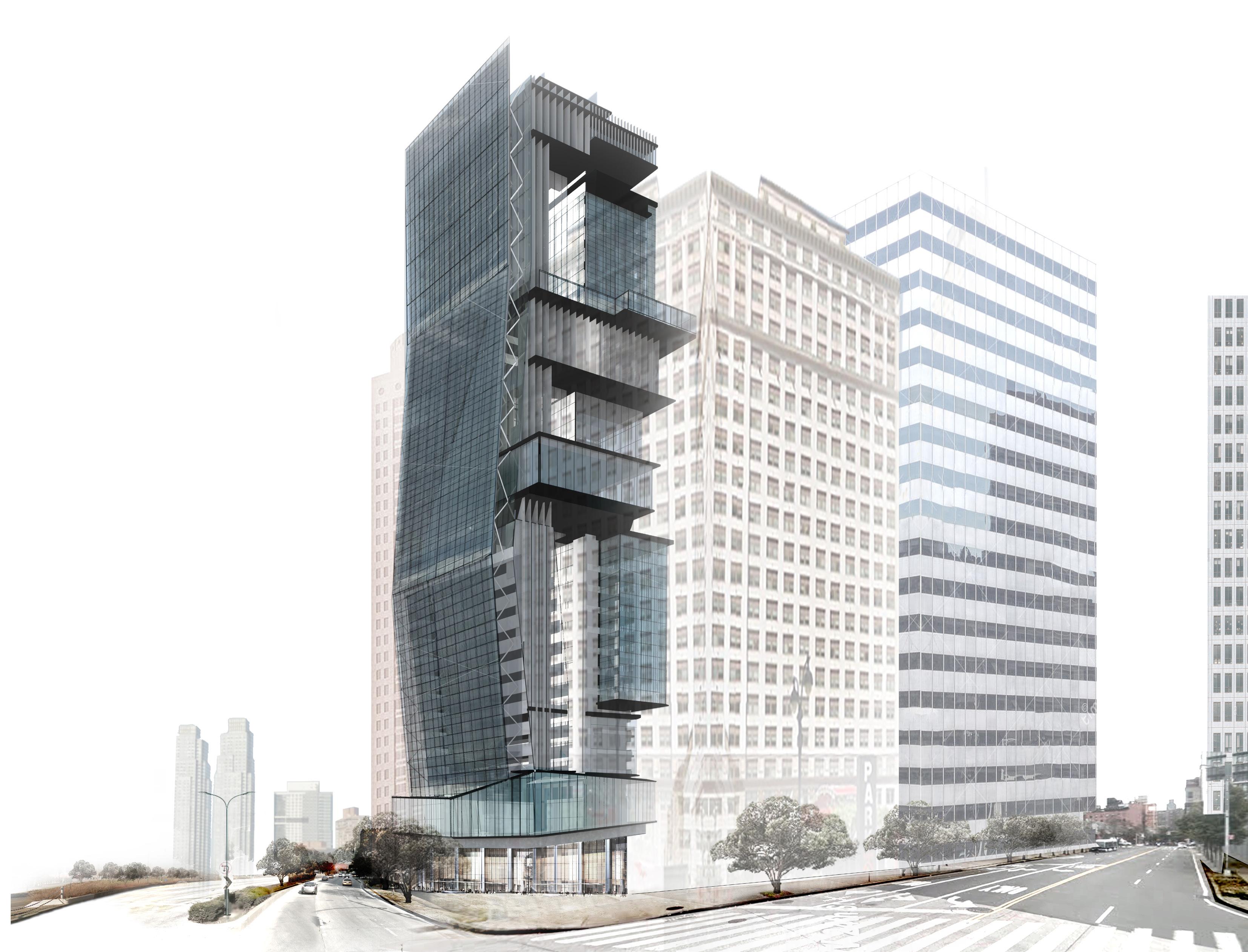

HUDSON VIEW D esign 7 | Fa l l 2 0 1 7 C r itic | Alfon s o Pe re z Par tn er | Al e xi s R a i f o rd This waterfront structure analyzes the sociological aspects of the hotel in terms of establishing a grounded relationship with the Hudson River Park and its adjacent piers. An angled translucent facade facing the water is held together with trusslike elements that imitate waves. Three communal public spaces-grand lobby, observation deck, and rooftop bar garden-are organized by view and placement along the park edge. A multi-level atrium unites the three with a void core rising the full building height. As the occupant ventures higher up, the morphology of view evolves as other visual aspects of the Chelsea neighborhood are revealed.

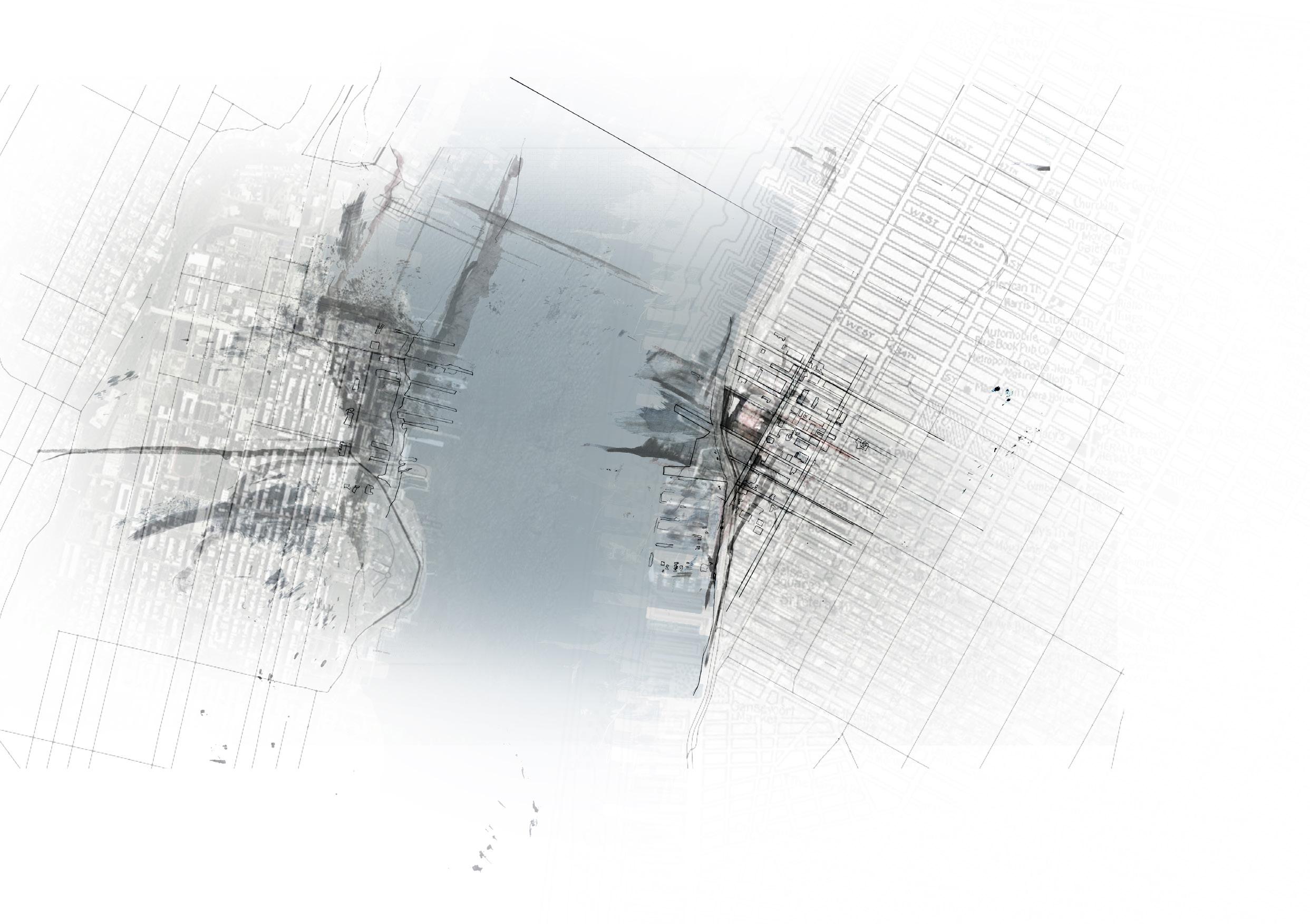

Hudson River Greenway

11th Ave. 12th Ave.

pier section

6 | Moder

7 | Moder

structure

26th St.

light core

semi-public

public

24th St.

22nd St.

8 | Moder

private

9 | Moder

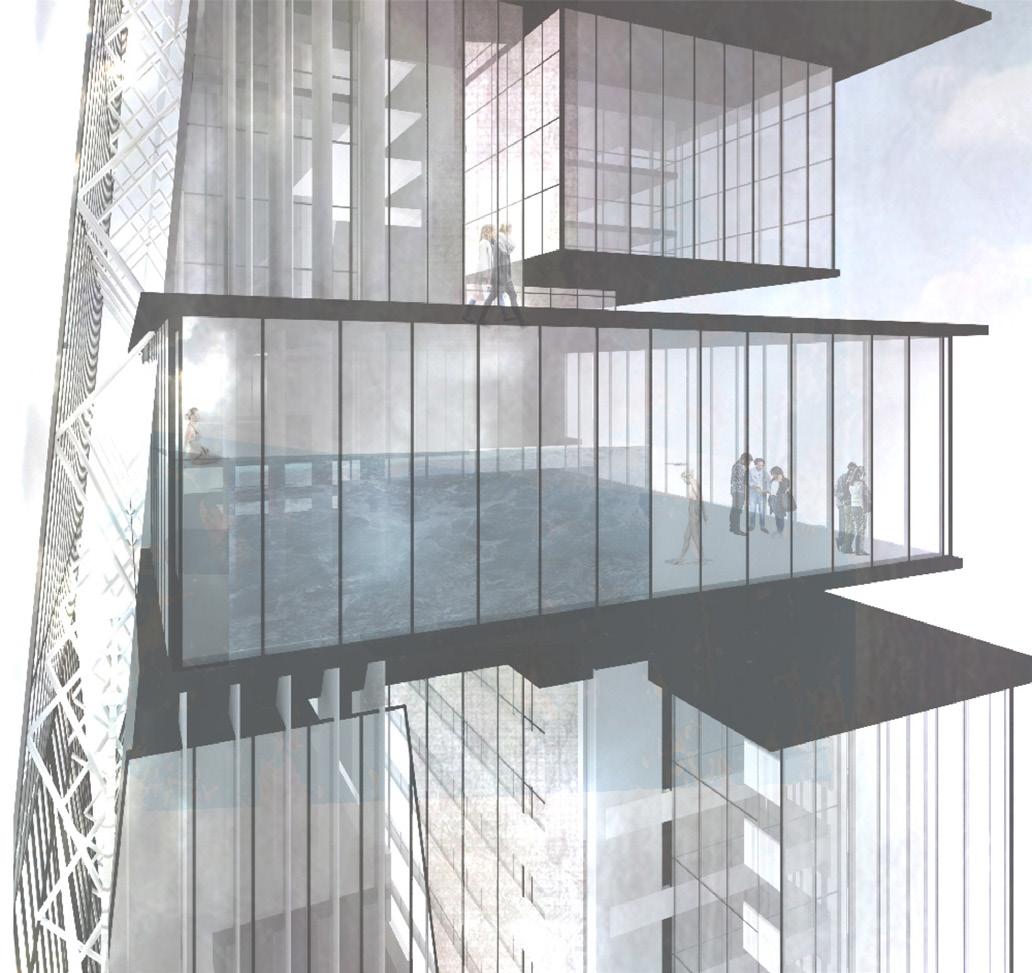

pool + observation deck

The façade follows a subtle angle to emphasize the relationship between the river and the hotel. The presence of the Hudson River as a calm entity within an environment bursting with activity was the primary driver for the construction of the façade components. All panels are composed of transparent curtain systems to provide open panoramic frames of the riverfront from the major public spaces. The structural system also maintains subtlety at a smaller scale. Truss-like components are arranged to support the heaviness of the glass while creating an air gap in between for diffusion of natural light and street noise.

10 | Moder

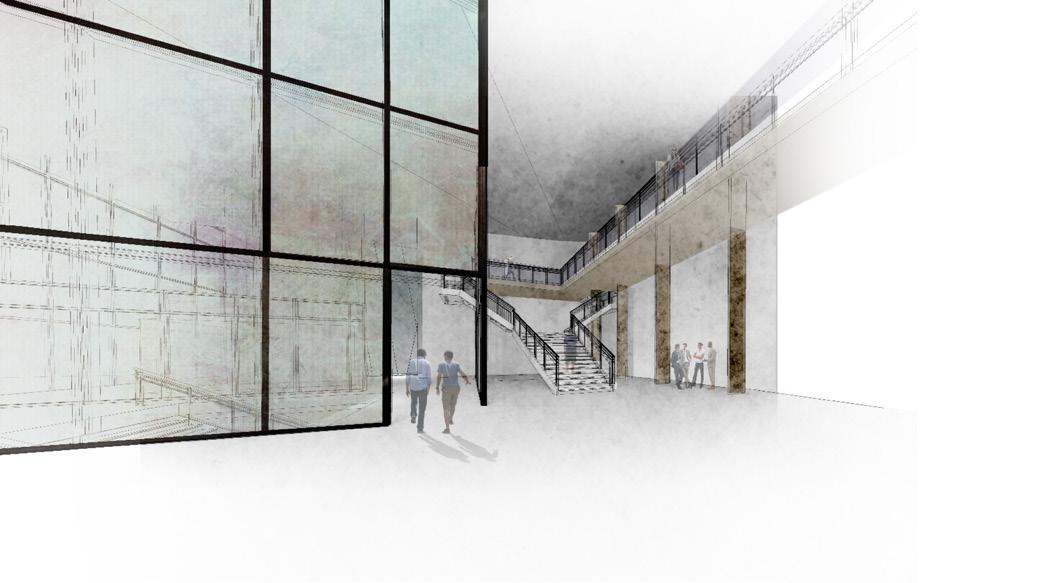

grand lobby

11 | Moder

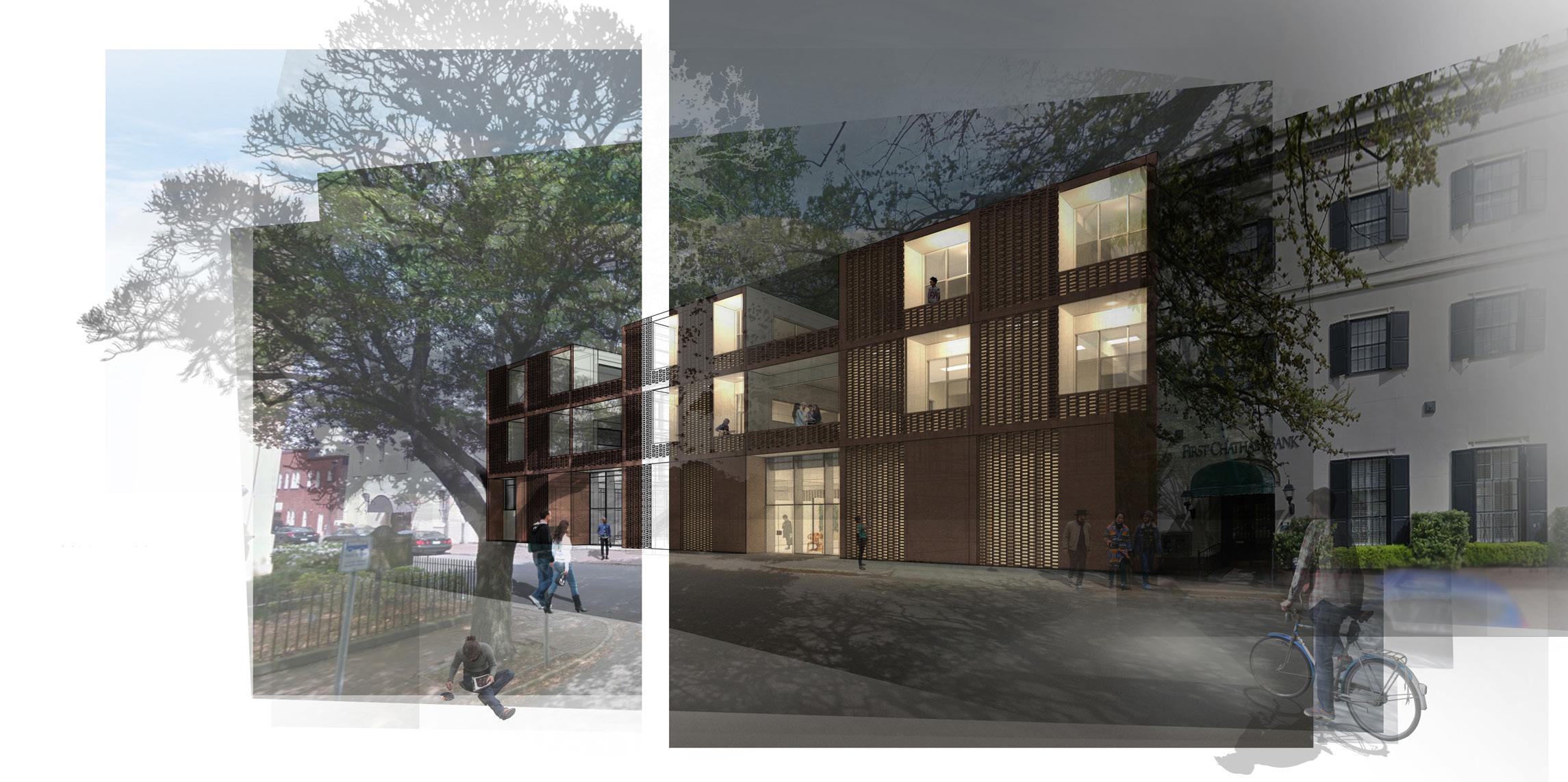

THE SCAD E XC H AN G E D e s ig n 6 | S p r i ng 2 0 1 7 C rit ic | J am es L e a ch Pa rt n e r | Al e xi s B e nt on

The mixed-use facility serves as a temporary living-working residence, where recent graduates of the Savannah College of Art and Design can establish their careers in their respective fields. A large gallery storefront on the ground floor is reserved for showcasing their work, as well as those of guest artists and designers.

While this space is entirely open to the public, the residents themselves enter the facility from the street via a semi-private hallway. Not only does the corridor integrate with the gallery by providing additional display, but it also signifies the main entrance for the residents.

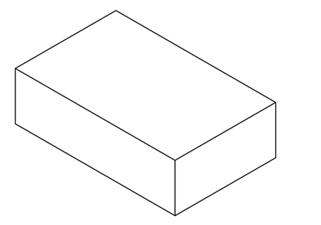

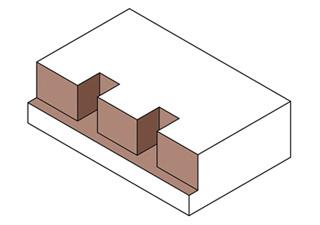

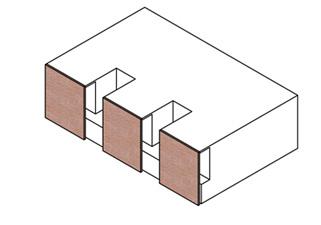

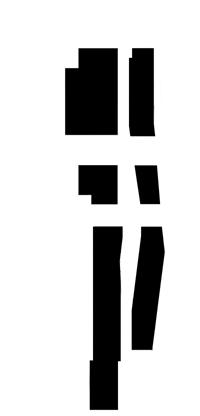

Extruded Site

12 | Moder

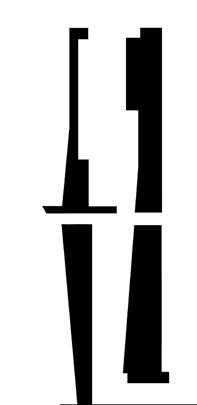

Residential Recess

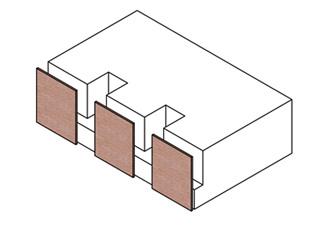

Crenellated Void

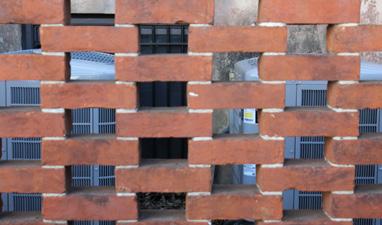

Striated Screen

Roof Enclosure

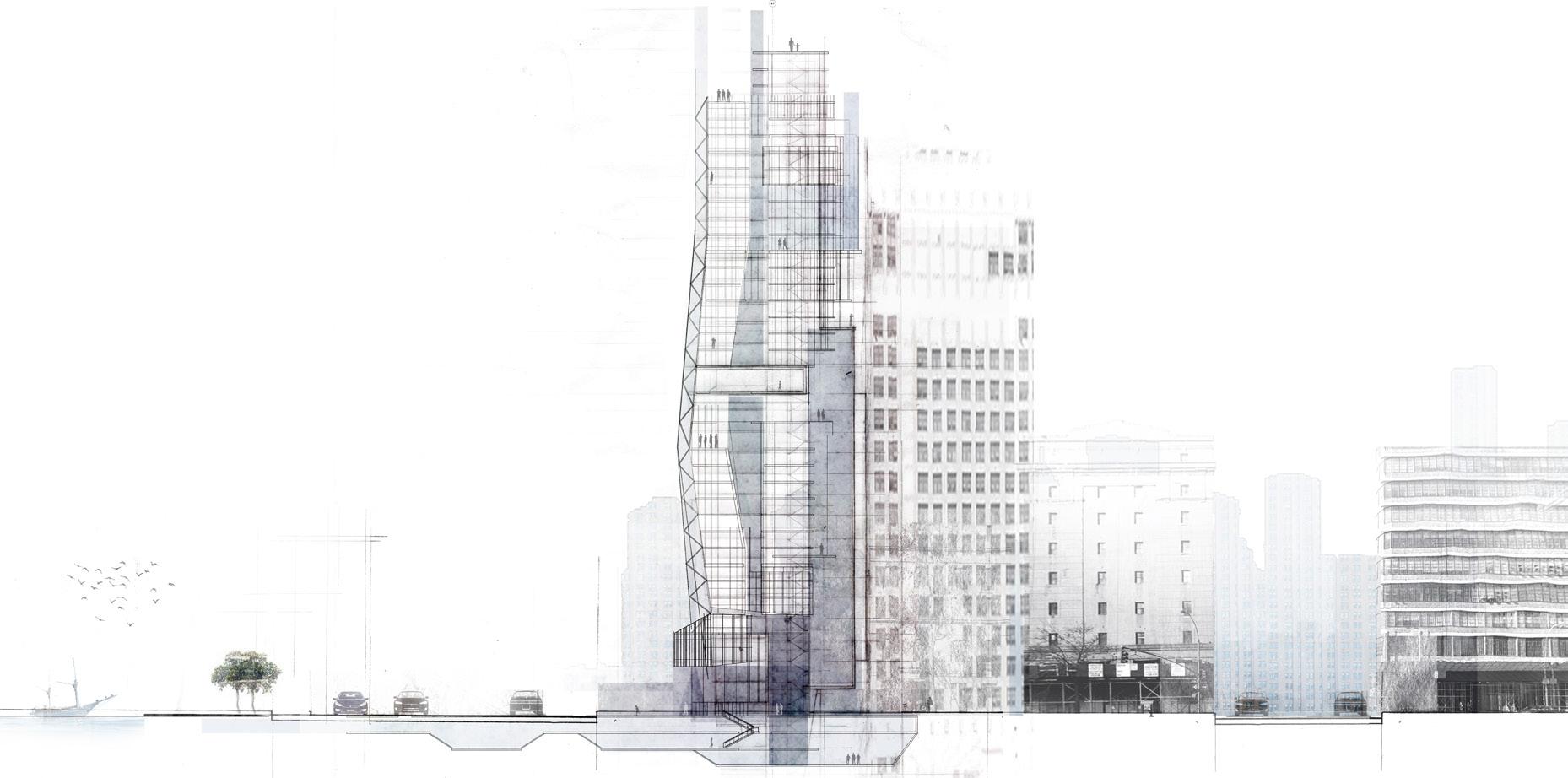

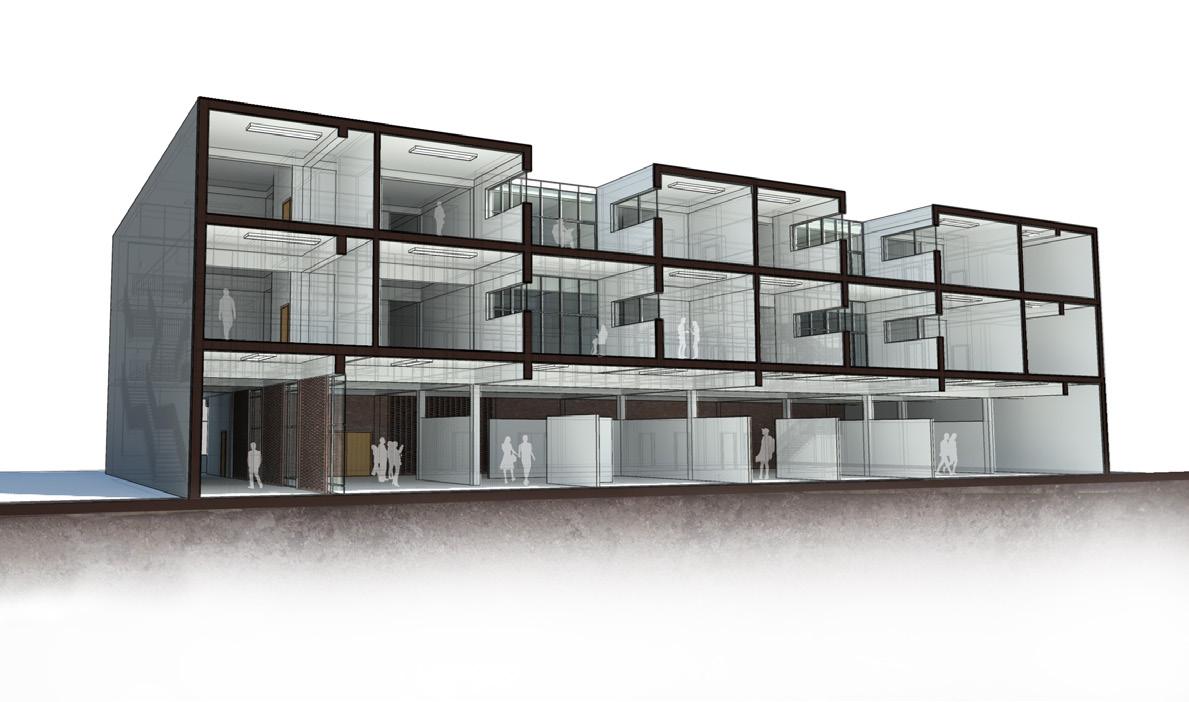

section perspective

This decision was also made to contrast this entry with the entrance located in a back alleyway, where waste disposal and delivery services also take place.

The upper two residential floors can be accessed from both private entrances and have luxury-style apartments, each with its own private studio for residents to work on their projects and share them with their peers. Larger works such as furniture and massive sculptural pieces are mainly done in a public workshop next to the gallery.

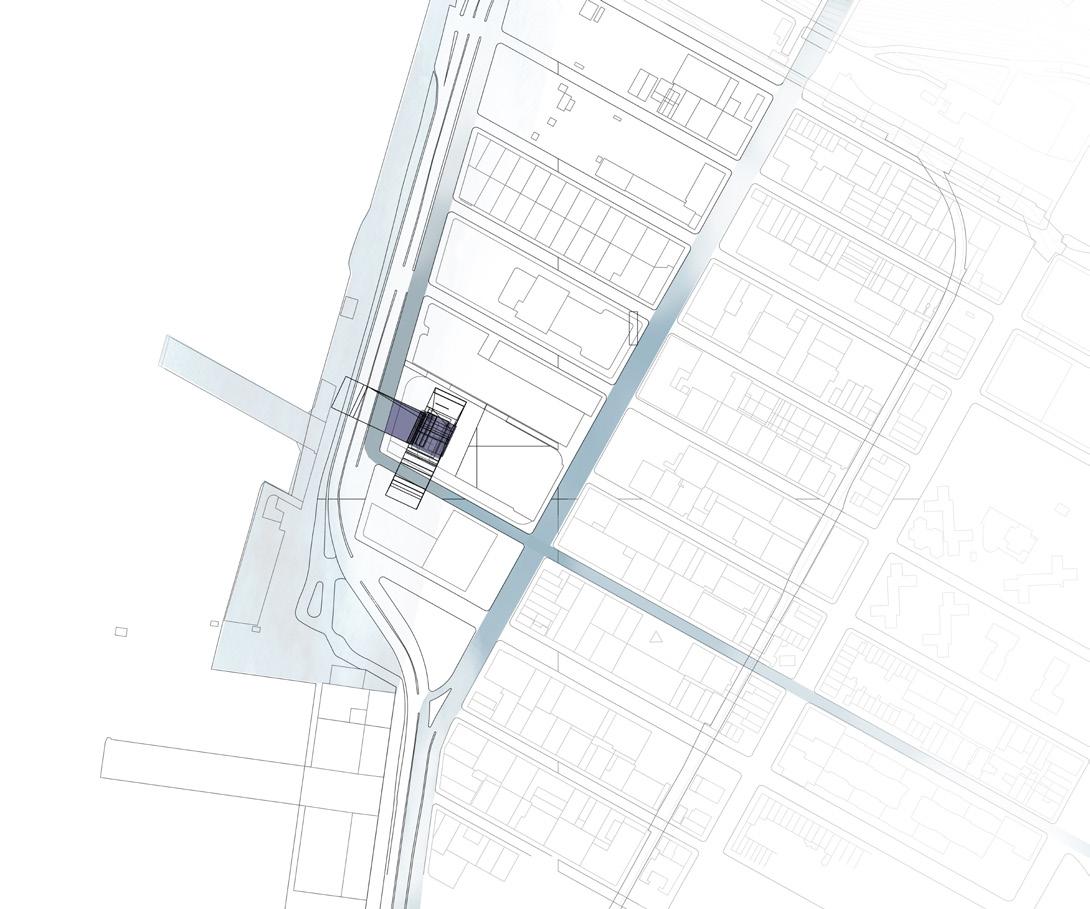

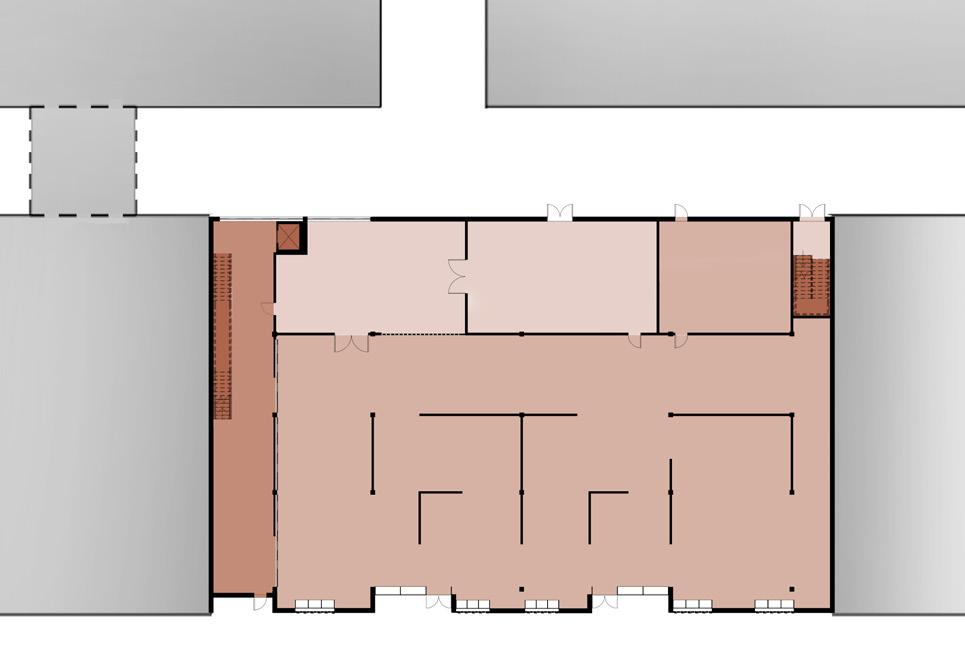

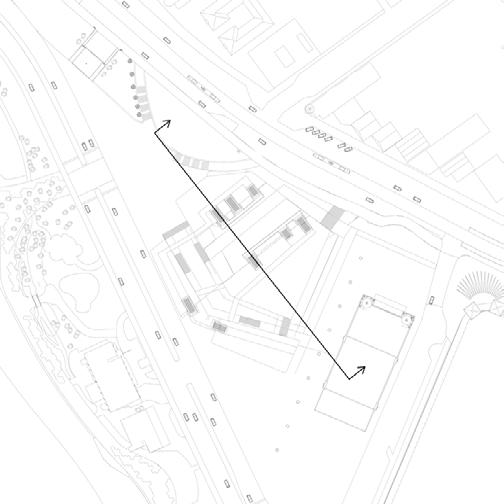

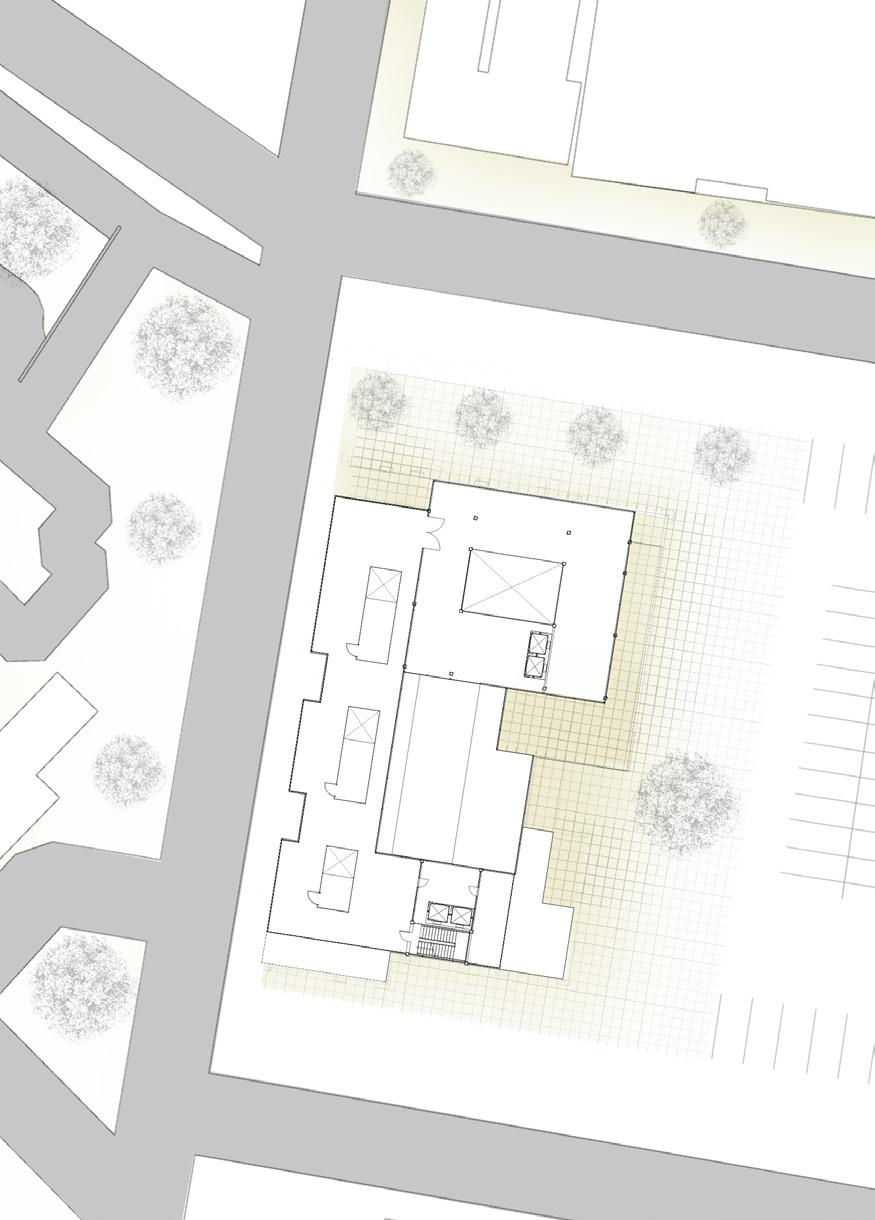

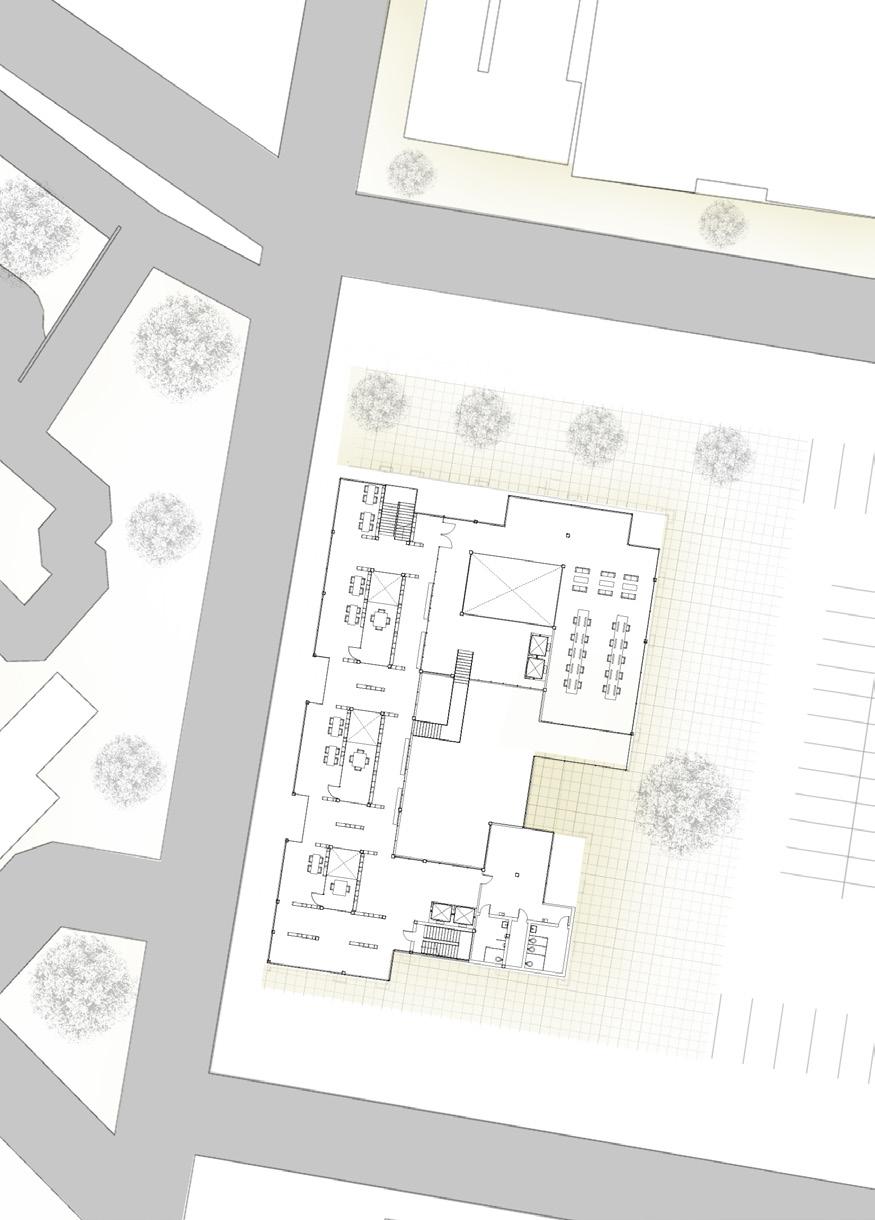

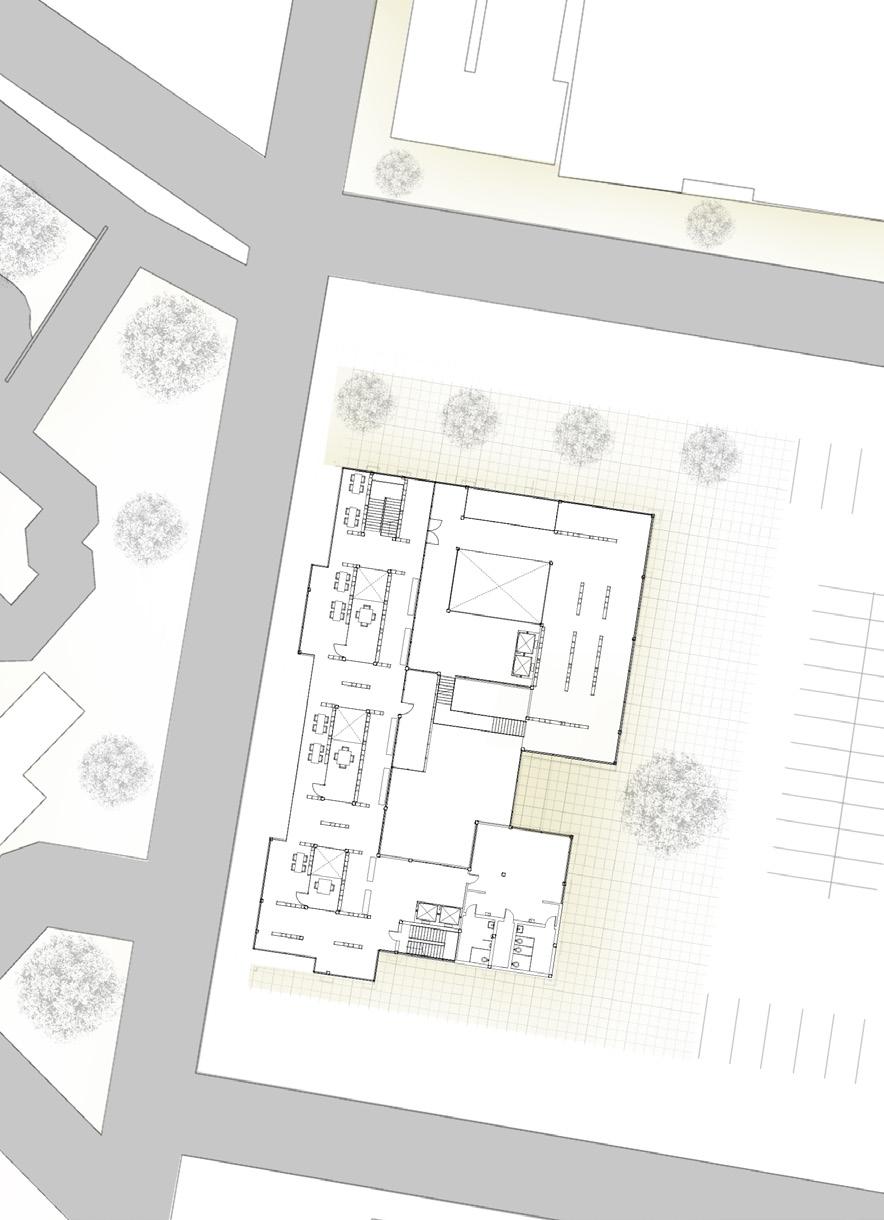

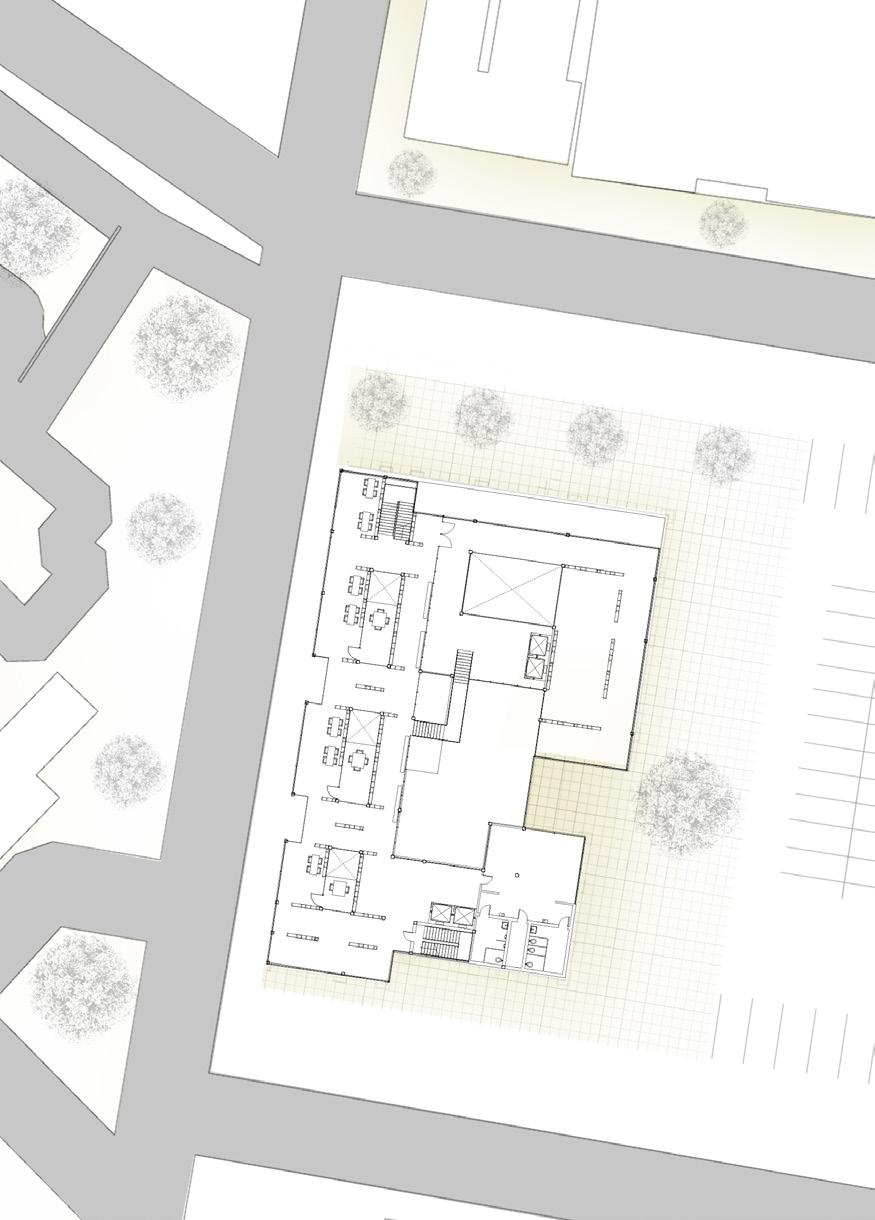

site plan

13 | Moder

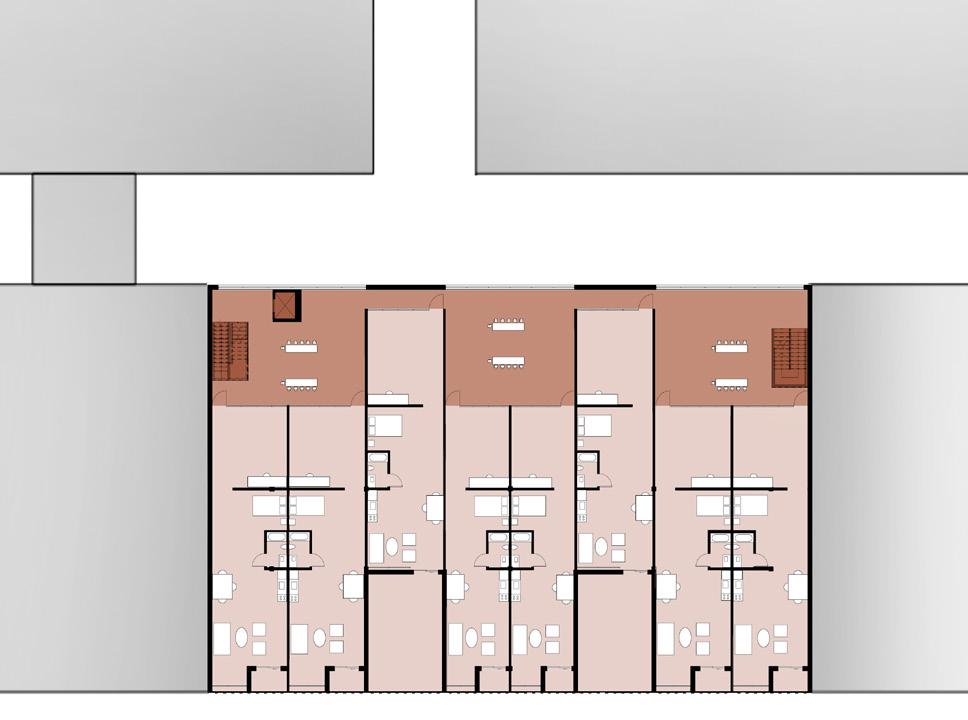

studio + residential circulation

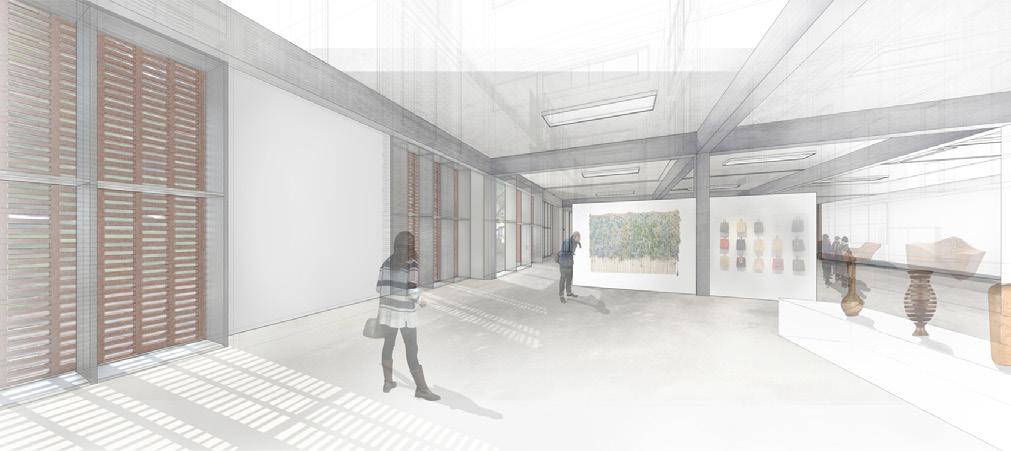

gallery + storefront

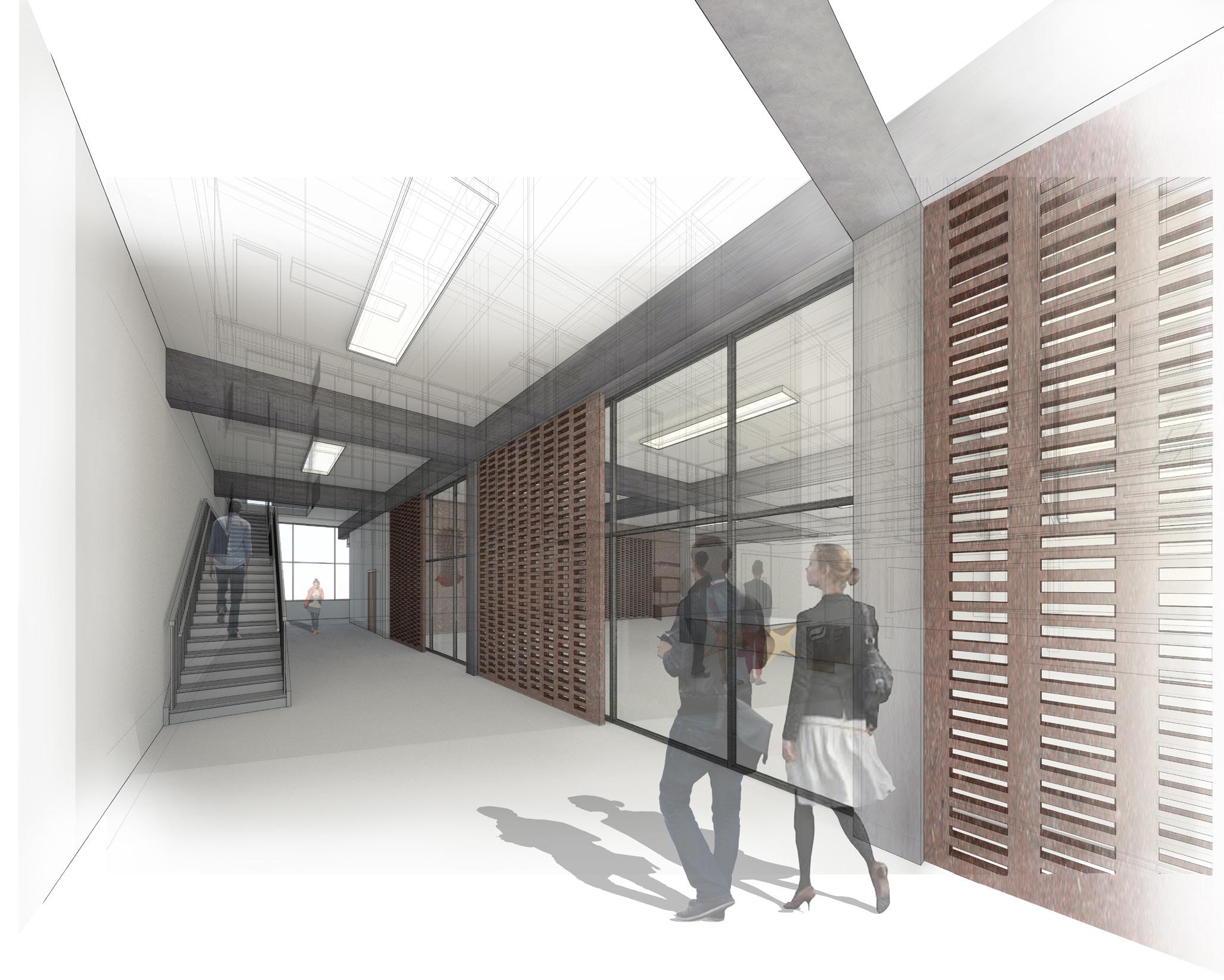

semi-private entry

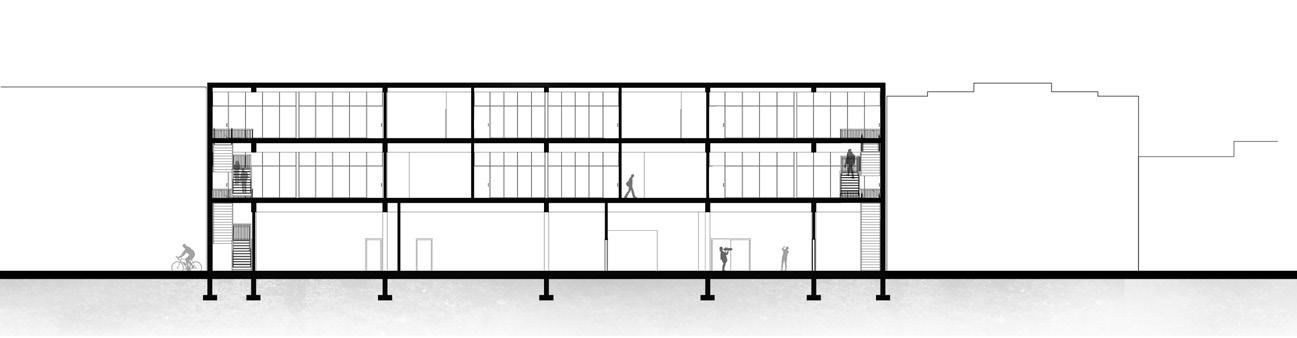

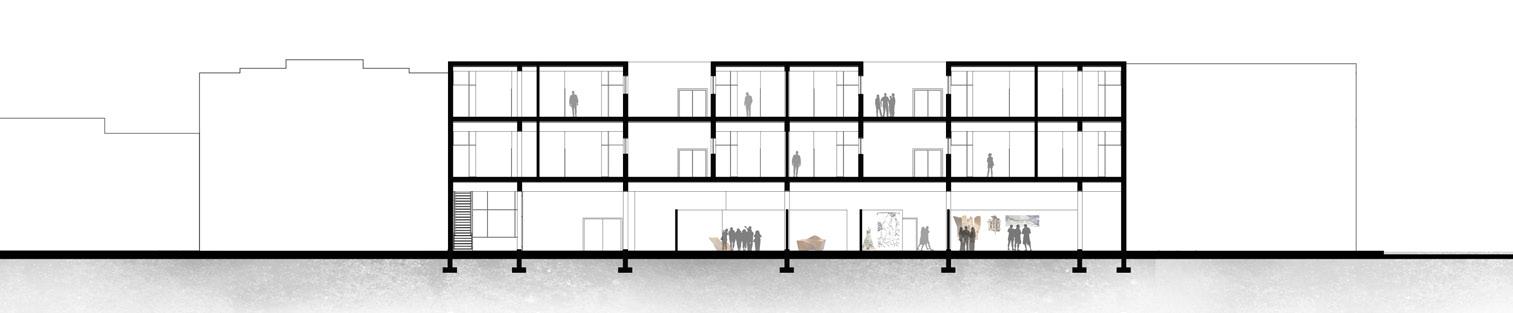

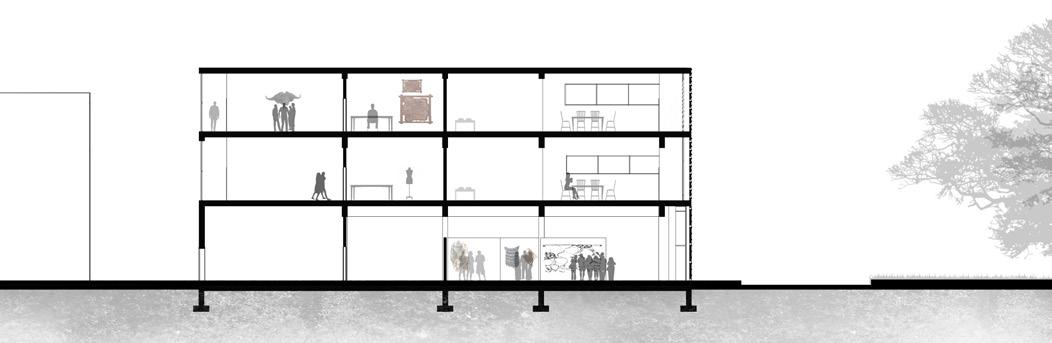

East Section

14 | Moder

North Section

LEGEND roof

structure

1

Gallery/Storefront

2

Public Workshop

3

Delivery/Waste Disposal

4

Mechanical

5

Semi-Private Entrance

6

Common Area

7

Private Workshop

8

Apartment

7

6 7

8

7

8

8

6

7

8

7

7

8 8

6 7

7

8

8

curtain wall Private

2nd + 3rd Floors

Public Horizontal Circulation screen façade

Vertical Circulation

2

3

4

1

5

Ground Floor

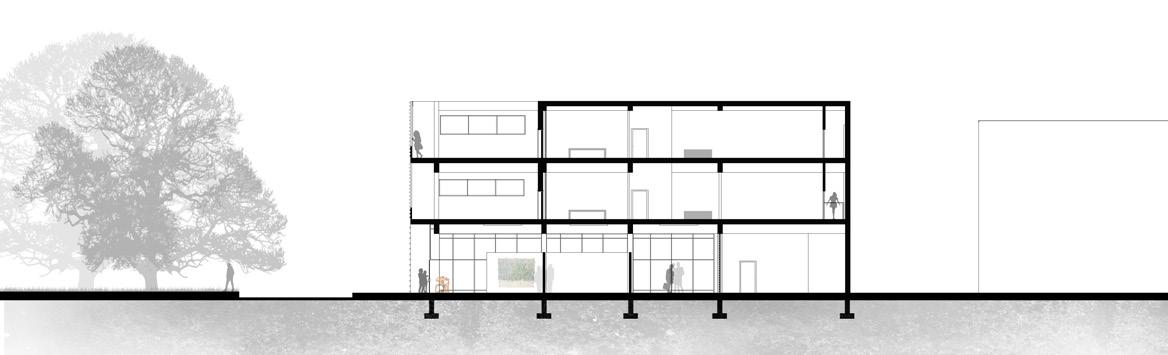

South Section

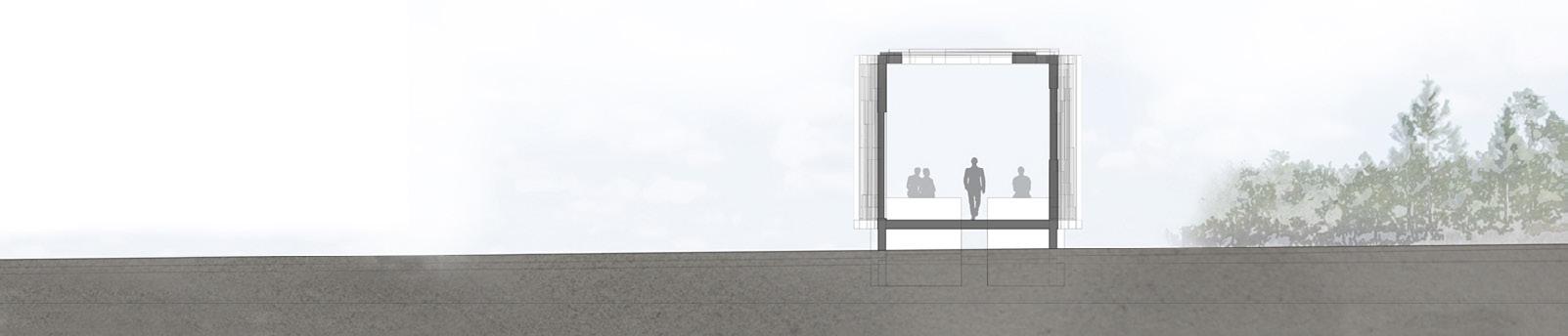

West Section

15 | Moder

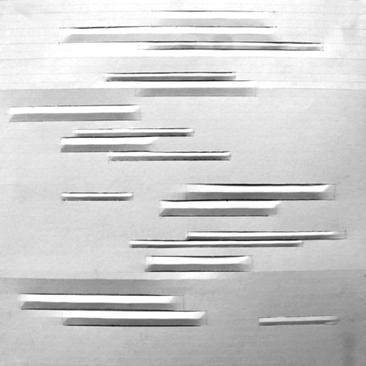

PLEATED HORIZON D esign 5 | Fa l l 2 0 1 6 Cr itic | Mi c h a e l Ku e n s t l e The development of the maritime chapel began with studies of existing edge conditions at Fort Island Trail Gulf Beach in Crystal River, Florida. This exploration resulted in visualizing the horizon as not a discretely uniform line, but in fact a point in time when land and water intersect and interact simultaneously. The parametric gradient is related to one of these specific moments, in which water, in the form of ripples, create natural pleat-like markings in the sand. Variations in these folds also open variable possibilities for light entry as expressed in the chapel façade.

Narrow slits in between the structural folds allow for thin stripes of light in contrast to an aperture at the far end revealing an expansive oceanic view. An artificial beach is likewise transformed into a venue for open public space by the parametric pleats at a larger scale. Each fold into the ground is pinched inward and outward to correspond with indigenous plant growth and shaded seating areas respectively.

16 | Moder

ceiling panels

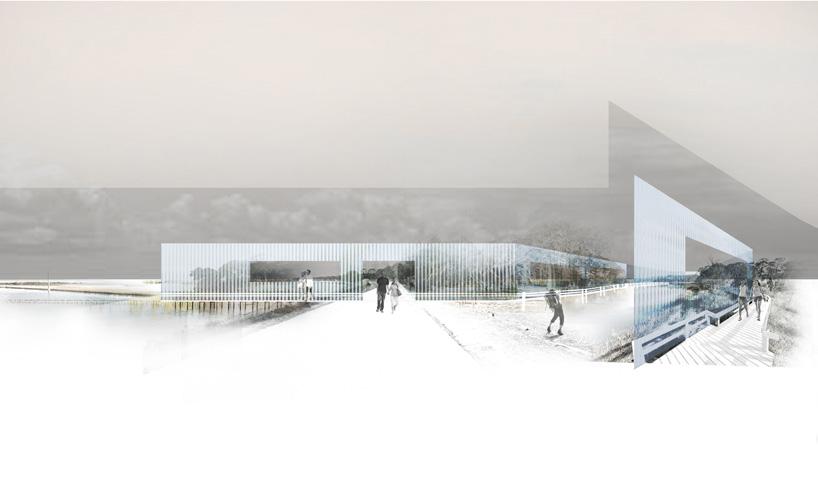

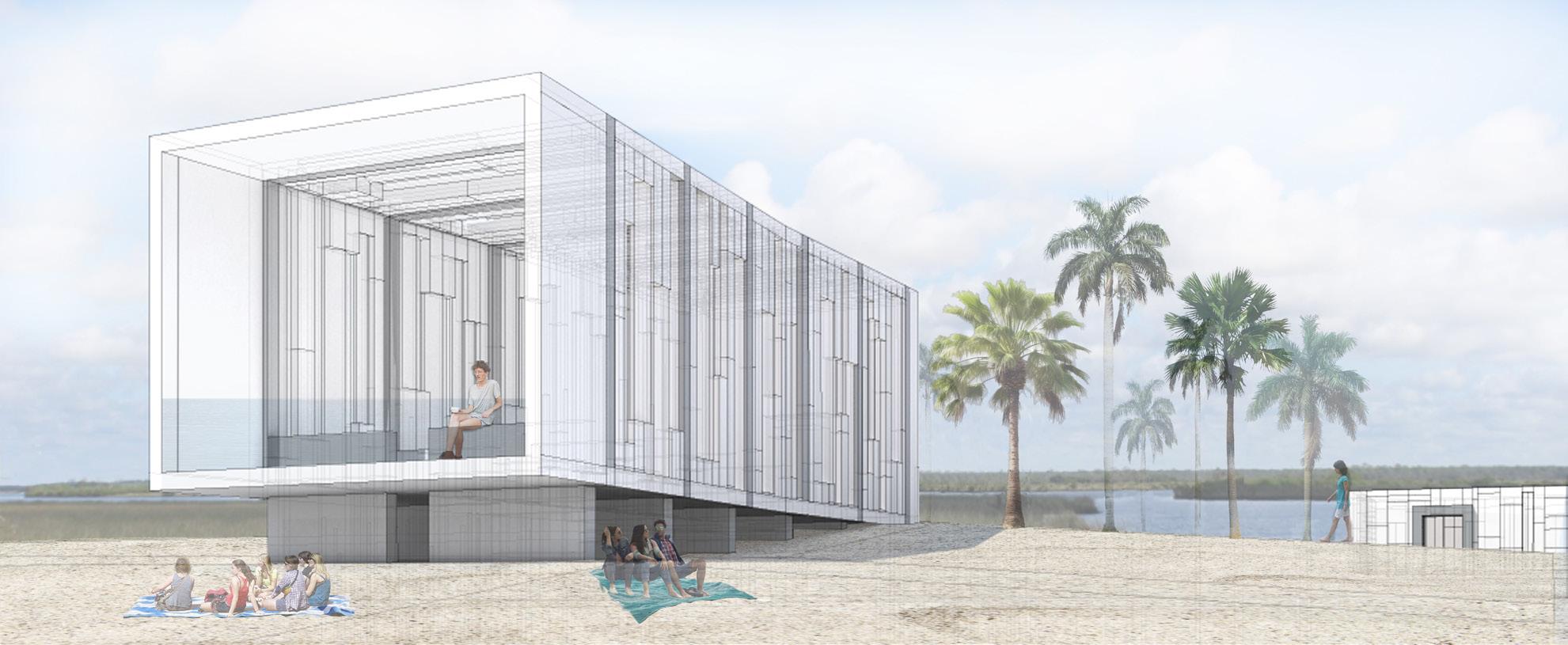

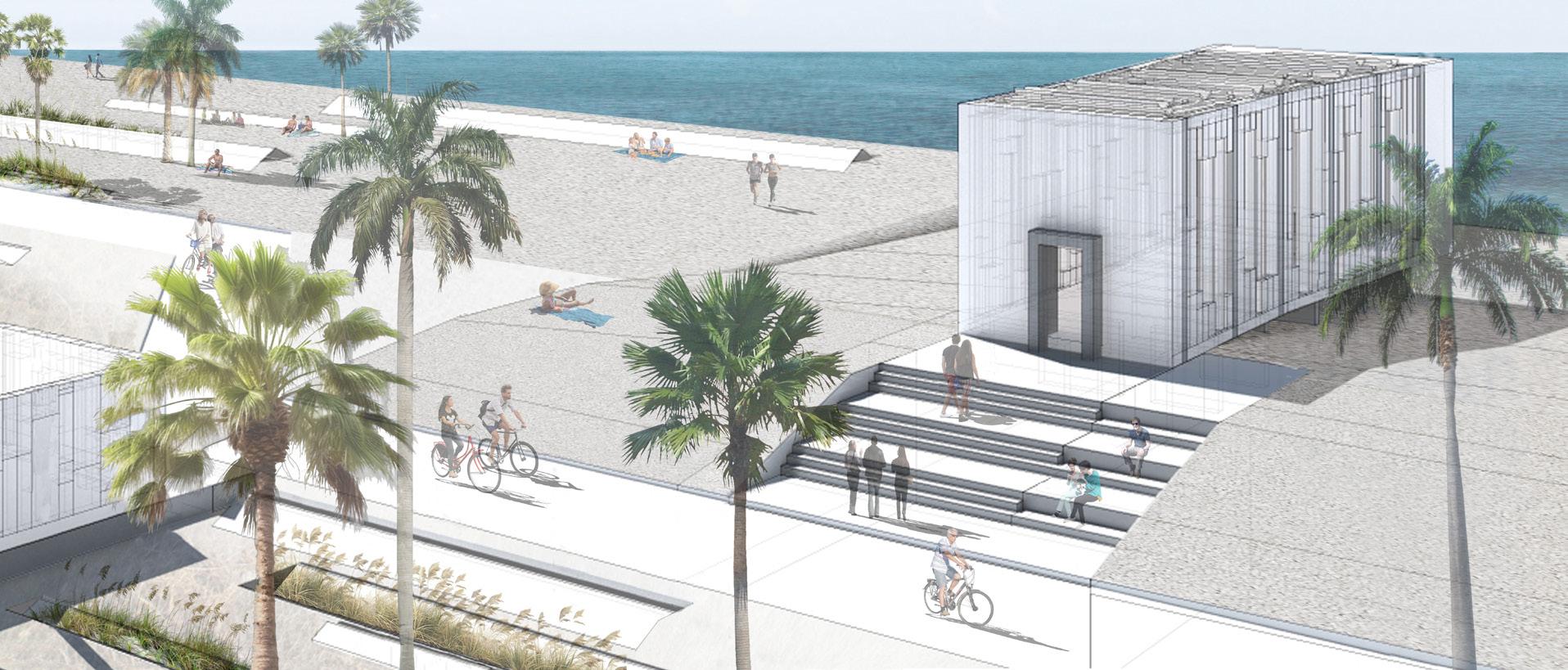

beach perspective

wall panels

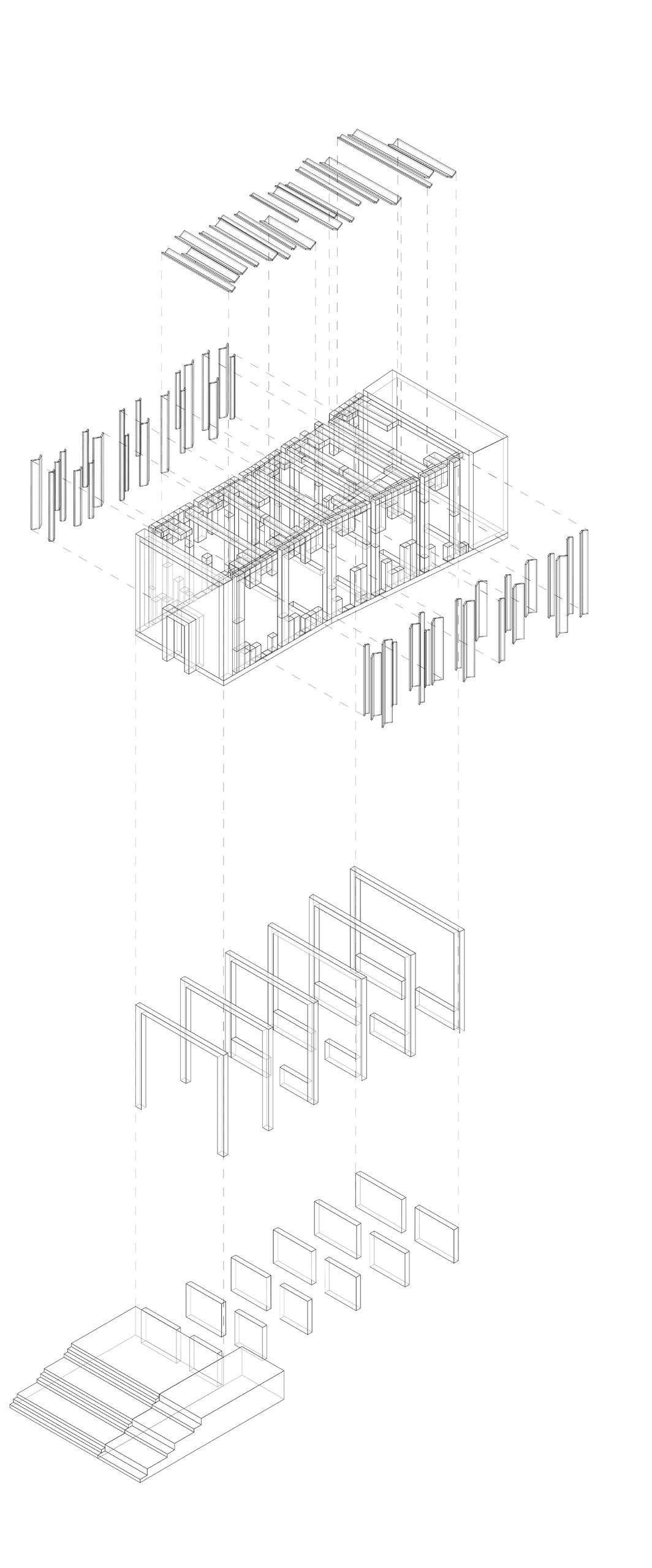

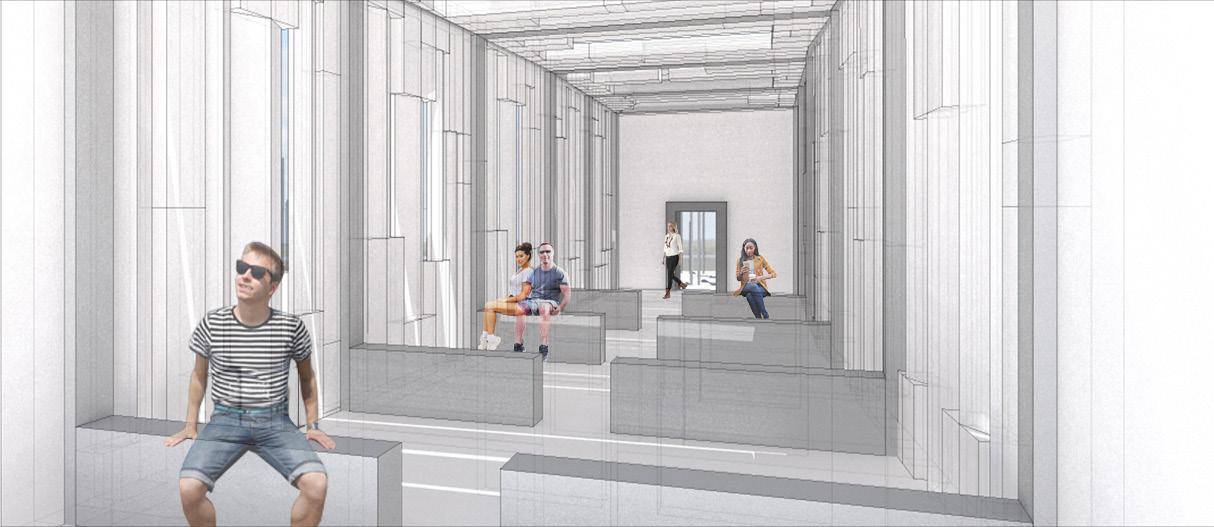

aisle + entrance hall framework

stairs + seating

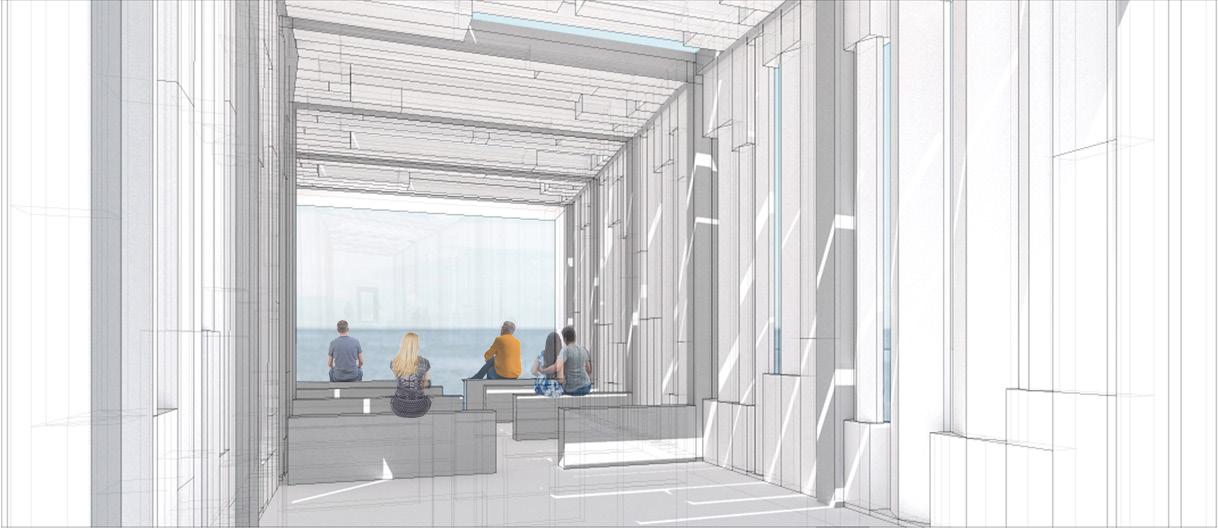

aisle + prayer sanctuary

17 | Moder

1 2 3

4

5

aerial perspective

longitudinal section

18 | Moder

CHAPEL 1

Gathering Stair

2

Entrance

3

Entrance Hall

4

Aisle

5

Altar

2 2 1

3

4 5

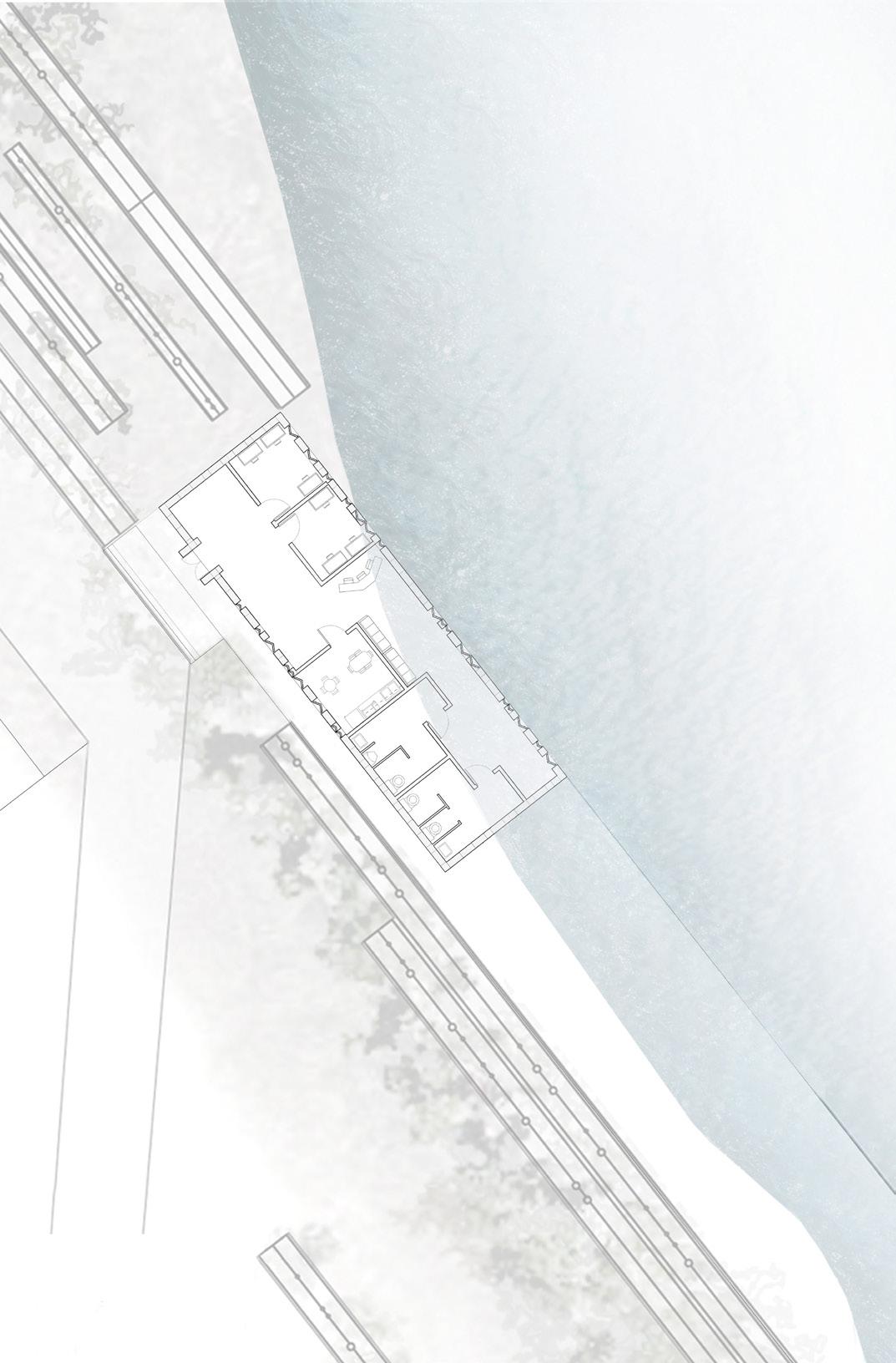

ADMINISTRATIVE BUILDING

6

7

1

Entrance

2

Office

3

Reception / Waiting Area

4

Kitchen

5

Men’s Lavatory

6

Women’s Lavatory

7

Boat Dock

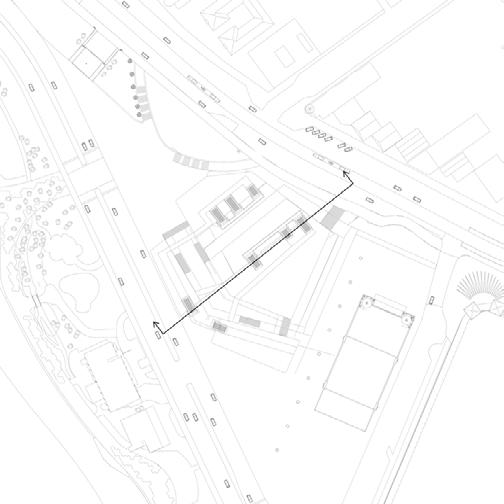

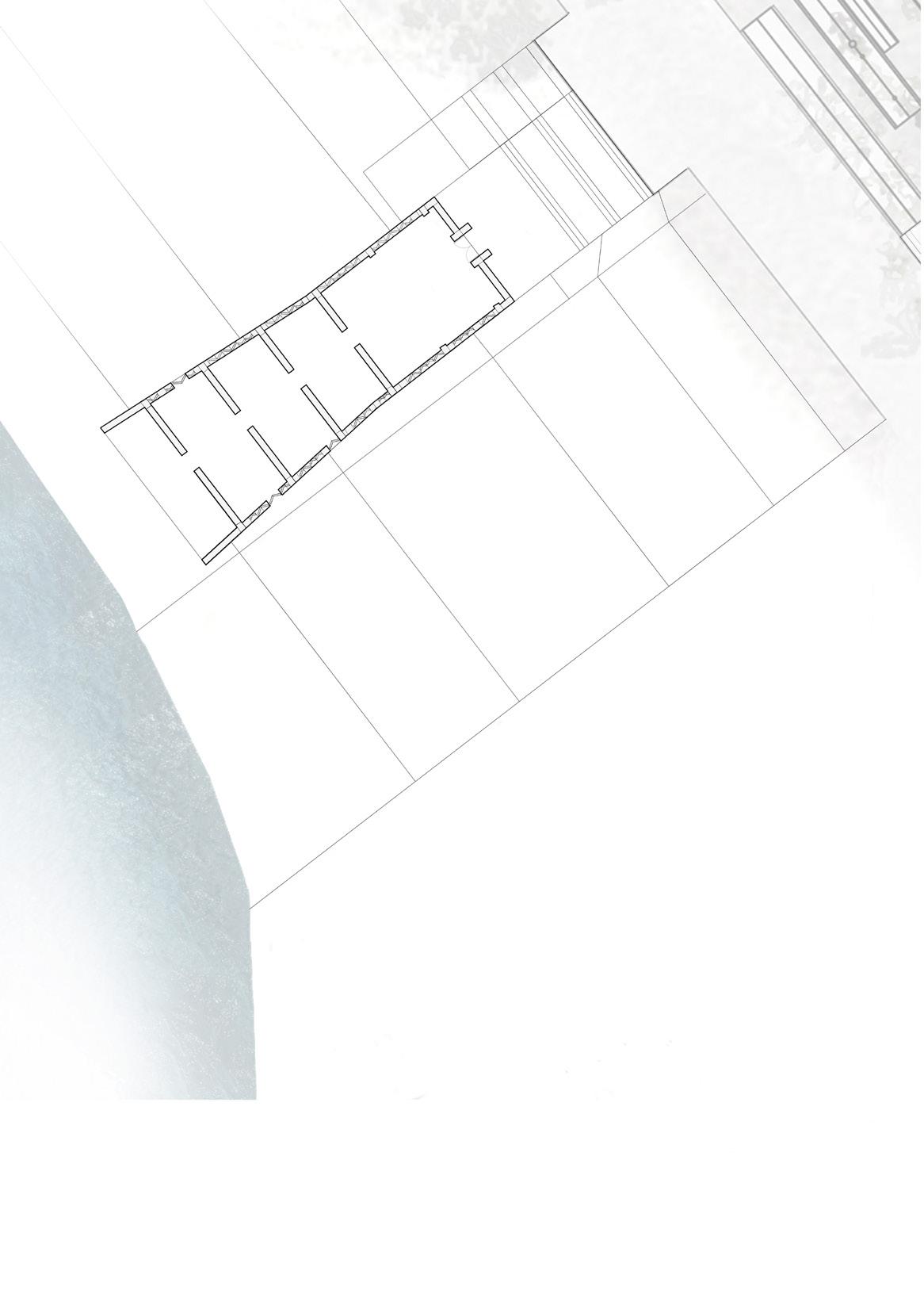

site plan

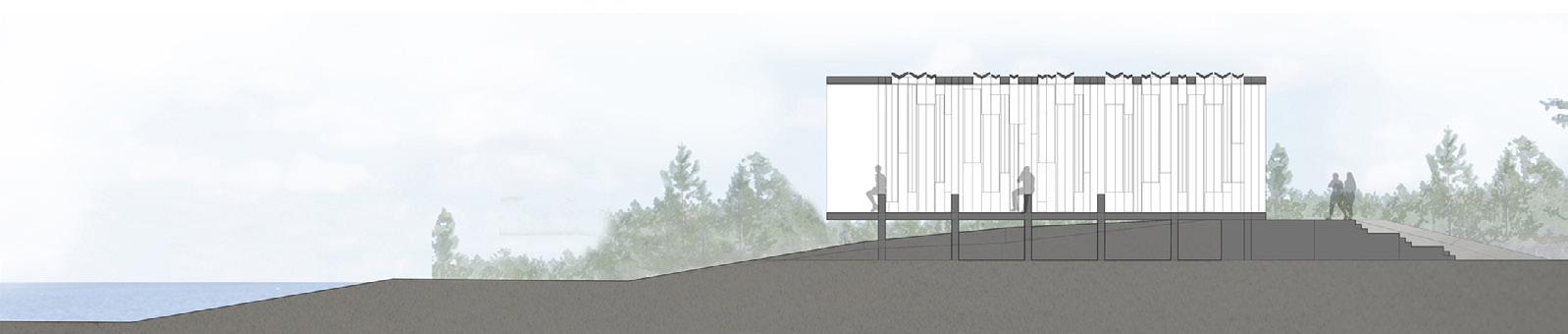

latitudinal section

19 | Moder

N 20th St

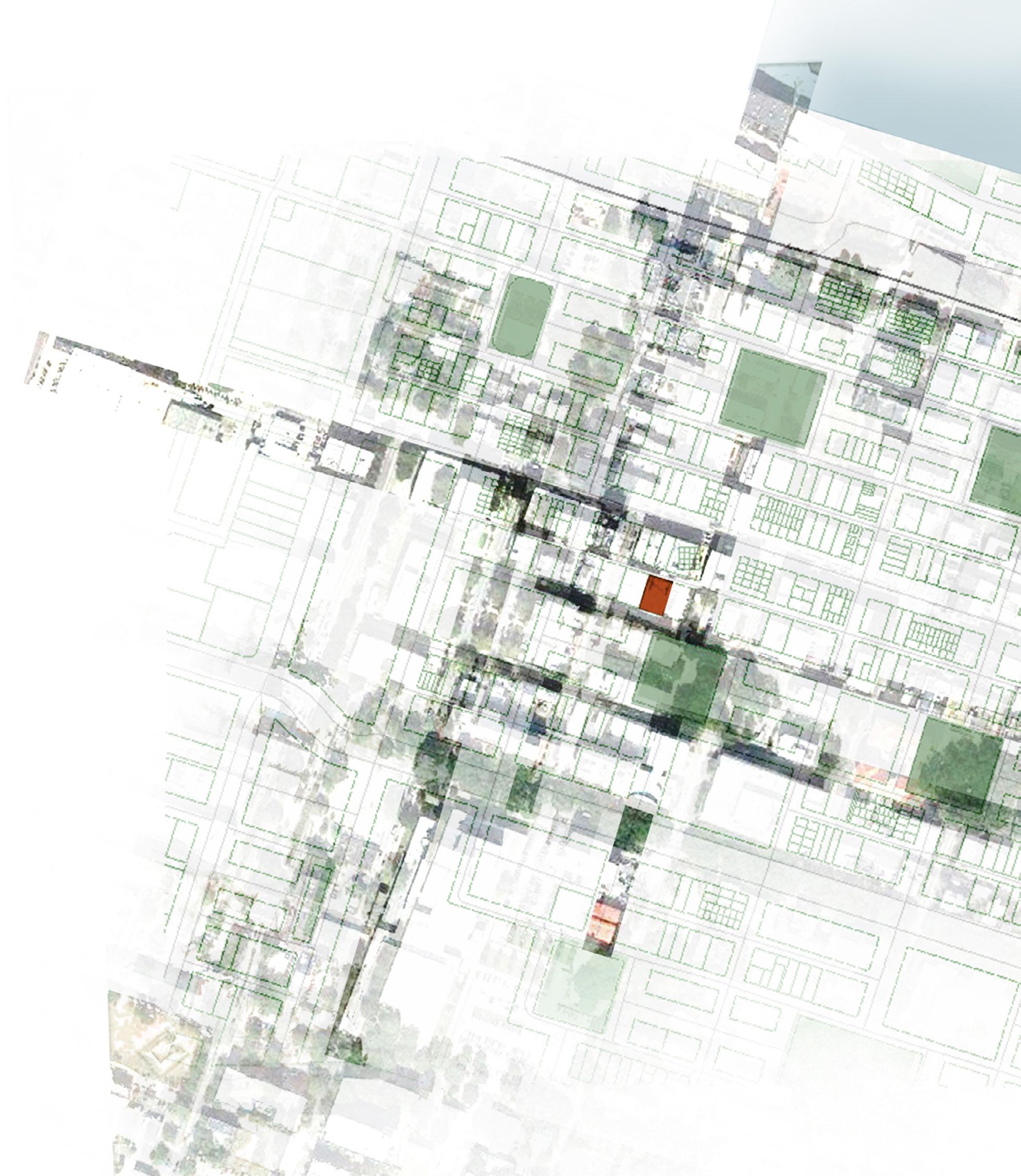

N 19th St site sections

FREE BEACON G r a d D e s i g n 2 | Sp ri ng 2 0 1 9 C rit ic s | M ar k McGl ot hl i n & B ra d l ey Walter s The proposal for the new extension of the Free Library of Philadelphia is a celebration of the city’s unique character, which can be described as a modern place hidden underneath a historically rich urban fabric. As the city aged over time, new layers were laid over, shaping the site into a palimpsest of culture and artifact. Another observation was made regarding the surrounding context of the parking lot where the extension is to be built. Situated in between the Barnes Foundation and the mixed-use complex near the Granary, this project provides an opportunity to engage with two iconic landmarks in order to revitalize vacant street edges. Both former projects are composed of interlocking and intersecting geometries, which easily stand out from the brownstone blocks east and west of the lot. In addition, they also incorporate a blend of old and new that is a recurring element in Philadelphia’s central district. The convenient location extension proposal allows for the project to continue the ongoing dialogue between both buildings as a way of transforming the empty lot into an enticing and engaging corner. These interpretations of the site became crucial in creating a program that offers a fresh retreat in the heart of the Philadelphia, while still honoring the value of the rare collections housed within.

20 | Moder

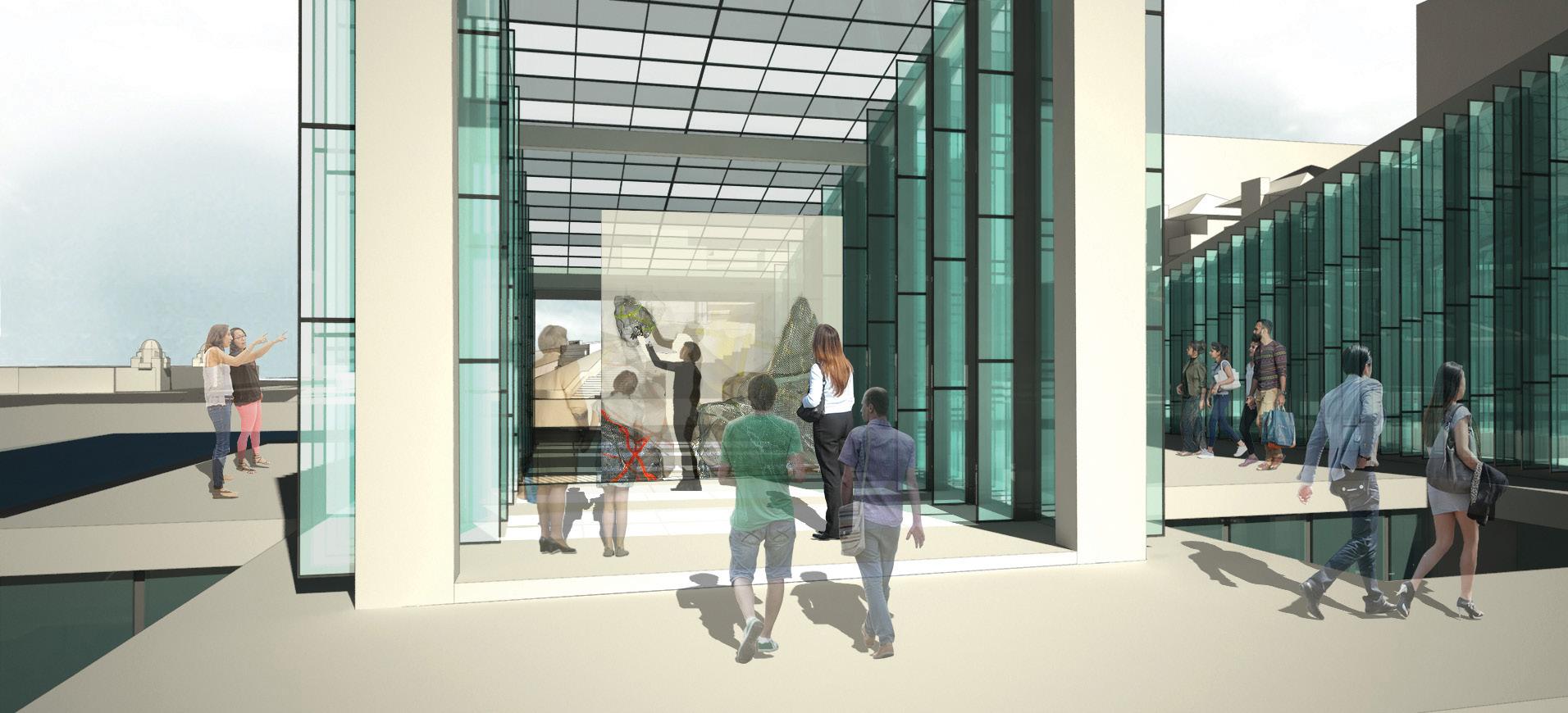

entrance view

Wood St

Calloway St

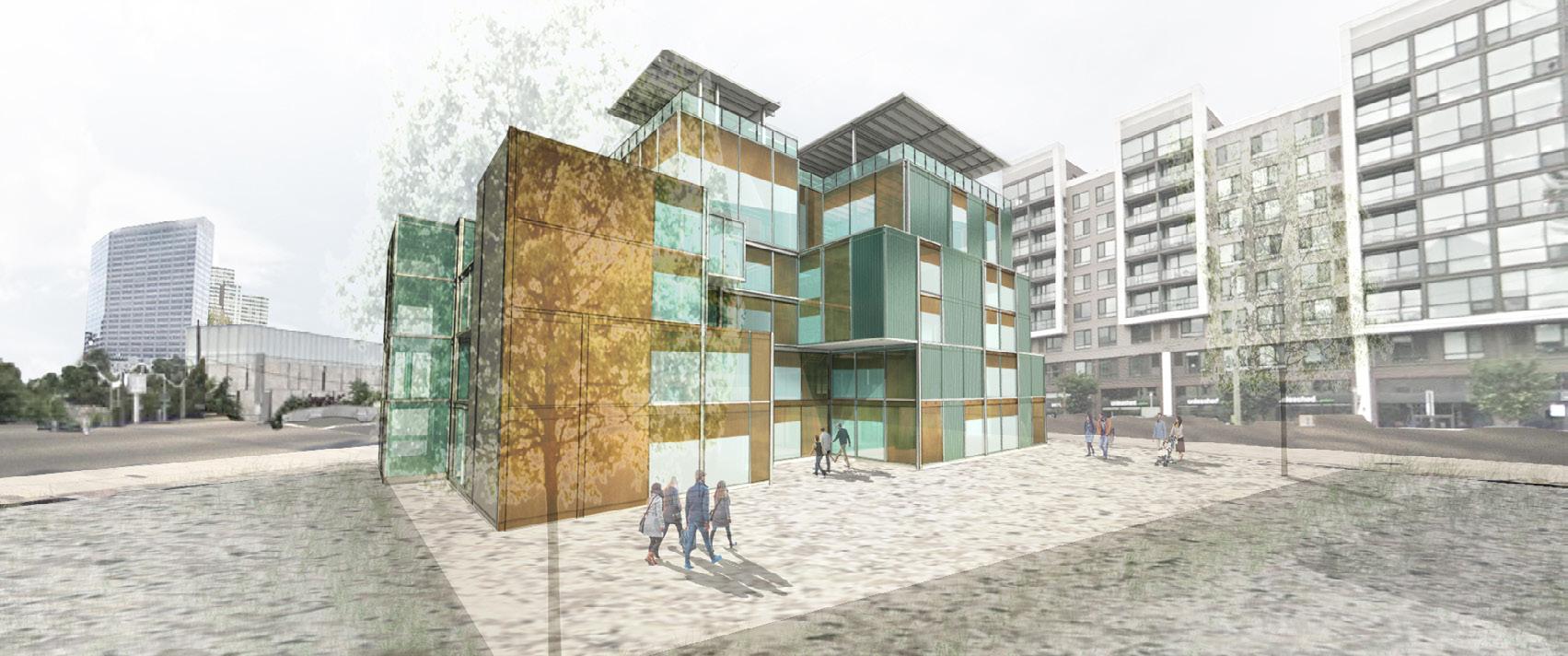

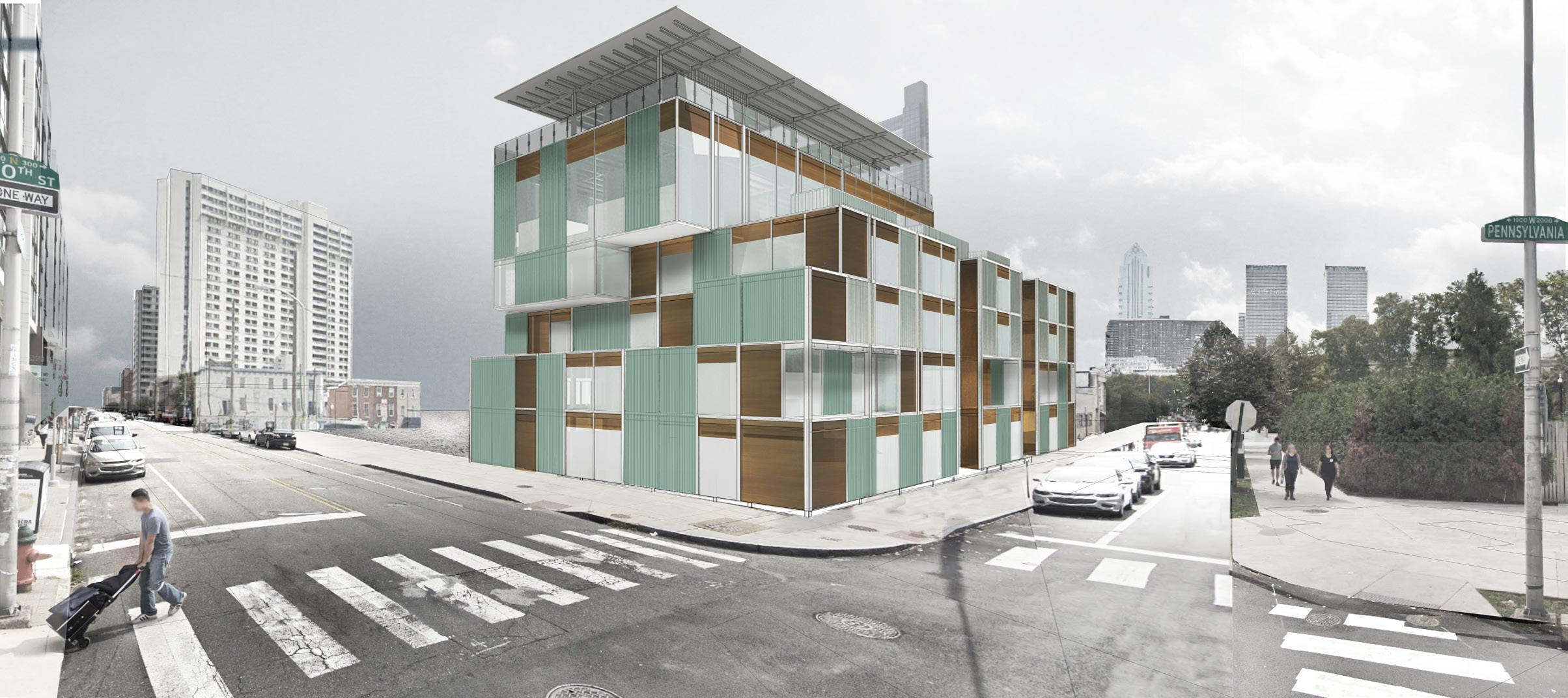

street view

21 | Moder

7

7

5

7

2 1 5

5

7 3

10

9

5

7

6

7

8 5

4

4 5

auditorium

22 | Moder

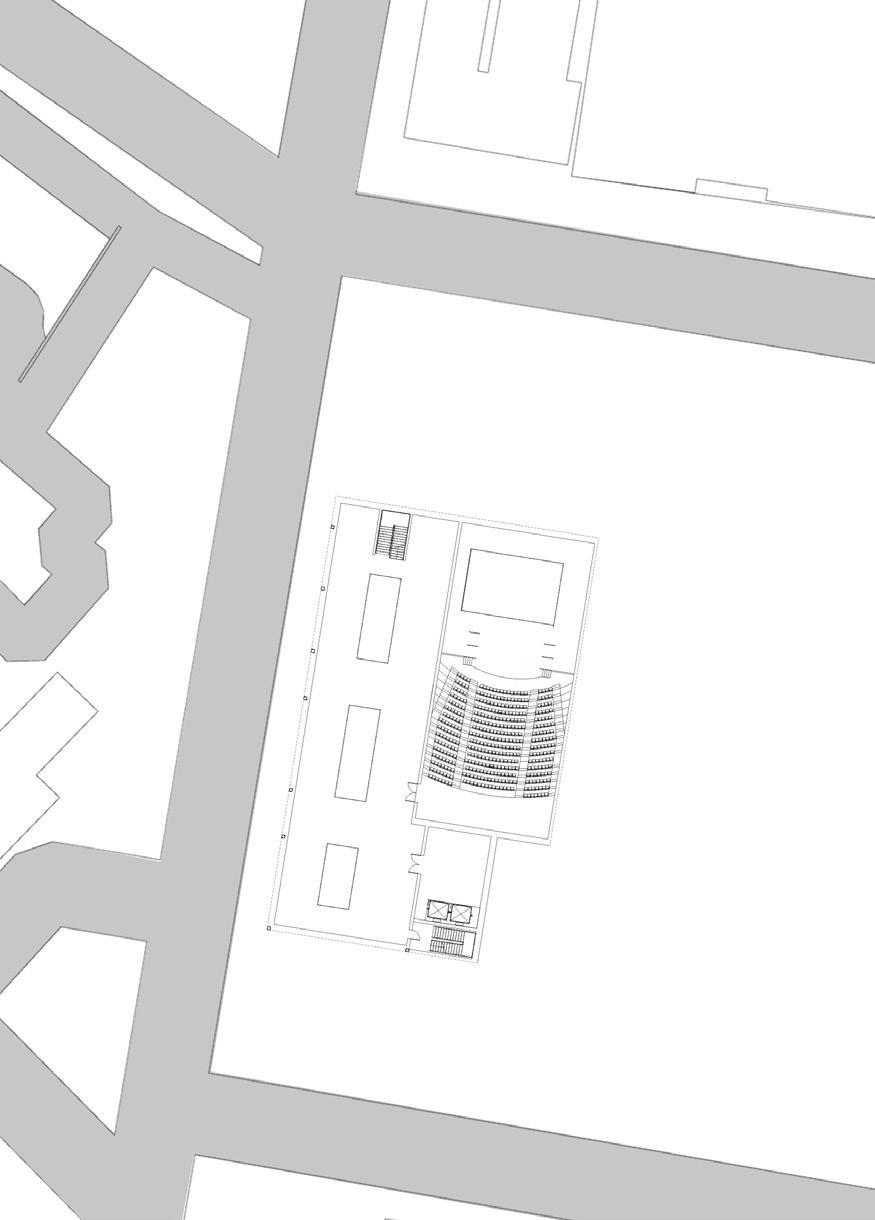

ground floor

second floor

1

LOWER MECHANICAL ROOM

2

PUBLIC AUDITORIUM / LECTURE HALL

3

LOBBY / WELCOME DESK

4

FOCUSED RESEARCH ROOM

5

READING ROOM

6

GENERAL STACKS

7

ADMINISTRATIVE OFFICE

11 13

5

5

6

5

12 13

5 4

4 5

third floor

8

SUPPORT / STORAGE

9

MAP & FLATWORK COLLECTION

10

RARE BOOKS

11

ARCHIVIST OFFICE

12

COMPUTER LAB

13

UPPER MECHANICAL ROOM

14

PUBLIC FORUM / EXHIBITION HALL

13

5

fourth floor

14

8

fifth floor

23 | Moder

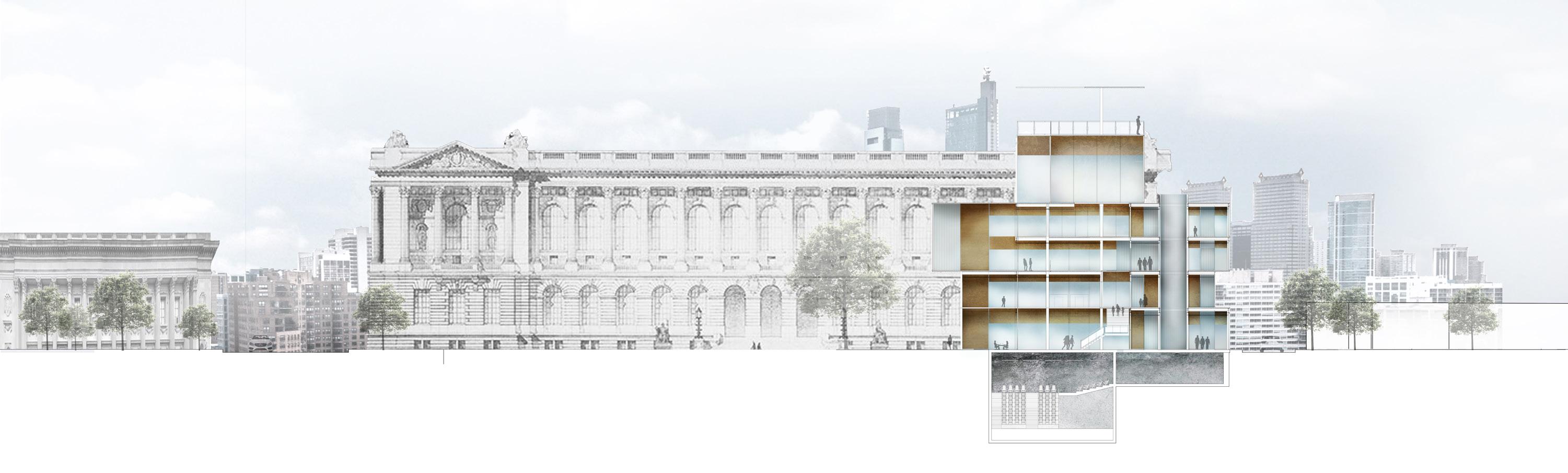

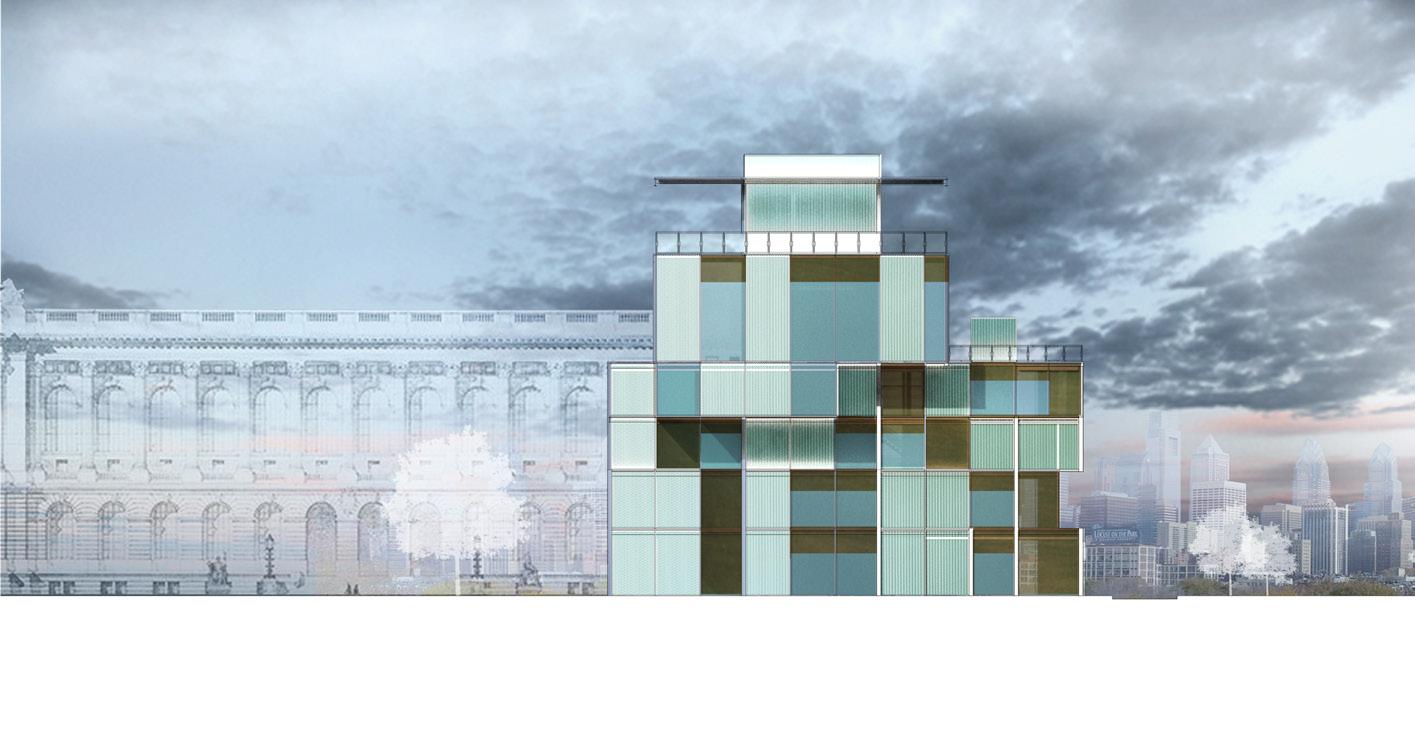

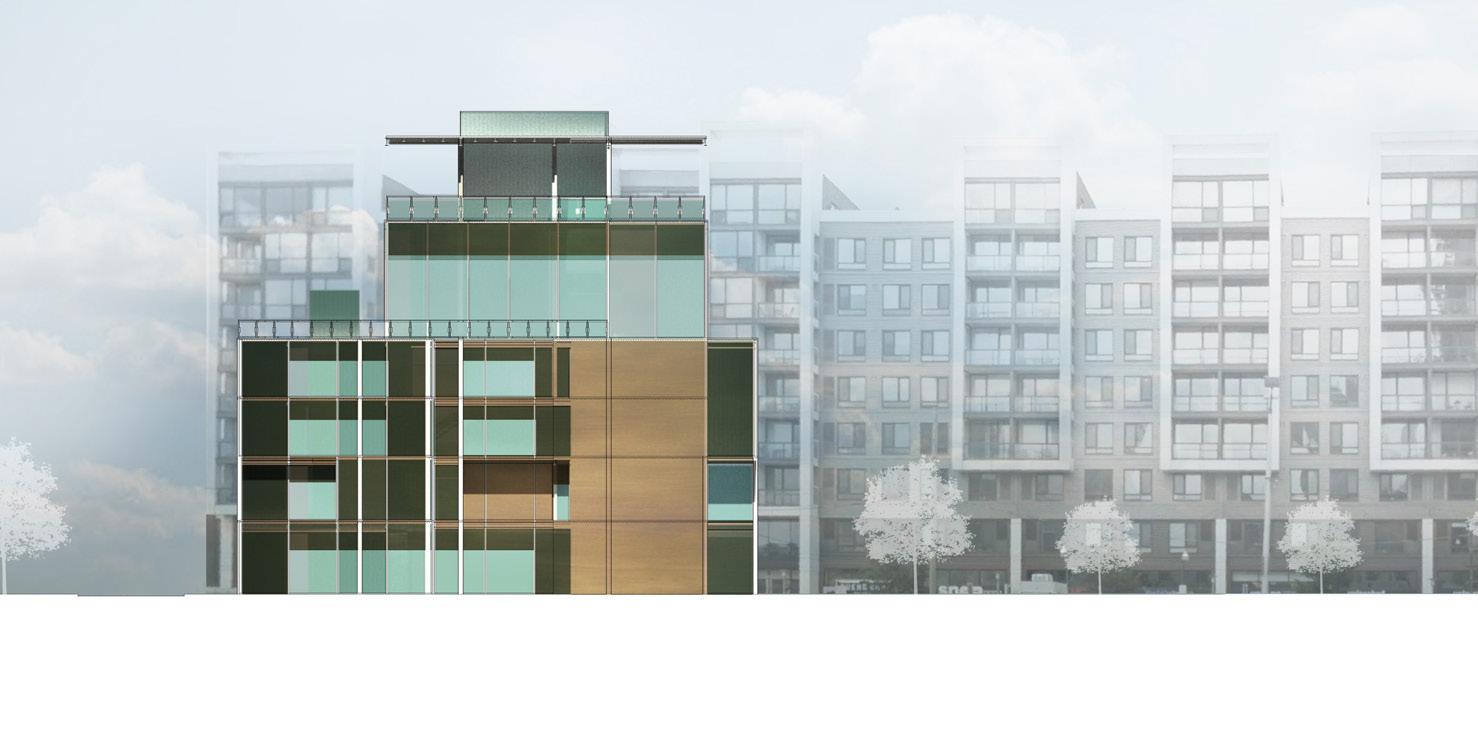

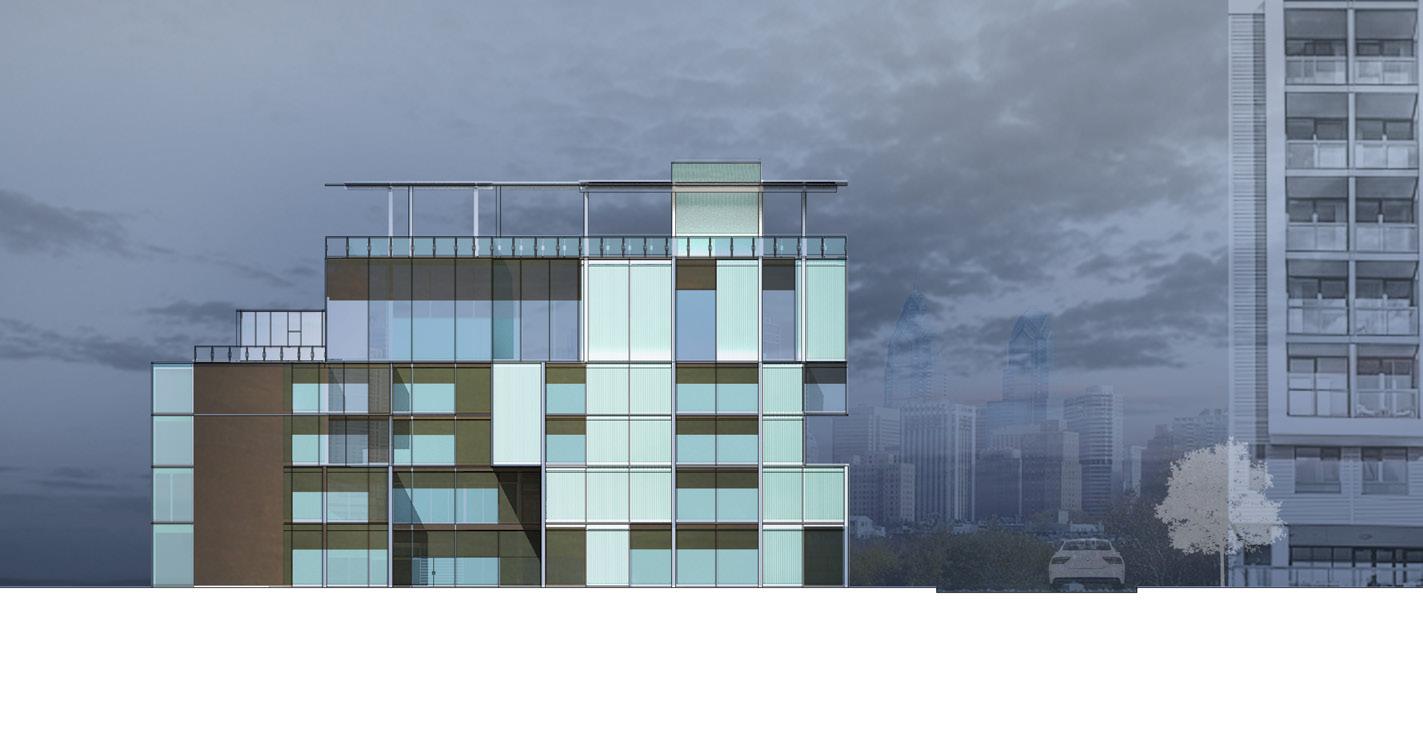

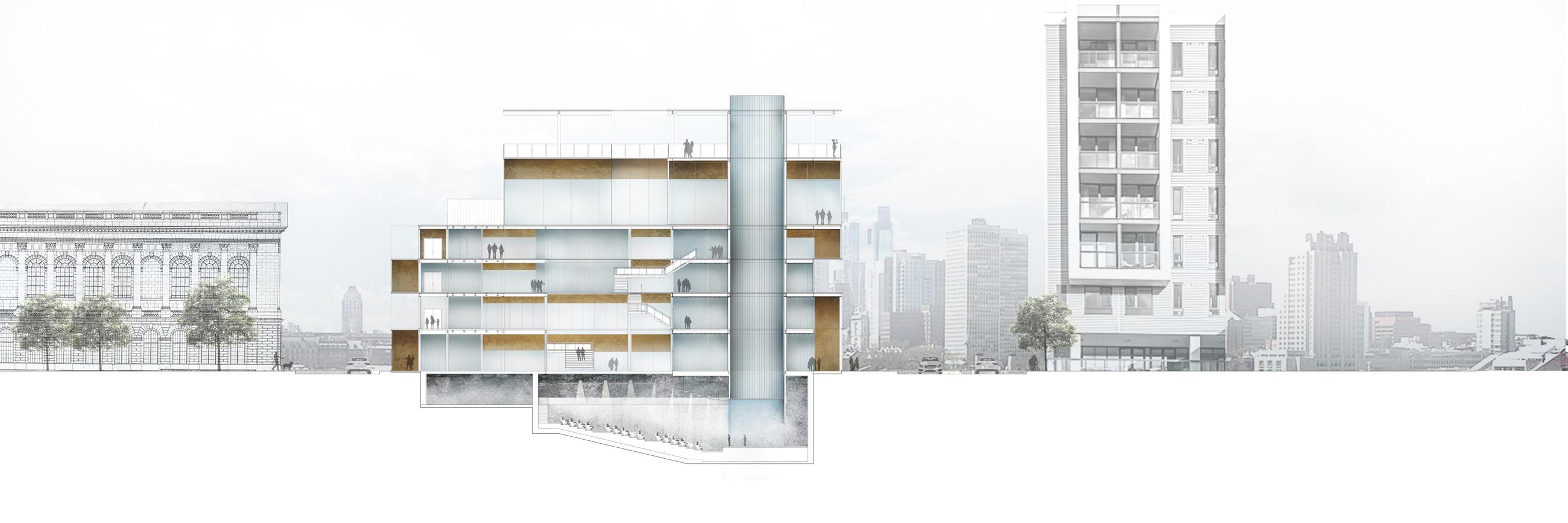

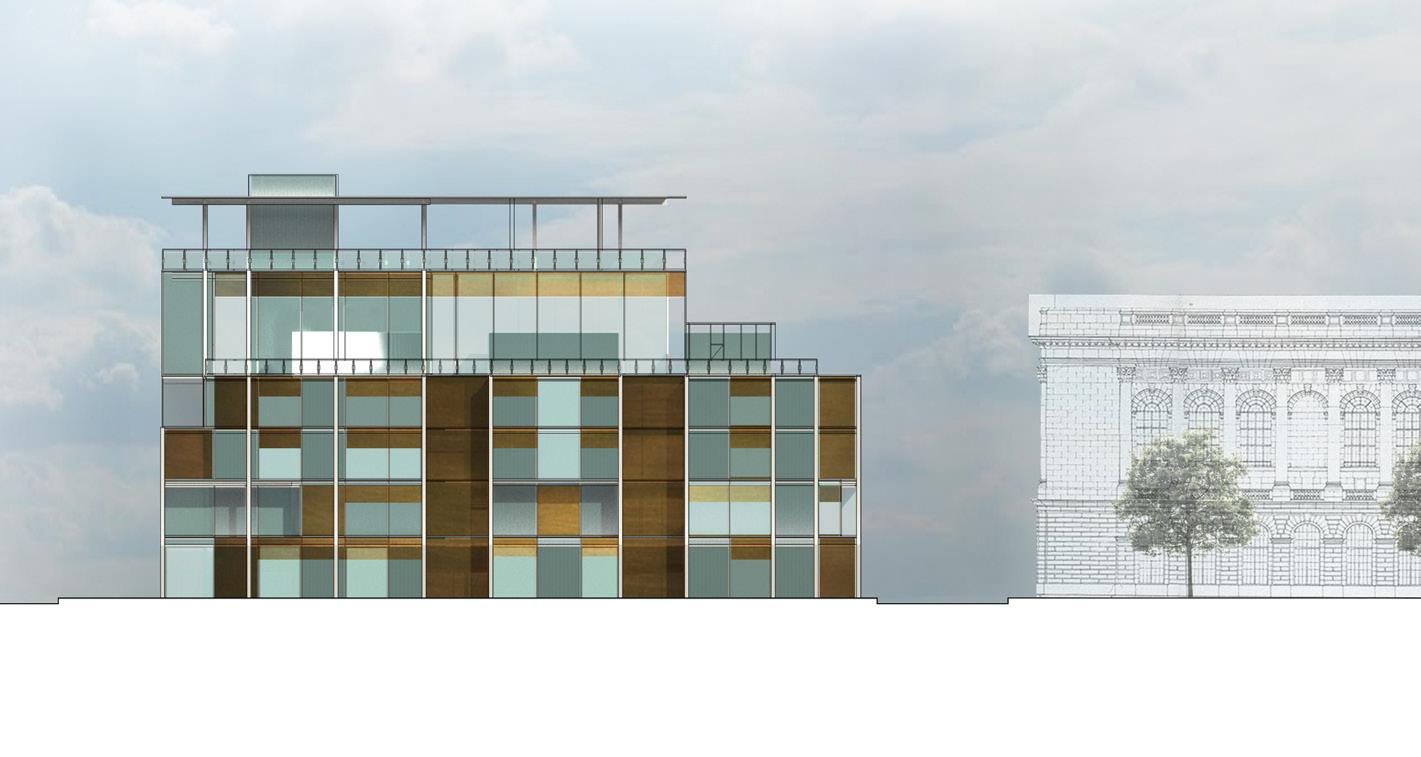

east elevation

The library itself is designed as the inverse of a palimpsest, one where history is kept inside a series of stacked transparent volumes. A composite skin made up of curtain and channel glass creates exterior moments where literature is concealed by semi-translucent patches that become less scattered as the façade turns the corner towards the rare book and map collection. A system of bronze panels wraps around the glass to mask the interior spaces further and to add a mysterious atmosphere that encourages passerby to learn more about the contained artifacts.

At night, the translucent façade turns the library into a glowing mass, acting as a “beacon” for those exploring the city. Once inside, visitors walk into an atrium that reveals much of the library’s upper levels and provides transparent, unobstructed views of the general stacks. Primary circulation and space are organized by a series of channel glass wells that also provide areas for private reading and research. These voids of light continue downwards into an underground auditorium, where morning and evening lectures are presented daily to the public. Located below the rare collections, this completely hidden space helps form the heart of the program. This volume also has access to a rooftop snack bar that is integrated with a public forum and exhibition hall on the floor below. The essence of the library lies in this overlay of history and culture that captures the gradual evolution of Philadelphia into a city that creates a comfortable union between its past and present.

north elevation

rare book library

rooftop / observation deck

24 | Moder

west elevation

south elevation

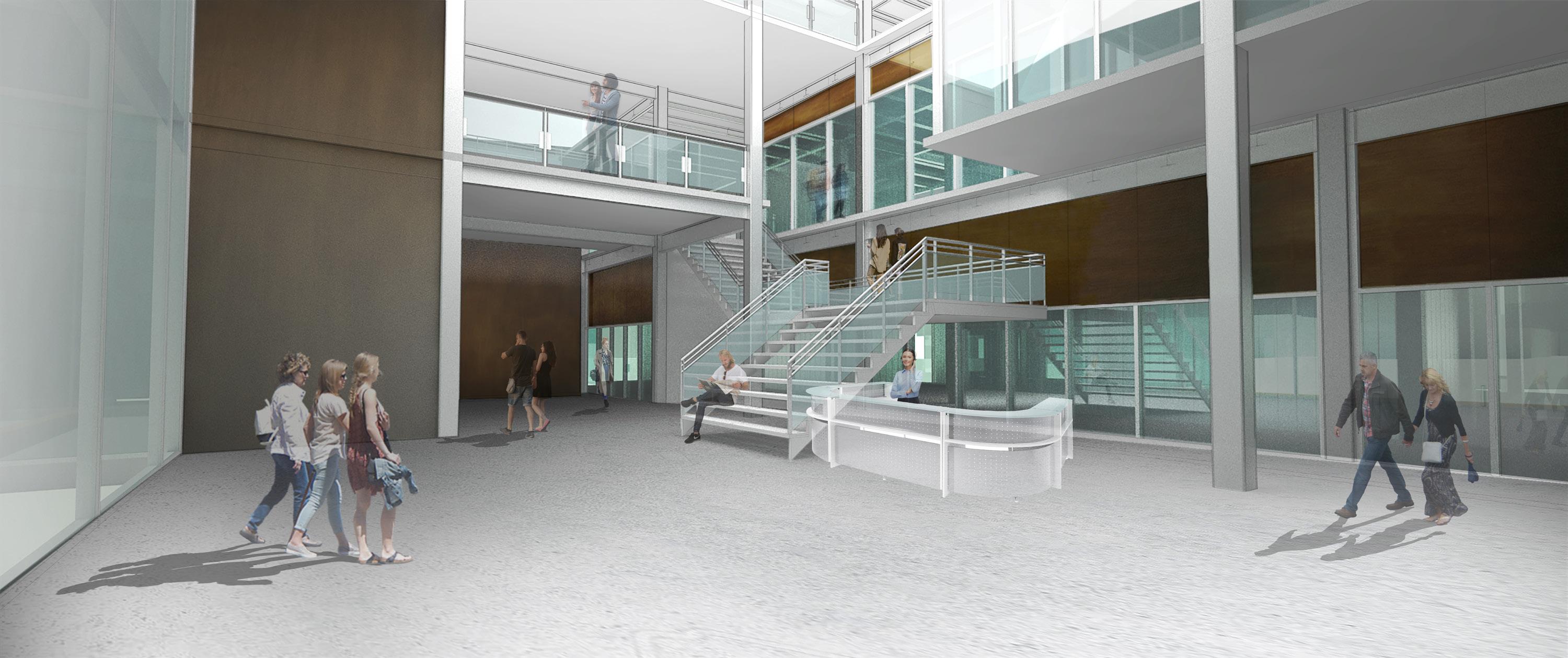

lobby / welcome desk

25 | Moder

1 2 3 4 5

6 7 8 9 10 11 12 13 14 15 16 17

1

7/8” CORRUGATED CLEAR ANODIZED ALUMINUM SIDING

2

CONTINUOUS DAMPROOFING

3

1/2” EXTERIOR SHEATHING

4

SPRAY INSULATION

5

ROUGH CAST CHANNEL GLASS

6

PVC DECK SUPPORT

7

DRAINAGE MEDIA FOR DEBRIS COLLECTION

8

5” COMPOSITE FLOOR SLAB

9

STEEL ANGLE

10

CONTINUOUS 6” HORIZONTAL STEEL CHANNEL FRAME

11

ANODIZED ALUMINUM WIND LOAD ANCHOR SUPPORT

12

CONTINUOUS 2 1/2” VERTICAL STEEL CHANNEL FRAME

13

CONTINUOUS STEEL TUBE

14

CLEAR ANODIZED ALUMINUM WIND CLIPS AND

18 19 20

21

22 23

24

SUPPORT STRUCTURE 15

5/8” GYPSUM BOARD

16

7” PLYWOOD

17

6” METAL FRAMING

18

EXTRACTED CLEAR ANODIZED ALUMINUM CHANNEL SUPPORT STACK JAMB

19

METAL WALL PANEL AND SOFFIT

20

DOUBLE GLAZED ALUMINUM CURTAIN WALL

21

FIRESTOP SYSTEM

22

STEEL WIDE FLANGE CROSS BEAM

23

STEEL WIDE FLANGE SPANNING MEMBER

24

STRUCTURAL STEEL COLUMN ENCASED WITH REINFORCED CONCRETE

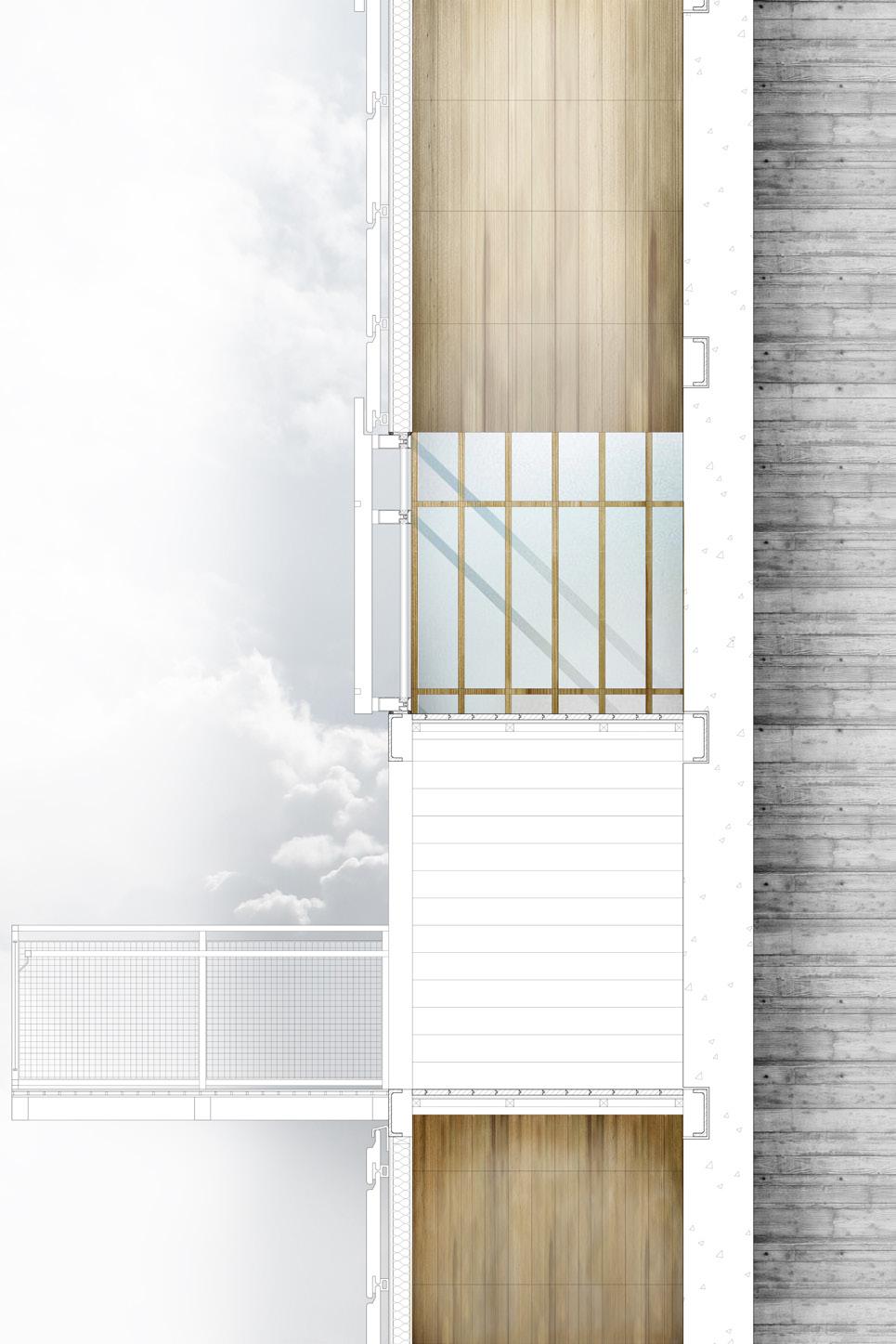

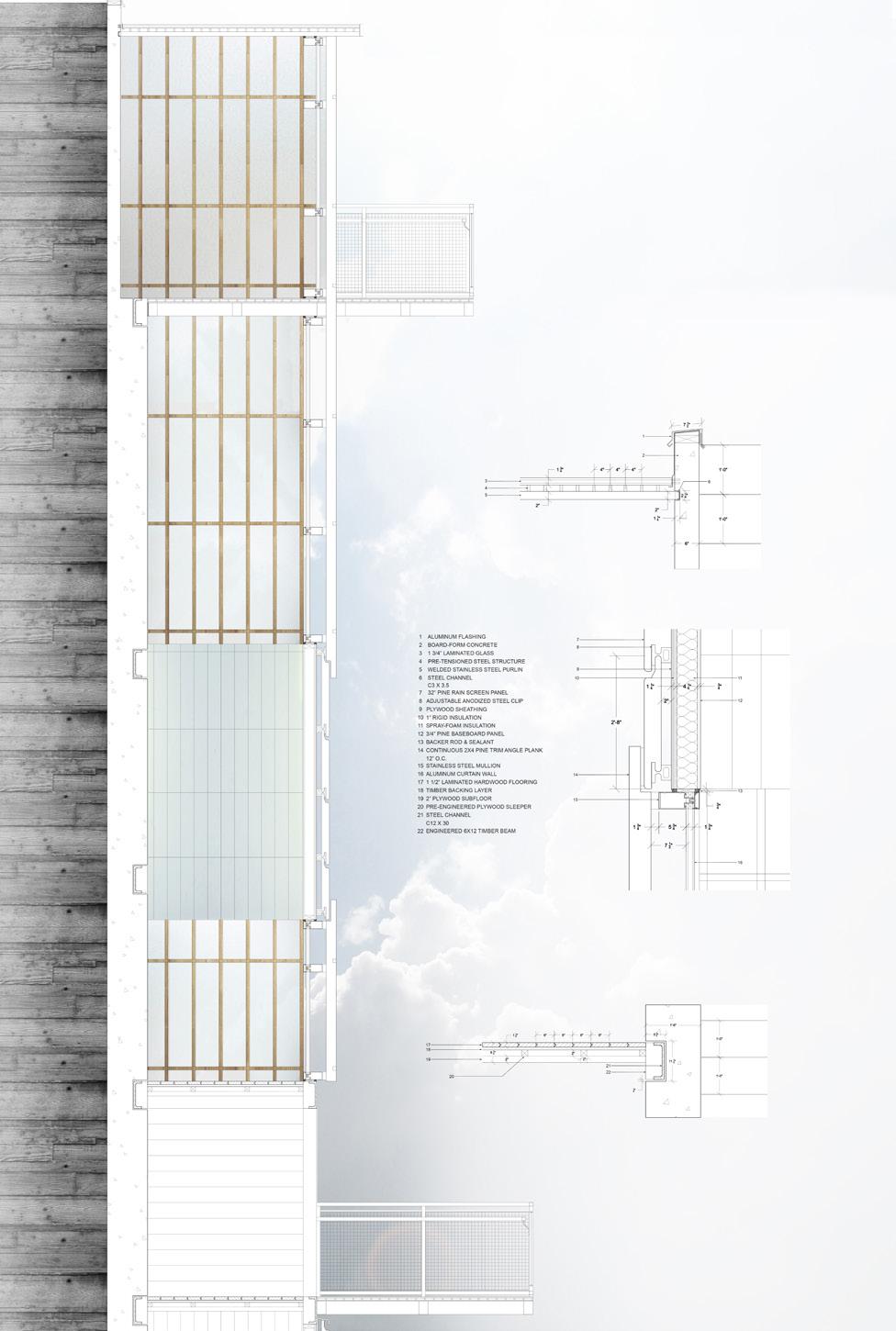

wall section

26 | Moder

light wells

stacks

reading rooms

circulation

facade

curtain wall

channel glass

bronze

structure

columns

beams

joists

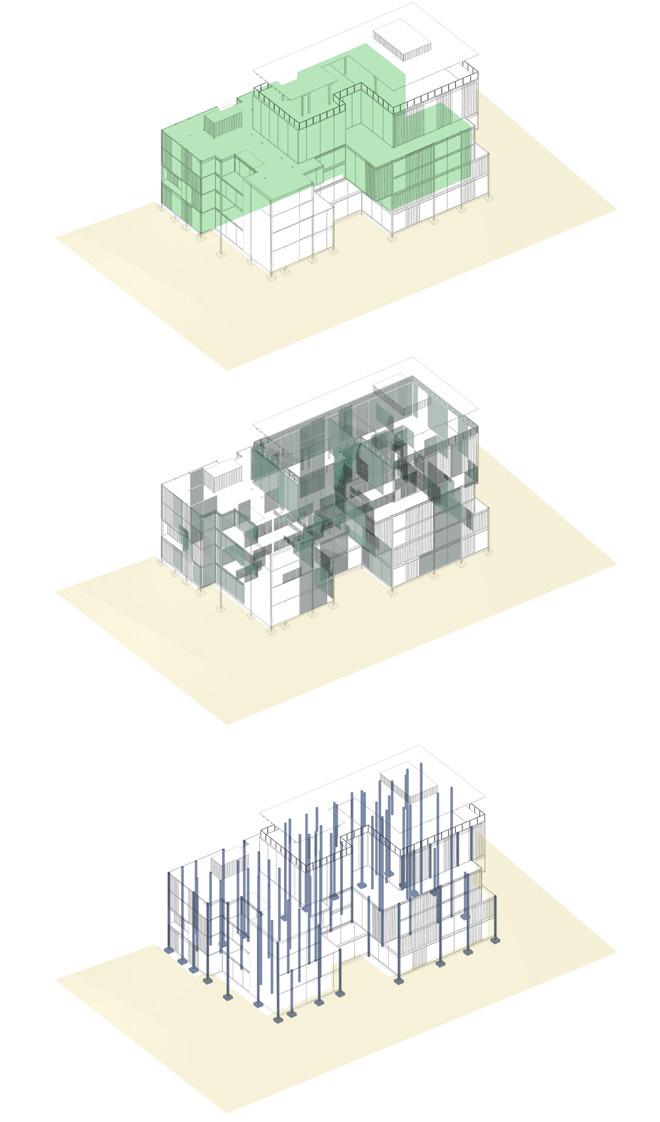

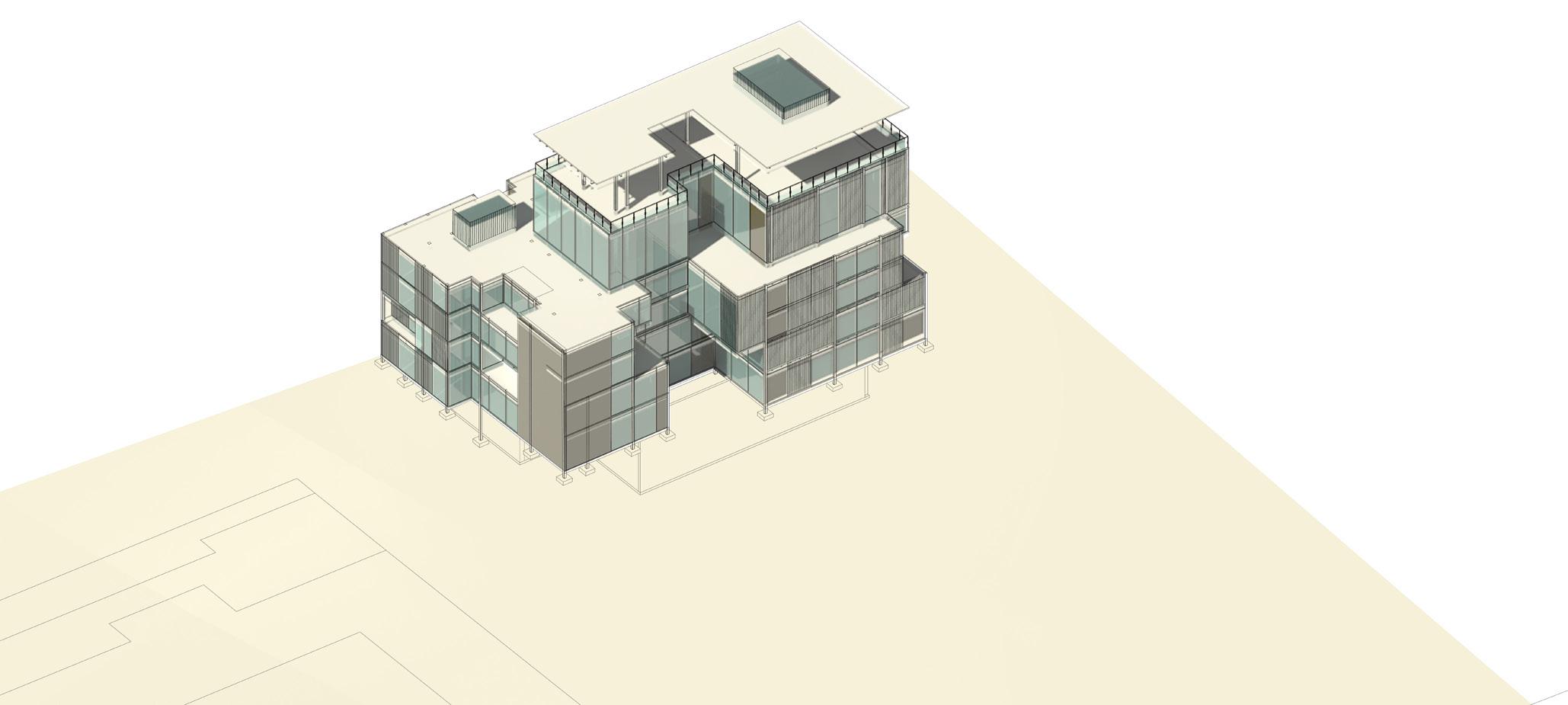

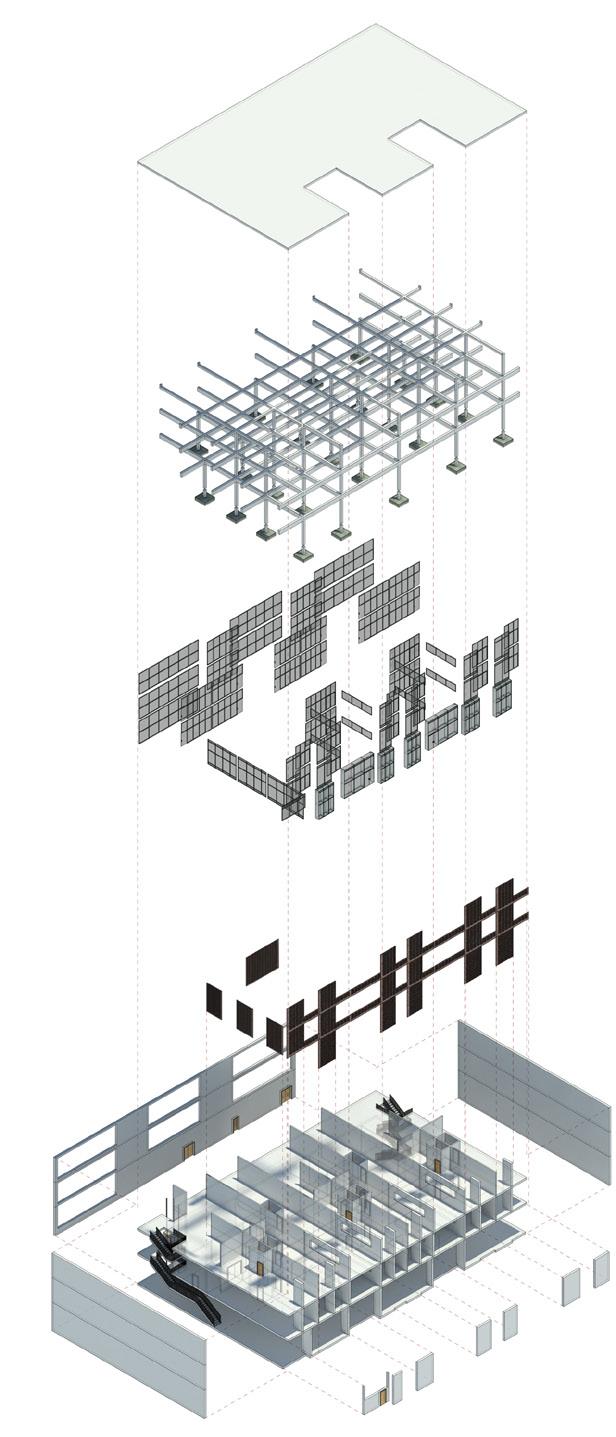

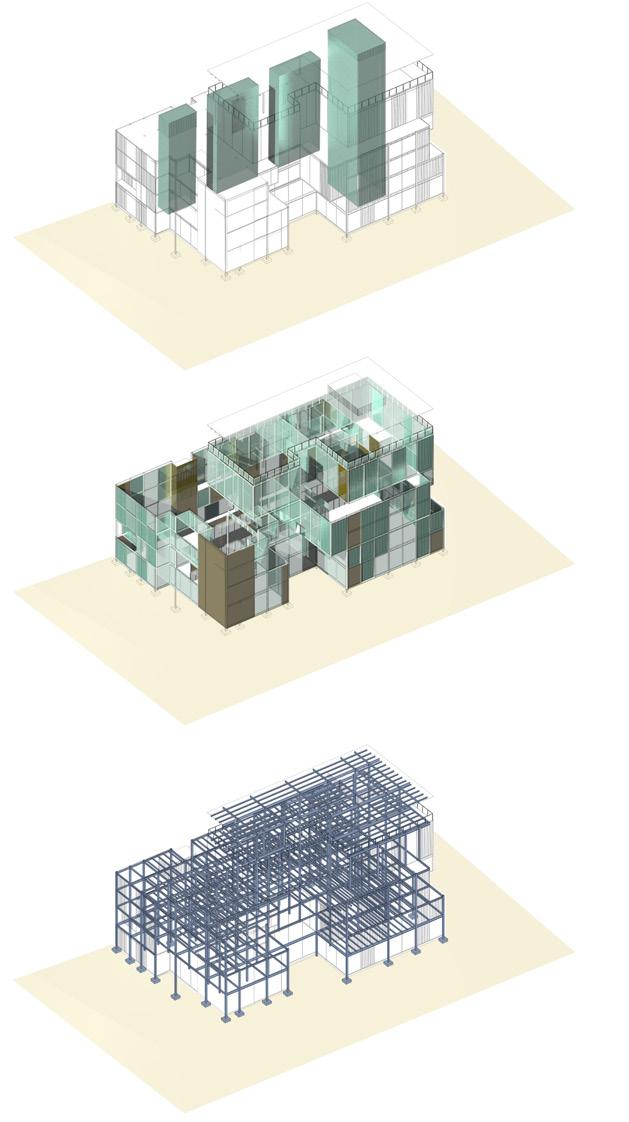

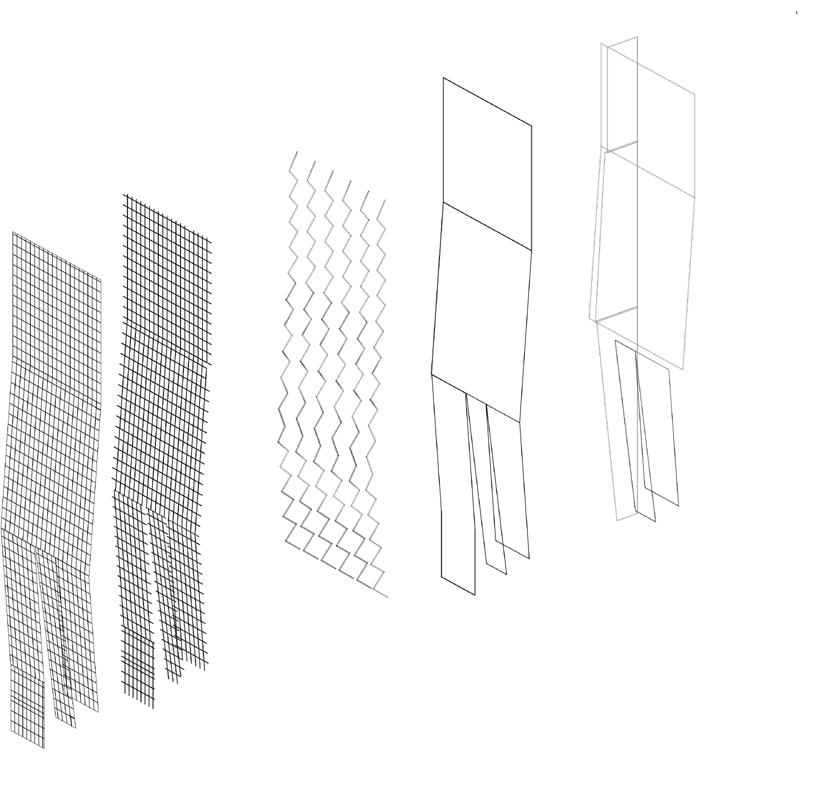

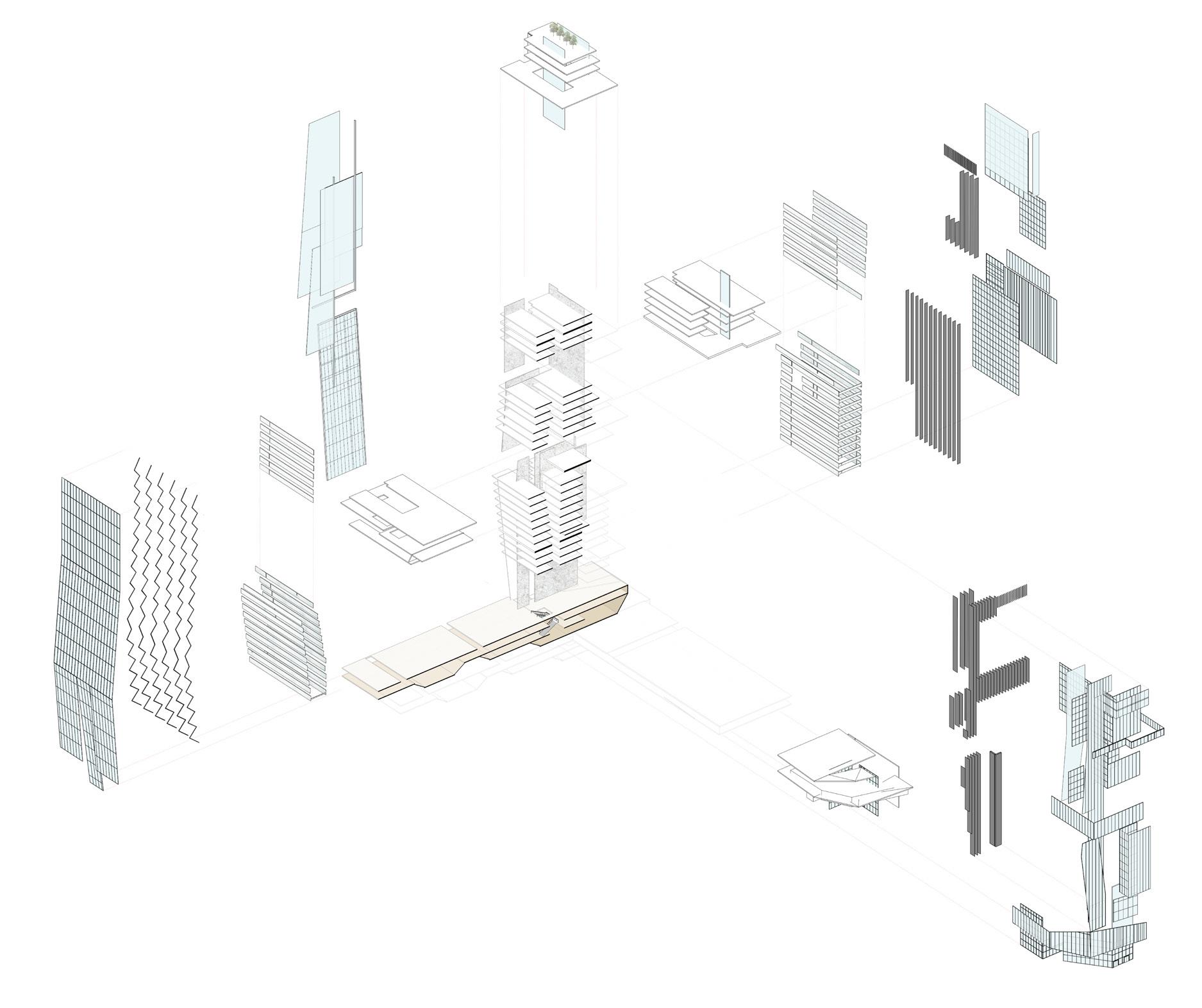

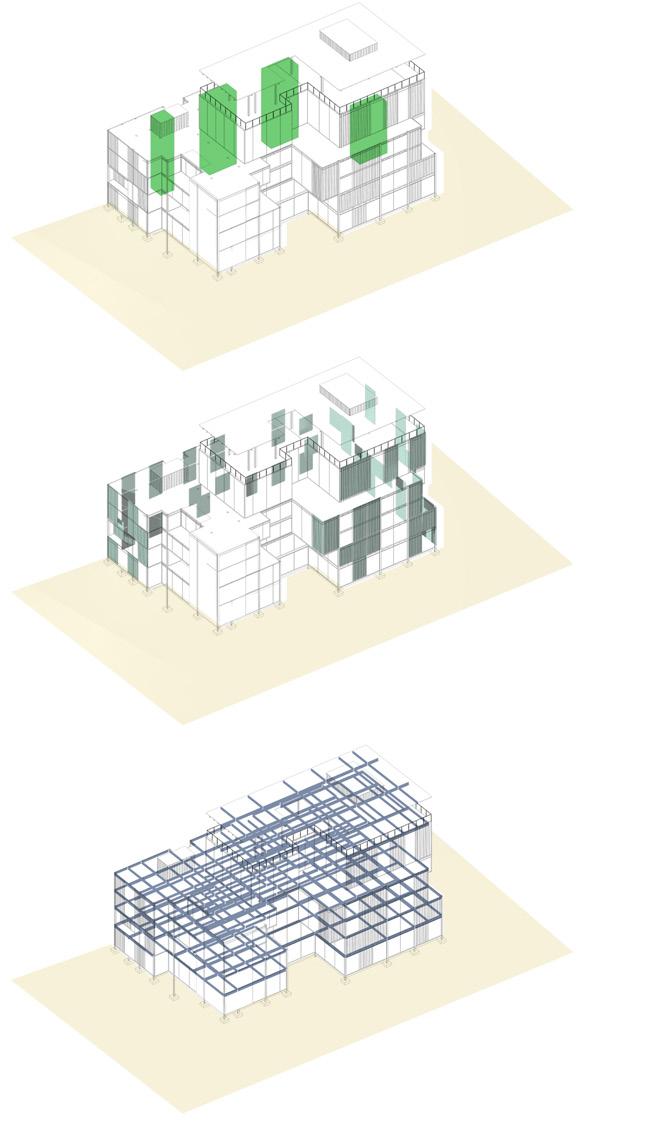

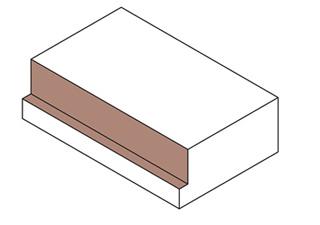

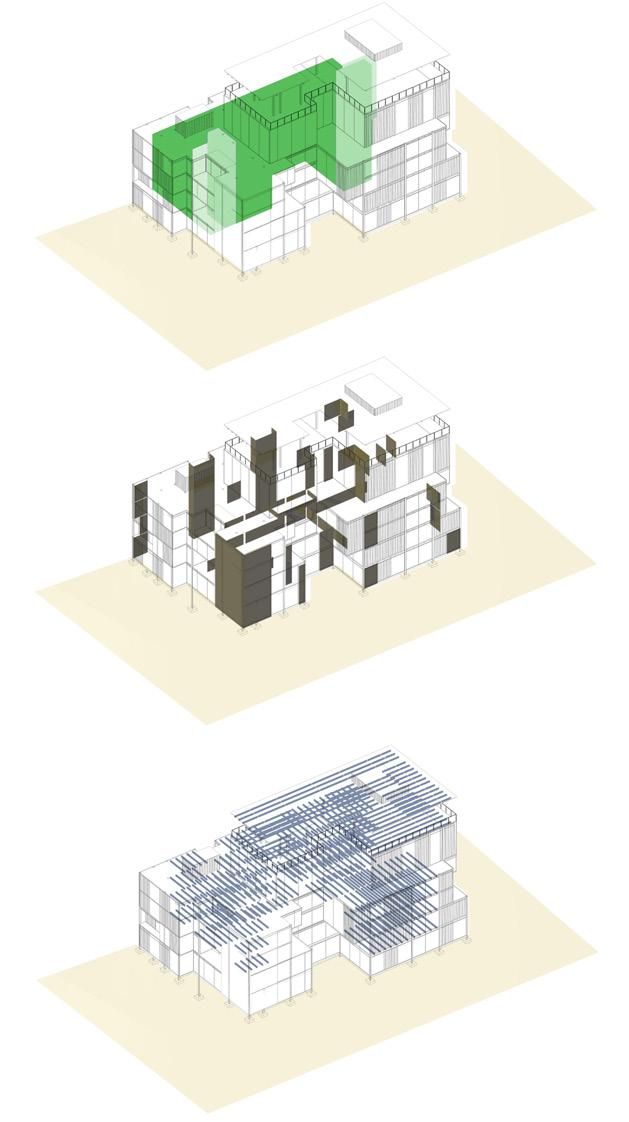

axonometric diagrams

27 | Moder

ROOST REFUGE Gr ad D e s i g n 3 | Fa l l 2 0 1 9 Cr itics | J e f f re y Ca rn e y & S a ra h G a mbl e

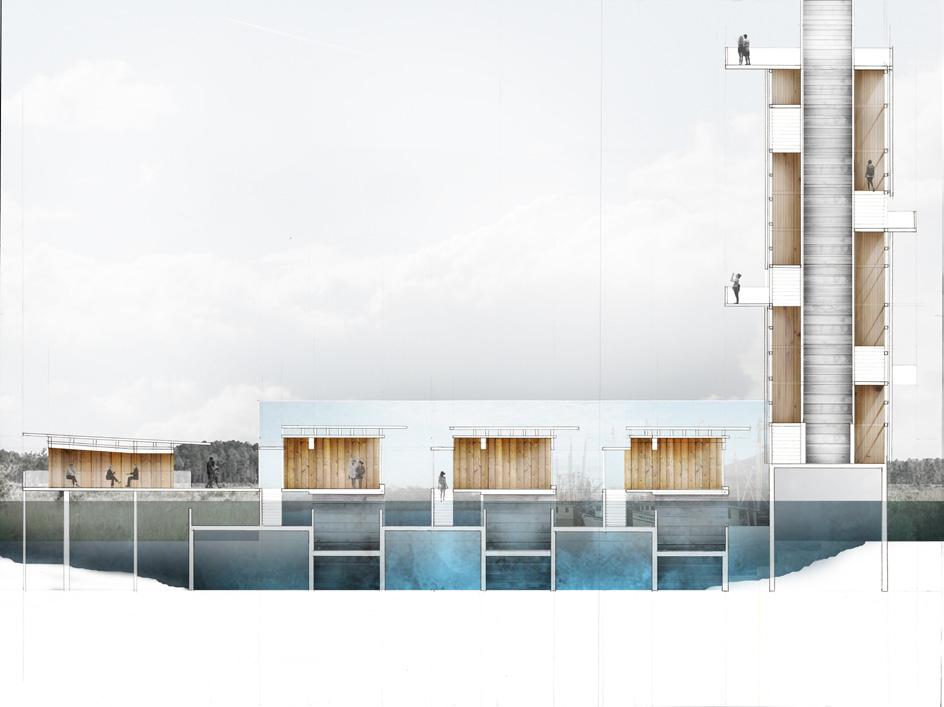

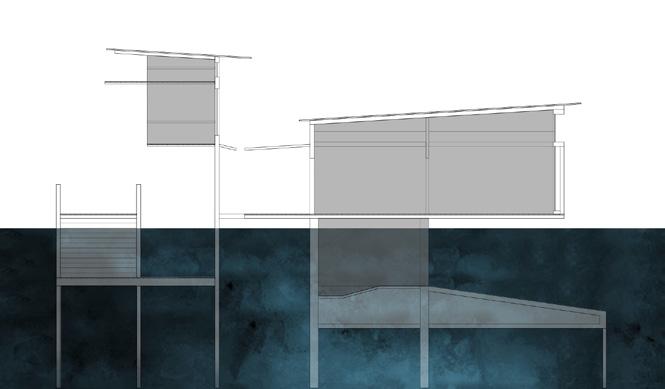

water level diagrams

28 | Moder

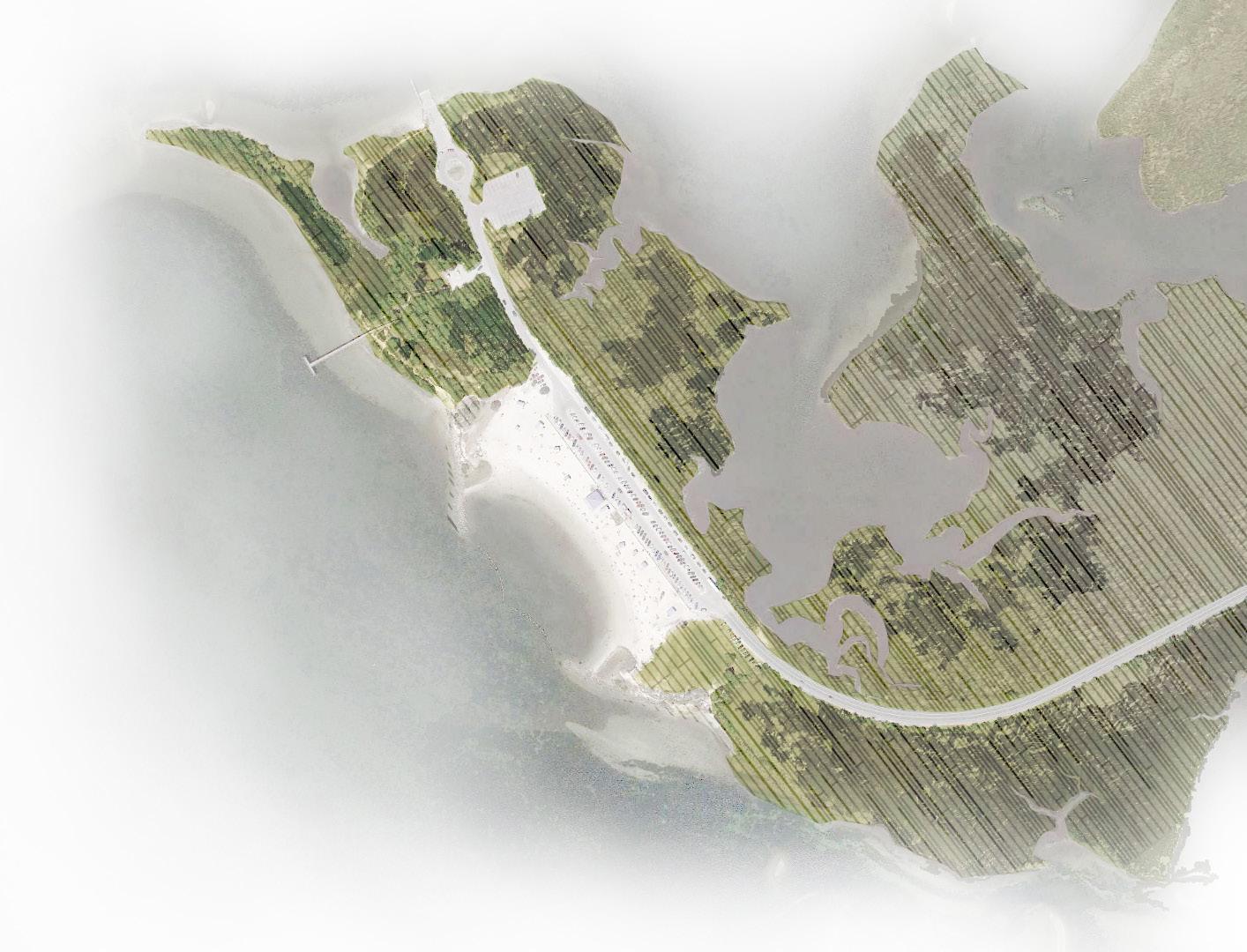

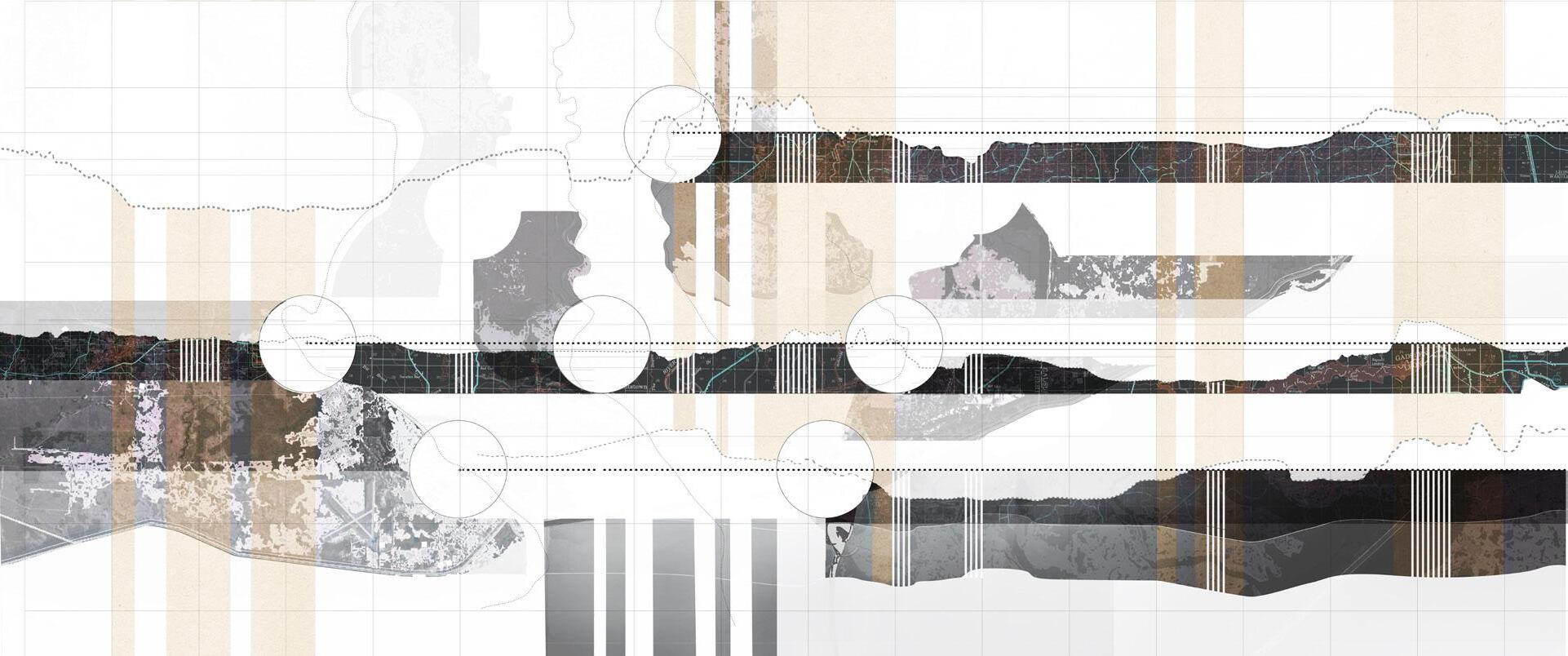

landscape transect drawing

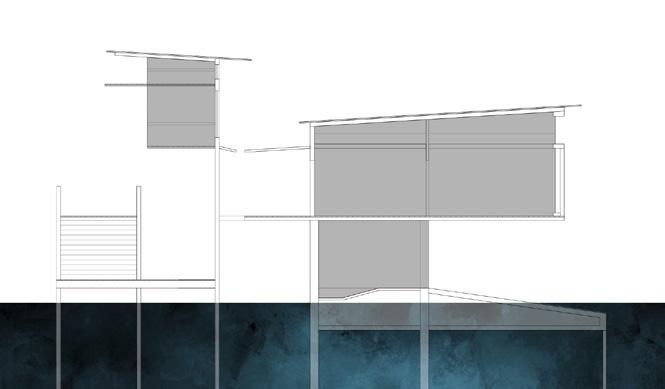

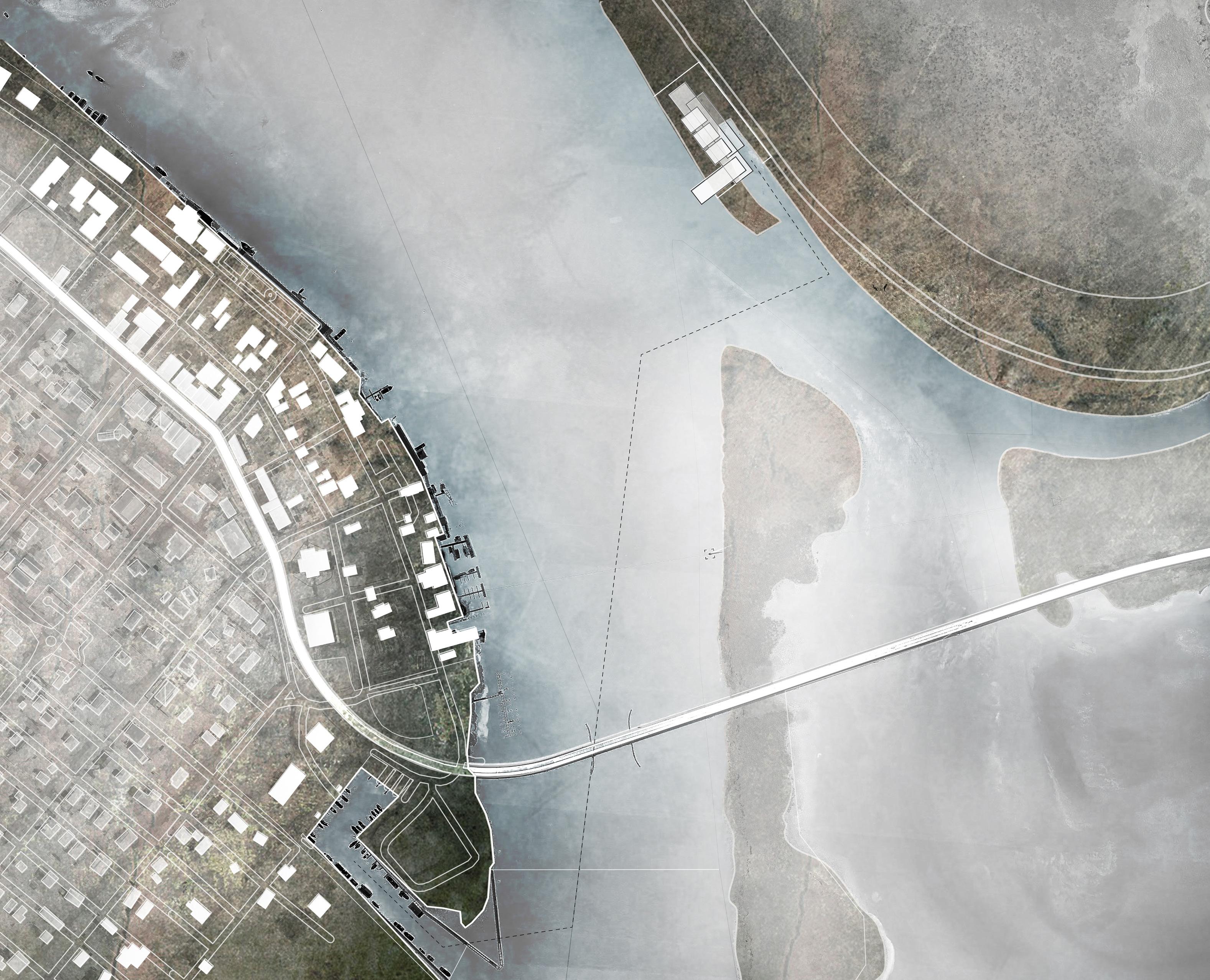

Located on an island off the coast of Apalachicola, Florida, a temporary refuge for both humans and birds addresses their relationship with an increasingly vulnerable landscape. A transect drawing explores the hydrological shaping of the nearby area between Apalachicola and Eastpoint. Known for its distinct hodgepodge of ecologies and wildlife, the forested area east of the Apalachicola River becomes more dynamic as fresh and coastal waters flow into each other from north and south respectively. A porous ground also forms as the land shifts in and out with the incoming tides, resulting in new layers of marks and textures that are gradually added over time.

Through an overlay of oceanographic and meteorological data taken from the site, a sectional collage is digitally created to express these diverse systems at work within the landscape.

The project contains a program that will adapt to the landscape as sea level rise submerges marshland and forest over a twenty-year period. In addition to three residential units looking out over the city, three smaller dwellings facing the delta are built into a reflective glass wall to accommodate migratory bird species travelling to the site at the same time. An observation tower brings the occupant from water to sky, offering panoramic views of city and coastal forest.

Together they form a series of spaces for local and “snowbird” residents to explore and learn more about their natural surroundings.

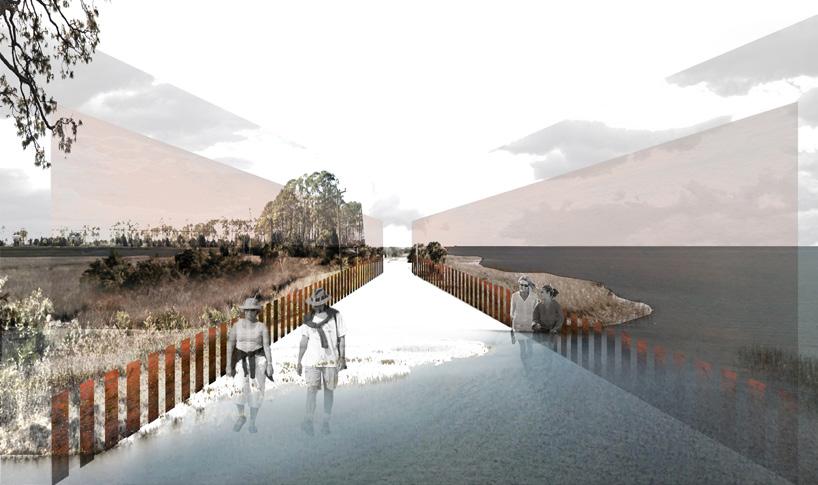

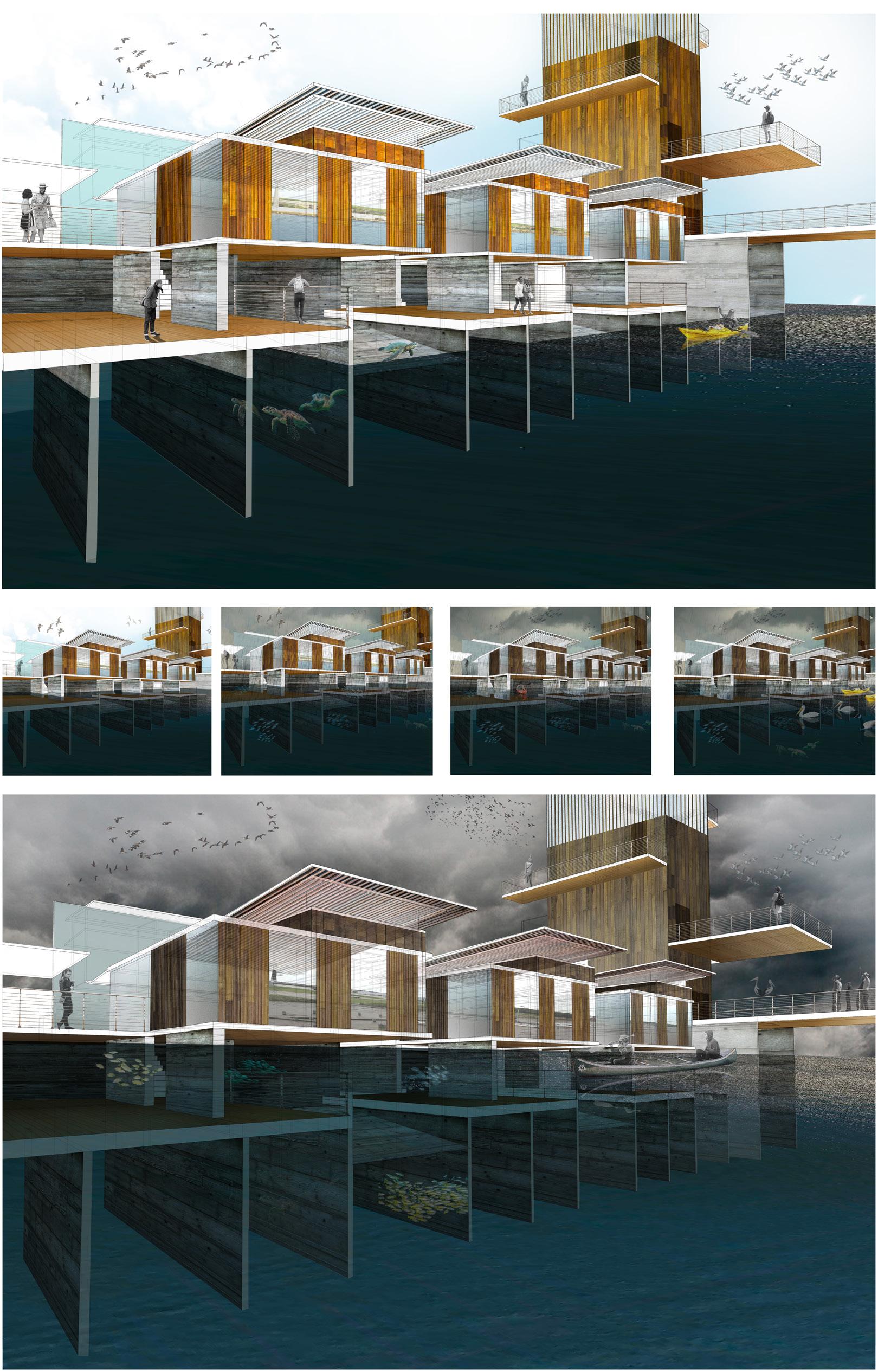

mediation collages

29 | Moder

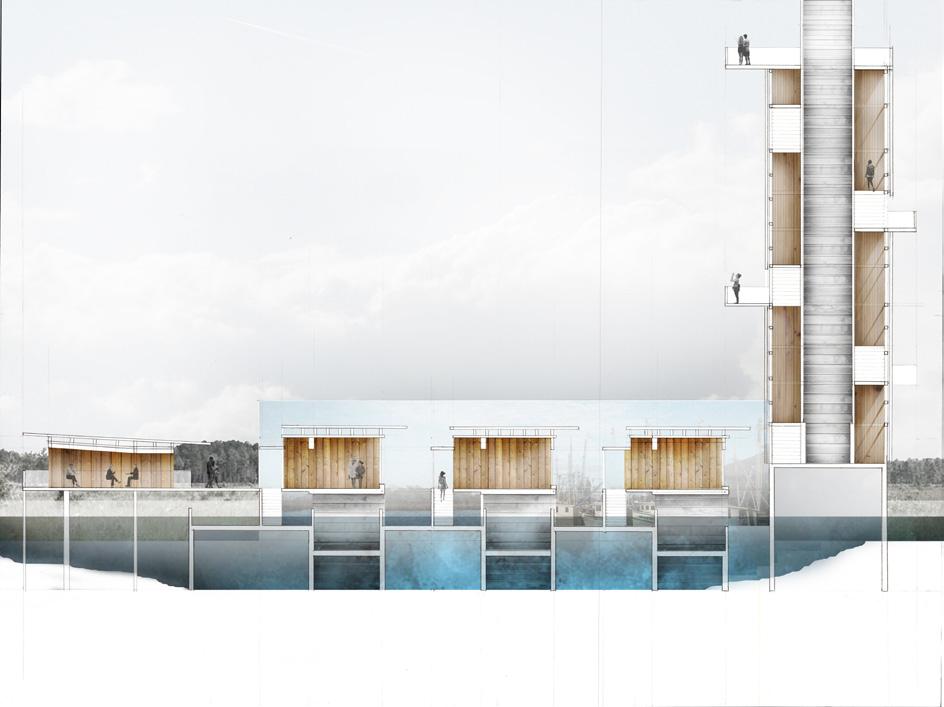

rendered wall section

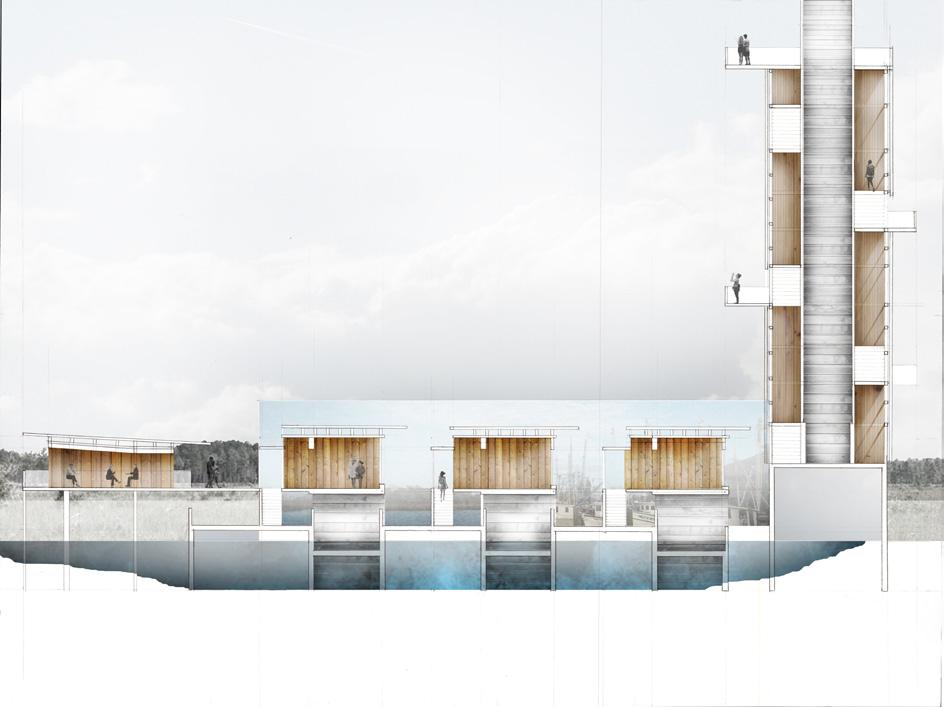

longitudinal sections

30 | Moder

31 | Moder

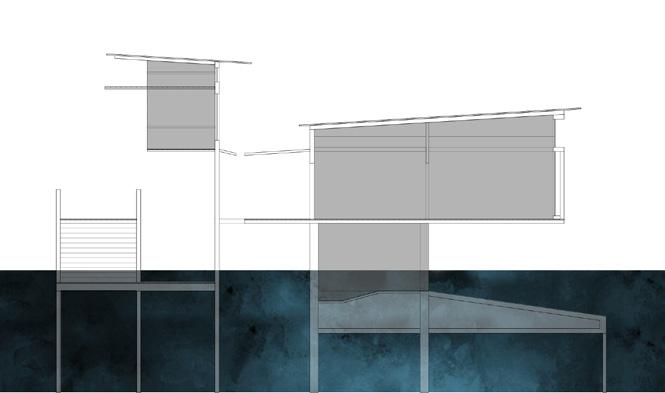

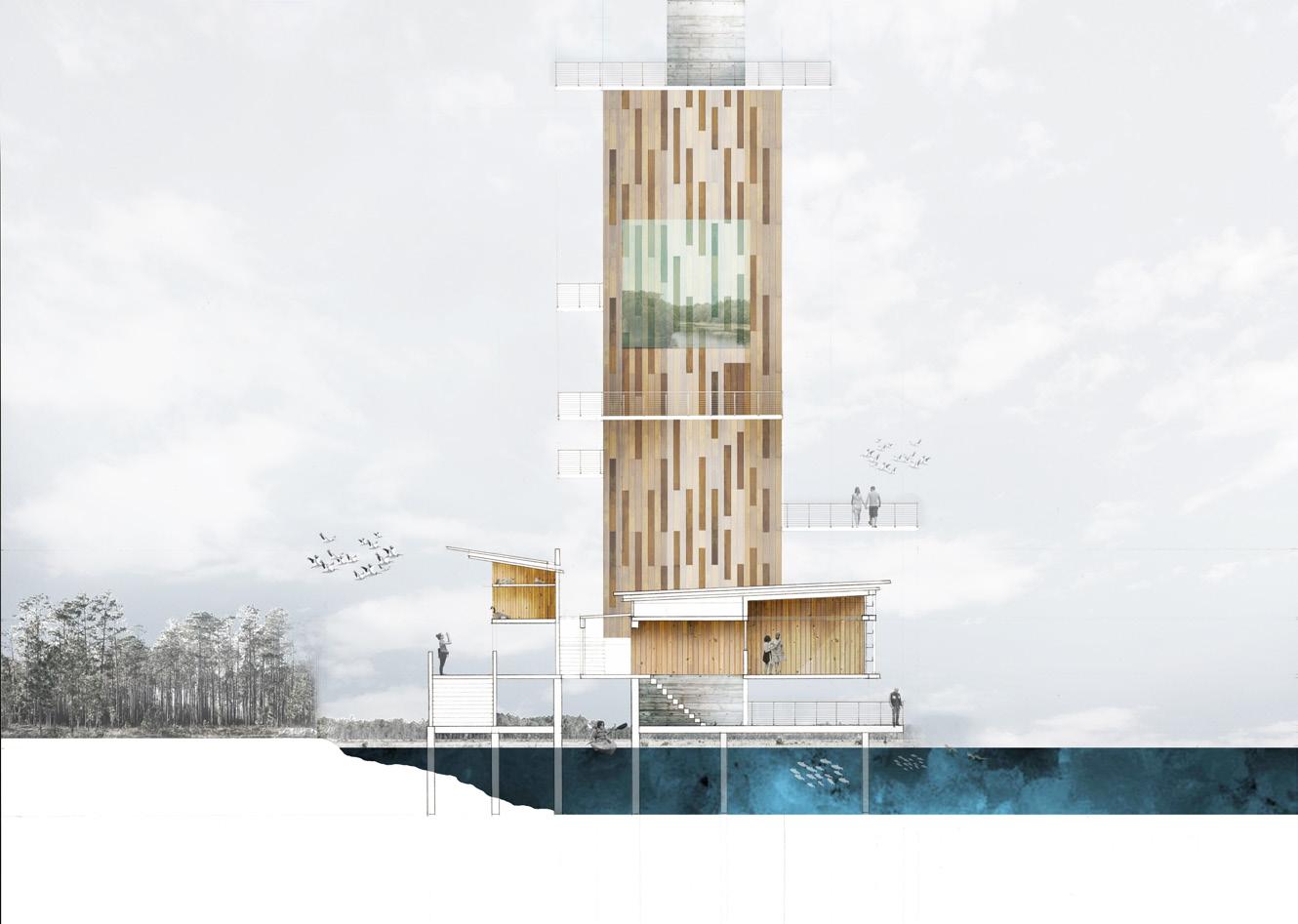

latitudinal section

32 | Moder

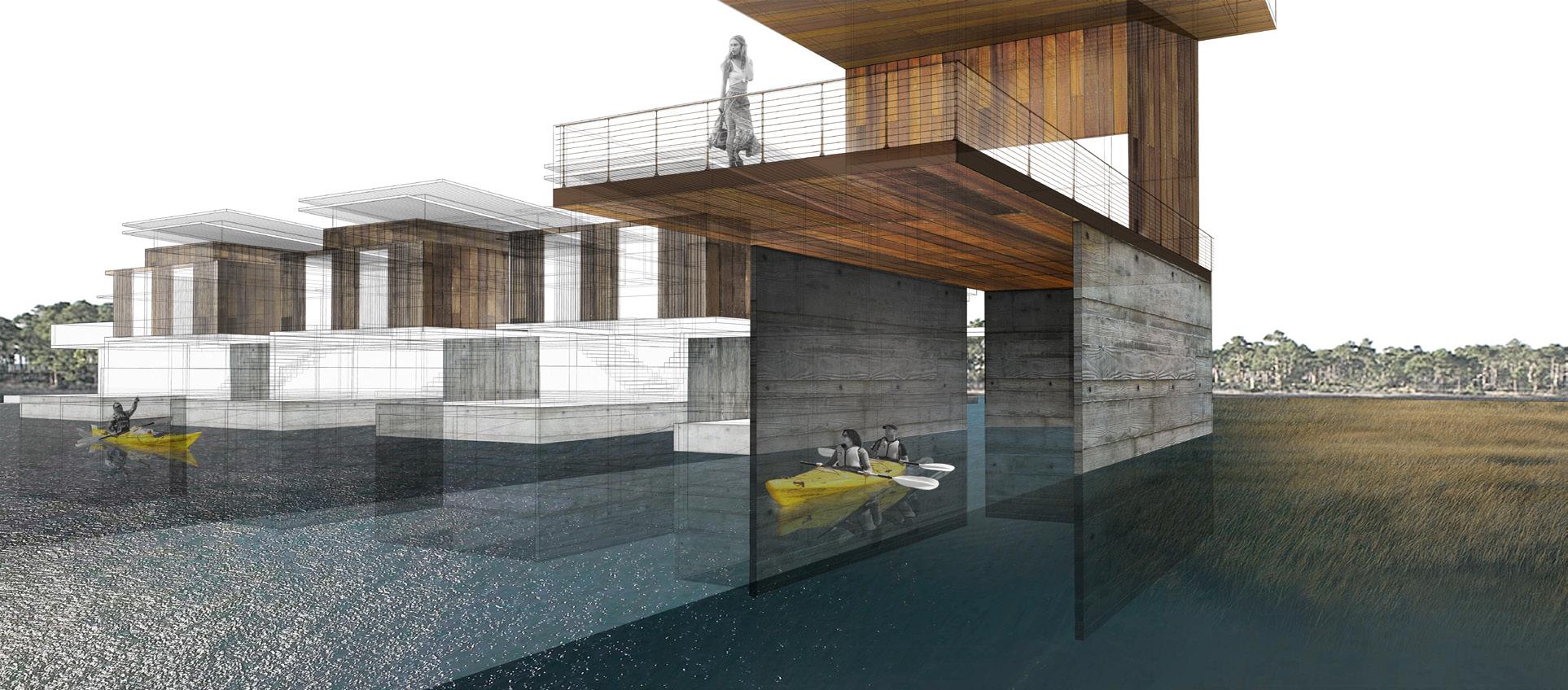

kayak launch + outdoor communal space

south entrance

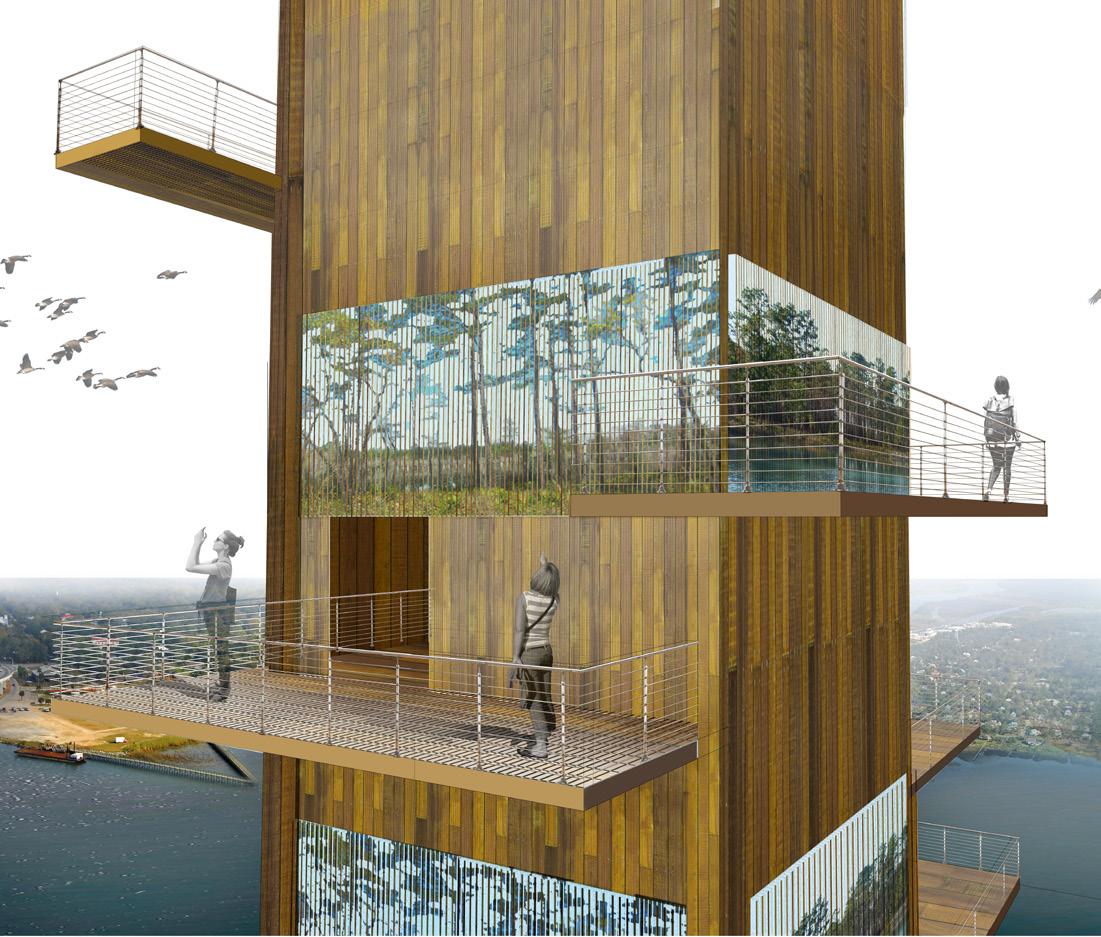

observation tower

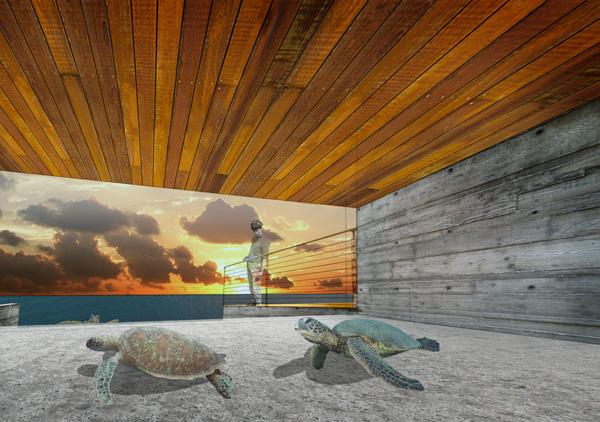

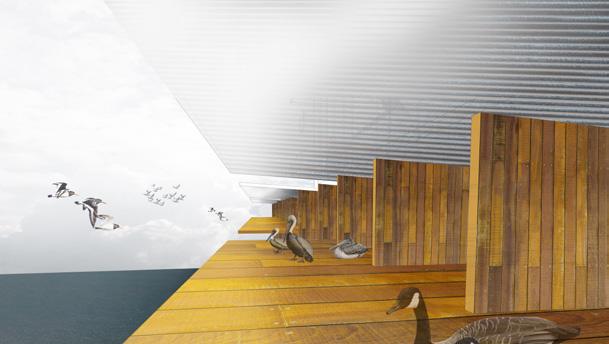

turtle + bird dwellings

33 | Moder

LUMINA PLEX D esign 8 | Spr in g 2018 C r itic | Nan cy C lar k LAGI 2018 C o mpetitio n En tr y As a seaside attraction, St. Kilda represents an important subculture within Melbourne that deserves to be celebrated. Although its locale is ideal for bringing in locals and tourists alike, one of the largest concerns pertaining to the site is exposure to harsh sunlight. This project attempts to ameliorate this drawback by utilizing solar energy collection methods with an aesthetic layer.

Each building of the cultural facility has a “hanging pavilion” with a photovoltaic façade that functions similarly to a building-integrated array. Acting as a solar collector, each structure will celebrate a different aspect of the community, including food, art, and music. In addition to its bright color scheme influenced by the local Bohemian lifestyle, every panel is operable and can maximize energy production at nearly any angle.

This is due to the usage of dye-sensitized solar cell (DSSC) technology, the color of each panel is determined by how much light is absorbed in any given day. The harvesting process is designed to mimic the biological phenomenon of photosynthesis, with colored dye in place of chlorophyll. Each façade will collect enough light to power the pavilions—and by extension the cultural facility.

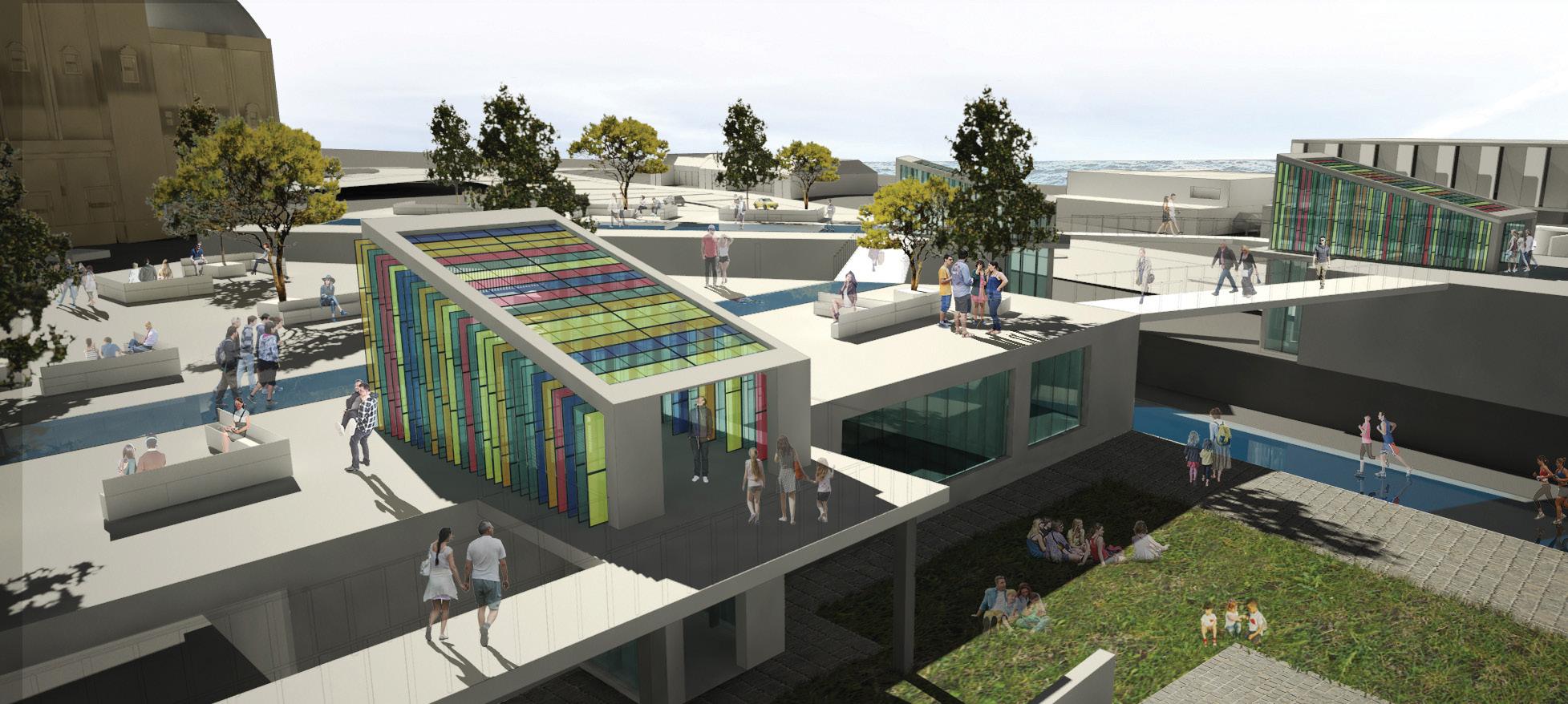

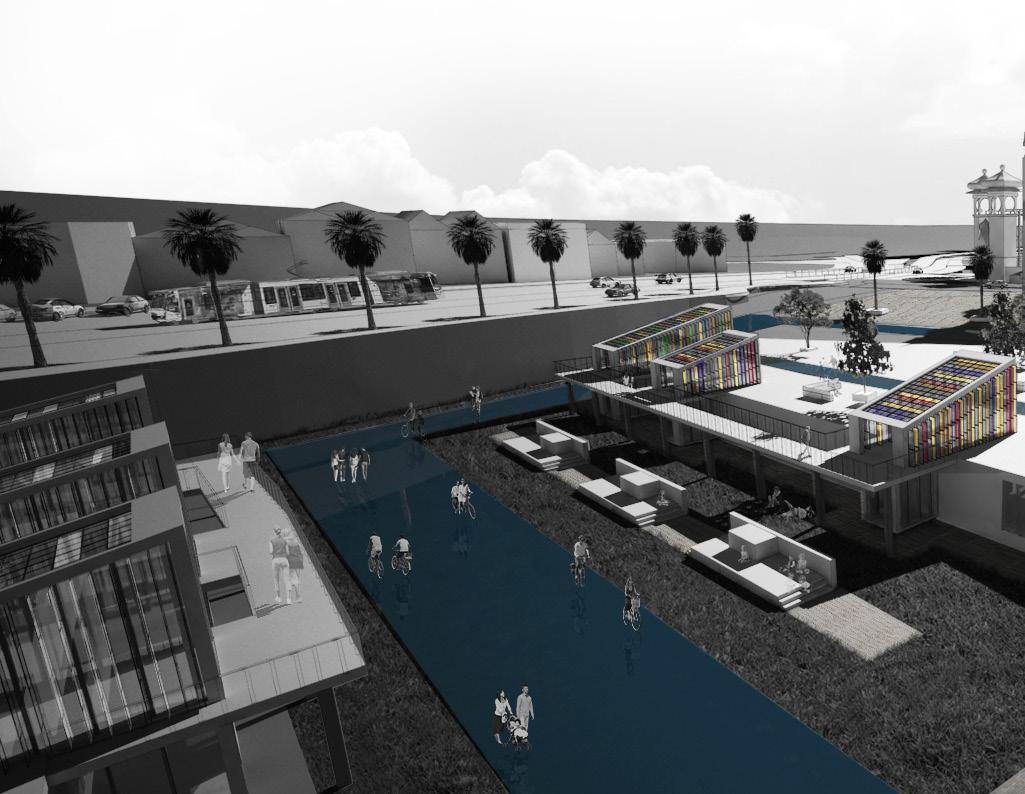

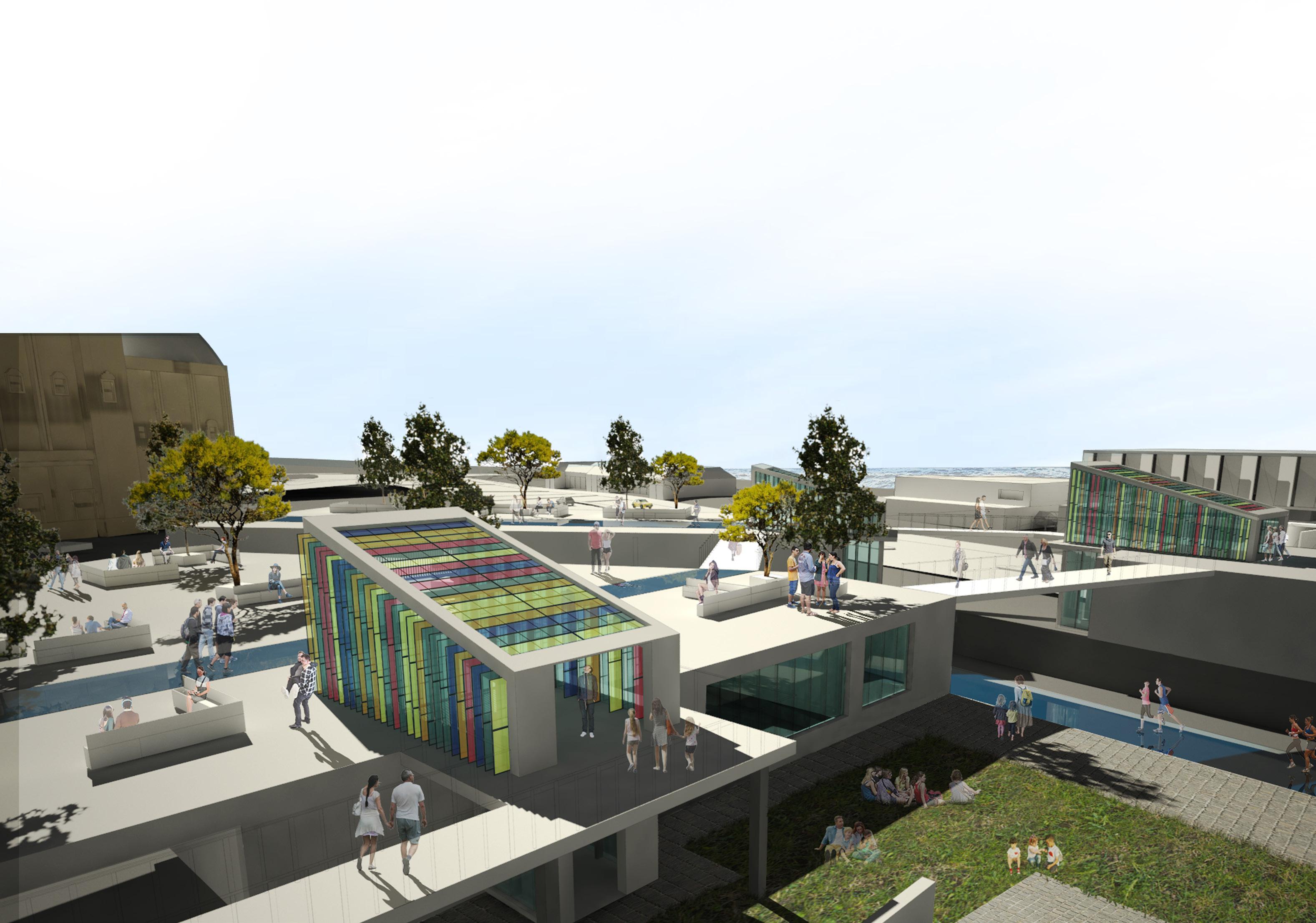

pavilion + roof garden

34 | Moder

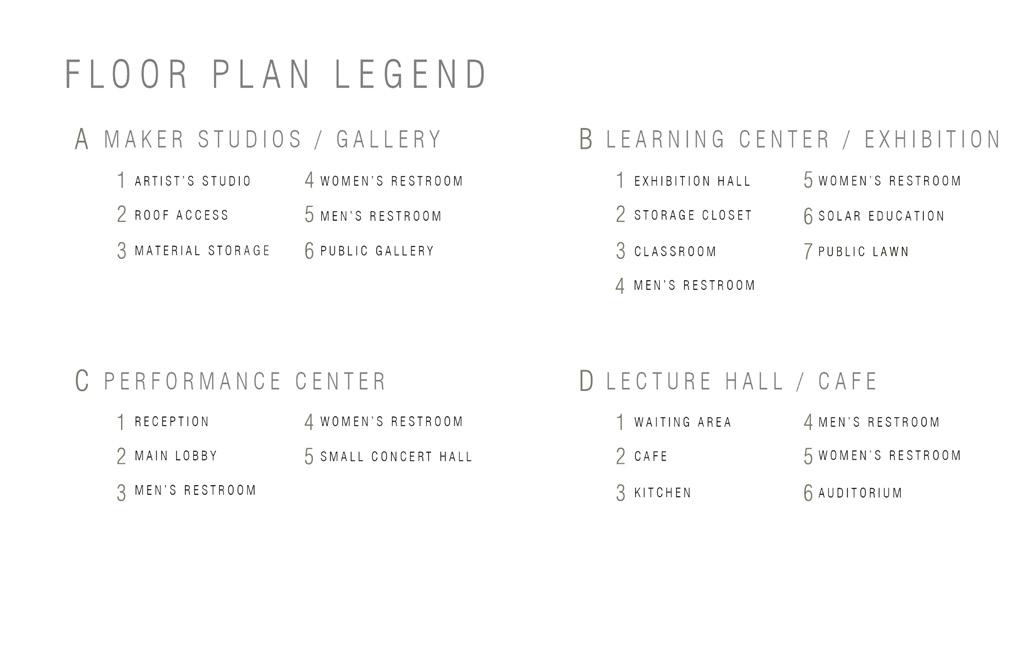

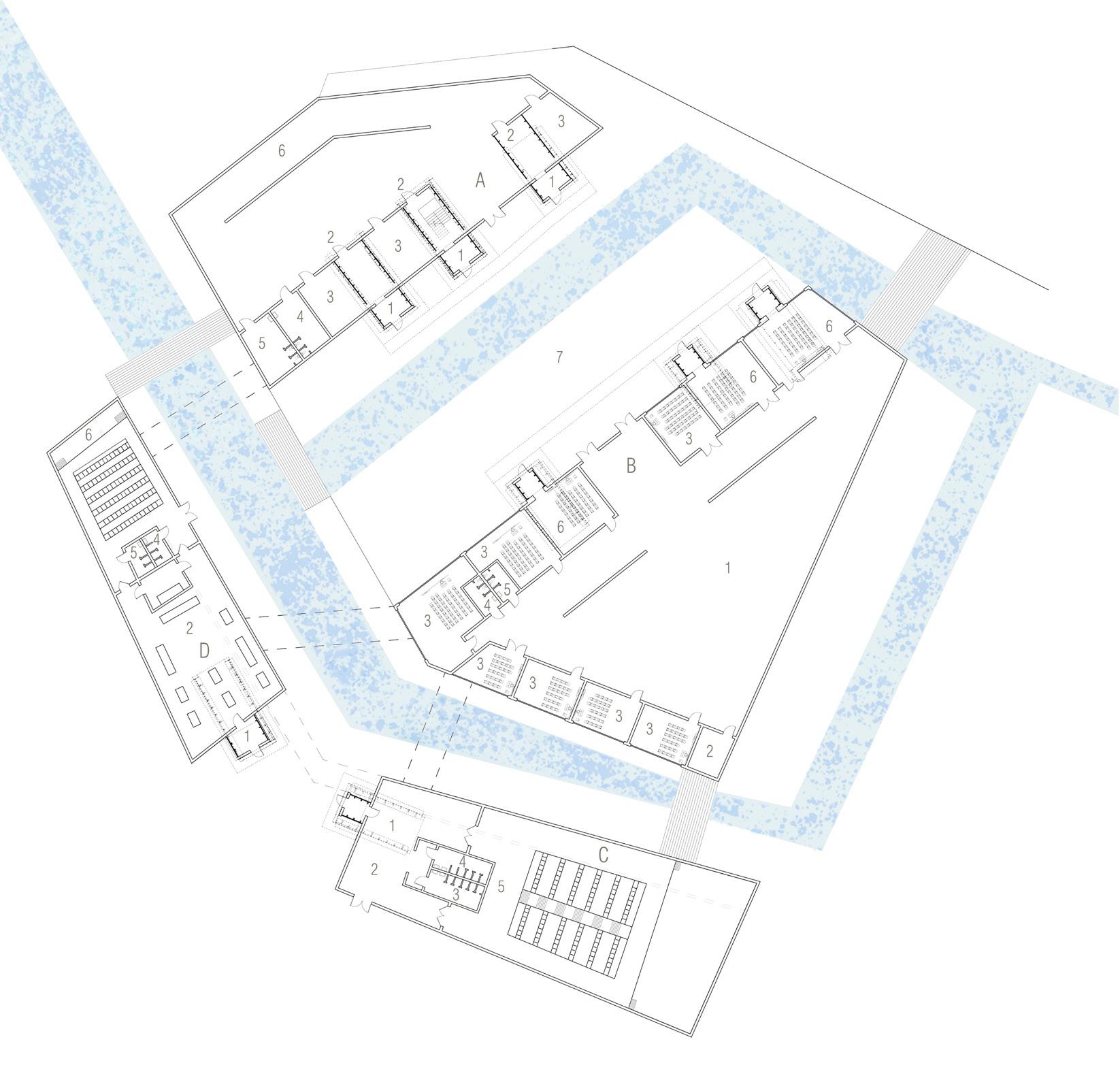

art

education

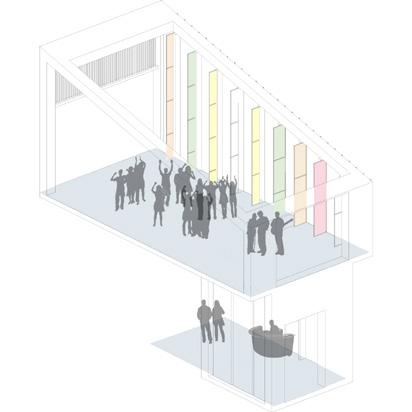

music + performace

dining + conference

35 | Moder

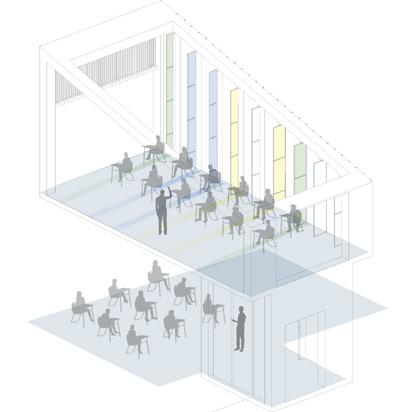

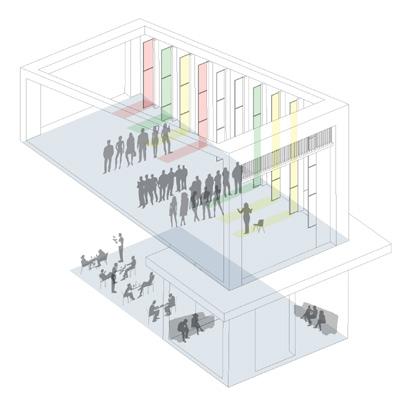

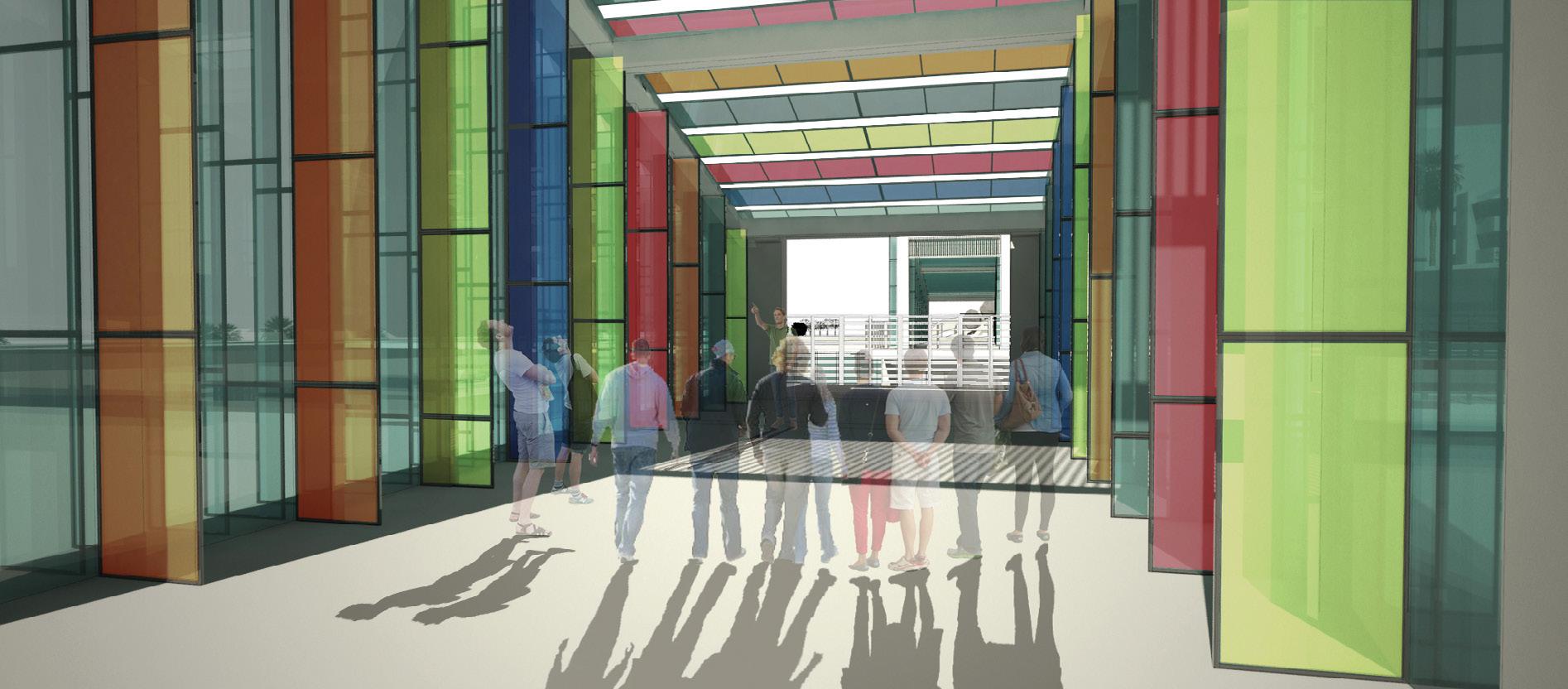

solar classroom interior

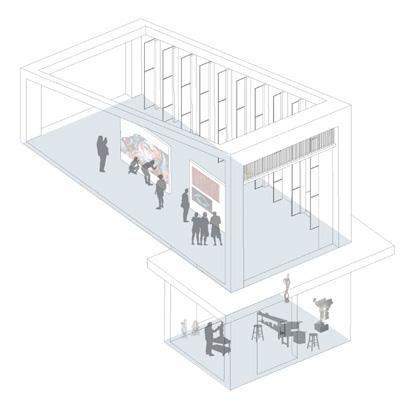

maker studio + public gallery

36 | Moder

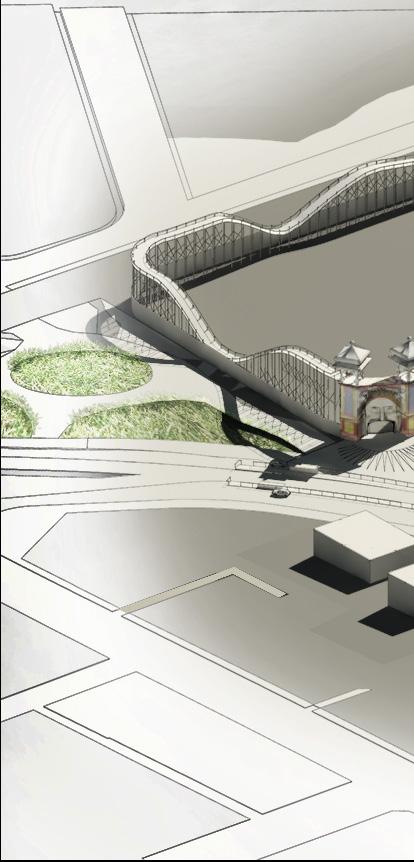

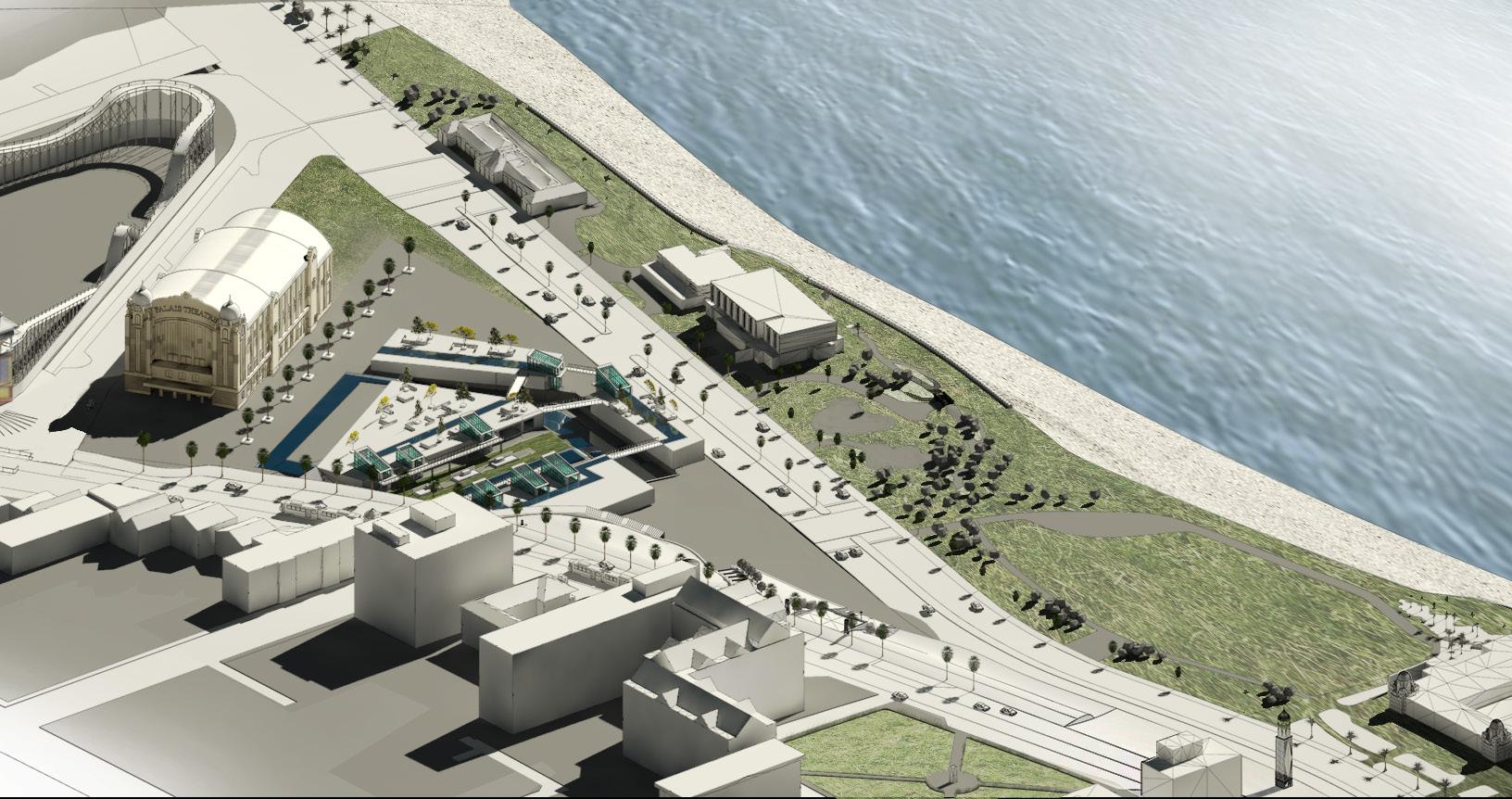

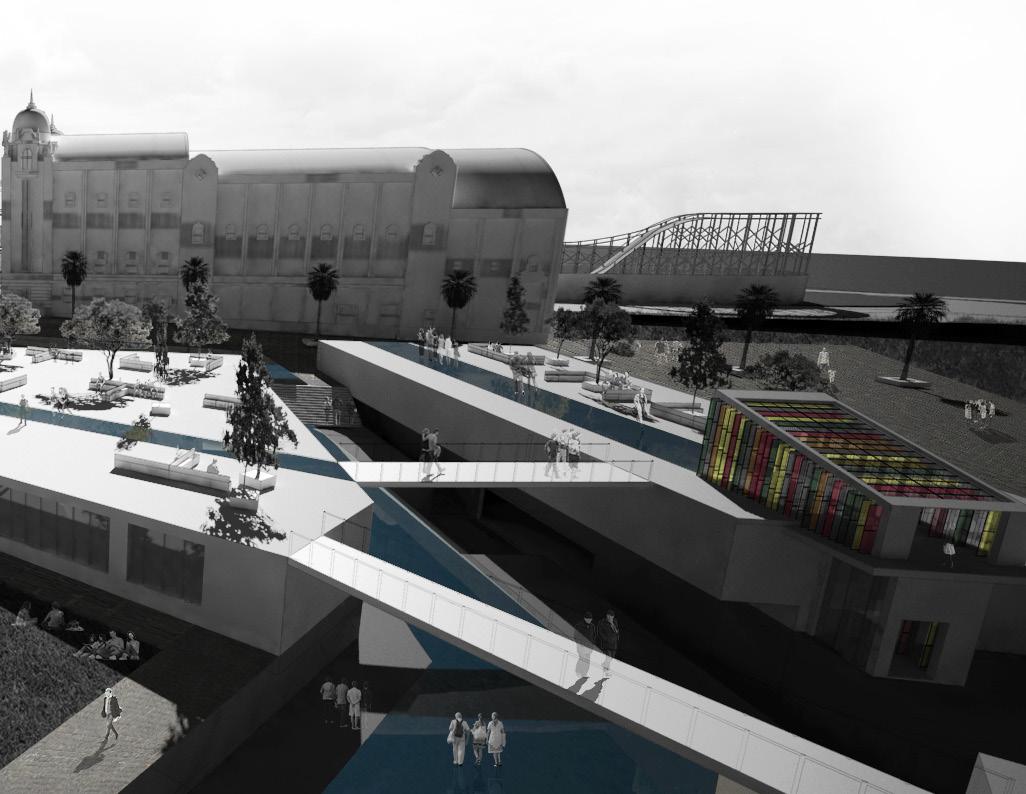

aerial perspective

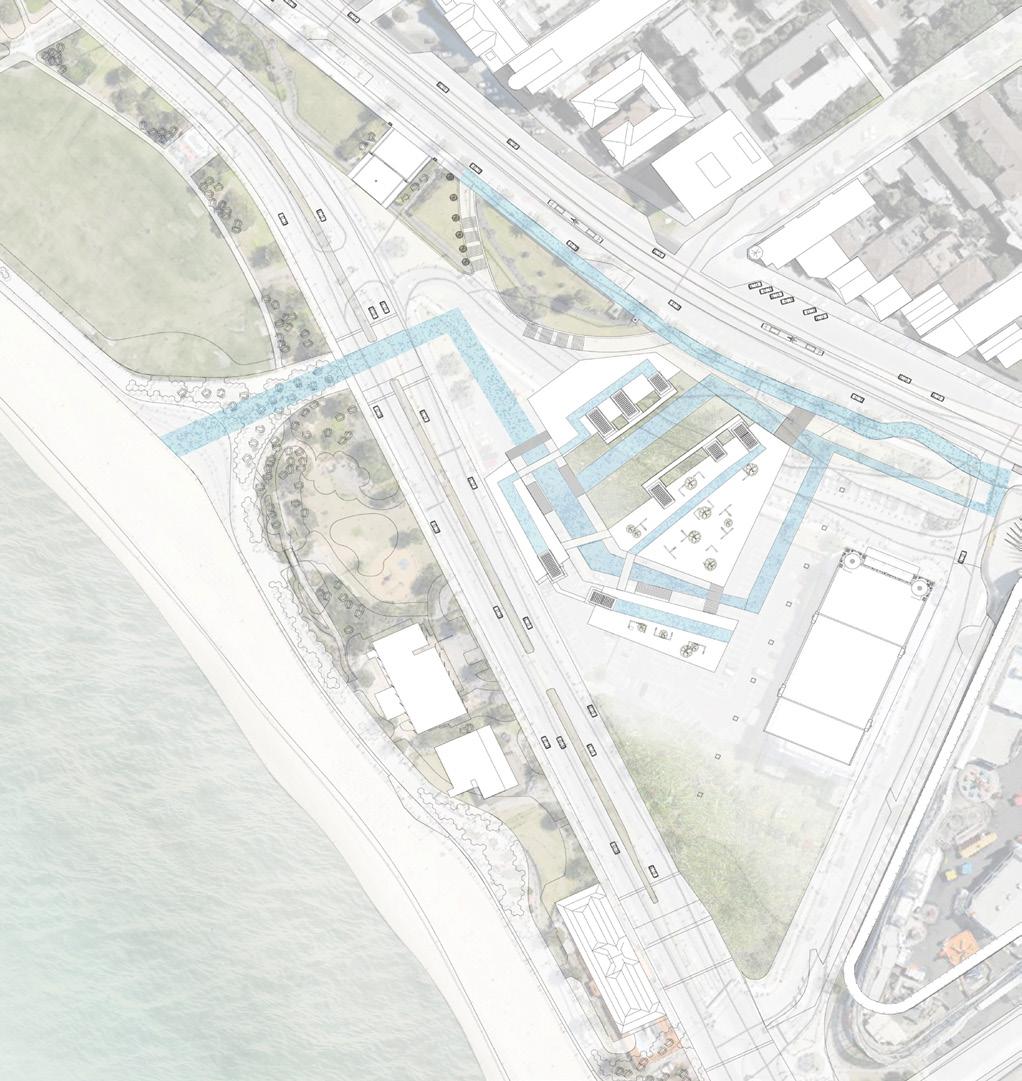

Once the day shifts to dusk, another solar collecting system activates. A network of wide paths creates an internal hub that makes up Lumina Plex. Connections on the Esplanade and Jacka Boulevard also draw pedestrians in from the city and beach, especially at night. Translucent concrete is infused with a photochemical called luminophore, which absorbs sunlight and releases it in the form of photons. This allows the sidewalks to transform into LED displays of varying imagery. There are several opportunities for local and international artists to express their creative visions through a unique platform. Paths are expected to produce enough electricity for these exhibits to last until sunrise, providing 24-hour access to the triangle.

37 | Moder

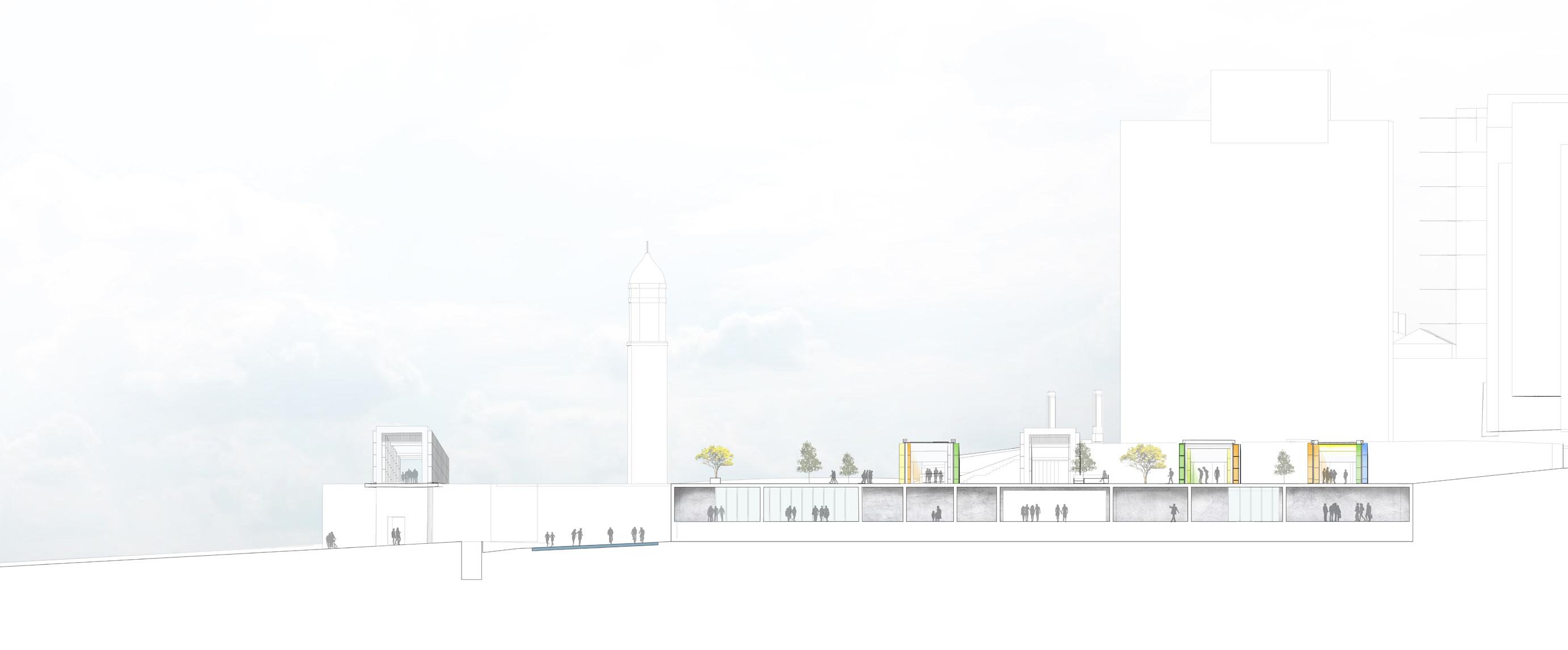

site section (slopes to theater)

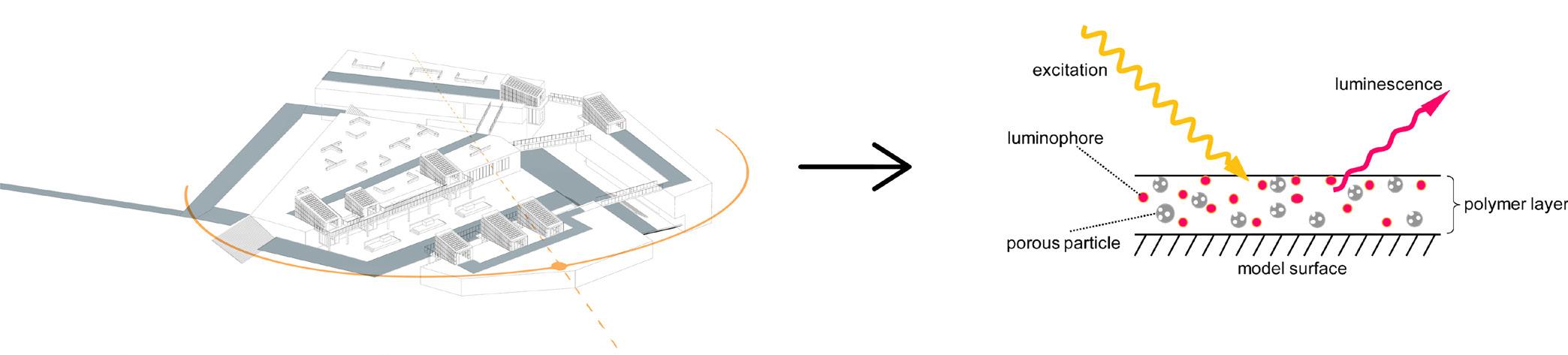

luminophore energy collection

800 m length x 7.5 m width = 6,000 m2 6,000 m2 long footpath (including roof) x 10 Wh/day x 8 h minimum collection period = 480,000 W = 480 kWh/day 480 kWh x 365 days/yr = 175,200 kWh/yr = 175.2 MWh/yr

38 | Moder

site section (esplanade to beach)

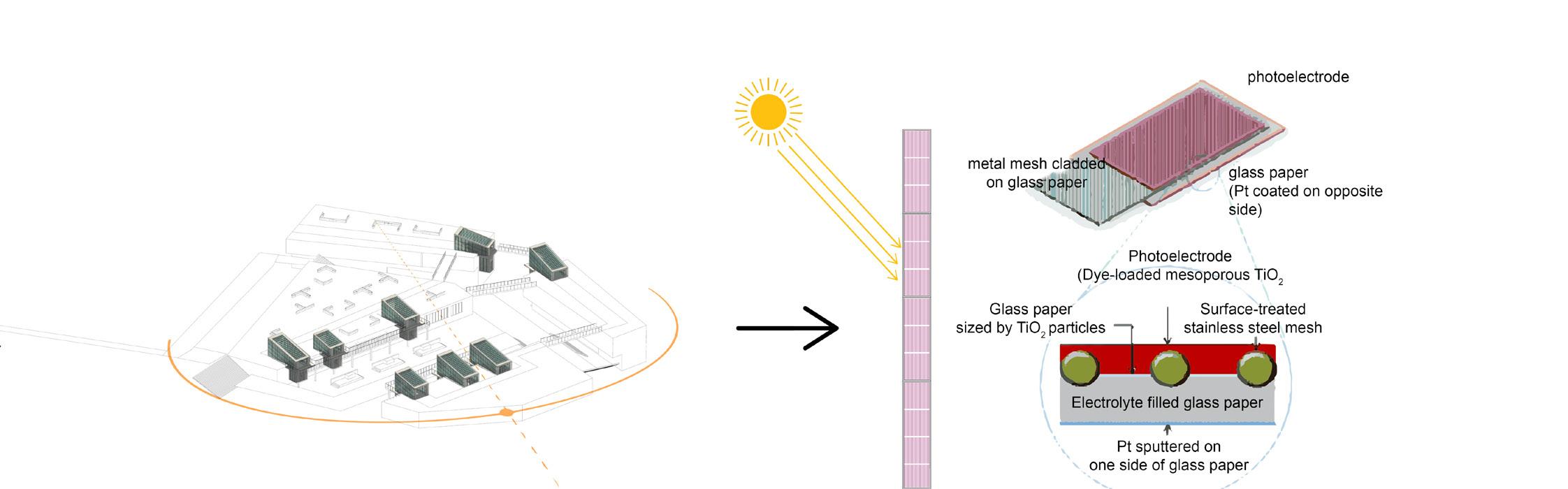

dye-sensitized solar energy collection

32-64 panels per solar facade = 52 panels avg 52 panels x 242.37 m2 x 265 Wh/panel x 8 h minimum collection period = 26,720,000 Wh/day = 26,720 kWh/day 26,720 kWh x 365 days/yr = 9,753,000 kWh/yr = 9,753 MWh/yr

39 | Moder

40 | Moder

41 | Moder
