[ CONTENTS ] 01 / HEALING EARTH SCARS

A mine park design based on GIS analysis 02 - 13

02 / INVERTED PYRAMIDS

A digital deisgn for a community that makes a living from e-waste 14 - 27

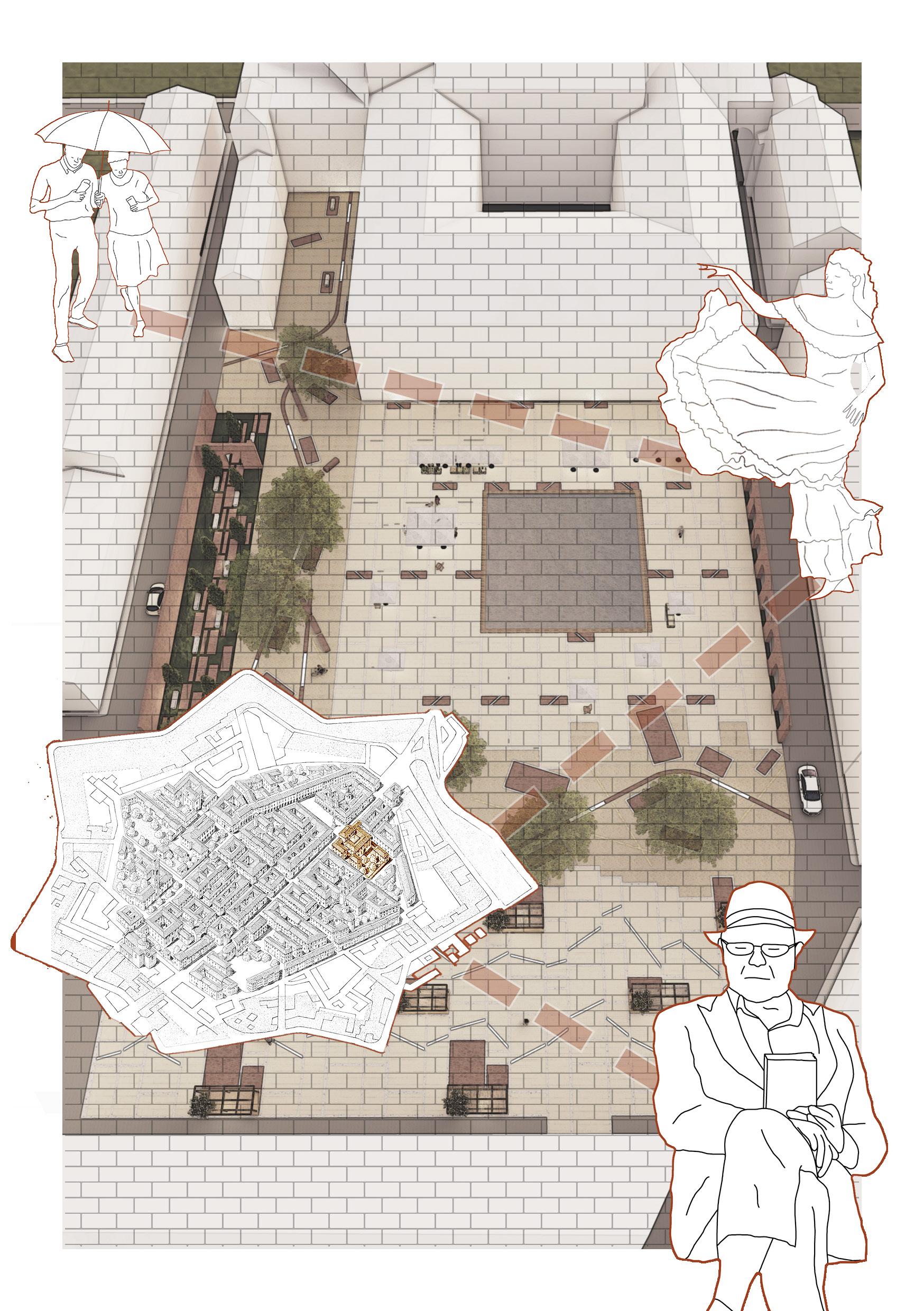

03 / IDENTITY REGENERATION OF THE ANCIENT GARDEN A piazza that can carry large-scale activities and daily leisure needs 28 - 37

04 / WEAVING RIVERS

A resilient landscape design oriented by flood adaptability 38-49

1

In

tr dus

ial

A re

a

a p e ea dsc n A r L an u c ti o s tr C on

F

o nv st C a ore A re

er s

ati o

n

Co

n

u s tr

on cti

en ev El

s As

es

sm

en

t

y ph

O

2

op lT a in rig

ra og

01 Healing Earth Scars Mine park design based on GIS analysis Acadamic Work Jijiagou Village, Taiyuan, Shanxi, China Individual Work Tutor: Pang Li April 2020 The site locates near Jijiagou Village in Xishan District, Wanbailin District, Taiyuan City, Shanxi Province, covering an area of 396hm2. The ecological problems caused by coal mine goaf in this area are the most prominent. In the regional context of the resource-based regions in Shanxi Province, affected by China's policy of vigorously developing ecological civilization, the Xishan area is facing the need for environmental restoration and scenic spot construction. With people's pursuit of quality of life, suburban parks with a good environment have gradually become the places of leisure and enter tainment that people yearn for.

Due to the site's large-scale geographical scope and complex mountainous terrain, to achieve ecological restoration, activation of regional tourism resources, and objective and reasonable regional landscape transformation, this project adopts the GIS to analyze this site. After analyzing the slope, elevation, aspect, and land use of the restricted terrain, it is more reasonable to decide on the landscape reconstruction process of the abandoned coal mine land.

3

Canada

China's coal industry

America

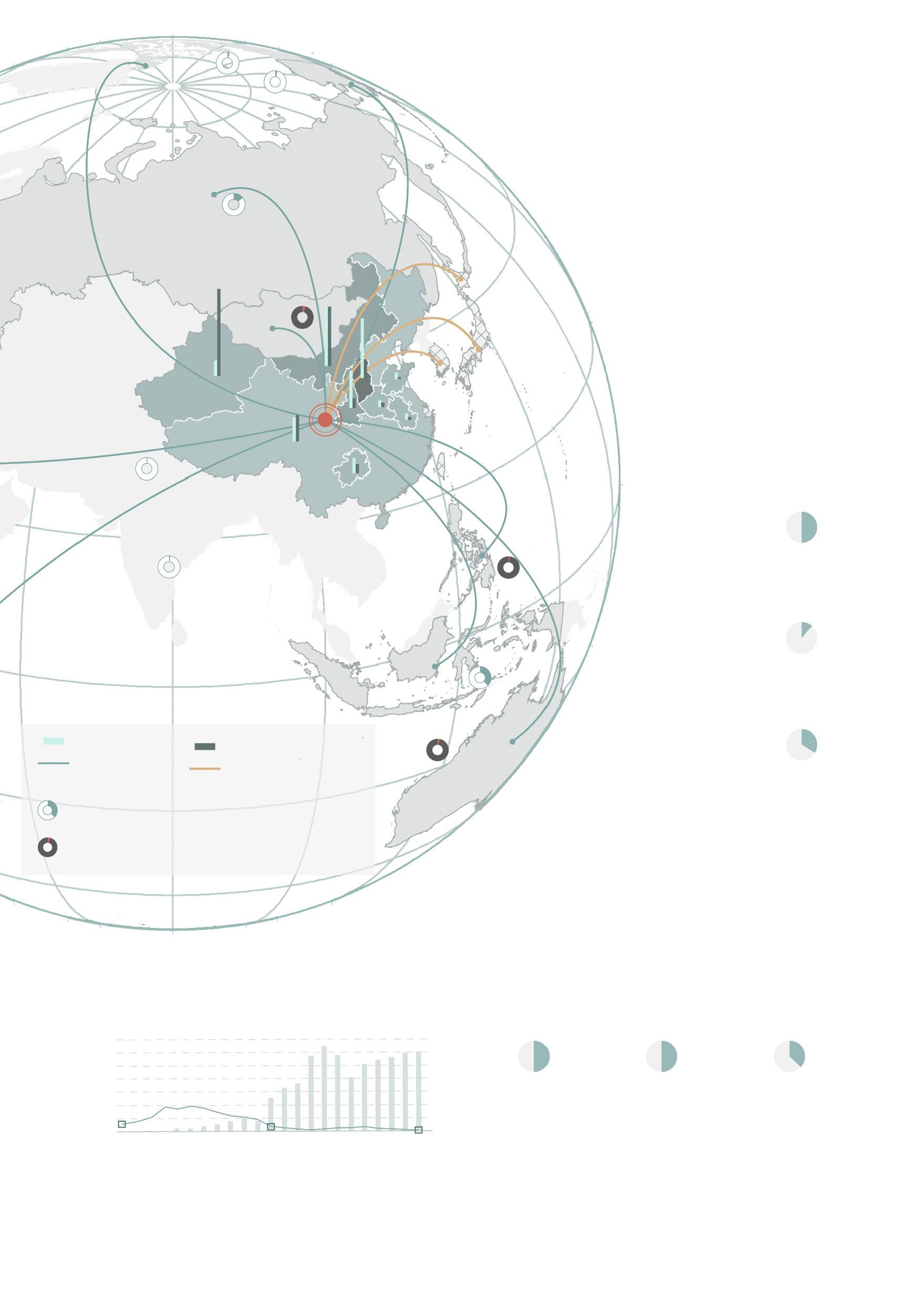

Coal export /Coal import proportion /Coal production and reserves in China Chinese coal mainly exports to Asian countries such as Japan and Korea.

Russia

The source countries of China's coal imports mainly include Indonesia, Australia, Russia, Mongolia, etc.

Korea Mongolia Japan

Regarding the distribution and reserves of coal resources, China's regional distribution is highly uneven, mainly distributed in Xinjiang, Inner Mongolia, and Shanxi.

Hongkong

China

Colombia

Philipines

South Africa

China accounts for 50% of the world's coal consumption.

Indonesia

Coal production

Coal reserves Coal import Coal Emport Proportion of coal exports to China in 2020 Coal exports to China showed an increasing trend

50% World Coal Consumption

13.3%

China accounts for 13.3% of the world’s coal reserves.

World Coal Reserves

China accounts for 51% of the world’s coal production.

51% World Coal Production

Australia

from 2019 to 2020

Coal exports to China showed an decreasing trend from 2019 to 2020

In current situation

Unit/Million tons

China's oil and natural gas resources are relatively insufficient, with proven oil recoverable reserves accounting for only 2.4% of the world's total and natural gas accounting for 1.2%. In comparison, coal accounts for about 14%. Such resource conditions determine that China's energy structure dominates by coal.

350 300 250 200 150 100 50 1998

4

2007

2020

China's coal imports and exports Before 2007, China imported a small amount of coal and was a coal exporter. Since 2007, China's coal exports have been lower than imports, becoming a coal importer.

85%

67.6%

59%

Coal Consumption in renewable energy consumption

Renewable Energy Consumption in energy consumption

Coal Consumption in energy consumption

China’s energy structure According to the graphs above, we can see that the leading energy consumed in China is coal.

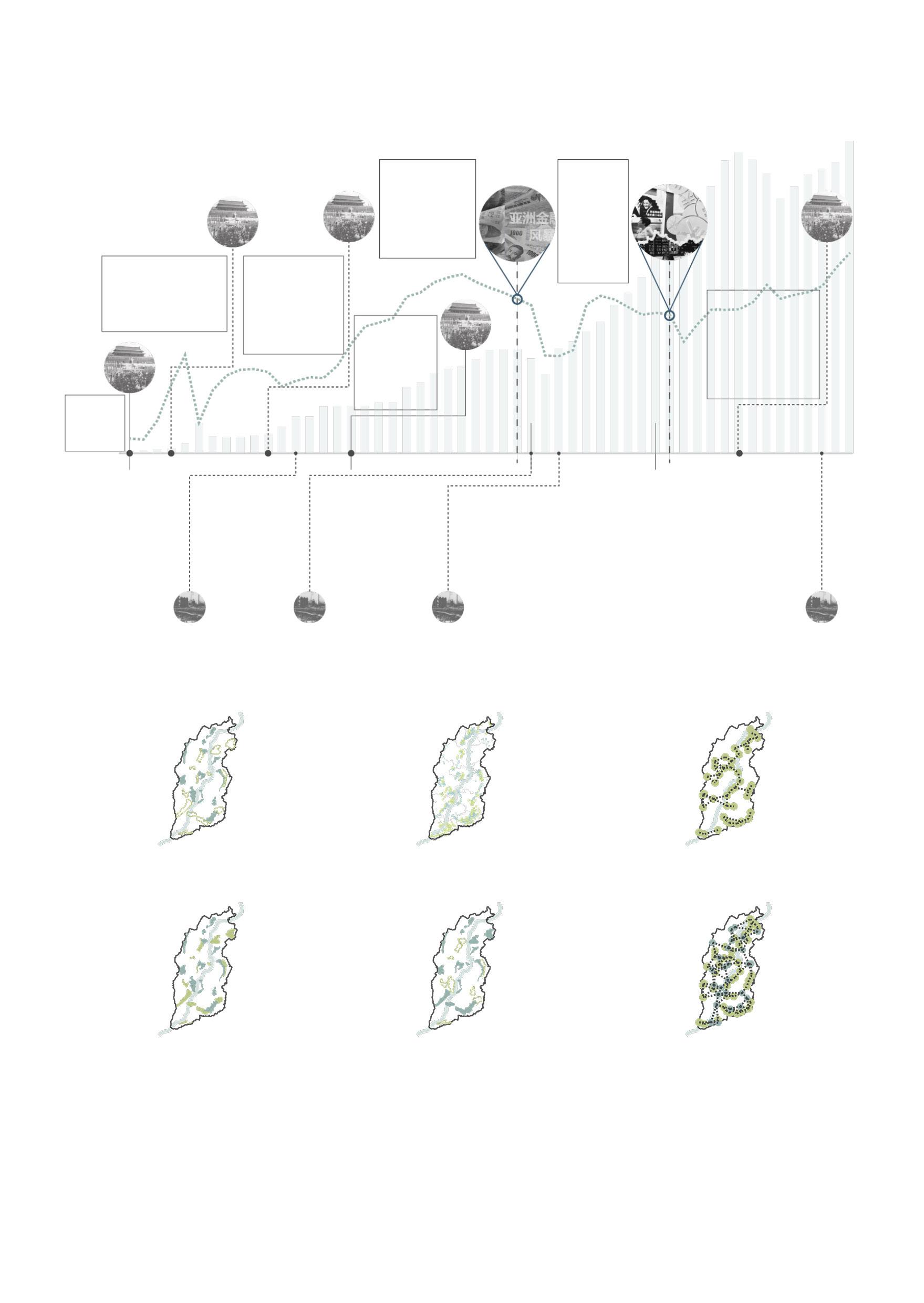

The development process of Shanxi coal industry 1980-1998

1949-1980

1998-2007

The Asian Financial Crisis The three-year Great Leap Forward

2007-

The International financial crisis

The Cultural Revolution

The National Mine Ecological Environment Restoration and Governance Site Meeting

The reform and opening-up policy

The foun -dation of New China After 1970, the level of coal mining mechanization in Shanxi improved, and coal production increased.

In 1998, Shanxi adjusted the coal production and transportation order and closed unreasonable coal mines.

After 2000, Shanxi carried out the integration of coal mine resources, and coal production gradually recovered.

"Shanxi Provincial Mine Environmental Governance and Restoration Fund Management Measures" forms a solid institutional constraint on the performance of mining rights holders on the obligation of mine ecological restoration.

Landscape Planning of Shanxi abandoned mines 2022

2022

2022

2040

2040

2040

Phased Governance

Ecological Restoration

The restoration will carry out in stages.

According to the destruction of It expects the green space construction abandoned mines in Shanxi, the areas of mines with less ecologi cal damage that need water restoration and and the fundamental ecological landform landscape reconstruction will restoration will be completed by 2040. be defined in 2040.

Green Space System &Tourism Linkage Through the landscape construction of abandoned mines, it is expected that in 2040, the mine parks will link the eco-tourism resources with the surrounding parks to form an ecotourism network system.

5

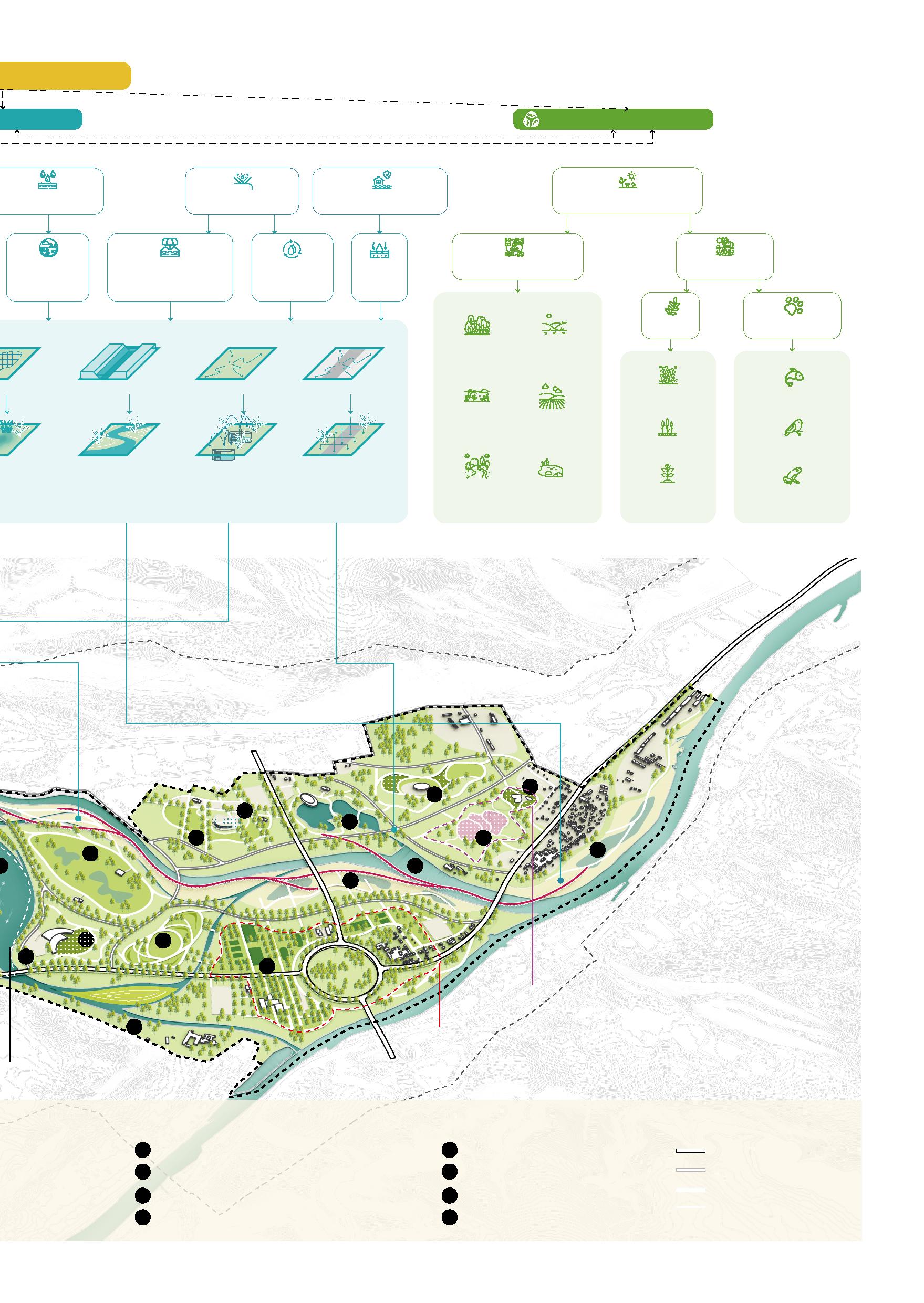

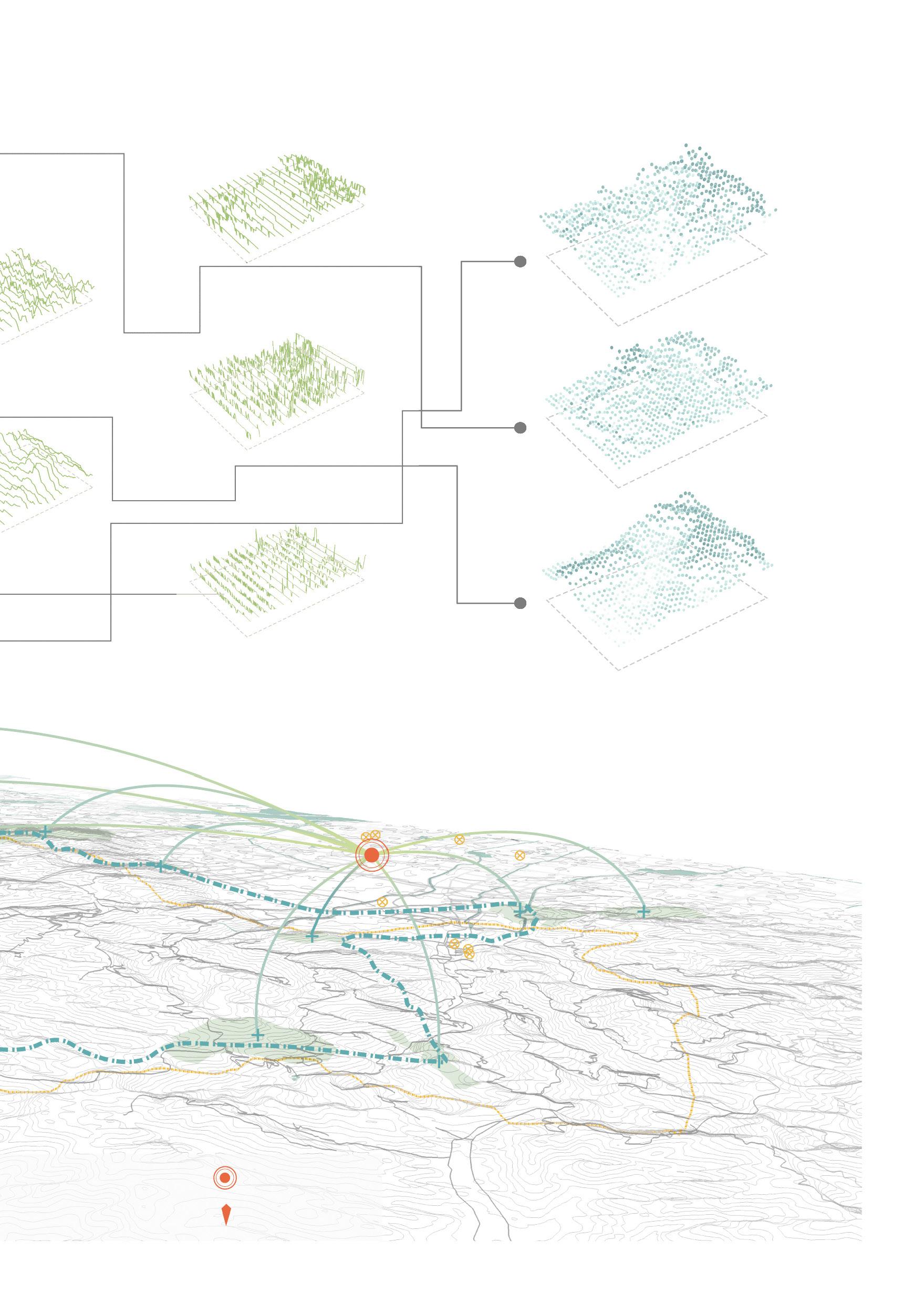

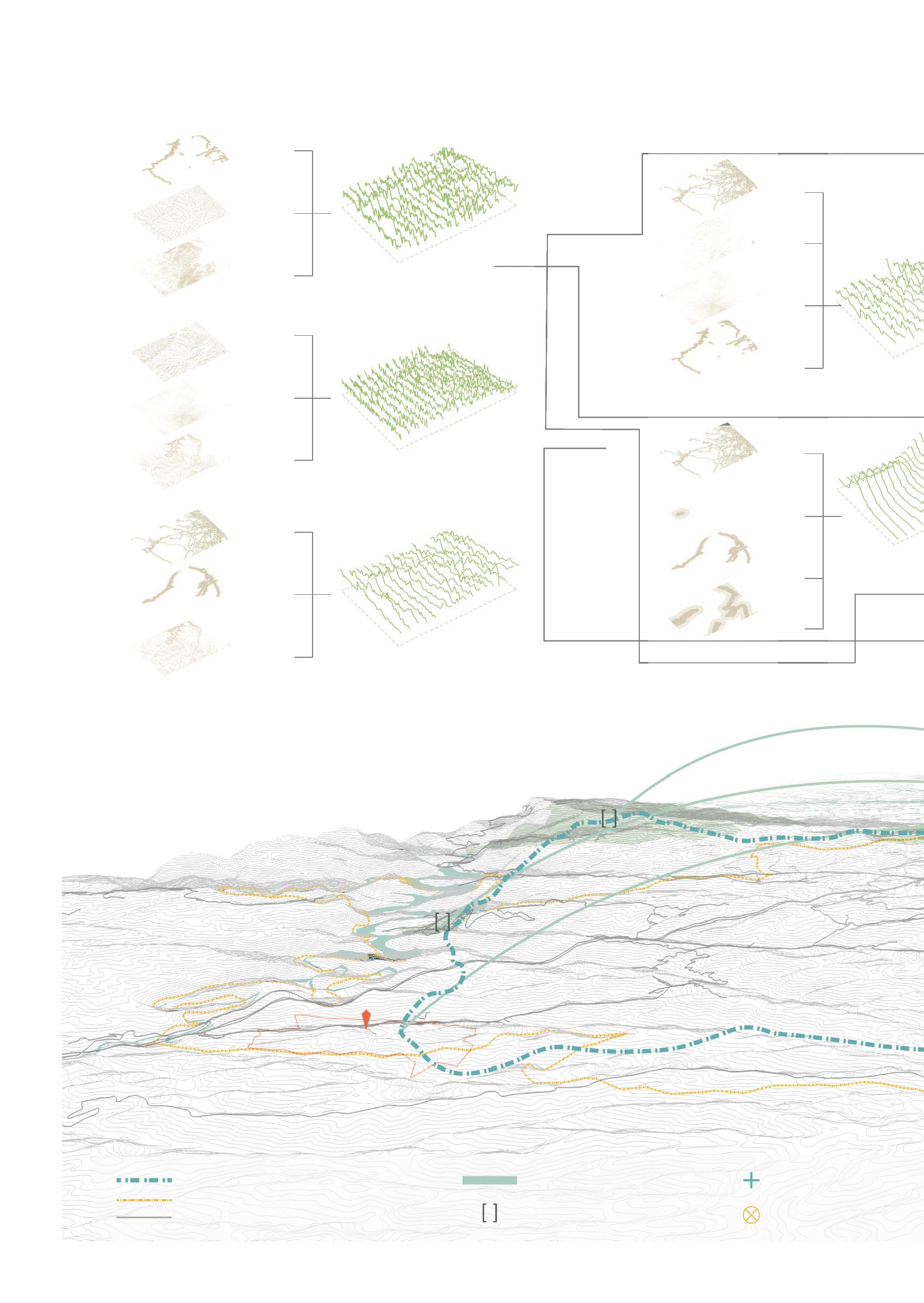

GIS analysis for the region

The evaluation level model is established by the AHRP method, and the weights of primary and secondary factors are determined by th Second-order Factors First-order Factors Second-order Factors First-order

St r

eam

Run

l Soi

Mo

is tu

of f

re

B uf

Buf

fer 0 . 45 × fer

×0

.25

H yd

rol

og y ×0.15

t 0 te n × 0 . 3 Con

e Veg

ta t

Hig A sp

ec t × 0. 2 5

va t

ion 35 × 0.

El e

r ap

hy

×0.20 ×0.20

Hig

hw

St r

d

ay

eam

× 0.

40

× 0.

25

× 0.

40

20

ion

× 0.

30

ay

eam

Roa

R

a ailw

y St Hig

At t

rac

ti o

n

× 0.

20

× 0.

30

×0.25

pe 0 Sl o × 0.4

Roa

× 0.

hw

St r

×0.25

og Top

d

Roa

×0.40

×0.10

Set

a ti o

30

n ×0.10

ay

× 0.

40

e nt

× 0.

30

hw

tl em

0. d ×

The design site is located on the outskirts of Taiyuan, on the border of Wanbailin District. It is an integral part of the suburban landscap 3 min by c ar km 3 2 2. 5 35.7km 6 0 min by car

Juewei Mountain c ar in by Scenic Area 60m m k 37.9

Guoxin Su Forest

First-line sky scenic spot

West Hill landscape connection West Hill area of the Wanbailin District Road 6

Water area

Parks transformed from

Cultural landscape resources

Coal mining enterprise

he DELPHI method. After that, GIS was used for weighted overlay analysis.

Factors First-order Factors

S oi

Weighted Sum

l

×0.15

Bir

d

it Hab

at

st C on

×0.10

d L an

Tr

po ans

r ta

ti o

n

ruc

ti o n

ui al S

t ab

ili t y

×0.15

Us e

Ec o

×0.50

log

i

Se c al

nsi

ti v i

ty

×0.30

e Veg

t at

ion In d

u

il s tr a

S ui

t ab

ili t y

pe construction belt in the Taiyuan Xishan Area.

in

m 3 0m

Duerping Peach Blossom Ditch

by

ca

r

ca

Wanberlin Ecopark

in by c ar

Siddagou Ecological Restoration Scenic Area

22m

19. 5k

9km

m an abandoned mining area

by

in

1 5.

Yuquan Mountain Suburban Forest Park

r ca

6.8k m 16min by

r

uburban Park

7.6k m 12m

Xishan Changfeng City Suburb Forest Park

Biaoqiaogou Theme Cultural Park

Urban areas Site 7

Site analysis based on GIS Second-order Factors

First-order Factors ×0.2

To

p hy p o gra

×0.1 a C over

ge

×0.3 por ta Trans

tion

×0.4 At tra

c tion

The point in the middle of the pixel grid is selected as the sample point, and the construction suitability index at the sample point with high height and dark color is high. ×0.2

g Topo

r a p hy

×0.1 La

e n d Us

×0.2 Ve

ion getat

×0.5 log Hydro

y

The point in the middle of the image grid is selected as the sample point, and the ecological sensitivity index of the sample point with high height and dark color is high.

Sample 2

Sample 4 Sample 3

Sample 1

Results Analysis

8

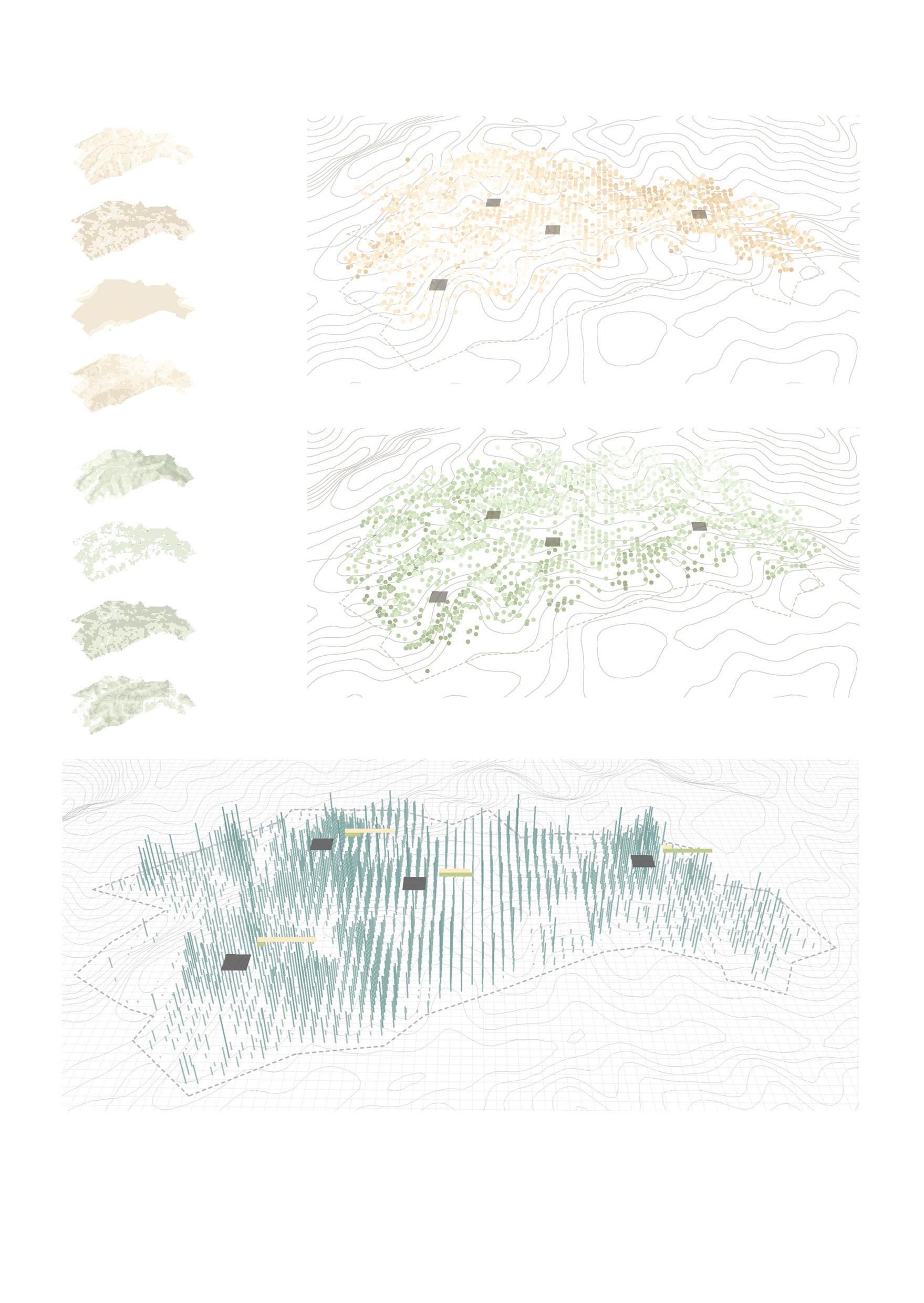

According to the GIS analysis results, the four more representative sites in the site were selected as samples. These four samples adopted different design strategies.

Sample 1 has excellent construction suitability, and the ecological sensitivity is extremely low.

Sample 2 has a high overall value, high construction suitability, and low ecological sensitivity.

Sample 3 has higher construction suitability and higher ecological sensitivity.

Sample 4 has extremely low construction suitability and high ecological sensitivity.

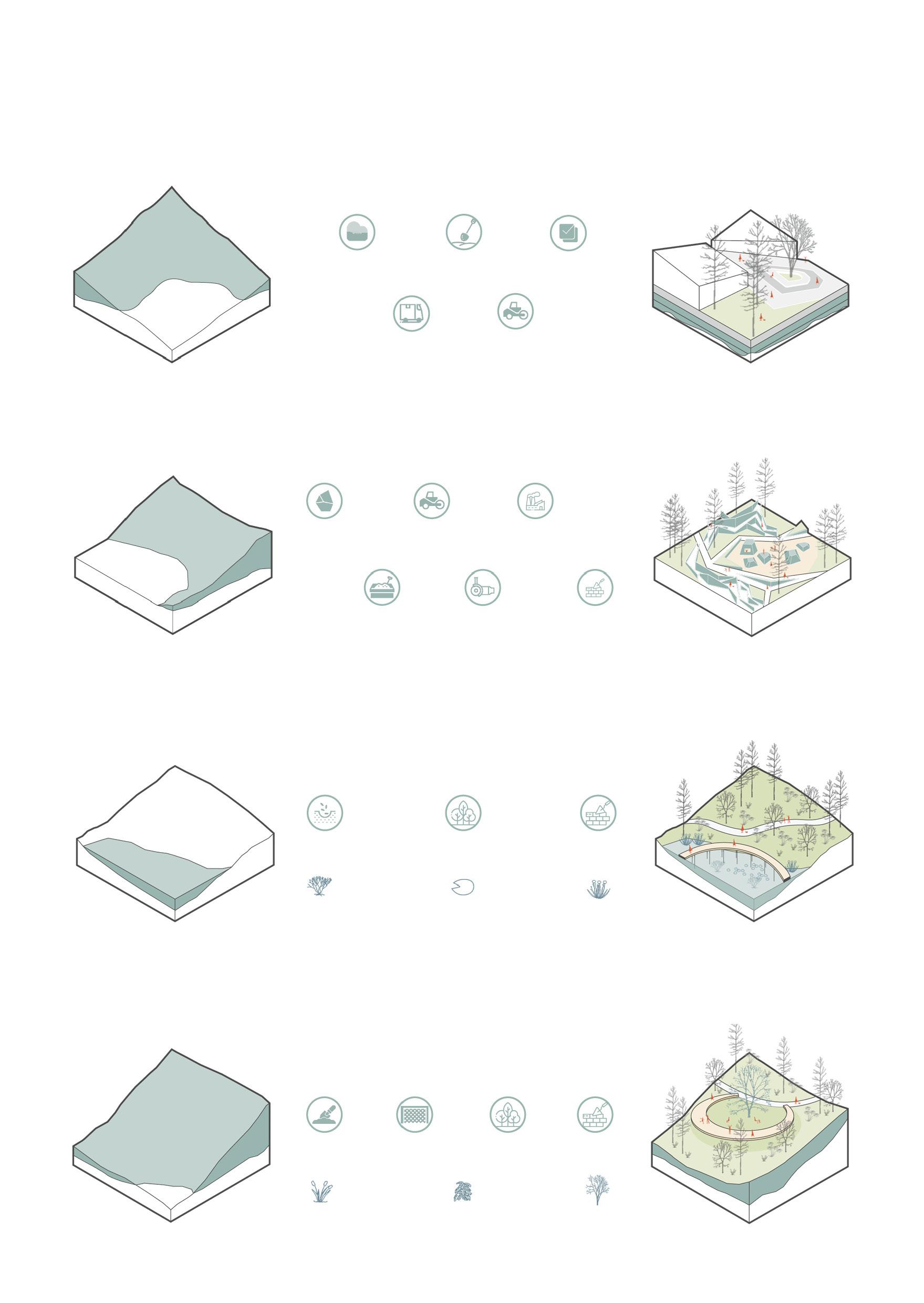

Design Strategies Strategy1 Coal Mine Museum Gangue Backfill Backfilling and subgrade materials enable the bulk consumption of gangue with low pollutant content, reducing the cost of construction of roadbeds, foundations, or dam foundations and reducing the land occupied.

Gangue mountain selection

Lay Gangue

1

Check

3

5

2

4

Transportation

Leveling

Strategy2 Mine Exploration Park Gangue Reusage Gangue can be used to prepare building materials to build park structures, mainly brick making, etc. When making bricks, the explosive substance of gangue can save coal, forming a virtuous circle.

Crush Gangue

Leveling

1

Roasting

3

5

2

4

Stir to mix

Dry

6

Build

Strategy3 Artificial Wetland Park Gangue Acid Wastewater Treatment Gangue can produce acidic wastewater, which causes soil, surface water, and groundwater pollution and seriously affects plant growth. Alkaline materials such as fly ash can be sown to neutralize with acidic substances in gangue, followed by the construction of wetlands.

Add Alkaline Substances

Plant Configuration

Trestles Construction

1

2

3

Floating Plant

Emergent Aquatic Plant

Submerged Macrophyte

Strategy4 Land Art

Ecological Restoration of Gangue Mountains For gangue that cannot be comprehensively utilized, ecological restoration is required. Gangue mountain has a significant slope area; due to the poor engineering stability, ecological planting blanket technology can be used to enhance strength and use plant configuration to fix the soil further. Then gangue mountains can carry out a certain degree of engineering construction.

Slope Shaping

1

Herb

Ecological Planting Plant Structure Blanket Configuration Construction

2

3

Shrub

4

Arbor 9

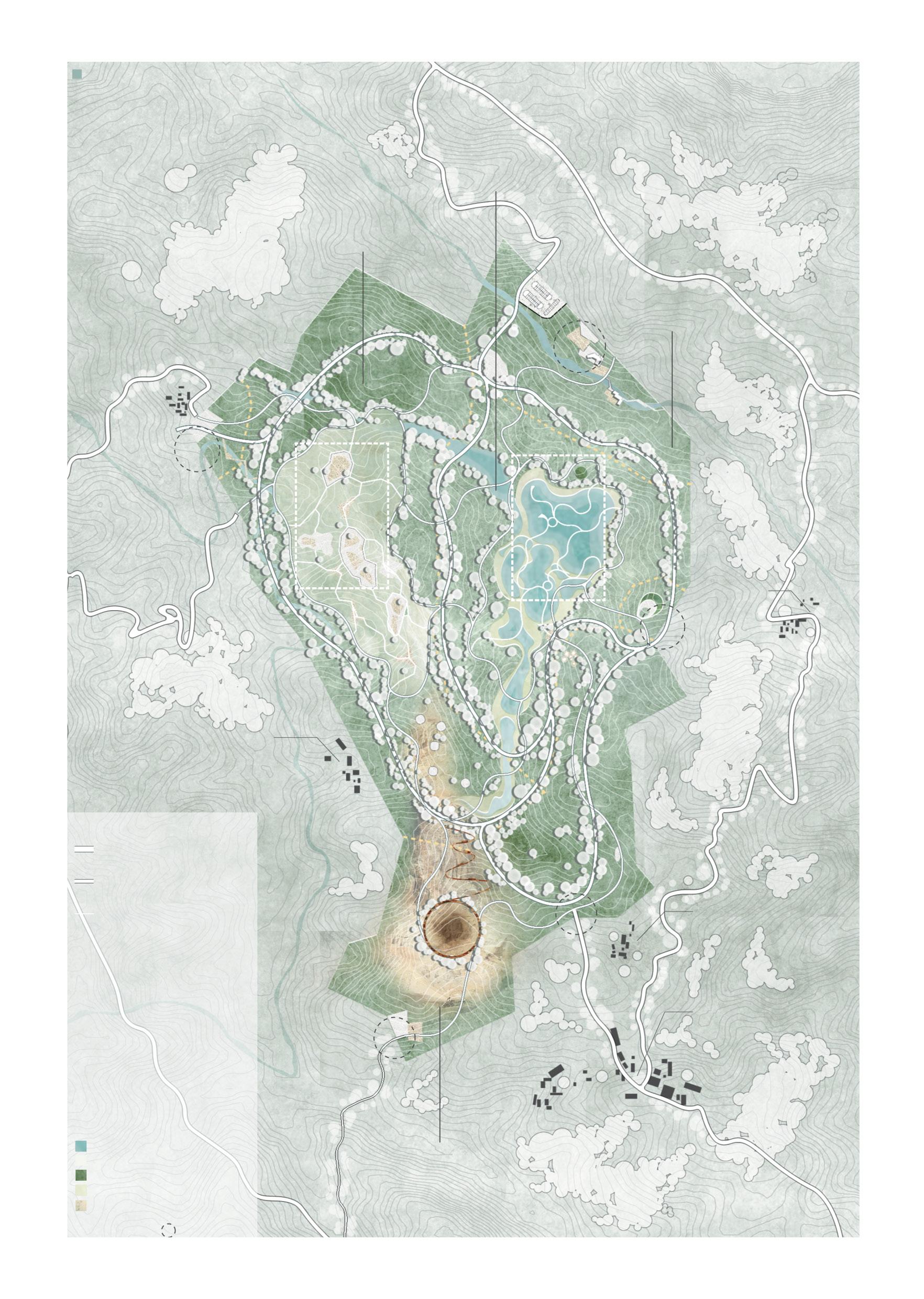

Master Plan N

05

50

200 Meter

100

Man-made wetland restoration area 2 25

Coal mine history science popularization area

Pr

e fe ctural Roa d

Tourist service area A

02

01

D B E

C

H

G

Road System 1st Level Road for walkers and vehicles 2nd Level Road for walkers and bikes 3rd Level Road for walkers

10

Threshold Places A Feature Entry Area B Waterfront Square C Man-made Wetland Park D Colliery Museum E Mine Exploration Park F Trestle and lookout G Land art H Tree House Water & plants Water Area Hard Paved Foors Forest Wetland Plants Pit Area Entrance

F

Ecological shelterbelt area

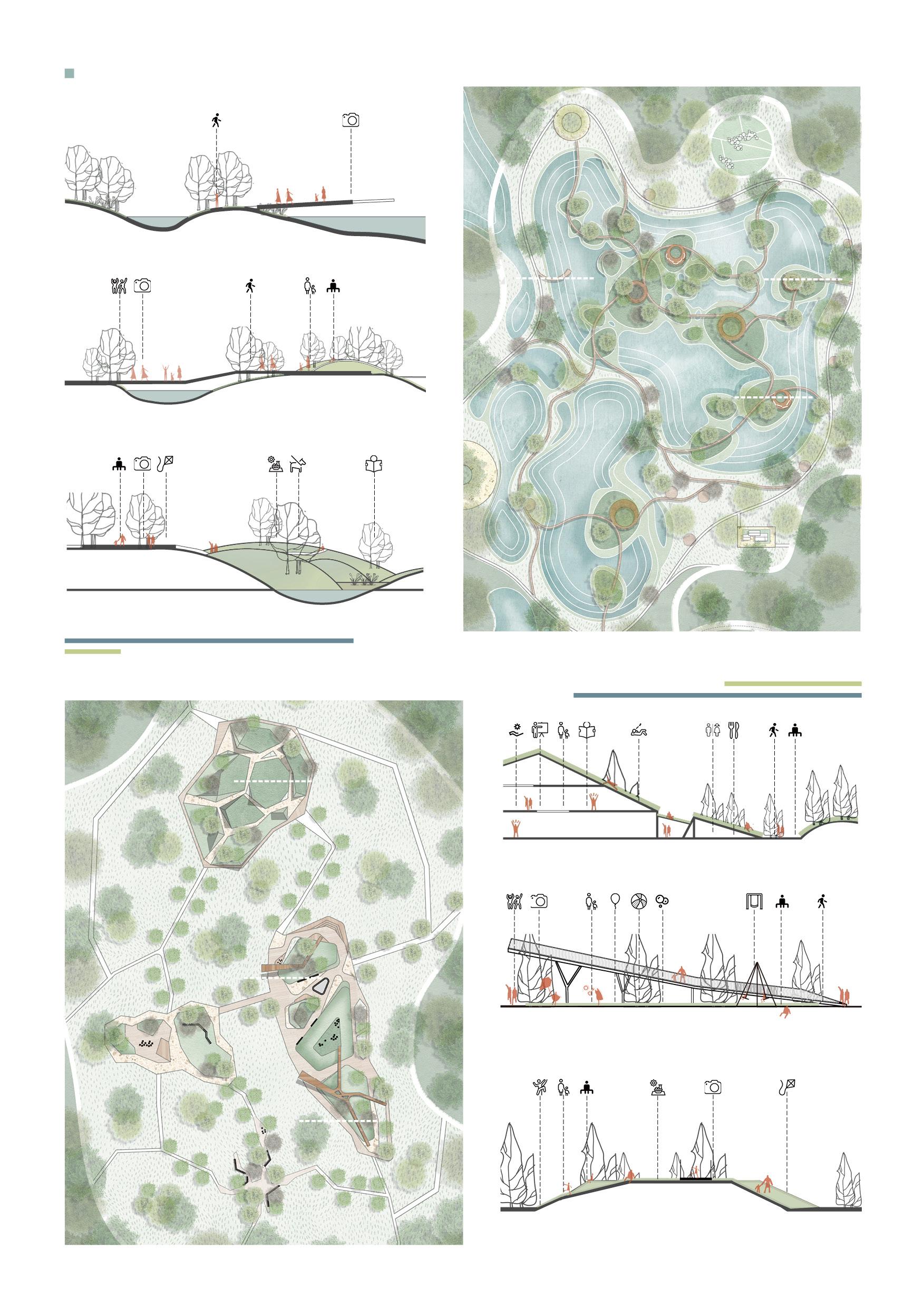

Regional Plan & Section

A-A Scenic Boardwalk A

B

A

C

B

C

B-B Viewing Platform

C-C Wetland Recreation 01 Plan of the ecological reconstruction of the wetland High Ecological Sensitivity

High Constructional Suitability 02 Plan of the industrial theme design of the mining area

D

D

D-D Colliery Museum

E

E

E-E Children's Sunken Theater

F

F

F-F Climbing Area for Children

11

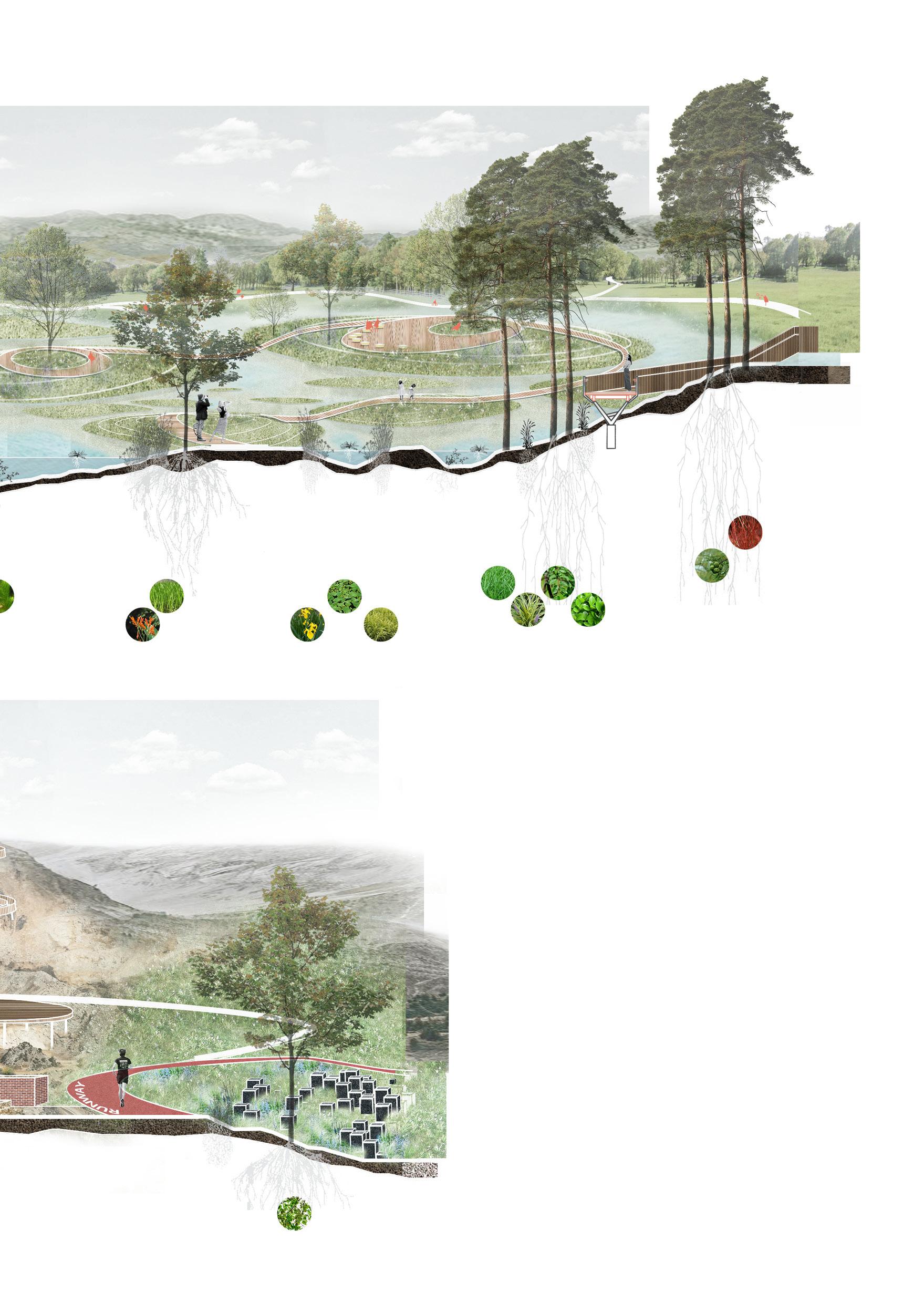

Section Perspective

Wa

Waterfront Plank

Wetland Ecological Park Area The wetland shall be constructed using Design Strategy 3 for the subsided land resulting from coal-mine with high ecological sensitivity in the site to solve the problem of water pollution caused by coal mining. The coal gangue is backfilled as soil, nourishing the growth of plants during the long natural succession. The artificial wetland park can also bring tourists a relaxed and pleasant tour experience.

12

Mine Pit

Ceratophyllum demersum L.

Trapa bispinosa Roxb.

Nymphaea tetragona

Climbing Plank

Platycladus orientalis (L.) Franco

Portulaca oleracea L.

Forsythia suspensa

Pinus bungeana Zucc.

Robinia pseudoacacia L.

Rest Place in Forest

Myriophyllum verticillatum L.

Wetland Plant Configuration The collapse area is close to the ponding revetment, and the ability to resist waterlogging and pollution should be considered when selecting the varieties of trees. Aquatic plants with high purification capacity are planted in shallow water areas to improve the quality of water areas.

aterfront Rest Space

Runway

Cornus alba Linnaeus

Taxodium distichum var. imbricatum (Nuttall) Croom

Ulmus parvifolia Jacq

Buxus megistophylla Levl.

Cynodon dactylon × C. transvaalensis Ophiopogon japonicus

Arundo donax L.

Lemna minor L.

Acorus calamus L.

Scirpus validus Vahl

Canna indica L.

Wetland Plants

Gangue reuse structure

Mine Theme Park Area The theme park area of the mining area is built at the mine pit and coal gangue hill in the original site. The coal gangue is reused through the coal gangue utilization method proposed in Design Strategy 1 and Design Strategy 2. The mine pit style is presented to show the place's memory to visitors.

Mine Plant Configuration

Ulmus pumila L.

Plants should choose plant varieties with tolerance to a wide range of pH values and drought and barren to improve the soil humidity and temperature conditions, establish the nutrient cycle between plants and soil, and ensure the success of the plant replantation strategy.

13

HIGH ACTIVITY DENSITY Slum & Poors

IMPORTANCE

Living

Environment

LOW ACTIVITY DENSITY

Contamination Monitoring

Government E-waste Recycling Contamination Remediation 14

02 Inverted pyramids A digital deisgn for a community that makes a living from e-waste Acadamic Work Agbogbloshie, Accra, Ghana Individual Work Tutor: Minzhi Lin; Jieping Chen October 2021 The site is controversial in the capital of Accra, Ghana; this used to be a lagoon where mangroves grew and is now a huge source of pollution. It is called "Agbogbloshie". Locals also nicknamed it "Sodom and Gomorrah," two cities condemned in the Bible. However, the poor living here believes this is a dignified land providing housing and job opportunities. Despite improper burning and dismantling, it has created devastating environmental and health problems for the entire capital.

The dumping of e-waste brings them many discarded precious metals, which means a considerable income.

I n 2021, t h e G h a n a i a n go v e r n m e n t i n c o r p o r a te d i t i n t o i t s u t o p i a n u r b a n p l a n n i n g , using it as part of the land for the construction of medical facilities, pulling out the slums on the site, and relocating the dumping site, which not only fails to f u n d a m e n t a l l y s o l v e t h e p o l l u t i o n b u t c o m p l e t e l y d e f e a t t h e d i g n i t y o f t h e p o o r.

Based on site characteristics and unavoidable waste dumping, I use phytomining and automation to amplify its site characteristics as an e-waste disposal site and make the e-waste industry harmless while retaining its employment opportunities. At the same time, to ensure the living problem of the poor while using phytomining for soil remediation, the slum is lifted vertically in the form of a giant landscape structure, forming a utopian living form that places the poor on the upper layer. It is an ironic project that celebrates the impartiality of the landscape.

15

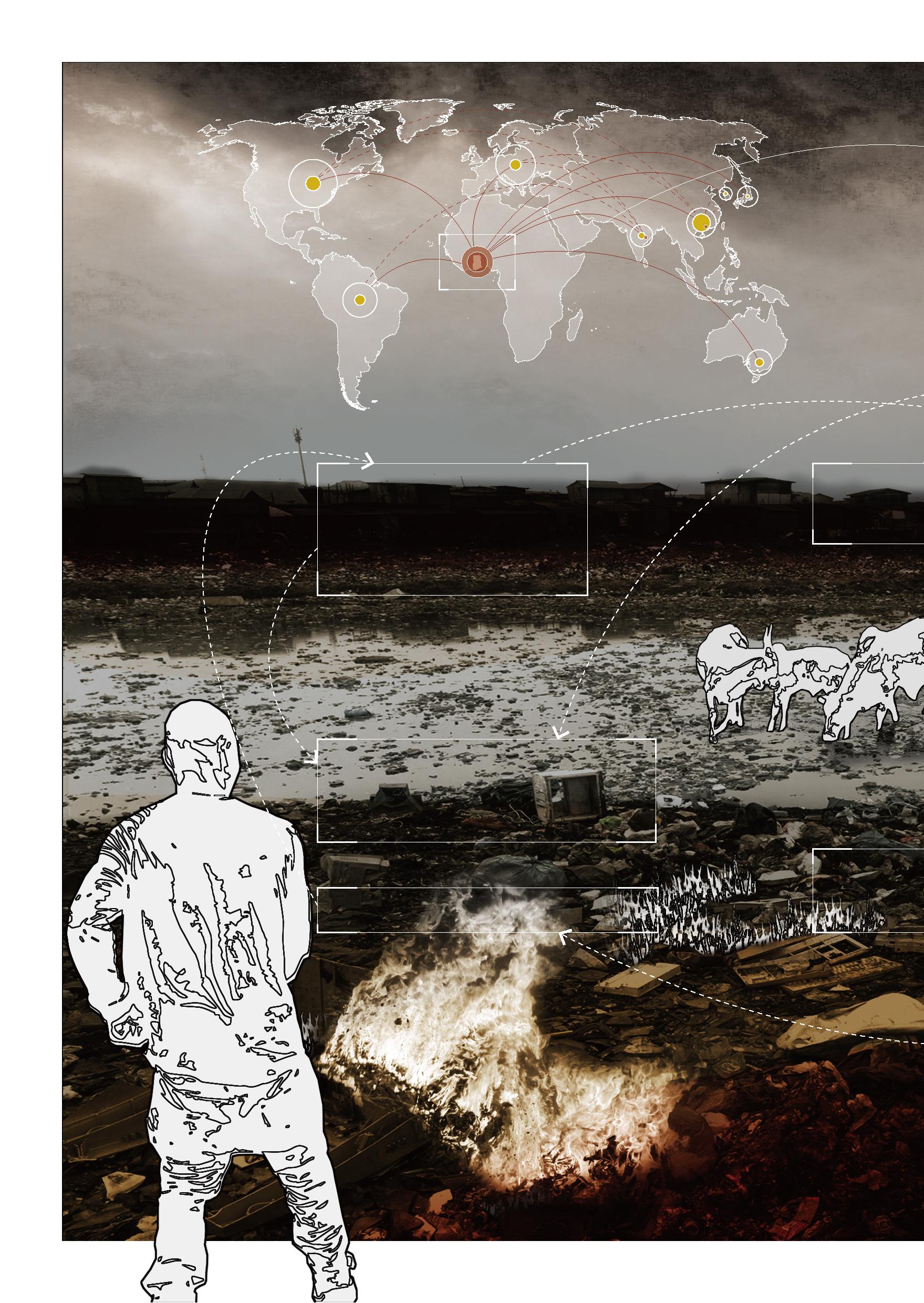

Ghana

The US 6.3/19.4

Germany 1.9/22.8 France 1.4/21.3 The US 6.3/19.4

Japan 2.1/16.9

EU

Korea India 2.0/1.5

China 7.2/5.2

Brazil 1.5/7.4 E-waste exported to other countries E-waste exported to Ghana E-waste importing countries E-waste exporting countries

Ghana 2.5 Million Metric Tonnes Australia

Soil Pollution PM 2.5 > 150 μg/m³ 10 times higher than The maximum limit (WHO): 15μg/m³ Mortality Rate: 80/100,000 >28,000 people/year

Slum: Old Fadam Population: 40,0 Most residents w High Residential

Pollution End Soil Pollution Daily Income: GH¢2 ( ＄0.35) ~ GH¢200 ( ＄35) Population Structure: Young Men & Children 80% of the children have dangerous levels of lead in their blood.

E-waste Burning Main cause of Air Pollution in Accra Central

16

Soil Pollution Poisons such as furans, and bro into the surroun

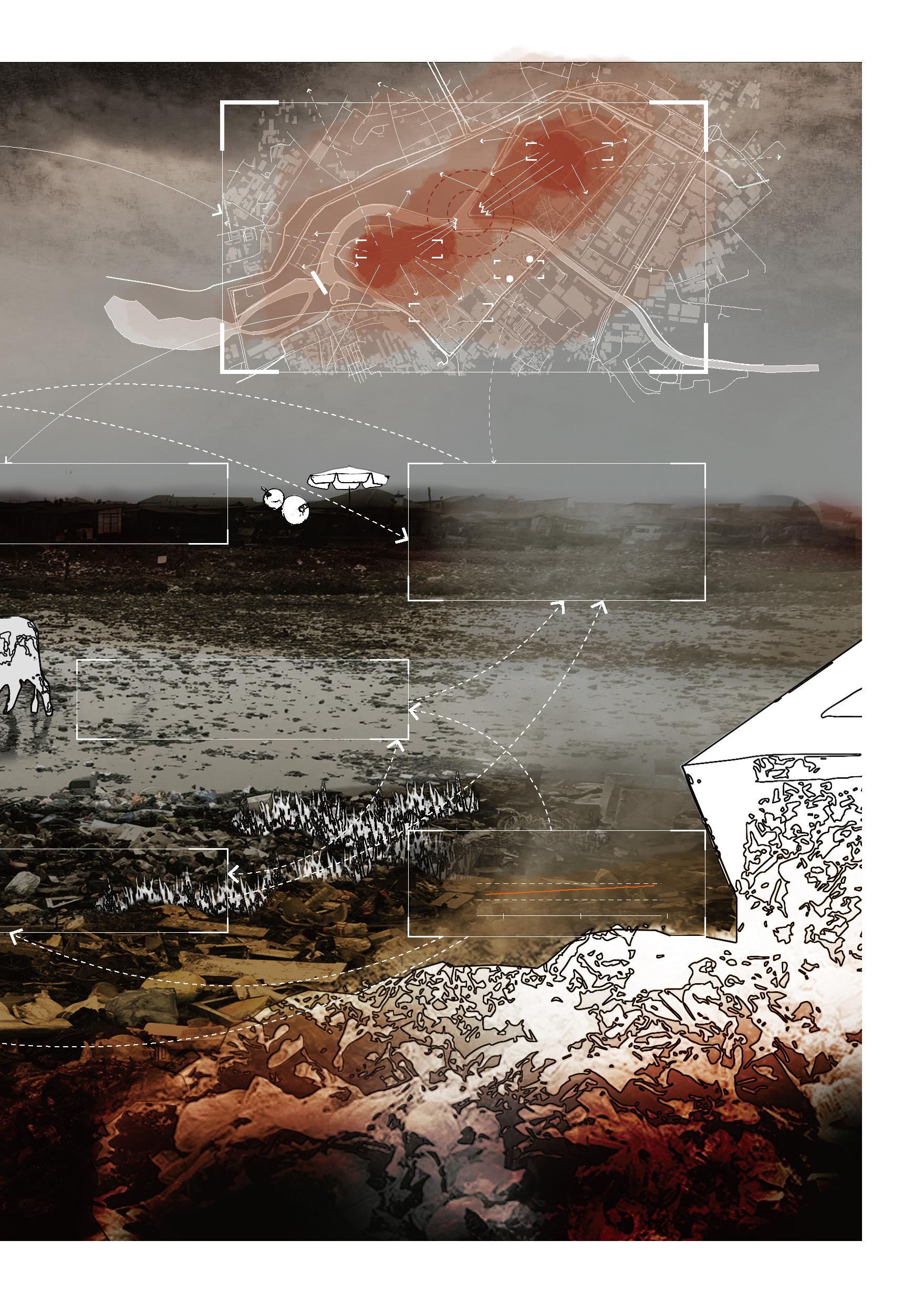

Agbogbloshie Agbogbloshie is situated on the banks of the Korle Lagoon, northwest of Accra's Central Business District.

Dumping Site

Dumping Site Market Old Fadama

ma 000 Women, Men and Children work at Agbogbloshie l Density: 0.2m²/person

Market Onion Market: 207m from the dumping site Tomato Market: 446m from the dumping site Largest Food Market in the Accra Central

Water Pollution the Basel Ac tion Net work found dangerous levels of dioxins and PCBS in chicken eggs at Agbogbloshie.

Metric tonnes

s lead, mercury, arsenic, dioxins, ominated flame retardants seep nding soil.

Pollution Beginning E-waste Input: 13,090 ¬ 17,094 tonnes/year 2.0 1.0 0

2019

2024

2030

17

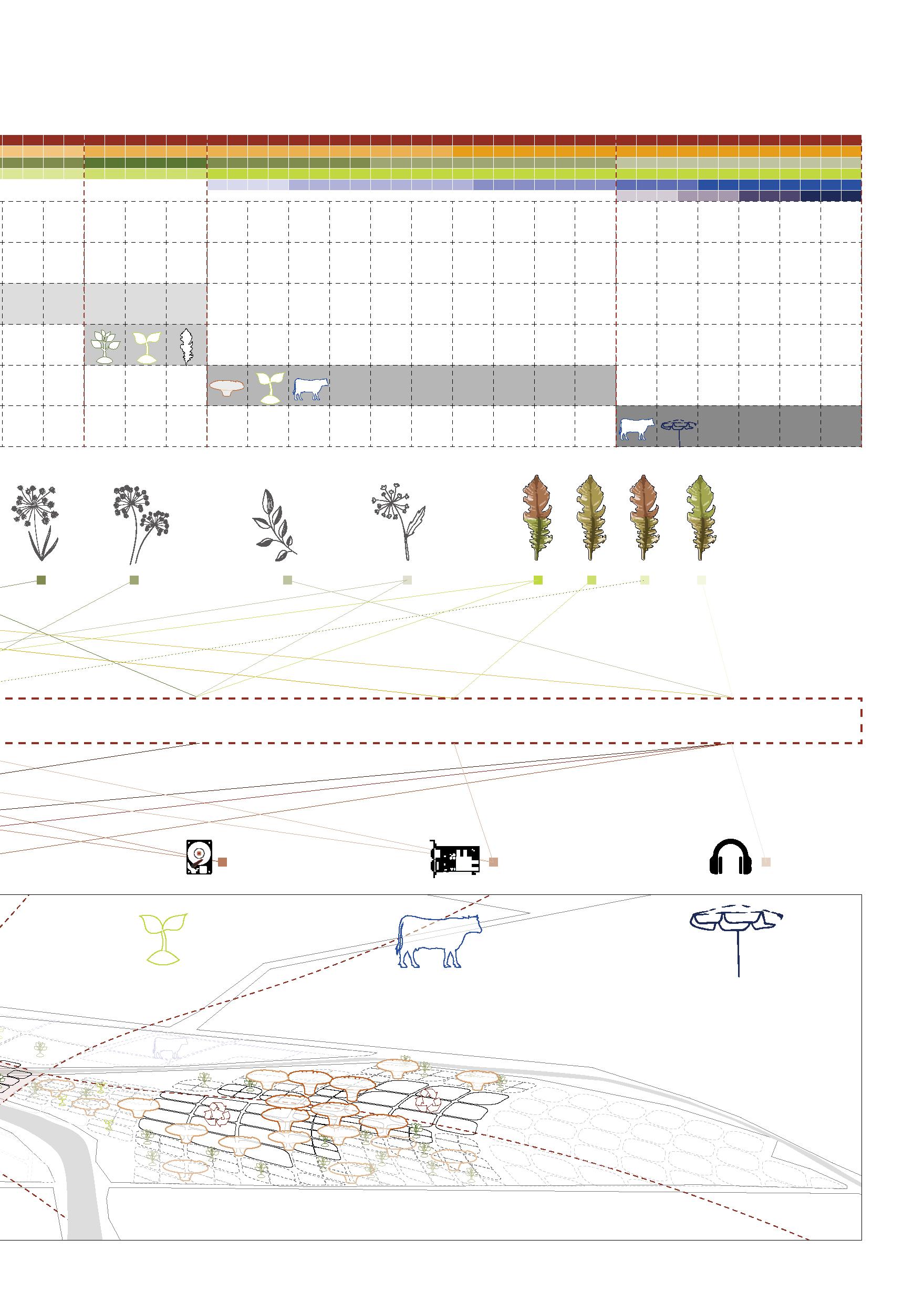

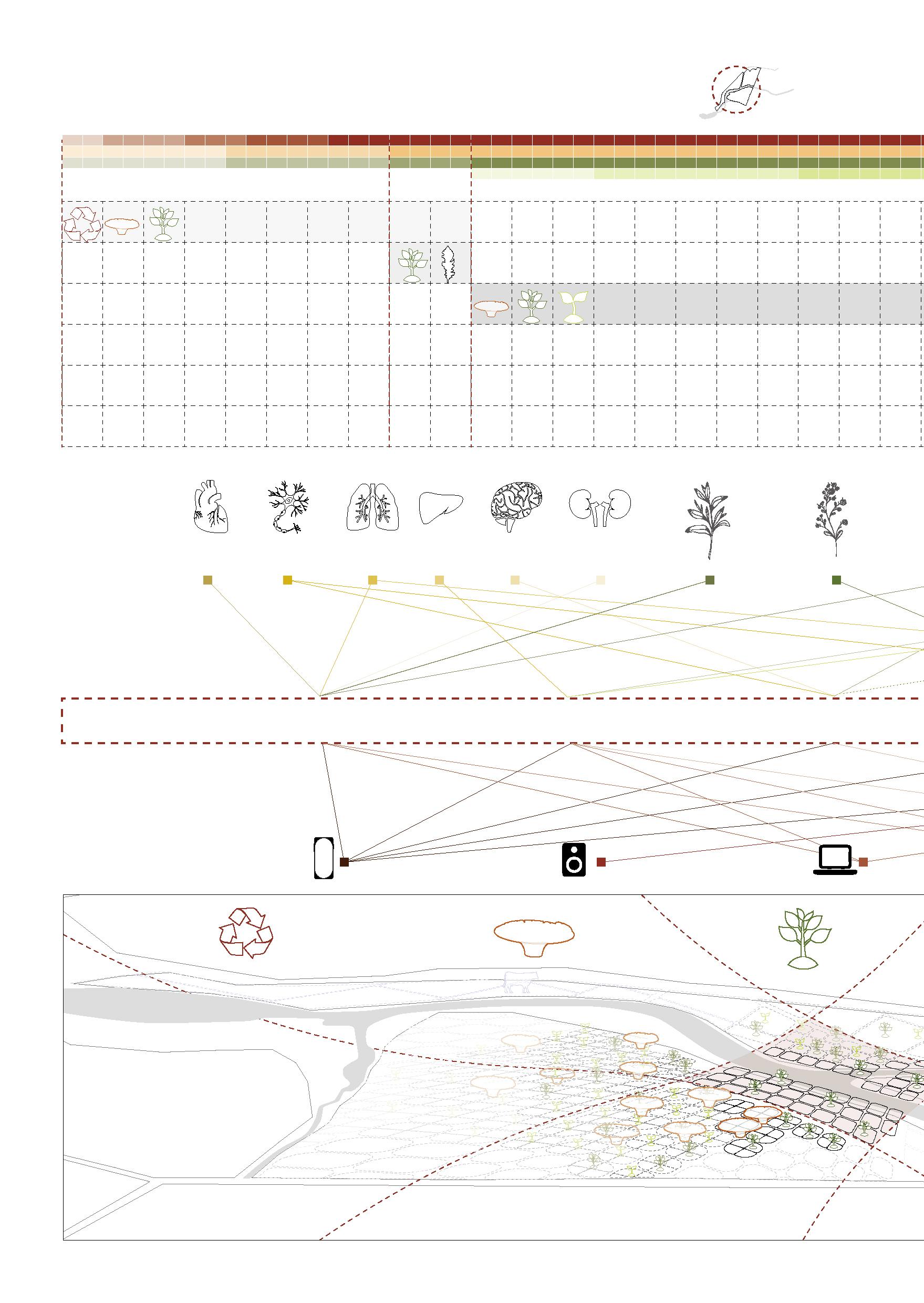

Industrial C Industry Density Period 1 5 YEARS E-waste recycling. Phytomining.

Residential structure constrcution.

Period 2 8 YEARS

More Phytomining. More Residential structure cons Join Agriculture.

Monitor 1 1 YEAR

Health Problems

Heart Nervous System

Metal Elements

Liver

Ni-nickel

E-waste

Brain

Kidney

Crotalaria Nocae Hollandiae

Pycnandra Acuminata

Cu-copper

Mobile Phone

E-waste Recycling

18

Lung

Pb-lead

MP3

Living

Com

Phytomining

Construction

strcution.

Period 3 5 YEARS Monitor 2 1.5 YEAR

More Agriculture. Join Stockbreeding.

More Residential structure constrcution.

Period 4 3 YEARS More Stockbreeding.

Join Market.

Hyperaccumulator

Alyssum Murale

Plant Indicator

Neptunia Amplexicaulis

Gossia Fragrantissima

Zn-zinc

mputer

Brassica Juncea

Hg-mercury

Hard Disk Drive

Agriculture

Taxiphyllum Taxrameum

Co-cobalt

PCB

Stockbreeding

Earphone

Market

19

Residential structure of 3 hight & connection 20m

20 16m

12m

16m 12m 8m 4m 0

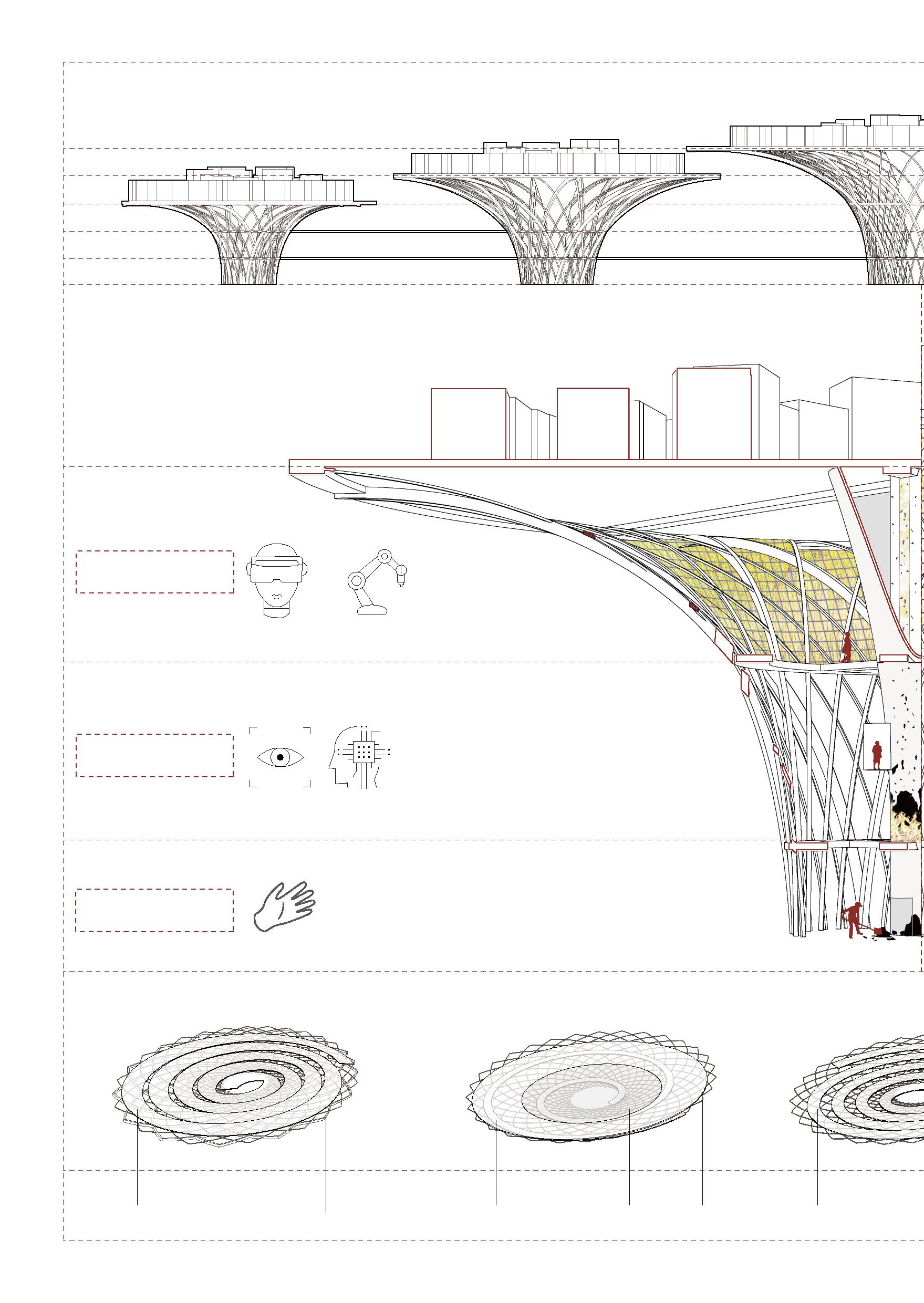

Reactor for e-waste recycling

WORK Analysis of bulk powder Processing of bulk powder Convert to raw meterials

End-processing

TECHNOLOGY Auhmented Reality Energy Efficient Robotics WORK Device disassembly Device shredding Sorting into e-waste fractions Grinding into bulk powder

Pre-processing

TECHNOLOGY Machine Vision Machine Learning & Artificial Intelligence

Collection

WORK

WAGE

E-waste collection Device level sorting

￡7.83 / hour in the UK ￡1.29 / hour in Agbogbloshie

3 types of public structure

Market Platform: 8m wide 20

Football Field Structure

Boardwalk: 3m wide

Football field Structure

Music Pi Boardwalk: 5m wide

Modelling by Grasshopper

0m

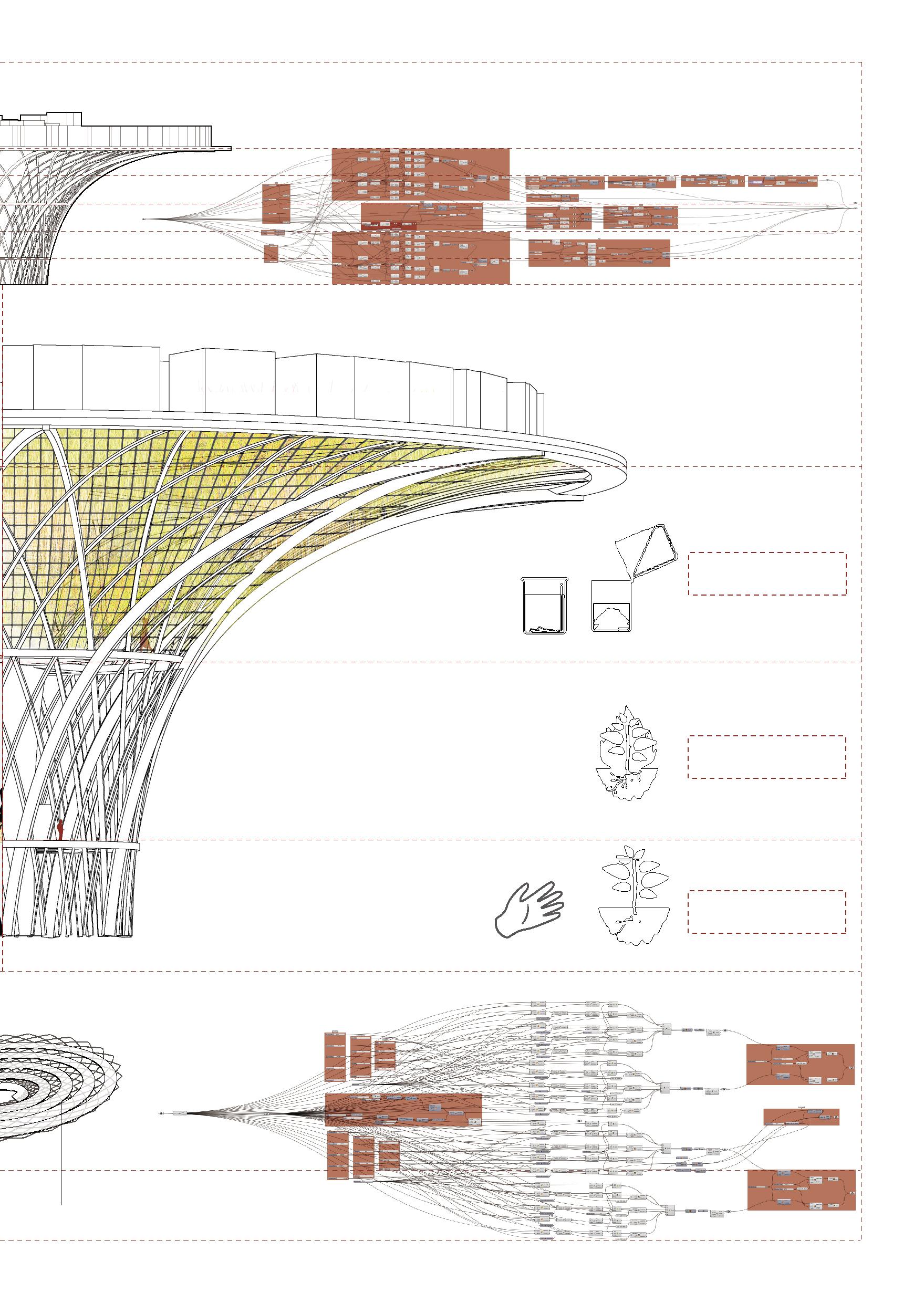

Reactor for phytomining

The ash is mixed with water and electrolysis is then used to extract the metal from the mixture.

hydrolysis

Hyperaccumulators are delivered into the second layer of the reaction for incineration.

The ash is then delivered to the third layer of the reaction.

Incineration

Hyperaccumulators are grown in an area with high grade ores.

Hyperaccumulators are harvested and transported into the bottom layer of the reaction by the poor.

Planting

Modelling by Grasshopper

iazza Structure 21

SITE ANALYSIS

Traffic hub Purification center Pollution center Mangrove center Residential center 2ND CLASS ROADS

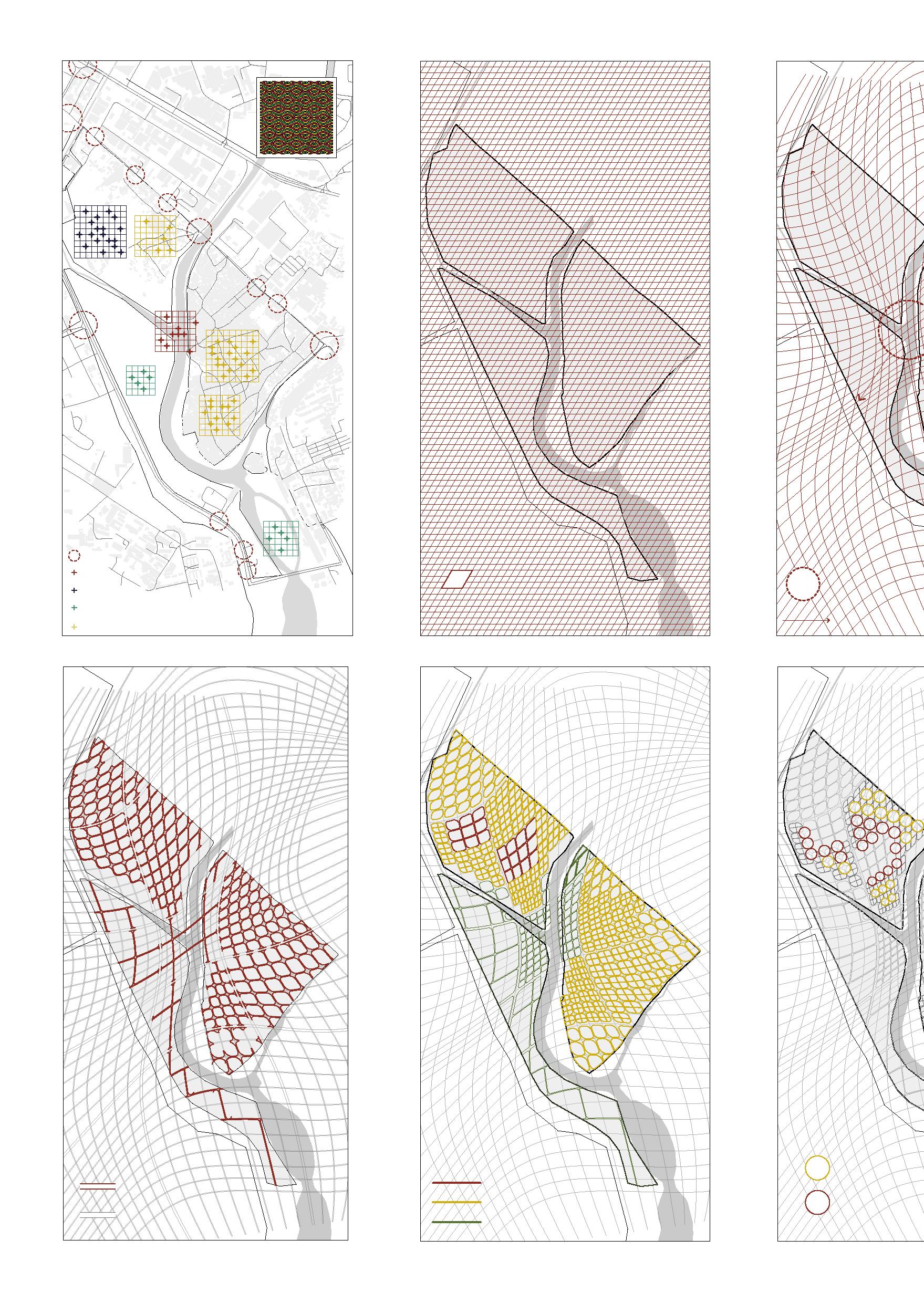

2nd class road-3m Offset structure lines 22

LAND LEVELLING

Side length: 3m

MESH DEFORMATION

Dense texture

(Maximum conta (High efficiency o

Texture diffusi INDUATRIAL BLOCK FORM

E-waste recycling area Phytomining & agriculture area Stockbreeding & wetland area

RESIDENTIAL STRUCTU

Residential st

with phytiminin

Residential st

with e-watste r

e

act area with land) of phytomining)

ion

URES

TRANSPORTATION

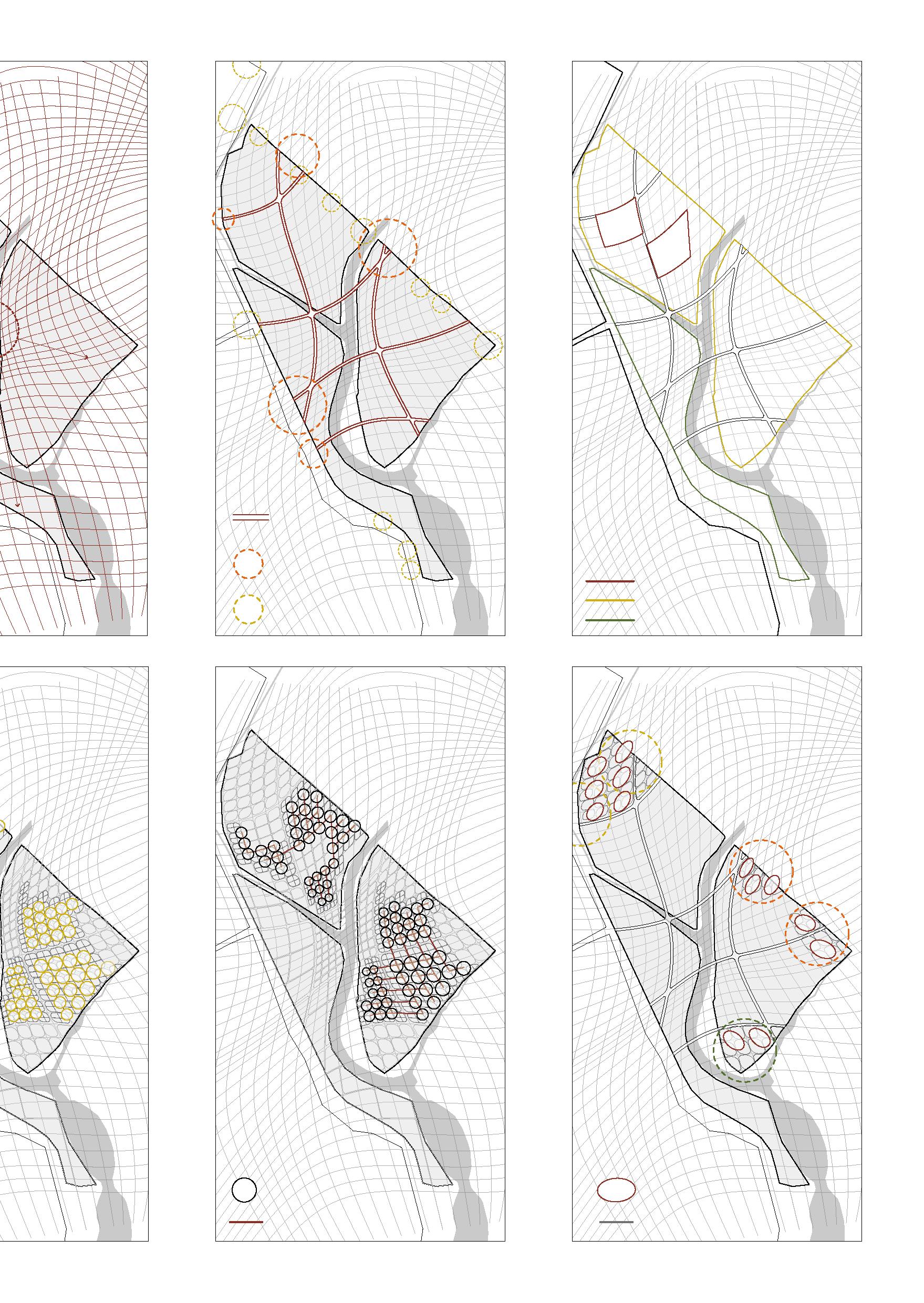

INDUSTRIAL BLOCK DIVISION

First class road-12m Designed entrance Original entrance CONNECTION BETWEEN STRUCTURE

E-waste recycling area Phytomining & agriculture area Stockbreeding area PUBLIC STRUCTURES & AREA

Football field + Music party plaza Market

Eco-park

tructure

ng reaction pile

tructure

recycling reaction pile

Residential structure Air corridors

between residential structures

Public activity structure Public area 23

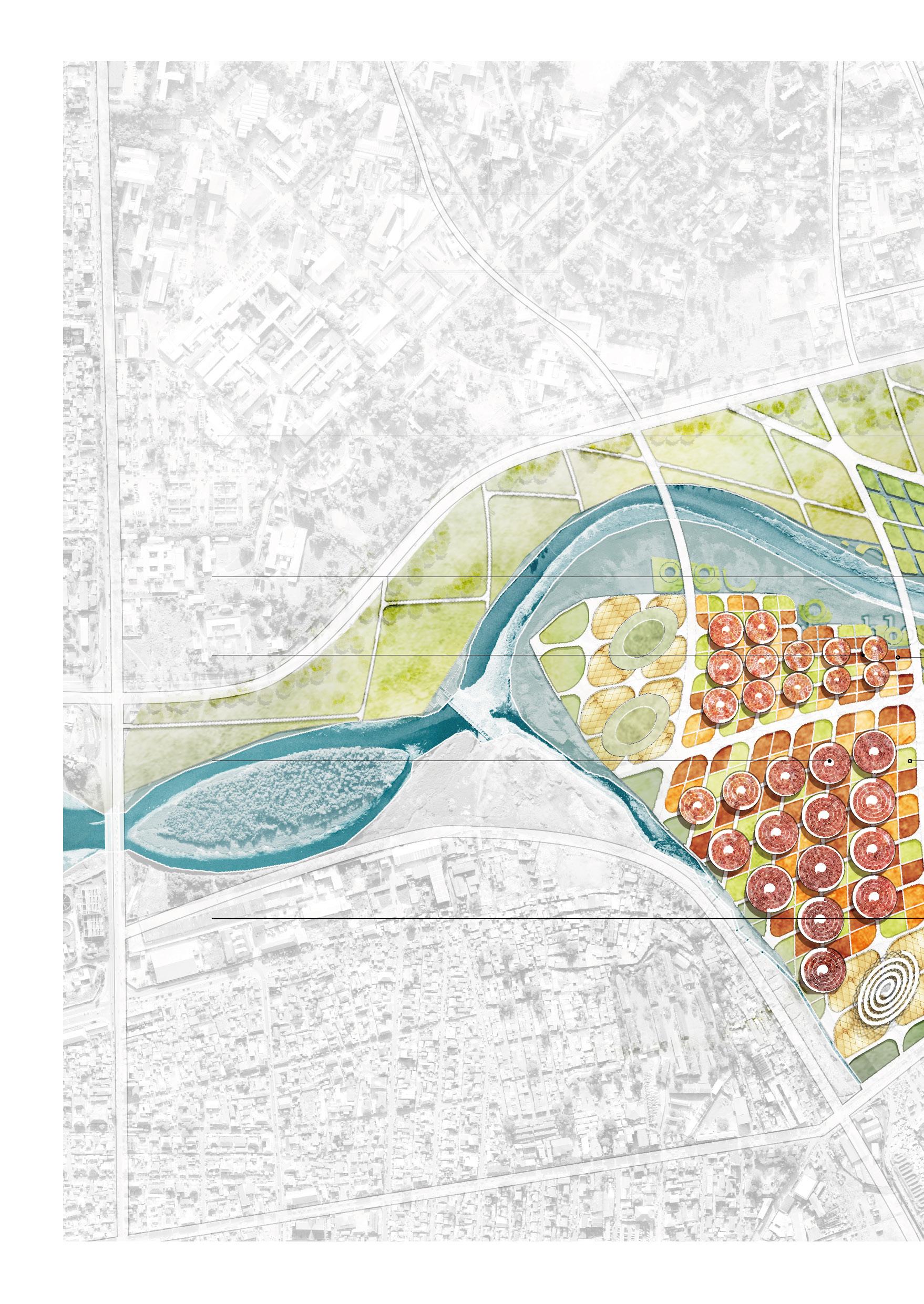

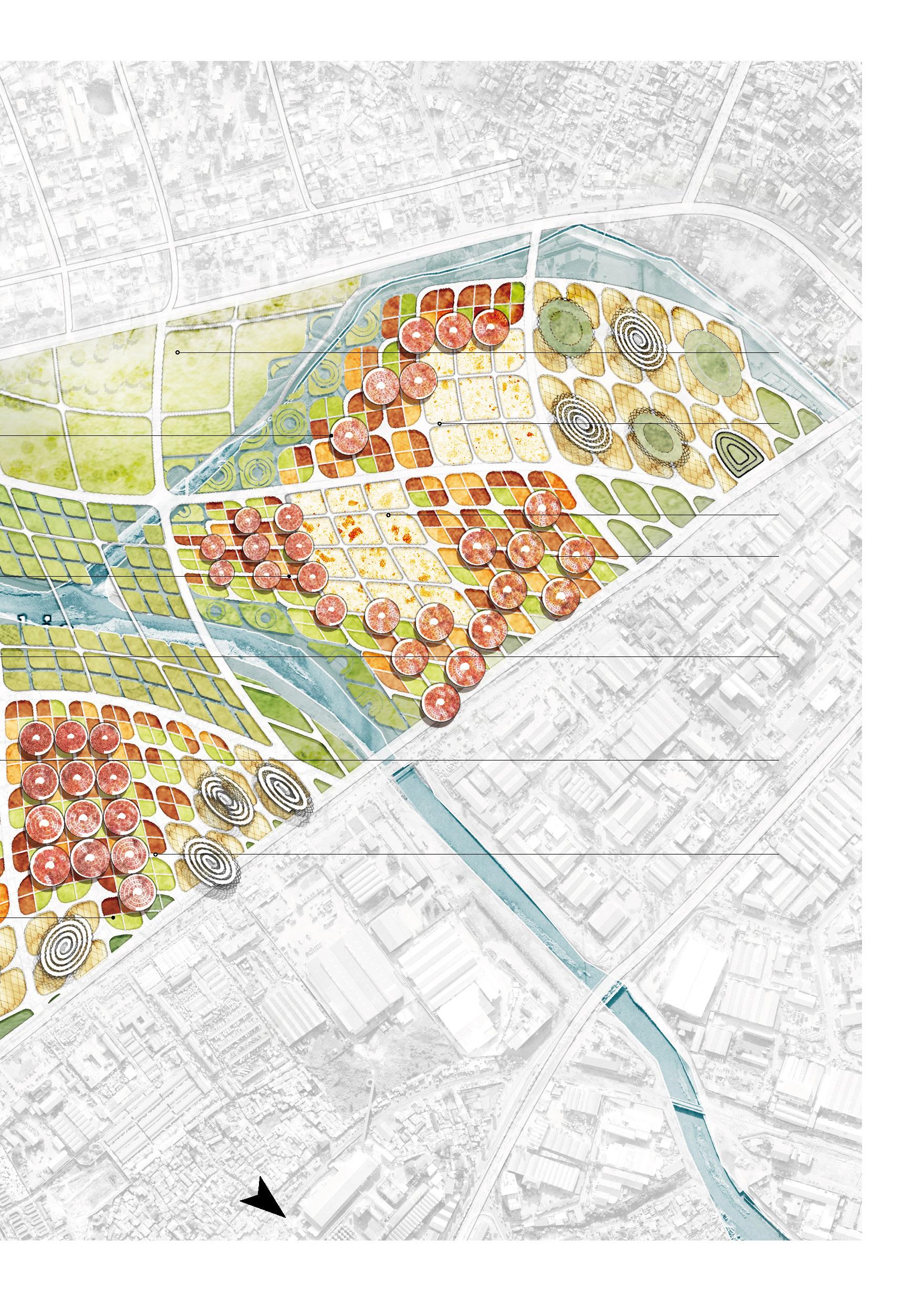

Master Plan Guggisberg Ave

Ring Community1 >690 people

Community1 >690 people

Community2: >2083 people

Community3: >1017 people

Man g

Tuesday Market Football Park

r ove

Korle

L a go o

n

Community4 >1576 people

Timber Market

24

Rd Rd W

Abossey Okai Central Mosque

242863.63 m² Stockfeeding

28234.98 m² E-wate Recycling

847656.40 m² E-watse Recycling 33644.70 m² Phytomining

39037.02 m² Agriculture

85455.32 m² Agriculture

Gr

ap

hi c

Rd

61566.25 m² Agriculture

Agbogbloshie Market

N

0

50

100

200

500 Meter 25

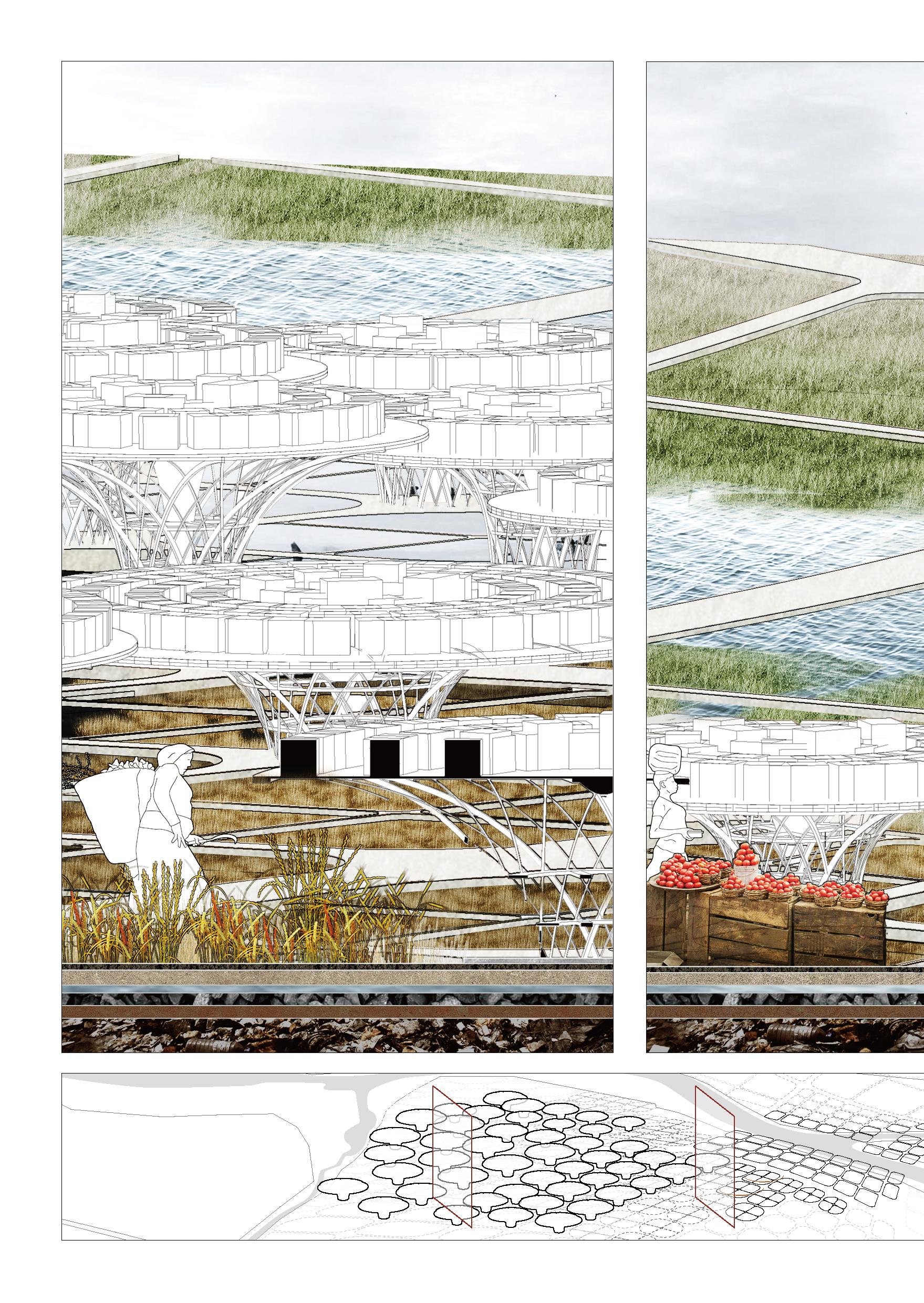

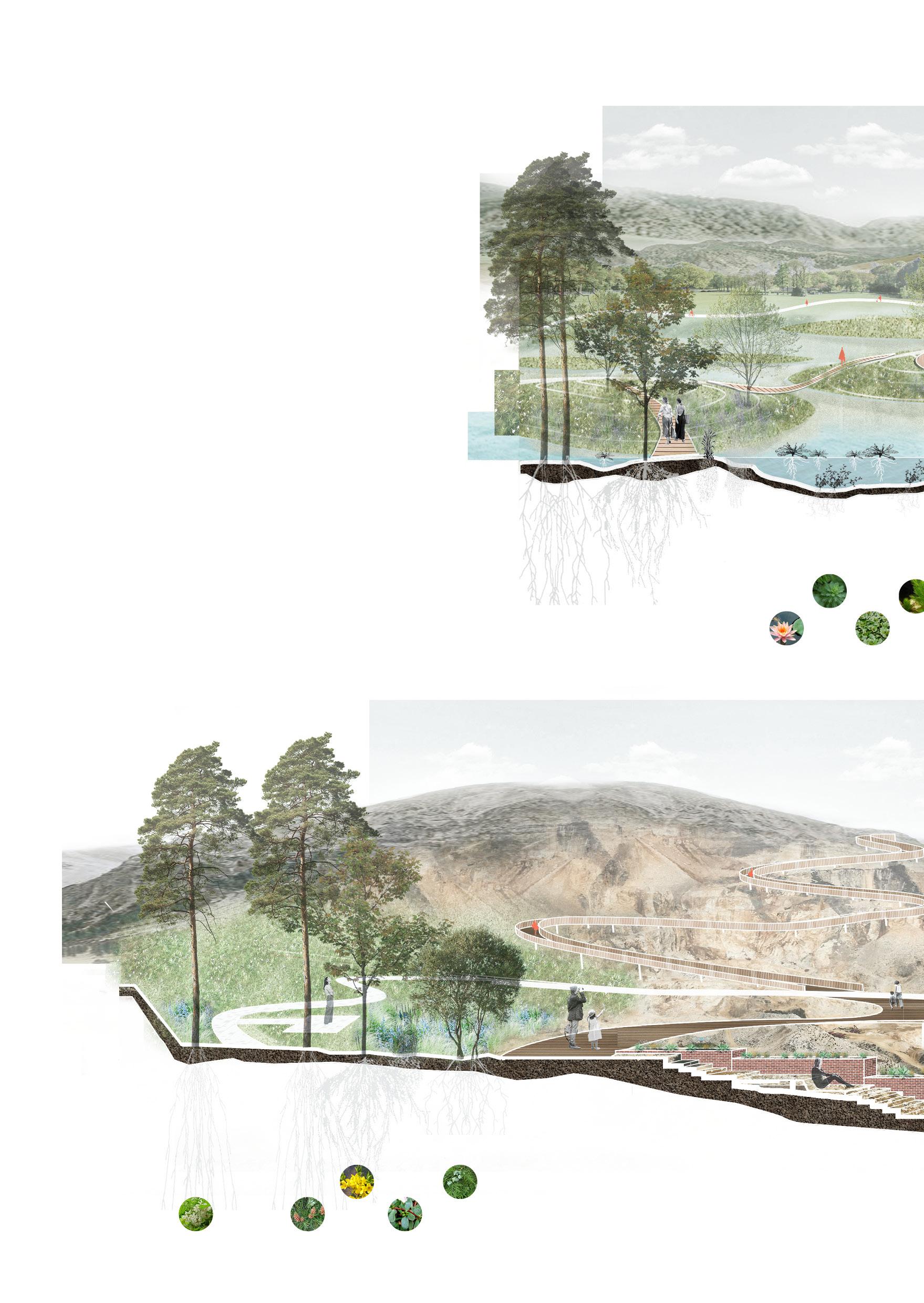

Perspectives Perspective 1 Phytomining & Agriculture

Position of perspectives

26

Perspective 1

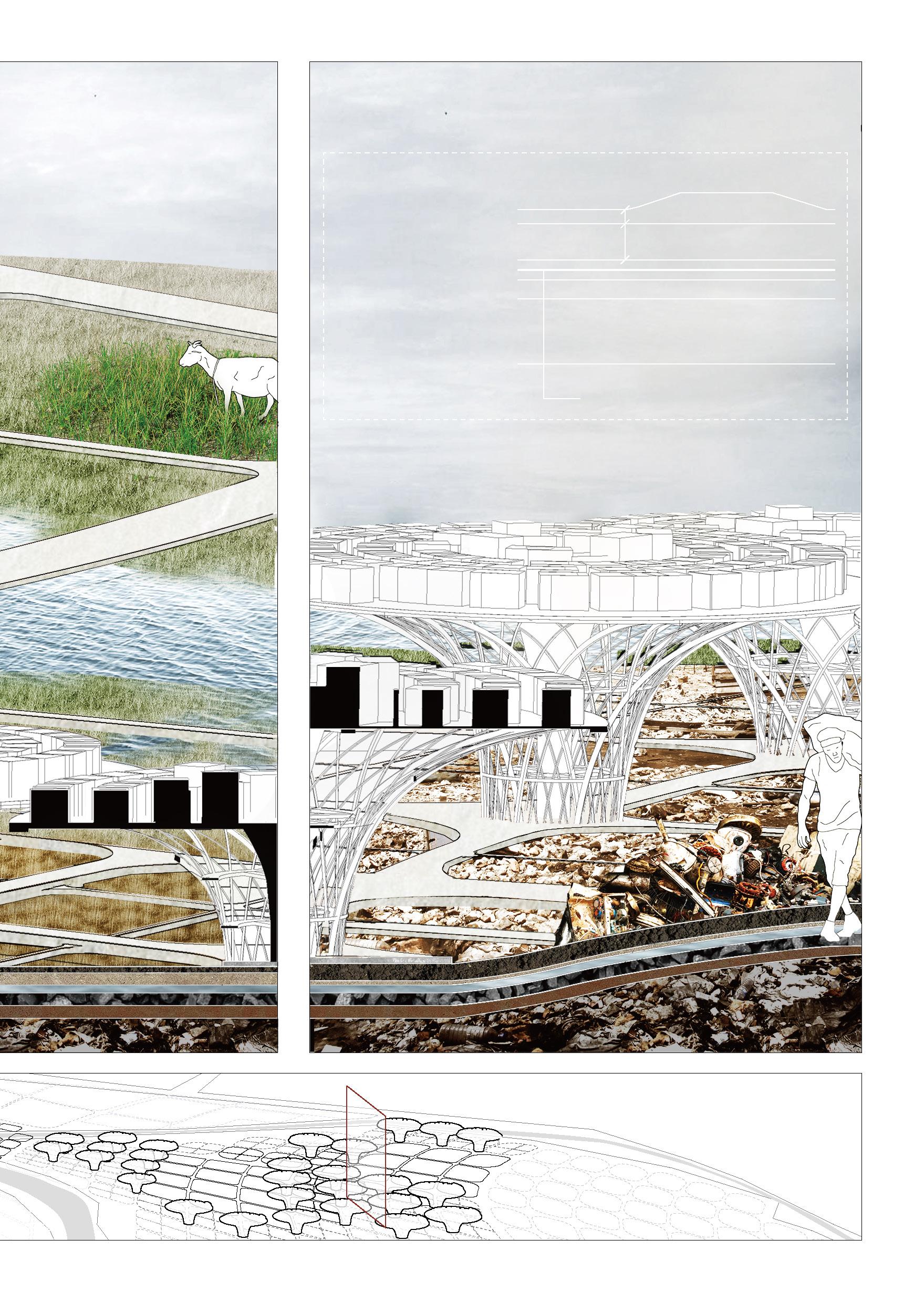

Perspective 2 Stockfeeding & Market

Perspective 2

Perspective 3 E-waste Recycling

A Landscape Cap Planting Soil

6 in min

Barrier Protection Meterial

2 ft min

Drainage Layer Gas Vent Layer Soil Barrier Layer Waste Impermeable Plastic Liner

Perspective 3

27

"What people in the city need now is an urban public space where they can rest and a square where they can exhibit and dance."

"In the vicissitudes of life, only the mottled brick walls have remained over time, recording the glory and decline of the Gonzaga family. " 28

03 Identity Regeneration of the Ancient Garden A piazza that can carry large-scale activities and daily leisure needs MIRC 2022 | Guastalla Design competition for the Ancient Garden of the Ducal Palace Guastalla, Reggio Emilia Province, Emilia Romagna, Italy Individual Academic Work Tutor: Kai Gu August 2022 The site locates in the historical center of Guastalla, between the Guastalla Medical Center and the Ducal Palace. After experiencing the Medieval, Renaissance, and Industrial Times, this site serves the urban residents together with the Ducal Palace as a public urban space. Compared with the two squares, Piazza Giuseppe Mazzini and Piazza I Maggio, near the site, the site has the largest area and can carry a large number of people. It is most likely to meet the needs of large-scale activities often held in Guastalla.

TTherefore, the design positioning of the project is "an urban public space that can meet the needs of large-scale activities and daily recreation." The project faces two main problems. One is how to carry out large-scale activities while meeting the needs of daily use; the other is how to remind visitors of the profound historical context of the site while serving as a public space in the city.

29

Location Guastalla

The site locates in Guastalla, Reggio Emilia Province, Emilia Romagna, northern Italy. It locates in the town's historical center, between the historical building Ducal Palace and Guastalla Medical Center.

VIA S. Gonzaga

Ducal Palace

Ducal Palace

Piazza Giuseppe Mazzini

VIA S. Gonzaga

Site

30

Medical Center Piazza I Maggio

Design Goal After experiencing the Medieval, Renaissance, and Industrial Times, this site is now used as public land. It has the potential to carry a large number of people and large-scale activities. The goal is "to create an urban public space that can meet the needs of large-scale activities and daily recreation."

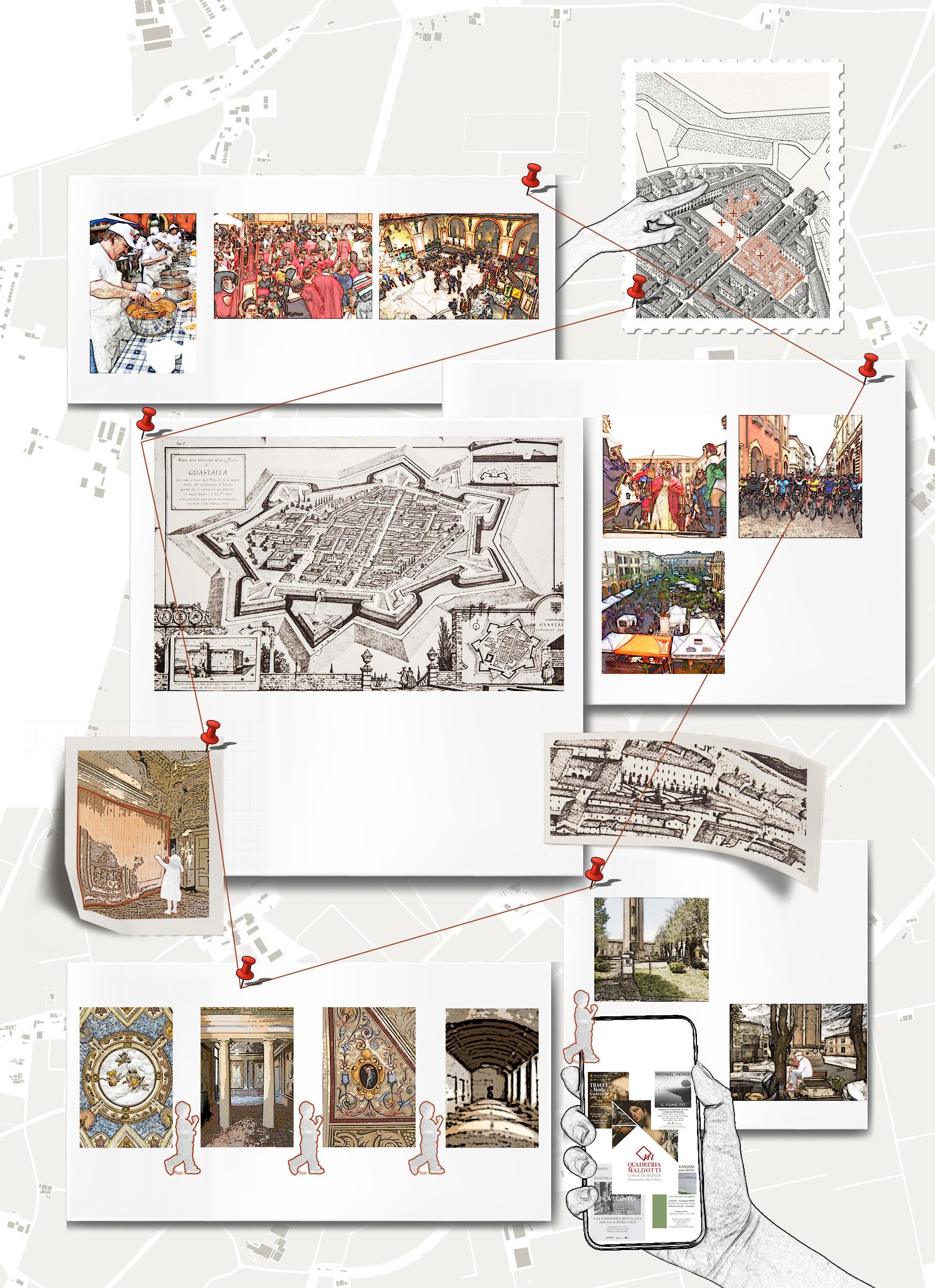

A. Urban origin The building complex built around the Machini square became the beginning of the layout and development of Guastalla city.

F. Problems of Piazza Giuseppe Mazzini

Piazza Giuseppe Mazzini has shown its insufficient carrying capacity as the public space currently carrying large-scale activities.

E. Traditional Festivals in Guastalla

1 3

2 1 The Gnoccata 2 The fearless of Emilia 3 Lost plants and animals

B. Style&Function Change of this site 1587_The garden of the Ducal Palace in Baroque style 1896-1908_Industrial land for seasoning timber in industrial style 1990s-now_Green city square in public features

After the restoration, the murals covering each other were presented, which showed the layered history of the Duke's estate.

D. Problems of Piazza I Maggio There is little infrastructure, and the piazza is hard to host significant events.

C. Style&Function Change of Ducal Palace

Renaissance

Baroque

Art Nouveau

Restoration

Gonzaga's residence

Ducal Palace

Company's office

City Museum

City Museum Exhibition

31

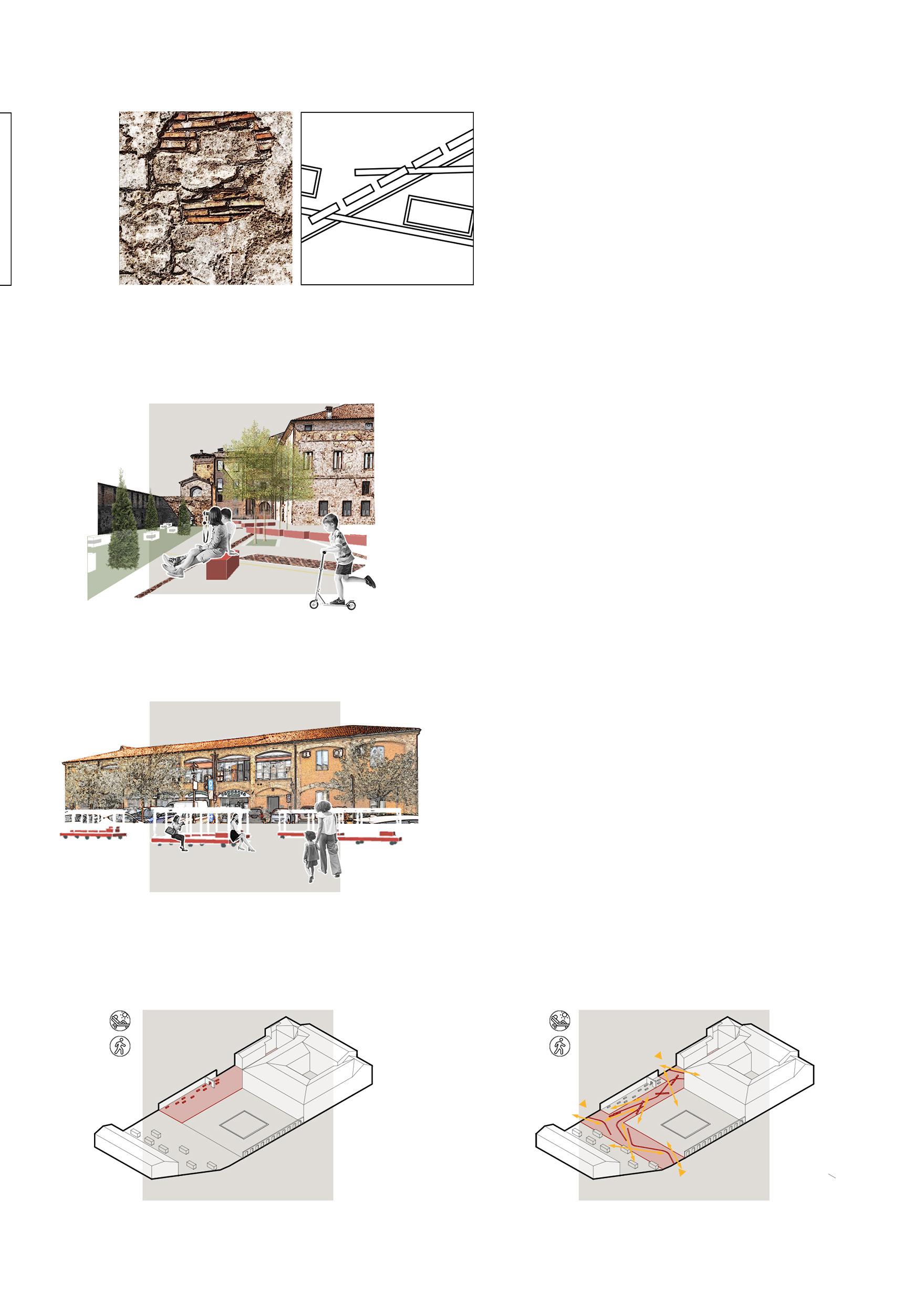

Element extraction

Brick wall crack

Regular arrangement

Broken brick

Scattered arrangement

Design Strategies

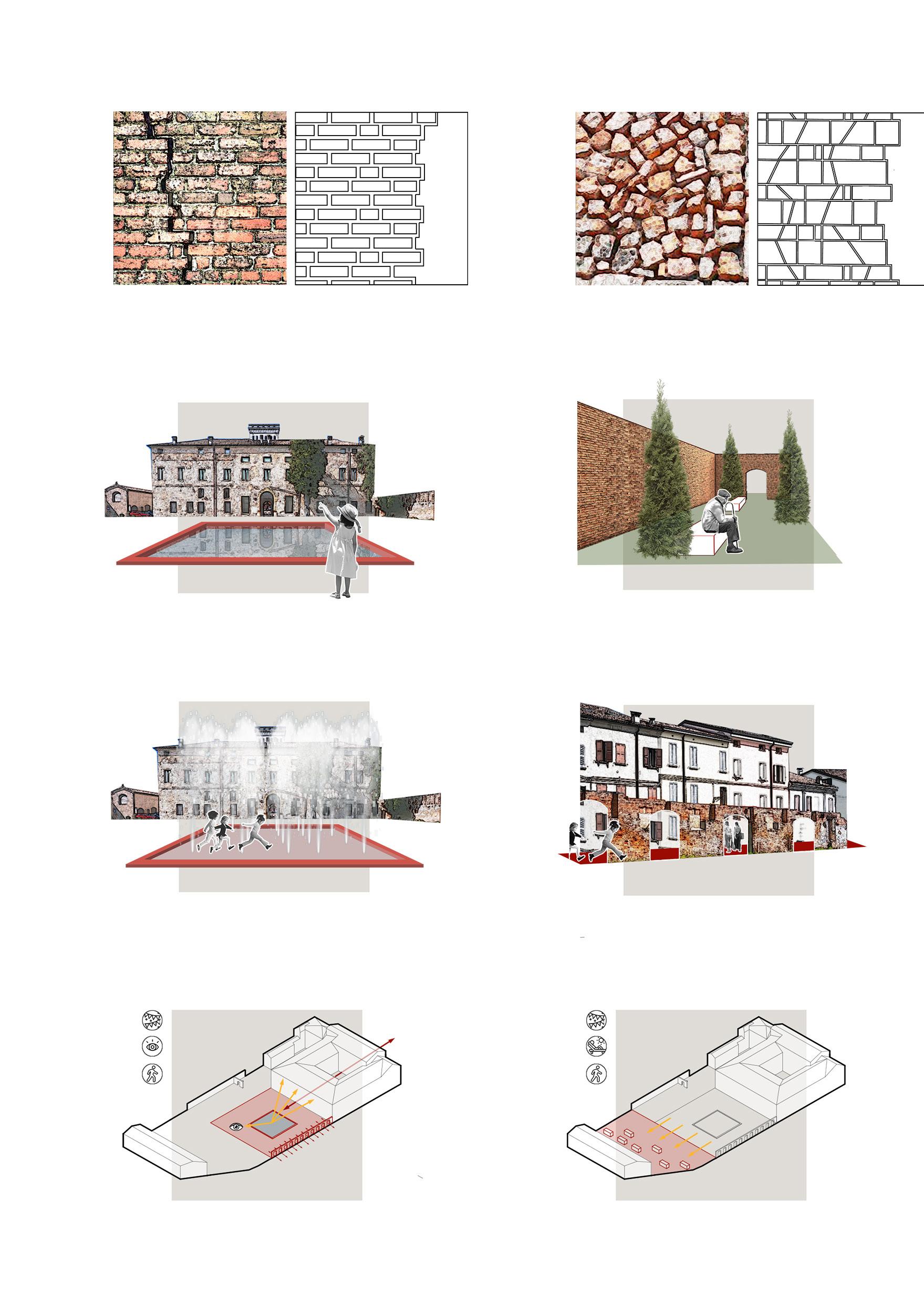

01 Mirror Pool

A new aspect of the Ducal Palace

04 Dryland fountain

Activate the site

02 Fixed recreationspace

05 A series of arches

Lean against the ancient w

Another way to use the ancient w

Design Generation Festival

Festival

View&Visit

Recreation

Transportation

Transportation Expansion direction

Sight direction Traffic direction Movable devices

01 Concentrated Space 32

02 Meeting space for expansion

wall

wall

Explaination Because the site has experienced changes in style and function, the ancient brick wall texture of the building outer skin and ancient wall remains on the site is selected to show the historical contex t of the site strata, and the texture is abstractly interpreted again with modern materials.

Mottled brick wall

Linear&planar elements

Explaination The design strategy mainly solves four major problems faced by the site: In the limited space, we should expand the depth of the space visually and increase the viewing angle of the Ducal Palace.

03 Multi-functional traffic space

Transportation&sustainability

Improve it s crowd - carr ying capacit y as public land for large-scale activities, market exhibitions, and festivals, maximize the available hard land area, and set up as many infrastructure facilities as possible to meet daily use.

To integrate the local culture of Guastalla, enhance the site's sustainability as much as possible, and increase the area of the soft underlying surface and plant planting.

According to the current situation, people shall treat the ancient brick walls left on the site differently.

06 Movable devices

To offer more available hard area

Recreation

Recreation

Transportation

Transportation

Bench

03 Fixed recreation space

Hint of spatial direction

04 Pedestrian flow direction & traffic 33

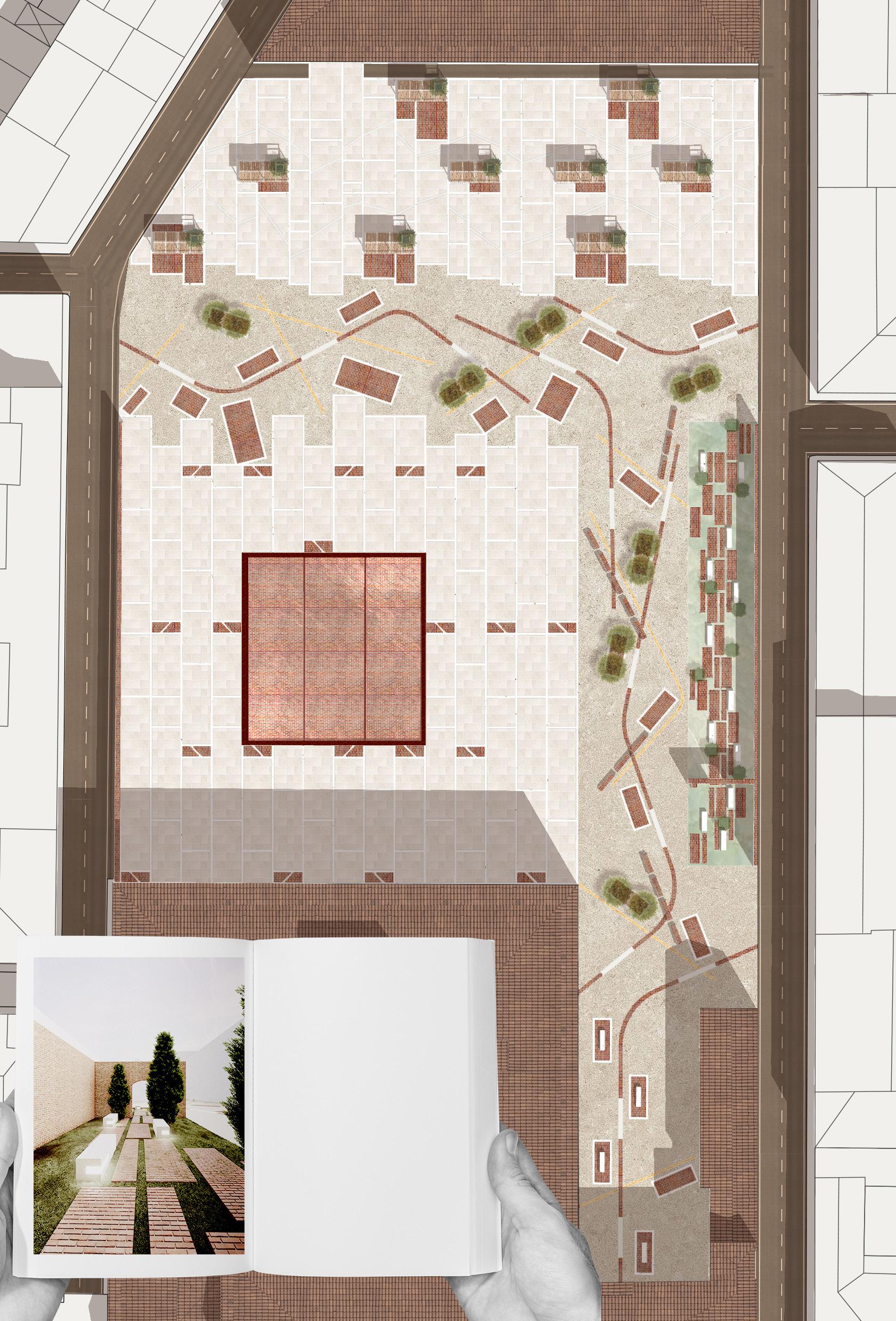

Plan N

0

5

10

20

Meter

D

A

Guastalla A new place to visit

Here we have...

A D r yl a n d fo u nta i n f o r y o u r

children to have some fun during weekends & Mirror pool to offer a new aspect for you to admire the Ducal palace B Concentrated area for largescale activities in Guastalla C Recreation space to offer you a place to relax outside

D Interactive devices offer a way for visitors to use this piazza and have accessible communication freely.

34

B

C

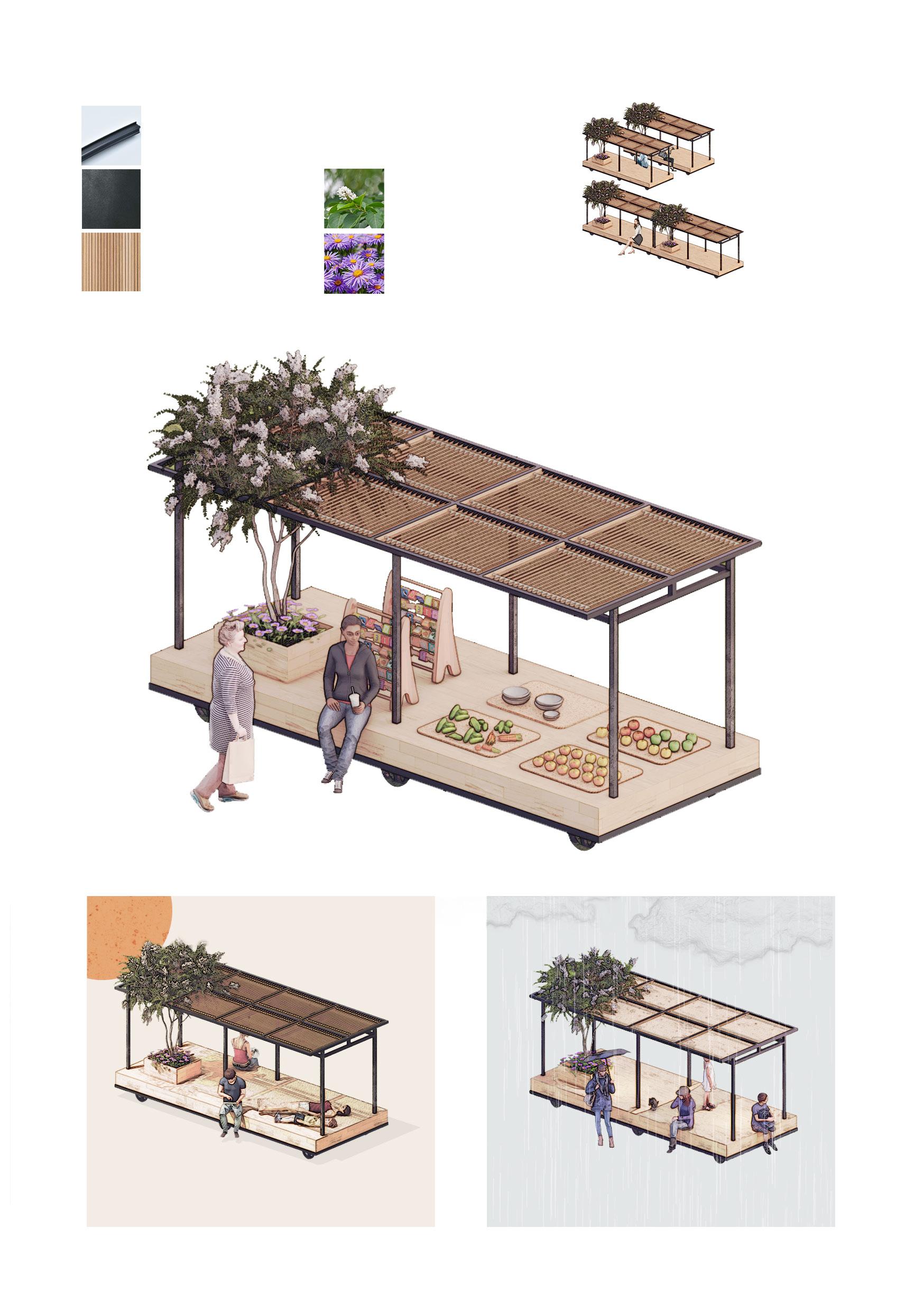

Material The structure of the device is iron, with wooden louvers on the top and PVC waterproof strips on both ends of the blade.

Plant Arrangement

Usage Keep proper conversation distance.

White Crape Myrtle

Used as audience seat.

Alpine Aster Isometric Drawing of the movable device

Use it on sunny days

Adjust the shutter to control the sun exposure.

Use it on rainy days

Close the shutter to take shelter from rain.

35

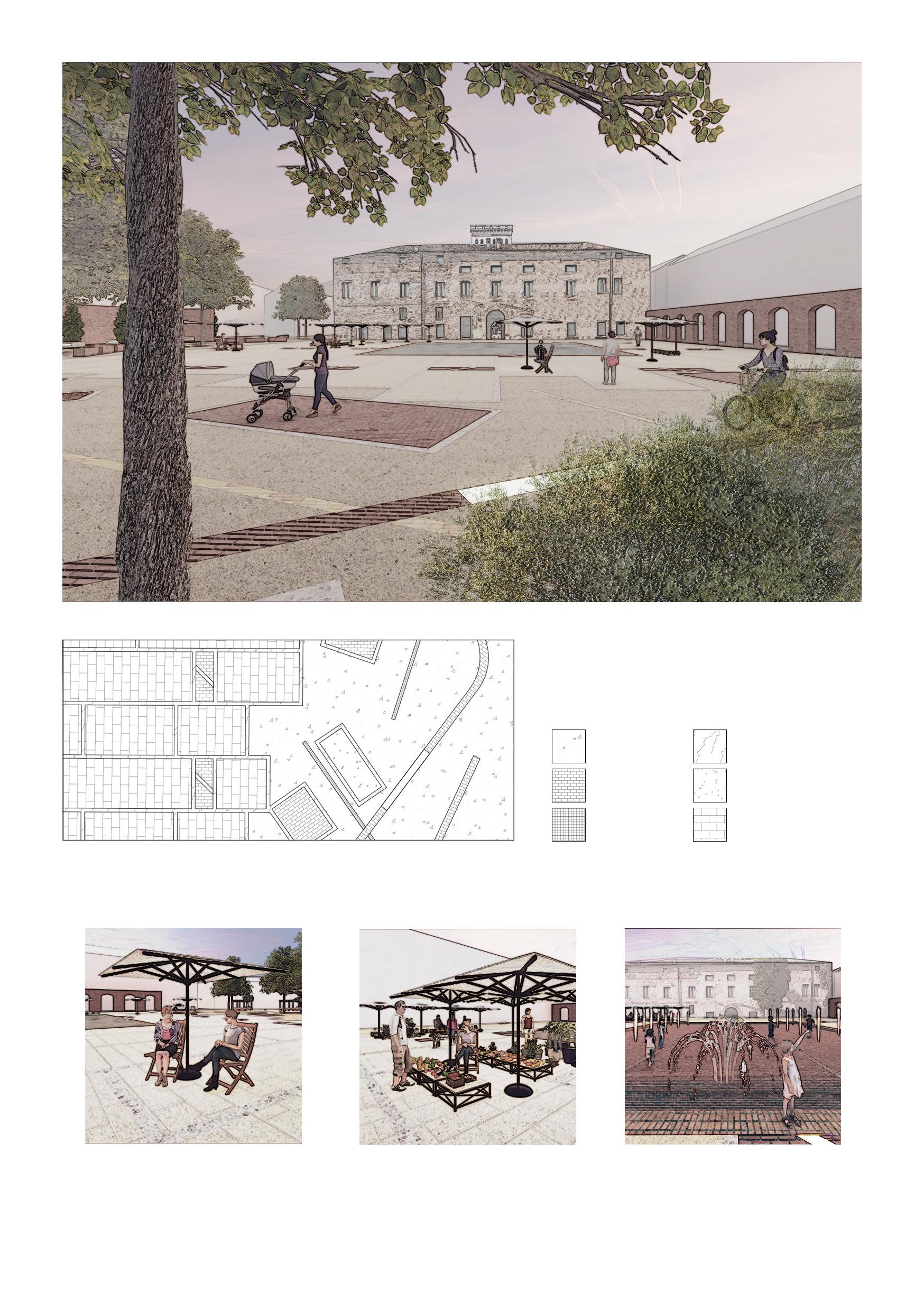

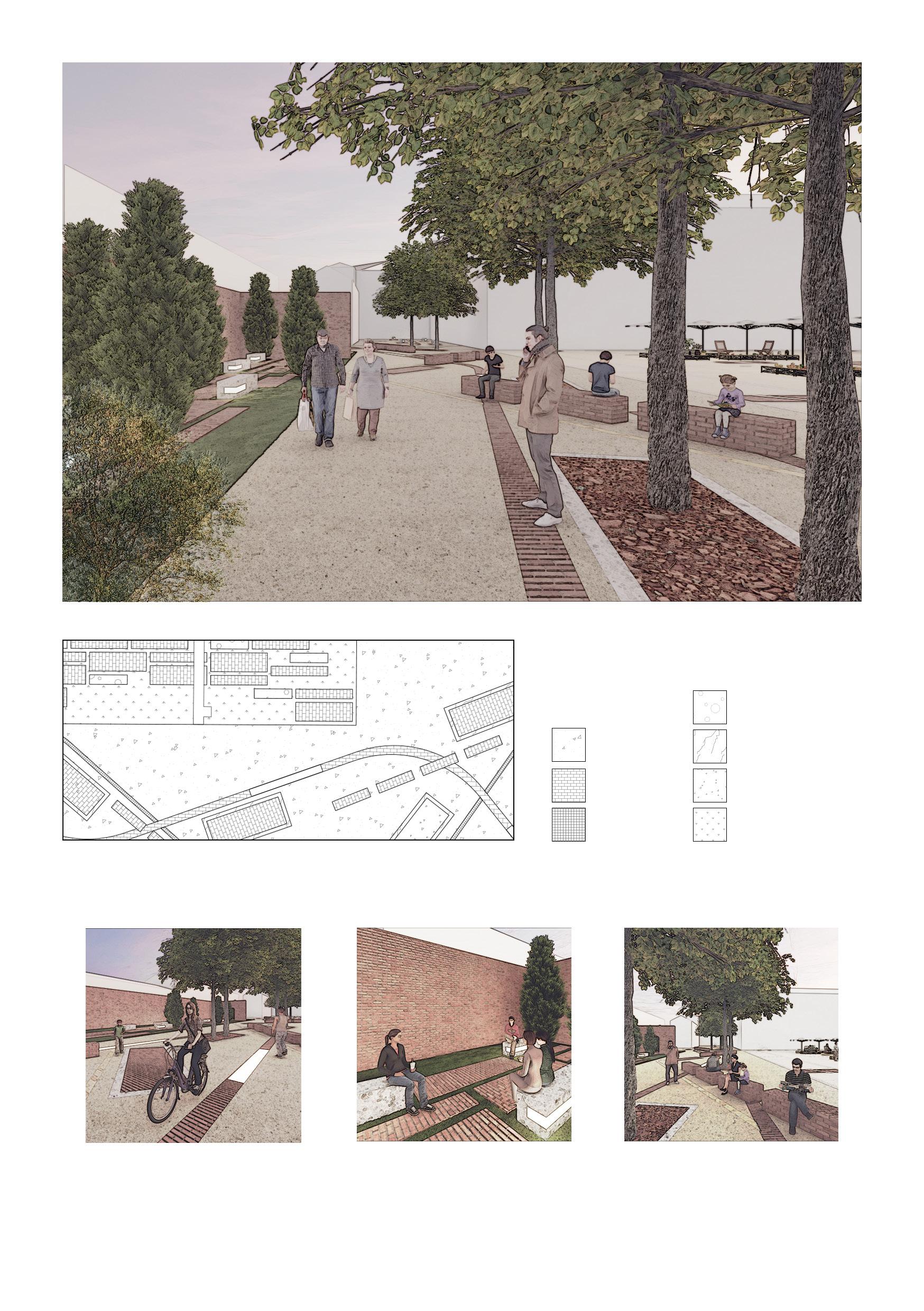

Material Embossed Concrete Concrete Almm

Marble

Italian Red Brick

Broken Red Brick

Tile

Grass

What you can do

"You can freely walk in this space with directional hints."

36

"You can have a private conversation with your friends on the benches between Italian cypresses."

"You can spend your spare time and enjoy the tree shade of Common Lindens ."

Material

Concrete Almm

Marble

Italian Red Brick

Broken Red Brick

Tile

Brick

What you can do

"You visit Ducal Palace and spend your leisure time chatting with friends here"

"You can also attend the Week Market activities held every week and the famous italian festival 'Lost Animals and Plants' held annually in Gustalla. "

"You can take your children here to have some fun"

37

Current river courses & Reservoir

Current flood divection

Current flood divection

Original flood divection

Flood area

Original flood divection

Original river courses

Agricultural losses Safety loss of life and property

Loss of biodiversity

Floodplain

Benounka River

38

Vltava River

04 Weaving rivers A resilient landscape design oriented by flood adaptability Acadamic Work Prague, The Czech Republic Individual Work Tutor: Pang Li December 2022 The project is located in the floodplain at the confluence of the Vltava River and Benounka River on the outskirts of Prague. Since the floodplain is located upstream of the Vltava river flowing through Prague, it is of great locational significance for preventing or delaying floodwaters from entering the center of Prague.

Due to the wrong river management in recent years, the historical river course has been artificially filled or shortened and straightened. Although the historic confluence of the Benounka river and Vltava river and other historic waterways are still visible and forced to be used during floods, they still cannot regulate or slow down the surge of river flow during heavy rains in any way.

The planning goal of this project is to realize the resilience of the landscape, and the design strategies of flood resilience, economic resilience, and biodiversity resilience were put forward, and then the flood-adaptive design of suburban parks was carried out. Through diverse water landscape designs, the Vltava river and Benounka river were woven together to relieve the pressure of floods on a single waterway.

39

Site Analysis The floodplain at the confluence of the Benounka and Vltava rivers is the most significantly affected by flooding in Prague, the capital of the Czech Republic. It is located in the upper reaches of the Vltava River that flows through Prague. The ecological regulation capacity and climate adaptability of this area are of great significance for improving urban resilience and strengthening the construction of Prague's flood control system.

Letňany Forest Park

Prague 1 Duby letní na Pavím vrchu

Vrchlického sady

Gopnicky Park

Riegrovy sady Gopnicky Park

Prokopské Valley

y ca

Central Park Pankrác Park at Chodov Fortress Branické skály

Nature Park Hostivař-Záběhlice

21 m

in b

Řepora - bývalá těžebna cihlářských hlín

r

Makchu pichu

Prague 16

8500 inhabitants

Geopark Spořilov

Cholupická bažantnic Central Park

Modřanská rokle

Zvolská homole

Ohrobecké údolí

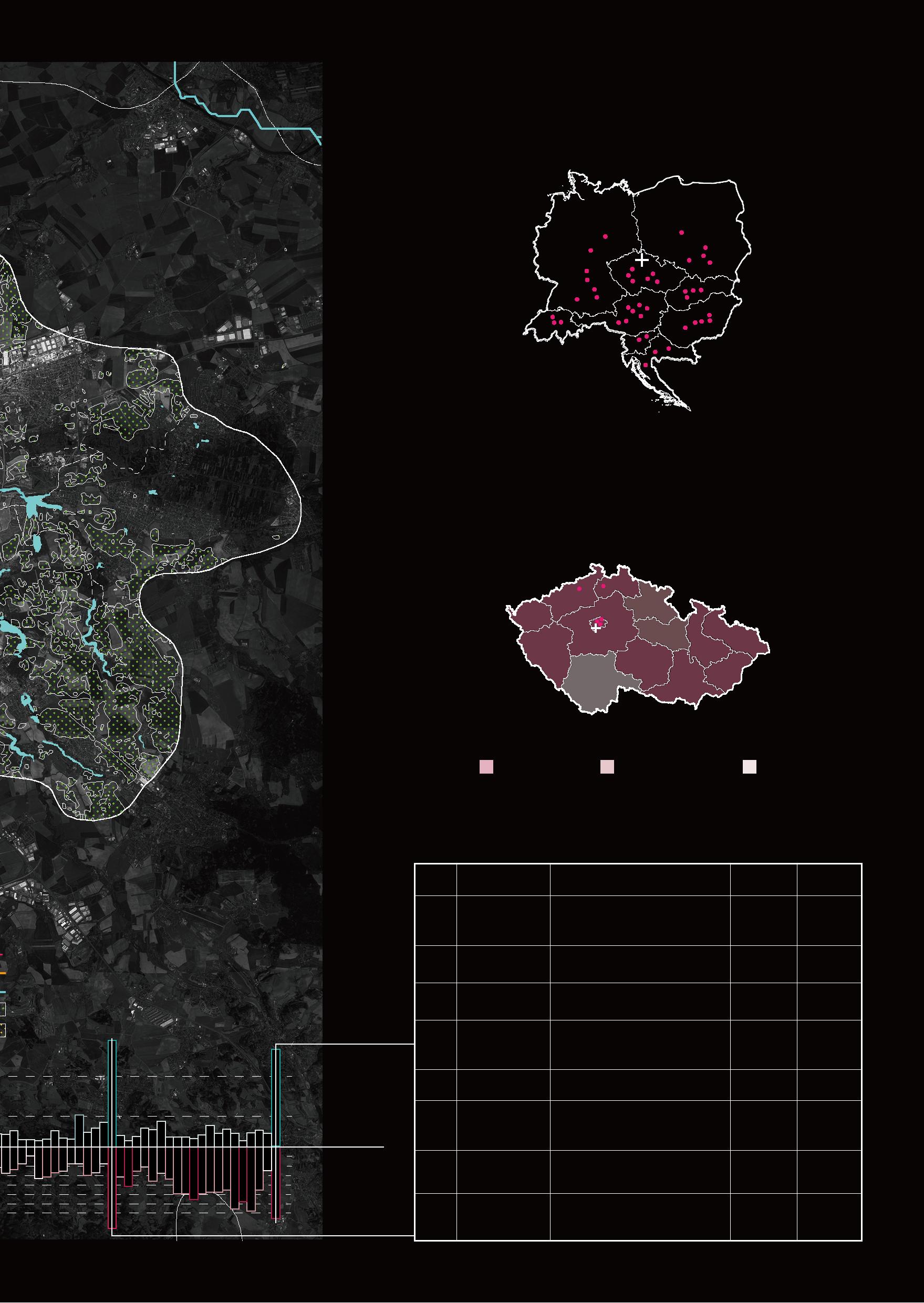

Legend Q5 Flood Area 2013 Flood Area Q100 Flood Area Benounka & Vltava Floodplain

Floods on Vltava river in Prague (1870-2013)

Floods in Central Europe (1870-2013) 40

City Park

Flood Frequency in Central Europe 1990s-2022

River flood risk & Flood Frequency in Czech Republic 1990s-2022

High

ce

Medium

Low

List of floods in Europe involving the Czech Republic

Year

Details

Countries

Austria, Czech Republic, 2021 2021 European Croatia, Germany, Luxembourg, floods Netherlands, Switzerland, UK Project Site Flood Wall River Agriculture Area Nature Preserve

243

Heavy rain

20

Heavy rain

2014 2021 European Bosnia and Herzegovina, Croatia, floods Serbia, Romania

86

Heavy rain

Germany, Czech Republic, 2021 European 2013 Austria, Switzerland, Slovakia, floods Belarus, Poland, Hungary

25

Heavy rain

2016

Level Q100 Dangerous 5 15 25 35

Frequency

Fatalities Causes

2021 European floods

2021 European floods

Austria, Belgium, France, Germany, Moldova, Romania

Poland, Hungary

37

Heavy rain

2021 European 2009 floods

Austria, Czech Republic, Hungary, Poland, Romania, Slovakia, Turkey

33

Heavy rain

2006 2021 European floods

Bulgaria, Romania, Germany, Czech Republic, Hungary

0

Czech Republic, Austria, Germany, Slovakia, Poland, Hungary, Romania, Croatia

Poorly construct -ed dikes

310

Heavy rain

2010

2002

2021 European floods

41

Problem Analysis

The floodplain Çernošice, an excellent oppo the developm

Flood risk

Insuffient flood-adaptive facilities Artificial flood control facilities that weaken the river's f lood discharge capacity

Construction of multi-level road system

Activities and temporary installation heavily dependent on the transportation system

Ave

Landscape infrastructure construction

Insufficient landscape infrastructure such as seats that can not meet the needs of high-density crowds

Addition of sports facilities

Inseffitcent sports facilities construction that does not match sports demand

Diversified habitat construction

Insufficient vegetation configuration that can adapt to the floodplain habitat Single vegetation type & chaotic plant configuration 42

Černoš

7,925 inhab Average age 38.

n area spans five Prague city districts and a Central Bohemian town, nd covers an area of approximately 1300 hectares. This presents an ortunity for the development of recreational, sustainable farming and ment of valuable river views.

Lahovice

836 inhabitants Average age 39.2 years old

Radotín

14,234 inhabitants erage age 39.2 years old

šice

bitants .8 years old

Modřany 12,334 inhabitants Average age 39.2 years old

Legend Settlement Water Body Agriculture Bare Land /Brownfield Buildings Q5 Flood Area Q20 Flood Area Q50 Flood Area Q100 Flood Area Floodplain Area

Lipence

3,564 inhabitants Average age 40.5 years old

Zbraslav

12,693 inhabitants Average age 39.2 years old

Cycling Road Railway Design Area & Area of Interest City Districts Road Railway Station 43

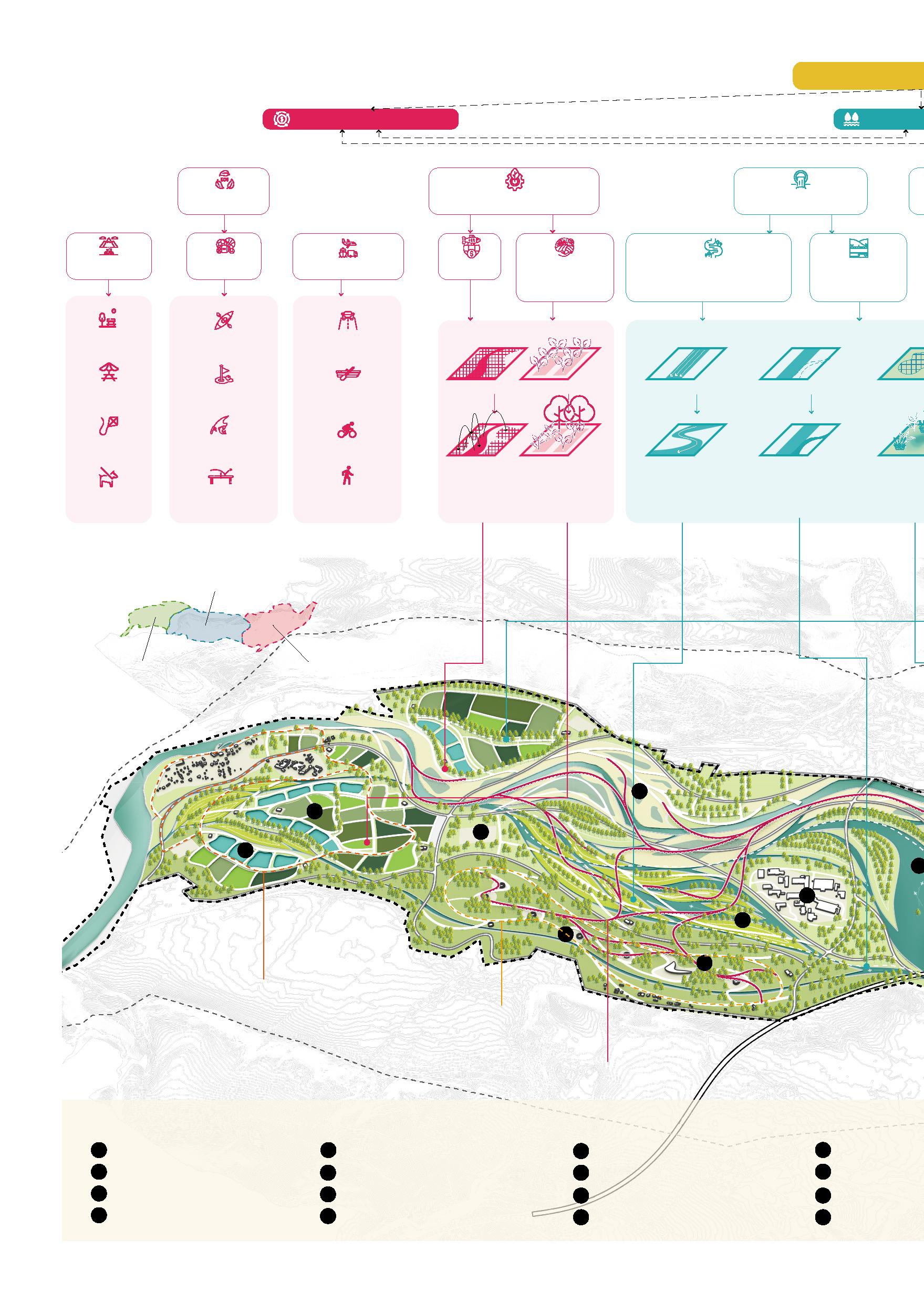

Landscape Economic Resilience

Flood R

Eco-tourism

Sustainable Industry

Recreation

Sports

Transportation

Bench

Kayaking

Roadway

Picnic

Golf

Waterway

Fly Kite

Sport Fishing

Cycling Track

Walk Dog

Table Tennis

Sidewalk

Flood Drainage

Fishery

Sustainable Agriculture

Fishponds

Food Forest

Revert the watercourses to curves

Reuse historic waterways

Historical Watercourse

Store & Flo

Ecological Water Landscape

Agriculture Landscape

City Park Landscape

City Park Landscape Bird-watching walking route

Boatin

44

1

Waterfront plank road

5 Boating park

9

13

Shrubbery

2

Wedding building

6 Wetland plank road

10 Sports park

14

Golf course

3

Flower field

7 City park

11 Kiting & picnic lawn

15

Kayaking club

4

Yoga park

8 Dry fountain

12 Natural lawn

16

Lake for kayak

Benounka & Vltava river

e Resilience

Resilience

Ecological Resilience

Flood Storage

Construct wetlands

& Purify ood

Flood Control

Build ecological berms

Flood Adaptation

Reuse rainwater

Ecosystem Diversity

Habitat Diversity

Biodiversity

Plant

Replace Flood Wall

Irrigation

Permeable Paving Surface

Forest

Grassland

Wetland

Fields

Creek

Fishponds

Hydrophyte

Aquatic Animal

Macrophyte

Bird

Terrestrial Plant

Amphibian

Hanada wedding route Sports route

ng route

king

17

Residential area

21 Bird watching tower

18 Biological observation wetland park

22 Parking lot

19 Forest park

23 Agriculture picking park

20

Wetland park

24 Fish pond

Highway Main Road Road Path 45

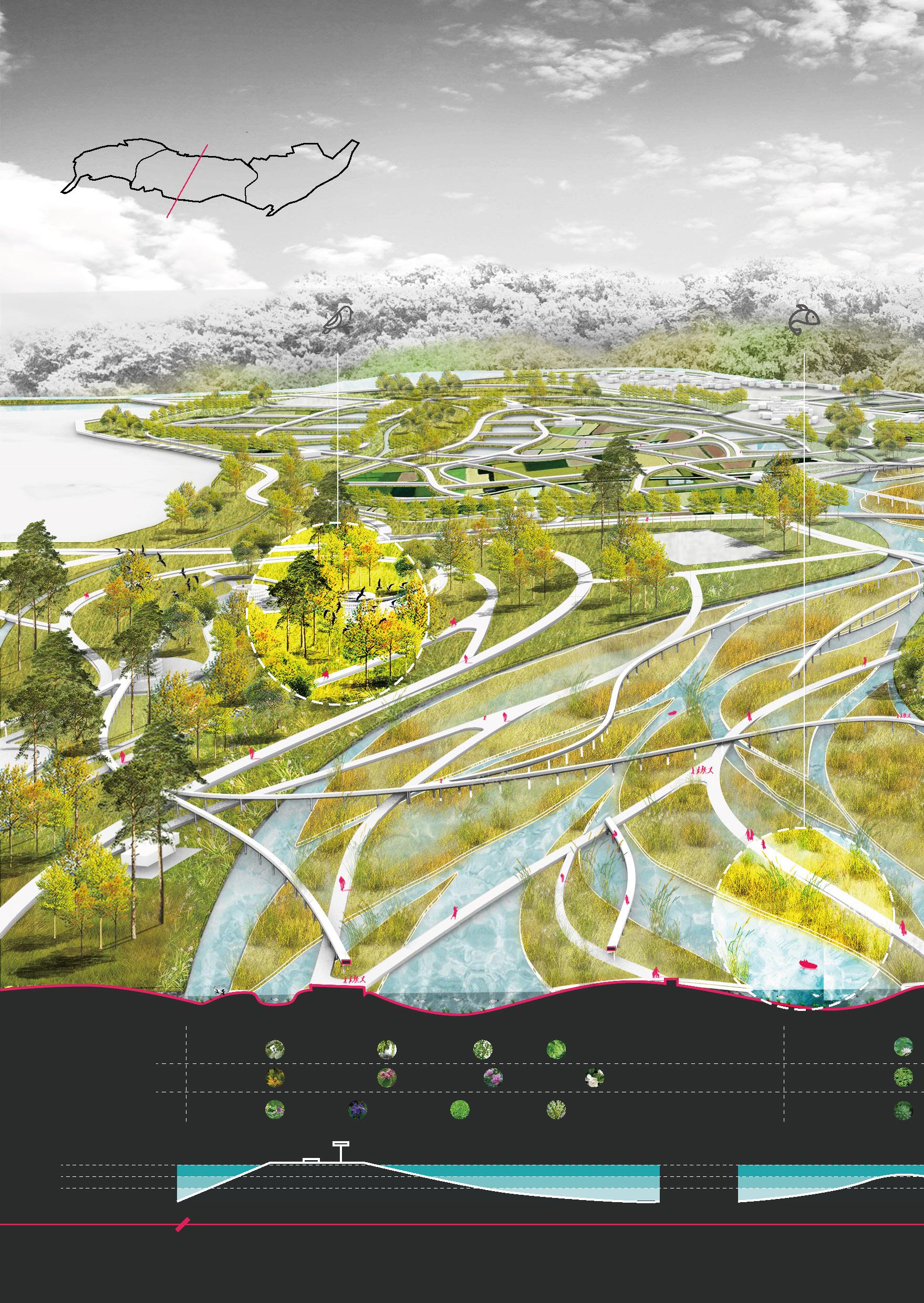

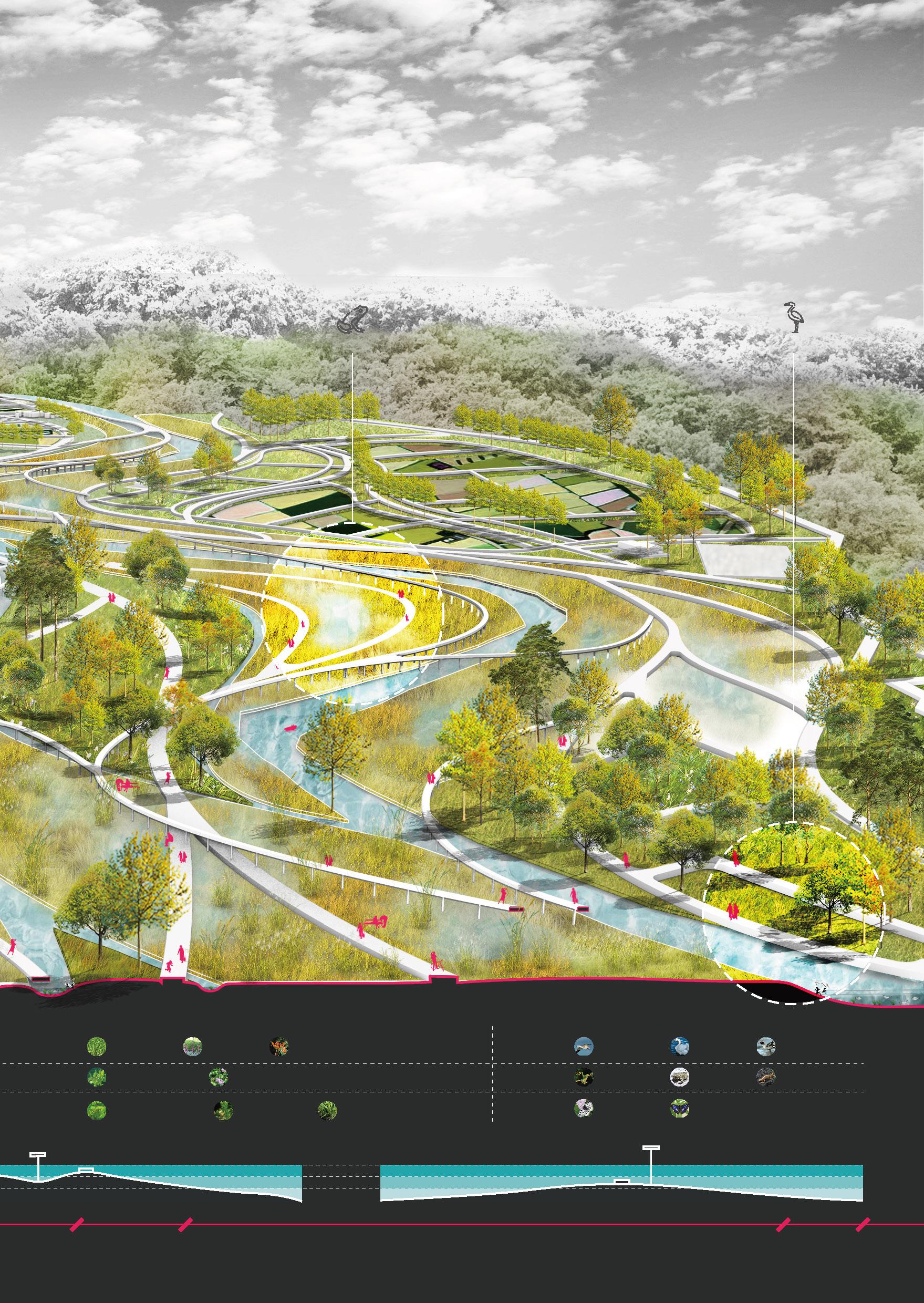

Sectional Perspective

of Ecological Water Landscape

Bird Watching

Biodiversity

Arbor Shrub Herb

Flood Tolerance Q100 Q5 Normal Level

46

Forest

Tourist Boating & Fish Observing

Populus Salix Ulmus Metasequoia glyptostroboides tomentosa Carr babylonica L. pumila L. Hu & W. C. Cheng Forsythia Lagerstroemia Hibiscus Gardenia viridissima Lindl. indica L. syriacus Linn. jasminoides Ellis Iris tectorum Ophiopogon japonicus Medicago Cyperaceae Maxim.

(Linn. f.) Ker-Gawl. sativa L.

Forest

Wetland

Wetland

Emergent Plants

N

Floating Plants

Le

Submerged Plants

M ve

Nelumbo sp.

emna minor L.

Myriophyllum erticillatum L.

Amphibians Observing

Scirpus Lythrum Canna indica L. validus Vahl salicaria L. Potamogeton Eichhornia crassipes distinctus A.Benn.

(Mart.) Solms Hydrilla verticillata (Linn. f.) Royle

Ceratophyllum demersum L.

Waterfowl Observing

Bird Amphibian

Vallisneria natans (Lour.) Hara

Insect

Snow goose Pool frog Parnassius apollo

Green-winged teal Carpathian Green Toad Newt Purple Emperor Butterfly Mute swan

Wetland

Forest

Wetland

River

47

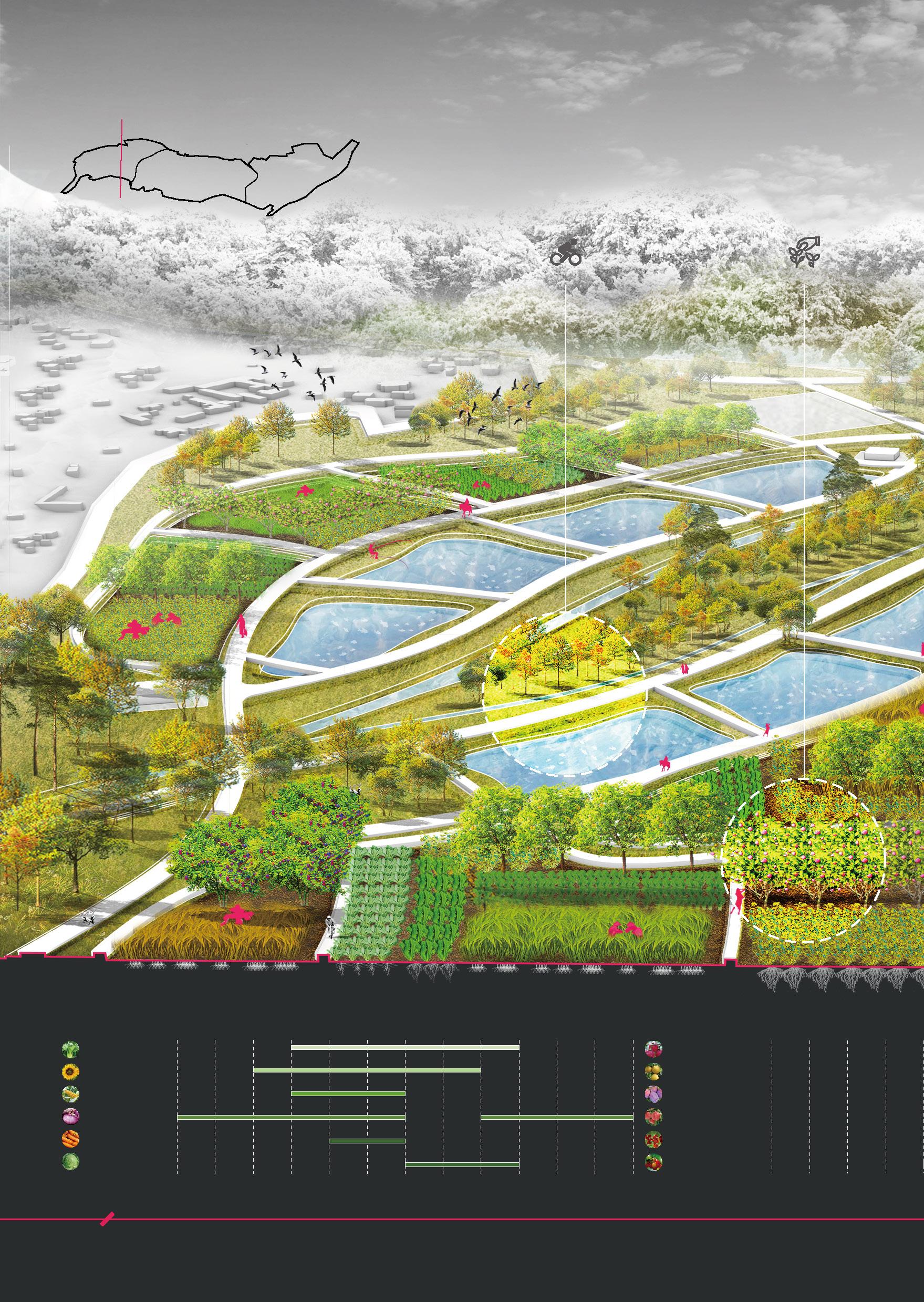

Sectional Perspective

of Agriculture Landscape

Cycling

Picking

Picking activity intensity & Rotation period Rape

Apple

Sunflower seed

Pear

Corn

Prunus domestica

Onion

Peach

Carrot

Currant

Cabbage

Cherry Jan

Forest 48

Feb

Mar

Apr

May

June

July

Aug

Sept

Oct

Nov

Dec

Jan

Field

Feb

Mar

Apr

Fishing

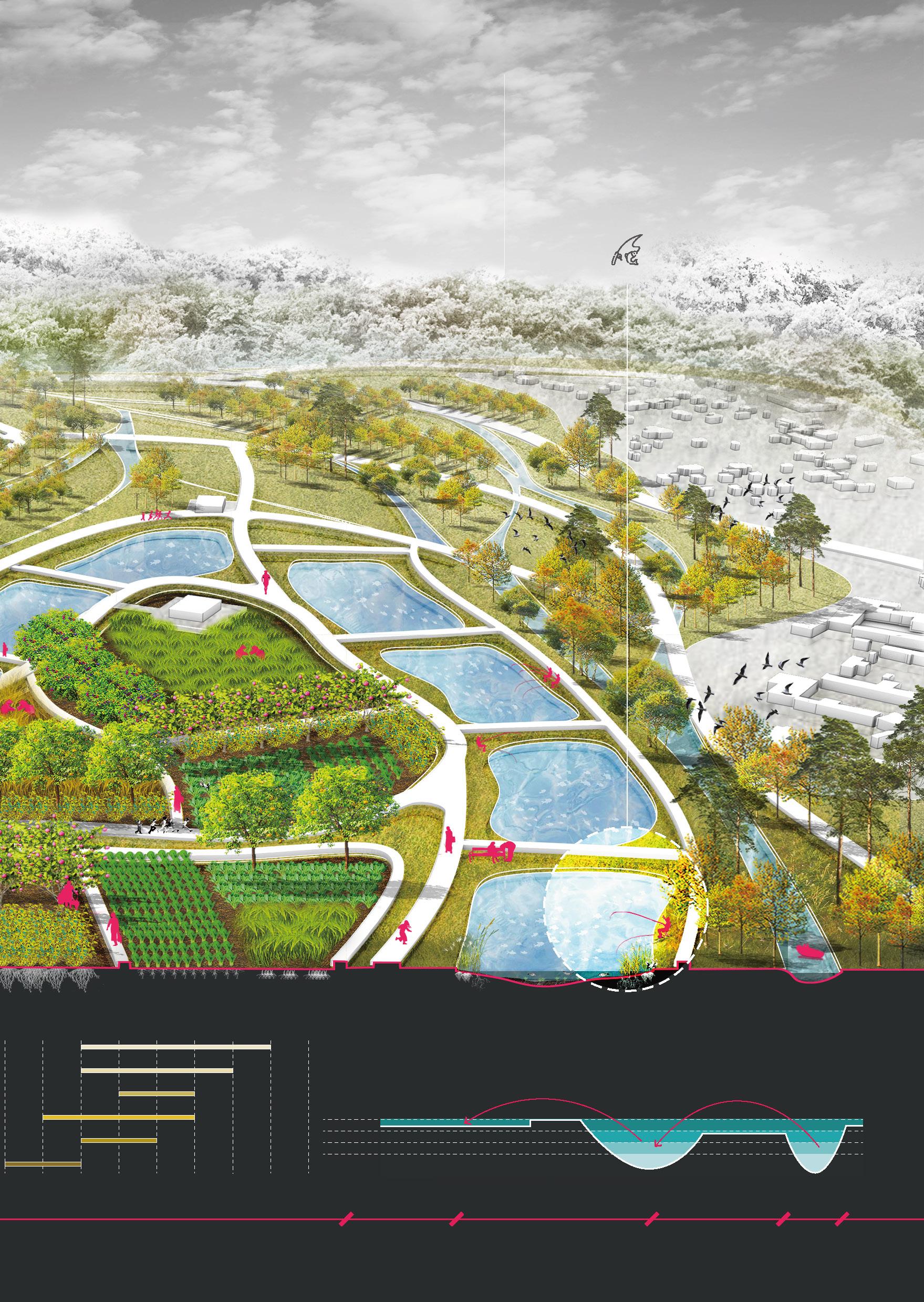

Picking activity intensity & Rotation period When there is a flood, the fish pond can be used as a flood storage tank to slow down the damage to the farmland caused by the flood.

Q100 Q50 Q5 Normal Level May

June

July

Aug

Sept

Oct

Nov

Dec

Meadow

Fish Ponds

Meadow

River

Forest

49
