Elevations
FRONT VIEW
REAR VIEW

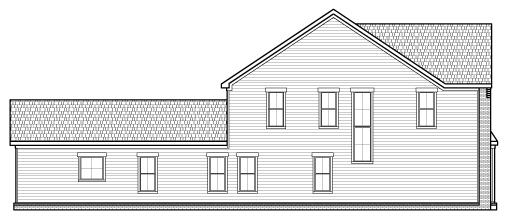

Elevations

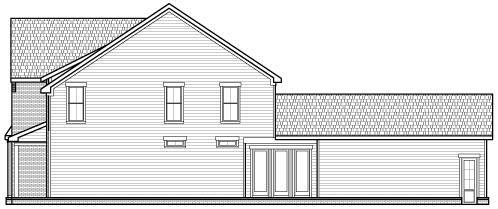

LEFT VIEW
RIGHT VIEW
Main Level
Second Level
Design Summary
SHINGLES
FRONT BAY SIDING, TRIM, COLUMNS, BRACKETS, SECONDARY DOORS
PAINT COLOR
Brand: Sherwin Williams
Color: Urbane Bronze Code: SW-7048
BRICK, SIDE SIDING, REAR SIDING
PAINT COLOR
Brand: Sherwin Williams
Color: Alabaster Code: SW-7008

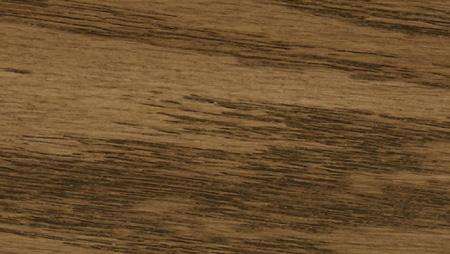

Dark Walnut PED
Overall Interior & Misc
INTERIOR WALLS, CEILINGS, TRIM, INTERIOR DOORS, BONUS AND BEDROOM 5 ACCENT WALL
PAINT COLOR
Brand: Sherwin Williams
Color: Heron Plume Code: SW-6070
BEDROOM 2 & 3, STAIRWELL
ACCENT WALLS
PAINT COLOR
Brand: Sherwin Williams
Color: Repose Grey Code: SW-7015
FIREPLACE MANTLE
SHIPLAP
PAINT COLOR
Brand: Sherwin Williams
Color: Porpoise Code: SW-7047

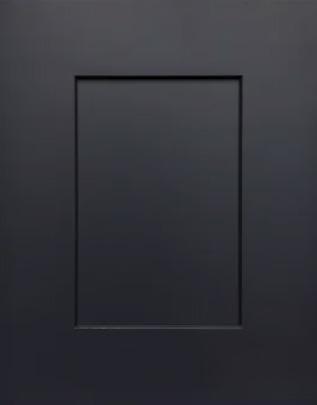

CUBBIES
PAINT COLOR
Brand: Sherwin Williams
Color: Cyberspace Code: SW 7076
STUDY
PAINT COLOR
Brand: Sherwin Williams
Color: Acier Code: SW-9170

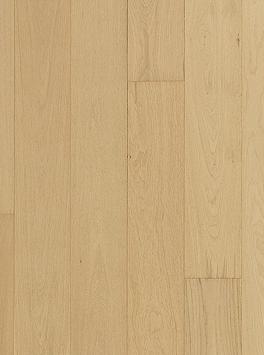

HARDWOOD FLOORS
Series: Harboulin
Color: Sand Dollar Oak

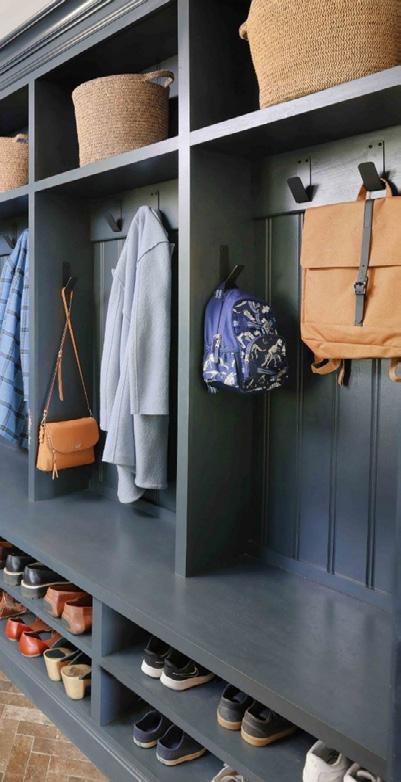

CUBBIES
No dividers in center section. Crown at top to be a flat 1x6
CUBBIE HOOKS
Brushed gold
CARPET
Brand: Dwellings
Style: Groundworks Plus
Color: Clam Shell

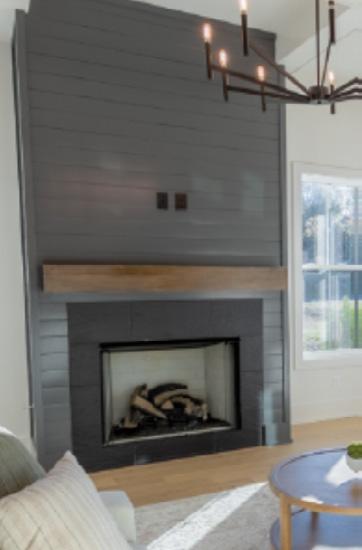

FIRE PLACE MANTLE

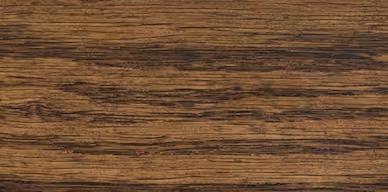

BEAM STAIN Dark Walnut
FIREPLACE
Horizontal Shiplap to wrap to back wall. Beam to be 8” thick, 8 deep. Wrapped cedar. Top of Stained Beam 48” High. Black Tile Surround.
FIREPLACE
Nain Negro Porcelain 12x24
Overall Interior & Misc
PRIMARY BEDROOM TRIM CEILING
Tray w/ white oak trim along perimete. White oak stained Pickled Oak w/ minwax Hellsman water based

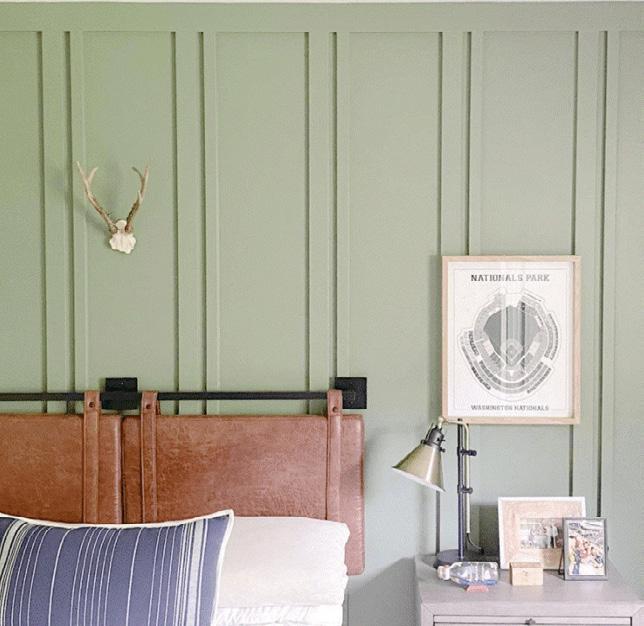

BEDROOM 2
ACCENT WALL
1x6 shiplap in V per design
BONUS ROOM TRIM
42” Paneling per picture
1x4
STUDY ACCENT WALL
1x3 staggered 2/3 height up for breaking point
BEDROOM 5
ACCENT WALL
1x4 Boxes per below spaced evenly across wall
BEDROOM 3
ACCENT WALL
1x3 Strips w/ 2” gap in between. Larger spacing in between Note: 1x6 on bottom and top

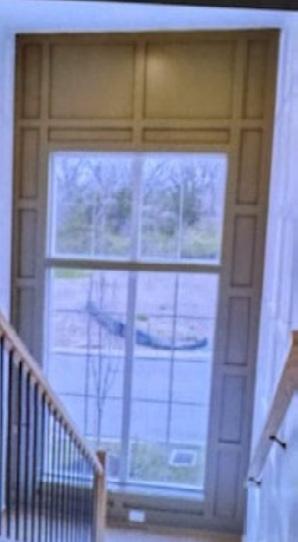

STAIRWELL WINDOW
WALL
1x4 Boxes per picture on back wall
STAIRWELL
Misc Lighting
BONUS ROOM
BEDROOMS 2, 3, 4, 5
GREAT ROOM

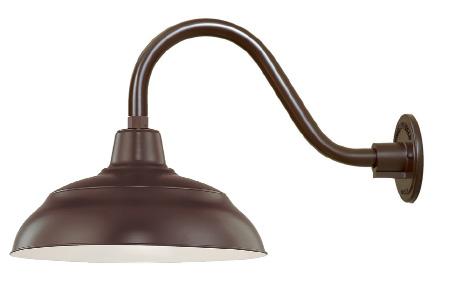

PORCH
FOYER
DINING ROOM
PRIMARY BEDROOM
STUDY
PERIMETER CABINETS
Color: White
ISLAND
Kitchen
CABINETS & WET BAR
Color: Ash Grey

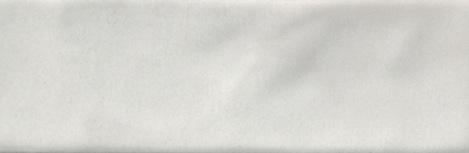

KITCHEN & WET BAR BACKSPLASH
Imperial Bianco Bevel Gloss
Ceramic Subway Wall Tile
3 x 6 in | 1/3 Offset
KITCHEN ISLAND LIGHTS
SINGLE HANDLE PULL-DOWN FAUCET
Brand: Delta
Model: 9159-CZ-DST
Material: Quartz
Color: Honeydew

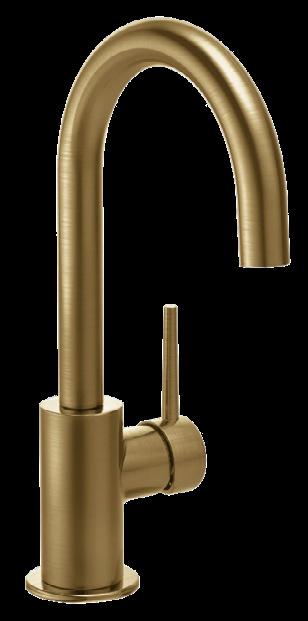

WET BAR SINGLE HANDLE PULL-DOWN FAUCET
Brand: Delta
Model: 1959LF-CZ
PERIMETER & WET
BAR COUNTERTOPS
Material: Quartz
Color: Super White ISLAND COUNTERTOP
Kitchen Appliances

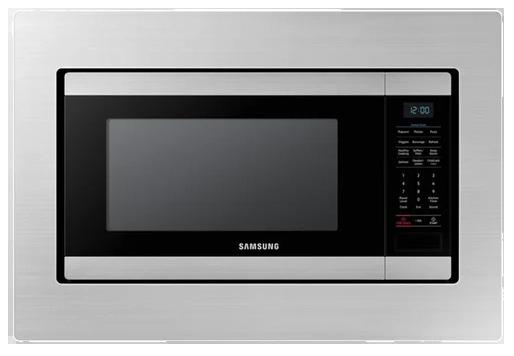

MICROWAVE

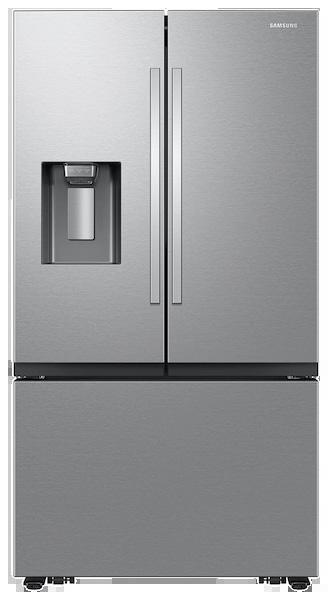

3-DOOR FRENCH DOOR COUNTER DEPTH REFRIGERATOR
Brand: Samsung Model: RF27CG5400SR

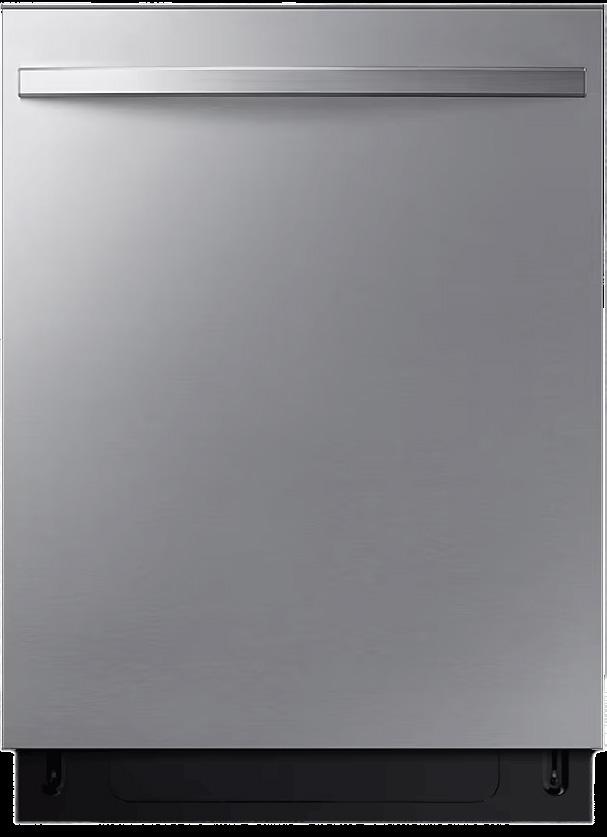

DISHWASHER
Brand: Samsung Model: DW80CG4021SR
Brand: Samsung Model: MA-TK8020T

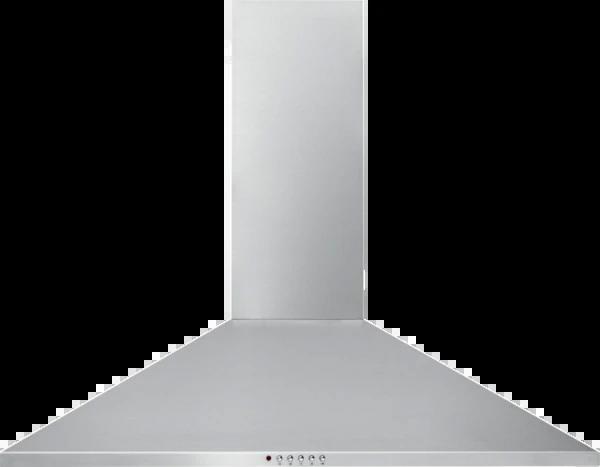

CHIMNEY WALL-MOUNT
HOOD
Brand: Frigidaire
Model: FHWC3055L S

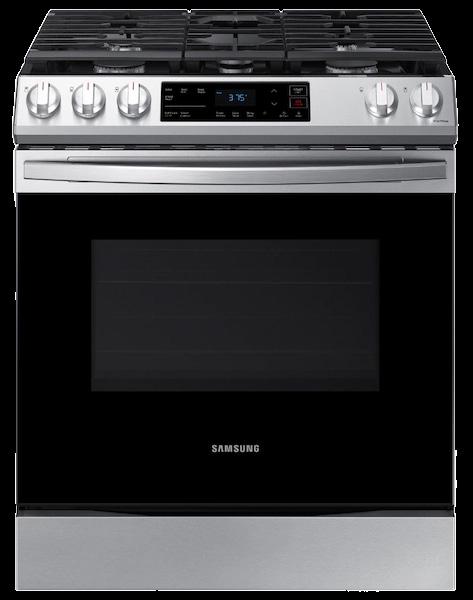

FRONT CONTROL SLIDE-IN GAS RANGE
Brand: Samsung Model: NX60T8111SS
Primary Bathroom
CABINETS
Color: White
TWO HANDLE WIDESPREAD FAUCET
Brand: Delta Model: 3559-CZMPU-DST
LIGHT
SHOWER WALL & BATHROOM FLOOR TILE

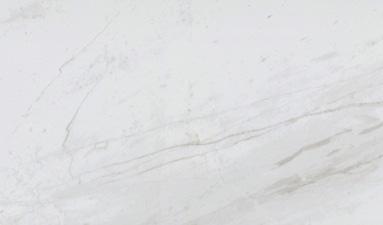

Volakas Porcelain
Matte | 12x24 | 1/3 Offset
Shower Wall Pattern: Vertical 1/3 Offset
MONITOR 14 SERIES SHOWER TRIM
Brand: Delta Model: 142749-CZ

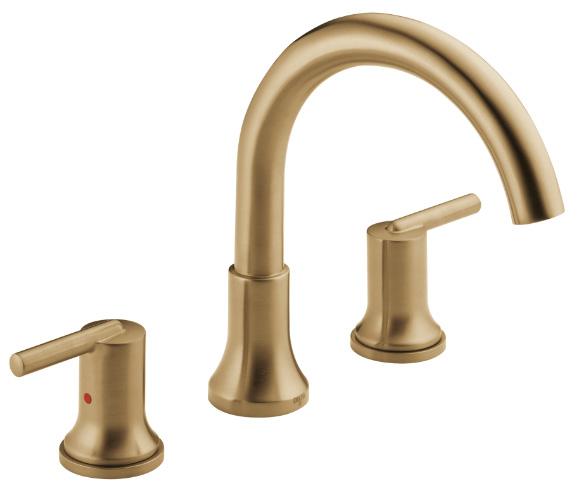

TUB TWO HANDLE WIDESPREAD FAUCET
Brand: Delta Model: T2759-CZ
COUNTERTOPS
Material: Quartz Color: Super White
SHOWER FLOOR TILE
VANITY
Calacatta Gold Penny Round Porcelain Mosaic TIle
Bathroom 2
MONITOR 14 SERIES
TUB/SHOWER
Brand: Delta
Model: 144749-CZ
CABINETS
Color: Ash Grey
VANITY LIGHT
SHOWER WALL TILE
Verano Ceramic White
4x12 | Herringbone Pattern
BATHROOM FLOOR TILE
Piemonte Pearl Matte Porcelain 12x24 | 1/3 Offset
COUNTERTOPS
Material: Quartz
Color: Super White
TWO HANDLE WIDESPREAD FAUCET
Brand: Delta
Model: 3559-CZMPU-DST
Bathroom 3
CABINETS
Color: Dove Grey
COUNTERTOPS
Material: Quartz
Color: Super White

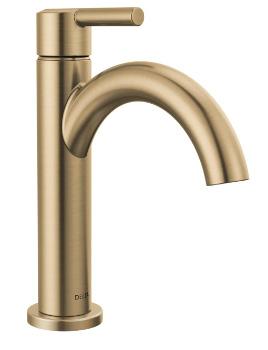

SINGLE HANDLE FAUCET
Brand: Delta

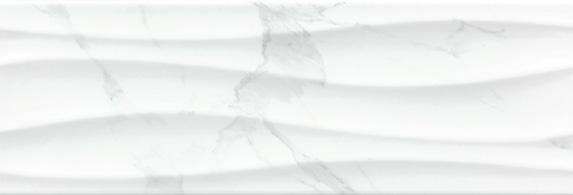

SHOWER WALL TILE
Pisano Waves Ceramic Horizontal 1/3 offset 8x24
BATHROOM FLOOR TILE
Penny Round Carrara Porcelain
Snow White
MONITOR 14 SERIES
TUB/SHOWER
Brand: Delta
Model: 144749-CZ
VANITY LIGHT
Bathroom 4
CABINETS
Color: Ash Grey
COUNTERTOPS
Material: Quartz
Color: Super White
VANITY LIGHT
BATHROOM FLOOR TILE
Volakas Porcelain
Matte | 12x24 | 1/3 Offset
SINGLE HANDLE FAUCET
Brand: Delta
MONITOR 14 SERIES TUB/SHOWER
Brand: Delta
Model: 144749-CZ
BATHROOM WALL TILE
Volakas Porcelain Matte 12x24 | Vertical Straight Stack
Laundry Room
CABINETS
Color: Cyberspace
COUNTERTOPS
Material: Quartz
Color: Super White
FLOOR TILE

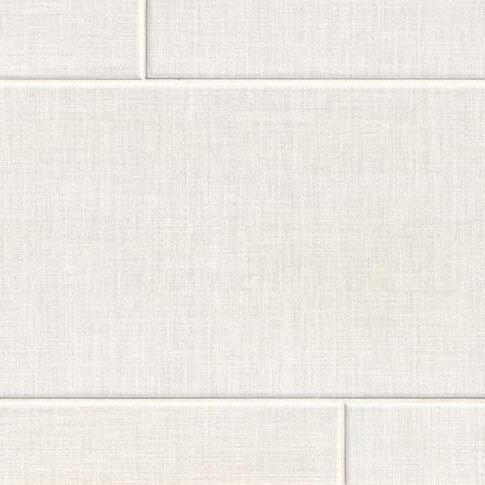

Linho Off-White Ceramic 12 x 24 | 1/3 Offset
SINGLE HANDLE
PULL-DOWN FAUCET
Brand: Delta Model: 9159-CZ-DST
