INTERNSHIP PORTFOLIO

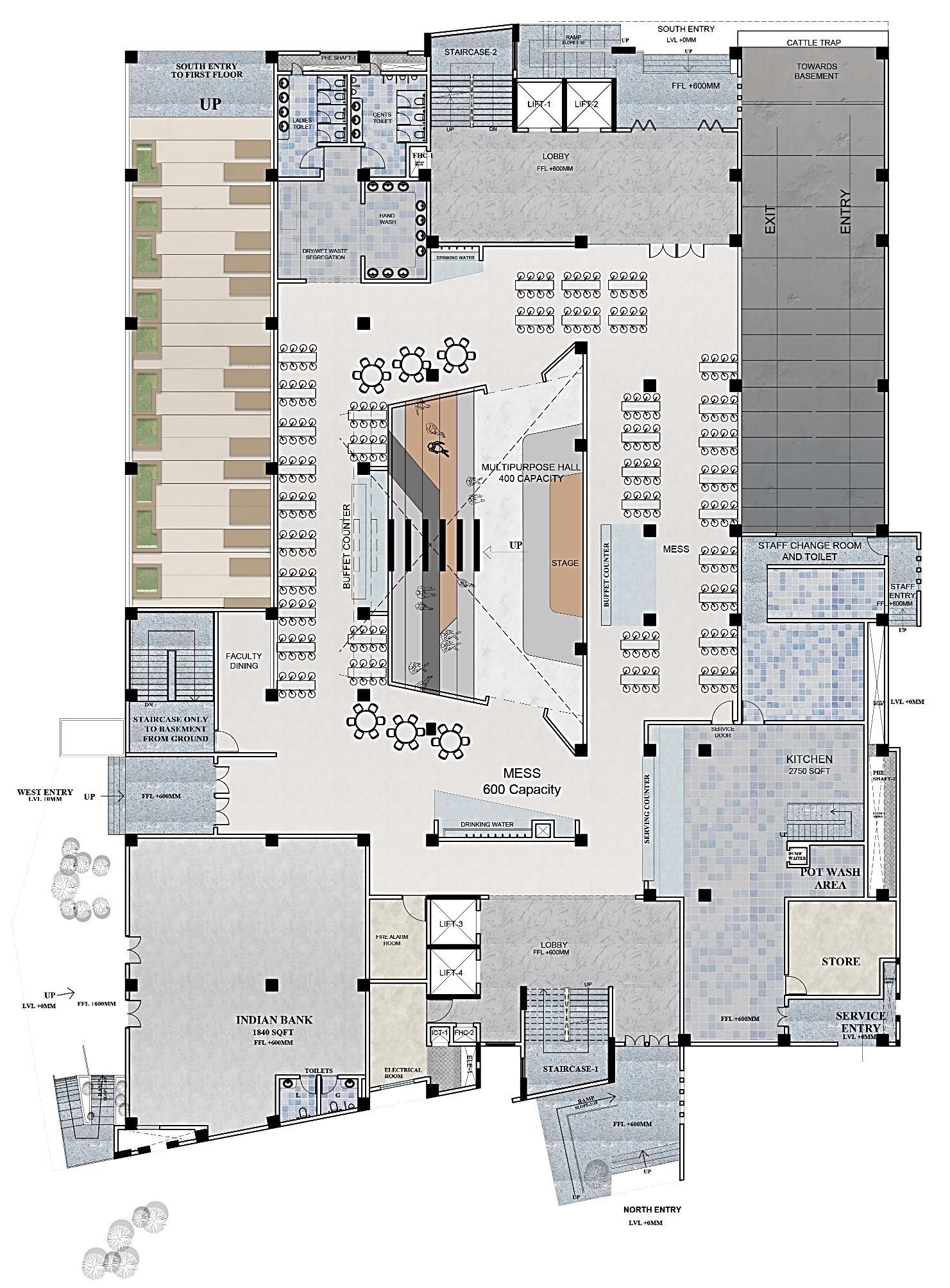

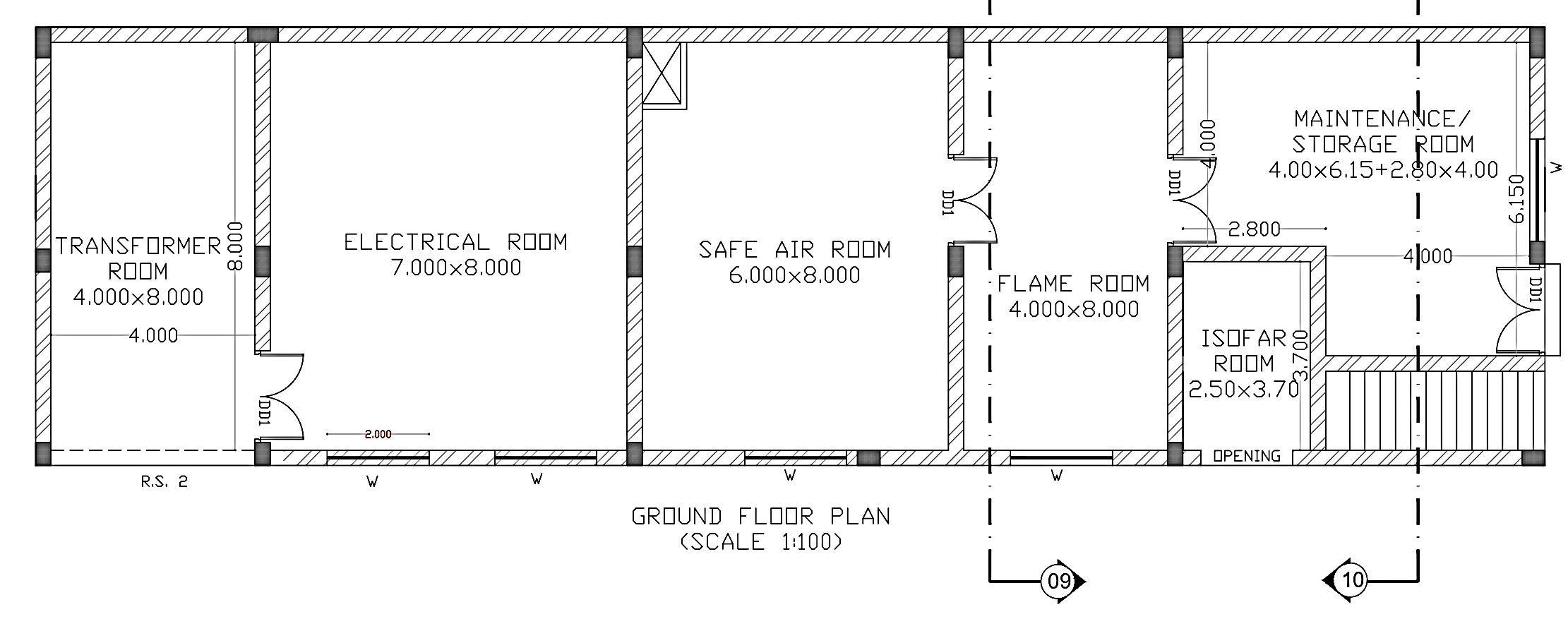

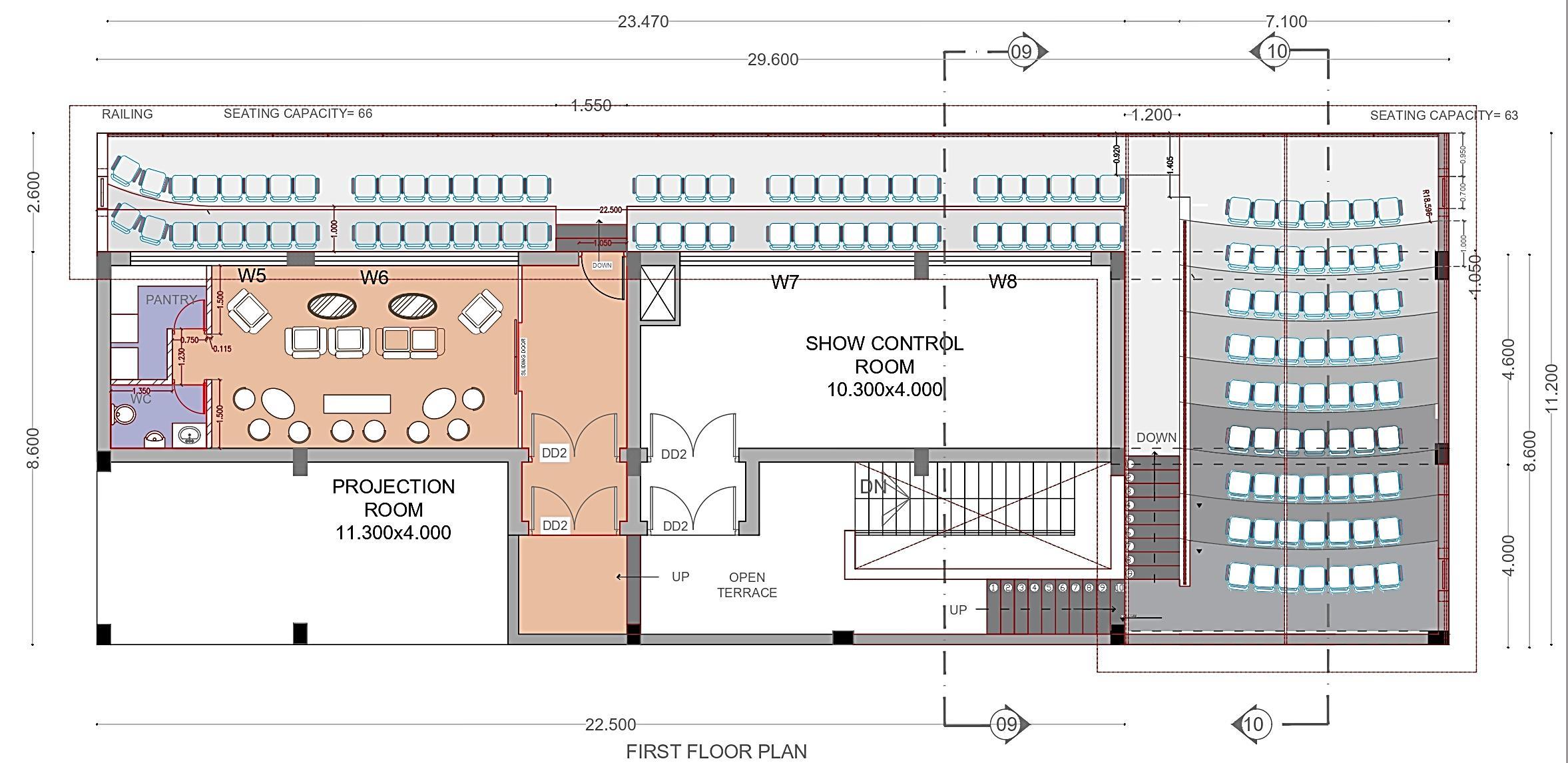

GROUND FLOOR PLAN

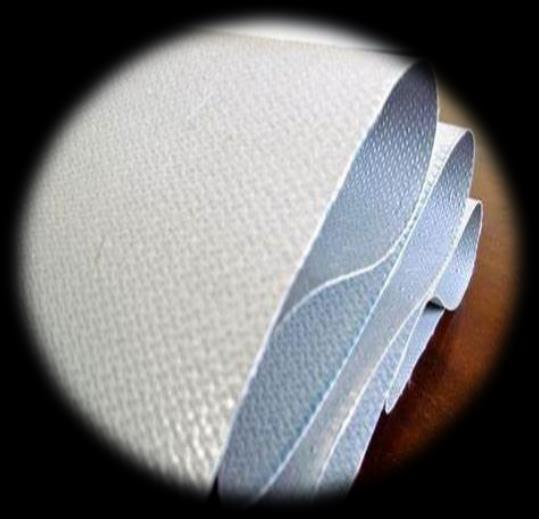

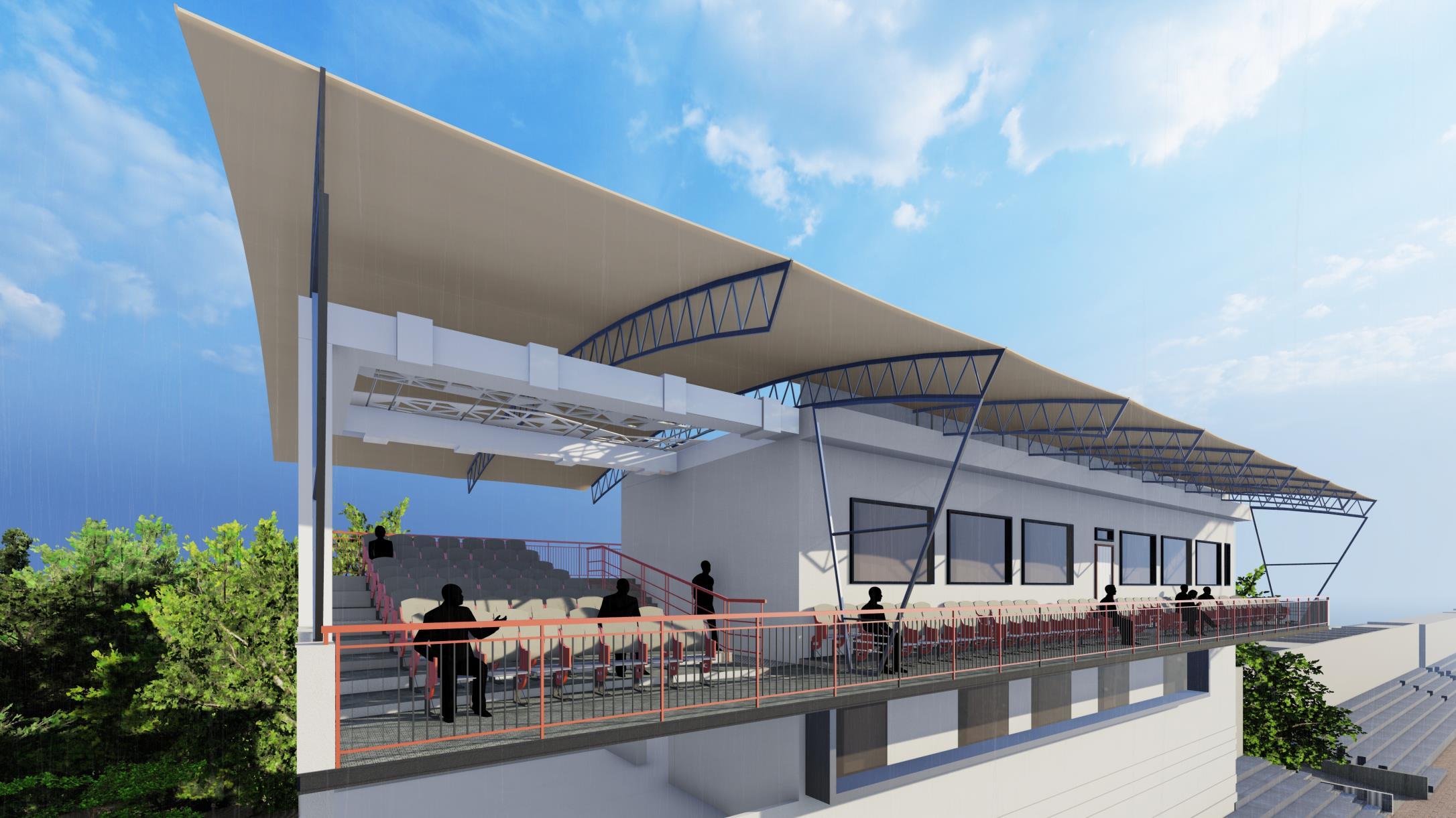

PROPOSED TENSILE ROOFING

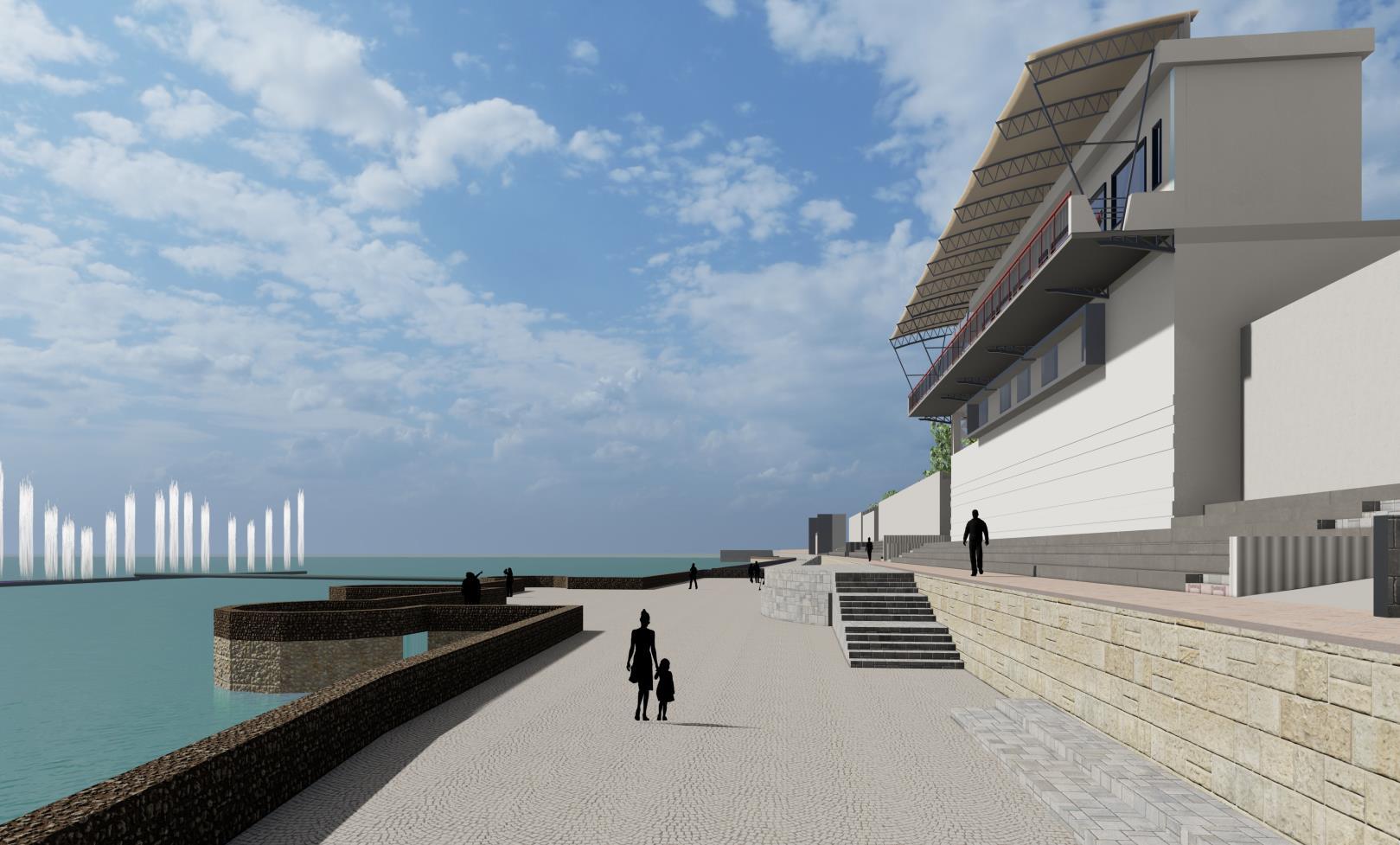

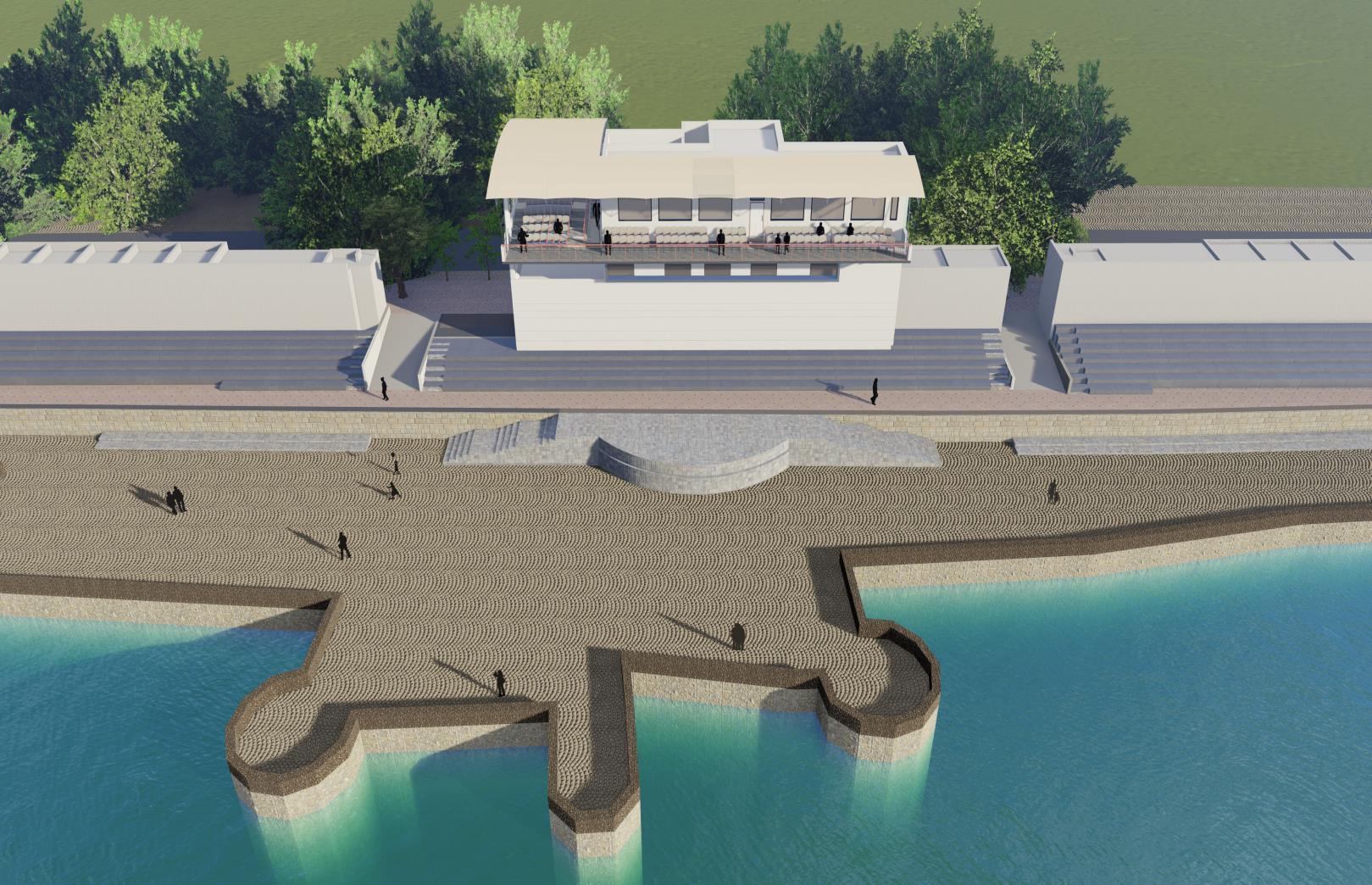

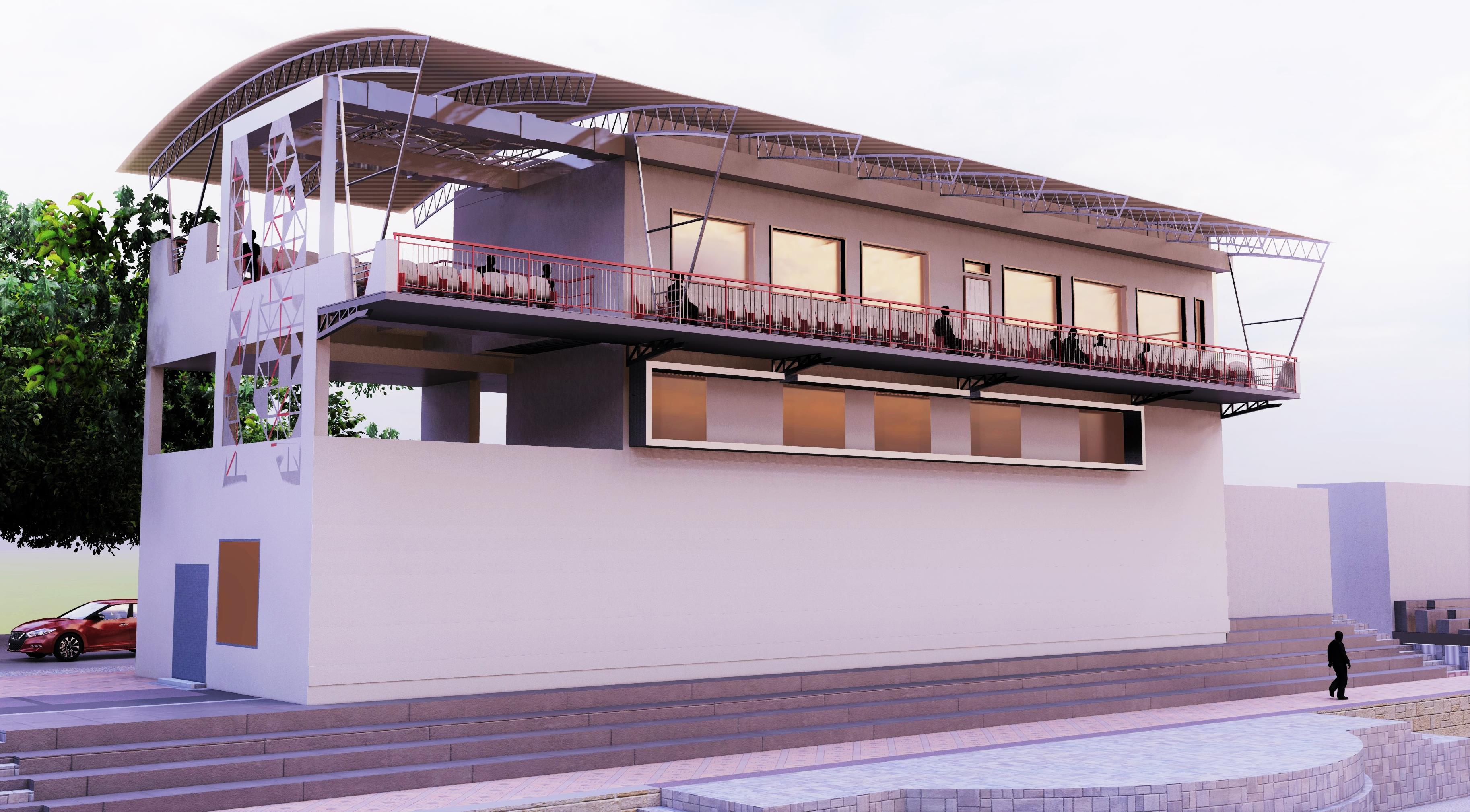

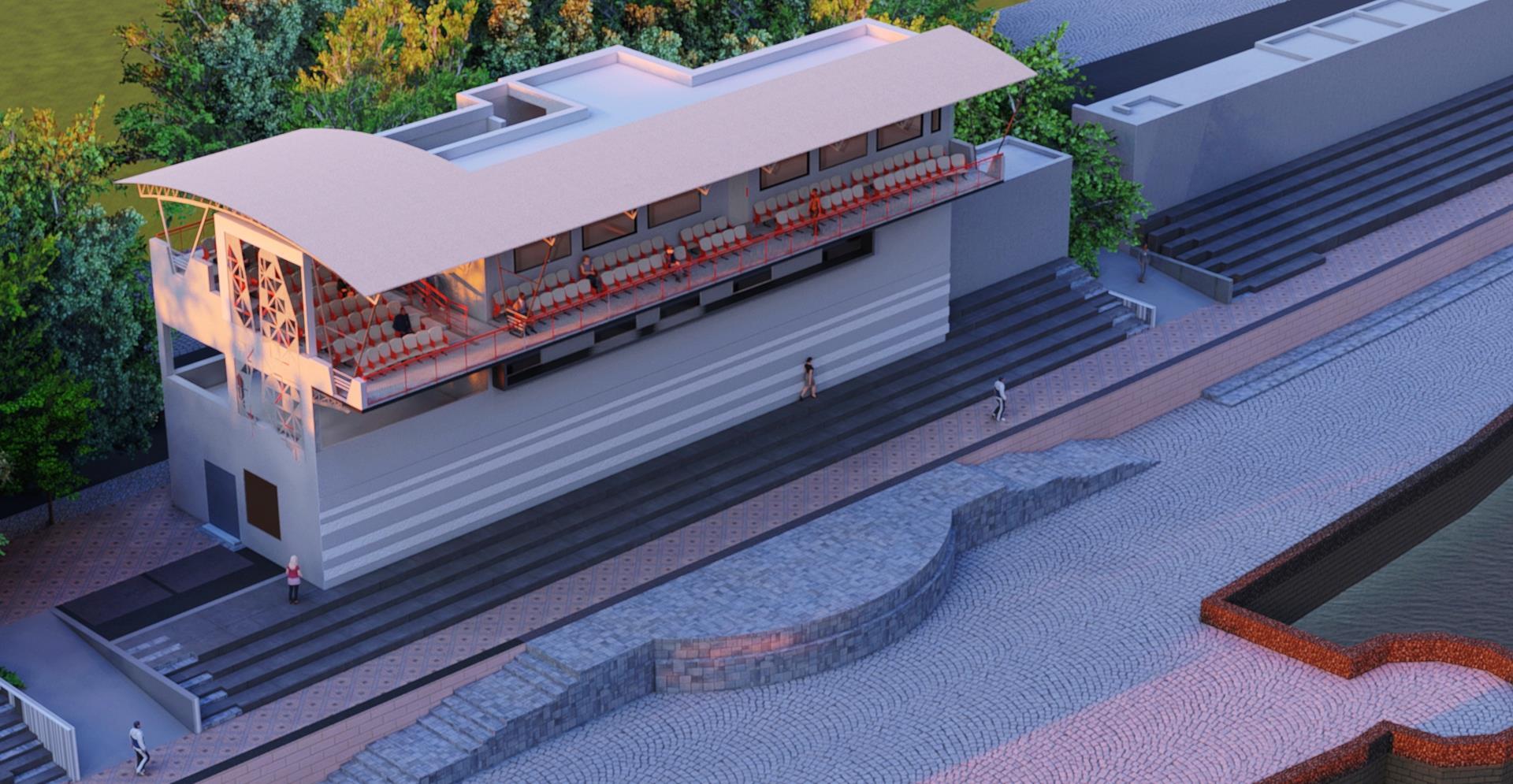

PROPOSED VIEWING GALLERY

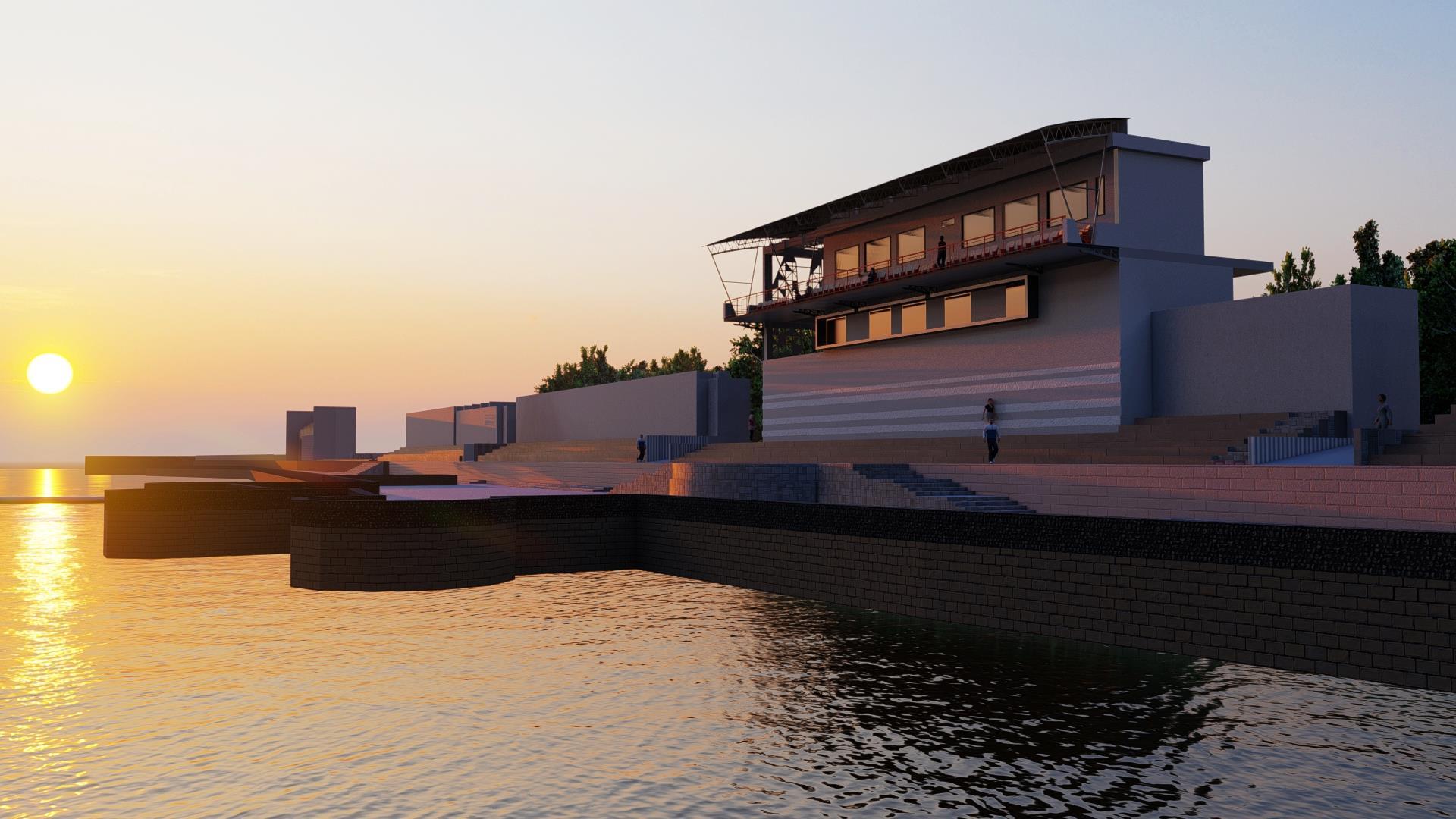

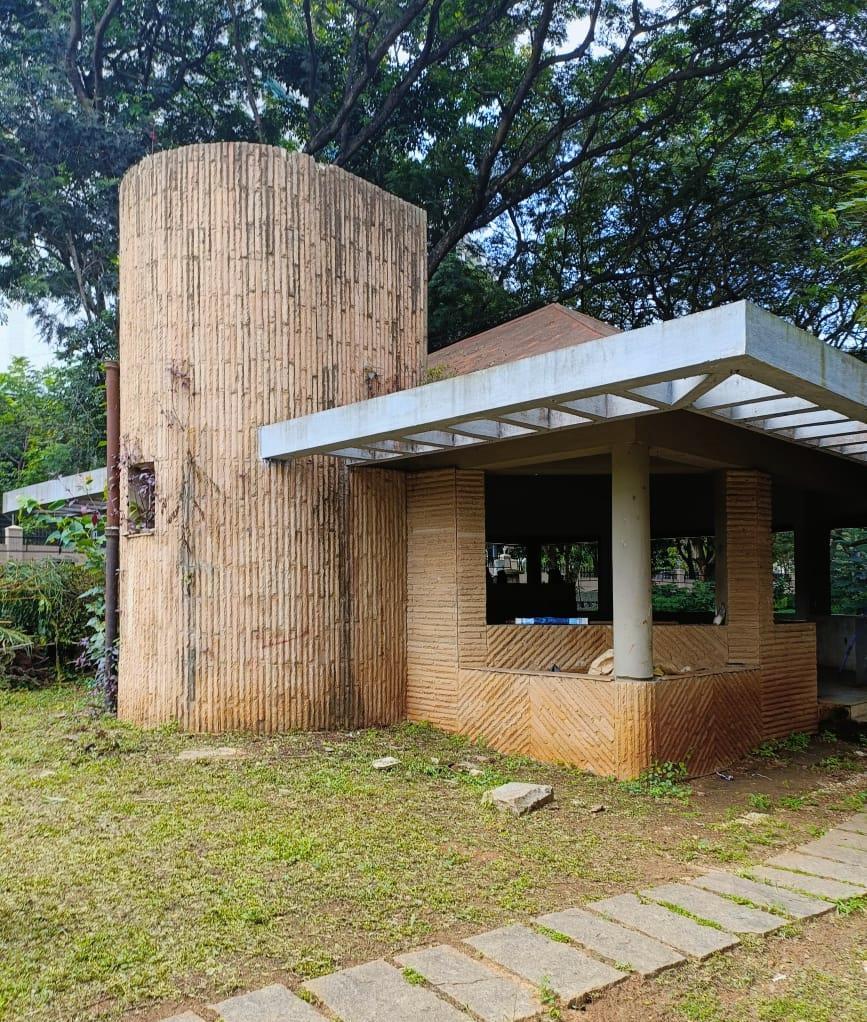

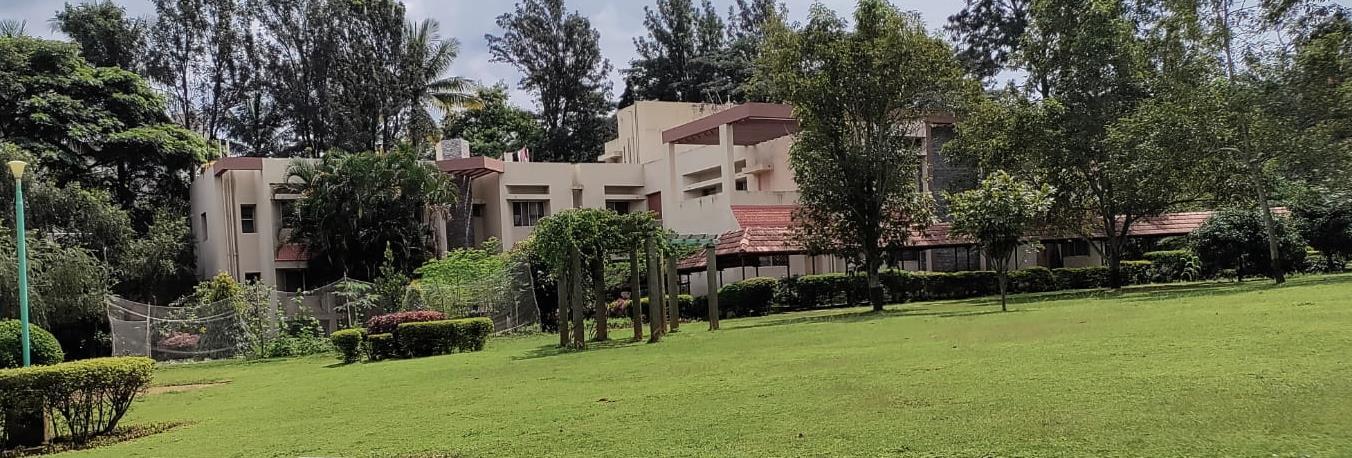

FUTALA LAKE EXISTING BUILDING

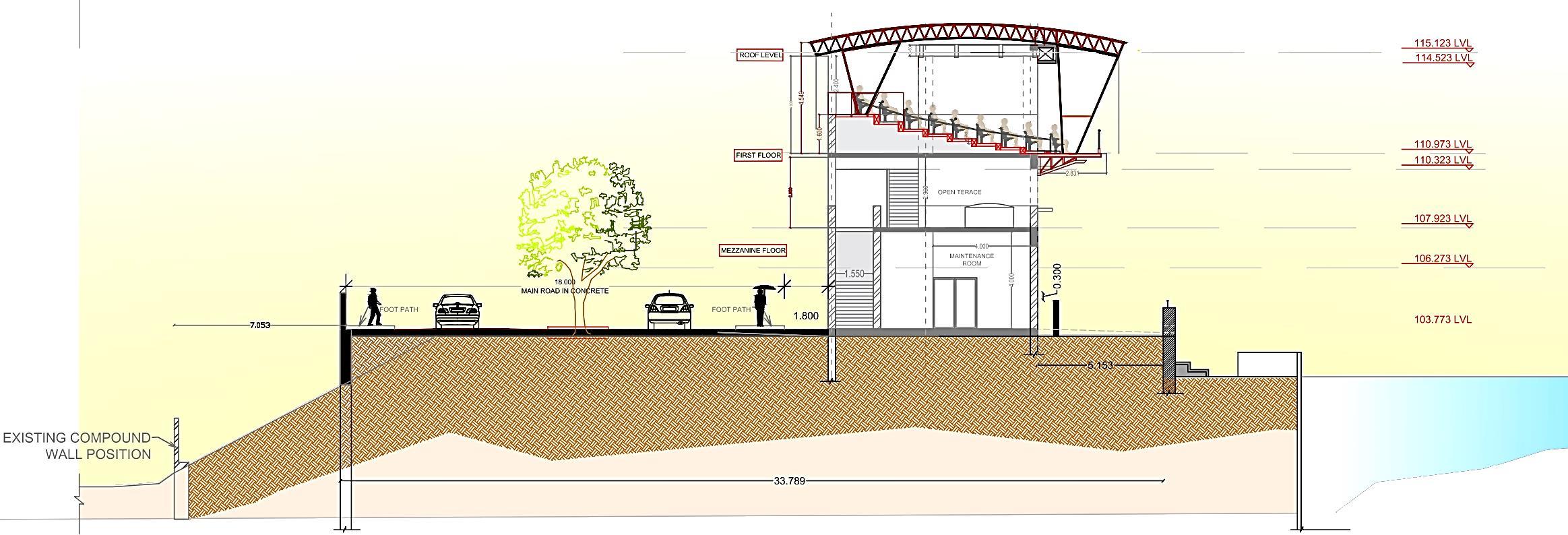

SECTION 09-09

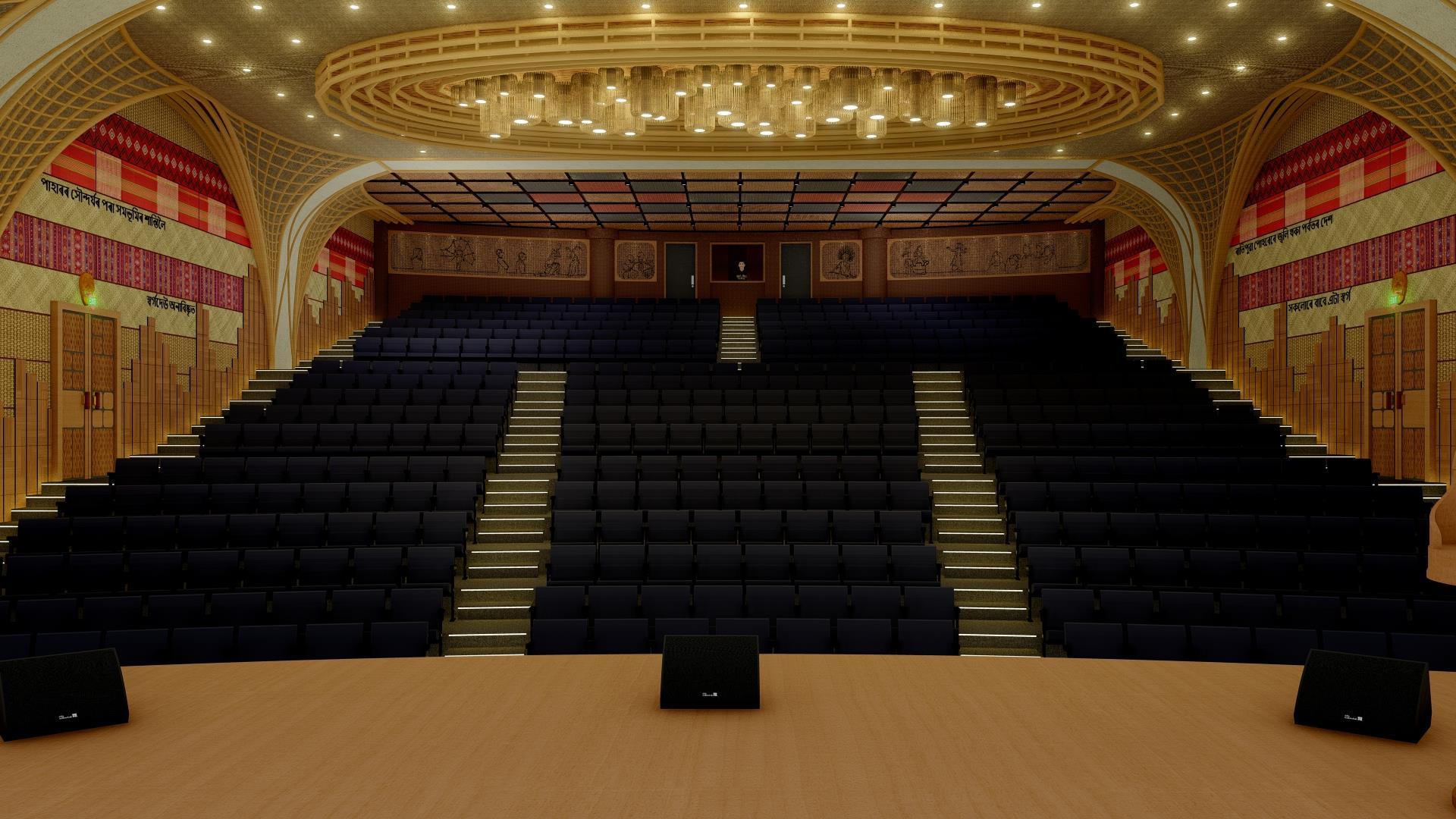

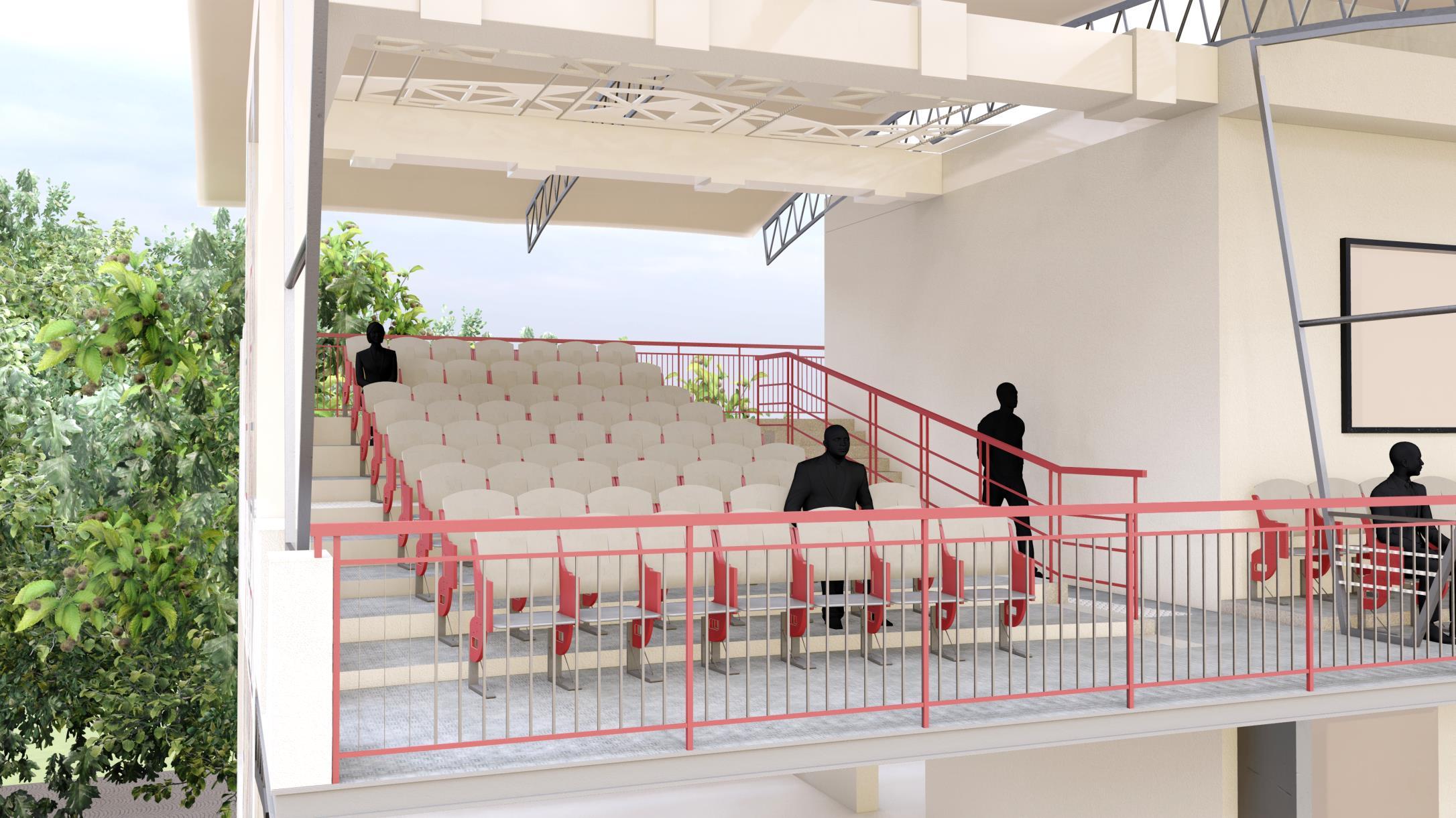

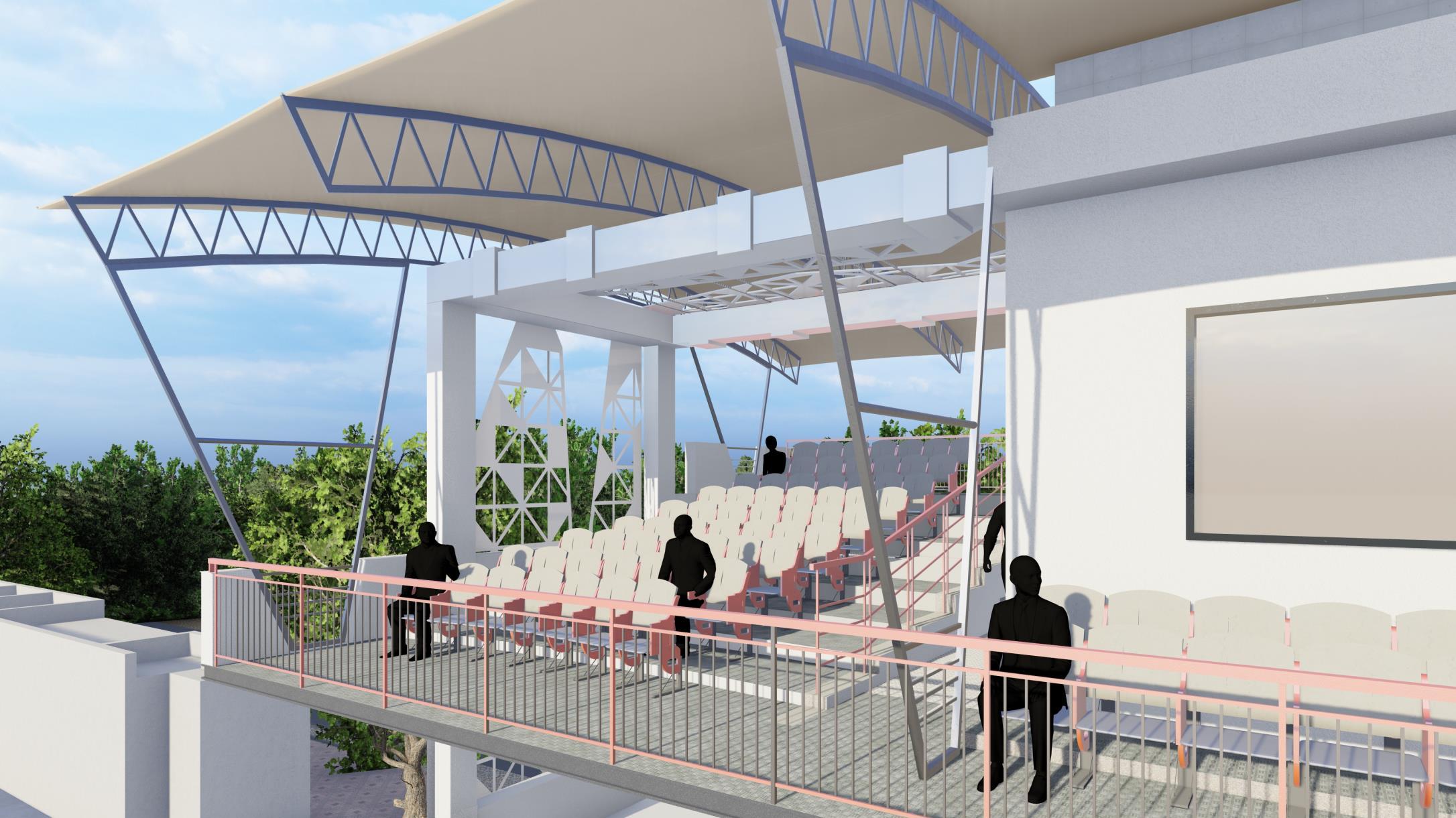

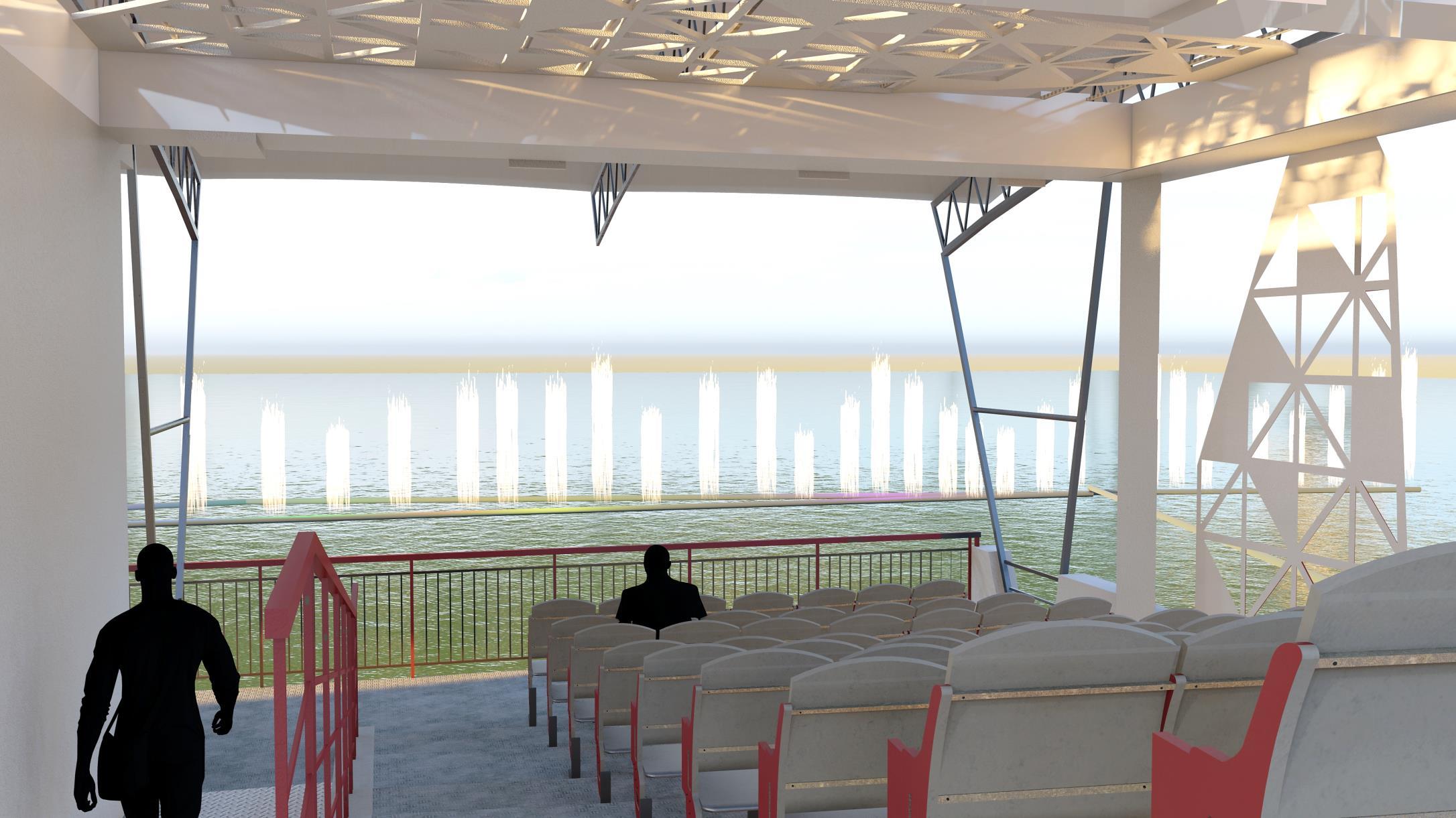

PROPOSED RAKED SEATING
SECTION 10-10
PROPOSED TENSILE ROOFING

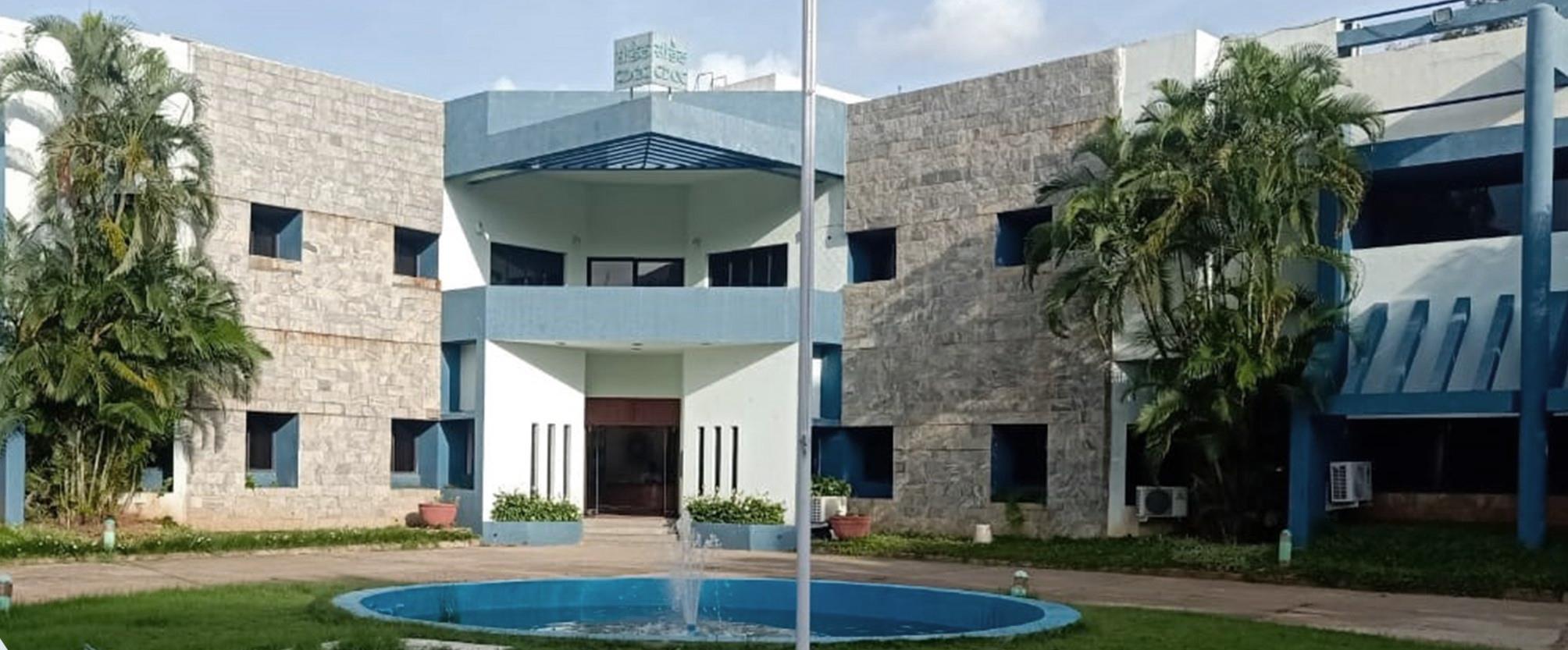

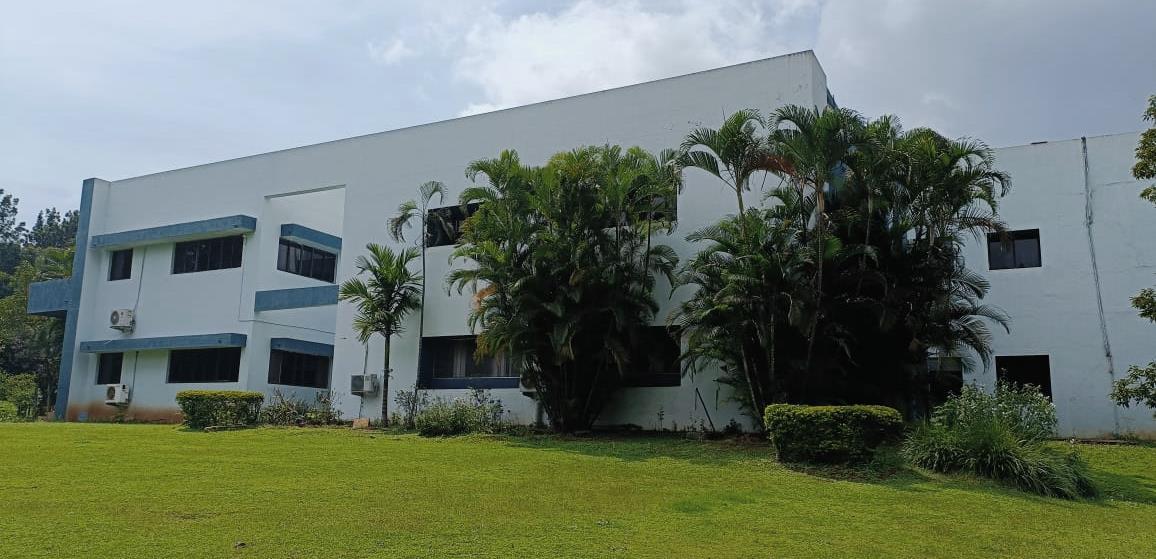

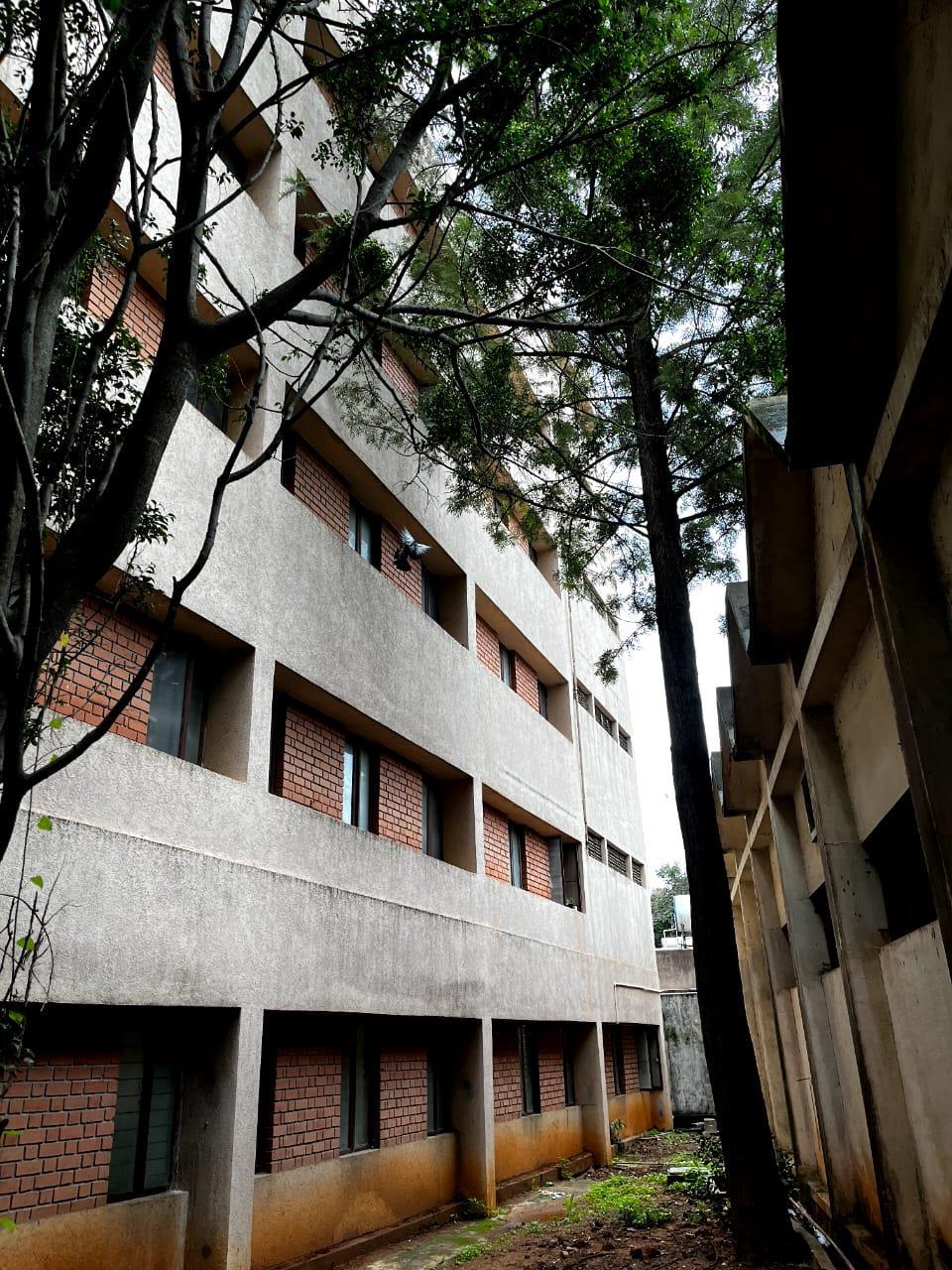

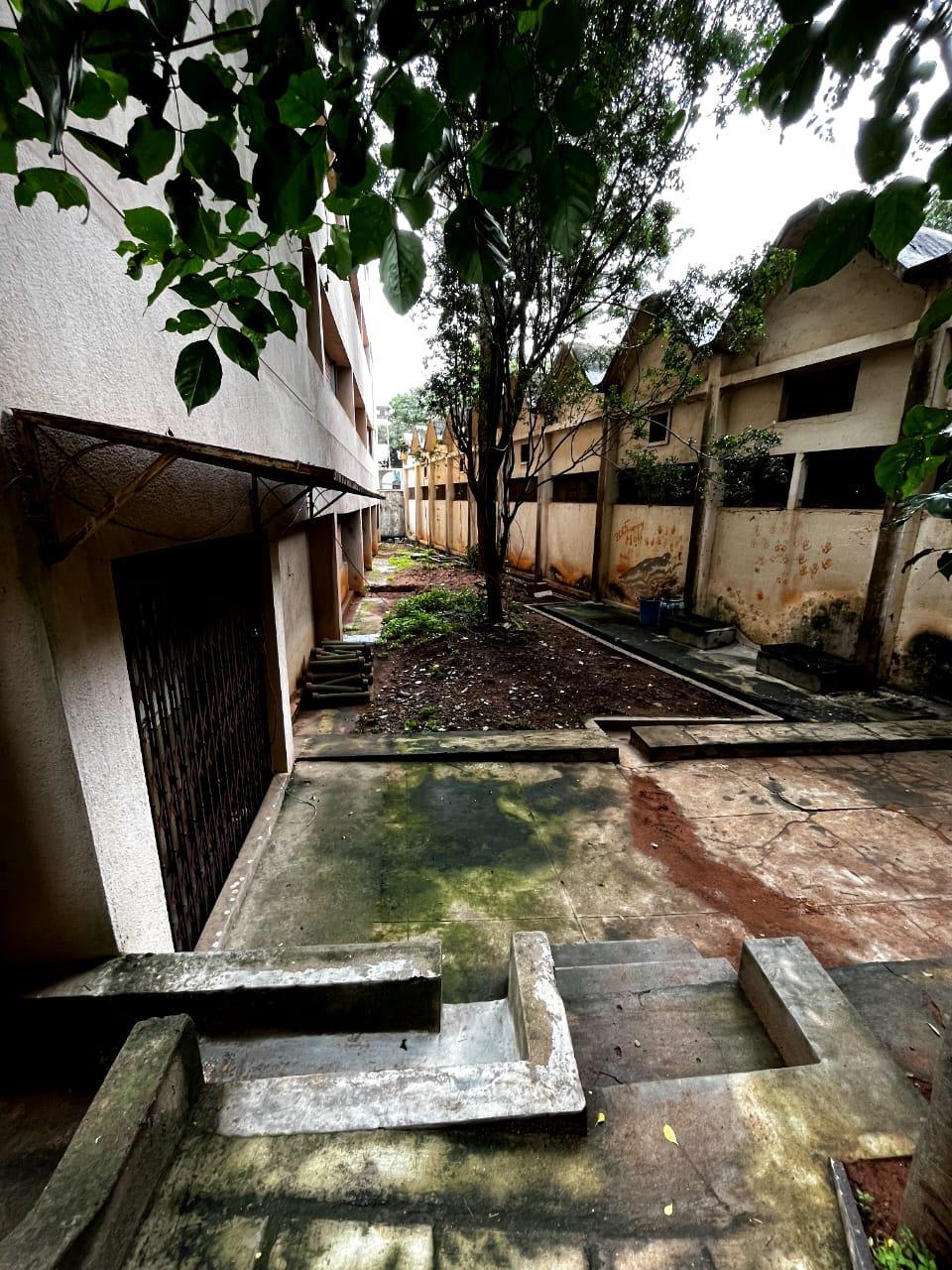

EXISTING BUILDING
FUTALA LAKE

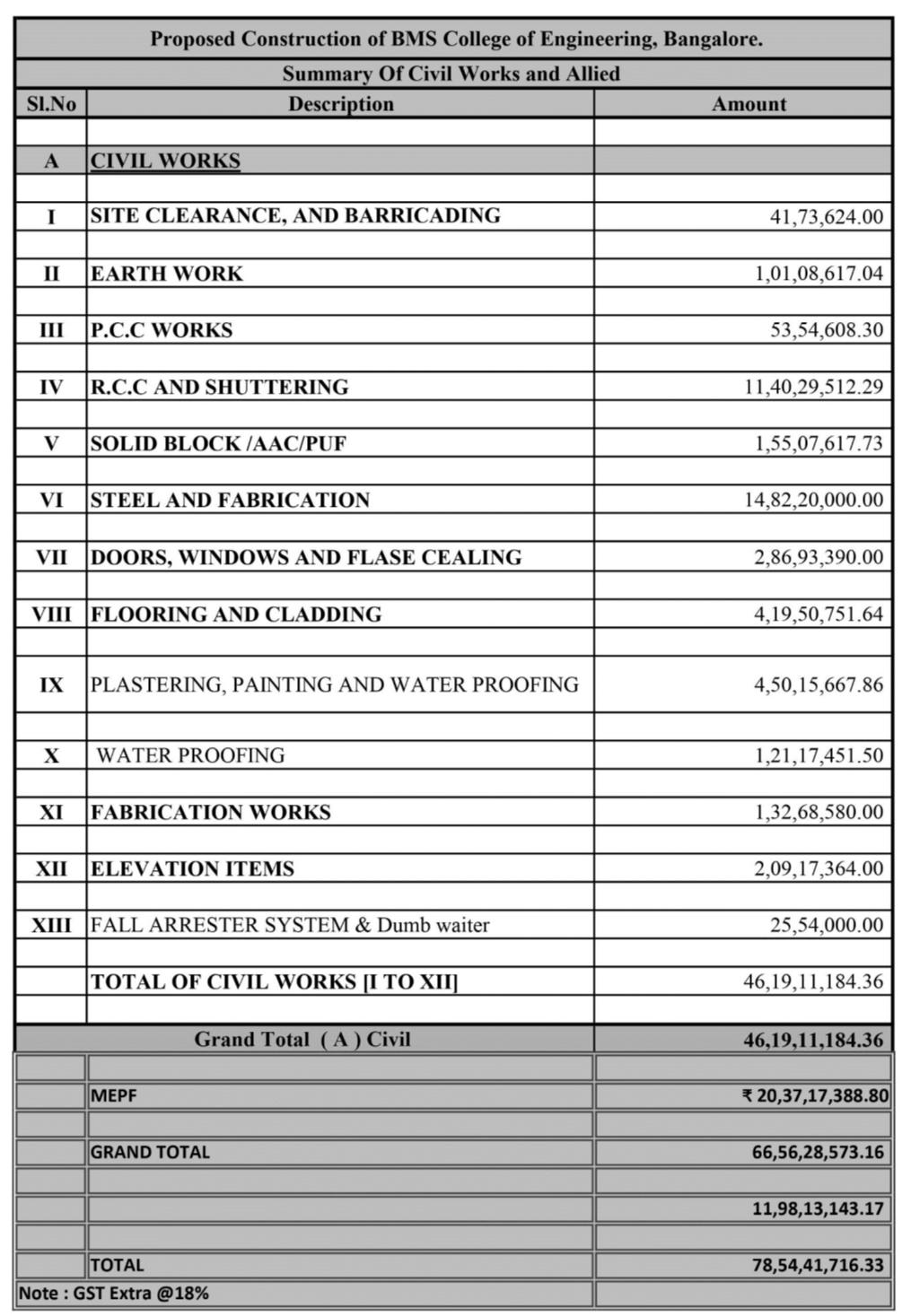

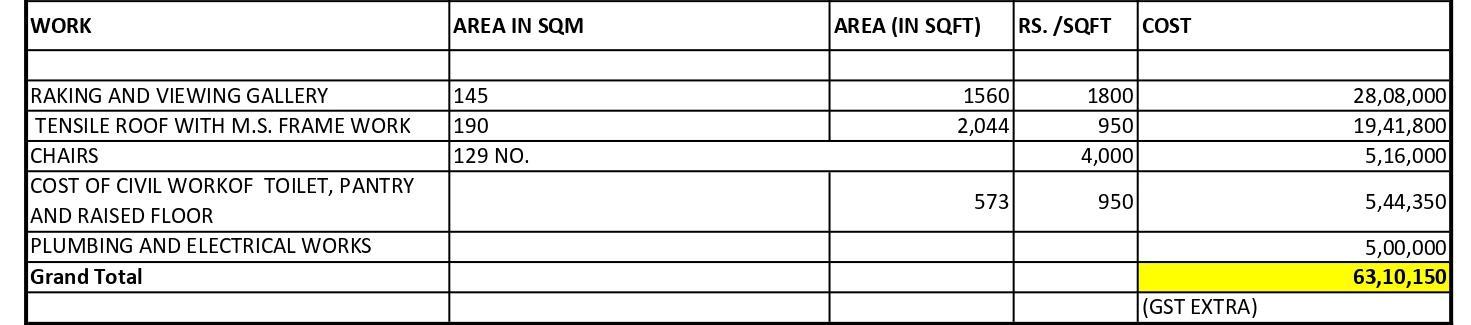

COST ESTIMATION CALCULATION

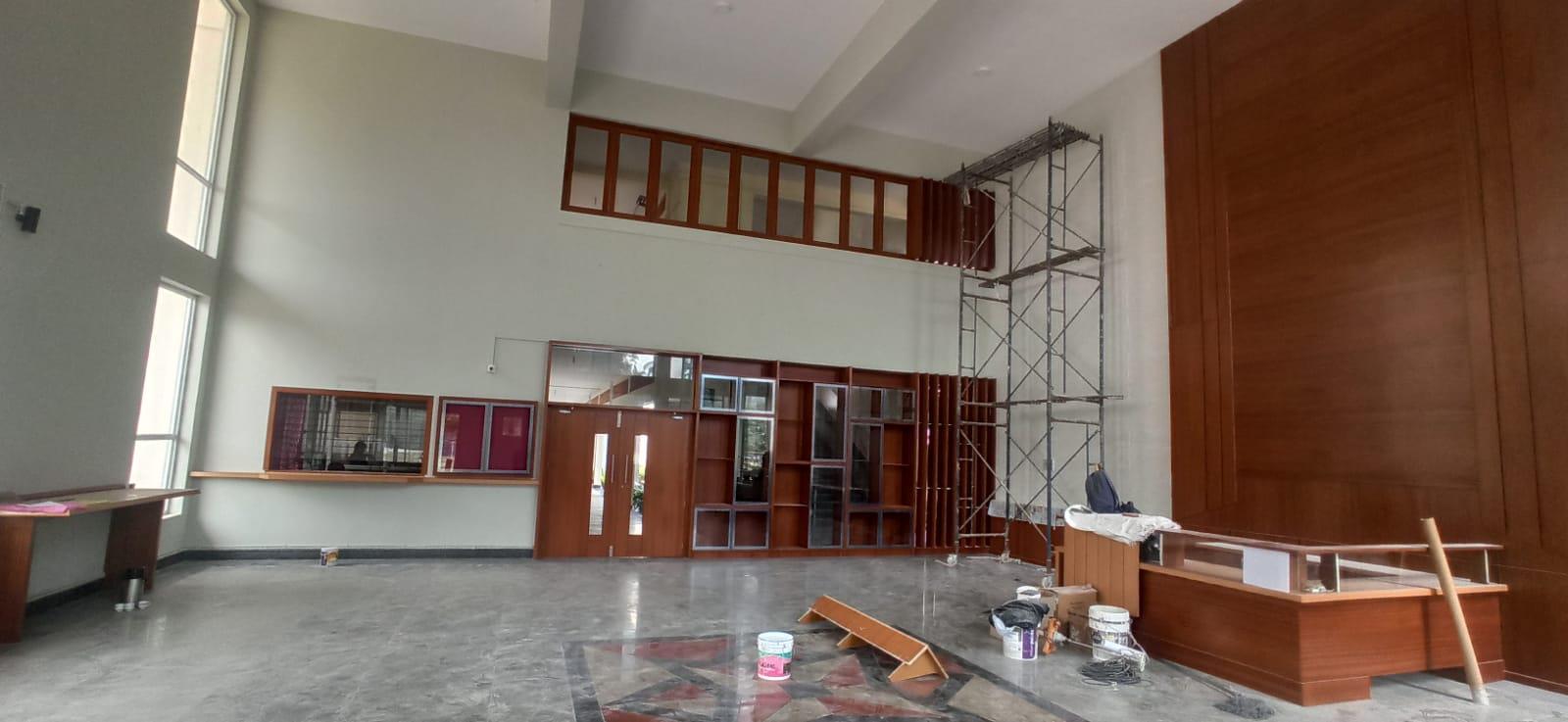

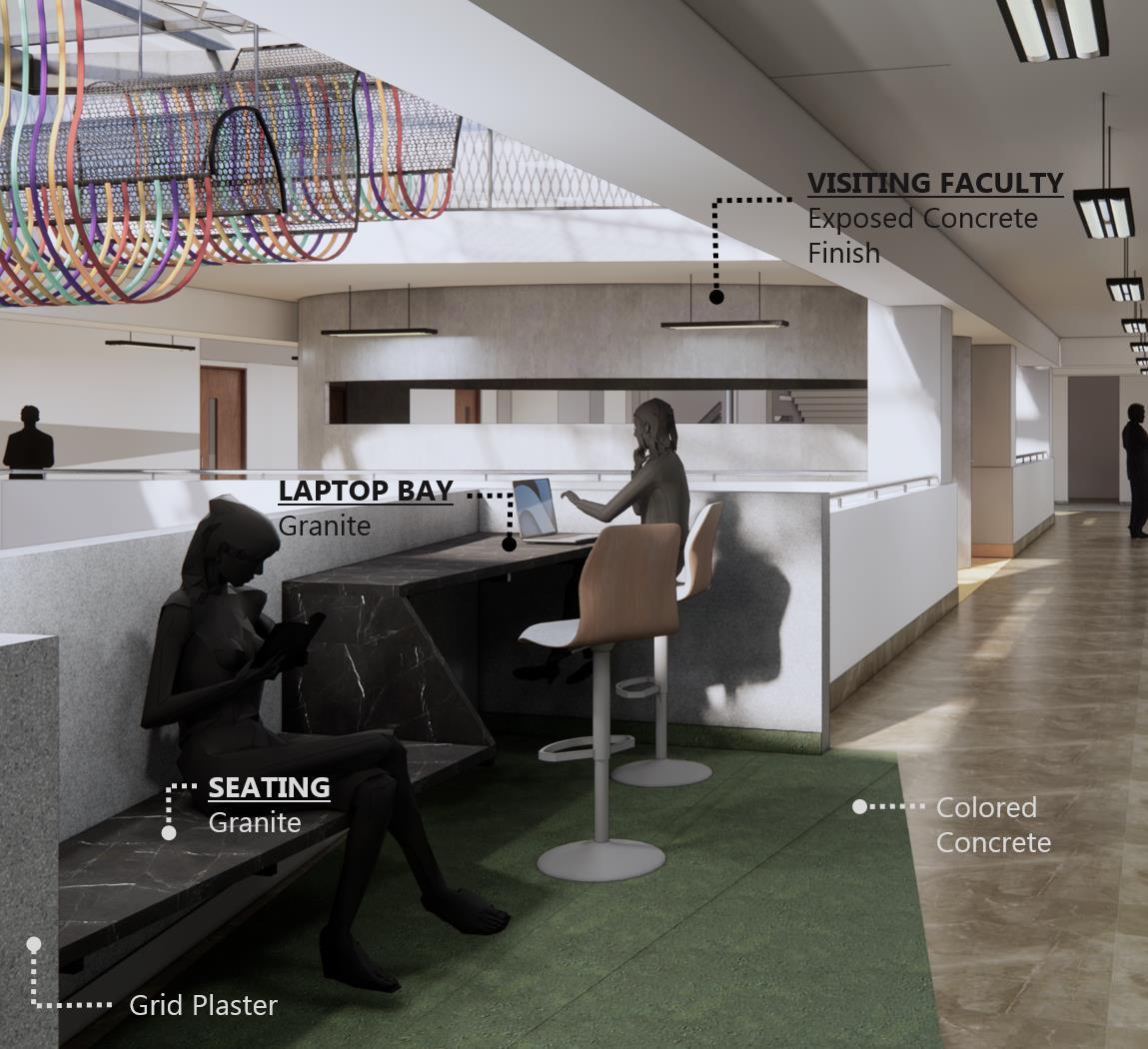

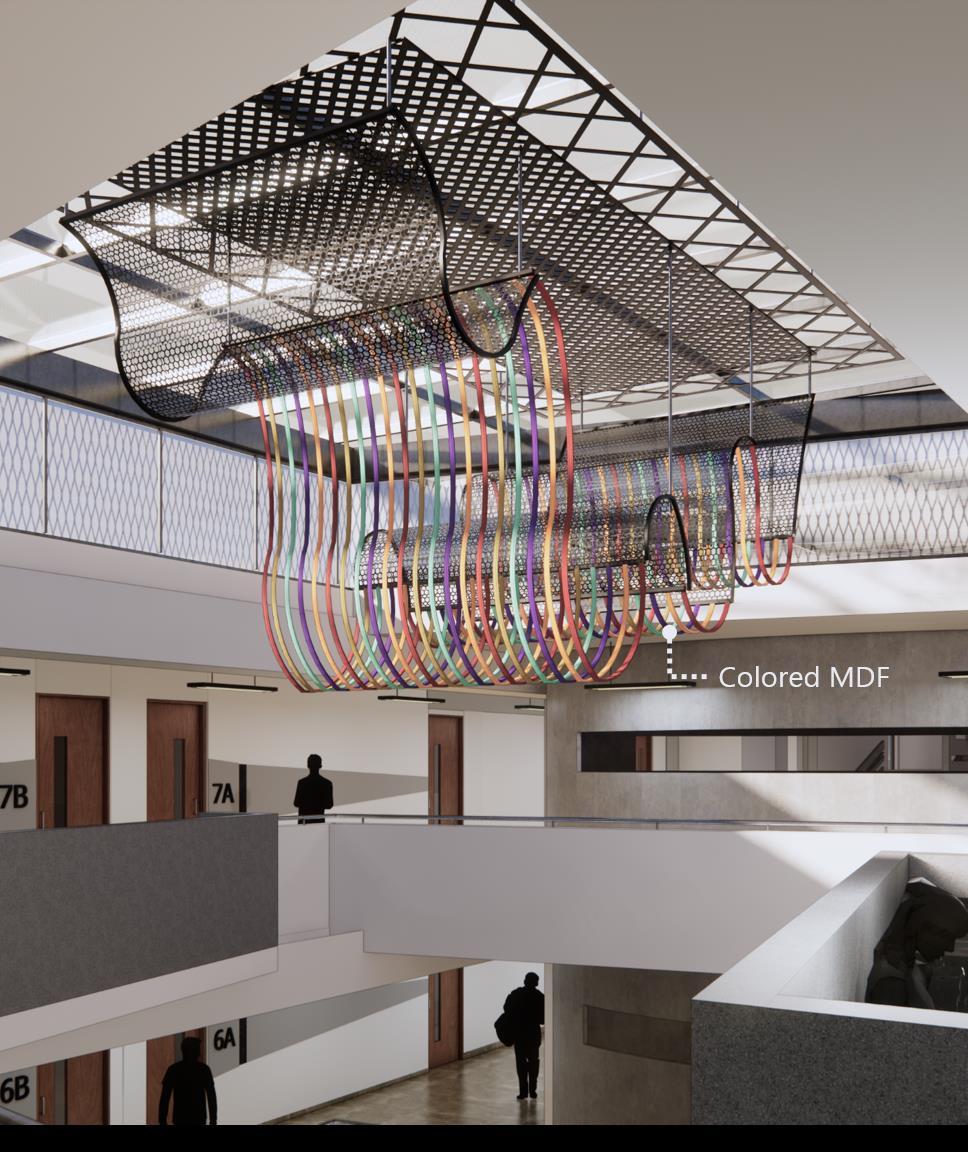

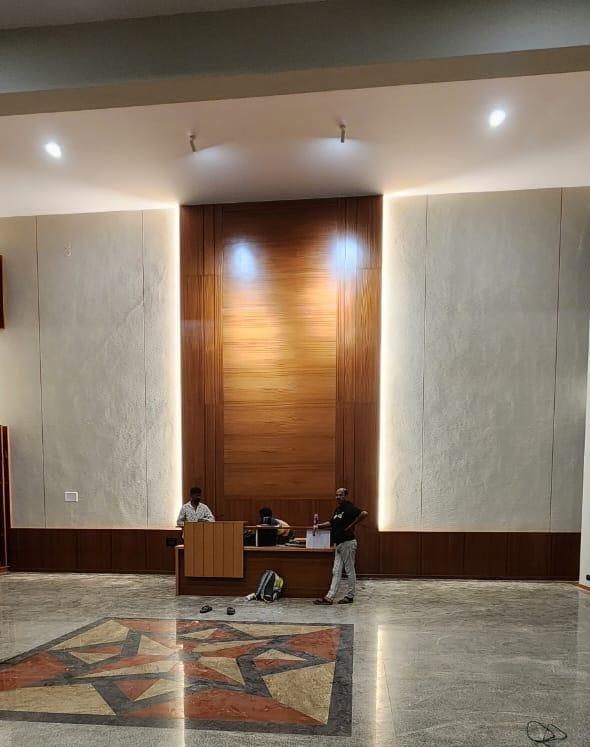

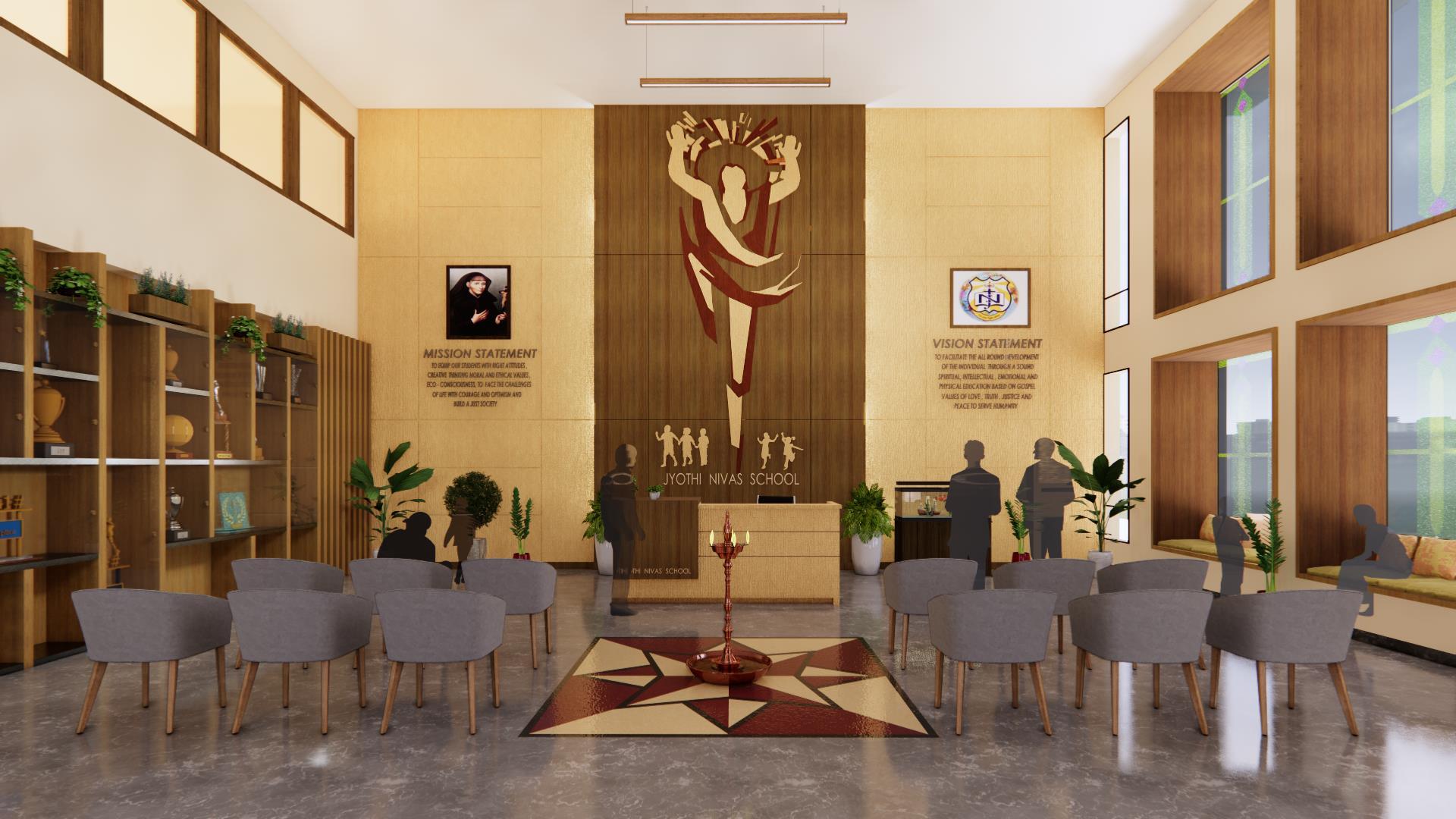

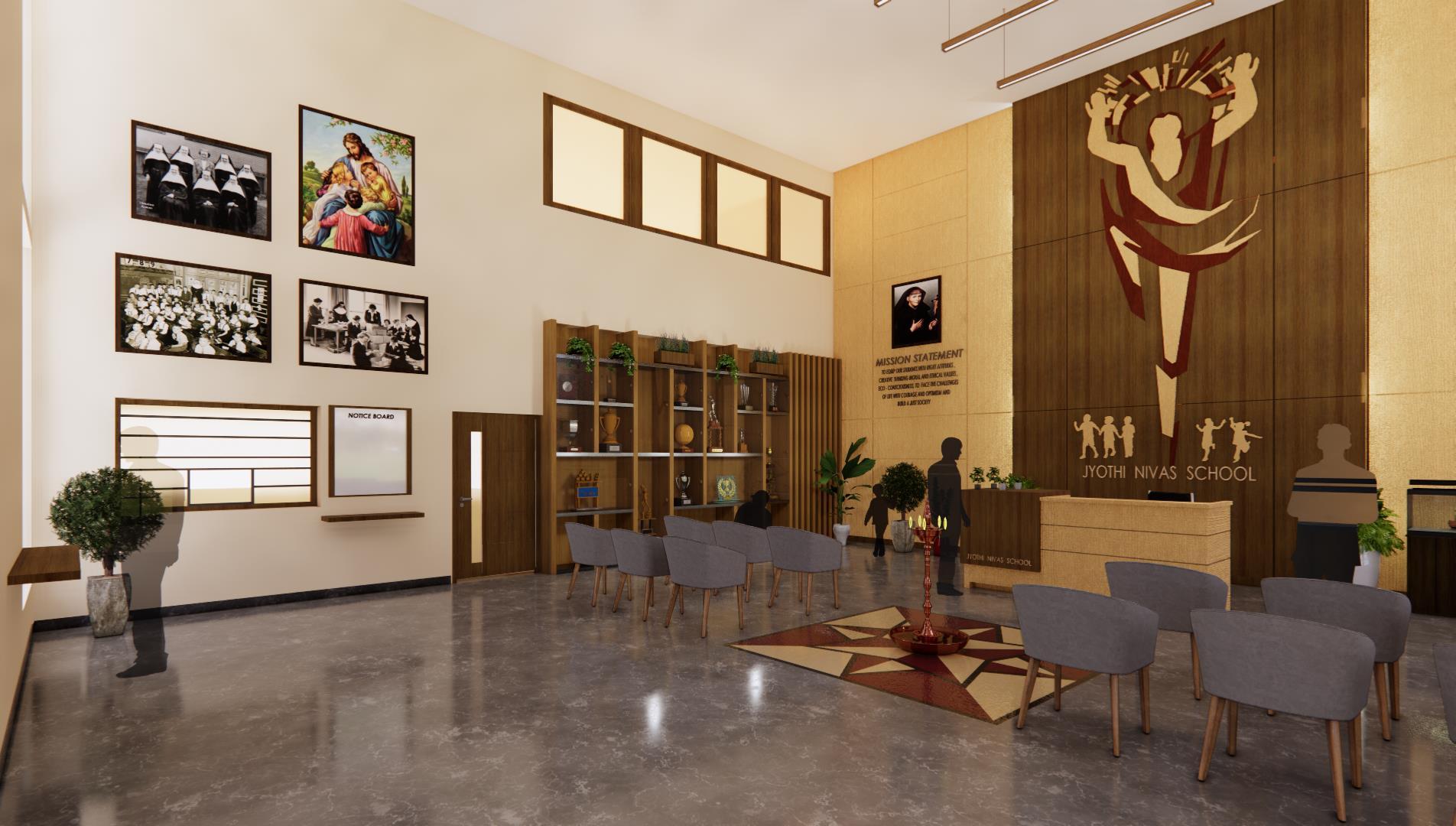

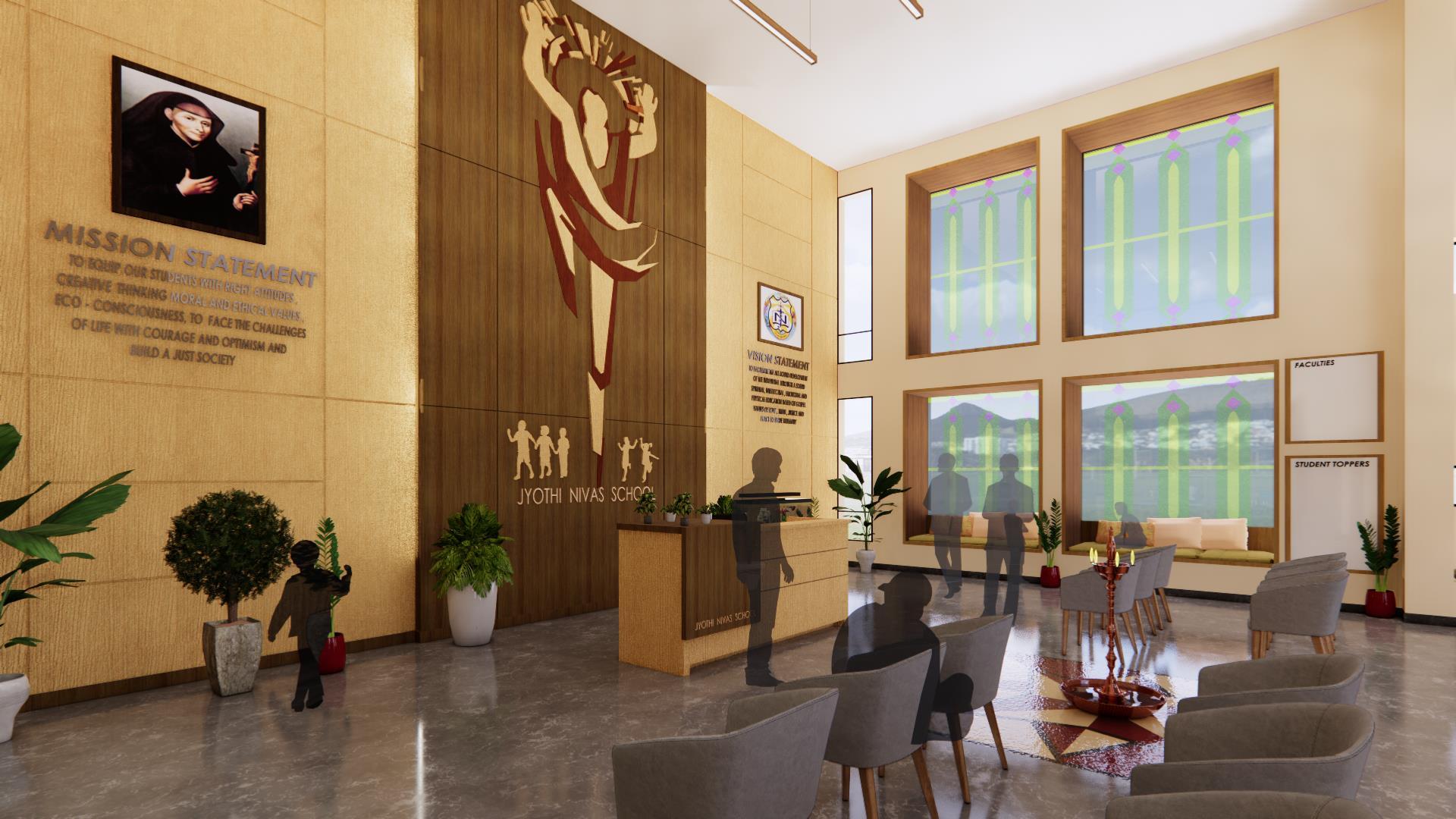

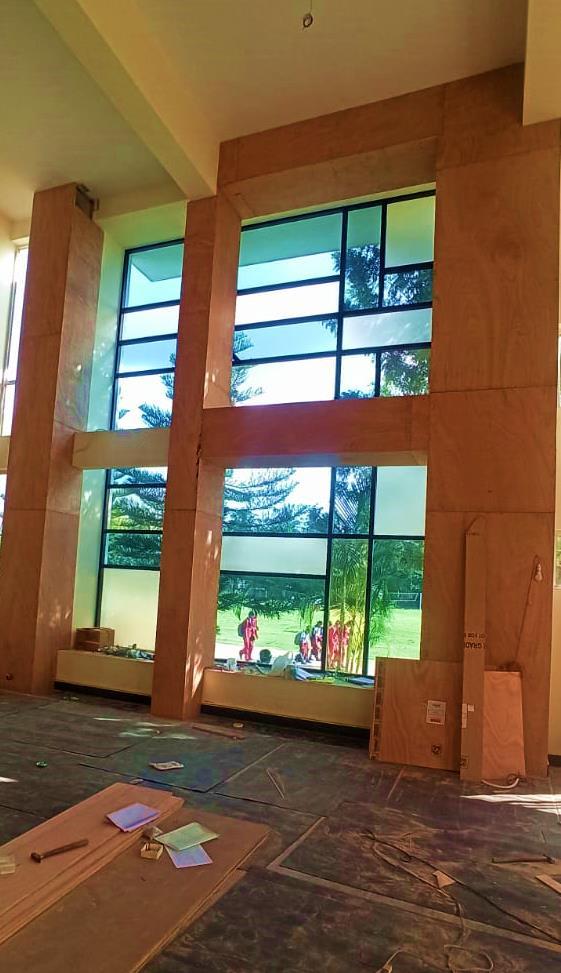

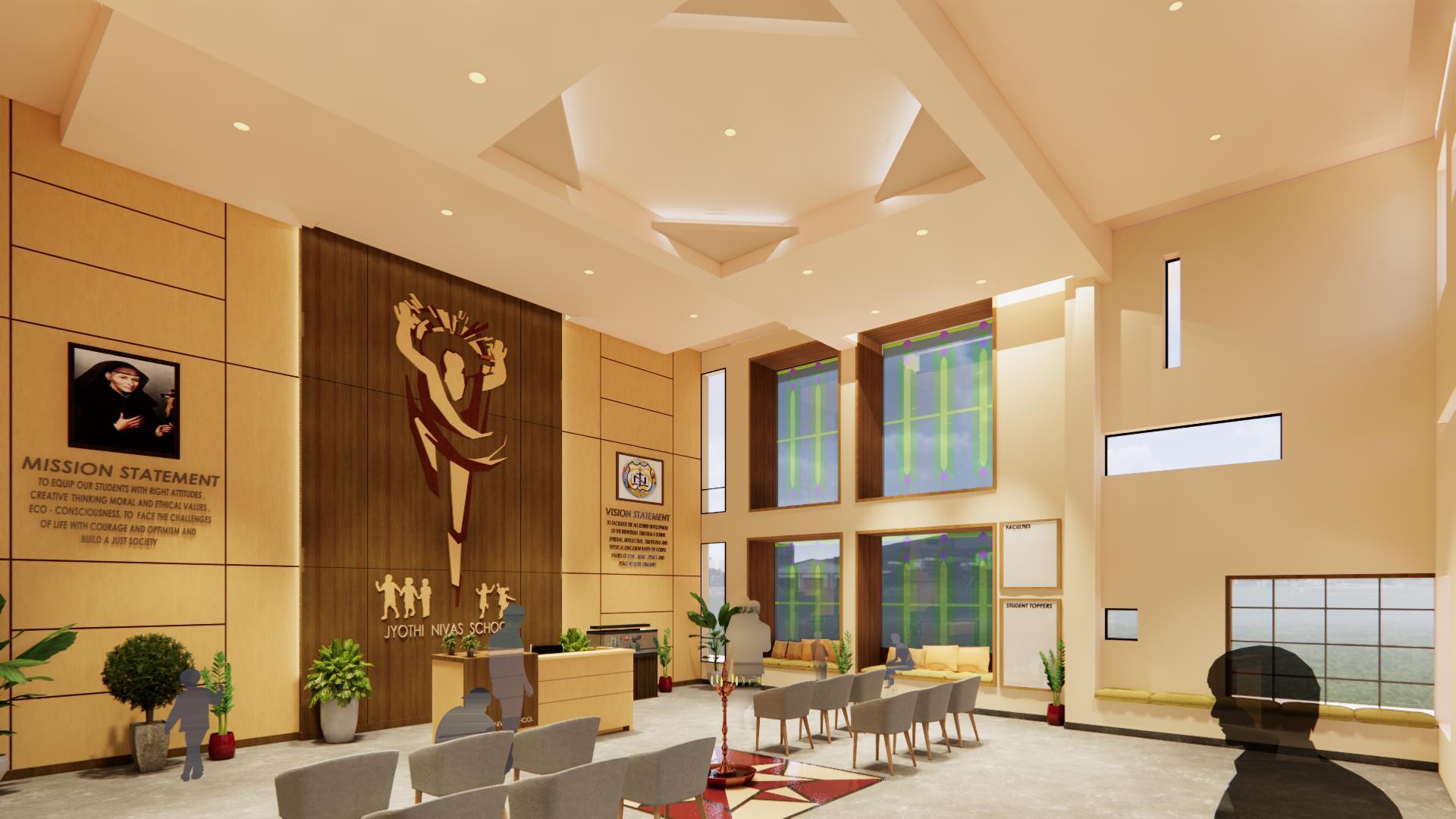

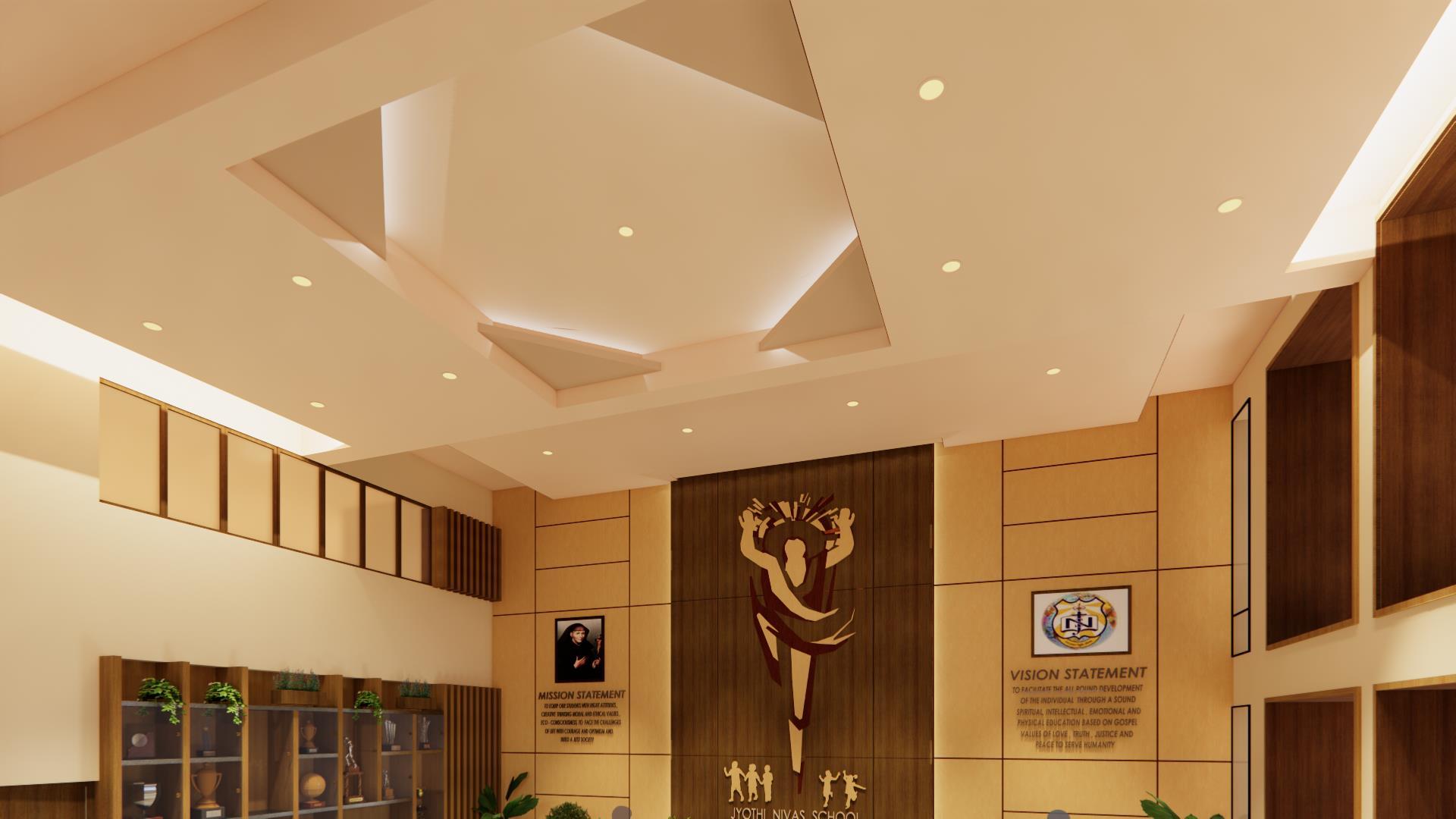

3D VIEW – INTERIORS OF LOBBY

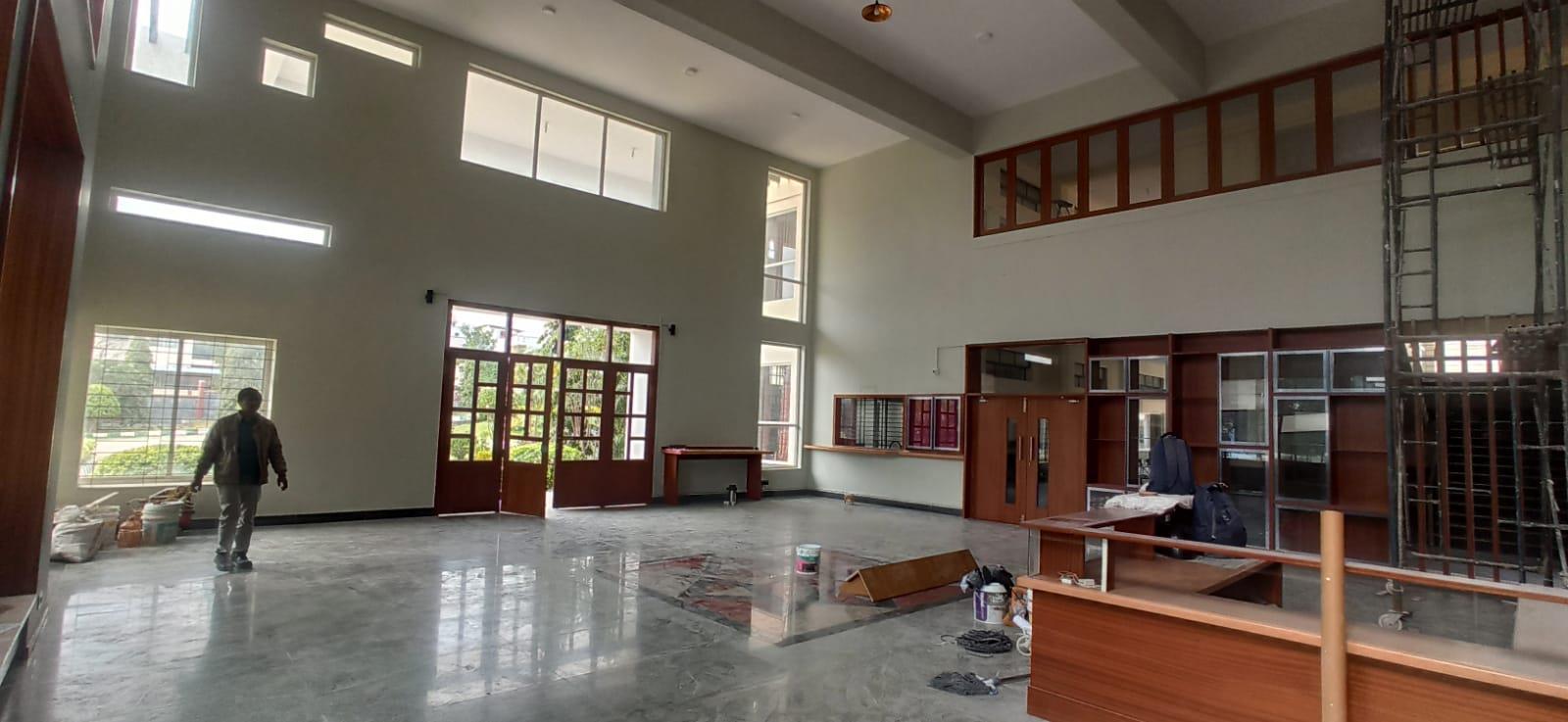

STAGE 2 (18/10)
STAGE 1 (14/10)
STAGE 3 (24/11)

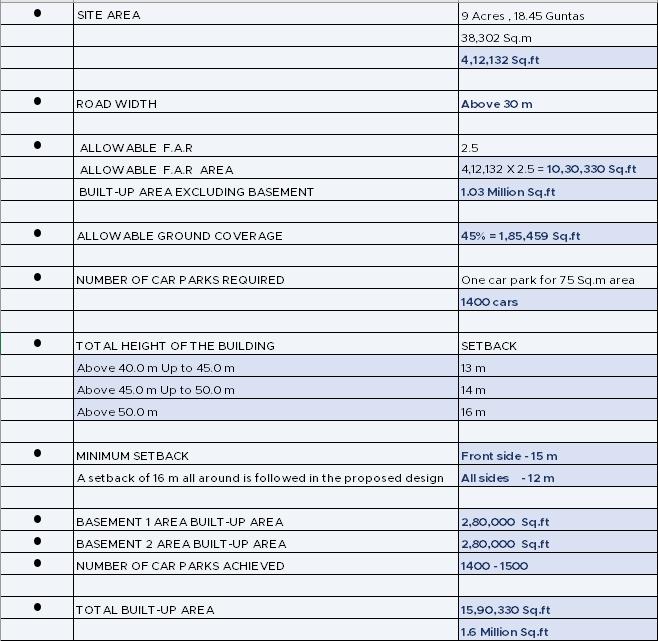

AREA STATEMENT
PROPOSED ZONING

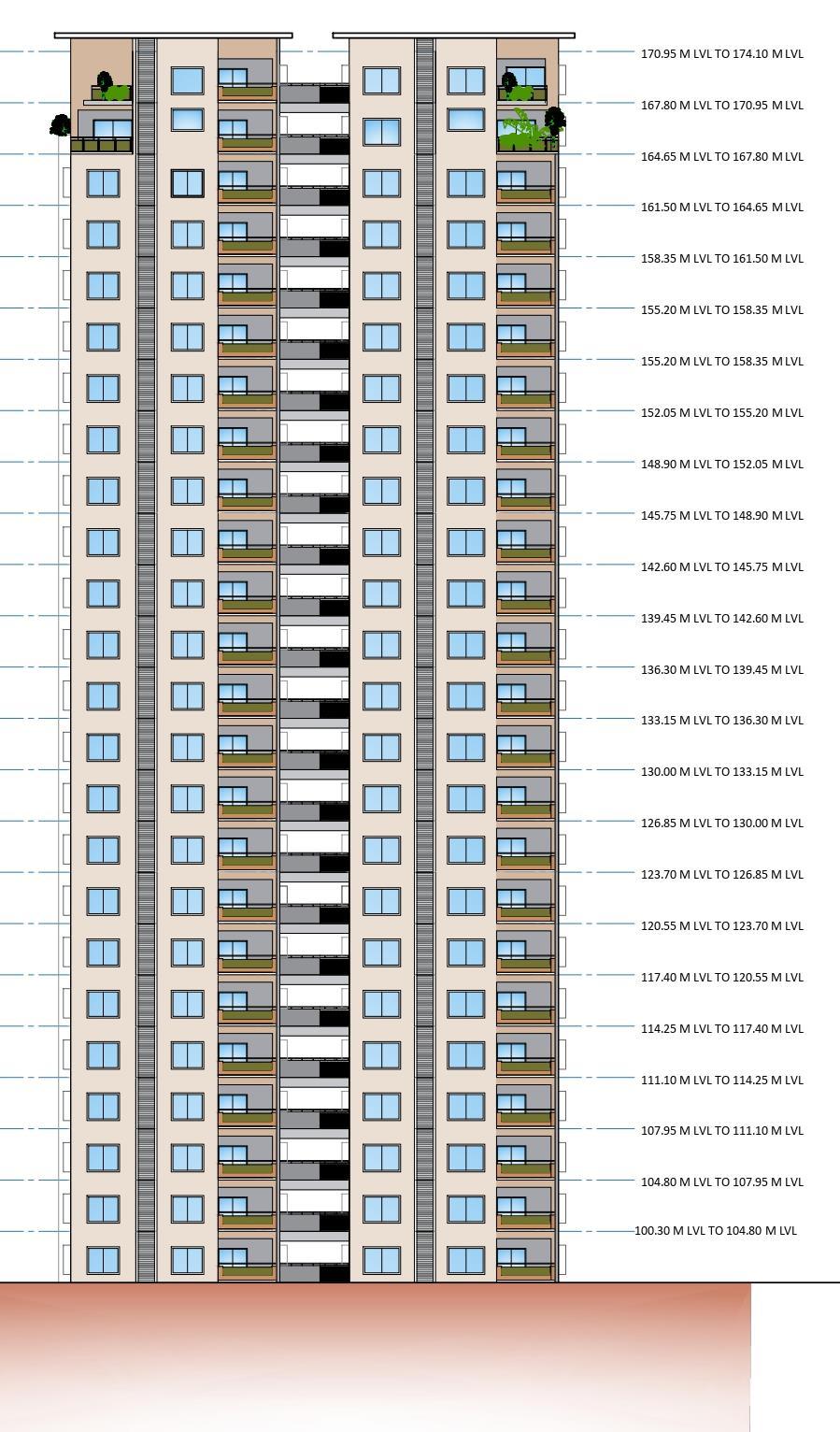

WEST SIDE ELEVATION

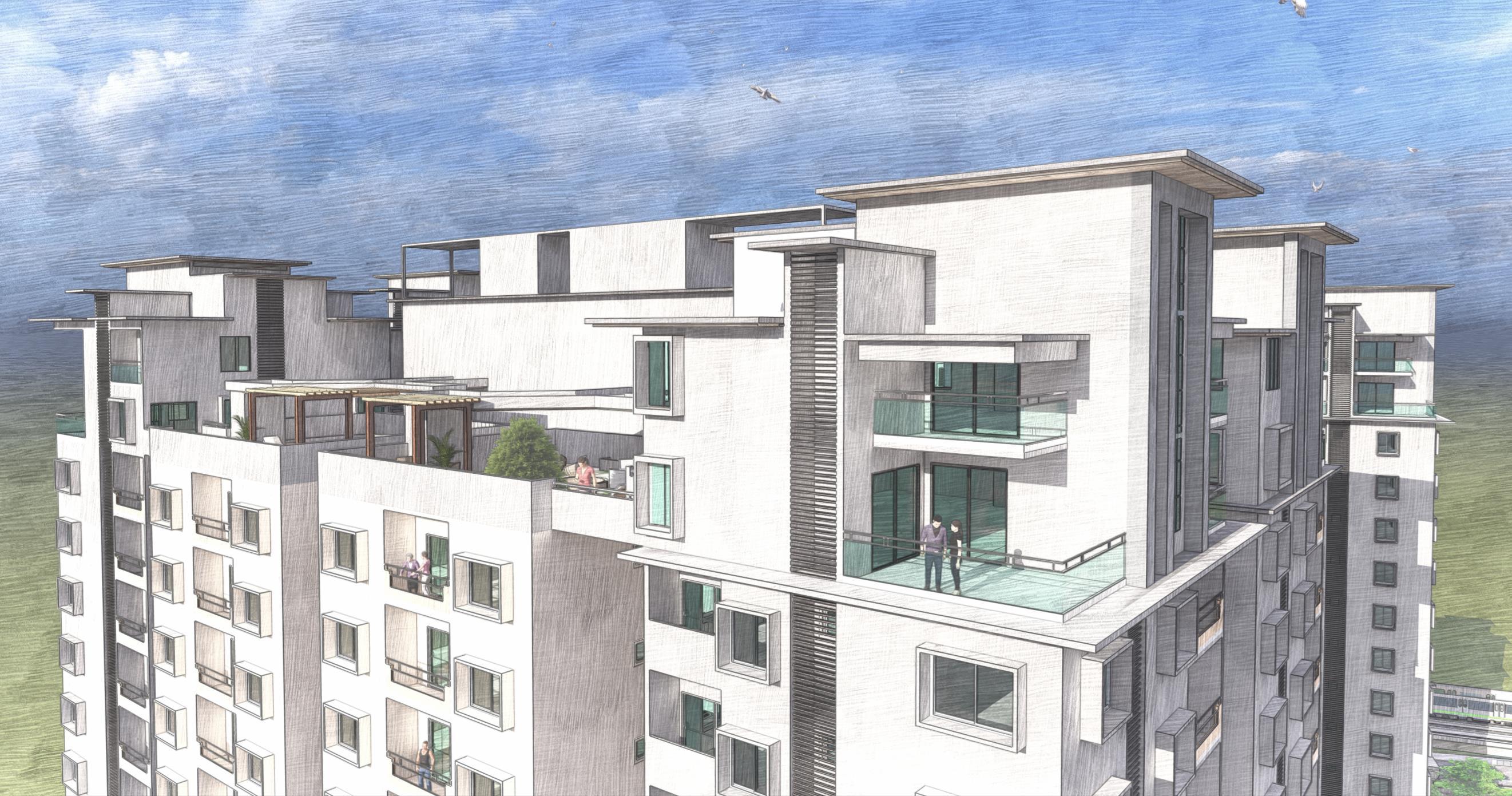

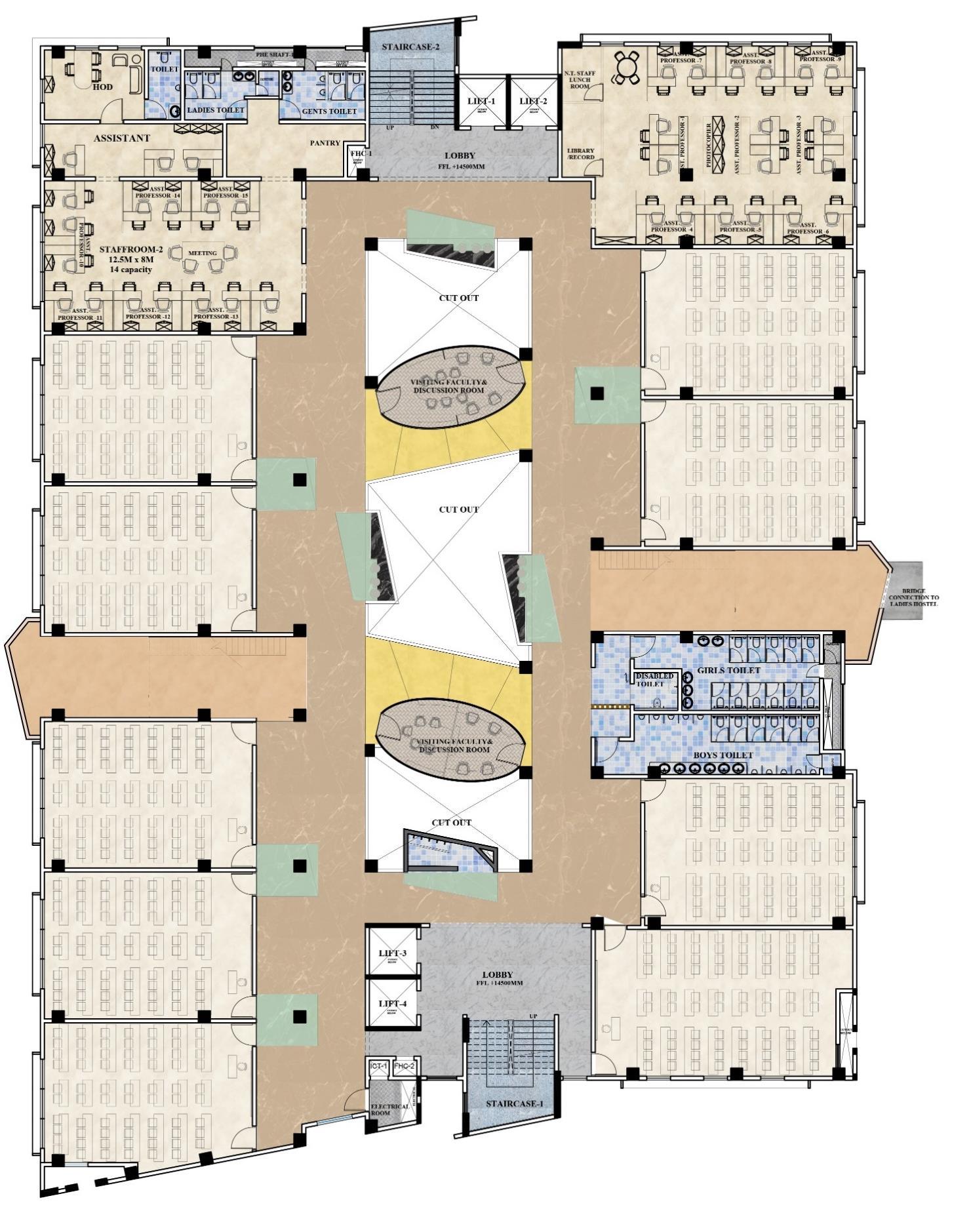

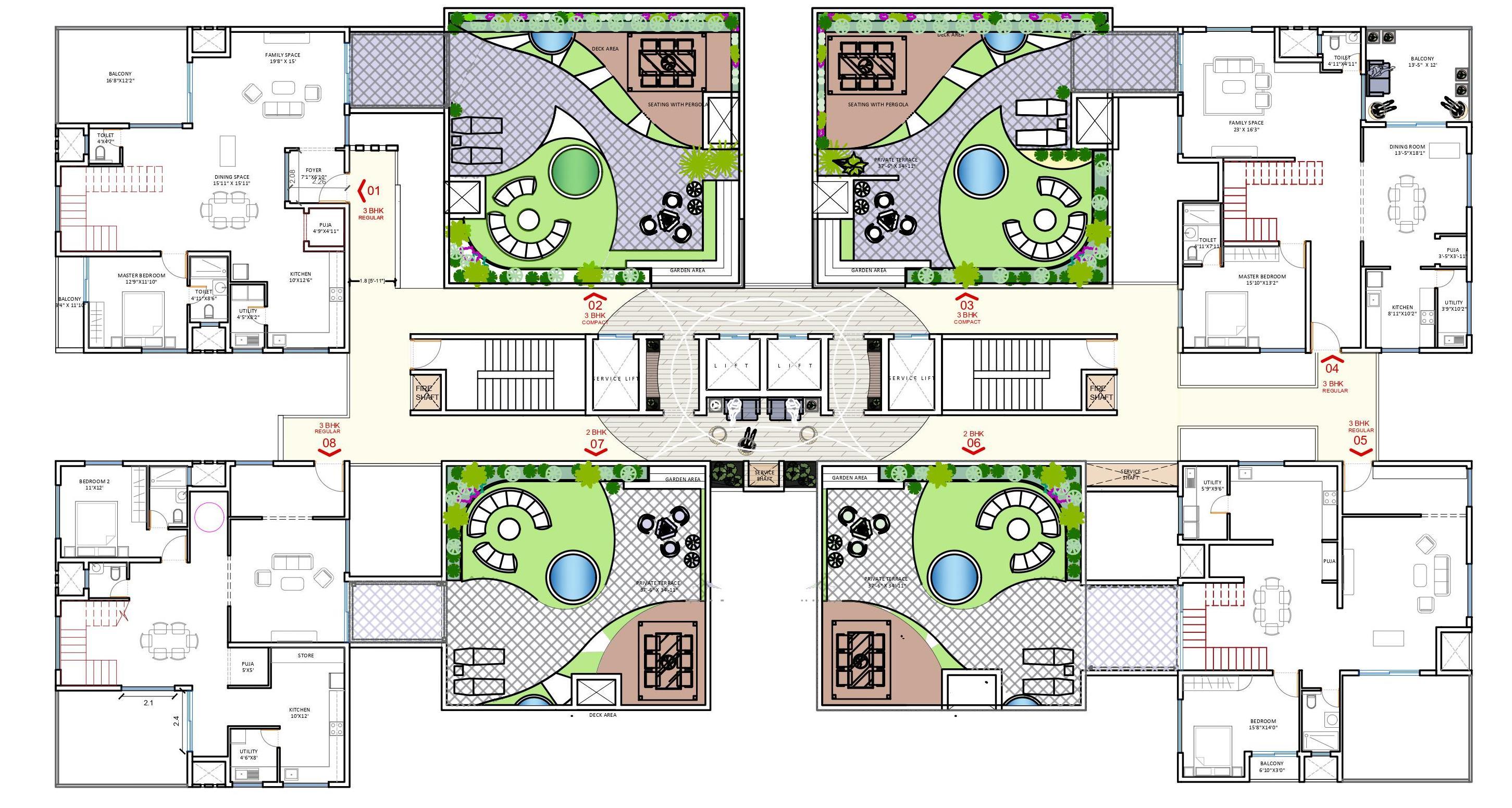

TYPICAL FLOOR PLAN WITH TERRACE GARDEN

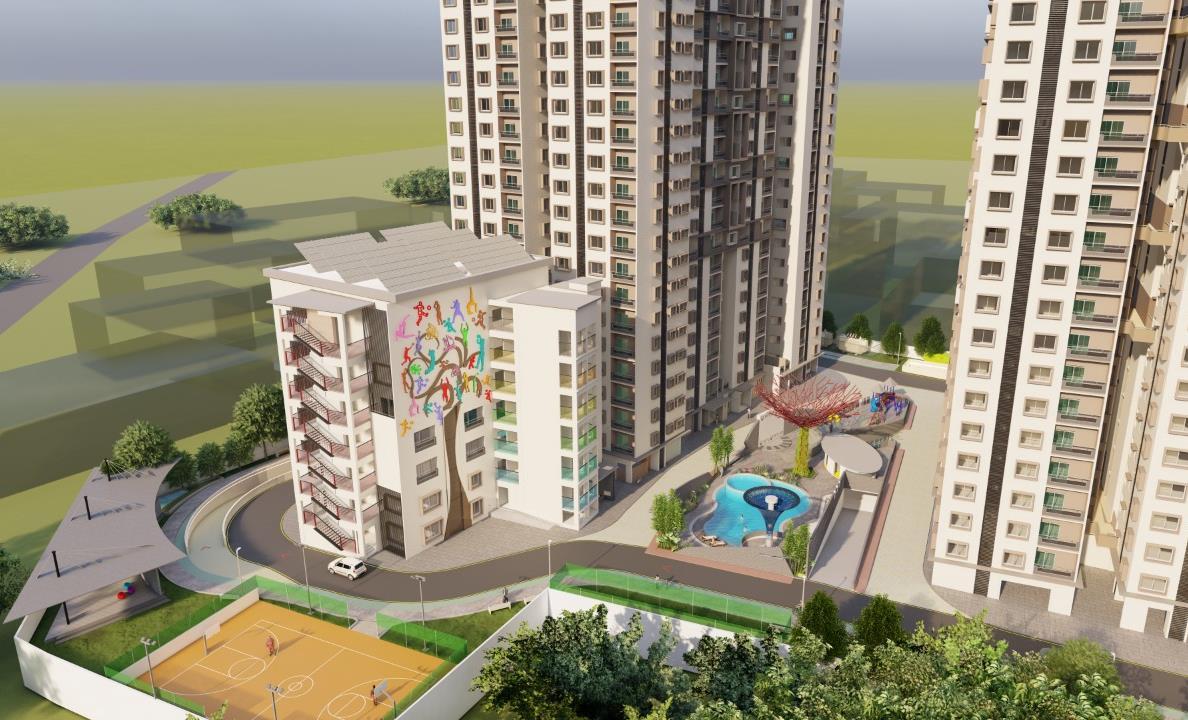

CLUB HOUSE 3D VIEWS

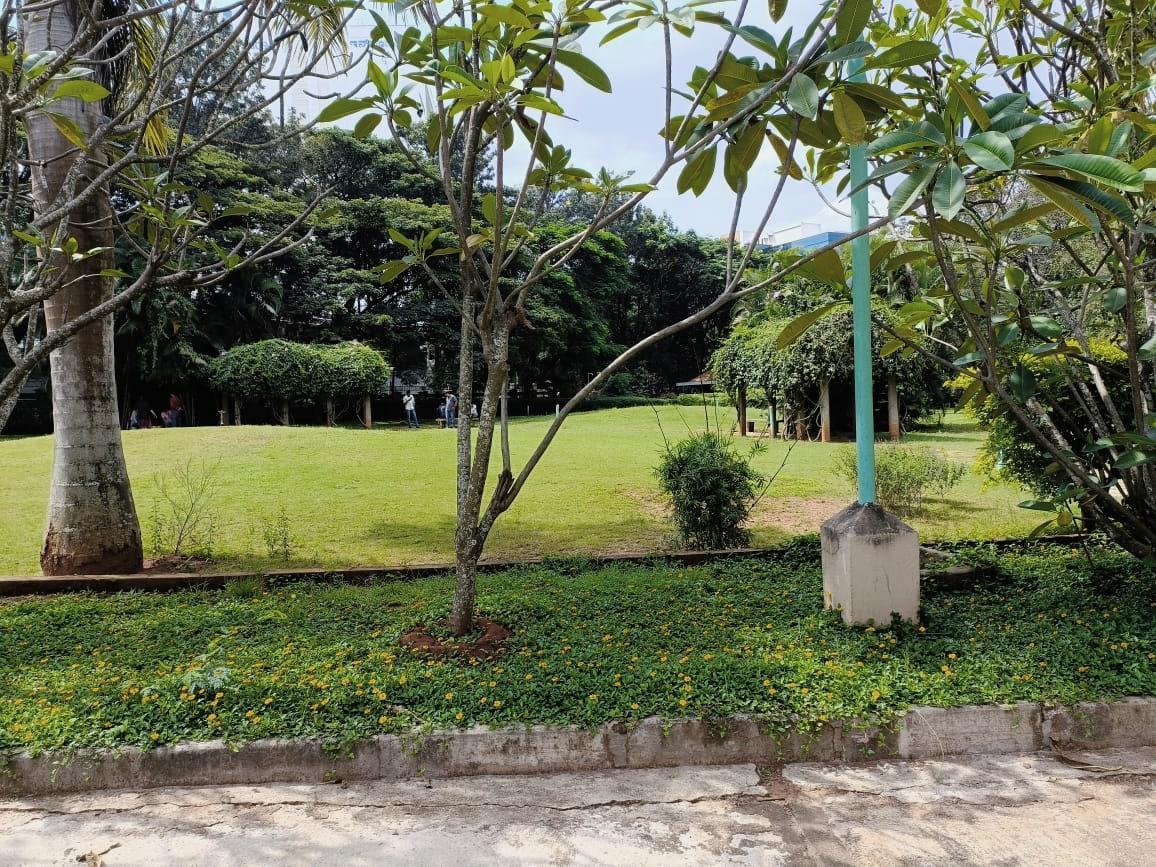

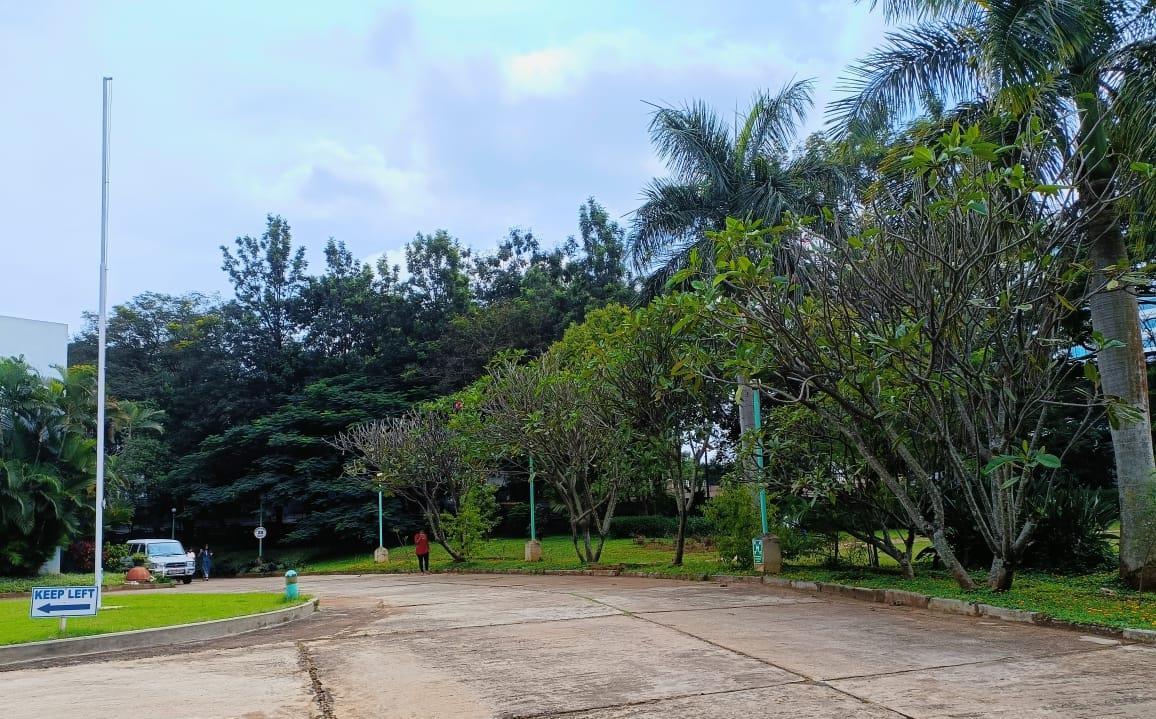

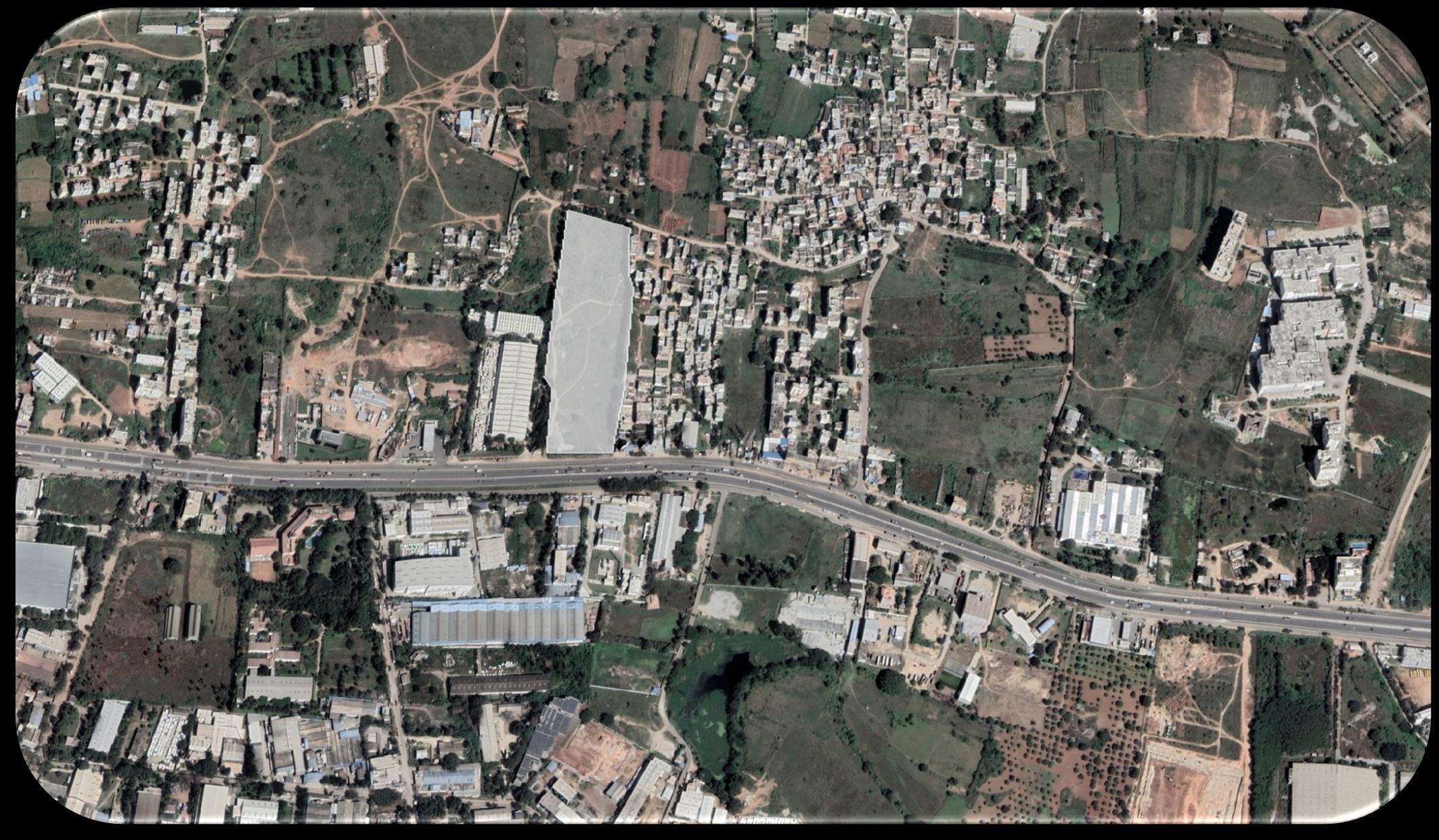

SITE LOCATION
The site is located on the Hosur road in the Bangalore urban with 9 acres longitudinal with access from the main road at the South
Perfected by time; an icon of the future. Each structure is designed as a unique component just as a pebble is formed by the ebbing and flowing of water over time.
AREA STATEMENT

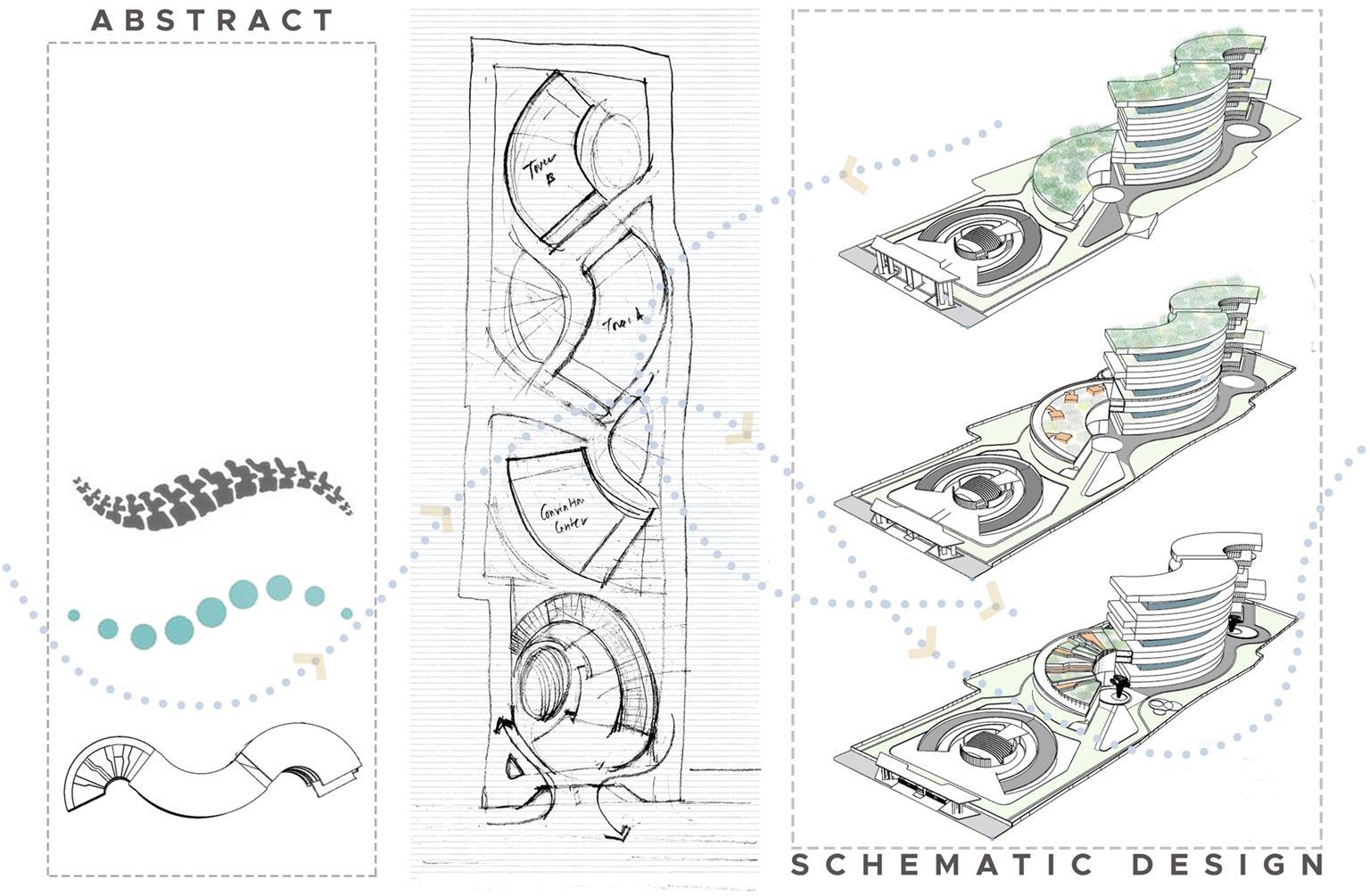

Fluidity in motion; a symbol of strength. Inspired by the curvature and connectivity of a human spine that represents strength and motion.

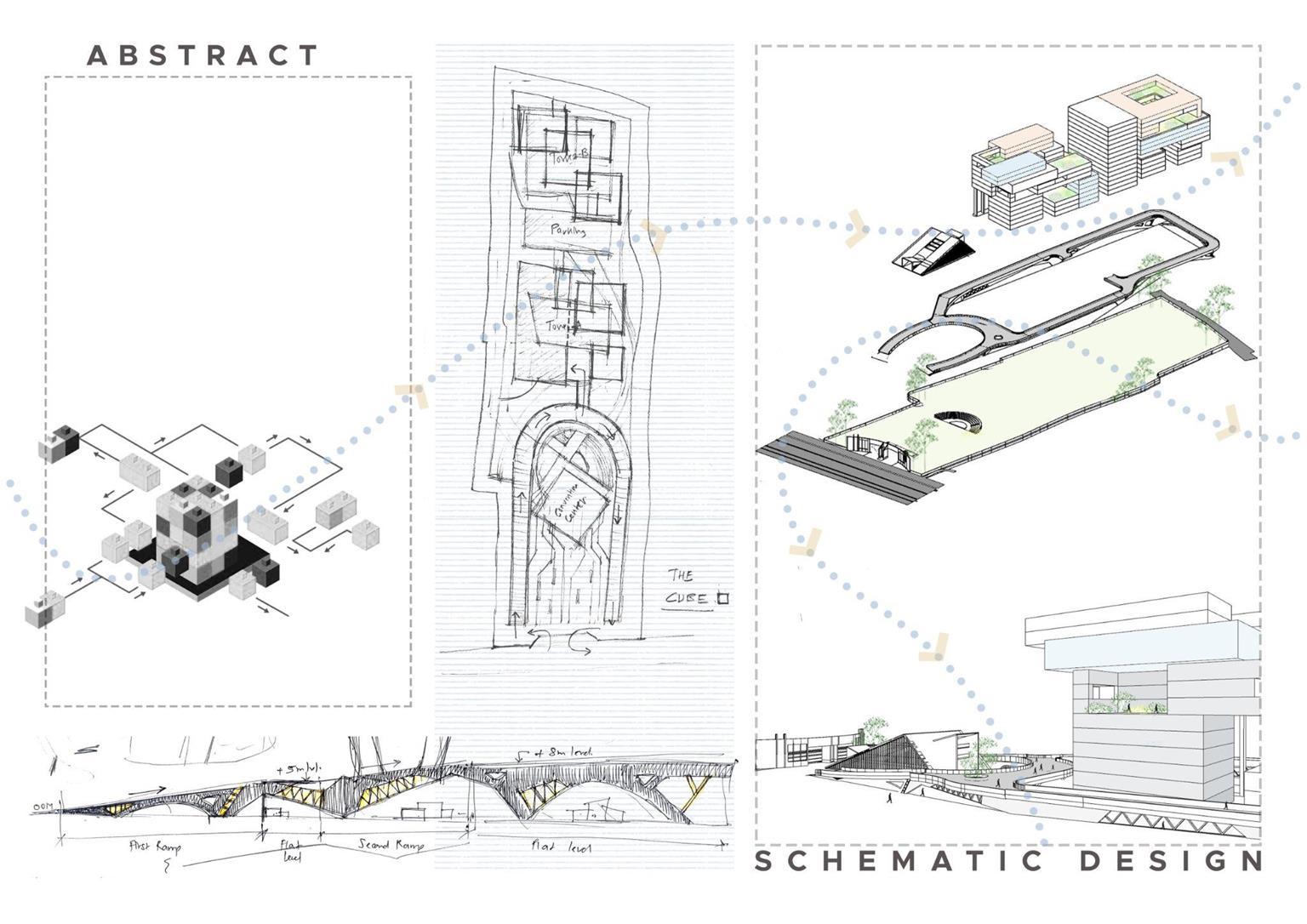

Building from creativity; sustained through connection.
These interlocking cube and cuboid blocks represent creativity and individuality brought together with a joint conscience.

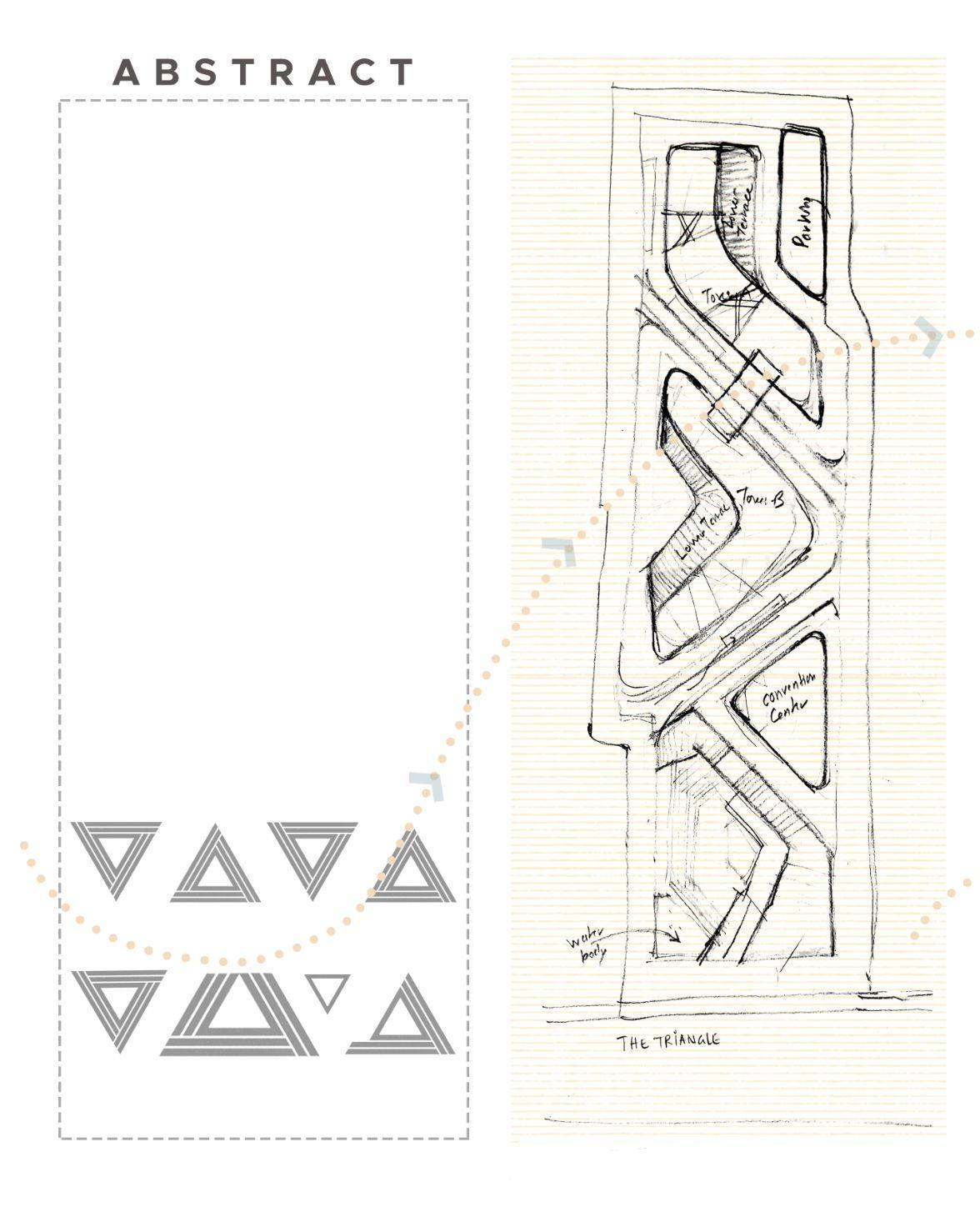

• The angular shapes of the structures are derived from the slicing of the elongated site at acute angles.
• Deconstruction of the Acute Triangle as you move through the site creates direction and energy.

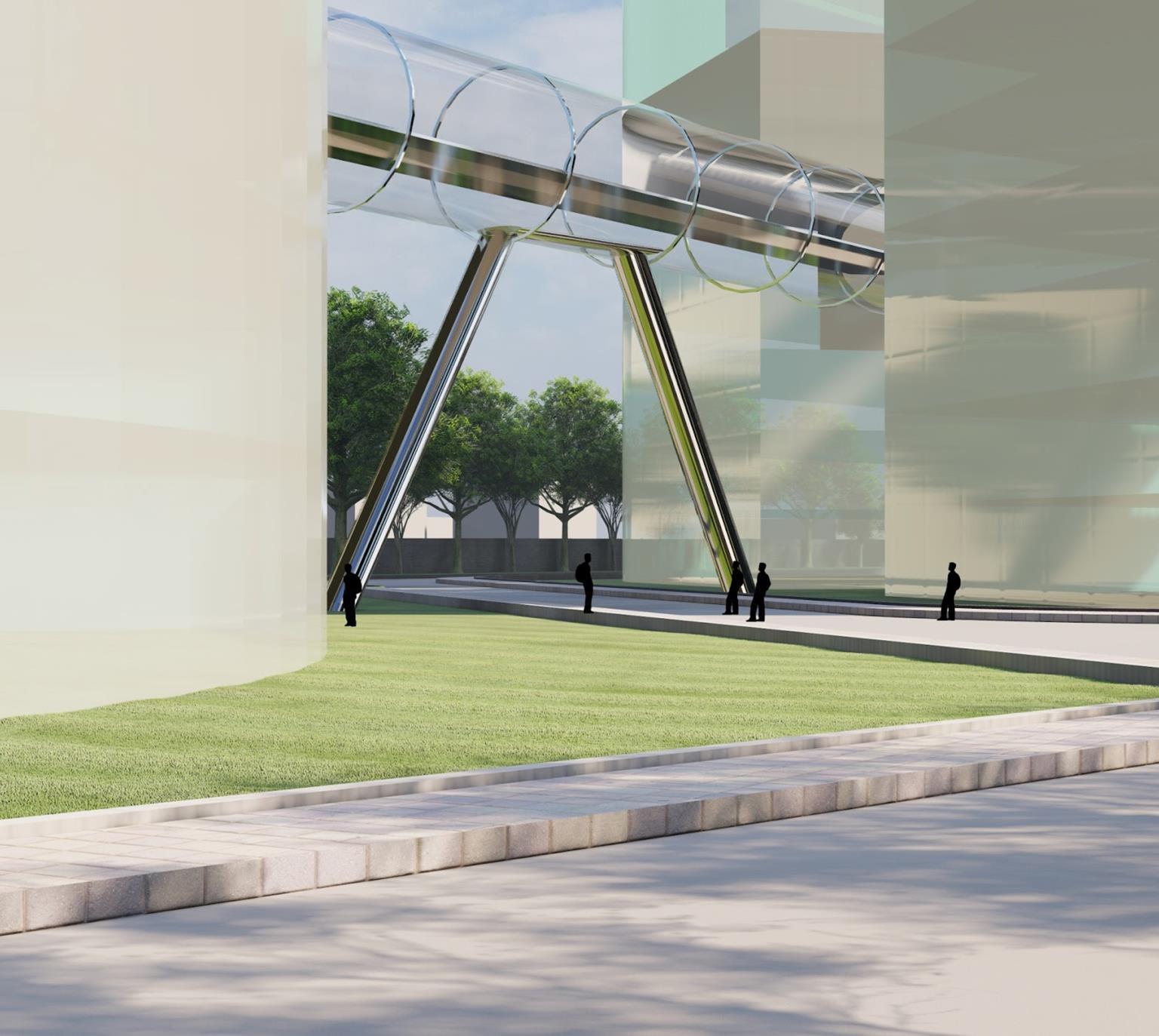

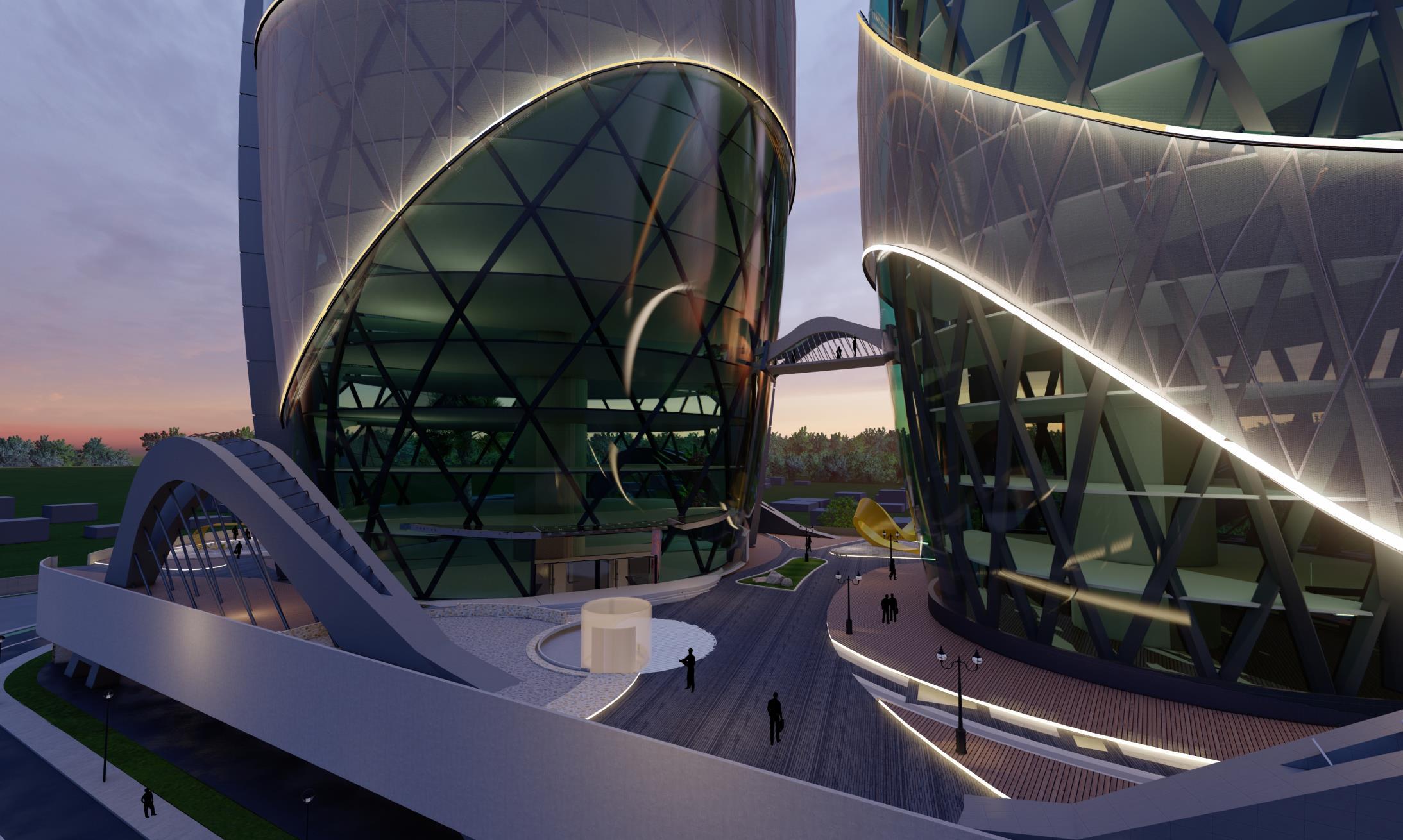

• The circular cross sections of the footbridges resemble the tunnels which carry water under pressure, resembling the flow of energy.
• The bridges’ angular supports that straddle the road are reminiscent of a triangle.

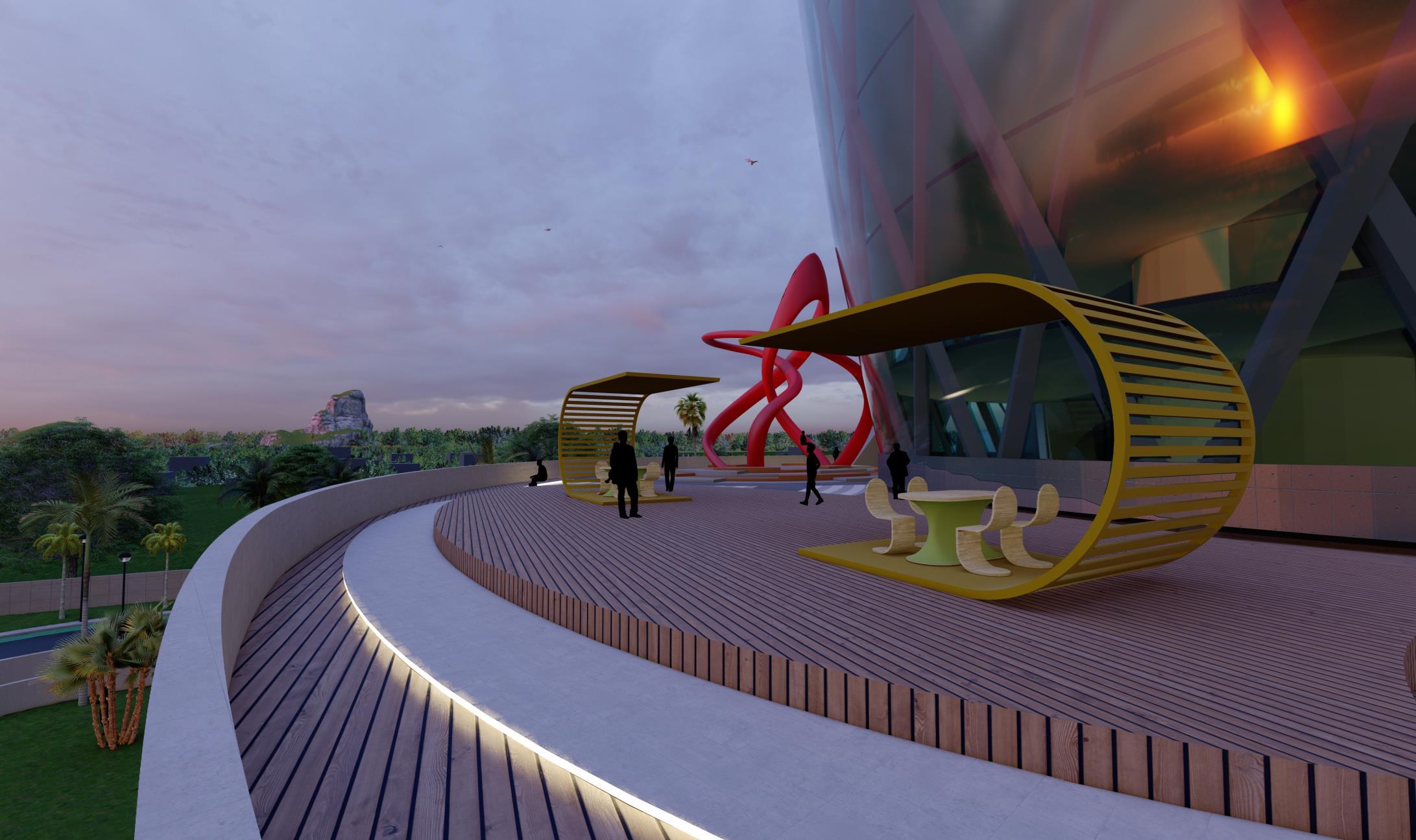

• The top-most floor of IT Tower 2 offers a green sustainable breakout space.

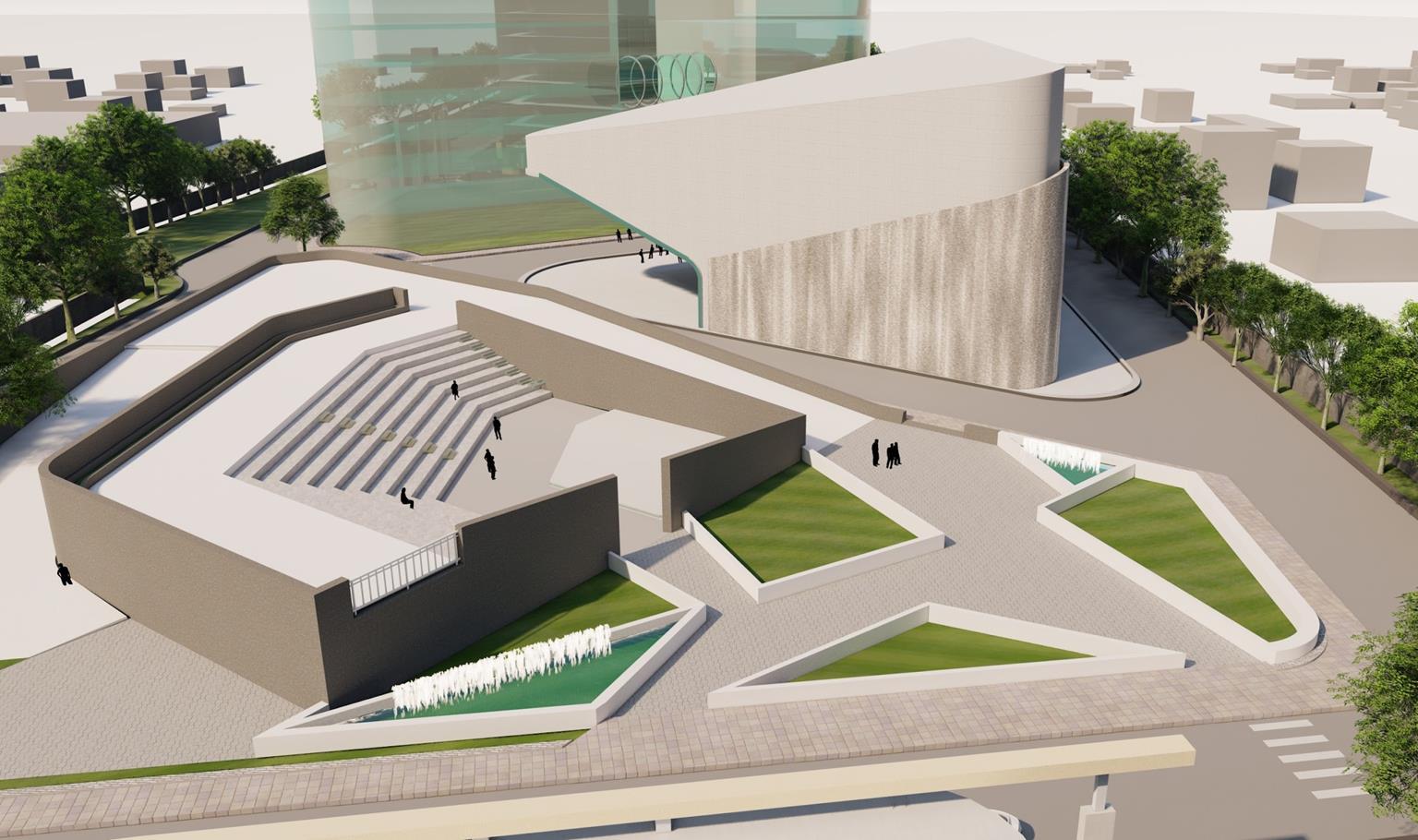

• The Amphitheatre and the Convention Centre have achieved a duality between open and enclosed, visible and concealed.
Imbibed with intensity; steadfast in direction.
Inspired by the angles of an acute triangle, combined with aerodynamic forms that represent energy and direction.
• The Amphitheatre is placed such that the audience is visible to passers-by, but not the performers.
• The public spaces are a perfect example of inversion in both plan and elevation.
• The angular overhang of the Convention Centre inverts the shape of the Amphitheatre.

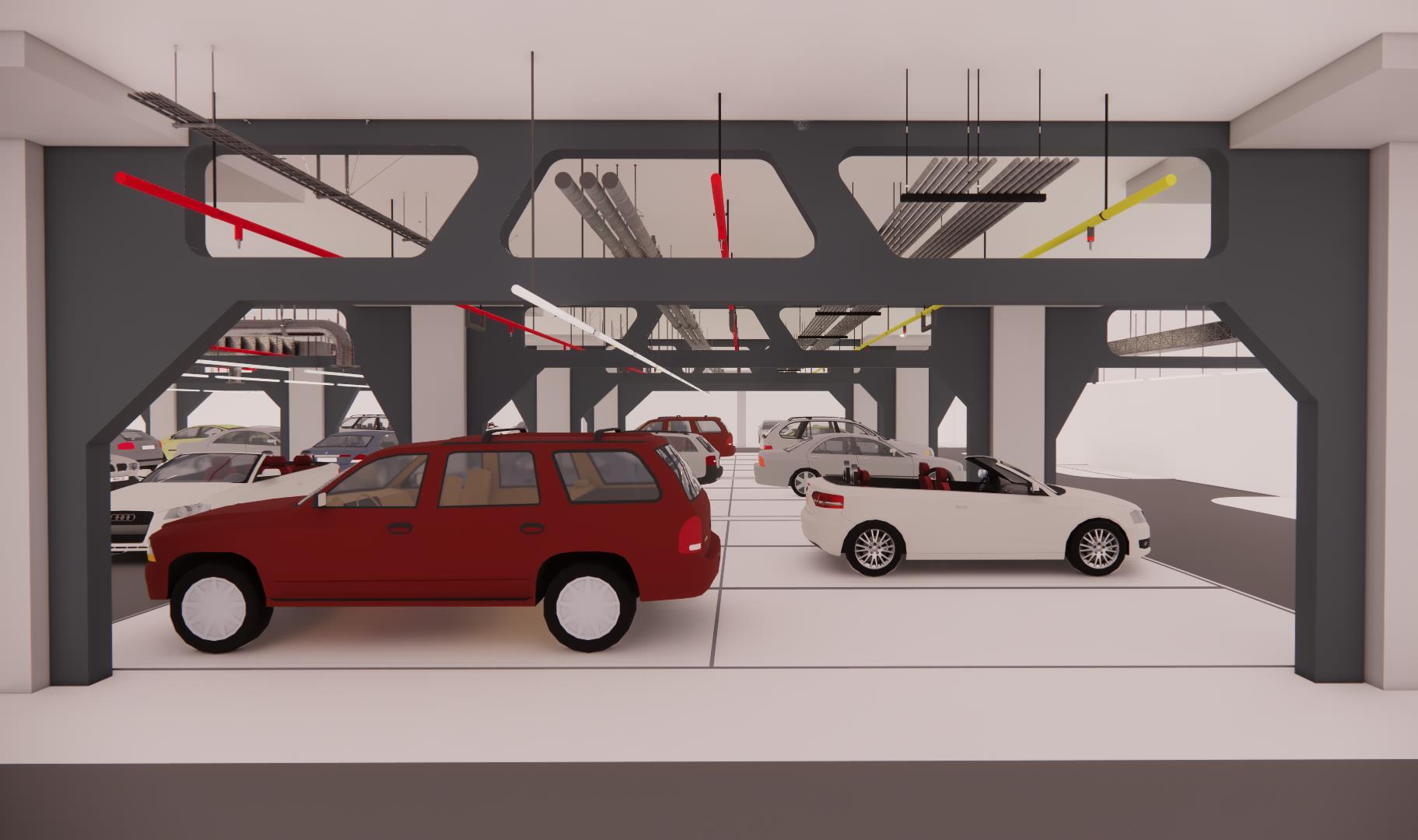

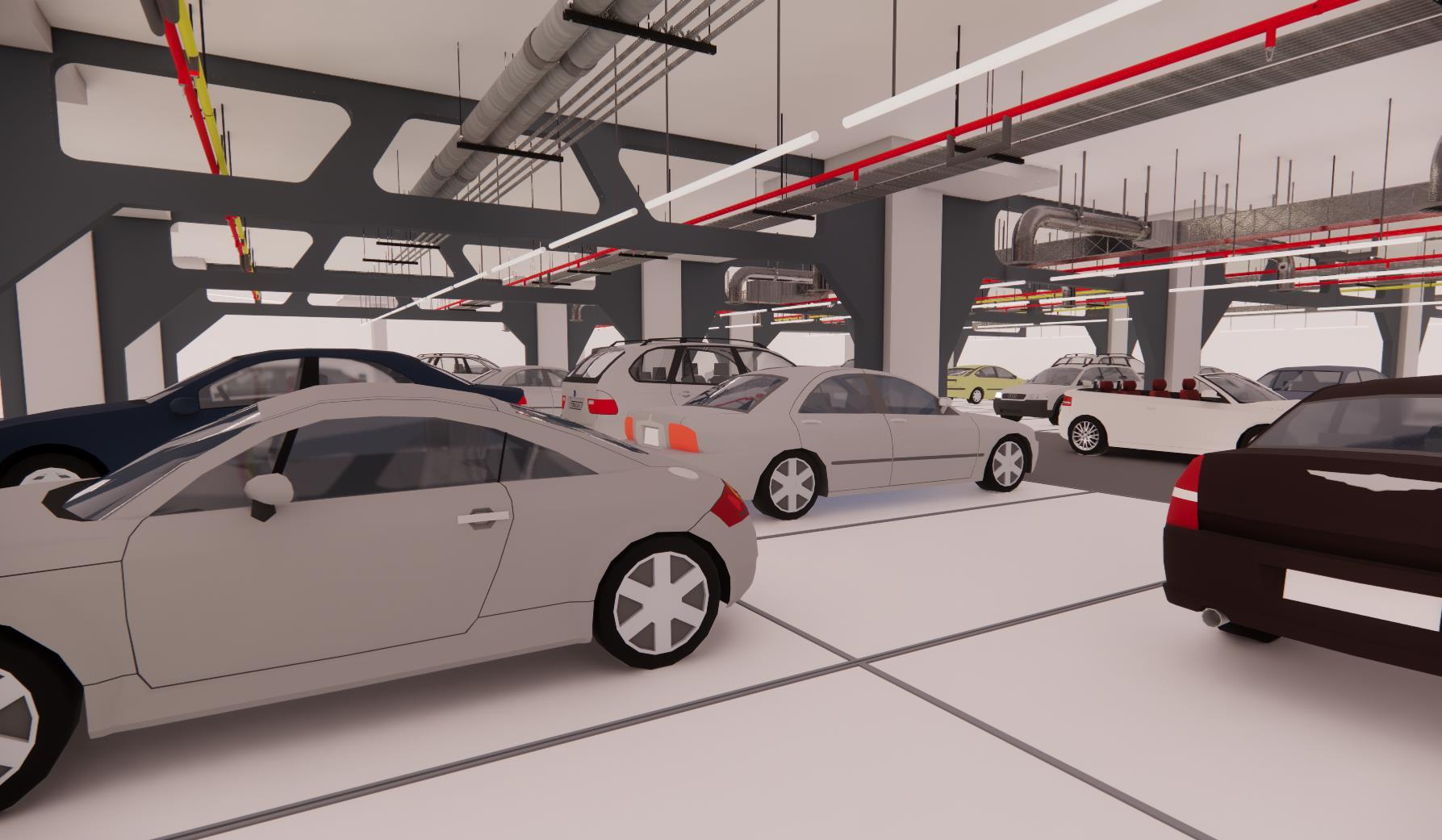

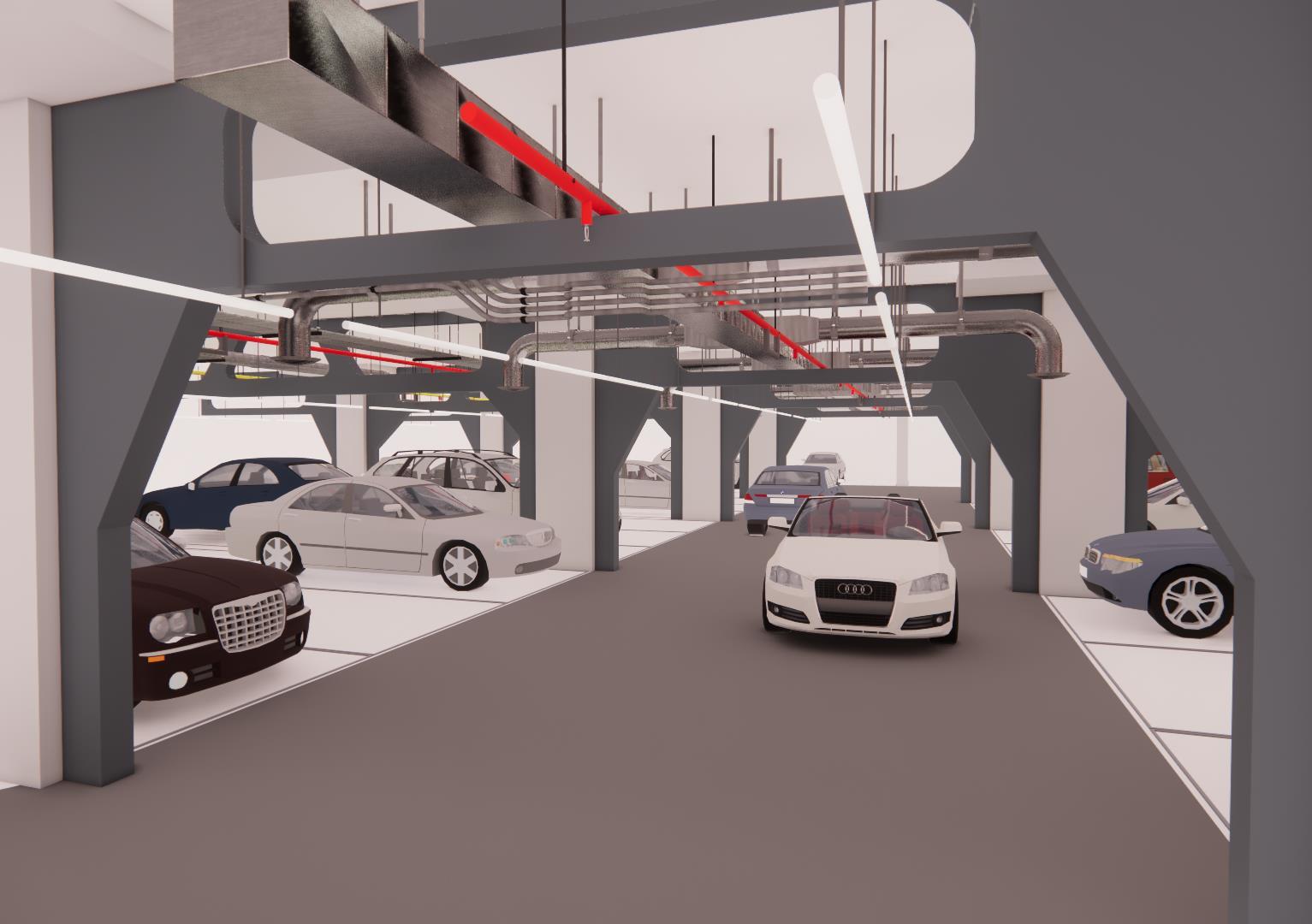

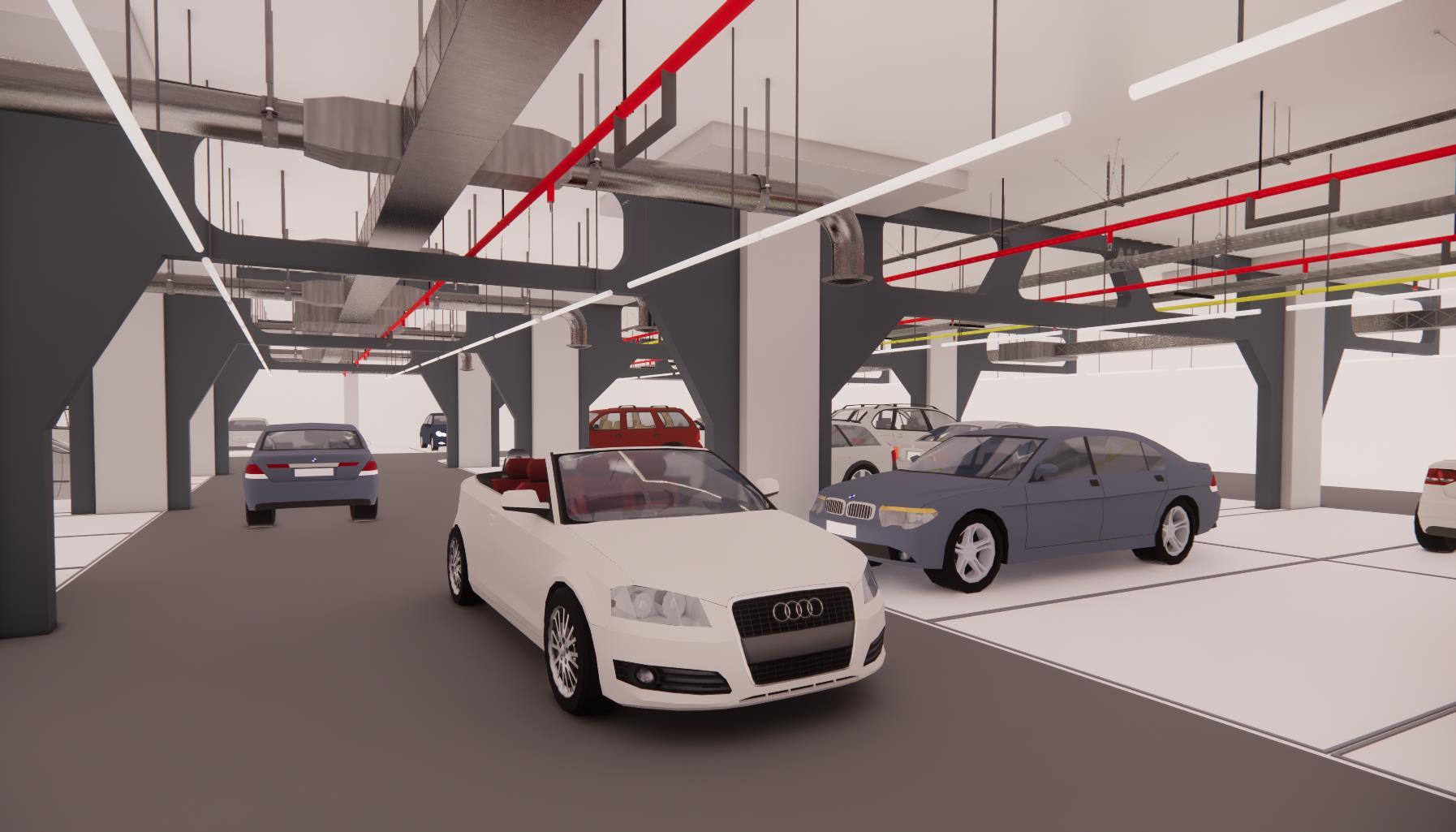

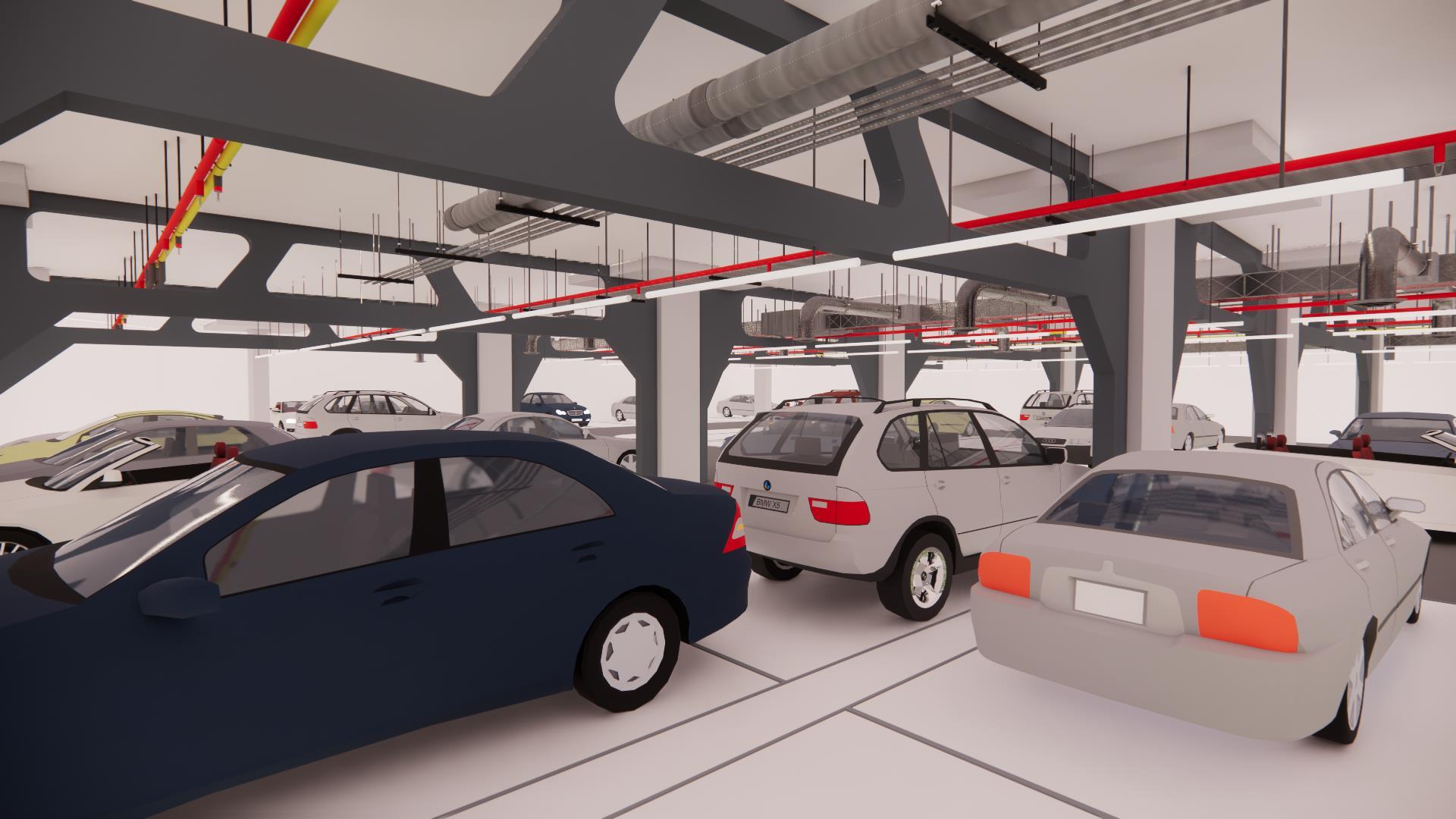

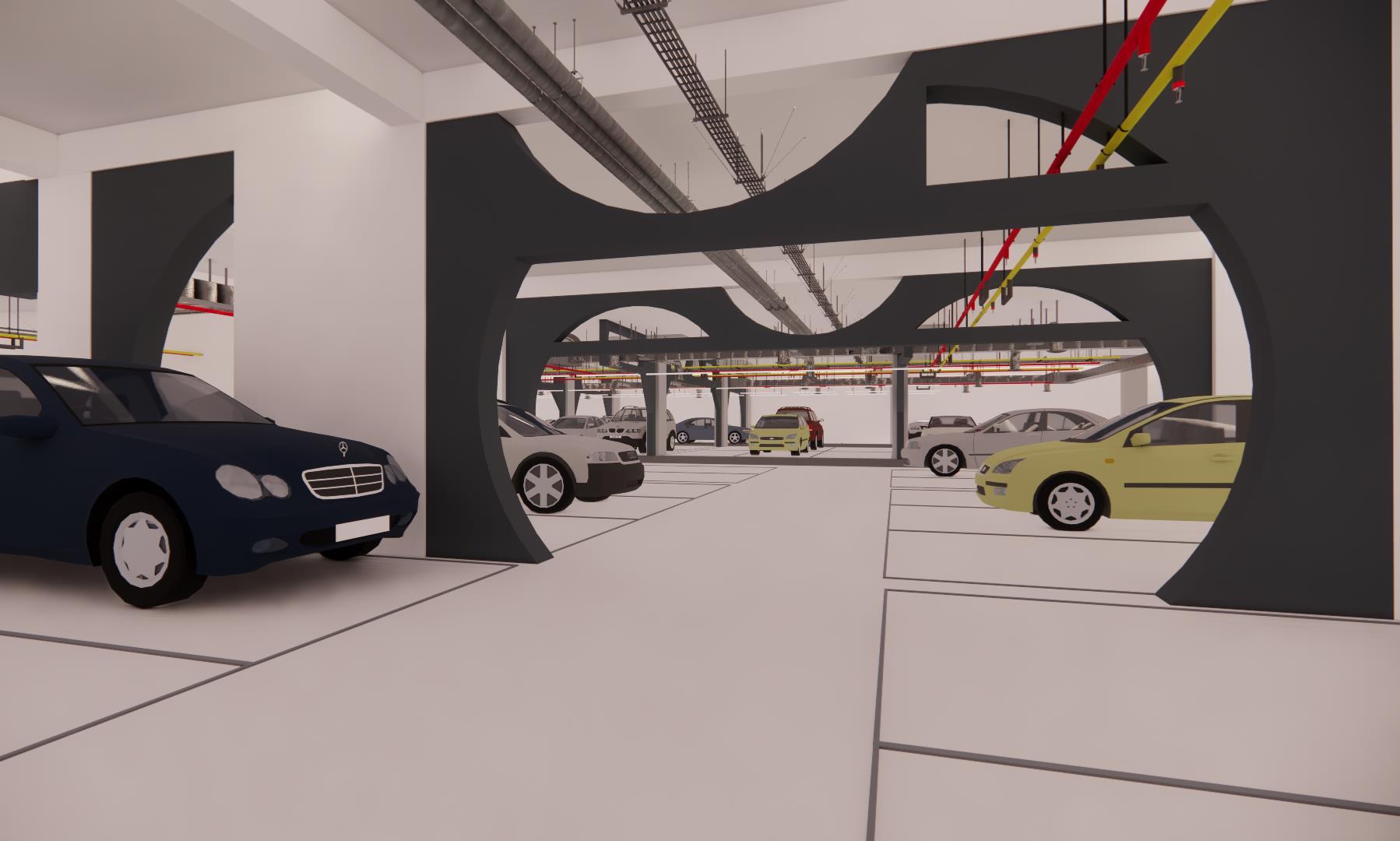

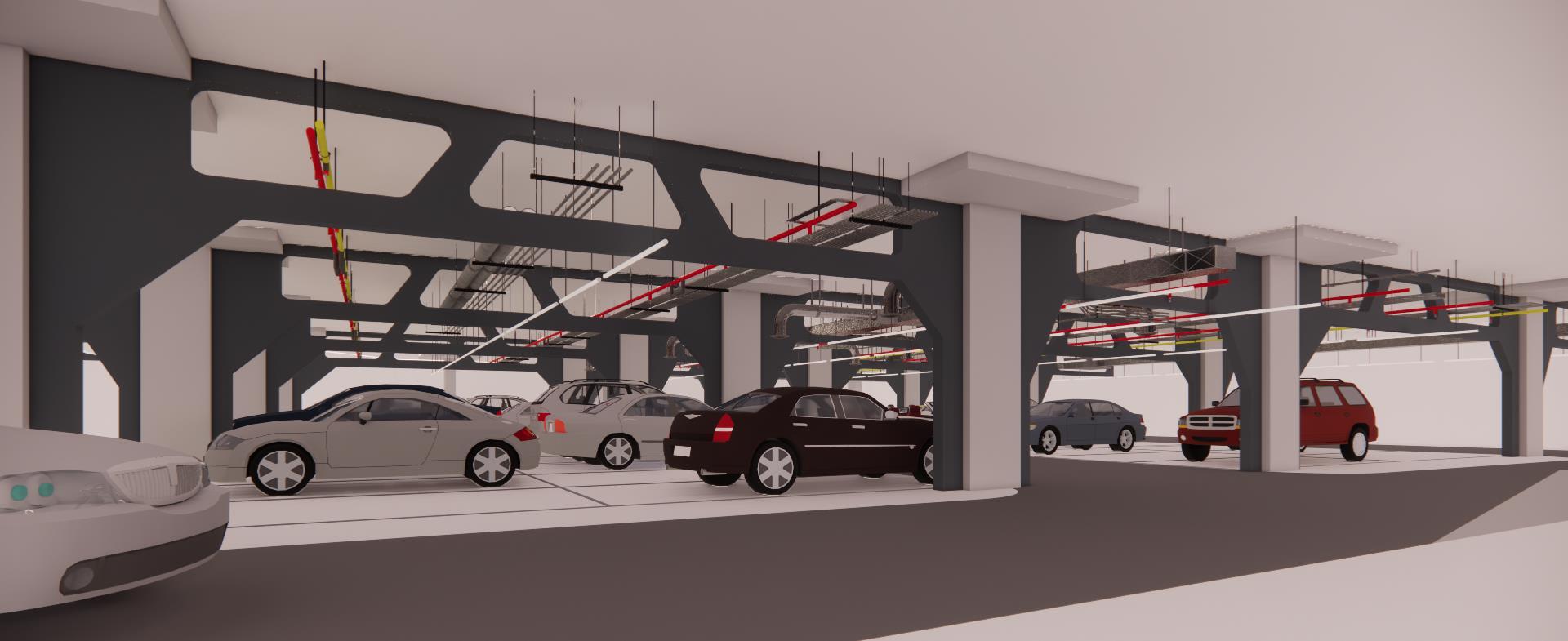

• Two Basement Levels provide ample parking for occupants and visitors.

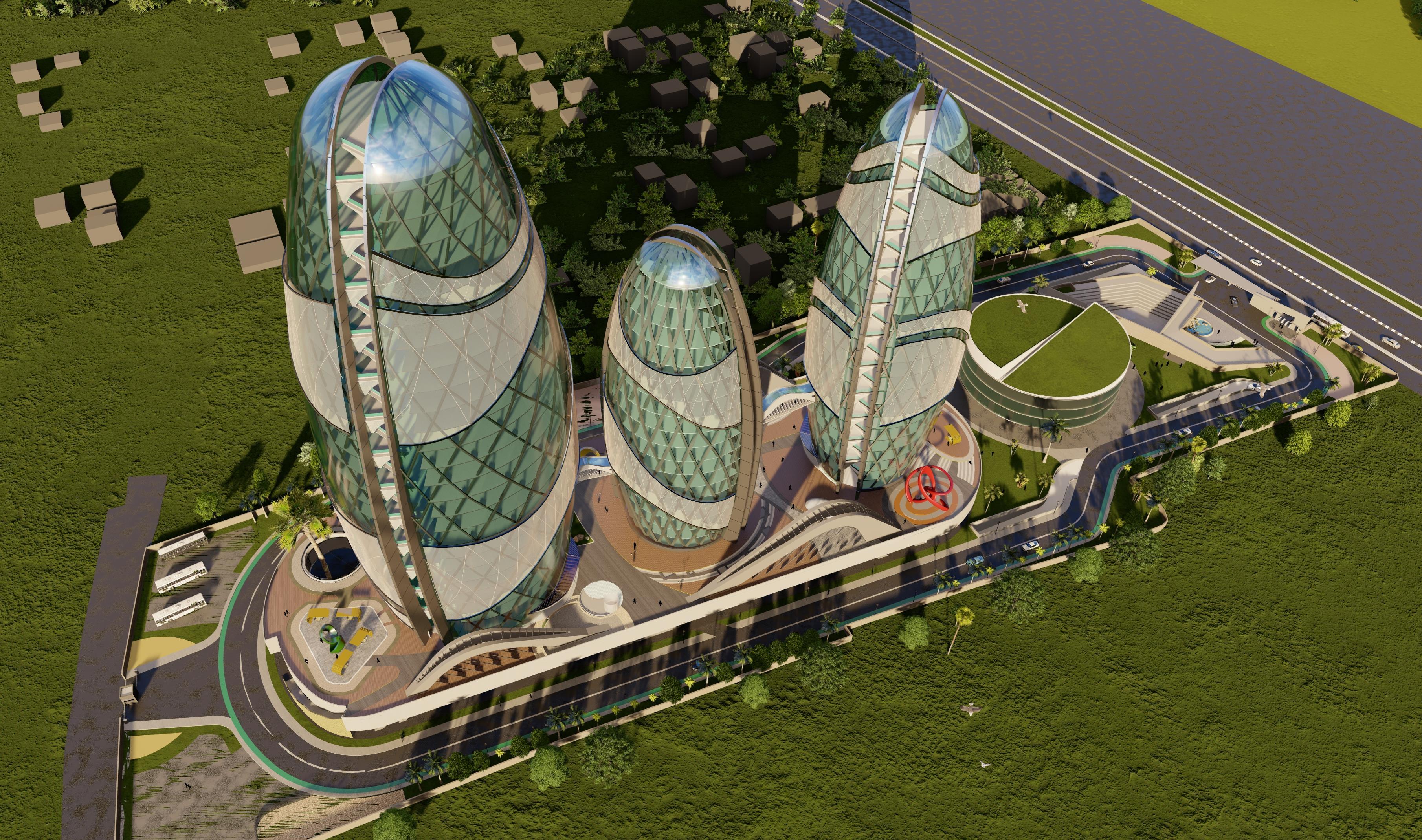

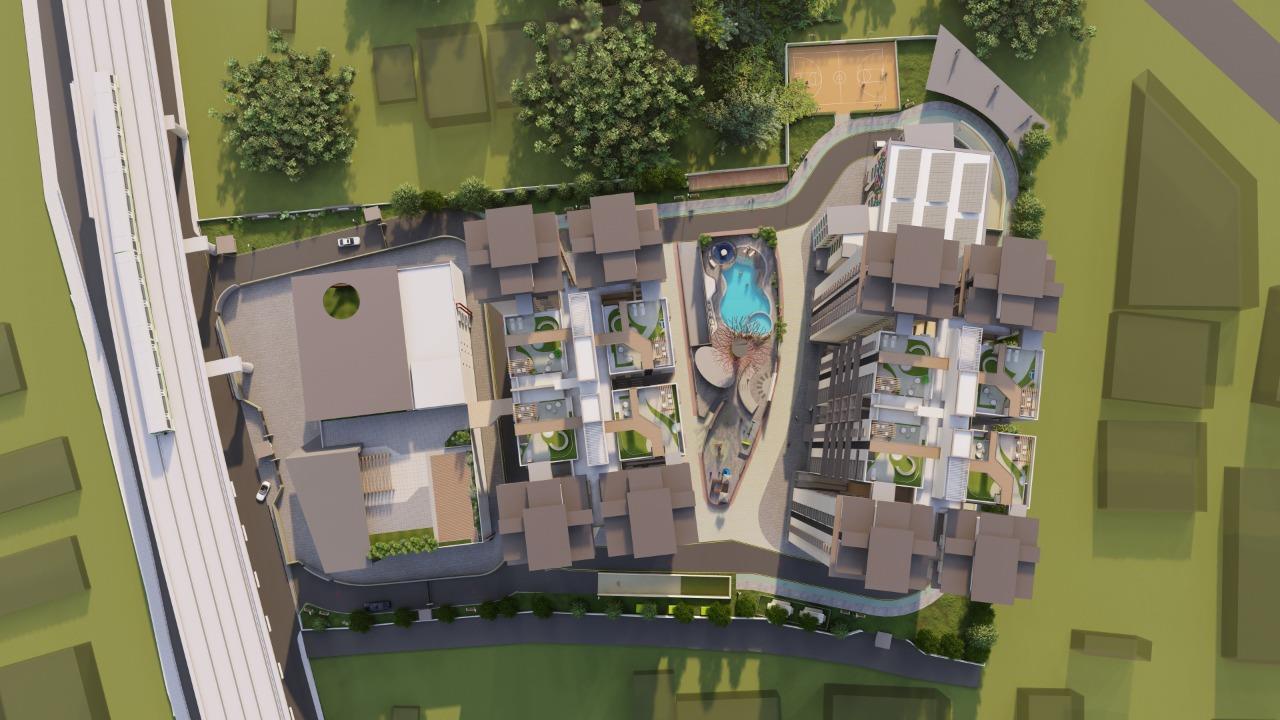

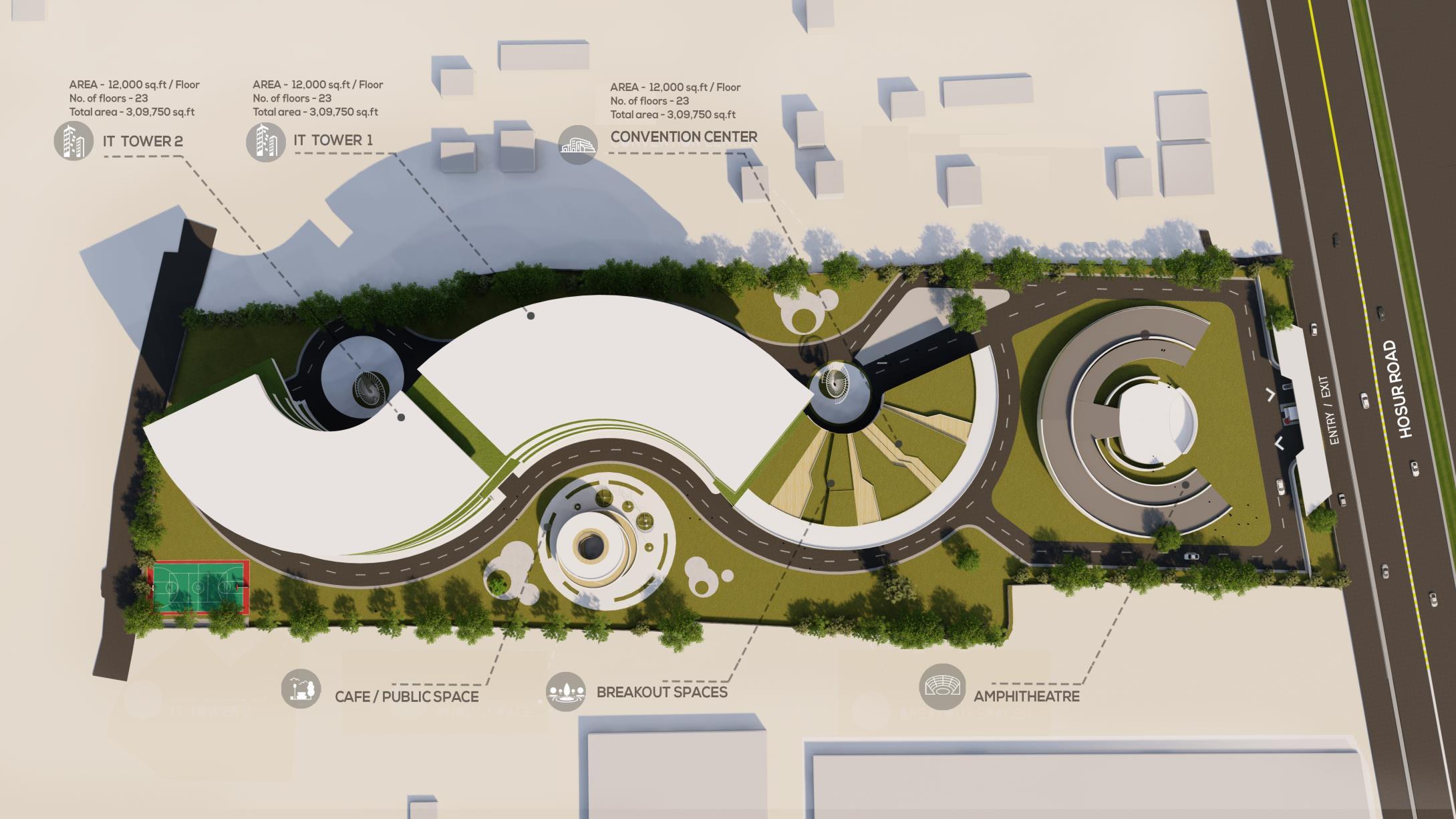

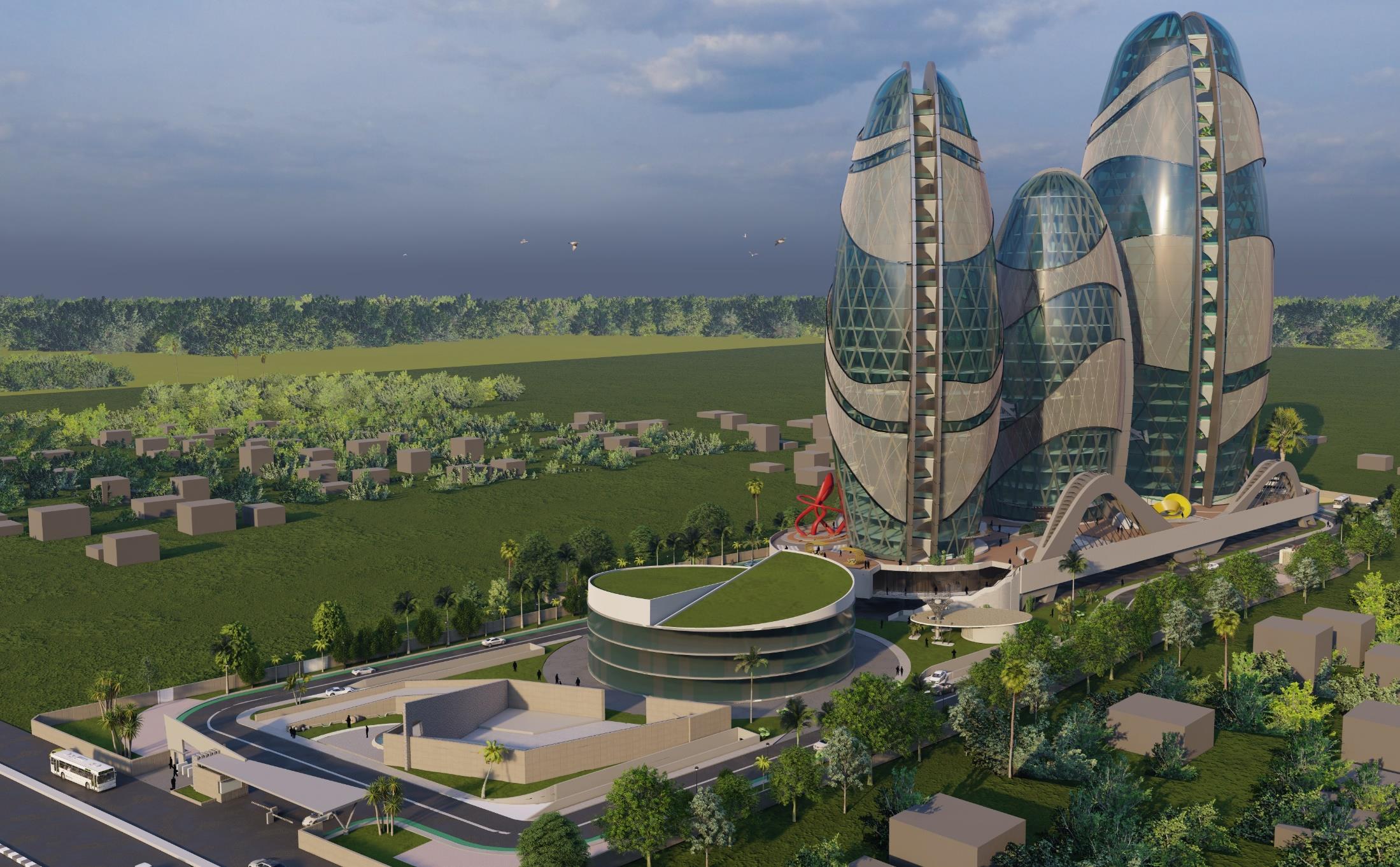

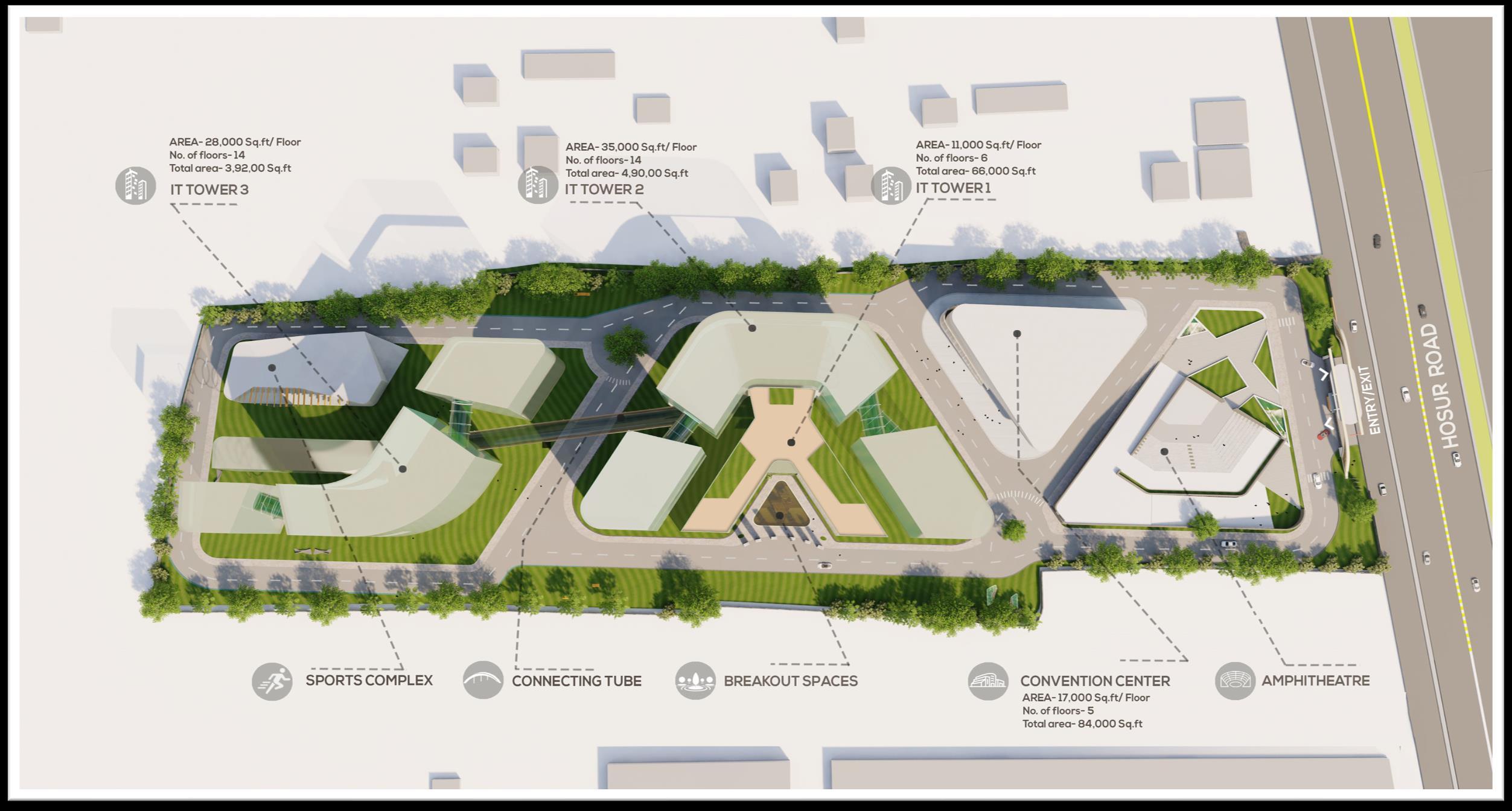

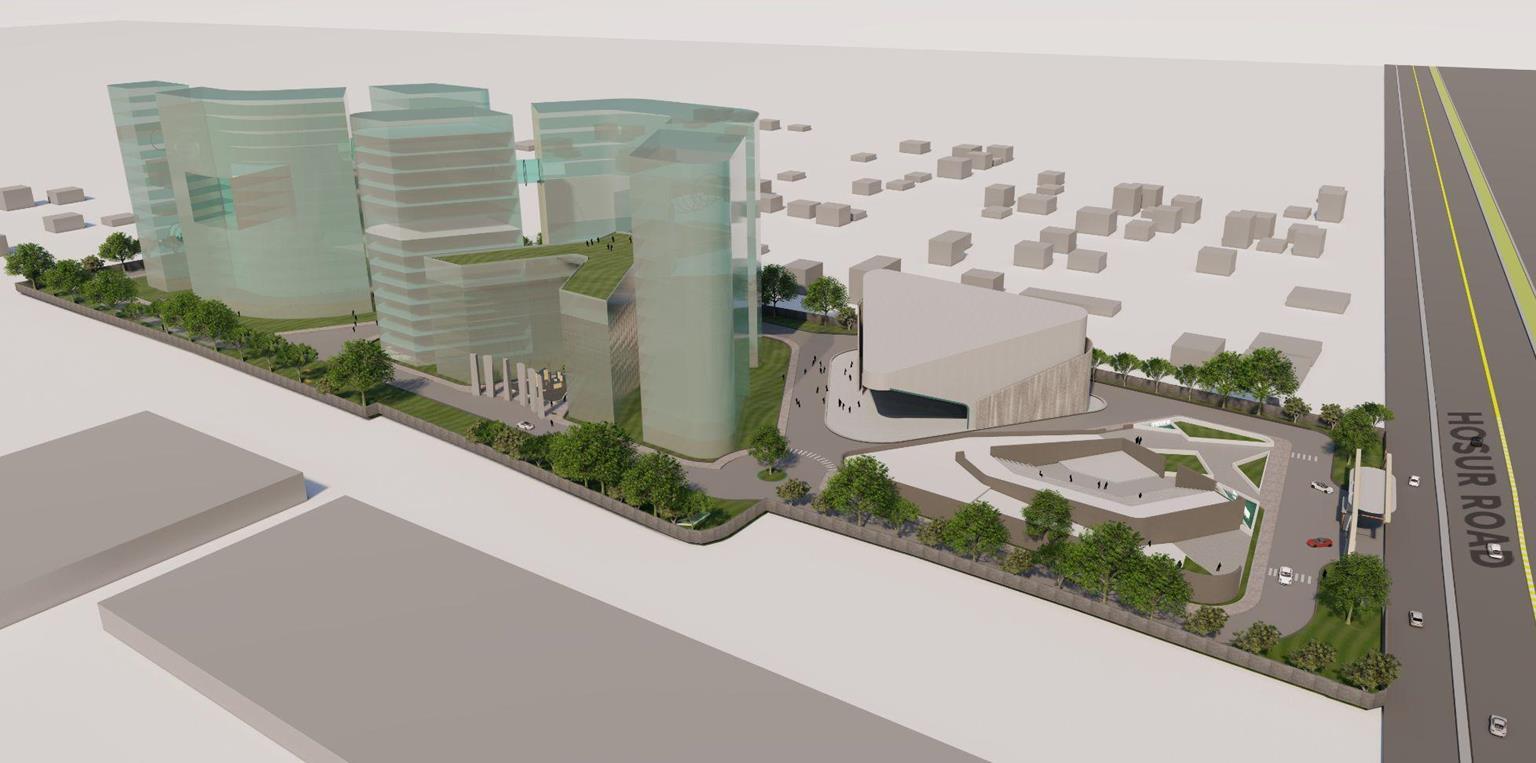

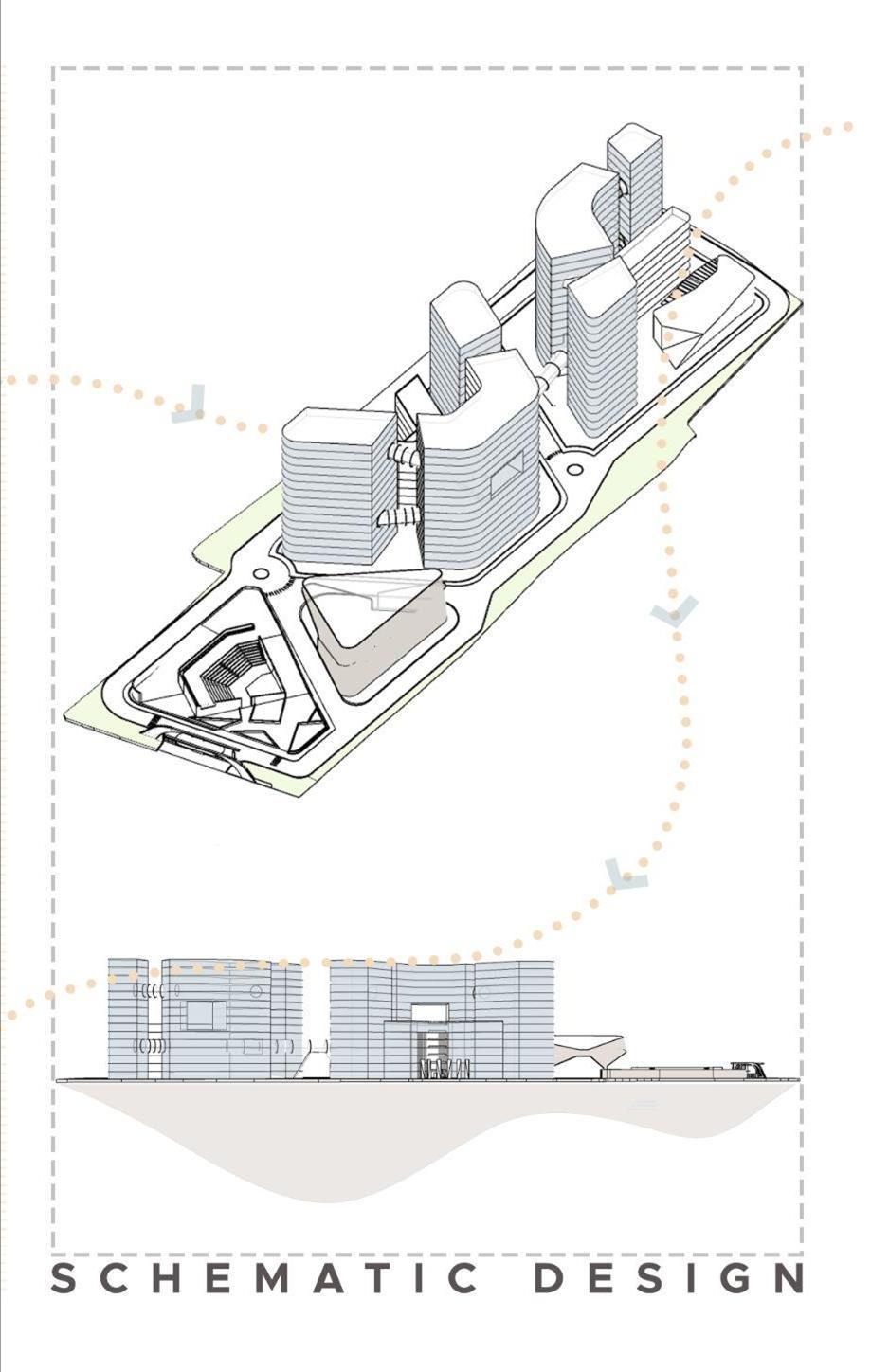

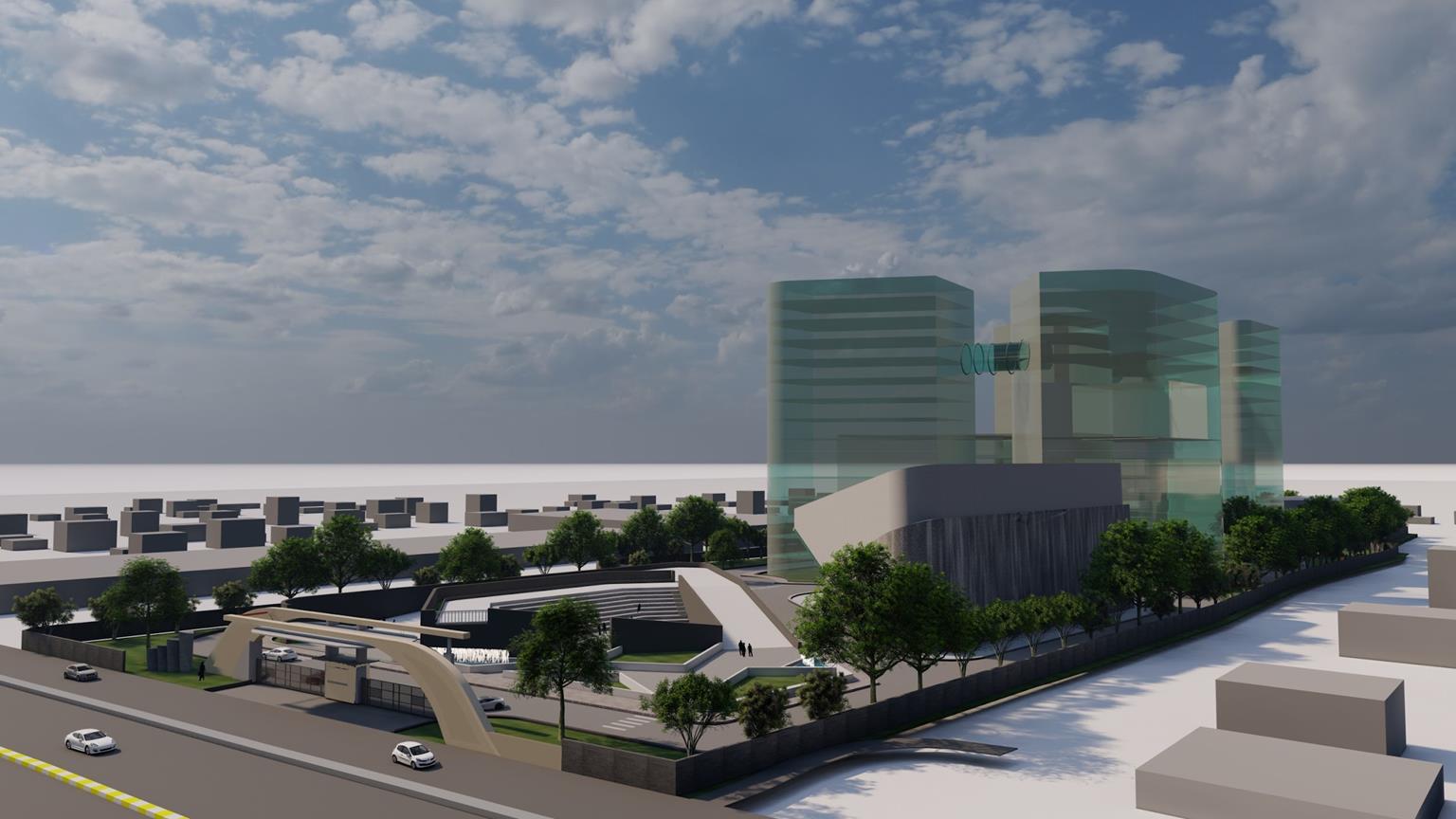

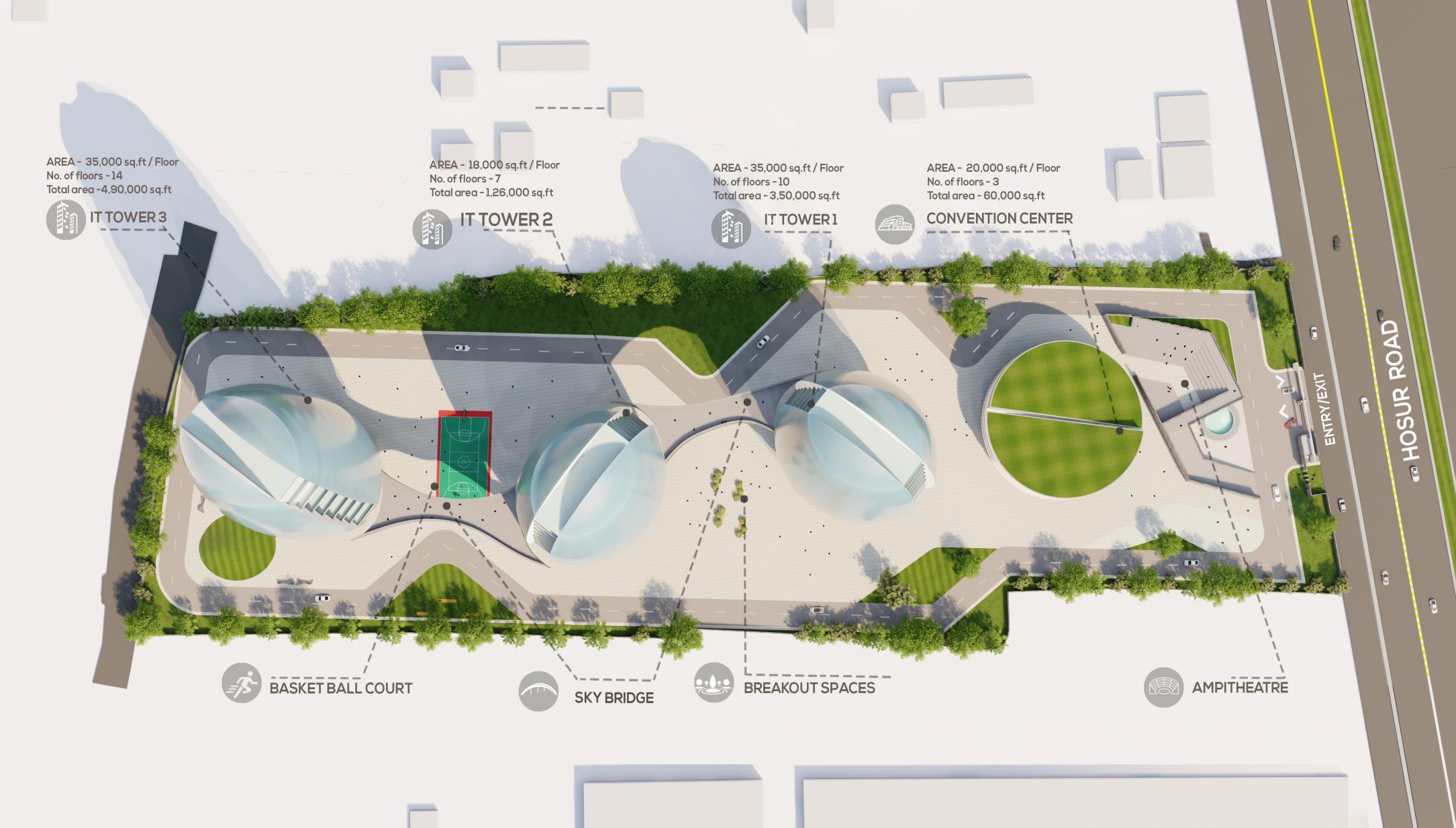

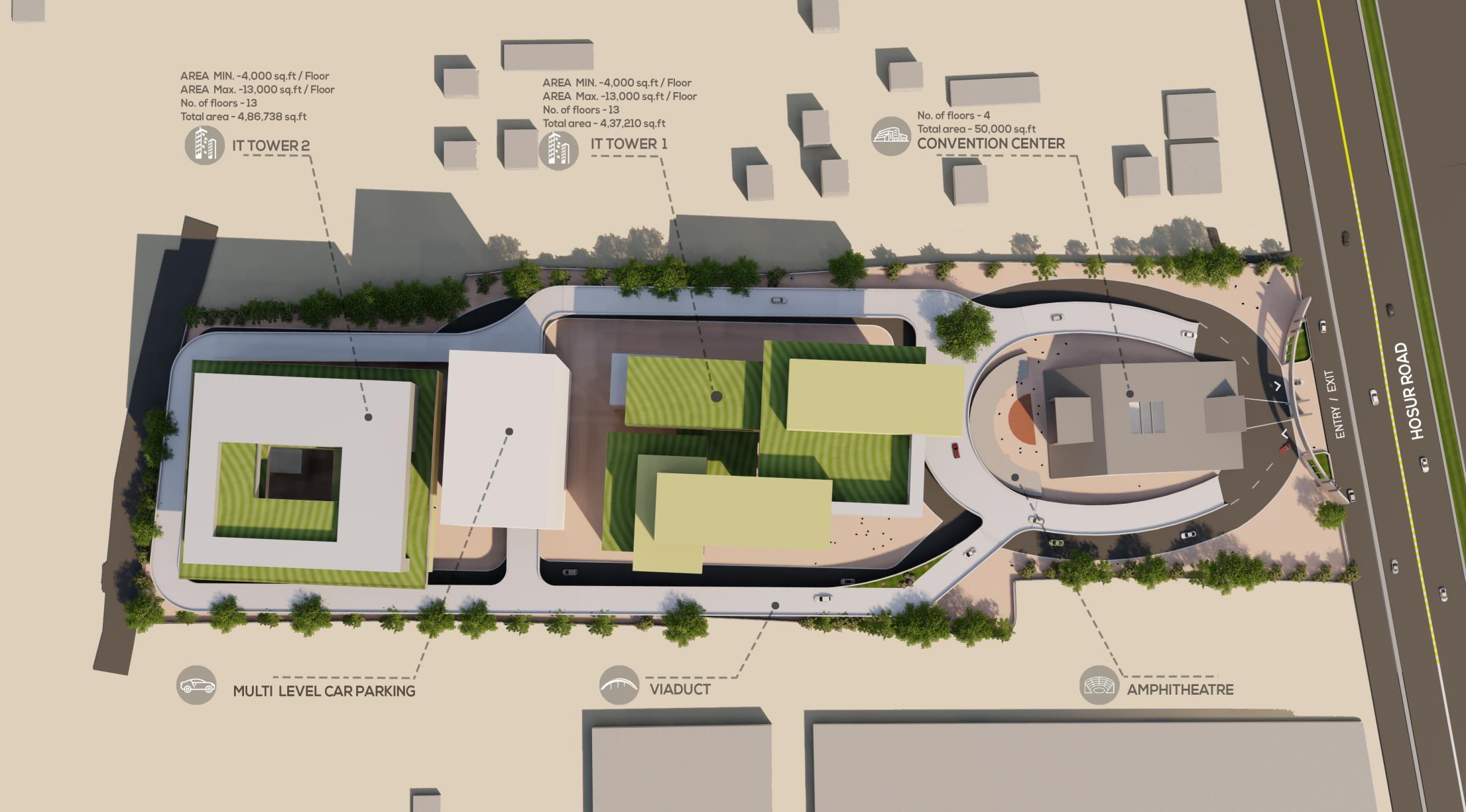

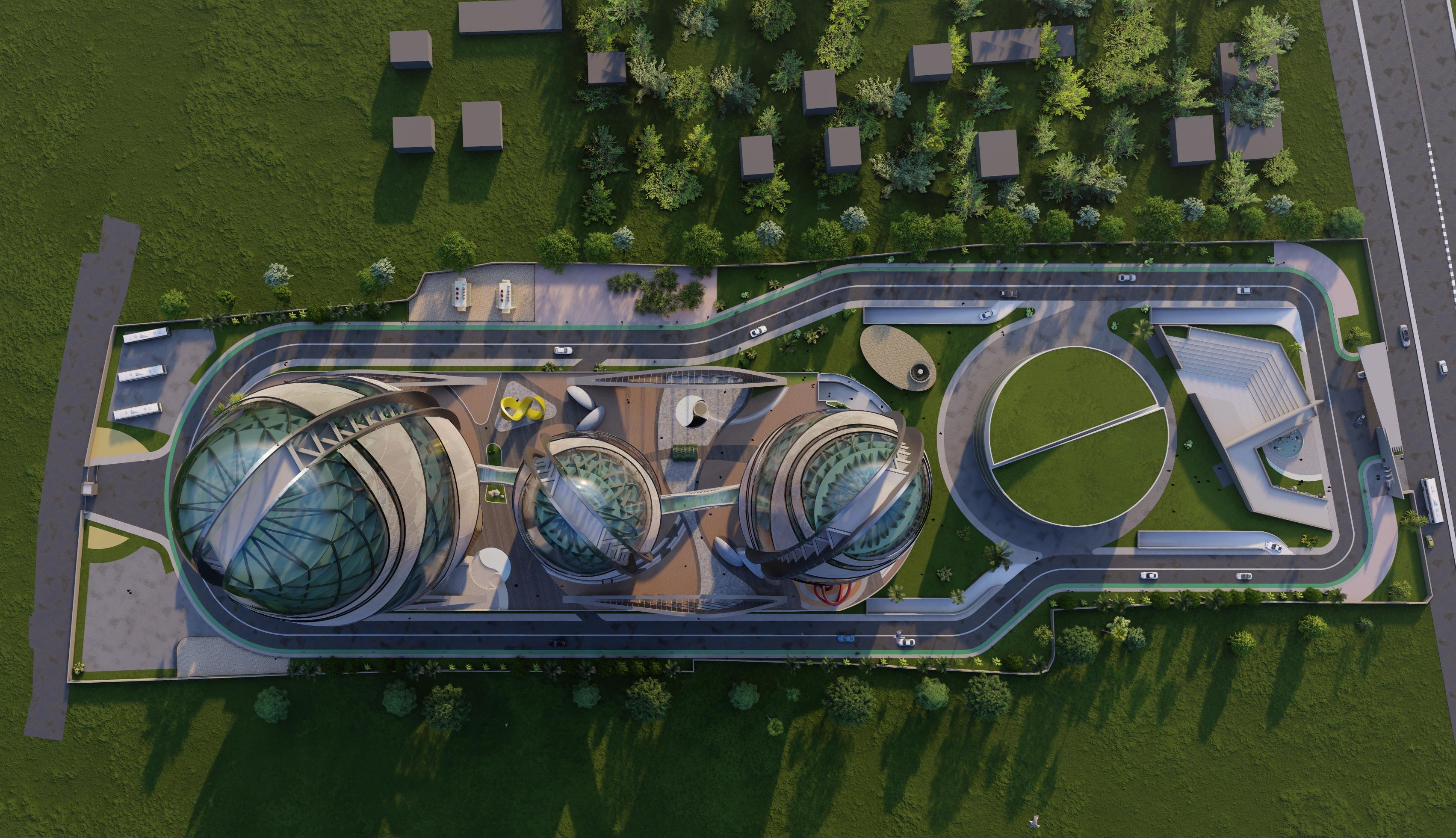

MASTERPLAN WITH THE PODIUM DESIGN
TOWER 1
TOWER 2
CONVENTION CENTRE
AMPHITHEATRE
TOWER 3

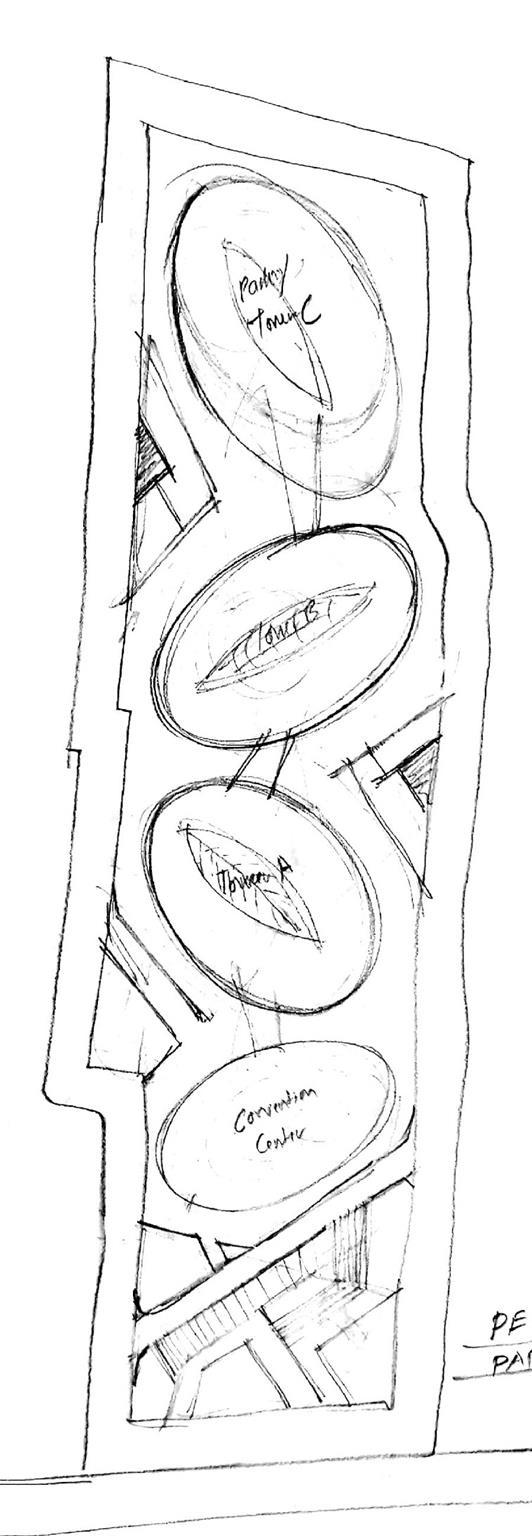

PODIUM DESIGN

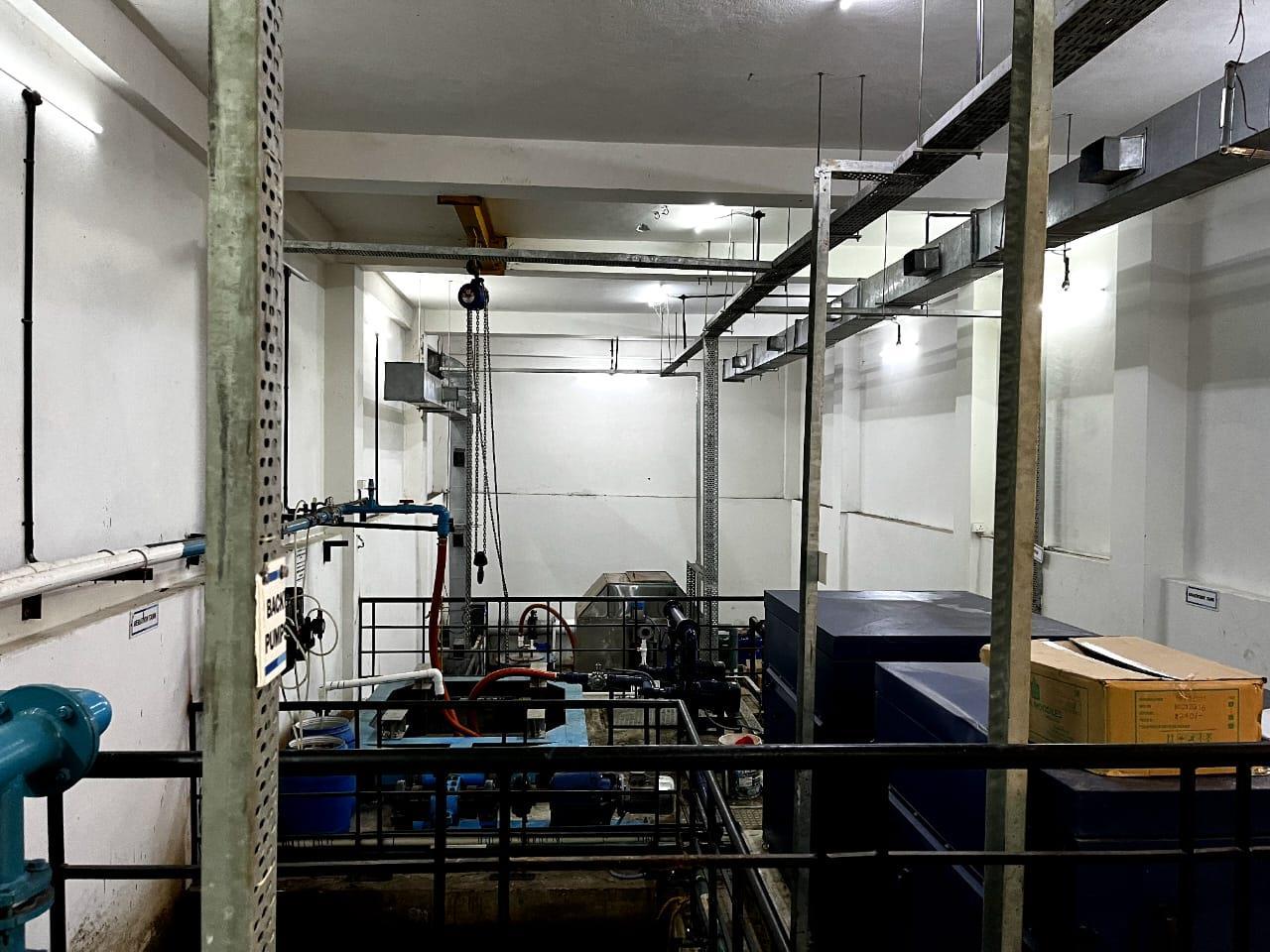

SERVICES TO BE DEMOLISHED
BANK REPLANNED

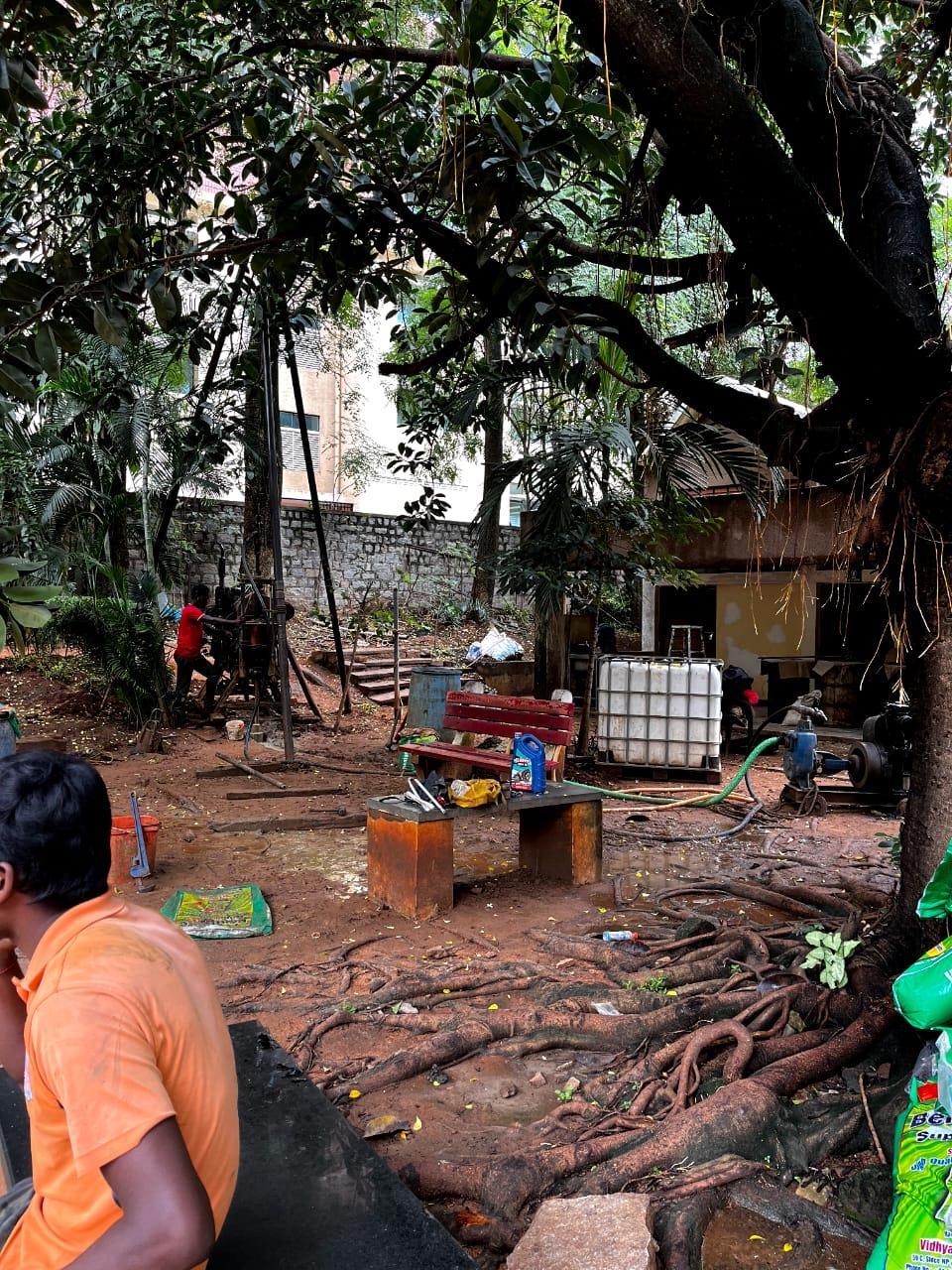

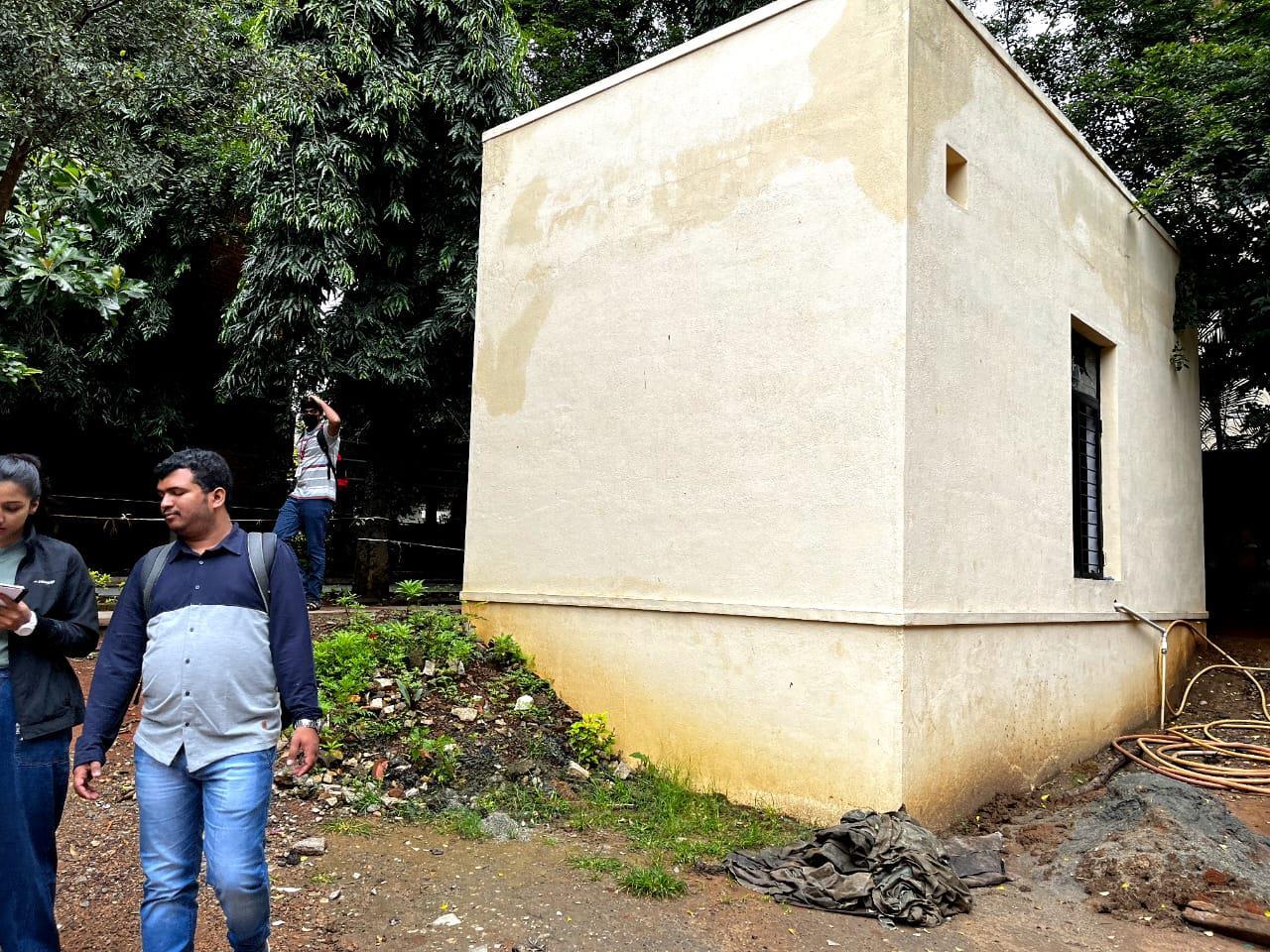

SOIL TESTING

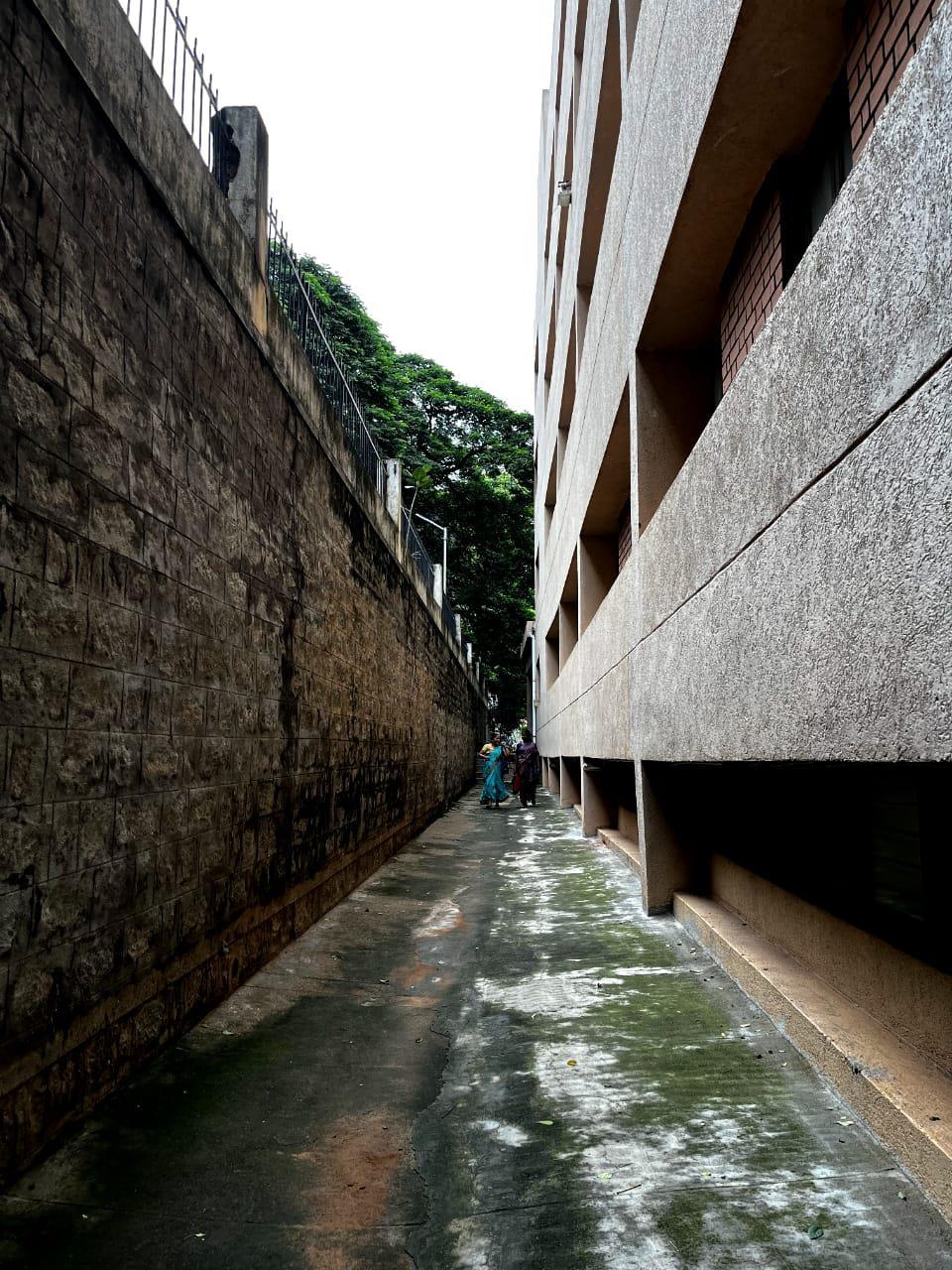

REAR END FOR SETBACKS
CONNECTIVITY WITH BRIDGE LEVELS

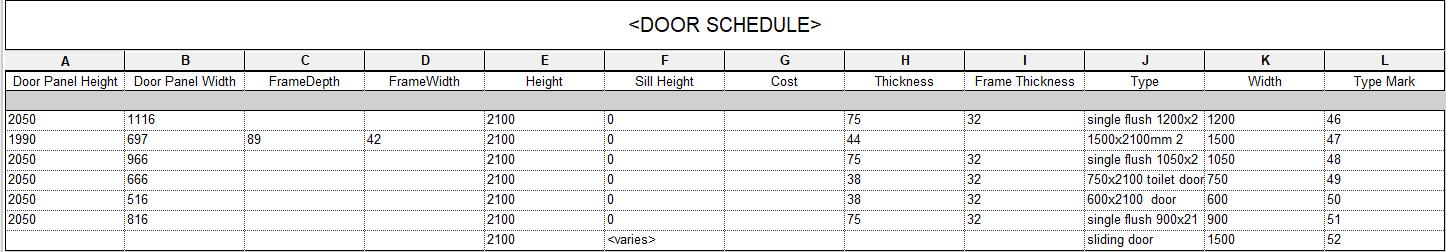

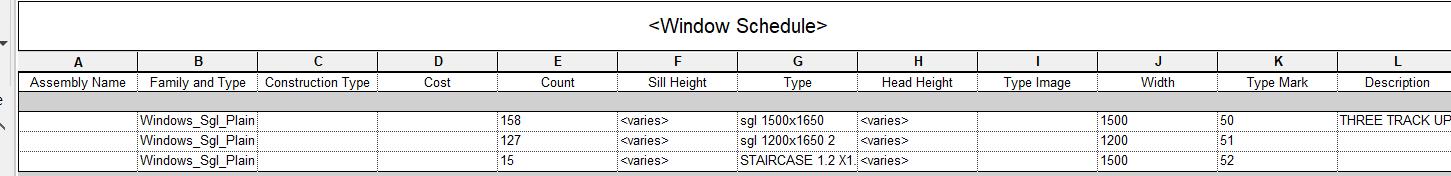

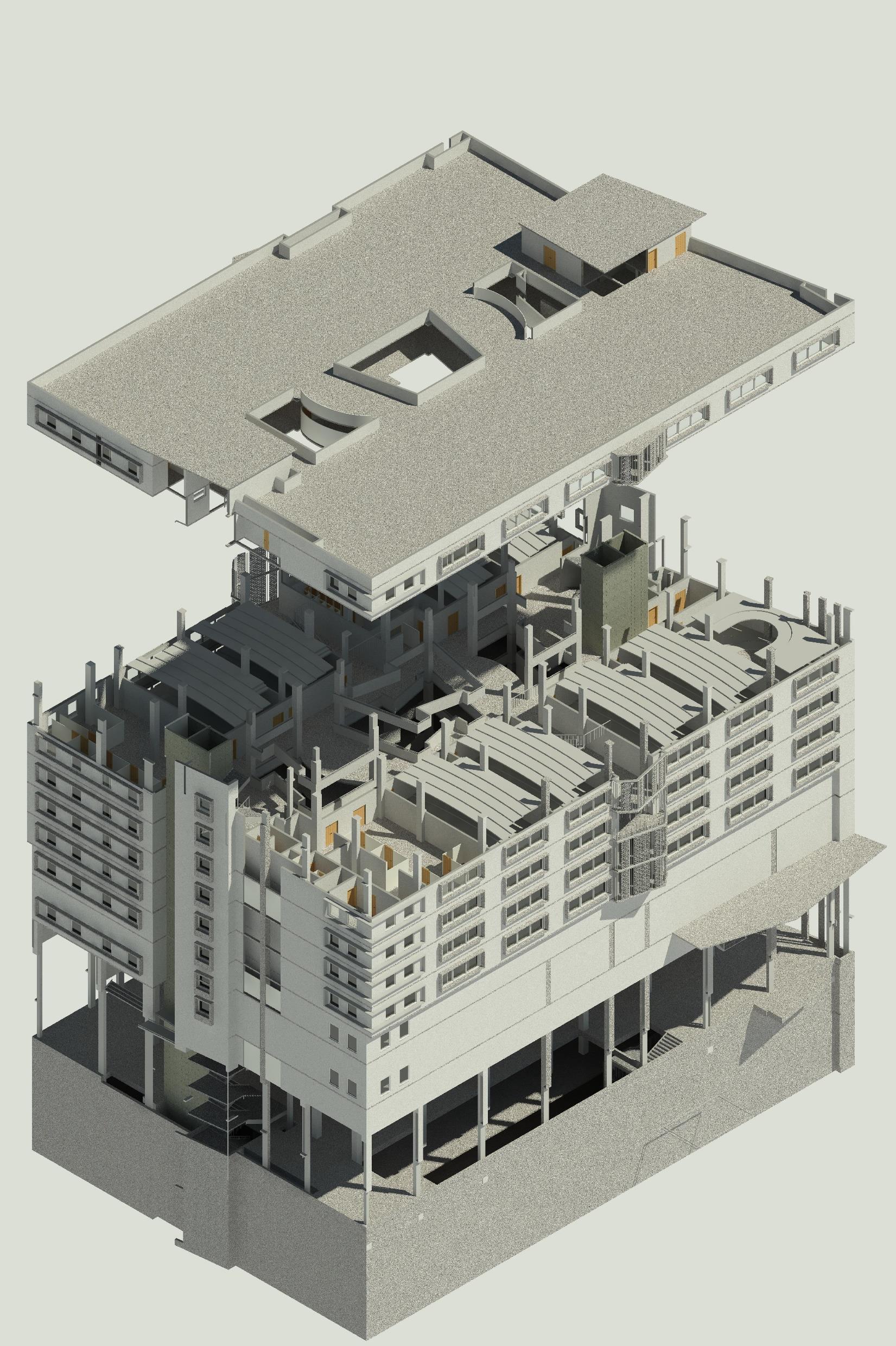

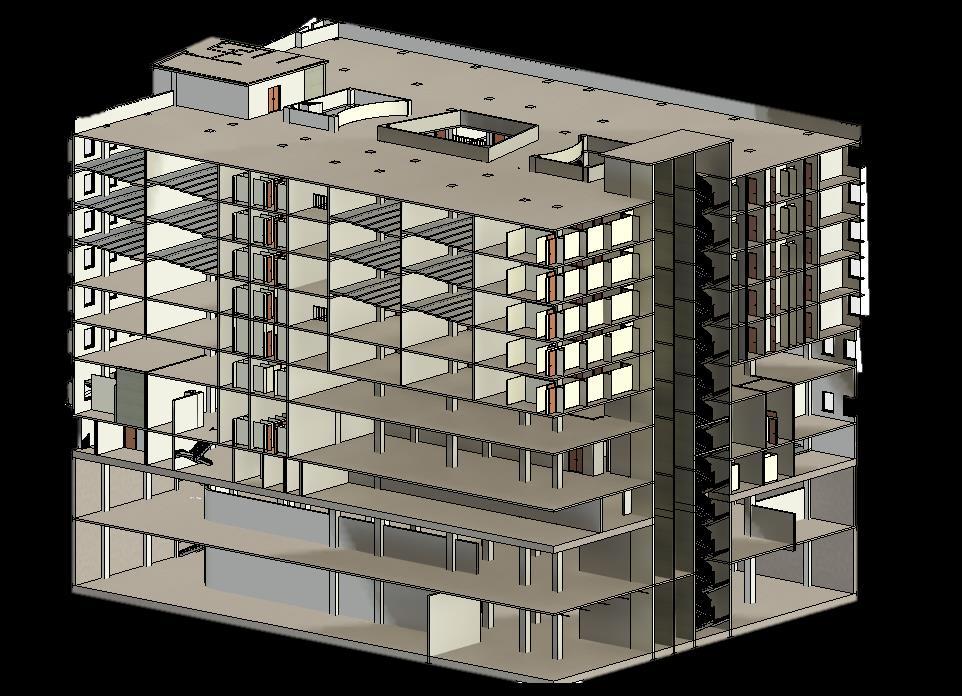

EXTRACTING DATA FROM BIM MODEL

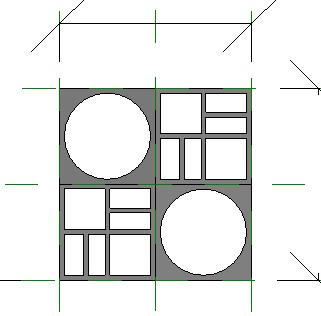

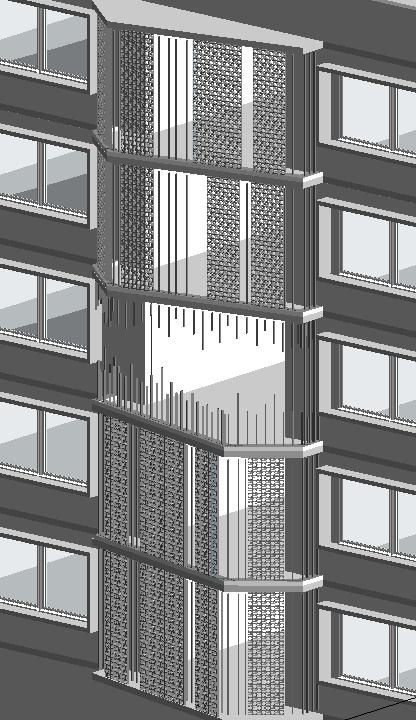

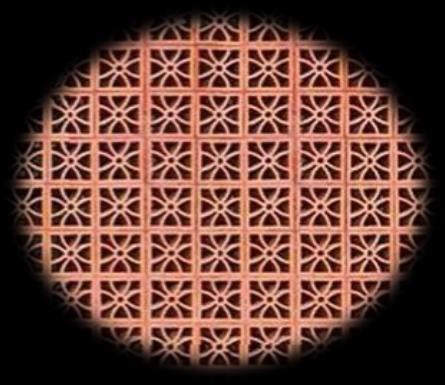

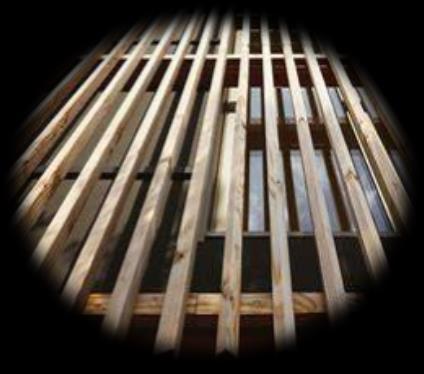

CUSTOM FAMILIES JALI WORK DETAILING PROPOSED

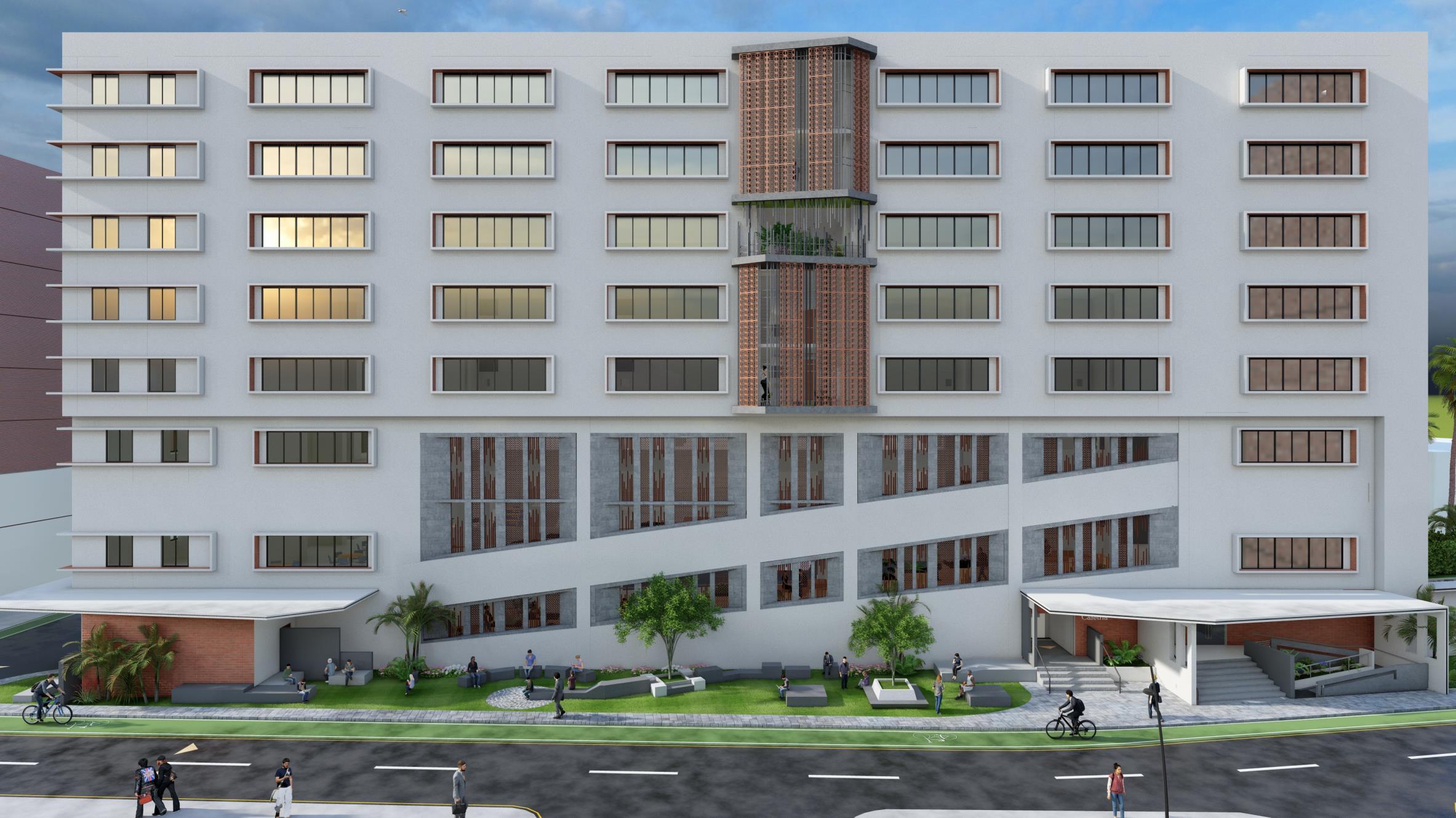

ELEVATION

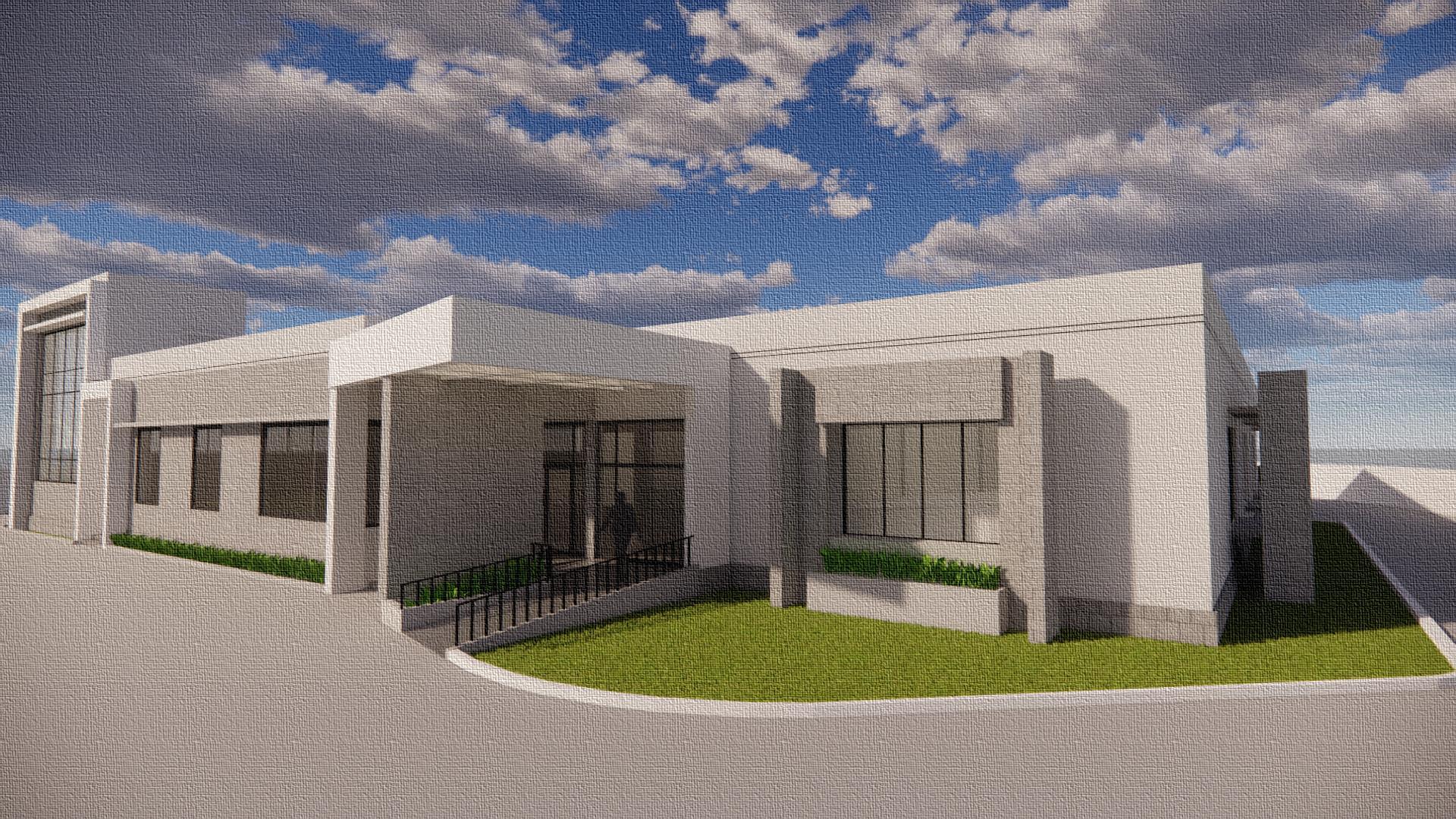

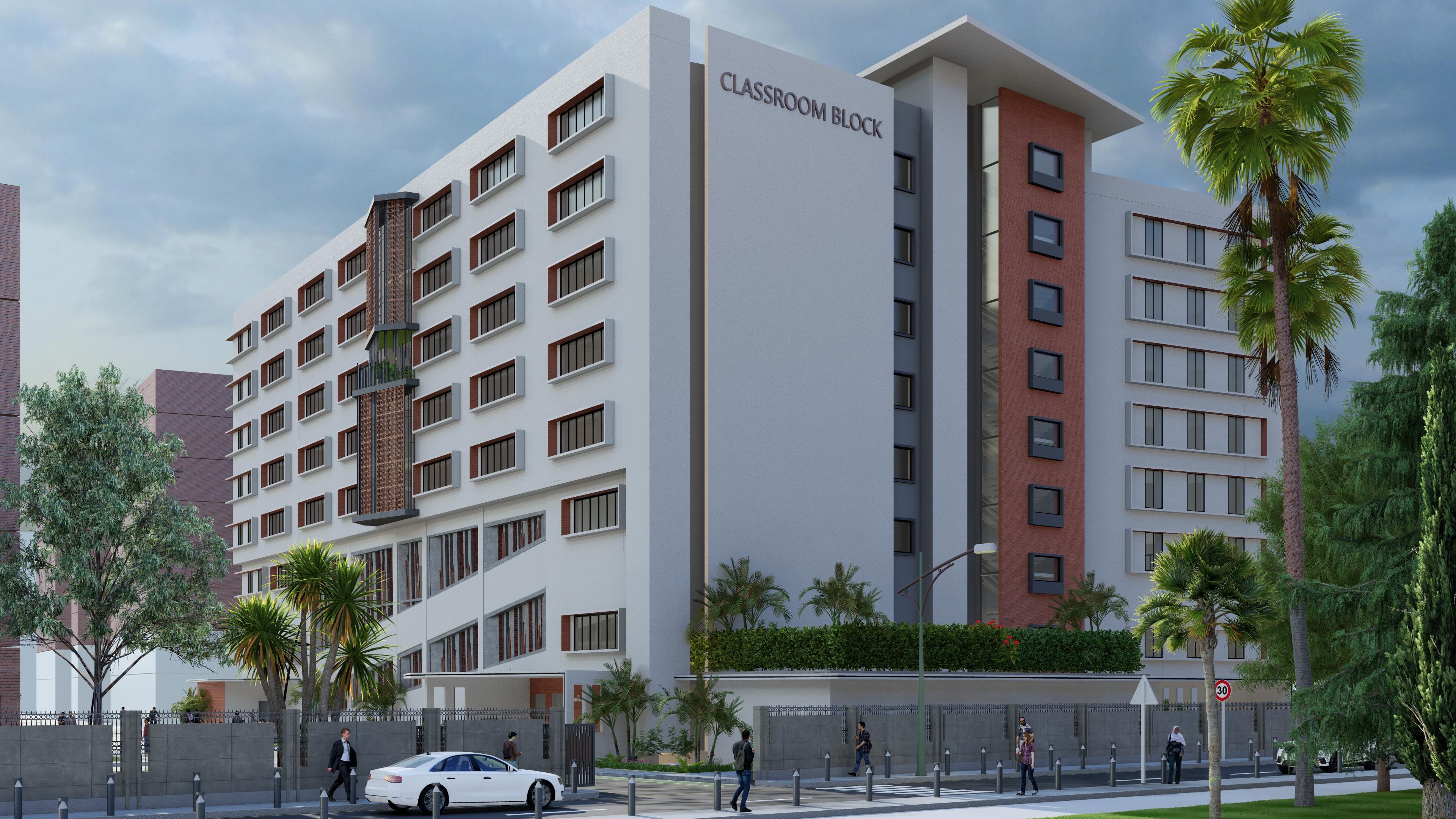

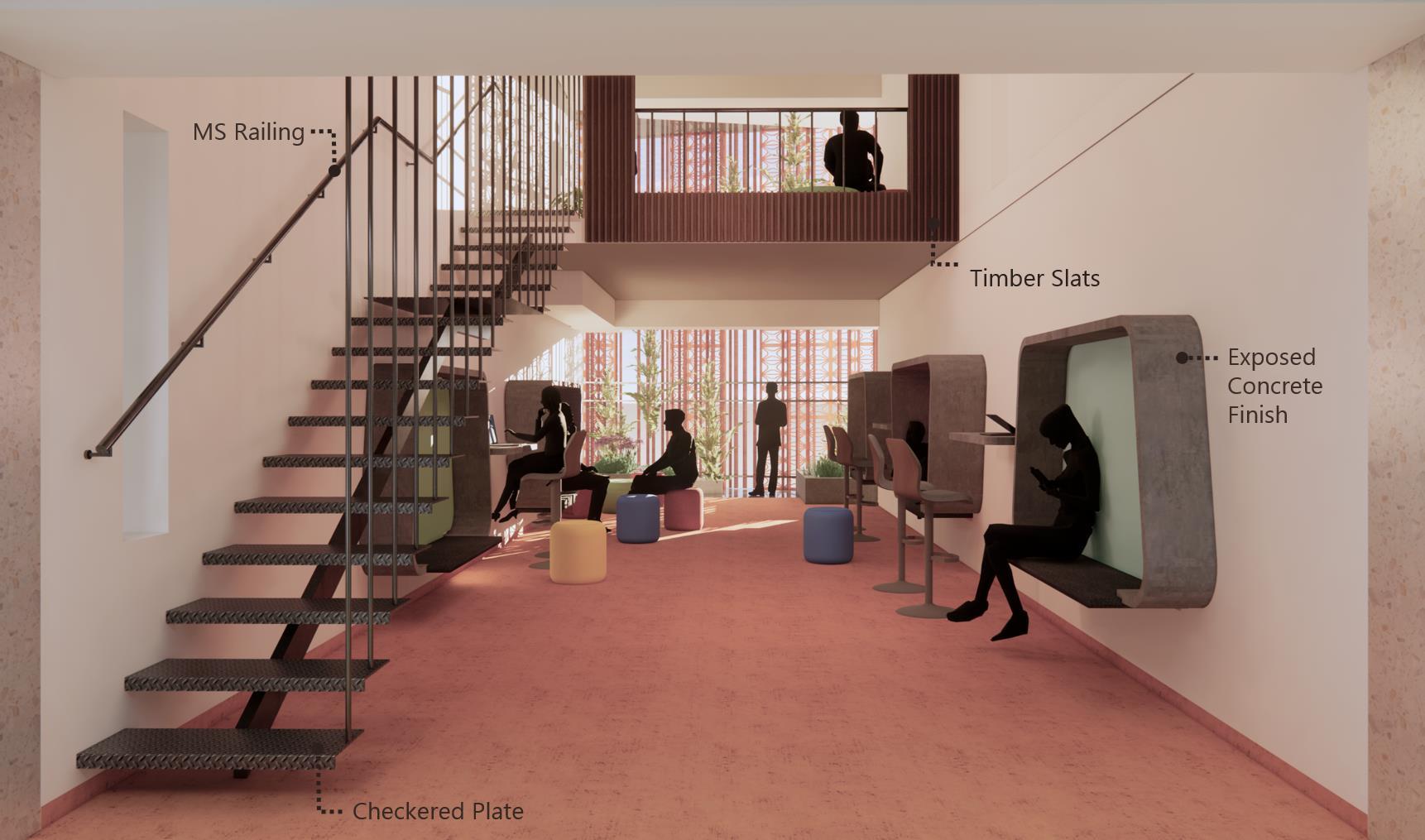

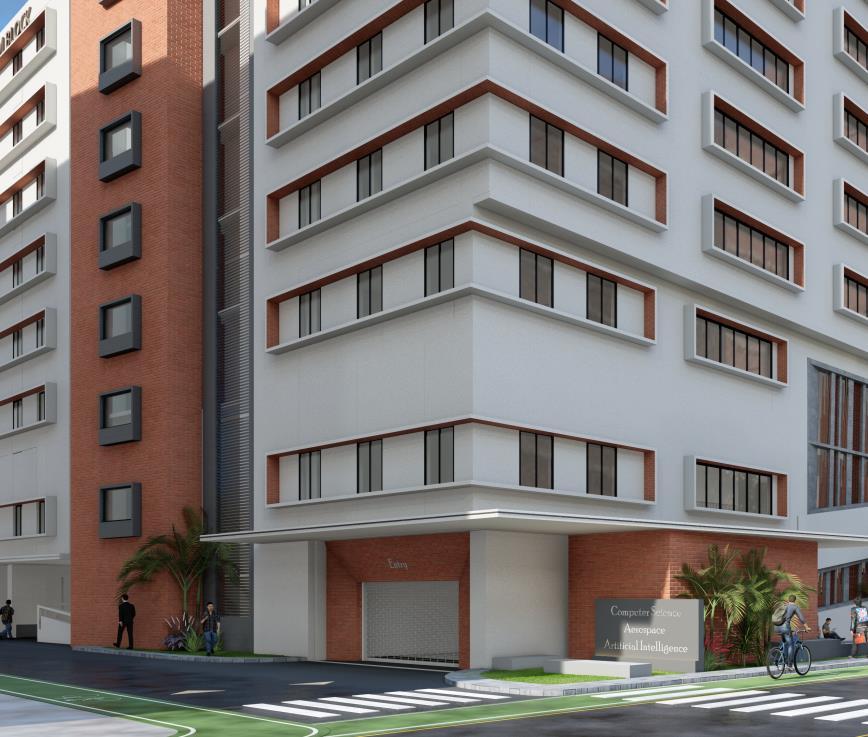

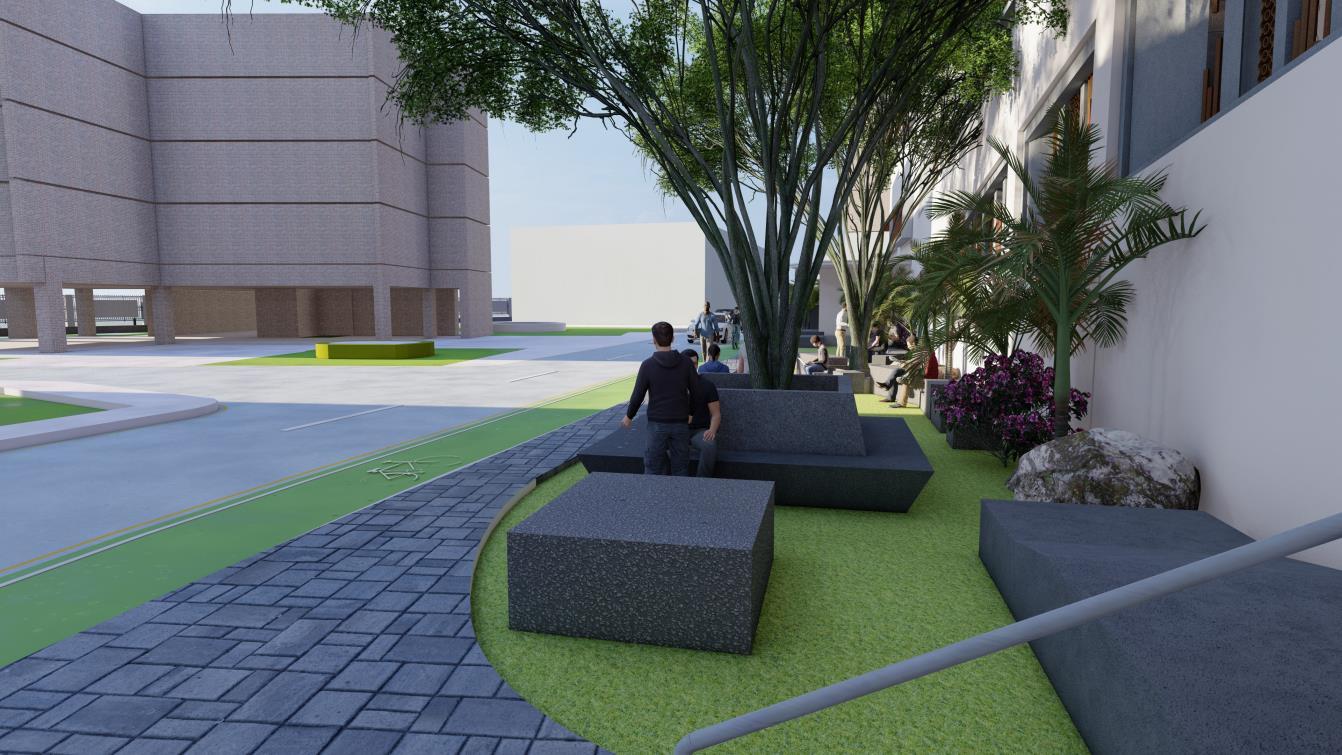

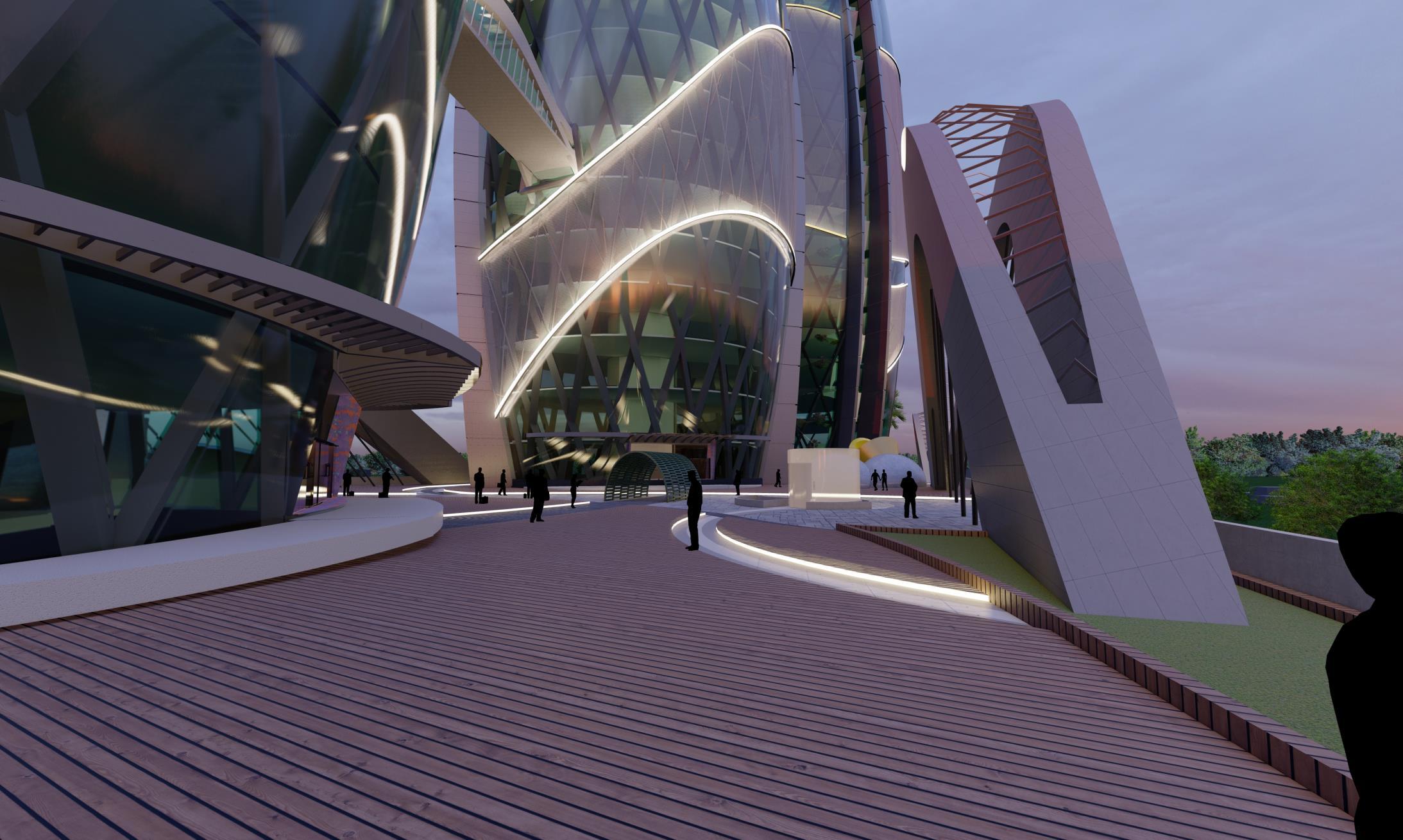

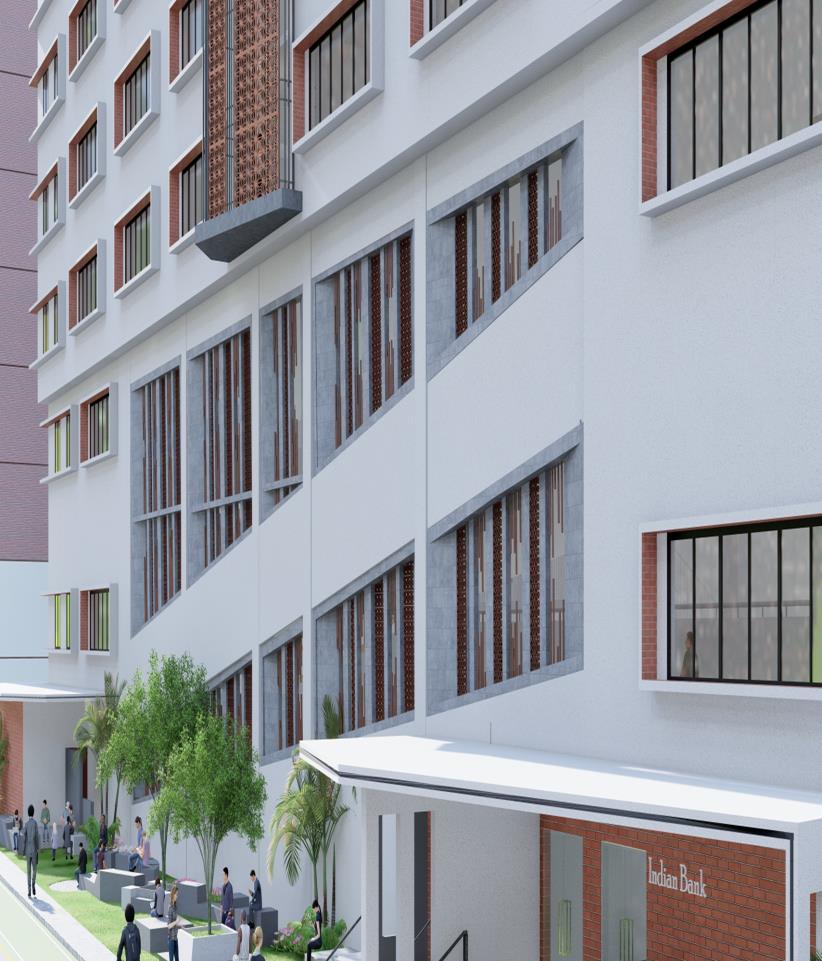

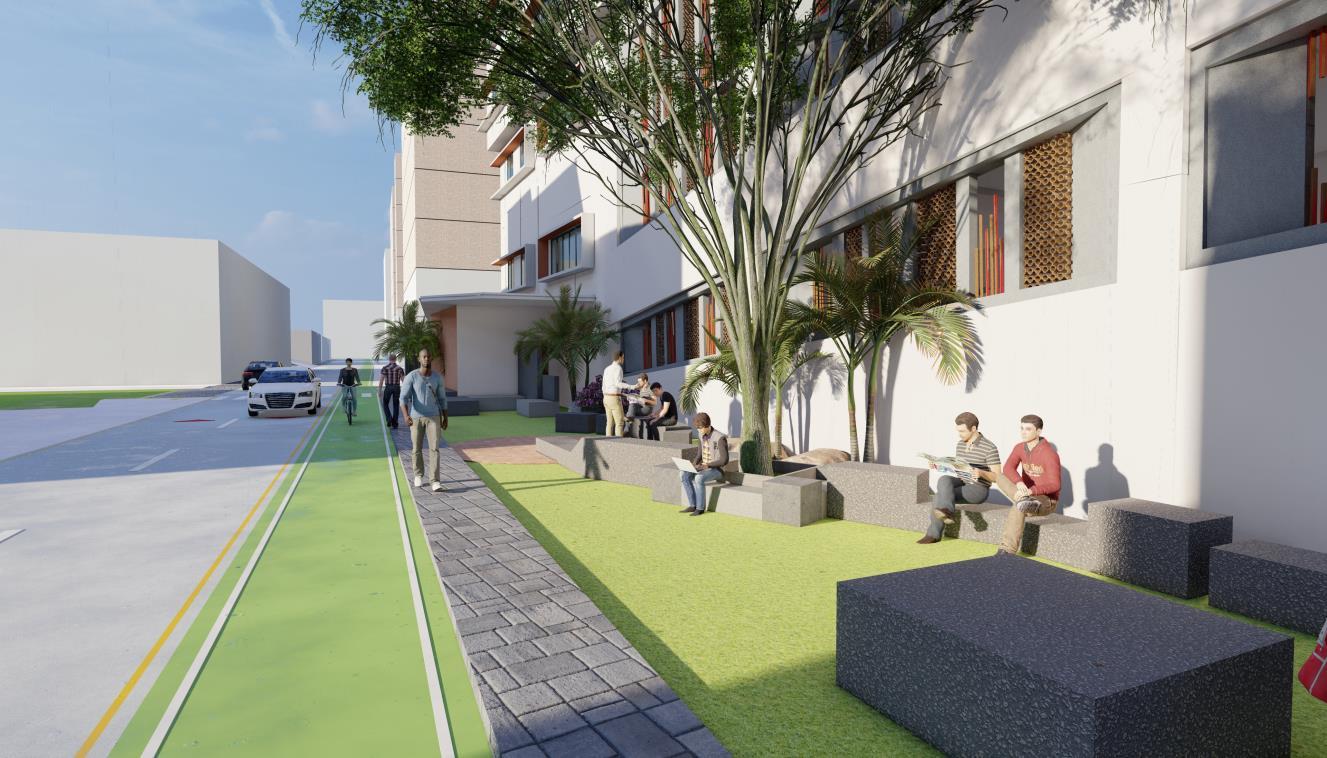

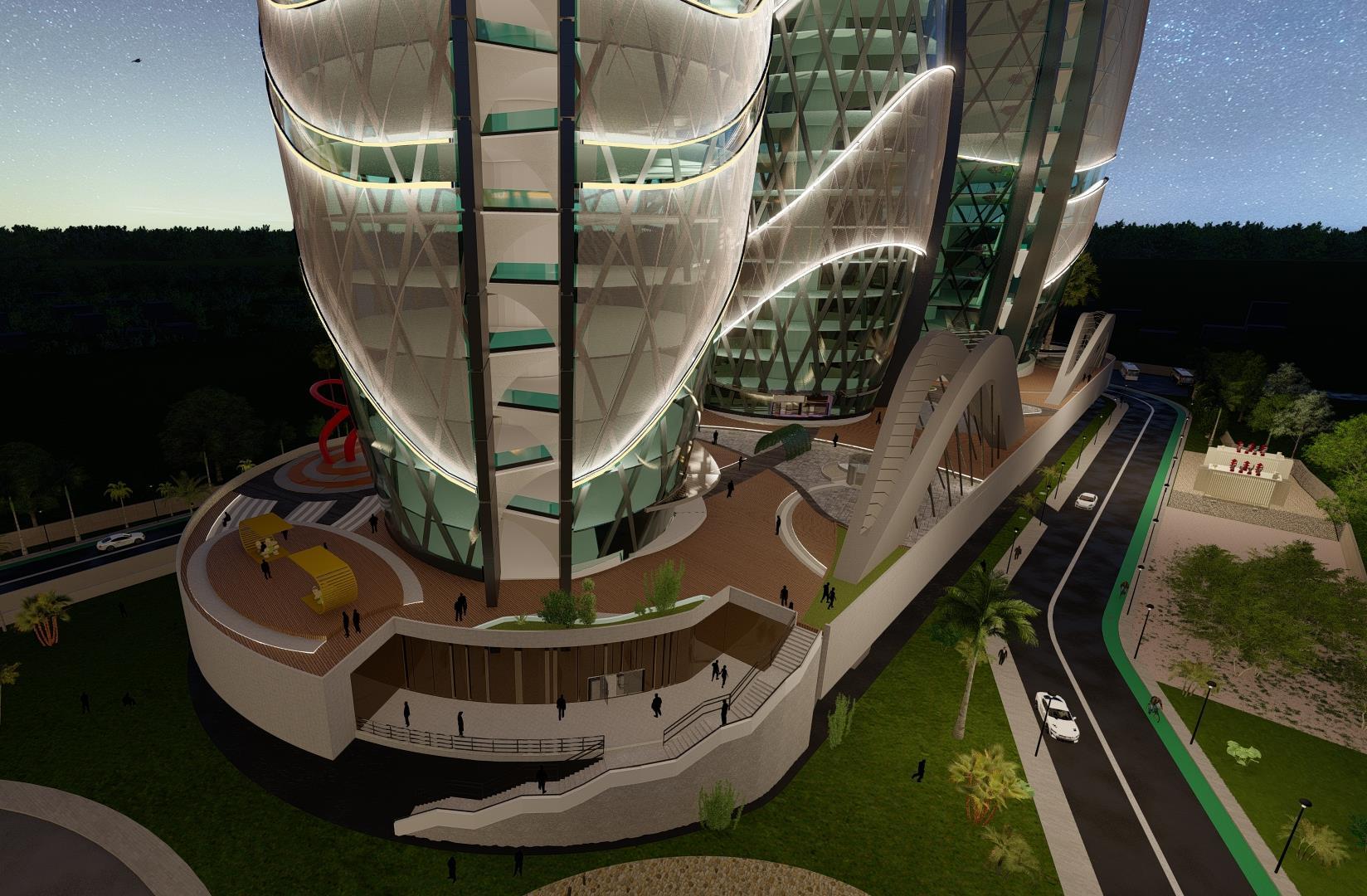

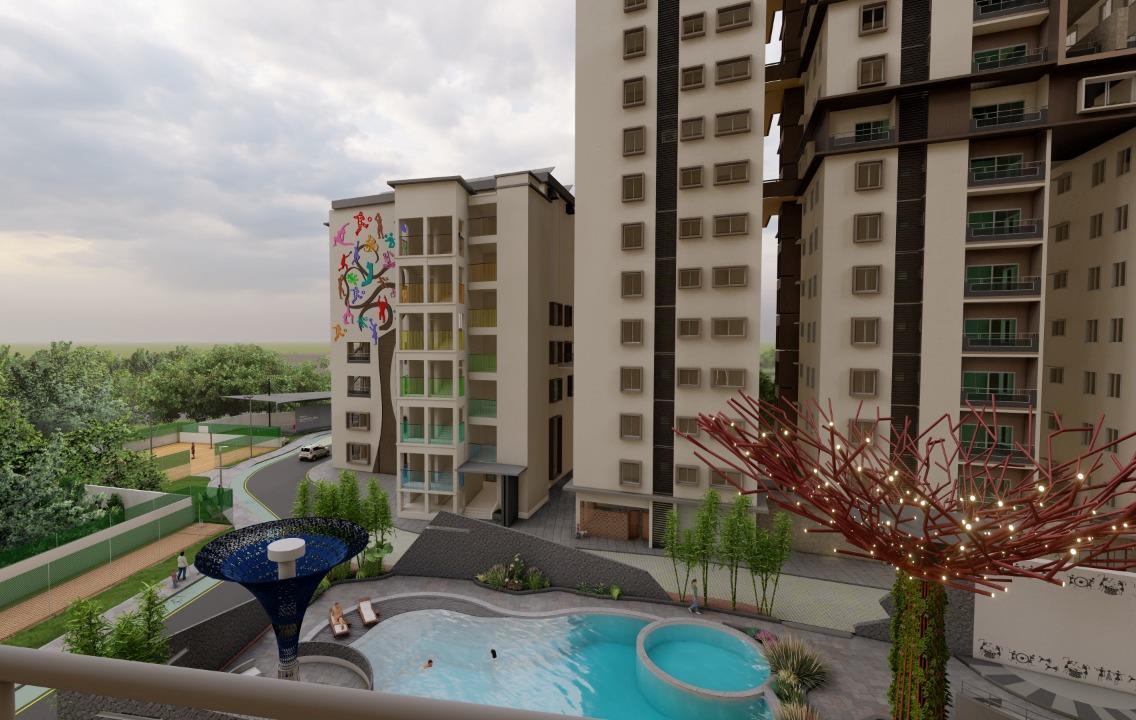

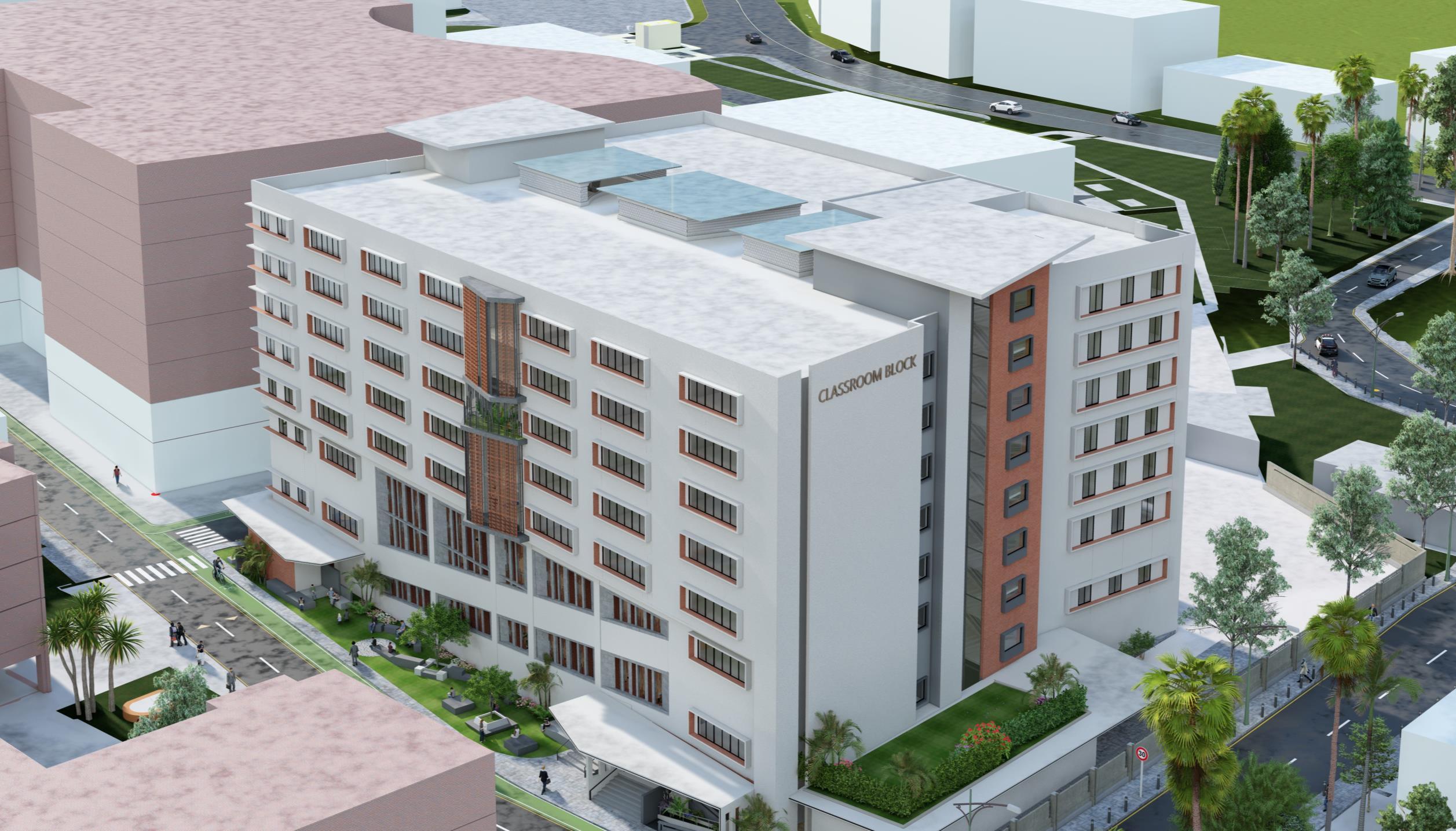

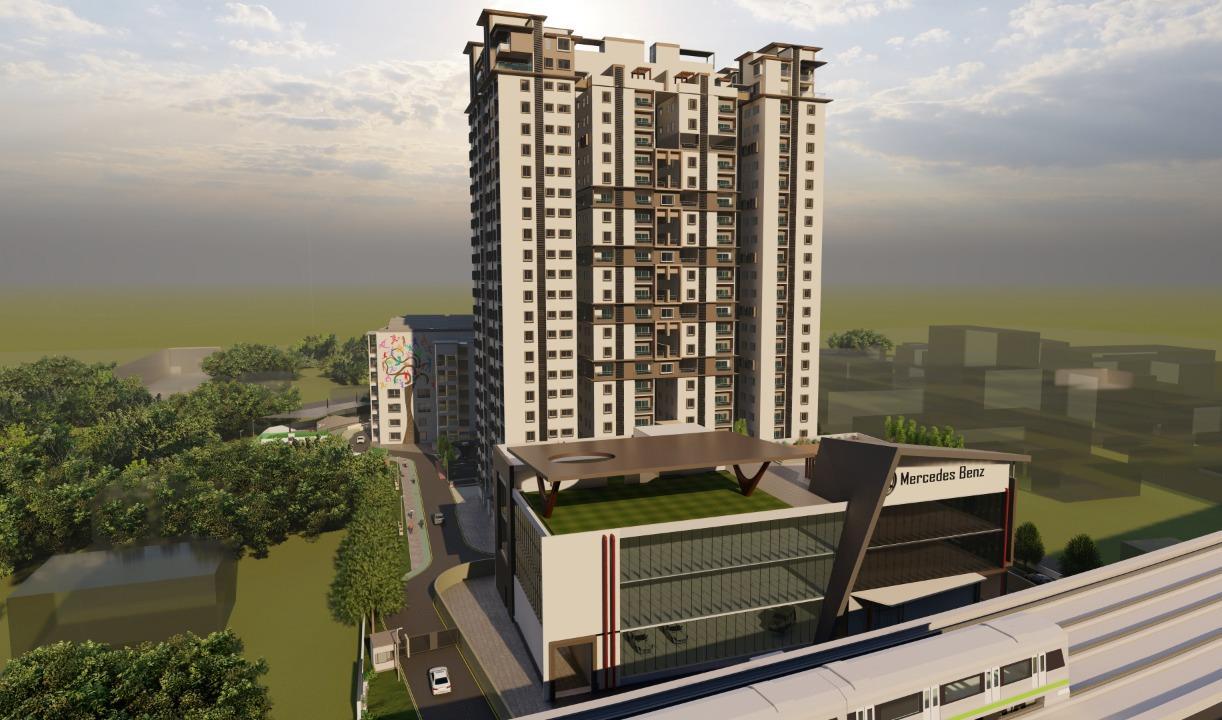

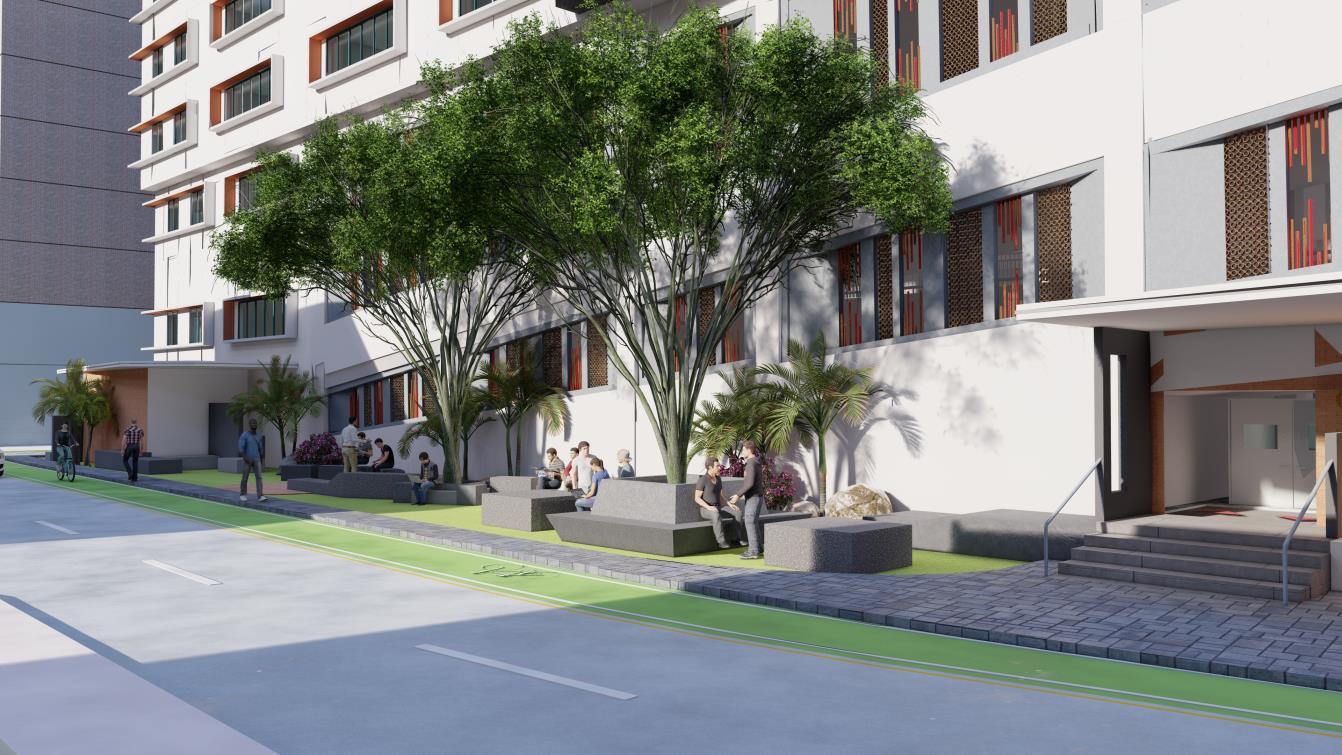

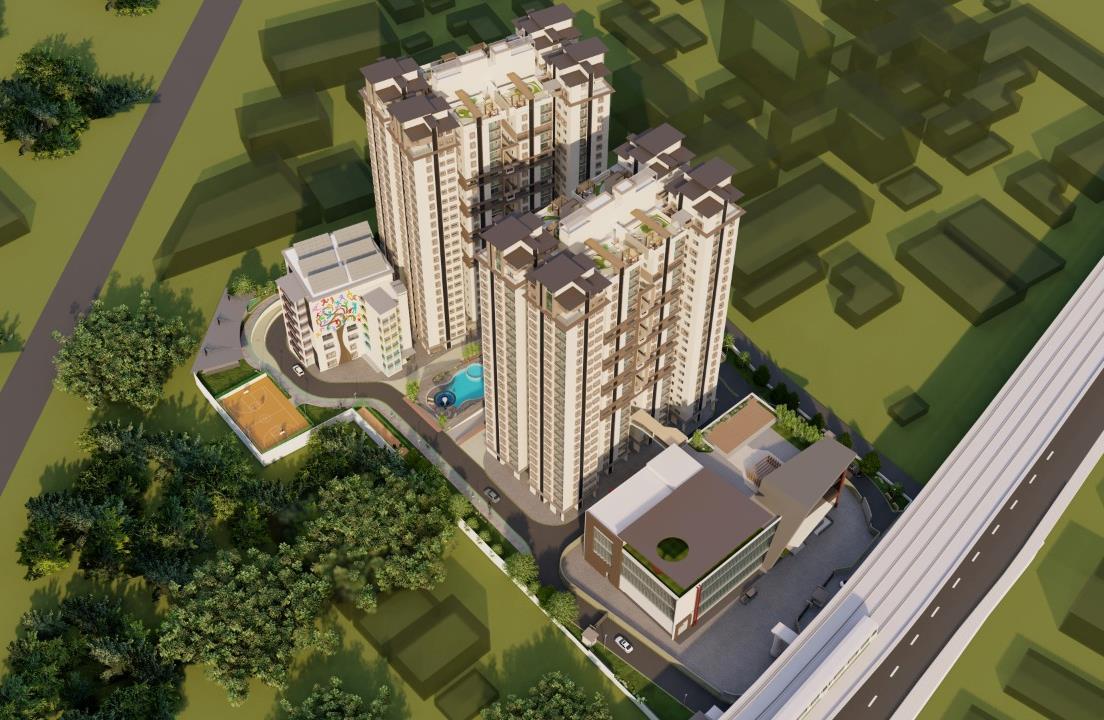

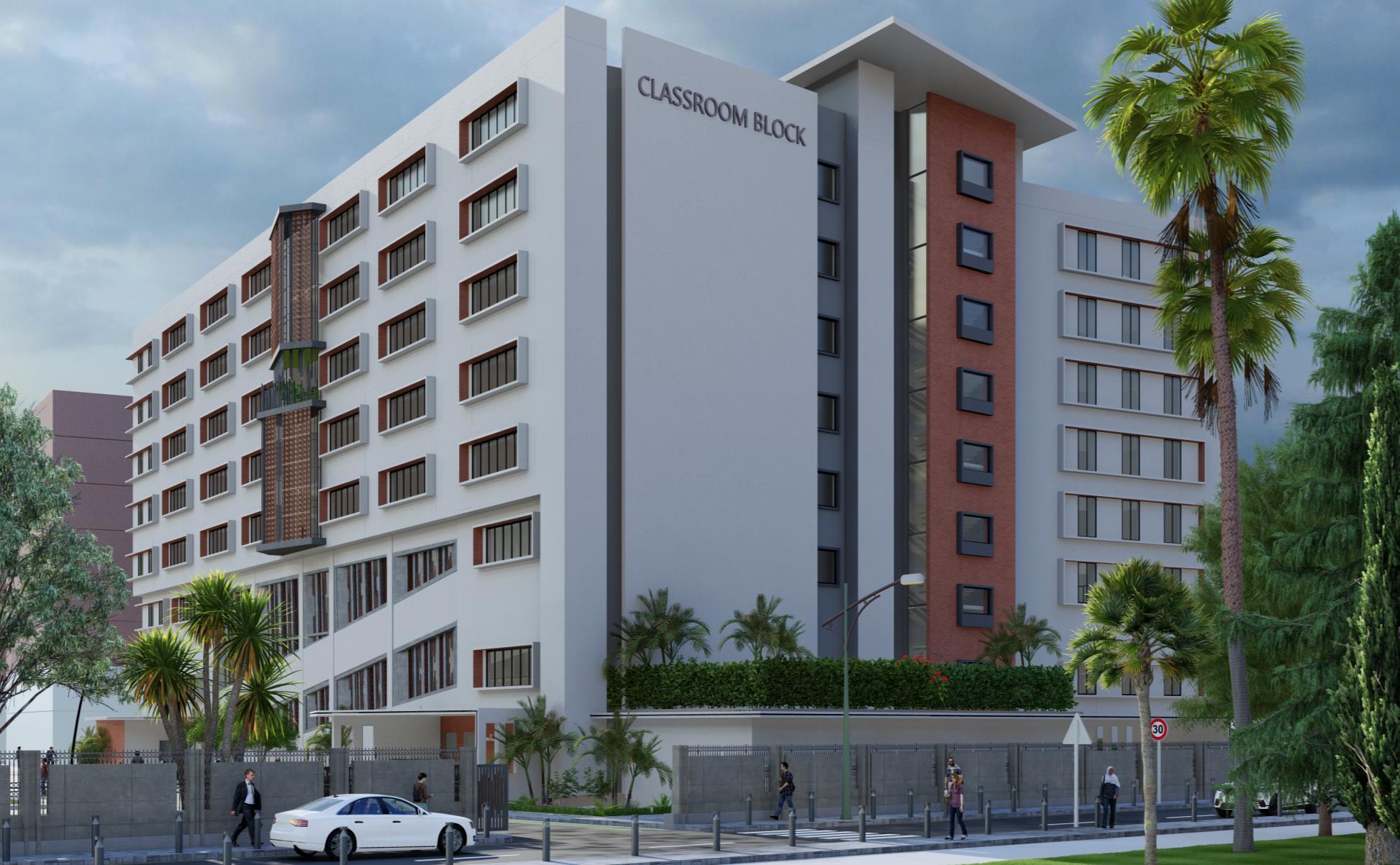

EXTERIOR VIEWS

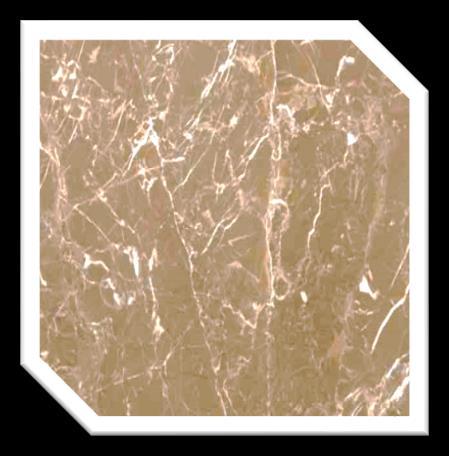

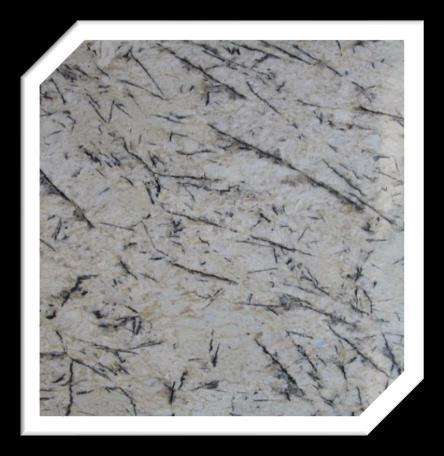

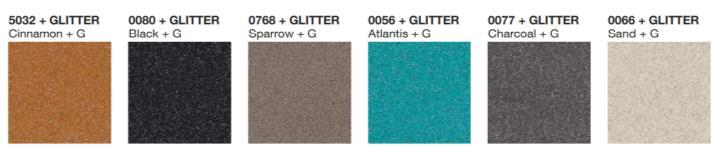

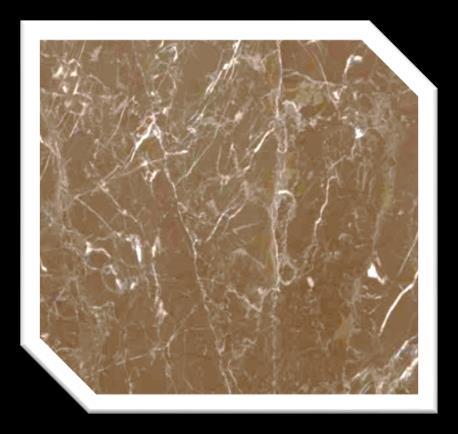

FLOORING MATERIAL PALLETTE

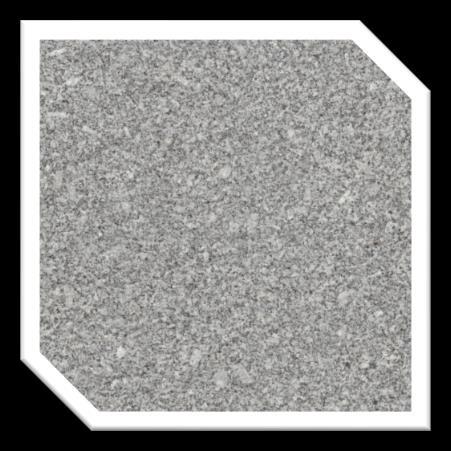

TERRAZZO FLOORING
FLOORING

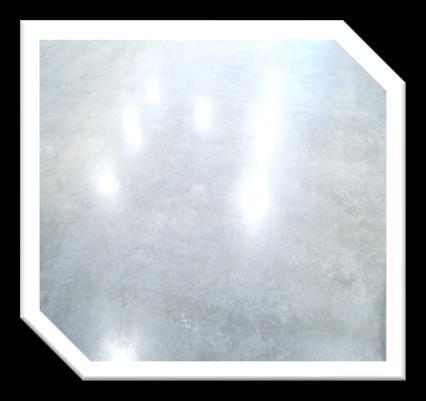

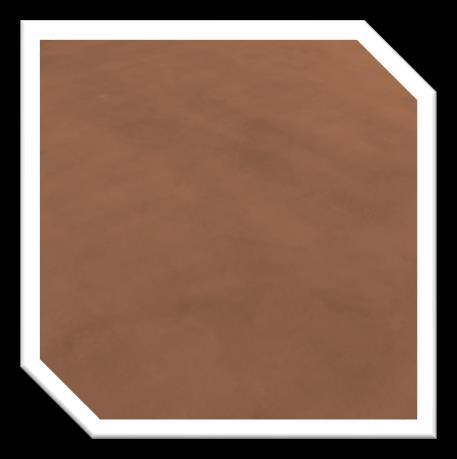

COLOURED CONCRETE

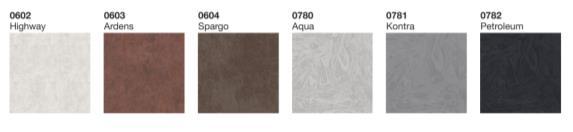

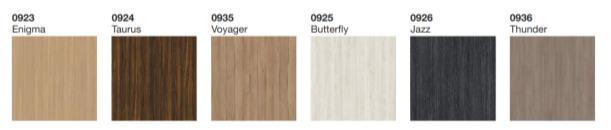

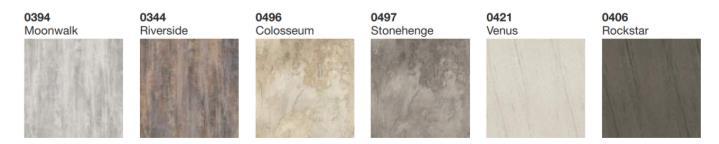

EXTERIOR CLADDING- HIGH PRESURE LAMINATES
BRAND : FUNDERMAX

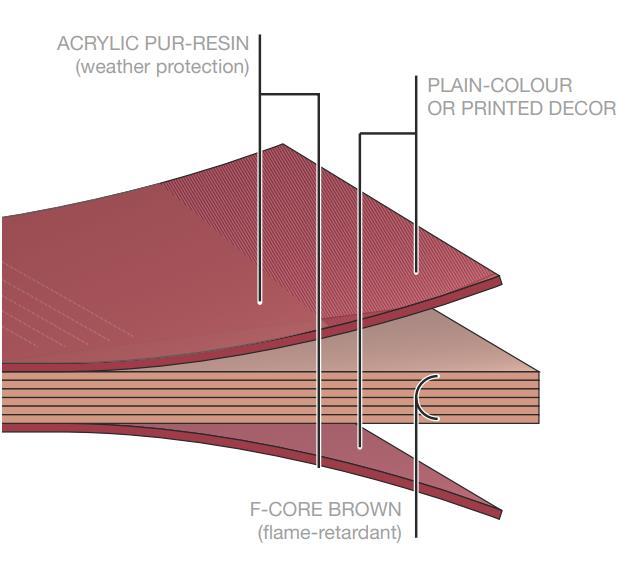

COMPOSITION OF HPL
A decorative surface material , available with special performance properties including chemical, fire and wear resistance.
HPL is produced by saturating multiple layers of kraft paper with phenolic resin. A layer of printed décor paper is placed on top of the kraft paper before pressing. The resulting sandwich is fused together under heat and pressure (more than 1,000 PSI). Because phenolic and melamine resins are thermoset plastics, the curing process transforms the resin into plastic by a cross linking process that converts the paper sheets into a single, rigid laminated sheet. Thermo-setting creates strong, irreversible bonds that contribute to HPL’s durability.
SUSTAINABLE PRODUCTION
Max Exterior is made from natural fiber panels around 65%, by weight consisting largely of wood that has been processed into “kraft papers”.
MECHANICAL PROPERTIES
Density :1.44 G/CM3
Flexural Strength : 105- 170MPa
TECHNIQUES

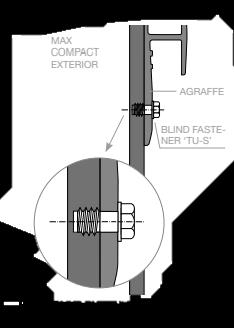

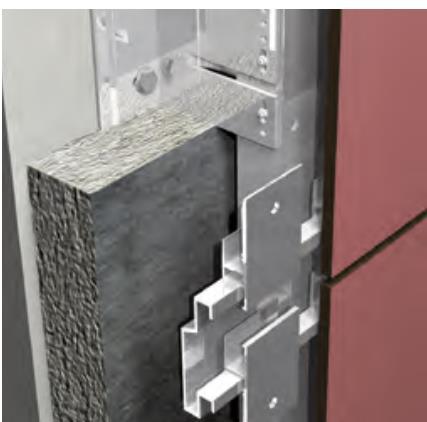

Concealed Mechanical Fastening Brackets with Panel Anchors
Tensile strength : 95- 140 MPa
Resistance To Wet Condition : 2%
Thermal conductivity : 0.3 W/mK

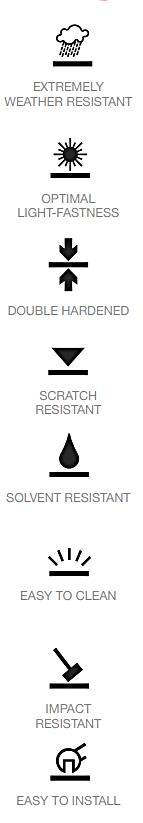

MATERIAL CHARACTERSTIC
Secret glued fastening with gluing systems

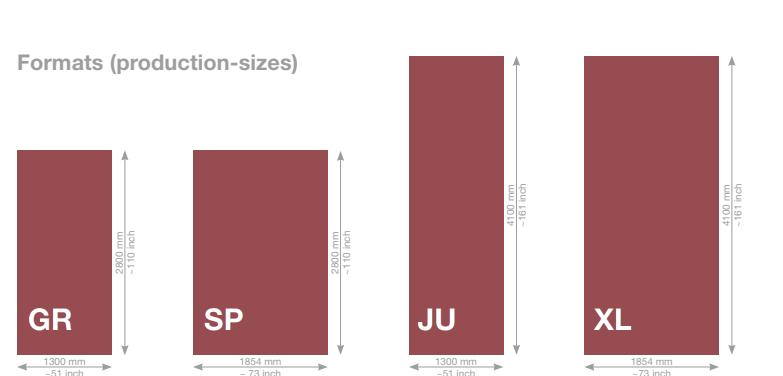

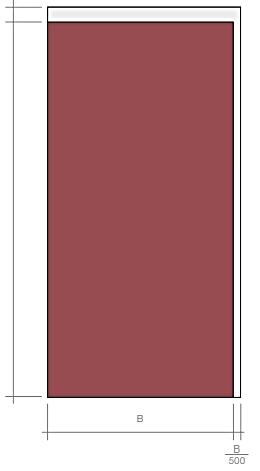

PANEL SIZE
2140 x1060mm ,1,0 mm
2800 x 1300mm ,1,0mm
4100 x 1300mm ,1,0 mm
4100 x 1300mm , 0.8mm
QUALITY MANAGEMENT SYSTEMS
Funder Max has oriented its production facilities and processes on internationally recognized standards such as ISO 9001, ISO 14001, OHSAS 18001 and EN 16001.

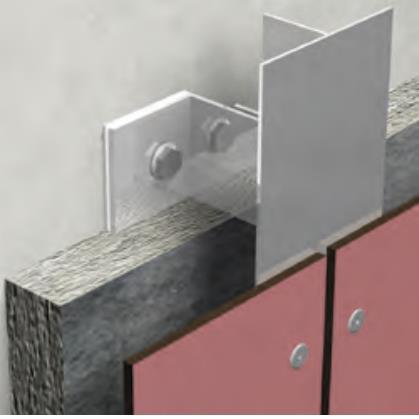

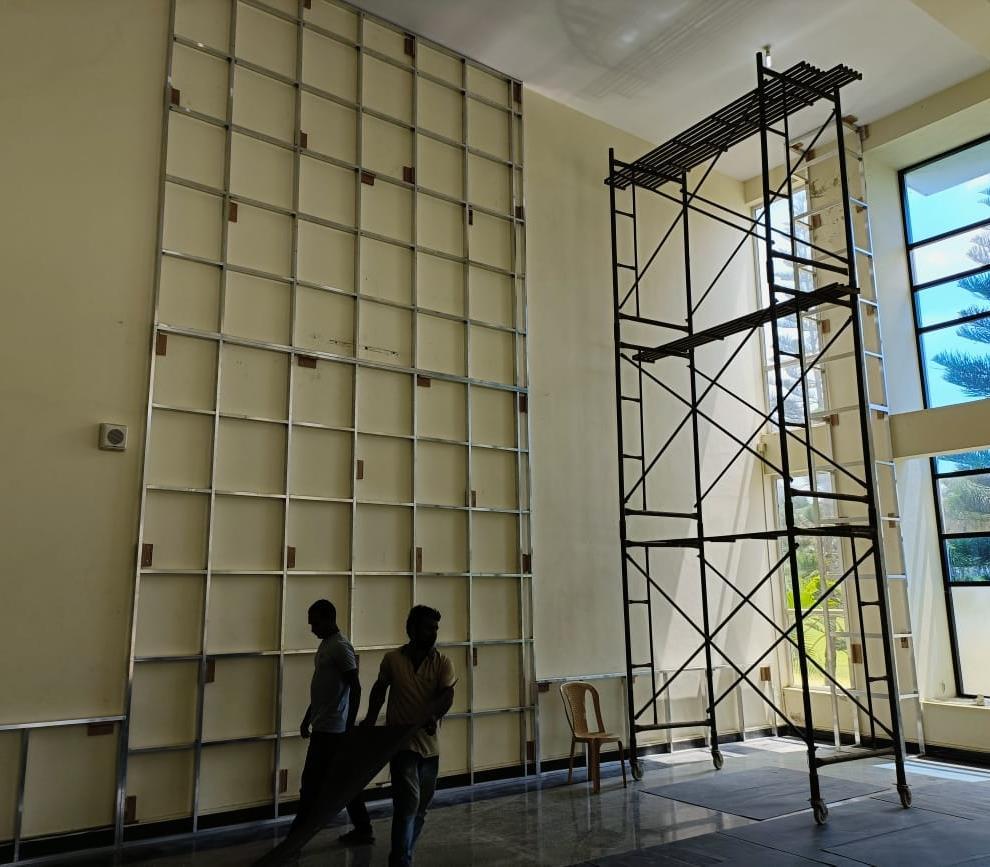

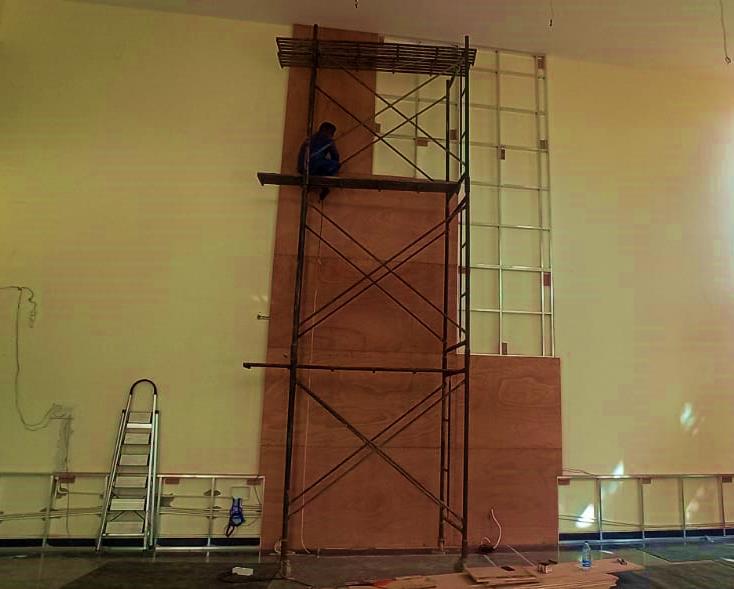

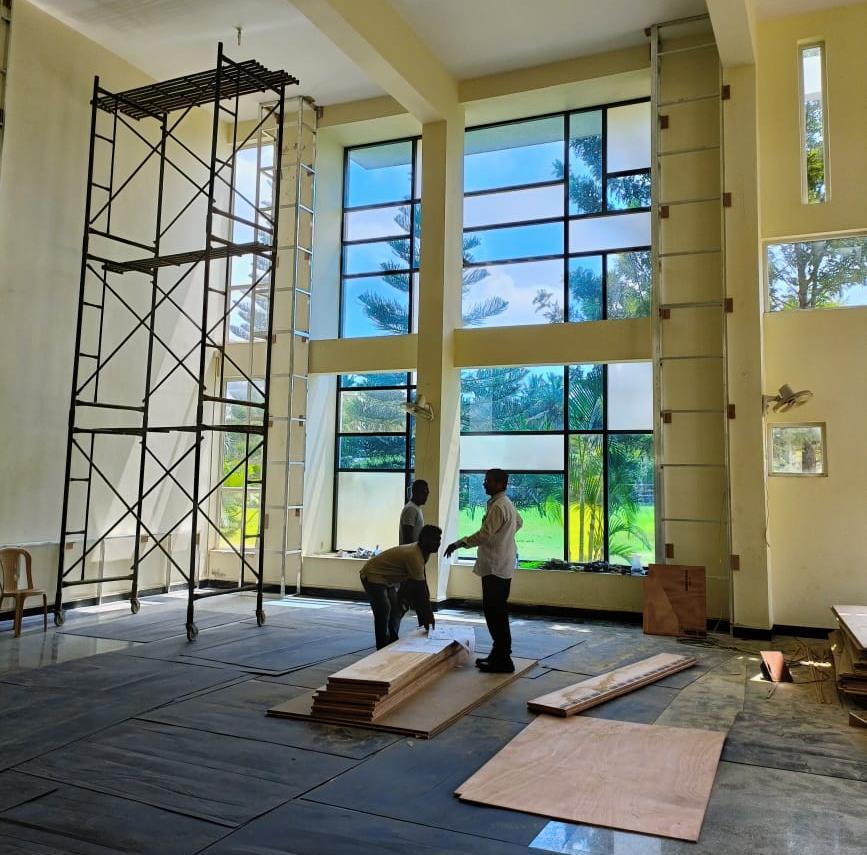

Mounting with rivets on an aluminum-substructure
It shrinks when it loses moisture and expands when it absorbs moisture!

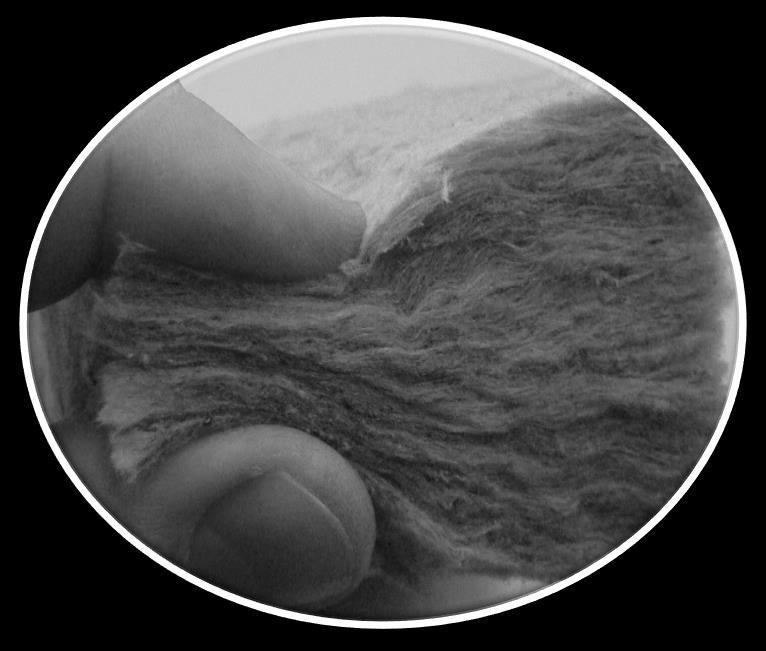

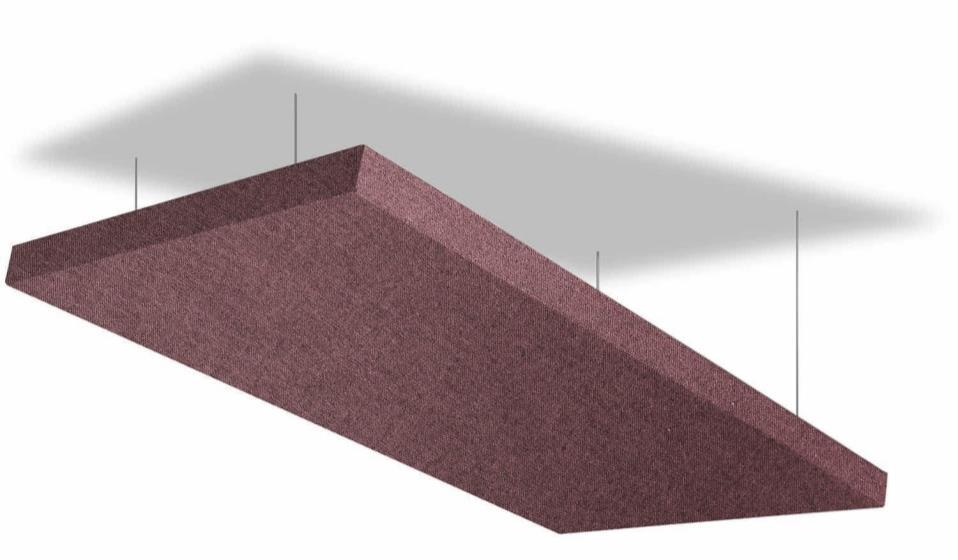

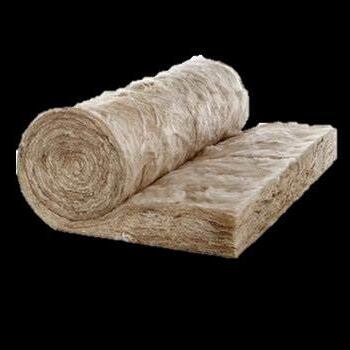

INTERIOR ACOUSTIC – ROCK WOOL
BRAND : ROCKWOOL - ROCKFON
MATERIAL
Stone wool( mineral wool) ceiling tiles with factory applied latex paint on glass scrim surface .
TYPES
Delta boards
Foil-faced insulation batts
Standard insulation boards

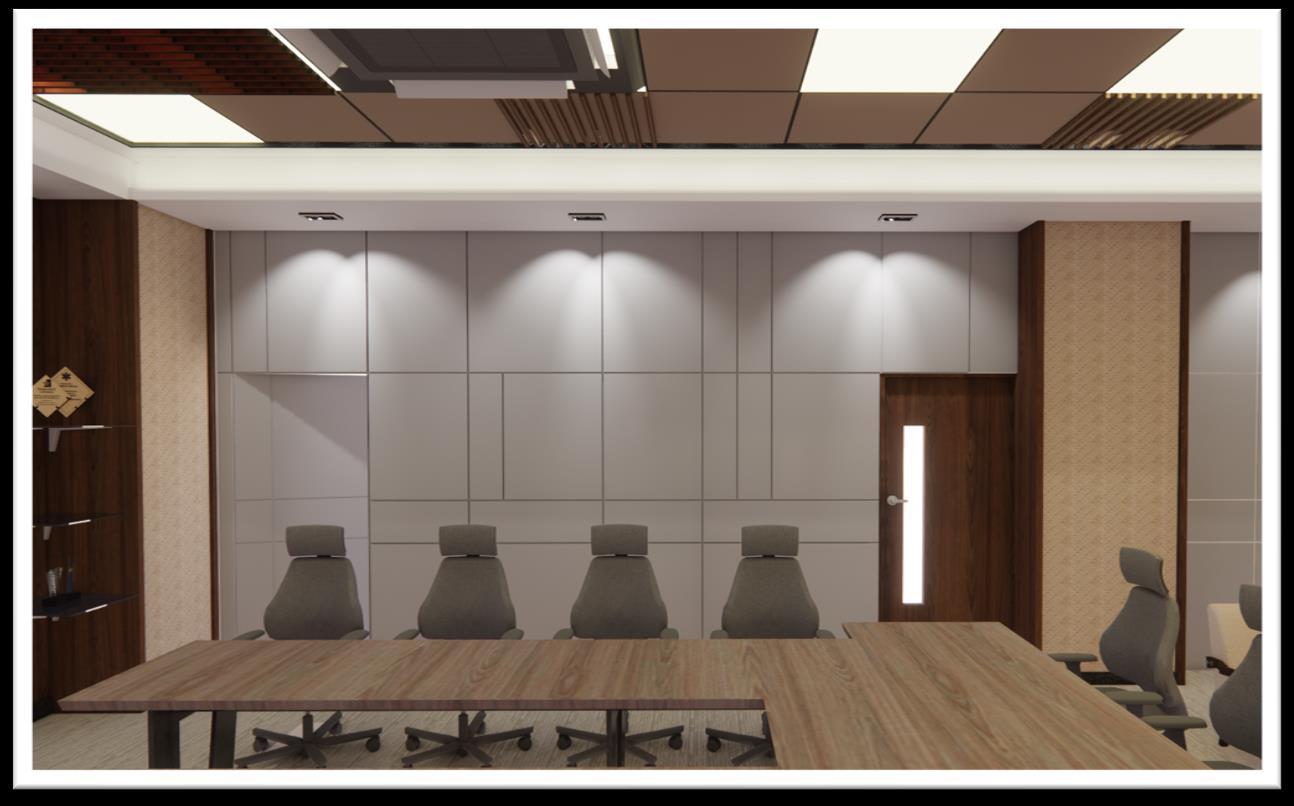

An acoustical ceiling and wall interiors solution , absorbs the sound with optimal installation flexibility benefitting different types of issues with its solution of usage .
COMPOSITION
The insulation is made from natural stone wool and harnesses its power to help reduce heating and cooling costs, maintaining steady temperature within rooms.
PRODUCT COMPATIBILITY
APPLICATIONS

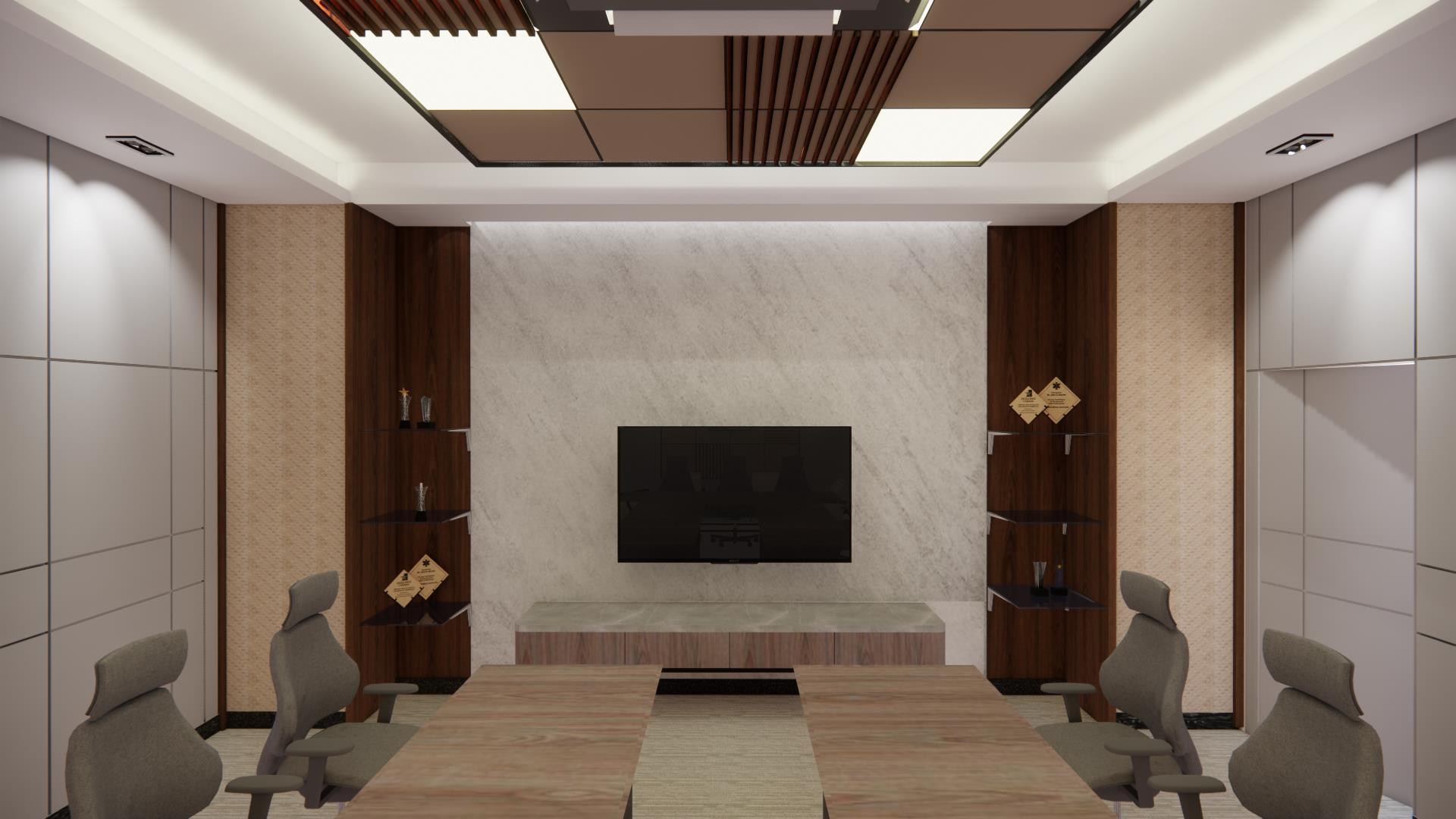

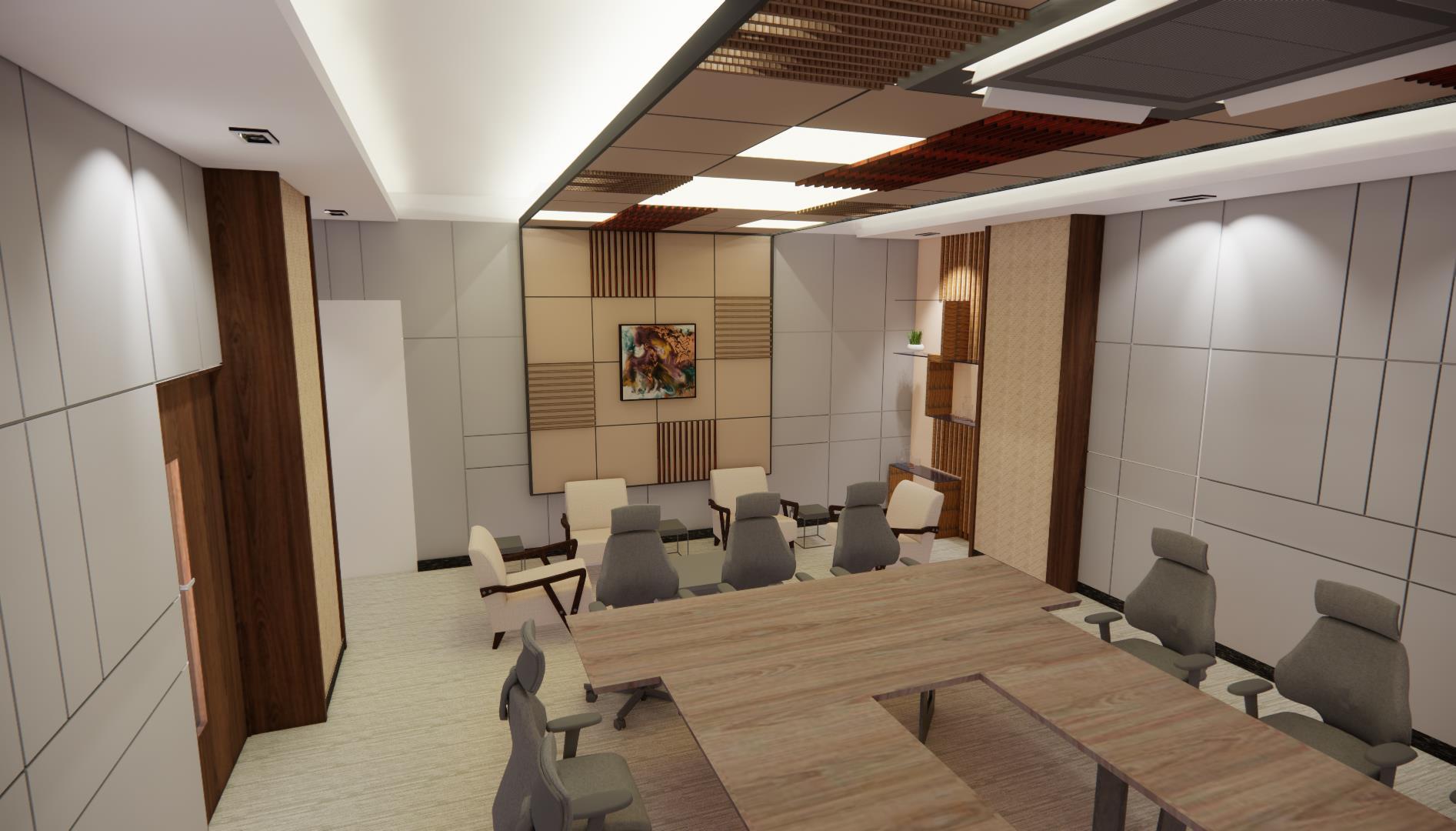

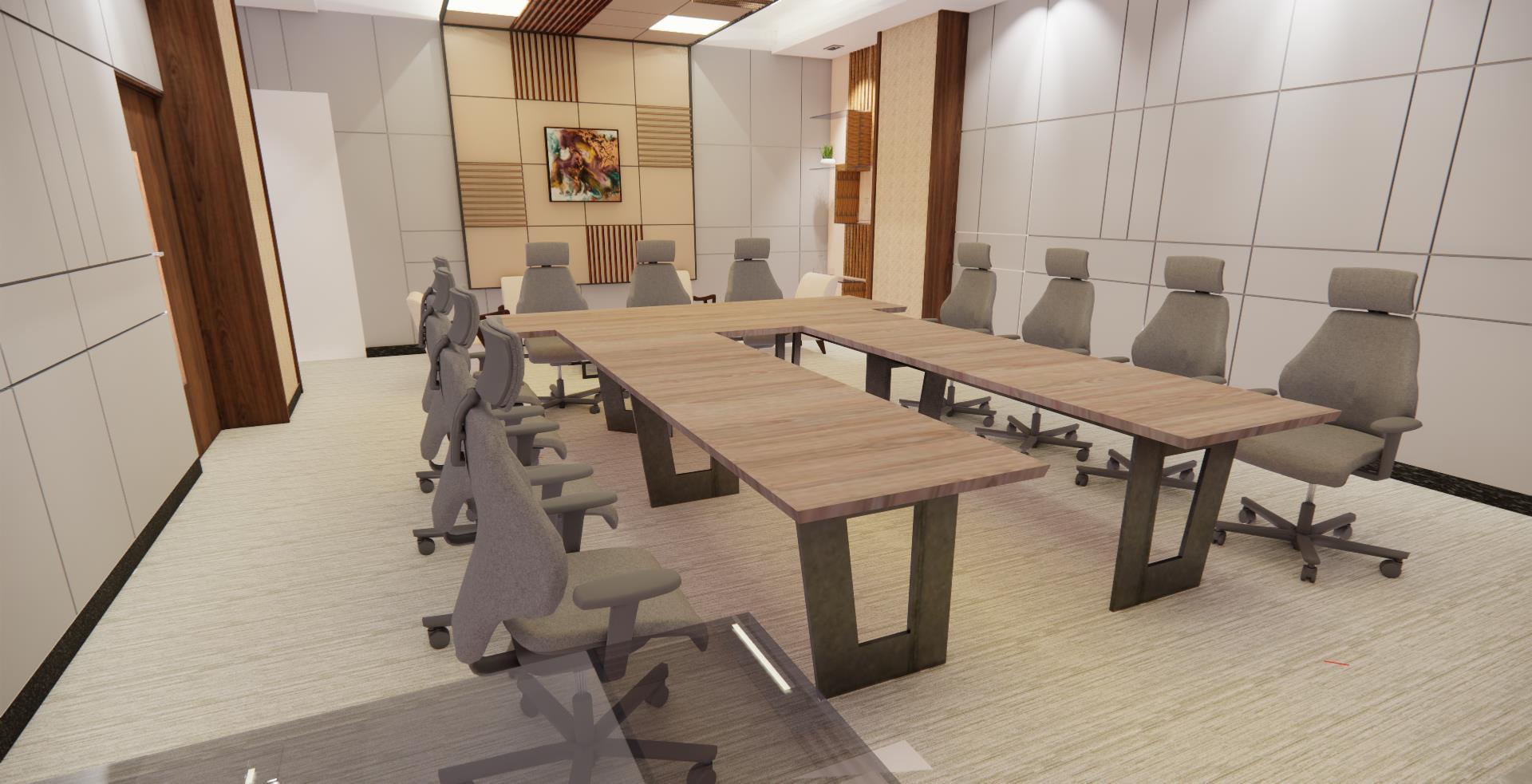

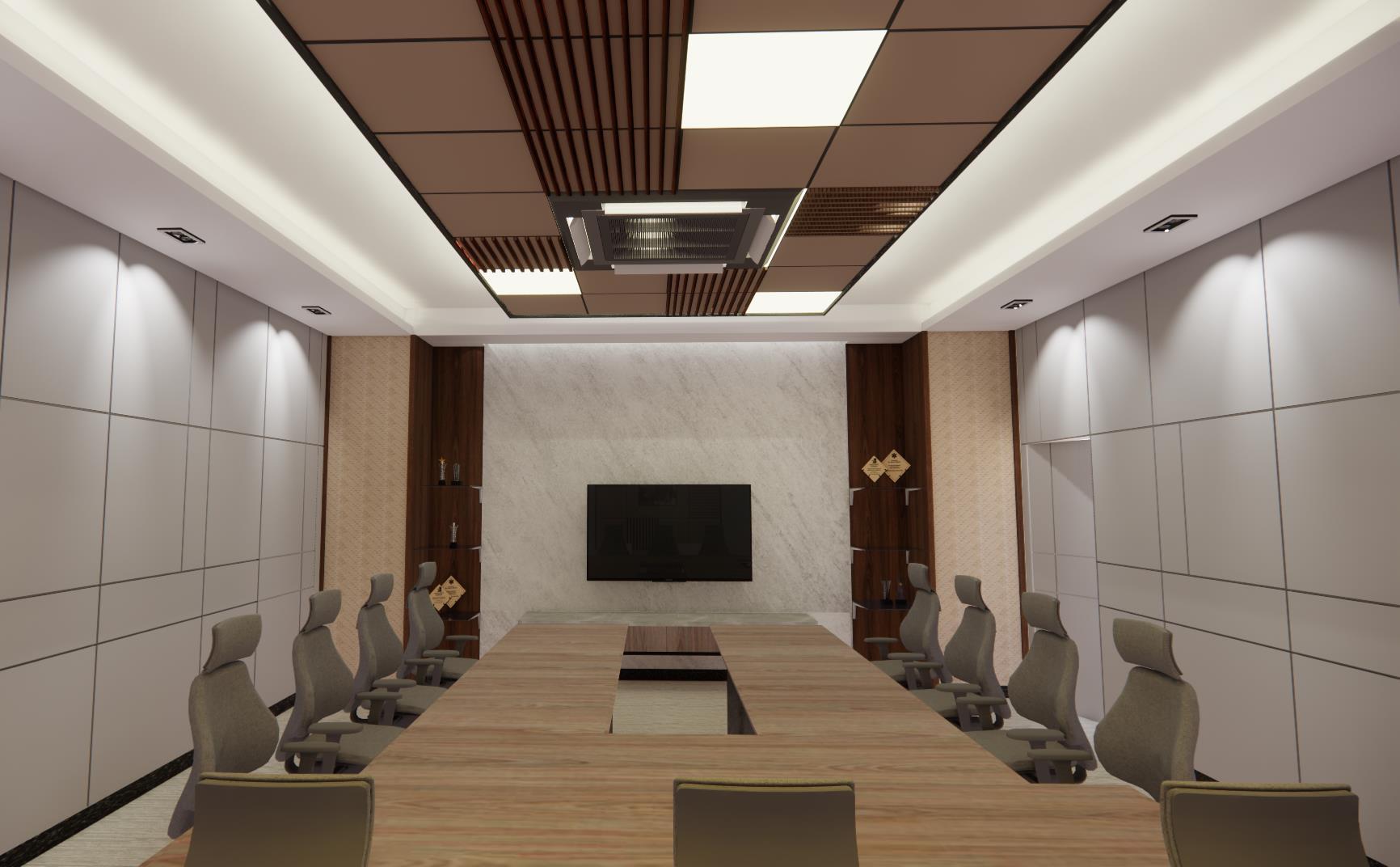

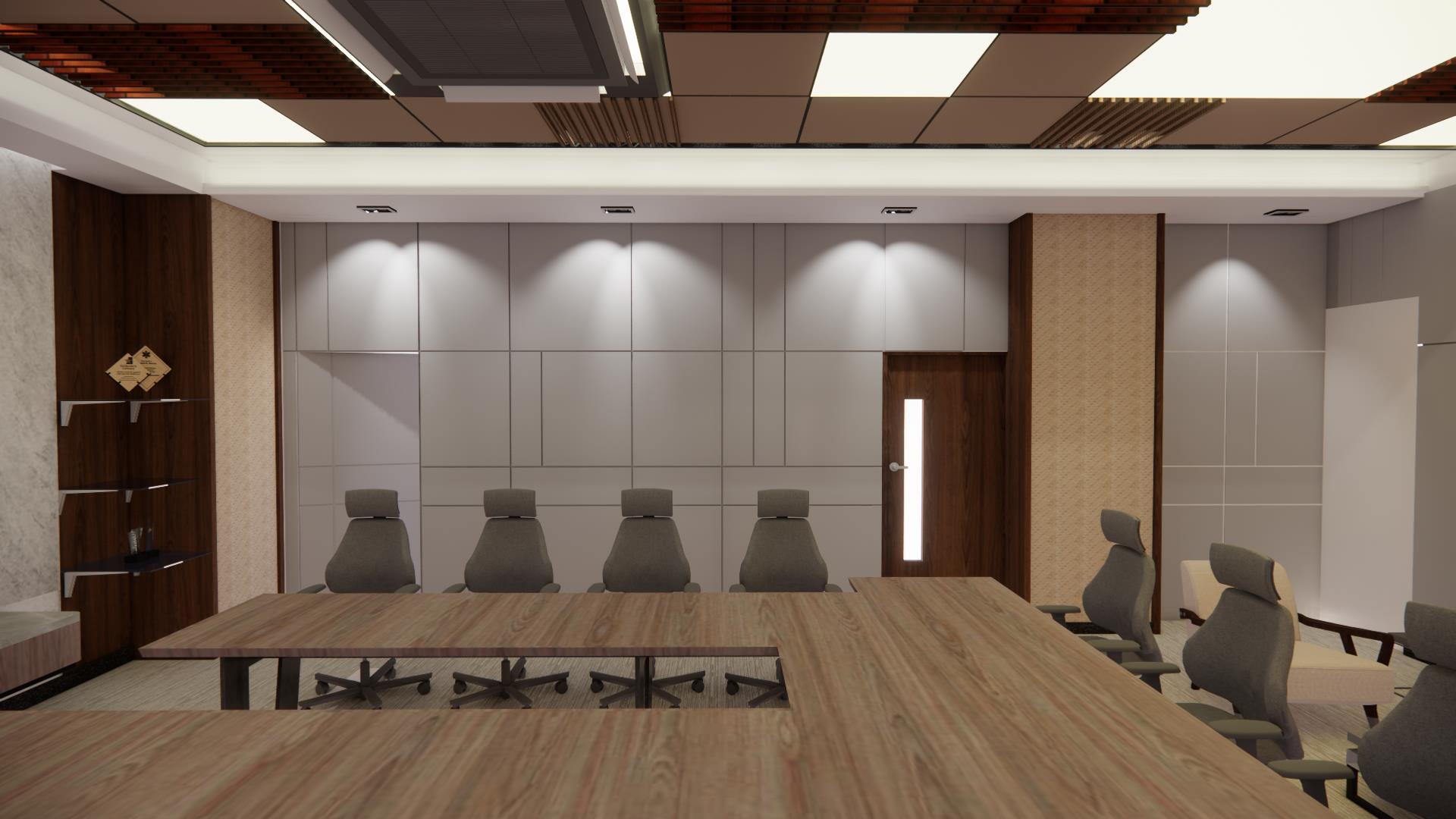

Conference room
Waiting Area
Reception Office Corridor
FIRE TESTING

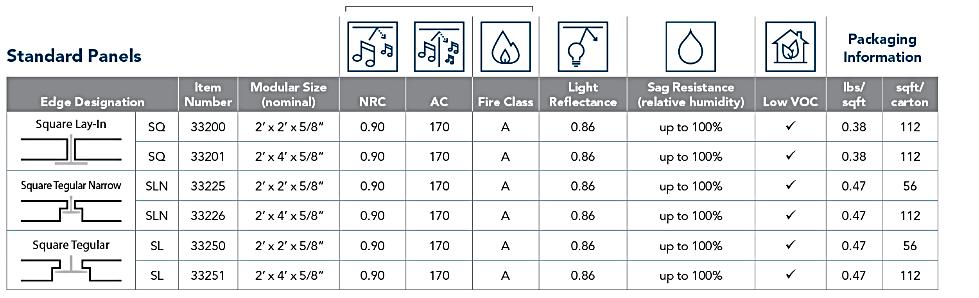

STANDARD PANELS

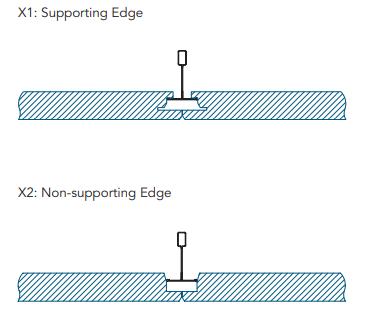

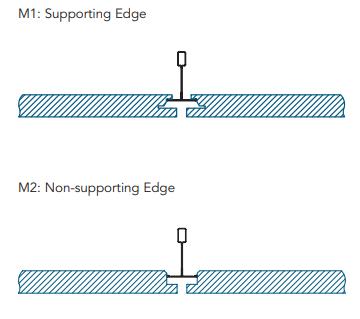

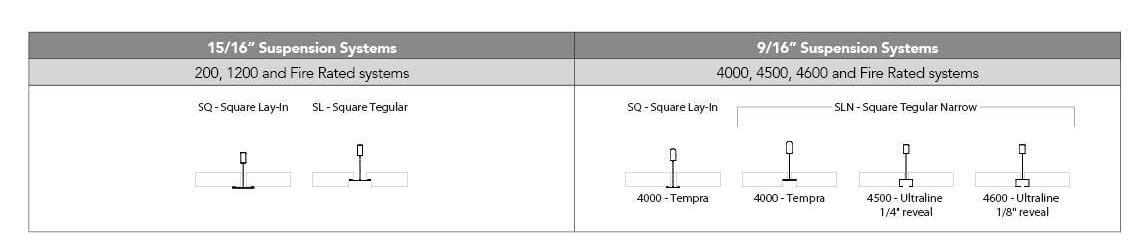

TILING INSTALLATION
FULL CONCEALED
THE CIRCULARITY OF STONE WOOL

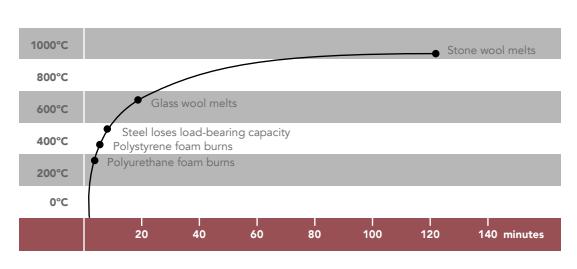

Behavior of different materials according to the standard time/temperature curve of fire resistance standard ISO 834.
Rock wool does not contain any greenhouse gases or ozone-depleting gases - such as CFCs, HCFCs or CO2
• Rock wool does not contain any toxic flame retardant
• wool is a circular product
• Rock wool is a durable insulation material
• Rock wool can have a high percentage of recycled content
FIRE SAFE
THERMAL INSULATION R Value (BTU Units): 2.2 RSI Value (Watts Units): 0.39
HUMIDITY RESISTANCE 100% relative humidity
WARRANTY 30 years
LIGHT REFLECTION
0.86
EDGE TREATMENT Painted
THERMAL
SEMI CONCEALED
• Rock wool can also be manufactured from secondary materials (materials that are recycled and used again)
• Creates energy-efficient buildings with high thermal comfort
• Its durable, recyclable and non-toxic
• Contributes to superior acoustic performance
• Have Environmental Product Declarations (EPDs)
ACOUSTIC
ROBUST
AESTHETIC
CIRCULAR
WATER
RESISTANT
