Why LINIAN?
About LINIAN
Our Range
- FireClip™ - for fire & security cables and PVC trunking
- SuperClip™ - for EV, solar cables and conduits
- T&E Clip™ - for twin, CPC cables and trunking
- Cable Tray Clip™ - for rapid cable tray installation
- Nano Clip™ - for fibre optic cables
- External Nano Clip™ - for external fibre cables and drop cables
- Earth Rod Pro™ Range - for rapid earth rod installation
LINIAN Product List
- FireClip™ Range
- SuperClip™ Range
- T&E Clip™ Range
- Earth Rod Pro™ Range
- Nano Clip ™ Range
- Cable Tray Clip™ Range
Substrates
Specialist Colours
LINIAN Demo Board
Become a stockist
Testimonials
At LINIAN we view the world a little differently. Where some are content to serve the industry as it is, we continually look for ways to drive it forward – to make it faster, safer, simpler.
Through products, like the world’s first single component fixing, we solve industry challenges, reduce inefficiencies and raise standards of safety and compliance across the board.
Being family run is at the core of our business. It has allowed us to forge a company-wide culture of honesty, determination and restless innovation that can be seen in everything we do.
WHAT WE DO
At LINIAN, we create British manufactured, innovative, easy to-install products that save time, money and lives. Our cable clips are sustainable and compliant replacement for cleats, p-clips, nail-in clips and conduit saddles. Using LINIAN cable fixings installers and electrical contractors save 70% of time on cable installs. Choosing our innovative cable tray clip electricians are saving over 90% of time on cable tray installs as well as increase sustainability rating of their projects.
Our range of 18th Edition compliant cable clips includes the LINIAN FireClip™ –the original single-component fire-rated fixing used for fire and security cables, and PVC trunking. For EV and solar installs as well as conduits, we offer the SuperClip™ that ensures neat and tidy looks and is quickly becoming number 1 choice of EV / PV and Solar contractors. Our customers use the T&E Clip™ for flat twin, cpc cabling and trunking; and the NanoClip™ – LINIAN’s proprietary range designed for fibre optic cables and other small diameter cables. If you are looking for efficient solutions for Earth Rod installs, LINIAN offer our Earth Rod Pro range for rapid earth rod installations. Finally, we brought to market the innovative Cable Tray Clip that replaces stainless steel cable ties, does not require use of tensioning tools and saves massive amount of contractors’ time and resource doing cable tray jobs. Our research and development team are continually working on new ideas. With innovation and safety at the heart of LINIAN, you can rest assured that we’ll be solving problems you haven’t even encountered yet!
Fire and security cables installations including inside PVC trunking

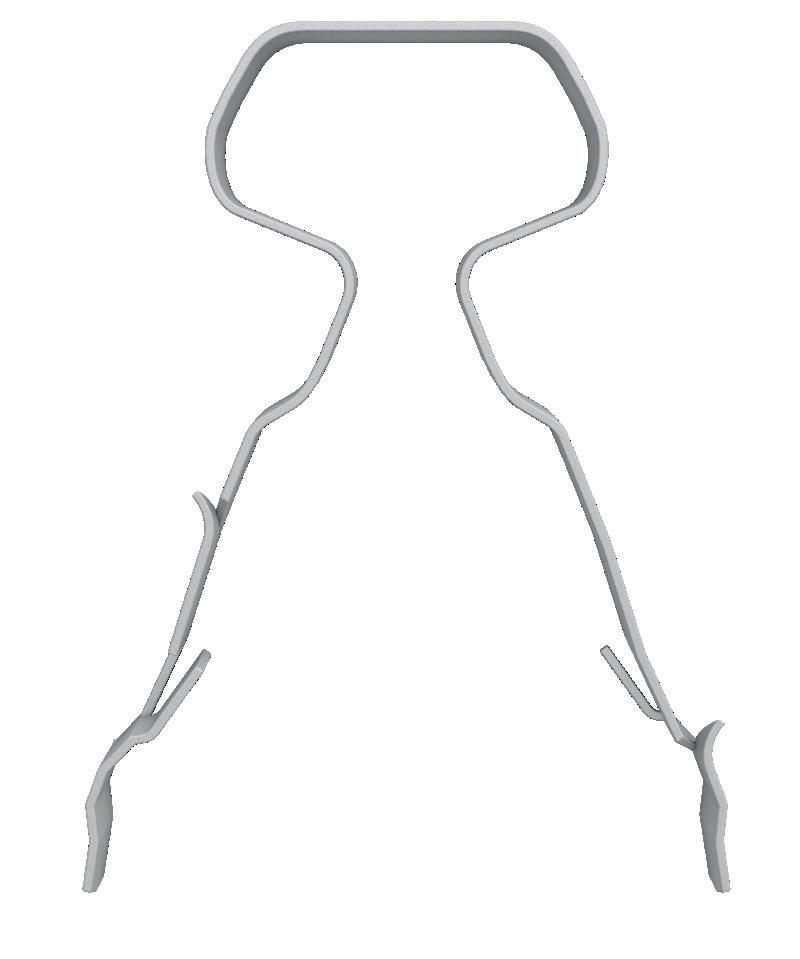

FIRECLIPtm
For Single or Double cable applications
70% quicker to install than traditional methods
18th Edition and Fire-Rated Cable Fixing, Safe and Compliant
90 & 120 minute fire resistant, meeting BSi and DIN classifications
Smoke emission tested to London Underground Standard
>1200 degrees Celsius melting point
Can be used with mini trunking alignment
Corrosion resistant and UV stable
FAST AND EASY TO INSTALL
No need for plugs, screws and washers – just drill your hole, slide our clip over the cable, and push it into the wall.
*Softer substrates – Plaster, Plasterboard, etc.
*Harder substrates – Concrete, Masonry, Timber, etc.
THE INDUSTRY STANDARD
Fast becoming the industry standard
– FireClip™ meets all current industry regulations, and surpasses a few too.
Salt spray tested to 1,000 hours. Our superior in-house coating not only looks good but performs when it matters most. Suitable for
Drill a hole in your substrate. We suggest a Ø5mm hole for softer substrates* and Ø6mm for harder substrates* to a depth of 30mm.
Slide the clip over the cable. Make sure it’s seated in the rounded area of the clip.
Compress and push it into the wall.
Pinch the legs together and push into the hole by hand.
British Standards:
– BS7671: Amendment 3
– BS7671: 18th Edition 2018
– BSEN50200 PH120
– BS8519: 2010
European Standards: – DIN 4102-12 E90
4mm — 14mm
Soft skin, flex and round cables. Single and doubles.
Versatile
Can hold cable from Ø4mm up to Ø14mm. Available in a variety of colours including Red, Black or White.
Neat and fast EV, solar and conduit installations
Scan the QR Code for Installation Video

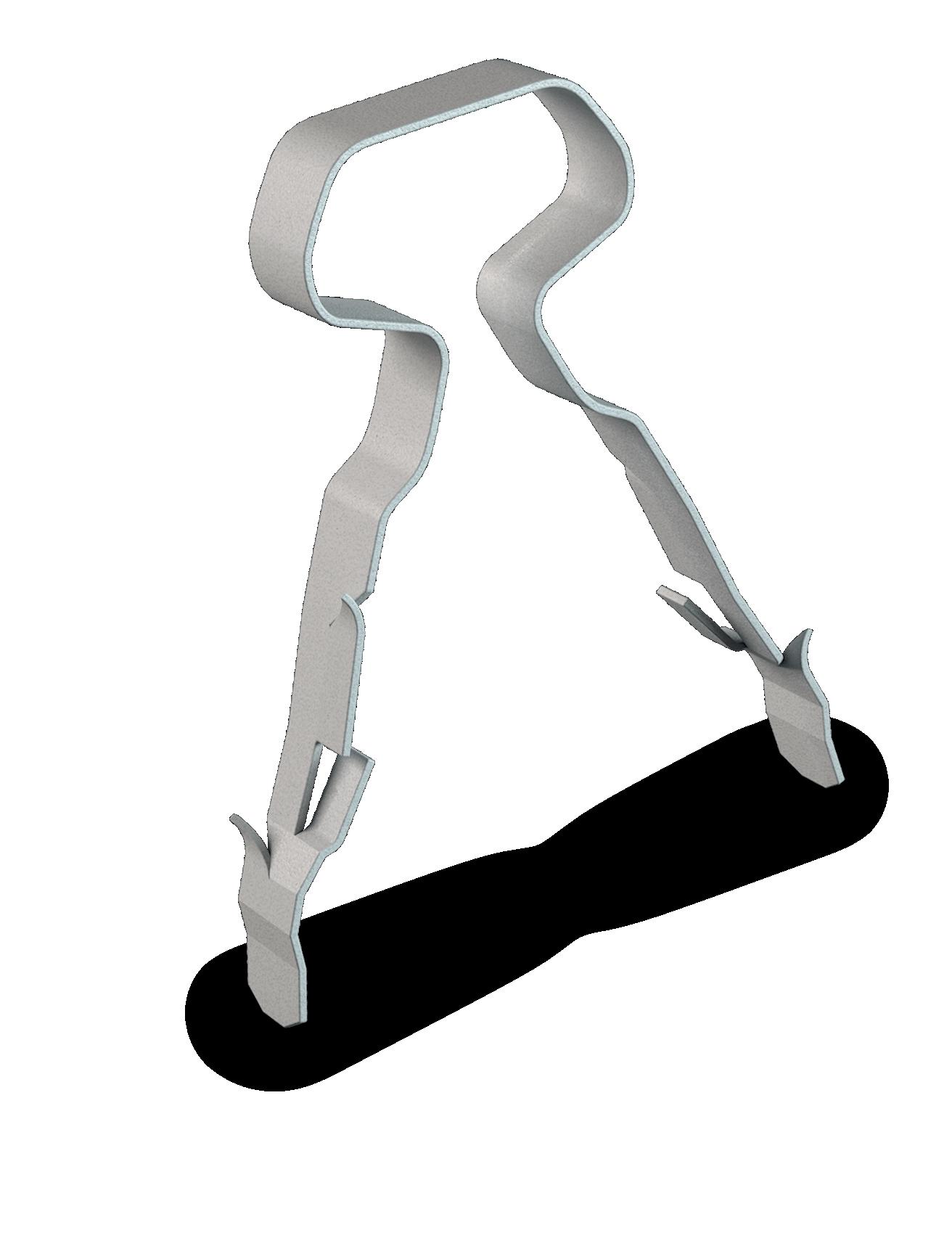

SUPERCLIPtm
Suitable for SWA Cable, Conduit and bunched cables for neat cable installation
Anchor fixings for wire and bunched cable
70% quicker to install than traditional methods
90 & 120 minute fire resistant, meeting BSi and DIN classifications
Corrosion resistant and UV stable, suitable for indoor and outdoor use
18th Edition and Fire-Rated Cable Fixings, Safe and Compliant
No need for conduit saddles
Perfect for fast and neat EV install and solar installs
FAST AND EASY TO INSTALL
No need for plugs, screws, washers conduit saddles or plastic/aluminium cleats – just drill your hole, slide our clip over the cable, and push it into the wall.
Drill a hole in your substrate. We suggest a Ø10mm hole at a depth of 40mm for all substrates.
Slide the clip over the cable. Make sure it’s seated in the rounded area of the clip.
Suitable for armoured cable and trunking. Our SuperClip can accommodate cable, conduit and trunking widths of 12–25mm.
Compress and push it into the wall.
Pinch the legs together and push into the hole by hand.
Fast becoming the industry standard
– SuperClip™ meets all current industry regulations, and surpasses a few too.
British Standards:
– BS7671: Amendment 3
– BS7671: 18th Edition 2018
– BSEN50200 PH120
– BS8519: 2010
European Standards:
– DIN 4102-12 E90
12mm — 25mm
SWA cables, PVC metal conduct
Versatile Can hold cable conduit and armoured (SWA) from Ø12mm up to Ø25mm. Available in a variety of colours including Red, Black, White or Galvanised.
The most versatile way to install and secure T&E cables
T&E CLIPtm
Scan the QR Code for Installation Video
For cables Tensile Load 24kg
1-10mm
T&E CLIPtm
Suitable for twin, cpc cabling and PVC trunking
Anchor fixings for wire and bunched cable
18th Edition and Fire-Rated Cable Fixings, Safe and Compliant
90 & 120 minute fire resistant, meeting BSi and DIN classifications
Corrosion resistant and UV stable, suitable for indoor and outdoor use
FAST AND EASY TO INSTALL
No need for plugs, screws, washers or nail in clips – just drill your hole, slide our clip over the cable, and push it into the wall.
*Softer substrates – Plaster, Plasterboard, etc.
*Harder substrates – Concrete, Masonry, Timber, etc.
THE INDUSTRY STANDARD
Fast becoming the industry standard – T&E Clip™ meets all current industry regulations, and surpasses a few too.
Drill a hole in your substrate. We suggest a Ø5mm hole for softer substrates* and Ø6mm for harder substrates* to a depth of 30mm.
British Standards: – BS7671: Amendment 3
– BS7671: 18th Edition 2018 – BSEN50200 PH120 – BS8519: 2010
European Standards: – DIN 4102-12 E90
Slide the clip over the cable. Make sure it’s seated in the rounded area of the clip.
Suitable for twin and cpc cabling. our T&E Clip provides a robust fixing designed to support an impressive tensile load.
1mm — 10mm
Flat Twin & Earth cable (624Y Twin & Earth PVC Cable BS6004)
Compress and push it into the wall. Pinch the legs together and push into the hole by hand.
Versatile Can hold cable from Ø1mm upto Ø10mm. Available in grey or white.
CABLE CLIP
TRAY

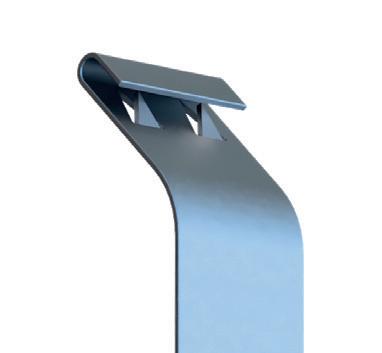

CABLE TRAY CLIPtm
Saves 90% time on installs compared to using steel ties
No tensioning tools requiredsimply locks into place by hand
Use with any brand of cable tray
Fire rated lightweight steel construction
Reusable sustainable design
Quick installation, reduces labour and project costs dramatically
Non corrosive and weather resistant
Prevents Premature Collapse of Cables and complies with BS7671, 18th Edition
Fully recyclable packaging

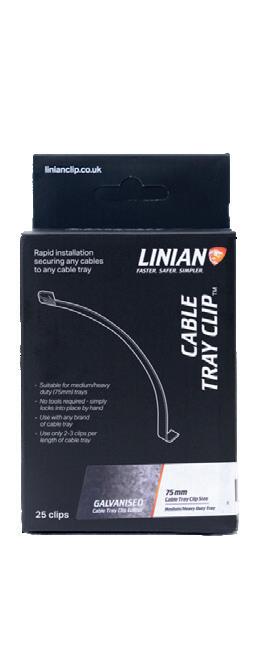

50mm Cable Tray Clip

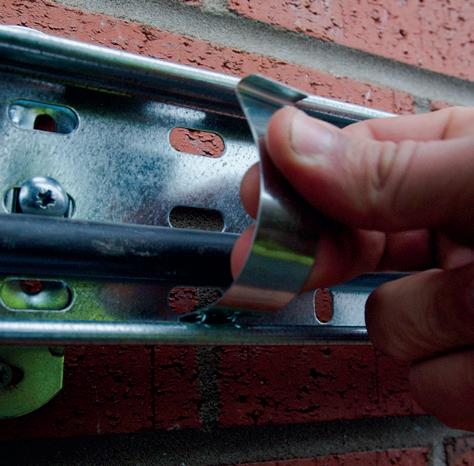

Place the cable tray clip over the sides of the tray.
Lock in by hand making sure that gripping teeth are now fixed on both sides.
75mm - 225mm Cable Tray Clip
Attach the side of the cable tray bracket with the gripping teeth first by hooking firmly under the trays retur flange.
Attach the opposite side under the opposite return flange and lock in by hand.
Only 2-3 clips per length of cable tray required for installations to be in accordance with the parameters set by BEAMA Guide to Premature Collapse (2022)
British Standards:
– BS7671: Amendment 3
This product is produced in UK manufacturing facilities with an approved, certified Quality Management System compliant with ISO 901:2015.
– BS7671: 18th Edition 2018
– BSEN50200 PH120 – BS8519: 2010
European Standards: – DIN 4102-12 E
Steel specification: Spring Steel
Gripping teeth. No sharp edges.
Fiber optic cables and other small diameter cables
Scan the QR Code for Installation Video
NANO CLIPtm
To fit: 2mm and 3mm
Salt-spray tested > 1000hrs
Corrosion resistant and UV stable, suitable for indoor and outdoor use
18th Edition and Fire-Rated Cable Fixings, Safe and Compliant
90 & 120 minute fire resistant, meeting BSi and DIN classifications
Melt point > 1200 °C
Tested to London Underground Standard for smoke emissions
FAST AND EASY TO INSTALL
No need for plugs, screws, washers or nail in clips – just drill your hole, slide our clip over the cable, and push it into the wall.
*Softer substrates – Plaster, Plasterboard, etc.
*Harder substrates – Concrete, Masonry, Timber, etc.
THE INDUSTRY STANDARD
Fast becoming the industry standard
– Nano Clip™ meets all current industry regulations, and surpasses a few too.
Drill a hole in your substrate.
We suggest a Ø3mm hole for softer substrates* and Ø3.5mmØ4.5mm for harder substrates* to a depth of 13.5mm.
British Standards:
– BS7671: Amendment 3
– BS7671: 18th Edition 2018
– BSEN50200 PH120
– BS8519: 2010
European Standards:
– DIN 4102-12 E90
Barely Visible NanoClips™ provide a neat, tidy and almost invisible finish.
Barbed Design Grips the substrate for a secure fixing. Made of spring steel.
Insert the cable into the open Push it into the
2mm — 3mm Fibre cables and other small diameter cables.
Versatile Can hold cable from Ø2mm upto Ø3mm. Available in white, black and brown.
For use on rendered walls and external fibre cable, and drop cable
CLIPtm
For cables 3-6mm
Scan the QR Code for Installation Video
EXTERNAL NANO CLIPtm
To fit: 3mm to 6mm cables
Salt-spray tested > 1000hrs
Corrosion resistant and UV stable, designed for outdoor use
18th Edition and Fire-Rated Cable Fixings, Safe and Compliant
90 & 120 minute fire resistant, meeting BSi and DIN classifications
Melt point > 1200 °C
Tested to London Underground Standard for smoke emissions
FAST AND EASY TO INSTALL
No need for plugs, screws, washers or nail in clips – just drill your hole, slide our clip over the cable, and push it into the wall.
Drill a hole in your substrate. We suggest a Ø7mm hole at a depth of 52mm.
Insert the cable into the open side of the clip. Make sure it stays seated in the side with the OPENING.
External NanoClips™ provide a neat, tidy and almost invisible finish.
Barbed Design penetrates the render and grips the substrate.
Material Spring Steel
Push it into the wall. Insert with the CLOSED area of the clip facing into the wall.
THE INDUSTRY STANDARD
This product is produced in UK manufacturing facilities with an approved, certified Quality Management System compliant with ISO 901:2015.
British Standards:
– BS7671: Amendment 3
– BS7671: 18th Edition 2018
– BSEN50200 PH120
– BS8519: 2010
European Standards:
– DIN 4102-12 E90
3mm — 6mm Fibre cables and other small diameter cables.
Versatile Can hold cable from Ø3mm upto Ø6mm. Available in white and black.
Use the LINIAN CLIP Insertion Tool
For rapid Earth Rod installation
EARTH ROD PRO
EARTH ROD PRO RANGE
tm
Threads onto any standard earth rod
Bores through hard top layers and underground rock
EARTH ROD MAX DRIVER
Attaches to your SDS drill
EARTH ROD PRO DRIVER
Attaches to your SDS drill
EARTH ROD DRILL BIT
Attaches directly to the earth rod
SPECIFICATIONS
Quality Standard:
All parts are produced in UK manufacturing facilities with an approved, certified Quality Management System compliant with ISO 901:2015.
Threads:
All parts made concurrently on state of the art sliding head lathes to ensure perfect compatibility of 5/8” BSW threads with copper earth rods.
Heat treatment:
Through-hardened to 45-55
HRC Rockwell, Strikes the perfect balance of toughness in hammer drilling applications.
Brazing:
Copper-brazing carbide tips at 1100 degrees Celsius to ensure an ultra-strong bond between tip and steel for extreme durability in the toughest drilling applications.
Carbide Tip Specification: European sourced ‘Hammer-grade’ Tungsten carbide tip designed to withstand hammer blows into the hardest of masonry substrates.
FAST AND EASY TO INSTALL
Remove the ERP Driver, ERP tip and the nut provided from their packaging.
Turn the nut and then the Driver on to one end of the earth rod and the tip onto the opposite end. Insert the Driver into the SDS or SDS Max chuck.
You can apply some grease to the shafts for easier removal.
Using the SDS drill, drive the rod into the substrate to the required depth.
Make sure that the shat and nut are removed and reused on your next earth rod install.

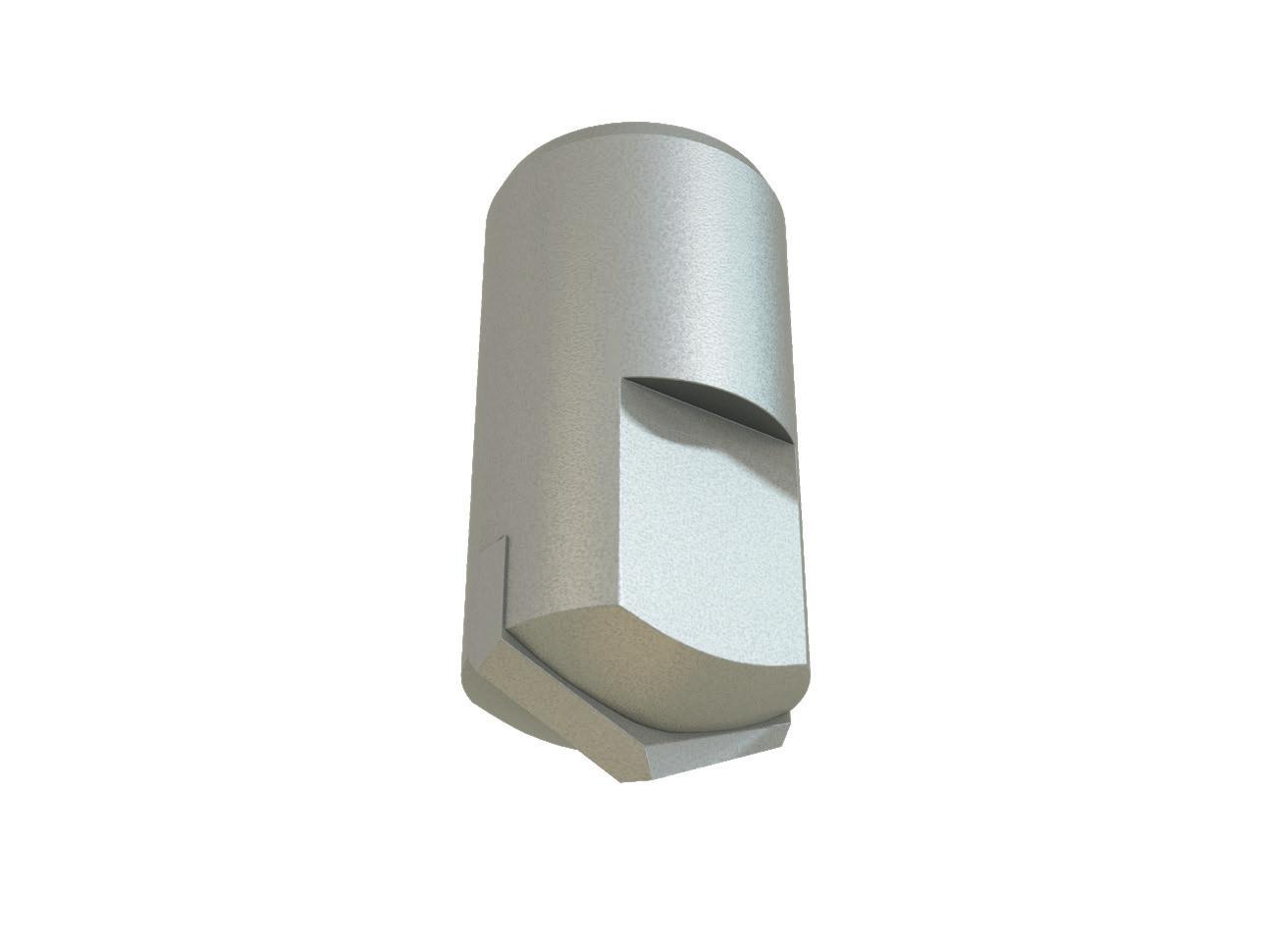

Earth Rod Drill Bit
Standard Tip also available (without Carbide) for fast, economical installation into softer substrates.
Drive Shanks:
Both our drive shanks are made to Bosch license specifications.
Steel Specification:
High alloy content, chromium, nickel, molybdenum European steel.
LINIAN Product List
FIRECLIP RANGE
LINIAN FireClip, Single, Black 4-6mm (1LCB406)(CC3)
LINIAN FireClip, Single, Red, 4-6mm (1LCR406)(CC3)
LINIAN FireClip, Single, White, 4-6mm (1LCW406)(CC3)
LINIAN FireClip, Single, Black, 6-8mm (1LCB608)(CC4)
LINIAN FireClip, Single, Red, 6-8mm (1LCR608)(CC4)
LINIAN FireClip, Single, White, 6-8mm (1LCW608)(CC4)
LINIAN FireClip, Double, Black, 6-8mm (1LCB682)(CC4x2)
LINIAN FireClip, Double, Red, 6-8mm (1LCR682)(CC4x2)
LINIAN FireClip, Double, White, 6-8mm (1LCW682)(CC4x2)
LINIAN FireClip, Single, Black 9-11mm (1LCB911)(CC5)
LINIAN FireClip, Single, Red, 9-11mm (1LCR911)(CC5)
LINIAN FireClip, Single, White, 9-11mm (1LCW911)(CC5)
LINIAN FireClip, Double, Black, 9-11mm (1LCB9112)(CC5x2)
LINIAN FireClip, Double, Red, 9-11mm (1LCR9112)(CC5x2)
LINIAN FireClip, Double, White, 9-11mm (1LCW9112)(CC5x2)
LINIAN FireClip, Single, White, 11-14mm (1LCCW1114)(CC6)
LINIAN FireClip, Single, Red, 11-14mm (1LCR1114)(CC6)
LINIAN FireClip, Single, Black, 11-14mm (1LCB1114)(CC6)
Available in over 200 specialist Ral Colours. Check p. 26
SUPERCLIP RANGE
LINIAN SuperClip, Black, 12-14mm (1LSB1214)(CC6)
LINIAN SuperClip, Red, 12-14mm (1LSR1214)(CC6)
LINIAN SuperClip, White, 12-14mm (1LSW1214)(CC6)
LINIAN SuperClip MegaPack, Black, 12-14mm (1LSB1214XL)(CC6)
LINIAN SuperClip, Black, 15-18mm (1LSB1518)(CC7)
LINIAN SuperClip, Red, 15-18mm (1LSR1518)(CC7)
LINIAN SuperClip, White, 15-18mm (1LSW1518)(CC7)
LINIAN SuperClip MegaPack, Black, 15-18mm (1LSB1518XL)(CC7)
LINIAN SuperClip, Black, 18-20mm (1LSB1820)(CC8)
LINIAN SuperClip, Red, 18-20mm (1LSR1820)(CC8)
LINIAN SuperClip, White, 18-20mm (1LSW1820)(CC8)
LINIAN SuperClip, Black, 20-22mm (1LSB2022)(CC9)
LINIAN SuperClip, Red, 20-22mm (1LSR2022)(CC9)
LINIAN SuperClip, White, 20-22mm (1LSW2022)(CC9)
LINIAN SuperClip, Galv, 20-22mm (1LSGALV2022)(CC9)
LINIAN SuperClip, Black, 23-25mm (1LSB2325)(CC10)
LINIAN SuperClip, Red, 23-25mm (1LSR2325)(CC10)
LINIAN SuperClip, White, 23-25mm (1LSW2325)(CC10)
LINIAN SuperClip, Galv, 23-25mm (1LSGALV2325)(CC10)
Available in over 200 specialist Ral Colours. Check p. 26
LINIAN T & E Clip, Grey, 1mm (1LTEG001)
LINIAN T & E Clip, White, 1mm (1LTEW001)
LINIAN T & E Clip, Grey, 1.5mm (1LTEG001.5)
LINIAN T & E Clip, White, 1.5mm (1LTEW001.5)
LINIAN T & Clip, Grey, 2.5mm (1LTEG002.5)
LINIAN T & E Clip, White, 2.5mm (1LTEW002.5)
LINIAN T & E Clip, Grey, 4mm (1LTEG004)
LINIAN T & E Clip, White, 4mm (1LTEW004)
LINIAN T & E Clip, Grey, 6mm (1LTEG006)
LINIAN T & E Clip, White, 6mm (1LTEW006)
LINIAN T & E Clip, Grey, 10mm (1LTEG010)
LINIAN T & E Clip, White, 10mm (1LTEW010)
LINIAN Earth Rod Pro Driver (SDS+)
LINIAN Earth Rod Pro Max Driver
LINIAN Earth Rod Pro Bit Carbide Tip
LINIAN Earth Rod Pro Bit Carbide Tip (Pack x 5)
LINIAN Earth Rod Pro Bit Carbide Tip (Pack x 10)
LINIAN Earth Rod Pro Bit Carbide Tip (Pack x 25)
NANOCLIP RANGE NANOCLIP RANGE
LINIAN NanoClip, White, 0.9mm (1LCW0.9)
LINIAN NanoClip, Black, 0.9mm (1LCB0.9)
LINIAN NanoClip, White, 2mm (1LCW002)
LINIAN NanoClip, White, 3mm (1LCW003)
LINIAN NanoClip Megapack, White, 2mm (1LCW002XL)
LINIAN NanoClip Megapack, White, 3mm (1LCW003XL)
LINIAN NanoClip, Black, 2mm (1LCB003)
LINIAN NanoClip, Black, 3mm (1LCB003)
LINIAN NanoClip Megapack, Black, 2mm (1LCB002XL)
LINIAN NanoClip Megapack, Black, 3mm (1LCB003XL)
LINIAN NanoClip, Brown, 2mm (1LCBR002)
LINIAN NanoClip, Brown, 3mm (1LCBR003)
LINIAN NanoClip, White, 3.8mm Internal (1LCW3.8)
LINIAN NanoClip, Black, 3.8mm Internal (1LCB3.8)
LINIAN External NanoClip, Black, 3mm (1LCB3EXT)
LINIAN External NanoClip, White, 3mm (1LCW3EXT)
LINIAN External NanoClip, Black, 5mm (1LCB5EXT)
LINIAN External NanoClip, White, 5mm (1LCW5EXT)
LINIAN Clip Insertion Tool
We are often asked if LINIAN cable clips can be used in timber or stone. The answer is YES! Check the visual below to see which substrates will work with our cable fixings range and feel free to try them out.
LINIAN Clips are suitable for use in the following substrates:
Plasterboard (Pull-out load reduced to 5kg.)
Masonry
Light Block
Heavy Block
Hollow Block
Hollow Brick Brick
Concrete
Timber Stone
SPECIALIST COLOURS AVAILABLE
Did you know that LINIAN clips can come in 200 Ral colours? Check the list below to see the variety of shades. To order a specialist colour please request via your wholesaler. Note that MOQs and lead times may apply.
LINIAN DEMO BOARD
Are you a wholesaler stocking LINIAN range and looking for a great POS to showcase how our products work? Or, maybe, you would like to receive some LINIAN samples to share with the electrical contractors in your area and boost sales?
Send us a request for a demo board, samples or any other support. Our friendly sales team will make sure we kit you out for success!
orders@linianclip.co.uk
+44 (0) 141 465 4858 or DM on LinkedIn @linianfireclip
BECOME A LINIAN STOCKIST
WHY STOCK LINIAN?
With LINIAN, you can rest assured you are giving your customers the highest quality, UK-manufactured products to get the job done faster, safer, simpler...and tidier. Installers will thank you when they realise how much time and labour savings they can make using LINIAN!
WHAT WILL YOU RECEIVE?
As a LINIAN stockist, you will have access to LINIAN’s full range of solutions for the Electrical, Fire, EV, Solar and Fibre markets, and be the first to know about innovative new products and releases. You will also receive:
- Website Listing
As an official stockist, you will be shown on the LINIAN stockist map - boosting your online presence!
- Free Slat Wall Display
With all stock profile orders, you’ll receive a LINIAN welcome pack including a free point-of-sale slat wall display, mini sample packs, LINIAN literature and merchandise.
- Digital Marketing Pack
LINIAN will provide you with a suite of video and social media content and trade counter display videoshelping both your staff and customers understand the advantages of LINIAN products.
JOIN THE LINIAN COMMUNITY
Have you joined the LINIAN #InstallationRevlolution? If so, we love to hear from you. You can contact us directly, leave a review on Google, or join in the conversation on social media:
@linianclip
LINIAN Clip
LINIAN LINIAN Fire Clip
LINIAN Fire Clip
LINIANFireClip
Sign up to our mailing list to stay up to date with all the latest news and offers at www.linianclip.co.uk
@rwelectricalltd
TESTIMONIALS
“The clips are great and easier and quicker to install than the standard p-clip, screw, and rawlplug. I would now use the LINIAN Clip on future installations.”
Project Engineer, Balfour Beatty Kilpatrick.
“Using LINIAN clips makes the job much quicker and a lot neater too.”
Quartz Empire Fire & Security Ltd
“Great product, made in the UK by a great company.”
Giffords Electrical @giffordselectrical, Instagram
“Super quick friendly and efficient service.”
RW Electrical Services @services_rw, Twitter
“Not only are they easy to use but they save us so much time and labour when cabling.”
Abel Alarms, Glasgow. National Fire and Security installer, in business for over 50 years.
“Where have you been hiding the last 23 years of my career? These things are amazing! Hours spent cleating cables up and down, side to side of properties across the country and then you come along with not only a time saving piece of magic. They are fire rated too! “These are going right in my basket” on future jobs going forward.”
Ricky Byrne, Byrne Electrical Ltd
“Running armoured cable outside in the rain made easier with #LINIANClip. Faster, cleaner, tougher, NO BRAINER!”
Synergy Electrical Engineering
“They are an amazing design... Used these on an 8-storey fire refit... Saved hours, no screws, no plugs, just knock them in.”
Diverge
Conor Wilkinson
Jack Cook, Charged EV
LINIAN Community
VIRTUAL SHOWROOM
We
1LSB1214 on EV cable (left) and 1LSB1518 on solar cable (right)
1LCTC100 Medium/heavy tray
1LCR911 Inside PVC trunking
