Shed Builders Catalog by lincsystems

About LINC: PAGE 2

SIDING & VINYL PAGE 11

FINISH & TRIM PAGE 15

FRAMING & SHEATHING PAGE 5

ROOFING PAGE 13

PASLODE CORDLESS PAGE 19

ACCESSORIES & SAFETY PAGE 23

TERRITORIES SERVED

This is what it me ans to do business with LINC

We deliver tangible value to our customers through innovative solutions aimed at optimizing your supply chain and ultimately improving your proﬁtability.

This commitment to delivering quantiﬁable results is THE LINC Advantage

• Our people and our culture are centered around providing superior customer solutions.

• We bring increased productivity through innovative products and application expertise

• On-site service and repair is tracked and monitored by our exclusive ServiceLINC

• Our well-trained and experienced professional service team will understand your needs

• Nothing is more important than the safety of our customers’ employees and our LINC Systems employees.

• We offer comprehensive on-site pneumatic safety training programs

• Industry-leading technologies not only make us more e cient, but more importantly, they improve the e ciency of our customers

• We are consistently investing our technology to enhance the customer experience

FRAMING & SHEATHING

COIL NAILERS

EVERWIN SCN90L Ultra-Light Coil Framing Nailer

LINC ITEM# EVER0090

FASTENER TYPE

FASTENER LENGTH

2” ~ 3-1/2”

FASTENER DIAMETER

(Wire) .099-.148 (Plastic) .099-.114

WEIGHT

6.6 Lbs

LOAD CAPACITY

150 ~ 300

FASTENER TYPE 15 ° Wire/Plastic Coil Nails 15° Wire Coil Nails

• INDUSTRY-LEADING LIGHTNESS World’s lightest 90mm coil nailer

• RAPID CYCLING VALVE Actuates up to 15 Cycles/Second

• BELT HOOK

Engineered composite material rotable hook

• DUAL COLLATION TOOL Compatible with plastic collated nails

• DRIVING DEPTH ADJUSTABLE Geared with tool-free depth adjustment knob

EVERWIN PN65-M-D Depth-Adjustable Industrial

Wire Coil Nailer

LINC ITEM# 1002141

FASTENER LENGTH

1-1/2” ~ 2-1/2”

FASTENER DIAMETER

(Wire) .092 ~ .114

WEIGHT

6.2 Lbs

LOAD CAPACITY

225 ~ 300

• SUPREME POWER-WEIGHT RATIO

• HIGH SPEED OPERATION Actuates up to 15 Cycles/Second

• METAL NAIL TRAY

Extremely reliable and wear-proof

• MACHINE MOUNTING COMPATIBLE

• EXCLUSIVE COMPONENT TREATMENT Special-treated driver and safety

• DRIVER GUIDE MINIMIZES MAINTENANCE COST

WIRE COIL NAILS

30 DEGREE STRIP NAILERS

EVERWIN FSN3490-ST Paper Tape Collated Strip Framing Nailer LINC ITEM# 1113490

FASTENER TYPE 34° Paper Tape Collated Nails

FASTENER LENGTH

2” ~ 3-1/2”

FASTENER DIAMETER

0.113” ~ 0.131”

• SUPERB DRIVING ENERGY Most powerful nailer in its class

• DEPTH ADJUSTABLE Tool-free depth adjustment

• DURABLE MAGAZINE Ductile all-metal magazine

• HIGH SPEED OPERATION 13 cycles/second

• SERRATED CONTACT ARM Hardened aggressive toenail safety

• STANDARD SEQUENTIAL TRIGGER Optional contact tip available

PASLODE F350-S Pneumatic

PowerMaster Plus Framing Nailer

LINC ITEM# PAS1021

PAPER TAPE NAILS

• ADJUSTABLE DEPTH OF DRIVE

Quickly get the right nail depth

• AGGRESSIVE TOOTH TIP

Ideal for toe nailing

• ADJUSTABLE EXHAUST CAP

Deflects air away from user

• ERGONOMIC HANDLE

For greater comfort

• ON BOARD ALLEN WRENCH

Readily accessible to adjust depth of drive and service tool

• RAFTER HOOK

Moves out of the way when not needed

21 DEGREE STRIP NAILER

EVERWIN FSN2283A Plastic Collated

Strip Framing Nailer

LINC# 1002283

2” ~ 3-1/2” FASTENER LENGTH

~ 0.148”

• DURABLE MAGAZINE

Ductile aluminum extrusion magazine

• SINGLE-PIECE CASTED CAP ASSEMBLY

Prolongs tool lifespan and minimizes maintenance downtime

• SERRATED SAFETY TIP

Ductile all-metal magazine

• SUFFICIENT DRIVING ENERGY

Powerful for heavy duty applications

• HIGH SPEED OPERATION

Fast cycle time boosts efficiency

• OPEN NOSE DESIGN

For easy extraction of a jammed nail

PLASTIC STICK NAILS

30 DEGREE JOIST NAILERS

EVERWIN MCN40B Positive Placement

Joist Hanger Nailer

LINC ITEM# 1001471

FASTENER TYPE

34° Paper Collated Nails

• FULL MECHANICAL DESIGN

Boosts ease of maintenance

• LOW NAIL LOCKOUT Prevents dry fires

• ALUMINUM MAGAZINE Offers Balance 1-1/2”

• COMPACT DESIGN Fits between 12” o.c joists

• ANTI NAIL BACKUP PAWL Boosts operation stability

• POWERFUL ENGINE Sinks nails with consistency

PASLODE F150S-PP Pneumatic

Positive Placement Metal Connector Nailer

LINC ITEM# PAS0123

FASTENER TYPE

34° Paper Collated Nail

FASTENER LENGTH

1-1/2”

FASTENER DIAMETER

0.131 ~ 0.148

CAPACITY

• NO-MAR TIP

Protects premium wood

• TOOL FREE ADJUSTMENT DEPTH OF DRIVE Quickly get the right nail depth

• NAIL LOCK-OUT Prevents blank firing and promotes driver blade durability

• REAR EXHAUST

Vents out of the back of the handle and away from you

• OPEN LINE OF SIGHT For precise nail placement

• ERGONOMIC HANDLE For greater comfort

SHEATHING STAPLERS

EVERWIN SN41S5 INDUSTRIAL

N 16/17 GA. Medium Crown Stapler

LINC ITEM# 1004150

FASTENER TYPE

16&17GA Staples

3/4” ~ 1 - 9/16”

• ALL METAL CONSTRUCTION

Solid exhaust cover and extrusion end cap

• HIGH SPEED OPERATION

Actuates up to 15-20 CYCLES/SECOND

• ONE-PIECE ALUMINUM CYLINDER DESIGN

A single cylinder/bottom frame assembly machined from solid block material

• PNEUMATIC POWER ADJUSTMENT KNOB

Helps set staple driving depth consistently with ease

• INDUSTRIAL JAM CLEARING

Exclusive rear jam-clearance design

EVERWIN SN50S5-TO INDUSTRIAL

N 16/17 GA. Medium Crown Stapler

LINC ITEM# 1007904

FASTENER TYPE

16&17GA Staples

~ 2”

• INDUSTRIAL JAM CLEARING

Exclusive rear jam-clearance design

• ALL STEEL CONSTRUCTION

Investment-casted exhaust cover and end cap

• INDUSTRY-LEADING ENERGY

396 In-lbs of driving power

• MAGNESIUM HOUSING

Light in weigh yet durable

• HIGH SPEED OPERATION Actuates up to 15-20 Cycles/Second

INDUSTRIAL SHEATHING STAPLES

SIDING & VINYL

SIDING COIL NAILERS

EVERWIN PN58 INDUSTRIAL Wire Coil Nailer

LINC# 1007883

FASTENER TYPE

• INDUSTRY-LEADING ENERGY 13% more powerful than PN57

FASTENER LENGTH

1” ~ 2-1/4”

15° Wire Coil Nails 15° Wire Coil Nails

LENGTH 0.083” ~ 0.090” 0.083” ~ 0.090”

• METAL BODY PROTECTOR Helps prevent drag and wear & tear on the tool frame

• EXCLUSIVE COMPONENT TREATMENT Special-treated driver and safety

• HIGH-SPEED OPERATION Actuates up to 15 Cycles/Second

• DEPTH ADJUSTMENT ACCESSORY AVAILABLE Optional heavy duty depth adjustable safety

FASTENER DIAMETER FASTENER DIAMETER

EVERWIN PN51B INDUSTRIAL Wire Coil Nailer

LINC# 1007912

FASTENER TYPE

LOAD CAPACITY LOAD CAPACITY

• INDUSTRY-LEADING ENERGY

420 In-lbs of driving power

• HIGH SPEED OPERATION Actuates up to 15 Cycles/Second

• METAL NAIL TRAY Extremely reliable and wear-proof

• TAKES CONICAL COIL NAILS Accepts both flat and conical collated nails

• MACHINE MOUNTING COMPATIBLE

• ADJUSTABLE EXHAUST COVER

Direct air exhaust away from user for comfort

SIDING COIL NAILS

VINYL SIDING STAPLER

APACH VF-25 18 Gauge Medium Crown Vinyl Siding Stapler

LINC#AP01011

VINYL SIDING STAPLES

• BOTTOM LOAD “JAM-FREE” MAGAZINE

• ERGONOMIC, WELL-BALANCED DESIGN

• LOW NOISE, LOW VIBRATION

• 360 DEGREE ADJUSTABLE EXHAUST PORT

• QUICK RELEASE NOSE FOR EASING CLEARING

ROOFING

ROOFING NAILERS

EVERWIN RCN45 Roofing Nailer

LINC ITEM# EVERCN45

• FAST INDUSTRIAL GRADE ENGINE

FASTENER TYPE

15° Wire Collated Roofing Nails

FASTENER LENGTH

7/8” ~ 1-3/4”

• EXTREME STEEL WEAR PROTECTION

• EASY RELIABLE DEPTH CONTROL

• DESIGNED TO REDUCE TAR BUILDUP

• SPEED LOAD MAGAZINE

• ADJUSTABLE STEEL BELT HOOK

METABO NV45AB2 Coil Roofing Nailer

LINC ITEM# HITNV45AB2

• EASY FASTENER INSTALLATION

FASTENER TYPE

Wire Collated Roofing Nails

LENGTH

7/8” ~ 1-3/4”

ROOFING COIL NAILS

Side loading magazine, convenient and easy for quick replenishment

• DEPTH ADJUSTMENT

Tool-less depth of drive adjustment, for precision nailing/flush driving

• IDEAL FOR ROOFING

For installation of asphalt roofing shingles and insulation boards

ROOFING STAPLER

OMER 65.25CL Medium Wire Stapler

LINC ITEM# 1006525

MEDIUM CROWN STAPLES

ROOFING STAPLER

FASTENER TYPE 19 GA Fine Wire Staples 16GA Bostich BCS2/ Prebena WC

WIDE CROWN

• MID SIZED & POWERFUL MOTOR

For production of every woodworking category

• VARIED CROWN WIDTH

Crown width provides great surface area to hold materials in place

• LIGHTWEIGHT DESIGN

For comfort and balance

• BUMP FIRE CYCLIC SPEED

For maneuverability, speed, and reliability

EVERWIN SN41S2-R INDUSTRIAL Bostitch BCS2 16 GA.

Wide Crown Roofing Stapler

LINC ITEM# 1004114

• BUILT-IN “SHINGLE GUIDE”

Helps ensure staples are placed in an optimal angle

• ALL METAL CONSTRUCTION

Solid exhaust cover and extrusion end cap

• HIGH SPEED OPERATION

Actuates up to 15-20 Cycles/Second

• PNEUMATIC POWER ADJUSTMENT KNOB

Helps set staple driving depth consistently with ease

• INDUSTRIAL JAM CLEARING

Exclusive rear jam-clearance design

WIDE CROWN STAPLES

FINISH & TRIM

GA Angled Brad Nails

• 360 DEGREE EXHAUST DEFLECTOR

• TOOL-FREE DEPTH ADJUSTMENT KNOB

• PATENTED STREAMLINED JAM-CLEARING MECHANISM

• IN-LINE 2 STEP LOADING MAGAZINE

• ANGLED NOSE BOLTS BOOST TOOL LONGEVITY

STRAIGHT FINISH NAILERS

EVERWIN FN1665 16GA Straight Finish Nailer

LINC ITEM# EVEFN1665

• 360° EXHAUST DEFLECTOR

• TOOL-FREE DEPTH ADJUSTMENT KNOB

• PATENTED STREAMLINED JAM-CLEARING MECHANISM

• BUILT WITH AN INDUSTRIAL BREAD ENGINE Provide the longevity for high volume applications

• FLIP OPEN JAM-CLEARING NOSE

PASLODE T250S-F16 Pneumatic 16GA Straight Finish Nailer LINC ITEM# PAS5500

• NO-MAR TIP Protects premium wood

• TOOL FREE ADJUSTMENT DEPTH OF DRIVE Quickly get the right nail depth

• NAIL LOCK-OUT Prevents blank firing and promotes driver blade durability

• REAR EXHAUST Vents out of the back of the handle and away from you

• OPEN LINE OF SIGHT For precise nail placement

• ERGONOMIC HANDLE For greater comfort

STRAIGHT FINISH NAILS

FINISH STAPLER

EVERWIN FS9040 18GA. Narrow Crown Stapler, 90 Series LINC ITEM# EVER9040

• TOOL FREE JAM CLEARANCE

Minimizes downtime

FINISH STAPLES

18 GA 90 Series / Bostitch SX

• WRAPAROUND SAFETY BOOST VERSATILITY

Simple operation from all angles

• PINCH-FREE ERGONOMIC TRIGGER

Ensures operator comfort

• ALUMINUM EXTRUDED BOTTOM LOAD MAG

For ease of jam clearance

• REAR EXHAUST DESIGN

Directs debris away from the operator

*Other sizes and colors available upon request. Please contact your LINC Sales Representative for more details.

*Additional tools & fasteners available online. Please contact your LINC Systems Representative.

HAMMER TACKER STAPLERS

SPOT NAILS A11 HAMMER TACKER

LINC# SPO85000

20GA 3/8” CR HAMMER TACKER A11

1/4” - 3/8”

• Lightweight, no cords, no hoses, no outlets, portable, rubber grip for comfort

• Applications: carpeting, house-wrap installation, insulation installation, poly sheeting, roofing, roofing felt installation, tar paper

SPOT NAILS A11/T-50 3/8” CROWN

FINE WIRE STAPLES GALVANIZED

FASTENER SERIES A11/T-50 3/8” CROWN

FINE WIRE STAPLES

PASLODE HT-550 HAMMER TACKER

LINC# 1013292

20 GA Fine Wire Stapler

• Wide Trip Lever with Smooth Rolled Edge – eliminates tearing roofing paper, insulation, and housewrap

• Quick Clear Release – easily clears jams, no tool required

• High–capacity, Bottom–load Magazine – easy to load and increases job site productivity

PASLODE 20 GAUGE GALVANIZED 1/2” CROWN

5,000 SERIES STAPLE

FASTENER SERIES PASLODE 5000 SERIES 1/2” STAPLES

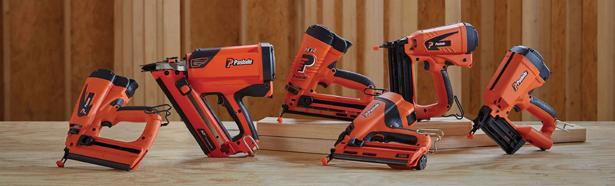

PASLODE CORDLESS TOOLS

PASLODE CF325XPRO24 Cordless XPRO Framing Nailer W/Fuel & Extra Battery

LINC ITEM# PAS906800DHL

FASTENER TYPE

34° Paper Tape Collated Nails

STAPLE LENGTH

• SWITCH BETWEEN SINGLE- AND RAPID-FIRE MODES Swap easily with the push of a button

• TOOL FREE ADJUSTABLE DEPTH OF DRIVE Always drives nails flush

• AGGRESSIVE TOOTH TIP IDEAL FOR TOE NAILING

2” ~ 3-1/4” 1-1/4” ~ 2”

.086 ~ .099 SHANK GAUGE SHANK GAUGE

• BYPASS FOLLOWER Fast and easy loading

• COMPACT DESIGN FITS BETWEEN 16” O.C. (ON CENTER) STUDS, JOISTS, AND ROOF TRUSSES

PASLODE CE20024 Coil Siding Fencing Nailer

LINC ITEM# PAS919100

FASTENER TYPE

Coil Nails

STAPLE LENGTH .113 ~ .131

• TOOL-FREE ADJUSTABLE DEPTH OF DRIVE Reliable DOD for consistent finishing

• HIGH CAPACITY / EASY LOADING MAGAZINE 200 CT. Magazine -easy side loading magazine

• COMFORT GRIP Ergonomic Handle

• CORDLESS 4,500 shots per charge

• METAL HOOK - EASILY ROTATE FOR WORK BELT OR RAFTER PLACEMENT

PASLODE IM250S-LI2 Cordless 16 GA Straight Finish Nailer

LINC ITEM# PAS916500

PASLODE ORANGE FUEL CELLS

LINC# PAS0131

• Works in ALL Paslode Cordless Framing Nailers

*Includes 2 Adapters

• TOOL FREE ADJUSTABLE DEPTH OF DRIVE

Quickly get the right nail depth

• NO–MAR TIP

Protects premium wood

• TOOL FREE JAM CLEAR

Removable nose plate for quick and easy access

• NO RAMP UP TIME

No delay after pulling trigger

• MINIMAL RECOIL

Uncompromising power & effortless operation

• CENTERED BATTERY ALIGNMENT For improved balance

PASLODE YELLOW TRIM CELL

LINC# PAS0121

• Universal Trim Fuel works with ALL Paslode Cordless Finish Nailers

PASLODE FUEL & NAIL PACKS

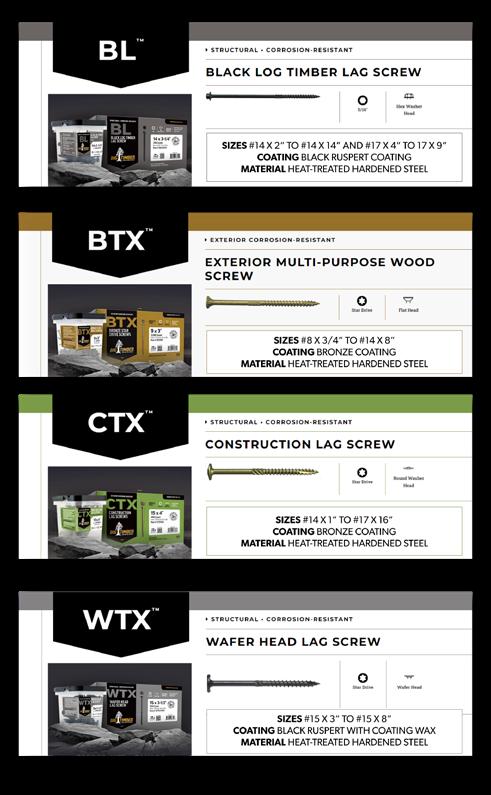

DISCOVER BIG TIMBER FASTENERS: MOUNTAIN TESTED SINCE 1945

GET THE JOB DONE RIGHT WITH FASTENERS THAT DON’T COMPROMISE.

Big Timber Fasteners are mountain tested and backed by certi ed independent testing to ensure your shed stands rm through it all. Designed for durability and ease, they’re the dependable choice for every shed builder.
